Samsung Electronics Co SCHI730 Dual-Band CDMA Phone w/ WLAN & Bluetooth User Manual SCH i730 FCC gul

Samsung Electronics Co Ltd Dual-Band CDMA Phone w/ WLAN & Bluetooth SCH i730 FCC gul

Contents

WLAN and Bluetooth Users Manual

WLAN/Bluetooth Users Manual
Confidential
SCH-i730 September 24, 2004
Confidential
SCH-i730 September 24, 2004
1. WLAN Users Manual
No Category Title Description How to use
1 Power On From today To use Wi-Fi
on your Pocket
PC, you need
to turn on Wi-Fi
and set up a
device
1. From the Today screen, tab the your
MITs Wireless icon.
2. Tab the “Wi-Fi Disabled” button.
3. When “Wi-Fi Disabled” button clicked,
then turns to “Wi-Fi Enable” state
Confidential
SCH-i730 September 24, 2004
4. Tab the “ok”.
From
settings
1. Move to Start > Setting > System > Wi-
Fi
Confidential
SCH-i730 September 24, 2004
2. Tab the “Wi-Fi Disabled” button
3. When “Wi-Fi Disabled” button clicked,
then turns to “Wi-Fi Enable” state
Confidential
SCH-i730 September 24, 2004
4. Tab the “ok”.
Power on
state
1. Wi-Fi is powered on, then LED(Light-
Emitting Diode) is blinking every 2
seconds.
2. Wi-Fi is powered on, but don’t connect
yet.
Confidential
SCH-i730 September 24, 2004
3. Pop-up bubble windows
4. Wi-Fi is powered on, and connected
with other station
2 Connection Move to
“Configure
Wireless
1. Tab the Wi-Fi icon or RSSID area.
Confidential
SCH-i730 September 24, 2004
Network”
Window
from today
Move to
“Configure
Wireless
Network”
Window
from
settings
1. Move to Start > Settings > Connections
> Network Cards.
Confidential
SCH-i730 September 24, 2004
Confidential
SCH-i730 September 24, 2004
Connection
to other
station or
AP in Pop-
up window
1. Tab the Station or AP you want to
connect.
2. Tab the network connects to the
Internet(Does not use proxy settings) or
Work(Uses proxy settings).
3. Tab the “Connect” button.
Connection
to other
1. Tab the Station or AP you want to
connect.
Confidential
SCH-i730 September 24, 2004
station or
AP in
“Configure
Wireless
Network”
Window
Confidential
SCH-i730 September 24, 2004
3. Setting IP setting 1. Move to “Network Adapters” in
“Configure Wireless Network” state.
2. Tab the “Wi-Fi” menu, locate on the
second
Confidential
SCH-i730 September 24, 2004
Make Ad-
hoc
Ad-hoc mode
is state that is
connected
stations only
without AP.
Must do static
IP setting first If
you want to
make Ad-hoc
mode.
1. Move to “Configure Wireless Network”
window.
2. Tab the “Add New…”
3. Tab the “Network name” box and Input
a SSID.
4. Select a mode that want between
Internet and Work.
5. Tab the “This is a device-to-device(ad-
Confidential
SCH-i730 September 24, 2004
hoc) connection” check box.
4. Power Off From today Note: The Wi-
Fi button
comes out
“Disabled”, but
power is not
intercepted
perfectly. Only
stop action, but
power is
consumed. If
shut off
perfectly, turns
off Wi-Fi in
“Settings”.
1. Tab the Wi-Fi power button, then the
button turns to Disabled and red color
state.
Confidential
SCH-i730 September 24, 2004
From
settings
1. Move to Start > Settings > System> Wi-
Fi
Confidential
SCH-i730 September 24, 2004
2. Tab the “Wi-Fi Enabled” button, then the
button turns to “Wi-Fi Disabled” state
Confidential
SCH-i730 September 24, 2004
Confidential
SCH-i730 September 24, 2004
2. Bluetooth Users Manual

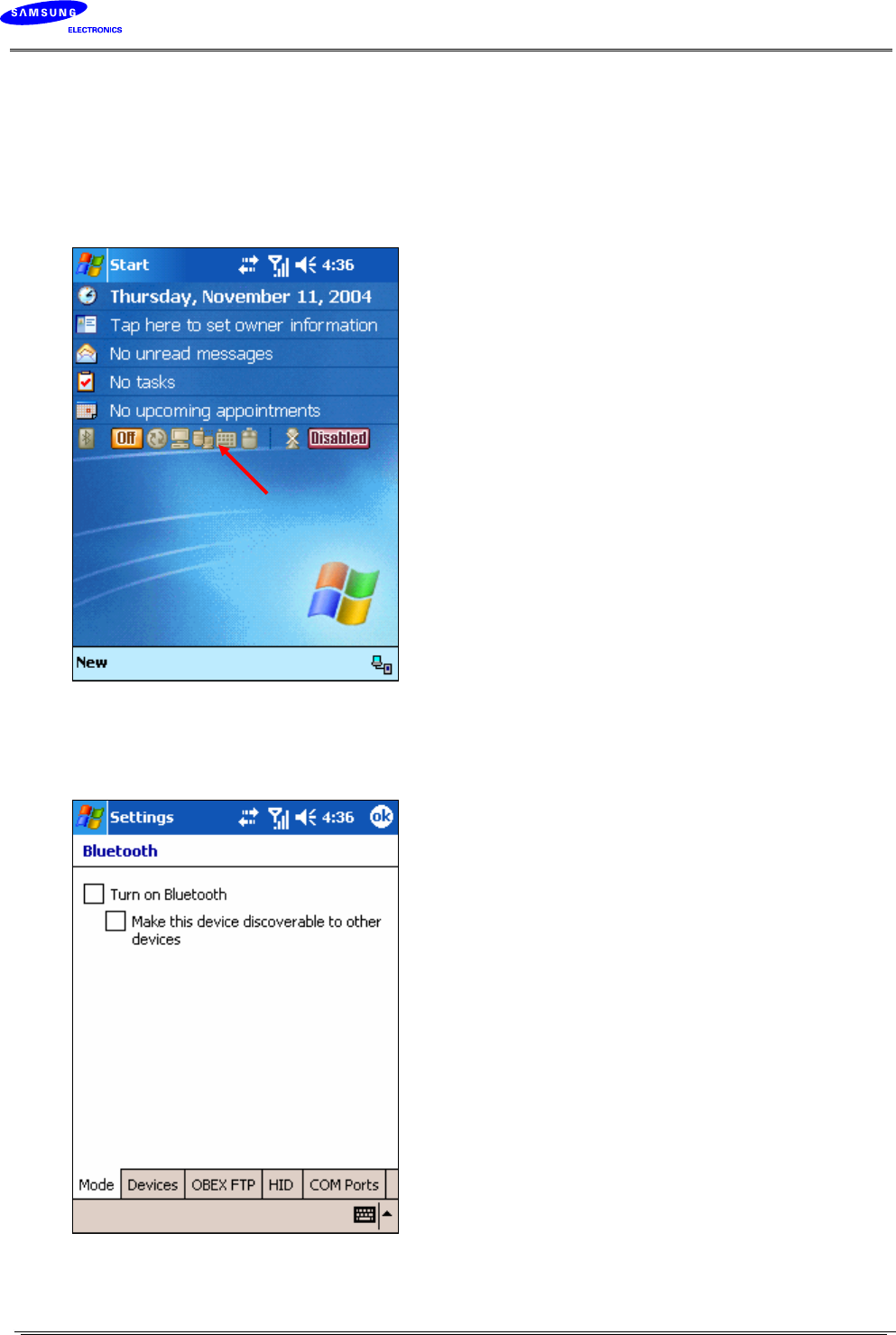

2.1 Bluetooth ON/OFF(1)
Today Screen
Bluetooth Setting Screen
- The box is not checked because Bluetooth
is turned off.
- Click the area near the red arrow in the
screen to turn on the Bluetooth in Today
Screen
Confidential
SCH-i730 September 24, 2004
Mode
2.2 Bluetooth ON/OFF(2)
Initial Display
- This UI is the setting display related to
turning on Bluetooth function.
- Mark check on “ Turn on Bluetooth”
option to use Bluetooth functions on
i730.
- Mark check on “Make the device
discoverable to other device” to allow
other Bluetooth devices to find i730,
as for using server function.
Confidential
SCH-i730 September 24, 2004

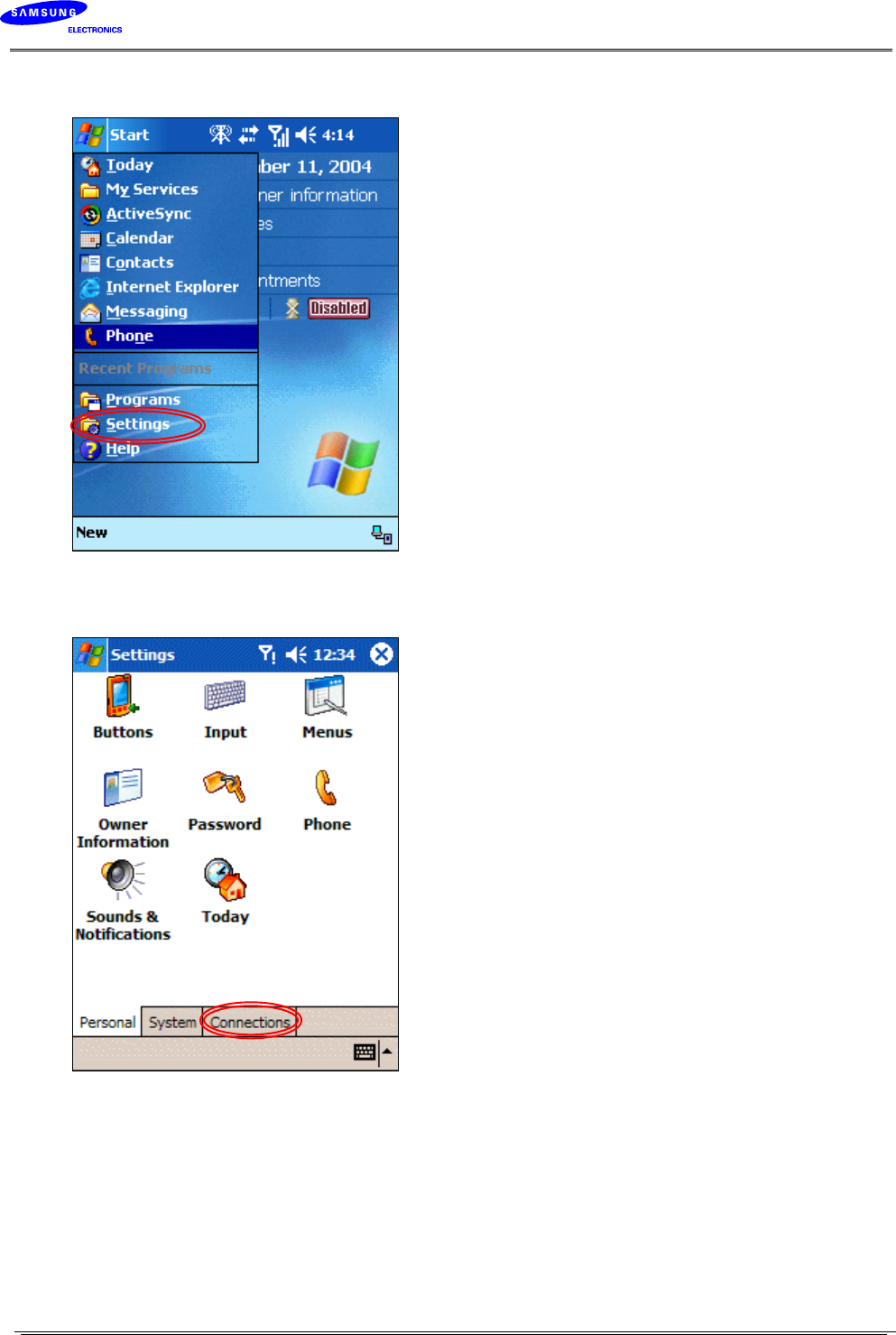

Selecting Settings Menu
Settings
- Select Settings from Start Menu to confirm
or change Bluetooth function setting.
- Select Connections Tab.
Confidential
SCH-i730 September 24, 2004
Connections Display
Mode
- This UI is the setting display related to
turning on Bluetooth function.
- Mark check on “ Turn on Bluetooth”
option to use Bluetooth functions on
i730.
- Mark check on “Make the device
discoverable to other device” to allow
other Bluetooth devices to find i730,
as for using server function.
- Select Bluetooth icon.
Confidential
SCH-i730 September 24, 2004

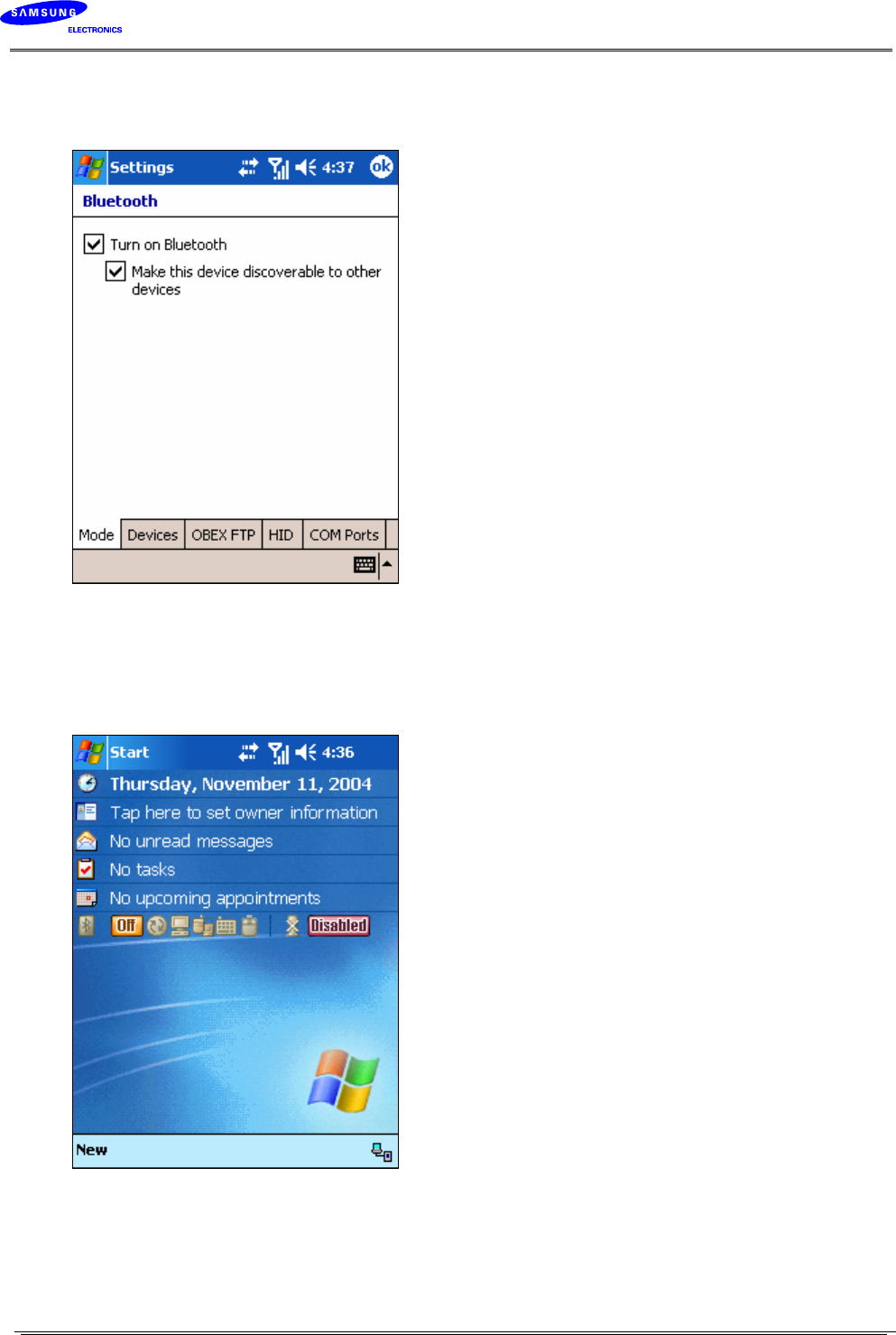

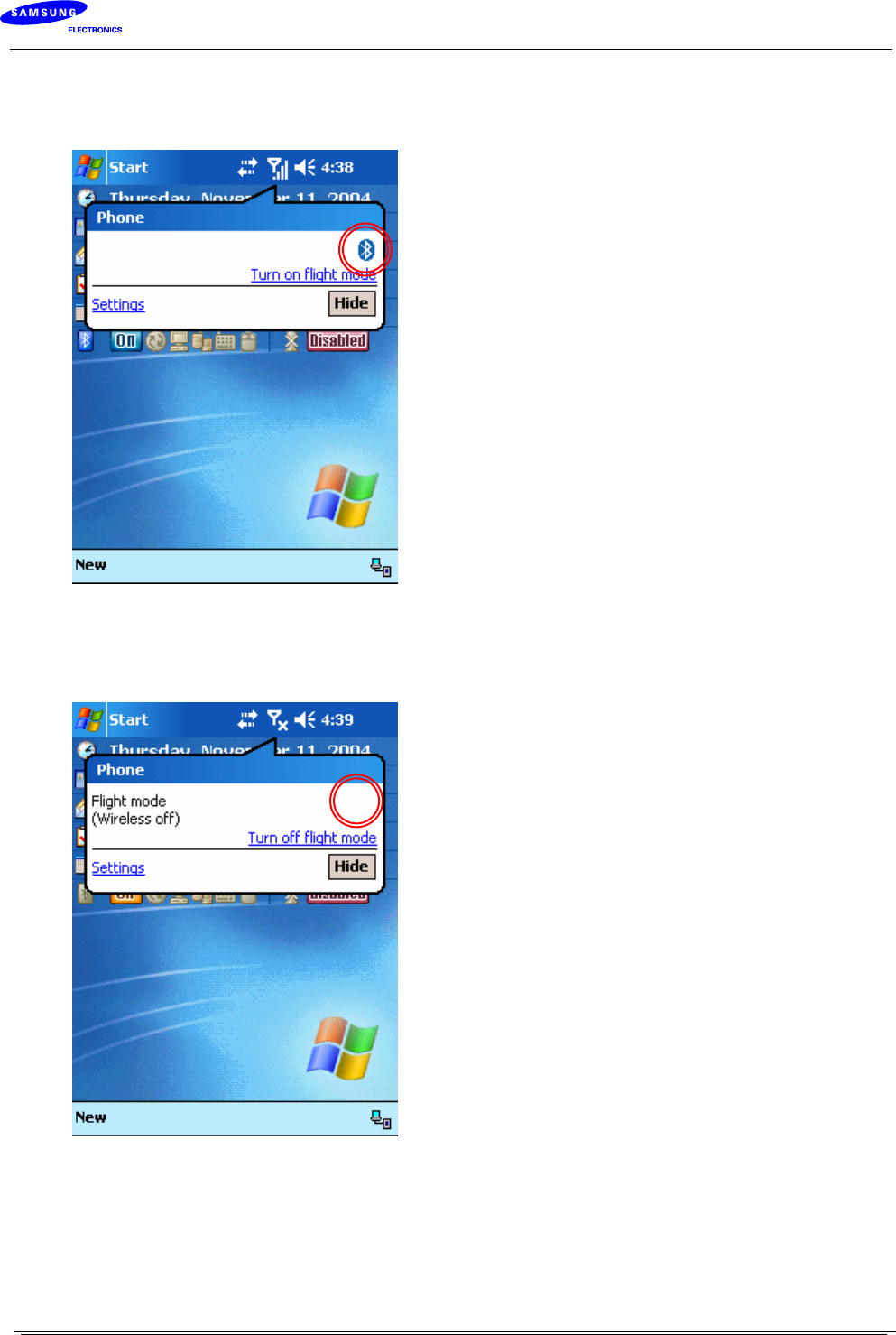

2.3. UI Status of turning ON
Bluetooth ON
2.4. UI Status of turning OFF
Bluetooth OFF
- You can see the unique Bluetooth mark as
clicking upper side antenna.
- You can’t see the unique Bluetooth mark as
clicking upper side antenna.
Confidential
SCH-i730 September 24, 2004
