GH68_3XXXXA Printed in Koreai925ANDROID TABLETUser ManualPlease read this manual before operating yourdevice and keep it for future reference. DRAFT For Internal Use OnlyThis document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes, could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate.

VZW_i925_UM_Eng_LKA_TE_120312_D2Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Galaxy Tab, including but not limited to, accessories, parts, or software relating there to (the “Galaxy Tab System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Open Source SoftwareSome software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:http://opensource.samsung.com.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT For Internal Use Only

THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE PHONE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER-AUTHORIZED SETTINGS.SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe.Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, DRAFT For Internal Use Only

INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] DRAFT For Internal Use Only

Samsung Telecommunications America (STA), LLC ©2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd.Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:www.samsung.com/us/supportHeadquarters:1301 E. Lookout DriveRichardson, TX 75082Customer Care Center:1000 Klein Rd.Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)Internet Address: http://www.samsung.comDRAFT For Internal Use Only

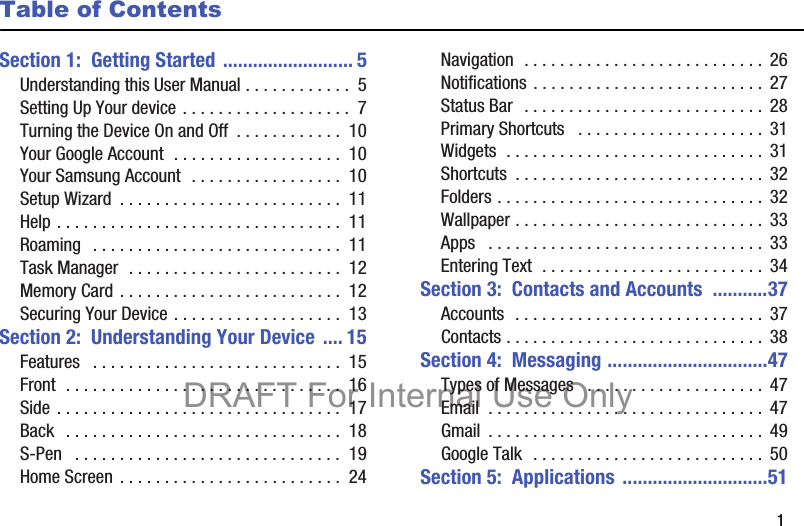

1Table of ContentsSection 1: Getting Started .......................... 5Understanding this User Manual . . . . . . . . . . . . 5Setting Up Your device . . . . . . . . . . . . . . . . . . . 7Turning the Device On and Off . . . . . . . . . . . . 10Your Google Account . . . . . . . . . . . . . . . . . . . 10Your Samsung Account . . . . . . . . . . . . . . . . . 10Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . 11Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Task Manager . . . . . . . . . . . . . . . . . . . . . . . . 12Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . 12Securing Your Device . . . . . . . . . . . . . . . . . . . 13Section 2: Understanding Your Device .... 15Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18S-Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . 24Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 26Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . 27Status Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . 28Primary Shortcuts . . . . . . . . . . . . . . . . . . . . . 31Widgets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . 34Section 3: Contacts and Accounts ...........37Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Section 4: Messaging ................................47Types of Messages . . . . . . . . . . . . . . . . . . . . 47Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49Google Talk . . . . . . . . . . . . . . . . . . . . . . . . . . 50Section 5: Applications .............................51DRAFT For Internal Use Only

2Managing Applications . . . . . . . . . . . . . . . . . . 51AllShare Play . . . . . . . . . . . . . . . . . . . . . . . . . .53Amazon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55Amazon Kindle . . . . . . . . . . . . . . . . . . . . . . . . 55Amazon MP3 . . . . . . . . . . . . . . . . . . . . . . . . . .55Audible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . .55Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . . 63Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65Google . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65Google+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66Group Cast . . . . . . . . . . . . . . . . . . . . . . . . . . . 66Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67IMDB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67Kies Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67Latitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68Local . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68Media Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . .69Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . .69Mobile Hotspot . . . . . . . . . . . . . . . . . . . . . . . .69Music Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . .69Music Player . . . . . . . . . . . . . . . . . . . . . . . . . .70My Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72My Verizon Mobile . . . . . . . . . . . . . . . . . . . . . .72Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . .72NFL Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . .73Paper Artist . . . . . . . . . . . . . . . . . . . . . . . . . . .73Play Books . . . . . . . . . . . . . . . . . . . . . . . . . . . .73Play Magazines . . . . . . . . . . . . . . . . . . . . . . . .73Play Movies & TV . . . . . . . . . . . . . . . . . . . . . . .74Play Music . . . . . . . . . . . . . . . . . . . . . . . . . . . .74Play Store . . . . . . . . . . . . . . . . . . . . . . . . . . . .74Polaris Office . . . . . . . . . . . . . . . . . . . . . . . . . .74S Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75S Suggest . . . . . . . . . . . . . . . . . . . . . . . . . . . .75DRAFT For Internal Use Only

3S Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . 76Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76Video Player . . . . . . . . . . . . . . . . . . . . . . . . . . 77Viewdini . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77Voice Recorder . . . . . . . . . . . . . . . . . . . . . . . . 78Voice Search . . . . . . . . . . . . . . . . . . . . . . . . . 78VPN Client . . . . . . . . . . . . . . . . . . . . . . . . . . . 78VZ Navigator . . . . . . . . . . . . . . . . . . . . . . . . . 78YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79Zappos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79Section 6: Connections ............................ 80Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80Wi-Fi Direct . . . . . . . . . . . . . . . . . . . . . . . . . . 82Mobile Hotspot . . . . . . . . . . . . . . . . . . . . . . . . 83Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86Tethering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86Nearby devices . . . . . . . . . . . . . . . . . . . . . . . 87Connecting to a Computer . . . . . . . . . . . . . . . 88Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . 89Section 7: Settings ....................................91Accessing Settings . . . . . . . . . . . . . . . . . . . . . 91Wireless and networks . . . . . . . . . . . . . . . . . . 91Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92More Wireless and Networks Settings . . . . . . 97Personal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114Language and input . . . . . . . . . . . . . . . . . . . 118Back up and reset . . . . . . . . . . . . . . . . . . . . 124Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . 125System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126S Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . 129Date and time . . . . . . . . . . . . . . . . . . . . . . . 129Accessibility . . . . . . . . . . . . . . . . . . . . . . . . . 130About device . . . . . . . . . . . . . . . . . . . . . . . . 137USB Settings . . . . . . . . . . . . . . . . . . . . . . . . 138Section 8: Health and Safety Information 139Exposure to Radio Frequency (RF) Signals . . 139Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . . . . . . . . . . . . . . . 144FCC Part 15 Information to User . . . . . . . . . . 146DRAFT For Internal Use Only

4Smart Practices While Driving . . . . . . . . . . . .146Battery Use and Safety . . . . . . . . . . . . . . . . .147Samsung Mobile Products and Recycling . . .149UL Certified Travel Charger . . . . . . . . . . . . . . 149Display / Touch-Screen . . . . . . . . . . . . . . . . . 150GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150Care and Maintenance . . . . . . . . . . . . . . . . .151Responsible Listening . . . . . . . . . . . . . . . . . .152Operating Environment . . . . . . . . . . . . . . . . . 154Restricting Children's Access to Your Mobile Device 156FCC Notice and Cautions . . . . . . . . . . . . . . . . 156Other Important Safety Information . . . . . . . . 156Section 9: Warranty Information ............158Standard Limited Warranty . . . . . . . . . . . . . . 158End User License Agreement for Software . . . 163Index .........................................................171DRAFT For Internal Use Only

Getting Started 5Section 1: Getting StartedUnderstanding this User ManualThe sections of this manual generally follow the features of your device. A robust index for features begins on page 171.Also included is important safety information beginning on page 139, that you should know before using your device.This manual gives navigation instructions according to the default display settings. If you select other settings, navigation steps may be different.Unless otherwise specified, all instructions in this manual assume that you are starting from the Home screen. To get to the Home screen, you may need to unlock the device. For more information, see “Securing Your Device” on page 13.Note: Instructions in this manual are based on default settings, and may vary from your device, depending on the software version on your device, and any changes to the device’s Settings.Unless stated otherwise, instructions in this User Manual start with the device unlocked, at the Home screen.All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your device and any changes to the device’s Settings.DRAFT For Internal Use Only

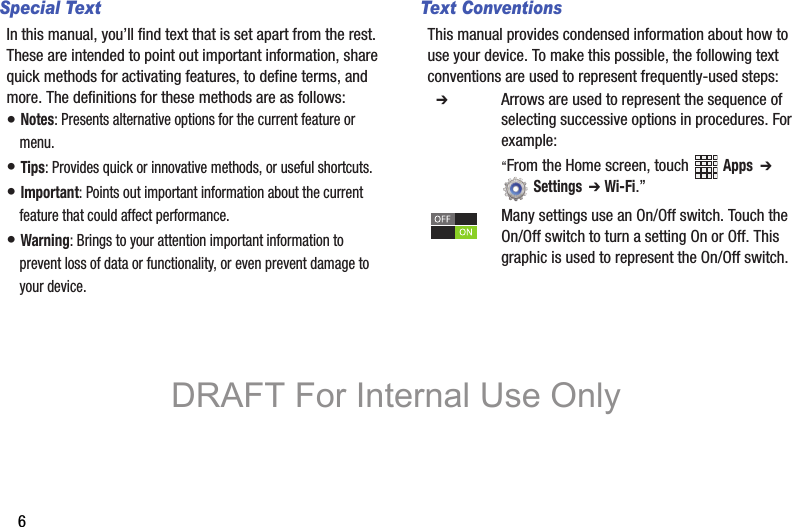

6Special TextIn this manual, you’ll find text that is set apart from the rest. These are intended to point out important information, share quick methods for activating features, to define terms, and more. The definitions for these methods are as follows:• Notes: Presents alternative options for the current feature or menu.• Tips: Provides quick or innovative methods, or useful shortcuts.• Important: Points out important information about the current feature that could affect performance.• Warning: Brings to your attention important information to prevent loss of data or functionality, or even prevent damage to your device.Text ConventionsThis manual provides condensed information about how to use your device. To make this possible, the following text conventions are used to represent frequently-used steps: ➔ Arrows are used to represent the sequence of selecting successive options in procedures. For example:“From the Home screen, touch Apps ➔ Settings ➔ Wi-Fi.”Many settings use an On/Off switch. Touch the On/Off switch to turn a setting On or Off. This graphic is used to represent the On/Off switch.DRAFT For Internal Use Only

Getting Started 7Setting Up Your deviceInstall the 4G LTE SIM (Subscriber Identity Module) card, battery, and optional memory card, then charge the battery to begin using your device.SIM CardYour device uses a 4G LTE SIM (Subscriber Identity Module). The 4G LTE SIM is a small, rectangular plastic card that stores information about your wireless service.The SIM card is installed under the back cover, and must remain in the device when in use.If you purchased your device at a Verizon Wireless store, the SIM card is activated and ready to use. If you ordered a new device, the card may need to be activated before you can use it. For more information about activating the SIM card, visit:http://www.verizonwireless.com/4GSIM.Caution! Turn the device off before installing or removing the SIM card. Do not bend or scratch the SIM card. Take care when handling, installing, or removing the SIM card, and avoid exposing the SIM card to static electricity, water, or dirt. Keep the SIM card out of reach of small children.DRAFT For Internal Use Only

Getting Started 9Charging the BatteryYour device comes with a Wall/USB Charger (Charging Head and USB cable) to charge your device from any 110/220 VAC outlet.Note: The battery comes partially charged. You must fully charge the battery before using your device for the first time. A fully discharged battery requires up to 4 hours of charge time. After the first charge, you can use the device while charging.1. Insert the USB cable into the port.2. Connect the USB cable to the charging head.3. Plug the charging head into a standard AC power outlet.4. When charging is complete, unplug the charging head from the power outlet and remove the USB cable from the device.DRAFT For Internal Use Only

10Turning the Device On and OffTurning the Device On Press and hold the Power/Lock Key until the device vibrates and starts up.Turning the Device Off1. Press and hold the Power/Lock Key until the device vibrates, and the Device Options menu displays.2. At the prompt, tap Power off.Your Google AccountYour new device uses your Google account to fully utilize its Android features, including Gmail, Google Talk and the Play Store. When you turn on your device for the first time, set up a connection with your existing Google account, or create a new Google account.To create a Google account, or set up your Google account on your device, use Accounts and sync settings (see “Accounts” on page 125).Your Samsung AccountCreate a Samsung account, for access to Samsung apps on your device, including Media Hub, Music Hub, and AllShare Play. For more information, see “Accounts” on page 125.DRAFT For Internal Use Only

Getting Started 11Setup WizardThe first time you turn your device on, Setup Wizard will guide you through the basics of setting up your device.Follow the prompts to choose a default language, set up accounts, choose location services, and learn more about your device.You can also use the Setup Wizard to quickly configure your device at any time.  From the Home screen, touch Apps ➔ Setup Wizard.HelpGet information about using your device, including videos, useful tips, and other information. From the Home screen, touch Apps ➔ Help.RoamingWhen you travel outside your home network’s coverage area, your device can use roaming to acquire service on other compatible digital networks. When roaming, the Roaming icon displays in the Status bar.Tip: You can set your device’s roaming behavior. For more information, see “Mobile networks” on page 97.During roaming, some services may not be available. Depending on your coverage area and service plan, extra charges may apply when connecting to the Internet, or using data services. Contact Verizon Wireless for more information about your coverage area and service plan.DRAFT For Internal Use Only

12Task ManagerYour device can run apps simultaneously, with some apps running in the background. Use Task Manager to see which apps are running on your device, and to end running apps to extend battery life. You can also uninstall apps from your device and check memory usage.1. From any unlocked screen, press and hold the Home Key, then select Task manager.2. Touch the Active applications tab to view apps running on your device. Touch End, or End all to close apps.3. Touch the Downloaded tab to view information about apps you’ve installed on your device. Touch Uninstall to remove an app from your device.4. Touch the RAM tab to display the amount of RAM (Random Access Memory) in use. Touch Clear memory to clear processes to increase available RAM. 5. Touch the Storage tab for internal system storage and SD card memory statistics.6. Touch the Help tab to view information about managing RAM, and tips for extending battery life.Tip: Touch and drag your finger on the tabs to scroll the tabs.Memory CardYour device supports optional, removable, microSD™ or microSDHC™ memory cards of up to 64GB capacity (not included), for storage of music, pictures, and other files. For more information about using memory cards, see “Memory Card” on page 89.Installing a Memory Card1. Remove the back cover. 2. With the gold contacts facing down, slide the memory card into the slot, pushing gently until it locks into place. 3. Install the back cover.DRAFT For Internal Use Only

Getting Started 13Removing a Memory CardImportant! To prevent damage to data stored on the memory card, unmount the card before removing it from the device.1. From the Home screen, touch Menu, then touch Settings ➔ Storage ➔ Unmount SD card.2. At the prompt, read the warning and select OK to continue. Wait for the SD card safe to remove icon to appear in the Status bar and Notification panel.3. Remove the back cover.4. Gently press on the memory card to release the lock, then carefully pull the card out.5. Install the back cover.Securing Your DeviceUse your device’s screen lock features to secure your device.Note: Unless stated otherwise, instructions in this User Manual start with the device unlocked, at the Home screen.To set a personal screen lock, use the Screen lock option under Security settings. For more information, see “Screen lock” on page 111.For other settings related to securing your device, see “Security” on page 114.Locking the Device By default, the device locks automatically when the screen times out.– or –Press the Power/Lock Key.DRAFT For Internal Use Only

14Unlocking the DeviceUnlock the device using one of the default unlock screens, or use Screen lock options for increased security. Press the Power/Lock Key, then touch and drag your finger across the screen.DRAFT For Internal Use Only

Understanding Your Device 15Section 2: Understanding Your DeviceFeatures• 5.5-inch HD Super AMOLED™ touch screen, 16:9 aspect ratio• CDMA 1X/EV-DO Rev-A /LTE Wireless Technology• 1.6 GHz quad-core processor with 2GB RAM• Android® 4.1, Jelly Bean• SAFE®• Create and collaborate with S-Pen–Precise and natural writing and drawing experience–Exclusive features - Easy Clip, Air View, Quick Command, Idea Sketch, and Photo Notes–Create original content and annotate documents–Store on the device, keep tabs with visual and audible alarms• Multitask with Popup Note, Popup Video, and Popup Browser• Keep in touch–SMS (Text) and MMS (Multimedia)–Voice–Email and Gmail–Chat• Enjoy pictures, music and video–Discover new media with Media Hub and Music Hub–Gallery, Music player, and Video player–DivX Certified® to play DivX® video up to HD 720p, including premium content• Connect to other devices–Wi-Fi 802.11 a/b/g/n–Wi-Fi Direct–Mobile Hotspot–DLNA–Bluetooth 4.0–USB 2.0 High-speed–Tethering–VPN• Capture memories–8 MP Camera and LED flash + 1.9 MP front-facing camera–Seamlessly share pictures via Share Shot to other devices–Capture rapid-fire still pictures with Burst Shot–Use Best Shot and Best Face to choose the best pictures• Control your device with S Voice, for natural voice commands• Share with friends–Specialized apps, including AllShare Play™ and Group Cast™–Integrated features, such as Share Shot in Camera• Take your content with you–16GB device memory (actual formatted capacity may vary)–Support for microSD™ and microSDHC™ memory cards up to 64GB capacity (not included)DRAFT For Internal Use Only

16Front• Earpiece: Plays sounds.• Light Sensor: Detects ambient light when Automatic brightness is enabled, and when using the Front camera.• 1.9 Megapixel Front Camera: Captures pictures and video.• Menu: Touch to display a context-sensitive menu of options for the current screen or feature. While using your device, you may notice that the Menu Key dims, but it is always available at a touch to provide a context-sensitive menu for the current screen or app (you can set the touch key light duration, see page 105).• Home: Press to display the Home screen, or Lock screen if the device is locked. Press and hold to display recent applications or launch Task Manager. Press twice from an unlocked screen to launch S Voice.• Back: Touch to return to the previous screen or option. While using your device, you may notice that the Back Key dims, but you can always use it to return to the previous item.DRAFT For Internal Use Only

Understanding Your Device 17Side• Volume: From the Home screen, press to adjust master volume. During media playback, press to adjust volume.• Power/Lock: Press and hold to turn the device on or off, and to access a device options menu. Press to lock the device, or to wake the screen for unlocking.DRAFT For Internal Use Only

18Back• 8 MP Camera: Use when taking photos or recording videos.• LED Flash: Use when taking photos or recording video.• Microphones (top and bottom): Capture audio during recording.• 3.5mm Headset Jack: Plug in an optional headset or TTY equipment.• Speaker: Play ringtones, music and media playback, and other sounds.• microUSB: Connect a USB cable for charging or to sync music and files, or connect to optional accessories (not included).DRAFT For Internal Use Only

Understanding Your Device 19S-PenCreate and collaborate with S Pen.Removing S PenS Pen stores inside your device, for convenient access. Slide S Pen from your device using the notch on the end of the S Pen.S Pen SettingsConfigure S Pen settings, including options for sounds and for tracking S Pen when it’s not stored in your device.For more information about S Pen, and to configure settings, touch Apps ➔ Settings ➔ S Pen, or see “S Pen” on page 127.DRAFT For Internal Use Only

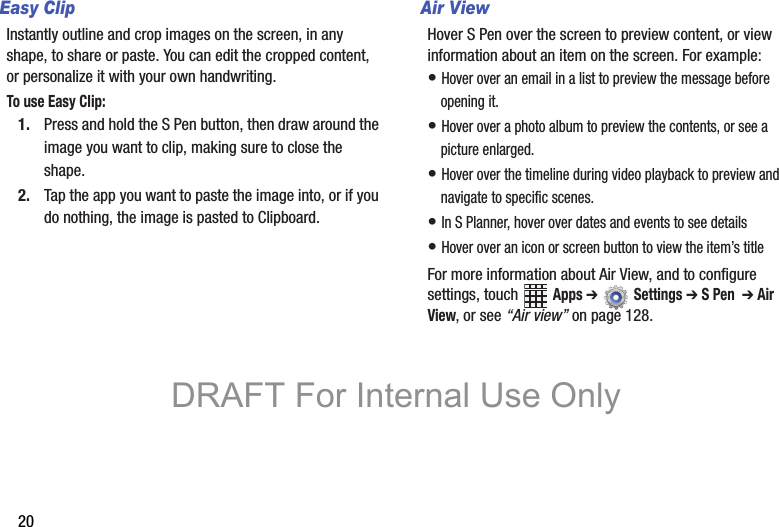

20Easy ClipInstantly outline and crop images on the screen, in any shape, to share or paste. You can edit the cropped content, or personalize it with your own handwriting.To use Easy Clip:1. Press and hold the S Pen button, then draw around the image you want to clip, making sure to close the shape.2. Tap the app you want to paste the image into, or if you do nothing, the image is pasted to Clipboard.Air ViewHover S Pen over the screen to preview content, or view information about an item on the screen. For example:• Hover over an email in a list to preview the message before opening it.• Hover over a photo album to preview the contents, or see a picture enlarged.• Hover over the timeline during video playback to preview and navigate to specific scenes.• In S Planner, hover over dates and events to see details• Hover over an icon or screen button to view the item’s titleFor more information about Air View, and to configure settings, touch Apps ➔ Settings ➔ S Pen ➔ Air View, or see “Air view” on page 128.DRAFT For Internal Use Only

Understanding Your Device 21Quick CommandMultitask like never before. Launch Quick Command pad from any screen, to hand-write tasks. Use S Pen to draw a Quick Command to launch a feature, or draw a Quick Command followed by a keyword to personalize the command. For example, draw a question mark “?” to search the Internet, or draw a question mark followed by a search term to search on the term.For more information about Quick Command, and to configure settings, touch Apps ➔ Settings ➔ S Pen ➔ Quick Command settings, or see “Quick Command settings” on page 128.To launch Quick Command: Press and hold the S Pen button and swipe upwards on the screen.Idea SketchExpress your ideas with an image. Add illustrations by hand-writing keywords on the Idea Sketch pad.To use Idea Sketch:1. From the Home screen, touch Apps ➔ S Note.2. From the toolbar, select the Insert tool, then choose Idea Sketch from the menu.3. Write a search term for something you want to draw or insert into your S Note. Or, select List and choose a category.4. S Note displays images matching your search term. Select an image to insert it into your S Note. You can edit the image, or draw on it, and changes are saved in the note.DRAFT For Internal Use Only

22Photo NotesHand-write a note on the back of pictures to add detail to your memories.To add a Photo Note:1. From the Home screen, touch Apps ➔ Gallery.2. Select a picture, then select Menu ➔ Draw on image.3. Use S Pen to write a note on the back of the picture, then select Done to save the note with the picture.Note: Photo notes are saved with the picture on your device, but are not transferred when you share the picture.Popup NoteMultitask with Popup Note - open an S Note instantly in a popup window to jot down a quick note during a meeting, or write down information from another area of the screen.
