User manual SCH-LC11
introducing your mobile device In this section, learn about your mobile device’s layout, keys, display, and icons Unpack Check your product box for the following items:  Mobile device  Battery  Travel adapter (charger)  User manual The items supplied with your device may vary depending on the software and accessories available in your region or offered by your service provider. You can obtain additional accessories from your local Samsung dealer. Device layout The front of your device includes the following keys and features: The rear of your device includes the following keys and features: Keys Key Function Power Turn the device on and off (press and hold); Side keys Short press of the side key will help you set up your device automatically. Long press of the side key will reset the status of your device as the state of the factory
LED indicators Your device’s LED indicators consist of four LEDs: LED Display LED 1 LTE Network Status (including the signal strength) LED 2 1x / EVDO Network Status (including the signal strength) LED 3 WiFi & Internet Status LED 4 Power & Charging
Power & Charging Status Indication Scenario LED 1 LED 2 LED 3 LED 4 Comments TA not connected Power Off / No Battery [X][X][X][X]ㅡ No light Power On [X][X][X][B]ㅡ LED4 : Blue - Solid ㅡ means a remained battery capacity of 100~20% Low Battery [X][X][X][Y]ㅡ LED4 : Yellow - Solid ㅡ means a remained battery capacity of 20~6% Critical Low Battery [X][X][X][R]ㅡ LED4 : Red - Solid ㅡ means a remained battery capacity of 5~1% TA connected Charging [X][X][X][G] - Blinking -ㅡ LED4 : Green - Blinking Charging Error [X][X][X][R] - Blinking -ㅡ LED4 : Red - Blinking Fully Charged [X][X][X][G]ㅡ LED4 : Green - Solid
LTE Network Service Indication Scenario LED 1 LED 2 LED 3 LED 4 Comments LTE_Strong / Modest RF Signal [B][X][X][B]ㅡ LED1 : Blue - Solid ㅡ Strong RF signals, meaning to 2~4 Antenna Bars LTE_Weak RF Signal [Y][X][X][B]ㅡ LED1 : Yellow - Solid ㅡ Weak RF signals, meaning 1 Antenna Bar LTE_Critical Weak RF & No Service [R][X][X][B]ㅡ LED1 : Red - Solid ㅡ Antenna Icon Only & No Service LTE Service Roaming [W][X][X][B]ㅡ LED1 : White - Solid LTE Service Failure [R] - Blinking -[X][X][B]ㅡ LED1 : Red - Blinking No WAN Connection [X][X][X][B]ㅡ LED1 : No light
1x / EVDO Network Service Indication LTE EV 1x Scenario LED 1 LED 2 LED 3 LED 4 Comments 1x / EVDO_Strong / Modest RF Signal [X][B][X][B]ㅡ LED2 : Blue - Solid ㅡ Strong RF signals, meaning to 2~4 Antenna Bars 1x / EVDO_Weak RF Signal [X][Y][X][B]ㅡ LED2 : Yellow - Solid ㅡ Weak RF signals, meaning 1 Antenna Bar 1x / EVDO_Critical Weak RF & No Service [X][R][X][B]ㅡ LED2 : Red - Solid ㅡ Antenna Icon Only & No Service 1x / EVDO Service Roaming [X][W][X][B]ㅡ LED2 : White - Solid 1x / EVDO Service Failure [X][R] - Blinking -[X][B]ㅡ LED2 : Red - Blinking No WAN Connection [X][X][X][B]ㅡ LED2 : No light
WiFi & Internet Status Indication Scenario LED 1 LED 2 LED 3 LED 4 Comments WiFi Standby (No WLAN connection & No WiFi connected) [X][X][G][B]ㅡ LED3 : Green - Solid WiFi Connected (WiFi connected but no data transfer) [X][X][B][B]ㅡ LED2 : Blue - Solid Data Transfer [X][X][B] - Blinking in proportion to data rate -[B]ㅡ LED2 : Blue - Blinking ㅡ Blinking rates depends on the data transfer rates
Combined Indication Scenario LED 1 LED 2 LED 3 LED 4 Comments OTADM Downloading and Updating [B] - Blinking →[B] → Blinking →[B] → Blinking -[B]ㅡ LED1, LED2, LED3 : Blue - Blinking Sequentially No SIM [W][W][W][B]ㅡ LED1, LED2, LED3 : White - Solid
assembling and preparing your mobile device Get started by assembling and setting up your mobile device for its first use. Install the SIM card and battery When you subscribe to a cellular service, you will receive a Subscriber Identity Module, or SIM card, with subscription details, such as your personal identification number (PIN) and optional services. To install the SIM card and battery, 1. Remove the battery cover. If the device is on, press and hold [ ] to turn it off. 2. Insert the SIM card. Place the SIM card in the device with the gold-coloured contacts facing down. 3. Insert the battery. 4. Replace the battery cover. Charge the battery Before using the device for the first time, you must charge the battery. 1. Open the cover to the multifunction jack on the side of the device. 2. Plug the small end of the travel adapter into the multifunction jack. Improperly connecting the travel adapter can cause serious damage to the device. Any damages by misuse are not covered by the warranty. 3. Plug the large end of the travel adapter into a power outlet. 4. When the battery is fully charged (the [|||||] icon is no longer moving), unplug the travel adapter from the power outlet. 5. Unplug the travel adapter from the device.
6. Close the cover to the multifunction jack. About the low battery indicator When your battery is low, the device will change its LED color from green to yellowr. If the battery level becomes too low, it will show red colors and the device will automatically power off. Recharge your battery to continue using your device.
Exposure to Radio Frequency (RF) SignalsYour wireless device is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the engineering experts drawn from industry, government, The exposure limit set by the FCC for wireless mobiledevices employs a unit of measurement known as the the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless devices to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using recommended operating positions accepted by the FCC with the device tested frequency bands. Although the SAR is determined of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model device is available for sale to the it does not exceed the exposure limit established by the FCC. Tests for each model device are performed in positions and locations (e.g. near the body) as requiredby the FCC. Health and safety informationFor typical operations, this model device has been tested and meets the FCC exposure guidelines. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.SAR information on this and other model devices can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. This site uses the FCC ID number A3LSCHLC11.You can check the FCC ID on the rear case. Once you have the FCC ID number for a particular device,follow the instructions on the website and it should provide values for typical or maximum SAR fora particular deviceSAR information can also be obtained at www.fcc.gov/cgb/sar.Operating EnvironmentRemember to follow any special regulations in force in any area and always switch your deviceforbidden to use it, or when it may cause interference or danger. When connecting the device or any accessory to another device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.

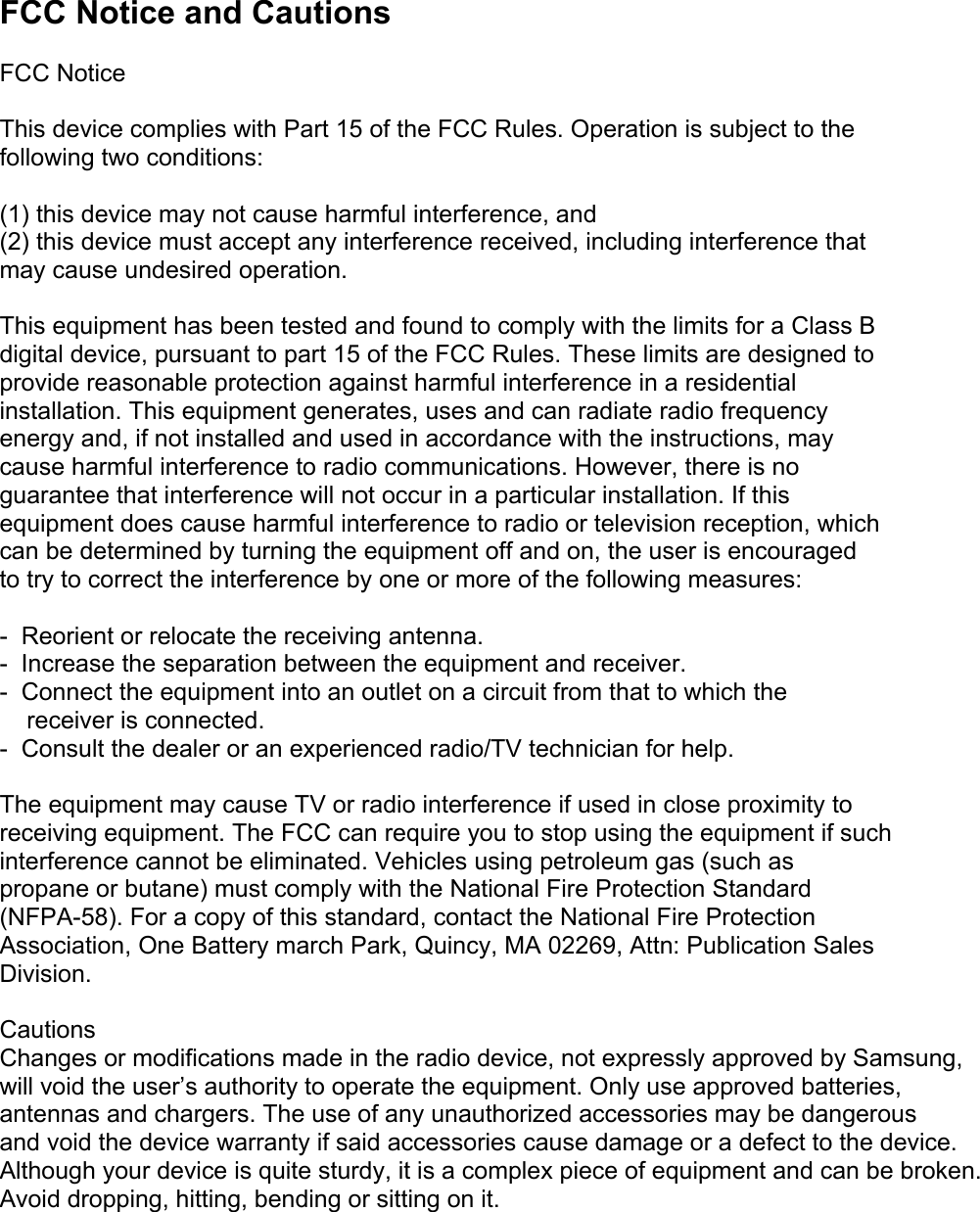

FCC Notice and Cautions FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The equipment may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the equipment if such interference cannot be eliminated. Vehicles using petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division. Cautions Changes or modifications made in the radio device, not expressly approved by Samsung, will void the user’s authority to operate the equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the device warranty if said accessories cause damage or a defect to the device. Although your device is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.
