Users Manual

GH68_3XXXXA Printed in KoreaSCH-R970ANDROID SMARTPHONEUser ManualPlease read this manual before operating yourphone and keep it for future reference.This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT FOR INTERNAL USE ONLY

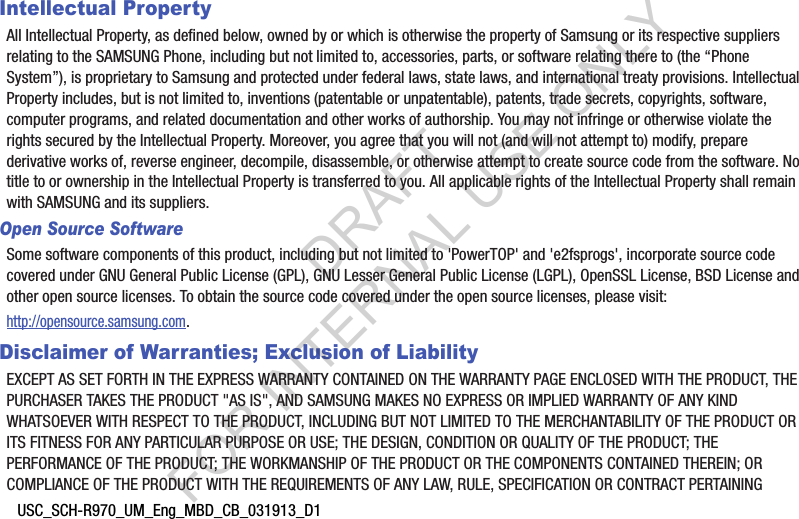

USC_SCH-R970_UM_Eng_MBD_CB_031913_D1Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Open Source SoftwareSome software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:http://opensource.samsung.com.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT FOR INTERNAL USE ONLY
THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY.SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe.Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In DRAFT FOR INTERNAL USE ONLY
addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] Samsung Telecommunications America (STA), LLC©2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd.Headquarters:1301 E. Lookout DriveRichardson, TX 75082Customer Care Center:1000 Klein Rd.Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)Internet Address: http://www.samsung.comDRAFT FOR INTERNAL USE ONLY
Do you have questions about your Samsung Mobile Phone? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:www.samsung.com/us/supportThe Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG.Nuance®, VSuite™, T9® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications, Inc., or its affiliates in the United States and/or other countries.microSD™, microSDHC™ and the microSD logo are Trademarks of the SD Card Association.Adobe and Flash are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.DivX Certified® to play DivX® video up to HD 720p, including premium content.ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos.ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in License settings under Settings > About device > Legal information. Go to vod.divx.com for more information on how to complete your registration.Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.LTE is a trademark of ETSI. Google, the Google logo, Google Search, Gmail, Maps, Navigation, Places, Google Talk, YouTube, Picasa, Android and Google Play are trademarks of Google, Inc.DRAFT FOR INTERNAL USE ONLY
©Samsung Telecommunications America, LLC (“Samsung”). Samsung and Super AMOLED are both trademarks of Samsung Electronics Co., Ltd. and/or its related entities. All product and brand names are trademarks or registered trademarks of their respective companies. Screen images simulated. Appearance of the phone may vary. DRAFT FOR INTERNAL USE ONLY
1Table of ContentsSection 1: Getting Started .......................... 4Understanding this User Manual . . . . . . . . . . . . 4Setting Up Your Phone . . . . . . . . . . . . . . . . . . . 6Turning Your Phone On . . . . . . . . . . . . . . . . . 14TTY Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Displaying Your Phone Number . . . . . . . . . . . 16Your Google™ Account . . . . . . . . . . . . . . . . . 17Creating a Samsung Account . . . . . . . . . . . . . 18Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Securing Your Phone . . . . . . . . . . . . . . . . . . . 19Section 2: Understanding Your Phone ..... 20Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Motions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . 34Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . 36Customizing the Home Screen . . . . . . . . . . . . 38Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40Wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . 44Section 3: Accounts and Contacts ...........50Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Section 4: Calling ......................................63Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . 63Multi-party Calling . . . . . . . . . . . . . . . . . . . . . 65Answering Calls . . . . . . . . . . . . . . . . . . . . . . . 66Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . 67Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 67Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 69DRAFT FOR INTERNAL USE ONLY
2Section 5: Messaging ................................74Types of Messages . . . . . . . . . . . . . . . . . . . . . 74Text and Multimedia Messaging . . . . . . . . . . . 74Emergency alerts . . . . . . . . . . . . . . . . . . . . . . 78Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80Google Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . 81Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 82Section 6: Applications and Widgets .......83Accessing Applications . . . . . . . . . . . . . . . . . . 83Applications List . . . . . . . . . . . . . . . . . . . . . . . 85Accessing Widgets . . . . . . . . . . . . . . . . . . . . 124Section 7: Connections ...........................128Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128Wi-Fi Direct . . . . . . . . . . . . . . . . . . . . . . . . . .129Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . .130VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131PC Connections . . . . . . . . . . . . . . . . . . . . . . .131Tethering . . . . . . . . . . . . . . . . . . . . . . . . . . . .134Portable Wi-Fi Hotspot . . . . . . . . . . . . . . . . . .134Beaming . . . . . . . . . . . . . . . . . . . . . . . . . . . .136AllShare Cast . . . . . . . . . . . . . . . . . . . . . . . . .137Nearby devices . . . . . . . . . . . . . . . . . . . . . . .138Memory Card . . . . . . . . . . . . . . . . . . . . . . . . .138Section 8: Settings ..................................140Accessing Settings . . . . . . . . . . . . . . . . . . . .140Connections . . . . . . . . . . . . . . . . . . . . . . . . .142My device . . . . . . . . . . . . . . . . . . . . . . . . . . .155Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . .177More . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185DRAFT FOR INTERNAL USE ONLY
3Section 9: Health and Safety Information ........................................ 196Exposure to Radio Frequency (RF) Signals . . 196Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . . . . . . . . . . . . . . . 201FCC Part 15 Information to User . . . . . . . . . . 203Commercial Mobile Alerting System (CMAS) . 203Smart Practices While Driving . . . . . . . . . . . 203Battery Use and Safety . . . . . . . . . . . . . . . . . 205Samsung Mobile Products and Recycling . . . 207UL Certified Travel Charger . . . . . . . . . . . . . 208Display / Touch-Screen . . . . . . . . . . . . . . . . 208GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209Emergency Calls . . . . . . . . . . . . . . . . . . . . . 209Care and Maintenance . . . . . . . . . . . . . . . . . 210Responsible Listening . . . . . . . . . . . . . . . . . 211Operating Environment . . . . . . . . . . . . . . . . 213FCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices . . . . . . . 215Restricting Children's Access to Your Mobile Device . . . . . . . . . . . . . . . . . . 217FCC Notice and Cautions . . . . . . . . . . . . . . . 217Other Important Safety Information . . . . . . . . 218Section 10: Warranty Information ..........220Standard Limited Warranty . . . . . . . . . . . . . . 220End User License Agreement for Software . . 225Index .........................................................233DRAFT FOR INTERNAL USE ONLY
4Section 1: Getting StartedThis section allows you to quickly start using your Samsung SCH-R970 phone by installing the SIM and microSD cards, installing and charging the battery, activating your service, and setting up your voicemail account. Understanding this User ManualThe sections of this manual generally follow the features of your phone. A robust index for features begins on page 233. Also included is important safety information that you should know before using your phone. Most of this information is near the back of the guide, beginning on page 196. This manual gives navigation instructions according to the default display settings. If you select other settings, navigation steps may be different. Unless otherwise specified, all instructions in this manual assume that you are starting from the Home screen. To get to the Home screen, you may need to unlock the phone or keypad. (For more information, refer to “Securing Your Phone” on page 19.) Note:Instructions in this manual are based on default settings, and may vary from your phone, depending on the software version on your phone, and any changes to the phone’s Settings. Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen. All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your phone and any changes to the phone’s Settings.DRAFT FOR INTERNAL USE ONLY
Getting Started 5Special TextIn this manual, you’ll find text that is set apart from the rest. These are intended to point out important information, share quick methods for activating features, to define terms, and more. The definitions for these methods are as follows:•Notes: Presents alternative options for the current feature, menu, or sub-menu.•Tips: Provides quick or innovative methods, or useful shortcuts.•Example: Gives an example of the feature or procedure.•Important: Points out important information about the current feature that could affect performance.•Warning: Brings to your attention important information to prevent loss of data or functionality, or even prevent damage to your phone.Text ConventionsThis manual provides condensed information about how to use your phone. To make this possible, the following text conventions are used to represent often-used steps:Example:“Press Home, then touch Menu ➔ Settings ➔ Wi-Fi.” ➔ Arrows are used to represent the sequence of selecting successive options in longer, or repetitive, procedures. DRAFT FOR INTERNAL USE ONLY

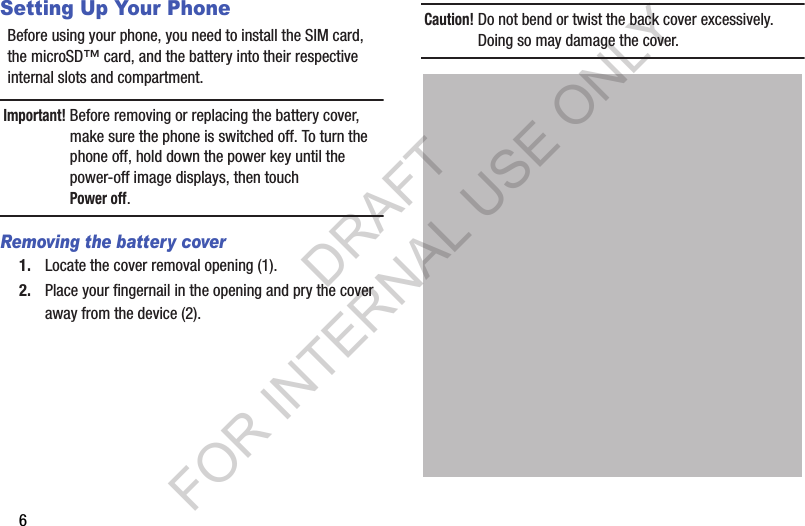

6Setting Up Your PhoneBefore using your phone, you need to install the SIM card, the microSD™ card, and the battery into their respective internal slots and compartment. Important!Before removing or replacing the battery cover, make sure the phone is switched off. To turn the phone off, hold down the power key until the power-off image displays, then touch Power off.Removing the battery cover1. Locate the cover removal opening (1).2. Place your fingernail in the opening and pry the cover away from the device (2). Caution! Do not bend or twist the back cover excessively. Doing so may damage the cover. DRAFT FOR INTERNAL USE ONLY
Getting Started 7Installing the battery cover䡲 Align the cover (1) and press it firmly into place (2), making sure it snaps into place at the corners. Installing the SIM CardWhen you subscribe to a 4G LTE cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, available optional services, and many others features. This SIM card will only work with this device. Important!The SIM card must be installed for your phone to establish a network connection.The plug-in SIM card information and its contacts can be easily damaged by scratching or bending, so be careful when handling, inserting, or removing the card. Keep all SIM cards out of reach of small children.1. Remove the battery cover. (See “Removing the battery cover” on page 6.) 2. Locate the SIM card slot on the bottom inside of the phone.3. Make sure the gold contacts of the SIM card face downward and that the notched corner of the card faces outward to the right (as shown). DRAFT FOR INTERNAL USE ONLY
84. Carefully slide the SIM card into the SIM card socket (as shown) until the card locks into place. Note: If the SIM card is not inserted correctly, the phone cannot make a network connection. Once the SIM card is inserted, do not remove it.If your SIM card is ever separated from the device or damaged, your device will not function. If you experience any issues with your device, contact Customer Service at 888-944-9400 or visit your nearest U.S. Cellular® retail location.SIM Card Limited WarrantySubject to the exclusions contained below, United States Cellular Corporation (“U.S. Cellular”) warrants to the original purchaser (“You” or “Your”) of the handset with which the SIM card was provided that the SIM card will be free from defects in material and workmanship for a period of one (1) year from the date You purchased the handset (the “Warranty Period”). This warranty is not transferable. Should a defect appear during the Warranty Period, U.S. Cellular will send a replacement SIM card to Your address within the United States without charge provided that you request the replacement SIM card during or within thirty (30) days following the Warranty Period by calling U.S. Cellular Customer Service at 888-944-9400 (or dialing 611 on Your U.S. Cellular handset) or by visiting a U.S. Cellular retail store.REPLACEMENT OF THE SIM CARD AS PROVIDED HEREIN IS YOUR EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY, AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF TITLE, FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, NONINFRINGEMENT OR ARISING FROM COURSE OF DEALING OR USAGE OF TRADE. NEITHER U.S. CELLULAR NOR ANY OF ITS AFFILIATES OR DRAFT FOR INTERNAL USE ONLY
Getting Started 9RETAILERS SHALL BE LIABLE TO YOU FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, ECONOMIC, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, LOSS OF REVENUE OR PROFITS, DAMAGE TO PROPERTY OR LOSS OF USE). IN NO EVENT SHALL U.S. CELLULAR’S, ITS AFFILIATES’ OR RETAILERS’ LIABILITY TO YOU OR ANY THIRD PARTY WITH RESPECT TO THE SIM CARD EXCEED THE COST OF REPLACING THE SIM CARD.THIS LIMITED WARRANTY SHALL BE CONSTRUED UNDER THE LAWS OF THE STATE OF ILLINOIS, EXCLUDING ITS CONFLICTS OF LAW PROVISIONS. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND DISCLAIMERS MAY NOT APPLY TO YOU.No agent, employee, dealer, retailer, representative or reseller is authorized to modify or extend the terms of this Limited Warranty. Removing the SIM Card1. Remove the battery cover. 2. Remove the battery. 3. Firmly press the card into the slot and release it. The card should pop partially out of the slot.4. Remove the card from the slot. 5. Replace the battery cover. Installing a Memory CardYour device lets you install a microSD (SD) or microSDHC memory card to expand available memory to store images, videos, music, applications, and data. 1. Remove the battery cover. (See “Removing the battery cover” on page 6.) 2. Locate the microSD card slot on the bottom inside of the phone.3. With the gold contacts facing down, carefully slide the memory card into the slot (as shown), pushing gently until it clicks into place. DRAFT FOR INTERNAL USE ONLY
10Important!Be sure to align the gold contact pins on the memory card with the phone’s contacts. Removing a Memory CardImportant!To prevent damage to information stored on the memory card, unmount the card before removing it from the phone.1. Press Home, then touch Menu ➔ Settings ➔ Storage ➔ Unmount SD card.2. Remove the battery cover. (See “Removing the battery cover” on page 6.) 3. Firmly press the Memory card into the slot and carefully release it. The card should pop partially out of the slot.4. Remove the card from the slot.5. Replace the battery cover. For more information, refer to “Installing the battery cover” on page 7.DRAFT FOR INTERNAL USE ONLY
Getting Started 11BatteryYour phone is powered by a rechargeable, standard Li-Ion battery. A Wall/USB Charger (Charging Head and USB cable) is included with the phone, for charging the battery. Note:The battery comes partially charged. You must fully charge the battery before using your phone for the first time. A fully discharged battery requires up to 4 hours of charge time.After the first charge, you can use the phone while charging. Warning!Use only Samsung-approved charging devices and batteries. Samsung accessories are designed to maximize battery life. Using other accessories may invalidate your warranty and may cause damage. Note:Failure to unplug the wall charger before you remove the battery, can cause damage to the phone. Battery IndicatorThe battery icon in the Annunciator Line shows battery power level. Two to three minutes before the battery becomes too low to operate your phone, the empty battery icon will flash and a tone will sound. If you continue to operate the phone without charging the battery, the phone will power off. Installing the Battery1. Remove the battery cover. (See “Removing the battery cover” on page 6.) 2. Slide the battery into the compartment (1) so that the tabs on the end align with the slots at the bottom of the phone, making sure the connectors align.3. Gently press down to secure the battery (2). DRAFT FOR INTERNAL USE ONLY
12Removing the Battery1. Remove the battery cover. (See “Removing the battery cover” on page 6.) 2. Lift the battery up by the slot provided (1). 3. Lift the battery up and out of the phone (2). Charging the BatteryYour phone is powered by a rechargeable Li-ion battery. A wall charger, which is used for charging the battery, is included with your phone. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.Before using your phone for the first time, you must fully charge the battery. A discharged battery recharges fully in approximately 4 hours.Note: Verify that the battery is installed prior to connecting the wall charger. If both the wall charger is connected and the battery is not installed, the handset will power cycle continuously and prevent proper operation. Failure to unplug the wall charger before you remove the battery, can cause the phone to become damaged.Important!: It is recommended you fully charge the battery before using your device for the first time.DRAFT FOR INTERNAL USE ONLY
Getting Started 131. Insert the USB cable into the device’s Charger/Accessory jack at the bottom of the device.Note: This illustration displays both the correct and incorrect orientation for connecting the USB cable. If the USB cable is incorrectly connected, damage to the accessory port will occur therefore voiding the phone’s warranty.2. Connect the USB cable to the charging head.3. Plug the charging head into a standard AC power outlet. The device turns on with the screen locked and indicates both its charge state and percent of charge.Warning!: While the device is charging, if the touch screen does not function due to an unstable power supply unplug the USB power adapter from the power outlet or unplug the USB cable from the device.DRAFT FOR INTERNAL USE ONLY
144. When charging is finished, first unplug the charger’s power plug from the AC wall outlet, then disconnect the USB cable connector from the device. Important!If your handset has a touch screen display, please note that a touch screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, refer to “Standard Limited Warranty” on page 220. Turning Your Phone On䡲 Press and hold the Power/Lock key (on the upper right side of the phone) for three seconds. While powering on, the phone connects with the network, then displays the Locked screen and any active Notification alerts.Note:Your phone’s internal antenna is located along the bottom back of the phone. Do not block the antenna; doing so may affect call quality or cause the phone to operate at a higher power level than necessary.DRAFT FOR INTERNAL USE ONLY
Getting Started 15Unlocking Your Phone1. If needed, press Press Home to wake the screen. 2. If there are no Notification alerts on your phone, swipe the screen to unlock it. The Home screen appears. Note:If you have purchased your phone online, the first time you power your phone on and unlock the screen, the Activation Wizard Welcome screen appears. Follow the prompts to activate and set-up your phone. Turning Your Phone Off1. Press and hold the Power/Lock Key (on the upper right side of the device) for two seconds. 2. At the prompt, touch Power off. The Power off pop-up appears. 3. At the prompt, touch OK. DRAFT FOR INTERNAL USE ONLY
16TTY ModeYour phone is fully TTY-compatible, allowing you to connect a TTY device to the phone’s headset jack. Before you can use your phone with a TTY device, you’ll need to enable TTY Mode. For more information, refer to “Other call settings” on page 73. VoicemailAll unanswered calls to your phone are sent to voicemail, even if your phone is turned off, so you’ll want to set up your voicemail and personal greeting as soon as you activate your phone. Setting up Voicemail1. Press Home, then touch Phone, then touch and hold . 2. Follow the automated instructions to set up your new password and record a greeting. Checking Voicemail1. Press Home, then touch Phone, then touch and hold . 2. Follow the automated instructions to manage voicemail.Tip:You can also access Voicemail by dialing your phone number from any touch-tone phone. Displaying Your Phone Number䡲 Press Home, then touch Menu ➔ Settings ➔ About device ➔ Status. Your phone number displays under My phone number. DRAFT FOR INTERNAL USE ONLY
Getting Started 17Your Google™ AccountYour new phone uses your Google account to fully utilize its Android features, including Gmail, Google Maps, Google Talk, and the Google™ Play. When you turn on your phone for the first time, you should set up a connection with your existing Google account, or create a new Google account. 1. Press Home, then touch Applications ➔ Gmail.The Add a Google Account screen displays.2. Touch Existing or New to continue. 3. Follow the on-screen instructions to sign in if you already have a Google account, or to create a Google Account. Resetting your Google Account PasswordA Google account password is required for Google applications. If you misplace or forget your Google Account password, follow these instructions to reset it:1. From your computer, use an Internet browser to navigate to http://google.com/accounts. 2. Once the Web Page loads, click on the Can’t access your account? link.3. Under Forgot your password?, follow the password reset prompts.DRAFT FOR INTERNAL USE ONLY
18Creating a Samsung AccountAn active Samsung account is required to use applications such as AllShare Play and Media Hub. 1. From the Home screen, touch Menu ➔ Settings. The Settings screen appears in the display. 2. Under Accounts, touch Add account. 3. From the Add account screen, touch Samsung account.4. From the Samsung account screen, touch Create new account and follow the on-screen instructions to create a Samsung account. 5. Read the Terms and conditions, then touch the I accept all the terms above check box.6. Touch Agree.7. Enter the required information and touch Sign up.8. At the Welcome screen, touch Next.9. Follow the on-screen instructions to verify your email address and activate your account.RoamingWhen you travel outside your home network’s coverage area, your phone can roam to acquire service on other compatible digital networks. When Roaming is active, the Roaming icon ( ) appears in the Annunciator Line (Notification Bar) of the display. Tip:You can set your phone’s roaming behavior. (For more information, refer to “Mobile networks” on page 148.) During roaming, some services may not be available. Depending on your coverage area and service plan, extra charges may apply when making or receiving calls. Note:Contact your Wireless Provider for more information about your coverage area and service plan. DRAFT FOR INTERNAL USE ONLY
Getting Started 19Securing Your PhoneBy default, the phone locks automatically when the screen times out, or you can lock it manually. You can unlock the phone using one of the default Unlock screens, or for increased security, use a personal screen unlock pattern, a Personal Identification Number (PIN), or a password. For more information about creating and enabling a Screen unlock pattern, see “Lock screen” on page 165. Note:Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.Locking the phone manually䡲 Press the Power/Lock key on the top right side of the phone.Unlocking the phoneFor information on unlocking your phone, see “Unlocking Your Phone” on page 15. Unlocking with a Personal Screen Unlock Pattern1. Press Home to wake the screen.2. Draw your personal unlock pattern on the screen. For more information, refer to “Lock screen” on page 165. Unlocking with a Password1. Press Home to wake the screen.2. Enter your Password. 3. Press OK.DRAFT FOR INTERNAL USE ONLY
20Section 2: Understanding Your PhoneFeatures•5.0-inch 1920x1080 Super AMOLED Full HD touch screen •CDMA 1X/EV-DO Rev-A /LTE Wireless Technology • 1.9 gigahertz quad-core processor with 16 or 32 GB memory and 2 GB RAM •Android® 4.2 platform •Google Play™ Store, plus pre-loaded applications •SAFE™ Certified •Connections –Wi-Fi 802.11 a/b/g/n (2.4 and 5 GHz bands)–Mobile Hotspot–Bluetooth 4.0–Tethering–VPN–NFC–Android Beam–S Beam–Wi-Fi Direct–AllShare Cast–DLNA–USB 2.0•Messaging Services–Text Messaging–Picture Messaging–Video Messaging–Voice Messaging–Email–Mobile Instant Messenger (IM)–Chat•13 Megapixel Camera-Camcorder with LED flash + 2 Megapixel Front Camera-Camcorder •Picture Gallery•Video Player (1080p — MP4 and 3GP) •DivX Certified® to play DivX® video up to HD 1080p, including premium content•Music Player (AAC, AAC+, eAAC+, MP3, and WMA) •Speakerphone•Support for microSD™ and microSDHC™ Memory Cards up to 64GB capacity DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 21Front View1.Earpiece: Use during calls to listen to callers.2.LED Indicator: Flashes or glows to alert you to alert notifications or phone status. 3.Menu Key: Press to display options for the current screen.4.Home Key: Press to display the Home screen, or Lock screen if the phone is locked. Press and hold to display recent applications or to launch Task Manager.5.Microphone: Use during calls to allow callers to hear your voice, and when recording.6.Back Key: Press to return to the previous screen or option.7.1.9 Megapixel Front Camera: Use for taking pictures and recording video.8.Proximity and Light Sensors: Detect the presence of nearby objects to control device functions or blank the screen display, such as when you hold the phone to your ear during a phone call. Detect ambient light to determine screen brightness when Brightness is set to Automatic brightness (see “Brightness” on page 162), and when taking pictures with the Front camera. 12346578DRAFT FOR INTERNAL USE ONLY
22Side Views1.Volume Key: From the Home screen, touch to adjust Master Volume. During calls or music playback, press to adjust volume. Press to mute the ringtone of an incoming call.2.USB Power/Accessory Port: Connect a USB cable for charging or to sync music and files.3.Power/Lock Key: Press and hold to turn the phone on or off. Press to lock the phone, or to wake the screen for unlocking.132DRAFT FOR INTERNAL USE ONLY

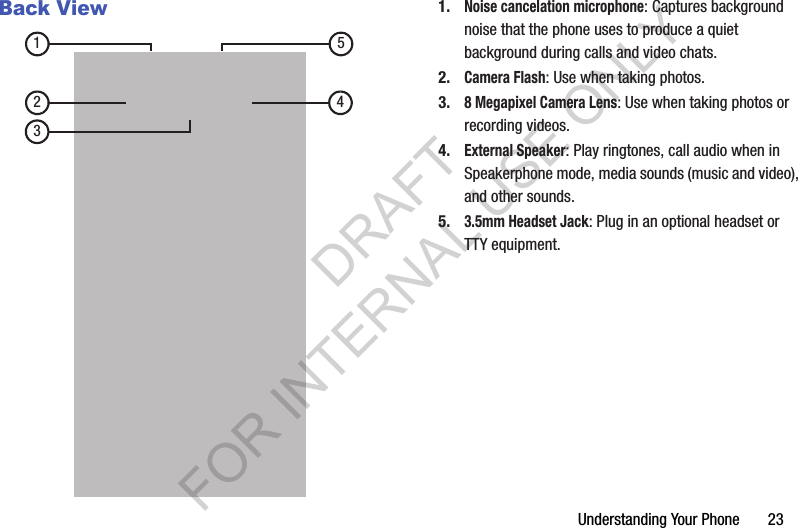

Understanding Your Phone 23Back View1.Noise cancelation microphone: Captures background noise that the phone uses to produce a quiet background during calls and video chats. 2.Camera Flash: Use when taking photos.3.8 Megapixel Camera Lens: Use when taking photos or recording videos.4.External Speaker: Play ringtones, call audio when in Speakerphone mode, media sounds (music and video), and other sounds.5.3.5mm Headset Jack: Plug in an optional headset or TTY equipment.12345DRAFT FOR INTERNAL USE ONLY
24NavigationNavigate your phone’s features using the command keys and the touch screen.Warning!Please note that a touch screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, see “Warranty Information” on page 220.Context-sensitive MenusWhile using your phone, context-sensitive menus offer options for the feature or screen currently in use. To access context-sensitive menus:•Touch Menu.•Touch and hold on an item. Command KeysMenu KeyTouch Menu to display a context-sensitive menu of options for the current screen or feature.Home KeyPress the Home Key to display the Home screen.Press and hold the Home Key to launch a menu of recent applications, or to launch Task Manager.Back KeyTouch Back to return to the previous screen, option or step.DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 25MotionsFinger MotionsTouchTouch items to select or launch them. For example:•Touch the on-screen keyboard to enter characters or text.•Touch an item to select it.•Touch an app’s icon to launch the application.Touch and HoldActivate on-screen items by a touch and hold gesture. For example: •Touch and hold a widget or icon on the Home screen to move it.•Touch and hold on a field to display a pop-up menu of options.SwipeSwipe your finger vertically or horizontally across the screen. For example:•Unlocking the screen•Scrolling the Home screen or a menu•Combine touch and hold with swipe to drag an item to a new location.PinchUsing two fingers, make a pinch motion on the screen. For example:•Pinch in to zoom in on pictures or screens.•Pinch out to zoom out on pictures or screens.DRAFT FOR INTERNAL USE ONLY
26MotionsYour phone recognizes motion, to allow you to navigate and access features by moving the phone in specific patterns. To use motions to control your phone, enable the Motion settings. (For more information, see “Motions and gestures” on page 176.) •Direct call: When this option is set to On, you can lift the phone to your ear to call a contact displayed in a Messaging, Contacts, or Call Log screen. •Smart alert: When this option is set to On, you can lift the phone to be automatically notified of missed calls, messages, and alerts that occurred while the phone was stationary. •Double tap to top: When this option is set to On, a double tap on the top of the phone takes you to the top of the list. DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 27•Tilt to zoom: When this option is set to On, touching and holding with your thumbs on the screen while in Gallery or Internet, then tilting the phone forward and back causes the screen to zoom in or out. •Pan to move icon: When this option is set to On, touching and holding on the screen, then moving the phone in a side-to-side motion, moves a highlighted icon to a new location on the Home screen. •Pan to browse images: When this option is set to On, moving the phone in a panning motion while viewing an image moves focus around in the image. •Shake to update: When this option is set to On, shaking the phone causes Bluetooth or Wi-Fi screens to scan for devices. DRAFT FOR INTERNAL USE ONLY
28•Turn over to mute/pause: When this option is set to On, turning the phone screen-down automatically mutes incoming call ringtones and alerts sounds. Hand motionsUse your hand to swipe across the screen, or cover the screen.•Palm swipe to capture: When this option is set to On, swiping the screen with the side of your hand (left to right, or right to left) captures a screen shot. DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 29•Palm touch to mute/pause: When this option is set to On, covering the screen with your hand mutes or pauses media playback. Using Multi WindowThis feature allows you to run multiple applications on the current screen at the same time. Note:Only applications found within the Multi window tray can be active atop another current application on the screen. When launching applications that contain multimedia files (music/video), audio from both files will be played simultaneously. Activating and Deactivating Multi windowTo activate Multi window:1. Touch and hold Back. The Multi window tray appears briefly (by default) on the left side of the screen, then closes, leaving only the Multi window tab showing. 2. Touch the tab to open the Multi window tray, showing some of the available Multi window apps. 3. Swipe the tray upwards to show more Multi window apps. DRAFT FOR INTERNAL USE ONLY
30To deactivate Multi window:䡲 With the Multi window tab showing, touch and hold Back. This action hides the Multi window tab from view. Repositioning the Multi WindowThe Multi window contains two components: tab and apps tray. The tab can be manually moved across the screen. The apps tray (containing the scrollable apps) can be relocated to launch from any side of the screen (top, bottom, left, or right). To move the tab:1. Activate the Multi window feature. (See “To activate Multi window:” on page 29.) 2. In a single motion, touch and hold the tab for approximately one-second, then slowly drag it to its new location along the current screen edge.Note:This is a quick way to get the tab out of the way if you can’t get to a button or option behind it. To relocate the Multi window tray:1. Activate the Multi window feature. (See “To activate Multi window:” on page 29.) 2. Touch the tab to display the apps tray (containing the scrollable apps).Note:Notice that when the apps are visible, the tab turns a dark grey. Its only in this state that the entire panel can be relocated.DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 313. In a single motion, touch and hold the Multi window tab for approximately one-second to detach it from the screen (1), then slowly drag it to its new location along any other available screen edge (2). You can move it to the top, bottom, or either side.Customizing the Multi Window trayThe applications found within the Multi window tray can be organized by either being rearranged or removed.To rearrange the Multi window applications:1. Activate the Multi window feature.2. Touch the tab to display the apps tray (containing the scrollable apps).3. In a single motion, touch and hold a desired app until it detaches from the tray, then carefully drag it to a new location in the list of apps. Lift your finger or stylus off the screen to let go of the app and drop it into its new location.To remove a Multi window application:1. Activate the Multi window feature.2. Touch the tab to display the Multi window tray (containing the scrollable apps).3. Touch Edit (located at the bottom of the list). 4. Follow the prompt to remove apps from the Multi window tray to the revealed staging area. 5. Tap Done once you have completed the removal process. DRAFT FOR INTERNAL USE ONLY

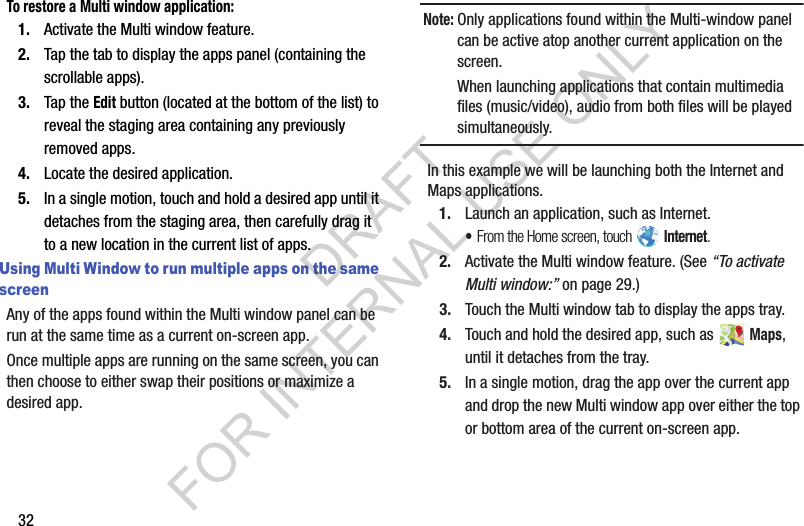

32To restore a Multi window application:1. Activate the Multi window feature.2. Tap the tab to display the apps panel (containing the scrollable apps).3. Tap the Edit button (located at the bottom of the list) to reveal the staging area containing any previously removed apps.4. Locate the desired application.5. In a single motion, touch and hold a desired app until it detaches from the staging area, then carefully drag it to a new location in the current list of apps.Using Multi Window to run multiple apps on the same screenAny of the apps found within the Multi window panel can be run at the same time as a current on-screen app. Once multiple apps are running on the same screen, you can then choose to either swap their positions or maximize a desired app.Note:Only applications found within the Multi-window panel can be active atop another current application on the screen. When launching applications that contain multimedia files (music/video), audio from both files will be played simultaneously. In this example we will be launching both the Internet and Maps applications.1. Launch an application, such as Internet. •From the Home screen, touch Internet. 2. Activate the Multi window feature. (See “To activate Multi window:” on page 29.) 3. Touch the Multi window tab to display the apps tray.4. Touch and hold the desired app, such as Maps, until it detaches from the tray. 5. In a single motion, drag the app over the current app and drop the new Multi window app over either the top or bottom area of the current on-screen app. DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 33Note:Once two applications are running, the device displays a split screen view containing both the initial app and the new Multi window app. Each application is still independent of the other. To swap the locations of the applications:1. With the two applications shown in a split screen, touch the Border bar to show the on-screen icons.2. Touch the desired application area (top or bottom).3. Touch Swap apps. The current apps swap places. To increase the size of a desired application window:䡲 With the two applications shown in a split screen, touch and hold the Border bar, then drag it to resize the desired window. To seperate the current applications:1. With the two applications shown in a split screen, touch the Border bar to show the on-screen icons.2. Touch the desired application area (top or bottom).3. Touch Maximize apps. The current apps are the both maximized. To close an application:1. With the two applications shown in a split screen, touch the Border bar to show the on-screen icons.2. Touch the desired application area (top or bottom).3. Touch Close app. The current apps swap places. App #1 MaxApp #2 Border SwapappsbarCloseDRAFT FOR INTERNAL USE ONLY
34NotificationsNotifications shows information about connections, alerts and other items. 1. Touch and drag downward from the top of the screen to display notifications.2. Touch an item to open that item, or to launch a related app or feature. 3. Touch Clear to clear all Notifications. Quick Settings MenuUse Quick Settings toggles at the top of Notifications to control popular settings. Slide your finger right and left across the Quick Settings menu to see all of the toggles. •Wi-Fi: Turn Wi-Fi On or Off. For more information about using Wi-Fi, see “Wi-Fi” on page 128.•GPS: Turn Standalone GPS services on or off. For more information, see “Location services” on page 185.•Sound: Touch to switch between your sound settings, and the two Silent modes, Mute and Vibrate. For more information, see “Volume” on page 156. •Screen rotation: Enable or disable the Auto rotation setting, to control whether the screen automatically updates when you rotate the phone. See “Auto-rotate screen” on page 162.•Bluetooth: Turn Bluetooth On or Off. For more information about using Bluetooth, see “Bluetooth” on page 130. •Mobile data: Activate or deactivate your phone’s access to mobile data. For more information, see “Turning Mobile data On or Off” on page 146. DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 35•Blocking mode: Enable or disable the Blocking mode setting, to control which notifications you receive. For more information, refer to “Blocking mode” on page 155. •Power saving: Enable or disable Power saving mode. For more information, see “Power saving mode” on page 164. •AllShare Cast: Enable or disable the AllShare Cast setting, to control whether your phone shares the contents of its display with other Digital Living Network Alliance (DLNA) certified devices, such as Smart televisions. For more information, refer to “AllShare Cast” on page 137. •Sync: Enable or disable synchronization with your accounts. Clearing Notifications1. Sweep your finger downward from the top of the screen to display Notifications.2. Touch a notification to clear it, or to launch an app.– or –Touch Clear to clear all notificationsDRAFT FOR INTERNAL USE ONLY
36Home ScreenThe Home screen is the starting point for using your phone. Note:Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your phone and any changes to the phone’s Settings.1.Status Bar: Presents icons to show network status, battery power, and connection details. For a list of icons, see “Status Bar Icons” on page 37.2.Multi window tab: Access Multi window tray. (.) 3.Home screen: The starting point for using your phone. Place shortcut icons, widgets, and other items to customize your phone to your needs. For more information, see “Home Screen” on page 36.4.Primary Shortcuts: Shortcuts to your phone’s common apps. For more information, see “Primary Shortcuts” on page 39.5.Panel Indicator: Shows what panel of 7 available Home screen panels appears in the display. 6.Shortcuts: Shortcuts to common apps.These shortcuts are found on the Home screen by default, and you can add more shortcuts to your favorite apps. For more information, see “Shortcuts” on page 40.7.Widgets: Apps that run on the Home screen. These widgets are found on the Home screen by default, and you can add your favorites. For more information, see “Widgets” on page 40.1345562DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 37Status Bar IconsThe Status Bar shows network and battery status and other details. Airplane Mode Active: All wireless communications are disabled. See “Airplane mode” on page 146. USB Connected: The phone is connected to a computer using a USB cable.Voice Call: A voice call is in progress. Speakerphone: Speakerphone is enabled. Missed Call: Displays when there is a missed call. Mute: Voice or playback volume is muted. Battery Level: Shown fully charged. Battery Charging: Battery is charging. Device Power Critical: Battery has very little power remaining. Charge immediately.GPS Location Active: One or more GPS location services are active. See “Location services” on page 185. Missing SIM: No LTE SIM is installed. No Network: No wireless network is available. 3G connection: Phone is active on a 3G system. 4G LTE Connection: Phone is active on a 4G LTE system. Signal Strength: Current signal strength. The greater the number of bars, the stronger the signal.New Message: You have new message(s). New Voicemail: You have new voicemail. A number indicates the number of new messages.DRAFT FOR INTERNAL USE ONLY
38Display settingsYou can customize display settings to your preferences. For more information, see “Display” on page 160.Extended Home ScreenThe Home screen consists of the Home panel, plus panels that extend beyond the display width to provide more space for adding shortcuts, widgets and folders.Slide your finger horizontally across the screen to scroll to the left or right side panels. As you scroll, the indicator at the bottom of the display shows your current position.Customizing the Home ScreenCustomize the Home screen to suit your preferences.•Add Shortcuts: For more information, see “Shortcuts” on page 40.•Add Widgets: For more information, see “Widgets” on page 40.•Add Folders: For more information, see “Folders” on page 41.•Change the Wallpaper: For more information, see “Wallpaper” on page 41.New Email Message: You have new email. Silent mode: All sounds except media and alarms are silenced, and Vibrate is not active. See “Volume” on page 156. Vibrate: All sounds are silenced, and Vibrate is active. See “Vibrations” on page 158. SD Card Ready: A memory card scan is underway, to prepare the card for use.SD Card Removed: A memory card was un-installed. Bluetooth Active: Bluetooth is turned on. Bluetooth Connected: Your device is connected with another Bluetooth device.Wi-Fi Active: Wi-Fi is active, and connected to a Wi-Fi network.Wi-Fi Action Needed: Action needed to connect to Wi-Fi network. For more information about configuring Wi-Fi, see “Wi-Fi Settings” on page 143. TTY: TTY Mode is active. DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 39Adding and removing Home screen panelsYour phone comes with 7 Home screen panels. You can customize the Home screen to include up to the seven default panels, and set one panel as Home.1. From the Home screen, touch Menu, then touch Edit page.2. Slide your finger across the screen to scroll the panels, and use these controls to configure panels: Tip:You can also “pinch” the Home screen to display Edit options.Primary ShortcutsPrimary Shortcuts appear at the bottom of the display. You can edit the Primary Shortcuts, except for Apps. Editing the Primary ShortcutsTo add or remove shortcuts:䡲 Touch and hold a shortcut, then drag it from the Primary Shortcuts to the Home screen, or from the Home screen to the Primary Shortcuts.To remove shortcuts:䡲 Touch and hold the shortcut until Remove appears, then drag the shortcut to the Remove icon.Remove: Touch and hold on a panel, then drag it to Remove. Add: Touch a previously-removed panel to add it, up to the default total of six. Change panel sequence: Touch and drag panels to different positions. DRAFT FOR INTERNAL USE ONLY

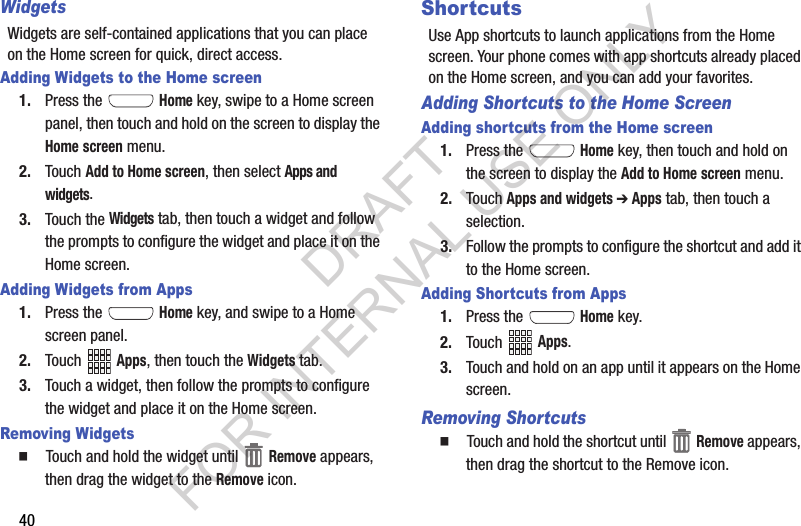

40WidgetsWidgets are self-contained applications that you can place on the Home screen for quick, direct access.Adding Widgets to the Home screen1. Press the Home key, swipe to a Home screen panel, then touch and hold on the screen to display the Home screen menu. 2. Touch Add to Home screen, then select Apps and widgets. 3. Touch the Widgets tab, then touch a widget and follow the prompts to configure the widget and place it on the Home screen.Adding Widgets from Apps1. Press the Home key, and swipe to a Home screen panel.2. Touch Apps, then touch the Widgets tab.3. Touch a widget, then follow the prompts to configure the widget and place it on the Home screen.Removing Widgets䡲 Touch and hold the widget until Remove appears, then drag the widget to the Remove icon.ShortcutsUse App shortcuts to launch applications from the Home screen. Your phone comes with app shortcuts already placed on the Home screen, and you can add your favorites.Adding Shortcuts to the Home ScreenAdding shortcuts from the Home screen1. Press the Home key, then touch and hold on the screen to display the Add to Home screen menu.2. Touch Apps and widgets ➔ Apps tab, then touch a selection.3. Follow the prompts to configure the shortcut and add it to the Home screen.Adding Shortcuts from Apps1. Press the Home key.2. Touch Apps.3. Touch and hold on an app until it appears on the Home screen.Removing Shortcuts䡲 Touch and hold the shortcut until Remove appears, then drag the shortcut to the Remove icon.DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 41FoldersPlace folders on the Home screen to organize items.Adding Folders1. Press the Home key.2. Touch and hold on the screen to display the Home screen menu, then select Add to Home screen ➔ Folder.– or –Touch Menu ➔ Create folder.3. The folder appears on the Home screen. Touch the folder to name it.Removing Folders䡲 Touch and hold the folder until Remove appears, then drag the folder to the Remove icon.WallpaperChoose a picture to display in the background of the Home screen. You can choose from pre-loaded wallpaper images, or select a picture you’ve taken with the Camera or downloaded.1. Press the Home key, touch and hold on the screen to display the Home screen menu, then select Set wallpaper ➔ Home screen / Lock screen / Home and lock screens. 2. Choose a source:•Gallery: Choose a picture stored on your phone or on an optional installed memory card. Touch a picture to select it, then use the crop tool to resize the picture, if desired. Touch Done to save the picture as wallpaper.•Live wallpapers: Choose from pre-loaded animated wallpaper images. Touch a wallpaper, then touch Set wallpaper. • Wallpaper: Choose from pre-loaded wallpaper images. Touch a wallpaper, then touch Set wallpaper.Note:You can also set Wallpaper in Settings. For more information, see “Wallpaper” on page 160. DRAFT FOR INTERNAL USE ONLY
42AppsApps holds all applications installed on your phone. Applications that you download and install from the Google Play™ Store or from the web are also added to Apps. The Apps screen is like the Home screen, it consists of panels that extend beyond the display width to provide more space. Slide your finger horizontally across the screen to scroll to the left or right side panels. As you scroll, the indicator at the bottom of the display shows your current position.For more information about applications, see “Applications and Widgets” on page 83.You can place shortcuts to apps on the Home screen, for quick access to the app. For more information, see “Adding Shortcuts from Apps” on page 40.1. Press the Home key, then touch Apps.2. Slide your finger left or right to scroll the Apps screens.3. Touch an icon to launch the application.Customizing the Apps ScreensChoosing a viewBy default, app icons appear in Grid view. You can change the view to list view.1. Press the Home key, then touch Apps.2. Touch Menu ➔ View type.3. Choose an option: • Customizable Grid: The default view, which allows you to touch and hold on apps to move them from screen to screen.• Alphabetical grid: Icons are arranged in a grid, in A-Z order.• Alphabetical list: Icons display in a list, sorted from A-Z.DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 43Apps screen options1. Press the Home key, then touch Apps.2. Touch Menu for options: •Play Store: Launch Google Play™ Store, to browse for new apps to download. •Edit: Touch and hold an app icon for these options: –Drag it to a new location. –Drag it to to create a new folder to contain the icon. –Drag it to to create a new apps screen and place the icon on it. –Drag it to to launch Application manager to view information about the app. For more information, refer to “Application manager” on page 189. –Drag to (if available) to remove the icon. The trashcan is only available for apps you’ve installed. Pre-loaded apps cannot be removed. •Create folder: Add folders in which to group your apps. • Uninstall: Remove an app that you downloaded from your phone. Pre-loaded apps cannot be un-installed. • Downloaded applications: Display all apps you’ve downloaded. •View type: Configure the apps screen. • Share apps: Select apps you’ve downloaded (not available for pre-loaded apps) to share via Bluetooth, Dropbox, Email, Flipboard, Gmail, Google+, Messaging, S Memo, Wi-Fi Direct. • Hide applications / Show hidden applications: Control whether app icons are visible in Apps. Hiding an icon does not remove the app from your phone. DRAFT FOR INTERNAL USE ONLY
44Entering TextThis section describes how to enter words, letters, punctuation, and numbers when you need to enter text. Text Input MethodsThere are three text input methods available: • Google Voice typing: allows you to enter text by speaking. • Samsung keyboard (default): Samsung’s on-screen QWERTY keypad that can be used in both portrait and landscape orientation.• Swype: a new way to enter text on touch screens. Instead of tapping each key, use your finger to trace over each letter of a word.(To change the input method, see “Keyboards and Input Methods” on page 139.) Entering Text Using the Samsung KeyboardFrom a screen where you can enter text, rotate your phone counterclockwise to a Landscape orientation. The on-screen QWERTY keypad will display.Changing the Text Input Mode - KeypadThere are two main keypad layout keys that will change the on-screen keys within the QWERTY keypad.The available Text Input modes are: Sym and Abc.New ParagraphText Input ModeShiftKeyDeleteKeySpace BarVoice Typingand SettingsDRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 45Note: When in Abc mode, the Sym button will appear. When in Sym mode, the Abc/ABC/abc button will appear.Using ABC Mode1. If desired, rotate your phone counterclockwise to a Landscape orientation.2. When you tap the Enter message field, the following screen displays: 3. Tap the desired alphabetic characters.4. The screen initially opens in ABC mode. After typing the first letter, the shift key ( ) will change to and following letters will be lowercase. 5. Tap to input another upper-case letter or tap twice to switch to ABC mode. The shift key will change to in ABC mode. All following letters will be uppercase until you tap the shift key again.Using Symbol/Numeric ModeUse Symbol/Numeric Mode to add numbers, symbols, or emoticons.1. Rotate your phone counterclockwise to a Landscape orientation.Symbol/Numeric Mode: activates the number, symbol, and emoticon keys.ABC Mode: activates the default alphabet keys. Can also be set to Abc or abc by using the shift () key.DRAFT FOR INTERNAL USE ONLY
462. Tap at the bottom of the screen. The following screen displays:3. Tap the desired number, symbol, or emoticon characters. 4. Tap the button to access additional symbols. 5. Tap to return to Abc mode.Predictive TextBy using the Predictive Text option, you can have next-letter prediction and regional error correction, which compensates for pressing the wrong keys on the QWERTY keyboard. Predictive text is turned on by default.1. Press and hold on the keyboard, then tap .2. Tap the ON/OFF slider, located to the right of the Predictive text field, to .3. In the text portion of the message screen, begin typing a word. A list of word options is displayed. Tap one of the words to replace the word that has already been typed or scroll the line of words to the left for more word choices.4. Continue typing your message. Tap to send the message or press for more options. For more information, refer to “Creating and Sending Messages” on page 101.Note: You can also use Predictive Text mode in the portrait orientation.DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 47Entering Text Using HandwritingYou can enter text simply by using your finger to handwrite letters on your screen.1. Press and hold on the keyboard, then tap .2. From the keypad, tap .3. Use your finger tip to write out each character. You can print or use cursive.4. You can write out your entire message using the Handwriting feature or tap to switch back to Samsung keyboard mode.Samsung Keyboard SettingsFor information on how you can configure your Samsung keyboard settings, see “Samsung Keyboard settings” on page 140.Using the Google Voice Typing FeatureYou can use your voice to enter text using the Google Voice typing feature.1. Tap on the keyboard.2. At the Speak now prompt, speak clearly and distinctly into the microphone.3. If the red microphone turns gray, then the feature has timed out and you should tap the microphone icon to start again.The text is displayed in the message as you are speaking.4. Tap to return to the keyboard.DRAFT FOR INTERNAL USE ONLY
48Note: The feature works best when you break your message down into smaller segments.Entering Text Using SwypeSwype™ is a text input method that allows you to enter a word by sliding your finger or stylus from letter to letter, lifting your finger between words. Swype uses error correcting algorithms and a language model to predict the next word. Swype also includes a tapping predictive text system.The following example shows how to enter the word “This”. Put your finger down on the “T”, and without lifting, glide it to the “h”, then to the “i” then over to the “s”. Enabling and Configuring SwypeThe Samsung keyboard is the default text input method, so to use Swype, you must first change the default keyboard setting. To enable Swype:1. From a screen where you can enter text, touch and drag down from the Notifications area then tap Select input method.2. Tap the Swype radio button. It will turn green.The Swype keyboard is displayed.Swype SettingsFor information on how you can configure your Swype settings, see “Swype Keypad Settings” on page 141.Swype Text Entry TipsYou can access the SwypeTips application and watch a video or tutorial on using Swype. You can also use the following Swype text entry tips.• Create a squiggle (like an S shape) to create a double letter (such as pp in apple).• Touch and hold a key to view the punctuation menu then make a selection.DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 49• Move your finger or stylus over the apostrophe to enter contractions.• Double-tap on the word you want to change to correct a misspelled word, then tap the delete key to erase one character. Touch and hold the delete key to erase an entire word.DRAFT FOR INTERNAL USE ONLY

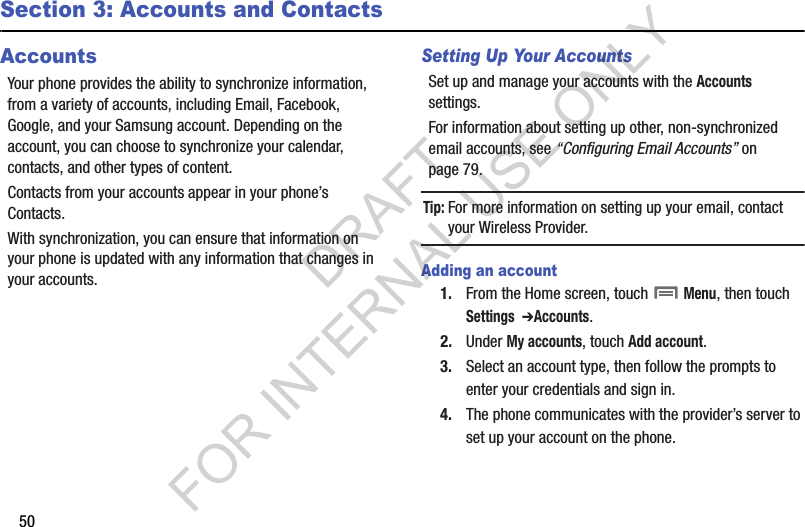

50Section 3: Accounts and ContactsAccountsYour phone provides the ability to synchronize information, from a variety of accounts, including Email, Facebook, Google, and your Samsung account. Depending on the account, you can choose to synchronize your calendar, contacts, and other types of content.Contacts from your accounts appear in your phone’s Contacts.With synchronization, you can ensure that information on your phone is updated with any information that changes in your accounts.Setting Up Your AccountsSet up and manage your accounts with the Accounts settings. For information about setting up other, non-synchronized email accounts, see “Configuring Email Accounts” on page 79. Tip:For more information on setting up your email, contact your Wireless Provider. Adding an account1. From the Home screen, touch Menu, then touch Settings ➔Accounts. 2. Under My accounts, touch Add account.3. Select an account type, then follow the prompts to enter your credentials and sign in. 4. The phone communicates with the provider’s server to set up your account on the phone. DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 51Controlling SynchronizationYou can choose to have your phone automatically synchronize with your accounts, or manually synchronize each account when you want to check messages.You may also choose to limit automatic or background synchronization to extend battery life.1. From the Home screen, touch Menu, then touch Settings ➔Accounts. 2. Under My accounts, touch the desired account type. The related account type screen appears. 3. Under Accounts, touch the desired account ID. The Sync settings screen for the selected account appears listing some or all of the following synchronization settings: •Sync Calendar •Sync Contacts •Sync Email •Sync Gmail • Sync Google Photos • Sync Google Play Books • Sync Google Play Magazines • Sync Google Play Movies & TV • Sync Google Play Music • Sync Internet • Sync Picasa Web Albums • Sync Tasks 4. Touch these settings to enable/disable synchronization of the associated file types. When enabled, a check mark appears in each setting check box. •With automatic synchronization enabled, your phone automatically synchronizes its related files with similar files on on-line file servers. • With automatic synchronization disabled, you can manually sync accounts by touching Sync all in the account type screen for each account. Tip:You can control automatic synchronization using the Sync toggle in the Quick Settings menu on the Notifications screen. (For more information, refer to “Quick Settings Menu” on page 34.) DRAFT FOR INTERNAL USE ONLY
52Google Account Privacy SettingsPersonalize the Privacy settings for Google accounts: 1. From the Home screen, touch Menu, then touch Settings ➔Accounts. 2. Under My accounts, touch Google. The Google account type screen appears. 3. Under Privacy, the following options are available: •Maps & Latitude: Tailor Location settings for Google accounts. •Search: Manage Google accounts location histories and search histories. • Location settings: Choose whether Google apps can access location information for Google accounts. •Google+: Manage Google+ information for Google accounts. •Ads: Choose whether to personalize Google and AdMob advertisements for Google accounts. Managing accounts1. From the Home screen, touch Menu, then touch Settings ➔Accounts. 2. Under My accounts, touch the desired account type. The related account type screen appears. 3. Under Accounts, touch the desired account ID. The Sync settings screen for the selected account appears. (For more information, refer to “Controlling Synchronization” on page 51.) 4. To enable or disable a synchronization setting, touch it. When enabled, a check mark appears in the check box. 5. To invoke the enabled synchronization settings for the selected account, touch Sync now. 6. To remove the selected account from your phone, touch Remove account. A Delete account? pop-up prompts you to confirm the removal. To remove the selected account, touch Remove account. DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 53ContactsTo access Contacts:䡲 From the Home screen, touch Contacts.Contact tips:•Swipe your finger left-to-right across a contact to make a call to the contact.•Swipe right-to-left across a contact to create a message addressed to the contact.Adding Contacts1. From the Home screen, touch Contacts ➔ Add contact. •If you have defined accounts (Google, Samsung, and so on), the Save contact to pop-up appears. Select Phone or the account to receive the new Contact entry. •If you have not defined any accounts, the Save contact pop-up appears. The following options are available: –OK: Saves your contacts in “my device contacts”. –Add new account: Lets you define an account to which your device will save your contacts. The Add new account screen appears. (For more information, refer to “Setting Up Your Accounts” on page 50.) 2. Touch contact fields to select or enter information: •Touch Add photo ID to choose a picture to identify the contact.•Touch Name to enter a name for the contact. Touch to enter Name prefix, First name, Middle name, Last name, or Name suffix.•Touch Phone number to enter a phone number, then touch the Label button to choose a label, from Mobile, Home, Work, Work Fax, Home Fax, Pager, Other, Custom, or Callback. To add another number, touch . •Touch Email address to enter an email address, then touch the Label button to choose a label, from Home, Work, Other, or Custom to create a new label. To add an address, touch . •Touch Address to enter a street or postal address, then touch the Label button to choose a label, from Home, Work, Other, or Custom to create a new label. To add an address, touch . •Touch next to Events to enter a special date, then touch the Label button to choose a label, from Birthday, Anniversary, Other, or Custom to create a new label.DRAFT FOR INTERNAL USE ONLY
54•Touch Groups to assign the contact to a group. For more information about Groups, see “Groups” on page 60. •Touch Ringtone to choose a ringtone for the contact. •Touch Message alert to select the alert tone to be played when you receive a message from this contact. •Touch Vibration pattern to choose a vibration pattern to play when you receive a call or message from this contact. •Touch Add another field to add more fields, including Phonetic Name, Organization, IM, Notes, Nickname, Website, or Relationship. 3. When you finish selecting and entering information, touch Save.Creating Contacts from Recent callsSave a phone number from a recent call to create a new contact, or update an existing contact. For more information, refer to “Creating or Updating Contacts Using Recent calls” on page 68. Creating Contacts from the Phone KeypadEnter a phone number with the Phone Keypad, then save it.1. From the Home screen, touch Phone.2. Touch the digits of the phone number on the Keypad.3. Touch Add to Contacts, then select Create contact from the pop-up menu.4. Continue entering contact information. (For more information, refer to “Adding Contacts” on page 53.) Tip:While entering a phone number, you can add waits or pauses. Enter the number up to the pause or wait, then touch Menu to select Add 2 sec pause or Add wait.DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 55Updating ContactsMake changes to update an existing contact.1. From the Home screen, touch Contacts.2. Touch a contact to view its information, then touch Edit.– or –Touch and hold a contact, then select Edit from the menu.3. Continue entering contact information. (For more information, refer to “Adding Contacts” on page 53.)Updating Contacts from the Phone KeypadEnter a phone number with the Phone Keypad, then save it.1. From the Home screen, touch Phone.2. Touch the digits of the phone number on the Keypad.3. Touch Add to Contacts, then select Update existing from the pop-up menu.4. Select a contact to update, then continue entering contact information. (For more information, refer to “Adding Contacts” on page 53.) Updating Contacts from Recent callsSave a phone number from a recent call to create a new contact, or update an existing contact.For more information, refer to “Creating or Updating Contacts Using Recent calls” on page 68. Choosing Contacts to Display1. From the Home screen, touch Contacts.2. Touch Menu, then touch Contacts to display:•Choose All contacts to show all contacts.•Touch Phone to show only show contacts saved to the phone.•Choose an account to only display contacts from that account.•Choose Customized list to select contact types for each account, or the phone. DRAFT FOR INTERNAL USE ONLY
56Contacts Settings1. From the Home screen, touch Contacts.2. Touch Menu, then touch Settings:•Select Only contacts with phones to show contacts with at least one stored phone number.•Touch List by to sort contacts by first or last name.•Touch Display contacts by to list contacts by first or last name.•Touch Contact sharing settings to set your preference for sending contacts namecards to other accounts or devices. (For more information about sending contacts, see “Sending Namecards” on page 59.) Other Contacts Options1. From the Home screen, touch Contacts.2. Touch a contact to display it, then touch Menu:•History: View calls and messages to and from this contact.•Edit: Modify contact information. (For more information, refer to “Updating Contacts” on page 55.) •Delete: Erase the contact record.•Join contact / Separate contact: Manage multiple contacts as one. (For more information, refer to “Joining Contacts” on page 57.) • Mark as default: Set a default phone number or other field (such as IM or email address). Defaults are the contact method used when creating a message or calling a contact. You can also set a default by touching and holding on a contact field.• Share namecard via: Send the namecard. (For more information, refer to “Sending Namecards” on page 59.)• Add to reject list: Mark the contact so that calls or messages from the contact are rejected automatically. To remove a contact from the reject list, touch and hold on the contact in the main contacts screen, then choose Delete from reject list.DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 57• Print contact info: Print the namecard via Bluetooth to a compatible Samsung Bluetooth-enabled printer. • Add shortcut to Home: Add shortcut to this contact to Home screen. My Local ProfileMy local profile is your own contact record, listed under ME in Contacts. You can send My local profile as a vCard via Bluetooth or as an attachment. Creating My Local Profile1. From the Home screen, touch Contacts.2. Under ME touch Set up profile.3. Enter your information in the contact fields. (For more information, refer to “Adding Contacts” on page 53.)Sending My Local ProfileYou can send your profile as a vCard via Bluetooth to other Bluetooth devices, or as an attachment.1. From the Home screen, touch Contacts.2. Touch your profile to display your contact information.3. Touch Menu, then touch Share namecard via. 4. Choose a sending method or app from the Complete action using pop-up, then follow the prompts to send the profile. Joining ContactsYour phone can synchronize with multiple accounts, including Google, Corporate, and other providers, plus social networking sites like Facebook. When you synchronize contacts from these accounts with your phone, you may have multiple contacts for one person. Joining contact records allows you to see all the contact’s numbers and addresses together. Joining also helps you keep your contacts updated, because any changes to information in the respective accounts is automatically updated the next time you synchronize with the account. Joining contacts1. From the Home screen, touch Contacts.2. Touch a contact to display its information.3. Touch Menu, then touch Join contact. A list of available contacts appears. 4. Select a contact to join to the displayed contact. The joined contact appears. DRAFT FOR INTERNAL USE ONLY
585. To join another contact, touch the Connection field. The Joined contact screen appears. Touch Join another contact. A list of available contacts appears. Select a contact to join to the displayed contact. The joined contact appears. Separating contacts1. From the Home screen, touch Contacts.2. Touch a contact to display its information.3. Touch the Connection field to display joined contacts.4. Touch to the right of a contact to remove it from the selected joined contact. Exporting and Importing ContactsYou can export your contact list to an installed memory card, or import a list of contacts (previously exported) from a memory card.1. From the Home screen, touch Contacts.2. Touch Menu, then touch Import/Export.3. Select an option, then follow the prompts to complete the operation:• Import from USB storage: Copy contacts that are saved in installed mass storage. • Export to USB storage: Copy contacts to installed mass storage. • Import from SD card: Copy contacts that are saved on an installed memory card. • Export to SD card: Copy contacts to an installed memory card.• Share namecard via: Share contacts as Namecards. (For more information, refer to “Sending Namecards” on page 59.) DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 59Sending NamecardsYou can send a contact entry as a namecard using a Bluetooth connection to another device, or as an attachment to a Gmail or Email message. Important!Not all Bluetooth devices will accept contacts, and not all devices support transfers of multiple contacts. Check the target device’s documentation.1. From the Home screen, touch Contacts.2. Touch Menu, then touch Import/Export ➔ Share namecard via.3. Touch contacts to mark them for sending, or touch Select all to mark all contacts. A check mark appears in the check box for marked contacts.4. Touch Done. 5. Choose a sending method or app from the Complete action using pop-up, then follow the prompts to send the profile. FavoritesMark contacts with a star to identify them as Favorites.Favorites display on the Favorites tab in the Phone and Contacts screens for fast dialing or messaging, and are indicated by the .Creating Favorites1. From the Home screen, touch Contacts.2. Touch and hold on a contact, then select Add to favorites from the pop-up menu. – or – Touch a contact to display it, then touch at the top right of the screen, it changes color to . DRAFT FOR INTERNAL USE ONLY
60GroupsAssign contacts to Groups to make searching for contacts faster, or to quickly call or send messages to group members. Your phone comes with pre-loaded groups you can use to add your contacts.Adding a New Group1. From the Home screen, touch Contacts ➔ Groups. 2. Touch Menu ➔ Create, then enter information:•Touch Group name to enter a Group Name.•Touch Group ringtone to choose a ringtone for calls from members of this group.•Touch Vibration pattern to choose a vibration to play for calls from members of this group.•Touch Add member to select members from Contacts.3. Touch Save to save the new group.Editing a Group1. From the Home screen, touch Contacts ➔ Groups.2. Touch a Group to display it.3. Touch Menu ➔ Edit, then update information for the group. For more information, see “Adding a New Group” on page 60.Deleting a GroupTip:You can only delete groups that you have created. 1. From the Home screen, touch Contacts ➔ Groups.2. Touch Menu ➔ Delete groups. 3. Touch a Group to mark it for deletion, or touch Select all to mark all groups. When selected, a check mark appears in the check box. You cannot delete pre-loaded groups.4. Touch Delete, then choose Group only or Group and group members.DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 61Adding Contacts to a Group1. From the Home screen, touch Contacts ➔ Groups.2. Touch a Group to display it, then touch . 3. Touch contact(s) to mark them for addition, or touch Select all to mark all contacts. When selected, a check mark appears in the check box.4. Touch Done to add the selected contact(s).Removing Contacts from a Group1. From the Home screen, touch Contacts ➔ Groups.2. Touch a Group to display it.3. Touch Menu ➔ Remove member. 4. Touch contact(s) to mark them for removal, or touch Select all to mark all contacts. When selected, a check mark appears in the check box.5. Touch Done to remove the selected contact(s).Sending a Message to Group MembersCreate a new text or email message, addressed to the group’s members.1. From the Home screen, touch Contacts ➔ Groups.2. Touch and hold a Group, then touch Send message or Send email. 3. Touch contacts to mark them as recipients for the new message, then touch Done.4. The new message opens, with the marked contacts as recipients. Continue creating the message, as desired. (For more information, refer to “Creating and Sending Messages” on page 74, or “Composing and Sending Email” on page 79.) DRAFT FOR INTERNAL USE ONLY
62Speed DialsSpeed dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you assign to contacts, to allow you to quickly call the contact.For more information about calling using speed dials, see “Making Calls using Speed Dials” on page 63.Note:Speed dial 1 is reserved for Voicemail, and cannot be assigned. Assigning Speed Dials1. From the Home screen, touch Contacts.2. Touch Menu, then touch Speed dial setting.3. A list of speed dials displays.Touch a speed dial, then touch a contact to assign the speed dial to the contact. Removing or Reassigning a Speed Dial1. From the Home screen, touch Contacts.2. Touch Menu, then touch Speed dial setting.3. Touch and hold an assigned Speed dial setting, the following options pop-up:• Replace: Touch a new speed dial location to assign it to the contact. •Delete: Un-assign the speed dial from the contact. DRAFT FOR INTERNAL USE ONLY
Calling 63Section 4: CallingMaking CallsYour phone offers multiple ways to make calls:•Use the touch screen Phone Keypad to enter the phone number or speed dial.•Call a contact from Contacts.•Call a contact from Favorites.•Return a call, or call a recent caller, from Recent. •Voice dial using Voice Dialer. Making Calls Using the Phone Keypad1. From the Home screen, touch Phone.2. Touch the digits of the telephone number on the Keypad.3. Touch to place the call.Making Calls using Speed DialsSpeed Dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you assign to contacts, to allow you to quickly call the contact.(For more information about setting speed dials, see “Speed Dials” on page 62.) 1. From the Home screen, touch Phone.2. Touch the digits of the speed dial number on the Keypad, holding the last digit until the number dials.DRAFT FOR INTERNAL USE ONLY
64Making Calls from ContactsA contact is an entry that you have created to store the name, numbers, and other information for people or groups of interest.(For more information, refer to “Contacts” on page 53.) 1. From the Home screen, touch Contacts.2. Find the contact and touch it to open the Contact entry.3. Swipe your finger from left to right across the contact to dial their default number.– or –Touch a contact, then touch to dial the number.Making Calls using S VoicePlace a call by speaking the name or number. 1. From the Home screen, touch Phone. then touch S Voice. 2. The first time you access S Voice, follow the prompts to confirm the license agreement, and view information about S Voice. 3. Follow the prompts to speak a command. You can say commands such as:• Call <Name >: Call an entry in your Contacts list.• Dial <Phone number>: Call a spoken phone number.•Redial: Repeat a recent call.DRAFT FOR INTERNAL USE ONLY

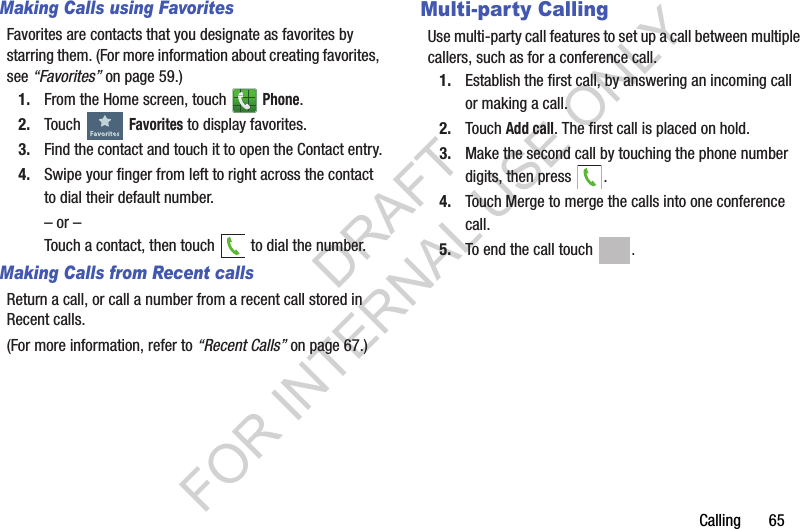

Calling 65Making Calls using FavoritesFavorites are contacts that you designate as favorites by starring them. (For more information about creating favorites, see “Favorites” on page 59.) 1. From the Home screen, touch Phone.2. Touch Favorites to display favorites.3. Find the contact and touch it to open the Contact entry.4. Swipe your finger from left to right across the contact to dial their default number.– or –Touch a contact, then touch to dial the number.Making Calls from Recent callsReturn a call, or call a number from a recent call stored in Recent calls. (For more information, refer to “Recent Calls” on page 67.) Multi-party CallingUse multi-party call features to set up a call between multiple callers, such as for a conference call.1. Establish the first call, by answering an incoming call or making a call.2. Touch Add call. The first call is placed on hold. 3. Make the second call by touching the phone number digits, then press .4. Touch Merge to merge the calls into one conference call.5. To end the call touch .DRAFT FOR INTERNAL USE ONLY
66Answering CallsYou can answer incoming calls when the phone is locked or unlocked.䡲 Touch and drag the Answer icon to the right. Tip:To silence the ringtone for an incoming call, press the Volume key Up or Down. Sending Calls to VoicemailWhen your phone alerts you to an incoming call, you can reject the call to send the caller to voice mail, or reject the call and send a message to the caller. Rejecting a call䡲 Touch and drag the Reject icon to the left.Rejecting a call with a message䡲 Touch and drag Reject call with message toward the middle of the screen, then select an existing message, or Create new message. Answering Call-Waiting CallsWhen you receive a call while on a call:•Touch and drag the Answer icon to the right to answer the incoming call. The original call is placed on hold, and remains on hold until you end the second call, or swap calls back to the original call.•Touch Swap to place a call on hold and return to the original call.Note:For more information about creating reject messages, see “Set reject messages” on page 70. DRAFT FOR INTERNAL USE ONLY
Calling 67Options During a CallWhile in a call, you can use these features:•Add call: Display the Dialer to set up a multi-party call. •Keypad: Display a keypad to enter numbers. •End call: End the phone call. •Speaker: Enable or disable speakerphone. •Mute: Mute or unmute your voice on the call. •Headset: Switch the call’s audio to a Bluetooth headset. •Touch Menu for options: –Contacts: Launch Contacts. –Message: Launch Messaging to view or create messages. –Memo: Launch S Memo to take notes in text, or create a drawing.–Noise reduction on/Noise reduction off: Enable or disable noise reduction, to improve call audio quality in noisy environments. –My call sound: Apply a sound equalizer to the call audio, in cases where you might need the sound softer or clear, or optimized for your right or left ear. Ending a Call䡲 Touch . Recent CallsWhen you place, answer, or miss a call, a record of the call is saved in Recent calls.Accessing Recent calls䡲 From the Home screen, touch Phone ➔ Recent to display recent calls. Making Calls using Recent calls1. From the Home screen, touch Phone.2. Touch Recent to display recent calls.3. Swipe your finger from left to right across the call to redial.– or –Touch a call, then touch to dial the number.DRAFT FOR INTERNAL USE ONLY

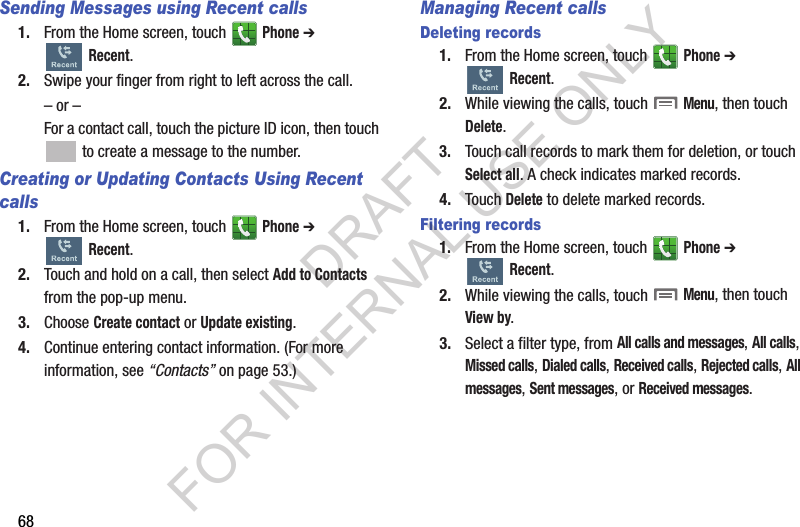

68Sending Messages using Recent calls1. From the Home screen, touch Phone ➔ Recent.2. Swipe your finger from right to left across the call.– or –For a contact call, touch the picture ID icon, then touch to create a message to the number.Creating or Updating Contacts Using Recent calls1. From the Home screen, touch Phone ➔ Recent.2. Touch and hold on a call, then select Add to Contacts from the pop-up menu.3. Choose Create contact or Update existing.4. Continue entering contact information. (For more information, see “Contacts” on page 53.) Managing Recent callsDeleting records1. From the Home screen, touch Phone ➔ Recent. 2. While viewing the calls, touch Menu, then touch Delete.3. Touch call records to mark them for deletion, or touch Select all. A check indicates marked records.4. Touch Delete to delete marked records.Filtering records1. From the Home screen, touch Phone ➔ Recent. 2. While viewing the calls, touch Menu, then touch View by.3. Select a filter type, from All calls and messages, All calls, Missed calls, Dialed calls, Received calls, Rejected calls, All messages, Sent messages, or Received messages.DRAFT FOR INTERNAL USE ONLY
Calling 69Viewing call durationsView the length of the Last call, all Dialed calls, all Received calls, or All calls.1. From the Home screen, touch Phone ➔ Recent. 2. While viewing calls, touch Menu, then touch Call duration.Call SettingsConfigure settings for calling with your phone. 䡲 To access Call settings, from the Home screen, touch Phone ➔ Menu ➔ Call Settings. Call rejectionCreate and manage a list of phone numbers, to have your phone automatically reject calls you receive from those numbers.䡲 From the Call Settings screen, touch Call rejection for these options: • Auto reject mode: Touch Auto reject mode to turn Auto reject On, or touch Auto reject mode to turn Auto reject Off. When On, calls from numbers on the Auto reject list will be rejected. • Auto reject list: Enter telephone numbers to be rejected when Auto reject mode is ON. Turn on Unavailable to reject calls with no caller ID. Touch Create, then follow the prompts to enter numbers to reject, or select them from Contacts. Touch Match criteria to set options for using the reject number list. DRAFT FOR INTERNAL USE ONLY
70Set reject messagesCreate and manage text messages to send to callers when you select Reject call with message in the Incoming call screen. 1. From the Call Settings screen, touch Set reject messages. 2. Manage messages: •To create new messages, touch Create, then follow the prompts. •To modify an existing message, touch the message, then edit the text. Ringtones and keypad tonesSelect incoming call ringtone and vibration, and enable or disable call vibration and keypad tones. 䡲 From the Call Settings screen, touch Ringtones and keypad tones. The following options are available: • Device ringtone: Select the ringtone your phone plays to alert you of incoming calls. • Device vibration: Select the vibration pattern your phone uses to alert you of incoming calls. • Incoming call vibration: Touch to enable/disable use of your selected Device vibration. When enabled, a check mark appears in the check box. •Keytones: Touch to enable/disable playing of DTMF tones when you enter numbers with the Phone keypad. When enabled, a check mark appears in the check box. DRAFT FOR INTERNAL USE ONLY
Calling 71Call alertsSet options for sounds and vibrations to occur during calls.䡲 From the Call Settings screen, touch Call alert. The following options are available: • Call vibrations: Enable Vibrate on connection to network to have your phone vibrate when it connects to the network. Enable on Call-end vibration to have the phone vibrate when the other caller ends the call. •Call status tones: Choose options for sounds to play during calls. Enable Call connect tone to have the phone play a tone when the other caller answers a call. Enable Minute minder to have a tone play once per minute during a call. Enable Call end tone to have the phone play a tone when the other caller ends the call. Touch OK to save the settings. • Alerts on call: Enable to have notifications for alarms and new messages play during phone calls. When disabled, these notifications will be muted during a call. Call answering/endingManage settings for answering and ending calls.1. From the Call Settings screen, touch Call answering/ending. The following options are available: • Answering key: When enabled, you can answer an incoming call by pressing Home. • The power key ends calls: When enabled, pressing Power/Lock ends a call. Auto screen off during callsWhen enabled, the screen automatically turns off during phone calls, and the proximity sensor on the front of the phone is used to turn the screen back on when the phone is moved or brought close to another surface, such as when you move the phone to your ear.䡲 From the Call Settings screen, touch Auto screen off during calls to enable or disable the option. DRAFT FOR INTERNAL USE ONLY
72Accessory setting for callConfigure headset options for calls.䡲 From the Call Settings screen, touch Accessory settings for call. The following options are available: • Headset settings for incoming calls: –Automatic answering: When enabled, and you have a headset connected to the Headset Jack, incoming calls are answered automatically after a delay, set at Automatic answering timer. –Automatic answering timer: Choose a time period to delay before automatically answering an incoming call when Automatic answering is enabled and a headset is connected to the phone. • BT (Bluetooth) headset settings for outgoing calls: –Outgoing call conditions: When the phone is paired with a Bluetooth headset, you can choose to make calls even when the phone is locked. Use extra volume for callsWhen enabled, the call screen displays a volume control, for adjusting call volume during calls.䡲 From the Call Settings screen, touch Use extra vol. for calls to enable or disable the option.Increase volume in pocketWhen enabled, the phone uses the proximity sensor to detect when the phone is in a pocket or other close-fitting location such as a purse or bag, and increases the volume for incoming call ringtones.䡲 From the Call Settings screen, touch Increase volume in pocket to enable or disable the option.Noise reductionWhen enabled, the phone uses both of its microphones to detect background noise from your environment and suppress it during calls.1. From the Call Settings screen, touch Additional settings. 2. Touch Noise reduction to enable or disable the option.DRAFT FOR INTERNAL USE ONLY
Calling 73VoicemailConfigure options for voicemail.䡲 From the Call Settings screen, under Voicemail, the following options are available: • Voicemail service: By default, your phone uses your wireless service provider’s voicemail service. If you have another option for voicemail installed, select it here.• Voicemail settings: By default, the speed dial for calling voicemail (speed dial 1) is set to your phone number. If you wish to use another Voicemail service, touch Voicemail number to set a new one. •Ringtone: Choose sound to play for a voicemail notification. •Vibrate: Choose an option for vibration to play for a voicemail notification.Other call settings䡲 From the Call Settings screen, under Other call settings, the following options are available: •Auto retry: When enabled, the phone will automatically redial a call if it receives a busy signal from the network.• TTY mode: Choose a TTY mode to enable TTY mode, for use with optional TTY equipment.•DTMF tones: Set the length of Dual-tone Multi-frequency tones, which play when you use the keypad during a call, such as when navigating phone menus.• Voice privacy: Enable or disable Enhanced voice privacy, to improve the security of phone calls. DRAFT FOR INTERNAL USE ONLY
74Section 5: MessagingThis section describes how to send and receive messages, and other features associated with messaging.Types of MessagesYour phone supports these types of messages:•Text messages: Send and receive simple messages containing text to other mobile phones or email addresses (also known as SMS).•Multimedia messages: Send and receive text messages with pictures, video, and/or sound to other mobile phones or email addresses (also known as MMS).•Mobile IMs: Exchange Instant Messages with other users of popular messaging sites.•Email: Send and receive email from your email accounts, including Corporate mail.•Gmail: Send and receive Gmail from your Google account.•Voicemail: Retrieve voice messages from callers.•Google Talk: Chat with other Google Talk users.Text and Multimedia MessagingYour phone can send and receive text and multimedia messages. Creating and Sending Messages1. From the Home screen, touch Messaging ➔ New message.2. Touch Enter recipient and enter a name, phone number or email address, or touch to add recipients from Contacts. As you enter text, matching contacts appear. Touch a contact to add it to the list. 3. Touch Enter message, then enter the message text. The following options are available (which options are available depends on whether you include an attachment):•Touch Attach to add media (images, pictures, videos, audio files) or content (Memo text, Calendar events, Locations, Contacts) to the message (converts the message to MMS).DRAFT FOR INTERNAL USE ONLY
Messaging 75•Touch Menu for options:–Insert smiley: Add a text emoticon to the message.–Add text: Select text from S Memo, Calendar, Location, Contacts or Text templates to add.–Preview: View the message and attachments before sending.–Add to Contacts: If the recipients are not saved in Contacts, save the info as a new contact, or update an existing contact.–Add slide / Delete slide: Add or remove a slide. Slides hold pictures or other media (adding a slide converts the message to MMS).–Add subject: Add a subject field (converts the message to MMS.)–Duration (5sec): Set the length of time the media on the slide displays.–Layout (bottom): Choose whether the message text appears above (Text on top) of the attachment(s), or after (Text on bottom).–Discard: Erase this message. 4. Touch to send the message. Managing MessagesMessages you send and receive to the same contact, number or address are grouped together as a “conversation”. Threads allow you to see all the messages you exchanged with a recipient in one place.1. From the Home screen, touch Messaging.2. Message threads display by contact, number, or address. While viewing message threads, you have these options:•Touch and hold a thread to choose options, including:–View Contact / Add to Contacts: View the contact record, or save the sender/recipient’s information.–Delete thread: Erase the entire message thread.–Register number as spam: Add this number to message reject list. Messages from this number are automatically placed in the Spam messages folder. •Touch Menu for options, including: –Search: Enter characters to search messages and recipients.–Delete threads: Touch message threads to mark them for erasure, or touch Select all to mark all message threads.DRAFT FOR INTERNAL USE ONLY
76–Draft messages: Messages you have composed and saved for later reuse and/or to be sent to a recipient. –Locked messages: Messages you have locked to protect them from accidental deletion. –Spam messages: Messages received from numbers you have registered as spam senders. –Settings: Configure Messaging settings.Message SettingsConfigure settings for message storage, delivery, or alerts.1. From the Home screen, touch Messaging.2. Touch Menu, then touch Settings for options:•Display: –Bubble style: Choose the appearance of messages in a message thread. Touch a bubble style for each side of the conversation, then touch Save.–Background style: Choose the appearance of the screen behind message threads. Touch a style, then touch Save.–Use the volume key: When enabled, you can change the size of message text while viewing by pressing the Volume Key.• General settings:–Delete old messages: When enabled, messages are automatically erased when storage reaches default limits. When disabled, the phone will prompt you to delete old messages to make room.–Text message limit: Set the number of SMS messages per conversation.–Multimedia message limit: Set the number of MMS messages per thread.DRAFT FOR INTERNAL USE ONLY
Messaging 77–Text templates: Text templates are phrases that you can add to your messages. Use a pre-loaded text template, or create your own.• Text message (SMS) settings:–Delivery reports: When enabled, you receive a delivery report for text messages you send. –Auto combination: When enabled, re-assembles multi-segment messages and shows them as a single message. • Multimedia message (MMS) settings:–Delivery reports: When enabled, you receive a delivery report for multimedia messages you send.–Auto-retrieve: When enabled, MMS messages download automatically. When disabled, the phone prompts for download.–Roaming auto-retrieve: When enabled, MMS messages download and display automatically when roaming. When disabled, the phone prompts you to download new MMS messages. –MMS alert: When enabled, alerts you when a message changes mode to MMS. • Notification settings: –Notifications: When enabled, message alerts display in the Status bar.–Select ringtone: Choose a sound for message alerts.–Vibrate: Configure vibration for message alerts. –Message alert repetition: Choose to have message alert repeat Once, Every 2 minutes, or Every 10 minutes. –Preview message: When enabled, a preview of a received message appears in the Status bar. • Emergency message settings: –Emergency alerts: This device is designed to receive Wireless Emergency Alerts from the Commercial Mobile Alert Service (CMAS), including Presidential Alerts, Imminent Alerts (Severe or Extreme), and AMBER Alerts (missing persons). You may choose not to receive Imminent and AMBER alerts, but Presidential Alerts cannot be disabled. All alerts are enabled by default (check mark shown). For more information about Emergency Alerts see “Emergency alerts” on page 78.–Emergency notification preview: Listen to an example of a Emergency Alert tone (and vibration, if enabled). The Emergency Alert tone plays at the same volume as your call ringtone.DRAFT FOR INTERNAL USE ONLY
78–Vibrate: Configure vibration for Emergency Alerts. –Alert sound: When enabled, a sound plays for emergency alerts. –Alert reminder: Choose whether, and at what interval, your phone plays a sound to notify you of a Emergency Alert after the Emergency Alert tone has stopped. • Signature settings: –Add signature: When enabled, adds your signature text to the end of your outgoing messages. –Signature text: Enter text to be added to the end of your outgoing messages. • Spam message settings: –Spam settings: When enabled, the Spam message settings are activated. –Register number as spam: Enter sender numbers whose messages are blocked automatically. –Register phrase as spam: Enter message text phrases that will cause messages to be blocked automatically. –Block unknown senders: When enabled, messages from “Unknown” senders are blocked automatically. Emergency alertsThis device is designed to receive Wireless Emergency Alerts from the Commercial Mobile Alert Service (CMAS). Emergency Alerts are geographically-targeted, and alert customers of imminent threats to their safety within their area. There is no charge for receiving an Emergency Alert.There are four types of Emergency Alerts:•Presidential •Extreme •Severe •AMBER Alerts (missing person alert) You may choose not to receive Extreme Alerts, Sever Alerts, and AMBER Alerts. Presidential Alerts, however, cannot be disabled. To disable Extreme and Severe Threat Alerts and AMBER Alerts, do the following: 1. From the Home screen, touch Messaging.2. Touch Menu ➔ Settings ➔ Emergency alerts.3. All alerts are enabled by default (check mark showing). To disable alerts, touch an alert to remove the check mark.DRAFT FOR INTERNAL USE ONLY
Messaging 79EmailSend and receive email using popular email services.Configuring Email AccountsYou can configure Email for most accounts in just a few steps.Configuring the first email account1. From the Home screen, select Apps ➔ Email.2. Select your email provider, then follow the prompts to set up your email account.Note:For more information on setting up your email, contact your Wireless Provider.Configuring additional email accounts1. From the Home screen, select Apps ➔ Email. 2. Touch Menu, then touch Settings.3. Select your email provider, then follow the prompts to set up your email account.Composing and Sending Email1. From the Home screen, select Apps ➔ Email ➔ Compose. 2. Touch fields to enter recipients and the email text.3. While composing a message, touch Menu for options.4. Touch Attach to add a file to the message.5. Touch Send to send the message.DRAFT FOR INTERNAL USE ONLY
80Managing EmailsRefreshing Your Email AccountRefresh your account to update your phone from the servers.1. From the Home screen, select Apps ➔ Email.2. Touch Refresh. Email Account SettingsUse Account settings to configure handling of your email.Note:Available settings depend on the email provider.1. From the Home screen, select Apps ➔ Email.2. Touch an account to view it, then touch Menu ➔ Settings ➔ General preferences for options. GmailSend and receive emails via Gmail, Google’s web-based email.䡲 From the Home screen, select Apps ➔ Gmail.Setting Up Your Gmail AccountThe first time you launch Gmail, your phone will prompt you to set up your Google account.1. From the Home screen, select Apps ➔ Gmail.2. Follow the prompts to sign in, or create a new account.3. The phone communicates with the Google server to set up your account and synchronize your email.Note:You can use more than one Google account on your phone. To add another account, from within Gmail, touch Menu ➔ Settings ➔ ADD ACCOUNT option. DRAFT FOR INTERNAL USE ONLY
Messaging 81Refreshing Your Gmail AccountRefresh your account to update messages on your phone.1. From the Home screen, touch Apps ➔ Gmail. 2. Touch Refresh.Managing Your Gmail AccountUse menu options to manage your Gmail.1. From the Home screen, touch Apps ➔ Gmail. 2. Touch Menu for options.Composing and Sending Gmail1. From the Home screen, touch Apps ➔ Gmail ➔ New message. 2. Touch fields and to compose the message. While composing, touch Menu for options. 3. When your message is complete, touch Send. Google TalkGoogle Talk is a free Windows and web-based application for instant messaging offered by Google. Conversation logs are automatically saved to a Chats area in your Gmail account. This allows you to search a chat log and store them in your Gmail accounts. 1. Log on to your Google account if you have not already done so. For more information, refer to “Your Google™ Account” on page 17. 2. From the Home screen, touch Apps ➔ Talk.3. Begin using Google Talk. 4. Press ➔ Help for more information on using Google Talk. Note: The Network confirms your login and processes. This could take up to 5 minutes to complete. DRAFT FOR INTERNAL USE ONLY
82MessengerMessenger allows you to bring groups of friends together into a simple group conversation. When you get a new conversation in Messenger, Google+ sends an update to your phone.1. Sign on to your Google account. For more information, refer to “Your Google™ Account” on page 172. From the Home screen, touch Apps ➔ Messenger.– or –From the Google+ application, select Messenger.3. Select the account you want to use to sign in to Google+.– or –Touch Create a new account to create another account.4. At the Messenger screen, touch to start a new message.5. In the upper text field, enter a name, email address, or circle.6. In the bottom message field, enter a message then touch .7. From the Messenger screen, touch Learn more for more detailed information.DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 83Section 6: Applications and WidgetsThis section contains a description of each application and widget that is available in the Apps and Widget menus, the function, and how to navigate through that particular application or widget. If the application or widget is already described in another section of this user manual, then a cross reference to that particular section is provided. This section contains a description of each application available in the Apps menu and how to launch it. For applications provided by Samsung, this section also describes functions and navigation. If an application is described in another section of this user manual, a cross reference to that particular section is provided. Note: This manual only addresses applications that have been loaded on your device as of the date of purchase. Information concerning third party applications that you may choose to download from the Google Play Store or other sources should be obtained from the application provider directly and not from Samsung. Tip:To open applications quickly, add the icons of frequently-used applications to one of the Home screens. (For details, see “Customizing the Home Screen” on page 38.) You can also add an application icon as a Primary Shortcut that will display on all Home screens. If you add an application as a primary shortcut, the application icon will not be displayed in the Apps menu. (For more information, refer to “Editing the Primary Shortcuts” on page 39.) Accessing Applications1. Press Home, then touch Apps, and the Apps tab. The Apps screen appears in the display. 2. Sweep your finger right or left to scroll the Apps screens. 3. To launch an application, touch the application’s icon. DRAFT FOR INTERNAL USE ONLY
84Customizing the Applications ScreensChoosing a viewBy default, application icons appear in Customizable grid view. You can change the view to Alphabetical grid view or Alphabetical list view. 1. From the Apps screen, touch Menu ➔ View type. The available options are: • Customizable grid: Arrange application icons in the order you prefer. • Alphabetical grid: Application icons automatically arranged in alphabetical order. • Alphabetical list: Application icons automatically listed in alphabetical order. Moving Application iconsWith the Apps screen in Customizable grid view, you can arrange the application icons to suit yourself. 1. From the Apps screen, touch Menu, then touch Edit. Note:The Edit option is not available with the Apps screen View type set to Alphabetical list. 2. Touch and hold an application icon, then drag it to a new location. 3. When you are finished, then touch Save. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 85Filtering Application iconsYou can select which icons appear in the Apps screen. 䡲 From the Apps screen, touch Menu, then touch either of the following options: • Downloaded applications: Shows only those applications you have downloaded and installed on your phone. • Hide applications: Mark those applications you do not want to appear on the Apps screen by touching their icons (check marks appear in their check boxes), then touch Done. The Apps screen appears without the hidden applications. Applications ListAllShare PlayAllShare Play™ wirelessly synchronizes your Samsung device with your TV, streams content, and even keeps tabs on who calls or sends text messages with real-time, on-screen monitoring. Samsung’s AllShare makes staying connected easy.Using AllShare Play you can share your in-device media content with other external DLNA certified™ (Digital Living Network Alliance) Devices. Tip:Wi-Fi capability can be provided to TVs via a digital multimedia streamer. AllShare Definitions: AllShareThis uses the traditional DLNA technology for sharing multimedia (photos, videos, or music) to your Samsung Smart TV and other DLNA devices.DRAFT FOR INTERNAL USE ONLY
86Important!Before launching AllShare Play, first connect both of your communicating devices to the same Wi-Fi and be using an active/registered Samsung account. For more information, refer to “Wi-Fi Settings” on page 143 and to “Creating a Samsung Account” on page 18. Important!The Samsung account manages your access information (username/password) to several applications, such as AllShare Play, ChatON, and Savanna Store.1. From the Apps screen, touch AllShare Play.The AllShare Play screen appears.2. Touch Sign in to sign into your Samsung account, if you have not already done so. (For more information, refer to “Creating a Samsung Account” on page 18.) 3. Touch Start and follow the on-screen prompts. AllShare PlayThis new feature builds on the previous AllShare feature. It includes features such as Web storage integration and social networking integration. This is a Web service that requires using a Samsung account.AllShare Play/Group CastA subset feature of AllShare Play, this allows you to mirror photos and multimedia presentations with other members of your current Wi-Fi group. Users must be on the same Wi-Fi and provide an access code to join the group.AllShare Cast (with Hub accessory)This feature functions with an external Wi-Fi AllShareCast Hub connected to a TV. It allows you to fully mirror what is currently displayed on your device to the external TV.DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 87The application contains two separate streaming media options: •Registered storage: allows you to receive and playback media stored externally (server, laptop, etc.) directly on your device by allowing you to add a Web storage service for streaming content. • Registered devices: allows you to stream/share selected multimedia content from your device to DLNA compliant device connected to the same Wireless Access Point.Configuring AllShare SettingsBefore using AllShare Play, you must configure it. That is, set-up parameters such as connected Wi-Fi, Items to share, source server address, and external device acceptance rights. 1. From the Apps screen, touch AllShare Play.2. Touch Menu ➔ Settings. The following options are available: •Registered storage: Lets you add a Web storage location. Without a storage service/location added, you will not be able to use AllShare Play. • My device: Lets you rename your device. •Save to: Lets you save your media to Internal memory (your phone) or an SD card. • Auto upload: Lets you set-up automatic upload of images from your device to those storage locations specified within the Web storage list. • Video optimization: Lets you optimize the video quality for streamed video content. •Password lock: Lets you restrict access to AllShare Play by requiring a user enter the currently active and associated Samsung account password. •My account: Lets you view information concerning your Samsung account. •Customer support: Lets you contact the AllShare team via a new email from an available email account. • About: Displays application information. DRAFT FOR INTERNAL USE ONLY
88Sharing Media Using AllShare Play to a Target DeviceImportant!Make sure all communicating devices are connected to the same Wi-Fi. 1. Launch AllShare on the target device (such as an Internet TV, Samsung Tablet, etc.).2. From the Apps screen, touch AllShare Play.3. From the Devices list, touch your device name. 4. Touch an available category tab (Pictures, Music, Movies, Files, or Info) and select a file. •Touch and hold to select multiple files.•A file with in the upper-left indicates it is stored remotely on a web storage location. Selecting this media causes your device to access the file currently stored on your services’ servers. 5. Touch an available on-screen file, image, or video to place a green check mark alongside it.6. Touch Stream to connected devices to begin streaming the selected files.7. On a target device (ex: Internet TV) select the on-screen Allow button to continue. Note:At this stage your device is requesting access to share media with the external source.8. Confirm AllShare Controller enabled appears in the Notification area at the top of the device to indicate you are using your device as the media source.AllShare Play Screen Sharing Using Group CastImportant!Verify all of your recipients are connected to the same Wi-Fi. 1. From the Apps screen, touch Gallery. 2. Touch a picture or video. 3. Touch ➔ Group Play. 4. If prompted, read the on-screen notification and touch OK to continue and return to the main AllShare Play screen. 5. Enter a security PIN and touch Done. This process makes sure only desired recipients can view your shared image. 2DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 896. Re-enter you PIN and touch Done. The device then waits for other connected recipients to accept the connection and enter the PIN on their screens.– or –Touch Start Group Play anyway to continue the process while your users connect.You can now interact and draw with the on-screen image, users will instantaneously see the same gestures and also be able to interact.Note:The newly altered image (with markups and comments) can not be saved, but you can take a screen shot of the current image and save it to your Clipboard. (For more information, refer to “Motions” on page 25.) CalculatorUse your phone’s Calculator to perform arithmetical calculations (addition, subtraction, multiplication, and division). 1. From the Apps screen, touch Calculator. 2. Enter the first number using the on-screen numeric keys. 3. Enter the operation for your calculation by touching the corresponding on-screen arithmetic function key. 4. Enter the second number. 5. To view the result, touch equals (=). 6. To view calculator history, touch located at the top of the calculator buttons. A history of your past calculations is displayed. Touch again to display the calculator keypad.7. To clear the calculator history, touch Menu ➔ Clear history.8. To change the text size, touch Menu ➔ Text size. Tap Small, Medium, or Large.9. Touch Menu ➔ One-handed operation on to set the display so that it is easier to use the calculator with one hand. Touch Menu ➔ One-handed operation off to turn it off. 10. To display the scientific calculator, rotate your phone to the landscape (horizontal) position. DRAFT FOR INTERNAL USE ONLY
90CalendarRecord events and appointments to manage your schedule.Tip:A Calendar widget is available in Widgets. (For more information about placing widgets on the Home screen, see “Widgets” on page 40.) 1. From the Apps screen, touch Calendar. 2. Touch a tab to choose a calendar view:•Year: Display the current year and scroll to other years.•Month: Display the current month and scroll to other months.• Week: Display the current week, and scroll to other weeks.•Day: Display today’s schedule, and scroll to other days.•List: Display events and tasks in a chronological list.•Task: Display tasks in a chronological list.3. Touch Menu for these options:•Go to: Display a specific date.•Delete: Delete an event.•Search: Search for calendar events. •Sync: Synchronize your phones calendar with your account calendars. (For more information, refer to “Setting Up Your Accounts” on page 50.) • Settings: Customize the calendar.Customizing the Calendar1. From the Apps screen, touch Calendar. 2. Touch Menu ➔ Settings to configure these settings: •View settings: –View styles: Choose Month view style (Calendar view + list, Calendar view +pop-up). –Week view: Choose Timeline or Analog view for a week’s events. –First day of week: Choose a day to begin each week.–Hide declined events: Enable or disable display of events.–Lock time zone: When enabled, sets event times and dates to a specified time zone, so that times and dates will not change if you move to another time zone.–Select time zone: When Lock time zone is enabled, specify the time zone for all events. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 91–Show week number: Display the number of the week (1 – 52) in a W column to the left of Sun. –Calendars: Select calendars to display.• Event notification: –Set alerts & notifications: Choose Alert to receive alerts, Status bar notification to display notifications in the Status bar, or Off for no notifications or alerts.–Select Ringtone: Choose a ringtone for event notifications, then touch OK.–Vibration: Enable/disable vibration for event notifications. –Default reminder time: Choose a default reminder time for Calendar events (default time is 15 minutes). –Notifications while screen is off: Enable/disable display of notifications on the full screen while the screen is blanked. –Quick responses: Pre-composed text to include with email notifications to meeting attendees, guests, and so on. •Gesture: –Swipe with two fingers: Show animation demonstrating how to change the Calendar view with a simple swipe with two fingers. Sending EventsSend events as vCalendar files to other compatible devices.1. From the Apps screen, touch Calendar. 2. Touch an event to display its details.3. Touch Menu ➔ Share via. 4. Select the desired Sharing method from the Share via pop-up. 5. Follow the prompts to send a copy of a Calendar event to another device. (For more information, refer to “Connections” on page 128.) DRAFT FOR INTERNAL USE ONLY
92CameraUse your 8.0 megapixel Camera feature to take photos and save them in JPEG format. Your phone also functions as a camcorder to record videos and save them in MPEG format. 䡲 From the Apps screen, touch Camera. Important!Do not take photos of people without their permission. Do not take photos in places where cameras are not allowed. Do not take photos in places where you may interfere with another person’s privacy. Taking PicturesNote: When taking a photo in direct sunlight or in bright conditions, shadows may appear on the photo. 1. From the Apps screen, touch Camera. 2. Using the display as a viewfinder, compose your picture by aiming the lens at the subject. •Touch the screen to focus on the area you touched. •“Pinch” the screen, or press the Volume key, to zoom in or out.•To configure settings, see “Camera Options” on page 93. 3. To take the picture, touch Take. 4. After taking a picture, touch Image Viewer to view the picture. While viewing the picture, use these options: •“Pinch” the screen, or touch the zoom icons, to zoom in or out, or double-touch to zoom all the way in or out. •Touch Camera to return to the Camera viewfinder screen. •Touch Share to send the picture using Group Cast, Picasa, S Memo, Bluetooth, Wi-Fi Direct, Messaging, Dropbox, Google+, Email, or Gmail. ViewfinderCameraImageViewerModeEffectsBatteryChargeChangeModeQuick SettingsFront(Gallery)VideoRecordTakePictureFacingCameraDisplays FrontFacing CameraDRAFT FOR INTERNAL USE ONLY
Applications and Widgets 93•Touch Slideshow to view all of your pictures as a slideshow. •Touch Delete to erase the picture (only visible with the screen in landscape mode). •Touch Menu to access added options: Face tag, Copy to clipboard, Rotate left, Rotate right, Crop, Set as (Contact photo, Home and lock screens, Home/Lock screen wallpaper), Buddy photo share, Print, Rename, Scan for nearby devices, or Details.Camera Options䡲 While in Camera mode, touch the Options tab:• Self portrait: Switch to the front camera lens, for self-portraits.• Flash: Choose Off, On, or Auto flash.• Shooting mode: Choose an automatic shooting mode, from:–Single shot: Take a single photo. –Best photo: Takes 8 photos in quick succession, then you select and save the best. –Best face: Takes 5 photos in quick succession and selects the best photograph based on open eyes, smiles, sudden movement, and so on. –Face detection: Touch the Camera button to focus on and take a picture of the subject’s face. –Panorama: Takes a landscape photo by taking an initial photo and then adding additional images to itself. The guide box lets you view the area where the second part of the panoramic picture should fall within. –Share shot: Uses Wi-Fi Direct to share your pictures quickly with your friends. –HDR: Takes pictures in HDR (High Dynamic Range) mode to increase image detail. –Buddy photo share: Uses face recognition from pictures in your contacts to send your friends or family pictures of themselves.–Beauty: Adjust the contrast to create a smooth facial feature effect. –Smile shot: Touch the Camera button to focus on the subject’s face. If a smile is detected, the picture is taken automatically. –Low light: Take better pictures when the light is low. DRAFT FOR INTERNAL USE ONLY
94• Color effects: Choose color theme for the picture: No effect (normal color), Cold vintage, Warm vintage, Posterize, Solarize, Green point, Blue point, or Red-yellow point, Washed out, Cartoonify, Black and white, Sepia, or Negative. • Settings: –Edit shortcuts: Select which function shortcuts appear in the function menu. –Burst shot: Detects action to automatically take multiple pictures to create a panorama. –GPS Tag: Add GPS location information to photo details.–Self-portrait: Set the front camera so you can take pictures of yourself.–Flash: Choose Off, On, or Auto flash. –Shooting mode: Choose Single shot, Burst shot, Face detection, Panorama, Share shot, HDR, Buddy photo share, Beauty, Smile shot, Low light, or Cartoon. –Effects: Apply a color effect to pictures.–Scene mode: Choose a mode to match conditions.–Exposure value: Adjust the picture brightness level by moving the slider. –Focus mode: Choose a type of automatic focus.–Timer: Set a delay before taking a picture. –Resolution: Choose a size (in pixels) for the image.–White balance: Choose a setting for the light source.–ISO: Choose a setting for imaging sensitivity.–Metering: Select a method for measuring light.–Auto contrast: Allow automatic light/dark adjustment.–Guidelines: Enable or disable an on-screen grid to aid in photo composition.–Auto share shot: Easily connect to the devices you want to share pictures with, then bring the devices back together (back-to-back) to connect them. –Anti-Shake: Enable Anti-Shake to minimize the effect of camera movement.–Contextual filename (requires GPS tagging): Lets you adjust the filename based on contextual information, such as your current GPS location. –Image quality: Choose a quality setting for photos.–Storage: Choose to store your pictures in Phone memory or on an optional Memory card. –Reset: Set all Camera settings to the defaults. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 95CamcorderUse your phone’s built-in Camcorder to record video.䡲 From the Apps screen, touch Camera ➔ Mode.Important!Do not take videos of people without their permission. Do not take videos in places where cameras are not allowed. Do not take videos in places where you may interfere with another person’s privacy. Capturing Video1. From the Apps screen, touch Camera ➔ Mode. 2. Using the display as a viewfinder, compose your shot by aiming the lens at the subject. •Touch the screen to focus on the area you touched.•“Pinch” the screen, or press the Volume key, to zoom in or out.•To configure settings, see “Camcorder Options” on page 96.3. To start recording, touch the Record button ( ). 4. To capture an image from the video while recording, touch . This feature is not available when the Anti-Shake feature is activated. 5. To stop recording, touch the Stop button ( ). 6. After recording, touch Image Viewer to view the video. While viewing the video, use these options: •Pinch the screen to zoom in or out, or double-touch to zoom all the way in or out. •Touch Play to review the video. •Touch Camera to return to the Camcorder viewfinder screen. •Touch Share to send the video. Mode RecordOptions menuImage ViewerbuttonbuttonDRAFT FOR INTERNAL USE ONLY
96•Touch Slideshow to review all your videos in sequence. •Touch Delete to erase the video. •Touch Menu to rename the video or view details about the video. •Touch Back to return to the Camcorder to record more videos.Camcorder OptionsConfigure the camcorder. 䡲 While in Camcorder mode, touch the Options tab:• Self recording: Record video with the front lens.• Flash: Choose Off or On.• Recording mode: Choose a recording mode, from:–Normal: Record a video of any length.–Limit for MMS: Record a video of a size suitable for sending in a Video message.• Color effects: Choose color theme for the picture: No effect (normal color), Cold vintage, Warm vintage, Posterize, Solarize, Green point, Blue point, Red-yellow point, Washed out, Cartoonify, Black and white, Sepia, or Negative. • Settings. –Edit shortcuts: Select which function shortcuts appear in the function menu. –GPS Tag: Add GPS location information to video details. –Self-recording: Set the front camera so you can take videos of yourself or video chat. –Flash: Choose Off or On. –Recording mode: Choose Normal or Limit for MMS recording mode. –Effects: Apply an effect to videos.–Exposure value: Adjust the picture brightness level by moving the slider. –Timer: Set a delay before starting recording. –Resolution: Choose a size (in pixels) for the recording.–White balance: Choose a setting for the light source.–Guidelines: Enable to display a grid to aid in video composition. –Anti-Shake: Enable Anti-Shake to minimize the effect of camcorder movement.–Contextual filename (requires GPS tagging): Lets you adjust the filename based on contextual information, such as your current GPS location. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 97–Video quality: Choose a quality setting for videos.–Storage: Choose to store your videos in Phone memory or on an optional Memory card. –Reset: Set all Camcorder settings to the defaults. City IDSubscribe to City ID to display city and state for incoming calls, and to look up city and state information for phone numbers. 䡲 From the Applications menu, touch City ID. ClockThe Clock application includes these features: •Alarm: Create alarms to go off once, or to repeat. •World clock: Display the time and date in any time zone. •Stopwatch: Record lap times. •Timer: Measure elapsed time. •Desk clock: Choose whether the clock calendar and weather appears on the display, and what outputs are active, when you connect your phone to an optional dock. 䡲 From the Apps screen, touch Clock.AlarmThis feature lets you set an alarm to ring at a specific time. 1. From the Clock screen, touch Alarm ➔ Create alarm. The following options display:•Time: tap (Up) or (Down) to set the new time for the alarm to sound. Tap AM or PM.•Alarm repeat: use this option to set the repeating status for the alarm by tapping one the days that you want the alarm to sound. Tap the Repeat weekly checkbox to have the alarm repeat weekly.• Alarm type: sets the way in which the alarm sounds when activated (Melody, Vibration, Vibration and melody, and Briefing).•More: displays the following additional options:–Alarm tone: sets the sound file which is played when the alarm is activated. Select an option or tap Add for additional options.–Alarm volume: drag the slider to adjust the alarm’s volume.DRAFT FOR INTERNAL USE ONLY
98–Location alarm: when activated, the alarm only sounds when you are at a specific location. Touch and slide the slider to the right to turn it on then follow the on-screen instructions to enter a location.–Snooze: use this option to set a Duration (3, 5, 10, 15, or 30 Minutes) and Snooze repeat (1, 2, 3, 5, or 10 Times). Tap the ON/OFF slider to activate.–Smart alarm: tracks body movements and calculates the best time for sounding the alarm. Place the phone somewhere on your bed then the phone's movement sensor (also known as accelerometer) is sensitive enough to work from any part of the bed. Set the Interval and the Tone. Tap the ON/OFF slider to activate.–Name: allows you to use a specific name for the alarm. The name will appear on the display when the alarm activates. 2. Tap Save to store the alarm details.Turning Off an Alarm䡲 To stop an alarm when it sounds, touch and sweep the icon to the right.Setting the Snooze Feature䡲 To activate the Snooze feature after an alarm sounds, touch and sweep the icon to the left. Snooze must first be set in the Alarm settings. (For more information, refer to “Alarm” on page 97.) Deleting AlarmsTo delete multiple alarms, follow these steps:1. From the Clock screen, touch Alarm ➔ Menu ➔ Delete.2. Touch the alarm or alarms you wish to delete. A green check mark will appear next to each selection. To delete all alarms, touch Select all.3. Touch Delete. To delete a single alarm: 1. From the Clock screen, touch Alarm. 2. Touch and hold on the alarm you want to delete. A pop-up menu appears. 3. Touch Delete. ZZZZDRAFT FOR INTERNAL USE ONLY
Applications and Widgets 99World ClockWorld Clock allows you to view the time of day or night in other parts of the world. World Clock displays time in hundreds of different cities, within all 24 time zones around the world. 1. From the Clock screen, touch World Clock. The clock for your time zone appears.2. Touch Add city to add another city to the World Clock.3. Scroll through the list of cities to find the city you want to add, or tap the Search bar and use the keypad to enter a city to search for.4. Touch the city you want to add. The clock for that city will display.5. To set Daylight Savings time, press and hold a city, then touch DST settings.6. Select Automatic, Off, or 1 hour.7. If Daylight Savings Time is selected, a sun symbol on the World Clock listing will appear. Deleting a World Clock Entry1. From the Clock screen, touch World Clock ➔ Menu ➔ Delete.2. Touch and hold the city clocks you wish to delete.3. Touch Delete. StopwatchYou can use this option to measure intervals of time. 1. From the Clock screen, touch Stopwatch.2. Touch Start to start the stopwatch and touch Lap to mark a unit of time per lap. 3. Touch Stop to stop the stopwatch.4. Touch Restart to continue or touch Reset to erase all times recorded.DRAFT FOR INTERNAL USE ONLY
100TimerYou can use this option to set a countdown timer. Use a timer to count down to an event based on a preset time length (hours, minutes, and seconds).1. From the Clock screen, touch Timer.2. The Minutes field is highlighted and set to 1 minute. Use the keypad to set the number of minutes you want.3. Touch the Hours field to set hours if desired. As you touch different fields, they will become highlighted.4. Touch the Seconds field to set seconds.5. Tap Start to begin the timer, and touch Stop to pause the timer. 6. After stopping, touch Restart to continue, or touch Reset to reset the timer back to the original setting. Desk clockYou can use the Desk clock when you have a desk dock and you want your phone to display the time, day, date, location, and weather conditions when it is docked. 1. From the Clock screen, touch Desk clock.The default Desk clock is displayed.2. Tap to display the Desk clock in full-screen mode.3. To make changes, touch ➔ Settings.4. The following options are displayed while in full-screen mode:• Hide status bar: when this is checked, the status bar is hidden from view.•Wallpaper: tap to select Desk clock wallpaper from Default, Gallery, or Same as home screen.•Calendar: when this is checked, the calendar is displayed. Tap to uncheck.• Weather: when this is activated, the location, temperature, and weather condition is displayed. Touch and slide the slider to the right to turn it on .•Dock: allows you to set your Dock settings such as Dock sound, Audio output mode, Desk home screen display, Automatic unlock, and Audio output.ContactsContacts lets you access and manage your Contacts list, Contacts Groups, Favorites list, and Speed dial settings. (see “Contacts” on page 53.) 䡲 From the Apps screen, touch Contacts. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 101DownloadsView and manage files and other items you download to your phone. 1. From the Apps screen, touch Downloads. 2. Touch an item to open it (if an appropriate application is installed.) Note:Applications you download from Google Play™ Store are managed with the Play Store app, and do not appear in Downloads. DropboxDropbox is a “cloud” file storage service. The Dropbox app lets you create an account with Dropbox or link with your existing Dropbox account. (For more information, refer to https://www.dropbox.com/.) 䡲 From the Apps screen, touch Dropbox.EmailSend and receive email using popular email services. For more information, see “Email” on page 79.䡲 From the Apps screen, touch Email. FlipboardThe Flipboard application creates a personalized digital magazine out of information being shared with you. Access news stories, personal feeds and other related material. Flip through your Facebook news feed, tweets from your Twitter account, photos from friends, and much more. 䡲 From the Apps screen, touch Flipboard. DRAFT FOR INTERNAL USE ONLY
102GalleryThe Gallery is where you view photos and videos. For photos, you can also perform basic editing tasks, view a slideshow, set photos as wallpaper or contact image, and share as a picture message. Note:You can increase Gallery photo and video storage by installing a memory card. (For more information, refer to “Installing a Memory Card” on page 9.) 1. From the Apps screen, touch Gallery. All of the Albums that hold your pictures and videos will be displayed with folder name(s) and number of files. 2. Touch an Album and thumbnails of the contents will be displayed. Tip:If your device indicates that memory is full when you access Gallery, use the My files app to delete some of the files, and try again. (For more information, refer to “My Files” on page 117.) Viewing Pictures1. From the Gallery screen, select an album, then touch a picture to view it.2. While viewing a picture, touch on the screen or touch Menu for options. •Touch Camera to return to the Camera viewfinder screen. •Touch Share to send the picture using Group Play, Dropbox, Flipboard, Picasa, Google+, S Memo, Bluetooth, Wi-Fi Direct, Messaging, Gmail, or Email. •Touch Slideshow to view all of your pictures as a slideshow. •Touch Menu for the following additional options: –Delete: Erase the picture. –Face tag: When enabled, identifies faces with a yellow box, so you can touch to add tag information.–Copy to clipboard: Create a copy, to paste into other apps.–Rotate left / Rotate right: Change the picture’s orientation.–Crop: Change the picture’s size and/or remove portions of the picture. –Set as: Assign the picture as a Contact photo, or as wallpaper.DRAFT FOR INTERNAL USE ONLY

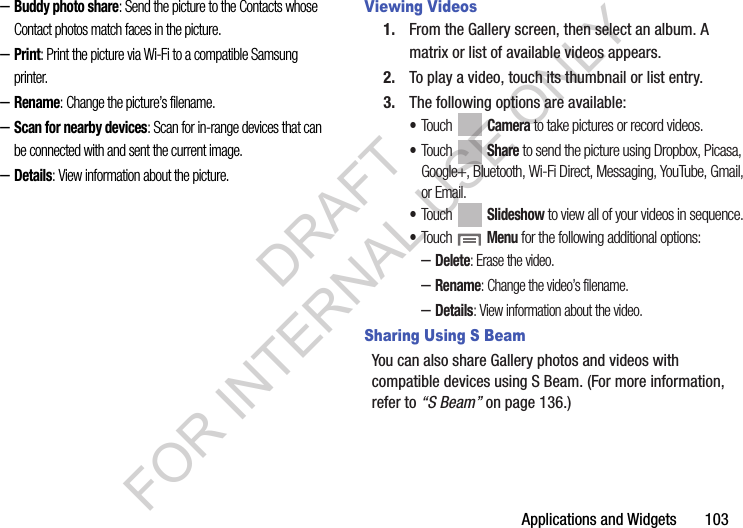

Applications and Widgets 103–Buddy photo share: Send the picture to the Contacts whose Contact photos match faces in the picture. –Print: Print the picture via Wi-Fi to a compatible Samsung printer.–Rename: Change the picture’s filename.–Scan for nearby devices: Scan for in-range devices that can be connected with and sent the current image.–Details: View information about the picture.Viewing Videos1. From the Gallery screen, then select an album. A matrix or list of available videos appears. 2. To play a video, touch its thumbnail or list entry. 3. The following options are available: •Touch Camera to take pictures or record videos. •Touch Share to send the picture using Dropbox, Picasa, Google+, Bluetooth, Wi-Fi Direct, Messaging, YouTube, Gmail, or Email. •Touch Slideshow to view all of your videos in sequence. •Touch Menu for the following additional options: –Delete: Erase the video. –Rename: Change the video’s filename.–Details: View information about the video. Sharing Using S BeamYou can also share Gallery photos and videos with compatible devices using S Beam. (For more information, refer to “S Beam” on page 136.) DRAFT FOR INTERNAL USE ONLY
104GmailSend and receive emails via Gmail, Google’s web-based email.For more information, see “Gmail” on page 80.䡲 From the Apps screen, touch Gmail. GoogleUse Google to search the Web.Tip:The Google Search Widget is available by default on the Home screen. For more information Widgets, see “Adding Widgets to the Home screen” on page 40.1. From the Apps screen, touch Google. 2. Enter search criteria. Search results display automatically. Touch a search result to display it in a browser window. Google SettingsGoogle Settings lets you quickly and easily change shared settings to tailor a number of Google apps at the same time to suit your needs. 䡲 From the Apps screen, touch Google Settings. Group PlayUsing Group Play, you can share documents or photos you are viewing, or music you are listening to, with other devices connected to the same Wi-Fi network with your device. 1. From the Applications screen, touch Group Play. The Welcome to Group Play! screen appears. 2. For instructions on using Group Play, touch Next. HelpUse Help to read or view brief instructions or videos on how to use the features and settings available with your tablet. 1. From the Applications screen, touch Help. The Help screen appears. 2. Select a topic from the menu on the left side of the screen. 3. Read or view the selected topic information in the right side of the screen. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 105InternetYour phone is equipped with a full HTML Browser, which allows you to access the internet. 䡲 From the Home screen, select Internet. Your Wireless Provider’s mobile home page appears in the Internet screen. Navigating the webSelecting items on a pageWhile browsing web pages, use gestures and menus to navigate: •Touch an item to select it. •Touch a hyperlink to follow the link. •Touch and hold on a hyperlink for options. Command Keys•Touch Back to return to the previous page. •To go to the next page, touch Forward. Touching and dragging•Touch and drag your finger on the screen to navigate pages, and to reposition pages within the screen. Entering text in a field•While browsing, touch a text field to display the virtual QWERTY keyboard to enter text.ZoomNote:Some web pages do not support the Zoom function. •Using two fingers, make a pinch motion on the screen. –Pinch in to zoom in on a web page. –Pinch out to zoom out on a web page. •To return a web page to original size, double tap on it. Entering a URLAccess a web site quickly by entering the URL.1. Touch the URL field at the top of the Internet screen, then enter the URL using the virtual QWERTY keyboard. If the URL field is not visible, touch and swipe downward until the URL field appears. 2. As you enter characters, potential matches display. Continue entering characters, or touch a match to complete the URL, then touch Go to load the page. DRAFT FOR INTERNAL USE ONLY
106Copying textCopy information from a web page.1. From the Internet screen, browse to the desired web site. 2. Touch and hold on the text to enable the text selector, then use the on-screen tools.Browser Options䡲 From the Internet screen, touch Menu for options:•New window: Displays a new window so you can browse multiple URLs. (For more information, refer to “Using Browser Windows” on page 107.) •Add bookmark: Lets you add a URL to your bookmark list• Add shortcut to home screen: Lets you add a shortcut to your Home screen. • Share page: Lets you share the page using Gmail or as a message.• Find on page: allows you to search in the current page.• Desktop view: allows you to assign the browser to display the current page in the desktop view (to closely mimic the display as it would appear on a desktop computer).• Save for offline reading: allows you to store the current page in memory so that it can be read later even if you loose your Internet connection.•Brightness: Lets you manually adjust screen brightness or select Automatic screen brightness. •Downloads: Displays the download history.•Print: Lets you print the screen or web page on a Samsung printer using Wi-Fi.• Settings: Lets you tailor the Internet browser to suit yourself. (For more information, refer to “Internet browser Settings” on page 108.) DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 107Using Browser WindowsYou can have multiple windows open at one time, and you can switch between windows.•To open a new window, on the Internet screen, touch Windows ➔ New window. •To switch to another open window, touch Windows. Touch and swipe to the desired window thumbnail, then touch it to display the window.•To close a window, touch Windows. Touch Close beside a window to close it. Going IncognitoThe Incognito feature lets you view Internet sites without leaving records in your browser history or search history, and without traces (such as cookies) being stored on your device. Note: Any downloaded files will be preserved and will stay on your device after you exit the incognito mode. To add an Incognito window:1. From your browser window, touch Windows ➔ Incognito. 2. A new Incognito window appears. Note: The incognito icon appears in the upper-left of the new browser window while you are in this mode. 3. Browse to the desired web site(s). To exit from the incognito window:1. From your browser window, touch (Windows). 2. Scroll across the available windows and locate the Incognito window. 3. Touch next to the incognito window to delete it.DRAFT FOR INTERNAL USE ONLY
108Using BookmarksWhile browsing, bookmark a site to quickly access it later.Creating a bookmark1. From the Internet screen, browse to the desired web site, then touch Bookmarks ➔ Add bookmark. The Add bookmark screen appears. 2. Edit the Name and Address of the new bookmark as needed, then select the Location where you want it added. 3. Touch Save to save the new bookmark. Accessing bookmarks and historyLaunch a bookmarked page, or reload recent pages.1. From the Internet screen, touch Bookmarks.2. On the tabs, use these options: •Touch an item to load the page.•Touch and hold on an item for options.•Touch Menu for more options.Deleting Bookmarks1. From the Bookmarks page, touch and hold the bookmark you want to delete.2. Touch Delete bookmark.3. In the Delete confirmation pop-up, touch OK.Internet browser SettingsTo make adjustments in your browser settings, follow these steps:1. From the Internet browser screen, touch Menu ➔ Settings. The following options are available:• General: –Set home page: Sets the current home page for the Web browser.–Form auto-fill: Lets you fill in web forms with a single touch.–Auto-fill text: Lets you enter text to be used in the Form auto-fill feature. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 109• Privacy and security: –Clear cache: Deletes all currently cached data. Touch OK to complete the process.–Clear history: Clears the browser navigation history. Touch OK to complete the process.–Show security warnings: Notifies you if there is a security issue with the current web site.–Accept cookies: Allows sites, that require cookies, to save and read cookies from your device.–Clear all cookie data: Deletes all current browser cookie files.–Remember form data: Allows the device to store data from any previously filled out forms. Remove the check mark to disable this function.–Clear form data: Deletes any stored data from previously filled out forms. Touch OK to complete the process.–Enable location: Allows web sites to request access to your location.–Clear location access: Clears location access for all web sites. Touch OK to complete the process.–Remember passwords: Stores user names and passwords for visited sites. Remove the check mark to disable this function.–Clear passwords: Deletes any previously stored user names or passwords. Touch OK to complete the process.–Enable notifications: Allows web site notifications. Select Always on, On demand, or Off.–Clear notifications: Deletes web site notification access information.• Accessibility: –Force zoom: Lets you override the web site’s request to control zoom.–Text size: Lets you preview the text size, scale the text size using a slider bar, and minimize the font size using a slider bar.–Inverted rendering: Lets you preview a web page, select Inverted rendering (black becomes white and vice versa), and adjust the Contrast using a slider bar.• Advanced: –Select search engine: Lets you set your default search engine to Google, Yahoo!, or Bing.–Open in background: New pages are launched in a separate page and displayed behind the current one. Remove the check mark to disable this function.DRAFT FOR INTERNAL USE ONLY
110–Enable JavaScript: Enables Javascript for the current Web page. Without this feature, some pages may not display properly. Remove the check mark to disable this function. –Allow multiple tabs per app: Lets you use multiple navigation tabs per application. –Enable plug-ins: Allows the download of plug-ins such as Adobe Flash.–Default storage: Lets you set your default storage to Phone or Memory Card.–Website settings: View advanced settings for individual web sites.–Default zoom: Adjusts the zoom feature. Set to Far, Medium, or Close.–Open pages in overview: Shows an overview of newly opened web pages.–Auto-fit pages: Allows web pages to be resized to fit as much of the screen as possible.–Block pop-ups: Prevents popup advertisement or windows from appearing on-screen. Remove the check mark to disable this function.–Text encoding: Adjusts the current text encoding.–Reset to default: Clears all browser data and resets all settings to default.• Bandwidth management: –Preload search results: Lets the browser preload high confidence search results in the background to help speed up searches.–Page preloading: Lets the browser preload web pages in background. (Options: Never, Only on Wi-Fi, or Always.) –Load images: Allows web page images to be loaded along with the other text components of a loaded website.•Labs: –Quick controls: Lets you open quick controls and hide the app and URL bars by swiping your thumb from the left or right edge of the screen.–Full screen: Lets you access Full screen mode and hide the status bar.DRAFT FOR INTERNAL USE ONLY

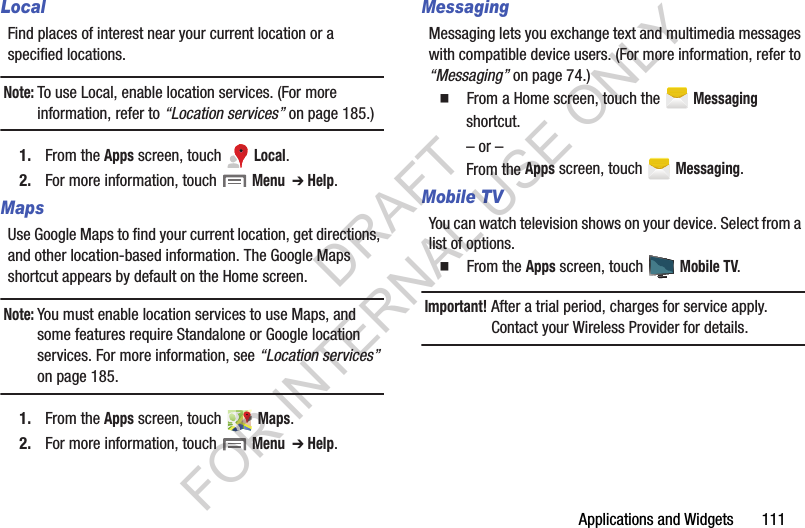

Applications and Widgets 111LocalFind places of interest near your current location or a specified locations. Note:To use Local, enable location services. (For more information, refer to “Location services” on page 185.)1. From the Apps screen, touch Local. 2. For more information, touch Menu ➔ Help. MapsUse Google Maps to find your current location, get directions, and other location-based information. The Google Maps shortcut appears by default on the Home screen. Note:You must enable location services to use Maps, and some features require Standalone or Google location services. For more information, see “Location services” on page 185.1. From the Apps screen, touch Maps.2. For more information, touch Menu ➔ Help. MessagingMessaging lets you exchange text and multimedia messages with compatible device users. (For more information, refer to “Messaging” on page 74.) 䡲 From a Home screen, touch the Messaging shortcut. – or –From the Apps screen, touch Messaging. Mobile TVYou can watch television shows on your device. Select from a list of options. 䡲 From the Apps screen, touch Mobile TV. Important!After a trial period, charges for service apply. Contact your Wireless Provider for details. DRAFT FOR INTERNAL USE ONLY
112Music HubSamsung Music Hub is a subscription based music app that gives you unlimited access to over 3 million songs from most major record labels. You can browse and play the latest releases, genres, artists, and popular music charts and stream high quality music over a Wi-Fi and 3G connection.Note:Music Hub service requires a Samsung account, and depends on service availability. 1. From the Apps screen, touch Music Hub.2. To rent or buy media, you must have a Samsung account. Touch Continue to log in or create a Samsung account. 3. Browse content, then follow the prompts to buy or rent. Music PlayerThe Music Player is an application that can play music files. The music player supports files with extensions AAC, AAC+, eAAC+, MP3, and WMA. Launching the Music Player allows you to navigate through your music library, play songs, and create playlists (music files bigger than 300 KB are displayed). Playing Music1. From the Apps screen, touch Music Player. VolumeShuffleRepeatPlaybackControlsMusic squareDRAFT FOR INTERNAL USE ONLY
Applications and Widgets 1132. Touch a library category tab at the top of the screen (All, Playlists, Albums, Artists, Music square, or Folders) to view the available music files. 3. Scroll through the list of songs and touch an entry to begin playback. The following Music Player controls are available:Tip:When you’re playing music in the background, playback controls are available on Notifications. For more information, see “Notifications” on page 34. Music squareMusic square analyzes your music files (a minimum of 25 files) and assigns them to playlists linked to buttons in a 5x5 matrix according to the following criteria: •Moods (Exciting, Passionate, Joyful, Calm) •Years (Exciting, Old, New, and Calm) Pause the song. Start the song after being paused. Press and hold to rewind the song. Touch to go to previous song. Press and hold to fast-forward the song. Touch to go to next song. Volume control. Repeat one: Repeats the song currently playing. Repeat all: Replays the current list when the list ends. Play All: Plays the current song list once. Shuffle On: The current list of songs is randomly shuffled for playback. Shuffle Off: Songs are not shuffled but play in listed order. Music square: Play songs linked to buttons in a 5x5 matrix and categorized according to four criteria. Music list: Returns you to the current playlist. Now Playing: Displays the Music player screen with the current song information. DRAFT FOR INTERNAL USE ONLY
1141. From the Apps screen, touch Music Player.2. Touch the Music square tab.– or –Touch Music square. 3. Touch ➔ Library update. 4. Select a playlist based on mood or age of the song. Music Player OptionsTo access additional options, follow these steps:䡲 While in the Music Player now playing screen, touch Menu. The follow options are available: • Add to quick list: Adds the current music file to the Quick list.• Via Bluetooth: Scans for devices and pairs with a Bluetooth headset.•Share via: Share your music with other devices using Bluetooth, Dropbox, Email, Gmail, Group Play, Messaging, or Wi-Fi Direct. • Add to playlist: Add the current music file to a selected playlist.•Details: View media information such as Artist, Title, Biography, and so on. •Set as: Set a music file as the Phone ringtone, as a Caller ringtone, or as the Alarm tone. • Scan for nearby devices: Search for nearby Wi-Fi devices for sharing your music (available when Wi-Fi is turned On). (For more information, refer to “Turning Wi-Fi On” on page 128.) • Settings: Change your Music Player settings. For more information, refer to “Music Player Settings” on page 115. •End: Close the Music Player app. PlaybackControlsPlaylistSelectionButtonsDRAFT FOR INTERNAL USE ONLY
Applications and Widgets 115Music Square OptionsTo access additional options, follow these steps:䡲 From the Music Player Music square screen, touch Menu. The follow options are available: •Help: Adds the current music file to the Quick list. • Library update: Analyzes your music files and assigns them to playlists linked to playlist selection buttons. • Change horizontal axis: Select Mood or Years. • Scan for nearby devices: Search for nearby Wi-Fi devices for sharing your music (available when Wi-Fi is turned On). (For more information, refer to “Turning Wi-Fi On” on page 128.)•Settings: Change your Music Player settings. For more information, refer to “Music Player Settings” on page 115. •End: Close the Music Player app. Music Player SettingsThe Music Player Settings menu allows you to set preferences for the music player such as whether you want the music to play in the background, sound effects, and how the music menu displays.䡲 While in the Music Player, touch Menu ➔ Settings. The follow settings are available: •SoundAlive: Set a type of equalization such as Normal, Pop, Rock, Jazz, Dance, Classic, etc.• Play speed: Set the play speed anywhere between 0.5X and 2.0X using the slider.• Music menu: Select which categories you want to display in the Music menu. Choices are: Albums, Artists, Genres, Music square, Folders, Composers, Years, Most played, Recently played, or Recently added. •Lyrics: When activated, the lyrics of the song are displayed if available.• Music auto off: When activated, music will automatically turn off after a set interval.DRAFT FOR INTERNAL USE ONLY

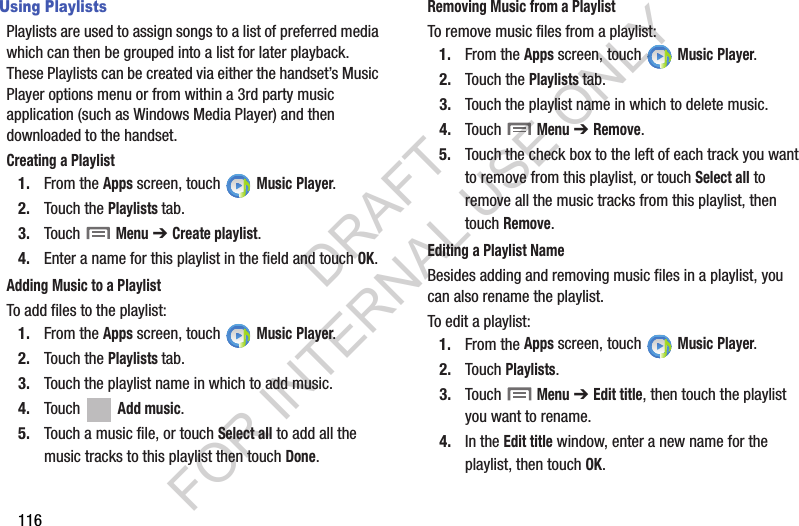

116Using PlaylistsPlaylists are used to assign songs to a list of preferred media which can then be grouped into a list for later playback. These Playlists can be created via either the handset’s Music Player options menu or from within a 3rd party music application (such as Windows Media Player) and then downloaded to the handset.Creating a Playlist1. From the Apps screen, touch Music Player.2. Touch the Playlists tab.3. Touch Menu ➔ Create playlist.4. Enter a name for this playlist in the field and touch OK.Adding Music to a PlaylistTo add files to the playlist:1. From the Apps screen, touch Music Player.2. Touch the Playlists tab.3. Touch the playlist name in which to add music.4. Touch Add music.5. Touch a music file, or touch Select all to add all the music tracks to this playlist then touch Done.Removing Music from a PlaylistTo remove music files from a playlist:1. From the Apps screen, touch Music Player.2. Touch the Playlists tab.3. Touch the playlist name in which to delete music.4. Touch Menu ➔ Remove.5. Touch the check box to the left of each track you want to remove from this playlist, or touch Select all to remove all the music tracks from this playlist, then touch Remove.Editing a Playlist NameBesides adding and removing music files in a playlist, you can also rename the playlist.To edit a playlist:1. From the Apps screen, touch Music Player.2. Touch Playlists. 3. Touch Menu ➔ Edit title, then touch the playlist you want to rename. 4. In the Edit title window, enter a new name for the playlist, then touch OK.DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 117For information on downloading music for your phone, see “Connecting as a Storage Device” on page 132.Setting a Song as a RingtoneYou can set a song as a ringtone for all voice calls, for calls from an individual contact, or as an alarm tone.1. From the Apps screen, touch Music Player.2. Touch and hold on a song, then touch Set as and choose from these options:• Phone ringtone: Set the song as the default ringtone for all incoming voice calls.• Caller ringtone: Choose a contact to set the song as the ringtone for calls from the contact.•Alarm tone: Set the song as the alarm ringtone for a new alarm, or for an existing alarm. My FilesFind, view and manage files stored on an installed memory card. If the file is associated with an application on your phone, you can launch the file in the application.1. From the Apps screen, touch My Files.2. Touch a folder and scroll down or up until you locate a file.3. Touch a file to launch it in the associated application (if the file is associated with an application).4. While browsing files, use these controls:•Touch Home to go back to the root directory.•Touch Up to go back up to a higher directory.•Touch Menu for options. DRAFT FOR INTERNAL USE ONLY
118NavigationUse Google Navigation to search for locations, and get turn-by-turn directions.Note:You must enable location services to use Navigation, and some features require Standalone or Google location services. For more information, see “Location services” on page 185.䡲 From the Apps screen, touch Navigation.PhoneThe Phone application allows you to access the dialer keypad, call logs, and favorites. For more information, refer to “Calling” on page 63. 䡲 From a Home screen, touch the Phone shortcut. – or –From the Apps screen, touch Phone. Play BooksGoogle Books is now Google Play™ Books. Discovering your favorite books and authors has never been easier. With Google Play Books, you can shop the world's largest selection of ebooks and read them anywhere you like - on a tablet, phone, ereader, or the Web.䡲 From the Apps screen, touch Play Books. Play MagazinesWith Google Play Magazines, you can subscribe to your favorite magazines and have them available to read on your phone at any time or any place. 䡲 From the Apps screen, touch Play Magazines. Play Movies & TVWith Google Play Movies, you can rent thousands of different movies. You can watch instantly, or download your movie for offline viewing at a later time. 1. From the Apps screen, touch Play Movies & TV. 2. Log on to your Google account if you have not already done so. 3. Following the on-screen instructions for renting and viewing movies. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 119Play MusicWith Google Play Music, you can play music that you have added to your music file as well as any music you copied from your PC. While offline, you can listen to music you have copied from your PC.1. From the Apps screen, touch Play Music.2. Follow the on-screen instructions to locate and play music. Play StoreAndroid Market is now Google Play™ Store, where all your favorite books, movies, apps, and games are all in one place that’s accessible from the Web and your Android device. You’ll need to have a Google account set up on your phone to download a new application.1. From the Apps screen, touch Play Store.2. The first time you open Play Store, read the Terms of Service, then touch Accept to continue.3. Browse for applications to download, then follow the prompts. S MemoThe S Memo application allows you to create memos using the keypad, your finger, or both. You can add images, handwriting, voice recordings, and typewritten text all in one place. 1. From the Apps screen, touch S Memo. 2. Review the Learn about actions information pop-up to learn more about S Memo. DRAFT FOR INTERNAL USE ONLY

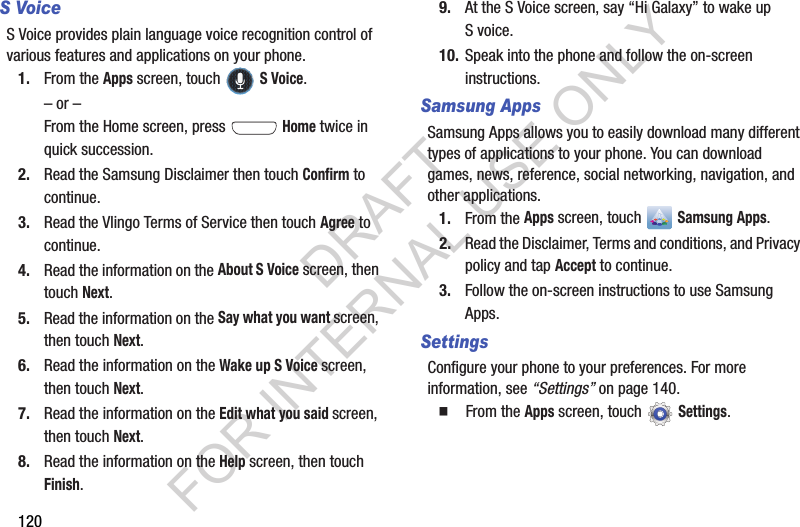

120S VoiceS Voice provides plain language voice recognition control of various features and applications on your phone. 1. From the Apps screen, touch S Voice. – or –From the Home screen, press Home twice in quick succession. 2. Read the Samsung Disclaimer then touch Confirm to continue. 3. Read the Vlingo Terms of Service then touch Agree to continue. 4. Read the information on the About S Voice screen, then touch Next. 5. Read the information on the Say what you want screen, then touch Next. 6. Read the information on the Wake up S Voice screen, then touch Next. 7. Read the information on the Edit what you said screen, then touch Next. 8. Read the information on the Help screen, then touch Finish. 9. At the S Voice screen, say “Hi Galaxy” to wake up S voice.10. Speak into the phone and follow the on-screen instructions.Samsung AppsSamsung Apps allows you to easily download many different types of applications to your phone. You can download games, news, reference, social networking, navigation, and other applications.1. From the Apps screen, touch Samsung Apps.2. Read the Disclaimer, Terms and conditions, and Privacy policy and tap Accept to continue.3. Follow the on-screen instructions to use Samsung Apps.SettingsConfigure your phone to your preferences. For more information, see “Settings” on page 140. 䡲 From the Apps screen, touch Settings. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 121Slacker RadioListen to your Slacker Radio station on your device. 1. From the Apps screen, touch Slacker Radio. 2. Begin selecting the music you want to listen to. Important!To use some features of this service, you must register with the service. TalkUse Google Talk to chat with other Google Talk users. For more information, see “Google Talk” on page 81. 䡲 From the Apps screen, touch Talk.Tone Room DeluxeFind, purchase, and download Ringtones and Ringback Tones. 䡲 From the Apps screen, touch Tone Room Deluxe. VideoVideo identifies and plays video files (3GP or MP4) stored on your phone or on an optional microSD Memory card. 1. From the Apps screen, touch Video.2. By default, videos display by name in an array of Thumbnails. You can also display your videos in an alphabetical list by touching the List tab, or touch the Folders tab to list the folders where your videos are stored. 3. To play a video, simply touch its thumbnail or list entry. The following video controls are available: Pause the video. Start the video after being paused. Touch and hold to rewind the video. Touch to go to previous video. Touch and hold to fast-forward the video. Touch to go to next video. Video image capture: Capture the current video image. Volume control. DRAFT FOR INTERNAL USE ONLY
122Note:The screen view icons are a three-way toggle. The icon that is displayed, is the mode that will appear after your touch the icon. 4. While playing a video, touch Menu for video options. Voice RecorderRecord your voice or other sounds, and share recordings via Bluetooth, Messaging, or Gmail.䡲 From the Apps screen, touch Voice Recorder. Voice SearchVoice Search offers voice-activated Google searches. If you agree, Voice Search uses your location to improve search results and offer other services. 䡲 From the Apps screen, touch Voice Search. VPN ClientVPN Client lets you define multiple Virtual Private Networks (VPNs) to your device and connect to them as needed by simply selecting a connection from the VPN Client list. 䡲 From the Apps screen, touch VPN Client. Rotate screen. Toggle screen orientation between portrait and landscape. PIP (Picture In Picture) view: The video plays in a small window so you can use your phone for other purposes while watching the video. To return to previous size, double-tap the screen. Original size view: The video plays in its original size. Full-screen in ratio view: The video is enlarged as much as possible without becoming distorted. Full-screen view. The entire screen is used, which may cause some image distortion. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 123Your Navigator DeluxeProvides all the features of an advanced car navigation system. Obtain turn-by-turn driving directions with GPS accuracy. Search for any destination (including gas stations, ATMs, restaurants, and more). View detailed maps of any location. Important!Your Navigator Deluxe requires you to activate the GPS location function on your phone. (For more information, refer to “Location services” on page 185.) 1. From the Apps menu, touch Your Navigator Deluxe. 2. From the Your Navigator Deluxe Home screen select one of the following options: •Drive To: Obtain turn by turn directions to an address, airport, contact address, and more. • Places: Search for nearby businesses, the cheapest gas prices, and more. • Maps & Traffic: View your current location on a map and any traffic in the area. •Local Apps: Launch applications that enhance Your Navigator Deluxe sessions. Note:If the GPS location function on your phone is inactive, follow the prompts to activate it. (For more information, refer to “Location services” on page 185.) Tip:The first time you launch Your Navigator Deluxe, your phone downloads Your Navigator Deluxe updates and applications not included with Your Navigator Deluxe to save storage. Activating Wi-Fi can save data charges during this download. (For more information, refer to “Wi-Fi” on page 128.) DRAFT FOR INTERNAL USE ONLY
124YouTubeAccess your YouTube™ account, and view and upload YouTube videos, right from your phone. 䡲 From the Apps screen, touch YouTube.Accessing Widgets1. Press Home, then Sweep your finger right or left to scroll to a particular Home screen panel. 2. Touch Apps, then the Widgets tab. The Widgets screen appears in the display. – or –Touch and hold on the displayed Home screen panel until the Home screen menu pops-up, then touch Add to Home screen ➔ Apps and widgets, then the Widgets tab. The Widgets screen appears in the display. 3. Sweep your finger right or left to scroll through the Widgets screens and find the desired widget. 4. To place a widget on the selected Home screen panel, touch and hold the widget’s image or icon, then position the widget on the Home screen panel. 5. If needed, follow any prompts to configure the widget. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 125Widgets ListThe following widgets are available for executing on your Home screen: •Active Apps Manager 2 x 1: •Alarm 4 x 1: Add, view, and manage alarms you set using this widget or using the Clock application. •Assistive Light 2 x 1: Use your phone’s flash as a flashlight. •Book 1 x 1: Directly access one of your downloaded electronic books from Play Books. •Bookmark 1 x 1: •Bookmarks 3 x 2: •Burned Calories 4 x 1: •Calendar 2 x 2: View your Calendar events scheduled for today. •Calendar (mini today) 4 x 3: View and access your Calendar events scheduled for today. •Calendar (month) 4 x 4: View and access your scheduled Calendar events, one month at a time. •Cento Store Widget 4 x 4: •Clock (digital) 4 x 1: View a digital clock-calendar. •Clock (digital) 2 x 1: View a digital clock-calendar. •Contact 1 x 1: Directly access a selected contact for calls or messaging. •Direct Dial 1 x 1: Immediately call a selected contact. •Direct Message 1 x 1: Immediately send a message to a selected contact. •Directions & Navigation 1 x 1: Immediately obtain directions to a selected location. •Dropbox Folder 1 x 1: Directly access one of your Dropbox folders. •Dual clock (digital) 2 x 2: View digital clock-calendar displays for two selected locations. •Email 4 x 4: View and directly access email messages in your Combined email box. •Enviroment Comfort 4 x 1: •Flipboard 4 x 1: View a small image of your Flipboard “magazine”. •Gmail 3 x 2: View and directly access your Gmail messages. •Gmail label 1 x 1: Directly access Gmail messages with a selected Gmail label. •Google Play Books 2 x 3: Directly access your Google books. DRAFT FOR INTERNAL USE ONLY
126•Google Play Music 4 x 1: Directly access and play a selected music playbook. •Google Search 4 x 1 (transparent background): Perform and manage Internet searches. •Google Search 4 x 1 (opaque background): Perform and manage Internet searches. •Messaging 3 x 3: View and access your latest messages. •MobiTiles 2 x 2: •Mono audio 2 x 1: Switch between Stereo and Mono audio reproduction. •Music Hub 4 x 1: Play your music purchased and downloaded from Music Hub. •Music Player 4 x 1: Play your music files. •Music playlist 1 x 1: Play a selected music playlist. •My Maps 1 x 1: •My Nav 1 x 1: •My Places 1 x 1: •My Sound 1 x 1: •Picture frame 2 x 2: Directly access your photos and images. •Play - My Library 4 x 3: Access your Google content (ebooks, music, magazines, and videos). •Play Recommendations 4 x 2: View recommendations from Google Play Store. •Play Store 2 x 2: View recommendations from and access Google Play Store. •S Bookmarks 2 x 2: View selected bookmarks and directly access the related web sites. •S Memo 2 x 2: View and access a stored memo. •Savanna Apps 4 x 4: •Settings Shortcut 1 x 1: Directly access selected settings for your phone. •Simple Picture Frame 2 x 2: •Slacker Radio 4 x 1: Access your on-line radio station. •Software update 1 x 1: Directly access your device software status information and access Software update. •Story Album Widget 4 x 3: •Taken Calories 4 x 1: •Traffic 1 x 1: Directly access traffic information for a selected destination. •Travel Widget: •U.S. Cellular Mobile Television 4 x 2: View and directly access a pre-selected Mobile Television channel. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 127•U.S. Cellular Mobile Television 4 x 1: Directly access a pre-selected Mobile Television channel. •Video Player 2 x 1: Directly access and play one or more selected videos. •Weather 4 x 2: View current and forecast temperature and weather conditions for a selected location. •Yahoo! Finance 4 x 2: View current prices for selected stocks and/or commodities and directly access additional financial information. •Yahoo! News 4 x 2: View news headlines and access full news articles. •Your Navigator Deluxe 4 x 3: View and control location and directions using your Wireless Provider’s GPS Navigator program. •Your Navigator Deluxe 4 x 1: •Your Navigator Deluxe Traffic 4 x 2: Request and view traffic information using your Wireless Provider’s traffic application. •YouTube 3 x 2: Receive and view suggested videos. Directly access your YouTube account. DRAFT FOR INTERNAL USE ONLY
128Section 7: ConnectionsWi-FiWi-Fi is a wireless networking technology that provides access to local area networks.Wi-Fi communication requires access to an existing Wi-Fi network. Wi-Fi networks can be Open (unsecured), or Secured (requiring you to provide login credentials). Your phone supports the 802.11 a/b/g/n Wi-Fi protocols.Configuring Wi-Fi SettingsConfigure your phone’s Wi-Fi settings. For more information, see “Wi-Fi Settings” on page 143.Turning Wi-Fi On or OffWhen you turn Wi-Fi service on, your phone automatically searches for available, in-range “hotspots” [also termed WAPs (Wireless Access Points)]. Turning Wi-Fi On1. From the top of the Home screen, sweep your finger downward to display the Notifications screen. 2. At the top of the Notifications screen, touch Wi-Fi to turn Wi-Fi On. Turning Wi-Fi Off1. From the top of the Home screen, sweep your finger downward to display Notifications. 2. At the top of the Notifications screen, touch Wi-Fi to turn Wi-Fi Off.DRAFT FOR INTERNAL USE ONLY

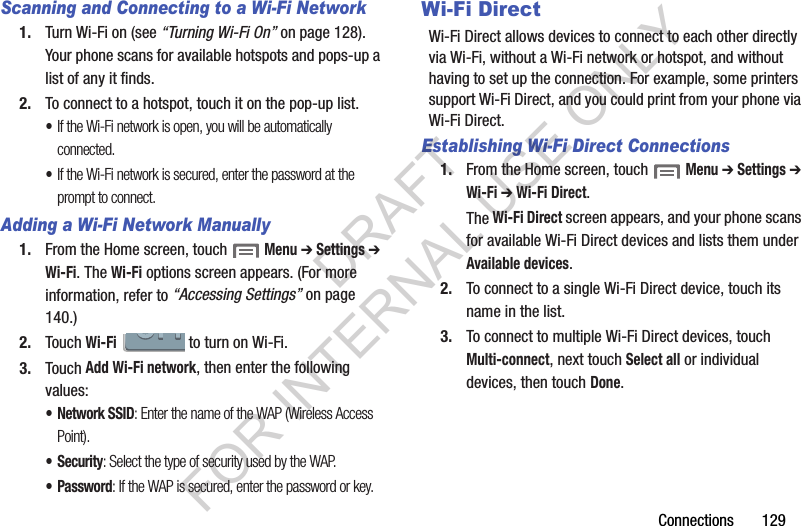

Connections 129Scanning and Connecting to a Wi-Fi Network1. Turn Wi-Fi on (see “Turning Wi-Fi On” on page 128). Your phone scans for available hotspots and pops-up a list of any it finds. 2. To connect to a hotspot, touch it on the pop-up list. •If the Wi-Fi network is open, you will be automatically connected. •If the Wi-Fi network is secured, enter the password at the prompt to connect. Adding a Wi-Fi Network Manually1. From the Home screen, touch Menu ➔ Settings ➔ Wi-Fi. The Wi-Fi options screen appears. (For more information, refer to “Accessing Settings” on page 140.) 2. Touch Wi-Fi to turn on Wi-Fi. 3. Touch Add Wi-Fi network, then enter the following values: • Network SSID: Enter the name of the WAP (Wireless Access Point). •Security: Select the type of security used by the WAP.•Password: If the WAP is secured, enter the password or key. Wi-Fi DirectWi-Fi Direct allows devices to connect to each other directly via Wi-Fi, without a Wi-Fi network or hotspot, and without having to set up the connection. For example, some printers support Wi-Fi Direct, and you could print from your phone via Wi-Fi Direct.Establishing Wi-Fi Direct Connections1. From the Home screen, touch Menu ➔ Settings ➔ Wi-Fi ➔ Wi-Fi Direct. The Wi-Fi Direct screen appears, and your phone scans for available Wi-Fi Direct devices and lists them under Available devices. 2. To connect to a single Wi-Fi Direct device, touch its name in the list. 3. To connect to multiple Wi-Fi Direct devices, touch Multi-connect, next touch Select all or individual devices, then touch Done. DRAFT FOR INTERNAL USE ONLY

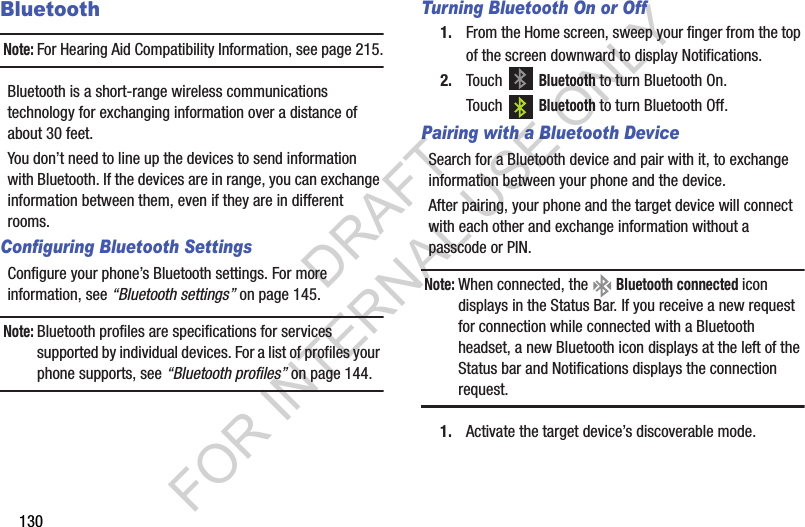

130BluetoothNote:For Hearing Aid Compatibility Information, see page 215.Bluetooth is a short-range wireless communications technology for exchanging information over a distance of about 30 feet.You don’t need to line up the devices to send information with Bluetooth. If the devices are in range, you can exchange information between them, even if they are in different rooms.Configuring Bluetooth SettingsConfigure your phone’s Bluetooth settings. For more information, see “Bluetooth settings” on page 145.Note:Bluetooth profiles are specifications for services supported by individual devices. For a list of profiles your phone supports, see “Bluetooth profiles” on page 144.Turning Bluetooth On or Off1. From the Home screen, sweep your finger from the top of the screen downward to display Notifications. 2. Touch Bluetooth to turn Bluetooth On. Touch Bluetooth to turn Bluetooth Off. Pairing with a Bluetooth DeviceSearch for a Bluetooth device and pair with it, to exchange information between your phone and the device. After pairing, your phone and the target device will connect with each other and exchange information without a passcode or PIN. Note:When connected, the Bluetooth connected icon displays in the Status Bar. If you receive a new request for connection while connected with a Bluetooth headset, a new Bluetooth icon displays at the left of the Status bar and Notifications displays the connection request. 1. Activate the target device’s discoverable mode. DRAFT FOR INTERNAL USE ONLY

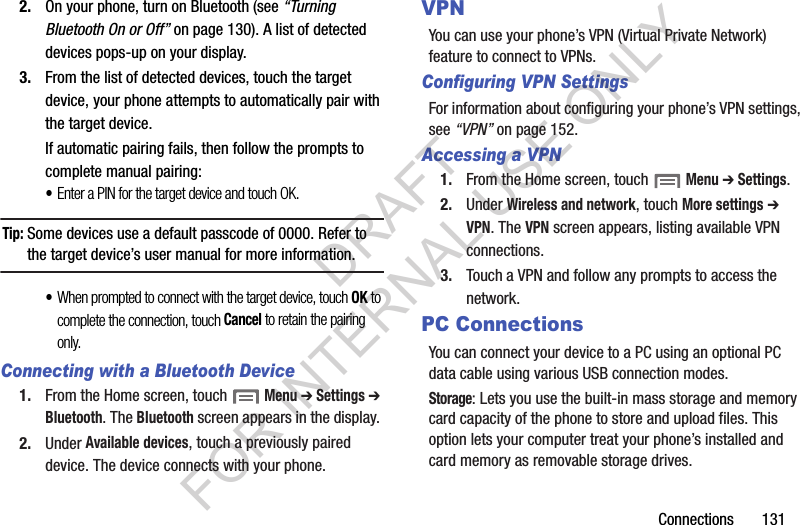

Connections 1312. On your phone, turn on Bluetooth (see “Turning Bluetooth On or Off” on page 130). A list of detected devices pops-up on your display. 3. From the list of detected devices, touch the target device, your phone attempts to automatically pair with the target device. If automatic pairing fails, then follow the prompts to complete manual pairing: •Enter a PIN for the target device and touch OK. Tip:Some devices use a default passcode of 0000. Refer to the target device’s user manual for more information. •When prompted to connect with the target device, touch OK to complete the connection, touch Cancel to retain the pairing only. Connecting with a Bluetooth Device1. From the Home screen, touch Menu ➔ Settings ➔ Bluetooth. The Bluetooth screen appears in the display. 2. Under Available devices, touch a previously paired device. The device connects with your phone. VPNYou can use your phone’s VPN (Virtual Private Network) feature to connect to VPNs. Configuring VPN SettingsFor information about configuring your phone’s VPN settings, see “VPN” on page 152. Accessing a VPN1. From the Home screen, touch Menu ➔ Settings. 2. Under Wireless and network, touch More settings ➔ VPN. The VPN screen appears, listing available VPN connections. 3. Touch a VPN and follow any prompts to access the network. PC ConnectionsYou can connect your device to a PC using an optional PC data cable using various USB connection modes. Storage: Lets you use the built-in mass storage and memory card capacity of the phone to store and upload files. This option lets your computer treat your phone’s installed and card memory as removable storage drives. DRAFT FOR INTERNAL USE ONLY
132Kies air: Lets you wirelessly synchronize files on your phone (in mass storage and on a memory card) with files on your Windows PC, provided they are both on the same Wi-Fi network. Note:To sync your device to your PC it is highly recommended that you install Samsung Kies which is available at http://www.samsung.com/kies (for Windows/Mac).Note:If you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher installed on your computer. Also, ensure that you have Samsung Kies 2.5 or Windows Media Player 10 or higher installed on your computer. Connecting as a Storage DeviceYou can connect your device to a personal computer, have your device appear as a removable disk, and access your device’s file directory. If you insert a memory card in the device, you can also access the files directory on the memory card by using the device as a memory card reader. Note: The file directory of the memory card displays as a removable disk, separate from the internal memory.1. Connect the USB cable to the device and connect the cable to the computer. After a few seconds, a pop-up window displays on the PC, prompting you to choose how to access the new device.2. On the PC pop-up, click Open device to view files. You can now transfer files between the PC and your phone’s memory and memory card (if installed). DRAFT FOR INTERNAL USE ONLY
Connections 133Kies via Wi-FiKies via Wi-Fi lets you wirelessly synchronize files on your phone (in mass storage and on a memory card) with files on your Windows PC, provided they are both on the same Wi-Fi network. You can view and share call logs, videos, photos, music, bookmarks, ringtones, and even send SMS messages from your PC. To use Kies air, follow these steps:1. Sign onto the same Wi-Fi network from your phone and from your PC. 2. On your phone, from the Home screen, touch ➔ Kies via Wi-Fi. 3. From the Kies air home screen, touch Start. A web URL is displayed on your phone screen. 4. On your PC, enter the URL in your web browser. 5. On your phone, an Access Request prompt is displayed. Touch Allow to continue. 6. Touch the Remember for today check box if you will be using Kies air with the same PC later. 7. From your PC, a security warning may be displayed asking if you want to run this application. Click Run to continue. 8. On your PC, the Kies air screen is displayed. On your phone, the icon appears on the Status Bar. 9. Follow the on-screen instructions to view and share information between your phone and PC. 10. To exit the Kies air application, touch Stop on your phone, then exit the web browser on your PC. DRAFT FOR INTERNAL USE ONLY
134TetheringUse Tethering to share your phone’s internet connection with a computer connected to your device using the USB data/charging cable, or using Bluetooth. (For more information, refer to “Tethering” on page 151.) 1. From the Settings screen, under Wireless and network, touch More settings ➔ Tethering and portable hotspot. The Tethering and portable hotspot screen appears. 2. Choose a tethering method:• USB tethering: Connect the computer to the phone via USB cable, then touch USB Tethering to turn tethering On or Off. When On, a check appears in the check box.• Bluetooth tethering: Connect your phone with the computer using Bluetooth. Consult the computer’s documentation for more information about using your computer to make a Bluetooth connect. Touch Bluetooth Tethering to turn tethering On or Off. When On, a check appears in the check box.Note:Using Tethering requires a subscription to your Wireless Provider’s mobile data service. Portable Wi-Fi HotspotUse Portable Wi-Fi Hotspot to share your phone’s internet connection with a PC or other device through Wi-Fi, using your phone as the mobile hotspot. Note:Portable Wi-Fi Hotspot requires a subscription to the applicable service to use the application. Portable Wi-Fi Hotspot consumes battery power and uses data service. While the Portable Wi-Fi Hotspot is active, your phone’s applications will use the Portable Wi-Fi Hotspot data feature allowance. Configuring Portable Wi-Fi Hotspot SettingsConfigure your phone’s Portable Wi-Fi Hotspot settings, including your phone’s name and password, and set the visibility of your phone’s Wi-Fi hotspot. Tip: By default, your device’s mobile hotspot has no security applied, and any device can connect. (For more information about configuring your mobile hotspot, see “Portable Wi-Fi Hotspot” on page 149.) DRAFT FOR INTERNAL USE ONLY

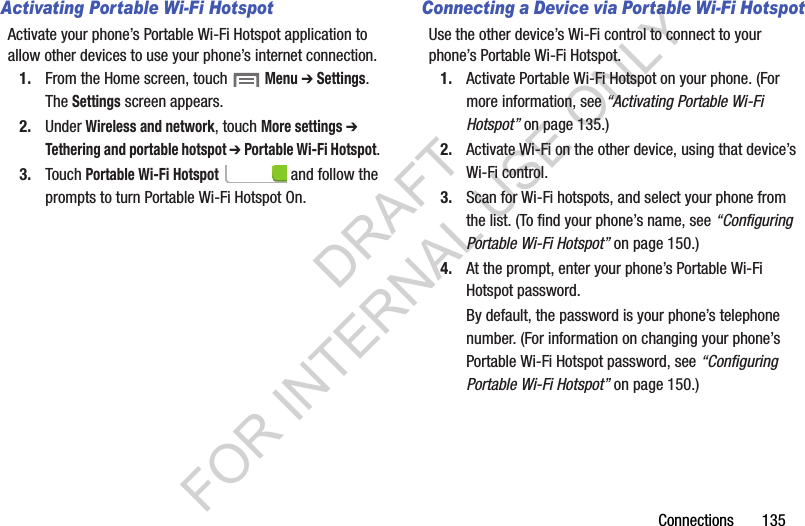

Connections 135Activating Portable Wi-Fi HotspotActivate your phone’s Portable Wi-Fi Hotspot application to allow other devices to use your phone’s internet connection.1. From the Home screen, touch Menu ➔ Settings. The Settings screen appears. 2. Under Wireless and network, touch More settings ➔ Tethering and portable hotspot ➔ Portable Wi-Fi Hotspot. 3. Touch Portable Wi-Fi Hotspot and follow the prompts to turn Portable Wi-Fi Hotspot On. Connecting a Device via Portable Wi-Fi HotspotUse the other device’s Wi-Fi control to connect to your phone’s Portable Wi-Fi Hotspot.1. Activate Portable Wi-Fi Hotspot on your phone. (For more information, see “Activating Portable Wi-Fi Hotspot” on page 135.) 2. Activate Wi-Fi on the other device, using that device’s Wi-Fi control.3. Scan for Wi-Fi hotspots, and select your phone from the list. (To find your phone’s name, see “Configuring Portable Wi-Fi Hotspot” on page 150.) 4. At the prompt, enter your phone’s Portable Wi-Fi Hotspot password. By default, the password is your phone’s telephone number. (For information on changing your phone’s Portable Wi-Fi Hotspot password, see “Configuring Portable Wi-Fi Hotspot” on page 150.) DRAFT FOR INTERNAL USE ONLY
136BeamingNFCNFC (Near Field Communication) allows data exchange when you touch your device with another compatible device. This is used for applications such as Android Beam and S Beam. 1. From the Home screen, touch Menu, then touch Settings. 2. Under Wireless and network, touch More settings. 3. Touch NFC to enable or disable NFC. When enabled, a check appears in the check box. Note: NFC must be turned on to use Android Beam or S Beam. S BeamWhen S Beam is activated, you can beam files to another NFC-capable device by holding the devices close together. You can beam images and videos from your gallery, music files from your music player, and more. Turning S Beam On or Off1. From the Home screen, touch Menu, then touch Settings. 2. Under Wireless and network, touch More settings. 3. Touch NFC to enable NFC. NFC must be enabled to use S Beam. When enabled, a check mark appears in the check box. 4. Touch S Beam to turn S Beam On, or touch SBeam to turn S Beam Off. DRAFT FOR INTERNAL USE ONLY
Connections 137Using S Beam1. Turn S Beam On. (See “Turning S Beam On or Off” .) 2. Launch Camera, Music Player, or Gallery (See “Applications and Widgets” on page 83.) When using Gallery, you can select multiple files to S Beam. 3. Place your phone back-to-back with the device to receive your “beamed” content, then touch the screen on your phone. The receiving device prompts the user to accept your “beamed” content. 4. Once the user of the receiving device accepts your “beamed” content, it appears on the screen of that device. AllShare CastAllShare Cast lets your phone share the contents of its display with other Digital Living Network Alliance (DLNA) certified devices, such as Smart televisions. Note:To view more information about DLNA certified products visit http://www.dlna.org/home.1. Connect your phone and another DLNA certified device to the same Wi-Fi network. (For more information, refer to “Wi-Fi” on page 128.) 2. On your phone press Home, then touch Menu ➔ Settings. The Settings screen appears. 3. Under Wireless and network, touch More settings. The Wireless and networks screen appears. 4. Touch AllShare Cast. The AllShare Cast screen appears with AllShare Cast already active and begins scanning for available devices. All detected DLNA certified devices are listed under Available devices. 5. Touch the desired device to establish a connection. You can now view the contents of your phone’s display on the connected device. DRAFT FOR INTERNAL USE ONLY
138Nearby devicesShare files with nearby DLNA certified devices over Wi-Fi. (For information on configuring Nearby devices, For more information, refer to “Nearby devices” on page 153.) Note:To use Nearby devices for sharing, you must have set up a connection with another Wi-Fi device that supports DLNA. 1. Connect your phone and another DLNA certified device to the same Wi-Fi network. (For more information, refer to “Wi-Fi” on page 128.) 2. On your phone press Home, then touch Menu ➔ Settings. The Settings screen appears. 3. Under Wireless and network, touch More settings ➔ Nearby devices. The Nearby devices screen appears. 4. Touch File sharing to turn file sharing via DLNA On or Off. When On, a check mark appears in the check box. Memory CardYour phone supports removable microSD™ or microSDHC™ memory cards of up to 64GB capacity, for storage of music, pictures, videos, and other files.Installing and Removing a Memory Card(For more information about installing and removing a memory card, see “Installing a Memory Card” on page 9.) Important!To prevent damage to information stored on the memory card, unmount the card before removing it from the phone.DRAFT FOR INTERNAL USE ONLY

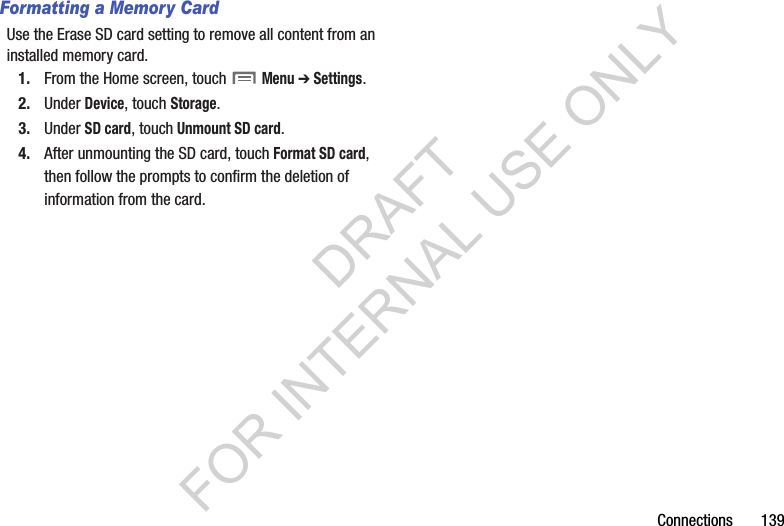

Connections 139Formatting a Memory CardUse the Erase SD card setting to remove all content from an installed memory card.1. From the Home screen, touch Menu ➔ Settings. 2. Under Device, touch Storage. 3. Under SD card, touch Unmount SD card.4. After unmounting the SD card, touch Format SD card, then follow the prompts to confirm the deletion of information from the card. DRAFT FOR INTERNAL USE ONLY
140Section 8: SettingsAccessing Settings䡲 From the Home screen, touch Menu ➔ Settings.– or –From the Home screen, touch Apps ➔ Settings. The Settings menu appears. Note:This section does not include information about Call settings. (For Call settings information, see “Call Settings” on page 69.) Settings TabsYour phone’s Settings are divided into 4 main groups. When the Settings screen appears, the following 4 tabs are located at the top of the screen: Connections: Wi-Fi, Bluetooth, Airplane Mode, Data usage, More settings, NFC, S Beam, Nearby devices, AllShare Cast, and Kies via Wi-Fi. My device: Home screen mode, Call, Blocking mode, Sound, Display, Power saving mode, Lock screen, Safety assurance, Accessory, Date and time, Accessibility, Language and input, Motions, and Air view. Accounts: Samsung account, Add account, Backup and reset. More: Location access, Security, Application manager, Battery, Storage, and About device.DRAFT FOR INTERNAL USE ONLY
Settings 141Using Setting Sliders䡲 To enable or disable a setting, touch the setting slider as shown. Accessing Additional Options䡲 To access additional setting options, touch the setting label. DRAFT FOR INTERNAL USE ONLY
142ConnectionsWi-FiSet up and manage your phone’s connections to Wi-Fi networks. Your phone supports Wi-Fi a/b/g/n.For more information about using Wi-Fi, see “Wi-Fi” on page 128. Turning Wi-Fi On or OffTurn your phone’s Wi-Fi service on or off. When you turn Wi-Fi service on, your phone automatically searches for nearby available Wi-Fi networks.Tip:When you turn Wi-Fi service on, your phone automatically searches for available networks and displays them.You can also turn Wi-Fi On or Off from the Notifications panel.Turn Wi-Fi On: 䡲 From the Settings screen, touch Connections, then under Network connections touch Wi-Fi . – or –From the Home screen and others, touch and swipe the Status Bar downward, then touch Wi-Fi. Turn Wi-Fi Off: 䡲 From the Settings screen, touch Connections, then under Network connections touch Wi-Fi . – or –From the Home screen and others, touch and swipe the Status Bar downward, then touch Wi-Fi. DRAFT FOR INTERNAL USE ONLY
Settings 143Wi-Fi SettingsConfigure and manage connections to Wi-Fi access points. 1. From the Settings screen, touch Connections. 2. Under Network connections, touch Wi-Fi. The Wi-Fi options screen appears. 3. Touch options to configure: • Add Wi-Fi network: Connect to a new Wi-Fi network (see “Adding a Wi-Fi Network Manually” on page 129). •Scan: Search for available Wi-Fi networks. • Wi-Fi Direct: Access Wi-Fi Direct settings (see “Wi-Fi Direct” on page 144.) 4. Touch Menu to access the following additional options: • Advanced: View and configure your phone’s Advanced Wi-Fi settings. • WPS push button: Record/send the signal from the Wi-Fi Protected Set-up push button on your Wi-Fi router. • WPS PIN entry: Record/send the Wi-Fi Protected Set-up Personal Identification Number for your Wi-Fi router. •Help: Provides on-line assistance to perform Wi-Fi interface tasks. Advanced Wi-Fi settings1. From the Settings screen, touch Connections ➔ Wi-Fi ➔ Menu ➔ Advanced.2. Configure settings:• Network notification: When enabled, your phone notifies you of nearby Wi-Fi networks when you launch a high data-usage application. • Keep Wi-Fi on during sleep: Specify when to switch from Wi-Fi to mobile data for data communications, when the phone goes to sleep (when the backlight goes out). This setting can affect your data usage, and the behavior of devices you connect to your phone, such as when tethering or using Mobile Hotspot.• Check for Internet service: Check whether Wi-Fi Internet service is available when connected to a W-Fi hotspot. •MAC address: (Not configurable) View your phone’s MAC address, needed for connecting to some secured networks (only shows when Wi-Fi is active).•IP address: (Not configurable) View your phone’s IP address (only shows when connected to a Wi-Fi network). DRAFT FOR INTERNAL USE ONLY
144Wi-Fi DirectWi-Fi Direct allows devices to connect to each other directly via Wi-Fi, without a Wi-Fi network or hotspot, and without having to set up the connection. For example, some printers support Wi-Fi Direct, and you could print from your phone via Wi-Fi Direct.Turning Wi-Fi Direct On or Off䡲 From the Settings screen, touch Connections ➔ Wi-Fi ➔ Wi-Fi Direct. The Wi-Fi Direct screen appears, and your phone scans for available Wi-Fi Direct devices and lists them under Available devices. For information on connecting your phone to other Wi-Fi Direct devices, see “Establishing Wi-Fi Direct Connections” on page 129. BluetoothYour phone supports Bluetooth® 4.0.Bluetooth profilesBluetooth profiles are specifications for services supported by individual devices. Profiles improve the ability of different devices to work together. Your phone supports these Bluetooth profiles:•Headset: HSP v1.2 profile supports use of compatible Bluetooth headsets for mono voice.•Handsfree: HFP v1.5 profile supports Bluetooth headsets, and may also support other compatible Bluetooth devices with speakerphone capabilities.•Stereo: A2DP v1.2, AVRCP v1.0, GAVDP 1.2, AVCTP 1.3 and AVDTP 1.2 profiles support delivery of stereo audio to compatible Bluetooth devices.•Object Exchange: OPP v1.0 profile allows sending and receiving of contact name cards (vCard 2.1) and calendar events (vCalendar) between devices. PBAP v1.2 supports exchange of Phone Book Objects.•Human Interface Devices: HID v1.0 profile supports certain interface devices.DRAFT FOR INTERNAL USE ONLY

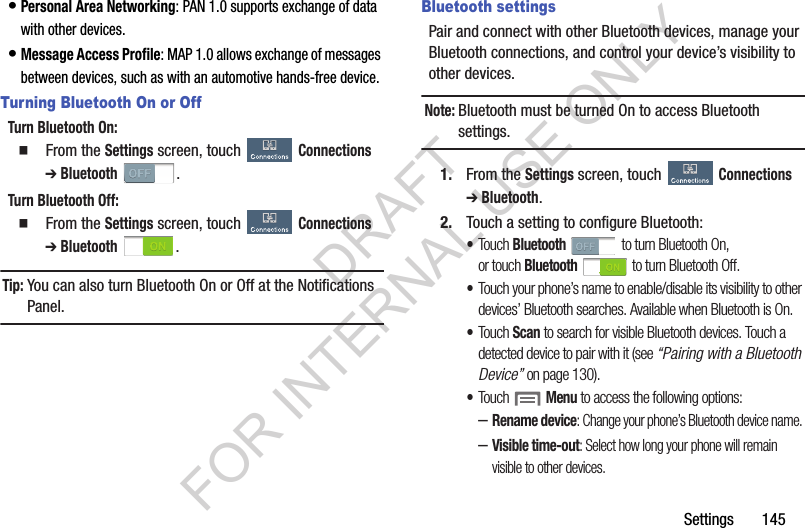

Settings 145•Personal Area Networking: PAN 1.0 supports exchange of data with other devices.•Message Access Profile: MAP 1.0 allows exchange of messages between devices, such as with an automotive hands-free device.Turning Bluetooth On or OffTurn Bluetooth On: 䡲 From the Settings screen, touch Connections ➔ Bluetooth . Turn Bluetooth Off: 䡲 From the Settings screen, touch Connections ➔ Bluetooth . Tip:You can also turn Bluetooth On or Off at the Notifications Panel. Bluetooth settingsPair and connect with other Bluetooth devices, manage your Bluetooth connections, and control your device’s visibility to other devices.Note:Bluetooth must be turned On to access Bluetooth settings. 1. From the Settings screen, touch Connections ➔ Bluetooth.2. Touch a setting to configure Bluetooth: •Touch Bluetooth to turn Bluetooth On, or touch Bluetooth to turn Bluetooth Off.•Touch your phone’s name to enable/disable its visibility to other devices’ Bluetooth searches. Available when Bluetooth is On. •Touch Scan to search for visible Bluetooth devices. Touch a detected device to pair with it (see “Pairing with a Bluetooth Device” on page 130). •Touch Menu to access the following options: –Rename device: Change your phone’s Bluetooth device name. –Visible time-out: Select how long your phone will remain visible to other devices. DRAFT FOR INTERNAL USE ONLY

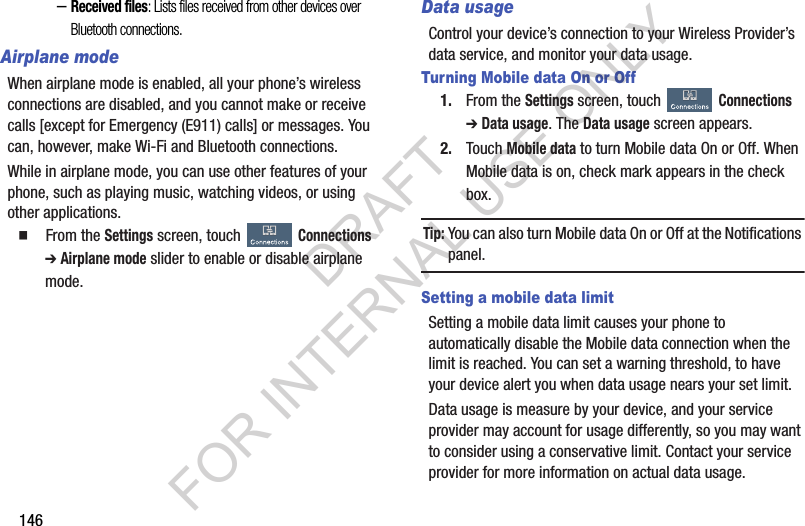

146–Received files: Lists files received from other devices over Bluetooth connections. Airplane modeWhen airplane mode is enabled, all your phone’s wireless connections are disabled, and you cannot make or receive calls [except for Emergency (E911) calls] or messages. You can, however, make Wi-Fi and Bluetooth connections. While in airplane mode, you can use other features of your phone, such as playing music, watching videos, or using other applications. 䡲 From the Settings screen, touch Connections ➔ Airplane mode slider to enable or disable airplane mode. Data usageControl your device’s connection to your Wireless Provider’s data service, and monitor your data usage. Turning Mobile data On or Off1. From the Settings screen, touch Connections ➔ Data usage. The Data usage screen appears. 2. Touch Mobile data to turn Mobile data On or Off. When Mobile data is on, check mark appears in the check box. Tip:You can also turn Mobile data On or Off at the Notifications panel. Setting a mobile data limitSetting a mobile data limit causes your phone to automatically disable the Mobile data connection when the limit is reached. You can set a warning threshold, to have your device alert you when data usage nears your set limit. Data usage is measure by your device, and your service provider may account for usage differently, so you may want to consider using a conservative limit. Contact your service provider for more information on actual data usage. DRAFT FOR INTERNAL USE ONLY
Settings 1471. From the Settings screen, touch Connections ➔ Data usage. The Data usage screen appears. 2. To enable mobile data, touch Mobile data.3. To enable the limit, touch Set mobile data limit. A red limit line appears in the Data usage screen. 4. To adjust the mobile Data usage cycle, touch and drag the vertical usage cycle lines left or right on the graph. 5. To adjust the mobile data usage warning level, touch and drag the horizontal warning line up or down on the graph. 6. To adjust the mobile data usage limit level, touch and drag the horizontal limit line up or down on the graph. DRAFT FOR INTERNAL USE ONLY

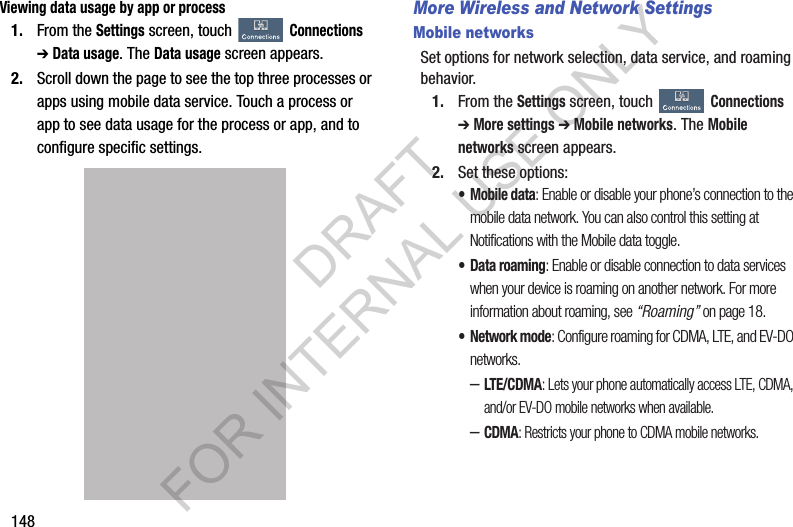

148Viewing data usage by app or process1. From the Settings screen, touch Connections ➔ Data usage. The Data usage screen appears. 2. Scroll down the page to see the top three processes or apps using mobile data service. Touch a process or app to see data usage for the process or app, and to configure specific settings. More Wireless and Network SettingsMobile networksSet options for network selection, data service, and roaming behavior.1. From the Settings screen, touch Connections ➔ More settings ➔ Mobile networks. The Mobile networks screen appears. 2. Set these options:•Mobile data: Enable or disable your phone’s connection to the mobile data network. You can also control this setting at Notifications with the Mobile data toggle.• Data roaming: Enable or disable connection to data services when your device is roaming on another network. For more information about roaming, see “Roaming” on page 18. •Network mode: Configure roaming for CDMA, LTE, and EV-DO networks.–LTE/CDMA: Lets your phone automatically access LTE, CDMA, and/or EV-DO mobile networks when available. –CDMA: Restricts your phone to CDMA mobile networks. DRAFT FOR INTERNAL USE ONLY

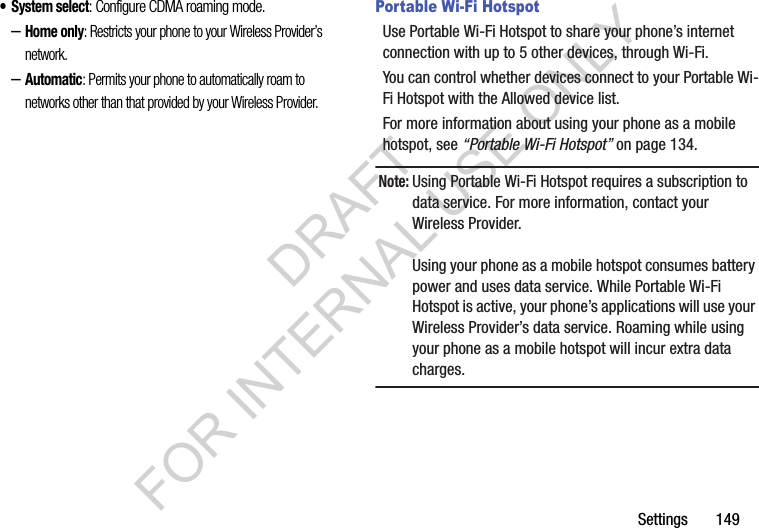

Settings 149• System select: Configure CDMA roaming mode. –Home only: Restricts your phone to your Wireless Provider’s network. –Automatic: Permits your phone to automatically roam to networks other than that provided by your Wireless Provider. Portable Wi-Fi HotspotUse Portable Wi-Fi Hotspot to share your phone’s internet connection with up to 5 other devices, through Wi-Fi. You can control whether devices connect to your Portable Wi-Fi Hotspot with the Allowed device list.For more information about using your phone as a mobile hotspot, see “Portable Wi-Fi Hotspot” on page 134. Note:Using Portable Wi-Fi Hotspot requires a subscription to data service. For more information, contact your Wireless Provider.Using your phone as a mobile hotspot consumes battery power and uses data service. While Portable Wi-Fi Hotspot is active, your phone’s applications will use your Wireless Provider’s data service. Roaming while using your phone as a mobile hotspot will incur extra data charges.DRAFT FOR INTERNAL USE ONLY

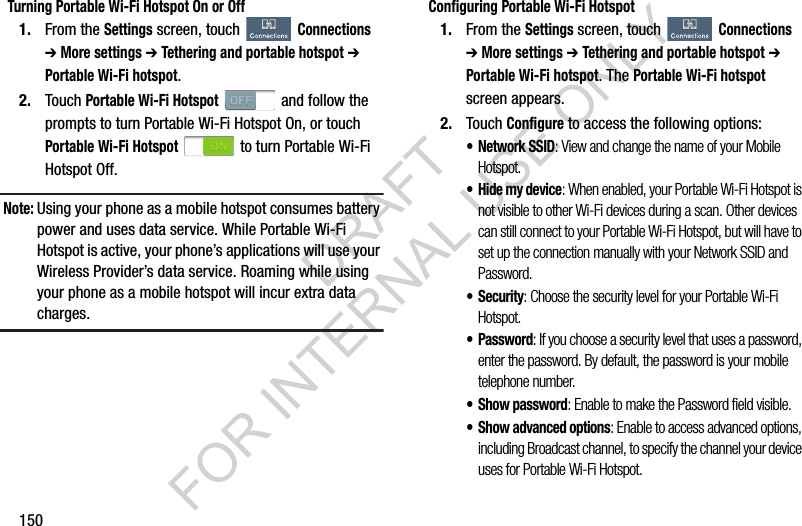

150Turning Portable Wi-Fi Hotspot On or Off1. From the Settings screen, touch Connections ➔ More settings ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot.2. Touch Portable Wi-Fi Hotspot and follow the prompts to turn Portable Wi-Fi Hotspot On, or touch Portable Wi-Fi Hotspot to turn Portable Wi-Fi Hotspot Off.Note:Using your phone as a mobile hotspot consumes battery power and uses data service. While Portable Wi-Fi Hotspot is active, your phone’s applications will use your Wireless Provider’s data service. Roaming while using your phone as a mobile hotspot will incur extra data charges.Configuring Portable Wi-Fi Hotspot1. From the Settings screen, touch Connections ➔ More settings ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot. The Portable Wi-Fi hotspot screen appears. 2. Touch Configure to access the following options:• Network SSID: View and change the name of your Mobile Hotspot.• Hide my device: When enabled, your Portable Wi-Fi Hotspot is not visible to other Wi-Fi devices during a scan. Other devices can still connect to your Portable Wi-Fi Hotspot, but will have to set up the connection manually with your Network SSID and Password.• Security: Choose the security level for your Portable Wi-Fi Hotspot.• Password: If you choose a security level that uses a password, enter the password. By default, the password is your mobile telephone number.• Show password: Enable to make the Password field visible.• Show advanced options: Enable to access advanced options, including Broadcast channel, to specify the channel your device uses for Portable Wi-Fi Hotspot.DRAFT FOR INTERNAL USE ONLY

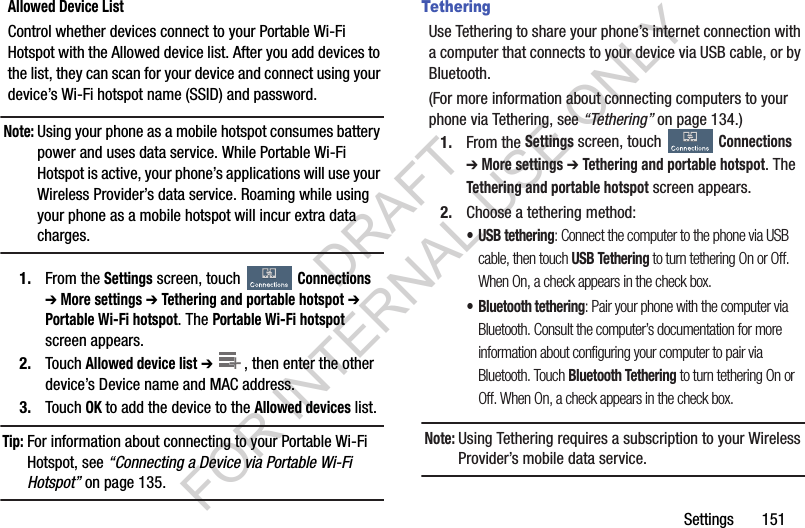

Settings 151Allowed Device ListControl whether devices connect to your Portable Wi-Fi Hotspot with the Allowed device list. After you add devices to the list, they can scan for your device and connect using your device’s Wi-Fi hotspot name (SSID) and password. Note:Using your phone as a mobile hotspot consumes battery power and uses data service. While Portable Wi-Fi Hotspot is active, your phone’s applications will use your Wireless Provider’s data service. Roaming while using your phone as a mobile hotspot will incur extra data charges.1. From the Settings screen, touch Connections ➔ More settings ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot. The Portable Wi-Fi hotspot screen appears.2. Touch Allowed device list ➔ , then enter the other device’s Device name and MAC address. 3. Touch OK to add the device to the Allowed devices list.Tip:For information about connecting to your Portable Wi-Fi Hotspot, see “Connecting a Device via Portable Wi-Fi Hotspot” on page 135.TetheringUse Tethering to share your phone’s internet connection with a computer that connects to your device via USB cable, or by Bluetooth.(For more information about connecting computers to your phone via Tethering, see “Tethering” on page 134.) 1. From the Settings screen, touch Connections ➔ More settings ➔ Tethering and portable hotspot. The Tethering and portable hotspot screen appears. 2. Choose a tethering method:• USB tethering: Connect the computer to the phone via USB cable, then touch USB Tethering to turn tethering On or Off. When On, a check appears in the check box.• Bluetooth tethering: Pair your phone with the computer via Bluetooth. Consult the computer’s documentation for more information about configuring your computer to pair via Bluetooth. Touch Bluetooth Tethering to turn tethering On or Off. When On, a check appears in the check box.Note:Using Tethering requires a subscription to your Wireless Provider’s mobile data service. ++DRAFT FOR INTERNAL USE ONLY
152VPNSet up and manage Virtual Private Networks (VPNs). For more information about using VPNs, see “VPN” on page 131Adding a VPN1. From the Settings screen, touch Connections ➔ More settings ➔ VPN.2. Touch Add VPN network to set up a connection to a VPN, using the following settings:•Name: Enter a name for the VPN connection.•Type: Choose the type of VPN.• Server address: Enter the IP address of the VPN server.• PPP encryption (MPPE): Touch to enable or disable encryption.• Show advanced options: Touch to show more options. Available options depend on the type of VPN you are adding.Note:You must enable at least Pattern security before setting up a VPN. If you have not yet enabled security, you’ll be prompted to do so the first time you launch VPN settings.NFCUse NFC (Near Field Communication) to share information between your phone and another NFC device by touching the devices together, typically back-to-back.For more information about sharing information with NFC, “S Beam” on page 153. 1. From the Settings screen, touch Connections. 2. Under Connect and share: •Touch the NFC slider to turn NFC On. •Touch the NFC slider to turn NFC Off. Note:NFC must be turned on to use S Beam. DRAFT FOR INTERNAL USE ONLY
Settings 153S BeamS Beam uses your phone’s NFC (Near Field Communication) to send, or “beam”, content to other NFC and Wi-Fi Direct devices, by holding the devices close together. S Beam works in the background. To share pictures or videos from Gallery, videos from Video player, or songs from Music player. Just bring the devices together (typically back-to-back), then touch the screen. Turning S Beam On or Off1. From the Settings screen, touch Connections. 2. Under Connect and share: •Touch the NFC slider to turn NFC On. •Touch the NFC slider to turn NFC Off. 3. Under Connect and share: •Touch the S Beam slider to turn S Beam On. •Touch the S Beam slider to turn S Beam Off. Nearby devicesShare files with nearby devices via DLNA (Digital Living Network Alliance) over Wi-Fi.Note:To use Nearby devices for sharing, you must have set up a connection with another Wi-Fi device that supports DLNA.1. From the Settings screen, touch Connections ➔ Nearby devices. The Nearby devices screen appears. 2. Touch File sharing to turn file sharing via DLNA On or Off. When On, a check mark appears in the check box. The Nearby devices pop-up appears. Read the cautionary statement, then touch OK. 3. Under Advanced, touch options to control how content is shared from your device:• Shared contents: Choose the type of content to share, from Videos, Photos, or Music.•Device name: View or modify your device’s name.• Allowed devices list: Lists Wi-Fi devices allowed to access your phone. Note:NFC must be turned on to use S Beam. DRAFT FOR INTERNAL USE ONLY
154• Not-allowed devices list: Lists Wi-Fi devices blocked from accessing your phone. •Download to: Choose a location to save downloaded content, from USB storage or SD card.• Upload from other devices: Choose how to handle incoming files from other devices, from Always accept, Always ask, or Always reject.AllShare CastAllShare Cast lets your phone share the contents of its display with other Digital Living Network Alliance (DLNA) certified devices, such as Smart televisions. (For more information, refer to “AllShare Cast” on page 137.) Note:To view more information about DLNA certified products visit http://www.dlna.org/home.Kies via Wi-FiKies via Wi-Fi allows you to sync your PC wirelessly with your device provided they are both on the same Wi-Fi network. You can view and share videos, photos, music, ringtones, and more.1. From your PC, download the Samsung Kies application if you don’t already have it. You can find it at samsung.com.2. From your PC, launch the Samsung Kies application.3. From your PC, connect to a Wi-Fi network.4. From the Settings screen, touch Connections ➔ Kies via Wi-Fi. 5. From your device, connect to the same Wi-Fi network that your PC is connected to if you have not already done so. (For more information, refer to “Connect to a Wi-Fi Network” on page 161.) DRAFT FOR INTERNAL USE ONLY
Settings 155My deviceHome screen modeSelect the Home screen layout that best suits your needs. 1. From the Settings screen, touch My device ➔ Home screen mode. The Home screen mode screen appears. 2. Select the desired Home screen mode: •Basic mode: A conventional layout for apps and widgets on the Home screen panels. • Easy mode: A simplified apps and widgets layout for first time smartphone users. CallNote:This section does not include information about Call settings. (For Call settings information, see “Call Settings” on page 69.) Blocking modeWhen enabled, Blocking mode lets you select which notifications you receive. 1. From the Settings screen, touch My device ➔ Blocking mode to enable this feature. 2. Touch the Blocking mode tab to access the following options: •Features: –Disable incoming calls: Blocks incoming calls from everyone except Allowed contacts. –Disable notifications: Blocks notifications from playing an alert tone. –Disable alarm and timer: Blocks notifications from Clock and Calendar alarms, and from timers. –Disable LED indicator: Stops LED indicator from lighting. •Set time: –Always: When enabled, Blocking mode stays active until you turn it off. –From: With Always disabled, select the time when Blocking mode will come on. DRAFT FOR INTERNAL USE ONLY
156–To: With Always disabled, select the time when Blocking mode will go off. • Allowed contacts: –Allowed contacts: Select contacts from whom your phone is to accept incoming calls. [Options are: None, All contacts, Favorites, Custom (selecting this option enables Allowed contact list).] –Allowed contact list: Add and remove contacts from whom your phone accepts calls when Blocking mode is on. 3. Select the desired option to enable/disable it. Sound䡲 From the Settings screen, My device ➔ Sound. The Sound menu appears. VolumeSet the system volume level, and set default volume for call ringtones, notifications, and media playback.Note:You can also set System volume from the Home screen by pressing the Volume key Up or Down. 1. From the Sound menu, touch Volume. The Volume menu pops-up. 2. Touch and drag the sliders for:• Music, video, games, and other media: Set the default volume level for audio playback. You can also adjust volume from this default inside the apps.•Ringtone: Set the volume for incoming call ringtones.• Notifications: Set the volume for notifications, such as new messages and event reminders.• System: Set the volume for all other system sounds, such as keytones played for screen touches. You can control whether tones play for screen touches with other sound settings.DRAFT FOR INTERNAL USE ONLY
Settings 1573. Touch OK to save your settings.Vibration intensitySet the level for vibration to accompany ringtones and notifications.1. From the Sound menu, touch Vibration intensity. The Vibration intensity menu pops-up. 2. Touch and drag the sliders for:• Incoming call: Set the vibration level for incoming call ringtones.• Notification: Set the vibration level for notifications, such as new messages and event reminders.• Haptic feedback: Set the vibration level vibrations to accompany screen touches.3. Touch OK to save your settings.RingtonesChoose a ringtone for incoming calls.1. From the Sound menu, under Ringtone and notifications, touch Ringtones. The Ringtones menu pops-up. 2. Touch a ringtone to select it. When you touch a ringtone, a sample plays, unless you have a Silent mode enabled. 3. Touch OK to save your selection. Tip:You can also set songs as ringtones for all calls, or for a selected contact. (For more information, refer to “Music Player” on page 112.) DRAFT FOR INTERNAL USE ONLY
158VibrationsChoose a vibration pattern to use when vibration is enabled.1. From the Sound menu, under Ringtone and notifications, touch Vibrations. The Vibrations menu pops-up. 2. Touch a vibration pattern to select it. When you touch a pattern, a sample plays. 3. To create your own pattern, touch Create. Touch Tap to create in the pattern, then touch Stop. Touch Save to save your pattern.4. Touch OK to save your selection. NotificationsChoose a default sound to play for notifications, such as for new messages and event reminders.1. From the Sound menu, under Ringtone and notifications, touch Notifications. The Notifications menu pops-up. 2. Touch a sound to select it. When you touch a sound, a sample plays. 3. Touch OK to save your selection. Tip:You can also set songs as ringtones. (For more information, refer to “Music Player” on page 112.) DRAFT FOR INTERNAL USE ONLY
Settings 159Vibrate when ringingWhen enabled, vibration is played at the same time as sounds for calls and alerts.䡲 From the Sound menu, under Ringtone and notifications, touch Vibrate when ringing to enable or disable the feature. When Vibrate when ringing is enabled, a check mark appears in the check box. Dialing keypad toneDialing keypad tones are sounds that play when you touch keys on the Phone keypad.䡲 From the Sound menu, under System, touch Dialing keypad tones to enable or disable key sounds.When Dialing keypad tones is enabled, a check mark appears in the check box. Touch soundsTouch sounds play when you touch items on the screen, such as when making a selection.䡲 From the Sound menu, under System, touch Touch sounds to enable or disable touch sounds.When Touch sounds is enabled, a check mark appears in the check box. Screen lock soundScreen lock sound plays when you lock or unlock the screen.䡲 From the Sound menu, under System, touch Screen lock sound to enable or disable the Screen lock sound.When Screen lock sound is enabled, a check mark appears in the check box. Haptic feedbackWhen turned On, the phone vibrates to indicate screen touches and other interactions. 䡲 From the Sound menu, under System, touch Haptic feedback to turn touch vibrations On or Off.DRAFT FOR INTERNAL USE ONLY
160Emergency toneYou can set your phone to play an alert tone or vibrate during an emergency call (for example, calls to 911).Caution! When you are endangered by intruders, you should disable Emergency tone before placing an Emergency Call. 1. From the Sound menu, under System, touch Emergency tone.2. Touch Alert or Vibrate, or touch Off for no emergency tone. Display䡲 From the Settings screen, touch My device ➔ Display. The Display menu appears. GeneralWallpaperSelect wallpaper(s) for the Home and Lock screens. 1. From the Display menu, under General, touch Wallpaper. 2. Touch the screen for which you want to select wallpaper. (Options are: Home screen, Lock screen, and Home and lock screens.) 3. Touch the source of the wallpaper(s) you want to use. [Options are: Gallery, Live wallpapers (not for the Lock screen), and Wallpapers.) 4. Touch the desired image or wallpaper. DRAFT FOR INTERNAL USE ONLY
Settings 161LED indicatorSelect which alerts cause the LED indicator (upper left corner of your phone) to come on while your phone’s screen is off. 䡲 From the Display menu, under General, touch LED indicator. The following options are available: •Charging: LED indicator lights red while your phone’s battery is being charged. • Low battery: LED indicator lights red when your phone’s battery charge level becomes low. • Notifications: LED indicator flashes blue when you have missed calls, new messages, or application events. • Voice recording: LED indicator lights blue when you are recording a voice note. Notification panel䡲 From the Display menu, under General, touch Notification panel. The following options are available: • Brightness adjustment: When enabled, the Brightness setting appears on the Notification panel, below the Quick setting buttons. • Set the quick setting buttons: By touching and dragging available buttons in rows 2 through 4 into row 1, you can customize which Quick settings buttons appear on the Notification panel. Multi window䡲 From the Display menu, under General, touch Multi window to enable or disable the Multi window tray. (For more information, refer to “Using Multi Window” on page 29.) DRAFT FOR INTERNAL USE ONLY
162ScreenScreen modeSet the screen color balance and contrast mode.1. From the Display menu, under Screen, touch Screen mode.2. Touch Dynamic, Standard, Natural, or Movie then touch OK.BrightnessSet the default screen brightness.1. From the Display menu, under Screen, touch Brightness.2. Touch and drag the slider to set the brightness, or touch Automatic brightness to allow the phone to adjust brightness in response to light conditions.3. Touch OK to save the setting.Auto-rotate screenWhen enabled, the screen’s orientation automatically changes when you rotate the phone.䡲 From the Display menu, under Screen, touch Auto-rotate screen to turn the feature On or Off.Tip:You can also set Auto rotate on the Notifications panel with the Screen rotation setting.Screen timeoutSet the length of delay between the last key press or screen touch and the automatic screen timeout (dim and lock).1. From the Display menu, under Screen, touch Screen timeout.2. Touch a setting to select it.DRAFT FOR INTERNAL USE ONLY

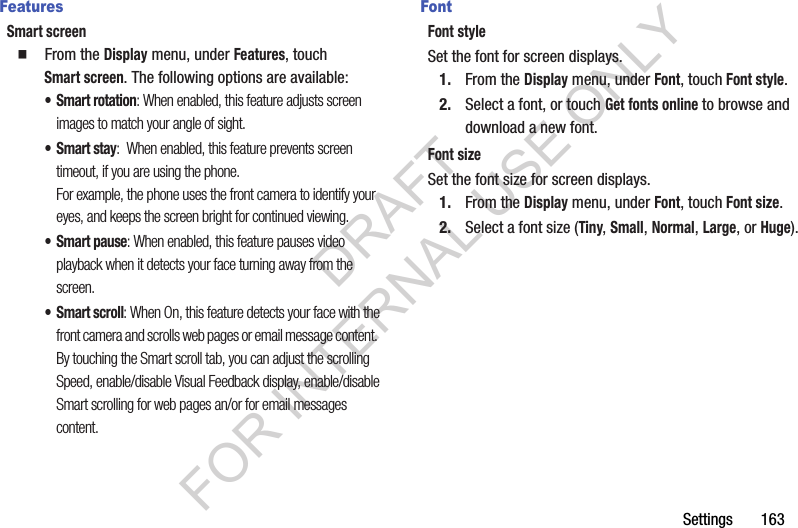

Settings 163FeaturesSmart screen䡲 From the Display menu, under Features, touch Smart screen. The following options are available: • Smart rotation: When enabled, this feature adjusts screen images to match your angle of sight. •Smart stay: When enabled, this feature prevents screen timeout, if you are using the phone. For example, the phone uses the front camera to identify your eyes, and keeps the screen bright for continued viewing. • Smart pause: When enabled, this feature pauses video playback when it detects your face turning away from the screen. • Smart scroll: When On, this feature detects your face with the front camera and scrolls web pages or email message content. By touching the Smart scroll tab, you can adjust the scrolling Speed, enable/disable Visual Feedback display, enable/disable Smart scrolling for web pages an/or for email messages content. FontFont styleSet the font for screen displays.1. From the Display menu, under Font, touch Font style.2. Select a font, or touch Get fonts online to browse and download a new font.Font sizeSet the font size for screen displays.1. From the Display menu, under Font, touch Font size.2. Select a font size (Tiny, Small, Normal, Large, or Huge). DRAFT FOR INTERNAL USE ONLY

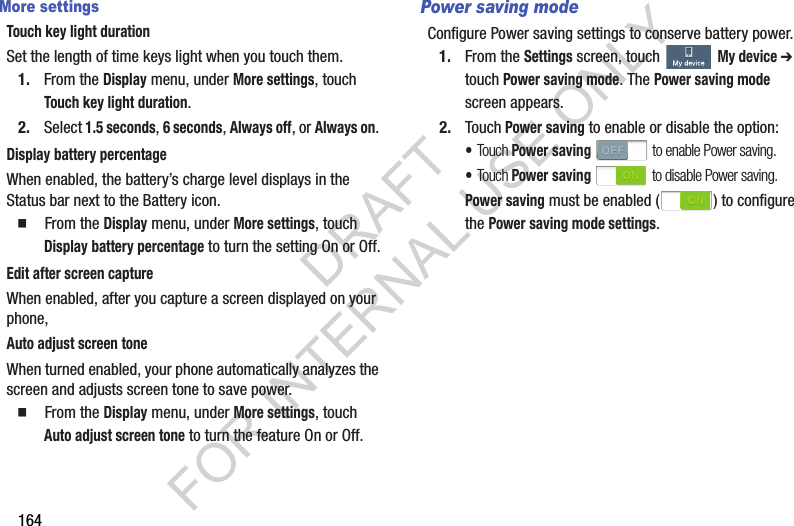

164More settingsTouch key light durationSet the length of time keys light when you touch them.1. From the Display menu, under More settings, touch Touch key light duration.2. Select 1.5 seconds, 6 seconds, Always off, or Always on. Display battery percentageWhen enabled, the battery’s charge level displays in the Status bar next to the Battery icon.䡲 From the Display menu, under More settings, touch Display battery percentage to turn the setting On or Off.Edit after screen captureWhen enabled, after you capture a screen displayed on your phone, Auto adjust screen toneWhen turned enabled, your phone automatically analyzes the screen and adjusts screen tone to save power.䡲 From the Display menu, under More settings, touch Auto adjust screen tone to turn the feature On or Off.Power saving modeConfigure Power saving settings to conserve battery power.1. From the Settings screen, touch My device ➔ touch Power saving mode. The Power saving mode screen appears. 2. Touch Power saving to enable or disable the option: •Touch Power saving to enable Power saving. •Touch Power saving to disable Power saving. Power saving must be enabled ( ) to configure the Power saving mode settings. DRAFT FOR INTERNAL USE ONLY
Settings 1653. Touch the following Power saving mode settings to enable or disable them. (When an option is enabled, a check mark appears in its check box.): • CPU power saving: When enabled, the phone’s maximum performance is limited. This does not affect normal usage, such as browsing and video playback. • Screen power saving: When enabled, the screen uses reduced frame refresh rate and lower brightness. • Turn off haptic feedback: When enabled, no vibration plays when you touch the screen. 4. Under Power saving tips, touch Learn about power saving to read information about Power saving options. 5. Touch an app or service to display the App info or Active app screen which provides more detailed storage usage information, and lets you Stop/Force stop or Uninstall/Report and app or service. For Downloaded apps, you can also Clear data, Clear cache, and/or Clear defaults. Lock screenChoose settings for locking and unlocking your phone. For more information about using the lock and unlock features, see “Securing Your Phone” on page 19.䡲 From the Settings screen, touch My device ➔ Lock screen. Touch the following options to access additional options: • Screen lock: Touch one of the following options to select it as your custom screen lock/unlock method: –Swipe: When enabled, you unlock the phone by swiping your finger across the screen. This is the default screen lock, and offers no security.–Face unlock: When enabled, you unlock the phone by looking at the screen. This option offers low security, because someone who looks similar to you could unlock your phone. Touch the option for more information, and to set up Face unlock.–Pattern: When enabled, you draw a pattern, which you create, on the screen to unlock the phone. Touch the option, then follow the prompts to create or change your screen unlock pattern.–PIN: When enabled, you enter a numeric PIN (Personal Identification Number), which you create, to unlock the phone.DRAFT FOR INTERNAL USE ONLY
166–Password: When enabled, you enter an alphanumeric password, which you create, to unlock the phone.–None: Disable all custom screen lock settings, to use the default swipe unlock screen. • Auto unlock zone: Touch Auto unlock zone to automatically disable Screen lock when in an auto unlock zone. • Lock screen widget options: Touch this option and the Lock screen widget options screen appears with the following additional options available: –Shortcut / Camera widget: Touch Shortcut / Camera widget to enable the Camera shortcut or widget on the Lock screen–Clock / My profile widget: Choose whether the Clock widget or a My profile text entry field appears on the Lock screen. –Edit clock: Customize the Clock on the Lock screen by enabling or disabling Dual clock function, set the Clock size (Small, Normal, or Large), choose whether to show the date, and or enter personal text you want to appear on the Lock screen. •Shortcuts: When enabled, application shortcuts appear on the lock screen. Swipe an icon to launch the associated application. Touch Shortcuts to enable lock screen shortcuts. Touch Shortcuts to disable lock screen shortcuts. Touch Shortcuts to add/remove lock screen shortcuts. –Unlock effect: Touch this option to enable/disable showing a Ripple or Light effect on the lock screen, provided the lock screen wallpaper is not “live”. –Help text: Touch this option to enable/disable showing text explanations of lock screen features. When enabled, a check mark appears in the check box. –Wake up in lock screen: Touch this option to enable/disable unlocking your phone by saying the S Voice wake-up command. When enabled, a check mark appears in the check box. (For more information about S Voice, see “S Voice” on page 120.) Note: The Lock screen options are only available when the Screen lock option is set to Swipe or Motion.DRAFT FOR INTERNAL USE ONLY
Settings 167–Set wake-up command: Touch this option and to configure the S Voice wake-up command functions. (For more information about S Voice, see “S Voice” on page 120.) Safety assuranceThis feature lets you delare an emergency situation that automatically sends a pre-composed Emergency message and/or Emergency pictures to designated Emergency contacts. 䡲 From the Settings screen, touch My device ➔ Safety assurance. Touch the following options to access additional options: • Emergency message: Touch this option to create or edit an emergency message for your phone to automatically send to your Emergency contacts. • Emergency pictures: When enabled this option automatically activates your phone’s front and rear cameras and takes and sends pictures from them to your Emergency contacts. • Sending interval: Select how often emergency messages and pictures are sent to your Emergency contacts. • Emergency contacts: Add or select contacts to receive your Emergency messages and pictures. AccessoryConfigure your phone’s behavior when you connect it to optional accessories (not included).䡲 From the Settings screen, touch My device ➔ Accessory. The Accessory screen appears. DockConfigure your phone’s behavior when it is connected to an optional Dock (not included). 䡲 From the Accessory screen, under Dock, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Dock sound: When enabled, a sound plays when you insert and remove the phone from the Dock.• Audio output mode: When enabled, audio plays through the Dock speakers when the phone is docked.• Desk home screen display: When enabled, displays a special screen when the phone is docked. DRAFT FOR INTERNAL USE ONLY
168Clear cover䡲 From the Accessory screen, under Clear cover, touch the check box next to Automatic unlock to enable/disable unlocking your phone’s screen by flipping the cover open, provided the secure lock is disabled: (When enabled, a check mark appears in the check box.) HDMIConfigure your phone’s behavior when you connect it to an HD television or an amplifier using an optional HDTV Adapter (not included). 䡲 From the Accessory screen, under HDMI, the following option is available: •Audio output: Select the quality of sound to be produced (Stereo or Surround). Date and timeBy default, your phone receives date and time information from the wireless network. When you are outside network coverage, you may want to set date and time information manually using the Date & time settings.1. From the Home screen, touch Menu, then select Settings ➔ Date and time.2. Touch a setting to configure:• Automatic date and time: When enabled, the phone takes date and time updates from the wireless network (disables Set date, Set time, and Select time zone).•Set date: Enter the current date (only available when Automatic date and time is disabled).•Set time: Enter the current time (only available when Automatic date and time is disabled).• Automatic time zone: When enabled, the phone uses the network-provided time zone. • Select time zone: Choose your local time zone (only available when Automatic date and time is disabled).• Use 24-hour format: Set the format for time displays.• Select date format: Set the format for date displays.AccessibilityYour phone offers features to make using the phone easier for those with certain physical disabilities. Use the Accessibility settings to activate these services. 䡲 From the Settings screen, under System, touch Accessibility. The Accessibility screen appears. DRAFT FOR INTERNAL USE ONLY
Settings 169System䡲 From the Accessibility screen, under System, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Auto-rotate screen: The screen’s orientation automatically changes when you rotate the phone. You can also set Auto rotate on the Notifications panel with the Screen rotation setting. • Screen timeout: Set the length of delay between the last key press or screen touch and the automatic screen timeout (dim and lock). • Speak passwords: Lets you speak passwords for log-ins. • The power key ends calls: Lets you can end voice calls by pressing the Power/Lock key. • Accessibility shortcut: Adds an Accessibility settings option to the Device options menu (appears when you press and hold the Power/Lock key. This provides quick access to the Accessibility settings, to make changes as you use the phone. ServicesEnable or disable accessibility services. TalkBack䡲 From the Accessibility screen, under Services, touch the following option: •TalkBack: When enabled in the TalkBack screen, recites menu options, application titles, contacts, and other items when scrolling and making selections, according to the Settings values you select. DRAFT FOR INTERNAL USE ONLY
170Vision䡲 From the Accessibility screen, under Vision, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) •Font size: Set the font size for screen displays (Tiny, Small, Normal, Large, Huge).• Negative colors: Reverses the colors on the screen. • Text-to-speech output: Select Preferred TTS engine, Speech rate, and Driving mode. • Enhance web accessibility: Does not allow / Allows apps to install scripts from Google that make their Web content more accessible. Hearing䡲 From the Accessibility screen, under Hearing, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Sound balance: Lets you adjust media player sound balance when you are using a stereo headset or stereo headphones. •Mono audio: Delivers monophonic sound to support listening with a wired or Bluetooth headset with one earphone. • Turn off all sounds: Disables all sounds, including the voice portion of calls. Mobility䡲 From the Accessibility screen, under Mobility, touch the following option: • Tap and hold delay: Select the length of time the phone considers a screen touch before interpreting a touch as touch-and-hold (Short, Medium, Long). DRAFT FOR INTERNAL USE ONLY
Settings 171Language and input䡲 From the Settings screen, under Input and control, touch Language and input. The Language and input screen appears. LanguageSelect the language used in your phone’s screens.䡲 From the Language and input screen, touch Language to select the language used in your phone’s screens. Keyboards and input methodsConfigure text entry options to your preferences. 䡲 From the Language and input screen, under Keyboards and input methods, touch the check box next to each of the following options to enable it. (When enabled, a check mark appears in the check box.): •Default: Review the default method for manually entering text. Note:This option cannot be changed. • Google voice typing: Lets you vocally dictate the text entered into a field. Touch beside Google voice typing to configure the following options: –Choose input languages: Select languages for Google voice typing. Select Automatic to use the Default language exclusively, or choose other language(s). –Block offensive words: When enabled, words many people find offensive are not shown in results of Google voice searches. Offensive words are replaced in results with a placeholder (####). –Download offline speech recognition: Enables voice input using Google voice typing while your phone is offline. • Samsung keyboard: Touch beside Samsung keypad to configure the following options. Note:This option cannot be disabled. –Portrait keyboard types: Choose the default keypad when the screen is in portrait mode, from Qwerty or 3x4 keyboard (similar to a phone keypad).–Input languages: Select languages for the Samsung keyboard. DRAFT FOR INTERNAL USE ONLY
172Tip:When you have more than one language selected, you can slide your finger on the space bar while entering text to switch languages.–Predictive text: When enabled, T9 suggests words matching your text entries and optionally, complete common words automatically. Touch Predictive text to enable T9 predictive text, touch Predictive text to disable T9 predictive text. Touch Predictive text to configure the following options: Personalized data: When enabled, Predictive text uses personal language data you have entered. Learn from Gmail: Log in to let your device learn from your Gmail messages.Learn from Facebook: Log in to let your device learn from your Facebook entries.Learn from Twitter: Log in to let your device learn from your “tweets”.Learn from Messaging: Update to let your device learn from your message text entries. Learn from Contacts: Update to let your device learn from your Contacts style.Clear personalized data: Remove all the personal language data you have entered.–T9 Trace: When enabled, you can sweep your finger over keypad letters to enter words. When you lift your finger, a word matching your sweep is entered automatically. Available when Predictive text is turned On.–Handwriting: When in Handwriting mode, Samsung keyboard recognizes on-screen tracing of words. Touch Handwriting to configure the following options: Recognition type: Select Stroke recognition or Complete recognition. Recognition time: Select 100 ms, 300 ms, 500 ms, 1000 ms, or 2000 ms. Pen thickness: Select 1 pixel, 3 pixels, 5 pixels, 7 pixels, or 9pixels. Pen color: Select Black, Red, Blue, Green, or Brown. Gesture guide: Shows gestures for text editing functions. Tutorial: Shows explanation of how to write by hand so that the phone will accept your input. About: Lists the Build, DHWR, and DioWord+ release versions. DRAFT FOR INTERNAL USE ONLY
Settings 173–Advanced: Auto-capitalization: When enabled, T9 automatically capitalizes words in your text based on common usage, such as at the beginning of sentences.Auto-punctuate: When enabled, a period and space are automatically entered to end a sentence, when you touch the space bar twice.Character preview: When enabled, characters available on the key you touch display briefly as you enter text.Key-tap vibration: When enabled, a vibration plays for your key touches.Key-tap sound: When enabled, a sound plays for your key touches.–Tutorial: View help for using T9 predictive text.–Reset settings: Touch to reset Samsung keyboard settings to the defaults, except for My word list and the Auto substitution list.•Swype: Touch beside Swype to configure the following options. –How to Swype: Learn Swype through quick, easy-to-use steps. –Gestures: Learn about the gestures you can use to simplify accessing Swype features. –Preferences: Vibrate on keypress: When enabled, the phone vibrates on text entry.Sound on keypress: When enabled, plays sounds as you enter text.Show helpful tips: When enabled, displays a flashing indicator for quick help as you enter text.Auto-spacing: When enabled, inserts spaces automatically when you pause entering text.Auto-capitalization: When enabled, automatically capitalizes the first letter of the first word in a sentence.Show complete Trace: Choose whether to display the complete Swype path. Pop-up on keypress: Characters pop-up when you type them. Next word prediction: When enabled, suggests possible matching words as you enter text.Reset Swype’s dictionary: Delete all words you’ve added. Version: View the current Swype software version. DRAFT FOR INTERNAL USE ONLY

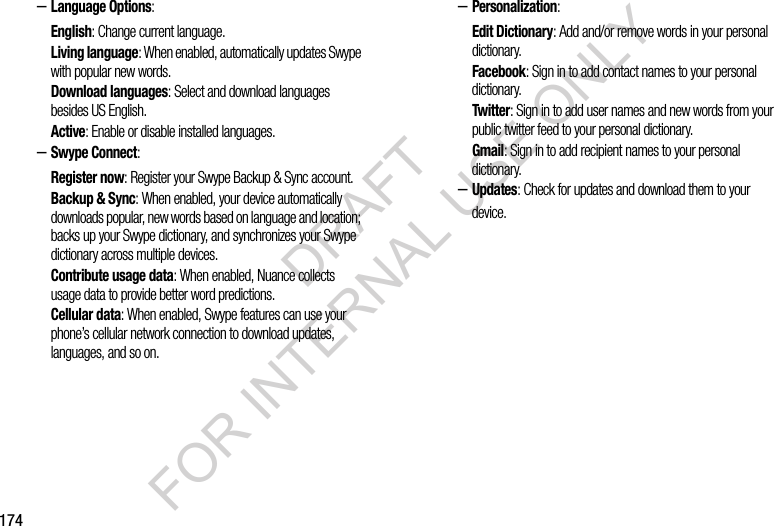

174–Language Options: English: Change current language. Living language: When enabled, automatically updates Swype with popular new words. Download languages: Select and download languages besides US English. Active: Enable or disable installed languages. –Swype Connect: Register now: Register your Swype Backup & Sync account. Backup & Sync: When enabled, your device automatically downloads popular, new words based on language and location; backs up your Swype dictionary, and synchronizes your Swype dictionary across multiple devices. Contribute usage data: When enabled, Nuance collects usage data to provide better word predictions. Cellular data: When enabled, Swype features can use your phone’s cellular network connection to download updates, languages, and so on. –Personalization:Edit Dictionary: Add and/or remove words in your personal dictionary.Facebook: Sign in to add contact names to your personal dictionary. Twitter: Sign in to add user names and new words from your public twitter feed to your personal dictionary. Gmail: Sign in to add recipient names to your personal dictionary. –Updates: Check for updates and download them to your device. DRAFT FOR INTERNAL USE ONLY
Settings 175Speech䡲 From the Language and input screen, under Speech, the following options are available: • Voice search: Configure how Voice search reacts to your speech. –Language: Choose a language for voice searching. –Speech output: Choose whether Speech is Always available or available with Hands-free only. –Block offensive words: When enabled, words many people find offensive are not shown in results of Google voice searches. Offensive words are replaced in results with a placeholder (####). –Hot word detection: When enabled, say “Google” to launch voice search. –Download offline speech recognition: Enables voice input while off-line. –Personalized recognition: Train Voice search to more accurately recognize your voice. –Google Account dashboard: Manage data collected under your Google account. • Text-to-speech output: Provides audible readout of text, for example, the contents of text messages, and the Caller ID for incoming calls. –Preferred TTS engine: Select Google Text-to-speech Engine, or Samsung TTS. –General: Speech rate: Choose a rate at which text readouts are spoken.Listen to an example: Play a sample of speech synthesis.Driving mode: When enabled, incoming calls and new notifications are read out automatically. Touch Driving mode to enable Driving mode. Touch Driving mode to disable Driving mode. Touch Driving mode to choose items to be read out when Driving mode is enabled (Incoming call, Message, New emails, New voicemail, Alarm, Schedule, and/or Unlock screen). Mouse/trackpadCustomize the response of your screen swipes.䡲 From the Language and input screen, under Mouse/trackpad, touch Pointer speed, then touch and drag along the scale to set the pointer speed.DRAFT FOR INTERNAL USE ONLY
176Motions and gesturesMotion lets you control a number of your phone’s functions by moving your hand or finger across the screen in a particular pattern or by moving the phone itself in a particular way.Note:For more information about using Motion, see “Motions” on page 25. 1. From the Settings screen, under System, touch Motions and gestures to enable your phone’s ability to recognize active gestures. Touch Motion to disable your phone’s ability to recognize active gestures. 2. Touch the Motion option. The Motion screen appears. For these options, when enable, a check mark appears in the check box. The following options are available: •Motion: –Direct call: When enabled, you can lift the phone to your ear while viewing a contact to dial the contact’s phone number.–Smart alert: When enabled, the phone will automatically notify you to missed calls and alerts that occurred while the phone was stationary.–Zoom: When enabled, tilting the phone while in Gallery or Internet causes the screen to zoom in or out.–Browse an image: When enabled, moving the phone in a panning motion while viewing an image moves focus around in the image.–Shake: When enabled, shaking the phone starts a new scan for nearby available devices.–Turn over: When enabled, turning the phone screen-down automatically mutes incoming call ringtones and alerts sounds and pauses media playback. • Palm motions: –Capture screen: When enabled, swiping your hand left or right across the display captures an image of the current screen. –Mute/pause: When enabled, covering the screen with your hand pauses media while playing or mutes sounds playing on your phone. • Gyroscope calibration: Calibrate your phone to your hand motions. DRAFT FOR INTERNAL USE ONLY
Settings 177Air viewThis feature lets you preview the contents or view information in pop-up windows by holding your finger above You can scroll through panels or lists by moving your finger to an edge (top/bottom/left/right) of the screen.Voice commandIncoming callsChatONAlarmCameraMusicAccountsSet up and manage accounts, including your Samsung, Email, Google, and social networking accounts. 䡲 From the Settings screen, under Accounts, touch the desired account type. The related account type screen appears. Samsung account1. From the Settings screen, under Accounts, touch Add account ➔ Samsung account. The Samsung account screen appears. 2. Under General settings, touch Account settings. The following options are available: • Account information: –Profile (password protected): Change password and view Email address, Date pf birth, Name prefix, First name, Lastname, Zip code, Nickname, and Receive newsletter status for your account. –Terms and conditions: Review Country or region, Terms and conditions, and Privacy policy information. DRAFT FOR INTERNAL USE ONLY
178–Help: Find your email address or password, Contact us with a text message, or review Customer support information [My questions, FAQ (Frequently Asked Questions), or Contact us]. • Device backup: –Auto backup: When set to On for at least an hour and connected to a Wi-Fi network and with the screen off and the device charging, your data is backed up automatically. –Backup options: Select the data to be backed up [Logs, Messages (SMS), Messages (MMS), and/or Wallpaper]. –Back up now: Immediately backup your data. Also shows when your data was Last backed up. –Restore: Immediately restore your backed up data to your device. Dropbox1. From the Settings screen, under Accounts, touch Add account ➔ Dropbox. The Welcome to Dropbox! screen appears. 2. Follow the prompts to set up a Dropbox account or a link to an existing account. Email1. From the Settings screen, under Accounts, touch Email. The Email screen appears. 2. Under Common settings, touch Settings. The Settings screen appears. 3. Touch General preferences. The following options are available: • General preferences: –Auto-advance: Select which screen (Next message, Previous message, Message list) appears after you delete a message. –Message preview line: Number of message lines (None, 1 line, 2 lines, 3 lines) that appear in the folder message list. –Email title: Select which message header line (Subject, Sender) appears as the message title in the folder message list. –Confirm deletions: When enabled, you are prompted to confirm message deletions. –Quick responses: Edit pre-composed text you frequently include in your messages. • Priority sender inbox: –Priority senders: List those senders whose messages receive priority in your message list. DRAFT FOR INTERNAL USE ONLY

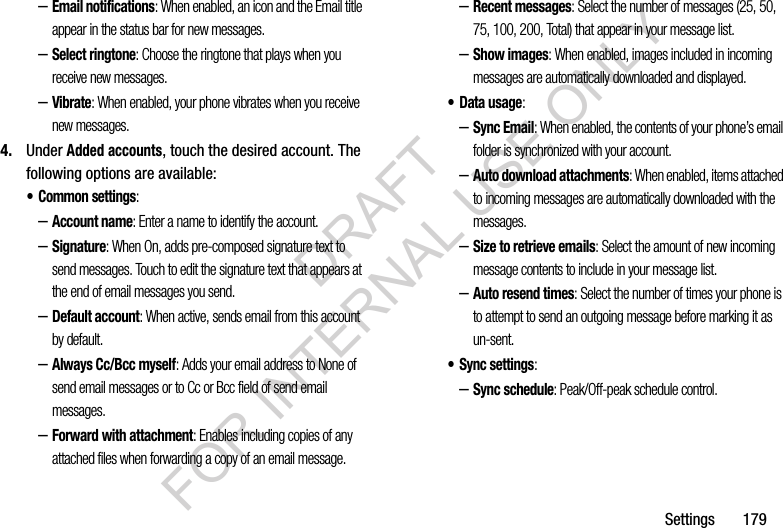

Settings 179–Email notifications: When enabled, an icon and the Email title appear in the status bar for new messages. –Select ringtone: Choose the ringtone that plays when you receive new messages. –Vibrate: When enabled, your phone vibrates when you receive new messages. 4. Under Added accounts, touch the desired account. The following options are available: • Common settings: –Account name: Enter a name to identify the account. –Signature: When On, adds pre-composed signature text to send messages. Touch to edit the signature text that appears at the end of email messages you send. –Default account: When active, sends email from this account by default. –Always Cc/Bcc myself: Adds your email address to None of send email messages or to Cc or Bcc field of send email messages. –Forward with attachment: Enables including copies of any attached files when forwarding a copy of an email message. –Recent messages: Select the number of messages (25, 50, 75, 100, 200, Total) that appear in your message list. –Show images: When enabled, images included in incoming messages are automatically downloaded and displayed. • Data usage: –Sync Email: When enabled, the contents of your phone’s email folder is synchronized with your account. –Auto download attachments: When enabled, items attached to incoming messages are automatically downloaded with the messages. –Size to retrieve emails: Select the amount of new incoming message contents to include in your message list. –Auto resend times: Select the number of times your phone is to attempt to send an outgoing message before marking it as un-sent. • Sync settings: –Sync schedule: Peak/Off-peak schedule control. DRAFT FOR INTERNAL USE ONLY
180• Notification settings –Email notifications: Enable or disable display of a new email icon in the Annunciator line when new mail arrives.–Select ringtone: Assign a ringtone for new email notifications.–Vibration: Enable or disable vibration with new email notifications.• Server settings–Incoming settings: Modify settings for accessing the email server to view incoming email messages. –Outgoing settings: Modify settings for accessing the email server to send email messages. Facebook1. From the Settings screen, under Accounts, touch Add account ➔ Facebook. The Play store - Facebook Install screen appears. 2. Follow the prompts to install and launch the Facebook app and to set up a Facebook account or a link to an existing account. GoogleAdding Google account1. From the Settings screen, under Accounts, touch Add account ➔ Google. The Add a Google Account screen appears. 2. Touch Existing or New. 3. Follow the prompts to set up a Google account link. DRAFT FOR INTERNAL USE ONLY
Settings 181Account Synchronization settings1. From the Settings screen, under Accounts, touch Gmail. The Google screen appears. 2. Under Accounts, touch the desired Google account. The Sync settings screen appears listing the following options: •Sync Calendar: Synchronize your phone’s calendar with your on-line calendar. •Sync Contacts: Synchronize your phone’s contacts list with your on-line contacts list. •Sync Gmail: Synchronize your phone’s Gmail inbox with your on-line Gmail inbox. • Sync Google Photos: Synchronize your phone’s gallery photos with your on-line Google Photos. • Sync Google Play Books: Synchronize your phone’s ebooks library with your on-line ebooks library. • Sync Google Play Magazines: Synchronize your phone’s emagazines library with your on-line emagazines library.• Sync Google Play Movies &: Synchronize your phone’s movies library with your on-line movies library. • Sync Google Play Music: Synchronize your phone’s music list with your on-line music list. • Sync Internet: Synchronize your phone’s Internet browser bookmarks with your on-line bookmarks list. •Sync now: Synchronize all enabled options immediately. • Remove account: Delete this account from your phone. DRAFT FOR INTERNAL USE ONLY

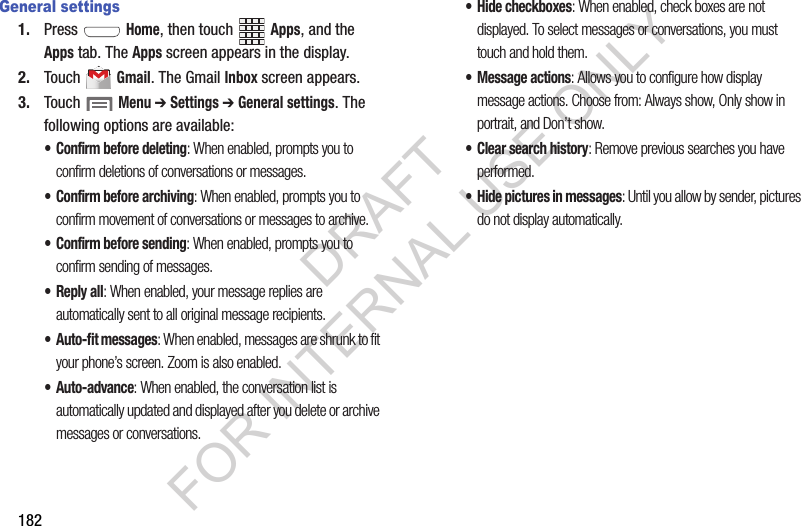

182General settings1. Press Home, then touch Apps, and the Apps tab. The Apps screen appears in the display. 2. Touch Gmail. The Gmail Inbox screen appears. 3. Touch Menu ➔ Settings ➔ General settings. The following options are available: • Confirm before deleting: When enabled, prompts you to confirm deletions of conversations or messages. • Confirm before archiving: When enabled, prompts you to confirm movement of conversations or messages to archive. • Confirm before sending: When enabled, prompts you to confirm sending of messages. •Reply all: When enabled, your message replies are automatically sent to all original message recipients. • Auto-fit messages: When enabled, messages are shrunk to fit your phone’s screen. Zoom is also enabled. • Auto-advance: When enabled, the conversation list is automatically updated and displayed after you delete or archive messages or conversations. • Hide checkboxes: When enabled, check boxes are not displayed. To select messages or conversations, you must touch and hold them. • Message actions: Allows you to configure how display message actions. Choose from: Always show, Only show in portrait, and Don’t show. • Clear search history: Remove previous searches you have performed. • Hide pictures in messages: Until you allow by sender, pictures do not display automatically. DRAFT FOR INTERNAL USE ONLY
Settings 183Account settings1. Press Home, then touch Apps, and the Apps tab. The Apps screen appears in the display. 2. Touch Gmail. The Gmail Inbox screen appears. 3. Touch Menu ➔ Settings and select an account. The following options are available: • Priority Inbox: When enabled, your Gmail account becomes your default inbox. • Notifications: When enabled, notifications for new email appears in the Notifications Panel. • Sound & vibrate: Select Sound (ringtone) to play when new messages arrive, whether to Vibrate to alert you to new messages, and whether to Notify you once for new email messages. •Signature: Create a text signature to add to outgoing messages. • DATA USAGE: –Gmail sync is ON: Enable or disable automatic synchronization, change synchronization settings for this account, remove this account (unless it is the only Gmail account), or add an account. –Days of mail to sync: Choose the number of days worth of Gmail messages to synchronize. –Manage labels: Choose which Gmail labels are synchronized, and access Sound & vibrate settings. –Download attachments: When enabled, automatically downloads attachments to recent messages, but only when your device is connected to a Wi-Fi network. LDAP1. From the Settings screen, under Accounts, touch Add account ➔ LDAP. The Set up an LDAP account screen appears. 2. Follow the prompts to set up an LDAP account link. DRAFT FOR INTERNAL USE ONLY
184Microsoft Exchange ActiveSync1. From the Settings screen, under Accounts, touch Microsoft Exchange ActiveSync. The Microsoft Exchange ActiveSync screen appears. 2. Under Common settings, touch Settings. The Settings screen appears. 3. Touch General preferences. The General preferences options are the same as for Email accounts. 4. Under Added accounts, touch the desired account. The following options are available: • Common settings: –Account name: Enter a name to identify the account. –Signature: Enter or change signature text. –Default account: Touch to assign or un-assign this account as the default account for sending email from your phone.–Always Cc/Bcc myself: Adds your email address to None of send email messages or to Cc or Bcc field of send email messages. –Forward with attachment: Enables including copies of any attached files when forwarding a copy of an email message. –Show images: When enabled, images included in messages automatically display, without a confirmation pop-up. • Data usage: –Auto download attachments: When enabled, automatically downloads attachments to recent messages, but only when your device is connected to a Wi-Fi network. • Exchange ActiveSync settings: –Period to sync email: Choose the number days worth of email messages the phone and server will synchronize. Choose from: All, 1 day, 3 days, 1 week, 2 weeks, or 1 month. –Empty server trash: Delete your email account’s trash bin remotely. –Sync schedule Choose your email automatic synchronization schedule. –Folder sync settings: Choose email automatic synchronization schedules for individual folders. –Out of office settings: Enable/disable your account’s out of office settings, choose the start/end dates, and enter/change your outgoing messages. –Size to retrieve emails: Choose how much of each message your phone retrieves before you view it. DRAFT FOR INTERNAL USE ONLY
Settings 185–Period to sync Calendar: Choose the period of time for your phone to synchronize calendar events (2 weeks, 1 month, 3months, 6 months, or All calendar). –In case of Sync Conflict: Choose whether your Device has priority or the Server has priority during automatic synchronization. –Auto resend times.: Choose the number of times to automatically resend a message before marking it un-sent. • Notification settings–Email notifications: Enable or disable display of a new email icon in the Annunciator line when new mail arrives.–Select ringtone: Assign a ringtone for new email notifications.–Vibrate: Enable or disable vibration with new email notifications.• Server settings–Exchange server settings: Change the server link settings on your device. –Sync contacts: Synchronize your phone’s contacts list with the Exchange server’s contacts list. –Sync Calendar: Synchronize your phone’s calendar with the Exchange server’s calendar. –Sync Task: Synchronize your phone’s Task list with the Exchange server’s Task list. MoreLocation servicesLocation services control your device's use of GPS signals. Some apps may require one or more location services be turned On for full app functionality.GPS signals may be affected by your surroundings, including:•Buildings •Tunnels or underground structures •Weather conditions •High-voltage or electromagnetic fields •Tinted windows 1. From the Settings screen, under Personal, touch Locations services. The Location services screen appears. 2. Touch the following options to enable/disable them. (When an option is enabled, a check mark appears in its check box.): • Use wireless networks: allows applications to use data from mobile networks and Wi-Fi to help determine your location.• Use GPS satellites: allows applications to use GPS to pinpoint your location.DRAFT FOR INTERNAL USE ONLY
186Note: Use GPS satellites must be enabled to use some applications. You can also enable or disable GPS from the Notifications panel. For more information, refer to “Notifications” on page 34. Important!By selecting Use GPS satellites, you are allowing access to all location information by any third party through web access or any software or peripheral components you choose to install, download, add, or attach to the device or any other means. • Location and Google search: allows Google to use your location data for improved search results and other services. Note:Google location services must be enabled to use some applications.Important!By selecting Location and Google search, you are allowing Google’s location service to collect anonymous location data. Some data may be stored on your device. Collection may occur even when n o apps are running.Security䡲 From the Settings screen, under Personal, touch Security. The Security screen appears. EncryptionAs a security measure, you can encrypt the contents of your phone or an installed memory card, and require a password each time you turn on the phone or access the memory card.Encryption may take an hour or more to complete. Start with a charged battery, and attach the charger until encryption is complete. Loss of power or other interruption may cause the loss of some or all data.Once your information is encrypted you will be prompted to enter your decryption password each time you turn your phone on. 䡲 From the Security screen, under Encryption, touch the following options to encrypt your information: • Encrypt device: Touch this option to encrypt accounts, settings, downloaded applications and data, media files, and more under a password you specify. DRAFT FOR INTERNAL USE ONLY
Settings 187•Encrypt external SD card: Touch this option to encrypt selected information stored on a microSD memory card under a password you specify. The following additional Encryption settings are available: –Encrypt: When enabled, new files on the memory card will be encrypted as they are added. –Full encryption: When enabled, all files on the memory card will be encrypted. –Exclude multimedia files: When enabled, multimedia files on the memory card will not be encrypted. PasswordsWhen enabled, password characters display briefly as you enter them. 䡲 From the Security screen, under Passwords, touch the following option to enable/disable it: (When the option is enabled, a check mark appears in the check box.) • Make passwords visible: When enabled, briefly displays password characters as you enter them.Device administrationView or disable device administrators. Some applications, such as corporate Email, may require you allow access to your device by device administrators in certain circumstances, such as if your phone is lost or stolen.Some features a device administrator might control include: •Setting the number of failed password attempts before the phone is restored to factory settings. •Automatically locking the phone. •Restoring factory settings on the phone. 䡲 From the Security screen, under Device administration, touch the following options to enable/disable them: (When an option is enabled, a check mark appears in its check box.) • Device administrators: View, add, or remove device administrators. • Unknown sources: When enabled, you can install applications from sources other than Google Play®. DRAFT FOR INTERNAL USE ONLY
188Warning!Because this device can be configured with system software not provided by or supported by Google or any other company, end-users operate these devices at their own risk. Credential storageYou can install credentials with an application, from device storage, or from an installed memory card, and use the Credential storage settings to allow applications to access the secure certificates and other credentials. 䡲 From the Security screen, under Credential storage, touch the following options to enable/disable them. (When an option is enabled, a check mark appears in its check box.): • Trusted credentials: View, enable, or disable trusted CA certificates. • Install from device storage: Install encrypted certificates from an installed memory card.Note:You must have installed a memory card containing encrypted certificates to use this feature. • Clear credentials: Clear stored credentials and reset the password.Note:This setting is only available if you have installed certificates.Back up and resetSet options for backing up your information and resetting your device. 䡲 From the Settings screen, under Personal, touch Backup and reset. The Backup and reset screen appears. Backup and restore䡲 From the Backup and reset screen, under Backup and restore, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Back up my data: Backs up app data, Wi-Fi passwords, and other phone settings to Google servers. • Backup account: Select or set-up a Google account your phone will use to backup your app data, Wi-Fi passwords, and other phone settings. DRAFT FOR INTERNAL USE ONLY
Settings 189•Automatic restore: Automatically restore app data, Wi-Fi passwords, and other phone settings from your automatic backup. Personal dataFactory data resetUse Factory data reset to return all settings to the defaults, and remove all data from the phone.䡲 From the Backup and reset screen, under Personal data, touch Factory data reset to return all settings to the defaults, and remove all data from the phone.Important!Settings and data erased in a Factory data reset cannot be recovered. To save your settings, you can use Back up my data settings before a reset.Application managerYou can download and install applications from the Google Play™ Store, or create applications using the Android SDK and install them on your phone. Use Application manager to manage applications on your phone.Warning!Because this device can be configured with system software not provided by or supported by Google or any other company, end-users operate these devices at their own risk. 1. From the Settings screen, under Device, touch Applications manager. The Applications manager screen appears. 2. Touch Downloaded, Running, or All to list the statuses of applications and services. The graph at the bottom of the Downloaded tab shows used and free Device memory. The graph at the bottom of the Running tab shows used and free RAM. DRAFT FOR INTERNAL USE ONLY
190BatterySee how much battery power is being used by device activities.1. From the Settings screen, under Device, touch Battery. The Battery screen appears. 2. View battery usage for applications and services currently running. The battery level displays in percentage. The amount of time the battery was used also displays. Battery usage displays in percentages per application.3. Touch Screen, Cell standby, Android System, Android OS, or any other listed feature or application to view how it is affecting battery use.Note: Other applications may be running that affect battery use. StorageManage the use of memory resources in your phone’s Device memory, and on an installed memory card.1. From the Settings screen, touch More ➔ Storage. The Storage screen appears. The following options are available: • Device memory: View usage for, and manage, your phone’s internal memory (For detailed information and to manage storage in use, touch any item except Total space or Available space.): –Total space: Shows the total installed device memory. –Applications: Shows the total device memory currently used to store applications. –Pictures, videos: Shows the total device memory currently used to store pictures and videos. –Audio: Shows the total device memory currently used to store music files, ringtones, and so on.) –Downloads: Shows the total device memory currently used to store recently downloaded files. –Miscellaneous files: Shows the total device memory currently used to store various application data and system data files. DRAFT FOR INTERNAL USE ONLY
Settings 191–Available space: Shows the total device memory available for use. •SD card: View usage for, and manage, storage space on an optional memory card. –Total space: Shows the total card memory. –Available space: Shows the total card memory available for use. –Unmount SD card: Deactivates the memory card so that you can safely remove it or format it. (For more information, see “Installing and Removing a Memory Card” on page 138) –Format SD card: Deletes all data from the memory card, including music, videos, and photos. (For more information, see “Formatting a Memory Card” on page 139.) Developer optionsUse the Developer options to set options for Android application development and testing. 䡲 From the Settings screen, under System, touch Developer options. The Developer options screen appears. Desktop backup passwordProtect the desktop with a backup password ID.1. From the Developer options screen, touch Desktop backup password. 2. In the Settings screen, enter the current full backup password, the new password for full backups, then enter the new password again.3. Touch Set backup password to save the password change.Stay awakeWhen enabled, this option blocks the screen from “sleeping” while the device is connected to a battery charger. Protect SD cardWhen enabled, this option requires Apps to request permission to access the optional microSD memory card. DRAFT FOR INTERNAL USE ONLY
192DebuggingUSB debuggingWhen enabled, allows debugging when the device is attached to a PC by a USB cable. 䡲 From the Developer options screen, touch USB debugging to enable or disable the setting. When enabled, a check mark appears in the check box. Allow mock locationsThis setting is used by developers when developing location-based applications.䡲 From the Developer options screen, touch Allow mock locations to enable or disable the setting. When enabled, a check mark appears in the check box.Select app to be debugged䡲 From the Developer options screen, touch Select app to be debugged to select one of the apps you are developing for debugging. Wait for debugger䡲 From the Developer options screen, touch Wait for debugger to delay launcing of the Select app to be debugged until the debugger has attached. Input䡲 From the Developer options screen, under Input, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Show touches: Displays touch interactions on the screen.• Show pointer location: Highlights the data that was touched on the screen. DRAFT FOR INTERNAL USE ONLY
Settings 193Drawing䡲 From the Developer options screen, under Drawing, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Show layout boundaries: When enabled, shows image clipping boundaries, margins, and so on. • Show GPU view updates: When enabled, flashes views inside windows when drawn with the GPU. • Show screen updates: Areas of the screen flash when they update.• Window animation scale: Configure the scale for animation (ranges from off to 10x).• Transition animation scale: Configure the scale for transitioning when using animation (ranges from Off to 10x).• Animator duration scale: Select the animation duration scale (ranges from off to 0.5x through 10x). • Disable hardware overlays: When enabled, the GPU is always used for screen compositing. •Force GPU rendering: Uses a 2D acceleration in applications.Monitoring䡲 From the Developer options screen, under Monitoring, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Strict mode: The screen flashes when applications perform long operations on the main thread. • Show CPU usage: Screen highlights the current CPU usage.• GPU rendering profile: When enabled, rendering time is measured in adb shell dumpsys gfxinfo. • Enable traces: Select which traces you want performed (Graphics, Input, View, WebView, Window Manager, Activity Manager, Sync Manager, Audio, and/or Video). DRAFT FOR INTERNAL USE ONLY
194Apps䡲 From the Developer options screen, under Apps, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Do not keep activities: Destroys every activity as soon as the application is closed. • Limit background processes: Set the number of processes that can run in background. Options are: Standard limit, No background processes, and 1 to 4 processes at most.•Show all ANRs: Displays a prompt when applications running in background are not responding. About deviceView information about your phone, including status, legal information, hardware and software versions, and a tutorial.Software UpdateSoftware Update lets your phone connect to the network and download any new phone software directly to your phone. The phone automatically updates with the latest available software when you access this option.1. From the Settings screen, under System, touch About device ➔ Software update. You are prompted to select your current country. 2. Select a Country, then touch OK. A Terms and Conditions screen appears. 3. To proceed to Software Update, touch I accept all the terms above, then touch Confirm. Your device registers itself with your Wireless Provider’s Software Update service, connects with your Wireless Provider’s server, and scans for software updates. 4. At the Software update prompt, touch OK to continue.5. The phone automatically updates the software (if available), otherwise, when the The latest updates have already been installed prompt is displayed, touch OK.DRAFT FOR INTERNAL USE ONLY

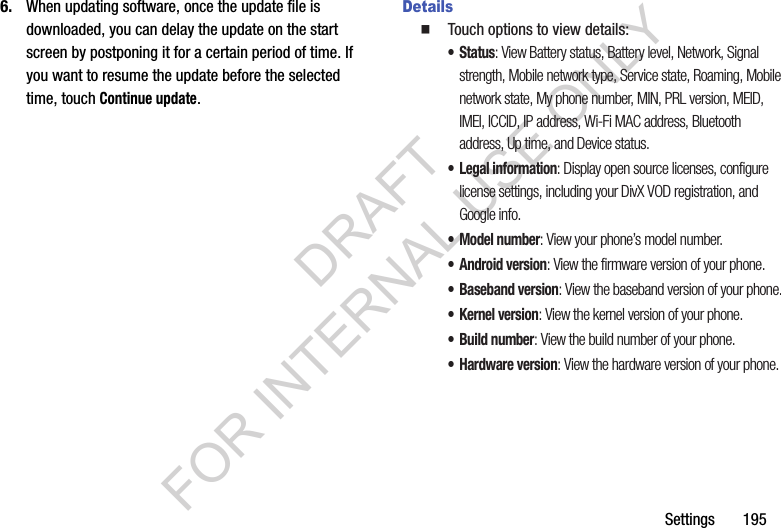

Settings 1956. When updating software, once the update file is downloaded, you can delay the update on the start screen by postponing it for a certain period of time. If you want to resume the update before the selected time, touch Continue update. Details䡲 Touch options to view details:•Status: View Battery status, Battery level, Network, Signal strength, Mobile network type, Service state, Roaming, Mobile network state, My phone number, MIN, PRL version, MEID, IMEI, ICCID, IP address, Wi-Fi MAC address, Bluetooth address, Up time, and Device status.• Legal information: Display open source licenses, configure license settings, including your DivX VOD registration, and Google info.• Model number: View your phone’s model number.• Android version: View the firmware version of your phone.• Baseband version: View the baseband version of your phone.•Kernel version: View the kernel version of your phone.• Build number: View the build number of your phone.• Hardware version: View the hardware version of your phone. DRAFT FOR INTERNAL USE ONLY
196Section 9: Health and Safety InformationThis device is capable of operating in Wi-Fi mode in the 2.4 and 5 GHz bands. The FCC requires that devices operating within 5.15-5.25 GHz may only be used indoors, not outside, in order to avoid interference with Mobile Satellite Services (MSS). Therefore, do not use this device outside as a Wi-Fi hotspot or in Wi-Fi Direct mode outside when using the 5.15-5.25 GHz band.This section outlines the safety precautions associated with using your phone. The terms “mobile device” or “cell phone” are used in this section to refer to your phone. Read this information before using your mobile device.Exposure to Radio Frequency (RF) SignalsThe U.S. Food and Drug Administration (FDA) has published information for consumers relating to Radio Frequency (RF) exposure from wireless phones. The FDA publication includes the following information:Do cell phones pose a health hazard?Many people are concerned that cell phone radiation will cause cancer or other serious health hazards. The weight of scientific evidence has not linked cell phones with any health problems.Cell phones emit low levels of Radio Frequency (RF) energy. Over the past 15 years, scientists have conducted hundreds of studies looking at the biological effects of the radio frequency energy emitted by cell phones. While some researchers have reported biological changes associated with RF energy, these studies have failed to be replicated. The majority of studies published have failed to show an association between exposure to radio frequency from a cell phone and health problems.The low levels of RF cell phones emit while in use are in the microwave frequency range. They also emit RF at substantially reduced time intervals when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 197The biological effects of radio frequency energy should not be confused with the effects from other types of electromagnetic energy.Very high levels of electromagnetic energy, such as is found in X-rays and gamma rays, can ionize biological tissues. Ionization is a process where electrons are stripped away from their normal locations in atoms and molecules. It can permanently damage biological tissues including DNA, the genetic material.The energy levels associated with radio frequency energy, including both radio waves and microwaves, are not great enough to cause ionization of atoms and molecules. Therefore, RF energy is a type of non-ionizing radiation. Other types of non-ionizing radiation include visible light, infrared radiation (heat), and other forms of electromagnetic radiation with relatively low frequencies.While RF energy does not ionize particles, large amounts can increase body temperatures and cause tissue damage. Two areas of the body, the eyes and the testes, are particularly vulnerable to RF heating because there is relatively little blood flow in them to carry away excess heat.Research Results to Date: Is there a connection between RF and certain health problems?The results of most studies conducted to date say no. In addition, attempts to replicate and confirm the few studies that have shown a connection have failed.The scientific community at large therefore believes that the weight of scientific evidence does not show an association between exposure to Radio Frequency (RF) from cell phones and adverse health outcomes. Still the scientific community has supported additional research to address gaps in knowledge. Some of these studies are described below.Interphone StudyInterphone is a large international study designed to determine whether cell phones increase the risk of head and neck cancer. A report published in the International Journal of Epidemiology (June, 2010) compared cell phone usage for more than 5,000 people with brain tumors (glioma and meningioma) and a similar number of healthy controls.Results of this study did NOT show that cell phones caused brain cancer. In this study, most people had no increased risk of brain cancer from using cell phones. For people with the heaviest use of cell phones (an average of more than ½ hour per day, every day, for over 10 years) the study suggested a DRAFT FOR INTERNAL USE ONLY
198slight increase in brain cancer. However, the authors determined that biases and errors prevented any conclusions being drawn from this data. Additional information about Interphone can be found at http://www.iarc.fr/en/media-centre/pr/2010/pdfs/pr200_E.pdf.Interphone is the largest cell phone study to date, but it did not answer all questions about cell phone safety. Additional research is being conducted around the world, and the FDA continues to monitor developments in this field.International Cohort Study on Mobile Phone Users (COSMOS)The COSMOS study aims to conduct long-term health monitoring of a large group of people to determine if there are any health issues linked to long-term exposure to radio frequency energy from cell phone use. The COSMOS study will follow approximately 300,000 adult cell phone users in Europe for 20 to 30 years. Additional information about the COSMOS study can be found at http://www.ukcosmos.org/index.html.Risk of Brain Cancer from Exposure to Radio Frequency Fields in Childhood and Adolescence (MOBI-KIDS)MOBI-KIDS is an international study investigating the relationship between exposure to radio frequency energy from communication technologies including cell phones and brain cancer in young people. This is an international multi-center study involving 14 European and non-European countries. Additional information about MOBI-KIDS can be found athttp://www.creal.cat/programes-recerca/en_projectes-creal/view.php?ID=39.Surveillance, Epidemiology, and End Results (SEER) Program of the National Cancer InstituteThe National Cancer Institute (NCI) actively follows cancer statistics in the United States to detect any change in rates of new cases for brain cancer. If cell phones play a role in risk for brain cancer, rates should go up, because heavy cell phone use has been common for quite some time in the U.S. Between 1987 and 2005, the overall age-adjusted incidence of brain cancer did not increase. Additional information about SEER can be found at http://seer.cancer.gov/.DRAFT FOR INTERNAL USE ONLY

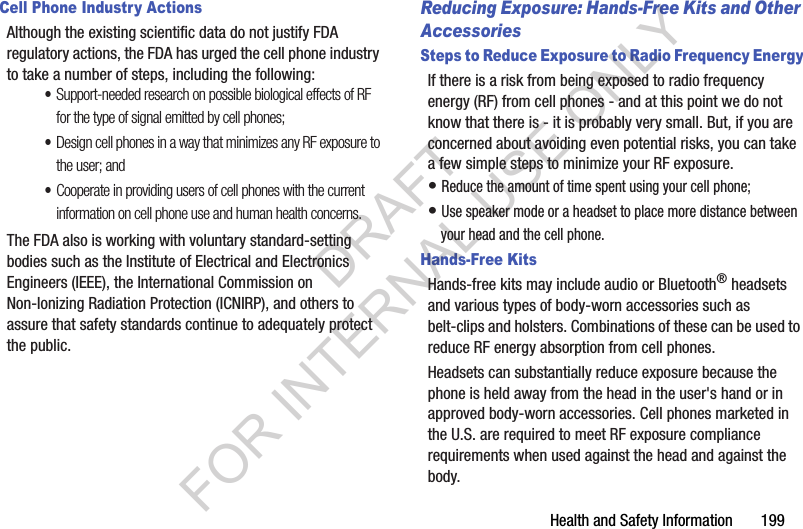

Health and Safety Information 199Cell Phone Industry ActionsAlthough the existing scientific data do not justify FDA regulatory actions, the FDA has urged the cell phone industry to take a number of steps, including the following:•Support-needed research on possible biological effects of RF for the type of signal emitted by cell phones;•Design cell phones in a way that minimizes any RF exposure to the user; and•Cooperate in providing users of cell phones with the current information on cell phone use and human health concerns.The FDA also is working with voluntary standard-setting bodies such as the Institute of Electrical and Electronics Engineers (IEEE), the International Commission on Non-Ionizing Radiation Protection (ICNIRP), and others to assure that safety standards continue to adequately protect the public.Reducing Exposure: Hands-Free Kits and Other AccessoriesSteps to Reduce Exposure to Radio Frequency EnergyIf there is a risk from being exposed to radio frequency energy (RF) from cell phones - and at this point we do not know that there is - it is probably very small. But, if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your RF exposure.• Reduce the amount of time spent using your cell phone;• Use speaker mode or a headset to place more distance between your head and the cell phone.Hands-Free KitsHands-free kits may include audio or Bluetooth® headsets and various types of body-worn accessories such as belt-clips and holsters. Combinations of these can be used to reduce RF energy absorption from cell phones.Headsets can substantially reduce exposure because the phone is held away from the head in the user's hand or in approved body-worn accessories. Cell phones marketed in the U.S. are required to meet RF exposure compliance requirements when used against the head and against the body.DRAFT FOR INTERNAL USE ONLY

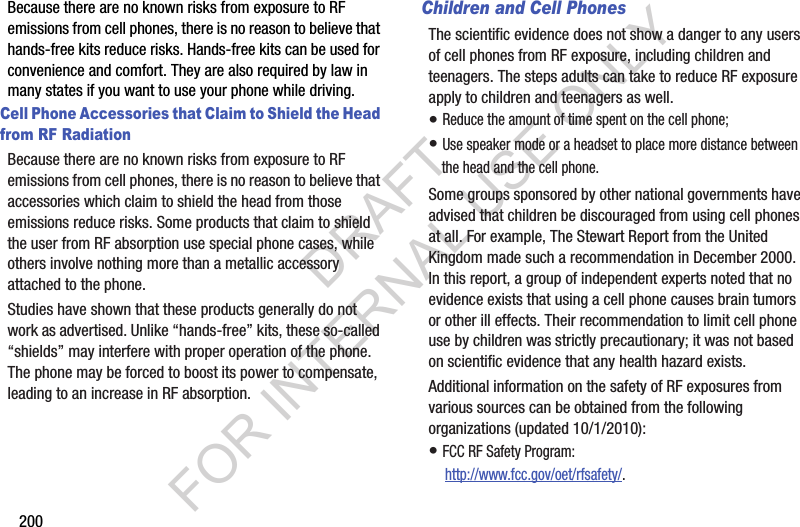

200Because there are no known risks from exposure to RF emissions from cell phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used for convenience and comfort. They are also required by law in many states if you want to use your phone while driving.Cell Phone Accessories that Claim to Shield the Head from RF RadiationBecause there are no known risks from exposure to RF emissions from cell phones, there is no reason to believe that accessories which claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike “hands-free” kits, these so-called “shields” may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption.Children and Cell PhonesThe scientific evidence does not show a danger to any users of cell phones from RF exposure, including children and teenagers. The steps adults can take to reduce RF exposure apply to children and teenagers as well.• Reduce the amount of time spent on the cell phone;• Use speaker mode or a headset to place more distance between the head and the cell phone.Some groups sponsored by other national governments have advised that children be discouraged from using cell phones at all. For example, The Stewart Report from the United Kingdom made such a recommendation in December 2000. In this report, a group of independent experts noted that no evidence exists that using a cell phone causes brain tumors or other ill effects. Their recommendation to limit cell phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations (updated 10/1/2010):• FCC RF Safety Program: http://www.fcc.gov/oet/rfsafety/.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 201• Environmental Protection Agency (EPA):http://www.epa.gov/radtown/wireless-tech.html.• Occupational Safety and Health Administration (OSHA): http://www.osha.gov/SLTC/radiofrequencyradiation/. (Note: This web address is case sensitive.)• National Institute for Occupational Safety and Health (NIOSH): http://www.cdc.gov/niosh/.• World Health Organization (WHO): http://www.who.int/peh-emf/en/.• International Commission on Non-Ionizing Radiation Protection: http://www.icnirp.de.• Health Protection Agency: http://www.hpa.org.uk/Topics/Radiation/.• US Food and Drug Administration: http://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/HomeBusinessandEntertainment/CellPhones/default.htm.Specific Absorption Rate (SAR) Certification InformationYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for Radio Frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government.These FCC RF exposure limits are derived from the recommendations of two expert organizations: the National Council on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The RF exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg).DRAFT FOR INTERNAL USE ONLY
202The FCC SAR limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum reported value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the phone.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the SAR limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. For body-worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the mobile device a minimum of 1.0 cm from the body.Use of other accessories may not ensure compliance with FCC RF exposure guidelines. The FCC has granted an Equipment Authorization for this mobile device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. This mobile phone has a FCC ID number: A3LSCHR970 [Model Number: SCH-R970] and the specific SAR levels for this mobile phone can be found at the following FCC website:http://www.fcc.gov/oet/ea/.The SAR information for this device can also be found on Samsung’s website: http://www.samsung.com/sar. SAR information on this and other model phones can be accessed online on the FCC's website through http://transition.fcc.gov/oet/rfsafety/sar.html. To find information that pertains to a particular model phone, this site uses the phone FCC ID number which is usually printed somewhere on the case of the phone. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 203SAR information can also be obtained at http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones.FCC Part 15 Information to UserPursuant to part 15.21 of the FCC Rules, you are cautioned that changes or modifications not expressly approved by Samsung could void your authority to operate the device.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Commercial Mobile Alerting System (CMAS)This device is designed to receive Wireless Emergency Alerts from CMAS. If your wireless provider has chosen to participate in CMAS, alerts are available while in the provider's coverage area. If you travel outside your provider's coverage area, wireless emergency alerts may not be available. For more information, please contact your wireless provider.Smart Practices While DrivingOn the Road - Off the PhoneThe primary responsibility of every driver is the safe operation of his or her vehicle.DRAFT FOR INTERNAL USE ONLY
204Responsible drivers understand that no secondary task should be performed while driving whether it be eating, drinking, talking to passengers, or talking on a mobile phone - unless the driver has assessed the driving conditions and is confident that the secondary task will not interfere with their primary responsibility. Do not engage in any activity while driving a moving vehicle which may cause you to take your eyes off the road or become so absorbed in the activity that your ability to concentrate on the act of driving becomes impaired. Samsung is committed to promoting responsible driving and giving drivers the tools they need to understand and address distractions.Check the laws and regulations on the use of mobile devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. For example, only hands-free use may be permitted in certain areas.Before answering calls, consider your circumstances. Let the call go to voicemail when driving conditions require. Remember, driving comes first, not the call!If you consider a call necessary and appropriate, follow these tips:• Use a hands-free device;• Secure your phone within easy reach;• Place calls when you are not moving;• Plan calls when your car will be stationary;• Do not engage in stressful or emotional conversations;• Let the person with whom you are speaking know that you are driving and will suspend the call if necessary;• Do not take notes or look up phone numbers while driving;Notice regarding legal restrictions on mounting this device in an automobile:Laws in some states may prohibit mounting this device on or near the windshield of an automobile. In other states, the law may permit mounting this device only in specific locations in the automobile. Be sure to consult the state and local laws or ordinances where you drive before mounting this device in an automobile. Failure to comply with these restrictions could result in fines, penalties, or other damages.Never mount this device in a manner that will obstruct the driver's clear view of the street and traffic.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 205Never use wireless data services such as text messaging, Web browsing, or e-mail while operating a vehicle.Never watch videos, such as a movie or clip, or play video games while operating a vehicle.For more information, go to http://www.ctia.org.Battery Use and SafetyImportant! Handle and store batteries properly to avoid injury or damage. Most battery issues arise from improper handling of batteries and, particularly, from the continued use of damaged batteries.• Do not disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery. Do not put a high degree of pressure on the battery. This can cause leakage or an internal short-circuit, resulting in overheating.• Do not let the phone or battery come in contact with liquids. Liquids can get into the phone's circuits, leading to corrosion. Even when the phone appears to be dry and appears to operate normally, the circuitry could slowly corrode and pose a safety hazard. If the phone and/or battery get wet, have them checked by your service provider or contact Samsung, even if they appear to be working properly.• Do not place your battery in or near a heat source. Excessive heating can damage the phone or the battery and could cause the phone or the battery to explode. Do not dry a wet or damp battery with an appliance or heat source such as a microwave oven, hair dryer, iron, or radiator. Avoid leaving your phone in your car in high temperatures.• Do not dispose of the phone or the battery in a fire. The phone or the battery may explode when overheated.• Do not handle a damaged or leaking battery. Do not let leaking battery fluid come in contact with your eyes, skin or clothing. For safe disposal options, contact your nearest Samsung-authorized service center.DRAFT FOR INTERNAL USE ONLY
206• Avoid dropping the cell phone. Dropping the phone or the battery, especially on a hard surface, can potentially cause damage to the phone and battery. If you suspect damage to the phone or battery, take it to a service center for inspection.• Never use any charger or battery that is damaged in any way.• Do not allow the battery to touch metal objects. Accidental short-circuiting can occur when a metallic object (coin, key, jewelry, clip, or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.Important! Use only Samsung-approved batteries, and recharge your battery only with Samsung-approved chargers which are specifically designed for your phone.WARNING!Use of a non-Samsung-approved battery or charger may present a risk of fire, explosion, leakage, or other hazard. Samsung's warranty does not cover damage to the phone caused by non-Samsung-approved batteries and/or chargers.• Do not use incompatible cell phone batteries and chargers. Some websites and second-hand dealers not associated with reputable manufacturers and carriers, might be selling incompatible or even counterfeit batteries and chargers. Consumers should purchase manufacturer or carrier-recommended products and accessories. If unsure about whether a replacement battery or charger is compatible, contact the manufacturer of the battery or charger.• Misuse or use of incompatible phones, batteries, and charging devices could result in damage to the equipment and a possible risk of fire, explosion, or leakage, leading to serious injuries, damages to your phone, or other serious hazard.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 207Samsung Mobile Products and RecyclingSamsung cares for the environment and encourages its customers to recycle Samsung mobile devices and genuine Samsung accessories.Proper disposal of your mobile device and its battery is not only important for safety, it benefits the environment. Batteries must be recycled or disposed of properly.Recycling programs for your mobile device, batteries, and accessories may not be available in your area.We've made it easy for you to recycle your old Samsung mobile device by working with respected take-back companies in every state in the country.Drop It OffYou can drop off your Samsung-branded mobile device and batteries for recycling at one of our numerous Samsung Recycling Direct (SM) locations. A list of these locations may be found at: http://pages.samsung.com/us/recyclingdirect/usactivities_environment_samsungrecyclingdirect_locations.jsp.Samsung-branded devices and batteries will be accepted at these locations for no fee.Consumers may also recycle their used mobile device or batteries at many retail or carrier-provided locations where mobile devices and batteries are sold. Additional information regarding specific locations may be found at: http://www.epa.gov/epawaste/partnerships/plugin/cellphone/index.htm or at http://www.call2recycle.org/.Mail It InThe Samsung Mobile Take-Back Program will provide Samsung customers with a free recycling mailing label. Just go to http://www.samsung.com/us/aboutsamsung/citizenship/usactivities_environment_samsungrecyclingdirect.html?INT=STA_recyle_your_phone_page and follow the instructions to print out a free pre-paid postage label and then send your old mobile device or battery to the address listed, via U.S. Mail, for recycling.Dispose of unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect Or call, (877) 278-0799.DRAFT FOR INTERNAL USE ONLY
208Follow local regulations regarding disposal of mobile devices and batteriesDispose of your mobile device and batteries in accordance with local regulations. In some areas, the disposal of these items in household or business trash may be prohibited. Help us protect the environment - recycle!Warning! Never dispose of batteries in a fire because they may explode.UL Certified Travel ChargerThe Travel Charger for this phone has met applicable UL safety requirements. Please adhere to the following safety instructions per UL guidelines:FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE.IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS.DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.FOR CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE AN ATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION FOR THE POWER OUTLET.THIS POWER UNIT IS INTENDED TO BE CORRECTLY ORIENTED IN A VERTICAL OR HORIZONTAL OR FLOOR MOUNT POSITION.Display / Touch-ScreenPlease note the following information when using your mobile device:WARNING REGARDING DISPLAYThe display on your mobile device is made of glass or acrylic and could break if your mobile device is dropped or if it receives significant impact. Do not use if screen is broken or cracked as this could cause injury to you.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 209WARRANTY DISCLAIMER: PROPER USE OF A TOUCH-SCREEN MOBILE DEVICEIf your mobile device has a touch-screen display, please note that a touch-screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch-screen may damage the tempered glass surface and void the warranty. For more information, please refer to the “Standard Limited Warranty”.GPSCertain Samsung mobile devices can use a Global Positioning System (GPS) signal for location-based applications. A GPS uses satellites controlled by the U.S. Government that are subject to changes implemented in accordance with the Department of Defense policy and the 2008 Federal Radio navigation Plan (FRP). Changes may affect the performance of location-based technology on your mobile device.Even with GPS, when you make an emergency call:• Always tell the emergency responder your location to the best of your ability; and• Remain on the mobile device for as long as the emergency responder instructs you.NavigationMaps, directions, and other navigation-data, including data relating to your current location, may contain inaccurate or incomplete data, and circumstances can and do change over time. In some areas, complete information may not be available. Therefore, you should always visually confirm that the navigational instructions are consistent with what you see before following them. All users should pay attention to road conditions, closures, traffic, and all other factors that may impact safe driving or walking. Always obey posted road signs.Emergency CallsThis mobile device, like any wireless mobile device, operates using radio signals, wireless and landline networks, as well as user-programmed functions, which cannot guarantee connection in all conditions, areas, or circumstances. Therefore, you should never rely solely on any wireless mobile device for essential communications (medical emergencies, for example). Before traveling in remote or underdeveloped areas, plan an alternate method of contacting emergency services personnel. Remember, to DRAFT FOR INTERNAL USE ONLY
210make or receive any calls, the mobile device must be switched on and in a service area with adequate signal strength.Emergency calls may not be possible on all wireless mobile device networks or when certain network services and/or mobile device features are in use. Check with local service providers.To make an emergency call:1. If the mobile device is not on, switch it on.2. From the Home screen, touch to launch the Phone Dialer.3. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.4. Touch to place the call.If certain features are in use (call blocking, for example), you may first need to deactivate those features before you can make an emergency call. Consult your User Manual and your local cellular service provider. When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your mobile device may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Care and MaintenanceYour mobile device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years:Keep your Samsung Mobile Device away from:Liquids of any kindKeep the mobile device dry. Precipitation, humidity, and liquids contain minerals that will corrode electronic circuits. If the mobile device does get wet, do not accelerate drying with the use of an oven, microwave, or dryer, because this may damage the mobile device and could cause a fire or explosion. Do not use the mobile device with a wet hand. Doing so may cause an electric shock to you or damage to the mobile device.DRAFT FOR INTERNAL USE ONLY

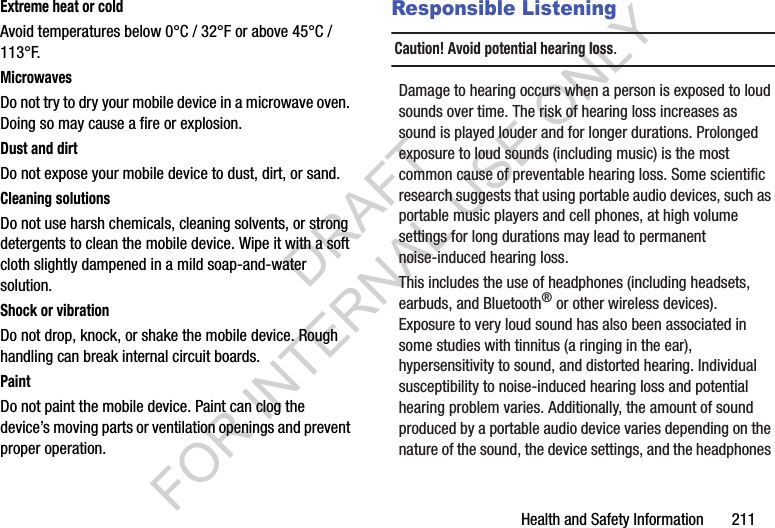

Health and Safety Information 211Extreme heat or coldAvoid temperatures below 0°C / 32°F or above 45°C / 113°F.MicrowavesDo not try to dry your mobile device in a microwave oven. Doing so may cause a fire or explosion.Dust and dirtDo not expose your mobile device to dust, dirt, or sand.Cleaning solutionsDo not use harsh chemicals, cleaning solvents, or strong detergents to clean the mobile device. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.Shock or vibrationDo not drop, knock, or shake the mobile device. Rough handling can break internal circuit boards.PaintDo not paint the mobile device. Paint can clog the device’s moving parts or ventilation openings and prevent proper operation.Responsible ListeningCaution! Avoid potential hearing loss.Damage to hearing occurs when a person is exposed to loud sounds over time. The risk of hearing loss increases as sound is played louder and for longer durations. Prolonged exposure to loud sounds (including music) is the most common cause of preventable hearing loss. Some scientific research suggests that using portable audio devices, such as portable music players and cell phones, at high volume settings for long durations may lead to permanent noise-induced hearing loss. This includes the use of headphones (including headsets, earbuds, and Bluetooth® or other wireless devices). Exposure to very loud sound has also been associated in some studies with tinnitus (a ringing in the ear), hypersensitivity to sound, and distorted hearing. Individual susceptibility to noise-induced hearing loss and potential hearing problem varies. Additionally, the amount of sound produced by a portable audio device varies depending on the nature of the sound, the device settings, and the headphones DRAFT FOR INTERNAL USE ONLY

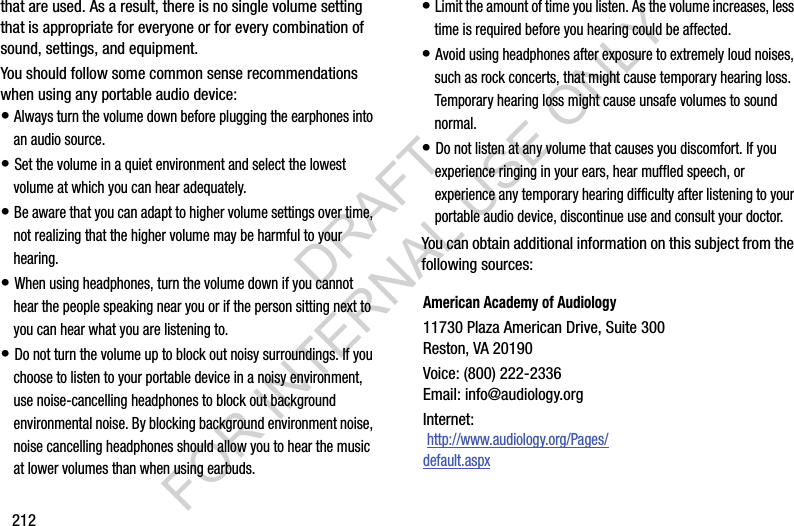

212that are used. As a result, there is no single volume setting that is appropriate for everyone or for every combination of sound, settings, and equipment.You should follow some common sense recommendations when using any portable audio device:• Always turn the volume down before plugging the earphones into an audio source.• Set the volume in a quiet environment and select the lowest volume at which you can hear adequately.• Be aware that you can adapt to higher volume settings over time, not realizing that the higher volume may be harmful to your hearing.• When using headphones, turn the volume down if you cannot hear the people speaking near you or if the person sitting next to you can hear what you are listening to.• Do not turn the volume up to block out noisy surroundings. If you choose to listen to your portable device in a noisy environment, use noise-cancelling headphones to block out background environmental noise. By blocking background environment noise, noise cancelling headphones should allow you to hear the music at lower volumes than when using earbuds.• Limit the amount of time you listen. As the volume increases, less time is required before you hearing could be affected.• Avoid using headphones after exposure to extremely loud noises, such as rock concerts, that might cause temporary hearing loss. Temporary hearing loss might cause unsafe volumes to sound normal.• Do not listen at any volume that causes you discomfort. If you experience ringing in your ears, hear muffled speech, or experience any temporary hearing difficulty after listening to your portable audio device, discontinue use and consult your doctor.You can obtain additional information on this subject from the following sources:American Academy of Audiology11730 Plaza American Drive, Suite 300Reston, VA 20190Voice: (800) 222-2336Email: info@audiology.orgInternet: http://www.audiology.org/Pages/default.aspxDRAFT FOR INTERNAL USE ONLY

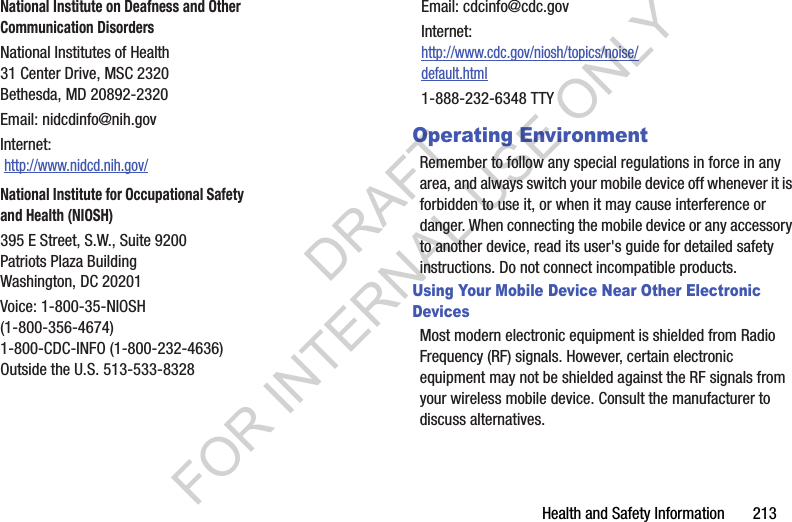

Health and Safety Information 213Operating EnvironmentRemember to follow any special regulations in force in any area, and always switch your mobile device off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the mobile device or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.Using Your Mobile Device Near Other Electronic DevicesMost modern electronic equipment is shielded from Radio Frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless mobile device. Consult the manufacturer to discuss alternatives.National Institute on Deafness and Other Communication DisordersNational Institutes of Health31 Center Drive, MSC 2320Bethesda, MD 20892-2320Email: nidcdinfo@nih.govInternet: http://www.nidcd.nih.gov/National Institute for Occupational Safety and Health (NIOSH)395 E Street, S.W., Suite 9200Patriots Plaza BuildingWashington, DC 20201Voice: 1-800-35-NIOSH (1-800-356-4674)1-800-CDC-INFO (1-800-232-4636)Outside the U.S. 513-533-8328Email: cdcinfo@cdc.govInternet:http://www.cdc.gov/niosh/topics/noise/default.html1-888-232-6348 TTYDRAFT FOR INTERNAL USE ONLY
214Implantable Medical DevicesA minimum separation of six (6) inches should be maintained between a handheld wireless mobile device and an implantable medical device, such as a pacemaker or implantable cardioverter defibrillator, to avoid potential interference with the device.Persons who have such devices:• Should ALWAYS keep the mobile device more than six (6) inches from their implantable medical device when the mobile device is turned ON;• Should not carry the mobile device in a breast pocket;• Should use the ear opposite the implantable medical device to minimize the potential for interference;• Should turn the mobile device OFF immediately if there is any reason to suspect that interference is taking place;• Should read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your wireless mobile device with an implantable medical device, consult your health care provider.For more information see: http://www.fcc.gov/oet/rfsafety/rf-faqs.html#.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your mobile device off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle before using your mobile device in a motor vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your mobile device off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your mobile device off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 215or fire resulting in bodily injury or even death. Users are advised to switch the mobile device off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust, or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.When your Device is WetDo not turn on your device if it is wet. If your device is already on, turn it off and remove the battery immediately (if the device will not turn off or you cannot remove the battery, leave it as-is). Then, dry the device with a towel and take it to a service center.FCC Hearing Aid Compatibility (HAC) Regulations for Wireless DevicesThe U.S. Federal Communications Commission (FCC) has established requirements for digital wireless mobile devices to be compatible with hearing aids and other assistive hearing devices.When individuals employing some assistive hearing devices (hearing aids and cochlear implants) use wireless mobile devices, they may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and mobile devices also vary in the amount of interference they generate.The wireless telephone industry has developed a rating system for wireless mobile devices to assist hearing device users find mobile devices that may be compatible with their hearing devices. Not all mobile devices have been rated. Mobile devices that are rated have the rating on their box or a label located on the box.The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not DRAFT FOR INTERNAL USE ONLY
216be able to use a rated mobile device successfully. Trying out the mobile device with your hearing device is the best way to evaluate it for your personal needs.M-Ratings: Wireless mobile devices rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than mobile devices that are not labeled. M4 is the better/higher of the two ratings. M-ratings refer to enabling acoustic coupling with hearing aids that do not operate in telecoil mode.T-Ratings: Mobile devices rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than mobile devices that are not labeled. T4 is the better/higher of the two ratings. T-ratings refer to enabling inductive coupling with hearing aids operating in telecoil mode.Hearing devices may also be rated. Your hearing aid manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. Under the current industry standard, American National Standards Institute (ANSI) C63.19, the hearing aid and wireless mobile device rating values are added together to indicate how usable they are together. For example, if a hearing aid meets the M2 level rating and the wireless mobile device meets the M3 level rating, the sum of the two values equals M5. Under the standard, this should provide the hearing aid user with normal use while using the hearing aid with the particular wireless mobile device. A sum of 6 or more would indicate excellent performance. However, these are not guarantees that all users will be satisfied. T ratings work similarly. M3 + M2 = 5T3 + T2 = 5DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 217The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.HAC for Newer TechnologiesThis phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this phone for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer.Restricting Children's Access to Your Mobile DeviceYour mobile device is not a toy. Do not allow children to play with it because they could hurt themselves and others, damage the mobile device, or make calls that increase your mobile device bill.Keep the mobile device and all its parts and accessories out of the reach of small children.FCC Notice and CautionsFCC NoticeThe mobile device may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the mobile device if such interference cannot be eliminated. Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association.CautionsAny changes or modifications to your mobile device not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. Only use approved batteries, antennas, and chargers. The use of any unauthorized accessories may be dangerous and void the mobile device warranty if said accessories cause damage or a defect to the mobile device. DRAFT FOR INTERNAL USE ONLY
218Although your mobile device is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it.Other Important Safety Information• Only qualified personnel should service the mobile device or install the mobile device in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted.• Check regularly that all wireless mobile device equipment in your vehicle is mounted and operating properly.• When using a headset in dry environments, static electricity can build up in the headset and cause a small quick static electrical shock. To minimize the risk of electrostatic discharge from the headset avoid using the headset in extremely dry environments or touch a grounded unpainted metal object to discharge static electricity before inserting the headset.• Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the mobile device, its parts, or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including installed or portable wireless equipment near or in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your mobile device off before boarding an aircraft. The use of wireless mobile devices in aircraft is illegal and may be dangerous to the aircraft's operation. Check with appropriate authorities before using any function of a mobile device while on an aircraft.• Failure to observe these instructions may lead to the suspension or denial of cell phone services to the offender, or legal action, or both.• While using your device, leave some lights on in the room and do not hold the screen too close to your eyes.• Seizures or blackouts can occur when you are exposed to flashing lights while watching videos or playing games for extended periods. If you feel any discomfort, stop using the device immediately.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 219• Reduce risk of repetitive motion injuries. When you repetitively perform actions, such as pressing keys, drawing characters on a touch screen with your fingers, or playing games, you may experience occasional discomfort in your hands, neck, shoulders, or other parts of your body. When using your device for extended periods, hold the device with a relaxed grip, press the keys lightly, and take frequent breaks. If you continue to have discomfort during or after such use, stop use and see a physician.• If your device has a camera flash or light, do not use the flash or light close to the eyes of people or pets. [122011]DRAFT FOR INTERNAL USE ONLY
220Section 10: Warranty InformationStandard Limited WarrantyWhat is covered and for how long?SAMSUNG TELECOMMUNICATIONS AMERICA, LLC (“SAMSUNG”) warrants that SAMSUNG’s handsets and accessories (“Products”) are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase by the first consumer purchaser and continuing for the following specified period of time after that date:What is not covered?This Limited Warranty is conditioned upon proper use of the Product. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abnormal use, abnormal conditions, improper storage, exposure to liquid, moisture, dampness, sand or dirt, neglect, or unusual physical, electrical or electromechanical stress; (b) scratches, dents and cosmetic damage, unless caused by SAMSUNG; (c) defects or damage resulting from excessive force or use of a metallic object when pressing on a touch screen; (d) equipment that has the serial number or the enhancement data code removed, defaced, damaged, altered or made illegible; (e) ordinary wear and tear; (f) defects or damage resulting from the use of Product in conjunction or connection with accessories, products, or ancillary/peripheral equipment not furnished or approved by SAMSUNG; (g) defects or damage resulting from improper testing, operation, maintenance, installation, service, or adjustment not furnished or approved by SAMSUNG; (h) defects or damage resulting from external causes such as collision with an object, fire, flooding, dirt, windstorm, lightning, earthquake, exposure to weather conditions, theft, blown fuse, or improper use of any electrical source; (i) defects or damage resulting from cellular signal reception Phone 1 YearBatteries 1 YearCase/Pouch/Holster 90 DaysOther Phone Accessories 1 YearDRAFT FOR INTERNAL USE ONLY

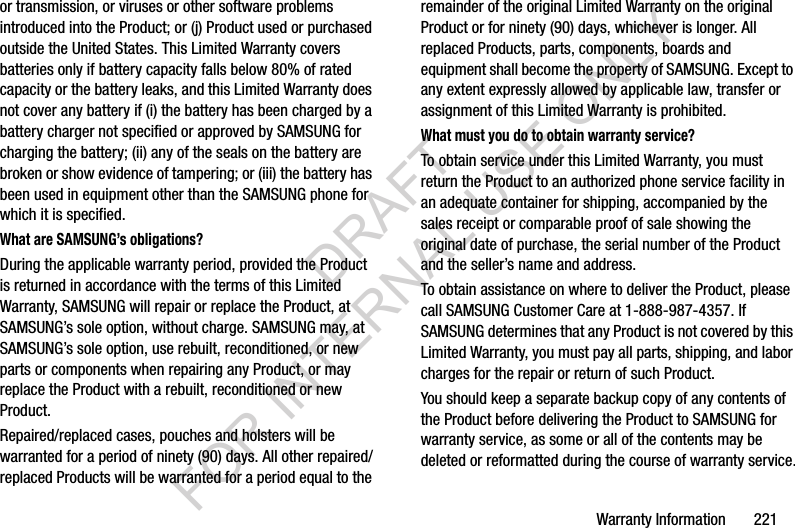

Warranty Information 221or transmission, or viruses or other software problems introduced into the Product; or (j) Product used or purchased outside the United States. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery; (ii) any of the seals on the battery are broken or show evidence of tampering; or (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified.What are SAMSUNG’s obligations?During the applicable warranty period, provided the Product is returned in accordance with the terms of this Limited Warranty, SAMSUNG will repair or replace the Product, at SAMSUNG’s sole option, without charge. SAMSUNG may, at SAMSUNG’s sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product, or may replace the Product with a rebuilt, reconditioned or new Product. Repaired/replaced cases, pouches and holsters will be warranted for a period of ninety (90) days. All other repaired/replaced Products will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for ninety (90) days, whichever is longer. All replaced Products, parts, components, boards and equipment shall become the property of SAMSUNG. Except to any extent expressly allowed by applicable law, transfer or assignment of this Limited Warranty is prohibited.What must you do to obtain warranty service?To obtain service under this Limited Warranty, you must return the Product to an authorized phone service facility in an adequate container for shipping, accompanied by the sales receipt or comparable proof of sale showing the original date of purchase, the serial number of the Product and the seller’s name and address. To obtain assistance on where to deliver the Product, please call SAMSUNG Customer Care at 1-888-987-4357. If SAMSUNG determines that any Product is not covered by this Limited Warranty, you must pay all parts, shipping, and labor charges for the repair or return of such Product.You should keep a separate backup copy of any contents of the Product before delivering the Product to SAMSUNG for warranty service, as some or all of the contents may be deleted or reformatted during the course of warranty service.DRAFT FOR INTERNAL USE ONLY
222What are the limits on SAMSUNG’s liability?THIS LIMITED WARRANTY SETS OUT THE FULL EXTENT OF SAMSUNG’S RESPONSIBILITIES, AND THE EXCLUSIVE REMEDY REGARDING THE PRODUCTS. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL SAMSUNG BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR FOR, WITHOUT LIMITATION, COMMERCIAL LOSS OF ANY SORT; LOSS OF USE, TIME, DATA, REPUTATION, OPPORTUNITY, GOODWILL, PROFITS OR SAVINGS; INCONVENIENCE; INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES; OR DAMAGES ARISING FROM THE USE OR INABILITY TO USE THE PRODUCT. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND DISCLAIMERS MAY NOT APPLY TO YOU.SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR EQUIPMENT USED IN CONJUNCTION WITH THE PRODUCT, OR THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE. RESPONSIBILITY FOR THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT RESTS SOLELY WITH THE USER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT.Nothing in the Product instructions or information shall be construed to create an express warranty of any kind with respect to the Products. No agent, employee, dealer, representative or reseller is authorized to modify or extend this Limited Warranty or to make binding representations or claims, whether in advertising, presentations or otherwise, on behalf of SAMSUNG regarding the Products or this Limited Warranty.This Limited Warranty gives you specific legal rights, and you may also have other rights that vary from state to state.DRAFT FOR INTERNAL USE ONLY

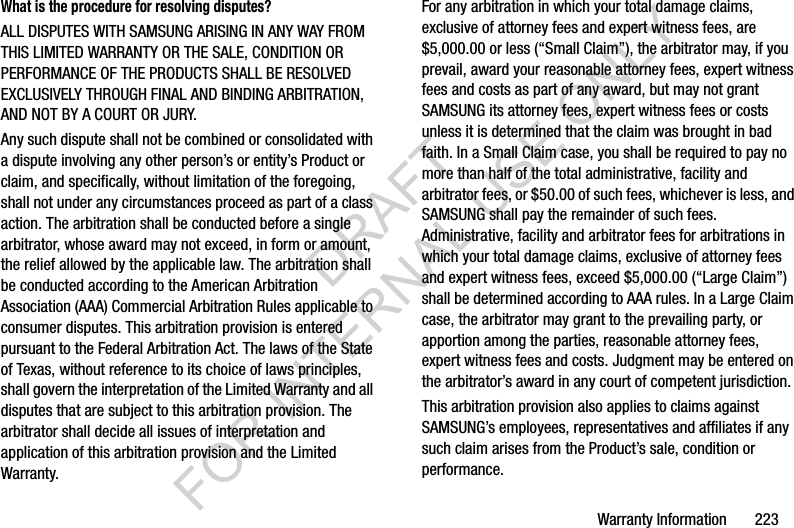

Warranty Information 223What is the procedure for resolving disputes?ALL DISPUTES WITH SAMSUNG ARISING IN ANY WAY FROM THIS LIMITED WARRANTY OR THE SALE, CONDITION OR PERFORMANCE OF THE PRODUCTS SHALL BE RESOLVED EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR JURY. Any such dispute shall not be combined or consolidated with a dispute involving any other person’s or entity’s Product or claim, and specifically, without limitation of the foregoing, shall not under any circumstances proceed as part of a class action. The arbitration shall be conducted before a single arbitrator, whose award may not exceed, in form or amount, the relief allowed by the applicable law. The arbitration shall be conducted according to the American Arbitration Association (AAA) Commercial Arbitration Rules applicable to consumer disputes. This arbitration provision is entered pursuant to the Federal Arbitration Act. The laws of the State of Texas, without reference to its choice of laws principles, shall govern the interpretation of the Limited Warranty and all disputes that are subject to this arbitration provision. The arbitrator shall decide all issues of interpretation and application of this arbitration provision and the Limited Warranty.For any arbitration in which your total damage claims, exclusive of attorney fees and expert witness fees, are $5,000.00 or less (“Small Claim”), the arbitrator may, if you prevail, award your reasonable attorney fees, expert witness fees and costs as part of any award, but may not grant SAMSUNG its attorney fees, expert witness fees or costs unless it is determined that the claim was brought in bad faith. In a Small Claim case, you shall be required to pay no more than half of the total administrative, facility and arbitrator fees, or $50.00 of such fees, whichever is less, and SAMSUNG shall pay the remainder of such fees. Administrative, facility and arbitrator fees for arbitrations in which your total damage claims, exclusive of attorney fees and expert witness fees, exceed $5,000.00 (“Large Claim”) shall be determined according to AAA rules. In a Large Claim case, the arbitrator may grant to the prevailing party, or apportion among the parties, reasonable attorney fees, expert witness fees and costs. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction.This arbitration provision also applies to claims against SAMSUNG’s employees, representatives and affiliates if any such claim arises from the Product’s sale, condition or performance.DRAFT FOR INTERNAL USE ONLY
224You may opt out of this dispute resolution procedure by providing notice to SAMSUNG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product. To opt out, you must send notice by e-mail to optout@sta.samsung.com, with the subject line: “Arbitration Opt Out.” You must include in the opt out e-mail (a) your name and address; (b) the date on which the Product was purchased; (c) the Product model name or model number; and (d) the IMEI or MEID or Serial Number, as applicable, if you have it (the IMEI or MEID or Serial Number can be found (i) on the Product box; (ii) on the Product information screen, which can be found under “Settings;” (iii) on a label on the back of the Product beneath the battery, if the battery is removable; and (iv) on the outside of the Product if the battery is not removable). Alternatively, you may opt out by calling 1-888-987-4357 no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product and providing the same information. These are the only two forms of notice that will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the benefits of the Limited Warranty.SeverabilityIf any portion of this Limited Warranty is held to be illegal or unenforceable, such partial illegality or unenforceability shall not affect the enforceability of the remainder of the Limited Warranty.Precautions for Transfer and DisposalIf data stored on this device is deleted or reformatted using the standard methods, the data only appears to be removed on a superficial level, and it may be possible for someone to retrieve and reuse the data by means of special software.To avoid unintended information leaks and other problems of this sort, it is recommended that the device be returned to Samsung’s Customer Care Center for an Extended File System (EFS) Clear which will eliminate all user memory and return all settings to default settings. Please contact the Samsung Customer Care Center for details.Important! Please provide warranty information (proof of purchase) to Samsung’s Customer Care Center in order to provide this service at no charge. If the warranty has expired on the device, charges may apply.DRAFT FOR INTERNAL USE ONLY
Warranty Information 225Samsung Telecommunications America, LLC1301 E. Lookout DriveRichardson, Texas 75082Phone: 1-800-SAMSUNGPhone: 1-888-987-HELP (4357)©2012 Samsung Telecommunications America, LLC. All rights reserved.No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice. [111611]End User License Agreement for SoftwareIMPORTANT. READ CAREFULLY: This End User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Samsung Electronics Co., Ltd. ("Samsung Electronics Co.") for software, owned by Samsung Electronics Co. and its affiliated companies and its third party suppliers and licensors, that accompanies this EULA, which includes computer software and may include associated media, printed materials, "online" or electronic documentation ("Software"). Samsung Electronics Co. is a separate company from the company that provides the limited warranty for this mobile device, Samsung Telecommunications America, LLC.This device requires the use of preloaded software in its normal operation. BY USING THE DEVICE OR ITS PRELOADED SOFTWARE, YOU ACCEPT THE TERMS OF THIS EULA. IF YOU DO NOT ACCEPT THESE TERMS, DO NOT USE THE DEVICE OR THE SOFTWARE. INSTEAD, RETURN THE DEVICE TO THE RETAILER FOR A REFUND OR CREDIT. 1. GRANT OF LICENSE. Samsung Electronics Co. grants you the following rights provided that you comply with all terms and conditions of this EULA: You may install, use, access, display and run one copy of the Software on the local hard disk(s) or other permanent storage media of one computer and use the Software on a single computer or a mobile device at a time, and you may not make the Software available over a network where it could be used by multiple computers at the same time. You may make one copy of the Software in machine readable form for backup purposes only; provided that the backup copy must include all copyright or other proprietary notices contained on the original.DRAFT FOR INTERNAL USE ONLY
2262. RESERVATION OF RIGHTS AND OWNERSHIP. Samsung Electronics Co. reserves all rights not expressly granted to you in this EULA. The Software is protected by copyright and other intellectual property laws and treaties. Samsung Electronics Co. or its suppliers own the title, copyright and other intellectual property rights in the Software. The Software is licensed, not sold.3. LIMITATIONS ON END USER RIGHTS. You may not reverse engineer, decompile, disassemble, or otherwise attempt to discover the source code or algorithms of, the Software (except and only to the extent that such activity is expressly permitted by applicable law not withstanding this limitation), or modify, or disable any features of, the Software, or create derivative works based on the Software. You may not rent, lease, lend, sublicense or provide commercial hosting services with the Software.4. CONSENT TO USE OF DATA. You agree that Samsung Electronics Co. and its affiliates may collect and use technical information gathered as part of the product support services related to the Software provided to you, if any. Samsung Electronics Co. and its affiliates may use this information solely to improve their products or to provide customized services or technologies to you and will not disclose this information in a form that personally identifies you.5. UPGRADES. This EULA applies to updates, supplements and add-on components (if any) of the Software that Samsung Electronics Co. may provide to you or make available to you after the date you obtain your initial copy of the Software, unless we provide other terms along with such upgrade. To use Software identified as an upgrade, you must first be licensed for the Software identified by Samsung Electronics Co. as eligible for the upgrade. After upgrading, you may no longer use the Software that formed the basis for your upgrade eligibility.6. SOFTWARE TRANSFER. You may not transfer this EULA or the rights to the Software granted herein to any third party unless it is in connection with the sale of the mobile device which the Software accompanied. In such event, the transfer must include all of the Software (including all component parts, the media and printed materials, any upgrades, this EULA) and you may not retain any copies of the Software. The transfer may not be an indirect transfer, such as a consignment. Prior to the transfer, the end user receiving the Software must agree to all the EULA terms.DRAFT FOR INTERNAL USE ONLY
Warranty Information 2277. EXPORT RESTRICTIONS. You acknowledge that the Software is subject to export restrictions of various countries. You agree to comply with all applicable international and national laws that apply to the Software, including the U.S. Export Administration Regulations, as well as end user, end use, and destination restrictions issued by U.S. and other governments.8. TERMINATION. This EULA is effective until terminated. Your rights under this License will terminate automatically without notice from Samsung Electronics Co. if you fail to comply with any of the terms and conditions of this EULA. Upon termination of this EULA, you must cease all use of the Software and destroy all copies, full or partial, of the Software.9. Disclaimer of Warranty. ALL SOFTWARE PROVIDED BY SAMSUNG ELECTRONICS CO. WITH THIS MOBILE DEVICE IS PROVIDED "AS IS" AND ON AN "AS AVAILABLE" BASIS, WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG ELECTRONICS CO., EITHER EXPRESS OR IMPLIED. TO THE FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE LAW, SAMSUNG ELECTRONICS CO. DISCLAIMS ALL WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY OR WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK OF VIRUSES, QUIET ENJOYMENT, NON INFRINGEMENT OF THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS. SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR LIMITATIONS OF IMPLIED WARRANTIES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN, OBTAINED BY YOU FROM SAMSUNG ELECTRONICS CO. OR ITS AFFILIATES SHALL BE DEEMED TO ALTER THIS DISCLAIMER BY SAMSUNG ELECTRONICS CO. OF WARRANTY REGARDING THE SOFTWARE, OR TO CREATE ANY WARRANTY OF ANY SORT FROM SAMSUNG ELECTRONICS CO. 10. THIRD-PARTY APPLICATIONS. Certain third party applications may be included with, or downloaded to this mobile device. Samsung Electronics Co. makes no representations whatsoever about any of these applications. Since Samsung Electronics Co. has no control over such applications, you acknowledge and agree that Samsung Electronics Co. is not responsible for the availability of such applications and is not responsible or liable for any content, advertising, products, services, or other materials on or available from such applications. You expressly acknowledge and agree that use of third party applications is at your sole DRAFT FOR INTERNAL USE ONLY
228risk and that the entire risk of unsatisfactory quality, performance, accuracy and effort is with you. It is up to you to take precautions to ensure that whatever you select to use is free of such items as viruses, worms, Trojan horses, and other items of a destructive nature. References on this mobile device to any names, marks, products, or services of any third-parties are provided solely as a convenience to you, and do not constitute or imply an endorsement, sponsorship, or recommendation of, or affiliation with the third party or its products and services. You agree that Samsung Electronics Co. shall not be responsible or liable, directly or indirectly, for any damage or loss caused or alleged to be caused by, or in connection with, use of or reliance on any such third party content, products, or services available on or through any such application. You acknowledge and agree that the use of any third-party application is governed by such third party application provider's Terms of Use, License Agreement, Privacy Policy, or other such agreement and that any information or personal data you provide, whether knowingly or unknowingly, to such third-party application provider, will be subject to such third party application provider's privacy policy, if such a policy exists. SAMSUNG ELECTRONICS CO. DISCLAIMS ANY RESPONSIBILITY FOR ANY DISCLOSURE OF INFORMATION OR ANY OTHER PRACTICES OF ANY THIRD PARTY APPLICATION PROVIDER.11. Disclaimer of Warranty Regarding Third Party Applications. SAMSUNG ELECTRONICS CO. DOES NOT WARRANT OR MAKE ANY REPRESENTATIONS REGARDING THE AVAILABILITY, USE, TIMELINESS, SECURITY, VALIDITY, ACCURACY, OR RELIABILITY OF, OR THE RESULTS OF THE USE OF, OR OTHERWISE RESPECTING, THE CONTENT OF ANY THIRD PARTY APPLICATION WHETHER SUCH THIRD PARTY APPLICATION IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG ELECTRONICS CO., IS DOWNLOADED, OR OTHERWISE OBTAINED. USE OF ANY THIRD PARTY APPLICATION IS DONE AT YOUR OWN DISCRETION AND RISK AND YOU ARE SOLELY RESPONSIBLE FOR ANY DAMAGE TO THE MOBILE DEVICE OR LOSS OF DATA THAT RESULTS FROM THE DOWNLOADING OR USE OF SUCH THIRD PARTY APPLICATIONS. SAMSUNG ELECTRONICS CO. EXPRESSLY DISCLAIMS ANY WARRANTY REGARDING WHETHER YOUR PERSONAL INFORMATION IS CAPTURED BY ANY THIRD PARTY APPLICATION PROVIDER OR THE USE TO WHICH SUCH PERSONAL INFORMATION MAY BE PUT BY SUCH THIRD PARTY APPLICATION PROVIDER. ANY THIRD PARTY APPLICATIONS PROVIDED WITH THIS MOBILE DEVICE DRAFT FOR INTERNAL USE ONLY
Warranty Information 229ARE PROVIDED "AS IS" AND ON AN "AS AVAILABLE" BASIS, WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG ELECTRONICS CO., EITHER EXPRESS OR IMPLIED. TO THE FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE LAW, SAMSUNG ELECTRONICS CO. DISCLAIMS ALL WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY OR WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK OF VIRUSES, QUIET ENJOYMENT, NON INFRINGEMENT OF THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS. SAMSUNG ELECTRONICS CO. DOES NOT WARRANT AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE THIRD PARTY APPLICATION, THAT THE FUNCTIONS CONTAINED IN THE THIRD PARTY APPLICATION WILL MEET YOUR REQUIREMENTS, THAT THE OPERATION OF THE THIRD PARTY APPLICATION WILL BE UNINTERRUPTED OR ERROR FREE, OR THAT DEFECTS IN THE THIRD PARTY APPLICATION WILL BE CORRECTED. YOU ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR, OR CORRECTION. SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR LIMITATIONS OF IMPLIED WARRANTIES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN, OBTAINED BY YOU FROM SAMSUNG ELECTRONICS CO. OR ANY OTHER PERSON OR ENTITY SHALL BE DEEMED TO ALTER THIS DISCLAIMER OF WARRANTY REGARDING THIRD PARTY APPLICATIONS, OR TO CREATE ANY WARRANTY BY SAMSUNG ELECTRONICS CO.12. Limitation of Liability. SAMSUNG ELECTRONICS CO. WILL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND ARISING OUT OF OR RELATING TO THE USE OR THE INABILITY TO USE THE SOFTWARE OR ANY THIRD PARTY APPLICATION, ITS CONTENT OR FUNCTIONALITY, INCLUDING BUT NOT LIMITED TO DAMAGES CAUSED BY OR RELATED TO ERRORS, OMISSIONS, INTERRUPTIONS, DEFECTS, DELAY IN OPERATION OR TRANSMISSION, COMPUTER VIRUS, FAILURE TO CONNECT, NETWORK CHARGES, IN-APP PURCHASES, AND ALL OTHER DIRECT, INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES EVEN IF SAMSUNG ELECTRONICS CO. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NOTWITHSTANDING THE FOREGOING, SAMSUNG ELECTRONIC CO.'S TOTAL LIABILITY TO YOU FOR ALL DRAFT FOR INTERNAL USE ONLY

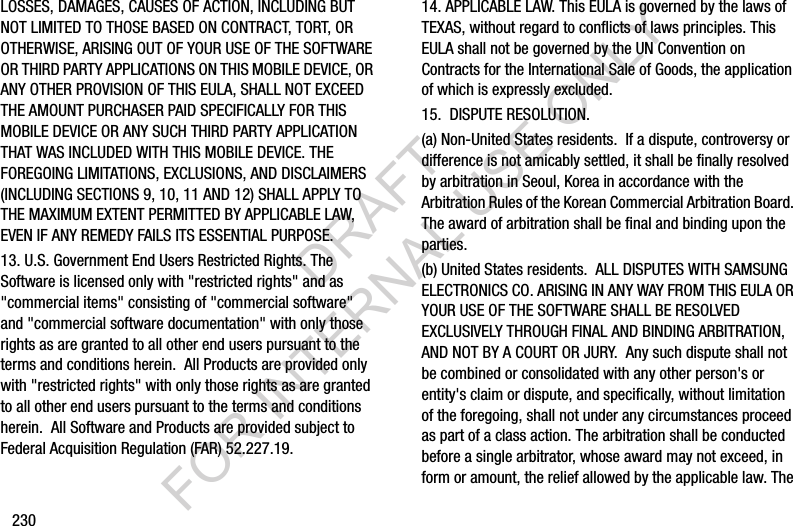

230LOSSES, DAMAGES, CAUSES OF ACTION, INCLUDING BUT NOT LIMITED TO THOSE BASED ON CONTRACT, TORT, OR OTHERWISE, ARISING OUT OF YOUR USE OF THE SOFTWARE OR THIRD PARTY APPLICATIONS ON THIS MOBILE DEVICE, OR ANY OTHER PROVISION OF THIS EULA, SHALL NOT EXCEED THE AMOUNT PURCHASER PAID SPECIFICALLY FOR THIS MOBILE DEVICE OR ANY SUCH THIRD PARTY APPLICATION THAT WAS INCLUDED WITH THIS MOBILE DEVICE. THE FOREGOING LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS (INCLUDING SECTIONS 9, 10, 11 AND 12) SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.13. U.S. Government End Users Restricted Rights. The Software is licensed only with "restricted rights" and as "commercial items" consisting of "commercial software" and "commercial software documentation" with only those rights as are granted to all other end users pursuant to the terms and conditions herein. All Products are provided only with "restricted rights" with only those rights as are granted to all other end users pursuant to the terms and conditions herein. All Software and Products are provided subject to Federal Acquisition Regulation (FAR) 52.227.19. 14. APPLICABLE LAW. This EULA is governed by the laws of TEXAS, without regard to conflicts of laws principles. This EULA shall not be governed by the UN Convention on Contracts for the International Sale of Goods, the application of which is expressly excluded. 15. DISPUTE RESOLUTION. (a) Non-United States residents. If a dispute, controversy or difference is not amicably settled, it shall be finally resolved by arbitration in Seoul, Korea in accordance with the Arbitration Rules of the Korean Commercial Arbitration Board. The award of arbitration shall be final and binding upon the parties. (b) United States residents. ALL DISPUTES WITH SAMSUNG ELECTRONICS CO. ARISING IN ANY WAY FROM THIS EULA OR YOUR USE OF THE SOFTWARE SHALL BE RESOLVED EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR JURY. Any such dispute shall not be combined or consolidated with any other person's or entity's claim or dispute, and specifically, without limitation of the foregoing, shall not under any circumstances proceed as part of a class action. The arbitration shall be conducted before a single arbitrator, whose award may not exceed, in form or amount, the relief allowed by the applicable law. The DRAFT FOR INTERNAL USE ONLY

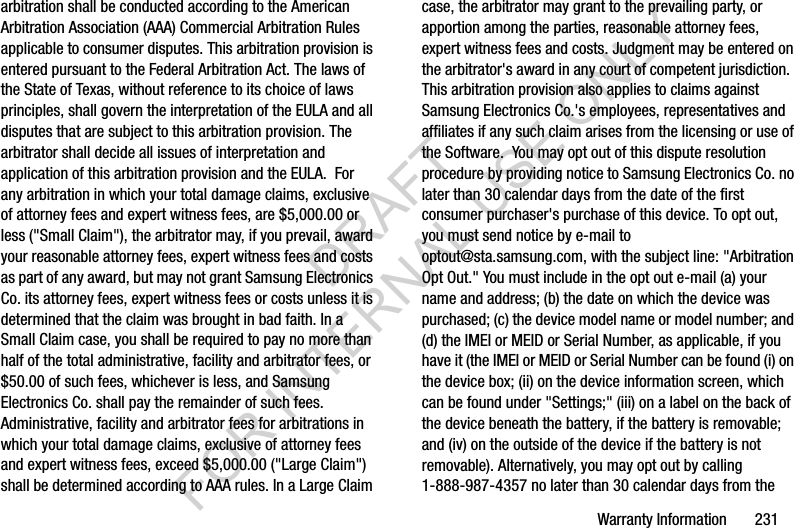

Warranty Information 231arbitration shall be conducted according to the American Arbitration Association (AAA) Commercial Arbitration Rules applicable to consumer disputes. This arbitration provision is entered pursuant to the Federal Arbitration Act. The laws of the State of Texas, without reference to its choice of laws principles, shall govern the interpretation of the EULA and all disputes that are subject to this arbitration provision. The arbitrator shall decide all issues of interpretation and application of this arbitration provision and the EULA. For any arbitration in which your total damage claims, exclusive of attorney fees and expert witness fees, are $5,000.00 or less ("Small Claim"), the arbitrator may, if you prevail, award your reasonable attorney fees, expert witness fees and costs as part of any award, but may not grant Samsung Electronics Co. its attorney fees, expert witness fees or costs unless it is determined that the claim was brought in bad faith. In a Small Claim case, you shall be required to pay no more than half of the total administrative, facility and arbitrator fees, or $50.00 of such fees, whichever is less, and Samsung Electronics Co. shall pay the remainder of such fees. Administrative, facility and arbitrator fees for arbitrations in which your total damage claims, exclusive of attorney fees and expert witness fees, exceed $5,000.00 ("Large Claim") shall be determined according to AAA rules. In a Large Claim case, the arbitrator may grant to the prevailing party, or apportion among the parties, reasonable attorney fees, expert witness fees and costs. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. This arbitration provision also applies to claims against Samsung Electronics Co.'s employees, representatives and affiliates if any such claim arises from the licensing or use of the Software. You may opt out of this dispute resolution procedure by providing notice to Samsung Electronics Co. no later than 30 calendar days from the date of the first consumer purchaser's purchase of this device. To opt out, you must send notice by e-mail to optout@sta.samsung.com, with the subject line: "Arbitration Opt Out." You must include in the opt out e-mail (a) your name and address; (b) the date on which the device was purchased; (c) the device model name or model number; and (d) the IMEI or MEID or Serial Number, as applicable, if you have it (the IMEI or MEID or Serial Number can be found (i) on the device box; (ii) on the device information screen, which can be found under "Settings;" (iii) on a label on the back of the device beneath the battery, if the battery is removable; and (iv) on the outside of the device if the battery is not removable). Alternatively, you may opt out by calling 1-888-987-4357 no later than 30 calendar days from the DRAFT FOR INTERNAL USE ONLY
232date of the first consumer purchaser's purchase of the device and providing the same information. These are the only two forms of notice that will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect your use of the device or its preloaded Software, and you will continue to enjoy the benefits of this license.16. ENTIRE AGREEMENT; SEVERABILITY. This EULA is the entire agreement between you and Samsung Electronics Co. relating to the Software and supersedes all prior or contemporaneous oral or written communications, proposals and representations with respect to the Software or any other subject matter covered by this EULA. If any provision of this EULA is held to be void, invalid, unenforceable or illegal, the other provisions shall continue in full force and effect. [101212]DRAFT FOR INTERNAL USE ONLY

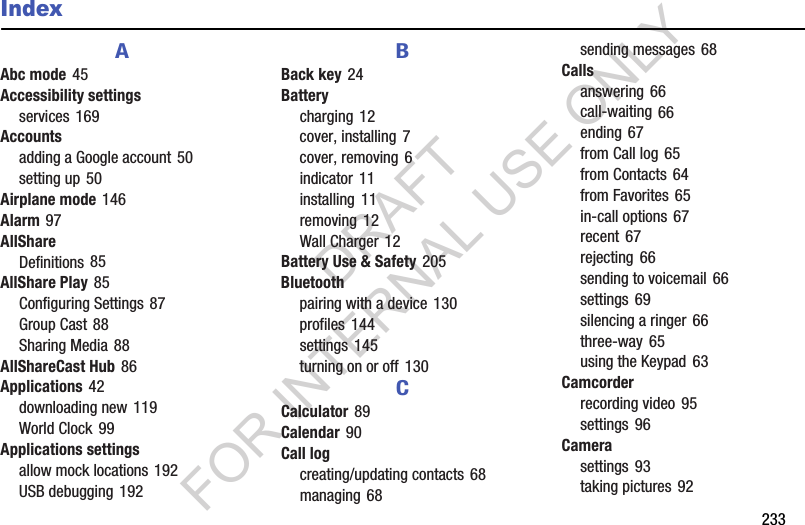

233IndexAAbc mode 45Accessibility settingsservices 169Accountsadding a Google account 50setting up 50Airplane mode 146Alarm 97AllShareDefinitions 85AllShare Play 85Configuring Settings 87Group Cast 88Sharing Media 88AllShareCast Hub 86Applications 42downloading new 119World Clock 99Applications settingsallow mock locations 192USB debugging 192BBack key 24Batterycharging 12cover, installing 7cover, removing 6indicator 11installing 11removing 12Wall Charger 12Battery Use & Safety 205Bluetoothpairing with a device 130profiles 144settings 145turning on or off 130CCalculator 89Calendar 90Call logcreating/updating contacts 68managing 68sending messages 68Callsanswering 66call-waiting 66ending 67from Call log 65from Contacts 64from Favorites 65in-call options 67recent 67rejecting 66sending to voicemail 66settings 69silencing a ringer 66three-way 65using the Keypad 63Camcorderrecording video 95settings 96Camerasettings 93taking pictures 92DRAFT FOR INTERNAL USE ONLY
234Care and Maintenance 210Children and Cell Phones 200Clock 97Commercial Mobile Alerting System (CMAS) 203Contactscreating 53creating from Call log 54creating from the Keypad 54exporting and importing 58groups 60joining 57My Profile 57namecards 59speed dials 62starred contacts 59updating 55updating from Call log 55, 68updating from Keypad 55Creating a Playlist 116DDisplay / Touch-Screen 208Display settingsbrightness 162font style and size 163screen timeout 162Do cell phones pose a health hazard? 196EEmailaccount settings 80combined Inbox 80composing and sending 79configuring accounts 79refreshing your accounts 80Emergency Calls 209Entering TextChanging the Text Entry Mode 44Using 123Sym Mode 45Using Abc Mode 45Using Swype 47, 48Using Symbol/Numeric Mode 45Exposure to Radio Frequency (RF) Signals 196FFCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices 215FCC Notice and Cautions 217GGalleryviewing pictures and video 102viewing videos 103Getting StartedSetting Up Your Phone 6Gmailcomposing and sending 81configuring your account 80managing your account 81refreshing your account 81GoogleGmail 80managing an account 52Maps 111Navigation 118Play Store 119setting up an account 50your account 17YouTube 124Google Voice Typing 47GPS 209Group Cast 88DRAFT FOR INTERNAL USE ONLY
235Groupsadding contacts 61creating 60sending a message 61HHand motions 28Handwriting feature 47HDMI Port 23Health and Safety Information 196Home key 24Home screen 36adding shortcuts 40adding widgets 40customizing 38folders 41primary shortcuts 39wallpaper 41IIconsStatus Bar 37Incognito 107Create Window 107Exit Window 107Internet 105KKeypadChanging Text Input 44LLandscape 44Locking and Unlockingunlocking the keypad 15, 19MMaps 111Memory Carderasing 139installing 9removing 10Memory cardinstalling 9removing 10Memory settingsinternal phone storage 190Menucontext-sensitive 24key 24Messagescreating and sending 74email 79Gmail 80managing 75settings 76types 74MessagingHandwriting 47Messenger 82microSDHC card 9Mobile Hotspotusing your phone as a hotspot 134Mobile networkssettings 148Motions 26Multi WindowActivate/Deactivate 29Customizing 31Increase App Window Size 33Maximize App 33Panel Relocation 30Rearrange Apps 31Removing Apps 31Restoring Apps 32Running Multiple Apps 32DRAFT FOR INTERNAL USE ONLY

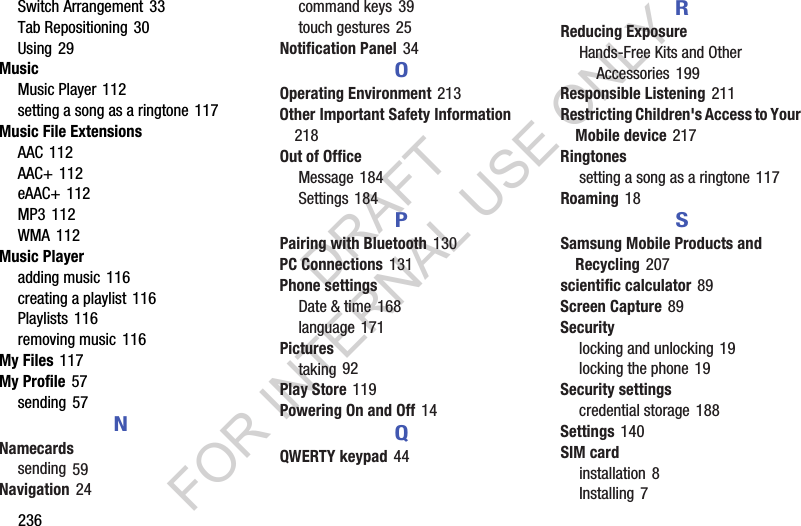

236Switch Arrangement 33Tab Repositioning 30Using 29MusicMusic Player 112setting a song as a ringtone 117Music File ExtensionsAAC 112AAC+ 112eAAC+ 112MP3 112WMA 112Music Playeradding music 116creating a playlist 116Playlists 116removing music 116My Files 117My Profile 57sending 57NNamecardssending 59Navigation 24command keys 39touch gestures 25Notification Panel 34OOperating Environment 213Other Important Safety Information 218Out of OfficeMessage 184Settings 184PPairing with Bluetooth 130PC Connections 131Phone settingsDate & time 168language 171Picturestaking 92Play Store 119Powering On and Off 14QQWERTY keypad 44RReducing ExposureHands-Free Kits and Other Accessories 199Responsible Listening 211Restricting Children's Access to Your Mobile device 217Ringtonessetting a song as a ringtone 117Roaming 18SSamsung Mobile Products and Recycling 207scientific calculator 89Screen Capture 89Securitylocking and unlocking 19locking the phone 19Security settingscredential storage 188Settings 140SIM cardinstallation 8Installing 7DRAFT FOR INTERNAL USE ONLY
237removing 9Smart Practices While Driving 203Snooze 98Software Update 194Specific Absorption Rate (SAR) Certification Information 201Speed Dialsassigning 62removing or reassigning 62Standard Limited Warranty 220Stopwatch 99SWYPEentering text using 47, 48Swype Settings 48Symbol/Numeric mode 45TText InputAbc mode 45Methods 44numeric mode 45symbol mode 45Text settingsdefault 171Google voice typing 171Samsung keyboard 171Timer 100TTY Mode 16Turning Your Phone On and Off 14UUL Certified Travel Charger 208Unlockingusing an unlock pattern 19USB Power/Accessory Port 22USB settingsmass storage device 132Using FavoritesDeleting a Favorite 108VVideosrecording 95Voicemailchecking 16setting up 16Volumekey 22VPNaccessing 131settings 152WWarranty Information 220Widgets 40Wi-Fiadding a connection manually 129scanning and connecting 129settings 142turning on or off 128using Kies via Wi-Fi 154using your phone as a hotspot 134Wireless NetworkingBluetooth 130VPN 131Wi-Fi 128World ClockDeleting an Entry 99World clock 99YYouTube 124DRAFT FOR INTERNAL USE ONLY

Navigation menu
