PORTABLE CELLULAR TELEPHONESCH-X601User’s ManualPrinted in ChinaCode No. : GH68-04402AEnglish. 10/2003. Rev.1.0World Wide Webwww.samsungmobile.comELECTRONICS* Some of the contents in this manual may differ from your phone, depending on the software installed or your service provider.
3IMPORTANT SAFETY PRECAUTIONS ....................................... 7UNPACKING............................................................................... 9YOUR PHONE ......................................................................... 10Phone’s Parts .............................................................................. 10Display ....................................................................................... 13Backlight .................................................................................... 15Service Light ............................................................................... 15GETTING STARTED .................................................................. 16Using a UIM Card ......................................................................... 16Using a Battery ........................................................................... 17Switching the Phone On or Off .................................................... 21PIN Code .................................................................................... 22Using the Soft Key ...................................................................... 23Your Phone’s Modes ..................................................................... 24CALL FUNCTIONS ................................................................... 27Making a Call .............................................................................. 27Ending a Call ................................................................................ 28Emergency Dialing ........................................................................ 28Using the Recent Call Logs ............................................................ 29Making a Call from the Phonebook ............................................... 30Prepend Dialing ............................................................................ 30Speed Dialing ............................................................................... 31Pause Dialing ............................................................................... 33Adjusting the Volume During a Call................................................ 35Answering a Call ........................................................................... 36Silencing an Incoming Call ............................................................ 36Rejecting a Call ............................................................................. 37Viewing Missed Calls ..................................................................... 37Options During a Call .................................................................... 38Call Waiting .................................................................................. 39Call Forwarding ............................................................................ 39Three-Way Calling........................................................................ 40Table of ContentsFCC RF EXPOSURE INFORMATIONIn August 1996 the Federal Communications Commission (FCC) ofthe United States with its action in Report and Order FCC 96-326adopted an updated safety standard for human exposure to radiofrequency electromagnetic energy emitted by FCC regulatedtransmitters. Those guidelines are consistent with the safetystandards previously set by both U.S. and international standardsbodies. The design of this phone complies with the FCC guidelinesand these international standards. Use only the supplied antenna or one that is approved.Unauthorized antennas, modifications, or attachments could impaircall quality, damage the phone, or result in a violation of FCCregulations.Do not use the phone with a damaged antenna. If a damagedantenna comes into contact with the skin, a minor burn may result.Please contact your local dealer for a replacement antenna.Body-worn OperationThis device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holstersor similar accessories that maintain at least a 0.59 inch (1.5 cm.) separation distance, between the user's body and the back of the phone, includingthe antenna, whether extended or retracted. The use of belt-clips,holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RFexposure requirements, and should be avoided. Vehicle Mounted External Antenna (optional, ifavailable.)A minimum separation distance of 7.9 inches (20cm) must bemaintained between a person and the vehicle mounted externalantenna to satisfy FCC RF exposure requirements.For more information about RF exposure, please visit the FCC website at www
54ENTERING TEXT ...................................................................... 41Changing the Text Input Mode ..................................................... 42Using the Chinese Pinyin Mode .................................................... 43Using the Chinese Stroke Mode .................................................... 48Using the T9 Word Mode ............................................................. 51Using the ABC Mode .................................................................... 53Using the Symbol/Symbol2 Mode ................................................ 55Using the 123 Mode .................................................................... 55USING THE MENUS......................................................... 56Accessing a Menu Function by Scrolling ........................................ 56Accessing a Menu Function by Using its Shortcut ........................... 57List of Menu Functions ................................................................. 58CALLS ........................................................................... 62Missed (Menu 1-1) ................................................................... 62Incoming (Menu 1-2) ............................................................... 63Outgoing (Menu 1-3) ............................................................... 64Erase Logs (Menu 1-4) .............................................................. 64Air Time (Menu 1-5).................................................................. 65Call Forward (Menu 1-6)........................................................... 66Call Waiting (Menu 1-7)............................................................ 67PHONEBOOK ................................................................ 68Find (Menu 2-1) ...................................................................... 68Add (Menu 2-2) ....................................................................... 71Group Set (Menu 2-3) .............................................................. 76My Phone # (Menu 2-4) .......................................................... 77MESSAGE ..................................................................... 78New Message (Menu 3-1).......................................................... 78Inbox (Menu 3-2)...................................................................... 80Outbox (Menu 3-3) ................................................................... 82Erase Messages (Menu 3-4)....................................................... 83Message Setup (Menu 3-5)........................................................ 83Web Alert (Menu 3-6)................................................................ 85SCHEDULER .................................................................. 86View Month (Menu 4-1) ........................................................... 86Jump To Date (Menu 4-2) ........................................................ 88Alarm Set (Menu 4-3) ............................................................. 89Calculator (Menu 4-4) .............................................................. 90Today (Menu 4-5) .................................................................... 91To Do List (Menu 4-6) .............................................................. 91Memo Pad (Menu 4-7) ............................................................ 92Countdown (Menu 4-8) ............................................................ 93World Time (Menu 4-9) ............................................................ 95ENTERTAINMENT ........................................................... 96Music Box (Menu 5-1) .............................................................. 96Image Box (Menu 5-2)............................................................. 98Games (Menu 5-3) ................................................................... 99Fun Box (Menu 5-4)............................................................... 102Memory Status (Menu 5-5)..................................................... 103SETTINGS ................................................................... 104Sounds (Menu 6-1) ................................................................ 104Ringer Volume (Menu 6-1-1) .............................................. 104Key Tone (Menu 6-1-2) ...................................................... 105Alerts (Menu 6-1-3) ........................................................... 106Voice Volume (Menu 6-1-4) ................................................ 107Power On/Off (Menu 6-1-5) ............................................... 107Display (Menu 6-2) ................................................................ 108Banner (Menu 6-2-1) ......................................................... 108Backlight (Menu 6-2-2) ...................................................... 109Language (Menu 6-2-3) ..................................................... 109Set Time (Menu 6-2-4) ....................................................... 110Service LED (Menu 6-2-5) ................................................... 111Contrast (Menu 6-2-6) ........................................................ 111
76SETTINGS (continued)Auto Retry (Menu 6-3) .......................................................... 111Auto Answer (Menu 6-4) ....................................................... 112Answer Mode (Menu 6-5) ...................................................... 112Roam Option (Menu 6-6) ....................................................... 113Security (Menu 6-7) .............................................................. 114Lock Mode (Menu 6-7-1) .................................................... 114Change Lock (Menu 6-7-2) ................................................. 115Emergency # (Menu 6-7-3) ................................................ 115Voice Privacy (Menu 6-7-4) ................................................ 116Restriction (Menu 6-7-5) .................................................... 117Clear Memory (Menu 6-7-6) ............................................... 117Reset Phone (Menu 6-7-7) .................................................. 118Card Setup (Menu 6-7-8) .................................................... 118Entry Method (Menu 6-8) ...................................................... 119Data Option (Menu 6-9) ........................................................ 120U-MAX ....................................................................... 121U-Info (Menu 7-1) ................................................................. 121U-Magic (Menu 7-2) .............................................................. 122UNI-Info (Menu 7-3) ............................................................. 122HEALTH AND SAFETY INFORMATION............................. 123GLOSSARY ..................................................................136QUICK REFERENCE CARD ............................................. 139Important SafetyPrecautionsRead these guidelines before using your wirelessphone. Failure to comply with them may bedangerous or illegal. Road Safety at All TimesDo not use a hand-held phone while driving; park thevehicle first. Switching Off When RefuellingDo not use the phone at a refuelling point (servicestation) or near fuels or chemicals.Switching Off in AircraftWireless phones can cause interference. Using themin aircraft is both illegal and dangerous.Switching Off in HospitalsSwitch off your phone near medical equipment.Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference,which could affect their performance.Special RegulationsMeet any special regulations in force in any area andalways switch off your phone whenever it isforbidden to use it, or when it may causeinterference or danger (in a hospital for example).
8IImmppoorrttaanntt SSaaffeettyy PPrreeccaauuttiioonnss9UnpackingYour package contains the following items.Sensible UseUse only in the normal position (held to the ear).Avoid unnecessary contact with the antenna whenthe phone is switched on.Emergency CallEnsure the phone is switched on and in service. Key in the emergency number for your presentlocation, then press . If certain feature are in use,deactivate those features before you can make anemergency call. Give all the necessary information asaccurately as possible. Do not cut off the call untilgiven permission to do so.Water ResistanceYour phone is not water-resistance. Keep it dry.Accessories and BatteriesUse only Samsung-approved accessories andbatteries. Use of any unauthorised accessaries coulddamage your phone and may be dangerous.Qualified ServiceOnly qualified service personnel may install or repairyour phone.For more detailed safety information, see“Health and Safety Information” on page 123.Phone Travel Adapter BatteriesUser’sManualFinger StrapWearableEar-microphone
11YYoouurr PPhhoonnee10Your PhonePhone’s PartsThe following illustration shows the main elementsof your phone.MicrophoneEarpieceDisplayPerform the functions indicated by the textabove them, on the bottom line of thedisplay.In the menu mode, scrolls through themenu options.In the standby mode, the key entersthe Games menu. The key enters theMessage, and held, the key entersthe View month(scheduler) screen. Key FunctionsEar-microphonejackFolderService lightWith the phone closedWith the phone openVolume keysDuring a call,adjust the voicevolume.In the standbymode, adjusts thecall ringer volume.Enters the U-MAX menu.Antenna(Soft keys)Keys
13YYoouurr PPhhoonnee12YYoouurr PPhhoonneeKey Functions (continued...)In the standby mode, allows you to changethe call ringer when pressed and held.In the text entry mode, changes the case ofletters.In the standby mode, quickly enters or exitsthe silent mode when pressed and held.In the text entry mode, inserts a space.Enters numbers, letters and some specialcharacters.~Deletes characters from the display.In the menu mode, returns to the previousmenu level.DisplayThe display has three areas; The first line for icons,the middle lines for text and graphic area, and thelast line for the soft key indications.IconsText and graphicareaSignal Strength : Shows the receivedsignal strength. The greater the number ofbars, the better the signal.IconsService: Appears when a call is inprogress.No Service: Appears when you are outsidea service area. When it displays, youcannot make or receive calls. Wait a littlewhile for a better signal or move into anopen area to regain service.Roaming: Appears when you are out ofyour home area and have logged onto adifferent network; for example, whentravelling in other countries.Ends a call. Also switches the phone on andoff when pressed and held. In the menu mode, cancels your input andreturns to the standby mode.Makes or answers a call.In the standby mode, recalls the last numberdialed, received or missed.Soft key indicationsKeys (continued...)Menu Find
15YYoouurr PPhhoonnee14YYoouurr PPhhoonneeVibration Mode: Appears when the ringervolume for calls is set to Vibrate or whenyour phone is in silent mode.Ringer Silent : Appears when the ringvolume for calls is set to Silent. New Message: Indicates that there is anew message waiting to be checked.Alarm Mode: Appears when you set analarm to ring at a specified time.Battery Status: Shows the level of yourbattery. The more bars you see, the morepower you have left.BacklightThe backlight illuminates the display and keypad.When you press any key or open the folder, thebacklight illuminates. It turns off if no key is pressedwithin a given period of time, depending on theBacklight option (Menu 6-2-2) set in the Displaymenu.To specify the length of time the phone waits beforethe backlight turns off, set the Backlight menuoption (Menu 6-2-2); see page 109 for furtherdetails.Service Light The service light on the folder flashes to indicate anincoming call, message or alarm and flashes for afew seconds when you turn the phone on or off. Itlights up while the battery is charging with the travelcharger; the color of the light turns green when thebattery is fully charged.Icons (continued...)Lock Mode: Appears when your phone islocked.Service light
17GGeettttiinngg SSttaarrtteedd16Getting StartedUsing a UIM CardThe UIM(User Identification Module) card contains achip with all the information required to operate yourphone. Note the following:• Keep all miniature UIM cards out of the reach ofsmall children.• The UIM card and its contacts can easily bedamaged by scratching or bending, so be carefulwhen handling, inserting or removing the card.Installing the UIM card1. If necessary, remove the battery by referring topage 18.2. Slide the UIM card into the slot ensuring that thenotched corner is at the top left and the goldcontacts of the card face into the phone.Removing the UIM CardSlide the UIM card out of the slot.Note:Despite of no UIM card in the phone, you canmake emergency call.Using a BatteryYour phone is powered by a rechargeable Li-ionbattery. Use only approved batteries and chargers.Ask your local Samsung dealer for further details.Note: You must fully charge the battery before usingyour phone for the first time. A dischargedbattery is fully recharged in approximately155 minutes for a standard battery. Installing the Battery1. Insert the teeth at the bottom of the battery intothe corresponding slots.
19GGeettttiinngg SSttaarrtteedd18GGeettttiinngg SSttaarrtteeddRemoving the Battery1. If necessary, switch off the phone by pressing andholding the key down until the power-offanimation is displayed.2. To remove the battery, push and hold the catchabove the battery on the back of the phone andlift the battery away.Charging the Battery A travel adapter and a battery charger are providedfor charging your batteries.Using the Travel AdapterThe travel adapter allows you to use the phone whilethe battery is charging, but this will cause thebattery to charge more slowly.1. With the battery in position on the phone, plug theconnector of the travel adapter into the jack at thebottom of the phone. Make sure that the arrow on the connector isfacing toward the front of the phone.2. Plug the adapter into a standard AC wall outlet.The battery strength icon on the display showsthat the battery is charging.2. Push the battery against the back of the phoneuntil it clicks into place. Make sure that the battery is properly installedbefore switching the phone on .
21GGeettttiinngg SSttaarrtteeddSwitching the Phone On or Off1. Open the folder.2. Press and hold for more than one second toswitch the phone on.3. If the phone asks for a Personal IdentificationNumber (PIN), enter the PIN code supplied withthe UIM card. For further details on the PIN code,see page 22.The service light flashes and an alert sounds.When the system locates services, you can seethe idle screens on the display.If the phone is out of the service area, the NoService icon ( ) appears on the display. In thiscase, you cannot place and receive calls. You cantry again later when service is available. Note: You can change the display language via theLanguage menu option (Menu 6-2-3). Seepage 109.4. When you wish to switch the phone off, pressand hold for more than one seconds until thepower-off animation is displayed.20GGeettttiinngg SSttaarrtteedd3. When charging is finished, unplug the adapterfrom both the power outlet and the phone bypressing the grey tabs on both sides of theconnector and pulling the connector out.Note: Do not remove the battery from the phonewithout unplugging the adapter while it ischarging. If you do this, the phone may bedamaged.
23GGeettttiinngg SSttaarrtteedd22GGeettttiinngg SSttaarrtteeddUsing the Soft KeysYour phone offers a set of functions that allows youto customise your phone. These functions arearranged in menus and submenus, accessed usingthe two soft keys marked and . Each menuand submenu allows you to view and alter thesettings of a particular function.The roles of the soft keys vary according to thecurrent context; the label on the bottom line of thedisplay just above each key indicates its current role.Example:Menu Find09/05 Fri 11:18Press the left soft keyto access Main MenuMode.Press the right soft keyto access PhonebookFind.WARNING!Do not switch on the phone when mobile phone useis prohibited or when it may cause interference ordanger.Note: Do not touch the antenna on the phoneunnecessarily when the phone is switched on.Contact with the antenna affects the callquality and may cause the phone to operateat a higher power level than otherwiseneeded.PIN CodeThe PIN code supplied with the UIM card helps youprotect the UIM card against unauthorized use.When the phone asks you to enter the code, enterthe appropriate code (displayed as asterisks forsecurity). If you enter an incorrect PIN code threetimes in succession, your UIM card is blocked. Tounblock the card, contact your service provider.You can enable or disable the code using the CardSetup menu option (Menu 6-7-8). For furtherinformation on the PIN code, see page 118.
25GGeettttiinngg SSttaarrtteedd24GGeettttiinngg SSttaarrtteeddPower Save ModeYour phone comes with a Power Save feature thatwill automatically be activated if your phone isunable to find a signal after 15 minutes of searching.While this feature is active, the phone’s batterycharge is conserved. To return to the standby mode,press any key.Lock ModeWhen you lock your phone using the Lock Modemenu option (Menu 6-7-1), you can receivemessages and calls, but you cannot place a call untilyou unlock the phone. To unlock the phone, press the Unlock soft key andenter the lock code. For further details about locking and unlocking thephone, see page 114.Your Phone’s ModesStandby ModeStandby mode is the most basic state of your phone.The phone goes into the standby mode soon after youturn it on, or whenever you briefly press . Whenyour phone is in the standby mode, you will typicallysee the current date and time. If you enter a phonenumber, you can press to dial it, or press the Savesoft key to save it in the internal phonebook. Press at any time to return to the standby mode.Be careful; if you are on a call when you press ,your phone disconnects the call and returns to thestandby mode. Press several times or hold it toreturn to the standby mode without ending the call.Talk ModeYou can place and answer calls only when your phoneis turned on. During a call, the phone is in the talkmode. While you are in the talk mode, pressing theMenu soft key gives you a list of options. See page 38for details on the options.
2726GGeettttiinngg SSttaarrtteeddSilent Mode The silent mode disables all sounds on the phone.This feature is best used in situations where thephone might disturb others, such as in a meeting, ata library and in a theater. To enter the silent mode, press and hold until“Entering Silent Mode” and the Vibration icon ( )appears.To exit the silent mode and reactive th previoussound settings, press and hold until “Exit SilentMode”appears. The vibration icon is no longerdisplayed.Note: When you turn the phone off, the silent modeis automatically deactivated.Call FunctionsMaking a CallTo make a call:1. In the standby mode, enter the area code andphone number.While entering a phone number, press the Pausesoft key to insert a hard pause. For moreinformation on pause dialing, see page 33.2. Press . The phone places the call to theentered phone number.Note: If you have set the time interval for automaticredialing in the Auto Retry menu option (Menu6-3), the phone automatically retries to makethe call when no one answers or the line isbusy. See page 111 for further details.Correcting the NumberTo clear Pressthe last digit .displayedthe whole display and hold for more thanone second.

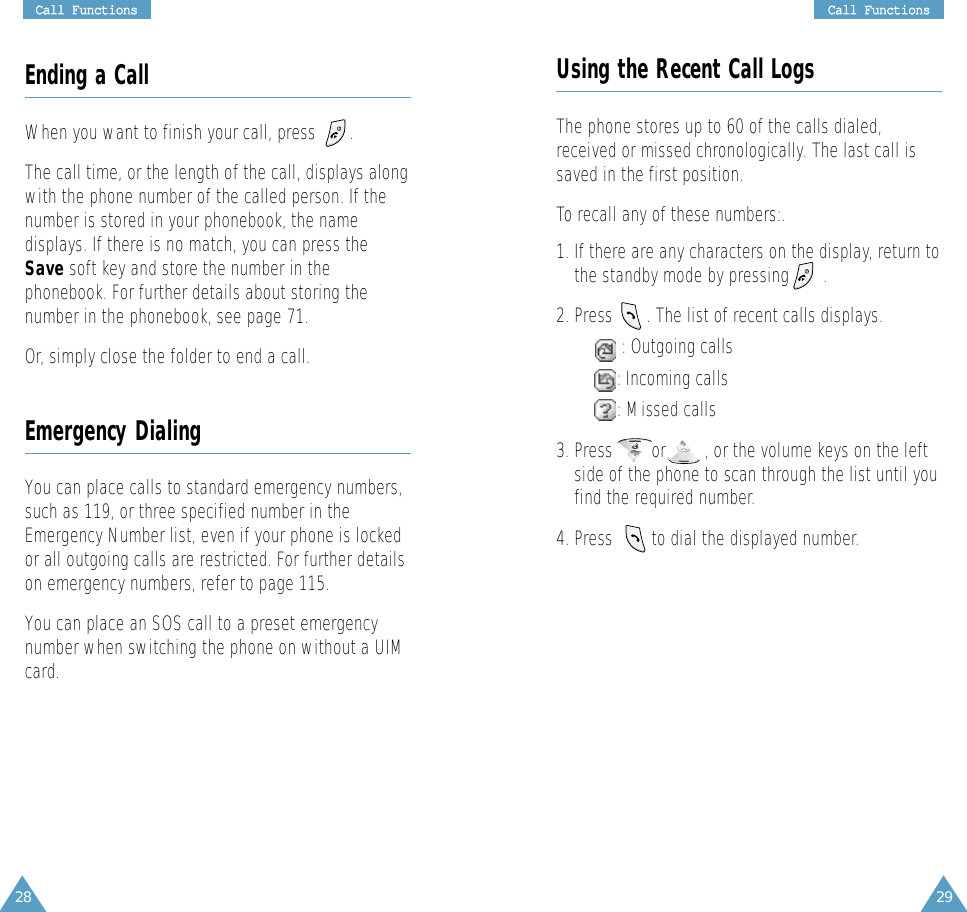

29CCaallll FFuunnccttiioonnss28CCaallll FFuunnccttiioonnssUsing the Recent Call LogsThe phone stores up to 60 of the calls dialed,received or missed chronologically. The last call issaved in the first position. To recall any of these numbers:.1. If there are any characters on the display, return tothe standby mode by pressing .2. Press . The list of recent calls displays.• : Outgoing calls• : Incoming calls• : Missed calls3. Press or , or the volume keys on the leftside of the phone to scan through the list until youfind the required number.4. Press to dial the displayed number.Ending a CallWhen you want to finish your call, press . The call time, or the length of the call, displays alongwith the phone number of the called person. If thenumber is stored in your phonebook, the namedisplays. If there is no match, you can press theSave soft key and store the number in thephonebook. For further details about storing thenumber in the phonebook, see page 71.Or, simply close the folder to end a call.Emergency DialingYou can place calls to standard emergency numbers,such as 119, or three specified number in theEmergency Number list, even if your phone is lockedor all outgoing calls are restricted. For further detailson emergency numbers, refer to page 115.You can place an SOS call to a preset emergencynumber when switching the phone on without a UIMcard.
31EEnntteerriinngg TTeexxtt30EEnntteerriinngg TTeexxttSpeed DialingOnce you have stored phone numbers in thephonebook, you can dial them easily with the fewpresses of the keys.From the UIM Card MemoryYou can dial the phone numbers stored in the UIMcard memory. The capacity of the card memory mayvary depending on the card.Enter the memory location of the desired number andpress and hold the final digit to dial.One-Touch Dial: Memory locations 001 through 009are special one-touch locations. You can dial thephone numbers stored in the Phonebook memoryfrom 001 through 009 simply by pressing one key. Press and hold the third digit of the memory location containing the number to be dialed.For example: Location no. 009Press and hold.The number (and name) stored is displayed, thendialed.Making a Call from the PhonebookYou can store the phone numbers called regularly inthe UIM card and phone memory, which is called“Phonebook.” You then simply recall the number todial. For further details on the phonebook, refer topage 68.Prepend DialingThe Prepend option lets you add digits, such as areacodes and network feature activation codes, to aphone number that is in your call logs before dialingit.To prepend the phone numbers stored in the calllogs:1. Access a call log in the Recent Calls list or in theCalls menu (Menu 1) referring to page 62 .2. When the phone number you want to dial displays,press the Menu soft key to access the Menu pop-up list.3. Press to select the Prepend option.4. Enter the area code or feature code.5. Press to dial the number.
33CCaallll FFuunnccttiioonnss32CCaallll FFuunnccttiioonnssPause DialingWhen you call automated system, like bankingservices, you are often required to enter a passwordor account number. Instead of manually entering thenumbers each time, you can store the numbers inyour Phonebook, separated by special characters,which are called pauses.Storing Pauses in a Phonebook EntryTo store a number in your Phonebook that containspauses:1. Enter the phone number you want to store, such asthe bank’s teleservice phone number.2. Press the Pause soft key to insert a pause. A “P”displays, meaning that a hard pause will occur atthat point in the dialing sequence.The “P”stops the dialing and waits for theteleservice to prompt you for a number. Thenumber following the “P” is your account number,PIN, etc.3. Enter the digits that need to follow the pause,such as your account number.4. Repeat steps 2 and 3 to add more pauses andnumbers, if necessary.5. Store the number in your Phonebook as younormally would by pressing the Save soft keyand following from Step 3 on page 75.Two-Touch Dial: For memory locations of twodigits.Press the second digit briefly, then hold down thethird digit of the memory cell.For example: Location no. 023Press briefly and hold down .The number (and name) stored is displayed, thendialed.Three-Touch Dial: For memory locations of twodigits.Press the first and the second digit briefly, then holddown the third digit of the memory cell.For example: Location no. 123Press and briefly, then holddown .The number (and name) stored is displayed, thendialed.From the Phone’s MemoryPress the digits of the phone memory locationcontaining the number to be dialed, then press andhold . For example: Location no. 029Press and briefly, then holddown . The number (and name) stored is displayed, thendialed.
35CCaallll FFuunnccttiioonnss34CCaallll FFuunnccttiioonnssIn the standby mode, you can also adjust the ringervolume for voice calls using these keys.Adjusting the Volume During a CallDuring a call, if you want to adjust the voice volume,use the volume keys on the left side of the phone. Press to increase the volume level and todecrease the level. The graphic on the display showsall five levels; the more bars you see, the higher thelevel. Pause Dialing from a Stored Phonebook Entry1. Call the number from the Phonebook.2. Wait for the appropriate prompt from the numberyou are calling. 3. When prompted, press to send the DTMF(Dual Tone Multi Frequency) number that followsyour pause.“SENDING DTMF” flashes on the display and thetransmitted tone sounds.Manual Pause DialingYou can enter pauses manually during the dialingprocess.1. Enter the phone number of the service you want tocall, such as a bank’s teleservice phone number.2. Press the Pause soft key to insert a pause.The screen displays a “P” indicating a pause. 3. Enter the number to be sent after the pause bypressing the digit keys, and then press .4. After connecting, wait for the prompt fromteleservice. Press again after the prompt tosend the additional number.
37CCaallll FFuunnccttiioonnss36CCaallll FFuunnccttiioonnssRejecting a CallTo reject an incoming call, press the right soft keyor .Press and hold one of the volume keys on the leftside of the phone with the folder closed.Viewing Missed CallsIf you fail to answer a call for any reason, the phoneindicates a missed call by displaying a textnotification on the screen. Additionally, if callerinformation is available, a Missed entry is created,and the screen displays the phone number of the lastmissed call.When the display informs you of the missed call,press to call the displayed number, or toclear the message and return to the standby mode.To view the list of the missed calls, refer to “Missed”on page 62.Answering a CallWhen somebody calls you, the phone alerts you byringing and blinking the service light.If the caller can be identified, the caller’s phonenumber, or name if stored in your Phonebook,displays. There are many ways to answer a call depending onyour setting in the Answer Mode menu option(Menu 6-5);Setting option To answer the call, By Send Key press .By Folder Open open the folder or press .By Any Key open the folder or press any keyexcept , , or thevolume keys.To end the call, close the folder or press .Note: You can answer a call while using thePhonebook or menu features. The currentoperation stops.Silencing an Incoming CallYou can silence the ringer when a call comes in bypressing one of the volume keys on the left side ofthe phone.
39CCaallll FFuunnccttiioonnss38CCaallll FFuunnccttiioonnssCall WaitingYou can answer an incoming call while you have acall in progress, if the Call Waiting menu (Menu 1-7) is enabled; see page 67.When a waiting call is detected, the incoming callalert sounds, depending on your network, and a textnotification displays. To answer a waiting call:1. To answer the call, press . The phoneconnects the calling party, and places the currentparty on hold.2. Press again to switch between the twoparties.3. To end the call, press or close the folder. Allof the calls are disconnected.Call ForwardingWhen the Call Forward menu (Menu 1-6) isenabled, your phone forwards incoming calls toanother phone number, even while your phone turnsoff. Activating Call Forwarding does not affect outgoingcalls made from this phone. For further details foractivating Call Forwarding. See page 66.Options During a CallYour phone provides a number of functions that youcan use during a call. As many of these options arenetwork services, you may not be able to use all ofthem at all times. Press the Menu soft key during a call to access thefollowing options:Mute/Quit: allows you to switch your phone’s microphone off, so that the other party cannot hearyou. Example: You wish to say something to anotherperson in the room but do not want the other party tohear you.Calls : allows you to access the Calls menu. Seepage 62.Phonebook: allows you to access the Phonebookmenu. See page 68.Silent/Quit: does not transmit the key tones. Itallows you to press keys without hearing annoyingkey tones during a call.Send My #: sends your phone number to the callingparty or automated services.DTMF length: manipulates the audible DTMF (Dual-Tone Multi-Frequency) tones. You can choosebetween Normal and Long.
4140CCaallll FFuunnccttiioonnssEntering TextAt many times when using your phone, you will needto enter text; for example, when storing a name inthe Phonebook, writing a text message or schedulingevents in your calendar. You can enter alphanumericcharacters into your phone by using your phone’skeypad.Your phone has the following text input modes:• Pinyin: allows you to enter a Chinese characterusing its Pinyin spelling, which is a phoneticsystem.• Stroke: allows you to a Chinese character usingthe individual strokes labeled on the keys.• T9 Word: allows you to enter English characterswith only one keypress per character.Note: The Pinyin, Stroke and Word modes use the T9input method. The T9 mode automaticallycompares your key presses to an internallinguistic database to determine the correctword.• ABC: allows you to enter English characters bypressing the key labeled with the desiredcharacter until the character displays.• Symbol, Symbol2: allows you to enter manydifferent symbols and special characters.• 123: allows you to enter numbers.Three-Way CallingThis feature enables you to conduct conference callswith two separate parties at the same time. Thephone records both calls in the Outgoing Calls Log.You are billed airtime for each of the outgoing callsseparately. Contact your service provider to activateThree-Way Calling.To make a three-way call:1. During a conversation, enter the phone number forthe third party and press . 2. When the third party answers, press again tobegin your three-way call. During a three-way call, if one of the callers hangsup, you and the remaining caller will stay connected.If you initiated the call and you hang up first, allthree parties are disconnected.
43EEnntteerriinngg TTeexxtt42EEnntteerriinngg TTeexxttUsing the Chinese Pinyin ModePinyin is a system to write the pronunciation ofChinese word using the Latin alphabet. With thePinyin input method, you can enter Chinesecharacters by keying in the Pinyin string using thephone’s keypad. The phone automatically presentsthe matching words.This mode allows you to enter Pinyin characters withonly one key per letter.Typing Characters in the Pinyin Mode1. Press keys corresponding to the phonetic spelling,referring to the Roman letters printed on the keys.Notice that the choices in the Character SelectionField change.Example: Typing “ ” in the Pinyin modeName: Mode PINYIN niPinyin Input FieldPress and to enter “ni.”The Character Selection FieldChanging the Text Input ModeExample: When you are entering a name1. In the text entry screen, press the Mode soft key. 2. Scroll to the desired mode by pressing or.Note: If you want to exit the Mode list withoutchanging to a new mode, press .3. To select the highlighted mode, press the OK soft key.You can change between T9 Word and ABCmode to enter English words and choose Pinyinor Stroke to enter Chinese characters. To includea symbol or number(s) between characters,Symbol,Symbol2 and 123 modes are alsoavailable. 4. You will find the selected text input modeindicator on the display.Text input mode indicator

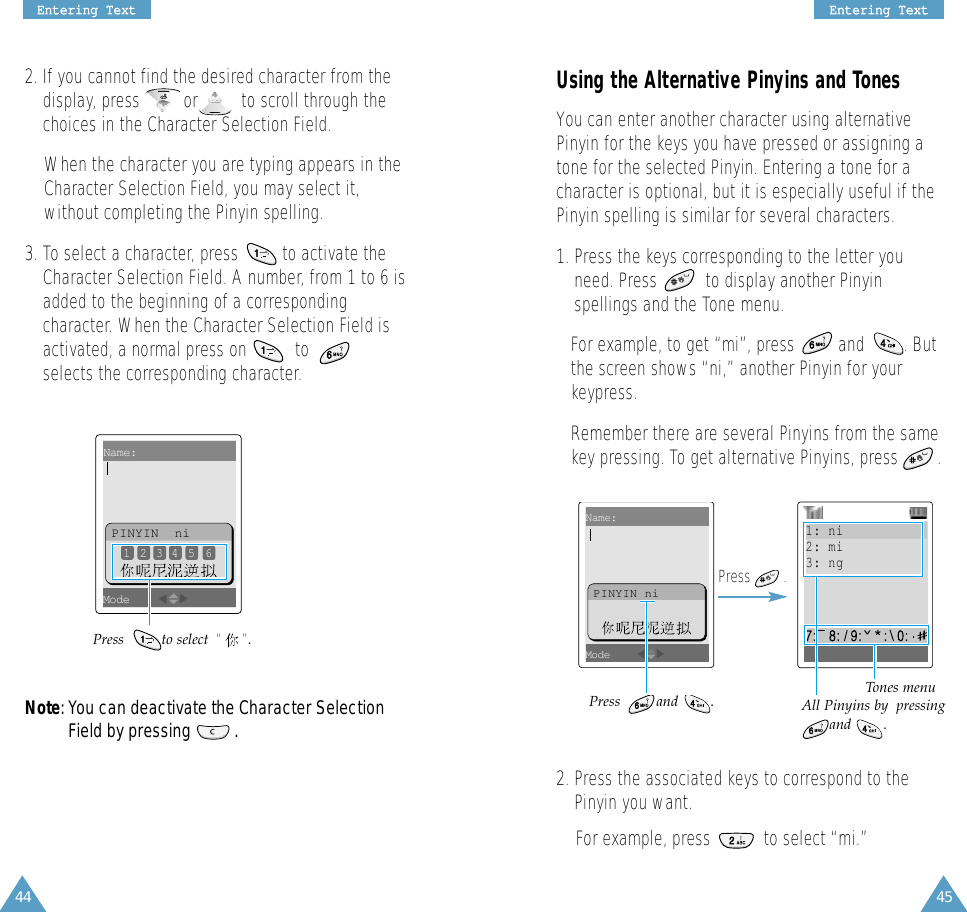

45EEnntteerriinngg TTeexxtt44EEnntteerriinngg TTeexxttUsing the Alternative Pinyins and TonesYou can enter another character using alternativePinyin for the keys you have pressed or assigning atone for the selected Pinyin. Entering a tone for acharacter is optional, but it is especially useful if thePinyin spelling is similar for several characters.1. Press the keys corresponding to the letter youneed. Press to display another Pinyinspellings and the Tone menu.For example, to get “mi”, press and . Butthe screen shows “ni,” another Pinyin for yourkeypress. Remember there are several Pinyins from the samekey pressing. To get alternative Pinyins, press .1: ni2: mi3: ngAll Pinyins by pressing and .Tones menuName: Mode PINYIN niPress and .Press .2. Press the associated keys to correspond to thePinyin you want.For example, press to select “mi.”2. If you cannot find the desired character from thedisplay, press or to scroll through thechoices in the Character Selection Field.When the character you are typing appears in theCharacter Selection Field, you may select it,without completing the Pinyin spelling.3. To select a character, press to activate theCharacter Selection Field. A number, from 1 to 6 isadded to the beginning of a correspondingcharacter. When the Character Selection Field isactivated, a normal press on toselects the corresponding character.Note: You can deactivate the Character SelectionField by pressing .Name: Mode PINYIN ni12345 6Press to select “”.
47EEnntteerriinngg TTeexxtt46EEnntteerriinngg TTeexxttRapid Character EntryRapid character entry is easy in any mode, using theCharacter Selection Field. As you enter characters,your phone predicts the next character you mightwant and presents choices in the Character SelectionField. For example, when you type the word “zhong guo( )”, if you enter the first character using thefollowing keystrokes; , , , , ,, you do not have to complete the Pinyin spellingto include “guo ( )”. With no extra typing, the letterdisplays conveniently in the Character Selection Fieldfor you to choose.ScrollingTo move the cursor to the left or right through yourtext message, press or when the CharacterSelection Field is not activated. Inserting a SpaceInsert a space between characters, press in theText Area.Clearing Strokes and CharactersPress one or more times to remove strokes oneby one to the left. Once the Pinyin input field isempty, pressing removes a letter from the TextArea.To clear all of the strokes and characters on thedisplay, press and hold .3. Press one of the keys to associated a tone;, , , for four tones, for light tone. To exit without assigning a tone, press .For example, to enter a third tone for Pinyin “mi”,press . You can get the character sets for the Pinyin “mi” with the third tone.1: ni2: mi3: ngCharacter sets for the Pinyin“mi” with the third tone.Name: Mode PINYIN mi12345 6Alternative Pinyin bypressing and .Press for the third tone4. If you cannot find the desired character from thedisplay, press to scroll through choices in theCharacter Selection Field.5. If you find the character you want to enter, press a key ( to ) to corresponding the character.Notes: • You may delete a previously entered tone bypressing .• To exit the Tone menu without making a selection,press .
49EEnntteerriinngg TTeexxtt48EEnntteerriinngg TTeexxtt2. The phone displays your strokes in the Key Strokeinput field and offers character choices in theCharacter Selection Field. As you enter strokes,notice that the choices in the Character SelectionField change. To scroll through the choices in the CharacterSelection Field, press or .Note: If you are uncertain of the order of one ormore strokes, press in place of eachquestionable stroke. Continue entering strokesuntil the character displays in the CharacterSelection Field or until you finish thecharacter.Key Stroke Input FieldPress to enter , then to enter . The Character Selection Field. To select “ ”, press .Name: Mode STROKE 7890Typing Strokes and Characters in the StrokeMode1. To type a character, press the keys corresponding toits component strokes. Press keys on the handset inthe order that you would write the strokes, using onepress per desired stroke. Example: Typing “ “ in the Stroke modeUsing the Chinese Stroke ModeThis mode allows you to enter individual Chinesestrokes, in written order, from top to bottom, andfrom left to right. Even though there are many different strokes used to create Chinese characters, the strokes are classifiedinto 5 basic categories; heng, shu, pie, dian and zhe.The basic strokes are printed on keys toon the keypad.To enter a stroke, press the key printed with thestroke that most closely represents the exact strokeyou desire. The table shows the stroke/keyrelationship:Categories Keys Strokes Represented in Each Category
51EEnntteerriinngg TTeexxtt50EEnntteerriinngg TTeexxttUsing the T9 Word ModeTo type a word, press keys corresponding to the lettersyou need. Remember the following as you are typing:1. Press keys on the phone just once per desired letter.For example, to enter “Hello,” press , , , , and .2. The word you are typing appears on the display. Itmay change with each key press.3. Type to the end of the word before editing ordeleting any keystrokes.If the word that appears on the display is not theword that you desire, press one or more times to display alternative word choices for the keys you have typed. For example, both “of” and “me” have the sequenceof and . The phone displays the mostcommonly used choice first.4. Put a space between words by pressing .To type words not found in the T9 Word mode, youneed to change the text input mode to the ABC mode. 3. When the character you are typing appears in theCharacter Selection Field, you may select it withoutfinishing the stroke sequence for the character.Characters displayed in the Character SelectionField correspond to keys 7to #on the keypad. Toselect a character from the Character SelectionField and add it to your message, press thecorresponding key to .Rapid Character EntryRapid character entry is easy in any mode, using theCharacter Selection Field. As you enter characters,your phone predicts the next character you mightwant and presents choices in the Character SelectionField. For example, try typing the characters “zhong guo( )” using the following keystrokes; , ,. Even though “guo ( )” is the twelve strokecharacter pair, your phone allows you to enter it inonly three key presses.ScrollingTo move the cursor to the left or right through yourtext, press or . Clearing Strokes and CharactersPress one or more times to remove strokes oneby one to the left. Once the Key Stroke input field isempty, pressing removes a letter from the TextArea.To clear all of the strokes and characters on thedisplay, press and hold .
53EEnntteerriinngg TTeexxtt52EEnntteerriinngg TTeexxttUsing the ABC ModeWhen typing in the ABC mode, you should press keylabeled with the required letter:- once for the first letter- twice for the second letterand so on.This method is called Multi-tap typing.For example, you need to press three timesquickly to display the letter “C” and two timesquickly to display the letter “K”. Refer to the table below for the list of charactersassigned to each key.Characters in the Order Displayed. @ , : ? - ; ’ / ( ) ! # % & * <> _ + = ” \ { } $ [ ] 1AB C2DE F 3GH I 4JK L5MN O 6PQ RS7TU V8WX Y Z 90KeyList of characters available:(Caps Lock mode)Smart PunctuationYou can insert periods, hyphens, and apostrophes bypressing . T9 Word applies rules of grammar toinsert the correct punctuation. Notice that isused twice in this example to display two punctuationmarks: Changing the CaseTo shift the case of the next letter(s) that you type,press . There are three cases: Lower Case(T9word), Initial Capital (T9Word) and Capitals Lock(T9WORD).Including a NumberYou can include a number between letters withoutexiting the T9 Word input mode. Press and hold thedesired number key.ScrollingTo move the cursor to the left or right through yourtext, press or .Clearing Letters and WordsPress one or more times to clear letters one byone to the left. Press and hold to erase all ofthe letters on the display.L e t ‘ s e a t .
55EEnntteerriinngg TTeexxtt54EEnntteerriinngg TTeexxttUsing the Symbol/Symbol2 ModeThe Symbol, Symbol2 mode enables you to entersymbols into your text. Press or to display more symbol sets.Press the keys corresponding to the desired mark,then the phone automatically switches back to thetext entry mode used just prior to selecting theSymbol mode.Using the 123 ModeThe 123 mode enables you to enter numbers intoyour text. Press the keys corresponding to thedesired digits, and manually switch back to the textentry mode of your choice; see page 41 for changingthe text input mode.Name: 12Mode OKSYMBOL 1234 5 6 789Name: Mode SYMBOL2 1234 5The cursor moves to the right when you press adifferent key. When entering the same letter twice ora different letter on the same key, just wait for a fewseconds for the cursor to automatically move to theright, and enter the next letter. Changing the CaseTo shift the case of the next letter(s) that you type,press . There are three cases: Lower Case (abc),Initial Capital (Abc) and Capitals Lock (ABC).Inserting a SpacePress to insert a space between words.Including a NumberYou can include a number between letters withoutexiting the ABC input mode. Press and hold thedesired number key.ScrollingTo move the cursor to the left or right through yourtext message, press or .Clearing Letters and WordsPress one or more times to clear letters one byone to the left. Press and hold to erase all ofthe letters on the display.
56 57UUssiinngg tthhee MMeennuussAccessing a Menu Function by Using itsShortcutThe menu items, such as menu, submenus andsetting options, are numbered and can be accessedquickly by using their shortcut numbers. Note: The numbers assigned to each menu functionare indicated on the list on page 60. 1. In the standby mode, press the Menu soft key toaccess the menu mode.2. Enter the first digit of the shortcut number. Repeatthis for each digit of the shortcut number.Example: Changing the display languagePress , , and .6enters Settings, 2selects Display, and 3selects Language.3. Scroll with the navigation keys to select thesetting of your choice. 4. Press the Save soft key to confirm the chosensetting.Using the MenusThe phone offers a range of functions that allowsyou to tailor the phone to your needs. Thesefunctions are arranged in menus and submenus.The menus and submenus can be accessed byscrolling or using the shortcuts.Accessing a Menu Function by Scrolling1. In the standby mode, press the Menu soft keyto access the main menu mode. 2. Scroll with and to reach the desiredmain menu, for example, Settings. Press theSelect soft key to enter the menu.3. Find the menu option you want, for example,Display, by scrolling with and . Pressthe Select soft key to enter the menu option.If the menu you have selected contains submenus,such as Language, repeat this step.4. Scroll with the navigation keys to select thesetting of your choice. 5. Press the Save soft key to confirm the chosensetting.Notes:• To return to the previous menu level, press .• You can exit the menu without changing the menusettings by pressing .
59583: Message3-1: New Message3-2: Inbox3-2-1: Voice3-2-2: TxtCard3-2-3: TxtPhone3-3: Outbox3-3-1: Card3-3-2: Phone3-4: Erase Msgs3-4-1: Voice Notif.3-4-2: Inbox Card3-4-3: Inbox Phone3-4-4: Outbox Card3-4-5: Outbox Phone3-4-6: All Messages3-5: Msg Setup3-5-1: Scroll Timer3-5-2: Msg. Reminder3-5-3: New Message3-5-4: Canned Msg.3-6: Web Alert4: Scheduler4-1: View Month4-2: Jump To Date4-3: Alarm Set4-4: Calculator4-5: Today4-6: To Do List4-7: Memo Pad4-8: Countdown4-9: World TimeUUssiinngg tthhee MMeennuussUUssiinngg tthhee MMeennuuss1: Calls1-1: Missed1-2: Incoming1-3: Outgoing1-4: Erase Logs1-4-1: Missed1-4-2: Incoming1-4-3: Outgoing1-4-4: All Calls1-5: Air Time1-5-1: Last Call1-5-2: Total1-5-3: LifeTime1-5-4: Erase Total1-6: Call Forward1-6-1: Busy1-6-2: No Answer1-6-3: Unconditional1-6-4: Busy/NoAnswer1-7: Call Waiting2: Phonebook2-1: Find 2-2: Add 2-3: Group Set2-4: My Phone #List of Menu FunctionsThe list shows the menu structure available andindicates the number assigned to each option.
5: Entertainment5-1: Music Box5-1-1: Voice Calls5-1-2: Messages5-1-3: Alarm/Scheduler5-2: Image Box5-2-1: Opening5-2-2: Closing5-2-3: Wallpaper5-3: Games5-3-1: ChickenRun5-3-2: MobileCop5-4: Fun Box5-4-1: Get In Melody5-4-2: Get In Animation5-5: Memory Status5-5-1: Total5-5-2: Music 5-5-3: Image 6: Settings6-1: Sounds6-1-1: Ringer Volume6-1-2: Key Tone6-1-2-1: Tone Volume6-1-2-2: Tone Type6-1-3: Alerts6-1-3-1: Minute Beep6-1-3-2: Service Area6-1-3-3: Connect6-1-3-4: Disconnect6-1-3-5: Fade6-1-3-6: Roam Area6-1-3-7: Folder6-1-4: Voice Volume6-1-5: Power On/Off61606: Settings (continued)6-2: Display6-2-1: Banner6-2-2: Backlight 6-2-3: Language 6-2-4: Set Time6-2-4-1: Main Clock6-2-4-2: Dual Clock 6-2-5: Service LED6-2-6: Contrast6-3: Auto Retry6-4: Auto Answer6-5: Answer Mode6-6: Roam Option6-7: Security6-7-1: Lock Mode6-7-2: Change Lock6-7-3: Emergency #6-7-4: Voice Privacy6-7-5: Restriction6-7-6: Clear Memory6-7-7: Reset Phone6-7-8: Card Setup6-7-8-1: PIN Check6-7-8-2: Change PIN6-7-8-3: UIM Lock6-8: Entry Method6-9: Data Option7: U-MAX7-1: U-Info7-2: U-Magic7-3: UNI-INFOUUssiinngg tthhee MMeennuussUUssiinngg tthhee MMeennuuss
63CCaallllss62When you access the menu options, the followingoptions are available:Talk: dials the selected number.Save: allows you to save the number in thephonebook.Prepend: allows you to add an area code or featurecode to the number before calling the number.Erase: allows you to erase the selected number. Incoming (Menu 1-2)This option lets you view up to 20 of the last callsyou received if you are subscribed to the Caller LineIdentification service. Contact your service providerfor more information about this service. When youaccess this menu, the list of the incoming callsdisplays.For further details about scrolling through the list andaccessing the call log, see “Missed” on page 66.CallsYou can use the Calls menu to:• view and dial the last missed, outgoing or incomingnumbers.• erase the numbers in the call logs.• view the duration of calls.• set the phone to receive the second call or toforward incoming calls to the preset number.Missed (Menu 1-1)If Caller Line Identification is available, your phonekeeps a list of the last 20 incoming calls that youfailed to answer. Contact your service provider forthe availability. 1. Press or to find the desired number or name, if saved in the phonebook. 2. Press the Select soft key to select the highlightednumber. The dialed number, or name if stored inthe phonebook, is displayed.3. To Pressplace a call to .the displayed numberuse the menu the Menu soft key. Foroptions details about the options,see the following page.view other calls the navigation keys.return to the standby .mode
65CCaallllss64CCaallllssAir Time (Menu 1-5)Your phone records the amount of air time, or talktime, used. Using this option, you can view thenumber of the calls to or from your phone and the airtime for all calls. You can easily erase the air timerecord at any time.Note: This feature is not intended to be used forbilling purposes.The following options are available:Last Call: shows the air time of the last call.Total: shows the number of all calls made to or fromyour phone and the total duration of the calls sincethe air time counter was last set to zero by using theErase Total option.LifeTime: shows the number and total duration of allcalls made to or from your phone since the phonewas shipped from the factory.Erase Total: erases the “Total” air timemeasurement and resets the air time counter.Outgoing (Menu 1-3)The phone stores up to 20 of the last calls youdialed. When you access this menu, a list of theoutgoing calls displays.For further details about scrolling through the list andaccessing the call log, see “Missed” on page 66.Erase Logs (Menu 1-4)In this menu, you can erase the entries stored ineach of the three call logs; outgoing, incoming andmissed calls. You can also erase all call log entriesat one time by selecting All Calls.When a confirming message appears, select Yes toerase the logs. If you want to cancel the selection,select No.
67CCaallllss66CCaallllssTo deactivate the call forward setting:1. Select the call forwarding option.2. Select Disable and press the Save soft key.Call Waiting (Menu 1-7)The Call Waiting feature alerts you of incoming callswhile you are on a call.To enable the feature, select Enable by using thenavigation keys and press the Save soft key.When this feature is enabled, you can respond to anincoming call by pressing while you are on acall. This puts the first caller on hold and answersthe second call. To switch to the first caller, pressagain.Note: If you press or close the folder, all callsare disconnected.To disable, select Disable and press the Save softkey.Call Forward (Menu 1-6)This network service allows incoming calls to beforwarded to another number.Note: This option is only available when yournetwork operator supports it. Contact yourservice provider to check the availability.The following options are available:Busy: Calls are forwarded if you are already on thephone.No Answer: Calls are forwarded if you do notanswer the phone.Unconditional: All of the calls are forwarded.Busy/NoAnswer: Calls are forwarded if you arealready on the phone or do not answer.To set your forwarding options:1. Select the type of call forwarding.2. Select Enable and press the Save soft key.3. Enter the area code and phone number to which your calls will be forwarded.4. Press the Send soft key. The phone sends yoursetting to your network.Once Call Forwarding is enabled, a notification textappears to inform you that your call will be diverted,each time a call is forwarded or you switch thephone on.
69PPhhoonneebbooookk68If you want to find a Chinese name, press theMenu soft key and enter the name and press theOK soft key. For more information on entering text,see page 41.Your phone highlights the first matching name.3. If necessary, press or to scroll through theentries. 4. When an entry is highlighted: • Press to place a call to the entry’s speed-dialnumber.• Press the Menu soft key to access the followingoptions:-Edit: edits the entry’s phone number, name,location number and other information.-Erase: erases the entry.-Add New: adds a number to the phonebook.You can create a new entry or add it to anexisting entry. For more information on adding anumber, refer to page 71.• Press the OK soft key to select the entry.Information about the entry displays. Move toeach item by pressing or . Press theMenu soft key to use one of the followingoptions: - Talk: dials the number labeled as SpeedDial.- Edit: allows you to change the selected item. -Copy: is only available when you select anumber item in phone memory entry or an itemin UIM card.PhonebookYou can store phone numbers and their correspondingnames in the memories of your UIM card and thephone. The UIM card and phone memories, althoughphysically separate, are used as if they were a singleentity, called the phonebook. Find (Menu 2-1)This option allows you to find an entry using aperson’s name, entry number, group name or memorylocation.Note:You can quickly access this menu by pressingThe Find soft key in Standby Mode. To change the finding method, press or untilthe option you want to use displays; By Name, ByEntry, By Group or By Storage.By NameWhen you select this method, the whole list of all ofthe phonebook entries appears in alphabetical order.1. Press to move to the name input box.2. Enter the first few letters of the name you want tofind.

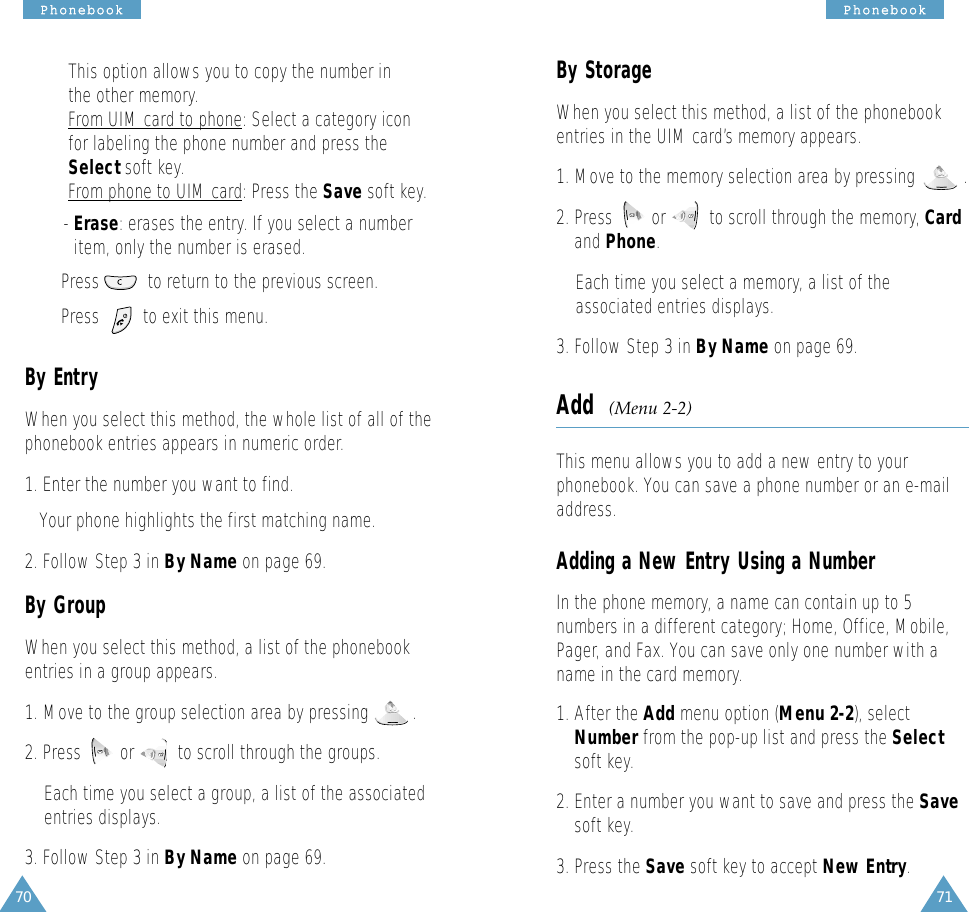

71PPhhoonneebbooookk70PPhhoonneebbooookkBy StorageWhen you select this method, a list of the phonebookentries in the UIM card’s memory appears.1. Move to the memory selection area by pressing .2. Press or to scroll through the memory, Cardand Phone. Each time you select a memory, a list of theassociated entries displays. 3. Follow Step 3 in By Name on page 69.Add (Menu 2-2)This menu allows you to add a new entry to yourphonebook. You can save a phone number or an e-mailaddress.Adding a New Entry Using a NumberIn the phone memory, a name can contain up to 5numbers in a different category; Home, Office, Mobile,Pager, and Fax. You can save only one number with aname in the card memory.1. After the Add menu option (Menu 2-2), selectNumber from the pop-up list and press the Selectsoft key. 2. Enter a number you want to save and press the Savesoft key.3. Press the Save soft key to accept New Entry. This option allows you to copy the number in the other memory.From UIM card to phone: Select a category icon for labeling the phone number and press the Select soft key.From phone to UIM card: Press the Save soft key.-Erase: erases the entry. If you select a numberitem, only the number is erased.• Press to return to the previous screen.• Press to exit this menu.By EntryWhen you select this method, the whole list of all of thephonebook entries appears in numeric order.1. Enter the number you want to find. Your phone highlights the first matching name.2. Follow Step 3 in By Name on page 69.By GroupWhen you select this method, a list of the phonebookentries in a group appears.1. Move to the group selection area by pressing .2. Press or to scroll through the groups. Each time you select a group, a list of the associatedentries displays. 3. Follow Step 3 in By Name on page 69.
73PPhhoonneebbooookk72PPhhoonneebbooookk• E-Mail/E-Mail2: Press the Edit soft key toenter an e-mail address. For more informationon how to enter characters, see page 43.• ETC: Press the Edit soft key to add a memoabout the person. For more information abouthow to enter characters, see page 43.• SpeedDial: Select the category icon of thenumber you want to use for speed dialing, bypressing or .• Relation: Select one of the predefined relationgroups, where the entry is included. Groupingthe entries enables you to search for a numberin the desired group. See page 70.• Ringer Melody: Press the Edit soft key to set a unique ringer melody for the entry. 6. Repeat Step 5 until you complete the contact information of the entry.7. Press the Save soft key to save the entry. After storing, the phone displays the memorystatus of the phonebook, then automaticallyreturns to the Phonebook menu screen.4. Enter a name and press the OK soft key.You can enter up to 14 characters in English or 12characters in Chinese. For more information onhow to enter characters, see page 43.5. Your phone shows the detail information. Highlightthe option you want to customize by pressingor .• Name: Press the Edit soft key to edit the nameyou entered in Step 4, if necessary. You canenter a name in this step if one has not alreadybeen entered. • Storage: The UIM card memory isautomatically selected.To save the number in the phone memory, pressthe Phone soft key. The screen showingcategory icons appears. Select an icon usingthe navigation keys and press the Select softkey.• Location: The first available location displays. Ifyou need to, enter the location number using thenumber keys or press or until thelocation number you want to use appears.The following options are available only when youselect the phone memory:• Home/Office/Mobile/Pager/Fax: You can addnumbers for each category. The phone numberyou have entered in Step 1 displays as a numberin the storage you‘ve chosen. You can alsochange the number.
75PPhhoonneebbooookk74PPhhoonneebbooookk4. Find the name to which you want to add thenumber using the navigation keys; see page 76.5. Select a category by pressing or andpress the Select soft key.6. Follow from Step 5 in “Adding a New Entry Using aNumber.”Adding a New Entry Using an E-mail AddressThis option allows you to store an e-mail address as aPhonebook entry.1. After the Add menu option (Menu 2-2), select E-mail from the pop-up list and press the Selectsoft key. 2. Enter the e-mail address and press the OK soft key.For more information on entering text, see page 41.3. Follow from Step 3 in “Adding a New Entry Using aNumber” on page 71.Adding a New Entry Using a MemoYou can make a memo about a person as a Phonebookentry.1. After accessing the Add menu option (Menu 2-2),select ETC from the pop-up list and press theSelect soft key.Saving a Phone Number from the Standby Mode1. In the standby mode, enter a number you want tosave. ORPress to end the call. The call time and thephone number display.2. To store the phone number, press the Save soft key. 3. Enter a name and press the OK soft key.For more information on entering text, see page 41.4. Follow from Step 5 in “Adding a New Entry Using aNumber” on page 71.Adding a Number into an Existing EntryYou can store up to 5 numbers in a name entry saved inthe phone memory by assigning them to the differenttypes. 1. After the Add menu option (Menu 2-2), selectNumber from the pop-up list and press the Selectsoft key.2. Enter a number you want to save and press the Savesoft key .3. Press or to select Find and press the Save soft key.
77PPhhoonneebbooookk76PPhhoonneebbooookkMy Phone Number (Menu 2-4)This option shows your phone number.To change the phone number:1. Press the Edit soft key when the number displays.2. Enter a new phone number and press the Savesoft key to save it.2. Enter a memo and press the OK soft key.For more information on entering text, see page 41.3. Press the Save soft key to accept New Entry.Note: To add the memo to an existing entry, selectFind. Find the name from the Phonebook list,and press the OK soft key.4. Enter a name and press the OK soft key.5. Follow from Step 5 in “Adding a New Entry Using aNumber on page 71.Group Set (Menu 2-3)This option allows you to change a relation group’sname. 1. Press or to select the group you want torename.2. Press the Select soft key .3. Press to erase the old group name.4. Enter a name.For more information on entering text, see page 41.5. Press the OK soft key to save the new name.
79MMeessssaaggee//UU--MMAAIILL781. Enter the message contents and press the OK softkey. You can enter up to 140 characters in Chinese or160 characters in English. To change the inputmode, press the Mode soft key and press thenavigation keys to find the desired mode. Formore information on entering text, see page 41. You can use up to 20 canned messages bypressing the Mode soft key and selectingCanned msg. Select a message from the list.For more information about canned msg, seepage 84.2. Select one of the following options, and press theOK soft key.• Send & Save: allows you to save a copy of themessage and then send the message to therequired destination. You can read the messagein your Outbox. • Send only: allows you to send the message.The message will be deleted after sending. • Save only: allows you to save the message sothat it can be sent later. You can read themessage in your Outbox. 3. Enter a phone number. If you press the Menu soft key and select PhoneBook, you can search your Phonebook for anumber.MessageIn this menu, you can:• write new SMS (Short Message Service)messages and check your incoming messages.• use the U-MAIL service, provided by your serviceprovider.Your phone can receive voice mail messages, textmessages, and web messages from your web server.Your phone can also send text messages if yoursystem supplier provides this service. Incoming messages are received even when yourphone is in the lock mode. However, the screen willnot display information about the message. Toaccess the message, you need to unlock the phone.If you receive an incoming message during a callconversation, your phone sounds an alert tone orvibrates, depending on your sound settings.Note: You can quickly enter this menu by pressingand holding in Standby Mode.New Message (Menu 3-1)You can create short text messages and send themto multiple mobile phones.
81MMeessssaaggee//UU--MMAAIILL80MMeessssaaggee//UU--MMAAIILLText MessagesWhen the phone receives a text message, the NewText Message icon ( ) and a text notification withthe call back number appear. Press the Select softkey to view the message immediately.When you access the TxtCard menu (Menu 3-2-2)or TxtPhone menu (Menu 3-2-3), a list of thereceived message displays. An icon displayed in thelist means the message’s status:• : displays when you have read the message.• : indicates that a duplicate message was sent. • : means that the message is urgent.Press or to scroll to the message youwant to read and press the View soft key. The phonedisplays the contents. If necessary, press orto scan through the message.While viewing a message, press the Menu soft keyto use the following options:Reply: allows you to send a reply message to thesender.Forward: allows you to send the message to otherpeople.Call/Save: Press to make a call to the sender’sphone number. Press the Save soft key to save it.Erase: erases the message from your Inbox.4. To send the message to multiple destinations,press and enter another number. Repeat this step to add more destinations. Youcan send the message to up to 10 destinations atone time.5. When you finish entering the numbers, press the OK soft key to send or save the message.Your phone informs you of whether or not the message was successfully sent, and returns to theMessage menu screen.Indox (Menu 3-2)Your phone can store SMS messages and theircorresponding Caller ID in your UIM card and phone’smemories. If your memory is full, the screen displaysa text notification and rejects additional incomingmessages until you erase the obsolete ones.Voice Messages When you receive a voice mail message, the textnotification displays. Press , and the phone dialsthe voice mail center. Then follow the voice promptsfrom the system to listen to the message.You can also check your voice messages byaccessing the Voice menu option (Menu 3-2-1). For further details about the voice mail service andits availability, contact your service provider.
83MMeessssaaggee//UU--MMAAIILL82MMeessssaaggee//UU--MMAAIILLErase Messages (Menu 3-4)Using this menu option, you can erase all of themessages in each message box; voice notification,card inbox, phone inbox, card outbox and phoneoutbox. You can also erase all of the messages at one timeusing the All Messages option.Msg Setup (Menu 3-5)Using this menu, you can set up various options forreceiving or sending messages.Scroll Timer (Menu 3-5-1)If an incoming message is too long for the display, thephone scrolls the screen automatically. You can setthe time interval in which the phone scrolls to the nextscreen, 1 through 5 seconds. When this option is set to Off, you need to manuallyscroll to the next screen using or .Message Reminder (Menu 3-5-2)When a message is received, your phone alerts youby sounding the specified ringer. You can set howoften this will happen.Outbox (Menu 3-3)Your phone can store your outgoing SMS messagesin your UIM card and phone’s memories. When you access the Card menu (Menu 3-3-1) orPhone menu (Menu 3-3-2), you can see themessage list. An icon displayed in the list means themessage’s status:• : indicates that the message was successfullydelivered.• : indicates that the message was not sent.Press or to scroll to the message youwant to review and press the View soft key. Thedisplay shows the contents along with thedestination number. If necessary, press orto scan through the message.While viewing a message, press the Menu soft keyto use the following options:Resend: allows you to send the message to otherpeople.Call/Save: Press to make a call to the sender’sphone number. Press the Save soft key to save it.Erase: erases the message from your Outbox.
85MMeessssaaggee//UU--MMAAIILL84MMeessssaaggee//UU--MMAAIILL2. Clear the existing message using , ifnecessary, enter a new message. For further information on how to enter text, seepage 41.3. Press the OK soft key to save the message.Web Alert (Menu 3-6)In this menu, you can view a web message from yourweb server. For details about reading a webmessage, refer to “Text Messages” on page 81.Off: The phone doesn’t alert after you receive anincoming message but the New Text/Voice Messageicon appears.Once: When you receive an incoming message, thephone alert you just once until you press any key oropen and close the folder.Every 2 min: When you receive an incomingmessage, the phone alert you every 2 minutes untilyou press any key or open and close the folder.New Message (Menu 3-5-3)You can set up the following options as defaultsettings when creating a new message. Priority: allows you to set the priority level ofmessages from Normal, Interactive, Urgent orEmergency.Delivery Ack: allows you to activate or deactivatethe delivery acknowledgement feature. When this isactivated, the network informs you when yourmessage is delivered to the recipient. Select On toturn the feature on or Off to turn it off.Canned Messages (Menu 3-5-4)Your phone has 11 preset messages to enable you touse them when writing a new message. You canchange them, if necessary. You can also add up 9messages.1. Press or to highlight the message youwant to change. Press the Select soft key.To add a new message, select an empty location.
87SScchheedduulleerr86On the calendar, press the Menu soft key to use thefollowing options:View: allows you to view the scheduled events ofthe selected day.Add new: allows you to add a new event on theselected day.Scheduling an Event You can schedule up to 9 events for one day and 20events total.1. Select a day from the calendar, referring to“Selecting a Day on the Calendar” on page 86, andpress the OK soft key.2. Enter your event contents and press the OK softkey.For more information on entering text, see page41.3. Enter the start time and date using the numerickeys and press .Note: You need to enter the time in 24-hour format. 4. Enter the end time and date using the numerickeys and press .5. Select the time when an alarm will inform you ofyour event by pressing or . If you selectNo alarm, the phone will not alert you.6. Press the Save soft key to save your event.SchedulerThe Scheduler feature enables you to:• keep track of important dates and events.• set the phone to ring at a specified time.• use the phone as a calculator.• create a list of things to do.• set and count down to D-Day.• check the current time in another part of the world.Note: If you did not set the current date and time,you cannot use some features in theScheduler. See page 110 for setting the timeand date.View Month (Menu 4-1)This option allows you to view the current month, aswell as the past or future month in the calendarformat. You can be alerted by the Calendar functionbefore an event commences. When you access thismenu, the current day is automatically indicated. Note: You can quickly enter this menu by pressingand holding in Standby Mode.Selecting a Day on the Calendar• You can move to the next or the previous day bypressing or . • You can move up or down the Calendar by oneweek by pressing or . • To display the next or previous month, use thevolume keys on the left side of the phone.
89SScchheedduulleerr88SScchheedduulleerrAlarm Set (Menu 4-3)This option allows you to set the alarm to ring at aspecific time.To set the alarm:1. Select the alarm frequency option by pressingor and press the Save soft key.• Once: The alarm rings only once and is then deactivated.• Daily: The alarm rings every day at the same time.2. Enter the required time for the alarm to ring byusing the numeric keys.Note: You must enter the time in 24-hour format. 3. Press the Save soft key to save the setting.To stop the alarm when it rings, simply open andclose the folder or press any key.To deactivate the alarm, access the Alarm Set menuoption, select Off from the alarm frequency optionsand press the Save soft key.Viewing Your ScheduleDays with scheduled events are seen in a rectangleon the calendar when you access the View Monthmenu option (Menu 4-1). Select one of them andpress the View soft key. The first event displays. Scroll to the events you want to view by pressingor . If necessary, press to display morecontents of the event.While viewing an event, press the Menu soft key touse the following options:Add new: adds a new event.Edit: edits the event. Erase: erases the event. Erase All: erases all of scheduled events.Jump To Date (Menu 4-2)This feature allows you to specify a date so that youcan easily access the day without scrolling throughthe calendar. 1. Enter the date using the numeric keys and press the Save soft key. 2. When the date you entered is highlighted on thecalendar, press the OK soft key to access it.For further details about scheduling an events, seepage 91.
91SScchheedduulleerr90SScchheedduulleerrToday (Menu 4-5)You can schedule up to 9 events for the current day,indicating each event’s start and end time. Eventsscheduled for future dates automatically appear onyour Today display for that particular day. For further details about scheduling and viewingevents, refer to “View Month” on page 86.To Do List (Menu 4-6)This feature allows you to enter up a list of tasks youneed to do and assign both a priority and a deadlineto them. You can store up to 20 tasks.Creating a To-Do Item1. Enter the task contents and press the OK soft key.For more information on entering text, see page41.2. Select High or Low priority using or andpress .3. Enter the time and date by which your task needsto be done, using the numeric keys.Note: You need to enter the time in 24-hour format. 4. Press the Save soft key to save the task.Calculator (Menu 4-4)Using this feature, you can use the phone as acalculator. The calculator provides the basicarithmetic functions; addition, subtraction,multiplication and division. To perform a calculation:1. Enter the first number using the numeric keys. Notes: • To erase any mistakes or clear the display,press .• Use to enter a decimal point and tochange the sign of a number to a negative (-).2. Select the operation for your calculation bypressing the navigation keys according to theillustration on the display; +(add), -(subtract),x(multiply), ÷(divide).3. Enter the second number. 4. To get the result, press the OK soft key.5. Repeat steps 1 to 4 as many times as required.
93SScchheedduulleerr92SScchheedduulleerrViewing a MemoThe list of your memos displays when you accessthe Memo pad menu (Menu 4-7). To view details,press or to scroll to the memo you want toview from the list and press the Select soft key. While viewing a memo, press the Menu soft key touse the following options:Add new: adds a new memo.Edit: edits the memo. Erase: erases the memo. Erase All: erases all of memos. Countdown (Menu 4-8)This menu helps you know how much time it takesfor you to do something or how many months, days,hours and minutes until a specific event occurs. Youcan create up to 20 Countdown timers using thisfeature. Creating a Countdown Timer1. Enter a name for your Countdown timer and pressthe OK soft key . For more information about how to entercharacters, see page 43.Viewing a TaskWhen you access the To Do List menu option (Menu4-6), the first task displays along with the deadlineand the associated priority highlighted; ★1for highpriority or★2for low priority. Scroll to the task you want to viewby pressingor . While viewing a task, press the Menu soft key touse the following options:Add new: adds a new task.Edit: edits the task. Erase: erases the task. Erase All: erases all of tasks. Memo Pad (Menu 4-7)This feature allows you to make memos of importantthings you need to remember.Writing a New Memo1. Enter what you need to remember.For further details on entering text, see page 41.2. Press the OK soft key to save the memo.
95SScchheedduulleerr94SScchheedduulleerrWorld Time (Menu 4-9)You can use this menu option to find out what time itis in another part of the world.Press the navigation keys to scroll to the desiredtime zone.2. Enter the time and date from which you want tocount down.Notes: • You need to enter the time in 24-hour format.• You can enter between 1981 and 2099 for theyear.3. Press the Save soft key to save the timer.Viewing a Countdown TimerThe first Countdown timers displays when you accessthe Countdown menu (Menu 4-8).Scroll to the timer you want to view by pressingor . While viewing a timer, press the Menu soft key touse the following options:Add New: creates a new timer.Edit: edits the timer. Erase: erases the timer.Erase All : erases all of timers.
97EEnntteerrttaaiinnmmeenntt96Whenever you scroll the melodies in the category, itplays a melody in the category is highlighted, pressthe Save soft key to select it, and press the Erasesoft key to erase it.Messages (Menu 5-1-2)This option allows you to have a distinctive ringer forincoming messages.Alarm/Scheduler (Menu 5-1-3)This option allows you to set an ringer for alertingyour alarm or schedule. The melodies are the same when you select theVoice Calls (Menu 5-1-1).EntertainmentThe Entertainment feature enables you to:• coustomize various sound settings.• set the images to be displayed in your display.• enjoy games.• check the status of your phone memory.Music Box (Menu 5-1)You can customize various sound settings.Voice Calls (Menu 5-1-1)This option allows you to set a unique ringer forincoming voice calls. Following categories are available.Basic Melody: allows you to select one ofpredefined melodies.U-Info Melody: allows you to select one ofmelodies downloaded from U-Info. U-Magic Melody: allows you to select one ofmelodies downladed from U-Magic.Fun Box Melody: allows you to select one ofmelodies downloaded from Fun Box. My Melody: allows you to select on of melodiesdownloaded from PC Link.
99EEnntteerrttaaiinnmmeenntt98EEnntteerrttaaiinnmmeennttBasic Image: allows you to select one of predefinedimages.U-Info Image: allows you to select one of imagesdownloaded from U-Info. U-Magic Image: allows you to select one of imagesdownloaded from U-Magic.Fun Box Image: allows you to select one of imagesdownloaded from Fun Box. Games (Menu 5-3)You can experience the fun of playing games on yourphone.Note: You can quickly enter this menu by pressingand holding in Standby Mode.Select one of the games and press any key to start it. When you start a game, the following menus areavailable.New Game: allows you to start a new game.High Score: shows you the high score table.Help/Key Info: shows you short guide for the game.Continue: allows you to continue the game. This menuis only available when you paused this game before. While playing a game:To Press thepause/resume the game key. exit the game key.Image Box (Menu 5-2)This option allows you to select the image to bedisplayed in the display.Opening (Menu 5-2-1)This option allows you to select the image to bedisplayed when you switch the phone on.Basic Image: allows you to select one of thepredefined images.U-Info Image: allows you to select one of imagesdownloaded from U-Info. Fun Box Image: allows you to select one of imagesdownloaded from Fun Box. Closing (Menu 5-2-2)This option allows you to select the image to bedisplayed when you switch the phone off.Basic Image: allows you to select one of thepredefined images.U-Info Image: allows you to select one of imagesdownloaded from U-Info. Fun Box Image: allows you to select one of imagesdownloaded from Fun Box. Wallpaper (Menu 5-2-3)This opion allows you to select the wallpaper image.Following categories are available.
101EEnntteerrttaaiinnmmeenntt100EEnntteerrttaaiinnmmeennttMoile Cop (Menu 5-3-2)The goal of this game is to shoot the enemies.When you select New Game menu, the first screendisplays three menus.Select Start menu to start a new game.Select Option menu to change following options.Sound : allows you to turn the sound on or off whileplaying the sound.Vibration : allows you to trun the vibration on or offwhile playing the game.: allows you to move the previous screen.Select Help menu to see the simple guide.Once the game starts, enemies in red appear attarget position. Check the position and pressappropriate number key to shoot the enemy.Sometimes enemies hold hostages, If you shoot thehostage, you will lose the bonus points.After running out of the bullets, press , orto reload them.Whenever you kill al the enemies for one stage, youcan go to the next stage. Chicken Run (Menu 5-3-1)The goal of this game is to move eggs or chicks tothe destination carefully.When you select New Game menu, the first screendisplays two menus.Select Start menu to start a new game.Select Option menu to change following options.Diffiiculty : allows you to change the level of thegame among Easy, Normal, and Hard.Sound : allows you to turn the sound on or off whileplaying the sound.Vibration : allows you to trun the vibration on or offwhile playing the game.: allows you to move the previous screen.Once the game starts, you need to control blue andred control items to move eggs ro chicks carefully.To control the blue items, press or , andpress or for the red ones. When youcomplete the given aims, the level goes up and thespeed goes up. 132465
103EEnntteerrttaaiinnmmeenntt102EEnntteerrttaaiinnmmeennttFun Box (Menu 5-4)You can access Samsung Fun Box on the Internet anddlownload various media items, such as melodies,images and games.Samsung Fun Box is the preset web site providingSamsung phone users with attractive downloadservices.Get In Melody In this menu, you can access the preset web page todownload ring tones and melodies.You can view the list of the downloded melodies inthe Fun Box Melody box in Music Box.Get In Animation In this menu, you can access the preset web page todownload images.You can view the list of the downloaded images inthe Fun Box Image box in Image Box.Memory Status (Menu 5-5)Total (Menu 5-5-1)You can see the total, used and free space.Music (Menu 5-5-2)You can see the list of melodies downloaded fromWeb, Samsung Fun Club or the PC link program.Image (Menu 5-5-3)You can see the list of images downloaded fromWeb, Samsung Fun Club.After selecting an item on the list, pressing theMenu soft key allows you to erase the selected itemor all of the items at one time.
SSeettttiinnggss105104Press the navigation keys to adjust the volume levelor select the type. The following options areavailable:.Silent: The phone does not sound a ring.1 Beep: The phone sounds a beep.Vibrate: The phone switches to the vibration mode.An incoming call vibrates the phone.Level 1 ~ 5: You can adjust the volume level. Thegraphic shows the volume level; the more bars, thelouder the volume.Key Tone (Menu 6-1-2)This option allows you to set up the tone that thekeypad generates each time you press a key. The following setting options are available:Tone Volume: allows you to adjust the volume. Thegraphic shows the volume level; the more bars, thelouder the volume. To turn the key tone off, selectSilent.Tone Type: allows you to select the type of keytone. Raindrop Sound,Drum Sound, Piano,Woman’s Voice, Girl’s Voice and Beep areavailable.SettingsMany different features of your phone can becustomized to suit your preferences.Sounds (Menu 6-1)You can use this menu to customize various soundsettings, such as the:• ringer volume.• key tone and voice volume.• alert sounds.• tone which sounds when the phone is switched onor off.Ringer Volume (Menu 6-1-1)This menu option allows you to adjust the ringervolume for the following items:Calls: allows you to adjust the ringer volume for theincoming calls.Note: You can adjust the volume using the volumekeys on the left side of the phone in thestandby mode.Messages: allows you to adjust the ringer volumefor incoming messages.Alarm/Scheduler: allows you to adjust the ringervolume for an alarm.

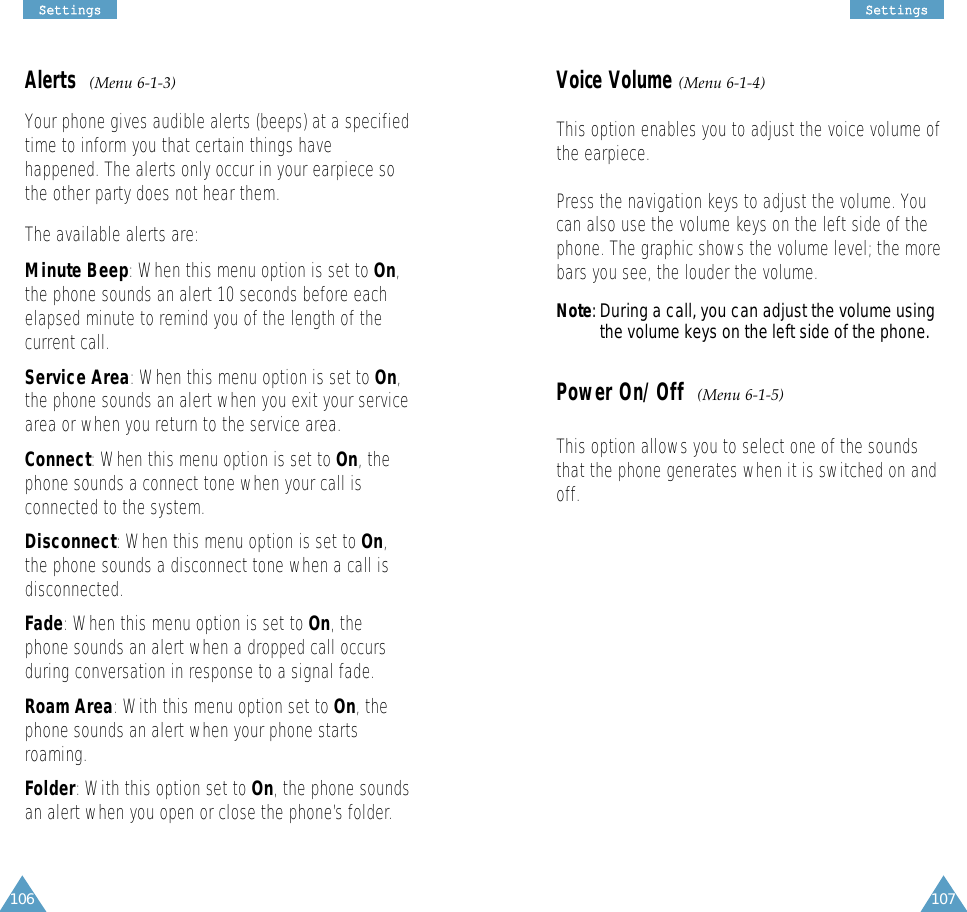

SSeettttiinnggss107SSeettttiinnggss106Voice Volume (Menu 6-1-4)This option enables you to adjust the voice volume ofthe earpiece. Press the navigation keys to adjust the volume. Youcan also use the volume keys on the left side of thephone. The graphic shows the volume level; the morebars you see, the louder the volume. Note: During a call, you can adjust the volume usingthe volume keys on the left side of the phone.Power On/Off (Menu 6-1-5)This option allows you to select one of the soundsthat the phone generates when it is switched on andoff. Alerts (Menu 6-1-3)Your phone gives audible alerts (beeps) at a specifiedtime to inform you that certain things havehappened. The alerts only occur in your earpiece sothe other party does not hear them. The available alerts are:Minute Beep: When this menu option is set to On,the phone sounds an alert 10 seconds before eachelapsed minute to remind you of the length of thecurrent call.Service Area: When this menu option is set to On,the phone sounds an alert when you exit your servicearea or when you return to the service area. Connect: When this menu option is set to On, thephone sounds a connect tone when your call isconnected to the system.Disconnect: When this menu option is set to On,the phone sounds a disconnect tone when a call isdisconnected.Fade: When this menu option is set to On, thephone sounds an alert when a dropped call occursduring conversation in response to a signal fade.Roam Area: With this menu option set to On, thephone sounds an alert when your phone startsroaming.Folder: With this option set to On, the phone soundsan alert when you open or close the phone’s folder.
SSeettttiinnggss109SSeettttiinnggss108Backlight (Menu 6-2-2)You have several options for setting how the LCDbacklight operates. When the folder is closed, the backlight remains off,thus conserving battery power. When the folder isopen, the length of time that the backlight remainson can be set as explained below. Remember thatbacklight use drains your battery faster.The following options are available:7/15/30/40 Seconds: The backlight remains on for7/15/30/40 seconds after the last key is pressed oryou open the folder. Then it starts dimming and turnsoff after 53/45/30/20 seconds.Language (Menu 6-2-3)You can change the language of the menu display.Select either English or Chinese. Display (Menu 6-2)The Display feature enables you to:• set a banner message• set the length of time for the backlight • change the display language.• set the current date and time.• set the external clock type.• turn the service light on or off.Banner (Menu 6-2-1)This option allows you to set a banner message to bedisplayed at the bottom of the display in the standbymode. To change the banner:1. If necessary, press to clear the old message.2. Enter a new banner message using thealphanumeric keys. For more information entering text, see page 41.3. When you finish entering the message, press theOK soft key to save it.
SSeettttiinnggss111SSeettttiinnggss110Service LED (Menu 6-2-5)You can turn on or off the service light on the folder.Contrast (Menu 6-2-6)This menu allows you to adjust the brightness of theLCD screens. 1. Press down or left navigation key to make thescreen darker, and up or right navigation key tomake the screen brighter. You can also use the volume keys to adjust thebrightness. Each time you press the key, you will see theselected status of the LCD. 2. Press the Select soft key to save your setting.Auto Retry (Menu 6-3)When this menu option turns on, your phoneautomatically dials the number when a connectionfails.Depending upon your location, the number oftimes your phone automatically dials the number maybe different.Set Time (Menu 6-2-4)This menu option allows you to set the current dateand time. The following options are available:Main ClockThe current time, if set, displays. In a service area,you don’t need to change the time setting. 1. Enter the current time and date. The month, day, hour and minute must each beentered using 2 digits and the year requires allfour digits. You need to enter the hour in 24-hourformat.2. When you finish entering the time and date, pressthe Save soft key to save it.Dual ClockThis option allows you to set the dual clock for theWallpaper display (Menu 5-2-3).To change the option, move to the first level until ithighlights using or key. Press orto scroll through the following options:Location: Select Left or Right by pressing or and press or to select the location.Summer Time: Select Left or Right by pressing or and press or to select On or Off.
SSeettttiinnggss113SSeettttiinnggss112Roam Option (Menu 6-6)Roaming is a feature which is only relevant in areaswhere there are at least two cellular serviceproviders having valid roaming agreements. Roamingallows you to register your phone on one of thenetworks, but use the facilities of the other if yourown network is not available. This system priorityfeature allows you to program your phone foroptimum operation within or outside your homeservice area.You should always check your phone’s displaybecause it will let you know when you’re outside theservice provider network and whether your phone isoperating in another network; the roaming icon ( )appears.You have the following options which allows you tocontrol the phone’s roaming ability:Home only: With this setting, you cannot roam. Ifyour home system is not available, your call will notbe connected and the No Service indicator ( ) isdisplayed.Automatic: Your phone automatically search for afirst available one of all types of service according tothe Preferred Roaming List supplied by the serviceprovider.Auto Answer (Menu 6-4)This feature is only used when the phone isconnected to the ear-microphone.With this menu option activated, the phoneautomatically answers calls after predefined rings.This option is useful while driving, for instance.To activate this feature, you can set how long yourphone waits before answering an incoming call.Select one from after 5 seconds, after 3 secondsand after 1 second.When this menu option is set to Off, the phone doesnot answer a call. If you do not answer the call, it isstored in the Missed call log; see page 62.Answer Mode (Menu 6-5)This menu option allows you to select how to answeran incoming call. It is preset to By Send Key. The following options are available:By Send Key: The phone answers only when youpress .By Folder Open: The phone answers when youopen the folder. When the folder is already open,press .By Any Key: When folder is opened, you can pressany key except for , , or the volume keyson the side of the phone. When the folder is closed,you can answer the call by opening the folder.
SSeettttiinnggss115SSeettttiinnggss114Change Lock (Menu 6-7-2)This feature allows you to change your current lockcode to a new one. The lock code is preset to “0000”at the factory.Enter a new, four-digit lock code and enter the codeonce again at the prompt. Note: Your phone does not allow viewing of the lockcode for security reasons, so be sure to writethe lock code down or memorize it if you havechangedEmergency # (Menu 6-7-3)Your phone provides the option of storing threeemergency numbers. All of these numbers can bemanually dialed at any time, even if your phone islocked or all outgoing calls are restricted.IMPORTANT NOTICE! Emergency calling may not be available on allwireless networks at all times, due to the varioustransmission methods, network parameters and usersettings used to complete a call from your wirelessphone. A connection cannot always be guaranteed. DO NOT depend on this phone as a primary methodof dialing 119 or for any other essential oremergency communications. Remember to always turn your phone on and checkfor the adequate signal strength before placing acall.Security (Menu 6-7)Your phone provides you with various securityoptions, including a user-programmable lock codeand emergency number features.To access the Security menu, you must enter the 4-digit lock code. It is preset to “0000” at the factory.Lock Mode (Menu 6-7-1)In the lock mode, you cannot dial numbers, except formaking an emergency call, or accessing menuoptions. The phone can receive incoming calls andmessages, even though the phone is in the lockmode.The following options are available:Never: the phone remains unlocked.On power up: the phone is automatically locked thenext time you turn the phone on.Now: the phone is immediately locked.To place an emergency call in the lock mode, enter aprogrammed number and then press . The phonerecognizes standard emergency numbers, such as119, or three numbers programmed in theEmergency # menu option (Menu 6-7-3); see page115.To unlock the phone, press the Unlock soft key andenter the 4-digit lock code. The phone is immediatelyunlocked.
SSeettttiinnggss117SSeettttiinnggss116Restriction (Menu 6-7-5)This feature allows you to restrict the use of yourphone. The following options are available:Outgoing: restricts outgoing calls from your phoneexcept emergency calls by standard emergencynumbers, such as 119, 110 and 120, or threeprogrammed numbers in Emergency # (Menu 6-7-3). Once you restricted the phone, storing a numberis also unavailable.Incoming: restricts incoming calls.Phonebook: restricts to access your Phonebook. Youcannot also add a new entry.When a confirming message displays, select Yes toturn it on or No turn it off.Clear Memory (Menu 6-7-6)This menu allows you to erase your phonebookentries in the UIM card or phone memory. You canalso erase all of the entries at one time.The following options are available:Card: clears all of the entries stored in the card.Phone: clears all of the entries stored in the phone.All: clears all Phonebook entries.When a confirming message displays, select Yes toclear the memory or No to cancel your selection.To store a emergency number:1. Press or to select the desired locationand press the Select soft key.2. Press to clear the existing number.3. Enter the desired number and press the Save softkey to save the number. Note: 119, 110 and 120 will remain as emergencynumbers, even if you change them in theemergency number list.To make an emergency call in the lock mode, simplyenter one of the programmed emergency numbersand press . Voice Privacy (Menu 6-7-4)Used only in digital networks, Voice Privacy encryptsthe voice channel so that people cannot eavesdropon your conversation.The following options are available:Standard: The phone uses a standard line for calls.Enhanced: The phone makes and receives calls onan encrypted high security line.Note: This feature may not be available in all areas.Contact your service provider for details andavailability.
SSeettttiinnggss119SSeettttiinnggss118Change PINThis feature allows you to change the PIN of the UIMcard to a new one, provided that the PIN Checkfeature (Menu 6-7-8-1) is enabled. You must enterthe current PIN before you can specify a new one.Enter a new PIN.UIM LockWhen this feature is enable, your phone only workswith the current UIM card.Once you have entered the lock code, you are askedto confirm it by entering it again.To unlock the UIM card, you must enter the UIM lockcode.Entry Method (Menu 6-8)This option allows you to select the default text inputmode. Select one of four input modes; T9 Word, ABC,Pinyin and Stroke.Reset Phone (Menu 6-7-7)Resetting the phone restores the default settings ofall of user-selectable options.When a confirming message displays, select Yes andpress the Select soft key to confirm. The phonereboots, turning itself off and then back on, andreturns to the standby mode.Note: The UIM card and phone memory cannot bereset.Select No or press to cancel your selection.Card Setup (Menu 6-7-8)In this menu, you can use the options for the UIMcard.PIN CheckWhen this feature is enabled, you must enter the PINassigned to your UIM card each time you switch thephone on. Consequently, any person who does nothave your PIN cannot use your phone without yourapproval. But emergency calls are available withoutthe PIN code.Note: Before disabling the PIN Check feature, youmust enter your PIN.
121SSeettttiinnggss120U-Max This menu is supplied by your service provider. Thecontents available in each menu option may be differentdepending on the service provider. For further details,contact your service provider.You can quickly access this menu by pressing the keyin the standby mode.While using these feature, you can see the commands onthe bottom line of the display. The function changesdepending on where you are in the connected application., , or are used to execute the commandsindicated by the text above them.U-Info (Menu 7-1)Your phone comes equipped with a web browser whichmakes it possible for you to access the Wireless Web.Each time you start the browser, the phone will connect tothe Wireless Web and the service icon ( ) will appear onthe display. Any time the icon is visible on the display, youare connected to the Wireless Web and will be billedaccordingly. Rates will vary according to your service plan. Launching the Web BrowserNote: The first time you use the web browser, you will gothrough a security setup process that takes 3 to 5minutes. Please follow the on- screen prompts tocomplete the security setup process. This initialsetup process occurs only the first time you accessthe service.Data Option (Menu 6-9)You may sometimes need to switch the network toanother, according to the service status in your area.In this menu, you can select the network type youprefer. If the network is not available with the currentsetting, try again after changing the option.The following options are available:Auto Selection: allows your phone to select anavailable data transmission type automatically.1X Only: allows your phone to use only 1x type.95A Only: allows your phone to use only 95A type.
123122UU--MMaaxx1. When you are connected to the network, the homepage or the last page you visited is displayed.The home page content when accessing the webbrowser differ according to your Wireless Webservice provider.2. To scroll through the screen, use and .Exiting the Web BrowserTo exit the Web Browser, simply press at anytime.U-Magic (Menu 7-2)In this menu, you can use various Brew applications. The contents displayed in this menu may be differentdepending on the service plan of your service provider.Select an option using or and press the key. For further details, contact your service provider.UNI-INFO (Menu 7-3)This menu is available only when you use a UIM UITKcard that provides additional services. For furtherdetails, see your UIM UTK card instructions.Health and Safety InformationBattery SafetyInformation about batteries* Criterion for Measuring Time:The Talk time is measured with the +10dBm, Voice Rate Half.Standby time will be reduced in the followingconditions:• When you use the additional features on yourphone such as writing and storing messages,playing games, connecting to the Internet, and soon.• If you are frequently out of the service area.• If you are out of the service area for a long periodof time.• If you use the phone out of the network’s localservice area.• If you use the talk mode repeatedly.Talk timeStandby timeStandard Battery(800 mA)Time up to 155 minutes65 to 125 hours(fully charged battery)Type

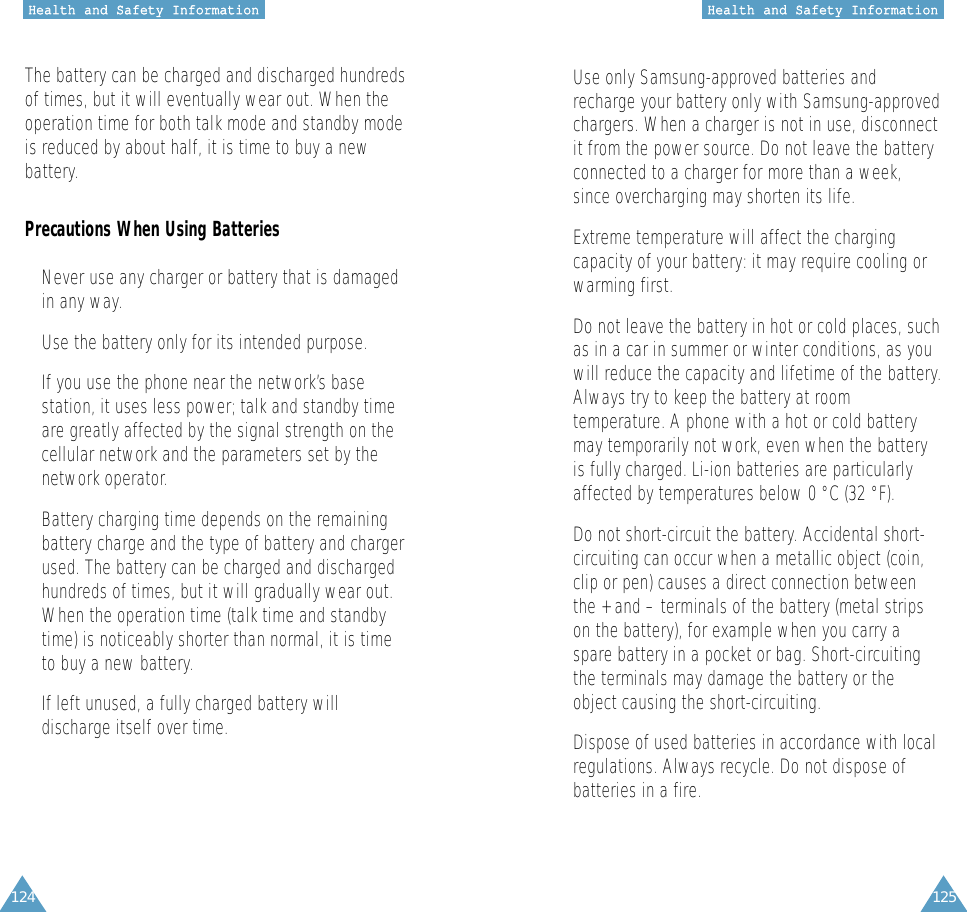

125HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn124HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn• Use only Samsung-approved batteries andrecharge your battery only with Samsung-approvedchargers. When a charger is not in use, disconnectit from the power source. Do not leave the batteryconnected to a charger for more than a week,since overcharging may shorten its life.• Extreme temperature will affect the chargingcapacity of your battery: it may require cooling orwarming first.• Do not leave the battery in hot or cold places, suchas in a car in summer or winter conditions, as youwill reduce the capacity and lifetime of the battery.Always try to keep the battery at roomtemperature. A phone with a hot or cold batterymay temporarily not work, even when the batteryis fully charged. Li-ion batteries are particularlyaffected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin,clip or pen) causes a direct connection betweenthe + and – terminals of the battery (metal stripson the battery), for example when you carry aspare battery in a pocket or bag. Short-circuitingthe terminals may damage the battery or theobject causing the short-circuiting.• Dispose of used batteries in accordance with localregulations. Always recycle. Do not dispose ofbatteries in a fire.The battery can be charged and discharged hundredsof times, but it will eventually wear out. When theoperation time for both talk mode and standby modeis reduced by about half, it is time to buy a newbattery. Precautions When Using Batteries• Never use any charger or battery that is damagedin any way.• Use the battery only for its intended purpose.• If you use the phone near the network’s basestation, it uses less power; talk and standby timeare greatly affected by the signal strength on thecellular network and the parameters set by thenetwork operator.• Battery charging time depends on the remainingbattery charge and the type of battery and chargerused. The battery can be charged and dischargedhundreds of times, but it will gradually wear out.When the operation time (talk time and standbytime) is noticeably shorter than normal, it is timeto buy a new battery.• If left unused, a fully charged battery willdischarge itself over time.
127HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn126HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn5. Do not take notes or look up phone numbers whiledriving. Jotting down a To Do List or flippingthrough your Phonebook takes your attention awayfrom your primary responsibility, driving safely.6. Dial sensibly and access the traffic; if possible,place calls when you are not moving or beforepulling into traffic. Try to plan calls when your carwill be stationary. If you need to make a call whilemoving, dial only a few numbers, check the roadand your mirrors, then continue.7. Do not engage in stressful or emotionalconversations that may be distracting. Make thepeople with whom you are talking aware that youare driving and suspend conversations that havethe potential to divert your attention from theroad.8. Use your wireless phone to call for help. Dial theemergency number in the case of fire, trafficaccident or medical emergencies. Remember, it isa free call on your wireless phone!9. Use your wireless phone to help others inemergencies. If you see a car accident, crime inprogress or other serious emergency where livesare in danger, call the emergency number, as youwould want others to do for you.Road SafetyYour wireless phone gives you the powerful ability tocommunicate by voice, almost anywhere, anytime.But an important responsibility accompanies thebenefits of wireless phones, one that every usermust uphold.When driving a car, driving is your first responsibility.When using your wireless phone behind the wheel ofa car, practice good common sense and rememberthe following tips.1. Get to know your wireless phone and its features,such as speed dial and redial. If available, thesefeatures help you to place your call without takingyour attention off the road.2. When available, use a hands-free device. Ifpossible, add an extra layer of convenience andsafety to your wireless phone with one of themany hands-free accessories available today.3. Position your wireless phone within easy reach. Beable to access your wireless phone withoutremoving your eyes from the road. If you get anincoming call at an inconvenient time, let yourvoice mail answer it for you.4. Let the person you are speaking with know you aredriving; if necessary, suspend the call in heavytraffic or hazardous weather conditions. Rain,sleet, snow, ice and even heavy traffic can behazardous.
129HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn128HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnElectronic DevicesMost modern electronic equipment is shielded fromradio frequency (RF) signals. However, certainelectronic equipment may not be shielded againstthe RF signals from your wireless phone. Consult themanufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that aminimum distance of 15 cm (6 inches) be maintainedbetween a wireless phone and a pacemaker to avoidpotential interference with the pacemaker. Theserecommendations are consistent with theindependent research and recommendations ofWireless Technology Research.Persons with pacemakers:• Should always keep the phone more than 15 cm (6inches) from their pacemaker when the phone isswitched on• Should not carry the phone in a breast pocket• Should use the ear opposite the pacemaker tominimize potential interferenceIf you have any reason to suspect that interferenceis taking place, switch off your phone immediately.10. Call roadside assistance or a special non-emergency wireless assistance number whennecessary. If you see a broken-down vehicleposing no serious hazard, a broken traffic signal,a minor traffic accident where no one appearsinjured, or a vehicle you know to be stolen, callroadside assistance or any other special non-emergency wireless number.Operating EnvironmentRemember to follow any special regulations in forcein any area and always switch off your phonewhenever it is forbidden to use it, or when it maycause interference or danger.When connecting the phone or any accessory toanother device, read its user’s guide for detailedsafety instructions. Do not connect incompatibleproducts.As with other mobile radio transmitting equipment,users are advised that for the satisfactory operationof the equipment and for the safety of personnel, it isrecommended that the equipment should only beused in the normal operating position (held to your ear with the antenna pointing over your shoulder).
131HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn130HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnPotentially Explosive AtmospheresSwitch off your phone when in any area with apotentially explosive atmosphere and obey all signsand instructions. Sparks in such areas could cause anexplosion or fire resulting in bodily injury or evendeath.Users are advised to switch off the phone while at arefuelling point (service station). Users are remindedof the need to observe restrictions on the use ofradio equipment in fuel depots (fuel storage anddistribution areas), chemical plants or where blastingoperations are in progress.Areas with a potentially explosive atmosphere areoften but not always clearly marked. They includebelow deck on boats, chemical transfer or storagefacilities, vehicles using liquefied petroleum gas(such as propane or butane), areas where the aircontains chemicals or particles, such as grain, dustor metal powders, and any other area where youwould normally be advised to turn off your vehicleengine.Hearing AidsSome digital wireless phones may interfere withsome hearing aids. In the event of such interference,you may wish to consult your hearing aidmanufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical devices,consult the manufacturer of your device to determineif it is adequately shielded from external RF energy.Your physician may be able to assist you in obtainingthis information. Switch off your phone in health carefacilities when any regulations posted in these areasinstruct you to do so. Hospitals or health carefacilities may be using equipment that could besensitive to external RF energy.VehiclesRF signals may affect improperly installed orinadequately shielded electronic systems in motorvehicles. Check with the manufacturer or itsrepresentative regarding your vehicle.You should also consult the manufacturer of anyequipment that has been added to your vehicle.Posted FacilitiesSwitch off your phone in any facility where postednotices require you to do so.

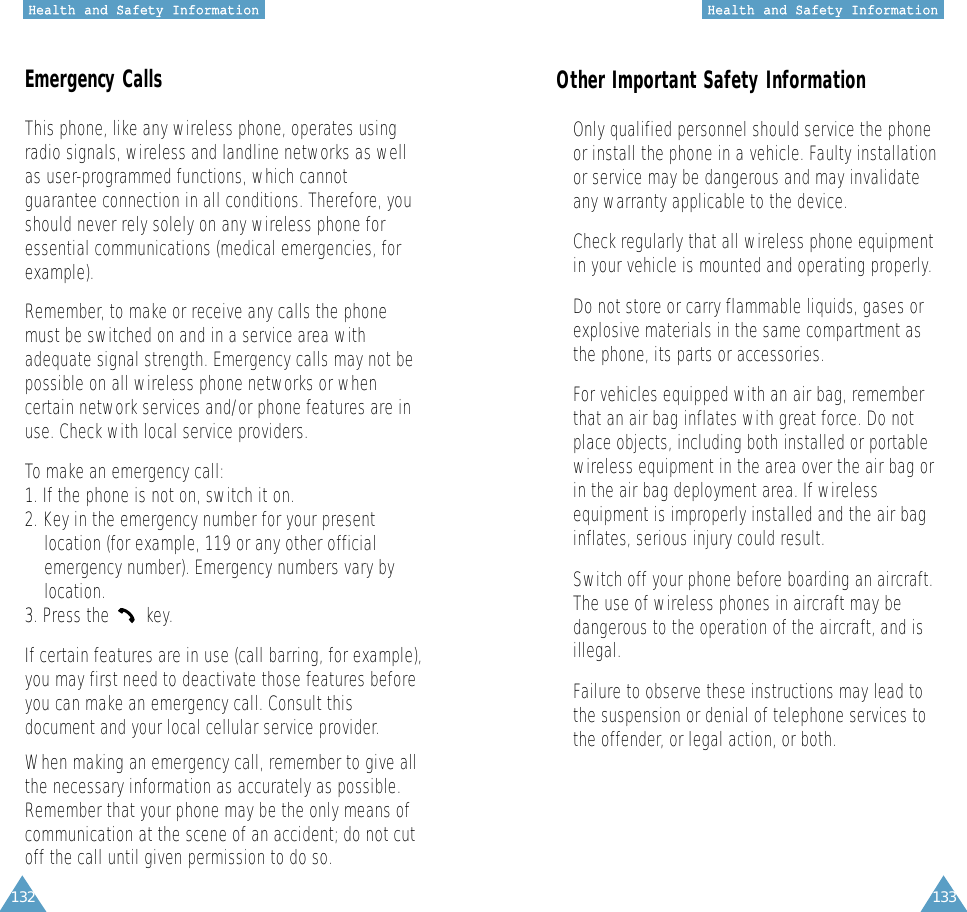

133HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn132HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnOther Important Safety Information• Only qualified personnel should service the phoneor install the phone in a vehicle. Faulty installationor service may be dangerous and may invalidateany warranty applicable to the device.• Check regularly that all wireless phone equipmentin your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases orexplosive materials in the same compartment asthe phone, its parts or accessories.• For vehicles equipped with an air bag, rememberthat an air bag inflates with great force. Do notplace objects, including both installed or portablewireless equipment in the area over the air bag orin the air bag deployment area. If wirelessequipment is improperly installed and the air baginflates, serious injury could result.• Switch off your phone before boarding an aircraft.The use of wireless phones in aircraft may bedangerous to the operation of the aircraft, and isillegal.• Failure to observe these instructions may lead tothe suspension or denial of telephone services tothe offender, or legal action, or both.Emergency CallsThis phone, like any wireless phone, operates usingradio signals, wireless and landline networks as wellas user-programmed functions, which cannotguarantee connection in all conditions. Therefore, youshould never rely solely on any wireless phone foressential communications (medical emergencies, forexample).Remember, to make or receive any calls the phonemust be switched on and in a service area withadequate signal strength. Emergency calls may not bepossible on all wireless phone networks or whencertain network services and/or phone features are inuse. Check with local service providers.To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 119 or any other official emergency number). Emergency numbers vary by location.3. Press the key.If certain features are in use (call barring, for example),you may first need to deactivate those features beforeyou can make an emergency call. Consult thisdocument and your local cellular service provider.When making an emergency call, remember to give allthe necessary information as accurately as possible.Remember that your phone may be the only means ofcommunication at the scene of an accident; do not cutoff the call until given permission to do so.
135HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn134HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn• Do not use harsh chemicals, cleaning solvents orstrong detergents to clean the phone. Wipe it witha soft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device’smoving parts and prevent proper operation.• Do not put the phone in or on heating devices,such as a microwave oven, a stove or a radiator.The phone may explode when overheated.• Use only the supplied or an approved replacementantenna. Unauthorized antennas or modifiedaccessories may damage the phone and violateregulations governing radio devices.• If the phone, battery, charger or any accessory isnot working properly, take it to your nearestqualified service facility. The personnel there willassist you, and if necessary, arrange for service.Care and MaintenanceYour phone is a product of superior design andcraftsmanship and should be treated with care. Thesuggestions below will help you fulfill any warrantyobligations and allow you to enjoy this product formany years. • Keep the phone and all its parts and accessoriesout of the reach of small children’s.• Keep the phone dry. Precipitation, humidity andliquids contain minerals will corrode electroniccircuits.• Do not touch the phone with a wet hand while it ischarging. Doing so may cause an electric shock toyou or damage to the phone. • Do not use or store the phone in dusty, dirty areas,as its moving parts may be damaged.• Do not store the phone in hot areas. Hightemperature can shorten the life of electronicdevices, damage batteries, and warp or meltcertain plastics.• Do not store the phone in cold areas. When thephone warms up to its normal operatingtemperature, moisture can form inside the phone,which may damage the phone’s electronic circuitboards.• Do not drop, knock or shake the phone. Roughhandling can break internal circuit boards.
137GGlloossssaarryy136DTMF - (Dual-Tone Multi- Frequency ) You sendDTMF signals when you enter numbers by pressingthe digit keys.EVRC - (Enhanced Variable Rate Codec) EVRC is anew global standard for compressing anddecompressing voice signals. EVRC uses a lower bitrate (the number of bits sent per second) thanexisting CDMA vocoders, while providing significantimprovements in voice quality. This technologyenables your phone to provide superb voice qualitywhile benefiting from the ability to process morecellular voice calls using less bandwidth than thevoice codecs in CDMA networks today.Frequency - A measure based on time, as one ormore waves per second, in an electrical or light waveinformation signal. A signal’s frequency is stated incycles-per-second or Hertz (Hz).LCD - (Liquid Crystal Display) Commonly used torefer to the screen display on the wireless phone.Prepend - The addition of a prefix, such as an areacode, to a phone number.GlossaryAir time - Actual time spent talking on the wirelessphone. Most carriers bill customers based on howmany minutes of airtime they use each month.Antenna - A device for transmitting or receivingsignals. The size and shape of antennas isdetermined, in part, by the frequency of the signalthey receive. Wireless phones and the base stationmust have antennas.Base Station - The fixed radio transmitter/receiverthat maintains communications with mobile radiotelephones within a given area. (Typically called acell or cell site)CDMA - (Code Division Multiple Access) A spread-spectrum approach to digital transmission. WithCDMA, each conversion is digitized and then taggedwith a code. The mobile phone deciphers only aparticular code to pick the right conversation off theair. The transmitted signal is just above noise levelacross the available bandwidth.Channel - Communications signals transmit alongpaths called channels.Codec Coder/Decorder - Compression &decompression.Deactivation - The process of rendering a wirelessphone inactive.
INTERNAL PHONE BOOKSCH-X609 Quick Reference CardStore a newnumber intomemorySpeed dial - Card Location number + hold down the last digit.- Phone Location number + hold • In the UIM cardPhone number + + Name+ + • In the phone’s memoryPhone number + + Name+ + + + Type + + Make a call Phone number + End a callReceive a call or Open the phoneAdjust ringer (in the standby mode) volume for calls „/ on the left sideAdjust voice (during a conversation) volume „/ on the left sideRedial the last call twiceSwitch to the (in the standby mode) silent mode Hold BASIC OPERATION138GGlloossssaarryyRF - Radio FrequencyRoaming - The ability to use a wireless phone tomake and receive calls in places outside of the homeservice area.Service Charge - The amount paid each month toreceive wireless service.Standby Time - The amount of time a fully chargedwireless portable or transportable phone can be onand idle without being in use. (See Talk Time)Talk Time - The length of time a person can talk ona portable or transportable wireless phone withoutrecharging the battery.Vocoder - Voice Coder. A device used to convertspeech into digital signals.Wireless - Radio-based Systems that allowtransmission of telephone or data signals through theair without a physical connection, such as a metalwire (copper) or fiber optic cable.
Licensed by QUALCOMM Incorporated under one or more of the following Patents.U.S Patent No. 4,901,307 5,056,109 5,099,2045,101,501 5,103,459 5,107,2255,109,390 Main Menu (To access, press )MENU TREE1: Calls 1 : Missed2 : Incoming3 : Outgoing4 : Erase Logs5 : Air Time6 : Call Forward7 : Call Waiting2 : Phonebook 1 : Find 2 : Add 3 : Group Set4 : My Phone #3 : Message 1 : New Message2 : Inbox3 : Outbox4 : Erase Msgs5 : Msg Setup6 : Web Alert4 : Scheduler 1 : View Month2 : Jump To Date3 : Alarm Set4 : Calculator5 : Today6 : To Do List7 : Memo Pad8 : Countdown 9 : World Time5 : Entertainment 1 : Music Box2 : Image Box3 : Games4 : Fun Box5: Memory Status6 : Settings 1 : Sounds2 : Display3 : Auto Retry4 : Auto Answer5 : Answer Mode6 : Roam Option 7 : Security8 : Entry Method9 : Data Option7 : U-MAX 1 : U-Info2 : U-Magic3 : UNI-INFO
