Samsung Electronics Co SCS-26UC2 Indoor Base Station Transceiver System User Manual

Samsung Electronics Co Ltd Indoor Base Station Transceiver System

Users Manual

UbiCell Plus User Guide _1 User Menual (SCS-26UC2)
2_ © SAMSUNG Electronics Co., Ltd. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation
UbiCell Plus User Guide _3 FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
4_ © SAMSUNG Electronics Co., Ltd. SAFETY CONCERNS The purpose of the Safety Concerns section is to ensure the safety of users and prevent property damage. Please read this document carefully for proper use. Conventions/Symbols Warning Provides information or instructions that the reader should follow in order to avoid personal injury or fatality. Caution Indication of a general caution. Caution Provides information or instructions that the reader should follow in order to avoid a service failure or damage to the system. Restriction Indication for prohibiting an action for a product. Note Indicates additional information as a reference. Instruction Indication for commanding a specifically required action.
UbiCell Plus User Guide _5 Warning WARNING Power Insert power cord tightly and fully into the outlet. Failure to do so may cause fire. Do not touch the UbiCell Plus or power plug with wet hands. Failure to do so may cause electric shock. Do not connect many devices to a single outlet. Failure to do so may cause electric shock. Pull out the power plug when the UbiCell Plus is not used for a long time or bad weather condition. Failure to do so may cause fire or electric shock.

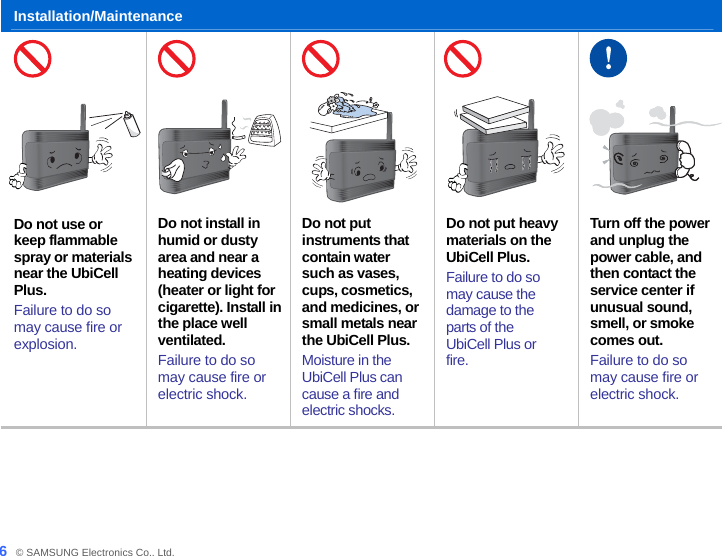

6_ © SAMSUNG Electronics Co., Ltd. Installation/Maintenance Do not use or keep flammable spray or materials near the UbiCell Plus. Failure to do so may cause fire or explosion. Do not install in humid or dusty area and near a heating devices (heater or light for cigarette). Install in the place well ventilated. Failure to do so may cause fire or electric shock. Do not put instruments that contain water such as vases, cups, cosmetics, and medicines, or small metals near the UbiCell Plus. Moisture in the UbiCell Plus can cause a fire and electric shocks. Do not put heavy materials on the UbiCell Plus. Failure to do so may cause the damage to the parts of the UbiCell Plus or fire. Turn off the power and unplug the power cable, and then contact the service center if unusual sound, smell, or smoke comes out. Failure to do so may cause fire or electric shock.
UbiCell Plus User Guide _7 Caution CAUTION Installation/Maintenance Accurately install and properly use the product according to the manual. This is to prevent malfunctions and reductions in product lifetime. Do not spray water directly or do not use chemical solvents such as wax, benzene, alcohol, thinner, mosquito spray, aerosol, lubricant, and detergent. Failure to do so may cause the damage to the product. Do not install the UbiCell Plus on an unstable surface or near the direct rays of sunlight. It may cause severe damage to the parts of the UbiCell Plus, and your UbiCell Plus may not work properly. Do not separate, repair or remodel the UbiCell Plus arbitrarily. If a repair is needed, please contact where the UbiCell Plus was purchased or call the Service Center.

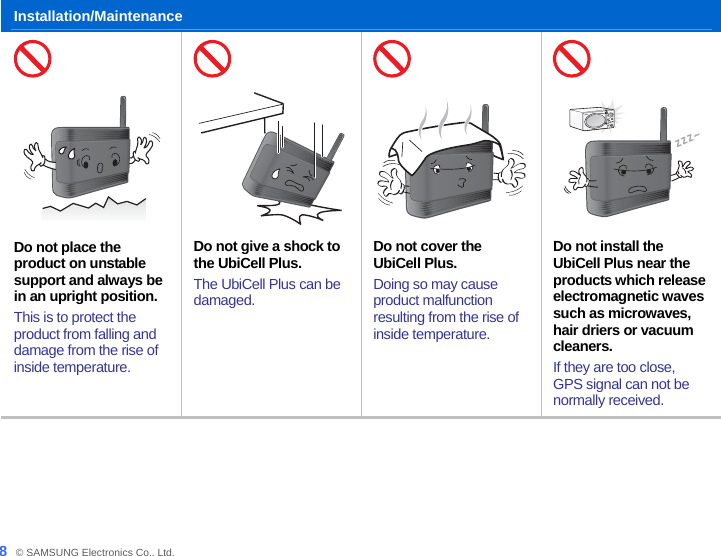

8_ © SAMSUNG Electronics Co., Ltd. Installation/Maintenance Do not place the product on unstable support and always be in an upright position. This is to protect the product from falling and damage from the rise of inside temperature. Do not give a shock to the UbiCell Plus. The UbiCell Plus can be damaged. Do not cover the UbiCell Plus. Doing so may cause product malfunction resulting from the rise of inside temperature. Do not install the UbiCell Plus near the products which release electromagnetic waves such as microwaves, hair driers or vacuum cleaners. If they are too close, GPS signal can not be normally received.
UbiCell Plus User Guide _9 Installation/Maintenance Clean the UbiCell Plus with a soft and dry cloth when cleaning. Failure to do so may cause the damage to the product. Check the maximum length of the cable and install it near the router. Failure to do so may cause malfunction of this product. The UbiCell Plus must be placed more than 50cm apart from the other LAN devices. RF signal interference may have a bad effect on the other LAN devices. Please use a refined accessory and a charger provided or activated by Samsung Electronics. The use of another accessory and a charger may cause the critical damage to the product.
10_ © SAMSUNG Electronics Co., Ltd. Installation/Maintenance Install the product in an area with good ventilation. Install the UbiCell Plus at a distance of more than 30 cm from the walls or other products. Not doing so may cause product malfunction resulting from the rise of inside temperature. Ethernet cable connector (RJ-45) should be plugged before plugging a DC power cable. Not doing so may cause product malfunction. When detaching the GPS antenna from the UbiCell Plus to receive superior GPS signal, connect extension cable to GPS antenna after pulling out the power plug. Failure to do so may cause the damage to the product.
UbiCell Plus User Guide _11 Installation/Maintenance GPS antenna detached from the UbiCell Plus always should be located indoors. If not, GPS antenna can be damaged, or cannot normally receive GPS signal. If the UbiCell Plus does not work for a long time, check the state of LED and call customer service. This is to prevent malfunctions and reductions in product lifetime. The UbiCell Plus should be registered first. Your UbiCell Plus will not be able to function if the instruction is violated.

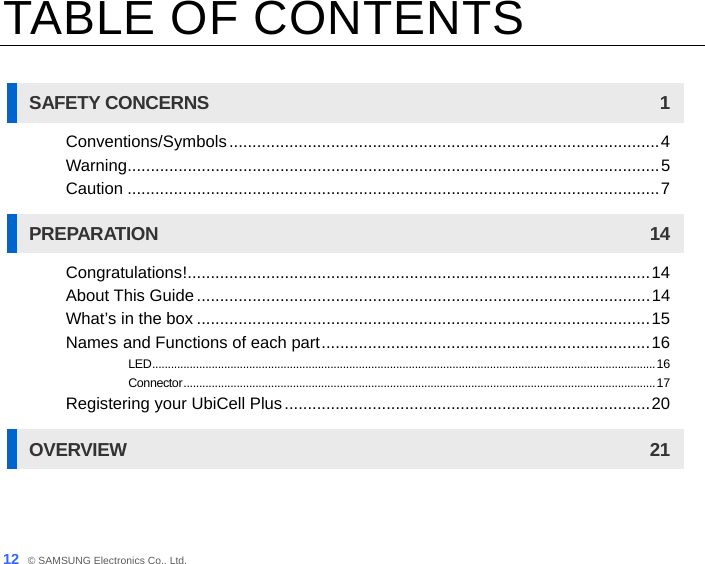

12_ © SAMSUNG Electronics Co., Ltd. TABLE OF CONTENTS SAFETY CONCERNS 1 Conventions/Symbols.............................................................................................4 Warning...................................................................................................................5 Caution ...................................................................................................................7 PREPARATION 14 Congratulations!....................................................................................................14 About This Guide ..................................................................................................14 What’s in the box ..................................................................................................15 Names and Functions of each part.......................................................................16 LED.................................................................................................................................................................16 Connector.......................................................................................................................................................17 Registering your UbiCell Plus...............................................................................20 OVERVIEW 21
UbiCell Plus User Guide _13 INSTALLING YOUR UBICELL PLUS 22 TROUBLESHOOTING 26 ANNEX A 28 Product Specifications ..........................................................................................28
14_ © SAMSUNG Electronics Co., Ltd. PREPARATION Congratulations! The UbiCell Plus ensures that you and your family have reliable wireless telephone service while in your home or small business. You only have to install the UbiCell Plus in your home or small business, and register. The UbiCell Plus will be functioned normally through the UbiCell Plus Manager (UCM). About This Guide This user guide provides instructions for the use of the UbiCell Plus. Please take the time to make sure of this guide to become familiar with the operation of your UbiCell Plus and the benefits this new UbiCell Plus can provide. Keep this guide handy. You may need to look up instructions for infrequently used features.
UbiCell Plus User Guide _15 What’s in the box After purchasing this product, check if the items below are all included in the package. If any item is missing or damaged, contact your dealer: Power Supply and Cord UbiCell Plus Ethernet Cable User Guide
16_ © SAMSUNG Electronics Co., Ltd. Names and Functions of each part The UbiCell Plus is very simple. On one end it has connectors for power and LAN. On the other end the UbiCell Plus has four LED indicators to let you know its status. LED Name Description PWR When powering on the UbiCell Plus, it turns blue. SYS When the UbiCell Plus normally works, It turns blue. When the alarm occurs, it turns red. GPS When GPS signal is normally received, it turns blue. When the internal GPS antenna is not able to detect a stable GPS signal and cannot validate accurate time and location information, it turns red. WAN When the Ethernet cable is normally connected, it turns blue. When there is data traffic, it turns blinking blue.

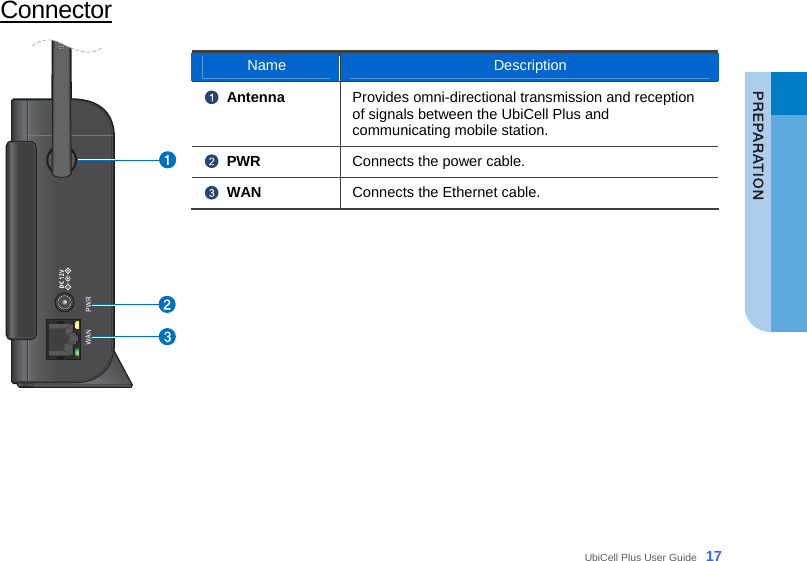

UbiCell Plus User Guide _17 Connector Name Description Antenna Provides omni-directional transmission and reception of signals between the UbiCell Plus and communicating mobile station. PWR Connects the power cable. WAN Connects the Ethernet cable.
18_ © SAMSUNG Electronics Co., Ltd. Using the GPS Antenna detached from the UbiCell Plus as an External GPS Antenna NOTE If the UbiCell Plus is installed in places where GPS signals cannot be received, detach the GPS antenna from the UbiCell Plus. Extension cable for GPS antenna is sold separately. Power off When detaching the GPS antenna from the UbiCell Plus to receive superior GPS signal, connect extension cable to GPS antenna after pulling out the power plug. The GPS antenna detached from the UbiCell Plus The GPS antenna detached from the UbiCell Plus always should be located indoors. The GPS antenna detached from the UbiCell Plus must be laid in a horizontal position, as close to a window as possible. Laying it on a window is ideal. To be certain of keeping the antenna horizontal, you may wish to tape it down, but do not use duct tape. The window should not have metal blinds, nor metallic solar film. The extension cable that is connected between the UbiCell Plus and detached GPS antenna is 7 meters (about 23 feet) long, providing plenty of flexibility in locating both it and the UbiCell Plus.

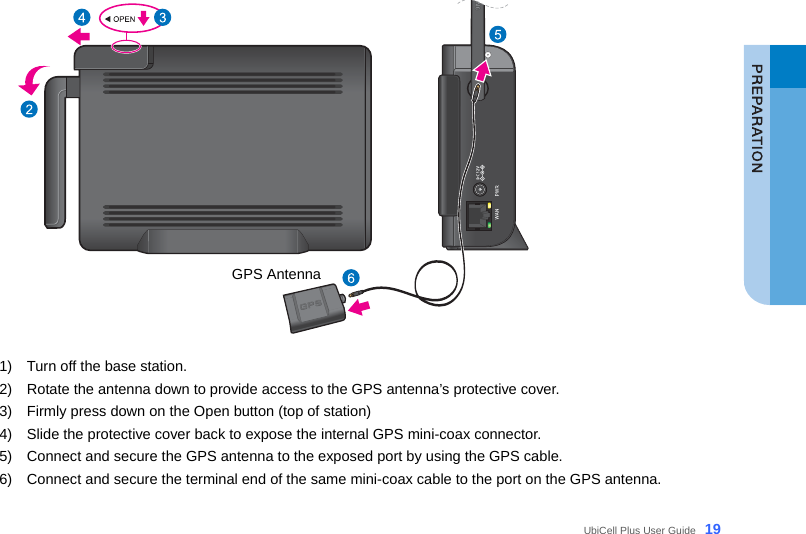

UbiCell Plus User Guide _19 1) Turn off the base station. 2) Rotate the antenna down to provide access to the GPS antenna’s protective cover. 3) Firmly press down on the Open button (top of station) 4) Slide the protective cover back to expose the internal GPS mini-coax connector. 5) Connect and secure the GPS antenna to the exposed port by using the GPS cable. 6) Connect and secure the terminal end of the same mini-coax cable to the port on the GPS antenna. GPS Antenna

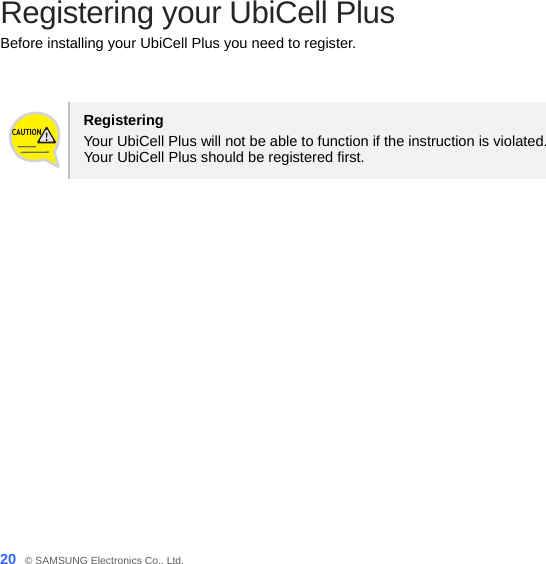

20_ © SAMSUNG Electronics Co., Ltd. Registering your UbiCell Plus Before installing your UbiCell Plus you need to register. Registering Your UbiCell Plus will not be able to function if the instruction is violated. Your UbiCell Plus should be registered first.
UbiCell Plus User Guide _21 OVERVIEW The UbiCell Plus is a system that performs the radio interface with Mobile Stations (MS), and exchanges radio subscriber data and signal data with the MSs under CDMA2000 standards. MS ISP UbiCell Provider’s Network Security Gateway Home or Office
22_ © SAMSUNG Electronics Co., Ltd. INSTALLING YOUR UBICELL PLUS If possible, place the UbiCell Plus in a high location such as on top of a book shelf or tall cabinet. For best results place the UbiCell Plus in a room with a window. Make sure your DSL modem or cable modem and broadband router are on and working properly. When your UbiCell Plus is operating, you had better stay at a distance of more than 20 cm from the UbiCell Plus. Installation Environment Refer to the ‘Environment Standard’ of ‘ANNEX’ for the conditions of the environment which make the UbiCell Plus normally work. Installing your UbiCell Plus 1) Your UbiCell Plus always should be in an upright position. 2) Install the UbiCell Plus at a distance of more than 30 cm from the walls or other products. 3) The adjustable antenna rotates only 180 degrees. Rotating it beyond that angle may damage the antenna.
UbiCell Plus User Guide _23 Connecting Ethernet Cables and Power 1) Connect one end of the included Ethernet cable to an open port on the modem. 2) Connect the other end to the WAN port located at the rear of the UbiCell Plus. 3) Plug the power supply connector into the PWR connector located at the rear of the UbiCell Plus. Power Supply Ethernet Cable Power Cord Modem
24_ © SAMSUNG Electronics Co., Ltd. 4) Insert one end of the power cord into the power supply and then plug the other end into an available power outlet. Ethernet Cable 1) Check the maximum length of the cable and install it near the router. 2) Ethernet cable connector (RJ-45) should be plugged before plugging a DC power cable. Connecting the power 1) Please use a refined accessory and a charger provided or activated by Samsung Electronics. 2) Use only the power supply and cord that are included in the package. Using any other power source may damage the UbiCell Plus.

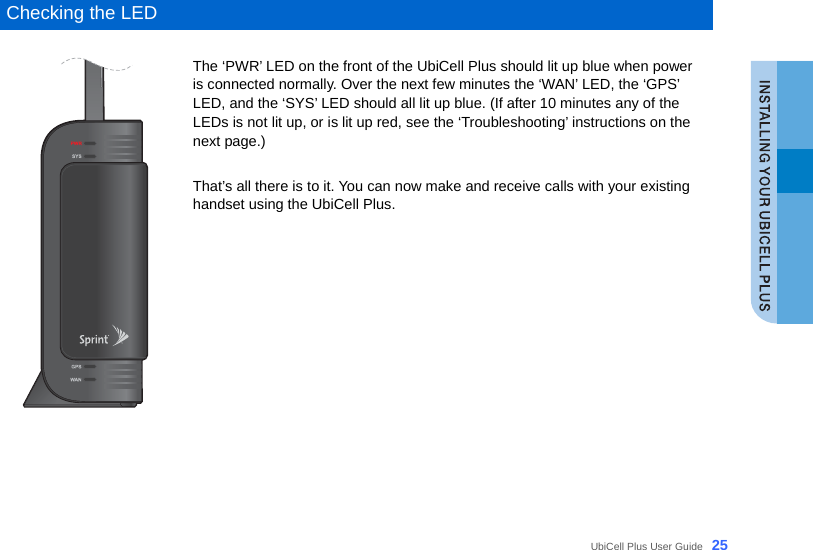

UbiCell Plus User Guide _25 Checking the LED The ‘PWR’ LED on the front of the UbiCell Plus should lit up blue when power is connected normally. Over the next few minutes the ‘WAN’ LED, the ‘GPS’ LED, and the ‘SYS’ LED should all lit up blue. (If after 10 minutes any of the LEDs is not lit up, or is lit up red, see the ‘Troubleshooting’ instructions on the next page.) That’s all there is to it. You can now make and receive calls with your existing handset using the UbiCell Plus.
26_ © SAMSUNG Electronics Co., Ltd. TROUBLESHOOTING In the unlikely event that you have problems, check the following: Trouble Solution The PWR LED is not lit - Make sure that one end of the power cord is securely connected to an active outlet and that the other end is properly connected to the power supply. - Make sure the power supply connector is securely inserted into the rear PWR connector on the back of the UbiCell Plus. The SYS LED lights up red The UbiCell Plus was unable to register. A red System LED indicates a system error was detected. Contact Samsung Customer Service. The WAN LED lights up red - A red light indicates that the WAN port is receiving power but has not detected a valid Ethernet connection. - Confirm that both ends of the Ethernet cable are securely plugged into the WAN port on the UbiCell Plus and into an open port on the router(or modem).
UbiCell Plus User Guide _27 Trouble Solution The GPS LED still does not light up blue 10 minutes after plugging-in the UbiCell Plus - The internal GPS antenna is either unable to obtain or having difficulty obtaining a GPS signal. - Move the UbiCell Plus a location with fewer surrounding obstructions. The new location should be in a more open area and closer to a window, if possible. - If relocation does not resolve the issue, detach the GPS antenna from the UbiCell Plus to use it as an external GPS antenna. - Make sure the power is properly configured and securely connected to the rear of the UbiCell Plus. - If the preceding fails, remove the power cord from the wall outlet, and then remove the power supply connector from PWR connector at the rear of the UbiCell Plus for at least 10 seconds. - Reconnect the power supply connector to the PWR connector, plug the power cord into the wall outlet. This allows the UbiCell Plus to initiate its startup sequence where it detects the Ethernet connection, GPS signal, and communication with the system. If the above suggestions did not correct the problem, or you encounter a problem that is not listed here, you can get additional assistance by calling Samsung customer service.
28_ © SAMSUNG Electronics Co., Ltd. ANNEX A Product Specifications
UbiCell Plus User Guide _29 Transmitter/Receiver Specification The specification of the transmitter and receiver of the UbiCell Plus is described as follows: The items that are not included in the following table should meet the IS-95A/B, IS-2000 standard. Frequencies by Models SCS-26UC2 support 1.9 G band Item Specification Tx Frequency 1,930~1,990 MHz (SCS-26UC2) Channel Bandwidth 1.25 MHz Conducted Power 50 mW/carrier Transmission Modulation QPSK Rx Frequency 1,850~1,910 MHz (SCS-26UC2) Channel Bandwidth 1.25 MHz Reception Sensitivity -119 dBm (SCS-26UC2)
30_ © SAMSUNG Electronics Co., Ltd. Unit Specification The specification of the UbiCell Plus is described as follows: Category Specification Size (H × W × D, mm) 144.0 ×204.4 × 42.2 Weight (g) 815(440+ 375[adapter & cables]) ± 40 Power The specification of the UbiCell Plus power is described as follows. The UbiCell Plus meets the power safety criterion defined in UL60950-1 and EN60950-1. Category Specification Input Voltage AC 110 V Voltage Variation Range (Tolerable error of commercial electric power source) 100~250 VAC
UbiCell Plus User Guide _31
