BASICUser’s GuideSCX-340x/340xW SeriesSCX-340xF/340xFW SeriesSCX-340xFH/340xHW SeriesBASICUser’s GuideThis guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.
2BASIC1. IntroductionKey benefits 5Features by models 7Useful to know 13About this user’s guide 14Safety information 15Machine overview 20Control panel overview 24Turning on the machine 29Installing the driver locally 30Reinstalling the driver 312. Menu Overview and Basic SetupMenu overview 33Machine’s basic settings 38Media and tray 40Basic printing 52Basic copying 58Basic scanning 63Basic faxing 643. MaintenanceOrdering supplies and accessories 69Available supplies 70Available maintenance parts 71Storing the toner cartridge 72Redistributing toner 74Replacing the toner cartridge 76Monitoring the supplies life 78Setting the toner low alert 79Cleaning the machine 80Tips for moving & storing your machine 864. TroubleshootingTips for avoiding paper jams 88Clearing original document jams 89Clearing paper jams 94Understanding the status LED 98Understanding display messages 100

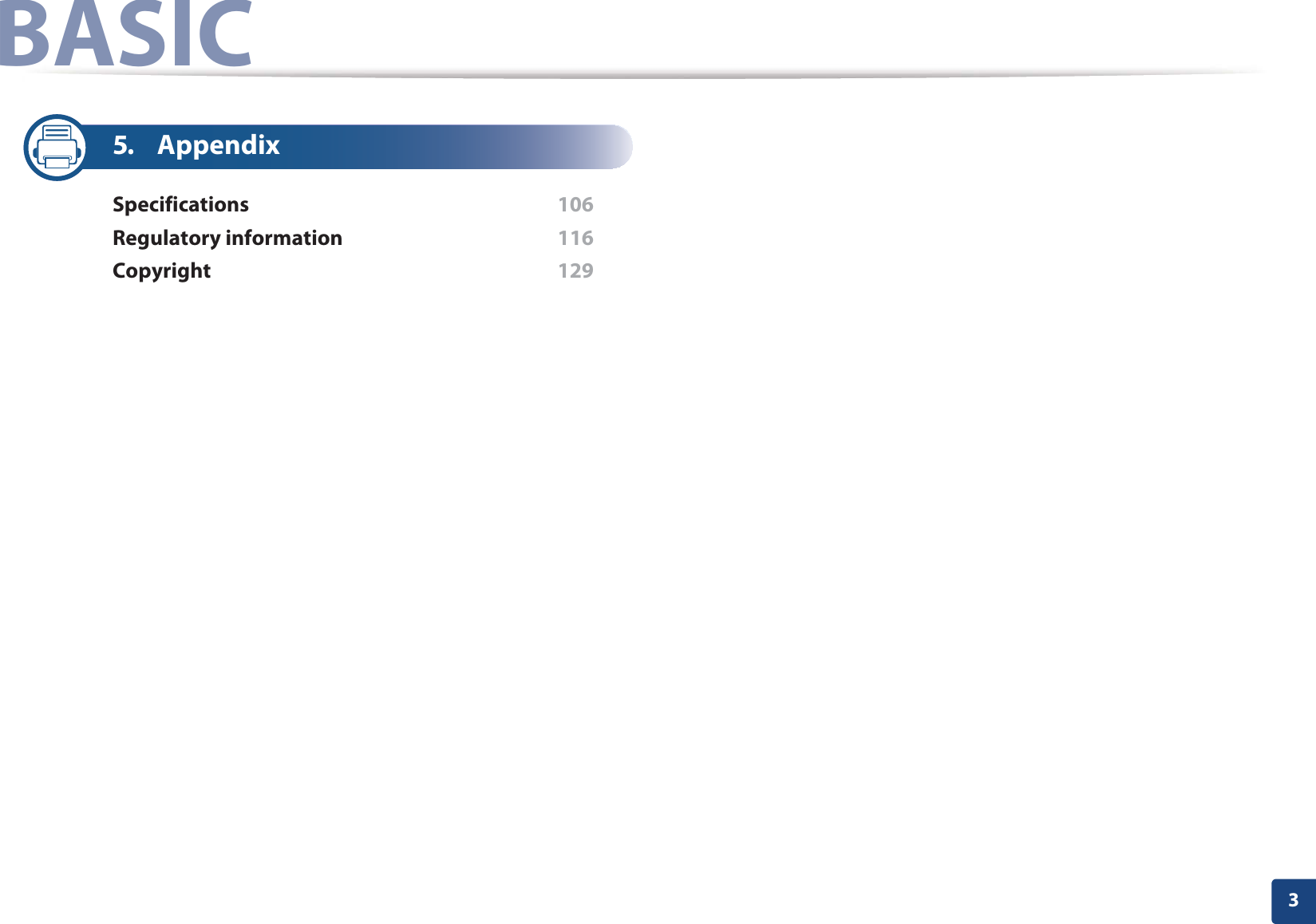

3BASIC5. AppendixSpecifications 106Regulatory information 116Copyright 129
1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5• Features by models 7• Useful to know 13• About this user’s guide 14• Safety information 15• Machine overview 20• Control panel overview 24• Turning on the machine 29• Installing the driver locally 30• Reinstalling the driver 31

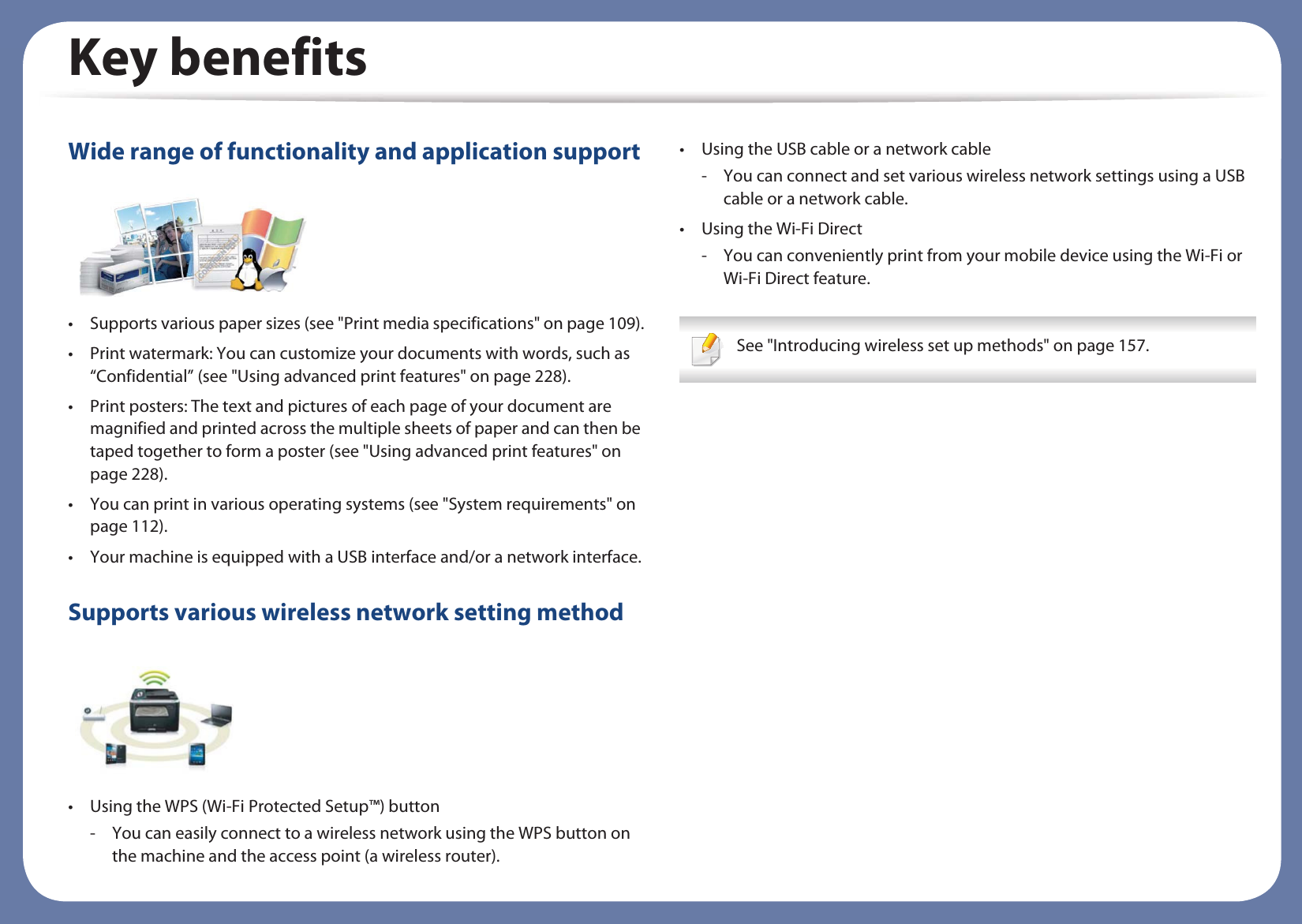

Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 56).• To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 228).• To save paper, you can print on both sides of the paper (double-sided printing) (Manual) (see "Using advanced print features" on page 228).• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.Fast high resolution printing• You can print with a resolution of up to 1,200 x 1,200 dpi effective output.• Fast, on-demand printing.- For single-side printing, 20 ppm (A4) or 21 ppm (Letter).Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboardG(see "Easy Capture Manager" on page 267).• Samsung Easy Printer Manager and Printing Status (or Smart Panel) is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 276 or "Using Smart Panel" on page 278).• AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 268).• Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows.• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.
Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 109).• Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 228).• Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 228).• You can print in various operating systems (see "System requirements" on page 112).• Your machine is equipped with a USB interface and/or a network interface.Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router).• Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable.• Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 157.
Features by modelsSome features and optional goods may not be available depending on model or country.Operating System (Ɣ: Included, Blank: Not available) Software Operating System SCX-340x SeriesSCX-340xW SeriesSCX-340xF SeriesSCX-340xFW SeriesSCX-340xHW SeriesSCX-340xFH SeriesWindows Ɣ ƔMacintosh Ɣ ƔLinux Ɣ ƔUnixSoftware SCX-340x SeriesSCX-340xW SeriesSCX-340xF SeriesSCX-340xFW SeriesSCX-340xHW SeriesSCX-340xFH SeriesSPL printer driver Ɣ ƔPCL printer driver
Features by modelsPS printer driverXPS printer driveraƔ ƔDirect Printing UtilitySamsung Easy Printer ManagerScan to PC settings Ɣ ƔFax to PC settings ƔDevice Settings Ɣ ƔSamsung Printer Status Ɣ ƔSmart Panel Ɣ ƔAnyWeb Print Ɣ ƔSyncThru™ Web Service Ɣ(SCX-340xW Series only)Ɣ (SCX-340xFW/ SCX-340xHW Series only)SyncThru Admin Web Service Ɣ (SCX-340xW Series only)Ɣ (SCX-340xFW/ SCX-340xHW Series only)Easy Eco Driver Ɣ ƔFax Samsung Network PC Fax ƔSoftware SCX-340x SeriesSCX-340xW SeriesSCX-340xF SeriesSCX-340xFW SeriesSCX-340xHW SeriesSCX-340xFH Series
Features by models91. Introduction (Ɣ: Included, Blank: Not available) Scan Twain scan driver Ɣ ƔWIA scan driver Ɣ ƔSamsung Scan Assistant Ɣ ƔSmarThru 4SmarThru Office Ɣ Ɣa. For XPS driver, it is only supported for Windows through the Samsung website (www.samsung.com)Software SCX-340x SeriesSCX-340xW SeriesSCX-340xF SeriesSCX-340xFW SeriesSCX-340xHW SeriesSCX-340xFH Series
Features by modelsVariety feature Features SCX-340x SeriesSCX-340xW SeriesSCX-340xF SeriesSCX-340xFW SeriesSCX-340xHW SeriesSCX-340xFH SeriesHi-Speed USB 2.0 Ɣ ƔNetwork Interface Ethernet 10/100 Base TX wired LAN Ɣ (SCX-340xFW/SCX340xHW Series only)Network Interface 802.11b/g/n wireless LANaƔ (SCX-340xW Series only)Ɣ (SCX-340xFW/SCX340xHW Series only)Eco printingGOControl panel) Ɣ ƔDuplex (2-sided) printing (Manual)bƔ ƔUSB memory interfaceMemory moduleMass Storage DeviceGOHDD)Duplex Automatic Document Feeder (DADF)Automatic Document Feeder (ADF) ƔHandset Ɣ (SCX-340xFH/ SCX-340xHW Series only)
Features by modelsFax Multi-send ƔDelay send ƔPriority send ƔDuplex sendSecure receive ƔDuplex printSend/ Receive forward - fax ƔSend/ Receive forward - emailSend/ Receive forward - serverScan Scanning to emailScanning to SMB serverScanning to FTP serverDuplex scanScan to PC Ɣ ƔFeatures SCX-340x SeriesSCX-340xW SeriesSCX-340xF SeriesSCX-340xFW SeriesSCX-340xHW SeriesSCX-340xFH Series
Features by models (Ɣ: Included, Blank: Not available) Copy ID card copying Ɣ ƔReduced or enlarged copying ƔCollation ƔPoster ƔClone ƔBook2-up/4-up ƔAdjust background Ɣ ƔMargin shiftEdge eraseGray enhanceDuplex copya. Depending on your country, wireless LAN card may not be available. For some counties, only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where you bought your machine.b. Windows only.Features SCX-340x SeriesSCX-340xW SeriesSCX-340xF SeriesSCX-340xFW SeriesSCX-340xHW SeriesSCX-340xFH Series
Useful to knowThe machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 53).• Remove the driver and install it again (see "Installing the driver locally" on page 30).• Select your machine as your default machine in your Windows (see "Setting your machine as a default machine" on page 227).Where can I purchase accessories or supplies?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/region to view product service information.The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 98).A paper jam has occurred.• Open and close the scan unit (see "Front view" on page 21).• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 94).Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge (see "Redistributing toner" on page 74).• Try a different print resolution setting (see "Opening printing preferences" on page 54).• Replace the toner cartridge (see "Replacing the toner cartridge" on page 76).Where can I download the machine’s driver?• You can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.
141. IntroductionAbout this user’s guideThis user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.• Read the safety information before using the machine.• If you have a problem using the machine, refer to the troubleshooting chapter.• Terms used in this user’s guide are explained in the glossary chapter.• All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased.• The screenshots in this administrator’s guide may differ from your machine depending on the machine’s firmware/driver version.• The procedures in this user’s guide are mainly based on Windows 7.1 ConventionsSome terms in this guide are used interchangeably, as below:• Document is synonymous with original.• Paper is synonymous with media, or print media.• Machine refers to printer or MFP.2 General iconsIcon Text DescriptionCaution Gives users information to protect the machine from possible mechanical damage or malfunction.Note Provides additional information or detailed specification of the machine function and feature.
151. IntroductionSafety informationThese warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.3 Important safety symbolsExplanation of all icons and signs used in this chapter4 Operating environment WarningWarning Hazards or unsafe practices that may result in severe personal injury or death.Caution Hazards or unsafe practices that may result in minor personal injury or property damage.Do not attempt.Do not use if the power cord is damaged or if the electrical outlet is not grounded.This could result in electric shock or fire. Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).This could result in electric shock or fire. • If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.This could result in electric shock or fire. Do not bend, or place heavy objects on the power cord. Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire. Do not remove the plug by pulling on the cord; do not handle the plug with wet hands. This could result in electric shock or fire.
Safety information161. Introduction Caution5 Operating method CautionDuring an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet. This could result in electric shock or fire. Be careful, the paper output area is hot. Burns could occur. If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the plug does not easily enter the electrical outlet, do not attempt to force it in. Call an electrician to change the electrical outlet, or this could result in electric shock.Do not allow pets to chew on the AC power, telephone or PC interface cords.This could result in electric shock or fire and/or injury to your pet. Do not forcefully pull the paper out during printing. It can cause damage to the machine.Be careful not to put your hand between the machine and paper tray.You may get injured.Be care when replacing paper or removing jammed paper. New paper has sharp edges and can cause painful cuts.When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch. Burns can occur.When removing jammed paper, do not use tweezers or sharp metal objects. It can damage the machine.Do not allow too many papers to stack up in the paper output tray.It can damage the machine.
Safety information171. Introduction6 Installation / Moving Warning CautionDo not block or push objects into the ventilation opening.This could result in elevated component temperatures which can cause damage or fire.Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.This machine's power reception device is the power cord. To switch off the power supply, remove the power cord from the electrical outlet. Do not place the machine in an area with dust, humidity, or water leaks. This could result in electric shock or fire. Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to lift the device safety.Then lift the machine:• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people.• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.The machine could fall, causing injury or machine damage.Do not place the machine on an unstable surface.The machine could fall, causing injury or machine damage.Use only No.26 AWGa or larger, telephone line cord, if necessary.Otherwise, it can cause damage to the machine.Make sure you plug the power cord into a grounded electrical outlet.Otherwise, this could result in electric shock or fire.
Safety information181. Introduction7 Maintenance / Checking CautionUse the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110V machine, then the gauge should be 16 AWG or larger.Otherwise, it can cause damage to the machine, and could result in electric shock or fire.Do not put a cover over the machine or place it in an airtight location, such as a closet.If the machine is not well-ventilated, this could result in fire.Do not overload wall outlets and extension cords.This can diminish performance, and could result in electric shock or fire.The machine should be connected tothe power level which is specified on the label.If you are unsure and want to check the power level you are using, contact the electrical utility company.a. AWG: American Wire GaugeUnplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine. This could result in electric shock or fire. When you are working inside the machine replacing supplies or cleaning the inside, do not operate the machine.You could get injured.Keep cleaning supplies away from children. Children could get hurt.Do not disassemble, repair or rebuild the machine by yourself. It can damage the machine. Call a certified technician when the machine needs repairing.To clean and operate the machine, strictly follow the user's guide provided with the machine.Otherwise, you could damage the machine.
Safety information191. Introduction8 Supply usage CautionKeep the power cable and the contact surface of the plug clean from dust or water.Otherwise, this could result in electric shock or fire. • Do not remove any covers or guards that are fastened with screws. • Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.• The machine should only be repaired by a Samsung service technician.Do not disassemble the toner cartridge.Toner dust can be dangerous if inhaled or ingested.Do not burn any of the supplies such as toner cartridge or fuser unit.This could cause an explosion or uncontrollable fire.When storing supplies such as toner cartridges, keep them away from children.Toner dust can be dangerous if inhaled or ingested.Using recycled supplies, such as toner, can cause damage to the machine.In case of damage due to the use of recycled supplies, a service fee will be charged.When toner gets on your clothing, do not use hot water to wash it.Hot water sets toner into fabric. Use cold water.When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.Toner dust can be dangerous if inhaled or ingested.
201. IntroductionMachine overview9 AccessoriesPower cord Quick installation guideSoftware CDaa. The software CD contains the print drivers, user’s guide, and software applications.Handsetbb. Handset model only (see "Features by models" on page 7).Misc. accessoriescc. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

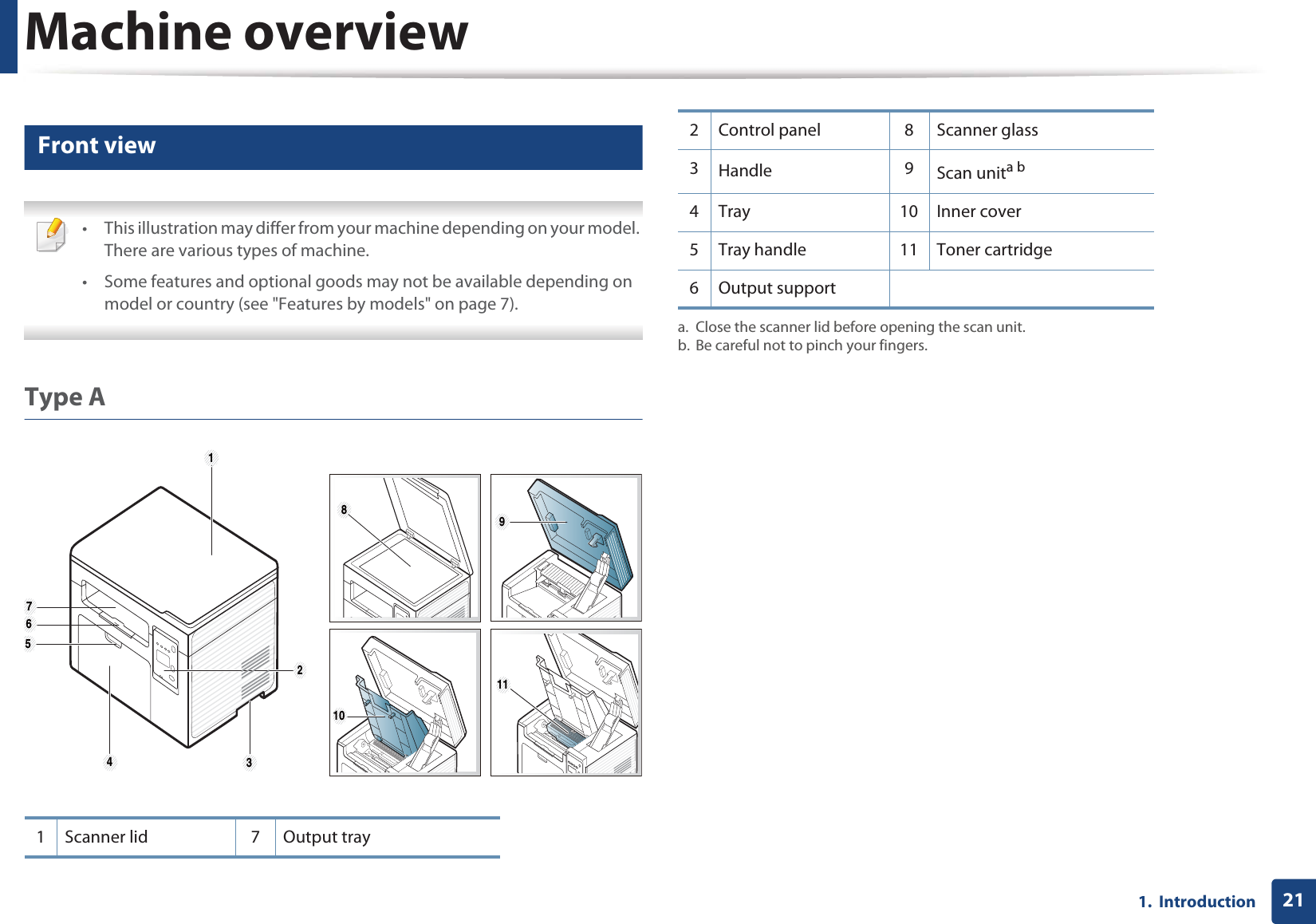

Machine overview211. Introduction10 Front view • This illustration may differ from your machine depending on your model. There are various types of machine.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). Type A1 Scanner lid 7 Output tray76 1 254 8 9 10 1132 Control panel 8 Scanner glass3Handle 9Scan unita b4 Tray 10 Inner cover5 Tray handle 11 Toner cartridge6 Output supporta. Close the scanner lid before opening the scan unit.b. Be careful not to pinch your fingers.
Machine overview221. IntroductionType B1 Document feeder cover 11 Scanner lid 3 109 1 2 58 7 6 4 12 13 14 11 15 16 17 18 192 Document feeder guide cover12 Scanner glass3Document feeder output tray 13 Paper width guide on a document feeder4 Document feeder output support14 Document feeder input support5 Control panel 15 Document feeder input tray6Handle 16 Handseta7Tray 17 Scan unitb c8 Tray handle 18 Inner cover 9 Output support 19 Toner cartridge10 Output traya. Handset model only (see "Features by models" on page 7).b. Close the scanner lid before opening the scan unit.c. Be careful not to pinch your fingers.
Machine overview231. Introduction11 Rear view • This illustration may differ from your machine depending on your model. There are various types of machine.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). Type AType B1USB port 2Power receptacle121USB port2Network portaa. SCX-340xFW/ SCX-340xHW Series only.3 Extension telephone socket (EXT.)4 Telephone line socket (LINE)5Power receptacle13425
241. IntroductionControl panel overview • This control panel may differ from your machine depending on its model. There are various types of control panels.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). 12 Type A 12 131EcoTurn into eco mode to reduce toner consumption and paper usage when pc-printing only (see "Eco printing" on page 56). 2WPSaConfigures the wireless network connection easily without a computer (see "Using the WPS button" on page 159).Print ScreenPress this button and the Status LED will start blinking. If you want to print only the active screen, release the button when the Status LED stops blinking. If you want to print the whole screen, release the button while it’s blinking. •Print Screen can only be used in the Windows and Macintosh operating systems.• You can only use this function with USB-connected machine.• When printing the active window/whole monitor screen using the print screen button, the machine may use more toner depending on what is being printed.• You can only use this function if the machine’s Samsung Easy Printer Manager program is installed. If you are a Macintosh OS user, you need to enable Screen Print Settings from the Samsung Easy Printer Manager to use the Print Screen feature. 3Scan to Sends scanned data (see "Basic Scanning" on page 63).
Control panel overview251. Introduction4ID CopyAllows you to copy both sides of an ID card like a driver’s license on a single side of paper (see "ID card copying" on page 60). 5PowerTurns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this button for more than three seconds. 6Front LEDWhen the LED lights on, place the front side of an ID card facing down on the scanner glass (see "ID card copying" on page 60). 7Back LEDWhen the LED lights on, place the back side of an ID card facing down on the scanner glass (see "ID card copying" on page 60). 8Stop/ClearStops an operation at any time and there are more functions.•Cancels the current job.•Prints configuration report: Press and hold this button for about 2 seconds until the status LED blinks slowly, and release. •Supplied Information report: Press and hold this button for about 6 seconds and release. • Network configuration reporta: Press and hold this button for about 4 seconds until the status LED blinks fast, and release.9+/- Buttons Allows you to increase/decrease the number of pages to copy. You can determine the number of copies (up to 99 copies) to copy by pressing the +/- buttons. The default value is 1.• If you press the +/- buttons, the number of copies will increase/decrease by one.• If you press and hold the +/- buttons, the number of copies will increase/decrease by ten.10 Start Starts a job.11 Status LED Indicates the status of your machine (see "Understanding the status LED" on page 98). 12 Toner LED Shows the status of the toner (see "Understanding the status LED" on page 98). 13 Display screen Shows the number of pages you want to copy.a. SCX-340xW Series only.
Control panel overview261. Introduction13 Type B1EcoTurn into eco mode to reduce toner consumption and paper usage when pc-printing and copying only (see "Eco printing" on page 56).2WPSaConfigures the wireless network connection easily without a computer (see "Using the WPS button" on page 159).Print ScreenPress this button and the display will Print Screen? on the display screen. If you want to print only the active screen, select the Active. If you want to print the whole screen, select Full. •Print Screen can only be used in the Windows and Macintosh operating systems.• You can only use this function with USB-connected machine.• When printing the active window/whole monitor screen using the print screen button, the machine may use more toner depending on what is being printed.• You can only use this function if the machine’s Samsung Easy Printer Manager program is installed. If you are a Macintosh OS user, you need to enable Screen Print Settings from the Samsung Easy Printer Manager to use the Print Screen feature. 3ID CopyAllows you to copy both sides of an ID card like a driver’s license on a single side of paper (see "ID card copying" on page 60).

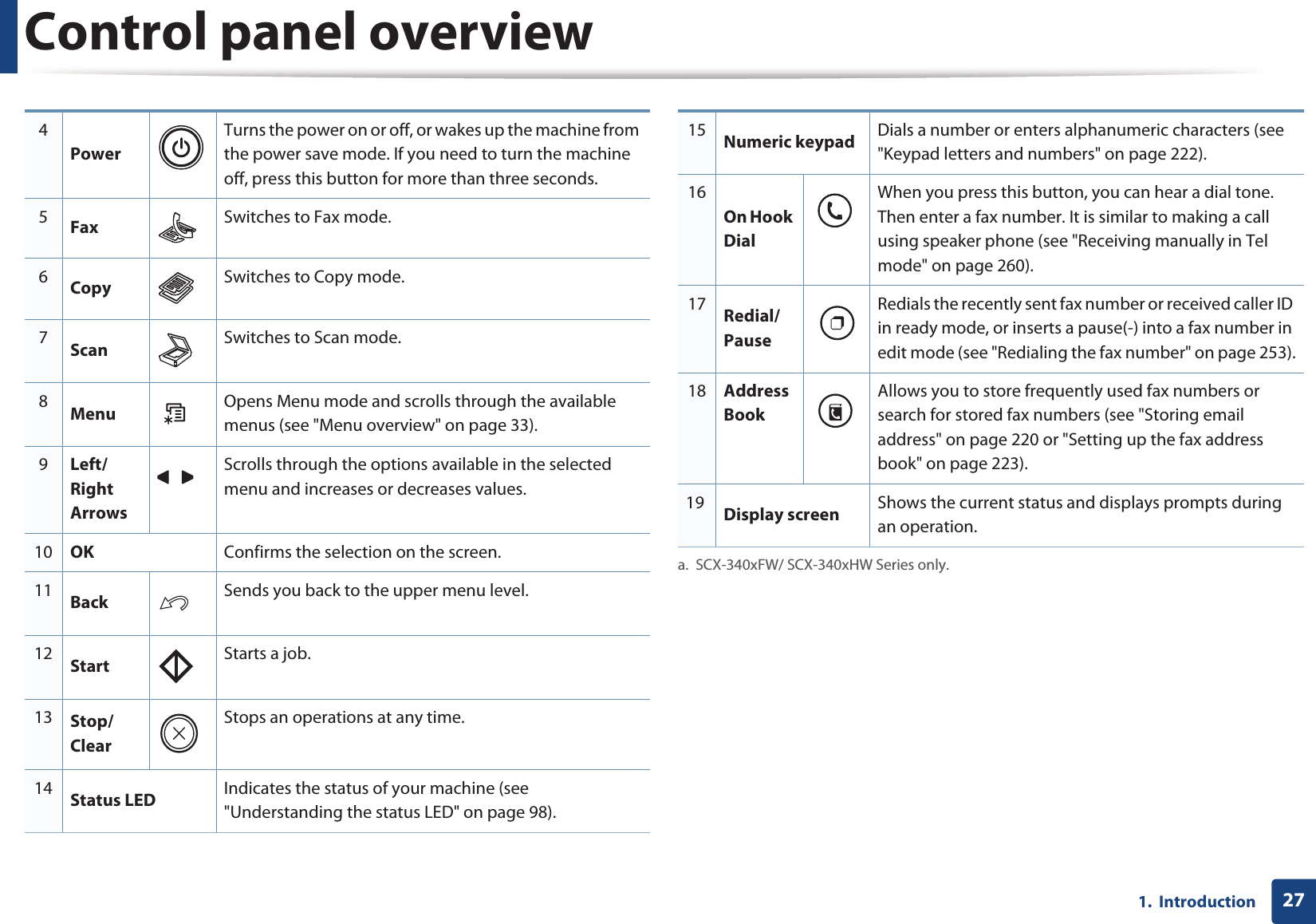

Control panel overview271. Introduction4PowerTurns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this button for more than three seconds. 5Fax Switches to Fax mode. 6Copy Switches to Copy mode. 7Scan Switches to Scan mode.8Menu Opens Menu mode and scrolls through the available menus (see "Menu overview" on page 33).9Left/Right ArrowsScrolls through the options available in the selected menu and increases or decreases values. 10 OK Confirms the selection on the screen. 11 Back Sends you back to the upper menu level.12 Start Starts a job.13 Stop/ClearStops an operations at any time. 14 Status LED Indicates the status of your machine (see "Understanding the status LED" on page 98). 15 Numeric keypad Dials a number or enters alphanumeric characters (see "Keypad letters and numbers" on page 222).16On Hook DialWhen you press this button, you can hear a dial tone. Then enter a fax number. It is similar to making a call using speaker phone (see "Receiving manually in Tel mode" on page 260).17 Redial/PauseRedials the recently sent fax number or received caller ID in ready mode, or inserts a pause(-) into a fax number in edit mode (see "Redialing the fax number" on page 253).18 Address BookAllows you to store frequently used fax numbers or search for stored fax numbers (see "Storing email address" on page 220 or "Setting up the fax address book" on page 223).19 Display screen Shows the current status and displays prompts during an operation.a. SCX-340xFW/ SCX-340xHW Series only.
Control panel overview281. Introduction14 Adjusting the control panel Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).
291. IntroductionTurning on the machine1Connect the machine to the electricity supply first.Turn the switch on if the machine has a power switch. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21). 2 Power is turned on automatically.For SCX-340x/SCX-340xW Series, press (Power) button on the control panel. If you want to turn the power off, press and hold (Power) button for about 3 seconds.
301. IntroductionInstalling the driver locallyA locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 144). • If you are a Macintosh or Linux operating systems user, refer to the "Installation for Macintosh" on page 134 or "Installation for Linux" on page 136. • The installation window in this User’s Guide may differ depending on the machine and interface in use.• Selecting Custom Installation allows you to choose which programs to install. • Only use a USB cable no longer than 3 meters (118 inches). 15 Windows1Make sure that the machine is connected to your computer and powered on. If the “Found New Hardware Wizard” appears during the installation procedure, click Cancel to close the window. 2 Insert the supplied software CD into your CD-ROM drive.If the installation window does not appear, click Start > All programs > Accessories > Run. X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.3 Select Install Now.4 Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.5 Follow the instructions in the installation window.

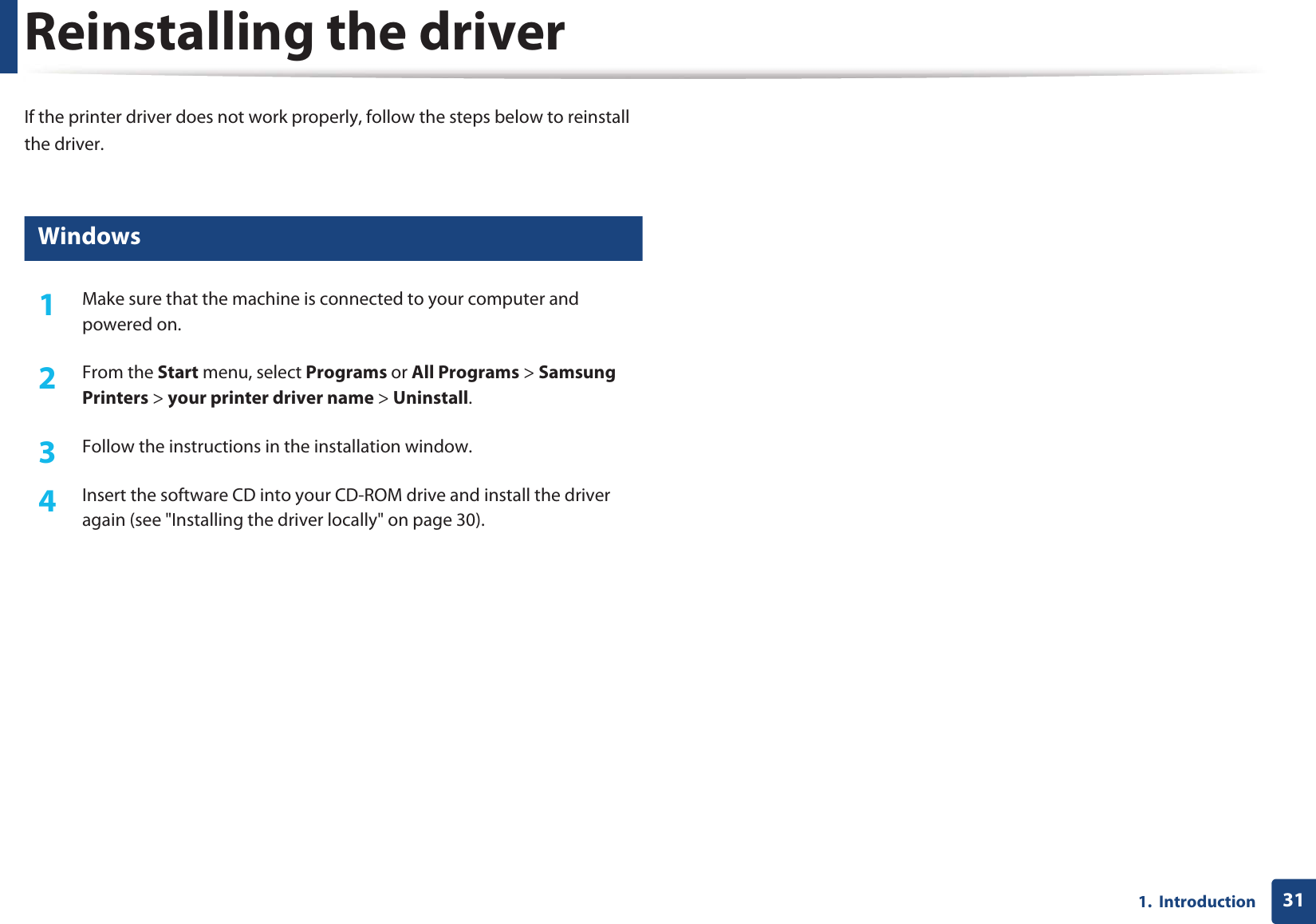

311. IntroductionReinstalling the driverIf the printer driver does not work properly, follow the steps below to reinstall the driver.16 Windows1Make sure that the machine is connected to your computer and powered on.2 From the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Uninstall.3 Follow the instructions in the installation window.4 Insert the software CD into your CD-ROM drive and install the driver again (see "Installing the driver locally" on page 30).
2. Menu Overview and Basic SetupThis chapter provides information about the overall menu structure and the basic setup options.• Menu overview 33• Machine’s basic settings 38• Media and tray 40• Basic printing 52• Basic copying 58• Basic scanning 63• Basic faxing 64
332. Menu Overview and Basic SetupMenu overviewThe control panel provides access to various menus to set up the machine or use the machine’s functions. • This function is not supported for SCX-340x/SCX-340xW Series (see "Control panel overview" on page 24).• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.• Some menu names may differ from your machine depending on its options or the models.• The menus are described in the Advanced Guide (see "Useful Setting Menus" on page 188). 1 Accessing the menu1Select the Fax, Copy, or Scan button on the control panel depending on the feature to be used.2 Select (Menu) until the menu you want appears on the bottom line of the display and press OK.3 Press the arrows until the needed menu item appears and press OK.4 If the setting item has sub menus, repeat step 3.5 Press OK to save the selection.6 Press (Stop/Clear) to return to the ready mode.Items OptionsFax Feature Darkness NormalDark+1- Dark+5Light+5- Light+1Contrast NormalDark+1- Dark+5Light+5- Light+1Resolution StandardFineSuper FinePhoto FaxColor FaxScan SizeMulti SendDelay Send
Menu overview342. Menu Overview and Basic SetupFax Feature (Continue)Priority SendForward FaxPCSecure Receive OffOnPrintAdd PageCancel JobFax Setup Sending Redial TimesRedial TermPrefix DialECM ModeSend ReportImage TCR Dial ModeaItems OptionsFax Setup (Continue)Receiving Receive ModeRing To AnswerStamp RCV NameRCV Start CodeAuto ReductionDiscard SizeJunk Fax SetupDRPD ModeaChange DefaultResolutionDarkness ContrastScan SizeAuto Report OnOffCopy Feature Scan SizeReduce/EnlargeDarkness NormalDark+1- Dark+5Light+5- Light+1Items Options
Menu overview352. Menu Overview and Basic SetupCopy Feature(Continue)Contrast NormalDark+1- Dark+5Light+5- Light+1Original Type TextText/PhotoPhotoLayout Normal2-Up4-UpID CopyPoster CopyClone CopyAdjust Bkgd. OffAutoEnhance Lev.1Enhance Lev.2Erase Lev.1- Erase Lev.4Items OptionsCopy Setup Change DefaultScan SizeCopiesCopy CollationReduce/EnlargeDarknessContrastOriginal TypeAdjust Bkgd.Items Options

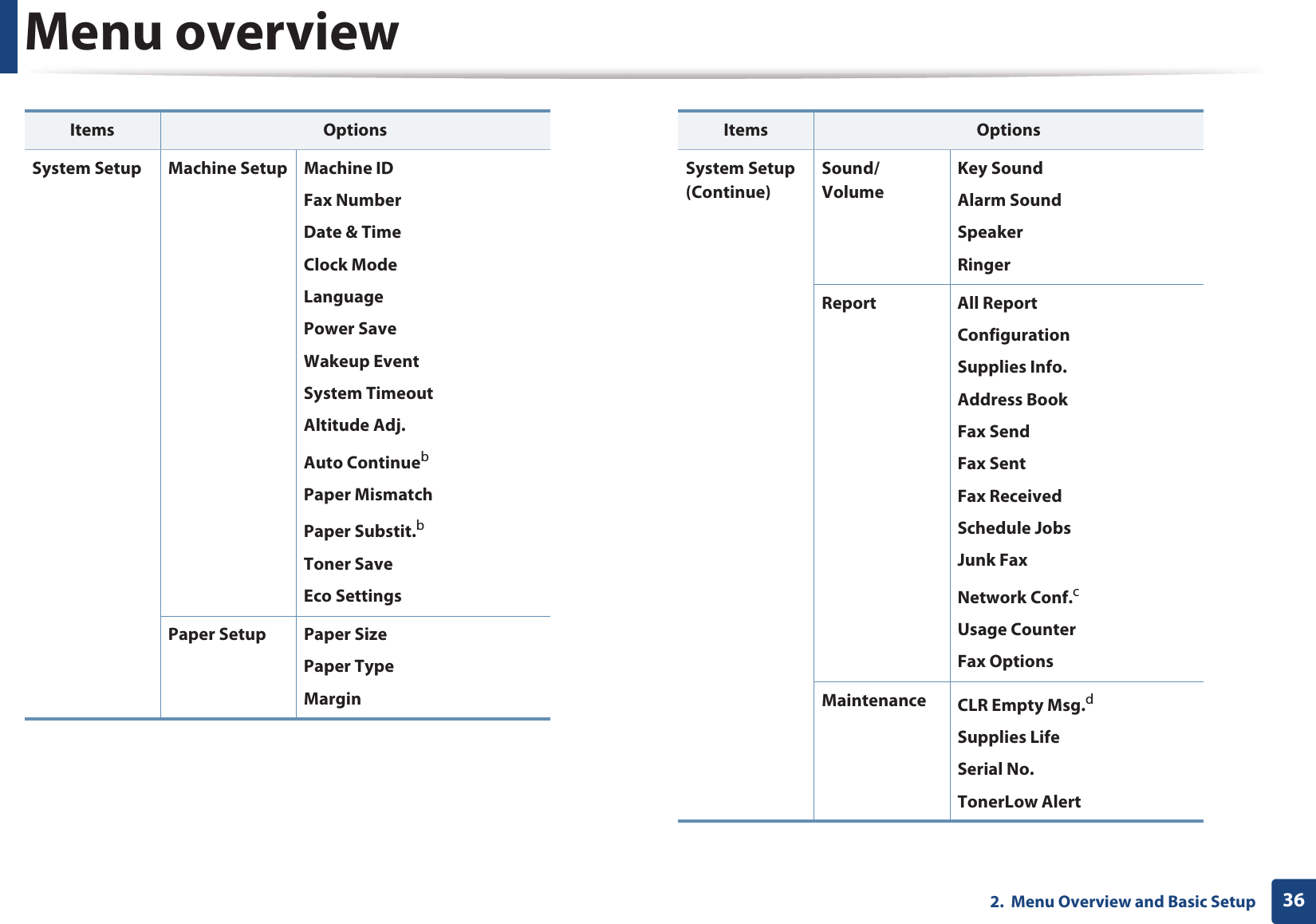

Menu overview362. Menu Overview and Basic SetupSystem Setup Machine Setup Machine IDFax NumberDate & TimeClock ModeLanguagePower SaveWakeup Event System TimeoutAltitude Adj.Auto ContinuebPaper MismatchPaper Substit.bToner SaveEco SettingsPaper Setup Paper SizePaper TypeMarginItems OptionsSystem Setup (Continue)Sound/VolumeKey SoundAlarm SoundSpeakerRingerReport All ReportConfigurationSupplies Info.Address BookFax SendFax SentFax ReceivedSchedule JobsJunk FaxNetwork Conf.cUsage CounterFax OptionsMaintenance CLR Empty Msg.dSupplies LifeSerial No.TonerLow AlertItems Options
Menu overview372. Menu Overview and Basic SetupSystem Setup (Continue)Clear Setting All SettingsFax SetupCopy SetupSystem SetupNetwork SetupcAddress BookFax SentFax ReceivedNetwork cTCP/IP (IPv4) DHCPBOOTPStaticTCP/IP (IPv6) IPv6 ActivateDHCPv6 ConfigEthernet SpeedAutomatic10Mbps Half10Mbps Full100Mbps Half100Mbps FullItems OptionsNetwork c (Continue)Wireless Wi-Fi ON/OFFWi-Fi DirectWPS SettingWLAN SettingWLAN DefaultWLAN SignalClear SettingNetwork Conf.a. This option may not be available depending on your country.b. This option only appears if Paper Mismatch is enabled.c. SCX-340xFW/ SCX-340xHW Series only.d. This option only appears when small amount of toner is left in the cartridge.Items Options
382. Menu Overview and Basic SetupMachine’s basic settings If your machine has +/- buttons on the control panel, (see "Control panel overview" on page 24):You can set the machine’s settings by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHUprogram or Machine section in Printer Settings Utility program.• For Windows and Macintosh users, see "Device Settings" on page 275.• For Linux users, see "Using Smart Panel" on page 278. After installation is complete, you may want to set the machine's default settings. To change the machine’s default settings, follow these steps: It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) button on the control panel.2 Press System Setup > Machine Setup.3 Select the option you want, then press OK.•Language: change the language that is displayed on the control panel.•Date & Time: When you set the time and date, they are used in delay fax and delay print. They are printed on reports. If, however, they are not correct, you need to change it for the correct time being. Enter the correct time and date using arrows or numeric keypad (see "Keypad letters and numbers" on page 222).• Month = 01 to 12• Day = 01 to 31• Year = requires four digits• Hour = 01 to 12• Minute = 00 to 59 •Clock Mode: You can set your machine to display the current time using either a 12-hour or 24-hour format.•Toner Save: Toner save mode allows your machine to use less toner on each page. Activating this mode extends the life of the toner cartridge beyond what one would experience in the normal mode, but it reduces print quality. When PC-printing, you can also turn on or off toner save mode in the printer properties.
Machine’s basic settings392. Menu Overview and Basic Setup•Power Save: When you are not using the machine for a while, use this feature to save power. • When you press the power button, start printing, or a fax is received, the product will wake up from the power saving mode.• Press (Menu) > System Setup > MachineGSetupG>GWakeup EventG>GButton Press >GOn on the control panel. When you press any button except power button, the machine wake up from the power save mode. •Altitude Adjust: Print quality is affected by atmospheric pressure, which atmospheric pressure is determined by the height of the machine above sea levelU Before you set the altitude value, determine the altitude where you areG(see "Altitude adjustment" on page 219).4 Select the option you want, then press OK.5 Press OK to save the selection.6 Press (Stop/Clear) to return to ready mode. Refer to below links to set other settings useful for using the machine.• See "Entering various characters" on page 222.• See "Keypad letters and numbers" on page 222.• See "Setting the paper size and type" on page 47.• See "Setting up the fax address book" on page 223.
402. Menu Overview and Basic SetupMedia and trayThis chapter provides information on how to load print media into your machine. • Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung’s warranty or service agreements.• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine. • Using inflammable print media can cause a fire.• Use designated print mediaG(see "Print media specifications" on page 109). The use of inflammable media or foreign materials left in the printer may lead to overheating of the unit andS in rare cases may cause a fire. 2 Tray overviewTo change the size, you need to adjust the paper guides.1Paper width guide2Tray Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21). If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper. 12
Media and tray412. Menu Overview and Basic Setup3 Loading paper in the tray Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21). 1Open the tray. Then, adjust the tray size to the media size you are loading (see "Tray overview" on page 40)U2 Flex or fan the edge of the paper stack to separate the pages before loading papers.3 Place the paper with the side you want to print facing up.12
Media and tray422. Menu Overview and Basic Setup • Do not push the paper width guide too far causing the media to warp.• Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled.• If you do not adjust the paper width guide, it may cause paper jams. 4 Squeeze the paper width guide and slide it to the edge of the paper stack without causing it to bend.5 When you print a document, set the paper type and size for the tray (see "Setting the paper size and type" on page 47). The settings made from the machine driver override the settings on the control panel.a To print in application, open an application and start the print menu.b Open Printing Preferences (see "Opening printing preferences" on page 54).c Press the Paper tab in Printing Preferences, and select an appropriate paper type. For example, if you want to use a label, set the paper type to Label.d Select Auto Select (or Manual Feeder) in paper source, then press OK.e Start printing in application.

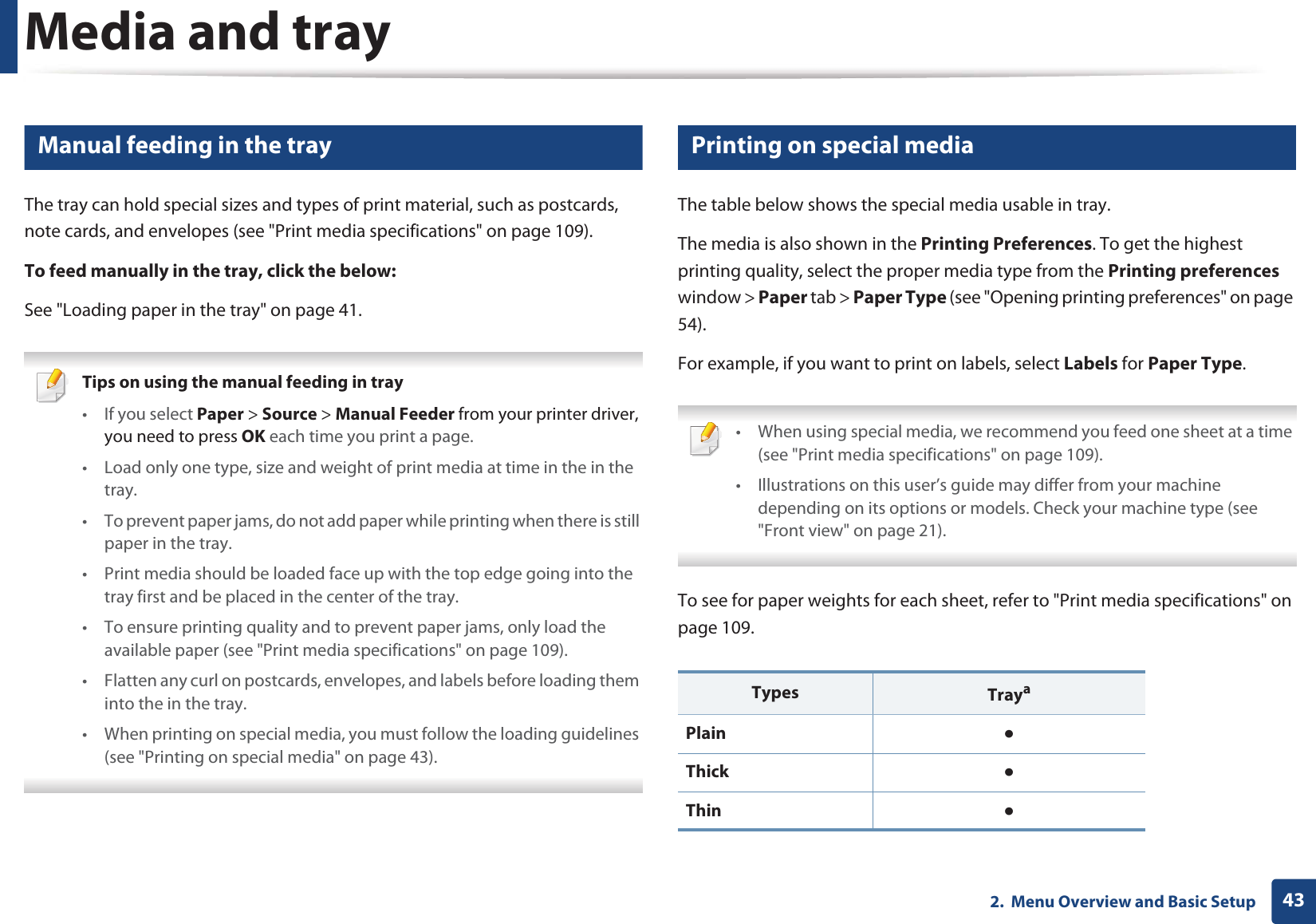

Media and tray432. Menu Overview and Basic Setup4 Manual feeding in the trayThe tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes (see "Print media specifications" on page 109). To feed manually in the tray, click the below:See "Loading paper in the tray" on page 41. Tips on using the manual feeding in tray•If you select Paper > Source > Manual Feeder from your printer driver, you need to press OK each time you print a page.• Load only one type, size and weight of print media at time in the in the tray.• To prevent paper jams, do not add paper while printing when there is still paper in the tray.• Print media should be loaded face up with the top edge going into the tray first and be placed in the center of the tray.• To ensure printing quality and to prevent paper jams, only load the available paper (see "Print media specifications" on page 109).• Flatten any curl on postcards, envelopes, and labels before loading them into the in the tray.• When printing on special media, you must follow the loading guidelines (see "Printing on special media" on page 43). 5 Printing on special mediaThe table below shows the special media usable in tray. The media is also shown in the Printing Preferences. To get the highest printing quality, select the proper media type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 54).For example, if you want to print on labels, select Labels for Paper Type. • When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 109).• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21). To see for paper weights for each sheet, refer to "Print media specifications" on page 109.Types TrayaPlain ƔThick ƔThin Ɣ
Media and tray442. Menu Overview and Basic Setup(Ɣ: Included, Blank: Not available) EnvelopePrinting successfully on envelopes depends upon the quality of the envelopes. To print an envelope, place it as shown in the following figure.• When selecting envelopes, consider the following factors:-Weight: should not exceed 90 g/m2 otherwise; jams may occur.-Construction: should lie flat with less than 6 mm curl and should not contain air.-Condition: should not be wrinkled, nicked, nor damaged.-Temperature: should resist the heat and pressure of the machine during operation.• Use only well-constructed envelopes with sharp and well-creased folds.• Do not use stamped envelopes.• Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.• Do not use damaged or poorly made envelopes.Bond ƔColor ƔCardStock ƔLabels ƔEnvelope ƔPreprinted ƔCotton ƔRecycled ƔArchive Ɣa. The paper types available manual feeding in tray.Types Traya
Media and tray452. Menu Overview and Basic Setup• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.1 Acceptable2 Unacceptable• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature for 0.1 second about 170°C (338 °F). The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.• For the best print quality, position margins no closer than 15 mm from the edges of the envelope.• Avoid printing over the area where the envelope’s seams meet.LabelsTo avoid damaging the machine, use only labels designed for use in laser printers.• When selecting labels, consider the following factors:-Adhesives: Should be stable at your machine’s fusing temperature about 170°C (338°F).-Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.-Curl: Must lie flat with no more than 13 mm of curl in any direction.-Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.
Media and tray462. Menu Overview and Basic Setup• Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.Card stock/ Custom-sized paper• In the software application, set the margins to at least 6.4 mm (0.25 inches) away from the edges of the material.Preprinted paperWhen loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature for 0.1 second (about 170°C (338°F)).• Preprinted paper ink must be non-flammable and should not adversely affect machine rollers.• Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.
Media and tray472. Menu Overview and Basic Setup6 Setting the paper size and typeAfter loading paper in the paper tray, set the paper size and type using the control panel buttons. If your has machine for RVTGbuttons on the control panel (see "Control panel overview" on page 24):You can set the machine’s settings by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHUprogram or Machine section in Printer Settings Utility program.• For Windows and Macintosh users, see "Device Settings" on page 275.• For Linux users, see "Using Smart Panel" on page 278. It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) button on the control panel.2 Press System Setup > Paper Setup > Paper Size or Paper Type.3 Select the tray and the option you want.4 Press OK to save the selection.5 Press (Stop/Clear) to return to ready mode. • The settings set from the machine driver override the settings on the control panel.a To print from an application, open an application and start the print menu.b Open Printing Preferences (see "Opening printing preferences" on page 54).c Press the Paper tabGand select an appropriate paper. • If you want to use special-sized paper such as billing paper, select the Paper tab > Size > Edit... and set CustomGPaper Size Settings in the Printing Preferences (see "Opening printing preferences" on page 54).

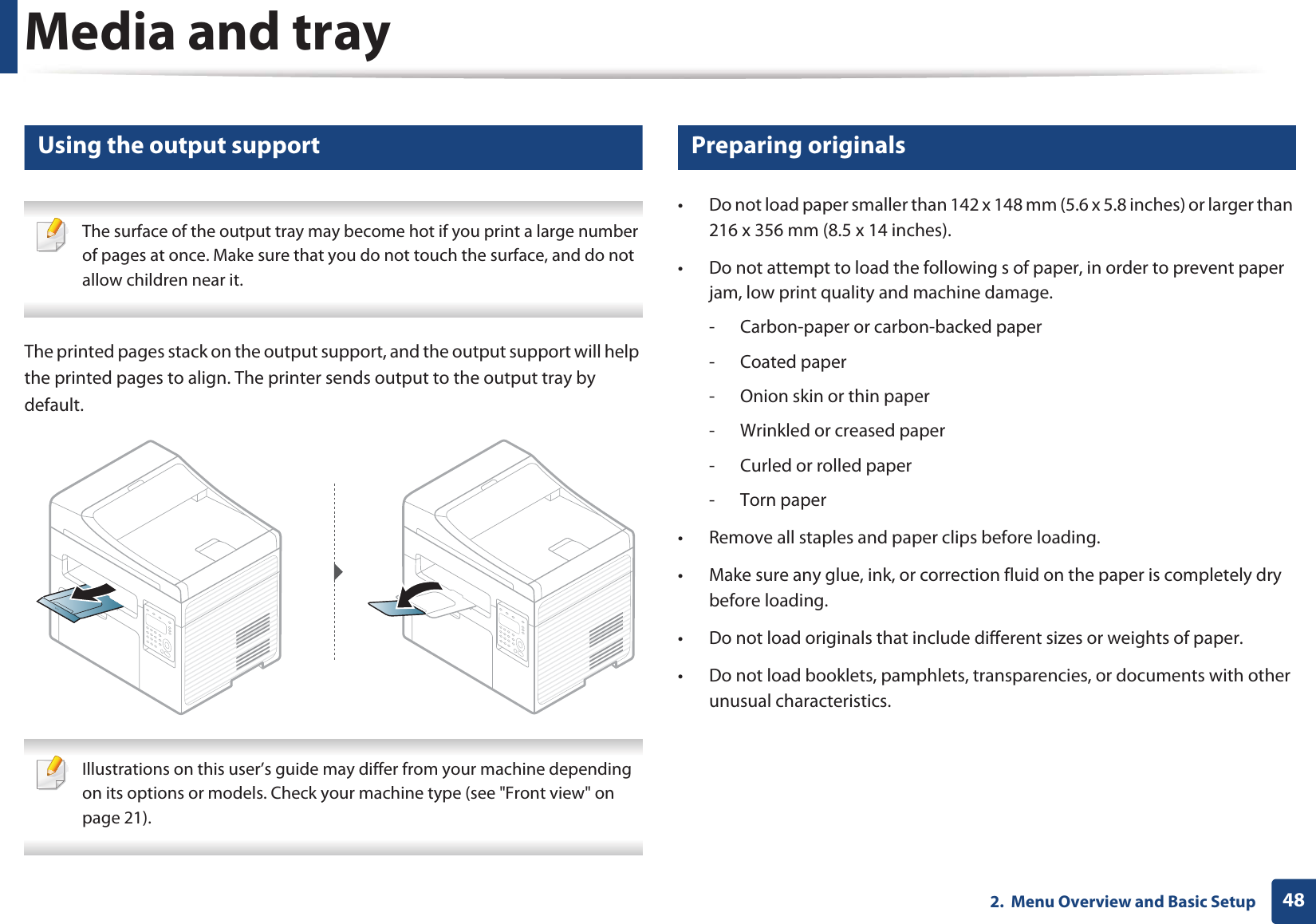

Media and tray482. Menu Overview and Basic Setup7 Using the output support The surface of the output tray may become hot if you print a large number of pages at once. Make sure that you do not touch the surface, and do not allow children near it. The printed pages stack on the output support, and the output support will help the printed pages to align. The printer sends output to the output tray by default. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21). 8 Preparing originals • Do not load paper smaller than 142 x 148 mm (5.6 x 5.8 inches) or larger than 216 x 356 mm (8.5 x 14 inches).• Do not attempt to load the following s of paper, in order to prevent paper jam, low print quality and machine damage.- Carbon-paper or carbon-backed paper- Coated paper- Onion skin or thin paper- Wrinkled or creased paper- Curled or rolled paper- Torn paper• Remove all staples and paper clips before loading.• Make sure any glue, ink, or correction fluid on the paper is completely dry before loading.• Do not load originals that include different sizes or weights of paper.• Do not load booklets, pamphlets, transparencies, or documents with other unusual characteristics.

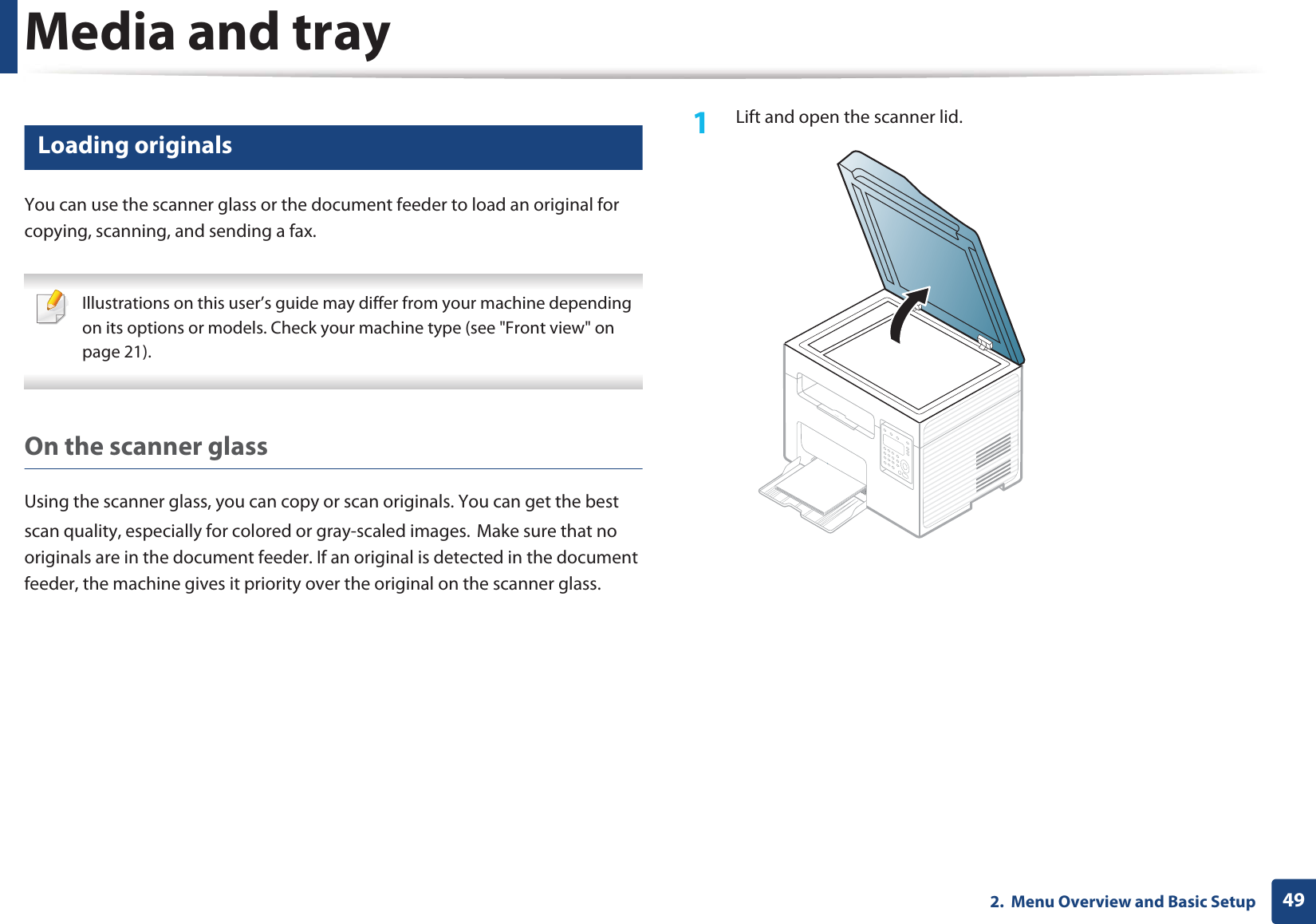

Media and tray492. Menu Overview and Basic Setup9 Loading originalsYou can use the scanner glass or the document feeder to load an original for copying, scanning, and sending a fax. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21). On the scanner glassUsing the scanner glass, you can copy or scan originals. You can get the best scan quality, especially for colored or gray-scaled images.GMake sure that no originals are in the document feeder. If an original is detected in the document feeder, the machine gives it priority over the original on the scanner glass.1Lift and open the scanner lid.
Media and tray502. Menu Overview and Basic Setup2 Place the original face down on the scanner glass. Align it with the registration guide at the top left corner of the glass.3 Close the scanner lid. • Leaving the scanner lid open while copying may affect copy quality and toner consumption.• Dust on the scanner glass may cause black spots on the printout. Always keep it clean (see "Cleaning the machine" on page 80).• If you are copying a page from a book or magazine, lift the scanner lid until its hinges are caught by the stopper and then close the lid. If the book or magazine is thicker than 30 mm, start copying with the scanner lid open. • Be careful not to break the scanner glass. You may get hurt.• Do not put hands while closing the scanner lid. The scanner lid may fall on your hands and get hurt.• Do not look the light from inside of the scanner while copying or scanning. It is harmful to eyes. In the document feeder Using the document feeder, you can load up to 40 sheets of paper (75 g/m2, 20 lbs bond) for one job.1Open the document feeder guide cover.
Media and tray512. Menu Overview and Basic Setup2 Flex or fan the edge of the paper stack to separate the pages before loading originals.3 Load the original face up into the document feeder input tray. Make sure that the bottom of the original stack matches the paper size marked on the document input tray.4 Adjust the document feeder width guides to the paper size. Dust on the document feeder glass may cause black lines on the printout. Always keep the glass clean (see "Cleaning the machine" on page 80).
522. Menu Overview and Basic SetupBasic printing For special printing features, refer to the Advanced Guide (see "Using advanced print features" on page 228). 10 Printing If you are a Macintosh or Linux operating systems user, refer to the Advanced Guide (see "Macintosh printing" on page 236 or "Linux printing" on page 237). The following Printing Preferences window is for Notepad in Windows 7.1Open the document you want to print.2 Select Print from the File menu.3 Select your machine from the Select Printer list.4 The basic print settings including the number of copies and print range are selected within the Print window. To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 54). 5 To start the print job, click OK or Print in the Print window.

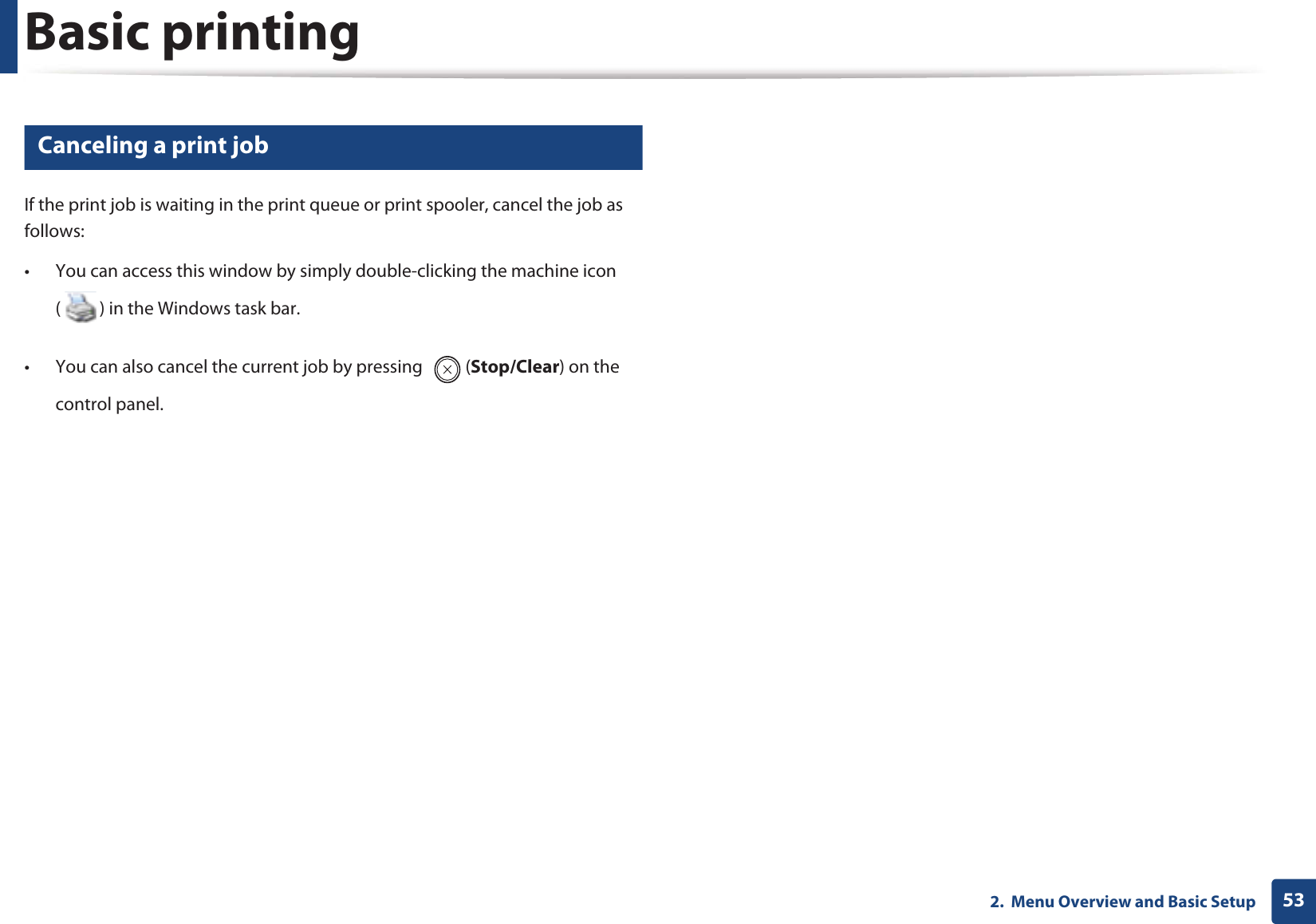

Basic printing532. Menu Overview and Basic Setup11 Canceling a print jobIf the print job is waiting in the print queue or print spooler, cancel the job as follows:• You can access this window by simply double-clicking the machine icon ( ) in the Windows task bar. • You can also cancel the current job by pressing (Stop/Clear) on the control panel.
Basic printing542. Menu Overview and Basic Setup12 Opening printing preferences • The Printing Preferences window that appears in this user’s guide may differ depending on the machine in use. • When you select an option in Printing Preferences, you may see a warning mark or . An mark means you can select that certain option but it is not recommended, and an mark means you cannot select that option due to the machine’s setting or environment. 1Open the document you want to print.2 Select Print from the file menu. The Print window appears. 3 Select your machine from the Select Printer. 4 Click Properties or Preferences. You can check the machine’s current status pressing the Printer Status button (see "Using Samsung Printer Status" on page 276).

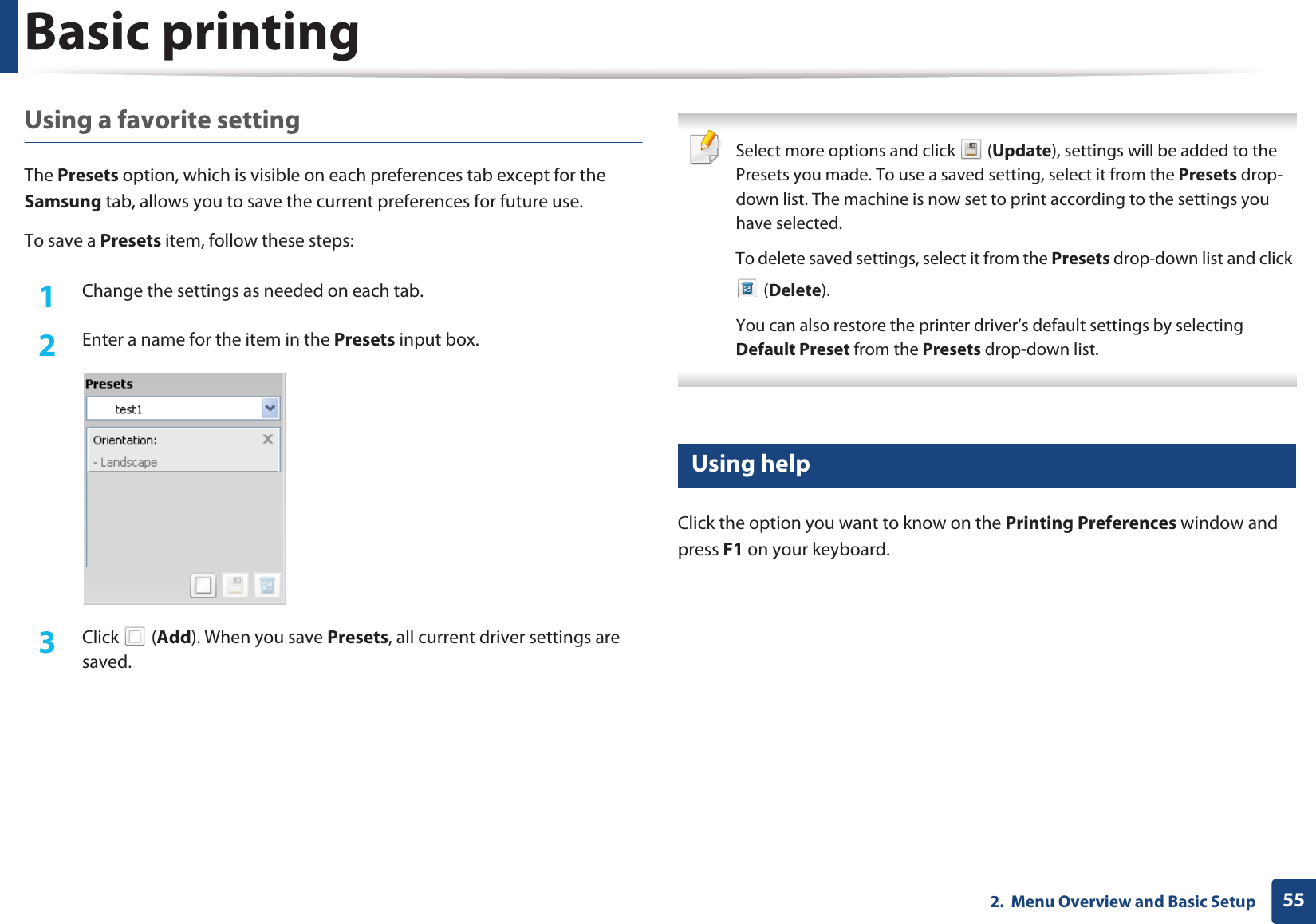

Basic printing552. Menu Overview and Basic SetupUsing a favorite settingThe Presets option, which is visible on each preferences tab except for the Samsung tab, allows you to save the current preferences for future use.To save a Presets item, follow these steps:1Change the settings as needed on each tab. 2 Enter a name for the item in the Presets input box.3 Click (Add). When you save Presets, all current driver settings are saved. Select more options and click (Update), settings will be added to the Presets you made. To use a saved setting, select it from the Presets drop-down list. The machine is now set to print according to the settings you have selected.To delete saved settings, select it from the Presets drop-down list and click (Delete). You can also restore the printer driver’s default settings by selecting Default Preset from the Presets drop-down list. 13 Using helpClick the option you want to know on the Printing Preferences window and press F1 on your keyboard.
Basic printing562. Menu Overview and Basic Setup14 Eco printingThe Eco function cuts toner consumption and paper usage. The Eco function allows you to save print resources and lead you to eco-friendly printing.If you press the Eco button from the control panel, eco mode is enabled. The default setting of Eco mode is Multiple Pages per Side (2) and Toner Save.Setting Eco mode on the control panel If your has machine for RVTGbuttons on the control panel or the machine is not supported network (see "Control panel overview" on page 24):You can set the machine’s settings by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHUprogram or Machine section in Printer Settings Utility program.• For Windows and Macintosh users, see "Device Settings" on page 275.• For Linux users, see "Using Smart Panel" on page 278. • The settings set from the machine’s driver override the settings on the control panel.• Accessing menus may differ from model to model (see "Accessing the menu" on page 33).• It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) > System Setup > Machine Setup > Eco Settings on the control panel.2 Select the option you want and press OK.•Default Mode: Select this to turn on or off the eco mode. (Toner save/2-up)-Off: Set the eco mode off.-On: Set the eco mode on. If you set the eco mode on with a password from the SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco > Settings) or 6DPVXQJ(DV\3ULQWHU0DQDJHU(Device Settings > Eco), the On force message appears. You have to enter the password to change the eco mode status.
Basic printing572. Menu Overview and Basic Setup•Select Temp.: Follow the settings from Syncthru™ Web Service or 6DPVXQJ(DV\3ULQWHU0DQDJHU. Before you select this item, you must set the eco function in SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco > Settings) or 6DPVXQJ(DV\3ULQWHU0DQDJHU(Device Settings > Eco). -Default Eco: The machine is set to Default Eco mode.-Custom Eco: Change any necessary values.3 Press OK to save the selection.Setting eco mode on the driverOpen the Eco tab to set Eco mode. When you see the eco image ( ), that means the eco mode is currently enabled.Eco options•Printer Default: Follows the settings from the machine's control panel.•None: Disables Eco mode.•Eco Printing: Enables eco mode. Activate the various Eco items you want to use.•Password: If the administrator fixed to enable the Eco mode, you have to enter the password to change the status.Result simulatorResult Simulator shows the results of reduced emission of carbon dioxide, used electricity, and the amount of saved paper in accordance with the settings you selected.• The results are calculated on the basis that the total number of printed paper is one hundred without a blank page when the Eco mode is disabled.• Refers to the calculation coefficient about CO2, energy, and paper from IEA, the index of Ministry of Internal Affairs and Communication of Japan and www.remanufacturing.org.uk. Each model has a different index. • The power consumption in printing mode refers to the average printing power consumption of this machine. • The actual amount displayed is only an estimate as the actual amount may differ depending on the operating system used, computing performance, application software, connection method, media type [thickness], media size, job complexity, etc.
582. Menu Overview and Basic SetupBasic copying For special printing features, refer to the Advanced Guide (see "Copy menu" on page 191). 15 Basic copy If your has machine for RVTGbuttons on the control panel (see "Control panel overview" on page 24):a Place a single original face down on the scanner glass.b If you want to customize the copy settings including darkness, original type and more by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHUprogram or Machine section in Printer Settings Utility program.• For Windows and Macintosh users, see "Device Settings" on page 275.• For Linux users, see "Using Smart Panel" on page 278.c Enter the number of copies using the +/- buttons if necessary.d Press (Start). 1Select (copy) on the control panel.2 Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 49).3 If you want to customize the copy settings including Reduce/Enlarge, Darkness, Contrast, Original Type, and more by using the control panel buttons (see "Changing the settings for each copy" on page 58). 4 Enter the number of copies using the arrow or number keypad, if necessary.5 Press (Start). If you need to cancel the copying job during the operation, press (Stop/Clear) and the copying will stop. 16 Changing the settings for each copyYour machine provides default settings for copying so that you can quickly and easily make a copy.
Basic copying592. Menu Overview and Basic Setup •If you press the (Stop/Clear) button twice while setting the copy options, all of the options you have set for the current copy job will be canceled and returned to their default status. Or, they will automatically return to their default status after the machine completes the copy in progressU• Accessing menus may differ from model to model (see "Accessing the menu" on page 33).If your has machine for RVTGbuttons on the control panel:You can customize the copy settings such as darkness, original type and more by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHUprogram or the Machine section in Printer Settings Utility program.- For Windows and Macintosh users, see "Device Settings" on page 275.- For Linux users, see "Using Smart Panel" on page 278.• It may be necessary to press OK to navigate to lower-level menus for some models. DarknessIf you have an original containing faint marking and dark images, you can adjust the brightness to make a copy that is easier to read.1Select (copy) > (Menu) > Copy Feature > Darkness on the control panel.2 Select the option you want and press OK.For example, the Light+5 being the lightest, and the Dark+5 being the darkest.3 Press (Stop/Clear) to return to ready mode.ContrastThe Contrast menu lets you increase or decrease the difference between the bright and dark areas of an image.1Select (copy) > (Menu) > Copy Feature > Contrast on the control panel.2 Select the option you want and press OK.Select Dark to heighten the contrast and select Light to reduce it.3 Press (Stop/Clear) to return to ready mode.Original The original setting is used to improve the copy quality by selecting the document for the current copy job.
Basic copying602. Menu Overview and Basic Setup1Select (copy) > (Menu) > Copy Feature > Original Type on the control panel.2 Select the option you want and press OK.•Text: Use for originals containing mostly text.•Text/Photo: Use for originals with mixed text and photographs. If texts in the printout is blurry, select Text to get the clear texts. •Photo: Use when the originals are photographs.3 Press (Stop/Clear) to return to ready mode.Reduced or enlarged copyYou can reduce or enlarge the size of a copied image from 25% to 400% from the document feeder or scanner glass. • This feature may not be available depending on model or optional goods (see "Variety feature" on page 10).• If the machine set to Eco mode, reduce and enlarge features are not available. To select from the predefined copy sizes1Select (copy) > (Menu) > Copy Feature > Reduce/Enlarge on the control panel.2 Select the option you want and press OK.3 Press (Stop/Clear) to return to ready mode.To scale the copy by directly entering the scale rate1Select (copy) > (Menu) > Copy Feature > Reduce/Enlarge > Custom on the control panel.2 Enter the copy size you want using the numeric keypad.3 Press OK to save the selection.4 Press (Stop/Clear) to return to ready mode. When you make a reduced copy, black lines may appear at the bottom of your copy. 17 ID card copyingYour machine can print 2-sided originals on one sheet.
Basic copying612. Menu Overview and Basic SetupThe machine prints one side of the original on the upper half of the paper and the other side on the lower half without reducing the size of the original. This feature is helpful for copying a small-sized item such as business card. • The original must be placed on the scanner glass to use this feature.• If the machine set to Eco mode, this feature is not available. Depending on the model, the operating procedure may differ.1Press ID Copy on the control panel.2 Place the front side of an original facing down on the scanner glass where arrows indicate as shown. Then, close the scanner lid.3 Place Front Side and Press [Start] appears on the display.If your machine has +/- buttons on the control panel, the Front LED on the control panel lights on.4 Press (Start).Your machine begins scanning the front side and shows Place Back Side and Press [Start].If your machine has +/- buttons on the control panel, the Back LED on the control panel lights on.5 Turn the original over and place it on the scanner glass where arrows indicate as shown. Then, close the scanner lid.6 Press (Start) button.

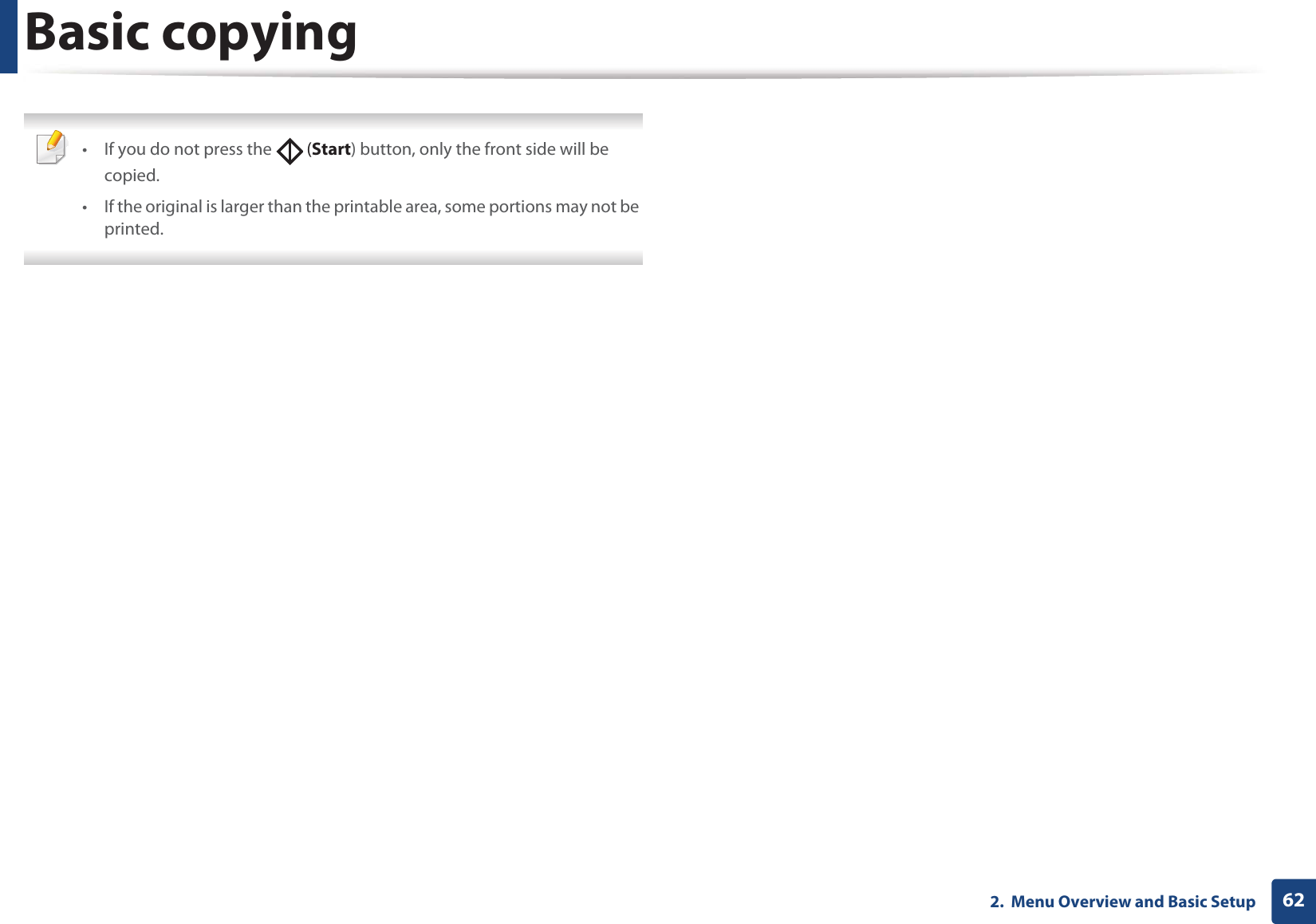

Basic copying622. Menu Overview and Basic Setup • If you do not press the (Start) button, only the front side will be copied.• If the original is larger than the printable area, some portions may not be printed.
632. Menu Overview and Basic SetupBasic scanning For special scanning features, refer to the Advanced Guide (see "Scan features" on page 242). 18 Basic ScanningThis is the normal and usual procedure for scanning originals.This is a basic scanning method for USB-connected machine. • It may be necessary to press OK to navigate to lower-level menus for some models.• If you want to scan using the network, refer to the Advanced Guide (see "Scanning from network connected machine" on page 243). 1Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 49).2 Select (scan) > Scan to PC on the control panel.ORPress Scan to on the control panerl. If you see Not Available message, check the port connectionSGor select Enable Scan from Device Panel in 5COUWPI'CU[2TKPVGT/CPCIGT!Switch to advanced mode!Scan to 2% Settings. 3 Select the scan destination you want and press OK.Default setting is My Documents. • You can create and save the frequently used settings as a profile list. Also you can add and delete the profile and save each profile to a different path.•To change the 5COUWPI'CU[2TKPVGT/CPCIGT! Switch to advanced mode!Scan to 2% Settings. 4 Select the option you want and press OK.5 Scanning begins. Scanned image is saved in computer’s C:\Users\users name\My Documents. The saved folder may differ, depending on your operating system or the application you are using.
642. Menu Overview and Basic SetupBasic faxing • This function is not supported for SCX-340x/SCX-340xW Series (see "Control panel overview" on page 24).• For special faxing features, refer to the Advanced Guide (see "Fax features" on page 253). • You cannot use this machine as a fax via the internet phone. For more information ask your internet service provider.• We recommend using traditional analog phone services (PSTN: Public Switched Telephone Network) when connecting telephone lines to use a fax machine. If you use other Internet services (DSL, ISDN, VolP), you can improve the connection quality by using the Micro-filter. The Micro-filter eliminates unnecessary noise signals and improves connection quality or Internet quality. Since the DSL Micro-filter is not provided with the machine, contact your Internet service provider for use on DSL Micro-filter.1Line port2Micro filter3DSL modem / Telephone line(see "Rear view" on page 23). 19 Preparing to faxBefore you send or receive a fax, you need to connect the supplied line cord to your telephone wall jack (see "Rear view" on page 23). Refer to the Quick Installation Guide how to make a connection. The method of making a telephone connection is different from one country to another.20 Sending a fax When you place the originals, you can use either the document feeder or the scanner glass. If the originals are placed on both the document feeder and the scanner glass, the machine will read the originals on the document feeder first, which has higher priority in scanning. 1Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 49).2 Select (fax) on the control panel.3 Adjust the resolution and the darkness to suit your fax needs (see "Adjusting the document settings" on page 66).

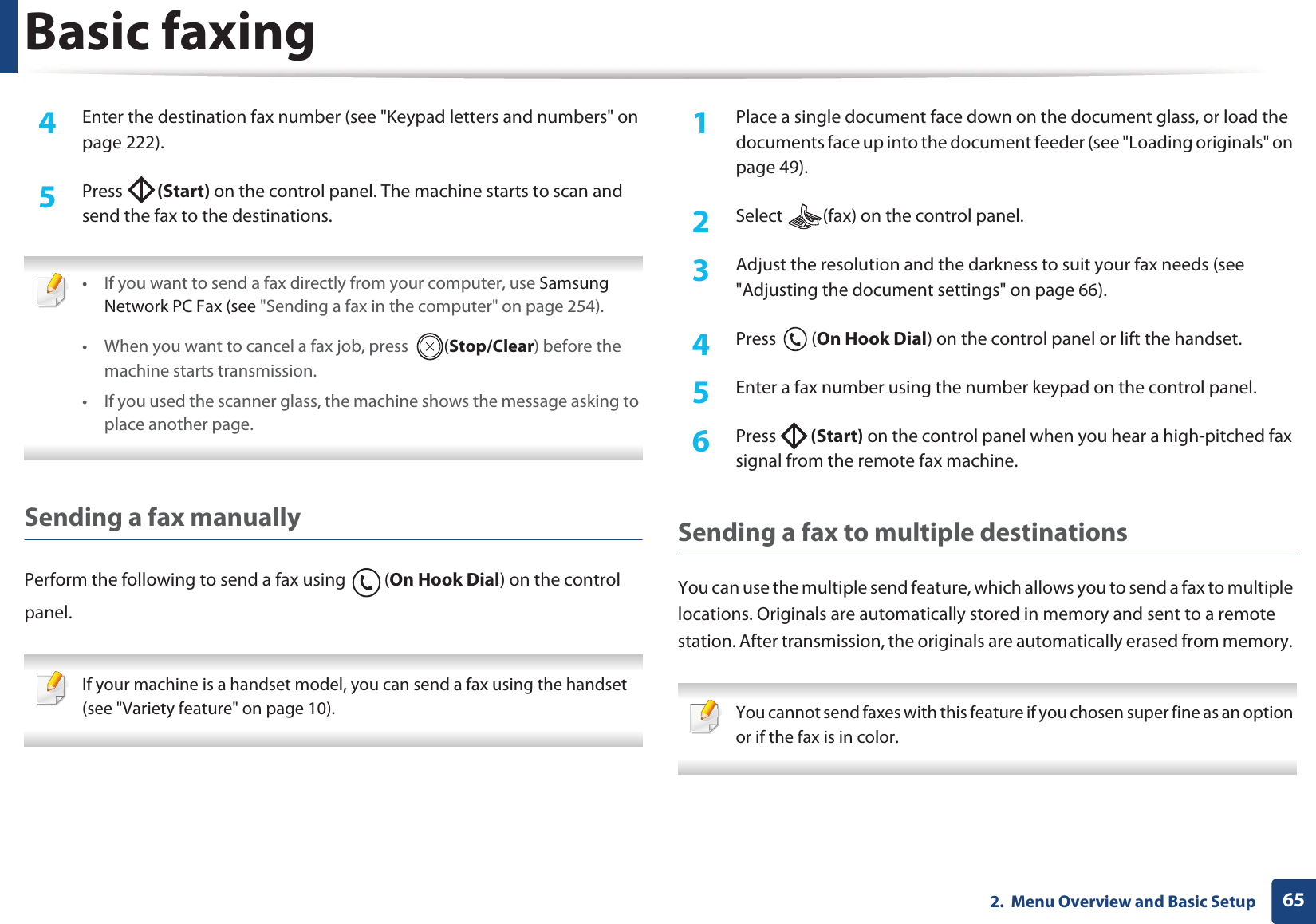

Basic faxing652. Menu Overview and Basic Setup4 Enter the destination fax number (see "Keypad letters and numbers" on page 222).5 Press (Start) on the control panel. The machine starts to scan and send the fax to the destinations. • If you want to send a fax directly from your computer, use Samsung Network PC Fax (see "Sending a fax in the computer" on page 254).• When you want to cancel a fax job, press (Stop/Clear) before the machine starts transmission.• If you used the scanner glass, the machine shows the message asking to place another page. Sending a fax manuallyPerform the following to send a fax using (On Hook Dial) on the control panel. If your machine is a handset model, you can send a fax using the handset (see "Variety feature" on page 10). 1Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 49).2 Select (fax) on the control panel.3 Adjust the resolution and the darkness to suit your fax needs (see "Adjusting the document settings" on page 66).4 Press (On Hook Dial) on the control panel or lift the handset.5 Enter a fax number using the number keypad on the control panel.6 Press (Start) on the control panel when you hear a high-pitched fax signal from the remote fax machine.Sending a fax to multiple destinationsYou can use the multiple send feature, which allows you to send a fax to multiple locations. Originals are automatically stored in memory and sent to a remote station. After transmission, the originals are automatically erased from memory. You cannot send faxes with this feature if you chosen super fine as an option or if the fax is in color.
Basic faxing662. Menu Overview and Basic Setup1Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 49).2 Select (fax) on the control panel.3 Adjust the resolution and the darkness to suit your fax needs (see "Adjusting the document settings" on page 66).4 Select (Menu) > Fax Feature > Multi Send on the control panel.5 Enter the number of the first receiving fax machine and press OK.You can press speed dial numbers or select a group dial number using the (Address book) button.6 Enter the second fax number and press OK.The display asks you to enter another fax number to send the document.7 To enter more fax numbers, press OK when Yes appears and repeat steps 5 and 6. • You can add up to 10 destinations.• Once you have entered a group dial number, you cannot enter another group dial number. 8 When you have finished entering fax numbers, select No at the Another No.? prompt and press OK.The machine begins sending the fax to the numbers you entered in the order in which you entered them.Multi send report is printed after sending faxes.21 Receiving a faxYour machine is preset Fax mode at the factory. When you receive a fax, the machine answers the call on a specified number of rings and automatically receives the fax.22 Adjusting the document settingsBefore starting a fax, change the following settings according to your original’s status to get the best quality. It may be necessary to press OK to navigate to lower-level menus for some models.

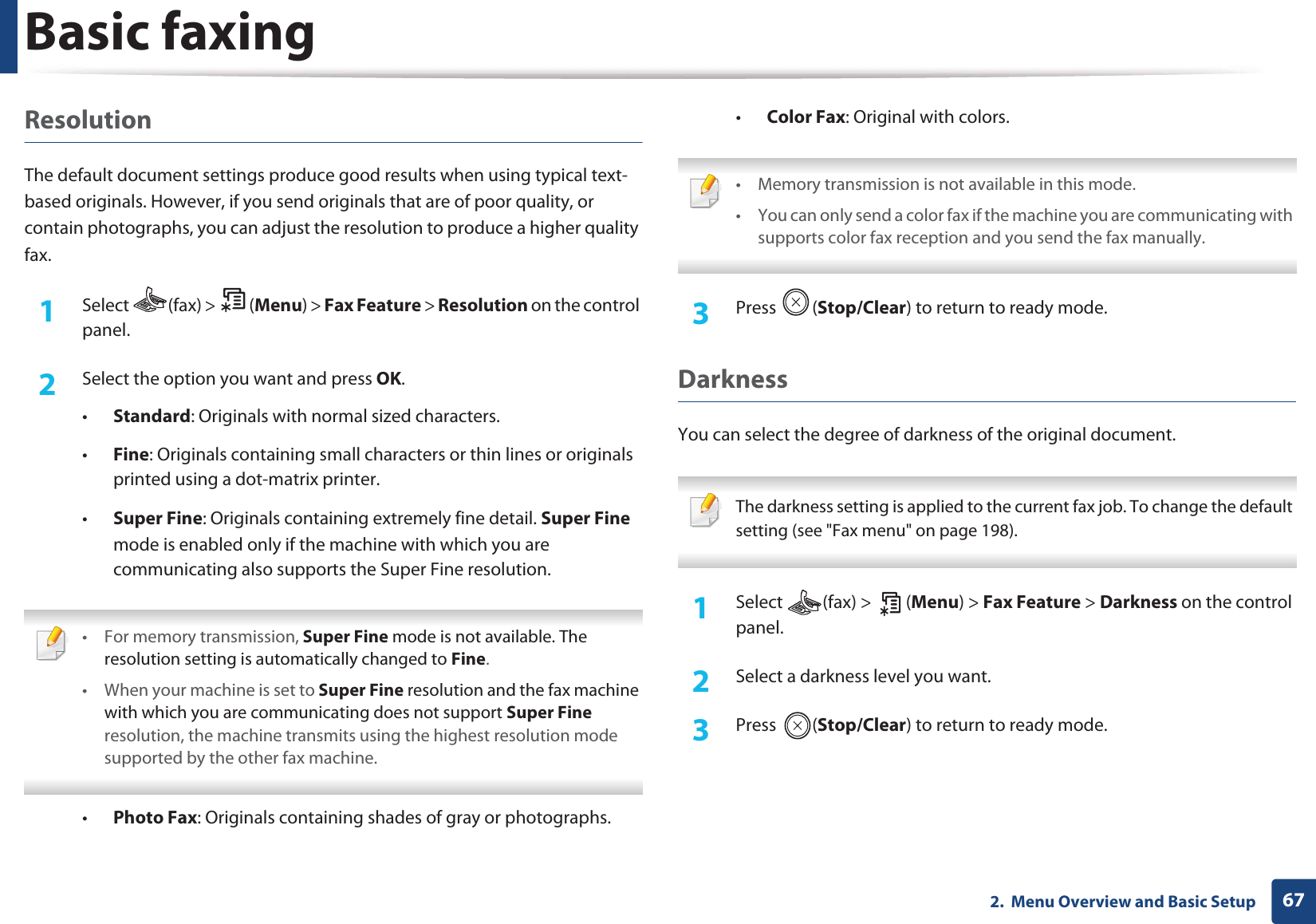

Basic faxing672. Menu Overview and Basic SetupResolutionThe default document settings produce good results when using typical text-based originals. However, if you send originals that are of poor quality, or contain photographs, you can adjust the resolution to produce a higher quality fax. 1Select (fax) > (Menu) > Fax Feature > Resolution on the control panel.2 Select the option you want and press OK.•Standard: Originals with normal sized characters.•Fine: Originals containing small characters or thin lines or originals printed using a dot-matrix printer.•Super Fine: Originals containing extremely fine detail. Super Fine mode is enabled only if the machine with which you are communicating also supports the Super Fine resolution. • For memory transmission, Super Fine mode is not available. The resolution setting is automatically changed to Fine.• When your machine is set to Super Fine resolution and the fax machine with which you are communicating does not support Super Fine resolution, the machine transmits using the highest resolution mode supported by the other fax machine. •Photo Fax: Originals containing shades of gray or photographs.•Color Fax: Original with colors. • Memory transmission is not available in this mode.• You can only send a color fax if the machine you are communicating with supports color fax reception and you send the fax manually. 3 Press (Stop/Clear) to return to ready mode.DarknessYou can select the degree of darkness of the original document. The darkness setting is applied to the current fax job. To change the default setting (see "Fax menu" on page 198). 1Select (fax) > (Menu) > Fax Feature > Darkness on the control panel.2 Select a darkness level you want.3 Press (Stop/Clear) to return to ready mode.

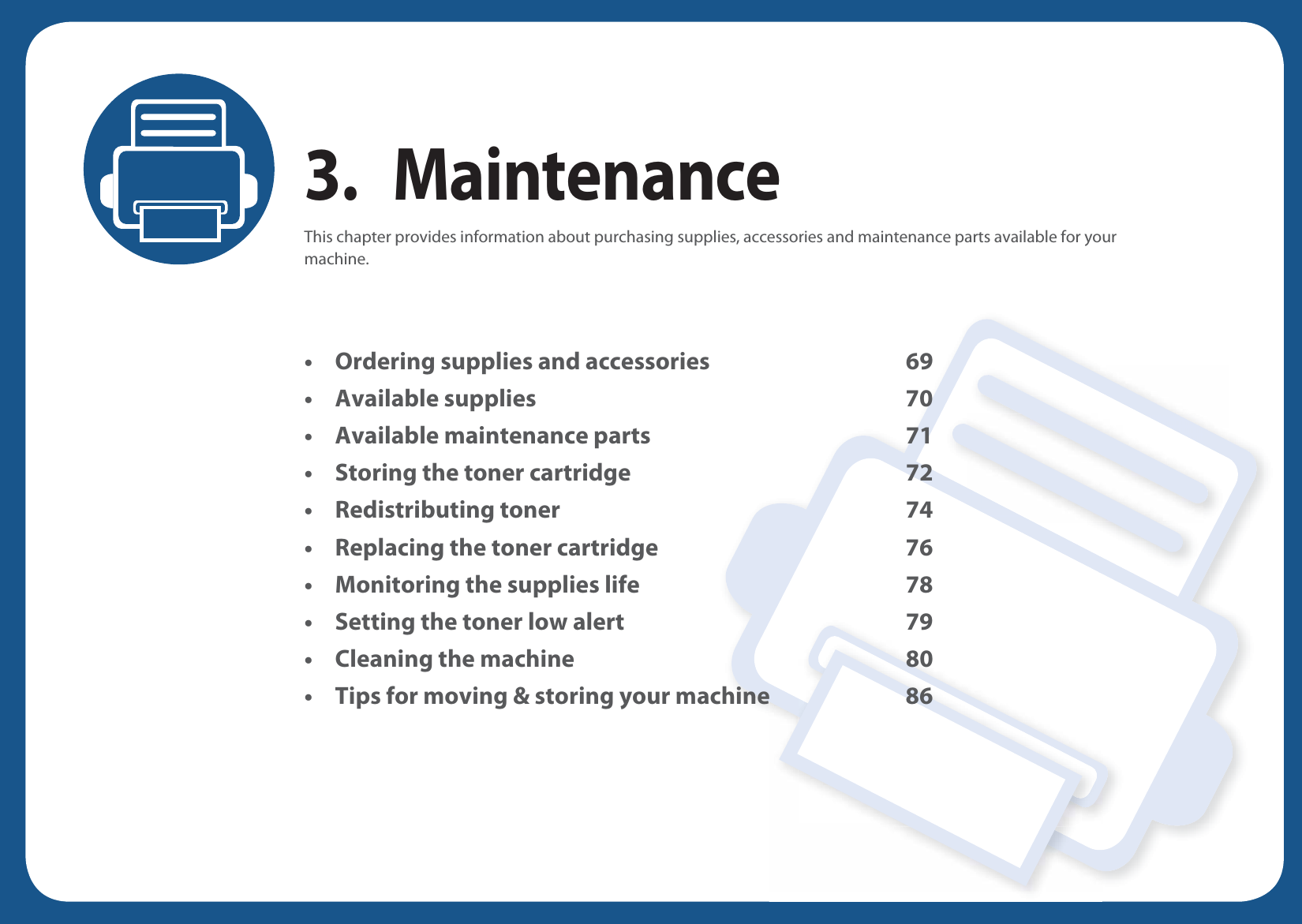

3. MaintenanceThis chapter provides information about purchasing supplies, accessories and maintenance parts available for your machine.• Ordering supplies and accessories 69• Available supplies 70• Available maintenance parts 71• Storing the toner cartridge 72• Redistributing toner 74• Replacing the toner cartridge 76• Monitoring the supplies life 78• Setting the toner low alert 79• Cleaning the machine 80• Tips for moving & storing your machine 86

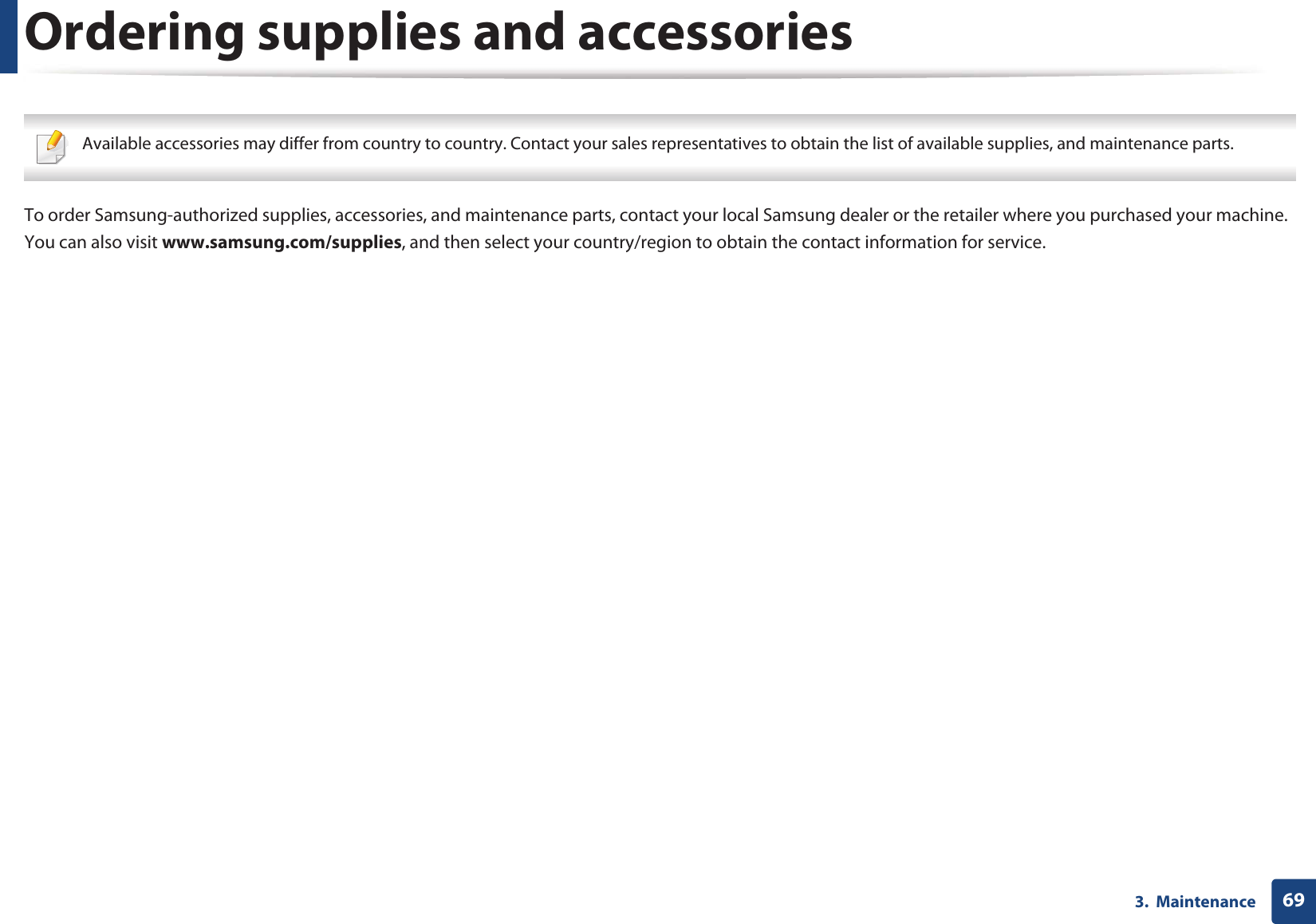

693. MaintenanceOrdering supplies and accessories Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts. To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.
703. MaintenanceAvailable suppliesWhen supplies reach the end of their life spans, you can order the followings of supplies for your machine: Depending on the options, percentage of image area and job mode used, the toner cartridge’s lifespan may differ. When purchasing new toner cartridges or other supplies, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other supplies will be incompatible with your machine due to different configurations of toner cartridges and other supplies according to the specific country conditions. Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine’s warranty. Type Average yieldaa. Declared yield value in accordance with ISO/IEC 19752. The number of pages may be affected by operating environment, printing interval, graphics, media type and media size.Part nameToner cartridge Approx. 1,500 pages MLT-D101S
713. MaintenanceAvailable maintenance partsTo purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its “Average yield”.Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which is to maintain your machine in top working condition. The maintenance parts below should be replaced when the life span of each item has been met.Parts Average yieldaa. It will be affected by the operating system used, computing performance, application software, connecting method, media, media size and job complexity.Transfer Roller Approx. 30,000 pages Fuser Unit Approx. 30,000 pagesPick-Up Roller Approx. 30,000 pagesFeed Roller Approx. 30,000 pagesADF Feed Rollerbb. This feature may not be available depending on model or optional goods (see "Variety feature" on page 10).Approx. 20,000 pagesADF Rubber PadbApprox. 20,000 pages
723. MaintenanceStoring the toner cartridgeToner cartridges contain components that are sensitive to light, temperature and humidity. Samsung suggests users follow these recommendations to ensure optimal performance, highest quality, and longest life from your new Samsung toner cartridge.Store this cartridge in the same environment in which the printer will be used. This should be in controlled temperature and humidity conditions. The toner cartridge should remain in its original and unopened package until installation – if original packaging is not available, cover the top opening of the cartridge with paper and store in a dark cabinet.Opening the cartridge package prior to use dramatically shortens its useful shelf and operating life. Do not store on the floor. If the toner cartridge is removed from the printer, follow the instructions below to store the toner cartridge properly.• Store the cartridge inside the protective bag from the original package. • Store lying flat (not standing on end) with the same side facing up as if it were installed in the machine.• Do not store consumables in any of the following conditions:- Temperature greater than 40°C (104°F).- Humidity range less than 20% or greater than 80%.- An environment with extreme changes in humidity or temperature.- Direct sunlight or room light.- Dusty places.- A car for a long period of time.- An environment where corrosive gases are present.- An environment with salty air.1 Handling instructions• Do not touch the surface of the photoconductive drum in the cartridge.• Do not expose the cartridge to unnecessary vibrations or shock.• Never manually rotate the drum, especially in the reverse direction; this can cause internal damage and toner spillage.2 Toner cartridge usageSamsung Electronics does not recommend or approve the use of non-Samsung brand toner cartridges in your printer including generic, store brand, refilled, or remanufactured toner cartridges. Samsung’s printer warranty does not cover damage to the machine caused by the use of a refilled, remanufactured, or non-Samsung brand toner cartridges.

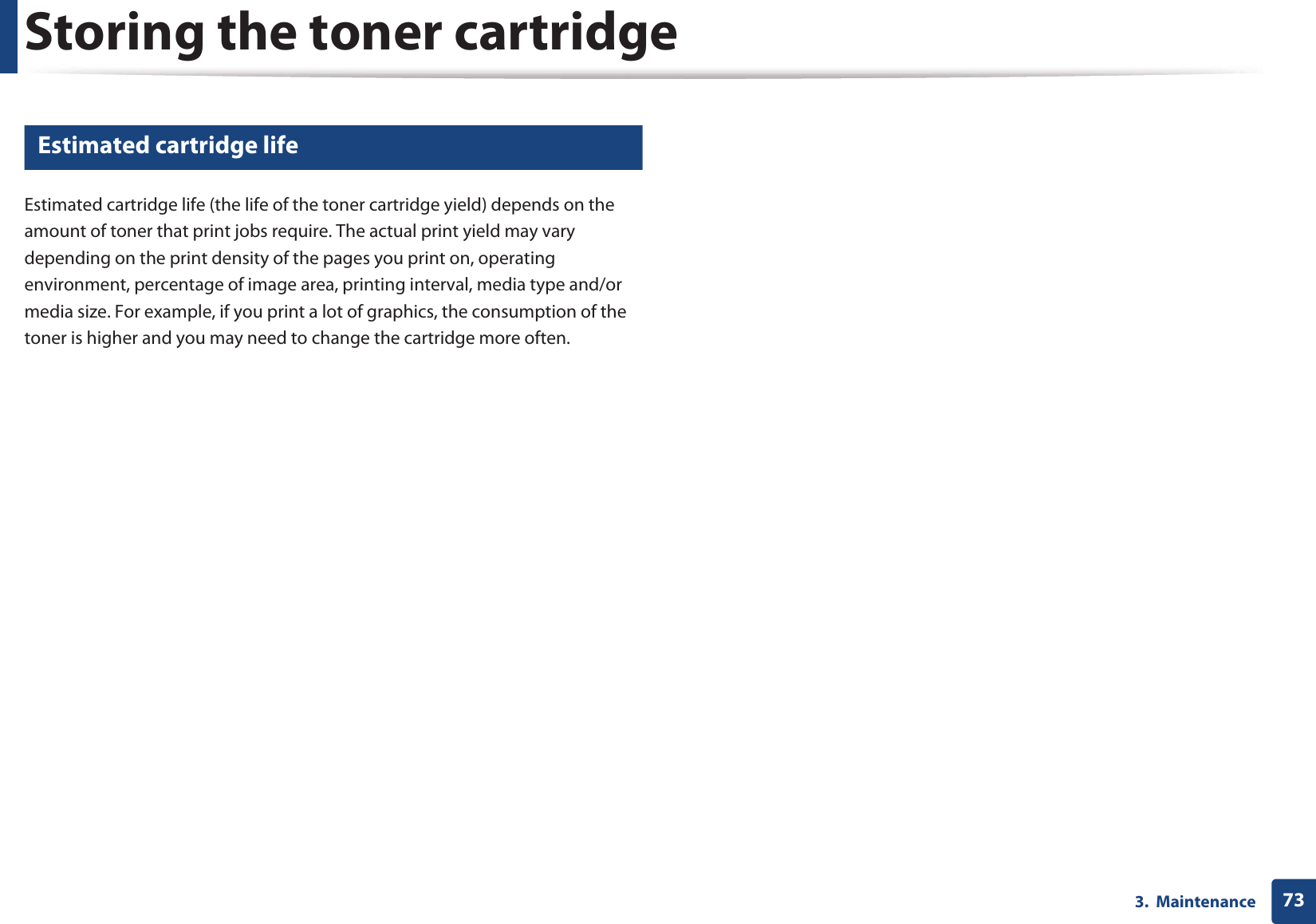

Storing the toner cartridge733. Maintenance3 Estimated cartridge lifeEstimated cartridge life (the life of the toner cartridge yield) depends on the amount of toner that print jobs require. The actual print yield may vary depending on the print density of the pages you print on, operating environment, percentage of image area, printing interval, media type and/or media size. For example, if you print a lot of graphics, the consumption of the toner is higher and you may need to change the cartridge more often.
743. MaintenanceRedistributing tonerWhen the toner cartridge is near the end of its life:• White streaks or light printing occurs and/or density variation side to side. • The Status LED blinks red. In the case of machine with a Toner LED, it blinks orange. If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21). • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.• When opening a scan unit, hold the document feeder and scan unit together.
Redistributing toner753. Maintenance1 2
763. MaintenanceReplacing the toner cartridge Click this link to open an animation about replacing a toner cartridge. • Shake the toner cartridge thoroughly, it will increase the initial print quality.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21). • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.• When opening a scan unit, hold the document feeder and scan unit together. When a toner cartridge has reached the end of life, the machine will stop printing.
Replacing the toner cartridge773. Maintenance
783. MaintenanceMonitoring the supplies lifeIf you experience frequent paper jams or printing problems, check the number of pages the machine has printed or scanned. Replace the corresponding parts, if necessary. • If your has machine for RVTGbuttons on the control panel (see "Control panel overview" on page 24):In ready mode, press and hold (Stop/Clear) button for about 6 seconds, then release. A supplied Information report prints out.• It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) > System Setup > Maintenance > Supplies Life on the control panel.2 Select the option you want and press OK.•Total: Displays the total number of pages printed.•ADF Scan: Displays the number of pages printed by using the document feeder.•Platen Scan: Displays the number of pages scanned by using scanner glass.•Supplies Info.: Prints the supply information page.3 Press (Stop/Clear) to return to ready mode.
793. MaintenanceSetting the toner low alertIf the amount of toner in the cartridge is low, a message or LED informing the user to change the toner cartridge appears. You can set the option for whether or not this message or LED appears. If your has machine for RVTGbuttons on the control panel (see "Control panel overview" on page 24):You can set the machine’s settings by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHUprogram or Machine section in Printer Settings Utility program.• For Windows and Macintosh users, see "Device Settings" on page 275.• For Linux users, see "Using Smart Panel" on page 278. 1Select (Menu) > System Setup > Maintenance > TonerLow Alert on the control panel.2 Select the option you want.3 Press OK to save the selection.
803. MaintenanceCleaning the machineIf printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer. • Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet. • If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you. 4 Cleaning the outsideClean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.
Cleaning the machine813. Maintenance5 Cleaning the insideDuring the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems. • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine. • Use a dry lint-free cloth to clean the machine.• Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).• When opening a scan unit, hold the document feeder and scan unit together.

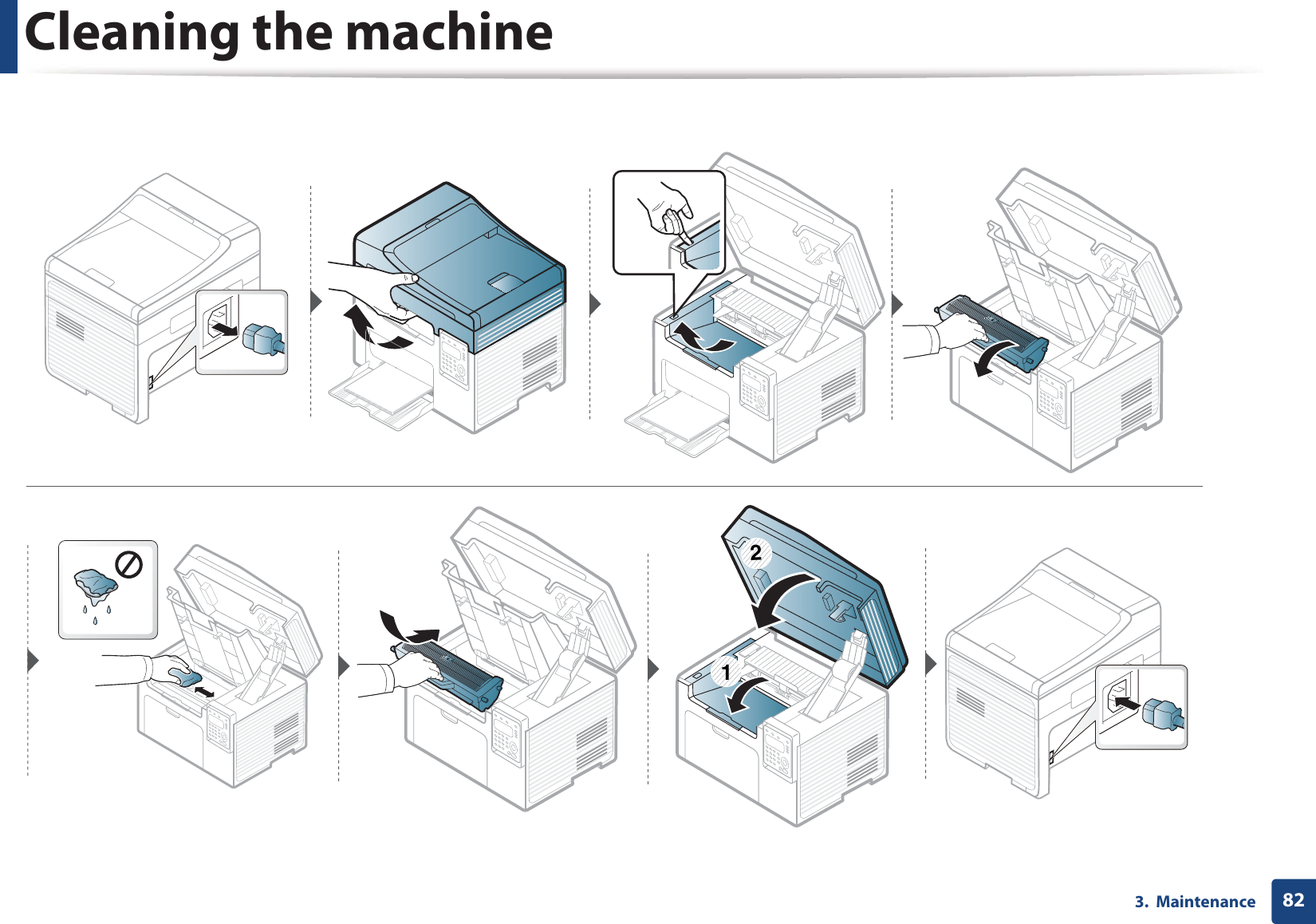

Cleaning the machine823. Maintenance1 2
Cleaning the machine833. Maintenance6 Cleaning the pickup roller • Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).
Cleaning the machine843. Maintenance7 Cleaning the scan unitKeeping the scan unit clean helps ensure the best possible copies. We suggest that you clean the scan unit at the start of each day and during the day as needed. • Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21). 1Slightly dampen a soft, lint-free cloth or paper towel with water.2 Lift and open the scanner lid.
Cleaning the machine853. Maintenance3 Wipe the surface of the scanner until it is clean and dry.1Scanner lid2Scanner glass3Document feeder glass4White bar4 Close the scanner lid. 1 2 4 3
863. MaintenanceTips for moving & storing your machine• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.• When moving the machine, make sure at least two people are holding the machine securely.
4. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Tips for avoiding paper jams 88• Clearing original document jams 89• Clearing paper jams 94• Understanding the status LED 98• Understanding display messages 100 This chapter gives helpful information for what to do if you encounter an error. If your machine has a display screen, check the message on the display screen first to solve the error.If you cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in the Advanced Guide (see "Troubleshooting" on page 284).If you cannot find a solution in the User's Guide or the problem persists, call for service.
884. TroubleshootingTips for avoiding paper jamsBy selecting the correct media s, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 40).• Do not remove paper from the tray while your machine is printing.• Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper.• Do not mix papers in a tray.• Use only recommended print media (see "Print media specifications" on page 109).

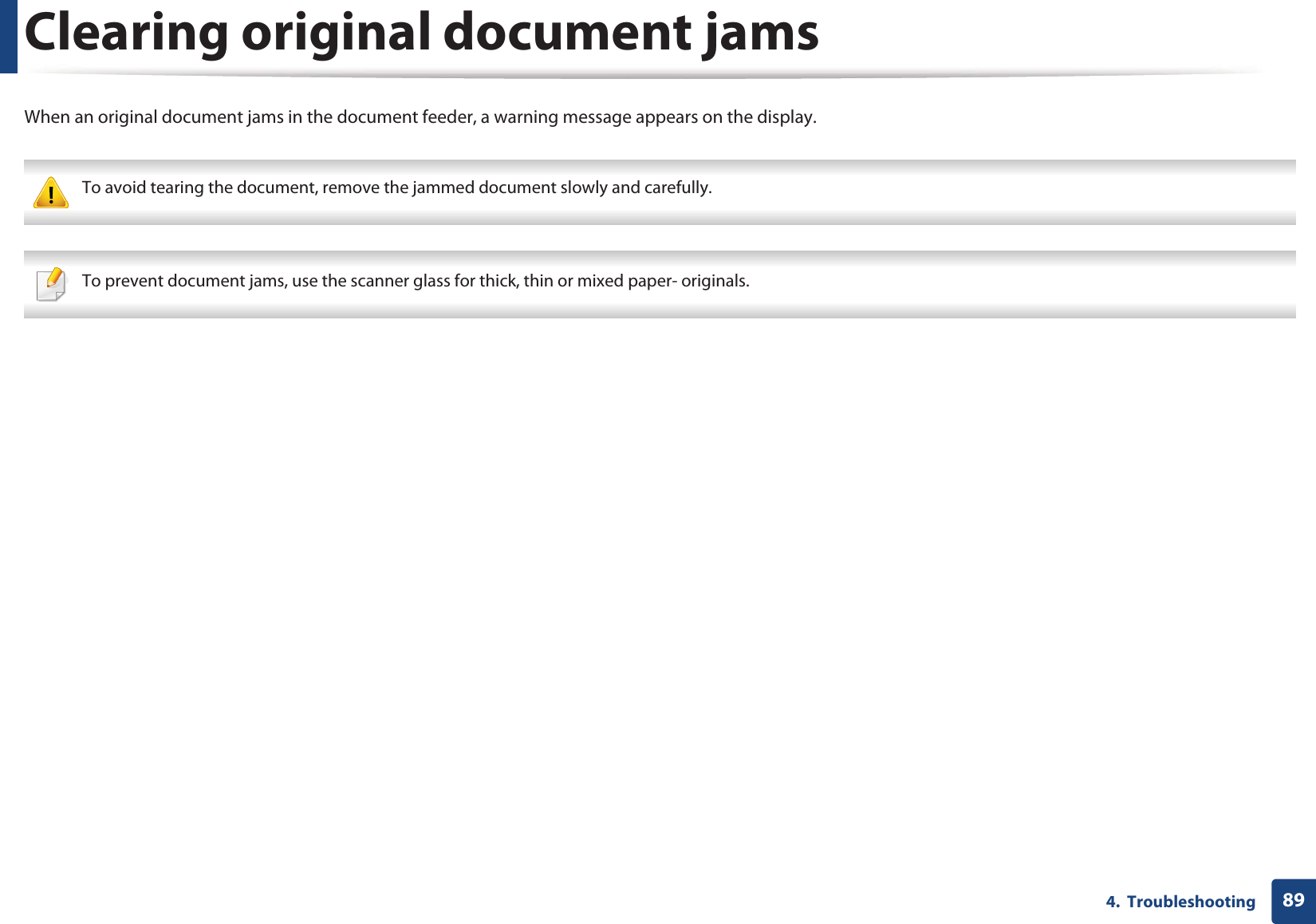

894. TroubleshootingClearing original document jamsWhen an original document jams in the document feeder, a warning message appears on the display. To avoid tearing the document, remove the jammed document slowly and carefully. To prevent document jams, use the scanner glass for thick, thin or mixed paper- originals.
Clearing original document jams904. Troubleshooting1 Original paper jam in front of scanner • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).• This troubleshooting may not be available depending on model or optional goods (see "Variety feature" on page 10).
Clearing original document jams914. Troubleshooting2 Original paper jam inside of scanner • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).• This troubleshooting may not be available depending on model or optional goods (see "Variety feature" on page 10).

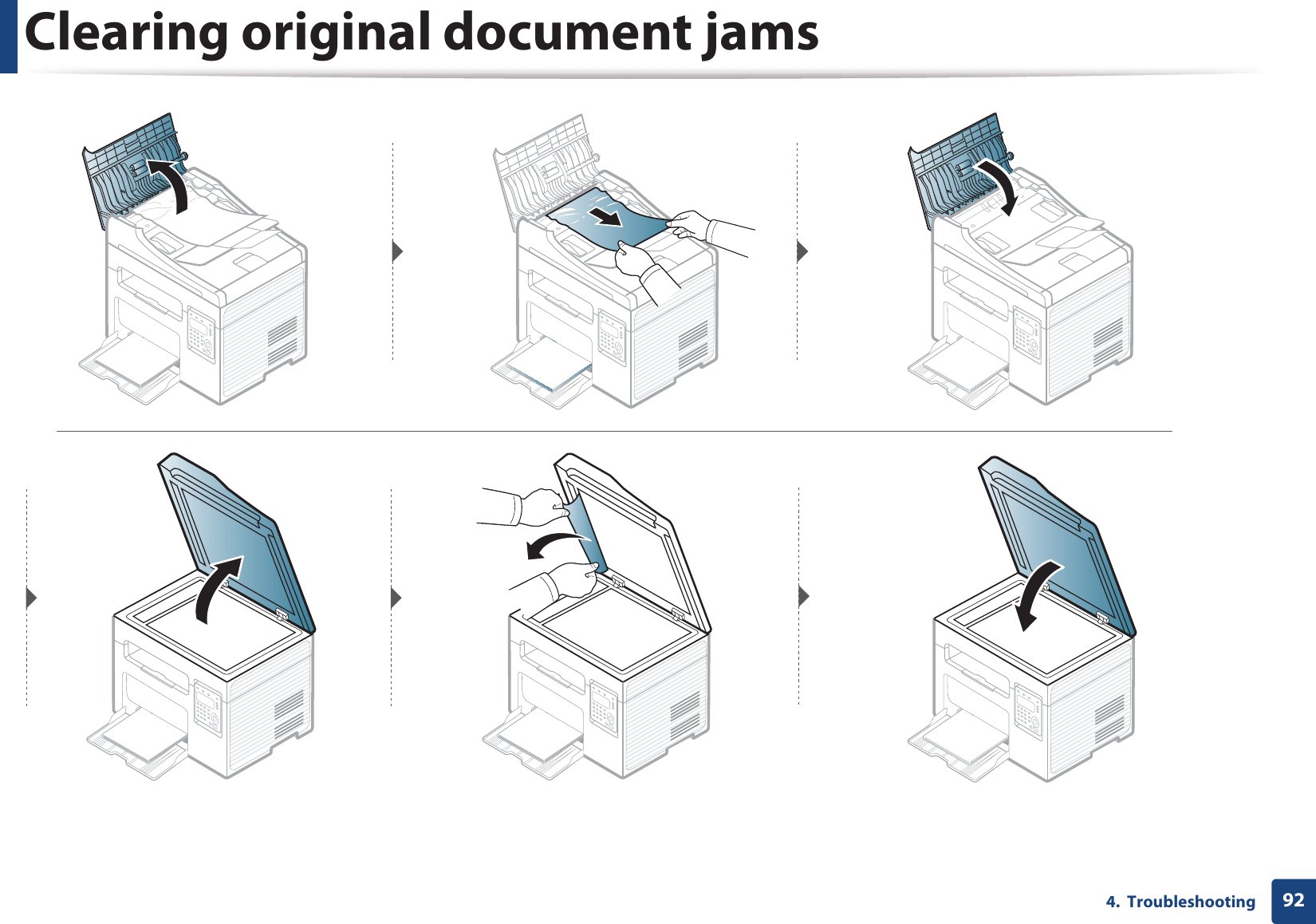

Clearing original document jams924. Troubleshooting
Clearing original document jams934. Troubleshooting3 Original paper jam in exit area of scanner • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).• This troubleshooting may not be available depending on model or optional goods (see "Front view" on page 21). 1Remove any remaining pages from the document feeder.2 Gently remove the jammed paper from the document feeder.
944. TroubleshootingClearing paper jams To avoid tearing the paper, pull the jammed paper out slowly and gently. 4 In tray Click this link to open an animation about clearing a jam. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).
Clearing paper jams954. Troubleshooting5 Inside the machine Click this link to open an animation about clearing a jam. • The fuser area is hot. Take care when removing paper from the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).
Clearing paper jams964. Troubleshooting1 2
Clearing paper jams974. TroubleshootingIf you do not see the paper in this area, stop and go to next step:
984. TroubleshootingUnderstanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country (see "Control panel overview" on page 24).• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 100).• You also can resolve the error with the guideline from the computers’s Samsung Printing Status or Smart Panel program window (see "Using Samsung Printer Status" on page 276 or "Using Smart Panel" on page 278).• If the problem persists, call a service representative. LED Status DescriptionStatusOff The machine is off-line.GreenBlinking When the backlight blinks, the machine is receiving or printing data.On • The machine is on-line and can be used.RedBlinking• A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message. When the problem is cleared, the machine resumes.• Small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 74).bOn• A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 76).• The cover is opened. Close the cover.• There is no paper in the tray when receiving or printing data. Load paper in the tray. • The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 100). • A paper jam has occurred (see "Clearing paper jams" on page 94).
Understanding the status LED994. Troubleshooting () WPSbBlueBlinking The machine is connecting to a wireless network.On The machine is connected to a wireless networkG(see "Wireless network setup" on page 156).Off The machine is disconnected from a wireless network.() Power BlueOn The machine is in power save mode.Off The machine is in ready mode or machine’s power is off.Eco GreenOn Eco mode is on. The default setting of Eco mode is 2-up and toner save.Off Eco mode is off. TonerbOrangeBlinking Small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 74).On A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 76).Off All toner cartridges are at normal capacity.a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of pages may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.b. Some LEDs may not be available depending on model or country (see "Control panel overview" on page 24).LED Status Description
1004. TroubleshootingUnderstanding display messagesMessages appear on the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ and their meaning, and correct the problem, if necessary. • This function is not supported for SCX-340x/SCX-340xW Series. You can resolve the error with the guideline from the computers’s Printing Status or Smart Panel program window (see "Using Samsung Printer Status" on page 276 or "Using Smart Panel" on page 278).• If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative.• When you call for service, provide the service representative with the contents of display message.• Some messages may not appear on the display depending on the options or models.• [error number] indicates the error number. 6 Paper Jam-related messagesMessage Meaning Suggested solutionsDocument jam.Remove jamThe loaded original document has jammed in the document feeder.Clear the jam (see "Clearing original document jams" on page 89).Jam or emptyDoor open&close • Paper has jammed in the paper feed area.• There is no paper in tray.• Clear the jam (see "In tray" on page 94).• Load paper in tray (see "Loading paper in the tray" on page 41).Paper Jaminside machinePaper has jammed in the inside machine. Clear the jam (see "Inside the machine" on page 95).
Understanding display messages1014. Troubleshooting7 Toner-related messages Message Meaning Suggested solutionsInstall TonerCartridge A toner cartridge is not installed. Install a toner cartridge.Not CompatibleToner cartridgeThe toner cartridge you have installed is not for your machine. Install a Samsung-genuine toner cartridge, designed for your machine.Prepare new cartridge Small amount of toner is left in the indicated cartridge. The estimated cartridge life of toner is close.Prepare a new cartridge for a replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 74).

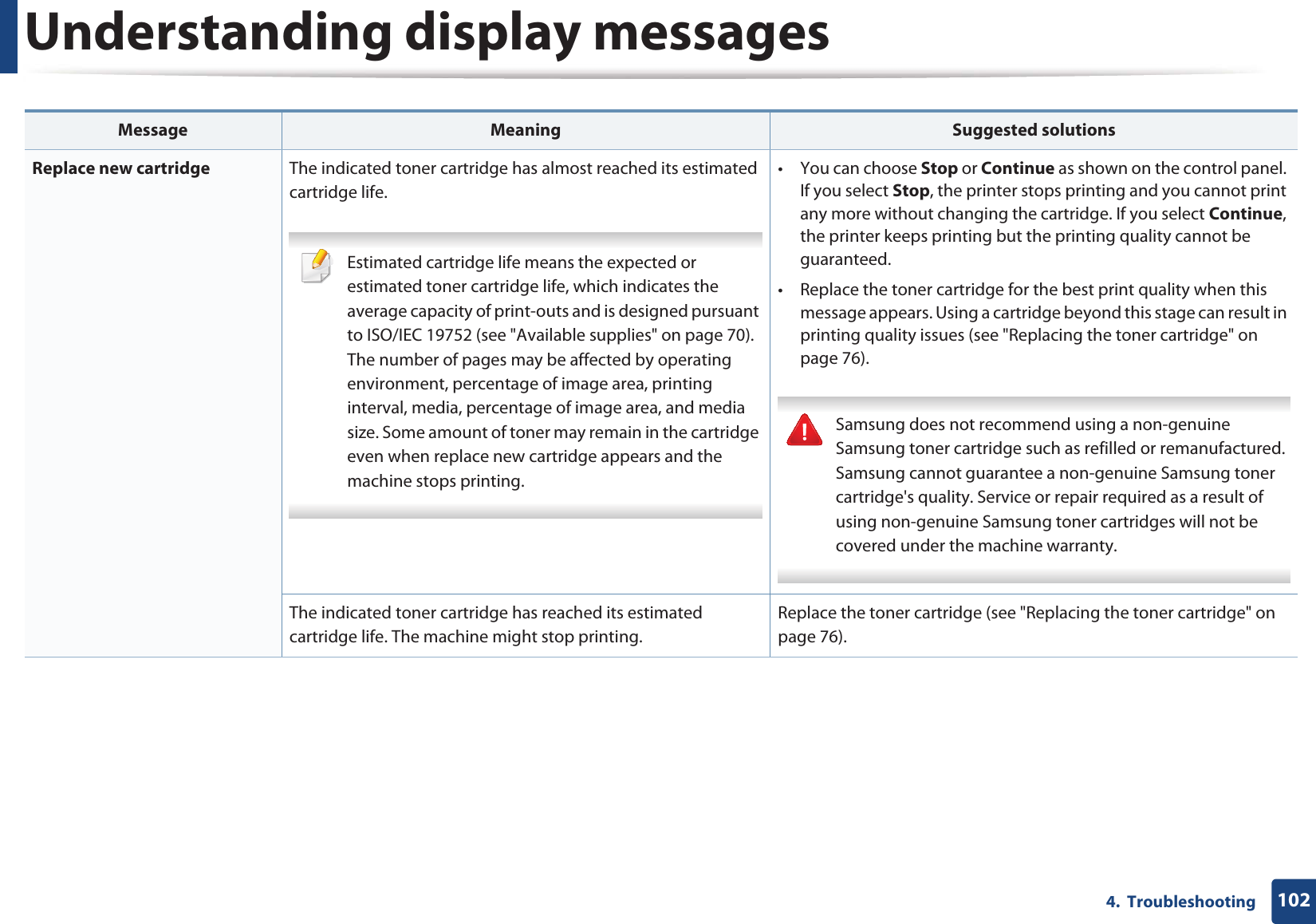

Understanding display messages1024. Troubleshooting Replace new cartridge The indicated toner cartridge has almost reached its estimated cartridge life. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752 (see "Available supplies" on page 70). The number of pages may be affected by operating environment, percentage of image area, printing interval, media, percentage of image area, and media size. Some amount of toner may remain in the cartridge even when replace new cartridge appears and the machine stops printing. • You can choose Stop or Continue as shown on the control panel. If you select Stop, the printer stops printing and you cannot print any more without changing the cartridge. If you select Continue, the printer keeps printing but the printing quality cannot be guaranteed.• Replace the toner cartridge for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the toner cartridge" on page 76). Samsung does not recommend using a non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty. The indicated toner cartridge has reached its estimated cartridge life. The machine might stop printing.Replace the toner cartridge (see "Replacing the toner cartridge" on page 76).Message Meaning Suggested solutions

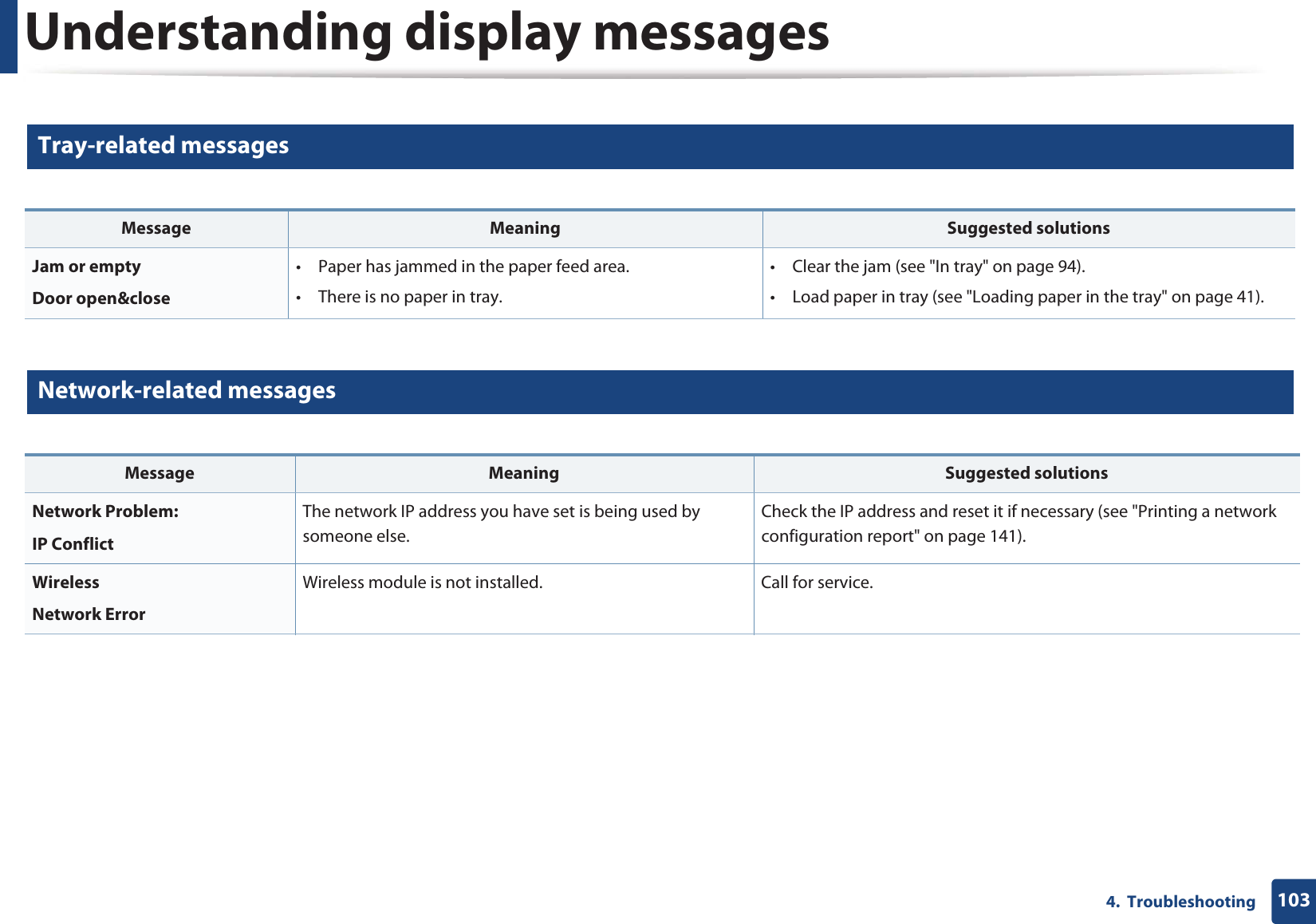

Understanding display messages1034. Troubleshooting8 Tray-related messages9 Network-related messagesMessage Meaning Suggested solutionsJam or emptyDoor open&close • Paper has jammed in the paper feed area.• There is no paper in tray.• Clear the jam (see "In tray" on page 94).• Load paper in tray (see "Loading paper in the tray" on page 41).Message Meaning Suggested solutionsNetwork Problem: IP ConflictThe network IP address you have set is being used by someone else. Check the IP address and reset it if necessary (see "Printing a network configuration report" on page 141).Wireless Network ErrorWireless module is not installed. Call for service.
Understanding display messages1044. Troubleshooting10 Misc. messagesMessage Meaning Suggested solutionsDoor OpenClose itThe cover is not securely latched. Close the cover until it locks into place. Door of scanner is open. The document feeder cover is not securely latched. Close the cover until it locks into place. Error [error number]Turn off then onThe machine unit cannot be controlled. Reboot the power and try the printing job again. If the problem persists, please call for service. Error [error number]Call for serviceScanner Locked The scanner is locked. Reboot the power. If the problem persists, please call for service.
5. AppendixThis chapter provides product specifications and information concerning applicable regulations.• Specifications 106• Regulatory information 116• Copyright 129
1065. AppendixSpecifications1 General specifications The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information. Items DescriptionDimension Width x Length x Height SCX-340x SeriesSCX-340xW Series389 x 274 x 249 mm (15.31 x 10.79 x 9.80 inches) SCX-340xF SeriesSCX-340xFW SeriesSCX-340xFH/ SCX-340xHW Seriesa402 x 293 x 296 mm (15.83 x 11.54 x 11.65 inches) Weight Machine with consumables SCX-340x SeriesSCX-340xW Series6.3 Kg (13.89 lbs)SCX-340xF SeriesSCX-340xFW SeriesSCX-340xFH/ SCX-340xHW Seriesa7.6 Kg (16.75 lbs)

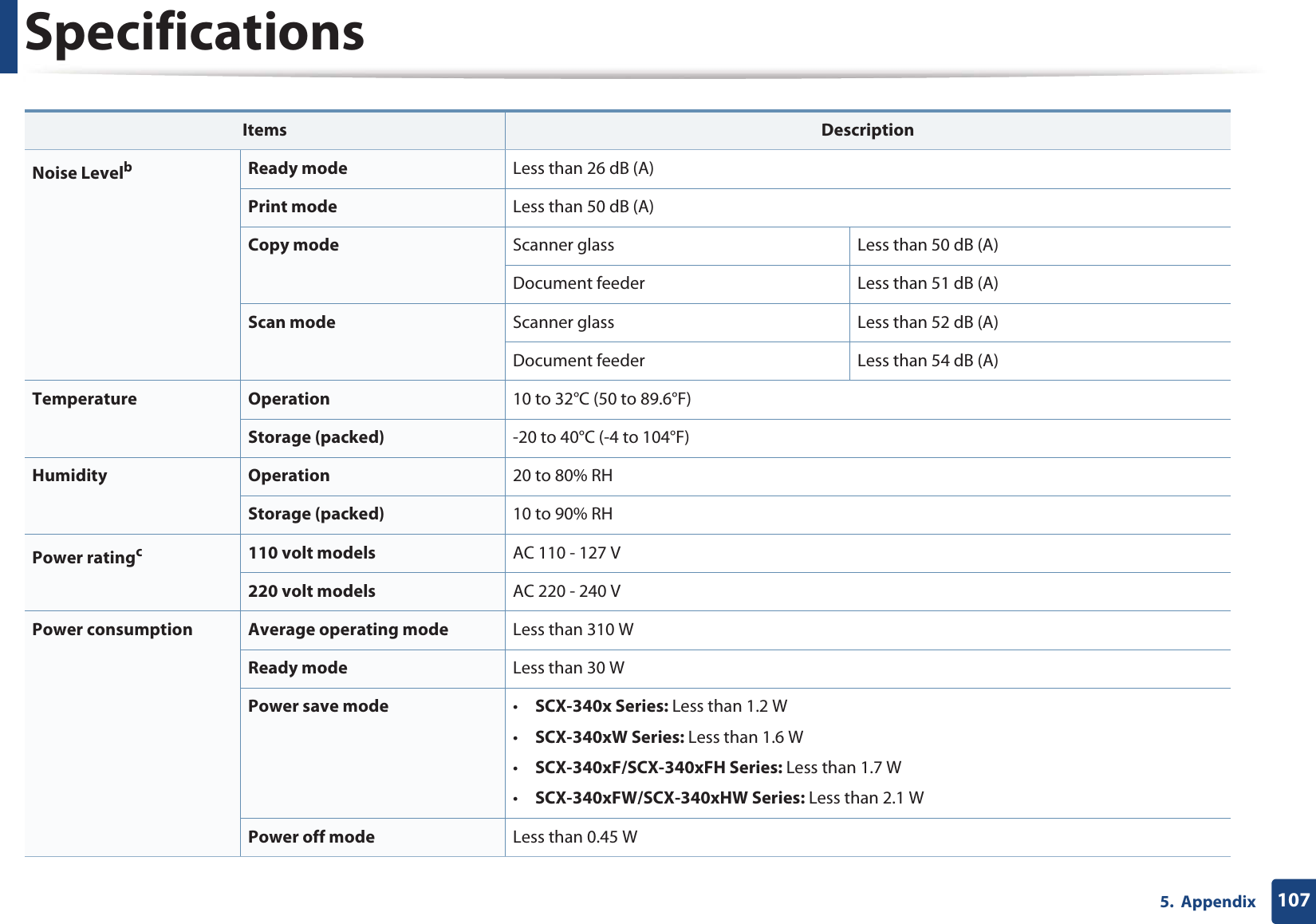

Specifications1075. AppendixNoise LevelbReady mode Less than 26 dB (A)Print mode Less than 50 dB (A)Copy mode Scanner glass Less than 50 dB (A)Document feeder Less than 51 dB (A)Scan mode Scanner glass Less than 52 dB (A)Document feeder Less than 54 dB (A)Temperature Operation 10 to 32°C (50 to 89.6°F)Storage (packed) -20 to 40°C (-4 to 104°F)Humidity Operation 20 to 80% RHStorage (packed) 10 to 90% RHPower ratingc110 volt models AC 110 - 127 V220 volt models AC 220 - 240 VPower consumption Average operating mode Less than 310 WReady mode Less than 30 WPower save mode •SCX-340x Series: Less than 1.2 W•SCX-340xW Series: Less than 1.6 W•SCX-340xF/SCX-340xFH Series: Less than 1.7 W•SCX-340xFW/SCX-340xHW Series: Less than 2.1 WPower off mode Less than 0.45 WItems Description

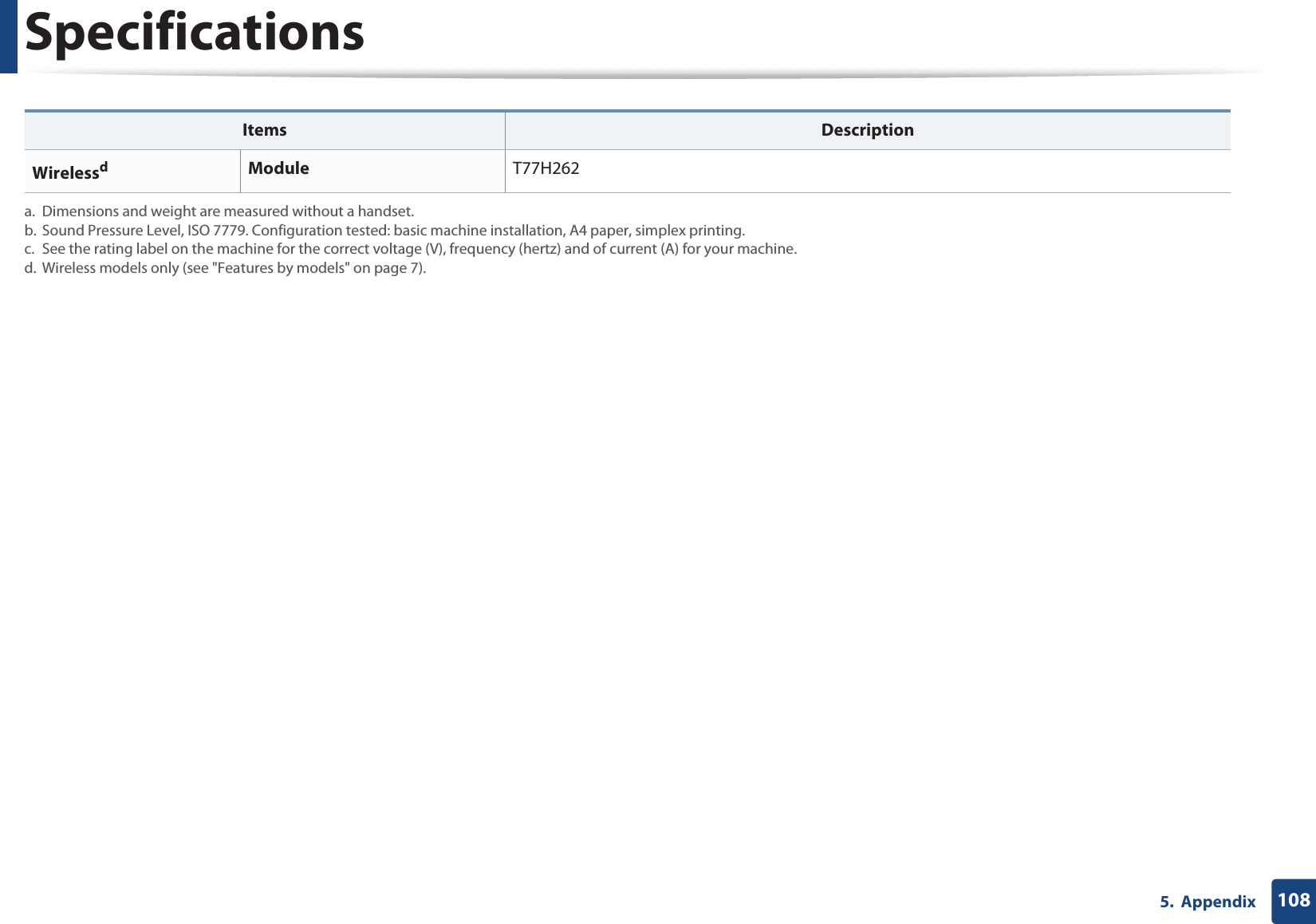

Specifications1085. Appendix WirelessdModule T77H262a. Dimensions and weight are measured without a handset.b. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.c. See the rating label on the machine for the correct voltage (V), frequency (hertz) and of current (A) for your machine.d. Wireless models only (see "Features by models" on page 7).Items Description
Specifications1095. Appendix2 Print media specifications Type Size DimensionsPrint media weight/CapacityaTray Manual feeding in traybPlain paperLetter 216 x 279 mm (8.5 x 11 inches) 71 to 85 g/m2 (19 to 23 lbs bond) • 150 sheets of 80 g/m2 (21 lbs bond)71 to 85 g/m2 (19 to 23 lbs bond) • 1 sheetLegal 216 x 356 mm (8.5 x 14 inches)US Folio 216 x 330 mm (8.5 x 13 inches)A4 210 x 297 mm (8.27 x 11.69 inches)Oficio 216 x 343 mm (8.5 x 13.5 inches)JIS B5 182 x 257 mm (7.17 x 10.12 inches)ISO B5 176 x 250 mm (6.93 x 9.84 inches) Executive 184 x 267 mm (7.25 x 10.5 inches)A5 148 x 210 mm (5.83 x 8.27 inches)EnvelopeEnvelope Monarch 98 x 191 mm (3.87 x 7.5 inches) 75 to 90 g/m2 (20 to 24 lbs bond)• 10 sheets75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheetEnvelope No. 10 105 x 241 mm (4.12 x 9.5 inches)Envelope DL 110 x 220 mm (4.33 x 8.66 inches)Envelope C5 162 x 229 mm (6.38 x 9.02 inches)
Specifications1105. AppendixThick paper Refer to the Plain paper section Refer to the Plain paper section 86 to 120 g/m2 (23 to 32 lbs bond)• 50 sheets of 120 g/m2 (32 lbs bond)86 to 120 g/m2 (23 to 32 lbs bond)• 1 sheetThin paper Refer to the Plain paper section Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lbs bond)• 160 sheets of 60 g/m2 (16 lbs bond)60 to 70 g/m2 (16 to 19 lbs bond)• 1 sheetCotton Refer to the Plain paper section Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheetColored Refer to the Plain paper section Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheetPre-printed Refer to the Plain paper section Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheetRecycled Refer to the Plain paper section Refer to the Plain paper section 60 to 90 g/m2 (16 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)60 to 90 g/m2 (16 to 24 lbs bond)• 1 sheetType Size DimensionsPrint media weight/CapacityaTray Manual feeding in trayb
Specifications1115. Appendix LabelscLetter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lbs bond)• 10 sheets120 to 150 g/m2 (32 to 40 lbs bond)• 1 sheetCard stockLetter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5,Postcard 4x6Refer to the Plain paper section 121 to 163 g/m2 (32 to 43 lbs bond)• 10 sheets121 to 163 g/m2 (32 to 43 lbs bond)• 1 sheetBond paper Refer to the Plain paper section Refer to the Plain paper section • 10 sheets • 1 sheetArchive Refer to the Plain paper section Refer to the Plain paper section • 100 sheets • 1 sheetMinimum size (custom) 76 x 127 mm (3 x 5 inches) 60 to 163 g/m2 (16 to 43 lbs bond)Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions. b. 1 sheet for manual feeding.c. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.Type Size DimensionsPrint media weight/CapacityaTray Manual feeding in trayb
Specifications1125. Appendix3 System requirementsMicrosoft® Windows® • Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.• Users who have administrator rights can install the software.Operating systemRequirement (recommended)CPU RAM free HDD spaceWindows® 2000 Intel® Pentium® II 400 MHz (Pentium III 933 MHz) 64 MB (128 MB) 600 MBWindows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (256 MB) 1.5 GBWindows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (512 MB) 1.25 GB to 2 GBWindows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GBWindows Vista®Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GBWindows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).•DVD-R/W DriveWindows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GB
Specifications1135. Appendix•Windows Terminal Services is compatible with your machine.•For Windows 2000, Services Pack 4 or higher is required. Macintosh Operating systemRequirements (Recommended)CPU RAM Free HDD spaceMac OS X 10.4 •Intel® processors•PowerPC G4/G5• 128 MB for a powerPC based Mac (512 MB)• 512 MB for an Intel-based Mac (1 GB)1 GBMac OS X 10.5 •Intel® processors• 867 MHz or faster Power PC G4/G5512 MB (1 GB) 1 GBMac OS X 10.6 ~ 10.7 •Intel® processors 1 GB (2 GB) 1 GB
Specifications1145. AppendixLinux Items RequirementsOperating system Redhat® Enterprise Linux WS 4, 5 (32/64 bit)Fedora 5 ~ 13 (32/64 bit)SuSE Linux 10.1 (32 bit)OpenSuSE® 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit)Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit)SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)Debian 4.0, 5.0 (32/64 bit)CPU Pentium IV 2.4GHz (Intel Core™2)RAM 512 MB (1 GB)Free HDD space 1 GB (2 GB)

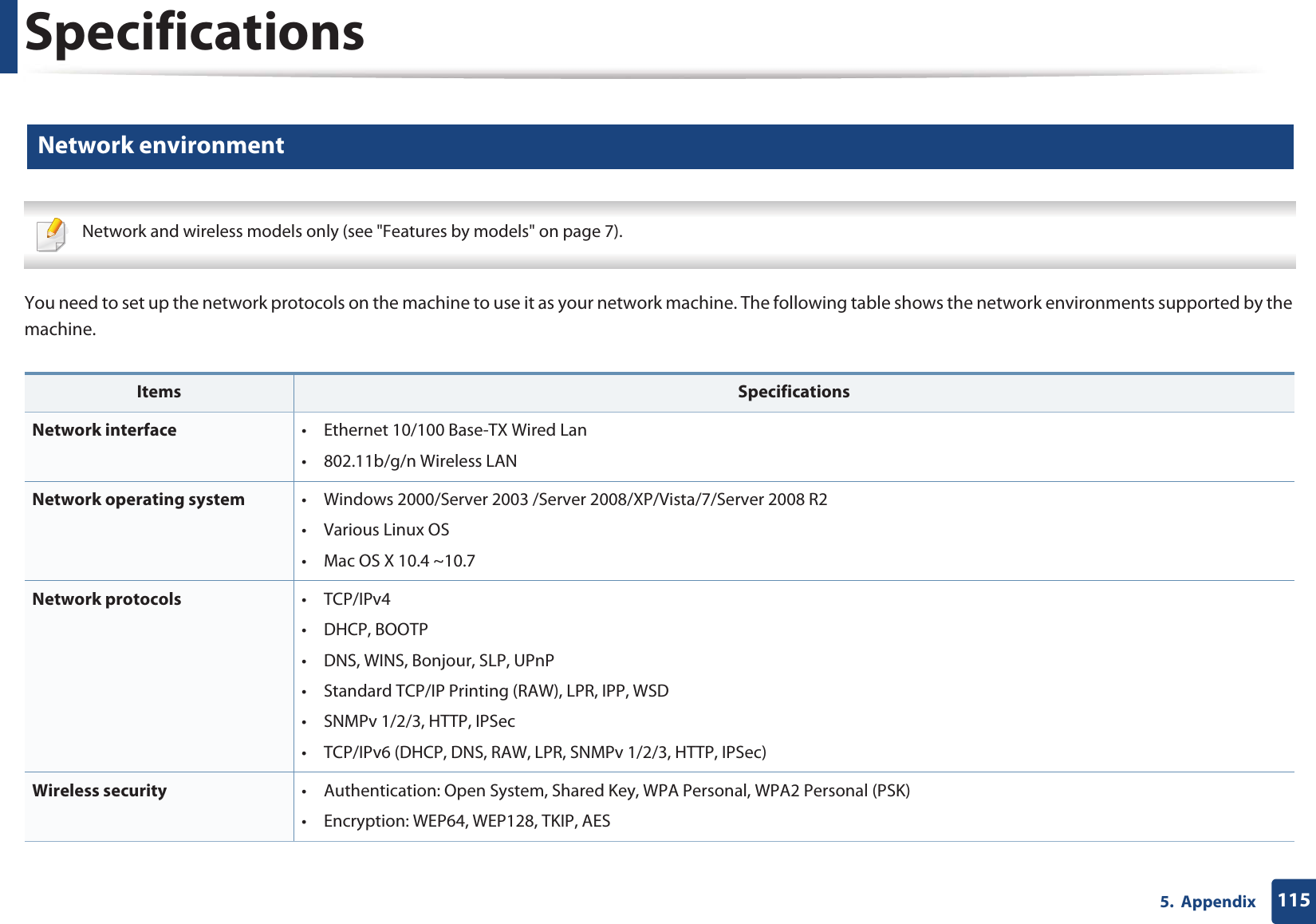

Specifications1155. Appendix4 Network environment Network and wireless models only (see "Features by models" on page 7). You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine. Items SpecificationsNetwork interface • Ethernet 10/100 Base-TX Wired Lan•802.11b/g/n Wireless LANNetwork operating system • Windows 2000/Server 2003 /Server 2008/XP/Vista/7/Server 2008 R2•Various Linux OS• Mac OS X 10.4 ~10.7Network protocols •TCP/IPv4• DHCP, BOOTP• DNS, WINS, Bonjour, SLP, UPnP• Standard TCP/IP Printing (RAW), LPR, IPP, WSD• SNMPv 1/2/3, HTTP, IPSec• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)• Encryption: WEP64, WEP128, TKIP, AES
1165. AppendixRegulatory informationThis machine is designed for a normal work environment and certified with several regulatory statements.5 Laser safety statementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1 : 2007.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.Warning Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

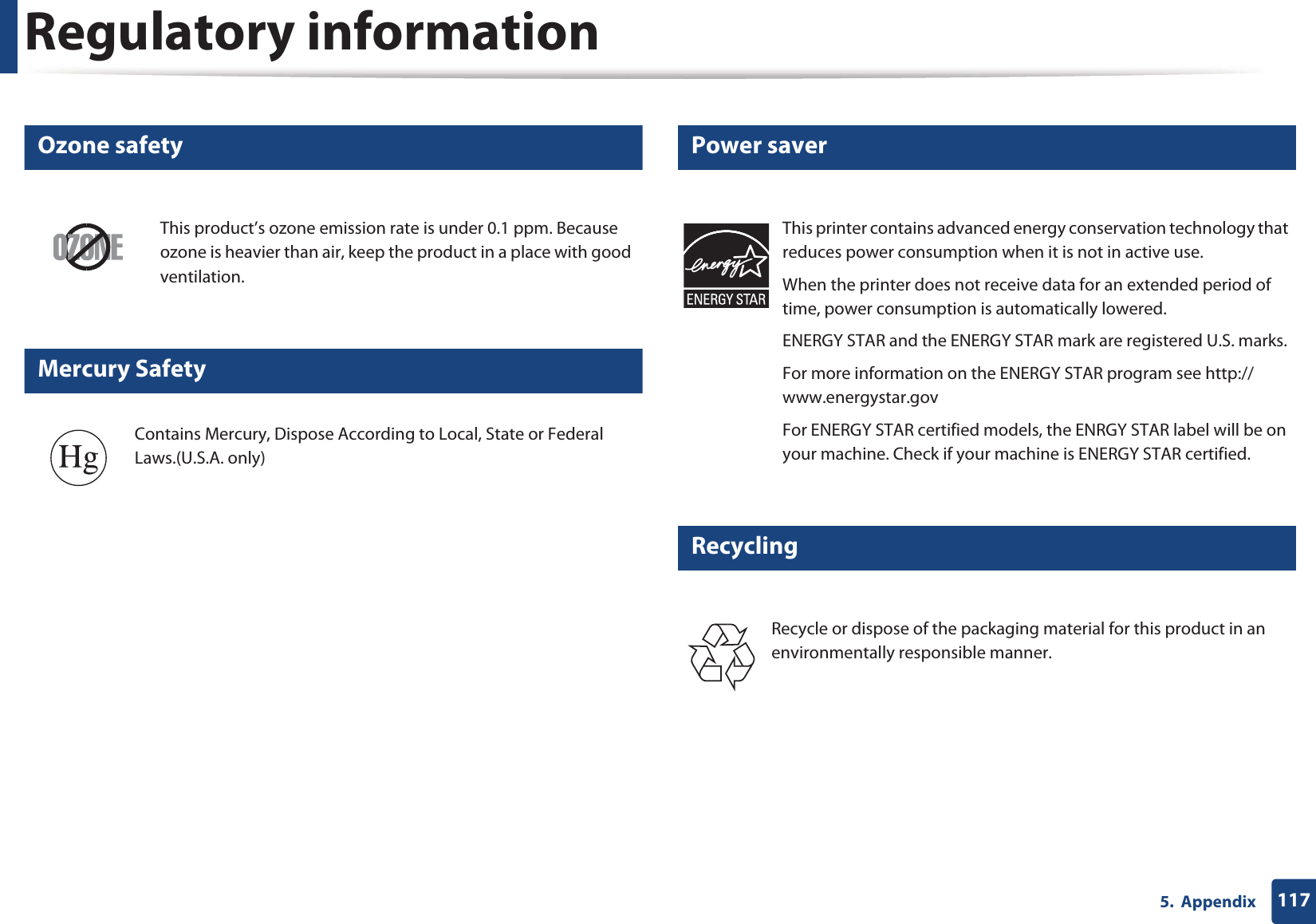

Regulatory information1175. Appendix6 Ozone safety7 Mercury Safety8 Power saver9 RecyclingThis product’s ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.Contains Mercury, Dispose According to Local, State or Federal Laws.(U.S.A. only)This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.govFor ENERGY STAR certified models, the ENRGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.Recycle or dispose of the packaging material for this product in an environmentally responsible manner.
Regulatory information1185. Appendix10 China only11 Correct disposal of this product (Waste electrical & electronic equipment)(Applicable in the european union and other european countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other s of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Regulatory information1195. Appendix(The United States of America only)Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 079912 Taiwan only13 Radio frequency emissionsFCC information to the userThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and• This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.
Regulatory information1205. AppendixCanadian radio interference regulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.14 United States of AmericaFederal Communications Commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.
Regulatory information1215. AppendixFCC Statement for Wireless LAN use: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna. 15 Russia only16 Germany only17 Turkey only18 Canada onlyThis product meets the applicable Industry Canada technical specifications. / Le present materiel est conforme aux specifications techniques applicables d’Industrie Canada.
Regulatory information1225. AppendixThe Ringer Equivalence Number (REN) is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five. / L’indice d’equivalence de la sonnerie (IES) sert a indiquer le nombre maximal de terminaux qui peuvent etre raccordes a une interface telephonique. La terminaison d’une interface peut consister en une combinaison quelconque de dispositifs, a la seule condition que la somme d’indices d’equivalence de la sonnerie de tous les dispositifs n’excede pas cinq.19 Fax BrandingThe Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission the following information:1 the date and time of transmission2 identification of either business, business entity or individual sending the message; and3 telephone number of either the sending machine, business, business entity or individual.The Telephone Company may make changes in its communications facilities, equipment operations or procedures where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to render any customer terminal equipment incompatible with telephone company communications facilities, or require modification or alteration of such terminal equipment, or otherwise materially affect its use or performance, the customer shall be given adequate notice in writing, to allow the customer an opportunity to maintain uninterrupted service20 Ringer Equivalence NumberThe Ringer Equivalence Number and FCC Registration Number for this machine may be found on the label located on the bottom or rear of the machine. In some instances you may need to provide these numbers to the telephone company.The Ringer Equivalence Number (REN) is a measure of the electrical load placed on the telephone line, and is useful for determining whether you have “overloaded” the line. Installing several s of equipment on the same telephone line may result in problems making and receiving telephone calls, especially ringing when your line is called. The sum of all Ringer Equivalence Numbers of the equipment on your telephone line should be less than five in order to assure proper service from the telephone company. In some cases, a sum of five may not be usable on your line. If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network.
Regulatory information1235. AppendixThe equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the rear of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. FCC Regulations state that changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. In the event that terminal equipment causes harm to the telephone network, the telephone company should notify the customer that service may be stopped. However, where prior notice is impractical, the company may temporarily cease service, providing that they:a promptly notify the customer.b give the customer an opportunity to correct the equipment problem.c inform the customer of the right to bring a complaint to the Federal Communication Commission pursuant to procedures set out in FCC Rules and Regulations Subpart E of Part 68. You should also know that:• Your machine is not designed to be connected to a digital PBX system.• If you intend to use a computer modem or fax modem on the same phone line as your machine, you may experience transmission and reception problems with all the equipment. It is recommended that no other equipment, except for a regular telephone, share the line with your machine.• If your area experiences a high incidence of lightning or power surges, we recommend that you install surge protectors for both the power and the telephone lines. Surge protectors can be purchased from your dealer or telephone and electronic specialty stores.• When programming emergency numbers and/or making test calls to emergency numbers, use a non-emergency number to advise the emergency service dispatcher of your intentions. The dispatcher will give you further instructions on how to actually test the emergency number.• This machine may not be used on coin service or party lines.• This machine provides magnetic coupling to hearing aids.You may safely connect this equipment to the telephone network by means of a standard modular jack, USOC RJ-11C.21 Replacing the Fitted Plug (for UK Only)ImportantThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Contact the people from you purchased the machine.

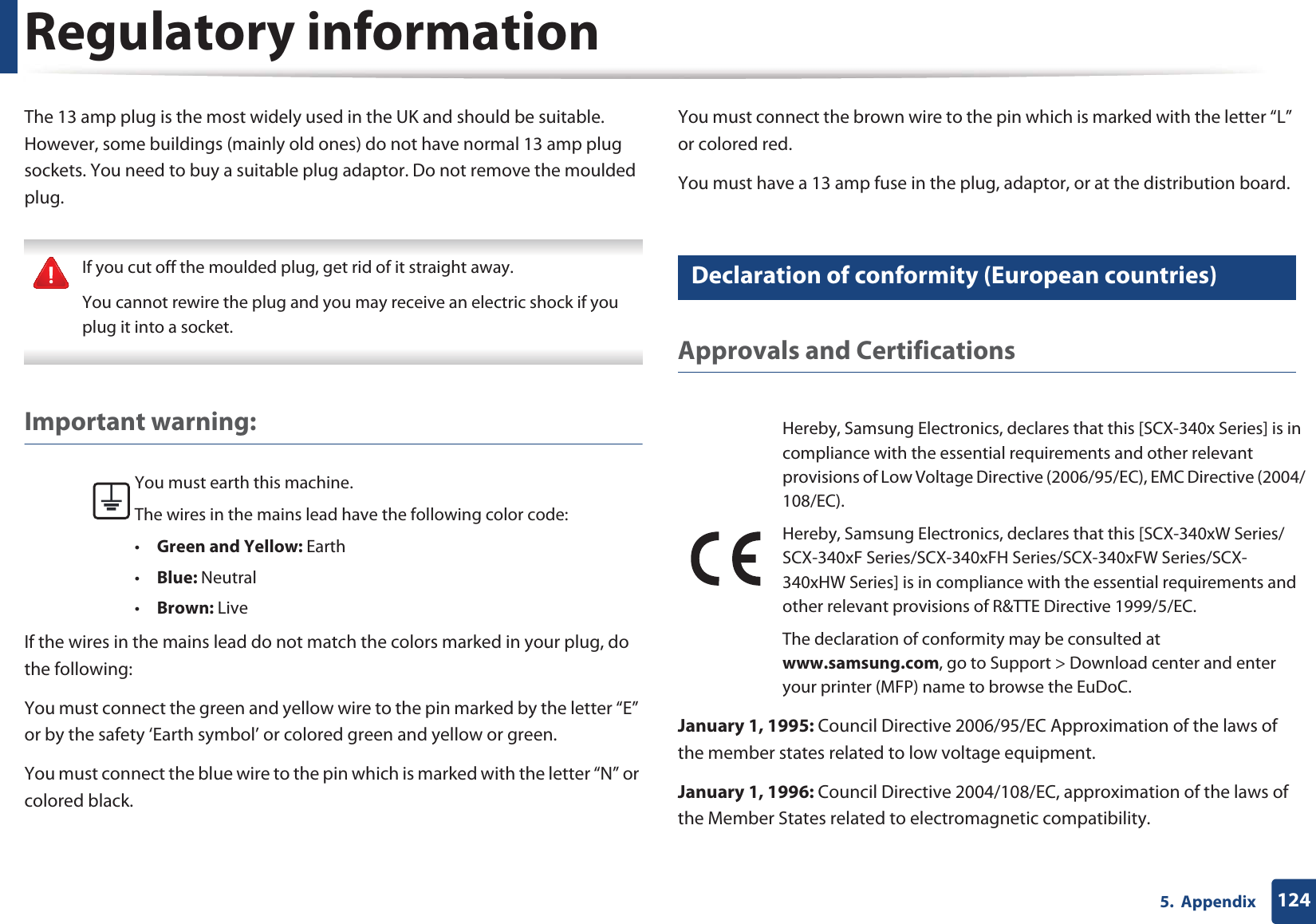

Regulatory information1245. AppendixThe 13 amp plug is the most widely used in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug. If you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket. Important warning: If the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.22 Declaration of conformity (European countries)Approvals and CertificationsJanuary 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of the Member States related to electromagnetic compatibility.You must earth this machine.The wires in the mains lead have the following color code:•Green and Yellow: Earth•Blue: Neutral•Brown: LiveHereby, Samsung Electronics, declares that this [SCX-340x Series] is in compliance with the essential requirements and other relevant provisions of Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC).Hereby, Samsung Electronics, declares that this [SCX-340xW Series/SCX-340xF Series/SCX-340xFH Series/SCX-340xFW Series/SCX-340xHW Series] is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.The declaration of conformity may be consulted at www.samsung.com, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC.

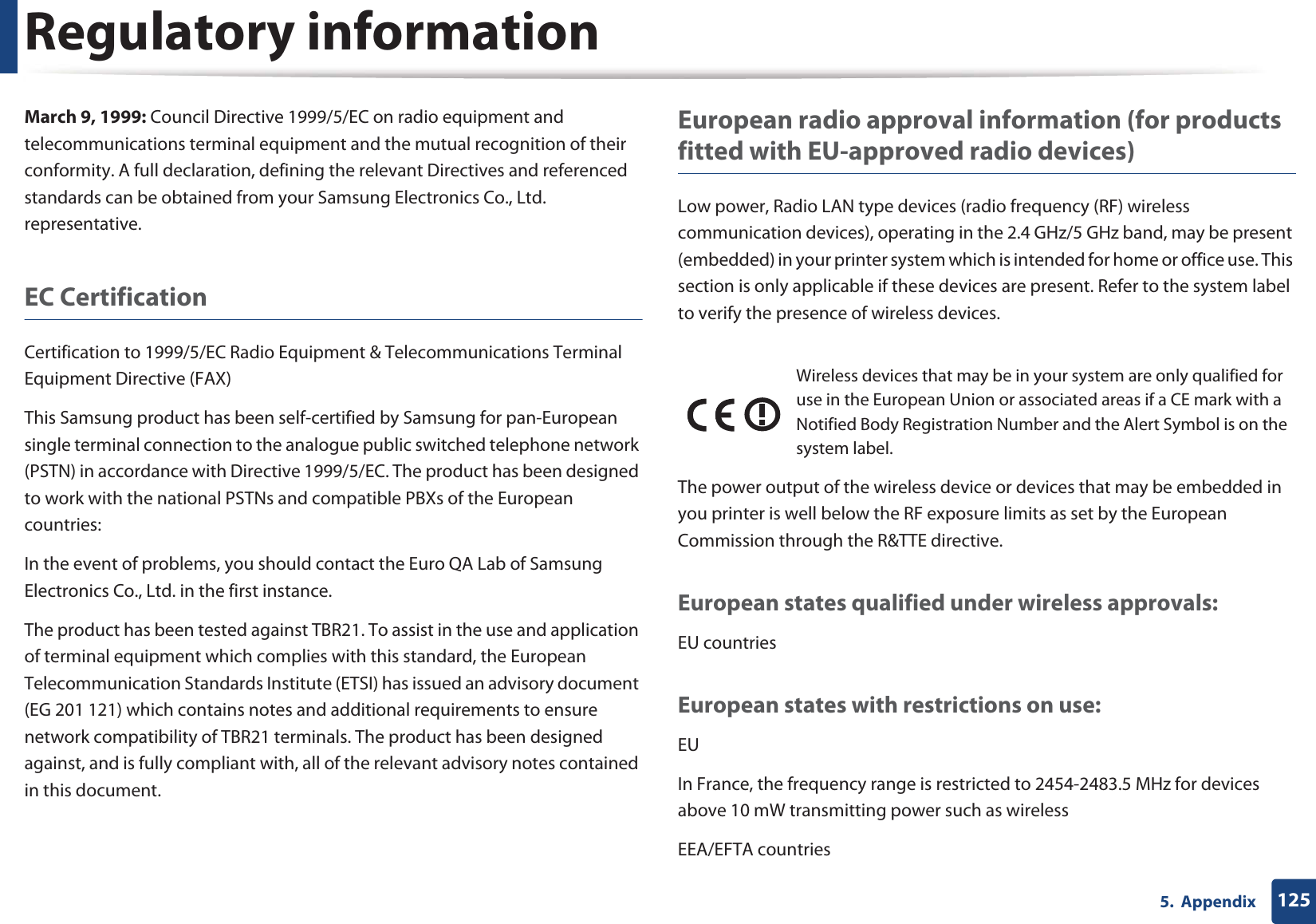

Regulatory information1255. AppendixMarch 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.EC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.European radio approval information (for products fitted with EU-approved radio devices)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.European states qualified under wireless approvals:EU countriesEuropean states with restrictions on use:EUIn France, the frequency range is restricted to 2454-2483.5 MHz for devices above 10 mW transmitting power such as wirelessEEA/EFTA countriesWireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.

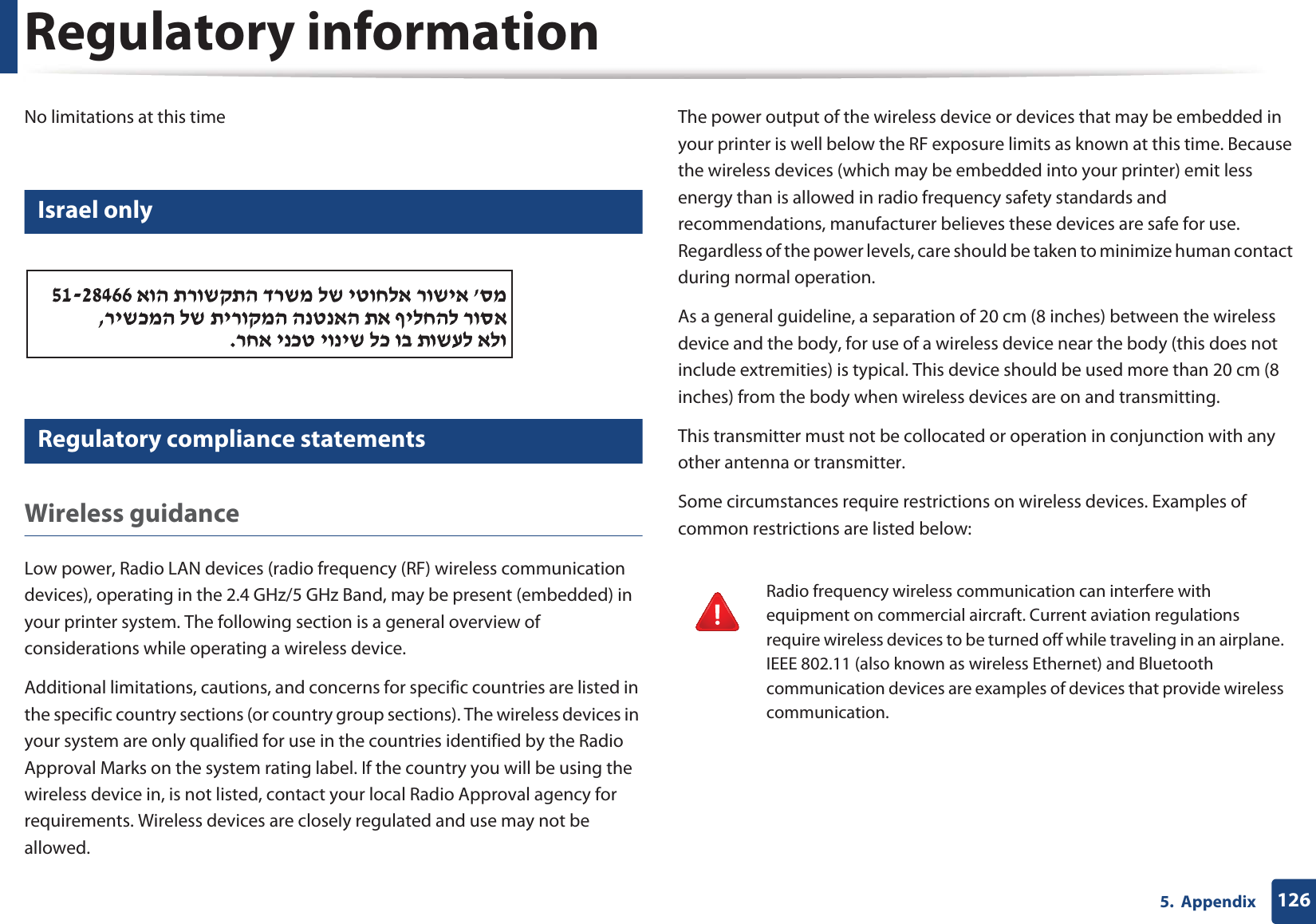

Regulatory information1265. AppendixNo limitations at this time23 Israel only24 Regulatory compliance statementsWireless guidanceLow power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

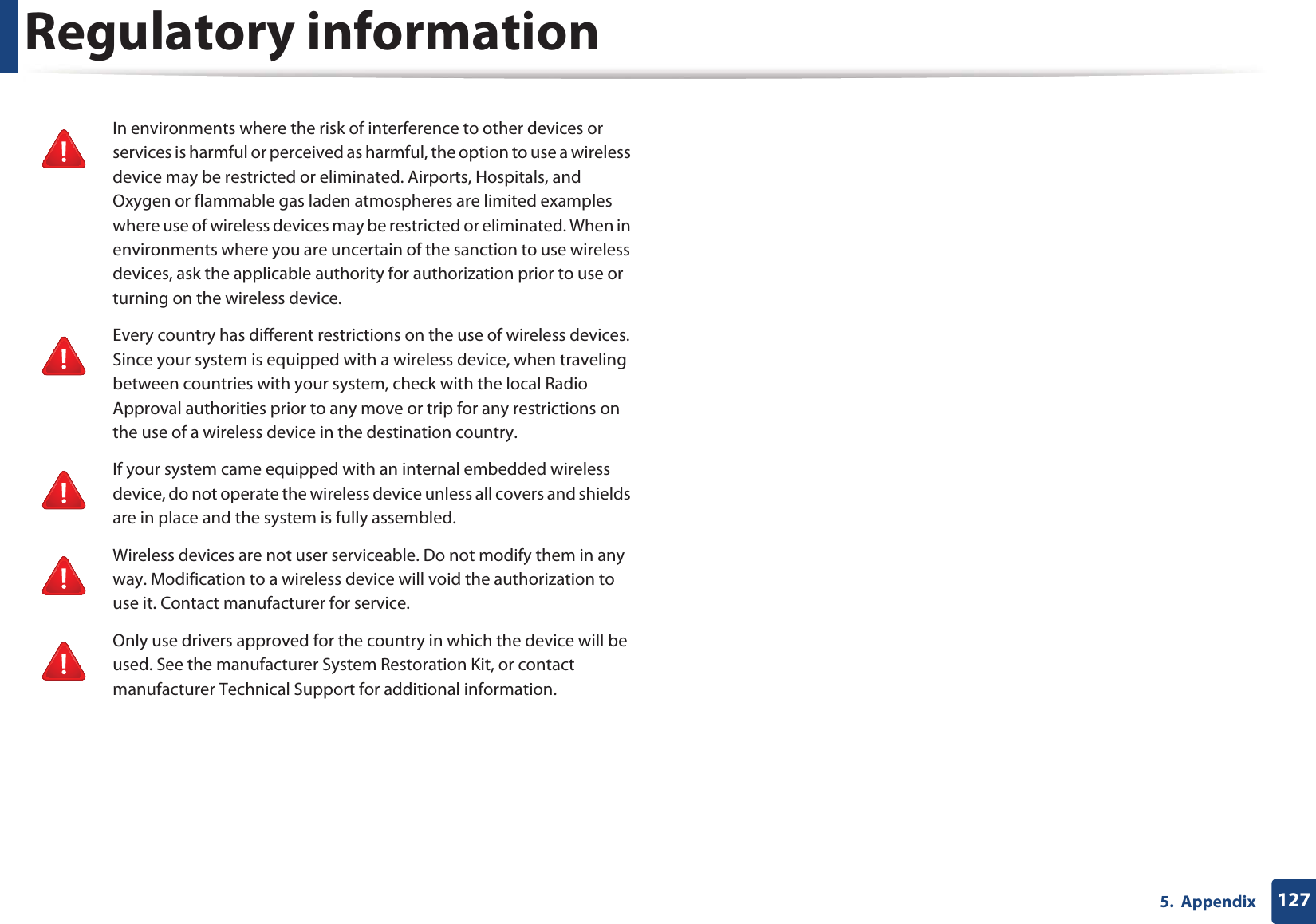

Regulatory information1275. AppendixIn environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.
Regulatory information1285. Appendix25 China only
1295. AppendixCopyright© 2011 Samsung Electronics Co., Ltd. All rights reserved.This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.• Microsoft, Windows, Windows Vista, Windows 7, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.• True, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.• All other brand or product names are trademarks of their respective companies or organizations.Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.REV. 1.00
ADVANCEDUser’s GuideSCX-340x/340xW SeriesSCX-340xF/340xFW SeriesSCX-340xFH/340xHW SeriesADVANCEDUser’s GuideThis guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.BASICThis guide provides information concerning installation, basic operation and troubleshooting on windows.
131ADVANCED1. Software InstallationInstallation for Macintosh 134Reinstallation for Macintosh 135Installation for Linux 136Reinstallation for Linux 1382. Using a Network-Connected MachineUseful network programs 140Wired network setup 141Installing driver over the network 144IPv6 configuration 153Wireless network setup 1563. Useful Setting MenusBefore you begin reading a chapter 189Print menu 190Copy menu 191Fax menu 198Scan menu 202System setup 204Admin setup 216Custom setup 2174. Special FeaturesAltitude adjustment 219Storing email address 220Entering various characters 222Setting up the fax address book 223Registering authorized users 226Printing features 227Scan features 242Fax features 253Using shared folder features 264Using memory/hard drive features 2655. Useful Management ToolsEasy Capture Manager 267Samsung AnyWeb Print 268Easy Eco Driver 269
132ADVANCEDUsing SyncThru™ Web Service 270Using Samsung Easy Printer Manager 273Using Samsung Printer Status 276Using Smart Panel 278Using the Linux Unified Driver Configurator 2806. TroubleshootingPaper feeding problems 285Power and cable connecting problems 286Printing problems 287Printing quality problems 291Copying problems 299Scanning problems 300Faxing problems 302Operating system problems 304

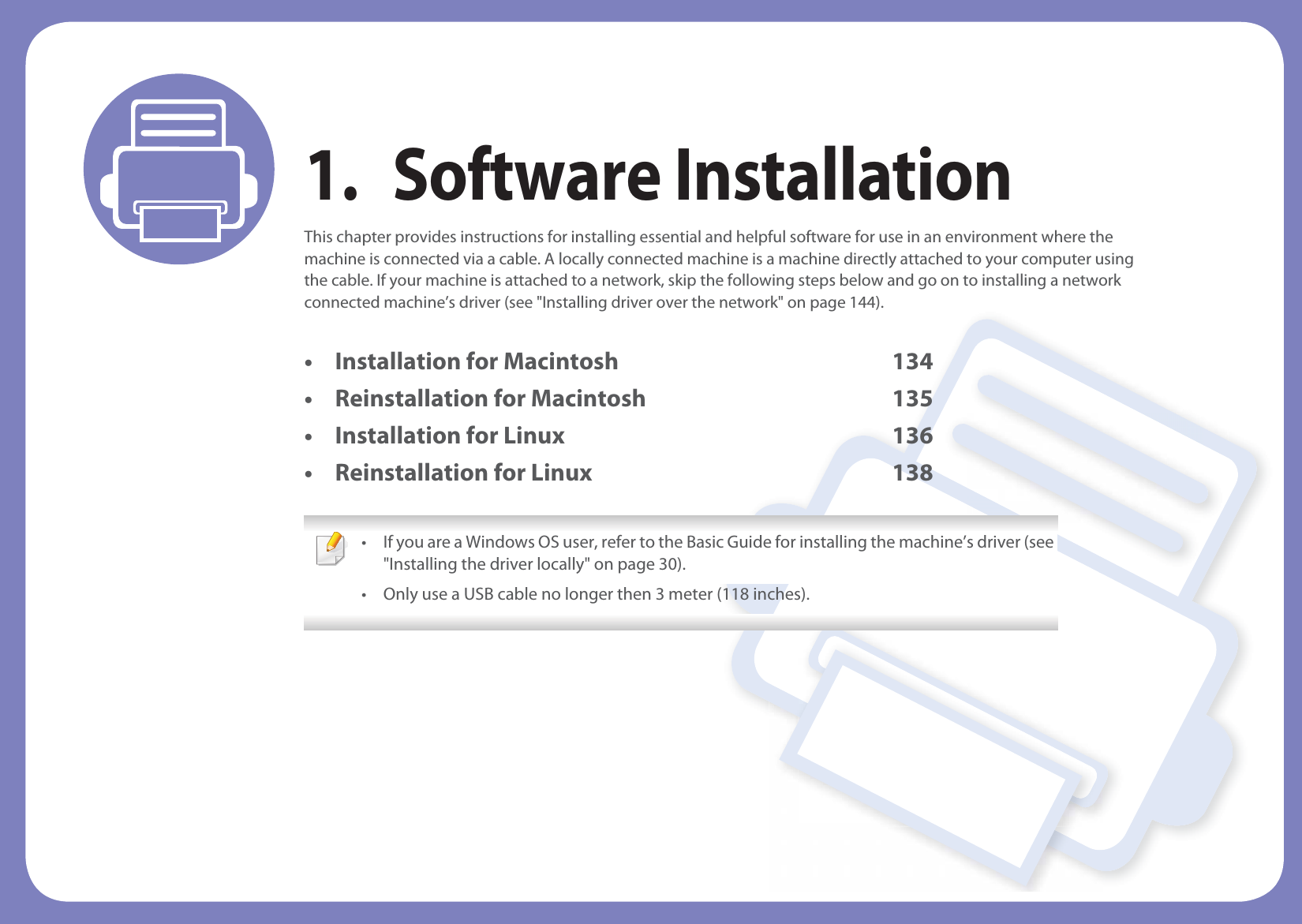

1. Software InstallationThis chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 144).• Installation for Macintosh 134• Reinstallation for Macintosh 135• Installation for Linux 136• Reinstallation for Linux 138 • If you are a Windows OS user, refer to the Basic Guide for installing the machine’s driver (see "Installing the driver locally" on page 30).• Only use a USB cable no longer then 3 meter (118 inches).
1341. Software InstallationInstallation for Macintosh1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Installer OS X icon.5 Click Continue.6 Read the license agreement and click Continue.7 Click Agree to agree to the license agreement.8 When the message that warns that all applications will close on your computer appears, click Continue.9 Click Continue on the User Options Pane.10 Click Install. All components necessary for machine operations will be installed.If you click Customize, you can choose individual components to install.11 Enter the password and click OK.12 Installing software requires you to restart your computer. Click Continue Installation.13 After the installation is finished, click Quit or Restart.14 Open the Applications folder > Utilities > Print Setup Utility.• For Mac OS X 10.5 -10.7, open the Applications folder > System Preferences and click Print & Fax.15 Click Add on the Printer List.• For Mac OS X 10.5 -10.7, click the “+” folder icon; a display window will pop up.16 Click Default Browser and find the USB connection.• For Mac OS X 10.5-10.7, click Default and find the USB connection.17 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model.• For Mac OS X 10.5-10.7, if Auto Select does not work properly, select Select a driver to use... and your machine name in Print Using. Your machine appears on the Printer List, and is set as the default machine.18 Click Add. To install the fax driver: a Open the Applications folder > Samsung > Fax Queue Creator.b Your machine appears on the Printer Listc Select machine to use and click Create button
1351. Software InstallationReinstallation for MacintoshIf the printer driver does not work properly, uninstall the driver and reinstall it.1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Uninstaller OS X icon.5 Enter the password and click OK.6 When the uninstall is done, click OK. If a machine has already been added, delete it from the Print Setup Utility or Print & Fax.
1361. Software InstallationInstallation for LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).1 Installing the Unified Linux Driver1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type “root” in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Unified Linux Driver package to your computer.4 Right-click the Unified Linux Driver package and extract the package. 5 Double click cdroot > autorun.6 When the welcome screen appears, click Next.7 When the installation is complete, click Finish.The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on-screen help that is available through your system menu or from the driver package Windows applications, such as Unified Driver Configurator or Image Manager.2 Installing the Smart Panel1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type in root in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Smart Panel package to your computer.4 Right-click the Smart Panel package and extract the package. 5 Double click cdroot > Linux > smartpanel > install.sh.
Installation for Linux1371. Software Installation3 Installing the Printer Settings Utility1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type “root” in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Printer Settings Utility package to your computer.4 Right-click the Printer Settings Utility package and extract the package. 5 Double click cdroot > Linux > psu > install.sh.
1381. Software InstallationReinstallation for LinuxIf the printer driver does not work properly, uninstall the driver and reinstall it. 1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type “root” in the Login field and enter the system password.You must log in as a super user (root) to uninstall the printer driver. If you are not a super user, ask your system administrator.3 Click the icon at the bottom of the desktop. When the Terminal screen appears, type in the following.[root@localhost root]#cd /opt/Samsung/mfp/uninstall/[root@localhost uninstall]#./uninstall.sh4 Click Uninstall.5 Click Next. 6 Click Finish.
2. Using a Network-Connected MachineThis chapter gives you step-by-step instructions for setting up a network connected machine and software.• Useful network programs 140• Wired network setup 141• Installing driver over the network 144• IPv6 configuration 153• Wireless network setup 156 Supported optional devices and features may differ according to your model (see "Features by models" on page 7).
1402. Using a Network-Connected MachineUseful network programsThere are several programs available to setup the network settings easily in a network environment. For the network administrator especially, managing several machines on the network is possible. • Before using the programs below, set the IP address first. • Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). 1 SyncThru™ Web ServiceThe web server embedded on your network machine allows you to do the following tasks (see "Using SyncThru™ Web Service" on page 270).• Check the supplies information and status.• Customize machine settings.• Set the email notification option. When you set this option, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's email automatically.• Configure the network parameters necessary for the machine to connect to various network environments.2 SyncThru™ Web Admin ServiceWeb-based machine management solution for network administrators. SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network machines from any site with corporate internet access. • Download this program from http://solution.samsungprinter.com.3 SetIP wired network setupThis utility program allows you to select a network interface and manually configure the IP addresses for use with the TCP/IP protocol.• See "IPv4 configuration using SetIP (Windows)" on page 141.• See "IPv4 configuration using SetIP (Macintosh)" on page 142.• See "IPv4 configuration using SetIP (Linux)" on page 143. • The machine that does not support the network port, it will not be able to use this feature (see "Rear view" on page 23).• TCP/IPv6 is not supported by this program.
1412. Using a Network-Connected MachineWired network setup4 Printing a network configuration reportYou can print Network Configuration Report from the machine’s control panel that will show the current machine’s network settings. This will help you to set up a network.•The machine has the display screen: Press the (Menu) button on the control panel and select Network > Network Conf. (Network Configuration).•The machine has the touch screen: Press Setup from the Main screen > Network > Next > Network Configuration.•The machine does not have the display screen: Press the (Cancel or Stop/Clear) button for more than 4~5 seconds on the control panel.Using this Network Configuration Report, you can find your machine’s MAC address and IP address.For example:• MAC Address: 00:15:99:41:A2:78• IP Address: 169.254.192.1925 Setting IP address • The machine that does not support the network interface, it will not be able to use this feature (see "Rear view" on page 23).• TCP/IPv6 is not supported by this program. First, you have to set up an IP address for network printing and managements. In most cases a new IP address will be automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server located on the network.IPv4 configuration using SetIP (Windows)Before using the SetIP program, disable the computer firewall from Control Panel > Security Center > Windows Firewall.1Install this program from the supplied CD-ROM by double-click Application > SetIP > Setup.exe.2 Follow the instructions in the installation window.3 Connect your machine to the network with a network cable.4 Turn on the machine.5 From the Windows Start menu, select All Programs > Samsung Printers > SetIP > SetIP.

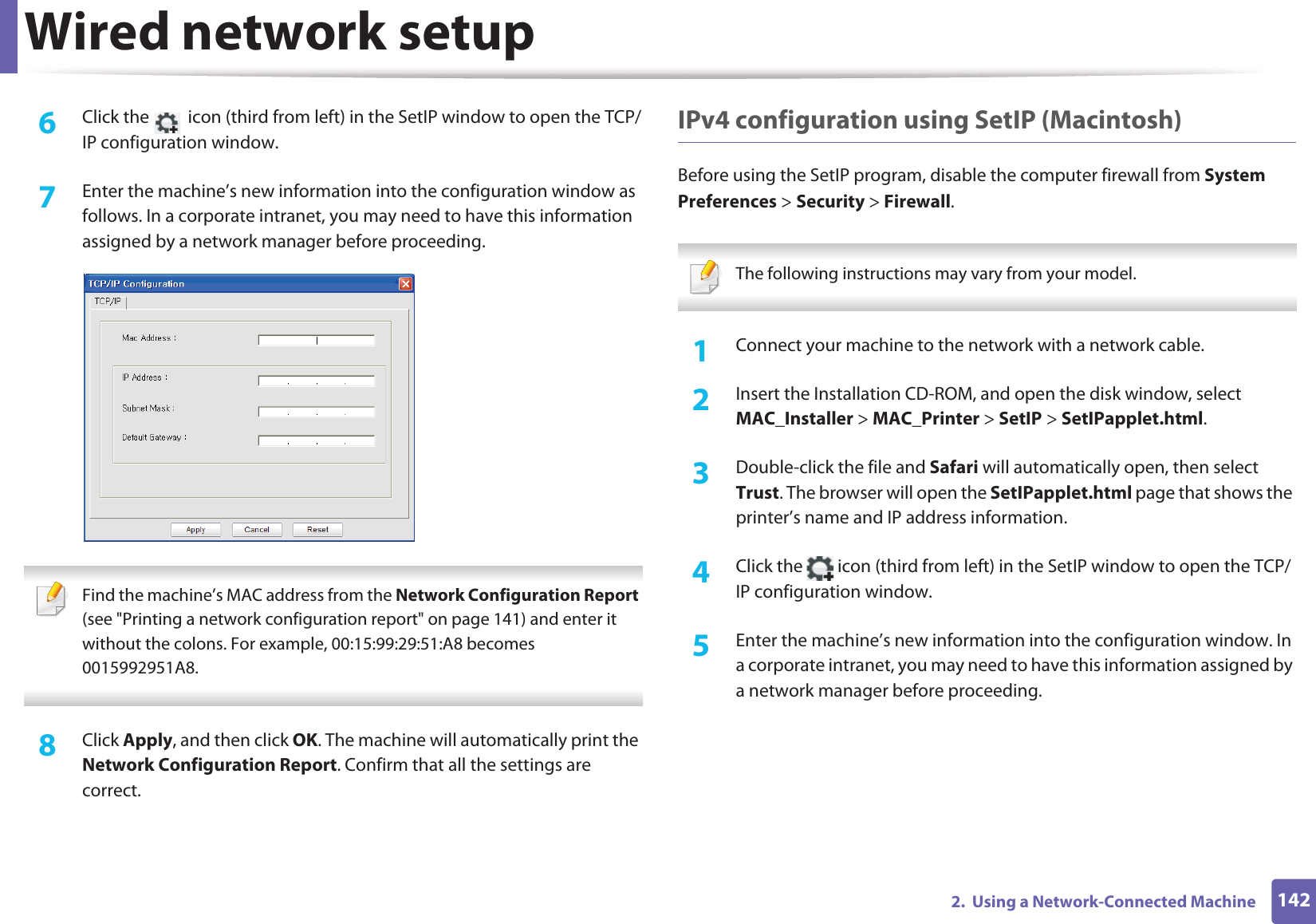

Wired network setup1422. Using a Network-Connected Machine6 Click the icon (third from left) in the SetIP window to open the TCP/IP configuration window.7 Enter the machine’s new information into the configuration window as follows. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 141) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 8 Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.IPv4 configuration using SetIP (Macintosh)Before using the SetIP program, disable the computer firewall from System Preferences > Security > Firewall. The following instructions may vary from your model. 1Connect your machine to the network with a network cable.2 Insert the Installation CD-ROM, and open the disk window, select MAC_Installer > MAC_Printer > SetIP > SetIPapplet.html.3 Double-click the file and Safari will automatically open, then select Trust. The browser will open the SetIPapplet.html page that shows the printer’s name and IP address information. 4 Click the icon (third from left) in the SetIP window to open the TCP/IP configuration window.5 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.
Wired network setup1432. Using a Network-Connected Machine Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 141) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 6 Select Apply, then OK, and OK again.7 Quit Safari.IPv4 configuration using SetIP (Linux)Before using the SetIP program, disable the computer firewall from System Preferences or Administrator. The following instructions may vary from your model or operating systems. 1Open /opt/Samsung/mfp/share/utils/.2 Double-click the SetIPApplet.html file. 3 Click to open the TCP/IP configuration window. 4 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 141) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 5 The machine will automatically print the Network Configuration Report.
1442. Using a Network-Connected MachineInstalling driver over the network • Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7).• The machine that does not support the network interface, it will not be able to use this feature (see "Rear view" on page 23). 6 Windows1Make sure that the machine is connected to the network and powered on. Also, your machine’s IP address should have been set (see "Setting IP address" on page 141). If the “Found New Hardware Wizard” appears during the installation procedure, click Cancel to close the window. 2 Insert the supplied software CD into your CD-ROM drive.3 Select Install Now. The Custom Installation allows you to select the machine’s connection and choose individual components to install. Follow the instructions on the window. 4 Read License Agreement, and select I accept the terms of the License Agreement. Then, click Next.The program searches for the machine.

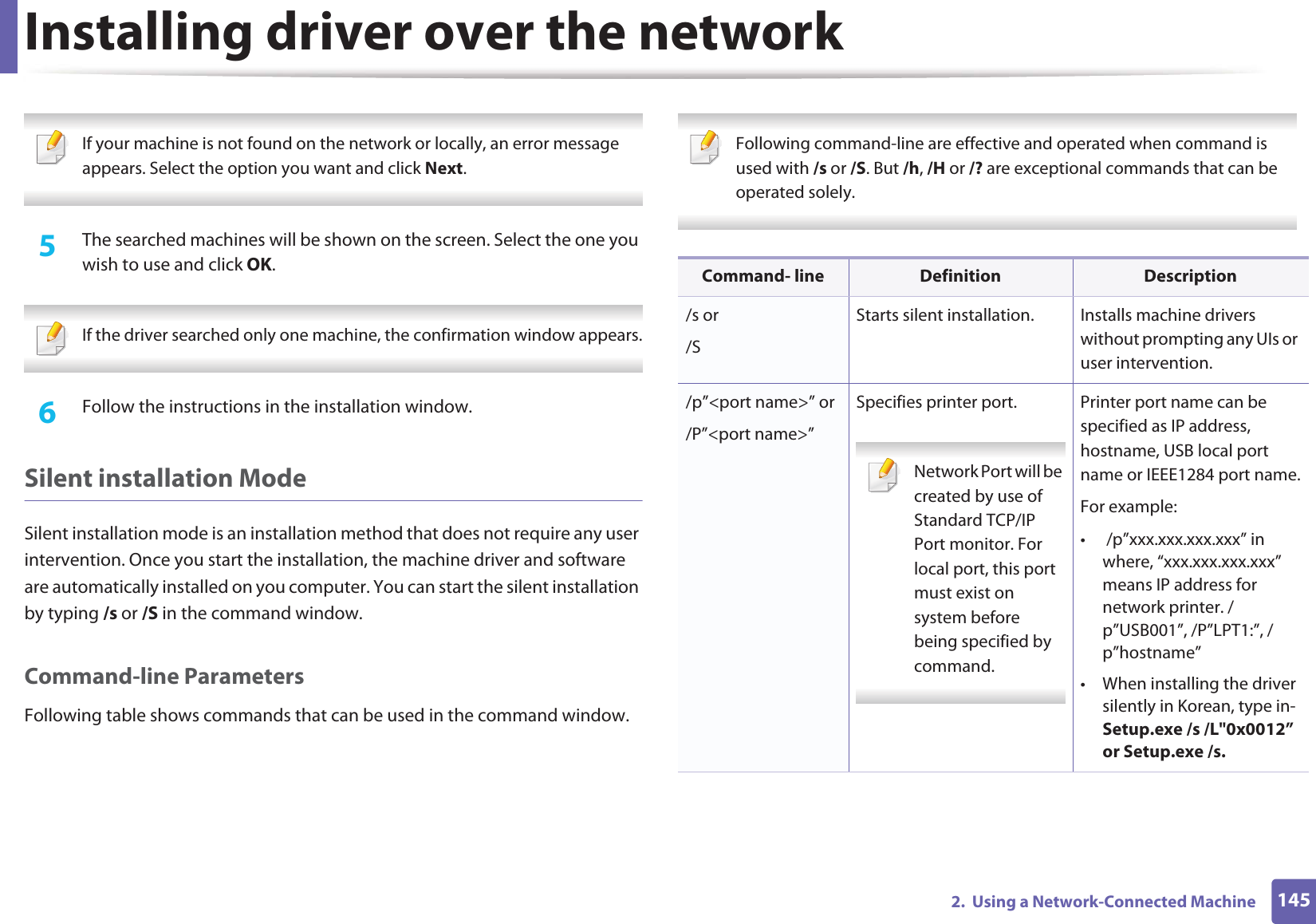

Installing driver over the network1452. Using a Network-Connected Machine If your machine is not found on the network or locally, an error message appears. Select the option you want and click Next. 5 The searched machines will be shown on the screen. Select the one you wish to use and click OK. If the driver searched only one machine, the confirmation window appears. 6 Follow the instructions in the installation window.Silent installation ModeSilent installation mode is an installation method that does not require any user intervention. Once you start the installation, the machine driver and software are automatically installed on you computer. You can start the silent installation by typing /s or /S in the command window.Command-line ParametersFollowing table shows commands that can be used in the command window. Following command-line are effective and operated when command is used with /s or /S. But /h, /H or /? are exceptional commands that can be operated solely. Command- line Definition Description/s or/SStarts silent installation. Installs machine drivers without prompting any UIs or user intervention./p”<port name>” or/P”<port name>”Specifies printer port. Network Port will be created by use of Standard TCP/IP Port monitor. For local port, this port must exist on system before being specified by command. Printer port name can be specified as IP address, hostname, USB local port name or IEEE1284 port name.For example:• /p”xxx.xxx.xxx.xxx” in where, “xxx.xxx.xxx.xxx” means IP address for network printer. /p”USB001”, /P”LPT1:”, /p”hostname”• When installing the driver silently in Korean, type in-Setup.exe /s /L"0x0012” or Setup.exe /s.
Installing driver over the network1462. Using a Network-Connected Machine/a”<dest_path>” or/A”<dest_path>”Specifies destination path for installation. The destination path should be a fully qualified path. Since machine drivers should be installed on the OS specific location, this command applies to only application software./i”<script filename>” or/I”<script filename>”Specifies customized install script file for custom operation. The script filename should be a fully qualified filename. Customized script file can be assigned for customized silent installation. This script file can be created or modified through provided installer customizing utility or by text editor. This customized script file is prior than default installer setting in setup package but not prior than command-line parameters. Command- line Definition Description/n”<Printer name>” or/N”<Printer name>”Specifies printer name. Printer instance shall be created as specified printer name.With this parameter, you can add printer instances as your wishes./nd or/NDCommands not to set the installed driver as a default machine driver.It indicates installed machine driver will not be the default machine driver on your system if there are one or more printer drivers installed. If there is no installed machine driver on your system, then this option won’t be applied because Windows OS will set installed printer driver as a default machine driver./x or/XUses existing machine driver files to create printer instance if it is already installed.This command provides a way to install a printer instance that uses installed printer driver files without installing an additional driver.Command- line Definition Description
Installing driver over the network1472. Using a Network-Connected Machine7 Macintosh1Make sure that the machine is connected to your network and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Installer OS X icon.5 Click Continue.6 Read the license agreement and click Continue.7 Click Agree to agree to the license agreement.8 When the message which warns that all applications will close on your computer appears, click Continue.9 Click Continue on the User Options Pane./up”<printer name>” or/UP”<printer name>”Removes only specified printer instance and not the driver files.This command provides a way to remove only specified printer instance from your system without effecting other printer drivers. It will not remove printer driver files from your system./d or/DUninstalls all device drivers and applications from your system.This command will remove all installed device drivers and application software from your system./v”<share name>” or/V”<share name>”Shares installed machine and add other available platform drivers for Point & Print.It will install all supported Windows OS platform’s machine drivers to system and share it with specified <share name> for point and print./o or /OOpens Printers and Faxes folder after installation.This command will open Printers and Faxes folder after the silent installation./f”<log filename>” or/F”<log filename>”Specifies log filename.The default log file is created in the system temp folder if not specified.It will create a log file to a specified folder.Command- line Definition Description/h, /H or /? Shows Command-line Usage.Command- line Definition Description
Installing driver over the network1482. Using a Network-Connected Machine If you have not set the IP address yet, click Set IP address and refer to "IPv4 configuration using SetIP (Macintosh)" on page 142. If you want to set the wireless setting, refer to "Setup using Macintosh" on page 172. 10 Click Install. All components necessary for machine operations will be installed.If you click Customize, you can choose individual components to install.11 Enter the password and click OK.12 Installing software requires you to restart your computer. Click Continue Installation.13 After the installation is finished, click Quit or Restart.14 Open the Applications folder > Utilities > Print Setup Utility.• For Mac OS X 10.5-10.7, open the Applications folder > System Preferences and click Print & Fax.15 Click Add on the Printer List.• For Mac OS X 10.5-10.7, click the “+” icon. A display window will pop up. 16 For Mac OS X 10.4, click IP Printer.• For Mac OS X 10.5-10.7, click IP.17 Select HP Jetdirect - Socket in Protocol. When printing a document containing many pages, printing performance may be enhanced by choosing Socket for Printer Type option. 18 Enter the machine’s IP address in the Address input field.19 Enter the queue name in the Queue input field. If you cannot determine the queue name for your machine server, try using the default queue first.20 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model. • For Mac OS X 10.5-10.7, if Auto Select does not work properly, choose Select Printer Software and your machine name in Print Using.21 Click Add.Your machine appears in the Printer List, and is set as the default machine. To install the fax driver: a Open the Applications folder > Samsung > Fax Queue Creator.b Your machine appears on the Printer List.c Select machine to use and Click Create button.
Installing driver over the network1492. Using a Network-Connected Machine8 LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads). To install other software:• See "Installing the Smart Panel" on page 136.• See "Installing the Printer Settings Utility" on page 137. Install the Linux driver and add network printer1Make sure that the machine is connected to your network and powered on. Also, your machine’s IP address should have been set. 2 Download the Unified Linux Driver package from the Samsung website.3 Extract the UnifiedLinuxDriver.tar.gz file and open the new directory.4 Double-click the Linux folder > install.sh icon.5 The Samsung installer window opens. Click Continue.6 The add printer wizard window opens. Click Next.7 Select network printer and click Search button.8 The machine’s IP address and model name appears on list field.9 Select your machine and click Next.10 Input the printer description and Next.11 After the machine is added, click Finish.12 When installation is done, click Finish.Add a network printer1Double-click the Unified Driver Configurator.2 Click Add Printer.3 The Add printer wizard window opens. Click Next.4 Select Network printer and click the Search button.5 The printer’s IP address and model name appears on list field.6 Select your machine and click Next.7 Enter the printer description and click Next.8 After the machine is added, click Finish.
Installing driver over the network1502. Using a Network-Connected Machine9 UNIX • Make sure your machine supports the UNIX operating system before installing the UNIX printer driver (see "Operating System" on page 7).• The commands are marked with “”, when typing the commands, do not type “”.• Some features and optional goods may not be available depending on model or country (see "Operating System" on page 7). To use the UNIX printer driver, you have to install the UNIX printer driver package first, then setup the printer. You can download the UNIX printer driver package from the Samsung website ((http://www.samsung.com > find your product > Support or Downloads).Installing the UNIX printer driver packageThe installation procedure is common for all variants of UNIX OS mentioned.1From the Samsung website, download and unpack the UNIX Printer Driver package to your computer. 2 Acquire root privileges.“su -”3 Copy the appropriate driver archive to the target UNIX computer. See administration guide of your UNIX OS for details. 4 Unpack the UNIX printer driver package.For example, on IBM AIX, use the following commands.“gzip -d < enter the package name | tar xf -”5 Go to the unpacked directory.6 Run the install script.“./install”install is the installer script file which is used to install or uninstall the UNIX Printer Driver package.Use “chmod 755 install” command to give the permission to the installer script.7 Execute the “. /install –c” command to verify installation results.8 Run “installprinter” from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window referring to the following procedures.
