Users Manual

Monochrome Laser Multifunction User’s Guide

SCX-4500 Series

This user’s guide is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not

responsible for any changes, direct or indirect damages, arising from or related to use of this user’s guide.

• SCX-4500 is model names of Samsung Electronics Co., Ltd.

• Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Microsoft, Windows, Windows XP and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation.

• UFST® and MicroType™ are registered trademarks of Monotype Imaging Inc.

• TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

CONTACT SAMSUNG WORLD WIDE

If you have any comments or questions regarding Samsung products,

contact the Samsung customer care center.

Country Customer Care Center Web Site

ARGENTINE 0800-333-3733 www.samsung.com/ar

AUSTRALIA 1300 362 603 www.samsung.com/au

BELGIUM 02 201 2418 www.samsung.com/be

BRAZIL 0800-124-421

4004-0000

www.samsung.com/br

CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca

CHILE 800-726-7864 (SAMSUNG) www.samsung.com/cl

CHINA 800-810-5858

010- 6475 1880

www.samsung.com.cn

COLOMBIA 01-8000-112-112 www.samsung.com/co

COSTA RICA 0-800-507-7267 www.samsung.com/latin

CZECH

REPUBLIC

844 000 844 www.samsung.com/cz

Distributor pro ýeskou republiku : Samsung Zrt., þeska

organizaþní složka Vyskoþilova 4, 14000 Praha 4

DENMARK 70 70 19 70 www.samsung.com/dk

ECUADOR 1-800-10-7267 www.samsung.com/latin

EL SALVADOR 800-6225 www.samsung.com/latin

ESTONIA 800-7267 www.samsung.ee

KAZAHSTAN 8-800-080-1188 www.samsung.kz

FINLAND 030-6227 515 www.samsung.com/fi

FRANCE 3260 SAMSUNG or

08 25 08 65 65 (€ 0,15/min)

www.samsung.com/fr

GERMANY 01805 - 121213

(€ 0,14/min)

www.samsung.de

GUATEMALA 1-800-299-0013 www.samsung.com/latin

HONG KONG 3698 4698 www.samsung.com/hk

HUNGARY 06-80-SAMSUNG (7267864) www.samsung.com/hu

INDIA 3030 8282

1800 110 011

www.samsung.com/in/

INDONESIA 0800-112-8888 www.samsung.com/id

ITALIA 800-SAMSUNG(7267864) www.samsung.com/it

JAMAICA 1-800-234-7267 www.samsung.com/latin

JAPAN 0120-327-527 www.samsung.com/jp

LATVIA 800-7267 www.samsung.com/lv/

index.htm

LITHUANIA 8-800-77777 www.samsung.com/lt

LUXEMBURG 0032 (0)2 201 24 18 www.samsung.lu

MALAYSIA 1800-88-9999 www.samsung.com/my

MEXICO 01-800-SAMSUNG

(7267864)

www.samsung.com/mx

NETHERLANDS

0900 20 200 88 (€ 0,10/min) www.samsung.com/nl

NORWAY 815-56 480 www.samsung.com/no

PANAMA 800-7267 www.samsung.com/latin

PHILIPPINES 1800-10-SAMSUNG

(7267864)

www.samsung.com/ph

POLAND 0 801 801 881 www.samsung.com/pl

PORTUGAL 80 8 200 128 www.samsung.com/pt

PUERTO RICO 1-800-682-3180 www.samsung.com/latin

REP.

DOMINICA

1-800-751-2676 www.samsung.com/latin

Republic of

Ireland

0818 717 100 www.samsung.com/uk

RUSSIA 8-800-200-0400 www.samsung.ru

SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg

SLOVAKIA 0800-SAMSUNG (726786) www.samsung.com/sk

SOUTH

AFRICA

0860 726 7864 (SAMSUNG) www.samsung.com/za

SPAIN 902 10 11 30 www.samsung.com/es

SWEDEN 0771-400 200 www.samsung.com/se

Switzerland 0800-7267864 www.samsung.com/ch/

TAIWAN 0800-329-999 www.samsung.com/tw

THAILAND 1800-29-3232

02-689-3232

www.samsung.com/th

TRINIDAD &

TOBAGO

1-800-7267-864 www.samsung.com/latin

U.A.E 800-SAMSUNG (7267864) www.samsung.com/mea

U.K 0870 SAMSUNG (7267864) www.samsung.com/uk

U.S.A 1-800-SAMSUNG (7267864) www.samsung.com

UKRAINE 8-800-502-0000 www.samsung.com/ur

UZBEKISTAN 8-800-120-0400 www.samsung.com.uz

VENEZUELA 0-800-100-5303 www.samsung.com/latin

VIETNAM 1 800 588 889 www.samsung.com/vn

Country Customer Care Center Web Site

CONTENTS

About this user’s guide .................................................................................................................................................i

Finding more information .............................................................................................................................................i

Safety and Regulatory Information .............................................................................................................................. ii

1. Introduction

Special features ...................................................................................................................................................... 1.1

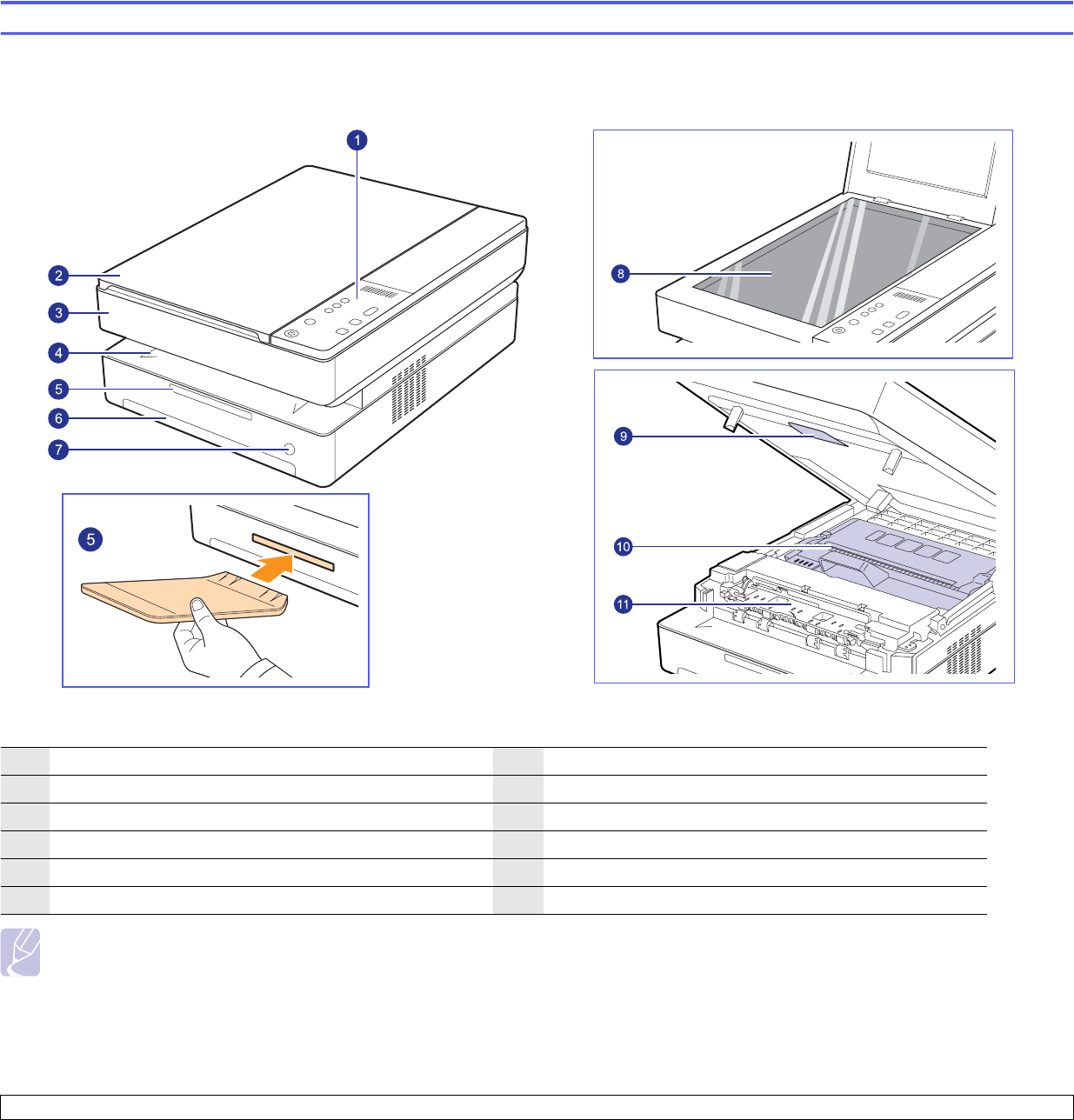

Machine overview ................................................................................................................................................... 1.2

Front view ........................................................................................................................................................... 1.2

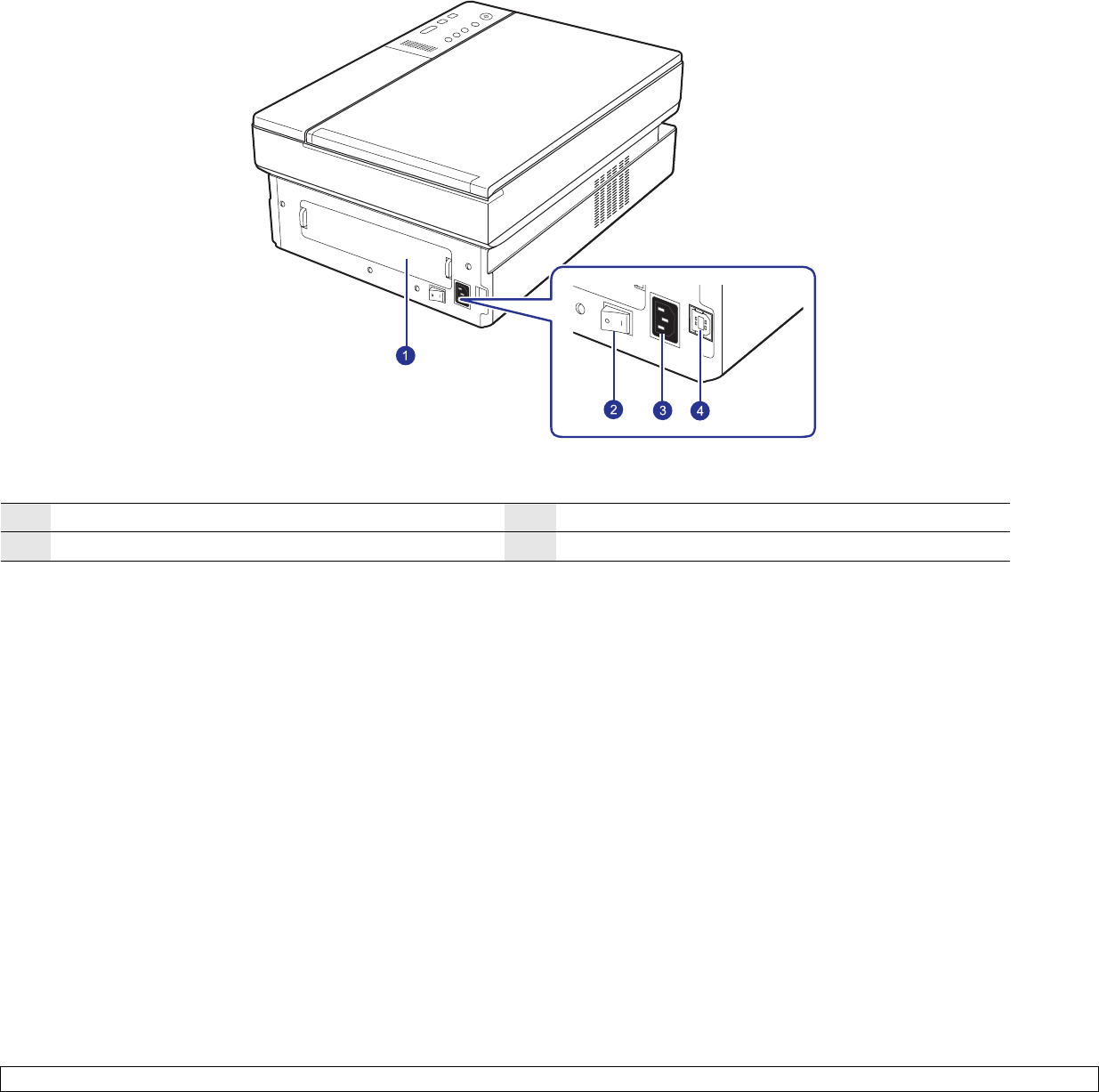

Rear view ............................................................................................................................................................ 1.3

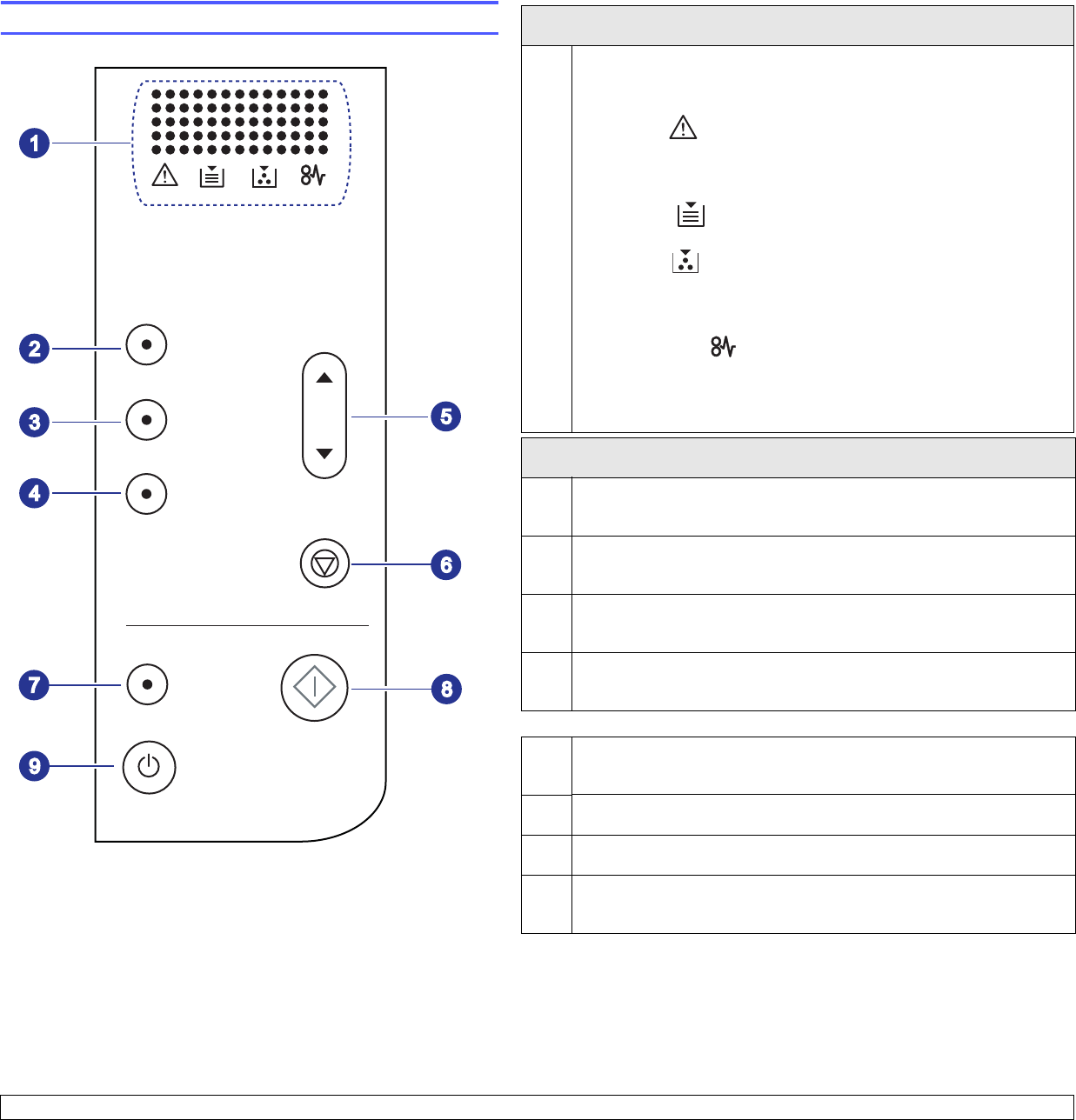

Control panel overview ........................................................................................................................................... 1.4

2. Software overview

Supplied software .................................................................................................................................................... 2.1

Printer driver features .............................................................................................................................................. 2.2

System requirements .............................................................................................................................................. 2.2

3. Getting Started

Setting up the hardware .......................................................................................................................................... 3.1

Altitude adjustment .................................................................................................................................................. 3.2

4. Loading originals and print media

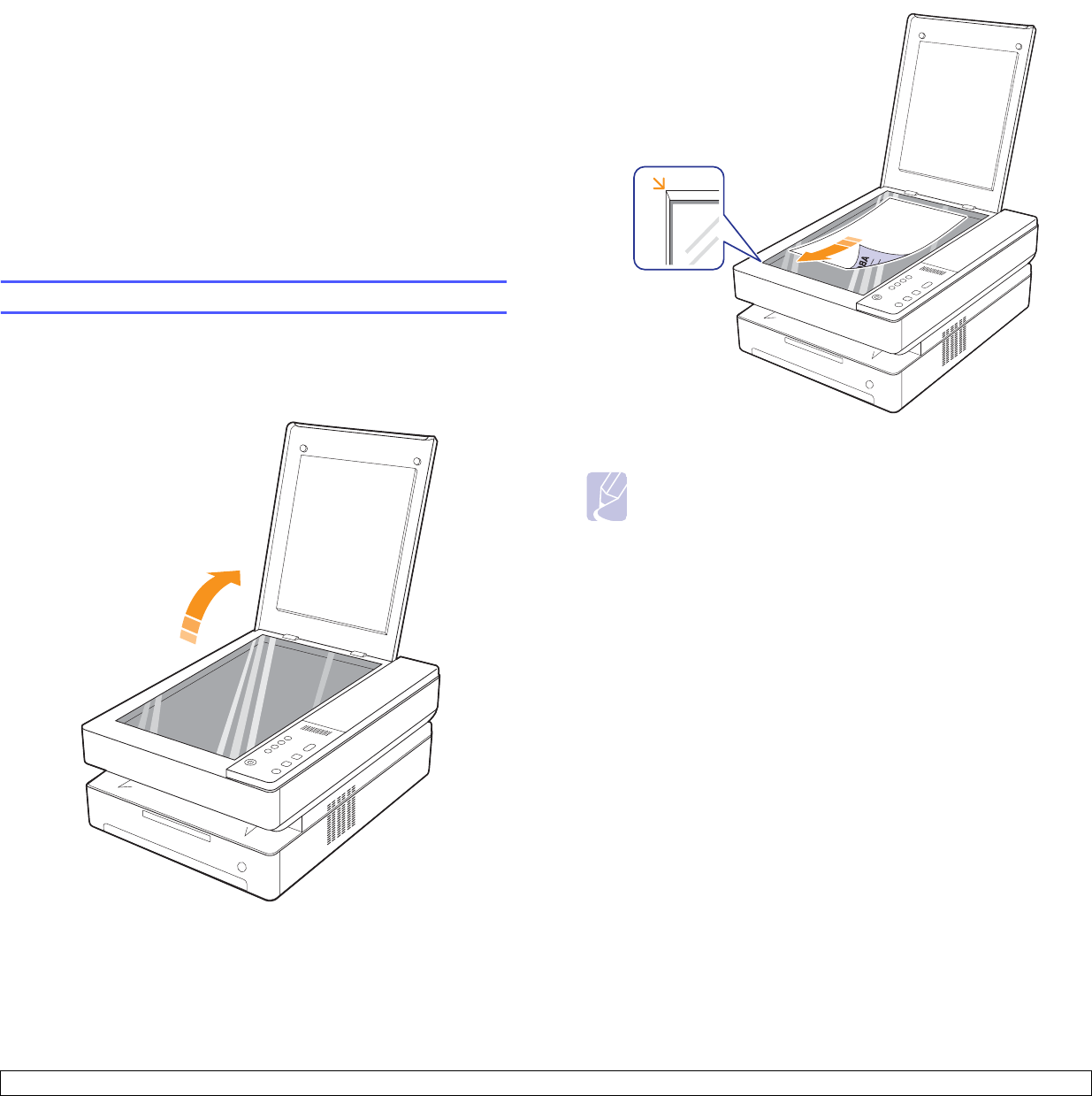

Loading originals ..................................................................................................................................................... 4.1

Selecting print media ............................................................................................................................................... 4.2

Guidelines for selecting and storing print media ................................................................................................. 4.2

Specifications on print media .............................................................................................................................. 4.3

Media sizes supported in each mode ................................................................................................................. 4.3

Guidelines for special print media ....................................................................................................................... 4.4

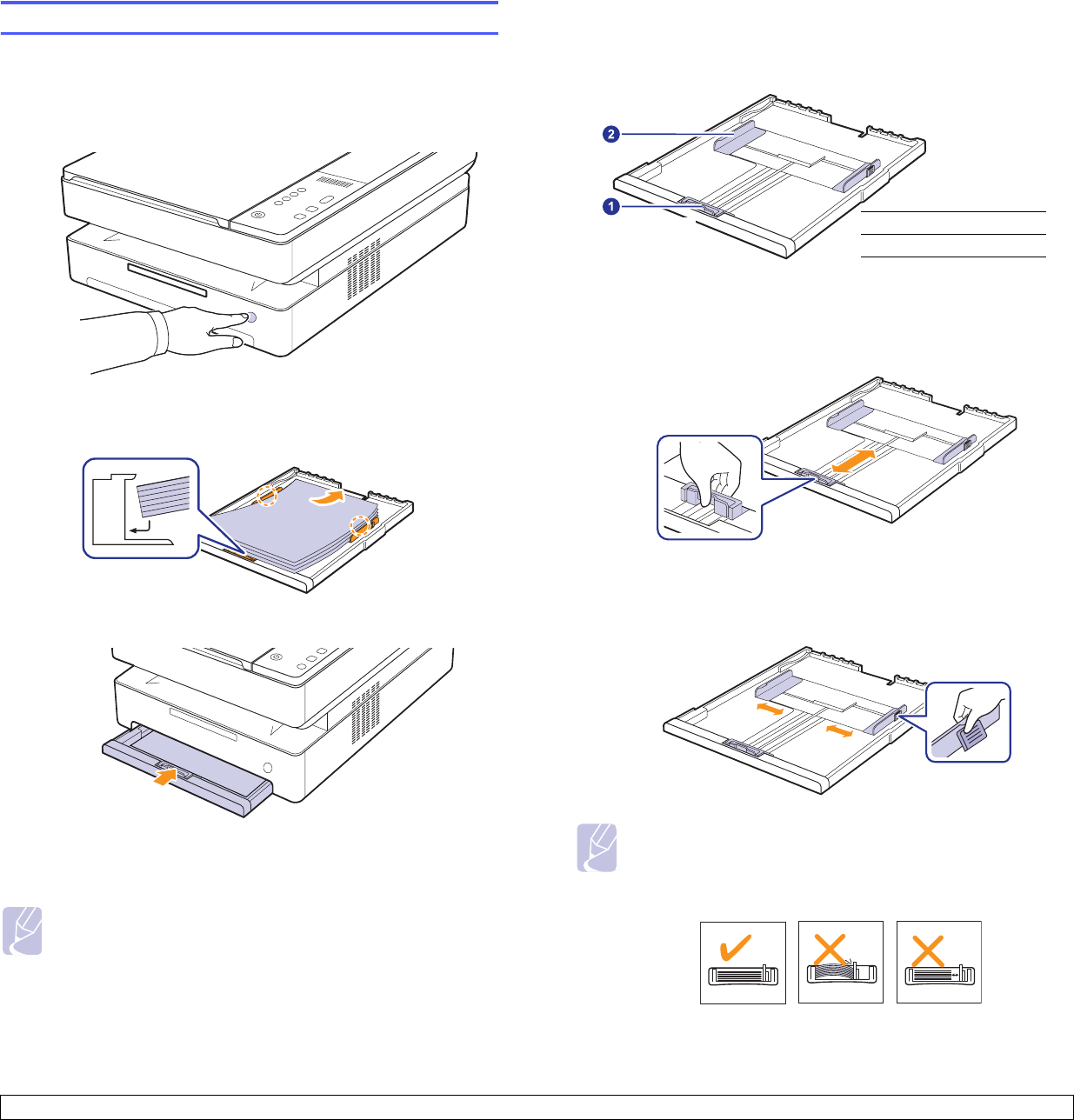

Loading paper in the tray ........................................................................................................................................ 4.5

Changing the paper size in the tray .................................................................................................................... 4.5

Loading an envelope in the tray .............................................................................................................................. 4.6

Setting the paper size and type ............................................................................................................................... 4.7

5. Copying

Copying originals ..................................................................................................................................................... 5.1

Changing the settings for each copy ....................................................................................................................... 5.1

Reducing or enlarging copies ............................................................................................................................. 5.1

Changing the darkness ....................................................................................................................................... 5.1

Setting the paper size ......................................................................................................................................... 5.1

Selecting the type of original ............................................................................................................................... 5.1

6. Scanning

Scanning basics ...................................................................................................................................................... 6.1

Scanning to an application using a local connection ............................................................................................... 6.1

7. Basic printing

Printing a document ................................................................................................................................................ 7.1

Canceling a print job ............................................................................................................................................... 7.1

8. Maintenance

Printing a machine report ........................................................................................................................................ 8.1

Cleaning your machine ........................................................................................................................................... 8.1

Cleaning the outside ........................................................................................................................................... 8.1

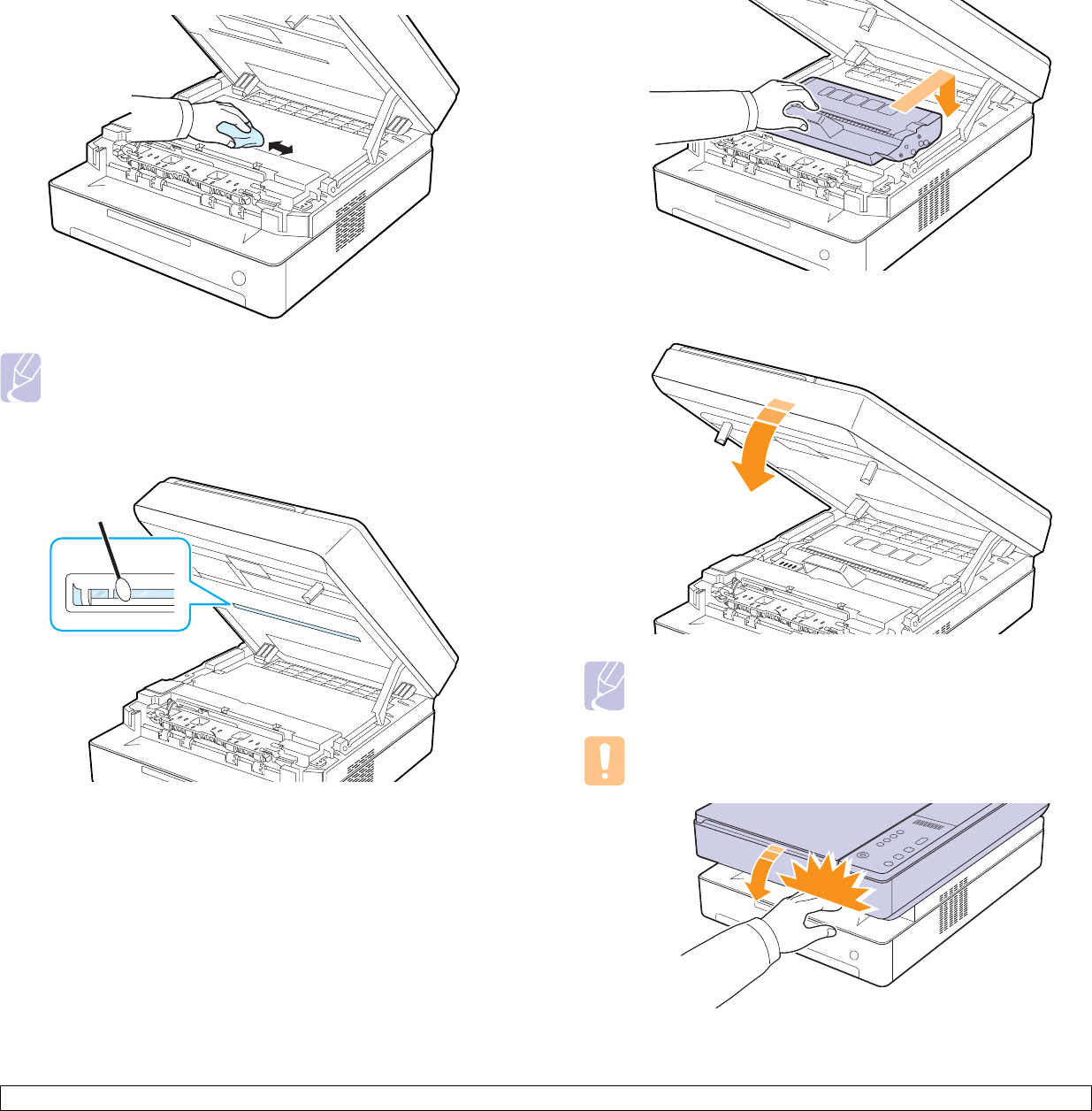

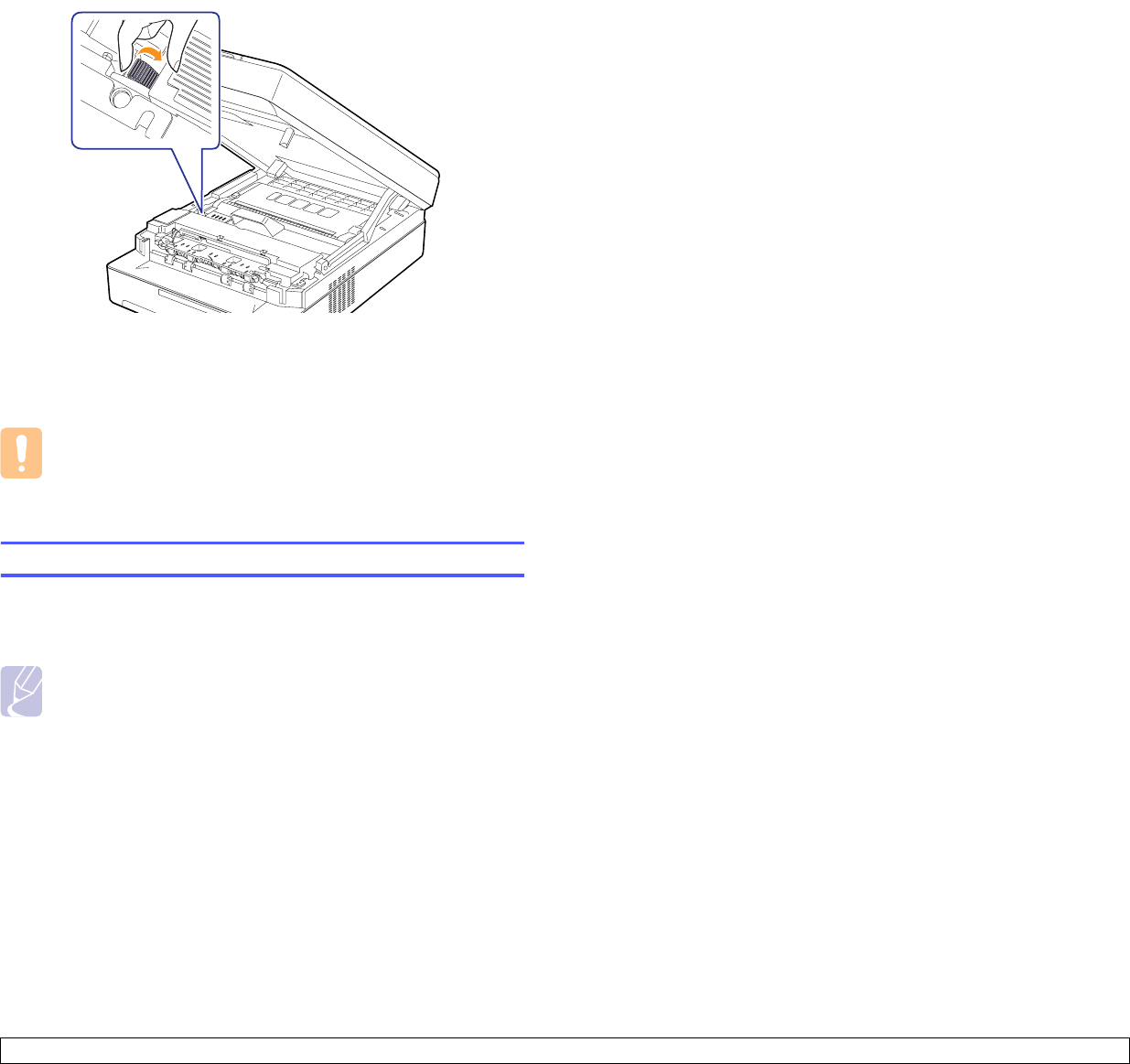

Cleaning the inside ............................................................................................................................................. 8.1

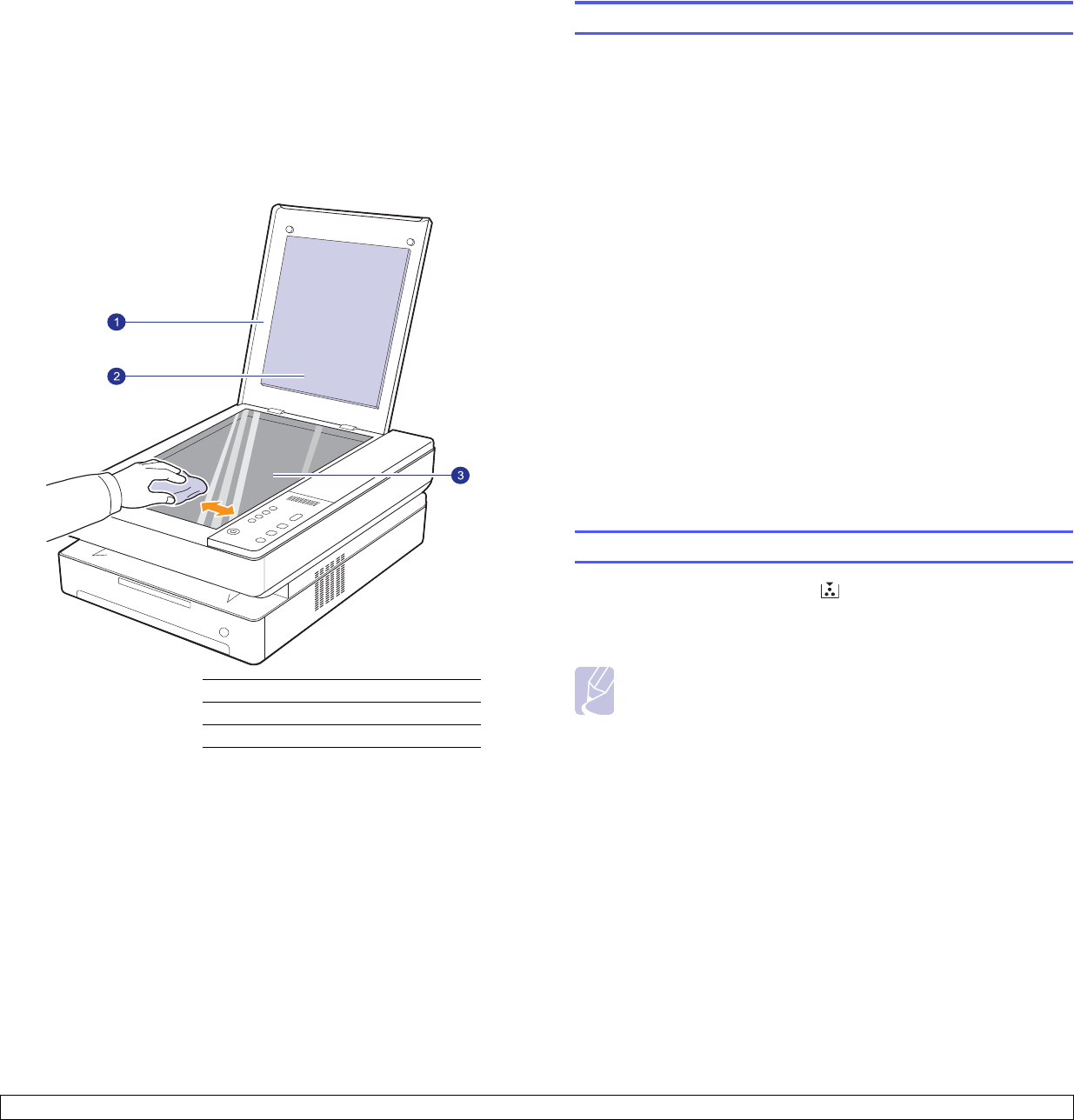

Cleaning the scan unit ........................................................................................................................................ 8.3

Maintaining the cartridge ......................................................................................................................................... 8.3

Print cartridge storage ........................................................................................................................................ 8.3

Expected cartridge life ........................................................................................................................................ 8.3

Redistributing toner ................................................................................................................................................. 8.3

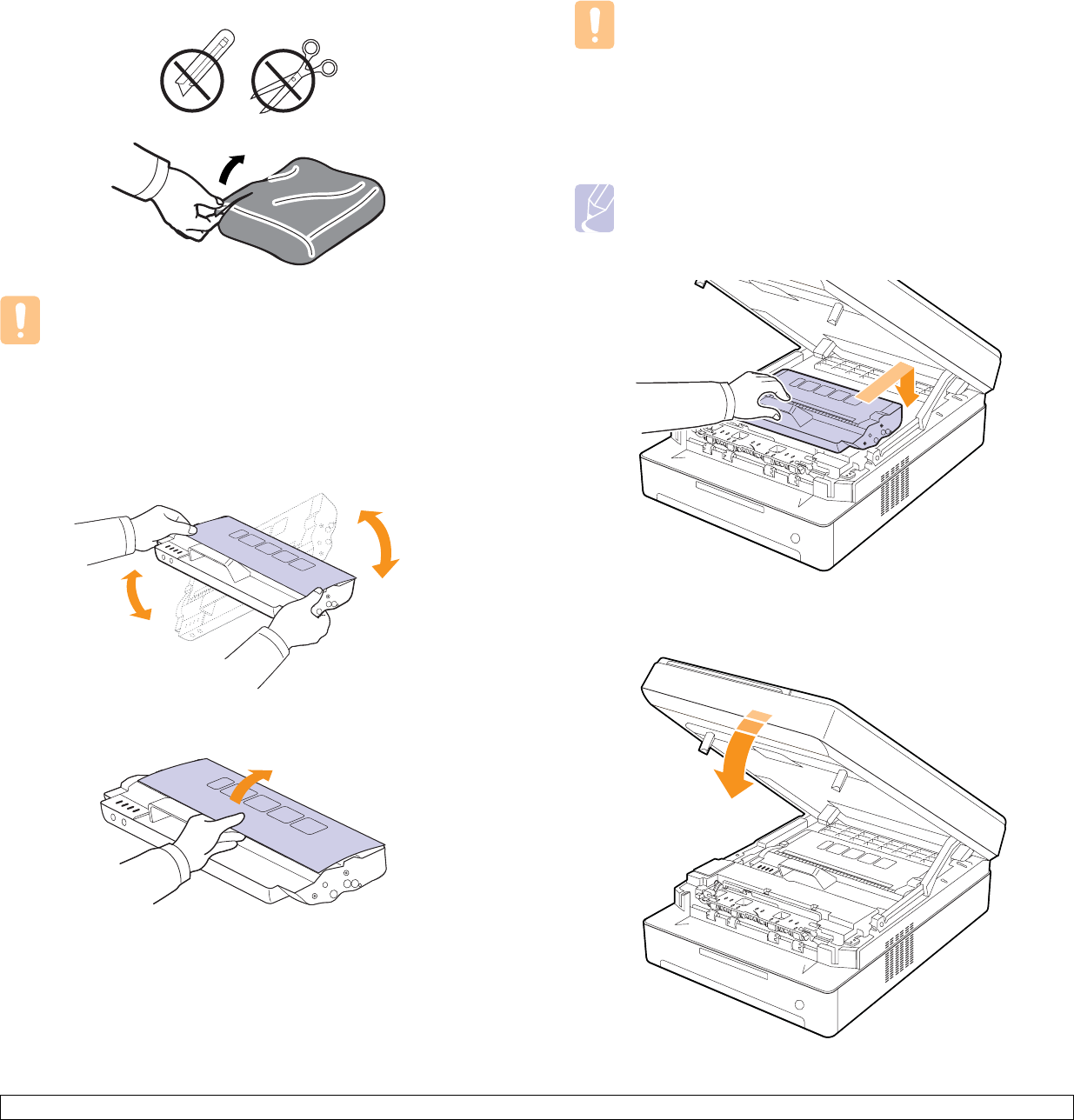

Replacing the print cartridge ................................................................................................................................... 8.5

Maintenance Parts .................................................................................................................................................. 8.7

9. Troubleshooting

Tips for avoiding paper jams ................................................................................................................................... 9.1

Clearing paper jams ................................................................................................................................................ 9.1

In the paper feed area and rear the machine ..................................................................................................... 9.1

Rear and inside the machine .............................................................................................................................. 9.3

In the exit area .................................................................................................................................................... 9.5

Understanding display messages ........................................................................................................................... 9.7

Solving other problems ........................................................................................................................................... 9.8

Paper feeding problems ...................................................................................................................................... 9.8

Printing problems ................................................................................................................................................ 9.8

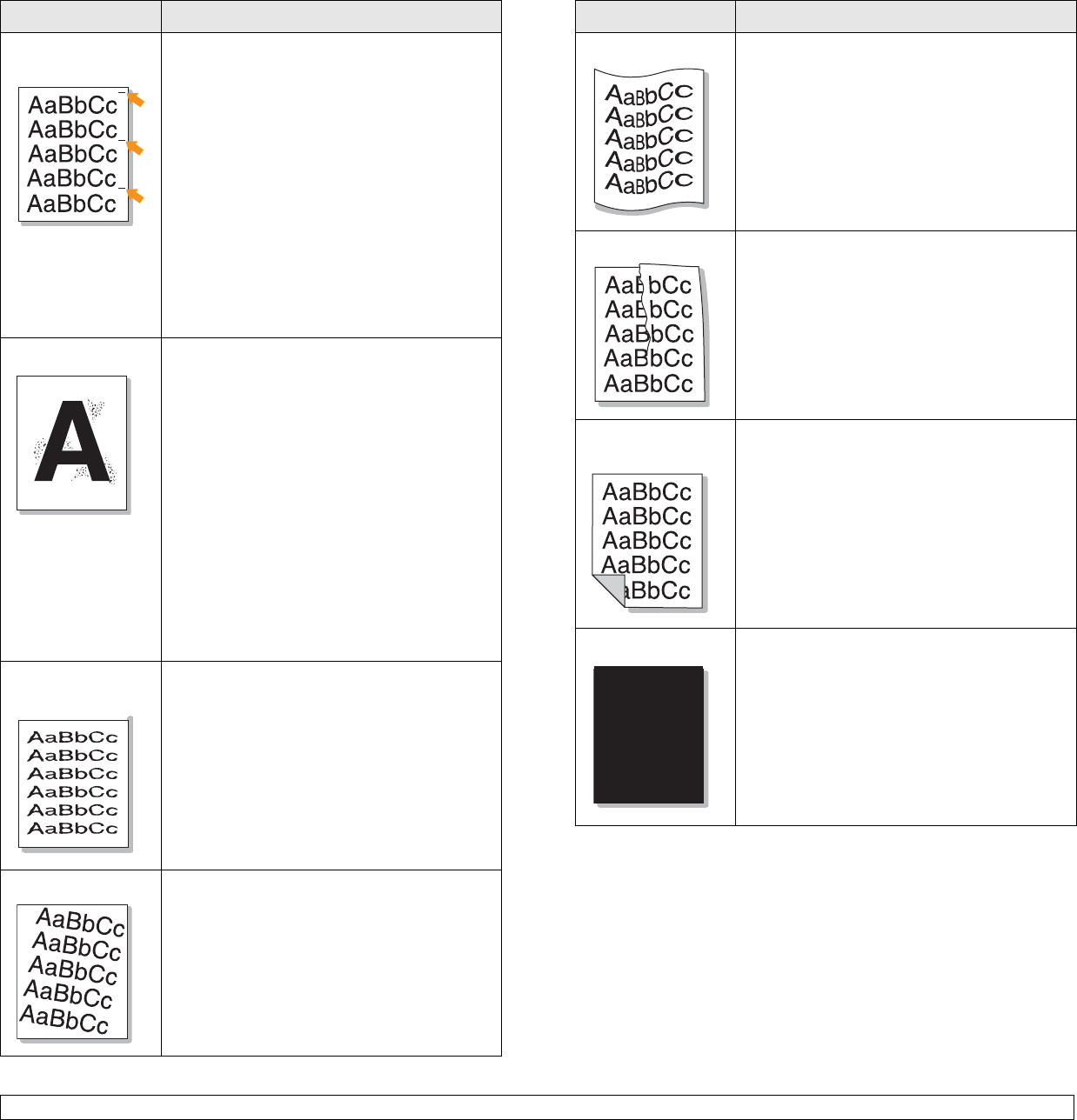

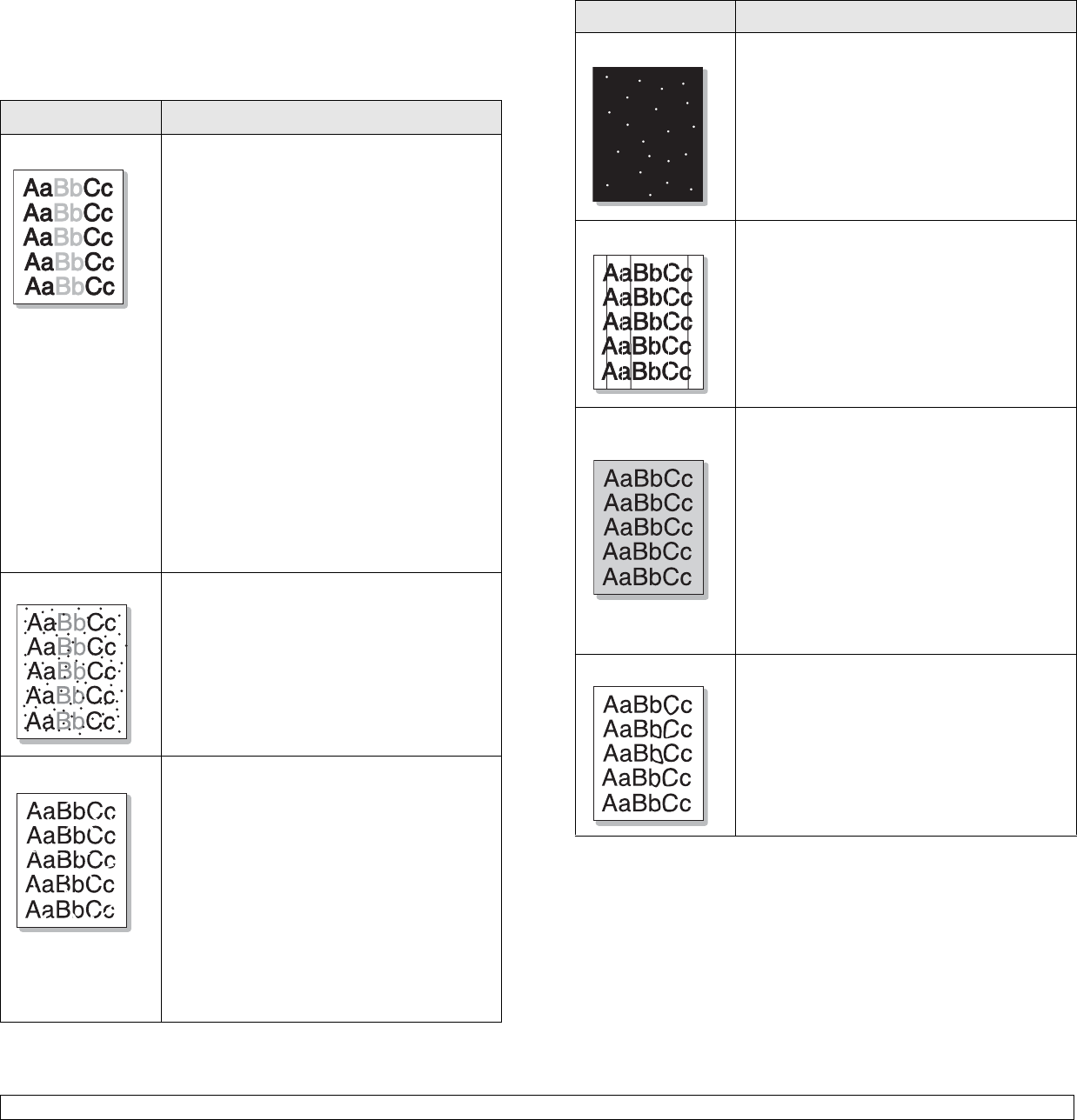

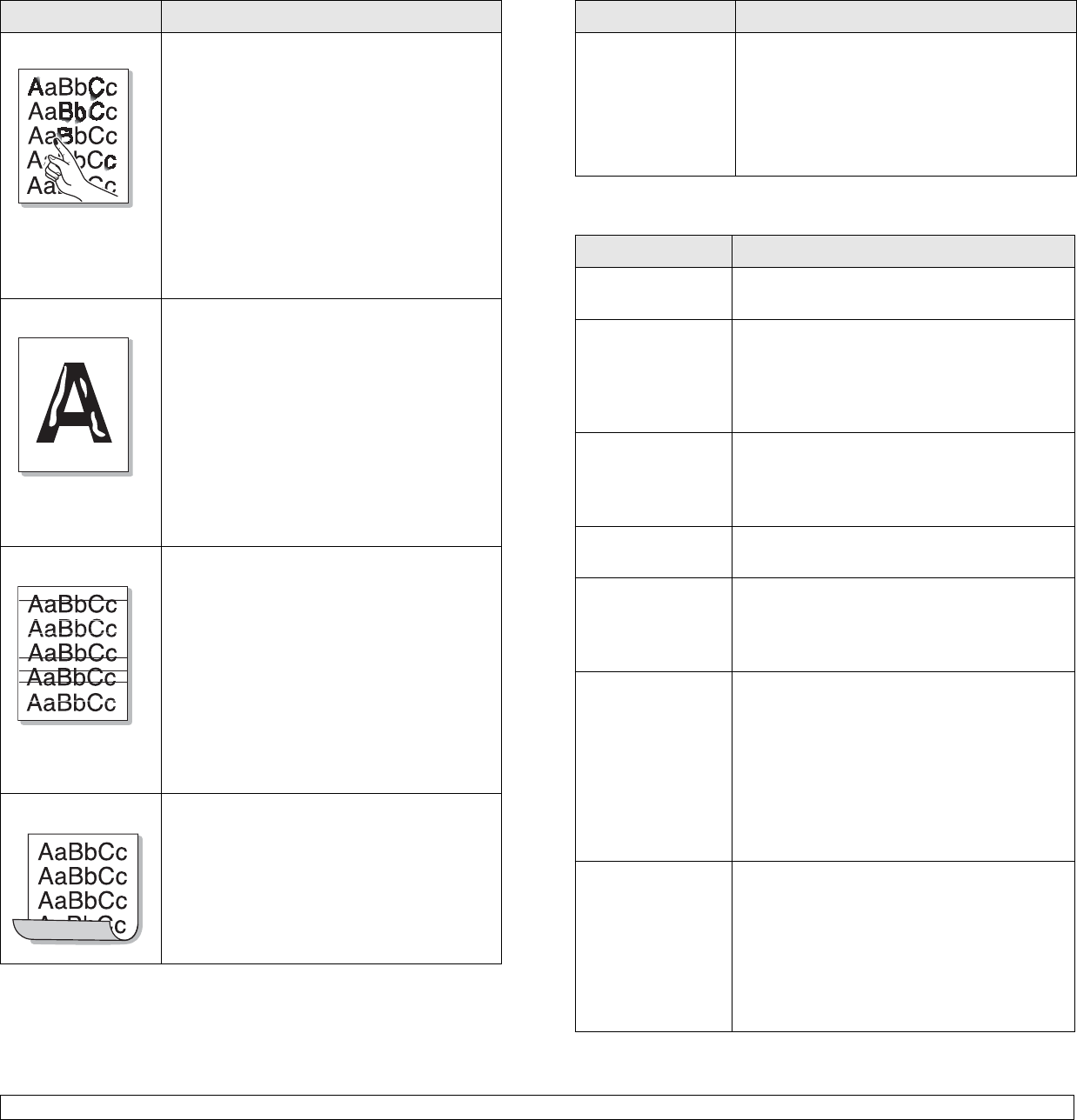

Printing quality problems .................................................................................................................................. 9.10

Copying problems ............................................................................................................................................. 9.12

Scanning problems ........................................................................................................................................... 9.13

Common Windows problems ............................................................................................................................ 9.13

Common Linux problems .................................................................................................................................. 9.14

Common Macintosh problems .......................................................................................................................... 9.15

10. Ordering supplies and accessories

Supplies ................................................................................................................................................................ 10.1

How to purchase ................................................................................................................................................... 10.1

11. Specifications

General specifications ........................................................................................................................................... 11.1

Printer specifications ............................................................................................................................................. 11.1

Copier specifications ............................................................................................................................................. 11.2

Scanner specifications .......................................................................................................................................... 11.2

12. Glossary

Index

About this user’s guide

This user’s guide provides information about basic understanding of the

machine as well as detailed explanation on each step during the actual

usage. Both novice users and professional users can refer to this guide for

installing and using the machine.

This explanation is mainly based on the Microsoft Windows operating

system.

Some terms in this guide are used interchangeably, as below.

• Document is synonymous with original.

• Paper is synonymous with media, or print media.

The following table offers the conventions of this guide.

Convention Description Example

Bold Used for texts on the

display or actual prints on

the machine.

Start Copy

Note Used to provide

additional information or

detailed specification of

the machine function and

feature.

Note

The date format

may differ from

country to country.

Caution Used to give users

information to protect the

machine from possible

mechanical damage or

malfunction.

Caution

Do not touch the

green underside of

the print cartridge.

Footnote Used to provide more

detailed information on

certain words or a

phrase.

a. pages per minute

(See page

1.1 for

information)

Used to guide users to

the reference page for

the additional detailed

information.

(See page 1.1 for more

information)

Finding more information

You can find information for setting up and using your machine from the

following resources, either as a print-out or onscreen.

Quick Install

Guide

Provides information on setting up your

machine and this requires that you follow

the instructions in the guide to prepare the

machine.

Online User’s

Guide

Provides you with step-by-step

instructions for using your machine’s full

features, and contains information for

maintaining your machine,

troubleshooting, and installing

accessories.

This user’s guide also contains

Software

section

to provide you with information on

how to print documents with your machine

in various operating systems, and how to

use the included software utilities.

Note

You can access the user’s guide in other

languages from the Manual folder on the

printer software CD.

Printer Driver

Help

Provides you with help information on

printer driver properties and instructions

for setting up the properties for printing. To

access a printer driver help screen, click

Help

from the printer properties dialog

box.

Samsung website If you have Internet access, you can get

help, support, printer drivers, manuals,

and order information from the Samsung

website, www.samsungprinter.com.

Safety and Regulatory Information

Important Precautions and Safety Information

When using this machine, these basic safety precautions should always be

followed to reduce risk of fire, electric shock and injury to people:

1 Read and understand all instructions.

2 Use common sense whenever operating electrical appliances.

3 Follow all warnings and instructions marked on the machine and in the

literature accompanying the machine.

4 If an operating instruction appears to conflict with safety information,

heed the safety information. You may have misunderstood the

operating instruction. If you cannot resolve the conflict, contact your

sales or service representative for assistance.

5 Unplug the machine from the AC wall socket and/or telephone jack

before cleaning. Do not use liquid or aerosol cleaners. Use only a damp

cloth for cleaning.

6 Do not place the machine on an unstable cart, stand or table. It may fall,

causing serious damage.

7 Your machine should never be placed on, near or over a radiator,

heater, air conditioner or ventilation duct.

8 Do not allow anything to rest on the power. Do not locate your machine

where the cords will be abused by persons walking on them.

9 Do not overload wall outlets and extension cords. This can diminish

performance, and may result in the risk of fire or electric shock.

10 Do not allow pets to chew on the AC power, telephone or PC interface

cords.

11 Never push objects of any kind into the machine through case or

cabinet openings. They may touch dangerous voltage points, creating a

risk of fire or shock. Never spill liquid of any kind onto or into the

machine.

12 To reduce the risk of electric shock, do not disassemble the machine.

Take it to a qualified service technician when repair work is required.

Opening or removing covers may expose you to dangerous voltages or

other risks. Incorrect reassembly could cause electric shock when the

unit is subsequently used.

13 Unplug the machine from the telephone jack, PC and AC wall outlet and

refer servicing to qualified service personnel under the following

conditions:

• When any part of the power cord, plug or connecting cable is

damaged or frayed.

• If liquid has been spilled into the machine.

• If the machine has been exposed to rain or water.

• If the machine does not operate properly after instructions have been

followed.

• If the machine has been dropped, or the cabinet appears damaged.

• If the machine exhibits a sudden and distinct change in performance.

14 Adjust only those controls covered by the operating instructions.

Improper adjustment of other controls may result in damage, and may

require extensive work by a qualified service technician to restore the

machine to normal operation.

15 Avoid using this machine during a lightning storm. There may be a

remote risk of electric shock from lightning. If possible, unplug the AC

power and telephone cord for the duration of the lightning storm.

16 The Power cord supplied with your machine should be used for safe

operation. If you are using a cord which is longer than 2 m with 110 V

machine, then it should be 16 AWG

or bigger.

17 Use only No.26 AWG

or larger telephone line cord.

18 SAVE THESE INSTRUCTIONS.

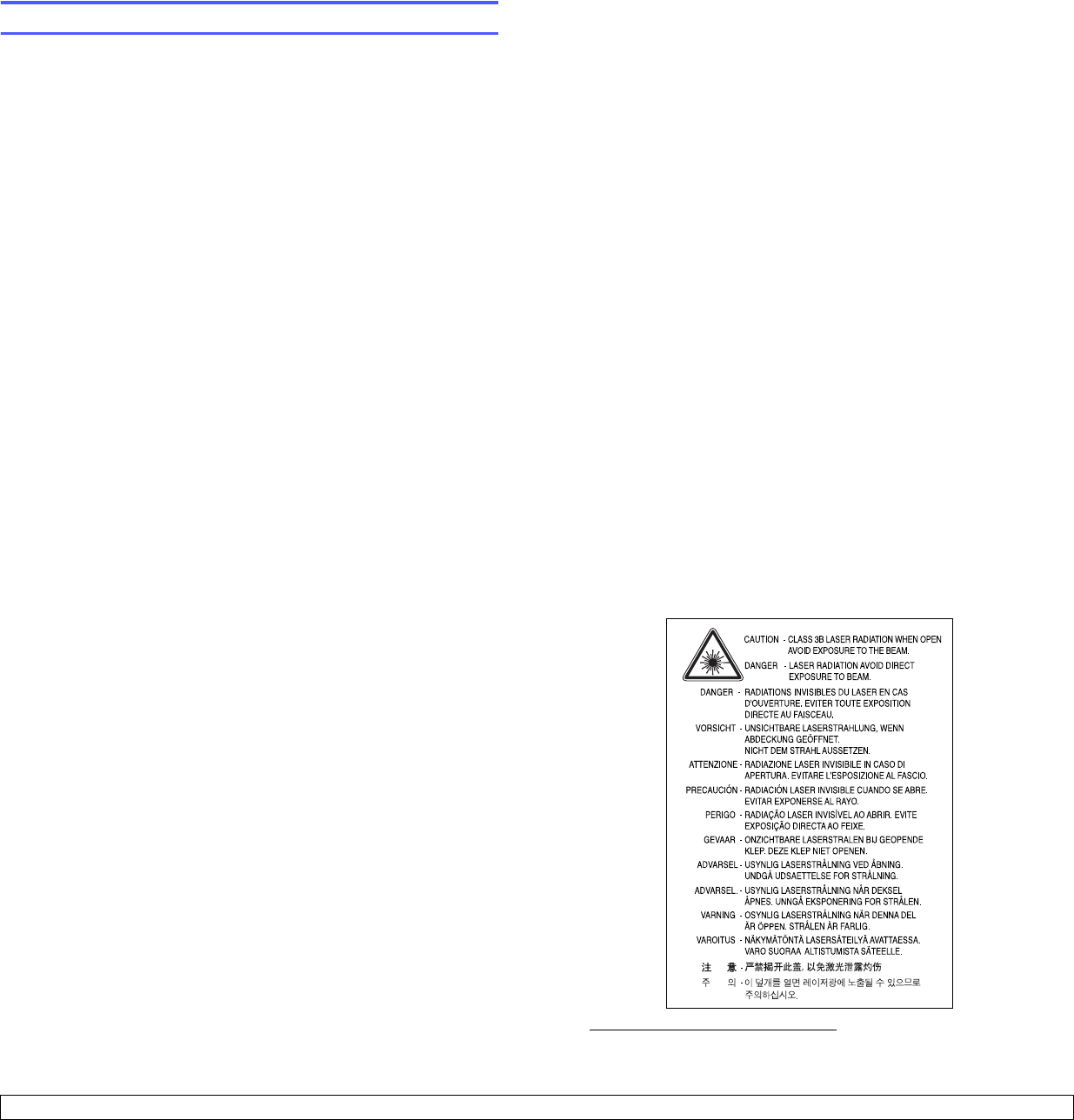

Laser Safety Statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21

CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is

certified as a Class I laser product conforming to the requirements of IEC 825.

Class I laser products are not considered to be hazardous. The laser system

and printer are designed so there is never any human access to laser

radiation above a Class I level during normal operation, user maintenance or

prescribed service condition.

WARNING

Never operate or service the printer with the protective cover removed from

Laser/Scanner assembly. The reflected beam, although invisible, can

damage your eyes.

When using this product, these basic safety precautions should always be

followed to reduce risk of fire, electric shock, and injury to persons:

1 AWG: American Wire Gauge

iii

Ozone Safety

During normal operation, this machine produces ozone.

The ozone produced does not present a hazard to the

operator. However, it is advisable that the machine be

operated in a well ventilated area.

If you need additional information about ozone, please

request your nearest Samsung dealer.

Mercury Safety

LAMP(S) INSIDE THIS PRODUCT CONTAIN

MERCURY AND MUST BE RECYCLED OR DISPOSED

OF ACCORDING TO LOCAL, STATE OR FEDERAL

LAWS. For details see lamprecycle.org, eiae.org, or call

1-800-Samsung

California USA Only

This Perchlorate warning applies only to primary CR (Manganese Dioxide)

Lithium coin cells in the product sold or distributed ONLY in California USA.

Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Power Saver

This printer contains advanced energy conservation technology that reduces

power consumption when it is not in active use.

When the printer does not receive data for an extended period of time, power

consumption is automatically lowered.

Recycling

Please recycle or dispose of the packaging material for this

product in an environmentally responsible manner.

Correct Disposal of This Product (Waste Electrical

& Electronic Equipment)

(Applicable in the European Union and other European

countries with separate collection systems)

This marking shown on the product or its literature,

indicates that it should not be disposed with other

household wastes at the end of its working life. To prevent

possible harm to the environment or human health from

uncontrolled waste disposal, please separate this from

other types of wastes and recycle it responsibly to promote

the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this

product, or their local government office, for details of where and how they

can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract. This product should not be mixed with

other commercial wastes for disposal.

Radio Frequency Emissions

FCC Information to the User

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or experienced radio TV technician for help.

Caution:

Change or modifications not expressly approved by the manufacturer

responsible for compliance could void the user's authority to operate the

equipment.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus as set out in the interference-causing

equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry

and Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques

applicables aux appareils numériques de Classe B prescrites dans la norme

sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par

l’Industrie et Sciences Canada.

Fax Branding

The Telephone Consumer Protection Act of 1991 makes it unlawful for any

person to use a computer or other electronic device to send any message via

a telephone facsimile machine unless such message clearly contains in a

margin at the top or bottom of each transmitted page or on the first page of

the transmission the following information:

(1) the date and time of transmission

(2) identification of either business, business entity or individual sending the

message; and

(3) telephone number of either the sending machine, business, business

entity or individual.

The Telephone Company may make changes in its communications facilities,

equipment operations or procedures where such action is reasonably

required in the operation of its business and is not inconsistent with the rules

and regulations in FCC Part 68. If such changes can be reasonably expected

to render any customer terminal equipment incompatible with telephone

company communications facilities, or require modification or alteration of

such terminal equipment, or otherwise materially affect its use or

performance, the customer shall be given adequate notice in writing, to allow

the customer an opportunity to maintain uninterrupted service.

Ringer Equivalence Number

The Ringer Equivalence Number and FCC Registration Number for this

machine may be found on the label located on the bottom or rear of the

machine. In some instances you may need to provide these numbers to the

telephone company.

The Ringer Equivalence Number (REN) is a measure of the electrical load

placed on the telephone line, and is useful for determining whether you have

“overloaded” the line. Installing several types of equipment on the same

telephone line may result in problems making and receiving telephone calls,

especially ringing when your line is called. The sum of all Ringer Equivalence

Numbers of the equipment on your telephone line should be less than five in

order to assure proper service from the telephone company. In some cases,

a sum of five may not be usable on your line. If any of your telephone

equipment is not operating properly, you should immediately remove it from

your telephone line, as it may cause harm to the telephone network.

WARNING:

FCC Regulations state that changes or modifications to this equipment not

expressly approved by the manufacturer could void the user’s authority to

operate this equipment. In the event that terminal equipment causes harm to

the telephone network, the telephone company should notify the customer

that service may be stopped. However, where prior notice is impractical, the

company may temporarily cease service, providing that they:

a) promptly notify the customer.

b) give the customer an opportunity to correct the equipment problem.

c) inform the customer of the right to bring a complaint to the Federal

Communication Commission pursuant to procedures set out in FCC Rules

and Regulations Subpart E of Part 68.

You should also know that:

• Your machine is not designed to be connected to a digital PBX system.

• If you intend to use a computer modem or fax modem on the same phone

line as your machine, you may experience transmission and reception

problems with all the equipment. It is recommended that no other

equipment, except for a regular telephone, share the line with your

machine.

• If your area experiences a high incidence of lightning or power surges, we

recommend that you install surge protectors for both the power and the

telephone lines. Surge protectors can be purchased from your dealer or

telephone and electronic specialty stores.

• When programming emergency numbers and/or making test calls to

emergency numbers, use a non-emergency number to advise the

emergency service dispatcher of your intentions. The dispatcher will give

you further instructions on how to actually test the emergency number.

• This machine may not be used on coin service or party lines.

• This machine provides magnetic coupling to hearing aids.

• You may safely connect this equipment to the telephone network by

means of a standard modular jack, USOC RJ-11C.

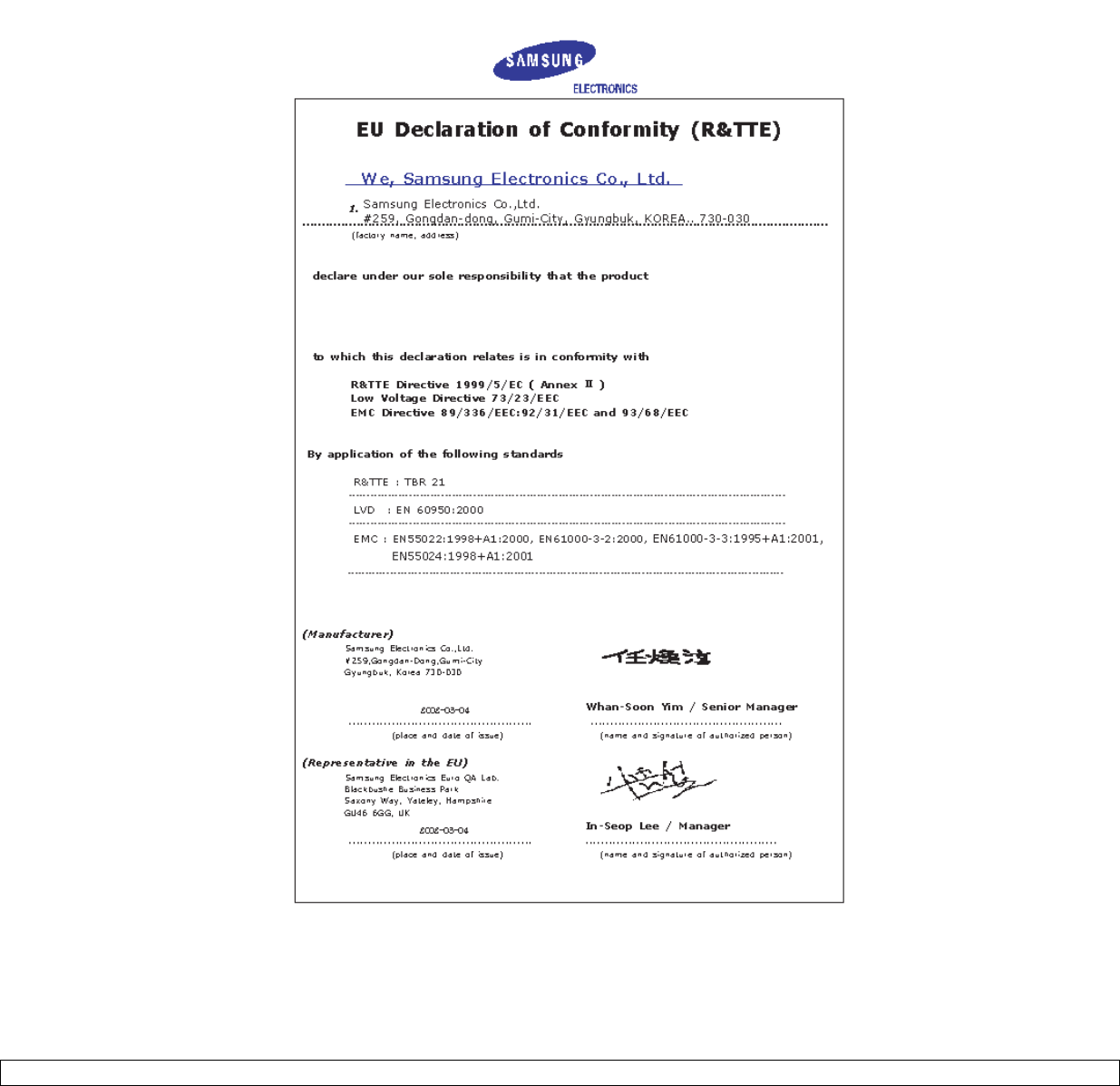

Declaration of Conformity (European Countries)

Approvals and Certifications

The CE marking applied to this product symbolizes

Samsung Electronics Co., Ltd. Declaration of Conformity

with the following applicable 93/68/EEC Directives of the

European Union as of the dates indicated:

January 1, 1995

: Council Directive 73/23/EEC Approximation of the laws of

the member states related to low voltage equipment.

January 1, 1996

: Council Directive 89/336/EEC (92/31/EEC), approximation

of the laws of the Member States related to electromagnetic compatibility.

March 9, 1999

: Council Directive 1999/5/EC on radio equipment and

telecommunications terminal equipment and the mutual recognition of their

conformity.

A full declaration, defining the relevant Directives and referenced standards

can be obtained from your Samsung Electronics Co., Ltd. representative.

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications

Terminal Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European

single terminal connection to the analogue public switched telephone

network (PSTN) in accordance with Directive 1999/5/EC. The product has

been designed to work with the national PSTNs and compatible PBXs of the

European countries:

In the event of problems, you should contact the Euro QA Lab of Samsung

Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21. To assist in the use and

application of terminal equipment which complies with this standard, the

European Telecommunication Standards Institute (ETSI) has issued an

advisory document (EG 201 121) which contains notes and additional

requirements to ensure network compatibility of TBR21 terminals. The

product has been designed against, and is fully compliant with, all of the

relevant advisory notes contained in this document.

Replacing the Fitted Plug (for UK Only)

Important

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp

plug and has a 13 amp fuse. When you change or examine the fuse, you

must re-fit the correct 13 amp fuse. You then need to replace the fuse cover.

If you have lost the fuse cover, do not use the plug until you have another

fuse cover.

Please contact the people from you purchased the machine.

The 13 amp plug is the most widely used type in the UK and should be

suitable. However, some buildings (mainly old ones) do not have normal 13

amp plug sockets. You need to buy a suitable plug adaptor. Do not remove

the moulded plug.

Warning

If you cut off the moulded plug, get rid of it straight away.

You cannot rewire the plug and you may receive an electric shock if you

plug it into a socket.

Important warning:

You must earth this machine.

The wires in the mains lead have the following color code:

• Green and Yellow: Earth

• Blue: Neutral

•Brown: Live

If the wires in the mains lead do not match the colors marked in your plug, do

the following:

You must connect the green and yellow wire to the pin marked by the letter

“E” or by the safety ‘Earth symbol’ or colored green and yellow or green.

You must connect the blue wire to the pin which is marked with the letter “N”

or colored black.

You must connect the brown wire to the pin which is marked with the letter “L”

or colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

1.1 <

Introduction>

1 Introduction

Thank you for purchasing this Samsung multifunctional product. Your

machine provides printing, copying and scanning functions.

This chapter includes:

• Special features

• Machine overview

• Control panel overview

Caution

•

This product is high glossy, Please be careful of surface scratch

while installation.

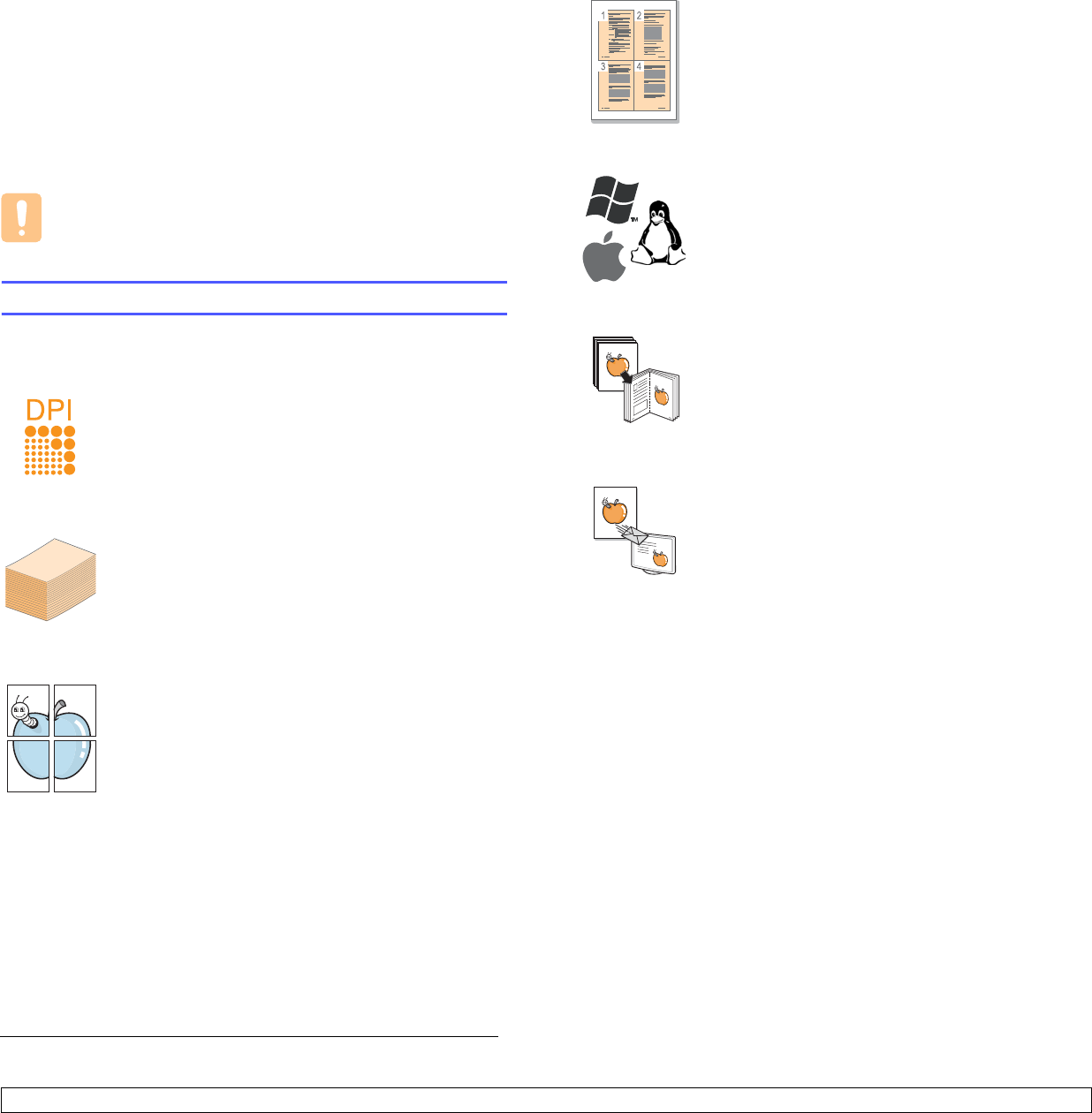

Special features

Your new machine is equipped with special features.

Print with excellent quality and speed

• You can print with a resolution of up to 600 x 600 dpi

Effective output

• Your machine prints A4-sized paper at up to 16 ppma

letter-sized paper at up to 17 ppm.

Handle different paper options with flexibility

The 100-sheet tray support plain paper in various

sizes.

Create professional documents

•Print Watermarks. You can customize your

documents with words, such as “Confidential”. See

Software section

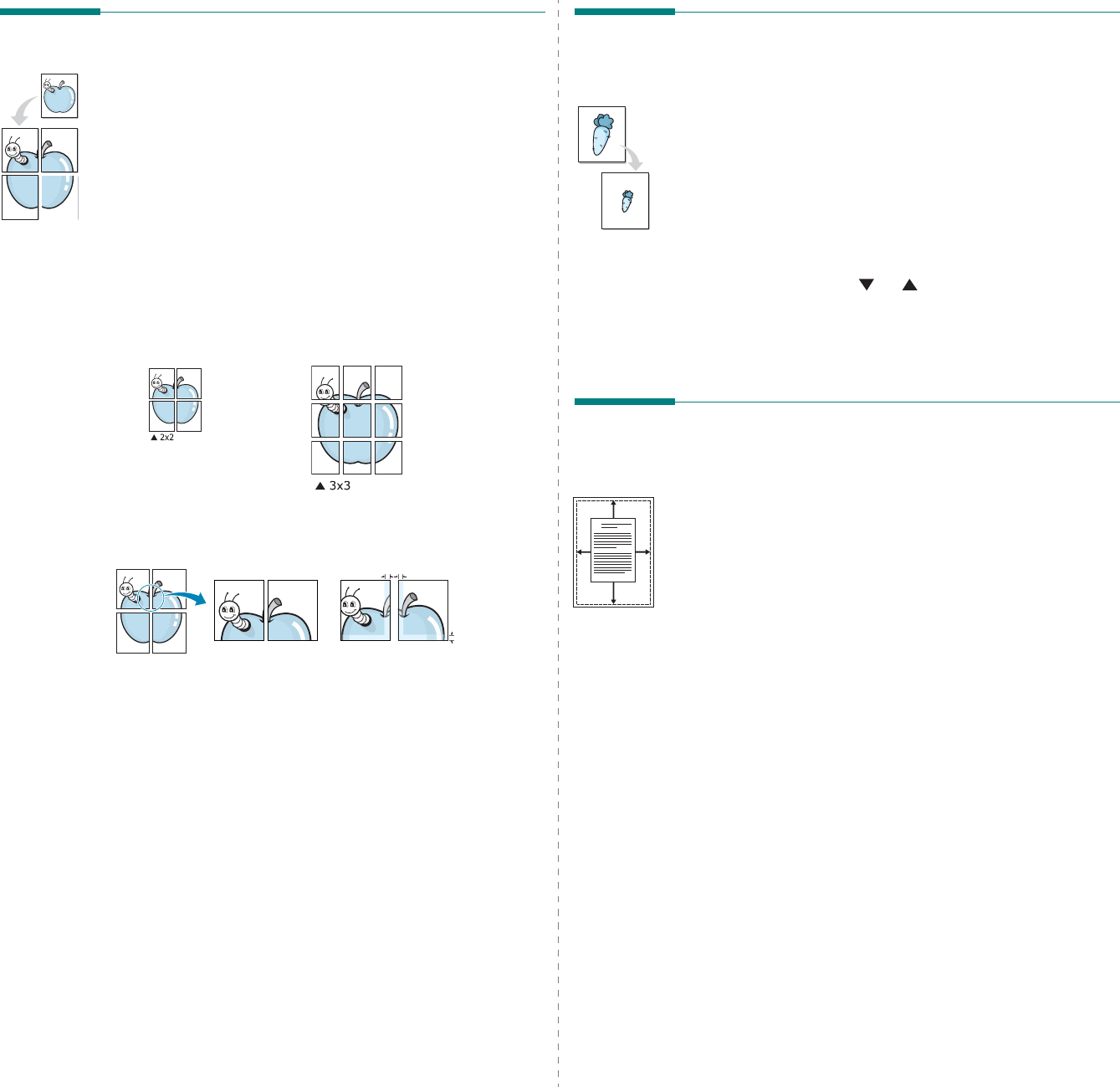

•Print Posters. The text and pictures of each page of

your document are magnified and printed across the

sheet of paper and can then be taped together to

form a poster. See

Software section

Save time and money

Print in various environments

Copy the original in high quality

Scan the original

• To save paper, you can print multiple pages on one

single sheet of paper.

• This machine automatically conserves electricity by

substantially reducing power consumption when not in

use.

• You can print with Windows 2000 and Windows XP/

2003/Vista (32/64bit) as well as Linux and

Macintosh systems.

• Your machine is equipped with a USB interface.

Copy the original and print them in enhanced image

quality and size.

• Scan in color and use the precise compressions of

JPEG, TIFF and PDF formats.

• Use one button to scan your original to the connected

computer.

a. pages per minute

1.2 <

Introduction>

Machine overview

These are the main components of your machine.

Front view

Note

• All illustrations on this user’s guide may differ from your machine.

• The surface of the output tray may become hot if you print a large number of pages at once. Please make sure that you do not touch the surface,

and do not allow children near it.

control panel

tray open button

scanner lid

scanner glass

top cover

top cover lever

output tray

print cartridge

output support

inner cover

tray

1.3 <

Introduction>

Rear view

1rear cover 3power receptacle

2power switch 4USB port

1.4 <

Introduction>

Control panel overview display

Shows the current status and prompts during an operation. The

message shows with specific LEDs as below. LEDs are working with

short message on a display.

• error LED

Blinks when the error occurs on your machine. If it blinks rapidly, the

machine has stopped for some reason. Check the display message

to solve the problem.

• paper LED

Blinks when the paper in the tray is empty.

• toner LED

Blinks when the print cartridge is almost empty or is not Samsung-

genuine cartridge. If it blinks rapidly, the print cartridge is totally

empty. Check the display message and replace the print cartridge.

• paper jam LED

Blinks when the paper jam in the machine. Check the display

message to release the jammed paper.

See page 9.7 about more information on the display messages.

copy buttons

2Copies: Increases the number of printouts. Number can be changed

by using up/down arrows. Possible values can be added up to 99.

3Reduce/Enlarge: Press this button to reduce or enlarge an image on

the paper. You have to use up/down arrows to change the size.

4Darkness: Defines the degree of darkness. Use up/down arrows to

change the level of light/dark in the printouts.

5up/down arrows: Moves to the next value when the one of copy

buttons pressed.

6Stop/Clear: Stops an operation at any time. Also, You can print a

machine report by pressing this button for about 4 seconds.

7Scan to PC: Scans an original to your computer.

8Start Copy: Starts a copy job.

9You can power on or off the control panel by pressing and holding this

button for few seconds.

2.1 <

Software overview>

2 Software overview

This chapter gives you an overview of the software that comes with your

machine. Further details on how to use the software are explained in the

Software section

This chapter includes:

• Supplied software

• Printer driver features

• System requirements

Supplied software

You must install the machine software using the supplied CDs after you

have set up your machine and connected it to your computer.

Each CD provides you with the following software:

CD Contents

Printer

software CD

Windows • Printer driver: Use this driver to

take full advantage of your

machine’s features.

•Scanner driver: TWAIN and

Windows Image Acquisition (WIA)

drivers are available for scanning

documents on your machine.

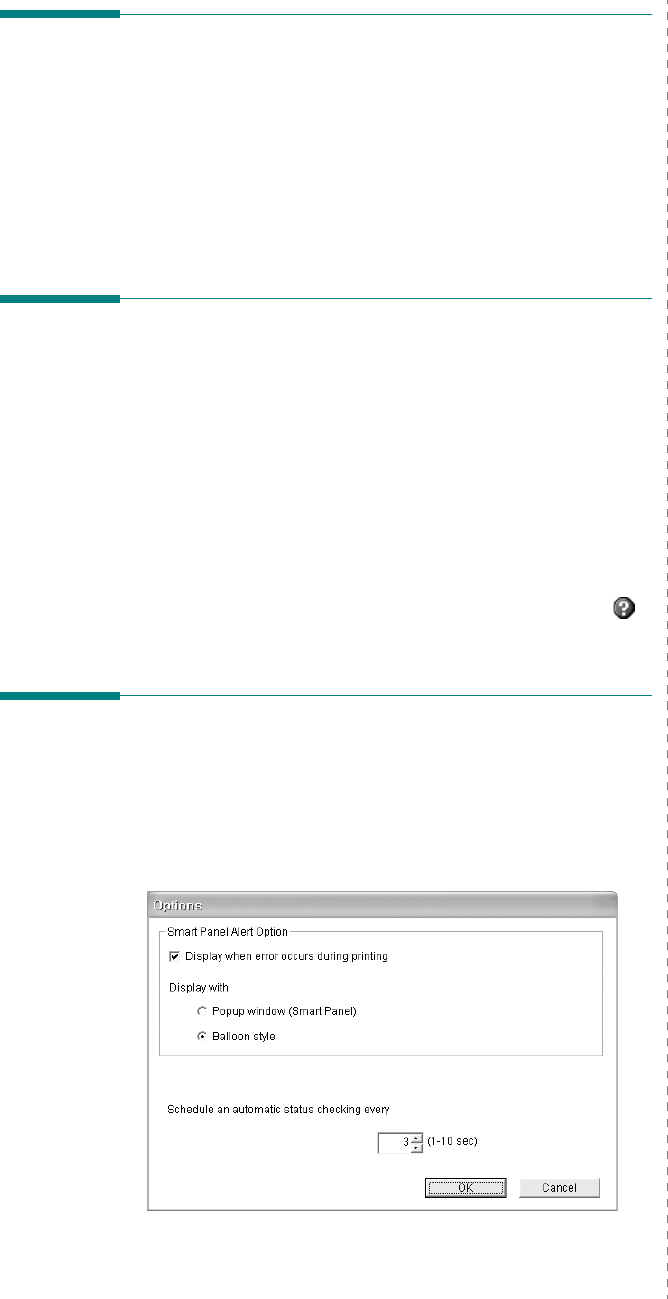

•Smart Panel: This program allows

you to monitor the machine’s status

and alerts you when an error occurs

during printing.

•SmarThrua: This is the

accompanying Windows-based

software for your multifunctional

machine.

• User’s Guide in PDF

a. Allows you to edit a scanned image in many ways using a powerful image

editor and to send the image by email. You can also open another image editor

program, like Adobe Photoshop, from SmarThru. For details, please refer to the

onscreen help supplied on the SmarThru program.

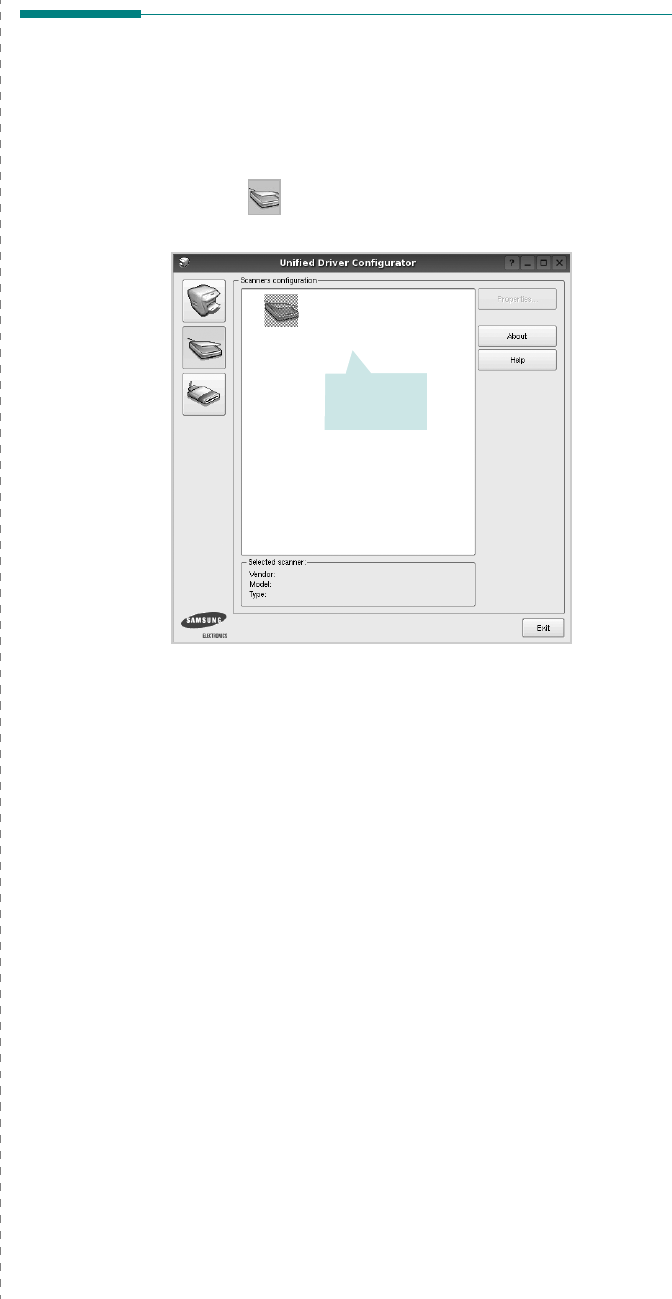

Linux • Linux printer driver: Use this driver

to run your machine from a Linux

computer and print documents.

•SANE: Use this driver to scan

documents.

Macintosh • Macintosh printer driver: Use this

driver to run your machine from a

Macintosh computer and print

documents.

•Scan driver: TWAIN driver is

available for scanning documents on

your machine.

•Smart Panel: This program allows

you to monitor the machine’s status

and alerts you when an error occurs

during printing.

2.2 <

Software overview>

Printer driver features

Your printer drivers support the following standard features:

• Paper size, orientation and media type

• Number of copies

In addition, you can use various special printing features. The following

table shows a general overview of features supported by your printer

drivers:

Feature Windows Linux Macintosh

Machine quality option O O O

Poster printing O X X

Multiple pages per sheet

(N-up)

O O (2, 4) O (2, 4, 6,

9, 16)

Fit to page printing O X X

Scale printing O X O

Watermark O X X

Overlay O X X

System requirements

Before you begin, ensure that your system meets the following

requirements:

Windows

Your machine supports the following Windows operating systems.

Note

• Internet Explorer 5.0 or higher is the minimum requirement for

all Windows operating systems.

• Users who have an administrator right can install the

software.

Requirement (recommended)

CPU RAM free HDD

space

Windows

2000

Pentium II 400 MHz

(Pentium III 933 MHz)

64 MB 650 MB

Windows

Pentium III 933 MHz

(Pentium IV 1 GHz)

128 MB

(256 MB)

1.5 GB

Windows

2003

Server

Pentium III 933 MHz

(Pentium IV 1 GHz)

128 MB

(512 MB)

1.25 GB to

2 GB

Windows

Vista

Pentium 4.3 GHz 512 MB

(1024 MB)

15 GB

2.3 <

Software overview>

Linux

Macintosh

Item Requirements

Operating system • Red Hat 8 ~ 9

• Fedora Core 1 ~ 4

• Mandrake 9.2 ~ 10.1

• SuSE 8.2 ~ 9.2

CPU Pentium IV 1 GHz or higher

RAM 256 MB or higher

Free HDD space 1 GB or higher

Software • Linux Kernel 2.4 or higher

• Glibc 2.2 or higher

• CUPS

• SANE

Note

• It is necessary to claim swap partition of 300 MB or larger for

working with large scanned images.

• The Linux scanner driver supports the maximum optical

resolution.

Item Requirements

Operating system Macintosh 10.3 ~ 10.4

CPU Intel processor

PowerPC G4 /G5

RAM 512 MB for an Intel-based Mac,

128 MB for a Power-PC based Mac

Free HDD space 1 GB

3.1 <

Getting Started>

3 Getting Started

This chapter gives you step-by-step instructions for setting up the

machine.

This chapter includes:

• Setting up the hardware

• Altitude adjustment

Setting up the hardware

This section shows the steps to set up the hardware which is explained

in the Quick Install Guide. Make sure you read Quick Install Guide and

complete following steps.

1Select a stable location.

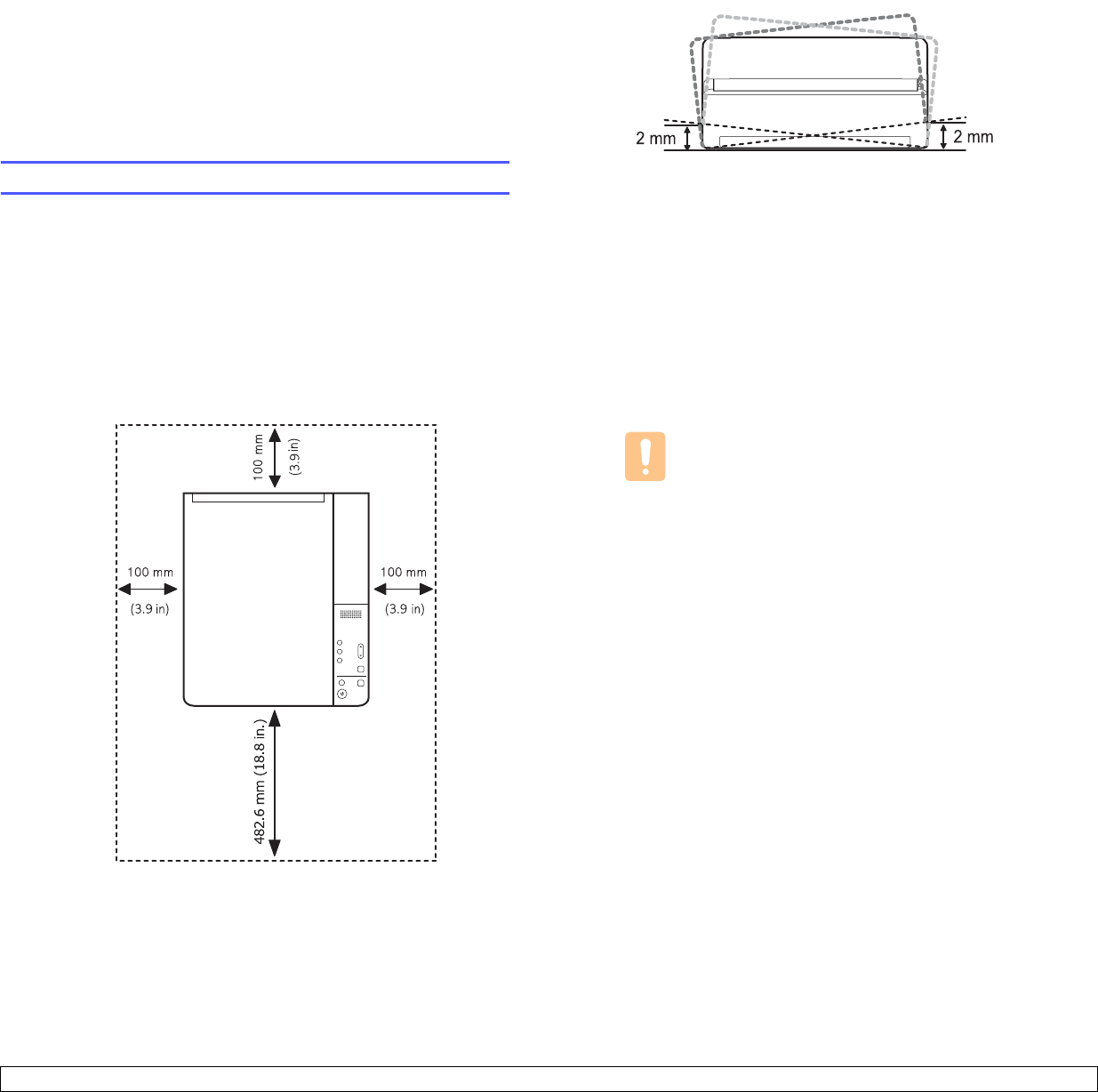

Select a level, stable place with adequate space for air circulation.

Allow extra space to open covers and trays.

The area should be well-ventilated and away from direct sunlight or

sources of heat, cold, and humidity. Do not set the machine close to

the edge of your desk or table.

Printing is suitable for altitudes under 2,500 m (8,200 ft). Refer to

the altitude setting to optimize your printing. See page 3.2 for more

information.

Place the machine on a flat and stable surface for not letting it lean

more than 2 mm (0.08 inches). Otherwise, it may affect the printing

quality.

2Unpack the machine and check all the enclosed items.

3Remove the tape holding the machine tightly.

4Install both the print cartridge.

5Load paper. (See "Loading paper in the tray" on page 4.5.)

6Make sure that all the cables are connected to the machine.

7Turn the machine on.

8Install the software. See Software section.

Caution

When you move the machine, do not tilt or turn it upside

down. Otherwise, the inside of the machine may be

contaminated by toner, which can cause damage to the

machine or bad printing quality.

3.2 <

Getting Started>

Altitude adjustment

The print quality is affected by atmospheric pressure, which is determined

by the height of the machine above sea level. The following information

will guide you on how to set your machine to the best print quality or best

quality of print.

The altitude above 2,500 m (8,200 ft), may affect the print quality such as

loose toner or light imaging.

Before you set the altitude setting, find the altitude where you are using

the machine.

To set the machine for high altitude, follow next step:

Note

The following procedure is for Windows XP. For other Windows

OS, refer to the corresponding Windows User's Guide or online

help.

1Click the Windows Start menu.

2Select Printers and Faxes.

3Select Samsung SCX-4500 Series icon.

4Right-click on the printer driver icon and select Properties.

5Click the Printer tab and select the High Altitude Correction.

6Click OK.

4.1 <

Loading originals and print media>

4 Loading originals and print

media

This chapter introduces you how to load originals and print media into

your machine.

This chapter includes:

• Loading originals

• Selecting print media

• Loading paper in the tray

• Loading an envelope in the tray

• Setting the paper size and type

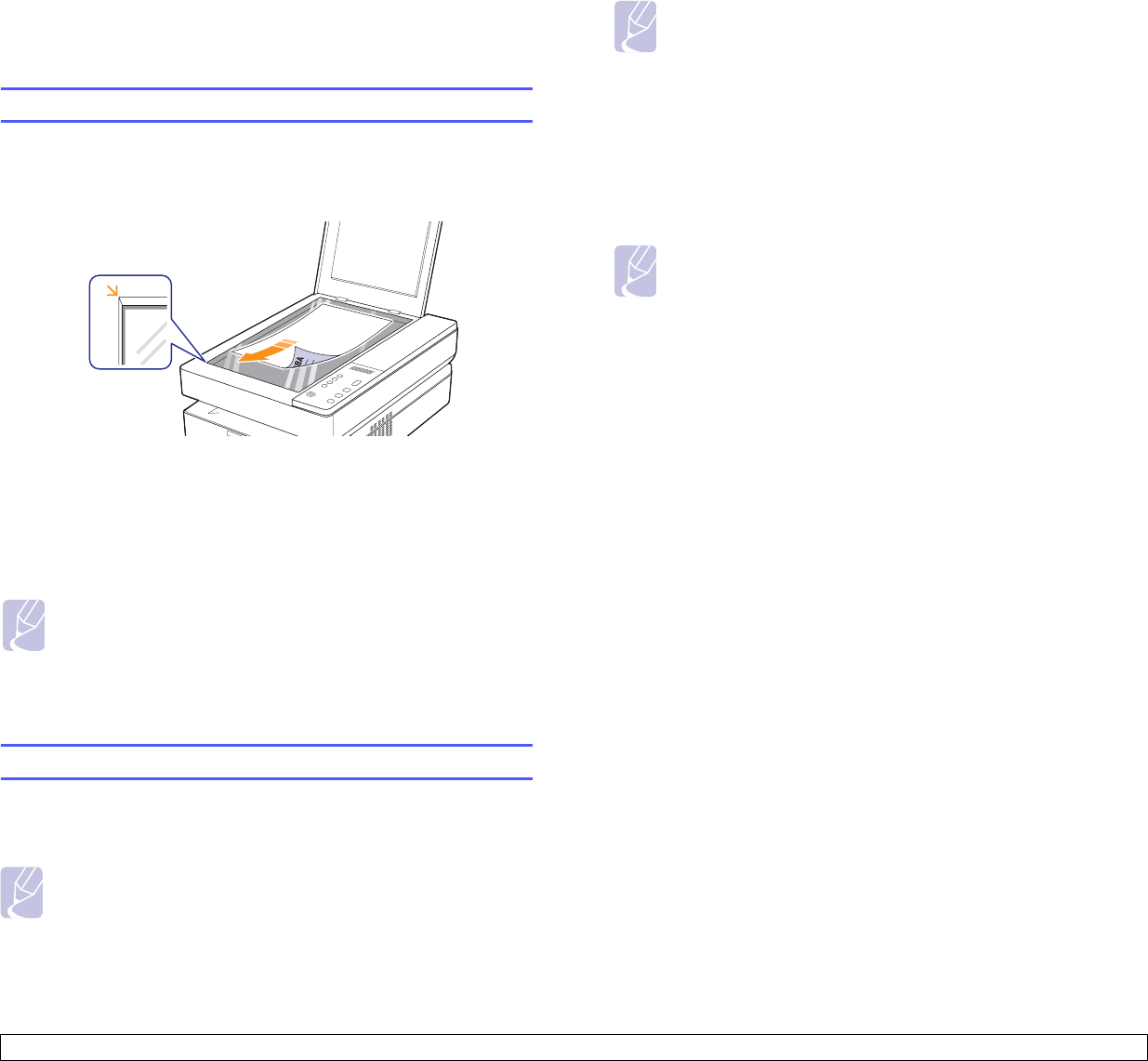

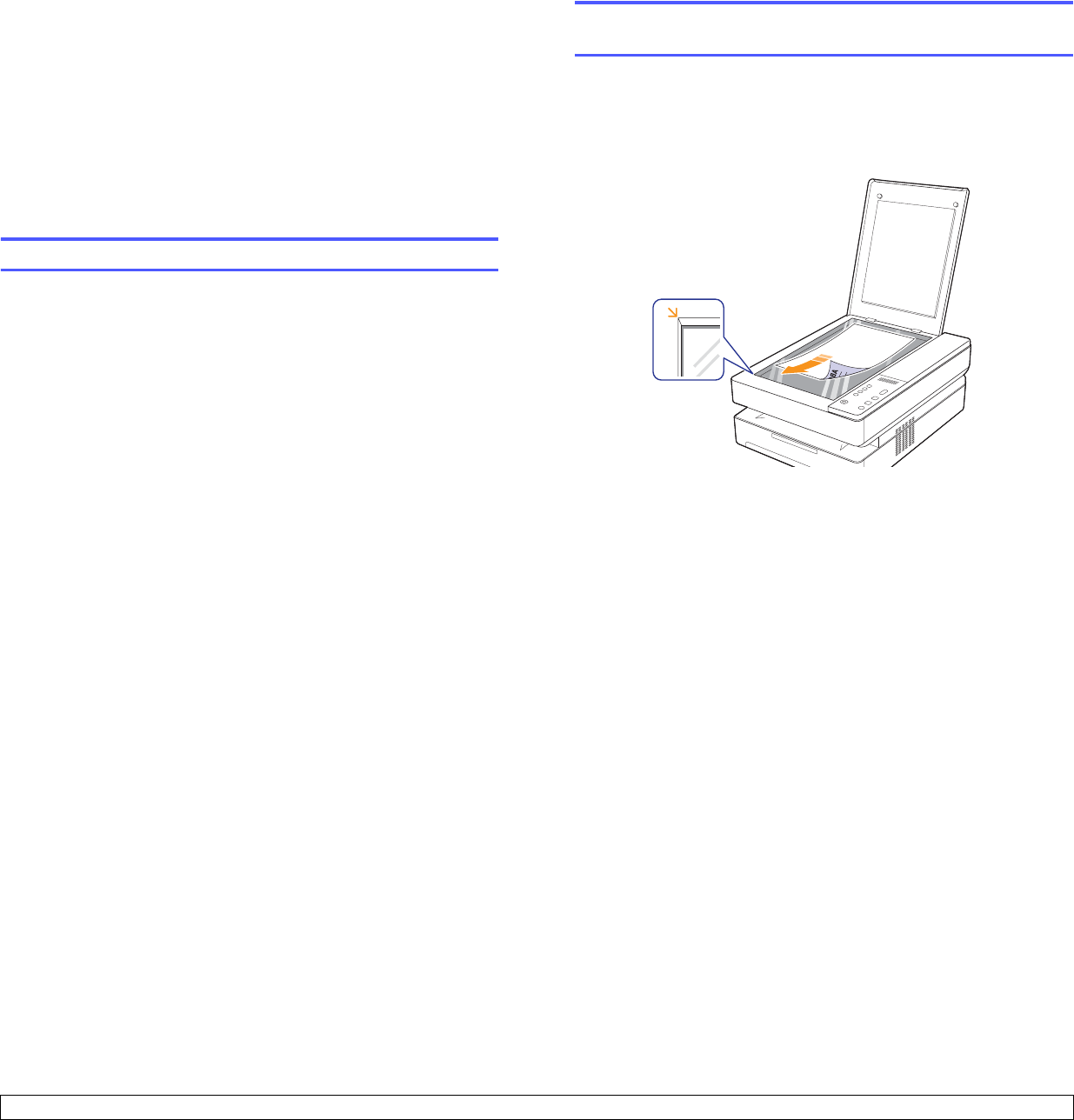

Loading originals

You can use the scanner glass to load an original for copying and

scanning.

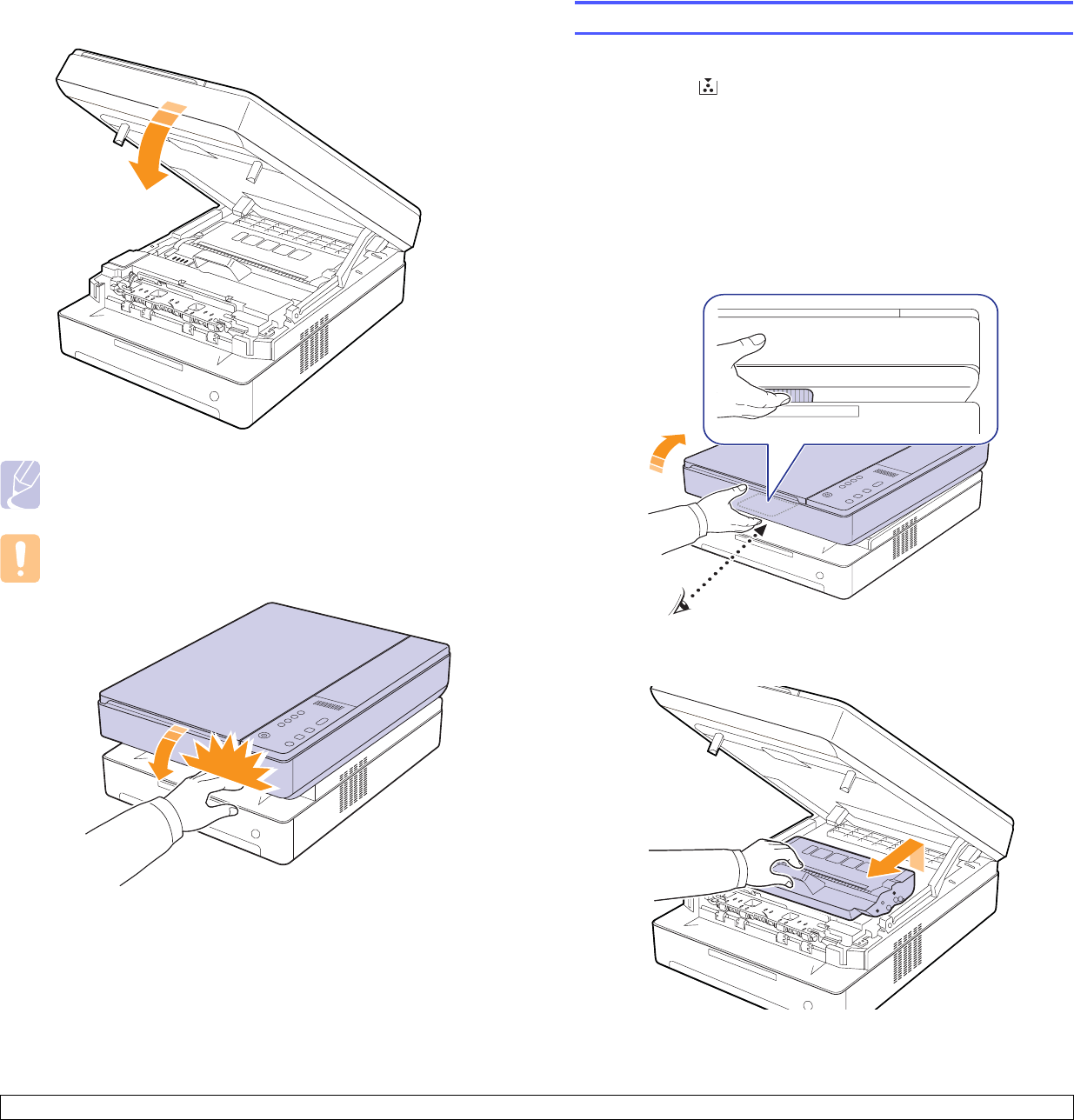

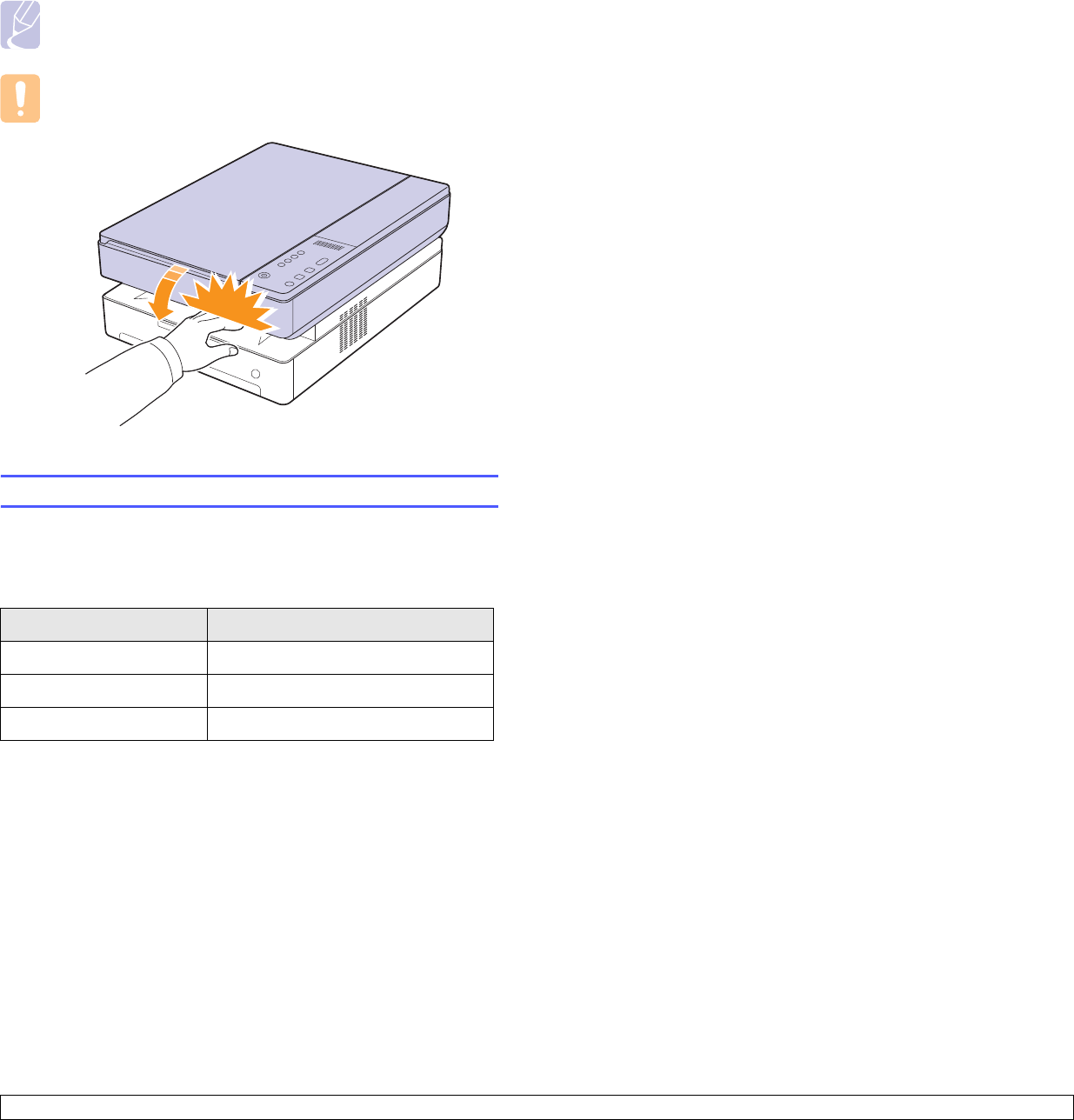

1Lift and open the scanner lid.

2Place the original face down on the scanner glass and align it with

the registration guide at the top left corner of the glass.

3Close the scanner lid.

Note

• Leaving the scanner lid open while copying may affect copy

quality and toner consumption.

• Dust on the scanner glass may cause black spots on the

printout. Always keep it clean. (Page 8.3)

• If you want to copy a book-like documentation such as

magazine, start copying with the scanner lid open.

4.2 <

Loading originals and print media>

Selecting print media

You can print on a variety of print media, such as plain paper, labels, and

transparencies. Always use print media that meet the guidelines for use

with your machine. Print media that does not meet the guidelines outlined

in this user’s guide may cause the following problems:

• Poor print quality

• Increased paper jams

• Premature wear on the machine.

Properties, such as weight, composition, grain, and moisture content, are

important factors that affect the machine’s performance and the output

quality. When you choose print materials, consider the following:

• The type, size and weight of the print media for your machine are

described later in this section.

• Desired outcome: The print media you choose should be appropriate

for your project.

• Brightness: Some print media are whiter than others and produce

sharper, more vibrant images.

• Surface smoothness: The smoothness of the print media affects how

crisp the printing looks on the paper.

Caution

Using print media that does not meet these specifications may

cause problems, requiring repairs. Such repairs are not covered

by Samsung’s warranty or service agreements.

Note

• Some print media may meet all of the guidelines in this section

and still not produce satisfactory results. This may be the result

of improper handling, unacceptable temperature and humidity

levels, or other variables over which Samsung has no control.

• Before purchasing large quantities of print media, ensure that it

meets the requirements specified in this user’s guide.

Guidelines for selecting and storing print media

When selecting or loading paper, or other print materials, keep these

guidelines in mind:

• Always use print media that conform with the specifications listed on

page 4.3.

• Attempting to print on damp, curled, wrinkled, or torn paper can cause

paper jams and poor print quality.

• For the best print quality, use only high quality copier grade paper

specifically recommended for use in laser machines.

• Avoid using the following media types:

- Paper with embossed lettering, perforations, or a texture that is too

smooth or too rough

- Erasable bond paper

- Multi-paged paper

- Synthetic paper and thermally reactive paper

- Carbonless paper and Tracing paper.

Use of these types of paper could result in paper jams, chemical

smells, and damage to your machine.

• Store print media in its ream wrapper until you are ready to use it.

Place cartons on pallets or shelves, not on the floor. Do not place

heavy objects on top of the paper, whether it is packaged or

unpackaged. Keep it away from moisture or other conditions that can

cause it to wrinkle or curl.

• Store unused print media at temperatures between 15 °C and 30 °C.

The relative humidity should be between 10% and 70%.

• Store unused print media in a moisture-proof wrap, such as a plastic

container or bag, to prevent dust and moisture from contaminating

your paper.

• Load special media types one sheet at a time through the tray to avoid

paper jams.

• To prevent print media, such as transparencies and label sheets, from

sticking together, remove them as they print out.

4.3 <

Loading originals and print media>

Specifications on print media

Note

Use the print media type mentioned below only.

Note

•When you use the thick paper (90 ~ 120 g/m2), select Thick Paper in the paper type. See 4.7 page.

• When you use the thin paper (under 70g/m2), select Thin Paper in the paper type. See 4.7 page.

• When you use the recycled paper, select Recycled Paper in the paper type. See 4.7 page.

Media sizes supported in each mode

Type Size Dimensions Weighta

a. If media weight is over 105 g/m2 (28lb bond), load a paper into the tray one by one.

Capacityb

b. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.

Plain paper

Letter 216 x 279 mm (8.5 x 11 inches)

60 to 163 g/m2 (16 to 43 lb

bond) for the tray

100 sheets of 75 g/m2

(20 lb bond) paper for the

tray

A4 210 x 297 mm (8.26 x 11.69 inches)

JIS B5 182 x 257 mm (7.16 x 10.11 inches)

ISO B5 176 x 250 mm (6.93 x 9.84 inches)

A5 148 x 210 mm (5.82 x 8.26 inches)

A6 105 x 148 mm (4.13 x 5.82 inches)

Executive 184 x 267 mm (7.25 x 10.5 inches)

Transparencyc

Recommended media: Transparency for a Laser Printers produced by HP, Xerox and 3M.

It is not recommended to use paperbacked transparencies such as Xerox 3R91334, which can cause a jam or be scratched.

Letter, A4 Refer to the Plain paper section 138 to 146 g/m2 (37 to 39 lb

bond) 1 sheet for the tray

Labels Letter, A4 Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lb

bond) 1 sheet for the tray

Card stock Letter, A4 Refer to the Plain paper section 60 to 163 g/m2 (24 to 43 lb

bond) 1 sheet for the tray

Minimum size (custom) 105 x 148 mm (4.13 x 5.83 inches)

60 to 163 g/m2 (16 to 43 lb bond) for the tray

Maximum size (custom) 216 x 297 mm (8.5 x 11.69 inches)

Mode Size Source

Copy mode Letter, A4, Executive, JIS B5, A5, A6 tray

Single side printing Letter, A4, Executive, JIS B5, ISO B5, A5, A6, custom

4.4 <

Loading originals and print media>

Guidelines for special print media

Media type Guidelines

Transparencies • To avoid damaging the machine, use only

transparencies designed for use in laser

machines.

• Transparencies used in the machine must be

able to withstand the machine’s fusing

temperature. Check your machine’s specification

to view the fusing temperature, see page 11.1.

• Place them on a flat surface after removing them

from the machine.

• Do not leave them in the paper tray for long

periods of time. Dust and dirt may accumulate

on them, resulting in spotty printing.

• To avoid smudging caused by fingerprints,

handle them carefully.

• To avoid fading, do not expose printed

transparencies to prolonged sunlight.

• Ensure that transparencies are not wrinkled,

curled, or have any torn edges.

Caution

Recommended media: Transparency for a

Color Laser Printers produced by HP,

Xerox and 3M. It is not recommended to

use paperbacked transparencies such as

Xerox 3R91334, which can cause a jam or

be scratched.

Labels • To avoid damaging the machine, use only labels

designed for use in laser machines.

• When selecting labels, consider the following

factors:

- Adhesives: The adhesive material should be

stable at your machine’s fusing temperature.

Check your machine’s specification to view the

fusing temperature, see page 11.1.

- Arrangement: Only use labels with no

exposed backing between them. Labels can

peel off sheets that have spaces between the

labels, causing serious jams.

- Curl: Prior to printing, labels must lie flat with

no more than 13 mm of curl in any direction.

- Condition: Do not use labels with wrinkles,

bubbles, or other indications of separation.

• Make sure that there is no exposed adhesive

material between labels. Exposed areas can

cause labels to peel off during printing, which

can cause paper jams. Exposed adhesive can

also cause damage to machine components.

• Do not run a sheet of labels through the machine

more than once. The adhesive backing is

designed for only a single pass through the

machine.

• Do not use labels that are separating from the

backing sheet or are wrinkled, bubbled, or

otherwise damaged.

Card stock or

custom-sized

materials

• In the software application, set margins at least

6.4 mm away from the edges of the material.

Preprinted

paper

• Letterhead must be printed with heat-resistant

ink that will not melt, vaporize, or release

hazardous emissions when subjected to the

printer’s fusing temperature for 0.1 second.

Check your machine’s specification to view the

fusing temperature, see page 11.1.

• Letterhead ink must be non-flammable and

should not adversely affect printer rollers.

• Forms and letterhead should be sealed in a

moisture-proof wrapping to prevent changes

during storage.

• Before you load preprinted paper, such as forms

and letterhead, verify that the ink on the paper is

dry. During the fusing process, wet ink can come

off preprinted paper, reducing print quality.

Media type Guidelines

4.5 <

Loading originals and print media>

Loading paper in the tray

Load the print media you use for the majority of your print jobs in the tray.

The tray can hold a maximum of 100 sheets of 75 g/m2 (Y0 lb bond) plain

paper.

1Press the tray open button, then the tray pops out. Pull the tray

completely out.

2Place paper with the side you want to print facing down.

3Align the tray with the slot, and slide it into the machine.

4After loading paper, set the paper type and size for the tray. See

Software section

for PC-printing.

Note

• You can load previously printed paper. The printed side should

be facing up with an uncurled edge at the rear. If you

experience problems with paper feed, turn the paper around.

Note that print quality is not guaranteed.

Changing the paper size in the tray

To load different sizes of paper, such as custom-sized paper, you need to

adjust the paper guides.

1Adjust the paper length guide to the desired paper length. It is

preset to Letter or A4 size depending on the country. To load

another size, hold the lever and move the length guide to the

corresponding position.

2After inserting paper into the tray, while pinching the paper width

guide as shown, move it toward the stack of paper until it lightly

touches the side of the stack. Do not press the guide too tightly to

the edge of the paper; the guide may bend the paper.

Note

• Do not push the paper width guides far enough to cause the

materials to warp.

• If you do not adjust the paper width guides, it may cause paper

jams.

1paper length guide

2paper width guide

4.6 <

Loading originals and print media>

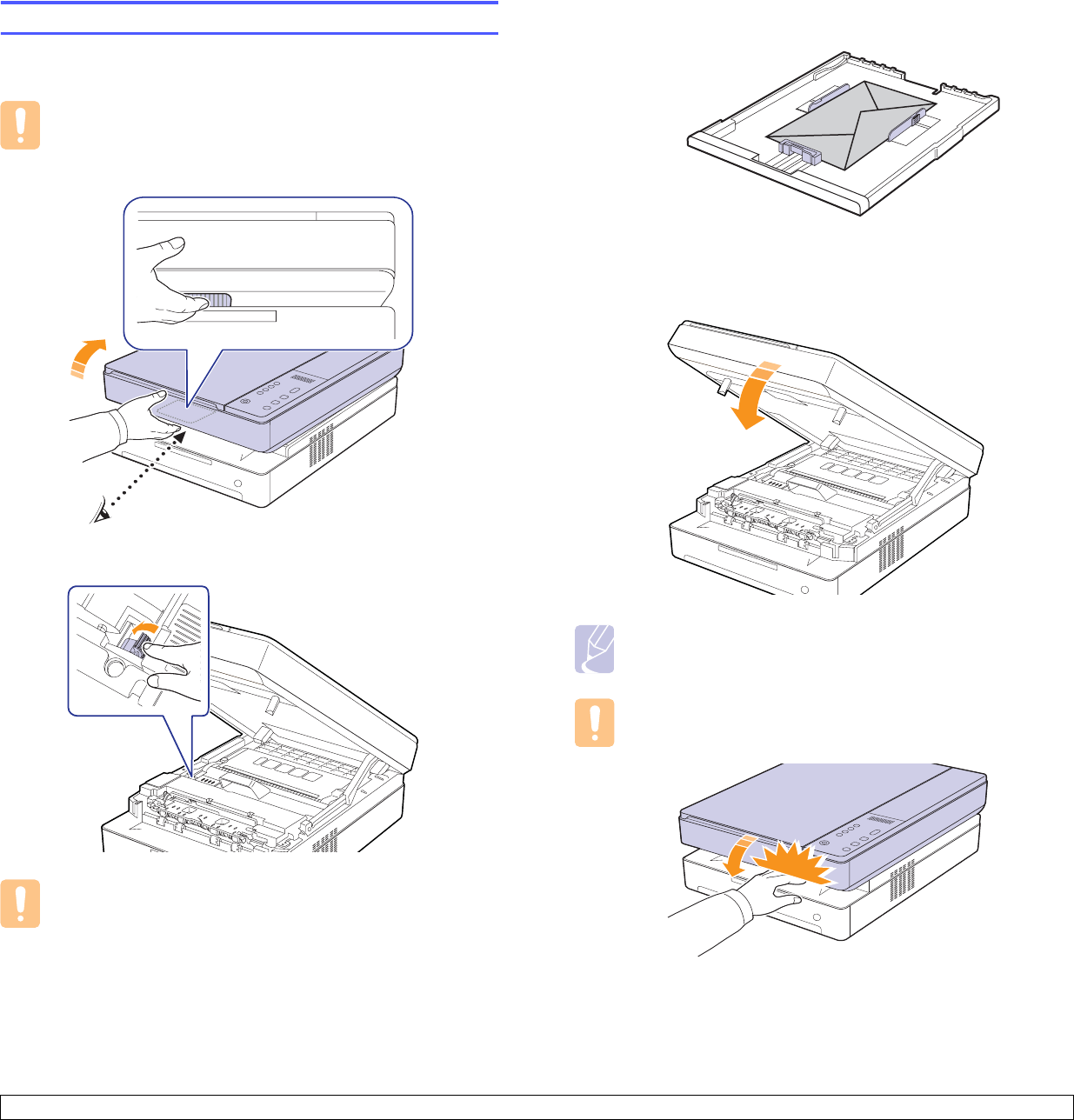

Loading an envelope in the tray

Your machine can print data such as addresses on an envelope. The

following steps are for loading an envelope in the tray.

Caution

This machine does not support the envelop print media.

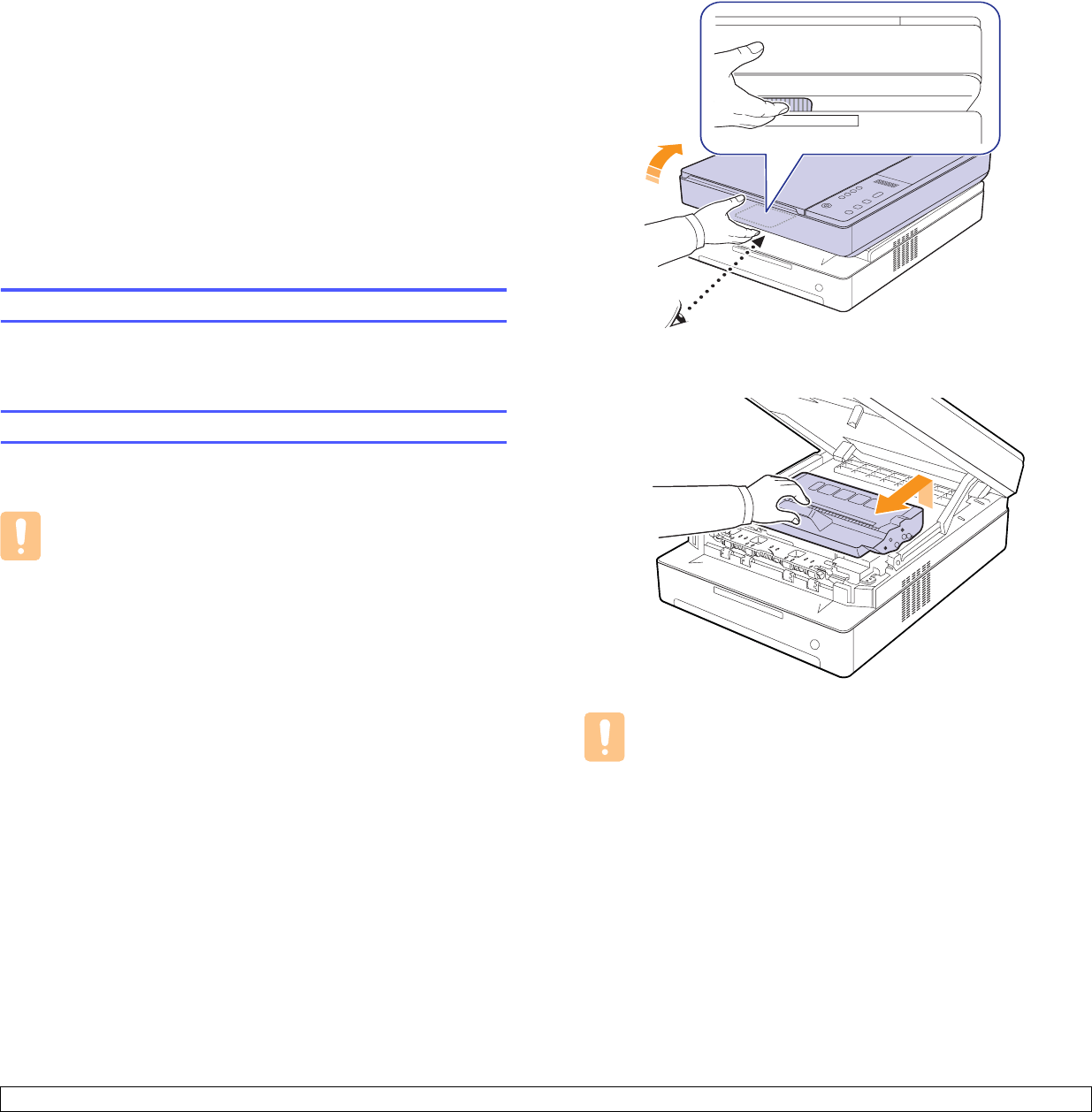

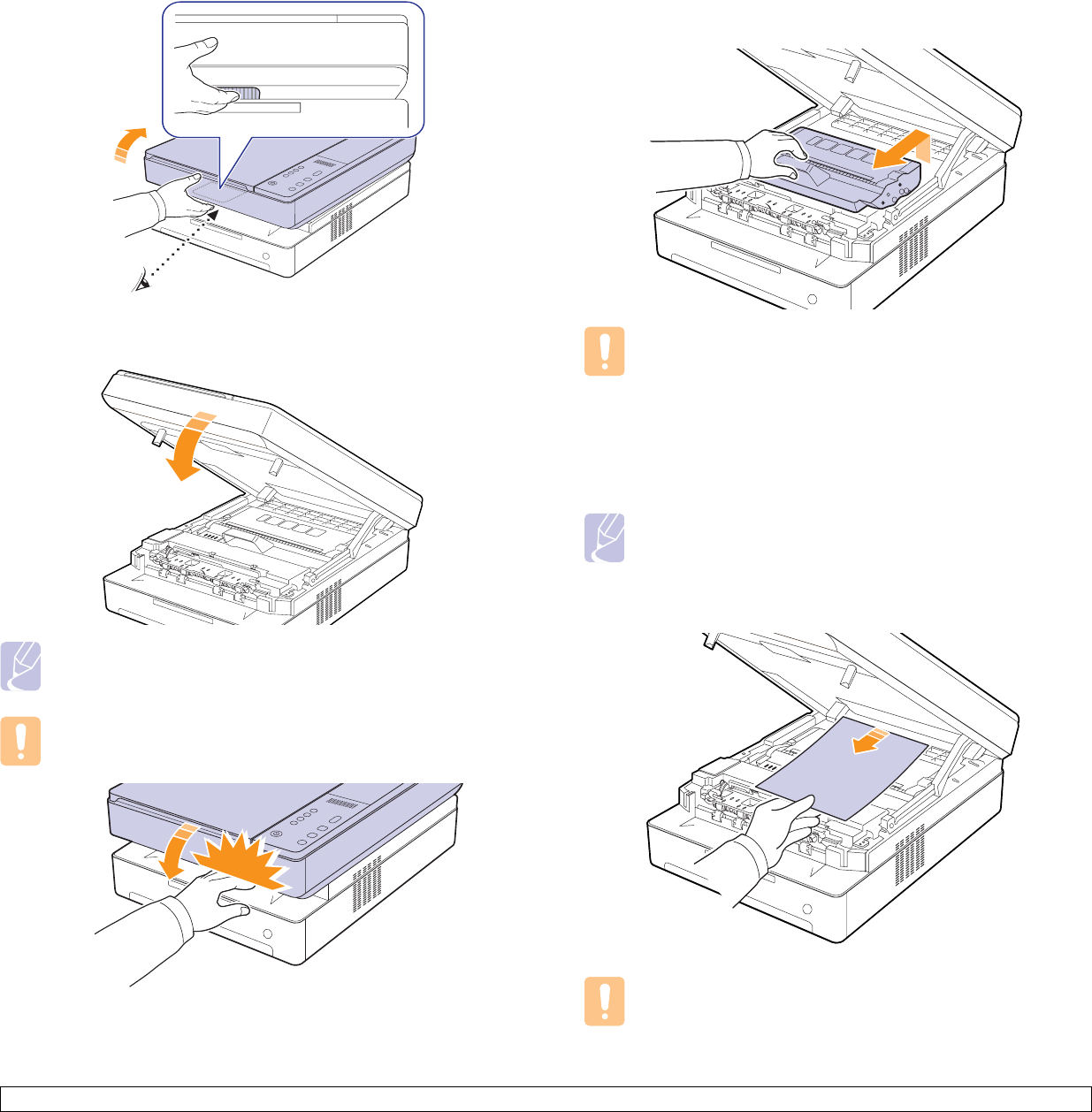

1Press the top cover lever, completely open the top cover.

2Press the fuser lever thoroughly.

Caution

Do not touch the fuser inside the machine. It is hot and could

cause burns! The fuser's operating temperature is

very hot

Take care when removing paper from the machine.

3Place an envelope on the tray as referring the following figure.

(see page 4.3.)

4Hold the top cover and close it slowly and carefully, until the cover is

securely latched.

Note

If the top cover is not completely closed, the machine will not

operate.

Caution

Be careful not to pinch your fingers

, since the top cover is very

heavy.

5Select the thick paper in the paper type from the printer properties.

4.7 <

Loading originals and print media>

6When the printing is completed, the top cover open.

7Remove the cartridge from the machine.

8The fuser lever should be released as it was, to print normal paper

media. Pull the fuser lever.

9Slide the print cartridge back into the machine.

10 Hold the top cover and close it slowly and carefully, until the cover is

the cover is securely latched.

Caution

Do not touch the fuser inside the machine. It is hot and could

cause burns! The fuser's operating temperature is

very hot

Take care when removing paper from the machine.

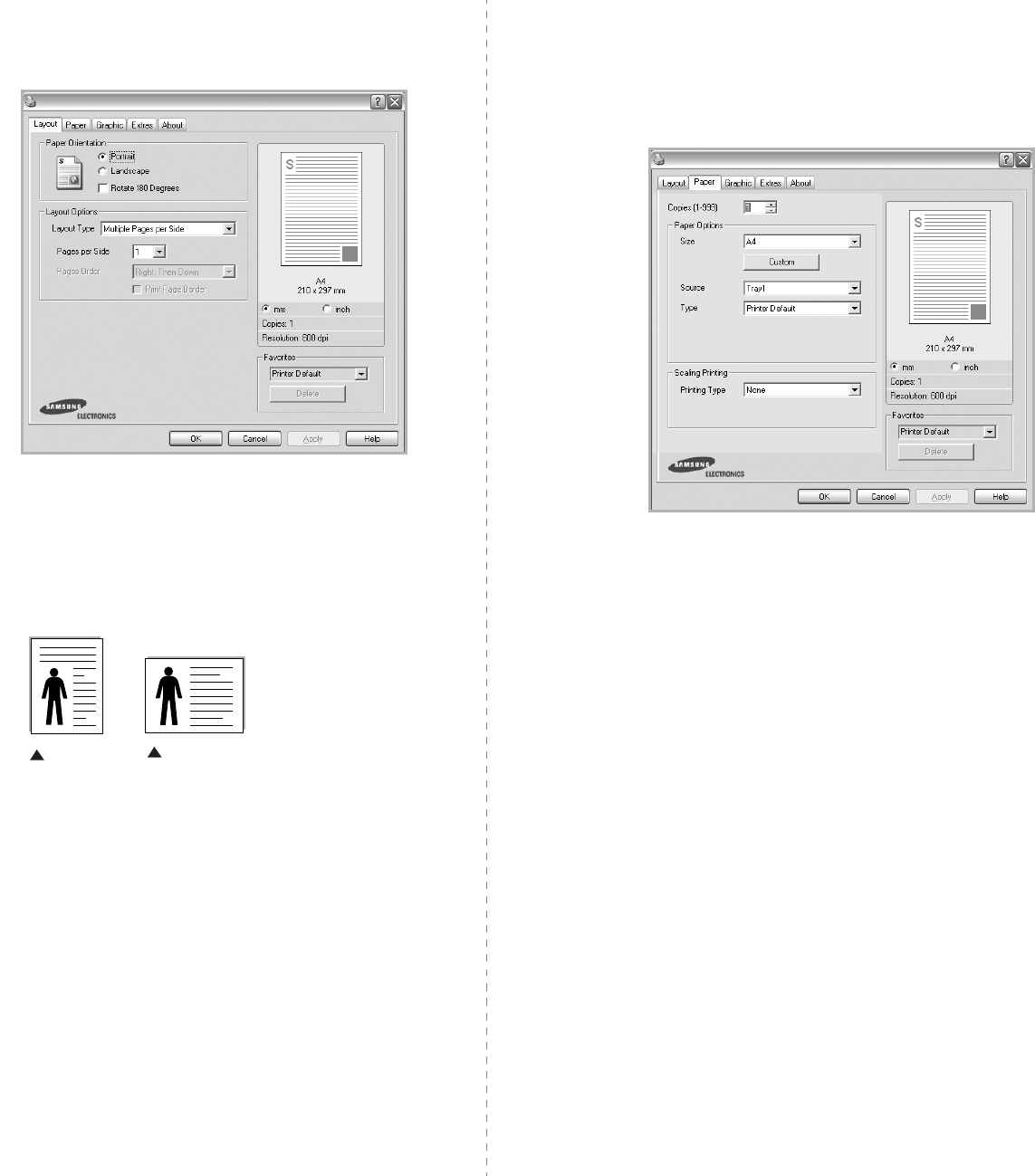

Setting the paper size and type

The settings you change remain in effect only while you are using the

current program. To make your changes permanent, make them in the

Printers folder.

Note

The following procedure is for Windows XP. For other Windows

OS, refer to the corresponding Windows User's Guide or online

help.

1Click the Start button on the computer screen.

2Select Printers and Faxes.

3Right-click on the printer driver icon and select Printing

Preferences.

4Click the Paper tab, and change the settings on Paper Options.

5Click OK.

5.1 <

Copying>

5 Copying

This chapter gives you information about using your machine as a copy

machine.

This chapter includes:

• Copying originals

• Changing the settings for each copy

Copying originals

This is the normal and usual procedure for copying your originals.

1Load originals place a single original face down on the scanner

glass.

2Customize the copy settings including copy size, darkness, and

paper size, by using the control panel buttons.

3Press Copies and select the number of copies using up/down

arrows, if necessary.

Press Start Copy on the control panel to begin copying.

Changing the settings for each copy

Your machine provides settings for copying so that you can quickly and

easily make a copy. However, if you want to change the options for each

copy, use the copy function buttons on the control panel.

Note

If you press Stop/Clear while setting the copy options, all of the

options you have set for the current copy job will be canceled

and returned to their default status. Or, they will automatically

return to their default status after the machine completes the

copy in progress.

Note

• To cancel the current copy job, press Stop/Clear on the control

panel.

• If you want to copy a book-like documentation such as

magazine, start copying with the scanner lid open.

Reducing or enlarging copies

You can reduce or enlarge the size of a copied image from 50% to 199%.

1Press Reduce/Enlarge.

2Press up/down arrows to select the setting you want.

Note

When you make a reduced copy, black lines may appear at the

bottom of your copy

Changing the darkness

If you have an original containing faint markings and dark images, you

can adjust the brightness to make a copy that is easier to read.

1Press Darkness.

2Press up/down arrows to select the setting you want.

Note

If you select the higher value, you will get the darker and clearer

print-out, but the toner consumption will be getting high.

Setting the paper size

1Ensure that you have installed the printer driver with the provided

Printer Software CD.

2Click Windows Start > Programs or All Programs > Samsung

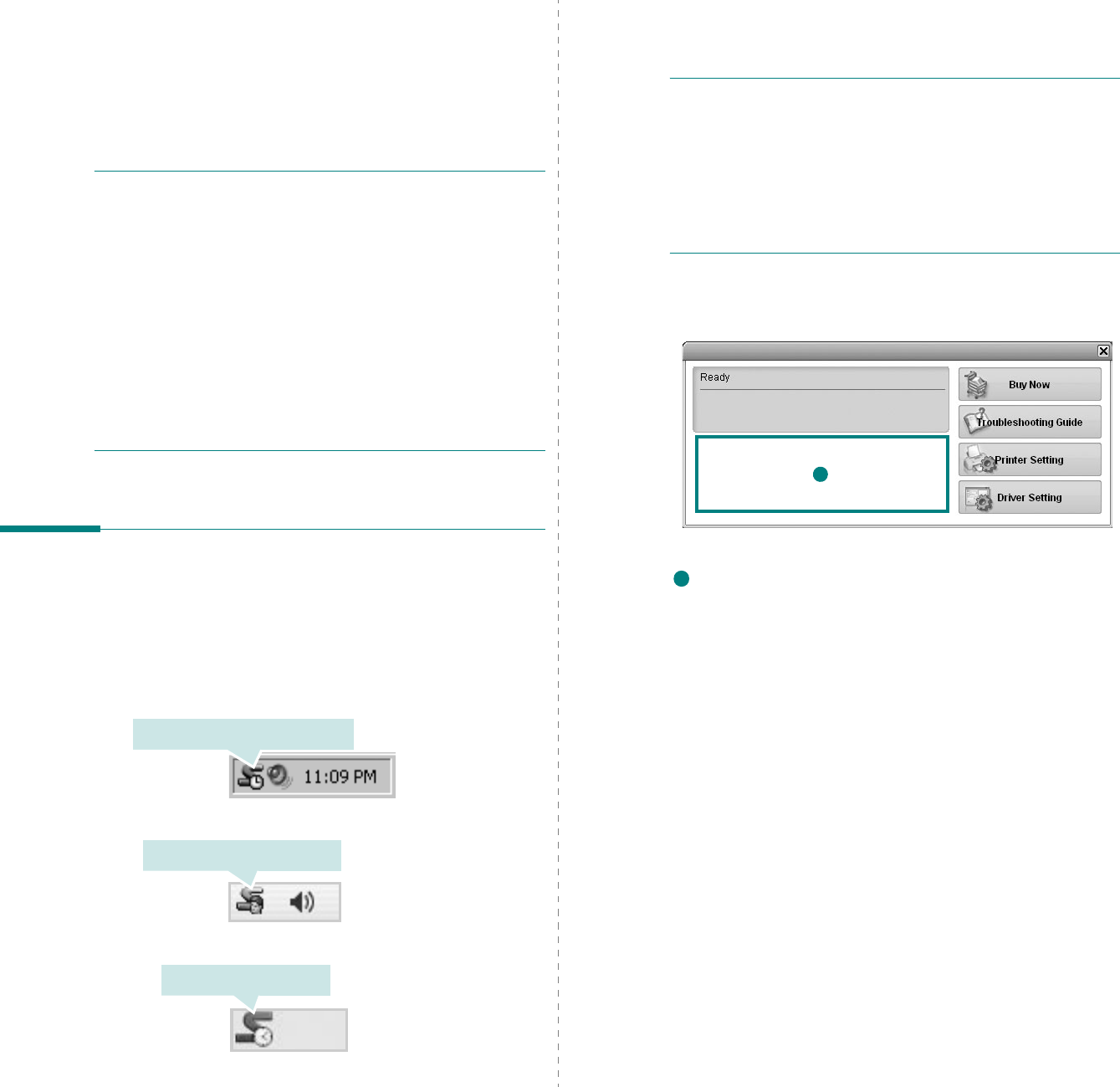

SCX-4500 Series > Smart Panel.

3Click Printer Setting.

4Click Copy > Paper Size. Select the appropriate value from the

dropdown list, and then click Apply.

Selecting the type of original

1Ensure that you have installed the printer driver with the provided

Printer Software CD.

2Click Windows Start > Programs or All Programs > Samsung

SCX-4500 Series > Smart Panel.

3Click Printer Setting.

4Click Copy > Original Type. Select the appropriate value from the

dropdown list, and then click Apply.

•Text: Use for originals containing mostly text.

•Text/Photo: Use for originals with mixed text and photographs.

•Photo: Use when originals are photographs.

6.1 <

Scanning>

6 Scanning

Scanning with your machine lets you turn hard copy originals into digital

files.

Refer to the Scanning part of Software section.

This chapter includes:

• Scanning basics

• Scanning to an application using a local connection

Scanning basics

Your machine offers the following ways to scan an image using a local

connection:

• Via one of the preset imaging applications. Scanning an image

launches the selected application, enabling you to control the

scanning process.

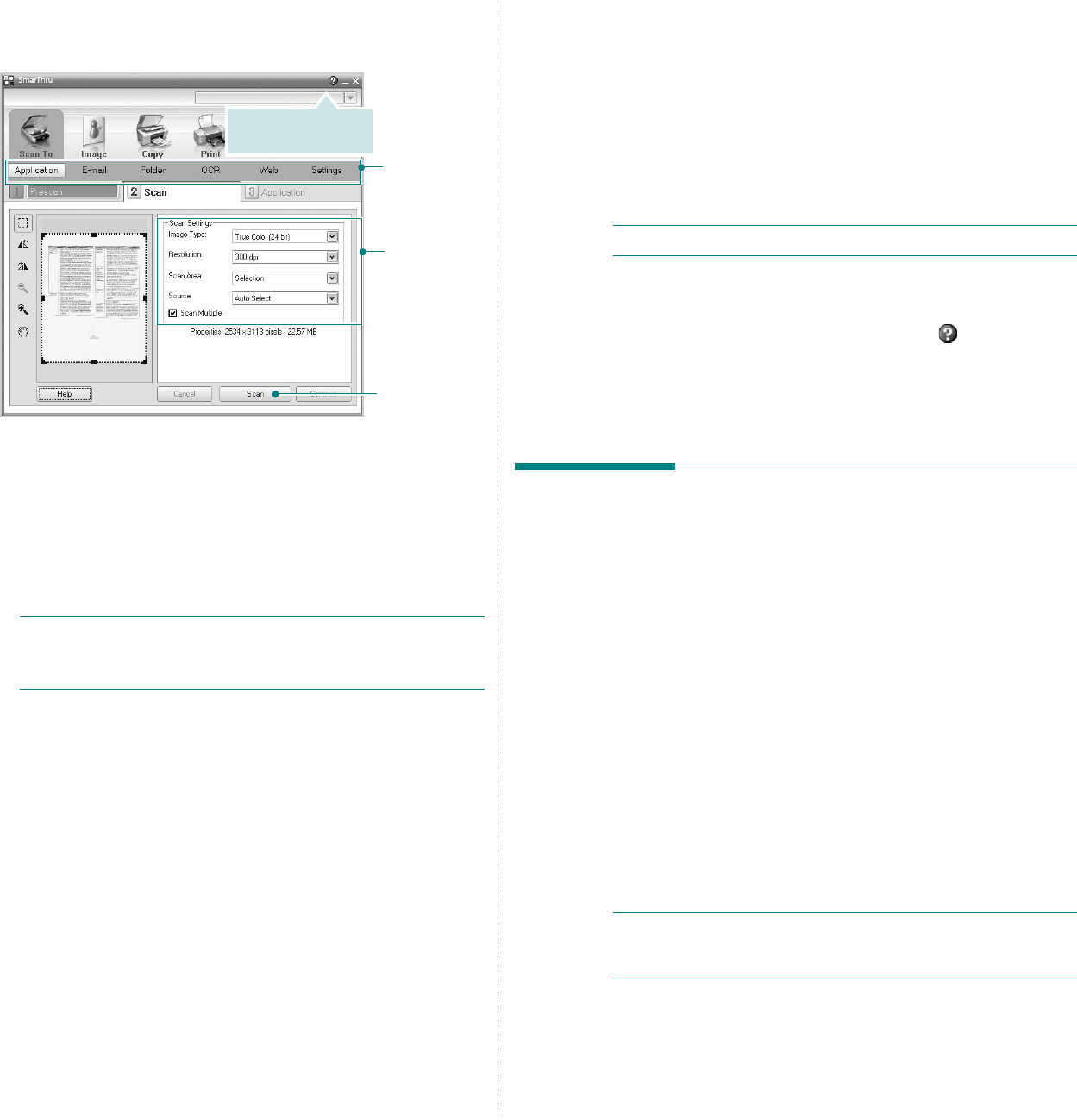

• Via the SmarThru™ program supplied with your machine. Scanning

an image launches SmarThru™ and enables you to control the

scanning process.

• Via the Windows Images Acquisition (WIA) driver. See the Software

Section.

• Via the TWAIN-compliant software: You can use other software

including Adobe Photoshop Deluxe and Adobe Photoshop.

Scanning to an application using a local

connection

1Make sure that your machine and computer are turned on and

properly connected to each other.

2Load originals place a single original face down on the scanner

glass.

3Press Scan to PC, then the scanned image will be stored on your

computer.

7.1 <

Basic printing>

7 Basic printing

This chapter explains common printing tasks. Your machine allows you to

print from various Windows, Macintosh, or Linux applications.

Note

The following procedure is for Windows operating system.

For Linux and Macintosh, see Software section.

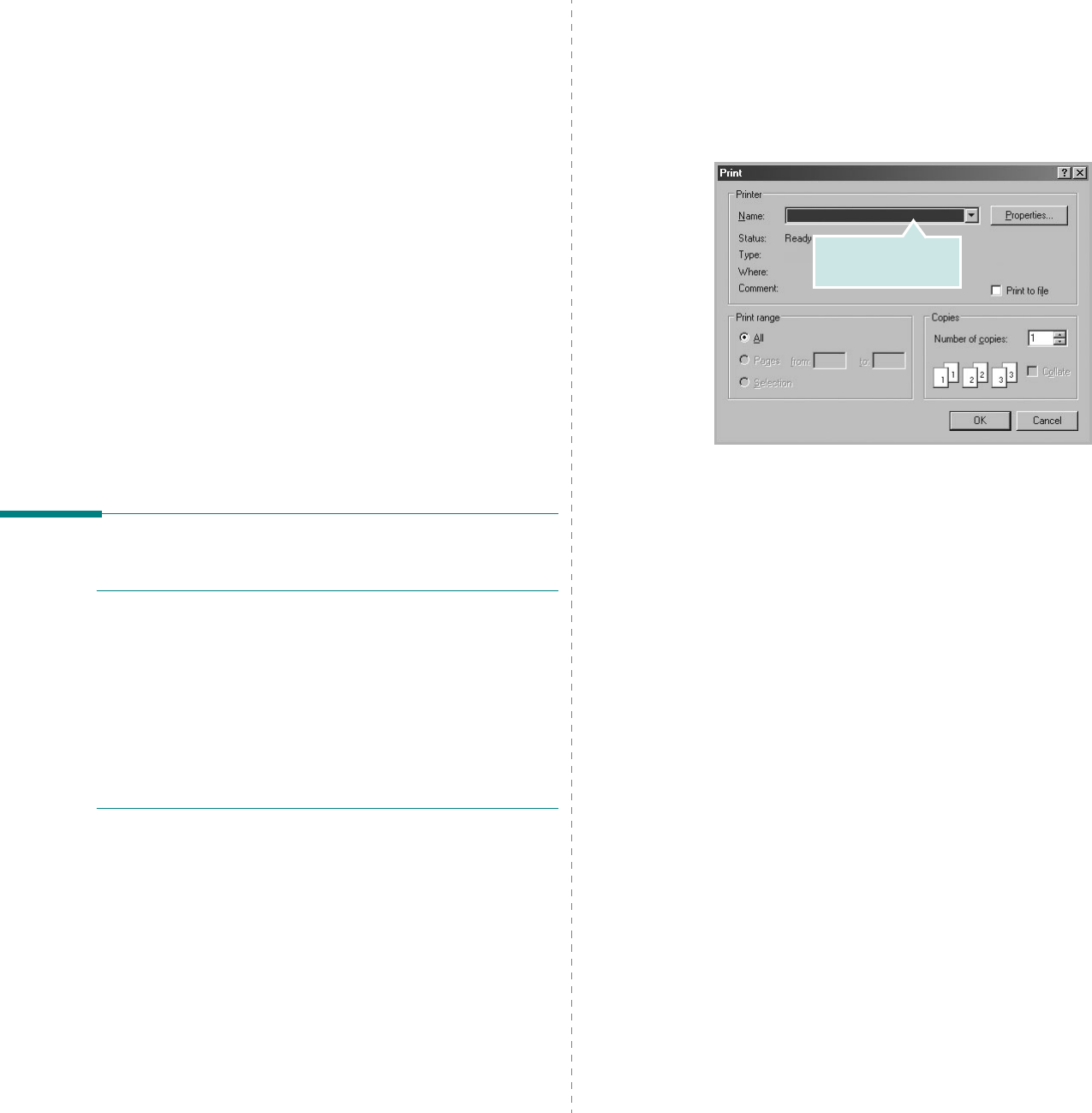

Printing a document

The exact steps for printing a document may vary depending on the

application you use.

1Open the document you want to print.

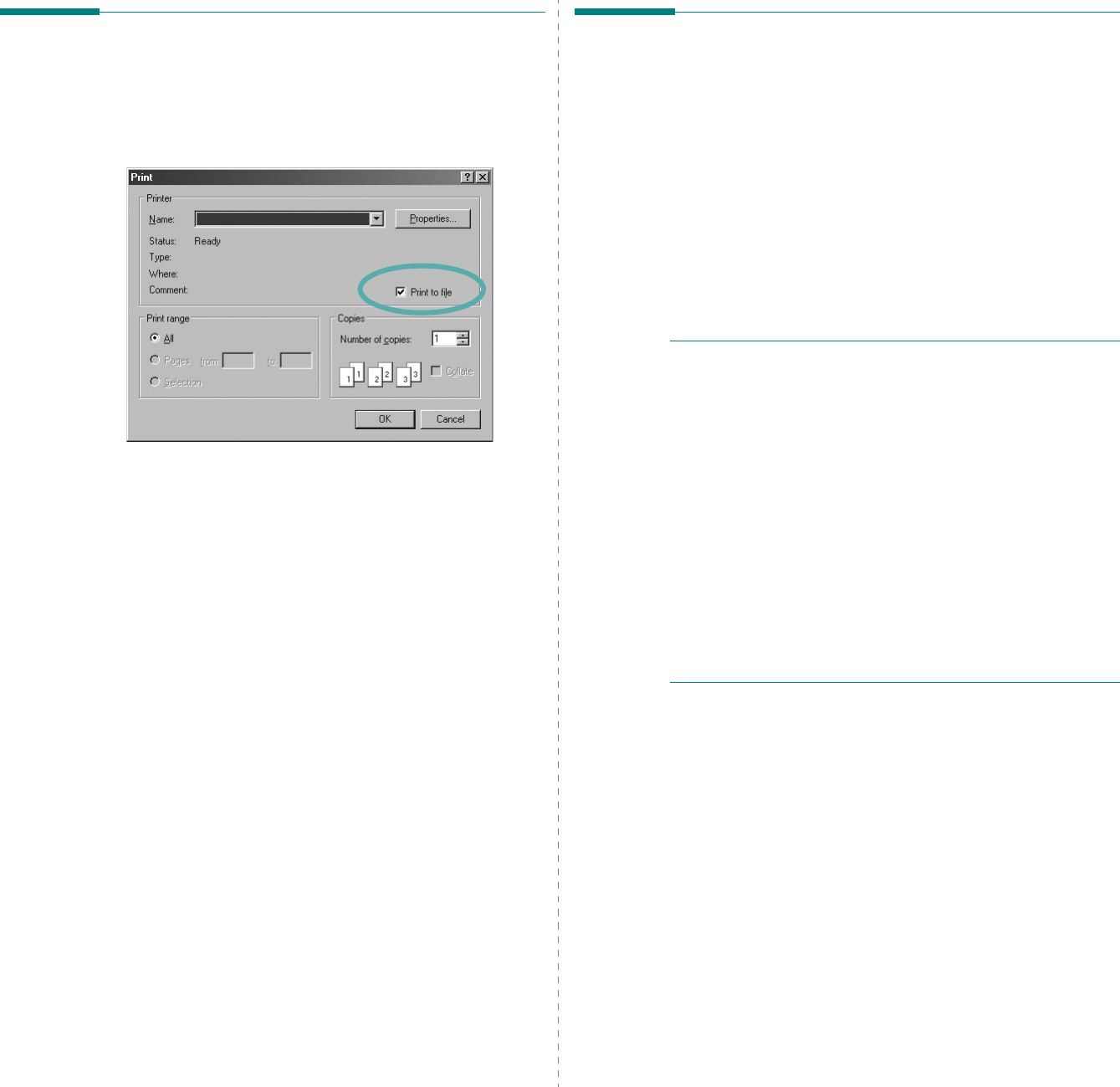

2Select Print from the File menu. The Print window is displayed. It

may look slightly different depending on your application.

3Select your printer driver from the Selet Printer list.

4To start the print job, click OK or Print in the Print window.

For details about printing, see

Software section

Canceling a print job

If the print job is waiting in a print queue or print spooler, such as the

printer group in Windows, delete the job as follows:

1Click the Windows Start menu.

2For Windows 2000, select Settings and then Printers.

For Windows XP/2003, select Printers and Faxes.

For Windows Vista, select Control Panel and than Printers.

3Double-click the Samsung SCX-4500 Series icon.

4From the Document menu, select Cancel.

Note

You can also access this window by simply double-clicking the

printer icon at the bottom right corner of the Windows desktop.

You can also cancel the current job by pressing Stop/Clear on the control

panel.

8.1 <

Maintenance>

8 Maintenance

This chapter provides information for maintaining your machine and the

print cartridge.

This chapter includes:

• Printing a machine report

• Cleaning your machine

• Maintaining the cartridge

• Redistributing toner

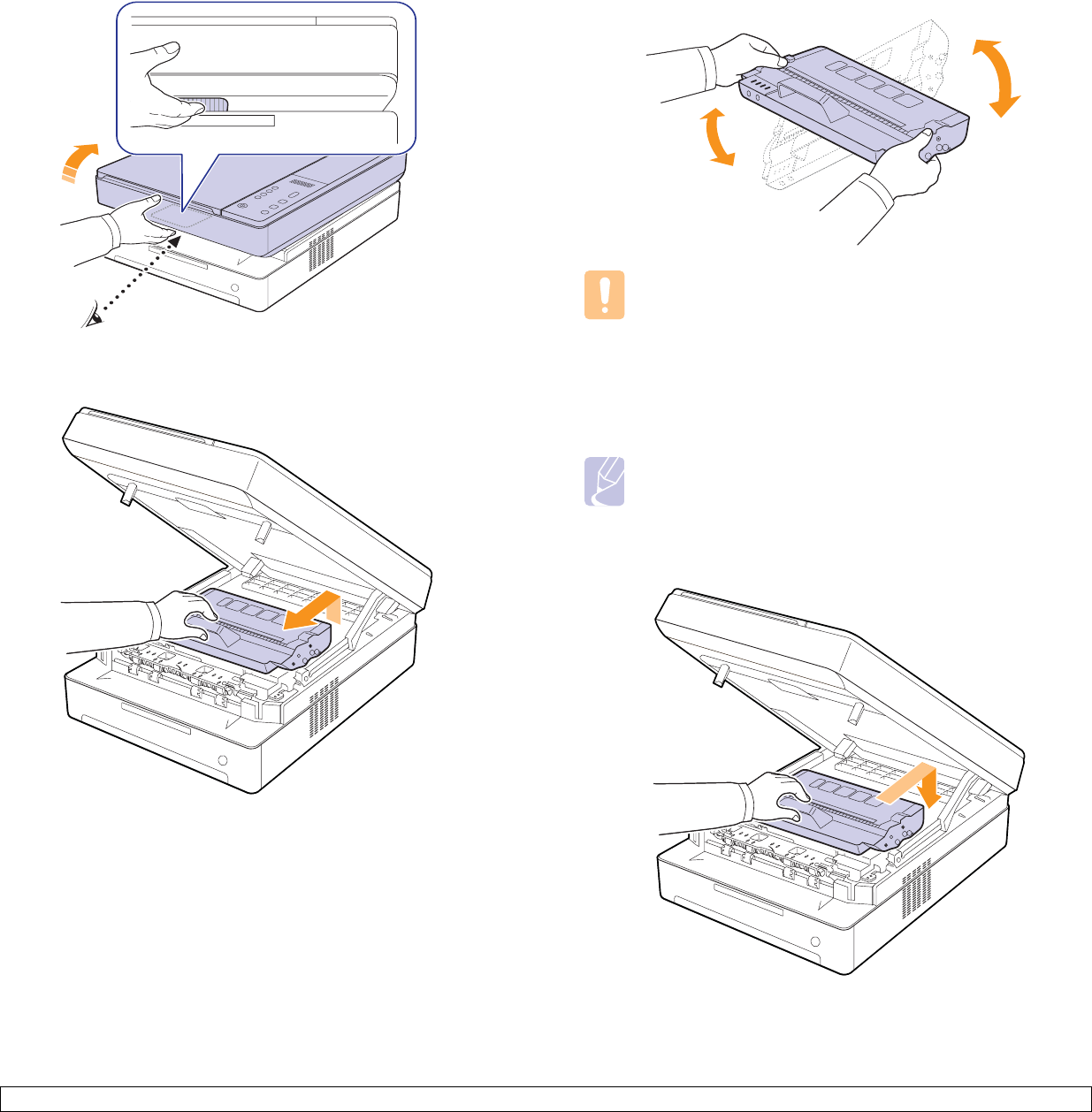

• Replacing the print cartridge

• Maintenance Parts

Printing a machine report

Press and hold

Stop/Clear

button for about 4 seconds to print a

machine report.

Cleaning your machine

To maintain print quality, follow the cleaning procedures below each time

the print cartridge is replaced or if print and scan quality problems occur.

Caution

• Cleaning the machine cabinet with cleaning materials that

contain large amounts of alcohol, solvent, or other strong

substances can discolor or damage the cabinet.

• If your machine or its surrounding is contaminated with toner,

we recommend you to use cloth or tissue dampened with

water to clean it. If you use a vacuum cleaner, toner blows in

the air and might be harmful for you.

• After cleaning, wipe the cabinet to remove any moisture.

Cleaning the outside

Make sure to brush off the dirt on the provided cloth before cleaning the

cabinet. Make sure to spray water 4-6 times onto the provided cloth or

other cloth for this purpose before cleaning the cabinet wiping in on

direction.

Cleaning the inside

During the printing process, paper, toner and dust particles can

accumulate inside the machine. This buildup can cause print quality

problems, such as toner specks or smearing. Cleaning the inside of the

machine clears or reduces these problems. Contact a service

representative to clean the parts inside the machine.

1Press the top cover lever, completely open the top cover.

2Grasp the handles on the print cartridge and pull to remove the

cartridge from the machine.

Caution

• Do not touch the green surface, the OPC drum or the front of

the print cartridge, with your hands or any other material. Use

the handle on each cartridge in order to avoid touching this

area.

• If you leave the top cover open for more than a few minutes,

the OPC drum can be exposed to light. This will cause

damage to the OPC drum. Close the top cover should the

installation need to be halted for any reason.

8.2 <

Maintenance>

3With a dry lint-free cloth, wipe away any dust and spilled toner from

the print cartridges area and their cavities.

Note

If toner gets on your clothing, wipe it off with a dry cloth and

wash it in cold water. Hot water sets toner into fabric.

4Locate the long strip of glass (LSU) inside the front door, and gently

swab the glass to see if dirt turns the white cotton black.

5Slide the print cartridge back into the machine.

6Hold the top cover and close it slowly and carefully, until the cover is

the cover is securely latched.

Note

If the top cover is not completely closed, the machine will not

operate.

Caution

Be careful not to pinch your fingers

, since the top cover is very

heavy.

8.3 <

Maintenance>

Cleaning the scan unit

Keeping the scan unit clean helps ensure the best possible copies. We

suggest that you clean the scan unit at the start of each day and during

the day, as needed.

1Slightly dampen a soft lint-free cloth or paper towel with water.

2Lift and open the scanner lid.

3Wipe the surface of the scanner glass until it is clean and dry.

4Wipe the underside of the scanner lid and white sheet until it is

clean and dry.

5Close the scanner lid.

1scanner lid

2white sheet

3scanner glass

Maintaining the cartridge

Print cartridge storage

To get the most from the print cartridge, keep the following guidelines in

mind:

• Do not remove the print cartridge from its package until ready for use.

• Do not refill the print cartridge. The machine warranty does not cover

damage caused by using a refilled cartridge.

• Store print cartridges in the same environment as your machine.

• To prevent damage to the print cartridge, do not expose it to light for

more than a few minutes.

Expected cartridge life

The print cartridge yield depends on the amount of toner that print jobs

require. Average yield for a new print cartridge is 2,000 standard pages

in accordance with the ISO/IEC 19752 standard. (Average yield for the

original print cartridge supplied with the machine is 1,000 standard

pages.) The actual number may also be different depending on the print

density of the pages you print on, and the number of pages may be

affected by operating environment, printing interval, media type, and

media size. If you print a lot of graphics, you may need to change the

cartridge more often.

Redistributing toner

When a toner is low the toner LED( ) blinks slowly.

It may cause faded or light areas on a paper. You can temporarily improve

print quality by redistributing the toner.

For detailed information about error message, see page 9.7.

Note

In some cases, white streaks or light printing will still occur even

after you have redistributed the toner.

8.4 <

Maintenance>

1Press the top cover lever, completely open the top cover.

2Grasp the handles on the print cartridge and pull to remove the

cartridge from the machine.

3Holding side edges of the print cartridge, thoroughly rock it from side

to side to redistribute the toner.

Caution

• Do not touch the green surface, the OPC drum or the front of

the print cartridge, with your hands or any other material. Use

the handle on each cartridge in order to avoid touching this

area.

• If you leave the top cover open for more than a few minutes,

the OPC drum can be exposed to light. This will cause

damage to the OPC drum. Close the top cover should the

installation need to be halted for any reason.

Note

If toner gets on your clothing, wipe it off with a dry

cloth and wash it in cold water. Hot water sets toner into

fabric.

4Slide the print cartridge back into the machine.

8.5 <

Maintenance>

5Hold the top cover and close it slowly and carefully, until the cover is

the cover is securely latched.

Note

If the top cover is not completely closed, the machine will not

operate.

Caution

Be careful not to pinch your fingers

, since the top cover is very

heavy.

Replacing the print cartridge

When the print cartridge is completely empty.

• The toner LED( ) blinks rapidly and the toner-related messages on

the display indicate when print cartridge should be replaced.

For detailed information about error message, see page 9.7.

• The machine stops printing.

At this stage, the print cartridge needs to be replaced. Check the type of

print cartridge for your machine. (See "Supplies" on page 10.1.)

1Turn the machine off, then wait a few minutes for the machine to

cool.

2Press the top cover lever, completely open the top cover.

3Grasp the handles on the empty print cartridge and pull to remove

the cartridge from the machine.

8.6 <

Maintenance>

4Take a new print cartridge out of its package.

Caution

• Don't use sharp objects, such as a knife or scissors, to open

the print cartridge package. You could damage the surface of

the print cartridge.

• To prevent damage, do not expose the print cartridge to light

for more than a few minutes. Cover it with a piece of paper to

protect it if necessary.

5Holding side edges of the print cartridge, thoroughly rock it from side

to side to redistribute the toner.

6Place the print cartridge on a flat surface, as shown, and remove the

paper covering the print cartridge.

Caution

• Do not touch the green surface, the OPC drum or the front of

each print cartridge, with your hands or any other material.

Use the handle on each cartridge in order to avoid touching

this area.

• If you leave the top cover open for more than a few minutes,

the OPC drum can be exposed to light. This will cause

damage to the OPC drum. Close the top cover should the

installation need to be halted for any reason.

Note

If toner gets on your clothing, wipe it off with a dry cloth and

wash it in cold water. Hot water sets toner into fabric.

7Insert the cartridge into place.

8Hold the top cover and close it slowly and carefully, until the cover is

the cover is securely latched.

8.7 <

Maintenance>

Note

If the top cover is not completely closed, the machine will not

operate.

Caution

Be careful not to pinch your fingers

, since the top cover is very

heavy.

Maintenance Parts

To avoid print quality and paper feed problems resulting from worn parts,

and to maintain your machine in top working condition the following

condition, the following items will need to be replaced after the specified

number of pages, or when the life span of each item has expired.

We highly recommend that this maintenance be performed by an

authorized service provider, dealer or the retailer where you bought the

machine. The warranty does not cover the replacement of the

maintenance parts after their lifespan.

Items Yield (Average)

Transfer roller Approx. 50,000 pages

Fuser unit Approx. 50,000 pages

Paper feed roller Approx. 50,000 pages

9.1 <

Troubleshooting>

9 Troubleshooting

This chapter gives helpful information on what to do if you encounter a

problem.

This chapter includes:

• Tips for avoiding paper jams

• Clearing paper jams

• Understanding display messages

• Solving other problems

Tips for avoiding paper jams

By selecting the correct media types, most paper jams can be avoided.

When a paper jam occurs, follow the steps outlined on page 9.1.

• Follow the procedures on page 4.5. Ensure that the adjustable guides

are positioned correctly.

• Do not overload the tray. Ensure that the paper level is below the

paper capacity mark on the inside of the tray.

• Do not remove paper from the tray while your machine is printing.

• Flex, fan, and straighten paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in a tray.

• Use only recommended print media. (see page

4.7

)

• Ensure that the recommended side of the print media is facing down in

the tray.

Clearing paper jams

Refer to the table below to locate and clear the paper jam.

Caution

To avoid tearing the paper, pull the jammed paper out gently

and slowly. Follow the instructions in the following sections to

clear the jam.

Status display Explanation Solution

Paper jam

LED( ) blinks

In the paper feed area and

rear the machine

Clear the jam.

(Page 9.1)

Rear and Inside the machine Clear the jam.

(Page 9.3)

In the exit area Clear the jam.

(Page 9.5)

In the paper feed area and rear the machine

If paper is jammed in the paper feed area and rear the machine, follow

the next steps to release the jammed paper.

Note

If your machine does not feed the transparency print media

properly, put a blank sheet of paper under the transparency and

try again.

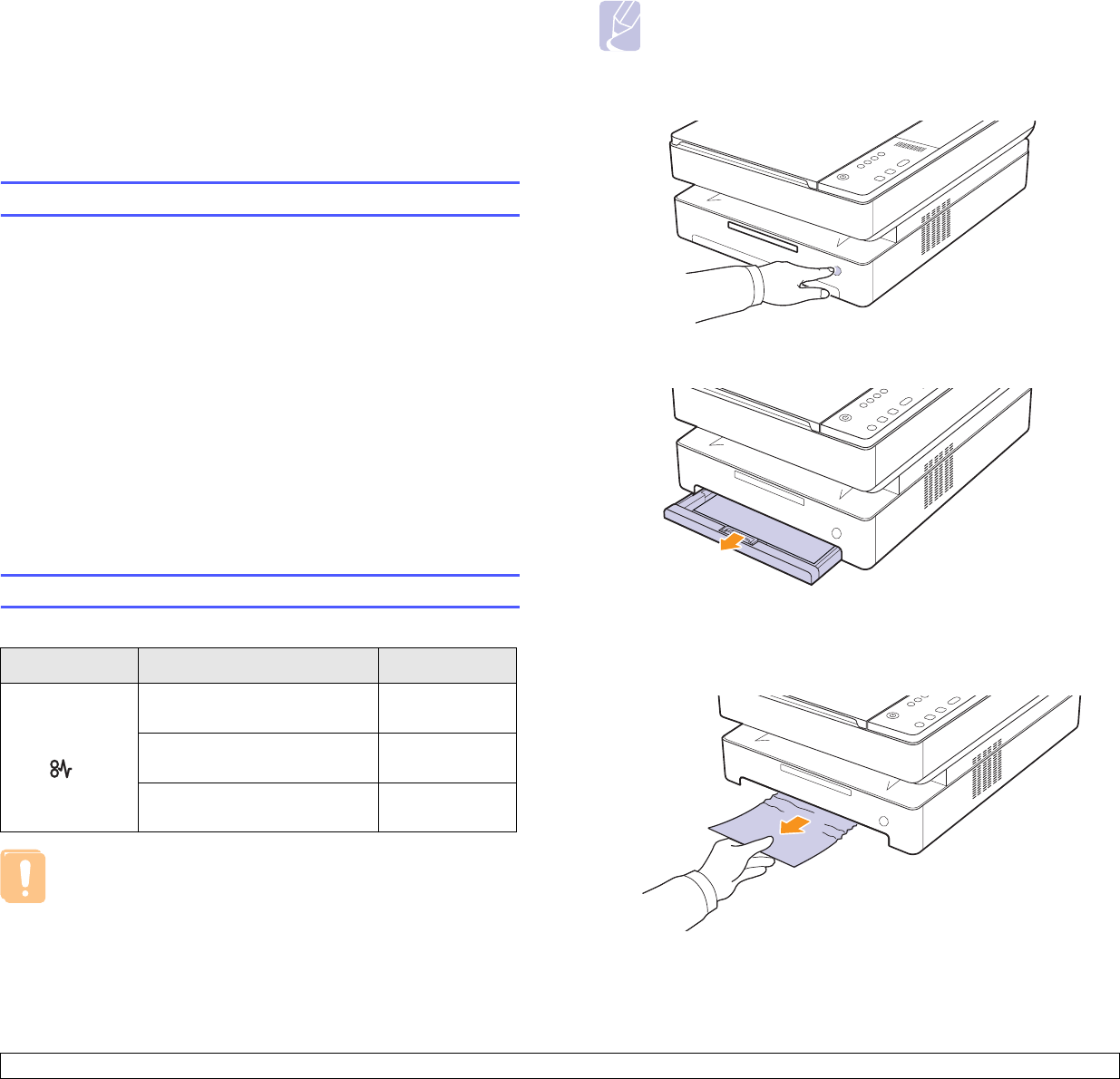

1Press the tray open button.

2Pull the tray open.

3Remove the jammed paper by gently pulling it straight out as shown

below.

9.2 <

Troubleshooting>

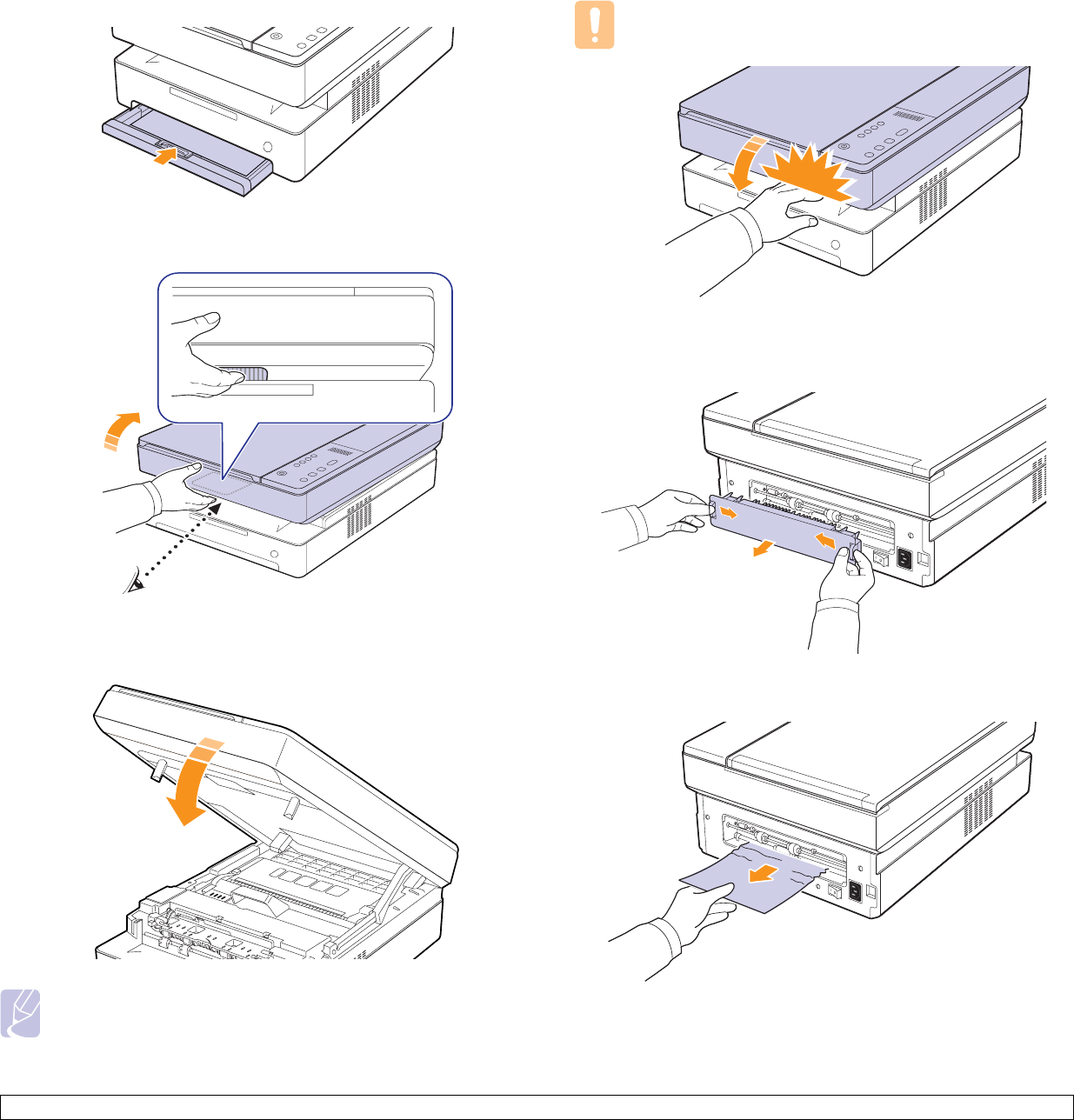

4Align the tray with the slot, and slide it into the machine.

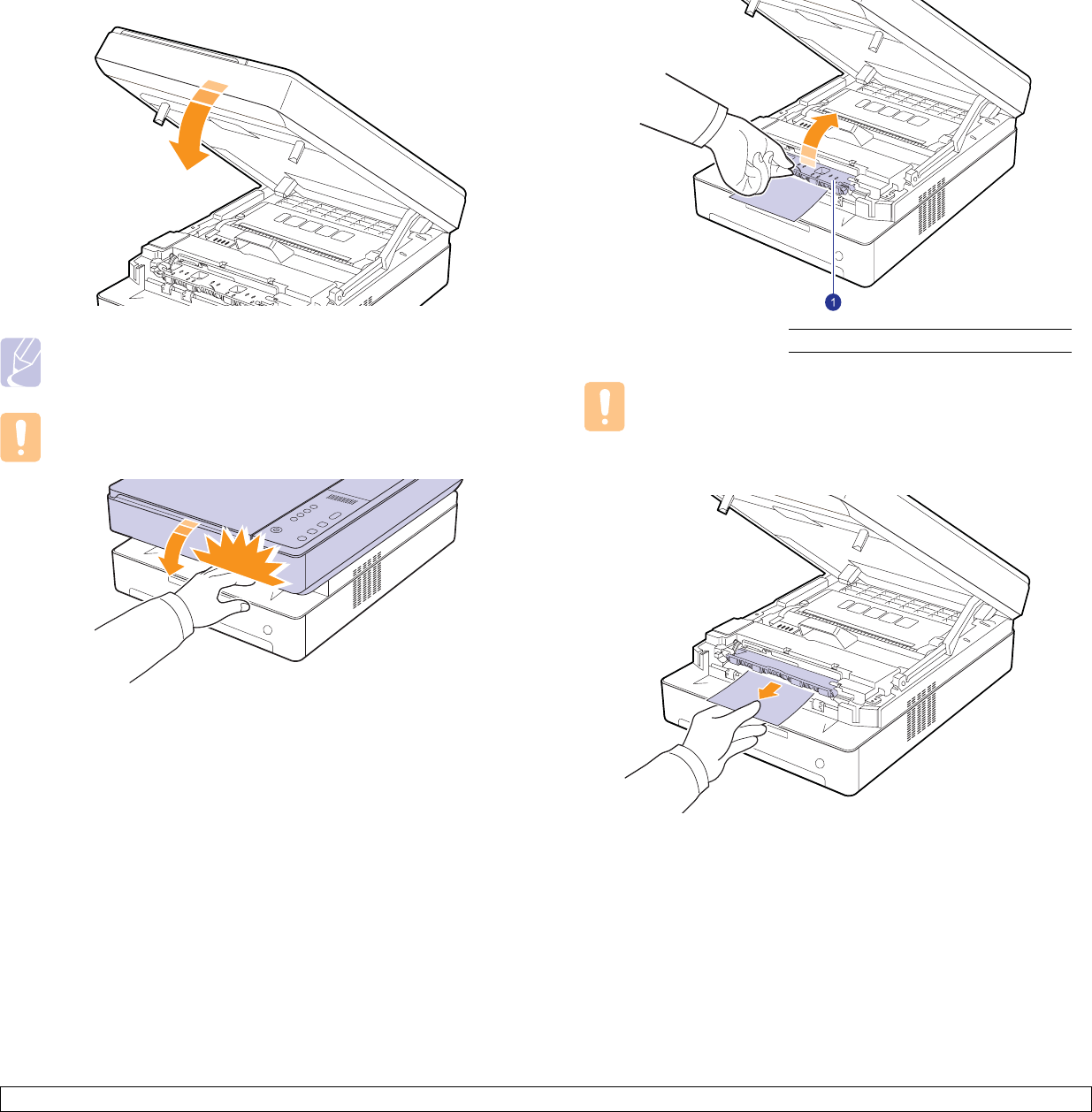

5Press the top cover lever, completely open the top cover.

6Hold the top cover and close it slowly and carefully, until the cover is

securely latched.

Note

If the top cover is not completely closed, the machine will not

operate.

Caution

Be careful not to pinch your fingers

, since the top cover is very

heavy.

7If the paper LED blinks, go to next step.

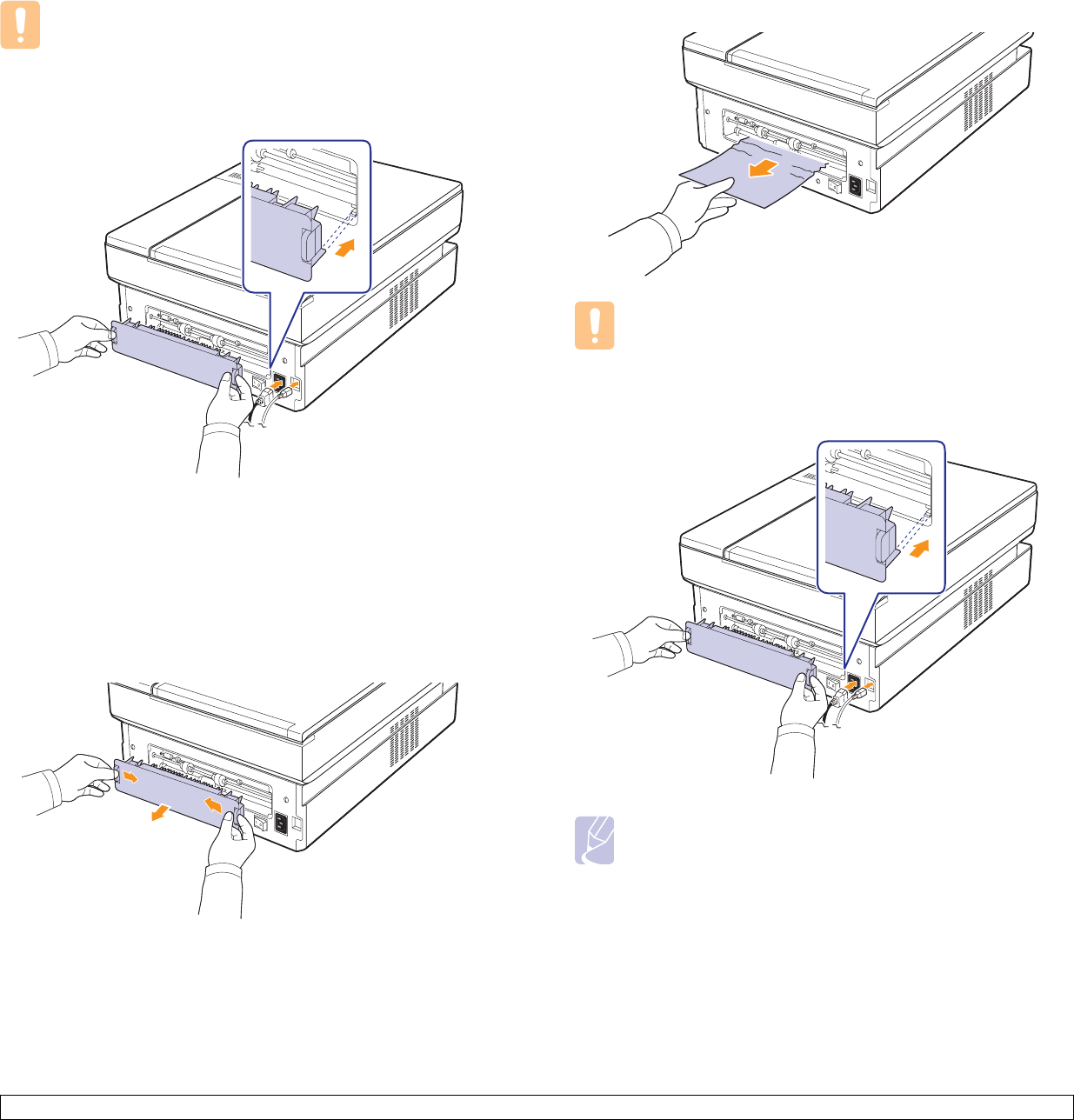

8Open the rear cover.

9Carefully take the jammed paper out of the machine.

9.3 <

Troubleshooting>

Caution

Do not touch the fuser inside the machine. It is hot and could

cause burns! The fuser's operating temperature is very hot.

Take care when removing paper from the machine.

10 Hold both edges of the rear cover, and align it as shown in the

following figure. Press the rear cover firmly until it clicks.

11 Open and close the top cover firmly. The machine will resume

printing.

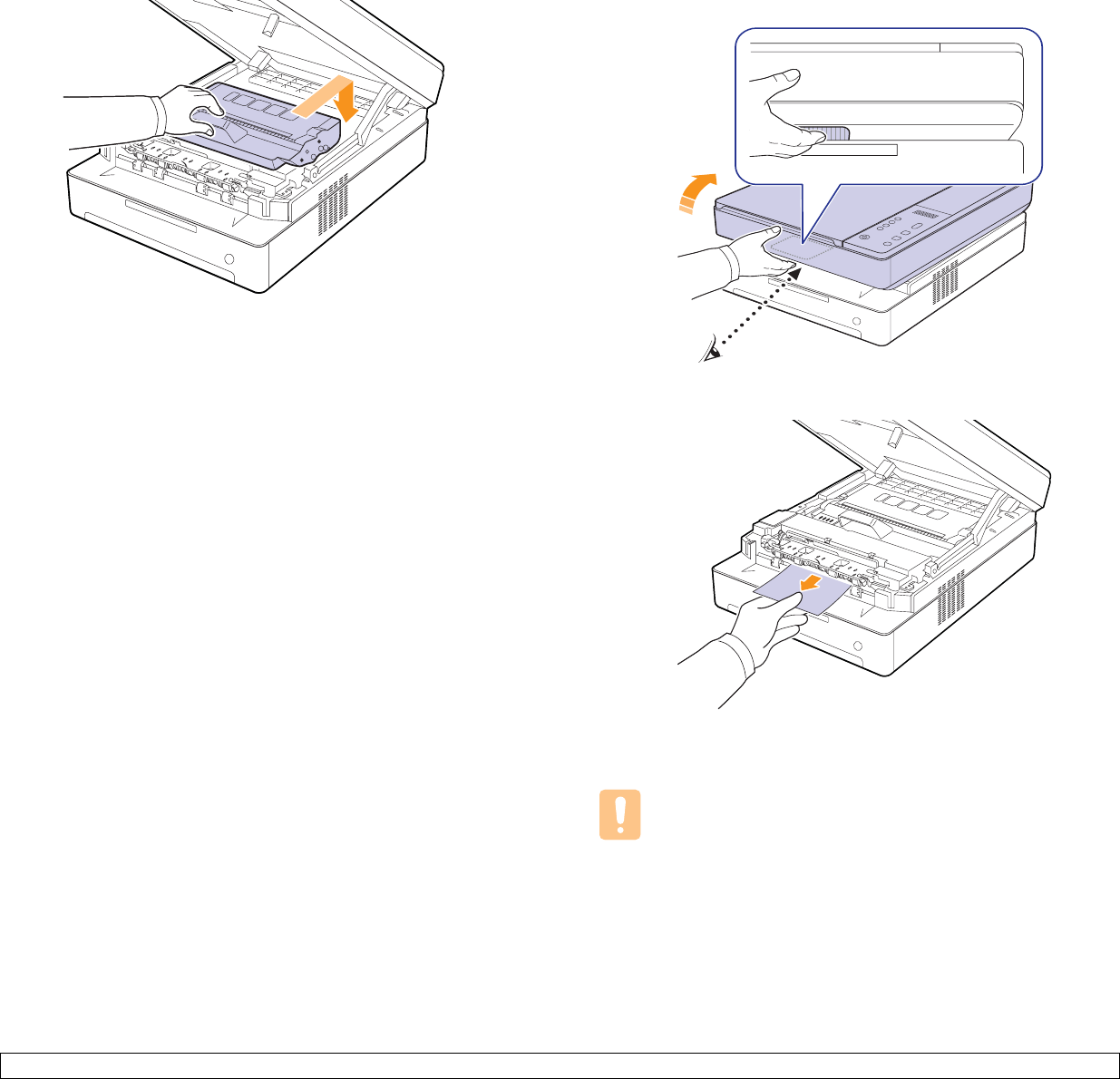

Rear and inside the machine

If paper is jammed in the rear and inside the machine, follow the next

steps to release the jammed paper.

1Open the rear cover.

2Carefully take the jammed paper out of the machine.

Caution

Do not touch the fuser inside the machine. It is hot and could

cause burns! The fuser's operating temperature is very hot.

Take care when removing paper from the machine.

3Hold both edges of the rear cover, and align it as shown in the

following figure. Press the rear cover firmly until it clicks.

Note

If the rear cover is not completely closed, the machine will not

operate.

9.4 <

Troubleshooting>

4Press the top cover lever, completely open the top cover.

5Hold the top cover and close it slowly and carefully, until the cover is

securely latched.

Note

If the top cover is not completely closed, the machine will not

operate.

Caution

Be careful not to pinch your fingers

, since the top cover is very

heavy.

6If the paper LED blinks, go to next step.

7Press the top cover lever, completely open the top cover.

8Grasp the handles on the print cartridge and pull to remove the

cartridge out of the machine.

Caution

• Do not touch the green surface, the OPC drum or the front of

the print cartridge, with your hands or any other material. Use

the handle on each cartridge in order to avoid touching this

area.

• If you leave the top cover open for more than a few minutes,

the OPC drum can be exposed to light. This will cause

damage to the OPC drum. Close the top cover should the

installation need to be halted for any reason.

Note

If toner gets on your clothing, wipe it off with a dry

cloth and wash it in cold water. Hot water sets toner into

fabric.

9Carefully take the jammed paper out of the machine.

Caution

Do not touch the fuser inside the machine. It is hot and could

cause burns! The fuser's operating temperature is

very hot

Take care when removing paper from the machine.

9.5 <

Troubleshooting>

10 After removing the jammed paper, check for paper which may be

jammed in other parts of the machine.

11 Slide the print cartridge back into the machine.

12 Close the top cover firmly. The machine will resume printing.

In the exit area

If paper is jammed in the paper exit area, follow the next steps to release

the jammed paper.

1Press the top cover lever, completely open the top cover.

2If a long portion of the paper is visible, pull it straight out.

If there is any resistance removing the paper, stop pulling and go to

step 4.

Caution

Do not touch the fuser inside the machine. It is hot and could

cause burns! The fuser's operating temperature is very hot.

Take care when removing paper from the machine.

9.6 <

Troubleshooting>

3Hold the top cover and close it slowly and carefully, until the cover is

securely latched.

Note

If the top cover is not completely closed, the machine will not

operate.

Caution

Be careful not to pinch your fingers

, since the top cover is very

heavy.

4Open the inner cover.

Caution

Do not touch the fuser inside the machine. It is hot and could

cause burns! The fuser's operating temperature is very hot.

Take care when removing paper from the machine.

5Carefully take the jammed paper out of the machine.

6Close the inner cover.

7After removing the jammed paper, check for paper which may be

jammed in other parts of the machine.

8Close the top cover firmly. The machine will resume printing.

1inner cover

9.7 <

Troubleshooting>

Understanding display messages

Messages appear on the Smart Panel program window or on the control

panel display to indicate machine status or errors. Refer to the tables

below to understand the messages meaning to correct the problem, if

necessary.

Note

When you call for service, it is very convenient to provide the

service representative with the contents of the display message.

Status display Explanation Solution

OPEN The covers is not

completely closed.

Press the covers until it

clicks.

LED blinks

There is a problem

in the machine.

Unplug the power cord

and plug it back in. If the

problem persists, contact

the service

representatives.

LED blinks There is no paper in

the tray.

Load paper in the tray.

(Page 4.5)

LED blinks

In the paper feed

area and rear the

machine.

Clear the jam. (Page 9.1)

Rear and Inside the

machine.

Clear the jam. (Page 9.3)

In the exit area. Clear the jam. (Page 9.5)

LED blinks

slowly

The corresponding

print cartridge is

almost empty.

Take out the

corresponding print

cartridge and thoroughly

shake it. By doing this,

you can temporarily

reestablish printing

operations. (Page 8.3)

LED blinks

rapidly

Replace the print cartridge with a new one. (Page

8.5)

The print cartridge is

installed improperly,

or not installed.

Reinstall the print

cartridge two or three

times. If the problem

persists, the print

cartridge is not being

detected. Please contact

the service

representatives. (Page

8.5)

!! T1 The print cartridge

which the arrow

indicates is not

suitable for your

machine.

Install the a Samsung-

genuine print cartridge

designed for your

machine.

!! T2 The lifespan of the

print cartridge which

the arrow indicates

is reached.

This message appears

when the toner is

completely empty, and

your machine stops

printing. Replace the

corresponding print

cartridge with a Samsung-

genuine cartridge.

(Page 8.5)

!! T3 The print cartridge

which the arrow

indicates is not a

Samsung-genuine

cartridge.

Replace the

corresponding print

cartridge with a Samsung-

genuine cartridge.

(Page 8.5)

Status display Explanation Solution

9.8 <

Troubleshooting>

Solving other problems

The following chart lists some conditions that may occur and the

recommended solutions. Follow the suggested solutions until the

problem is corrected. If the problem persists, please call for service.

Paper feeding problems

Condition Suggested solutions

Paper is jammed

during printing.

Clear the paper jam. (See "Clearing paper

jams" on page 9.1.)

Paper sticks

together.

• Ensure that there is not too much paper in the

tray. The tray can hold up to 100 sheets of

paper.

• Make sure that you are using the correct type

of paper. (See "Specifications on print

media" on page 4.3.)

• Remove paper from the tray and flex or fan

the paper.

• Humid conditions may cause some paper to

stick together.

Multiple sheets of

paper do not

feed.

• Different types of paper may be stacked in the

tray. Load paper of only one type, size, and

weight.

• If multiple sheets have caused a paper jam,

clear the paper jam. (See "Clearing paper

jams" on page 9.1.)

Paper does not

feed into the

machine.

• Paper has not been loaded correctly. Remove

paper from the tray and reload it correctly.

• There is too much paper in the tray. Remove

excess paper from the tray.

• The paper is too thick. Use only paper that

meets the specifications required by the

machine. (See "Specifications on print

media" on page 4.3.)

• Remove any obstructions from inside the

machine.

The paper keeps

jamming.

• There is too much paper in the tray. Remove

excess paper from the tray.

• An incorrect type of paper is being used. Use

only paper that meets the specifications

required by the machine. (See "Specifications

on print media" on page 4.3.)

• There may be debris inside the machine.

Open the top cover and remove the debris.

Printing problems

Condition Possible cause Suggested solutions

The

machine

does not

print.

The machine is not

receiving power.

Check the power cord

connections. Check the

power switch and the power

source.

The machine is not

selected as the

default printer.

Select a machine name as

your default printer in your

Windows.

Check the machine for the following:

• The cover is not closed. Close the cover.

• Paper is jammed. Clear the paper jam. (See

"Clearing paper jams" on page 9.1.)

• No paper is loaded. Load paper. (See "Loading

paper in the tray" on page 4.5.)

• The print cartridge is not installed. Install the print

cartridge.

If a system error occurs, contact your service

representative.

The connection cable

between the

computer and the

machine is not

connected properly.

Disconnect the printer cable

and reconnect it.

The connection cable

between the

computer and the

machine is defective.

If possible, attach the cable

to another computer that is

working properly and print a

job. You can also try using a

different printer cable.

The port setting is

incorrect.

Check the Windows printer

setting to make sure that the

print job is sent to the correct

port. If the computer has

more than one port, make

sure that the machine is

attached to the correct one.

The machine may be

configured

incorrectly.

Check the printer properties

to ensure that all of the print

settings are correct.

The printer driver

may be incorrectly

installed.

Repair the printer software.

See

Software section

The machine is

malfunctioning.

Check the display message

on the control panel to see if

the machine is indicating a

system error. Contact a

service representative.

9.9 <

Troubleshooting>

The

machine

selects print

materials

from the

wrong

paper

source.

The paper option that

was selected in the

machine properties

may be incorrect.

For many software

applications, the paper

source selection is found

under the Paper tab within

the printer properties. Select

the correct paper source.

See the printer driver help

screen.

A print job

is extremely

slow.

The job may be very

complex.

Reduce the complexity of the

page or try adjusting the print

quality settings such as

adjusting the resolution.

Half the

page is

blank.

The page orientation

setting may be

incorrect.

Change the page orientation

in your application. See the

printer driver help screen.

The paper size and

the paper size

settings do not

match.

Ensure that the paper size in

the printer driver settings

matches the paper in the

tray.

Or, ensure that the paper

size in the printer driver

settings matches the paper

selection in the software

application settings you use.

The

machine

prints, but

the text is

wrong,

garbled, or

incomplete.

The printer cable is

loose or defective.

Disconnect the printer cable

and reconnect. Try a print job

that you have already printed

successfully. If possible,

attach the cable and the

machine to another computer

and try a print job that you

know works. Finally, try a

new printer cable.

The wrong printer

driver was selected.

Check the application’s

printer selection menu to

ensure that your machine is

selected.

The software

application is

malfunctioning.

Try printing a job from

another application.

The operating system

is malfunctioning.

Exit Windows and reboot the

computer. Turn the machine

off and then back on again.

Condition Possible cause Suggested solutions

Pages print,

but they are

blank.

The print cartridge is

defective or out of

toner.

Redistribute the toner, if

necessary.

If necessary, replace the print

cartridge.

The file may have

blank pages.

Check the file to ensure that

it does not contain blank

pages.

Some parts, such as

the controller or the

board, may be

defective.

Contact a service

representative.

PDF file

does not

correctly-

some parts

are missing

in the

graphics,

text or

illustrations.

Incompatibility

between the PDF file

and the Acrobat

products.

Printing the PDF file as an

image may enable the file to

print. Turn on

Print As Image

from the Acrobat printing

options.

Note: It will take longer to

print when you print a PDF

file as an image.

The print

quality of

photos is

not good.

Images are

not clear.

The resolution of the

photo is very low.

Reduce the photo size. If you

increase the photo size in the

software application, the

resolution will be reduced.

Condition Possible cause Suggested solutions

9.10 <

Troubleshooting>

Printing quality problems

If the inside of the machine is dirty or paper has been loaded improperly,

you may notice a reduction in print quality. See the table below to clear

the problem.

Condition Suggested solutions

Light or faded print

If a vertical white streak or faded area appears

on the page:

• The toner supply is low. You may be able to

temporarily extend the print cartridge life. If

this does not improve the print quality, install

a new print cartridge.

• The paper may not meet paper

specifications; for example, the paper may

be too moist or rough. (See "Specifications

on print media" on page 4.3.)

• If the entire page is light, the print resolution

setting is too low or the toner save mode is

on. Adjust the print resolution and turn the

toner save mode off. See the help screen of

the printer driver and refer to Software

section, respectively.

• A combination of faded or smeared defects

may indicate that the print cartridge needs

cleaning. Contact a service representative.

• The surface of the LSU part inside the

machine may be dirty. Clean the LSU,

contact a service representative.

Toner specks

• The paper may not meet specifications; for

example, the paper may be too moist or

rough. (See "Specifications on print

media" on page 4.3.)

• The paper path may need cleaning. Contact

a service representative.

Dropouts

If faded areas, generally rounded, occur

randomly on the page:

• A single sheet of paper may be defective.

Try reprinting the job.

• The moisture content of the paper is uneven

or the paper has moist spots on its surface.

Try a different brand of paper. (See

"Specifications on print media" on page 4.3.)

• The paper lot is bad. The manufacturing

processes can cause some areas to reject

toner. Try a different kind or brand of paper.

• If these steps do not correct the problem,

contact a service representative.

White Spots White spots appear on the page:

• The paper path may need cleaning. Contact

a service representative.

Vertical lines

If black vertical streaks appear on the page:

• The print cartridge has probably been

scratched. Remove the print cartridge and

install a new one.

If white vertical streaks appear on the page:

• Clean the inside of the machine. Contact a

service representative to clean the inside of

the machine.

Color or Black

background

If the amount of background shading becomes

unacceptable:

• Change to a lighter weight paper. (See

"Specifications on print media" on page 4.3.)

• Check the environmental conditions: very

dry conditions (low humidity) or a high level

of humidity (higher than 80% RH) can

increase the amount of background

shading.

• Remove the old print cartridge, and then

install a new one. (See "Replacing the print

cartridge" on page 8.5.)

Toner smear

• Clean the inside of the machine. Contact a

service representative to clean the inside of

the machine.

• Check the paper type and quality. (See

"Specifications on print media" on page 4.3.)

Condition Suggested solutions

9.11 <

Troubleshooting>

Vertical repetitive

defects

If marks repeatedly appear on the printed side

of the page at even intervals:

• Clean the inside of the machine. Contact a

service representative to clean the inside of

the machine. After cleaning the inside of the

machine, if you still have the same

problems, install a new print cartridge of the

problem color. See "Replacing the print

cartridge" on page 8.5.

• Parts of the machine may have toner on

them. If the defects occur on the back of the

page, the problem will likely correct itself

after a few more pages.

• The fusing assembly may be damaged.

Contact a service representative.

Background scatter

Background scatter results from bits of toner

randomly distributed on the printed page.

• The paper may be too damp. Try printing

with a different batch of paper. Do not open

packages of paper until necessary so that

the paper does not absorb too much

moisture.

• If background scatter occurs on an

envelope, change the printing layout to

avoid printing over areas that have

overlapping seams on the reverse side.

Printing on seams can cause problems.

• If background scatter covers the entire

surface area of a printed page, adjust the

print resolution through your software

application or in printer properties.

Misformed

characters

• If characters are improperly formed and

producing hollow images, the paper stock

may be too slick. Try different paper. (See

"Specifications on print media" on page 4.3.)

• If characters are improperly formed and

producing a wavy effect, the scanner unit

may need service. Contact a service

representative.

Page skew

• Ensure that the paper is loaded properly.

• Check the paper type and quality. (See

"Specifications on print media" on page 4.3.)

• Ensure that the paper or other material is

loaded correctly and the guides are not too

tight or too loose against the paper stack.

Condition Suggested solutions

Curl or wave

• Ensure that the paper is loaded properly.

• Check the paper type and quality. Both high

temperature and humidity can cause paper

curl. (See "Specifications on print media" on

page 4.3.)

• Turn the stack of paper over in the tray. Also

try rotating the paper 180° in the tray.

Wrinkles or creases

• Ensure that the paper is loaded properly.

• Check the paper type and quality. (See

"Specifications on print media" on page 4.3.)

• Turn the stack of paper over in the tray. Also

try rotating the paper 180° in the tray.

Back of printouts

are dirty

Check for leaking toner. Clean the inside of

the machine. Contact a service

representative.

Black pages

• The print cartridge may not be installed

properly. Remove the cartridge and reinsert

it.

• The print cartridge may be defective and

need replacing. Remove the print cartridge

and install a new one. (See "Replacing the

print cartridge" on page 8.5.)

• The machine may require repair. Contact a

service representative.

Condition Suggested solutions

9.12 <

Troubleshooting>

Loose toner

• Clean the inside of the machine. Contact a

service representative to clean the inside of

the machine. After cleaning the inside of the

machine, if you still have the same

problems, contact a service representative.

• Check the paper type and quality. (See

"Specifications on print media" on page 4.3.)

• Remove the print cartridge, and then install

a new one. (See "Replacing the print

cartridge" on page 8.5.)

• If the problem persists, the machine may

require repair. Contact a service

representative.

Character Voids

Character voids are white areas within parts of

characters that should be solid black:

• If you are using transparencies, try another

type of transparency. Because of the

composition of transparencies, some

character voids are normal.

• You may be printing on the wrong surface of

the paper. Remove the paper and turn it

around.

• The paper may not meet paper

specifications. (See "Specifications on print

media" on page 4.3.)

Horizontal stripes

If horizontally aligned black streaks or smears

appear:

• The print cartridge may be installed

improperly. Remove the cartridge and

reinsert it.

• The print cartridge may be defective.

Remove the print cartridge and install a new

one. (See "Replacing the print cartridge" on

page 8.5.)

• If the problem persists, the machine may

require repair. Contact a service

representative.

Curl

If the printed paper is curled or paper does not

feed into the machine:

• Turn the stack of paper over in the tray. Also

try rotating the paper 180° in the tray.

Condition Suggested solutions

Copying problems

An unknown image

repetitively appears

on the next few

sheets or loose

toner, light print, or

contamination

occurs.

You machine is probably being used at an

altitude of 2,500 m (8,200 ft) or above. The

high altitude may affect the print quality from

loose toner or light imaging. You can set this

option through the Printer Tab in printer

driver’s properties. See page 3.2.

Condition Suggested solutions

Copies are too light

or too dark.

Use Darkness arrows to darken or lighten the

backgrounds of copies.

Smears, lines,

marks, or spots

appears on copies.

• If the defects are on the original, press

Darkness arrows to lighten the background

of your copies.

• If there are no defects on the original, clean

the scan unit. (Page page 8.3)

Copy image is

skewed.

• Ensure that the original is face down on the

scanner glass.

• Check that the copy paper is loaded

correctly.

Blank copies print

out.

Ensure that the original is face down on the

scanner glass.

Image rubs off the

copy easily.

• Replace the paper in the tray with paper

from a new package.

• In high humidity areas, do not leave paper in

the machine for extended periods of time.

Frequent copy

paper jams occur.

• Fan the stack of paper, then turn it over in

the tray. Replace the paper in the tray with a

fresh supply. Check/adjust the paper guides,

if necessary.

• Ensure that the paper is the proper paper

weight. 75 g/m2 paper is recommended.

• Check for copy paper or pieces of copy

paper remaining in the machine after a

paper jam has been cleared.

Print cartridge

produces fewer

copies than

expected before

running out of

toner.

• Your originals may contain pictures, solids,

or heavy lines. For example, your originals

may be forms, newsletters, books, or other

documents that use more toner.

• The machine may be turned on and off

frequently.

• The scanner lid may be left open while

copies are being made.

Condition Suggested solutions

9.13 <

Troubleshooting>

Scanning problems

Condition Suggested solutions

The scanner does

not work.

• Make sure that you place the original to be

scanned face down on the scanner glass,.

• There may not be enough available memory

to hold the document you want to scan. Try

the Prescan function to see if that works. Try

lowering the scan resolution rate.

• Check that the printer cable is connected

properly.

• Make sure that the printer cable is not

defective. Switch the cable with a known

good cable. If necessary, replace the cable.

• Check that the scanner is configured

correctly. Check scan setting in the

SmarThru

Configuration

or the application you want to

use to make certain that the scanner job is

being sent to the correct port.

The unit scans

very slowly.

• Check if the machine is printing received

data. If so, scan the document after the

received data has been printed.

• Graphics are scanned more slowly than text.

Message appears

on your computer

screen:

• “Device can't be

set to the H/W

mode you want.”

• “Port is being

used by another

program.”

•“Port is

Disabled.”

• “Scanner is busy

receiving or

printing data.

When the

current job is

completed, try

again.”

• “Invalid handle.”

• “Scanning has

failed.”

• There may be a copying or printing job in

progress. Try your job again when that job is

finished, try your job again.

• The selected port is currently being used.

Restart your computer and try again.

• The scanner driver is not installed or the

operating environment is not set up properly.

• Ensure that the machine is properly

connected and the power is on, then restart

your computer.

• The USB cable may be improperly connected

or the power may be off.

Common Windows problems

Note

Refer to Microsoft Windows 2000/XP/2003/Vista User’s Guide

that came with your PC for further information on Windows error

messages.

Condition Suggested solutions

“File in Use”

message appears

during installation.

Exit all software applications. Remove all

software from the StartUp Group, then restart

Windows. Reinstall the printer driver.

“General

Protection Fault”,

“Exception OE”,

“Spool32”, or

“Illegal Operation”

messages appear.

Close all other applications, reboot Windows

and try printing again.

“Fail To Print”, “A

machine timeout

error occurred.”

messages appear.

These messages may appear during printing.

Just keep waiting until the machine finishes

printing. If the message appears in standby

mode or after printing has been completed,

check the connection and/or whether an error

has occurred.

9.14 <

Troubleshooting>

Common Linux problems

Problem Possible cause and solutions

The machine does not

print.

• Check if the printer driver is installed in your

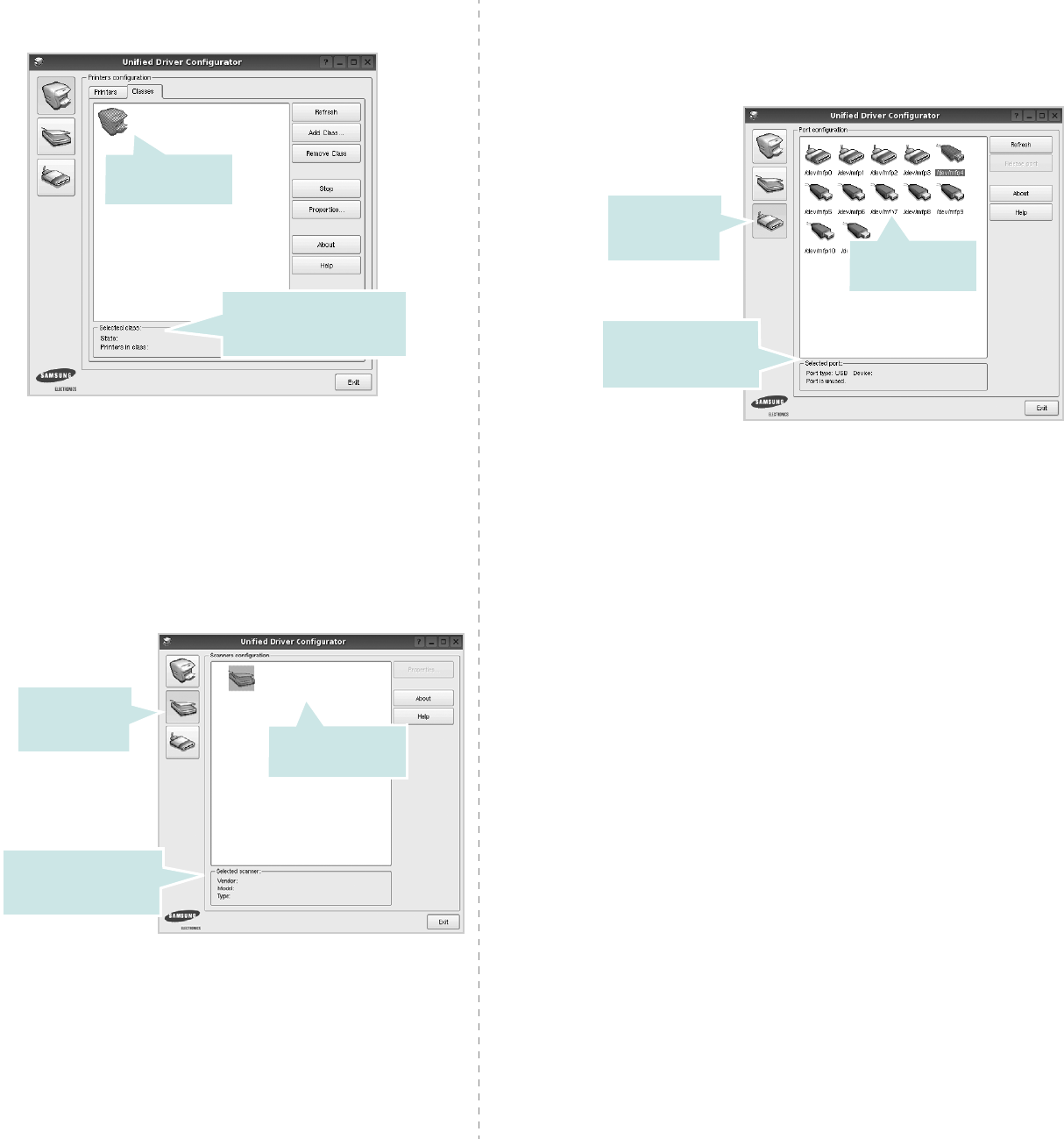

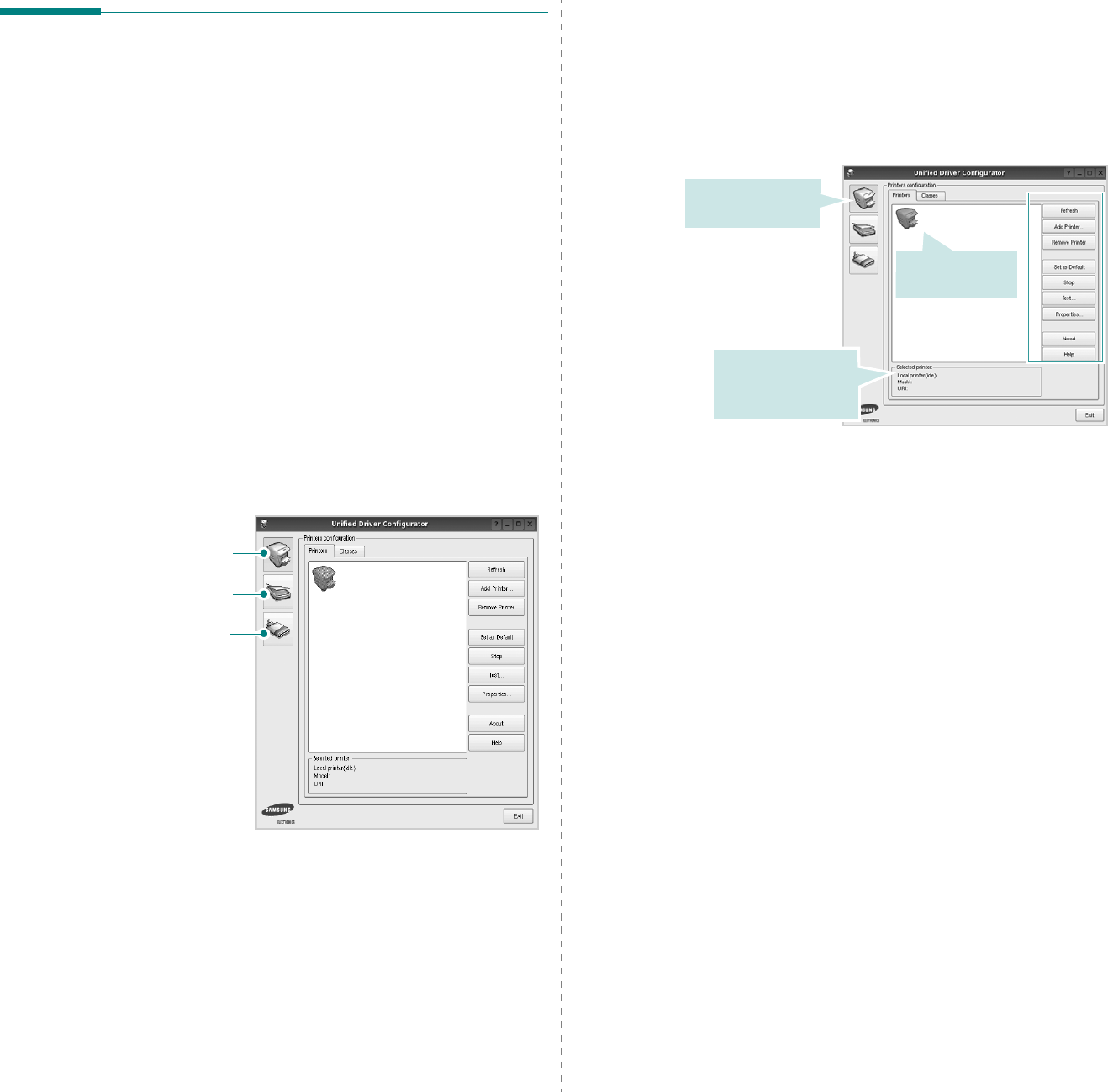

system. Open Unified Driver configurator

and switch to the Printers tab in Printers

configuration window to look at the list of

available printers. Make sure that your

machine is displayed on the list. If not,

please, invoke Add new printer wizard to

set up your device.

• Check if the printer has started. Open

Printers configuration and select your

machine on the printers list. Look at the

description in the Selected printer pane. If

its status contains “(stopped)” string,

please, press the Start button. After that

normal operation of the printer should be

restored. The “stopped” status might be

activated when some problems in printing

occurred. For instance, this could be an

attempt to print a document when a port is

claimed by a scanning application.

• Check if the port is not busy. Since

functional components of MFP (printer and

scanner) share the same I/O interface

(port), the situation of simultaneous access

of different “consumer” applications to the

same port are possible. To avoid possible

conflicts, only one of them at a time is

allowed to gain control over the device. The

other “consumer” will encounter “device

busy” response. You should open ports

configuration and select the port assigned

to your printer. In the Selected port pane

you can see if the port is occupied by some

other application. If this is the case, you

should wait for completion of the current job

or should press Release port button, if you

are sure that the present owner is not

functioning properly.

• Check if your application has special print

option such as “-oraw”. If “-oraw” is

specified in the command line parameter

then remove it to print properly. For Gimp

front-end, select “print” -> “Setup printer”

and edit command line parameter in the

command item.

The machine does not

appear on the

scanners list.

• Check if your machine is attached to your

computer. Make sure that it is connected

properly via the USB port and is turned on.

• Check if the scanner driver for your

machine is installed in your system. Open

Unified Driver configurator, switch to

Scanners configuration, then press

Drivers. Make sure that driver with a name

corresponding to your machine's name is

listed in the window. Check if the port is not

busy. Since functional components of MFP

(printer and scanner) share the same I/O

interface (port), the situation of

simultaneous access of different

“consumer” application to the same port is

possible. To avoid possible conflicts, only

one of them at a time is allowed to gain

control over the device. The other

“consumer” will encounter “device busy”

response. This can usually happen while

starting scan procedure, and appropriate

message box appears.

• To identify the source of the problem, you

should open ports configuration and select

the port assigned to your scanner. port's

symbol /dev/mfp0 corresponds to LP:0

designation displayed in the scanners’

options, /dev/mfp1 relates to LP:1 and so

on. USB ports start at /dev/mfp4, so

scanner on USB:0 relates to /dev/mfp4

respectively and so forth sequentially. In the

Selected port pane you can see if the port

is occupied by some other application. If

this is the case, you should wait for

completion of the current job or you should

press Release port button, if you are sure

that the present port's owner is not

functioning properly.

Problem Possible cause and solutions

9.15 <

Troubleshooting>

The machine does not

scan.

• Check if a document is loaded into the

machine.

• Check if your machine is connected to the

computer. Make sure if it is connected

properly if an I/O error is reported while

scanning.

• Check if the port is not busy. Since

functional components of MFP (printer and

scanner) share the same I/O interface

(port), the situation of simultaneous access

of different “consumer” application to the

same port is possible. To avoid possible

conflicts, only one of them at a time is

allowed to gain control over the device. The

other “consumer” will encounter “device

busy” response. This can usually happen

while starting scan procedure, and

appropriate message box will be displayed.

To identify the source of the problem, you

should open ports configuration and select

the port assigned to your scanner. port’s

symbol /dev/mfp0 corresponds to LP:0

designation displayed in the scanners’

options, /dev/mfp1 relates to LP:1 and so

on. USB ports start at /dev/mfp4, so

scanner on USB:0 relates to /dev/mfp4

respectively and so forth sequentially. In the

Selected port pane you can see if the port

is occupied by some other application. If

this is the case, you should wait for

completion of the current job or should

press the Release port button, if you are

sure that the present port’s owner is not

functioning properly.

I cannot scan via Gimp

Front-end.

• Check if Gimp Front-end has

“Xsane: Device dialog.” on the “Acquire”

menu. If not, you should install Xsane plug-

in for Gimp on the your computer. You can

find Xsane plug-in package for Gimp on

Linux distribution CD or Gimp home page.

For the detail information, refer to the Help

for Linux distribution CD or Gimp Front-end

application.

If you wish to use other kind of scan

application, refer to the Help for application.

Problem Possible cause and solutions

Common Macintosh problems

I encounter error

“Cannot open port

device file” when

printing a document.

Please avoid changing the print job

parameters (via LPR GUI, for example) while

a print job is in progress. Known versions of

CUPS server break the print job whenever

print options are changed and then try to

restart the job from the beginning. Since

Unified Linux Driver locks port while printing,

the abrupt termination of the driver keeps the

port locked and therefore unavailable for

subsequent print jobs. If this situation

occurred, please, try to release the port.

When printing a

document over the

network in SuSE 9.2,

the machine does not

print.

The CUPS (Common Unix Printing System)

version distributed with SuSE Linux 9.2

(cups-1.1.21) has a problem with ipp

(Internet Printing Protocol) printing. Use the

socket printing instead of ipp or install later

version of CUPS (cups-1.1.22 or higher).

Problem Suggested solutions

PDF file does not print

correctly-some parts are

missing in the graphics,

text or illustrations.

Incompatibility between the PDF file and

the Acrobat products.

Printing the PDF file as an image may

enable the file to print. Turn on

Print As


from the Acrobat printing options.

Note: It will take longer to print when

you print a PDF file as an image.

The document has

printed, but the print job

has not disappeared from

the spooler in

Mac OS 10.3.2.

Update your Mac OS to OS 10.3.3. or

higher.

Some fonts are not

printed properly in the

Adobe Illustrator

program.

Those fonts may not supported by your

machine. Start the Adobe Illustrator

program, click File > Print > Illustrator

tab. Then, check Force Fonts to

Download, and try again.

Problem Possible cause and solutions

10.1 <

Ordering supplies and accesso-

10 Ordering supplies and

accessories

This chapter provides information on purchasing cartridges and

accessories available for your machine.

This chapter includes:

• Supplies

• How to purchase

Supplies

When the toner runs out, you can order the following type of print

cartridge for your machine:

How to purchase

To order Samsung-authorized supplies or accessories, contact your local

Samsung dealer or the retailer where you purchased your machine, or

visit www.samsungprinter.com and select your country/region to obtain

information on calling for technical support.

Type Average yielda

a. Declared yield value in accordance with ISO/IEC 19752.

Caution

When you purchase a new print cartridge or supplies, you must

purchase them in the same country you have purchased your

machine. Otherwise, the print cartridge or supplies will be

incompatible with your machine since the configuration of the

print cartridge or supplies vary depending on the countries.

Part number

Standard yield Approx. 2,000 pages SCX-D4500A

11.1 <

Specifications>

11 Specifications

This chapter includes:

• General specifications

• Printer specifications

• Copier specifications

• Scanner specifications

Note

The numbers herein is subject to change according to its install

environment.

General specifications

Item Specifications and Description

Paper input

capacitya100 multi-pages for plain paper

(20 lb bond, 75 g/m2)

Paper output

capacity

30 sheets (face up)

Consumables 1-piece print cartridge system

Power rating AC 110 - 127 V or AC 220 - 240 V

See the Rating label on the machine for the

correct voltage, frequency (hertz) and type of

current for your machine.

Power

consumption

Average operation mode: Less than 350 W

Sleep mode: Less than 8.12 W

Noise levelbStandby mode: Less than 38 dBA

Scanning/Printing mode: Less than 45 dBA

Operating

environment

Temperature: 10 °C to 32 °C (

F to 89.6

)

Humidity: 20% to 80% RH

Display Blue LED Module (65EA Dots)

print cartridge

yieldcAverage 2,000 pages standard yield print

cartridge. Declared yield value in accordance

with ISO/IEC 19752.

(Ships with 1,000 pages print cartridge)

Memory 8 MB (Non-extendable)

External dimension

(W x D x H)

332 x 393 x 162.3mm

(13.1 x 15.5 x 6.4 inches)

Printer specifications

Weight 8.6 Kg (18.96 lbs)

(including consumables)

Package weight

Paper: 1.84 Kg (4.06 lbs)

Plastic: 0.267 Kg (0.59 lbs)

Duty cycle Monthly print volume: Up to 4,000 pages

a.For details about paper input capacity, see page 4.3.

b. Sound Pressure Level, ISO 7779

c. Average cartridge yield declared in accordance with ISO/IEC 19752. The

number of pages may be affected by the operating environment, printing

interval, media type, and media size.

Item Description

Printing method Laser Beam Printing

Printing speeda

a. Print speed will be affected by operating system used, computing performance,

application software, connect on method, media type, media size, and job

complexity.

Up to 16 ppm in A4 (17 ppm in Letter)

First print out time from coldboot: Less than 15 seconds

Print resolution Up to 600 x 600 dpi Effective output

Printer language SPL (Samsung Printer Language)

OS compatibility &

driverb

b. Please visit www.samsungprinter.com to download the latest software version.

Windows 2000/ 2003/ XP/ Vista, Various Linux

OS, Mac 10.3 ~ 10.4

Interface USB 2.0

Item Specifications and Description

11.2 <

Specifications>

Copier specifications

Item Description

Copy speeda

a. Copy speed is based on single document multiple copy.

Up to 16 cpm in A4 (17 cpm in Letter)

First copy out time from coldboot: Less than 15 seconds

Copy resolution Scan: up to 600 x 300 dpi (Text, Text/Photo)

up to 600 x 600 dpi (Photo)

Print: up to 600 x 600 dpi

(Text, Text/Photo, Photo)

Zoom rate 50 to 199%

Multiple copies 1 to 99 pages

Scanner specifications

Item Description

Compatibility TWAIN standard / WIA standard

Scanning method Color CIS

Resolution Optical: Max. 600 x 600 dpi (Mono and color)

Enhanced: 4,800 x 4,800 dpi

Effective scanning

length

Max. 297 mm (11.7 inches)

Effective scanning

width

Max. 208 mm (8.2 inches)

Color bit depth 24 bits

Mono bit depth 1 bit for Linearity & Halftone

8 bits for Gray scale

Grayscale 256 levels

12.1 <

Glossary>

12 Glossary

Control Panel

A control panel is a flat area where control or monitoring instruments are

displayed. They are typically found in top or front of the machine.

Coverage

This is the printing term used for toner usage measurement on printing

and generally used as 5% coverage. 5% coverage means that an A4

sided paper has about 5% image or text on it. So, if the paper or original

has complicated images or lots of text on it, the coverage will be over 5%

and at the same time, toner usage will be as much as the coverage.

Default

The first set values.

DPI

This is the measurement of resolution which is used for printing or

scanning. Generally, more dots per inch result in a higher resolution,

more visible detail in the image, and a larger file size.

Duty Cycle

Duty cycle is the page quantity which does not affect printer performance

for a month. Generally the printer has the lifespan limitation such as

pages per year. The lifespan means the average capacity of print-outs,

usually within the warranty period. For example, if the duty cycle is 48,000

pages per month assuming 20 working days, a printer limits 2,400 pages

a day, which is not small amount.

Fuser Unit

This is the part of a laser printer that melts the toner onto the print media.

It consists of two hot rollers. After toner is transferred onto the paper, the

fuser unit applies heat and pressure to ensure that the toner stays on the

paper permanently, which is why paper is warm when it comes out of a

laser printer.

Grayscale

Shades of gray that represent light and dark portions of an image when

color images are converted to grayscale; colors are represented by

various shades of gray.

Halftone

This is an image type that simulates grayscale by varying the number of

dots. Highly colored areas consist of a large number of dots, while lighter

areas consist of a smaller number of dots.

ISO

The International Organization for Standardization (ISO) is an

international standard-setting body composed of representatives from

national standards bodies. It produces world-wide industrial and

commercial standards.

LED

A light-emitting diode (LED) is a semiconductor device that indicates the

status of a machine.

Print Media

Media such as papers, envelopes, labels, and transparencies which can

be used on a printer, a scanner, a fax or, a copier.

OPC Drum

A mechanism that makes a virtual image for print using a laser beam

emitted from a laser printer, and it is usually green or gray-colored and

cylinder-shaped. An exposing unit of a drum is slowly worn away by its

usage of the printer, and it should be replaced appropriately since it

becomes scratched from grit in paper.

PDF

Portable Document Format (PDF) is a proprietary file format developed

by Adobe Systems for representing two-dimensional documents in a

device-independent and resolution-independent format.

PPM

Pages Per Minute. PPM shows the printer's speed, how many pages a

printer can actually print per minute.

PRN file

An interface for a device driver, this allows software to interact with the

device driver using standard input/output system calls, which simplifies

many tasks.

Resolution

The sharpness of an image, measured in dots per inch (dpi). The higher

the dpi, the greater the resolution.

Print Cartridge

It is a kind of bottle within a machine like a printer which contains toner.

Toner is a powder used in laser printers and photocopiers which forms the

text and images on the printed paper. Toner can be melted by the heat of

the fuser, causing it to bind to the fibers in the paper.

URL

Uniform Resource Locator (URL) is the global address of documents and

resources on the Internet. The first part of the address indicates what

protocol to use, the second part specifies the IP address or the domain

name where the resource is located.

USB

Universal serial bus (USB) is a standard that was developed by the USB

Implementers Forum, Inc., to connect computers and peripherals. Unlike

the parallel port, USB is designed to concurrently connect a single

computer USB port to multiple peripherals.

cleaning

insideG8.1

outsideG8.1

scan unitG8.3

control panelG1.2SG1.4

CopiesG1.4

DarknessG1.4

Reduce/EnlargeG1.4

Scan to PCG1.4

Start CopyG1.4

Stop/ClearG1.4

Up/Down arrowsG1.4

copy

copyingG5.1

darknessG5.1

original typeG5.1

paper sizeG5.1

reduce/enlargeG5.1

solving copy problemsG9.12

driver

featureG2.2

error messageG9.7

jam

clearing paper from the trayG9.1

tips for avoiding paper jamsG9.1

Linux

requirementsG2.3

Linux problemsG9.14

Macintosh

problemsG9.15

requirementsG2.3

MaintenanceG8.1

maintenance partsG8.7

print cartridgeG8.3

message on the display screenG9.7

ordering suppliesG10.1

originalsG4.1

loading on the scanner glassG4.1

output supportG1.2

output trayG1.2

paper

changing the sizeG4.5

clearing jamG9.1

paper feeding problemsG9.8

setting the paper size of the trayG4.7

Power switchG1.3

print cartridgeG1.2

print media

guidelinesG4.2

media sizesG4.3

selecting print mediaG4.2

specificationG4.3

Printer software CDG2.1

printingG7.1

problem solvingG9.8

printing reportG8.1

problem, solve

LinuxG9.14

problems

copyingG9.12

display messageG9.7

MacintoshG9.15

paper feederG9.8

printingG9.8

printing qualityG9.10

scanningG9.13

WindowsG9.13

quality

solving the printing problemG9.10

ReduceG1.4

replacing components

print cartridgeG8.5

scanner glassG1.2

scanner lidG1.2

scanning

solving scanning problemsG9.13

to applicationG6.1

specificationsG11.1SG12.1

supplied softwareG2.1

supplies

expected print cartridge lifeG8.3

ordering suppliesG10.1

top coverG1.2

top cover leverG1.2

trayG1.2

adjusting the width and lengthG4.5

tray open buttonG1.2

troubleshootingG9.1

USB

portG1.3

Windows

problemsG9.13

requirementsG2.2

INDEX

Samsung Printer

Software section

SOFTWARE SECTION

CONTENTS

Chapter 1:

INSTALLING PRINTER SOFTWARE IN WINDOWS

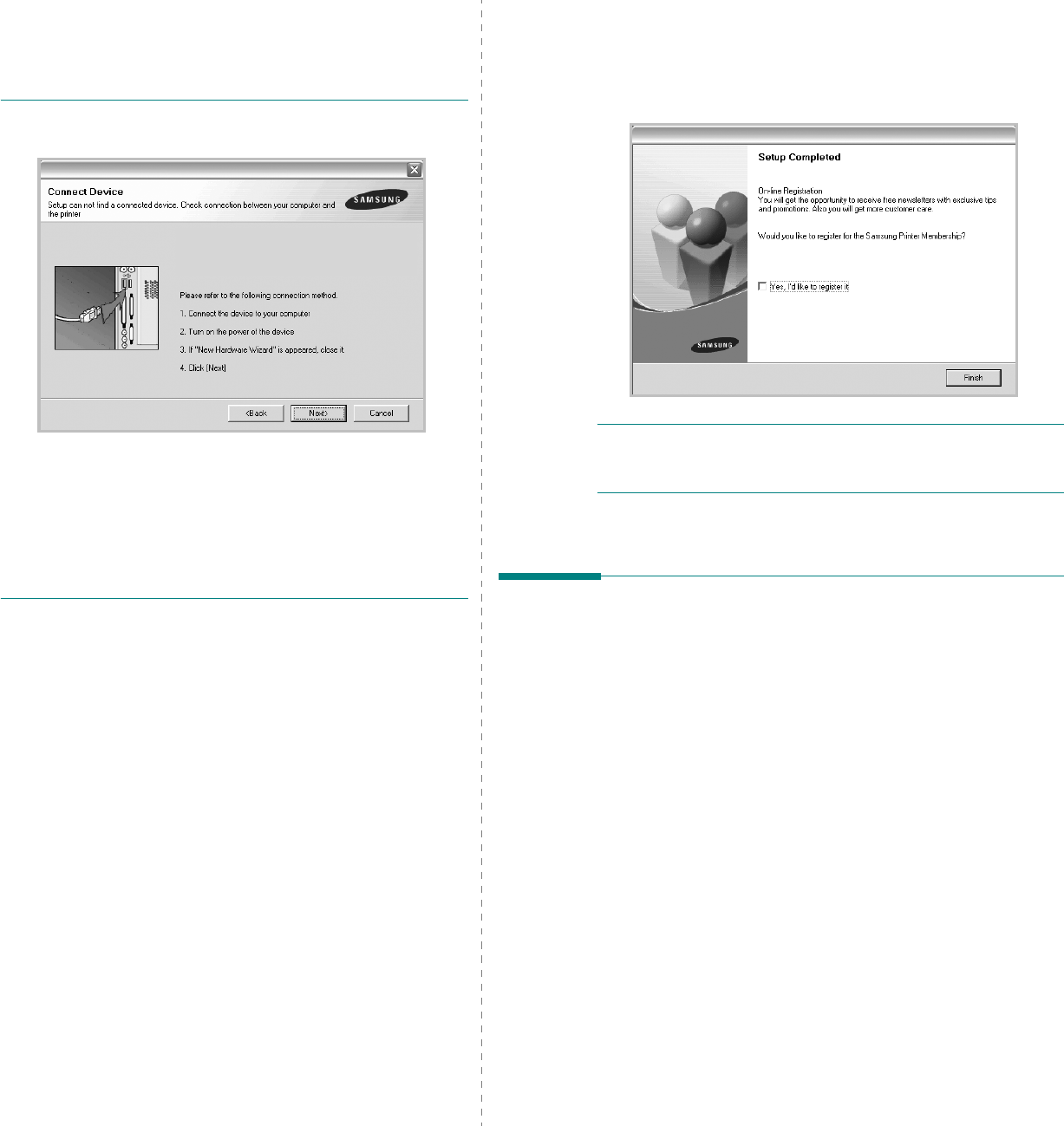

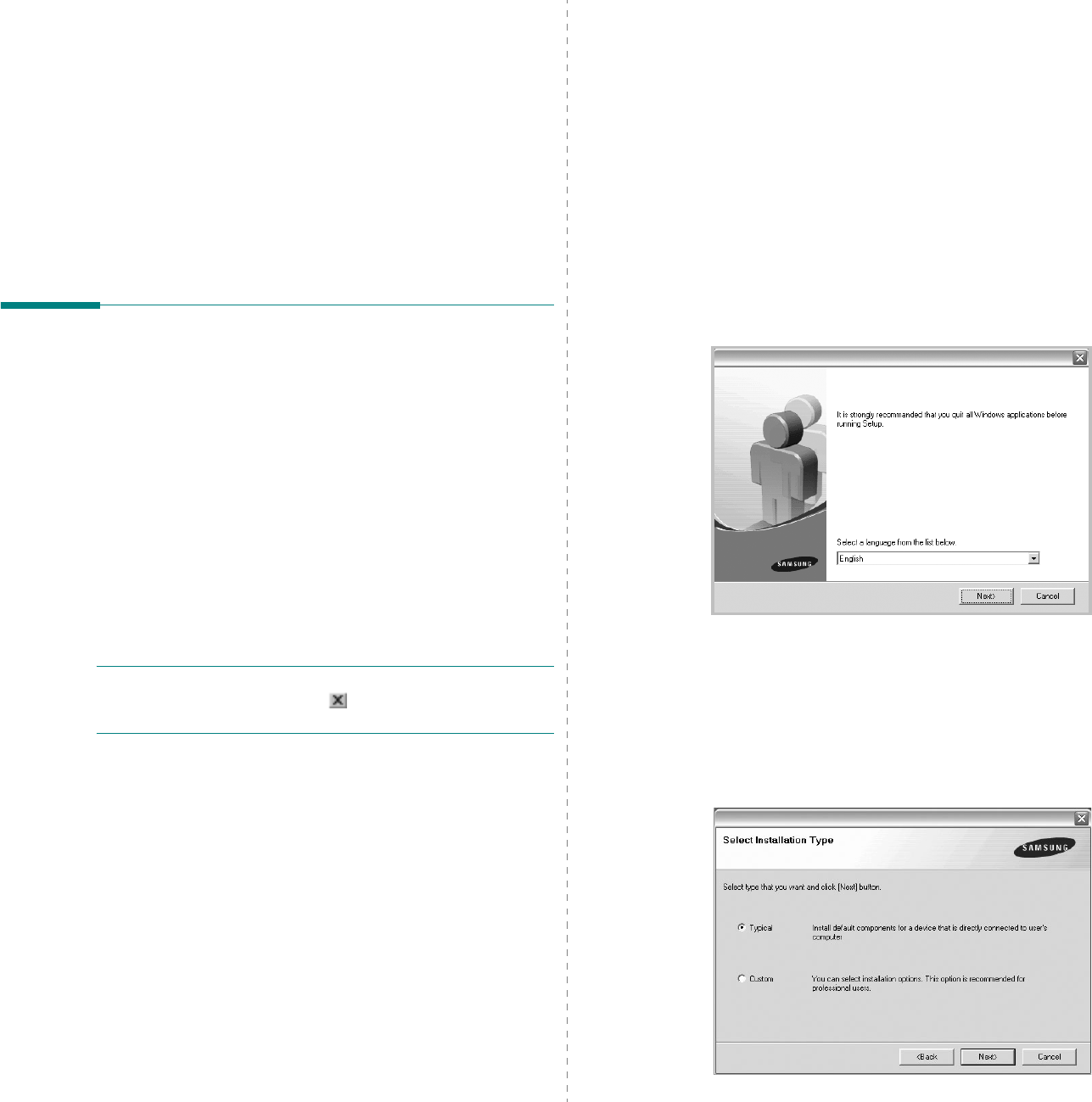

Installing Printer Software ........................................................................................................ 4

Changing the Software Language .............................................................................................. 5

Reinstalling Printer Software ..................................................................................................... 6

Removing Printer Software ....................................................................................................... 6

Chapter 2:

BASIC PRINTING

Printing a Document ................................................................................................................ 7

Printing to a file (PRN) ............................................................................................................ 8

Printer Settings ....................................................................................................................... 8

Layout Tab .................................................................................................................... 9

Paper Tab ...................................................................................................................... 9

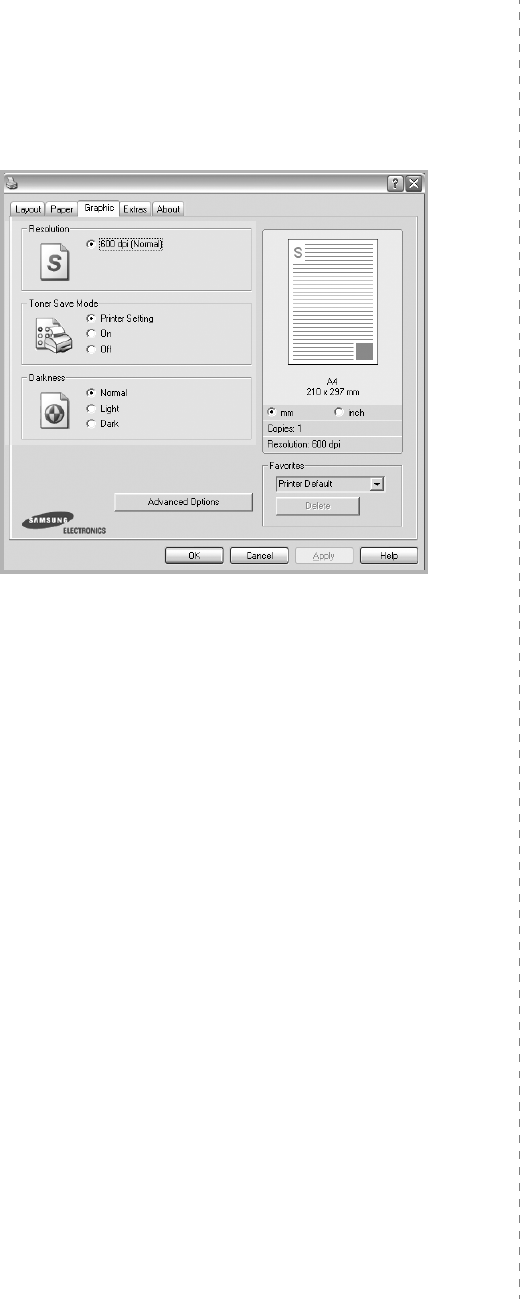

Graphics Tab ............................................................................................................... 10

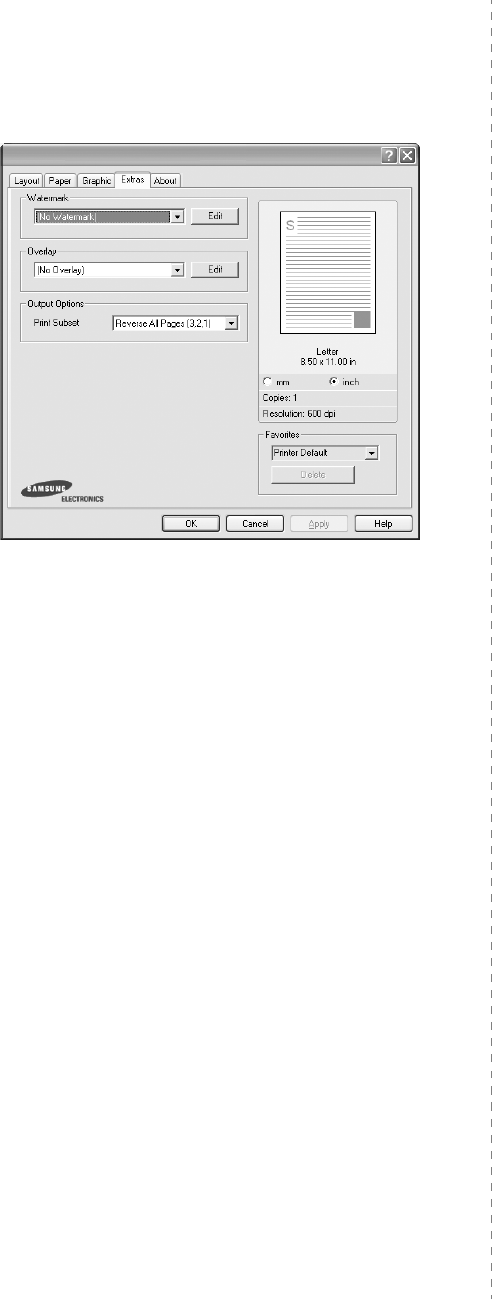

Extras Tab ................................................................................................................... 11

About Tab ................................................................................................................... 11

Printer Tab .................................................................................................................. 11

Using a Favorite Setting ................................................................................................ 12

Using Help ................................................................................................................... 12

Chapter 3:

ADVANCED PRINTING

Printing Multiple Pages on One Sheet of Paper (N-Up Printing) ..................................................... 13

Printing Posters ..................................................................................................................... 14

Printing a Reduced or Enlarged Document ................................................................................ 14

Fitting Your Document to a Selected Paper Size ......................................................................... 14

Using Watermarks ................................................................................................................. 15

Using an Existing Watermark ......................................................................................... 15

Creating a Watermark ................................................................................................... 15

Editing a Watermark ..................................................................................................... 15

Deleting a Watermark ................................................................................................... 15

Using Overlays ...................................................................................................................... 16

What is an Overlay? ...................................................................................................... 16

Creating a New Page Overlay ......................................................................................... 16

Using a Page Overlay .................................................................................................... 16

Deleting a Page Overlay ................................................................................................ 16

Chapter 4:

SHARING THE PRINTER LOCALLY

Setting Up a Host Computer ................................................................................................... 17

Setting Up a Client Computer .................................................................................................. 17

Chapter 5:

SCANNING

Scanning Using Samsung SmarThru ......................................................................................... 18

Uninstalling Samsung SmarThru ..................................................................................... 18

Using Samsung SmarThru ............................................................................................. 18

Using Onscreen Help File ............................................................................................... 19

Scanning Process with TWAIN-enabled Software ........................................................................ 19

Scanning Using the WIA Driver ................................................................................................ 20

Windows XP ................................................................................................................. 20

Windows Vista ............................................................................................................. 20

Chapter 6:

USING SMART PANEL

Understanding Smart Panel .................................................................................................... 21

Opening the Troubleshooting Guide ......................................................................................... 22

Using Printer Settings Utility ................................................................................................... 22

Using Onscreen Help File ............................................................................................... 22

Changing the Smart Panel Program Settings ............................................................................. 22

Chapter 7:

USING YOUR PRINTER IN LINUX

Getting Started ..................................................................................................................... 23

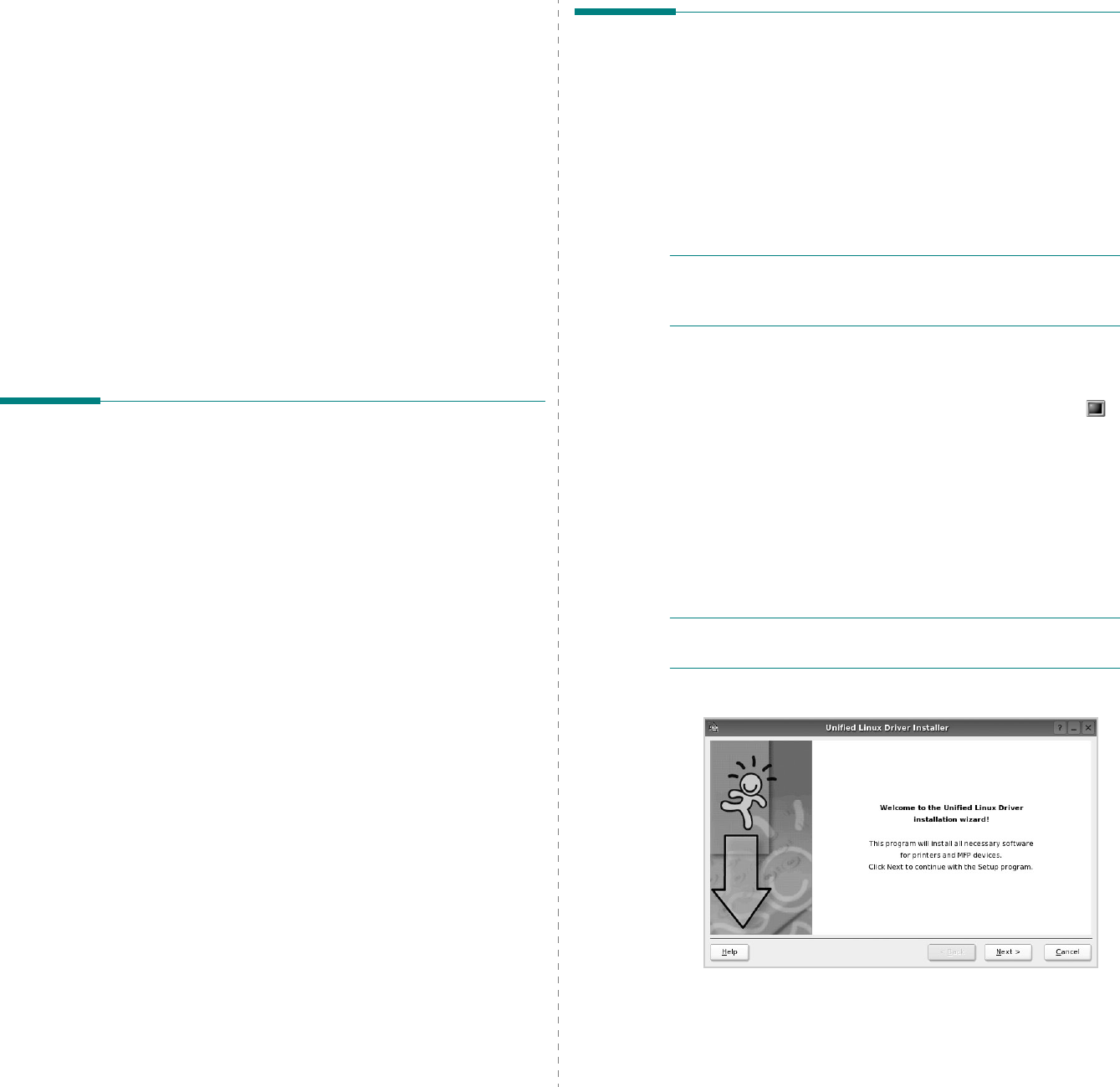

Installing the Unified Linux Driver ............................................................................................ 23

Installing the Unified Linux Driver ................................................................................... 23

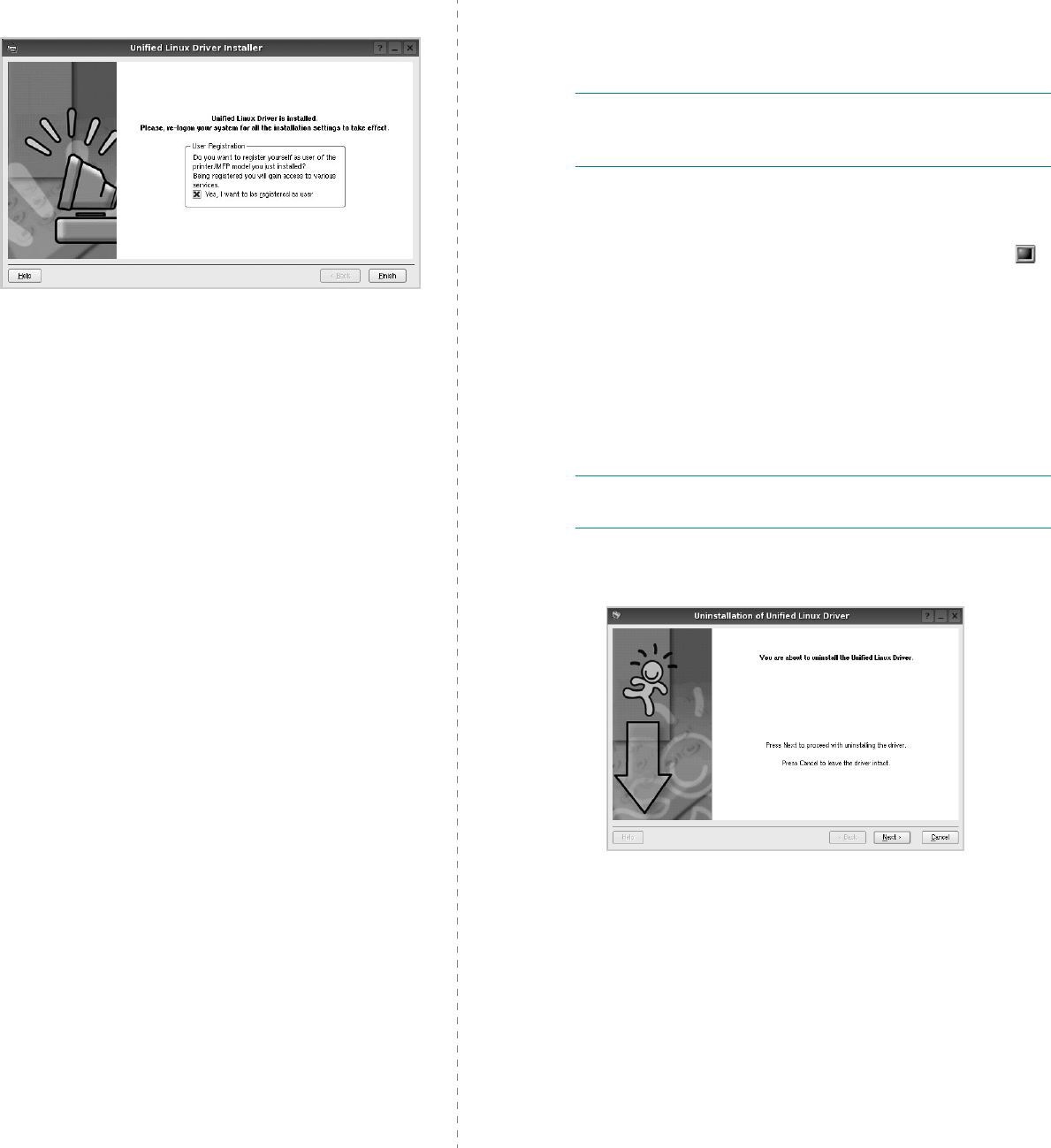

Uninstalling the Unified Linux Driver ............................................................................... 24

Using the Unified Driver Configurator ....................................................................................... 25

Opening the Unified Driver Configurator .......................................................................... 25

Printers Configuration ................................................................................................... 25

Scanners Configuration ................................................................................................. 26

Ports Configuration ....................................................................................................... 26

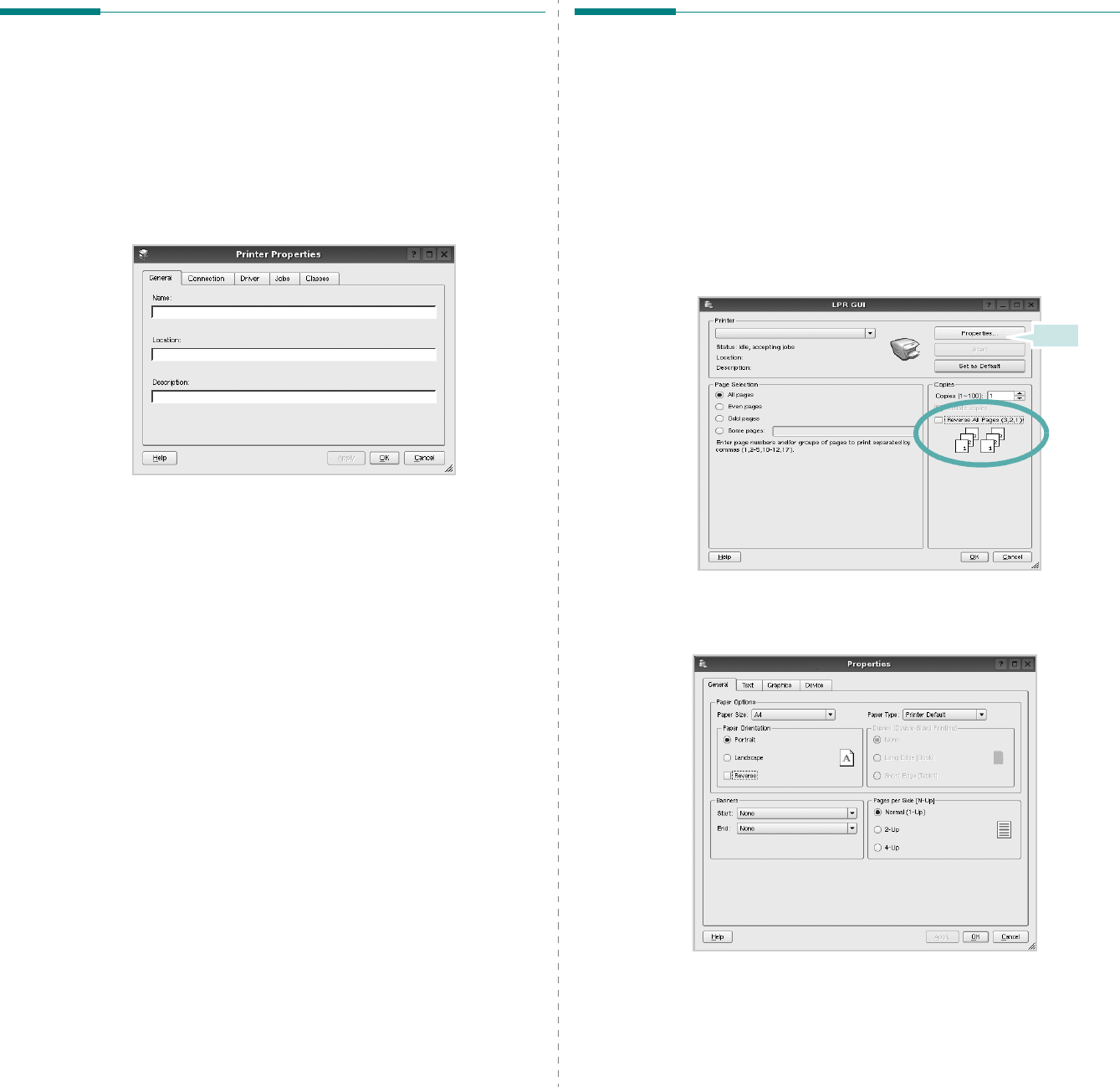

Configuring Printer Properties ................................................................................................. 27

Printing a Document .............................................................................................................. 27

Printing from Applications .............................................................................................. 27

Printing Files ................................................................................................................ 28

Scanning a Document ............................................................................................................ 28

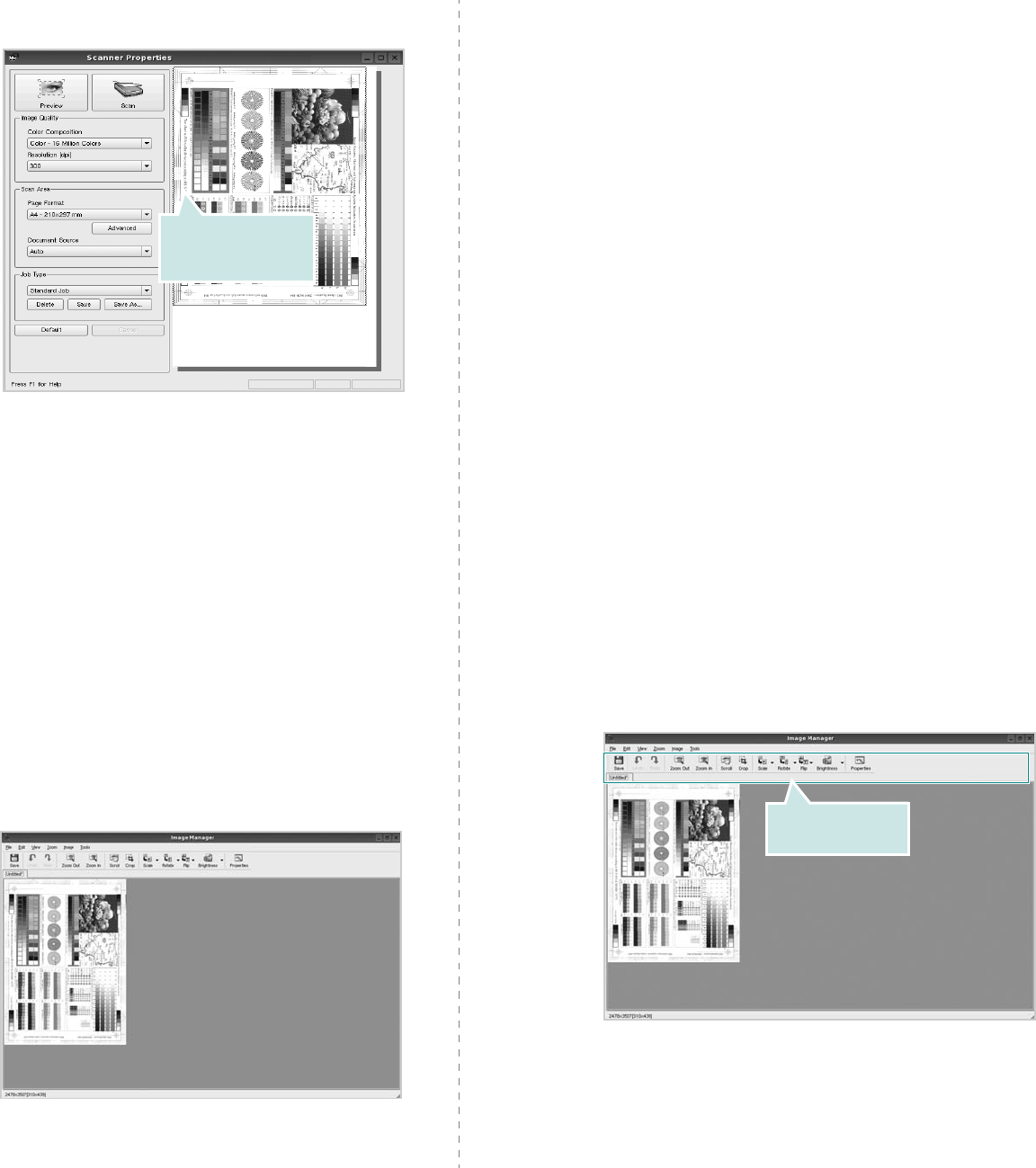

Using the Image Manager .............................................................................................. 29

Chapter 8:

USING YOUR PRINTER WITH A MACINTOSH

Installing Software ................................................................................................................ 31

Scan driver .................................................................................................................. 32

Setting Up the Printer ............................................................................................................ 32

For a USB-connected .................................................................................................... 32

Printing ................................................................................................................................ 33

Printing a Document ..................................................................................................... 33

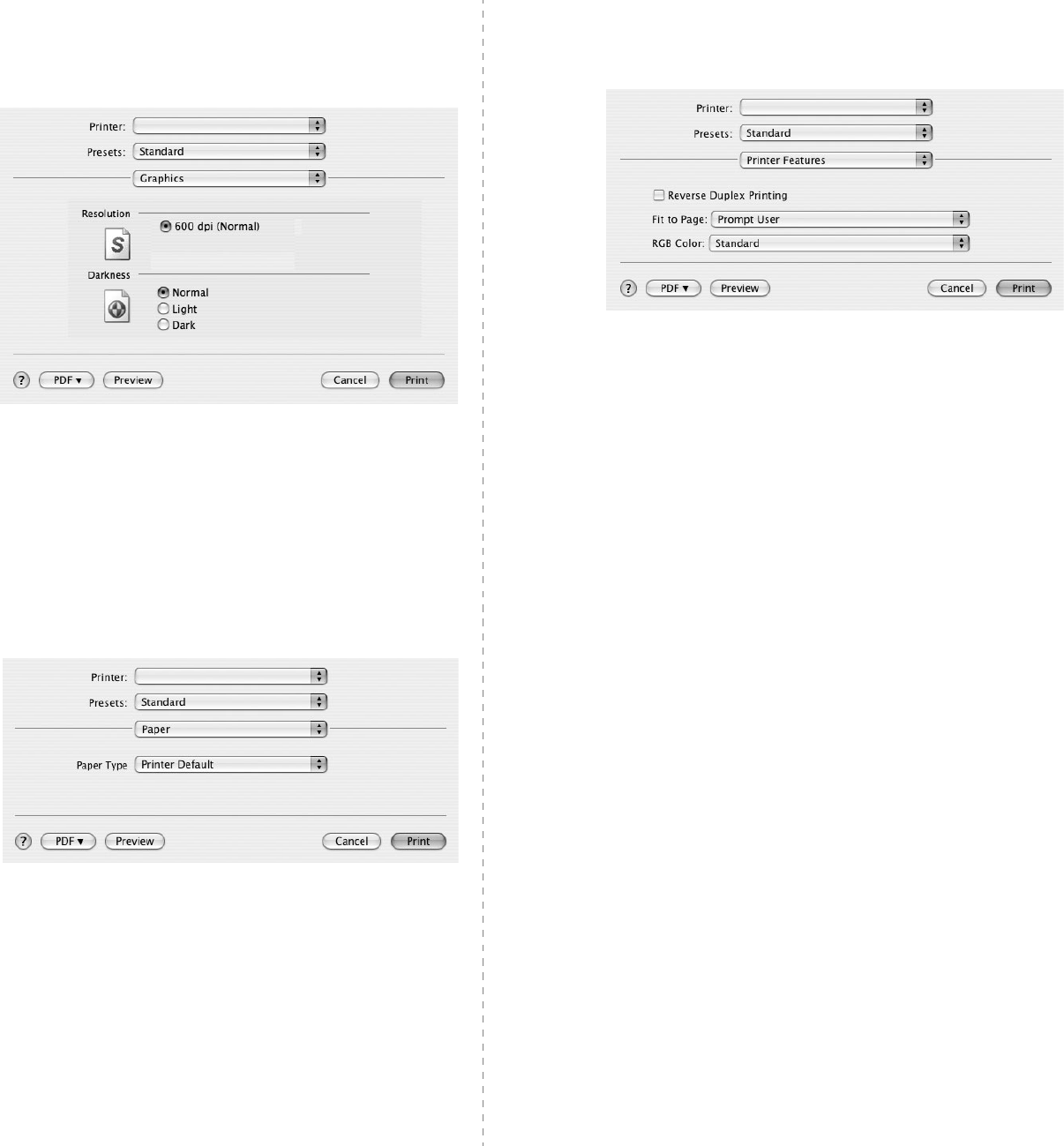

Changing Printer Settings .............................................................................................. 33

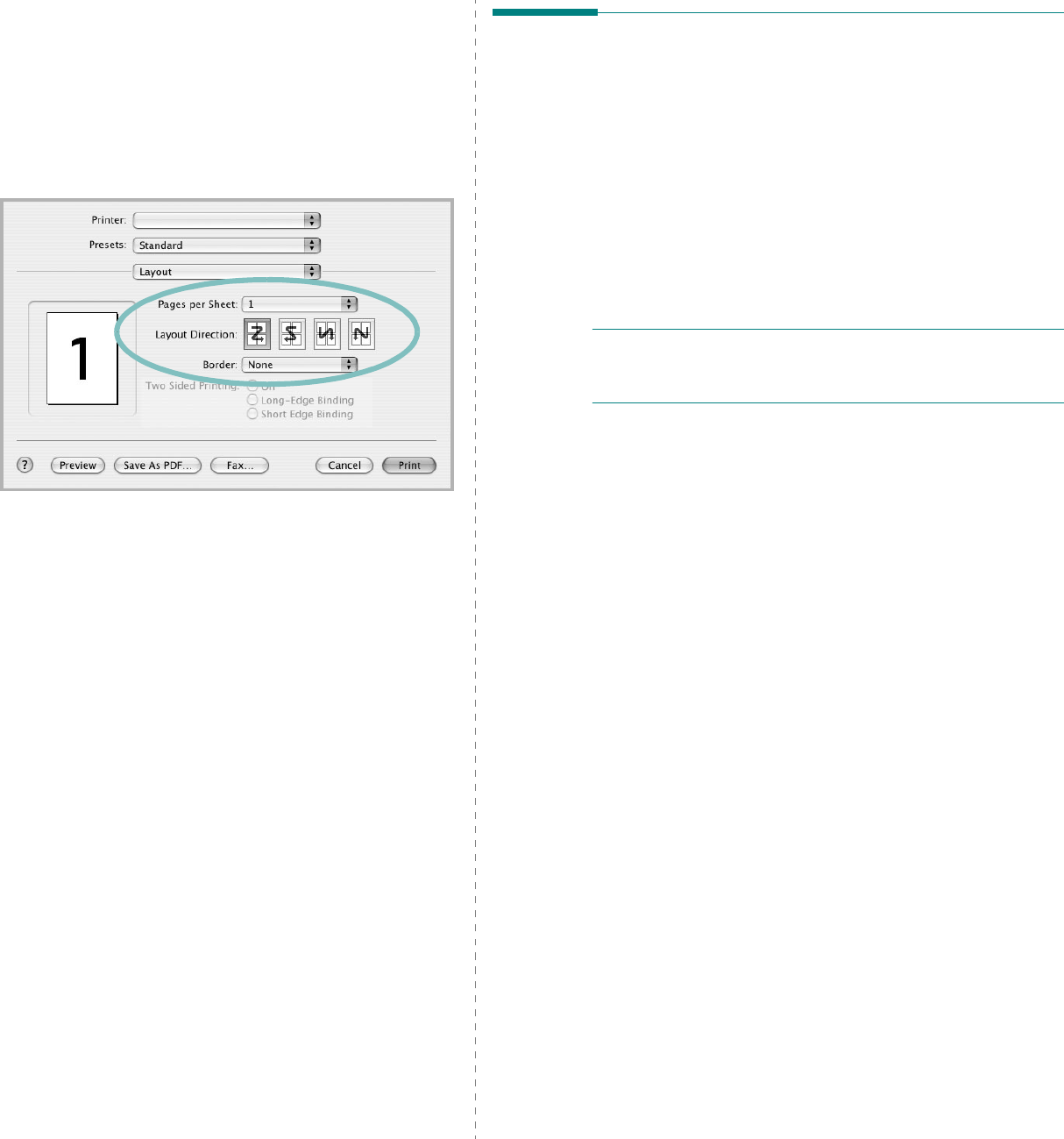

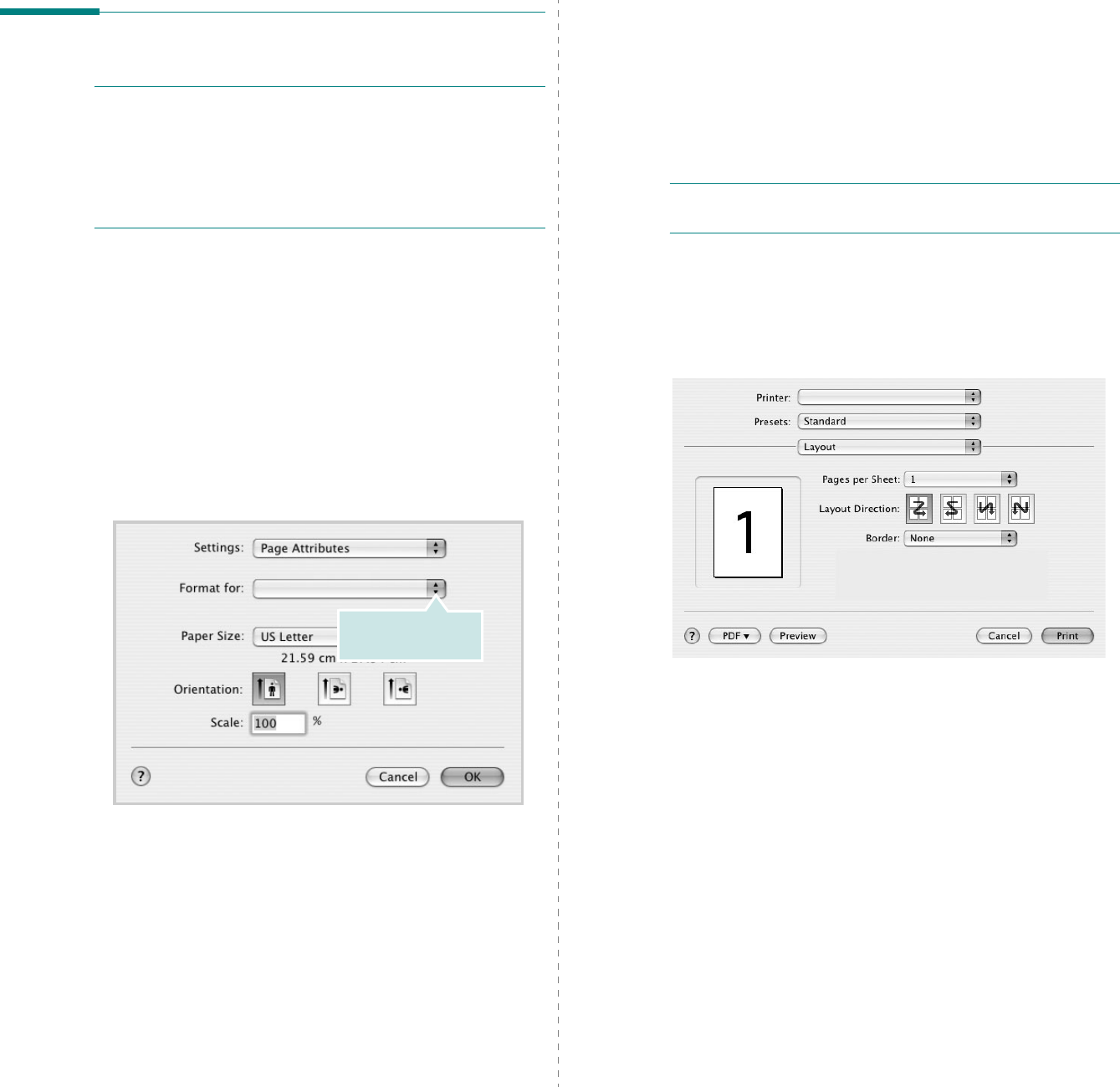

Printing Multiple Pages on One Sheet of Paper .................................................................. 35

Scanning .............................................................................................................................. 35

Installing Printer Software in Windows

1Installing Printer

Software in Windows

This chapter includes:

• Installing Printer Software

• Changing the Software Language

• Reinstalling Printer Software

• Removing Printer Software

Installing Printer Software

You can install the printer software for local printing. To install

the printer software on the computer, perform the appropriate

installation procedure depending on the printer in use.

A printer driver is software that lets your computer

communicate with your printer. The procedure to install drivers

may differ depending on the operating system you are using.

All applications should be closed on your PC before beginning

installation.

A local printer is a printer directly attached to your computer

using the printer cable supplied with your printer, such as a USB

or parallel cable.

You can install the printer software using the typical or custom

method.

NOTE

: If the “New Hardware Wizard” window appears during

the installation procedure, click in the upper right corner of

the box to close the window, or click

Cancel

This is recommended for most users. All components necessary

for printer operations will be installed.

Make sure that the printer is connected to your computer

and powered on.

Insert the supplied CD-ROM into your CD-ROM drive.

The CD-ROM should automatically run, and an installation

window appears.

If the installation window does not appear, click

Start

and

then

Run

. Type

X:\Setup.exe

, replacing “

” with the

letter which represents your drive and click

If you use Windows Vista, click

Start

→

All programs

→

Accessories

→

Run

, and type

X:\Setup.exe

If the

AutoPlay

window appears in Windows Vista, click

Run Setup.exe

Install or run program

field, and

click

Continue

in the

User Account Control

window.

Click

• If necessary, select a language from the drop-down list.

•

View User’s Guide

: Allows you to view the User’s

Guide. If your computer doesn’t have Adobe Acrobat,

click on this option and it will automatically install Adobe

Acrobat Reader for you.

Choose the type of installation. Click

Installing Printer Software in Windows

•

Typical

: Installs the most common software for your

printer. This is recommended for most users.

•

Custom

: Allows you to choose the individual

components you want to install.

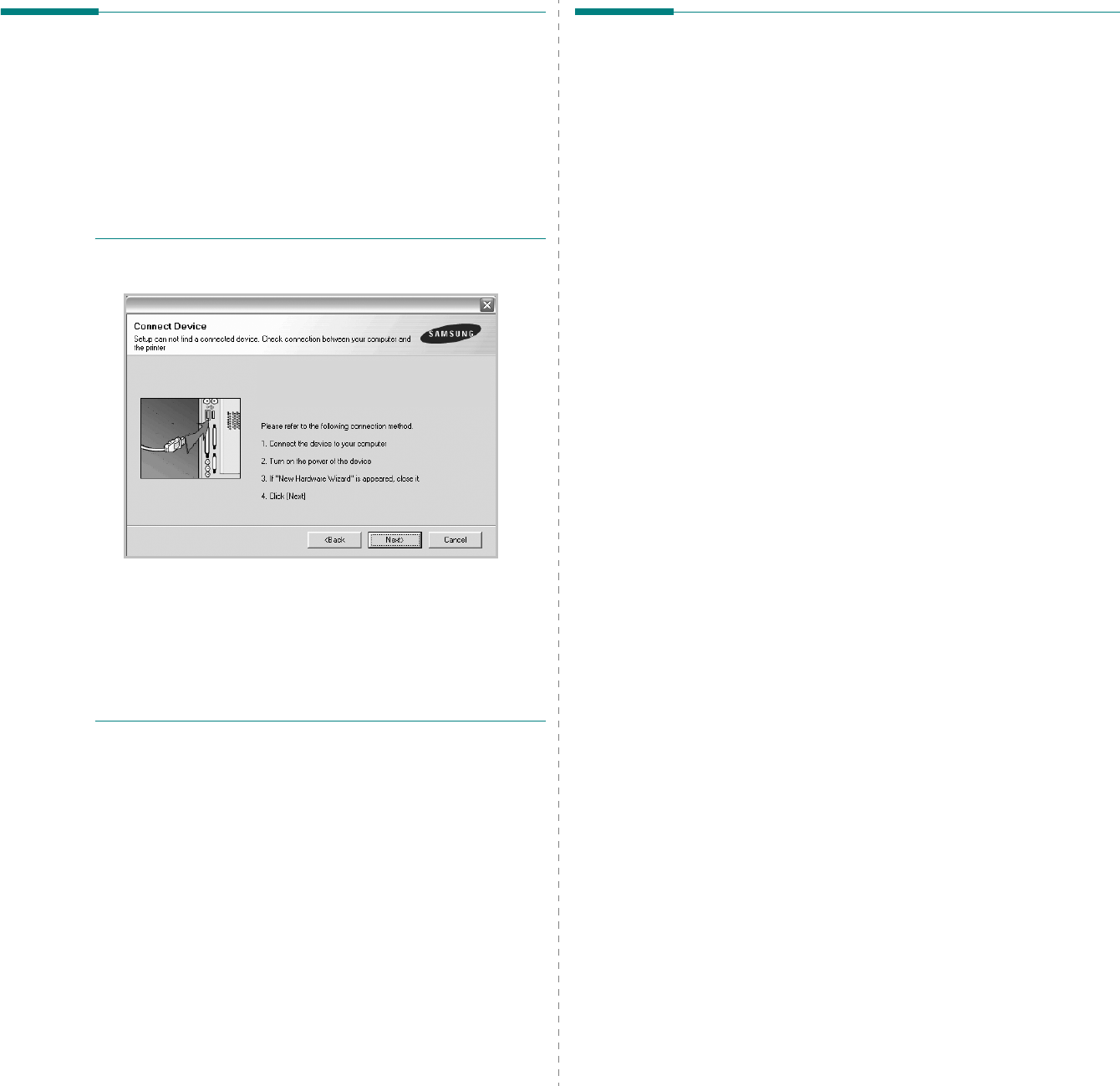

NOTE

: If your printer is not already connected to the

computer, the following window will appear.

• After connecting the printer, click

• If you don’t want to connect the printer at this time, click

, and

on the following screen. Then the installation

will start and a test page will not be printed at the end of the

installation.

• The installation window that appears in this User’s

Guide may differ depending on the printer and

interface in use.

After the installation is finished, a window asking you to

print a test page appears. If you choose to print a test

page, select the checkbox and click

Otherwise, just click

and skip to step 7.

If the test page prints out correctly, click

Yes

If not, click

to reprint it.

To register yourself as a user of Samsung Printers in order

to receive information from Samsung, select the checkbox

and click

Finish

. You are now sent to the Samsung web

site.

Otherwise, just click

Finish

NOTE

: After setup is complete, if your printer driver doesn’t

work properly, reinstall the printer driver. See “Reinstalling

Printer Software” on page 6.

Changing the Software

Language

After installation of the software, you can change the display

language.

Click the Windows

Start

menu.

Select

Programs

All Programs

and then

your printer

driver name

Select

Language Selection

Select the desired language from the language selection

window, and click

Installing Printer Software in Windows

Reinstalling Printer Software

You can reinstall the software if installation fails.

Start Windows.

From the

Start

menu select

Programs

All Programs

→

your printer driver name

→

Maintenance

Select

Repair

and click

You will see a component list so that you can reinstall any

item individually.

NOTE

: If your printer is not already connected to the

computer, the following window will appear.

• After connecting the printer, click

• If you don’t want to connect the printer at this time, click

, and

on the following screen. Then the installation

will start and a test page will not be printed at the end of the

installation.

• The reinstallation window that appears in this User’s

Guide may differ depending on the printer and

interface in use.

Select the components you want to reinstall and click

If you

you select

your printer driver name

and reinstall

the printer software for local printing

, the window asking

you to print a test page appears. Do as follows:

a. To print a test page, select the check box and click

b. If the test page prints out correctly, click

Yes

If it doesn’t, click

to reprint it.

When the reinstallation is done, click

Finish

Removing Printer Software

Start Windows.

From the

Start

menu select

Programs

All Programs

→

your printer driver name

→

Maintenance

Select

Remove

and click

You will see a component list so that you can remove any

item individually.

Select the components you want to remove and then click

When your computer asks you to confirm your selection,

click

Yes

The selected driver and all of its components are removed

from your computer.

After the software is removed, click

Finish

Basic Printing

2Basic Printing

This chapter explains the printing options and common printing

tasks in Windows.

This chapter includes:

• Printing a Document

• Printing to a file (PRN)

• Printer Settings

- Layout Tab

- Paper Tab

- Graphics Tab

- Extras Tab

- About Tab

- Printer Tab

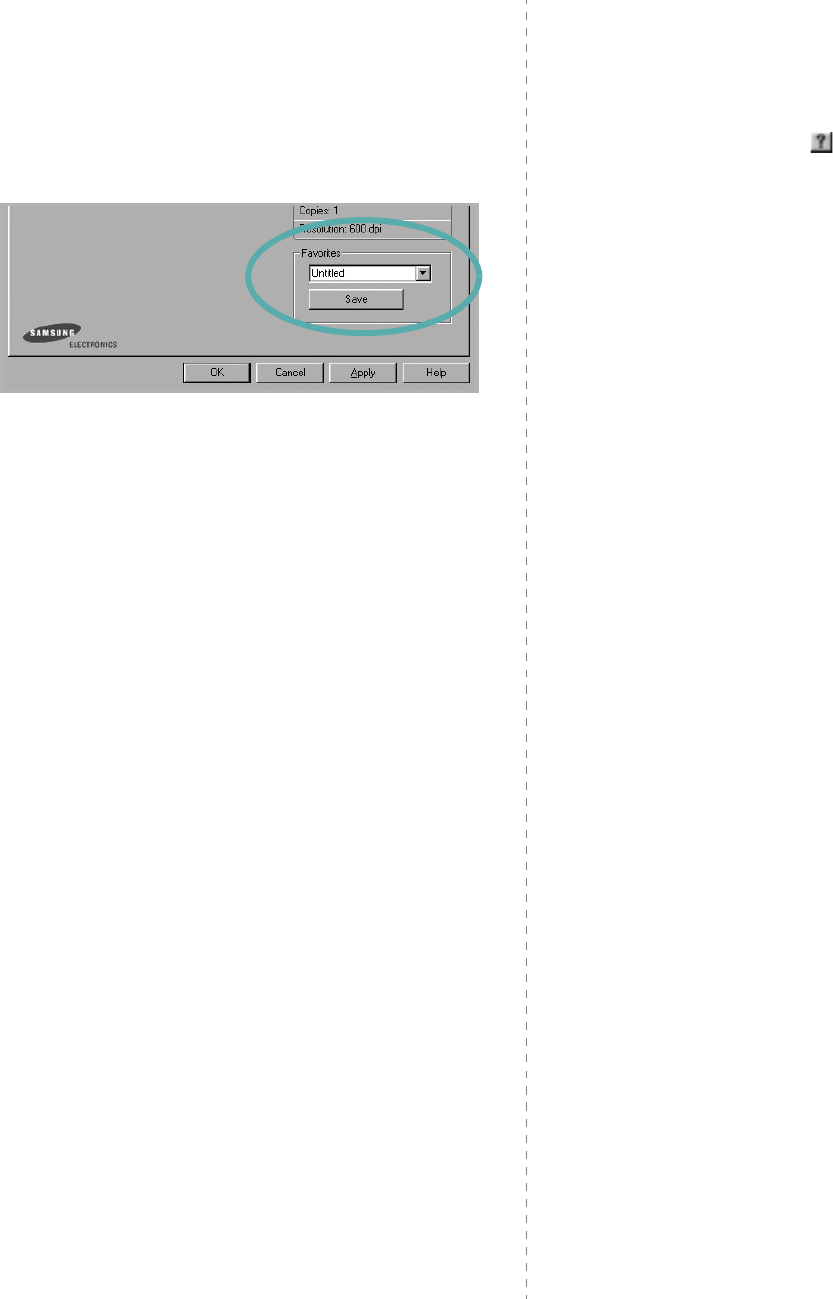

- Using a Favorite Setting

- Using Help

Printing a Document

OTES

• Your printer driver

Properties

window that appears in this

User’s Guide may differ depending on the printer in use.

However the composition of the printer properties window is

similar.

• Check the Operating System(s) that are compatible

with your printer. Please refer to the OS Compatibility

section of Printer Specifications in your Printer User’s

Guide.

• If you need to know the exact name of your printer, you can

check the supplied CD-ROM.

The following procedure describes the general steps required

for printing from various Windows applications. The exact steps

for printing a document may vary depending on the application

program you are using. Refer to the User’s Guide of your

software application for the exact printing procedure.

Open the document you want to print.

Select

from the

File

menu. The Print window is

displayed. It may look slightly different depending on your

application.

The basic print settings are selected within the Print

window. These settings include the number of copies and

print range.

Select

your printer driver

from the

Name

drop-down

list.

To take advantage of the printer features provided by your

printer driver, click

Properties

Preferences

in the

application’s Print window. For details, see “Printer

Settings” on page 8.

If you see

Setup

Printer

, or

Options

in your Print

window, click it instead. Then click

Properties

on the next

screen.

Click

to close the printer properties window.

To start the print job, click

in the Print

window.

Make sure that your

printer is selected.

Basic Printing

Printing to a file (PRN)

You will sometimes need to save the print data as a file for your

purpose.

To create a file:

Check the

Print to file

box at the

window.

Select the folder and assign a name of the file and then

click OK.

Printer Settings

You can use the printer properties window, which allows you to

access all of the printer options you need when using your

printer. When the printer properties are displayed, you can

review and change the settings needed for your print job.

Your printer properties window may differ, depending on your

operating system. This Software User’s Guide shows the

Properties window for Windows XP.

Your printer driver

Properties

window that appears in this

User’s Guide may differ depending on the printer in use.

If you access printer properties through the Printers folder, you

can view additional Windows-based tabs (refer to your

Windows User’s Guide) and the Printer tab (see “Printer Tab” on

page 11).

OTES

• Most Windows applications will override settings you specify

in the printer driver. Change all print settings available in the

software application first, and change any remaining settings

using the printer driver.

• The settings you change remain in effect only while you are

using the current program.

To make your changes

permanent

, make them in the Printers folder.

• The following procedure is for Windows XP. For other

Windows OS, refer to the corresponding Windows User's

Guide or online help.

1. Click the Windows

Start

button.

2. Select

Printers and Faxes

3. Select your printer driver icon.

4. Right-click on the printer driver icon and select

Printing Preferences

5. Change the settings on each tab, click OK.

Basic Printing

Layout Tab

The

Layout

tab provides options to adjust how the document

appears on the printed page.

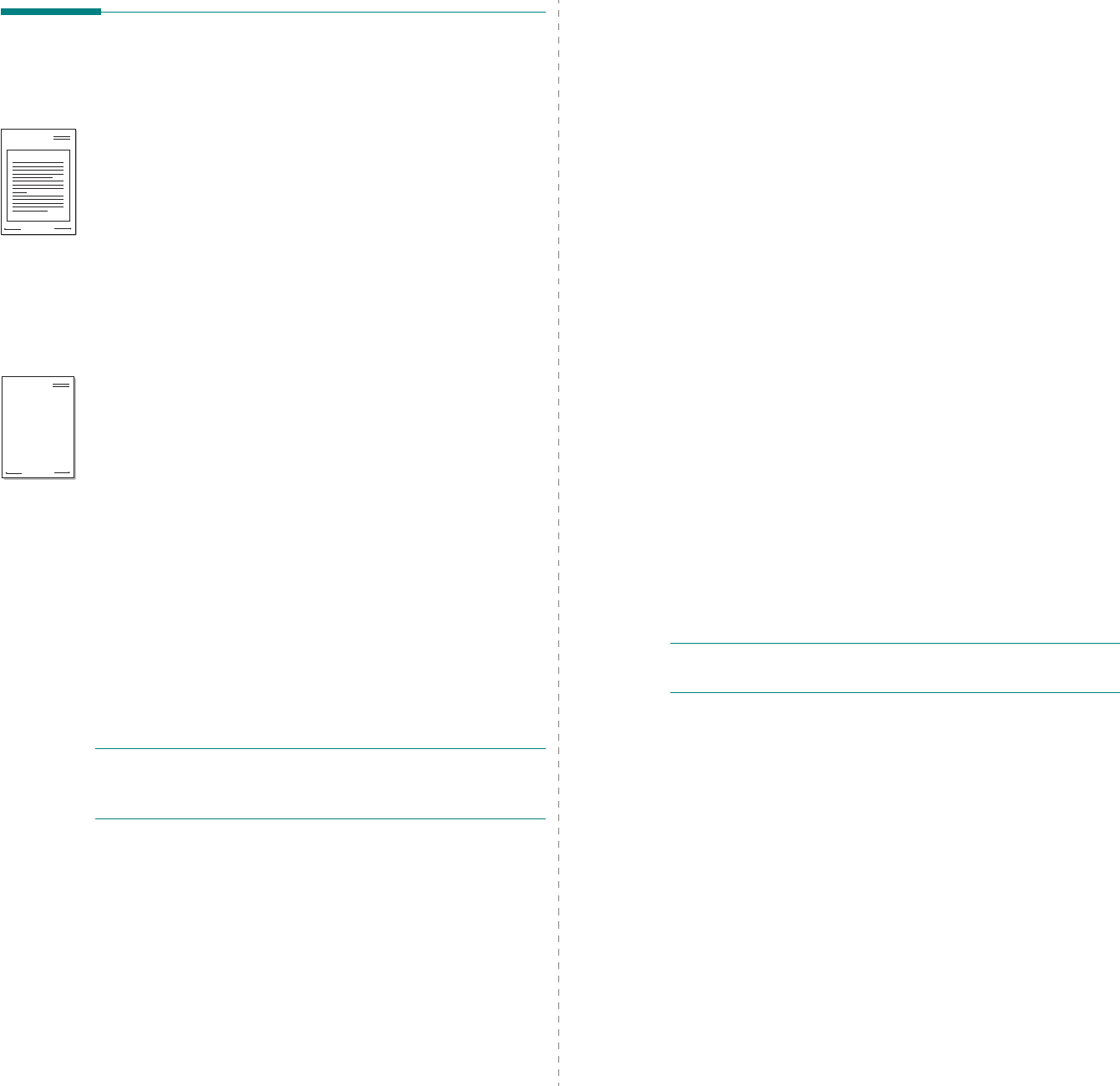

Paper Orientation

allows you to select the direction in which

information is printed on a page.

•

Portrait

prints across the width of the page, letter style.

•

Landscape

prints across the length of the page, spreadsheet

style.

•

Rotate

allows you to rotate the page the selected degrees.

Layout Options

allows you to select advanced printing options.

You can choose

Multiple Pages per Side

and

Poster Printing

•

For details, see

“Printing Multiple Pages on One Sheet of Paper

(N-Up Printing)” on page 13.

•

For details, see

“Printing Posters” on page 14

Landscape

Portrait

Paper Tab

Use the following options to set the basic paper handling

specifications when you access the printer properties. See

“Printing a Document” on page 7 for more information on

accessing printer properties.

Click the

Paper

tab to access various paper properties.

Copies

allows you to choose the number of copies to be printed.

You can select 1 to 999 copies.

Paper Options

Size

allows you to set the size of paper you loaded in the tray.

If the required size is not listed in the

Size

box, click

Custom

When the

Custom Paper Setting

window appears, set the paper

size and click

. The setting appears in the list so that you can

select it.

Source

Make sure that

Source

is set to the corresponding paper tray.

Type

Set

Type

to correspond to the paper loaded in the tray from

which you want to print. This will let you get the best quality

printout. If not, print quality may not be acheived as you want.

Scaling Printing

allows you to automatically or manually scale

your print job on a page. You can choose from

None

Reduce/

Enlarge

, and

Fit to Page

•

For details, see

“Printing a Reduced or Enlarged Document” on

page 14.

•

For details, see

“Fitting Your Document to a Selected Paper

Size” on page 14.

Basic Printing

Graphics Tab

Use the following Graphic options to adjust the print quality for

your specific printing needs. See “Printing a Document” on

page 7 for more information on accessing printer properties.

Click the

Graphic

tab to display the properties shown below.

Resolution

The Resolution options you can select may vary

depending on your printer model.

The higher the setting,

the sharper the clarity of printed characters and graphics. The

higher setting also may increase the time it takes to print a

document.

Toner Save Mode

Selecting this option extends the life of your toner cartridge and

reduces your cost per page without a significant reduction in print

quality.

Some printers do not support this feature.

•

Printer Setting

: If you select this option, this feature is

determined by the setting you’ve made on the control panel of

the printer.

•

: Select this option to allow the printer to use less toner on

each page.

•

Off

: If you don’t need to save toner when printing a document,

select this option.

Darkness

Use this option to lighten or darken your print job.

Some

printers do not support this feature.

•

Normal

: This setting is for normal documents.

•

Light

: This setting is for bolder line widths or darker gray-scale

images.

•

Dark

: This setting is for finer line width, higher definition in

graphics, and lighter gray-scale images.

Advanced Options

You can set advanced settings by clicking the

Advanced

Options

button.

•

Grayscale Enhancement

allows users to preserve the details of nature photos, and

improve contrast and readability among gray scaled colors,

when printing color documents in grayscale.

•

Print All Text To Black

: When the

Print All Text To

Black

option is checked, all text in your document prints solid

black, regardless of the color it appears on the screen.

•

Print All Text to Darken

: When the

Print All Text to

Darken

option is checked, all text in your document is allowed

to print darker than on a normal document.

Basic Printing

Extras Tab

You can select output options for your document. See “Printing

a Document” on page 7 for more information about accessing

the printer properties.

Click the

Extras

tab to access the following feature:

Watermark

You can create a background text image to be printed on each

page of your document.

For details, see

“Using Watermarks” on

page 15.

Overlay

Overlays are often used to take the place of preprinted forms and

letterhead paper.

For details, see

“Using Overlays” on page 16.

Output Options

•

Print Subset

: You can set the sequence in which the pages

print. Select the print order from the drop-down list.

Normal (1,2,3)

: Your printer prints all pages from the first

page to the last page.

Reverse All Pages (3,2,1)

: Your printer prints all pages

from the last page to the first page.

Print Odd Pages

: Your printer prints only the odd numbered

pages of the document.

Print Even Pages

: Your printer prints only the even

numbered pages of the document.

About Tab

Use the

About

tab to display the copyright notice and the

version number of the driver. If you have an Internet browser,

you can connect to the Internet by clicking on the web site icon.

See “Printing a Document” on page 7 for more information

about accessing printer properties.

Printer Tab

If you access printer properties through the

Printers

folder,

you can view the

Printer

tab. You can set the printer

configuration.

The following procedure is for Windows XP. For other Windows

OS, refer to the corresponding Windows User's Guide or online

help.

Click the Windows

Start

menu.

Select

Printers and Faxes

Select

your printer driver

icon.

Right-click on the printer driver icon and select

Properties

Click the

Printer

tab and set the options.

Basic Printing

Using a Favorite Setting

The

Favorites

option, which is visible on each properties tab,

allows you to save the current properties settings for future

use.

To s ave a

Favorites

item:

Change the settings as needed on each tab.

Enter a name for the item in the

Favorites

input box.

Click

Save

When you save

Favorites

, all current driver settings are

saved.

To use a saved setting, select the item from the

Favorites

drop

down list. The printer is now set to print according to the

Favorites setting you selected.

To delete a Favorites item, select it from the list and click

Delete

You can also restore the printer driver’s default settings by

selecting

Printer Default

from the list.

Using Help

Your printer has a help screen that can be activated by clicking

the

Help

button in the printer properties window. These help

screens give detailed information about the printer features

provided by the printer driver.

You can also click from the upper right corner of the window,

and then click on any setting.

Advanced Printing

3Advanced Printing

This chapter explains printing options and advanced printing

tasks.

OTE

• Your printer driver

Properties

window that appears in this

User’s Guide may differ depending on the printer in use.

However the composition of the printer properties window is

similar.

• If you need to know the exact name of your printer, you can

check the supplied CD-ROM.

This chapter includes:

• Printing Multiple Pages on One Sheet of Paper (N-Up

Printing)

•Printing Posters

• Printing a Reduced or Enlarged Document

• Fitting Your Document to a Selected Paper Size

•Using Watermarks

•Using Overlays

Printing Multiple Pages on One

Sheet of Paper (N-Up Printing)

You can select the number of pages to print on a single sheet

of paper. To print more than one page per sheet, the pages will

be reduced in size and arranged in the order you specify. You

can print up to 16 pages on one sheet.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

From the

Layout

tab, choose

Multiple Pages per Side

the

Layout Type

drop-down list.

Select the number of pages you want to print per sheet

(1, 2, 4, 6, 9, or 16) in the

Pages per Side

drop-down

list.

Select the page order from the

Page Order

drop-down

list, if necessary.

Check

Print Page Border

to print a border around each

page on the sheet.

Click the

Paper

tab, select the paper source, size, and

type.

Click

and print the document.

1 2

3 4

Advanced Printing

Printing Posters

This feature allows you to print a single-page document onto 4,

9, or 16 sheets of paper, for the purpose of pasting the sheets

together to form one poster-size document.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Layout

tab, select

Poster Printing

in the

Layout Type

drop-down list.

Configure the poster option:

You can select the page layout from

Poster<2x2>

Poster<3x3>

Poster<4x4>

. If you select

Poster<2x2>

, the output will be automatically stretched

to cover 4 physical pages.

Specify an overlap in millimeters or inches to make it

easier to pasting the sheets together.

Click the

Paper

tab, select the paper source, size, and

type.

Click

and print the document. You can complete the

poster by pasting the sheets together.

0.15 inches

Printing a Reduced or Enlarged

Document

You can change the size of a page’s content to appear larger or

smaller on the printed page.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

From the

Paper

tab, select

Reduce/Enlarge

in the

Printing Type

drop-down list.

Enter the scaling rate in the

Percentage

input box.

You can also click the or button.

Select the paper source, size, and type in

Paper Options

Click

and print the document.

Fitting Your Document to a

Selected Paper Size

This printer feature allows you to scale your print job to any

selected paper size regardless of the digital document size. This

can be useful when you want to check fine details on a small

document.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

From the

Paper

tab, select

Fit to Page

in the

Printing

Type

drop-down list.

Select the correct size from the

Output size

drop-down

list.

Select the paper source, size, and type in

Paper Options

Click

and print the document.

Advanced Printing

Using Watermarks

The Watermark option allows you to print text over an existing

document. For example, you may want to have large gray

letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally

across the first page or all pages of a document.

There are several predefined watermarks that come with the

printer, and they can be modified, or you can add new ones to

the list.

Using an Existing Watermark

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Extras

tab, and select the desired watermark

from the

Watermark

drop-down list. You will see the

selected watermark in the preview image.

Click

and start printing.

OTE

: The preview image shows how the page will look when

it is printed.

Creating a Watermark

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Extras

tab, and click the

Edit

button in the

Watermark

section. The

Edit Watermark

window

appears.

Enter a text message in the

Watermark Message

box.

You can enter up to 40 characters. The message displays

in the preview window.

When the

First Page Only

box is checked, the watermark

prints on the first page only.

Select watermark options.

You can select the font name, style, size, or grayscale level

from the

Font Attributes

section and set the angle of the

watermark from the

Message Angle

section.

Click

Add

to add a new watermark to the list.

When you have finished editing, click

and start

printing.

To stop printing the watermark, select

(No Watermark)

from

the

Watermark

drop-down list.

Editing a Watermark

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Extras

tab and click the

Edit

button in the

Watermark

section. The

Edit Watermark

window

appears.

Select the watermark you want to edit from the

Current

Watermarks

list and change the watermark message and

options.

Click

Update

to save the changes.

Click

until you exit the Print window.

Deleting a Watermark

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

From the

Extras

tab, click the

Edit

button in the

Watermark section. The

Edit Watermark

window

appears.

Select the watermark you want to delete from the

Current

Watermarks

list and click

Delete

Click

until you exit the Print window.

Advanced Printing

Using Overlays

What is an Overlay?

An overlay is text and/or images stored in the computer hard

disk drive (HDD) as a special file format that can be printed on

any document. Overlays are often used to take the place of

preprinted forms and letterhead paper. Rather than using

preprinted letterhead, you can create an overlay containing the

exact same information that is currently on your letterhead. To

print a letter with your company’s letterhead, you do not need

to load preprinted letterhead paper in the printer. You need only

tell the printer to print the letterhead overlay on your

document.

Creating a New Page Overlay

To use a page overlay, you must create a new page overlay

containing your logo or image.

Create or open a document containing text or an image for

use in a new page overlay. Position the items exactly as

you wish them to appear when printed as an overlay.

To save the document as an overlay, access printer

properties. See “Printing a Document” on page 7.

Click the

Extras

tab, and click

Edit

button in the

Overlay

section.

In the Edit Overlay window, click

Create Overlay

In the Create Overlay window, type a name of up to eight

characters in the

File name

box. Select the destination

path, if necessary. (The default is C:\Formover).

Click

Save

. The name appears on the

Overlay List

box.

Click

Yes

to finish creating.

The file is not printed. Instead it is stored on your

computer hard disk drive.

OTE

: The overlay document size must be the same as the

documents you print with the overlay. Do not create an overlay

with a watermark.

WORLD BEST

Dear ABC

Regards

WORLD BEST

Using a Page Overlay

After an overlay has been created, it is ready to be printed with

your document. To print an overlay with a document:

Create or open the document you want to print.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Extras

tab.

Select the desired overlay from the

Overlay

drop-down

list box.

If the overlay file you want does not appear in the

Overlay

list, click

Edit

button and

Load Overlay

, and

select the overlay file.

If you have stored the overlay file you want to use in an

external source, you can also load the file when you access

the

Load Overlay

window.

After you select the file, click

Open

. The file appears in the

Overlay List

box and is available for printing. Select the

overlay from the

Overlay List

box.

If necessary, click

Confirm Page Overlay When

Printing

. If this box is checked, a message window

appears each time you submit a document for printing,

asking you to confirm your wish to print an overlay on your

document.

If this box is not checked and an overlay has been

selected, the overlay automatically prints with your

document.

Click

Yes

until printing begins.

The selected overlay downloads with your print job and

prints on your document.

OTE

: The resolution of the overlay document must be the

same as that of the document you will print with the overlay.

Deleting a Page Overlay

You can delete page overlays that you no longer use.

In the printer properties window, click the

Extras

tab.

Click the

Edit

button in the

Overlay

section.

Select the overlay you want to delete from the

Overlay

List

box.

Click

Delete Overlay

When a confirming message window appears, click

Yes

Click

until you exit the Print window.

Sharing the Printer Locally

4Sharing the Printer

Locally

You can connect the printer directly to a selected computer,

which is called “host computer,” on the network.

The following procedure is for Windows XP. For other Windows

OS, refer to the corresponding Windows User's Guide or online

help.

OTES

• Check the Operating System(s) that are compatible with

your printer. Please refer to the OS Compatibility section of

Printer Specifications in your Printer User’s Guide.

• If you need to know the exact name of your printer, you can

check the supplied CD-ROM.

Setting Up a Host Computer

Start Windows.

From the

Start

menu select

Printers and Faxes

Double-click

your printer driver icon

From the

Printer

menu, select

Sharing

Check the

Share this printer

box.

Fill in the

Shared Name

field, and then click

Setting Up a Client Computer

Right-click the Windows

Start

button and select

Explore

Select

My Network Places

and then right-click

for Computers

Fill in the IP address of host computer in

Computer name

field, and click

. (In case host computer requires

User name

and

Password

, fill in User ID and password

of host computer account.)

Double-click

Printers and Faxes

Right-click printer driver icon, select

Connect

Click

Yes

, if the installation confirm message appears.

Scanning

5Scanning

Scanning with your machine lets you turn pictures and text into

digital files on your computer. Then you can fax or e-mail the

files, display them on your web site or use them to create

projects that you can print using Samsung SmarThru software

or the WIA driver.

This chapter includes:

• Scanning Using Samsung SmarThru

• Scanning Process with TWAIN-enabled Software

• Scanning Using the WIA Driver

OTES

• Check the Operating System(s) that are compatible

with your printer. Please refer to the OS Compatibility

section of Printer Specifications in your Printer User’s

Guide.

• You can check your printer name in the supplied CD-

ROM.

• The maximum resolution that can be achieved

depends upon various factors, including computer

speed, available disk space, memory, the size of the

image being scanned, and bit depth settings. Thus,

depending on your system and what you are scanning,

you may not be able to scan at certain resolutions,

especially using enhanced dpi.

Scanning Using Samsung

SmarThru

Samsung SmarThru is the accompanying software for your

machine. With SmarThru, scanning is the proverbial piece of

cake.

Uninstalling Samsung SmarThru

OTE

: Before beginning uninstallation, ensure that all

applications are closed on your computer.

From the

Start

menu, select

Programs

Select

SmarThru 4

, and then select

Uninstall SmarThru

When your computer asks you to confirm, click

Click

Finish

You may be prompted to restart your computer. In this

case you must shut the computer down and then restart it

before the changes will be saved.

Using Samsung SmarThru

Follow these steps to start scanning using the SmarThru:

Make sure that your machine and computer are turned on

and properly connected to each other.

Place your photograph or page on the document glass

or ADF.

Once you have installed Samsung SmarThru, you will see

the

SmarThru 4

icon on your desktop. Double-click the

SmarThru 4

icon.

The SmarThru 4 window opens.

•Scan To

Allows you to scan an image and save it to an application

or folder, email it, or publish it on a web site.

•Image

Allows you to edit an image you have saved as a graphic

file and send it to a selected application or folder, email it,

or publish it on a web site.

•Copy

Allows you to produce professional quality copies. You can

make black and white or color copies of an image if your

machine supports it, and customize the copy settings.

•Print

Allows you to print images you have saved. You can print

images in black and white or color mode if your machine

supports it.

Double-click this icon.

Make sure that your

printer is selected.

Scanning

Click

Scan To

. The

Scan To

menu bar appears on the

SmarThru 4 window.

Scan To

lets you use the following services:

•Application

Scanning an image and placing it in an image editor

application, such as Paint or Adobe Photoshop.

•E-mail

Scanning an image and emailing it. Allows you to scan an

image, preview it, and email it.

OTE

: To send an image by e-mail, you must have a mail

client program, like Outlook Express, which has been set up

with your e-mail account.

•Folder

Scanning an image and saving it to a folder. Allows you to

scan an image, preview it, and save it to the folder of your

choice.

•OCR

Scanning an image and performing text recognition.

Allows you to scan an image, preview it, and send it to the

OCR program for text recognition.

- Recommended Scan Option for OCR

- Resolution: 200 or 300 dpi

- Image Type: Grayscale or Black & White

•Web

Scanning an image, previewing it, and publishing it on a

web site, using the specified file format for the image you

want to publish.

Adjust the

scan settings.

Scan To

menu bar

Click to start

scanning.

Make sure that your

printer is selected.

•Settings

Customizing settings of

Scan To

basic functions. Allows

you to customize settings for

Application

E-mail

OCR

and

Web

functions.

Click the service icon according to your job.

SmarThru 4

opens for the selected service. Adjust the

scan settings.

To start scanning, click

Scan

OTE

: If you want to cancel the scan job, click

Cancel

Using Onscreen Help File

For more information about SmarThru, click at the top right

corner of the window. The SmarThru Help window opens and

allows you to view onscreen help supplied on the SmarThru

program.

Scanning Process with TWAIN-

enabled Software

If you want to scan documents using other software, you will

need to use TWAIN-compliant software, such as Adobe

PhotoDeluxe or Adobe Photoshop. The first time you scan with

your machine, select it as your TWAIN source in the application

you use.

The basic scanning process involves a number of steps:

Make sure that your machine and computer are turned on

and properly connected to each other.

Load the document(s) face up into the DADF (or ADF).

Place a single document face down on the document

glass.

Open an application, such as PhotoDeluxe or Photoshop.

Open the TWAIN window and set the scan options.

Scan and save your scanned image.

OTE

: You need to follow the program’s instructions for

acquiring an image. Please refer to the user’s guide of the

application.

Scanning

Scanning Using the WIA Driver

Your machine also supports the Windows Image Acquisition

(WIA) driver for scanning images. WIA is one of the standard

components provided by Microsoft

Windows

XP and works

with digital cameras and scanners. Unlike the TWAIN driver, the

WIA driver allows you to scan and easily manipulate images

without using additional software.

OTE

: The WIA driver works only on Windows XP/Vista with

USB port.

Windows XP

Load the document(s) face up into the DADF (or ADF).

Place a single document face down on the document

glass.

From the

Start

menu on your desktop window, select

Settings

Control Panel

, and then

Scanners and

Cameras

Double click

your scanner driver

icon. The Scanner and

Camera Wizard launches.

Choose your scanning preferences and click

Preview

see how your preferences affect the picture.

Click

Enter a picture name, and select a file format and

destination to save the picture.

Follow the on-screen instructions to edit the picture after it

is copied to your computer.

Windows Vista

Load the document(s) face up into the DADF (or ADF).

Place a single document face down on the document glass.

Click

Start

→

Control Panel

→

Hardware and Sound

→

Scanners and Cameras

Click on

Scan a document or picture

. Then

Windows

Fax and Scan

application is opened automatically.

OTE

: To view scanners, user can click on

View scanners

and cameras

Click

Scan

and then scan driver is opened.

Choose your scanning preferences and click

Preview

see your preferences affect the picture.

Click

Scan

OTE

: If you want to cancel the scan job, press the Cancel

button on the Scanner and Camera Wizard.

Using Smart Panel

6Using Smart Panel

Smart Panel is a program that monitors and informs you of the

status of the printer, and allows you to customize the printer’s

settings.

Smart Panel

is installed automatically when you

install the printer software.

OTES

• To use this program, you need:

- Windows 98 or higher (Windows NT 4.0 can be used only

for network-supported printers.) To check for Operating

System(s) that are compatible with your printer, refer to

Printer Specifications in your Printer User’s Guide.

- Mac OS X 10.3 or higher

- Linux. To check for Linux systems that are compatible with

your printer, refer to Printer Specifications in your Printer

User’s Guide.

- Internet Explorer version 5.0 or higher for flash animation

in HTML Help.

• If you need to know the exact name of your printer, you can

check the supplied CD-ROM.

Understanding Smart Panel

If an error occurs while printing, Smart Panel appears

automatically, showing the error.

You can also launch Smart Panel manually. Double-click the

Smart Panel icon on the Windows task bar (in Windows), or

Notification Area (in Linux). You can also click it on the status

bar (in Mac OS X).

Double-click this icon in Windows.

Click this icon in Mac OS X.

Click this icon in Linux.

If you are a Windows user, from the

Start

menu, select

Programs

All Programs

→

your printer driver name

→

Smart Panel

OTES

• If you have already installed more than one Samsung

printer, first select the printer model you want in order to

use the corresponding Smart Panel. Right-click (in Windows

or Linux) or click (in Mac OS X) the Smart Panel icon and

select

your printer name

• The Smart Panel window and its contents shown in this

Software User’s Guide may differ depending on the printer or

Operating System in use.

The Smart Panel program displays the current status of the

printer, the level of toner remaining in the toner cartridge(s)

and various other information. You can also change settings.

Toner Level

You can view the level of toner remaining in the toner

cartridge(s). The printer and the number of toner cartridge(s)

shown in the above window may differ depending on the printer in

use. Any printers do not have this feature.

Buy Now

You can order replacement toner cartridge(s) online.

Troubleshooting Guide

You can view Help to solve problems.

Printer Setting

You can configure various printer settings in the Printer Settings

Utility window. Any printers do not have this feature.

Driver Setting (Only for Windows)

You can use the printer properties window, which allows you to

access all of the printer options you need for using your

printer.

For details,

See “Printer Settings” on page 8.

Using Smart Panel

Opening the Troubleshooting

Guide

Using the troubleshooting guide, you can view solutions for

error status problems.

Right-click (in Windows or Linux) or click (in Mac OS X) the

Smart Panel icon and select

Troubleshooting Guide

Using Printer Settings Utility

Using the Printer Settings Utility, you can configure and check

print settings.

Right-click the Smart Panel icon and select

Printer

Setting

Change the settings.

To send the changes to the printer, click the

Apply

button.

Using Onscreen Help File

For more information about

Printer Settings Utility

, click .

Changing the Smart Panel

Program Settings

Right-click (in Windows or Linux) or click (in Mac OS X) the

Smart Panel icon and select

Options

The following window opens.

•

Display when error occurs during printing

: The

computer shows the Smart Panel popup window or

balloon when an error occurs during printing.

•

Display with

(Only for Windows): You can select how the

computer shows you a message. If you select

Popup

window (smart panel)

, the message appears in the

Smart Panel popup window.

•

Schedule an automatic status checking every

: The

computer updates the printer status regularly. Setting the

value close to 1 second causes the computer to check the

printer status more frequently, thereby allowing a faster

response to any printer error.

Using Your Printer in Linux

7Using Your Printer in

Linux

You can use your machine in a Linux environment.

This chapter includes:

• Getting Started

• Installing the Unified Linux Driver

• Using the Unified Driver Configurator

• Configuring Printer Properties

• Printing a Document

• Scanning a Document

Getting Started

The supplied CD-ROM provides you with Samsung’s Unified

Linux Driver package for using your machine with a Linux

computer.

Samsung’s Unified Linux Driver package contains printer and

scanner drivers, providing the ability to print documents and

scan images. The package also delivers powerful applications

for configuring your machine and further processing of the

scanned documents.

After the driver is installed on your Linux system, the driver

package allows you to monitor a number of machine devices via

fast ECP parallel ports and USB simultaneously.

The acquired documents can then be edited, printed on the

same local or network machine devices, sent by e-mail,

uploaded to an FTP site, or transferred to an external OCR

system.

The Unified Linux Driver package is supplied with a smart and

flexible installation program. You don't need to search for

additional components that might be necessary for the Unified

Linux Driver software: all required packages will be carried onto

your system and installed automatically; this is possible on a

wide set of the most popular Linux clones.

Installing the Unified Linux

Driver

Installing the Unified Linux Driver

Make sure that you connect your machine to your

computer. Turn both the computer and the machine on.

When the Administrator Login window appears, type in

root

in the Login field and enter the system password.

OTE

: You must log in as a super user (root) to install the

printer software. If you are not a super user, ask your system

administrator.

Insert the printer software CD-ROM. The CD-ROM will

automatically run.

If the CD-ROM does not automatically run, click the

icon at the bottom of the desktop. When the Terminal

screen appears, type in:

If the CD-ROM is secondary master and the location to

mount is /mnt/cdrom,

[root@localhost root]#mount -t iso9660 /dev/hdc /mnt/

cdrom

[root@localhost root]#cd /mnt/cdrom/Linux

[root@localhost root]#./install.sh

OTE

: The installation program runs automatically if you

have an autorun software package installed and configured.

When the welcome screen appears, click

Using Your Printer in Linux

When the installation is complete, click

Finish

The installation program has added the Unified Driver

Configurator desktop icon and Samsung Unified Driver

group to the system menu for your convenience. If you

have any difficulties, consult the onscreen help that is

available through your system menu or can otherwise be

called from the driver package windows applications,

such as

Unified Driver Configurator


Manager

Uninstalling the Unified Linux Driver

When the Administrator Login window appears, type in

root

in the Login field and enter the system password.

OTE

: You must log in as a super user (root) to install the

printer software. If you are not a super user, ask your system

administrator.

Insert the printer software CD-ROM. The CD-ROM will

automatically run.

If the CD-ROM does not automatically run, click the

icon at the bottom of the desktop. When the Terminal

screen appears, type in:

If the CD-ROM is secondary master and the location to

mount is /mnt/cdrom,

[root@localhost root]#mount -t iso9660 /dev/hdc /mnt/

cdrom

[root@localhost root]#cd /mnt/cdrom/Linux

[root@localhost root]#./uninstall.sh

OTE

: The installation program runs automatically if you

have an autorun software package installed and configured.

Click

Uninstall

Click

Finish

Using Your Printer in Linux

Using the Unified Driver

Configurator

Unified Linux Driver Configurator is a tool primarily intended for

configuring Printer or MFP devices. Since an MFP device

combines the printer and scanner, the Unified Linux Driver

Configurator provides options logically grouped for printer and

scanner functions. There is also a special MFP port option

responsible for the regulation of access to an MFP printer and

scanner via a single I/O channel.

After installing the Unified Linux driver, the Unified Linux Driver

Configurator icon will automatically be created on your desktop.

Opening the Unified Driver

Configurator

Double-click

Unified Driver Configurator

on the

desktop.

You can also click the Startup Menu icon and select

Samsung Unified Driver

and then

Unified Driver

Configurator

Press each button on the Modules pane to switch to the

corresponding configuration window.

You can use the onscreen help by clicking

Help

After changing the configurations, click

Exit

to close the

Unified Driver Configurator.

Printers Configuration button

Scanners Configuration button

Ports Configuration button

Printers Configuration

Printers configuration has the two tabs:

Printers

and

Classes

Printers Tab

You can see the current system’s printer configuration by

clicking on the printer icon button on the left side of the Unified

Driver Configurator window.

You can use the following printer control buttons:

•

Refresh

: renews the available printers list.

•

Add Printer

: allows you to add a new printer.

•

Remove Printer

: removes the selected printer.

•

Set as Default

: sets the current printer as a default

printer.

•

Stop

Start

: stops/starts the printer.

•

Test

: allows you to print a test page to check if the

machine is working properly.

•

Properties

: allows you to view and change the printer

properties. For details, see page 27.

Shows all of the

installed printer.

Switches to Printer

configuration.

Shows the status,

model name and

URI of your printer.

Using Your Printer in Linux

Classes Tab

The Classes tab shows a list of available printer classes.

•

Refresh

: Renews the classes list.

•

Add Class... :

Allows you to add a new printer class.

•

Remove Class :

Removes the selected printer class.

Scanners Configuration

In this window, you can monitor the activity of scanner devices,

view a list of installed Samsung MFP devices, change device

properties, and scan images.

•

Properties...

: Allows you to change the scan properties

and scan a document. See page 28.

•

Drivers... :

Allows you to monitor the activity of the scan drivers.

Shows the status of the

class and the number of

printers in the class.

Shows all of the

printer classes.

Switches to

Scanners

configuration. Shows all of the

installed scanners.

Shows the vendor,

model name and type

of your scanner.

Ports Configuration

In this window, you can view the list of available ports, check

the status of each port and release a port that is stalled in busy

state when its owner is terminated for any reason.

•

Refresh

: Renews the available ports list.

•

Release port :

Releases the selected port.

Sharing Ports Between Printers and Scanners

Your machine may be connected to a host computer via the

parallel port or USB port. Since the MFP device contains more

than one device (printer and scanner), it is necessary to

organize proper access of “consumer” applications to these

devices via the single I/O port.

The Samsung Unified Linux Driver package provides an

appropriate port sharing mechanism that is used by Samsung

printer and scanner drivers. The drivers address their devices

via so-called MFP ports. The current status of any MFP port can

be viewed via the Ports Configuration. The port sharing

prevents you from accessing one functional block of the MFP

device, while another block is in use.

When you install a new MFP device onto your system, it is

strongly recommended you do this with the assistance of an

Unified Driver Configurator. In this case you will be asked to

choose I/O port for the new device. This choice will provide the

most suitable configuration for MFP’s functionality. For MFP

scanners I/O ports are being chosen by scanner drivers

automatically, so proper settings are applied by default.

Switches to

ports

configuration.

Shows the port type,

device connected to

the port and status

Shows all of the

available ports.

Using Your Printer in Linux

Configuring Printer Properties

Using the properties window provided by the Printers

configuration, you can change the various properties for your

machine as a printer.

Open the Unified Driver Configurator.

If necessary, switch to Printers configuration.

Select your machine on the available printers list and click

Properties

The Printer Properties window opens.

The following five tabs display at the top of the window:

•

General

: allows you to change the printer location and

name. The name entered in this tab displays on the

printer list in Printers configuration.

•

Connection

: allows you to view or select another port. If

you change the printer port from USB to parallel or vice

versa while in use, you must re-configure the printer port

in this tab.

•

Driver

: allows you to view or select another printer

driver. By clicking

Options

, you can set the default

device options.

•

Jobs

: shows the list of print jobs. Click

Cancel job

cancel the selected job and select the

Show completed

jobs

check box to see previous jobs on the job list.

•

Classes

: shows the class that your printer is in. Click

Add to Class

to add your printer to a specific class or

click

Remove from Class

to remove the printer from the

selected class.

Click

to apply the changes and close the Printer

Properties Window.

Printing a Document

Printing from Applications

There are a lot of Linux applications that you are allowed to

print from using Common UNIX Printing System (CUPS). You

can print on your machine from any such application.

From the application you are using, select

from the

File

menu.

Select

directly using

lpr

In the LPR GUI window, select the model name of your

machine from the Printer list and click

Properties

•

Reverse All Pages(3,2,1)

: When you use this feature,

you do not need to sort the print-out by stacks.

Change the printer and print job properties.

Click.

Using Your Printer in Linux

The following four tabs display at the top of the window.

•

General

- allows you to change the paper size, the paper

type, and the orientation of the documents, enables the

duplex feature, adds start and end banners, and changes

the number of pages per sheet.

•

Text

- allows you to specify the page margins and set the

text options, such as spacing or columns.

•

Graphics

- allows you to set image options that are used

when printing images/files, such as color options, image

size, or image position.

•

Device

: allows you to set the print resolution, paper

source, and destination.

Click

Apply

to apply the changes and close the Properties

window.

Click

in the LPR GUI window to start printing.

The Printing window appears, allowing you to monitor the

status of your print job.

To abort the current job, click

Cancel

Printing Files

You can print many different types of files on the Samsung

machine device using the standard CUPS way - directly from

the command line interface. The CUPS lpr utility allows you do

that. But the drivers package replaces the standard lpr tool by

a much more user-friendly LPR GUI program.

To print any document file:

Type

lpr <file_name>

from the Linux shell command

line and press

Enter

. The LPR GUI window appears.

When you type only

lpr

and press

Enter

, the Select

file(s) to print window appears first. Just select any files

you want to print and click

Open

In the LPR GUI window, select your printer from the list,

and change the printer and print job properties.

For details about the properties window, see page 27.

Click

to start printing.

Scanning a Document

You can scan a document using the Unified Driver Configurator

window.

Double-click the Unified Driver Configurator on your

desktop.

Click the button to switch to Scanners Configuration.

Select the scanner on the list.

When you have only one MFP device and it is connected

to the computer and turned on, your scanner appears on

the list and is automatically selected.

If you have two or more scanners attached to your

computer, you can select any scanner to work at any

time. For example, while acquisition is in progress on the

first scanner, you may select the second scanner, set the

device options and start the image acquisition

simultaneously.

Click

Properties

Load the document to be scanned face up into the ADF

(Automatic Document Feeder) or face down on the

document glass.

Click

Preview

in the Scanner Properties window.

Click your

scanner.

Using Your Printer in Linux

The document is scanned and the image preview appears

in the Preview Pane.

Change the scan options in the Image Quality and Scan

Area sections.

•

Image Quality

: allows you to select the color

composition and the scan resolution for the image.

•

Scan Area

: allows you to select the page size. The

Advanced

button enables you to set the page size

manually.

If you want to use one of the preset scan option settings,

select from the Job Type drop-down list. For details about

the preset Job Type settings, see page 29.

You can restore the default setting for the scan options

by clicking

Default

When you have finished, click

Scan

to start scanning.

The status bar appears on the bottom left of the window

to show you the progress of the scan. To cancel scanning,

click

Cancel

The scanned image appears in the new Image Manager

tab.

If you want to edit the scanned image, use the toolbar.

For further details about editing an image, see page 29.

Drag the pointer to

set the image area

to be scanned.

When you are finished, click

Save

on the toolbar.

Select the file directory where you want to save the image

and enter the file name.

Click

Save

Adding Job Type Settings

You can save your scan option settings to retrieve for a later

scanning.

To save a new Job Type setting:

Change the options from the Scanner Properties window.

Click

Save As

Enter the name for your setting.

Click

Your setting is added to the Saved Settings drop-down

list.

To save a Job Type setting for the next scan job:

Select the setting you want to use from the Job Type drop-

down list.

The next time you open the Scanner Properties window,

the saved setting is automatically selected for the scan

job.

To delete a Job Type setting:

Select the setting you want to delete from the Job Type

drop-down list.

Click

Delete

The setting is deleted from the list

Using the Image Manager

The Image Manager application provides you with menu

commands and tools to edit your scanned image.

Use these tools to

edit the image.

Using Your Printer in Linux

You can use the following tools to edit the image:

For further details about the Image Manager application, refer

to the onscreen help.

Tools Function

Saves the image.

Cancels your last action.

Restores the action you canceled.

Allows you to scroll through the image.

Crops the selected image area.

Zooms the image out.

Zooms the image in.

Allows you to scale the image size; you can

enter the size manually, or set the rate to

scale proportionally, vertically, or

horizontally.

Allows you to rotate the image; you can

select the number of degrees from the drop-

down list.

Allows you to flip the image vertically or

horizontally.

Allows you to adjust the brightness or

contrast of the image, or to invert the

image.

Shows the properties of the image.

Using Your Printer with a Macintosh

8Using Your Printer with

a Macintosh

Your printer supports Macintosh systems with a built-in USB

interface or 10/100 Base-TX network interface card. When you

print a file from a Macintosh computer, you can use the CUPS driver

by installing the PPD file.

OTE

Some printers do not support a network

interface. Make sure that your printer supports a

network interface by referring to Printer Specifications

in your Printer User’s Guide.

This chapter includes:

• Installing Software

• Setting Up the Printer

•Printing

•Scanning

Installing Software

The CD-ROM that came with your printer provides you with the

PPD file that allows you to use the CUPS driver or Apple

LaserWriter driver

(only available when you use a printer

which supports the PostScript driver)

, for printing on a

Macintosh computer.

Also, it provides you with the Twain driver for scanning on a

Macintosh computer.

Printer driver

Installing the Printer driver

Make sure that you connect your printer to the computer.

Turn on your computer and printer.

Insert the CD-ROM which came with your printer into the

CD-ROM drive.

Double-click

CD-ROM icon

that appears on your

Macintosh desktop.

Double-click the

MAC_Installer

folder.

Double-click the

MAC_Printer

folder.

Double-click the

Samsung SPL2 Installer

icon.

Enter the password and click

The Samsung SPL Installer window opens. Click

Continue

and then click

Continue

Select

Easy Install

and click

Install

After the installation is finished, click

Quit

Uninstalling the Printer driver

Uninstall is required if you are upgrading the software, or if

installation fails.

Insert the CD-ROM which came with your printer into the

CD-ROM drive.

Double-click

CD-ROM icon

that appears on your

Macintosh desktop.

Double-click the

MAC_Installer

folder.

Double-click the

MAC_Printer

folder.

Double-click the

Samsung SPL2 Installer

icon.

Enter the password and click

The Samsung SPL Installer window opens. Click

Continue

and then click

Continue

Select

Uninstall

and then click

Uninstall

When the uninstallation is done, click

Quit

Using Your Printer with a Macintosh

Scan driver

Installing the Scan driver

Make sure that you connect your printer to the computer.

Turn on your computer and printer.

Insert the CD-ROM which came with your printer into the

CD-ROM drive.

Double-click

CD-ROM icon

that appears on your

Macintosh desktop.

Double-click the

MAC_Installer

folder.

Double-click the

MAC_Twain

folder.

Double-click the

Samsung ScanThru Installer

icon.

Enter the password and click

Click

Continue

Click

Install

After the installation is finished, click

Quit

Uninstalling the Scan driver

Insert the CD-ROM which came with your printer into the

CD-ROM drive.

Double-click

CD-ROM icon

that appears on your

Macintosh desktop.

Double-click the

MAC_Installer

folder.

Double-click the

MAC_Twain

folder.

Double-click the

Samsung ScanThru Installer

icon.

Enter the password and click

Click

Continue

Select

Uninstall

from the Installation Type and then Click

Uninstall

When the uninstallation is done, click

Quit

Setting Up the Printer

Set up for your printer will be different depending on which

cable you use to connect the printer to your computer—the

network cable or the USB cable.

For a USB-connected

Follow the instructions on “Installing Software” on page 31

to install the PPD and Filter files on your computer.

Open

Print Setup Utility

from the

Utilities

folder.

Click

Add

on the

Printer List

Select the

USB

tab.

Select

Samsung

Printer Model

and your printer in

Model Name

Click

Add

Your printer appears on the

Printer List

, and is set as the

default printer.

Printing

OTES

• The Macintosh printer’s properties window that appears in

this User’s Guide may differ depending on the printer in use.

However the composition of the printer properties window is

similar.

• You can check your printer name in the supplied CD-

ROM.

Printing a Document

When you print with a Macintosh, you need to check the printer

software setting in each application you use. Follow these steps

to print from a Macintosh.

Open a Macintosh application and select the file you want

to print.

Open the

File

menu and click

Page Setup

(

Document

Setup

in some applications).

Choose your paper size, orientation, scaling, and other

options and click

Open the

File

menu and click

Choose the number of copies you want and indicate which

pages you want to print.

Click

when you finish setting the options.

▲

Mac OS 10.3

Make sure that your

printer is selected.

Changing Printer Settings

You can use advanced printing features when using your

printer.

From your Macintosh application, select

from the

File

menu. The printer name which appears in the printer properties

window may differ depending on the printer in use. Except for

the name, the composition of the printer properties window is

similar.

OTES

: The setting options may differ depending on printers

and Macintosh OS version.

Layout

The

Layout

tab provides options to adjust how the document

appears on the printed page. You can print multiple pages on

one sheet of paper. Select

Layout

from the

Presets

drop-down

list to access the following features.

•

Pages per Sheet

: This feature determines how many

pages printed on one page. For details, see "Printing

Multiple Pages on One Sheet of Paper" on the next

column.

•

Layout Direction

: You can select the printing direction

on a page as like the examples on UI.

▲

Mac OS 10.4

Graphics

The

Graphics

tab provides options for selecting

Resolution(Quality)

and

Color Mode

. Select

Graphics

form the

Presets

' drop-down list to access the graphic

features.

•

Resolution(Quality)

: You can select the printing

resolution. The higher the setting, the sharper the clarity

of printed characters and graphics. The higher setting

also may increase the time it takes to print a document.

Paper

Set

Paper Type

to correspond to the paper loaded in the tray

from which you want to print. This will let you get the best

quality printout. If you load a different type of print material,

select the corresponding paper type.

▲

Mac OS 10.4

▲

Mac OS 10.4

Printer Features

This tab provides options for selecting the paper type and

adjusting print quality. Select

Printer Features

from the

Presets

' drop-down list to access the following features:

•

Fit to Page

: This setting allows you to scale your print

job to any selected paper size regardless of the digital

document size. This can be useful when you want to

check fine details on a small document.

▲

Mac OS 10.4

Printing Multiple Pages on One Sheet

of Paper

You can print more than one page on a single sheet of paper.

This feature provides a cost-effective way to print draft pages.

From your Macintosh application, select

from the

File

menu.

Select

Layout

Select the number of pages you want to print on one sheet

of paper on the

Pages per Sheet

drop-down list.

Select the page order from the

Layout Direction

option.

To print a border around each page on the sheet, select

the option you want from the

Border

drop-down list.

Click

, and the printer prints the selected number of

pages on one side of each page.

▲

Mac OS 10.3

Scanning

If you want to scan documents using other software, you will

need to use TWAIN-compliant software, such as Adobe

PhotoDeluxe or Adobe Photoshop. The first time you scan with

your machine, select it as your TWAIN source in the application

you use.

The basic scanning process involves a number of steps:

• Place your photograph or page on the document glass or

ADF.

• Open an application, such as PhotoDeluxe or Photoshop.

• Open the TWAIN window and set the scan options.

• Scan and save your scanned image.

OTE

: You need to follow the program’s instructions for

acquiring an image. Please refer to the User’s Guide of the

application.

SOFTWARE SECTION

INDEX

advanced printing, use

canceling

scan

document, print

Macintosh

Windows

Extras properties, set

favorites settings, use

Graphics properties, set

help, use

install

printer driver

Macintosh

Windows

installing

Linux software

language, change

Layout properties, set

Windows

Linux

driver, install

printer properties

printing

scanning

Macintosh

driver

install

uninstall

printing

scanning

setting up the printer

MFP driver, install

Linux

n-up printing

Macintosh

Windows

orientation, print

Windows

overlay

create

delete

Paper properties, set

paper size, set

paper source, set

Windows

paper type, set

poster, print

document

fit to page

from Macintosh

from Windows

N-up

Macintosh

Windows

overlay

poster

PRN

scaling

watermark

print resolution

printer driver, install

Linux

printer properties

Linux

printer properties, set

Macintosh

Windows

printer resolution, set

Windows

printer software

install

Macintosh

Windows

uninstall

Macintosh

Windows

printing

from Linux

resolution

printing

scanning

Linux

SmarThru

TWAIN

WIA driver

scanning from Macintosh

setting

darkness

favorites

image mode

resolution

Windows

toner save

true-type option

software

install

Macintosh

Windows

reinstall

Windows

system requirements

Macintosh

uninstall

Macintosh

Windows

status monitor, use

toner save, set

TWAIN, scan

uninstall, software

Macintosh

Windows

uninstalling

MFP driver

Linux

watermark

create

delete

edit

WIA, scan
