MonitorUser ManualThe color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.S24E370 S27E370BN46-00487A-X3
2Table of contentsBefore Using the ProductCopyright 5Securing the Installation Space 6Precautions for storage 6Safety Precautions 6Symbols 6Cleaning 7Electricity and Safety 7Installation 8Operation 10Correct posture to use the product 13PreparationsChecking the Components 14Components 14Parts 15Control Panel 15Direct Key guide 16Function Key Guide 17Reverse Side 19Adjusting the Product Tilt 20Anti-theft Lock 21Connecting and Using a Source DeviceBefore Connecting 22Pre-connection Checkpoints 22Connecting and Using a PC 22Connection Using the D-SUB Cable (Analog Type) 22Connection Using the HDMI Cable 23Connection Using an HDMI-DVI Cable 23Connection Using an DP Cable 24Connecting to Headphones or Speakers 24Connecting the Power 25Driver Installation 26Setting Optimum Resolution 26Using the Wireless Charging functionWireless Charging 27Precautions 28Screen SetupSAMSUNG MAGIC Bright 30Configuring SAMSUNG MAGIC Bright 30Brightness 32Configuring Brightness 32Contrast 33Configuring Contrast 33Sharpness 34Configuring Sharpness 34Color 35Configuring Color 35SAMSUNG MAGIC Upscale 36Configuring SAMSUNG MAGIC Upscale 36HDMI Black Level 37Configuring the HDMI Black Level Settings 37Eye Saver Mode 38Configuring Eye Saver Mode 38Game Mode 39Configuring Game Mode 39Response Time 40Configuring the Response Time 40Picture Size 41Changing the Picture Size 41Screen Adjustment 43Configuring H-Position & V-Position 43Configuring Coarse 44
3Table of contentsConfiguring Fine 45Coordinating OSDTransparency 46Changing Transparency 46Position 47Configuring Position 47Language 48Configuring Language 48Display Time 49Configuring Display Time 49Setup and ResetWireless Charging 50Configuring Wireless Charging 50FreeSync 51Configuring FreeSync 51Eco Saving Plus 53Configuring Eco Saving Plus 53Off Timer 54Configuring Off Timer 54Configuring Turn Off After 55PC/AV Mode 56Configuring PC/AV Mode 56Source Detection 57Configuring Source Detection 57Key Repeat Time 58Configuring Key Repeat Time 58Power LED On 59Configuring Power LED On 59Reset All 60Initializing Settings (Reset All) 60Information Menu and OthersInformation 61Displaying Information 61Configuring Brightness, Contrast and Sharpness from the Initial Screen 62Configuring Volume in the Initial Screen 63Volume 63Installing the SoftwareEasy Setting Box 64Installing the Software 64Removing the Software 64Troubleshooting GuideRequirements Before Contacting Samsung Customer Service Center 65Testing the Product 65Checking the Resolution and Frequency 65Check the following. 66Q & A 69SpecificationsGeneral 71PowerSaver 73Standard Signal Mode Table 74
4Table of contentsAppendixResponsibility for the Pay Service (Cost to Customers) 76Not a product defect 76A Product damage caused by customer's fault 76Others 76Terminology 77
5CopyrightThe contents of this manual are subject to change without notice to improve quality.ⓒ 2015 Samsung ElectronicsSamsung Electronics owns the copyright for this manual.Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.Microsoft, Windows are registered trademarks of Microsoft Corporation.VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.Ownership of all other trademarks is attributed to their due owner.Before Using the ProductChapter 01
6Securing the Installation SpaceEnsure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Be sure to allow the amount of space as shown below or greater when installing the product. ―The exterior may differ depending on the product.10 cm (3,93 inches)10 cm(3,93 inches)10 cm(3,93 inches)10 cm(3,93 inches)10 cm(3,93 inches)Precautions for storageHigh-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby. ―Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product (Service fee will be charged.)Safety PrecautionsCautionRISK OF ELECTRIC SHOCK DO NOT OPENCaution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)THERE ARE NO USER SERVICEABLE PARTS INSIDE.REFER ALL SERVICING TO QUALIFIED PERSONNEL.This symbol indicates that high voltage is present inside.It is dangerous to make any kind of contact with any internal part of this product.This symbol alerts you that important literature concerning operation and maintenance has been included with this product.SymbolsWarningA serious or fatal injury may result if instructions are not followed.CautionPersonal injury or damage to properties may result if instructions are not followed.Activities marked by this symbol are prohibited.Instructions marked by this symbol must be followed.
7Cleaning ―Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. ―Take the following steps when cleaning. ―The following images are for reference only. Real-life situations may differ from what is shown in the images.1 Power off the product and computer.2 Disconnect the power cord from the product. ―Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.!3 Wipe the monitor with a clean, soft and dry cloth. •Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor. •Do not spray water or detergent directly on the product.4 Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.5 Connect the power cord to the product when cleaning is finished.6 Power on the product and computer.Electricity and Safety ―The following images are for reference only. Real-life situations may differ from what is shown in the images.WarningDo not use a damaged power cord or plug, or a loose power socket. •An electric shock or fire may result.Do not use multiple products with a single power socket. •Overheated power sockets may cause a fire.Do not touch the power plug with wet hands. Otherwise, an electric shock may result.!Insert the power plug all the way in so it is not loose. •An unsecure connection may cause a fire.!Connect the power plug to a grounded power socket (type 1 insulated devices only). •An electric shock or injury may result.
8Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object. •Damage to the cord may result in a fire or electric shock.Do not place the power cord or product near heat sources. •A fire or electric shock may result.!Clean any dust around the pins of the power plug or the power socket with a dry cloth. •A fire may result.CautionDo not disconnect the power cord while the product is being used. •The product may become damaged by an electric shock.!Only use the power cord provided with your product by Samsung. Do not use the power cord with other products. •A fire or electric shock may result.!Keep the power socket where the power cord is connected unobstructed. •The power cord must be disconnected to cut off power to the product when an issue occurs.!Hold the plug when disconnecting the power cord from the power socket. •An electric shock or fire may result.InstallationWarningDO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES. •A fire may result.Do not install the product in poorly ventilated spaces such as a bookcase or closet. •An increased internal temperature may cause a fire.!Install the product at least 10cm away from the wall to allow ventilation. •An increased internal temperature may cause a fire.!Keep the plastic packaging out of the reach of children. •Children may suffocate.
9Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.) •The product may fall and become damaged and/or cause an injury. •Using the product in an area with excess vibration may damage the product or cause a fire.!Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke. •A fire or electric shock may result.Do not expose the product to direct sunlight, heat, or a hot object such as a stove. •The product lifespan may be reduced or a fire may result.Do not install the product within the reach of young children. •The product may fall and injure children.Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.Caution!Do not drop the product while moving. •Product failure or personal injury may result.Do not set down the product on its front. •The screen may become damaged.When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding. •The product may fall and become damaged and/or cause an injury. •Install the product only on cabinets or shelves of the right size.!Set down the product gently. •Product failure or personal injury may result.SAMSUNG!Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended period of time) may seriously affect its performance. •Be sure to consult Samsung Customer Service Center if you want to install the product at such a place.
10OperationWarningThere is a high voltage inside the product. Never disassemble, repair or modify the product yourself. •A fire or electric shock may result. •Contact Samsung Customer Service Center for repairs.!To move the product, first disconnect all the cables from it, including the power cable. •Damage to the cord may result in a fire or electric shock.!If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately and contact Samsung Customer Service Center. •An electric shock or fire may result.Do not let children hang from the product or climb on top of it. •Children may become injured or seriously harmed.If the product is dropped or the outer case is damaged, turn off the power and disconnect the power cord. Then contact Samsung Customer Service Center. •Continued use can result in a fire or electric shock.Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product. •The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a serious injury.!During a lightning or thunderstorm, power off the product and remove the power cable. •A fire or electric shock may result.!Do not drop objects on the product or apply impact. •A fire or electric shock may result.Do not move the product by pulling the power cord or any cable. •Product failure, an electric shock or fire may result from a damaged cable.!GASIf a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately. •Sparks can cause an explosion or fire.Do not lift or move the product by pulling the power cord or any cable. •Product failure, an electric shock or fire may result from a damaged cable.
11!Do not use or keep combustible spray or an inflammable substance near the product. •An explosion or fire may result.Ensure the vents are not blocked by tablecloths or curtains. •An increased internal temperature may cause a fire.100Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc) into the product (via the vent or input/output ports, etc). •Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Center. •Product failure, an electric shock or fire may result.Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product. •Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Center. •Product failure, an electric shock or fire may result.Caution!Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels. •Activate power-saving mode or a moving-picture screen saver if you will not be using the product for an extended period of time.-_-!Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc). •Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.!Use the product at the recommended resolution and frequency. •Your eyesight may deteriorate.Do not put DC power adapters together. •Otherwise, a fire may result.Remove the plastic bag from the DC power adapter before you use it. •Otherwise, a fire may result.Do not let water enter the DC power device or get the device wet. •An electric shock or fire may result. •Avoid using the product outdoors where it can be exposed to rain or snow. •Be careful not to get the DC power adapter wet when you wash the floor.
12Do not put the DC power adapter near to any heating apparatus. •Otherwise, a fire may result.!Keep the DC power adapter in a well-ventilated area.Do not hold the product upside-down or move it by holding the stand. •The product may fall and become damaged or cause an injury.!Looking at the screen too close for an extended period of time can deteriorate your eyesight.Do not use humidifiers or stoves around the product. •A fire or electric shock may result.!Rest your eyes for more than 5 minutes for every 1 hour of product use. •Eye fatigue will be relieved.Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.!Store small accessories out of the reach of children.!Exercise caution when adjusting the product angle or stand height. •Your hand or finger may get stuck and injured. •Tilting the product at an excessive angle may cause the product to fall and an injury may result.Do not place heavy objects on the product. •Product failure or personal injury may result.When using headphones or earphones, do not turn the volume too high. •Having the sound too loud may damage your hearing.
13Correct posture to use the productUse the product in the correct posture as follows: •Straighten your back. •Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at the screen. Keep your eyes directly in front of the screen. •Adjust the angle so light does not reflect on the screen. •Keep your forearms perpendicular to your upper arms and level with the back of your hands. •Keep your elbows at about a right angle. •Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.
14PreparationsChapter 02Checking the Components -Contact the dealer from whom you purchased the product if any item is missing. -The pictures may look different from the actual components. -The optimal resolution may not be available when using a non-high speed HDMI or HDMI-DVI cable.Components ―Components may vary depending on the country.Quick Setup Guide Warranty card(Not available in some locations) Regulatory guide User manual (Optional)DC power adapter (Integrated)(Optional) (P. 25)DC power adapter (Detachable)(Optional) (P. 22)Power cable (Only provided with the detachable DC power adapter.)(P. 23)D-SUB cable (Optional)HDMI cable (Optional) (P. 23)HDMI-DVI cable (Optional) (P. 23) Non-Slip Pad (P. 28)
15PartsControl Panel ―The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.LEFTReturnJOG ButtonFunction Key GuideRIGHTDOWNPRESS(ENTER)UPPower LEDIcons DescriptionJOG ButtonMulti directional button that helps navigate. ―The JOG button is located on the rear left side of the product. The button can be used to move up, down, left or right, or as Enter.Power LEDThis LED is power status indicator and works as •Power on (Power button): Off •Power saving mode: Blinking •Power Off (Power button): On ―he power Indicator operation can be swapped by changing in the menu. (System Power LED On) Actual models because of functional variation maybe haven’t this function.Function Key GuidePress the JOG button when the screen is turned on. The Function Key Guide will appear. To access the onscreen menu when the guide is displayed, press the corresponding direction button again. ―Function Key Guide may vary depending on the function or product model. Please refer to the actual product. model. Please refer to the actual product.
16Direct Key guideAnalog modeBrightnessAuto AdjustmentVolumeFeaturesWireless Charging OHDMI, DisplayPort modeBrightnessAuto AdjustmentFeatures ―The shortcut button screen (OSD menu) shown below is displayed only when the monitor screen is turned on, the computer resolution changes, or the input source changes. ―Analog mode option •UP: Adjust Brightness, Contrast, Sharpness. •DOWN: Auto Adjustment. ―Changing the resolution in Display Properties will activate the Auto Adjustment function. ―This function is only available in Analog mode. •LEFT/RIGHT: Adjust Volume, Mute. •PRESS(ENTER): Display Function Key Guide. ―HDMI, DisplayPort mode option •UP/DOWN: Adjust Brightness, Contrast, Sharpness. •LEFT/RIGHT: Adjust Volume, Mute. •PRESS(ENTER): Display Function Key Guide.Wireless Charging O
17Function Key Guide ―To enter the main menu or to use other items, press the JOG button to display the Function Key Guide. You can exit by pressing the JOG button again.ReturnUP/DOWN/LEFT/RIGHT: Move to the item you want. The description for each item will appear when the focus changes.PRESS(ENTER): The selected item will be applied.Icons DescriptionSelects to change the input signal by moving the JOG button in the Function Key Guide screen. A message will appear on the top left corner of the screen if the input signal has been changed.Selects by moving the JOG button in the function key guide screen.The OSD (On Screen Display) of your Monitor’s feature appears.OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable/Disable: To lock/unlock the OSD control, press the LEFT button for 10 seconds when the main menu displayed. ―If the OSD control is locked, Brightness and Contrast can be adjusted.Wireless Charging is available.System Power LED On is available. Information can be viewed.Selects by moving the JOG button in the function key guide screen.Press to enable or disable Wireless Charging.Selects to turn the Monitor off by moving the JOG button in the function key guide screen. ―Actual models because of functional variation, Function key guide options will be different. Please run the corresponding function based on the actual icon and description.
18 ―When the monitor displays nothing (i.e. Power saving mode or Non-signal mode), 2 direct keys for control source and power could be used as below.JOG Button Power saving/Non-signal modeUP Source ChangeDownPRESS(ENTER) for 2 seconds Power Off ―When the monitor displays the Main menu the JOG Button could be used as below.JOG Button ActionUP/DOWN Move the optionLEFTExit the Main menu.Close Sublist without saving value.Value decreases in the slider.RIGHTMove to next depth.Value increases in the slider.PRESS(ENTER)Move to next depth.Save the value and close Sublist.
19Reverse Side ―The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.Port DescriptionConnects to a PC using a DP cable.Connects to a source device using an HDMI cable or HDMI-DVI cable.Connect to an audio output device such as headphones.Connect to a PC using the D-SUB cable.Connects to the DC power adapter.
20Adjusting the Product Tilt ―The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. TBD° (±TBD°) ~ TBD° (±TBD°) • You can adjust the product tilt. •Hold the lower part of the product and adjust the tilt carefully.
21Anti-theft Lock ―An anti-theft lock allows you to use the product securely even in public places. ―The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.To lock an anti-theft locking device:1 Fix the cable of your anti-theft locking device to a heavy object such as a desk.2 Put one end of the cable through the loop on the other end.3 Insert the locking device into the anti-theft lock slot at the back of the product.4 Lock the locking device. -An anti-theft locking device can be purchased separately. -Refer to the user guide provided with your anti-theft locking device for details. -Anti-theft locking devices can be purchased at electronics retailers or online.
22Connecting and Using a Source DeviceChapter 03Before ConnectingCheck the following before you connect this product with other devices.Pre-connection Checkpoints ―Before connecting a source device, read the user manual provided with it.The number and locations of ports on source devices may differ from device to device. ―Do not connect the power cable until all connections are completed.Connecting the power cable during connection may damage the product. ―Check the types of ports at the back of the product you want to connect.Connecting and Using a PCSelect a connection method suitable for your PC. ―Connecting parts may differ in different products.Connection Using the D-SUB Cable (Analog Type) ―Do not connect the power cable before connecting all other cables.Ensure you connect a source device first before connecting the power cable.RGB IN1 Connect the D-SUB cable to the RGB IN port on the back of the product and the RGB port on the PC.2 Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC.3 Change the input source to Analog controlling the JOG button UP/DOWN, when input source is not set. ―Provided ports may vary depending on the product.
23Connection Using the HDMI Cable ―Do not connect the power cable before connecting all other cables.Ensure you connect a source device first before connecting the power cable.HDMI IN1 Connect the HDMI cable to the HDMI IN port on the back of the product and the HDMI port on the PC.2 Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC.3 Change the input source to HDMI controlling the JOG button UP/DOWN, when input source is not set. ―Provided ports may vary depending on the product.Connection Using an HDMI-DVI Cable ―Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.HDMI IN1 Connect the HDMI-DVI cable to the HDMI IN port on the back of the product and the DVI port on the PC.2 Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC.3 Change the input source to HDMI controlling the JOG button UP/DOWN, when input source is not set. ―The audio function is not supported if the source device is connected using the HDMI-DVI cable. ―Provided ports may vary depending on the product.
24Connection Using an DP CableDo not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.DP IN1 Connect the DP cable to the DP IN port on the back of the product and the DP port on the PC.2 Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC.3 Change the input source to DisplayPort controlling the JOG button UP/DOWN, when input source is not set. ―A DP cable shorter under 1.5m in length is recommended. Using a cable longer than 1.5m can affect the picture quality. ―Provided ports may vary depending on the product.Connecting to Headphones ―Do not connect the power cable before connecting all other cables.Ensure you connect a source device first before connecting the power cable.1 Connect an audio output device such as headphones to port on the product. ―The sound could only be heard when using the HDMI to HDMI cable or DP cable. ―Provided ports may vary depending on the product.
25Connecting the PowerPower connection using integrated DC power adapter1231 Connect the power cable to the DC power adapter. Then, connect the DC power adapter to the DC 14V port on the back of the product.2 Next, connect the power cable to the power outlet.3 Press the JOG button on the back of the monitor to turn it on. ―The input voltage is switched automatically.Power connection using detachable DC power adapter12311 Connect the power cable to the DC power adapter. Then, connect the DC power adapter to the DC 14V port on the back of the product.2 Next, connect the power cable to the power outlet.3 Press the JOG button on the back of the monitor to turn it on. ―The input voltage is switched automatically.
26Driver Installation ―You can set the optimum resolution and frequency for this product by installing the corresponding drivers. ―To install the latest version of the product driver, download it from the Samsung Electronics website at http://www.samsung.com.1 Click on the "Windows Driver" downloaded from the website.2 Follow the instructions given on the screen to proceed with installation.3 Select your product model from the list of models.4 Go to Display Properties and check that the resolution and refresh rate are appropriate.Refer to your Windows OS manual for further details.Setting Optimum ResolutionAn information message about setting optimum resolution will appear if you power on the product for the first time after purchase.Select a language on the product and change the resolution on your PC to the optimum setting. Setup GuideThe optimal resolution for this monitor is as follows:****x**** **HzFollow the above settings to set the resolution.Current ResolutionCloseEnglishLanguage****x****1 Select a language by moving the JOG button LEFT/RIGHT. Next, press the JOG button.2 To hide the information message, press the JOG button. ―If the optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again. ―The optimum resolution can also be selected in Control Panel on your PC.
27Using the Wireless Charging functionChapter 04Wireless Charging ―The wireless charging cover and mobile device should be purchased separately. ―If wireless charging does not work, check your mobile device first. Ensure that the device supports wireless charging and is not broken. ―Wireless charging times can vary, depending on the mobile device position, the wireless charging cover/module, and battery life. ―For (Qi-certified) devices that can be wirelessly charged, go the following website: (http://www.wirelesspowerconsortium.com) ―LED indications for each statusStatus Status LED IndicationPower is connected Red Green OrangeCharging is in progress RedCharging is completed GreenError occurred while charging Red Green Flashes in orange, then turns offIn standby mode Turns off ―Indications can vary, depending on the mobile device and wireless charging cover.
28Precautions ―Make sure to read the user manual before use to ensure that you use the monitor properly and safely. ―This wireless charging monitor is compatible with Qi-certified devices (receivers). ―This monitor uses a magnetic induction system and has obtained Qi certification for wireless charging from the Wireless Power Consortium (WPC). The monitor can charge mobile devices made according to Qi standards. Do not use the monitor to charge a device that has not been manufactured according to Qi standards (certification). ―Make sure to use the standard monitor adapter that came with the monitor.Connect the adapter to the monitor, then check the effective wireless charging range indicated on the stand. Next, place your mobile device in the center of the range. Make sure that the device supports wireless charging.After placing the mobile device in the correct position, make sure that the device starts charging.The charging progress is indicated by the LED at the bottom of the stand, in addition to sound, message and charging icon notifications on the device.Wireless charging may not work or the mobile device may fall off if the device is not correctly positioned inside the effective wireless charging range. This range is marked with a circle.The mobile device may not charge in the following cases: the device is placed outside the wireless charging range, the device screen is facing downwards, or the device is far from the charging point.Do not place the wireless charging cover in the wireless charging area without a mobile device.The monitor may overheat and fail. An overheating monitor can also cause heat burns or fire. -Your mobile device may slip, depending on the material and shape of the back of the device. Use the anti-slip pad included in the package.
29 ―Do not place a metallic object, such as a coin, under the mobile device in the wireless charging area. An external accessory made out of metal can interfere with the charging progress. ―Do not place an object other than your mobile device in the wireless charging area. Do not place a heavy object in the wireless charging area. ―If the monitor has not been used for an extended period of time or it is used in a place open to the public, make sure that the monitor and the charging area are clean before charging. There should be no water, dust or other foreign substances in the charging area. ―If the monitor overheats, stop using it for a while. Prolonged skin contact with an overheating monitor can cause a low-temperature burn producing red spots and pigmentation. Take extra care to ensure your safety. ―Viewing DMB content is not possible when charging is in progress. ―Charging may not work if there is a wireless pager or a device that generates strong radio waves, such as a radio or microwave, in the vicinity. Do not use the monitor near these devices. The reception rate of the mobile device may decrease if you charge the device wirelessly in an area with weak signal strength. ―Placing an object that has a magnet, such as a credit card, phone card, bankbook and transportation ticket, in the wireless charging area can damage data contained in the object. Take extra care to prevent data loss. ―An object larger than 2mm, including an accessory and wireless charging cover, can interfere with charging. Remove any unnecessary object before charging your device. ―This monitor is an electric device. Make sure to use it in a place that is not exposed to humidity or heat. ―Do not use or store the monitor in a place with an excessively high or low temperature. ―Do not clean the monitor using alcohol or benzene. ―not transform, repair, modify or disassemble the monitor. ―If a device cannot be charged, make sure that the monitor adapter is connected properly to the power outlet. Next, use the OSD menu to make sure that wireless charging is set to On (X : charging is disabled, O : charging is enabled). ―See Wireless Charging for details.(P. 50)Power is turned o In low power mode In normal operationWireless charging is enabled X O OWireless charging is disabled X X X ―After charging is complete, remove the mobile device from the monitor.
30Screen SetupConfigure the screen settings such as brightness.A detailed description of each function is provided. Refer to your product for details.Chapter 05SAMSUNG MAGIC BrightThis menu provides an optimum picture quality suitable for the environment where the product will be used. ―This menu is not available when Eco Saving Plus is enabled. ―This menu is not available when Game Mode is enabled. ―This menu is not available when Eye Saver Mode is enabled.You can customize the brightness to suit your preferences.In PC mode SAMSUNGMAGICBrightSAMSUNGMAGICUpscalePictureBrightnessContrastSharpnessColorHDMI Black LevelSet to an optimum picture quality suitable for the working environment.CustomStandardCinemaDynamic ContrastOReturn -The displayed image may differ depending on the model.Conguring SAMSUNG MAGIC Bright1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to SAMSUNGMAGICBright controlling the JOG button UP/DOWN and press the JOG button. •Custom: Customize the contrast and brightness as required. •Standard: Obtain a picture quality suitable for editing documents or using Internet. •Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content. •Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
31When the external input is connected through HDMI/DP and PC/AV Mode is set to AV, SAMSUNGMAGICBright has four automatic picture settings (Dynamic, Standard, Movie and Custom) that are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom which automatically recalls your personalized picture settings. •Dynamic: Select this mode to view a sharper image than in Standard mode. •Standard: Select this mode when the surroundings are bright. This also provides a sharp image. •Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue. •Custom: Select this mode when you want to adjust the image according to your preferences.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.In AV mode SAMSUNGMAGICBrightSAMSUNGMAGICUpscalePictureBrightnessContrastSharpnessColorHDMI Black LevelSet to an optimum picture quality suitable for the working environment.DynamicStandardMovieCustomOReturn -The displayed image may differ depending on the model.
32BrightnessYou can adjust the general brightness of the picture. (Range: 0~100)A higher value will make the picture appear brighter. ―This menu is not available when SAMSUNGMAGICBright is set to Dynamic Contrast mode. ―This menu is not available when Eco Saving Plus is enabled. ―This menu is not available when Eye Saver Mode is enabled. SAMSUNGMAGICBrightSAMSUNGMAGICUpscalePictureBrightnessContrastSharpnessColorHDMI Black LevelAdjust the brightness level. Values closer to 100 mean a brighter screen.Custom1007560OReturn -The displayed image may differ depending on the model.Conguring Brightness1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Brightness controlling the JOG button UP/DOWN and press the JOG button.4 Adjust the Brightness controlling the JOG button LEFT/RIGHT.5 The selected option will be applied.
33ContrastAdjust the contrast between the objects and background. (Range: 0~100)A higher value will increase the contrast to make the object appear clearer. ―This option is not available when SAMSUNGMAGICBright is in Cinema or Dynamic Contrast mode. ―This menu is not available when Game Mode is enabled. SAMSUNGMAGICBrightSAMSUNGMAGICUpscalePictureBrightnessContrastSharpnessColorHDMI Black LevelAdjust the contrast level. Values closer to 100 mean a bigger light/dark contrast.Custom1007560OReturn -The displayed image may differ depending on the model.Conguring Contrast1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Contrast controlling the JOG button UP/DOWN and press the JOG button.4 Adjust the Contrast controlling the JOG button LEFT/RIGHT.5 The selected option will be applied.
34SharpnessMake the outline of objects more clear or blurry. (Range: 0~100)A higher value will make the outline of objects clearer. ―This option is not available when SAMSUNGMAGICBright is in Cinema or Dynamic Contrast mode. ―This menu is not available when SAMSUNGMAGICUpscale is in Mode1 or Mode2 mode. ―This menu is not available when Game Mode is enabled. SAMSUNGMAGICBrightSAMSUNGMAGICUpscalePictureBrightnessContrastSharpnessColorHDMI Black LevelAdjust the sharpness of the picture. Values closer to 100 mean a sharper image.Custom1007560OReturn -The displayed image may differ depending on the model.Conguring Sharpness1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Sharpness controlling the JOG button UP/DOWN and press the JOG button.4 Adjust the Sharpness controlling the JOG button LEFT/RIGHT.5 The selected option will be applied.
35ColorA detailed description of each function is provided. Refer to your product for details. ―Adjust the tint of the screen. This menu is not available when SAMSUNGMAGICBright is set to Cinema or Dynamic Contrast mode. ―This menu is not available when Game Mode is enabled. ―This menu is not available when Eye Saver Mode is enabled. SAMSUNGMAGICBrightSAMSUNGMAGICUpscalePictureBrightnessContrastSharpnessColorHDMI Black LevelCongure color settings.Custom1007560OReturn ColorRedGreenBlueColor ToneGamma505050NormalMode1Adjust the red saturation level. Values closer to 100 mean greater intensity for the color.Return -The displayed image may differ depending on the model.Conguring Color1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Color controlling the JOG button UP/DOWN and press the JOG button. •Red: Adjust the red saturation level. Values closer to 100 mean greater intensity for the color. •Green: Adjust the green saturation level. Values closer to 100 mean greater intensity for the color. •Blue: Adjust the blue saturation level. Values closer to 100 mean greater intensity for the color. •Color Tone: Select a color tone that best suits your viewing needs. -Cool 2: Set the color temperature to be cooler than Cool 1. -Cool 1: Set the color temperature to be cooler than Normal mode. -Normal: Display the standard color tone. -Warm 1: Set the color temperature to be warmer than Normal mode. -Warm 2: Set the color temperature to be warmer than Warm 1. -Custom: Customize the color tone. ―When the external input is connected through HDMI/DP and PC/AV Mode is set to AV, Color Tone has four color temperature settings (Cool, Normal, Warm and Custom). •Gamma: Adjust the middle level of luminance. -Mode1 / Mode2 / Mode34 Move to the desired option by controlling the JOG button and then press the JOG button.5 The selected option will be applied.
36SAMSUNG MAGIC UpscaleSAMSUNGMAGICUpscale function can enhance the layers of the picture details and the vividness of the picture. ―Adjust the tint of the screen. This menu is not available when SAMSUNGMAGICBright is set to Cinema or Dynamic Contrast mode. ―This menu is not available when Game Mode is enabled. SAMSUNGMAGICBrightSAMSUNGMAGICUpscalePictureBrightnessContrastSharpnessColorHDMI Black LevelEnhance picture detail and vividness.Custom10075OMode1Mode2Return -The displayed image may differ depending on the model.Conguring SAMSUNG MAGIC Upscale1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to SAMSUNGMAGICUpscale controlling the JOG button UP/DOWN and press the JOG button. •Off / Mode1 / Mode2 ―Comparing with Mode1, Mode2 has a stronger effect.4 Move to the desired option by controlling the JOG button and then press the JOG button.5 The selected option will be applied.
37HDMI Black LevelIf a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/color degradation, black level, etc.) may occur, depending on the connected source device. In such case, HDMI Black Level can be used to adjust the image quality.If this is the case, correct the degraded picture quality using HDMI Black Level. ―This function is only available in HDMI mode. 해제SAMSUNGMAGICBrightSAMSUNGMAGICUpscalePictureBrightnessContrastSharpnessColorHDMI Black LevelOptimize HDMI picture brightness and contrast by adjusting the black level of the video signal.NormalLowCustom1007560Return -The displayed image may differ depending on the model.Conguring the HDMI Black Level Settings1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to HDMI Black Level controlling the JOG button UP/DOWN and press the JOG button. •Normal: Select this mode when there is no contrast ratio degradation. •Low: Select this mode to reduce the black level and increase the white level when there is a contrast ratio degradation.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied. ―HDMI Black Level may not be compatible with some source devices. ―The HDMI Black Level feature is only activated at a certain AV resolution, such as 720P and 1080P.

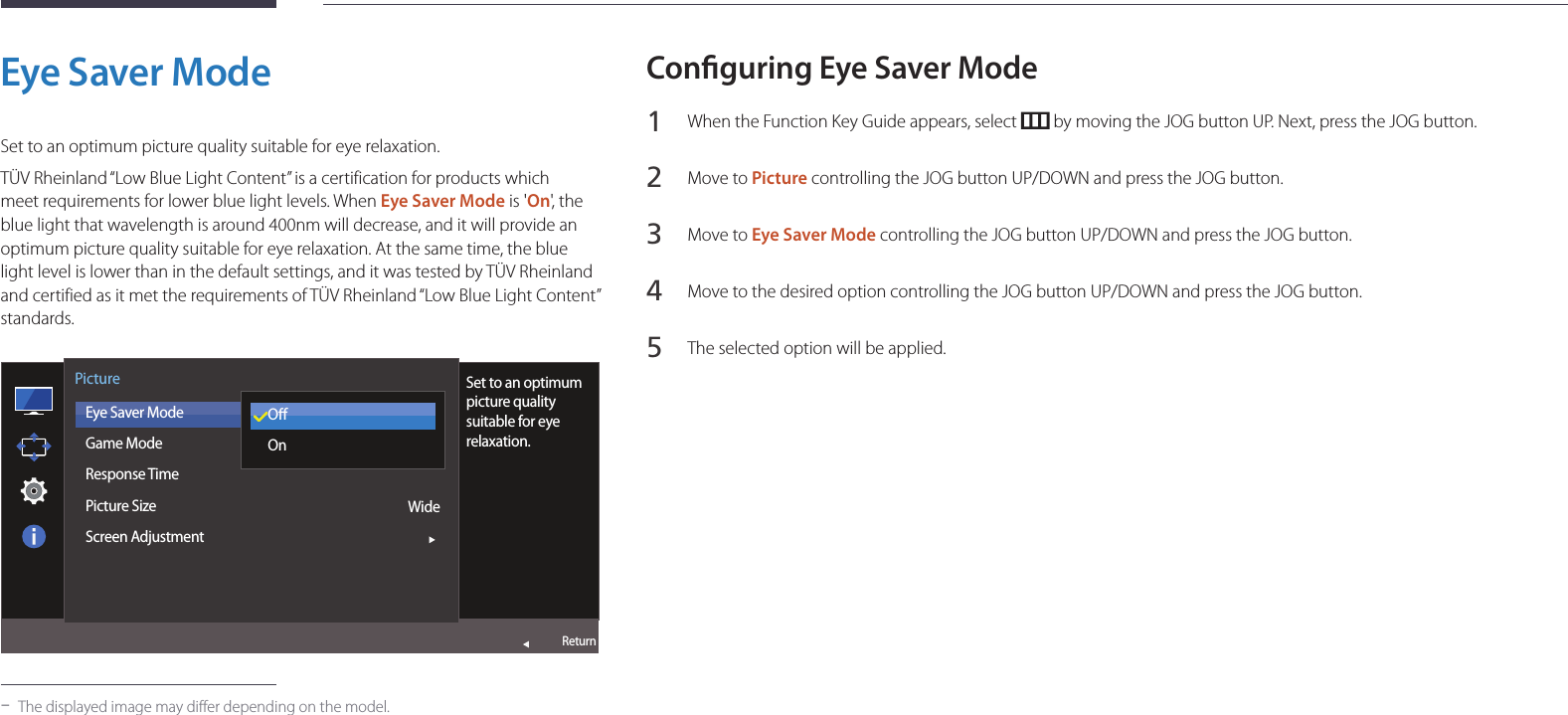

38Eye Saver ModeSet to an optimum picture quality suitable for eye relaxation.TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm will decrease, and it will provide an optimum picture quality suitable for eye relaxation. At the same time, the blue light level is lower than in the default settings, and it was tested by TÜV Rheinland and certified as it met the requirements of TÜV Rheinland “Low Blue Light Content” standards. PictureEye Saver ModeGame ModeResponse TimePicture SizeScreen AdjustmentSet to an optimum picture quality suitable for eye relaxation.WideOOnReturn -The displayed image may differ depending on the model.Conguring Eye Saver Mode1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Eye Saver Mode controlling the JOG button UP/DOWN and press the JOG button.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
39Game ModeConfigure the product screen settings for game mode.Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™ is connected. ―This menu is not available when Eye Saver Mode is enabled. 와이드PictureEye Saver ModeGame ModeResponse TimePicture SizeScreen AdjustmentOptimizes image settings for playing games.OOnAlways OnReturn -The displayed image may differ depending on the model.Conguring Game Mode1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Game Mode controlling the JOG button UP/DOWN and press the JOG button.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied. ―When the monitor turns off, enters power-saving mode or changes input sources, Game Mode turns Off even if it is set to On. ―If you want to keep Game Mode enabled all the time, select Always On.
40Response TimeAccelerate the panel response rate to make video appear more vivid and natural. ―It is best to set Response Time to Standard or Faster when you are not viewing a movie. Picture Accelerate the panel response rate to make video appear more vivid and natural.StandardFasterFastestEye Saver ModeGame ModeResponse TimePicture SizeScreen AdjustmentWideReturn -The displayed image may differ depending on the model.Conguring the Response Time1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Response Time controlling the JOG button UP/DOWN and press the JOG button. •Standard / Faster / Fastest4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
41Picture SizeChange the picture size.In PC mode PictureEye Saver ModeGame ModeResponse TimePicture SizeScreen AdjustmentChoose the size and aspect ratio of the picture displayed on screen.AutoWideOOReturn -The displayed image may differ depending on the model.Changing the Picture Size1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Picture Size controlling the JOG button UP/DOWN and press the JOG button.In PC mode •Auto: Display the picture according to the aspect ratio of the input source. •Wide: Display the picture in full screen regardless of the aspect ratio of the input source.

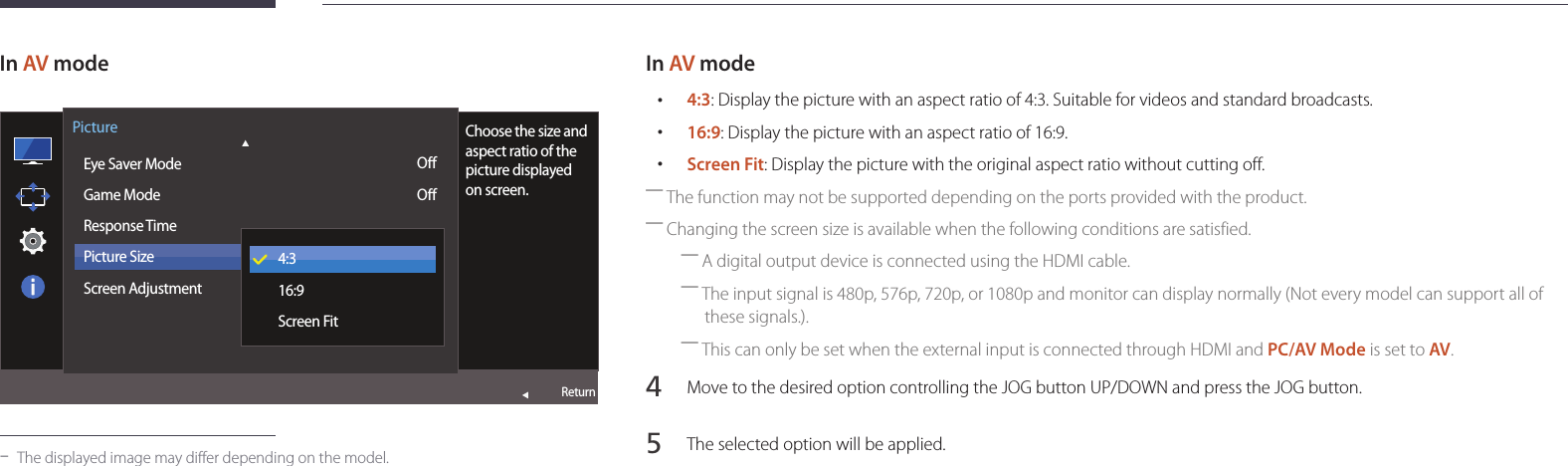

42In AV mode PictureEye Saver ModeGame ModeResponse TimePicture SizeScreen AdjustmentChoose the size and aspect ratio of the picture displayed on screen.4:316:9Screen FitOOReturn -The displayed image may differ depending on the model.In AV mode •4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts. •16:9: Display the picture with an aspect ratio of 16:9. •Screen Fit: Display the picture with the original aspect ratio without cutting off. ―The function may not be supported depending on the ports provided with the product. ―Changing the screen size is available when the following conditions are satisfied. ―A digital output device is connected using the HDMI cable. ―The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of these signals.). ―This can only be set when the external input is connected through HDMI and PC/AV Mode is set to AV.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
43Screen Adjustment ―This menu is available in Analog mode only. ―This menu is only available when Picture Size is set to Screen Fit in AV Mode.When a 480P or 576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select Screen Fit to adjust horizontal position in 0-6 levels. Screen AdjustmentH-PositionV-PositionCoarseFineMove the image displayed on the screen to the left or right.505022000Return Screen AdjustmentH-PositionV-PositionCoarseFineMove the image displayed on the screen up or down.505022000Return -The displayed image may differ depending on the model.Conguring H-Position & V-PositionH-Position: Move the screen to the left or right.V-Position: Move the screen up or down.1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Screen Adjustment controlling the JOG button UP/DOWN and press the JOG button.4 Move to the H-Position or V-Position controlling the JOG button UP/DOWN and press the JOG button.5 Adjust the H-Position or V-Position controlling the JOG button LEFT/RIGHT and press the JOG button.6 The selected option will be applied.
44Adjust the screen frequency. ―This menu is available in Analog mode only. Screen AdjustmentH-PositionV-PositionCoarseFineAdjust the screen frequency.505022000Return -The displayed image may differ depending on the model.Conguring Coarse1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Screen Adjustment controlling the JOG button UP/DOWN and press the JOG button.4 Move to the Coarse controlling the JOG button UP/DOWN and press the JOG button.5 Adjust the Coarse controlling the JOG button LEFT/RIGHT.6 The selected option will be applied.
45Fine-adjust the screen to obtain a vivid picture. ―This menu is available in Analog mode only. Screen AdjustmentH-PositionV-PositionCoarseFineReturnFine-tune the screen to get a vivid picture.505022000 -The displayed image may differ depending on the model.Conguring Fine1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.3 Move to Screen Adjustment controlling the JOG button UP/DOWN and press the JOG button.4 Move to the Fine controlling the JOG button UP/DOWN and press the JOG button.5 Adjust the Fine controlling the JOG button LEFT/RIGHT.6 The selected option will be applied.
46Coordinating OSDA detailed description of each function is provided. Refer to your product for details.Chapter 06TransparencySet the transparency for the menu windows. 한국어OnScreen DisplayTransparencyPositionLanguageDisplay TimeCongure the transparency of the menu windows.OOn20 secReturn -The displayed image may differ depending on the model.Changing Transparency1 When the Function Key Guide appears, select to display the corresponding menu screen.2 Move to OnScreen Display controlling the JOG button UP/DOWN and press the JOG button.3 Move to Transparency controlling the JOG button UP/DOWN and press the JOG button. •Off / On4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
47Position PositionH-PositionV-Position1000Move the menu position to the left or right.Return PositionH-PositionV-Position1000Move the menu position up or down.Return -The displayed image may differ depending on the model.Conguring PositionH-Position: Move the menu position to the left or right.V-Position: Move the menu position up or down.1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to OnScreen Display controlling the JOG button UP/DOWN and press the JOG button.3 Move to Position controlling the JOG button UP/DOWN and press the JOG button.4 Move to the H-Position or V-Position controlling the JOG button UP/DOWN and press the JOG button.5 Adjust the H-Position or V-Position controlling the JOG button LEFT/RIGHT and press the JOG button.6 The selected option will be applied.
48LanguageSet the menu language. ―A change to the language setting will only be applied to the onscreen menu display. ―It will not be applied to other functions on your PC. DeutschEnglishEspañolFrançaisItalianoOnScreen DisplayTransparencyPositionLanguageDisplay TimeReturnSet the menu language.On -The displayed image may differ depending on the model.Conguring Language1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to OnScreen Display controlling the JOG button UP/DOWN and press the JOG button.3 Move to Language controlling the JOG button UP/DOWN and press the JOG button.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
49Display TimeSet the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time.Display Time can be used to specify the time after which you want the OSD menu to disappear. OnScreen DisplayTransparencyPositionLanguageDisplay TimeSet how long the menu window will remain on screen for when it is not in use.5 sec10 sec20 sec200 secOnReturn -The displayed image may differ depending on the model.Conguring Display Time1 When the Function Key Guide appears, select to display the corresponding menu screen.2 Move to OnScreen Display controlling the JOG button UP/DOWN and press the JOG button.3 Move to Display Time controlling the JOG button UP/DOWN and press the JOG button. •5 sec / 10 sec / 20 sec / 200 sec4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
50Setup and ResetA detailed description of each function is provided. Refer to your product for details.Chapter 07Wireless Charging Wireless ChargingFreeSyncEco Saving PlusO TimerPC/AV ModeSource DetectionKey Repeat TimeSystemReturnEnable or disable Wireless Charginf.AutoAccelerationOOn -The displayed image may differ depending on the model.Conguring Wireless Charging1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to Wireless Charging controlling the JOG button UP/DOWN and press the JOG button. •Off / On4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
51FreeSyncThe sound quality of the monitor may decrease if FreeSync is enabled. Wireless ChargingFreeSyncEco Saving PlusO TimerPC/AV ModeSource DetectionKey Repeat TimeSystemReturnFreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. FreeSync can be operated when you use AMD's graphic card with supporting Freesync solution.AutoAccelerationOStandard EngineUltimate Engine -The displayed image may differ depending on the model.Conguring FreeSync1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to FreeSync controlling the JOG button UP/DOWN and press the JOG button. •Off •Standard Engine: You can experience standard FreeSync technology. •Ultimate Engine: You can experience maximized FreeSync technology. ―If the FreeSync function is enabled, the screen may flicker when you play games.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency.FreeSync can be operated when you use AMD's graphic card with supporting FreeSync solution.FreeSync is only supported by AMD graphics cards. Select FreeSync Off if you are using a graphics card from a different manufacturer.Please refer to the AMD's official website related situation.Only a few of the following types of AMD graphics card can support FreeSync, and need to install the AMD's latest official FreeSync driver. •Radeon R9 290X/290 •Radeon R9 285 •Radeon R7 260X/260 •AMD A10 “Kaveri” APU (ex. A10 7850K) – motherboard needs to have DP 1.2a for FreeSync to work.
52Point the right mouse button, select the AMD Catalyst Control Center.
53Eco Saving PlusThe Eco Saving Plus function reduces power consumption by controlling the electric current used by the monitor panel. ―This option is not available when SAMSUNGMAGICBright is in Dynamic Contrast mode. ―This menu is not available when Game Mode is enabled. ―This menu is not available when Eye Saver Mode is enabled. Wireless ChargingFreeSyncEco Saving PlusO TimerPC/AV ModeSource DetectionKey Repeat TimeSystemReturnAdjust the power consumption of the product to save energy.OnOAutoLowHigh -The displayed image may differ depending on the model.Conguring Eco Saving Plus1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to Eco Saving Plus controlling the JOG button UP/DOWN and press the JOG button. •Off: Deactivate the Eco Saving Plus function. •Auto: The power consumption will automatically be reduced by about 10% over the current setting.(The reduction of power consumption depends on the customer screen brightness condition.) •Low: The power consumption will be reduced by 25% over the default setting. •High: The power consumption will be reduced by 50% over the default setting.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
54O TimerYou can set the product to automatically turn off. Wireless ChargingFreeSyncEco Saving PlusO TimerPC/AV ModeSource DetectionKey Repeat TimeSystem Enable or disable the O Timer.OOOAutoAccelerationReturn 해제동작O TimerTurn O AfterO Timer Enable or disable the O Timer.OOnReturn -The displayed image may differ depending on the model.Conguring O Timer1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to Off Timer controlling the JOG button UP/DOWN and press the JOG button. •Off: Deactivate the off timer so that the product does not power off automatically. •On: Activate the off timer so that the product powers off automatically.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.

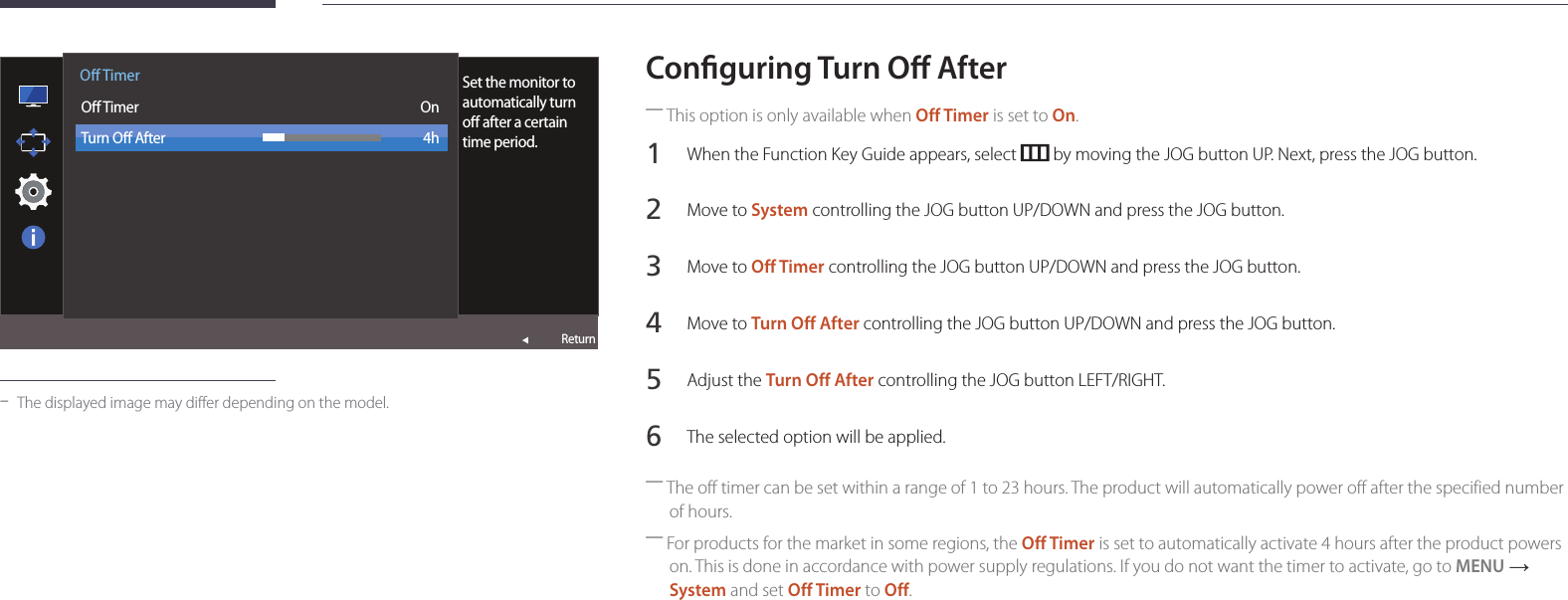

55 O TimerTurn O AfterO Timer Set the monitor to automatically turn o after a certain time period.On4hReturn -The displayed image may differ depending on the model.Conguring Turn O After ―This option is only available when Off Timer is set to On.1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to Off Timer controlling the JOG button UP/DOWN and press the JOG button.4 Move to Turn Off After controlling the JOG button UP/DOWN and press the JOG button.5 Adjust the Turn Off After controlling the JOG button LEFT/RIGHT.6 The selected option will be applied. ―The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours. ―For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to MENU System and set Off Timer to Off.
56PC/AV ModeSet PC/AV Mode to AV. The picture size will be enlarged.This option is useful when you view a movie. Wireless ChargingFreeSyncEco Saving PlusO TimerPC/AV ModeSource DetectionKey Repeat TimeSystem Set to AV to enlarge the picture.OOOAutoAccelerationReturn PC/AV ModeHDMIDisplayPortPCAVSelect the PC/AV mode for the HDMI source.Return -The displayed image may differ depending on the model. ―This function does not support Analog mode. ―Supplied for the wide models only such as 16:9 or 16:10. ―If the monitor is in HDMI, DisplayPort mode and the screen says Check Signal Cable or power saving mode activates, press the JOG button to display the function-button screen and then select the icon. You can select PC or AV.Conguring PC/AV Mode1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to PC/AV Mode controlling the JOG button UP/DOWN and press the JOG button.4 Move to the HDMI, DisplayPort controlling the JOG button UP/DOWN and press the JOG button. •Set to PC when connected to a PC. •Set to AV when connected to an AV device.5 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.6 The selected option will be applied.
57Source DetectionYou can activate Source Detection. Wireless ChargingFreeSyncEco Saving PlusO TimerPC/AV ModeSource DetectionKey Repeat TimeSystem Decide how input sources will be detected.AutoManualOOOReturn -The displayed image may differ depending on the model.Conguring Source Detection1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to Source Detection controlling the JOG button UP/DOWN and press the JOG button. •Auto: The input source is automatically recognized. •Manual: Manually select an input source.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
58Key Repeat TimeControl the response rate of a button when the button is pressed. 자동수동Wireless ChargingFreeSyncEco Saving PlusO TimerPC/AV ModeSource DetectionKey Repeat TimeSystemReturnCongure the response rate of a button when the button is pressed.Acceleration1 sec2 secNo RepeatOO -The displayed image may differ depending on the model.Conguring Key Repeat Time1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to Key Repeat Time controlling the JOG button UP/DOWN and press the JOG button. •Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is pressed.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.

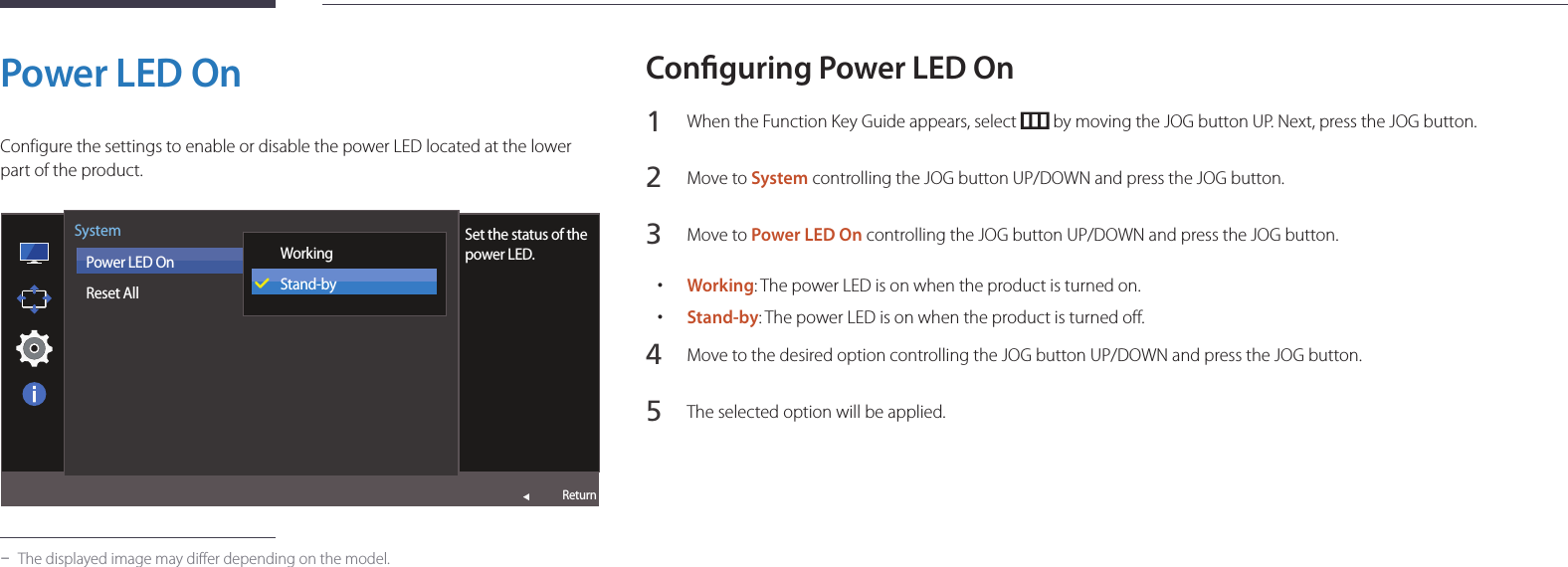

59Power LED OnConfigure the settings to enable or disable the power LED located at the lower part of the product. Power LED OnReset AllSystemReturnSet the status of the power LED.WorkingStand-by -The displayed image may differ depending on the model.Conguring Power LED On1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to Power LED On controlling the JOG button UP/DOWN and press the JOG button. •Working: The power LED is on when the product is turned on. •Stand-by: The power LED is on when the product is turned off.4 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5 The selected option will be applied.
60Reset AllReturn all the settings for the product to the default factory settings.Image Size Power LED OnReset AllReturnSystemStand-byReturn all the settings for the product to the default factory settings. All the menu settings will be reset to default. Are you sure you want to reset?Yes No -The displayed image may differ depending on the model.Initializing Settings (Reset All)1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to System controlling the JOG button UP/DOWN and press the JOG button.3 Move to Reset All controlling the JOG button UP/DOWN and press the JOG button.4 Move to the desired option controlling the JOG button LEFT/RIGHT and press the JOG button.5 The selected option will be applied.
61Information Menu and OthersA detailed description of each function is provided. Refer to your product for details.Chapter 08Information PictureOnScreen DisplaySystemInformationInformationExit***********kHz **Hz PP****x****Optimal Mode****x**** **Hz -The displayed image may differ depending on the model.Displaying InformationView the current input source, frequency and resolution.1 When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.2 Move to Information controlling the JOG button UP/DOWN and press the JOG button. The current input source, frequency and resolution will appear.
62Conguring Brightness, Contrast and Sharpness from the Initial ScreenYou can adjust Brightness, Contrast or Sharpness by moving the JOG button up or down, if no OSD menu is displayed.BrightnessContrastSharpness100 -The displayed image may differ depending on the model.Brightness ―This menu is not available when SAMSUNGMAGICBright is set to Dynamic Contrast mode. ―This menu is not available when Eco Saving Plus is enabled. ―This menu is not available when Eye Saver Mode is enabled.Contrast ―This menu is not available when SAMSUNGMAGICBright is in Cinema or Dynamic Contrast mode. ―This menu is not available when Game Mode is enabled.Sharpness ―This menu is not available when SAMSUNGMAGICBright is in Cinema or Dynamic Contrast mode. ―This menu is not available when Game Mode is enabled.1 Move the JOG button UP/DOWN to select Brightness, Contrast or Sharpness.2 Move the JOG button LEFT/RIGHT to adjust the Brightness, Contrast or Sharpness setting.
63Conguring Volume in the Initial ScreenYou can adjust Volume by moving the JOG button left or right, if no OSD menu is displayed.MuteVolume 50Mute -The displayed image may differ depending on the model.Volume1 Adjust the Volume controlling the JOG button LEFT/RIGHT. ―If the audio quality of a connected input device is poor, the Auto Mute function on the product may mute the sound or cause choppy audio when applying the headphones or speakers. Set the input volume for the input device to at least 20% and control the volume using the volume control (JOG button LEFT/RIGHT) on the product. ―What is Auto Mute?The function mutes the audio to improve sound effect when there is sound noise or when the input signal is weak, usually due to a problem with the volume of an input device. ―To activate the Mute function, access the Volume control screen, then use the JOG button to move the focus down.To deactivate the Mute function, access the Volume control screen, then increase or decrease the Volume.
64Installing the SoftwareChapter 09Easy Setting BoxEasy Setting BoxEasy Setting Box enables users to use the monitor by partitioning multiple sections.Installing the Software1 To install the latest version of Easy Setting Box, download it from the Samsung Electronics website at http://www.samsung.com.2 Select the Easy Setting Box setup program.3 When the Installation Wizard appears, click Next.4 Follow the instructions given on the screen to proceed with installation. ―The software may not work properly if you do not restart the computer after the installation. ―The Easy Setting Box icon may not appear depending on the computer system and the product specifications. ―If the shortcut icon does not appear, press the F5 key.Restrictions and Problems with the Installation (Easy Setting Box)The Easy Setting Box installation may be affected by the Graphics Card, Motherboard and the Networking Environment.System RequirementsOS •Windows Vista 32Bit/64Bit •Windows 7 32Bit/64Bit •Windows 8 32Bit/64Bit •Windows 8.1 32Bit/64BitHardware •At least 32MB of memory •At least 60MB of free space on the hard disk driveRemoving the SoftwareClick Start, select Settings/Control Panel, and then double-click Add or Remove Programs.Select Easy Setting Box from the program list and click the Add/Delete button.
65Troubleshooting GuideChapter 10Requirements Before Contacting Samsung Customer Service CenterBefore calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center.Testing the ProductCheck if your product is operating normally by using the product test function.If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test.1 Power off both the PC and product.2 Disconnect the cables from the product.3 Power on the product.4 If the message Check Signal Cable appears, the product is working normally.Checking the Resolution and FrequencyFor a mode that exceeds the supported resolution(refer to Standard Signal Mode Table), the message Not Optimum Mode will appear for a short time. ―The displayed resolution may vary, depending on the computer system settings and cables.If the screen remains blank, check the PC system, video controller and cable.
66Check the following.Installation issue (PC mode)Issues SolutionsThe screen keeps switching on and o.Check the cable connection between the product and PC, and ensure the connectors are locked.Blank spaces are found on all four sides of the screen when an HDMI or HDMI-DVI cable is connected to the product and PC.The blank spaces found on the screen have nothing to do with the product.Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the screen size in the HDMI or DVI settings for the graphics card.If the graphics card settings menu does not have an option to adjust the screen size, update the graphics card driver to the latest version.(Please contact the graphics card or computer manufacturer for further details about how to adjust the screen settings.)Screen issueIssues SolutionsThe power LED is o. The screen will not switch on.Check that the power cable is connected properly.The message Check Signal Cable appears.Check that the cable is properly connected to the product.Check that the device connected to the product is powered on.Not Optimum Mode is displayed.This message appears when the signal from the graphics card exceeds the maximum resolution or frequency for the product.Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (P. 74).The images on the screen look distorted.Check the cable connection to the product.
67Issues SolutionsThe screen is not clear. The screen is blurry.Adjust Coarse and Fine.Remove any accessories (video extension cable, etc.) and try again.Set the resolution and frequency to the recommended level.The screen appears unstable and shaky.Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (P. 74) in this manual and the Information menu on the product.There are shadows or ghost images left on the screen.The screen is too bright. The screen is too dark.Adjust Brightness and Contrast.Screen color is inconsistent.Change the Color settings.The colors on the screen have a shadow and are distorted.Change the Color settings.White does not really look white.Change the Color settings.There is no image on the screen and the power LED blinks every 0.5 to 1 second.The product is operating in power-saving mode.Press any key on the keyboard or move the mouse to return to normal operating mode.Text is blurry.If using a Windows OS (e.g. Windows 7, Windows 8 or Windows 8.1): Go to Control Panel Fonts Adjust ClearType text and change Turn on ClearType.Video playback is choppy.Playback of high-definition large video files can be choppy. This may be because the video player is not optimized for the computer resource. Try playing the file on another video player.
68Sound issueIssues SolutionsThere is no sound.Check the connection of the audio cable or adjust the volume.Check the volume.The volume is too low.Adjust the volume.If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software program.Video is available but there is no sound.Sound cannot be heard if a HDMI-DVI cable is used to connect the input device.Connect the device using an HDMI cable or a DP cable.Source device issueIssues SolutionsA beeping sound is heard when my PC is booting.If a beeping sound is heard when your PC is booting, have your PC serviced.
69Q & AQuestion AnswerHow can I change the frequency?Set the frequency on your graphics card. •Windows XP: Go to Control Panel Appearance and Themes Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings. •Windows ME/2000: Go to Control Panel Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings. •Windows Vista: Go to Control Panel Appearance and Personalization Personalization Display Settings Advanced Settings Monitor, and adjust Refresh rate under Monitor settings. •Windows 7: Go to Control Panel Appearance and Personalization Display Screen Resolution Advanced settings Monitor, and adjust Refresh rate under Monitor settings. •Windows 8(Windows 8.1): Go to Settings Control Panel Appearance and Personalization Display Screen Resolution Advanced settings Monitor, and adjust Refresh rate under Monitor settings.How can I change the resolution? •Windows XP: Go to Control Panel Appearance and Themes Display Settings, and adjust the resolution. •Windows ME/2000: Go to Control Panel Display Settings, and adjust the resolution. •Windows Vista: Go to Control Panel Appearance and Personalization Personalize Display Settings, and adjust the resolution. •Windows 7: Go to Control Panel Appearance and Personalization Display Adjust Resolution, and adjust the resolution. •Windows 8(Windows 8.1): Go to Settings Control Panel Appearance and Personalization Display Adjust Resolution, and adjust the resolution.Refer to the user manual for your PC or graphics card for further instructions on adjustment.

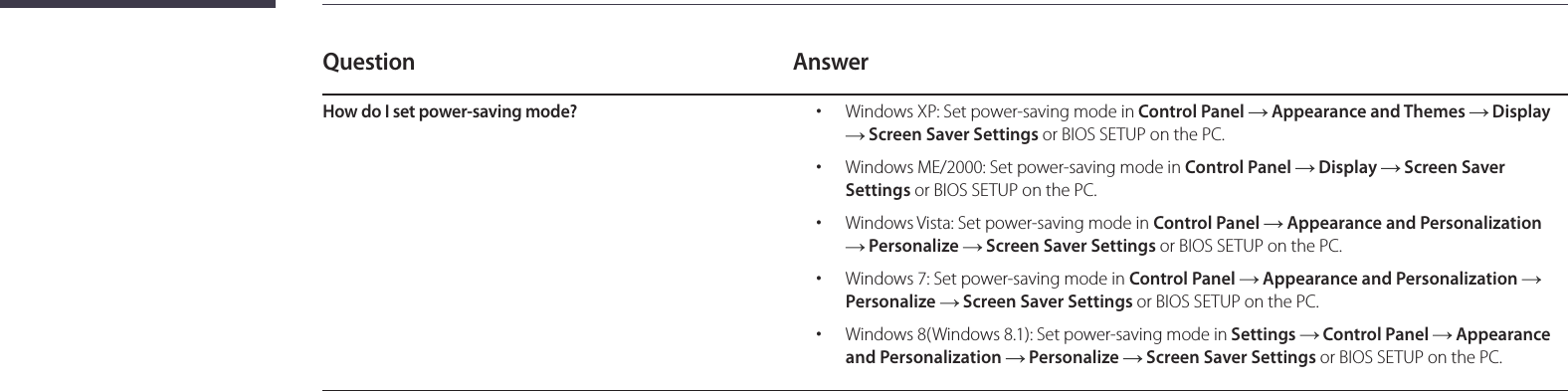

70Question AnswerHow do I set power-saving mode? •Windows XP: Set power-saving mode in Control Panel Appearance and Themes Display Screen Saver Settings or BIOS SETUP on the PC. •Windows ME/2000: Set power-saving mode in Control Panel Display Screen Saver Settings or BIOS SETUP on the PC. •Windows Vista: Set power-saving mode in Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC. •Windows 7: Set power-saving mode in Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC. •Windows 8(Windows 8.1): Set power-saving mode in Settings Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.

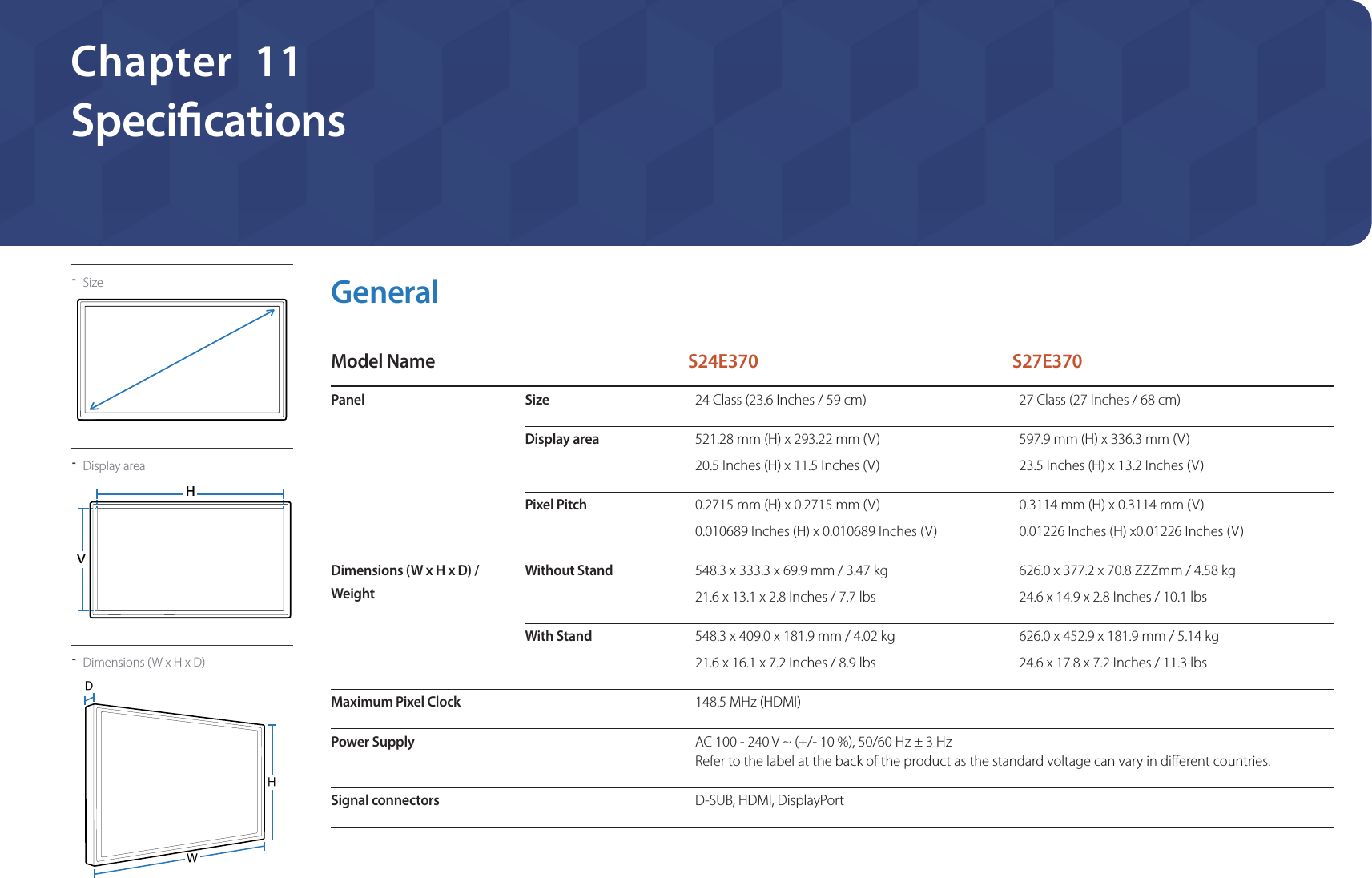

71SpecicationsChapter 11- Size- Display areaHV- Dimensions (W x H x D)WDHGeneralModel Name S24E370 S27E370Panel Size24 Class (23.6 Inches / 59 cm) 27 Class (27 Inches / 68 cm)Display area521.28 mm (H) x 293.22 mm (V)20.5 Inches (H) x 11.5 Inches (V)597.9 mm (H) x 336.3 mm (V)23.5 Inches (H) x 13.2 Inches (V)Pixel Pitch0.2715 mm (H) x 0.2715 mm (V)0.010689 Inches (H) x 0.010689 Inches (V)0.3114 mm (H) x 0.3114 mm (V)0.01226 Inches (H) x0.01226 Inches (V)Dimensions (W x H x D) / WeightWithout Stand548.3 x 333.3 x 69.9 mm / 3.47 kg21.6 x 13.1 x 2.8 Inches / 7.7 lbs626.0 x 377.2 x 70.8 ZZZmm / 4.58 kg24.6 x 14.9 x 2.8 Inches / 10.1 lbsWith Stand548.3 x 409.0 x 181.9 mm / 4.02 kg21.6 x 16.1 x 7.2 Inches / 8.9 lbs626.0 x 452.9 x 181.9 mm / 5.14 kg24.6 x 17.8 x 7.2 Inches / 11.3 lbsMaximum Pixel Clock148.5 MHz (HDMI)Power SupplyAC 100 - 240 V ~ (+/- 10 %), 50/60 Hz ± 3 Hz Refer to the label at the back of the product as the standard voltage can vary in different countries.Signal connectorsD-SUB, HDMI, DisplayPort
72Model Name S24E370 S27E370Environmental conditions OperatingTemperature: 50 F – 104 F (10 C – 40 C)Humidity: 10 % – 80 %, non-condensingStorageTemperature: -4 F – 113 F (-20 C – 45 C)Humidity: 5 % – 95 %, non-condensing ―Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. ―Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. ―The above specifications are subject to change without notice to improve quality. ―This device is a Class B digital apparatus.(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
73PowerSaverThe power-saving function of this product reduces power consumption by switching off the screen and changing the color of the power LED if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Power-saving mode only functions when the product is connected to a PC with a power-saving function.PowerSaver Power Consumption Power saving mode Power o (Power button)Power IndicatorOff Blinking OnPower ConsumptionS24E370Typical 18.5 W Typical 0.3 WMax 0.45 WLess than 0.3 WS27E370Typical 17.8 W ―The displayed power consumption level can vary in different operating conditions or when settings are changed. ―ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.Energy Star power is measured with the test method in the current Energy Star® Standard. ―SOG(Sync On Green) is not supported. ―To reduce the power consumption to 0, disconnect the power cord. Disconnect the power cable if you will not be using the product for an extended period of time (during vacation, etc.)
74Standard Signal Mode Table -This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for your product.Model Name S24E370 / S27E370Synchronization Horizontal Frequency30 – 81 kHzVertical Frequency56 – 75 HzResolution Optimum resolution1920 x 1080 @ 60 HzMaximum resolution1920 x 1080 @ 60 HzIf a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.Resolution Horizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)VESA, 640 x 48031.469 59.940 25.175 -/-VESA, 800 x 60035.156 56.250 36.000 +/+VESA, 800 x 60037.879 60.317 40.000 +/+VESA, 1024 x 76848.363 60.004 65.000 -/-VESA, 1280 x 72045.000 60.000 74.250 +/+VESA, 1280 x 80049.702 59.810 83.500 -/+VESA, 1280 x 102463.981 60.020 108.000 +/+VESA, 1440 x 90055.935 59.887 106.500 -/+VESA, 1600 x 900 RB60.000 60.000 108.000 +/+
75Resolution Horizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)VESA, 1680 x 105065.290 59.954 146.250 -/+VESA, 1920 x 108067.500 60.000 148.500 +/+ -Horizontal FrequencyThe time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz. -Vertical FrequencyRepeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
76AppendixChapter 12Responsibility for the Pay Service (Cost to Customers) ―When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases.Not a product defectCleaning of the product, Adjustment, Explanation, Re-installation and etc. •If a service technician gives instructions on how to use product or simply adjusts options without disassembling product. •If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.) •If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time. •If a product is reinstalled to move to a different spot or to move to a different house. •If customer requests instructions on how to use because of another company's product. •If customer requests instructions on how to use the network or another company's program. •If customer requests software installation and setup for the product. •If a service technician removes/cleans dusts or foreign materials inside of the product. •If customer requests an installation additionally after purchasing a product through home-shopping or online.A Product damage caused by customer's faultProduct damage caused by customer's mishandling or wrong repairIf a product damage is caused by; •External impact or drop. •Use of supplies or separatly sold product unspecified by Samsung. •Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd. •Remodeling or repairing the product by customer. •Using it with incorrect voltage or non-authorised electrical connections. •Not following the "cautions" in User Manual.Others •If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc) •If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.) ―If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.
77TerminologyOSD (On Screen Display)____ On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as required. You can change the screen brightness, tint, size and many other settings using menus displayed on the screen.Gamma____ The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.Grey scale____ Scale refers to levels of color intensity that show variations of color change from darker areas to brighter areas on the screen. Changes to the screen brightness are expressed with black and white variation, and grey scale refers to the medium area between black and white. Changing the grey scale through Gamma adjustment will change the medium brightness on the screen.Scanning rate____ Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that the screen refreshes 60 times per second. The screen scanning rate depends on the performance of the graphics cards in your PC and monitor.Dot Pitch____ The product and screen consist of red, green and blue dots.A shorter distance between the dots produces a higher resolution. Dot pitch refers to the distance between the shortest distance between dots of the same color. Dot pitch is measured in millimeters.Horizontal Frequency____ Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal frequency is measured in kHz and represents how many times horizontal lines per second are transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the horizontal lines that make up an image are transmitted 85000 times per second. The horizontal frequency is indicated in 85kHz.Vertical Frequency____ One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and represents how many images can be created per second by those horizontal lines. A vertical frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is also called "refresh rate" and affects screen flicker.Resolution____ Resolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the level of display detail. A higher resolution displays a greater amount of information on the screen and is suitable for performing multiple tasks at the same time.E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080 vertical lines (vertical resolution).Plug & Play____ The Plug & Play feature allows the automatic exchange of information between a monitor and PC to produce an optimum display environment.The monitor uses VESA DDC (international standard) to execute Plug & Play.
