Users Manual

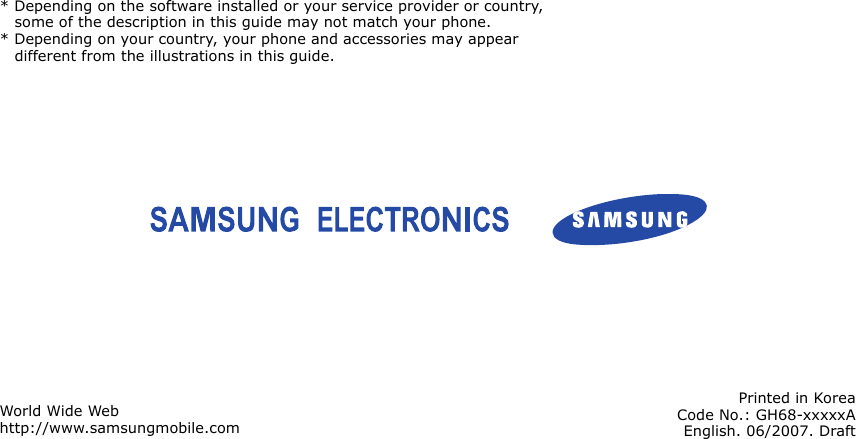

World Wide Webhttp://www.samsungmobile.com* Depending on the software installed or your service provider or country, some of the description in this guide may not match your phone.* Depending on your country, your phone and accessories may appear different from the illustrations in this guide. Printed in KoreaCode No.: GH68-xxxxxAEnglish. 06/2007. Draft

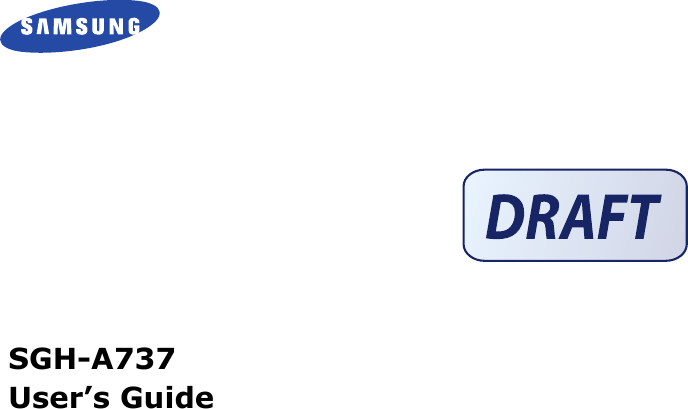

SGH-A737User’s Guide
ImportantsafetyprecautionsFailure to comply with the following precautions may be dangerous or illegal.Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance.
Important safety precautions1Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Useof any unauthorised accessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 23.• The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions.At very high volumes, prolonged listening to a headset can damage your hearing.
2ContentsUnpack 4Make sure you have each itemGet started 5First steps to operating your phoneInstall and charge the phone ..................................... 5Power on or off........................................................ 6Keys and display ..................................................... 6Menu functions 9 All menu options listedSolve problems 17Help and personal needsHealth and safety information 19
3Overview of menu functionsTo access Menu mode, press <Menu> in Idle mode.1 AT&T Music2 2 Messaging1 Create New Message2 Inbox3 Mobile Email4 IM5 Sent6 Outbox7 Drafts8 My Folder9 Templates10 Delete All11 Message Settings12 Memory Status3 Recent Calls1 All Calls2 Missed Calls3 Calls Made4 Calls Received5 Voice Mail6 Speed Dial7 Delete All8 Call Time9 Data Volume10 Data Call Time11 Call Cost4 MEdia Net1 MEdia Net2 Enter URL3 Favorites4 Saved page5 History6 Advanced7 Browser Settings5 AT&T Mall1 Shop Tones2 Shop Games3 Shop Graphics4 Shop Multimedia5 Shop Applications6 MEdia Net Home6 Cellular Video7 My Stuff8 Address Book9 Settings1 Profiles2 Display & Light Settings3 Time & Date4 Phone Settings5 Call Settings6 Connectivity7 Applications Settings8 Security9 Software Update10 Reset Settings11 Memory Status12 Phone Information
4UnpackYour package contains the following items.•Handset• Battery•Travel Adapter•User’s GuideIn addition, you can obtain various accessories from your local Samsung dealer.•Standard Battery• Extended Battery• Battery Charger•Headset• PC Data Link Kit• Car Charger/AdaptorThe items supplied with your phone and the accessories at your Samsung dealer may vary, depending on your country or service provider.Your phone

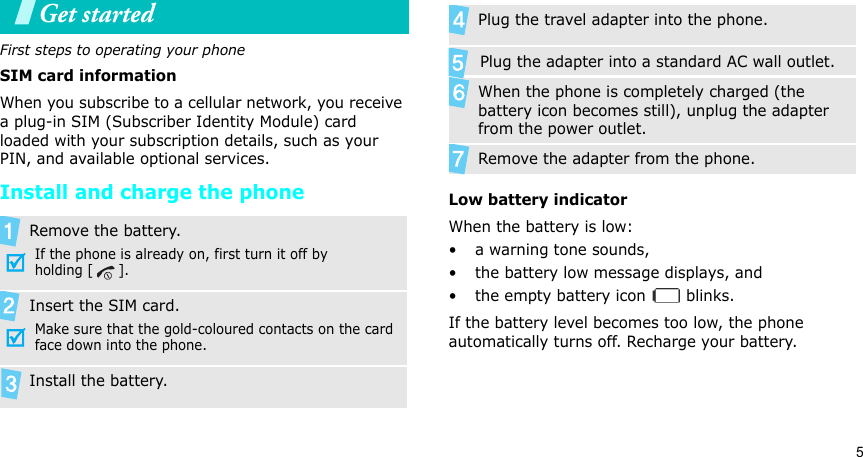

5Get startedFirst steps to operating your phoneSIM card informationWhen you subscribe to a cellular network, you receive a plug-in SIM (Subscriber Identity Module) card loaded with your subscription details, such as your PIN, and available optional services.Install and charge the phoneLow battery indicatorWhen the battery is low:• a warning tone sounds,• the battery low message displays, and• the empty battery icon blinks.If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Remove the battery.If the phone is already on, first turn it off by holding [ ].Insert the SIM card.Make sure that the gold-coloured contacts on the card face down into the phone.Install the battery. Plug the travel adapter into the phone. Plug the adapter into a standard AC wall outlet. When the phone is completely charged (the battery icon becomes still), unplug the adapter from the power outlet.Remove the adapter from the phone.
6Get startedPower on or off Keys and displaySwitch onDo not turn on the phone when mobile phone use is prohibited.1. Open the phone.2. Press and hold [ ] to turn on the phone.3. If necessary, enter the PIN and press <OK>.Switch off1. Open the phone.2. Press and hold [ ].Key(s) DescriptionSoft keysPerform the function indicated on the bottom line of the display.Navigation keysIn Idle mode, access your favourite menus, directly.In Menu mode, scroll through the menu options.AT&T key In Idle mode, launch the web browser.In Menu mode, select the highlighted menu option.Cancel key Delete characters from the display.In Menu mode, return to the previous menu level.
7Get startedSEND key Send or answer a call.In Idle mode, retrieve the recent numbers dialled, missed, or received.ENDkey End a call. Press and hold to switch the phone on and off. In Menu mode, cancel input and return the phone to Idle mode.Numeric keysEnter numbers, letters, and some special characters.In Idle mode, press and hold [1] to access your voicemail server. Press and hold [0] to enter the international call prefix.* key In Idle mode, press and hold [ ] to enter a pause between numbers.# key Press and hold [ ] to activate or deactivate Quiet mode.Volume keysAdjust the phone volume.In Idle mode, with the phone open, adjust the keypad tone volume. With the phone closed, press and hold to activate the external display.Applicationswitch keyOpen the application switch window to access other applications without exiting the current application.
8Get startedDisplayLayoutIcons*(continued)Received signal strengthAccessing services in a 2.5G (GPRS) network; when transferring data, this icon animatesEDGE network3G (UMTS) networkRoaming networkVoice call in progressText and graphicsdisplay messages, instructions, and information you enter.Soft key function indicatorsshow the current functions assigned to the two soft keys.Menu IMIconsdisplay various icons.IconsOut of your service area; you cannot send or receive voice callsConnected with PC via USB portBrowsing Internet on PC using the phone as modemNew message:Inbox full:Profile settingBattery power level* The icons shown on the display may vary, dependingon your country or service provider.
9Menu functionsAll menu options listedAT&T Music (Menu 1)AT&T Music‚ is a music service which provides you access to Streaming Music, Music Videos, Music store, Music communities, music applications, and a unique MusicID application.Music PlayerThe Music Player is a component of the built in Media Player which is an application that can play music files. Shop MusicAT&T Music‚ can be used to shop for ringtones, Answer Tones‚ and songs from some of your favorite music stores.MusicIDMusicID is an application which uses the onboard microphone to analyze a song sample and then compare it to a remote database of songs. Once the application completes the analysis of the song sample, it then provides you with the name of the song, artist and album art as well as opportunities to buy related content.Streaming MusicThis service allows you to stream over 40 channels of commercial free music through your handset.Music VideoThe Music Videos homepage is a component of the Cellular Video service. This page provides you with links to some of the most popular multimedia content.
10Menu functionsThe BuzzThis service allows you to navigate through Top 20 chart songs (in a variety of categories). Other features of this service include streaming entertainment news about your favorite music artists, access to an artists main page (containing discographies, ringtones, concert dates,etc..), concert information, games, and setup options for your own personal billboard notifications.CommunityThis Community is a place where you can find a listing of various fan sites that provide sound clips, wallpapers, bios, discographies, and other information about an artist.Music AppsMessaging (Menu 2)Use the Messaging menu to send and receive text messages, multimedia messages, and e-mails. You can also use push message and cell broadcast message features.To access this menu, press <Menu> in Idle mode and select Messaging.Create New MessageUse this menu to create and send text messages, multimedia messages, or e-mails. You can also send files using MMS.InboxThis folder stores all types of messages you have received, except for e-mails.

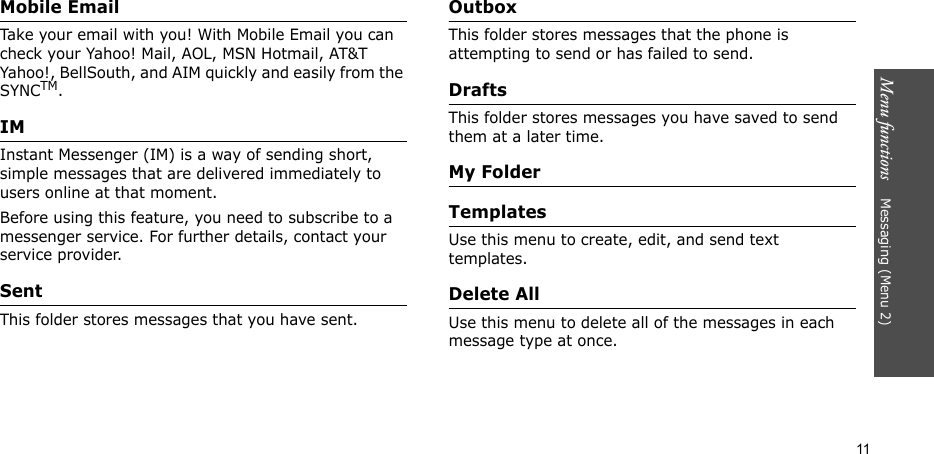

Menu functions Messaging (Menu 2)11Mobile EmailTake your email with you! With Mobile Email you can check your Yahoo! Mail, AOL, MSN Hotmail, AT&T Yahoo!, BellSouth, and AIM quickly and easily from the SYNCTM.IMInstant Messenger (IM) is a way of sending short, simple messages that are delivered immediately to users online at that moment.Before using this feature, you need to subscribe to a messenger service. For further details, contact your service provider.SentThis folder stores messages that you have sent.OutboxThis folder stores messages that the phone is attempting to send or has failed to send. DraftsThis folder stores messages you have saved to send them at a later time.My FolderTemplatesUse this menu to create, edit, and send text templates.Delete AllUse this menu to delete all of the messages in each message type at once.
12Menu functionsMessaging SettingsUse this menu to customize the settings for IM, SMS, MMS, E-mail, Push message, and Broadcast.Memory StatusUse this menu to check the total amount of memory for storing messages and the amount of memory currently being used in each message box.Recent Calls (Menu 3)Use this menu to view the calls you have dialed, received, or missed, and the length of calls. You can also check the cost of your calls, if your SIM card supports this function.To access this menu, press <Menu> in Idle mode and select Recent Calls.All CallsThe phone stores the numbers of the calls you’ve dialed, received, or missed. You can access these functions from Idle or Menu mode.Missed CallsThis menu displays the most recent calls you did not answer.

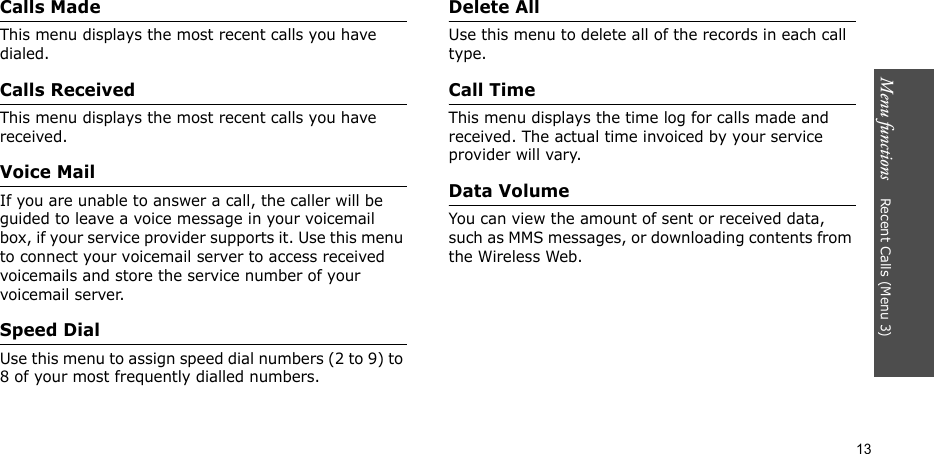

Menu functions Recent Calls (Menu 3)13Calls MadeThis menu displays the most recent calls you have dialed.Calls ReceivedThis menu displays the most recent calls you have received.Voice MailIf you are unable to answer a call, the caller will be guided to leave a voice message in your voicemail box, if your service provider supports it. Use this menu to connect your voicemail server to access received voicemails and store the service number of your voicemail server.Speed DialUse this menu to assign speed dial numbers (2 to 9) to 8 of your most frequently dialled numbers.Delete AllUse this menu to delete all of the records in each call type.Call TimeThis menu displays the time log for calls made and received. The actual time invoiced by your service provider will vary.Data VolumeYou can view the amount of sent or received data, such as MMS messages, or downloading contents from the Wireless Web.
14Menu functionsData Call TimeYou can view the call time of the data calls you have received or sent, such as MMS messages, or downloading contents from the Wireless Web.Call CostThis network feature displays the cost of calls. This menu is available only if your SIM card supports this feature. Note that this is not intended to be used for billing purposes.MEdia Net (Menu 4)Your phone is equipped with a WAP (Wireless Application Protocol) browser to allow you to access and navigate the Wireless Web using your phone.To access this menu, press Menu in Idle mode and select MEdia Net.MEdia NetUse this menu to connect your phone to the network and load the homepage of the wireless web service provider.Enter URLUse this menu to manually enter a URL address and access the associated web page.You can add the entered URL to the Bookmark list by selecting Add bookmark.
Menu functions AT&T Mall (Menu 5)15FavoritesUse this menu to save URL addresses in order to quickly access web pages, or access the preset bookmarks.Saved pageYou can access the list of pages you have saved while online.HistoryYou can access the list of pages you have accessed recently.AdvancedYou can clear the information stored in the cache, which is the phone°Øs temporary memory which stores the most recently accessed Web pages.AT&T Mall (Menu 5)You can access the web site preset by your service provider to download various items, such as melodies, MIDlets, images, applications.To access this menu, press Menu in Idle mode and select AT&T Mall.Shop TonesYou can access the web site preset by your service provider to download melodies.Shop GamesYou can access the web site preset by your service provider to download games.Shop GraphicsYou can access the web site given by your service provider to download images.
16Menu functionsShop MultimediaYou can access the web site preset by your service provider to download images or sounds.Shop ApplicationsYou can access the web site preset by your service provider so that you can download more Java games and applications.MEdia Net HomeYou can access the homepage of the Wireless web site preset by your service provider.Cellular Video (Menu 6)Your phone is equipped with a WAP (Wireless Application Protocol) browser which allows you to access Internet and then upload media files directly to your phone. These media files are displayed using the built-in Media Player. Cellular Video (CV) is a media service which allows you to not only navigate to your favorite web sites but stream media content (Weather, News/Sports highlights, etc..) directly to your phone.My Stuff (Menu 7)My Stuff stores file downloads for the following: Audio, Graphics, Video, Music, Games/Apps, Applications, Other Files, Memory Card, and Memory Status.
Menu functions 17Address Book (Menu 8)You can store phone numbers on your SIM card and in your phone’s memory. The SIM card and phone’s memory are physically separate, but they are used as a single entity called Phonebook.To access this menu, press Menu in Idle mode and select Address Book.Settings (Menu 9)Use this menu to customize your phone settings. You can also reset the settings to their default values.To access this menu, press Menu in Idle mode and select Settings.ProfilesTo access the available options for this calling profile, press the Options soft key. Highlight Edit and press the Select soft key or the key. Use the Left and Right Navigation keys to move between the various tabs. The phone can be set to additional audio profiles which are available via the Profiles menu. Although each profiles has similarities, they have each been preset to use different audio parameters for incoming phone call alerts, message alerts, and phone usage.
18Menu functionsDisplay and Light SettingsUse this menu to change settings for the display and light.You can:• change the background image.• select a skin color pattern for Menu mode.• specify whether or not the phone displays text.• adjust the brightness of the display for varying lighting conditions.• select the length of time the backlight and the display stay on.• select a font color for the numbers entered while dialling.• activate the service light feature.Time & DateUse this menu to change setting for the time and date. Before setting the time and date, specify your time zone in the World Time menu.You can:• set the time and date.• change the time format.• set whether the calendar starts with Sunday or Monday.• set the phone to receive time information from the network.
Menu functions Settings (Menu 9)19Phone SettingsMany different features your phone’ system can be customized to suit your preferences.You can:• select a language to be used for text display.• set the greeting to be displayed when the phone is switched on.• use the Navigation keys as shortcuts to access specific menus directly from Idle mode.• activate or deactivate auto redialing, Anykey Answer and Active folder features.Calls SettingsUse this menu to set options for call functions.ConnectivityUse this menu to access network services. Please contact your service provider to check their availability and subscribe to them, if you wish.Applications SettingsThe Application Settings feature allows you to configure the functional parameters for most of the on board applications.SecurityUse this menu to protect the phone against unauthorized use by managing the several access codes of your phone and SIM card.You can:• activate the PIN check feature which lets the phone prompt you to enter the PIN code each time you turn on the phone.
20Menu functions• change your PIN/PIN2 code or phone password.• lock your phone.• lock your media contents.• activate the Fixed Dialing Number (FDN) mode to restrict outgoing calls, except to numbers on the SIM card.Software UpdateThe Software Update feature enables you to use your phone to connect to the network and upload any new phone software directly to your phone.Reset SettingsUse this menu to reset the phone settings, display settings, sound settings, individually. You can also reset all of these settings at the same time.Memory StatusUse this menu to check the amount of memory being used for storing data, such as messages, media files, calendar data, or Contacts entries. You can view the amount of shared memory.Phone Information
Solve problems Settings (Menu 9)21Solve problemsHelp and personal needsTo save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional.When you switch on your phone, the following messages may appear:“Insert SIM”• Be sure that the SIM card is correctly installed.“Phone lock”• The automatic locking function has been enabled. You must enter the phone’s password before you can use the phone.“Enter PIN”• You are using your phone for the first time. You must enter the PIN supplied with the SIM card.• The PIN check feature is enabled. Every time the phone is switched on, the PIN has to be entered. To disable this feature, use the PIN check menu.“Enter PUK”• The PIN code has been entered incorrectly three times in succession, and the phone is now blocked. Enter the PUK supplied by your service provider.“No service,” “Network failure,” or “Not done” displays• The network connection has been lost. You may be in a weak signal area. Move and try again.• You are trying to access an option for which you have no subscription with your service provider. Contact the service provider for further details.You have entered a number but it was not dialled• Be sure that you have pressed [ ].• Be sure that you have accessed the right cellular network.• Be sure that you have not set an outgoing call barring option.Your correspondent cannot reach you• Be sure that your phone is switched on. ([ ] pressed for more than one second.)E760-2.fm Page 21 Wednesday, June 27, 2007 1:20 PM
22Solve problems• Be sure that you are accessing the correct cellular network.• Be sure that you have not set an incoming call barring option.Your correspondent cannot hear you speaking• Be sure that you have switched on the microphone.• Be sure that you are holding the phone close enough to your mouth. The microphone is located at the bottom of the phone.The phone starts beeping and “Battery low” flashes on the display• Your battery is insufficiently charged. Recharge the battery.The audio quality of the call is poor• Check the signal strength indicator on the display ( ). The number of bars indicates the signal strength from strong ( ) to weak ( ).• Try moving the phone slightly or moving closer to a window if you are in a building.No number is dialled when you re-call a Phonebook entry• Use the Contact list feature to ensure the number has been stored correctly.• Re-store the number, if necessary.The battery doesn’t charge properly or the phone sometimes turns itself off• Wipe the charging contacts both on the phone and on the battery with a clean soft cloth.If the above guidelines do not help you to solve the problem, take note of:• The model and serial numbers of your phone•Your warranty details• A clear description of the problemThen contact your local dealer or Samsung after-sales service.E760-2.fm Page 22 Wednesday, June 27, 2007 1:20 PM
Health and safety information 23Health and safety informationExposure to radio frequency(RF) signalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.E760-2.fm Page 23 Wednesday, June 27, 2007 1:20 PM
24Health and safety informationBefore a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. The highest SAR values for this model phone as reported to the FCC are : 850 Head: 0.602 W/Kg, Body-worn: 0.572 W/Kg.1900 Head: 1.28 W/Kg, Body-worn: 0.677 W/Kg. For body worn operations, this model phone has been testde and meets the FCC exposure guidelines when used with a Samsung accessory designated for this product or when used with an accessroy that contains no metal and that positons the handset a minimum 1.5 cm from the body. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.SAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. This site uses the phone FCC ID number A3LSGHA737.Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar.Consumer Information on Wireless PhonesThe U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called “cell,” “mobile,” or “PCS” phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is E760-2.fm Page 24 Thursday, August 23, 2007 3:06 PM

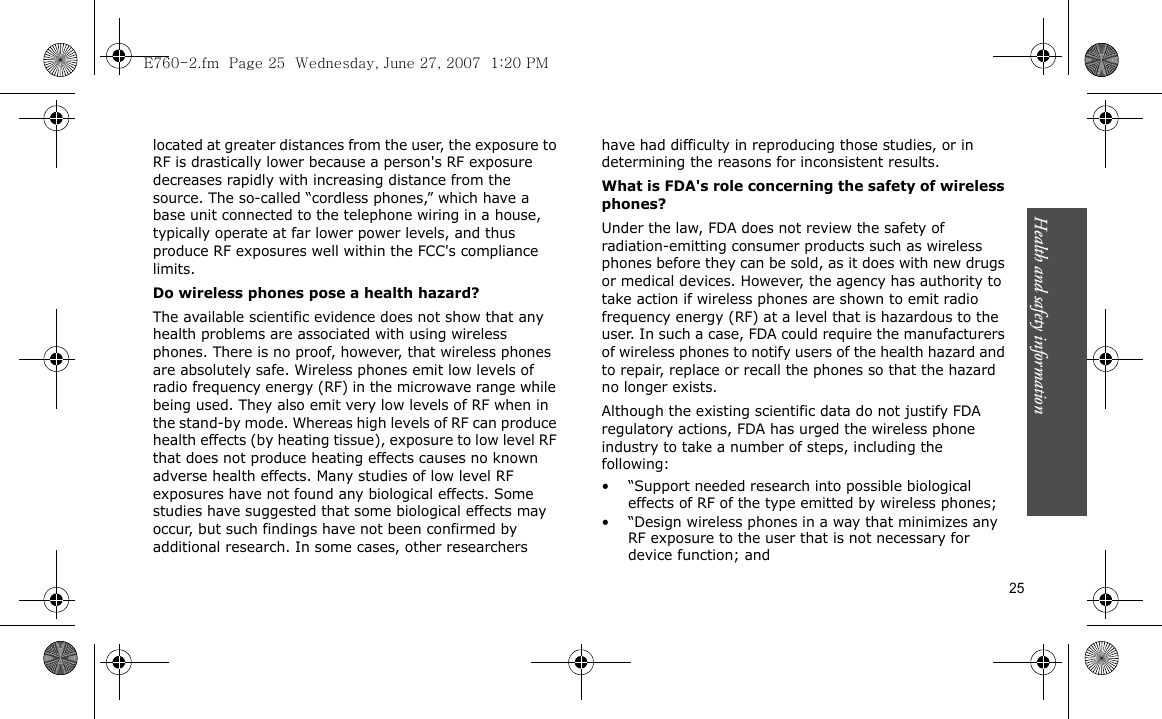

Health and safety information 25located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called “cordless phones,” which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:• “Support needed research into possible biological effects of RF of the type emitted by wireless phones;• “Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; andE760-2.fm Page 25 Wednesday, June 27, 2007 1:20 PM

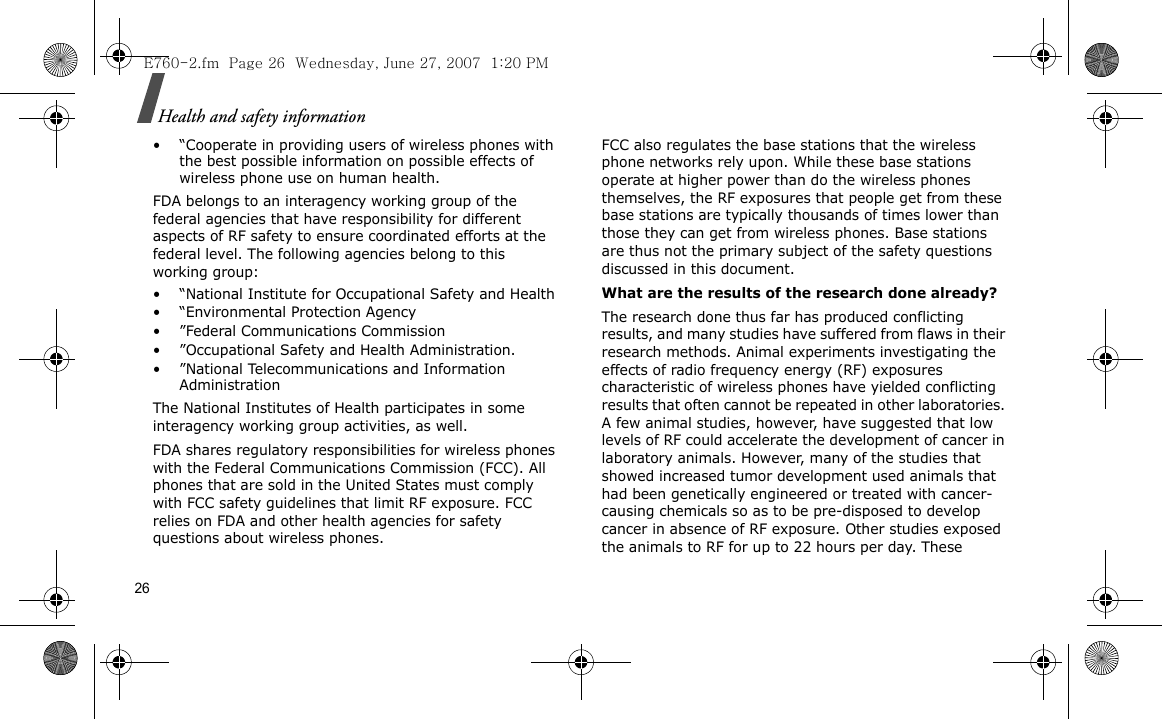

26Health and safety information• “Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:• “National Institute for Occupational Safety and Health• “Environmental Protection Agency• ”Federal Communications Commission• ”Occupational Safety and Health Administration.• ”National Telecommunications and Information AdministrationThe National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These E760-2.fm Page 26 Wednesday, June 27, 2007 1:20 PM

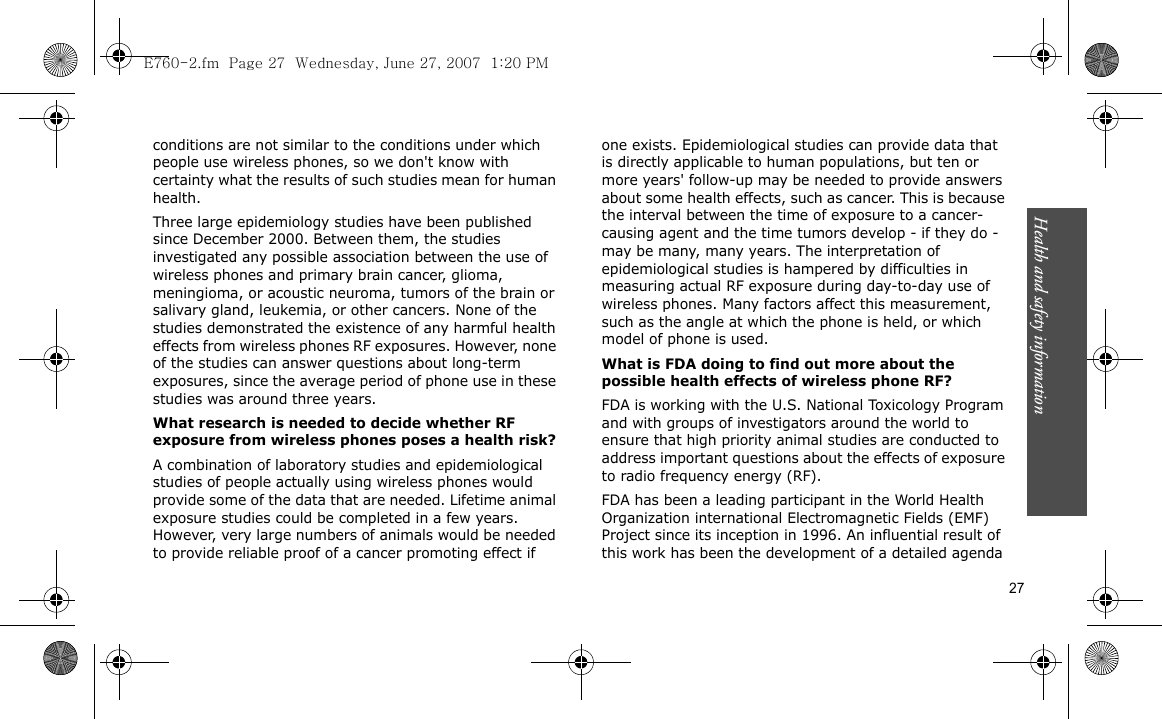

Health and safety information 27conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.What research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.What is FDA doing to find out more about the possible health effects of wireless phone RF?FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda E760-2.fm Page 27 Wednesday, June 27, 2007 1:20 PM
28Health and safety informationof research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.• “If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance E760-2.fm Page 28 Wednesday, June 27, 2007 1:20 PM

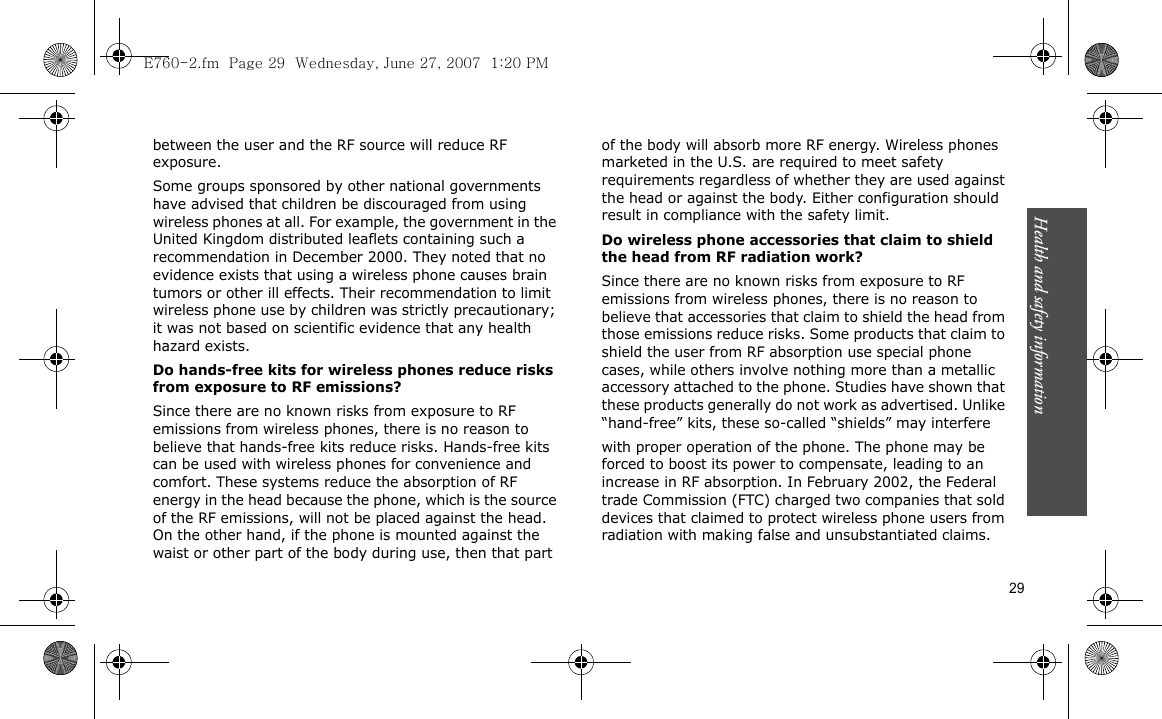

Health and safety information 29between the user and the RF source will reduce RF exposure.Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike “hand-free” kits, these so-called “shields” may interferewith proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. E760-2.fm Page 29 Wednesday, June 27, 2007 1:20 PM

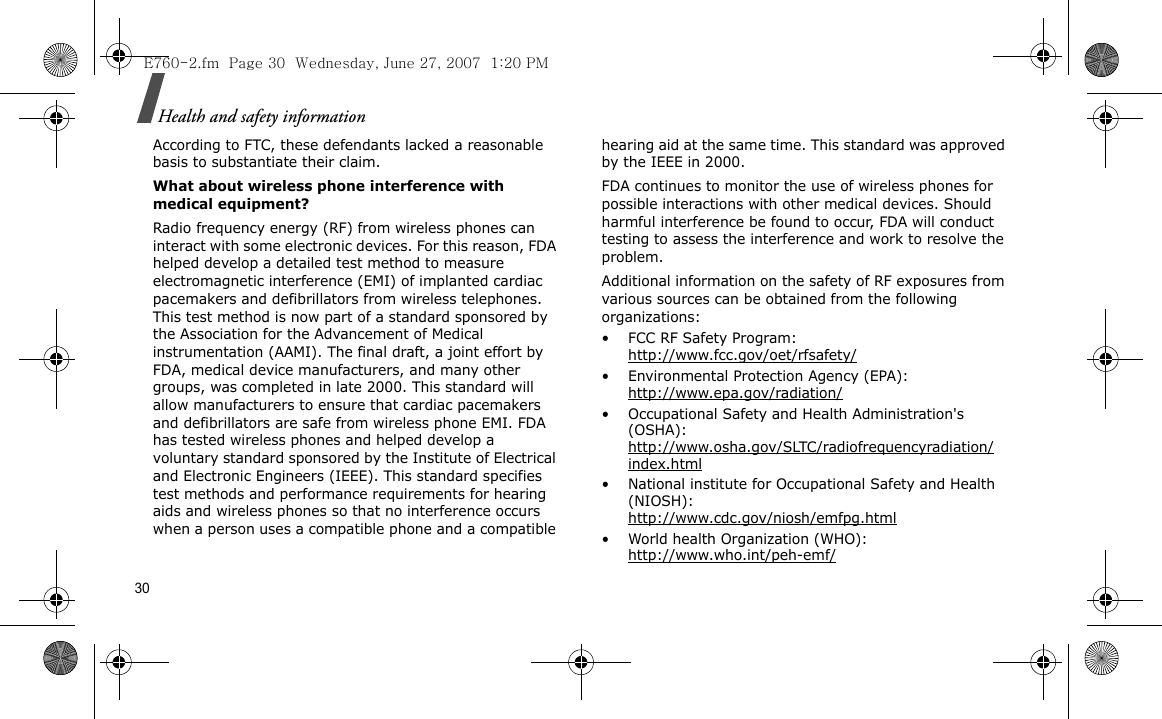

30Health and safety informationAccording to FTC, these defendants lacked a reasonable basis to substantiate their claim.What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations:• FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/• Environmental Protection Agency (EPA):http://www.epa.gov/radiation/• Occupational Safety and Health Administration's (OSHA): http://www.osha.gov/SLTC/radiofrequencyradiation/index.html• National institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/emfpg.html• World health Organization (WHO):http://www.who.int/peh-emf/E760-2.fm Page 30 Wednesday, June 27, 2007 1:20 PM
Health and safety information 31• International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.de• National Radiation Protection Board (UK):http://www.nrpb.org.uk• Updated 4/3/2002: US food and Drug Administrationhttp://www.fda.gov/cellphonesRoad SafetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.2. When available, use a hands-free device. If possible, add an additional layer of convenience and safety to your wireless phone with one of the many hands free accessories available today.3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.5. Do not take notes or look up phone numbers while driving. Jotting down a “to do” list or flipping through your address book takes attention away from your primary responsibility, driving safely.6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.7. Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.E760-2.fm Page 31 Wednesday, June 27, 2007 1:20 PM
32Health and safety information8. Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!9. Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you.10. Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency number.“The wireless industry reminds you to use your phone safely when driving.”For more information, please call 1-888-901-SAFE, or visit our web-site www.wow-com.comProvided by the Cellular Telecommunications & Internet AssociationOperating EnvironmentRemember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the phone or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).Using Your Phone Near Other Electronic DevicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.E760-2.fm Page 32 Wednesday, June 27, 2007 1:20 PM
Health and safety information 33PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker.These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:• should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on.• should not carry the phone in a breast pocket.• should use the ear opposite the pacemaker to minimize potential interference.If you have any reason to suspect that interference is taking place, switch your phone off immediately.Hearing AidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your phone off in any facility where posted notices require you to do so.E760-2.fm Page 33 Wednesday, June 27, 2007 1:20 PM
34Health and safety informationPotentially Explosive EnvironmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Emergency CallsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.3. Press [SEND].If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Restricting Children's access to your PhoneYour phone is not a toy. Children should not be allowed to play with it because they couldE760-2.fm Page 34 Wednesday, June 27, 2007 1:20 PM
Health and safety information 35FCC Notice and CautionsFCC NoticeThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and,f not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.The phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division.E760-2.fm Page 35 Wednesday, June 27, 2007 1:20 PM
36Health and safety informationCautionsChanges or modifications made in the radio phone, not expressly approved by Samsung, will void the user°Øs authority to operate the equipment.Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.Other Important Safety Information.• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your phone off before boarding an aircraft. The use of wireless phone in aircraft is illegal and may be dangerous to the aircraft's operation.• Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Product PerformanceGetting the Most Out of Your Signal ReceptionThe quality of each call you make or receive depends on the signal strength in your area. Your phone informs you of the current signal strength by displaying a number of bars next to the signal strength icon. The more bars displayed, the stronger the signal.If you're inside a building, being near a window may give you better reception.E760-2.fm Page 36 Wednesday, June 27, 2007 1:20 PM
Health and safety information 37Understanding the Power Save FeatureIf your phone is unable to find a signal after 15 minutes of searching, a Power Save feature is automatically activated. If your phone is active, it periodically rechecks service availability or you can check it yourself by pressing any key.Anytime the Power Save feature is activated, a message displays on the screen. When a signal is found, your phone returns to standby mode.Understanding How Your Phone OperatesYour phone is basically a radio transmitter and receiver. When it's turned on, it receives and transmits radio frequency (RF) signals. When you use your phone, the system handling your call controls the power level. This power can range from 0.006 watts to 0.2 watts in digital mode.Maintaining Your Phone's Peak PerformanceFor the best care of your phone, only authorized personnel should service your phone and accessories. Faulty service may void the warranty.There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service.• Hold the phone with the antenna raised, fully-extended and over your shoulder.• Try not to hold, bend or twist the phone's antenna.• Don't use the phone if the antenna is damaged.• Speak directly into the phone's receiver.• Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. If it is inoperable, call Customer Care for service.Availability of Various Features/Ring TonesMany services and features are network dependent and may require additional subscription and/or usage charges. Not all features are available for purchase or use in all areas. Downloadable Ring Tones may be available at an additional cost. Other conditions and restrictions may apply. See your service provider for additional information.E760-2.fm Page 37 Wednesday, June 27, 2007 1:20 PM
38Health and safety informationBattery Standby and Talk TimeStandby and talk times will vary depending on phone usage patterns and conditions. Battery power consumption depends on factors such as network configuration, signal strength, operating temperature, features selected, frequency of calls, and voice, data, and other application usage patterns. Battery Precautions.• Never use any charger or battery that is damaged in any way.• Use the battery only for its intended purpose.• If you use the phone near the network's base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.• Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.• If left unused, a fully charged battery will discharge itself over time.• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short- circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery E760-2.fm Page 38 Wednesday, June 27, 2007 1:20 PM
Health and safety information 39in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.• Dispose of used batteries in accordance with local regulations. In some areas, the disposal of batteries in household or business trash may be prohibited. For safe disposal options for Li-Ion batteries, contact your nearest Samsung authorized service center. Always recycle. Do not dispose of batteries in a fire.Care and MaintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years.• Keep the phone and all its parts and accessories out of the reach of small children.• Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.• Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone's electronic circuit boards.• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device's moving parts and prevent proper operation.• Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.• When the phone or battery gets wet, the label indicating water damage inside the phone changes color. In this case, phone repairs are no longer E760-2.fm Page 39 Wednesday, June 27, 2007 1:20 PM
40Health and safety informationguaranteed by the manufacturer's warranty, even if the warranty for your phone has not expired.• If your phone has a flash or light, do not use it too close to the eyes of people or animals. This may cause damage to their eyes.• Use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.• If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.E760-2.fm Page 40 Wednesday, June 27, 2007 1:20 PM
GH68-08136AHearing Aid Compatibility with Mobile PhonesWhen some mobile phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate. The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box. The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interfer-ence, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to gener-ate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.) Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.
