Users Manual

Printed in KoreaCode No.:GH68-xxxxxAEnglish (LTN). 11/2007. Rev. 1.0World Wide Webhttp://www.samsungmobile.comSGH-B110LUser’s Guide• Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly.• Depending on your country, your phone and accessories may appear different from the illustrations in this guide.Draft_012007. 11. 13S/W Version: B110LUMGJ1 Installing the SIM card and battery1.Remove the battery cover and insert the SIM card.2.Install the battery and reattach the cover.Battery coverBattery Charging the battery1.Plug the supplied travel adapter into the phone and a power outlet.2.When charging is finished, unplug the adapter.Note: Do not remove the battery from the phone without unplugging the adapter first. Otherwise, the phone may be damaged.With the triangle facing the front of your phone Phone layout and key functions4-way navigation keysIn Idle mode, access the following menus or functions directly.Up/Down: Key volumeLeft: CreateRight: FM radioIn Menu mode, scroll through menu options.Power/End keyTurns the phone on or off when held down. Also ends a call.Silent mode keyX Silent modeCancel/Clear keyDeletes characters from the display. Returns the display to the previous menu level. Sends an SOS message when pressed four times with the key locked.X SOS modeWeb access/Confirm keyIn Idle mode, accessesthe web browser. InMenu mode, selectsthe highlighted optionor confirms input.Voicemail server keyIn Idle mode, accessesyour voicemail serverwhen held down.Soft keysPerform functionsindicated by the textabove the key.Dial keyMakes and answers acall. In Idle mode,retrieves the mostrecent calls.Keypad lock key X Keypad lock mode Alphanumeric keys DisplayYour phone is in Idle mode when you are not on a call or using a menu. You must be in Idle mode to dial a phone number.Silent modePress and hold in Idle mode to disable all sounds on the phone. To exit, press and hold this key again.Keypad lock modePress and hold in Idle mode and then press the Yes soft key to lock the keypad and ignore accidental key pressing. To unlock, press the left soft key and then .SOS modePress C four times in Idle mode with the key locked to send an SOS message to preset numbers. Once the SOS message is sent, the phone will change to SOS mode and will receive calls only from the registered recipients. Upon receiving a call from the SOS message recipients, the phone will automatically answer the call. Press to exit SOS mode.Menu PhonebookText and graphicsSoft key function indicatorsIconsYour phone displays the following status indicators on the top of the screen:Icon DescriptionSignal strengthCall in progressOut of your service area; you cannot make or receive calls except for emergency callsSOS message feature activeGPRS networkAlarm setSilent modeRinger type•None: Melody• : Vibration•: Vibration then melodyHome Zone, if registered for the appropriate serviceCall diverting feature activeNew text messageNew voicemail messageBattery power level Switching on or off the phone 1. Press and hold for more than one second to switch on the phone.2. If the time & date message appears, press the Yes soft key and set the time and date by following the onscreen instructions.3. To switch off the phone, press and hold for more than two seconds. Changing the display language1. In Idle mode, press the Menu soft key.2. Select Phone settings → Language → Text language.3. Select a language. Making a call1. In Idle mode, enter an area code and phone number, and press . 2. When you want to end the call, press . Answering a call1. When the phone rings, press the Accept soft key or to answer a call.Press the Reject soft key or to reject the call.2. Press to end the call. Adjusting the volume1. In Idle mode, press the Menu soft key.2. Select Sound settings → Incoming calls → Ring volume. 3. Press the Navigation keys to adjust the volume level.4. Press the Save soft key. While a call is in progress, press Up or Down to adjust the earpiece volume. Press and hold Up or Down to mute the ringtone. Changing a ringtone for calls1. In Idle mode, press the Menu soft key.2. Select Sound settings → Incoming calls → Default ringtones or My sounds. 3. Select a ringtone and press the Yes soft key. Redialing recent numbers1. In Idle mode, press .2. Press Up or Down to scroll to the number you want.3. Press to dial the number. Using the menusIn Idle mode, press the Menu soft key to enter the main menu.Use the 4-way navigation keys to scroll up, down, left, or right through the menu system, highlight menu items, and change feature settings.To exi t the m en u without changing the menu settings, press this key.Labels at the bottom corners of the display show the current soft key functions. Press the left soft key or right soft key to perform the function indicated.To return to theprevious menulevel, press theBack soft keyor C.To select or modify a menu or feature:1. In Idle mode, press the Menu soft key.2. Press the Navigation keys to reach a desired menu and then press the Select soft key or .3. If the menu contains any submenus, locate the one you want by pressing the Navigation keys. Press the Select soft key or to enter the submenu.If the selected menu contains additional submenus, repeat this step.4. Press the Navigation keys to find the setting of your choice.5. Press the Select soft key or to confirm your chosen setting.Shortcut numbersYou can quickly access the menu you want by using shortcut numbers. The shortcut number displays in front of the menu name in Menu mode. Menu map1. Call records1.1 Missed calls1.2 Received calls1.3 Dialled calls1.4 Delete all1.5 Call time1.6 Call costs*2. Network services2.1 Call diverting2.2 Call barring2.3 Call waiting2.4 Network selection2.5 Caller ID2.6 Active line*3. Applications3.1 FM radio3.2 SIM-AT*3.3 Calculator4. Sound settings4.1 Incoming calls4.2 Messages4.3 Power on/off4.4 Connection tone4.5 Keypad tone4.6 Minute minder4.7 Silent mode4.8 Alerts on call5. Messages5.1 Short messages5.2 Push messages5.3 Preset messages5.4 Voice mail5.5 Broadcast5.6 Settings5.7 SOS messages5.8 Memory status6. Fun box6.1 WWW services6.2 Media box7. Organizer7.1 Clock7.2 Alarm7.3 Converter8. Phonebook8.1 Find name8.2 FDN list8.3 Add entry8.4 Speed-dial list8.5 Own number8.6 Management8.7 SDN*9. Phone settings9.1 Display9.2 Greeting message9.3 Language9.4 Security9.5 Auto redial9.6 Voice clarity9.7 Anykey answer9.8 Auto keypad lock9.9 Reset settings* Shows only if supported by your SIM card. Entering textChanging the text input modeIn a text input field, press the right soft key until the input mode indicator you want appears.T9 mode1. Press 2 to 9 to start entering a word. Press each key once for one letter. The word you are entering appears on the display. It may change with each keypress. Finish entering the word before editing or deleting any keystrokes.Example: To enter “Hello” in T9 mode, press 4, 3, 5, 5, and 6.2. Press to insert a space and enter the next word.ABC modePress the keys labeled with the letter you want once for the first letter, twice for the second letter, and so on.For example, press 2 three times to enter “C” and 5 two times to enter “K”.
Number modePress the keys corresponding to the digits you want.Symbol modePress the keys corresponding to the symbol you want and press the OK soft key. You can press Up or Down to display more symbols. Tips for entering text• To move the cursor, press the Navigation keys.• To delete characters one by one, press C. To delete all of the characters, press and hold C.• To insert a space between characters, press .• To change case in T9 mode or ABC mode, press .• To enter punctuation marks in T9 mode or ABC mode, press 1. Sending an SMS message1. In Idle mode, press left .2. Enter the message text.3. Press the Options soft key and add items using the following options:• Add media: add sounds, images, or animated images.• Add emoticon: add emoticons.• Preset messages: add text templates.4. Press the Options soft key and select Send.5. Select an empty location.6. Enter a destination number and press the OK soft key.7. Press the Send soft key to send the message. Quick feature referenceThis section provides brief explanations of features on your phone.Menu DescriptionMenu > Call records > Missed calls, Received calls, or Dialled callsView the most recent calls you have dialed, received, or missed.Menu > Call records > Delete allDelete the call logs in each call type, or all logs at once.Menu > Call records > Call timeView the duration of recent calls you have dialed and received. Also reset the time counter.Menu > Call records > Call costsView the cost of your calls.Menu > Network services Access network services offered by your service provider. Menu > Application > FM radioListen to music or news via the FM radio on your phone. First, you must connect your phone with the headset, which serves as a radio antenna.Menu > Applications > SIM-ATUse a variety of additional services offered by your service provider.Menu > Applications > CalculatorPerform basic arithmetic functions.Menu > Sound settings > Incoming callsSelect a ringtone for incoming calls, a volume level, or an alert type.Menu > Sound settings > MessagesSelect the alert ringtone and alert type for incoming messages or set how often you are informed of a new message.Menu > Sound settings > Power on/offSet the phone to sound when it is switched on or off.Menu > Sound settings > Connection toneSet the phone to beep when a call is connected to the system.Menu > Sound settings > Keypad toneSelect a tone which the phone sounds when you press a key. Menu > Sound settings > Minute minderSet the phone to beep every minute during a call to keep you informed of the length of your call.Menu DescriptionMenu > Sound settings > Silent modeSet how the phone acts to alert you to a specific event while in Silent mode.Menu > Sound settings > Alerts on callSet the phone to alert you when you receive a new message or when the time for an alarm comes during a call.Menu > Messages > Short messages > CreateCreate and send messages to other mobile phones.Menu > Messages > Short messages > Inbox or OutboxRead received or sent messages.Menu > Messages > Short messages > Emoticon templatesPreset templates of frequently used emoticons.Menu > Messages > Short messages > Delete allDelete messages in each message folder, or all messages at once. Menu > Messages > Push messagesChange the settings for the service, and access or delete push messages.Menu DescriptionMenu > Messages > Preset messagesPreset templates of frequently used messages.Menu > Messages > Voice mailAccess your voicemail server and listen to messages on the network. Menu > Messages > BroadcastChange settings for the service and access broadcast messages.Menu > Messages > SettingsSet options for using messaging services.Menu > Messages > SOS messagesActivate the SOS message feature. Enter recipients and select the repeat mode.Menu > Messages > Memory statusCheck memory information for messages.Menu > Fun box > WWW servicesLaunch and configure the web browser.Menu > Fun box > Media box > Downloaded images or SoundsAccess sounds or images in your phone’s memory.Menu DescriptionMenu > Fun box > Media box > Delete allDelete sounds and images in each media box.Menu > Fun box > Media box > Memory statusCheck the amount of memory in use for sounds and images.Menu > Organizer > ClockSet the current time and date manually and set your local time zone.Menu > Organizer > AlarmSet an alarm to sound at a specific time.Menu > Organizer > ConverterDo conversions such as length and temperature.Menu > Phonebook > Find nameSearch for contacts in Phonebook.Menu > Phonebook > FDN listCreate a list of contacts to be used in FDN (Fixed Dialing Number) mode, in which the phone allows outgoing calls only to the specified phone numbers.Menu > Phonebook > Add entryAdd a new contact to Phonebook.Menu DescriptionMenu > Phonebook > Speed-dial listAssign speed dial numbers (2 to 9) for eight of your most frequently dialed numbers.Menu > Phonebook > Own numberCheck your phone numbers or assign a name to them.Menu > Phonebook > ManagementCopy all contacts on the SIM card to the phone’s memory or delete all Phonebook contacts. You can also check memory information for Phonebook contacts.Menu > Phonebook > SDNAccess the list of service numbers assigned by your service provider. Menu > Phone settings > DisplayChange settings for the display and backlight.Menu > Phone settings > Greeting messageEnter the greeting message to be displayed when the phone is switched on.Menu > Phone settings > LanguageSelect a language to be used for the display text or text input mode.Menu > Phone settings > SecurityProtect the phone against unauthorised use.Menu DescriptionMenu > Phone settings > Security > Mobile trackerTrack your phone when it is stolen or lost. When someone tries to use your phone with other SIM card, the phone will automatically send the preset tracking message to your family or friends.Menu > Phone settings > Auto redialSet the phone to make up to ten attempts to redial a phone number after an unsuccessful call.Menu > Phone settings > Anykey answerAnswer an incoming call by pressing any key, except for the Reject soft key and .Menu > Phone settings > Auto keypad lockSet the phone to automatically lock the keypad in times of inactivity.Menu > Phone settings > Reset settingsReset the phone to the factory default settings.Menu Description Important safety precautionsRead these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal.Drive safely at all timesDo not use a hand-held phone while driving; park the vehicle first. Switching off when refuelingDo not use the phone at a refueling point (service station) or near fuels or chemicals.Switching off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switching off near all medical equipmentHospitals and health care facilities may be using equipment that could be sensitive to external RF energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance.Special regulationsFollow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it.Water resistanceYour phone is not water-resistant. Keep it dry.Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Do not end the call until given permission to do so.Small children and your phoneKeep the phone and all its parts including accessories out of reach of small children.Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.Risk of explosion if a battery is replaced by an incorrect type.Dispose used batteries according to the instructions.At very high volume, prolonged listening to a headset can damage your hearing.CAUTION SAR informationYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards that were developed by independent scientific organizations through periodic and through evaluation of scientific studies.The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless phones employs a unit of measurement known as Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6 W/kg*. * In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

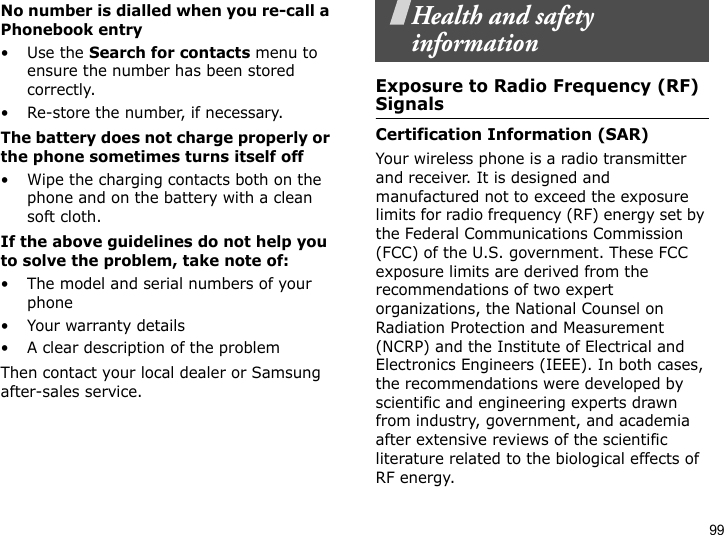

99No number is dialled when you re-call a Phonebook entry•Use the Search for contacts menu to ensure the number has been stored correctly.• Re-store the number, if necessary.The battery does not charge properly or the phone sometimes turns itself off• Wipe the charging contacts both on the phone and on the battery with a clean soft cloth.If the above guidelines do not help you to solve the problem, take note of:• The model and serial numbers of your phone•Your warranty details• A clear description of the problemThen contact your local dealer or Samsung after-sales service.Health and safety informationExposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.
100Health and safety informationThe exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. The highest SAR values for this model phone as reported to the GSM850 Mode Head: 0.458 W/Kg, Body-worn: 0.737 W/Kg.GSM1900 Mode Head: 1.07 W/Kg, Body-worn: 0.686 W/Kg. For body worn operations, this model phone has been testde and meets the FCC exposure guidelines when used with a Samsung accessory designated for this product or when used with an accessroy that contains no metal and that positons the handset a minimum 1.5 cm from the body.Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.SAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. This site uses the phone FCC ID number A3LSGHB110L. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar.
Health and safety information Settings 113hurt themselves and others, damage the phone or make calls that increase your phone bill.FCC Notice and CautionsFCC NoticeThe phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and,f not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:-Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

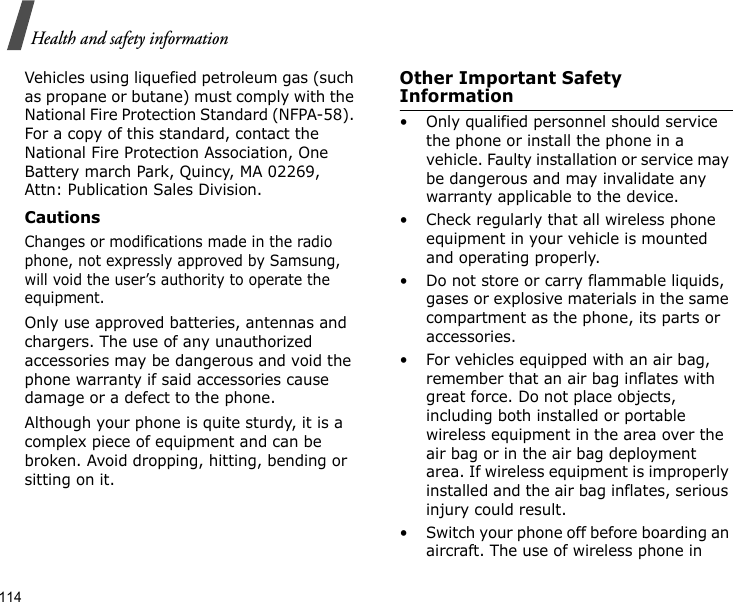

114Health and safety informationVehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division.CautionsChanges or modifications made in the radio phone, not expressly approved by Samsung, will void the user’s authority to operate the equipment.Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.Other Important Safety Information• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your phone off before boarding an aircraft. The use of wireless phone in
