Samsung Electronics Co SGHD428 Single-Band PCS GSM Phone User Manual
Samsung Electronics Co Ltd Single-Band PCS GSM Phone Users Manual
Users Manual
* Some of the contents of this manual may differ from your phone,
depending on the software installed or your service provider.
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-XXXXXA
English. 04/2004. Rev 1.0
GPRS TELEPHONE
SGH-D428
Draft version
(2004. 05.10)
3
Contents
Important safety precautions ................................ 7
Unpacking ............................................................. 9
Your phone.......................................................... 10
Phone layout........................................................... 10
Display................................................................... 13
Tool icons panel....................................................... 15
Backlight ................................................................ 16
Service light............................................................ 16
Camera .................................................................. 16
Getting started .................................................... 17

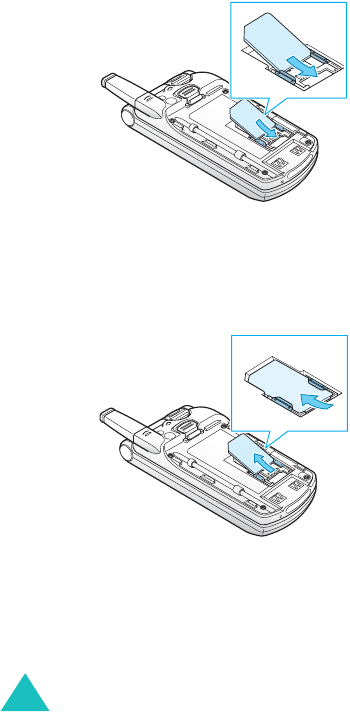

Installing the SIM card ............................................. 17

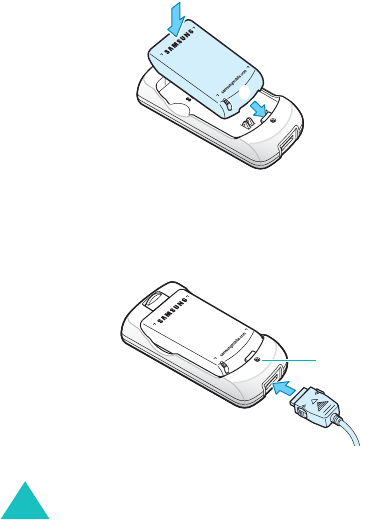

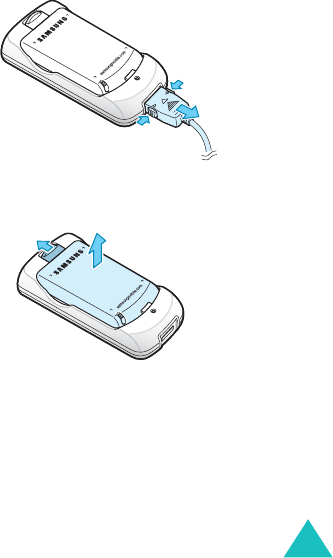

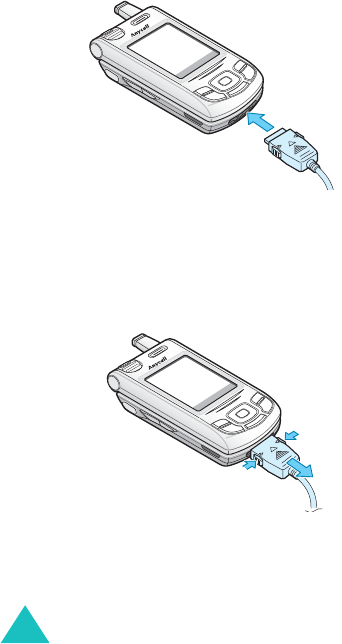

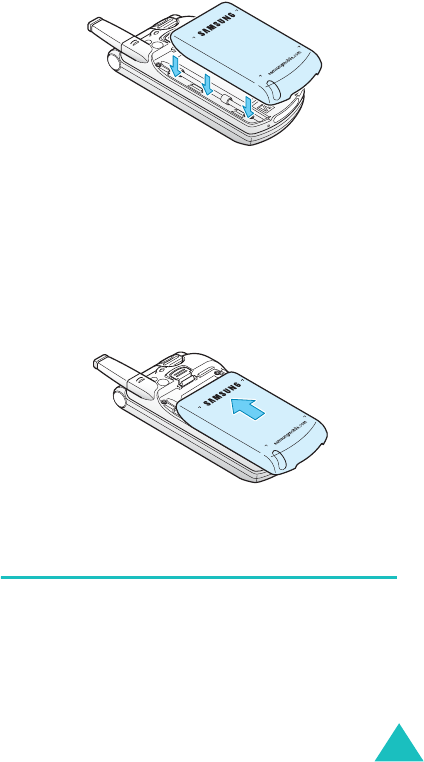

Charging the battery................................................ 19
Switching on or off the phone.................................... 24
Using the keypad lock feature ................................... 25

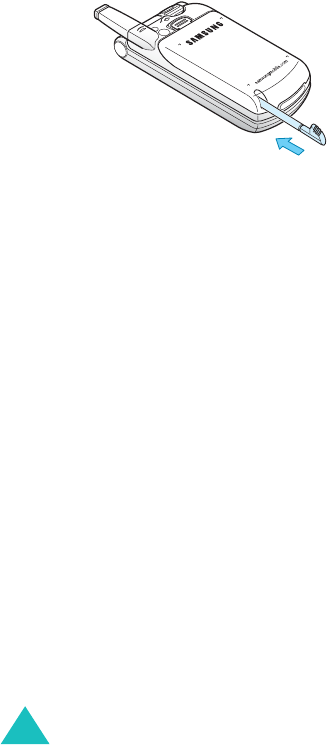

Using the stylus pen................................................. 25
Selecting functions and options........................... 27
Using the soft keys .................................................. 27
Using the touch screen............................................. 28
Selecting options ..................................................... 29
Call functions....................................................... 31
Making a call........................................................... 31
Adjusting the volume ............................................... 33
Answering a call ...................................................... 34
Viewing missed calls ................................................ 35
Quickly switching to silent mode................................ 37
Phonebook........................................................... 38
Storing a number with a name .................................. 38
Using Phonebook entry options.................................. 41
Dialling a number from Phonebook............................. 42
Speed dialling ......................................................... 43
Searching for and dialling a number in Phonebook........ 45
Editing a caller group ............................................... 46
Deleting all of the Phonebook entries.......................... 47
Checking the memory status..................................... 48
Using the service dialling numbers ............................. 49
Contents
4
Entering text ....................................................... 50
Changing the text input mode ................................... 51

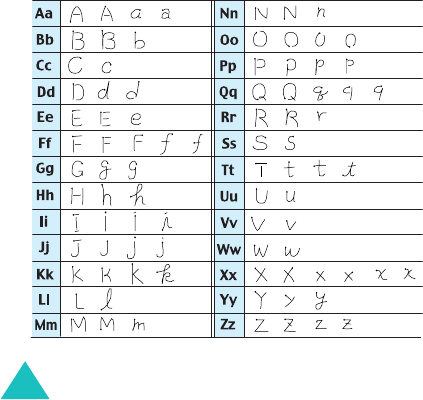

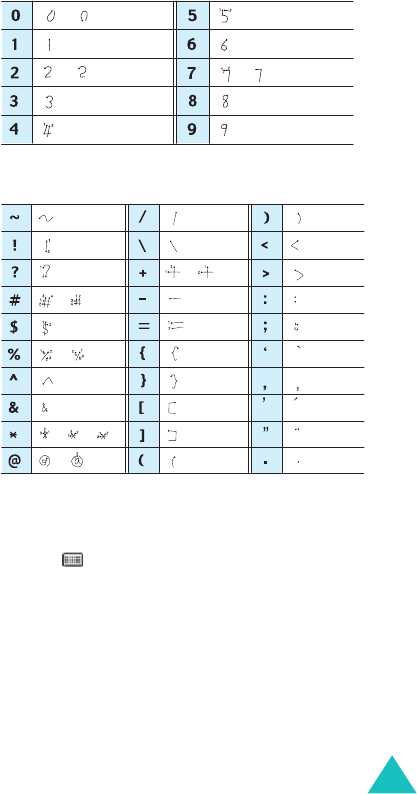

Using Pen Stroke mode ............................................ 53
Using Chinese Pinyin mode ....................................... 57
Using Chinese Stroke modes ..................................... 60
Using Quick English mode......................................... 63
Using English mode.................................................. 65
Using Number mode................................................. 67
Using Symbol mode ................................................. 67
Using My Words mode.............................................. 68
Using Help mode ..................................................... 70
Options during a call............................................ 71
Putting a call on hold................................................ 71
Using the menu functions ......................................... 72
Switching the microphone off (Mute).......................... 73
Muting and sending DTMF tones ................................ 74
Sending a sequence of DTMF tones ............................ 74
Searching for a number in Phonebook ........................ 75
Call waiting............................................................. 75
Making a multi-party call .......................................... 76
Using the menus.................................................. 78
Accessing a menu function by scrolling ....................... 78
Using shortcuts ....................................................... 79
List of menu functions .............................................. 80
SIM AT menu ....................................................... 85
Call records ......................................................... 86
Missed calls
(Menu 2.1)
............................................. 86
Received calls
(Menu 2.2)
.......................................... 87
Dialled calls
(Menu 2.3)
............................................. 87
Delete all
(Menu 2.4)
................................................. 88
Call time
(Menu 2.5)
................................................. 88
Call costs
(Menu 2.6)
................................................ 89
Network services................................................. 90
Call diverting
(Menu 3.1)
........................................... 90
Call barring
(Menu 3.2)
.............................................. 91
Call waiting
(Menu 3.3)
.............................................. 93
Network selection
(Menu 3.4)
..................................... 94
Caller ID
(Menu 3.5)
................................................. 95
Closed user group
(Menu 3.6)
.................................... 95
Contents
5
Sound settings..................................................... 97
Ring tone
(Menu 4.1)
................................................ 97
Ring volume
(Menu 4.2)
............................................ 97
Alert type
(Menu 4.3)
................................................ 98
Keypad tone
(Menu 4.4)
............................................ 98
Message tone
(Menu 4.5)
........................................... 98
Slider tone
(Menu 4.6)
............................................. 100
Power on/off
(Menu 4.7)
.......................................... 100
Alert on call
(Menu 4.8)
........................................... 100
Extra tones
(Menu 4.9)
............................................ 101
Messages........................................................... 102
Text messages
(Menu 5.1)
....................................... 102
Multimedia messages
(Menu 5.2)
.............................. 109
Push messages
(Menu 5.3)
...................................... 121
Delete all
(Menu 5.4)
............................................... 122
Voice mail
(Menu 5.5)
............................................. 122
Broadcast messages
(Menu 5.6)
............................... 123
Memory status
(Menu 5.7)
....................................... 124
Funbox .............................................................. 125
WAP browser
(Menu 6.1)
......................................... 125
Fun Club
(Menu 6.2)
............................................... 131
Games & More
(Menu 6.3)
....................................... 133
Sounds
(Menu 6.4)
................................................. 136
Images
(Menu 6.5)
................................................. 137
Delete all
(Menu 6.6)
.............................................. 137
Memory status
(Menu 6.7)
....................................... 138
Match Match
(Menu 6.8)
.......................................... 138
Organiser........................................................... 140
Alarm
(Menu 7.1)
................................................... 140
Calendar
(Menu 7.2)
............................................... 142
Time & Date
(Menu 7.3)
.......................................... 145
Calculator
(Menu 7.4)
.............................................. 146
To do list
(Menu 7.5)
............................................... 147
Sketch memo
(Menu 7.6)
........................................ 149
Voice memo
(Menu 7.7)
.......................................... 151
Currency exchange
(Menu 7.8)
................................. 154
Dictionary
(Menu 7.9)
............................................. 154
Contents
6
Camera.............................................................. 156
Take photos
(Menu 8.1)
........................................... 156
My photos
(Menu 8.2)
............................................. 159
Video
(Menu 8.3)
.................................................... 160
Memory status
(Menu 8.4)
....................................... 162
Phone settings................................................... 163
Activate infrared
(Menu 9.1)
..................................... 163
Display settings
(Menu 9.2)
...................................... 167
Greeting message
(Menu 9.3)
.................................. 169
Own number
(Menu 9.4)
.......................................... 169
Language
(Menu 9.5)
.............................................. 170
Security
(Menu 9.6)
................................................ 170
Extra settings
(Menu 9.7)
........................................ 174
Reset settings
(Menu 9.8)
........................................ 175
Solving problems............................................... 176
Access codes ..................................................... 179
Phone password .................................................... 179
PIN...................................................................... 180
PUK ..................................................................... 180
PIN2 .................................................................... 181
PUK2 ................................................................... 181
Barring password................................................... 182
Health and safety information ........................... 183
Exposure to radio-frequency energy
(SAR information).................................................. 183
Precautions when using batteries............................. 184
Road safety .......................................................... 186
Operating environment........................................... 186
Electronic devices .................................................. 187
Potentially explosive environments........................... 189
Emergency calls .................................................... 190
Other important safety information .......................... 191
Care and maintenance............................................ 192
Glossary ............................................................ 194
Quick Reference Card ........................................ 201
7
Important safety
precautions
Read these guidelines before using your wireless
phone. Failure to comply with them may be
dangerous or illegal.
Road safety at all times
Do not use a hand-held phone while driving; park
the vehicle first.
Switching off when refuelling
Do not use the phone at a refuelling point (service
station) or near fuels or chemicals.
Switching off in an aircraft
Wireless phones can cause interference. Using them
in an aircraft is both illegal and dangerous.
Switching off in hospitals
Switch off your phone near medical equipment.
Follow any regulations or rules in force.
Interference
All wireless phones may be subject to interference,
which could affect their performance.
Special regulations
Meet any special regulations in force in any area
and always switch off your phone whenever it is
forbidden to use it, or when it may cause
interference or danger (in a hospital for example).
Important safety precautions
8
Sensible use
Use only in the normal position (held to the ear).
Avoid unnecessary contact with the antenna when
the phone is switched on.
Emergency call
Ensure the phone is switched on and in service. Key
in the emergency number for your present location,
then press the key. You must deactivate any
unnecessary features before you can make an
emergency call. Give all the necessary information
as accurately as possible. Do not end the call until
given permission to do so.
Water resistance
Your phone is not water-resistant. Keep it dry.
Accessories and batteries
Use only Samsung-approved accessories and
batteries. Use of any unauthorised accessories
could damage your phone and may be dangerous.
Qualified service
Only qualified service personnel may repair your
phone.
For more detailed safety information, see “Health
and Safety Information” on page 183.
CAUTION
RISK OF EXPLOSION IF A BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS.
9
Unpacking
Your package contains the following items:
Note
: The illustrations above may look different from
your phone and accessories
Handset Travel charger
Batteries Battery charger
PC link CD PC link cable
Straight headset Hand strap
User’s manuals Stylus pen
10
Your phone
Phone layout
The following illustrations show the main elements
of your phone:
Earpiece
Touch screen
Soft key (right)
Power on/off /
menu exit key
Alphanumeric
keys
Special
function keys
Volume/menu
browse keys
Dial key
Microphone
Headset jack
Cancel/
c
orrection key
Navigation
(Up/
Down/Right/
Left)
keys
WAP browser/
confirmation key
Camera
Tool icons
panel
Soft key
(left)
Infrared port
Your phone
11
Key
(s)
Description
In Menu mode, scrolls through the
menu options and Phonebook.
While entering text, moves the cursor
up and down respectively.
In Idle mode, the Up key allows you to
access the
Sound settings
menu and
the Down key to access the
Camera
menu.
When entering text, moves the cursor
to the left and right respectively.
In Idle mode, the Left key allows you to
access the
Messages
menu and the
Right key to access
Voice memo
menu
directly.
(soft keys)
Performs the functions indicated by the
text above them, on the bottom line of
the display.
In Idle mode, allows you to quickly
access the Wireless Web or Samsung
Fun Club.
In Menu mode, selects the highlighted
main menu or menu option.
Makes or answers a call.
In Idle mode, recalls the last number
you dialled or received when held down.
Your phone
12
Deletes characters from the display.
In Menu mode, returns to the previous
menu level.
Ends a call. Also switches the phone on
and off when held down.
In Menu mode, cancels your input and
returns to Idle mode.
In Idle mode, accesses your voice mail
when held down.
Enters numbers, letters, and some
special characters.
Enters special characters.
Performs various functions.
(on the left side of the phone)
During a call, adjusts the earpiece
volume.
In Idle mode with the phone open,
adjusts the keypad tone volume. With
the phone closed and the external
display on, turns on or off the flashlight
when held down.
In Menu mode, scrolls through the
menu options and Phonebook.
Key
(s)
Description
(continued)
Your phone
13
Display
Display layout
The display has three areas:
Area Description
First line Displays various icons. See
page 14.
Middle lines Displays messages, instructions,
and any information that you
enter, such as the number you
are dialling.
Last line Shows the current functions
assigned to the two soft keys.
Icons
Text and
graphic area
Soft key indicators
Menu Name
Your phone
14
Icons
Icon Description
Shows the received signal strength. The
greater the number of bars, the stronger
the signal.
Appears when you set an alarm to ring at
a specified time.
Appears when the IrDA port is active. For
details, see page 163.
Appears when you are out of your home
area and have logged onto a different
network; for example, when travelling in
other countries.
Appears when a new text message has
been received.
Appears when a new voice mail message
has been received.
Appears when a new multimedia message
has been received.
Appears when a call is in progress.
Appears when you are out of your service
area. When it displays, you cannot make
or receive a call.
Appears when you are connected to the
GPRS network.
Your phone
15
Tool icons panel
The tool icons below the display performs the
following functions when tapped:
Appears when Silent mode is active or
when you set the
Alert type
menu (Menu
4.3) to
Vibrate
. For further details, see
page 37 and page 98 respectively.
Appears when Mute mode is active.
Shows the level of your battery. The more
bars you see, the more power you have
remaining.
Icon Description
Returns to Idle mode.
Allows you to search for a number from
Phonebook.
Opens a new sketch memo screen.
Enters the
Dictionary
menu.
Allows you to quickly access your Inbox or
Outbox of text messages.
Icon Description
(continued)
Your phone
16
Backlight
The backlight illuminates the display and the
keypad. When you press any key or open the
phone, the backlight turns on and remains on for a
given period of time, depending on your setting in
the
Back light
menu. When no keys are pressed,
the display turns off after one minute to conserve
your battery power.
To specify the length of time the backlight is active,
set the
Back light
menu. See page 168 for further
details.
Service light
The keys on the top of the phone works as a service
light to blink when service is available on the
phone.
You can activate or deactivate the use of the service
light in the
Service light
menu. See page 168 for
further details.
Camera
The camera on the top left of your phone allows you
to take a photo or record a video while on the
move.
For further details about the Camera feature, see
page 156.
17
Getting started
Installing the SIM card
When you subscribe to a cellular network, you are
provided with a plug-in SIM card loaded with your
subscription details, such as your PIN, any optional
services available, and so on.
Important!
The plug-in SIM card and its contacts
can be easily damaged by scratches or
bending, so be careful when handling,
inserting or removing the card.
Keep all SIM cards out of the reach of
small children.
1. If necessary, switch off the phone by holding
down the key until the power-off image
displays.
2. Remove the battery.
➀
Press down the battery lock above the battery.
➁
Slide away the battery, as shown.
➀
➁
Getting started
18
3. Slide the SIM card into the SIM card socket, as
shown, so that it locks the card into position.
Make sure the gold coloured contacts of the card
face into the phone.
Note
: When you need to remove the SIM card,
slide it upward, as shown, and take it out of
the socket.
Getting started
19
4. Place the battery so that the grooves on it align
with the tabs on the phone.
Note
: Before installing the battery, make sure that
the stylus pen is removed from the phone.
5. Slide the battery toward the top of the phone
until it clicks into place.
Make sure that the battery is properly installed
before switching the power on.
Charging the battery
Your phone is powered by a rechargeable Li-ion
battery. A battery charger and a travel adapter
comes with your phone for charging the battery.
Use only approved batteries and chargers. Ask your
local Samsung dealer for further details.
Getting started
20
Note
: You must fully charge the battery before using
your phone for the first time. A discharged
battery is fully recharged in approximately
200 minutes.
Using the Battery Charger
You can charge the battery alone by using the
battery charger.
1. Insert the battery into the charger, ensuring that
the terminals on the battery are in contact with
those on the charger. Press the battery until it
clicks into place.
2. Plug the connector of the travel adapter into the
jack at the bottom of the charger. The LED on
the charger turns red.
➀
➁
LED
Getting started
21
3. Plug the adapter into a standard AC wall outlet.
The LED indicates the charging progress with
the following colours:
• Red: the battery is being charged.
• Green: the battery is completely charged.
• Yellow: the battery is not correctly plugged in
or is operating at a too high or too low
temperature.
4. When charging is finished, unplug the adapter
from both the power outlet and the charger.
5. Remove the battery from the charger.
➁
➀
➀
➀➁
Getting started
22
Using the travel adapter
The travel adapter allows you to use the phone
while the battery is charging, but this causes the
phone to charge more slowly.
1. With the battery in position on the phone, plug
the connector of the travel adapter into the jack
at the bottom of the phone.
2. Plug the adapter into a standard AC wall outlet.
3. When charging is finished, unplug the adapter
from the power outlet and disconnect it from the
phone by pressing the buttons on both sides of
the connector and pulling the connector out.
Note
: You must unplug the
adapter
before removing
the battery from the phone during charging;
otherwise, the phone could be damaged.
➀➁
➀
Getting started
23
Low battery indicator
When the battery is weak and only a few minutes of
talk time remain, a warning tone sounds and a
message repeats at regular intervals on the display.
If this happens, your phone will turn off the
backlight to conserve the remaining battery power.
When the battery level becomes too low, the phone
automatically turns off.
Getting started
24
Switching on or off the phone
1. Press and hold the key until the phone
switches on.
2. If the phone asks you to enter a password, enter
the password and press the
OK
soft key. The
phone password is preset to “00000000” at the
factory. For further details, see page 179.
3. If the phone asks for a PIN, enter the PIN and
press the
OK
soft key. For further details, see
page 180.
The phone searches for your network and, after
finding it, the idle screen appears on the display,
as illustrated below. Now, you can make or
receive a call.
Note
: The display language is preset to English at
the factory. To change the language, use
the
Language
menu. For further details,
see page 170.
4. When you wish to switch off the phone, hold
down the key until the power-off image
displays.
Note
: If your phone is closed, you first need to open it
to activate the display and the keypad.
Service provider
07:30
Mon 26 Mar
Menu Name
Getting started
25
Using the keypad lock feature
You can open the phone to use the number keypad
and close the phone to make it compact.
When you close the phone, the display turns off and
the phone automatically locks the keypad to keep it
from being pressed accidentally.
When you press and hold down the
key or one
of the Volume keys on the left side, the display
turns on and shows “Keypad locked.” To unlock the
keypad, press and hold the
Unlock
soft key. The
keypad is activated and you can use the phone’s
functions.
Using the stylus pen
Your phone’s display is a touch screen which allows
you to select an item displayed by tapping on it or
to write text as you would on paper. A stylus pen is
supplied with your phone to let you tap and write on
the touch screen.
1. Expand the stylus pen by pulling the handle.
2. Use the stylus pen, holding it as you would a pen
or pencil.
Getting started
26
3. When you don’t use the stylus pen, store in the
phone by slide it into the storage slot on the
bottom of the phone.
27
Selecting functions
and options
Your phone offers a set of functions that allow you
to customise it. These functions are arranged in
menus and sub-menus, accessed using the two soft
keys. Each menu and sub-menu allows you to view
and alter the settings of a particular function.
Using the soft keys
The roles of the soft keys vary according to the
function you are currently using; the labels on the
bottom line of the display just above each key
indicate its current role.
Example:
Menu Name
Service provider
07:30
Mon 29 Mar
Press the left soft
key to access Menu
mode.
Press the right soft key
to access the
Phonebook feature.
Selecting functions and options
28
In each main menu, one of the most popular sub
menus is assigned to the left soft key for
example, if you select the
Sound settings
menu,
Ringtone
is assigned to the left soft key. This
allows you to quickly access the most popular
menus.
Using the touch screen
Using the stylus pen, you can tap items on the
display of your phone to perform the following
operations:
• Enter main menus
• Select menu options
• Perform soft key commands
• Scroll through lists
• Enter text on the onscreen keyboards
• Move the cursor in text input fields
Note
: Tapping on main menus perform the same as
you press the left soft key; it allows you to
quickly access the most popular sub menus.
Selecting functions and options
29
Selecting options
To you select an option, you can use both the
keypad and the touch screen.
To view the various functions and options available
and to select the one you want:
To Choose one of the
following options:
perform a soft key
command • Press the corresponding
soft key.
• Tap the soft key indicator.
scroll through a list • Press the Up or Down key.
• Tap the up or down arrow
on the right of the list.
select an option or
a function • Press
Select
soft key or
key when the option or
function is highlighted.
• Tap
Select
when the
option or function is
highlighted.
• Press the corresponding
number key when the
option or function is
numbered.
• Tap the option or function.
move back up one
level in the
structure
• Press the soft key.
• Tap .
• Press the
C
key.
exit the structure
without changing
the settings
• Press the key.
• Close the phone.
Selecting functions and options
30
In some functions, you may be asked for a
password or PIN. Enter the code and tap
OK
or
press the
OK
soft key or key.
Note
: When you access a list of options, your phone
highlights the currently selected option. If,
however, there are only two options, such as
On
/
Off
or
Enable
/
Disable
, your phone
highlights the option that is not currently active
so that you can select it directly.
31
Call functions
Making a call
When the idle screen displays, enter the area code
and phone number, then press the key.
Note
: When you activate the
Auto redial
option in
the
Extra settings
menu
(Menu 9.7)
, the
phone automatically redials up to ten times if
the person does not answer the call or is
already on the phone. See page 174 for further
details.
Making an international call
1. Press and hold the
0
key.
The
+
character appears.
2. Enter the country code, area code and phone
number and press the key.
Correcting the number
To clear Press the
the last digit
displayed
C
key.
any other digit in
the number Left or Right key until the
cursor is immediately to the
right of the digit to be cleared.
Press the
C
key. You can also
insert a missing digit simply by
pressing the appropriate key.
the whole display
C
key and hold it for more than
one second.
Call functions
32
Ending a call
When you want to end your call, briefly press the
key or close the phone.
Redialling the last number
The phone stores the numbers you’ve dialled,
received, or missed if the caller or the call recipient
is identified. See “Call records” on page 86 for
further details.
To recall any of these numbers:
1. If you have typed characters on the display,
press the key to return to Idle mode.
2. Press the key to display a list of the most
recent numbers in the order you made or
received them.
3. Scroll through the numbers until the number
you want highlights.
4. Choose one of the following options:
• To dial the number, press the key.
• To edit the number, select
Options
and then
select
Edit
. Change the number, referring to
“Correcting the Number” on page 31.
• To delete the number, select
Options
and then
select
Delete
.
• To delete all of the numbers on the Call log list,
select
Options
and then select
Delete all
.
For
details, see page 88.
Call functions
33
Making a call from Phonebook
You can store phone numbers that you use
regularly in the SIM card or in the phone’s memory,
which are collectively called Phonebook.
Once you have stored numbers in Phonebook, you
can dial a number by pressing a few keys or assign
your most frequently-used numbers to number keys
using the Speed Dial feature.
For further details about the Phonebook feature,
see page 38.
Adjusting the volume
During a call, if you want to adjust the earpiece
volume, use the Volume keys on the left side of the
phone.
Press the key to increase the volume level and
the key to decrease the level.
In Idle mode with the phone open, you can also
adjust the keypad tone volume using these keys.
Call functions
34
Answering a call
When somebody calls you, the phone rings and
displays the incoming call image.
When the caller can be identified, the caller’s phone
number or name, if stored in your Phonebook,
displays.
1. If necessary, open the phone. Press the key
or select
Accept
to answer the incoming call.
When the
Anykey answer
option in the
Extra
settings
menu (Menu 9.7) is activated, you can
press any key to answer a call except for
the key and the
Reject
soft key. See
page 174.
When th
e
Active slide
option in the
Extra
settings
menu is activated, you can answer the
call simply by opening the phone. See page 174.
Note
: To reject the call, press and hold the Volume
keys before opening the phone, or select
Reject
or press the
key.
2. End the call by closing the phone or pressing
the key.
Note
: You can answer a call while using Phonebook or
menu features. After ending the call, the
display returns to the function screen you were
using.
Call functions
35
Viewing missed calls
When you are unable to answer a call for any
reason, you can find out who called you so that you
can call the person back.
The number of calls you missed displays on the idle
screen immediately after a call is missed.
To view the missed call immediately:
1. If the phone is closed, open the phone.
2. Select
View
.
The number for the most recent missed call
displays, if available.
3. Scroll through the missed calls if there is more
than one.
4. Choose one of the following options:
• To call the number displayed, press the
key.
• To edit or delete a missed call number, select
the call. See below.
Editing a missed call number
Note
: When the number for the missed call is not
available, the
Edit
option does not display.
1. Select
Options
or press the key and then
select the
Edit
option.
2. Change the number.
Call functions
36
3. Choose one of the following options:
• To call the number, press the key.
• To store the number, select
Save
and enter
the name and the location. For further details,
see page 38.
Deleting a missed call
1. Select
Options
or press the key.
2. Select
Delete
.
You can press the key at any time to exit the
Missed Call feature.
Note
: You can access the Missed Call feature at any
time by selecting the
Missed calls
menu
(Menu 2.1). For further details, see page 86.
Call functions
37
Quickly switching to silent mode
Silent mode is convenient when you wish to stop
the phone from making noise, in a theatre for
example.
In Idle mode, press and hold the
key until the
“Silent mode” message and the Vibration icon ( )
display. The phone also vibrates.
In Silent mode, your phone changes the sound
settings as follows:
To exit and reactivate the previous sound settings,
press and hold the
key again until “Exit silent
mode” appears. The Vibration icon ( ) no longer
displays.
Notes
:
• When you turn off the phone, Silent mode is
automatically deactivated.
• Activating Silent mode will not turn off the camera
shutter sound.
Option New Setting
Alert type Vibration
Keypad tone Off
SMS/MMS tone Light + vibration
SMS-CB tone Light only
Slider tone Off
Power off tone Off
Extra tones Off
38
Phonebook
You can store phone numbers and their
corresponding names in both your SIM card and
your phone’s memory. They are physically separate,
but are used as a single entity, called Phonebook.
Note
: Depending on the manufacturer of your SIM
card, the maximum number of phone numbers
the SIM card can store may differ.
Storing a number with a name
There are two ways to store a number:
• Entering a number and then selecting
Save
in
Idle mode
•Using the
New entry
option in the Phonebook
menu
Storing a number in idle mode
1. Enter the number you want to store.
Note
: If you make a mistake while entering a
number, correct it using the
C
key. For
further details, see page 31.
2. When you are sure that it is correct, select
Save
.
3. Select an icon to identify the category of the
number to be stored. Three categories are
available:
• : Mobile phone number
• : Office number
• : Home number
Phonebook
39
4. Select a memory location, either
SIM
or
Phone
.
Note
: When you change phones, any numbers
stored in your SIM card are automatically
available with the new phone, whereas any
numbers stored in the phone’s memory
must be reentered.
5. Enter a name and select
OK
.
For further details about how to enter
characters, see page 50.
6. When the phone confirms the name you’ve
entered, select
OK
.
7. If you do not want to save the number and
name in the suggested location, press the
C
key
to clear the location number and enter another
location by pressing the number keys.
8. Select
OK
to store the name and number.
After storing, the phone displays the Phonebook
entry or name you just created.
9. Choose one of the following options:
• To dial the number, press the key.
• To use the entry options, select
Options
or
press the key. For further details, see
page 41.
• To return to the idle screen, press the
key.
Phonebook
40
Storing a number using the Phonebook
menu
1. When the idle screen displays, select
Name
.
2. Select
New entry
.
3. Select an icon to identify the category of the
number to be stored.
Note
: The E-mail icon ( ) is available in this
step. It allows you to save an e-mail
address instead of a phone number.
4. Select a memory location, either
SIM
or
Phone
.
Note
: When you are saving an e-mail address,
SIM is not available.
5. Enter a name and select
OK
.
For further details about how to enter
characters, see page 50.
6. When the phone confirms the name you
entered, select
OK
.
7. Enter the number or address you want to store
and select
Save
.
8. Continue the procedure from step 7 on page 39
to store the number.
Phonebook
41
Using Phonebook entry options
While accessing any Phonebook entry, select
Options
or press the key to access the options
for the entry.
The following options are available:
Paste
: allows you to paste the number into the
normal dialling mode. Use this option to dial a
number similar to one in Phonebook, such as a
different extension in the same office.
Use the
C
key to change the number as required;
see page 31 for further details. When you are ready
to dial, press the key.
Edit
: allows you to edit the name and number.
Select
One entry
to change the name and/or
phone number for the selected entry. If you change
the name, the number is saved separately with the
new name.
Select
All entry
to change only the name of the
entry.
Erase
: allows you to erase the name and number
from Phonebook. You are asked to confirm that you
wish to delete the name and number by selecting
Yes
.
Copy
: allows you to copy the number to another
location. You can select the memory and the
location number.
Caller group
: allows you to organise your
Phonebook entries in caller groups so that the
phone alerts you in a specific way when a person
from one of your groups calls you. Select one of the
ten groups available.
Phonebook
42
To remove an entry from a group, select the
No
group
option.
For further details about how to change caller group
properties, see page 46.
Add entry
: allows you to add a new number to the
currently selected name.
Send via IrDA
: allows you to send one or all
numbers in the entry to another phone via the
infrared port. For details, see page 166.
Dialling a number from Phonebook
Once you have stored phone numbers in
Phonebook, you can dial them easily and quickly by
using the location numbers that were assigned to
them in Phonebook.
Dialling a number from the SIM card
1. In Idle mode, enter the location number of the
number you want to dial and press the key.
The list of the entries in the SIM card appears.
2. If necessary, scroll through the list.
3. When the number displays, select
Dial
or press
the or key.
Dialling a number from the phone’s
memory
1. In Idle mode, press and hold the
0
key. A
+
appears.
Phonebook
43
2. Enter the location number of the number you
want and press the key.
The list of the entries in the phone’s memory
appears.
3. If necessary, scroll through the list.
4. When the number displays, select
Dial
or press
the or key.
Speed dialling
You can assign up to eight phone numbers from
Phonebook that you use most frequently to the
number keys (
2
to
9
), and then dial them easily
whenever you want, simply by pressing and holding
the associated number key.
Setting up speed-dial entries
1. When the idle screen displays, select
Name
.
2. Select
Speed dial
.
3. Select the key to which you wish to assign the
speed-dialling number, from the
2
to
9
keys.
Note
: Memory location 1 is reserved for your Voice
Mail server number.
If you have already assigned a number to the
key, the
Options
soft key replaces the
Select
soft key. Go to step 6.
4. Enter the first few letters of the name that you
want to find and select
OK
.
Phonebook
44
5. Select a Phonebook entry from the list.
6. Select a number, if the entry has more than one.
7. Once you have assigned a number to the key,
you can use the following options by selecting
Options
or pressing the key:
•
Change
: allows you to assign a different
number to the key.
•
Delete
: allows you to clear the setting so that
no number is assigned to the key.
•
Delete all
: allows you to clear the settings for
all keys so that no numbers are assigned to
any of the keys.
•
Number
: allows you to view the number
assigned to the key. You can dial the number
by pressing the key.
8. When you are finished, select or press the
key.
Speed-dialling from Phonebook
To speed-dial the numbers assigned to the
2
to
9
keys, press and hold the appropriate key.
Phonebook
45
Searching for and dialling a number
in Phonebook
After storing numbers in Phonebook, you can
search for them in two ways; by name and by caller
group.
Searching for a number by name
1. When the idle screen displays, select
Name
and
then select
Search
. Alternatively, tap from
any screen.
You are asked to enter a name.
2. Enter the first few letters of the name that you
want to find and select
OK
.
The Phonebook entries are listed, starting with
the first entry matching your input.
3. Select the entry you want.
4. Select one of the following options:
• To dial the number, press the key.
• To use the entry options, select
Options
or
press the key. For further details, see
page 41.
• To return to the idle screen, press the
key.
Searching for a number by caller group
1. When the idle screen displays, select
Name
.
2. Select
Group search
. You are asked to enter a
group name.
Phonebook
46
3. Enter the first few letters of the group name that
you want to find and select
OK
.
The caller groups are listed, starting with the
first group matching your input.
4. Select a group from the list.
The Phonebook entries in the caller group are
listed.
5. Select the entry you want.
6. Select one of the following options:
• To dial the number, press the key.
• To use the entry options, select
Options
or
press the key. For further details, see
page 41.
• To return to the idle screen, press the
key.
Editing a caller group
1. When the idle screen displays, select
Name
.
2. Choose
Group edit
.
3. Choose the group that you want to find.
4. Select each option and change the settings, as
required. The following options are available:
•
Call ringtone
: allows you to set a ring tone to
be used when you receive a call from a person
in the group.
Phonebook
47
•
SMS tone
: allows you to set a ring tone to be
used when you receive a message from a
person in the group.
•
Graphic
: allows you to set a graphic icon to be
displayed when you receive a call from a
person in the group.
•
Group name
: allows you to assign a name to
the group. For further details about how to
enter characters, see page 50.
5. When you are finished, select
or press the
key.
Deleting all of the Phonebook entries
You can delete all of the entries in the selected
memory or both memories.
1. When the idle screen displays, select
Name
.
2. Select
Delete all
.
3. Select the memory you want to empty,
All
,
SIM
, or
Phone
, in order to place a check mark.
You can remove the check mark by selecting the
option again.
4. When you are finished marking, select
Delete
to
delete the entries in the selected memory.
5. Enter the phone password and select
OK
.
Note
: The password is preset to “00000000” at
the factory. To change it, see page 172.
Phonebook
48
6. When the confirmation message appears, select
Yes
.
To cancel the deletion, select
No
.
7. When the display asks for your confirmation,
select
Yes
.
8. When you are finished, select or press the
key.
Checking the memory status
You can check how many names and numbers are
stored in Phonebook, in both the SIM card and the
phone’s memory. You can also see the capacity of
both memories.
1. When the idle screen displays, select
Name
.
2. Choose
Memory status
.
3. Choose the memory location.
A pop-up box shows to view the number of the
entries you stored and the total number of the
entries you can store in the SIM card and the
phone’s memory.
4. When you are finished, select or press the
key.
Phonebook
49
Using the service dialling numbers
You can view the list of Service Dialling Numbers
(SDN) assigned by your network provider. These
numbers include emergency numbers, directory
enquiries, and voice mail numbers.
1. When the idle screen displays, select
Name
.
2. Select
SDN
.
3. Select the number you want.
4. To dial the number displayed, select
Dial
or
press the or key.
Note
: This option is available only when your SIM card
supports Service Dialling Numbers.
50
Entering text
The phone allows you to enter characters for
messages and names in Chinese and English by
using the keypad and the touch screen. To enter
Chinese text, the phone provides several widely
used pronunciation based (Pinyin) and character
shape based (Stroke) input methods to meet the
preferences of different users, allowing for greater
convenience and ease of use.
You can also enter any combination of Chinese
characters, alphabets, numbers, and special
symbols including punctuation marks.
The following text input modes are available on
your phone:
•Pen stroke mode
•Pinyin mode
• Chinese Simplified Stroke mode
• Quick English mode
•English mode
• Chinese Traditional Stroke mode
•Number mode
• Symbolic mode
•My Words mode
• Help mode
Directions for using each of the text input modes
appear later in this section.
Entering text
51
Note
: The available text input modes may be
different, depending on your language setting.
Refer to the following table:
Changing the text input mode
When you are in a field that allows characters to be
entered, you will notice the text input mode
indicator on the display.
Example: Entering a name for a Phonebook entry
Language Available modes
English Pen Stroke, Quick English, English,
Number, Symbolic, My Words
Chinese T Pen Stroke, Quick English, English,
CHN T Stroke, Number, Symbolic,
My Words
Chinese S Pen Stroke, Pinyin, CHN S Stroke,
Quick English, English, Number,
Symbolic, My Words
OK
Text input
mode indicator
Enter name
Entering text
52
To change to another text input mode:
1. Select the current mode indicator on the right
soft key field.
2. Select the mode you want to use.
Note
: If you want to exit the menu without
changing to a new mode, select .
The selected text input mode indicator appears
at the bottom of the display.
Input mode Indicator
Pen Stroke mode (see page 53)
Chinese Pinyin mode (see page 57)
Chinese Simplified Stroke
mode (see page 60)
Quick English mode (see page 63)
English mode (see page 65)
Chinese Traditional
Stroke mode (see page 60)
Number mode (see page 67)
Symbolic mode No Indicator (see
page 67)
My Words mode No Indicator (see
page 68)
Help mode No Indicator (see
page 70)
Entering text
53
Using Pen Stroke mode
Pen Stroke mode allows you to write letters you
want to enter on the touch screen using the stylus
pen as you would on the paper or choose from the
displayed choices corresponding to your pen stroke.
You can enter Chinese and English letters, symbols,
and numbers without having to change the text
input mode.
In this mode, you can also open the alphabetic,
numeric, and symbolic onscreen keyboard and
enter text simply by tapping the characters on the
keyboard.
Typing characters in Pen Stroke mode
1. Write the character you want on the Pen Stroke
field.
Note
: You need to follow the correct sequence of
strokes. For the sequences of English
alphabet, numbers, and symbols, see
page 54.
The first choice is automatically inserted into the
Text field.
Pen Stroke
field
Character
Selection field Opens the onscreen
keyboard. See
page 55.
Enters a colon.
Enters a comma.
Enters a period.
Enters a space.
Clears the last input.
Text field
OK
Enter name
Entering text
54
2. If the phone doesn’t recognise your stroke, you
can select a character from the Character
Selection field.
The first character is replaced with the selected
one.
Note
: If the character you want doesn’t display in
the Character Selection field, you need to
clear the entered character and then start
over the writing.
3. Continue writing the next characters.
Sequences of pen strokes
When you write English alphabet, numbers, and
symbols, refer to the following tables to enter
strokes in the correct order.
English
Entering text
55
Numbers
Symbols
Using the onscreen keyboard
Tapping in Pen Stroke mode opens the
onscreen keyboard. You can select either the
alphabetic, numeric, or symbolic keyboard.
To enter characters using the onscreen keyboard,
just tap the one you want on the keyboard.
Entering text
56
•Tap
Abc
to open the alphabetic keyboard.
•Tap
123
to open the numeric keyboard.
•Tap
#$?
to open the symbolic keyboard.
E
n
t
er
name
OK
Opens the
alphabetic keyboard.
Switches to
Caps Lock
mode.
Shifts the letter case.
Enters a space.
Clears the last input.
Switches to Pen
Stroke mode.
E
n
t
er
name
OK
Opens the numeric
keyboard.
Enters a space.
Clears the last input.
Switches to Pen
Stroke mode.
E
n
t
er
name
OK
Opens the symbolic
keyboard.
Enters a space.
Clears the last input.
Switches to Pen
Stroke mode.
Entering text
57
Using Chinese Pinyin mode
Pinyin is a system to write pronunciation of Chinese
words using the Latin alphabets. With the Pinyin
input method, you can enter Chinese characters by
keying in the Pinyin string from the phone’s keypad
and the phone automatically presents the matching
words.
This mode allows you to enter Pinyin characters
with only one key press per letter.
Typing characters in Pinyin mode
1. Press the keys corresponding to the phonetic
spelling, referring to the alphabets printed on
the keys. Notice that the choices in the
Character Selection field change. All of the
phonetic spellings corresponding to the keys you
press display.
Example: Typing “ ” in Pinyin mode
2. Select the Pinyin you want.
3. If you cannot find the character on the display,
scroll through choices in the Character Selection
field by pressing the Down key. To move back,
press the Up key.
Key Stroke field
Press the
5
and
4
keys to enter “li.”
To select “li”, press
the Right key.
Character
Selection
field
OK
Enter name
Entering text
58
When the character you are typing appears in
the Character Selection field, you may select it,
without completing the Pinyin spelling for the
character.
4. When the character displays, press the
1
key to
activate the Character Selection field. A number
(
7
to ) is added to the beginning of a
corresponding character.
5. With the Character Selection field being
activated, tap the character or press the
7
key
to the key to select the corresponding
character.
Notes
:
• If you enter the first character of the name you
assigned to a My Words item (see page 68), the
display shows you the character along with the
Pinyins for your keypress. To use the item, press the
Right key to highlight the character and then press
the key.
• If you enter the first three characters of a My Words
item (see page 68), the remaining characters
automatically display. To use the My Words item,
press the Right key to move the cursor. If you don’t
want to use it, enter the next character you want.
Press the
9
key
to select “ ” or
just tap it.
Enter name
OK
Entering text
59
Inserting a space
To insert a space between characters, press the
key when the cursor blinks in the Text Area.
Scrolling
To move the cursor through your text, press the
Navigation keys or just tap the position where you
want to place the cursor.
Clearing strokes and characters
Press the
C
key one or more times to remove key
stokes to the left. When the Key Stroke field is
empty, pressing the
C
key removes characters from
the Text Area.
Rapid character entry
Rapid character entry is easy in any mode, using
the Character Selection field. As you enter
characters, your phone predicts the next character
you might want and presents choices in the
Character Selection field. When the character you
want appears, you may select it as described in
steps 4 and 5 in “Typing characters in Pinyin mode”
on page 57.
For example, when you want to type the word
“zhong guo ( ),” enter the first character using
the following keystrokes;
9
,
4
,
6
,
6
,
1
, and
7
. You
don’t need to complete the Pinyin spelling to include
“guo ( ).” With no extra typing, the character
displays conveniently in the Character Selection
field for you to choose.
Entering text
60
Using Chinese Stroke modes
Your phone provides Chinese Simplified Stroke
mode and Chinese Traditional Stroke mode. These
modes allow you to enter individual Chinese
strokes, in written order, from top to bottom and
from left to right.
The two modes work similarly, but the characters
that appear on the display may differ.
Even though there are many different strokes used
to create Chinese characters, the strokes are
classified into 5 basic categories; heng, shu, pie,
dian and zhe. The basic strokes are printed on the
1
to
5
keys on the keypad.
To enter a stroke, press the key printed with the
stroke that most closely represents the exact stroke
you want.
The table shows the stroke/key relationship:
Entering text
61
Typing stokes and characters in Stroke
Mode
1. To type a character, press the keys
corresponding to its component strokes. Press
the keys on the phone in order that you would
write the strokes, using one press per stroke.
Example: Typing “ ” in Chinese Traditional
Stroke mode
2. The phone displays your strokes in the Key
Stroke field and offers character choices in the
Character Selection field. As you enter strokes,
notice that the choices in the Character
Selection field change. To scroll through the
choices, press the Down key. To move back,
press the Up key.
3. When the character you are typing appears in
the Character Selection field, you may select it
without finishing the stroke sequence for the
character. Characters displayed in the Character
Selection field correspond to the keys
7
to on
the keypad.
To select a character and add it to your text,
press the corresponding key (
7
to ). You can
also tap the character.
Key Stroke field
Press the
5
and
3
keys to enter
“.”
Character
Selection
field
Enter name
OK
Entering text
62
Notes
:
• If you are uncertain of the order of one or more
strokes, press the
6
key in place of each
questionable stroke. Continue entering strokes until
the character displays in the Character Selection
field or until you finish the character.
• If you enter the first three characters of a My Words
item (see page 68), the remaining characters
automatically displays. To use the word you added,
press the Right key to move the cursor. If you don’t
want to use it, enter the next character you want.
Inserting a space
To insert a space between characters, press the
key when the cursor blinks in the Text Area.
Scrolling
To move the cursor through your text, press the
Navigation keys or just tap the position where you
want to place the cursor.
Clearing strokes and characters
Press the
C
key one or more times to remove
strokes to the left. When the Key Stroke field is
empty, pressing the
C
key removes characters from
the Text Area.
Entering text
63
Rapid character entry
Rapid character entry is easy in any mode, using
the Character Selection field.
As you enter characters, your phone predicts the
next character you might want and presents choices
in the Character Selection field. When the character
you want appears, you may select it as described in
step 3 on page 61.
In most cases, the character you want appears in
the Character Selection field before you enter all of
the strokes to build it.
For example, try typing the twelve stroke character
pair “ ” using the following keystrokes;
2
,
8
,
and
7
. Even though “ ” is a twelve stroke
character pair, your phone enables you to type it in
only three key presses!
Using Quick English mode
This mode allows you to enter English words with
only one key press per letter. Each key on a keypad
has more than one letter; for example, when you
press the 5 key once, J, K, or L displays. Quick
English mode automatically compares your key
presses to an internal linguistic database to
determine the correct word.
The mode requires far fewer keystrokes than the
traditional multi-tap method, English mode.
Note
: In Quick English mode, the touch screen is not
available.
Entering text
64
To enter a word in Quick English mode:
1. Press keys on the phone just once per a letter
you want. For example, to enter “HELLO,” press
the
4
,
3
,
5
,
5
and
6
keys.
The word that you are typing appears on the
display. It may change with each key that you
press.
2. Type to the end of the word before editing or
deleting any keystrokes.
3. If the word is correct, insert a space by pressing
the key and start entering the next word.
Otherwise, press the
0
key, the Up or Down key
repeatedly to display alternative word choices
for the keys that you pressed.
Example: Both “Of” and “Me” use the
6
and
3
keys. The phone displays the most
commonly used choice first.
To type words not found in Quick English mode,
change Text input mode to English mode.
Smart punctuation
To enter periods, hyphens, or apostrophes, press
the
1
key. Quick English mode applies grammar
rules to ensure that the correct punctuation is used.
Changing the case
To change the case of the letters, use the key.
There are three cases; Capital Lock( ), Lower
case( ) and Initial Capital( ).
Entering text
65
Scrolling
To move the cursor through your text, press the
Navigation keys.
Clearing letters and words
To delete letters, press the
C
key. Press and hold
the
C
key to clear the display.
Using English mode
When typing in English mode, you can tap the
alphabets on the onscreen keyboard, or press the
key labelled with the character you want:
- Once for the first character
- Twice for the second character
- and so on.
This method is called Multi-tap typing.
For example, you need to press the
2
key three
times to display the character “C” and the
5
key two
times to display the character “K.”
The cursor moves to the right when you press a
different key. When entering the same letter twice
or a different letter on the same key, just wait for a
few seconds for the cursor to move to the right
automatically, and then select the next letter.
Entering text
66
Refer to the table below for more information about
the characters available by pressing the number
keys:
Inserting a space
You can insert a space between words by pressing
the key.
Changing the case
To change the case of the letters, use the key.
There are three cases; Capital Lock( ), Lower
case( ) and Initial Capital( ).
Scrolling
To move the cursor through your text, press the
Navigation keys or just tap the position where you
want to place the cursor.
Entering text
67
Clearing letters and words
To delete letters, press the
C
key. Press and hold
the
C
key to clear the display
Using Number mode
Number mode enables you to enter numbers in
your text, such as a telephone number. Tap the
number on the onscreen keyboard or press the keys
corresponding to the digits you want to enter.
Using Symbol mode
Symbol mode enables you to insert symbols into
your text.
• To select a symbol, press the corresponding
number key or just tap the symbol.
• To display more symbols. press the Up or Down
key or tap the up or down arrow.
• To insert the symbol(s) into your text, select
OK
or press the key.
SYMBOL
OK Back
Entering text
68
• To clear the symbol(s) you entered, press the
C
key.
• To cancel your input and exit Symbolic mode,
select
Back
.
Using My Words mode
This mode allows you to preset Chinese words or
phrases so that you can quickly and easily insert
them into your text while you are creating a
message.
Adding a word or phrase onto the My
Words list
1. Select
Add Word
.
2. Enter a word or phrase using the available
modes and select
OK
.
For further details about each mode, see pages
from 57 to 65.
3. Enter a name to assign to the word you added.
If necessary, press the
C
key to clear the
characters.
4. Select
OK
.
The word or phrase is added to the My Words
list. The item is saved separately, depending on
the mode you select.
Entering text
69
Using My Words items
1. Choose the current input mode indicator on the
right soft key field when you are creating text.
2. Select
My Words
from the list.
3. Press the right soft key or tap the mode
indicator on the right soft key field to select the
input mode.
The display shows the list of My Words items
created in the selected mode.
4. Select the word you want from the list.
Alternatively, enter a few letters of the name of
the My Words item you want to find. The first
item matching your input highlights. You can
then select an item.
5. Choose
Select
. The word is inserted in your
text.
Using My Words options
Select a word or phrase from the My Words list and
select
Options
.
The following options are available:
Edit Phrase
: allows you to change the word or
phrase and then the name assigned to the item.
Create Phrase
: allows you to add a new word or
phrase.
Delete Phrase
: allows you to delete the item.
When a confirmation message appears, select
Yes
.
Select Phrase
: allows you to insert the word or
phrase to your text.
Entering text
70
Using Help mode
On-screen help is available by selecting
Help
from
the input mode menu. Use the Up and Down keys
or tap the up and down arrows to scroll through the
Help information.
71
Options during a call
Your phone provides a number of control functions
that you can use during a call.
Putting a call on hold
You can place the current call on hold whenever you
want. You can make another call while you have a
call in progress if your network supports this
service.
To place a call on hold, simply select
Hold
. You can
reactivate the call whenever you want by selecting
Unhold
.
To make a call while you have a call in progress:
1. Enter the phone number that you wish to dial or
look it up in Phonebook.
For details about searching for a number in
Phonebook, see page 45.
2. Press the key to dial the second call.
The first call is automatically put on hold.
Alternatively,
1. Put the current call on hold by selecting
Hold
.
2. Make the second call in the normal way.
Options during a call
72
When you have an active call and a call on hold, you
may switch between the two calls, changing the one
on hold to active and placing the other on hold.
To switch between the two calls, select
Swap
.
The current call is placed on hold and the call on
hold is reactivated so that you can continue
conversing with the other person.
When you want to finish, end each call normally by
pressing the key.
Using the menu functions
During a call, you can access the main menu
functions.
1. Select
Options
or press the key and then
select
Menu
.
2. If necessary, scroll through the menu list.
Note
: You cannot use some menus during a call.
They are deactivated on this list.
3. Select the menu you want to use.
4. If the selected menu has sub-options, repeat
steps 2 and 3.
For further details about the menu functions
available, see the list on page 80.
Options during a call
73
Switching the microphone off (Mute)
You can temporarily switch your phone’s
microphone off so that the other person on the
phone cannot hear you.
Example: You wish to say something to another
person in the room but do not want the
person on the phone to hear you.
To switch the microphone off temporarily:
1. Select
Options
or press the key.
2. Select
Mute
.
The other person on the phone can no longer
hear you.
To switch the microphone back on:
1. Select
Options
or press the key.
2. Select
Unmute
.
The other person on the phone can hear you
again.
Options during a call
74
Muting and sending DTMF tones
The
Mute keys
and
Send keys
options allow you
to turn off or on the key tones. If the
Mute keys
option is selected, your phone does not transmit the
DTMF (Dual Tone Multi-Frequency) tones of the
keys, which allows you to press keys without
hearing annoying key tones during a call.
Note
: To communicate with answering machines or
computerised telephone systems, the
Send
keys
option must be selected.
Sending a sequence of DTMF tones
You can send the DTMF tones after entering the
entire number you need to send.
This option is helpful for entering a password or an
account number when you call an automated
system, like a banking service.
To send the DTMF tones:
1. When you are connected to the teleservice
system, select
Options
or press the key.
2. Select
Send DTMF
.
3. Enter the number you want to send and select
OK
.
The tones are sent.
Options during a call
75
Searching for a number in
Phonebook
You can search for a number in Phonebook during a
call.
1. Select
Options
or press the key.
2. Select
Phonebook
.
The Phonebook entries are listed.
3. Enter the name that you wish to find and select
OK
.
If you enter the first few letters of the name, the
Phonebook entries are listed, starting with the
first entry matching your input.
4. Select the entry you want to view.
For further details about the Phonebook feature,
see page 38.
Call waiting
You can answer an incoming call while you have a
call in progress, if your network supports this
service and you have set the
Call waiting
menu
(Menu 3.3) to
Activate
; see page 93. You are
notified of an incoming call by a call waiting tone.
To answer a call while you have a call in progress:
1. Press the key to answer the incoming call.
The first call is automatically put on hold.
2. To switch between the two calls, select
Swap
.
Options during a call
76
3. To end the call on hold, select
Options
or press
the key and then select
End held call
.
To end the current call, press the key.
Making a multi-party call
A multi-party call is a network service that allows
up to six people to take part simultaneously in a
multi-party or conference call. For more information
about subscribing to this service, contact your
service provider.
Setting up the multi-party call
1. Call the first participant in the normal way.
2. Call the second participant in the normal way.
The first call is automatically put on hold.
3. To join the first participant to the multi-party
call, select
Options
or press the key and then
select
Join
.
4. To add a new person to the multi-party call, call
the person in the normal way and select
Options
or press the key and then select
Join
.
You can add incoming callers by answering the call,
by selecting
Options
or press the key and the
selecting the
Join
option. Repeat as required.
Options during a call
77
Having a private conversation with one
participant
1. Select
Options
or press the key and then
select
Select one
.
The list of call participants appears.
2. Select a person from the list and press the
key.
3. Select
Private
.
Now you can talk privately to that person. The
other participants can still converse with each
other.
4. To return to the multi-party call, select
Options
and then select
Join
.
All the multi-party call participants can now hear
each other.
Dropping one participant
1. Select
Options
or press the key and then
select
Select one
.
The list of call participants appears.
2. Select a person from the list and press the
key.
3. Select
Remove
.
The call ends with that participant, but you can
continue to talk to the others.
4. When you want to end the multi-party call, close
the phone or press the key.
78
Using the menus
The phone offers a range of functions that allow you
to tailor it to your needs. These functions are
arranged in menus and sub-menus.
The menus and sub-menus can be accessed by
scrolling or by using the shortcuts.
Accessing a menu function by
scrolling
You can scroll and select a menu function by
tapping items on the touch screen or pressing the
Navigation keys and the associate soft keys.
1. In Idle mode, Select
Menu
to access Menu
mode.
2. Scroll using the Navigation keys to reach a main
menu,
Phone settings
for example. Select it to
enter the menu.
Note
: When you select a main menu, the left soft
key allows you to quickly access its most
popular submenus.
3. If the menu contains submenus,
Language
for
example, select it.
If the menu that you have selected contains
further options, repeat this step.
4. You can select a menu function as follows:
• To scroll through the menus, tap the up or
down arrow, press the Up or Down key, or
press the Volume keys.
Using the menus
79
• To confirm the chosen setting, tap the setting
or press the
Select
soft key or the key.
• To return to the previous menu level, tap or
press the soft key or
C
key.
• To exit the menu without changing the
settings, press the key.
Using shortcuts
Menu items, such as menus, sub-menus, and
options, can be accessed quickly by using their
shortcut numbers. For the main menus, you can
access any one of them by pressing the number keys
(
1
to
9
) corresponding to their location
on the screen.
Press the
Menu
soft key and enter the number of
the menu you want.
Notes
:
• The numbers assigned to each menu are indicated
on the list on page 80. They may not match the
menu number on the phone, depending on the
services supported by your SIM card.
• For the menu number 10, use the
0
key.
Example: Accessing the
Language
menu.
1. Press the
Menu
soft key.
2. Press the
9
key for
Phone settings
.
3. Press the
5
key for
Language
.
The languages available display.
Using the menus
80
List of menu functions
The following list shows the menu structure
available and indicates the number assigned to
each option and the page where you can find a
description of each feature.
1. SIM AT menu
*
(see page 85)
2. Call records
(see page 86)
2.1 Missed calls
2.2 Received calls
2.3 Dialled calls
2.4 Delete all
2.5 Call time
2.5.1 Last call time
2.5.2 Total sent
2.5.3 Total received
2.5.4 Reset timers
2.6 Call costs
**
2.6.1 Last call cost
2.6.2 Total cost
2.6.3 Max cost
2.6.4 Reset counters
2.6.5 Set max cost
2.6.6 Price/Unit
3. Network services
(see page 90)
3.1 Call diverting
3.1.1 Divert always
3.1.2 Busy
3.1.3 No reply
3.1.4 Unreachable
3.1.5 Cancel all
* May be available only if you use a SIM AT card.
** Shows only if supported by your SIM card.
Using the menus
81
3. Network service
(continued)
3.2 Call barring
3.2.1 All outgoing
3.2.2 International
3.2.3 International except to home
3.2.4 All incoming
3.2.5 Incoming while abroad
3.2.6 Cancel all
3.2.7 Change barring password
3.3 Call waiting
3.3.1 Voice calls
3.3.2 Data calls
3.3.3 Cancel all
3.4 Network selection
3.5 Caller ID
3.6 Closed user group
3.6.1 Index list
3.6.2 Outside access
3.6.3 Default group
3.6.4 Deactivate
*
3.7 Band selection
4. Sound settings
(see page 97)
4.1 Ring tone
4.2 Ring volume
4.3 Alert type
4.4 Keypad tone
4.5 Message tone
4.5.1 SMS tone
4.5.2 SMS-CB tone
4.5.3 MMS tone
4.5.4 Off
4.6 Slider tone
4.7 Power on/off
4.8 Alert on call
4.9 Extra tones
* Shows only if the Closed user group Feature is active.
Using the menus
82
5. Messages
(see page 102)
5.1 Text messages
5.1.1 Create
5.1.2 Inbox
5.1.3 Outbox
5.1.4 Templates
5.1.5 Settings
5.2 Multimedia messages
5.2.1 Create
5.2.2 Inbox
5.2.3 Outbox
5.2.4 Draft
5.2.5 Templates
5.2.6 Settings
5.2.7 MMS profile
5.3 Push messages
5.3.1 Inbox
5.3.2 Receive
5.3.3 Delete all
5.4 Delete all
5.4.1 Text messages
5.4.2 Multimedia messages
5.5 Voice mail
5.5.1 Connect to voice server
5.5.2 Voice server number
5.6 Broadcast messages
5.6.1 Read
5.6.2 Receive
5.6.3 Channel list
5.6.4 Language
5.7 Memory status
5.7.1 Text messages
5.7.2 Multimedia messages
6. Funbox
(see page 125)
6.1 WAP browser
6.1.1 Home
6.1.2 Favorite
6.1.3 http://
6.1.4 Settings
6.1.5 Clear cache
Using the menus
83
6. Funbox
(continued)
6.2 Fun club
‘6.2.1 SFC home
6.2.2 Gift box
6.2.3 Service area
6.3 Games & More
6.4 Sounds
6.5 Images
6.6 Delete all
6.7 Memory status
6.7.1 Games
6.7.2 Sounds&Images
6.8 Match Match
7. Organiser
(see page 140)
7.1 Alarm
7.1.1 Once alarm
7.1.2 Daily alarm
7.1.3 Morning call
7.1.4 Remove alarm
7.1.5 Autopower
7.2 Calendar
7.3 Time & Date
7.3.1 Set time
7.3.2 Set date
7.3.3 World time
7.3.4 Time format
7.3.5 Date format
7.4 Calculator
7.5 To do list
7.6 Sketch memo
7.6.1 Read memo
7.6.2 Sketch memo
7.6.3 Setup
7.7 Voice memo
7.7.1 Record
7.7.2 Memo list
7.7.3 Delete all
7.7.4 Memory status
7.8 Currency exchange
7.9 Dictionary
Using the menus
84
8. Camera
(see page 156)
8.1 Take photos
8.2 My photos
8.3 Video
8.3.1 Record
8.3.2 Video clips
8.4 Memory status
9. Phone settings
(see page 163)
9.1 Activate infrared
9.1.1 With PC
9.1.2 With other phone
9.2 Display settings
9.2.1 Wallpaper
9.2.2 Menu style
9.2.3 Brightness
9.2.4 Back light
9.2.5 Service light
9.2.6 Graphic logo
9.3 Greeting message
9.4 Own number
9.5 Language
9.6 Security
9.6.1 PIN check
9.6.2 Change PIN
9.6.3 Phone lock
9.6.4 Change password
9.6.5 Privacy
9.6.6 SIM lock
9.6.7 FDN mode
*
9.6.8 Change PIN2
*
9.7 Extra settings
9.8 Reset settings
* Shows only if supported by your SIM card.
85
SIM AT menu
This menu is available if you use a SIM AT card that
provides additional services, such as news, weather,
sports, entertainment, and location services.
Available services may vary, depending on your
service provider’s service plans.
For further details, see your SIM card instructions
or contact your service provider.
86
Call records
In this menu, you can view the:
• calls you missed, received, or dialled.
• length of your calls.
• cost of your calls, if your SIM card supports it.
Notes
:
• You can access the numbers in the three types of call
records by pressing the key in Idle mode.
• The number of call records the phone can store may
be different depending on your SIM card.
Missed calls
(Menu 2.1)
This menu lets you view the most recent 20
numbers of the calls you received, but did not
answer.
The number or name, if available, displays together
with the time and date when the call was received.
Press the key to dial the number.
By selecting
Options
or pressing the key, you
can use the following options:
Edit
: allows you to edit the number and dial it or
save it in Phonebook.
Delete
: deletes the call from the list.
Call records
87
Received calls
(Menu 2.2)
This menu lets you view the most recent 20
numbers of the calls you received.
The number or name, if available, displays together
with the time and date when the call was received.
Press the key to dial the number.
By selecting
Options
or pressing the key, you
can use the following options:
Edit
: allows you to edit the number and dial it or
save it in Phonebook.
Delete
: deletes the call from the list.
Dialled calls
(Menu 2.3)
This menu lets you view the most recent 20
numbers you dialled.
The number or name, if available, displays together
with the time and date when the call was made.
Press the key to dial the number.
By selecting
Options
or pressing the key, you
can use the following options:
Edit
: allows you to edit the number and dial it or
save it in Phonebook.
Delete
: deletes the call from the list.
Call records
88
Delete all
(Menu 2.4)
This menu allows you to delete all of the records in
each call type. You can also delete all of your call
records at one time.
1. Select a call type to place a check mark. Repeat
this step to select more call types
You can remove the check mark by selecting it
again.
2. Select
Delete
to delete the marked records.
3. When a confirmation message displays, select
Yes
to confirm.
4. When the phone asks for your confirmation
again, select
Yes
.
Call time
(Menu 2.5)
This menu lets you view the timers for calls you
made and received.
Note
:
The actual time invoiced for calls by your
service provider may vary, depending on
network features, rounding-off for billing
purposes, and so on.
The following options are available:
Last call time
: length of the last call.
Total sent
: total length of all calls you made since
the timer was last reset.
Total received
: total length of all calls you
received since the timer was last reset.
Call records
89
Reset timers
: option used to reset the call timers.
You must first enter the phone password and then
select
OK
.
Note
: The password is preset to “00000000.” To
change this password, see page 172.
Call costs
(Menu 2.6)
This network feature lets you view the cost of calls.
This menu may not be available, depending on your
SIM card.
The following options are available:
Last call cost
: cost of the last call you made.
Total cost
: total cost of all calls you made since
the cost counter was last reset. If the total cost
exceeds the maximum cost set in the
Set max cost
menu, you can no longer make any calls until you
reset the counter.
Max cost
: maximum cost set in the
Set max cost
menu.
Reset counters
: option used to reset the cost
counter. You must first enter your PIN2 (see
page 181) and then select
OK
.
Set max cost
: option used to enter the maximum
cost that you authorise for your calls. You must first
enter your PIN2 (see page 181) and then select
OK
.
Price/Unit
: option used to set the cost of one unit;
this price per unit is applied when calculating the
cost of your calls. You must first enter your PIN2
(see page 181) and then select
OK
.
90
Network services
These menu functions are network services. Please
contact your service provider to check their
availability and subscribe to them, if you wish.
Call diverting
(Menu 3.1)
This network service enables incoming calls to be
rerouted to the number that you specify.
Example: You may wish to divert your business calls
to a colleague while you are on holiday.
You can use the following options to divert voice
calls and/or data calls:
Divert always
: all calls are diverted.
Busy
: calls are diverted when you are already on
another call.
No reply
: calls are diverted when you do not
answer the phone.
Unreachable
: calls are diverted when you are not
in an area covered by your service provider or when
your phone is switched off.
Cancel all
: all of the call diverting options are
cancelled.
To set your call diverting options:
1. Select a call diverting option.
2. Select the type of calls, voice or data.
The current status displays. If the option has
already been set, the number to which the calls
are diverted displays.
Network services
91
3. If you selected
No reply
in step 1, select the
length of time the network waits for before
diverting a call.
5. Enter the number to which the calls are to be
diverted and select
OK
.
To enter an international code, press and hold
the
0
key until the
+
sign displays.
The phone sends your settings to the network
and the network’s acknowledgement displays.
You can deactivate all call diverting settings by
selecting
Cancel all
.
Call barring
(Menu 3.2)
The call barring network service allows you to
restrict your calls.
You can use the following options to restrict voice
calls and/or data calls:
All outgoing
: calls cannot be made.
International
: international calls cannot be made.
4.
To Select the
activate call
diverting
Activate
option. Go to
step 5.
change the number
to be called
Change
option. Go to
step 5.
deactivate call
diverting
Remove
option.
Network services
92
International except to home
: when abroad,
calls can be made only to numbers within the
current country and to your home country, which is
the country where your home network provider is
located.
All incoming
: calls cannot be received.
Incoming while abroad
: calls cannot be received
when you are using your phone outside of your
home country.
Cancel all
: all call barring settings are deactivated;
calls can be made and received normally.
To set your call barring options:
1. Select a call barring option.
2. Select the type of calls, voice or data.
3. select
Activate
to confirm your settings.
4. Enter your call barring password supplied by
your service provider.
The phone sends your settings to the network
and the network’s acknowledgement displays.
To deactivate specific call barring settings:
1. Select the call barring option to be deactivated.
2. Select the type of calls to which this option
applies.
3. Select
Deactivate
.
4. Enter your call barring password supplied by
your service provider.
The phone sends your settings to the network
and the network’s acknowledgement displays.
Network services
93
You can also deactivate all call barring settings by
selecting
Cancel all
.
Change barring password
: you can set and
change the call barring password obtained from
your service provider using this option. You must
enter the current password before you can specify a
new one.
Once you have entered a new password, you are
asked to confirm it by entering it again.
Call waiting
(Menu 3.3)
This network service informs you when someone is
trying to reach you during another call.
You can specify individual call waiting options for
voice calls and/or data calls.
To set your call waiting options:
1. Select the type of calls, voice or data, to which
you want to apply the call waiting option.
The screen informs you whether call waiting is
activated or deactivated.
2. You can activate or deactivate the call waiting
feature as necessary by selecting
Activate
or
Deactivate
respectively.
You can also deactivate all call waiting settings by
selecting
Cancel all
.
Network services
94
Network selection
(Menu 3.4)
The Network Selection feature enables you to
automatically or manually select the network used
when roaming outside of your home area.
Note
: You can select a network other than your home
network only if there is a valid roaming
agreement between them.
To automatically or manually select the network
when roaming:
1. Select the appropriate option.
If you select
Automatic
, you are connected to
the first available network when roaming.
If you select
Manual
, the phone scans for the
available networks. Go to step 2.
2. Select the network you want.
You are connected to that network.
Network services
95
Caller ID
(Menu 3.5)
You can prevent your phone number from being
displayed on the phone of the person being called.
Note
: Some networks do not allow the user to change
this setting.
The following options are available:
Default
: the default setting provided by the
network is used.
Hide number
: your number does not display on
the other person’s phone.
Send number
: your number is sent each time you
make a call.
Closed user group
(Menu 3.6)
Closed user group (CUG) is a network service which
allows incoming and outgoing calls to be restricted
to a selected user group. You can create up to ten
user groups.
Example: A company lends SIM cards to its
employees and wants to restrict outgoing
calls to members of the same team.
For details on how to create and use a closed user
group, contact your service provider.
When you select the
Closed user group
menu,
you can enter the CUG function. You can now
access the following options:
Index list
: lets you list, add, or delete CUG index
numbers.
Network services
96
Add a new CUG index as advised by your service
provider or delete a group.
Outside access
: lets you enable or disable calls to
numbers other than those in the Closed user group.
This feature depends on the nature of your CUG
subscription. Please check with your service
provider.
Default group
: you may set a default CUG with
your service provider. If you have done so, you can
enable the
Default group
option on your phone.
When making a call, you are given the option of
using your default CUG, instead of selecting one
from the list.
Deactivate
: deactivates the CUG function. This
menu appears only when the default group is
enabled or a CUG index is selected.
To Select
add a new CUG
index
Options
, select the
Add
option, and enter the index.
delete a CUG
index
Options
and select the
Delete
option.
activate a CUG
index
Options
and select the
Activate
option.
97
Sound settings
You can use the Sound Settings feature to
customise various settings, such as the:
• ring melody, volume, and type.
• sounds made when you press a key, receive a
message, open/close the phone, or switch your
phone on/off.
• alert tone made every minute during a call, when
you make an error, or when your call is connected
to the system.
Notes
:
• You can quickly access this menu by pressing the Up
key in Idle mode.
• When the phone is in Silent mode (see page 37), you
cannot change the sound settings.
Ring tone
(Menu 4.1)
This menu allows you to select a ring melody.
You can choose between many different melodies. If
you have downloaded sounds from the Internet or
the optional EasyGPRS programme, you can use
them in this menu.
Ring volume
(Menu 4.2)
This menu allows you to adjust the ring volume to
one of five levels.
Sound settings
98
Alert type
(Menu 4.3)
This menu allows you to specify how you are to be
informed of incoming calls.
The following options are available:
Light only
: the service light flashes; the phone
neither rings nor vibrates.
Melody
: the phone rings using the ring tone
selected in the
Ring tone
menu.
Vibration
: the phone vibrates but does not ring.
Keypad tone
(Menu 4.4)
This menu allows you to select a tone type that the
phone sounds when you press a key.
To turn off the sound, select
Off
.
Message tone
(Menu 4.5)
This menu allows you to select how the phone
informs you that a new message has been received.
SMS tone
The following options are available for alerting you
to new SMS messages:
Off
: the phone does not use an SMS tone.
Light only
: the service light flashes.
Vibration
: the phone vibrates.
Sound settings
99
Single beep
: the phone beeps once.
SMS tone x
: the phone uses one of several SMS
tones.
SMS-CB tone
The following options are available for alerting you
to new cell broadcast messages:
Off
: the phone does not use a CB tone.
Light only
: the service light flashes.
Vibration
: the phone vibrates.
Single beep
: the phone beeps once.
SMS-CB tone x
: the phone uses one of several CB
tones.
MMS tone
The following options are available for alerting you
to new multimedia messages:
Off
: the phone does not use an MMS tone.
Light only
: the service light flashes.
Vibration
: the phone vibrates.
Single beep
: the phone beeps once.
MMS tone x
: the phone uses one of several MMS
tones.
Off
Selecting this menu turns off all of the message
tones.
Sound settings
100
Slider tone
(Menu 4.6)
This menu allows you to select a tone type that the
phone sounds when you open or close the phone.
To turn off the sound, select
Off
.
Power on/off
(Menu 4.7)
This menu allows you to select a melody that the
phone sounds when it is switched on and off.
To turn off the sound, select
Off
.
Alert on call
(Menu 4.8)
This menu allows you to choose whether or not the
phone informs you when you receive a new
message or when the time for an alarm comes
during a call.
Off
: the phone doesn’t actively alert you to
incoming messages or alarms. It only displays the
corresponding notification.
On
: the phone alerts you with a beep and displays
the corresponding notification.
Sound settings
101
Extra tones
(Menu 4.9)
You can customise additional tones used for the
phone.
To use a tone, select it to place a check mark. You
can remove the check mark by selecting it again.
The following options are available:
Error tone
: sets whether or not the phone informs
you when you make a mistake.
Minute minder
: sets whether or not the phone
beeps every minute during an outgoing call to keep
you informed of the length of your call.
Connect tone
: sets whether or not your phone
beeps when your call is connected to the system.
102
Messages
Using the
Messages
menu, you can use various
message features, such as:
• short text messages
• multimedia messages
•WAP push messages
•voice mail
• cell broadcast messages
Note
: You can quickly access this menu by pressing
the Left key in Idle mode.
Text messages
(Menu 5.1)
Short Message Service (SMS) allows you to send
and receive short text messages to and from other
GSM mobile phones. In addition, your phone
supports the Enhanced Messaging Service (EMS),
which enables you to include simple pictures,
melodies, and animated images in your messages.
To use this feature, you must subscribe to your
service provider’s message service.
When the Text Message icon ( ) appears, you
have received new text messages. If the memory is
full, an error message displays and you cannot
receive any new messages. Use the
Delete
option
in each message box to delete the obsolete ones.
Note
: You can quickly open the Inbox and Outbox of
text messages by tapping from any screen.
Messages
103
Create
In this menu, you can write and send a text
message.
Note
: When you add media objects to the message,
the number of characters you can enter
decreases.
Creating a simple text message
1. Create your message.
Note
: For further details about how to enter
characters, see page 50.
2. When you finish entering the message, select
Options
. The following options are available:
•
Send only
: allows you to send the message.
The message is deleted after sending.
•
Save and send
: allows you to save a copy of
the message and then send the message. You
can read the message in your Outbox.
•
Save only
: allows you to save the message so
that it can be sent later. You can read the
message in your Outbox.
• For further details about
Add content
,
Add
templates
,
Add from phonebook
, and
Add
from bookmark
options, see page 104.
3. Select
Send
only
or
Save and send
.
If you want to just save the message, select
Save only
. After saving the message, the phone
returns to the
Text
messages
menu screen.
4. If you select a save option, choose the memory
location.
Messages
104
5. Enter a destination number and select
OK
.
The message is sent.
Note
: When the phone fails to send the message, it
asks you if you want to retry. Select
Yes
to
confirm. Otherwise, press the
No
soft key to
return to the Create screen.
Creating a text message using the options
1. Create a message.
2. Press the
Options
.
3. Select one of the following options:
•
Add content
: allows you to add a sound,
melody, picture, or animated image to the
message. Select the category of the object to
be added. In each category, you can select
from the various factory-set items or choose
an item received from other sources, such as
the Internet or other phones.
•
Add templates
: allows you to apply one of
the preset message templates to the text.
Select one of five messages stored in the
Templates
box. For further details, see
page 107.
•
Add from phonebook
: allows you to add a
Phonebook entry to your message. Select one
from the list.
•
Add from bookmark
: allows you to add a
web page’s address stored in your Favorite list.
Select one from the list.
4. Complete the message, and send or save it by
following the procedure from step 2 on
page 103.
Messages
105
Inbox
(Menu 5.1.1)
This message box is used to store the messages
that you have received.
When you enter this menu, the list of messages in
the box displays with the senders’ phone numbers
or names, if available in your Phonebook.
1. Select a message from the list to read the
message contents.
2. Scroll through the contents, if necessary.
3. To scroll to the previous or next message, press
the or key.
While reading a message, you can choose the
following options by selecting the
Options
:
Delete
: allows you to delete the message.
Send
: allows you to send/resend the message. For
further details, see page 103.
Text reply
: allows you to reply to the sender by
sending a text message.
Call back
: allows you to call the sender back.
Save address
: allows you to extract the sender’s
number and URL, e-mail addresses, or phone
numbers from the message text.
Move to phone
: allows you to move the message
from the SIM card to the phone’s memory. This
option is only available when you select a message
stored in the SIM card.
Move to SIM
: allows you to move the message
from the phone’s memory to the SIM card. This
option is only available when you select a message
stored in the phone’s memory.
Messages
106
Select content
: allows you to save media
contents, such as sounds or images, from the
message into your phone. You can use the contents
when writing a message. For details, see page 104.
Outbox
(Menu 5.1.2)
This message box is used to store the messages
that you have already sent or will send.
When you access this menu, the list of messages in
the box displays with the recipients’ phone numbers
or names, if available in your Phonebook.
1. Select a message from the list to read the
message contents.
2. Scroll through the contents, if necessary.
3. To scroll to the previous or next message, press
the or key.
While reading a message, you can choose the
following options by selecting
Options
:
Delete
: allows you to delete the message.
Send
: allows you to send/resend the message. For
further details, see page 103.
Save address
: allows you to extract the
destination number and URL, e-mail addresses, or
phone numbers from the message text.
Move to phone
: allows you to move the message
from the SIM card to the phone’s memory. This
option is only available when you select a message
stored in the SIM card.
Messages
107
Move to SIM
: allows you to move the message
from the phone memory to the SIM card. This
option is only available when you select a message
stored in the phone’s memory.
Select content
: allows you to save media
contents, such as sounds or images, from the
message into your phone. You can use the contents
when writing a message. For details, see page 104.
Templates
(Menu 5.1.3)
Using this menu, you can preset a maximum of five
messages that you use most frequently.
Select an empty location or the message template
you want and select
Options
.
The following options are available:
Edit
: allows you to write a new message or edit the
message.
Note
: For further details about how to enter
characters, see page 50.
Send
: allows you to retrieve the message. Once
you have completed the message, you can send,
save and send, or simply save it. For further details
about how to send a message, see page 103.
Delete
: allows you to delete the message. You are
asked to confirm the deletion by selecting
Yes
.
Messages
108
S
ettings
(Menu 5.1.4)
In this menu, you can set up default SMS/EMS
information. A setting group is a collection of
settings required to send text messages. The
number of setting groups available depends on the
capacity of your SIM card.
Notes
:
• The setting options available in this menu may be
different, depending on your service provider.
• The last setting you accessed is automatically
activated for sending messages.
Setting x
(where
x
is the setting group number):
each group has its own sub-menu.
Setting name: allows you to give a name to the
setting group currently being defined.
Service centre: allows you to store or change the
number of your message centre, which is required
when sending messages. You must obtain this
number from your service provider.
Default destination: allows you to store the default
destination number. The number automatically
displays on the Destination screen when you create
a message.
Default type: allows you to set the default message
type to
Text
,
Fax
,
E-mail
, or
Paging
. The network
can convert the messages into the selected format.
Validity period: allows you to set the length of time
your text messages are stored in the message
centre while attempts are made to deliver them.
Messages
109
Common settings
: The following options are
available:
Reply path: allows the recipient of your message to
send you a reply through your message centre, if
your network supports this service.
Delivery reports: allows you to activate or
deactivate the report function. When this function is
activated, the network informs you whether or not
your message has been delivered.
Bearer selection: allows you to choose either
GSM
or
GPRS
, depending on your network.
Multimedia messages
(Menu 5.2)
This menu allows you to use the Multimedia
Message Service.
Multimedia Message Service (MMS) is a messaging
service very similar to Short Message Service
(SMS). It provides automatic and immediate
delivery of personal multimedia messages from
phone to phone or from phone to e-mail.
In addition to the familiar text content of text
messages, multimedia messages can contain
images, graphics, voice, and audio clips. An MMS
message is a multimedia presentation in a single
entry. It is not a text file with attachments.
Using the MMS feature, your phone can receive and
send multimedia messages that contain multimedia
files, such as your photos, sounds and images you
downloaded from the Internet, and voice memos
you recorded. This function is available only if it is
supported by your service provider. Only phones
that offer multimedia message features can receive
and display multimedia messages.
Messages
110
Create
(Menu 5.2.1)
This menu allows you to create a new multimedia
message and then send it to multiple destinations.
Creating and sending a multimedia message
1. Enter the subject of your message and select
Next
.
For further details about how to enter
characters, see page 50.
2. When
Add here
highlights, select
Options
and
add the message contents using one of the
following options:
•
Add text
: allows you to enter the message
text.
•
Add photo
:
allows you to add a photo you
took using the camera on your phone. Select
Take photo
to take a new photo, or
Select
to add one of the photos stored in the
phone’s memory. For further details about
using the camera, see page 156.
•
Add picture
: allows you to add a picture
stored in the
Images
folder. You may not be
able to add some downloaded images if they
are not in the correct format.
•
Add sound
: allows you to add a sound file.
Select
Record voice
to record a new voice
memo, or select
Sound list
to add one of the
sounds in the phone’s memory. You may not
be able to add some downloaded sounds if
they are not in the correct format.
Messages
111
•
Add sketch
: allows you to add a sketch
memo. Select
New memo
to create a new
memo, or
Saved memo
to add one of the
memos stored in the phone’s memory. For
further details, see page 149.
•
Send
: allows you to send the message. Use
this option when you finish creating the
message.
•
Save
: saves the message in the
Draft
or
Templates
box for later use. For further
details, see page 118.
•
Settings
: allows you to change the message
settings. For further details about each setting
option, see page 119. After changing the
settings, you need to select or press the
C
key to go back to the Write options screen.
•
Add destination
: allows you to enter
destination numbers or addresses. See steps 6
to 11. After adding them, you need to select
or press the
C
key to go back to the Write
options screen.
•
Preview
: shows your message as it will
display on the recipient’s phone.
Note
: You can add text, an image and a sound
once for each page.
3. Repeat step 2 until you finish creating your
message.
4. If you want to change the added items, highlight
one and select
Options
to display the Write
Options list.
Note
: The options available are different
depending on whether the item you select
on the message screen is text, an image, a
sound, or the Page field.
Messages
112
The following options are available:
•
Edit text
/
/
sound
: allows you to
change the text or replace the image or sound
with another one.
•
Add page
: allows you to add up to five pages.
After you add a page, the display shows you
the current page number and memory space
used for the page. You can move to each page
using the Left or Right key on the message
screen.
•
Delete
: deletes the item from your message.
•
Duration
: allows you to set when and how
long text, an image, a sound, or a page
displays on the message presentation screen.
If the duration you set is shorter than the
content duration for a particular page, the
content duration is automatically decreased.
•
Send
: allows you to send the message.
•
Save
: saves the message in the
Draft
or
Templates
box for later use. For further
details, see page 118.
•
Settings
: allows you to change the message
settings. For further details about each setting
option, see page 119.
•
Add destination
: allows you to enter
destination numbers or addresses. See steps 6
to 11. After adding them, you need to select
or press the
C
key to go back to the Write
options screen.
•
Preview
: shows your message as it will
display on the recipient’s phone.
5. When you are finished creating the message,
select
Send
.
Messages
113
6. Select a destination type (
To
,
Cc
, or
Bcc
).
7. Choose one of the following options:
•
Phone number
: allows you to enter the
phone number you want.
•
E-mail
: allows you to enter the e-mail address
of the recipient.
•
Phonebook
: allows you to retrieve a number
from your Phonebook.
8. Enter a number or an e-mail address and select
OK
, or select a number from Phonebook.
9. To add a destination, select
Add destination
and repeat from step 7.
If you want to edit the destinations, select one
and select
Options
. You can change or delete
it.
10. To enter additional numbers or addresses to the
other destination types, select and repeat
steps 6 through 10.
You can enter up to 10 destinations each for
To
,
Cc
, and
Bcc
.
11. When you are finished entering the
destinations, select
Send message
.
Your phone sends the message.
Messages
114
Inbox
(Menu 5.2.1)
Viewing a message when you receive it
When a new multimedia message comes in, the
display shows the MMS Message icon ( ) and a
text notification along with the message subject.
1. Choose
Select
to view brief information about
the message, such as the sender’s number, the
message size and the subject.
If you want to view the message later in the
Inbox, select
Exit
or press the
C
key.
2. Scroll through the message information, if
necessary.
You can use the following options by selecting
Options
:
•
Retrieve
: retrieves the message from the
MMS server.
•
Delete
: deletes the message.
•
More properties
: shows you detailed
information about the message.
3. To read the message, select
Retrieve
.
Your phone retrieves the message contents from
the server and displays it.
4. Scroll through the message, if necessary.
5. When you are finished, press the key.
Messages
115
Viewing a received message in the inbox
When you access the
Inbox
menu, the list of
multimedia messages you received displays with
the senders’ phone numbers, if they are available in
your Phonebook, or subjects. The icons on the left
tell you the status of the messages:
• : MMS notifications that have been opened.
• : MMS notifications that are unopened.
• : MMS notifications that you sent an enquiry to
the MMS server for retrieving the message.
• : MMS notifications that the phone is retrieving
the messages from the MMS server.
• : MMS notifications of which the phone
couldn’t retrieve the message.
• : Messages that have been unopened.
• : Messages that are unopened.
1. Select a message on the list.
The phone presents the message and scrolls to
the next page, if it has one, after a specified
time.
2. Press the
OK
to go to the message view screen.
Or, the display automatically switches to the
screen after a few seconds.
3. To scroll through the message, press the Up or
Down key.
If the message has more than one page, you
can scroll through the pages by using the Left
and Right keys.
Messages
116
While viewing a message, you can choose the
Message options by selecting
Options
.
If you are viewing a new message, the options are
the same as when you view a message as soon as
you receive it. See page 114.
When you are reviewing a message retrieved from
the MMS server, the following options are available:
Delete
: deletes the message.
Reply
: allows you to reply to the sender by sending
a text or multimedia message.
Callback
: allows you to call the sender back.
Save address
: allows you to extract the sender’s
number or e-mail address and URL, e-mail
addresses, or phone numbers from the message
text.
Forward
: allows you to forward the message to
another person. When the message contains media
contents locked by your service provider, this option
is not available.
Save picture
: allows you to save an image from
the message into your phone. Pictures are stored in
the
Images
folder.
Save sound
: allows you to save a sound from the
message into the
Sounds
folder.
Properties
: shows you information about the
message, such as the message status, subject,
sender’s e-mail address or phone number, message
size, priority, and the time and date when the
message was received.
Messages
117
Outbox
(Menu 5.2.2)
When you access this menu, the list of the
multimedia messages you sent or saved displays.
The icons on the left tell you the status of the
messages.
• : Messages currently being sent
• : Messages sent
• : Messages your phone couldn’t send
• : Messages to be sent
• : Messages deferred
1. Select a message on the list.
The phone presents the message and scrolls to
the next page, if it has one, after a specified
time.
2. Select
OK
to go to the message view screen.
Or, the display automatically switches to the
screen after a few seconds.
3. To scroll through the message, press the Up or
Down key.
If the message has more than one page, you
can scroll through the pages by using the Left
and Right keys.
While viewing a message, you can choose the
following options by selecting
Options
:
Delete
: deletes the message.
Save address
: allows you to extract the
destination numbers or e-mail addresses and URL,
e-mail addresses, or phone numbers from the
message text.
Messages
118
Send
: allows you to send/resend the message.
Edit
: allows you to change the message contents,
sound, picture, or text.
Properties
: shows you information about the
message, such as the message status, subject,
sender and recipients’ e-mail addresses or phone
numbers, message size, priority, and the time and
date when the message was sent.
Draft
(Menu 5.2.3)
After creating a multimedia message, you can store
it in this message box for later sending.
For further details about viewing a message, see
“Outbox” on page 117.
Templates
(Menu 5.2.4)
This menu stores messages you saved as templates
so that you can use them to make new messages.
Select a message template from the list. The phone
presents the message
Select
OK
to use the following options, or the
display automatically shows the options after a
specified time:
Edit
: allows you to send a message using the
template. For further details about how to send a
message, see page 110.
Delete
: allows you to delete the message. You are
asked to confirm the deletion by selecting
Yes
.
Messages
119
Settings
(Menu 5.2.5)
You can change the default settings for sending or
receiving multimedia messages.
The following options are available:
Delivery report
: when this option is enabled, the
network informs you whether or not your message
has been delivered.
Read reply
: when this option is enabled, your
phone sends a request for a reply along with your
message to the recipient.
Auto download
: you can set whether or not your
phone retrieves new incoming messages from the
MMS server without notifications.
On: the phone automatically retrieves new
messages from the server. As soon as you receive a
message you can use more options while you are
reading. See page 116 for details about the options.
Off: you need to manually download new messages
by using the
Retrieve
option.
Message acceptance
: you can specify the
category of messages you want to receive.
Hide ID
: when this option is enabled, your phone
number does not display on the recipient’s phone.
Validity period
: you can select the length of time
your messages are stored in the message centre
after they are sent.
Delivery time
: you can set a delay time before the
phone sends your messages.
Priority
: you can select the priority level of your
messages.
Messages
120
Report allowed
: when this option is enabled, the
sender of an incoming message receives a delivery
report from the network.
Page duration
: you can set the length of time one
page of an outgoing message displays on the
message presentation screen. After a specified
time, the display automatically scrolls to the next
page.
MMS profile
(Menu 5.2.6)
In this menu, you can configure various network
settings that are required when you send or receive
multimedia messages.
Notes
:
• The last profile you accessed is automatically
activated for sending messages.
• If you change the MMS settings without first
checking with your service provider, the MMS feature
may not work properly.
• The availability of the setting options may vary
depending on your country.
The following options are available for each profile:
Profile name
: enter a name that you wish to
assign to the MMS server.
Connection URL
: enter the address of your MMS
server.
Security
: select a data transmission mode. Choose
Secure
to protect your data against unauthorised
access; otherwise, choose
Non-secure
.
IP address
: enter the gateway address required to
connect to the MMS server.
Messages
121
User name
: enter the user ID required to connect
to the MMS server.
Password
: enter the password required to connect
to the MMS server.
APN
: enter the access point name used for the
address of the MMS server.
For further details, contact your service provider.
Push messages
(Menu 5.3)
In this menu, you can receive and access web
messages from the server.
The following options are available:
Inbox
: allows you to read the messages received
from the web server.
Receive
: allows you to set whether or not your
phone receives web messages. Select
Always
to
receive web messages, or
Never
to reject web
messages.
Delete all
: allows you to delete all of the web
messages.
Messages
122
Delete all
(Menu 5.4)
This menu allows you to delete all of the messages
in each message box. You can also delete all of your
messages at one time.
1. Select a message type.
2. Select a message box to place a check mark.
Repeat this step to select more boxes to be
cleared.
You can remove the check mark by selecting the
box again.
3. Select
Delete
to delete the marked messages.
4. When a confirmation message displays, select
Yes
to confirm.
5. When the display asks for your confirmation
again, select
Yes
.
Voice mail
(Menu 5.5)
This menu allows you to access your voice mail box,
if your network supports this service.
The following options are available:
Connect to voice server
: before using the Voice
Mail feature, you must enter the voice server
number obtained from your service provider. You
can then select this option to listen to your voice
messages.
You can quickly connect to the voice server by
pressing and holding the
1
key in Idle mode.
Messages
123
Voice server number
: allows you to change the
voice mail server number, if necessary.
Note
: Voice Mail is a network feature. Please contact
your service provider for further details.
Broadcast messages
(Menu 5.6)
This network service allows you to receive text
messages on various topics, such as the weather or
traffic.
Cell Broadcast (CB) messages display as soon as
they are received, provided that:
• the phone is in Idle mode.
•the
Receive
option is set to
Enable
.
• the message channel is currently active on the
channel list.
The following options are available:
Read
: lets you view the received messages.
The
Volatile
box displays the messages from the
network, but loses its contents as soon as the
phone is switched off. Scroll through the message
by using the Up and Down keys.
You can save a CB message in the
Archive
box for
later retrieval. When a text notification appears,
select
Options
and then select
Save
.
Receive
: allows you to enable or disable the
reception of broadcast messages.
Messages
124
Channel list
: allows you to indicate the channels
from which you wish to receive broadcast
messages. The following options are available:
Select: use to enable or disable channels on the list
by marking or unmarking them respectively. A
check mark displays in front of each selected
channel.
Add channel: use to enter the ID and title for a new
channel.
Delete: use to remove a channel from the list.
Edit: use to change the ID and title of an existing
channel.
Language
: allows you to select your preferred
language to display cell broadcast messages.
Please contact your service provider for further
details.
Memory status
(Menu 5.7)
You can check the amount of the memory being
used and the memory remaining for messages.
The following options are available:
Text messages
: shows the number of messages
currently stored and the total number of messages
you can store in the SIM, Phone, and Broadcast
memories.
Multimedia messages
: shows the total space,
including the free and used space, and how much
space is currently occupied by each message box.
Press the Up or Down key to scroll through the
screen.
125
Funbox
The
Funbox
menu contains several fun options.
WAP browser
(Menu 6.1)
Your phone is equipped with a WAP (Wireless
Application Protocol) browser to allow you to access
and navigate the Wireless Web using your phone.
Home
(Menu 6.1.1)
Selecting this menu connects the phone to the
network and loads the homepage of the Wireless
Web service provider. You can also press and hold
the key in Idle mode.
The contents of the WAP Browser startup homepage
depends on your Wireless Web service provider. To
scroll through the screen, use the Up and Down
keys.
Note
: To access the startup homepage from any other
screen in the WAP browser, use the
Home
option. For further details about the WAP
Browser menu options, see page 127.
Exiting the WAP browser
To exit the browser at any time, simply press and
hold the key.
Funbox
126
Navigating the WAP browse
r
Entering text in the WAP browser
When you are prompted to enter text, the current
text input mode is indicated on the screen. To
change the text input mode, press the key one or
more times.
The following modes are available:
Upper-case character mode
(
A
): allows you to
enter upper-case English characters.
Lower-case character mode
(
a
): allows you to
enter lower-case English characters.
Note
: You can also enter special characters in Upper-
case or Lower-case Character mode. For details
about available characters, see page 65.
T9 mode
(
T9
): allows you to enter English
characters by pressing one key per letter. In this
mode,
you can use only the
0
key to display
alternative words.
To change the case, press the
key.
To Press the
scroll through and
select browser
items
Up or Down key. Press the
key, or press the
Options
soft key and then choose
Select
.
return to the
previous page
C
key, or press the
Options
soft key and then select
Back
.
return to the
startup homepage
Menu
soft key and select
Home
. For further details
about this option, see
page 127.
Funbox
127
Number mode
(
1
): allows you to enter numbers.
Selecting and using browser menu options
Various menu options are available when you are
using the WAP Browser to navigate the Wireless
Web.
To access a menu option:
1. Press the
Menu
soft key.
A menu list displays.
2. Highlight a menu by pressing the Up or Down
key.
3. Select an option by pressing the
Select
soft key
or key.
4. If necessary, select a secondary option using the
Up and Down keys, and press the
Select
soft
key or key to confirm.
Note
: The menus may vary, depending on your
version of the WAP browser.
The following options are available:
Bookmarks
: shows the bookmark list. You can
bookmark the current web page or access one of
boookmarked pages.
Reload
: reloads the current page.
Home
: takes you back at any time to the home
page of the Wireless Web service provider.
Go to URL
: allows you to manually enter the URL
address of a Web page. After entering an address,
press the
OK
soft key to go there directly.
Funbox
128
Show URL
: displays the URL address of the Web
page to which you are currently connected. It also
enables you to set the current site as the startup
home page.
Clear cache
: deletes the information stored in the
cache, which stores the most recently accessed
Web pages.
Security info
: shows security information when
you access the Wireless Web with the secured WAP
setting activated.
Inbox
: allows you to read messages received from
the web server.
Show images
: shows the images on the current
web page in order. Press the
Next
soft key or key
to view the next images.
To Press the
set the current
page as your
startup home page
Option
soft key or key
and select the
Save to
home
option.
set a bookmark for
the current page
Option
soft key or key
and select the
Save to
bookmark
option.
cancel your setting
Back
soft key or
C
key.
Funbox
129
Favorite
(Menu 6.1.2)
This menu allows you to store the URL addresses of
up to 16 of your favourite web sites.
To store your favourite web site:
1. Select an empty location.
2. Enter the address you want to store and select
Enter
.
For further details about how to enter
characters, see page 50.
3. Enter a name for the Favorite item and select
OK
.
Once you have stored a Favorite item, you can use
the following options when you select
Options
:
Go to URL
: takes you to the corresponding web
site.
Edit
: allows you to change the address and the
name of the item.
Delete
: allows you to delete the item.
http://
(Menu 6.1.3)
This menu allows you to manually enter the URL
address of the web site that you wish to access.
After entering an address, select
Enter
to access
the associated site.
For further details about how to enter characters,
see page 50.
Funbox
130
Settings
(Menu 6.1.4)
This menu allows you to set up five proxy servers
for the WAP browser. Contact your service provider
for details about your Settings options.
Note
: The availability of the setting options may vary
depending on your country.
For each server, the following options are available:
Profile name
: enter a name that you wish to
assign to the HTTP proxy server.
Homepage URL
: set the address of your startup
homepage. When the default homepage displays,
you can delete it using the
C
key and enter your
own choice.
Security
: select a data transmission mode. Choose
Secure
to protect your data against unauthorised
access; otherwise, choose
Non-secure
.
Bearer
: select a bearer to be used for each type of
network address accessed;
GPRS
or
Data
.
The remaining options depend on the Bearer
setting.
When the bearer is set to
GPRS
:
IP address
: enter the WAP gateway address
required to connect to the Internet.
User name
: enter the user ID required to connect
to the GPRS network.
Password
: enter the password required to connect
to the GPRS network.
APN
: enter the access point name used for the
address of the GPRS network gateway.
Funbox
131
When the bearer is set to
Data
:
IP address
: enter the WAP gateway address
required to connect to the Internet.
Login name
: enter the PPP server login ID.
Password
: enter the PPP server password.
Dial-up number
: enter the PPP server phone
number.
Data call type
: select a data call type;
Analogue
or
ISDN
.
Note
: The WAP browser settings may vary, depending
on the service provider. Contact your service
provider for further details.
Clear cache
(Menu 6.1.5)
You can clear the information stored in the cache,
the phone’s temporary memory which stores the
most recently accessed Web pages.
Fun Club
(Menu 6.2)
You can access Samsung Fun Club on the Internet
and download various media items, such as
melodies and images.
Note
: You can quickly access Samsung Fun Club by
pressing the key in Idle mode and then
selecting
Fun club
.
Samsung Fun Club is the preset web site providing
Samsung phone users with attractive download
services.
Funbox
132
You can download:
• images and ring tones via SMS.
• 4-level greyscale and colour images from WAP.
• 64-polyphonic melodies from WAP.
•customer services.
• information and electronic catalogues for
Samsung Electronics products.
SFC home
(Menu 6.2.1)
In this menu, you can access the Samsung Fun Club
homepage.
Note: Before accessing Samsung Fun Club for the first
time, please connect your service provider’s
WAP homepage first. Then reconnects to
Samsung Fun Club. This service requires WAP
subscription and is unavailable depending on
your local system and services.
Gift box
(Menu 6.2.2)
Through Samsung Fun Club, you can receive
images and ring tones from other people as gifts.
This menu stores notification messages from the
Fun Club server to inform you that you have a gift
received. After selecting a notification, you can
access Samsung Fun Club to download the gift to
your phone. Downloaded gift items are saved in
Images or Sounds menu.
Funbox
133
Service area
(Menu 6.2.3)
Each time you move to HongKong or China, you
need to change this setting to use the SFC service,
according to the area where you are. You can
choose either
China
or
China HK
.
For further details about this service, contact your
service provider.
Games & More
(Menu 6.3)
You can enjoy downloaded Java applications or
download applications from the web site provided
by your service provider. You can also change the
DNS setting required for accessing Java services, if
necessary.
Note
: Java services may not be available depending
on your service provider.
When you access the
Games & More
menu, the list
of the default games appears. Once you have
downloaded games, they are added to the list.
Launching a MIDlet
Note
: The following procedure is for the default
games. For downloaded games, the procedure
may be different.
1. Select the MIDlet you want on the game list.
2. On the startup screen of the MIDlet, scroll to an
option using the Navigation keys or the
2
and
8
keys.
Funbox
134
The following options are available:
•
START GAME
: starts a new game.
•
CONTINUE
: allows you to continue the last
game you were playing.
•
HIGH SCORE
: shows the high score table.
This option may not be available for some
games.
•
HOW TO PLAY
: shows how to play the game
and the key functions for the game.
•
OPTION
: allows you to switch the game
sound on or off.
3. Press the
5
key or key to confirm your
selection.
To view MIDlet information:
1. Scroll to the MIDlet you want on the game list
and select
Prop
.
The display shows information about the MIDlet,
such as the file size, application version, and its
vendor.
2. To scroll to other MIDlet information, press
the Navigation keys.
While you are playing a
game, to Press the
adjust the sound volume Volume keys.
stop the game and return
to the startup screen
C
key.
exit the game key.
Funbox
135
3. If you want to delete the MIDlet, select
Delete
and then select
Yes
to confirm the deletion.
Note
: When you select the default games from
the list, the
Delete
option is not available,
so that you cannot delete them.
4. To exit and return to the game list, select
Back
.
Entering text
If you need to enter text while using a MIDlet, you
can use the following input modes:
Upper-case character mode
(
A
): allows you to
enter upper-case English characters.
Lower-case character mode
(
a
): allows you to
enter lower-case English characters.
Number mode
(
1
): allows you to enter numbers.
Symbol mode
: allows you to enter symbols. After
highlighting a symbol by pressing the Navigation
keys, press the
OK
soft key or key to insert it.
T9 mode
(
T9
): allows you to enter English
characters by pressing one key per letter. In this
mode, you can change the case by pressing the
0
key.
To change the text input mode, press the key
until the appropriate indicator appears.
Funbox
136
Changing the DNS settings
The DNS (Domain Name Server) is the server that
assigns the Java server domain name to an IP
address. The DNS setting is preset at the factory,
but sometimes you may need to change it at your
service provider’s instructions.
1. Select
Setting
on the game list.
2. Enter the primary address using the number
keypad and select
OK
.
3. Enter the secondary address and select
OK
.
Sounds
(Menu 6.4)
In this menu, you can listen to the sounds
downloaded from the web server or received in
multimedia messages. You can set the downloaded
sounds as the current ring tone.
Select sound you want on the Sounds list.
By selecting
Options
, you can use the following
options:
Rename
: allows you to change the name of the
sound.
Delete
: deletes the sound.
Set as ringtone
: sets the sound as your ring tone.
Funbox
137
Images
(Menu 6.5)
In this menu, you can view the images downloaded
from the web server or received in messages. You
can set the downloaded pictures as the current
background image. If you set a photo as your
wallpaper, it is designated as
My photo
on the list.
Select the image you want on the Images list.
By selecting
Options
, you can use the following
options:
Rename
: allows you to change the name of the
image.
Delete
: deletes the image.
Set as wallpaper
: sets the image as your
wallpaper.
Delete all
(Menu 6.6)
This menu allows you to delete all of the
downloaded contents in the
Games
,
Sounds
, and
Images
folders. You can delete all of the contents
at one time.
1. Select a folder to place a check mark. Repeat
this step to select more folders to be cleared.
You can remove the check mark by selecting the
folder again.
2. Select
Delete
to delete the marked items.
3. When a confirmation message displays, select
Yes
to confirm.
4. When the display asks for your confirmation
again, select
Yes
.
Funbox
138
Memory status
(Menu 6.7)
You can check the memory being used and the
memory remaining for games, sounds, and images.
The following options are available:
Games
: the display shows the percentage of the
free and used space for games as well as the
number of the games you downloaded.
Sounds&Images
: the display shows the
percentage of the free and used space, including
the memory status used for objects in the
Sounds
and
Images
menus.
Match Match
(Menu 6.8)
You can enjoy the Match Match game, which is a
touch game.
The object of this game is to find all of matching
pairs of cards as quickly as possible. The score will
be come up with fast speed of touch and lower
number of touch. Have a fun time and improve your
memory skill.
On the startup screen of the game, the following
options are available:
New game
: starts a new game.
High score
: shows the 5 highest scores.
Setting
: allows you to select the time limit for one
game and select the theme of the card.
Help
: opens the help screen.
Funbox
139
To start a game:
1. Select
New game
.
2. Select two of the cards by tapping on the card.
If both cards are the same, those cards will stay
flipped over. If they are different, remember
what is on the card so you can try again. After a
few seconds, they face down again.
3. Select more cards.
The game is over when you have matched all of
the pairs and all the cards are flipped over. Then
you can continue the game of the next level.
Notes
:
• You can pause the game by pressing the
C
key. To
resume, tap anywhere on the screen.
• To exit the current game, tap
X
on the bottom of the
screen.
140
Organiser
The Organiser feature enables you to:
• set an alarm so that the phone rings at a specific
time, such as to remind you of an appointment.
• view the calendar and organise your schedule.
• set the current time and date.
• use the phone as a calculator for basic
mathematical equations or currency exchange
operations.
• define a list of things to do.
• record voice memos and make a memo with a
simple drawing.
Alarm
(Menu 7.1)
This feature allows you to:
• set the alarm to ring at a specific time.
• set the phone to switch on automatically and ring
the alarm, even if the phone is switched off.
The following options are available:
Once alarm
: the alarm rings only once and is then
deactivated.
Daily alarm
: the alarm rings every day at the
same time.
Morning call
: the alarm rings to wake you up in
the morning.
To set an alarm:
1. Choose the type of alarm to be set.
Organiser
141
2. Enter the time for the alarm to sound and select
OK
.
Note
: Your phone is preset to use 24-hour format.
To change the format, see page 145.
If you want to use the alarm options, press the
Options
soft key. The following options are
available:
•
Remove alarm
: deactivates the current
alarm.
•
Alarm tone
: allows you to select the alarm
melody.
3. If applicable, select
AM
or
PM
.
4. If you select
Morning call
in step 1, choose the
repeat option,
Monday to friday
or
Monday to
saturday
.
To stop the alarm when it rings, select
Exit
or press
one of the Volume keys,
C
key, or key.
Remove alarm
: deactivates all alarm settings.
Autopower
: when this option is set to
Enable
, the
alarm rings at the specified time, even if the phone
is switched off.
If the option is set to
Disable
and the phone is
switched off at the specified time, the alarm does
not ring.
Organiser
142
Calendar
(Menu 7.2)
With the Calendar feature, you can:
• consult the calendar to check your memos.
• write memos to keep track of your schedule.
• set an alarm to act as a reminder.
Consulting the calendar
When you select the
Calendar
menu, the calendar
with today’s date highlighted displays. On the
bottom line, the date in the lunar calendar appears.
The following options are available when you select
Options
:
Search all
: displays all of the memos, starting with
the oldest regardless of the day.
Delete all
: allows you to delete all of the memos.
You are asked to confirm your action.
Go to date
: allows you to go to a specific date.
Exit
: exits the Calendar feature and returns to Idle
mode.
Organiser
143
Writing a memo
You can make new memos for the calendar.
To write or edit a memo on a specific date:
1. Select a date on the calendar.
Note
: To skip to the previous or next month,
press
the Volume keys
on the left side of
the phone.
An empty memo screen displays allowing you to
enter your memo.
2. Enter your memo and then select
OK
.
Note
: For further details about how to enter
characters, see page 50.
You are asked if you wish to set an alarm.
3. If you want an alarm to ring on the chosen day,
select
Yes
.
Otherwise, select
Skip
. The memo is saved and
the display returns to the calendar.
4. If you selected
Yes
at the previous step, enter
the time for the alarm and select
OK
.
Note
: Your phone is preset to use 24-hour format.
To change the format, see page 145.
You can also select the melody for the alarm by
selecting
Melody
.
5. If applicable, select
AM
or
PM
.
The colour of the date on the calendar changes
to green to indicate that a memo exists for that
date.
Organiser
144
When the time for an alarm comes and the phone is
ringing the selected alarm melody, select
View
to
read the associated memo. Alternatively, select
Exit
or press the
C
or key.
Viewing a memo
When you select a day for which a memo already
exists on the calendar, the latest memo for the day
displays.
If more than one memo is stored, press the Up or
Down key to scroll to the previous or next memo.
Select
New
to add a new memo for the day.
You can use the following options by selecting
Options
:
Edit
: allows you to change the memo text.
Alarm
: allows you to set an alarm to ring at a
specified time to remind you of the memo. If you
set the alarm earlier, you can change or delete it.
Delete
: allows you to delete the memo.
Copy to
: allows you to copy the memo to another
date.
Move to
: allows you to change the date of the
memo.
Send via IrDA
: allows you to send the memo to
another phone via the infrared port. For details, see
page 166.
Organiser
145
Time & Date
(Menu 7.3)
This menu allows you to change the current time
and date displayed. You can also find out what time
it is in another part of the world.
The following options are available:
Set time
: allows you to enter the current time.
Note
: Before setting the time, you must specify your
time zone in the
World time
menu.
Set date
: allows you to enter the day, month, and
year.
World time
: allows you to find out what time it is
in another part of the world.
The screen shows the:
• city name, the time difference between the
selected city and your time zone, and the current
time and date.
• city selected as your time zone and the current
time and date.
To select your time zone:
1. Scroll to the city corresponding to your time
zone.
The local time and date display.
2. Select
Set
.
Time format
: allows you to change the time
format to
12 hour
or
24 hour
.
Date format
: allows you to change the date
format.
Organiser
146
Calculator
(Menu 7.4)
With this feature, you can use the phone as a
calculator.
The calculator provides you with scientific
calculations using trigonometric functions,
logarithms, logical operators, and factorials, as well
as four basic arithmetic functions
Selects the format of the calculator,
binary, octonal, decimal, hexadecimal.
Selects or enters various scientific
calculation factors.
clears your input forward.
clears your input backward.
shows the result of your calculation.
clears the last number you entered.
clears any value stored in the
calculator’s memory.
Organiser
147
To do list
(Menu 7.5)
This feature allows you to:
• enter a list of tasks to be done.
• assign a priority and a deadline to each task.
• sort the tasks by priority and status mark.
Creating the to do list
1. Select
New
.
2. Enter the first task.
Note
: For further details about how to enter
characters, see page 50.
3. Select
OK
.
4. Select a priority status of high, normal, or low.
5. Enter your deadline and select
OK
.
If you don’t want to set the deadline, select
Skip
.
retrieves the stored value from the
calculator’s memory.
saves the current value in the
calculator’s memory.
places the current value into the
calculator’s memory until is
tapped.
moves the cursor left/right/up/down.
exits the calculator.
Organiser
148
Editing the to do list
When you select the
To do list
menu, the current
contents display with the status mark, if the task
has been done, and priority; for High, for
Normal, and for Low.
To view the details for a task, select it from the list.
You can scroll to other task by pressing the Up or
Down key.
To change the status of a task, press the key to
mark the task as completed as of the current time
and date.
By pressing the
Options
soft key on the list or the
task view, you can use the following options:
New
: allows you to create a new task.
Mark
: allows you to change the status of the
current task to either
Done
or
Undo
.
Edit
: allows you to change the text, priority and/or
deadline for the current task
Sort
: allows you to sorts the existing tasks by
priority or status. Select the sort criteria,
High
,
Low
,
Done
, or
Undo
.
Copy
: makes a copy of the current task.
Copy to calendar
: allows you to copy the current
task as a calendar memo. You can change the text
and deadline for the task, and set the alarm.
Delete
: deletes the current task.
Delete all
: allows you to delete all of the tasks.
Exit
: exits the To do list.
Organiser
149
Sketch memo
(Menu 7.6)
In this menu you can make a memo by drawing a
sketch using stylus on the touch screen yourself.
Creating a new sketch memo
1. Tap on the tool icons panel.
An empty sketch memo screen opens.
2. Draw a sketch using the stylus pen on the
screen.
You can use the following tools at the bottom
line of the screen:
Tool Function
Clears your drawing on the screen.
Erases the drawing as you move the
stylus.
Cancels you last action.
Opens the line picker screen so that
you can change the line thickness.
Sketch name
OK
Organiser
150
3. When you are finished, select
OK
to save the
memo.
Read memo
(Menu 7.6.1)
This menu allows you to review your sketch
memos. The display shows the memos in Thumbnail
mode.
• To view a memo on the full screen or edit the
memo, select it and then tap or select
OK
.
• To delete a memo, select it and then tap .
Opens the line picker screen so that
you can change the thickness of the
line.
Allows you to set an alarm for your
sketch memo. You can select a date
from the calendar and set the time for
the alarm.
Tool Function
Sketch name
OK
Organiser
151
Sketch memo
(Menu 7.6.2)
Selecting this menu opens a new sketch memo. For
further details about creating a new memo, see
page 149.
Setup
(Menu 7.6.3)
This menu allows you to activate or deactivate the
alarm feature for sketch memos or delete all of the
memos.
Alarm
: when this option is set to
On
, all of the
alarms settings for your memos.
Erase all
: selecting this option allows you to erase
all of your memos. Select
Yes
to confirm the
deletion. When the display asks for your
confirmation again, select
OK
.
Voice memo
(Menu 7.7)
In this menu, you can record voice memos. After
recording, you can send a memo to other people
using the Multimedia Message Service (MMS).
Note
: You can quickly access this menu by pressing
the Right soft key in Idle mode.
Record
(Menu 7.7.1)
This menu allows you to record a new memo. When
you select this menu, the display shows the 30-
second timer.
1. To start recording, select
Record
.
Organiser
152
2. Record a memo by speaking into the
microphone.
3. When you select
Stop
or if the recording time
goes off, the following options display:
•
Replay
: plays back your memo.
•
Re-record
: discards the memo and enables
you to record another one.
•
Save
: allows you to save the memo.
•
Quit
: cancels your recording and exits the
Record
menu.
4. To save the memo, select
Save
.
5. Press the
C
key to clear the default name, if
necessary, and enter a name for the memo.
For further details about how to enter
characters, see page 50.
6. When you are finished, select
OK
.
The memo is saved and then the display shows
the memo information.
After saving, the phone displays the information
about the memo. Select
Options
to use the
following memo options:
Send
: allows you to send the memo to other people
by using the MMS feature. Follow the procedure on
page 110.
Rename
: allows you to change the memo’s name.
Delete
: deletes the memo.
Organiser
153
Memo list
(Menu 7.7.2)
This menu shows your voice memo list.
Select a memo to use the following options:
Play
: plays the memo.
Send
: allows you to send the memo to other people
by using the MMS feature. See page 110 for further
details about sending a message.
Rename
: allows you to change the memo’s name.
Properties
: displays information about the memo,
such as the name, the date when the memo was
made, recording duration, and memory size.
Delete
: deletes the memo.
Delete all
(Menu 7.7.3)
In this menu, you can delete all of your voice
memos.
When the confirmation message appears, select
Yes
. When the display asks for your confirmation
again, select
Yes
.
Memory status
(Menu 7.7.4)
In this menu, you can check the number of memos
you recorded and the total number of memos you
can record.
Organiser
154
Currency exchange
(Menu 7.8)
Using this menu, you can figure out currency
conversions.
1. Enter the current exchange rate of your source
currency and select
OK
.
You can insert a decimal point by pressing
the key
.
2. Enter the amount to convert and select
OK
.
The amount you entered and its equivalent
value display.
3. Select
Exit
or press the
C
key to exit the
currency convertor.
Dictionary
(Menu 7.9)
Your phone provides you with the English-Chinese
or Chinese-English dictionary.
Note
: You can quickly open the
Dictionary
screen by
tapping from any screen.
To look for a word from the dictionary:
1. Select
Input
.
2. Enter the Chinese or English word you want.
For further details about how to enter
characters, see page 50.
Organiser
155
3. Select
OK
.
The displays shows the pronunciation of the
associated word you entered and the
corresponding English or Chinese words.
If you entered an English word, you can view the
word in simplified Chinese or traditional Chinese
by tapping
T
or
S
on the right of the input field.
4. To look for another word, repeat from step 1.
156
Camera
Using the camera module in your phone, you can
take photos of people or events while on the move.
Additionally, you can send photos to other people in
a multimedia message or set it as a wallpaper.
You can also record videos using your phone as a
camcorder.
Note
: In Idle mode, you can quickly enter the
Camera
menu by pressing the Down key.
CAUTION
:
• Do not take photos of people without their
permission.
• Do not take photos in a place where cameras are not
allowed.
• Do not take photos in a place where you may
interfere with another person’s privacy.
Take photos
(Menu 8.1)
This menu allows you to take photos. Your camera
produces JPEG photos.
Note
: When you take a photo in direct sunlight or in
bright conditions, shadows may appear on the
photo.
1. Accessing the
Take photos
menu turns on the
camera on the top left of your phone. You can
also press and hold the Down key in Idle mode.
The image to be captured appears on the
display.
Camera
157
2. Adjust the image by rotating the camera module
and aiming it at the subject.
You can also use the following options:
• Select
Options
to use the camera options. For
details of each option, see the following page.
• Press the Right key to zoom in or out.
• Press the Left key to change the frame size.
• Press the Up or Down key to adjust the image
brightness.
• Press the key to flip the image vertically or
the key to see its mirror image.
3. Select
Take
to take the photo.
4. Select
Save
to save the photo.
To discard the photo, select
Cancel
.
5. Enter a name for the photo and select
OK
.
6. Choose one of the following options:
T
o Select
use the photo options
Options
. For details, see
page 159.
return to Preview
mode
Preview
or press the
C
key.
Camera
158
Using the camera options
In Preview mode, you can use various options for
the camera by selecting
Options
.
The following options are available:
Effects
: allows you to change the colour tone or
apply special effects to the photo.
Frames
: allows you to use a decorated frame.
Select a frame from the list using the Navigation
keys.
Multi shot
: allows you to take a series of action
stills. Select the capture speed to
High speed
or
Normal speed
and the number of photos for the
camera to take. When you select
Take
in Preview
mode, the camera takes photos successively.
After taking photos, select
Save All
to save all of
them. To save the selected one(s), scroll to the
photo you want and select
Select
to place a check
mark. Repeat to select more photos and then select
Save
.
Rotation
: allows you to rotate the photo. You can
flip the photo vertically, see its mirror image, or do
both at the same time.
Self timer
: allows you to have a delay time before
the camera takes the photo. Select the length of
time you want. When you select
Take
in Preview
mode, the camera takes the photo after the
specified time.
Settings
: allows you to change the image settings.
Photo size: allows you to select the image size. The
selected image size displays on the preview screen.
Photo quality: allows you to select the image
quality. The selected quality displays on the preview
screen.
Camera
159
My photos
(Menu 8.2)
This menu allows you to review your photos.
When you access this menu, your phone displays
the photos in Thumbnail mode, which shows them
as small images.
To view the photos on the full screen, select
View
.
To go back to Thumbnail mode, select
Multi
.
Select
Options
or press the key to use the
following photo options:
Send
: allows you to send the photo as a
multimedia message. For further details, see
page 110.
Rename
: allows you to change the name of the
photo.
Set as wallpaper
: allows you to set the photo as
your wallpaper on the idle screen.
Protection
: allows you to protect the photo from
being deleted.
Delete this
: allows you to delete the photo.
Delete all
: allows you to delete all of the photos
saved in your phone.
Edit
: allows you to change the color tone of the
photo or apply special effects on the photo.
Properties
: shows the properties of the photo,
such as the time and date when it was taken, file
size, photo size, protection status, file format, and
file name.
Camera
160
Video
(Menu 8.3)
You can record and play videos using your phone as
a camcorder.
Record
(Menu 8.3.1)
In this menu, you can record a new video.
1. When the camera turns on, adjust the image by
aiming the camera at the subject.
You can also use the following options:
• Select
Options
to use the camera options. For
details of each option, see the following page.
• Press the Right key to zoom in or out.
• Press the Left key to change the frame size.
You can also select
Small
or
Large
.
• Press the Up or Down key to adjust the image
brightness.
• Press the key to flip the image vertically or
the key to see its mirror image.
2. Select
Record
to start recording.
3. When you are finished, select
Stop
to stop
recording.
The phone will automatically stop if the
recording time expires.
4. Enter a name for the video and select
OK
.
The phone saves the video file and then returns
to Preview mode.
Camera
161
Video clips
(Menu 8.3.2)
When you access this menu, the thumbnail images
of your videos display.
To play a video:
1. Select the video you want to review.
2. Select
Play
to start playing the video.
Select
Options
on the video list to use the following
video options:
Rename
: allows you to change the file name.
Delete
: allows you to delete the current video file.
Delete all
: allows you to delete all of your video
files.
Protection
: allows you to protect the video from
being deleted.
Properties
: shows the properties of the video,
such as the time and date when it was recorded, file
size, protection status, and playing time.
3.
To Select
pause the playing
Pause
.
resume
Play
.
stop
Stop
.
Camera
162
Memory status
(Menu 8.4)
You can check the percentage of the memory being
used and the remaining memory for photos and
videos in the camera.
163
Phone settings
Many different features of your phone can be
customised to suit your preferences. All of these
features are accessed in the
Phone settings
menu.
Activate infrared
(Menu 9.1)
This feature allows you to send or receive data to or
from IrDA-compatible computers or phones through
the infrared port.
With PC
To use an infrared connection with a computer, you
must:
• configure and activate an IrDA-compliant infrared
port on your PC.
• activate the infrared feature on the phone; the
IrDA icon ( ) appears on the top line of the
display.
• align the IrDA port on the phone with the IrDA
port on your computer or another phone.
The connection is ready for data transmission.
IrDA port
IrDA port
Phone settings
164
If there is no communication between your phone
and the IrDA-compliant device within 30 seconds of
activating the feature, it is automatically
deactivated.
Note
: For optimal performance, use the PC link cable.
supplied with your phone.
With other phone
(Menu 9.1.1)
Using the infrared connection, you can send or
receive Phonebook entries and calendar memos
from another compliant phone.
Note
: If you receive a call while sending or receiving
data, you can either answer or reject the call
without interrupting the IrDA connection. But,
picking up your phone may break the
connection between the phones, so use the
supplied headset to answer the call.
Receiving data from another phone
1. Align the IrDA ports on both phones with each
other.
2. Activate the infrared feature on the phones. For
this phone, access the
Activate infrared
menu
and select
With other phone
.
The connection between the phones is
established and your phone receives data from
the other phone. You can receive up to 20 items
in succession.
Phone settings
165
3. When the list of the received data displays, you
have two options:
To save an individual item:
➀
Select one item on the list. The display shows
the Phonebook entry or calendar memo.
➁
Select
OK
.
➂
Select
Options
.
The following options are available:
•
Discard
: deletes the data.
•
Save
: allows you to save the selected data
in your phone’s memory.
④
Select
Save
.
To save all of the data:
➀
Select
Options
.
The following options are available:
•
Save All
: allows you to save all data.
•
Save All vCard
: saves all the Phonebook
entries from the received data.
•
Save All vCalendar
: saves all the calendar
memos from the received data.
•
Discard All
: deletes all of the data.
•
Discard All vCard
: deletes all the
Phonebook entries from the received data.
•
Discard All vCalendar
: deletes all the
calendar memos from the received data.
•
Exit
: exits the IrDA function. When the
phone asks if you want to delete the
remaining data, select
Yes
or
No
.
➁
Select a save option .
Phone settings
166
4. When FDN (Fixed Dial Number) mode is enabled
on your phone, enter the PIN2 and select
OK
.
For further details about the FDN mode, see
page 173.
5. Select
Save
.
The entries are saved.
Sending Your Phone Book
1. Align the IrDA ports on both phones with each
other to establish the IrDA connection.
The IrDA port of the other phone must be
activated.
2. Access a Phone Book entry and select
Options
.
See page 45.
3. Select
Send via IrDA
.
4. Select
Selected data
or
All data
.
Your phone begins sending the data.
Sending a Calendar Memo
1. Align the IrDA ports on both phones with each
other to establish the IrDA connection.
The IrDA port of the other phone must be
activated.
2. Access the
Calendar
menu and select the
memo you want to send. Seepage 144.
3. Select
Options
and select
Send via IrDA
.
Your phone begins sending the memo.
Phone settings
167
Display settings
(Menu 9.2)
In this menu, you can change various settings for
the display and the lights.
Wallpaper
(Menu 9.2.1)
This menu allows you to change the background
image or the colour of the text to be displayed in
Idle mode.
The following options are available:
Wallpaper list
: you can select a background image
to be displayed on the idle screen. You have various
preset images available. You can also select a blank
background or any images downloaded from the
Internet and the optional EasyGPRS programme or
received in messages.
To change the background image:
1. Select an image from the list.
2. When the image displays, you can scroll to other
images by pressing the Up or Down key.
3. When the image you want displays, choose
Select
to display it on the idle screen.
Text display
: you can specify whether or not the
phone displays the current time and date.
Text color
: you can select the colour of the text to
be displayed on the idle screen. This option is
available only when the
Text display
option is
enabled.
Phone settings
168
Menu style
(Menu 9.2.2)
This menu allows you to select the menu display
style. You can choose either
Grid style
,
Bar style
,
or
Page style
.
Brightness
(Menu 9.2.3)
You can adjust the display brightness to see it
better in different lighting conditions.
Service light
(Menu 9.2.4)
The keys on the top of the phone backlight as a
service light to indicate when service is available.
This menu allows you to select whether or not the
service light is used. It also allows you to select a
color in which the service light flashes.
Select one of the seven color settings. When the
phone is ready for use, the service light flashes in
the appropriate color.
If you do not wish to use the service light,
select
Off
.
Back light
(Menu 9.2.5)
You can select the length of time the backlight is on.
The backlight turns on when you press a key or
receive a call or message and remains on for the
specified length of time.
Phone settings
169
Graphic logo
(Menu 9.2.6)
This menu allows you to display your service
provider’s logo instead of its name.
Off
: the service provider’s name displays in Idle
mode.
On
: the service provider’s logo stored in your phone
displays in Idle mode; if no logo has been stored,
the service provider’s name displays.
Greeting message
(Menu 9.3)
This menu allows you to set a greeting to be
displayed briefly when the phone is switched on.
For further details about how to enter characters,
see page 50.
Own number
(Menu 9.4)
This function is a memory aid, which you can use to
check your own phone numbers if you need to do so.
You can:
• assign a name to each of your own phone
numbers registered on your SIM card.
• edit the names and numbers.
Any changes made here do not in any way affect
the actual subscriber numbers on your SIM card.
Phone settings
170
Language
(Menu 9.5)
You can select a display language. Select either
English
,
Chinese S
(Simplified Chinese), or
Chinese T
(Traditional Chinese).
Note
: Depending on your language selection,
available input modes may change. For details,
see page 51.
Security
(Menu 9.6)
The Security feature enables you to restrict the use
of your phone by others and the types of calls.
Various codes and passwords are used to protect
features of your phone. They are described in the
following sections. Also see pages 179-182.
PIN check
(Menu 9.6.1)
When the PIN Check feature is enabled, you must
enter your PIN each time you switch on the phone.
Consequently, any person who does not have your
PIN cannot use your phone without your approval.
Note
: Before disabling the PIN Check feature, you
must enter your PIN.
The following options are available:
Disable
: the phone connects directly to the
network when you switch it on.
Enable
: you must enter the PIN each time the
phone is switched on.
Phone settings
171
Change PIN
(Menu 9.6.2)
This feature allows you to change your current PIN
to a new one, provided that the PIN Check feature
is enabled. You must enter the current PIN before
you can specify a new one.
Once you have entered a new PIN, you are asked to
confirm it by entering it again.
Phone lock
(Menu 9.6.3)
When the Phone Lock feature is enabled, the phone
is locked and you must enter a 4- to 8-digit phone
password each time the phone is switched on.
The password is preset to “00000000” at the
factory. To change the phone password, see the
Change password
menu on page 172.
Once the correct password has been entered, you
can use the phone until you switch it off.
The following options are available:
Disable
: you are not asked to enter the phone
password when you switch on the phone.
Enable
: you are required to enter the phone
password when you switch on the phone.
Phone settings
172
Change password
(Menu 9.6.4)
The Change Password feature allows you to change
your current phone password to a new one. You
must enter the current password before you can
specify a new one.
The password is preset to “00000000” at the
factory. Once you have entered a new password,
you are asked to confirm it by entering it again.
Privacy
(Menu 9.6.5)
Using this menu, you can lock your media contents,
such as multimedia messages, photos, videos,
voice memos, images, and sounds. Once you have
locked the contents, you must enter the phone
password to access the associated menus.
1. Select the item you want to lock in order to
place a check mark. Repeat this step to select
more items.
You can remove the check mark by selecting it
again.
2. Select
OK
.
3. When the phone asks for the phone password,
enter the password and select
OK
.
Note
: The password is preset to “00000000” at the
factory. To change this password, see
page 172.
Phone settings
173
SIM lock
(Menu 9.6.6)
When the SIM Lock feature is enabled, your phone
only works with the current SIM. You must enter
the SIM lock code to use a different SIM card.
Once you have entered the lock code, you are
asked to confirm it by entering it again.
To unlock the SIM, you must enter the SIM lock
code.
FDN mode
(Menu 9.6.7)
The FDN (Fixed Dial Number) mode, if supported by
your SIM card, allows you to restrict your outgoing
calls to a limited set of phone numbers.
The following options are available:
Disable
: you can call any number.
Enable
: you can only call phone numbers stored in
Phonebook. You must enter your PIN2.
Note
: Not all SIM cards have a PIN2. If your SIM card
does not, this menu does not display.
Change PIN2
(Menu 9.6.8)
The Change PIN2 feature allows you to change your
current PIN2 to a new one. You must enter the
current PIN2 before you can specify a new one.
Once you have entered a new PIN2, you are asked
to confirm it by entering it again.
Note
: Not all SIM cards have a PIN2. If your SIM card
does not, this menu does not display.
Phone settings
174
Extra settings
(Menu 9.7)
You can turn on or off the automatic redialling or
answering features.
Select the option you want to activate. A check
mark displays in front of the option. To deactivate
the option, just select it again.
The following options are available:
Auto redial
: when this option is checked, the
phone makes up to ten attempts to redial a phone
number after an unsuccessful call.
Note
: The interval between two attempts varies.
Active slide
: when this option is checked, you can
simply open the phone to answer a call.
When it is unchecked, you must open the phone
and press a key to answer a call, depending on the
setting of the
Anykey answer
option.
Anykey answer
: when this option is checked, you
can answer an incoming call by pressing any key,
except the key and the
Reject
soft key. To
reject the call, press the key or the
Reject
soft key.
When this option is unchecked, you can only press
the key or
Accept
soft key.
Phone settings
175
Reset settings
(Menu 9.8)
You can easily reset your phone to its default
settings.
To reset your phone, enter the 4- to 8-digit phone
password and select
OK
.
Note
: The password is preset to “00000000.” To
change this password, see page 172.
176
Solving problems
If you are experiencing problems with your phone,
perform the following simple checks before
contacting a service professional. This may save
you the time and expense of an unnecessary
service call.
When you switch your phone on, the
following messages may appear:
Insert SIM card
• Check that the SIM card is correctly installed.
Enter password
• The automatic locking function has been enabled.
You must enter the phone’s password before you
can use the phone.
Enter PIN
• You are using your phone for the first time. You
must enter the Personal Identification Number
(PIN) supplied with the SIM card.
• The PIN Check feature is enabled. Every time the
phone is switched on, the PIN has to be entered.
To disable this feature, use the
PIN check
menu.
See page 170.
Enter PUK
• The PIN code was entered incorrectly three times
in succession and the phone is now blocked.
Enter the PUK supplied by your service provider.
Solving problems
177
“No service,” “Network failure” or “Not
done” displays
• The network connection was lost. You may be in a
weak signal area (in a tunnel or surrounded by
buildings). Move and try again.
• You are trying to access an option for which you
have not taken out a subscription with your
service provider. Contact the service provider for
further details.
You have entered a number but it was
not dialled
• Have you pressed the key?
• Are you accessing the right cellular network?
• You may have set an outgoing call barring option.
Your correspondent cannot reach you
• Is your phone switched on (the key pressed
for more than one second)?
• Are you accessing the right cellular network?
• You may have set an incoming call barring option.
Your correspondent cannot hear you
speaking
• Have you switched off the microphone?
• Are you holding the phone close enough to your
mouth? The microphone is located at the bottom
of the phone.
Solving problems
178
The phone starts beeping and
“**Warning** Low battery” flashes on
the display
• Your battery is insufficiently charged. Recharge
the battery.
The audio quality of the call is poor
• Check the signal strength indicator on the display
( ); the number of bars indicates the signal
strength from strong ( ) to weak ( ).
• Try moving the phone slightly or moving closer to
a window if you are in a building.
No number is dialled when you recall a
Phonebook entry
• Check that the number has been stored correctly,
by using the Phonebook Search feature.
• Re-store the number, if necessary.
If the above guidelines do not help you to solve
the problem, take note of:
• the model and serial numbers of your phone
• your warranty details
• a clear description of the problem
Then contact your local dealer or Samsung after-
sales service.
179
Access codes
There are several access codes that are used by
your phone and its SIM card. These codes help you
protect the phone against unauthorised use.
When requested for any of the codes explained
below, enter the appropriate code, displayed as
asterisks, and select
OK
. If you make a mistake,
press the
C
key one or more times until the
incorrect digit is cleared and then continue entering
the correct code.
The access codes, except for the PUK and PUK2
codes, can be changed using the
Security
menu.
See page 170 for further details.
Important!
Avoid using access codes resembling
emergency numbers, such as 112, so
that you do not accidentally dial an
emergency number.
Phone password
The Phone Lock feature uses the phone password to
protect your phone against unauthorised use. The
phone password is supplied with the phone and is
preset to “00000000” at the factory.
To See
activate/deactivate the
Phone Lock feature page 171.
change the phone
password page 172.
Access codes
180
PIN
The
P
ersonal
I
dentification
N
umber or PIN (4 to
8 digits) protects your SIM card against
unauthorised use. It is usually supplied with the
SIM card.
If you enter an incorrect PIN three times in
succession, the code is disabled and cannot be used
until you re-enable it by entering the PUK (see
below).
PUK
The 8-digit PUK (
P
IN
U
nblocking
K
ey) is required to
change a disabled PIN. The PUK may be supplied
with the SIM card. If not, or you have lost it,
contact your service provider.
To re-enable your PIN:
1. Enter the PUK and select
OK
.
2. Enter a new PIN of your choice and select
OK
.
3. When the
Confirm new PIN
message displays,
enter the same code again and select
OK
.
If you enter an incorrect PUK ten times in
succession, the SIM card becomes invalid. Contact
your service provider for a new card.
To See
activate/deactivate the
PIN Check feature page 170.
change the PIN page 171.
Access codes
181
PIN2
The PIN2 (4 to 8-digits), supplied with some SIM
cards, is required to access specific functions, such
as setting the maximum cost of a call. These
functions are available if supported by your SIM
card.
If you enter an incorrect PIN2 three times in
succession, the code is disabled and you cannot
access the functions until you re-enable it by
entering the PUK2.
To change the PIN2, see page 173.
PUK2
The 8-digit PUK2 (
P
IN
U
nblocking
K
ey
2
), supplied
with some SIM cards, is required to change a
disabled PIN2. If you lose the code, contact your
service provider.
To re-enable your PIN2:
1. Enter the PUK2 and select
OK
.
2. Enter a new PIN2 of your choice and select
OK
.
3. When the
Confirm PIN2
message displays,
enter the same code again and select
OK
.
If you enter an incorrect PUK2 ten times in
succession, you will not be able to access the
functions requiring the PIN2. Contact your service
provider for a new card.
Access codes
182
Barring password
A 4-digit barring password is required when you use
the Call Barring function. You can obtain the
password from your service provider when you
subscribe to this function.
You can change this password in the
Call barring
menu. See page 91 for further details.
183
Health and safety
information
Exposure to radio-frequency energy
(SAR information)
This phone meets European Union (EU)
requirements concerning exposure to radio waves.
Your mobile phone is a radio transmitter and
receiver. It is designed and manufactured so as not
to exceed the limits for exposure to radio-frequency
(RF) energy, as recommended by the EU Council.
These limits are part of comprehensive guidelines
and establish permitted levels of RF energy for the
general population. The guidelines were developed
by independent scientific organisations through the
periodic and thorough evaluation of scientific
studies. The limits include a substantial safety
margin designed to ensure the safety of all persons,
regardless of age and health.
The exposure standard for mobile phones employs
a unit of measurement known as SAR (Specific
Absorption Rate). The SAR limit recommended by
the EU Council is 2.0W/kg.
*
* The SAR limit for mobile phones used by the public is 2.0
watts/kilogram (W/kg) averaged over ten grams of body
tissue. The limit incorporates a substantial margin of safety to
give additional protection for the public and to account for any
variations in measurements. The SAR values may vary
depending on national reporting requirements and the
network band.
Health and safety information
184
SAR tests are conducted using standard operating
positions with the phone transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest
certified power level, the actual SAR level of the
phone while operating can be well below the
maximum value. This is because the phone is
designed to operate at multiple power levels so as
to use only the power required to reach the
network. In general, the closer you are to a base
station, the lower the power output of the phone.
Before a new model phone is available for sale to
the public, compliance with the European R&TTE
Directive must be shown. This directive includes as
one of its essential requirements the protection of
the health and safety of the user and any other
person.
Precautions when using batteries
• Never use any charger or battery that is damaged
in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network’s base
station, it uses less power; talk and standby time
are greatly affected by the signal strength on the
cellular network and the parameters set by the
network operator.
• Battery charging time depends on the remaining
battery charge, the type of battery and the
charger used. The battery can be charged and
discharged hundreds of times, but it will gradually
wear out. When the operation time (talk time and
standby time) is noticeably shorter than normal,
it is time to buy a new battery.
Health and safety information
185
• If left unused, a fully charged battery will
discharge itself over time.
• Use only Samsung-approved batteries and
recharge your battery only with Samsung-
approved chargers. When a charger is not in use,
disconnect it from the power source. Do not leave
the battery connected to a charger for more than
a week, since overcharging may shorten its life.
• Extreme temperatures will affect the charging
capacity of your battery: it may require cooling or
warming first.
• Do not leave the battery in hot or cold places,
such as in a car in summer or winter conditions,
as you will reduce the capacity and lifetime of the
battery. Always try to keep the battery at room
temperature. A phone with a hot or cold battery
may temporarily not work, even when the battery
is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C (32 °F).
• Do not short-circuit the battery. Accidental short-
circuiting can occur when a metallic object (coin,
clip or pen) causes a direct connection between
the + and – terminals of the battery (metal strips
on the battery), for example when you carry a
spare battery in a pocket or bag. Short-circuiting
the terminals may damage the battery or the
object causing the short-circuiting.
• Dispose of used batteries in accordance with local
regulations. Always recycle. Do not dispose of
batteries in a fire.
Health and safety information
186
Road safety
Your wireless phone gives you the powerful ability
to communicate by voice, almost anywhere,
anytime. But an important responsibility
accompanies the benefits of wireless phones, one
that every user must uphold.
When driving a car, driving is your first
responsibility. When using your wireless phone
behind the wheel of a car, make sure that you are
following the special regulations in a given area or
country.
Operating environment
Remember to follow any special regulations in force
in any area and always switch off your phone
whenever it is forbidden to use it, or when it may
cause interference or danger.
When connecting the phone or any accessory to
another device, read its user’s guide for detailed
safety instructions. Do not connect incompatible
products.
As with other mobile radio transmitting equipment,
users are advised that for the satisfactory operation
of the equipment and for the safety of personnel, it
is recommended that the equipment should only be
used in the normal operating position (held to your
ear with the antenna pointing over your shoulder).
Health and safety information
187
Electronic devices
Most modern electronic equipment is shielded from
radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against
the RF signals from your wireless phone. Consult
the manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a
minimum distance of 15 cm (6 inches) be
maintained between a wireless phone and a
pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent
with the independent research and
recommendations of Wireless Technology Research.
Persons with pacemakers:
• Should always keep the phone more than 15 cm
(6 inches) from their pacemaker when the phone
is switched on
• Should not carry the phone in a breast pocket
• Should use the ear opposite the pacemaker to
minimise potential interference
If you have any reason to suspect that interference
is taking place, switch off your phone immediately.
Hearing aids
Some digital wireless phones may interfere with
some hearing aids. In the event of such
interference, you may wish to consult your hearing
aid manufacturer to discuss alternatives.
Health and safety information
188
Other medical devices
If you use any other personal medical devices,
consult the manufacturer of your device to
determine if it is adequately shielded from external
RF energy. Your physician may be able to assist you
in obtaining this information. switch off your phone
in health care facilities when any regulations posted
in these areas instruct you to do so. Hospitals or
health care facilities may be using equipment that
could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
representative regarding your vehicle.
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Posted facilities
Switch off your phone in any facility where posted
notices require you to do so.
Health and safety information
189
Potentially explosive environments
Switch off your phone when in any area with a
potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause
an explosion or fire resulting in bodily injury or even
death.
Users are advised to switch off the phone while at a
refuelling point (service station). Users are
reminded of the need to observe restrictions on the
use of radio equipment in fuel depots (fuel storage
and distribution areas), chemical plants or where
blasting operations are in progress.
Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include
the areas below decks on boats, chemical transfer
or storage facilities, vehicles using liquefied
petroleum gas, such as propane or butane, areas
where the air contains chemicals or particles, such
as grain, dust or metal powders, and any other area
where you would normally be advised to turn off
your vehicle engine.
Health and safety information
190
Emergency calls
This phone, like any wireless phone, operates using
radio signals, wireless and landline networks as well
as user-programmed functions, which cannot
guarantee connection in all conditions. Therefore,
you should never rely solely on any wireless phone
for essential communications (medical
emergencies, for example).
Remember, to make or receive any calls the phone
must be switched on and in a service area with
adequate signal strength. Emergency calls may not
be possible on all wireless phone networks or when
certain network services and/or phone features are
in use. Check with local service providers.
To make an emergency call, proceed as follows.
1. If the phone is not on, switch it on.
2. Key in the emergency number for your present
location (for example, 112 or any other official
emergency number). Emergency numbers vary
by location.
3. Press the key.
If certain features are in use (call barring, for
example), you may first need to deactivate those
features before you can make an emergency call.
Consult this document and your local cellular
service provider.
When making an emergency call, remember to give
all the necessary information as accurately as
possible. Remember that your phone may be the
only means of communication at the scene of an
accident; do not cut off the call until given
permission to do so.
Health and safety information
191
Other important safety information
• Only qualified personnel should service the phone
or install the phone in a vehicle. Faulty
installation or service may be dangerous and may
invalidate any warranty applicable to the device.
• Check regularly that all wireless phone equipment
in your vehicle is mounted and operating
properly.
• Do not store or carry flammable liquids, gases or
explosive materials in the same compartment as
the phone, its parts or accessories.
• For vehicles equipped with an air bag, remember
that an air bag inflates with great force. Do not
place objects, including both installed or portable
wireless equipment in the area over the air bag or
in the air bag deployment area. If wireless
equipment is improperly installed and the air bag
inflates, serious injury could result.
• Switch off your phone before boarding an aircraft.
The use of wireless phones in an aircraft may be
dangerous to the operation of the aircraft, and is
illegal.
• Failure to observe these instructions may lead to
the suspension or denial of telephone services to
the offender, or legal action, or both.
Health and safety information
192
Care and maintenance
Your phone is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for
many years.
• Keep the phone and all its parts and accessories
out of the reach of small children.
• Keep the phone dry. Precipitation, humidity, and
liquids contain minerals that corrode electronic
circuits.
• Do not use the phone with a wet hand. Doing so
may cause an electric shock to you or damage to
the phone.
• Do not use or store the phone in dusty, dirty
areas, as its moving parts may be damaged.
• Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt
certain plastics.
• Do not store the phone in cold areas. When the
phone warms up to its normal operating
temperature, moisture can form inside the
phone, which may damage the phone’s electronic
circuit boards.
• Do not drop, knock or shake the phone. Rough
handling can break internal circuit boards.
• Do not use harsh chemicals, cleaning solvents, or
strong detergents to clean the phone. Wipe it
with a soft cloth slightly dampened in a mild
soap-and-water solution.
Health and safety information
193
• Do not paint the phone. Paint can clog the
device’s moving parts and prevent proper
operation.
• Do not put the phone in or on heating devices,
such as a microwave oven, a stove, or a radiator.
The phone may explode when overheated.
• Use only the supplied or an approved
replacement antenna. Unauthorised antennas or
modified accessories may damage the phone and
violate regulations governing radio devices.
• If the phone, battery, charger, or any accessory is
not working properly, take it to your nearest
qualified service facility. The personnel there will
assist you, and if necessary, arrange for service.
194
Glossary
To help you understand the main technical terms
and abbreviations used in this booklet, and to take
full advantage of the features of your mobile phone,
here are a few definitions:
Active folder
Ability to answer a call simply by opening the
phone.
Call barring
Ability to restrict outgoing and incoming calls.
Call diverting
Ability to reroute calls to another number.
Call holding
Ability to put one call on standby while answering or
making another call; you can then switch between
the two calls, as required.
Call waiting
Informs you that you have an incoming call when
you are engaged on another call.
Caller line identification services (Caller ID)
Services allowing subscribers to view or block the
telephone numbers of callers.
Glossary
195
EMS (Enhanced Message Service)
An adaptation of the Short Message Service (SMS)
that allows you to send and receive ring tones and
the service provider’s logo, as well as combinations
of simple media to and from EMS-compliant
handsets. Because EMS is based on SMS, it can use
SMS centres the same way that SMS does. EMS
works on all Global System for Mobile
communications (GSM) networks. EMS senders can
use text, melodies, pictures, sounds, and
animations to enhance the expressive power of
messages that are limited by the display constraints
of mobile devices.
GPRS (General Packet Radio Service)
New non-voice value-added service that allows
information to be sent and received across a mobile
telephone network. GPRS provides continuous
connection to the Internet for mobile phone and
computer users. It is based on the Global System
for Mobile Communication (GSM) circuit-switched
cellular phone connections and the Short Message
Service (SMS).
GSM (Global System for Mobile Communication)
International standard for cellular communication,
guaranteeing compatibility between the various
network operators. GSM covers most European
countries and many other parts of the world.
Glossary
196
Java
Programming language generating applications that
can run on all hardware platforms, whether small,
medium or large, without modification. It has been
promoted for and geared heavily to the Web, both
for public Web sites and Intranets. When a Java
program runs from a Web page, it is called a Java
applet. When it is run on a mobile phone or pager, it
is called a MIDlet.
MMS (Multimedia Message Service)
A message service for the mobile environment,
standardized by the WAP Forum and the 3rd
Generation Partnership Program (3GPP). For phone
users, MMS is similar to Short Message Service
(SMS)-it provides automatic, immediate delivery of
user-created content from phone to phone. The
message addressing used is primarily phone
numbers, thus the traffic goes from phone to
phone. MMS also provides support for e-mail
addressing, so that messages can be sent by
e-mail. In addition to the text content of SMS, MMS
messages can contain still images, voice, or audio
clips, and also video clips and presentation
information.
Multi-party calling
Ability to establish a conference call involving up to
five additional parties.
Phone password
Security code used to unlock the phone when you
have selected the option to lock it automatically
each time it switches on.
Glossary
197
PIN (Personal Identification Number)
Security code that protects the phone against
unauthorised use. The PIN is supplied by the
service provider with the SIM card. It may be a four
to eight-digit number and can be changed, as
required.
Proxy server
A proxy server resides between a Web client, such
as a web browser, and a real Web server and acts
as an intermediary between them. When some
people browse a web site, their browser is not
actually connecting to the web server. The request
from their browser goes to a proxy server, and the
proxy server makes the request to the web server.
A proxy server can improve performance for groups
of users because it caches the results of all requests
for a certain amount of time. If a user requests a
web page that it already loaded for another user, it
reloads the page instead of forwarding the request
to the Web server, which can be a time-consuming
operation.
PUK (PIN Unblocking Key)
Security code used to unlock the phone when an
incorrect PIN has been entered three times in
succession. The eight-digit number is supplied by
the service provider with the SIM card.
Roaming
Use of your phone when you are outside your home
area (when travelling for example).
Glossary
198
SDN (Service Dialling Numbers)
Telephone numbers supplied by your network
provider and giving access to special services, such
as voice mail, directory inquiries, customer support
and emergency services.
SIM (Subscriber Identification Module)
Card containing a chip with all the information
required to operate the phone (network and
memory information, as well as the subscriber’s
personal data). The SIM card fits into a small slot
on the back of the phone and is protected by the
battery.
SMS (Short Message Service)
Network service sending and receiving messages to
and from another subscriber without having to
speak to the correspondent. The message created
or received can be displayed, received, edited or
sent.
Soft keys
Two keys marke
d
on the phone, the purpose of
which:
• varies according to the function that you are
currently using.
• is indicated on the bottom line of the display just
above the corresponding key.
Voice mail
Computerised answering service that automatically
answers your calls when you are not available,
plays a greeting (optionally in your own voice) and
records a message.
Glossary
199
200
201
Search for
a Number
in
Phonebook
➀
Tap , or select
Name
in Idle mode and select
Search
.
➁
Enter the first few letters
of the name.
➂
Select
OK
.
➃
Select the name from the
list.
➄
Press the key to dial.
Choose the
Alert Type
➀
Select the
Alert type
menu.
➁
Select an option:
• Light only
•Melody
•Vibration
Take a
➀
Press and hold the Down
key.
➁
Select
Take
.
➂
Select
Save
.
➃
Enter a name.
➄
Select
OK
.
Switch
On/Off Press and hold the key.
Make a
Call
➀
Enter the number.
➁
Press the
key.
End a Call Briefly press the key or
close the phone.
View
Missed
Calls
Shortly
After
Missing
Them
➀
Open the phone and select
View
.
➁
Scroll through the missed
calls.
➂
To return the call, press the
key.
Answer a
Call Open the phone or press the
key.
Adjust the
Volume Press the or key on the
left side of the phone.
SGH-D428 GPRS Telephone
Quick Reference Card
202
Use the Tool
Icons below
the Display
• : Tap to return to Idle
mode.
• : Tap to search for a
Phonebook entry.
• : Tap to open the
dictionary.
• : Tap to make a sketch
memo
• : Tap to open the Inbox
or Outbox of text
messages.
Store
Number in
Phonebook
➀
Enter the number and
select
Save
.
➁
Select an icon.
➂
Select a memory.
➃
Enter a name.
➄
Select
OK
.
➅
If necessary, change the
location number.
➆
Select
OK
.
➇
Press the key to
return to Idle mode.
Select an
Item on
the
Display
Choose one of the following
options:
• Tap the item on the touch
screen.
• Scroll to the item using the
Navigation keys and press
the
Select
or
OK
soft key.
• If the item is numbered,
press the corresponding
number key.
Access
the Menu
Functions
➀
Select
Menu
.
➁
Scroll through the list of the
menus until you reach the
menu you want.
➂
Select the menu.
➃
Scroll through the list of the
options until the one you
want is selected.
➄
Select the option.
Each of the two soft keys perform the
function indicated by the text above it, on
the bottom line of the display.
125
Health and Safety
Information
Exposure to Radio Frequency (RF) Signals
Your wireless phone is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission
(FCC) of the U.S. Government. These limits are part of
comprehensive guidelines and establish permitted
levels of RF energy for the general population. The
guidelines are based on the safety standards that were
developed by independent scientific organizations
through periodic and through evaluation of scientific
studies.
The standards include a substantial safety margin
designed to assure the safety of all persons, regardless
of age and health.
The exposure standard for wireless phones employs a
unit of measurement known as Specific Absorption
Rate (SAR). The SAR limit set by the FCC is 1.6W/kg *.
*In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg)
averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in measurements.
safety-end-NorthA 1/27/03 2:05 PM Page 125
126
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
127
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
SAR tests are conducted using standard operating
positions specified by the FCC with the phone
transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power levels
so as to use only the power required to reach the
network. In general, the closer you are to a wireless
base station antenna, the lower the power output of
the phone.
Before a new model phone is available for sale to the
public, it must be tested and certified to the FCC that
it does not exceed the limit established by the
government-adopted requirement for safe exposure.
The tests are performed in positions and locations
(e.g., at the ear and worn on the body) as required by
the FCC for each model. While there may be
differences between the SAR levels of various phones
and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC
and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID
printed in the label on the phone.
FCC certification information for this model phone is
attached separation paper.
For Body Operation
To maintain compliance with FCC RF exposure require-
ments, use only belt-clips, holsters or similar accessories
that maintain a 1.5 cm. separation distance between the
user's body and the back of the phone, including the
antenna. The use of belt-clips, holsters and similar
accessories should not contain metallic components in
its assembly. The use of accessories that do not satisfy
these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
For more Information concerning exposure to radio
frequency signals, see the following websites:
Federal Communications Commission (FCC)
http://www.fcc.gov/rfsafety
Cellular Telecommunications Industry Association (CTIA):
http://www.wow-com.com
U.S.Food and Drug Administration (FDA)
http://www.fda.gov/cdrh/consumer
World Health Organization (WHO)
http://www.who.int/peh-emf/en
safety-end-NorthA 1/27/03 2:05 PM Page 126
129
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
• Do not leave the battery in hot or cold places, such
as in a car in summer or winter conditions, as you
will reduce the capacity and lifetime of the battery.
Always try to keep the battery at room
temperature. A phone with a hot or cold battery
may temporarily not work, even when the battery
is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C (32 °F).
• Do not short-circuit the battery. Accidental short-
circuiting can occur when a metallic object (coin,
clip or pen) causes a direct connection between
the + and – terminals of the battery (metal strips
on the battery), for example when you carry a
spare battery in a pocket or bag. Short-circuiting
the terminals may damage the battery or the
object causing the short-circuiting.
• Dispose of used batteries in accordance with local
regulations. Always recycle. Do not dispose of
batteries in a fire.
Road Safety
Your wireless phone gives you the powerful ability to
communicate by voice, almost anywhere, anytime.
But an important responsibility accompanies the
benefits of wireless phones, one that every user
must uphold.
When driving a car, driving is your first responsibility.
When using your wireless phone behind the wheel of
a car, practice good common sense and remember
the following tips.
128
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
Precautions When Using Batteries
• Never use any charger or battery that is damaged in
any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network’s base
station, it uses less power; talk and standby time
are greatly affected by the signal strength on the
cellular network and the parameters set by the
network operator.
• Battery charging time depends on the remaining
battery charge and the type of battery and charger
used. The battery can be charged and discharged
hundreds of times, but it will gradually wear out.
When the operation time (talk time and standby
time) is noticeably shorter than normal, it is time to
buy a new battery.
• If left unused, a fully charged battery will discharge
itself over time.
• Use only Samsung-approved batteries and recharge
your battery only with Samsung-approved chargers.
When a charger is not in use, disconnect it from the
power source. Do not leave the battery connected to
a charger for more than a week, since overcharging
may shorten its life.
• Extreme temperatures will affect the charging
capacity of your battery: it may require cooling or
warming first.
safety-end-NorthA 1/27/03 2:05 PM Page 128
131
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
130
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
7. Do not engage in stressful or emotional
conversations that may be distracting. Make the
people with whom you are talking aware that you
are driving and suspend conversations that have
the potential to divert your attention from the
road.
8. Use your wireless phone to call for help. Dial the
emergency number in the case of fire, traffic
accident or medical emergencies. Remember, it is
a free call on your wireless phone!
9. Use your wireless phone to help others in
emergencies. If you see a car accident, crime in
progress or other serious emergency where lives
are in danger, call the emergency number, as you
would want others to do for you.
10. Call roadside assistance or a special non-
emergency wireless assistance number when
necessary. If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal,
a minor traffic accident where no one appears
injured, or a vehicle you know to be stolen, call
roadside assistance or any other special non-
emergency wireless number.
1. Get to know your wireless phone and its features,
such as speed dial and redial. If available, these
features help you to place your call without taking
your attention off the road.
2. When available, use a hands-free device. If
possible, add an extra layer of convenience and
safety to your wireless phone with one of the
many hands-free accessories available today.
3. Position your wireless phone within easy reach. Be
able to access your wireless phone without
removing your eyes from the road. If you get an
incoming call at an inconvenient time, let your
voice mail answer it for you.
4. Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions. Rain,
sleet, snow, ice and even heavy traffic can be
hazardous.
5. Do not take notes or look up phone numbers while
driving. Jotting down a To Do list or flipping
through your phonebook takes your attention away
from your primary responsibility, driving safely.
6. Dial sensibly and assess the traffic; if possible,
place calls when you are not moving or before
pulling into traffic. Try to plan calls when your car
will be stationary. If you need to make a call while
moving, dial only a few numbers, check the road
and your mirrors, then continue.
safety-end-NorthA 1/27/03 2:05 PM Page 130
133
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
132
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
Wireless Technology Research.
Persons with pacemakers:
• Should always keep the phone more than 15 cm (6
inches) from their pacemaker when the phone is
switched on
• Should not carry the phone in a breast pocket
• Should use the ear opposite the pacemaker to
minimize potential interference
If you have any reason to suspect that interference is
taking place, switch off your phone immediately.
Hearing Aids
Some digital wireless phones may interfere with
some hearing aids. In the event of such interference,
you may wish to consult your hearing aid
manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical devices,
consult the manufacturer of your device to determine
if it is adequately shielded from external RF energy.
Your physician may be able to assist you in obtaining
this information. Switch off your phone in health care
facilities when any regulations posted in these areas
instruct you to do so. Hospitals or health care
facilities may be using equipment that could be
sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
Operating Environment
Remember to follow any special regulations in force
in any area and always switch off your phone
whenever it is forbidden to use it, or when it may
cause interference or danger.
When connecting the phone or any accessory to
another device, read its user’s guide for detailed
safety instructions. Do not connect incompatible
products.
As with other mobile radio transmitting equipment,
users are advised that for the satisfactory operation
of the equipment and for the safety of personnel, it is
recommended that the equipment should only be
used in the normal operating position (held to your
ear with the antenna pointing over your shoulder).
Electronic Devices
Most modern electronic equipment is shielded from
radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against
the RF signals from your wireless phone. Consult the
manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a
minimum distance of 15 cm (6 inches) be maintained
between a wireless phone and a pacemaker to avoid
potential interference with the pacemaker. These
recommendations are consistent with the
independent research and recommendations of
safety-end-NorthA 1/27/03 2:05 PM Page 132
135
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
134
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
Emergency Calls
This phone, like any wireless phone, operates using
radio signals, wireless and landline networks as well
as user-programmed functions, which cannot guarantee
connection in all conditions. Therefore, you should
never rely solely on any wireless phone for essential
communications (medical emergencies, for example).
Remember, to make or receive any calls the phone
must be switched on and in a service area with
adequate signal strength. Emergency calls may not be
possible on all wireless phone networks or when
certain network services and/or phone features are in
use. Check with local service providers.
To make an emergency call, proceed as follows.
1. If the phone is not on, switch it on.
2. Key in the emergency number for your present
location. Emergency numbers vary by
location.
3. Press the <SEND> key.
If certain features are in use (call barring, for example),
you may first need to deactivate those features before
you can make an emergency call. Consult this
document and your local cellular service provider.
When making an emergency call, remember to give all
the necessary information as accurately as possible.
Remember that your phone may be the only means of
communication at the scene of an accident; do not cut
off the call until given permission to do so.
representative regarding your vehicle.
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Posted Facilities
Switch off your phone in any facility where posted
notices require you to do so.
Potentially Explosive Atmospheres
Switch off your phone when in any area with a
potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even
death.
Users are advised to switch off the phone while at a
refueling point (service station). Users are reminded
of the need to observe restrictions on the use of
radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants or where blasting
operations are in progress.
Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include
below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas
(such as propane or butane), areas where the air
contains chemicals or particles, such as grain, dust
or metal powders, and any other area where you
would normally be advised to turn off your vehicle
engine.
safety-end-NorthA 1/27/03 2:05 PM Page 134
137
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
136
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
Care and Maintenance
Your phone is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for
many years.
• Keep the phone and all its parts and accessories
out of the reach of small children’s.
• Keep the phone dry. Precipitation, humidity and
liquids contain minerals that will corrode
electronic circuits.
• Do not touch the phone with a wet hand while it is
charging. Doing so may cause an electric shock to
you or damage to the phone.
• Do not use or store the phone in dusty, dirty areas,
as its moving parts may be damaged.
• Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt
certain plastics.
• Do not store the phone in cold areas. When the
phone warms up to its normal operating
temperature, moisture can form inside the phone,
which may damage the phone’s electronic circuit
boards.
Other Important Safety Information
• Only qualified personnel should service the phone or
install the phone in a vehicle. Faulty installation or
service may be dangerous and may invalidate any
warranty applicable to the device.
• Check regularly that all wireless phone equipment in
your vehicle is mounted and operating properly.
• Do not store or carry flammable liquids, gases or
explosive materials in the same compartment as the
phone, its parts or accessories.
• For vehicles equipped with an air bag, remember
that an air bag inflates with great force. Do not
place objects, including both installed or portable
wireless equipment in the area over the air bag or in
the air bag deployment area. If wireless equipment
is improperly installed and the air bag inflates,
serious injury could result.
• Switch off your phone before boarding an aircraft.
The use of wireless phones in aircraft may be
dangerous to the operation of the aircraft, and is
illegal.
• Failure to observe these instructions may lead to the
suspension or denial of telephone services to the
offender, or legal action, or both.
safety-end-NorthA 1/27/03 2:05 PM Page 136
139
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
138
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
• Do not drop, knock or shake the phone. Rough
handling can break internal circuit boards.
• Do not use harsh chemicals, cleaning solvents or
strong detergents to clean the phone. Wipe it with a
soft cloth slightly dampened in a mild soap-and-water
solution.
• Do not paint it. Paint can clog the device’s moving
parts and prevent proper operation.
• Do not put the phone in or on heating devices, such as
a microwave oven, a stove or a radiator. The phone
may explode when overheated.
• Use only the supplied or an approved replacement
antenna. Unauthorized antennas or modified
accessories may damage the phone and violate
regulations governing radio devices.
• If the phone, battery, charger or any accessory is not
working properly, take it to your nearest qualified
service facility. The personnel there will assist you,
and if necessary, arrange for service.
Acknowledging Special Precautions and the FCC
and Industry Canada Notice
Cautions
Modifications not expressly approved by the party
responsible for compliance could void the user's authority
to operate the equipment. FCC Compliance Information
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received.
Including interference that may cause undesired
operation.
Information to User
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following measures:
safety-end-NorthA 1/27/03 2:05 PM Page 138
141
AAppppeennddiixx
Appendix A: CERTIFICATION INFORMATION (SAR)
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency(RF)
energy set by the Federal Communications Commission
of the U.S. Government. These limits are part of
comprehensive guidelines and establish permitted
levels of RF energy for the general population. The
guidelines are based on safety standards that were
developed by independent scientific organizations
through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety
margin designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless mobile phones
employs a unit of measurement known as the Specific
Absorption Rate(SAR). The SAR limit set by the FCC is
1.6 W/kg. SAR Tests are conducted using standard
operating positions accepted by the FCC with the
phone transmitting at its highest certified power level
in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power levels
so as to use only the power required to reach the
network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
140
HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV
technician for help.
safety-end-NorthA 1/27/03 2:05 PM Page 140
143
Appendix B: Guide to Safe and Responsible Wireless
Phone Use
Cellular Telecommunications & Internet Association
“Safety is the most important call you will ever make.”
A Guide to Safe and Responsible Wireless Phone Use
TENS OF MILLIONS OF PEOPLE IN THE U.S. TODAY TAKE
ADVANTAGE OF THE UNIQUE COMBINATION OF
CONVENIENCE, SAFETY AND VALUE DELIVERED BY THE
WIRELESS TELEPHONE. QUITE SIMPLY, THE WIRELESS
PHONE GIVES PEOPLE THE POWERFUL ABILITY TO
COMMUNICATE BY VOICE-ALMOST ANYWHERE,
ANYTIME-WITH THE BOSS, WITH A CLIENT, WITH THE
KIDS, WITH EMERGENCY PERSONNEL OR EVEN WITH
THE POLICE. EACH YEAR, AMERICANS MAKE BILLIONS
OF CALLS FROM THEIR WIRELESS PHONES, AND THE
NUMBERS ARE RAPIDLY GROWING.
But an important responsibility accompanies those
benefits, one that every wireless phone user must
uphold. When driving a car, driving is your first
responsibility. A wireless phone can be an invaluable
tool, but good judgment must be exercised at all times
while driving a motor vehicle-whether on the phone or
not.
The basic lessons are ones we all learned as teenagers.
Driving requires alertness, caution and courtesy. It
requires a heavy dose of basic common sense-keep your
head up, keep your eyes on the road, check your mirrors
frequently and watch out for other drivers. It requires
obeying all traffic signs and signals and staying within
the speed limit. It means using seatbelts and requiring
other passengers to do the same.
142
Before a new model phone is available for sale to the
public, it must be tested and certified to the FCC that it
does not exceed the limit established by the government-
adopted requirement for safe exposure. The tests are
performed in positions and locations(e.g., at the ear and
worn on the body) as required by the FCC for each
model.
The highest SAR values for this model phone as reported
to the FCC are Head: 0.464 W/Kg, Body-worn: 0.287 W/Kg.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as
in compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC
and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID
A3LSGHD428.
In the United States and Canada, the SAR limit for
mobile phones used by the public is 1.6
watts/kilogram(W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety
to give additional protection for the public and to
account for any variations in measurements.
AAppppeennddiixxAAppppeennddiixx
safety-end-NorthA 1/27/03 2:05 PM Page 142
145
4. Suspend conversations during hazardous driving
conditions or situations. Let the person you are speaking
with know you are driving; if necessary, suspend the call
in heavy traffic or hazardous weather conditions. Rain,
sleet, snow and ice can be hazardous, but so is heavy
traffic. As a driver, your first responsibility is to pay
attention to the road.
5. Do not take notes or look up phone numbers while
driving. If you are reading an address book or business
card, or writing a “to do” list while driving a car, you are
not watching where you are going. It’s common sense.
Don’t get caught in a dangerous situation because you
are reading or writing and not paying attention to the
road or nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place
calls when you are not moving or before pulling into
traffic. Try to plan your calls before you begin your trip or
attempt to coincide your calls with times you may be
stopped at a stop sign, red light or otherwise stationary.
But if you need to dial while driving, follow this simple
tip-dial only a few numbers, check the road and your
mirrors, then continue.
7. Do not engage in stressful or emotional conversations
that may be distracting. Stressful or emotional
conversations and driving do not mix-they are distracting
and even dangerous when you are behind the wheel of a
car. Make people you are talking with aware you are
driving and if necessary, suspend conversations which
have the potential to divert your attention from the road.
144
But with wireless phone use, driving safely means a
little more. This brochure is a call to wireless phone
users everywhere to make safety their first priority when
behind the wheel of a car. Wireless telecommunications
is keeping us in touch, simplifying our lives, protecting us
in emergencies and providing opportunities to help
others in need. When it comes to the use of wireless
phones, safety is your most important call.
Wireless Phone “Safety Tips”
Below are safety tips to follow while driving and using a
wireless phone which should be easy to remember.
1. Get to know your wireless phone and its features such
as speed dial and redial. Carefully read your instruction
manual and learn to take advantage of valuable features
most phones offer, including automatic redial and
memory. Also, work to memorize the phone keypad so
you can use the speed dial function without taking your
attention off the road.
2. When available, use a hands free device. A number of
hands free wireless phone accessories are readily
available today. Whether you choose an installed
mounted device for your wireless phone or a speaker
phone accessory, take advantage of these devices if
available to you.
3. Position your wireless phone within easy reach. Make
sure you place your wireless phone within easy reach
and where you can grab it without removing your eyes
from the road. If you get an incoming call at an
inconvenient time, if possible, let your voice mail answer
it for you.
AAppppeennddiixxAAppppeennddiixx
safety-end-NorthA 1/27/03 2:05 PM Page 144
146
8. Use your wireless phone to call for help. Your wireless
phone is one of the greatest tools you can own to
protect yourself and your family in dangerous situations-
with your phone at your side, help is only three numbers
away. Dial 9-1-1 or other local emergency number in the
case of fire, traffic accident, road hazard or medical
emergency. Remember, it is a free call on your wireless
phone!
9. Use your wireless phone to help others in
emergencies. Your wireless phone provides you a perfect
opportunity to be a “Good Samaritan” in your community.
If you see an auto accident, crime in progress or other
serious emergency where lives are in danger, call 9-1-1
or other local emergency number, as you would want
others to do for you.
10. Call roadside assistance or a special wireless non-
emergency assistance number when necessary. Certain
situations you encounter while driving may require
attention, but are not urgent enough to merit a call for
emergency services. But you still can use your wireless
phone to lend a hand. If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a minor
traffic accident where no one appears injured or a
vehicle you know to be stolen, call roadside assistance
or other special non-emergency wireless number.
Careless, distracted individuals and people driving
irresponsibly represent a hazard to everyone on the road.
Since 1984, the Cellular Telecommunications Industry
Association and the wireless industry have conducted
educational outreach to inform wireless phone users of
147
their responsibilities as safe drivers and good citizens.
As we approach a new century, more and more of us will
take advantage of the benefits of wireless telephones.
And, as we take to the roads, we all have a
responsibility to drive safely.
“The wireless industry reminds you to use your phone
safely when driving.”
Cellular Telecommunications & Internet Association
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-
com.com/consumer/issues/driving/articles.cfm?ID=85
AAppppeennddiixxAAppppeennddiixx
safety-end-NorthA 1/27/03 2:05 PM Page 146
149
low level RF that does not produce heating effects
causes no known adverse health effects. Many studies
of low level RF exposures have not found any biological
effects. Some studies have suggested that some
biological effects may occur, but such findings have not
been confirmed by additional research. In some cases,
other researchers have had difficulty in reproducing
those studies, or in determining the reasons for
inconsistent results.
3. What is FDA’s role concerning the safety of wireless
phones?
Under the law, FDA does not review the safety of
radiation-emitting consumer products such as wireless
phones before they can be sold, as it does with new
drugs or medical devices. However, the agency has
authority to take action if wireless phones are shown to
emit radiofrequency energy (RF) at a level that is
hazardous to the user. In such a case, FDA could require
the manufacturers of wireless phones to notify users of
the health hazard and to repair, replace or recall the
phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone
industry to take a number of steps, including the
following:
Support needed research into possible biological effects
of RF of the type emitted by wireless phones;
Design wireless phones in a way that minimizes any RF
exposure to the user that is not necessary for device
function; and
Cooperate in providing users of wireless phones with the
148
Appendix C: Consumer Update on Wireless Phones
U.S. Food and Drug Administration
1. What kinds of phones are the subject of this update?
The term wireless phone refers here to hand-held
wireless phones with built-in antennas, often called cell,
mobile, or PCS phones. These types of wireless phones
can expose the user to measurable radiofrequency
energy (RF) because of the short distance between the
phone and the user s head. These RF exposures are
limited by Federal Communications Commission safety
guidelines that were developed with the advice of FDA
and other federal health and safety agencies. When the
phone is located at greater distances from the user, the
exposure to RF is drastically lower because a person’s RF
exposure decreases rapidly with increasing distance
from the source. The so-called “cordless phones,” which
have a base unit connected to the telephone wiring in a
house, typically operate at far lower power levels, and
thus produce RF exposures well within the FCC’s
compliance limits.
2. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any
health problems are associated with using wireless
phones. There is no proof, however, that wireless phones
are absolutely safe. Wireless phones emit low levels of
radiofrequency energy (RF) in the microwave range while
being used. They also emit very low levels of RF when in
the stand-by mode. Whereas high levels of RF can
produce health effects (by heating tissue), exposure to
AAppppeennddiixxAAppppeennddiixx
safety-end-NorthA 1/27/03 2:05 PM Page 148
151
4. What is FDA doing to find out more about the possible
health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology
Program and with groups of investigators around the
world to ensure that high priority animal studies are
conducted to address important questions about the
effects of exposure to radiofrequency energy (RF).
FDA has been a leading participant in the World Health
Organization International Electromagnetic Fields (EMF)
Project since its inception in 1996. An influential result
of this work has been the development of a detailed
agenda of research needs that has driven the
establishment of new research programs around the
world. The Project has also helped develop a series of
public information documents on EMF issues.
FDA and the Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative Research
and Development Agreement (CRADA) to do research on
wireless phone safety. FDA provides the scientific
oversight, obtaining input from experts in government,
industry, and academic organizations. CTIA-funded
research is conducted through contracts to independent
investigators. The initial research will include both
laboratory studies and studies of wireless phone users.
The CRADA will also include a broad assessment of
additional research needs in the context of the latest
research developments around the world.
5. What steps can I take to reduce my exposure to
radiofrequency energy from my wireless phone?
150
best possible information on possible effects of wireless
phone use on human health
FDA belongs to an interagency working group of the
federal agencies that have responsibility for different
aspects of RF safety to ensure coordinated efforts at the
federal level. The following agencies belong to this
working group:
National Institute for Occupational Safety and Health
Environmental Protection Agency
Federal Communications Commission
Occupational Safety and Health Administration
National Telecommunications and Information
Administration
The National Institutes of Health participates in some
interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless
phones with the Federal Communications Commission
(FCC). All phones that are sold in the United States must
comply with FCC safety guidelines that limit RF exposure.
FCC relies on FDA and other health agencies for safety
questions about wireless phones.
FCC also regulates the base stations that the wireless
phone networks rely upon. While these base stations
operate at higher power than do the wireless phones
themselves, the RF exposures that people get from these
base stations are typically thousands of times lower than
those they can get from wireless phones. Base stations
are thus not the primary subject of the safety questions
discussed in this document.
AAppppeennddiixxAAppppeennddiixx
safety-end-NorthA 1/27/03 2:05 PM Page 150
153
Some groups sponsored by other national governments
have advised that children be discouraged from using
wireless phones at all. For example, the government in
the United Kingdom distributed leaflets containing such
a recommendation in December 2000. They noted that no
evidence exists that using a wireless phone causes brain
tumors or other ill effects. Their recommendation to limit
wireless phone use by children was strictly
precautionary; it was not based on scientific evidence
that any health hazard exists.
7. Do hands-free kits for wireless phones reduce risks
from exposure to RF emissions?
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason to
believe that hands-free kits reduce risks. Hands-free kits
can be used with wireless phones for convenience and
comfort. These systems reduce the absorption of RF
energy in the head because the phone, which is the
source of the RF emissions, will not be placed against
the head. On the other hand, if the phone is mounted
against the waist or other part of the body during use,
then that part of the body will absorb more RF energy.
Wireless phones marketed in the U.S. are required to
meet safety requirements regardless of whether they are
used against the head or against the body. Either
configuration should result in compliance with the safety
limit.
8. Do wireless phone accessories that claim to shield the
head from RF radiation work?
152
If there is a risk from these products—and at this point
we do not know that there is—it is probably very small.
But if you are concerned about avoiding even potential
risks, you can take a few simple steps to minimize your
exposure to radiofrequency energy (RF). Since time is a
key factor in how much exposure a person receives,
reducing the amount of time spent using a wireless
phone will reduce RF exposure.
If you must conduct extended conversations by wireless
phone every day, you could place more distance between
your body and the source of the RF, since the exposure
level drops off dramatically with distance. For example,
you could use a headset and carry the wireless phone
away from your body or use a wireless phone connected
to a remote antenna
Again, the scientific data do not demonstrate that
wireless phones are harmful. But if you are concerned
about the RF exposure from these products, you can use
measures like those described above to reduce your RF
exposure from wireless phone use.
6. What about children using wireless phones?
The scientific evidence does not show a danger to users
of wireless phones, including children and teenagers. If
you want to take steps to lower exposure to
radiofrequency energy (RF), the measures described
above would apply to children and teenagers using
wireless phones. Reducing the time of wireless phone
use and increasing the distance between the user and
the RF source will reduce RF exposure.
AAppppeennddiixxAAppppeennddiixx
safety-end-NorthA 1/27/03 2:05 PM Page 152
155
FDA has tested hearing aids for interference from
handheld wireless phones and helped develop a
voluntary standard sponsored by the Institute of
Electrical and Electronic Engineers (IEEE). This standard
specifies test methods and performance requirements for
hearing aids and wireless phones so that that no
interference occurs when a person uses a compatible
phone and a compatible hearing aid at the same time.
This standard was approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for
possible interactions with other medical devices. Should
harmful interference be found to occur, FDA will conduct
testing to assess the interference and work to resolve
the problem.
10. What are the results of the research done already?
The research done thus far has produced conflicting
results, and many studies have suffered from flaws in
their research methods. Animal experiments
investigating the effects of radiofrequency energy (RF)
exposures characteristic of wireless phones have yielded
conflicting results that often cannot be repeated in other
laboratories. A few animal studies, however, have
suggested that low levels of RF could accelerate the
development of cancer in laboratory animals. However,
many of the studies that showed increased tumor
development used animals that had been genetically
engineered or treated with cancer-causing chemicals so
as to be pre-disposed to develop cancer in the absence
of RF exposure. Other studies exposed the animals to RF
for up to 22 hours per day. These conditions are not
similar to the conditions under which people use
wireless phones, so we don t know with certainty what
154
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason to
believe that accessories that claim to shield the head
from those emissions reduce risks. Some products that
claim to shield the user from RF absorption use special
phone cases, while others involve nothing more than a
metallic accessory attached to the phone. Studies have
shown that these products generally do not work as
advertised. Unlike “hand-free” kits, these so-called
“shields” may interfere with proper operation of the
phone. The phone may be forced to boost its power to
compensate, leading to an increase in RF absorption. In
February 2002, the Federal trade Commission (FTC)
charged two companies that sold devices that claimed to
protect wireless phone users from radiation with making
false and unsubstantiated claims. According to FTC,
these defendants lacked a reasonable basis to
substantiate their claim.
9. What about wireless phone interference with medical
equipment?
Radiofrequency energy (RF) from wireless phones can
interact with some electronic devices. For this reason,
FDA helped develop a detailed test method to measure
electromagnetic interference (EMI) of implanted cardiac
pacemakers and defibrillators from wireless telephones.
This test method is now part of a standard sponsored by
the Association for the Advancement of Medical
instrumentation (AAMI). The final draft, a joint effort by
FDA, medical device manufacturers, and many other
groups, was completed in late 2000. This standard will
allow manufacturers to ensure that cardiac pacemakers
and defibrillators are safe from wireless phone EMI.
AAppppeennddiixxAAppppeennddiixx
safety-end-NorthA 1/27/03 2:05 PM Page 154
157156
the results of such studies mean for human health.
Three large epidemiology studies have been published
since December 2000. Between them, the studies
investigated any possible association between the use of
wireless phones and primary brain cancer, glioma,
meningioma, or acoustic neuroma, tumors of the brain or
salivary gland, leukemia, or other cancers. None of the
studies demonstrated the existence of any harmful
health effects from wireless phone RF exposures.
However, none of the studies can answer questions
about long-term exposures, since the average period of
phone use in these studies was around three years.
11. What research is needed to decide whether RF
exposure from wireless phones poses a health risk?
A combination of laboratory studies and epidemiological
studies of people actually using wireless phones would
provide some of the data that are needed. Lifetime
animal exposure studies could be completed in a few
years. However, very large numbers of animals would be
needed to provide reliable proof of a cancer promoting
effect if one exists. Epidemiological studies can provide
data that is directly applicable to human populations, but
10 or more years follow-up may be needed to provide
answers about some health effects, such as cancer. This
is because the interval between the time of exposure to
a cancer-causing agent and the time tumors develop - if
they do - may be many, many years. The interpretation of
epidemiological studies is hampered by difficulties in
measuring actual RF exposure during day-to-day use of
wireless phones. Many factors affect this measurement,
such as the angle at which the phone is held, or which
model of phone is used.
12. Which other federal agencies have responsibilities
related to potential RF health effects?
Additional information on the safety of RF exposures from
various sources can be obtained from the following
organizations.
FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/
Environmental Protection Agency (EPA):
http://www.epa.gov/radiation/
Occupational Safety and Health Administration’s (OSHA):
http://www.osha-
slc.gov/SLTC/radiofrequencyradiation/index.html
National Institute for Occupational Safety and Health
(NIOSH):
http://www.cdc.gov/niosh/emfpg.html
World health Organization (WHO):
http://www.who.int/peh-emf/
International Commission on Non-Ionizing Radiation
Protection:
http://www.icnirp.de
National Radiation Protection Board (UK):
http://www.nrpb.org.uk
Updated 4/3/2002: US Food and Drug Administration
http://www.fda.gov/cellphones
AAppppeennddiixxAAppppeennddiixx
safety-end-NorthA 1/27/03 2:05 PM Page 156
