Users Manual

SamsungSmartphoneSGH-D730World Wide Webhttp://www.samsungmobile.com
This product includes software licensed from Symbian Ltd © 1998-2004. Symbian and Symbian OS are trademarks of Symbian Ltd.Java™ and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.
3ContentsImportant safety precautions . . . . . . . . . . . . . . . . . . 7CHAPTER 1: Getting startedWhat’s in the box? . . . . . . . . . . . . . . . . . . . . . . . . . 10Getting to know your phone . . . . . . . . . . . . . . . . . . 12Installing the SIM card . . . . . . . . . . . . . . . . . . . . . . 16Installing the battery . . . . . . . . . . . . . . . . . . . . . . . 17Charging the battery . . . . . . . . . . . . . . . . . . . . . . . 20Switching the phone on or off . . . . . . . . . . . . . . . . . 21Using an optional memory card . . . . . . . . . . . . . . . . 23CHAPTER 2: General informationStandby mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26Extend view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Onscreen help . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Navigation bar - moving horizontally . . . . . . . . . . . . 33Actions common to all applications . . . . . . . . . . . . . 34Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . 37Shared memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38CHAPTER 3: Call functionsMaking a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . 50Using options during a call . . . . . . . . . . . . . . . . . . . 51Viewing the Log . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Contents4CHAPTER 4: ContactsCreating contact cards . . . . . . . . . . . . . . . . . . . . . . 57Copying contacts . . . . . . . . . . . . . . . . . . . . . . . . . . 59Options when viewing contacts . . . . . . . . . . . . . . . . 59Sending contact information . . . . . . . . . . . . . . . . . . 64Subscribed contacts . . . . . . . . . . . . . . . . . . . . . . . . 64Contact groups . . . . . . . . . . . . . . . . . . . . . . . . . . . 67CHAPTER 5: EntertainmentCamera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69MP3 Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79RealPlayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90ImageCook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102CHAPTER 6: Message servicesMessaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106Voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143Chat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144CHAPTER 7: SchedulerCalendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155To-do . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162CHAPTER 8: ExtrasAnyvoice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 Image print . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169 Info print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Contents5Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188Wallet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198CHAPTER 9: InternetWeb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205CHAPTER 10: PersonalisationProfiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216Theme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220Go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222Mounut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224Presence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229CHAPTER 11: SettingsChanging the settings . . . . . . . . . . . . . . . . . . . . . 232Phone settings . . . . . . . . . . . . . . . . . . . . . . . . . . 232External display settings . . . . . . . . . . . . . . . . . . . . 236Call settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237Connection settings . . . . . . . . . . . . . . . . . . . . . . . 239Date and time settings . . . . . . . . . . . . . . . . . . . . . 248Security settings . . . . . . . . . . . . . . . . . . . . . . . . . 249Call diverting settings . . . . . . . . . . . . . . . . . . . . . 255Call barring settings . . . . . . . . . . . . . . . . . . . . . . . 256Network settings . . . . . . . . . . . . . . . . . . . . . . . . . 258Enhancement settings . . . . . . . . . . . . . . . . . . . . . 259
Contents6CHAPTER 12: ManagersFile manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260Application manager . . . . . . . . . . . . . . . . . . . . . . 261Device manager . . . . . . . . . . . . . . . . . . . . . . . . . 266CHAPTER 13: ConnectivityBluetooth connections . . . . . . . . . . . . . . . . . . . . . 268PC Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272Remote synchronisation . . . . . . . . . . . . . . . . . . . . 274Connection manager . . . . . . . . . . . . . . . . . . . . . . 277APPENDIX A: TroubleshootingGeneral problems . . . . . . . . . . . . . . . . . . . . . . . . 279Call problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 281Power and charging problems . . . . . . . . . . . . . . . . 282Application problems . . . . . . . . . . . . . . . . . . . . . . 285APPENDIX B: Important safety informationSAR certification information . . . . . . . . . . . . . . . . . 288Precautions when using batteries . . . . . . . . . . . . . 289Road safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291Operating environment . . . . . . . . . . . . . . . . . . . . 291Electronic devices . . . . . . . . . . . . . . . . . . . . . . . . 292Potentially explosive environments . . . . . . . . . . . . 294Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . 295Other important safety information . . . . . . . . . . . . 296APPENDIX C: Care and maintenance
7Important safety precautionsRead these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving; park the vehicle first. Switching off when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switching off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switching off near all medical equipmentSwitch your phone off near medical equipment. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. Follow any regulations or rules in force.
8InterferenceAll wireless phones may be subject to interference, which could affect their performance.Special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example).Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Give all the necessary information as accurately as possible. Do not end the call until given permission to do so.
9Keeping your phone away from small childrenKeep the phone and all its parts including accessories out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see page 288.CAUTIONRISK OF EXPLOSION IF A BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
101Getting startedCongratulations on the purchase of your new Smartphone! This chapter helps you set up your phone, charge the phone’s batteries, and familiarise yourself with its different components.What’s in the box?Your package contains the following items:Phone BatteryTra vel cha r g e rPC link CD* + User’s guide CD * The PC link CD contains PC Suite, Add-on software, and applications.Quick reference guide PC data link cable
Getting started11In addition, you can obtain the following accessories for your phone from your local Samsung dealer:Note: The items supplied with your phone and available accessories may be different depending on your country or service provider.• Standard battery • Stylish hands-free and car kit• Extended battery • Travel charger• PC data link cable • PC link CD• Straight headset • Hand strap• Car cradle • Memory card (MMC micro)• Car charger/adapter
Getting started12Getting to know your phoneFront ViewWith the phone openLeft soft keyABC keyNavigation keysTa l k / Vo i ce c om m a nd k e yDisplayPower/End keyMenu keyOK keyAlphanumeric keysRight soft keyMicrophoneEarpieceClear keySpecialfunction keys
Getting started13With the phone closedRear viewVolume keysExternal displayCamera keyProfile keyFlashService lightCamera lensspeakerBattery coverBattery cover lockMemory card slotCharging/Communication portHeadset jack
Getting started14Key DescriptionPress to open the list of the profiles. Press to select Switch off! to switch the phone off without pressing and holding . Press to select Lock phone to quickly lock the phone. Press and hold to open the Camera application.In Camera, press to take a picture or to record a video clip.Press to adjust the voice volume during a call. In Standby mode, with the phone open, press to adjust all the phone’s sounds. With the phone closed, press and hold to activate the external display, or to turn the flashlight on or off when the display is active. Press either soft key to perform the command shown on the screen immediately above the keys.In Standby mode, press to switch between the Standby screen and Extend view.When entering text, press to change the text input method. Press to open the main menu screen, which contains a list of available features and applications.Press to scroll through items on a screen. Press to move the cursor in a text input field.In Standby mode, press the Down key to open the Web application and the other keys to access your favourite applications; you can assign applications to each key according to your preferences.
Getting started15Press to confirm your selection. The OK key is similar to the "Enter" key on a keyboard. In Standby mode, press to open the Contacts application. Press to:• dial a phone number on the screen.• answer an incoming call.• access call logs.In Standby mode, press and hold to open the Anyvoice application. Press to clear one or more characters when you are in a text field. Press to delete contents in any application or remove add-on applications.Press to end a call. Press to hide the currently activated application. Press and hold to turn the phone on or off.Press to enter numbers and characters.Press to enter an international call prefix or pauses when entering a phone number. Press to display a list of symbols when you are in a text input field.Press to change case in a text input field. Press and hold to switch between text and number input modes.Key Description
Getting started16Installing the SIM cardWhen you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available, and much more.• Keep all SIM cards out of the reach of small children.• The SIM card and its contacts can easily be damaged by scratches or bending, so be careful when handling, inserting, or removing the card.• When installing the SIM card, make sure that your phone is switched off before removing the battery.A PIN (Personal Identification Number) is supplied with the SIM card from your network operator and must be entered when you switch on your phone for the first time.Inserting the SIM card1. If necessary, remove the battery by referring to page 19.2. Insert and slide the SIM card under the two tabs, as shown, ensuring that the gold-coloured contacts of the card face down into the phone.
Getting started17Removing the SIM cardTo remove the SIM card, slide the card out of the holder, as shown.Installing the batteryYour phone is powered by a rechargeable Li-ion battery. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.Note: You must fully charge the battery before using your phone for the first time. Fully recharging a discharged standard battery takes approximately 90 minutes.
Getting started18Installing the battery1. Slide down the battery cover and lift it away.2. Place the battery so that the gold-coloured contacts on the top left side align with the gold-coloured contacts on the top left side of the phone and press the battery until it clicks into place.
Getting started193. Slide the battery cover towards the top of the phone until it clicks into place.Make sure that the battery cover is securely locked before switching on the phone.Removing the battery1. If necessary, switch off the phone by pressing and holding until the power-off image displays. 2. To remove the battery, slide down the battery cover and lift it away.3. Lift away the battery, as shown.
Getting started20Charging the batteryNote: The phone can be used while the battery is being charged, but this causes the battery to charge more slowly.1. Plug the connector of the travel charger into the bottom of the phone. Check that the arrow on the connector is facing up.2. Plug the charger into a standard AC wall outlet.You can see the LED on the charger indicating the charging progress by the following colours:• Red: the phone is being charged.• Green: the battery is fully charged.• Orange: the phone is not seated correctly in the connector of the travel charger or the travel charger is not plugged in correctly. Check the phone and the charger.
Getting started213. When charging is finished, first unplug the charger from the power outlet. Then remove the charger from the phone by pressing the buttons on both sides of the connector and pulling the connector out.Switching the phone on or off1. Press and hold until the power-on image displays.If you turn on the phone for the first time, you need to set current time and date.2. Enter the current time and press the OK soft key.3. Enter the current date and press the OK soft key.4. If the phone asks for a PIN, enter the PIN and press the OK soft key. For further details, see page 249.
Getting started225. If the phone asks for a lock code, enter the lock code and press the OK soft key. The default lock code is 00000000. For further details, see page 249.The phone searches for your network, and after finding it, the Standby screen appears on the display. Now, you can make or receive a call.Note: To change the display language, use the Phone language option in the Settings menu. For further details, see page 232.6. To switch off the phone, press and hold until the power-off image displays.
Getting started23Using an optional memory cardUsing a memory card (MMC micro), you can store your multimedia files, such as video clips, sound files, photos, and messaging data, and back up information from your phone’s memory.Notes:• Use only compatible memory cards with your phone. Other memory cards, such as Secure Digital (SD) cards, do not fit in the card slot and are not compatible with your phone. Using an incompatible memory card may damage the card, as well as the phone, and data stored on the card.• When you insert/remove a locked memory card (indicated as “memory card locked” when you open the Memory application), you will not hear the system sound on insertion. Also, you will not hear the system sound and see the note on removal.To insert a memory card: 1. Insert the card into the memory card slot with the label facing down.
Getting started242. Push the card in with your thumb until it locks into place. You will hear the system sound. 3. Close the card cover so that the phone recognises the installed card. To remove the memory card:1. Press and select Remove mem. card.2. When a “Remove memory card and press ‘OK’” message appears, press the OK soft key.
Getting started253. Open the card cover and push the card in and release it. Then slide the card out of the card slot and press the OK soft key.WARNING!• Removing the memory card without following the procedure above may cause damage to your data and the memory card.• If you need to reboot the phone while installing an application on the memory card, do not remove the card until the reboot is complete; otherwise the application files may be lost.
262General informationYour phone provides various functions which are very handy for daily use and for entertainment, such as Camera, MP3 Player, Messaging, Calculator, and Calendar.Standby modeThe components described below are shown when your phone is ready for use, with no characters keyed in. In this state, the phone is in Standby mode.ABCDGFE

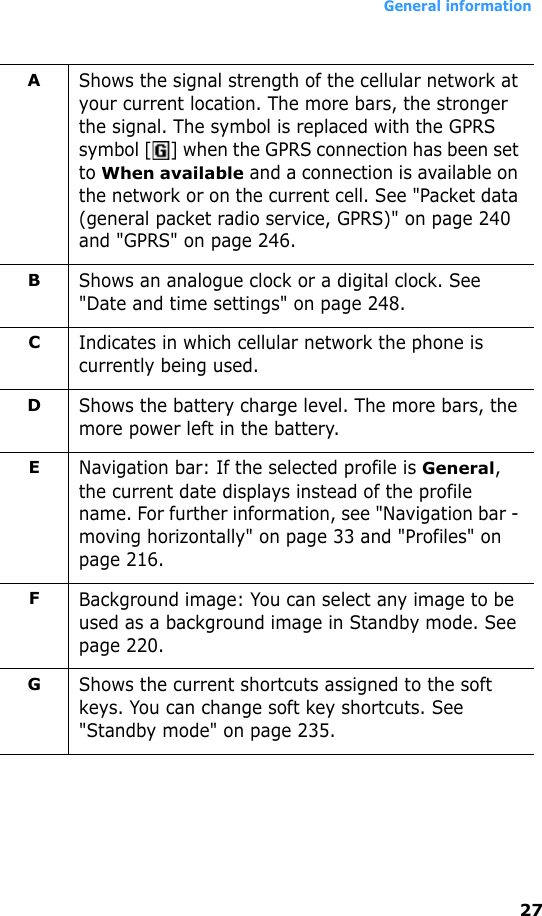

General information27AShows the signal strength of the cellular network at your current location. The more bars, the stronger the signal. The symbol is replaced with the GPRS symbol [ ] when the GPRS connection has been set to When available and a connection is available on the network or on the current cell. See "Packet data (general packet radio service, GPRS)" on page 240 and "GPRS" on page 246.BShows an analogue clock or a digital clock. See "Date and time settings" on page 248.CIndicates in which cellular network the phone is currently being used.DShows the battery charge level. The more bars, the more power left in the battery.ENavigation bar: If the selected profile is General, the current date displays instead of the profile name. For further information, see "Navigation bar - moving horizontally" on page 33 and "Profiles" on page 216.FBackground image: You can select any image to be used as a background image in Standby mode. See page 220.GShows the current shortcuts assigned to the soft keys. You can change soft key shortcuts. See "Standby mode" on page 235.

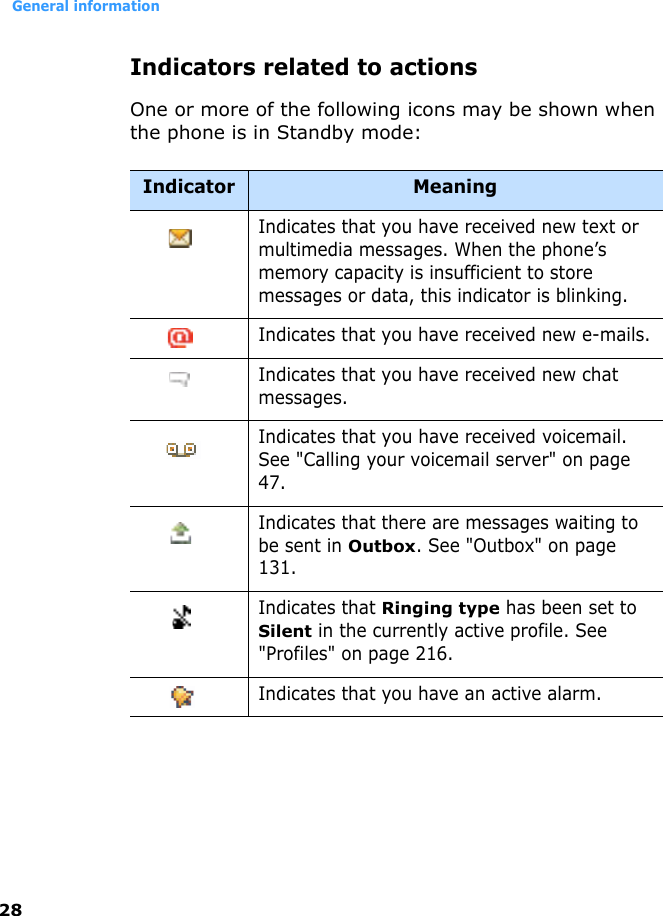

General information28Indicators related to actionsOne or more of the following icons may be shown when the phone is in Standby mode: Indicator MeaningIndicates that you have received new text or multimedia messages. When the phone’s memory capacity is insufficient to store messages or data, this indicator is blinking.Indicates that you have received new e-mails.Indicates that you have received new chat messages.Indicates that you have received voicemail. See "Calling your voicemail server" on page 47.Indicates that there are messages waiting to be sent in Outbox. See "Outbox" on page 131.Indicates that Ringing type has been set to Silent in the currently active profile. See "Profiles" on page 216.Indicates that you have an active alarm.
General information29Indicates that all calls to your phone are being diverted. indicates that all calls to the phone are being diverted to a voicemail server. See "Call diverting settings" on page 255. If you have two phone lines, the divert indicator for the first line is and the indicator for the second line is .Indicates that you can make calls using phone line 2 only (network service). See “Line in use (network service)” on page 238.Indicates a data call.Appears instead of the signal strength indicator when there is an active GPRS connection. indicates that the GPRS is ready for the network. indicates that there are multiple GPRS connections. indicates that the GPRS connection is put on hold during a voice call.Indicates that a USB connection with a computer is active.Appears when a headset is connected to your phone.Appears when the Bluetooth feature is activated. For further details, see page 268.Indicator Meaning
General information30Extend viewYou will see the Extend view when you press in Standby mode. On the Extend view, you can see important information, such as messages and e-mails, tasks, and calendar entries, for the day, at a glance.You can also quickly switch to applications you have recently accessed. Scroll to an application and press to open it.Menu screenIn the Menu, you can access all of the applications for your phone. Press to open the Menu screen.Opening applications or foldersScroll to an application or a folder using the Navigation keys and press to open it.Closing applicationsPress the Exit soft key or select Options → Exit. You can also backstep by pressing the Back soft key as many times as you need to return to Standby mode. Any unsaved data is saved automatically.If you press , the phone returns to the Standby mode and the application is left open in the background.Note: Pressing will always end a call, even if another application is active and displayed on the display.
General information31Rearranging applicationsYou can rearrange applications or folders on the Menu screen, and move applications into folders.To change the location of an application on the Menu screen:1. On the Menu screen, scroll to the application you want to move.2. Select Options → Move.A check mark is placed beside the selected application.3. Move the selection to the desired location and press the OK soft key.To move an application to a folder:1. On the Menu screen, scroll to the application you want to move.2. Select Options → Move to folder.3. Select a folder.Note: You can add a new folder by selecting Options → New folder.
General information32Switching between applicationsIf you have several applications open and want to switch from one application to another, press and hold . The application switching window opens, showing a list of applications that are currently open.Scroll to an application using the Up or Down key, and press the Select soft key to go to it or press to close it.Note: The Telephone application cannot be closed with .Adding applicationsYou can add more applications to your phone by downloading installation files from the wireless web or by using the Manager application.To download an application, select Options → App. downloads. You can select a bookmark for a preset website which provides you with a variety of applications available for download, or enter the URL address of the website. After accessing the website, search for an application and follow the onscreen instructions.For details about installing applications by using the Manager application, see page 261.
General information33Onscreen helpYour phone has a help function that you can access from any application which has the Options selection. To access the onscreen help, select Options → Help.To access a help function for the Menu, press to open the Menu, and then select Help.Navigation bar - moving horizontallyOn the navigation bar, you can see:• editing indicators. See "Entering text" on page 38.• other information, for example, in Images, numbers like 2/4 mean that the current picture is the second of 4 pictures in the folder. Press the Right key to see the next picture.• small arrows or tabs which tell you if there are more views, folders, or files you can move to. Press the Right or Left key to move to the next or previous views, folders, or files.
General information34Actions common to all applicationsAdding itemsWhen you are in an application, select Options and then an option for creating a new item, such as New contact, Create message, New entry, or New note. Options for creating an item are different in each application.For information on how to insert text and numbers, see "Entering text" on page 38.Opening itemsWhen you are viewing a list of files or folders, to open an item, scroll to it and press or select Options → Open.Editing itemsTo edit an item, you sometimes need to first open it for viewing and then select Options → Edit. Then you can change its contents.Renaming items To give a new name to a file or folder, scroll to it and select Options → Rename.
General information35Removing or deleting itemsScroll to the item and select Options → Delete or press . To delete multiple items at one time, you first need to mark them. See the next section, “Marking an item.”Marking an itemThere are several ways to select items on a list:• To select one item at a time, scroll to it and select Options → Mark/Unmark → Mark. A check mark is placed next to the item.• To select all of the items on the list, select Options → Mark/Unmark → Mark all.• To unmark an item, scroll to it and select Options → Mark/Unmark → Unmark.• To unmark all of the items, select Options → Mark/Unmark → Unmark all.Sending itemsYou can send items, such as contact information, pictures, sounds, and calendar entries, via one of various messaging services or via Bluetooth.1. Open an item and select Options → Send.
General information362. Select a method; the choices are: Via text message, Via multimedia, Via e-mail, or Via Bluetooth.• If you opt to send the item in a text message, the text message editor screen opens. Enter a phone number in the To: field and then select Options → Send. For details, see page 111.• If you opt to send the item in a multimedia message, the Multimedia Slide screen opens. Enter the phone number of the recipient in the To: field. Add text and then select Options → Send. For details, see page 113.• If you opt to send the in an e-mail, the E-mail screen opens. Enter the e-mail address of the recipient in the To: field. Enter the message subject and add text, picture(s), video file(s), or sound(s), and then select Options → Send. For details, see page 118.• If you opt to send the item via Bluetooth, see page 268.Arranging itemsYou can arrange items such as pictures, sounds, and messages, into folders.Creating foldersTo create a new folder, select Options → New folder. You are asked to name the folder.
General information37Moving items to an application folder1. Scroll to an item and select Options → Move to folder (not shown if there are no folders available). A list of available folders opens.2. Select the location to which you want the item moved and press the OK soft key.Searching for itemsYou can search for a name, file, or folder by using the search field. To search for a file and folder in File manager, you need to activate the search field by selecting Options → Find.1. Start to enter text in the search field. The phone immediately starts to search for matches and highlights the best match. To make the search more accurate, enter more letters. The phone highlights the selection moves to the item that best matches your input.2. When you find the correct item, press to open it.Volume controlWhen you have an active call or are listening to a sound, press / on the left side of the phone to increase or decrease the volume level, respectively.
General information38Shared memorySome features in your phone use shared memory: Contacts, text messages, multimedia messages, images and ringtones, camera, RealPlayerTM, calendar, to-do notes, and downloaded applications. Using any of these features leaves less memory for other features. This is especially true with heavy use of any of the features. For example, saving many images may use up all of the shared memory and your phone may display that the memory is full. In this case, delete some of the information or items taking up the shared memory. Entering textYou can enter text in two different ways: using the method traditionally used in mobile phones-pressing a key repeatedly until the desired character displays-or Dictionary, which is a predictive text input mode.Changing the text input modeYou can change the text input mode by pressing or , as follows:Note: In the recipient field of the message screen, you must press first to change text input mode.
General information39• To select the traditional text input mode, press until the indicator displays on the top right of the screen. Alternatively, press and select Dictionary → Off.• To select the Dictionary text input mode, press until the indicator displays on the top right of the screen. Alternatively, press and select Dictionary on.• To select Number mode, press and hold until the indicator 123 displays on the top right of the screen. Alternatively, press and select Number mode. To return to the previous input mode, press and hold .Using traditional text inputUse the keys to to enter text.1. Press a number key repeatedly until the desired character appears. Note that there are more characters available for a number key than are printed on the key.2. Select the other letters in the same way.Note: If the next letter is located on the same key as the present one, wait until the cursor appears or press the Right key to end the time-out period, and then enter the letter.Tips for traditional text input• To change cases, .Abc (Initial capital), ABC (Capital lock), and abc (Lower case), press .• To remove a character, press . Press and hold to clear more than one character.
General information40• To insert a symbol or punctuation mark, press . Alternatively, press and select Insert symbol. Use the Navigation keys to scroll through the list and press the Select soft key.• The most common punctuation marks are available under . Press repeatedly to reach the desired punctuation mark.• To insert a number quickly, press and hold the corresponding number key.• To insert a space, press . • To move the cursor to the next line, press three times. displays briefly and then the cursor moves.Using Dictionary1. Write the desired word by pressing the keys to . Press each key only once for one letter. The word changes after every key press.Note: Do not pay attention to what appears on the display. The word match is evolving. Wait until you have entered the whole word before you check the result.For example, to enter “Hello” when the English Dictionary is selected, press for H, for e, for l, for l, and for o.The word suggestion changes after each keypress.
General information412. When you have finished the word, check that it is correct.• If the word is correct, you can confirm it by pressing the Right key or pressing to insert a space. The underlining disappears and you can begin to enter a new word.• If the word is not correct, you have the following options:- Press repeatedly to view other matching words the dictionary has found, one by one.- Press and select Dictionary → Matches to view a list of matching words. Select the word you want to use.• If the ? character is shown after word, the word you intended to enter is not in Dictionary. To add a word to Dictionary, press the Spell soft key, enter the word (max. 32 letters) using traditional text input, and press the OK soft key. The word is added to Dictionary. When Dictionary becomes full, a new word will replace the oldest added word.• To remove the character and clear characters one by one from the word, press .3. When the correct word displays, press to insert a space, so that the word is complete.
General information42Tips for using Dictionary• To change cases, .Abc (Initial capital), ABC (Capital lock), and abc (Lower case), press . • To remove a character, press . Press and hold to clear more than one character.• To insert a number, press and hold the corresponding number key.• To insert a symbol or and punctuation marks, press to open a list of symbols and punctuation marks. Alternatively, press and select Insert symbol. Use the Navigation keys to scroll through the list and press the Select soft key.• The most common punctuation marks are available under . Press and then repeatedly to reach the desired punctuation mark.Tip: Dictionary tries to guess which commonly used punctuation mark (. , ? ! ’) is needed. The order and availability of the punctuation marks depend on the language being used.• To view matching words the dictionary has found, one by one, press repeatedly when a word is active (underlined).You can also press , select Dictionary and select:•Matches to view a list of words that correspond to your key presses, which is available only if the word is active (underlined). Scroll to the desired word and press .
General information43•Insert word to add a word (max. 32 letters) to Dictionary by using traditional text input.When Dictionary becomes full, a new word will replace the oldest added word.•Edit word to open a view where you can edit the word, which is available only if the word is active (underlined).•Off to deactivate Dictionary.Editing optionsWhen you press , the following options appear (depending on the text input mode and situation you are in):•Dictionary (predictive text input), Alpha mode (traditional text input), Number mode.•Cut, Copy: available only if text has been selected first. For details, see below.•Paste: available only when text has been either cut or copied to the clipboard.•Insert symbol, and•Writing language: changes the input language for all editors in the phone. See page 232.
General information44Copying textIf you want to copy text to the clipboard, the following are the easiest methods:1. To select letters and words, press and hold . At the same time, press the Right or Left key. As the selection moves, text is highlighted.To select lines of text, press and hold . At the same time, press the Up or Down key.2. When you have selected the text that you want, stop pressing the Navigation keys.3. To copy the text to the clipboard, while still holding , press the Copy soft key.You can also release , press it once to open a list of editing commands, and select Copy or Cut.4. To insert the text into a document, while holding , press the Paste soft key.You can also press and select Paste.
453Call functionsThis chapter gives you information for using your phone’s call functions.Making a call1. In Standby mode, use the keypad to enter an area code and phone number.Press to remove a number.For international calls, press twice for the international prefix (the + character replaces the international access code) and then enter the country code, area code without 0, and phone number.Note: Calls described here as international may in some cases be made between regions of the same nation.2. Press to call the number.Note: To adjust the volume during a call, press .3. To end the call, press or close the phone. You can also use the End call soft key.Note: Pressing will always end a call, even if another application is active and displayed.
Call functions46Accessing dialling optionsAfter entering a number, press the Options soft key. You can access the following options:•Add to Contacts: adds the number to the Contacts directory. Select Create new to create a new contact or Update existing to add information to an existing contact. For details about the Contacts application, see page 57.•Call: dials the number.•Send: sends a text or multimedia message to the number.Making a call using Contacts1. To open the Contacts application, press the Contacts soft key in Standby mode. You can also press to open the Menu and then select Contacts.2. Scroll to the name you want. Alternatively, enter the first few letters of the name in the search field at the bottom of the screen. Matching contacts are listed.3. Press or select Options → Call to start the call.If the contact has more than one phone number, scroll to the number you want and press or the Call soft key to start the call.
Call functions47Making a call using name diallingYou can make a phone call by saying the name that has been assigned to a contact card in the Contacts directory. For details, see “Name dialling” on page 165.Note: To use the Name Dial feature, the name and number that you want to dial must be in your Contacts directory. For details about the Contacts application, see page 57.Calling your voicemail serverThe voicemail server is a network service which acts as an answering machine where callers who are unable to reach you can leave voice messages.To call your voicemail server, press and hold in Standby mode.If the phone asks for the voicemail server number, enter it and press the OK soft key. You can obtain this number from your service provider.Each phone line may have its own voicemail server number. See “Line in use (network service)” on page 238.Changing the voicemail server numberTo change the phone number of your voicemail server, press to open the Menu, and then select Tools → Voice mail → Options → Change number. Enter the new number and press the OK soft key.
Call functions48Speed dialling a phone numberOnce you have stored a number in Contacts, you can assign the most frequently-used numbers to the speed dialling keys to and quickly and easily dial them with only one keypress. See “Assigning speed dialling keys” on page 62.• In Standby mode, press the corresponding speed dialling key and .•If the Speed dialling function is set to On (see page 237), press and hold the corresponding speed dialling key until the call is started.To view the speed dialling assignments, press to open the Menu, and then select Tools → Speed dial.Dialling using a pauseWhen you call an automated system, like a banking service, you are required to enter a password or an account number. Instead of manually entering the numbers each time, you can enter the necessary DTMF tones separated by pauses before dialling.
Call functions49Note: DTMF tones are the tones you hear when you press the number keys. DTMF tones allow you to communicate with computerised telephone systems, for example, voicemail servers or telebanking systems.1. Enter the phone number you want to dial, such as a bank’s teleservice number.2. Press repeatedly to insert a pause.You can insert two types of pauses:• p: inserts a pause of approximately two seconds between numbers. The numbers following “p” are sent automatically.• w: if you use a pause of this type, the remaining sequence is not sent until you press .3. Enter a number to be sent after the pause, such as your account number, PIN, etc.4. Repeat steps 2 and 3 to add more pauses and numbers, if necessary.5. Press to make a call.6. After connecting, wait for a prompt from the system, and then press at each prompt, if applicable.The DTMF tones are sent.
Call functions50Answering a call1. To answer an incoming call, open the phone if necessary, and press or select Options → Answer.• To reject a call, press . The caller will hear a “line busy” tone.Note: If you have activated the Tools → Settings → Call divert → If busy function to divert calls, for example, to your voicemail server, rejecting an incoming call will also divert the call. See “Call diverting settings” on page 255.• To quickly mute the call ringer, press the Silence soft key.Note: If the Silent profile is active (see page 216), Reject displays in place of Silence to allows you to reject a call.• Depending on the Side key setting, press and hold / to mute the call ringer or reject an incoming call. See page 238.• To adjust the phone tones for different environments and situations, for example, when you want your phone to be silent, see “Profiles” on page 216.2. To end the call, press or close the phone.
Call functions51Using options during a callWhile a call is in progress, you can access the following options by pressing the Options soft key.Note: Depending on the status of your call, for example, having a second call or a call on hold, available options vary.•Swap: switches between the active call and the call on hold.•End active call: ends the active call.•End all calls: ends all calls.•Hold: puts the current call on hold.•Unhold: reactivates the call on hold.•Mute: switches your phone’s microphone off so that the other person on the phone cannot hear you.•Unmute: switches your phone’s microphone on.•Mute key: switches the key tones off.•Send key: switches the key tones on.•New call: makes a new call. When you select this option, the current call is placed on hold.•Conference: makes a conference call. You can have a conversation with up to 5 participants.- Private: (shown when you have a conference call) Use to talk privately to a person during a conference call. When the list of call participants appears, select one and press the Private soft key.
Call functions52- Drop participant: (shown when you have a conference call) Use to disconnect a person during a conference call. When the list of call participants appears, select one and press the Drop soft key.•Transfer: connects an incoming call or a call on hold with an active call and disconnects you from both calls.•Send DTMF: sends DTMF tones for numbers, such as passwords or bank account numbers. You can check or correct the numbers before sending.•Help: shows the help information on the options available during a call.Viewing the LogIn the Log application, you can monitor phone calls, text message call duration, packet data connections, and data calls registered by the phone. You can filter the log to view just one type of event and create new contact cards based on the log information.Press to open the Menu, and then select Log.Recent callsThe phone registers the phone numbers of missed, received, and dialled calls. The phone registers missed and received calls only if the network supports these functions.Press in Standby mode or press to open the Menu, and then select Log → Recent calls.
Call functions53Missed calls and received callsThese network services allow you to view the 20 most recent calls you have missed and calls you have accepted. To view the 20 most recent missed calls’ originating phone numbers, select Log → Recent calls → Missed calls.When you see a note about missed calls in Standby mode, press the Show soft key to access the list of missed calls. To call back, scroll to the number or name you want and press .To view a list of the 20 numbers or names from which you have most recently accepted calls, select Log → Recent calls → Received calls.Dialled callsTo view the 20 phone numbers that you have most recently called or attempted to call, select Log → Recent calls → Dialled calls.You can also press in Standby mode to quickly open the Dialled calls list. Erasing recent call logs• To clear all recent call logs, select Options → Clear recent calls on the Recent calls screen.• To clear the selected call type’s logs, open the call type whose contents you want to erase and select Options → Clear list.• To clear an individual call log, open a log type, scroll to the log, and press or select Options → Delete.
Call functions54Call durationPress to open the Menu, and then select Log → Call duration to view the duration of the last call, dialled and received calls, and total calls.Note: The actual time invoiced for calls by your service provider may vary, depending upon network features, rounding-off for billing, and so forth.Erasing call duration timersOn the Call duration screen, scroll to the call duration type you want to erase and select Options → Clear timers. For this, you need to enter the lock code. The default lock code is 00000000. See “Security settings” on page 249.Tip: If you have subscribed to two phone lines, you can filter the log to view the call duration for only one line. Select Options → Filter timers → Line1 or Line2.GPRS counterYou can check how much data, measured in bytes, has been transferred to and from your phone.The display shows the counters for all sent and received data, separately.To reset the counters, select Options → Clear counters. For this, you need to enter a lock code. The default lock code is 00000000.
Call functions55Viewing the general logIn the general log, for each communication event, you can see the sender or recipient’s name or phone number.Press to open the Menu, and then select Log and press the Right key.Note: Sub-events, such as a text message sent in more than one part and packet data connections, are logged as one communication event.You can also view each communication event in details. Scroll to an event and press or select Options → View details.Filtering the logBy selecting a filter, you can display only log items of the specified type.1. Select Options → Filter. A list of filters opens.2. Select a filter.Erasing the contents of the logTo erase all the log contents permanently, select Options → Clear log.
Call functions56Log settingsSelect Options → Settings. The list of settings opens.•Log duration: The log events remain in the phone’s memory for a set number of days, after which they are automatically erased to free up memory.If you select No log, all of the log contents, Recent calls log, and Message delivery reports are permanently deleted.•Show call duration: When this option is set to Yes, you will see the call duration timer on the display while you have an active call.If you select No, the call duration timer is hidden from the main display. The external display still shows the timer.
574ContactsIn Contacts, you can store and manage a person’s contact information, such as a name, phone numbers, and addresses, as a contact card.Press to open the Menu, and then select Contacts.You can also press the Contacts soft key in Standby mode.You can add a personal ringtone or a thumbnail image to a contact card. You can create contact groups.Creating contact cardsYou can create contact cards and save them selectively in your phone’s memory or the SIM card.Creating a new contact card in the phone’s memory1. Open Contacts and select Options → New contact. An empty contact card opens.2. Fill in the fields you want and press the Done soft key. The contact card is saved and closed, after which you can see it in Contacts.Note: On the Contacts list, a contact’s last name will display first by default. You can set the Contacts list to display the first name first by selecting Options → Settings.
Contacts58Creating a contact card on the SIM card1. Open Contacts and select Options → SIM directory.2. On the SIM directory screen, select Options → New SIM contact.3. Enter a name and a phone number in each field.4. Press the Done soft key.Note: Once you have stored numbers on the SIM card, you can retrieve them by entering their location numbers, which are automatically assigned in the order in which the numbers are stored, and pressing . For example, pressing and then in Standby mode shows the first number stored in the SIM directory. You can then dial the number.Assigning own numberYou can register the phone number and name on the SIM card as the own number. 1. Open Contacts and select Options → SIM directory.2. On the SIM directory screen, select Options → My numbers.3. Select the field you want to save.4. Enter the name and phone number.5. Press the Done soft key.
Contacts59Copying contacts• To copy contacts from the SIM card to your phone’s memory, go to Contacts and select Options → SIM directory. Scroll to the contact you want to copy and select Options → Copy to Contacts.• To copy contacts from the phone’s memory to your SIM card, go to Contacts, scroll to the contact you want and select Options → Copy to SIM direct..Then select the number type you want to copy. If you want to copy all contact information, select All.Options when viewing contactsTo view details of a contact card, select the card from the Contacts list.Contact information view () shows all information on the contact card. If you added an image to the contact card, the thumbnail image displays on the top left of the screen. The name field is always displayed in the contact information view, but other fields are only displayed if they contain information. The icon on the right side of a number indicates the number assigned to the speed dial number.Note: Only fields that have information are displayed in the contact information view. Select Options → Edit → Options → Add detail if you want to add more data to the contact card.
Contacts60Changing contact information 1. On the Contacts list, select the contact card you want to edit.2. To change the information on the contact card, select Options → Edit.3. To save your changes and to return to the Contacts list, press the Done soft key.Managing contact informationYou can add input fields to the contact card to store more information about a person, or alternatively remove fields.1. Open a contact card and select Options → Edit.2. To add an extra field, select Options → Add detail.To delete a field you do not need, select Options → Delete detail.To rename the label of a contact card field, select Options → Edit label.3. When you have finished, press the Done soft key.
Contacts61Adding a picture to a contact cardYou can add a caller ID image to a contact card as a thumbnail image. See “Camera” on page 69 for more information on how to take and store pictures.1. Open a contact card and select Options → Edit.2. Select Options → Add thumbnail.3. If you use the memory card, select the memory where the image files you want are saved.4. Select an image from the Images folder or one of the other folders where the image files you want are saved. The selected thumbnail image will be shown when the contact is calling you.You can select Add thumbnail to replace the image with a different thumbnail or Remove thumbnail to remove the thumbnail from the contact card. Assigning default numbers and addressesIf a person has several phone numbers or e-mail addresses, to speed up calling and sending messages, you can define the default number and address.Open a contact card and select Options → Defaults. A pop-up window opens, listing the different options.For example, scroll to Phone number and press the Assign soft key. A list of phone numbers in the selected contact card is shown. Select the one you want to use as the default. When you return to the contact card view, you will see the default number underlined.
Contacts62Assigning speed dialling keysSpeed dialling is a quick way to call frequently-used numbers. You can assign eight phone numbers to speed dialling keys to . Number 1 is reserved for the voicemail server.1. Open the contact card.2. Scroll to the phone number you want and select Options → Assign speed dial. The speed dialling grid opens, showing you the numbers from 2 to 9.3. Scroll to a location and press the Assign soft key. When you return to the contact information view, you will see the speed dial icon on the right side of the number.To call the number by speed dialling, go to Standby mode, make sure that the speed dialling setting is activated (see page 237), and press and hold the appropriate speed dialling key.
Contacts63Adding a ringtone for a contact card or groupYou can set a ringtone for each contact card and group. When a person calls you, the phone plays the chosen ringtone if the person’s contact information is saved in Contacts.1. Open a contact card, or go to the group list and scroll to a contact group.2. Select Options → Ringing tone. A list of ringtones opens.3. Select the ringtone you wish to use for the contact or group.To remove the ringtone, select Default tone from the list of ringtones.Note: For an individual contact, the phone always uses the ringtone that was assigned last. If you first change a group ringtone and then the ringtone of a single contact that belongs to that group, the ringtone of the single contact is used the next time the contact calls you.

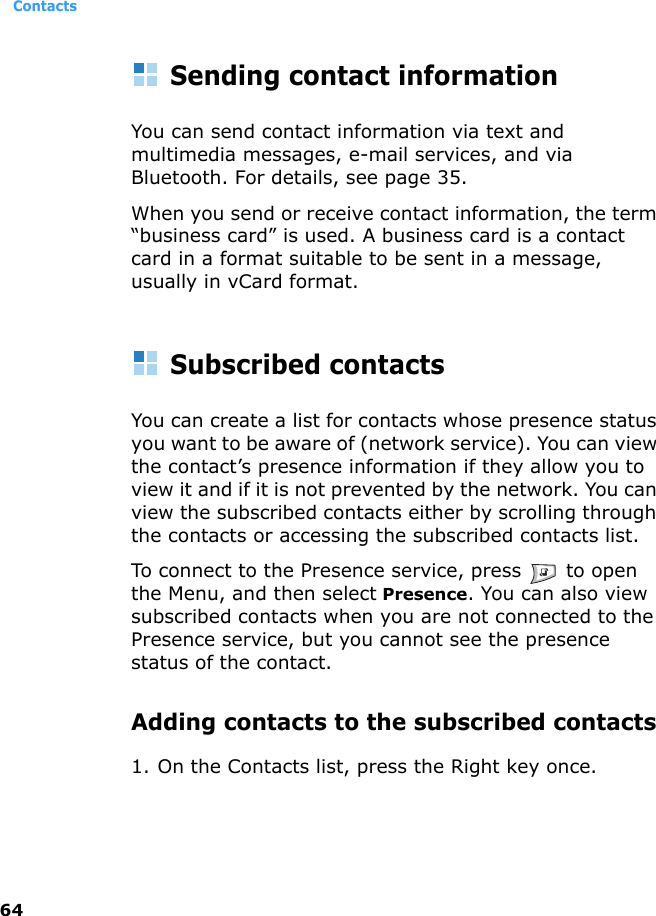

Contacts64Sending contact informationYou can send contact information via text and multimedia messages, e-mail services, and via Bluetooth. For details, see page 35.When you send or receive contact information, the term “business card” is used. A business card is a contact card in a format suitable to be sent in a message, usually in vCard format.Subscribed contactsYou can create a list for contacts whose presence status you want to be aware of (network service). You can view the contact’s presence information if they allow you to view it and if it is not prevented by the network. You can view the subscribed contacts either by scrolling through the contacts or accessing the subscribed contacts list.To connect to the Presence service, press to open the Menu, and then select Presence. You can also view subscribed contacts when you are not connected to the Presence service, but you cannot see the presence status of the contact.Adding contacts to the subscribed contacts1. On the Contacts list, press the Right key once.
Contacts652. If you have no contacts on your list, select Options → Subscribe new. The list of contacts is shown.If you have not connected to the Presence service, the phone asks if you want to connect now. Select the Yes soft key.3. Select a contact from the list and if the contact has an ID saved, the contact is added to the subscribed contacts list. If there is more than one ID, select one of them. After subscription to the contact, “Subscription activated” is shown.Viewing subscribed contactsSee also “Viewing the presence of others” on page 230 to view the presence information.1. On the Contacts list, press the Right key once.The status information of the first contact on the subscribed contacts list is shown and it may include text and one or more of the following icons:, , or indicates that the person is either available, busy, or not available. indicates that the person’s presence information is not available.2. Scroll to the desired contact and press or select Options → Open to view the details of the selected contact.
Contacts663. If you press the Options soft key, you can select:• Open to view the details of the contact.• Call to make a call.• Create message to send a text message to the selected contact.• Switch tracking on/off to activate or deactivate the tracking for the contact’s presence status. When the tracking is activated, appears on the list, and you will be notified if the presence status of the contact changes. appears when the tracking is deactivated.• Open conversation to start a chat conversation.• Unsubscribe to remove the selected contact from the list of subscribed contacts.• Subscribe new to add a new contact to the list of subscribed contacts.• My presence to view my presence status.Unsubscribing a contact1. On the Contacts list, press the Right key once.2. Select the contact to subscribe and select Options → Unsubscribe.3. If you are not logged into the Presence service, press the Yes soft key to log in.4. Press the Yes soft key to confirm.
Contacts67Contact groupsYou can create contact groups, which can, for example, be used as distribution lists for sending text messages and e-mails. Creating contact groups1. On the Contacts list, press the Right key twice to open the group list.2. Select Options → New group.3. Enter a name for the group and press the OK soft key.Adding members to a groupTo add a contact to a group:1. On the Contacts list, scroll to the contact you want to add to a group and select Options → Add to group. A list of available groups opens.2. Scroll to the group to which you want to add the contact and press the Add soft key.

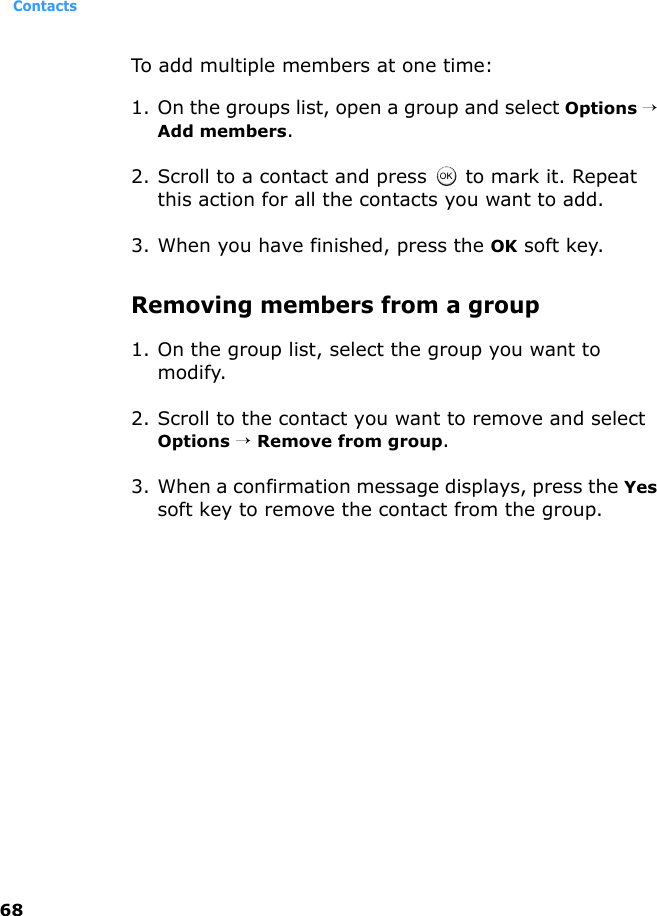

Contacts68To add multiple members at one time:1. On the groups list, open a group and select Options → Add members.2. Scroll to a contact and press to mark it. Repeat this action for all the contacts you want to add.3. When you have finished, press the OK soft key.Removing members from a group1. On the group list, select the group you want to modify.2. Scroll to the contact you want to remove and select Options → Remove from group.3. When a confirmation message displays, press the Yes soft key to remove the contact from the group.
695EntertainmentThis chapter provides you with information about applications in which you can enjoy the use of multimedia files, such as Camera, MP3 Player, RealPlayer, Gallery, ImageCook, and Game.CameraUsing Camera, you can take pictures of people or events while on the move.You can also record video clips with sound.Taking picturesThe camera produces JPEG pictures. JPEG is a standardised image compression format. JPEG files can be viewed with most common image viewers, image editors, and Internet browsers. You can recognise these files by their JPG extensions.Important:• Do not take pictures of people without their permission.• Do not take pictures in places where cameras are not allowed.• Do not take pictures in places where it may interfere with another person’s privacy.
Entertainment70To take a picture with the phone open:1. In Standby mode, press and hold on the right side of the phone. You can also press to open the Menu, and then select Camera. The Camera application opens and the view to be captured on the Image screen displays.2. Locate the image you want by moving the phone and aiming the camera lens to the subject.To zoom in on your subject before taking the picture, press the Up key.To zoom out, press the Down key.To show the mirror image, press .Use the following keypad to change the camera setting options:• : Turn the flash on or off.• : Activate or deactivate Night mode.• : Select the memory where the picture is saved to.Indicates the camera mode, camera settings, and the memory being used.
Entertainment71• : Adjust the brightness of the image.• : Select the white balance mode.3. When the image you want to capture appears on the screen, press or or select Options → Capture.Do not move the phone before the camera starts to save the picture. The picture is saved to either the phone’s memory or the memory card, depending on the setting of Memory in use. See page 74.After the picture has been saved:• To access previously saved pictures, go to the Images folder in Gallery by selecting Options → Go to Gallery. See page 90.• To change the name of the picture, select Options → Rename.• To set the picture as the wallpaper for Standby mode, select Options → Set as wallpaper.• To return to the Image screen to take a new picture, press or the Back soft key.Notes: • Camera goes into Battery Saving mode, displaying “Camera on standby,” if there have been no key presses within 2 minutes. To continue taking pictures, press .• The resolution of a digitally zoomed picture is lower than that of a non-zoomed picture, but the image remains the same size. You may notice the difference in image quality if you view the picture on a computer.
Entertainment72To take a picture with the phone closed:1. When the phone is closed, press and hold on the right side of the phone. The image to be captured displays on the external display.2. Locate the image you want by moving the phone and aiming the camera lens to the subject.To show the mirror image, press .3. Press to take the picture.The picture is saved to either the phone’s memory or the memory card, depending on the setting of Memory in use. See page 74.Using the self-timerYou can set the camera to take a picture automatically after a predefined time.1. Select Options → Self-timer.2. Select a time delay from 5 seconds, 10 seconds, or 15 seconds.The icon and the timer appear on the top right of the screen.3. Press the Activate soft key or to take a picture. The timer counts down and the camera will take a picture after the selected delay.
Entertainment73Using Night modeWhen the lighting is dim and the camera needs a longer exposure time for the picture to be of good quality, you can use Night mode. To activate Night mode, select Options → Activate night mode. To deactivate Night mode, select Options → Deact. night mode.Changing camera optionsYou can adjust the image quality, resolution, brightness, and flash setting and change the default image name and the memory location of saved images. These settings will be applied to all subsequent pictures that you take.On the Image screen, press the Options soft key to access the following options:•Flash on/off: Turn on or off the flash on the right side of the camera. The flash will light when you press or to take a picture.•Adjust: Adjust the image brightness and white balance.- Brightness: Select the brightness of image by pressing the Left or Right key.- White balance: Change the white balance setting based on the lighting conditions.•Mirror: Select whether or not the phone shows the mirror image.

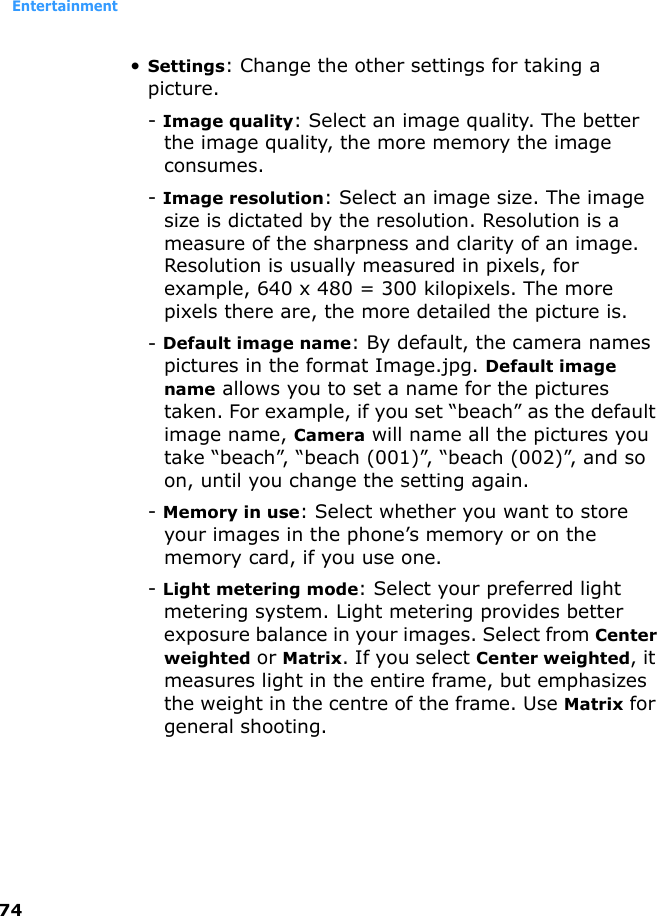

Entertainment74•Settings: Change the other settings for taking a picture.- Image quality: Select an image quality. The better the image quality, the more memory the image consumes.- Image resolution: Select an image size. The image size is dictated by the resolution. Resolution is a measure of the sharpness and clarity of an image. Resolution is usually measured in pixels, for example, 640 x 480 = 300 kilopixels. The more pixels there are, the more detailed the picture is.- Default image name: By default, the camera names pictures in the format Image.jpg. Default image name allows you to set a name for the pictures taken. For example, if you set “beach” as the default image name, Camera will name all the pictures you take “beach”, “beach (001)”, “beach (002)”, and so on, until you change the setting again.- Memory in use: Select whether you want to store your images in the phone’s memory or on the memory card, if you use one.- Light metering mode: Select your preferred light metering system. Light metering provides better exposure balance in your images. Select from Center weighted or Matrix. If you select Center weighted, it measures light in the entire frame, but emphasizes the weight in the centre of the frame. Use Matrix for general shooting.
Entertainment75- Sensitivity: Select the ISO setting, which controls the sensitivity of your camera. For low light situations, lower the number to increase the quality. The higher the number, the faster the camera shutter functions and the more sensitive the camera is to light. Higher ISO settings may bring some distortion to an image.Recording video clipsYou can record video clips. Recorded video clips are in 3GP format, which is the standard video file format for multimedia messaging.1. In the Image screen, press the Right key. The Video screen displays.Indicates the video mode, video settings, and the memory being used.
Entertainment76To zoom in or out on your subject, press the Up or Down key. Use the following keypad to change the camera setting options:• : Mute or unmute the audio.• : Activate or deactivate Night mode.• : Select the memory where the video clip is saved to.• : Adjust the brightness of the image.• : Select the white balance mode.2. To start recording, press or or select Options → Record. The timer on the top right of the screen shows you the elapsed time.3. To pause recording at any time, press the Pause soft key or . To resume, press the Continue soft key or .4. To stop recording before the maximum recording time is up, press the Stop soft key. After the video has been saved, you will see the recording time on the top right of the still image. The video clip is saved to either the phone’s memory or on the memory card, depending on the setting of Memory in use. See page 78.After the video clip has been saved:• To immediately play the video clip you just recorded, select Options → Play.
Entertainment77• To access previously saved video clips, go to the Video clips folder in Gallery by selecting Options → Go to Gallery. See page 90.• To change the name of the video clip, select Options → Rename.• To return to the Video screen to record a new video clip, press or the Back soft key.Activating Night modeWhen the lighting is dim and the camera needs a longer exposure time for the video to be of good quality, activate Night mode. Select Options → Activate night mode.To deactivate Night mode, select Options → Deact. night mode.Muting soundIf you don’t want to record sound with the video, select Options → Mute. To deactivate Mute mode, select Options → Unmute.Changing video optionsYou can adjust recording time, resolution, and brightness and change the default name and the memory location of saved video clips. On the Video screen, press the Options soft key to access the following options:
Entertainment78•Adjust: Adjust the brightness, and white balance for the video image.- Brightness: Select the brightness of image by pressing the Left or Right key.- White balance: Change the white balance setting based on the lighting conditions.•Mirror: Select whether the phone shows the mirror image or not.•Settings: Change the other settings for recording a video clip.- Length: Select the recording time limit. If you select Short, the phone records a video of up to 100KB or 300 KB, which is the limit for sending an MMS message. If you select Maximum, the phone records a video to the limit of the memory remaining.- Video resolution: Select the image size from 352x288, 176x144 or 128x96. (352x288: Video quality cannot be quaranteed for fast motion).- Default video name: Define the default name of your video clips. For example, if you set “Holiday” as the default video clip name, Camcorder will name all of the video clips you take “Holiday,” “Holiday(001),” “Holiday(002),” and so on, until you change the setting again.- Memory in use: Select the default memory location for saving video clips.
Entertainment79MP3 PlayerUsing MP3 Player, you can play MP3 music files. You can download MP3 files from the Internet or transfer ones from a computer. All of the MP3 files in the phone’s memory or on the memory card are automatically added to the MP3 file list.Playing MP3 files1. Press to open the Menu, and then select MP3 Play.... The MP3 Player screen opens. 2. Press to play the first MP3 file stored in the play list. Shows thevolume level.Shows the time elapsed, total time, and name ofthe file.Shows the current player settings.Indicates theprogress of thecurrent file.
Entertainment803. While playing music files:• To adjust the volume, press / or the Up or Down key.• To pause playback, select . • To resume playback, select .• To skip to the previous or next file in the play list, select or .• To repeat all of the MP3 files in the play list, select .• To view details about the current file, such as the file name, size, date received, and the file format, select Options → View details. Using the MP3 play listBefore using MP3 Player, first add the MP3 files from the MP3 file list to the play list. For details on how to add the files to the play list, see page 81.1. On the MP3 Player screen, select Options → Go to play list. The play list displays.2. On the play list:• To play a file, select the file you want.• To open the MP3 Player screen, press the Player soft key.• To change the file order in the list, select Options → List move up or List move down. • To remove a file from the list, scroll to the file and select Options → Delete.
Entertainment81• To remove all of the files from the list, select Options → Delete all.• To access the file details, such as the name, size and format of the file, scroll to the file and select Options → View details.Using the MP3 file listAll MP3 files are automatically added to the MP3 file list, regardless of where they are stored. On the MP3 file list, you can add MP3 files to the play list and delete files permanently.Adding MP3 files to the play list 1. Select Options → Go to file list. All MP3 files in the phone’s memory and on the memory card, if you use one, display.You can view indicators, telling you the memory where the file is stored, next to the file name ( for the phone’s memory and for the memory card).Note: When you save MP3 files in your phone’s memory, the C directory, you need to copy them to the Nokia folder to let them display on the MP3 file list.
Entertainment822. On the file list:• To add a file to the play list, scroll to the file you want and press . A check mark displays beside the selected file.• To add all of the MP3 files to the play list, select Options → Mark all.3. To go to the MP3 Player screen, press or the Player soft key. The checked files are added to the play list.Changing MP3 Player settingsOn the MP3 Player screen, select Options → Settings. You can set the following options:•Auto start: Choose On to automatically start playing files without having to press each time you open MP3 Player.•Repeat: Choose On to repeat all files in order.•Shuffle: Choose On to play the files in random.•Equalizer: Set the equalizer to the genre you want.•Quick play: Choose On to play the files without adding the files to the play list.•Background: Set the MP3 Player screen to display the image pattern or to show you song lyrics, if supported, while playing files.
Entertainment83RealPlayerWith RealPlayer, you can play media files, such as music files, video files, sound files, and stream live content from the Internet, stored in the phone’s memory or on the memory card, if you use one.Files with extensions .3gp, .mp3, .mp4, .amr, .rm, .ram, .ra, and .rv are supported by RealPlayer.Press to open the Menu, and then select RealPlayer.Playing media filesYou can play any music or video file from the list shown when you start RealPlayer, or play a file directly from the Internet.Playing media files from the phone’s memory or the memory card1. Select Options → Open and select:• Most recent clips to play one of the 6 most recent files played in RealPlayer. Select a file from the list.• Saved clip to play a file saved in the phone’s memory or on the memory card, if available. Select a memory and then select a file from the memory directory.• Mem. card sound clips to play sound files saved on the memory card. Enter a track list name and press the OK soft key. A new track list is created and all of the sound files are retrieved from the memory card. This option is only available when a memory card is inserted into the phone.
Entertainment842. Use the following options during playback:If you are playing a video file:• To adjust the volume, press / or the Left or Right key.• To move backward or forward through a file, press and hold the Up or Down key. • To pause playback, press the Pause soft key.• To resume playback, select Options → Continue.• To stop playback, press the Stop soft key.If you are playing a sound file:• To adjust the volume, press / or the Left or Right key.• To pause playback, select . • To resume playback, select .• To skip to the previous or next file, select or .• To move backward or forward through a file, select or . The player moves by 5-second increments.
Entertainment85• To stop playback, select or press the Stop soft key.If you are playing an MP3 file, see page 79.Playing stream live content from the Internet1. Select a streaming link from the web browser or a file containing the address for the streaming content.The display shows a confirmation message for connecting to the server.2. Press the Yes soft key to confirm.Notes: • You cannot connect to a site unless you have configured an access point. See page 241.• Many service providers will require you to use an Internet access point (IAP) for your default access point. Other service providers allow you to use a WAP access point. Contact your service provider for more information.• In RealPlayer, you can only open an rtsp:// URL address. You cannot open an http:// URL address. However, RealPlayer will recognise an http link to a .ram file since a .ram file is a text file containing an rtsp link.3. Once you are connected to the server, playback begins with buffering of the streaming content.• To adjust the volume, press the Left or Right key.• To pause playback, press the Pause soft key. • To resume playback, select Options → Continue.• To stop playback, press the Stop soft key.
Entertainment86Using a track listYou can make your own track list.Creating a track list1. On the RealPlayer main screen, select Options → New track list.2. Select a folder or site and then the directory to which you want to save the track list.If you use the memory card, first select the memory.3. Enter a list name and press the OK soft key.4. Select a folder from which you want to retrieve files and then select a file from the directory.If you use the memory card, first select the memory.Once a file is selected, the Music player opens.5. To add more files, select Options → Edit track list.6. Select Options → Add sound clip and then select a memory (if you use one), a folder, and then a file.7. Repeat step 6 until you have finished adding files.8. Press the Back soft key and then the Yes soft key to save the changes.
Entertainment87Playing files on a track list1. On the RealPlayer main screen, select Options → Open → Saved clip.2. Select a folder where the list you want is stored and search for the list.If you use the memory card, first select the memory.3. When you find the list you want, press or the Select soft key.The Music player opens and the first file begins playing.Editing a track list1. While playing files on a track list, select Options → Edit track list. The track list opens.2. Press the Options soft key and select:• Add sound clip to add more sound files to the list.• Delete to remove the currently selected file from the list.• Move to change the file order. A check mark is placed to the right of the file. Move the selection to the place you want and press the OK soft key to move the file.3. Press the Back soft key and then the Yes soft key to save the changes.
Entertainment88Viewing clip detailsYou can view the file details, such as the name, format, duration, file size, and the time and date when the file was saved. Access a file and select Options → Clip details.Sending media filesYou can send media files via multimedia message and e-mail services, and via Bluetooth. For details, see page 35.Changing RealPlayer settingsWhen you select one of the settings, a tab view is opened. Press the Right or Left key to move between the different setting tabs. To change the video file settings, select Options → Settings → Video to open the following list of settings:•Contrast: Adjust the brightness of video clips by pressing the Left or Right key.•Repeat: Choose On to play the currently playing video file repeatedly.To change the sound file settings, select Options → Settings → Audio to open the following list of settings:•Repeat: Choose On to play the currently playing sound file repeatedly.•Random play: Choose On to play sound files in random.
Entertainment89To chan ge th e connection settings for accessing video streaming services, select Options → Settings → Connection to open the following list of settings:•Proxy: Choose whether or not a proxy is used. If you want to use a proxy server, specify the following entries:- Proxy serv. address: Enter a proxy server address.- Proxy port number: Enter a proxy server port.•Network: Change items from the following list of network settings:- Default access point: Enter the default access point.- Online time: Select the length of time RealPlayer stays online when inactive. After the specified period of inactivity, RealPlayer will disconnect from the server.- Connection time-out: Select the time RealPlayer waits for a response from the network to connect to a corresponding server when you select a link. If there is no response within the specified period of time, the connection attempt will be cancelled.- Server time-out: Select the length of time RealPlayer waits for a response from the corresponding server when you send a request to the server, for example, pausing and resuming playback. After the specified period of time, RealPlayer gives you an alert message of no response, and disconnects from the server.- Lowest UDP port: Enter the lowest port number of the server's port range.- Highest UDP port: Enter the highest port number of the server's port range.

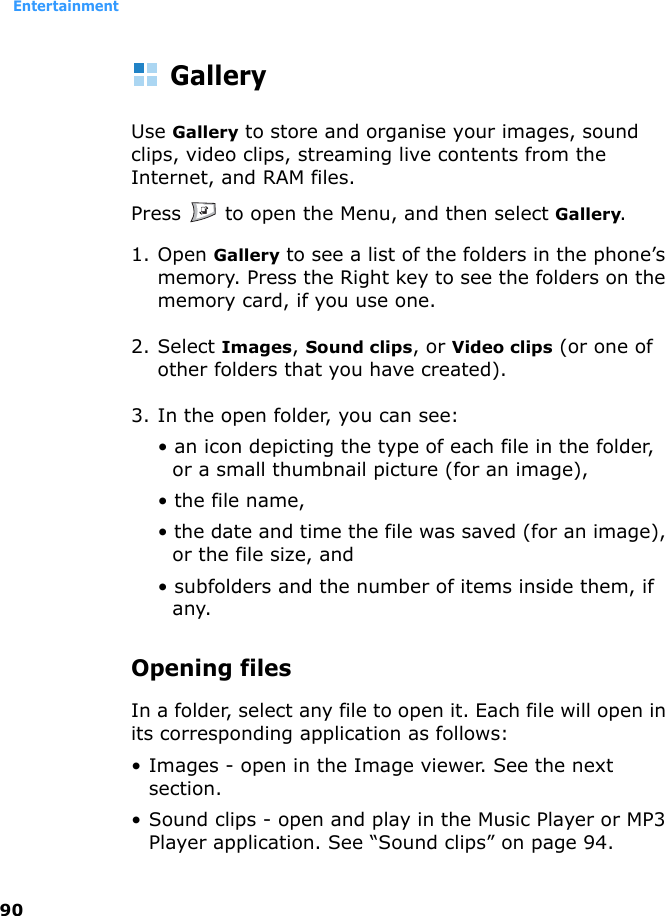

Entertainment90GalleryUse Gallery to store and organise your images, sound clips, video clips, streaming live contents from the Internet, and RAM files.Press to open the Menu, and then select Gallery. 1. Open Gallery to see a list of the folders in the phone’s memory. Press the Right key to see the folders on the memory card, if you use one.2. Select Images, Sound clips, or Video clips (or one of other folders that you have created).3. In the open folder, you can see:• an icon depicting the type of each file in the folder, or a small thumbnail picture (for an image),• the file name, • the date and time the file was saved (for an image), or the file size, and• subfolders and the number of items inside them, if any.Opening filesIn a folder, select any file to open it. Each file will open in its corresponding application as follows:• Images - open in the Image viewer. See the next section.• Sound clips - open and play in the Music Player or MP3 Player application. See “Sound clips” on page 94.
Entertainment91• Video clips, RAM files, and streaming live content - open and play in the RealPlayerTM application. See “RealPlayer” on page 83.• Subfolders - open to display contents.ImagesIn this folder, you can access pictures you have taken using the camera and images you have downloaded from the Internet or received in multimedia messages.Note: With ImageCook, you can edit pictures using various edit options. See page 98.Viewing an image1. On the Gallery screen, select Images.2. Press the Up or Down key to browse through the pictures.3. Press to open a picture.When you are viewing a picture, pressing the Left or Right key takes you to the next or previous picture in the current folder.Using options in an image viewYou can use the following options while you are viewing a picture:• To zoom in or out, select Options → Zoom in or Zoom out.
Entertainment92• To view the picture on the full screen, select Options → Full screen. To go back to the normal view, press the right soft key or select the left soft key → Normal screen.• To move the picture to the direction you want when you are zooming in, press the Navigation keys.• To rotate the picture 90 degrees counterclockwise, select Options → Rotate → Left. To rotate the picture 90 degrees clockwise, select Options → Rotate → Right.Note: Because these options are only for viewing, changes made in the image view are not saved.Using the keypad shortcutsIn an image view, you can use the following keys:• : rotates the picture 90 degrees counterclockwise.• , , , : moves the picture to the direction you want while zooming in. These keys function as the Navigation keys.• : rotates the picture 90 degrees clockwise.• , : zooms in or out.• : zooms in. Pressing this key once again switches the display to Full screen view.• : switches the view mode between the full screen view and the normal view.
Entertainment93Viewing image detailsTo view image details, such as format type, the time and date the image was created, resolution, size, colour type, select Options → View details. Press the Up or Down key to scroll through image information.Accessing other default folders•Picture messages folder - Use this folder to store pictures received in picture messages.Select Images → Picture msgs.. The six default pictures display.To save a picture that you have received in a picture message, press to open the Menu, and then select Messaging → Inbox, open the message, and select Options → Save picture.•Presence logos folder - Use this folder to store user logos for the Presence service.Select Images → Presence logos.•Wallpapers folder - Use this folder to store pictures that you want to use as background images.Select Images → Wallpapers.Sending a pictureYou can send pictures via multimedia message and e-mail services, and via Bluetooth. For details, see page 35.
Entertainment94Setting a picture as wallpaperYou can set your pictures as wallpaper (background images) for Standby mode. Open the picture you want and select Options → Set as wallpaper.Sound clipsIn this folder, you can access sound clips you have recorded in Recorder, and sound files you have downloaded from the Internet or received in multimedia messages.Playing sound clips1. On the Gallery screen, select Sound clips.2. Press the Up or Down key to scroll to a sound clip or track list and press . If necessary, select the subfolder you want.The Music player screen opens and the sound clip starts playing.3. During playback, you can use the following options:• To adjust the volume, press / or the Left or Right key.• To pause playback, select . • To resume playback, select .• To skip to the previous or next file, select or .
Entertainment95• To move backward or forward through a file, select or . The player moves by 5-second increments.• To stop playback, select or press the Stop soft key.Sending a sound clipYou can send sound clips via multimedia message and e-mail services, and via Bluetooth. For details, see page 35.Video clipsIn this folder, you can access video clips you have recorded using the camera or video files you have downloaded from the Internet or received in multimedia messages.Playing video clips1. On the Gallery screen, select Video clips.On the Video clips list, you will see:• the size (kB) and file name of the video clip • subfolders and the number of the items inside them, if any2. Press the Up or Down key to scroll to a video clip and press . The RealPlayer opens and the video clip starts playing. For details, see page 84.
Entertainment96Sending a video clipYou can send video clips via multimedia message and e-mail services, and via Bluetooth. For details, see page 35.Downloading filesYou can download files from the web browser. The downloaded files are saved in Gallery.Select Options → Gallery downloads and choose from Graphic downloads, Video downloads, or Tone downloads. The web browser opens and you can choose a bookmark for the website from which to download or enter a URL address of the website. See “Viewing bookmarks” on page 208.To access the web browser, you must configure your default access point. See “Access points” on page 241.Uploading images to an image server (network service)You can send your pictures to an image server to allow others to share your pictures online.Note: You can upload only .JPG files to an image server.Before you can upload images, you must enter the settings for the image server. See “Setting up the image server” below. You can get these settings from your service provider.
Entertainment97Uploading an image1. To begin an upload, scroll to an image. If you want to upload more than one image or all of your images, select Options → Mark/Unmark.2. To upload the currently selected image, select Mark.To upload all images, select Mark all.3. Select Options → Image uploader.4. Select Upload.5. Enter a name for the folder on the image server where the images will be stored, and press .Setting up the image server1. Select Options → Image uploader → Settings.2. Select Image servers. 3. Fill in the details for each field.If you want to add a new image server, select Options → New image server.4. When you are finished, press the Back soft key.
Entertainment98ImageCookUse ImageCook to edit pictures you have taken using the camera and images you have downloaded from the Internet or received in multimedia messages. You can send pictures via one of the messaging services or via Bluetooth. You can also set pictures as wallpaper for Standby mode.Press to open the Menu, and then select ImageCook. Editing a pictureYou can edit pictures by changing the image settings, applying a special effect, or adding decorative items.1. On the ImageCook screen, there is a list of the folders in the phone’s memory. Press the Right key to see the folders on the memory card, if you use one.2. Select Images or one of the other folders where the image files you want are saved.3. Scroll to the picture you want to edit and press or select Options → Edit.4. You are asked to select the part of the image to be edited. You can edit specific parts of the image by cropping the area first. If you so desire, press the Yes soft key and select the part of the image you want to edit by pressing the Navigation keys and then the Options soft key.To change the image size to QCIF (176*144), press the No soft key.
Entertainment995. Press the Right or Left key to move between the edit options on the navigation bar. The following icons indicate each edit option:• for Adjust• for Effect• for Add6. Press the Options soft key and select an option.By selecting the Adjust option, you can use:• Rotate to rotate the picture 90 degrees clockwise or counterclockwise. • Flip to change the image to its mirror image or flip the image vertically.• Zoom to zoom in or out. Select Options → Zoom in or Zoom out.By selecting the Effect option, you can use:• Adjust to adjust the image brightness by pressing the Left or Right key, or to adjust the image contrast by pressing the Up or Down key.• Tone to select a colour tone.• Magic effect to apply an effect, such as Negative, Sharp, Noise, Emboss, Mosaic, Edge, Blur, or Fisheye lens.• Special effect to apply a special effect, such as B/W movie, Old movie, Warm, Fresh, or Horror.• History to show you the original and previously edited status of image. Select the image to return to any of the images.
Entertainment100By selecting the Add option, you can use:• Add frame to select a decorative frame. After selecting, press or the Apply soft key to add the frame to the picture.• Add icon to select an icon. After selecting an icon, move the icon around the photo by pressing the Navigation keys and press or the Apply soft key to add the icon to the picture.• Add text to enter text to be displayed on the picture. While entering text, you can change the colour or size of the text by selecting Options → Color or Size. After completing the entry, press or select Options → Insert to add the text to the picture. You can move the text position by pressing the Navigation keys. Then press or select Options → Apply to fix the text.• Add balloon to select a balloon. After selecting a balloon, move the balloon around the photo by pressing the Navigation keys. To enter text in the balloon, select Options → Input text. While entering text, you can change the colour or size of the text by selecting Options → Text color or Text size. After completing the entry, press or select Options → Insert text. You can also change the size of the balloon by selecting Options → Balloon size. Then press or select Options → Apply to fix the balloon.• Focus to access and change previously added elements.Note: You can view the help information on each edit option by selecting Options → Help.
Entertainment1017. When you have finished, select Options → Save.8. Enter a name and press the OK soft key.If you use an existing name, the phone asks you if you want to replace. Press the OK soft key to confirm, or the Cancel soft key and then enter another name.9. Press the Back soft key to return to the file list.Sending a pictureYou can send pictures via multimedia message and e-mail services, and via Bluetooth. For details, see page 35.Setting a picture as wallpaperYou can use your pictures as wallpaper (background images) for Standby mode. Select Options → Set as wallpaper.
Entertainment102GamesIn Games, you can enjoy two default games, Ziogolf and BubbleSmile. You can also download games from the Internet.Press to open the Menu, and then select Games.Notes: • Running certain games may consume the phone’s battery faster (and you may need to connect the phone to the charger.)• You can download games from various sources and store them in your phone. See “Installing Java™ applications” on page 264.ZiogolfYou can enjoy a round of golf on your phone.1. In Games, select Ziogolf.2. Press the Up or Down key to access the following options:• New Game: starts a new game.• Load Game: restarts a saved game.• Best Score: displays the high score table.• Credits: displays information about the developers of Ziogolf.• Help: displays the key help screen to show you the keys used to play the game.• Quit: exits the game screen.
Entertainment1033. Select New Game.4. Select a player.5. Enter a name for the player and press .6. To start the game, press or the right soft key.7. Press the right soft key and select a club.Note: You can view the course by pressing the Navigation keys.8. Press the left soft key and direct your swing by pressing the Left or Right key. Press to get ready to swing.9. Press and then press again to determine the strength of your swing.10.When the white bar is near the “0” mark, press to hit the ball. 11.Press to continue.12.Repeat from step 8 until you are on the green.13. When you are on the green, select the direction of your putt, depending on the level of the surface displayed on the top right of the game screen, by pressing the Left or Right key. Then press .14. Press when the white line is near the flag mark.
Entertainment104Each time you finish a hole, the display shows your score. Press to go to the next hole. When you have finished 18 holes, the game is over.While playing the game, press to access the following options:•Resume Game: returns to the game screen.•Sound: switches the game sound on or off.•Volume: adjusts the volume level for the game sound.•Save Game: saves the current game.•End Game: ends the game.BubbleSmileThe goal of this game is to score as many points as possible by rotating adjacent bubbles to create a row, either horizontally or diagonally, of 3 or more identical bubbles.1. In Games, select BubbleSm.... 2. Press the Up or Down key to access the following options:• TIMED MODE: is the game mode for beginners. In this mode, you play until time runs out. You set more time than in the Skilled Mode game.• SKILLED MODE: is the game mode for more skilled users. In this mode, the more moves you make, the faster the gauge goes down.If you create a row of more than 4 identical bubbles, the gauge goes up.
Entertainment105• HIGH SCORE: shows the high score table. • HOW TO PLAY: shows how to play the game.• CREDITS: shows you information about the developers of BubbleSmile.• EXIT: ends the game.3. Select a game mode from TIMED MODE or SKILLED MODE.4. Press the Navigation keys to move the band currently surrounding 3 bubbles to the desired location.5. Press the left or right soft key to rotate the bubbles within the band counterclockwise or clockwise.When a set of 3 or more identical bubbles are aligned, they disappear.While playing the game, press to access the following options:•RESUME GAME: returns you to the game screen.•EFFECT: switches on or off the game sound.•NON-SAVED N’ END: ends the game without saving it.•SAVED N’ EXIT: saves the game and then exits it.
1066Message servicesYour phone provides you with various message service applications:•Messaging •Voicemail•ChatMessagingIn Messaging, you can create and send, receive, and manage:• text messages,• multimedia messages,• e-mails, and• smart messages: special text messages containing data.In addition, you can receive service messages and cell broadcast messages, and send service commands.Press to open the Menu, and then select Messaging. You can also press the Messag. soft key in Standby mode.
Message services107Message foldersWhen you open Messaging, the New message function and a list of the following default message folders appears: Inbox: contains received messages, except for e-mails and cell broadcast messages. E-mails are stored in Mailbox. You can read cell broadcast messages by selecting Options → Cell broadcast. My folders: stores your messages to organise them into folders. You can create new folders within My folders. Mailbox: When you open this folder, you can either connect to your remote mailbox to retrieve new e-mails or view previously retrieved e-mails offline. See page 126 for further information about online and offline modes. After you have defined settings for a new mailbox, the name given to that mailbox replaces Mailbox in the main view. See "Settings for e-mails" on page 139. Drafts: stores draft messages that have not been sent. Sent: stores the 20 most recent messages that have been sent successfully. To change the number of messages to be saved, see "Settings for other folders" on page 142. Outbox: is a temporary storage place for messages waiting to be sent. Cell broadcast: contains messages on various topics received from your service provider.
Message services108 Reports: You can request the network to send you a delivery report for the sent text messages and multimedia messages. To receive a delivery report, select Options → Settings → Text message or Multimedia message, scroll to Receive report, and select Yes.Notes: • Receiving a delivery report for a multimedia message that has been sent to an e-mail address might not be possible. • Before you can create a multimedia message, write an e-mail, or connect to your remote mailbox, you must have the correct connection settings. See "Settings needed for e-mail" on page 117 and "Settings needed for multimedia messaging" on page 114.When you have opened one of the default folders, for example, Sent, you can easily move between folders: pressing the Right key will open the next folder (Outbox), and pressing the Left key will open the previous folder (Drafts).General informationThe status of any message is always either draft, sent, or received. Messages can be saved to the Drafts folder before they are sent. Messages are temporarily placed in Outbox to wait for sending. After a message has been sent, you can find a copy of the message in the Sent folder. Received and sent messages are in read-only state until you select Reply or Forward, which copies the message to an editor.
Message services109Note: Messages or data that have been sent via Bluetooth are not saved in the Drafts or Sent folder.Opening a received message• When you receive a message, and the note “1 new message” are shown in Standby mode. Press the Show soft key to open the message. Press the Exit soft key to close the note.• If you have more than one new message, press the Show soft key to open Inbox to see the message headings. To open a message in Inbox, select the message you want.Creating and sending new messagesYou can start to create a message in two ways:• By selecting New message → Text message, Multimedia message, or E-mail in the Messaging main view, or• By starting to create a message while using an application that has the Send or Create message option. In this case, the file that was selected, such as an image or a text, is added to the message.Note: When sending messages, your phone may display the word “Sent.” This is an indication that the message has been sent by your phone to the message centre number programmed into your phone. This is not an indication that the message has been received at the intended destination.

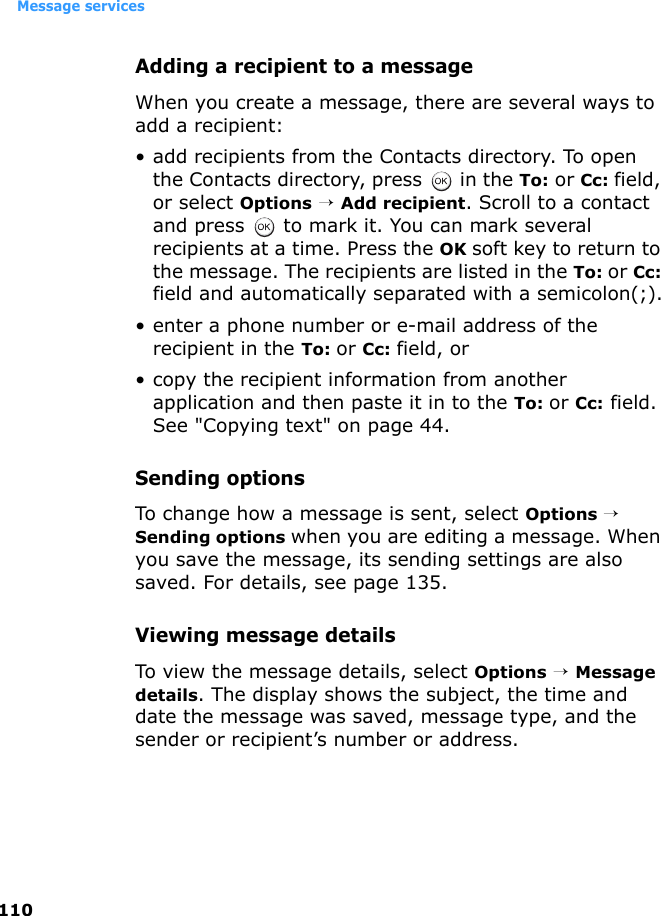

Message services110Adding a recipient to a messageWhen you create a message, there are several ways to add a recipient:• add recipients from the Contacts directory. To open the Contacts directory, press in the To: or Cc: field, or select Options → Add recipient. Scroll to a contact and press to mark it. You can mark several recipients at a time. Press the OK soft key to return to the message. The recipients are listed in the To: or Cc: field and automatically separated with a semicolon(;).• enter a phone number or e-mail address of the recipient in the To: or Cc: field, or• copy the recipient information from another application and then paste it in to the To: or Cc: field. See "Copying text" on page 44.Sending optionsTo change how a message is sent, select Options → Sending options when you are editing a message. When you save the message, its sending settings are also saved. For details, see page 135.Viewing message detailsTo view the message details, select Options → Message details. The display shows the subject, the time and date the message was saved, message type, and the sender or recipient’s number or address.
Message services111Text messagesYou can create and send a simple text message or a picture message containing small images.Writing and sending text messages1. Select New message → Text message. The editor opens with the cursor in the To: field.2. Press to select recipient(s) from Contacts, or enter the phone number of the recipient. Add a semicolon (;) to separate each recipient. 3. Press the Down key to move to the text field.4. Enter the message text.• To add a message template, select Options → Insert → Template.Note: Your phone supports the sending of multiple text messages at the same time. Therefore, the normal 160-character limit for one text message can be exceeded. If your text exceeds 160 characters, it is sent as two or more messages, and sending the message may cost you more.On the navigation bar at the top of the display, you can see the message length indicator counting backwards from 160. For example, 10 (2) means that you can still add 10 characters for the text to be sent as two messages.• To set the sending options for the message, select Options → Sending options. See page 135.
Message services1125. To send the message, select Options → Send or press .Creating and sending picture messagesYour phone allows you to send and receive picture messages. Picture messages are text messages that contain small black-and-white graphics. There are several default pictures available in the Picture msgs. folder.Note: This function can be used only if it is supported by your network operator or service provider. Only phones that offer picture messaging features can receive and display picture messages.1. There are two possibilities; either:• Open the Menu → Gallery → Images → Picture msgs. and select a picture to be sent. Select Options → Send, or• Open the Menu → Messaging → New message → Text message → Options → Insert → Picture. Select a picture to be sent.2. Press to select recipient(s) from Contacts, or enter the phone number of the recipient. Add a semicolon (;) to separate each recipient. 3. Press the Down key and enter the message text.4. To send the message, select Options → Send or press .
Message services113Note: Each picture message is made up of items worth several text messages’ worth of information. Therefore, sending one picture message may cost more than sending one text message.Sending smart messagesSmart messages are special text messages that can contain data. You can send smart messages, such as:• picture messages. See page 112.• business cards containing contact information in generic (vCard) format.• calendar entries (vCalender format).For details about sending items from an application, see page 35.Multimedia messagesA multimedia message can contain a combination of text and video clips, or text, images, and sound clips in one slide, but not a combination of images and video clips in one side. You can send multimedia messages phone to phone or phone to e-mail.Note: This function can be used only if it is supported by your network operator or service provider. Only devices that offer compatible multimedia message or e-mail features can receive and display multimedia messages. Devices that don’t have these features may receive details as a link to a web page.
Message services114Settings needed for multimedia messagingFor availability of and subscription to data services, please contact your network operator or service provider. •Go to Tools → Settings → Connection → Access points and define the settings for a multimedia messaging access point. For further information on different data connections, see also "Connection settings" on page 239.•Go to Messaging → Options → Settings → Multimedia message. Open Access point in use and select the access point you created to be used as the preferred connection. See also "Settings for multimedia messages" on page 137.Note: You may receive the settings as a smart message from your network operator or service provider. See "Receiving smart messages" on page 122.Creating and sending multimedia messages Note: When you are sending a multimedia message to any phone other than an SGH-D730, you should use smaller image sizes and sound clips that are no longer than 1 minute. When you are sending a multimedia message to an e-mail address or to another SGH-D730, use a larger image size (network dependent). 1. In Messaging, select New message → Multimedia message.
Message services1152. Press to select the recipient(s) from Contacts, or enter the phone number of the recipient. Add a semicolon(;) to separate each recipient.3. Press the Down key and enter the message text.4. You can add objects to the multimedia message in any order you want.• To add an image, select Options → Insert object → Image. If you select Insert new → Image, Camera opens and you can take a new picture. The new picture is automatically saved. Press the Select soft key to insert a copy into the message.Note: When sending a multimedia message to another phone, set the default image size to Small. See page 139.• To add sound, select Options → Insert object → Sound clip. If you select Insert new→ Sound clip, Voice recorder opens and you can record a new sound. The new sound is automatically saved. Press the Select soft key to insert a copy into the message. When a sound has been added, the melody indicator is shown on the navigation bar. Note: If you opt to add a video file, the resolution of the video must be smaller than 176 x 144.• To add video, select Options → Insert object → Video clip. If you select Insert new → Video clip, Camera opens and you can record a new video. The new video is automatically saved. Select Options → Select to insert a copy into the message.
Message services116• To add more slides to your message, select Options → Insert new → Slide. After adding slides, press the Up or Down key or select Options → Move to select the slide you want to go.Note: When you insert an object, you need to select whether the object is stored in the phone’s memory or on the memory card, if one is used.• To make a multimedia presentation using one of the image or sound templates, select Options → Create presentation. For a presentation, you can change a colour, add an image to the background, and apply a special effect between images and slides of the presentation.• To remove an added item, select Options → Remove, and select the item you want.• To set the sending options for the multimedia message, select Options → Sending options. See page 137.Note: When you add more than one image, sound, or video clip to a multimedia message, a slide is automatically added. You can scroll through the slides by pressing the Up or Down key or selecting Options → Move.5. To send the message, press or select Options → Send.Previewing a multimedia messageTo see what the multimedia message will look like, select Options → Preview.
Message services117Working with different media objects• To see all of the different media objects included in a multimedia message, open a multimedia message and select Options → Objects to open the Objects view. A list of different objects and their file sizes displays. You can change the order of the objects, delete objects, or open objects in a corresponding application.• To remove a multimedia object, scroll to the object and select Options → Remove. E-mailYou can send e-mails that include text, images, sound clips, video clips, or other attachments.Settings needed for e-mailBefore you can send, receive, retrieve, reply to, or forward e-mail, you must:• Configure an Internet Access Point (IAP) correctly. See "Connection settings" on page 239.• Define your e-mail settings correctly. See "Settings for e-mails" on page 139.Note: Follow the instructions given by your remote mailbox and Internet service provider.
Message services118Writing and sending e-mails1. Select New message → E-mail.2. Press to select the recipient(s) from Contacts, or enter the e-mail address of the recipient in the To: field. Add a semicolon (;) to separate each recipient. If you want to send a copy of your e-mail to someone, press the Down key and enter the address in the Cc: field.3. Press the Down key to move to the Subject field.4. Enter the e-mail subject and press the Down key.5. Enter the e-mail text.• To add an attachment to the e-mail, select Options → Insert → Image, Sound clip, Video clip, or Note. appears on the navigation bar to indicate that the e-mail has an attachment.• Select Options → Insert → Template to add pre-written text to the e-mail.• You can also add an attachment to an e-mail by selecting Options → Attachments in an open e-mail. The Attachments view opens where you can add, view, and remove attachments.Note: When you add an attachment, you need to select whether the image is stored in the phone’s memory or on the memory card, if one is used.• To remove an attachment, on the Attachments view screen, scroll to the attachment and select Options → Remove.
Message services119• To set the sending options for the e-mail, select Options → Sending options. See page 139.6. To send the e-mail, select Options → Send or press .Important: Copyright protections may prevent some images, sounds, and their contents from being copied, modified, transferred, or forwarded.Note: E-mails are automatically placed in Outbox before sending. If something goes wrong while the phone is sending the e-mail, the e-mail is left in Outbox with the status Failed. Inbox - receiving messagesMessages and data can be received using text message or multimedia service, or via Bluetooth. When there are unread messages in Inbox, the icon changes to .In Inbox, the message icons tell you what kind of a message it is. Here are some of the icons that you may see:• for an unread text message,• for an unread smart message, which may include a business card or a calendar entry,• for an unread multimedia message,• for an unread service message,• for media files received via Bluetooth, and• for an message of unknown type.
Message services120Viewing messages in InboxTo open a message, select the message you want.Use the Up or Down key to move up and down in the message. When you view a message, press the Left or Right key to move to the previous or next message in the folder.Options in different message viewersTo use message options, press the Options soft key in a message view. Available options depend on the type of the message you have opened:•Save picture: saves the picture to Gallery → Images → the Picture msg. folder.•Save business card: saves the contact card in a smart message to Contacts.•Save to Calendar: saves the memo in a smart message to Calendar.•Play presentation: plays the multimedia presentation from a multimedia message.•Reply: copies the address of the sender to the To: field. Select Reply → To all to copy the addresses of the sender and Cc: field recipients to the new message.•Forward: copies the message contents to an editor.•Call: calls the sender by pressing .•Delete: deletes a message.•View image: displays an image in a multimedia message.•Play sound clip: plays the sound in a multimedia message.
Message services121•Play video clip: plays the video in a multimedia message.•Objects: displays a list of all the different multimedia objects in a multimedia message.•Message details: shows detailed information about a message.•Move to folder: moves message(s) to My folders or one of the folders you have created. See "Moving items to an application folder" on page 37.•Add to Contacts: copies the phone number or e-mail address of the message sender to the Contacts directory. Choose whether you want to create a new contact card or add the information to an existing contact card.•Find: searches the message for phone numbers, e-mail addresses, and URL addresses. After the search, you can make a call or send a message to the found number or e-mail address, or save the data to Contacts or as a browser bookmark.Viewing multimedia messages in InboxYou can recognise multimedia messages by their icon .To open a multimedia message, select the message you want. You can see an image, read a message, and hear a sound, simultaneously.If a sound is playing, the Left or Right key to increase or decrease the volume. If you want to mute the sound, press the Stop soft key.
Message services122Multimedia message objectsTo see what kinds of media objects have been included in the multimedia message, open the message and select Options → Objects. In the Objects view, you can view files that have been included in the multimedia message. You can choose to save the file in your phone or to send it, for example, via Bluetooth to another device.To open a file, select the file you want.Important: Multimedia message objects may contain viruses or otherwise be harmful to your phone or computer. Do not open any attachment if you are not sure of the trustworthiness of the sender. For more information, see "Certificate management" on page 252.Receiving smart messagesYour phone can receive many kinds of smart messages, which are text messages that contain data (also called Over-The- Air (OTA) messages). To open a received smart message, open Inbox and select the smart message ( ).•Picture message: to save a picture in the Picture msgs. folder for later use, select Options → Save picture.•Business card: to save contact information, select Options → Save business card.Note: If certificates or sound files are attached to business cards, they are not saved.
Message services123•Ringing tone: to save a ringtone to Gallery, select Options → Save.•Operator logo: to save a logo, select Options → Save. The operator logo can now be seen in Standby mode instead of the network operator’s own identification.•Calendar entry: to save an entry to Calendar, select Options → Save to Calendar.•WAP message: to save a bookmark, select Options → Save to bookmarks. The bookmark is added to the Bookmarks list. If the message contains both browser access point settings and bookmarks, to save the data select Options → Save all. Or, select Options → View details to view the bookmark and access point information separately. If you do not want to save all of the data, select a setting or bookmark, open the details and select Options → Save to settings or Save to bookmarks, depending on what you are looking at.•E-mail notification: tells you how many new e-mails you have in your remote mailbox. An extended notification may list more detailed information such as subject, sender, attachments, and so on.• In addition, you can receive a text message service number, voicemail server number, profile settings for remote synchronisation, access point settings for the browser, multimedia messaging or e-mail, access point login script settings, or e-mail settings. To save the settings, select Options → Save to SMS sett., Save to voice mail, Save to settings or Save to e-mail sett..
Message services124Service messagesYou can order service messages (push messages) from service providers. Service messages are notifications of, for example, news headlines, and they may contain a text message or an address for a browser service. For availability and subscription, contact your service provider.Service providers can update an existing service message every time a new service message is received. Messages can be updated even if you have moved them to a folder other than Inbox. When service messages expire, they are deleted automatically.Viewing service messages in Inbox1. In Inbox, select a service message ( ).2. To download or view the service, press Download message. The note Downloading message is displayed. The phone starts to make a data connection, if needed.3. Press the Back soft key to return to Inbox.Viewing service messages on the browserWhen you are browsing, select Options → Read service msgs. to download and view new service messages.
Message services125My foldersIn My folders, you can organise your messages into folders, create new folders, and rename and delete folders. Select Options → New folder or Rename folder. For more information, see "Moving items to an application folder" on page 37. You can also create and store text templates in My folders.Templates folderYou can use text templates to avoid rewriting messages that you send often. Select Templates and:• To create a new template, select Options → New template.• To send a message using a template, select Options → Send.MailboxWhen you open this folder, you can connect to your Mailbox:• to retrieve new e-mail headings or messages, or• to view your previously retrieved e-mail headings or messages offline.If you select Mailbox or New message → E-mail in the Messaging main view and you have not set up your e-mail account, you will be prompted to do so. See "Settings for e-mails" on page 139.
Message services126When you create a new mailbox, the name you give to the mailbox automatically replaces Mailbox in the Messaging main view. You can have up to 6 mailboxes.Opening a mailboxWhen you open a mailbox, you can choose whether you want to view the previously retrieved e-mails and e-mail headings offline, or connect to the e-mail server.• When you select your mailbox, the phone asks you if you want to Connect to mailbox?. Select Yes to connect to your mailbox or No to view previously retrieved e-mails offline.• Another way to start a connection is to select Options → Connect.Viewing e-mails when onlineWhen you are online, you are continuously connected to your mailbox via a data call or a packet data connection. See page 29 for data connection indicators and page 239 for general information about data connections.Note: If you are using the POP3 protocol, e-mails are not updated automatically in online mode. To see the newest e-mails, you need to disconnect and then make a new connection to your mailbox.Viewing e-mails when offlineWhen you view e-mails offline, your phone is not connected to your mailbox. This mode may help you to save on connection costs.
Message services127To view e-mails offline, you must first retrieve e-mails from your mailbox. See the next section. After you have retrieved the e-mails to your phone, select Options → Disconnect to end the data connection.You can continue reading the retrieved e-mail headings and/or the retrieved e-mails offline. You can enter new e-mails, reply to the retrieved e-mails, and forward e-mails. You can order the e-mails to be sent the next time you connect to the mailbox. When you open Mailbox the next time and you want to view and read the e-mails offline, answer No to the Connect to mailbox? query.Retrieving e-mails from a mailboxIf you are offline, select Options → Connect to start a connection to your mailbox.The mailbox view is similar to the Inbox folder in Messaging. You can move up and down on the list by pressing the Up or Down key. The following icons are used to show the status of e-mails:• - new e-mail (offline or online mode), whose content has not been retrieved from the mailbox to your phone (the arrow on the icon is pointing downward).• - new e-mail, whose content has been retrieved from the mailbox (arrow pointing upward).• - e-mails that are read and the content has been retrieved from the mailbox.• - e-mail headings that have been read and the message content has been deleted from the phone and the server.
Message services1281. When you have an open connection to your mailbox, select Options → Retrieve e-mail →• New to retrieve all new e-mails to your phone.• Selected to retrieve the selected e-mail.• All to retrieve all messages from the mailbox.To cancel retrieval, press the Cancel soft key.2. After you have retrieved the e-mails, you can continue viewing them online or select Options → Disconnect to end the connection and view the e-mails offline. Opening e-mailsWhen you are viewing e-mail boxes either in online or offline mode, select the e-mail you want to view. If the e-mail has not been retrieved (arrow on the icon is pointing downward) and you are offline, you are asked to retrieve e-mails. Press the Yes soft key. If you are online, the e-mail is automatically retrieved from the mailbox. Note that the data connection is left open after the e-mail has been retrieved. Select Options → Disconnect to end the data connection.Disconnecting from a mailboxWhen you are online, select Options → Disconnect to end the GSM data call or GPRS connection to the remote mailbox.
Message services129Viewing e-mail attachmentsOpen a message that has the attachment indicator and select Options → Attachments to open the Attachments view. In the Attachments view, you can retrieve, open, or save attachments. You can also send attachments via Bluetooth.Important: E-mail attachments may contain viruses or otherwise be harmful to your phone or computer. Do not open any attachment if you are not sure of the trustworthiness of the sender. For more information, see "Certificate management" on page 252.Opening an attachment1. In the Attachments view, select an attachment.The attachment opens in the corresponding application.2. Press the Back soft key to return to the e-mail viewer.Saving an attachmentTo save an attachment, select Options → Save in the Attachment view. The attachment is saved in the corresponding application.Note: Attachments, such as images, can be saved on the memory card, if one is used.
Message services130Deleting e-mails• To delete an e-mail from the phone while still retaining it in your mailbox:Select Options → Delete → Phone only.Note: The phone mirrors the e-mail headings in your mailbox. So, although you delete the message content, the e-mail heading stays in your phone. If you want to remove the heading as well, you have to first delete the e-mail from your remote mailbox and then make a connection from your phone to the remote mailbox again to update the status.• To delete an e-mail from both the phone and from your mailbox:Select Options → Delete → Phone and server. The e-mail icon change to .Note: If you are offline, the e-mail is first deleted from your phone. During the next connection to your mailbox, it is automatically deleted from your mailbox. If you are using the POP3 protocol, e-mails marked to be deleted are removed only after you have closed the connection to your mailbox.Undeleting e-mails when offlineTo cancel deleting an e-mail from both the phone and server, scroll to an e-mail that has been marked to be deleted during the next connection , and select Options → Undelete.
Message services131OutboxOutbox is a temporary storage place for messages that are waiting to be sent.Status of the messages in Outbox•Sending: A connection is being made and the message is being sent.•Waiting/Queued: For example, if there are two similar types of messages in Outbox, one of them is waiting until the first one is sent.•Resend at (time): Sending has failed. The phone tries to send the message again after a time-out period. Select Option → Send if you want to restart the sending immediately.•Deferred: You can defer sending messages while they are in Outbox. Scroll to a message that is being sent and select Options → Defer sending.•Failed: Sending has failed. The maximum number of sending attempts has been reached. If you are trying to send a text message, open the message and check that the Sending settings are correct.Messages are placed in Outbox when your phone is outside the network coverage area. You can also schedule e-mails to be sent the next time you connect to your mailbox.
Message services132Cell broadcastYou can access Cell broadcast (CB) messages on various topics, such as the weather or traffic conditions, received from your service provider by selecting Cell broadcast in the Messaging main view. You can also select Options → Cell broadcast. For available topics and relevant topic numbers, contact your service provider.When you access Cell broadcast, the screen shows:• the status of the topic: - (unread) and (read) for subscribed messages - (unread) and (read) for unsubscribed messages• the topic number, topic name, and whether it has been flagged for Hotmark. You are notified when messages belonging to a flagged topic have arrived.On the topic list:• To add a topic, select Options → Topic → Add manually. Then enter the topic name and number.• To change the name and number of a topic, scroll to it and select Options → Topic → Edit.• To remove a topic, scroll to the topic and select Options → Topic → Delete. To delete all of topics, select Options → Delete all.• To subscribe to a topic, scroll to the topic and select Options → Subscribe. To cancel the subscription to the topic, select Options → Unsubscribe.
Message services133• To receive a notification when a message related to a topic arrives, scroll to the topic and select Options → Hotmark. To remove the hotmark setting, select Options → Remove hotmark.Note: A packet data (GPRS) connection may prevent cell broadcast reception. Contact your network operator for the correct GPRS settings. For further information on the GPRS setting, see "GPRS" on page 246.ReportsIn Reports, you can view delivery reports for your text and multimedia messages, if you set the Receive report option to Yes in the Text message and Multimedia message settings.Note: No delivery reports can be received for messages sent to e-mail addresses.Tip: You can define the receipt of delivery reports in the Text message and Multimedia message settings. For details, see page 135 and page 138 respectively.• To call a message recipient, scroll to the delivery report and press or select Options → Call.• To clear a report, scroll to the report and select Options → Clear deliv. reports.
Message services134Viewing messages on a SIM card Sometimes, text messages may be stored on the SIM card, depending on their specifications.Before you can view the messages stored on the SIM card, you need to copy them to a folder on your phone.1. In the Messaging main view, select Options → SIM messages.2. Select Options → Mark/Unmark → Mark or Mark all to mark messages.3. Select Options → Copy. A list of folders opens.4. Select a folder. Go to the folder to view the messages.Service command editorYou can send requests, such as activation commands for network services (also known as USSD commands), to your service provider. For more information, contact your service provider. To send a re qu est:• In Standby mode or when you have an active call, enter the command number(s) and press , or• If you need to enter letters as well as numbers in Messaging, select Options → Service command.
Message services135Messaging settingsThe Messaging settings have been divided into groups according to the different message types. Select the settings you want to edit.Settings for text messagesGo to Messaging and select Options → Settings → Text message to open the following list of settings:•Message centres: Lists all of the text message centres that have been defined. See "Adding a new text message centre" on page 136.•Msg. centre in use (Message centre in use): Defines which message centre is used for delivering text messages and smart messages, such as picture messages.•Receive report: When this network service is set to Yes, the network informs you when a message has been delivered. Delivery reports are saved in the Reports folder.•Message validity: If the recipient of a message cannot be reached within the validity period, the message is removed from the text message service centre. Note that the network must support this feature. Maximum time is the maximum amount of time allowed by the network for the message to remain active.
Message services136•Message sent as: You can convert your text messages to another format. The options are Text, Fax, Paging, and E-mail. For further information, contact your network operator.Note: Change this option only if you are sure that your service centre is able to convert text messages into these other formats.•Preferred connection: You can send text messages via the normal GSM network or via GPRS, if supported by the network. See "GPRS" on page 246.•Reply via same ctr.: When this network service is set to Yes, the recipient’s reply message is sent using the same text message centre. Note that this may not work between all operators.Adding a new text message centre1. On the Text message setting view, select Message centres and select Options → New msg. centre.2. Select Msg. centre name, enter a name for the service centre, and press the OK soft key.3. Select Msg. centre number, enter the number of the message service centre, and press the OK soft key.You can get the number from your service provider.
Message services137Settings for multimedia messagesGo to Messaging and select Options → Settings → Multimedia message to open the following list of settings:•Access point in use (Must be defined): Select which access point is used as the preferred connection for the multimedia message centre.Note: If you receive multimedia message settings in a smart message and save them, the received settings are automatically used for the Preferred connection. See "Receiving smart messages" on page 122.•Multimedia reception: Select:- Only in home net. if you want to receive multimedia messages only when you are in your home network. When you are outside your home network, multimedia message reception is turned off.- Always on if you want to receive multimedia messages regardless of where you are.- Off if you do not want to receive multimedia messages or advertisements at all.Important: When you are outside your home network, sending and receiving multimedia messages may cost you more.If the settings Only in home net. or Always on have been selected, your phone can make an active data call or GPRS connection without your knowledge.
Message services138•On receiving msg.: Select:- Retr. immediately if you want the phone to retrieve multimedia messages instantly. If there are Deferred status messages, they are retrieved as well.- Defer retrieval if you want the multimedia message centre to save the message to be retrieved later.- Reject message if you want to reject multimedia messages. The multimedia message centre will delete the waiting messages.•Allow anon. messages: Select No if you want to reject messages from anonymous senders.•Receive adverts: Define whether or not you want to receive multimedia message advertisements.•Receive report: When this network service is set to Yes, the network informs you when your message has been delivered. Delivery reports are saved in the Reports folder.Note: It may not be possible to receive a delivery report for a multimedia message that has been sent to an e-mail address.•Deny report sending: Select Yes, if you do not want your phone to send delivery reports for received multimedia messages.•Message validity: If the recipient of a message cannot be reached within the validity period, the message is removed from the multimedia message centre. Note that the network must support this feature. Maximum time is the maximum amount of time allowed by the network before a message is deleted.
Message services139•Image size: Define the size of images in multimedia messages. The options are Small (max. 160x120 pixels) and Large (max. 640x480 pixels). When you send a message to an e-mail address, the image size is set to Small.Settings for e-mailsGo to Messaging and select Options → Settings → E-mail. To select the mailbox you want to use, select Mailbox in use.Settings for MailboxesSelect Mailboxes to open a list of mailboxes that have been defined. If no mailboxes have been defined, you are prompted to do so. The following list of settings is shown:•Mailbox name: Enter a name for the mailbox.•Access point in use (Must be defined): This is the Internet Access Point (IAP) used for the mailbox. Choose an IAP from the list. For more information on how to create an IAP, see also "Connection settings" on page 239.•My e-mail address (Must be defined): Enter the e-mail address given to you by your service provider. The address must contain the @ character. Replies to your messages are sent to this address.•Outgoing mail server (Must be defined): Enter the IP address or host name of the mail server that sends your e-mails.
Message services140•Send message: Define how an e-mail is sent from your phone. When you select Immediately, a connection to the mailbox is started immediately after you have made this selection. When you select During next conn., an e-mail is sent the next time you connect to your remote mailbox.•Send copy to self: Select Yes to save a copy of the e-mail to your mailbox and to the address defined in My e-mail address.•Include signature: Select Yes if you want to attach a signature to your e-mails, and to enter or edit a signature text.•User name: Enter your user name, given to you by your mail service provider.•Password: Enter your password. If you leave this field blank, you are prompted for the password when you try to connect to your remote mailbox.•Incoming mail server (Must be defined): The IP address or host name of the mail server that receives your e-mails.•Mailbox type: Define the e-mail protocol your mail service provider recommends.Note: This setting can be selected only once and cannot be changed if you have saved or exited from the mailbox settings.•Security: Select a secure connection protocol, SSL(Secure Sockets Layer) or TLS(Transport Layer Security). Any amount of data and messages can be sent securely.
Message services141•Retrieve attachments (for the IMAP4 protocol): Select Yes to retrieve e-mails with or without attachments.•Retrieve headers (for the IMAP4 protocol): Limit the number of e-mail headers you want to retrieve to your phone.•APOP secure login (for the POP3 protocol): Select On to encrypt the sending of passwords to the remote e-mail server. Settings for service messagesWhen you go to Messaging and select Options → Settings → Service message, the following list of settings opens:•Service messages: Choose whether or not you want to receive service messages.•Download messages: Choose Automatically if you want the phone to automatically connect to the server to receive service messages, or Manually if you want to manually connect to the server. Settings for cell broadcast messagesCheck with your service provider to see if Cell Broadcast (CB) messaging is available and what the available topics and related topic numbers are. Go to Messaging and select Options → Settings → Cell broadcast to change the settings:•Reception: Select On to receive CB messages.
Message services142•Language: Select All to receive cell broadcast messages in every possible language, or Selected to choose in which languages you wish to receive CB messages. If the language you want is not found in the list, select Other.•Topic detection: Select On to save a topic number automatically when you receive a CB message that does not belong to any of the existing topics. The topic number is saved to the topic list and shown without a name. Choose Off if you do not want to save new topic numbers automatically.Settings for other foldersGo to Messaging and select Options → Settings → Other to open the following list of settings:•Save sent messages: Choose Yes if you want to save a copy of every text message, multimedia message, or e-mail that you have sent. Messages will be saved to the Sent folder.•No. of saved msgs.: Define how many sent messages can be saved to the Sent folder at a time. When the limit is exceeded, the oldest message(s) will be deleted.
Message services143Voice mailIn Voice mail, you can access the voicemail server to check new voicemails.Press to open the Menu, and then select Tools → Voice mail.Connecting to the voicemail serverYou first need to define the number of your voicemail server. Enter the number obtained from your service provider and press the OK soft key.If you want to search for the number in Contacts, press the Find soft key and select it.Now, you can access the voicemail server by selecting Tools → Voice mail → Voice mailbox or on the voice mailbox main view, select Options → Call voice mailbox. You can also press and hold in Standby mode. Follow instructions from the server to check your voicemails.Changing the voicemail server numberIf you need to change the number of the voicemail server, go to Voice mail and select Options → Change number. Enter a new number and press the OK soft key.
Message services144ChatNote: This function can be used only if it is supported by your network operator or service provider. Only phones that offer compatible chat features can receive and display chat messages.Chat is a way of sending short text messages that are delivered over TCP/IP protocols to online users (network service). Your contact list shows you when the contacts on the list are online and available to participate in a chat conversation.When you have written and sent your message, it stays on the display. The reply message appears below your original message.You can use the other functions of the phone while you have an active chat session in the background. Depending on the network, the active chat session may consume the phone’s battery faster and you may need to connect the phone to a charger.Press to open the Menu, and then select Chat.Before starting ChatTo access a chat service, you need to set up a chat server and other settings. You may receive the settings from the service provider; see "Receiving smart messages" on page 122. You can also set up the settings manually; see "Settings for chat" on page 153.
Message services145Connecting to and disconnecting from the chat serviceTo connect to the chat service, go to Chat, and select Options → Login. When the phone has successfully connected, “Login completed” is displayed.Tip: To set the phone to automatically connect to the chat service each time you access the Chat application, select Options → Settings → Server settings → Chat login type → On app. start-up.To disconnect from the chat service, select Logout.Starting a chat sessionWhen you enter Chat and connect to the chat service, you can select:•Conversations to view the list of new and read chats or invitations to chats during the active chat session. Scroll to the message or invitation you want and select Options → Open to read the message. indicates new chat messages and indicates invitations.On the Conversations list, scroll to a conversation, press the Options soft key and select:- Open to open the conversation to start a chat session.- Delete to delete the invitation, if the selected item is an invitation.
Message services146- New conversation to start a new conversation. You can select a participant from the Conversations list or enter the participant's ID manually, and then the phone sends an invitation to her/him.- Set auto reply on to set the phone to send a preset reply automatically when a participant sends you a message or invitation.- Blocking options → Add to blocked list to block messages from the current participiant. Select Add ID to list manually to add a contact to the blocking list or View blocked list to view blocked contacts. To unblock the contact, select Unblock.•Chat contacts to view the contacts that you have added. If you have received a new message from a contact, it is indicated by . indicates an online contact and indicates an offline contact in the phone’s Contacts directory. indicates a blocked contact and no indicator means that the contact is unknown. Scroll to a contact and press or select Options → Open conversation to start a chat.For details, see "Contacts for chat" on page 149.•Chat groups to view the list of bookmarks to public groups provided by the network operator or service provider. To start a chat session with a group, scroll to a group and press or select Options → Open. You can also select Options → Join group and enter a group ID. Enter the screen name that you want to use in the conversation.
Message services147When you start a group chat, press the Options soft key and select:- Send private msg. to send a private message to a specific member of the chat group.- Send invitation to send your invitation to the members of the chat group.- Leave chat group to leave the chat group.- Chat group to view information about the group. You can view the members and group details and change the group settings.- Record convers. to save the current conversation in Notes.- Stop recording. to stop saving the conversation.•Options → New chat contact → Search from server to search for other chat users on the network.You can search for a user by name, ID, phone number, or e-mail address.• To start a chat session from Contacts, see "Viewing subscribed contacts" on page 65.After joining a chat session, you can write your message and press to send it. Your message displays on the message list and the reply message displays below your message. During a conversation, press the Options soft key and select:•Send to send the entered message.•Add to Chat contact to add the current partner to the Chat contacts list.

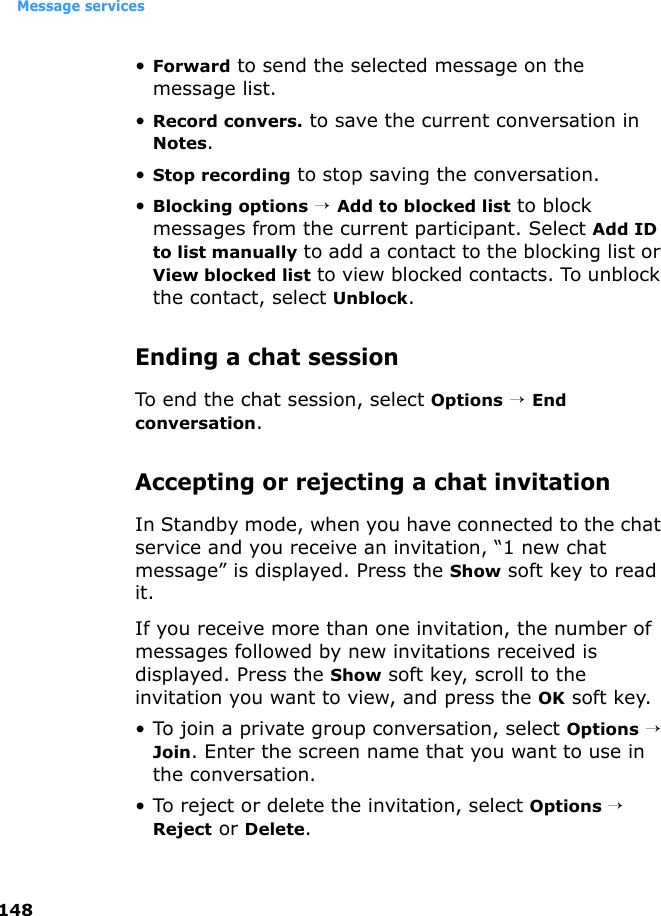

Message services148•Forward to send the selected message on the message list.•Record convers. to save the current conversation in Notes.•Stop recording to stop saving the conversation.•Blocking options → Add to blocked list to block messages from the current participant. Select Add ID to list manually to add a contact to the blocking list or View blocked list to view blocked contacts. To unblock the contact, select Unblock.Ending a chat sessionTo end the chat session, select Options → End conversation.Accepting or rejecting a chat invitationIn Standby mode, when you have connected to the chat service and you receive an invitation, “1 new chat message” is displayed. Press the Show soft key to read it.If you receive more than one invitation, the number of messages followed by new invitations received is displayed. Press the Show soft key, scroll to the invitation you want to view, and press the OK soft key.• To join a private group conversation, select Options → Join. Enter the screen name that you want to use in the conversation.• To reject or delete the invitation, select Options → Reject or Delete.
Message services149Reading a chat messageIn Standby mode, when you have connected to the chat service and you receive a message from a person who is not taking part in the conversation, “1 new chat message” is displayed. Press the Show soft key to read it and start a conversation.New messages received during an active chat session are held in Conversations in the Chat application. If the message is from a person whose contact information is not in the Chat contacts list, the sender’s ID is shown. If the contact information can be found in the phone’s memory and the phone recognises it, the sender’s name is shown. To save a new contact in the phone’s memory, Select Options → Add to Chat contact and add details and press the Done soft key.Contacts for chatIn the Chat contacts list, you can save information about chat participants, check their availability, and set tracking to recognise when they log into or out of the Chat service. When you open the Chat contacts list, the saved chat participants display. indicates that the participant has logged into the service and indicates that the one has logged out. indicates that the participant is blocked.Select Chat contacts → Options, and:•New Chat contact to create a new contact or search for a contact from the server or other list.•Reload user availab. to update the connection status of the contacts.
Message services150•Settings to edit the Chat menu or server settings.Scroll to a contact, and press to start to chat, or press the Options soft key and select:•Contact details to view the selected contact details. You can also edit the details.•Switch tracking on to receive a note when the connection status of the contact changes. appears on the Chat contacts list to indicate that tracking is activated for that participant.•Belongs to groups to view which group the contact belongs to.•Edit to change the contact information.•Delete to remove a contact from the Chat contacts list.•Blocking options → Add to blocked list to block the messages from the selected contact. Select Add ID to list manually to add a contact to the blocking list or View blocked list to view the blocked contacts. To unblock the contact, select Unblock.Chat groupsYou can create your own private groups for a chat session, or use the public groups provided by the service provider. The private groups exist only during an active chat session. You can add only the contacts that are in your Contacts list to a private group. See page 57 for details on creating a new contact.
Message services151Accessing Public groupsYou can bookmark public groups that your service provider may maintain. Connect to the chat service and select Chat groups. Scroll to a group that you want to chat with and press or select Options → Open. If you are not in the group, key in your screen name as your identity for the group. If you press the Options soft key, you can select Delete group to delete a group from your group list.Creating a private group1. Connect to the chat service and select Chat groups → Options → Create new group.2. When a confirmation message to connect to the server displays, press the Yes soft key. You need to enter your ID and password.3. Enter the group information.• Group name: Enter the group name.• Group topic: Enter the topic of the group chat.• Welcome note: Enter a welcome greeting that group members will see when they join the group.• Group size: Enter the maximum number of members who can join the group.• Allow search: Select Yes to allow the chat users to search for the group.• Editing rights: Assign rights for editing the group information to the creator of the group or the selected member(s).
Message services152• Group members: Select All to allow all chat users to join the group or Selected only to add the selected users to the group.When you select Selected only, in the Group members view, select Options → Add member → Chat contact or Enter User ID.- If you select Chat contact, scroll to a contact and press to place a check mark. When you have finished checking the contact(s) you want, press the Select soft key.- If you select Enter User ID, enter the ID of the contact you want and press the OK soft key.To remove a contact from the private group, scroll to it and select Options → Remove. To remove all contact, select Options → Remove all.When you are finished, you need to press the Back soft key from the private group list.• Banned list: Select Selected users to set up the list of the chat contacts to be banned to join the group.• Allow private msg.: Select Yes to allow private messages to the members of the group.4. When you have finished, press the Done soft key.
Message services153Settings for chatTo change the settings for chatting, go to Chat and select Options → Settings.Chat settings•Use screen name: Enter the screen name to be displayed on the chat screen as your identity.•Chat presence: Select if you want your presence to be active for all members of a conversation, or only for the contacts stored in your Chat contacts list.•Allow messages from: Select if you want to receive chat messages from all members of a conversation or only from the contacts stored in your Chat contacts list.•Allow invitations from: Select if you want to receive invitations from all chat users or only from the contacts on your Chat contacts list.•Message speed: Adjust the speed of the message transmission by pressing the Left or Right key.•Availability reloading: Select if you want to automatically or manually reload other chat users’ availability status to indicate whether they are online or offline.Server settings•Servers: Add a new server or edit an existing server. To add a new server, press when New server highlights or select Options → New server.- Server name: Enter a name for the server.
Message services154- Access point in use: Select an access point. You can add or edit an access point; for details, see page 241.- Web address: Enter your web address.- User ID: Enter your user ID.- Password: Enter your password.Note: You can get the web address, user ID, and password from your network operator or service provider.•Default server: Select the server you want to use.•Presence login type: You can change the setting for the Presence service login; for details about the Presence service, see page 229. Select:- Automatic to automatically log in to the Presence service when you switch on the phone, regardless of your location.- Aut. in home net. to automatically log in to the Presence service when you are in your home network.- On app. start-up to automatically log in to the Presence service when you enter the Presence application. - Manual to display a confirmation message when you access the Presence application.•Chat login type: Select On app. start-up to automatically log in to the chat service when you access the Chat application. Select Manual to display a confirmation message when you access the application.
1557SchedulerThis chapter gives you information on how to keep track of your schedule and how to make a list of tasks you need to do.CalendarIn Calendar, you can keep track of appointments, meetings, birthdays, anniversaries, and other events. You can also set a calendar alarm to remind you of upcoming events.Press to open the Menu, and then select Calendar.Creating calendar entries1. On the calendar, scroll to the date you want.2. Select Options → New entry and select:• Meeting to remind you of an appointment that has a specific date and time.• Memo to write a general entry for a day.• Anniversary to remind you of birthdays or special dates. Anniversary entries are repeated every year.3. Fill in the fields. Use the Up or Down key to move between fields.• Subject/Occasion: Enter a description of the event.• Location: Enter the place of a meeting.• Start time, End time, Start date, and End date.
Scheduler156• Alarm: Select On to activate the fields for Alarm time and Alarm date. Once an alarm has been set for the entry, displays in the day view.• Repeat: You can change the entry to repeat. displays in the day view. The repeat function is handy if you have a recurring event, such as a weekly class, a fortnightly or monthly meeting, anniversary, or a daily routine you need to remember.• Repeat until: You can set an ending date for the entry to repeat, for example, the ending date of a weekly course you are taking. This option is shown only if you have selected to repeat the event.• Synchronisation: If you select Private, after synchronisation the particular calendar entry can be seen only by you. It will not be available to those with online access to view your calendar. This is useful when, for example, you synchronise your calendar with a calendar on a compatible computer at work. If you select Public, the calendar entry is visible to those who have access to view your calendar online. If you select None, the calendar entry will not be copied to your computer when you synchronise your calendar.4. To save the entry, press the Done soft key.
Scheduler157Viewing CalendarYou can view the calendar in the month, week, or day view.Month viewWhen you access Calendar, you can see your appointments in the month view. You can change the default view screen. See page 160.In the month view, one row equals one week. Today’s date is underlined. Dates that have calendar entries are marked with icons at the right bottom corner. In Calendar, select Options → Month view.The currently selected date is highlighted.Synchronisation icons in the month view:• - Private,• - Public,• - None, and• - the day has more than one entry.Date including a calendar entry.Today’s date isunderlined.
Scheduler158To move to the day view, select the date you want to open.To go to a certain date, select Options → Go to date. Enter the date and press the OK soft key.Tip: If you press in the month, week, or day view, today’s date is automatically highlighted.Week viewIn the week view, the calendar entries for the selected week are shown in seven day boxes. Today’s day of the week is underlined. Memos and Anniversaries are placed before 8 o’clock. Meeting entries are marked with coloured bars according to starting and ending times.The colour of the bars varies depending on the synchronisation type.In Calendar, select Options → Week view.To view or edit an entry, select the cell that has the entry to move to the day view and select the entry you want to open.
Scheduler159Calendar entry icons in the day and week views: • No icon - Meeting In the week view, the synchronisation indicators are displayed in different colours; Red for Private, Blue for Public, Pink for None.• - Memo • - AnniversaryDay viewIn the day view, you can see the calendar entries for the selected day. The entries are grouped according to their starting times. Memos and Anniversaries are placed before 8 o’clock.In the month view or week view, select the date you want to open.To open an entry for editing, select it.
Scheduler160Editing calendar entries1. In the day view, select the entry.2. Edit the entry fields and press the Done soft key.Setting calendar alarms1. Create a new Meeting or Anniversary entry, or open a previously created entry.2. Scroll to Alarm and select On.3. Enter the alarm time and date on the Alarm time and Alarm date field.4. Press the Done soft key. An alarm indicator is shown next to the entry in the day view.Stopping a calendar alarmThe alarm duration is one minute. When the alarm sounds, press the Stop soft key to stop the calendar alarm. If you press the Snooze soft key, you can stop the alarm and cause it to sound again after 5 minutes.Sending calendar entriesYou can send Calendar entries via text and multimedia messages, and e-mail services, and via Bluetooth. For further information, see page 35.
Scheduler161Deleting calendar entriesWhen you delete a repeated entry, you can choose one of the following options: •All occurrences: all repeated entries are deleted.•This entry only: only the currently selected entry is deleted.Changing calendar settingsSelect Options → Settings and select:•Calendar alarm tone to select a personalised alarm tone.•Default view to select the view that is shown when you first open Calendar.•Week starts on to change the starting day of the week.•Week view title to change the title of the week view to be the week number or the week dates, if a week starts with Monday.
Scheduler162To-doIn To-do, you can keep a list of tasks that you need to do.Press to open the Menu, and then select To-do.Creating tasks1. Start entering a task. The editor opens and the cursor blinks after the letters you have keyed in.You can also select Options → New to-do note to open the editor.2. Complete the task subject in the Subject field. 3. Scroll to the Due date field and enter the date by which you need to finish the task. 4. Scroll to the Priority field and select a priority for the task. 5. To save the task, press the Done soft key.
Scheduler163Viewing tasksWhen you open To-do, a list of tasks displays. The task list shows your “things to do” list. The task’s priority icons display as follows: - High, - Low, and No icon - Normal.• To open a task, scroll to it and press or select Options → Open.• To delete a task, scroll to it and select Options → Delete or press .• To mark a task as completed, scroll to it and select Options → Mark as done. You can also press . The check mark displays beside the task; - task completed and - not completed• To restore a task, select Options → Mark as not done or press again.
1648ExtrasAnyvoiceYour phone provides a set of powerful voice-enabled features that enhance the hands-free capabilities of your phone. Using Anyvoice, you can:• make a call by saying any name from Contacts, without having to train the system to recognise names.• retrieve contact information for a person on the Contacts list by saying the person’s name.• launch applications by voice.• change settings that affect the way Anyvoice works on your phone.To s tar t Anyvoice and access the voice features of your phone:Press and hold in Standby mode, or press to open the Menu, and then select Usefulness → Anyvoice.If contact cards have been changed, Anyvoice automatically synchronise the contact list with them in Contacts.When the phone prompts you with displaying “Please say a command,” say one of the commands:• Call [person’s name]• Open [application]• Name dial• Name search
Extras165Note: Anyvoice can recognise up to 1000 different names in Contacts and 200 different names of applications.Name diallingYou can make a phone call by saying the name that has been assigned to a contact card in the Contacts directory.Note: To use the Name Dial feature, the name and number that you want to dial must be in your Contacts directory. For details about Contacts, see page 57.1. Go to Anyvoice. The Anyvoice main screen opens and the phone says “Please say a command.” 2. Say “Name dial” after a beep sounds.Note: The phone counts down the time. If you don’t say anything within 10 seconds or until the progress bar moves to the end, it prompts you one more time.3. Say the full name of the contact card, the first name followed by the last name.Note: You can say “Call” and then a person’s name stored in Contacts to make a call by voice command; for example, say “Call James Bond.” This will save you a step for name dialling.
Extras1664. If there are similar names, the phone displays the 3 best candidates and then recites the name that most closely matches your command and the first available number type. If the name or type is not what you wanted, say “Next” or press the Right or Down key. To go back to the name or type recited previously, say “Previous” or press the Left or Up key.Repeat until you hear what you want.5. If you press or say nothing for 3 seconds, the phone dials the currently selected number.Searching for contactsAnyvoice lets you retrieve contact information for any name in the Contacts directory by saying that name. Your phone displays the information.To view contact information by saying the name:1. Go to Anyvoice. The Anyvoice main screen opens and the phone prompts you, saying “Please say a command.” 2. Say “Name search” after a beep sounds.3. Say the full name of the contact card, the first name followed by the last name.4. If there are similar names, follow step 4 in "Name dialling" on page 165.5. If you press or say nothing for 3 seconds, the phone displays the currently selected contact card.
Extras167Opening applications by voiceAnyvoice lets you use your voice to launch applications on your phone. By default, you can launch the applications displayed on the Anyvoice screen by voice. You can customise the application list by adding or removing the applications to be launched by voice.To open an application by saying the name of the application:1. Go to Anyvoice. The Anyvoice main screen opens and the phone prompts you, saying “Please say a command.”2. Say “Open” and then the name of the application that you want to open; for example, say “Open Contacts.”3. If the phone found several applications, follow step 4 in "Name dialling" on page 165.4. If you press or say nothing for 3 seconds, the phone automatically opens the currently selected application.Customising the application listTo add or remove an application to be launched by voice:1. Go to Anyvoice and select Options → Settings.2. Press the Right key to display the application list screen.
Extras1683. Select the application you want to add. A check mark displays next to the selected application and the application is added to the application list.If you want to cancel the selection, deselect it. A check mark disappears.Note: Application names for recognition can be changed by selecting Options → Rename.4. When you are finished, press the Back soft key.Synchronising with ContactsSychronisation with Contacts must be done if contact cards have been changed. Anyvoice automatically detects the changes and synchronises with Contacts. You can synchronise with Contacts manually by selecting Options → Synchronize.Changing the voice recognition settingsTo change the settings for using the Anyvoice application, select Options → Settings. The Settings screen displays.•Time limit: sets the time limit your phone waits for your voice command. The default setting is 10 seconds.•Voice guide: turns on or off the voice message guiding you through the voice command procedure.•Voice volume: adjusts the volume for the voice guide message.
Extras169•Num. of results: sets the number of the best candidates the phone will display when there are similar names in Contacts.•Accuracy level: adjusts the sensitivity in which your phone recognises a voice command. Change the setting if your phone has difficulty recognising your voice command. Image printWith Image print, you can print images that you taken using the camera on the phone or that you have received in multimedia messages, via Bluetooth or memory card (DPOF). You can retrieve images from Gallery.Press to open the Menu, and then select Usefulness → ImagePrint.Note: Your phone supports the following Bluetooth printers:HP Photosmart 325/375/2610/2710/8150/8450, Officejet 7310/7410, and Deskjet 995ck/450wbt.Printing picturesYou can print pictures as it is or as a sticker.Printing basic pictures1. On the Print screen, select Gallery to see a list of pictures in the phone’s memory. Press the Right key to see the pictures on the memory card, if you use one.
Extras1702. Scroll to the picture you want to print. If you want to print multiple pictures at one time, scroll to the picture and select Options → Mark/Unmark → Mark. Repeat the action for all pictures you want to print.3. You can specify the printing settings, such as image layout or image size. Select Options → Page format. For details, see page 172.4. When you have finished, select Options → Print to Bluetooth or Print to mem. card. 5. If you select Print to Bluetooth, the Select printer screen displays a list of Bluetooth printers that have been already found. Select the printer you want to use. If no printers have been previously used, you can add the printer to the list by selecting Options → Find printers. You can change the paper size in which the image is to be printed by selecting Options → Paper size.If you select Print to mem. card, the phone writes a DPOF file to the memory card. Remove the memory card from the phone and insert the memory card into a DPOF capable printer for printing. For details about printing to a DPOF capable printer, refer to the printer User’s Guide.
Extras171Printing stickers1. On the Print screen, select Gallery to see a list of pictures in the phone’s memory. Press the Right key to see the pictures on the memory card, if you use one.2. Select Options → Page format.3. Select Stickers in Page format and select how many copies of the image to print on a page in Sticker layout. Press the Back soft key.4. Select the image you want. You can select only one image for sticker printing.5. After selecting the image, you are asked to add a border to the image. Press the Yes soft key to add a border to the image, or the No soft key.6. If you select Yes in step 5, you can select a border on the Select border screen.If you select No in step 5, go to step 8.7. Scroll to a border by pressing the Left or Right key and press or select Options → Select.8. When the Select printer screen appears, showing a list of BPP-enabled Bluetooth printers that have been already found, select the printer you want to use.If no printers have been previously used, you can add the printer to the list. Select Options → Find printers.
Extras172Changing print settingsYou can change the image settings, such as the type of image to be printed, image layout, or image size.1. On the Select images screen, press the Left key or select Options → Page format.2. The following options are available:• Page format: You can select the type of the image to be printed. If you select Stickers, the selected image prints as a sticker.• Image layout: You can select how many images to print. • Image size: You can select the image size. This option is only available when you selected 1 Up from the Image layout option.3. When you finished, press the Back soft key. Info printWith Info print, you can print a wide variety of data, such as messages and e-mails, contacts, calendar entries, and notes, via Bluetooth.Press to open the Menu, and then select Usefulness → Info Print.Note: Your phone supports the following Bluetooth printers:HP Photosmart 325/375/2610/2710/8150/8450, Officejet 7310/7410, and Deskjet 995ck/450wbt.
Extras173Printing messagesYou can print SMS, MMS, and E-mail messages:• SMS messages are simple text messages without pictures.• Only JPEG attachments in MMS messages can be printed.• E-mail text can be printed, but attachments are ignored. To print an image attached to e-mail, first save the image to a file and then print the image.Printing messages1. On the Print screen, select Messaging.2. Select the folder where the messages you want are saved. The Email folder only appears when one e-mail message is contained at least.3. Scroll to the message you want and select Options → Print to print the message.The Select printer screen displays a list of Bluetooth printers that have been already found. 4. You can change the paper size in which the message is to be printed by selecting Options → Paper size.5. Select the printer you want to use.If no printers have been previously used, you can add the printer to the list. Select Options → Find printers.
Extras174Printing e-mails with attachmentsE-mail attachments cannot be printed. However, the body text of an e-mail with attachments may be printed. When selecting an e-mail with attachments for printing, you are asked if you want to continue. Press the Yes soft key to print the body text of the e-mail, or the No soft key to cancel printing. If a JPEG image file is attached to e-mail, you can print it by saving as a file.Printing MMS messages with unsupported attachmentsSome types of MMS attachments are not supported for printing. When the selected MMS message contains objects of these types, you are asked if you want to continue. Press the Yes soft key to print the parts of the MMS message that are printable, or the No soft key to cancel printing.Printing contactsYou can print contact cards or contact groups stored in Contacts.Printing a contact card1. On the Print screen, select Contacts to see a list of contact cards in the phone’s memory.
Extras1752. Scroll to the contact card you want to print. If you want to print multiple contact cards at one time, scroll to the contact card and press to mark it. Repeat the action for all contact cards you want to print.3. When you have finished, press the Print soft key. The Select printer screen displays a list of BPP-enabled Bluetooth printers that have been already found.4. Follow from step 4 on page 173.Printing a contact group1. On the Print screen, select Contacts to see a list of contact cards in the phone’s memory.2. Press the Right key to open the group list.3. Scroll to the group you want to print.If you want to print multiple contact groups at one time, scroll to the group and press to mark it. Repeat the action for all contact groups you want to print.4. When you have finished, press the Print soft key. The Select printer screen displays a list of BPP-enabled Bluetooth printers that have been already found.5. Follow from step 4 on page 173.
Extras176Printing calendar entriesYou can print calendar entries created in at Calendar. All of the entries in a full day you select print at a time.1. On the Print screen, select Calendar.The current day displays on the calendar list.2. Select the date you want to print by pressing the Left or Right key.To go to a certain date, select Options → Go to date. Enter the date and press the OK soft key.3. When you have finished, select Options → Print. The Select printer screen displays a list of BPP-enabled Bluetooth printers that have been already found.4. Follow from step 4 on page 173.Printing notesYou can print notes created in Notes.1. On the Print screen, select Notes.2. Select the note you want to print. The preview screen appears.3. Select Options → Print. The Select printer screen displays a list of BPP-enabled Bluetooth printers that have been already found.4. Follow from step 4 on page 173.
Extras177NotesIn Notes, you can create notes that are not associated with records in Calendar, Contacts, or To-do. The number of memos you can store depends on the memory available on your phone.Press to open the Menu, and then select Extras → Notes.Creating a note1. Start entering note text or select Options → New note. The display for entering note text appears.2. Complete the note text.3. When you are finished, press the Done soft key. The most recently saved note is placed in the first position, displaying the time the note was made.
Extras178Sending notesYou can send notes via text and multimedia messages, and e-mail services, and via Bluetooth. For details, see page 35.Setting as a Go to itemYou can set a note as a Go to item so that you can quickly access it. Scroll to a note and select Options → Add to ‘Go to’.CalculatorIn Calculator, you can perform general mathematical functions, such as addition, subtraction, multiplication, and division.Press to open the Menu, and then select Extras → Calculator.
Extras1791. Enter the first number of your calculation. Press to erase a mistake in the number.2. Scroll to the function you want using the Navigation keys and press .3. Enter the second number.4. To get the result, select .Note: Calculator has limited accuracy and rounding errors may occur, especially in long division.Tips for using the calculator• To insert a decimal, press .• To change a function, for example from + to -, press until the function you want is selected on the screen.• Press to clear the result of the previous calculation.• Select MS or select Options → Memory → Save to save a number to the memory, indicated by M. To retrieve the number from the memory, select MR or select Options → Memory → Recall.• To delete the number from the memory, select Options → Memory → Clear.• To delete all of the calculations on the sheet, select Options → Clear screen.• To retrieve the result of the last calculation, select Options → Last result.
Extras180ConverterIn Converter, you can convert measurements such as Length from one unit (Yards) to another (Metres).Press to open the Menu, and then select Extras → Converter.Note: Converter has limited accuracy and rounding errors may occur.Converting unitsNote: You first need to set the currency rates. See page 181.1. Select Type to open a list of measurement units. 2. Select the measurement type you want to use.3. Select the first Unit field to open a list of available units. 4. Select the unit from which you want to convert.5. Scroll to the first Amount field and enter the value you want to convert.Press to add a decimal and press for the +, — (for temperature), and E (exponent) symbols.
Extras1816. Select the second Unit field and select the unit to which you want to convert.The other Amount field charges automatically to show the converted value.Note: The conversion order changes if you enter a value in the second Amount field. The result is shown in the first Amount field.Setting a base currency and exchange ratesBefore you can make currency conversions, you need to choose a base currency (usually your domestic currency) and enter exchange rates.Note: The rate of the base currency is always 1. The base currency determines the conversion rates of the other currencies.1. Select Currency as the measurement type and select Options → Currency rates. A list of currencies opens and you can see the current base currency at the top.2. To change the base currency, scroll to the currency (usually your domestic currency) and select Options → Set as base curr..Important: When you change the base currency, all previously set exchange rates are reset to 0 and you need to enter new rates.
Extras1823. To enter exchange rates, scroll to the currency, and enter a new rate, that is, how many units of the currency equal one unit of the base currency you have selected. See the example below:If you set the Euro (EUR) as the base currency, a United Kingdom Pound (GBP) is approximately 1.63575 EUR. Thus, you would enter 1.63575 as the exchange rate for the GBP.4. When you have finished, press the Done soft key.5. Press the Yes soft key to save the changes.After you have inserted all necessary exchange rates, you can make currency conversions, see "Converting units" on page 180.RecorderRecorder allows you to record telephone conversations and voice memos of up to 1 minute.Press to open the Menu, and then select Extras → Recorder.Notes: • Obey all local laws governing recording of calls.Do not use this feature illegally.• Recorder cannot be used when a data call or a GPRS connection is active.
Extras183Recording a voice memo1. Press to starting recording when highlights. You can also select Options → Record sound clip. • To pause recording, press the Pause soft key or select .• To resume recording, press the Record soft key or select .2. To stop recording, press the Stop soft key or select .The recorded sound clip is automatically saved in the Sound clips folder in Gallery.After a sound clip has been saved: • To play back the sound clip, select .• To fast forward, select .• To fast rewind, select .• To change the name of the sound clip, select Options → Rename sound clip.• To access previously saved clips, select Options → Go to Gallery. You can send sound clips via multimedia message and e-mail services, and via Bluetooth. For details, see page 35.You can change the saving location from the phone’s memory to the memory card by selecting Options → Settings.
Extras184ClockIn Clock, you can view the current time and date of your home city, set up the display of the time and date information, and check the time in other cities all over the world. You can also set an alarm to ring at a specified time.Press to open the Menu, and then select Extras → Clock.Viewing world clockTo view the world time in other cities, first you must add the cities you want to the world clock screen. To add ci ti es:1. Press the Right key once on the home clock screen.2. Select Options → Add city.3. Scroll through the city list using the Up or Down key.Alternatively, enter the first few letters of the country or city. Starting entering letters displays the search field. You can also search the country or city by selecting Options → Find.This will search for countries and cities by their first few letters. For example, entering “p” will match “France, Paris” as well as “Paraguay, Asuncion,” as both contain entries that start with “p.”
Extras1854. Select the city you want.You can view the current time of the selected city on the world clock screen.5. Repeat from step 2 to add more cities, if necessary.You can set a city on the world city list as the home city. The time and date of the selected city displays on the home clock screen. Scroll to the city you want and press Yes soft key to change the home city. Select Options → My home city.To remove the city from the list, select Options → Remove.Changing clock settingsTo change the time or date, select Options → Settings on the home clock or world clock screen.The following setting options are available:•Time: Enter the current time. If the time format is set to 12-hour, you can change am/pm by pressing any key, except for , , Left or Right key, , or the soft keys.•Date: Enter the current date.•Date format: Select the date display format, either dd mm yyyy (day, month, year), mm dd yyyy (month, day, year), or yyyy mm dd (year, month, day).•Date separator: Select a separator for the date display.•Time format: Select the time format, either 12-hour or 24-hour.
Extras186•Time separator: Select a separator for the time display.•Clock type: Select a clock type to be displayed on the top of the Standby screen and Extend view, either Analogue or Digital.•Autopower: Select On to set the phone to automatically switch on to ring an alarm if the time for the alarm comes while the phone is switched off. •Auto time update: Select On if you want the mobile phone network to update the time and date, and time zone information to your phone.The phone reboots,turning itself off and then back on.•Daylight-saving: Select On to use daylight savings. The indicator is shown on the home clock screen.Setting an alarmPress the Right key twice on the home clock screen. You can set the following alarm modes: •Once alarm: the alarm rings just once and is then deactivated.•Daily alarm: the alarm rings every day at the same time.•Morning call: the alarm rings to wake you up in the morning from Monday to Friday.To set an alarm:1. On the Alarm screen, select the type of alarm to be set.2. Select Set time, enter the time for the alarm to sound, and press the OK soft key.
Extras1873. Select Alarm sound and choose an alarm tone.4. Press the None soft key to save your selection.The alarm is active and the indicator is shown in Standby mode.To remove the alarm:1. On the Alarm screen, select the type of alarm you want to remove. 2. Select Remove alarm.3. When a confirmation message appears, press the Yes soft key. You can also scroll to the type of alarm and select Options → Remove once alarm, Remove daily alarm, or Remove morning call on the Alarm screen.Turning off the alarmWhen the alarm time comes, the phone will sound an alarm tone and flash “Once alarm,” “Daily alarm,” or “Morning call,” the alarm icon, and the current time on the display.• Press the Stop soft key.• Press the Snooze soft key or to stop the alarm and cause it after 5 minutes. You can do this a maximum of 5 times.
Extras188If the alarm time comes while your phone is switched off, the phone switches itself on and starts sounding the alarm tone. If you press the Stop soft key, the phone asks whether you want to activate the phone for calls. Press the No soft key to leave the phone switched off or the Yes soft key to switch it on.Note: You can select whether or not the phone rings the alarm tone while the phone is switched off using the Autopower option. See page 186.MemoryIf you have a memory card, you can use it to store your multimedia files, such as video clips and sound files, pictures, and messaging information, and to back up information from your phone’s memory. For details about inserting the memory card, see page 23.Press to open the Menu, and then select Extras → Memory. The display shows information about the currently installed memory card.Important: • Keep all memory cards out of the reach of small children.• After formatting the memory card as FAT32 on your computer, if you insert the card into the phone and access the Memory application, the system will inform you that the memory card is corrupted and ask whether you will format it or not. This is because the system supports only FAT12 and FAT16 formats. Therefore, to use the memory card with your phone, you must format the card as FAT12 or FAT16.
Extras189Note: Details on how you can use the memory card with other features and applications of your phone are given in the sections describing these features and applications.Removing the memory cardTo remove the memory card from the phone safely, press and select Remove mem. card. Then press the OK soft key and remove the memory card. For further details, see page 24 Backing up and restoring information• You can back up information from your phone’s memory to the memory card.Select Options → Backup phone mem.. When a confirmation message appears, press the Yes soft key.• You can restore information from the memory card to the phone’s memory.Select Options → Restore from card. When a confirmation message appears, press the Yes soft key.Formatting the memory cardYou must format the memory card before you can use it for the first time.Select Options → Format mem. card. When a confirmation message appears, press the Yes soft key. Once you confirm, formatting starts.
Extras190Renaming the memory cardYou can change the memory card name. Select Options → Memory card name. Enter the name you want and press the OK soft key.Setting a memory card passwordYou can set a password to lock your memory card against unauthorised use.Notes: • Once a password for the memory card has been set, devices that do not support a feature related to the memory card password, such as Microsoft Windows, cannot read the card. You first need to remove the password on the phone. • The password is stored in your phone and you don’t have to enter it again while you are using the memory card on the same phone. When you use the memory card on another phone, you are asked for the password.To set, change, or remove your password:Select Options → Set password, Change password, or Remove password.For every option, you are asked to enter and confirm your password. The password can be up to 8 characters long.Important: Once the password is removed, the memory card is unlocked and can be used on another phone without a password.
Extras191Unlocking the memory cardWhen you insert another password-protected memory card in your phone, you are prompted to enter the password of the card. To unlock the card, select Options → Unlock memory card. You are asked to enter the password.Checking memory consumptionUsing the Memory details option, you can check the memory consumption of different data groups and the available memory for installing new applications or software on your memory card.Select Options → Memory details.WalletWallet provides you with a storage area for your personal information, such as credit and debit card numbers, addresses, and other useful data, for example, user names and passwords.Press to open the Menu, and then select Extras → Wallet.The information stored in the wallet can be easily retrieved while browsing, to automatically fill in online forms on browser pages, for example, when a service asks for credit card details. Data in the wallet is encrypted and protected with the wallet code that you have defined.
Extras192You can group wallet data into profiles that can be accessed, for example for making purchases online.Due to the nature of the wallet, it will automatically close after 5 minutes of inactivity. Enter the wallet code to regain access to the contents. You can change this automatic time-out period, if required. See "Changing Wallet settings" on page 197.Entering the wallet codeWhen you open the wallet for the first time, you must create your own access code:1. Enter a code of your choice (4 - 10 alphanumeric characters), and press the OK soft key.2. You will be prompted to verify the code. Enter the same code and press the OK soft key. Do not give your wallet code to anyone else.Each time you open the wallet you will be prompted for a wallet code. Enter the code that you have created and press the OK soft key.Note: If you enter the wallet code incorrectly on 3 consecutive occasions, the wallet application will be blocked for 5 minutes. The block time increases if further incorrect wallet codes are entered.Important: If you forget your wallet code, you will have to reset the code, and you will lose all information stored in the wallet. See "Resetting the wallet and wallet code" on page 197.
Extras193Storing personal card details1. Select Cards from the Wallet main screen.2. Select a type of card from the list.• Payment cards: Credit and debit cards• Loyalty cards: Membership and store cards• Online acc. cards: Personal user names and passwords to online services• Address cards: Basic contact details for home/office• User info cards: Customised personal preferences for online services3. Select Options → New card. The corresponding card form opens.4. Fill in the fields and press the Done soft key.You can also receive card information directly to the phone from a card issuer or service provider (if they offer this service). You will be notified which category the card belongs to. Save or discard the card. You can view and rename a saved card, but you cannot edit it.Once you have stored card information, you can open, edit, or delete fields in the cards. Any changes will be saved upon the exiting cards.
Extras194Creating a wallet profileOnce you have stored your personal card details, you can combine them together into a wallet profile. Use a wallet profile to send wallet data from different cards and categories to the browser.1. Select Wallet profiles from the Wallet main screen.2. Select Options → New profile. A Wallet profile form opens.3. Fill in the fields, as indicated below. Some of the fields must contain data selected from the wallet. You must save the data under the relevant category before creating a wallet profile, or the profile cannot be created.• Profile name: Choose and enter a name for the profile.• Payment card: Select a card from the Payment cards category.• Loyalty card: Select a card from the Loyalty cards category.• Online access card: Select a card from the Online acc. cards category.• Shipping address: Select a shipping address from the Address cards category.• Billing address: By default this is the same as the shipping address. If you require a different address, select a billing address from the Address cards category.
Extras195• User info card: Select your personal information card from the user info cards category.• Receive e-receipt: Select a destination to which receipts for online transactions are delivered from the Address cards category.• Deliver e-receipt: Select whether or not receipts for online transactions are delivered to a phone number, e-mail address, or both.• RFID sending: Select whether or not your unique phone identification (ID) is sent with the wallet profile (for future development dependent on RFID-based ticketing) to services that require it.4. When you are finished, press the Done soft key.Viewing ticket detailsYou can receive notifications of items purchased online via the browser.Received notifications are stored in the wallet. To view the notifications:1. Select Tickets from the Wallet main screen.2. Select the ticket you want.You can view the validity dates, price, or other information about the ticket.Note: None of the fields within the notification can be modified.To delete a ticket, scroll to the ticket and select Options → Delete.
Extras196Creating personal notesPersonal notes are a means of storing sensitive information, for example, a bank account number. You can access the data in a personal note from the browser.You can also send a note via messaging services. For details, see page 35.1. Select Personal notes from the Wallet main screen.2. Select Options → New note. The Personal notes screen opens.3. Write a note and press the Done soft key.4. Enter the note title and press the OK soft key.Retrieving information from Wallet to your browserWhen using online mobile services supporting the wallet functionality, you can upload the data stored in your wallet to automatically enter your details into an online form. For example, by uploading your payment card details you do not need to key in the card number and expiry date each time you need them (depending on the content being browsed). Also, you can retrieve your user name and password stored as an access card when connecting to a mobile service that requires authentication.
Extras197Changing Wallet settingsOn the Wallet main screen, select Options → Settings. You can set the following options:•Wallet code: Change your wallet code. You will be prompted to enter the current code, create a new code, and verify the new code.•RFID: Set the phone ID code, type, and sending options (for future development dependent on RFID-based ticketing).•Automatic close: Change the automatic time-out period (1 - 60 minutes). After the time-out period has elapsed, the wallet code must be re-entered to gain access to the contents.Resetting the wallet and wallet codeTo reset both the contents of the wallet and the wallet code:1. Key in “*#7370925538#” in Standby mode.2. Enter the phone’s lock code, and press the OK soft key. See "Security settings" on page 249.Note: This operation erases all contents of the wallet.When opening the wallet again, you must enter a new wallet code. See "Entering the wallet code" on page 192.
Extras198ViewerViewer is a revolutionary product for document browsing on thin-client computing platforms. It allows you to view content on your phone without any file-conversion or loss of content. Simply by using the Navigation keys, you can scroll through your document sideways or vertically to view larger pages on a smaller screen, and zoom in or out to view intricate details or overviews. To view a document, you must transfer documents from a computer. If you have installed the memory card, you can view the files stored in it. Viewer supports most common desktop document formats including PDF, Word, Excel, and PowerPoint.Press to open the Menu, and then select Usefulness → Viewer. Once it is running, you will see the default blank page.
Extras199Viewing a document1. On the Viewer main screen, select Options → Open file(*). The Explore view opens. It shows the directories, such as C or E.The “E” directory indicates the installed memory card. The “C” directory indicates your phone’s memory. 2. Select the directory you want to open.The name of the current folder’s path location is shown at the top of the screen and the folders and documents in the selected driver appear.Documents look like sheets of paper in various colours, depending on their type. The following document formats are supported:Adobe PDF: , Microsoft Word: , Microsoft Power Point: , Microsoft Excel: , Plain Text: .
Extras2003. Select the folder or document you want to view.4. If you select a folder icon, you will be shown the contents of that folder.If you select a document icon, it will be opened.Options in the document viewYou can use the following options while viewing a document.• To rotate the screen 90 degrees counterclockwise, select Options → Page → Rotate (9).Note: You can change the direction of the rotation in the Preferences option. See page 202.• To zoom in or out, press the Mode soft key until the icon displays on the bottom right of the screen. Press the Navigation keys to zoom in or out.• To fit the width of the page on screen, select Options → Page → Fit to Width (7).• To pan to a different part of the document, press the Mode soft key until the icon displays on the bottom right of the screen. Press the Navigation keys to move in the direction you want.• To navigate pages, if there is more than one page, select Options → Page → Goto Page (#), Next Page (3), Previous Page (1), First Page, or Last page.
Extras201Keypad shortcutsIn the document view, you can use the following keys:• , : navigates to the previous or next page.• , , , : pans up, down, left, or rignt.• , : zooms in or out.• : fits to the width of the page.• : rotates the screen.• : opens other file.• : goes to the page you want to view.Viewing HistoryThe history view shows you previously visited documents as small thumbnail-images of the document, and the document’s name, location, and the date of your visit.To open the history view, select Options → History.• To view information about a document, scroll to the document you want and press the Info soft key.• To return to the most recently displayed document, select Options → Document.• To return to any of the documents from the history view, select the thumbnail image of that page.• To delete all of the documents in the history view, select Options → Clear all.Note: Documents will remain on the History list until a certain number of days have passed. You can control this period in the Preferences option. See page 202.
Extras202Viewing FavouritesFor your favourite documents, you can keep a list in the favourites view. This looks similar to the history view, but includes only those pages you have explicitly added. Before viewing favourites, you must first add the pages to your favourites. To open the favourites view, select Options → Favourites.• To add the current page to your favourites, select Options → Add favourite. Enter the name you want and press the OK soft key.• To return to the most recently displayed document, select Options → Document.• To view information about a document, scroll to the document you want and press the Info soft key.• To return to one of your favourites, select the thumbnail image of the page. • To delete one of your favourites, scroll to the thumbnail image of the page and select Options → Delete favourite.Changing Viewer settingsSelect Options → Preferences.You can use the following options:•Start from: Select what is displayed in the document view when you first launch viewer. By default, when you first open the Viewer application, a blank page displays on the screen.
Extras203•Keep history: Set the period after which the thumbnail pictures and descriptions of pages are purged from the history memory. •Rotate: Select the direction the screen will be rotated when the Rotate (9) option is used.
2049InternetThis chapter describes how to get access to the Internet and how to use the Internet applications.Your phone has the following browser applications:• Web - A browser in Wireless Application Protocol (WAP) format for accessing various types of information, entertainment, and other services provided by various WAP operators. WAP is suited to mobile devices with small screen displays and limited amounts of memory. WAP uses mainly text but does support pictures.To connect to the Internet,• the wireless network you use must support data calls,• the data service must be activated for your SIM card,• you must have obtained an Internet access point from an Internet Service Provider (ISP), and• you must have defined the proper web browser settings.Note: Your phone is suited for access to the Internet by default, so that you can easily use the Internet Service. If the Internet browser doesn’t work properly, you can download and update the browser settings from your service provider’s website.Your ISP can give you instructions on how to configure the browser settings. Follow the instructions carefully.
Internet205WebVarious service providers on the Internet maintain pages specifically designed for mobile phones, offering services such as news and weather reports, banking, travel information, entertainment, and games. With the web browser, you can view these services as web pages written in WML, XHTML pages written in XHTML, or a mixture of both.Press to open the Menu, and then select Web.Note: Check the availability of services, pricing, and tariffs with your network operator and/or service provider. Service providers can also give you instructions on how to use their services.Basic steps for accessing the browser service• Save the settings that are needed to access the web service that you want to use. See the next section “Setting up the phone for the browser service.”• Make a connection to the service. See page 207.• Start browsing web pages. See page 209.• End the connection to the service. See page 213.
Internet206Setting up the phone for the browser serviceReceiving settings in a smart messageYou may receive service settings in a special text message, a smart message, from the network operator or service provider that offers the service. See "Receiving smart messages" on page 122. For more information, contact your network operator or service provider.Tip: Settings may also be available at the website of a network operator or service provider.Entering settings manuallyFollow the instructions given to you by your service provider.•Go to Tools → Settings → Connection → Access points and define the settings for an access point. See "Connection settings" on page 239.•Go to Web → Options → Bookmark manager → Add bookmark. Enter a name for the bookmark and the address of the browser page defined for the current access point.
Internet207Making a connectionOnce you have stored all the required connection settings, you can access browser pages.There are three different ways to access browser pages:• Select the homepage of your service provider,• Select a bookmark from the Bookmarks view, or• Press the keys to to start to enter the address of a browser service. The Go to field at the bottom of the display is immediately activated and you can continue entering the address there. After you have entered the address, press the Go to soft key.Connection securityIf the security indicator displays during a connection, the data transmission between the phone and the browser gateway or server is encrypted.Note: The security icon does not indicate that data transmission between the gateway and the content server (place where the requested resource is stored) is completely secure. It is up to the service provider to secure data transmission between the gateway and the content server.
Internet208Viewing bookmarksA bookmark consists of an Internet address (mandatory), bookmark title, access point, and if the service requires, a user name and password.Note: Your phone may have some pre-installed bookmarks for sites not affiliated with your phone. Your phone does not warrant or endorse these sites. If you choose to access them, you should take the same precautions, for security or content, as you would with any site.To access the Bookmarks list while browsing, press and hold .To return to the browser view again, select Options → Back to page.In Bookmarks, you can see bookmarks for different kinds of web pages.Bookmark status is indicated by the following icons:• - The starting page defined for the access point. If you use another access point for browsing, the starting page is changed accordingly.• - The folder of automatic bookmarks. When you have activated the Automatic bookmarks option (see page 214), the web pages you have visited will be automatically bookmarked and the bookmarks will be saved in this folder.• - A folder you created.• - A default folder. You cannot delete folders of this type.• - A bookmark.
Internet209When you scroll through bookmarks, you can see the address of the highlighted bookmark in the Go to field at the bottom of the display. On the right side of a bookmark title, the data connection type indicator appears.• - a packet data (GPRS) connection• - GSM data connectionAdding bookmarks manually1. In the Bookmarks view, select Options → Bookmark manager → Add bookmark.2. Fill in the fields. Only the address must be defined. The default access point is assigned to the bookmark, if none is selected. Press to enter special characters, such as /, ., :, and @.3. Select Options → Save to save the bookmark.Sending bookmarksYou can send a bookmark via text message service. For details, see page 35.BrowsingOn a web page, links appear underlined in blue. Images that act as links have a blue border around them.Keys and commands used in browsing• To open a link, press .• To scroll, use the Navigation keys.
Internet210• To enter letters and numbers in a field, press to . Press to enter special characters, such as /, ., :, and @. Press to clear characters.• To go to the previous page while browsing, press the Back soft key. If the Back soft key is not available, select Options → Navigation options → History to view a chronological list of the pages you have visited during the current browsing session. The history list is cleared each time a session is closed.• To check boxes and make selections, press .• To retrieve the latest content from the server, select Options → Navigation options → Reload.• To change the display mode of the browser, select Options → Advanced options → Small screen. To return to the original status, select Options → Advanced options → Original screen.• To open the Bookmarks screen and search for a bookmark, select Options → Bookmarks.• To save a bookmark while browsing, select Options → Save as bookmark.• To find a phone number, e-mail address, or URL address from web pages, select Options → Find.• To view session and security details of the current browser page, select Options → Details.Viewing new service messages while browsingTo download and view new service messages while browsing:1. Select Options → Advanced options → Read service msgs. (shown only if there are new messages).
Internet2112. Select the message you want to download and open.For more information about service messages, see page 124.Viewing saved pagesIf you regularly browse pages containing information which doesn’t change very often, for example a train timetable, you can save and then browse those pages when offline. If you have a memory card, you can save web pages to it, instead of to the phone’s memory.On a web page, select Options → Advanced options → Save page to save the page. Enter the page name and press .The following icons are available on the Saved pages view:• - A saved web page. In the Saved pages view you can also create folders in which to store your saved web pages.• - A folder containing saved web pages.To open the Saved pages view, press the Right key in the Bookmarks view. In the Saved pages view, press to open a saved page.If you want to start a connection to the web service and retrieve the page again, select Options → Reload.Note: The phone stays online after you reload the page.You can arrange the pages into folders by selecting Options → Saved Pages Mngr..
Internet212Downloading itemsYou can download items such as ringtones, images, operator logos, and video clips through the mobile browser. You may be charged for downloading items.Once downloaded, items are handled by the respective applications on your phone; for example, a downloaded picture will be saved in Images.Note: Digital Rights Management (DRM) is a system for protecting the copyright of digital content that is distributed online. Copyright protections may prevent some images, ringtones, and other content from being copied, modified, transferred, or forwarded.Downloading directly from the web page1. Scroll to a link and select Options → Open.2. Choose the appropriate option to download the item, for example, Buy or Download.3. Follow the onscreen instructions.Using Wallet information for purchasing itemsIf the online content is compatible, you can use your wallet information to make the purchase:1. Select Open wallet. You will be prompted for your wallet code.2. Enter the wallet code and press the OK soft key.
Internet2133. Select the appropriate card category from your wallet.4. Select Fill in. This will upload the selected wallet information.If the wallet does not contain all information necessary for the purchase, you will be requested to enter the remaining details manually.Ending a connectionTo end a connection to the network:• Select Options → Disconnect, or• Select Options → Exit to quit browsing and to return to Standby mode.Emptying the cacheThe information or services you have accessed are stored in the cache memory of the phone.A cache is a buffer memory that is used to store data temporarily.If you have tried to access or have accessed confidential information requiring passwords (for example, your bank account), empty the cache of your phone after each use. To empty the cache, select Options → Navigation options → Clear cache.
Internet214Changing browser settingsSelect Options → Settings.•Default access point: If you want to change the default access point, press to open a list of available access points. The current default access point is highlighted. For more information, see "Connection settings" on page 239.•Show images: Choose Yes if you want to view pictures when you are browsing. If you choose No, you can later load images during browsing by selecting Options → View images.•Font size: You can choose one of the five text sizes to be used on a web page: Largest, Large, Normal, Small, and Smallest.•Default encoding: To display text characters correctly on a web page, select the appropriate language type.•Automatic bookmarks: You can turn on or off the automatic completion of address in the Bookmarks view. Once you have activated this option, when you enter an address, the list of the addresses containing the character(s) you entered, which are stored in the Auto. bookmarks folder, appears. You can quickly select the address you want.To h ide th e Auto. bookmarks folder in the Bookmarks view, select Hide folder.•Screen size: You can select how to view web pages. To display the browser on the full screen, select Full screen.
Internet215•Rendering: You can select how to browse the web page. Select:- By speed to download pages faster, but have with lower image quality.- By quality to get good image quality while browsing, but a slower page download speed.•Cookies: You can enable or disable the receiving and sending of cookies.•Security warnings: You can enable or disable viewing the security warnings you may get during browsing.•Conf. DTMF sending: The browser supports functions you can access while browsing. You can make a voice call while you are on a web page, send DTMF tones while a voice call is in progress, and save a name and phone number from a web page. Choose whether you want to confirm before the phone sends DTMF tones during a voice call. •Wallet: Select whether or not you use wallet data to fill in forms for online transactions or provide a service with your personal information.
21610PersonalisationYou can customise your phone to suit your preferences and needs by using various tools, such as:•Profiles- sound settings for various environments•Themes- display theme settings•Go to- shortcuts for your favourite menus•Mounut- fun character images to show the frequency of your phone use, among other things.ProfilesIn Profiles, you can adjust and customise the phone tones for different events, environments, or caller groups. There are six preset profiles: General, Silent, Meeting, Outdoor, Pager, and Offline, which you can customise to meet your needs.You can see the currently selected profile at the top of the display in Standby mode. If the General profile is in use, only the current date is shown.The tones can be the default ringtones, tones received in a message or transferred to your phone via Bluetooth or from a computer, and then saved to your phone.Press to open the Menu, and then select Profiles.
Personalisation217Changing profilesOn the Profiles list, scroll to the profile you want and select Options → Activate.You can quickly change the profile by pressing on the right side of the phone. Select the profile you want to activate.Customising profiles1. To modify a profile, scroll to the profile on the Profiles list and select Options → Personalise. A list of profile settings opens.2. Scroll to the setting you want to change and press to open the choices:• Ringing tone: Choose a ringtone for voice calls from the list. If a memory card is used, tones stored on it have the icon next to the tone name.Note: You can change ringtones in two places: Profiles or Contacts. See "Adding a ringtone for a contact card or group" on page 63.• Ringing type: Select the ringtone type. When Ascending is selected, the ringing volume starts from level one and increases to the set volume level.• Ringing volume: Set the volume level for the ringtone and message alert tones.
Personalisation218• Message alert tone: Choose the tone for messages.• Chat alert tone: Choose the tone for chat messages.• Vibrating alert: Set the phone to vibrate at incoming voice calls and messages. • Keypad tones: Set the volume level for keypad tones.• Warning tones: Set phone to sound a warning tone, for example, when the battery is running out of power.• Alert for: Set the phone to ring only upon calls from phone numbers that belong to a selected contact group. Phone calls coming from people outside the selected group have a silent alert. The choices are All calls or the list of contact groups, if you have created them. See "Creating contact groups" on page 67.• Profile name: Change a profile name. The General profile cannot be renamed.3. When you are finished, press the Back soft key.Creating a new profileYou can create a new profile by selecting Options → Create new. For further details about customising each option, see page 217.
Personalisation219Offline profileThe Offline profile lets you use the phone without connecting to the GSM wireless network to use the phone’s applications.Important:In the Offline profile, you cannot make any calls, excluding emergency calls, or use other features that require network coverage.To activate the Offline profile:On the Profiles list, scroll to Offline and select Options → Activate.The GSM is turned off and the signal strength indicator is disappeared. All GSM wireless phone signals to and from the device are disabled.To leave the Offline profile, activate any other profile. When the confirmation message appears, press the Yes soft key. The phone re-enables GSM wireless transmissions (providing there is sufficient signal strength).
Personalisation220ThemeIn Themes, you can change the look of your phone’s display by activating a theme. A theme can include the Standby mode wallpaper, colour palette, and background image in Go to. Edit a theme for more detailed personalisation.Press to open the Menu, and then select Usefulness → Themes. You will see a list of the available themes. The currently active theme is indicated by a check mark. Press the Right key to see the themes on the memory card, if you use one.Changing themesTo preview a theme, scroll to the theme and select Options → Preview to view the theme. Press the Apply soft key to activate the theme. You can activate the theme without previewing it by selecting Options → Apply from the Themes main view.Editing themesGroup together elements from other themes, or images from Gallery to personalise themes further.1. Scroll to a theme and select Options → Edit.You can use the following options:• Wallpaper: Select an image from one of the available themes, or select your own image from Gallery, to use as a background image in Standby mode.
Personalisation221• Colour palette: Change the colour palette used on all of the option list fields.• Image in ‘Go to’: Select an image from one of the available themes, or select your own image from Gallery, to use as a background image in Go to.2. Select the option you want to edit.3. Change the current setting. 4. When you have finished, press the Back soft key.Restoring themesYou can restore the currently selected theme to its original settings while editing. Select Options → Restore orig. theme.Downloading themesYou can download themes from the web browser. Select Options → Theme downloads. Then you can enter a URL address or a bookmark for the web site providing you with theme downloads.
Personalisation222Go toUse Go to for storing shortcuts, links to your favourite photos, video clips, notes, sound files, browser bookmarks, and saved web pages.Press to open the Menu, and then select Go to. You will see the following default shortcuts:• - opens the day view in Calendar.• - opens the Inbox in Messaging.• - opens the Notes editor.Adding shortcutsShortcuts can be added only from the individual application. Not all applications have this feature. 1. Open the application and scroll to the item that you want to add as a shortcut to Go to.2. Select Options → Add to ‘Go to’.
Personalisation223Note: A shortcut in Go to is automatically updated if you move the item it is pointing to, for example, from one folder to another. Using shortcutsIn Go to:• To open a shortcut, select the icon. The item is opened in the corresponding application.• To delete a shortcut, scroll to the shortcut you want to remove and select Options → Delete shortcut. Removing a shortcut does not affect the file it is referring to. You cannot delete the default shortcuts.• To change the shortcut name, select Options → Edit shortcut name. Enter the new name. This change affects only the shortcut, not the file or item the shortcut refers to.• To change the shortcut icon, select Options → Shortcut icon. Select an icon on the list. You cannot change the default shortcuts’ icons. • To change the order of shortcut items, scroll to an item to move and select Options → Move. Select the position by pressing the Navigation keys and press the OK soft key.• To change to the list view, select Options → List view.• To return to the normal view, select Options → Grid view.
Personalisation224MounutMounut is a system that shows a fun character expressing an emotion, depending on the frequency of your phone use, i.e., making and receiving calls and messages, adding contact cards or applications, or using the camera. You can also send the character along with your messages to enhance the message.Press to open the Menu, and then select Usefulness → Mounut. Selecting a Mounut character1. On the Mounut main screen, select My Mounuts.The currently selected Mounut character displays.2. Press the Left or Right key to scroll to one of the Mounut characters stored on your phone.3. Press or select Options → Giving life.4. Once you have changed the Mounut character, a confirmation message displays to inform you that the emotion status will reset. Press the OK soft key to confirm.5. When you are finished, press the Back soft key to exit.Viewing the emotional status of the Mounut character
Personalisation2251. On the Mounut main screen, select My Mounuts. You can view the selected Mounut character.2. Select Options → Emotion status.The display shows the value of the emotion status of your Mounut character with a bar graph. The value of the emotion status changes depending on the frequency of use of the phone. The emotion of the Mounut character is made up of Popularity, Sensibility, and Intelligence.• Popularity: The value of the emotion status increases or decreases depending on the number of sent and received SMS/MMS messages, and incoming or outgoing calls.• Sensibility: The value of the emotion status increases or decreases depending on the frequency in sending or receiving MMS/CB messages, changing themes, taking pictures, and recording videos.• Intelligence: The value of the emotion status increases or decreases depending on the frequency
Personalisation226in adding, deleting, or editing contact cards, receiving SMS messages, sending MMS messages, and installing SIS files.3. When you are finished, press the Back soft key to exit.Each time the value of the emotion status is changed, the following events happen on your phone:•Emotion: Your phone checks the value of the Mounut’s emotion twice a day (11:00~13:00 and 17:00~19:00) and displays the emotion of the Mounut character. See page 224.•Level changing: When the total number of the 3 bar graphs exceeds 30, the level of the Mounut character is raised from Level 1 to Level 2. In this case, an animated image showing the change of level appears, and the image of the Mounut character is upgraded. When the total number of the 3 bars drops below 30, the level of the Mounut character returns to the previous level status, Level 1.•Ending: When it has been 100 days since you set up the Mounut character or the level of each bar graph is 20, an ending event happens on your phone. After the ending event, the Mounut character automatically is changed to another one.Note: You can reset the emotion of the Mounut character. On the Status screen, select Options → Reset emotion. When a confirmation message appears, press the OK soft key. After resetting the emotion, the number of each bar is changed to 6.
Personalisation227Viewing the biorhythms of the Mounut character1. On the Mounut main screen, select My Mounuts. You can view the selected Mounut character.2. Select Options → Biorhythm.You can view the biorhythms of the Mounut character. 3. When you are finished, press the Back soft key to exit.Changing Mounut settingsYou can define or edit the general settings of your Mounut system.1. On the Mounut main screen, select Settings.
Personalisation2282. Set the following options:• SMS action: When selected, your phone informs you when an SMS message is delivered with your Mounut character. Also, by adding action emotions to your SMS message, you can control the Mounut character's behaviour on the recipient’s phone. The followings are corresponding emoticons and behaviour; - Happy behaviour: :-), :), :-)), :)) - Sad behaviour: :<, :(, :C, :-((- Angry behaviour: X-(, X(, :-L, :-@- Tired behaviour: (:|, :S, :-&, :ZIf the received SMS message has specified behaviour emoticons, your Mounut character shows the proper behaviour corresponding with the emoticons.• Help: When selected, your phone shows all help information in your phone with the Mounut character.• Emotion: When selected, you can view emotion status of the Mounut character with animation and text, twice a day (11:00~13:00 and 17:00~19:00). • Holiday event: When selected, your phone informs you of the defined holiday, such as May Day, New Year, and Christmas, with the Mounut character.3. When you are finished, press the Back soft key.
Personalisation229PresencePresence (network service) provides you with enhanced communication services that you can share, for example, with your family, friends, and colleagues using compatible devices. You can share your current presence status with those who have access to the service and request the information. The requested information is shown on the subscribed contacts list in Contacts. You can control and personalise the information that you want to share with others, and control the list of persons who can view your presence status.For the availability of the Presence service, contact your network operator or service provider. You need to access the Presence service before you can share your presence status with others. Other viewers need access to the Presence service and a compatible phone to share your presence status.Press to open the Menu, and then select Presence.Logging in to the Presence serviceTo log in to the Presence service, go to Presence and select Options → Login. Enter your user ID and password and press the OK soft key.To disconnect from the service, select Options → Logout.
Personalisation230Viewing the presence of othersGo to Presence and select Public pres. → Options → Viewers → Public to view all of the persons who have subscribed to your presence information. • To add a person to the Private viewers list, scroll to the one you want and select Options → Add to private list.• To block allowing a person to view your presence information, scroll to the one you want and select Options → Block.To view the list of the people who are allowed to view your personalised presence information, from the Presence main screen, select Private pres. → Options → Viewers → Private. To view all of the people you have blocked from viewing your presence information, from the Presence main screen, select Blocked pres. → Options → Viewers → Blocked.Changing your presence informationYou can change your presence status, presence message, and logo to be displayed on the other private viewers’ phones.Go to Presence and select:•Public pres. or Private pres. → Options → My availability to set your availability status to Available (indicated by ), or to Busy (indicated by ), or to Not available (indicated by ).
Personalisation231•Private pres. → Options → Private message to set the text to be shown to others. Select Write message to enter a new message or select Previous messages to select one of the old messages as the status message.•Private pres. → Options → My presence logo → On to personalise an image from the Images folder in Gallery or on the memory card, if you use one. To select the default logo of the availability status, select Off. Settings for PresenceGo to Presence and select Options→ Settings.•Show presence to to select the groups with whom you want to share your presence status. Select Private & public, Private viewers, Public viewers, or No one.•Sync. with Profiles to select whether you want to link your private message and availability setting to Profiles. Note that you cannot link a personalised status logo to a profile. See also "Profiles" on page 216.•Server settings to change the server setting. Note that Presence shares the server with Chat. For details, see "Server settings" on page 153.
23211SettingsYou can change various settings for your phone.Changing the settingsPress to open the Menu, and then select Tools → Settings.1. Select a setting group you want to open.2. Scroll to a setting you want to change and select to • switch between options if there are only two (On/Off).• open a list of options or an editor.• open a slider view. Then press the Right or Left key to increase or decrease the value.Note: You may be able to receive some settings from your service provider in a smart message. See "Receiving smart messages" on page 122.Phone settingsSelect Tools → Settings → Phone to change the general phone settings.
Settings233General•Phone language: You can change the language for the display text of your phone. This change also affects the format used for the date and time and the separators used, for example, in calculations. There are three languages installed on your phone. If you select Automatic, the phone selects the language according to the information on your SIM card. After you have changed the phone language, you must restart the phone.Note: Changing the settings for Phone language or Writing language affects every application in your phone and the change remains effective until you change these settings again.•Writing language: You can change the writing language for writing on your phone. Changing the language affects:- the characters available when you press any key ( to ).- the predictive text dictionary used, and - the special characters that are available when you press and .For example, you are using a phone where the phone language is in English but you want to enter all of your messages to French. After you change the language, the special characters or punctuation marks used in the French language are available when you press and .
Settings234•Dictionary: You can turn the Dictionary on or off for all of the editors in the phone. You can also change this setting when you are in an editor. Press and select Dictionary on, or Dictionary → Insert word or Off.Note: Dictionary is not available for all languages.•Welcome note or logo: The welcome note or logo displays briefly each time you switch on the phone. Select Default if you want to use the default image or animation. Select Text to enter a welcome note (max, 50 letters). Select Image to select an image from Images in Gallery or on the memory card, if you use one.•Orig. phone settings: You can reset some of the settings to their original values. To do this, you need the lock code. See page 250. After resetting the settings, you must restart the phone.•Hotswap by: You can set how you remove the memory card. If you select Latch, you can simply open the card cover and remove the card. If you select Memory card, you need to press and select Extras → Memory → Remove mem. card. You can also press and select Remove mem. card.Note: All documents and files that you have created are left as they are.
Settings235Standby mode•Extend view: You can turn on the extended phone view. When it is on, Standby mode changes to the Extend view and the most recently-accessed applications display so that you can quickly access them. Also, message and scheduler information displays.•Left selection key and Right selection key: You can change the shortcuts that appear over the left and right soft keys in Standby mode. In addition to an application, you can have the shortcut point to a function, for example, New message.Note: You cannot create a shortcut to an application that you have installed.•Left key, Up key, and Right key: You can change the shortcuts assigned to the Left, Right, and Up keys. In Standby mode, you can access specific menu directly using the Navigation keys.Display•Brightness: Use to change the brightness of the main display and external display by pressing the Left or Right key.•Backlight timeout: A backlight illuminates the main display, external display, and the keypad. When you press any key or open the phone, the backlight turns on and remains on for the backlight time-out period. You can select the length of time the backlight is on.
Settings236•Dimming timeout: After the backlight is off, your phone enters Dimming mode and then the display is turns off. Select the length of time the Dimming mode remains on. •Service light: The service light is on the front of the phone, on the left side of the camera. It flashes at regular intervals when services are available on the phone. You can turn this service light feature on or off.External display settingsSelect Tools → Settings → External disp. to configure the settings for the external display.•Clock: You can select a type for the clock to be displayed on the external display.•Cover display msg.: This setting is shown only if you select a Clock type.You can enter the text displayed on the external display.•Wallpaper: This setting is shown only if you select a Clock type.You can select an image from Gallery or the memory card, if you use one, to be used as a background image on the external display.
Settings237Call settingsSelect Tools → Settings → Call to change the call-related settings.•Send my caller ID: This network service allows you to set your phone number to be displayed (Yes) or hidden (No) from the person whom you are calling. Or, the value may be set by your network operator or service provider when you make a subscription (Set by network).•Call waiting: This network service allows the network to notify you of a new incoming call while you have a call in progress. Select Activate to request the network to activate call waiting, Cancel to request the network to deactivate call waiting, or Check status to check if the function is active or not.•Automatic redial: When this setting is activated, your phone makes a maximum of 10 attempts to connect the call after an unsuccessful call attempt. Press to stop automatic redialling.•Summary after call: Activate this setting if you want the phone to briefly display the duration of each call.•Speed dialling: When this setting is activated, the numbers assigned to the speed dialling keys, to , can be dialled by pressing and holding the corresponding key. See also "Assigning speed dialling keys" on page 62.•Connect tone: Select On, and you can hear a tone when your call is connected to the system.
Settings238•Anykey answer: When this setting is activated, you can answer an incoming call by briefly pressing any key, except and .•Active folder: When this setting is activated, you can answer an incoming call by opening the phone.•Msg. alert during call: When this setting is activated, the phone alerts you to a new message during a call.•Side key: Depending on this setting, the phone mutes the call ringer or rejects an incoming call when you press and hold / .•Line in use (network service): This setting is shown only if the SIM card supports two subscriber numbers, that is two phone lines. Select which phone line (line 1 or line 2) you want to use for making calls and sending short messages. Calls on both lines can be answered, irrespective of the selected line.Note: You will not be able to make calls if you select Line 2 and have not subscribed to this network service. To prevent line selection, select Line change → Disable if supported by your SIM card.
Settings239Connection settingsSelect Tools → Settings → Connection to change the connection settings.General information about data connections and access pointsAn access point is the point where your phone connects to the Internet by way of a data call or packet data connection. An access point can be provided, for example, by a commercial Internet service provider for mobile devices, or by a network operator.To define the settings for access points, press to open the Menu, and then select Tools → Settings → Connection → Access points.A data connection is required to connect to an access point. Your phone supports the following data connections:• GSM data call ( ).• Packet data (GPRS) connection ( ).There are three different kinds of access points that you can define: MMS access point, browser access point, and Internet access point (IAP). Check with your service provider for what kind of an access point is needed for the service you wish to access. You need to set access point settings to:• send and receive multimedia messages,• send and receive e-mail,
Settings240•browse pages,• download JavaTM applications,• use image upload, or• use your phone as a modem.Data callsA data call enables data transmission rates to a maximum of 9.6 Kbps. For availability and subscription to data services, contact your network operator or service provider.Minimum settings needed to make a data callTo insert a set of basic data call settings, press to open the Menu, and then select Tools → Settings → Connection → Access points → Options → New access point → Use default settings → Data bearer→ Data call. See "Creating an access point" on page 241 for further information.Packet data (general packet radio service, GPRS)Packet data, or General Packet Radio Service (GPRS), uses packet data technology where information is sent in short bursts of data over the mobile network. The benefit of sending data in packets is that the network is occupied only when sending or receiving data. Because GPRS uses the network efficiently, it allows for quick data connection set up and fast data transmission speeds.
Settings241Minimum settings needed to make a packet data connectionYou need to subscribe to the GPRS service. For availability and subscription to GPRS, contact your network operator or service provider.Press to open the Menu, and then select Tools → Settings → Connection → Access points → Options → New access point → Use default settings→ Data bearer→ GPRS. See "Creating an access point" on page 241 for further information.Pricing for packet data and applicationsBoth the active GPRS connection and the applications used over GPRS require fees, for example, using services, sending and receiving data, and text messages. For more detailed information on fees, contact your network operator or service provider. Access pointsSelect Tools → Settings → Connection → Access points.Creating an access pointYou may have preset access point settings in your mobile phone. Or, you may receive access point settings in a smart message from a service provider. See "Receiving smart messages" on page 122. If there are no access points defined when you open Access points, you are asked if you want to create one.
Settings242If there are access points defined, to create a new access point, select Options → New access point and select:•Use default settings to use the default settings. Make the needed changes and press the Back soft key to save the settings.•Use existing settings to use existing setting information as the basis for the new access point settings. A list of existing access points is opened. Select one. Access point settings are opened with some fields already filled.Fill in the following fields:Notes: • Begin filling in the settings from the top because depending on what data connection you select (Bearer type), only certain setting fields are available.• Follow the instructions given to you by your service provider very carefully.•Connection name: Enter a descriptive name for the connection.•Data bearer: The options are GPRS and Data call. Depending on what data connection you select, only certain setting fields are available. Fill in all fields marked with Must be defined or with a red asterisk. Other fields can be left empty, unless you have been instructed otherwise by your service provider.Note: To be able to use a data connection, the network service provider must support this feature, and if necessary, activate it for your SIM card.
Settings243Tip! Also see "Settings for multimedia messages" on page 137, and "Settings for e-mails" on page 139.•Access point name (for GPRS only): The access point name is needed to establish a connection to the GPRS network. You obtain the access point name from your network operator or service provider.•Dial-up number (for Data call only): The modem telephone number of the access point is needed.•User name: Enter a user name if required by the service provider. The user name may be needed to make a data connection, and is usually provided by the service provider. The user name is often case-sensitive.•Prompt password: If you must enter a new password every time you log on to a server, or if you do not want to save your password to the phone, choose Yes. •Password: A password may be needed to make a data connection, and is usually provided by the service provider. The password is often case-sensitive. When you are entering the password, the characters you enter are shown briefly and then changed to asterisks (*).•Authentication: Choose Normal or Secure.•Homepage: Depending on what you are setting up, enter either: - the service address, or - the address of the multimedia messaging centre.
Settings244•Data call type (for Data call only): Analogue, ISDN v.110, or ISDN v.120 define whether the phone uses an analogue or digital connection. This setting depends on both your GSM network operator and Internet Service Provider (ISP), because some GSM networks do not support certain types of ISDN connections. For details, contact your ISP. If ISDN connections are available, they establish connections more quickly than analogue methods.•Maximum data speed (for Data call only): The options are Automatic, 9600, and 14400, depending on what you have chosen in Data call type.Note: The speeds above represent the maximum speed at which your connection can operate. During any given connection, the operating speed may be less, depending on network conditions.If you select Options → Advanced settings, you can set the following options:•Phone IP address: Enter the IP address of your phone.•Primary name server: Enter the IP address of the primary DNS server. •Second. name server: Enter the IP address of the secondary DNS server.•Proxy serv. address: Enter the IP address of the proxy server.•Proxy port number: Enter the port number of the proxy server.Note: If you need to change the settings above, contact your Internet service provider to obtain these parameters.
Settings245DNS (Domain Name System) is an Internet service that translates domain names, such as www.samsung.com, into IP addresses, like 211.45.27.231.The following settings are shown if you have selected Data call as the connection type:•Use callback: This option allows a server to call you back once you have made the initial call, so that you have a connection without paying for the call. Contact your service provider to subscribe to this service.Notes: • Charges may apply for certain types of received calls, such as roaming calls. Contact your GSM network operator for more information.• The phone expects the callback call to use the same data call settings that were used in the callback - request call. The network must support that type of call in both directions, to and from the phone.•Callback type: Choose Use server no. or Use other no.. Ask your service provider for the correct setting to use. This depends on the service provider’s configuration.•Callback number: Enter your phone’s data phone number for the dial back server to use. Usually, this number is the data call phone number of your phone.
Settings246•Use PPP compression: PPP (Point-to-Point Protocol) is a common networking software protocol that enables any computer with a modem and a phone line to connect directly to the Internet.When set to Yes, this option speeds up the data transfer, if supported by the remote PPP server. If you have problems with establishing a connection, try setting this to No. Contact your service provider for guidance.•Use login script: Choose Yes or No to use the login script.•Login script: Insert the login script.•Modem initialisation (Modem initialisation string): This controls your phone using modem AT commands. If required, enter characters specified by your GSM network service provider or Internet service provider.Editing an access pointWhen you open Access points, the list of already available access points opens. Select the access point you want to edit.Deleting an access pointOn the list of access points, scroll to the access point you want to remove and select Options → Delete.GPRSThe packet data settings affect all access points using a packet data connection.Select Tools → Settings → Connection → GPRS.
Settings247•GPRS connection: If you select When available and you are in a network that supports packet data, the phone registers to the GPRS network and sending text messages is done via GPRS. Also, starting an active packet data connection, for example, to send and receive e-mail, is quicker. If you select When needed, the phone uses a packet data connection only if you start an application or action that needs it. The GPRS connection is closed once it is not used by any application.Note: If there is no GPRS coverage and you have chosen When available, the phone periodically tries to establish a packet data connection.•Access point: The access point name is needed when you want to use your phone as a packet data modem for your computer. For more information on modem connections, see the User’s Guide for the Internet Access programme included on the supplied Software CD-ROM.Data callThe data call settings affect all access points using a data call. Select Tools → Settings → Connection → Data call.Online time: If there are no actions, the data call is dropped automatically after a time-out period. The options are User defined, in which case you enter a time, or Unlimited.
Settings248ConfigurationsYou may receive configuration parameters for network settings by message from your service provider so that you can apply the parameters simply by opening the message. A configuration message can contain the settings for the web browser, chat, multimedia messages, and streaming video services. In this menu, you can access configuration messages you have received.Select Tools → Settings → Connection → Configurations.Select the configuration message you want to open. To apply the configuration to the corresponding menu, select Options → Save.Note: For opening some messages, you may need to enter the PIN code.Date and time settingsThe date and time settings allow you to define the date and time used on your phone, as well as change the date and time format and separators. Select Tools → Settings → Date and time.In addition, the following options are available:•Clock type: Choose Analogue or Digital to change the clock shown in Standby mode.•Autopower: When this option is On, set alarms ring at the specified time, even if the phone is switched off.
Settings249•Auto time update: Choose if you want the mobile phone network to update time, date, and time zone information to your phone (network service). Note: For the Auto time update setting to take effect, the phone needs to be restarted.•Daylight-saving: Turn on or off Daylight Savings Time.Security settingsSelect Tools → Settings → Security.Phone and SIMExplanations for the different security codes that may be needed:•PIN code (4 to 8 digits): The PIN (Personal Identification Number) code protects your SIM card against unauthorised use. The PIN code is usually supplied with the SIM card.After 3 consecutive incorrect PIN code entries, the PIN code is blocked. If the PIN code is blocked, you need to unblock the PIN code before you can use the SIM card again. See the information about the PUK (PIN Unblocking Key) code.•PIN2 code (4 to 8 digits): The PIN2 code, supplied with some SIM cards, is required to access some functions, such as call cost counters.
Settings250•Lock code (4 to 8 digits): The security code can be used to lock the phone and keypad to avoid unauthorised use.Note: The factory setting for the lock code is 00000000. To avoid unauthorised use of your phone, change the lock code. Keep the new code secret and in a safe place separate from your phone.•PUK and PUK2 codes (8 digits): The PUK (PIN Unblocking Key) code is required to change a blocked PIN code. The PUK2 code is required to change a blocked PIN2 code. If the codes are not supplied with the SIM card, contact the operator whose SIM card is in your phone for the codes.You can change the following codes in the Phone and SIM menu: lock code, PIN code, and PIN2 code. These codes can only include numbers from 0 to 9.Note: Avoid using access codes similar to emergency numbers, such as 112, to prevent accidental dialling of the emergency number.•PIN code request: When the PIN code request is active, the code is requested each time the phone is switched on. Note that deactivating the PIN code request may not be allowed by some SIM cards.•PIN code/PIN2 code/Lock code: Open these settings if you want to change the codes.
Settings251•Autolock period: You can set an autolock period, a time-out after which the phone is automatically locked and can be used only if the correct lock code is entered. Select the length of the time-out from 15 sec, 30 sec, 1 min, and 2 min, or None to turn off the autolock period.Notes: • When the phone is locked, you may be able to call the emergency number programmed into your phone (e.g., 112 or other official emergency numbers).• To lock the phone manually, press . From the list of commands, select Lock phone.To unlock the phone, in Standby mode, press the Unlock soft key, enter the lock code, and press the OK soft key.•Lock if SIM changed: Select Yes if you want the phone to ask for the lock code when an unknown, new SIM card is inserted into your phone. The phone maintains a list of SIM cards that are recognised as the owner’s cards.•Fixed dialling: You can restrict your outgoing calls to a limited set of phone numbers, if supported by your SIM card. You need the PIN2 code for this function. When this function is active, you can only call those phone numbers that are included on the fixed dialling list.To activate the Fixed dialling feature, select Options → Activ. fixed dialling.To add new numbers to the Fixed dialling contacts list, select Options → New contact or Add from Contacts.
Settings252Note: When Fixed dialling is activated, calls may be possible to certain emergency numbers in some networks (e.g., 112 or other official emergency numbers).•Closed user group (network service): You can specify a group of people whom you can call and who can call you. For more information, contact your network operator or service provider. Select Default to activate the default group agreed on with the network operator, On if you want to use another group (you need to know the group index number), or Off.Note: When calls are limited to Closed user groups, calls may be possible to certain emergency numbers in some networks (e.g., 112 or other official emergency numbers).•Confirm SIM services (network service): This allows you to set the phone to display confirmation messages when you are using a SIM card service.Certificate managementIn the Certificate management main view, you can see a list of authority certificates that have been stored in your phone. Press the Right key to see a list of personal certificates, if available.Authority certificates are used by some services, such as banking services, for checking signature or server certificates or other authority certificates.Digital certificates are used to verify the origin of browser pages and installed software. However, they can only be trusted if the origin of the certificate is known to be authentic.
Settings253User certificates are issued to users by a Certifying Authority.Digital certificates are needed if you:• want to connect to an online bank or another site or remote server for actions that involve transferring confidential information, or• want to minimise the risk of viruses or other malicious software, and be sure of the authenticity of software when downloading and installing software.Important: Note, however, that even if the use of certificates makes the risks involved in remote connections and software installation considerably smaller, they must be used correctly in order for you to benefit from increased security. The existence of a certificate does not offer any protection by itself; the certificate manager must contain correct, authentic, or trusted certificates for increased security to be available.Viewing certificate details - checking authenticityYou can only be sure of the correct identity of a browser gateway or a server when the signature and the period of validity of a browser gateway or server certificate have been checked.You will be notified on the phone’s display:• if the identity of the browser server or gateway is not authentic or• if you do not have the correct security certificate in your phone.
Settings254To check certificate details, scroll to a certificate and press or select Options → Certificate details. The details include the following entries: Label, Issuer, Subject, Validity period, Certificate format, Algorithm, Serial number, and Fingerprint.Changing the trust settings of an authority certificateScroll to an authority certificate and select Options → Trust settings. Depending on the certificate, a list of the applications that can use the selected certificate is shown. For example:•Symbian installation: The certificate is able to certify installation of native applications running on Symbian OS, which have an SIS extension.•Internet: The certificate is able to certify Internet servers.•App. installation: The certificate is able to certify installation of any other add-on applications.Important: Before changing these settings, you must make sure that you really trust the owner of the certificate and that the certificate really belongs to the listed owner.
Settings255Call diverting settingsCall diverting is a network service that allows you to direct your incoming calls to another number, for example, to your voicemail server number. For details, contact your service provider.1. Select Tools → Settings → Call divert.2. Scroll to one of the following diverting options.• All voice calls: all calls are diverted.• If busy: calls are diverted when you are already on another call.• If not answered: calls are diverted when you do not answer the phone.• If out of reach: calls are diverted when your phone is out of a service area.• If not available: calls are diverted when your phone is turned off.• All fax calls: all fax calls are diverted.• All data calls: all data calls are diverted. 3. Select Options → Activate to activate the divert setting. Or, select Cancel to deactivate the divert setting or Cancel all diverts to cancel all active divert settings.To check whether or not diverting is activated, select Check status.
Settings2564. If you select Activate, select where you want to divert your calls to; your voicemail server number or to another number.5. Enter your voicemail server number or the phone number you want and press the OK soft key. The phone sends your setting to the network.Call barring settingsCall barring is a network service that allows you to restrict the making and receiving of calls with your phone. For this function, you need the barring password, which you can obtain from your service provider.1. Select Tools → Settings → Call barring.2. Scroll to one of the following barring options.• Outgoing calls: calls cannot be made.• International calls: international calls cannot be made.• International calls except to home ctry.: When abroad, calls can be made only to numbers within the current country and to your home country, which is the country where your home network provider is located.• Incoming calls: calls cannot be received.
Settings257• Incoming calls when abroad: calls cannot be received when you are using your phone outside of your home country.3. Select Options → Activate to request the network to activate call barring, Cancel to deactivate the selected call barring, or Check status to check if calls are barred or not.• Select Options → Edit barrings passw. to change the barring password.• Select Options → Cancel all barrings to cancel all active call barrings.4. Enter the barring password and press the OK soft key.The phone sends your setting to the network.Notes:• When calls are barred, calls may be possible to certain emergency numbers in some networks (e.g., 112 or other official emergency numbers).• Call barring affects all calls, including data calls.• You cannot have barring of incoming calls and Call diverting or Fixed dialling active at the same time.
Settings258Network settingsSelect Tools → Settings → Network.•Operator selection: Choose Automatic to set the phone to automatically search for and select one of the cellular networks available in your area, or choose Manual, if you want to select the desired network manually from a list of networks. When the connection to a manually selected network is lost, the phone sounds an error tone and asks you to select a network again. The selected network must have a roaming agreement with your home network, that is, the operator whose SIM card is in your phone.Tip: A roaming agreement is an agreement between two or more network service providers to enable the users of one service provider to use the services of other service providers.•Cell info display: Select On to set the phone to indicate when it is used in a cellular network based on Micro Cellular Network (MCN) technology and to activate the reception of cell information.•Band selection: You can use your phone in any of the following networks: GSM 900, GSM 1800, and GSM 1900. To use a network dependant feature, or when you travel abroad, you may need to change the band.
Settings259Enhancement settingsYou can change the headset or hands-free settings.Select Tools → Settings → Enhancement → Headset or Handsfree.Then select:•Default profile to select the profile you want to be activated each time when you connect the headset to your phone or your phone is used as the hands-free. See "Profiles" on page 216.•Automatic answer to set the phone to answer an incoming call automatically after five seconds when you connect the headset to your phone or your phone is used as the hands-free. If Ring type is set to Beep once or Silent, Automatic anwser cannot be used, and you must answer the phone manually.
26012ManagersThis chapter gives you information about using manager applications to allow you to manage multimedia files, add-on applications, and your device.File managerIn File manager, you can browse, open, and manage files and folders in the phone’s memory or on the memory card, if you use one.Press to open the Menu, and then select Tools → File mgr..Open File manager to see a list of the folders in the phone memory. Press the Right key to see the folders on the memory card, if you use one.You can browse, open, and create folders, mark, copy, and move items to folders. See "Actions common to all applications" on page 34.Viewing memory consumptionIf you have a memory card installed on your phone, you will have a choice of two memory views, one for the phone memory and one for the memory card.1. Press the Left or Right key to move from one memory tab to another.2. To check memory consumption for the current memory, select Options → Memory details.
Managers261The phone calculates the approximate amount of memory currently in use and free memory for storing data and installing new applications.In the memory views, you can view the memory consumption of the different data groups: Calendar, Contacts, Documents, Images, Sound files, Video clips, Messages, and Applications.Note: If the phone’s memory capacity is getting low, remove some files, or move them to the memory card, if you use one, or to your computer by using PC Suite. Application managerIn Manager, you can install new Symbian operating system applications (SIS files) and Java™ applications. You can also update and uninstall applications from the phone, and monitor installation history.Press to open the Menu, and then select Tools → Manager.When you open Manager, you can see a list of:• installation packages that have been saved to the phone’s memory (indicated by ),• partially installed applications, and • fully installed applications that you can remove.
Managers262Notes: • You can only use Symbian operating system applications with an SIS extension.• Your phone supports J2ME™ Java applications. Do not download PersonalJava™ applications to your phone as they cannot be installed.General information for installing applicationsYou can install applications that are specifically intended for this phone and suitable for the Symbian operating system.Note: If you install an application that is not intended specifically for this phone, it may function and look different from what was originally intended.Applications may be downloaded to your phone during browsing, received as attachments in multimedia messages or e-mails, or received via Bluetooth from another compatible device, for example, a phone or a computer. If you are using PC Suite to transfer an application, place it in the Installed files folder in File manager.Important: Only install software from sources that offer adequate protection against viruses and other harmful software.
Managers263To increase protection, the application installation system uses digital signatures and certificates for applications. Do not install the application if Application manager gives a security warning during installation.Important: If you install an application that contains an update or repair to an existing application, you can only restore the original application if you have the original application or a full back-up copy of the removed application. To restore the original application, first remove the updated or repaired application and then install again from the original application or the back-up copy.During installation, the phone checks the integrity of the application to be installed. The phone shows information about the checks being carried out and you are given options whether to continue or cancel the installation. Once the phone has checked the integrity of the application, it is installed on your phone.Installing applicationsOpen Manager, scroll to an application installation package, and select Options → Install to start the installation. Alternatively, search the phone’s memory or the memory card, select an application. The installation starts.
Managers264Some applications may give the option of partial installation, allowing you to select the particular components of the application that you want to install. If you are installing an application without a digital signature or a certificate, the phone warns you of the risks. Continue the installation only if you are absolutely sure of the origin and contents of the application.Installing Java™ applicationsThe .JAD/JAR file is required for installation. If you have .JAD/JAR files, you can directly install by selecting .JAD/JAR files in the File manager or Application manager. If it has been removed from the phone, you can download files from push messages or web page of various contents supplier, manufacture, and operator. If there is no access point defined for Application manager, you will be asked to select one. When you are downloading the .JAR file, you may need to enter a user name and password to access the server. You obtain these from the supplier or manufacturer of the application.Java settingsTo change the security settings that determine the actions that a Java application is permitted to do, select Options → Settings.Note: Not all Java applications permit you to change the security settings.
Managers265Removing applications1. Scroll to an application and select Options → Remove.2. Press the Yes soft key.If you remove an application, you can re-install it only when you have the original application or a full backup of the removed application. Once you have removed an application, you may no longer be able to open documents created with that application. If another application depends on the application that you removed, the other application may stop working. Refer to the documentation of the installed application for details.Note: To send your installation log to a help desk so that they can see what has been installed or removed, select Options → Send log → Via text message or Via e-mail (available only if the correct e-mail settings are in place).
Managers266Device managerDevice manager allows a third party, such as your service provider, to assist you directly with phone settings. To allow device management, your phone must establish a connection and synchronise with the third party’s server. You can start a configuration session from your phone, and you can accept or reject server-initiated synchronisation attempts. This feature is operator dependent and may not be available on all phones. Contact your service provider for information and availability.Press to open the Menu, and then select Tools → Dev. mgr..Creating a new profile A device manager profile must be defined before you are connected to a server. The third party who is assisting you can help define the profile settingsWhen you open Device manager, you are asked if you want to create a new server profile. Press the Yes soft key. You can set up the following options:•Server name: Device manager server name. •Server ID: Remote device manager server ID. •Server password: Password used in server alerts. Enter the password that must be provided by the device manager server when synchronising with your phone.
Managers267•Access point: Internet access point your phone uses to establish the server connection. Choose from the list of access points defined in your phone.•Host address: Device management server URL.•Port: Device management server port.•User name: Your user name for this profile.•Password: Your password for this profile.•Allow configuration: Device management allowed on this server, select Yes or No.•Auto-accept all reqs.: Automatic or approved device management on this server. Select Yes to allow synchronisation without your verification, or select No to verify each synchronisation attempt.To add a new profile, from the Device manager main screen, select Options → New server profile.Starting a configuration To start a configuration session, select Options → Start configuration. To disable or enable configurations from the server, select Options → Disable config./Enable config..
26813ConnectivityYou can transfer data from your phone to a compatible device, for example, a phone or computer, via Bluetooth or a PC data link cable.Bluetooth connectionsBluetooth is a short-range wireless communications technology. Devices with Bluetooth capabilities can exchange data over a distance of about 10 meters (30 feet) without requiring a physical connection.Using Bluetooth, you can send or receive data, such as business cards and calendar notes, to and from devices.Notes: • Some devices may not be compatible with your phone.• If there are obstacles between the devices, the maximum operating distance may be reduced. Setting up BluetoothTo use a Bluetooth connection, press to open the Menu, and then select Connect.→ Bluetooth. You are asked to give a name to your phone, if you don’t change the default name.You can access various Bluetooth functions. The following options are available:•Bluetooth: Activate or deactivate the Bluetooth feature. When this option is set to On, the Bluetooth icon appears in Standby mode.
Connectivity269•My phone’s visibility: Select Shown to all to allow other Bluetooth devices to search for your phone or select Hidden to set your phone to be hidden from other Bluetooth devices.•My phone’s name: Change your phone’s Bluetooth device name, which is displayed on other devices. The name can be up to 30 characters.Searching for and pairing with a Bluetooth device1. On the Bluetooth screen, press the Right key to move to the Paired devices screen.2. Select Options → New paired device to search for a new device.If you have searched for devices before, the phone displays the More devices option above the devices you have searched for previously. To search for new devices, select More devices.If you want to stop searching, press the Stop soft key.3. Select a device with which to connect.After searching for connectable devices, a list of devices you can connect to displays. The following icons on the left of the devices indicates the type of device it is:• : for a mobile phone• : for a Bluetooth device• : for a computer• : for a headset, hands-free and car kit
Connectivity2704. Enter a Bluetooth PIN and press the OK soft key. This code is used just once and you don’t need to memorise it.When the owner of the other device enters the same code, pairing is complete.Note: Pairing means authentication. The users of Bluetooth-enabled devices must agree on the Bluetooth PIN, and use the same code for both devices in order to pair them. Some devices, especially headsets, hands-free and car kits, may have a fixed Bluetooth PIN, such as 0000. If the other device has one, you must enter the code.When the pairing is complete, you are asked to set the device to be authorised. Press the Yes soft key to confirm, or the No soft key.Using device optionsWhen you press the Options soft key on the Paired devices screen, you can access the following options from the device list:•New paired device to search for other devices to pair with. •Connect/Disconnect: to connect the headset, hands-free and car kit to your phone, or end the connection.•Assign short name to assign a short name to a device.
Connectivity271•Set as authorised/Set as unauthorised to set whether or not the phone asks you to permit connection when specific devices try to connect to your phone. If you set a device as authorised, the icon is added next the device on the Paired devices list.•Delete to delete the device.•Delete all to delete all devices.Receiving data via BluetoothBefore receiving data, make sure that your phone’s Bluetooth feature is active. When receiving data via Bluetooth, you are asked if you want to accept the data. If you accept it, the item is placed in the Inbox folder in Messaging. Messages received via Bluetooth are indicated by or , depending on the message type. See page 119.Sending data via Bluetooth1. Make sure that the Bluetooth feature is active.2. Locate the item you want to send in an application, such as Calendar, Contacts, Camera, Camcorder, or File Manager.3. Scroll to the item. 4. Select Options → Send → Via Bluetooth.If the device to which you want to send does not appear on the list, search for and pair with the device by proceeding from step 2 on page 269.
Connectivity272The phone searches for devices within range and displays a list of available devices. Paired devices are shown with .5. Select the device from the list.6. If necessary, enter your PIN and press the OK soft key.The item is sent to the device you selected.PC SuiteFor further information on how to make a connection to a compatible computer via the Bluetooth device or using a PC data link cable, and how to install the PC Suite for the Samsung SGH-D730, see the PC Suite Install Remove Manual on the CD-ROM. You can find it in the “Software for PC” section. For further information on how to use the PC Suite for the Samsung SGH-D730, see the PC Suite online help.Installing PC Suite1. Insert the PC Link CD into the CD-ROM drive of your compatible computer.The CD-ROM should launch itself. If not, proceed as follows:a. Click the Start button on the Windowns and select Programs → Windows Explorer.b. On the CD-ROM drive, locate a file named Setup and double-click it. The CD-ROM interface opens.
Connectivity2732. Double-click PC Suite for Samsung SGH-D730 in the “Software for PC” section. 3. Follow the instructions on the installation wizard screen.The wizard will guide you through the installation process.System requirementTo install and run the Samsung PC Suite application on your PC, you need the following:• Windows 2000/XP.• at least 150 MB of free disk space.To connect your phone and a compatible PC, you need one of the following connection sets:•an infrared port.• a USB cable (PC Data Link Cable) and USB port.To access Bluetooth devices from a compatible PC, you need one of the following Bluetooth stacks on your PC:• Microsoft Windows XP Bluetooth.• WIDCOMM Bluetooth for Windows 2000/XP (BTW 1.4.x, BTW 3.x.x.x).• Toshiba Bluetooth Stack for Windows 2000/XP.• IVT Bluetooth Stack for Windows 2000/XP.To synchronise Bluetooth devices with a compatible PC, you need the following Bluetooth stack on your PC.• WIDCOMM Bluetooth for Windows 2000/XP (BTW 1.4.x, BTW 3.x.x.x).
Connectivity274Remote synchronisationThe Sync application enables you to synchronise your calendar, notes, or contacts with various calendar and address book applications with other devices via Bluetooth, or on the Internet. Synchronisation takes place over a GSM data call or packet data connection.Sync uses SyncML technology for synchronisation. For information on SyncML compatibility, please contact the supplier of the calendar, notes, or address book application with which you want to synchronise your phone data.Press to open the Menu, and then select Connect. → Sync.Creating a new synchronisation profile1. If no profiles have been defined, the phone asks you if you want to create a new profile. Select Yes.To create a new profile in addition to existing ones, select Options → New sync profile. Choose whether you want to use the default setting values or copy the values from an existing profile to be used as the basis for the new profile.2. Define the following:• Sync profile name: Enter a name for the profile.• Data bearer: Select Web to synchronise with a server on the Internet. Select Bluetooth to synchronise with a Bluetooth device. Depending on what synchronisation method you select, only certain setting fields are available.
Connectivity275• Access point (for Web only): Select the access point you want to use for the data connection.• Host address: Enter the URL address of the server on the Internet. Contact your service provider or system administrator for the correct values.• Port (for Web only): Enter the port number of the server. Contact your service provider or system administrator for the correct values.• User name: Enter your user ID for the synchronisation server. Contact your service provider or system administrator for your correct ID.• Password: Enter your password. Contact your service provider or system administrator for the correct password.• Allow sync requests: You can set whether or not you accept synchronisation request received from this server. • Accept all sync reqs.: You can set whether or not your phone ask for your confirmation before accepting synchronisation from this server.3. Press the Right key and define which applications will be synchronised, Contacts, Calendar, and/or Notes.4. Enter a correct path to the remote database of the selected application on the server and select the direction of synchronisation.5. Press the Back soft key twice to save the settings.
Connectivity276Synchronising dataIn the Sync main view, you can see the different profiles, and what kind of data will be synchronised: Calendar, Contacts, Notes, or all.Synchronising data with a server1. In the Sync main view, scroll to a profile and select Options → Synchronise. The status of the synchronisation is shown at the bottom of the screen.To cancel synchronisation before it has finished, press the Cancel soft key.2. You are notified when the synchronisation has been completed.After synchronisation is complete, select Options → View log to open a log file showing the synchronisation status (complete or incomplete) and how many calendar, notes, or contact entries have been added, updated, deleted, or discarded (if not synchronised) in the phone or on the server.Synchronising data via Bluetooth1. In the Sync main view, scroll to a profile and select Options → Synchronise.2. The phone searches for devices within range and displays a list of available devices. Paired devices are shown with .If you have searched for devices before, the phone displays the More devices option above the devices you have searched for previously. To search for new devices, select More devices.If you want to stop searching, press the Stop soft key.
Connectivity2773. Select a device with which you want to synchronise. The status of the synchronisation is shown at the bottom of the screen.To cancel synchronisation before it has finished, press the Cancel soft key.Connection managerIn Connection manager, you can identify the status of multiple data connections, view details on the amount of data sent and received, and end unused connections.Press to open the Menu, and then select Connect. → Conn. mgr..Note: You can view details of data connections only. Voice calls are not listed. When you open Connection manager, you will see a list of: • open data connections, - Data call, - GPRS• the status of each connection, or• the amount of data uploaded and downloaded for each connection or• the duration of each connection.Note: The actual time invoiced for calls by your service provider may vary, depending upon network features, rounding-off for billing, and so forth.
Connectivity278Viewing connection detailsTo view the details of a connection, scroll to a connection and select Options → Details. The following is displayed:•Name: the name of the Internet access point (IAP) in use, or Modem connection if the connection is a dial-up connection.•Bearer: the type of data connection; Data call or GPRS.•Status: the current status of the connection.•Received: the amount of data, in bytes, received by the phone.•Sent - the amount of data, in bytes, sent from the phone.•Duration: the length of time that the connection has been open.•Speed: the current speed of both sending and receiving data in kB/s (kilobytes per second).•Dial-up (Data call): the dial-up number used, or Name (GPRS) - the access point name used.•Shared (not shown if the connection is not shared): the number of applications using the same connection.Ending connectionsScroll to a connection and select Options → Disconnect to end that connection only. Press the Yes soft key to confirm.
279Appendix A: TroubleshootingGeneral problems“Insert SIM card” displays• Check that the SIM card has been correctly installed.“No network coverage,” “Unable to connect. No network coverage.” or “Message sending failed” displays• The network connection has been lost. You may be in a weak signal area (in a tunnel or surrounded by buildings). Move and try again.• You are trying to access an option for which you have not taken out a subscription with your service provider. Contact the service provider for further details.The bars above disappear • If you have just turned on your phone, wait about 2 minutes, until your phone finds the network and receives a signal from the network.• If you are in a tunnel or in an elevator, the phone may not be able to receive the network signal properly. Move to an open place. • This may appear when you move between different service areas. It is normal.
Troubleshooting280The display is not clear• In direct sunlight, you may not see the display clearly. Moving to a place with different lighting should solve this problem.White lines appear on the display• This may happen if you turn on the phone after a long period of disuse, or after removing the battery without turning off the phone. This is not related to the phone’s life or performance. The display should correct itself shortly.“Locked” displays • The automatic locking feature has been enabled. You must press the Unlock soft key and enter the lock code before you can use the phone. To disable this feature, go to Tools → Settings → Security → Phone and SIM and set Autolock period to None.“PIN code” appears• You are using your phone for the first time. You must enter the Personal Identification Number (PIN) supplied with the SIM card.• The PIN check feature has been enabled. Each time the phone is switched on, the PIN has to be entered. To disable this feature, go to Tools → Settings → Security → Phone and SIM and set PIN code request to Off.
Troubleshooting281“PUK code” appears• The PIN code was entered incorrectly three times in succession and the phone is now blocked. Enter the PUK supplied by your service provider.I forgot the lock, PIN, or PUK codes• The default lock code is 00000000. If you forget or lose the lock code, contact your phone dealer. If you forget or lose a PIN or PUK code, or if you have not received such a code, contact your network provider. For information about passwords, contact your access point provider, for example, a commercial Internet Service Provider (ISP), service provider, or network operator.Call problemsI have entered a number but it was not dialled• Have you pressed ?• Check if your wireless connection to your mobile service provider is switched on and the signal from the GSM network is unobstructed.• You may have set an outgoing call barring option.My correspondent cannot reach me• Is your phone switched on?• Check if your wireless connection to your mobile service provider is switched on and the signal from the GSM network is unobstructed.
Troubleshooting282• You may have set an incoming call barring option.My correspondent cannot hear me speaking• Have you switched off the microphone?• Are you holding the phone close enough to your mouth? The microphone is located at the bottom of the phone.The audio quality of the call is poor• Adjust the voice volume by pressing .• Check the signal strength indicator on the display ( ); the number of bars indicates the signal strength, from strong to weak.• Try moving the phone slightly or moving closer to a window if you are in a building.Calls to and from the phone are not connected properly, and are easily disconnected.• Signals from the network are weak. Move to another area.• Touching the antenna may lower the call quality. Be careful not to touch the antenna while using the phone.Power and charging problems"Battery low" appears on the display• Your battery is insufficiently charged. Recharge the battery.
Troubleshooting283While charging, the LED on the travel charger blinks• Disconnect the phone from the travel charger, remove the battery, and then replace it. Try charging again.• If the problem persists, clean the metal contacts on the battery and the phone.• If the actions above do not clear the problem, contact a Samsung service representative.The phone malfunctions or does not function• Remove the battery and then replace it. Turn on the phone. If the problem persists, contact a Samsung service representative.The LED on the travel charger turns to yellow• The travel charger is overheated. Disconnect the charger from the phone or unplug it from the power outlet. Wait until the charger cools down and then recharge the phone.The battery’s standby time is shorter than expected• Batteries are subject to wear and tear. Standby time may grow shorter as time passes.• Leaving the fully charged battery in a cold or hot place for a long period of time may reduce battery life.• Standby time depends on where you use the phone. The actual time may differ from the battery’s specifications.
Troubleshooting284Is it OK if I leave the phone connected to the power outlet after it is fully charged (indicated by the green LED on the charger is on)• We recommend that you disconnect the phone from the charger or unplug the charger from the power outlet.The phone becomes hot• This may happen when you are on the phone or when you use applications, such as games, the Internet, or the camera, because the phone needs more power at those times. This does not affect the phone’s life and performance.The battery level seem sufficient, but the phone does not turn on• Remove the battery from the phone and reinstall it. Then turn on the phone.• Clean the metal contacts both on the battery and on the phone. Reinstall the battery and turn on the phone.The phone turns off when the charger is connected• Some dust on the contacts may cause unexpected power-off or charging problems. Clean the metal contacts both on the battery and on the phone.
Troubleshooting285Application problems“Not enough memory to perform operation. Delete some data first.” or “Memory low. Delete some data.” displays• To view what kind of data you have and how much memory the different data groups consume, go to Tools → File manager and select Options → Memory details. Delete old items from applications. If necessary, make a backup copy of your data using PC Suite or the memory card.Browser“No valid access point defined. Define one in Services settings.” displays• Insert proper browser settings. Contact your service provider for instructions.The phone is unable to connect to the Internet• Check if you have set up and are connected to an Internet service provider.• Check if your wireless connection to your mobile service provider is switched on and the signal from the GPRS network is unobstructed.• Verify with your service provider that your user name and password are correct.• Verify with your Internet service provider that the network you are trying to connect is available, or try to connect it from another PC.
Troubleshooting286Calendar - Week numbers are missing• If you have changed the Calendar settings so that the week starts on a day other than Monday, the week numbers will not be shown.Camera - Images seem smudged• Check that the camera lens protection window is clean.Contacts - No number is dialled when you recall a contact card• Check that a number has been stored in the contact card.• Re-store the number, if necessary.BluetoothI cannot end a Bluetooth connection• If another device is connected to your phone, you can either end the connection using the other device or by deactivating Bluetooth. Go to Bluetooth and select the setting Bluetooth → Off.I cannot find my friends Bluetooth-enabled device• Check that both have activated Bluetooth. • Check that the distance between the two devices is not over 10 metres or that there are no walls or other obstructions between the devices.• Check that the other device is not in Hidden mode.• Check that both devices are compatible.
Troubleshooting287Log- The log appears empty• You may have activated a filter, and no communication events fitting that filter have been logged. To see all events, select Options → Filter → All communication.Messaging - I cannot select a contact card when creating a message•If the contact card does not have a phone number or e-mail address, you cannot select it. Add the missing information to the contact card in Contacts.PC connectivity- Problems occur when connecting the phone to a PC.• Make sure that PC Suite is installed and running on your PC. See the User’s Guide for PC Suite on the CD-ROM. For further information on how to use PC Suite, see the help function on PC Suite or visit www.samsungmobile.com.Application does not respond• Open the application switching window by pressing and holding . Then scroll to the application and press to close the application. Open it again.If the above guidelines do not help you to solve the problem, take note of:• the model and serial numbers of your phone• your warranty details• a clear description of the problemThen contact your local dealer or Samsung after-sales service.

Navigation menu
