Users Manual
SGH-D988
user manual
2008.
4.23
ii
using this
manual
This user manual has been specially designed to
guide you through the functions and features of your
mobile phone. To get started quickly,
refer to “introducing your mobile phone,”
“assembling and preparing your mobile phone,”
and “using basic functions.”
Instructional icons
Before you start, familiarise yourself with the icons
you will see in this manual:
Warning
—situations that could cause
injury to yourself or others
Caution
—situations that could cause
damage to your phone or other
equipment
Note
—notes, usage tips, or additional
information
X
Refer to
—pages with related information;
for example:
X
p.12 (represents “see
page 12”)
using this manual
iii
Copyright information
Rights to all technologies and products that
comprise this device are the property of their
respective owners:
• Bluetooth® is a registered trademark of the
Bluetooth SIG, Inc. worldwide—Bluetooth QD ID:
B0XXXXX.
• Java™ is a trademark of Sun Microsystems, Inc.
→
Followed by
—the order of options or
menus you must select to perform a step;
for example: Tap → Messages →
Create new message (represents ,
followed by Messages, followed by
Create new message)
[ ]
Square brackets
—phone keys; for
example: [ ] (represents the Power/
Menu exit key)
iv
contents
Health and safety information 2
introducing your mobile phone 33
Unpack .....................................................33
Phone layout .............................................34
Keys .........................................................35
Display ......................................................35
Quick access icons in Idle mode ...............36
Icons .........................................................36
Stylus and touch screen ...........................37
assembling and preparing your mobile
phone 39

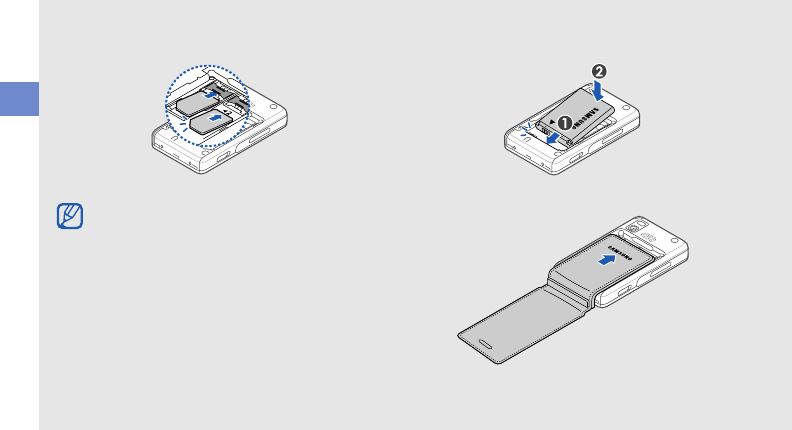

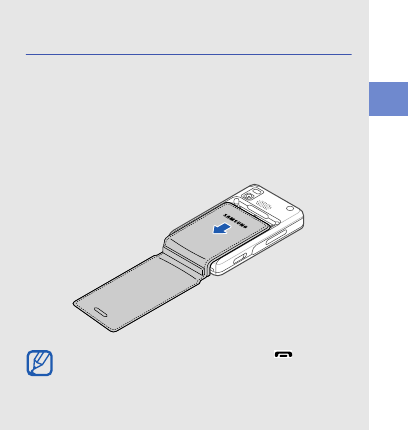

Install the SIM card and battery ................. 39

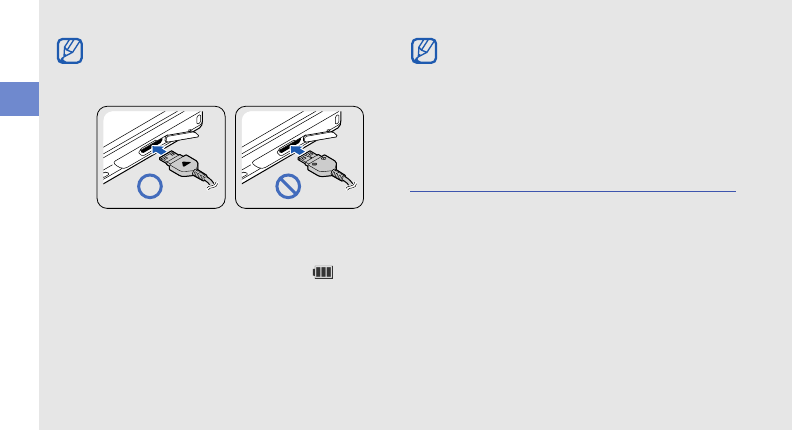

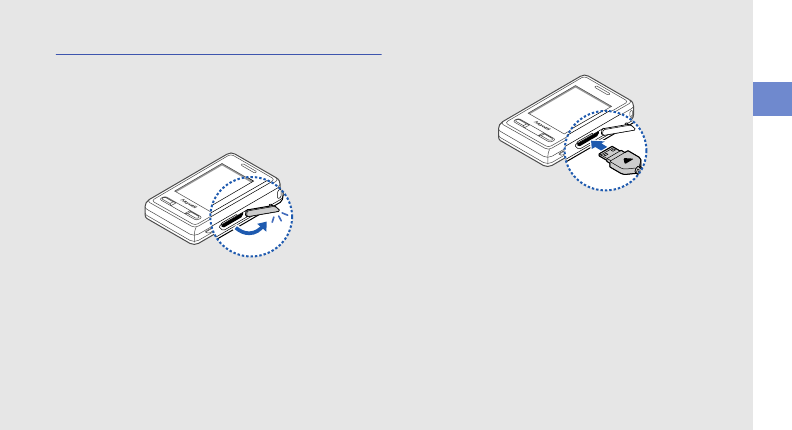

Charge the battery ....................................41
Insert a memory card (optional) .................42
using basic functions 44
Turn your phone on and off .......................44
contents
v
Access menus .......................................... 45
Customise your phone .............................. 45
Use basic call functions ............................ 47
Send and view messages ......................... 48
Add and find contacts ............................... 52
Use basic camera functions ...................... 52
Listen to music .........................................53
Browse the web ........................................55
using advanced functions 56
Use advanced call functions ..................... 56
Use advanced Phonebook functions ......... 58
Use advanced messaging functions .......... 59
Use advanced music functions ................. 60
using tools and applications 62
Use China Mobile services ........................62
Use the Bluetooth wireless feature ............ 64
Activate and send an SOS message .........65
Record and play voice memos .................. 66
Edit images ...............................................67
Use Java-powered games and
applications .............................................. 68
View world clocks ..................................... 69
Set and use alarms ................................... 70
Use the calculator .....................................70
Convert currencies or measurements ....... 71
Set a countdown timer ............................. 71
Use the stopwatch ....................................71
Look up words in a dictionary ...................71
Create a text memo .................................. 72
Create and view sketches ......................... 72
Manage your calendar .............................. 73
troubleshooting a
2
Health and
safety
information
Exposure to Radio Frequency (RF)
Signals
Certification Information (SAR)
Your wireless phone is a radio transmitter and
receiver. It is designed and manufactured not to
exceed the exposure limits for radio frequency (RF)
energy set by the Federal Communications
Commission (FCC) of the U.S. government. These
FCC exposure limits are derived from the
recommendations of two expert organizations, the
National Counsel on Radiation Protection and
Measurement (NCRP) and the Institute of Electrical
and Electronics Engineers (IEEE). In both cases, the
recommendations were developed by scientific and
engineering experts drawn from industry,
government, and academia after extensive reviews
of the scientific literature related to the biological
effects of RF energy.
The exposure limit set by the FCC for wireless
mobile phones employs a unit of measurement
known as the Specific Absorption Rate (SAR). The
Health and safety information
3
SAR is a measure of the rate of absorption of RF
energy by the human body expressed in units of
watts per kilogram (W/kg). The FCC requires
wireless phones to comply with a safety limit of 1.6
watts per kilogram (1.6 W/kg). The FCC exposure
limit incorporates a substantial margin of safety to
give additional protection to the public and to
account for any variations in measurements.
SAR tests are conducted using standard operating
positions accepted by the FCC with the phone
transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power
levels so as to use only the power required to reach
the network. In general, the closer you are to a
wireless base station antenna, the lower the power
output.
Before a new model phone is available for sale to the
public, it must be tested and certified to the FCC
that it does not exceed the exposure limit
established by the FCC. Tests for each model phone
are performed in positions and locations (e.g. at the
ear and worn on the body) as required by the FCC.
4
Health and safety information
The highest SAR values for this model phone as
reported to the FCC are:The highest SAR values for
this model phone as reported to the FCC are
Head:1.15 W/Kg, Body- worn:0.394 W/Kg.
Body worn operation, this model phone has been
tested and meets the FCC RF exposure guidelines
whenused with a Samsung accessory designated for
this product or when used with an accessory that
contains no metal and that positions the handset a
minimum of 1.5 cm from the body.
Non-compliance with the above restrictions may
result in violation of FCC RF exposure guidelines.
SAR information on this and other model phones can
be viewed on-line at www.fcc.gov/oet/fccid. This site
uses the phone FCC ID number, A3LSGHD988
Sometimes it may be necessary to remove the
battery pack to find the number. Once you have the
FCC ID number for a particular phone, follow the
instructions on the website and it should provide
values for typical or maximum SAR for a particular
phone. Additional product specific SAR information
can also be obtained at www.fcc.gov/cgb/sar.
Health and safety information
5
UL Certified Travel Adapter
The Travel Adaptor for this phone has met applicable
UL safety requirements. Please adhere to the
following safety instructions per UL
guidelines.FAILURE TO FOLLOW THE
INSTRUCTIONS OUTLINED MAY LEAD TO
SERIOUS PERSONAL INJURY AND POSSIBLE
PROPERTY DAMAGEIMPORTANT SAFETY
INSTRUCTIONS - SAVE THESE
INSTRUCTIONS.DANGER - TO REDUCE THE RISK
OF FIRE OR ELECTRIC SHOCK, CAREFULLY
FOLLOW THESE INSTRUCTIONS.FOR
CONNECTION TO A SUPPLY NOT IN NORTH
AMERICA, USE AN ATTACHMENT PLUG ADAPTOR
OF THE PROPER CONFIGURATION FOR THE
POWER OUTLET. THIS POWER UNIT IS INTENDED
TO BE CORRECTLY ORIENTATED IN A VERTICAL
OR HORIZONTAL OR FLOOR MOUNT POSITION.
Consumer Information on Wireless
Phones
The U.S. Food and Drug Administration (FDA)
has published a series of Questions and
Answers for consumers relating to radio
frequency (RF) exposure from wireless
phones. The FDA publication includes the
following information:
What kinds of phones are the subject
of this update?
The term wireless phone refers here to hand-held
wireless phones with built-in antennas, often called
“cell,” “mobile,” or “PCS” phones. These types of
wireless phones can expose the user to measurable
radio frequency energy (RF) because of the short
distance between the phone and the user's head.
These RF exposures are limited by Federal
Communications Commission safety guidelines that
were developed with the advice of FDA and other
6
Health and safety information
federal health and safety agencies. When the phone
is located at greater distances from the user, the
exposure to RF is drastically lower because a
person's RF exposure decreases rapidly with
increasing distance from the source. The so-called
“cordless phones,” which have a base unit
connected to the telephone wiring in a house,
typically operate at far lower power levels, and thus
produce RF exposures well within the FCC's
compliance limits.
Do wireless phones pose a health
hazard?
The available scientific evidence does not show that
any health problems are associated with using
wireless phones. There is no proof, however, that
wireless phones are absolutely safe. Wireless
phones emit low levels of radio frequency energy
(RF) in the microwave range while being used. They
also emit very low levels of RF when in the stand-by
mode. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low
level RF that does not produce heating effects
causes no known adverse health effects. Many
studies of low level RF exposures have not found
any biological effects. Some studies have suggested
that some biological effects may occur, but such
findings have not been confirmed by additional
research. In some cases, other researchers have
had difficulty in reproducing those studies, or in
determining the reasons for inconsistent results.
Health and safety information
7
What is FDA's role concerning the
safety of wireless phones?
Under the law, FDA does not review the safety of
radiation-emitting consumer products such as
wireless phones before they can be sold, as it does
with new drugs or medical devices. However, the
agency has authority to take action if wireless
phones are shown to emit radio frequency energy
(RF) at a level that is hazardous to the user. In such a
case, FDA could require the manufacturers of
wireless phones to notify users of the health hazard
and to repair, replace or recall the phones so that the
hazard no longer exists.
Although the existing scientific data do not justify
FDA regulatory actions, FDA has urged the wireless
phone industry to take a number of steps, including
the following:
“Support needed research into possible biological
effects of RF of the type emitted by wireless phones;
“Design wireless phones in a way that minimizes any
RF exposure to the user that is not necessary for
device function; and
“Cooperate in providing users of wireless phones
with the best possible information on possible
effects of wireless phone use on human health.
FDA belongs to an interagency working group of the
federal agencies that have responsibility for different
aspects of RF safety to ensure coordinated efforts at
the federal level. The following agencies belong to
this working group:
• “National Institute for Occupational Safety and
Health
• “Environmental Protection Agency
• “Federal Communications Commission
• “Occupational Safety and Health Administration
• “National Telecommunications and Information
Administration
8
Health and safety information
The National Institutes of Health participates in some
interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless
phones with the Federal Communications
Commission (FCC). All phones that are sold in the
United States must comply with FCC safety
guidelines that limit RF exposure. FCC relies on FDA
and other health agencies for safety questions about
wireless phones.
FCC also regulates the base stations that the
wireless phone networks rely upon. While these
base stations operate at higher power than do the
wireless phones themselves, the RF exposures that
people get from these base stations are typically
thousands of times lower than those they can get
from wireless phones. Base stations are thus not the
primary subject of the safety questions discussed in
this document.
What are the results of the research
done already?
The research done thus far has produced conflicting
results, and many studies have suffered from flaws
in their research methods. Animal experiments
investigating the effects of radio frequency energy
(RF) exposures characteristic of wireless phones
have yielded conflicting results that often cannot be
repeated in other laboratories. A few animal studies,
however, have suggested that low levels of RF could
accelerate the development of cancer in laboratory
animals. However, many of the studies that showed
increased tumor development used animals that had
been genetically engineered or treated with cancer-
causing chemicals so as to be pre-disposed to
develop cancer in absence of RF exposure. Other
studies exposed the animals to RF for up to 22
hours per day. These conditions are not similar to the
conditions under which people use wireless phones,
Health and safety information
9
so we don't know with certainty what the results of
such studies mean for human health.
Three large epidemiology studies have been
published since December 2000. Between them,
the studies investigated any possible association
between the use of wireless phones and primary
brain cancer, glioma, meningioma, or acoustic
neuroma, tumors of the brain or salivary gland,
leukemia, or other cancers. None of the studies
demonstrated the existence of any harmful health
effects from wireless phones RF exposures.
However, none of the studies can answer questions
about long-term exposures, since the average
period of phone use in these studies was around
three years.
What research is needed to decide
whether RF exposure from wireless
phones poses a health risk?
A combination of laboratory studies and
epidemiological studies of people actually using
wireless phones would provide some of the data that
are needed. Lifetime animal exposure studies could
be completed in a few years. However, very large
numbers of animals would be needed to provide
reliable proof of a cancer promoting effect if one
exists. Epidemiological studies can provide data that
is directly applicable to human populations, but ten
or more years' follow-up may be needed to provide
answers about some health effects, such as cancer.
This is because the interval between the time of
exposure to a cancer-causing agent and the time
tumors develop - if they do - may be many, many
years. The interpretation of epidemiological studies is
hampered by difficulties in measuring actual RF
exposure during day-to-day use of wireless phones.
10
Health and safety information
Many factors affect this measurement, such as the
angle at which the phone is held, or which model of
phone is used.
What is FDA doing to find out more
about the possible health effects of
wireless phone RF?
FDA is working with the U.S. National Toxicology
Program and with groups of investigators around the
world to ensure that high priority animal studies are
conducted to address important questions about the
effects of exposure to radio frequency energy (RF).
FDA has been a leading participant in the World
Health Organization international Electromagnetic
Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the
development of a detailed agenda of research
needs that has driven the establishment of new
research programs around the world. The Project
has also helped develop a series of public
information documents on EMF issues.
FDA and Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative
Research and Development Agreement (CRADA) to
do research on wireless phone safety. FDA provides
the scientific oversight, obtaining input from experts
in government, industry, and academic
organizations. CTIA-funded research is conducted
through contracts to independent investigators. The
initial research will include both laboratory studies
and studies of wireless phone users. The CRADA
will also include a broad assessment of additional
research needs in the context of the latest research
developments around the world.
Health and safety information
11
What steps can I take to reduce my
exposure to radio frequency energy
from my wireless phone?
If there is a risk from these products - and at this
point we do not know that there is - it is probably
very small. But if you are concerned about avoiding
even potential risks, you can take a few simple steps
to minimize your exposure to radio frequency energy
(RF). Since time is a key factor in how much
exposure a person receives, reducing the amount of
time spent using a wireless phone will reduce RF
exposure.
• “If you must conduct extended conversations by
wireless phone every day, you could place more
distance between your body and the source of
the RF, since the exposure level drops off
dramatically with distance. For example, you
could use a headset and carry the wireless phone
away from your body or use a wireless phone
connected to a remote antenna.
Again, the scientific data do not demonstrate
that wireless phones are harmful. But if you
are concerned about the RF exposure from
these products, you can use measures like
those described above to reduce your RF
exposure from wireless phone use.
What about children using wireless
phones?
The scientific evidence does not show a danger to
users of wireless phones, including children and
teenagers. If you want to take steps to lower
exposure to radio frequency energy (RF), the
measures described above would apply to children
and teenagers using wireless phones. Reducing the
time of wireless phone use and increasing the
distance between the user and the RF source will
reduce RF exposure.
Some groups sponsored by other national
governments have advised that children be
12
Health and safety information
discouraged from using wireless phones at all. For
example, the government in the United Kingdom
distributed leaflets containing such a
recommendation in December 2000. They noted
that no evidence exists that using a wireless phone
causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by
children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
Do hands-free kits for wireless phones
reduce risks from exposure to RF
emissions?
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason
to believe that hands-free kits reduce risks. Hands-
free kits can be used with wireless phones for
convenience and comfort. These systems reduce
the absorption of RF energy in the head because the
phone, which is the source of the RF emissions, will
not be placed against the head. On the other hand,
if the phone is mounted against the waist or other
part of the body during use, then that part of the
body will absorb more RF energy. Wireless phones
marketed in the U.S. are required to meet safety
requirements regardless of whether they are used
against the head or against the body. Either
configuration should result in compliance with the
safety limit.
Health and safety information
13
Do wireless phone accessories that
claim to shield the head from RF
radiation work?
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason
to believe that accessories that claim to shield the
head from those emissions reduce risks. Some
products that claim to shield the user from RF
absorption use special phone cases, while others
involve nothing more than a metallic accessory
attached to the phone. Studies have shown that
these products generally do not work as advertised.
Unlike “hand-free” kits, these so-called “shields” may
interfere with proper operation of the phone. The
phone may be forced to boost its power to
compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade
Commission (FTC) charged two companies that sold
devices that claimed to protect wireless phone users
from radiation with making false and unsubstantiated
claims. According to FTC, these defendants lacked
a reasonable basis to substantiate their claim.
What about wireless phone
interference with medical equipment?
Radio frequency energy (RF) from wireless phones
can interact with some electronic devices. For this
reason, FDA helped develop a detailed test method
to measure electromagnetic interference (EMI) of
implanted cardiac pacemakers and defibrillators
from wireless telephones. This test method is now
part of a standard sponsored by the Association for
the Advancement of Medical instrumentation (AAMI).
The final draft, a joint effort by FDA, medical device
manufacturers, and many other groups, was
completed in late 2000. This standard will allow
manufacturers to ensure that cardiac pacemakers
and defibrillators are safe from wireless phone EMI.
FDA has tested wireless phones and helped
develop a voluntary standard sponsored by the
Institute of Electrical and Electronic Engineers (IEEE).
This standard specifies test methods and
performance requirements for hearing aids and
wireless phones so that no interference occurs
when a person uses a compatible phone and a
14
Health and safety information
compatible hearing aid at the same time. This
standard was approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones
for possible interactions with other medical devices.
Should harmful interference be found to occur, FDA
will conduct testing to assess the interference and
work to resolve the problem.
Additional information on the safety of RF exposures
from various sources can be obtained from the
following organizations:
• FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/
• Environmental Protection Agency (EPA):
http://www.epa.gov/radiation/
• Occupational Safety and Health
Administration's (OSHA):
http://www.osha.gov/SLTC/
radiofrequencyradiation/index.html
• National institute for Occupational Safety
and Health (NIOSH):
http://www.cdc.gov/niosh/emfpg.html
• World health Organization (WHO):
http://www.who.int/peh-emf/
• International Commission on Non-
Ionizing Radiation Protection:
http://www.icnirp.de
• National Radiation Protection Board (UK):
http://www.nrpb.org.uk
• Updated 4/3/2002: US food and Drug
Administration
http://www.fda.gov/cellphones
Health and safety information
15
Road Safety
Your wireless phone gives you the powerful ability to
communicate by voice, almost anywhere, anytime.
But an important responsibility accompanies the
benefits of wireless phones, one that every user
must uphold.
When driving a car, driving is your first responsibility.
When using your wireless phone behind the wheel
of a car, practice good common sense and
remember the following tips:
1. Get to know your wireless phone and its
features, such as speed dial and redial. If
available, these features help you to place
your call without taking your attention off
the road.
2. When available, use a hands-free device.
If possible, add an additional layer of
convenience and safety to your wireless
phone with one of the many hands free
accessories available today.
3. Position your wireless phone within easy
reach. Be able to access your wireless
phone without removing your eyes from
the road. If you get an incoming call at an
inconvenient time, let your voice mail
answer it for you.
4. Let the person you are speaking with
know you are driving; if necessary,
suspend the call in heavy traffic or
hazardous weather conditions. Rain,
sleet, snow, ice and even heavy traffic
can be hazardous.
5. Do not take notes or look up phone
numbers while driving. Jotting down a “to
do” list or flipping through your address
16
Health and safety information
book takes attention away from your
primary responsibility, driving safely.
6. Dial sensibly and assess the traffic; if
possible, place calls when you are not
moving or before pulling into traffic. Try
to plan calls when your car will be
stationary. If you need to make a call
while moving, dial only a few numbers,
check the road and your mirrors, then
continue.
7. Do not engage in stressful or emotional
conversations that may be distracting.
Make people you are talking with aware
you are driving and suspend
conversations that have the potential to
divert your attention from the road.
8. Use your wireless phone to call for help.
Dial 9-1-1 or other local emergency
number in the case of fire, traffic accident
or medical emergencies. Remember, it is
a free call on your wireless phone!
9. Use your wireless phone to help others in
emergencies. If you see an auto accident,
crime in progress or other serious
emergency where lives are in danger, call
9-1-1 or other local emergency number,
as you would want others to do for you.
10. Call roadside assistance or a special non-
emergency wireless assistance number
when necessary. If you see a broken-
down vehicle posing no serious hazard, a
broken traffic signal, a minor traffic
accident where no one appears injured,
or a vehicle you know to be stolen, call
roadside assistance or other special non-
emergency number.
Health and safety information
17
“The wireless industry reminds you to
use your phone safely when driving.”
For more information, please call 1-888-901-SAFE,
or visit our web-site www.wow-com.com
Provided by the Cellular Telecommunications &
Internet Association
Operating Environment
Remember to follow any special regulations in force
in any area and always switch your phone off
whenever it is forbidden to use it, or when it may
cause interference or danger. When connecting the
phone or any accessory to another device, read its
user's guide for detailed safety instructions. Do not
connect incompatible products.
As with other mobile radio transmitting equipment,
users are advised that for the satisfactory operation
of the equipment and for the safety of personnel, it is
recommended that the equipment should only be
used in the normal operating position (held to your
ear with the antenna pointing over your shoulder).
18
Health and safety information
Using Your Phone Near Other
Electronic Devices
Most modern electronic equipment is shielded from
radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against
the RF signals from your wireless phone. Consult the
manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a
minimum distance of 15 cm (6 inches) be
maintained between a wireless phone and a
pacemaker to avoid potential interference with the
pacemaker.
These recommendations are consistent with the
independent research and recommendations of
Wireless Technology Research.
Persons with pacemakers:
• should always keep the phone more than
15 cm
(6 inches) from their pacemaker when
the phone is switched on.
• should not carry the phone in a breast
pocket.
• should use the ear opposite the
pacemaker to minimize potential
interference.
If you have any reason to suspect that interference is
taking place, switch your phone off immediately.
Health and safety information
19
Hearing Aid Compatibility with Mobile
Phones
When some mobile phones are used near some
hearing devices (hearing aids and
cochlear implants), users may detect a buzzing,
humming, or whining noise. Some
hearing devices are more immune than others to this
interference noise, and phones
also vary in the amount of interference they
generate.
The wireless telephone industry has developed
ratings for some of their mobile
phones, to assist hearing device users in finding
phones that may be compatible
with their hearing devices. Not all phones have been
rated. Phones that are rated
have the rating on their box or a label on the box.
The ratings are not guarantees. Results will vary
depending on the user’s hearing
device and hearing loss. If your hearing device
happens to be vulnerable to
interference, you may not be able to use a rated
phone successfully. Trying out the
phone with your hearing device is the best way to
evaluate it for your personal
needs.
M-Ratings: Phones rated M3 or M4 meet FCC
requirements and are likely to
generate less interference to hearing devices than
phones that are not labeled. M4 is
the better/higher of the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC
requirements and are likely to be more usable with a
20
Health and safety information
hearing device°Øs telecoil (°×T Switch°± or
°×Telephone Switch°±) than unrated phones. T4 is
the better/higher of the two ratings. (Note that not all
hearing devices have telecoils in them.)Hearing
devices may also be measured for immunity to this
type of interference. Your hearing device
manufacturer or hearing health professional may
help you find results for your hearing device. The
more immune your hearing aid is, the less likely you
are to experience interference noise from mobile
phones.
Other Medical Devices
If you use any other personal medical devices,
consult the manufacturer of your device to determine
if it is adequately shielded from external RF energy.
Your physician may be able to assist you in obtaining
this information. Switch your phone off in health care
facilities when any regulations posted in these areas
instruct you to do so. Hospitals or health care
facilities may be using equipment that could be
sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
representative regarding your vehicle. You should
also consult the manufacturer of any equipment that
has been added to your vehicle.
Health and safety information
21
Posted Facilities
Switch your phone off in any facility where posted
notices require you to do so.
Potentially Explosive Environments
Switch your phone off when in any area with a
potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause
an explosion or fire resulting in bodily injury or even
death.
Users are advised to switch the phone off while at a
refueling point (service station). Users are reminded
of the need to observe restrictions on the use of
radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants or where blasting
operations are in progress.
Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include
below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas
(such as propane or butane), areas where the air
contains chemicals or particles, such as grain, dust
or metal powders, and any other area where you
would normally be advised to turn off your vehicle
engine.
Emergency Calls
This phone, like any wireless phone, operates using
radio signals, wireless and landline networks as well
as user programmed functions, which cannot
guarantee connection in all conditions. Therefore,
you should never rely solely on any wireless phone
for essential communications (medical emergencies,
for example).
Remember, to make or receive any calls the phone
must be switched on and in a service area with
adequate signal strength. Emergency calls may not
be possible on all wireless phone networks or when
certain network services and/or phone features are
in use. Check with local service providers.
22
Health and safety information
To make an emergency call:
1. If the phone is not on, switch it on.
2. Key in the emergency number for your
present location (for example, 911 or
other official emergency number).
Emergency numbers vary by location.
3. Press .
If certain features are in use (call barring, for
example), you may first need to deactivate those
features before you can make an emergency call.
Consult this document and your local cellular service
provider.
When making an emergency call, remember to give
all the necessary information as accurately as
possible. Remember that your phone may be the
only means of communication at the scene of an
accident; do not cut off the call until given
permission to do so.
Restricting Children's access to your
Phone
Your phone is not a toy. Children should not be
allowed to play with it because they could hurt
themselves and others, damage the phone or make
calls that increase your phone bill.
Health and safety information
23
FCC Notice and Cautions
FCC Notice
• This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
• This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.This equipment generates, uses and
can radiate radio frequency energy and,if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment
and receiver.
-Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV
technician for help
24
Health and safety information
The phone may cause TV or radio interference if
used in close proximity to receiving equipment. The
FCC can require you to stop using the phone if such
interference cannot be eliminated.
Vehicles using liquefied petroleum gas (such as
propane or butane) must comply with the National
Fire Protection Standard (NFPA-58). For a copy of
this standard, contact the National Fire Protection
Association, One Battery march Park, Quincy, MA
02269, Attn: Publication Sales Division.
Cautions
Changes or modifications made in the radio phone,
not expressly approved by Samsung, will void the
user’s authority to operate the equipment.
Only use approved batteries, antennas andchargers.
The use of any unauthorized accessories may be
dangerous and void the phone warranty if said
accessories cause damage or a defect to the
phone.
Although your phone is quite sturdy, it is a complex
piece of equipment and can be broken. Avoid
dropping, hitting, bending or sitting on it.
Health and safety information
25
Other Important Safety
Information
• Only qualified personnel should service
the phone or install the phone in a
vehicle. Faulty installation or service may
be dangerous and may invalidate any
warranty applicable to the device.
• Check regularly that all wireless phone
equipment in your vehicle is mounted and
operating properly.
• Do not store or carry flammable liquids,
gases or explosive materials in the same
compartment as the phone, its parts or
accessories.
• For vehicles equipped with an air bag,
remember that an air bag inflates with
great force. Do not place objects,
including both installed or portable
wireless equipment in the area over the
air bag or in the air bag deployment area.
If wireless equipment is improperly
installed and the air bag inflates, serious
injury could result.
• Switch your phone off before boarding an
aircraft. The use of wireless phone in
aircraft is illegal and may be dangerous to
the aircraft's operation.
• Failure to observe these instructions may
lead to the suspension or denial of
telephone services to the offender, or
legal action, or both.
26
Health and safety information
Product Performance
Getting the Most Out of Your Signal
Reception
The quality of each call you make or receive
depends on the signal strength in your area.
Your phone informs you of the current signal
strength by displaying a number of bars next
to the signal strength icon. The more bars
displayed, the stronger the signal.
If you're inside a building, being near a
window may give you better reception.
Understanding the Power Save Feature
If your phone is unable to find a signal after
15 minutes of searching, a Power Save
feature is automatically activated. If your
phone is active, it periodically rechecks
service availability or you can check it
yourself by pressing any key.
Anytime the Power Save feature is activated,
a message displays on the screen. When a
signal is found, your phone returns to
standby mode.
Maintaining Your Phone's Peak
Performance
For the best care of your phone, only
authorized personnel should service your
phone and accessories. Faulty service may
void the warranty.
There are several simple guidelines to
operating your phone properly and
maintaining safe, satisfactory service.
• Hold the phone with the antenna raised,
fully-extended and over your shoulder.
Health and safety information
27
• Try not to hold, bend or twist the phone's
antenna.
• Don't use the phone if the antenna is
damaged.
• Speak directly into the phone's receiver.
• Avoid exposing your phone and
accessories to rain or liquid spills. If your
phone does get wet, immediately turn the
power off and remove the battery. If it is
inoperable, call Customer Care for
service.
Availability of Various Features/
Ring Tones
Many services and features are network
dependent and may require additional
subscription and/or usage charges. Not all
features are available for purchase or use in
all areas. Downloadable Ring Tones may be
available at an additional cost. Other
conditions and restrictions may apply. See
your service provider for additional
information.
28
Health and safety information
Battery Standby and Talk Time
Standby and talk times will vary depending
on phone usage patterns and conditions.
Battery power consumption depends on
factors such as network configuration, signal
strength, operating temperature, features
selected, frequency of calls, and voice, data,
and other application usage patterns.
Battery Precautions
• Never use any charger or battery that is
damaged in any way.
• Use the battery only for its intended
purpose.
• If you use the phone near the network's
base station, it uses less power; talk and
standby time are greatly affected by the
signal strength on the cellular network
and the parameters set by the network
operator.
• Battery charging time depends on the
remaining battery charge and the type of
battery and charger used. The battery
can be charged and discharged hundreds
of times, but it will gradually wear out.
When the operation time (talk time and
standby time) is noticeably shorter than
normal, it is time to buy a new battery.
Health and safety information
29
• If left unused, a fully charged battery will
discharge itself over time.
• Use only Samsung-approved batteries
and recharge your battery only with
Samsung-approved chargers. When a
charger is not in use, disconnect it from
the power source. Do not leave the
battery connected to a charger for more
than a week, since overcharging may
shorten its life.
• Extreme temperatures will affect the
charging capacity of your battery: it may
require cooling or warming first.
• Do not leave the battery in hot or cold
places, such as in a car in summer or
winter conditions, as you will reduce the
capacity and lifetime of the battery.
Always try to keep the battery at room
temperature. A phone with a hot or cold
battery may temporarily not work, even
when the battery is fully charged. Li-ion
batteries are particularly affected by
temperatures below 0 °C (32 °F).
• Do not short-circuit the battery.
Accidental short- circuiting can occur
when a metallic object (coin, clip or pen)
causes a direct connection between the +
and - terminals of the battery (metal
strips on the battery), for example when
you carry a spare battery in a pocket or
bag. Short-circuiting the terminals may
damage the battery or the object causing
the short-circuiting.
• Dispose of used batteries in accordance
with local regulations. In some areas, the
disposal of batteries in household or
business trash may be prohibited. For
30
Health and safety information
safe disposal options for Li-Ion batteries,
contact your nearest Samsung authorized
service center. Always recycle. Do not
dispose of batteries in a fire.
Care and Maintenance
Your phone is a product of superior design
and craftsmanship and should be treated
with care. The suggestions below will help
you fulfill any warranty obligations and allow
you to enjoy this product for many years.
• Keep the phone and all its parts and
accessories out of the reach of small
children.
• Keep the phone dry. Precipitation,
humidity and liquids contain minerals that
will corrode electronic circuits.
• Do not use the phone with a wet hand.
Doing so may cause an electric shock to
you or damage to the phone.
• Do not use or store the phone in dusty,
dirty areas, as its moving parts may be
damaged.
• Do not store the phone in hot areas. High
temperatures can shorten the life of
electronic devices, damage batteries, and
warp or melt certain plastics.
• Do not store the phone in cold areas.
When the phone warms up to its normal
operating temperature, moisture can
form inside the phone, which may
damage the phone's electronic circuit
boards.
Health and safety information
31
• Do not drop, knock or shake the phone.
Rough handling can break internal circuit
boards.
• Do not use harsh chemicals, cleaning
solvents or strong detergents to clean the
phone. Wipe it with a soft cloth slightly
dampened in a mild soap-and-water
solution.
• Do not paint the phone. Paint can clog the
device's moving parts and prevent proper
operation.
• Do not put the phone in or on heating
devices, such as a microwave oven, a
stove or a radiator. The phone may
explode when overheated.
• When the phone or battery gets wet, the
label indicating water damage inside the
phone changes color. In this case, phone
repairs are no longer guaranteed by the
manufacturer's warranty, even if the
warranty for your phone has not expired.
• If your phone has a flash or light, do not
use it too close to the eyes of people or
animals. This may cause damage to their
eyes.
• Use only the supplied or an approved
replacement antenna. Unauthorized
antennas or modified accessories may
damage the phone and violate regulations
governing radio devices.
• If the phone, battery, charger or any
accessory is not working properly, take it
to your nearest qualified service facility.
The personnel there will assist you, and if
necessary, arrange for service.
32
Health and safety information
33
introducing your mobile phone
introducing your
mobile phone
In this section, learn about your mobile phone’s
layout, keys, display, and icons.
Unpack
Check your product box for the following items:
• Mobile phone
• Battery
• Travel adapter (charger)
•User manual
• The items supplied with your phone may vary
depending on the software and accessories
available in your region or offered by your
service provider.
You can obtain additional accessories from
your local Samsung dealer.
• Use only Samsung-approved software.
Pirated or illegal software may cause damage
or malfunctions that are not covered by
manufacturer’s warranty.
34
introducing your mobile phone
Phone layout
The front of your phone includes the following keys
and features:
The rear of your phone includes the following keys
and features:
Earpiece
Power/Menu exit
key
HOLD key
Dial key
Volume key
Mouthpiece
Display
Web access/
Confirm key
You can lock the keys and screen to prevent
any unwanted phone operations. To lock,
press up [
HOLD
]. To unlock these keys, and
screen press down [
HOLD
].
Camera lens
Battery cover
Multifunction jack
Camera key
Speaker
Flashbulb
Stylus slot and
pen
introducing your mobile phone
35
Keys
Display
Your phone’s display consists of three areas:
Key Function
Dial
Make or answer a call; In Idle mode,
retrieve recently dialled, missed, or
received numbers
Web
access/
Confirm
In Idle mode, access My Menu mode
(up) or user-defined menus (left/right/
down); In Menu mode, scroll through
menu options
Power/
Menu exit
Turn the phone on and off (press and
hold); End a call; In Idle mode, open
the KUAIXUN previewer; In Menu
mode, cancel input and return to Idle
mode
Volume Adjust the phone’s volume
HOLD Lock or unlock the touch screen and
keys
Camera
In Idle mode, turn on the camera; In
Camera mode, take a photo or
record a video
Key Function
Icon line
Displays various icons
Text and graphic area
Displays messages,
instructions, and information
you enter
Softkey line
Displays the current actions
assigned to each softkey
36
introducing your mobile phone
Quick access icons in Idle mode
Learn about the icons that appear in Idle mode.
• : Access the menu screen.
• : Create a sketch.
X
p. 72
• : Create a text message.
X
p. 48
• : Access the dialling screen.
• : Access the contact list.
Icons
Learn about the icons that appear on your display.
You can access the corresponding menu or
feature by tapping the icons.
Icon Definition
Signal strength
Call in progress
No service available or phone in Offline mode
SOS message feature activated
Alarm activated
GPRS network connected
EDGE network connected
Browsing the web
Connected to secured web page
Call diverting activated
In Home Zone service area
In Office Zone service area
Bluetooth activated
Bluetooth hands-free car kit or headset
connected
Icon Definition
introducing your mobile phone
37
Stylus and touch screen
Learn basic actions to use the stylus and touch
screen.
• Tap: Touch the screen once with the stylus to
select the highlighted menu or option.
• Tap-and-hold: Tap and hold the stylus on an item
to perform.
• Drag: Tap and hold the stylus on the screen and
drag the stylus to move the scroll bar.
Music playback in progress
Music playback paused
New text message (SMS)
New multimedia message (MMS)
New email message
New voice mail message
Memory card inserted
FM radio on
Silent mode activated (muted)
Silent mode activated (set to vibrate)
Ringer mode: melody
Ringer mode: increasing melody
Icon Definition
Ringer mode: vibration
Battery power level
To avoid scratching your device’s screen, do
not use pens, pencils, or other sharp objects to
tap or write on the screen.
Icon Definition
38
introducing your mobile phone
A special slot for storing the stylus is included on the
back of your device.
39
assembling and preparing your mobile phone
assembling and
preparing your
mobile phone
Get started by assembling and setting up your
mobile phone for its first use.
Install the SIM card and battery
When you subscribe to a cellular service, you will
receive a Subscriber Identity Module, or SIM card,
with subscription details, such as your personal
identification number (PIN) and optional services.
To install the SIM card and battery,
1. Remove the battery cover.
If the phone is on, press and hold
[
] to turn it
off.
40
assembling and preparing your mobile phone
2. Insert the SIM cards. 3. Insert the battery.
4. Replace the battery cover.
Place the SIM cards in the phone with the gold-
coloured contacts facing down.
assembling and preparing your mobile phone
41
Charge the battery
Before using the phone for the first time, you must
charge the battery.
1. Open the cover to the multifunction jack on the
side of the phone.
2. Plug the small end of the travel adapter into the
multifunction jack.
With the triangle facing up
42
assembling and preparing your mobile phone
3. Plug the large end of the travel adapter into a
power outlet.
4. When the battery is fully charged (the icon is
no longer moving), unplug the travel adapter from
the power outlet.
5. Unplug the travel adapter from the phone.
6. Close the cover to the multifunction jack.
Insert a memory card (optional)
To store additional multimedia files, you must insert a
memory card. Your phone accepts microSDTM
memory cards up to XX GB (depending on memory
card manufacturer and type).
1. Remove the battery cover.
Improperly connecting the travel adapter can
cause serious damage to the phone. Any
damages by misuse are not covered by the
warranty.
About the low battery indicator
When your battery is low, the phone will emit a
warning tone and a low battery message. The
battery icon will also be empty and blinking. If
the battery level becomes too low, the phone
will automatically power off. Recharge your
battery to continue using your phone.
assembling and preparing your mobile phone
43
2. Unlock the memory card cove.
3. Lift the memory card and insert a memory card
with the label side facing up.
4. Close and lock the memory card cover.
44
using basic
functions
Learn how to perform basic operations and use the
main features of your mobile phone.
Turn your phone on and off
To turn your phone on,
1. Press and hold [ ].
2. Enter your PIN and tap (if necessary).
3. Calibrate your screen and tap Done.
4. Tap to register new SIM cards.
5. Assign names and signal icons to the new SIM
cards and tap .
6. Select a primary SIM card and tap .
To turn your phone off, repeat step 1 above.
The first time you turn on the phone, you will be
prompted to calibrate the screen.
The primary SIM card will be shown at the top
left of the screen.
45
using basic functions
Change a primary SIM card
In Dual SIM mode, you can use two SIM cards at the
same time and set the SIM cards for primary and
secondary. Use the primary SIM card or select a SIM
card you will use for making calls or sending
messages.
To change a primary SIM card, tap → Settings →
Phone settings → Dual mode setting → a SIM
card → Primary.
Switch to Offline mode
By switching to Offline mode, you can use your
phone’s non-network services in areas where
wireless devices are prohibited, such as aeroplanes
and hospitals.
To switch to Offline mode, tap → Settings →
Phone settings → Offline mode → On.
Access menus
To access your phone’s menus,
1. In Idle mode, tap an icon for the menu you want.
2. Scroll to a menu or option.
3. Tap to confirm the highlighted option.
4. Tap to move up one level; Press [ ] to return
to Idle mode.
Customise your phone
Get more from your phone by customising it to
match your preferences.
Follow all posted warnings and directions from
official personnel when in areas where wireless
devices are prohibited.
46
using basic functions
Adjust the volume of the key tones
In Idle mode, press [ / ] to adjust the key tone
volume.
Switch to or from Silent mode
In Idle mode, tap and hold the sound profile icon to
silence or tap the icon again to unsilence your
phone.
Calibrate the screen
You can calibrate the screen so that your phone
recognises the input better.
1. In Idle mode, tap
→ Settings → Touch
settings → Calibration.
2. Tap the target on the screen with your stylus.
3. When you are finished, tap Done.
Change your ringtone
1. In Idle mode, tap the sound profile icon.
2. Tap Ring tone.
3. Scroll left or right to a ringtone category → a
ringtone.
4. Tap .
Select a wallpaper (Idle mode)
1. In Idle mode, tap → Settings → Display
settings → Wallpaper.
2. Tap Wallpaper → an image category → an
image → .
3. Tap .
47
using basic functions
Select a skin colour (Menu mode)
1. In Idle mode, tap → Settings → Display
settings → Main menu style.
2. Select a colour pattern.
Set menu shortcuts
1. In Idle mode, tap → Settings → Phone
settings → Shortcuts.
2. Select a key to use as a shortcut.
3. Select a menu to assign to the shortcut key.
Lock your phone
1. In Idle mode, tap → Settings → Security →
Phone → Phone lock → Enable.
2. Enter a new 4- to 8-digit password and tap .
3. Enter the new password again and tap .
Use basic call functions
Learn to make or answer calls and use basic call
functions.
Make a call
1. In Idle mode, tap and enter an area code and
a phone number.
Tap and hold to enter a pause.
2. Press [ ] to dial the number by using the
primary SIM card. Alternatively, select a SIM card
you want.
3. To end the call, press [ ].
During a call, your phone automatically locks
the touch screen and keys to prevent
accidental inputs.
48
using basic functions
Answer a call
1. When a call comes in, press [ ].
2. To end the call, press [ ].
Adjust the volume
To adjust the volume during a call, press [ / ].
Use the speakerphone feature
1. During a call, tap → to activate the
speaker.
2. To switch back to the earpiece, tap again.
Use the headset
By connecting the supplied headset to the
multifunction jack, you can make and answer calls:
• To redial the last call, press the headset button,
and then press again.
• To answer a call, press the headset button.
• To end a call, press the headset button.
Send and view messages
Learn to send and view text (SMS), multimedia
(MMS), and email messages.
Send a text message
1. In Idle mode, tap → Messages → Create
new message → Text message. You can also
tap in Idle mode.
2. Enter your message text and tap .
X
p. 50
3. Enter a destination number and tap .
4. Select a SIM card (if necessary).
5. Tap to send the message.
49
using basic functions
Send a multimedia message
1. In Idle mode, tap → Messages → Create
new message → Multimedia message.
2. Tap Subject.
3. Enter a subject and tap .
4. Tap Image or video or Music and sound → an
item type.
5. Tap an item category → an item you want to add.
6. Tap Text.
7. Enter your message text and tap .
8. Tap → Send.
9. Enter a destination number and tap .
10. Select a SIM card (if necessary).
11. Tap to send the message.
Send an email
1. In Idle mode, tap → Messages → Create
new message → Email.
2. Tap Subject.
3. Enter a subject and tap .
4. Tap Message.
5. Enter your email text and tap .
6. Tap File attach and attach a file (if necessary).
7. Tap → Send.
8. Enter an email address and tap .
9. Select a SIM card (if necessary).
10.Tap → Send to send the message.
50
using basic functions
Enter text
With your phone’s touch screen and stylus, you can
enter or write text. To change the text input method:
• Tap to switch to the handwriting method.
• Tap to switch to the virtual keyboard.
• Tap to return to the virtual keypad.
To change the text input mode, tap (Pinyin),
(Stroke), Abc (English), 123 (Number), or SYM
(Symbol).
To enter text using the handwriting method,
1. Switch to the handwriting method. Tap to
switch the text input mode.
2. Write characters, numbers, or symbols.
3. Tap one of the choices to enter.
4. When you are finished, tap to return to your
message.
Delete
Insert a space
Expand the text
input field
51
using basic functions
To enter text using the virtual keypad,
1. Switch to the virtual keypad. Tap to switch the
text input mode.
2. Enter characters, numbers, or symbols.
3. Tap one of the choices to enter.
4. When you are finished, tap to return to your
message.
View text or multimedia messages
1. In Idle mode, tap → Messages → My
messages → Inbox.
2. Select a text or multimedia message.
View an email
1. In Idle mode, tap → Messages → → My
messages → Email inbox → Check new mail.
2. Select an email or a header.
3. If you selected a header, tap → Retrieve to
view the body of the email.
Delete
Insert a space
Expand the text
input field
52
using basic functions
Add and find contacts
Learn the basics of using the Phonebook feature.
Add a new contact
1. In Idle mode, tap , enter a phone number, and
tap .
2. Select a memory location (phone or SIM) →
New.
3. Select a number type (if necessary).
4. Enter contact information.
5. Tap → Save to add the contact to memory.
Find a contact
1. In Idle mode, tap → Phonebook →
Phonebook → Contact list. You can also tap
in Idle mode.
2. Enter the first few letters of the name you want to
find.
3. Select the contact’s name from the search list.
Use basic camera functions
Learn the basics to capture and view photos and
videos.
Capture photos
1. In Idle mode, press [ ] to turn on the camera.
2. Rotate the phone counter-clockwise to
landscape view.
3. Aim the lens at the subject and make any
adjustments.
Once you have found a contact, you can:
• call the contact by pressing
[]
• edit the contact information by tapping
→
Edit
53
using basic functions
4. Press the Confirm key or [ ] to take a photo.
The photo is saved automatically.
5. Tap to take another photo (step 3).
View photos
In Idle mode, tap → My favorite → Images → My
photos → a photo file.
Capture videos
1. In Idle mode, press [ ] to turn on the camera.
2. Tap → Camcorder to switch to Recording
mode.
3. Rotate the phone counter-clockwise to
landscape view.
4. Aim the lens at the subject and make any
adjustments.
5. Press the Confirm key or [ ] to start recording.
6. Tap to stop recording.
The video is saved automatically.
7. Tap to record another video (step 4).
View videos
In Idle mode, tap → My favorite → Videos → My
video clips → a video file.
Listen to music
Learn how to listen to music via the music player or
FM radio.
Listen to the FM radio
1. Plug the supplied headset into the phone’s
multifunction jack.
54
using basic functions
2. In Idle mode, tap → Applications → FM
radio.
3. Tap to start the radio.
4. Tap to start automatic tuning.
The radio scans and saves available stations
automatically.
5. Control the FM radio using the following icons:
6. To turn the radio off, tap .
Create a playlist and listen to music files
Start by transferring files to your phone or memory
card:
• Download from the wireless web.
X
Browse the
web
• Download from a PC with the optional Samsung
PC Studio.
X
Samsung PC Studio user manual
• Receive via Bluetooth.
X
p. 65
• Copy to your memory card.
X
p. 60
After transferring music files to your phone or
memory card,
1. In Idle mode, tap → Music.
2. Tap → Add music from → a memory
location.
3. Tap the files you want to include → .
4. Tap to begin playback.
The first time you access
FM radio
, you will be
prompted to start automatic tuning.
Key Function
Select a radio station
/
Change the sound output
Open the channel list
Adjust the volume
55
using basic functions
5. Control playback using the following keys:
6. Tap → Stop to stop playback.
Browse the web
Learn to access and bookmark your favourite web
pages.
Browse web pages
1. In Idle mode, press the Confirm key to launch
your service provider’s homepage.
2. Navigate web pages using the following keys:
Bookmark your favourite web pages
1. In Idle mode, tap → My favorites → Browser
→ Bookmarks.
2. Select an empty location.
3. Enter a page title and a web address (URL).
4. Tap .
Key Function
/
Pause or resume playback
Adjust the volume up or down
Skip backward; Scan backward in a
file (tap and hold)
Skip forward; Scan forward in a file
(tap and hold)
Key Function
???
Scroll up or down on a web page
Confirm
Select an item
Return to the previous page
Access a list of browser options
56
using advanced
functions
Learn how to perform advanced operations and use
additional features of your mobile phone.
Use advanced call functions
Learn about your phone’s additional calling
capabilities.
View and dial missed calls
Your phone will display calls you have missed on the
display. To dial the number of a missed call,
1. Tap View.
2. Scroll to the missed call you want to dial.
3. Press [ ] to dial.
Call a recently dialled number
1. In Idle mode, press [ ] to display a list of recent
numbers.
2. Scroll to the number you want and press [ ] to
dial.
57
using advanced functions
Hold a call or retrieve a held call
Tap → Hold to place a call on hold or tap →
Retrieve to retrieve a held call.
Dial a second call
If your network supports this function, you can dial
another number during a call:
1. Tap → Hold to place the first call on hold.
2. Enter the second number to dial and press [ ].
3. Tap → Swap to switch between the two calls.
4. To end the call on hold, tap → End held call.
5. To end the current call, press [ ].
Answer a second call
If your network supports this function, you can
answer a second incoming call:
1. Press [ ] to answer the second call.
The first call is automatically placed on hold.
2. Tap → Swap to switch between the calls.
Make a multiparty call (conference call)
1. Call the first party you want to add to the
multiparty call.
2. While connected to the first party, call the
second party.
The first party is automatically placed on hold.
3. When connected to the second party, tap →
Conference call.
4. Repeat steps 1 and 2 to add more parties, if
necessary.
5. To end the multiparty call, press [ ].
58
using advanced functions
Call an international number
1. In Idle mode, tap and tap and hold 0 to insert
the + character.
2. Enter the complete number you want to dial
(country code, area code, and phone number),
and then press [ ] to dial.
Call a contact from Phonebook
You can call numbers directly from Phonebook
using stored contacts.
X
p. 52
1. In Idle mode, tap → Phonebook →
Phonebook → Contact list. You can also tap
in Idle mode.
2. Scroll to the number you want to dial and press
[ ] to dial.
Use advanced Phonebook functions
Learn to create namecards, set speed dial numbers,
and create groups of contacts.
Create a namecard
1. In Idle mode, tap → Phonebook →
Phonebook → My namecard.
2. Enter your personal details and tap → Save.
Set speed dial numbers
1. In Idle mode, tap → Phonebook →
Phonebook → Speed dial.
2. Tap a number you want to set (2-9) and tap →
Add → a contact list
You can send your namecard by attaching it to
a message or email or transferring it via the
Bluetooth wireless feature.
59
using advanced functions
3. Select a contact → a number type (if necessary)
to assign to the number.
The contact is saved to the speed dial number.
Create a group of contacts
By creating groups of contacts, you can assign
ringtones and caller ID photos to each group or send
messages and emails to an entire group. Start by
creating a group:
1. In Idle mode, tap → Phonebook →
Phonebook → Group.
2. Tap → Add.
3. Enter a group name and tap .
4. To set the caller ID image, tap Not assigned and
select an image category → an image.
5. To set a group ringtone, tap Not assigned → a
ringtone category → a ringtone.
6. Tap .
Use advanced messaging functions
Learn to create templates and use templates to
create new messages.
Create a text template
1. In Idle mode, tap → Messages → Templates
→ Text template.
2. Select an empty location.
3. Enter your text and tap to save the template.
You can now call this contact from Idle mode
by tapping
and tapping
and holding the
assigned speed dial number.
60
using advanced functions
Create a multimedia template
1. Create a multimedia message, with a subject
and desired attachments, to use as your
template.
X
p. 48
2. From the message screen, tap → Save in →
Templates.
The message is now saved as a multimedia
template with a preset name, such as ‘Birthday.’
Insert text templates in new messages
1. To start a new message, tap → Messages →
Create new message → a message type.
2. Scroll down to the text field, and tap → Insert
→ Text template → a template.
Create a message from a multimedia
template
1. In Idle mode, tap → Messages → Templates
→ Multimedia message templates.
2. Scroll to the template you want and tap →
Send.
Use advanced music functions
Learn to prepare music files and store radio stations.
Copy music files to a memory card
1. Insert a memory card.
2. In Idle mode, tap → Settings → Phone
settings → USB settings → Mass storage.
3. Press [ ] to return to Idle mode.
61
using advanced functions
4. Using an optional PC data cable, connect the
multifunction jack on your phone to a PC.
When connected, a pop-up window will appear
on the PC.
5. Select Open folder to view files in the pop-up
window on the PC.
6. Copy files from the PC to the memory card.
Customise your music player settings
Learn to adjust the playback and sound settings for
your music player.
1. In Idle mode, tap → Music.
2. Tap → Settings.
3. Adjust the settings to customise your music
player.
4. Tap .
Store radio stations automatically
1. In Idle mode, tap → Applications → FM
radio.
2. Tap → Self-tuning.
The radio scans and saves available stations
automatically.
62
using tools and
applications
Learn how to work with your mobile phone’s tools
and additional applications.
Use China Mobile services
Learn to use KUAIXUN services or China Mobile In
services.
Use KUAIXUN services
The mobile information service KUAIXUN allows you
to receive a variety of news and real-time information
about sports and entertainment at any moment.
To purchase KUAIXUN channels,
1. In Idle mode, press [ ] to open the KUAIXUN
previewer.
2. Tap XX → Channel Mgt → Channel Purchase.
3. Find and download the channels you want.
63
using tools and applications
To access the information service,
1. In Idle mode, press [ ] to open the KUAIXUN
previewer.
2. Scroll left or right to a KUAIXUN channel.
3. Scroll down to the content list.
4. Select the content you want.
Use China Mobile In services
In Idle mode, tap → China Mobile In → a service.
You are connected to the preset website.
Service Function
Wireless
Music
Download music files on your phone
Games
Get information about games and
download a variety of games
News &
Weather
Get the latest news and weather
reports
IM (Fetion)
Use the chatting service
Mobile TV
Watch popular movies and TV
Push-Email
box
Receive emails from your preset
account; Reply to or forward emails
Phonebook
Manager
Access an online Phonebook
service, where you can manage
contacts on the wireless web and
synchronise Phonebook with the
online Phonebook
KUAIXUN
Change the settings for using
KUAIXUN services
QR-code
Scan barcodes that are created for
mobile phone use to get various
information on the corresponding
content or service
Finance
Online
Use the online stock transaction
service or check market conditions
Service Function
64
using tools and applications
Use the Bluetooth wireless feature
Learn about your phone’s ability to connect to other
wireless devices for exchanging data and using
hands-free features.
Turn on the Bluetooth wireless feature
1. In Idle mode, tap → Applications →
Bluetooth → Activation → On.
2. To allow other devices to locate your phone,
select My phone’s visibility → On.
Find and pair with other Bluetooth-
enabled devices
1. In Idle mode, tap → Applications →
Bluetooth → My devices → Search new
devices.
2. Tap a device.
3. Enter a PIN for the Bluetooth wireless feature or
the other device’s Bluetooth PIN, if it has one,
and tap XX.
When the owner of the other device enters the
same code or accepts the connection, pairing is
complete.
What’s New
Get your service provider’s latest
offerings
STK
Applications
Use a variety of additional services
offered by your service provider, if this
service is supported by your SIM
card
My Monternet
Access or download your favourite
content
Monternet
Connect to Monternet
Service Function
65
using tools and applications
Send data using the Bluetooth wireless
feature
1. Select the file or item from one of your phone’s
applications that you want to send.
2. Tap → Send via → Bluetooth (when sending
contact data, specify which data to send).
Receive data using the Bluetooth
wireless feature
1. Enter the PIN for the Bluetooth wireless feature
and tap XX (if necessary).
2. Tap XX to confirm that you are willing to receive
data from the device (if necessary).
Activate and send an SOS message
When you have an emergency, you can send an
SOS message asking for help.
1. In Idle mode, tap → Messages → SOS
messages → Sending options.
2. Scroll left or right to On.
3. Tap Recipients to open the recipient list.
4. Tap → Phonebook to open your contact list.
5. Tap a contact → a number (if necessary).
6. When you are finished selecting contacts, tap
→ Save to save the recipients.
7. Tap Repeat and set the number of times to
repeat the SOS message.
8. Tap → .
66
using tools and applications
To send an SOS message, the keys must be
locked. With the keys locked, press [ / ] four
times.
Record and play voice memos
Learn to operate your phone’s voice recorder.
Record a voice memo
1. In Idle mode, tap → Applications → Voice
recorder.
2. Tap to start recording.
3. Speak your memo into the microphone.
4. When you are finished speaking, tap .
Play a voice memo
1. From the voice recorder screen, tap → Go to
My voice clips.
2. Select a file.
3. Control the playback using the following keys:
Once you send an SOS message, all phone
functions will be suspended until you press
[]
.
Key Function
/
Pause or resume playback
Adjust the volume up or down
Scan backward in a file
Scan forward in a file
Stop playback
67
using tools and applications
Edit images
Learn to edit images and apply fun effects.
Apply effects to images
1. In Idle mode, tap → Applications → Image
editor.
2. Tap → New image → Open or New photo.
3. Select an image or take a new photo.
4. Tap → Effects → an effect option.
5. Select a variation of the effect to apply and tap
.
6. When done with effects, tap → Save as.
7. Enter a new file name for the image and tap →
Save.
Adjust an image
1. In Idle mode, tap → Applications → Image
editor.
2. Tap → New image → Open or New photo.
3. Select an image or take a new photo.
4. Tap → Adjust → an adjustment option
(brightness, contrast, or colour).
5. Adjust the image as desired and tap .
6. Tap → Save as.
7. Enter a new file name for the image and tap →
Save.
Transform an image
1. In Idle mode, tap → Applications → Image
editor.
2. Tap → New image → Open or New photo.
68
using tools and applications
3. Select an image or take a new photo.
4. Tap → Transform → Rotate or Flip.
5. Rotate or flip the image as desired and tap .
6. Tap → Save as.
7. Enter a new file name for the image and tap →
Save.
Insert a visual feature
1. In Idle mode, tap → Applications → Image
editor.
2. Tap → New image → Open or New photo.
3. Select an image or take a new photo.
4. Tap → Insert → a visual feature (frame, clip
art, or emoticon).
5. Select a visual feature to add and press [ ].
6. Move the added image (if necessary).
7. Tap .
8. Tap → Save as.
9. Enter a new file name for the image and tap →
Save.
Use Java-powered games and
applications
Learn to use games and applications powered by
award-winning Java technology.
Play games
1. In Idle mode, tap → My favorite → Java box.
2. Select a game from the list and follow the
onscreen instructions.
69
using tools and applications
Launch applications
1. In Idle mode, tap → My favorite → Java box
→ an application.
2. Tap to access a list of various options and
settings for your application.
View world clocks
Learn to view the time in another country or city and
set world clocks to appear on your display.
View a world clock
1. In Idle mode, tap → Organiser → World
clock.
2. Scroll down to a world clock.
3. Scroll left or right to a time zone.
4. To set daylight saving time, tap → Apply
daylight saving time → a time zone → .
5. Tap → Save to create your world clock.
Add a world clock to your display
In Dual Clock Display mode, you can view clocks
with two different time zones on your display.
After you have created a world clock,
1. In Idle mode, tap → Organiser → World
clock.
2. Scroll to the world clock you want to add and tap
→ Mark as second clock.
3. Tap → Display settings.
4. Scroll left or right to Dual digital.
5. Tap .
Available games may vary, depending on your
service provider or region. Game controls and
options may vary.
70
using tools and applications
Set and use alarms
Learn to set and control alarms for important events.
Set a new alarm
1. In Idle mode, tap → Organiser → Alarm.
2. Tap an empty alarm location.
3. Scroll left or right to On.
4. Set alarm details.
5. Tap .
Stop an alarm
When the alarm sounds,
• Tap to stop an alarm without snooze.
• Tap to stop an alarm with snooze or tap to
silence the alarm for the snooze period.
Deactivate an alarm
1. In Idle mode, tap → Organiser → Alarm.
2. Tap the alarm you want to deactivate.
3. Scroll left or right to Off.
4. Tap .
Use the calculator
1. In Idle mode, tap → Organiser → Calculator.
2. Use the keys that correspond to the calculator
display to perform basic mathematical
operations.
The auto power-up feature sets the phone to
automatically turn on and sound the alarm at
the designated time if the phone is turned off.
71
using tools and applications
Convert currencies or
measurements
1. In Idle mode, tap → Organiser → a
conversion type.
2. Enter the currencies or measurements and units
in the appropriate fields.
Set a countdown timer
1. In Idle mode, tap → Organiser → Timer.
2. Tap .
3. Enter hours or minutes to count down and tap
.
4. Tap to start the countdown.
5. When the timer expires, tap to stop the alert.
Use the stopwatch
1. In Idle mode, tap → Organiser →
Stopwatch.
2. Tap to begin and tap to record lap times.
3. Tap to clear recorded times.
Look up words in a dictionary
Learn to look up English or Chinese words in your
dictionary.
Look up Chinese words
1. In Idle mode, tap → Organiser → Dictionary.
2. Enter a Chinese word.
3. Scroll to a word and tap .
72
using tools and applications
Look up English words
1. In Idle mode, tap → Organiser → Dictionary.
2. Tap → ENG-CHN Dictionary.
3. Enter an English word.
4. Scroll to a word and tap .
Create a text memo
1. In Idle mode, tap → Organiser → Memo.
2. Tap → Create.
3. Enter your memo text and tap .
Create and view sketches
Learn to create and view sketches with your stylus.
Create a sketch
1. In Idle mode, tap → Organiser → Sketch
memo. You can also tap in Idle mode.
2. Make a sketch using the following tools:
3. When you are finished, tap → .
Tools Function
Open a new sketch
Select a pen or brush; Erase the sketch
Cancel the last action
Select thickness for the brush lines
Select a line colour
Make a sketch from a photo
View the saved sketches
73
using tools and applications
View a sketch
1. In Idle mode, tap → Organiser → Sketch
memo. You can also tap in Idle mode.
2. Tap → a sketch.
You can use the following tools:
Manage your calendar
Learn to change the calendar view and create
events.
Change the calendar view
1. In Idle mode, tap → Calendar.
2. Tap → View by → Day or Week.
Create an event
1. In Idle mode, tap → Calendar.
2. Tap → Create → an event type.
3. Enter the details of the event as required.
4. Tap .
Tools Function
Edit the sketch
Delete the sketch
Set an alarm with the sketch
Set the sketch as a wallpaper
a
troubleshooting
If you are having trouble with your mobile phone, try these troubleshooting procedures before contacting a service
professional.
When you turn on your phone, the following
messages may appear:
Your phone displays “No service” or “Network
failure.”
• When you are in areas with weak signals or poor
reception, you may lose reception. Move to
another area and try again.
Message Try this to solve the problem:
Insert SIM Ensure that the SIM card is installed
correctly.
Enter PIN
When using the phone for the first
time or when the PIN requirement is
enabled, you must enter the PIN
supplied with the SIM card. You can
disable this feature by using the
PIN check
menu.
Enter PUK
Your SIM card is blocked, usually
as a result of entering your PIN
incorrectly several times. You must
enter the PUK supplied by your
service provider.
Message Try this to solve the problem:
b
troubleshooting
• You cannot access some options without a
subscription. Contact your service provider for
more details.
You enter a number, but the call is not dialled.
• Ensure that you have pressed the Dial key: [ ].
• Ensure that you have accessed the right cellular
network.
• Ensure that you have not set call barring for the
phone number.
Another caller cannot reach you.
• Ensure that your phone is turned on.
• Ensure that you have accessed the right cellular
network.
• Ensure that you have not set call barring for the
phone number.
Another caller cannot hear you speaking.
• Ensure that you are not covering the built-in
microphone.
• Ensure that the microphone is close to your
mouth.
• If using a headset, ensure that it is properly
connected.
The phone beeps and the battery icon flashes.
Your battery is low. Recharge or replace the battery to
continue using the phone.
The audio quality of the call is poor.
• Ensure that you are not blocking the phone’s
internal antenna.
• When you are in areas with weak signals or poor
reception, you may lose reception. Move to
another area and try again.
c
troubleshooting
You select a contact to call, but the call is not
dialled.
• Ensure that the correct number is stored in the
contact list.
• Re-enter and save the number, if necessary.
The battery does not charge properly or
sometimes the phone turns itself off.
• The battery terminals may be dirty. Wipe both
gold-coloured contacts with a clean, soft cloth
and try charging the battery again.
• If the battery will no longer charge completely,
dispose of the old battery properly and replace it
with a new battery.
Some of the contents in this manual may differ from your phone depending on the software of the phone or your
service provider.
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-XXXXXA
English. 03/2008. Rev. 1.0
