TRI BANDGPRS TELEPHONESGH-E715* Some of the contents of this manual may differ from your phone,depending upon the software installed or your service provider.Printed in KoreaCode No.: GH68-xxxxxAEnglish. 08/2003. Rev. 1.0World Wide Webhttp://www.samsungmobile.com

3 Contents Important Safety Precautions................................ 7Unpacking.............................................................. 9Your Phone .......................................................... 10 Phone Layout .......................................................... 10Display................................................................... 13Service Light........................................................... 16Camera .................................................................. 16 Getting Started .................................................... 17 Installing the SIM Card............................................. 17Charging the Battery................................................ 19Switching the Phone On or Off................................... 21 Call Functions ...................................................... 22 Making a Call .......................................................... 22Adjusting the Volume ............................................... 24Answering a Call...................................................... 25Viewing Missed Calls ................................................ 26Quickly Switching to Silent Mode................................ 28 Selecting Functions and Options .......................... 29Phonebook........................................................... 31 Storing a Number with a Name.................................. 31Using Phonebook Entry Options ................................. 34Searching for a Number in Phonebook ........................ 35Editing a Caller Group .............................................. 37Speed-dialling ......................................................... 38Deleting All of the Phonebook Entries ......................... 40Checking the Memory Status ..................................... 41 Entering Text ....................................................... 42 Changing the Text Input Mode................................... 43Using the T9 Mode ................................................... 44Using the Upper/lower-case Character Modes .............. 46Using the Symbol Mode ............................................ 47Using the Number Mode ........................................... 47

Contents 6 Funbox .............................................................. 130 Zones (Menu 9.1) ............................................................ 130 Games (Menu 9.2) .......................................................... 135 Sounds (Menu 9.3) ......................................................... 137 Images (Menu 9.4) ......................................................... 138 Delete All (Menu 9.5)...................................................... 138 Memory Status (Menu 9.6) ............................................. 139 Solving Problems ............................................... 140Access Codes ..................................................... 143 Phone Password .................................................... 143PIN ...................................................................... 144PUK ..................................................................... 144PIN2 .................................................................... 145PUK2 ................................................................... 145 Health and Safety Information .......................... 146 Exposure to Radio-Frequency Energy(SAR Information) ................................................. 146Precautions When Using Batteries ............................ 147Road Safety .......................................................... 149Operating Environment........................................... 151Electronic Devices.................................................. 151Potentially Explosive Environments .......................... 153Emergency Calls .................................................... 154Other Important Safety Information ......................... 155Care and Maintenance ............................................ 156 Glossary ............................................................ 158Index................................................................. 163Quick Reference Card ........................................ 167

7 Important Safety Precautions Read these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal. Road Safety at All Times Do not use a hand-held phone while driving; park the vehicle first. Switching Off When Refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switching Off in Aircraft Wireless phones can cause interference. Using them in aircraft is both illegal and dangerous. Switching Off in Hospitals Switch your phone off near medical equipment. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect their performance. Special Regulations Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example).

Important Safety Precautions 8 Sensible Use Use only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency Call Ensure the phone is switched on and in service. Key in the emergency number for your present location, then press the key. You must deactivate any unnecessary features before you can make an emergency call. Give all the necessary information as accurately as possible. Do not cut off the call until given permission to do so. Water Resistance Your phone is not water-resistant. Keep it dry. Accessories and Batteries Use only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous. Qualified Service Only qualified service personnel may repair your phone.For more detailed safety information, see “Health and Safety Information” on page 146. 9 Unpacking Your package contains the following items:In addition, you can obtain the following accessories for your phone from your local Samsung dealer:• Ear-microphone• Travel charger/adapter• Battery charger• Standard battery• Simple hands-free kit• Cigarette lighter adapter• Car holder• Data kitHandset Travel AdapterBattery User’s Manuals

10 Your Phone Phone Layout The following illustrations show the main elements of your phone:EarpieceDisplaySoft key (right)Power on/off / menu exit keyAlphanumeric keysSpecialfunction keysVolume/menubrowse keysDial/menuconfirmation keyIrDA port MicrophoneEar-microphonejackSoft key (left)Navigation keys (Up/Down/Left/Right key)Cancel/correction keyWAP browser keyFolderCamera moduleExternaldisplayCamera keyService light Your Phone 11 Key (s) Description In Menu Mode, scroll through the menu options and the Phonebook memory.In Idle Mode, allow you to access your favourite menu options directly. For further details about shortcuts, see page 112.In Menu Mode, return to the previous menu level and select the current menu respectively. When entering text, move the cursor to the left and right respectively. In Idle Mode, allow you to access your favourite menu options directly. For further details about shortcuts, see page 112. (soft keys) Perform the functions indicated by the text above them, on the bottom line of the display.In Idle Mode, directly launches the WAP (Wireless Application Protocol) browser.Deletes characters from the display.In Menu Mode, returns to the previous menu level.Makes or answers a call.In Idle Mode, recalls the last number dialled or received when held down.In Menu Mode, selects a menu function or stores information that you have entered, such as a name in the phone or SIM memory.

Your Phone 12 Ends a call. Also switches the phone on and off when held down. In Menu Mode, cancels your input and returns to Idle Mode.In Idle Mode, quickly accesses your voice mail when held down.Enter numbers, letters and some special characters.Enter special characters.Perform various functions.(on the left side of the phone) During a call, adjust the earpiece volume.In Idle Mode, adjust the keypad tone volume.In Menu Mode, scroll through the menu options and the Phonebook memory.(on the right side of the phone)In Idle Mode, quickly accesses the Camera menu to allow you to use the camera application. Turns the camera on when held down.In the capture mode, works as a camera shutter.Key(s) Description (continued)Your Phone13DisplayDisplay LayoutThe display has three areas:Area DescriptionFirst line Displays various icons. See page 14.Middle lines Display messages, instructions and any information that you enter, such as the number to be dialled.Last line Shows the functions currently assigned to the two soft keys.IconsText and graphic areaSoft keyindicatorsMenu Name

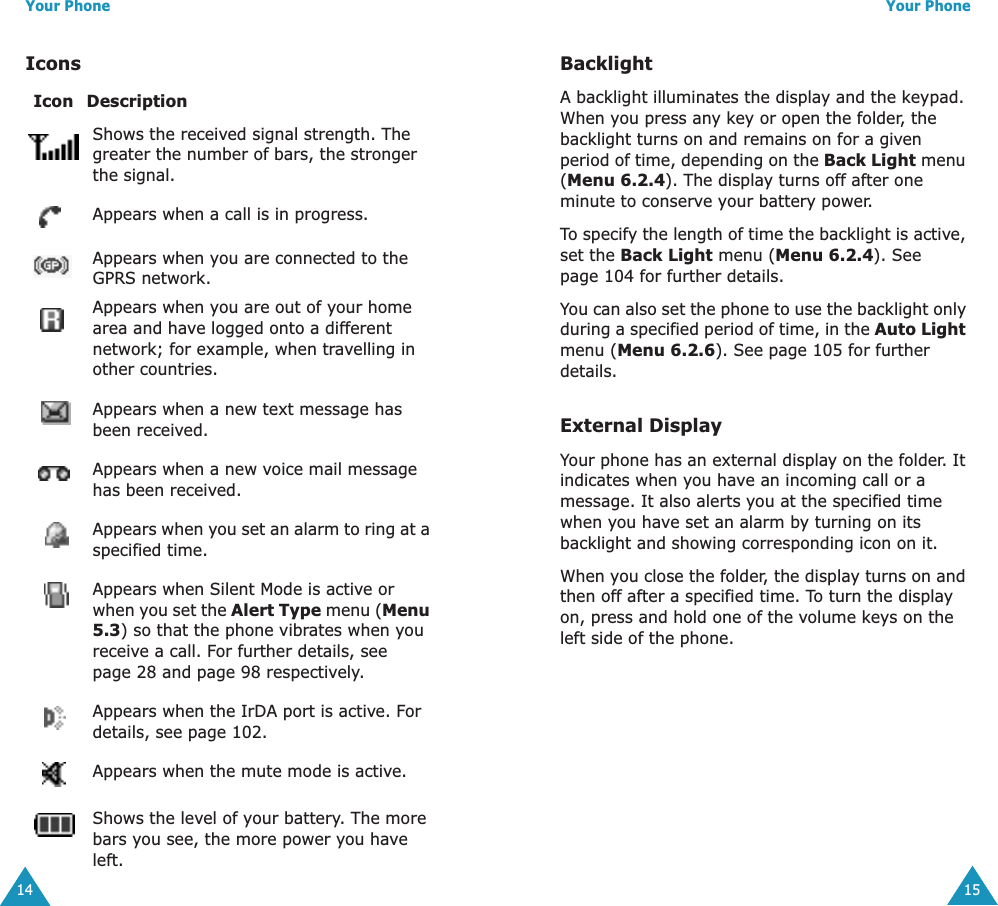

Your Phone14IconsIcon Description Shows the received signal strength. The greater the number of bars, the stronger the signal.Appears when a call is in progress.Appears when you are connected to the GPRS network.Appears when you are out of your home area and have logged onto a different network; for example, when travelling in other countries.Appears when a new text message has been received.Appears when a new voice mail message has been received.Appears when you set an alarm to ring at a specified time.Appears when Silent Mode is active or when you set the Alert Type menu (Menu 5.3) so that the phone vibrates when you receive a call. For further details, see page 28 and page 98 respectively. Appears when the IrDA port is active. For details, see page 102.Appears when the mute mode is active.Shows the level of your battery. The more bars you see, the more power you have left.Your Phone15BacklightA backlight illuminates the display and the keypad. When you press any key or open the folder, the backlight turns on and remains on for a given period of time, depending on the Back Light menu (Menu 6.2.4). The display turns off after one minute to conserve your battery power.To specify the length of time the backlight is active, set the Back Light menu (Menu 6.2.4). See page 104 for further details.You can also set the phone to use the backlight only during a specified period of time, in the Auto Light menu (Menu 6.2.6). See page 105 for further details.External DisplayYour phone has an external display on the folder. It indicates when you have an incoming call or a message. It also alerts you at the specified time when you have set an alarm by turning on its backlight and showing corresponding icon on it. When you close the folder, the display turns on and then off after a specified time. To turn the display on, press and hold one of the volume keys on the left side of the phone.

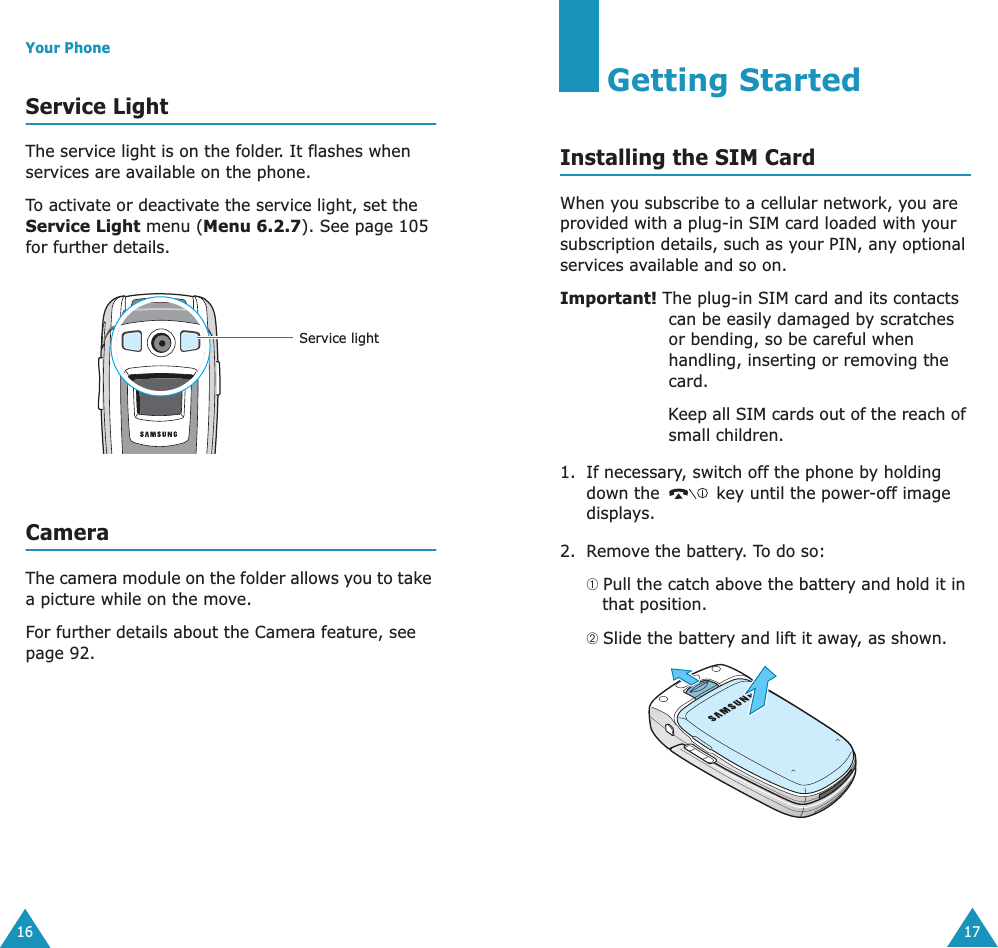

Your Phone16Service LightThe service light is on the folder. It flashes when services are available on the phone.To activate or deactivate the service light, set the Service Light menu (Menu 6.2.7). See page 105 for further details.CameraThe camera module on the folder allows you to take a picture while on the move. For further details about the Camera feature, see page 92.Service light17Getting StartedInstalling the SIM CardWhen you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available and so on.Important! The plug-in SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card.Keep all SIM cards out of the reach of small children.1. If necessary, switch off the phone by holding down the key until the power-off image displays.2. Remove the battery. To do so:➀ Pull the catch above the battery and hold it in that position.➁ Slide the battery and lift it away, as shown.

Getting Started183. Slide the SIM card into the SIM card socket, as shown, so that it locks the card into position. Make sure the gold contacts of the card face into the phone.Note: When you need to remove the SIM card, slide it, as shown, and take it out of the socket.4. Replace the battery, taking care to match the tabs on the battery with the grooves on the phone. Getting Started195. Slide the battery towards the top of the phone until it clicks into place. Make sure that the battery is properly installed before switching the power on. Charging the BatteryYour phone is powered by a rechargeable Li-ion battery. A travel adapter comes with your phone for charging the battery. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.The travel adapter allows you to use the phone while the battery is charging, but this causes the phone to charge more slowly. Note: You must fully charge the battery before using your phone for the first time. A discharged battery is fully recharged in approximately 200 minutes.

Getting Started201. With the battery in position on the phone, plug the connector of the travel adapter into the jack at the bottom of the phone. 2. Plug the adapter into a standard AC wall outlet.3. When charging is finished, unplug the adapter from the power outlet and from the phone by pressing the gray tabs on both sides of the connector and pulling the connector out.Note: You must unplug the adapter before removing the battery from the phone during charging; otherwise, the phone could be damaged.Low Battery IndicatorWhen the battery is weak and only a few minutes of talk time remain, a warning tone sounds and a message repeats at regular intervals on the display. When the battery level becomes too low, the phone automatically turns off.Getting Started21Switching the Phone On or Off1. Open the folder.2. Press and hold the key until the phone switches on.3. If the phone asks you to enter the phone password, enter the password and press the OK soft key. The phone password is preset to “00000000” at the factory. For further details, see page 143.4. If the phone asks for a PIN, enter the PIN and press the OK soft key. For further details, see page 144.The phone searches for your network and, after finding it, the idle screen appears on the display, as illustrated below. Now, you can make or receive a call.Note: The display language is preset to English at the factory. To change the language, use the Language menu (Menu 6.5). For further details, see page 108.5. When you wish to switch the phone off, hold down the key until the power-off image displays.Service Provider07:30Wed 06 MarMenu Name

22Call FunctionsMaking a CallWhen the idle screen displays, enter the area code and phone number, and press the key.Note: When you check the Auto Redial option in the Extra Settings menu (Menu 6.8), the phone automatically redials up to ten times when the person does not answer the call or is already on the phone. See page 111 for further details.Making an International Call1. Press and hold the 0 key. The + character appears.2. Enter the country code, area code and phone number and press the key.Correcting the Number To clear Press thethe last digit displayedC key. any other digit in the numberLeft or Right key until the cursor is immediately to the right of the digit to be cleared. Press the C key. You can also insert a missing digit simply by pressing the appropriate key.the whole display C key and hold it for more than one second.Call Functions23Ending a CallWhen you want to finish your call, briefly press the key.Redialling the Last NumberThe phone stores the numbers you dial, receive or miss if the caller is identified. See “Call Records” on page 88 for further details. To recall any of these numbers:1. If you have typed characters on the display, press the key to return to Idle Mode.2. Press the key to display a list of the last numbers in the order in which the calls were made.3. Use the Up and Down keys to scroll through the numbers until the number you want highlights.4. To Press thedial the number key.edit the number Options soft key and select Edit. Change the number as required, referring to “Correcting the Number” on page 22 for further details. delete the number Options soft key and select Delete.delete all of the numbers on the Redial list Options soft key and select Delete All. When a confirming message displays, press the Yes soft key.

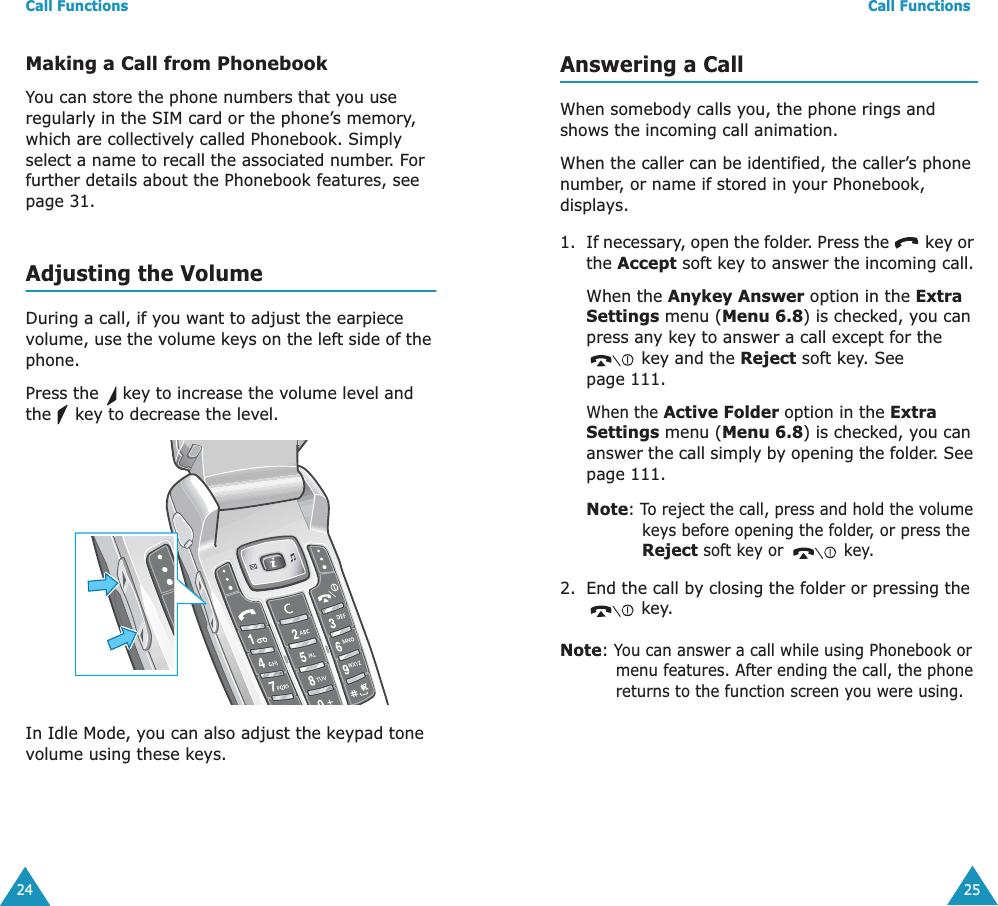

Call Functions24Making a Call from PhonebookYou can store the phone numbers that you use regularly in the SIM card or the phone’s memory, which are collectively called Phonebook. Simply select a name to recall the associated number. For further details about the Phonebook features, see page 31.Adjusting the VolumeDuring a call, if you want to adjust the earpiece volume, use the volume keys on the left side of the phone. Press the key to increase the volume level and the key to decrease the level.In Idle Mode, you can also adjust the keypad tone volume using these keys.Call Functions25Answering a CallWhen somebody calls you, the phone rings and shows the incoming call animation. When the caller can be identified, the caller’s phone number, or name if stored in your Phonebook, displays. 1. If necessary, open the folder. Press the key or the Accept soft key to answer the incoming call.When the Anykey Answer option in the Extra Settings menu (Menu 6.8) is checked, you can press any key to answer a call except for the key and the Reject soft key. See page 111.When the Active Folder option in the Extra Settings menu (Menu 6.8) is checked, you can answer the call simply by opening the folder. See page 111.Note: To reject the call, press and hold the volume keys before opening the folder, or press the Reject soft key or key. 2. End the call by closing the folder or pressing the key.Note: You can answer a call while using Phonebook or menu features. After ending the call, the phone returns to the function screen you were using.

Call Functions26Viewing Missed CallsWhen you are unable to answer a call for any reason, you can find out who is calling you, if this service is available, so that you can call the person back. The number of missed calls displays on the idle screen immediately after a call is missed.To view the missed call immediately:1. If the phone is closed, open the folder.2. Press the View soft key.The number for the most recent missed call displays, if available.Editing a Missed Call NumberNote: When the number for the missed call is not available, the Edit option does not display.1. Press the Options soft key.2. Press the Up or Down key to highlight the Edit option.3. Press the Select soft key.3. To Press thescroll through the missed callsUp or Down key.call the number displayed key.edit or delete a missed call numberSelect soft key. See below.Call Functions274. Change the number, as required. Deleting a Missed Call1. Press the Options soft key.2. If necessary, press the or key to highlight the Delete option.3. Press the Select soft key.You can press the key at any time to exit the Missed Call feature.Note: You can access the Missed Call feature at any time by selecting the Missed Calls menu (Menu 3.1). For further details, see page 88.5. To Press thecall the number key.store the numberSave soft key and enter the name and location required. For further details, see page 31.

Call Functions28Quickly Switching to Silent ModeSilent Mode is convenient when you wish to stop the phone from making noise, in a theatre for example.In Idle Mode, press and hold the key until the “Silent Mode” message and the Vibration icon ( ) display.In Silent Mode, your phone changes the sound settings as follows:To exit and reactivate the previous sound settings, press and hold the key again until “Exit Silent Mode” appears. The Vibration icon ( ) no longer displays.Note: When you turn the phone off, Silent Mode is automatically deactivated.Option New SettingAlert Type (Menu 5.3) VibrationKeypad Tone (Menu 5.4)OffMessage Tone (Menu 5.5) Light OnlyFolder Tone (Menu 5.6)OffPower Off Tone OffExtra Tones (Menu 5.8)Off29Selecting Functions and OptionsYour phone offers a set of functions that allow you to customise it. These functions are arranged in menus and sub-menus, accessed using the two soft keys marked and . Each menu and sub-menu allows you to view and alter the settings of a particular function.The roles of the soft keys vary according to the function you are currently using; the label on the bottom line of the display just above each key indicates its current role.Example:Menu NameService Provider07:30Wed 06 MarPress the left soft key to access Menu Mode.Press the right soft key to access the Phonebook feature.

Selecting Functions and Options30To view various functions/options available and select the one you want: 1. Press the appropriate soft key.In some functions, you may be asked for a password or PIN. Enter the code and press the OK soft key.Note: When you access a list of options, your phone highlights the current option. If, however, there are only two options, such as On/Off or Enable/Disable, your phone highlights the option that is not currently active so that you can select it directly.2. To Press the select the: • function displayed • option highlightedSelect soft key or the Right key. view the next function or highlight the next option on a listDown key or key on the left side of the phone. move back to the previous function or option on a listUp key or key on the left side of the phone. move back up one level in the structureLeft key, soft key or C key. exit the structure without changing the settings key.31PhonebookYou can store phone numbers and their corresponding names in the memory of your SIM card and phone’s memories. They are physically separate but are used as a single entity, called Phonebook.Storing a Number with a NameThere are two ways to store a number: • Using the Save soft key in Idle Mode • Using the New Entry option in the Phonebook menuStoring a Number in Idle ModeAs soon as you start to enter a number, Save appears above the left soft key to allow you to store the number in Phonebook.1. Enter the number you want to store.Note: If you make a mistake while entering a number, correct it using the C key. For further details, see page 22.2. When you are sure that it is correct, press the Save soft key.3. Select an icon to identify the category of the number to be stored. Three categories are available:• : Mobile phone number• : Office number• : Home numberTo select the category, press the Left or Right key and press the Select soft key.

Phonebook324. Select a memory, either Phone Memory or Card Memory, by pressing the Up or Down key and press the Select soft key.Note: When you change phones, any numbers stored in your SIM card memory are automatically available with the new phone, whereas any numbers stored in the phone’s memory must be reentered.5. Enter a name and press the OK soft key.The maximum length of a name depends on your SIM card. For further details about how to enter characters, see page 42.6. If you do not want to save the number and name in the suggested location, press the C key to clear the location number and enter another location by pressing the number keys.7. Press the OK soft key to store the name and number.After storing, the phone displays the Phonebook entry or name you just created.8. To Press theuse the entry options Options soft key. For further details, see page 34.return to the idle screen key.Phonebook33Storing a Number Using the Phonebook Menu1. When the idle screen displays, press the Name soft key. 2. Scroll to New Entry by pressing the Up or Down key and press the Select soft key.3. Select an icon to identify the category of the number to be stored by pressing the Left or Right key, and press the Select soft key.Note: The E-mail icon ( ) is available in this step. It allows you to save an e-mail address instead of a phone number.4. Select a memory, either Phone Memory or Card Memory, by pressing the Up or Down key and press the Select soft key5. Enter a name and press the OK soft key. The maximum length of a name depends on your SIM card. For further details about how to enter characters, see page 42.6. Enter the number or address you want to store and press the Save soft key.7. Continue the procedure from Step 6 on page 32 to store the number.

Phonebook34Using Phonebook Entry OptionsWhile accessing any Phonebook entry, press the Options soft key to access the options for the entry.The following options are available:Paste: allows you to paste the number into the normal dialling mode. Use this option to dial a number similar to one in Phonebook, such as a different extension in the same office.Use the C key to change the number as required; see page 22 for further details. When you are ready to dial, press the key.Edit: allows you to edit the name and number.Select One Entry to change one number for the selected name. If you change the name, the number is saved separately. Select All Entry to change the name of the entry.Delete: allows you to delete the name and number from Phonebook. You are asked to confirm that you wish to delete the name and number by pressing the Yes soft key.Copy: allows you to copy the number to another location. Use this option to store a number similar to one already in the memory; once copied, edit the number and store it in Phonebook.To Press theselect the highlighted optionSelect soft key or the Right key.highlight a different optionUp or Down key until the option you want highlights.Phonebook35Caller Group: allows you to organise your Phonebook entries in caller groups so that the phone alerts you in a specific way when a person from one of your groups calls you. Select one of the ten groups available. To remove an entry from a group, select the No Group option.For further details about how to change caller group properties, see page 37.Add Entry: allows you to add a new number to the currently selected name.Searching for a Number in PhonebookAfter storing numbers in Phonebook, you can search for them in two ways; by name and by caller group.Searching for a Number by Name1. When the idle screen displays, press the Name soft key. 2. Press the Select soft key when Search highlights. You are asked to enter a name.3. Enter the first few letters of the name that you want to find.The Phonebook entries are listed, starting with the first entry matching your input.

Phonebook365. Once you have found the entry, press the key to dial the number, or press the Options soft key to access the Phonebook entry options; for further details, see page 34.Searching for a Number by Caller Group1. When the idle screen displays, press the Name soft key. 2. Scroll to Group Search by pressing the Up or Down key and press the Select soft key. You are asked to enter a group name.3. Enter the first few letters of the group name that you want to find.The caller groups are listed, starting with the first group matching your input. 4. If necessary, scroll to a group by pressing the Up or Down key and press the View soft key.The Phonebook entries in the caller group are listed.4. To Press theview the highlighted entryView soft key.select a different entryUp or Down key until the entry highlights.look for a name starting with a different letterkey labelled with the letter you want to enter. Phonebook376. Once you have found the entry, press the key to dial the number, or press the Options soft key to access the Phonebook entry options; for further details, see page 34.Editing a Caller Group1. When the idle screen displays, press the Name soft key.2. Scroll to Group Edit by pressing the Up or Down key and press the Select soft key.3. Scroll through the group list by pressing the Up or Down key.4. When the group you want highlights, press the Options soft key.5. Select each option and change the settings, as required. The following options are available:• Call Ring Tone: allows you to set a ring tone to be used when you receive a voice call from a person in the group.• SMS Tone: allows you to set a ring tone to be used when you receive a message from a person in the group.5. To Press theview the highlighted entryView soft key.select a differententryUp or Down key until the entry you want highlights.

Phonebook38• Graphic: allows you to set a graphic icon to be displayed when you receive a voice call from a person in the group.• Group Name: allows you to assign a name to the group. For further details about how to enter characters, see page 42.6. When you finish changing the settings, press the C or key.Speed-diallingOnce you have stored phone numbers in Phonebook, you can set up to eight speed-dial entries and then dial them easily whenever you want, simply by pressing the associated number key.Setting Up Speed-dial Entries1. When the idle screen displays, press the Name soft key.2. Scroll to Speed Dial by pressing the Up or Down key and press the Select soft key.3. Select the key to which you wish to assign the speed-dialling number, from the 2 to 9 keys, and press the OK soft key.Note: If you have already assigned a number to the key, the Options soft key replaces the OK soft key. Go to Step 6.4. Select a Phonebook entry from the list and press the View soft key.Phonebook395. Select a number, if the entry has more than one, by pressing the Up or Down key and press the Select soft key.6. Once you have assigned a number to the key, you can use the following options by pressing the Options soft key:• Change: allows you to assign a different number to the key.• Delete: allows you to clear the setting so that no number is assigned to the key.• Delete All: allows you to clear the settings for all keys so that no numbers are assigned to any of the keys.• Number: allows you to view the number assigned to the key.7. When you finish setting the options, press the C or key.Speed-dialling from PhonebookTo speed-dial the numbers assigned to keys 2 to 9, press and hold the appropriate key.Note: Memory location 1 is reserved for your Voice Mail server number.

Phonebook40Deleting All of the Phonebook EntriesYou can delete all of entries in the selected memory or both memories. 1. When the idle screen displays, press the Name soft key.2. Scroll to Delete All by pressing the Up or Down key and press the Select soft key.3. To place a check mark by the memory you want to empty, All, SIM or Phone, press the Mark soft key. You can remove the check mark by pressing the Unmark soft key.4. When you are finished marking, press the Delete soft key to delete the entries in the selected memory.5. Enter the phone password and press the OK soft key.Note: The password is preset to “00000000” at the factory. To change it, see page 109.6. When the confirming message appears, press the Yes soft key.To cancel the deletion, press the No soft key.7. When you finish deleting, press the C or key.Phonebook41Checking the Memory StatusYou can check how many names and numbers are stored in Phonebook, in both the SIM card and phone memories. You can also see the capacity of both memories. 1. When the idle screen displays, press the Name soft key.2. Select the Memory Status option by pressing the Up or Down key and press the Select soft key.3. Press the Up or Down key to view the number of existing and remaining entries in the SIM card and phone memories.4. When you finish checking, press the C or key.

42Entering TextWhen using your phone, you will often need to enter text, such as when storing a name in Phonebook, creating your personal greeting or scheduling events on your calendar. You can enter alphanumeric characters by using your phone’s keypad.Your phone has the following text input modes:• T9 modeThis mode allows you to enter words with only one keystroke per letter. Each key on the keypad has more than one letter – when you press the 5 key once, J, K or L displays. The T9 mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word, thus requiring far fewer keystrokes than the traditional alphabet mode.•Upper/lower-case character modesThese modes allow you to enter letters by pressing the key labelled with the letter you want to enter once, twice, three or four times until it displays.• Symbol modeThis mode allows you to enter various symbols and special characters. •Number modeThis mode allows you to enter numbers.Entering Text43Changing the Text Input ModeWhen you are in a field that allows characters to be entered, you will notice the text input mode indicator on the display.Example: Writing a text messageTo select the Press the key untilT9 mode displays. See page 44.Upper-case character mode displays. See page 46.Lower-case character mode displays. See page 46.Symbol mode displays. See page 47.Number mode displays. See page 47.OptionsText input mode indicator

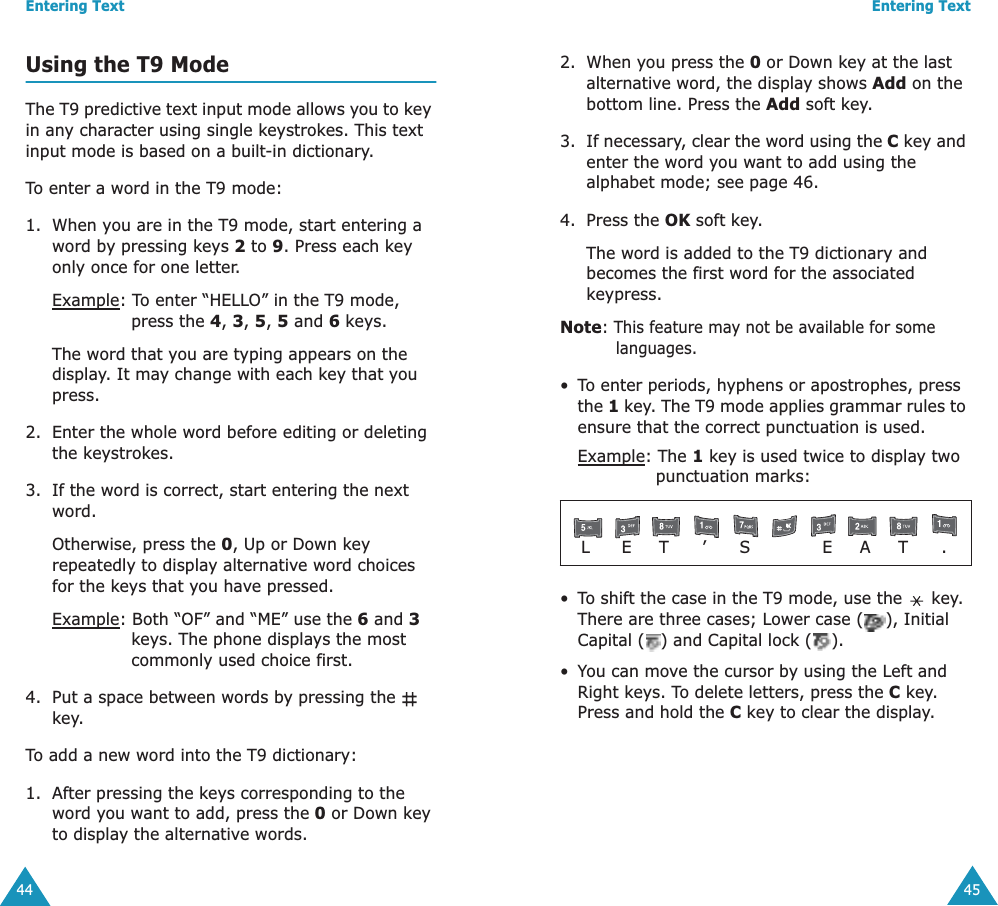

Entering Text44Using the T9 ModeThe T9 predictive text input mode allows you to key in any character using single keystrokes. This text input mode is based on a built-in dictionary.To enter a word in the T9 mode:1. When you are in the T9 mode, start entering a word by pressing keys 2 to 9. Press each key only once for one letter. Example: To enter “HELLO” in the T9 mode, press the 4, 3, 5, 5 and 6 keys.The word that you are typing appears on the display. It may change with each key that you press.2. Enter the whole word before editing or deleting the keystrokes.3. If the word is correct, start entering the next word. Otherwise, press the 0, Up or Down key repeatedly to display alternative word choices for the keys that you have pressed. Example: Both “OF” and “ME” use the 6 and 3 keys. The phone displays the most commonly used choice first.4. Put a space between words by pressing the key.To add a new word into the T9 dictionary:1. After pressing the keys corresponding to the word you want to add, press the 0 or Down key to display the alternative words.Entering Text452. When you press the 0 or Down key at the last alternative word, the display shows Add on the bottom line. Press the Add soft key.3. If necessary, clear the word using the C key and enter the word you want to add using the alphabet mode; see page 46.4. Press the OK soft key.The word is added to the T9 dictionary and becomes the first word for the associated keypress.Note: This feature may not be available for some languages.•To enter periods, hyphens or apostrophes, press the 1 key. The T9 mode applies grammar rules to ensure that the correct punctuation is used. Example: The 1 key is used twice to display two punctuation marks: •To shift the case in the T9 mode, use the key. There are three cases; Lower case ( ), Initial Capital ( ) and Capital lock ( ).•You can move the cursor by using the Left and Right keys. To delete letters, press the C key. Press and hold the C key to clear the display. L E T ’ S E A T .

Entering Text46Using the Upper/lower-case Character ModesUse the 1 to 0 keys to enter your text. 1. Press the keys labelled with the required letter:- Once for the first letter- Twice for the second letter- And so on2. Select the other letters in the same way.Note: The cursor moves to the right when you press a different key. When entering the same letter twice or a different letter on the same key, just wait for a few seconds for the cursor to move to the right automatically, and then select the next letter.Refer to the table below for further details about the characters available:Characters in the Order DisplayedKeySpaceUpper Case Lower CaseEntering Text47•To insert a space, press the key. •You can move the cursor by using the Left and Right keys. To delete letters, press the C key. Press and hold the C key to clear the display. Using the Symbol ModeThe symbol mode enables you to insert symbols into a text message. Use the navigation keys to scroll to the symbol you want to enter and then press the OK soft key to insert the highlighted symbol into your message. Using the Number ModeThe number mode enables you to enter numbers into a text message. Press the keys corresponding to the digits you want to enter.918OK

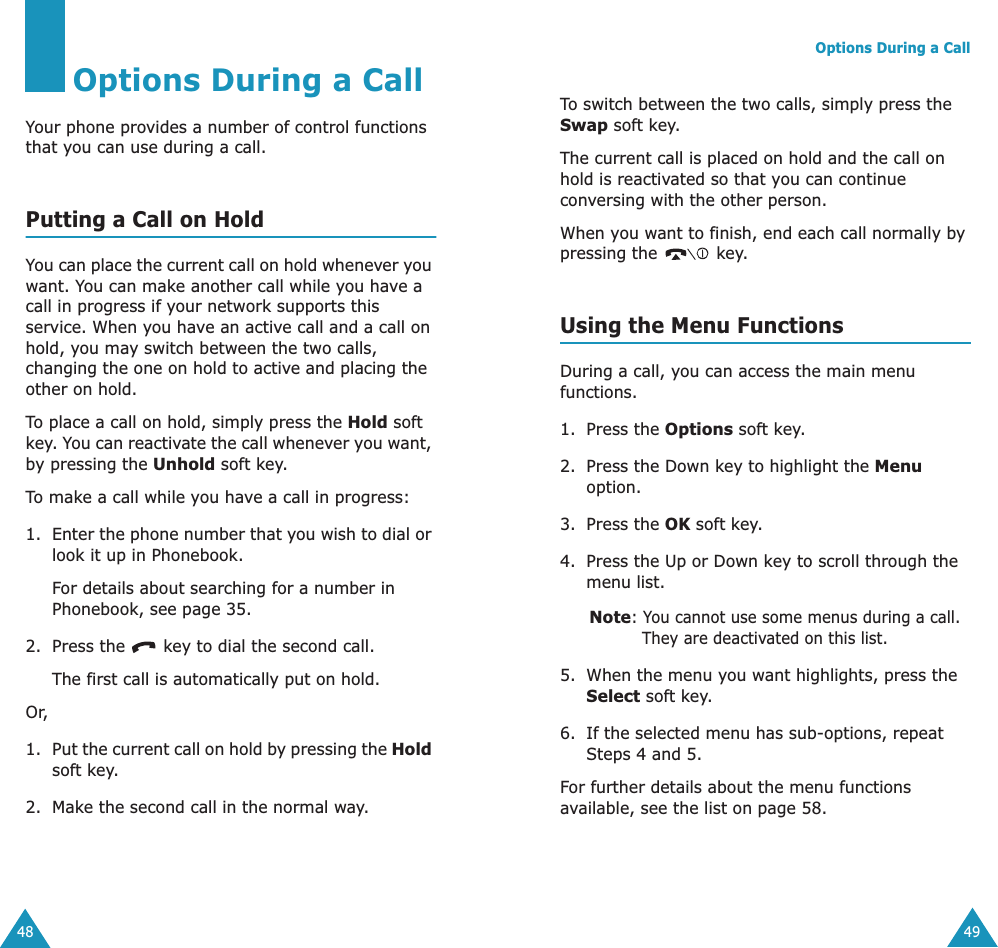

48Options During a CallYour phone provides a number of control functions that you can use during a call. Putting a Call on HoldYou can place the current call on hold whenever you want. You can make another call while you have a call in progress if your network supports this service. When you have an active call and a call on hold, you may switch between the two calls, changing the one on hold to active and placing the other on hold. To place a call on hold, simply press the Hold soft key. You can reactivate the call whenever you want, by pressing the Unhold soft key.To make a call while you have a call in progress:1. Enter the phone number that you wish to dial or look it up in Phonebook.For details about searching for a number in Phonebook, see page 35.2. Press the key to dial the second call. The first call is automatically put on hold.Or, 1. Put the current call on hold by pressing the Hold soft key.2. Make the second call in the normal way.Options During a Call49To switch between the two calls, simply press the Swap soft key.The current call is placed on hold and the call on hold is reactivated so that you can continue conversing with the other person.When you want to finish, end each call normally by pressing the key.Using the Menu FunctionsDuring a call, you can access the main menu functions. 1. Press the Options soft key.2. Press the Down key to highlight the Menu option.3. Press the OK soft key.4. Press the Up or Down key to scroll through the menu list.Note: You cannot use some menus during a call. They are deactivated on this list.5. When the menu you want highlights, press the Select soft key.6. If the selected menu has sub-options, repeat Steps 4 and 5.For further details about the menu functions available, see the list on page 58.

Options During a Call50Switching the Microphone Off (Mute)You can temporarily switch your phone’s microphone off so that the other person cannot hear you.Example: You wish to say something to another person in the room but do not want the other person to hear you.To switch the microphone off temporarily:1. Press the Options soft key.2. If necessary, press the Down key to highlight the Mute option.3. Press the OK soft key. The other person can no longer hear you.To switch the microphone back on:1. Press the Options soft key.2. If necessary, press the Down key to highlight the Unmute option.3. Press the OK soft key. The other person can hear you again.Options During a Call51Muting/Sending Key TonesThese options allow you to turn the key tones off or on. If the Mute Keys option is selected, your phone does not transmit the key tones, which allows you to press keys without hearing annoying key tones during a call.Note: To communicate with answering machines or computerised telephone systems, the Send Keys option must be selected.Sending DTMF TonesYou can send the DTMF (dual tone multi-frequency) tones of the number on the display during a call.This option is helpful for entering a password or account number when you call an automated system, like a banking service.To send the DTMF tones:1. When you are connected to the teleservice system, press the Options soft key.2. Press the Down key to highlight the Send DTMF option.3. Press the OK soft key.4. Enter the number you want to send and press the OK soft key.The tones of the displayed number are sent.

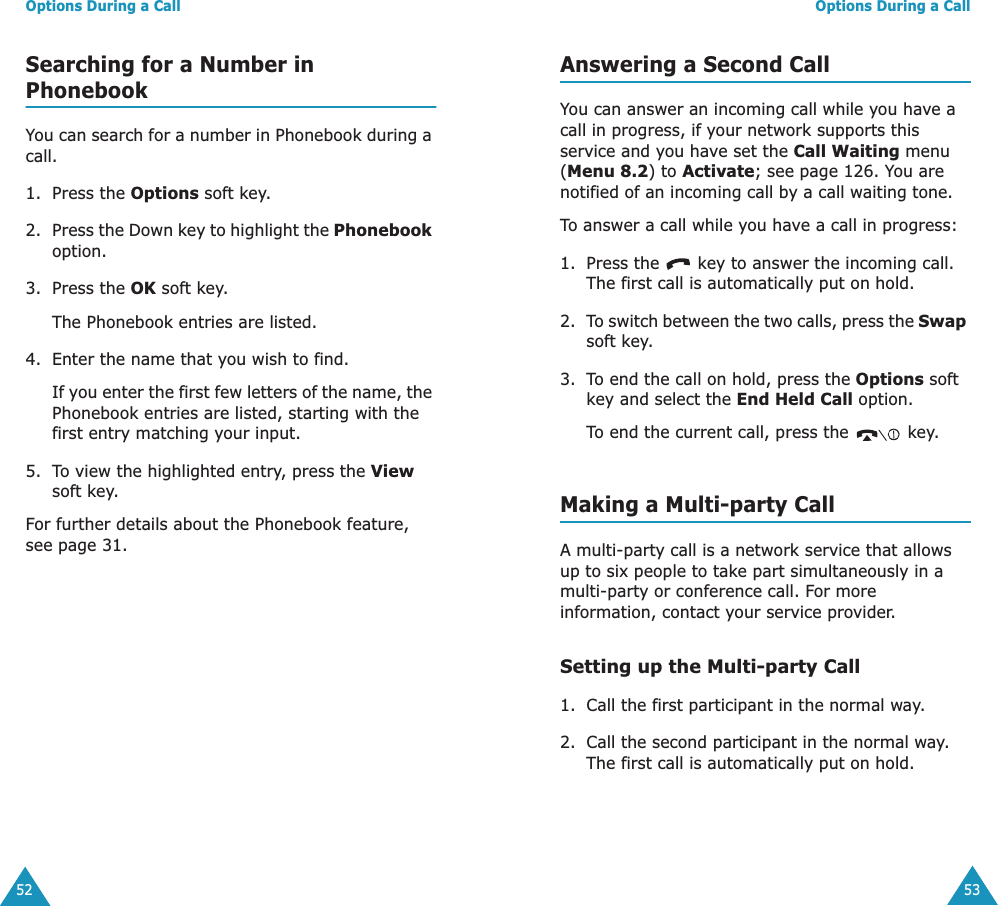

Options During a Call52Searching for a Number in PhonebookYou can search for a number in Phonebook during a call.1. Press the Options soft key.2. Press the Down key to highlight the Phonebook option.3. Press the OK soft key.The Phonebook entries are listed.4. Enter the name that you wish to find.If you enter the first few letters of the name, the Phonebook entries are listed, starting with the first entry matching your input.5. To view the highlighted entry, press the View soft key.For further details about the Phonebook feature, see page 31.Options During a Call53Answering a Second CallYou can answer an incoming call while you have a call in progress, if your network supports this service and you have set the Call Waiting menu (Menu 8.2) to Activate; see page 126. You are notified of an incoming call by a call waiting tone.To answer a call while you have a call in progress:1. Press the key to answer the incoming call. The first call is automatically put on hold.2. To switch between the two calls, press the Swap soft key.3. To end the call on hold, press the Options soft key and select the End Held Call option.To end the current call, press the key.Making a Multi-party CallA multi-party call is a network service that allows up to six people to take part simultaneously in a multi-party or conference call. For more information, contact your service provider.Setting up the Multi-party Call1. Call the first participant in the normal way.2. Call the second participant in the normal way. The first call is automatically put on hold.

Options During a Call543. To join the first participant to the multi-party call, press the Options soft key and select the Join option. Press the OK soft key.4. To add a new person to the multi-party call, call the person in the normal way and press the Options soft key. Select the Join option and press the OK soft key.You can add incoming callers by answering the call, pressing the Options soft key, and selecting the Join option. Repeat as required.Having a Private Conversation With One Participant1. Press the Options soft key and choose the Select One option. Press the OK soft key.The list of call participants appears.2. Highlight a person from the list by pressing the Up or Down key, and press the Select soft key or the key.3. When the Private option highlights, press the OK soft key.Now you can talk privately with that person. The other participants can still converse with each other.4. To return to the multi-party call, press the Options soft key and select the Join option. Press the OK soft key.All the multi-party call participants can now hear each other.Options During a Call55Dropping One Participant1. Press the Options soft key and choose the Select One option. Press the OK soft key.The list of call participants appears.2. Highlight a person from the list by pressing the Up or Down key, and press the Select soft key or the key.3. Press the Down key to select the Remove option and press the OK soft key. The call ends with that participant, but you can continue to talk with the others.4. When you want to end the multi-party call, close the folder or press the key.

56Using the MenusThe phone offers a range of functions that allow you to tailor it to your needs. These functions are arranged in menus and sub-menus.The menus and sub-menus can be accessed by scrolling with the navigation keys or by using the shortcuts.Accessing a Menu Function by Scrolling1. In Idle Mode, press the Menu soft key to access Menu Mode. 2. Scroll with the Up or Down key to reach a main menu, Phone Settings for example. Press the Select soft key or the Right key to enter the menu.3. If the menu contains any sub-menus, Language for example, you can access them by scrolling with the Up or Down key and pressing the Select soft key or the Right key.If the menu that you have selected contains further options, repeat this step.4. To Press thescroll through the menusUp or Down key, or use the and keys on the left side of the phone.confirm the chosen settingSelect soft key or the Right key.return to the previous menu level soft key or the Left key.exit the menu without changing the settings key.Using the Menus57Accessing a Menu Function by Using Its ShortcutThe menu items, such as menu, sub-menus and options, are numbered and can be accessed quickly by using their shortcut numbers. The shortcut number is shown on the bottom right next to the soft key on the display. Simply press the Menu soft key and enter the number of the menu you want.Note: The numbers assigned to each menu are indicated on the list on page 58. They may not match the menu number on the phone, depending on the services supported by your SIM card.Example: Accessing the Language option.1. Press the Menu soft key.2. Press the 6 key for Phone Settings.3. Press the 5 key for Language.The languages available display. List of Menu FunctionsThe following list shows the menu structure available and indicates the number assigned to each option and the page where you can find a description of each feature.Note: If you use a SIM AT card that provides additional services, the SIM AT menu displays when you press the Menu soft key to enter Menu Mode. For further details, see your SIM card instructions.

Using the Menus581. Text Messages (see page 63)1.1 Inbox1.2 Outbox1.3 Write New1.4 Templates1.5 Settings1.5.1 Setting 1*1.5.2 Setting 2*1.5.3 Common Setting1.6 Delete All1.7 Memory Status1.7.1 SIM Memory1.7.2 PHONE Memory1.7.3 CB Memory1.8 Voice Mail1.8.1 Connect to Voice Server1.8.2 Voice Server Number1.9 Broadcast1.9.1 Read1.9.2 Receive1.9.3 Channel List1.9.4 Language1.10 Location Service1.10.1 Services1.10.2 Setting1.10.3 Send Location2. Picture Messages (see page 77)2.1 Inbox2.2 Outbox2.3 Draft2.4 Write New2.5 Templates2.6 Delete All2.7 Memory Status* Shows only if supported by your SIM card.Using the Menus592. Picture Messages (continued)2.8 Setup 2.8.1 Delivery Report2.8.2 Read Reply2.8.3 Auto Download2.8.4 Message Acceptance2.8.5 Hide ID2.8.6 Expiry Date2.8.7 Delivery Time2.8.8 Priority2.8.9 Report Allowed2.8.10 Page Duration2.9 MMS Profile3. Call Records (see page 88)3.1 Missed Calls3.2 Incomming Calls3.3 Outgoing Calls3.4 Delete All3.5 Call Time3.5.1 Last Call Time3.5.2 Total Sent3.5.3 Total Received3.5.4 Reset Timers3.6 Call Cost*3.6.1 Last Call Cost3.6.2 Total Cost3.6.3 Max Cost3.6.4 Reset Counters3.6.5 Set Max Cost3.6.6 Price/Unit4. Camera (see page 92)4.1 Take and Send4.2 My Photos* Shows only if supported by your SIM card.

Using the Menus605. Sound Settings (see page 97)5.1 Ring Tone5.2 Ring Volume5.3 Alert Type5.4 Keypad Tone5.5 Message Tone5.5.1 SMS Tone5.5.2 SMS-CB Tone5.6 Folder Tone5.7 Power On/Off5.8 Extra Tones 6. Phone Settings (see page 102)6.1 Infrared Activate6.2 My Settings6.2.1 Wallpaper6.2.2 Menu Style6.2.3 Brightness6.2.4 Back Light6.2.5 Dimming Mode6.2.6 Auto Light6.2.7 Service Light6.2.8 Graphic Logo6.3 Greeting Message6.4 Own Number6.5 Language6.6 Security6.6.1 PIN Check6.6.2 Change PIN6.6.3 Phone Lock6.6.4 Change Password6.6.5 SIM Lock6.6.6 FDN Mode*6.6.7 Change PIN2*6.7 Extra Settings* Shows only if supported by your SIM card.Using the Menus616. Phone settings (continued)6.8 Short Cut6.8.1 Key Up6.8.2 Key Down6.8.3 Key Right6.8.4 Key Left6.9 Reset Settings7. Organiser (see page 113)7.1 Alarm7.1.1 Once Alarm7.1.2 Daily Alarm7.1.3 Morning Alarm7.1.4 Remove Alarm7.1.5 Autopower7.2 Calendar7.3 Time & Date7.3.1 Set Time7.3.2 Set Date7.3.3 World Time7.3.4 Time Format7.4 Calculator7.5 To Do List7.6 Currency Exchange8. Network Services (see page 124)8.1 Call Forward8.1.1 Forward Always8.1.2 Busy8.1.3 No Reply8.1.4 Unreachable8.1.5 Cancel All8.2 Call Waiting8.3 Network Selection8.4 Caller ID8.5 Band Selection

Using the Menus629. Funbox (see page 130)9.1 Zones9.1.1 Home9.1.2 Favorite9.1.3 Clear Cache9.1.4 Push Message9.2 Games9.3 Sounds9.4 Images9.5 Delete All9.6 Memory Status9.6.1 Games9.6.2 Sounds & Images63Text MessageShort Message Service (SMS) allows you to send and receive short text messages to and from other GSM mobile phones. In addition, your phone supports the Enhanced Messaging Service (EMS), which enables you to make messages including simple pictures, melodies, and animation. To use this feature, you must subscribe to the message service of your service provider.When the Message icon ( ) appears, you have received new text messages. If the memory is full, an error message displays and you cannot receive any new messages. Use the Delete option in each message box to delete the obsolete ones.Inbox (Menu 1.1) This message box is used to store the messages that you have received.When you enter this menu, the list of messages in the box displays with the senders’ phone numbers or names, if available in your Phonebook.1. Select a message from the list and press the View soft key to read the message contents.2. To scroll through the contents, press the Up or Down key.3. To scroll to the previous or next message, press the or key.

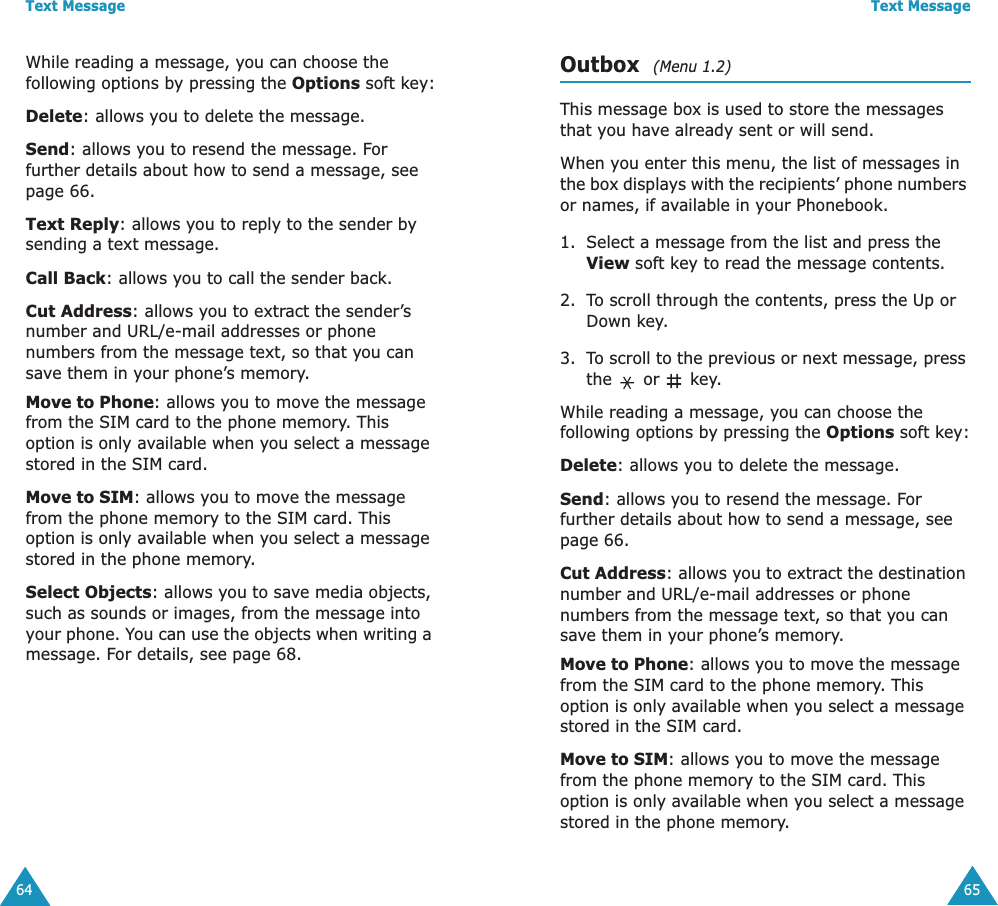

Text Message64While reading a message, you can choose the following options by pressing the Options soft key:Delete: allows you to delete the message.Send: allows you to resend the message. For further details about how to send a message, see page 66.Text Reply: allows you to reply to the sender by sending a text message. Call Back: allows you to call the sender back.Cut Address: allows you to extract the sender’s number and URL/e-mail addresses or phone numbers from the message text, so that you can save them in your phone’s memory.Move to Phone: allows you to move the message from the SIM card to the phone memory. This option is only available when you select a message stored in the SIM card.Move to SIM: allows you to move the message from the phone memory to the SIM card. This option is only available when you select a message stored in the phone memory.Select Objects: allows you to save media objects, such as sounds or images, from the message into your phone. You can use the objects when writing a message. For details, see page 68. Text Message65Outbox (Menu 1.2) This message box is used to store the messages that you have already sent or will send.When you enter this menu, the list of messages in the box displays with the recipients’ phone numbers or names, if available in your Phonebook.1. Select a message from the list and press the View soft key to read the message contents.2. To scroll through the contents, press the Up or Down key.3. To scroll to the previous or next message, press the or key.While reading a message, you can choose the following options by pressing the Options soft key:Delete: allows you to delete the message.Send: allows you to resend the message. For further details about how to send a message, see page 66.Cut Address: allows you to extract the destination number and URL/e-mail addresses or phone numbers from the message text, so that you can save them in your phone’s memory.Move to Phone: allows you to move the message from the SIM card to the phone memory. This option is only available when you select a message stored in the SIM card.Move to SIM: allows you to move the message from the phone memory to the SIM card. This option is only available when you select a message stored in the phone memory.

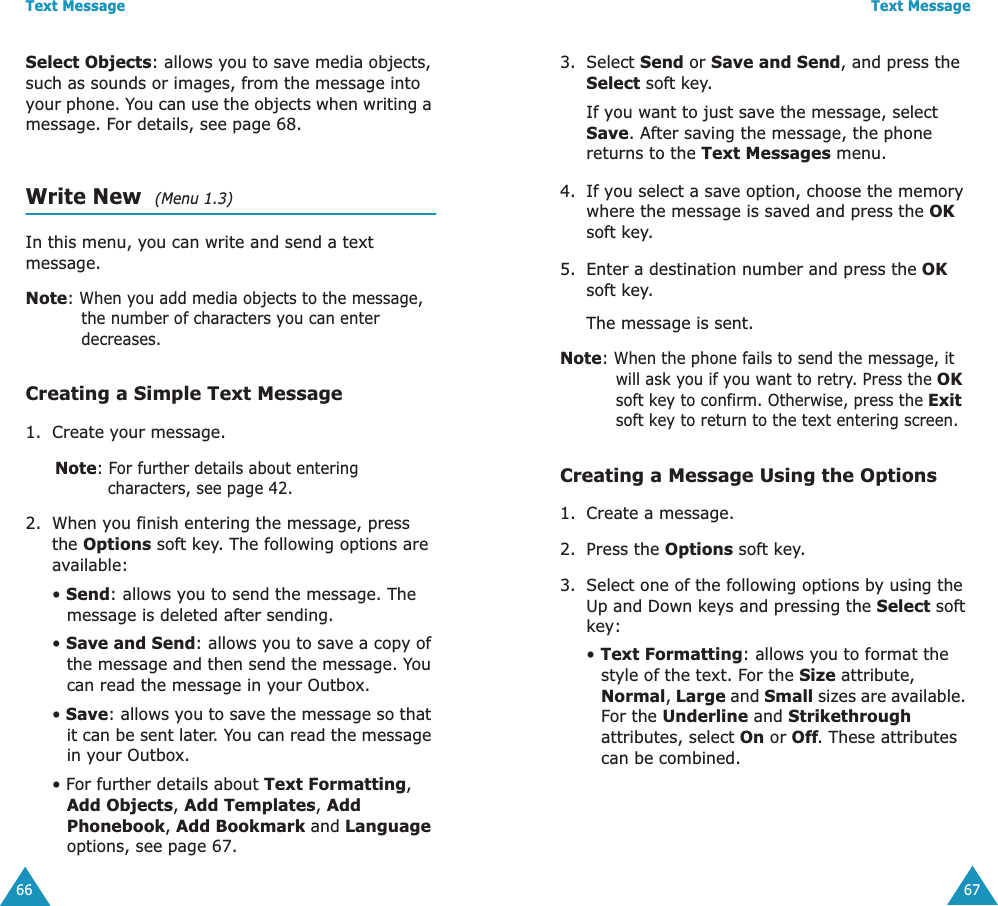

Text Message66Select Objects: allows you to save media objects, such as sounds or images, from the message into your phone. You can use the objects when writing a message. For details, see page 68.Write New (Menu 1.3) In this menu, you can write and send a text message.Note: When you add media objects to the message, the number of characters you can enter decreases.Creating a Simple Text Message1. Create your message.Note: For further details about entering characters, see page 42.2. When you finish entering the message, press the Options soft key. The following options are available:• Send: allows you to send the message. The message is deleted after sending.• Save and Send: allows you to save a copy of the message and then send the message. You can read the message in your Outbox. • Save: allows you to save the message so that it can be sent later. You can read the message in your Outbox.• For further details about Text Formatting, Add Objects, Add Templates, Add Phonebook, Add Bookmark and Language options, see page 67.Text Message673. Select Send or Save and Send, and press the Select soft key.If you want to just save the message, select Save. After saving the message, the phone returns to the Text Messages menu.4. If you select a save option, choose the memory where the message is saved and press the OK soft key.5. Enter a destination number and press the OK soft key. The message is sent.Note: When the phone fails to send the message, it will ask you if you want to retry. Press the OK soft key to confirm. Otherwise, press the Exit soft key to return to the text entering screen. Creating a Message Using the Options1. Create a message.2. Press the Options soft key.3. Select one of the following options by using the Up and Down keys and pressing the Select soft key:• Text Formatting: allows you to format the style of the text. For the Size attribute, Normal, Large and Small sizes are available. For the Underline and Strikethrough attributes, select On or Off. These attributes can be combined.

Text Message68• Add Objects: allows you to add a sound, melody, picture or animation to the message. Select the category of the object to be added. In each category, you can select the various factory-set items or choose an item received from other sources, such as the Internet or other phones.• Add Templates: allows you to apply one of the preset message templates to the text. Select one of five messages stored in the Templates menu (Menu 1.4). For further details, see page 68.• Add Phonebook: allows you to add a Phonebook entry to your message. Select one from the list.• Add Bookmark: allows you to add a web page’s address stored in your Favorite list (Menu 9.1.2). Select one from the list.• Language: allows you to change the language to be used in the T9 input mode. Select the language to be used. 4. Complete the message, and send or save it by following the procedure from Step 2 on page 66. Templates (Menu 1.4) Using this menu, you can preset up to five messages that you use most frequently. Select an empty location or the message template you want and press the Options soft key.Text Message69The following options are available:Edit: allows you to write a new message or edit the message.Note: For further details about how to enter characters, see page 42.Send Message: allows you to retrieve the message. Once you have completed the message, you can send, save and send, or simply save it. For further details about how to send a message, see page 66.Delete: allows you to delete the message. You are asked to confirm the deletion by pressing the Yes soft key.Settings (Menu 1.5) In this menu, you can set up default SMS information. A setting group is a collection of settings required to send messages. The number of setting groups available depends on the capacity of your SIM card. Note: The last setting you accessed is automatically activated for sending messages.Setting x (where x is the setting group number): each group has its own sub-menu.Service Centre: allows you to store or change the number of your message centre, which is required when sending messages. You must obtain this number from your service provider.

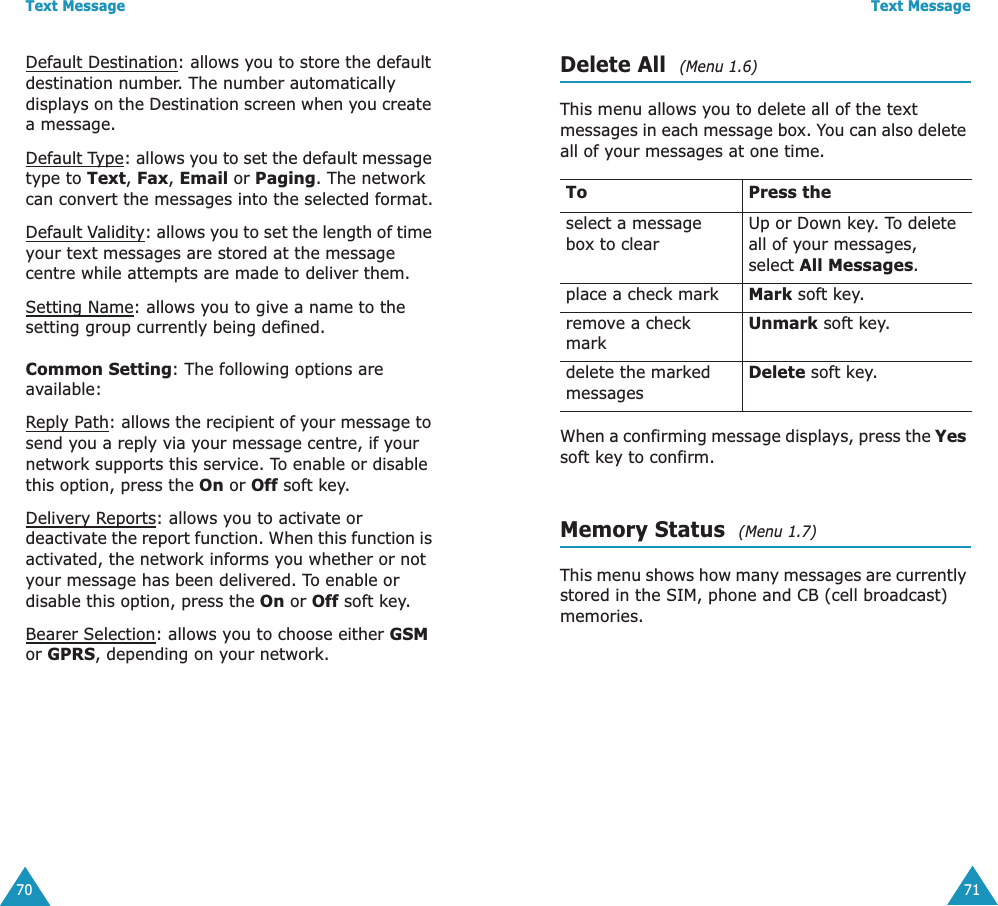

Text Message70Default Destination: allows you to store the default destination number. The number automatically displays on the Destination screen when you create a message.Default Type: allows you to set the default message type to Text, Fax, Email or Paging. The network can convert the messages into the selected format.Default Validity: allows you to set the length of time your text messages are stored at the message centre while attempts are made to deliver them.Setting Name: allows you to give a name to the setting group currently being defined.Common Setting: The following options are available:Reply Path: allows the recipient of your message to send you a reply via your message centre, if your network supports this service. To enable or disable this option, press the On or Off soft key.Delivery Reports: allows you to activate or deactivate the report function. When this function is activated, the network informs you whether or not your message has been delivered. To enable or disable this option, press the On or Off soft key.Bearer Selection: allows you to choose either GSM or GPRS, depending on your network.Text Message71Delete All (Menu 1.6) This menu allows you to delete all of the text messages in each message box. You can also delete all of your messages at one time.When a confirming message displays, press the Yes soft key to confirm.Memory Status (Menu 1.7) This menu shows how many messages are currently stored in the SIM, phone and CB (cell broadcast) memories.To Press theselect a message box to clearUp or Down key. To delete all of your messages, select All Messages.place a check mark Mark soft key.remove a check markUnmark soft key.delete the marked messagesDelete soft key.

Text Message72Voice Mail (Menu 1.8) This menu provides you with a way of accessing your voice mailbox, if your network supports this service. The following options are available:Connect to Voice Server: before using this feature, you must enter the voice server number obtained from your service provider (see menu option 1.8.2). You can then select a server number from the list and press the OK soft key to listen to your messages. You can quickly connect to the voice server by pressing and holding the 1 key in Idle Mode.Voice Server Number: allows you to change the voice mail server number, if necessary.1. Select a number location using the Up or Down key and press the OK soft key.2. Press the Edit soft key.4. Press the OK soft key to save the number.Note: Voice Mail is a network feature. Please contact your service provider for further details.3. To Press theenter the server numbercorresponding numeric keys.correct a digit C key.move the cursor to the left or right without clearing a digitLeft or Right key.Text Message73Broadcast (Menu 1.9) This network service allows you to receive text messages on various topics, such as the weather or traffic. Cell Broadcast (CB) messages display as soon as they are received, provided that: • the phone is in Idle Mode.• the Receive option is set to Enable.• the message channel is currently active on the channel list.The following options are available:Read: lets you view the received message. The Volatile box displays the messages from the network, but loses its contents as soon as the phone is switched off. Scroll through the message by using the Up and Down keys. While reading a message, press the Save soft key to store the message in the Archive box for later retrieval.Receive: allows you to enable or disable the reception of broadcast messages.Channel List: allows you to indicate the channels from which you wish to receive broadcast messages. The following options are available:Select: use to enable or disable channels on the list by marking or unmarking them respectively. A check mark displays in front of each selected channel.Add Channel: use to enter the ID and title for a new channel.Delete: use to remove a channel from the list.Edit: use to change the ID and title of an existing channel.

Text Message74Language: allows you to select your preferred language to display cell broadcast messages.Please contact your service provider for further details.Location Service (Menu 1.10) In this menu, you can use the location service, which enables emergency call centres to locate you using the EOTD (Enhanced Observed Time Difference) feature.The EOTD feature uses up to four cellular base stations to measure the arrival times of the call at various cellular antennas and pinpoints a cellphone’s location. Emergency call centres can then locate a landline phone with saving the lives of those unaware of where they are or too injured or panicked to provide any details.Service (Menu 1.10.1)You can configure various settings required when sending your location information to service centres. For each service setting, the following options are available:Service Name: allows you to store the service centre name that you want to use.Service Number: allows you to store the number of your service centre required for emergency dialling.Text Message75Service MO Set: allows you to set the whether or not your phone sends information about your location to the centre.Service MT Set: allows you to set the whether or not your phone allows the centre to scan information to about your location.Service Periodic Set: allows you to set your phone to send your location information to the service centre at specified intervals.Service Type: allows you to select how your phone sends your location to the service centre. Select Only SMS to send by SMS message only. Select VoiceCall&SMS to send by voice calls along with SMS messages.Setting (Menu 1.10.1)In this menu, you can set up default settings required when using the location service. These settings are for the EOTD service server. For further details, contact your service provider.The following options are available:SMLC Address: allows you to store the address of the server that processes your information and sends it to your service centre.EOTD Setting: allows you to select whether or not you use the location service centre. To use the service, you must set this option to Enable.MO Setting: allows you to set whether or not the server sends information about your location to the service centre. To use the service, you must set this option to Enable.

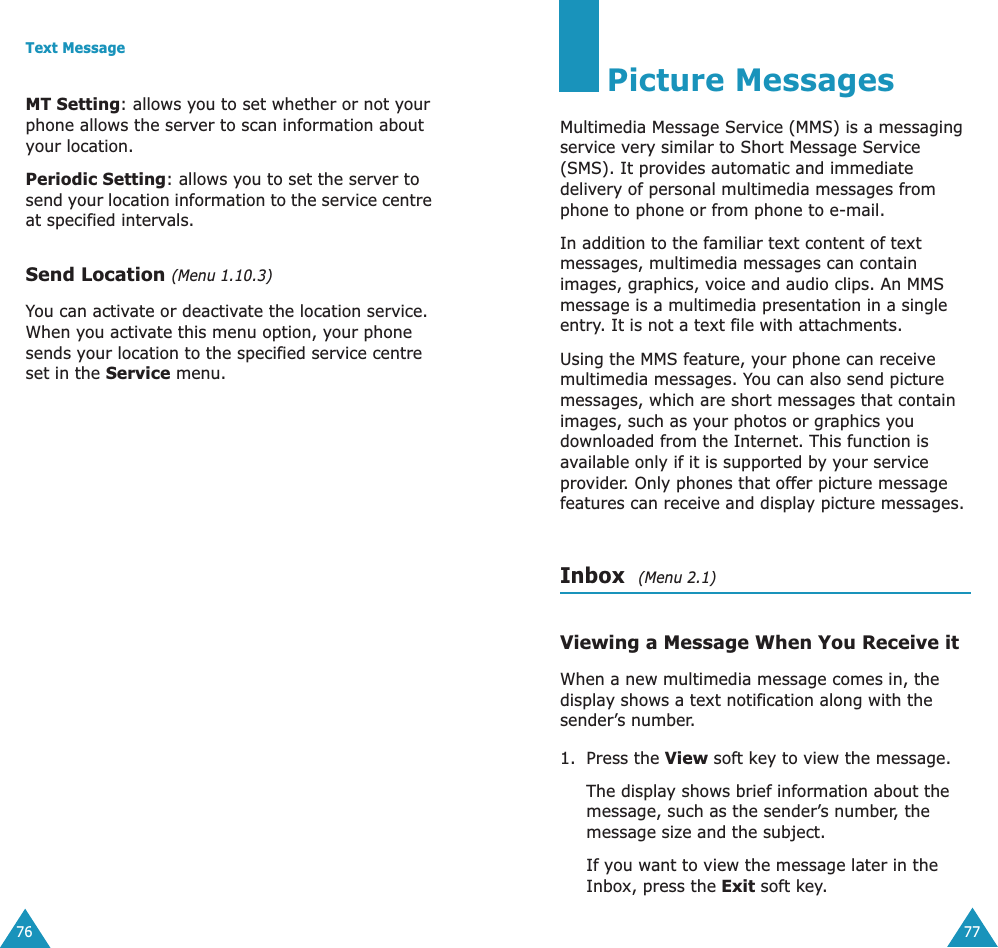

Text Message76MT Setting: allows you to set whether or not your phone allows the server to scan information about your location.Periodic Setting: allows you to set the server to send your location information to the service centre at specified intervals.Send Location (Menu 1.10.3)You can activate or deactivate the location service. When you activate this menu option, your phone sends your location to the specified service centre set in the Service menu.77Picture MessagesMultimedia Message Service (MMS) is a messaging service very similar to Short Message Service (SMS). It provides automatic and immediate delivery of personal multimedia messages from phone to phone or from phone to e-mail.In addition to the familiar text content of text messages, multimedia messages can contain images, graphics, voice and audio clips. An MMS message is a multimedia presentation in a single entry. It is not a text file with attachments.Using the MMS feature, your phone can receive multimedia messages. You can also send picture messages, which are short messages that contain images, such as your photos or graphics you downloaded from the Internet. This function is available only if it is supported by your service provider. Only phones that offer picture message features can receive and display picture messages.Inbox (Menu 2.1)Viewing a Message When You Receive itWhen a new multimedia message comes in, the display shows a text notification along with the sender’s number.1. Press the View soft key to view the message.The display shows brief information about the message, such as the sender’s number, the message size and the subject. If you want to view the message later in the Inbox, press the Exit soft key.

Picture Messages782. To scroll through the message information, press the Up or Down key.While viewing the information, press the Options soft key to use the following options:Retrieve: retrieves the message from the MMS server.Delete: deletes the message.More Information: shows you detailed information about the message.Viewing a Received Message in the InboxWhen you access the Inbox menu (Menu 2.1), the list of multimedia messages you received displays with the senders’ phone numbers, if they are available in your Phonebook, or subjects. The icons on the left tell you the status of the messages.•: Messages you have already read.•: Messages you haven’t read yet.1. Select a message on the list and press the Select soft key. The display presents the message and scrolls to the next page, if it has one, after a specified time; for details about setting the time, see page 86.2. Press the OK soft key to go to the message view screen. Or, the display automatically switches to the screen.Picture Messages793. To scroll through the message, press the Up or Down key.If the message has more than one page, you can scroll through the pages by using the Left and Right keys. While viewing a message, you can choose the Message options by pressing the Options soft key. If you are viewing a new message, the options are the same as when you view a message as soon as you receive it. See the previous section.When you are reviewing a message, the following options are available:Delete: deletes the message.Reply: allows you to reply to the sender by sending a text or picture message. Callback: allows you to call the sender back.Cut Address: allows you to extract the sender’s number, so that you can dial the number or save it in your Phonebook.Forward: allows you to forward the message to another person. Save Picture: allows you to save an image from the message into your phone. Images are stored in the Images folder (Menu 9.4).Save Sound: allows you to save a sound from the message into the Sounds folder (Menu 9.3).Information: shows you information about the message, such as subject, sender’s address, message size, status and priority.

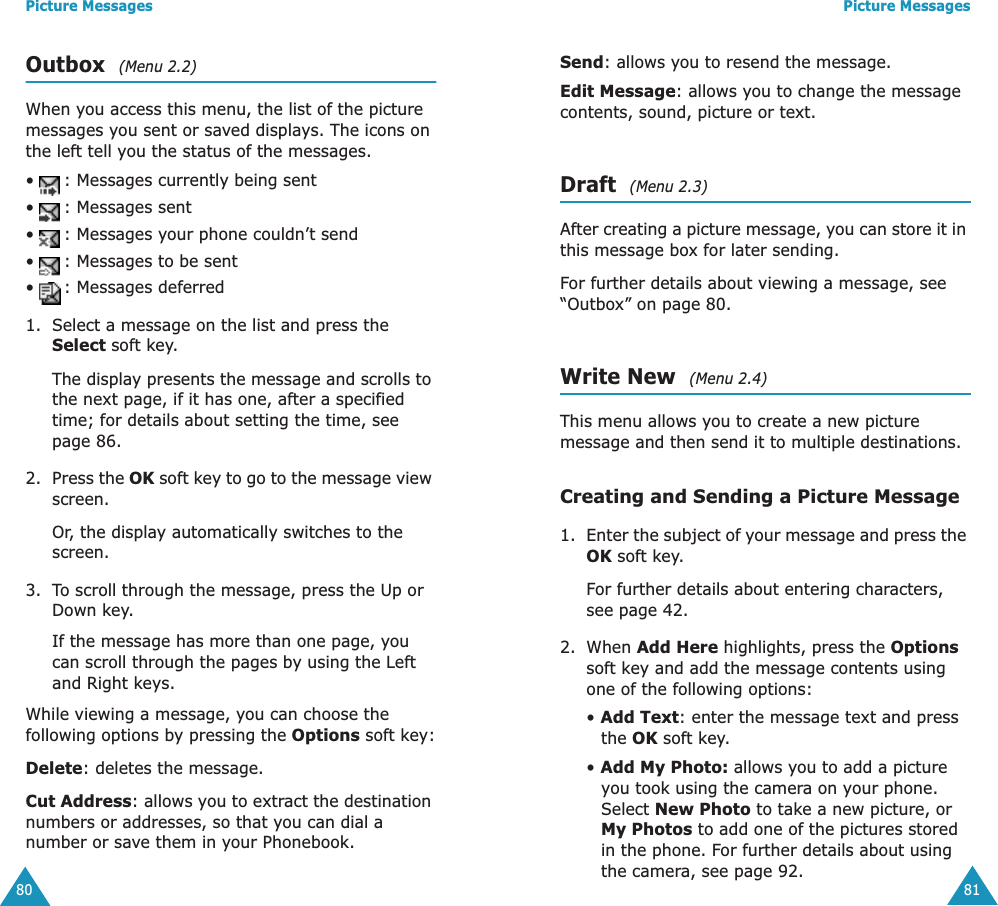

Picture Messages80Outbox (Menu 2.2)When you access this menu, the list of the picture messages you sent or saved displays. The icons on the left tell you the status of the messages.•: Messages currently being sent•: Messages sent•: Messages your phone couldn’t send•: Messages to be sent•: Messages deferred1. Select a message on the list and press the Select soft key. The display presents the message and scrolls to the next page, if it has one, after a specified time; for details about setting the time, see page 86.2. Press the OK soft key to go to the message view screen. Or, the display automatically switches to the screen.3. To scroll through the message, press the Up or Down key.If the message has more than one page, you can scroll through the pages by using the Left and Right keys.While viewing a message, you can choose the following options by pressing the Options soft key:Delete: deletes the message.Cut Address: allows you to extract the destination numbers or addresses, so that you can dial a number or save them in your Phonebook.Picture Messages81Send: allows you to resend the message.Edit Message: allows you to change the message contents, sound, picture or text.Draft (Menu 2.3)After creating a picture message, you can store it in this message box for later sending. For further details about viewing a message, see “Outbox” on page 80.Write New (Menu 2.4)This menu allows you to create a new picture message and then send it to multiple destinations.Creating and Sending a Picture Message1. Enter the subject of your message and press the OK soft key.For further details about entering characters, see page 42.2. When Add Here highlights, press the Options soft key and add the message contents using one of the following options:• Add Text: enter the message text and press the OK soft key.• Add My Photo: allows you to add a picture you took using the camera on your phone. Select New Photo to take a new picture, or My Photos to add one of the pictures stored in the phone. For further details about using the camera, see page 92.

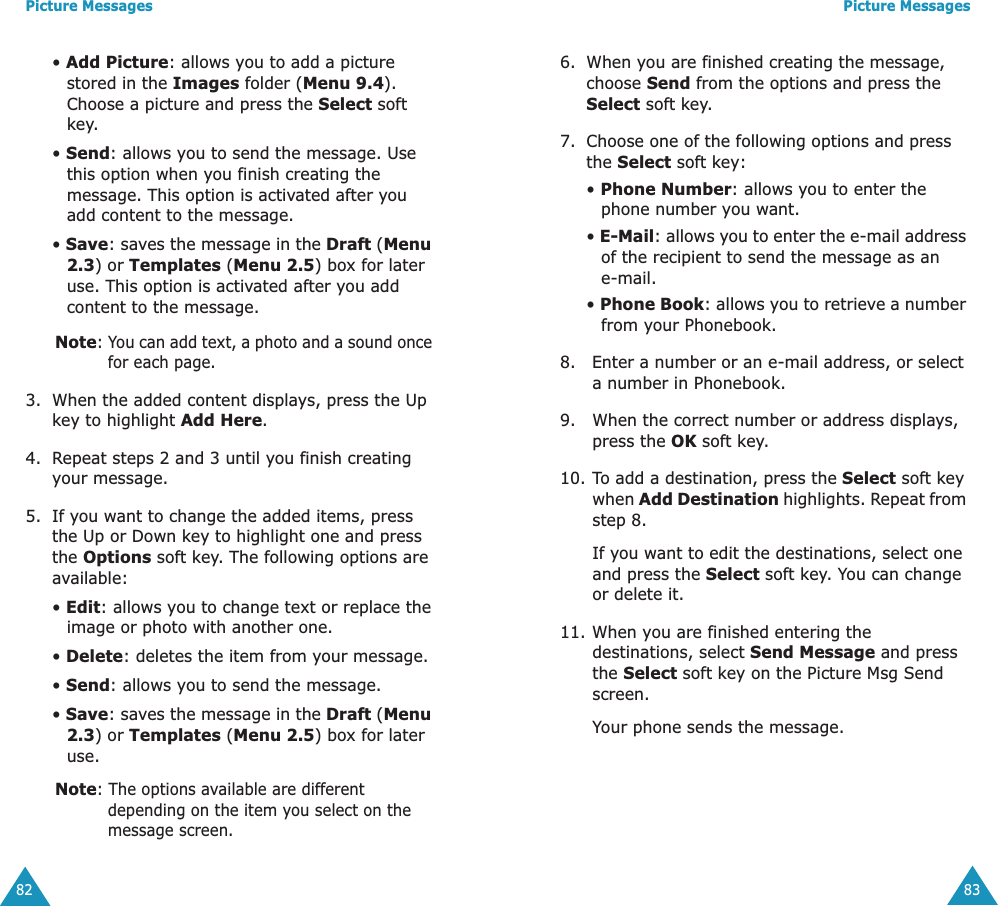

Picture Messages82• Add Picture: allows you to add a picture stored in the Images folder (Menu 9.4). Choose a picture and press the Select soft key.• Send: allows you to send the message. Use this option when you finish creating the message. This option is activated after you add content to the message.• Save: saves the message in the Draft (Menu 2.3) or Templates (Menu 2.5) box for later use. This option is activated after you add content to the message.Note: You can add text, a photo and a sound once for each page.3. When the added content displays, press the Up key to highlight Add Here.4. Repeat steps 2 and 3 until you finish creating your message.5. If you want to change the added items, press the Up or Down key to highlight one and press the Options soft key. The following options are available:• Edit: allows you to change text or replace the image or photo with another one.• Delete: deletes the item from your message.• Send: allows you to send the message.• Save: saves the message in the Draft (Menu 2.3) or Templates (Menu 2.5) box for later use. Note: The options available are different depending on the item you select on the message screen.Picture Messages836. When you are finished creating the message, choose Send from the options and press the Select soft key.7. Choose one of the following options and press the Select soft key:• Phone Number: allows you to enter the phone number you want.• E-Mail: allows you to enter the e-mail address of the recipient to send the message as an e-mail.• Phone Book: allows you to retrieve a number from your Phonebook.8. Enter a number or an e-mail address, or select a number in Phonebook. 9. When the correct number or address displays, press the OK soft key.10. To add a destination, press the Select soft key when Add Destination highlights. Repeat from step 8.If you want to edit the destinations, select one and press the Select soft key. You can change or delete it.11. When you are finished entering the destinations, select Send Message and press the Select soft key on the Picture Msg Send screen.Your phone sends the message.

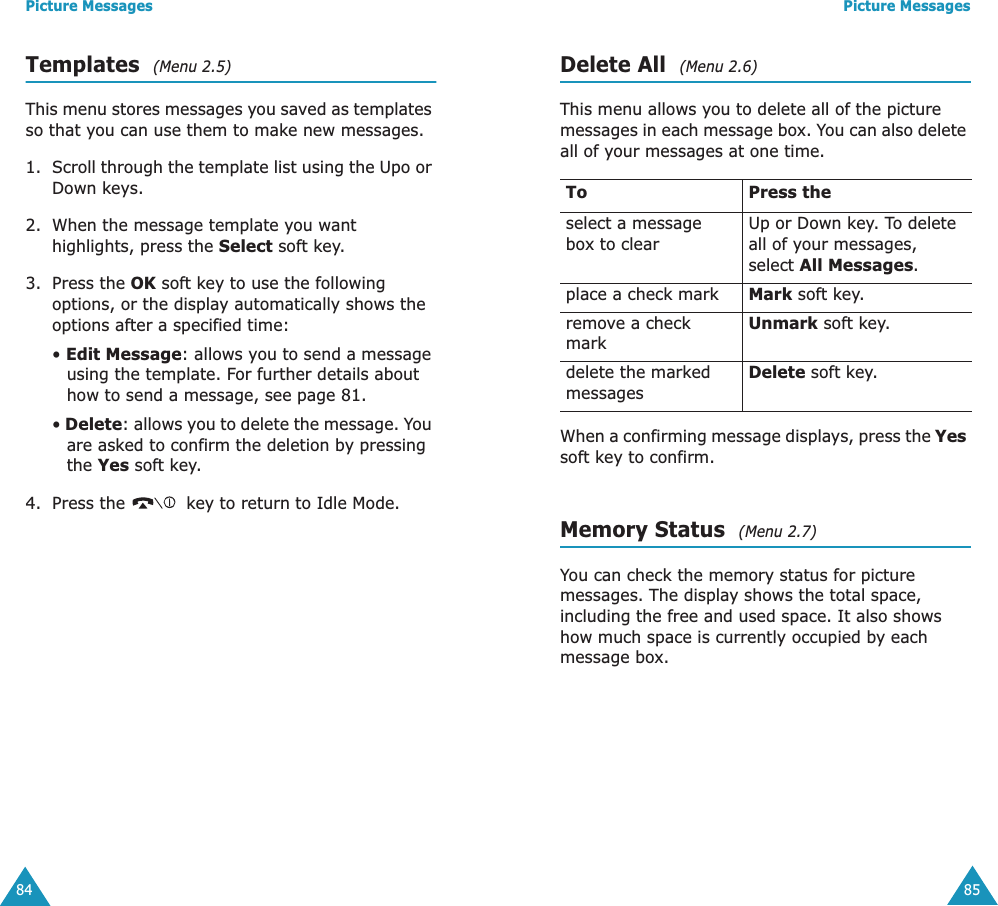

Picture Messages84Templates (Menu 2.5)This menu stores messages you saved as templates so that you can use them to make new messages.1. Scroll through the template list using the Upo or Down keys. 2. When the message template you want highlights, press the Select soft key.3. Press the OK soft key to use the following options, or the display automatically shows the options after a specified time:• Edit Message: allows you to send a message using the template. For further details about how to send a message, see page 81.• Delete: allows you to delete the message. You are asked to confirm the deletion by pressing the Yes soft key.4. Press the key to return to Idle Mode.Picture Messages85Delete All (Menu 2.6) This menu allows you to delete all of the picture messages in each message box. You can also delete all of your messages at one time.When a confirming message displays, press the Yes soft key to confirm.Memory Status (Menu 2.7)You can check the memory status for picture messages. The display shows the total space, including the free and used space. It also shows how much space is currently occupied by each message box.To Press theselect a message box to clearUp or Down key. To delete all of your messages, select All Messages.place a check mark Mark soft key.remove a check markUnmark soft key.delete the marked messagesDelete soft key.

88Call RecordsIn this menu, you can view the:• calls you missed, received or dialled.• length of your calls.• cost of your calls.Notes:• You can access the numbers in the three types of call records by pressing the key in Idle Mode.• The number of call records the phone can store may be different depending on your SIM card.Missed Calls (Menu 3.1) This menu lets you view the last 20 numbers of the calls you received, but did not answer. The number and name, if available, display together with the date and time when the call was received. By pressing the Options soft key, you can:• delete the call from the list.•edit the number, if available, and dial it or save it in Phonebook.You can also dial the number by pressing the key.Call Records89Incomming Calls (Menu 3.2) This menu lets you view the last 20 numbers of the calls you received. The number and name, if available, display together with the date and time when the call was received. By pressing the Options soft key, you can:• delete the call from the list.•edit the number, if available, and dial it or save it in Phonebook.You can also dial the number by pressing the key.Outgoing Calls (Menu 3.3) This menu lets you view the last 20 numbers you dialled. The number and name, if available, display together with the date and time when the call was made. By pressing the Options soft key, you can:• delete the call from the list.• edit the number and dial it or save it in Phonebook.You can also dial the number by pressing the key.

Call Records90Delete All (Menu 3.4) This menu allows you to delete all of the records in each call type. You can also delete all of your call records at one time.When a confirming message displays, press the Yes soft key to confirm.Call Time (Menu 3.5) This menu lets you view the timers for calls made and received. Note: The actual time invoiced for calls by your service provider may vary, depending on network features, rounding-off for billing purposes and so on.The following timers are available:Last Call Time: length of the last call.Total Sent: total length of all calls made since the timer was last reset.To Press theselect a call type to clearUp or Down key. To delete all of your call records, select All Calls.place a check mark Mark soft key.remove a check mark Unmark soft key.delete the marked messagesDelete soft key.Call Records91Total Received: total length of all calls received since the timer was last reset.Reset Timers: option used to reset the call timers. You must first enter the phone password (see page 143) and then press the OK soft key.Call Cost (Menu 3.6) This network feature lets you view the cost of calls. This menu may not be shown depending on your SIM card.The following options are available:Last Call Cost: cost of the last call made.Total Cost: total cost of all calls made since the cost counter was last reset. If the total cost exceeds the maximum cost set in the Set Max Cost option, you can no longer make any calls until you reset the counter.Max Cost: maximum cost set in the Set Max Cost option. See below.Reset Counters: option used to reset the cost counter. You must first enter your PIN2 (see page 145) and then press the OK soft key.Set Max Cost: option used to enter the maximum cost that you authorise for your calls. You must first enter your PIN2 (see page 145) and then press the OK soft key. Price/Unit: option used to set the cost of one unit; this price per unit is applied when calculating the cost of your calls. You must first enter your PIN2 (see page 145) and then press the OK soft key.

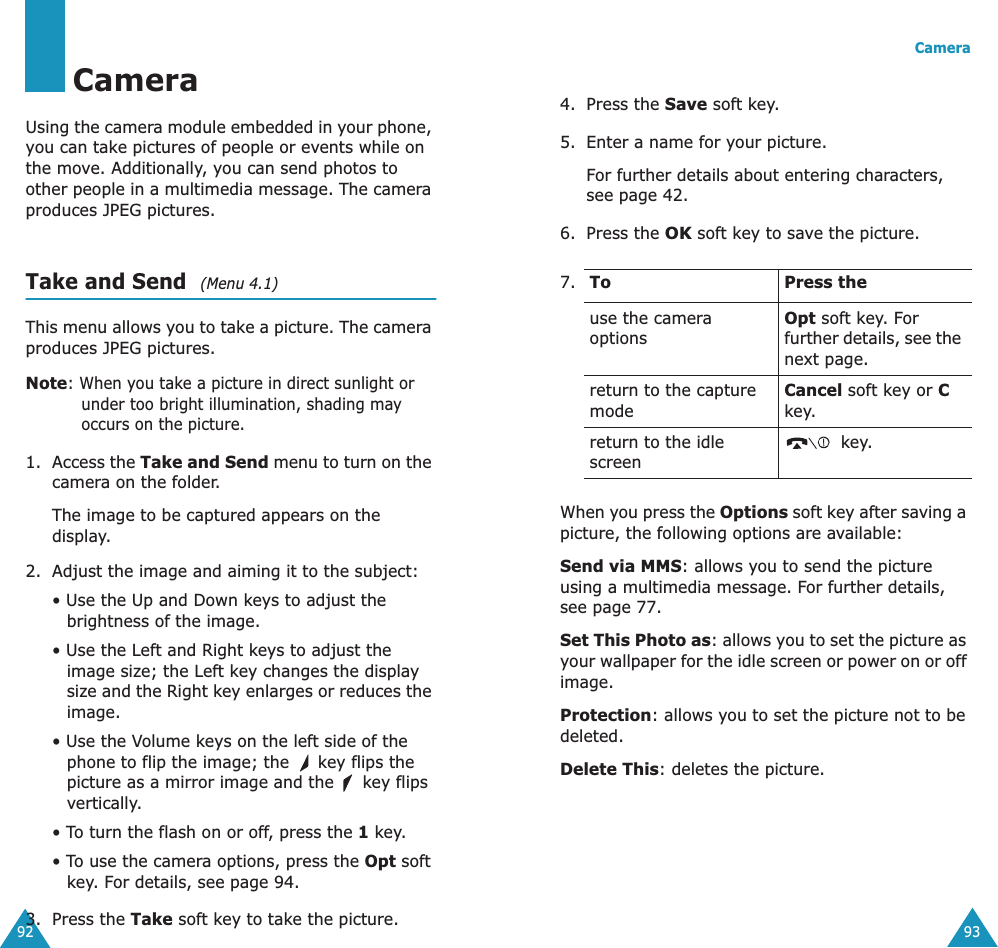

92CameraUsing the camera module embedded in your phone, you can take pictures of people or events while on the move. Additionally, you can send photos to other people in a multimedia message. The camera produces JPEG pictures.Take and Send (Menu 4.1)This menu allows you to take a picture. The camera produces JPEG pictures.Note: When you take a picture in direct sunlight or under too bright illumination, shading may occurs on the picture.1. Access the Take and Send menu to turn on the camera on the folder.The image to be captured appears on the display.2. Adjust the image and aiming it to the subject:• Use the Up and Down keys to adjust the brightness of the image.• Use the Left and Right keys to adjust the image size; the Left key changes the display size and the Right key enlarges or reduces the image.• Use the Volume keys on the left side of the phone to flip the image; the key flips the picture as a mirror image and the key flips vertically.• To turn the flash on or off, press the 1 key.• To use the camera options, press the Opt soft key. For details, see page 94.3. Press the Take soft key to take the picture.Camera934. Press the Save soft key.5. Enter a name for your picture.For further details about entering characters, see page 42.6. Press the OK soft key to save the picture.When you press the Options soft key after saving a picture, the following options are available:Send via MMS: allows you to send the picture using a multimedia message. For further details, see page 77. Set This Photo as: allows you to set the picture as your wallpaper for the idle screen or power on or off image.Protection: allows you to set the picture not to be deleted.Delete This: deletes the picture.7. To Press theuse the camera optionsOpt soft key. For further details, see the next page.return to the capture modeCancel soft key or C key.return to the idle screen key.

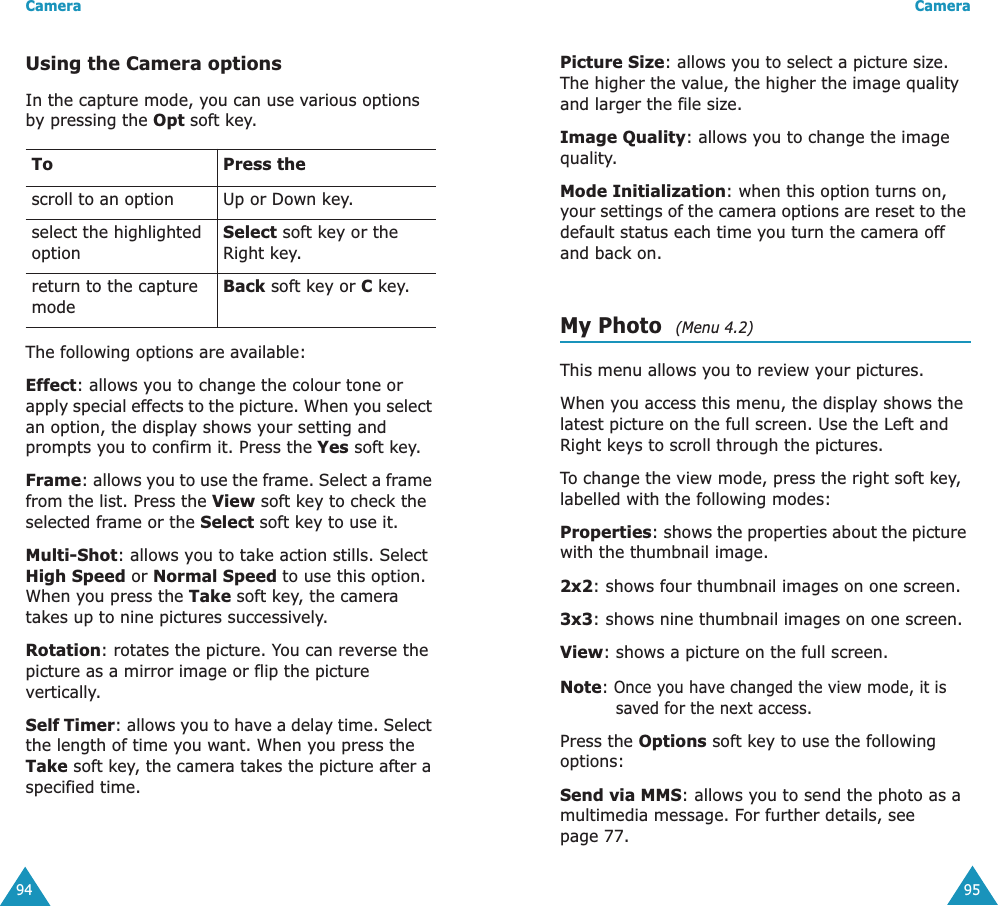

Camera94Using the Camera optionsIn the capture mode, you can use various options by pressing the Opt soft key. The following options are available:Effect: allows you to change the colour tone or apply special effects to the picture. When you select an option, the display shows your setting and prompts you to confirm it. Press the Yes soft key.Frame: allows you to use the frame. Select a frame from the list. Press the View soft key to check the selected frame or the Select soft key to use it. Multi-Shot: allows you to take action stills. Select High Speed or Normal Speed to use this option. When you press the Take soft key, the camera takes up to nine pictures successively.Rotation: rotates the picture. You can reverse the picture as a mirror image or flip the picture vertically.Self Timer: allows you to have a delay time. Select the length of time you want. When you press the Take soft key, the camera takes the picture after a specified time.To Press thescroll to an option Up or Down key.select the highlighted optionSelect soft key or the Right key.return to the capture modeBack soft key or C key.Camera95Picture Size: allows you to select a picture size. The higher the value, the higher the image quality and larger the file size.Image Quality: allows you to change the image quality.Mode Initialization: when this option turns on, your settings of the camera options are reset to the default status each time you turn the camera off and back on.My Photo (Menu 4.2)This menu allows you to review your pictures.When you access this menu, the display shows the latest picture on the full screen. Use the Left and Right keys to scroll through the pictures.To change the view mode, press the right soft key, labelled with the following modes:Properties: shows the properties about the picture with the thumbnail image.2x2: shows four thumbnail images on one screen.3x3: shows nine thumbnail images on one screen.View: shows a picture on the full screen.Note: Once you have changed the view mode, it is saved for the next access.Press the Options soft key to use the following options:Send via MMS: allows you to send the photo as a multimedia message. For further details, see page 77.

Camera96Set This Photo as: allows you to set the picture as your wallpaper for the idle screen or power on or off image.Protection: allows you to set the picture not to be deleted.Delete This: deletes the picture.Delete All: deletes all of the pictures saved in your phone.Rename: allows you to change the name of the picture.View Properties: shows the properties of the picture, such as date and time it was taken, file size, image size, protection status, file format and file name.97Sound SettingsYou can use the Sound Settings feature to customise various settings, such as the:• ring melody, volume and type.• sounds made when you press a key, receive a message, open/close the folder or switch your phone on/off.•alert tone made every minute during a call, when you make an error or when your call is connected to the system.Note: When the phone is in Silent Mode (see page 28), you cannot change the sound settings.Ring Tone (Menu 5.1) This menu allows you to select a ring melody. You can also download melodies from the T-mobile server.You can choose between many different melodies. Each time you select a melody, it plays for a few seconds. If you have downloaded sounds from the Internet or EasyGPRS programme, you can use them in this menu. Ring Volume (Menu 5.2) This menu allows you to adjust the ring volume to one of five levels. Use the Up and Down keys or the volume keys on the left side of the phone to increase or decrease the volume.

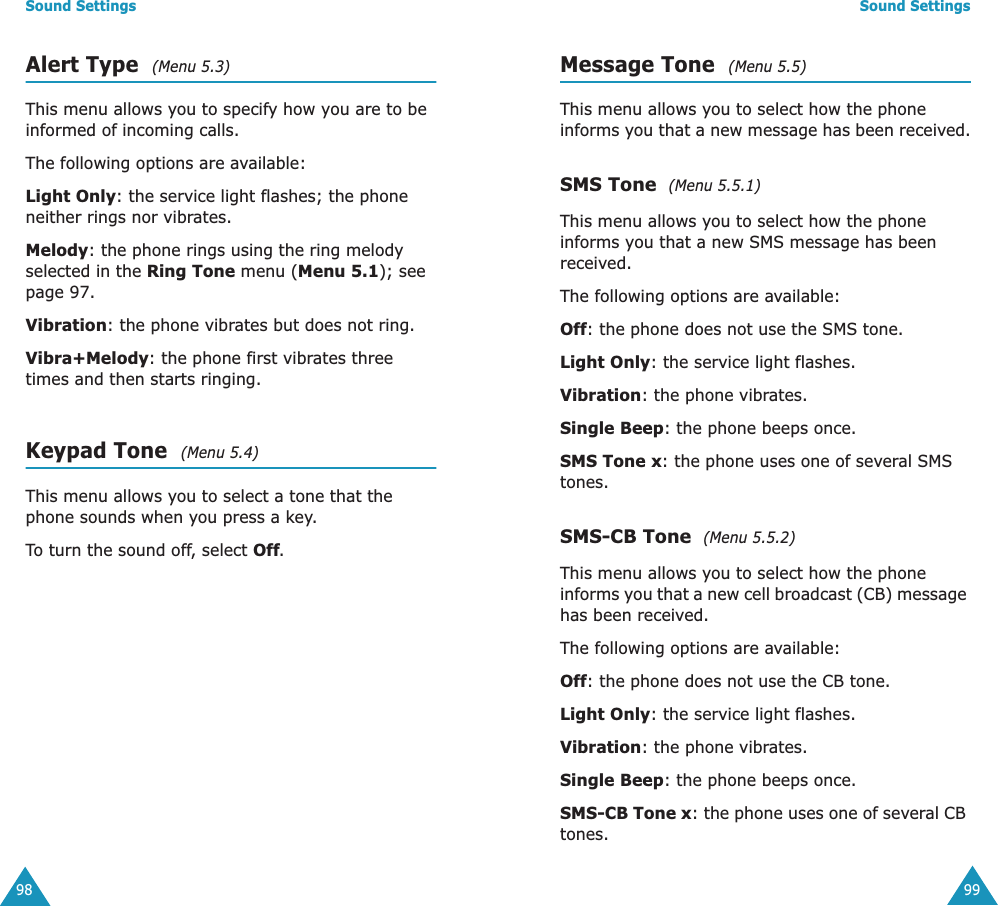

Sound Settings98Alert Type (Menu 5.3) This menu allows you to specify how you are to be informed of incoming calls. The following options are available:Light Only: the service light flashes; the phone neither rings nor vibrates.Melody: the phone rings using the ring melody selected in the Ring Tone menu (Menu 5.1); see page 97.Vibration: the phone vibrates but does not ring. Vibra+Melody: the phone first vibrates three times and then starts ringing.Keypad Tone (Menu 5.4) This menu allows you to select a tone that the phone sounds when you press a key. To turn the sound off, select Off.Sound Settings99Message Tone (Menu 5.5) This menu allows you to select how the phone informs you that a new message has been received.SMS Tone (Menu 5.5.1)This menu allows you to select how the phone informs you that a new SMS message has been received.The following options are available:Off: the phone does not use the SMS tone.Light Only: the service light flashes.Vibration: the phone vibrates.Single Beep: the phone beeps once. SMS Tone x: the phone uses one of several SMS tones. SMS-CB Tone (Menu 5.5.2)This menu allows you to select how the phone informs you that a new cell broadcast (CB) message has been received.The following options are available:Off: the phone does not use the CB tone.Light Only: the service light flashes.Vibration: the phone vibrates.Single Beep: the phone beeps once. SMS-CB Tone x: the phone uses one of several CB tones.

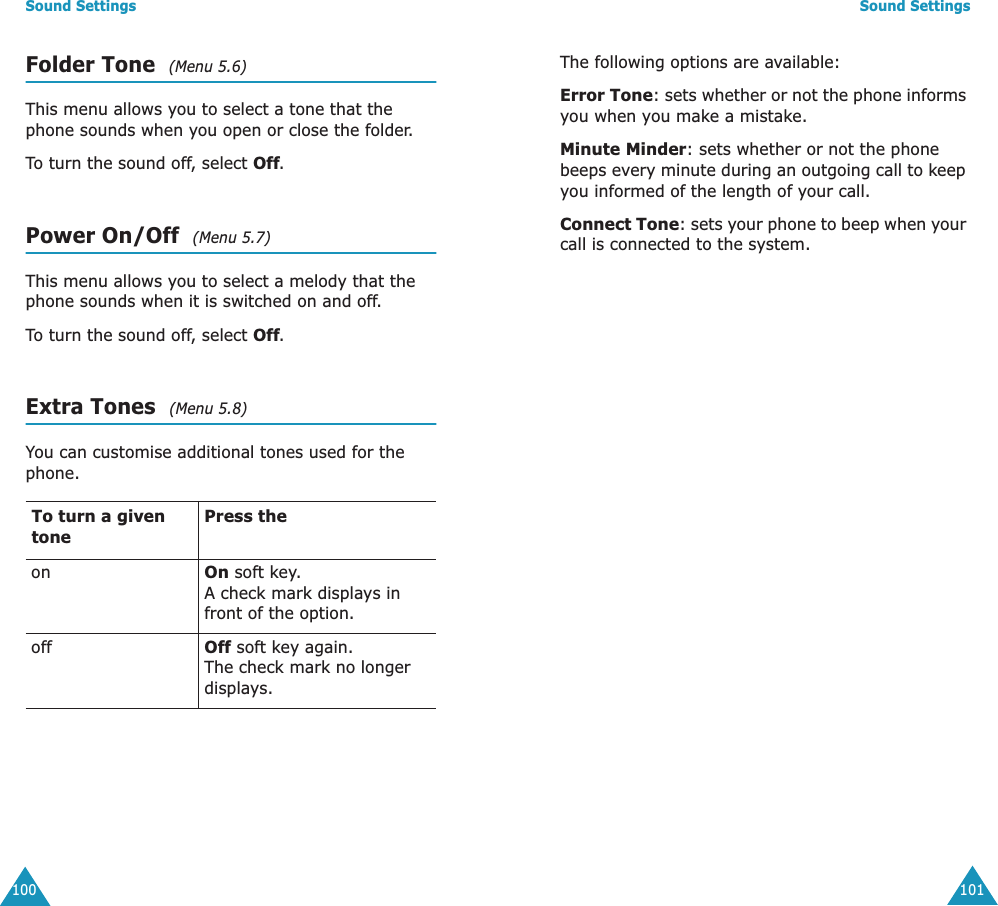

Sound Settings100Folder Tone (Menu 5.6)This menu allows you to select a tone that the phone sounds when you open or close the folder. To turn the sound off, select Off. Power On/Off (Menu 5.7)This menu allows you to select a melody that the phone sounds when it is switched on and off. To turn the sound off, select Off. Extra Tones (Menu 5.8) You can customise additional tones used for the phone. To turn a given tonePress the on On soft key.A check mark displays in front of the option. off Off soft key again.The check mark no longer displays.Sound Settings101The following options are available:Error Tone: sets whether or not the phone informs you when you make a mistake. Minute Minder: sets whether or not the phone beeps every minute during an outgoing call to keep you informed of the length of your call.Connect Tone: sets your phone to beep when your call is connected to the system.

102Phone SettingsMany different features of your phone can be customised to suit your preferences. All of these features are accessed in the Phone Settings menu.Infrared Activate (Menu 6.1) This feature allows you to send or receive data through the infrared port. To use an infrared connection, you must:•configure and activate an IrDA-compliant infrared port on your PC.• activate the infrared feature on the phone; the IrDA icon ( ) appears on the top line of the display.• align the IrDA port on the phone with the IrDA port on your computer.The connection is ready for data transmission.If there is no communication between your phone and the IrDA-compliant device within 30 seconds of activating the feature, it is automatically deactivated.Note: For the best performance, use the data link cable supplied in your SGH-E705 kit.IrDA portIrDA portPhone Settings103My Settings (Menu 6.2) In this menu, you can change various settings for the display or backlight.Wallpaper (Menu 6.2.1)This menu allows you to change the background image or the colour of the text to be displayed in Idle Mode.The following options are available:Wallpaper List: you can select a background image to be displayed on the idle screen.To change the background image:1. Scroll through the list by pressing the Up or Down key.You have various preset images available. You can also select the blank background and any images downloaded from the Internet and the EasyGPRS programme or received by messages. Once you have set a photo as the wallpaper, it displays as My Photo.icn on this list.2. Press the Select soft key when the image you want highlights.3. When the image displays, press the Select soft key to display it on the idle screen. Text Display: you can specify whether or not the phone displays the text, such as the date and time and the service provider’s name.Text Color: you can select a colour of the text to be displayed on the idle screen.

Phone Settings104Menu Style (Menu 6.2.2)This menu allows you to select the menu display style. You can choose either Folder Style or Page Style. Brightness (Menu 6.2.3) This menu allows you to adjust the brightness of the display screen to see it better in different lighting conditions.1. Select a display, either Main LCD or Front LCD, and press the Select soft key.2. Adjust the brightness by using the Up and Down keys or volume keys on the left side of the phone.3. When you are satisfied, press the OK soft key to save the selection.Back Light (Menu 6.2.4) You can select whether or not the phone uses the backlight. A marginal increase in standby/talk time can be achieved by turning the backlight off.Select the length of time the backlight is on. The backlight turns on when you press a key or receive a call or message and remains on for the specified length of time. If you do not want to use the backlight, select Off.Phone Settings105Dimming Mode (Menu 6.2.5)This menu allows you to select whether or not the phone uses the dimming mode. Select the length of time for which the phone dimms. 10 seconds, 30 seconds, 1 minute, 3 minutes and On are available.If you do not want to use the dimming mode, select Off.Auto Light (Menu 6.2.6) This feature helps you to conserve your battery power by allowing you to set the backlight to be used at certain times.The following options are available:Disable: the backlight is used according to your setting in the Back Light menu (Menu 6.2.4); see page 104.Enable: the backlight is used only during the specified period of time. Enter the time when the phone turns the light on and then turns it off, using the appropriate number keys.Service Light (Menu 6.2.7) This menu allows you to select whether or not the service light is used or in which colour it flashes. Select one of the seven colours. When the phone is ready for use, the service light flashes in the appropriate colour.If you do not wish to use the service light, select Off.

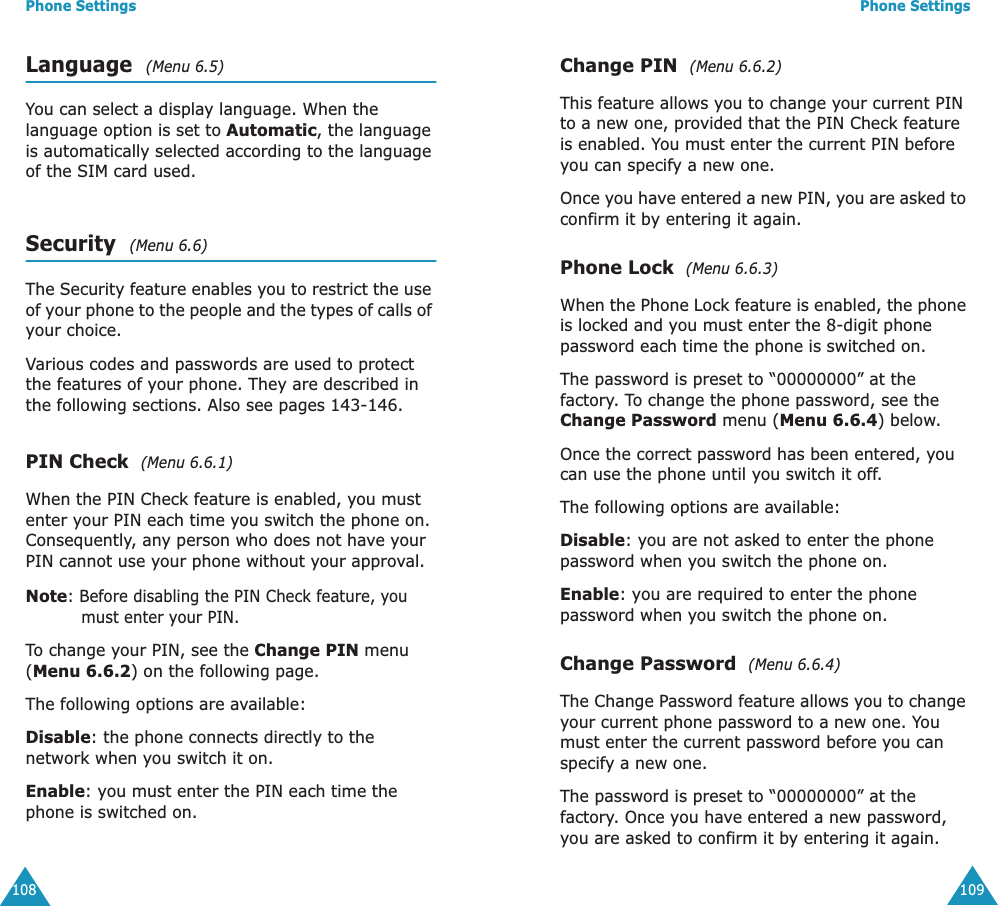

Phone Settings108Language (Menu 6.5) You can select a display language. When the language option is set to Automatic, the language is automatically selected according to the language of the SIM card used.Security (Menu 6.6) The Security feature enables you to restrict the use of your phone to the people and the types of calls of your choice.Various codes and passwords are used to protect the features of your phone. They are described in the following sections. Also see pages 143-146.PIN Check (Menu 6.6.1) When the PIN Check feature is enabled, you must enter your PIN each time you switch the phone on. Consequently, any person who does not have your PIN cannot use your phone without your approval.Note: Before disabling the PIN Check feature, you must enter your PIN.To change your PIN, see the Change PIN menu (Menu 6.6.2) on the following page.The following options are available:Disable: the phone connects directly to the network when you switch it on.Enable: you must enter the PIN each time the phone is switched on.Phone Settings109Change PIN (Menu 6.6.2) This feature allows you to change your current PIN to a new one, provided that the PIN Check feature is enabled. You must enter the current PIN before you can specify a new one.Once you have entered a new PIN, you are asked to confirm it by entering it again.Phone Lock (Menu 6.6.3) When the Phone Lock feature is enabled, the phone is locked and you must enter the 8-digit phone password each time the phone is switched on.The password is preset to “00000000” at the factory. To change the phone password, see the Change Password menu (Menu 6.6.4) below.Once the correct password has been entered, you can use the phone until you switch it off.The following options are available:Disable: you are not asked to enter the phone password when you switch the phone on.Enable: you are required to enter the phone password when you switch the phone on.Change Password (Menu 6.6.4) The Change Password feature allows you to change your current phone password to a new one. You must enter the current password before you can specify a new one.The password is preset to “00000000” at the factory. Once you have entered a new password, you are asked to confirm it by entering it again.

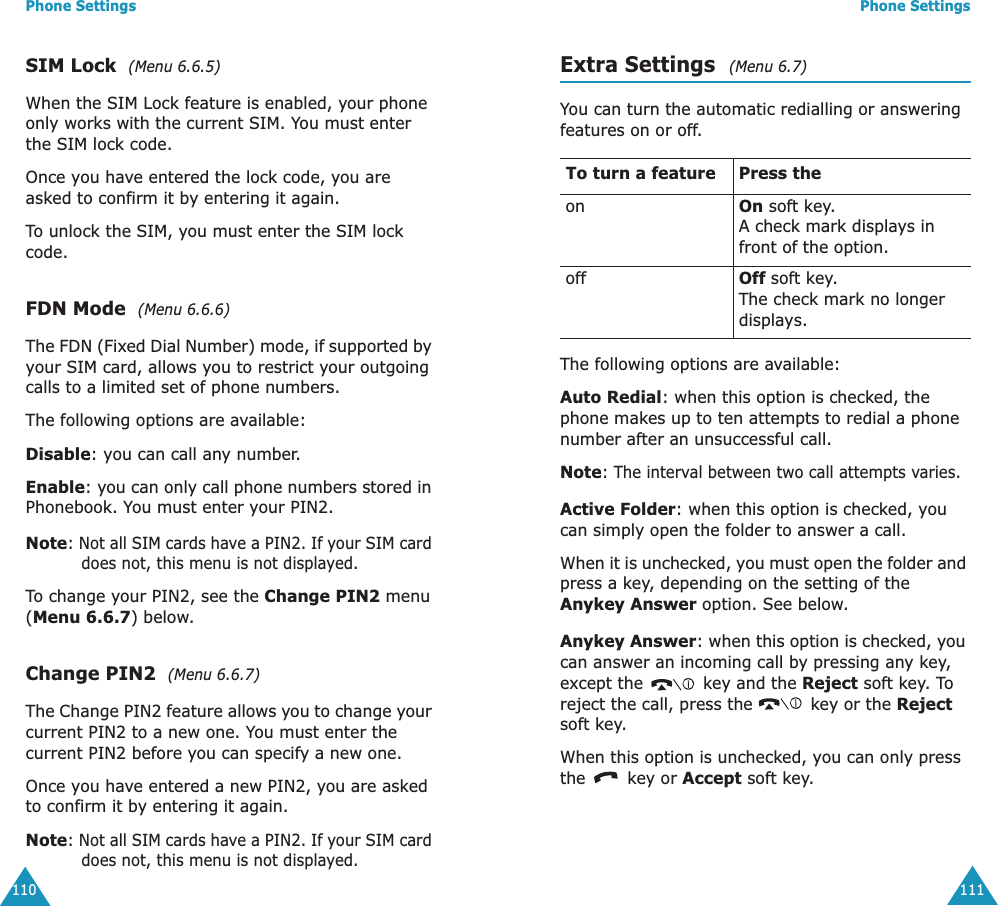

Phone Settings110SIM Lock (Menu 6.6.5) When the SIM Lock feature is enabled, your phone only works with the current SIM. You must enter the SIM lock code.Once you have entered the lock code, you are asked to confirm it by entering it again.To unlock the SIM, you must enter the SIM lock code.FDN Mode (Menu 6.6.6) The FDN (Fixed Dial Number) mode, if supported by your SIM card, allows you to restrict your outgoing calls to a limited set of phone numbers.The following options are available:Disable: you can call any number.Enable: you can only call phone numbers stored in Phonebook. You must enter your PIN2.Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu is not displayed.To change your PIN2, see the Change PIN2 menu (Menu 6.6.7) below.Change PIN2 (Menu 6.6.7) The Change PIN2 feature allows you to change your current PIN2 to a new one. You must enter the current PIN2 before you can specify a new one.Once you have entered a new PIN2, you are asked to confirm it by entering it again.Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu is not displayed.Phone Settings111Extra Settings (Menu 6.7) You can turn the automatic redialling or answering features on or off. The following options are available:Auto Redial: when this option is checked, the phone makes up to ten attempts to redial a phone number after an unsuccessful call.Note: The interval between two call attempts varies.Active Folder: when this option is checked, you can simply open the folder to answer a call.When it is unchecked, you must open the folder and press a key, depending on the setting of the Anykey Answer option. See below.Anykey Answer: when this option is checked, you can answer an incoming call by pressing any key, except the key and the Reject soft key. To reject the call, press the key or the Reject soft key. When this option is unchecked, you can only press the key or Accept soft key.To turn a feature Press the on On soft key.A check mark displays in front of the option. off Off soft key.The check mark no longer displays.

Phone Settings112Short Cut (Menu 6.8) The navigation keys can be used as shortcut keys. In Idle Mode, they allow you to access specific menus directly.To assign a shortcut to a key:1. Select the key to be used as a shortcut key by pressing the Up or Down key, and press the Select soft key.• Key Up• Key Down • Key Right• Key Left 2. Select the menu to be assigned to the key by pressing the Up or Down key.Note: To deactivate a shortcut key, select the None option.3. Press the Select soft key to save the selection.Reset Settings (Menu 6.9) You can easily reset your phone to its default settings. To reset your phone:1. Select the Reset Settings menu.2. Enter the 8-digit phone password and press the OK soft key.Note: The password is preset to “00000000.” To change this password, see page 109.113OrganiserThe Organiser feature enables you to:•set an alarm so that the phone rings at a specific time, such as to remind you of an appointment.• view the calendar and organise your schedule.• set the current date and time.• define a list of things to do.• use the phone as a calculator for basic mathematical equations or currency exchange operations. Alarm (Menu 7.1) This feature allows you to:• set the alarm to ring at a specific time.•set the phone to switch on automatically and ring the alarm even if the phone is switched off.The following options are available:Once Alarm: the alarm rings only once and is then deactivated.Daily Alarm: the alarm rings every day at the same time.Morning Alarm: the alarm rings to wake you up in the morning.To set an alarm:1. Choose the type of alarm to be set and press the Select soft key.

Organiser1142. Enter the time for the alarm to sound.Note: Your phone is preset to use 24-hour format. To change the format, see page 118.If you want to use the alarm options, press the Options soft key. The following options are available:• Remove Alarm: deactivates the current alarm. • Alarm Sound Set: allows you to select the alarm melody.3. Press the OK soft key.4. If you select Morning Alarm in Step 1, choose the repeat option, Monday to Friday or Monday to Saturday, and press the Select soft key.To stop the alarm when it rings, open the folder and press the Exit soft key.Remove Alarm: deactivates all alarm settings.Autopower: when this option is set to Enable, the alarm rings at the specified time, even if the phone is switched off. If the menu option is set to Disable and the phone is switched off at the specified time, the alarm does not ring.Organiser115Calendar (Menu 7.2) With the Calendar feature, you can:• consult the calendar to check your memos.•write memos to keep track of your schedule.• trigger an alarm, if necessary.Consulting the CalendarWhen you select the Calendar menu (Menu 7.2), the calendar displays. The following options are available when you press the Options soft key:Search All: displays all of the memos, starting with the oldest regardless of the day. To scroll through the memos, press the Up or Down key.Delete All: allows you to delete all of the memos. You are asked to confirm your action.Go to Date: allows you to go to a specific date.Exit: exits the Calendar feature and returns to Idle Mode.

Organiser116Writing a MemoYou can make up to 30 memos for one day.To write or edit a memo on a specific date:1. Select a date on the calendar, using the navigation keys.Note: To skip to the previous or next month, press the or key on the left side of the phone.2. Press the Select soft key. An empty memo screen displays allowing you to enter your memo.3. Enter your memo and then press the OK soft key.Note: For further details about how to enter characters, see page 42.You are asked if you wish to set an alarm.4. If you want an alarm to ring on the chosen day, press the Yes soft key. Otherwise, press the No soft key. The memo is saved.5. If you pressed the Yes soft key, enter the time for the alarm and press the OK soft key.You can also select the melody for the alarm by pressing the Melody soft key. The colour of the date on the calendar changes to green to indicate that a memo exists.Organiser117Viewing a MemoWhen you select a day for which a memo already exists on the calendar, the latest memo for the day displays. If more than one memo is stored, press the Up or Down key to scroll to the previous or next memo. Press the New soft key to add a new memo to the day.You can use the following options by pressing the Options soft key:Edit: allows you to change the memo text.Alarm: allows you to set an alarm to ring at the specified time to inform you of the memo. If you set the alarm earlier, you can change or delete it.Delete: allows you to delete the memo.Copy to: allows you to copy the memo to another date.Move to: allows you to change the date of the memo.

Organiser118Time & Date (Menu 7.3) This menu allows you to change the current time and date displayed. You can also use this option to find out what time it is in another part of the world.The following options are available:Set Time: allows you to enter the current time. You can choose the time format in the Time Format menu (Menu 7.3.4). See below.Note: Before setting the time, you must specify your time zone, in the World Time menu (Menu 7.3.3).Set Date: allows you to enter the day, month and year. World Time: allows you to find out what time it is in another part of the world, using the Left and Right keys.The screen shows the:• city name.• current date and time.• time difference between the selected city and your city if you have set the local time (see below for further details) or GMT (by default).To select your time zone:1. Select the city corresponding to your time zone by pressing the Left or Right key one or more times.The local date and time display.2. Press the Set soft key.Time Format: allows you to change the time format to 24 Hours or 12 Hours.Organiser119Calculator (Menu 7.4) With this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions; addition, subtraction, multiplication and division.1. Enter the first number using the numeric keys.Notes: • To delete mistakes or clear the display, press the C key.• To include a decimal point or a bracket, press the left soft key until the symbol you want displays.2. Press the right soft key until the required arithmetic symbol appears: + (addition), - (subtraction), (multiplication), / (division).3. Enter the second number.4. To view the result, press the key.5. Repeat steps 1 to 4 as many times as required.

Organiser120To Do List (Menu 7.5) This feature allows you to:• enter a list of tasks to be done.• assign a priority and a deadline to each task.• sort the tasks by priority and status mark.Creating the To Do List1. Press the New soft key.2. Enter the first task.Note: For further details about how to enter characters, see page 42.3. Press the OK soft key.4. Select high, normal or low priority using the Up and Down keys and press the Select soft key.5. Enter your deadline and press the OK soft key.If you do not want to set a deadline, press the Skip soft key.Editing the To Do ListWhen you select the To Do List menu (Menu 7.5), the current contents display with the status mark and priority; for High, for Normal and for Low.Organiser121 To view the details for a specific task➀ highlight the task.➁ press the View soft key.➂ scroll through the tasks using the Up and Down keys, if necessary. To change the status of a specific task➀ highlight the task.➁ press the key to mark the task as completed as of the current date and time.or➀ highlight the task. ➁ press the Options soft key.➂ select the Mark option.➃ select the appropriate status (Done or Undo). To create a new task➀ press the Options soft key.➁ select the New option.➂ enter the text, priority and/or deadline for the task. To edit an existing task➀ highlight the task.➁ press the Options soft key.➂ select the Edit option.➃ change the text, priority and/or deadline for the task, as required. To sort the existing tasks by priority or status➀ press the Options soft key.➁ select the Sort option.➂ select the sort criterion (High, Low, Done or Undo).

Organiser122 To copy a task ➀ highlight the task.➁ press the Options soft key.➂ select the Copy option.➃ change the text, priority and/or deadline for the task, as required. To copy a task to the calendar➀ highlight the task.➁ press the Options soft key.➂ select the Copy to Calendar option.➃ change the text and deadline for the task and set the alarm, as required. To delete a task ➀ highlight the task.➁ press the Options soft key.➂ select the Delete option. To delete all tasks➀ press the Options soft key.➁ select the Delete All option.➂ confirm the deletion by pressing the OK soft key. To exit the To Do list➀ press the Options soft key.➁ select the Exit option.Organiser123Currency Exchange (Menu 7.6) Using this menu, you can make currency conversions.1. Enter the current exchange rate of your source currency and press the OK soft key.You can insert a decimal point by pressing the key.2. Enter the amount to convert and press the OK soft key.The amount you entered and its equivalent value display.3. Press the Exit soft key to exit the currency convertor.

124Network ServicesThese menu functions are network services. Please contact your service provider to check their availability and subscribe to them, if you wish.Call Forward (Menu 8.1) This network service enables incoming calls to be rerouted to the number that you specify.Example:You may wish to forward your business calls to a colleague while you are on holiday.Call Forward can be set up in the following ways:Divert Always: all calls are forwarded.Busy: calls are forwarded when you are already on another call.No Reply: calls are forwarded when you do not answer the phone.Unreachable: calls are forwarded when you are not in an area covered by your service provider.Cancel All: all call forwarding options are cancelled.You can specify individual forwarding options for each of the following call types:•Voice calls only•Data calls onlyNetwork Services125To set your call forwarding options:1. Select the type of call forwarding by pressing the Up or Down key, and then press the Select soft key.2. Select the type of calls to be forwarded by pressing the Up or Down key, and then press the Select soft key.The current status displays. If the option has already been set, the number to which the calls are forwarded displays.4. Enter the number to which the calls are to be forwarded and press the OK soft key.To enter an international code, press the 0 key until the + sign displays.The phone sends your settings to the network and the network’s acknowledgement displays.You can deactivate all call forwarding settings by selecting the Cancel All option.3. To Press theactivate call forwardingActivate soft key.Go to Step 4.change the number to be calledChange soft key.Go to Step 4. deactivate call forwardingRemove soft key.

Network Services126Call Waiting (Menu 8.2) This network service informs you when someone is trying to reach you during another call.You can specify individual call waiting options for each of the following call types:•Voice calls only•Data calls onlyTo set your call waiting options:1. Select the type of calls to which you want to apply the call waiting option by pressing the Up or Down key, and then press the Select soft key.The screen informs you whether call waiting is activated or deactivated. 2. You can activate or deactivate the call waiting feature as necessary by using the Activate or Deactivate soft key respectively. To return to the previous screen, press the Exit soft key.You can also deactivate all call waiting settings by selecting the Cancel All option.Network Services127Network Selection (Menu 8.3) The Network Selection feature enables you to automatically or manually select the network used when roaming outside of your home area.Note: You can select a network other than your home network only if there is a valid roaming agreement between them.To indicate to automatically or manually select the network when roaming:1. When Network Selection displays, press the Select soft key.2. Press the Up or Down key until the appropriate option highlights and then press the OK soft key.If you select Automatic, you are connected to the first available network when roaming.If you select Manual, the phone scans for the available networks. Go to Step 3.3. Press the Up or Down key until the preferred network highlights and then press the OK soft key.You are connected to that network.

Network Services128Caller ID (Menu 8.4) You can prevent your phone number from being displayed on the phone of the person being called.Note: Some networks do not allow the user to change this setting.The following options are available:Default: the default setting provided by the network is used.Hide Number: your number does not display on the other person’s phone.Send Number: your number is sent each time you make a call.Band Selection (Menu 8.5) For the phone to make and receive phone calls, it must register with one of the available networks. Your phone can handle either of the following types of networks: •GSM 900•GSM 1800• Combined GSM 900/1800•GSM 1900The country where you purchased your phone determines the default band that it uses. When you travel abroad, you must remember to change to an appropriate band. Network Services1291. When Band Selection displays, press the Select soft key.2. Press the Up or Down key until the appropriate option, GSM 900/1800 or GSM 1900, highlights and press the OK soft key.When you select a new band, your phone displays a confirmation message and then automatically searches for all of the available networks. Your phone registers with a preferred network within the band.s

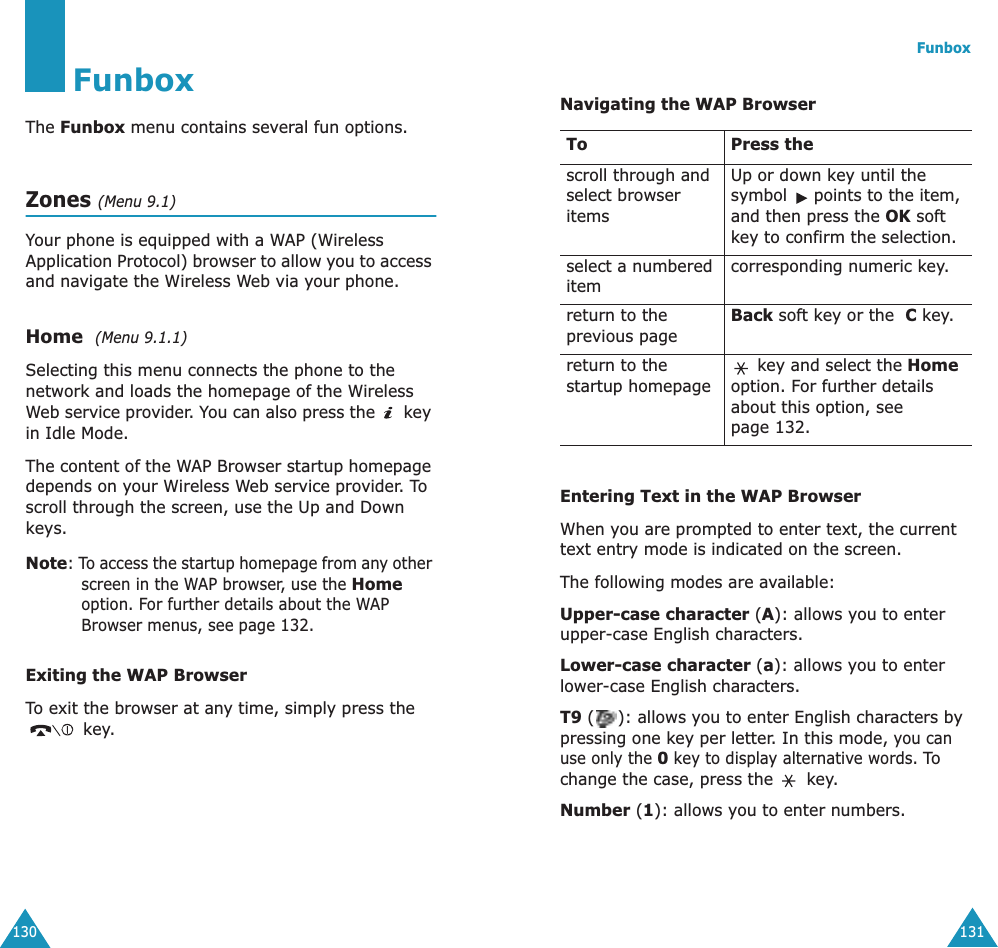

130FunboxThe Funbox menu contains several fun options.Zones (Menu 9.1) Your phone is equipped with a WAP (Wireless Application Protocol) browser to allow you to access and navigate the Wireless Web via your phone.Home (Menu 9.1.1)Selecting this menu connects the phone to the network and loads the homepage of the Wireless Web service provider. You can also press the key in Idle Mode.The content of the WAP Browser startup homepage depends on your Wireless Web service provider. To scroll through the screen, use the Up and Down keys.Note: To access the startup homepage from any other screen in the WAP browser, use the Home option. For further details about the WAP Browser menus, see page 132.Exiting the WAP BrowserTo exit the browser at any time, simply press the key.Funbox131Navigating the WAP BrowserEntering Text in the WAP BrowserWhen you are prompted to enter text, the current text entry mode is indicated on the screen. The following modes are available:Upper-case character (A): allows you to enter upper-case English characters.Lower-case character (a): allows you to enter lower-case English characters.T9 ( ): allows you to enter English characters by pressing one key per letter. In this mode, you can use only the 0 key to display alternative words. To change the case, press the key.Number (1): allows you to enter numbers.To Press thescroll through and select browser itemsUp or down key until the symbol points to the item, and then press the OK soft key to confirm the selection.select a numbered itemcorresponding numeric key.return to the previous pageBack soft key or the C key.return to the startup homepage key and select the Home option. For further details about this option, see page 132.

Funbox132Selecting and Using Browser Menu OptionsVarious menu options are available when you are using the WAP Browser to navigate the Wireless Web.To access a menu option:1. Press the key. A menu list displays.2. Highlight a menu by pressing the Up or Down key.3. Select an option by pressing the Select soft key.4. If necessary, select the secondary option using the Up and Down keys, and press the Select soft key to confirm.Note: The menus may vary, depending on your version of the WAP browser.To change modespress the key one or more times.To enter a spacepress the key.To edit text➀ set the cursor to the right of the character(s) to be corrected.➁ press the C key as required.➂ enter the correct character(s).Funbox133The following options are available: Reload: reloads the current page.Home: takes you back at any time to the home page of the Wireless Web service provider.Goto URL: allows you to manually enter the URL address of a Web page. After entering an address, press the OK soft key to go there directly.Show URL: displays the URL address of the Web page to which you are currently connected. It also enables you to set the current site as the startup home page. Edit Home: allows you to change the startup home page manually. Enter the URL and press the OK soft key. For further details about entering text, see page 42.Clear Cache: deletes the information stored in the cache, which stores the most recently accessed Web pages.Inbox: allows you to read messages received from the web server.To Press theset the current page as your startup home pageOption soft key, select the Save to Home option and press the Select soft key.set a bookmark for the current pageOption soft key, select the Save to Bookmark option and press the Select soft key.cancel your setting Back soft key.

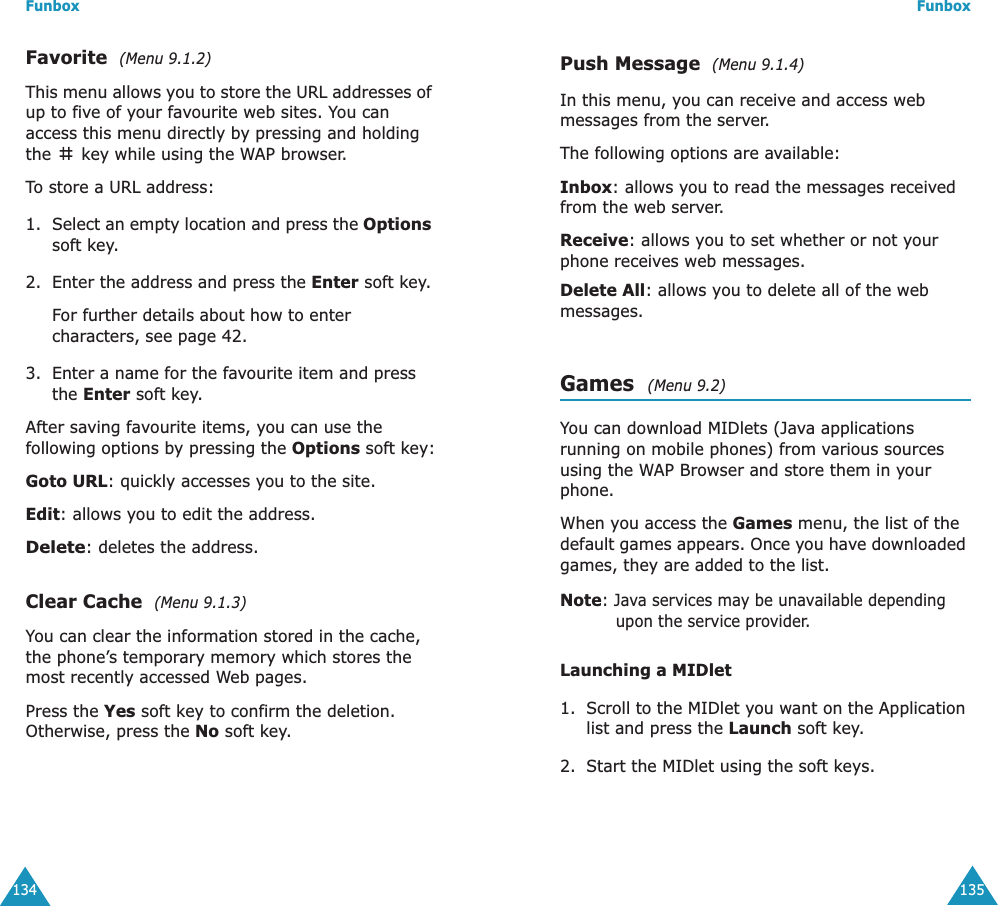

Funbox134Favorite (Menu 9.1.2)This menu allows you to store the URL addresses of up to five of your favourite web sites. You can access this menu directly by pressing and holding the key while using the WAP browser.To store a URL address:1. Select an empty location and press the Options soft key. 2. Enter the address and press the Enter soft key.For further details about how to enter characters, see page 42. 3. Enter a name for the favourite item and press the Enter soft key.After saving favourite items, you can use the following options by pressing the Options soft key:Goto URL: quickly accesses you to the site. Edit: allows you to edit the address.Delete: deletes the address.Clear Cache (Menu 9.1.3)You can clear the information stored in the cache, the phone’s temporary memory which stores the most recently accessed Web pages.Press the Yes soft key to confirm the deletion. Otherwise, press the No soft key.Funbox135Push Message (Menu 9.1.4)In this menu, you can receive and access web messages from the server.The following options are available:Inbox: allows you to read the messages received from the web server.Receive: allows you to set whether or not your phone receives web messages.Delete All: allows you to delete all of the web messages.Games (Menu 9.2) You can download MIDlets (Java applications running on mobile phones) from various sources using the WAP Browser and store them in your phone. When you access the Games menu, the list of the default games appears. Once you have downloaded games, they are added to the list.Note: Java services may be unavailable depending upon the service provider.Launching a MIDlet1. Scroll to the MIDlet you want on the Application list and press the Launch soft key.2. Start the MIDlet using the soft keys.

Funbox136Viewing MIDlet Information1. Scroll to the MIDlet you want and press the Info soft key. The display shows information about the MIDlet, such as file size, application version and its vendor.2. To scroll to other MIDlet information, press the Up or Down key.3. If you want to delete the MIDlet, press the Delete soft key and then press the Yes soft key to confirm the deletion.4. To exit and return to the Application screen, press the Back soft key or the C key.Changing the DNS SettingsThe DNS (Domain Name Server) is the server that resolves the Java server domain name into IP address. The DNS setting is preset at the factory, but sometimes you may need to change it at your service provider’s instruction.1. Scroll to Setting on the Applications list and press the Select soft key.2. Enter the primary address using the number keypad and press the OK soft key.3. Enter the secondary address and press the OK soft key.Funbox137Entering TextFor entering text while using a MIDlet, the following input modes are available:Upper-case character (A): allows you to enter upper-case English characters.Lower-case character (a): allows you to enter lower-case English characters.Number (1): allows you to enter numbers.Symbol: allows you to enter symbols. After highlighting a symbol by pressing the navigation keys, press the key to insert it.T9 ( ): allows you to enter English characters by pressing one key per letter. In this mode, you can change the case by pressing the 0 key.To change the text input mode, press the key until the appropriate indicator appears on the soft key area of the display.Sounds (Menu 9.3)In this menu, you can view the list of sounds downloaded from the web server or received in multimedia messages. You can set the downloaded sounds as the current ring tone or send them to other phones. By pressing the Options soft key, you can use the following options: Rename: allows you to change the name of the sound.Delete: deletes the sound.Set as Ring Tone: sets the sound as your ring tone.

Funbox138Images (Menu 9.4)In this menu, you can view the list of pictures downloaded from the web server or received in messages. You can set the downloaded pictures as the current background image or send them to other phones.If you set a photo as your wallpaper, it displays as My Photo.icn on the list.By pressing the Options soft key, you can use the following options: Rename: allows you to change the name of the image.Delete: deletes the image.Set as Wallpaper: sets the image as your wallpaper. Delete All (Menu 9.5)This menu allows you to delete all of the downloaded items in the Games, Sounds and Images folders. You can delete all of the items at one time.When a confirming message displays, press the Yes soft key to confirm.To Press theselect a folder to clearUp or Down key. To delete all of your items, select All.place a check mark Mark soft key.remove a check mark Unmark soft key.delete the marked itemsDelete soft key.Funbox139Memory Status (Menu 9.6)You can check the memory status for games or sounds and images. The display shows the total, free and used space, and the number of objects you downloaded.s

140Solving ProblemsBefore contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary service call.When you switch your phone on, the following messages may appear:Insert SIM Card• Check that the SIM card is correctly installed.Phone Locked Enter Password•The automatic locking function has been enabled. You must enter the phone’s password before you can use the phone.Enter PIN•You are using your phone for the first time. You must enter the Personal Identification Number (PIN) supplied with the SIM card.•The PIN Check feature is enabled. Every time the phone is switched on, the PIN has to be entered. To disable this feature, use the PIN Check menu (Menu 6.6.1).Enter PUK•The PIN code was entered incorrectly three times in succession and the phone is now blocked. Enter the PUK supplied by your network operator.Solving Problems141“No service,” “Network failure” or “Not done” displays•The network connection was lost. You may be in a weak signal area (in a tunnel or surrounded by buildings). Move and try again.•You are trying to access an option for which you have not taken out a subscription with your service provider. Contact the service provider for further details.You have entered a number but it was not dialled•Have you pressed the key?• Are you accessing the right cellular network?•You may have set an outgoing call barring option.Your correspondent cannot reach you• Is your phone switched on (the key pressed for more than one second)?• Are you accessing the right cellular network?•You may have set an incoming call barring option.Your correspondent cannot hear you speaking•Have you switched off the microphone?• Are you holding the phone close enough to your mouth? The microphone is located at the bottom of the phone.

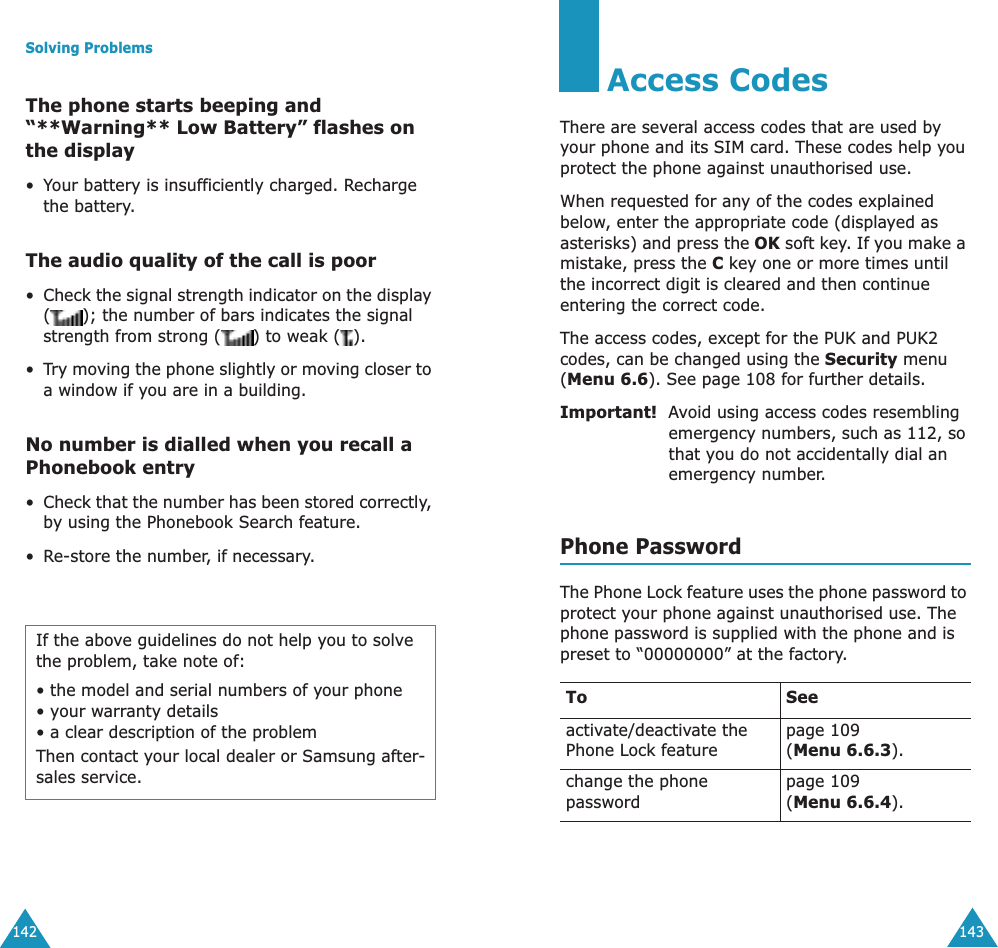

Solving Problems142The phone starts beeping and “**Warning** Low Battery” flashes on the display•Your battery is insufficiently charged. Recharge the battery.The audio quality of the call is poor•Check the signal strength indicator on the display ( ); the number of bars indicates the signal strength from strong ( ) to weak ( ).•Try moving the phone slightly or moving closer to a window if you are in a building.No number is dialled when you recall a Phonebook entry•Check that the number has been stored correctly, by using the Phonebook Search feature.•Re-store the number, if necessary.If the above guidelines do not help you to solve the problem, take note of:• the model and serial numbers of your phone• your warranty details• a clear description of the problemThen contact your local dealer or Samsung after-sales service.143Access CodesThere are several access codes that are used by your phone and its SIM card. These codes help you protect the phone against unauthorised use.When requested for any of the codes explained below, enter the appropriate code (displayed as asterisks) and press the OK soft key. If you make a mistake, press the C key one or more times until the incorrect digit is cleared and then continue entering the correct code.The access codes, except for the PUK and PUK2 codes, can be changed using the Security menu (Menu 6.6). See page 108 for further details.Important! Avoid using access codes resembling emergency numbers, such as 112, so that you do not accidentally dial an emergency number.Phone PasswordThe Phone Lock feature uses the phone password to protect your phone against unauthorised use. The phone password is supplied with the phone and is preset to “00000000” at the factory.To Seeactivate/deactivate the Phone Lock featurepage 109(Menu 6.6.3).change the phone passwordpage 109(Menu 6.6.4).

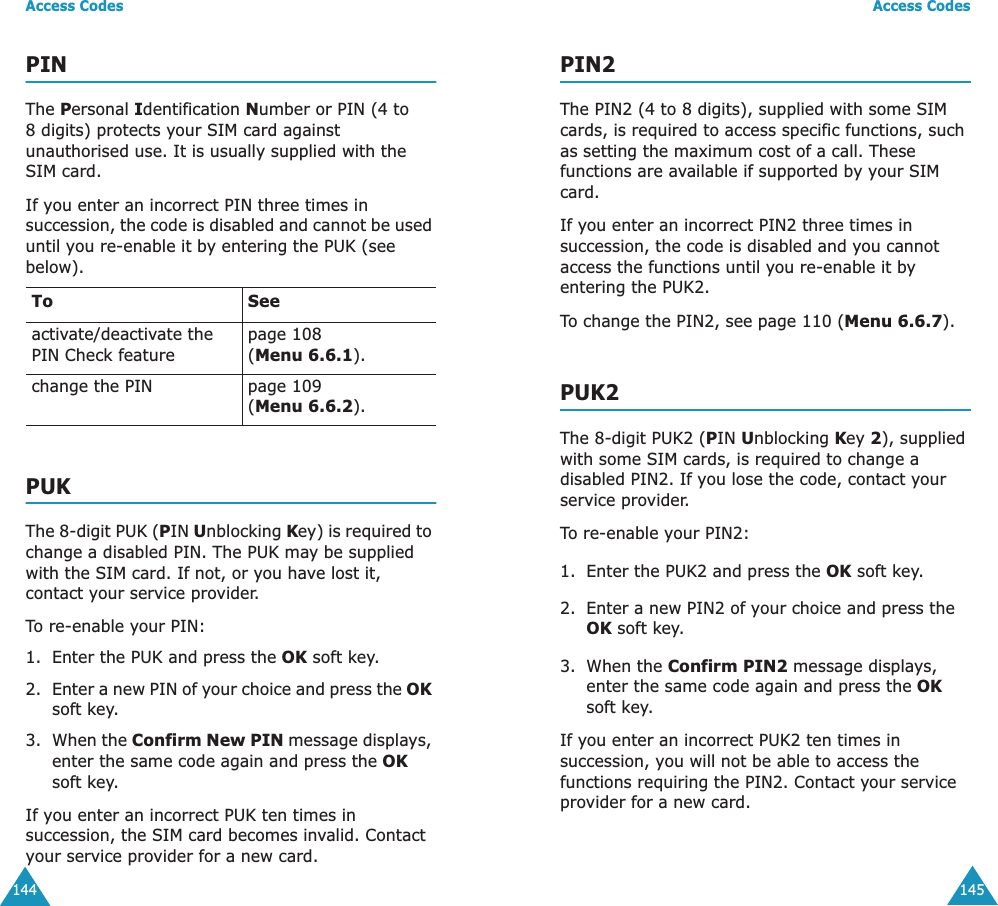

Access Codes144PINThe Personal Identification Number or PIN (4 to 8 digits) protects your SIM card against unauthorised use. It is usually supplied with the SIM card.If you enter an incorrect PIN three times in succession, the code is disabled and cannot be used until you re-enable it by entering the PUK (see below).PUKThe 8-digit PUK (PIN Unblocking Key) is required to change a disabled PIN. The PUK may be supplied with the SIM card. If not, or you have lost it, contact your service provider.To re-enable your PIN:1. Enter the PUK and press the OK soft key.2. Enter a new PIN of your choice and press the OK soft key.3. When the Confirm New PIN message displays, enter the same code again and press the OK soft key.If you enter an incorrect PUK ten times in succession, the SIM card becomes invalid. Contact your service provider for a new card.To Seeactivate/deactivate the PIN Check featurepage 108 (Menu 6.6.1).change the PIN page 109(Menu 6.6.2).Access Codes145PIN2The PIN2 (4 to 8 digits), supplied with some SIM cards, is required to access specific functions, such as setting the maximum cost of a call. These functions are available if supported by your SIM card.If you enter an incorrect PIN2 three times in succession, the code is disabled and you cannot access the functions until you re-enable it by entering the PUK2.To change the PIN2, see page 110 (Menu 6.6.7).PUK2The 8-digit PUK2 (PIN Unblocking Key 2), supplied with some SIM cards, is required to change a disabled PIN2. If you lose the code, contact your service provider.To re-enable your PIN2:1. Enter the PUK2 and press the OK soft key.2. Enter a new PIN2 of your choice and press the OK soft key.3. When the Confirm PIN2 message displays, enter the same code again and press the OK soft key.If you enter an incorrect PUK2 ten times in succession, you will not be able to access the functions requiring the PIN2. Contact your service provider for a new card.

146Health and Safety InformationExposure to Radio Frequency (RF) SignalsYour wireless phone is a radio transmitter andreceiver. It is designed and manufactured not toexceed the emission limits for exposure to radiofrequency (RF) energy set by the FederalCommunications Commission (FCC) of the U.S.Government. These limits are part ofcomprehensive guidelines and establish permittedlevels of RF energy for the general population. Theguidelines are based on the safety standardspreviously set by both U.S. and internationalstandards bodies:• American National Standards Institute (ANSI)IEEE. C95.1-1992• National Council on Radiation Protection andMeasurement (NCRP). Report 86. 1986• International Commission on Non-IonizingRadiation Protection (ICNIRP) 1996• Ministry of Health (Canada), Safety Code 6.The standards include a substantial safety margindesigned to assure the safety of all persons,regardless of age and health.The exposure standard for wireless phones employsa unit of measurement known as SpecificAbsorption Rate (SAR). The SAR limitrecommended by the FCC is 1.6W/kg .** In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.Health and Safety Information147SAR tests are conducted using standard operatingpositions specified by the FCC with the phonetransmitting at its highest certified power level in alltested frequency bands. Although the SAR isdetermined at the highest certified power level, theactual SAR level of the phone while operating canbe well below the maximum value. This is becausethe phone is designed to operate at multiple powerlevels so as to use only the power required to reachthe network. In general, the closer you are to awireless base station antenna, the lower the poweroutput of the phone.Before a phone model is available for sale to thepublic, it must be tested and certified to the FCCthat it does not exceed the limit established by thegovernment-adopted requirement for safeexposure. The tests are performed in positions andlocations (e.g., at the ear and worn on the body) asrequired by the FCC for each model. The highestSAR value for this model phone when tested for useat the ear is 0.559W/Kg and when worn on thebody, as described in this user guide, is 0.099W/Kg(Body-worn measurements differ among phonemodels, depending upon available accessories andFCC requirements). While there may be differencesbetween the SAR levels of various phones and atvarious positions, they all meet the governmentrequirement for safe exposure.The FCC has granted an Equipment Authorizationfor this model phone with all reported SAR levelsevaluated as in compliance with the FCC RFemission guidelines. SAR information on thismodel phone is on file with the FCC and can befound under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC IDA3LSGHE715.

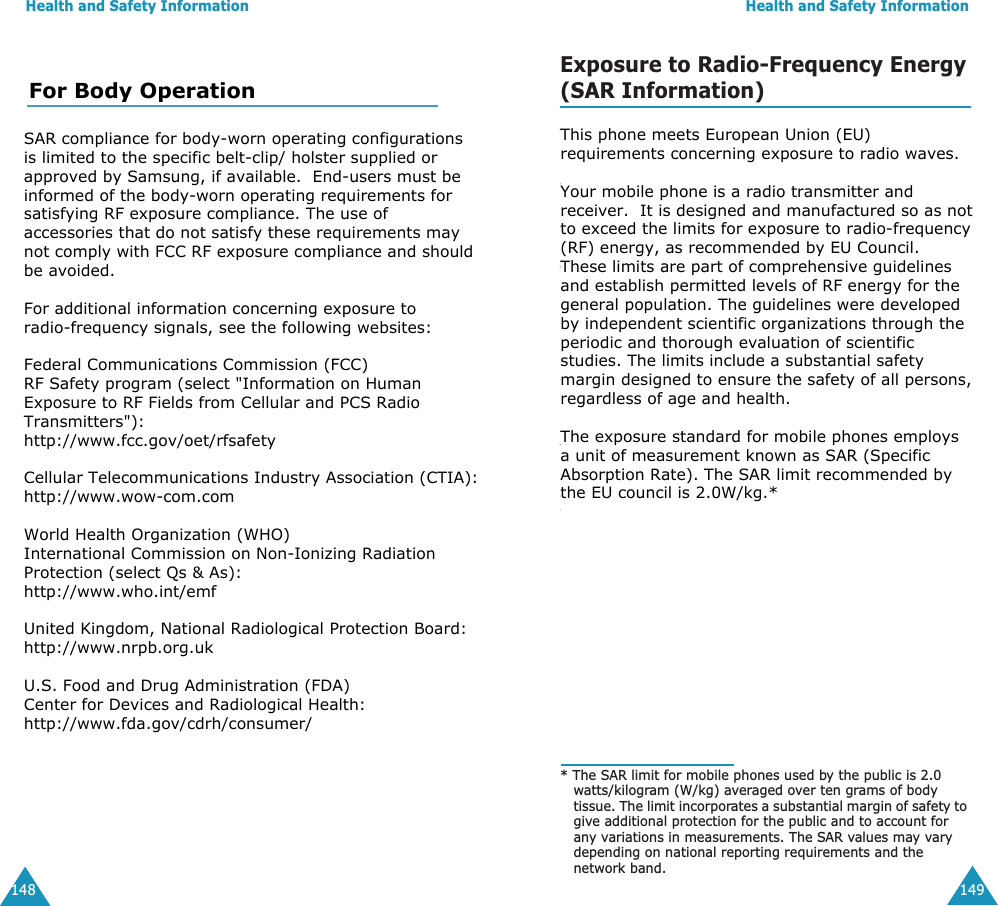

Health and Safety Information148Health and Safety Information149Exposure to Radio-Frequency Energy(SAR Information)This phone meets European Union (EU) requirements concerning exposure to radio waves.Your mobile phone is a radio transmitter and receiver. It is designed and manufactured so as not to exceed the limits for exposure to radio-frequency (RF) energy, as recommended by the EU Council. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines were developed by independent scientific organisations through the periodic and thorough evaluation of scientific studies. The limits include a substantial safety margin designed to ensure the safety of all persons, regardless of age and health.The exposure standard for mobile phones employs a unit of measurement known as SAR (Specific Absorption Rate). The SAR limit recommended by the EU Council is 2.0W/kg.** The SAR limit for mobile phones used by the public is 2.0 watts/kilogram (W/kg) averaged over ten grams of body tissue. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. The SAR values may vary depending on national reporting requirements and the network band.This phone meets European Union (EU)requirements concerning exposure to radio waves.Your mobile phone is a radio transmitter and receiver. It is designed and manufactured so as notto exceed the limits for exposure to radio-frequency(RF) energy, as recommended by EU Council.These limits are part of comprehensive guidelinesand establish permitted levels of RF energy for thegeneral population. The guidelines were developedby independent scientific organizations through theperiodic and thorough evaluation of scientificstudies. The limits include a substantial safetymargin designed to ensure the safety of all persons,regardless of age and health.The exposure standard for mobile phones employsa unit of measurement known as SAR (SpecificAbsorption Rate). The SAR limit recommended bythe EU council is 2.0W/kg.*For Body OperationSAR compliance for body-worn operating configurations is limited to the specific belt-clip/ holster supplied or approved by Samsung, if available. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure compliance and should be avoided. For additional information concerning exposure to radio-frequency signals, see the following websites:Federal Communications Commission (FCC)RF Safety program (select "Information on Human Exposure to RF Fields from Cellular and PCS Radio Transmitters"):http://www.fcc.gov/oet/rfsafetyCellular Telecommunications Industry Association (CTIA):http://www.wow-com.comWorld Health Organization (WHO)International Commission on Non-Ionizing Radiation Protection (select Qs & As):http://www.who.int/emfUnited Kingdom, National Radiological Protection Board:http://www.nrpb.org.ukU.S. Food and Drug Administration (FDA)Center for Devices and Radiological Health:http://www.fda.gov/cdrh/consumer/

Health and Safety Information150SAR tests are conducted using standard operating positions with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station, the lower the power output of the phone. Before a new model phone is available for sale to the public, compliance with the European R&TTE Directive must be shown. This directive includes as one of its essential requirements the protection of the health and safety of the user and any other person.Precautions When Using Batteries•Never use any charger or battery that is damaged in any way.• Use the battery only for its intended purpose.• If you use the phone near the network’s base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.• Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.Health and Safety Information151• If left unused, a fully charged battery will discharge itself over time.• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).•Do not short-circuit the battery. Accidental short- circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and – terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.•Dispose of used batteries in accordance with local regulations. Always recycle. Do not dispose of batteries in a fire.

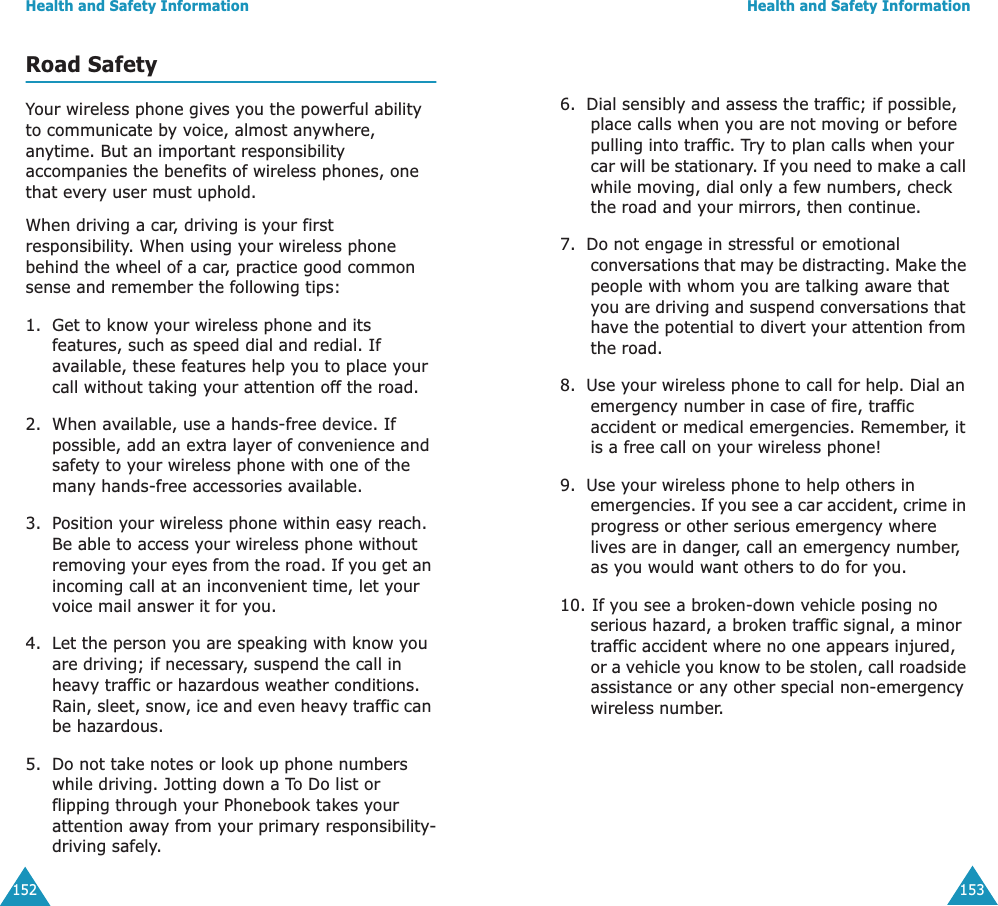

Health and Safety Information152Road SafetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.2. When available, use a hands-free device. If possible, add an extra layer of convenience and safety to your wireless phone with one of the many hands-free accessories available.3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.5. Do not take notes or look up phone numbers while driving. Jotting down a To Do list or flipping through your Phonebook takes your attention away from your primary responsibility-driving safely.Health and Safety Information1536. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.7. Do not engage in stressful or emotional conversations that may be distracting. Make the people with whom you are talking aware that you are driving and suspend conversations that have the potential to divert your attention from the road.8. Use your wireless phone to call for help. Dial an emergency number in case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!9. Use your wireless phone to help others in emergencies. If you see a car accident, crime in progress or other serious emergency where lives are in danger, call an emergency number, as you would want others to do for you.10. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or any other special non-emergency wireless number.

Health and Safety Information154Operating EnvironmentRemember to follow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.When connecting the phone or any accessory to another device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).Electronic DevicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Health and Safety Information155Persons with pacemakers:• Should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on• Should not carry the phone in a breast pocket• Should use the ear opposite the pacemaker to minimise potential interferenceIf you have any reason to suspect that interference is taking place, switch your phone off immediately.Hearing AidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle.You should also consult the manufacturer of any equipment that has been added to your vehicle.

Health and Safety Information156Posted FacilitiesSwitch off your phone in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refuelling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas, such as propane or butane, areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Health and Safety Information157Emergency CallsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.To make an emergency call, proceed as follows.1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 112 or any other official emergency number). Emergency numbers vary by location.3. Press the key.If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.

Health and Safety Information158Other Important Safety Information•Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.•Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.•For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.•Switch your phone off before boarding an aircraft. The use of wireless phones in aircraft may be dangerous to the operation of the aircraft, and is illegal.•Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Health and Safety Information159Care and MaintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years. •Keep the phone and all its parts and accessories out of the reach of small children.•Keep the phone dry. Precipitation, humidity and liquids contain minerals that corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone. • Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone’s electronic circuit boards.• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

Glossary162simple media to and from EMS-compliant handsets. Because EMS is based on SMS, it can use SMS centres the same way that SMS does. EMS works on all Global System for Mobile communications (GSM) networks. EMS senders can use text, melodies, pictures, sounds, and animations to enhance the expressive power of messages that are limited by the display constraints of mobile devices.GPRS (General Packet Radio Service)New non-voice value-added service that allows information to be sent and received across a mobile telephone network. GPRS provides continuous connection to the Internet for mobile phone and computer users. It is based on the Global System for Mobile Communication (GSM) circuit-switched cellular phone connections and the Short Message Service (SMS).GSM (Global System for Mobile Communication)International standard for cellular communication, guaranteeing compatibility between the various network operators. GSM covers most European countries and many other parts of the world.JavaProgramming language generating applications that can run on all hardware platforms, whether small, medium or large, without modification. It has been promoted for and geared heavily to the Web, both for public Web sites and Intranets. When a Java program runs from a Web page, it is called a Java applet. When it is run on a mobile phone or pager, it is called a MIDlet.Glossary163MMS (Multimedia Message Service)A message service for the mobile environment, standardized by the WAP Forum and the 3rd Generation Partnership Program (3GPP). For phone users, MMS is similar to Short Message Service (SMS)-it provides automatic, immediate delivery of user-created content from phone to phone. The message addressing used is primarily phone numbers, thus the traffic goes from phone to phone. MMS also provides support for e-mail addressing, so that messages can be sent by e-mail. In addition to the text content of SMS, MMS messages can contain still images, voice or audio clips, and also video clips and presentation information.Multi-party CallingAbility to establish a conference call involving up to five additional parties.Phone PasswordSecurity code used to unlock the phone when you have selected the option to lock it automatically each time it switches on.PIN (Personal Identification Number)Security code that protects the phone against unauthorised use. The PIN is supplied by the service provider with the SIM card. It may be a four to eight-digit number and can be changed, as required.

Glossary164PUK (PIN Unblocking Key)Security code used to unlock the phone when an incorrect PIN has been entered three times in succession. The eight-digit number is supplied by the service provider with the SIM card.RoamingUse of your phone when you are outside your home area (when travelling for example).SDN (Service Dialling Numbers)Telephone numbers supplied by your network provider and giving access to special services, such as voice mail, directory inquiries, customer support and emergency services.SIM (Subscriber Identification Module)Card containing a chip with all the information required to operate the phone (network and memory information, as well as the subscriber’s personal data). The SIM card fits into a small slot on the back of the phone and is protected by the battery.SMS (Short Message Service)Network service sending and receiving messages to and from another subscriber without having to speak to the correspondent. The message created or received can be displayed, received, edited or sent.Glossary165Soft KeysTwo keys marked and on the phone, the purpose of which:•varies according to the function that you are currently using.•is indicated on the bottom line of the display just above the corresponding key.Tri BandAbility to handle any of the following types of network; GSM 900, GSM 1800, combined GSM 900/ 1800 and GSM 1900 MHz bands, for greater call success and wider roaming.Your phone automatically searches for the last network used. If, for any reason, this network is unavailable, your phone will attempt to register with a different network. Voice MailComputerised answering service that automatically answers your calls when you are not available, plays a greeting (optionally in your own voice) and records a message.

166IndexAAccess codes •143Active folder •111Alarm •113Alert type •98Alphabet mode, text input •46Anykey answer •111Auto redial •111BBackground image •103Backlight time, set •104Backlight •15Backlight, auto •105Barring, calls •126Batterycharge •19install •18remove •17Battery low indicator •20Battery precautions •147Brightness, display •104Broadcast messages •73CCalculator •119Calendar memoscopy •117delete•117view •117write •116Call back, message •64Call costs •91Call numbersdialled •89missed •26, 88received •89Call records •88Call time •90Caller groupsedit •37search •36Caller ID •128Callsanswer •25bar •126divert •124end •23hold •48make •22redial •23wait •53, 126Cameratake picture •92CB (Cell Broadcast) messages •73Characters, enter •42Closed User Group (CUG) •128Conference call •53Connect tone •101Cost, calls •91Currency exchange •123DDate, set •118Delivery reports, message •70Dialled calls •89Display icons •14Divert, calls •124DTMF tones, send •51EEarpiece volume •24Emergency calls •154EMS (Enhanced Message Service) •63Error tone •101FFDN (Fixed Dial Number) mode •110Folder tone •100Forward, picture message •79Index167GGames •135Greeting message •106HHold, call •48IIcons, description •14Inbox, messagespicture •77text •63Infrared, connect •102International calls •22Internet •130JJava service •135KKey volume •24Keypad tonesselect •98send •51Keysdescription •11location •10shortcut •112LLanguage, select •108Last number, redial •23Lockphone•109SIM card •110Low battery indicator •20MMemory statusdownloaded items •139phonebook •41picture messages •85text messages •71Menusaccess •56list •57Message tone •99Messagescell broadcast •73greeting •106multimedia •77picture •77text •63voice •72MIDlets, launch •135Minute minder •101Missed calls •26, 88Morning call •113Multimedia messages (MMS) •77Multi-party calls •53Muteall sounds •28key tones •51microphone •50NNamesenter •42search/dial •35Network band, select •128Network services •124Numbers, phonesearch/dial •35store •31

Index168OOrganiser •113Outbox, messagespicture •80text •65Own number •107PPasswordcall bar •146phone •109, 143Phonelock •109password •143Phonebookcopy •34delete •34, 40edit •34options •34search/dial •35speed-dial •38store •31Photostake •92Picture messagescreate/send •81delete •79, 80edit •81read •77, 80PINchange •109description •144PIN2change •110description •145Power on/off tone •100PUK •144PUK2 •145RReceived calls •89Received messagespicture •77text •63Redialautomatically •111manually •23Reset •112Ring tone •97Ring type •98Ring volume •97Roaming •127SSafetyinformation •146precautions •7Scheduler •115Search, phonebook •35Security, calls •108Sent messagespicture •80text •65Service light •16, 105Shortcut, menu •112Silent mode •29SIM cardinstall •17lock •110SMS (Short Message Service)Inbox •63Outbox •65Soft keys •29Sounds, set •97Speed-dial •38Switch on/offmicrophone •50phone •21Symbol, text input •47TT9 mode, text input •44Tasks, to do listcreate •120edit •120Templatespicture •84text •68Text input mode •43Text messagedelete •64, 65, 71read •63, 65send •66set •69Text, enter •42Index169Time format •118Time, set •118To do list •120Toneconnect •101error •101folder •100keypad •98message •99ring •97Travel adapter •19UUser group •128VVibration •98Voice mail •72Voicemail server •72Volume, adjustearpiece •24keypad tone •24ring •97WWaiting call •126Wallpaper •103WAP browseraccess •130cache, clear •134favorites •134World time •118

Index170

171Access the Menu Functions➀Press the Menu soft key.➁Scroll with the Up and Down keys through the list of the menus until you reach the menu you want.➂Press the Select soft key.➃Scroll with the Up and Down keys through the list of the options until the one you want is selected.➄Press the Select soft key.Each of the two soft keys ( and ) perform the function indicated by the text above it, on the bottom line of the display.Switch On/Off Press and hold the key.Make a Call ➀Key in the number.➁Press the key.End a Call Briefly press the key.View Missed Calls Immediately After Missing Them➀Open the phone and press the View soft key.➁Scroll with the Up and Down keys through the missed calls.➂To return the call, press the key.Tri Band SGH-E715 GPRS TelephoneQuick Reference Card

172Answer a CallOpen the phoneorPress the key.Adjust the VolumePress the or key on the left side of the phone.Choose the Alert Type➀Select the Alert Type menu (Menu 5.3).➁Select an option: •Light Only•Melody•Vibration•Vibra+Melody➂Press the Select soft key.Store Numbers in Phonebook➀Enter the number and press the Save soft key.➁Select an icon.➂Press the Select soft key.➃Select a memory.➄Press the Select soft key.Store Numbers in Phonebook(continued)➅Enter the name.➆Press the OK soft key.➇If necessary, change the location number.➈Press the OK soft key.➉Press the key to return to Idle Mode.Search for a Number in Phonebook➀Press the Name soft key.➁Select the Search option.➂Enter the first few letters of the name.➃To scroll through the names, press the Up or Down key.➄Press the View soft key.➅To scroll through the numbers, press the Up or Down key.➆Press the key to dial.Declaration of Conformity (R&TTE) For the following product :TRI BAND GSM TELEPHONE (Product Name)SGH-E715(Model Number)Manufactured at :Samsung Electronics, 94-1 Imsu-Dong, Gumi City, Kyung Buk, Korea, 730-350(factory name, address*)to which this declaration relates, is in conformity with the following standards and/or other normative documents.Safety : EN 60950:2000EMC : EN 301 489-1:2000 EN 301 489-7:2000SAR : EN 50360:2001 OET Bulletin 65, Supplement C:2001Network : EN 301 511 V7.0.1We hereby declare the [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.The conformity assessment procedure referred to in Article 10 and detailed in Annex[IV] of Directive 1999/5/EC has been followed with the involvement of the following Notified Body(ies):BABT, Claremont House, 34 Molesey Road, Walton-on-Thames, KT12 4RQ, UK Identification mark: 168The technical documentation kept at:Samsung Electronics Euro QA Lab.which will be made available upon request.(Representative in the EU)Samsung Electronics Euro QA Lab.Blackbushe Business Park, Saxony Way, Yateley, Hampshire, GU46 6GG, UK2003. 3. 26 In-Seop Lee / S. Manager(place and date of issue) (name and signature of authorised person)* This is not the address of the Samsung Service Centre. For the address or the phone number of the Samsung Service Centre, see the warranty card or contact the retailer where you purchased your phone.
