Samsung Electronics Co SGHE880 Single-Mode PCS GSM Phone w/ Bluetooth User Manual
Samsung Electronics Co Ltd Single-Mode PCS GSM Phone w/ Bluetooth Users Manual
Users Manual
* Some of the contents of this manual may differ from your phone,
depending on the software installed or your service provider.
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-XXXXXA
English. 02/2004. Rev 1.0
GPRS TELEPHONE
SGH-E880
Draft version
(2005. 02. 23)
3
Contents
Important safety precautions........................... 7
Unpacking ........................................................ 9
Your phone..................................................... 10
Phone layout........................................................... 10
Display................................................................... 13
Camera.................................................................. 16
Flash...................................................................... 16
Getting started............................................... 17

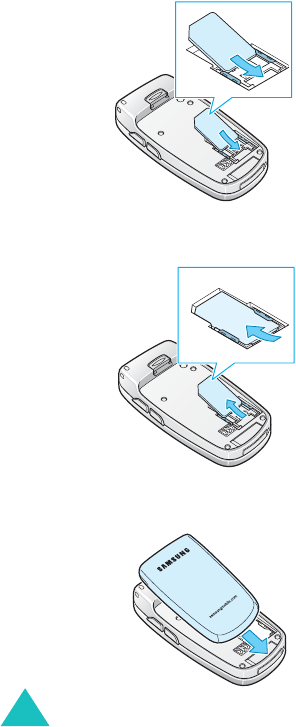

Installing the SIM card ............................................. 17

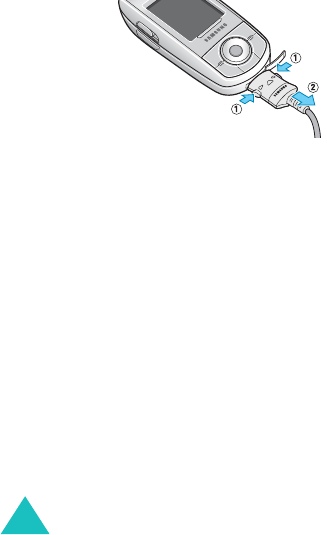

Charging the battery................................................ 19
Switching the phone on or off.................................... 21
Selecting functions and options.................................. 22
Call functions ................................................. 24
Making a call........................................................... 24
Adjusting the volume ............................................... 29
Answering a call ...................................................... 30
Viewing missed calls ................................................ 30
Quickly switching to Quiet mode ................................ 32
Using the headset.................................................... 32
Entering text .................................................. 33
Changing the text input mode ................................... 34
Using AB mode........................................................ 34
Using T9 mode........................................................ 36
Using Numeric mode................................................ 37

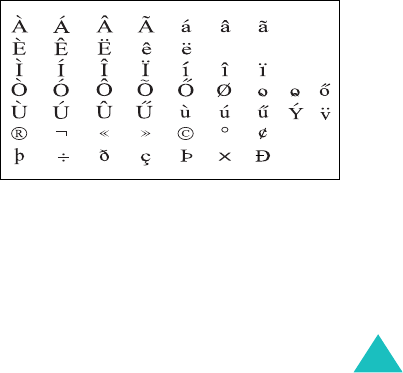

Using Symbol mode ................................................. 38
Options during a call ...................................... 39
Putting a call on hold................................................ 39
Using the speaker.................................................... 40
Call waiting............................................................. 41
Using the Bluetooth headset...................................... 41
Switching the Voice Clarity feature on or off ................ 42
Switching off the microphone (Mute).......................... 43
Muting or sending key tones...................................... 43
Using Phonebook..................................................... 44
Sending a sequence of DTMF tones ............................ 44
Using the message service........................................ 44
Using SIM services................................................... 45
Making a multi-party call .......................................... 45
Contents
4
Using the menus ............................................ 47
Accessing a menu function by scrolling ....................... 47
Using shortcuts ....................................................... 48
List of menu functions .............................................. 49
Call records .................................................... 54
Current contacts
(Menu 1.1)
....................................... 54
Missed calls
(Menu 1.2)
............................................. 55
Dialled calls
(Menu 1.3)
............................................. 55
Received calls
(Menu 1.4)
.......................................... 55
Delete all
(Menu 1.5)
................................................ 56
Call time
(Menu 1.6)
................................................. 56
Call cost
(Menu 1.7)
.................................................. 57
Phonebook ..................................................... 58
Contact list
(Menu 2.1)
............................................. 58
Add new contact
(Menu 2.2)
....................................... 60
Group
(Menu 2.3)
.................................................... 62
Speed dial
(Menu 2.4)
.............................................. 64
My name card
(Menu 2.5)
.......................................... 65
Own number
(Menu 2.6)
............................................ 66
Management
(Menu 2.7)
............................................ 66
Service number
(Menu 2.8)
........................................ 68
Information
(Menu 2.9)
............................................. 68
Applications ................................................... 69
Java world
(Menu 3.1)
............................................... 69
MP3 player
(Menu 3.2)
.............................................. 71
Voice recorder
(Menu 3.3)
.......................................... 75
World time
(Menu 3.4)
.............................................. 78
Alarm
(Menu 3.5)
..................................................... 79
PIM Sync
(Menu 3.6)
................................................. 80
Calculator
(Menu 3.7)
................................................ 82
Converter
(Menu 3.8)
................................................ 83
Timer
(Menu 3.9)
...................................................... 84
Stopwatch
(Menu 3.0)
............................................... 85
Browser.......................................................... 86
Home
(Menu 4.1)
...................................................... 86
Favorite
(Menu 4.2)
.................................................. 88
http://
(Menu 4.3)
.................................................... 89
Clear cache
(Menu 4.5)
.............................................. 89
Contents
5
Messages........................................................ 90
Create new message
(Menu 5.1)
................................. 91
My messages
(Menu 5.2)
........................................... 99
Templates
(Menu 5.3)
............................................. 109
Delete all
(Menu 5.4)
............................................... 110
Settings
(Menu 5.5)
................................................ 111
Memory status
(Menu 5.8)
....................................... 117
File manager ................................................ 118
Images
(Menu 6.1)
................................................. 118
Videos
(Menu 6.2)
.................................................. 120
Music
(Menu 6.3)
.................................................... 121
Sounds
(Menu 6.4)
................................................. 123
Other files
(Menu 6.5)
............................................. 125
Memory status
(Menu 6.6)
....................................... 125
Organiser ..................................................... 126
Scheduling a new event.......................................... 126
Consulting the calendar .......................................... 129
Viewing the calendar in different views ..................... 130
Viewing missed alarm events .................................. 132
Camera......................................................... 133
Take a photo
(Menu 8.1)
......................................... 133
Record video
(Menu 8.2)
.......................................... 138
Go to Photos
(Menu 8.3)
.......................................... 142
Go to Video clips
(Menu 8.4)
.................................... 143
Settings........................................................ 145
Time & Date
(Menu 9.1)
.......................................... 145
Phone settings
(Menu 9.2)
....................................... 146
Display settings
(Menu 9.3)
...................................... 148
Sound settings
(Menu 9.4)
....................................... 150
Network services
(Menu 9.5)
.................................... 153
Bluetooth
(Menu 9.6)
............................................. 161
Security
(Menu 9.7)
................................................ 164
Connect settings
(Menu 9.8)
.................................... 166
Reset settings
(Menu 9.9)
........................................ 168
Solving problems.......................................... 169
Contents
6
Access codes ................................................ 172
Phone password .................................................... 172
PIN...................................................................... 173
PUK ..................................................................... 173
PIN2 .................................................................... 174
PUK2 ................................................................... 174
Barring password................................................... 175
Health and safety information...................... 176
SAR certification information ................................... 176
For body operation................................................. 178
Precautions when using batteries............................. 179
Road safety .......................................................... 180
Operating environment........................................... 182
Electronic devices .................................................. 183
Potentially explosive environments........................... 185
Emergency calls .................................................... 185
Other important safety information .......................... 187
Care and maintenance............................................ 188
Acknowledging special precautions and
the FCC and industry Canada n187otice
............................. 189
Appendix A ........................................................... 191
Appendix B ........................................................... 193
Appendix c............................................................ 197
STANDARD LIMITED WARRANT................................ 207
Glossary ....................................................... 210
Index ........................................................... 218
Quick reference card .................................... 223
7
Important safety
precautions
Read these guidelines before using your wireless
phone. Failure to comply with them may be
dangerous or illegal.
Road safety at all times
Do not use a hand-held phone while driving; park
the vehicle first.
Switching off when refuelling
Do not use the phone at a refuelling point (service
station) or near fuels or chemicals.
Switching off in an aircraft
Wireless phones can cause interference. Using them
in an aircraft is both illegal and dangerous.
Switching off near all medical equipment
Switch off your phone near medical equipment.
Hospitals or health care facilities may be using
equipment that could be sensitive to external RF
energy. Follow any regulations or rules in force.
Interference
All wireless phones may be subject to interference,
which could affect their performance.
Special regulations
Meet any special regulations in force in any area
and always switch off your phone whenever it is
forbidden to use it, or when it may cause
interference or danger (in a hospital for example).
Water resistance
Your phone is not water-resistant. Keep it dry.
Important safety precautions
8
Sensible use
Use only in the normal position (held to the ear).
Avoid unnecessary contact with the antenna when
the phone is switched on.
Emergency call
Key in the emergency number for your present
location, then press the key. Give all necessary
information as accurately as possible. Do not end
the call until given permission to do so.
Keeping small children away from your phone
Keep the phone and all its parts including
accessories out of the reach of small children.
Accessories and batteries
Use only Samsung-approved accessories and
batteries. Use of any unauthorised accessories
could damage your phone and may be dangerous.
Use only Samsung-approved batteries and recharge
your battery only with Samsung-approved
chargers.
Qualified service
Only qualified service personnel may repair your
phone.
For more detailed safety information, see “Health
and safety information” on page 176.
CAUTION
RISK OF EXPLOSION IF A BATTERY IS REPLACED
BY AN INCORRECT TYPE
.
DISPOSE USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
9
Unpacking
Your package contains the following items:
You can obtain the following accessories for your
phone from your local Samsung dealer:
Notes
:
• The items supplied with your phone and available
accessories may be different, depending on your
country or service provider.
• The supplied items may look different from the
illustrations above.
Handset Travel Charger
Battery User’s Manual
• Standard/Extended battery
• Hand strap
• Car charger
• Bluetooth handsfree car kit
• Car cradle
• Bluetooth headset kit
• Headset
• PC data link kit
• Travel charger
10
Your phone
Phone layout
The following illustrations show the main elements
of your phone:
Earpiece
Display
Power on/off/
Menu exit key
Alphanumeric
keys
Soft key (right)
Microphone
Soft key (left)
Special function
keys
Navigation (Up/
Down/Left/Right)
keys
WAP access/
Confirm key
Volume keys
Clear key
Dial key
Camera key
Camera
Flash Headset jack
Your phone
11
Key
(s)
Description
(soft keys)
Performs the functions indicated on the
bottom line of the display.
In Idle mode, allows you to access your
favourite menu options directly. For
further details about shortcuts, see
page 147.
In Menu mode, scrolls through the
menu options and Phonebook.
When entering text, moves the cursor.
In Idle mode, launches the WAP
(Wireless Application Protocol) browser.
In Menu mode, confirms the selected
menu option or your input.
Deletes characters from the display.
Clears an item in a message folder, file
folder, or the organiser.
Makes or answers a call.
In Idle mode, retrieves the most recent
numbers dialled, missed, or received.
Ends a call. Also switches the phone on
and off when held down.
In Menu mode, cancels your input and
returns the phone to Idle mode.
Enters numbers, letters, and some
special characters.
In Idle mode, the
1
key connects to
your voicemail server, and the
0
key
inserts the prefix (+) for international
calls.
Your phone
12
Enters special characters.
Performs various functions.
(on the left side)
Adjusts the volume level for various
sounds for the phone.
With the phone closed, turns on the
flashlight or activates the clock on the
external display when held down.
(on the right side)
In Idle mode, accesses the
Camera
menu. Turns on the camera when held
down.
In Camera mode, takes a photo or
starts recording a video.
Key
(s)
Description
(continued)
Your phone
13
Display
Display layout
The display has three areas:
Area Description
First line Displays various icons. See page 14.
Middle Displays messages, instructions, and
any information that you enter, such
as the number you are dialling.
Last line Shows the current functions assigned
to the two soft keys.
Text and
graphics area
Soft key function
indicators
Menu Name
Icons
Your phone
14
Icons
Icon Description
Shows the received signal strength. The
greater the number of bars, the stronger
the signal.
Appears when a call is in progress.
Appears when you are out of your service
area. When it displays, you cannot make or
receive a call.
Appears when you have set an alarm to
ring at a specified time.
Appears when a new message has been
received.
Appears when a new voice mail message
has been received.
Appears when the Call Diverting feature is
active.
Appears when the Bluetooth feature is
active.
Appears when you are connected to the
GPRS network.
Appears when you are in the Home Zone if
you have registered for the appropriate
service.
Appears when you are in the Office Zone if
you have registered for the appropriate
service.
Your phone
15
External display
Your phone has an external display on the front of
the phone. When you close the phone, it shows the
phone’s status and the current time and date. It
also alerts you to incoming calls and messages, and
an alarm set when a specified time comes.
You can change the backlight time and icon display
setting in the
Backlight
menu (
Menu 9.3.5
). For
further details, see page 149.
Using the external display, you can take photos,
record videos, enjoy music with the phone closed.
Backlight
The backlight illuminates the display and the
keypad. When you press any key or open the
phone, the backlight comes on. It goes off when no
keys have been pressed within a given period of
time, and then the phone’s display turns off a
specified period of time, depending on the setting in
the
Backlight
menu (
Menu 9.3.5
). For further
details, see page 149.
Appears when you have set the phone to
vibrate for an incoming call.
Appears when Quiet mode is active.
Shows the level of your battery. The more
bars you see, the more power you have
remaining.
Icon Description
(continued)
Your phone
16
Camera
The camera module on the back of your phone
allows you to take a photo and record a video while
on the move.
For further details about the Camera feature, see
page 133.
Flash
You can use the flash next to the camera to take
photos when it’s dark. It also functions as a
flashlight which can be used at night.
To turn the flashlight on or off, press and hold either
of the Volume keys with the phone closed.
17
Getting started
Installing the SIM card
When you subscribe to a cellular network, you are
provided with a plug-in SIM card loaded with your
subscription details, such as your PIN, any optional
services available, and so on.
Important!
The plug-in SIM card and its contacts
can be easily damaged by scratches or
bending, so be careful when handling,
inserting, or removing the card.
Keep all SIM cards out of the reach of
small children.
1. If the phone is on, switch off the phone by
holding down the key until the power-off
image displays.
2. Remove the battery. To do so:
➀
Press and hold the catch above the battery
toward the top of the phone.
➁
Lift the battery away, as shown.
➀➁
Getting started
18
3. Slide the SIM card into the SIM card socket, as
shown, so that the card locks into position.
Make sure the gold-coloured contacts on the
card face into the phone.
Note
: Remove the SIM card, slide it upwards, as
shown, and take it out of the socket.
4. Place the battery so that the tabs on the end
align with the slots at the bottom of the phone.
Getting started
19
5. Press the battery until it clicks into place. Make
sure that the battery is properly installed before
switching the power on.
Charging the battery
Your phone is powered by a rechargeable Li-ion
battery. A travel charger comes with your phone for
charging the battery.
The travel charger allows you to use the phone
while the battery is charging, but this causes the
phone to charge more slowly.
Note
: You must fully charge the battery before using
your phone for the first time. A discharged
battery recharges fully in approximately 90
minutes.
1. With the battery in position on the phone, plug
the connector of the travel charger into the jack
at the bottom of the phone.
LED
Getting started
20
2. Plug the adapter into a standard AC wall outlet.
The LED on the charger indicates the charging
progress by the following colours:
• Red: the battery is being charged.
• Green: the battery is completely charged.
• Orange: the battery is not correctly plugged in
or is operating at a too high or too low.
3. When charging is finished, unplug the charger
from the power outlet and disconnect it from the
phone by pressing the buttons on both sides of
the connector and pulling out the connector.
Note
: You must unplug the charger before removing
the battery from the phone during charging;
otherwise, the phone could be damaged.
Low battery indicator
When the battery is weak and only a few minutes of
talk time remain, a warning tone sounds and the
“Battery low” message repeats at regular intervals
on the display. In this case, your phone turns off
the backlight to conserve the remaining battery
power. You may not be able to use more battery
consuming features, like the camera, games, MP3
player.
If the battery level becomes too low, the phone will
automatically turn off.
Getting started
21
Switching the phone on or off
1. Open the phone.
2. Press and hold the key until the phone
switches on.
3. If the phone asks you to enter a password, enter
the password and press the
OK
soft key.
Note
: The password is preset to “00000000” at
the factory. To change this password, see
page xx.
4. If the phone asks for a PIN, enter the PIN and
press the
OK
soft key.
The phone searches for your network and, after
finding it, the idle screen appears on the display.
Now, you can dial or receive calls.
Note
: To change the display language, use the
Language
menu (
Menu 9.2.1
). For
further details, see page 146.
5. When you wish to switch off the phone, press
and hold the key until the power-off image
displays.
WARING!
Do not switch on the phone when mobile Phone use
is prohibited or when it may cause interference or
danger.
Getting started
22
Selecting functions and options
Your phone offers a set of functions that allow you
to customise and use it. These functions are
arranged in menus and sub-menus, accessed using
the two soft keys, and .
Using the soft keys
The roles of the soft keys vary, depending on the
function you are currently using; the labels on the
bottom line of the display their current roles.
Example:
Menu Name
Service Provider
07:30
04 Nov
Tue.
Press the left soft
key to access Menu
mode.
Press the right soft key to
access
Contact list
in the
Phonebook
menu.
Getting started
23
Selecting options
To view the various functions and options available
and to select the one you want:
1. Press the appropriate soft key.
In some functions, you may be asked for a
password or PIN. Enter the code and press the
OK
soft key.
Note
: When you access a list of options, your phone
highlights the currently active option. If,
however, there are only two options, such as
On
/
Off
or
Enable
/
Disable
, your phone
highlights the option that is not currently
active, so that you can select it directly.
2.
To Press the
select the:
• function displayed
• option highlighted
Select
soft key or
the key.
view the next function or
highlight the next option
on a list
Down key.
move back to the
previous function or
option on a list
Up key.
move back up one level
in the menu structure
Back
soft key.
return to Idle mode
without changing the
settings
key.
24
Call functions
Making a call
1. When the idle screen displays, enter the area
code and phone number, then press the key.
2. When you want to end your call, press the
key or close the phone.
Note
: When you have activated the
Auto
redial
option in the
Extra
settings
menu (
Menu
9.2.4
), the phone automatically redial up to 10
times if the person does not answer the call or
is already on the phone. See page 147 for
further details.
Making an international call
1. In Idle mode, press and hold the
0
key.
The
+
character appears.
2. Enter the country code, area code, and phone
number and press the key.
Correcting the number
T
o clear Press the
the last digit
displayed
C
key.
any other digit in
the number Left or Right key until the cursor
is immediately to the right of
the digit to be cleared and press
the
C
key. You can also insert a
missing digit.
the whole display
C
key and hold it for more than
one second.
Call functions
25
Redialling the last number
The phone stores the numbers of the calls you’ve
dialled, received, or missed, if the call recipient or
caller can be identified.
To recall any of these numbers:
1. In Idle mode, press the key to display a list
of the most recent numbers used.
2. Press the Left or Right key to move to other call
types.
3. Press the Up or Down key to scroll through the
numbers until the number you want highlights.
4. Press the key to dial the highlighted number.
See “Call records” on page 54 for further details.
Making a call from Phonebook
You can store phone numbers that you use
regularly on the SIM card or in the phone’s memory.
These entries are collectively called Phonebook.
Once you have stored a number in Phonebook, you
can dial it by pressing a few keys. You can also
assign your most frequently-used numbers to
number keys using the Speed Dial feature.
For further details about the Phonebook feature,
see page 58.
Call functions
26
Storing a number in Phonebook
Note
: You also use the
Add new
contact
menu
(
Menu 2.2
) to store a number. For details, see
page 60.
To store a number in the phone’s memory:
1. Enter the number you want to store and press
the
Options
soft key.
2. Select
Save contacts to
and press the
Select
soft key.
3. Select
Phone
and press the
Select
soft key.
4. Select an icon to identify the category in which
the number is to be stored and press the
Select
soft key.
•
Mobile
•
Home
•
Office
•
Fax
•
Other
5. Enter information about the contact. The
following fields are available:
•
First name
/
Last name
: Enter the entry
name. For further details about how to enter
characters, see page 33.
•
Mobile
/
Home
/
Office
/
Fax
/
Other
: Add a
number for any category.
•
E-mail
: Enter an e-mail address.
•
Graphic ID
: Assign an image as a caller ID
image to be displayed when you receive a call
from the selected number.
Call functions
27
•
Ringer ID
: Select a unique ringer melody for
the entry. By selecting a different tone for
each entry, incoming voice calls having a caller
ID can be distinguished from each other.
•
Group
: Select one of the default relation
groups, where the entry is included.
•
Memo
: Add a memo about the person.
6. Press the
Save
soft key.
To store a number on the SIM card:
Note
: When you change phones, any numbers stored
in your SIM card are automatically available
with the new phone, whereas any numbers
stored in the phone’s memory will need to be
reentered.
1. Enter the number you want to store and press
the
Options
soft key.
2. Select
Save Contact to
and press the
Select
soft key.
3. Select
SIM
and press the
Select
soft key.
4. Press the Up key and enter a name.
5. Press the Down key twice.
7.
To Press the
use the entry
options
Options
soft key. For further
details, see page 59.
make a call Select a number and press the
key.
return to Idle
mode key.
Call functions
28
6. If you want another location, press the
C
key to
clear the location number and enter the number
you want.
7. Press the
Save
soft key.
Dialling a number from Phonebook
After storing numbers you can dial them by
entering their location numbers. For entries in the
phone’s memory, the location numbers are assigned
in order in which they are saved.
Note
: If you cannot remember a location number or if
you want to dial a number in the phone’s
memory, you must go into the
Contact list
menu (
Menu 2.1
) to search for the entry by
name. For details, see page 58.
To dial a number from the SIM card:
1. In Idle mode, enter the location number you can
and press the key.
2. You can press the Left or Right key to find other
numbers.
3. Press the
Dial
soft key when you have found the
number you want.
8.
To Press the
use the entry
options
Options
soft key. For further
details, see page 59.
make a call key.
return to Idle
mode key.
Call functions
29
To dial a number from the phone’s memory:
1. In Idle mode, press and hold the
0
key to
display “+.”
2. Enter the location number you want and press
the key.
3. You can press the Left or Right key to find other
numbers.
4. Press the
Dial
soft key when you have found the
number you want.
Adjusting the volume
During a call, if you want to adjust the earpiece
volume, use the Volume keys on the left side of the
phone.
Press the key to increase the volume level and
the key to decrease the level.
In Idle mode, you can also adjust the keypad tone
volume using these keys.
Call functions
30
Answering a call
When somebody calls you, the phone rings and
displays the incoming call image.
The caller’s phone number or name, if stored in
Phonebook, displays.
1. Press the key or the
Accept
soft key or open
the phone to answer the incoming call.
When the
Anykey
answer
option in the
Extra
Settings
menu (
Menu 9.2.4
) is active, you can
press any key to answer a call except for the
key and the
Reject
soft key. See
page 148
.
When the
Active folder
option in the
Extra
settings
menu is active, you can just open the
phone to answer a call.
Note
: To reject the call, press and hold either of
the Volume keys before opening the phone,
or press the
Reject
soft key or the
key.
2. End the call by closing the phone or pressing the
key.
Note
: You can answer a call while using menu
features or Phonebook. After ending the call,
the display returns to the function screen you
were using.
Viewing missed calls
When you are unable to answer a call for any
reason, you can find out who called you.
The number of calls you have missed displays on
the idle screen immediately after a call is missed.
Call functions
31
To view a missed call immediately:
1. If the phone is closed, open the phone.
2. Press the
View
soft key.
When you press the
Options
soft key, you can
access the following options:
Details
: shows information about the call.
Call back
: calls back the caller.
Paste
: allows you to paste the number in the
Dialling mode screen.
Send message
: allows you to send an SMS (Short
Message Service) or MMS (Multimedia Message
Service) message to the number. For further
details, see page 91 or page 93, respectively.
Delete
: deletes the current call.
Delete all
: deletes all calls.
3.
To Press the
scroll through the
missed calls, if
necessary
Up or Down key.
access the options
Options
soft key.
See below.
call the number
displayed key.
Call functions
32
Quickly switching to Quiet mode
Quiet mode is convenient when you wish to stop the
phone from ringing, in a theatre for example.
In Idle mode, press and hold the
key until the
“Quiet mode” message and the Quiet mode icon
() display.
In Quiet mode, instead of making sounds, your
phone will vibrate, or do nothing, depending on the
function and the situation.
To exit and reactivate the previous sound settings,
press and hold the
key again until “Exit quiet
mode” appears. The Quiet mode icon no longer
displays.
Using the headset
With the headset, you can make or answer calls
without holding the phone.
Connect the headset to the jack on the left side of
the phone. The button on the headset works as
listed below:
To Press the
redial the last
call button to display call logs and
then press and hold the button.
answer a call button for more than two seconds
when the phone rings.
end a call button for more than two
seconds.
33
Entering text
When using your phone, you will often need to
enter text, such as when storing a name in
Phonebook, creating your personal greeting, or
scheduling events on your calendar. You can enter
alphanumeric characters by using your phone’s
keypad.
Your phone has the following text input modes:
•AB mode
This mode allows you to enter letters by pressing
the key labelled with the letter you want.
•T9 mode
This mode allows you to enter words with only
one keystroke per letter. Each key on the keypad
has more than one letter; for example, pressing
the
5
key can enter J, K, or L.
•Numeric mode
This mode allows you to enter numbers.
• Symbol mode
This mode allows you to enter various symbols
and punctuation marks.
Entering text
34
Changing the text input mode
When you are in a field that allows characters to be
entered, you will notice the text input mode
indicator on the display.
Example: Writing a text message
To change the text input mode:
• Press and hold the key to switch between T9
mode and AB mode.
• Press the key to shift case in T9 or AB mode or
switch to Numeric mode.
3 cases are available: Initial capital ( ), Capital
lock ( ), and Lower case ( ).
• Press and hold the key to switch to Symbol
mode.
Using AB mode
Use the
1
to
0
keys to enter your text.
1. Press the keys labelled with the letter you want:
- Once for the first letter
- Twice for the second letter
- And so on
Options Back
Text input mode
indicator
Text message
Entering text
35
2. Select the other letters in the same way.
• To insert a space, press the key.
• You can move the cursor by pressing the
Navigation keys. To delete letters, press the
C
key. Press and hold the
C
key to clear the
entire display.
Note
: The cursor moves to the right when you press a
different key. When entering the same letter
twice or a different letter on the same key, just
wait for a few seconds for the cursor to move to
the right automatically, or press the Right key
to move the cursor. Then enter the next letter.
Refer to the table below for further details about
available characters:
Note
: The characters available in AB mode may be
different, depending on your country.
Characters in the Order Displayed
Key Upper Case Lower Case
Space
Entering text
36
Using T9 mode
T9 is a predictive text input mode that allows you to
key in any character using single keystrokes. This
text input mode is based on a built-in dictionary.
To enter a word in T9 mode:
1. When you are in T9 mode, start entering a word
by pressing the
2
to
9
keys. Press each key only
once for each letter.
Example: To enter “Hello” in T9 mode,
press the
4
,
3
,
5
,
5
, and
6
keys.
The word that you are typing appears on the
display. It may change with each key that you
press.
2. Enter the whole word before editing or deleting
the keystrokes.
3. When the word displays correctly, go to step 4.
If the word doesn’t display correctly, press the
0
key repeatedly to display alternative word
choices for the keys that you have pressed.
Example: Both “Of” and “Me” use the
6
and
3
keys. The phone displays the most
commonly used choice first.
4. Insert a space by pressing the key and start
entering the next word.
• To enter periods or apostrophes, press the
1
key. T9 mode applies grammar rules to choose
the correct punctuation.
• You can move the cursor by pressing the
Navigation keys. To delete letters, press the
C
key. Press and hold the
C
key to clear the
entire display.
Entering text
37
To add a new word into the T9 dictionary:
1. After pressing the keys corresponding to the
word you want to add, press the
0
key to display
the alternative words.
2. When there are no more alternative words, the
display shows
Add
on the bottom line. Press the
Add
soft key.
3. Enter the word you want to add using AB mode;
see page 34.
4. Press the
OK
soft key.
The word is added to the T9 dictionary and
becomes the first word for the associated
keypress series.
Note
: This feature may not be available for some
languages.
Using Numeric mode
Use Numeric mode to enter numbers. Press the
keys corresponding to the digits you want to enter.
Entering text
38
Using Symbol mode
Use Symbol mode to insert symbols.
To Press the
select a symbol corresponding number
key.
display more symbols Up or Down key.
clear the symbol(s)
C
key.
insert the symbol(s)
into text
OK
soft key.
39
Options during a call
You can access a number of control functions that
you can use during a call.
Putting a call on hold
You can place the current call on hold whenever you
want. You can make another call while you have a
call in progress if your network supports this
service.
To place a call on hold, simply press the
Hold
soft
key. You can reactivate the call whenever you want,
by pressing the
Retrieve
soft key.
To make a call while you have a call in progress:
1. Enter the phone number that you wish to dial, or
look it up in Phonebook.
For details about searching for a number in
Phonebook, see page 58.
2. Press the key to dial the second call.
The first call is automatically put on hold.
Alternatively,
1. Put the current call on hold by pressing the
Hold
soft key.
2. Make the second call in the normal way.
Options during a call
40
When you have an active call and a call on hold, you
may switch between the two calls, changing the one
on hold to active and placing the other on hold.
To switch between the two calls, simply press the
Swap
soft key.
The current call is placed on hold and the call on
hold is reactivated so that you can continue
conversing with that person.
When you want to finish, end each call normally by
pressing the key.
Using the speaker
You can speak and listen to the phone from a short
distance without having to hold the phone to your
ear, for example, having it on a table nearby.
To use this feature, press the key during a call. A
icon appears on the bottom line of the screen.
To return to the normal phone mode, press the
key again a icon appears on the bottom line of
the screen.
Note
: When you are in Speaker mode, the Voice
Clarity feature is automatically disabled.
Options during a call
41
Call waiting
You can answer an incoming call while you have a
call in progress, if your network supports this
service and you have set the
Call
waiting
menu
(
Menu 9.5.3
) to
Activate
. You are notified of an
incoming call by a call waiting tone.
To answer a call while you have a call in progress:
1. Press the key to answer the incoming call.
The first call is automatically put on hold.
2. To switch between the two calls, press the
Swap
soft key.
3. To end the call on hold, press the
Options
soft
key and select
End
held
call
.
To end the current call, press the key.
Using the Bluetooth headset
Using the Bluetooth headset, you can converse with
the person on the phone without having to hold the
phone to your ear during a call.
To use this feature, you first need to register your
headset and connect it to the phone. For further
details, see page 163.
To use the Bluetooth headset:
1. Put on the headset.
2. Press the
Options
soft key.
3. Select
Switch to headset
and press the
Select
soft key.
Now you can talk to the other person via the
headset.
Options during a call
42
To return to the normal phone mode:
1. Press the
Options
soft key.
2. Select
Switch to phone
and press the
Select
soft key.
Switching the Voice Clarity feature
on or off
You can increase the microphone’s sensitivity to
allow the other person on the phone to hear your
voice even though you may be whispering.
Note
: If you are using the Speaker feature, you must
first deactivate it in order to use the Voice
Clarity feature.
To switch the Voice Clarity feature on:
1. Press the
Options
soft key.
2. Select
Voice clarity on
and press the
Select
soft key.
To switch the Voice Clarity feature off:
1. Press the
Options
soft key.
2. Select
Voice clarity off
and press the
Select
soft key.
Options during a call
43
Switching off the microphone (Mute)
You can temporarily switch off your phone’s
microphone so that the person on the phone cannot
hear you.
Example: You wish to say something to a person in
the room, but do not want the person on
the phone to hear you.
To switch the microphone off temporarily:
1. Press the
Options
soft key.
2. Select
Mute
and press the
Select
soft key.
The person can no longer hear you.
To switch the microphone back on:
1. Press the
Options
soft key.
2. Select
Unmute
and press the
Select
soft key.
The person can hear you again.
Muting or sending key tones
Mute keys
and
Send keys
options allow you to
turn the key tones off or on.
If
Mute
keys
is selected, your phone does not
transmit the DTMF (Dual Tone Multi-Frequency)
tones of the keys, which allows you to press keys
without hearing annoying key tones during a call.
To communicate with answering machines or
computerised telephone systems,
Send
keys
must
be selected.
Options during a call
44
Using Phonebook
You can use the
Phonebook
option during a call to
search for or store entries.
For further details about the Phonebook feature,
see page 58.
Sending a sequence of DTMF tones
You can send DTMF tones as a group after entering
the entire number you need to send.
This option is helpful for entering a password or an
account number when you call an automated
system, like a banking service.
To send DTMF tones:
1. While connected to the teleservice system,
press the
Options
soft key.
2. Select
Send
DTMF
and press the select soft
key.
3. Enter the number you want to send and press
the
OK
soft key.
The tones are sent.
Using the message service
If you receive a message during a call, the Message
icon ( ) appears on the display. The
Message
option enables you to read the message. You can
also send a new message.
For further details about the Messages feature, see
page 90.
Options during a call
45
Using SIM services
The
SIM service
menu is available if you use a SIM
card that provides additional services, such as news,
weather, sports, entertainment, and location
services. Available services may vary, depending on
your service provider’s service plans.
For further details, see your SIM card instructions or
contact your service provider.
Making a multi-party call
A multi-party call is a network service that allows up
to 6 people to take part simultaneously in a multi-
party or conference call. For further details about
subscribing to this service, contact your service
provider.
Setting up a multi-party call
1. Call the first participant in the normal way.
2. Call the second participant in the normal way.
The first call is automatically put on hold.
3. To join the first participant to the multi-party
call, press the
Options
soft key and select
Join
.
Press the
Select
soft key.
4. To add a new person to the multi-party call, call
the new person in the normal way and press the
Options
soft key. Select
Join
and press the
Select
soft key.
You can add incoming callers by answering the
call, pressing the
Options
soft key, and selecting
Join
.
Options during a call
46
Having a private conversation with one
participant
1. During a multi-party call, press the
Options
soft
key.
2. Select Split and press the
Select
soft key.
3. Highlight a person from the call participant list
and press the
Select
soft key.
Now you can talk privately to that person. The
other participants can still converse with each
other.
4. To return to the multi-party call, press the
Options
soft key and select the
Join
option.
Press the
Select
soft key.
All the multi-party call participants can now hear
each other.
Dropping one participant
1. During a multi-party call, press the
Options
soft
key.
2. Select
Remove
and press the
Select
soft key.
3. Highlight a person from the call participant list
and press the
Select
soft key.
The call with that participant ends, but you can
continue to talk to the others.
4. When you want to end the multi-party call, close
the phone or press the key.
47
Using the menus
The phone offers a range of functions that allow you
to tailor it to your needs. These functions are
arranged in menus and sub-menus and can be
accessed by scrolling or by using shortcuts.
Accessing a menu function by scrolling
1. In Idle mode, press the
Menu
soft key to access
Menu mode.
2. Scroll by pressing the Navigation keys to reach a
main menu,
Settings
for example, and press
the
Select
soft key.
3. If the menu contains sub-menus,
Phone
Settings
for example, you can access them by
pressing the Up or Down key and press the
Select
soft key.
Note
: You can move to other main menus by
pressing the Left or Right key.
If the menu that you have selected contains
further options, repeat this step.
4.
To Press the
scroll through the
menus Up or Down key.
confirm the chosen
setting
Select
soft key or the
key.
return to the previous
menu level
Back
soft key.
return to Idle mode key.
Using the menus
48
Using shortcuts
Menu items, such as menus, sub-menus, and
options, can be accessed quickly by using their
shortcut numbers.
Press the
Menu
soft key and enter the number of
the menu you want.
Note
: The numbers assigned to each menu are
indicated on the list on page 49. They may not
match the menu on your phone, depending on
the services supported by your SIM card.
Example: Accessing the
Language
menu
1. Press the
Menu
soft key.
2. Press the
9
key for
Settings
.
3. Press the
2
key for
Phone
settings
.
4. Press the
1
key for
Language
.
The available languages display.
Using the menus
49
List of menu functions
The following list shows the menu structure and
indicates the number assigned to each option and
the page where you can find a description of each
feature.
1. Call records
(see page 54)
1.1 Current contacts
1.2 Missed calls
1.3 Dialled calls
1.4 Received calls
1.5 Delete all
1.6 Call time
1.6.1 Last call time
1.6.2 Total sent
1.6.3 Total received
1.6.4 Reset timers
1.7 Call costs
*
1.7.1 Last call cost
1.7.2 Total cost
1.7.3 Max cost
1.7.4 Reset counters
1.7.5 Set max cost
1.7.6 Price/Unit
2.
Phonebook
(see page 58)
2.1 Contact list
2.2 Add new contact
2.3 Group
2.4 Speed dial
2.5 My name card
2.6 Own number
2.7 Management
2.7.1 Default saving
2.7.2 Copy all to phone
2.7.3 Delete all
2.7.4 Memory status
2.8 Service number
*
2.9 Information
*
* Shows only if supported by your SIM card.
Using the menus
50
3. Applications
(see page 69)
3.1 Java world
3.1.1 Downloads
3.1.2 Settings
3.1.3 Memory status
3.2 MP3 player
3.3 Voice recorder
3.4 World time
3.5 Alarm
3.6 PIN sync
3.7 Calculator
3.8 Converter
3.8.1 Currency
3.8.2 Length
3.8.3 Weight
3.8.4 Volume
3.8.5 Area
3.8.6 Temperature
3.9 Timer
3.10 Stopwatch
4. Browser
(see page 86)
4.1 Home
4.2 Favorite
4.3 http://
4.4 WAP profile
4.5 Clear cache
Using the menus
51
5. Messages
(see page 90)
5.1 Create message
5.1.1 Text message
5.1.2 Multimedia message
5.1.3 Email
5.2 My messages
5.2.1 Inbox
5.2.2 Drafts
5.2.3 Outbox
5.2.4 Sent box
5.2.5 Email box
5.2.6 My folders
5.3 Templates
5.4 Delete all
5.5 Settings
5.2.1 Text message
5.2.2 Multimedia message
5.2.3 E-mail
5.2.4 Push message
5.2.5 Broadcast
5.6 Memory status
6. File manager
(see page 118)
6.1 Images
6.2 Videos
6.3 Music
6.4 Sounds
6.5 Other files
6.6 Memory status
7. Organiser
(see page 126)
8. Camera
(see page 133)
8.1 Take a photo
8.2 Record video
8.3 Go to photos
8.4 Go to video clips
Using the menus
52
9. Settings
(see page 145)
9.1 Time & Date
9.2 Phone settings
9.2.1 Language
9.2.2 Greeting message
9.2.3 Short cut
9.2.4 Extra settings
9.3 Display settings
9.3.1 Idle
9.3.2 Skin
9.3.3 LCD brightness
9.3.4 Back light
9.4 Sound settings
9.4.1 Incoming call
9.4.2 Keypad tone
9.4.3 Message tone
9.4.4 Power on/off
9.4.5 Folder tone
9.4.6 Quiet mode
9.4.7 Extra tones
9.5 Network services
9.5.1 Call diverting
9.5.2 Call barring
9.5.3 Call waiting
9.5.4 Network selection
9.5.5 Caller ID
9.5.6 Voice mail server
9.5.7
Closed user group
9.5.8 Band selection
9.6 Bluetooth
9.6.1 Activation
9.6.2 My devices
9.6.3 My phone’s visibility
9.6.4 My phone’s name
9.6.5 Secure mode
9.6.6 Bluetooth services
Using the menus
53
9. Settings
(continued)
9.7 Security
9.7.1 PIN check
9.7.2 Change PIN
9.7.3 Phone lock
9.7.4 Change password
9.7.5 Privacy
9.7.6 SIM lock
9.7.7 FDN mode
*
9.7.8 Change PIN2
*
9.8 Connect settings
9.9 Reset settings
* Shows only if supported by your SIM card.
54
Call records
In this menu, you can view the:
• calls you have dialled, received, or missed.
• length of your calls.
• cost of your calls, depending on your SIM card.
Note
: You can access the call records of all 3 types of
calls by pressing the
key in Idle mode.
Current contacts
(Menu 1.1)
In this menu, you can view the most recent calls
used, in the order you’ve dialled, received, or
missed them.
The numbers or names, if saved in your phone,
display.
On the call list, press the
Options
soft key to
access the following options:
Details
: shows details about the call.
Save to contacts
: allows you to save the number
in Phonebook. For further details, see page 60.
To Press the
select a call type Left or Right key.
scroll through the list Up or Down key.
view details of a call key.
access the options
Option
soft key. For
details, see the next page.
dial a number key.
Call records
55
Send message
: allows you to send an SMS or MMS
message to the number. For further details, see
page 91.
Delete
: allows you to delete the call record or all
records.
Missed calls
(Menu 1.2)
This menu lets you view the most recent calls you
have received, but did not answer.
For further details, see “Current contacts
(Menu
1.1)
” on page 54.
Dialled calls
(Menu 1.3)
This menu lets you view the most recent calls you
have dialled.
For further details, see “Current contacts
(Menu
1.1)
” on page 54.
Received calls
(Menu 1.4)
This menu lets you view the most recent calls you
have received.
For further details, see “Current contacts
(Menu
1.1)
” on page 54.
Call records
56
Delete all
(Menu 1.5)
This menu allows you to delete all of the records in
each call type separately. You can also delete all of
your call records at one time.
1. Select a call type and press the key to place
check mark.
Repeat this to select more types.
2. Press the
Delete
soft key to delete the marked
records.
3. Press the
OK
soft key to confirm the deletion.
Call time
(Menu 1.6)
This menu lets you view the time log for calls made
and received.
Note
: The actual time invoiced by your servi
ce
provider may vary, depending on network
features, rounding-off for billing purposes, and
so on.
The following options are available:
Last
call
time
: shows the length of the last call.
Total
sent
: shows the total length of all calls you
have made since the timer was last reset.
Total
received
: shows the total length of all calls
you have received since the timer was last reset.
Reset
timers
: allows you to reset the call timers.
Call records
57
Call cost
(Menu 1.7)
This network feature lets you view the cost of calls.
This menu may not be available, depending on your
SIM card.
Note
: This feature is not intended to be used for
billing purposes.
The following options are available:
Last
call
cost
: shows the cost of the last call you
made.
Total
cost
: shows the total cost of all calls you
have made since the cost counter was last reset. If
the total cost exceeds the maximum cost set in the
Set
max
cost
option, you can no longer make any
calls until you reset the counter.
Max
cost
: shows the maximum cost set in the
Set
max
cost
option.
Reset
counters
: allows you to reset the cost
counter.
Set
max
cost
: allows you to enter the maximum
cost authorised for your calls.
Price/Unit
: allows you to view and set the cost of
one unit; this price per unit is applied when
calculating the cost of your calls.
58
Phonebook
You can store phone numbers and their
corresponding names in both your SIM card and
your phone’s memory. They are physically separate
but are used as a single entity, called Phonebook.
Note
: Depending on your particular SIM card, the
maximum number of phone numbers the SIM
card can store may differ.
Contact list
(Menu 2.1)
In this menu, you can search for numbers in
Phonebook by entering names.
Note
: You can quickly enter this menu by pressing the
Name
soft key in Idle mode.
Finding a contact
1. Enter the first few letters of the name that you
want to find or scroll to a name by pressing the
Up or Down key.
The names in Phonebook are listed, starting with
the one that most closely matches your input.
2.
To Press the
view the highlighted
name key.
select a different name Up or Down key.
look for a name starting
with a different letter key labelled with the
letter you want.
Phonebook
59
3. Once you have found the number, press the
key to dial.
Alternatively, press the
Options
soft key to
access the contact options; for further details,
see the next section.
On the contact list, press the
Options
soft key to
access the following options:
View
: shows information about the selected
contact.
Send message
: allows you to send a message to
the contact. For details, see page 91.
Add new contact
: allows you to add a new contact
to Phonebook.
Delete
: allows you to delete the selected contact or
all contacts.
Using contact options
While viewing any name in Phonebook, press the
Options
soft key to access the following options for
the name.
Note
: Available options may vary, depending on the
field you selected.
Edit
:
allows you to edit the contact information.
Send message
: allows you to send a message to
the contact.
Copy
: allows you to copy the number to another
memory location.
Send via
: allows you send the
contact
as a
name
card to other people by using the messaging feature
or the Bluetooth feature.
Delete
: allows you to delete the selected
contact
from Phonebook.
Phonebook
60
Add new contact
(Menu 2.2)
This menu allows you to add a new entry into
Phonebook. In the phone’s memory, a name can
contain up to 5 numbers in different categories:
Mobile, Home, Office, Fax, and Other. You can save
only one number in a SIM card entry.
Note
: You can select a default memory location in
which you want to save the number. For further
details, see page 66.
Storing a number in the phone’s
memory
1. When
Phone
highlights, press the
Select
soft
key.
2. Enter information about the contact. The
following input fields are available:
•
First name
/
Last name
: Enter the contact’s
name. For further details about how to enter
characters, see page 33.
•
Mobile
/
Home
/
Office
/
Fax
/
Other
: Add a
number for any category.
•
E-mail
: Enter an e-mail address.
•
Graphic ID
: Press the key and assign an
image as a caller ID image for the contact.
•
Ringer ID
: Press the key and select an
unique ringer melody for the contact.
•
Group
: Press the key and select one of the
default relation groups, where the
contact
is
included. For further details about creating a
group, see page xx.
•
Memo
: Add a memo about the person.
Phonebook
61
3. When you have finished entering the contact
information, press the
Save
soft key.
Storing a number on the SIM card
Note
: When you change phones, any numbers stored
on your SIM card are automatically available
with the new phone, whereas any numbers
stored in the phone’s memory will need to be
reentered.
1. Select
SIM
and press the
Select
soft key.
2. Enter the contact information. The following
fields are available:
•
Name
: enter a contact’s name.
•
Phone number
: enter a phone number.
•
Location
: enter a location number.
4.
To Press the
access the options
Options
soft key. For
further details, see
page 59.
dial a number Down key to scroll to a
number and press the
key.
3.
To Press the
access the options
Options
soft key. For
further details, see
page 59.
dial the number key.
Phonebook
62
Group
(Menu 2.3)
In this menu, you can create and manage caller
groups to organise your Phonebook entries.
Creating a new caller group
1. On the Group screen, press the
Options
soft
key.
2. Select
Add
and press the
Select
soft key.
3. Enter the group information. The following fields
are available:
•
Name
: enter a group name.
•
Graphic ID
: Press the key and assign an
image to be displayed when a call comes in
from a member of the group.
•
Ringer ID
: Press the key and select a
ringer melody to be played when a call comes
in from a member of the group.
4. Press the
Save
soft key.
The new group is added to the Group list and
you can specify a group when storing a contact.
Phonebook
63
Viewing members in a group
To view the names in a caller group, scroll to the
group and press the key. The list of the members
in the group appears.
Press the
Options
soft key to access the following
options:
View
: shows you the contact information of a
member.
Add
: allows you to add a member to the group.
Delete
: allows you to delete a member from the
group.
Managing caller groups
You can change the properties of a group or delete
a group.
On the group list, press the
Options
soft key to
access the following options:
View
: shows the list of the members in the group.
Add
: allows you to add a new group.
Edit
: allows you to change the properties of the
currently selected group.
Send message
: allow you to send a message to all
of the members of the group.
Delete
: allows you to delete the selected group or
all groups. Note that the members in the group are
not deleted from Phonebook.
Phonebook
64
Speed dial
(Menu 2.4)
You can assign up to 8 of your most frequently used
phone numbers from your Phonebook list to the
number keys (
2
to
9
), and then dial them easily
whenever you want, simply by pressing and holding
the associated number key.
Setting up speed dial entries
1. Select the key to which you wish to assign the
speed dialling number, from the
2
to
9
keys, and
press the key.
Note
: Memory location 1 is reserved for your
Voice Mail server number.
2. Enter the name you want, or scroll to it using
the Up or Down key.
3. Press the
Select
soft key.
4. If there are more one than number for the
name, scroll to a number and press the
Select
soft key.
When you select a key on the Speed dial screen,
you can access the following options by pressing
the
Options
soft key:
View
: shows the number assigned to the key.
Add
: allows you to assign a number to the key. This
option shows for an empty key.
Change
: allows you to assign a different number to
the key. This option shows for an occupied key.
Remove
: clears the setting so that no number is
assigned to the key.
Phonebook
65
Speed dialling
To quickly dial the numbers assigned to the
2
to
9
keys, press and hold the appropriate key in Idle
mode.
My name card
(Menu 2.5)
In this menu, you can create a name card for
yourself. After creating a name card, you can send
it to other people via several different routes.
Create your name card as you would for saving a
number in Phonebook. For further details, see
page 60.
After saving a name card, press the
Options
soft
key to access the following options:
Edit
: allows you to edit your name card.
Send via
: allows you to send your name card to
other people by using the messaging feature or the
Bluetooth feature. For further details, see page xx
or page xx.
Exchange namecard
: allows you to exchange
your name card with another person’s name card
via the Bluetooth feature. For further details, see
page 161.
Remove
: allows you to clear your name card.
Phonebook
66
Own number
(Menu 2.6)
You can:
• assign a name to each of your own phone
numbers registered on your SIM card.
• delete the names and numbers.
Any changes made here do not in any way affect
the actual subscriber numbers on your SIM card.
Management
(Menu 2.7)
In this menu, you can:
• select the default memory location to which
numbers are saved.
• copy all of the Phonebook entries in your SIM
card to your phone’s memory.
• delete all of the entries in Phonebook.
• check the memory status of Phonebook.
Default saving
(Menu 2.7.1)
You can select a default memory location to which
you want names and numbers saved.
The following options are available:
Phone
: the phone saves contacts in the phone’s
memory.
SIM
: the phone saves contacts on the SIM card.
Ask on saving
: the phone displays the memory
options to allow you to select a memory location.
Phonebook
67
Copy all to phone
(Menu 2.7.2)
You can copy all of the contacts stored on the SIM
card to the phone’s memory.
Delete all
(Menu 2.7.3)
You can delete all of the contacts from your phone’s
memory, your SIM card, or both.
1. Select the memory location you want to empty
and press the key to place a check mark.
2. Press the
Delete
soft key to delete the contacts
in the selected memory location(s).
3. Enter the phone password and press the
OK
soft
key.
Note
: The password is preset to “00000000” at
the factory. To change this password, see
page 165.
4. Press the
Yes
soft key to confirm the deletion.
Memory status
(Menu 2.7.4)
The menu shows you the number of contacts you
have stored and the total number of the contacts
you can store in the phone’s memory and on the
SIM card.
Phonebook
68
Service number
(Menu 2.8)
You can view the list of Service Dialling Numbers
(SDN) assigned by your service provider. These
numbers include emergency numbers, directory
enquiries, and voice mail numbers.
Note
: This menu is available only when your SIM card
supports Service Dialling Numbers.
1. Scroll through the numbers by pressing the Up
or Down key.
2. Press the
Dial
soft key to dial the number
displayed.
Information
(Menu 2.9)
??
69
Applications
In this menu, you can:
•enjoy various Java games.
• play music files using your phone as an MP3
player.
• record a voice memo.
• set your time zone and check world time.
• set an alarm so that the phone alerts you at a
specific time.
• use the phone as a calculator, convertor, timer, or
stopwatch.
Java world
(Menu 3.1)
You can enjoy Java games. You have games pre-
installed on your phone and download more games
from the wireless Web.
Downloads
(Menu 3.1.1)
When you access the
Downloads
menu, the list of
default games appears. Once you have downloaded
games, they are added to this list.
Note
: Java services may not be available, depending
on your service provider.
Applications
70
Playing a game
1. From the game list, select a game and press the
key.
2. Press the left soft key. For some games, you can
press any key.
3. Select
New Game
or
Start
and press the key.
4. Follow instructions on the screen to start the
game.
Viewing properties of a game
1. From the game list, select a game and press the
Options
soft key.
2. Select
Properties
and press the
Select
soft key.
3. Press the Up or Down key to scroll through the
screen.
You can move to the properties screen of another
game by pressing the Left or Right key.
4. Press the
OK
soft key to exit.
Deleting a game
Note
: Default games cannot be deleted.
1. From the game list, select a game and press the
Options
soft key.
2. Select
Delete
and press the
Select
soft key.
3. Choose
Selected
to delete the currently selected
game, or
All
to delete all of downloaded games.
4. Press the
Yes
soft key to confirm the deletion.
Applications
71
Settings
(Menu 3.1.2)
In this menu, you can select a connection profile for
accessing Java services.
Note
: To change the properties of a connection
profile, see page 166.
Memory status
(Menu 3.1.3)
In this menu, you can view the amount of memory
available and memory currently in use for Java
games and the number of games you have
downloaded.
MP3 player
(Menu 3.2)
You can enjoy music using your phone.
Before using the MP3 player, you first need to save
MP3 music files in your phone’s memory.
Downloading and receiving music files
You can download or receive music files using the
following methods:
• from the wireless web
• from a computer through the EasyStudio II
programme
• from MMS messages or e-mails
• Via Bluetooth; for further details, see page 161.
The downloaded or received files are stored in the
Music
folder. See page 121.
Applications
72
Creating the play list
1. On the MP3 player screen, press the
Options
soft key.
2. Select
Add list
and press the
Select
soft key.
3. Select
Add all
to add all music files to the play
list and press the
Select
soft key. Skip to step 5.
Select
Add a file
to add a music file and press
the
Select
soft key. Continue to the next step.
4. Select a file from the music list and press the
Select
soft key.
5. Press the
Options
soft key and select
Add to
playlist
. Repeat from step 3.
6. When the play list is complete, press the
Back
soft key to go back to the MP3 player screen.
Playing MP3 files
Once you have created the play list, press the
key to play music on the MP3 player screen.
You can use the following keys to control the MP3
player:
Key Function
pauses or resume playback.
Left returns to the previous file.
Right skips to the next file.
Down stops playback.
Up opens the play list.
Applications
73
Note
: Closing the phone doesn’t interrupt playback.
To control the
MP3
player with the phone
closed, see page 75.
Using the MP3 player options
On the MP3 player screen, press the
Options
soft
key to access the following options:
Note
: Depending on the playback status, paused,
stopped, or started, available options vary.
Play
: plays the music.
Pause
: pause playback.
Open playlist
: opens the play list.
Go to music
: opens the music list.
Send via
: allows you to send the current music file
to other people by using the messaging feature or
Bluetooth feature.
Set as
: sets the current music file as your call
ringer or ID for a Phonebook entry.
Activate key
: ??
Remove from playlist
: deletes the current file
from the play list.
/ adjusts the volume level.
1
changes the equalizer mode.
2
changes the skin colour.
3
turns the shuffle mode on or off.
4
turns the 3D sound on or off.
5
changes the repeat mode.
Key Function
Applications
74
Settings
: allows you to customise the default
settings for the Media player.
•
Repeat mode
: allows you to select a repeat
mode.
•
Shuffle
: allows you to turn the shuffle mode on
or off.
•
Visualization
: allows you to select a music genre
for the equalizer.
•
3D sound
: allows you to turns the 3D sound on
or off.
•
MP3 skin
: allows you to select a skin colour of
the MP3 player screen.
•
Volume
: allows you to select a volume level.
Properties
: shows the properties of the current
music file.
Key management
: shows the help information for
using the keys in the Media player.
Managing the play list
On the MP3 player screen, press the Up key to open
the play list.
Press the
Options
soft key to access the following
options:
Play
: plays the currently selected music file.
Add to playlist
: allows you to add more music files
to the play list.
Change order
: allows you to change the order of
the selected file.
Remove
: deletes the currently selected file or all
files from the play list.
Properties
: shows the properties of the currently
selected file.
Applications
75
Playing music with the phone closed
You can enjoy music with the phone closed. Use the
following keys to control the MP3 player:
Voice recorder
(Menu 3.3)
You can record voice memos. After recording, you
can send the memo to other people using various
sending options. You can record voice memos of up
to 1 hour in duration.
Recording a voice memo
1. To start recording, press the key.
2. Record a memo by speaking into the
microphone.
During the recording:
Key Function
launches or close the Media player when
held down.
starts playing music and pause playback.
returns to the beginning of the file or the
previous file.
skips to the next file.
/ adjusts the volume level.
To Press the
pause
Pause
soft key.
resume
Record
soft key.
adjust the volume Volume keys.
Applications
76
3. When you have finished, press the Down key to
stop and save the memo.
If the recording time expires, the phone will
automatically stop and save the memo.
Using voice memo options
After recording a voice memo, you can access the
following options by pressing the
Options
soft key:
Play
: plays back your voice memo.
Go to voice list
: opens the voice memo list.
Send via
: allows you to send the memo by using
the messaging feature or Bluetooth feature.
Delete
: allows you to delete the voice memo.
Rename
: allows you to change the name of the
voice memo.
Share for bluetooth
: ??
Protection
: locks the voice memo to protect it
from being deleted.
Properties
: shows you the properties of the voice
memo.
Using the voice recorder options
On the Voice record screen, press the
Options
soft
key to access the following options:
Record
: begins recording a new voice memo.
Go to voice list
: opens the voice memo list.
Applications
77
Settings
: allows you to change the default settings
for recording a voice memo. To change settings,
press the Left or Right key. The following options
are available:
•
Recording time
: allows you to select a
maximum recording time.
•
Equalize value
: allows you to change the
equalizer image on the Voice recorder screen.
•
Volume
: allows you to select a volume level for
recording voice memos.
Playing a voice memo
1. On the Voice record screen, press the
Options
soft key.
2. Select the
Go to voice list
option and press the
Select
soft key.
3. Scroll to a voice memo and press the key.
During playback:
4. To stop, press the Down key.
To Press the
pause
Pause
soft key.
resume
Play
soft key.
move backward Left key.
move forward Right key.
adjust the volume Volume keys.
switch to Record mode Up key.
Applications
78
World time
(Menu 3.4)
This menu allows you to find out what time it is in
another part of the world and set your local time
zone.
Viewing world time
Press the Left or Right key to scroll through the
world map.
The screen shows the selected city name, the time
difference to your local time zone and current time
and date.
Setting your local time zone
1. Select the city corresponding to your home time
zone by pressing the Left or Right key.
2. Press the
Set
soft key.
3. Select
Save
and press the
Select
soft key.
Applying Daylight Savings Time (DST)
1. On the world map, press the
Set
soft key.
2. Select
Set daylight saving time
and press the
Select
soft key.
3. Scroll to the time zone to which you want to
apply the setting and press the key to place a
check mark.
Repeat this step to apply DST to more time
zones.
4. Press the
Save
soft key.
Applications
79
Alarm
(Menu 3.5)
This menu allows you to set an alarm to ring at a
specific time.
Setting an alarm
1. Choose a type of alarm,
Morning call
,
Alarm1
,
or
Alarm2
and press the
Select
soft key.
2. Select
On
in the Alarm field by pressing the Left
or Right key and press the Down key.
3. Enter the time for the alarm to sound and press
the Down key.
Note
: Your phone is preset to a 24-hour format.
To change the format, see page 145.
4. If applicable, select
AM
or
PM
and press the
Down key.
5. Select a repeat option and press the Down key.
6. Press the key in the Alarm tone field.
7. Select a sound category and press the
Select
soft key.
8. Select the alarm melody you want and press the
Select
soft key.
9. Press the
Save
soft key.
When the time for an alarm comes:
• Press the
Confirm
soft key to stop the alarm.
• Press the
Snooze
soft key to let the alarm sound
after 5 minutes.
Applications
80
Activating the autopower alarm
You can set your alarms to ring at the specified
time, even if the phone is off.
On the Alarm screen, scroll to
Autopower
and
press the
Select
soft key
.
If the time for an alarm comes when the phone is
off, the phone automatically switches on and rings
the alarm.
PIM Sync
(Menu 3.6)
You can synchronize personal information stored in
Phonebook, Calendar, and To Do List with
corresponding PC applications by using the
EasyStudio II program supplied with your phone.
Creating a synchronisation profile
To synchronise your phone with other devices, you
need to create a synchronisation profile.
1. Press the
OK
soft key to confirm the creating.
2. With or without a name for the profile, press the
Yes
soft key.
3. Set up the following information for the profile:
•
Profile name
: allows you to enter the setting
name.
•
Sync category
: allows you to select the
application(s) you want to synchronize. Select
All
to synchronise all of the items in each
application.
•
Sync Type
: allows you to select a
synchronisation type.
Applications
81
•
Normal Sync
: the phone and PC/remote
server exchange only newly added, changed,
or deleted data.
•
Recovery Sync
: the phone sends all of its
data to the PC and the PC sends only data that
the phone does not contain.
•
Sync protocol
: allows you to select a
connection method,
Serial
,
Bluetooth
, or
USB
.
4. Press the
Save
soft key.
Starting Synchronization
1. Make sure that your PC has the EasyStudio II
program installed and the phone and the PC are
connected by a USB or serial cable or an active
Bluethooth connection.
2. From the PIM sync screen, select a profile and
press the
Options
soft key.
3. Select
Start sync
and press the
Select
soft key.
The synchronization begins.
Using the Synchronisation options
You can access the following options by pressing the
Options
soft key from the PIM sync screen:
Start sync
: starts a synchronisation by the
currently selected profile.
View result
: shows the result of the last
synchronisation.
New sync profile
: allows you to create a new
profile.
Applications
82
Edit sync profile
: allows you to change the
properties of the currently selected profile.
Delete
: allows you to delete the currently selected
profile or all profiles.
Calculator
(Menu 3.7)
With this feature, you can use the phone as a
calculator. The calculator provides basic arithmetic
functions: addition, subtraction, multiplication, and
division.
To use the calculator:
1. Enter the first number using the numeric keys.
Notes
:
• To include a decimal point or brackets, press the
left soft
key.
• To move the cursor, press the
or key.
2. Enter the operation for your calculation by
pressing the Navigation keys.
3. Enter the second number.
4. Repeat steps 2 to 3 as many times as required.
5. To view the result, press the key.
Applications
83
Converter
(Menu 3.8)
Using this menu, you can do currency and other
conversions.
To use the converter:
1. Select the convertor type you want and press
the
Select
soft key.
2. Select the original unit by pressing the Left or
Right key and press the Down key.
3. Enter the value to be converted and press the
Down key.
Notes
:
• You can insert a decimal point by pressing
the
key
.
• For a temperature conversion, you can change
the sign of a number to above zero (+) or below
zero (-) by pressing the
key.
• For a currency conversion, you can view and
change the currency rate. Press the
View rate
soft key.
4. Select the unit you want to change into by
pressing the Left or Right key.
The equivalent value for the amount you entered
displays.
Applications
84
Timer
(Menu 3.9)
In this menu, you can set a period of time for the
phone to count down. The phone will alert you with
an alarm when the specified period of time has
expired.
To set the timer:
1. Press the
Set
soft key.
2. Enter the length of time you want to count
down.
3. Press the
OK
soft key.
4. To start counting down, press the key.
Even if you exit the Timer screen, the timer will
continue running. When the specified time has
expired, the phone informs you by playing a melody
and displaying a text notification.
To stop the timer melody when it rings, press any
key.
To stop the timer before the end, press the key
on the Timer screen.
Note
: The timer uses power from the battery.
Consequently the phone’s operating time is
reduced.
Applications
85
Stopwatch
(Menu 3.0)
The stopwatch can be used to measure elapsed
time.
Example: Running or swimming races
The precision of the stopwatch is one
one-hundredth of a second. The maximum
measurement time is 10 hours.
To use the stopwatch:
1. To start timing something, press the key.
2. To check an interval, for example, one lap, press
the key.
You can repeat this step for a total of 4 intervals.
To reset the stopwatch, press the
Reset
soft key.
86
Browser
Your phone is equipped with a WAP (Wireless
Application Protocol) browser to allow you to access
and navigate the Wireless Web using your phone.
Home
(Menu 4.1)
Selecting this menu connects the phone to the
network and loads the homepage of the Wireless
Web service provider. You can also press the key
in Idle mode to launch the browser.
The contents of the WAP Browser startup homepage
depends on your Wireless Web service provider.
Exiting the WAP browser
To exit the browser at any time, simply press the
key.
Navigating the WAP browser
To Press the
scroll through
browser items Up or Down key.
select a browser
item soft key.
return to the
previous page
C
key.
return to the
startup homepage
C
key for more than 2
seconds.
Browser
87
Entering text in the WAP browser
When you are prompted to enter text, the currently
active text input mode is indicated on the screen.
For further details about how to enter characters,
see page 33.
Selecting and using browser menu
options
Various menu options are available when you are
using the WAP browser to navigate the Wireless
Web.
To access a menu option:
1. Press the
Menu
soft key.
2. Select
Menu
and press the soft key.
3. Highlight a menu and press the soft key.
4. If necessary, select a secondary option and
press the soft key to confirm.
Note
: The menus may vary, depending on your
version of the WAP browser.
The following options are available:
Back
: goes to the previous page.
Home
: takes you back at any time to the home
page of the Wireless Web service provider.
Exit
: exits the WAP browser.
Reload
: reloads the current page.
Browser
88
Show
URL
: displays the URL address of the Web
page to which you are currently connected. It also
enables you to set the current site as the startup
home page.
About...
: provides you with information about your
version of the WAP browser.
Favorite
(Menu 4.2)
This menu allows you to store the URL addresses of
up to 10 of your favourite websites.
To store a URL address:
1. Select an empty location and press the
Options
soft key.
2. Enter a name for the bookmark and press the
Enter
soft.
3. Enter the address and press the
Enter
soft key.
After saving an item, you can access the following
options by pressing the
Options
soft key:
Go to URL
: quickly takes you to the site.
Edit
: allows you to edit the address and name of
the bookmark.
Delete
: allows you to delete the bookmark or all
bookmarks.
Browser
89
http://
(Menu 4.3)
This menu allows you to manually enter the URL
address of a website that you wish to access.
For further details about how to enter characters,
see page 33.
After entering the URL address you want to access,
press the
Enter
soft key to go to the site.
Clear cache
(Menu 4.5)
Selecting this menu clears the information stored in
the cache, the phone’s temporary memory in which
the most recently accessed Web pages are stored.
90
Messages
Using the
Messages
menu, you can use various
message formats.
The following types of message services are
available:
• Short Message Service (SMS): allows you to send
and receive short text messages to and from
other GSM mobile phones. In addition, your
phone supports the Enhanced Messaging Service
(EMS), which enables you to include simple
pictures, melodies, and animated images in your
messages.
• Multimedia Message Service (MMS): provides
delivery of personal multimedia messages from
phone to phone or from phone to e-mail. In
addition to the familiar text content, multimedia
messages can contain images, video clips, audio
clips, and combinations of these things.
• E-mail: allows you to send and receive e-mails
directly from your phone.
• WAP push: allows you to receive messages from
the WAP server.
• Voicemail: gives you the way to access your voice
messages stored on the service provider’s
voicemail server.
• Cell broadcast (CB): allows you to receive text
messages on various topics, such as the weather
or traffic.
Messages
91
Create new message
(Menu 5.1)
Using this menu, you can create and send an SMS
MMS, or e-mail message.
Text message
(Menu 5.1.1)
In this menu, you can write and send SMS
messages.
Creating a simple text message
1. Create your message.
You can create a message using standard
Alphabet characters or special Unicode
characters, depending on the setting in the
Character support
menu; see page 111.
Notes
:
• For further details about entering characters, see
page 22.
• You can enter up to 918 standard Alphabet
characters in your message. When you enter
text using Unicode characters, the maximum
number of characters in a message is reduced by
approximately half.
2. When you finish entering the message, press
the
Options
soft key.
3. Select
Send and save
or
Send only
and press
the
Select
soft key.
Send and save
first saves a copy of the
message and then sends the message. You can
read it in the
Outbox
folder.
Messages
92
Send
only
sends the message. The message is
then deleted after sending.
You can save the message in the
Drafts
folder
to send it later by selecting
Save to drafts
.
Note
: For further details about other options, see
page 92.
4. Enter a destination number.
5. If you want to send the message to more than
one person, press the Down key and fill in
another destination field.
Repeat this to add more phone numbers. You
can enter up to 10 numbers.
Note
: You will be billed for each phone number.
6. When you have finished, press the key.
7. Press the
OK
soft key to confirm sending.
Using SMS content options
While creating an SMS message, press the
Options
soft key to access the following options:
Insert
: allows you to add a text template, contact
from Phonebook, or bookmark to the message text.
Add picture
: allows you to add a picture.
Add animation
: allows you to add an animated
image.
Add melody
: allows you to add a melody.
Attach
: allows you to attach a contact from
Phonebook as a name card format and an event
item from the organiser as a VCS file format.
Messages
93
Text style
: allows you to format the text. The text
attributes can combined.
Language select
: allows you to select a language
to be used in T9 input mode.
Input method
: allows you to change the text input
mode.
Creating a long text message
When you write a text message, the phone
automatically splits it into several messages if your
message exceeds the maximum number of
characters allowed for sending. The number of split
messages to be sent is shown each time your
message is split. Depending on your service
provider, the maximum number of characters may
vary.
Multimedia message
(Menu 5.1.2)
In this menu, you can create a new MMS message.
Creating and sending a multimedia
message
1. When
Subject
highlights, press the key.
2. Enter the subject of your message and press the
OK
soft key.
For further details about how to enter
characters, see page 33.
3. Press the Down key to move to the
Picture&Video field, and press the key.
Messages
94
4. Add a photo or video to the message by using
the following options:
•
Add image
: allows you to add one of the
images stored in the phone’s memory or take
and add a new photo. For details about the
Camera feature, see page 133.
•
Add videos
: allows you to add one of video
clips stored in the phone’s memory or record a
new video clip.
Note
: When you add a video clip to a message, you
are unable to add a sound clip to the message.
5. Press the Down key to move to the Sound field
and press the key.
6. Select
Add sound
and add a sound clip by
selecting one of sounds stored in the phone’s
memory or record and add a new voice memo.
For details about the voice recorder feature, see
page 75.
7. Press the Down key to move to the Message
field and press the key.
8. Enter the message text and press the key.
9. Select
Done
and press the
Select
soft key.
10.Press the
Options
soft key, choose
Send
and
press the
Select
soft key.
11.Enter a destination number or e-mail address.
12.If you want to send the message to more than
one person, press the Down key and fill in
another destination field.
Repeat this to add more destinations. You can
enter up to 20 destinations.
Messages
95
Note
: You will be billed for each phone number or
e-mail address.
13.When you are finished, press the
Options
soft
key.
14.Select
Send
and press the
Select
soft key.
Using MMS content options
While creating an MMS message, if you want to
change any of added items, press the Up or Down
key to highlight a field and press the
Options
soft
key.
Note
: Available options are different, depending on
whether the field you select on the message
screen is the Subject, Picture & Video, Sound,
or Message field.
The following options are available:
Add
: allows you to add a subject of your message
or message text.
Edit
: allows you to edit the subject of your
message or message text.
Add image
/
sound
/
video
: allows you to add an
image, sound clip, or video clip.
Change image
/
sound
/
video
: allows you to
exchange the added item for another.
Preview
: shows the message you created.
Send
: allows you to send the message.
Save to
: saves the message to the
Drafts
folder or
one of folders you have created.
Language select
: allows you to select a language
to be used in T9 input mode.
Messages
96
Input method
: allows you to change the text input
mode.
Add page
: allows you to add more pages. You can
move to each page by pressing the Left or Right key
on the message screen.
Delete page
: allows you to delete the added page.
Edit
(page??): allows you to change the duration of
page display or to move the page forward.
Attach
: allows you to attach a contact in Phonebook
as a name card format or an item in the organiser as
a CVS file format.
Remove subject
/
media
/
sound
/
message
:
removes the added item from the message.
E-mail
(Menu 5.3.1)
In this menu, you can create and send a new e-mail.
Notes
:
• To send an e-mail, you need to select an appropriate
e-mail profile and set up an e-mail account. For
details, see page xx.
• When creating a message, the total size of
attachments is limited to approximately 210KB.
Because the message will be encrypted, the
subsequent size will reach the allowed maximum size
(300KB).
Creating and sending an e-mail
1. When
Subject
highlights, press the key.
2. When
Create
highlights, press the key.
Messages
97
3. Enter the subject of your e-mail and press the
key.
For further details about entering characters,
see page 33.
4. Select
Done
and press the key.
5. Press the Down key to move to the Message
field and press the key.
6. Select
Add
and press the key.
7. Enter the e-mail text and press the key.
8. Select
Done
and press the key.
9. Press the Down key to move to the File attach
field and press the key.
10.Attach files by selecting the following options:
•
Add images
: allows you to add one of images
stored in the phone’s memory or take and add
a new photo.
•
Add video
: allows you to add one of video
clips stored in the phone’s memory or record
and add a new video clip.
•
Add sounds
: allows you to add one of sound
clips stored in the phone’s memory or record
and add a new voice memo.
•
Other files
: allows you to add ??
•
Attach
: allows you to add a text template, an
entry from Phonebook, or a bookmark.
11.When you have finished creating the e-mail,
press the
Options
soft key.
Messages
98
12.Select
Send only
or
Save and send
and press
the
Select
soft key.
Send
only
sends the e-mail. The e-mail is then
deleted after sending.
Save and send
first saves a copy of e-mail and
then sends the e-mail. You can read it in the
Outbox
folder.
13.Enter an e-mail address.
14.If you want to send the message to more than
one person, press the Down key and fill in
another destination field.
Repeat this to more destinations. You can enter
up to 15 e-mail addresses.
Note
: You will be billed for each e-mail address.
15.When you have finished, press the
Options
soft
key.
16.Select
Send
and press the
Select
soft key.
Using e-mail content options
While creating an e-mail, if you want to change
added items, press the Up or Down key to highlight
a field or an attached file and press the
Options
soft key.
Note
: Available options are different, depending on
whether the field you select on the message
screen is the Subject, Message, or File attach,
or attached file field.
Messages
99
The following options are available:
Add
: allows you to add a subject, e-mail text, and
media files.
Edit
: allows you to edit the subject of your e-mail
or e-mail text.
View
: shows the attached file.
Send
: allows you to send the e-mail.
Save to
: saves the e-mail in the
Drafts
folder or
one of folders you have created.
Remove subject
/
message
: clears the subject of
your e-mail or e-mail text.
Remove
: deletes the selected attached file or all
attached file.
Remove all attachments
: deletes all attached
files.
My messages
(Menu 5.2)
In this menu, you can access messages you have
received, sent, or saved.
Inbox
(Menu 5.2.1)
The Inbox stores all messages you have received,
except for e-mails.
Note
: When you buy media content from the Internet,
this content may be delivered to you in MMS
messages. Save the items in the message to
your phone’s memory. You cannot forward
these messages to other people or add the
saved items to an MMS message.
Messages
100
Viewing a message at the time of its receipt
When a message has been received, the phone
alerts you by:
• Displaying a message icon and text notification.
• Sounding a message tone, vibrating, or lighting,
depending on the message alert setting.
To read a message immediately, press the
View
soft key. To read it later, press the
Exit
soft key.
For an MMS message, press the
Options
soft key
and select
Retrieve
. The message is downloaded
from the MMS server to the phone’s memory.
For the options you can use while viewing a
message, see page 101.
Viewing a message in Inbox
When you access the
Inbox
folder, a list of received
messages appears. The icons on the left tells you
types of messages:
• : SMS
• : MMS
• ?? : WAP push
• ?? : CB
• : OTA (SMS containing configuration for
network services, from your service provider)
• : Delivery report for your sent messages
To open a message:
1. Select a message from the list and press the
key to read its content.
Messages
101
Alternatively, you can access the following
options by pressing the
Options
soft key:
•
View
: opens a message.
•
Retrieve
: retrieves an MMS message from the
server.
•
Delete
: deletes a message or all messages.
•
Move to my folder
: move a message to one
of folders you have created.
•
Sort by
: changes the sort order of the
message list.
•
Protection
: locks a message to keep it from
being deleted.
•
Properties
: shows you information of an MMS
message.
2. Press the Up or Down key to scroll through the
content.
3. Press the or key to scroll to the previous or
next message.
Using message options
While viewing a message, press the
Options
soft
key to access the following options:
SMS messages
•
Reply via
: allows you to a reply to the sender by
SMS or MMS.
•
Forward
: allows you to forward the message to
other destinations.
•
Delete
: deletes the message.
•
Move to phone/SIM
: moves the message from
the SIM card to the phone’s memory or vice
versa.
Messages
102
•
Cut
address
: extracts URL, e-mail addresses, or
phone numbers from the message.
•
Cut media/Attach
: extracts media items from
the message to save them to your phone’s
memory.
•
Protection
: locks the message to keep it from
being deleted.
MMS messages
•
Reply via SMS
: allows you to a reply to the
sender by SMS.
•
Reply via MMS to
: allows you to a reply to the
sender or all other recipients including the sender
by MMS.
•
Forward
: allows you to forward the message to
other destinations.
•
Delete
: deletes the message.
•
Cut
address
: extracts URL, e-mail addresses, or
phone numbers from the message text.
•
Cut media/Attach
: extracts media items from
the message to save them to your phone’s
memory.
•
Protection
: locks the message to keep it from
being deleted.
•
Properties
: show the properties of the message.
OTA message
•
Install
: applies the configuration specified in the
message to your phone.
•
Cut
address
: extracts URL, e-mail addresses, or
phone numbers from the message.
•
Delete
: deletes the message.
Messages
103
Delivery report message
•
Delete
: deletes the message.
•
Cut
address
: extracts URL, e-mail addresses, or
phone numbers from the message text.
•
Protection
: locks the message to keep it from
being deleted.
WAP push message
•
Go to URL
: connects to the URL specified in the
message.
•
Delete
: deletes the message.
•
Cut
address
: extracts URL, e-mail addresses, or
phone numbers from the message.
•
Protection
: locks the message to keep it from
being deleted.
CB message
•
Save
: saves the message to the phone’s
memory.
•
Delete
: deletes the message.
•
Cut
address
: extracts URL, e-mail addresses, or
phone numbers from the message.
Drafts
(Menu 5.2.2)
After creating a message, you can store it in this
message folder to be sent at a later time. The
phone also stores messages that it fails to send.
From the list of draft messages, select a message
and press the key. The phone opens the message
in Edit mode.
Messages
104
Press the
Options
soft key to access the following
options:
Edit
: allows you to change and send the message.
Delete
: deletes a message or all messages.
Move to my folder
: move a message to one of
folders you have created.
Sort by
: changes the sort order of the message.
Protection
: locks a message to keep it from being
deleted.
Properties
: shows you information of an MMS
message.
Outbox
(Menu 5.2.3)
This message box is used to store messages that
the phone is attempting to send or failed to send.
Viewing a message
When you access this menu, a list of messages in
the box displays. In addition to the type icons, the
following icons tells you the message status:
• : Message the phone is sending
• : Message the phone has failed to send
To open a message:
1. Select a message from the list and press the
key to read the message content.
Alternatively, you can access the following
options by pressing the
Options
soft key:
•
View
: opens a message.
•
Delete
: deletes a message or all messages.
Messages
105
•
Move to my folder
: move a message to one
of folders you have created.
•
Sort by
: changes the sort order of the
message.
•
Protection
: locks a message to keep it from
being deleted.
•
Properties
: shows you information of an MMS
message.
2. Press the Up or Down key to scroll through the
content.
3. Press the or key to scroll to the previous or
next message.
Using message options
While reading a message, you can access the
following options by pressing the
Options
soft key:
Send
/
Send again
: allows you to send/resend the
message.
Cancel sending
: cancels sending the message.
Delete
: allows you to delete the message.
Cut
address
: extracts URL, e-mail addresses, or
phone numbers from the message.
Protection
: locks the message to keep it from
being deleted.
Properties
: shows information of the message.
Messages
106
Sent
(Menu 5.2.4)
This message folder is used to store messages that
the phone has sent successfully.
Using message options
While reading a message, you can ac.cess the
following options by pressing the
Options
soft key:
Forward
: allows you to forward the message to
other destinations.
Delete
: allows you to delete the message.
Cut
address
: extracts URL, e-mail addresses, or
phone numbers from the message.
Protection
: locks the message to keep it from
being deleted.
Properties
: shows you information of the
message.
Email box
(Menu 5.2.5)
This menu allows you to check the e-mail server for
new e-mails and review the e-mail messages you
have received.
Note
: To receive e-mails, you need to select an
appropriate e-mail profile and set up an e-mail
account.
Messages
107
Retrieving an e-mail
1. Press the
Yes
soft key when
Check e-mail
highlights to retrieve e-mail headers from the
server.
Note
: You can set the phone to retrieve headers
only or whole
e-mail
s including headers
and bodies in the
Retrieve
option. For
details, see page 114.
The list of e-mail headers or entire e-mails you
have received displays.
2. Press the Up or Down key to scroll to an e-mail
header or entire e-mail.
You can access the following options by pressing
the
Options
soft key:
•
Delete
: deletes the header.
•
Cut address
: extract e-mail addresses, URLs,
and phone numbers from the header.
•
Protection
: locks the header to keep it from
being deleted.
•
Properties
: shows you information of the
message.
3. Press the key to open the header or e-mail.
4. Press the Up or Down key to scroll through the
content.
When you select an attached file, you can view
or play the attached file in the e-mail.
Messages
108
Using e-mail options
Note
: While you are retrieving e-mails from the
e-mail server, some options are not available.
While viewing an e-mail message, press the
Options
soft key to access the following options:
Retrieve
: allows you to retrieve the entire e-mail
of the header.
Reply
: allows you to send a reply to the sender or
to all other recipients including the sender.
Forward
: allows you to forward the e-mail to other
destinations.
Save
: allows you to save the attached file in your
phone’s memory.
Delete
: allows you to delete the e-mail.
Add filtering list
: allows you to add the sender’s
e-mail address to the filter list to reject e-mails
from that address.
Cut address
: extract e-mail addresses, URLs, and
phone numbers from the e-mail.
Protection
: locks the e-mail to keep it from being
deleted.
Properties
: shows you information of the e-mail.
My folder
(Menu 5.2.6)
In this menu, you can create message folders to
organise your messages.
Messages
109
Creating a folder
When you access the
My folder
menu, the phone
prompts you to add a folder.
1. Press the
OK
soft key to confirm.
2. Enter the folder name and press the
OK
soft
key.
Using folder options
After creating folders, you can access the following
options by pressing the
Options
soft key from the
folder list:
Open
: opens a folder.
Add folder
: allows you to add a new folder.
Rename folder
: allows you to change the name of
a folder.
Delete
: deletes the selected folder or all folders.
Templates
(Menu 5.3)
You can create templates for your most commonly
used phrases, sentences, or messages. You can
then retrieve and use them at will. You can change
the templates at any time, or send one as a
message immediately.
Creating a text template
1. Select an empty location or the message
template you want and press the key.
2. Enter the message you want.
3. Press the
OK
soft key.
Messages
110
Using template options
On the text template list, press the
Options
soft key
to access the following options:
Edit
: allows you to change an existing text
template.
Send via
: allows you to send a new message using
the template.
Delete
: allows you to delete the template.
Add new
: allows you to add a new template.
Delete all
(Menu 5.4)
You can delete the messages in each message folder
one by one, or all at once. You can also delete all of
your messages at one time.
1. Scroll to the message folder you want to empty
and press the key to place a check mark.
Repeat this step to select more messages.
To delete all of messages, select
All messages
.
2. Press the
Delete
soft key.
3. When the phone asks if you want to include
protected messages, press the key.
If you don’t want this, deselect the check box.
4. Press the
OK
soft key to confirm the deletion.
5. Press the
OK
soft key to confirm the deletion
again.
Messages
111
Settings
(Menu 5.5)
You can set up various options for using messaging
services.
Text messages
(Menu 5.5.5)
In this menu, you can set up default SMS message
information.
Common settings
: provides you with the following
options:
•
Reply path
: allows the recipient of your message
to send you a reply through your message centre,
if your network supports this service.
•
Delivery report
: allows you to activate or
deactivate the report function. When this function
is activated, the network informs you whether or
not your message has been delivered.
•
Character support
: allows you to select a
character encoding type, either
GSM-alphabet
,
Unicode
, or
Auto
. If you select
Auto
, the phone
automatically changes the encoding type from
GSM-alphabet to Unicode when you enter a
Unicode character.
When you select
Unicode
, the maximum number
of characters in a message is reduced by
approximately half. If your recipient’s phone does
not support Unicode characters, he/she may not
be able to read your message correctly. For
details about Unicode characters, see page 192.
SMS profile
: allows you to select a setting profile
to be used for SMS.
Messages
112
Profile settings
: allows you to set up the following
properties in a profile.
•
Service centre
: allows you to store or change
the number of your SMS centre. You must obtain
this number from your service provider.
•
Default destination
: allows you to enter the
default destination. It will display in the first field
on the Destination list.
•
Default type
: allows you to set the default
message type. The network can convert the
messages into the selected format.
•
Validity period
: allows you to set the length of
time your SMS messages are stored in the SMS
centre while attempts are made to deliver them.
•
Setting name
: allows you to set a profile name.
Multimedia message
(Menu 5.5.2)
You can change the default settings for sending or
receiving multimedia messages.
Send settings
: allows you to change the default
settings for sending a message.
•
Delivery report
: the network informs you
whether or not your message has been delivered.
•
Address hiding
: your phone number is not
displayed on the recipient’s phone.
•
Read reply
: your phone sends a request for a
reply along with your message to the recipient.
•
Priority
: allows you to select the priority level of
your messages.
•
Validity period
: allows you to select a length of
time your messages are stored in the message
centre after they are sent.
Messages
113
•
Delivery after
: allows you to select a time delay
before messages are sent.
Receive settings
: allows you to change the default
settings for receiving a multimedia message.
•
Anonymous reject
: the phone rejects messages
from anonymous senders.
•
Adverts allowed
: the phone accepts
advertisement messages.
•
Information allowed
: the phone accepts
information messages.
•
Personal allowed
: the phone accepts personal
messages.
•
Report allowed
: the sender of an incoming
message receives a delivery report from the
network.
•
Home reception
: allows you to set whether or
not your phone automatically retrieves new
messages from the MMS server when you are in
your home service area.
•
Roaming reception
: allows you to set whether
or not your phone automatically retrieves new
messages from the MMS server when you are
roaming in another network.
MMS profiles
: allows you to select a connection
profile to be used for MMS.
E-mail
(Menu 5.3.6)
You can change the default setting options for using
the e-mail feature.
Send settings
: allows you to change the default
settings for sending an e-mail.
•
Delivery confirm
: the network informs you
whether or not your e-mail has been delivered.
Messages
114
•
Read confirm
: your phone sends a request for a
reply along with your e-mail to the recipient.
•
Priority
: you can select the priority level of your
e-mail.
•
Include signature
: attaches your name, phone
number, a simple memo, or tag line as a
signature to your e-mail. Remaining options are
available when you activate this option.
•
Edit name
: you can set the name in your
signature.
•
Edit telephone number
: you can set the phone
number in your signature.
•
Edit note
: you can set the tag line in your
signature.
Receiving settings
: allows you to change the
default settings for receiving an e-mail.
•
Check interval
: allows you to select how often
the phone automatically checks the server for
incoming e-mail. If this option is set to
Not used
,
you need to manually check the server by
selecting
Check new mail
in the
E-mail box
folder.
•
Read reply
: allows you to set whether or not the
phone sends a read-reply request to the sender.
•
Retrieve option
: you can select whether or not
the phone retrieves headers only or whole
e-mails including the headers and bodies.
•
Reject if over
: allows you to set the maximum
message size for incoming e-mail. Your phone will
reject e-mail which are over the specified size.
•
Leave a copy of messages the server
: the
phone leaves copies of e-mails in the server after
retrieving.
Messages
115
Block list
: allows you to set up a filter list to
rejects e-mails from the specified addresses or
associated the specified subject.
Email account
: allows you to set up e-mail
accounts and select an account to be used.
•
Current account
: allows you to select one of the
accounts.
•
Account setting
: allows you to configure up to 5
e-mail accounts using different e-mail servers.
The following options are available for each
account:
Account name: enter a name for the selected
account.
User name: enter the name to be displayed in
your outgoing messages as the sender’s name.
Email address: enter your e-mail address.
User ID: enter your e-mail ID.
Password: enter your e-mail password.
SMTP server: enter the IP address or domain
name of the server to be used for receiving
messages. Your e-mail service provider can give
you this information.
SMTP port: enter the SMTP port number. Your e-
mail service provider can give you this
information.
Protocol type: specify an e-mail protocol type for
the incoming server, either
POP3
or
IMAP4
.
Contact your e-mail service provider for more
information.
POP3 port: (For POP3) enter the POP3 port
number.
Messages
116
APOP login: (For POP3) when this option is
checked, you can connect to the server by using
the APOP login scheme.
Include attachments: (For IMAP4) when this
option is checked, you can receive attachments
with e-mails from the server.
Max retrieve E-mail: (For IMAP4) set the number
of headers you will retrieve from the server.
Secure connection: set whether or not you protect
your data by using SSL (Secure Socket Layer).
Email profile
: allows you to select a connection
profile to be used for e-mail services.
Push messages
(Menu 5.5.4)
You can change the settings for receiving WAP push
messages from the wireless web server. The
following options are available:
Receive
: allows you to set whether or not your
phone receives push messages.
Last name
: allows you to enter the address of the
sever from which you want receive push messages,
when the
Receive
option is set to
SMS-C specific
.
Broadcast
(Menu 5.5.5)
You can change the settings for receiving CB
messages. The following options are available:
Receive
: allows you to enable or disable the
reception of CB messages.
Messages
117
Channel list
: allows you to indicate the channels
from which you wish to receive CB messages.
Please contact your service provider for further
details.
•
Select
: allows you to enable or disable channels.
•
Add channel
: allows you to add new channels.
•
Delete
: allows you to delete channels.
•
Edit
: allows you to change the channel ID
number and name.
Language
: allows you to select the preferred
languages in which to display CB messages.
Memory status
(Menu 5.8)
In this menu, you can view the memory status for
SMS, MMS and e-mail.
The following options are available:
Text message
: By pressing the Up or Down key,
you can view the number of SMS messages you
have stored and the total number of SMS messages
you can store in each memory.
Multimedia message
: By pressing the
Next
soft
key, you can check the total amount of memory for
MMS messages and the amount of memory
currently in use in each message folder.
Email
: By pressing the
Next
soft key, you can
check the total amount of memory for e-mails and
the amount of memory currently in use in each
message folder.
118
File manager
File manager allows you to access and manage the
media files in your phone’s memory.
Images
(Menu 6.1)
In this menu, you can view the photos you have
taken and images downloaded from a web server or
received in messages.
Viewing an image
1. Select an image folder and press the
Select
soft
key.
2. Select an item and press the key.
Using image options
Press the
Options
soft key to access the following
options:
Note
: Available options vary depending on whether
you are looking at the list or viewing an image.
View
: shows the
.
List
: return to the
list.
Send via
: allows you to send the
by using
the messaging feature or the Bluetooth feature.
Set as
: allows you to set the
as your
wallpaper or as a caller ID image for a contact in
Phonebook.
File manager
119
Edit
: allows you to edit the image by using the
following options:
•
Emotions
: allows you to add an emotion to the
. After selecting an emotion, you can move
the emotion by pressing the Navigation keys.
•
Frames
: allows you to apply a decorative frame
to the
.
•
Effect
: allows you to change a colour tone of the
.
Delete
: allows you to delete the selected
or
all
s.
Rename
: allows you to change the
name.
Move to favorite images
: moves the
to the
Favorite image
folder.
Move to download images
/
Move to photos
:
moves the
to the
Download images
or
Photos
folder.
Slide show
: allows you to set all
images
to
automatically display as a slide show. You can select
the time interval between
images
.
Share for bluetooth
:
Protection
: locks the
image to keep it
from being
deleted.
Properties
: shows you information of the
.
File manager
120
Videos
(Menu 6.2)
In this menu, you can view the videos you have
recorded or downloaded from the wireless web or
received in messages.
Playing a video clip
1. Select a video folder and press the
Select
soft
key.
2. Scroll to the video clip you want and press the
key.
You can use the following options while playing a
file:
Using video clip options
Press the
Options
soft key to access the following
options:
Note
: Available options vary depending on whether
you are looking at the video list or viewing a
still image of a video clip.
Play
: plays the video clip.
List
: returns to the video list.
To Press the
pause or resume playback key.
move backward in a clip Left key.
move forward in a clip Right key.
adjust the volume level Volume keys.
stop Right soft key.
File manager
121
Send via
: allows you to send the video clip using
the messaging feature or the Bluetooth feature.
Delete
: allows you to delete the selected video clip
or all video clips.
Rename
: allows you to change the name of the
video clip.
Move to favorite videos
/
images
: moves the
video clip to the
Favorite videos
folder.
Move to download videos
/
Move to videos
:
moves the video clips to the
Download videos
or
videos
folder.
Share for bluetooth
: ??
Protection
: locks the video clip to keep it from
being deleted.
Properties
: shows you information of the video
clip.
Music
(Menu 6.3)
In this menu, you can access music files
downloaded from the wireless web, or imported
from your computer to the phone through the
EasyStudio II programme.
Playing Music
1. Select a file and press the
Options
soft key.
2. Select
Play
and press the
Select
soft key.
File manager
122
You can use the following keys while playing a
file:
Using music file options
Press the
Options
soft key to access the following
options:
Play
: begins playing the music file.
Send via
: allows you to send the music file using
the messaging feature or Bluetooth feature.
Add to playlist
: allows you to music files to the
play list.
Set as
: allows you to set the file as your ring tone
or as a caller melody for an entry in Phonebook.
Delete
: allows you to delete the music file or all
music files.
Key Function
pauses or resume playback.
Left returns to the previous file.
Right skips to the next file.
Down stops playback.
Up opens the play list.
/ adjusts the volume level.
1
changes the equalizer mode.
2
changes the skin colour.
3
turns the shuffle mode on or off.
4
turns the 3D sound on or off.
5
changes the repeat mode.
File manager
123
Rename
: allows you to change the file name.
Share for bluetooth
: ??
Protection
: locks the music file to keep it from
being deleted.
Properties
: shows you information of the music
file.
Sounds
(Menu 6.4)
In this menu, you can access sound files you have
recorded, downloaded from the wireless web, or
received in messages.
Playing a sound clip
1. Select a sound folder and press the
Select
soft
key.
2. Select a sound clip and press the
Options
soft
key.
3. Select
Play
and press the
Select
soft key.
You can use the following options while playing a
sound clip:
To Press the
pause
Pause
soft key.
resume
Play
soft key.
move backward Left key.
move forward Right key.
adjust the volume Volume keys.
File manager
124
Using Sound clip options
Press the
Options
soft key to access the following
options:
Play
: plays the voice memo.
Send via
: allows you to send the sound clip by
using the messaging feature or the Bluetooth
feature.
Delete
: allows you to delete the selected sound clip
or all sound clips.
Rename
: allows you to change the name of the
sound clip.
Move to favorite sounds
: moves the sound clip to
the
Favorite sounds
folder.
Move to voice list
/
Move to download sounds
:
moves the sound clip to the
voice list
or
Download sounds
folder.
Share for bluetooth
: ??
Protection
: locks the sound clip to keep it from
being deleted.
Properties
: shows you information of the sound
clip.
switch to Record
mode Up key.
stop Down key.
To Press the
File manager
125
Other files
(Menu 6.5)
?????
Using file options
Press the
Options
soft key to access the following
options:
Send via
: allows you to send the file by using the
messaging feature or the Bluetooth feature.
Delete
: allows you to delete the selected file or all
files.
Rename
: allows you to change the file name.
Share for bluetooth
: ??
Protection
: locks the file to keep it from being
deleted.
Properties
: shows you information of the file.
Memory status
(Menu 6.6)
You can check the total amount of memory for
media files and the amount of memory currently in
use each media file folder.
126
Organiser
The Organiser feature enables you to:
• keep track of your schedule, anniversaries, and
tasks and make a memo.
• view missed alarm events.
Scheduling a new event
You can schedule up to 400 events for the calendar.
More than one event per day can be scheduled.
Entering a new schedule event
1. After selecting a day on the calendar, press the
Options
soft key.
2. Select
Create
and press the
Select
soft key.
3. Select
Schedule
and press the
Select
soft key.
4. Enter information or select the settings you want
in the following field:
•
Subject
: enter the title of the event. See
page 33 for more information about entering
characters.
•
Details
: enter the event details.
•
Start date
: enter the starting date.
•
Start time
: enter the starting time of the
event.
•
AM/PM
: select
AM
or
PM
. This option is only
available when the time format is set to
12-
hour
.
•
End date
: enter the ending date of the event.
Organiser
127
•
End time
: enter the ending time.
•
AM/PM
: select
AM
or
PM
. This option is only
available when the time format is set to
12-
hour
.
•
Location
: enter information about the event
location.
•
Alarm
: press the key to set an alarm to
remind you of the event.
•
Before
: set when the alarm will alert you
before the event starts; enter the number you
want and select a unit.
•
Ringtone
: select an alarm tone.
•
Repeat
: if you are making a recurring event,
press the key. Select a repeat unit.
•
Until
: set the ending date for the repeat entry.
5. When you finish entering the event, press the
Save
soft key.
Entering a new anniversary
1. After selecting a day on the calendar, press the
Options
soft key.
2. Select
Create
and press the
Select
soft key.
3. Select
Anniversary
and press the
Select
soft
key.
4. Enter information or select the settings you want
in the following field:
•
Occasion
: enter information about the
occasion. See page 33 for more information
about entering characters.
•
Date
: enter the date.
Organiser
128
•
Alarm
: press the key to set an alarm to
remind you of the event
•
Before
: set when the alarm will alert you
before the day arrives; enter the number you
want and select a unit.
•
Ringtone
: enter the time when the alarm
sounds.
•
AM/PM
: select
AM
or
PM
. This option is only
available when the time format is set to
12-
hour
.
•
Alarmtone
: select an alarm tone.
•
Repeat every year
: press the key to set
the phone to remind you every year.
5. When you finish entering the anniversary, press
the
Save
soft key.
Entering a memo
1. After selecting a day on the calendar, press the
Options
soft key.
2. Select
Create
and press the
Select
soft key.
3. Select
Memo
and press the
Select
soft key.
4. Enter a memo and press the
Save
soft key.
Entering a task
1. After selecting a day on the calendar, press the
Options
soft key.
2. Select
Create
and press the
Select
soft key.
3. Select
To do
and press the
Select
soft key.
Organiser
129
4. Enter information you want or select the settings
you want in the following field:
•
To do
: enter information about the task.
•
Start date
: enter the starting date.
•
Due date
: enter the ending date.
•
Select priority
: select a priority level.
5. When you finish entering the task, press the
Save
soft key.
Consulting the calendar
When you select the
Organiser
menu (
Menu 7.1
),
the calendar displays with today’s date indicated by
a blue box. At the bottom of the calendar, the
number of events scheduled for that day displays.
The following icons tell you what kind of events they
are:
• : Schedule events
• : Anniversaries
•: Tasks
•: Memos
Viewing an event
Square brackets on each corner of a calendar day
indicate the type of events:
• Blue: Schedule events
• Orange: Anniversaries
•Green: Memos
•Red: Tasks
Organiser
130
When you access a day for which an event already
exists on the calendar, a list of the events you have
created displays in Day view. Scroll to an event and
press the key to view its details.
Using the calendar options
The following options are available when you press
the
Options
soft key:
View mode
: allows you to change the view mode of
the calendar. For details, see page 130.
Create
: allows you to add a new event. For details,
see page 126.
Go to
: allows you to go to a specific date.
Sort by
: allows you to change the sort order.
Delete
: allows you to delete events for the selected
date, specific period or current month/week. You
can also delete all of the events in the calendar.
Missed alarm events
: allows you to view events
for which you have missed alarms.
Memory status
: allows you to view the number of
events you have saved and the total number of
events you can save for each type.
Viewing the calendar in different
views
By default, the calendar displays in Month view. You
can change the view mode to Day view or Week
view.
To change the view mode, press the
Options
soft
key and select
View mode
. Then, select the view
mode you want.
Organiser
131
Day view
In Day view, the calendar shows the list of events
for a day.
The following icons may be shown depending on the
event’s status.
• : Alarm set for the event
• : Recurring event
• : Task of high priority
• : Task of normal priority
• : Task of low priority
•: Completed task
Viewing an event
• Press the Left or Right key to move to other day
views.
• Press the Up or Down key to scroll through the
events for the selected day.
• Press the key to view the event details.
To change the event details, press the
Options
soft key and select
Edit
.
Week view
In Week view, the calendar shows the time line of a
week.
Square brackets on each corner of a day of the
week on the top line indicate the type of events:
• Blue: Schedule events
• Orange: Anniversaries
Organiser
132
•Green: Memos
•Red: Tasks
The pink-coloured cell indicates that there are
schedule events for that time.
Select any cell in the day you want to view and
press the key. The Day view of that day displays.
Viewing missed alarm events
When you are unable to acknowledge an alarm for
an event you have set, the phone displays a
notification about the missed alarm. When a
notification appears, press the
View
soft key to
view the corresponding event. Otherwise, press the
Exit
soft key.
To view a missed alarm event press the
Options
soft key and select
Missed event alarms
.
After checking the missed event, press the
Confirm
soft key. The event is deleted from the missed
event list.
On the event list, press the
Options
soft key to
access the following options:
View
: shows you the event.
Delete
: allows you to delete the event.
Delete all
: allows you to delete all events.
133
Camera
Using the camera module embedded in your phone,
you can take photos of people or events while on
the move.
You can also record videos using the phone as a
camcorder.
CAUTION
:
• Do not take photos of people without their
permission.
• Do not take photos in a place where cameras are not
allowed.
• Do not take photos in a place where you may
interfere with another person’s privacy.
Take a photo
(Menu 8.1)
The camera produces JPEG photos.
Note
: When you take a photo in direct sunlight or in
bright conditions, shadows may appear on the
photo.
Taking a photo
1. Access the
Take a photo
menu. You can also
press and hold the
Camera key
on the right side
of the phone in Idle mode.
2. Adjust the image to be captured by aiming the
camera at the subject.
When you press the left soft key, you can use
the camera options. For details, see page 134.
You can quickly change the image settings or
switch to other modes by using the keypad. For
details, see page 136.
Camera
134
3. Press the key or the Camera key to take the
photo.
The photo automatically saves in the
Photos
folder.
Note
: Hold the phone still for 1 or 2 seconds after
pressing the camera shutter key. It may
take some time to process the image data.
Using camera options in Capture mode
In Capture mode, you can access various options by
pressing the left soft key.
The following options are available:
Shooting mode
: allows you to take a photo in
various modes.
•
Single shot
: allows you to take a photo in the
normal mode.
•
Multi shot
: allows you to take a series of action
stills. Select the number of photos the camera will
take. When you press the key or the Camera
key, the camera takes the photos successively.
Note
: Depending on the specified image size, the
shutter speed for series shots may vary. The
larger the image, the slower the shutter
speed.
4.
To Press the
use photo
options
Options
soft key. For further
details, see page 137.
return to Capture
mode
Back
soft key.
Camera
135
•
Mosaic shot
: allows you to take several stills and
save them in one frame. Select the number of
still images the camera will take. The images will
be saved in one frame, consisting of the multiple
stills taken.
Effects
: allows you to change the colour tone of the
photo.
Frames
: allows you to use a decorative frame.
Select a frame from the list using the Navigation
keys.
Flash
: turns the flash on or off.
Timer
: allows you to set a time delay before the
camera takes a photo. Select the length of delay
you want.
Go to Photos
: goes to the
Photos
folder.
Settings
: allows you to change the default settings
for taking a photo. The following options are
available:
•
Size
: allows you to select the image size.
•
Photo quality
: allows you to select the image
quality.
•
Viewfinder
: allows you to select a preview
screen.
•
Shutter sound
: allows you to select the sound
that you hear when you press the shutter, the
Camera key or the key.
Short cuts
: shows you the functions of the keys
you can use in Capture mode.
Camera
136
Using the keypad in Capture mode
You can use the following keys to customise your
camera settings when you are in Capture mode.
Key Function
Left/
Right adjusts the brightness of the image.
Up/
Down zooms in or out.
flips the image vertically.
shows the mirror image.
1
switches to Record mode. See page 138.
2
changes the image size.
3
changes the image quality.
4
changes the camera mode.
5
changes the colour tone of the photo.
6
reduces the distortion on the image to
maximise detail and sharpness.
7
selects a decorative frame.
8
sets the timer.
9
goes to the
Photos
folder.
0
turns the flash on or off.
changes the viewfinder to Full Screen
mode or Standard Ratio mode.
Camera
137
Using photo options
After saving a photo, press the
Options
soft key to
access the following options:
Take another
: returns to Capture mode.
Send via
: allows you to send the photo by using
the messaging feature or the Bluetooth feature.
Set as
: allows you to set the photo as your
wallpaper or as a caller ID image for an entry in
Phonebook.
Delete
: allows you to delete the photo.
Rename
: allows you to change the name of the
photo.
Go to photos
: goes to the
Photos
folder.
Protection
: locks the photo to keep it from being
deleted.
Properties
: shows you information of the photo.
Taking a photo with the phone closed
You can take a photo with the phone closed, through
the external display.
1. Press and hold the Camera key.
2. Scroll to the image setting options by pressing
the key and change the settings by pressing
the key:
• : shows the mirror image.
• : adjusts the image brightness.
• : zooms in or out.
3. Press the Camera key to take a photo.
The photo is saved automatically.
Camera
138
Record video
(Menu 8.2)
You can record a video of what is currently
displayed on the camera screen and save it as a
.3gp file.
Recording a Video
1. When the camera turns on, adjust the image by
aiming the camera at the subject.
When you press the left soft key, you can use
the camera options. For details, see page 139.
You can quickly change the image settings or
switch to other modes by using the keypad. For
details, see page 139.
2. Press the Camera key or the key to start
recording.
3. When you are finished, press the camera key or
the key. Or, recording stops when the
recording time expires.
The video clip automatically saves in the
Video
clips
folder.
4.
To Press the
play back the video
clip key.
use the video options
Options
soft key. For
further details, see
page 140.
return to Record
mode soft key.
Camera
139
Using camera options in Record mode
Press the
Options
soft key in Record mode to
Access the following options for recording a video
clip:
Effects
: allows you to change the colour tone or
apply a special effect to the video clip.
Flash
: turn the flash on or off.
Timer
: allows you to set a time delay before the
camera starts recording the video clip. Select the
length of delay you want.
Go to Videos
: goes to the
Videos
folder.
Settings
: allows you to change the default settings
for recording a video. The following options are
available:
•
Recording mode
: allows you to select a video
recording mode.
When this option is set to
Limit for
MMS
, you can
record a video for adding to an MMS message. In
this mode the frame size can be
176X144
or
128X96
and the quality in fixed to
Economy
.
When this option is set to
Normal
, you can record a
video within the limit of the current available
memory. How long your video can be depends on
how much memory has been used.
•
Size
: allows you to select the image size.
•
Video quality
: allows you to select the image
quality.
•
Viewfinder
: allows you to select a preview
screen.
•
Audio record
: allows you to record audio with a
video clip.
Camera
140
Camcorder short cuts
: shows you the functions of
the keys you can use in Record mode.
Using the keypad in Record mode
You can use the following keys to customise your
camera settings when you are in Record mode:
Key Function
Up/
Down zooms in or out.
Left/
Right adjusts the brightness of the image.
flips the image vertically.
shows the mirror image.
1
switches to Capture mode. See page 133.
2
changes the frame size.
3
changes the image quality.
4
Changes the recording mode to MMS mode
or Normal mode.
5
changes the colour tone of the video.
6
reduces the distortion on the image to
maximise detail and sharpness.
7
turns audio on or off.
8
sets the timer.
9
goes to the
Video clips
folder.
0
turns the flash on or off.
changes the viewfinder to Full Screen
mode or Standard Ratio mode.
Camera
141
Using video options
When you press the
Options
soft key after saving a
video clip, the following options are available:
Record another
: returns to Record mode.
Send via
: allows you to send the video clip by using
the messaging feature or the Bluetooth feature.
Delete
: allows you to delete the video clip.
Rename
: allows you to change the name of the
video clip.
Go to Videos
: goes to
Videos
folder.
Protection
: locks the video clip to keep it from
being deleted.
Properties
: shows you information of the video clip.
Recording a video with the phone closed
You can record a video with the phone closed,
through the external display.
1. Press and hold the Camera key.
2. Press the key to switch to Record mode.
3. Scroll to the image setting options by pressing
the key and change the settings by pressing
the key:
• : shows the mirror image.
• : adjusts the image brightness.
• : zooms in or out.
4. Press the Camera key to start recording.
5. Press the Camera key to stop.
The video clip is saved automatically.
Camera
142
Go to Photos
(Menu 8.3)
When you access this menu, a list of photos you
have taken displays.
Viewing a photo
Scroll through the list using the Up or Down key. To
view the selected photo, press the key. To go
back to the photo list, press the
Back
soft key.
Using photo options
Press the
Options
soft key to access the following
options:
Note
: Available options vary depending on whether
you are looking at the photo list or viewing a
photo.
View
: shows the photo.
List
: returns you to the photo list.
Send via
: allows to send the photo by using the
messaging feature or the Bluetooth feature.
Set as
: allows you to set the photo as your
wallpaper or as a caller ID image for an entry in
Phonebook.
Delete
: allows you to delete the photo or all
photos.
Rename
: allows you to change the name of the
photo.
Move to Favorite images
: allows you to move the
photo to the
Favorite images
folder.
Camera
143
Slide show
: set all photos to automatically display
one after another as a slide show. You can select a
time interval between photos.
Share for bluetooth
: ??
Protection
: locks the photo to keep it from being
deleted.
Properties
: shows information of the photo.
Go to Video clips
(Menu 8.4)
When you access this menu, a list of the videos you
have recorded displays.
Playing a video clip
Scroll to a video using the Up or Down key and
press the key.
During playback, you can use the following options:
To Press the
Pause playback/resume key.
move backward in the
video Left key.
move forward in the video Right key.
adjust the volume level Volume keys.
stop playback right soft key.
Camera
144
Using video clip options
Press the
Options
soft key to access the following
options:
Play
: plays the video clip.
Send
: allows you to send the video clip by using
the messaging feature or the Bluetooth feature.
Delete
: allows you to delete the video clip or all
video clips.
Rename
: allows you to change the name of the
video clip.
Move to Favorite videos
: allows you to move the
video clip to the
Favorite videos
folder.
Share for bluetooth
:
Protection
: locks the video clip to keep it from
being deleted.
Properties
: shows you information of the video
clip.
145
Settings
In this menu, you can customise your phone’s
various settings, such as:
• time and date setting
• phone settings
• display settings
• sound settings
• network services
• Bluetooth settings
• security settings
• connection settings
You can also reset the settings to their default
values.
Time & Date
(Menu 9.1)
This menu allows you to change the current time
and date displayed.
The following options are available:
Set time
: allows you to enter the current time
using the number keys.
Note
: Before setting the time, you must specify your
time zone in the
World
time
menu
(
Menu
3.4
).
AM/PM
: allows you to select
AM
or
PM
. This
option is only available when the
Time format
is
set to
12 hours
.
Settings
146
Time format
: allows you to select a time format,
12 hours
or
24 hours
.
Set date
: allows you to enter the current date
using the number keys.
Starting day of calendar
: allows you to set which
day of the week the calendar starts with.
Phone settings
(Menu 9.2)
Many different features of your phone can be
customised to suit your preferences.
Language
(Menu 9.2.1)
You can select a language for the display text.
Select one of several languages.
You can select a display language. When the
language option is set to
Automatic
, the language
is automatically selected according to the language
of the SIM card used.
Note
: Depending on your country, service provider, or
the software version of the phone, the
Automatic
option may not display.
Greeting message
(Menu 9.2.2)
This menu allows you to set a greeting to be
displayed briefly when the phone is switched on.
Settings
147
Short cut
(Menu 9.2.3)
The Navigation keys can be used as shortcut keys.
In Idle mode, they allow you to access specific
menus directly.
To assign a shortcut to a key:
1. Press the key you want to use as a shortcut key
and press the key.
2. Select the menu to be assigned and press the
Select
soft key.
On the Short cut screen, press the
Options
soft key
to access the following options:
Change
: allows you to change a shortcut menu.
Remove
: deactivates the shortcut key assignment
to the selected key.
Remove all
: deactivates all of shortcut
assignments.
Extra settings
(Menu 9.2.4)
You can turn the automatic redialling or answering
features on or off.
To activate a feature, press the key to place a
check mark.
The following options are available:
Auto redial
: when this option is enabled, the
phone makes up to 10 attempts to redial a phone
number after an unsuccessful call.
Note
: The interval between attempts varies.
Active folder
: when this option is enabled, you can
simply open the phone to answer a call.
Settings
148
Anykey
answer
: when this option is enabled, you
can answer an incoming call by pressing any key,
except the key or the
Reject
soft key. To reject
the call, press the key or the
Reject
soft key.
When this option is set to
Off
, you must press the
key or the
Accept
soft key to answer a call.
Display settings
(Menu 9.3)
In this menu, you can change various settings for
the display or the backlight.
Idle
(Menu 9.3.1)
This menu allows you to set up what is shown on
the main display or the external display in Idle
mode.
The following options are available:
Main LCD wallpaper
: allows you to change the
image to be displayed on the main display.
Sub LCD wallpaper
: allows you to change the
image to be displayed on the external display.
Text position
: allows you to select a text position.
If you don’t want text to display in Idle mode, select
Off
.
Text style
: allows to apply the shadow or outline to
text.
Text colour
: allows you to select the colour of the
text.
Graphic logo
: allows you to set phone to display
the service provider’s logo instead of its name, if
you have download one.
Settings
149
Skin
(Menu 9.3.3)
In this menu, you can select a skin colour pattern
for Menu mode. Select one of 4 patterns.
LCD brightness
(Menu 9.3.4)
You can adjust the brightness of the display to see it
better in different lighting conditions.
Back light
(Menu 9.3.5)
In this menu, you can select a length of time the
backlight is on and the display is on in Dim mode, in
which the backlight is off.
The following options are available:
Main LCD on
: allows you to select a length of time
the backlight of the main display stays on at the
time of inactivity after you open the phone or press
the last key.
Main LCD dim
: allows you to select a length of
time the main display stays on at the time of
inactivity after the backlight turns off.
Sub LCD on
: allows you to select a length of time
the backlight of the external display stays on after
you close the phone.
Fixed icon display
: allows you to set whether or
not the external display shows the fixed icons.(??)
Settings
150
Sound settings
(Menu 9.4)
You can customise various sound settings.
Note
: If the phone is in Quiet mode (see page 32), a
confirmation message appears. Press the
Yes
soft key to listen to a sound when you change a
sound setting.
Incoming call
(Menu 9.4.1)
In this menu, you can select a ring tone volume and
alert type for incoming calls.
The following options are available:
Ringtone
: allows you to select a ring melody.
Volume
: allows you to select a ring volume.
Alert type
: allows you to specify how you are to be
informed of incoming calls.
•
Melody
: the phone rings using the selected ring
tone.
•
Vibration
: the phone vibrates but does not ring.
•
Vibration then melody
: the phone vibrates
three times and then starts ringing.
Keypad tone
(Menu 9.4.2)
This menu allows you to select the tone that the
phone sounds when you press a key.
Settings
151
Message tone
(Menu 9.4.3)
This menu allows you to set up the ringers for SMS,
MMS, e-mail, and CB messages.
For each message, the following options are
available:
Tone
: allows you to use one of several message
tones.
Alert type
: allows you to specify how you are
informed of any incoming messages.
Melody
: the phone rings using the tone selected
under the
Tone
option.
Vibration
: the phone vibrates.
Vibration then melody
: the phone vibrates 6
times and then starts ringing.
Repetition
: allows you to specify how often the
phone informs you of a new message.
Power on/off
(Menu 9.4.4)
This menu allows you to select the melody that the
phone sounds when it is switched on or off.
Folder tone
(Menu 9.4.5)
This menu allows you to select the tone that the
phone sounds when you open or close the phone.
Settings
152
Quiet mode
(Menu 9.4.6)
In this menu, you can select an alert type for
incoming calls or messages when the phone is in
Quiet mode.
The following options are available:
Vibration
: the phone vibrates in Quiet mode.
Mute
: the phone mutes all sound settings in Quiet
mode.
Extra tones
(Menu 9.4.7)
You can customise additional tones for the phone.
To use a tone, select it and press the key to place
a check mark.
The following options are available:
Minute
minder
: the phone beeps every minute
during an outgoing call to keep you informed of the
length of your call.
Connection
tone
: your phone beeps when your
call is connected to the system.
Alerts on call
: the phone informs you when you
receive a new message or when the time for an
alarm comes during a call.
Indicative
tones
: the phone beeps when a pop-up
window displays.
Settings
153
Network services
(Menu 9.5)
These menu functions access network services.
Please contact your service provider to check their
availability and then subscribe to them, if you wish.
Call diverting
(Menu 9.5.1)
This network service enables incoming calls to be
rerouted to a number that you specify.
Example: You may wish to divert your business calls
to a colleague while you are on holiday.
Activating your call diverting options
1. Select a call diverting option and press the
Select
soft key.
The following options are available:
•
Divert always
: all calls are diverted.
•
Busy
: calls are diverted when you are already
on another call.
•
No
reply
: calls are diverted when you do not
answer the phone.
•
Unreachable
: calls are diverted when you are
not in an area covered by your service
provider or when your phone is switched off.
•
Cancel
all
: all call diverting options are
cancelled.
2. Select the type of calls, voice or data, and press
the
Select
soft key.
The current status displays. If the option has
already been set, the number to which the calls
are diverted displays.
Settings
154
3. Press the
Activate
soft key.
4. Enter the number to which the calls are to be
diverted and press the
OK
soft key.
To enter an international code, press the
0
key
until the
+
sign displays.
5. If you selected
No reply
in step 1, select the
length of time the network delays before
diverting a call and press the
Select
soft key.
The phone sends your settings to the network
and the network’s acknowledgement displays.
Changing the phone number for call diverting
1. Select the call diverting option to which to apply
this setting and press the
Select
soft key.
2. Select the type of calls, voice or data, and press
the
Select
soft key.
The current status displays. If the option has
already been set, the number to which the calls
are diverted displays.
3. Press the
Options
soft key.
4. Select
Change
and press the
Select
key.
5. Enter a new number and press the
OK
key.
Deactivating specific call diverting options
1. Select the call diverting options to be
deactivated and press the
Select
soft key.
2. Select the type of calls to which this option
applies and press the
Select
soft key.
Settings
155
3. Press the
Options
soft key and select
Remove
.
4. Press the
Select
soft key.
Call barring
(Menu 9.5.2)
The call barring network service allows you to
restrict your calls.
Activating call barring options
1. Select a call barring option and press the
Select
soft key.
The following options are available:
•
All
outgoing
: calls cannot be made.
•
International
: international calls cannot be
made.
•
International
except
to
home
: when
abroad, calls can be made only to numbers
within the current country and to your home
country, which is the country where your home
network provider is located.
•
All
incoming
: calls cannot be received.
•
Incoming
while
abroad
: calls cannot be
received when you are using your phone
outside of your home country.
•
Cancel
all
: all call barring settings are
deactivated; calls can be made and received
normally.
2. Select the type of calls, voice or data and press
the
Select
soft key.
3. Select the
Activate
soft key.
Settings
156
4. Enter the call barring password supplied by your
service provider and press the
OK
soft key.
The phone sends your settings to the network
and the network’s acknowledgement displays.
Changing the barring password
1. Select
Change barring password
and press
the
Select
soft key.
2. Enter the current password and press the
OK
soft key.
3. Enter a new password and press the
OK
soft
key.
Enter the new password again and press the
OK
soft key.
Deactivating specific call barring settings
1. Select the call barring option to be deactivated
and press the
Select
soft key.
2. Select the type of calls to which this option
applies and press the
Select
soft key.
3. Press the
Deactivate
soft key.
4. Enter the call barring password supplied by your
service provider and press the
OK
soft key.
The phone sends your settings to the network
and the network’s acknowledgement displays.
Settings
157
Call waiting
(Menu 9.5.3)
This network service informs you when someone is
trying to reach you during another call.
You can specify individual call waiting options for
voice calls and/or data calls.
To set your call waiting options:
1. Select the type of calls, voice or data, to which
you want to apply the call waiting option and
then press the
Select
soft key.
The screen informs you whether call waiting is
activated or deactivated.
2. You can activate or deactivate the call waiting
feature as necessary by selecting the
Activate
or
Deactivate
option respectively and press the
Select
soft key.
To return to the previous screen, press the
Back
soft key.
You can also deactivate all call waiting settings by
selecting the
Cancel
all
option.
Network selection
(Menu 9.5.4)
The Network Selection feature enables you to
automatically or manually select the network used
when roaming outside of your home area.
Note
: You can select a network other than your home
network only if there is a valid roaming
agreement between the two.
Settings
158
To automatically or manually select the network to
be used when roaming:
1. Select the appropriate option and press the
Select
soft key.
If you select
Automatic
, you are connected to
the first available network when roaming.
If you select
Manual
, go to step 2.
2. Press the Up or Down key until the network you
want highlights and then press the
OK
soft key.
The phone will scan for that network and you
will be connected.
Caller ID
(Menu 9.5.5)
You can prevent your phone number from being
displayed on the phone of the person being called.
Note
: Some networks do not allow the user to change
this setting.
The following options are available:
Default
: the default setting provided by the
network is used.
Hide
number
: your number does not display on
the other person’s phone.
Send
number
: your number is sent each time you
make a call.
Settings
159
Voice mail
(Menu 9.5.6)
This menu allows you to access your voice mail box,
if your network supports this service.
The following options are available:
Connect to voice server
: allows you to connect to
your voice mail server and listen to your voice mails.
Before using the voicemail feature, you must enter
the voice mail server number obtained from your
service provider.
Note
: You can quickly connect to the voice mail server
by pressing and holding the
1
key in Idle mode.
Voice server number
: allows you to change the
voice mail server number, if necessary.
Closed user group
(Menu 9.5.7)
This network service allows incoming and outgoing
calls to be restricted to a selected user group. You
can create up to 10 user groups.
Example: A company lends SIM cards to its
employees and wants to restrict outgoing
calls to members of the same team.
For details about how to create and use a closed
user group, contact your service provider.
In the
Close user group
menu, you can access the
following options to set up the CUG feature:
Index list
: lets you list, add, or delete CUG index
numbers.
If there is no CUG index stored, you are prompted
to add a new index when you select this option.
Once you have added a CUG index, the list of
current CUG indexes appears.
Settings
160
Add a new CUG index as advised by your service
provider, or delete a group.
Outside
access
: lets you enable or disable calls to
numbers other than those in the Closed user group.
This feature depends on the nature of your CUG
subscription. Please check with your service
provider.
Default
group
: you may set a default CUG with
your service provider. If you have done so, you can
enable the
Default
group
option on your phone.
When making a call, you are given the option of
using your default CUG, instead of selecting one
from the list.
Deactivate
: deactivates the CUG function. This
menu appears only when the default group is
enabled or a CUG index is selected.
To Press the
scroll through
existing CUG indexes Up or Down key.
add a new CUG index
Options
soft key select
Add
and enter the index.
delete a CUG index
Options
soft key and select
Delete
.
activate a CUG index
Options
soft key and select
Activate
.
Settings
161
Band selection
(Menu 9.5.8)
For the phone to make and receive phone calls, it
must register with an available network. Your phone
can handle any of the following types of networks:
• GSM 1900
• Combined GSM 900/1800
The country where you purchased your phone
determines the default band that it uses. When you
travel abroad, you must remember to change to an
appropriate band.
1. Select the appropriate option and press the
OK
soft key.
2. When the display confirms the network band
you selected, press the
Yes
soft key.
To cancel the selection, press the
No
soft key.
When you select a new band, your phone
automatically searches for all available networks.
Your phone registers with a preferred network
within the band.
Bluetooth
(Menu 9.6)
Bluetooth technology enables cost-free wireless
connections between electronic devices within a
maximum range of 10 meters. A Bluetooth
connection can be used to send photos, images,
videos, messages, scheduled items, and to connect
wirelessly to devices using Bluetooth technology,
such as computers.
Settings
162
Since Bluetooth devices communicate using radio
waves, your phone and the other Bluetooth device
do not need to be in line of sight to each other.
The 2 devices only need to be within a maximum of
10 meters of each other, although the connection
can be subjected to interference from obstructions,
such as walls or other electronic devices. In some
countries, there may be restrictions on using
Bluetooth devices. Please contact your service
provider.
Setting up the Bluetooth feature
When you access
Bluetooth
menu, you can access
the following options:
Activation
: allows you to activate the Bluetooth
feature.
My devices
: allows you to search for connectable
Bluetooth devices. For details, see the following
page.
My phone’s visibility
: allows you to set whether
or not your phone is available to other Bluetooth
devices.
My phone’s name
: allows you to change your
phone’s Bluetooth device name, which is displayed
on other devices. You can enter up to 32 characters.
Secure mode
: allows you to select whether or not
the phone asks for your confirmation when other
devices access your data.
Bluetooth services
: shows a list of the Bluetooth
services you can use.
Settings
163
Searching for and pairing a Bluetooth
device
1. Select
My devices
from the Bluetooth setting
options and press the
Select
soft key.
2. Press the
Select
soft key when
Search new
device
highlights.
If you have searched for devices before, the
phone displays the
More devices
option along
with the devices you have searched for
previously. To search for new devices, select the
More devices
option and press the
Select
soft
key.
3. Scroll to a device and press the
Select
soft key
to connect to the device to be paired.
After searching for connectable devices, a list of
devices you can connect to displays. The icon on
the left of the device tells you the kind of device:
• for a handsfree or headset
• for a mobile phone
• for a computer
• for a PDA
• for an unknown device
The colour of the icon tells you the status of the
device; grey for unpaired devices, blue for
paired devices, and red for devices that are
currently connected to your phone.
4. Enter the PIN code and press the
OK
soft key.
Settings
164
Using device options
When you press the
Options
soft key on the device
list, you can access the following options:
Browse files
: allows you to search for data from
other devices and take data directly to your phone.
Rename
: allows you to change the name of the
paired device.
Authorise
/
Unauthorise device
: allows you to set
whether or not the phone asks you to permit
connection when other devices try to connect to
your phone.
Delete
: allows you to delete the device.
Security
(Menu 9.7)
The Security feature enables you to restrict the use
of your phone by others and to restrict the types of
calls made.
Various codes and passwords are used to protect
the features of your phone. They are described in
the following sections. Also see pages 172-174.
PIN check
(Menu 9.7.1)
When the PIN Check feature is enabled, you must
enter your PIN each time you switch on the phone.
Consequently, any person who does not have your
PIN cannot use your phone without your approval.
Settings
165
Change PIN
(Menu 9.7.2)
This feature allows you to change your current PIN
to a new one, provided that the PIN Check feature is
enabled.
Phone lock
(Menu 9.7.3)
When the Phone Lock feature is enabled, the phone
is locked and you must enter a 4- to 8-digit phone
password each time the phone is switched on.
The password is preset to “00000000” at the
factory. To change the phone password, see the
Change password
menu.
Change password
(Menu 9.7.4)
The Change Password feature allows you to change
your current phone password to a new one.
The password is preset to “00000000” at the
factory. Once you have entered a new 4- to 8- digit
password, you are asked to confirm it by entering it
again.
Privacy
(Menu 9.7.5)
Using this menu, you can lock your media contents,
such as multimedia messages, e-mails, images,
videos, music files, and sounds. Once you have
locked the contents, you must enter the phone’s
password to access phone functions.
Settings
166
SIM lock
(Menu 9.7.6)
When the SIM Lock feature is enabled, your phone
only works with the current SIM. You must enter
the SIM lock code to use a different SIM card.
To unlock the SIM card, you must enter the SIM
lock code.
FDN mode
(Menu 9.7.7)
FDN (Fixed Dial Number) mode, if supported by
your SIM card, allows you to restrict your outgoing
calls to a limited set of phone numbers.
Change PIN2
(Menu 9.7.8)
The Change PIN2 feature allows you to change your
current PIN2 to a new one.
Note
: Not all SIM cards have a PIN2. If your SIM card
does not, this menu does not display.
Connect settings
(Menu 9.8)
You can customize the profiles containing the
settings for connecting your phone to the network.
You need these settings to use the WAP browser or
send MMS messages or e-mails.
Note
: Your phone is suited for connecting to the
network by default. If you change the MMS
settings without first checking with your
service provider, the WAP, MMS, and e-mail
features may not work properly.
Settings
167
Changing a profile
For each profile, the following options available:
Profile name
: enter a name that you wish to
assign to the profile.
Home URL
: enter the address of the WAP
homepage of your service provider.
Proxy
: activate or deactivate the proxy server.
When you checked this option, the
IP address
and
Port
options are activated. Enter the IP address
and the port number.
DNS
: activate or deactivate the DNS address.
When you checked this option,
DNS1
and
DNS2
options are activated. Enter the DNS addresses.
Bearer
: select the network bearer type, either
GPRS
or
GSM
.
Advanced
: select to change the advanced options.
Depending on the bearer setting, available options
vary.
When the bearer is set to
GPRS
:
APN
: enter the access point name.
Login ID
: enter the login ID.
Password
: enter the login password.
When the bearer is set to
GSM
:
Dial number
: enter the PPP phone number.
Login ID
: enter the login ID.
Password
: enter the login password.
Data call type
: select a call type for data
transmission.
Settings
168
Using profile options
From the profile list, press the
Options
soft key to
access the following options:
Edit
: allows you to change properties of a profile.
Delete
: allows you to delete a profile.
Add new connection
: allows you to add a new
profile.
Reset settings
(Menu 9.9)
Using this menu, you can reset the
Phone
settings
,
Display settings
, and
Sound settings
menus individually. You can also reset all the
settings in your phone at one time.
1. Select a setting menu to reset and press the
key.
Repeat this to select more menus.
2. Press the
Reset
soft key to reset the marked
items.
3. Press the
Yes
soft key to confirm the reset.
4. Enter the 4- to 8-digit phone password and
press the
OK
soft key.
Note
: The password is preset to “00000000” at the
factory. To change this password, see
page 165.
169
Solving problems
If you are experiencing problems with your phone,
perform the following simple checks, before
contacting a service professional. This may save
you the time and expense of an unnecessary
service call.
When you switch your phone on, the
following messages may appear:
Insert SIM card
• Check that the SIM card is correctly installed.
Phone locked enter password
• The automatic locking function has been enabled.
You must enter the phone’s password before you
can use the phone.
Enter PIN
• You are using your phone for the first time. You
must enter the Personal Identification Number
(PIN) supplied with the SIM card.
• The PIN Check feature is enabled. Every time the
phone is switched on, the PIN has to be entered.
To disable this feature, use the
PIN check
menu
(
Menu 9.7.1
).
Enter PUK
• The PIN code was entered incorrectly three times
in succession and the phone is now blocked.
Enter the PUK supplied by your service provider.
Solving problems
170
“No Service,” “Network Failure” or “Not
Done” displays
• The network connection has been lost. You may
be in a weak signal area (in a tunnel or
surrounded by buildings). Move and try again.
• You are trying to access an option for which you
have not taken out a subscription with your
service provider. Contact the service provider for
further details.
You have entered a number but it was
not dialled
• Have you pressed the key?
• Are you accessing the right cellular network?
• You may have set an outgoing call barring option.
Your correspondent cannot reach you
• Is your phone switched on (the key pressed
for more than one second)?
• Are you accessing the right cellular network?
• You may have set an incoming call barring option.
Your correspondent cannot hear you
speaking
• Have you switched off the microphone?
• Are you holding the phone close enough to your
mouth? The microphone is located at the bottom
of the phone.
Solving problems
171
The phone starts beeping and
“**Warning** Low Battery” flashes on
the display
• Your battery is insufficiently charged. Recharge
the battery.
The audio quality of the call is poor
• Check the signal strength indicator on the display
( ); the number of bars indicates the signal
strength from strong ( ) to weak ( ).
• Try moving the phone slightly or moving closer to
a window if you are in a building.
No number is dialled when you recall a
Contacts entry
• Check that the number has been stored correctly,
by using the Contacts Search feature.
• Re-store the number, if necessary.
If the above guidelines do not help you to solve
the problem, take note of:
• the model and serial numbers of your phone
• your warranty details
• a clear description of the problem
Then contact your local dealer or Samsung after-
sales service.
172
Access codes
There are several access codes that are used by
your phone and its SIM card. These codes help you
protect the phone against unauthorised use.
When requested for any of the codes explained
below, enter the appropriate code (displayed as
asterisks) and press the
OK
soft key. If you make a
mistake, press the
C
key one or more times until
the incorrect digit is cleared and then continue
entering the correct code.
The access codes, except for the PUK and PUK2
codes, can be changed using the
Security
menu
(
Menu 9.7
). See page 164 for further details.
Important!
Avoid using access codes resembling
emergency numbers, such as 112, so
that you do not accidentally dial an
emergency number.
Phone password
The Phone Lock feature uses the phone password to
protect your phone against unauthorised use. The
phone password is supplied with the phone and is
preset to “00000000” at the factory.
To See
activate/deactivate the
Phone Lock feature page 165 (
Menu 9.7.3
).
change the phone
password page 165 (
Menu 9.7.4
).
Access codes
173
PIN
The
P
ersonal
I
dentification
N
umber or PIN (4 to
8 digits) protects your SIM card against
unauthorised use. It is usually supplied with the
SIM card.
If you enter an incorrect PIN three times in
succession, the code is disabled and cannot be used
until you re-enable it by entering the PUK (see
below).
PUK
The 8-digit PUK (
P
IN
U
nblocking
K
ey) is required to
change a disabled PIN. The PUK may be supplied
with the SIM card. If not, or if you have lost it,
contact your service provider.
To re-enable your PIN:
1. Enter the PUK and press the
OK
soft key.
2. Enter a new PIN of your choice and press the
OK
soft key.
3. When the
Confirm New PIN
message displays,
enter the same code again and press the
OK
soft key.
If you enter an incorrect PUK ten times in
succession, the SIM card becomes invalid. Contact
your service provider for a new card.
To See
activate/deactivate the
PIN Check feature page 164 (
Menu 9.7.1
).
change the PIN page 165 (
Menu 9.7.2
).
Access codes
174
PIN2
The PIN2 (4 to 8 digits), supplied with some SIM
cards, is required to access specific functions, such
as setting the maximum cost of a call. These
functions are available if supported by your SIM
card.
If you enter an incorrect PIN2 three times in
succession, the code is disabled and you cannot
access the functions until you re-enable it by
entering the PUK2.
To change the PIN2, see page 166 (
Menu 9.7.8
).
PUK2
The 8-digit PUK2 (
P
IN
U
nblocking
K
ey
2
), supplied
with some SIM cards, is required to change a
disabled PIN2. If you lose the code, contact your
service provider.
To re-enable your PIN2:
1. Enter the PUK2 and press the
OK
soft key.
2. Enter a new PIN2 of your choice and press the
OK
soft key.
3. When the
Confirm PIN2
message displays,
enter the same code again and press the
OK
soft key.
If you enter an incorrect PUK2 ten times in
succession, you will not be able to access the
functions requiring the PIN2. Contact your service
provider for a new card.
Access codes
175
Barring password
A 4-digit barring password is required when you use
the Call Barring function. You can obtain the
password from your service provider when you
subscribe to this function.
You can change this password in the
Call
barring
menu (
Menu 9.5.2
). See page 155 for further
details.
176
Health and safety
information
SAR certification information
Your wireless phone is a radio transmitter and
receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S.
Government. These limits are part of
comprehensive guidelines and establish permitted
levels of RF energy for the general population. The
guidelines are based on the safety standards that
were developed by independent scientific
organizations through periodic and through
evaluation of scientific studies.
The standards include a substantial safety margin
designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless phones employs
a unit of measurement known as Specific
Absorption Rate (SAR). The SAR limit recommended
by the FCC is 1.6W/kg.
*
*
n the U.S. and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one
gram of tissue. The standard incorporates a substantial
margin of safety to give additional protection for the public
and to account for any variations in measurements
.
Health and safety information
177
SAR tests are conducted using standard operating
positions specified by the FCC with the phone
transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can
be well below the maximum value. This is because
the phone is designed to operate at multiple power
levels so as to use only the power required to reach
the network. In general, the closer you are to a
wireless base station antenna, the lower the power
output of the phone.
Before a new model phone is available for sale to
the public, it must be tested and certified to the FCC
that it does not exceed the limit established by the
government-adopted requirement for safe
exposure. The tests are performed in positions and
locations (e.g., at the ear and worn on the body) as
required by the FCC for each model. While there
may be differences between the SAR levels of
various phones and at various positions, they all
meet the government requirement.
The FCC has granted an Equipment Authorization
for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found
under the Display Grant section of http://
www.fcc.gov/oet/fccid after searching on FCC ID
printed in the label on the phone.
FCC certification information for this model phone is
attached separation paper.
Health and safety information
178
For body operation
To maintain compliance with FCC RF exposure require-
ments, use only belt-clips, holsters or similar
accessories that maintain a 1.5 cm. separation distance
between the user's body and the back of the phone,
including the antenna. The use of belt-clips, holsters
and similar accessories should not contain metallic
components in its assembly. The use of accessories
that do not satisfy these requirements may not comply
with FCC RF exposure requirements, and should
be avoided.
For more Information concerning exposure to radio
frequency signals, see the following websites:
Federal Communications Commission (FCC)
http://www.fcc.gov
Cellular Telecommunications Industry Association
(CTIA): http://www.wow-com.com
U.S.Food and Drug Administration (FDA)
http://www.fda.gov/cdrh/consumer
World Health Organization (WHO)
http://www.who.int/peh-emf/en
Health and safety information
179
Precautions when using batteries
• Never use any charger or battery that is damaged
in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network’s base
station, it uses less power; talk and standby time
are greatly affected by the signal strength on the
cellular network and the parameters set by the
network operator.
• Battery charging time depends on the remaining
battery charge and the type of battery and
charger used. The battery can be charged and
discharged hundreds of times, but it will gradually
wear out. When the operation time (talk time and
standby time) is noticeably shorter than normal,
it is time to buy a new battery.
• If left unused, a fully charged battery will
discharge itself over time.
• Use only Samsung-approved batteries and
recharge your battery only with Samsung-
approved chargers. When a charger is not in use,
disconnect it from the power source. Do not leave
the battery connected to a charger for more than
a week, since overcharging may shorten its life.
• Extreme temperatures will affect the charging
capacity of your battery: it may require cooling or
warming first.
• Do not leave the battery in hot or cold places,
such as in a car in summer or winter conditions,
as you will reduce the capacity and lifetime of the
battery. Always try to keep the battery at room
temperature. A phone with a hot or cold battery
may temporarily not work, even when the battery
is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C (32 °F).
Health and safety information
180
• Do not short-circuit the battery. Accidental short-
circuiting can occur when a metallic object (coin,
clip or pen) causes a direct connection between
the + and – terminals of the battery (metal strips
on the battery), for example when you carry a
spare battery in a pocket or bag. Short-circuiting
the terminals may damage the battery or the
object causing the short-circuiting.
• Dispose of used batteries in accordance with local
regulations. Always recycle. Do not dispose of
batteries in a fire.
Road safety
Your wireless phone gives you the powerful ability
to communicate by voice, almost anywhere,
anytime. But an important responsibility
accompanies the benefits of wireless phones, one
that every user must uphold.
When driving a car, driving is your first
responsibility. When using your wireless phone
behind the wheel of a car, practice good common
sense and remember the following tips:
1. Get to know your wireless phone and its
features, such as speed dial and redial. If
available, these features help you to place your
call without taking your attention off the road.
2. When available, use a hands-free device. If
possible, add an extra layer of convenience and
safety to your wireless phone with one of the
many hands-free accessories available today.
3. Position your wireless phone within easy reach.
Be able to access your wireless phone without
removing your eyes from the road. If you get an
incoming call at an inconvenient time, let your
voice mail answer it for you.
Health and safety information
181
4. Let the person you are speaking with know you
are driving; if necessary, suspend the call in
heavy traffic or hazardous weather conditions.
Rain, sleet, snow, ice and even heavy traffic can
be hazardous.
5. Do not take notes or look up phone numbers
while driving. Jotting down a To Do list or
flipping through your phonebook takes your
attention away from your primary responsibility,
driving safely.
6. Dial sensibly and assess the traffic; if possible,
place calls when you are not moving or before
pulling into traffic. Try to plan calls when your
car will be stationary. If you need to make a call
while moving, dial only a few numbers, check
the road and your mirrors, then continue.
7. Do not engage in stressful or emotional
conversations that may be distracting. Make the
people with whom you are talking aware that
you are driving and suspend conversations that
have the potential to divert your attention from
the road.
8. Use your wireless phone to call for help. Dial the
emergency number in the case of fire, traffic
accident or medical emergencies. Remember, it
is a free call on your wireless phone!
9. Use your wireless phone to help others in
emergencies. If you see a car accident, crime in
progress or other serious emergency where
lives are in danger, call the emergency number,
as you would want others to do for you.
10. Call roadside assistance or a special non-
emergency wireles assistance number when
necessary. If you see a broken-down vehicle
Health and safety information
182
posing no serious hazard, a broken traffic
signal, a minor traffic accident where no one
appears injured, or a vehicle you know to be
stolen, call roadside assistance or any other
special non-emergency wireless number.
Operating environment
Remember to follow any special regulations in force
in any area and always switch your phone off
whenever it is forbidden to use it, or when it may
cause interference or danger.
When connecting the phone or any accessory to
another device, read its user’s guide for detailed
safety instructions. Do not connect incompatible
products.
As with other mobile radio transmitting equipment,
users are advised that for the satisfactory operation
of the equipment and for the safety of personnel, it
is recommended that the equipment should only be
used in the normal operating position (held to your
ear with the antenna pointing over your shoulder).
Health and safety information
183
Electronic devices
Most modern electronic equipment is shielded from
radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against
the RF signals from your wireless phone. Consult
the manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a
minimum distance of 15 cm (6 inches) be
maintained between a wireless phone and a
pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent
with the independent research and
recommendations of Wireless Technology Research.
Persons with pacemakers:
• should always keep the phone more than 15 cm
(6 inches) from their pacemaker when the phone
is switched on.
• should not carry the phone in a breast pocket.
• should use the ear opposite the pacemaker to
minimize potential interference.
If you have any reason to suspect that interference
is taking place, switch your phone off immediately.
Hearing aids
Some digital wireless phones may interfere with
some hearing aids. In the event of such
interference, you may wish to consult your hearing
aid manufacturer to discuss alternatives.
Health and safety information
184
Other medical devices
If you use any other personal medical devices,
consult the manufacturer of your device to
determine if it is adequately shielded from external
RF energy. Your physician may be able to assist you
in obtaining this information. Switch your phone off
in health care facilities when any regulations posted
in these areas instruct you to do so. Hospitals or
health care facilities may be using equipment that
could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
representative regarding your vehicle.
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Posted facilities
Switch your phone off in any facility where posted
notices require you to do so.
Health and safety information
185
Potentially explosive environments
Switch your phone off when in any area with a
potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause
an explosion or fire resulting in bodily injury or even
death.
Users are advised to switch the phone off while at a
refueling point (service station). Users are
reminded of the need to observe restrictions on the
use of radio equipment in fuel depots (fuel storage
and distribution areas), chemical plants or where
blasting operations are in progress.
Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include
below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas
(such as propane or butane), areas where the air
contains chemicals or particles, such as grain, dust
or metal powders, and any other area where you
would normally be advised to turn off your vehicle
engine.
Emergency calls
This phone, like any wireless phone, operates using
radio signals, wireless and landline networks as well
as user-programmed functions, which cannot
guarantee connection in all conditions. Therefore,
you should never rely solely on any wireless phone
for essential communications (medical
emergencies, for example).
Remember, to make or receive any calls the phone
must be switched on and in a service area with
adequate signal strength. Emergency calls may not
Health and safety information
186
be possible on all wireless phone networks or when
certain network services and/or phone features are
in use. Check with local service providers.
To make an emergency call:
1. If the phone is not on, switch it on.
2. Key in the emergency number for your present
location (for example, 911 or other official
emergency number). Emergency numbers vary
by location.
3. Press the key.
If certain features are in use (call barring, for
example), you may first need to deactivate those
features before you can make an emergency call.
Consult this document and your local cellular
service provider.
When making an emergency call, remember to give
all the necessary information as accurately as
possible. Remember that your phone may be the
only means of communication at the scene of an
accident; do not cut off the call until given
permission to do so.
Health and safety information
187
Other important safety information
• Only qualified personnel should service the phone
or install the phone in a vehicle. Faulty
installation or service may be dangerous and may
invalidate any warranty applicable to the device.
• Check regularly that all wireless phone equipment
in your vehicle is mounted and operating
properly.
• Do not store or carry flammable liquids, gases or
explosive materials in the same compartment as
the phone, its parts or accessories.
• For vehicles equipped with an air bag, remember
that an air bag inflates with great force. Do not
place objects, including both installed or portable
wireless equipment in the area over the air bag or
in the air bag deployment area. If wireless
equipment is improperly installed and the air bag
inflates, serious injury could result.
• Switch your phone off before boarding an aircraft.
The use of wireless phones in aircraft may be
dangerous to the operation of the aircraft, and is
illegal.
• Failure to observe these instructions may lead to
the suspension or denial of telephone services to
the offender, or legal action, or both.
Health and safety information
188
Care and maintenance
Your phone is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for
many years
• Keep the phone and all its parts and accessories
out of the reach of small children’s.
• Keep the phone dry. Precipitation, humidity and
liquids contain minerals that will corrode
electronic circuits.
• Do not use the phone with a wet hand. Doing so
may cause an electric shock to you or damage to
the phone.
• Do not use or store the phone in dusty, dirty
areas, as its moving parts may be damaged.
• Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt
certain plastics.
• Do not store the phone in cold areas. When the
phone warms up to its normal operating
temperature, moisture can form inside the
phone, which may damage the phone’s electronic
circuit boards.
• Do not drop, knock or shake the phone. Rough
handling can break internal circuit boards.
• Do not use harsh chemicals, cleaning solvents or
strong detergents to clean the phone. Wipe it
with a soft cloth slightly dampened in a mild
soap-and-water solution.
Health and safety information
189
• Do not paint the phone. Paint can clog the
device’s moving parts and prevent proper
operation.
• Do not put the phone in or on heating devices,
such as a microwave oven, a stove or a radiator.
The phone may explode when overheated.
• Use only the supplied or an approved
replacement antenna. Unauthorised antennas or
modified accessories may damage the phone and
violate regulations governing radio devices.
• If the phone, battery, charger or any accessory is
not working properly, take it to your nearest
qualified service facility. The personnel there will
assist you, and if necessary, arrange for service.
Acknowledging special precautions and
the FCC and industry Canada n187otice
Cautions
Modifications not expressly approved by the party
responsible for compliance could void the user's
authority to operate the equipment.
FCC Compliance Information
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference
received.
Including interference that may cause undesired
operation.
Health and safety information
190
Information to User
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
This equipment generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV
technician for help.
Appendix A: CERTIFICATION INFORMATION (SAR)
191
Appendix A: CERTIFICATION
INFORMATION (SAR)
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and
receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radio
frequency(RF) energy set by the Federal
Communications Commission of the U.S.
Government. These limits are part of
comprehensive guidelines and establish permitted
levels of RF energy for the general population. The
guidelines are based on safety standards that were
developed by independent scientific organizations
through periodic and thorough evaluation of
scientific studies. The standards include a
substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones
employs a unit of measurement known as the
Specific Absorption Rate (SAR). The SAR limit set
by the FCC is 1.6 W/kg. SAR Tests are conducted
using standard operating positions accepted by the
FCC with the phone transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest
certified power level, the actual SAR level of the
phone while operating can be well below the
maximum value. This is because the phone is
designed to operate at multiple power levels so as
to use only the power required to reach the
network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
Before a new model phone is available for sale to
the public, it must be tested and certified to the FCC
Appendix A: CERTIFICATION INFORMATION (SAR)
192
that it does not exceed the limit established by the
government-adopted requirement for safe
exposure. The tests are performed in positions and
locations(e.g., at the ear and worn on the body) as
required by the FCC for each model.
The highest SAR values for this model phone as
reported to the FCC are Head: 1.48W/Kg, Body-
worn: 0.546W/Kg.
The FCC has granted an Equipment Authorization
for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found
under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on
FCC ID A3LSGHE880.
In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kilogram (W/kg)
averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give
additional protection for the public and to account for any
variations in measurements.
Appendix B: Guide to Safe and Responsible Wireless
193
Appendix B: Guide to Safe and
Responsible Wireless Phone Use
Cellular Telecommunications & Internet Association
“Safety is the most important call you will ever
make.”
A Guide to Safe and Responsible Wireless
Phone Use
TENS OF MILLIONS OF PEOPLE IN THE U.S. TODAY
TAKE ADVANTAGE OF THE UNIQUE COMBINATION
OF CONVENIENCE, SAFETY AND VALUE DELIVERED
BY THE WIRELESS TELEPHONE. QUITE SIMPLY, THE
WIRELESS PHONE GIVES PEOPLE THE POWERFUL
ABILITY TO COMMUNICATE BY VOICE-ALMOST
ANYWHERE, ANYTIME-WITH THE BOSS, WITH A
CLIENT, WITH THE KIDS, WITH EMERGENCY
PERSONNEL OR EVEN WITH THE POLICE. EACH
YEAR, AMERICANS MAKE BILLIONS OF CALLS FROM
THEIR WIRELESS PHONES, AND THE NUMBERS ARE
RAPIDLY GROWING.
But an important responsibility accompanies those
benefits, one that every wireless phone user must
uphold. When driving a car, driving is your first
responsibility. A wireless phone can be an
invaluable tool, but good judgment must be
exercised at all times while driving a motor vehicle-
whether on the phone or not.
The basic lessons are ones we all learned as
teenagers. Driving requires alertness, caution and
courtesy. It requires a heavy dose of basic common
sense-keep your head up, keep your eyes on the
road, check your mirrors frequently and watch out
for other drivers. It requires obeying all traffic signs
and signals and staying within the speed limit.
It means using seat belts and requiring other
passengers to do the same.
But with wireless phone use, driving safely means a
little more. This brochure is a call to wireless phone
Appendix B: Guide to Safe and Responsible Wireless
194
users everywhere to make safety their first priority
when behind the wheel of a car. Wireless
telecommunications is keeping us in touch,
simplifying our lives, protecting us in emergencies
and providing opportunities to help others in need.
When it comes to the use of wireless phones, safety
is your most important call.
Wireless Phone “Safety Tips”
Below are safety tips to follow while driving and
using a wireless phone which should be easy to
remember:
1. Get to know your wireless phone and its features
such as speed dial and redial. Carefully read your
instruction manual and learn to take advantage of
valuable features most phones offer, including
automatic redial and memory. Also, work to
memorize the phone keypad so you can use the
speed dial function without taking your attention
off the road.
2. When available, use a hands free device. A
number of hands free wireless phone accessories
are readily available today. Whether you choose
an installed mounted device for your wireless
phone or a speaker phone accessory, take
advantage of these devices if available to you.
3. Position your wireless phone within easy reach.
Make sure you place your wireless phone within
easy reach and where you can grab it without
removing your eyes from the road. If you get an
incoming call at an inconvenient time, if possible,
let your voice mail answer it for you.
4. Suspend conversations during hazardous driving
conditions or situations. Let the person you are
speaking with know you are driving; if necessary,
suspend the call in heavy traffic or hazardous
weather conditions. Rain, sleet, snow and ice can
be hazardous, but so is heavy traffic. As a driver,
Appendix B: Guide to Safe and Responsible Wireless
195
your first responsibility is to pay attention to the
road.
5. Do not take notes or look up phone numbers
while driving. If you are reading an address book
or business card, or writing a “to do” list while
driving a car, you are not watching where you are
going. It’s common sense. Don’t get caught in a
dangerous situation because you are reading or
writing and not paying attention to the road or
nearby vehicles.
6. Dial sensibly and assess the traffic; if possible,
place calls when you are not moving or before
pulling into traffic. Try to plan your calls before
you begin your trip or attempt to coincide your
calls with times you may be stopped at a stop
sign, red light or otherwise stationary. But if you
need to dial while driving, follow this simple tip-
dial only a few numbers, check the road and your
mirrors, then continue.
7. Do not engage in stressful or emotional
conversations that may be distracting. Stressful
or emotional conversations and driving do not
mix-they are distracting and even dangerous
when you are behind the wheel of a car. Make
people you are talking with aware you are driving
and if necessary, suspend conversations which
have the potential to divert your attention from
the road.
8. Use your wireless phone to call for help. Your
wireless phone is one of the greatest tools you
can own to protect yourself and your family in
dangerous situations-with your phone at your
side, help is only three numbers away. Dial 9-1-1
or other local emergency number in the case of
fire, traffic accident, road hazard or medical
emergency. Remember, it is a free call on your
wireless phone!
Appendix B: Guide to Safe and Responsible Wireless
196
9. Use your wireless phone to help others in
emergencies. Your wireless phone provides you a
perfect opportunity to be a “Good Samaritan” in
your community. If you see an auto accident,
crime in progress or other serious emergency
where lives are in danger, call 9-1-1 or other local
emergency number, as you would want others to
do for you.
10.Call roadside assistance or a special wireless non-
emergency assistance number when necessary.
Certain situations you encounter while driving
may require attention, but are not urgent enough
to merit a call for emergency services. But you
still can use your wireless phone to lend a hand.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor
traffic accident where no one appears injured or a
vehicle you know to be stolen, call roadside
assistance or other special non-emergency
wireless number.
Careless, distracted individuals and people driving
irresponsibly represent a hazard to everyone on the
road. Since 1984, the Cellular Telecommunications
Industry Association and the wireless industry have
conducted educational outreach to inform wireless
phone users of their responsibilities as safe drivers
and good citizens. As we approach a new century,
more and more of us will take advantage of the
benefits of wireless telephones. And, as we take to
the roads, we all have a responsibility to drive
safely.
“The wireless industry reminds you to use your
phone safely when driving.”
Cellular Telecommunications & Internet Association
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/
issues/driving/articles.cfm?ID=85
Appendix C: Consumer Update on Wireless Phones
197
Appendix C: Consumer Update on
Wireless Phones
U.S. Food and Drug Administration
1. What kinds of phones are the subject of this
update?
The term wireless phone refers here to hand-held
wireless phones with built-in antennas, often called
cell, mobile, or PCS phones. These types of wireless
phones can expose the user to measurable radio
frequency energy (RF) because of the short
distance between the phone and the user s head.
These RF exposures are limited by Federal
Communications Commission safety guidelines that
were developed with the advice of FDA and other
federal health and safety agencies. When the phone
is located at greater distances from the user, the
exposure to RF is drastically lower because a
person’s RF exposure decreases rapidly with
increasing distance from the source. The so-called
“cordless phones,” which have a base unit
connected to the telephone wiring in a house,
typically operate at far lower power levels, and thus
produce RF exposures well within the FCC’s
compliance limits.
2. Do wireless phones pose a health hazard?
The available scientific evidence does not show that
any health problems are associated with using
wireless phones. There is no proof, however, that
wireless phones are absolutely safe. Wireless
phones emit low levels of radio frequency energy
(RF) in the microwave range while being used. They
also emit very low levels of RF when in the stand-by
mode. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low
Appendix C: Consumer Update on Wireless Phones
198
level RF that does not produce heating effects
causes no known adverse health effects. Many
studies of low level RF exposures have not found
any biological effects. Some studies have suggested
that some biological effects may occur, but such
findings have not been confirmed by additional
research. In some cases, other researchers have
had difficulty in reproducing those studies, or in
determining the reasons for inconsistent results.
3. What is FDA’s role concerning the safety of
wireless phones?
Under the law, FDA does not review the safety of
radiation-emitting consumer products such as
wireless phones before they can be sold, as it does
with new drugs or medical devices. However, the
agency has authority to take action if wireless
phones are shown to emit radio frequency energy
(RF) at a level that is hazardous to the user. In such
a case, FDA could require the manufacturers of
wireless phones to notify users of the health hazard
and to repair, replace or recall the phones so that
the hazard no longer exists.
Although the existing scientific data do not justify
FDA regulatory actions, FDA has urged the wireless
phone industry to take a number of steps, including
the following:
Support needed research into possible biological
effects of RF of the type emitted by wireless
phones;
Design wireless phones in a way that minimizes any
RF exposure to the user that is not necessary for
device function; and
Appendix C: Consumer Update on Wireless Phones
199
Cooperate in providing users of wireless phones
with the best possible information on possible
effects of wireless phone use on human health
FDA belongs to an interagency working group of the
federal agencies that have responsibility for
different aspects of RF safety to ensure coordinated
efforts at the federal level. The following agencies
belong to this working group:
National Institute for Occupational Safety and
Health
Environmental Protection Agency
Federal Communications Commission
Occupational Safety and Health Administration
National Telecommunications and Information
Administration
The National Institutes of Health participates in
some interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless
phones with the Federal Communications
Commission (FCC). All phones that are sold in the
United States must comply with FCC safety
guidelines that limit RF exposure. FCC relies on FDA
and other health agencies for safety questions
about wireless phones.
FCC also regulates the base stations that the
wireless phone networks rely upon. While these
base stations operate at higher power than do the
wireless phones themselves, the RF exposures that
people get from these base stations are typically
thousands of times lower than those they can get
from wireless phones. Base stations are thus not
the primary subject of the safety questions
discussed in this document.
Appendix C: Consumer Update on Wireless Phones
200
4. What is FDA doing to find out more about the
possible health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology
Program and with groups of investigators around
the world to ensure that high priority animal studies
are conducted to address important questions
about the effects of exposure to radio frequency
energy (RF).
FDA has been a leading participant in the World
Health Organization International Electromagnetic
Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the
development of a detailed agenda of research
needs that has driven the establishment of new
research programs around the world. The Project
has also helped develop a series of public
information documents on EMF issues.
FDA and the Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative
Research and Development Agreement (CRADA) to
do research on wireless phone safety. FDA provides
the scientific oversight, obtaining input from
experts in government, industry, and academic
organizations. CTIA-funded research is conducted
through contracts to independent investigators. The
initial research will include both laboratory studies
and studies of wireless phone users. The CRADA will
also include a broad assessment of additional
research needs in the context of the latest research
developments around the world.
5. What steps can I take to reduce my exposure to
radio frequency energy from my wireless phone?
If there is a risk from these products—and at this
point we do not know that there is—it is probably
very small. But if you are concerned about avoiding
even potential risks, you can take a few simple
Appendix C: Consumer Update on Wireless Phones
201
steps to minimize your exposure to radio frequency
energy (RF). Since time is a key factor in how much
exposure a person receives, reducing the amount of
time spent using a wireless phone will reduce RF
exposure.
If you must conduct extended conversations by
wireless phone every day, you could place more
distance between your body and the source of the
RF, since the exposure level drops off dramatically
with distance. For example, you could use a
headset and carry the wireless phone away from
your body or use a wireless phone connected to a
remote antenna
Again, the scientific data do not demonstrate that
wireless phones are harmful. But if you are
concerned about the RF exposure from these
products, you can use measures like those
described above to reduce your RF exposure from
wireless phone use.
6. What about children using wireless phones?
The scientific evidence does not show a danger to
users of wireless phones, including children and
teenagers. If you want to take steps to lower
exposure to radio frequency energy (RF), the
measures described above would apply to children
and teenagers using wireless phones. Reducing the
time of wireless phone use and increasing the
distance between the user and the RF source will
reduce RF exposure.
Some groups sponsored by other national
governments have advised that children be
discouraged from using wireless phones at all. For
example, the government in the United Kingdom
distributed leaflets containing such a
recommendation in December 2000. They noted
Appendix C: Consumer Update on Wireless Phones
202
that no evidence exists that using a wireless phone
causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by
children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
7. Do hands-free kits for wireless phones reduce
risks from exposure to RF emissions?
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason
to believe that hands-free kits reduce risks. Hands-
free kits can be used with wireless phones for
convenience and comfort. These systems reduce
the absorption of RF energy in the head because
the phone, which is the source of the RF emissions,
will not be placed against the head. On the other
hand, if the phone is mounted against the waist or
other part of the body during use, then that part of
the body will absorb more RF energy. Wireless
phones marketed in the U.S. are required to meet
safety requirements regardless of whether they are
used against the head or against the body. Either
configuration should result in compliance with the
safety limit.
8. Do wireless phone accessories that claim to
shield the head from RF radiation work?
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason
to believe that accessories that claim to shield the
head from those emissions reduce risks. Some
products that claim to shield the user from RF
absorption use special phone cases, while others
involve nothing more than a metallic accessory
attached to the phone. Studies have shown that
these products generally do not work as advertised.
Unlike “hand-free” kits, these so-called “shields”
Appendix C: Consumer Update on Wireless Phones
203
may interfere with proper operation of the phone.
The phone may be forced to boost its power to
compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade
Commission (FTC) charged two companies that sold
devices that claimed to protect wireless phone
users from radiation with making false and
unsubstantiated claims. According to FTC, these
defendants lacked a reasonable basis to
substantiate their claim.
9. What about wireless phone interference with
medical equipment?
Radio frequency energy (RF) from wireless phones
can interact with some electronic devices. For this
reason, FDA helped develop a detailed test method
to measure electromagnetic interference (EMI) of
implanted cardiac pacemakers and defibrillators
from wireless telephones. This test method is now
part of a standard sponsored by the Association for
the Advancement of Medical instrumentation
(AAMI). The final draft, a joint effort by FDA,
medical device manufacturers, and many other
groups, was completed in late 2000. This standard
will allow manufacturers to ensure that cardiac
pacemakers and defibrillators are safe from wireless
phone EMI.
FDA has tested hearing aids for interference from
handheld wireless phones and helped develop a
voluntary standard sponsored by the Institute of
Electrical and Electronic Engineers (IEEE). This
standard specifies test methods and performance
requirements for hearing aids and wireless phones
so that no interference occurs when a person uses a
compatible phone and a compatible hearing aid at
the same time. This standard was approved by the
IEEE in 2000.
Appendix C: Consumer Update on Wireless Phones
204
FDA continues to monitor the use of wireless
phones for possible interactions with other medical
devices. Should harmful interference be found to
occur, FDA will conduct testing to assess the
interference and work to resolve the problem.
10.What are the results of the research done
already?
The research done thus far has produced conflicting
results, and many studies have suffered from flaws
in their research methods. Animal experiments
investigating the effects of radiofrequency energy
(RF) exposures characteristic of wireless phones
have yielded conflicting results that often cannot be
repeated in other laboratories. A few animal
studies, however, have suggested that low levels of
RF could accelerate the development of cancer in
laboratory animals. However, many of the studies
that showed increased tumor development used
animals that had been genetically engineered or
treated with cancer-causing chemicals so as to be
pre-disposed to develop cancer in the absence of RF
exposure. Other studies exposed the animals to RF
for up to 22 hours per day. These conditions are not
similar to the conditions under which people use
wireless phones, so we don t know with certainty
what the results of such studies mean for human
health.
Three large epidemiology studies have been
published since December 2000. Between them, the
studies investigated any possible association
between the use of wireless phones and primary
brain cancer, gioma, meningioma, or acoustic
neuroma, tumors of the brain or salivary gland,
leukemia, or other cancers. None of the studies
demonstrated the existence of any harmful health
effects from wireless phone RF exposures. However,
Appendix C: Consumer Update on Wireless Phones
205
none of the studies can answer questions about
long-term exposures, since the average period of
phone use in these studies was around three years.
11.What research is needed to decide whether RF
exposure from wireless phones poses a health
risk?
A combination of laboratory studies and
epidemiological studies of people actually using
wireless phones would provide some of the data
that are needed. Lifetime animal exposure studies
could be completed in a few years. However, very
large numbers of animals would be needed to
provide reliable proof of a cancer promoting effect if
one exists. Epidemiological studies can provide data
that is directly applicable to human populations, but
10 or more years follow-up may be needed to
provide answers about some health effects, such as
cancer. This is because the interval between the
time of exposure to a cancer-causing agent and the
time tumors develop - if they do - may be many,
many years. The interpretation of epidemiological
studies is hampered by difficulties in measuring
actual RF exposure during day-to-day use of
wireless phones. Many factors affect this
measurement, such as the angle at which the
phone is held, or which model of phone is used.
12.Which other federal agencies have
responsibilities related to potential RF health
effects?
Additional information on the safety of RF
exposures from various sources can be obtained
from the following organizations.
FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/
Appendix C: Consumer Update on Wireless Phones
206
Environmental Protection Agency (EPA):
http://www.epa.gov/radiation/
Occupational Safety and Health Administration’s
(OSHA):
http://www.osha-slc.gov/SLTC/
radiofrequencyradiation/index.html
National Institute for Occupational Safety and
Health (NIOSH):
http://www.cdc.gov/niosh/emfpg.html
World health Organization (WHO):
http://www.who.int/peh-emf/
International Commission on Non-Ionizing
Radiation Protection:
http://www.icnirp.de
National Radiation Protection Board (UK):
http://www.nrpb.org.uk
Updated 4/3/2002: US Food and Drug Administration
http://www.fda.gov/cellphones
Appendix C: Consumer Update on Wireless Phones
207
STANDARD LIMITED WARRANTY
What is Covered and For How Long?
SAMSUNG
TELECOMMUNICATIONS AMERICA, L.P. (“SAMSUNG”) warrants
to the original purchaser (“Purchaser”) that SAMSUNG’s Phones
and accessories (“Products”) are free from defects in material
and workmanship under normal use and service for the period
commencing upon the date of purchase and continuing for the
following specified period of time after that date:
What is Not Covered?
This Limited Warranty is conditioned
upon proper use of Product by Purchaser. This Limited Warranty
does not cover: (a) defects or damage resulting from accident,
misuse, abuse, neglect, unusual physical, electrical or
electromechanical stress, or modification of any part of Product,
including antenna, or cosmetic damage; (b) equipment that has
the serial number removed or made illegible; (c) any plastic
surfaces or other externally exposed parts that are scratched or
damaged due to normal use; (d) malfunctions resulting from
the use of Product in conjunction with accessories, products, or
ancillary/peripheral equipment not furnished or approved by
SAMSUNG; (e) defects or damage from improper testing,
operation, maintenance, installation, or adjustment; (f)
installation, maintenance, and service of Product, or (g) Product
used or purchased outside the United States or Canada. This
Limited Warranty covers batteries only if battery capacity falls
below 80% of rated capacity or the battery leaks, and this
Limited Warranty does not cover any battery if (i) the battery
has been charged by a battery charger not specified or
approved by SAMSUNG for charging the battery, (ii) any of the
seals on the battery are broken or show evidence of tampering,
or (iii) the battery has been used in equipment other than the
SAMSUNG phone for which it is specified.
What are SAMSUNG’s Obligations?
During the applicable
warranty period, SAMSUNG will repair or replace, at SAMSUNG’s
sole option, without charge to Purchaser, any defective
component part of Product. To obtain service under this Limited
Warranty, Purchaser must return Product to an authorized
phone service facility in an adequate container for shipping,
accompanied by Purchaser’s sales receipt or comparable
substitute proof of sale showing the date of purchase, the serial
number of Product and the sellers’ name and address. To obtain
assistance on where to deliver the Product, call Samsung
Customer Care at 1-888-987-4357. Upon receipt, SAMSUNG
will promptly repair or replace the defective Product. SAMSUNG
may, at SAMSUNG’s sole option, use rebuilt, reconditioned, or
Phone 1 Year
Batteries 1 Year
Leather Case/ Pouch 90 Days
Holster 90 Days
Other Phone Accessories 1 Year
Appendix C: Consumer Update on Wireless Phones
208
new parts or components when repairing any Product or replace
Product with a rebuilt, reconditioned or new Product. Repaired/
replaced leather cases, pouches and holsters will be warranted
for a period of ninety (90) days. All other repaired/replaced
Product will be warranted for a period equal to the remainder of
the original Limited Warranty on the original Product or for 90
days, whichever is longer. All replaced parts, components,
boards and equipment shall become the property of SAMSUNG.
If SAMSUNG determines that any Product is not covered by this
Limited Warranty, Purchaser must pay all parts, shipping, and
labor charges for the repair or return of such Product.
What Are the Limits On SAMSUNG’s Liability?
EXCEPT AS
SET FORTH IN THE EXPRESS WARRANTY CONTAINED HEREIN,
PURCHASER TAKES THE PRODUCT “AS IS,” AND SAMSUNG
MAKES NO WARRANTY OR REPRESENTATION AND THERE ARE
NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR
OTHERWISE, OF ANY KIND WHATSOEVER WITH RESPECT TO
THE PRODUCT, INCLUDING BUT NOT LIMITED TO:
• THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS
FOR ANY PARTICULAR PURPOSE OR USE;
• WARRANTIES OF TITLE OR NON-INFRINGEMENT;
• DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE
PRODUCT;
• THE WORKMANSHIP OF THE PRODUCT OR THE
COMPONENTS CONTAINED THEREIN; OR
• COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS
OF ANY LAW, RULE, SPECIFICATION OR CONTRACT
PERTAINING THERETO.
NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE
CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY KIND
WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL IMPLIED
WARRANTIES AND CONDITIONS THAT MAY ARISE BY
OPERATION OF LAW, INCLUDING IF APPLICABLE THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME
DURATION OF TIME AS THE EXPRESS WRITTEN WARRANTY
STATED HEREIN. SOME STATES/PROVINCES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS,
SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN
ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY
DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE,
USE, OR MISUSE OF, OR INABILITY TO USE THE PRODUCT OR
ARISING DIRECTLY OR INDIRECTLY FROM THE USE OR LOSS OF
USE OF THE PRODUCT OR FROM THE BREACH OF THE EXPRESS
WARRANTY, INCLUDING INCIDENTAL, SPECIAL,
CONSEQUENTIAL OR SIMILAR DAMAGES, OR LOSS OF
ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES
ARISING FROM ANY TORT (INCLUDING NEGLIGENCE OR
GROSS NEGLIGENCE) OR FAULT COMMITTED BY SAMSUNG, ITS
AGENTS OR EMPLOYEES, OR FOR ANY BREACH OF CONTRACT
OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY
OTHER PARTY. SOME STATES/PROVINCES DO NOT ALLOW THE
Appendix C: Consumer Update on Wireless Phones
209
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM
STATE TO STATE/PROVINCE TO PROVINCE. THIS LIMITED
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL PURCHASER OF THIS PRODUCT AND STATES
PURCHASER’S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS
LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY
REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR
UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY
FOR THE REMAINDER OF THIS LIMITED WARRANTY WHICH
PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE
CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS
THE LAW PERMITS.
THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE
THIRD-PARTY SOFTWARE OR EQUIPMENT IN CONJUNCTION
WITH THE PRODUCT. SAMSUNG MAKES NO WARRANTIES OR
REPRESENTATIONS AND THERE ARE NO CONDITIONS,
EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE
QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR
SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR EQUIPMENT,
WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS
INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR
OTHERWISE, INCLUDING THE ABILITY TO INTEGRATE ANY
SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT. THE
QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND
SUITABILITY OF ANY SUCH THIRD-PARTY SOFTWARE OR
EQUIPMENT LIE SOLELY WITH THE PURCHASER AND THE
DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY
SOFTWARE OR EQUIPMENT, AS THE CASE MAY BE.
This Limited Warranty allocates risk of Product failure between
Purchaser and SAMSUNG, and SAMSUNG’s Product pricing
reflects this allocation of risk and the limitations of liability
contained in this Limited Warranty. The agents, employees,
distributors, and dealers of SAMSUNG are not authorized to
make modifications to this Limited Warranty, or make additional
warranties binding on SAMSUNG. Accordingly, additional
statements such as dealer advertising or presentation, whether
oral or written, do not constitute warranties by SAMSUNG and
should not be relied upon.
Samsung Telecommunications America, L.P.
1130 East Arapaho Road
Richardson, Texas 75081
Phone: 1-800-SAMSUNG
Phone: 1-888-987-HELP (4357)
©2002 Samsung Telecommunications America. All rights
reserved.
No reproduction in whole or in part allowed without prior written
approval.
Specifications and availability subject to change without notice.
[080802]
210
Glossary
To help you understand the main technical terms
and abbreviations used in this booklet, and to take
full advantage of the features of your mobile phone,
here are a few definitions:
Active folder
Ability to answer a call simply by opening the
phone.
Call barring
Ability to restrict outgoing and incoming calls.
Call diverting
Ability to reroute calls to another number.
Call holding
Ability to put one call on standby while answering or
making another call; you can then switch between
the two calls, as required.
Call waiting
Informs you that you have an incoming call when
you are engaged on another call.
Caller line identification services (Caller ID)
Services allowing subscribers to view or block the
telephone numbers of callers.
Glossary
211
EMS (Enhanced Message Service)
An adaptation of the Short Message Service (SMS)
that allows you to send and receive ring tones and
the service provider’s logo, as well as combinations
of simple media to and from EMS-compliant
handsets. Because EMS is based on SMS, it can use
SMS centres the same way that SMS does. EMS
works on all Global System for Mobile
communications (GSM) networks. EMS senders can
use text, melodies, photos, sounds, and animations
to enhance the expressive power of messages that
are limited by the display constraints of mobile
devices.
GPRS (General Packet Radio Service)
New non-voice value-added service that allows
information to be sent and received across a mobile
telephone network. GPRS provides continuous
connection to the Internet for mobile phone and
computer users. It is based on the Global System
for Mobile Communication (GSM) circuit-switched
cellular phone connections and the Short Message
Service (SMS).
GSM (Global System for Mobile
Communication)
International standard for cellular communication,
guaranteeing compatibility between the various
network operators. GSM covers most European
countries and many other parts of the world.
Glossary
212
Java
Programming language generating applications that
can run on all hardware platforms, whether small,
medium or large, without modification. It has been
promoted for and geared heavily to the Web, both
for public Web sites and Intranets. When a Java
program runs from a Web page, it is called a Java
applet. When it is run on a mobile phone or pager, it
is called a MIDlet.
MMS (Multimedia Message Service)
A message service for the mobile environment,
standardized by the WAP Forum and the 3rd
Generation Partnership Program (3GPP). For phone
users, MMS is similar to Short Message Service
(SMS)-it provides automatic, immediate delivery of
user-created content from phone to phone. The
message addressing used is primarily phone
numbers, thus the traffic goes from phone to
phone. MMS also provides support for e-mail
addressing, so that messages can be sent by e-
mail. In addition to the text content of SMS, MMS
messages can contain still images, voice or audio
clips, and also video clips and presentation
information.
Multi-party calling
Ability to establish a conference call involving up to
five additional parties.
Phone password
Security code used to unlock the phone when you
have selected the option to lock it automatically
each time it switches on.
Glossary
213
PIN (Personal Identification Number)
Security code that protects the phone against
unauthorised use. The PIN is supplied by the
service provider with the SIM card. It may be a four
to eight-digit number and can be changed, as
required.
Proxy server
A proxy server resides between a Web client, such
as a web browser, and a real Web server and acts
as an intermediary between them. When some
people browse a web site, their browser is not
actually connecting to the web server. The request
from their browser goes to a proxy server, and the
proxy server makes the request to the web server.
A proxy server can improve performance for groups
of users because it caches the results of all requests
for a certain amount of time. If a user requests a
web page that it already loaded for another user, it
reloads the page instead of forwarding the request
to the Web server, which can be a time-consuming
operation.
PUK (PIN Unblocking Key)
Security code used to unlock the phone when an
incorrect PIN has been entered three times in
succession. The eight-digit number is supplied by
the service provider with the SIM card.
Roaming
Use of your phone when you are outside your home
area (when travelling for example).
Glossary
214
SDN (Service Dialling Numbers)
Telephone numbers supplied by your network
provider and giving access to special services, such
as voice mail, directory inquiries, customer support
and emergency services.
SIM (Subscriber Identification Module)
Card containing a chip with all the information
required to operate the phone (network and
memory information, as well as the subscriber’s
personal data). The SIM card fits into a small slot
on the back of the phone and is protected by the
battery.
SMS (Short Message Service)
Network service sending and receiving messages to
and from another subscriber without having to
speak to the correspondent. The message created
or received can be displayed, received, edited or
sent.
Soft keys
Two keys marke
d
and on the phone, the
purpose of which:
• varies according to the function that you are
currently using.
• is indicated on the bottom line of the display just
above the corresponding key.
Glossary
215
Tri band
Ability to handle any of the following types of
network; GSM 900, GSM 1800, combined GSM 900/
1800 and GSM 1900 MHz bands, for greater call
success and wider roaming.
Your phone automatically searches for the last
network used. If, for any reason, this network is
unavailable, your phone will attempt to register
with a different network.
Uni-code encoding
A character coding system designed to support the
worldwide interchange, processing, and display of
the written text of the diverse languages and
technical disciplines of the world. Uni-code encoding
provides data transmission to any other platforms
without corruption, especially when you use special
Alphabet that are used for languages other than
English. Please refer to the following table for the
major characters requiring Uni-code encoding:
To change the character encoding type in your
phone, use the
Character support
menu. Keep in
mind that the maximum number of characters
which can be in a message will be reduced to
approximately half in length if you enter text using
Uni-code characters.
Glossary
216
Voice mail
Computerised answering service that automatically
answers your calls when you are not available,
plays a greeting (optionally in your own voice) and
records a message.
Glossary
217
218
Index
A
Access codes •
172
Alarm •
79
Alphabet mode, text input •
34
Anniversary
creating •
127
Answering
call •
30
second call •
41
Anykey answer •
148
Auto redial •
147
B
Backlight
time, set •
149
Band selection •
161
Barring, calls •
155
Battery
charging •
19
installing •
18
low indicator •
20
precautions •
177
removing •
17
Bluetooth
settings •
162
talking on headset •
41
Broadcast messages •
116
Browser, WAP •
86
C
Calculator •
82
Call costs •
57
Call records
dialled •
55
missed •
30
,
55
received •
55
Call time •
56
Caller group
creating •
62
managing •
63
Caller ID •
158
Calls
answering •
30
barring •
155
diverting •
153
holding •
39
making •
24
redialling •
25
rejecting •
30
transferring to
Bluetooth headset
•
41
waiting •
41
,
157
Camera
options •
134
playing videos •
143
recording videos •
138
taking photos •
133
viewing photos •
142
CB (Cell Broadcast) messages
•
116
Characters, enter •
33
Charging battery •
19
Conference call •
45
Connect tone •
152
Conversion •
83
Cost, calls •
57
D
Date, set •
146
Deleting
call records •
54
phonebook •
59
photos •
142
text messages •
105
,
106
videos •
144
voice memos •
76
Delivery reports, message •
111
Dialled calls •
55
Display
icons •
14
layout •
13
settings •
148
Diverting, calls •
153
DTMF tones, send •
44
Index
219
E
Earpiece volume •
29
E-mail messages
creating/sending •
96
reading •
106
setting •
113
Emergency calls •
183
EMS (Enhanced Message
Service) •
90
F
FDN (Fixed Dial Number)
mode •
166
Forwarding
e-mail messages •
108
G
Games •
69
Greeting message •
146
H
Health and safety •
176
Holding, call •
39
I
Icons, description •
14
Images, downloaded •
118
Inbox, messages
e-mail •
106
multimedia •
100
International calls •
24
Internet •
86
J
Java service •
69
K
Key volume •
29
Keypad tones
selecting •
150
sending •
43
Keys
description •
11
location •
10
L
Language, select •
146
Last number, redial •
25
Locking
media contents •
165
phone •
165
SIM card •
166
Loudspeaker •
40
Low battery indicator •
20
M
Memory status
camera •
117
phonebook •
67
Menus
accessing •
47
list •
49
Message tone •
151
Messages
cell broadcast •
116
greeting •
146
multimedia •
90
ring tone •
151
text •
90
MIDlets, launch •
69
Minute minder •
152
Miscellaneous events
creating •
126
Missed alarm events •
132
Missed calls •
30
,
55
MMS (Multimedia Messages
Service) •
90
MP3 player •
71
Multimedia messages
creating/sending •
91
reading •
100
setting •
111
Multi-party calls •
45
Index
220
Muting
all sounds •
32
key tones •
43
microphone •
43
My name card •
65
N
Names
entering •
33
searching/dialling •
58
Network band, select •
161
Network selection •
157
Network services •
153
Numbers, phone
searching/dialling •
58
storing •
60
O
On/off switch, phone •
21
Outbox, messages
text •
104
Own number •
66
P
Password
call barring •
175
phone •
165
,
172
Phone
care and maintenance
•
185
display •
13
icons •
14
keys •
11
layout •
10
locking •
165
password •
165
,
172
resetting •
168
switching on/off •
21
unpacking •
9
Phonebook
copying •
59
deleting •
59
editing •
59
managing •
66
options •
59
speed-dialling •
64
storing •
60
Photos
deleting •
142
taking •
133
viewing •
142
PIN
changing •
165
description •
173
PIN2
changing •
166
description •
174
Power on/off tone •
151
Privacy •
165
Problems, solve •
169
PUK •
173
PUK2 •
174
Q
Quiet mode •
32
R
Received calls •
55
Received messages
e-mail •
106
multimedia •
100
text •
100
Recording
videos •
138
voice memos •
75
Redialling
automatically •
147
manually •
25
Resetting phone •
168
Ringer
incoming calls •
150
messages •
151
Road safety •
179
Roaming •
157
Index
221
S
Safety
information •
176
precautions •
7
Schedule
creating •
126
Sent messages
text •
104
Short cut •
147
SIM card
installing •
17
locking •
166
SMS (Short Message Service)
•
90
Soft keys •
22
Sound settings •
150
Sounds, downloaded •
123
Speed-dial •
64
Stopwatch •
85
Switching on/off
microphone •
43
phone •
21
T
T9 mode, text input •
34
Task
creating •
128
Text input mode •
34
Text message
creating/sending •
91
deleting •
105
,
106
reading •
104
setting •
111
Text templates •
109
Text, enter •
33
Time format •
146
Time, set •
145
Timer •
84
Tone
connect •
152
keypad •
150
message •
151
minute minder •
152
power on/off •
151
slide •
151
Travel adapter •
19
V
Videos
deleting •
142
recording •
138
Voice clarity, microphone •
42
Voice memos
deleting •
76
playing •
77
recording •
75
Voicemail server •
159
Volume, adjust
earpiece •
29
keypad tone •
29
W
Waiting call •
41
,
157
WAP browser
access •
86
cache, clear •
89
World time •
78
Writing messages
e-mail•
96
multimedia •
93
text •
91
Index
222
223
Access
the menu
functions
➀
Press the
Menu
soft key.
➁
Scroll by pressing the
Navigation keys through
the list of the menus until
you reach the menu you
want.
➂
Press the
Select
soft key.
➃
Scroll by pressing the Up
and Down keys through
the list of the options until
the one you want is
selected.
➄
Press the
Select
soft key.
Each of the two soft keys (
and )
performs the function indicated by the
text above it, on the bottom line of the
display.
Switch on/off Press and hold the
key.
Make a call
➀
Enter the number.
➁
Press the key.
End a call Briefly press the
key.
View missed
calls
immediately
after missing
them
➀
Open the phone and
press the
View
soft key.
➁
Scroll by pressing the Up
and Down keys through
the missed calls.
➂
To return the call, press
the key.
Answer a call Open the phone
or
Press the key.
Adjust the
volume Press the or key on
the left side of the phone.
SGH-E880 GPRS Telephone
Quick reference card
224
Search for a
number in
Phonebook
➀
Press the
Name
soft
key.
➁
Enter the first few letters
of the name.
➂
To scroll through the
names, press the Up or
Down key.
➃
Press the key.
➄
To scroll through the
numbers, press the Up
or Down key.
➅
Press the key to dial.
Take a
Photo • With the phone open
➀
In Idle mode, press and
hold the Camera key.
➁
Press the key.
• With the phone closed
➀
Press and hold the
Camera key.
➁
Press the Camera key.
Store
numbers in
Phonebook
• In the phone’s memory
➀
Enter the number and
press the
Save
soft key.
➁
Select
Phone
.
➂
Select a type icon.
➃
Scroll through the items
using the Up or Down key,
and enter information or
press the Left or Right
key. (Last name/First
name/Mobile/Home/
Office/Fax/Other/Email/
Graphic ID/Alert/Group/
Notes)
➄
Press the
Save
soft key.
• On the SIM card
➀
Enter the number and
press the
Save
soft key.
➁
Select
SIM
.
➂
Enter the name.
➃
Press the
Save
soft key.
Declaration of Conformity (R&TTE)
