* Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly.* Depending on your country, your phone and accessories may appear different from the illustrations in this guide.World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GH68-XXXXXAEnglish (EU). 09/2007. Rev. 1.0

SGH-F110User’s GuideDraft_3rd2007. 09. 05(Version:F110XAGH5)

Important safetyprecautionsDrive safely at all timesDo not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. InterferenceAll wireless phones may be subject to interference, which could affect their performance.Failure to comply with the following precautions may be dangerous or illegal.Copyright information• Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Bluetooth QD ID: B0XXXXX•JavaTM is a trademark or registered trademark of Sun Microsystems, Inc.• Windows Media Player® is a registered trademark of Microsoft Corporation.

1Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry.Sensible useUse only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press .Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 44.• The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions.At very high volumes, prolonged listening to a headset can damage your hearing.

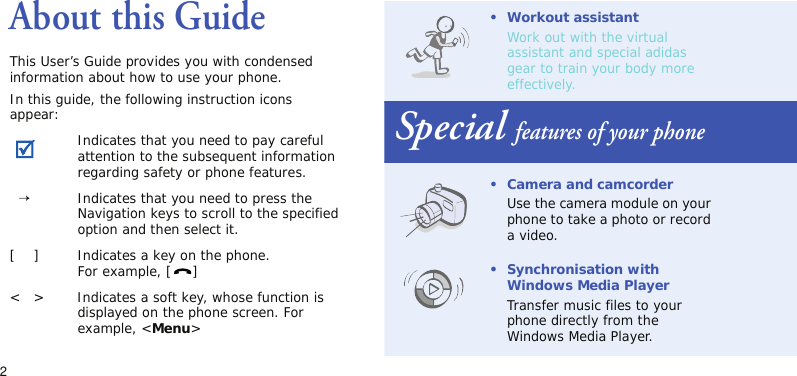

2About this GuideThis User’s Guide provides you with condensed information about how to use your phone.In this guide, the following instruction icons appear:Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features. →Indicates that you need to press the Navigation keys to scroll to the specified option and then select it.[ ] Indicates a key on the phone.For example, [ ]< > Indicates a soft key, whose function is displayed on the phone screen. For example, <Menu>• Workout assistantWork out with the virtual assistant and special adidas gear to train your body more effectively. Special features of your phone• Camera and camcorderUse the camera module on your phone to take a photo or record a video.•Synchronisation with Windows Media PlayerTransfer music files to your phone directly from the Windows Media Player.

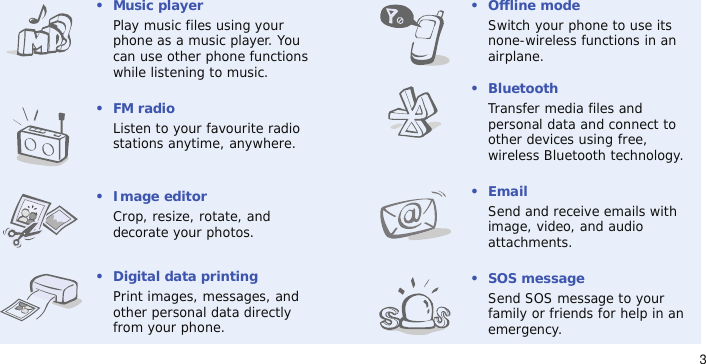

3• Music playerPlay music files using your phone as a music player. You can use other phone functions while listening to music.•FM radioListen to your favourite radio stations anytime, anywhere.•Image editorCrop, resize, rotate, and decorate your photos.• Digital data printingPrint images, messages, and other personal data directly from your phone.•Offline modeSwitch your phone to use its none-wireless functions in an airplane.• BluetoothTransfer media files and personal data and connect to other devices using free, wireless Bluetooth technology.•EmailSend and receive emails with image, video, and audio attachments.•SOS messageSend SOS message to your family or friends for help in an emergency.

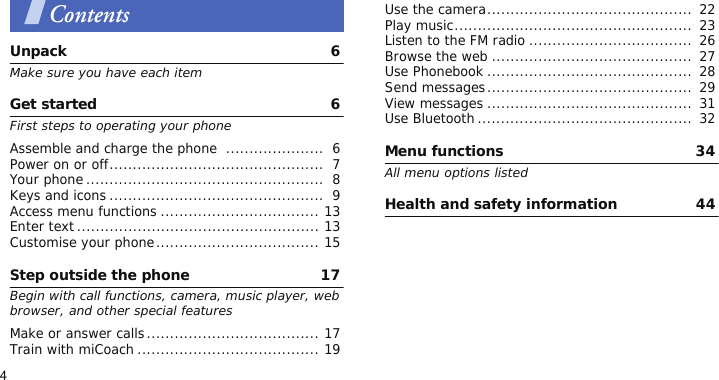

4ContentsUnpack 6Make sure you have each itemGet started 6First steps to operating your phoneAssemble and charge the phone ..................... 6Power on or off.............................................. 7Your phone ................................................... 8Keys and icons .............................................. 9Access menu functions .................................. 13Enter text.................................................... 13Customise your phone................................... 15Step outside the phone 17Begin with call functions, camera, music player, web browser, and other special featuresMake or answer calls..................................... 17Train with miCoach ....................................... 19Use the camera............................................ 22Play music................................................... 23Listen to the FM radio ................................... 26Browse the web ........................................... 27Use Phonebook ............................................ 28Send messages............................................ 29View messages ............................................ 31Use Bluetooth .............................................. 32Menu functions 34All menu options listedHealth and safety information 44

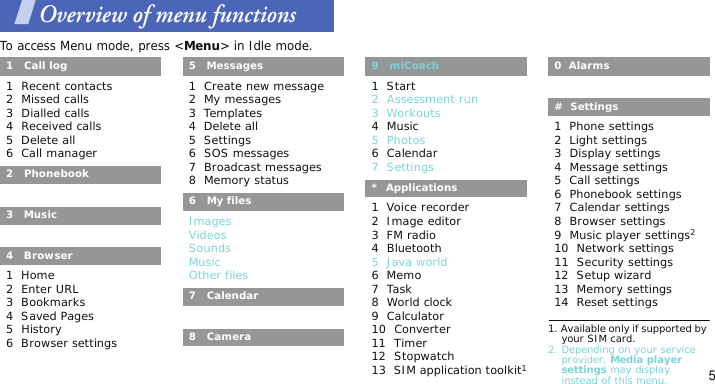

51 Call log1 Recent contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call manager2 Phonebook3 Music4 Browser1 Home2 Enter URL3 Bookmarks4 Saved Pages5 History6 Browser settings5 Messages1 Create new message2 My messages3 Templates4 Delete all5 Settings6 SOS messages7 Broadcast messages8 Memory status6 My filesImagesVideosSoundsMusicOther files7 Calendar8 Camera9 miCoach1 Start2 Assessment run3 Workouts4 Music5 Photos6 Calendar7 Settings* Applications1 Voice recorder2 Image editor3 FM radio4 Bluetooth5 Java world6 Memo7 Task8 World clock9 Calculator10 Converter11 Timer12 Stopwatch13 SIM application toolkit10 Alarms# Settings1 Phone settings2 Light settings3 Display settings4 Message settings5 Call settings6 Phonebook settings7 Calendar settings8 Browser settings9 Music player settings210 Network settings11 Security settings12 Setup wizard13 Memory settings14 Reset settings1. Available only if supported by your SIM card.2. Depending on your service provider, Media player settings may display instead of this menu.Overview of menu functionsTo access Menu mode, press <Menu> in Idle mode.

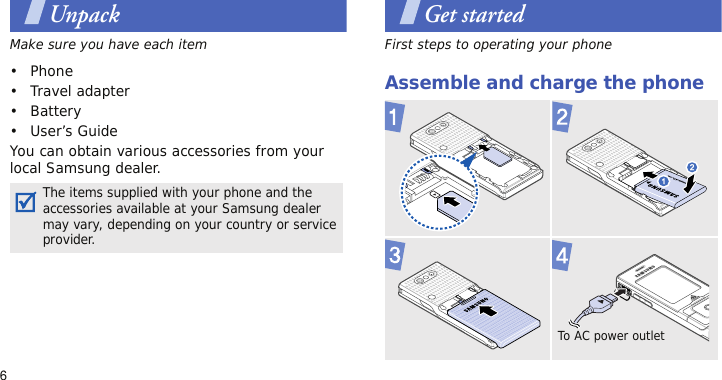

6UnpackMake sure you have each item• Phone•Travel adapter•Battery• User’s GuideYou can obtain various accessories from your local Samsung dealer.Get startedFirst steps to operating your phoneAssemble and charge the phone The items supplied with your phone and the accessories available at your Samsung dealer may vary, depending on your country or service provider. To AC power outlet

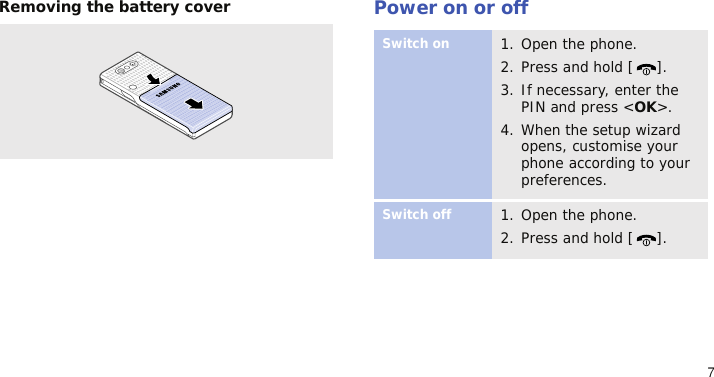

7Removing the battery coverPower on or offSwitch on1. Open the phone.2. Press and hold [ ].3. If necessary, enter the PIN and press <OK>.4. When the setup wizard opens, customise your phone according to your preferences.Switch off1. Open the phone.2. Press and hold [ ].

Get started8Your phoneFront viewRear viewDelete keyMouthpiecePower/Menu exit keyRight soft keyNavigation keys(Up/Down/Left/Right)DisplayVolume keysLeft soft keyDial keyAlphanumeric keysWeb access/Confirm keyMulti-function jackEarpieceSpecialfunction keysSports key Music player keyWhen you close the phone, it locks the exposed keys to prevent any unwanted phone operations, from accidentally pressing any of the keys. To unlock the keys, press <Unlock> and then <OK>.Camera keyMirror Camera lensSpeaker

9Keys and iconsKeysPerform the function indicated on the bottom line of the display.In Idle mode, access the following menus directly:• Up: My menu mode• Down/Left/Right: your favourite menusIn Menu mode, scroll through menu options.In Idle mode, launch the web browser.In Menu mode, select the highlighted menu option or confirm input.While playing music, pause or resume playback on the idle screen.In Idle mode, access the miCoach menu.During workout, pause or resume workout. Press and hold to stop workout.In Idle mode, begin playing music files or pause playback. Press and hold to launch the music player.

11IconsThe following icons may appear on the top line of the screen to indicate your phone’s status. Depending on your country or service provider, the icons shown on the display may vary.Signal strengthCall in progressOut of your service areaAlarm setSOS message feature activeNew message:•: Text message• : Multimedia message•: Email•: VoicemailCall diverting feature activeBluetooth activeBluetooth headset or hands-free car kit connectedGPRS network status•Blue: GPRS network• Red: Transferring data in GPRS network

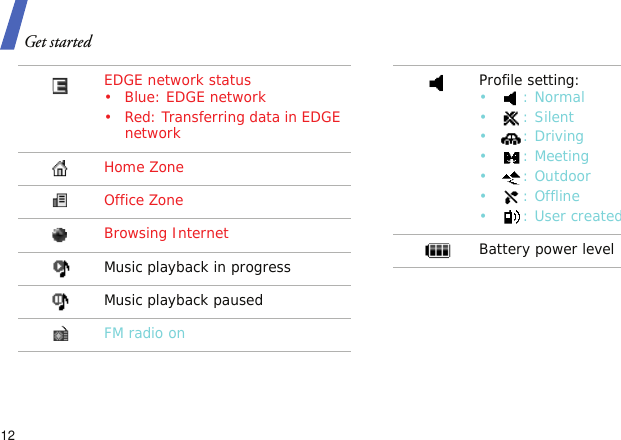

Get started12EDGE network status•Blue: EDGE network• Red: Transferring data in EDGE networkHome ZoneOffice ZoneBrowsing InternetMusic playback in progressMusic playback pausedFM radio onProfile setting:•: Normal• : Silent• : Driving•: Meeting•: Outdoor•: Offline• : User createdBattery power level

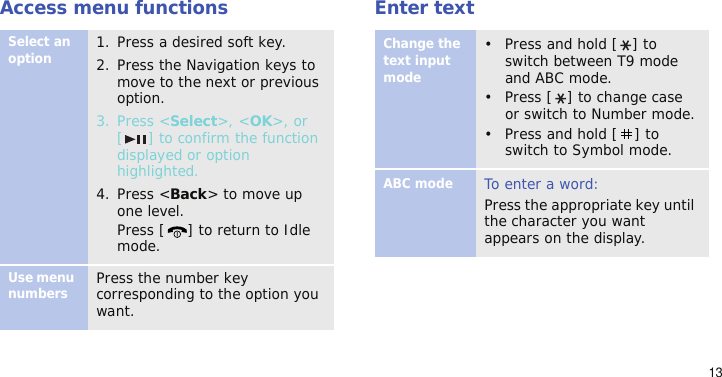

13Access menu functions Enter textSelect an option1. Press a desired soft key.2. Press the Navigation keys to move to the next or previous option.3. Press <Select>, <OK>, or [ ] to confirm the function displayed or option highlighted.4. Press <Back> to move up one level.Press [ ] to return to Idle mode.Use menu numbersPress the number key corresponding to the option you want.Change the text input mode•Press and hold [] to switch between T9 mode and ABC mode.• Press [ ] to change case or switch to Number mode.• Press and hold [ ] to switch to Symbol mode.ABC modeTo enter a word:Press the appropriate key until the character you want appears on the display.

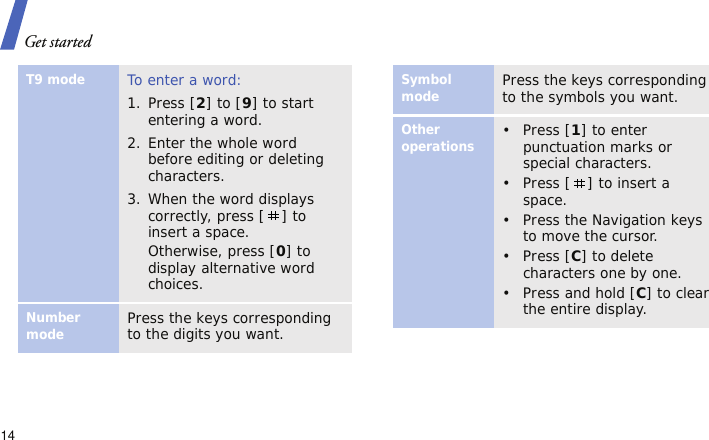

Get started14T9 modeTo enter a word:1. Press [2] to [9] to start entering a word.2. Enter the whole word before editing or deleting characters.3. When the word displays correctly, press [ ] to insert a space.Otherwise, press [0] to display alternative word choices.Number modePress the keys corresponding to the digits you want.Symbol modePress the keys corresponding to the symbols you want.Other operations•Press [1] to enter punctuation marks or special characters.• Press [ ] to insert a space.• Press the Navigation keys to move the cursor. •Press [C] to delete characters one by one.•Press and hold [C] to clear the entire display.

Get started161. In Idle mode, press <Menu> and select Settings → Display settings → Home screen.2. Press [Left] or [Right] to select Images.3. Select Wallpaper.4. Select an image category.5. Select an image.6. Press <Save>.Idle mode wallpaper1. In Idle mode, press <Menu> and select Settings → Display settings → My theme.2. Select a theme.1. In Idle mode, press <Menu> and select Settings → Phone settings → Shortcuts.2. Select a key.3. Select a menu to be assigned to the key.Menu mode skin colourMenu shortcuts

Step outside the phone181. Press [ ] when the phone rings.2. Press [ ] to end the call.During a call, press [ ] and then <Yes> to activate the speaker.Press [ ] again to switch back to the earpiece.1. During a call, call the second participant.The first call is put on hold.2. Press <Options> and select Join.Answer a callUse the speakerphone featureMake a multi-party call3. Repeat step 1 and 2 to add more participants.4. During a multi-party call:• Press <Options> and select Split to have a private conversation with one participant.• Press <Options> and select Remove to drop one participant.5. Press [ ] to end the multi-party call.

Step outside the phone203. Press <OK>.4. Press <Yes> to listen music during workout and select a music file. See page 25.5. Start your workout when the workout view displays.Press [ ] to pause, or [ ] to resume workout. 6. Press and hold [ ] to stop workout. The workout result is saved in Calendar.You can send your workout results to a PC and view a detailed assessment on the adidas website.To listen to music: 1. From the workout view, press [ ].2. Press <Yes> to play music.To take a photo: 1. From the workout view, press and hold [Camera] to turn on the camera.2. Aim the lens at the subject and make any desired adjustments.3. Press [Camera] to take a photo.Use multimedia functions during workout

211. In Idle mode, press [ ] and select Calendar.2. Select a date.3. Press <Options> and select Schedule workout.4. Specify information about the workout plan.5. Press <Save> to save the workout plan.1. In Idle mode, press [ ] and select Settings.2. Set up the following options for workout:•Units: change the units of distance and weight.Schedule a workout planCustomise workout settings•Body: specify your body information.•Notification: set whether to receive phone notifications during workout.•Narration: set options for your assistant narration.•Connection: change your connection ID to be required to access the two sensored accessories.•Pedometer: activate or deactivate the pedometer use.•Reset settings: reset all workout settings.

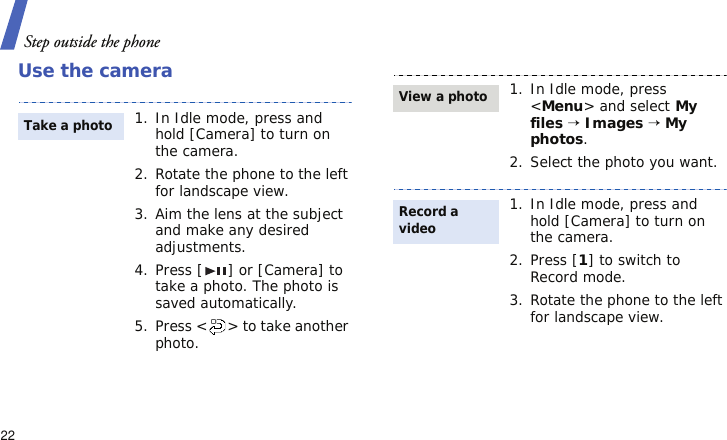

Step outside the phone22Use the camera1. In Idle mode, press and hold [Camera] to turn on the camera.2. Rotate the phone to the left for landscape view.3. Aim the lens at the subject and make any desired adjustments.4. Press [ ] or [Camera] to take a photo. The photo is saved automatically.5. Press < > to take another photo.Take a photo1. In Idle mode, press <Menu> and select My files → Images → My photos.2. Select the photo you want.1. In Idle mode, press and hold [Camera] to turn on the camera.2. Press [1] to switch to Record mode.3. Rotate the phone to the left for landscape view.View a photoRecord a video

23Play music4. Press [ ] or [Camera] to start recording.5. Press [ ], < >, or [Camera] to stop recording. The video is saved automatically.6. Press < > to record another video.1. In Idle mode, press <Menu> and select My files → Videos → My video clips.2. Select the video you want.View a videoUse these methods:• Download from the wireless web.• Download from a PC using the optional Samsung PC Studio. See Samsung PC Studio User’s Guide.• Receive via Bluetooth.•Copy directly from a PC. See the next section.• Synchronise music files with Windows Media Player. See page 24.Prepare music files

Step outside the phone241. In Idle mode, press <Menu> and select Settings → Phone settings → USB settings → Mass storage.2. Connect your phone and PC with an optional PC data cable.3. Select Open folder to view files when a pop-up window appears on your PC.4. Copy files from the PC to the phone.5. When you have finished, disconnect the phone from the PC.Copy music files to the phoneYou can copy music files to the phone by synchronising with Windows Media Player 11.1. In Idle mode, press <Menu> and select Settings → Phone settings → USB settings → Media player.2. Connect your phone and PC with an optional PC data cable.3. Select Sync digital media files to this device when a pop-up window appears on your PC.Synchronise with Windows Media Player

254. Enter the name of your phone and click Finish.5. Select and drag the music files you want to the sync list.6. Click Start Sync.7. When synchronisation is finished, disconnect the phone from the PC.1. In Idle mode, press <Menu> and select Music.2. Select a music category → a music file.Play music files3. During playback, use the following keys:•: pause or resume playback.• Left: return to the previous file. Press and hold to scan backward in a file.• Right: skip to the next file. Press and hold to scan forward in a file.• Up: open the playlist.• Volume: adjust the volume.4. Press [Down] to stop playback.

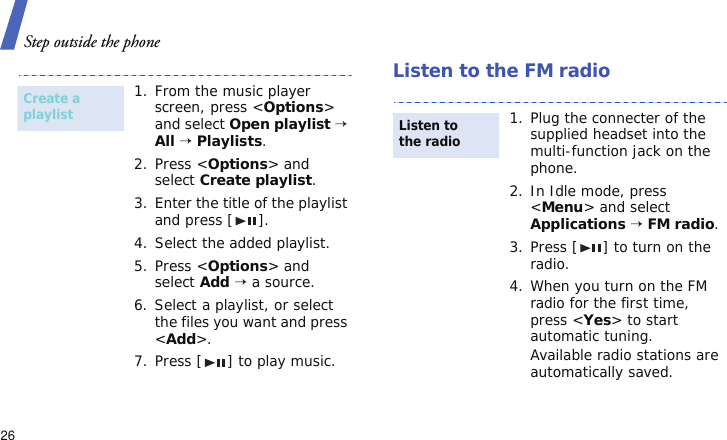

Step outside the phone26Listen to the FM radio1. From the music player screen, press <Options> and select Open playlist → All → Playlists.2. Press <Options> and select Create playlist.3. Enter the title of the playlist and press [ ].4. Select the added playlist.5. Press <Options> and select Add → a source.6. Select a playlist, or select the files you want and press <Add>.7. Press [ ] to play music.Create a playlist1. Plug the connecter of the supplied headset into the multi-function jack on the phone.2. In Idle mode, press <Menu> and select Applications → FM radio.3. Press [ ] to turn on the radio.4. When you turn on the FM radio for the first time, press <Yes> to start automatic tuning.Available radio stations are automatically saved.Listen to the radio

27Browse the web5. Press [Up] or [Down] to select a stored radio stations.Alternatively, press [Left] or [Right] to find available radio stations.6. Press [ ] to turn off the radio.By automatic tuning:1. From the radio screen, press <Options> and select Self-tuning.2. Press <Yes> to confirm. Available radio stations are automatically saved.Store radio stationsBy manual setup:1. From the radio screen, press [Left] or [Right] to select the radio station you want.2. Press <Options> and select Add to Favourites.In Idle mode, press [ ]. The homepage of your service provider opens.Launch the web browser

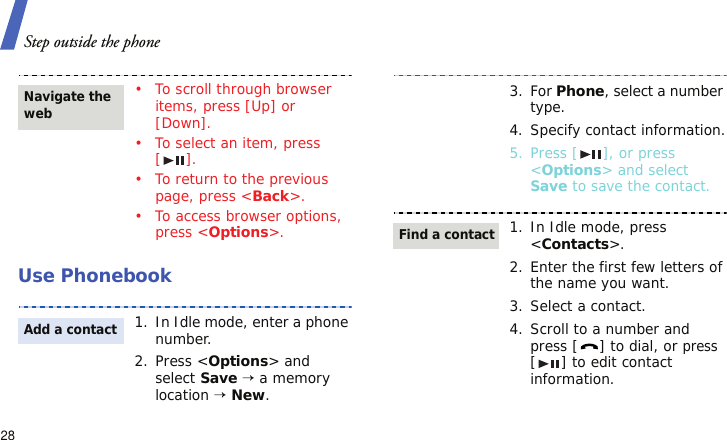

Step outside the phone28Use Phonebook• To scroll through browser items, press [Up] or [Down].• To select an item, press [].• To return to the previous page, press <Back>.• To access browser options, press <Options>.1. In Idle mode, enter a phone number. 2. Press <Options> and select Save → a memory location → New.Navigate the webAdd a contact3. For Phone, select a number type.4. Specify contact information.5. Press [ ], or press <Options> and select Save to save the contact.1. In Idle mode, press <Contacts>.2. Enter the first few letters of the name you want.3. Select a contact.4. Scroll to a number and press [ ] to dial, or press [ ] to edit contact information.Find a contact

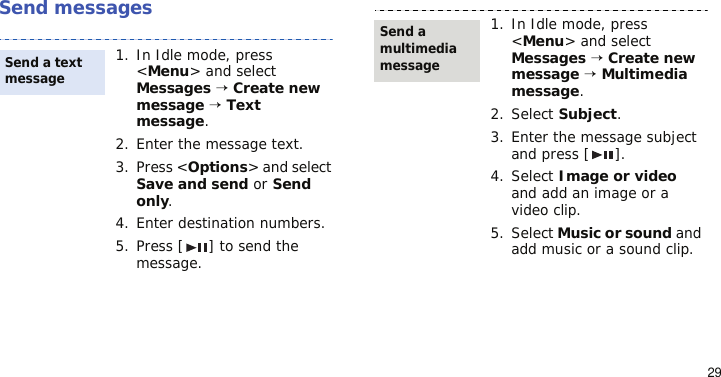

29Send messages1. In Idle mode, press <Menu> and select Messages → Create new message → Text message.2. Enter the message text.3. Press <Options> and select Save and send or Send only.4. Enter destination numbers.5. Press [ ] to send the message.Send a text message1. In Idle mode, press <Menu> and select Messages → Create new message → Multimedia message.2. Select Subject.3. Enter the message subject and press [ ].4. Select Image or video and add an image or a video clip.5. Select Music or sound and add music or a sound clip.Send a multimedia message

Step outside the phone306. Select Text.7. Enter the message text and press [ ].8. Press <Options> and select Send.9. Enter destination numbers or email addresses.10.Press [ ] to send the message.1. In Idle mode, press <Menu> and select Messages → Create new message → Email.2. Press <Yes>.3. When the setup wizard opens, press <Yes> and customise settings for your email account.4. Select Subject.5. Enter the email text and press [ ].6. Select Message.7. Enter the email text and press [ ].Send an email

31View messages8. Select File attach.9. Add image, video, sound, music, or document files.10.Press <Option> and select Send.11.Enter email addresses.12.Press [ ] to send the email.1. In Idle mode, press <Menu> and select Messages → My messages → Inbox.2. Select a text message.View a text message1. In Idle mode, press <Menu> and select Messages → My messages → Inbox.2. Select a multimedia message.1. In Idle mode, press <Menu> and select Messages → My messages → Email inbox.2. Select Check new mail.3. Select an email or a header.4. If you selected a header, press <Options> and select Retrieve to view the body of the email.View a multimedia messageView an email

Step outside the phone32Use Bluetooth Your phone is equipped with Bluetooth technology, enabling you to connect the phone wirelessly to other Bluetooth devices and exchange data with them, talk hands-free, or control the phone remotely.1. In Idle mode, press <Menu> and select Applications → Bluetooth → Activation → On.2. Select My phone’s visibility → On to allow other devices to find your phone.Turn on Bluetooth1. In Idle mode, press <Menu> and select Applications → Bluetooth → My devices → Search new device.2. Select a device.3. Enter a Bluetooth PIN or the other device’s Bluetooth PIN, if it has one, and press <OK>. When the owner of the other device enters the same code, the pairing is complete.Search for and pair with a Bluetooth device

331. Access an application, such as Phonebook, My files, Calendar, Memo, or Task.2. Select the item you want to send.3. Press <Options> and select Send namecard via or Send via → Bluetooth.4. For sending a contact, select which data you want to send.5. Search for and select a device.6. If necessary, enter the Bluetooth PIN and press <OK>.Send data1. When a device attempts to access your phone, press <Yes> to permit the connection.2. If necessary, press <Yes> to confirm that you are willing to receive.Receive data

34Menu functionsAll menu options listedThis section provides brief explanations of menu functions on your phone.Call logPhonebookSearch for contact information stored in Phonebook.MusicAccess and listen to all music files sorted by criteria. You can also make your own music playlists.Menu DescriptionRecent contacts, Missed calls, Dialled calls, Received callsCheck the most recent calls dialled, received, or missed.Delete all Delete all of the records in each call type.Call manager → Call timeCheck the time record for calls made and received.Call manager → Call costs Check the cost of your calls, if supported by your SIM card.Call manager → Reject listMake a list of the phone numbers of callers to reject.Menu Description

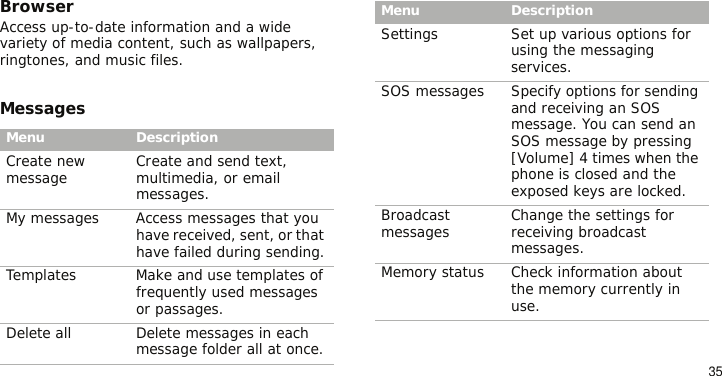

35BrowserAccess up-to-date information and a wide variety of media content, such as wallpapers, ringtones, and music files.MessagesMenu DescriptionCreate new message Create and send text, multimedia, or email messages.My messages Access messages that you have received, sent, or that have failed during sending.Templates Make and use templates of frequently used messages or passages.Delete all Delete messages in each message folder all at once.Settings Set up various options for using the messaging services.SOS messages Specify options for sending and receiving an SOS message. You can send an SOS message by pressing [Volume] 4 times when the phone is closed and the exposed keys are locked.Broadcast messages Change the settings for receiving broadcast messages.Memory status Check information about the memory currently in use.Menu Description

37ApplicationsMenu DescriptionVoice recorder Record voice memos and any other sounds. Image editor Edit your photos using various editing tools.FM radio Listen to music or news via the FM radio on your phone.Bluetooth Connect the phone wirelessly to other Bluetooth devices.Java world Access Java games and applications.Memo Make memos for things that are important and manage them.Task Make a list of tasks you need to complete.World clock Set your local time zone and find out the current time in another part of the world.Calculator Perform arithmetic functions.Converter Do conversions, such as length and temperature.Timer Set a period of time for the phone to count down.Menu Description

Menu functions38AlarmsSet a wake-up call to wake you up in the morning or an alarm to alert you to an event at a specific time.SettingsStopwatch Measure elapsed time.SIM application toolkit Use a variety of additional services offered by your service provider.Depending on your SIM card, this menu may be available but labelled differently.Menu DescriptionMenu DescriptionPhone settings → Phone profiles Change the sound settings of the phone for different events or situations.Phone settings → Language Select a language for the display text.Phone settings → Shortcuts Use the Navigation keys as shortcuts to access specific menus directly from Idle mode. [Up] is fixed as a shortcut to My menu mode.Phone settings → Time and date Change the time and date displayed on your phone.Phone settings → Volume key Set how the phone reacts if you press and hold [Volume] when a call comes in.

39Phone settings → Show caller informationSet the phone to display or block caller information on all missed calls and incoming messages.Phone settings → My menu Set up a menu of your own using your favourite menu items, which can be easily accessed by pressing [Up] in Idle mode.Phone settings → Slide settings Set how the phone reacts when you open it for an incoming call, and when you close it while using a function.Menu DescriptionPhone settings → USB settings Select a USB mode that will be used when you connect your phone to another device via USB interface.Light settings → Backlight time Select the length of time the backlight or display stays on when the phone is not used.Light settings → Brightness Adjust the brightness of the display for varying lighting conditions.Light settings → Keypad light Set how the phone controls the use of the keypad light.Display settings → Home screen Set up the idle screen on the display.Menu Description

Menu functions40Display settings → My theme Select a theme for Menu mode.Display settings → Text display Change the display settings for the text displayed on the idle screen.Display settings → Dialling displayCustomise the settings for the display while dialling.Display settings → Greeting messageEnter the greeting that is displayed briefly when the phone is switched on.Display settings → Menu transition effectSelect a transition when you move between menus in Menu mode.Menu DescriptionMessage settings Set up various options for using the messaging services.Call settings Access network services for call functions.Phonebook settings → Speed dialAssign speed dial numbers for your most frequently dialled numbers.Phonebook settings → Save new contacts toSelect a default memory location for saving contacts.Phonebook settings → View phonebook fromSelect a memory location from which Phonebook shows entries.Menu Description

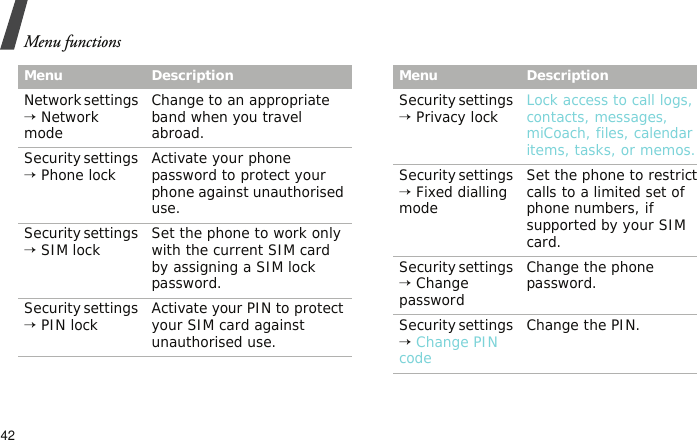

Menu functions42Network settings → Network modeChange to an appropriate band when you travel abroad.Security settings → Phone lock Activate your phone password to protect your phone against unauthorised use.Security settings → SIM lock Set the phone to work only with the current SIM card by assigning a SIM lock password. Security settings → PIN lock Activate your PIN to protect your SIM card against unauthorised use.Menu DescriptionSecurity settings → Privacy lock Lock access to call logs, contacts, messages, miCoach, files, calendar items, tasks, or memos.Security settings → Fixed dialling modeSet the phone to restrict calls to a limited set of phone numbers, if supported by your SIM card.Security settings → Change passwordChange the phone password.Security settings → Change PIN codeChange the PIN.Menu Description

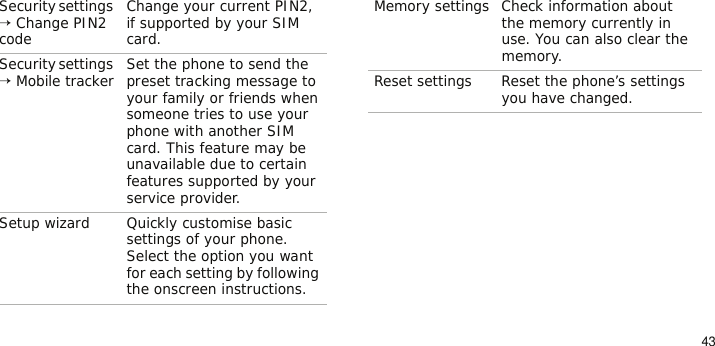

43Security settings → Change PIN2 codeChange your current PIN2, if supported by your SIM card.Security settings → Mobile tracker Set the phone to send the preset tracking message to your family or friends when someone tries to use your phone with another SIM card. This feature may be unavailable due to certain features supported by your service provider.Setup wizard Quickly customise basic settings of your phone. Select the option you want for each setting by following the onscreen instructions.Menu DescriptionMemory settings Check information about the memory currently in use. You can also clear the memory.Reset settings Reset the phone’s settings you have changed.Menu Description

44Health and safety informationExposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. The highest SAR values for this model phone as reported to the FCC are:

Health and safety information45GSM850 Head:0.286 W/Kg, Body-worn: 1.46 W/Kg; GSM1900 Head: 0.481 W/Kg, Body-worn: 1.35 W/Kg.For body worn operation, this model phone has been tested and meets the FCC RF exposure guidelines whenused with a Samsung accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.SAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. This site uses the phone FCC ID number, A3LSGHF110. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar.Consumer Information on Wireless PhonesThe U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called “cell”,”mobile” or ”PCS” phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called °×cordless phones,°± which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.

46Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:• “Support needed research into possible biological effects of RF of the type emitted by wireless phones;• “Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and• “Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.

Health and safety information47FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:• “National Institute for Occupational Safety and Health• “Environmental Protection Agency• “Federal Communications Commission• “Occupational Safety and Health Administration• “National Telecommunications and Information AdministrationThe National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RFexposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the

48animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.What research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.What is FDA doing to find out more about the possible health effects of wireless phone RF?

Health and safety information49FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.• “If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.

50Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists. Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.

Health and safety information51Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike °×hand-free°± kits, these so-called °×shields°± may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and

52work to resolve the problem.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations:• FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/• .Environmental Protection Agency (EPA):http://www.epa.gov/radiation/.• Occupational Safety and Health Administration's (OSHA): http://www.osha.gov/SLTC/radiofrequencyradiation/index.html• National institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/emfpg.html .• World health Organization (WHO):http://www.who.int/peh-emf/.• International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.de.• National Radiation Protection Board (UK):http://www.nrpb.org.uk.• Updated 4/3/2002: US food and Drug Administrationhttp://www.fda.gov/cellphonesRoad safetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When you are driving a car, driving is your first responsibility. When using your wireless phone while driving, follow local regulations in the country or region you are in.Operating environmentRemember to follow any special regulations in force in the area you are in, and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.°×Federal Communications CommissionWhen connecting the phone or any accessory to another device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.

Health and safety information53As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).Electronic devicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research and recommendations of Wireless Technology Research. If you have any reason to suspect that interference is taking place, switch off your phone immediately.Hearing aidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other medical devicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch off your phone in health care facilities when regulations posted in these areas instruct you to do so. VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor

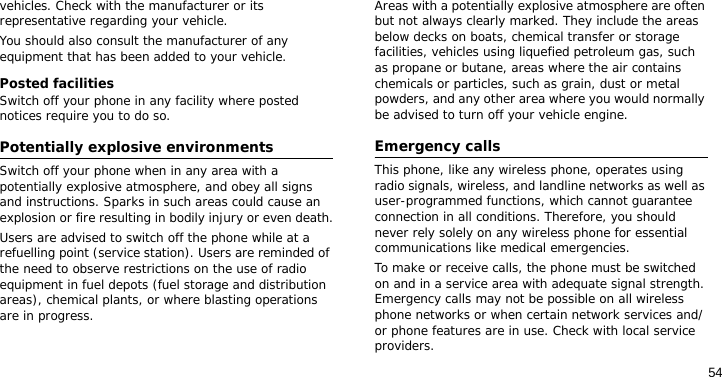

54vehicles. Check with the manufacturer or its representative regarding your vehicle.You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted facilitiesSwitch off your phone in any facility where posted notices require you to do so.Potentially explosive environmentsSwitch off your phone when in any area with a potentially explosive atmosphere, and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch off the phone while at a refuelling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include the areas below decks on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas, such as propane or butane, areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency callsThis phone, like any wireless phone, operates using radio signals, wireless, and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications like medical emergencies.To make or receive calls, the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.

Health and safety information55To make an emergency call:1. Switch on the phone.2. Key in the emergency number for your present location. Emergency numbers vary by location.3. Press [].Certain features like Call Barring may need to be deactivated before you can make an emergency call. Consult this document and your local cellular service provider.FCC Notice and CautionsFCC Notice. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

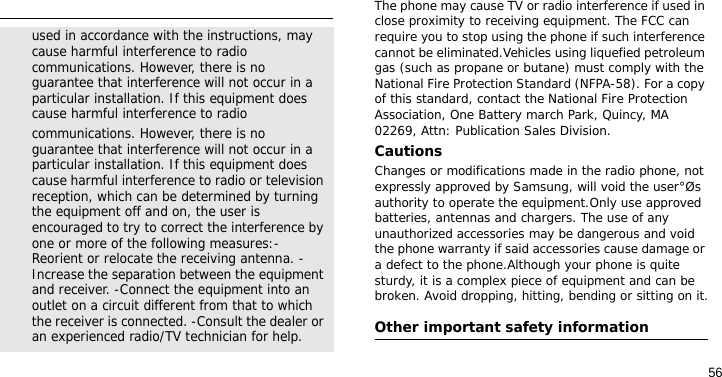

56The phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division.CautionsChanges or modifications made in the radio phone, not expressly approved by Samsung, will void the user°Øs authority to operate the equipment.Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.Other important safety informationused in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

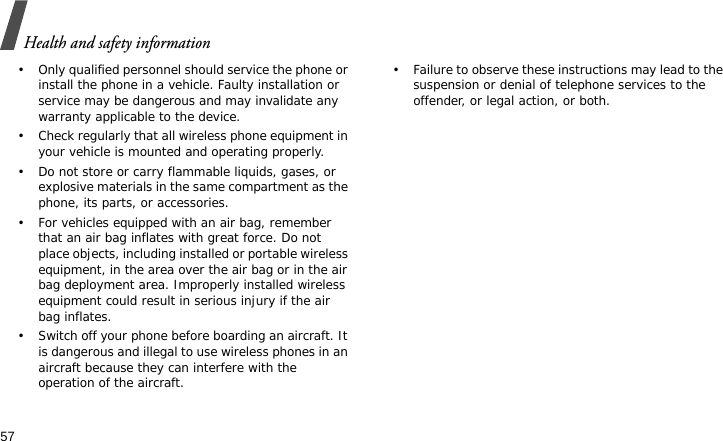

Health and safety information57• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. Improperly installed wireless equipment could result in serious injury if the air bag inflates.• Switch off your phone before boarding an aircraft. It is dangerous and illegal to use wireless phones in an aircraft because they can interfere with the operation of the aircraft.• Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.

58Care and maintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years. • Keep your phone and all its parts and accessories out of the reach of small children and pets. They may accidentally damage these things or choke on small parts.• Keep the phone dry. Precipitation, humidity, and liquids contain minerals that corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone. • Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone’s electronic circuit boards.• Do not drop, knock, or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone. Wipe it with a soft cloth.• Do not paint the phone. Paint can clog the device’s moving parts and prevent proper operation.• Do not put the phone in or on heating devices, such as a microwave oven, stove, or radiator. The phone may explode when overheated.• When the phone or battery gets wet, the label indicating water damage inside the phone changes

Health and safety information59colour. In this case, phone repairs are no longer guaranteed by the manufacturer's warranty, even if the warranty for your phone has not expired.• If your phone has a flash or light, do not use it too close to the eyes of people or animals. This may cause damage to their eyes.• Use only the supplied or an approved replacement antenna. Unauthorised antennas or modified accessories may damage the phone and violate regulations governing radio devices.• If the phone, battery, charger, or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.
