Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider.World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GH68-xxxxxAEnglish. 04/2008. Rev. 1.0

SGH-G400user manualDraft 012008.04.17Version: G400AIH01

iiusing thismanualThis user manual has been specially designed toguide you through the functions and features of yourmobile phone. To get started quickly,refer to “introducing your mobile phone,”“assembling and preparing your mobile phone,”and “using basic functions.”Instructional iconsBefore you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or othersCaution—situations that could cause damage to your phone or other equipmentNote—notes, usage tips, or additional information XRefer to—pages with related information; for example: X p.12 (represents “see page 12”)

using this manualiiiCopyright informationRights to all technologies and products that comprise this device are the property of their respective owners:•Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide—Bluetooth QD ID: B0xxxxx.• Java™ is a trademark of Sun Microsystems, Inc.• Windows Media Player® is registered trademark of Microsoft Corporation.→Followed by—the order of options or menus you must select to perform a step; for example: Press <Menu> → Messages → Create message (represents Menu, followed by Messages, followed by Create message)[ ]Square brackets—phone keys; for example: [ ] (represents the Power/ Menu exit key)< >Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey)

ivcontentssafety and usage information 2Safety warnings .......................................... 2Safety precautions ...................................... 4Important usage information ....................... 7introducing your mobile phone 10Unpack ..................................................... 10Phone layout ............................................. 11Keys ......................................................... 12Display ...................................................... 13Icons .........................................................14assembling and preparing your mobile phone 17Install the SIM or USIM card and battery ...17Charge the battery .................................... 19Insert a memory card (optional) ................. 20using basic functions 21Turn your phone on and off ....................... 21Access menus .......................................... 22

contentsvSwitch applications ................................... 22Use the external display ............................ 22Customise your phone .............................. 23Use basic call functions ............................ 26Send and view messages ......................... 27Add and find contacts ............................... 29Use basic camera functions ...................... 30Listen to music ......................................... 31Browse the web ........................................ 34using advanced functions 35Use advanced call functions ..................... 35Use advanced Phonebook functions ......... 37Use advanced messaging functions .......... 38Use advanced camera functions ............... 39Use advanced music functions ................. 43using tools and applications 46Use the Bluetooth wireless feature ............ 46Print images .............................................. 48Activate and send an SOS message ......... 49Activate the mobile tracker ........................ 50Record and play voice memos .................. 50Use Java-powered games and applications .............................................. 51Use the RSS reader .................................. 52Create and view world clocks ................... 53Set and use alarms ................................... 54Use the calculator ..................................... 55Convert currencies or measurements .......55Set a countdown timer ............................. 55Use the stopwatch .................................... 55Create a new task ..................................... 56Create a text memo .................................. 56Manage your calendar .............................. 56troubleshooting aindex d

2safety andusageinformation Comply with the following precautions to avoiddangerous or illegal situations and ensure peakperformance of your mobile phone.Keep your phone away from small children and petsKeep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.Protect your hearingSafety warningsListening to a headset at high volumes can damage your hearing. Use only the minimum volume setting necessary to hear your conversation or music.

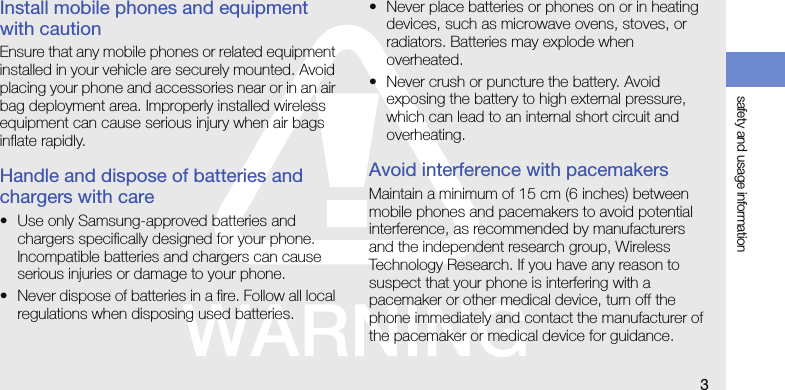

safety and usage information3Install mobile phones and equipment with cautionEnsure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly.Handle and dispose of batteries and chargers with care• Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.• Never dispose of batteries in a fire. Follow all local regulations when disposing used batteries.• Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.• Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating.Avoid interference with pacemakersMaintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance.

4safety and usage informationTurn off the phone in potentially explosive environmentsDo not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories.Reduce the risk of repetitive motion injuriesWhen sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks.Drive safely at all timesAvoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible.Follow all safety warnings and regulationsComply with any regulations that restrict the use of a mobile phone in a certain area.Use only Samsung-approved accessoriesUsing incompatible accessories may damage your phone or cause injury.Safety precautions

safety and usage information5Turn off the phone near medical equipmentYour phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel.Turn off the phone or disable the wireless functions when in an aircraftYour phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel.Protect batteries and chargers from damage• Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/113° F). Extreme temperatures can reduce the charging capacity and life of your batteries.• Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage.• Never use a damaged charger or battery.

6safety and usage informationHandle your phone carefully and sensibly• Do not allow your phone to get wet—liquids can cause serious damage. Do not handle your phone with wet hands. Water damage to your phone can void your manufacturer’s warranty.• Avoid using or storing your phone in dusty, dirty areas to prevent damage to moving parts.• Your phone is a complex electronic device—protect it from impacts and rough handling to avoid serious damage.• Do not paint your phone, as paint can clog moving parts and prevent proper operation.• Avoid using the phone’s camera flash or light close to the eyes of children or animals.• Your phone and memory cards may be damaged by exposure to magnetic fields. Do not use carrying cases or accessories with magnetic closures or allow your phone to come in contact with magnetic fields for extended periods of time.Avoid interference with other electronic devicesYour phone emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience.

safety and usage information7Use your phone in the normal positionAvoid contact with your phone’s internal antenna.Allow only qualified personnel to service your phoneAllowing unqualified personnel to service your phone may result in damage to your phone and will void your warranty.Ensure maximum battery and charger life• Avoid charging batteries for more than a week, as overcharging may shorten battery life.• Over time, unused batteries will discharge and must be recharged before use.• Disconnect chargers from power sources when not in use.• Use batteries only for their intended purpose.Handle SIM cards and memory cards with care• Do not remove a card while the phone is transferring or accessing information, as this could result in loss of data and/or damage to the card or phone.• Protect cards from strong shocks, static electricity, and electrical noise from other devices.• Frequent writing and erasing will shorten the life span of memory cards.• Do not touch gold-coloured contacts or terminals with your fingers or metal objects. If dirty, wipe the card with a soft cloth.Important usage information

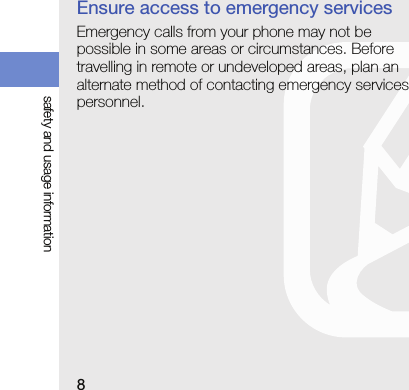

8safety and usage informationEnsure access to emergency servicesEmergency calls from your phone may not be possible in some areas or circumstances. Before travelling in remote or undeveloped areas, plan an alternate method of contacting emergency services personnel.

safety and usage information9Correct disposal of this product(Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems)This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

10introducing yourmobile phone In this section, learn about your mobile phone’slayout, keys, display, and icons.UnpackCheck your product box for the following items:• Mobile phone• Battery• Travel adapter (charger)• User manual The items supplied with your phone may vary depending on the software and accessories available in your region or offered by your service provider.You can obtain additional accessories from your local Samsung dealer.

introducing your mobile phone11Phone layoutThe inside of your phone includes the following keys and features:The outside of your phone includes the following keys and features:Power/Menu exit keyAlphanumeric keysMouthpieceVolume keyDial keyLeft softkey4-way navigation keyRight softkeyVideo call keyCamera lens EarpieceMain DisplayFlashbulbSpecial functionkeysDelete keyApplication switch keyCamera lensConfirm keyMemory card slotExternal display(Touch screen)Multifunction jackHold keyCamera key

introducing your mobile phone13DisplayYour phone’s main display consists of three areas:Volume Adjust the phone’s volumeHold Lock or unlock the touch screenCameraIn Idle mode, turn on the camera (press and hold); In Camera mode, take a photo or record a videoKey FunctionIcon lineDisplays various iconsText and graphic areaDisplays messages, instructions, and information you enterSoftkey lineDisplays the current actions assigned to each softkeySelect Back

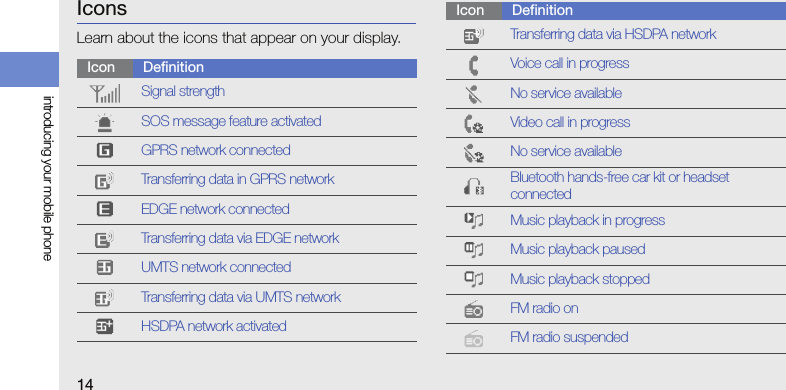

14introducing your mobile phoneIconsLearn about the icons that appear on your display.Icon DefinitionSignal strengthSOS message feature activatedGPRS network connectedTransferring data in GPRS networkEDGE network connectedTransferring data via EDGE networkUMTS network connectedTransferring data via UMTS networkHSDPA network activatedTransferring data via HSDPA networkVoice call in progressNo service availableVideo call in progressNo service availableBluetooth hands-free car kit or headset connectedMusic playback in progressMusic playback pausedMusic playback stoppedFM radio onFM radio suspendedIcon Definition

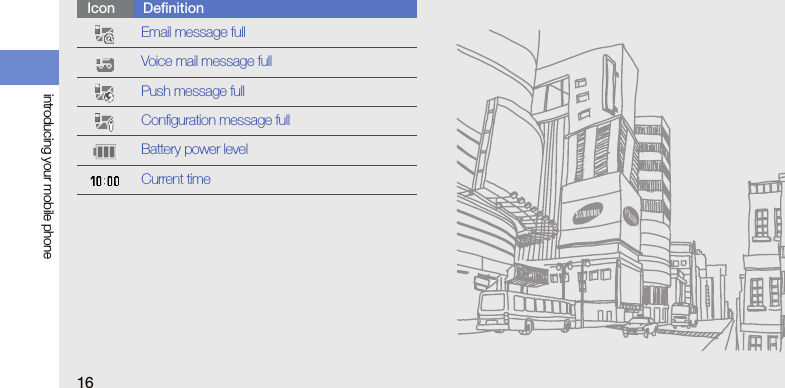

16introducing your mobile phoneEmail message fullVoice mail message fullPush message fullConfiguration message fullBattery power levelCurrent timeIcon Definition

17assembling and preparing your mobile phoneassembling andpreparing yourmobile phone Get started by assembling and setting up your mobile phone for its first use.Install the SIM or USIM card and batteryWhen you subscribe to a cellular service, you will receive a Subscriber Identity Module, or SIM card, with subscription details, such as your personal identification number (PIN) and optional services. To use UMTS or HSDPA services, you can purchase a Universal Subscriber Identity Module (USIM) card.To install the SIM or USIM card and battery,1. Remove the battery cover.If the phone is on, press and hold [] to turn it off.

18assembling and preparing your mobile phone2. Insert the SIM or USIM card. 3. Insert the battery.4. Replace the battery cover.Place the SIM or USIM card in the phone with the gold-coloured contacts facing down.

assembling and preparing your mobile phone19Charge the batteryBefore using the phone for the first time, you must charge the battery.1. Open the cover to the multifunction jack and plug the small end of the travel adapter.2. Plug the large end of the travel adapter into a power outlet.3. When the battery is fully charged (the icon is no longer moving), unplug the travel adapter from the power outlet.4. Unplug the travel adapter from the phone.5. Close the cover to the multifunction jack.Improperly connecting the travel adapter can cause serious damage to the phone. Any damages by misuse are not covered by the warranty.With the triangle facing upAbout the low battery indicatorWhen your battery is low, the phone will emit a warning tone and a low battery message. The battery icon will also be empty and blinking. If the battery level becomes too low, the phone will automatically power off. Recharge your battery to continue using your phone.

20assembling and preparing your mobile phoneInsert a memory card (optional)To store additional multimedia files, you must insert a memory card. Your phone accepts microSD™ memory cards up to XX GB (depending on memory card manufacturer and type).1. Open the cover to the memory card slot on the side of the phone.2. Insert a memory card with the label side facing up.3. Push the memory card in the memory card slot until it locks in place.To remove the memory card, push it gently until it disengages from the phone, and then pull the memory card out of the memory card slot.

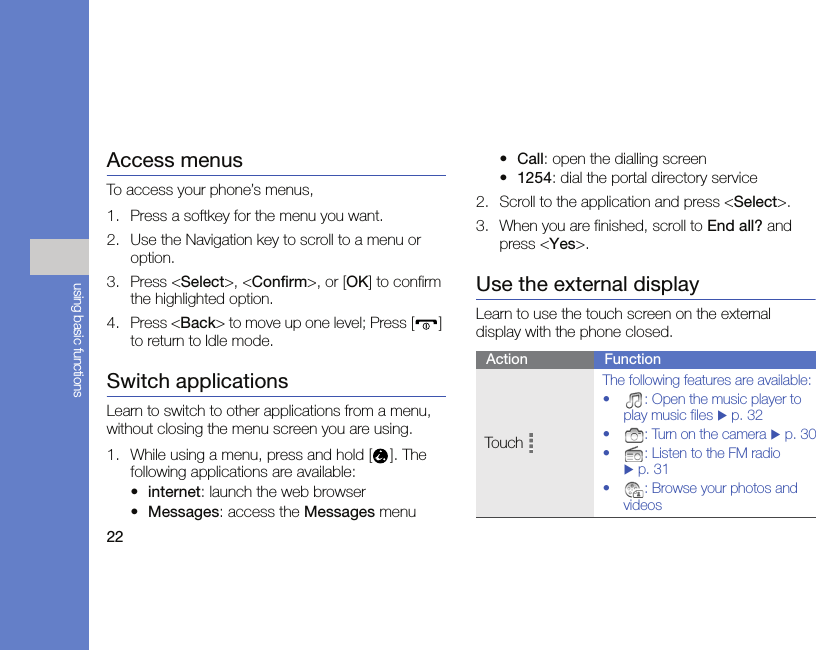

22using basic functionsAccess menusTo access your phone’s menus,1. Press a softkey for the menu you want.2. Use the Navigation key to scroll to a menu or option.3. Press <Select>, <Confirm>, or [OK] to confirm the highlighted option.4. Press <Back> to move up one level; Press [ ] to return to Idle mode.Switch applicationsLearn to switch to other applications from a menu, without closing the menu screen you are using.1. While using a menu, press and hold [ ]. The following applications are available:•internet: launch the web browser•Messages: access the Messages menu•Call: open the dialling screen•1254: dial the portal directory service2. Scroll to the application and press <Select>.3. When you are finished, scroll to End all? and press <Yes>.Use the external displayLearn to use the touch screen on the external display with the phone closed.Action FunctionTouch The following features are available:• : Open the music player to play music files X p. 32• : Turn on the camera X p. 30• : Listen to the FM radio X p. 31• : Browse your photos and videos

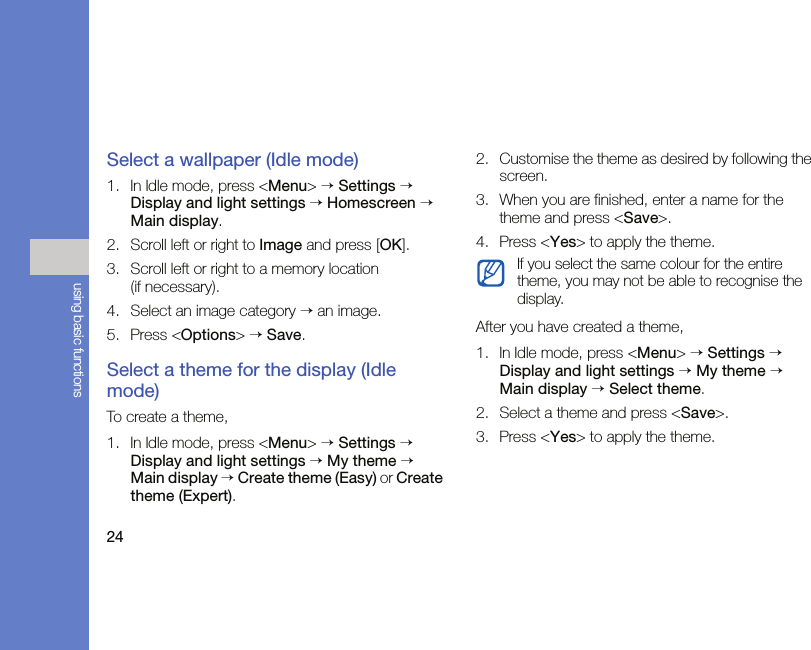

24using basic functionsSelect a wallpaper (Idle mode)1. In Idle mode, press <Menu> → Settings → Display and light settings → Homescreen → Main display.2. Scroll left or right to Image and press [OK].3. Scroll left or right to a memory location (if necessary).4. Select an image category → an image.5. Press <Options> → Save.Select a theme for the display (Idle mode)To create a theme,1. In Idle mode, press <Menu> → Settings → Display and light settings → My theme → Main display → Create theme (Easy) or Create theme (Expert).2. Customise the theme as desired by following the screen.3. When you are finished, enter a name for the theme and press <Save>.4. Press <Yes> to apply the theme.After you have created a theme,1. In Idle mode, press <Menu> → Settings → Display and light settings → My theme → Main display → Select theme.2. Select a theme and press <Save>.3. Press <Yes> to apply the theme.If you select the same colour for the entire theme, you may not be able to recognise the display.

25using basic functionsCustomise the external displayTo change a theme colour,1. In Idle mode, press <Menu> → Settings → Display and light settings → My theme → Cover display.2. Scroll left or right to a colour.3. Press <Save>.To set a wallpaper,1. In Idle mode, press <Menu> → Settings → Display and light settings → Homescreen → Cover display.2. Scroll left or right to On.3. Scroll down and press [OK].4. Scroll left or right to a memory location (if necessary).5. Select an image category → an image.6. Press <Set>.Set menu shortcuts1. In Idle mode, press <Menu> → Settings → Phone settings → Shortcuts.2. Select a key to use as a shortcut.3. Select a menu to assign to the shortcut key.Lock your phone1. In Idle mode, press <Menu> → Settings → Security → Phone lock.2. Select On.3. Enter a new 4- to 8-digit password and press <Confirm>.4. Enter the new password again and press <Confirm>.

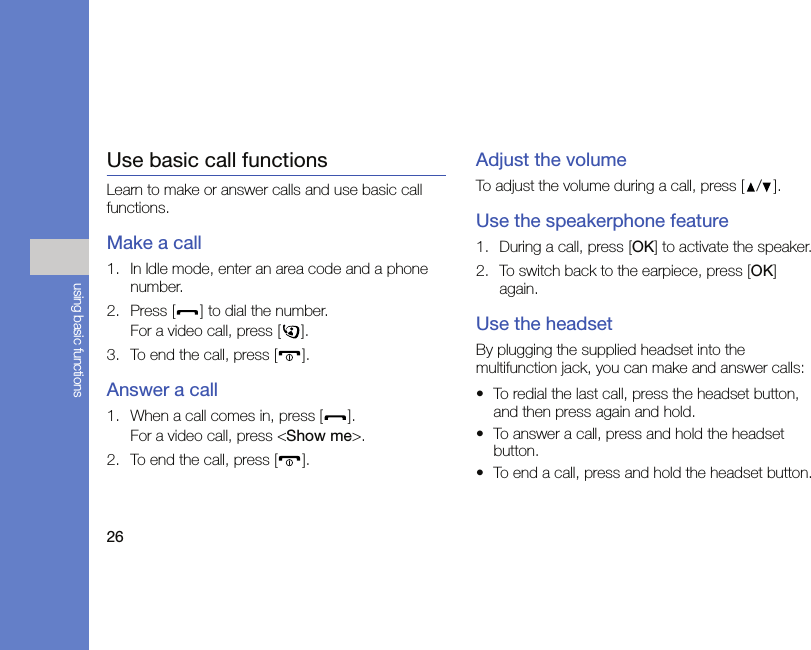

26using basic functionsUse basic call functionsLearn to make or answer calls and use basic call functions.Make a call1. In Idle mode, enter an area code and a phone number.2. Press [ ] to dial the number.For a video call, press [ ].3. To end the call, press [ ]. Answer a call1. When a call comes in, press [ ].For a video call, press <Show me>.2. To end the call, press [ ].Adjust the volumeTo adjust the volume during a call, press [ / ].Use the speakerphone feature1. During a call, press [OK] to activate the speaker.2. To switch back to the earpiece, press [OK] again.Use the headsetBy plugging the supplied headset into the multifunction jack, you can make and answer calls:• To redial the last call, press the headset button, and then press again and hold.• To answer a call, press and hold the headset button.• To end a call, press and hold the headset button.

27using basic functionsSend and view messagesLearn to send or view text (SMS), multimedia (MMS), or email messages or postcard.Send a text or multimedia message1. In Idle mode, press <Menu> → Messages → Create message → Message.2. Enter a destination number and scroll down.3. Enter your message text. X p. 28For sending as a text message, skip to step 7.For attaching multimedia, continue with step 4.4. Press <Options> → Add multimedia and add an item.5. Press <Options> → Advanced → Add subject.6. Enter a subject.7. Press <Options> → Send to send the message.Send a postcard1. In Idle mode, press <Menu> → Messages → Create message → TIMClick → TIMClick postcard.2. Select [Recipient] → Phonebook or New address.3. Select a contact or enter destination information.4. Scroll down and enter your postcard text.5. Scroll down and select Picture.6. Scroll left or right to a memory location (if necessary).7. Select an image category → an image.8. Press <Options> → Send to send the postcard.Send an email1. In Idle mode, press <Menu> → Messages → Create message → Email.

28using basic functions2. Enter an email address and scroll down.3. Enter a subject and scroll down.4. Enter your email text.5. Press <Options> → Attach multimedia or Attach organiser and attach a file (if necessary).6. Press <Options> → Send to send the email.Enter textWhen entering text, you can change the text input mode:• Press and hold [ ] to switch between T9 and ABC modes.• Press [ ] to change case or switch to Number mode.• Press and hold [ ] to switch to Symbol mode.Enter text in one of the following modes:Mode FunctionABCPress the appropriate alphanumeric key until the character you want appears on the display.T91. Press the appropriate alphanumeric keys to enter an entire word.2. When the word displays correctly, press [ ] to insert a space. If the correct word does not display, press [0] to select an alternate word.NumberPress the appropriate alphanumeric key to enter a number.SymbolPress the appropriate alphanumeric key to select a symbol.

29using basic functionsView text or multimedia messages1. In Idle mode, press <Menu> → Messages → Inbox.2. Select a text or multimedia message.View an email1. In Idle mode, press <Menu> → Messages → Email inbox.2. Press <Options> → Download.3. Select an email or a header.4. If you selected a header, press <Options> → Retrieve to view the body of the email.Add and find contactsLearn the basics of using the Phonebook feature.Add a new contact1. In Idle mode, enter a phone number and press <Options>.2. Select Add to Phonebook → a memory location (phone or SIM) → New. 3. Select a number type (if necessary).4. Enter contact information.5. Press [OK], or press <Options> → Save to add the contact to memory.Find a contact1. In Idle mode, press <Menu> → Phonebook.2. Enter the first few letters of the name you want to find.3. Select the contact’s name from the search list.

30using basic functionsUse basic camera functionsLearn the basics to capture and view photos and videos.Capture photos1. From the external display, touch → to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Aim the lens at the subject and make any adjustments:• Touch to adjust the exposure• Touch to zoom4. Press [ ] to take a photo. The photo is saved automatically.5. Touch to take another photo (step 3).Capture self portrait1. In Idle mode, press and hold [ ] to turn on the camera.2. Aim the lens at yourself and make any adjustments.3. Press [OK] or [ ] to take a photo.The photo is saved automatically.4. Press < > or [ ] to take another photo (step 2).View photosFrom the external display, touch → → a photo file.Once you have found a contact, you can:• call the contact by pressing []• edit the contact information by pressing <Options> → Edit

31using basic functionsCapture videos1. From the external display, touch → to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Touch → to switch to Recording mode.4. Aim the lens at the subject and make any adjustments:• Touch to adjust the exposure• Touch to zoom5. Press [ ] to start recording.6. Touch or press [ ] to stop recording. The video is saved automatically.7. Touch to record another video (step 4).View videosFrom the external display, touch → → → a video file.Listen to musicLearn how to listen to music via the music player or FM radio.Listen to the FM radioStart the FM radio on the main display1. Plug the supplied headset into the phone’s multifunction jack.2. In Idle mode, press <Menu> → Applications → FM radio.3. Press [OK] to start the radio.4. Scroll left or right to a radio station.5. To turn off the FM radio, press [OK].

32using basic functionsStart the FM radio on the external display1. Plug the supplied headset into the phone’s multifunction jack.2. From the external display, touch → . The FM radio turns on automatically.3. Control the FM radio using the following actions:Listen to music filesStart by transferring files to your phone or memory card:• Download from the wireless web. X Browse the web• Download from a PC with the optional Samsung PC Studio. X p. 43• Receive via Bluetooth. X p. 47• Copy to your memory card. X p. 43• Synchronise with Windows Media Player 11. X p. 44Play music on the main display1. In Idle mode, press <Menu> → Applications → Music player.2. Select a music category → a music file.Touch to pause or resume the radioTouch to scrolldown to a radiostationTouch to scroll up to a radio stationTouch to openthe Favourites list

33using basic functions3. Control playback using the following keys: Play music on the external display1. From the external display, touch → .2. Select a music category → a music file.3. Control playback using the following actions:Key FunctionOKPause or resume playbackVolumeAdjust the volume up or downNavigation• Left: Restart playback; Skip backward (press within 3 seconds); Scan backward in a file (press and hold)• Right: Skip forward; Scan forward in a file (press and hold)• Up: Open the playlist•Down: Stop playbackTouch to skipbackwardTouch to pause or resume playbackTouch to skip forward

34using basic functionsBrowse the webLearn to access and bookmark your favourite web pages.Browse web pages1. In Idle mode, press [OK] to launch your service provider’s homepage.2. Navigate web pages using the following keys:Bookmark your favourite web pages1. In Idle mode, press <Menu> → Applications → Browser → Bookmarks.2. Press <Options> → Add bookmark.3. Enter a page title and a web address (URL).4. Press <Save>.Key FunctionNavigationScroll up or down on a web pageOKSelect an item<Back>Return to the previous page<Options>Access a list of browser options

35using advanced functionsusing advancedfunctions Learn how to perform advanced operations and useadditional features of your mobile phone.Use advanced call functionsLearn about your phone’s additional calling capabilities. View and dial missed callsYour phone will display calls you have missed on the display. To dial the number of a missed call,1. Press <View>.2. Scroll to the missed call you want to dial.3. Press [ ] to dial.Call a recently dialled number1. In Idle mode, press [ ] to display a list of recent numbers.2. Scroll to the number you want and press [ ] to dial.

36using advanced functionsHold a call or retrieve a held callPress <Hold> to place a call on hold or press <Retrieve> to retrieve a held call.Dial a second callIf your network supports this function, you can dial another number during a call:1. Press <Hold> to place the first call on hold.2. Enter the second number to dial and press [ ].3. Press <Swap> to switch between the two calls.4. To end the call on hold, press <Options> → End call → Held Call.5. To end the current call, press [ ].Answer a second callIf your network supports this function, you can answer a second incoming call:1. Press <Accept> or [ ] to answer the second call.The first call is automatically placed on hold.2. Press <Swap> to switch between the calls.Make a multiparty call (conference call)1. Call the first party you want to add to the multiparty call.2. While connected to the first party, call the second party.The first party is automatically placed on hold.3. When connected to the second party, press <Options> → Conference call.

37using advanced functions4. Repeat steps 1 and 2 to add more parties (if necessary).5. To end the multiparty call, press [ ].Call an international number1. In Idle mode, press and hold [0] to insert the + character.2. Enter the complete number you want to dial (country code, area code, and phone number), and then press [ ] to dial. Call a contact from PhonebookYou can call numbers directly from Phonebook using stored contacts. X p. 291. In Idle mode, press <Menu> → Phonebook.2. Scroll to the number you want to dial and press [ ] to dial. Use advanced Phonebook functionsLearn to create namecards, set speed dial numbers, and create groups of contacts.Create a namecard1. In Idle mode, press <Menu> → Phonebook.2. Press <Options> → My name card.3. Enter your personal details.4. Press [OK] or press <Options> → Save.Set speed dial numbers1. In Idle mode, press <Menu> → Phonebook.2. Scroll to a contact to assign.3. Press <Options> → Assign speed dial.You can send your namecard by attaching it to a message or email or transferring it via the Bluetooth wireless feature.

38using advanced functions4. Scroll to a number you want to set (2-9) and press <Select>.The contact is saved to the speed dial number.Create a group of contactsBy creating groups of contacts, you can assign ringtones and caller ID photos to each group or send messages and emails to an entire group. Start by creating a group:1. In Idle mode, press <Menu> → Phonebook.2. Scroll left or right to Groups.3. Press <Options> → Create group.4. Enter a group name and press <Save>.5. Press <Options> → Group settings.6. To set the caller ID image, press [OK] → an image category → an image.7. To set a group ringtone, scroll down and press [OK] → a ringtone category → a ringtone.8. Press <Options> → Save.Use advanced messaging functionsLearn to create templates and use templates to create new messages.Create a text template1. In Idle mode, press <Menu> → Messages → Templates → Text templates.2. Press <Options> → Create to open a new template window.3. Enter your text and press [OK] to save the template.You can now call this contact from Idle mode by pressing and holding the assigned speed dial number.

39using advanced functionsCreate a multimedia template1. Create a multimedia message, with a subject and desired attachments, to use as your template. X p. 272. From the message screen, press <Options> → Save in → Templates.The message is now saved as a multimedia template with a preset name, such as ‘Birthday.’Insert text templates in new messages1. To start a new message, press <Menu> → Messages → Create message → a message type.2. Scroll down to the text field, and press <Options> → Insert → Text template → a template.Create a message from a multimedia template1. In Idle mode, press <Menu> → Messages → Templates → Multimedia templates.2. Scroll to the template you want and press <Options> → Send.Your template opens as a new multimedia message.Use advanced camera functionsLearn how to capture photos in various modes and customise camera settings.Capture a series of photos1. From the external display, touch → to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.

40using advanced functions3. Touch → → .4. Select the number of photos.5. Make any necessary adjustments.6. Press [ ] to begin the multi-shot.Capture divided photos1. From the external display, touch → to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Touch → → .4. Select an image layout.5. Make any necessary adjustments.6. Press [ ] to capture the divided photos.Capture panoramic photos1. From the external display, touch → to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Touch → → .4. Select the number of photos.5. Make any necessary adjustments.6. Press [ ] to take the first photo.7. Slowly move the phone to the right until the viewfinder shows in red. The phone captures the next photo automatically.8. Repeat step 7 to complete the panoramic photo.

41using advanced functionsUse camera optionsWhile using the camera, touch to access the following options:While using the camcorder, touch to access the following options:Icon Options FunctionShooting modeSwitch the shooting modesSizeChange the image sizeFlashTurn the flash on or offTimerSelect the time delay Face detectionSet the camera to automatically recognise and focus on the faces of peopleEffectsApply a special effectWhite balanceAdjust the colour balance of the imageViewfinder modeSelect a viewfinder modeIcon Options FunctionSizeChange the image sizeFlashTurn the flash on or offTimerSelect the time delay EffectsApply a special effectWhite balanceAdjust the colour balance of the imageAudio recordingTurn the audio on or offIcon Options Function

42using advanced functionsCustomise camera settingsIn Idle mode, press <Menu> → Settings → Appication settings → Camera settings to access the following:Recording modeSelect a recording modeYou can also touch → → → from the external display.Setting FunctionQualityAdjust the quality of your digital images or video clipsISOAdjust the film speed settingExposure meteringSelect a type of exposure metreIcon Options FunctionSingle shot modeAdjust how the camera save captured images or video clipsAnti-ShakeReduce blur caused by vibration or movementWide dynamic rangeAdjust the camera’s sensitivity to a wide range of available lightShutter soundSelect a sound to accompany the shutter actionZoom soundTurn the zoom sound on or offDefault storageSelect a memory location to store new images and video clipsDefault nameEdit a default name for newly captured images or video clipsSetting Function

43using advanced functionsUse advanced music functionsLearn to prepare music files, create playlists, and store radio stations.Copy music files via Samsung PC Studio1. In Idle mode, press <Menu> → Settings → Phone settings → PC connections → Samsung PC studio.2. Press [ ] to return to Idle mode.3. Using an optional PC data cable, connect the multifunction jack on your phone to a PC.4. Run Samsung PC Studio and copy files from the PC to the phone.Refer to the Samsung PC Studio help for more information.Copy music file to a memory card1. Insert a memory card.2. In Idle mode, press <Menu> → Settings → Phone settings → PC connections → Mass storage.3. Press [ ] to return to Idle mode.4. Using an optional PC data cable, connect the multifunction jack on your phone to a PC.When connected, a pop-up window will appear on the PC.5. Select Open folder to view files in the pop-up window on the PC.6. Copy files from the PC to the memory card.

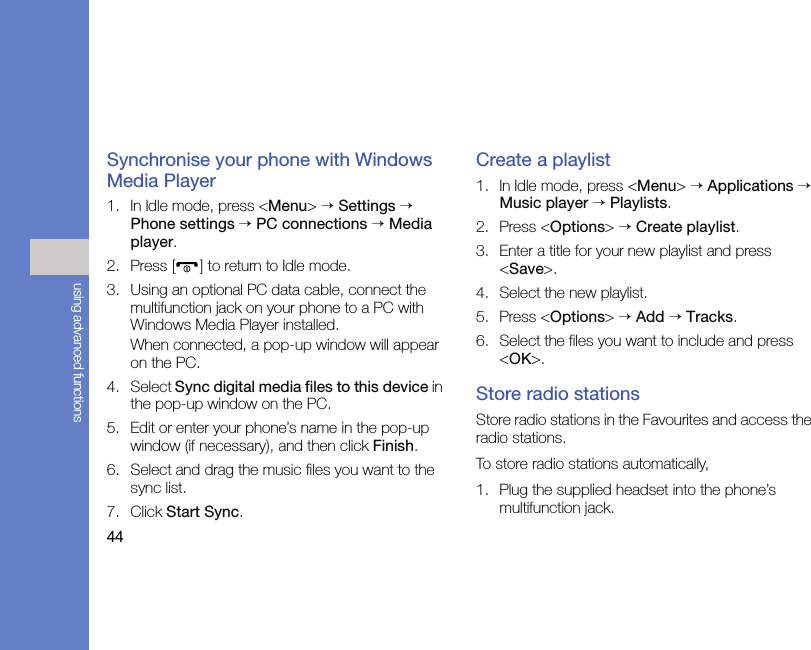

44using advanced functionsSynchronise your phone with Windows Media Player1. In Idle mode, press <Menu> → Settings → Phone settings → PC connections → Media player.2. Press [ ] to return to Idle mode.3. Using an optional PC data cable, connect the multifunction jack on your phone to a PC with Windows Media Player installed.When connected, a pop-up window will appear on the PC.4. Select Sync digital media files to this device in the pop-up window on the PC.5. Edit or enter your phone’s name in the pop-up window (if necessary), and then click Finish.6. Select and drag the music files you want to the sync list. 7. Click Start Sync.Create a playlist1. In Idle mode, press <Menu> → Applications → Music player → Playlists.2. Press <Options> → Create playlist.3. Enter a title for your new playlist and press <Save>.4. Select the new playlist.5. Press <Options> → Add → Tracks.6. Select the files you want to include and press <OK>.Store radio stationsStore radio stations in the Favourites and access the radio stations.To store radio stations automatically,1. Plug the supplied headset into the phone’s multifunction jack.

45using advanced functions2. From the external display, touch → .3. Touch → .4. Touch Yes to confirm (if necessary).The radio scans and saves available stations in the Favourites automatically.To store radio stations manually,1. Plug the supplied headset into the phone’s multifunction jack.2. From the external display, touch → .3. Scroll left or right to a radio station.4. Touch → to save the station in the Favourites.To tune the FM radio to any radio station in the Favourites, touch → → and then scroll up or down from the radio screen.

46using tools andapplications Learn how to work with your mobile phone’s toolsand additional applications.Use the Bluetooth wireless featureLearn about your phone’s ability to connect to other wireless devices for exchanging data and using hands-free features.Turn on the Bluetooth wireless feature1. In Idle mode, press <Menu> → Settings → Bluetooth.2. Press <Options> → Settings.3. Scroll down to Activation.4. Scroll left or right to On.5. To allow other devices to locate your phone, scroll down and scroll left or right to On.6. Press <Save>.

47using tools and applicationsFind and pair with other Bluetooth-enabled devices1. In Idle mode, press <Menu> → Settings → Bluetooth → Search for new devices.2. Scroll to a device and press <Select>.3. Enter a PIN for the Bluetooth wireless feature or the other device’s Bluetooth PIN, if it has one, and press <OK>.When the owner of the other device enters the same code or accepts the connection, pairing is complete.Send data using the Bluetooth wireless feature1. Select the file or item from one of your phone’s applications that you want to send.2. Press <Options> → Send name card via, Send via, or Send URL via → Bluetooth (when sending contact data, specify which data to send).Receive data using the Bluetooth wireless feature1. Enter the PIN for the Bluetooth wireless feature and press <OK> (if necessary).2. Press <Yes> to confirm that you are willing to receive data from the device (if necessary).Use Remote SIM modeIn Remote SIM mode, you can make or answer calls only with a connected Bluetooth hands-free car kit via the SIM card on your phone.

48using tools and applicationsTo activate Remote SIM mode,1. In Idle mode, press <Menu> → Settings → Bluetooth.2. Press <Options> → Settings.3. Scroll down to Remote SIM mode.4. Scroll left or right to On and press <Save>.To use Remote SIM mode, start the Bluetooth connection from a Bluetooth hands-free car kit.Print imagesLearn to print your image with an optional PC data cable or the Bluetooth wireless feature, or send images to a printing service shop for printing.To print an image using an optional PC data cable,1. Connect the multifunction jack on your phone to a compatible printer.2. In Idle mode, press <Menu> → File manager → Images → an image.3. Press <Options> → Print via → USB.4. Set print options and press <Print>.To print an image using the Bluetooth wireless feature,1. In Idle mode, press <Menu> → File manager → Images → an image.2. Press <Options> → Print via → Bluetooth.3. Select a Bluetooth-enabled printer and pair with the printer. X p. 474. Set print options and press <Print>.The Bluetooth hands-free car kit must be authorised. To authorise, press <Options> → Authorise device.

49using tools and applicationsTo send an image to a printing service shop,1. In Idle mode, press <Menu> → File manager → Images → an image.2. Press <Options> → Send via → TIMClick → TIMClick print.3. Select Post Code.4. Enter the postal code of a printing service shop and press [OK].5. Press <Options> → Send.Activate and send an SOS messageWhen you have an emergency, you can send an SOS message asking for help.1. In Idle mode, press <Menu> → Messages → SOS messages → Sending options.2. Scroll left or right to On.3. Scroll down and press [OK] to open the recipient list.4. Press <Options> → Phonebook to open your contact list.5. Scroll to a contact and press [OK].6. When you are finished selecting contacts, press <Done> → a number (if necessary) to return to the recipient list.7. Press <Options> → OK to save the recipients.8. Scroll down and set the number of times to repeat the SOS message.9. Press <Save> → <Yes>.To send an SOS message, the phone must be closed and the keys are locked. With the phone closed, press [ / ] four times.Once you send an SOS message, all phone functions will be suspended until you press [].

50using tools and applicationsActivate the mobile trackerWhen someone inserts a new SIM or USIM card in your phone, the mobile tracker feature will automatically send the contact number to two recipients to help you locate and recover your phone.To activate the mobile tracker,1. In Idle mode, press <Menu> → Settings → Security → Mobile tracker.2. Enter your password and press <Confirm>.3. Scroll left or right to On.4. Scroll down and press [OK] to open the recipient list.5. Press <Options> → Phonebook to open your contact list.6. Scroll to a contact and press [OK].7. Select a number.8. Press <Options> → OK to save the recipients.9. Scroll down and enter the sender’s name.10.Press <Options> → Save → <Accept>.Record and play voice memosLearn to operate your phone’s voice recorder.Record a voice memo1. In Idle mode, press <Menu> → Applications → Voice recorder.2. Press [OK] to start recording.3. Speak your memo into the microphone.4. When you are finished speaking, press the Navigation key down.

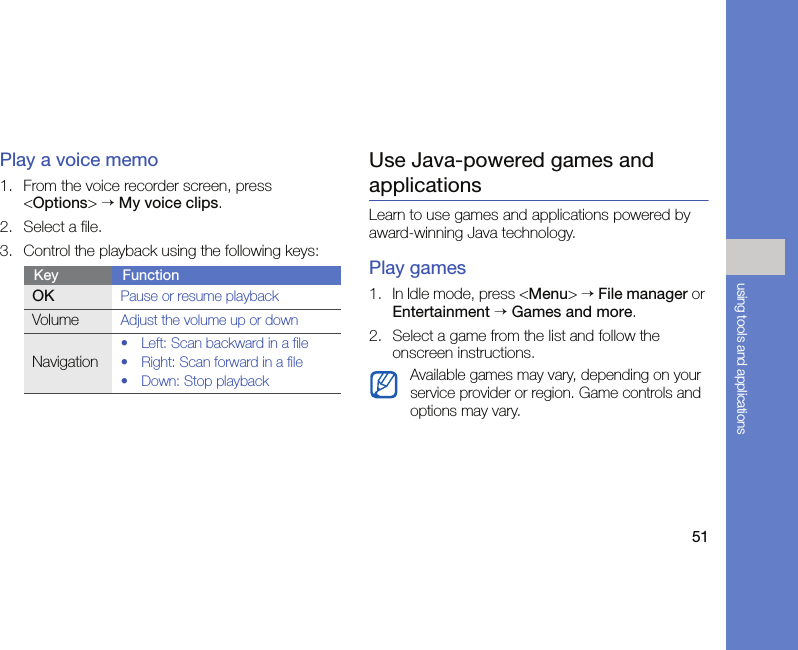

51using tools and applicationsPlay a voice memo1. From the voice recorder screen, press <Options> → My voice clips.2. Select a file.3. Control the playback using the following keys:Use Java-powered games and applicationsLearn to use games and applications powered by award-winning Java technology.Play games1. In Idle mode, press <Menu> → File manager or Entertainment → Games and more.2. Select a game from the list and follow the onscreen instructions.Key FunctionOKPause or resume playbackVolumeAdjust the volume up or downNavigation• Left: Scan backward in a file• Right: Scan forward in a file• Down: Stop playbackAvailable games may vary, depending on your service provider or region. Game controls and options may vary.

52using tools and applicationsLaunch applications1. In Idle mode, press <Menu> → File manager or Entertainment → Games and more → an application.2. Press <Options> to access a list of various options and settings for your application. Use the RSS readerLearn to use the RSS reader to get the latest news and information from your favourite websites.Create feeds1. In Idle mode, press <Menu> → Applications → RSS reader.2. Press <Options> → Add.3. Enter the address of an RSS feed and press <OK>.4. To add more feeds, repeat steps 2-3 above.Read RSS feeds1. In Idle mode, press <Menu> → Applications → RSS reader.2. Press <Options> → Update → Selected or All to get the latest contents. 3. Select a feed → an updated post.Download multimedia1. In Idle mode, press <Menu> → Applications → RSS reader.2. Scroll a feed and press <Options> → Open.3. Scroll a post containing multimedia.4. Press <Options> → Media → Download.

53using tools and applicationsCustomise RSS reader settings1. In Idle mode, press <Menu> → Applications → RSS reader.2. Press <Options> → Setting.3. Customise the settings as desired.Create and view world clocksLearn to view the time in another country or city and set world clocks to appear on your display.Create a world clock1. In Idle mode, press <Menu> → Applications → World clock.2. Press <Options> → Add.3. Scroll left or right to a time zone.4. To set daylight saving time, scroll down and press [OK].5. Press <OK> to save your world clock.6. To add more world clocks, repeat steps 2-5 above.Add a world clock to your displayIn Dual Clock Display mode, you can view clocks with two different time zones on your display.After you have saved world clocks,1. In Idle mode, press <Menu> → Applications → World clock.2. Scroll to the world clock you want to add and press <Options> → Set as second clock.3. Press <Options> → Display settings.4. Scroll left or right to Dual.

54using tools and applications5. Scroll down, and then scroll left or right to a dual clock style.6. Press <Save>.Set and use alarmsLearn to set and control alarms for important events.Set a new alarm1. In Idle mode, press <Menu> → Alarms.2. Scroll to an empty alarm location and press [OK].3. Set alarm details.4. Press <Options> → Save.Stop an alarmWhen the alarm sounds,• Press any key to stop an alarm without snooze.• Press <OK> or [OK] to stop an alarm with snooze, or press <Snooze> or any key to silence the alarm for the snooze period.Deactivate an alarm1. In Idle mode, press <Menu> → Alarms.2. Scroll to the alarm you want to deactivate and press [OK].3. Scroll down (if necessary).4. Scroll left or right to Off.5. Press [OK].The auto power-up feature sets the phone to automatically turn on and sound the alarm at the designated time if the phone is turned off.

55using tools and applicationsUse the calculator1. In Idle mode, press <Menu> → Applications → Calculator.2. Use the keys that correspond to the calculator display to perform basic mathematical operations.Convert currencies or measurements1. In Idle mode, press <Menu> → Applications → Convertor → a conversion type.2. Enter the currencies or measurements and units in the appropriate fields.Set a countdown timer1. In Idle mode, press <Menu> → Applications → Timer.2. Press <Set>.3. Enter hours or minutes to count down and press <OK>.4. Press [OK] to begin or pause the countdown.5. When the timer expires, press <OK> to stop the alert.Use the stopwatch1. In Idle mode, press <Menu> → Applications → Stopwatch.2. Press [OK] to begin and record lap times.3. When you are finished, press <Stop>.4. Press <Reset> to clear recorded times.

56using tools and applicationsCreate a new task1. In Idle mode, press <Menu> → Applications → Task.2. Press <Options> → Create.3. Enter the details of the task.4. Press <Options> → Save.Create a text memo1. In Idle mode, press <Menu> → Applications → Memo.2. Press <Options> → Create.3. Enter your memo text and press [OK].Manage your calendarLearn to change the calendar view and create events.Change the calendar view1. In Idle mode, press <Menu> → Calendar.2. Press <Options> → View by → Day or Week.Create an event1. In Idle mode, press <Menu> → Calendar.2. Press <Options> → Create → an event type.3. Enter the details of the event as required.4. Press <Options> → Save.

57Health and safety informationExposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the

Health and safety information58FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. The highest SAR values for this model phone as reported to the FCC are: PCS1900 Head: 0.206 W/Kg, Boby: 0.517 W/Kg.For body worn operation, this model phone has been tested and meets the FCC RF exposure guidelines whenused with a Samsung accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.SAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. This site uses the phone FCC ID number, A3LSGHG400 Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar.Consumer Information on Wireless PhonesThe U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called “cell,” “mobile,” or “PCS” phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater

59distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called “cordless phones,” which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:• “Support needed research into possible biological effects of RF of the type emitted by wireless phones;

Health and safety information60• “Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and• “Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:• “National Institute for Occupational Safety and Health• “Environmental Protection Agency• “Federal Communications Commission• “Occupational Safety and Health Administration• “National Telecommunications and Information AdministrationThe National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have

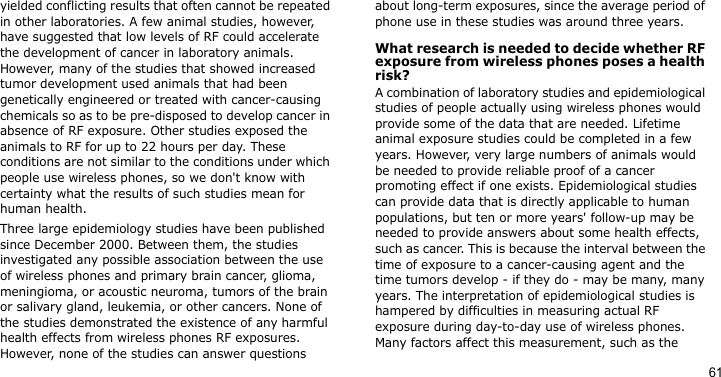

61yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.What research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the

Health and safety information62angle at which the phone is held, or which model of phone is used.What is FDA doing to find out more about the possible health effects of wireless phone RF?FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.• “If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the

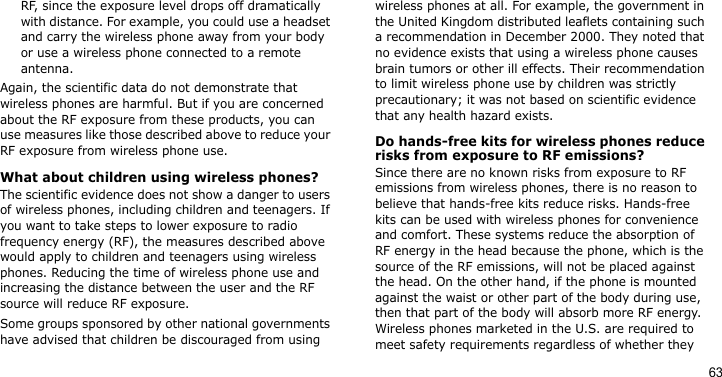

63RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists. Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they

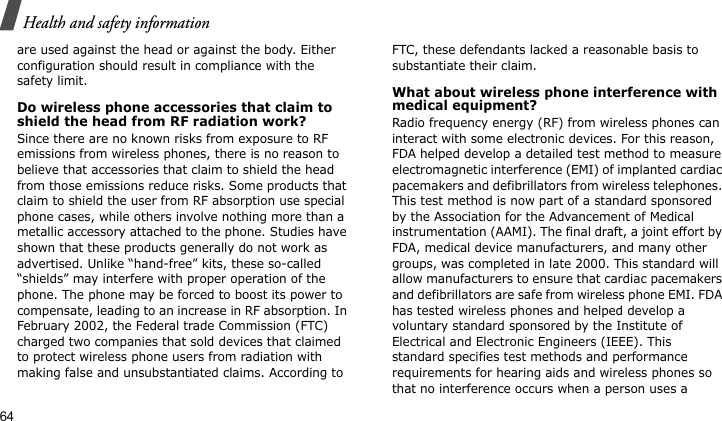

Health and safety information64are used against the head or against the body. Either configuration should result in compliance with the safety limit.Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike “hand-free” kits, these so-called “shields” may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a

65compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.• Additional information on the safety of RF exposures from various sources can be obtained from the following organizations:• FCC RF Safety Program:• http://www.fcc.gov/oet/rfsafety/• Environmental Protection Agency (EPA):• http://www.epa.gov/radiation/• Occupational Safety and Health Administration's (OSHA): • http://www.osha.gov/SLTC/radiofrequencyradiation/index.html• National institute for Occupational Safety and Health (NIOSH):• http://www.cdc.gov/niosh/emfpg.html • World health Organization (WHO):• http://www.who.int/peh-emf/• International Commission on Non-Ionizing Radiation Protection:• http://www.icnirp.de• National Radiation Protection Board (UK):• http://www.nrpb.org.uk• Updated 4/3/2002: US food and Drug Administration• http://www.fda.gov/cellphones

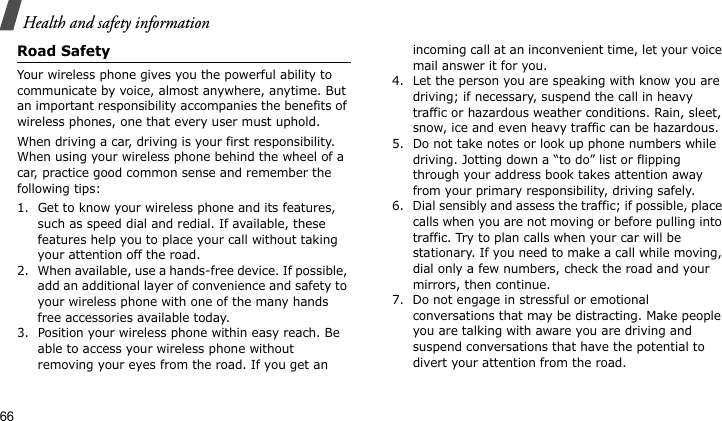

Health and safety information66Road SafetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.2. When available, use a hands-free device. If possible, add an additional layer of convenience and safety to your wireless phone with one of the many hands free accessories available today.3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.5. Do not take notes or look up phone numbers while driving. Jotting down a “to do” list or flipping through your address book takes attention away from your primary responsibility, driving safely.6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.7. Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.

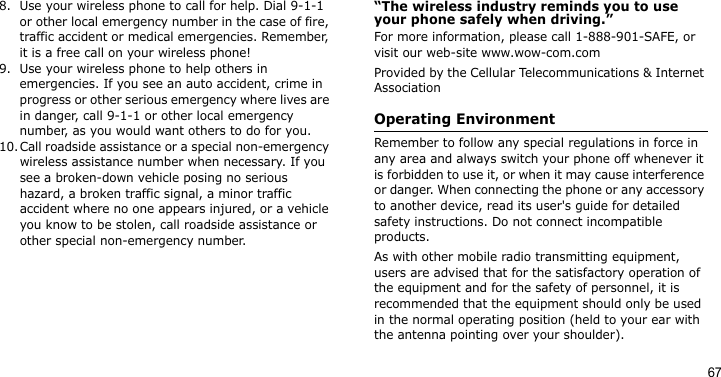

678. Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!9. Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you.10.Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency number.“The wireless industry reminds you to use your phone safely when driving.”For more information, please call 1-888-901-SAFE, or visit our web-site www.wow-com.comProvided by the Cellular Telecommunications & Internet AssociationOperating EnvironmentRemember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the phone or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).

Health and safety information68Using Your Phone Near Other Electronic DevicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker.These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:• should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on.• should not carry the phone in a breast pocket.• should use the ear opposite the pacemaker to minimize potential interference.If you have any reason to suspect that interference is taking place, switch your phone off immediately.Hearing AidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

69VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your phone off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.

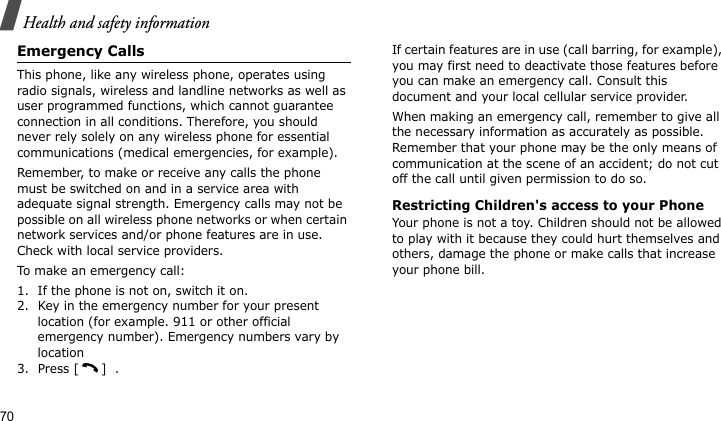

Health and safety information70Emergency CallsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example. 911 or other official emergency number). Emergency numbers vary by location3. Press [ ] .If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Restricting Children's access to your PhoneYour phone is not a toy. Children should not be allowed to play with it because they could hurt themselves and others, damage the phone or make calls that increase your phone bill.

71FCC Notice and Cautions•This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.•This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

Health and safety information72The phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division.CautionsChanges or modifications made in the radio phone, not expressly approved by Samsung, will void the user’s authority to operate the equipment.Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.Other Important Safety Information• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your phone off before boarding an aircraft. The use of wireless phone in aircraft is illegal and may be dangerous to the aircraft's operation.

73• Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Product PerformanceGetting the Most Out of Your Signal ReceptionThe quality of each call you make or receive depends on the signal strength in your area. Your phone informs you of the current signal strength by displaying a number of bars next to the signal strength icon. The more bars displayed, the stronger the signal.If you're inside a building, being near a window may give you better reception.Understanding the Power Save FeatureIf your phone is unable to find a signal after 15 minutes of searching, a Power Save feature is automatically activated. If your phone is active, it periodically rechecks service availability or you can check it yourself by pressing any key.Anytime the Power Save feature is activated, a message displays on the screen. When a signal is found, your phone returns to standby mode.Maintaining Your Phone's Peak PerformanceFor the best care of your phone, only authorized personnel should service your phone and accessories. Faulty service may void the warranty.There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service.• Hold the phone with the antenna raised, fully-extended and over your shoulder.• Try not to hold, bend or twist the phone's antenna.• Don't use the phone if the antenna is damaged.• Speak directly into the phone's receiver.• Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. If it is inoperable, call Customer Care for service.

Health and safety information74Availability of Various Features/Ring TonesMany services and features are network dependent and may require additional subscription and/or usage charges. Not all features are available for purchase or use in all areas. Downloadable Ring Tones may be available at an additional cost. Other conditions and restrictions may apply. See your service provider for additional information.Battery Standby and Talk TimeStandby and talk times will vary depending on phone usage patterns and conditions. Battery power consumption depends on factors such as network configuration, signal strength, operating temperature, features selected, frequency of calls, and voice, data, and other application usage patterns. Battery Precautions• Never use any charger or battery that is damaged in any way.• Use the battery only for its intended purpose.• If you use the phone near the network's base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.• Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.• If left unused, a fully charged battery will discharge itself over time.• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers.

75When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short- circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.• Dispose of used batteries in accordance with local regulations. In some areas, the disposal of batteries in household or business trash may be prohibited. For safe disposal options for Li-Ion batteries, contact your nearest Samsung authorized service center. Always recycle. Do not dispose of batteries in a fire.Care and MaintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years.• Keep the phone and all its parts and accessories out of the reach of small children.• Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.

Health and safety information76• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.• Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone's electronic circuit boards.• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device's moving parts and prevent proper operation.• Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.• When the phone or battery gets wet, the label indicating water damage inside the phone changes color. In this case, phone repairs are no longer guaranteed by the manufacturer's warranty, even if the warranty for your phone has not expired. • If your phone has a flash or light, do not use it too close to the eyes of people or animals. This may cause damage to their eyes.• Use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.• If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.
