Users Manual
Please read this manual before
operating your phone, and keep it for
future reference.
Smartphone
SGH-i300
User’s Guide
World Wide Web
http://www.samsungmobile.com
2
Table of Contents
Important safety precautions . . . . . . . . . . . . . . . . . . . 6
CHAPTER 1 Getting started
What’s in the box? . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Getting to know your phone . . . . . . . . . . . . . . . . . . . . 9
Installing the SIM card . . . . . . . . . . . . . . . . . . . . . . . 13
Installing the battery . . . . . . . . . . . . . . . . . . . . . . . . 14
Charging your phone . . . . . . . . . . . . . . . . . . . . . . . . 16
Turning your phone on or off . . . . . . . . . . . . . . . . . . 17
CHAPTER 2 The basics
Using the Home screen . . . . . . . . . . . . . . . . . . . . . . 18
Start menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

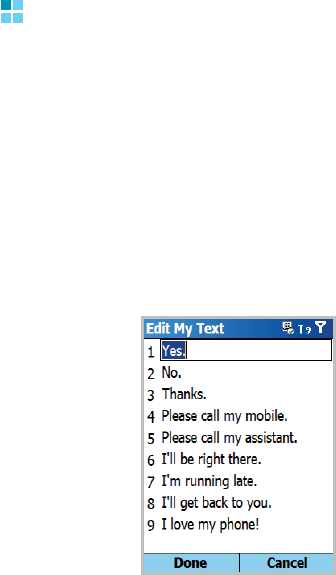

Using My Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Customising your phone . . . . . . . . . . . . . . . . . . . . . . 30
Key lock (Keyguard) . . . . . . . . . . . . . . . . . . . . . . . . 43
Using the Launcher . . . . . . . . . . . . . . . . . . . . . . . . . 44
Using an optional memory card . . . . . . . . . . . . . . . . . 46
Adding and removing programmes . . . . . . . . . . . . . . 47
Managing certificates . . . . . . . . . . . . . . . . . . . . . . . . 51
Resetting your phone . . . . . . . . . . . . . . . . . . . . . . . . 52
Using online help . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Table of Contents
3
CHAPTER 3 Synchronisation
Installing ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . 56
Customising connection settings . . . . . . . . . . . . . . . . 58
Connecting your phone to a computer . . . . . . . . . . . . 59
Synchronising information . . . . . . . . . . . . . . . . . . . . 61
Customising synchronisation settings . . . . . . . . . . . . . 62
CHAPTER 4 Phone functions
Checking if you are connected . . . . . . . . . . . . . . . . . 68
Turning the phone functions on and off . . . . . . . . . . . 69

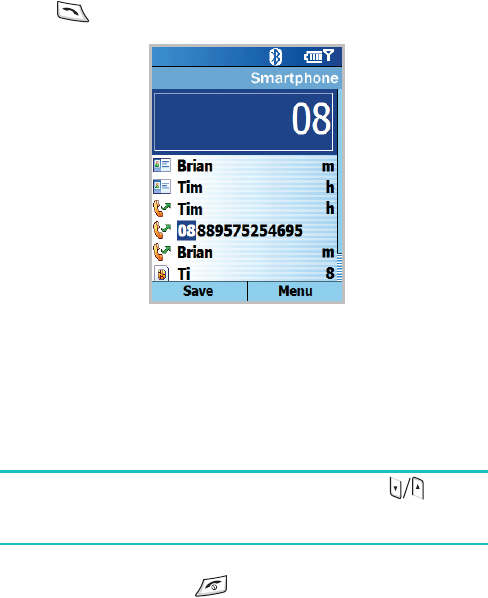

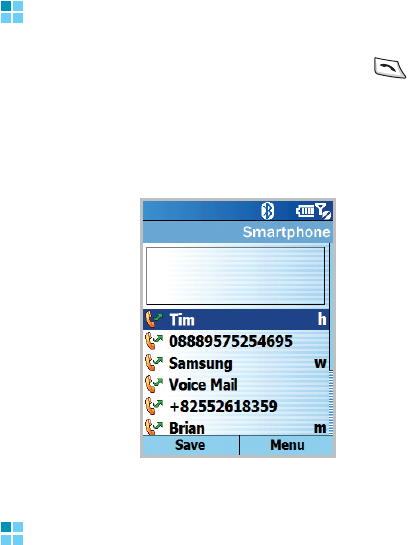

Using the Dialer screen . . . . . . . . . . . . . . . . . . . . . . 70

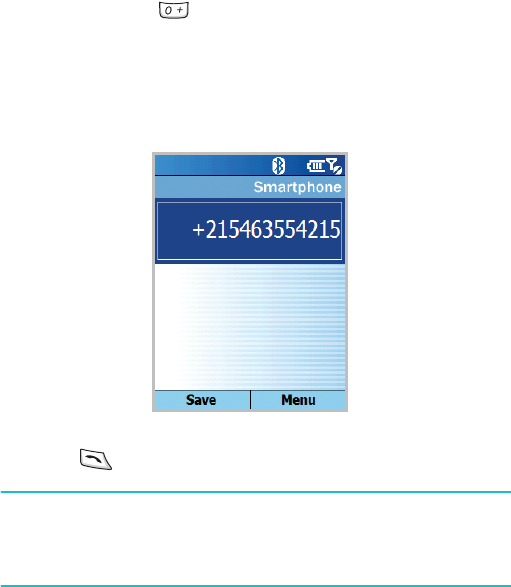

Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Advanced calling features . . . . . . . . . . . . . . . . . . . . . 72
Answering or rejecting a call . . . . . . . . . . . . . . . . . . . 76
Options during a call . . . . . . . . . . . . . . . . . . . . . . . . 77
Call-related features . . . . . . . . . . . . . . . . . . . . . . . . 78
Customising your phone functions . . . . . . . . . . . . . . . 87
CHAPTER 5 Message, Internet, and Messenger

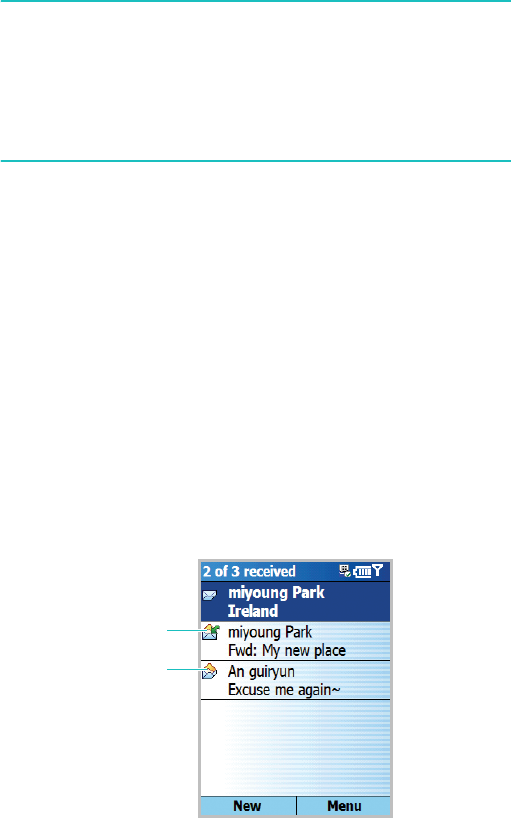

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Internet Explorer . . . . . . . . . . . . . . . . . . . . . . . . . . 118

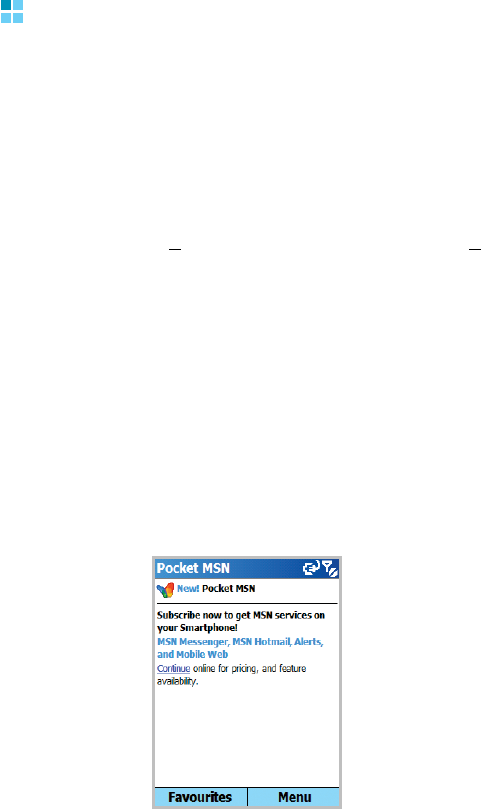

Pocket MSN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
WAP Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
MSN Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
CHAPTER 6 Organiser
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Table of Contents
4
CHAPTER 7 Multimedia
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
SAMSUNG Media Player . . . . . . . . . . . . . . . . . . . . . 164
Windows Media player . . . . . . . . . . . . . . . . . . . . . . 170
SRS WOW XT Settings . . . . . . . . . . . . . . . . . . . . . . 176

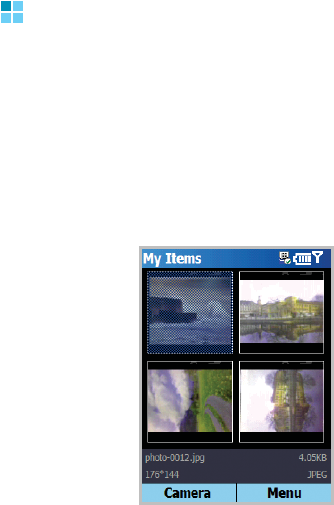

My Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
FunBox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
CHAPTER 8 Extra programmes
Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

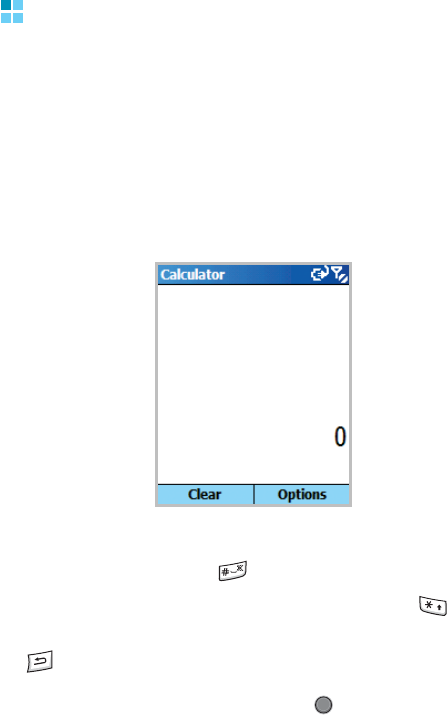

Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Voice Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Voice Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Time Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Document Viewer . . . . . . . . . . . . . . . . . . . . . . . . . 195
File Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

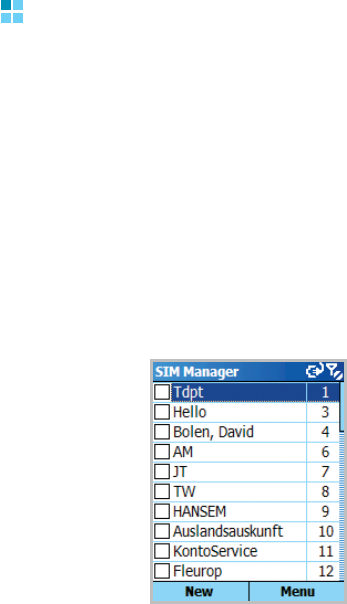

SIM Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Task Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
CHAPTER 9 Getting connected
Beaming with infrared connections . . . . . . . . . . . . . 207
Beaming with Bluetooth . . . . . . . . . . . . . . . . . . . . . 209
Modem link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Connecting to the Internet or your network . . . . . . . 216
Table of Contents
5
CHAPTER 10 Troubleshooting
General problems . . . . . . . . . . . . . . . . . . . . . . . . . 226
Call problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Power and charging problems . . . . . . . . . . . . . . . . . 230
Application problems . . . . . . . . . . . . . . . . . . . . . . . 232
CHAPTER 11 Regulatory notices
Regulatory agency identification numbers . . . . . . . . 238
SAR certification information . . . . . . . . . . . . . . . . . . 239
European union notice . . . . . . . . . . . . . . . . . . . . . . 240
Important safety information . . . . . . . . . . . . . . . . . 241
Safety precautions for power supply unit . . . . . . . . . 242
Care and maintenance . . . . . . . . . . . . . . . . . . . . . . 243
Microsoft End User License Agreement . . . . . . . . . . . 245
DESCRIPTION OF OTHER RIGHTS
AND LIMITATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 247
6
Important safety precautions
Read these guidelines before using your wireless phone.
Failure to comply with them may be dangerous or illegal.
Drive safely at all times
Do not use a hand-held phone while driving. Park the
vehicle first.
Switch off the phone when refuelling
Do not use the phone at a refuelling point (service station)
or near fuels or chemicals.
Switch off in an aircraft
Wireless phones can cause interference. Using them in an
aircraft is both illegal and dangerous.
Switch off the phone near all medical equipment
Hospitals or health care facilities may be using equipment
that could be sensitive to external radio frequency energy.
Follow any regulations or rules in force.
Interference
All wireless phones may be subject to interference, which
could affect their performance.
Be aware of special regulations
Meet any special regulations in force in any area and
always switch off your phone whenever it is forbidden to
use it, or when it may cause interference or danger.
7
Water resistance
Your phone is not water-resistant. Keep it dry.
Sensible use
Use only in the normal position (held to the ear). Avoid
unnecessary contact with the antenna when the phone is
switched on.
Emergency calls
Key in the emergency number for your present location,
then press .
Keep your phone away from small children
Keep the phone and all its parts, including accessories, out
of the reach of small children.
Accessories and batteries
Use only Samsung-approved accessories and batteries. Use
of any unauthorised accessories could damage your phone
and may be dangerous.
CAUTION:
• The phone could explode if the battery is replaced with an
incorrect type.
• Dispose of used batteries according to the manufacturer’s
instructions.
Qualified service
Only qualified service personnel may install or repair your
phone. Failure to do so may invalidate the warranty.
For more detailed safety information, see “Important safety
information” on page 241.
8
1
Getting started
Congratulations on the purchase of your new Smartphone!
This chapter helps you set up your phone, charge the
phone’s batteries, and familiarise yourself with the different
components of your phone.
What’s in the box?
Your package contains the following items:
In addition, you can obtain the following accessories for
your phone from your local Samsung dealer:
Note
: The items supplied with your phone and available
accessories may be different depending on your country
or service provider.
Phone PC data link cable Battery
Travel charger CD-ROMs
*
* One contains Microsoft ActiveSync software, Add-on software and
applications, and the other contains User’s Guide in PDF format.
Quick reference guide
• Car charger/adapter • Desktop holder
• Standard/extended battery • Bluetooth handsfree car kit
• Travel adapter • Straight headset
• PC data link cable • Bluetooth USB dongle kit
• Bluetooth mono &
stereo headset kit
Getting started
9
Getting to know your phone
Front view
Navigation key
Earpiece
Right soft key
Reset hole
End/Power
on or off key
OK key
Display
Back key
Microphone
Home key
Volume key
Dialer/Send key
Headset jack
Left soft key
Voice command key
SAMSUNG media
player key
Service light
Alphanumeric
keys
Special function
keys
Infrared port
Getting started
10
Rear view
Charging/
Communication port
Memory card slot
Camera key
Phone key
Lock key Battery lock
Camera flash
Camera lens
Battery
Speaker
Getting started
11
Keys of your phone
Key Description
• Press to open the Quick List screen.
• Press and hold to turn the phone mode on or
off.
Press and hold to turn the backlight off and
lock the keys.
• Press to open the
Camera
application.
• Press to take a photo in Camera.
Press to perform the command shown on the
screen immediately above the key.
• Press to switch to the Home screen in an
application.
• Press and hold to open the Launcher.
• Press to return to the previous screen.
• Press to delete characters in a text input
field.
Navigation (Left/Right/Up/Down) key or disc.
Press or spin to scroll through a list.
• Press to confirm your selection.
• Press to move the cursor to the next line in a
text input field.
• Press to open the Dialer screen.
• Press to make or answer a call in Phone
mode.
Getting started
12
• Press and hold to turn the phone on or off.
• Press to end a call in Phone mode.
Press to enter numbers and characters.
• Press to change the letter-case in a text
input field.
• Press and hold to change the text input
mode.
• Press to enter a space in a text input field.
• Press and hold to activate or deactivate the
Silent profile.
• Press to open the
Voice Notes
application.
• Press to record a memo in the
Voice Notes
application.
• Press and hold to open the
Voice Assist
application.
Press to open the
SAMSUNG Media Player
application.
• Press to adjust the voice volume during a call
or the earpiece volume in Idle mode.
• Press to adjust the speake volume in a media
player.
• Press to flip the image in Camera.
Key Description
Getting started
13
Installing the SIM card
When you subscribe to a cellular network, you are provided
with a plug-in SIM card loaded with your subscription
details, such as your PIN, any optional services available,
and many others details.
• Keep all miniature SIM cards out of the reach of small
children.
• The SIM card and its contacts can be easily damaged by
scratches or bending, so be careful when handling,
inserting, or removing the card.
• When installing the SIM card, always make sure that the
phone is switched off before you remove the battery.
Inserting the SIM card
1. If necessary, remove the battery by referring to page
15.
2. Insert and slide the SIM card under the two tabs, as
shown, ensuring that the gold coloured contacts of the
card face down into the phone.
Getting started
14
Removing the SIM card
To remove the SIM card, slide the card out of the holder, as
shown.
Installing the battery
Installing the battery
1. Insert the teeth on the bottom of the battery into the
corresponding slots on the phone.
Getting started
15
2. Press the battery against the back of the phone.
Make sure that the battery is securely locked before
switching on the phone.
Removing the battery
1. If necessary, switch off the phone by pressing and
holding
until the power-off image displays.
Or, you can also press
and scroll to
Power off
and
then press the
Select
soft key.
2. To remove the battery, pull and hold the battery lock,
with the back of the phone facing you.
3. Lift the battery away from the phone, as shown.
Getting started
16
Charging your phone
1. Plug the connector of the travel charger into the bottom
of the phone. Check that the arrow on the connector is
facing up.
2. Plug the charger into a standard AC wall outlet.
You can see the LED on the charger indicating the
charging progress by the following colours:
• Red: the phone is being charged.
• Green: the phone is fully charged.
• Orange: the travel charger is not plugged in correctly.
Check the phone and the charger.
Getting started
17
3. When charging is finished, first unplug the charger from
the power outlet. Then remove the charger from the
phone by pressing the buttons on both sides of the
connector and pulling the connector out.
Low battery warning
Your phone displays the Battery Very Low icon ( ) and a
warning message when the battery gets very low. If this
happens, charge the battery.
Turning your phone on or off
Press and hold
to turn on your phone. The phone is
logged into your home network and receives the signal
from the network. You can now make and answer a call
and use applications on the phone.
To turn off the phone, press and hold
.
2
18
The basics
This chapter explains basic information about using your
phone, such as customising your phone and using online
help.
Using the Home screen
You will see the Home screen when you turn on your phone.
You can also display it by pressing in an application or
the
Home
soft key from the
Start
menu.
On the Home screen, you can view important information
for the day or messages at a glance. You can also quickly
switch to the application you recently access.
Press to open the
Start
menu and switch
to a programme.
Scroll to the item
and press to
view your schedule
and messages.
Shows the recent
applications you used.
Select the application
you want to access.
Press to access the
Contacts
application.
Status icons show a
specific status of
your phone.
Select to change the
phone’s sound profile.
The basics
19
Navigation bar
On the top line of the screen, the navigation bar displays
icons to show your phone’s current status. Followings are
some of the status icons you may see:
Status icon Description
Shows the level of your battery power.
The more bars you see, the more power
you have remaining. You can also view
the following battery status:
• : Battery is very low.
• : Battery is charging.
Appears to tell you the current text input
mode.
• : T9 mode
• : Multipress mode
• : Number mode
Appears when
Ring tone
has been set to
Vibrate
in
Sounds
or
Ring type
has
been set to a vibrate option in the current
active profile. See page 35 or page 36.
Also, appears when the Silent profile is
selected. See page 36.
Appears when
Ring tone
has been set to
None
on
Sounds
or
Ring type
has been
set to
Silent
in the current active profile.
See page 35 or page 36.
Appears when you’re roaming outside of
your home area and logged onto a
different network.
The basics
20
Shows the strength of the signal.
You can also view the following service
status:
• : You are outside a service area.
• : The phone functions turn off.
Appears when a GPRS connection is
available in the network. When
connection with a GPRS network is active,
appears.
Indicates that an instant message has
been received.
Appears when an e-mail or SMS message
has been received.
Indicates that you can make calls using
phone line 1 only (network service). See
page xx.
Indicates that you can make calls using
phone line 2 only (network service). See
page xx.
Appears when a new voicemail has been
received.
• : A new voicemail from line 1.
• : A new voicemail from line 2.
• : A new voicemail from both lines.
Appears when a call is in progress.
Appears when there is a call you have
missed.
Status icon Description
The basics
21
Changing information from the Home
screen
From the Home screen, you can change information,
including:
• upcoming appointments
• profile options
• unread text messages
To change information on each item:
1. On the
Home
screen, scroll to the item you want to
change by pressing or spinning the Navigation key and
press .
2. Enter or change the information.
For more information on changing these items, see
the appropriate instructions for each task in this
guide.
3. Press or to return to the Home screen.
Appears when you set incoming calls to
be diverted to another destination.
Appears when the current call is on hold.
Appears when a data call is in progress.
Appears when the Bluetooth feature is
activate. See page 209.
Status icon Description
The basics
22
Customising the Home screen
You can customise the Home screen according to your
preferences.
To customise the Home screen:
1. On the
Home screen, press the
Start
soft key.
2. Select
Settings
→
Home Screen
.
3. Scroll to the options you want and press to select the
settings.
The following options are available:
•
Home screen layout
: Select the layout to be used for
the Home screen.
•
Colour scheme
: Select the colour scheme to be used
for the Home screen.
•
Background image
: Select an image to use as a
background image on the Home screen.
The basics
23
•
Time out
: Specify the length of time the phone waits
before returning the display to the Home screen if the
phone is not used.
4. When you have finished, press the
Done
soft key.
Start menu screen
On the Start menu screen, you can access all of the
applications for your phone. From the Home screen, press
the
Start
soft key to open the Start menu screen.
Opening applications or folders
Scroll to an application or a folder by pressing or spinning
the Navigation key and press to open it. You can also
press the number key assigned to the application you want.
The basics
24
Switching between applications
You can open several applications and switch from one
application to another. On the Home screen, you can view a
list of applications that are currently open. Scroll to an
application by pressing or spinning the Navigation key and
press .
Closing applications
Using
Task Manager
, you can end the applications which
is currently open. On the Home screen, press the
Start
soft
key and select
More
→
More
→
Tools
→
Task Manager
.
Scroll to an application, press the
Menu
soft key and select
Stop
. If you want to close all of the open applications,
select
Stop All
.
Entering text
The number keys of your phone are labelled with the
alphabet so that you can enter text easily.
Your phone has the following input modes:
•T9 mode
• Multipress mode
•Symbol mode
• 123 mode
To change the text input mode:
1. On the text input field, press and hold .
The basics
25
2. Select a mode from the pop-up menu list.
The text input mode indicator appears on the top line of
the display.
Note
: You can change the language for T9 mode by
selecting
T9 Languages
.
T9 mode
T9 is a predictive text input mode that allows you to enter
any character with one key press. This text input mode is
based on a built-in dictionary.
To enter a word in T9 mode:
1. Press the keys to . Press each key only once for
each letter.
Example: To enter
Hello
, press , , , , and
.
The word that you are typing appears on the display. It
may change with each key that you press.
2. Enter the whole word before editing or deleting
characters.
Mode Indicator See
T9 mode below
Multipress mode page 27
123 mode page 28
Symbol mode no indicator page 28
The basics
26
3. If the word displays correctly, go to step 4.
If the word doesn’t display correctly, scroll to the word
on the pop-up list, which displays alternative word
choices for the keys that you have pressed.
Example: Both
Of
and
Me
use and . The phone
displays the most commonly used choice first.
4. Press to insert a space and start entering the next
word.
To change the letter-case:
Press . Three cases are available:
• Capital Lock
•Initial Lock
•Small Lock
To delete letters:
Press . Press and hold to clear the entire display.
To include a number:
Press and hold the corresponding number key.
Adding words
Sometimes T9 may not recognise the word you’re trying to
enter. If you can’t find the entered word from the pop-up
list, you can add the word to T9 dictionary so that it will
recognise the word the next time you enter it.
To add a word into the T9 dictionary:
1. Enter a word.
2. Select
Add Word?
from the pop-up menu list.
The basics
27
3. Enter the word you want to add using Multipress mode.
4. Press the
Done
soft key.
Multipress mode
Multipress mode allows you to enter letters by pressing the
key labelled with the letter you want repeatedly until it
displays.
To enter a word in
Multipress mode
:
1. Press the key labelled with the letter you want:
- Once for the first letter
- Twice for the second letter
- And so on
2. Enter other letters in the same way.
The cursor moves to the right when you press a
different key. When entering the same letter twice or a
different letter on the same key, just wait for seconds or
press the Right key, and then press the next letter.
3. Press to insert a space between words.
To change the letter-case:
Press . Three cases are available:
• Capital Lock
•Initial Lock
•Small Lock
The basics
28
To delete letters:
Press . Press and hold to clear the entire display.
To quickly include a number:
Press and hold the corresponding number key.
Symbol mode
This mode allows you to enter various symbols and function
marks.
To enter a symbol:
From the symbol list, scroll to the symbol you want and
press the
Done
soft key.
123 mode
This mode allows you to enter numbers. Press the
corresponding number key.
The basics
29
Using My Text
In the Messaging or MSN Messenger application, use
My
Text
to quickly insert preset or frequently used sentences
into the text entry area.
To i nser t a
My Text
item while composing a message,
press the
Menu
soft key and select
Insert Text
and then
select a sentence.
To e di t a
My Text
item, press the
Menu
soft key and select
Options
, or press the
Options
soft key and select
Edit My
Text
. Select the sentence you wish to edit and make
desired changes.
The basics
30
Customising your phone
You can customise the phone settings to suit the way you
work.
Regional settings
Using
Regional Settings
, you can change number,
currency, and time and date formats appropriate to the
countries in question.
1.
On the Home screen, press the
Start
soft key.
2.
Select
Settings
→
More
→
Regional Settings
.
3. Select the option you want in each field.
4. When you have finished, press the
Done
soft key.
If you changed the
Language
or
Locale
option, you
need to turn the phone off and then back on to make
your changes take effect. Press the
OK
soft key to
confirm.
The basics
31
Time and date settings
The Date and Time setting enables you set the date, time,
and time zone.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Date and Time
.
3. Set your time zone and the current date and time.
4. When you have finished, press the
Done
soft key.
Note
: You can change the time and date format to be
displayed in
Regional Settings
.
The basics
32
Alarm settings
You can set an alarm to ring at a specified time.
To set an alarm:
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Date and Time
.
3. Scroll to the
Alarm
field and select whether or not the
alarm rings.
4. Scroll to the
Alarm time
field, and set the time for the
alarm to ring.
5. When you have finished, press the
Done
soft key.
To stop an alarm:
When the time for an alarm comes, use either of two soft
keys to stop the alarm:
• Press the
Dismiss
soft key.
• Press the
Menu
soft key and select
Snooze
to stop the
alarm for 5 minutes, after which it will resume.
• To dismiss all alarms on the list, press the
Menu
soft key
and select
Dismiss All
.
The basics
33
Power settings
You can conserve battery power by adjusting the time-out
settings for the battery and display and the display
brightness. During standby, the phone goes to Sleep mode
after a specified period of time of inactivity, so very little
power is being consumed. This helps to preserve
programmes and data stored in the RAM.
A lower setting increases the usable battery time. A higher
setting decreases the usable battery time and allocates it
for standby usage.
To adjust the power setting:
1. On the
Home
screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Power Management
.
3. Select the power settings:
•
Main battery
: You can check the remaining amount
of battery power.
•
Backlight time out
: You can select the length of time
the backlight stays on. A backlight illuminates the
display and the keypad. When you press any key, the
backlight turns on and remains on for the backlight
time-out period.
•
Display time out
: You can select the length of time
the display remains on.
•
Display Brightness
: You can adjust the brightness
for the display.
4. When you have finished, press the
Done
soft key.
The basics
34
Accessibility settings
You can configure the options to increase the accessibility
to your phone’s functions.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Accessibility
.
3. Select the options you want.
•
System font size
: allows you to set the size of the
font on your screen.
•
Multipress time out
: allows you to set the length of
time between keypresses when entering text in
Multipress mode.
•
Confirmation time out
: allows you to set the delay
before an unconfirmed action times out.
•
In
-
call alert volume
: allows you to set the volume of
the alert tone that sounds when you are on a call.
4. When you have finished, press the
Done
soft key.
Sound settings
You can customise various sound settings.
Setting sounds and notifications
Your phone reminds you in various ways when you have
something to do, receive a message, or press the keys on
the phone. For example, if you’ve set up an appointment in
Calendar
, or an alarm in
Date and Time
, you are notified
in any of the following ways:
• A message box appears on the screen.
• A sound, which you can specify, is played.
The basics
35
• The LED indicator flashes.
• Your phone vibrates.
You can change phone sounds by choosing types or sounds
for each event or by choosing a sound theme.
To choose reminder types and sounds:
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Sounds
.
3. Select the event for which to specify a sound.
4. When you have finished, press the
Done
soft key.
Note
: You can connect to the Internet and then download
ringtones that are in a .WAV or .MID format.
To choose the sound theme:
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Sounds Theme
.
The basics
36
3. Scroll to the theme you want and press the
Done
soft
key.
The selected sound theme affects all of the sound settings
in
Sounds
. If you selected
None
, all of the sound settings
in
Sounds
are changed to the default setting.
Changing the sound profile
Using
Profiles
, you can adjust and customise the phone
tones for different events or environments and then apply
the settings as a group. You can see the currently selected
profile on the Home screen.
For the
Headset
,
Car
, and
Speakerphone
profiles, you
can only use them when the headset or car kit is connected
to your phone or your phone is used as a speakerphone.
To change profiles:
1. On the Home screen, press the
Start
soft key and select
Settings
→
Profiles
. A list of profiles opens.
2. On the Profiles list, select the profile you want.
Note
: You can quickly change the profile. Press on the right
side of the phone and select the profile you want.

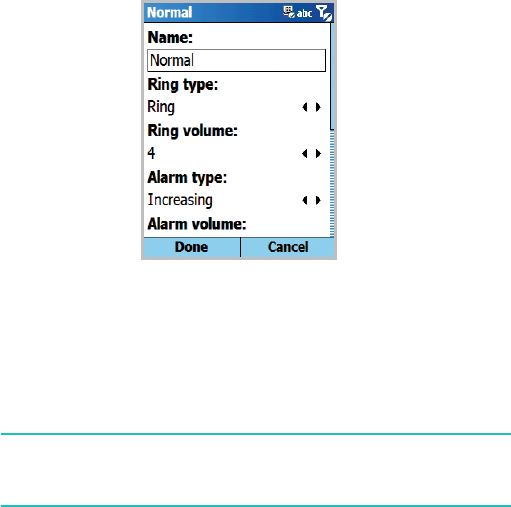

To customise profiles:
1. On the Profiles screen, scroll to the profile, press the
Menu
soft key, and select
Edit
.
The basics
37
2. Change the setting in each field. The settings may differ
depending on the selected profile.
If you selected
Headset
or
Car
in step 1, you can set
the time that the phone answers an incoming call
automatically when you connect the headset or car kit
to your phone.
3. When you have finished, press the
Done
soft key.
Note
: You can change the all profile settings to their factory
default. Press the
Menu
soft key from the profiles listen
and select
Reset to default
.
The basics
38
Owner information
Owner Information identifies the owner or user of the
phone. Set your contact information in case you have lost
the phone.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Owner Information
.
3. Fill in each input field.
4. If you want to attach notes, enter notes in the
Notes
field.
5. When you have finished, press the
Done
soft key.
The basics
39
Security settings
With options in
Security
, you can protect your phone and
SIM card from unathorised use.
Locking the phone
You can protect your phone using the Phone Lock feature.
Once the the feature is enabled, your phone is
automatically locked after the specified length of time of
inactivity.
Note
: Even if the phone is locked, you may be able to receive
calls.
To lock the phone:
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Security
.
3. On the Security screen, select
Enable Phone Lock
.
4. In the
Lock phone after
field, select a length of time of
inactivity the phone waits before locking itself.
5. Enter a password in the
Password
field using the
number keypad.
6. Re-enter the same password in the
Confirm password
field for confirmation.
7. Press the
Done
soft key.
Note
: You can also quickly lock the phone by pressing and
selecting
Device lock
from the Quick List.
The basics
40
To unlock your phone:
1. On the Home screen, press the
Unlock
soft key.
2. Enter the password and press the
Unlock
soft key.
To disable the phone lock:
1. On the Security screen, select
Disable Phone Lock
.
2. Enter the password and press the
Done
soft key.
Activating SIM PIN
When this option is enabled, you must enter your PIN each
time you turn on your phone or you insert the current SIM
card into other device. Consequently, any person who does
not have your PIN cannot use your phone without your
approval.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Security
.
3. On the Security screen, select
Enable SIM PIN
.
4. Enter the PIN and press the
Done
soft key.
The basics
41
Changing PIN
You can change your current PIN to a new one. This option
is only available the
Enable SIM PIN
option is activated.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Security
.
3. On the Security screen, select
Change PIN
.
4. Enter the old PIN, a new one, and then the new one
again.
5. Press the
Done
soft key.
Locking the SIM card
When this option is enabled, your phone only works with
the current SIM card.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Security
.
3. On the Security screen, select
Enable SIM Lock
.
4. Enter the PIN code of your SIM card using the number
keypad.
5. Press the
Done
soft key.
The basics
42

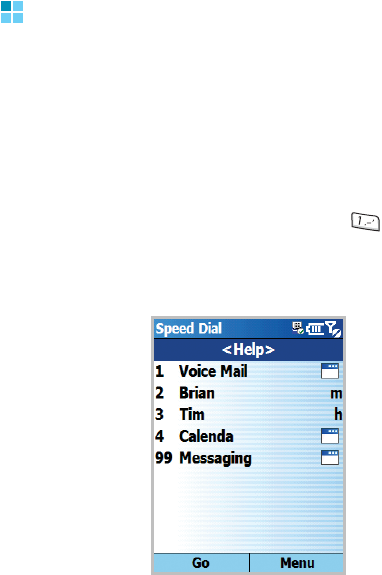

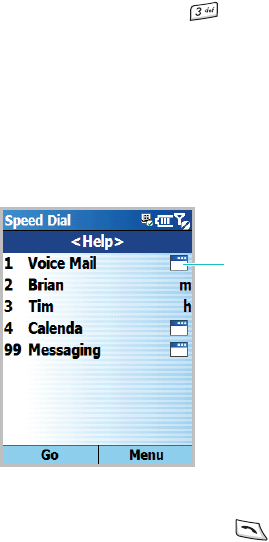

Menu shortcut settings
The number keys can be used as shortcut keys to directly
access specific applications that exist in the
Start
menu.
Note
: You can also assign phone numbers, e-mail addresses,
or Web pages in Contacts to the number keys as speed
dial entries. For details about setting the speed dial list,
see page 81.

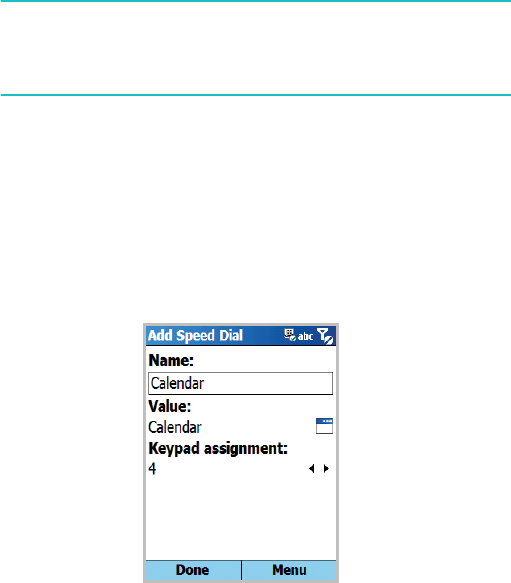

To assign a shortcut to a key:
1. On the Home screen, press the
Start
soft key.
2. Scroll to the application you want to assign to a key.
3. Press the
Menu
soft key and select
Add Speed Dial
.
4. If necessary, enter a name you want in the
Name
field.
The basics
43
5. Select a location in the
Keypad assignment
field and
press the
Done
soft key.
The application is assigned to the specified location.
Note
: Up to 99 Speed Dial locations are available.
Locations 0 and 1 are reserved for the international
call prefix “+” and the voicemail centre number,
respectively.
To access a menu using short cuts, press and hold the
number key(s) on the Home screen.
Key lock (Keyguard)
You can lock the function keys to keep any accidental key
presses from causing applications’ launch or phone switch
on or off.
To lock the keypad, use the following ways:
• Press on the right side of the phone and select
Key
lock
on the Quick List screen. Once the keypad has been
locked, press the
Unlock
soft key and then press to
unlock the keypad.
• Press and hold . The backlight of the display and
keypad turns off and all the keys, except are locked.
To unlock the keys, press and hold .
The basics
44
Using the Launcher
Using the Launcher, you can view the applications in the
Start
menu categorised by type, and quickly access the
application you want.
To open the Launcher:
On the Home screen, press and hold or the
Start
soft
key.
Opening an application
1. On the Launcher screen, press the
Next
soft key and
select the group.
2. Select the application you want.
The basics
45
Moving an application
You can move an application within a group or to another
group.
1. On the Launcher screen, scroll to the application you
want to move.
2. Press the
Menu
soft key and select
Move
.
3. Move the application to the position you want.
To select the group to which you want the application
moved, press the
Menu
soft key and select
Change
Group
. Select the category and the position in the
category.
4. Press the
Done
soft key.
Creating a new category
You can create new categories to organise applications on
the phone.
1. On the Launcher screen, press the
Menu
soft key.
2. Select
Edit Group
→
New
.
3. Enter a new category name of up to 24 characters.
4. Press the
Add
soft key.
The basics
46
Managing a category
You can rename and delete the categories.
1. On the Launcher screen, select the category you want
by pressing the
Group
soft key.
2. Press the
Menu
soft key and select
Edit Group
.
3. Select
Rename
to rename the selected category,
change the name, and then press the
OK
soft key.
Select
Delete
to delete the category. When the
confirmation message appears, press the
OK
soft key.
Using an optional memory card
Your phone has an expansion slot compatible with Trans
Flash (T-Flash) memory cards, which are primarily used to
back up or transfer files and data.
1. Push the memory card into the slot until it clicks into
place. The card is secure when it is not protruding from
the
phone
.
The basics
47
2. To remove the card, push it in and release so that it is
disengaged from the slot. Then slide the card out.
Adding and removing programmes
Programmes added to your phone at the factory are stored
in ROM (Read Only Memory). You cannot remove this
software, and you’ll never accidentally lose ROM contents.
ROM programmes can be updated using special installation
programmes with a *.xip extension.
You can install any programme created for your phone, as
long as your device has enough memory. The most popular
place to find software for your device is on the
Phone
Web
site (http://www.microsoft.com/mobile/
Smartphone
).
The basics
48
Adding programmes using ActiveSync
You can install programmes downloaded from the Internet
or included on the supplied software CD-ROM by
performing a synchronisation between your phone and
your PC.
First you need to determine what your phone and
processor type is so that you know which version of the
software to install.
To add a programme:
1. On the Home screen, press the
Start
soft key and select
Settings
→
About
. Check the version of your phone.
2. Download a programme to your PC from the Internet or
insert the CD or disk that contains the programme into
your PC.
You may see a single *.xip, *.exe, or *.zip file, a
Setup.exe file, or several versions of files for different
device types and processors. Be sure to select the
programme designed for the
phone
and your
phone
’s
processor type.
3. Read any installation instructions, Read Me files, or
documentation that comes with the programme. Many
programmes provide special installation instructions.
4. Connect your phone to your PC and make sure that the
ActiveSync is activated.
For more information on ActiveSync, see page 55.
The basics
49
5. Double-click the *.exe file on the PC.
If the file is an installer, the installation wizard will
begin. Follow the instructions on the screen. Once the
software has been installed on your PC, the installer will
automatically transfer the software to your phone.
If the file is not an installer, you will see an error
message stating that the programme is valid, but it is
designed for a different type of PC. You will need to
move this file to your phone. If you cannot find any
installation instructions for the programme in the Read
Me file or documentation, use ActiveSync Explore to
copy the programme file to the
Program Files
folder on
your phone. For more information on copying files using
ActiveSync, see ActiveSync Help on your PC.
6. Once installation is complete, you can view and open the
programme by accessing the
File Manager
application.
Adding a programme directly from the
Internet
First, you need to determine what your phone and
processor type is so that you know which version of the
software to install.
1. On the Home screen, press the
Start
soft key and select
Settings
→
About
. Check the version of your phone.
2. Download the programme to your phone straight from
the Internet using Internet Explorer on your phone.
You may see a single *.xip, *.exe, or *.zip file, a
setup.exe file, or several versions of files for different
device types and processors. Be sure to select the
programme designed for the
phone
and your
phone
’s
processor type.
The basics
50
3. Read any installation instructions, Read Me files, or
documentation that comes with the programme. Many
programmes provide special installation instructions.
4. Select the file, such as a *.xip or *.exe file. The
installation wizard will start. Follow the directions on the
screen.
5. Once installation is complete, you can view and open the
programme by accessing the
File Manager
application.
Removing programmes
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Remove Programs
.
3. Select the programme you want to delete.
4. Press the
Menu
soft key and select
Remove
.
5. Press the
Yes
soft key to confirm the deletion.
6. When you have finished, press the
OK
soft key.
The basics
51
Managing certificates
On your phone you can add and delete public key
certificates. Certificates help establish your identity when
you log on to a secured network or establish the identity of
other computers, such as servers, with which you connect.
You can store the following two types of certificates on your
phone.
•
Root certificates
: helps establish the identity of servers
with which you connect. This helps prevent unauthorised
users from accessing your phone and information.
•
Personal certificates
: helps establish your identity,
when you log on to a secured network, such as a
corporate network.
Viewing certificates
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Certificates
→
Personal
or
Root
.
The list displays the name of the certificate issuer and
expiration date.
3. To view more details, select the certificate.
Deleting a certificate
1. Scroll to the certicate you want on the list.
2. Press the
Menu
soft key and then select
Delete
.
3. Press the
Yes
soft key to confirm the deletion.
The basics
52
Resetting your phone
You can perform a soft reset or a hard reset – a soft reset
restarts your phone and a hard reset returns your phone to
its factory setting and remove all of the programmes and
data you have added. The result of a soft reset is that some
data may be lost in programmes that are open.
However, the result of a hard reset is to wipe out new
programmes you have added – i.e., the phone will only
have the software that was present when you bought it.
Performing a soft reset
If your phone responds slowly, stops responding, or
freezes, try a soft reset. A soft reset causes the phone to
restart and re-adjust memory allocation. Unsaved data in
open windows may be lost.
To perform a soft reset use either of the following ways:
• With a pointed tool, press the reset button inside the hole
on the bottom of the phone.
• Remove the battery and then reinstall it.
Performing a hard reset
You can return the phone to its factory setting and remove
all of the programmes and data you have added.
To perform a hard reset:
1. Turn off the phone and remove the battery and install it
again.
The basics
53
2. While holding , press and hold .
3. Enter the initialisation password in the
Enter password
field. The reset password is preset to “0000” at the
factory.
Your phone resets the system after about 6 or 7
minutes.
Changing initialisation password
You can change the reset password to prevent unauthoised
person from initialising your phone.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Security
→
Initialization
PW
.
3. Enter the old password, then a new one, and re-enter
the new password for confirmation.
4. Press the
Done
soft key.
The basics
54
Using online help
Your phone is supported by additional information available
online, or on the CD-ROM that came with your phone.
For information on: see:
additional programmes
that can be installed on
y
our
phone,
the supplied CD-ROM.
connecting to and
synchronising with a
PC,
the User’s Guide or ActiveSync
Help on your PC. To view the
ActiveSync help, click the
ActiveSync icon on the Windows
task bar and click
Open
Microsoft ActiveSync
→
Help
→
Microsoft ActiveSync Help
.
last-minute updates
and detailed technical
information,
the Read Me files, located in the
Microsoft ActiveSync
folder
on the PC and on the supplied
software CD-ROM.
up-to-date information
on your phone,
http://www.microsoft.com/
mobile/smartphone.
3
55
Synchronisation
Using Microsoft
®
ActiveSync
®
, you can synchronise data in
your desktop computer with the data in your phone.
Synchronisation compares the data on your phone with
your desktop computer and updates both your phone and
computer with the most recent data. For example:
• Keep Contacts, Calendar, Tasks, or Inbox data up-to-date
by synchronising your phone with Microsoft Outlook data
on your desktop computer.
• Synchronise Microsoft Word and Microsoft Excel files
between your phone and desktop computer. Your files are
automatically converted to the correct format.
With ActiveSync, you can also:
• Back up and restore your phone data.
• Copy (rather than synchronise) files between your phone
and desktop computer.
• Control when synchronisation occurs by selecting a
synchronisation mode. For example, you can synchronise
continually while connected to your desktop computer or
only when you choose the synchronise command.
• Select which data types are synchronised and control how
much data is synchronised. For example, you can choose
how many weeks of past appointments you made
synchronised.
Synchronisation
56
WARNING!
• ActiveSync synchronises two devices using most recent data.
Therefore, if you delete specific data from the phone after a
synchronisation, and then perform a synchronisation again,
the corresponding data on the computer will be deleted. Be
careful not to lose your important data.
• If you turn off the phone after copying files to any folders,
except for the
Storage
folder, using ActiveSync, all files in
those folders will be deleted. Store important files in the
Storage
folder to prevent from being deleted.
Installing ActiveSync
Before you can begin synchronisation with your desktop
computer, you must install ActiveSync on your desktop
computer using the supplied CD-ROM. You can also
download the latest version of ActiveSync from the
Microsoft web site (http://www.microsoft.com).
To install ActiveSync on your desktop computer:
1. Insert the CD-ROM into the CD-ROM drive of your
desktop computer.
Alternatively, double-click the downloaded ActiveSync
installer.
2. Follow the instructions on the screen for installing
Microsoft ActiveSync.
For more help, click on the
Help
button during
installation.
Synchronisation
57
3. After installation is complete, the ActiveSync New
Partnership Wizard helps you connect your phone to
your desktop computer, set up a partnership so that you
can synchronise information between your phone and
your desktop computer and/or server, and customise
your synchronisation settings.
Note
: After installing ActiveSync, a window appears
prompting you to connect for the partnership setting.
See page 59 for more information on connecting the
phone and a computer.
Important
: To prevent synchronisation problems, select
Synchronize with Microsoft Mobile Information Server and/
or this desktop computer
only if you are certain that your
company is running Microsoft Mobile Information Server 2002
or later, and you know the server name. Otherwise, select
Synchronize with this desktop computer
instead. For more
information, contact your network administrator or service
provider.
Your first synchronisation process will automatically begin
when you finish using the wizard.
After the first synchronisation, take a look at Calendar,
Contacts, and Tasks on your phone. You will notice that
your information has been copied to the phone. Disconnect
the phone from the desktop computer and you are ready to
go!
Synchronisation
58
Customising connection settings
To establish a connection between your computer and the
phone, you must enable the connection(s) you want to use
in the ActiveSync programme. By default, all connections
are enabled.
1. From the ActiveSync window on your computer, select
File
→
Connection Settings...
.
2. Change the connection settings.
3. Click
OK
.
Synchronisation
59
Connecting your phone to a
computer
To connect the phone to your computer, you can choose
one of the following ways:
• Using the PC data link cable
• Using the infrared port
• Using a Bluetooth connection
Connecting with the USB cable
Connect one end of the PC data link cable to the bottom of
the phone and the other end into the USB port on your
computer.
Note:
USB mode of your phone must be set to ActiveSync.
Press the
Start
soft key and select
Settings
→
More...
→
USB Mode
.
The connection is established and the Microsoft ActiveSync
window appears. The synchronisation automatically begins.
Connecting via the infrared port
Align the infrared ports on your phone and the computer.
On the Home screen, press the
Start
soft key and select
ActiveSync
, and then select
Menu
→
Connect via IR
.
Once the connections is established, appears on the
Windows task bar.
Note
: If your computer doesn’t have an infrared port, you can
purchase a USB-IrDA adapter.
Synchronisation
60
Connecting via Bluetooth
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Bluetooth
.
3. Select the operating mode you want. For details, see
page 210.
4. Press the
Menu
soft key and select
Devices
.
5. Press the
Menu
soft key and select
New
to search for a
new Bluetooth compatible computer.
6. Scroll to your Bluetooth compatible computer and press
the
Select
soft key to pair with the computer.
7. Enter a Bluetooth PIN and press the
Done
soft key. This
code is used just once and you don’t need to memorise
it.
When you enter the same code on your computer,
paring is finished.
8. Enter a display name for the computer and press the
Done
soft key.
9. Press the
OK
soft key.
Synchronisation
61
Synchronising information
1. Connect your phone to your computer.
For more information on connecting the phone and the
computer, see page 59.
2. The ActiveSync screen on your computer automatically
appears and starts synchronisation.
Once the synchronisation is complete, the phone stays
connected to the computer. If any change is made,
ActiveSync automatically begins synchronisation. You can
start synchronisation at any time by pressing the
Sync
soft
key. To stop synchronisation, press the
Stop
soft key.
Open the file directory on the phone by clicking
Explore
from the Microsoft ActiveSync window. You can copy files
quickly and easily from the phone to the computer or vice
versa.
To break the connection, disconnect the PC data link cable
or remove the phone out of the infrared or Bluetooth range.
Shows the
synchronisation status.
Shows types of
information to be
synchronised.
Synchronisation
62
Customising synchronisation
settings
You can customise various setting options for
synchronisation with a PC and a server, and set the
synchronisation schedule.
Note
: To set the synchronisation options, you first need to
disconnect your phone from the PC.
Change the synchronisation schedule
You can schedule synchronisation of your phone on two
separate times. Use the peak time schedule to synchronise
during working hours or other times when you experience
higher mail volumes. Use the off-peak time schedule to
synchronise during times when you experience lower mail
volumes. When you are roaming, you can synchronise
manually to reduce roaming charges, or synchronise using
the mobile schedules.
1. In ActiveSync on your phone, press the
Menu
soft key
and select
Options
→
Mobile Schedule
.
2. Set each option:
• To synchronise periodically during peak times, select a
frequency of synchronisation in the
Peak time sync
list.
• To synchronise periodically during off-peak times,
select a frequency of synchronisation on the
Off-peak
time sync
list.
• To set synchronisation while roaming, select a
frequency on the
Roaming sync
list.
Synchronisation
63
• To synchronise each time you send an e-mail, select
Sync outgoing items as they are sent
check box.
• To set the days and hours for peak times, press the
Menu
soft key and select
Peak Times
.
3. When you have finished, press the
Done
soft key.
Setting PC synchronisation
1. In ActiveSync on your phone, press the
Menu
soft key
and select
Options
→
PC Settings
.
2. Select your computer name on the
Use
list.
3. Select one or both of the following:
• Select
Use mobile schedule to sync with this PC
if
you want to synchronise the phone with the PC at
scheduled intervals.
• Select
Sync with this PC during manual sync
if you
want to synchronise the phone with this PC.
4. Press the
Menu
soft key and select
Advanced
.
5. Select the connection type to be used.
6. When you have finished, press the
Done
soft key.
7. Press the
Done
soft key.
Note
: For more information on the conditions that must be
met on the PC and how to change synchronisation
options, see ActiveSync Help on the PC.
Synchronisation
64
Setting server synchronisation
You can synchronise information automatically as items
arrive only if your company is running Microsoft Exchange
Server with Exchange ActiveSync.
Note
: You can also set up a connection to synchronise
remotely with a server when you first create a
partnership between your phone and your PC.
To configure an Exchange server connection:
1. In ActiveSync on your phone, press the
Menu
soft key
and select
Options
→
Server Settings
.
2. Select
Connection
and enter your Microsoft Exchange
user name, password, and domain name.
If you want the device to save your password so that
you need not enter it when connecting, select
Save
password
check box.
3. In the
Server Name
field, enter name of your Exchange
server to which you want to connect.
4. Select
This server uses an SSL connection
to use a
SSL protocol for server access.
5. If you want to set the frequency to synchronise the
phone with your server when connected to a PC, press
the
Menu
soft key and select
Rules
and then select
desired options.
6. When you have finished, press the
Done
soft key.
7. Press the
Done
soft key.
Synchronisation
65
To change Exchange server synchronisation settings:
1. In ActiveSync on your phone, press the
Menu
soft key
and select
Options
→
Server Settings
.
2. Select the types of information that you want to
synchronise with the server:
Inbox
,
Calendar
, or
Contacts
.
3. Do one of the following:
• To synchronise Calendar, Contacts, or Inbox
information, select
Sync [Information Type] with a
server
.
• Change the duration of days for which data will be
synchornised. For Inbox, you can also change the
amount of data to be synchronised and the maximum
e-mail size. Note that there are no synchronisation
settings for Contacts.
4. When you have finished, press the
Done
soft key.
To change the rule for resolving conflicts:
If items change on both your phone and server, conflicts
will arise during synchronisation.
1. In ActiveSync on your phone, press the
Menu
soft key
and select
Options
→
Server Settings
.
2. Select
Conflicts
and select the rule in the
When
conflicts occur
field.
3. Press the
Done
soft key.
Synchronisation
66
Synchronisation
67
68
4
Phone functions
As well as all the standard features of a mobile phone, such
as mailbox and call history, there are several dialling
features unique to your phone. For example, you can take
notes while talking, dial directly from Contacts and easily
transfer contacts between your SIM card and your phone’s
memory.
Additionally, such as a conventional mobile phone, you can
easily use one hand to access and navigate through the
important features of your phone and make calls.
Checking if you are connected
The default settings for your phone are programmed with
the assumption that you want to use the phone mode.
Therefore, providing you have inserted a SIM card, your
phone will activate your mobile phone connection to your
service provider’s network.
The icon indicates that you are connected to the network
of your mobile phone operator. A full strength signal is
indicated by and as the strength of the signal diminishes
so will the number of vertical bars in the icon, with no bars
indicating no signal.
Phone functions
69
Turning the phone functions on and
off
You can choose to turn off the phone functions and just use
the PDA functions at any time and then turn it back on
when you want.
Note
: In many countries you are required by law to turn off
the phone functions when you fly. To turn off the display
of your phone doesn’t actually turn off the phone
functions; you must turn off your wireless connection to
your operator’s network.
To turn the phone functions off:
Press and hold on the right side of the phone until
appears in the navigation bar of the screen. Or press
and select
Flight mode
.
To turn the phone functions on:
Press and hold until appears in the navigation bar of
the screen. Or press and select
Flight mode
off
.
Phone functions
70
Using the Dialer screen
When you start entering a number or press , the Dialer
screen opens. You can view the most recent calls you have
dialled, received, and missed on the Dialer screen.
From the Dialer screen, make calls, access Contacts, and
view the call information by pressing the
Menu
soft key.
Making a call
You can make a phone call using the number keypad.
Making a call from the Dialer
1. On the Dialer screen, enter a number or a contact name
using the keypad.
If there are numbers that contain your input in Call
History or Contacts, they are listed so that you can
select one.
Phone functions
71
2. Press to make a call.
While the number dials, if the number is already in
Contacts, the corresponding name displays.
When a call is connected, the call duration time displays.
During a call, you can use the several call options. For
details, see page 77.
Note
: To adjust the volume during a call, press on the
left side of your phone to increase or decrease the
volume level.
3. To end the call, press .
Phone functions
72
Advanced calling features
You can make a call from the
Contacts
,
Speed Dial
, and
Call History
.
Making a call from Contacts
1. On the Home screen, press the
Contacts
soft key.
You can also press the
Start
soft key and select
Contacts
.
2. Select a contact card from the contact list and then
press .
Phone functions
73
Making a call from Speed Dial
Speed Dial is a list you can create of often-dialled numbers.
Information on adding a number to Speed Dial is detailed
on page 81.
By memorising the position on the Speed Dial list, you can
dial the number simply by entering that number. For
example:
In the picture below, “Tim” is at position 3. To dial his
number, simply press and hold ; if the number holds a
position of 10 or more, press the first number briefly, and
then press and hold the second number to dial.
Alternatively, if you don’t remember the position of a
number in the Speed Dial, access the Speed Dial list:
1. On the Home screen, press the
Start
soft key and select
More
→
Speed Dial
.
2. On the list of the Speed Dial numbers, scroll to the
number you want and then press or
the
Go
soft
key.
Indicates that this
location is set for a
menu shortcut.
Phone functions
74
Making a call using name dialling
You can make a phone call by saying the name that has
been assigned to a contact in
Contacts
or on the SIM card.
For details, see page 186.
Making a call from the Call History
1. On the Home screen, press the
Start
soft key and select
Call History
.
Note
: Icon is for incoming calls, icon is for outgoing
calls, and icon is for missed calls.
2. To view the calls categorised by call type, press the
Menu
soft key, select
Filter
, and select a category from
the pop-up list.
3. Scroll to the number and then press
.
Phone functions
75
Making an international call
1. Press and hold until the
+
sign appears. The
+
replaces the international access code.
2. Enter the full phone number you want to dial. It includes
the country code, the area code (without the leading
zero), and the phone number.
3. Press
.
Note
: You can set the international access code. On the Home
screen, press the
Start
soft key, select
Settings
→
Phone
→
Call options
, and enter a code in the
Country code
field.
Phone functions
76
Making an emergency call
Your phone provides the emergency number
112
. This
number can normally be used to make an emergency call in
any country, with or without a SIM card inserted, if you are
within a mobile phone network’s service area.
Enter the emergency number
112
and press .
Notes
:
• Some mobile phone service providers may require that a SIM
card be inserted, and in some cases that the PIN has been
entered as well.
• In some cases, other emergency numbers may also be
accessed. Your mobile phone service provider may save
additional local emergency numbers on the SIM card.
Answering or rejecting a call
• Press the
Accept
soft key or press to answer or
reject a received call.
• press the
Reject
soft key or press to reject the call.
Note
: If you reject a call, the busy tone is sent out. Depending
on the network service provider, you may be guided to
the voicemail server of the other person.
• When a the phone rings, you can mute the ringer by
pressing either of the .
Phone functions
77
Options during a call
Your phone provides a number of control functions that you
can use while a call is in progress.
Putting a call on hold
If a person is trying to call you when you are talking on the
phone, a notification window will pop out.
1. Press the
Accept
soft key to answer the second call and
put the first on hold.
2. To swap back and forth between the two callers, press
the
Swap
soft key.
3. To end the second call and go back to the first, press the
End
soft key
or press .
Setting up conference calling
1. Put a call on hold, dial a second number, and wait for it
to be picked up. Alternatively, accept a second incoming
call when you already have one in progress.
2. Press the
Menu
soft key and select
Conference
.
If the conference connection is successful, the word
“Conference” will appear at the top of the Dialer screen.
3. Press the
Hold
soft key
to place the conference call on
hold and make a new call or answer a second call.
Phone functions
78
4.
Press the
Menu
soft key and select
Join
to join
together all existing calls
. You can add up to 5
participants.
To talk privately to a person during a conference call,
press the
Menu
soft key and select
Private
. When the
list of call participants appears, select one.
Call-related features
Checking your voicemail
The first speed dial location defaults as your voicemail box.
When you insert your SIM card into your phone, it will
automatically detect and set as default the voicemail centre
number of your mobile service provider.
To check your voicemail, press and hold from the
Dialer screen. You can also press the
Start
soft key and
select
More
→
Speed Dial
. Scroll to
Voice Mail
and press
the
Go
soft key.
Phone functions
79
Note
: You can check and change the voicemail centre number.
On the Home screen, press the
Start
soft key, select
Settings
→
Phone
→
Call Options
, and check
Voice
mail number
.
Adding and transferring contact
information
There are a number of ways in which telephone numbers
and contacts can be entered and stored, and there are also
a number of ways to make a phone call. It is therefore
important to be able to transfer those contacts between the
programmes used to make calls.
Places where contacts can be entered into your
phone and stored
• Your SIM card: You can exchange your SIM card between
your phone and other devices; while using other devices,
you can create one or more new contacts on the SIM
card.
• Contacts.
•Call History: New contact numbers can be found in
incoming calls or missed calls.
Why transfer numbers?
• In the event you lose your SIM card while using it in
another device, your SIM numbers will be backed up on
to your device.
• If you want to transfer a number to
Speed Dial
, it must
be in
Contacts
, not on the SIM card.
Phone functions
80
• If you are using your SIM in another device, you may
need the numbers stored in
Contacts
.
• Transferring numbers to
Contacts
allows you to create
more detailed records.
Adding and transferring Contacts
1. To create a contact, see page 134.
2. Select the contact and scroll to the item you want to
transfer.
3. Press the
Menu
soft key.
4. To transfer a contact to Speed Dial, select
Add Speed
Dial
from the pop-up menu. On the Add Speed Dial
screen, enter the contact name (if necessary), select a
location, and press the
Done
soft key.
Phone functions
81
Note
: By default the
Key assignment
option will assign
you the next available position in the
Speed Dial
list. If you put a number in a position that is already
occupied, a confirmation message appears to ask
you if you want to overwrite the setting.
To transfer the contact to the SIM card, select
Save to
SIM
, enter the contact name (if necessary), and press
the
Done
soft key.
Managing the Speed Dial list
You can assign frequently-used phone numbers, e-mail
addresses, or web pages in Contacts to the speed dial
location 2 through 99. The location 0 and 1 on the Speed
Dial list is preset for the international call prefix + and the
voicemail centre number, respectively.
Using this application, you just need to press and hold a
number key to dial a phone number, create a new
e-mail, or goes to a web page.
Note
: You cannot create a speed dial for a phone number
stored on the SIM card.
To add a contact to the Speed Dial list:
1. On the Home screen, press the
Contacts
soft key.
You can also press the
Start
soft key and select
Contacts
.
2. Select a contact from the list.
Phone functions
82
3. Scroll to a number, e-mail address, or Web page
address.
4. Press the
Menu
soft key and select
Add Speed Dial
.
5. If necessary, enter the name you want.
6. In the
Keypad assignment
field, select a location.
7. Press the
Done
soft key.
To delete location assignments:
1. On the Home screen, press the
Start
soft key.
2. Select
More
→
Speed Dial
.
3. On the Speed Dial list, select a number, press the
Menu
soft key, and select
Delete
.
4. When the confirmation message appears, press the
Yes
soft key.
Phone functions
83
Managing your Call History
The
Call History
details all incoming, outgoing, and
missed calls, and also provides a summary of total calls. It
can also tell you when a call was initiated and how long it
lasted.
On the Home screen, press the
Start
soft key and select
Call History
. A list of all calls appears.
If necessary, select the category of the call history to be
displayed by pressing the
Menu
soft key and selecting
Filter
.
Calls are categorised as below:
•
No Filter
: shows all calls made to and from the phone in
chronological order.
•
Missed Calls
: shows only calls that were not answered.
•
Incoming Calls
: shows only calls made to the phone.
•
Outgoing Calls
: shows only calls made from the phone.
Phone functions
84
Viewing details of calls
• To view the duration of a call and time and date you
received or made it, scroll to the call you want to view
and press .
• To view contact information, scroll to a contact, press the
Menu
soft key, and select
Find Contact
.
• To send an e-mail message using the e-mail address on
the call history, scroll to the contacts press the
Menu
soft
key, and select
Email
.
• To delete individual calls, scroll to the contact, press the
Menu
soft key, and then select
Delete
.
• To save the phone number on the selected call history as
a new contact or add it to an existing contact, scroll to
the contact, and press the
Save
soft key.
Phone functions
85
Viewing call timers
In Call History, you can view the duration of your calls. This
option is convenient for estimating your usage.
To view the call timers:
1. On the Call History screen, press the
Menu
soft key and
select
View Timers
.
You can view the total call time, the last call time, the
time of calls you received and made, and a lifetime
counter. You can also view the time you reset the call
time last.
2. Press the
Done
soft key.
You can easily erase the call time records at any time,
except for
Last call
and
Lifetime calls
, by pressing the
Menu
soft key and selecting
Reset Timers
.
Phone functions
86
Viewing call cost
This network feature lets you view the cost of calls. You can
set the maximum cost to limit the cost of your calls to a
certain amount of charging units or units of currency. When
the max cost is active, calls can be made only as long as
the preset max cost is not exceeded.
Viewing call cost may not be available, depending on
particular SIM cards. For more information, contact your
service provider.
To view the cost of calls:
1. On the Call history screen, press the
Menu
soft key and
select
Call Cost
.
2. Select the option you want.
•
Last Call Cost
: shows the cost of the last call you
made.
•
Total Cost
: shows the total cost of all calls made
since the cost counter was last reset. If the total cost
exceeds the maximum cost set in the
Set Max Cost
option, you can no longer make any calls until you
reset the counter.
•
Max Cost
: shows the maximum cost set in the
Set
Max Cost
option.
•
Reset Counters
: allows you to reset the cost counter.
Before resetting, you must first enter your PIN2.
•
Set Max Cost
: allows you to enter the maximum cost
that you authorise for your calls. After finished, you
must enter your PIN2.
•
Price
/
Unit
: allows you to set the cost of one unit. This
price per unit is applied when calculating the cost of
your calls. After finished, you must enter your PIN2.
3. When you have finished, press the
Done
soft key.
Phone functions
87
Customising your phone functions
You can personalise the settings of your phone, the
services you have, and the network to which you are
connected.
Call options
You can customise settings related to call functions, such
as an answering option, voice mail and SMS access
numbers, and country and area codes.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Call Options
.
3. Select the option you want in each field.
•
Any key answer
: When this box is checked, you can
answer incoming calls by pressing any key, except for
, , , and .
•
Show SIM contacts
: When this box is checked, the
contacts stored on the SIM card displays on the
Contacts list.
•
Voice mail number
/
SMS service centre
: When you
insert your SIM card into your phone, it automatically
detects and sets your voicemail centre and SMS access
numbers by default. You can change the numbers.
•
Country code
/
Dialling code
: You can enter a
country code or area code.
4. When you have finished, press the
Done
soft key.
Phone functions
88
Service LED
You can change the colour of the service LED to indicate
the service status.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
More
→
Service LED
.
3. Select a colour and press the
Done
soft key.
Tones
You can customise additional tones for the phone.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Extra Tones
.
3. Select the option you want in each field.
•
Connect Tone
: You can set whether or not your
phone sounds an alert tone when your call is
connected.
•
Minute Minder Tone
: You can set whether or not
your phone sounds an alerts tone every minute.
4. When you have finished, press the
Done
soft key.
Phone functions
89
Caller ID
When you place a call, your phone number can be
displayed or hidden from the person that you are calling.
You can enable or disable the display of your caller
indentification.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Caller ID
.
3. In the
Provide my caller ID to
field, select
No one
to
hide your caller ID or
Everyone
to display it to all. If
you want to display your caller ID to the contacts stored
in Contacts, select
Only my contacts
.
4. Press the
Done
soft key.
Closed User Group (CUG)
This service allows incoming and outgoing calls to be
restricted to a selected user group. The CUG service may
not be available depending on particular SIM cards.
For more information, contact your service provider.
Activating a closed user group
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Closed User Group
.
Phone functions
90
3. Set each option. The following options are available:
•
Index List
: Set up the index list by pressing the
Menu
soft key and selecting
Add
,
Delete
, and
Activate
.
•
Outside Access
: Enable or disable calls to numbers
other than those in the Closed User Group.
•
Default Group
: Select whether or not to set a default
CUG with your service provider.
•
Deactivate
: Deactivate indexes.
4. When you have finished, press the
Done
soft key.
Network settings
You can set the phone to automatically select a network or
select a network manually when you are roaming out of a
service area.
Finding a network
1. On the Home screen, press the
Start
soft key and select
Settings
→
Phone
→
More
→
Networks
.
2. Press the
Menu
soft and select
Find a New Network
(retrieving settings may take a few minutes).
Note
: You can enable this function when the phone is
currently out of network service.
The current network displays in the
Current network
field.
3. Press the
Done
soft key.
Phone functions
91
Selecting a network
1. On the Home screen, press the
Start
soft key and select
Settings
→
Phone
→
More
→
Networks
.
2. Select either
Automatic
or
Manual
in the
Network
selection
field (retrieving settings may take a few
minutes when you select
Manual
).
3. If you select
Manual
, press the
Menu
soft key and
select
Select a Network
. Select a network you want
and press the
Done
soft key.
You are connected to that network.
If you select
Automatic
, select the preferred network.
See below.
4. Press the
Done
soft key.
Setting preferred networks
1. On the Home screen, press the
Start
soft key and select
Settings
→
Phone
→
More
→
Networks
.
2. Press the
Menu
soft and select
Preferred Networks
.
(retrieving settings may take a few minutes).
3. Select a network and re-priorities the order for network
usage by pressing the Up or Down key.
4. Press the
Done
soft key.
Note
: If there are many service providers available to you,
enable this function to select a lower fee network.
Phone functions
92
Call barring
This service allows you to restrict your incoming or
outgoing calls.
To activate or deactivate call barring:
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Call Barring
(retrieving
settings may take a few minutes).
3. Select the calls type you want to restrict and press the
Done
soft key.
You can choose to restrict your calls with the following
choices:
•
All calls
: No calls can be made or received.
•
When roaming
: Calls cannot be received when you
are using your phone outside of your home service
area.
•
Off
: Call barring is deactivated; all calls can be made
and received normally.
•
Int’s except home
: When abroad, calls can be made
only to numbers within the current country and to your
home country.
•
Int’l calls
: International calls cannot be made.
4. Enter the barring password provided by your service
provider and press the
Done
soft key.
Phone functions
93
To change the barring password:
You can set and change the call barring password obtained
from your service provider.
1. On the Dialer screen, tap
Tools
→
Options...
. You can
also access the screen by tapping the
Start
menu
→
Settings
→
Phone
.
2. Tap the
More
tab
→
Call Barring Password
→
Get
Settings
.
3. Enter the old password, then a new one, and re-enter
for confirmation.
4. Tap
OK
.
Call forwarding
This service allows you to forward your incoming calls to
another phone number.
To activate or deactivate call forwarding:
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Call Forwarding
(retrieving settings may take a few minutes).
3. Select a call forwarding option from the following
conditions:
•
Unconditional
: All calls are forwarded.
•
No Reply
: Calls are forwarded when you do not
answer your phone.
•
Busy
: Calls are forwarded when you are on the phone.
•
Unavailable
: Calls are forwarded when your phone is
turned off or your phone is out of the network service
area.
Phone functions
94
4. Select the
Enable call forwarding
check box.
5. Enter the phone number to which calls are to be
forwarded.
6. Press the
Done
soft key.
Call waiting
This service allows you to receive another call while you
have a call in progress. You can also turn this option off by
unsettling
Provided call waiting notifications
.
To activate or deactivate call waiting:
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Call Waiting
(retrieving
settings may take a few minutes).
3. Select or unsettle
Provide call waiting notifications
.
Once you have activated the Call Waiting service, you
will receive an alert tone when you have a second call
during a call.
4. Press the
Done
soft key.
Band selection
For the phone to make and receive phone calls, it must be
registered with one of the available networks. Your phone
can handle combined GSM 900/1800 or PCS 1900
networks.
Phone functions
95
The country where your phone was purchased determines
the default band that it uses. When you travel abroad, you
must remember to change to an appropriate band.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Band Selection
.
3. Select an appropriate band in the
Band Selection
field.
4. Press the
Done
soft key.
5. If the confirmation screen displays, press the
Yes
soft
key to confirm your selection.
6. Press the
OK
soft key.
Fixed Dialling
When this option is enabled, your phone restricts your
outgoing calls to a limited set of phone numbers. You can
only call those phone numbers that are included on the
Fixed dialling number list or which begin with the same
digit(s) as a phone number on the list.
To activate the Fixed dialling function:
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Fixed Dialling
.
3. Select the
Enable fixed dialling
checkbox and press
the
Done
soft key.
4. Enter PIN2 and press the
Done
soft key.
Phone functions
96
To add new numbers to the Fixed dialling number list:
1. On the Fixed Dialling screen, press the
Menu
soft key
and select
Edit Numbers
.
2. Press the
Menu
soft key and select
Add
.
3. Enter the number and press the
Done
soft key.
4. Repeat steps 2 and 3 to enter additional numbers.
5. Press the
Done
soft key.
Changing PIN2
This option allows you to change your current PIN2 to a
new one. You must enter the current PIN2 before you can
specify a new one.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Security
.
3. On the Security screen, select
Change PIN2
.
4. Enter the old PIN2, then a new one, and re-enter the
new PIN2 for confirmation.
5. Press the
Done
soft key.
15
97
Message, Internet, and
Messenger
Messaging
In
Messaging
, you can create, send, receive, view, edit,
and organise:
• Text messages (SMS)
• Multimedia message (MMS)
• E-mail messages
To go to
Messaging
, on the Home screen, press the
Start
soft key and select
Messaging
.
SMS Messages
You can write an SMS message of up to 160 characters.
When you enter more than 160 characters, your phone
handles the message as a multi-part message.
Creating an SMS message
1. On the Messaging main screen, select
SMS Messages
.
2. Press the
New
soft key.
3. In the
To
field, enter phone number(s) of one or more
recipients, separating them with a semicolon, or retrieve
a number from the contact list by pressing the
Menu
soft key and selecting
Insert Contact
.
Message, Internet, and Messenger
98
4. Press the Down key and compose your message.
To enter preset or frequently used messages, press the
Menu
soft key, select
Insert Text
, and select a
message.
5. Press the
Send
soft key when you’ve finished the
message.
If you want to send the message later, press the
Menu
soft key and select
Postpone Message
. The message
is automatically saved in
Drafts
.
Note
: If you want to know if your message is delivered to the
recipient(s), press the
Menu
soft key, select
Message
Options
→
Request message delivery
notification
.
Viewing messages
When you receive a new SMS message, the icon
displays on the Home screen and a new message is stored
in
Inbox
. Press the
Message
soft key to open the
message.
You can also view messages you received, sent, composed
but not sent by accessing the message folders.
To open the message folders:
On the SMS Messages screen, press the
Menu
soft key and
select
Folders
. The following default folders display:
•
Deleted Items
: contains messages that have been
deleted on your phone.
•
Drafts
: stores draft messages that have not been sent.
•
Inbox
: contains received SMS and broadcast messages.
For details on broadcast messages, see page xx.
Message, Internet, and Messenger
99
•
Outbox
: is a temporary storage place for messages
waiting to be sent.
•
Sent Items
: stores the messages that have been sent.
If you want to organise messages into additional folders on
the folder list, press the
Menu
soft key and select
Manage
Folders
to create new folders.
To view all message folder contents, press the
Menu
soft
key and select
Show All Folders
.
To clear the SMS messages in the specific folder, scroll to
the folder, press the
Menu
soft key, and select
Clear SMS
Messages
.
To view a message:
1. On the SMS messages screen, open the message folder
you want.
The most recently received messages are displayed first
on the SMS Messages screen.
2. Select a message you want to view.
Unread message
Read message
Position only
Message, Internet, and Messenger
100
3. While viewing the message, you can use the following
options by pressing the
Menu
soft key. Available options
depend on the folder you have opened.
•
Delete
: Deletes the message.
•
Reply
: Sends a reply to the sender. You can also send
a reply by pressing the
Reply
soft key.
•
Reply All
: Sends a reply to the senders in the
To
field.
•
Forward
: Copies the message contents to an editor to
forward the message to other people.
•
Save to Contacts
: Allows you to copy the phone
number of the message sender to the Contacts
directory. Choose whether you want to create a new
contact or add the phone number to an existing
contact.
•
Move
: Allows you to move message(s) to other
folders.
•
Mark as Unread
/
Read
: Allows you to mark the
unread or read message.
Note
: You can change the default settings for viewing an SMS
message. On the SMS message list, press the
Menu
soft key and select
Options
→
Display
. You can select
whether or not SMS messages display on the list with
the date and time, and configure the sorting method of
messages.
Message, Internet, and Messenger
101
Inserting signatures into SMS messages
You can specify a signature to be automatically inserted
into SMS messages that you send.
1. On the SMS Messages screen, press the
Menu
soft key
and select
Options
→
Signatures
.
2. Select
SMS Messages
from the
Select an account
field.
3. Select the
Use signature with this account
checkbox.
To insert a signature in every SMS message when you
reply or forward the message, select the
Include when
replying and forwarding
checkbox.
4. Enter a signature in the
Signature
field and press the
Done
soft key.
5. Press the
Done
soft key.
Configuring Broadcast channels
Your phone can receive text messages on various topics,
such as news, weather forecasts, traffic, entertainment,
and so on, from your service provider. To receive broadcast
messages, you must enable channels.
1. On Home screen, press the
Start
soft key.
2. Select
Settings
→
Phone
→
Channels
.
3. Set each option:
•
Enable channels
: Select to enable the reception of
broadcast messages.
Message, Internet, and Messenger
102
•
Receive channel list
: Select to receive a list of all of
the available channels from the network.
To manually set up the channel list, press the
Menu
soft key and select
Edit Channels
. On the Edit
Channels screen, press the
Menu
soft key and select
Add
to add a new channel. You can also enable or
disable channels individually.
•
Language
: Select your preferred language to display
broadcast messages.
4. Press the
Done
soft key.
Viewing messages on the SIM card
Sometimes, the text messages may be stored on the SIM
card, depending on their specifications. Before you can
view the messages stored on the SIM card, you need to
copy them to a folder in your phone.
1. On the SMS Message screen, press the
Menu
soft key
and select
Options
→
Import SIM Messages
.
2. Press the
Done
soft key.
The text messages are copied from the SIM card to
Inbox of the selected account.
MMS Messages
You can send or receive multimedia messages (MMS). In
addition to the familiar text content of text messages,
multimedia messages can contain images, video clips,
audio clips, and combinations of these things in more than
one page.
MMS also supports e-mail addressing, so that messages
can be sent from phone to e-mail and vice versa.
Message, Internet, and Messenger
103
Creating an MMS message
1. On the Messaging main screen, select
MMS
.
2. Press the
New
soft key.
3. Enter the recipient’s number(s) or address(es),
seperating them with a semicolon.
You can also retrieve number(s) or the address(es) from
the contact list or the list you sent lately by pressing the
Menu
soft key and selecting
Add Recipients
.
4. Press the Down key and enter your text.
5. To add items, press the
Menu
soft key and select
Add
item
.
6. Select a file type and add the item you want. You can
also press the
Menu
soft key and select
Capture
or
Record Voice
to take a new photo, record a new video
clip, or record a voice memo.
7. You can access the following options by pressing the
Menu
soft key:
•
Preview
: Shows the multimedia message you
created.
•
Edit item
: Allows you to edit the added items.
•
Insert
: Allows you to insert the contact card or
calendar schedule.
•
Add Subject
: Allows you to enter the message
subject.
•
Edit Page
: Allows you to add pages or charge the text
style.
Message, Internet, and Messenger
104
•
MMS Options
: Allows you to change the message
options, such as priority, expiry time, and hiding the
sender’s address, see page 102.
•
Save To
: Saves the message in the
Draft
or
Template
folder.
•
Cancel Message
: Calcels creating the message.
8. When you have finished composing the message, press
the
Send
soft key.
Viewing messages
You can view multimedia messages you have received,
sent, and saved but not sent by accessing the message
folders.
To open the message folders:
On the MMS screen, press the
Menu
soft key and select
Folders
.
The following default folders display:
•
Deleted Items
: Contains messages that have been
deleted on your phone.
•
Drafts
: Stores draft messages that have not been sent.
•
Inbox
: Contains received messages.
•
Outbox
: is a temporary storage place for messages
waiting to be sent.
•
Sent Items
: Stores the messages that have been sent.
To view a message:
1. On the MMS screen, open the message folder you want.
A list of messages appears.
Message, Internet, and Messenger
105
2. Select the message you want to read.
3. While you read the message, use the following options:
• To play the message, press the
Play
soft key.
• To view the previous page,
press the
Left key.
• To view the next page,
press the
Right key.
• To access the added item in the message, press the
OK
key.
4. You can also access the following options by pressing
the
Menu
soft key. Available options depend on the type
of folder you had opend.
•
Reply
: Allows you to reply to the sender or all the
recipeints.
•
Forward
: Allows you to forward the message to other
people.
•
Save
: Allows you to save the phone number or e-mail
address of the sender to the Contacts directory or
objects in the message, such as an image, audio, or
video, or to save the message as a template.
•
Delete
: Deletes the message. The message is moved
to the Deleted Items folder.
Position only
Unread message
Read message
Message, Internet, and Messenger
106
•
Save to Contacts
: Allows you to save the sender’s
address in the Contacts directory.
•
Properties
: Shows you the message properties.
5. When you have read a message, press to return to
the list screen.
Configuring MMS settings
You can change the default MMS settings. While composing
an MMS message, press the
Menu
soft key and select
MMS Options
.
•
Sending Options
: Allows you to change the settings for
sending MMS messages.
Priority
: You can select the priority level of your
messages.
Validity Period
: You can select the length of time your
messages are stored in the message centre after they
are sent.
Delivery Time
: You can select the time delay before
messages are sent.
Message Size
: You can select the maximum message
size.
Hide Address
: When this option is checked, your phone
number is not displayed on the recipient’s phone.
Delivery Report
: When this option is checked, the
network informs you whether or not your message has
been delivered.
Read Report
: When this option is checked, your phone
sends a request for a reply along with your message to
the recipient.
Keep a copy
: When this option is checked, a copy of
your messages is sent to you.
Message, Internet, and Messenger
107
•
Receiving Options
: Allows you to change the settings
for receiving MMS messages.
Home Network
: Set how to retrieve new messages
from the server in your home network.
Roaming Network
: Set how to retrieve new messages
from the server while roaming around another network.
Delivery Report
: Select to receive a report when your
message is delivered.
Read Report
: Select to receive a report when your
message is read.
Anonymous Reject
: Select to reject messages from
unknown senders.
•
MMS Profiles
: Allows you to set up and activate MMS
profiles which are sets of MMS parameters required to
send or receive MMS messages.
To edit a profile, select it and press the
Menu
soft key
and select
Edit
. Change the following options:
MMS Profile
: Enter the profile name.
MMSC
: Enter the URL address of the MMS centre.
Data Connections
: Select an intermediate to connect to
the MMS centre, Gateway, or Proxy.
Gateway
: Select a gateway to connect to the MMS
centre.
IP Address
: Enter the IP address of the gateway.
Port
: Enter the port number of the gateway.
Encoding
: Select an encoding type to send your
messages.
To activate a profile, select it from the profile list.
Message, Internet, and Messenger
108
•
Creation mode
: Allows you to set the phone to allow the
MMS creation using unsupported file format.
Free
: The phone adds unsupported files.
Restricted
: The phone does not allows you to add
unsupported files.
Warning
: The phone alerts you if you try to add
unsupported files.
•
Reply Charging
E-mail messages
You can send and receive e-mail messages in one of these
ways:
• Synchronise e-mail messages with Microsoft Exchange or
Microsoft Outlook on your PC.
• Send and receive e-mail messages by connecting directly
to an e-mail server through an Internet service provider
(ISP) or a network.
Synchronising E-mail messages
Use
Outlook E
-
Mail
to send and receive e-mail messages
by synchronising e-mail messages with Microsoft Exchange
or Microsoft Outlook on your PC.
E-mail messages can be synchronised as part of the
general synchronisation process. You will need to enable
Inbox synchronisation in
ActiveSync
. For information on
enabling Inbox synchronisation, see “ActiveSync Help” on
the PC.
Message, Internet, and Messenger
109
During Synchronisation
• Messages are copied from the mail folders of Exchange or
Outlook on your PC to the
Outlook E-mail
folder in
Messaging
on your phone. By default, you will receive
messages from only the three days, and only the first
100 lines of each message.
• E-mail messages in
Outbox
on your phone are
transferred to Exchange or Outlook, and then sent from
those programmes.
• E-mail messages in folders must be selected in
ActiveSync
on your PC in order to be transferred.
Connecting directly to an E-mail server
You can send and receive e-mail messages by connecting
to an e-mail server. You’ll need to set up a remote
connection to a network or an ISP, and a connection to your
e-mail server.
When you connect to the e-mail server, new messages are
downloaded to the phone’s
Inbox
folder. Also messages in
the phone’s
Outbox
folder are sent, and messages that
have been deleted on the e-mail server are removed from
the phone’s
Inbox
folder. Messages that you receive
directly from an e-mail server are linked to your e-mail
server rather than your PC.
Creating an E-mail account
You need to create a new account to be used for retrieving
and sending e-mail messages.
To make a new account:
1. From the Messaging home screen, select
Outlook E-
Mail
.
Message, Internet, and Messenger
110
2. Press the
Menu
soft key and select
Options
→
Account
Setup
.
3. Press the
Menu
soft key and select
New
.
4. Enter your display name and e-mail address.
If you want to set up your account automatically from
the Internet, select
Attempt to obtain e-mail
settings from the Internet
.
5. Press the
Next
soft key.
6. Enter your user information, such as user name,
password, and domain name (if necessary).
If you want to save the password, select the
Save
password
checkbox.
7. Press the
Next
soft key.
8. Select the e-mail server type,
POP3
or
IMAP4
, enter
an account name, and select a network type.
9. Press the
Next
soft key.
10. Enter the server information, such as incoming mail
server and outgoing mail server.
If you want to set up outgoing server, select
Outgoing
Server Settings
.
11. Press the
Next
soft key.
Message, Internet, and Messenger
111
12. Set the options for downloading e-mail messages and
press the
Next
soft key.
You can select the duration of days for which you
receive e-mail messages and set the maximum data
volume of e-mail messages you want to download.
13. Select how often your phone automatically connects to
the server and checks for incoming e-mails, and press
the
Next
soft key.
14. Press the
Finish
soft key.
Folder behavior with a direct connection to an E-mail
server
The behavior of the folders you create depends on whether
you are using POP3 or IMAP4.
• If you use POP3 and you move e-mail messages to a
folder you created, the link is broken between the
messages on the device and their copies on the mail
server. The next time you connect, the mail server will
see that the messages are missing from the device Inbox
and delete them from the server. This prevents you from
having duplicate copies of a message, but it also means
that you will no longer have access to messages that you
move to folders created from anywhere except the
device.
• If you use IMAP4, the folders you created and the e-mail
messages you moved are mirrored on the server.
Therefore, messages are available to you anytime you
connect to your mail server, whether it is from your
device or PC. This synchronisation of folders occurs
whenever you connect to your mail server; create new
folders or rename/delete folders when connected.
Message, Internet, and Messenger
112
Creating an E-mail message
1. On the Messaging main screen, select the e-mail
account with which you want to send.
2. Press the
New
soft key.
3. In the
To
and
Cc
fields, enter e-mail address(es) of one
or more recipients, separating them with a semicolon, or
retrieve addresses from the contact list by pressing the
Menu
soft key and selecting
Insert Contact
.
4. In the
Subj
field, enter the subject of the e-mail
message.
5. Compose your e-mail message.
To enter preset or frequently used sentences, press the
Menu
soft key, select
Insert Text
, and select a
sentence.
You can record a voice note as an attachment by
pressing the
Menu
soft key and selecting
Insert
Recording
. Press the
Record
soft key to start
recording.
Message, Internet, and Messenger
113
6. Press the
Send
soft key when you’ve finished the
message.
If you want to send the e-mail message later, press the
Menu
soft key and select
Postpone Message
. The
message is automatically saved in
Drafts
.
7. Press the
Menu
soft key and select
Send/Receive
.
Note
: If you want to know if your e-mail
messages
is
delivered, press the
Menu
soft key, select
Message
Options
, and select the
Request message
delivery notification
checkbox.
Viewing e-mail messages
When you receive a new e-mail message, the icon
displays on the Home screen and a new message is stored
in
Inbox
.
You can also view messages you received, sent, composed
but not sent by accessing the message folders.
To open the message folders:
On the Messaging main screen, select the e-mail account
you want, press the
Menu
soft key, and select
Folders
.
The following default folders display:
•
Deleted Items
: contains messages that have been
deleted on your phone.
•
Drafts
: stores draft messages that have not been sent.
•
Inbox
: contains received messages.
•
Outbox
: is a temporary storage place for messages
waiting to be sent.
•
Sent Items
: stores the messages that have been sent.
Message, Internet, and Messenger
114
Note
: When you first have synchronised e-mail messages, the
Junk E-mail
folder is copied from the Microsoft
Outlook on your PC to
Outlook E-mail
on your phone.
The next time you synchronise, the e-mail messages
that appear to be Junk e-mail are saved in the
Junk
e-mail
folder according to the junk e-mail options you
set in the Microsoft Outlook on your PC.
To move a message to another folder, select the message
on the message list and then press the
Menu
soft key and
select
Move
.
To view all message folder contents in the selected
account, press the
Menu
soft key and select
Show All
Folders
.
To view an e-mail message:
1. On the Messaging main screen, select the e-mail account
from which you want to receive e-mail messages.
2. Press the
Menu
soft key and select
Send
/
Receive
.
The phone connects to your e-mail server and receives
your incoming e-mail messages or sends the e-mail
messages in Outbox.
Unread message
Read message
Message, Internet, and Messenger
115
3. Select the message you want view.
4. While viewing the message, you can use the following
options by pressing the
Menu
soft key. Available options
depend on the folder you have opened.
•
Delete
: Deletes the message.
•
Reply All
: Sends a reply to the senders and recipients
in the
To
field.
•
Forward
: Forwards the message to other people.
•
Save to Contacts
: Allows you to save the e-mail
address of the sender to the Contacts directory.
•
Move
: Allows you to move message(s) to other
folders.
•
Mark as Unread
/
Mark as Read
: Allows you to
change the message status to read or unread.
•
Mark for Download
: Allows you to mark the
message to download its completed contents from the
e-mail server. For details, see page 115.
•
Options
: Allows you to select a language for reading a
message.
•
Send/Receive
: Sends or receives the e-mail
messages.
Downloading a full message
When you connect to your e-mail server or synchronise
with your PC, by default, you’ll receive first 0.5KB of each
new message. The message size includes its attachments.
The original messages and attachments remain on the e-
mail server or your PC. You can change the message size
for receiving when you set up the account.
Message, Internet, and Messenger
116
You can mark the messages that you want to retrieve in full
during your next synchronisation or e-mail server
connection. On the message list, select the message of
which full contents you want to retrieve. Press the
Menu
soft key and select
Mark for Download
. The icon in
the Inbox gives you visual indication of message status.
Setting downloading options
You specify your downloading preferences when you set up
the account or select your synchronisation options. You can
change them at any time:
• Change options for Inbox synchronisation using
ActiveSync
options. For more information, see
“ActiveSync Help.”
• Change options for direct e-mail server connections in
Inbox
on your phone. Press the
Menu
soft key and
select
Options
→
Account Setup
. Select the account
you want and change it.
Viewing e-mail attachments
On the message list, messages that have the attachment
display with the icon. Open the message from the list.
Within a message, attachments are displayed as a list of
hyperlinks at the bottom of the message.
To download an attachment, select the attachment in an
open message. It is downloaded the next time you
synchonise or connect to your e-mail server and send or
receive e-mail messages.
To view an attachment, select the attachment in an open
message. You can view the attachment in the
Document
Viewer
application.
Message, Internet, and Messenger
117
Inserting signatures into e-mail messages
You can specify a signature to be automatically inserted
into e-mail messages that you send.
To specify a signature:
1. On the Messaging main screen, select the e-mail
account you want.
2. Press the
Menu
soft key and select
Options
→
Signatures
.
3. Select the account for which you want to specify from
the
Select an account
field.
4. Select the
Use signature with this account
checkbox.
5. To insert a signature in every e-mail messages when
you reply or forward the message, select the
Include
when replying and forwarding
checkbox.
6. Enter a signature to insert in the
Signature
field and
press the
Done
soft key.
Message, Internet, and Messenger
118
Internet Explorer
Use Microsoft
®
Pocket Internet Explorer to view Web HTML,
cHTML, and WAP pages. You can browse by connecting to
an Internet service provider (ISP) or network and browse
the Web. To do this, you’ll need to create the connection
first as described 216.
When connected to an ISP or network, you can also
download files and programmes from the Internet.
Opening Internet Explorer
On the Home screen, press the
Start
soft key and select
Internet Explorer
.
Message, Internet, and Messenger
119
Browsing the Internet
1. To connect and start browsing, do one of the following:
• Press the
Menu
soft key and select
Address Bar
.
Enter the web address you want to visit or select
View
History
to open the list of the pages you last
accessed.
• Scroll to the page you want to view from the
Favourites list.
2. Press the
Go
soft key on the browser to open the
associated web page.
While processing, appears on the top right of the
browser.
Navigating the Internet Explorer
The following table helps you browse the Internet easily:
To Press
scroll through browser
items
the Up or Down key, or
spin the Navigation key.
select a browser item .
return to the previous page .
open the Favourites list the
Favourites
soft key.
refresh the connection the
Menu
soft key and
select
Refresh
.
view information on the
web page
the
Menu
soft key and
select
Properties
.
add the current web page
to the Favourites list
Menu
soft key and select
Add Favourite
.
Message, Internet, and Messenger
120
Using the Favourites list
You can store your favourite link while using the Internet
Browser and then access them easily. Categorising them
enables you to find them more quickly.
Adding a Web page to the Favourites list
1. Go to the page you want to add and press the
Menu
soft key and select
Add Favourite
.
2. Enter a name for the favourite link and the URL of the
link.
3. Select a category from the
Folder
field under which you
want to save the favourite.
You can also create a new category. See page 127.
4. Press the
Add
soft key.
Message, Internet, and Messenger
121
Opening a link through the Favourites list
1. On the Internet Explorer screen, press the
Favourites
soft key.
2. Scroll to the link you want to access.
If the link you want is in the certain folder, open the
folder and scroll to the link.
3. Press the
Go
soft key.
Managing Favourites categories
You can create a new category for saving favourite web
pages and edit or delete the created categories.
1. On the Internet Explorer screen, press the
Favourites
soft key.
2. On the Favourites screen, press the
Menu
soft key and
select
Add Folder
to create a new category.
Or scroll to the category and press the
Menu
soft key
and select
Edit
or
Delete
to edit or delete the selected
category.
Deleting a favourite link
1. On the Favourites screen, scroll to the link you want to
delete.
If the link you want is in the certain folder, open the
folder and scroll to the link.
2. Press the
Menu
soft key and select
Delete
.
3. Press the
Yes
soft key to confirm the deletion.
Message, Internet, and Messenger
122
Changing Explorer options
You can customise Web browsing options, change the
connection settings, and clear memory. On the Internet
Explorer screen, press the
Menu
soft key and select
Options
.
The following options are available:
•
General
:
You can select whether or not to show
images or play sounds on Web pages, view the
warnings when you move from a secure web page to a
non-secure one, or enable or disable the receiving and
sending of cookies. You can also select the language
to use.
•
Connections
: You can change the network settings to
connect to Internet Explorer. If you select the
Automatically detect settings
checkbox, your phone
automatically detects network settings from your service
provider.
•
Memory
: You can check the amount of memory
currently being used for the Internet Explorer. To clear
the memory, scroll to a type of memory and press the
Clear
soft key.
Message, Internet, and Messenger
123
Pocket MSN
Pocket MSN delivers an always-on experience that enables
you to remain available to other online users and always up
to date with e-mail, instant messaging (IM) and other
online services without maintaining a continuous network
connection to the phone.
The connection will be restored when a new message
arrives or when you needs the service. In addition,
subscribers will receive only updates or changes to their
contacts and Inbox rather than receiving entire lists
when they connect to the service.
You will have one-click access to MSN Hotmail
®
and MSN
Messenger. In addition, Pocket MSN will allow you to
wirelessly browse online and receive other MSN services,
including MSN Alerts, which include news, sports and
weather updates.
In addition to always-on services, you can access, compose
and answer Hotmail messages offline, maximising their
time when mobile connections aren't available.
To access Pocket MSN, on the Home screen, press the
Start
soft key and select
More
→
Pocket MSN
.
Message, Internet, and Messenger
124
WAP Browser
Using
WAP Browser
, you can browse the WAP service
preset by your service provider and other WAP (Wireless
Application Protocol) sites on your phone.
Connecting to a WAP site
1. On the Home screen, press the
Start
soft key.
2. Select
More
→
WAP Browser
.
3. To connect and start browsing, do one of the following:
• Press the
Menu
soft key and select
Home
to access
the homepage of your service provider.
• Press the
Favorites
soft key, select the category
which contains the WAP site you want, and then select
the WAP site.
• Press the
Menu
soft key and select
Go To
. Enter the
address of WAP site you want to visit and press the
Go
soft key.
Message, Internet, and Messenger
125
4. While you are navigating through the WAP pages, you
can use the following options:
Using the Favorites list
You can store your favourite WAP sites and then access
them easily. Categorising them enables you to find them
more quickly.
Adding a URL to the Favorites list
1. On the WAP Browser screen, press the
Menu
soft key
and select
Add to Favorites
.
2. Enter a name for the category and press the
Save
soft
key.
To Press
display the list of your
favorites
the
Favorites
soft key.
go to the previous visited
page
.
go to the homepage the
Menu
soft key and
select
Home
.
refresh the current page the
Menu
soft key and
select
Refresh
.
Message, Internet, and Messenger
126
3. Enter a name for the favourite site and the URL of the
site.
4. Select a category under which you want to save the
favourite.
You can also create a new category by pressing the
Menu
soft key and select
New Category
.
5. Press the
Done
soft key.
Opening a page through the Favourites list
1. On the WAP Browser screen, press the
Favorites
soft
key.
The list of the categories displays.
2. Scroll to a category from the list and press the
Open
soft key.
3. Scroll to a WAP site you want and press the
Go
soft key.
Message, Internet, and Messenger
127
Managing Favorite categories
You can create a new category for saving favourite WAP
sites and edit or delete the created category.
1. On the WAP Browser screen, press the
Favorites
soft
key.
2. Press the
Menu
soft key and select
New
to create a
new category.
Or scroll to the category you want, press the
Menu
soft
key, and then select
Rename
or
Delete
to edit the
selected category.
Deleting a favourite item
1. On the Category screen, scroll to a category from the
list and press the
Open
soft key.
2. Scroll to a WAP site you want to delete and press the
Menu
soft key and select
Delete
.
3. Press the
Yes
soft key to confirm the deletion.
Using the history
The History list keeps track of all of the WAP sites you have
visited.
To view the history:
1. On the WAP Browser screen, press the
Menu
soft key
and select
View
→
History
.
Message, Internet, and Messenger
128
The History screen displays the recently visited URLs.
2. To open a page in the history, scroll to the page and
press the
Go
soft key.
To clear the history:
1. From the History list, press the
Menu
soft key and
select
Clear History
.
2. Press the
Yes
soft key. All entries on the History list are
cleared.
Viewing push messages
You can access your Push Inbox on the WAP Browser
screen and view messages pushed by the WAP server.
To view WAP push messages:
1. On the WAP Browser screen, press the
Menu
soft key.
2. Select
View
→
Push Inbox
.
The Push Inbox screen opens and shows the message
list.
Message, Internet, and Messenger
129
3. Select the message you want to view.
The Push Message Details screen displays the messages
with all the details, such as the contents, the sender’s
address, time and date, priority, and URL.
4. To access the URL specified in the message, press the
Go To
soft key.
To move the message in the Push Inbox screen to the
Push-Archive screen, press the
Menu
soft key and
select
Move to Archive
.
5. When you have finished, press the
Done
soft key.
To clear WAP push messages:
Press the
Menu
soft key in the Push Inbox screen and
select
Delete
.
Setting the WAP options
You can access options for the WAP browser. Press the
Menu
soft key and select
Options
.
•
Settings
: You can view the current connection settings
for WAP and set the selected profile as an active profile or
edit a selected profile. You can also set the WAP browser
to load the homepage when launching.
•
Cache & Cookie
: Viewed pages can be cached for faster
downloads and Cookie stores information related to a
session. You can select to enable or disable the cache or
cookie. You can also specify the size of the cache.
You can clear information stored in the cache and cookie
by pressing the
Menu
soft key and selecting
Clear
Cache
or
ClearCookie
.
Message, Internet, and Messenger
130
•
Set as Homepage
: You can change the startup
homepage of the WAP browser. Access the page you want
and select this option.
MSN Messenger
MSN
®
Messenger on your phone is an instant messaging
programme that lets you:
• see who is online.
• send and receive instant messages.
• have instant message conversations with groups of
contacts.
To use
MSN Messenger
, you must have a Microsoft
Passport™ account or Hotmail account, or a Microsoft
Exchange e-mail account. If you have a Hotmail
®
or MSN
account, you already have a Passport. Once you have
obtained either a Microsoft Passport or a Microsoft
Exchange account, you are ready to set up your account.
Note
: Sign up for a Microsoft Passport account at http://
www.passport.com. Get a free Microsoft Hotmail e-mail
address at http://www.hotmail.com.
To open MSN Messenger:
On the Home screen, press the
Start
soft key and select
MSN Messenger
.
Message, Internet, and Messenger
131
Setting up
Before you can connect, you must set up the instant
messaging account(s) to use. For MSN Messenger Service,
you must enter a Microsoft Passport or Hotmail account.
For Exchange Instant Messaging, you must enter an
Exchange account.
To set up an account and sign in:
1. On the MSN Messenger main screen,
press the
Options
soft key and select
Passport Account
.
2. Enter the ID and the password of your Microsoft
Passport and Hotmail account. For details, see the online
Help.
3. To sign in, press the
Sign In
soft key on the MSN
Messenger main screen and enter your e-mail address
and password.
4. Press the
Sign In
soft key.
Message, Internet, and Messenger
132
Working with contacts
The MSN Messenger screen shows all of your messenger
contacts at a glance, divided into
Online
and
Not Online
categories. From this view, while connected, you can start
a chat.
• To see others online without being seen, on the MSN
Messenger screen, press the
Menu
soft key and select
Chats
.
• To add a contact, press the
Menu
soft key and select
Add Contact
.
• To delete a contact, press the
Menu
soft key and select
Delete Contact
.
• To view the properties of a contact, press the
Menu
soft
key and select
Properties
.
• To block a contact from chatting with you, press the
Menu
softkey and select
Block
.
Position only
Message, Internet, and Messenger
133
Chatting with contacts
1. To open a chat window, scroll to the contact with whom
you want to chat.
2. Press the
Menu
soft key and select
Send Message
.
3. Enter your message in the text entry area at the bottom
of the screen, or press the
Menu
soft key and select
My
Text
to enter a preset message.
To invite another contact to a multi user chat, press the
Menu
soft key, select
Invite
, and select the contact you
want to invite.
To switch back to the main window without closing a
chat, press the
Menu
soft key and select
My contacts
.
To revert back to your chat window, press the
Menu
soft
key, select
Chats
, and select the person whom you were
chatting with.
4. To end the chat, press the
Menu
soft key and select
End Chat
.
For more information on using MSN Messenger, see the
online Help by tapping the
Start
menu
→
Help
.
134
6
Organiser
This chapter explains how to keep track of contacts and
appointments and make a list of tasks you need to do.
Using ActiveSync
®
, you can synchronise information in
Microsoft Outlook or Microsoft Exchange on your PC with
your device. You can also synchronise this information
directly with a Microsoft Exchange server. Each time you
synchronise, ActiveSync compares the changes you made
on your device and PC or server and updates both with the
latest information. For information about synchronsing
Contacts, Calendar, Tasks, and Inbox, see “ActiveSync
Help” on the PC.
Contacts
Contacts maintains a list of your friends and colleagues so
that you can easily find the information you’re looking for,
whether you’re at home or on the road. Using the device’s
infrared (IR) port, you can quickly share Contacts
information with other device users.
To open Contacts:
On the Home screen, press the
Contacts
soft key. Or press
the
Start
soft key and select
Contacts
. You can view the
list of contacts that you have created.
Creating a contact card
You can save a new contact card in the Contacts application
or on the SIM card.
Organiser
135
Creating a contact card in the phone’s memory
1. On the Contacts screen,
press the
New
soft key
.
2. Enter a name and other contact information.
3. To assign the contact card to a category, scroll to the
Categories
field and select a category. In the contact
list, you can display contacts by category.
4. You can add a personal ringtone to a contact card. Scroll
to the
Custom ring tone
field and select the ring
melody you want.
5. When you have finished, press the
Done
soft key to
return to the contact list.
Organiser
136
Creating a contact card in the SIM card
1. On the Contacts screen, press the
Menu
soft key
and
select
New SIM Contact
.
2. On the SIM Contact screen, enter the name of the
person you want to add.
3. Scroll to the
Number
field and enter the number you
want to store.
4. Press the
Done
soft key.
Creating a contact card from the Dialer screen
1. On the Home screen, enter the phone number and press
the
Save
soft key.
2. If you are creating a contact card for the first time, skip
to step 3.
To create a new contact card, select
<New Item>
.
If you want to add the phone number to the existing
contact card, select the contact card.
Organiser
137
3. Scroll to the location you want to save the number and
press the
Insert
soft key.
4. Fill in the other fields by referring from step 2 on page
136.
Viewing and editing a contact card
When you access the Contacts application, the contact list
displays the names of your contacts alphabetically, along
with an abbreviation for the primary contact number or E-
mail address, such as the person’s work phone number (w)
or mobile phone number (m).
Indicates the type of
the default number or
e-mail address.
Indicates the contacts
stored on the SIM card.
Organiser
138
The following table shows possible abbreviations that might
be displayed on the Contacts list and their meanings:
Note
: All of the contacts saved on the SIM card follow all of
the contacts saved in the phone’s memory. You can
select not to display the contacts stored on the SIM
card from the Contacts list.
Abbreviation Meaning
w work phone
h home phone
m mobile phone
w2 work phone 2
ee-mail
h2 home
phone 2
pgr pager
car car phone
wfx work fax number (shown in the summary
view)
hfx home fax number (shown in the
summary view)
ast assistant number
rdo radio phone number
e2 e-mail 2
e3 e-mail 3
web web page ( shown in the summary
view)
Organiser
139
To open a contact card:
1. On the contact list, select the contact’s name you want
to view.
If the contact card is assigned to a certain category,
press the
Menu
soft key and select
Filter
and then
select the category from the pop-up list.
The contact list stored in the selected category displays.
2. Select the contact card you want.
A summary screen is displayed. The highlighted item is
the default number or e-mail address you set.
3. On the summary screen:
• To edit the contact information, press the
Edit
soft
key.
• To send an SMS message to the contact card, scroll to
the available number and press the
Menu
soft key and
then select
Send SMS Message
.
• To dial a number, select the number.
• To send an e-mail, select the e-mail address.
• To access a web page, select the web page.
Organiser
140
Assigning default numbers and addresses
If a person has several phone numbers or e-mail
addresses, to speed up calling and sending messages, you
can define certain numbers and addresses to be used as
the default.
1. On the contact list, select the contact card you want.
2. Scroll to the phone number or e-mail address you want
to use as the default.
3. Press the
Menu
soft key and select
Set as Default
.
In the summary view, you can see the default number
marked as dot.
Copying entries between the SIM Card and
Contacts
You can copy the contact card or all of contact entries in a
specific category to the SIM card or vice versa.
To copy from Contacts to the SIM card:
1. On the contact list, select the contact card stored in the
phone’s memory.
2. Scroll to the phone number to be copied.
3. Press the
Menu
soft key and select
Save to SIM
.
The selected phone number is inserted the
Number
field. If necessary, change the contact name.
4. Press the
Done
soft key.
Organiser
141
To copy from the SIM card to Contacts:
1. On the contact list, select the contact card stored on the
SIM card.
2. Press the
Menu
soft key and select
Save to Contacts
.
3. Select
<New Item>
to creat a new contact card and
follow step 2 on page 136.
Otherwise, select a contact card to which you want to
add the number, scroll to the number type, and press
the
Insert
soft key. Press the
Done
soft key to save the
change.
Beaming a contact card
You can send a contact card in Contacts to another phone
via an active infrared connection.
To beam a contact card via an infrared:
1. On the contact list or on the summary screen, press the
Menu
soft key and select
Beam Contact
.
2. Align the IR ports on the devices so that they are
unobstructed and within a close range.
3. Select the IrDA-compatible device.
4. Press the
Beam
soft key.
Organiser
142
Deleting a contact card
1. On the contact list or on the summary screen, press the
Menu
soft key and select
Delete
.
2. Press the
Yes
soft key permanently delete the contact
card.
Note
: If you delete a contact card on your phone and
synchronise Contacts with your computer, you also
delete the contact card in Outlook on your computer.
Calendar
Use
Calendar
to schedule appointments, including
meetings and other events. You can check your
appointments in one of several views (Agenda, Week, and
Month).
To open Calendar:
On the Home screen, press the
Start
soft key and select
Calendar
. You can view the lists of appointments that you
have created in the agenda view.
Organiser
143
Creating an appointment
1. Press the
Menu
soft key and select
New
.
2. Fill in the fields.
•
Subject
: Enter a description of the
appointment
.
•
Start date
,
Start time
,
End date
, and
End time
: If
needed, change the date and time.
•
All day event
: If checked, the appointment lasts all
day.
•
Location
: Enter the place of the
appointment
.
•
Reminder
: Select a time setting for the alarm to
remind you of the
appointment
.
•
Occurs
: Select a repeat interval to set how often the
appointment
repeats.
•
Status
: Select an appropriate appointment status.
•
Private
: If checked, you can prevent other people
from viewing the appointment.
•
Notes
: Add a note for the
appointment
.
3. When you have finished, press the
Done
soft key.
Viewing and editing an appointment
On the Calendar screen, you can view and edit your
appointments using the different views: Agenda, Week, or
Month. By default, the Calendar first appears in the agenda
view, which provides the most detail about your
appointment.
Organiser
144
Switching to view mode
You can change the view mode of the calendar to cycle
through the agenda, week, and month view.
In each view, press the
Week
,
Month
, or
Agenda
soft
key.
•
Week View
: shows the calendar of your appointments
for an entire week.
•
Month View
: allows you to keep track of your monthly
schedule and shows which days have appointments
scheduled.
Organiser
145
•
Agenda View
: shows
you the appointments for the
selected day. The entries are grouped according to their
starting times.
Note
: You can customise the Calendar display, such as
changing the first day of the week, by pressing the
Menu
soft key and selecting
Options
on the agenda,
week, or month view.
Editing an appointment
1. Select the calendar view by pressing the
Week
,
Month
,
or
Agenda
soft key.
2. In each view, select the date of the appointment by
pressing or spining the Navigation key.
To go to today, press the
Menu
soft key and select
Go
to Today
.
To go to a certain date, press the
Menu
soft key and
select
Go to Date
. Enter the date and press the
Done
soft key.
Organiser
146
3. Select the appointment you want to view.
4.
Press the
Edit
soft key to edit the appointment and
view its details.
5. If you are editing a repeating or continuous
appointment, decide if you want to edit all appointments
in the series or just the current appointment by pressing
the
No
or
Yes
soft key.
6. Edit the appointment information and
press the
Done
soft key to save the changes to the appointment and
return to the appointment list.
Shows a note, if you
created one.
Shows summary
information for the
appointment.
Organiser
147
Beaming an appointment
You can send an appointment to another phone via an
active infrared connection.
1. On the Calendar screen, open the appointment you
want.
2. Press the
Menu
soft key and select
Beam
Appointment
.
3. Align the IR ports on the devices so that they are
unobstructed and within a close range.
4. Select the IrDA-compatiple device.
5. Press the
Beam
soft key.
Deleting an appointment
1. On the Calendar screen, scroll to an appointment to
delete.
2.
Press the
Menu
soft key and select
Delete
.
If you make deleting to a repeating or continuous
appointment, you can decide which of the appointments
you want to delete all appointments in the series or just
the current appointment by pressing the
No
or
Yes
soft
key.
3.
Press the
Yes
soft key
to permanently delete the
appointment.
Organiser
148
Tasks
Tasks is a convenient place to create task reminders. You
can mark a task as completed or delete a task.
To open Tasks:
On the Home screen, press the
Start
soft key and select
More
→
Tasks
.
Creating a task
1. Enter your task information in the
Enter new task
here
field.
2. When you have finished, press .
To view the created task details, scroll to the task you
want and press .
Completing a task
When a task is complete, mark it to indicate that the task is
done. To mark, scroll to the completed task and press the
Complete
soft key.
Organiser
149
To unmark, press the
Activate
soft key.
Deleting a task
1. On the task list, scroll to the task and press the
Delete
soft key.
2. Press the
Yes
soft key to delete the task permanently.
150
7
Multimedia
Camera
With the built-in camera on your phone, you can take
photos of people or events while on the move. You can view
and edit photos. Your phone supports JPEG, GIF, PNG, and
BMP pictures.
To open Camera:
Press and hold on the right side of the phone, or press
the
Start
soft key
on the Home screen
and select
Camera
.
Taking photos
1. When you access the Camera mode, the image to be
captured appears.
2. Aim the camera module to the subject.
Position only
Multimedia
151
3. Adjust the camera settings:
• Press the Left or Right key to adjust the brightness of
the image.
• Press the Up or Down key to zoom in or out.
• Press to flip the image vertically.
• Press to show the mirror image.
• Press the
Menu
soft key to access the camera options.
See page 152.
• Use the number keypad to adjust the image quickly.
See page 153.
4. Press or to take a photo.
The photo is saved to either the phone’s memory or the
memory card, depending on the setting of
Default
Storage
. See page 153.
5. To take more photos, press the
Preview
soft key and
repeat from step 1.
After the photo has been saved, you can access the
following options by pressing the
Menu
soft key:
•
Send
: allows you to send the photo via a multimedia
message service and an infrared or a Bluetooth
connection. For details, see page 207.
•
Delete
: deletes the photo.
•
Rename
: allows you to change the name of the photo.
•
Set as
: allows you to set the photo as the wallpaper for
the Home screen or the caller ID image for a contact
card.
•
Properties
: shows you the photo properties.
Multimedia
152
Setting the camera options
You can customise the camera settings. Once you set the
camera settings, the corresponding icons display at the top
of the Preview screen.
1. On the Preview screen, press the
Menu
soft key.
2. Adjust any of the following settings:
•
Shooting Mode
: Change the camera shooting mode.
Single shot
: Takes a normal single shot.
Multi Shot Speed
: Takes a series of stills. Select the
shutter speed between each shot in Multi shot mode.
Mosaic Shot
: Takes a series of stills and saves them
in one frame. Select whether you want to take pictures
automatically or manually in Mosaic shot mode.
•
Effect
: Select a colour tone for photos.
•
White Balance
: Adjust a colour balance of the
photos. You can make your photo appear warmer or
cooler.
•
Frames
: Select a decorative frame. Select a frame
using the Navigation key.
•
Flash
: Select the flash setting.
•
Timer
: Select the length of time for the phone to
delay before taking a photo.
•
Record Video
: Switch to Camcorder mode.
•
Camera Settings
: Change the default settings for
taking a photo.
Photo Size
: Selects an image size. The image size is
dictated by the resolution. Resolution is a measure of
the sharpness and clarity of an image. Resolution is
usually measured in pixels, for example, 640 x 480 =
300 kilopixels. The more pixels there are, the more
detailed the photo is.
Multimedia
153
Photo Quality
: Selects an image quality. The better
the image quality, the more memory the image
consumes.
Viewfinder
: Selects a preview mode.
Shutter Sound
: Selects a sound when you press the
shutter, or .
Default Storage
: Selects whether you want to store
your images in the phone’s memory or on the memory
card, if you use one.
Default Name
: Changes the default name of photo
names.
•
Camera short cut
: Check the functions of the keys
you can use in camera mode.
Using the keypad shortcuts
You can use the keypad to customise your camera settings
when you are in the preview screen.
• : Switches to Camcorder mode.
• : Changes the image size.
• : Changes the image quality.
• : Changes the shooting mode by changing the
number of photos or the layout.
• : Changes the colour tone.
•
:
Changes the white balance.
• : Selects a decorated frame.
• : Selects the length of delay before taking a photo.
•: Opens
My Photos
.
• : Changes the preview mode.
• : Turns the flash on or off.
Multimedia
154
Viewing photos
Captured photos are saved in the
My Photos
folder.
Viewing a photo
1. On the Camera screen, select the
My Photos
soft key.
By default, you can view the photos in Thumbnail view.
Thumbnail view displays miniature versions of your
photos. To change the thumbnail size, press the
Menu
soft key and select
View Options
→
Small Icon
or
Large Icon
.
To view the photos on the list, press the Menu soft
key and select
View Options
→
List View
. You can
also sort the photos by name, date, or size by
pressing the Menu soft key and selecting Sorting
.
2. Select a photo.
Multimedia
155
3. Press to view the photo on the Full screen. On the
Full screen view, you can pan around the photo using
the Navigation key. You can access the tools to scale or
rotate the photo by pressing the
Menu
soft key and
selecting
Option
.
4. Press the Left or Right key to view the next or previous
photo.
Viewing a slide show
You can view your photos in as a slide show. A slide show is
a sequential presentation of each of the photos in the
current album.
To view a slide show:
1. Open a photo and press the
Menu
soft key and select
Slide Show
→
Start
.
The slide show begins from the selected photo.
2. Press the Menu soft key to access the following options:
•
Play
: Starts the slide show.
•
Pause
: Pauses the slide show.
•
Stop
: Stops the slide show.
•
Full screen
: Changes the view mode.
•
Forward
: Shows photos in order.
•
Reverse
: Shows photos in reverse order.
•
Left to Right
/
Right to Left
: Changes the direction of
the slide show.
3. To end the slide show, press the
End show
soft key.
Multimedia
156
To change the slide show settings:
1. Press the
Menu
soft key and select
Slide Show
→
Slide
Show Setting
.
2. Set the following options:
•
Slide Show Interval
: select the delay interval
between photos.
•
Continuous Play
: set if the slide show repeats.
•
Landscape
: change the direction of the slide show.
3. Press the
Done
soft key.
Editing a photo
You can edit photos by changing the image settings,
applying a special effect, or adding decoration items.
Note
: You can only edit the photos whose size are QCIF (176 *
144).
1. Open the photo you want to edit and press the
Menu
soft key and select
Edit
.
2. If you are asked to change the image size to QCIF, press
the
Yes
soft key.
3. On the PhotoEditor screen, press the
Menu
soft key and
use. The following options to edit the photo.
•
Effects
: Select a colour tone for the photo.
•
Frames
: Select a decorative frame.
•
Add
: Add an icon or text to the image.
Multimedia
157
Icon
: Select an icon and move it to the place you want
by pressing the Navigation key. Press the
OK
soft key
to add the icon to the photo.
Text
: Enter text to be displayed on the photo. While
entering, you can change the colour or size of the text
by pressing the
Menu
soft key. After completing the
text, press . Then you can change the text position
by pressing the Navigation key and press the
Menu
soft key and select
Fasten
.
•
Brightness
/
Contrast
: Adjust the image brightness
by pressing the Left or Right key and adjust the image
contrast by pressing the Up or Down key.
•
Zoom
: Zoom in or out of the image. Move the focus
up, down, right, or left by pressing the
Navigation
key, press the
Zoom
soft key, and select a zoom
rate.
•
Rotate
: Rotate the photo to the left or right or view its
mirror image.
•
Focus
: Select one of the added items and then
replace it with another one and/or change its position.
4. When you have finished, press the
Menu
soft key and
select
Save
to save the photo as a new file. Enter a new
name and press the
OK
soft key.
Alternatively, press the
Done
soft key to save the
changes to the photo. Press the
Yes
soft key to confirm
the saving.
Multimedia
158
Sending a photo
You can send photos via multimedia messaging service or
via an infrared or a Bluetooth connection.
1. Scroll to the photo you want or open the photo.
2. Press the
Menu
soft key and select
Send
.
3. Select a method;
as
MMS
,
via IR
, or
via Bluetooth
.
4. If you opt to send the photo in an MMS message, the
Send Photo screen opens. Add text and press the
Send
soft key. For details, see page 103.
If you opt to send the photo via an infrared connection,
align your phone’s infrared port with the one on the
other phone or PC. See page 209.
If you opt to send the photo via a Bluetooth connection,
see page 212.
Setting a photo as wallpaper or caller ID
You can use your photos as wallpaper (background images)
for the Home screen or the caller ID image which adds to a
contact card as a thumbnail image.
1. Scroll to the photo you want or open the photo.
2. Press the
Menu
soft key and select
Set as
.
3. Select
Home Screen
or
Caller ID
.
Multimedia
159
Copying and moving a photo
You can copy and move the photos you have taken to other
folders.
1. Scroll to the photo you want to or open the photo.
2. Press the
Menu
soft key and select
File
→
Copy to
or
Move to
.
3. Scroll to the folder you want and press the
Done
soft
key.
Deleting a photo
1. Scroll to the photo you want to delete or open the
photo.
2. Press the
Menu
soft key and select
File
→
Delete
.
3. Press the
Yes
soft key to confirm the deletion.
Recording video clips
You can record video clips. The camcorder produces
.3GP videos.
1. From camera mode, press to switch to Camcorder
mode.
The image to be recorded appears.
2. Aim the camera module to the subject.
Multimedia
160
3. Adjust the camera settings.
• Press to flip the image vertically.
• Press to view the mirror image.
• Press the Up or Down key to zoom in or out on your
subject.
• Press the Left or Right key to adjust the brightness of
the image.
• Press the
Menu
soft key to access the video options.
See page 161
• Use the number keypad to adjust the image quickly.
See page 162.
4. To start recording, press . The timer on the top right
of the screen shows you the elapsed time.
5. To stop recording before the maximum recording time is
up, press the
Stop
soft key.
The video clip is saved to either the phone’s memory or
on the memory card, depending on the setting of the
Default Storage
. See page 161.
6. To review the video, press . To record additional video
clips, press the
Preview
soft key.
After the video has been saved, you can use the following
options by pressing the
Menu
soft key.
•
Send
: Allows you to send the video via a multimedia
message service and an infrared or a Bluetooth
connection. For details, see page 207.
•
Delete
: Deletes the video.
•
Rename
: Allows you to change the name of the video.
•
Properties
: Shows you video properties.
Multimedia
161
Setting the video options
You can customise the video settings. Once you set the
video settings, the corresponding icons display at the top of
the Video Preview screen.
1. On the Video Preview screen, press the
Menu
soft key.
2. Adjust any of the following settings:
•
Effect
: Select a colour tone for videos.
•
White Balance
: Adjust a colour balance of the
videos.
•
Flash
: Select the flash settings.
•
Timer
: Select the length of time for the phone to
delay before recording a video.
•
Take Photo
: Switch to Camera mode.
•
Camcorder Settings
: Change the default settings for
recording a video.
Recording Mode
: Select the recording time limit. If
you selected
No Limit
, the phone records a video to
the limit of the memory remaining.
Video Size
: Selects an image size.
Video Quality
: Select an image quality.
Viewfinder
: Select a preview mode.
Audio Record
: Select whether or not you record
audio with a video clip.
Default Storage
: Select whether you want to store
your video clips in the phone’s memory or on the
memory card, if you use one.
Default Name
: Change the default prefix of video
names.
Multimedia
162
Using the keypad shortcuts
You can use the keypad to customise your video settings
when you are on the Video Preview screen.
• : switches to Camera mode.
• : changes the image size.
• : changes the image quality.
• : switches to the recording mode.
•:
changes the colour tone
.
•:
changes the white balance
.
•:
mutes or unmutes audio
.
•:
selects the length of delay before starting
recording a video.
•: opens
My Videos
.
•:
changes the preview mode
.
• : turns the flash on or off.
Playing a video clip
1. On the Camcorder screen, select
My Videos
.
By default, the display shows you view video clips in
Thumbnail view. Thumbnail view displays miniature
versions of your videos.
2. Select the video clip you want.
Samsung Media Player opens and the video plays.
Multimedia
163
3. Use the following options during playback:
• To adjust the volume, press or the Up or Down
key.
• To pause or resume playback, press .
For details about Samsung Media Player, see page xx.
Sending a video clip
You can send video clips via multimedia messaging service
and an infrared or a Bluetooth connection.
1. On the Video Player screen, scroll to the video clip you
want.
2. Press the
Menu
soft key and select
Send
.
3. Select a method:
as MMS
,
via IR
, or
via Bluetooth
.
• If you opt to send the video clip in a multimedia
message, the Send Video screen opens. Add text and
press the
Send
soft key. For details, see page xx.
Multimedia
164
Note
: You cannot use video clips whose file size are larger
than 300 KB or whose image size are QVGA.
• If you opt to send the video clip via an infrared
connection, see page xx.
SAMSUNG Media Player
With Samsung Media Player, you can play most common
music and movie files, such as WMV, WMA, MP3, 3GP, MP4,
AAC, AACT, and OGG files.
To play media files on your phone, you must copy files to
the phone's memory or the memory card. For details for
copying media files, see page xx.
To open Samsung Media Player:
From any screen, press and hold . You can also press the
Start
soft key from the Home screen and select
More
→
Samsung Media
.
Preparing media files
The Windows Media Player of your phone can play various
file formats, such as, .asf, .wma, .wmv, and .mp3. You can
copy media files from your desktop computer to the phone
using the Windows Media Player or ActiveSync. You can
also copy media files using the memory card.
Note
: If you have stored too many files in memory, the
operation speed of the system slows down. Using an
optional memory card helps you clear up this problem
and lets you enjoy more music files.
Multimedia
165
About DRM, licenses, and protected files
Some digital media files, such as songs downloaded from
online stores, are encrypted to prevent the files from being
unlawfully distributed or shared. Content providers use a
technology called Digital Rights Management (DRM), to
encrypt the files. During the encryption process, the
content provider creates a license which specifies how and
when the file can be used.
For example, a content provider could create a license that
allows you to play a certain file on your computer, but not
on your phone. Or, a license that allows you to play a
certain file on your phone, but only for a month, or perhaps
only a certain number of times. Files that have licenses
associated with them are called protected files.
If you want to copy a protected file from your desktop
computer to your phone, use the desktop Media Player to
synchronise the file to your phone. This will ensure that the
license is copied along with the protected file. In the
desktop version of Windows Media Player 10 or later, you
can use the
Sync
feature to automatically copy your audio
files, video files, and playlists to your phone every time you
connect.
To copy media files using the ActiveSync:
1. Connect your phone to a computer and start
synchronisation by referring to page 55.
2. Open the file directory on the phone by clicking
Explore
from the Microsoft ActiveSync window.
Multimedia
166
3. Double-click
My Smartphone
and drag the media files
you want to copy in the sub-folder in the My
Smartphone window.
Windows Media Player automatically retrieves the media
files from the folder where the files are copied and you
can search them from the Library screen. If the media
files do not appear in Library, you can manually update
the library by pressing the
Menu
soft key and selecting
Update Library
.
Using libraries
A library is a file list provided by SAMSUNG Media Player to
retrieve media files in the phone’s memory.
The Library screen contains categories, such as My Music,
My Videos, My TV, and My Playlists. Using the Library
screen, you can sort your content by criteria, such as artist
name, album title, or genre.
On the Library screen, you can use the following options by
pressing the
Menu
soft key:
•
Queue Up
: Adds the selected file to the end of the
current playlist.
•
Delete from Library
: Deletes the selected file from the
library.
•
Library
: Allows you to select the library that you want to
view (for example, the library of files stored on your
phone or on the memory card).
•
Update Library
: Adds new files to the library by
searching your phone or a memory card. Press the
Search
soft key to start searches for new media files and
add them to the corresponding library. When adding files
has been finished, press the
Done
soft key.
Multimedia
167
•
Open File
: allows you to find and play files that are
stored on your phone or a memory card, but those are
not in the library.
•
Properties
: displays information about the selected file.
•
Done
: closes the Library screen and displays the player
screen.
Playing Media files
1. From the Samsung Media Player screen, press the
Menu
soft key and select
Library
.
2. Scroll to the library you want to play and press the
Play
soft key.
3. During playback, use the following options:
• Press to pause or resume playback.
• Press the Right key to move forward in a file.
• Press the Left key to move backward in a file.
• Press the
Menu
soft key and select
Shuffle
/
Repeat
to activate Shuffle mode and chagne the repeat mode.
• Use the alphanemeric keys to quick control Samsung
Media Player. You can assign a control function to each
of them; press the
Menu
soft key and select
Player
Settings
→
Buttons
.
Multimedia
168
Setting up a play list
You can create a play list with your favourite media files.
Creating a play list
1. From the Samsung Media Player screen, press the
Menu
soft key and select
Library
or
File system
.
2. Select a library or folder and find the media file you
want.
3. For a library, press the
Menu
soft key and select
Add to
Now Playing
.
For a file directory, select the files and press the
Add
soft key.
4. Repeat from step 1 to add more files.
5. When you have finished adding files, press to return
to the player screen.
6. Press the
Now Playing
soft key to access the play list.
7. To start playback, press the
Play
soft key.
To save the playlist, press the
Menu
soft key and select
Save Playlist
.
Editing a play list
• To add files to the play list, press the
Menu
soft key and
select
Add
→
an adding option.
• To remove files from the play list, press the
Menu
soft
key and select
Remove
→
a removing option.
Multimedia
169
• To change the play order, press the
Menu
soft key and
select
Change order
.
• To sort the play list by a category, such as title, artist,
album or file name, press the
Menu
soft key and selec
Sort
→
a category.
Changing player settings
You can change the setting for Samsung Media Player.
From the player screen, press the
Menu
soft key and select
Player Settings.
•
General
: Allows you to set Samsung Media Player to
pause playback for another program, to resume playback
after a phone call, or to turn itself off after a specified
time.
•
Display
: Allows you to set Samsung Media Player to
display specified media infomation, elapsed time, or
lyrics during playback.
•
Sound
: Allows you to set the equalizer, sound balance,
speaker mode, or gradual volume increasement.
•
Video
: Allows you to set the video display for movie
playback.
•
Buttons
: Allows you to set up shortcut keys to quickly
control playback.
•
Skins
: Allows you to change the appearance of the
palyer screen.
•
Network
: Allows you to set up the network parameters
for accessing a streaming service.
•
Memory Status
: Shows you memory information
•
Reset Settings
: resets all of your settings to their
default status.
Multimedia
170
Windows Media player
Your phone is equipped with Microsoft Windows Media
Player 10. With Windows Media Player, you can play
Windows Media Audio, Windows Media Video, and MP3
audio files that are stored on your phone, a memory card,
or on the Web.
To open Windows Media Player:
On the Home screen, press the
Start
soft key and select
More
→
More
→
Windows Media
.
The Library screen opens. For more information on using
libraries, see page xx.
Copy media files using the desktop player
In addition to Active Sync (page xx), you can the desktop
player to copy media files. Using the desktop player
ensures that licenses are copied with protected files. See
page 165.
Multimedia
171
Make sure that you have Windows Media Player 10 or later
versions on your desktop computer. Depending on the
version of your desktop player, the procedure to copy files
may vary.
1. Connect your phone to the desktop computer and start
synchronisation using a USB cable.
2. Open Windows Media Player on the desktop computer.
3. Click the
Sync
tab.
4. Click the
Edit Playlist
icon.
5. Select the media files you want to synchronise from the
left pane of the window.
6. Click
OK
.
Multimedia
172
7. Select the saving location from the right pane.
8. Click to select the quality level you want and click
OK
.
The selected files are converted and copied to the
location you selected in step 7.
Playing music and video files
If you have copied media files in your phone’s memory or
memory card, you can play them from Media Player.
To play media files from a library:
1. On the Library screen, if necessary, press the
Menu
soft
key and select
Library
and then select the memory that
you want to use.
2. Select a category, such as
My Music
or
My Video
.
3. Scroll to the library you want to play and press the
Play
soft key.
Note
: If the file does not appear in a library, on the Library
screen, press the
Menu
soft key and select
Open File
.
On the File System screen, select the file you want to
play.
4. The player screen displays and the selected file plays.
Use the following options during playback:
• To adjust the volume, press the Up or Down key. You
can view the volume level on the screen.
• To move backward in a file, press and hold the Left
key.
• To move forward in a file, press and hold the Right key.
Multimedia
173
• To access the next file, press the Right key.
• To access the previous file, press the Left key.
• To pause or resume playback, press .
• To move forward in a file, press and hold the Right key.
• To move backward in a file, press and hold the Left
key.
• To play the files in the playlist randomly or repeatedly,
press the
Menu
soft key and select
Shuffle
/
Repeat
.
• To stop playback, press the
Menu
soft key and select
Stop
.
To play media files on a network:
1. On the Player screen, press the
Menu
soft key and
select
Open URL
.
2. Enter a URL in the
URL
field.
Or scroll to a URL that you have used in the
History
field.
3. Press the
OK
soft key.
Note
: To play streaming media, you must be connected to a
network. For more information on creating a remote
connection between your phone and a network, see
page xx.
Multimedia
174
Setting up a playlist
You can add media files on the Library screen to a
temporary playlist. It lists the currently playing file, as well
as any files that have been queued up to play next.
Creating a playlist
1. On the Library screen, select the category you want and
scroll to the file you want to play.
If the file does not appear on the list, press the
Menu
soft key and select
Update Library
. You can also select
Open File
to display the File System screen and search
the files you want.
2. Press the
Menu
soft key and select
Queue Up
.
3. Repeat from step 1 to add more files.
4. Press to return to the player screen.
5. Press to start playing the files.
To view the play list:
On the player screen, press the
Now Playing
soft key. You
can use various options by pressing the
Menu
soft key.
Editing the playlist
• To change the play order, press the
Menu
soft key and
select
Move Up
or
Move Down
.
• To delete the selected files, press the
Menu
soft key and
select
Delete from Playlist
.
• To clear the playlist, press the
Menu
soft key and select
Clear Now Playing
.
Multimedia
175
Changing the Window Media Player
settings
You can customise the appearance and functionality of
Windows Media Player. On the player screen, press the
Menu
soft key and select
Options
.
You can use the following options:
•
Playback
: Select the options for playback. You can
select the way time is displayed on the player screen, or
whether or not to pause playback when you lunch
another programme, and resume playback after a phone
call.
•
Audio
/
Video
: Select the viewing options for playing
videos, such as shrinking oversized videos and playing
videos in a full screen.
•
Network
: Change network connection settings to be
used for playing streaming videos.
•
Library
: Select whether the player screen or the Library
screen is displayed when you open Windows Media
Player.
•
Skins
: Change the appearance of the player screen by
selecting a new skin.
•
Buttons
: Assign Windows Media Player functions to the
keys on your phone to quickly control playback without
having to use the menus.
Multimedia
176
SRS WOW XT Settings
SRS WOW XT for Mobile is a suite of 3D audio, bass
enhancement, and mono and stereo speaker technologies
designed to improve the quality of mobile audio, e g
cellular phone sound quality.
WOW XT for Mobile provides great audio performance and
eliminates many of the physical limitations of small
devices, allowing even tiny speakers to deliver incredibly
deep, rich bass tones and crisp, clear dialog.
To enjoy music with high audio quality, enable the WOW XT
feature before playing media files.
1. On the Home screen, press the
Start
soft key.
2. Select
More
→
More
→
Utilities
→
WOW XT Settings
.
3. On the SRS WOW XT screen, select
On
in the
SRS On
/
Off
field.
4. Select the type you want in the
SRS EQ
field.
5. Press the
Done
soft key.
Multimedia
177
My Items
This programme allows you to access all of the photos,
sounds, and videos stored in your phone's memory.
To open My Items:
From the Home screen, press the
Menu
soft key and select
More
→
My Items
.
By default, the
My Photos
folder opens.
Opening an item folder
Press the
Menu
soft key and select
Mode
→
My Photos
,
My Sounds
, or
My Videos
. To view all items, select
All
.
• For viewing photos, see page xx.
• For playing videos, see page xx.
• For playing sounds, ??.
Multimedia
178
FunBox
Using
FunBox
, you can download Java applications, such
as games and tools specifically designed for mobile phones,
to your phone through the Internet. Once you have
downloaded the Java applications, they are added to the
FunBox main screen.
To open FunBox:
On the Home screen, press the
Start
soft key and select
More
→
FunBox
.
Downloading Java games and utilities
The WAP Browser application is used to browse and
download necessary files to install Java applications from
the Internet.
1. On the FunBox main screen, press the
Download
soft
key.
The WAP Browser application opens.
2. Find the Java link you want.
3. Select a MIDlet you want to download.
4. When the confirmation message appears, press the
Yes
soft key to install the application.
The detailed information about the application you want
to install displays and the confirmation message
appears.
5. Press the
Install
soft key to install the application.
Multimedia
179
6. When the installation is finished, the application is saved
in the FunBox main screen and the phone launches the
application.
Opening a Java application
1. On the FunBox main screen, scroll to the application you
want to open from the list.
2. Press the
Menu
soft key and select
Launch
.
Using the Java options
On the Applications screen, press the
Menu
soft key to
access the following options:
•
Download
: Download the Java application to your
phone. See 178.
•
Launch
: Launch the selected application.
•
Information
: Show the information about the
selected application, such as the size, version, vender,
and the security options.
•
Remove
: Remove the selected application.
•
Update
: Update the selected application.
•
Application Settings
: Select whether or not you
continue opening an application when you receive
information from other applications while running an
application.
•
Exit
: Exit the selected application
.
180
8
Extra programmes
Games
Your phone includes fun games, such as Jawbreaker and
Solitaire in the
Games
application.
To open Games:
On the Home screen, press the
Start
soft key
and select
More
→
More
→
Games
.
Jawbreaker
The object of Jawbreaker is to clear out all the balls. The
rule is that you may only clear out adjacent same-coloured
balls. The score depends on clear out every balls.
Playing the game
1. On the Start screen, select
Jawbreaker
.
2. Navigate to the ball you want to clear and press .
The group will be outline, and the score for that selection
will be shown.
3. Press to accept that selection.
Press the
Menu
soft key and select
Statistics
to view
statistics or information about the game.
You can customise the game options such as play sounds,
game style, or ball colour by pressing the
Menu
soft key
and selecting
Options
.
Extra programmes
181
Solitaire
The object of Solitaire is to use all the cards in the deck to
build up the four suit stacks in ascending order, beginning
with aces.
Playing the game
1. On the Start screen, select
Solitaire
. Press the
Menu
soft key and select
New Game
. The game starts.
2. Move any aces on the seven stacks to the four card
spaces at the top of the screen and then make any other
available plays.
To move cards, press the number or character of the
card to move and then press the number or character of
the stack to which you want to move the card.
Note
: Pressing the Up key moves a card to one of the four
stacks in the upper right corner of the screen if it
belongs there.
3. When you have made all available plays, press the
Draw
soft key to turn over cards.
Extra programmes
182
Calculator
The calculator allows you to perform general mathematical
functions, such as addition, subtraction, multiplication, and
division.
To use calculator:
1. On the Home screen, press the
Start
soft key.
2. Select
More
→
More
→
Accessories
→
Calculator
.
3. Enter the numbers and perform calculations by pressing
the Navigation key or .
You can also add a decimal point by pressing .
To clear the last digit entered in a multi digit entry, press
or press the
Clear
soft key.
4. To execute the calculation, press .
Extra programmes
183
Voice Notes
In any programme where you can write on the screen, you
can also quickly capture thoughts, reminders, and phone
numbers by recording a message. In
Voice Notes
, you can
create a recording.
To open Voice Notes:
From any screen, press . You can also press the
Start
soft key on the Home screen, and select
More
→
Voice
Notes
.
Recording a voice note
1. Hold your phone’s microphone near your mouth or other
source of sound.
2. Press the
Record
soft key to make your recording.
The numbers on the centre of the screen indicate the
elapsed time.
Extra programmes
184
3. Press the
Stop
soft key to stop recording.
Your phone automatically saves the voice note labelled
with the title and lists the notes on the All Notes screen.
You can also change the title of the note by pressing the
Menu
soft key and selecting
Rename
.
Reviewing a voice note
1. On the All Notes list, select the note you want to review.
Recording is playing.
You can adjust the sound volume by pressing on
the left side of the phone.
2. Press the
Stop
soft key to stop playing.
Setting a voice note as the ringtone
1. On the All Notes list, scroll to a voice note.
2. Press the
Menu
soft key and select
Set as Ringtone
.
3. Press the
OK
soft key.
Voice Assist
Voice Assist is a speech recognition application that enables
you to launch applications or dial contacts by speaking an
associated command into the microphone.
Extra programmes
185
Voice tips
• Speak clearly, naturally, and continuously. Try to avoid
hesitations, such as “er” and “um”, at the beginning and
in the middle of phrases.
• If you are in a very noisy environment, use the headset.
If you are not using the headset, address the internal
microphone at the bottom of the phone at a distance of
about 10-20 cm from your mouth.
• Speak when Voice Assist is ready to listen, as indicated
by the progress bar and after an audible beep.
• If Voice Assist doesn’t clearly hear what you said, try
repeating your voice command. If problems persist, try
the Sensitivity setting to optimise the speech engine for
your voice.
To open Voice Assist:
On the Home screen or in an application, press and hold .
You can also press the
Start
soft key on the Home screen
and select
More
→
Voice Assist
. The Voice Command
screen displays.
Extra programmes
186
Note
: If you select the
Voice Active Mode
checkbox at
Settings
, on the left side of the phone is associated
with Voice Assist, so that you can start Voice Assist by
simply pressing .
When the phone prompts you with displaying “Please say a
command”, say one of the commands:
•Name Dial
•Name Search
• Open <Program>
• Call <Name>
Dialling a number
You can make a phone call by saying the name that has
been assigned to a contact in
Contacts
or the SIM card.
Note
: To use the Name Dial feature, the name that you want
to dial must be in
Contacts
or the SIM card. For details
about Contacts, see page 134.
1. On the Voice Command screen, after a voice prompt
followed by a short beep, say “Name Dial”.
2. On the Name Dial screen, after a voice prompt followed
by a short beep, say a name in the following manner:
“<First Name + Last Name>”
If Voice Assist does not hear anything until the progress
bar moves to the right end of the bar, you will be asked
to repeat the command twice again.
Extra programmes
187
Note
: You can also say “Call” and then a person’s name stored
in
Contacts
or on the SIM card to make a call by voice
command; for example, say “Call James Bond.” This will
save you a step for name dialling.
3. Your phone recognises your command and displays a list
of one more names in the confirmation screen.
Note
: If
Quick Launch
is checked at
Settings
, this
confirmation step will be skipped and the best
recognition result will be executed immediately.
4. Scroll to the item you want to open and press the
Ok
soft key.
• If the item you want to open is the only item in the list
OR is already highlighted, then press the
Ok
soft key
OR wait until the time slider moves at the right end for
immediate execution.
• If the item you want to open is not highlighted, say
“
Previous
” or “
Next
” to scroll to it. You can also press
the Navigation key to move around the result list.
5. If the selected name has more than one number, the
phone asks which number you want to dial. Repeat step
4 to select a number category.
6. If you press the
Ok
soft key or say nothing for 3
seconds, the phone dials the currently selected number.
Extra programmes
188
Searching for contacts
You can retrieve contact information for any name in
Contacts
or the SIM card by saying that name. Your phone
displays the information.
1. On the Voice Command screen, after a voice prompt
followed by a short beep, say “Name Search”.
2. On the Name Search screen, after a voice prompt
followed by a short beep, say a name of the contact in
the following manner: “<First Name + Last Name>”.
If Voice Assist does not hear anything until the progress
bar moves to the right end of the bar, you will be asked
to repeat the command twice again.
3. Your phone recognises your command and displays a list
of one more names in the confirmation screen. Follow
step 4 on page 188.
Note
: If
Quick Launch
is checked at
Settings
, this
confirmation step will be skipped and the best
recognition result will be executed immediately.
4. If you press the
Ok
soft key or say nothing for 3
seconds, the phone displays the contact card.
Opening applications by voice
You can use your voice to launch applications that exist in
Start
menu.
1. On the Voice Command screen, after a voice prompt
followed by a short beep, say an application name in the
following manner: “Open <Application Name>”.
Extra programmes
189
2. Your phone recognises your command and displays a list
of one more applications in the confirmation screen.
Follow step 4 on page 188.
Note
: If
Quick Launch
is checked at
Settings
, this
confirmation step will be skipped and the best
recognition result will be executed immediately.
3. If you press the
Ok
soft key or say nothing for 3
seconds, the phone automatically opens the currently
selected application.
Customising Voice Assist settings
You can customise the various settings for using Voice
Assist by pressing the
Settings
soft key on the Voice Assist
main screen.
•
Timeout
: Adjust the maximum time to listen to your
command.
•
Voice Guides
: Check for more comprehensive voice
prompts and responses.
•
Quick Launch
: Check to skip the confirmation.
•
Voice Active Mode
: Check to assign
Voice Assist
to
.
After changing the
Voice Active Mode
checkbox and
pressing the
Done
soft key, you will be asked to confirm
your change as the phone will need to be rebooted.
Once
Voice Active Mode
is activated, you can launch
the Voice Assist application by pressing .
•
Sensitivity
: Adjust the sensitivity in which your phone
recoginise the current voice and noise. Change the
setting if your phone has difficulty recognising a name,
application, or command.
Extra programmes
190
Time Manager
Time Manager
enables you to use various clock features
provided by your phone. You can use the phone as the
alarm clock, world time clock, D-Day clock, and stopwatch.
To open Time Manager:
On the Home screen, press the
Start
soft key and select
More
→
More
→
Tools
→
Time Manager
.
Setting an alarm
You can use the alarm clock to set a wake up alarm or set
an alarm to remind you of an appointment once or
everyday. On the Time Manager screen, select
Alarm
.
To set a wake-up alarm:
1. On the Alarm screen, select
Morning Call
.
2. Put a check mark and enter the time for the wake-up
alarm to ring in the
Time
field.
You can make up to 3 wake up alarm.
Extra programmes
191
3. Select the days when the wake-up alarm rings in the
week viewer.
4. Select a melody for the alarm in the
Tone
field.
5. Select a time interval to resume the alarm after the
alarm is stopped in the
Snooze
field.
6. Press the
Save
soft key.
To set a reminder:
1. On the Alarm screen, select one of
Alaem 1
to
Alarm
4
.
2. Set each alarm option.
3. Press the
Save
soft key.
Extra programmes
192
To set a reminder for everyday:
1. On the Alarm screen, select
Daily Alarm
.
2. On the AlarmSetting screen, select the time in the
Alarm time
field.
If you want to set the time manually, select
Custom
time
and enter the time you want.
3. Select a melody for the alarm in the
Tone
field.
4. Press the
Save
soft key.
When alarm rings, press the
OK
soft key.
Viewing world clock
The world map enables you to check the time and date in
many cities all over the world.
1. On the Time Manager screen, select
World Clock
.
In the World Clock screen, GMT (Greenwitch Mean Time)
displays on the top line.
Extra programmes
193
2. Select the clock you want.
3. Press the Left or Right key to move the time zone line.
To apply daylight savings to the currently selected time
zone, select
Summer Time
.
To set the displayed world clock as your Home screen
image, select Display in
Home Screen
.
4. Press the
Save
soft key to save the selected time zone.
Extra programmes
194
Setting a D-day clock
You can set a count down clock to check how many days
and hours remains or have passed for a specific day.
1. On the Time Manager screen, select
D-Day
.
2. Press the
New
soft key.
3. Enter the title of the event in the
Title
field.
4. Set the date you want to count from in the
Date
field.
5. Set the number of days you want to count and set
whether the d-day is ahead or after the date you set in
the
Count Date
field.
6. Select
Alarm
to set an alarm for the D-Day clock.
7. Press the
Save
soft key.
Using a stopwatch
You can measure elapsed time interval.
1. On the Time Manager screen, select
Stop Watch
.
2. Press the
Start
soft key to start the timer.
3. Press the
Record
soft key to check an interval.
You can do this step for a total of 100 intervals.
4. Press the
Stop
soft key to stop the stopwatch.
Extra programmes
195
Document Viewer
Document Viewer
is a revolutionary product for
document browsing on thin-client computing platforms. It
allows you to view content on your phone without any file-
conversion or loss of content. Simply by using the
Navigation key, you can scroll your document sideways or
vertically to view larger pages on a smaller screen and
zoom in or out to view intricate details or overviews.
To view a document, you must transfer documents from a
PC. If you have installed the memory card, you can view
the files stored in it.
By default,
Document Viewer
supports most common
desktop document formats, such as .doc, .xls, .ppt, .pdf,
.mhtml, and .wmf.
Note
: Some document formats, such as .xls and .ppt, are not
transformed into their corresponding file types when
you copy them to your phone by using ActiveSync, so
that you cannot view the documents in the directory.
To avoid this case, change the conversion setting on the
ActiveSync screen on your computer. Click
Tools
→
Options
→
Rules
, select the
Conversion Settings
button, and uncheck
Convert files when
synchronized
,
copied or moved
.
To open Document Viewer:
On the Home screen, press the
Start
soft key and select
More
→
More
→
Tools
→
Document Viewer
.
Extra programmes
196
Viewing a document
On the Document Viewer screen, the file directory of the
phone display. The folders which contain further documents
are shown in yellow.
1. Select the folder containing the document you want.
If you have installed a memory card,
Storage Card
appears to allow you to access files on the memory
card.
2. Select the document you want to open.
Documents look like sheets of paper in various other
colours, depending on their types as follows:
Adobe PDF: , Microsoft World: , Microsoft Power
Point: , Microsoft Excel: , Plain Text: .
Go back to the
upper level
directory.
Extra programmes
197
Options in a document view
You can use the following options while viewing a
document.
•
Rotating
: To rotate the screen 90 degrees clockwise,
press the
Menu
soft key and select
Page
→
Rotate
.
•
Zooming
: To zoom in or out, spin the Navigation key, or
press the
Menu
soft key and select
Page
→
Zoom in
or
Zoom out
.
•
Fitting to width
: To fit the width of the page on screen,
press or press the
Menu
soft key and select
Page
→
Fit to width
.
•
Panning
: To pan to a different part of the document,
press the Navigation key to move to the direction you
want.
•
Navigating
: To navigate the pages, press the
Menu
soft
key and select
Page
→
Next Page
,
Previous Page
,
First Page
, or
Last Page
.
Keypad shortcuts
In a document view, you can use the following shortcut
keys:
• : navigates to the previous page.
• : pans up.
• : navigates to the next page.
• : pans left.
• : rotates the screen 90 degrees clockwise.
• : pans right.
• : navigates to the first page.
Extra programmes
198
• : pans down.
• : navigates to the last page.
•: zoom in.
• : fits to the width of the page.
• : zooms out.
Viewing History
The history view shows you previously visited documents
as a small thumbnail-image of the document, and the
document’s name, location, and the date of your visiting.
To open the history view, press the
Menu
soft key and
select
History
.
To access any of the documents from the history view,
select the small picture of that page.
Note
: Documents will remain on the history list until a certain
number of days have passed. You can control this
period in the option. See page 199.
Viewing the Favourites list
For your favourite document, you can keep a list in
Favourites. This looks similar to the history view but
includes only those pages you have explicitly added. Before
viewing the Favourites list, first you must add the pages to
the Favourites list.
Extra programmes
199
To add the current page to the Favourites list:
1. Press the
Menu
soft key and select
Favourites
to
access the Favourites list.
2. Press the
Add
/
Delete
soft key and select
Add
.
3. Enter the name you want and then press the
OK
soft
key.
To open a favourite page:
Access the Favourites list and select the thumbnail of the
page you want.
Changing Viewer settings
On the Document Viewer screen, press the
Menu
soft key
and select
Settings
. The following options are available:
•
Preferences
: Set the period after which the thumbnail
pictures and descriptions of pages are purged from the
history memory. To clear the History list, select
Clear
History
.
•
Files
: Select the file types which can be displayed on the
Document Viewer screen. Select
All
to select all file
formats.
•
Help
: Shows the Help screen for using Document Viewer.
•
About
: Shows information about the developers of
Document Viewer.
Extra programmes
200
File Manager
The
File Manager
application allows you to open an
explorer window similar to a desktop Windows based
system. The explorer window allows you to navigate
through your phone to locate desired folders and files.
You can also quickly manage, delete, copy, or edit any files
and folders on your phone. You can create new folders.
Note
: If you turn off the phone after storing some files in any
folders, except for the
Storage
folder, using
ActiveSync, all of the files in those folders will be
deleted. Store important files in the
Storage
folder to
prevent them from being deleted.
To open File Manager:
1.
On the Home screen, press the
Start
soft key.
2.
Select
More
→
More
→
Tools
→
File Manager
.
You can see a list of the folders in the phone’s memory.
Extra programmes
201
3. Scroll to the folder that you want to view.
4. Select an item, to open it.
Managing files
To use file management options, such as
Copy
,
Delete
, or
Paste
,
Rename
, press the
Edit
soft key.
You can use the following options while using the
File
Manager
application:
• To create a new folder, press the
Edit
soft key and select
New Folder
.
• To add a folder to a Favourites list, press the
Menu
soft
key and select
Favorites
→
Add current file
/
folder
.
• To send a file, press the
Menu
soft key and select
Send
→
via Infrared
,
via Bluetooth
, or
Send MMS
.
• To change the order of files or folders, press the
Menu
soft key and select
Sorting
→
a category.
• To refresh the list of the folders or files, press the
Menu
soft key and select
Refresh
.
• To return to the first level directory, press the
Menu
soft
key and select
Folder Tree 1
.
Extra programmes
202
SIM Manager
The
SIM Manager
application enables you to view the
contact cards stored on the SIM card and to copy the
contact(s) from the SIM card to the contact list on your
phone. You can also create a new contact card in the SIM
card, edit, and delete the contact card.
Viewing SIM contacts
1.
On the Home screen, press the
Start
soft key.
2.
Select
More
→
More
→
Tools
→
SIM Manager
.
The contact list displays on the SIM Manager screen.
3. From the SIM contact list:
• To create a new entry, press the
New
soft key.
• To register the phone number and name on the SIM
card as the own number, press the
Menu
soft key and
select
Own Number
.
Extra programmes
203
• To view and use service numbers preset by your
service provider, press the
Menu
soft key and select
SDN
.
• To view the amount of the contacts, SMS messages,
and CB messages stored on the SIM card, press the
Menu
soft key and select
Memory Status
.
• To refresh the SIM contacts, press the
Menu
soft key
and select
Refresh
.
Copying contacts to the Contacts
application
You can copy a contact or all contacts stored on the SIM
card to the Contacts application.
1. On the SIM Manager screen, select the checkbox next to
the contact name you want to copy to your phone.
If you want to copy all contacts,
press the
Menu
soft
key
and select
Check
→
Check All
.
2.
Press the
Menu
soft key
and select
SIM Tool
→
Copy
to Contacts
.
3. To change the number category, press the
Menu
soft
key and select
Change (M/H/W)
.
4.
Press the
Copy
soft key
.
5. Press the
OK
soft key.
6. To verify that your contacts have been copied to your
phone, go to
Contacts
and search for the added
contacts.
Extra programmes
204
Using the SIM Manager options
On the SIM Manager screen, press the
Menu
soft key and
select
SIM Tool
. The following options are available.
•
View
: shows the selected SIM entry.
•
Edit
: allows you to edit the selected entry.
•
Delete Entries
: allows you to delete the selected
entry(ies).
•
Dial
: dials the number in the selected entry.
•
Send SMS
: sends the SMS message using the number in
the selected entry.
•
Copy to Contacts
: copies the selected entry(ies) to the
Contacts application.
•
Beam
: allows you to send the selected entry via an
infrared or a Bluetooth connection.
Using the SMS Tool options
Sometimes, text messages may be stored on the SIM card,
depending on their specifications. To view these messages,
On the SIM Manager screen, press the
Menu
soft key and
select
SMS Tool
. You can view a list of the sender’s phone
numbers of the received SMS messages stored on the SIM
card.
On the SIM SMS Tool screen, press the
Menu
soft key to
move SIM messages from the SIM card to the phone’s
memory and view or delete an SMS message.
To jump across your selection between the SIM list and the
PDA list, press the
Change
soft key.
Extra programmes
205
Task Manager
Your phone is multi-tasking device, meaning that it can run
more than one application at the same time. However,
multi-tasking may cause hang-ups, freezing, and memory
problems.
To end the applications currently operating, use
Task
Manager
.
To open Task Manager:
On the Home screen, press the
Start
soft key and select
More
→
More
→
Tools
→
Task Manager
. The list of all the
applications currently running on your phone appears.
Managing running applications
• To activate an application, press the
Menu
soft key and
select
Activate
.
• To close an application, press the
Menu
soft key and
select
Stop
. To close all applications, select
Stop All
.
• To refresh the application list, press the
Menu
soft key
and select
Refresh
.
Checking the Memory state
You can check the memory in use for running applications
or storing files and information. On the Task Manager
screen, press the
Menu
soft key and select
Memory
.
Extra programmes
206
Checking the Storage cards
You can check the memory in use for storing files in each
storage folder:
Storage Card
,
Storage
, and
HDD
. On the
Take Manager screen, press the
Menu
soft key and select
Storage
.
9
207
Getting connected
You can use your phone to exchange information with other
mobile devices as well as your desktop computer, a
network, or the Internet. You have the following connection
options:
• Use the infrared (IR) port on your device to send and
receive files between two devices.
• Exchange information between devices with Bluetooth
capabilities without a physical connection.
• Connect the phone to your computer using a USB or
IrDA connection to use the phone as a modem.
• Connect to your Internet service provider (ISP) or the
network at your company. Once connected, you can
send or receive e-mail and instant messages, and
browse the Internet or intranet.
• Connect to your desktop computer to synchronise
remotely. Once connected, you can synchronise data
such as your Contacts, Calendar, Tasks, or Inbox data.
For details on ActiveSync, see Chapter 4
“Synchronising information.”
Beaming with infrared connections
Your phone can send and receive files to and from other IR
devices. In most cases, you can also receive files from your
PC when it is equipped with an IR port. The two devices
must be aimed at each other approximately four inches
apart.
If you have difficulty getting the two devices to send or
receive data, try the following:
• Transfer only one file at a time. No more than 25
contacts should be transferred at once.
Getting connected
208
• Make sure that the IR port windows are clear and free
of any dirt or obstructions and that there are no
obstacles between the IR port windows.
• Adjust the room lighting or move to another location.
Some types of lighting may interfere with
transmission.
Activating or deactivating IrDA receptions
By default your phone detects incoming IR transmissions
and prompts you to accept them.
If you do not want your device to receive data, take the
following steps:
1.
On the Home screen, press the
Start
soft key.
2.
Select
Settings
→
Beam
.
3. Deselect the
Receive incoming beams
checkbox.
4. Press the
Done
soft key.
Receiving data
1. Align the IR port on your phone with the IR port on
another device.
2. Have the other device send the data to your phone. Your
phone will automatically receive the data.
3. When prompted to receive an incoming data, press the
Yes
soft key.
Getting connected
209
Sending data
1. Locate the item you want to send in an application, such
as
Calendar
,
Contacts
,
Camera
,
Camcorder
, or
File
Manager
.
2. Scroll to the item
.
3. Press the
Menu
soft key and select
Beam
, followed by
the type of item, such as Contact or Appointment.
If you send an item in
File Manager
, press the
Menu
soft key and select
Send
→
via Infrared
.
In Camera or Camcorder, press the
Menu
soft key and
select
Send
→
Via IrDA
.
4. Align the IR port on your phone with the IR port on the
device. The two devices starts an IrDA connection and
the other device name appears on your phone.
5.
Scroll to the device name and press the
Beam
soft
key to send the item.
Beaming with Bluetooth
Bluetooth is a short-range wireless communications
technology. Devices with Bluetooth capabilities can
exchange data over a distance of about 10 meters (30 feet)
without requiring a physical connection.
Unlike infrared, you don’t need to line up the phone with
another device to beam information with Bluetooth.
Getting connected
210
Activating Bluetooth mode
1.
On the Home screen, press the
Start
soft key.
2.
Select
Settings
→
Bluetooth
.
3.
On t
he Bluetooth scree
n,
select the operating mode you
want in the
Bluetooth
field.
You can use the following operating mode:
•
On
: The Bluetooth radio is turned on and you can use
Bluetooth features.
•
Off
: The Bluetooth radio is turned off. You can neither
send nor receive data by using Bluetooth.
•
Discoverable
: The Bluetooth radio is turned on, and
all of the other Bluetooth devices within range (about
10 meters) can detect your device and attempt to
beam data to your device, establish a bond, or use a
Bluetooth service.
4. Press the
Done
soft key.
Getting connected
211
Searching for and pairing with a Bluetooth
device
1. On the Bluetooth screen, press the
Menu
soft key and
select
Devices
.
2. To search for a new device, press the
Menu
soft key and
select
New
.
3. Select a device to connect to the paired device.
4. Enter a Bluetooth PIN and press the
Done
soft key. This
code is used just once and you don’t need to memorise
it.
When the owner of the other device enters the same
code, paring is finished.
Note
: Some devices, especially headsets or hands-free car
kits, may have a fixed Bluetooth PIN, such as
0000
. If
the other device has one, you must enter the code.
5. Enter a display name for the device and press the
Done
soft key.
6. Press the
OK
soft key.
Using the device options
When you press the
Menu
soft key on the Devices screen,
you can access the following options from the device list:
•
New
: allows you to search for any devices.
•
Edit
: allows you to change the name of the connectable
device.
Getting connected
212
•
Delete
: allows you to delete the device.
•
Set as Hands-free
: allows you to use the connectable
device as a headset.
You can converse with the other
person on the phone without holding the phone to your
ear during a call.
Receiving data with Bluetooth
1. Make sure that the
Receive incoming beams
checkbox is selected. To check it,
press the
Start
soft
key and select
Settings
→
Beam
.
2. When prompted to receive an incoming data, press the
Yes
soft key.
Sending data with Bluetooth
1. Locate the item you want to send in an application, such
as
Calendar
,
Contacts
,
Camera
,
Camcorder
, or
File
Manager
.
2. Scroll to the item
.
3. Press the
Menu
soft key and select
Beam
followed by
the type of item, such as Contact or Appointment.
If you send and item in
File Manager
,
Camera
, or
Camcorder
, press the
Menu
soft key and select
Send
→
via Bluetooth
.
If the device to which you want to send does not appear
on the list, search for and pair with the device by
following from step 2 on page 211.
The phone searches for devices within range and
displays a list of available devices.
Getting connected
213
4. Select the device from the list.
5. Press the
Beam
soft key.
The item is sent to the device you selected.
Using a Bluetooth stereo headset
Using a Bluetooth stereo headset, you can play the audio
files or converse with the person on the phone without
holding the phone to your ear. You can purchase a
Bluetooth stereo headset separately.
To pair with a Bluetooth headset:
Note
: Make sure that the Bluetooth mode is activated by
referring to page 209.
1. On the Bluetooth screen, select Bluetooth stereo.
2. To search for a new headset, press the
Menu
soft key
and select
New
.
3. Scroll to a headset and press the
Menu
soft key and
select
Connect
.
4. Press the
Yes
soft key to confirm the connection.
5. Enter a fixed Bluetooth PIN and press the
Done
soft
key.
6. Press the
OK
soft key to confirm the connection with the
headset has been established.
7. Press the
Done
soft key.
Getting connected
214
To play a audio file:
1. During playing an audio file, put on an optional headset.
2. Press the
Menu
soft key and select
Switch to headset
.
You can listen to the audio clip via the headset.
To converse with a person:
1. During a call, put on an optional headset.
2. Press the
Menu
soft key and select
Switch to headset
.
You can talk to the other person via the headset.
To disconnect the phone and Bluetooth headset:
1. Press the
Disconnect
soft key.
2. Press the
Yes
soft key.
3. Press the
OK
soft key.
You can also disconnect the phone and the headset by
pressing the relevant button on the headset. For details,
see the User’s Guide supplied with the headset.
Getting connected
215
Modem link
Using
Modem Link
, you can set your phone to be used as
an external modem for another device or computer when
connected via the active IrDA port or USB port.
1. Make sure that your phone is not connected with
another device.
2.
On the Home screen, press the
Start
soft key.
3.
Select
More
→
More
→
Accessories
→
Modem Link
.
4. When you first access this application, the warning
message displays. Press the
OK
soft key.
5. On the Modem Link screen, select the type of connection
and baud rate.
6. To activate Modem Link press the
Menu
soft key and
select
Activate
.
7. Press the
Done
soft key.
Note
: When Modem Link is activated, you cannot use
ActiveSync.
Getting connected
216
Connecting to the Internet or your
network
You can use the
Data Connections
settings to create dial-
up, Virtual Private Network (VPN), GPRS, and proxy
connections so that you can connect to the Internet or your
corporate network. By using a data connection, you can
browse the Web, download e-mails, chat by using MSN
®
Messenger, or synchronise remotely with an Exchange
Server. Check with your service provider to see if a data
connection has already been set up for you, and if over-
the-air configuration is supported.
Working with dial-up connections
You can create a dial-up connection to connect remotely to
the Internet, a Wireless Application Protocol (WAP)
network, or your corporate network. Then, when you open
a programme that is configured to use this connection, the
phone uses it to automatically connect to the network.
Creating a dial-up connection
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Data Connections
.
3. Press the
Menu
soft key and select
Edit Connections
→
Dial Up Connections
.
4. Press the
Menu
soft key and select
Add
.
Getting connected
217
5. Enter the requested information.
•
Description
: Enter a name for the connection.
•
Connects to
: Select a network.
•
Phone number
: Enter the dial-up number you use to
connect to the network.
•
User name
: Enter your network user name.
•
Password
: Enter your password.
•
Domain
: Enter the domain name, if required.
Note
: If you are not sure about the information to enter, ask
your network administrator.
Tip
: If you subscribe to General Packet Radio Service (GPRS), you
can set up a GPRS connection to access your corporate
network or the Internet, which is faster than a dial-up
connection. For details, see “Working with GPRS
connections.”
6. When you have finished, press the
Done
soft key.
Editing a dial-up connection
1. On the Dial Up Connections screen, scroll to the
connection you want to edit.
2. Press the
Menu
soft key, and select
Edit
.
3. Edit the connection settings.
4. When you have finished, press the
Done
soft key.
Getting connected
218
Deleting a dial-up connection
1. On the Dial Up Connections screen, scroll to the
connection you want to delete.
2. Press the
Menu
soft key and select
Delete
.
3. Press the
Yes
soft key.
Working with VPN connections
If your company has set up a virtual private network
(VPN), you can create a VPN connection to gain access to
your corporate network over an Internet connection.
Creating a VPN connection
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Data Connections
.
3. Press the
Menu
soft key and select
Edit Connections
→
VPN Connections
.
4. Press the
Menu
soft key and select
Add
.
5. Enter the requested information.
•
Description
: Enter a name for the connection.
•
VPN type
: Select the type of VPN.
•
Server
: Enter the VPN server name.
•
Connects from
: Select the type of network from
which you will connect to VPN (typically
The
Internet
).
•
Connects to
: Select the type of network to which you
will connect (typically
Work
).
Getting connected
219
•
User name
: Enter your user name for the VPN.
•
Password
: Enter your password.
•
Domain
: Enter the domain name, if required.
•
IPSec authentication
:
If you selected
IPSec
/
L2TP
for
VPN type
, select the type of authentication:
Pre
-
Shared Key
or
Certificate
.
•
IPSec Pre-shared key
: If you selected
Pre
-
Shared
Key
for
IPSec authentication
, enter the shared key.
6. When you have finished, press the
Done
soft key.
Note
: If you are not sure about the information to enter, ask
your network administrator.
Editing a VPN connection
1. On the VPN Connections screen, scroll to the connection
you want to edit.
2. Press the
Menu
soft key and select
Edit
.
3. Edit the connection settings.
4. When you have finished, press the
Done
soft key.
Deleting a VPN connection
1. On the VPN Connections screen, scroll to the connection
you want to delete.
2. Press the
Menu
soft key and select
Delete
.
3. Press the
Yes
soft key.
Getting connected
220
Working with proxy connections
You can use a proxy connection to gain access to the
Internet over an existing connection to your corporate
network.
Creating proxy connection
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Data Connections
.
3. Press the
Menu
soft key and select
Edit Connections
→
Proxy Connections
.
4. Press the
Menu
soft key and select
Add
.
5. Enter the requested information.
•
Description
: Enter a name for the connection.
•
Connects from
: Select the type of network from
which you will connect.
•
Connects to
: Select the type of network to which you
will connect.
•
Proxy (name:port)
: Enter the proxy server name
and port number in the form: server name:port
number.
•
Type
: Select the type of proxy connection to create.
•
User name
: Enter your user name for the network to
which you will connect.
•
Password
: Enter your password.
Note
: If you are not sure about the information to enter, ask
your network administrator.
Getting connected
221
Editing proxy connection
1. On the Proxy Connections screen, scroll to the
connection you want to edit.
2. Press the
Menu
soft key and select
Edit
.
3. Edit the connection settings.
4. When you have finished, press the
Done
soft key.
Deleting a proxy connection
1. On the Proxy Connections screen, scroll to the
connection you want to delete.
2. Press the
Menu
soft key, and then select
Delete
.
3. Press the
Yes
soft key.
Working with GPRS connections
If you subscribe to General Packet Radio Services (GPRS),
you can set up a GPRS connection to gain access to your
corporate network or the Internet. This is faster than a
dial-up connection.
You can also use your phone as a GPRS modem for a
desktop computer.
Creating a GPRS connection
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Data Connections
.
Getting connected
222
3. Press the
Menu
soft key and select
Edit Connections
→
GPRS Connections
.
4. Press the
Menu
soft key and select
Add
.
5. Enter the requested information.
•
Description
: Enter a name for the connection.
•
Connects to
: Select the type of network to which you
will connect.
•
Access point
: Enter the information provided by your
system administrator.
•
User name
: Enter your user name for the GPRS
network.
•
Password
: Enter your password.
•
Primary DNS
: Enter the primary domain naming
system (DNS) address, as provided by your
network
administrator
.
•
Secondary DNS
: Enter the secondary DNS address,
as provided by your system administrator.
•
IP address
: Enter the Internet Protocol (IP) address,
as provided by your system administrator.
Note
: If you are not sure about the information to enter, ask
your network administrator.
Editing a GPRS connection
1. On the GPRS Connections screen, scroll to the
connection you want to edit.
2. Press the
Menu
soft key and select
Edit
.
Getting connected
223
3. Change the connection settings.
4. When you have finished, press the
Done
soft key.
Deleting a GPRS connection
1. On the GPRS Connections screen, scroll to the
connection you want to delete.
2. Press the
Menu
soft key and select
Delete
.
3. Press the
Yes
soft key.
Setting up Data Connections
After creating connection profiles, you can assign a profile
to each connection type.
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Data Connections
.
3. Select a profile in each connection.
4. Press the
Done
soft key.
Adding a URL exception
Some URLs for Web pages on your company intranet may
use periods, for example: intranet.companyname.com. To
view these pages in Internet Explorer, you must create a
URL exception.
Note
: You do not need to create URL exceptions for Internet
URLs.
Getting connected
224
Adding a URL exception
1. On the Home screen, press the
Start
soft key.
2. Select
Settings
→
More
→
Data Connections
.
3. Press the
Menu
soft key and select
Work URL
Exceptions
.
4. Press the
Menu
soft key and select
Add
.
5. In the
URL Pattern
field, enter the URL and press the
Done
soft key. Separate multiple URLs with a
semicolon.
Editing a URL exception
1. On the Work URL Exceptions screen scroll to the URL
you want to edit.
2. Press the
Menu
soft key, and then select
Edit
.
3. Edit the connection settings.
Deleting a URL exception
1. On the Work URL Exceptions screen, scroll to the URL
you want to delete.
2. Press the
Menu
soft key, and then select
Delete
.
3. Press the
Yes
soft key.
Getting connected
225
Changing the Data connection options
1. On the Data Connections screen, press the
Menu
soft
key and select
Options
.
The following options are available:
•
Redial attempts
: Select the redial attempt to
connect the Internet or your network after an
unsuccessful connection.
•
Idle disconnect after
: Select the length of time your
phone waits for connecting to the Internet or your
network after the specified period, your phone will
disconnect from the Internet or your network.
•
My desktop connects to
: Select the type of network
to which your desktop computer will connect.
2. When you have finished, press the
Done
soft key.
226
10
Troubleshooting
General problems
Problem Description & Solution
“Invalid or
missing SIM
card. Emergency
call only”
displays
Check that the SIM card has been
correctly installed.
“No network
coverage,” “Error
unable to
connect. No
network
coverage.” or
“Message
sending failed”
displays
• The network connection has been
lost. You may be in a weak signal
area (in a tunnel or surrounded by
buildings). Move and try again.
• You are trying to access an option
for which you have not taken out a
subscription with your service
provider. Contact the service
provider for further details.
The bars next to
disappear
• If you have just turned on your
phone, wait about 2 minutes, until
your phone finds the network and
receives a signal from the network.
• If you are in a tunnel or in an
elevator, the phone may not be able
to receive the network signal
properly. Move to an open place.
• This may appear when you move
between different service areas. It is
normal.
Troubleshooting
227
The display is not
clear
In direct sunlight, you may not see the
display clearly. Moving to a place with
different lighting should solve this
problem.
White lines
appear on the
display
This may happen if you turn on the
phone after a long period of disuse, or
after removing the battery without
turning off the phone. This is not
related to the phone’s life or
performance. The display should
correct itself shortly.
“Locked” displays The phone lock feature has been
enabled. You must press the
Unlock
soft key and enter the lock code
before you can use the phone. To
disable this feature, press the
Start
soft key and select
Settings
→
More
→
Security
→
Disable Phone Lock
and enter the password.
“PIN code”
appears
• You are using your phone for the
first time. You must enter the
Personal Identification Number (PIN)
supplied with the SIM card.
• The PIN check feature has been
enabled. Each time the phone is
switched on, the PIN has to be
entered. To disable this feature,
press the
Start
soft key and select
Settings
→
More
→
Security
→
Disable SIM PIN
, and enter the
PIN.
Problem Description & Solution
Troubleshooting
228
Call problems
“PUK code”
appears
The PIN code was entered incorrectly
three times in succession and the
phone is now blocked. Enter the PUK
supplied by your service provider.
I forgot the lock,
PIN,
initialisation, or
PUK codes
If you forget or lose the lock code,
contact your phone dealer. If you
forget or lose a PIN or PUK code, or if
you have not received such a code,
contact your network provider. For
information about passwords, contact
your access point provider, for
example, a commercial Internet
Service Provider (ISP), service
provider, or network operator.
Problem Description & Solution
I have entered a
number but it
was not dialled
• Have you pressed ?
• Check if your wireless connection to
your mobile service provider is
switched on and the signal from the
network is unobstructed.
• You may have set an outgoing call
barring option.
Problem Description & Solution
Troubleshooting
229
My
correspondent
cannot reach me
• Is your phone switched on (
pressed for more than one second)?
• Check if your wireless connection to
your mobile service provider is
switched on and the signal from the
network is unobstructed.
• You may have set an incoming call
barring option.
My
correspondent
cannot hear me
speaking
• Have you switched on the
microphone?
• Are you holding the phone close
enough to your mouth? The
microphone is located at the bottom
of the phone.
The audio quality
of the call is poor
• Adjust the voice volume by pressing
.
• Check the signal strength indicator
on the display ( ); the number of
bars indicates the signal strength,
from strong to weak.
• Try moving the phone slightly or
moving closer to a window if you are
in a building.
Calls to and from
the phone are
not connected
properly, and are
easily
disconnected
• Signals from the network are weak.
Move to another area.
• Touching the antenna may lower the
call quality. Be careful not to touch
the antenna while using the phone.
Problem Description & Solution
Troubleshooting
230
Power and charging problems
Problem Description & Solution
“Recharge
Battery” appears
on the display
When you turn on the phone, this
message appears. Recharge the
battery.
Battery low alert
appears on the
display
Your battery is insufficiently charged.
Recharge the battery.
While charging,
the LED on the
travel charger
blinks
• Disconnect the phone from the
travel charger, remove the battery,
and then replace it. Try charging
again.
• If the problem persists, clean the
metal contacts on the battery and
the phone.
• If the actions above do not clear the
problem, contact a Samsung service
representative.
The phone
malfunctions or
does not function
Remove the battery and then replace
it. Turn on the phone. Or press the
hole on the bottom of the phone to
perform a soft reset. If the problem
persists, contact a Samsung service
representative.
The LED on the
travel charger
turns to yellow
The travel charger is overheated.
Disconnect the charger from the
phone or unplug it from the power
outlet. Wait until the charger cools
down and then recharge the phone.
Troubleshooting
231
The battery’s
standby time is
shorter than
expected
• Batteries are subject to wear and
tear. Standby time may grow shorter
as time passes.
• Leaving the fully charged battery in
a cold or hot place for a long period
of time may reduce battery life.
• Standby time depends on where you
use the phone. The actual time may
differ from the battery’s
specifications.
Is it OK if I leave
the phone
connected to the
power outlet
after it is fully
charged
(indicated by the
green LED on the
charger is on)
We recommend that you disconnect
the phone from the charger or unplug
the charger from the power outlet.
The phone
becomes hot
This may happen when you are on the
phone or when you use applications,
such as games, the Internet, or the
camera, because the phone needs
more power at those times. This does
not affect the phone’s life and
performance.
Problem Description & Solution
Troubleshooting
232
Application problems
The battery level
seem sufficient,
but the phone
does not turn on
• Remove the battery from the phone
and reinstall it. Then turn on the
phone.
• Clean the metal contacts both on the
battery and on the phone. Reinstall
the battery and turn on the phone.
The phone turns
off when the
charger is
connected
Some dust on the contacts may cause
unexpected power-off or charging
problems. Clean the metal contacts
both on the battery and on the phone.
Problem Description & Solution
“Not enough
memory to
perform
operation. Delete
some data first.”
or “Memory low.
Delete some
data.” displays
To view what kind of data you have
and how much memory the different
data groups consume, press the
Start
soft key and select
More
→
More
→
Tools
→
Task Manager
. Press the
Menu
soft key, and select
Memory
.
Delete old items from applications. If
necessary, make a backup copy of
your data using ActiveSync or the
memory card.
Problem Description & Solution
Troubleshooting
233
Browser
“No valid access
point defined.
Define one in
Services
settings.”
displays
Insert proper browser settings.
Contact your service provider for
instructions.
The phone is
unable to
connect to the
Internet
• Check if you have set up and are
connected to an Internet service
provider.
• Check if your wireless connection to
your mobile service provider is
switched on and the signal from the
GPRS network is not obstructed.
• Verify with your service provider
that your user name and password
are correct.
• Verify with your Internet service
provider that the network you are
trying to connect is available, or try
to connect it from another PC.
Camera
Images seem
smudged
Check that the camera lens protection
window is clean.
Problem Description & Solution
Troubleshooting
234
Contacts
No number is
dialled when you
recall a contact
card
• Check that a number has been
stored in the contact card.
• Re-store the number, if necessary.
Infrared
Data does not
transfer via an
infrared
connection
• Line up the infrared ports of two
devices so that they are
unobstructed and within close range.
• Make sure that nothing is between
the two infrared ports.
• Adjust the room lighting. Some
types of light interfere with infrared
connections. Try moving to a
different location or turning off some
lights.
Bluetooth
I cannot end a
Bluetooth
connection
If another device is connected to your
phone, you can either end the
connection using the other device or
by deactivating Bluetooth. Go to
Bluetooth and select the setting
Bluetooth
→
Off
.
Problem Description & Solution
Troubleshooting
235
I cannot find my
friends
Bluetooth-
enabled device
• Check that both have activated
Bluetooth.
• Check that the distance between the
two devices is not over 10 metres or
that there are no walls or other
obstructions between the devices.
• Check that the other device is not in
Hidden
mode.
• Check that both devices are
compatible.
Bluetooth stereo headset
I cannot discover
the remote
Bluetooth stereo
headset
• Check if the Bluetooth functionality
on the phone is turned on.
• Check if the remote Bluetooth stereo
headset is in the discoverable mode.
• Check if the remote Bluetooth device
has the capability to act as a stereo
headset.
I cannot connect
to the remote
Bluetooth stereo
headset
Ensure that the correct PIN was
entered on the phone during the
connection with the headset. Most
Bluetooth headsets have a fixed PIN
that would be mentioned in their
user’s guide. You would need to enter
the PIN when establishing a
connection with the headset.
Problem Description & Solution
Troubleshooting
236
I cannot listen to
music on the
remote
Bluetooth stereo
headset
• Ensure that you are connected to
the Bluetooth stereo headset
through the Bluetooth stereo
application.
• Ensure that the song that you are
playing is one of the supported
formats.
• Check the battery levels on the
Bluetooth stereo headset.
• Ensure that the phone and headset
are within range of each other. The
maximum distance between the two
should not be more than 30 feet.
• If the phone established a
connection to the headset when the
Windows Media Player was already
playing a song, this song would not
be heard on the headset. You need
to start the next song or stop the
Windows Media Player to listen to
music to the headset.
There are breaks
in the music
being played on
the remote
Bluetooth stereo
headset
• You may observe breaks if there are
walls that separate the phone and
the Bluetooth stereo headset.
• Check whether your phone is in the
Discoverable mode. If not, make the
phone is set to the On mode.
Problem Description & Solution
Troubleshooting
237
If the above guidelines do not help you to solve the
problem, take note of:
• the model and serial numbers of your phone
• your warranty details
• a clear description of the problem
Then contact your local dealer or Samsung after-sales
service.
Call history
The call history
appears empty
You may have activated a filter, and
no communication events fitting that
filter have been logged. To see all
events, press the
Start
soft key and
select
Call History
. Press the
Menu
soft key and select
Filter
→
No Filter
.
Messaging
I cannot select a
contact card
when creating a
message
If the contact card does not have a
phone number or e-mail address, you
cannot select it. Add the missing
information to the contact card in
Contacts
.
PC connectivity
Problems occur
when connecting
the phone to a
PC
Make sure that ActiveSync is installed
and running on your PC. See the
user’s guide for ActiveSync on the CD-
ROM. For further information on how
to use ActiveSync, see the help
function on ActiveSync or visit
www.microsoft.com.
Problem Description & Solution
Health and Safety Information
138
Health and Safety
Information
Exposure to Radio Frequency (RF)
Signals
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the
Federal Communications Commission (FCC) of the U.S.
Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on the safety
standards that were developed by independent scientific
organizations through periodic and through evaluation of
scientific studies.
The standards include a substantial safety margin designed to
assure the safety of all persons, regardless of age and health.
The exposure standard for wireless phones employs a unit of
measurement known as Specific Absorption Rate (SAR). The
SAR limit recommended by the FCC is 1.6W/kg.
*
* In the U.S. and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram
of tissue. The standard incorporates a substantial margin of
safety to give additional protection for the public and to
account for any variations in measurements.
Health and Safety Information
139
SAR tests are conducted using standard operating positions
specified by the FCC with the phone transmitting at its highest
certified power level in all tested frequency bands. Although
the SAR is determined at the highest certified power level, the
actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is
designed to operate at multiple power levels so as to use only
the power required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower
the power output of the phone.
Before a new model phone is available for sale to the public, it
must be tested and certified to the FCC that it does not
exceed the limit established by the government adopted
requirement for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the
body) as required by the FCC for each model. While there
may be differences between the SAR levels of various phones
and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of http://
www.fcc.gov/oet/fccid after searching on FCC ID printed in
the label on the phone.
Health and Safety Information
140
For Body Operation
For body worn operation, this model phone has been tested
and meets the FCC RF exposure guidelines when used with a
Samsung-supplied or approved accessory designated for this
product or when used with and accessory that contains no
metal and that positions the handset a minimum from the
body.
The minimum distance for this model phone is written in the
FCC certification information from the body. None compliance
with the above conditions may violate FCC RF exposure
guidelines.
For more Information concerning exposure to radio frequency
signals, see the following websites:
Federal Communications Commission (FCC)
http://www.fcc.gov
Cellular Telecommunications Industry Association (CTIA):
http://www.wow-com.com
U.S.Food and Drug Administration (FDA)
http://www.fda.gov/cdrh/consumer
World Health Organization (WHO)
http://www.who.int/peh-emf/en
Precautions When Using Batteries
●
Never use any charger or battery that is damaged in any
way.
●
Use the battery only for its intended purpose.
●
If you use the phone near the network’s base station, it
uses less power; talk and standby time are greatly affected
by the signal strength on the cellular network and the
parameters set by the network operator.
Health and Safety Information
141
●
Battery charging time depends on the remaining battery
charge, the type of battery and the charger used. The
battery can be charged and discharged hundreds of times,
but it will gradually wear out. When the operation time
(talk time and standby time) is noticeably shorter than
normal, it is time to buy a new battery.
●
If left unused, a fully charged battery will discharge itself
over time.
●
Use only Samsung-approved batteries and recharge your
battery only with Samsung-approved chargers. When a
charger is not in use, disconnect it from the power source.
Do not leave the battery connected to a charger for more
than a week, since overcharging may shorten its life.
●
Extreme temperatures will affect the charging capacity of
your battery: it may require cooling or warming first.
●
Do not leave the battery in hot or cold places, such as in a
car in summer or winter conditions, as you will reduce the
capacity and lifetime of the battery. Always try to keep the
battery at room temperature. A phone with a hot or cold
battery may temporarily not work, even when the battery
is fully charged. Li-ion batteries are particularly affected by
temperatures below 0 °C (32 °F).
●
Do not short-circuit the battery. Accidental short-circuiting
can occur when a metallic object (coin, clip or pen) causes
a direct connection between the + and – terminals of the
battery (metal strips on the battery), for example when
you carry a spare battery in a pocket or bag. Short-
circuiting the terminals may damage the battery or the
object causing the short-circuiting.
●
Dispose used batteries in accordance with local
regulations. Always recycle. Do not dispose batteries in
a fire.
Health and Safety Information
142
Road Safety
Your wireless phone gives you the powerful ability to
communicate by voice, almost anywhere, anytime. But an
important responsibility accompanies the benefits of wireless
phones, one that every user must uphold.
When driving a car, driving is your first responsibility. When
using your wireless phone behind the wheel of a car, practice
good common sense and remember the following tips:
●
Get to know your wireless phone and its features, such as
speed dial and redial. If available, these features help you
to place your call without taking your attention off the
road.
●
When available, use a hands-free device. If possible, add
an extra layer of convenience and safety to your wireless
phone with one of the many hands-free accessories
available today.
●
Position your wireless phone within easy reach. Be able to
access your wireless phone without removing your eyes
from the road. If you get an incoming call at an
inconvenient time, let your voice mail answer it for you.
●
Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy traffic or
hazardous weather conditions. Rain, sleet, snow, ice and
even heavy traffic can be hazardous.
●
Do not take notes or look up phone numbers while driving.
Jotting down a To Do list or flipping through your
phonebook takes your attention away from your primary
responsibility, driving safely.
●
Dial sensibly and assess the traffic; if possible, place calls
when you are not moving or before pulling into traffic. Try
to plan calls when your car will be stationary. If you need
to make a call while moving, dial only a few numbers,
check the road and your mirrors, then continue.
Health and Safety Information
143
●
Do not engage in stressful or emotional conversations that
may be distracting. Make the people to whom you are
talking aware that you are driving and suspend
conversations that have the potential to divert your
attention from the road.
●
Use your wireless phone to call for help. Dial the
emergency number in the case of fire, traffic accident or
medical emergencies. Remember, it is a free call on your
wireless phone!
●
Use your wireless phone to help others in emergencies. If
you see a car accident, crime in progress or other serious
emergency where lives are in danger, call the emergency
number, as you would want others to do for you.
●
If you see a broken-down vehicle posing no serious
hazard, a broken traffic signal, a minor traffic accident
where no one appears injured, or a vehicle you know to be
stolen, call roadside assistance or any other special non-
emergency wireless number.
Operating Environment
Remember to follow any special regulations in force in any
area and always switch your phone off whenever it is
forbidden to use it, or when it may cause interference or
danger.
When connecting the phone or any accessory to another
device, read its user’s guide for detailed safety instructions.
Do not connect incompatible products.
As with other mobile radio transmitting equipment, users are
advised that for the satisfactory operation of the equipment
and for the safety of personnel, it is recommended that the
equipment should only be used in the normal operating
position (held to your ear with the antenna pointing over your
shoulder).
Health and Safety Information
144
Electronic Devices
Most modern electronic equipment is shielded from radio
frequency (RF) signals. However, certain electronic equipment
may not be shielded against the RF signals from your wireless
phone. Consult the manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a minimum
distance of 15 cm (6 inches) be maintained between a
wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are
consistent with the independent research and
recommendations of Wireless Technology Research.
Persons with pacemakers:
●
should always keep the phone more than 15 cm (6 inches)
from their pacemaker when the phone is switched on.
●
should not carry the phone in a breast pocket.
●
should use the ear opposite the pacemaker to minimize
potential interference.
If you have any reason to suspect that interference is taking
place, switch your phone off immediately.
Hearing Aids
Some digital wireless phones may interfere with some hearing
aids. In the event of such interference, you may wish to
consult your hearing aid manufacturer to discuss alternatives.
Health and Safety Information
145
Other Medical Devices
If you use any other personal medical devices, consult the
manufacturer of your device to determine if it is adequately
shielded from external RF energy. Your physician may be able
to assist you in obtaining this information. Switch your phone
off in health care facilities when any regulations posted in
these areas instruct you to do so. Hospitals or health care
facilities may be using equipment that could be sensitive to
external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with the
manufacturer or its representative regarding your vehicle.
You should also consult the manufacturer of any equipment
that has been added to your vehicle. You should also consult
the manufacturer of any equipment that has been added to
your vehicle.
Posted Facilities
Switch your phone off in any facility where posted notices
require you to do so.
Health and Safety Information
146
Potentially Explosive Environments
Switch your phone off when in any area with a potentially
explosive atmosphere and obey all signs and instructions.
Sparks in such areas could cause an explosion or fire resulting
in bodily injury or even death.
Users are advised to switch the phone off while at a refueling
point (service station). Users are reminded of the need to
observe restrictions on the use of radio equipment in fuel
depots (fuel storage and distribution areas), chemical plants
or where blasting operations are in progress.
Areas with a potentially explosive atmosphere are often but
not always clearly marked. They include the areas below deck
on boats, chemical transfer or storage facilities, vehicles using
liquefied petroleum gas (such as propane or butane), areas
where the air contains chemicals or particles, such as grain,
dust or metal powders, and any other area where you would
normally be advised to turn off your vehicle engine.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, wireless and landline networks as well as user-
programmed functions, which cannot guarantee connection in
all conditions. Therefore, you should never rely solely on any
wireless phone for essential communications (medical
emergencies, for example).
Remember, to make or receive any calls the phone must be
switched on and in a service area with adequate signal
strength. Emergency calls may not be possible on all wireless
phone networks or when certain network services and/or
phone features are in use. Check with local service providers.
Health and Safety Information
147
To make an emergency call:
1. If the phone is not on, switch it on.
2. Key in the emergency number for your present location
(for example, 911 or other official emergency number).
Emergency numbers vary by location.
3. Press the <Send> key.
If certain features are in use (call barring, for example), you
may first need to deactivate those features before you can
make an emergency call. Consult this document and your
local cellular service provider.
When making an emergency call, remember to give all the
necessary information as accurately as possible. Remember
that your phone may be the only means of communication at
the scene of an accident; do not cut off the call until given
permission to do so.
Other Important Safety Information
●
Only qualified personnel should service the phone or install
the phone in a vehicle. Faulty installation or service may be
dangerous and may invalidate any warranty applicable to
the device.
●
Check regularly that all wireless phone equipment in your
vehicle is mounted and operating properly.
●
Do not store or carry flammable liquids, gases or explosive
materials in the same compartment as the phone, its parts
or accessories.
Health and Safety Information
148
●
For vehicles equipped with an air bag, remember that an
air bag inflates with great force. Do not place objects,
including both installed or portable wireless equipment in
the area over the air bag or in the air bag deployment
area. If wireless equipment is improperly installed and the
air bag inflates, serious injury could result.
●
Switch your phone off before boarding an aircraft. The use
of wireless phones in aircraft is illegal and may be
dangerous to the aircraft’s operation.
●
Failure to observe these instructions may lead to the
suspension or denial of telephone services to the offender,
or legal action, or both.
Care and Maintenance
Your phone is a product of superior design and craftsmanship
and should be treated with care. The suggestions below will
help you fulfill any warranty obligations and allow you to
enjoy this product for many years
●
Keep the phone and all its parts and accessories out of the
reach of small children’s.
●
Keep the phone dry. Precipitation, humidity and liquids
contain minerals that will corrode electronic circuits.
●
Do not use the phone with a wet hand. Doing so may
cause an electric shock to you or damage to the phone.
●
Do not use or store the phone in dusty, dirty areas, as its
moving parts may be damaged.
●
Do not store the phone in hot areas. High temperatures
can shorten the life of electronic devices, damage
batteries, and warp or melt certain plastics.
Health and Safety Information
149
●
Do not store the phone in cold areas. When the phone
warms up to its normal operating temperature, moisture
can form inside the phone, which may damage the phone’s
electronic circuit boards.
●
Do not drop, knock or shake the phone. Rough handling
can break internal circuit boards.
●
Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the phone. Wipe it with a soft cloth
slightly dampened in a mild soap-and-water solution.
●
Do not paint the phone. Paint can clog the device’s moving
parts and prevent proper operation.
●
Do not put the phone in or on heating devices, such as a
microwave oven, a stove or a radiator. The phone may
explode when overheated.
●
Use only the supplied or an approved replacement
antenna. Unauthorized antennas or modified accessories
may damage the phone and violate regulations governing
radio devices.
●
If the phone, battery, charger or any accessory is not
working properly, take it to your nearest qualified service
facility. The personnel there will assist you, and if
necessary, arrange for service.
Acknowledging Special Precautions and
the FCC and Industry Canada Notice
Cautions
Modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the
equipment.
Health and Safety Information
150
FCC Compliance Information
This device complies with Part 15 of FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received.
Including interference that may cause undesired operation.
Information to User
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and
receiver.
●
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
●
Consult the dealer or an experienced radio/ TV technician
for help.
Health and Safety Information
151
Appendix A: CERTIFICATION INFORMATION
(SAR)
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the
Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on safety
standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless mobile phones employs a
unit of measurement known as the Specific Absorption Rate
(SAR). The SAR limit set by the FCC is 1.6 W/kg. SAR Tests
are conducted using standard operating positions accepted by
the FCC with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual
SAR level of the phone while operating can be well below the
maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are
to a wireless base station antenna, the lower the power
output.
Before a new model phone is available for sale to the public, it
must be tested and certified to the FCC that it does not
exceed the limit established by the government adopted
requirement for safe exposure. The tests are performed in
Health and Safety Information
152
positions and locations(e.g., at the ear and worn on the body)
as required by the FCC for each model.
The highest SAR values of this model phone as reported to
FCC are
Head: 0.475W/kg, Body-worn: 0.661 W/kg in GSM 1900.
Body-worn operations are restricted to Samsung-supplied,
approved or none Samsung designated accessories that have
no metal and must provide at least 1.5cm separation between
the device, including its antenna whether extended or
retracted, and the user’s body. None compliance to the above
restrictions may violate FCC RF exposure guidelines.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of http://
www.fcc.gov/oet/fccid after searching on FCC ID
A3LSGHI300.
In the United States and Canada, the SAR limit for mobile phones
used by the public is 1.6 watts/kilogram (W/kg) averaged over
one gram of tissue. The standard incorporates a substantial ma
gin of safety to give additional protection for the public and to
account for any variations in measurements.
Health and Safety Information
153
Appendix B: Guide to Safe and Responsible
Wireless Phone Use
Cellular Telecommunications & Internet Association
“Safety is the most important call you will ever make.”
A Guide to Safe and Responsible Wireless Phone Use
TENS OF MILLIONS OF PEOPLE IN THE U.S. TODAY TAKE
ADVANTAGE OF THE UNIQUE COMBINATION OF
CONVENIENCE, SAFETY AND VALUE DELIVERED BY THE
WIRELESS TELEPHONE. QUITE SIMPLY, THE WIRELESS
PHONE GIVES PEOPLE THE POWERFUL ABILITY TO
COMMUNICATE BY VOICE-ALMOST ANYWHERE, ANYTIME-
WITH THE BOSS, WITH A CLIENT, WITH THE KIDS, WITH
EMERGENCY PERSONNEL OR EVEN WITH THE POLICE. EACH
YEAR, AMERICANS MAKE BILLIONS OF CALLS FROM THEIR
WIRELESS PHONES, AND THE NUMBERS ARE RAPIDLY
GROWING.
But an important responsibility accompanies those benefits,
one that every wireless phone user must uphold. When
driving a car, driving is your first responsibility. A wireless
phone can be an invaluable tool, but good judgment must be
exercised at all times while driving a motor vehicle whether
on the phone or not.
The basic lessons are ones we all learned as teenagers.
Driving requires alertness, caution and courtesy. It requires a
heavy dose of basic common sense-keep your head up, keep
your eyes on the road, check your mirrors frequently and
watch out for other drivers. It requires obeying all traffic signs
and signals and staying within the speed limit. It means using
seat belts and requiring other passengers to do the same.
Health and Safety Information
154
But with wireless phone use, driving safely means a little
more. This brochure is a call to wireless phone users
everywhere to make safety their first priority when behind the
wheel of a car. Wireless telecommunications is keeping us in
touch, simplifying our lives, protecting us in emergencies and
providing opportunities to help others in need. When it comes
to the use of wireless phones, safety is your most important
call.
Wireless Phone “Safety Tips”
Below are safety tips to follow while driving and using a
wireless phone which should be easy to remember:
1. Get to know your wireless phone and its features such as
speed dial and redial. Carefully read your instruction
manual and learn to take advantage of valuable features
most phones offer, including automatic redial and memory.
Also, work to memorize the phone keypad so you can use
the speed dial function without taking your attention off
the road.
2. When available, use a hands free device. A number of
hands free wireless phone accessories are readily available
today. Whether you choose an installed mounted device
for your wireless phone or a speaker phone accessory,
take advantage of these devices if available to you.
3. Position your wireless phone within easy reach. Make sure
you place your wireless phone within easy reach and
where you can grab it without removing your eyes from
the road. If you get an incoming call at an inconvenient
time, if possible, let your voice mail answer it for you.
Health and Safety Information
155
4. Suspend conversations during hazardous driving
conditions or situations. Let the person you are speaking
with know you are driving; if necessary, suspend the call
in heavy traffic or hazardous weather conditions. Rain,
sleet, snow and ice can be hazardous, but so is heavy
traffic. As a driver, your first responsibility is to pay
attention to the road.
5. Do not take notes or look up phone numbers while driving.
If you are reading an address book or business card, or
writing a “to do” list while driving a car, you are not
watching where you are going. It’s common sense. Don’t
get caught in a dangerous situation because you are
reading or writing and not paying attention to the road or
nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls
when you are not moving or before pulling into traffic. Try
to plan your calls before you begin your trip or attempt to
coincide your calls with times you may be stopped at a
stop sign, red light or otherwise stationary. But if you need
to dial while driving, follow this simple tip-dial only a few
numbers, check the road and your mirrors, then continue.
7. Do not engage in stressful or emotional conversations that
may be distracting. Stressful or emotional conversations
and driving do not mix-they are distracting and even
dangerous when you are behind the wheel of a car. Make
people you are talking with aware you are driving and if
necessary, suspend conversations which have the
potential to divert your attention from the road.
8. Use your wireless phone to call for help. Your wireless
phone is one of the greatest tools you can own to protect
yourself and your family in dangerous situations-with your
phone at your side, help is only three numbers away. Dial
9-1-1 or other local emergency number in the case of fire,
traffic accident, road hazard or medical emergency.
Remember, it is a free call on your wireless phone!
Health and Safety Information
156
9. Use your wireless phone to help others in emergencies.
Your wireless phone provides you a perfect opportunity to
be a “Good Samaritan” in your community. If you see an
auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other
local emergency number, as you would want others to do
for you.
10.Call roadside assistance or a special wireless non
emergency assistance number when necessary. Certain
situations you encounter while driving may require
attention, but are not urgent enough to merit a call for
emergency services. But you still can use your wireless
phone to lend a hand. If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a minor
traffic accident where no one appears injured or a vehicle
you know to be stolen, call roadside assistance or other
special non-emergency wireless number.
Careless, distracted individuals and people driving
irresponsibly represent a hazard to everyone on the road.
Since 1984, the Cellular Telecommunications Industry
Association and the wireless industry have conducted
educational outreach to inform wireless phone users of their
responsibilities as safe drivers and good citizens. As we
approach a new century, more and more of us will take
advantage of the benefits of wireless telephones. And, as we
take to the roads, we all have a responsibility to drive safely.
“The wireless industry reminds you to use your phone safely
when driving.”
Cellular Telecommunications & Internet Association For more
information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/
driving/articles.cfm?ID =85
Health and Safety Information
157
Appendix C: Consumer Update on Wireless
Phones
U.S. Food and Drug Administration
1. What kinds of phones are the subject of this update?
The term wireless phone refers here to hand-held wireless
phones with built-in antennas, often called cell, mobile, or
PCS phones. These types of wireless phones can expose the
user to measurable radio frequency energy (RF) because of
the short distance between the phone and the user s head.
These RF exposures are limited by Federal Communications
Commission safety guidelines that were developed with the
advice of FDA and other federal health and safety agencies.
When the phone is located at greater distances from the user,
the exposure to RF is drastically lower because a person’s RF
exposure decreases rapidly with increasing distance from the
source. The so-called “cordless phones,” which have a base
unit connected to the telephone wiring in a house, typically
operate at far lower power levels, and thus produce RF
exposures well within the FCC’s compliance limits.
2. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any
health problems are associated with using wireless phones.
There is no proof, however, that wireless phones are
absolutely safe. Wireless phones emit low levels of radio
frequency energy (RF) in the microwave range while being
used. They also emit very low levels of RF when in the stand-
by mode. Whereas high levels of RF can produce health
effects (by heating tissue), exposure to low level RF that does
not produce heating effects causes no known adverse health
effects. Many studies of low level RF exposures have not
found any biological effects. Some studies have suggested
that some biological effects may occur, but such findings have
not been confirmed by additional research. In some cases,
Health and Safety Information
158
other researchers have had difficulty in reproducing those
studies, or in determining the reasons for inconsistent results.
3. What is FDA’s role concerning the safety of wireless
phones?
Under the law, FDA does not review the safety of radiation
emitting consumer products such as wireless phones before
they can be sold, as it does with new drugs or medical
devices. However, the agency has authority to take action if
wireless phones are shown to emit radio frequency energy
(RF) at a level that is hazardous to the user. In such a case,
FDA could require the manufacturers of wireless phones to
notify users of the health hazard and to repair, replace or
recall the phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone industry
to take a number of steps, including the following:
●
Support needed research into possible biological effects of
RF of the type emitted by wireless phones;
●
Design wireless phones in a way that minimizes any RF
exposure to the user that is not necessary for device
function; and
●
Cooperate in providing users of wireless phones with the
best possible information on possible effects of wireless
phone use on human health
FDA belongs to an interagency working group of the federal
agencies that have responsibility for different aspects of RF
safety to ensure coordinated efforts at the federal level. The
following agencies belong to this working group:
●
National Institute for Occupational Safety and Health
●
Environmental Protection Agency Federal Communications
Commission
Health and Safety Information
159
●
Occupational Safety and Health Administration
●
National Telecommunications and Information
Administration
●
The National Institutes of Health participates in some
interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless phones
with the Federal Communications Commission (FCC). All
phones that are sold in the United States must comply with
FCC safety guidelines that limit RF exposure. FCC relies on
FDA and other health agencies for safety questions about
wireless phones.
FCC also regulates the base stations that the wireless phone
networks rely upon. While these base stations operate at
higher power than do the wireless phones themselves, the RF
exposures that people get from these base stations are
typically thousands of times lower than those they can get
from wireless phones. Base stations are thus not the primary
subject of the safety questions discussed in this document.
4. What is FDA doing to find out more about the possible
health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and
with groups of investigators around the world to ensure that
high priority animal studies are conducted to address
important questions about the effects of exposure to radio
frequency energy (RF).
FDA has been a leading participant in the World Health
Organization International Electromagnetic Fields (EMF)
Project since its inception in 1996. An influential result of this
work has been the development of a detailed agenda of
research needs that has driven the establishment of new
research programs around the world. The Project has also
helped develop a series of public information documents on
EMF issues.
Health and Safety Information
160
FDA and the Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative Research and
Development Agreement (CRADA) to do research on wireless
phone safety. FDA provides the scientific oversight, obtaining
input from experts in government, industry, and academic
organizations. CTIA-funded research is conducted through
contracts to independent investigators. The initial research
will include both laboratory studies and studies of wireless
phone users. The CRADA will also include a broad assessment
of additional research needs in the context of the latest
research developments around the world.
5. What steps can I take to reduce my exposure to radio
frequency energy from my wireless phone?
If there is a risk from these products—and at this point we do
not know that there is—it is probably very small. But if you
are concerned about avoiding even potential risks, you can
take a few simple steps to minimize your exposure to radio
frequency energy (RF). Since time is a key factor in how
much exposure a person receives, reducing the amount of
time spent using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless
phone every day, you could place more distance between
your body and the source of the RF, since the exposure level
drops off dramatically with distance. For example, you could
use a headset and carry the wireless phone away from your
body or use a wireless phone connected to a remote antenna
Again, the scientific data do not demonstrate that wireless
phones are harmful. But if you are concerned about the RF
exposure from these products, you can use measures like
those described above to reduce your RF exposure from
wireless phone use.
Health and Safety Information
161
6. What about children using wireless phones?
The scientific evidence does not show a danger to users of
wireless phones, including children and teenagers. If you
want to take steps to lower exposure to radio frequency
energy (RF), the measures described above would apply to
children and teenagers using wireless phones. Reducing the
time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure.
Some groups sponsored by other national governments have
advised that children be discouraged from using wireless
phones at all. For example, the government in the United
Kingdom distributed leaflets containing such a
recommendation in December 2000. They noted that no
evidence exists that using a wireless phone causes brain
tumors or other ill effects. Their recommendation to limit
wireless phone use by children was strictly precautionary; it
was not based on scientific evidence that any health hazard
exists.
7. Do hands-free kits for wireless phones reduce risks from
exposure to RF emissions?
Since there are no known risks from exposure to RF emissions
from wireless phones, there is no reason to believe that
hands-free kits reduce risks. Hands-free kits can be used with
wireless phones for convenience and comfort. These systems
reduce the absorption of RF energy in the head because the
phone, which is the source of the RF emissions, will not be
placed against the head. On the other hand, if the phone is
mounted against the waist or other part of the body during
use, then that part of the body will absorb more RF energy.
Wireless phones marketed in the U.S. are required to meet
safety requirements regardless of whether they are used
against the head or against the body. Either configuration
should result in compliance with the safety limit.
Health and Safety Information
162
8. Do wireless phone accessories that claim to shield the
head from RF radiation work?
Since there are no known risks from exposure to RF emissions
from wireless phones, there is no reason to believe that
accessories that claim to shield the head from those
emissions reduce risks. Some products that claim to shield
the user from RF absorption use special phone cases, while
others involve nothing more than a metallic accessory
attached to the phone. Studies have shown that these
products generally do not work as advertised. Unlike “hand-
free” kits, these so-called “shields” may interfere with proper
operation of the phone. The phone may be forced to boost its
power to compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade Commission
(FTC) charged two companies that sold devices that claimed
to protect wireless phone users from radiation with making
false and unsubstantiated claims. According to FTC, these
defendants lacked a reasonable basis to substantiate their
claim.
9. What about wireless phone interference with medical
equipment?
Radio frequency energy (RF) from wireless phones can
interact with some electronic devices. For this reason, FDA
helped develop a detailed test method to measure
electromagnetic interference (EMI) of implanted cardiac
pacemakers and defibrillators from wireless telephones. This
test method is now part of a standard sponsored by the
Association for the Advancement of Medical instrumentation
(AAMI). The final draft, a joint effort by FDA, medical device
manufacturers, and many other groups, was completed in
late 2000. This standard will allow manufacturers to ensure
that cardiac pacemakers and defibrillators are safe from
wireless phone EMI.
Health and Safety Information
163
FDA has tested hearing aids for interference from handheld
wireless phones and helped develop a voluntary standard
sponsored by the Institute of Electrical and Electronic
Engineers (IEEE). This standard specifies test methods and
performance requirements for hearing aids and wireless
phones so that no interference occurs when a person uses a
compatible phone and a compatible hearing aid at the same
time. This standard was approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for
possible interactions with other medical devices. Should
harmful interference be found to occur, FDA will conduct
testing to assess the interference and work to resolve the
problem.
10.What are the results of the research done already?
The research done thus far has produced conflicting results,
and many studies have suffered from flaws in their research
methods. Animal experiments investigating the effects of
radio frequency energy (RF) exposures characteristic of
wireless phones have yielded conflicting results that often
cannot be repeated in other laboratories. A few animal
studies, however, have suggested that low levels of RF could
accelerate the development of cancer in laboratory animals.
However, many of the studies that showed increased tumor
development used animals that had been genetically
engineered or treated with cancer causing chemicals so as to
be pre-disposed to develop cancer in the absence of RF
exposure. Other studies exposed the animals to RF for up to
22 hours per day. These conditions are not similar to the
conditions under which people use wireless phones, so we
don t know with certainty what the results of such studies
mean for human health.
Health and Safety Information
164
Three large epidemiology studies have been published since
December 2000. Between them, the studies investigated any
possible association between the use of wireless phones and
primary brain cancer, gioma, meningioma, or acoustic
neuroma, tumors of the brain or salivary gland, leukemia, or
other cancers. None of the studies demonstrated the
existence of any harmful health effects from wireless phone
RF exposures. However, none of the studies can answer
questions about long-term exposures, since the average
period of phone use in these studies was around three years.
11.What research is needed to decide whether RF exposure
from wireless phones poses a health risk?
A combination of laboratory studies and epidemiological
studies of people actually using wireless phones would
provide some of the data that are needed. Lifetime animal
exposure studies could be completed in a few years. However,
very large numbers of animals would be needed to provide
reliable proof of a cancer promoting effect if one exists.
Epidemiological studies can provide data that is directly
applicable to human populations, but 10 or more years follow-
up may be needed to provide answers about some health
effects, such as cancer. This is because the interval between
the time of exposure to a cancer-causing agent and the time
tumors develop - if they do - may be many, many years. The
interpretation of epidemiological studies is hampered by
difficulties in measuring actual RF exposure during day-to-day
use of wireless phones. Many factors affect this
measurement, such as the angle at which the phone is held,
or which model of phone is used.
Health and Safety Information
165
12.Which other federal agencies have responsibilities related
to potential RF health effects?
Additional information on the safety of RF exposures from
various sources can be obtained from the following
organizations.
FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/
Environmental Protection Agency (EPA):
http://www.epa.gov/radiation/
Occupational Safety and Health Administration’s (OSHA):
http://www.osha-slc.gov/SLTC/radiofrequencyradiation/
index.html
National Institute for Occupational Safety and Health
(NIOSH):
http://www.cdc.gov/niosh/emfpg.html
World health Organization (WHO):
http://www.who.int/peh-emf/
International Commission on Non-Ionizing Radiation
Protection:
http://www.icnirp.de
National Radiation Protection Board (UK):
http://www.nrpb.org.uk
Updated 4/3/2002: US Food and Drug Administration http://
www.fda.gov/cellphones
STANDARD LIMITED WARRANTY
166
STANDARD LIMITED
WARRANTY
What is Covered and For How Long? SAMSUNG
TELECOMMUNICATIONS AMERICA, L.P. (SAMSUNG) warrants
to the original purchaser ("Purchaser") that SAMSUNG’s
Phones and accessories ("Products") are free from defects in
material and workmanship under normal use and service for
the period commencing upon the date of purchase and
continuing for the following specified period of time after that
date:
Phone 1 Year
Batteries 1 Year
Leather Case/Pouch 90 Days
Holster 90 Days
Other Phone Accessories 1 Year
What is Not Covered? This Limited Warranty is conditioned
upon proper use of Product by Purchaser. This Limited
Warranty does not cover: (a) defects or damage resulting
from accident, misuse, abuse, neglect, unusual physical,
electrical or electromechanical stress, or modification of any
part of Product, including antenna, or cosmetic damage; (b)
equipment that has the serial number removed or made
illegible; (c) any plastic surfaces or other externally exposed
parts that are scratched or damaged due to normal use; (d)
malfunctions resulting from the use of Product in conjunction
with accessories, products, or ancillary/peripheral equipment
not furnished or approved by SAMSUNG; (e) defects or
damage from improper testing, operation, maintenance,
installation, or adjustment; (f) installation, maintenance, and
service of Product, or (g) Product used or purchased outside
the United States or Canada.
STANDARD LIMITED WARRANTY
167
This Limited Warranty covers batteries only if battery capacity
falls below 80% of rated capacity or the battery leaks, and
this Limited Warranty does not cover any battery if (i) the
battery has been charged by a battery charger not specified
or approved by SAMSUNG for charging the battery, (ii) any of
the seals on the battery are broken or show evidence of
tampering, or (iii) the battery has been used in equipment
other than the SAMSUNG phone for which it is specified.
What are SAMSUNG’s Obligations? During the applicable
warranty period, SAMSUNG will repair or replace, at
SAMSUNG’s sole option, without charge to Purchaser, any
defective component part of Product. To obtain service under
this Limited Warranty, Purchaser must return Product to an
authorized phone service facility in an adequate container for
shipping, accompanied by Purchaser’s sales receipt or
comparable substitute proof of sale showing the date of
purchase, the serial number of Product and the sellers’ name
and address. To obtain assistance on where to deliver the
Product, call Samsung Customer Care at 1-888-987-4357.
Upon receipt, SAMSUNG will promptly repair or replace the
defective Product. SAMSUNG may, at SAMSUNG’s sole
option, use rebuilt, reconditioned, or new parts or
components when repairing any Product or replace Product
with a rebuilt, reconditioned or new Product. Repaired/
replaced leather cases, pouches and holsters will be
warranted for a period of ninety (90) days. All other repaired/
replaced Product will be warranted for a period equal to the
remainder of the original Limited Warranty on the original
Product or for 90 days, whichever is longer. All replaced
parts, components, boards and equipment shall become the
property of SAMSUNG. If SAMSUNG determines that any
Product is not covered by this Limited Warranty, Purchaser
must pay all parts, shipping, and labor charges for the repair
or return of such Product.
STANDARD LIMITED WARRANTY
168
What Are the Limits On SAMSUNG’s Liability? EXCEPT AS
SET FORTH IN THE EXPRESS WARRANTY CONTAINED
HEREIN, PURCHASER TAKES THE PRODUCT “AS IS,” AND
SAMSUNG MAKES NO WARRANTY OR REPRESENTATION AND
THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED,
STATUTORY OR OTHERWISE, OF ANY KIND WHATSOEVER
WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT
LIMITED TO:
●
THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS
FOR ANY PARTICULAR PURPOSE OR USE;
●
WARRANTIES OF TITLE OR NON-INFRINGEMENT;
●
DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF
THE PRODUCT;
●
THE WORKMANSHIP OF THE PRODUCT OR THE
COMPONENTS CONTAINED THEREIN; OR
●
COMPLIANCE OF THE PRODUCT WITH THE
REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR
CONTRACT PERTAINING THERETO.
NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL
BE CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY
KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL
IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE
BY OPERATION OF LAW, INCLUDING IF APPLICABLE THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE
SAME DURATION OF TIME AS THE EXPRESS WRITTEN
WARRANTY STATED HEREIN. SOME STATES/PROVINCES DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE
LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM
THE PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USE
THE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM
THE USE OR LOSS OF USE OF THE PRODUCT OR FROM THE
STANDARD LIMITED WARRANTY
169
BREACH OF THE EXPRESS WARRANTY, INCLUDING
INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR
DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR
BENEFITS, OR FOR DAMAGES ARISING FROM ANY TORT
(INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR
FAULT COMMITTED BY SAMSUNG, ITS AGENTS OR
EMPLOYEES, OR FOR ANY BREACH OF CONTRACT OR FOR
ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER
PARTY. SOME STATES/PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM
STATE TO STATE/PROVINCE TO PROVINCE.
THIS LIMITED
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES
PURCHASER’S EXCLUSIVE REMEDY. IF ANY PORTION OF
THIS LIMITED WARRANTY IS HELD ILLEGAL OR
UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL
ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE
ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED
WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND
WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS
OR AS LIMITED AS THE LAW PERMITS.
THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE
THIRD-PARTY SOFTWARE OR EQUIPMENT IN CONJUNCTION
WITH THE PRODUCT. SAMSUNG MAKES NO WARRANTIES OR
REPRESENTATIONS AND THERE ARE NO CONDITIONS,
EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO
THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE
OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR
EQUIPMENT, WHETHER SUCH THIRD-PARTY SOFTWARE OR
EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED
BY SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO
INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE
STANDARD LIMITED WARRANTY
170
PRODUCT. THE QUALITY, CAPABILITIES, OPERATIONS,
PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-
PARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE
PURCHASER AND THE DIRECT VENDOR, OWNER OR
SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR
EQUIPMENT, AS THE CASE MAY BE.
This Limited Warranty allocates risk of Product failure
between Purchaser and SAMSUNG, and SAMSUNG’s Product
pricing reflects this allocation of risk and the limitations of
liability contained in this Limited Warranty. The agents,
employees, distributors, and dealers of SAMSUNG are not
authorized to make modifications to this Limited Warranty, or
make additional warranties binding on SAMSUNG.
Accordingly, additional statements such as dealer advertising
or presentation, whether oral or written, do not constitute
warranties by SAMSUNG and should not be relied upon.
Samsung Telecommunications America, L.P.
1301 East Lookout Drive
Richardson, Texas 75082
Phone: 1-800-SAMSUNG
Phone: 1-888-987-HELP (4357)
©2004 Samsung Telecommunications America. All rights
reserved.
No reproduction in whole or in part allowed without prior
written approval.
Specifications and availability subject to change without
notice. [080802]
8. Bluetooth
