Samsung Electronics Co SGHI467 Portable Tablet Computer with Multi-band UMTS/GSM/EDGE/LTE/WLAN and Bluetooth User Manual i467

Samsung Electronics Co Ltd Portable Tablet Computer with Multi-band UMTS/GSM/EDGE/LTE/WLAN and Bluetooth i467

UserManual.wiki >

Samsung Electronics Co >

SGHI467 User Manual >

Contents

1. Users Manual 1
2. Users Manual 2

Users Manual 1

4G LTE TABLETUser ManualPlease read this manual before operating yourtablet, and keep it for future reference. DRAFT For Internal Use Only

SGH-I467_UM_English_UCMD8_WC_050213_F1Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Open Source SoftwareSome software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:http://opensource.samsung.com.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT For Internal Use Only

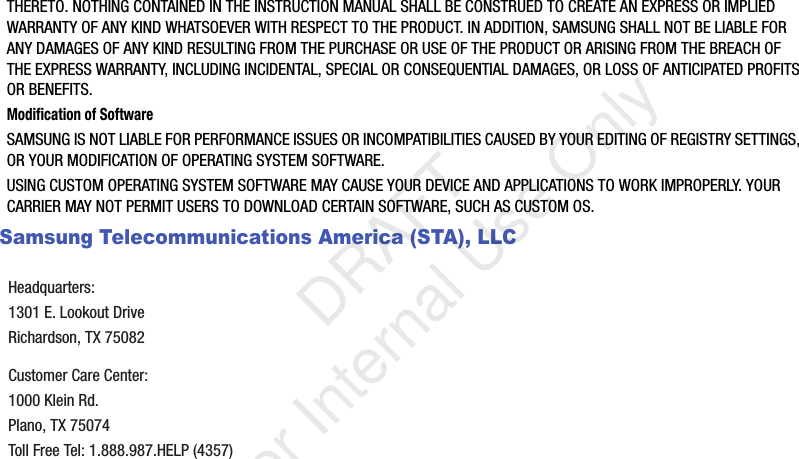

THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.Modification of SoftwareSAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS.Samsung Telecommunications America (STA), LLCHeadquarters:1301 E. Lookout DriveRichardson, TX 75082Customer Care Center:1000 Klein Rd.Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357) DRAFT For Internal Use Only

1Table of ContentsSection 1: Getting Started ...........................6Understanding This User Manual . . . . . . . . . . . .6Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Installing the SIM Card . . . . . . . . . . . . . . . . . . .9Turning Your Device On and Off . . . . . . . . . . . .10Setting Up Your Device . . . . . . . . . . . . . . . . . .10Creating a New Google Account . . . . . . . . . . .11Creating a Samsung Account . . . . . . . . . . . . .11Retrieving Your Google Account Password . . . . 12Memory Card . . . . . . . . . . . . . . . . . . . . . . . . .12Locking and Unlocking the Touch Screen . . . .13Troubleshooting . . . . . . . . . . . . . . . . . . . . . . .13Section 2: Understanding Your Device .....14Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . .15Home Screen . . . . . . . . . . . . . . . . . . . . . . . . .17Navigating Your Device . . . . . . . . . . . . . . . . . .19S Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20Notifications . . . . . . . . . . . . . . . . . . . . . . . . . .23Status Details . . . . . . . . . . . . . . . . . . . . . . . . .23Quick Settings . . . . . . . . . . . . . . . . . . . . . . . . .23Status Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . .27Primary Shortcuts . . . . . . . . . . . . . . . . . . . . . .28Widgets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28App Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . .28Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29Wallpapers . . . . . . . . . . . . . . . . . . . . . . . . . . .30Multi Window Tray . . . . . . . . . . . . . . . . . . . . . .30Apps Screen . . . . . . . . . . . . . . . . . . . . . . . . . .32Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . .32Section 3: Contacts and Accounts ...........34Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40Section 4: Entering Text ...........................42Text Input Methods . . . . . . . . . . . . . . . . . . . . .42Using the Samsung Keyboard . . . . . . . . . . . . .42 DRAFT For Internal Use Only

2Using the Handwriting Feature . . . . . . . . . . . . 46Using Google Voice Typing . . . . . . . . . . . . . . . 47Entering Text Using Swype . . . . . . . . . . . . . . . 47Section 5: Messaging ............................... 49Types of Messages . . . . . . . . . . . . . . . . . . . . 49Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Google Talk . . . . . . . . . . . . . . . . . . . . . . . . . . 55Google+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 59ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59Section 6: Music ....................................... 61Listening to Music . . . . . . . . . . . . . . . . . . . . . 61Google Play Music . . . . . . . . . . . . . . . . . . . . . 61Music Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . 62Music Player . . . . . . . . . . . . . . . . . . . . . . . . . 62Section 7: Photos and Video .................... 68Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68Video Player . . . . . . . . . . . . . . . . . . . . . . . . . . 75Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77Section 8: Connections .............................82Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84Wi-Fi Direct . . . . . . . . . . . . . . . . . . . . . . . . . . 86Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87Managing Downloads . . . . . . . . . . . . . . . . . . . 89Kies Via Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . 89Synchronizing with Windows Media Player . . . 90Connecting as a Mass Storage Device . . . . . . 91Section 9: Applications .............................92Updating Applications . . . . . . . . . . . . . . . . . . . 92GPS Applications . . . . . . . . . . . . . . . . . . . . . . 92Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93AllShare Play . . . . . . . . . . . . . . . . . . . . . . . . . 94Amazon Kindle . . . . . . . . . . . . . . . . . . . . . . . . 95aNote HD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95AT&T AllAccess . . . . . . . . . . . . . . . . . . . . . . . 97AT&T Device Help . . . . . . . . . . . . . . . . . . . . . . 97AT&T Locker . . . . . . . . . . . . . . . . . . . . . . . . . 97AT&T Ready2Go . . . . . . . . . . . . . . . . . . . . . . . 97Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 DRAFT For Internal Use Only

3Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101Chrome . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . .101Downloads . . . . . . . . . . . . . . . . . . . . . . . . . .101Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102Flipboard . . . . . . . . . . . . . . . . . . . . . . . . . . . .102Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102Game Hub . . . . . . . . . . . . . . . . . . . . . . . . . . .103Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103Google Search . . . . . . . . . . . . . . . . . . . . . . . .103Google+ . . . . . . . . . . . . . . . . . . . . . . . . . . . .104Group Play . . . . . . . . . . . . . . . . . . . . . . . . . .104Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105Local . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106Messenger . . . . . . . . . . . . . . . . . . . . . . . . . .107Music Hub . . . . . . . . . . . . . . . . . . . . . . . . . . .107Music Player . . . . . . . . . . . . . . . . . . . . . . . . .107My Files . . . . . . . . . . . . . . . . . . . . . . . . . . . .107myAT&T . . . . . . . . . . . . . . . . . . . . . . . . . . . .108Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . .109Paper Artist . . . . . . . . . . . . . . . . . . . . . . . . . .109Play Books . . . . . . . . . . . . . . . . . . . . . . . . . . .110Play Magazines . . . . . . . . . . . . . . . . . . . . . . .110Play Movies & TV . . . . . . . . . . . . . . . . . . . . . .110Play Music . . . . . . . . . . . . . . . . . . . . . . . . . . .111Play Store . . . . . . . . . . . . . . . . . . . . . . . . . . .111Polaris Office . . . . . . . . . . . . . . . . . . . . . . . . .112S Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112S Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112Samsung Apps . . . . . . . . . . . . . . . . . . . . . . .113Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113Smart Remote . . . . . . . . . . . . . . . . . . . . . . . .113Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114Video Player . . . . . . . . . . . . . . . . . . . . . . . . . .114Voice Search . . . . . . . . . . . . . . . . . . . . . . . . .114WatchOn . . . . . . . . . . . . . . . . . . . . . . . . . . . .114World Clock . . . . . . . . . . . . . . . . . . . . . . . . . .117YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . .118YPmobile . . . . . . . . . . . . . . . . . . . . . . . . . . . .118 DRAFT For Internal Use Only

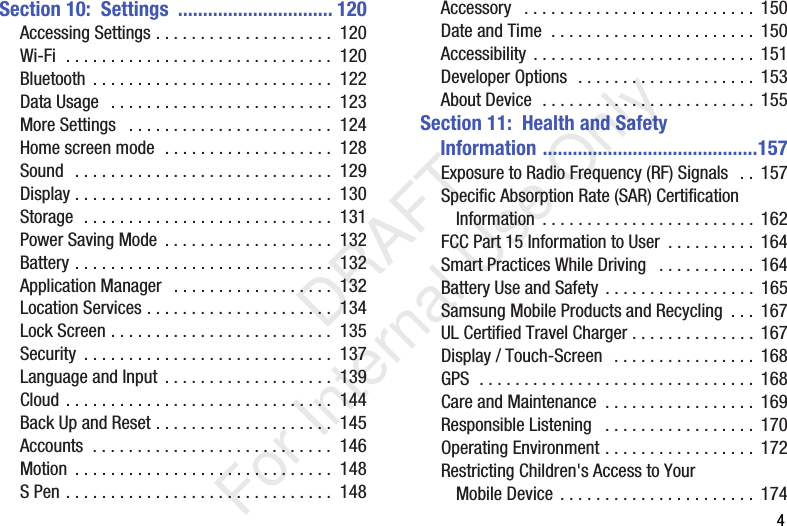

4Section 10: Settings ............................... 120Accessing Settings . . . . . . . . . . . . . . . . . . . . 120Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . 122Data Usage . . . . . . . . . . . . . . . . . . . . . . . . . 123More Settings . . . . . . . . . . . . . . . . . . . . . . . 124Home screen mode . . . . . . . . . . . . . . . . . . . 128Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131Power Saving Mode . . . . . . . . . . . . . . . . . . . 132Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132Application Manager . . . . . . . . . . . . . . . . . . 132Location Services . . . . . . . . . . . . . . . . . . . . . 134Lock Screen . . . . . . . . . . . . . . . . . . . . . . . . . 135Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137Language and Input . . . . . . . . . . . . . . . . . . . 139Cloud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144Back Up and Reset . . . . . . . . . . . . . . . . . . . . 145Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . 146Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148S Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . 150Date and Time . . . . . . . . . . . . . . . . . . . . . . . 150Accessibility . . . . . . . . . . . . . . . . . . . . . . . . . 151Developer Options . . . . . . . . . . . . . . . . . . . . 153About Device . . . . . . . . . . . . . . . . . . . . . . . . 155Section 11: Health and Safety Information ...........................................157Exposure to Radio Frequency (RF) Signals . . 157Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . . . . . . . . . . . . . . . 162FCC Part 15 Information to User . . . . . . . . . . 164Smart Practices While Driving . . . . . . . . . . . 164Battery Use and Safety . . . . . . . . . . . . . . . . . 165Samsung Mobile Products and Recycling . . . 167UL Certified Travel Charger . . . . . . . . . . . . . . 167Display / Touch-Screen . . . . . . . . . . . . . . . . 168GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168Care and Maintenance . . . . . . . . . . . . . . . . . 169Responsible Listening . . . . . . . . . . . . . . . . . 170Operating Environment . . . . . . . . . . . . . . . . . 172Restricting Children's Access to Your Mobile Device . . . . . . . . . . . . . . . . . . . . . . 174 DRAFT For Internal Use Only

5FCC Notice and Cautions . . . . . . . . . . . . . . . .174Other Important Safety Information . . . . . . . . 174Section 12: Warranty Information ..........176Standard Limited Warranty . . . . . . . . . . . . . . 176End User License Agreement for Software . . . 181Section 13: Samsung Product Registration ..........................................189Index .........................................................190 DRAFT For Internal Use Only

Getting Started 6Section 1: Getting StartedThis section helps you to quickly start using your device.Understanding This User ManualThe sections of this manual generally follow the features of your device. A robust index for features begins on page 190.Also included is important safety information, beginning on page 157, that you should know before using your device.This manual gives navigation instructions according to the default display settings. If you select other settings, navigation steps may be different.Unless otherwise specified, all instructions in this manual assume that you are starting from a Home screen. To get to a Home screen, you may need to unlock the device. For more information, refer to “Locking and Unlocking the Touch Screen” on page 13.Note: Instructions in this manual are based on default settings and may vary from your device depending on the software version on your device and any changes to the device’s settings.Note: Unless stated otherwise, instructions in this user manual start with the device unlocked, at the Home screen.All screen images in this manual are simulated. Actual displays may vary depending on the software version of your device and any changes to the device’s settings.Special TextIn this manual, some text is set apart from the rest. This special text is intended to point out important information, share quick methods for activating features, define terms, and more. The definitions for these methods are as follows:• Notes: Presents alternative options for the current feature, menu, or sub-menu.• Tips: Provides quick or innovative methods or useful shortcuts.• Important: Points out important information about the current feature that could affect performance.• Warning: Brings important information to your attention that can help to prevent loss of data or functionality or damage to your device. DRAFT For Internal Use Only

7Text ConventionsThis manual provides condensed information about how to use your device. To make this possible, the following text conventions are used to represent often-used steps:BatteryYour device is powered by a rechargeable, standard Li-Ion battery. A Wall/USB Charger (Charging Head and USB cable) are included with the device for charging the battery.Note: The battery comes partially charged. You must fully charge the battery before using your device for the first time.After the first charge, you can use the device while charging.Warning! Use only approved charging devices. Approved accessories are designed to maximize battery life. Using other accessories may invalidate your warranty and may cause damage.Battery IndicatorThe Battery icon in the Status Bar shows the battery power level. When battery power is 15% or less, your device prompts you to charge the battery. If you continue to operate the device without charging, the device powers off. For battery use information, see “About Device” on page 155.Tip: Touch the Time field to display battery charge status.Charging the BatteryYour device comes with a Wall/USB Charger (Outlet Connector, Charging Head, and USB cable) to charge your device from any standard AC power outlet.➔ Arrows are used to represent the sequence of selecting successive options in longer, or repetitive, procedures. For example:From a Home screen, touch Apps ➔ Settings ➔Display ➔ Screen timeout. DRAFT For Internal Use Only

Getting Started 8Note: The battery comes partially charged. You must fully charge the battery before using your device for the first time.After the first charge, you can use the device while charging.1. Insert the USB cable into the Charging Head (1).2. Insert the USB cable into the device’s Charger/Accessory Port (2).3. Plug the Charging Head into a standard AC power outlet.Warning! While the device is charging, if the touch screen does not function due to an unstable power supply, unplug the USB power adapter from the power outlet or unplug the USB cable from the device.CorrectIncorrectCorrectIncorrect DRAFT For Internal Use Only

94. When charging is complete, unplug the Charging Head from the power outlet and remove the USB cable from the device.Installing the SIM CardWhen you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, available optional services, and many others features.Important! The plug-in SIM card information and its contacts can be easily damaged by scratching or bending, so be careful when handling, inserting, or removing the card. Keep all SIM cards out of reach of small children. Carefully slide the SIM card into the SIM card socket (as shown) until the card locks into place. The illustration shows the screen facing up.•Make sure that the card’s gold contacts face downward and that the notched corner of the card goes in first.Note: If the card is not inserted correctly, the device will not detect the SIM card. Re-orient the card back into the slot if the SIM is not detected. DRAFT For Internal Use Only

Getting Started 10Turning Your Device On and OffTurning Your Device On Press and hold the Power/Lock Key .Note: Your device’s internal antenna is located along the top back of the device. Do not block the antenna; doing so may affect signal quality and may cause the device to operate at a higher power level than is necessary. For more information, refer to “GPS Applications” on page 92.Turning Your Device Off1. Press and hold the Power/Lock Key .2. At the prompt, touch Power off ➔ OK.Setting Up Your DeviceWhen you first turn on your device, you are asked to set up a few things. To do that, the following screens display. Some screens can be skipped (touch Skip) or re-displayed (touch Back). Some screens display depending on the options you choose.1. When you first turn on your tablet, the Let’s set up your device! screen displays. 2. The default language for your tablet is English. If you would like to select Spanish, tap Español on the bottom right-hand side of the screen.3. Tap Terms & Conditions, read the End User License Agreement for Ready2Go, then tap Back.4. Tap get started.– or –Touch Cancel to set up your tablet later. You can access Ready2Go by tapping Applications ➔ AT&T Ready2Go .5. Read and follow the instructions on each screen to set up your tablet. DRAFT For Internal Use Only

11Creating a New Google AccountIn order to utilize your device to the fullest extent, you will need to create a Google™ Account when you first use your device. With a Google Account, Google applications will always be in sync between your tablet and computer.If you did not create a new account during the setup procedure when you first turned your tablet on, follow these steps:1. From the Home screen, tap ➔ Gmail.The Add a Google Account screen displays.2. Tap New to create a new Google account.– or –If you already have a Google account, tap Existing to sign in and add the account to your tablet.3. Follow the on-screen instructions to add a Google Account.Note: Once you have created a Google account, you only need to sign in.Creating a Samsung AccountAn active Samsung account is required to begin accessing applications such as ChatON and Samsung Hub. If you did not create a Samsung account when you first set up your tablet, follow these steps:1. From the home screen, tap ➔ Settings ➔ Add account.2. Tap Samsung account.3. Tap Create new account.4. Select your Country or region..5. Tap Terms and conditions to read them and tap .6. Tap Privacy policy to read it and tap .7. Tap the I accept all the terms above checkbox.8. Tap Agree.9. Enter the required information and tap Sign up.You Samsung account is created. DRAFT For Internal Use Only

Getting Started 12Retrieving Your Google Account PasswordA Google account password is required for Google applications. If you misplace or forget your Google Account password, follow these instructions to retrieve it:1. From your computer, use an Internet browser to navigate to http://google.com/accounts.2. Once the URL loads, click on the Can’t access your account? link and follow the on-screen instructions.Memory CardYour device supports removable microSD or microSDHC memory cards with maximum capacities of 64 GB (depending on the memory card manufacturer and type). Memory cards are used to store music, photos, videos, and other files.Installing a Memory Card1. Open the Memory Card Slot cover and turn to expose the slot.2. With the gold contacts facing down, carefully slide the memory card into the slot, pushing gently until it clicks into place.3. Replace the Memory Card Slot cover.Removing a Memory CardImportant! To prevent damage to information stored on the memory card, unmount the card before removing it from the device.1. From a Home screen, touch Apps ➔ Settings ➔Storage.2. Under SD card, touch Unmount SD card and then touchOK.CorrectIncorrect DRAFT For Internal Use Only

133. Open the Memory Card Slot cover and turn to expose the slot.4. Gently press down on the memory card (1), so that it pops out from the slot, and carefully pull the card out (2).5. Replace the Memory Card Slot cover.For more information, refer to “Memory Card” on page 32.Locking and Unlocking the Touch Screen1. Press to lock the touch screen.2. Press again to display the lock screen then swipe your finger across the screen to unlock.Note: Swipe is the default screen locking method. To change your screen lock, see “Screen Lock” on page 135.Tip: From the Lock screen, touch and swipe one of the app shortcut icons to launch that application.TroubleshootingIf your device has fatal errors, hangs up, or freezes, you may need to reset the device to regain functionality.• If your device is frozen and unresponsive, press and hold the Power/Lock Key for 8 to 10 seconds. DRAFT For Internal Use Only

Understanding Your Device 14Section 2: Understanding Your DeviceThis section outlines key features of your device and describes the screen and the icons that appear when the device is in use. It also shows how to navigate through the device.Features• 8.0-inch WXGA (1280x800) TFT (PLS) LCD touch screen• Android Version 4.1.2 • 4G Network with 1.6 GHz quad-core processor• Full HTML Web Browser• Bluetooth 4.0 Wireless technology. For more information, refer to “Bluetooth” on page 122.• Built-in Wi-Fi technology (802.11 a/b/g/n/h)• 5 Megapixel camera and camcorder, plus 1.3 Megapixel forward-facing camera for video chat• Full integration of Google applications (Gmail, YouTube, Google Maps, and Voice Search)• Photo Gallery that supports GIF, AGIF, JPEG, PNG, BMP, WBMP, and WEBP formats• Messaging includes Gmail, Email (corporate and personal), Google Talk (Instant Messaging), Google+, and Messenger• HD Video Player (1080p)• DivX Certified® to play DivX® video up to HD 720p, including premium content• Supports HDMI/MHL connections to connect electronic devices to high-definition televisions (HDTVs) and displays.• Music player that supports MP3, AAC/AAC+/EAAC+, WMA, OGG (vorbis), FLAC, AC-3• 2 GB RAM memory and 16GB on-board memory, which is used for data storage and access• Support for microSD and microSDHC Memory Cards• S Pen for writing and playing games• Preloaded applications such as AllShare Play, Google Play Books, Google Play Store, Music Hub, and Polaris Office. For more information, refer to “More Application Information” on page 32. DRAFT For Internal Use Only

15Front ViewThe following items can be found on the front of your device as illustrated.1.External Speakers: Used in music or video playback, notification tones, and for other sounds.2.Light Sensor: Used to control screen brightness automatically and when taking photos with the front-facing Camera.3.Front-facing Camera Lens: Used when taking photos or recording videos.4.Display Screen: The orientation of the display screen rotates with the tablet as you turn it. You can turn this feature on and off. For more information, refer to “System Accessibility” on page 151.3241 DRAFT For Internal Use Only

Understanding Your Device 16Back View1.3.5mm Headset Jack: Plug in for headphones.2.Power/Lock Key: Press and hold to turn the device on or off. Press to lock the device or to wake the screen for unlocking.3.Volume Key: From a Home screen, press to adjust Master Volume. During music playback, press to adjust volume.4.Infrared Blaster: Used to emit infrared signals used for controlling external devices. For more information, refer to “WatchOn” on page 114.5.S Pen: A built-in stylus that allows you to perform various functions. For more information, refer to “S Pen” on page 20.6.Charger/Accessory Port: Plug in a USB cable for charging or to sync music and files.7.SIM Card Slot: Install your SIM card here.8.Memory Card Slot: Install a memory card for storage of files.9.Camera Lens: Used when taking photos or recording videos.168723459 DRAFT For Internal Use Only

17Home ScreenThe Home screen is the starting point for using your device.Note: Unless stated otherwise, instructions in this user manual start with the device unlocked, at the Home screen.1.Widgets: Applications that run on the Home screen. Some widgets are found on the Home screen by default. For more information, refer to “Widgets” on page 28.2.AT&T AllAccess: Allows you to view and manage your AT&Tdata plan.3.Home screen: The starting point for using your device. Place shortcuts, widgets, and other items to customize your device to your needs.4.App Shortcuts: Shortcuts to common applications. For more information, refer to “App Shortcuts” on page 28.5.Primary Shortcuts: Shortcuts to common features. These shortcuts are found on the Home screen by default. For more information, refer to “Primary Shortcuts” on page 28.6.Apps: Display the Apps screen.7.Current screen indicator: Indicates which Home screen is being displayed. For more information, refer to “Extended Home Screen” on page 18.8.Time: Displays the current time. DRAFT For Internal Use Only

Understanding Your Device 189.Status Icons: Indicate the status of your tablet. For more information, refer to “Status Bar” on page 27.Extended Home ScreenThe Home screen consists of the Home panel, plus four panels that extend beyond the display width to provide more space for adding shortcuts and widgets.Slide your finger horizontally across the screen to scroll to the left or right side panels. As you scroll, the indicator at the top of the display shows your current position.Note: The center panel displays when you touch Home.Customizing the Home ScreensTo customize the Home screens to suit your preferences:1. Navigate to one of the Home screen panels.2. Touch and hold on the screen until the Home screen pop-up displays.– or –Use the S Pen to touch and hold on the screen until the Home screen pop-up displays.3. Touch Set wallpaper to change the Home screen wallpaper. For more information, refer to “Wallpapers” on page 30.4. Under Add to Home screen touch:• Apps and widgets to add app or widget shortcuts on the Home screen.•Folder to add a folder on a Home screen. For more information, refer to “Folders” on page 29.•Page to add a Home screen.Display SettingsYou can customize display screen settings to your preferences. For more information, refer to “Display” on page 130.Adding and Removing Home Screen PanelsYour device comes with seven Home screen panels. You can customize the Home screen by removing or adding panels.Note: The panel in the center position displays when you touch Home. DRAFT For Internal Use Only

191. From a Home screen, pinch the screen from the left and right side to the center to display the editing screen.Tip: Touch and hold on the screen until the Home screen pop-up displays. Under Add to Home screen, touch Page to add a Home screen.2. Use these controls to configure panels:3. To rearrange the order of panels, touch and drag a panel to a new location.4. Touch Back to return to the Home screenNavigating Your DeviceUse command buttons and the touch screen to navigate.Command ButtonsBackTouch Back to return to the previous screen, option, or step.• Touch an option in the list.Remove: Touch and drag a panel to the Trash Can to remove the panel from the Home screen. It will turn red.Add: Touch to add a new panel, up to a total of seven. This option is available when less than seven panels have been added.Default Home Page: Touch the Home icon at the upper right corner of a panel to set it as the default home screen. DRAFT For Internal Use Only

Understanding Your Device 20Application BarThe Application Bar is the area along the top of various application screens. It usually contains the Search and Menu icons, as well as other icons that are used to display options and settings.Screen NavigationTouchTouch items to select or launch them. For example:• Touch the on-screen keyboard to enter characters or text.• Touch a menu item to select it.• Touch an application’s icon to launch the application.Touch and HoldActivate on-screen items. For example:• Touch and hold a widget on the home screen to move it.• Touch and hold on a field to display a pop-up menu of options.Swipe, Flick, or SlideSwipe, flick, or slide your finger vertically or horizontally across the screen. For example:• Unlocking the screen.• Scrolling the Home screens or a menu.PinchUse two fingers, such as your index finger and thumb, to make an inward pinch motion on the screen, as if you are picking something up, or an outward motion by sweeping your fingers out.For example:• Pinch a photo in Gallery to zoom in.• Pinch a webpage to zoom in or out.S PenThe S Pen is a stylus that assists you in performing different functions. By using the Pen button, you can minimize having to switch between touch and pen input.12 DRAFT For Internal Use Only

211.Pen button: by pressing the Pen button, you can add functionality to the S Pen. For more information, refer to “Using the S Pen” on page 22.2.Stylus tip: the tip of the S Pen is used for tapping the screen.S Pen SettingsThere are several settings available that control the behavior of the S Pen. For example, you can choose a sound that will play when you remove the S Pen from or return it to the slot in your device.Instead of the default menu of shortcuts that displays when you remove the S Pen from your device, you can change the setting so that the S Note, Calendar, Crayon physics, PS Touch, or Polaris Office app launches.Also, there is a setting to display a hovering pen icon on the screen when the pen tip is near the screen.Plus, there is a setting that helps to conserve battery power by causing your tablet not to try to detect the S Pen when it is in its slot in your tablet.For more information, refer to “S Pen” on page 148.Removing the S Pen From Your DeviceThe S Pen is conveniently stored in your device to make it easy to find.To remove the S Pen, follow these steps:1. Locate the S Pen at the lower right corner of the device.Use your fingernail or a sharp object to pull the end of the S Pen out of the device.(1)2. Pull the S Pen out of the device (2). DRAFT For Internal Use Only

Understanding Your Device 22Using the S PenThere are several different functions you can perform by using the S Pen.S Pen Screen OperationsThe S Pen can be used for various screen operations.• Touch a command button, such as Back, or icons, such as Apps or Email, with the S Pen instead of your finger. The result is the same.• To sweep to the next screen, touch and drag the screen to the left or right.Launch Popup Note Mini AppTo take quick notes or jot down ideas, you can launch the Popup Note Mini App from the default menu of shortcuts that displays when you remove the S Pen from your device. You can also launch the Popup Note Mini App from any screen with the S Pen.To open the Popup Note Mini App: Hold the S Pen button and double-tap the screen.Tip: Touch to launch the S Note app. For information on using your S Pen with the S Note app, see “S Note” on page 112. DRAFT For Internal Use Only

23S Pen Screen CaptureTo capture a screen image, hold the S Pen button and press and hold the S Pen anywhere on the screen. Files are saved in the Screenshots folder. For more information, refer to “S Pen Screen Capture” on page 23.NotificationsWhen you receive a notification, the Notification icon displays in the System Bar, to the left of the Time. Notifications indicate the arrival of Gmail, Email, alarms, and more.Status DetailsTo display the current date and time, battery status, and Wi-Fi connectivity status, open Status Details.1. Tap and swipe down the top of the screen to see the Quick Settings, Recommended shortcuts using your S Pen and any notifications.Note: Recommended shortcuts for your S Pen are only displayed when the S Pen is removed from your tablet.2. Touch a notification summary to respond to it.3. Touch Home or Back or use the S Pen and swipe upwards to close the Status Details screen.Quick SettingsTo view and control the most common settings for your tablet, as well as accessing the complete Settings application, and viewing your notifications, open the Quick Settings panel.1. Tap and swipe down the top of the screen to see the Quick Settings. DRAFT For Internal Use Only

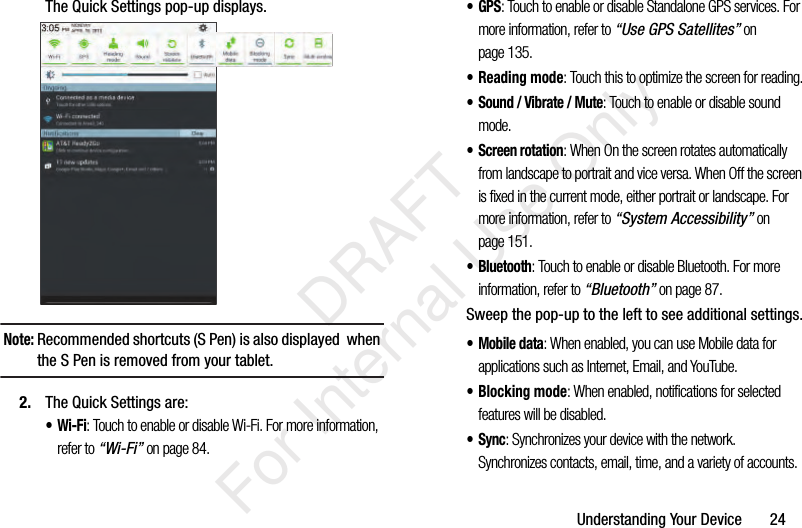

Understanding Your Device 24The Quick Settings pop-up displays.Note: Recommended shortcuts (S Pen) is also displayed when the S Pen is removed from your tablet.2. The Quick Settings are:•Wi-Fi: Touch to enable or disable Wi-Fi. For more information, refer to “Wi-Fi” on page 84.•GPS: Touch to enable or disable Standalone GPS services. For more information, refer to “Use GPS Satellites” on page 135.• Reading mode: Touch this to optimize the screen for reading.• Sound / Vibrate / Mute: Touch to enable or disable sound mode.• Screen rotation: When On the screen rotates automatically from landscape to portrait and vice versa. When Off the screen is fixed in the current mode, either portrait or landscape. For more information, refer to “System Accessibility” on page 151.• Bluetooth: Touch to enable or disable Bluetooth. For more information, refer to “Bluetooth” on page 87.Sweep the pop-up to the left to see additional settings.• Mobile data: When enabled, you can use Mobile data for applications such as Internet, Email, and YouTube. • Blocking mode: When enabled, notifications for selected features will be disabled. •Sync: Synchronizes your device with the network. Synchronizes contacts, email, time, and a variety of accounts. DRAFT For Internal Use Only

25• Multi window: When enabled, multiple screens may display at one time.3. Touch the Brightness slider and drag it to set the brightness or touch Auto to allow the device to set brightness automatically based on available light and battery charge status.4. Touch Settings to open the Settings application. For more information, refer to “Settings” on page 120.5.Notifications displays system notifications. Touch a notification entry to display the details. Touch Clear to remove Notification Icons from the System Bar.For more information, refer to “Notifications” on page 23.6. Touch or or use the S Pen and swipe up to close the Status Details screen.Notifications display in the System Bar and, in some cases, under the Notifications heading in the Quick Settings to alert you to activity on the tablet such as new messages, application downloads, software updates, and more. The following table lists those icons.System Alert: Check under the Notifications heading in the Quick Settings for alerts.Download: An application or file is being downloaded or has been downloaded to the device.Download Successful: A recent application download or update completed successfully.New Email Message: You have new email. Touch Reply to view and answer the email.New Gmail Message: You have new Gmail. Touch the icon for additional information.Google Talk Invitation: Someone has invited you to chat using Google Talk.Music player: Music is playing. Touch the Music icon or touch the Status Details to see the song title and music player controls. For more information, refer to “Music Player” on page 62. DRAFT For Internal Use Only

Understanding Your Device 26Music App: A song is playing in the Music app. Touch the Music icon or touch the Status Details to see the song title and music player controls. For more information, refer to “Google Play Music” on page 61.Wi-Fi networks available: An open Wi-Fi network is in range.GPS Active: Displays when GPS is active.Software update: There may be a software update available for this device. For more information, refer to “Software Update” on page 155.Updates Available: Updates to the applications you have downloaded are available.Set up input methods: When the keyboard is being displayed, touch this icon to display a menu of quick keyboard settings.Wi-Fi Direct: Displays when Wi-Fi Direct is active and your tablet is connected to another device. For more information, refer to “Wi-Fi Direct” on page 86.Screenshot Captured: A screenshot has been captured. For more information, refer to “S Pen Screen Capture” on page 23.Nearby Devices: The Nearby devices setting is enabled. For more information, refer to “Nearby Devices” on page 127.Blocking Mode: Notifications for selected features are disabled. For more information, refer to “Blocking Mode” on page 128.Event: This is a notification for one or more events. For more information, refer to “Creating an Event or Task” on page 100.Navigation Active: The Navigation App is active. For more information, refer to “Navigation” on page 109.USB Connected: Device is connected to a computer using a USB cable. DRAFT For Internal Use Only

27Status BarThe Status Bar is part of the System Bar and displays icons to show network status, battery power, and other details.Battery Level: Shown fully charged.Charging Indicator: Battery is charging. Device Power Critical: Battery has only three percent power remaining. At about 15 percent power remaining, a pop-up is displayed to remind you to charge immediately.USB Connection Indicator: The device is connected to a computer using a USB cable, but it is not charging. The battery is only charged while connected to a computer, if the device is turned off. When the device is off, press the Power/Lock key to see the battery charging indicator.Battery Fully Charged: When the battery is fully charged, this indicator is displayed.Airplane Mode: Indicates that the Airplane Mode is active, which allows you to use many of your device’s features, but it cannot access online information or applications.Bluetooth Active: Bluetooth is turned on. For more information, refer to “Bluetooth” on page 87.Bluetooth Connected: Your device is connected to a Bluetooth device.Wi-Fi Active: Wi-Fi is connected, active, and communicating with a Wireless Access Point (WAP).Alarm Set: Displays when you set an alarm to ring at a specified time. For more information, refer to “Alarm” on page 93.Smart stay: Set the screen to stay on as long as you look at it. For more information, refer to “Display” on page 130. DRAFT For Internal Use Only

Understanding Your Device 28Primary ShortcutsPrimary Shortcuts display at the bottom of the main Home screen.Tip: The main Home screen is usually the center Home screen.The default Primary Shortcuts are: Email, S Note, Browser, Camera, Settings, and Apps.WidgetsWhen you first turn on your tablet, there are various widgets on the center Home screen. They can also appear on the Home screens to the left and right of the center Home screen.Widgets are self-contained applications that you can place on the Home screens to access your favorite features.Adding Widgets to a Home screen1. Navigate to the Home screen on which you want to place the Widget and touch Apps.2. Touch the Widgets tab.Note: Swipe across the screen horizontally to view all Widgets.3. Touch and hold the widget’s icon until the Home screen displays, then slide your finger where you want to place the icon and release it.Note: There must be room on the screen where you want to place the widget, otherwise the widget will not add to the Home screen.Removing Widgets Touch and hold the Widget until the Remove icon displays, then drag the widget to the Remove icon.Note: This action does not actually delete the Widget, it just removes it from the current Home screen.App ShortcutsUse App Shortcuts for quick access to applications or features, such as Email or other applications.1. Navigate to the Home screen on which you want to place the App Shortcut.2. Touch Apps.– or – DRAFT For Internal Use Only

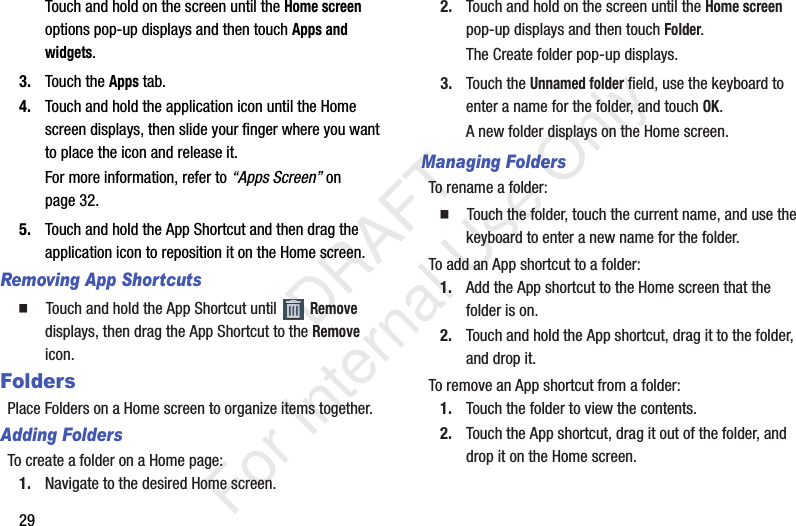

29Touch and hold on the screen until the Home screen options pop-up displays and then touch Apps and widgets.3. Touch the Apps tab.4. Touch and hold the application icon until the Home screen displays, then slide your finger where you want to place the icon and release it. For more information, refer to “Apps Screen” on page 32.5. Touch and hold the App Shortcut and then drag the application icon to reposition it on the Home screen.Removing App Shortcuts Touch and hold the App Shortcut until Remove displays, then drag the App Shortcut to the Remove icon.FoldersPlace Folders on a Home screen to organize items together.Adding FoldersTo create a folder on a Home page:1. Navigate to the desired Home screen.2. Touch and hold on the screen until the Home screen pop-up displays and then touch Folder.The Create folder pop-up displays.3. Touch the Unnamed folder field, use the keyboard to enter a name for the folder, and touch OK.A new folder displays on the Home screen.Managing FoldersTo rename a folder: Touch the folder, touch the current name, and use the keyboard to enter a new name for the folder.To add an App shortcut to a folder:1. Add the App shortcut to the Home screen that the folder is on.2. Touch and hold the App shortcut, drag it to the folder, and drop it.To remove an App shortcut from a folder:1. Touch the folder to view the contents.2. Touch the App shortcut, drag it out of the folder, and drop it on the Home screen. DRAFT For Internal Use Only

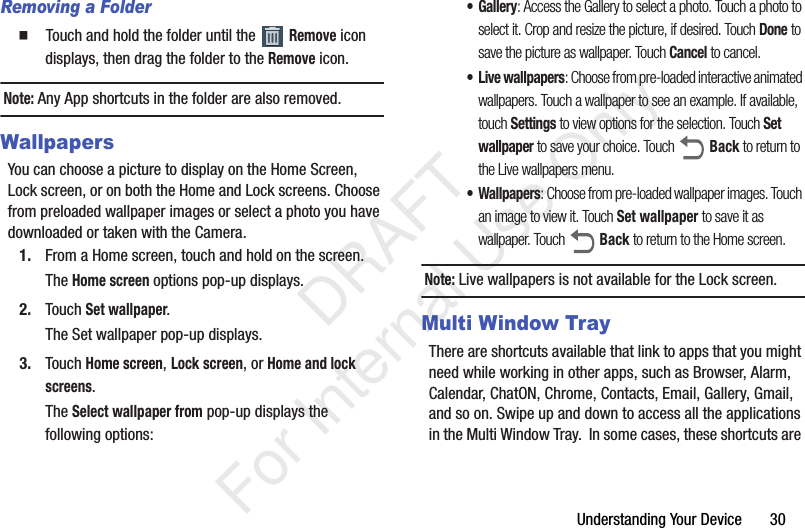

Understanding Your Device 30Removing a Folder Touch and hold the folder until the Remove icon displays, then drag the folder to the Remove icon.Note: Any App shortcuts in the folder are also removed.WallpapersYou can choose a picture to display on the Home Screen, Lock screen, or on both the Home and Lock screens. Choose from preloaded wallpaper images or select a photo you have downloaded or taken with the Camera.1. From a Home screen, touch and hold on the screen.The Home screen options pop-up displays.2. Touch Set wallpaper.The Set wallpaper pop-up displays.3. Touch Home screen, Lock screen, or Home and lock screens.The Select wallpaper from pop-up displays the following options:•Gallery: Access the Gallery to select a photo. Touch a photo to select it. Crop and resize the picture, if desired. Touch Done to save the picture as wallpaper. Touch Cancel to cancel.• Live wallpapers: Choose from pre-loaded interactive animated wallpapers. Touch a wallpaper to see an example. If available, touch Settings to view options for the selection. Touch Set wallpaper to save your choice. Touch Back to return to the Live wallpapers menu.• Wallpapers: Choose from pre-loaded wallpaper images. Touch an image to view it. Touch Set wallpaper to save it as wallpaper. Touch Back to return to the Home screen.Note: Live wallpapers is not available for the Lock screen.Multi Window TrayThere are shortcuts available that link to apps that you might need while working in other apps, such as Browser, Alarm, Calendar, ChatON, Chrome, Contacts, Email, Gallery, Gmail, and so on. Swipe up and down to access all the applications in the Multi Window Tray. In some cases, these shortcuts are DRAFT For Internal Use Only

31actually links to the part of the app you need most and they contain a link to the actual app where you can use other functions.1. To access this menu, touch and hold the Back key.2. From any screen, touch Multi Window Tray at the left of the screen. The Multi Window Tray icons display.Note: Swipe across the screen vertically to view all Multi Window Apps.3. Touch to customize the Multi Window Tray. For more information, refer to “Customizing the Multi Window Tray” on page 31.4. Touch one of the icons to display a mini app pop-up.The pop-up varies depending on the application. Various controls display at the top of the pop-up and a miniature version of the app displays in the body of the pop-up.5. Touch items in the body of the pop-up, such as an email entry or keys on the Calculator.For more information, refer to “Apps Screen” on page 32.Customizing the Multi Window TrayYou can choose applications to display on the Multi Window Tray and arrange them in any order.1. From any screen, touch Multi Window Tray at the bottom, center of the screen.2. Touch . DRAFT For Internal Use Only

Understanding Your Device 323. Touch and drag apps in and out of the tray or to another position in the tray.Apps ScreenThe Apps screen displays all applications installed on your wireless device. Applications that you download and install from Google Play or from the web are also added to a Home screen.The Apps icons are arranged in a Alphabetical grid. To arrange the Apps icons in any order you choose, follow these steps:1. From a Home screen, touch Apps.2. Touch Menu ➔ View type.3. Touch Customizable grid.4. Touch Menu ➔ Edit.5. Touch and hold an icon and drag it to a new position.6. Touch Save to save the changes.You can place shortcuts to applications on the Home screen for quick access to the application. For more information, refer to “App Shortcuts” on page 28.Application InformationTo view information about an App, such as the amount of storage it uses, force the App to stop, uninstall updates, and clear data:1. From a Home screen, touch Apps ➔ Settings ➔ Application manager.2. Touch the All tab, scroll through the apps list, and touch the app to open a screen with details about the App.More Application InformationFor more information, refer to “Applications” on page 92.In the Applications section, each application that is available on the Applications screen is listed and described. If the application is also described in another section of this user manual, then a cross reference to that particular section is provided. Various widgets are also described.Memory CardYour device supports removable microSD or microSDHC memory cards for storing music, photos, videos, and files. DRAFT For Internal Use Only

33Installing and Removing a Memory CardFor more information about installing and removing a memory card, see “Memory Card” on page 12.Important! To prevent damage to information stored on the memory card, always unmount the card before removing it from the device.Formatting a Memory CardFormatting erases all content from the memory card and prepares it for use with your device.Formatting a Memory Card Using Your Device1. From a Home screen, touch Apps ➔ Settings ➔Storage.2. After mounting the SD card, touch Format SD card.3. Follow the prompts to confirm the formatting of the card.Formatting a Memory Card Using Your ComputerConsult your computer and/or memory card reader documentation for information about formatting memory cards. DRAFT For Internal Use Only

Contacts and Accounts 34Section 3: Contacts and AccountsThis section explains how to manage contacts and accounts.AccountsYour device can synchronize with a variety of accounts. With synchronization, information on your device is updated with any information that changes in your accounts.• Samsung account: Add your Samsung account. For more information, refer to “Signing In to your Samsung Account” on page 147.• ChatON: Add your ChatON account. For more information, refer to “ChatON” on page 59.• Email: Add an Email account to sync Contacts. For more information, refer to “Email” on page 52.• Facebook: Add your Facebook account to sync Contacts.• Google: Add your Google account to sync your Contacts, Calendar, and Gmail. For more information, refer to “Gmail” on page 49.• LDAP: Add an LDAP account to find entries in an LDAP directory server.• Microsoft Exchange ActiveSync: Add your Exchange account to sync Contacts, Calendar, and Email.Setting Up Your AccountsSet up and manage your synchronized accounts with the Accounts setting.1. From a Home screen, touch Apps ➔ Settings ➔ Add account.2. Touch the account type.3. Follow the prompts to enter your account credentials to complete the set-up process.Your tablet communicates with the appropriate account servers to set up your account. When complete, your account displays in the Accounts area of the Settings screen. DRAFT For Internal Use Only

35ContactsStore contact information for your friends, family, and colleagues to quickly access information or to send a message.To access Contacts: From a Home screen, touch Apps ➔Contacts.Creating Contacts1. From a Home screen, touch Apps ➔Contacts ➔.The Save contact to pop-up displays.2. Touch Device, SIM, or an account that you have already set up.3. Touch the Contact photo to set up a photo to identify the contact.4. Touch contact fields to display the keyboard and enter information:•Some fields have preset values. Touch the field and touch the desired value. For example, touch the Label tab and touch a label for the field.•Other fields have to be input. Touch the field and use the on-screen keyboard to input information.•Touching the check box next to some fields may make additional fields available.•Touch to add additional fields.Touch to remove an unused field. Also, touch Add another field to add other fields.•Touch the screen and swipe up or down to display additional fields or touch Next on the keyboard to move to the next field.5. Touch Done to remove the keyboard.6. When you finish entering information, touch Save.– or –Touch Cancel to cancel and discard changes.Tip: Display a contact’s record and touch the Email field to send an email, the Address field to display the address on a map, or the Website field to link to the website.Updating ContactsTo update an existing contact:1. From a Home screen, touch Apps ➔Contacts. DRAFT For Internal Use Only

Contacts and Accounts 362. Touch a contact in the Contacts list to view its information.3. Touch Edit.4. Continue entering contact information. For more information, refer to “Creating Contacts” on page 35.Deleting ContactsTo delete a contact:1. From a Home screen, touch Apps ➔Contacts.2. Touch a contact in the Contacts list to view its information, and then touch Delete. At the prompt, touch OK.Managing Photo IDsTo remove or update a contact’s Photo ID:1. From a Home screen, touch Apps ➔Contacts.2. Touch Edit.3. Touch the Contact photo, then touch Remove, Image, Take picture, S Note, Pictures by people. Contacts Display OptionsThere are various ways to display your Contacts and general Contacts settings.1. From a Home screen, touch Apps ➔Contacts.2. Touch Groups, Favorites, or Contacts, above the Contacts List, to view contacts various ways:•Groups: Displays the possible Groups, such as Not assigned, Co-workers, Family, Friends, and so on. The number of contacts in the group is displayed next to the group name. Touch a group name to show only contacts in that group. For more information, refer to “Creating a New Group” on page 38.•Favorites: Show only your favorite, or starred, contacts. For more information, refer to “Favorites” on page 40.•Contacts: Show all your contacts. Touch the Search field and enter a keyword to list contacts that contain that keyword.3. From the Groups, Favorites, or Contacts list, touch Menu to display the options for each grouping.4. From the Contacts list, touch Menu ➔ Settings to display and manage Contacts settings. DRAFT For Internal Use Only

37Linked ContactsYour device can synchronize with multiple accounts, including Google, Corporate Exchange, and other email providers. When you synchronize contacts from these accounts with your device, you may have multiple contacts for one person.Linking, or joining, imported contact records allows you to see all the contact’s numbers and addresses together in one contact entry. Linking also helps you keep your contacts updated, because any changes that your contacts make to their information in the respective accounts is automatically updated the next time you synchronize with the account.Joining Contacts1. From a Home screen, touch Apps ➔Contacts.2. Touch a contact in the Contacts list to view its information.3. Touch Menu ➔ Join contact.4. Touch the contact you want to Join.The joined contact’s information is displayed with the original contact’s information.5. Repeat Steps 3 and 4 to join other contacts.Separating Contacts1. From a Home screen, touch Apps ➔Contacts.2. Touch a contact in the Contacts list to view its information.3. Touch Menu ➔ Separate contact.A list of Joined contacts displays.4. Touch ➔ OK to separate a joined contact.The contact is removed from the list.Sharing Contact InformationYou can send a contact’s information by way of Bluetooth to other Bluetooth devices or in an Email or Gmail as an attachment.Note: Not all Bluetooth devices accept contacts and not all devices support transfers of multiple contacts. Check the target device’s documentation.1. From a Home screen, touch Apps ➔Contacts.2. Touch Menu ➔ Share namecard via. DRAFT For Internal Use Only

Contacts and Accounts 38Tip: Set up a contact record for yourself to share your information with others.3. At the prompt, choose a sending method such as Bluetooth.4. Follow the prompts to send the contact information.Importing and Exporting ContactsTo back up and restore your contacts information, you can export your contacts list to a storage device, such as a PC, or import your contacts list (previously exported) from a storage device.1. Use the USB cable to connect your device to the storage device.2. From a Home screen, touch Apps ➔Contacts.3. Touch Menu ➔ Import/Export.The Import/Export contacts pop-up displays.4. Touch an option and then follow the prompts to complete the operation.GroupsAssign contacts to Groups to make searching for contacts faster or to quickly send messages to group members.Creating a New GroupCreate a new group when you add or edit a contact.1. From a Home screen, touch Apps ➔Contacts.2. Touch Groups then touch .3. Touch the Group name field and use the keyboard to enter a new Group name.4. Touch the Add member and place a Done next to the contacts to be assigned to this group. 5. Touch Save to save the new group name.Tip: Contacts can belong to more than one group. Just touch the contact’s Groups field and touch each group.Once you create a new group, the Contacts List can be set to display only the contacts in that group. For more information, refer to “Contacts Display Options” on page 36. DRAFT For Internal Use Only

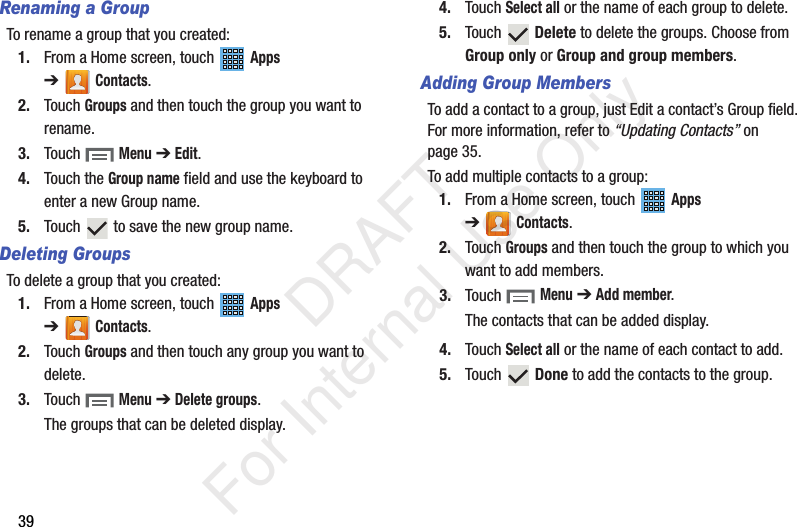

39Renaming a GroupTo rename a group that you created:1. From a Home screen, touch Apps ➔Contacts.2. Touch Groups and then touch the group you want to rename.3. Touch Menu ➔ Edit.4. Touch the Group name field and use the keyboard to enter a new Group name.5. Touch to save the new group name.Deleting GroupsTo delete a group that you created:1. From a Home screen, touch Apps ➔Contacts.2. Touch Groups and then touch any group you want to delete.3. Touch Menu ➔ Delete groups.The groups that can be deleted display.4. Touch Select all or the name of each group to delete.5. Touch Delete to delete the groups. Choose from Group only or Group and group members.Adding Group MembersTo add a contact to a group, just Edit a contact’s Group field. For more information, refer to “Updating Contacts” on page 35.To add multiple contacts to a group:1. From a Home screen, touch Apps ➔Contacts.2. Touch Groups and then touch the group to which you want to add members.3. Touch Menu ➔ Add member.The contacts that can be added display.4. Touch Select all or the name of each contact to add.5. Touch Done to add the contacts to the group. DRAFT For Internal Use Only

Contacts and Accounts 40Removing Group MembersTo remove contacts from a group:1. From a Home screen, touch Apps ➔Contacts.2. Touch Groups and then touch the group from which you want to remove members.3. Touch Menu ➔ Remove member.4. Touch Select all or the name of each contact to remove.5. Touch Done to remove the contacts.Contacts are removed from the group and the group name is removed from each contact’s Group field.FavoritesMark contact records with a gold star to identify them as favorites.Adding FavoritesTo add a contact to the Favorites list:1. From a Home screen, touch Apps ➔Contacts.2. Touch a contact to display it.3. Touch the Star next to the contact name so that it turns gold .Tip: You do not have to edit the contact to change the Starred status.Accessing FavoritesTo view your favorites list:1. From a Home screen, touch Apps ➔Contacts.2. Touch Favorites above the Contacts List.Only your starred contacts display.Removing FavoritesTo remove one or more contacts from your favorites list:1. From a Home screen, touch Apps ➔Contacts.2. Touch Favorites above the Contacts List.3. Touch Menu ➔ Remove from favorites.4. Touch Select all or the name of each contact to remove.5. Touch Done to remove the contacts.To remove one contact from your favorites list: DRAFT For Internal Use Only

411. From a Home screen, touch Apps ➔Contacts.2. Touch a contact to display it.3. Touch the Star next to the contact’s name so that it turns gray to remove it from the Favorites list. DRAFT For Internal Use Only

Entering Text 42Section 4: Entering TextThis section describes how to select the desired text input method when entering characters into your tablet. This section also describes the predictive text entry system that reduces the amount of key strokes associated with entering text.Your tablet comes equipped with an orientation detector that can tell if the tablet is being held in an upright (Portrait) or sideways (Landscape) orientation. This is useful when entering text.Text Input MethodsThere are three text input methods available:• Google Voice typing: allows you to enter text by speaking. • Samsung keyboard (default): Samsung’s on-screen QWERTY keypad that can be used in both portrait and landscape orientation.• Swype: a new way to enter text on touch screens. Instead of tapping each key, use your finger to trace over each letter of a word.You can set a default text entry method in Settings. For more information, refer to “Keyboards and Input Methods” on page 140.To choose a text input method while entering text:1. Touch Choose input method in the Status bar.The Set up input methods pop-up displays.2. Touch an input method to activate it.Using the Samsung KeyboardThe Samsung keyboard is a custom virtual QWERTY keyboard, featuring optional predictive text or continuous input. Input characters by touching the on-screen keys with your finger or use speech recognition.You can enable predictive text, to have the Samsung keyboard match your key touches to common words and displays them. The Personalization option learns from GMal, Facebok and Twitter. Log into these applications to enable the Samsung keyboard to learn from your text input. DRAFT For Internal Use Only

43Keyboard TypesIn addition to the default QWERTY keyboard, there are two other types of the Samsung keyboard: a Floating keyboard and a Split keyboard.To change the keyboard type:1. Use two fingers, such as your index finger and thumb, to make an inward pinch motion on the screen, where the keyboard is displayed.A pop-up displays the three keyboard types.2. Touch one of the keyboard types to display it.The Split keyboard can be moved up and down and the Floating keyboard can be moved anywhere. Tap and hold with two fingers to move the Floating or Split keyboard.Configuring the Samsung KeyboardYou can configure the Samsung keyboard to your preferences. While entering text: Touch in the Status bar to display Choose input method and then select Set up input methods in the pop-up.– or –Touch and hold on the keyboard and then select from the pop-up menu.The Samsung keyboard settings screen displays.For more information, refer to “Samsung Keyboard Settings” on page 140.Entering Upper and Lower Case LettersThe default case is lower case (abc). Enter upper and lower case alphabet letters by touching the Shift key to toggle the case, before touching the letter key(s).• Touch once to switch from abc to Abc mode.• Touch twice to switch to ABC mode. When ABC mode is enabled, the Shift key background turns blue. DRAFT For Internal Use Only

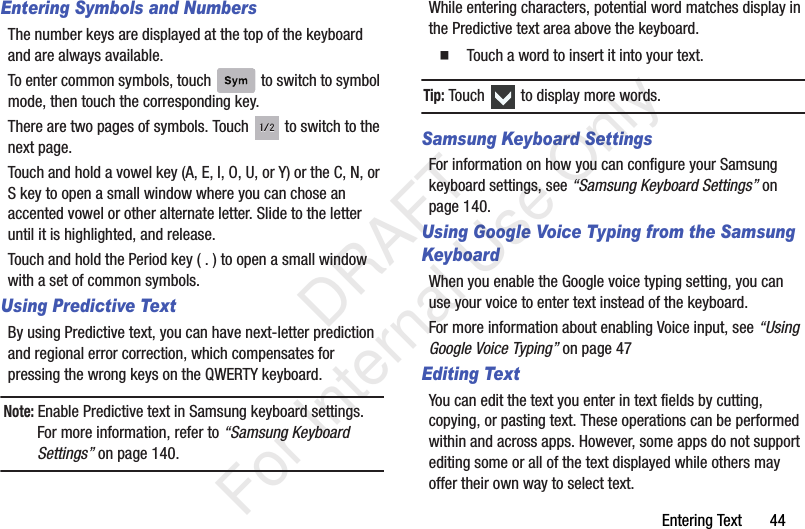

Entering Text 44Entering Symbols and NumbersThe number keys are displayed at the top of the keyboard and are always available.To enter common symbols, touch to switch to symbol mode, then touch the corresponding key.There are two pages of symbols. Touch to switch to the next page.Touch and hold a vowel key (A, E, I, O, U, or Y) or the C, N, or S key to open a small window where you can chose an accented vowel or other alternate letter. Slide to the letter until it is highlighted, and release.Touch and hold the Period key ( . ) to open a small window with a set of common symbols.Using Predictive TextBy using Predictive text, you can have next-letter prediction and regional error correction, which compensates for pressing the wrong keys on the QWERTY keyboard.Note: Enable Predictive text in Samsung keyboard settings. For more information, refer to “Samsung Keyboard Settings” on page 140.While entering characters, potential word matches display in the Predictive text area above the keyboard. Touch a word to insert it into your text.Tip: Touch to display more words.Samsung Keyboard SettingsFor information on how you can configure your Samsung keyboard settings, see “Samsung Keyboard Settings” on page 140.Using Google Voice Typing from the Samsung KeyboardWhen you enable the Google voice typing setting, you can use your voice to enter text instead of the keyboard.For more information about enabling Voice input, see “Using Google Voice Typing” on page 47Editing TextYou can edit the text you enter in text fields by cutting, copying, or pasting text. These operations can be performed within and across apps. However, some apps do not support editing some or all of the text displayed while others may offer their own way to select text. DRAFT For Internal Use Only

45Editing Existing TextTo edit text that you have entered:1. Touch the text at the point you want to edit.The Cursor displays at the point you touched.2. Touch and drag the Cursor to a better position, if necessary.3. Enter additional text or delete text by repeatedly touching the Delete key.Copying, Deleting, or Replacing TextTo select and copy, delete, or replace text:1. Touch and hold the text or word you want to select.The selected text is highlighted with a tab at each end of the selection.2. Touch and drag either tab to select more or less text.Tip: Touch Select all in the Application bar to select all text in the field. Touch on another area of the screen or touch Done to deselect the text.3. Depending on the action you want to take for the selected text, in the Application bar touch:•Select all to highlight all text in the field.•Cut to remove the selected text.•Copy to save the selected text to the clipboard.– or –Enter text by typing or speaking to replace the selection with what you type.Pasting TextTo paste previously copied text:1. Touch the text at the point you want to paste the copied text.The Cursor displays at the point you touched.2. Touch the Cursor.A pop-up displays.3. Touch Paste in the pop-up.To paste text directly from the clipboard:1. Touch the Clipboard key to display the text saved to the clipboard.2. Touch a text block to paste that text where the Cursor is positioned. DRAFT For Internal Use Only

Entering Text 46Closing the KeyboardTo close the keyboard: Touch Close Keyboard.Using the Handwriting FeatureYou can enter text simply by using your finger or the S Pen to handwrite letters on your screen.1. From a screen where you can enter text, activate the keyboard by touching a text input field on the screen.2. If necessary, touch Set up input methods in the Status bar and then touch Samsung keyboard.The Samsung keyboard displays.3. Touch and hold on the keyboard and then select from the pop-up menu.The handwriting pad displays.4. Use your finger tip or the S Pen to write out each character. You can print or use cursive.As you write, suggestions are offered in the word options area in case the correct letters were not recognized.Handwriting Tips• For uppercase letters, write the letter larger than the lowercase letters.• Write a dash (horizontal line) to add a space.• Delete words by sweeping backward across them.• To display numbers and symbols, touch and then touch a number or symbol key. Touch the button marked 1/2 or 2/2 to see more symbols and emoticons. Touch to exit the numbers and symbols keyboard.• To return to the Samsung keyboard, touch .Handwriting SettingsTo change the Handwriting settings:1. Touch and then touch Set up input methods.The Language and input settings screen displays.2. Touch next to Samsung keyboard to display Samsung keyboard settings.3. Touch Handwriting.For more information, refer to “Samsung Keyboard Settings” on page 140.4. Press repeatedly to return to your message. DRAFT For Internal Use Only

47Using Google Voice TypingYou can use your voice to enter text using the Google voice typing feature.While entering text:1. Touch Set up input methods in the Status Bar and then touch Google voice typing in the Set up input methods pop-up.– or –Touch on the keyboard.For more information, refer to “Keyboards and Input Methods” on page 140.2. At the Speak now prompt, speak clearly and distinctly into the microphone.The software converts your voice to text, which is displayed in the message.3. Keep speaking to add more test.4. Touch Done to display the Samsung keyboard.Entering Text Using SwypeSwype™ is a text input method that allows you to enter a word by sliding your finger or stylus from letter to letter, lifting your finger between words. Swype uses error correcting algorithms and a language model to predict the next word. Swype also includes a tapping predictive text system.Enabling and Configuring SwypeThe Samsung keyboard is the default text input method, so to use Swype, you must first change the default keyboard setting. To enable Swype:1. From a screen where you can enter text, touch and drag down from the Notifications area then tap Select input method.2. Tap the Swype radio button. It will turn green.The Swype keyboard is displayed.3. Draw a path through the letters with your finger or S Pen rather than tapping each key. DRAFT For Internal Use Only

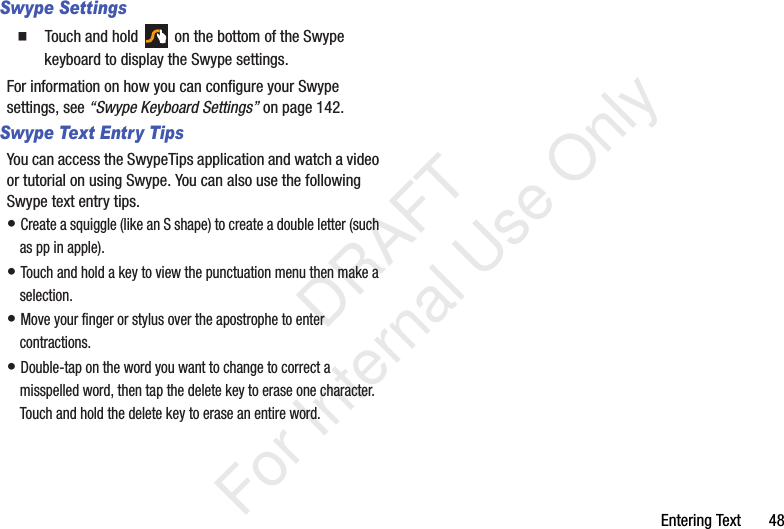

Entering Text 48Swype Settings Touch and hold on the bottom of the Swype keyboard to display the Swype settings.For information on how you can configure your Swype settings, see “Swype Keyboard Settings” on page 142.Swype Text Entry TipsYou can access the SwypeTips application and watch a video or tutorial on using Swype. You can also use the following Swype text entry tips.• Create a squiggle (like an S shape) to create a double letter (such as pp in apple).• Touch and hold a key to view the punctuation menu then make a selection.• Move your finger or stylus over the apostrophe to enter contractions.• Double-tap on the word you want to change to correct a misspelled word, then tap the delete key to erase one character. Touch and hold the delete key to erase an entire word. DRAFT For Internal Use Only

49Section 5: MessagingThis section describes how to send and receive messages and other features associated with messaging.Types of MessagesYour device supports these types of messages:• Gmail: Send and receive Gmail from your Google account.• Email: Send and receive email from your email accounts, including Corporate Exchange mail.• Google Talk: Chat with other Google Talk users.• Google Messenger: Use Google Messenger to bring groups of friends together into a simple group conversation. • ChatON: Use ChatON to send and receive instant messages from any device that has a mobile phone number.GmailSend and receive email with Gmail, Google’s web-based email.Tip: To set up your Google account on your device, use Accounts settings. For more information, refer to “Accounts” on page 146. From a Home screen, touch Apps ➔ Gmail.Setting Up Your Gmail AccountIf you did not set up a Google account during the initial configuration, the first time you launch Gmail, your device prompts you to set up your Google account.Note: You can use more than one Google account on your device. To add another account, touch Menu ➔Settings ➔ ADD ACCOUNT.1. From a Home screen, touch Apps ➔ Gmail.The Add a Google Account screen displays.2. Touch Existing to sign in to an existing account.•At the Sign in screen, use the on-screen keyboard to enter your Google Email name and Password, then touch .– or –Touch New to create a new account.•At the Your name screen, enter your first and last name, and touch . DRAFT For Internal Use Only

Messaging 50•At the Choose username follow the prompts to create a new account.The Backup and restore screen displays.3. Read the backup and restore information, touch the option to enable or disable it, and then touch .4. The device communicates with the Google server to set up your account and synchronize your email. When complete, your Gmail displays in the Inbox.Refreshing Your Gmail AccountRefresh your account to update your device from the Gmail servers.1. From a Home screen, touch Apps ➔ Gmail.2. Touch Refresh in the Application Bar.Managing Your Gmail AccountUse menu options to manage your Gmail account.1. From a Home screen, touch Apps ➔ Gmail.2. Touch Menu for these options:• Manage labels: Determine settings for each label.•Settings: Configure settings. For more information, refer to “Gmail Account Settings” on page 52.• Send Feedback: Fill out a Google feedback form.•Help: Learn about using Gmail.Managing Your Gmail ConversationsIn addition to managing your Gmail account, there are options for changing the status of one or more Gmail conversations in an account.1. From a Home screen, touch Apps ➔ Gmail.2. Touch the gray box to the left of one or more conversations and then choose one of the following options:•Archive : Archive the selected conversation. Archived conversations are moved to th Archive folder. • Delete : Delete the conversations. Deleted conversations are moved to the Trash folder.• Change labels : Relocate the conversations to the Inbox, Personal, Receipts, Travel, or Work folder and then touch OK.• Mark as Read / Mark as Unread : Mark the conversations as read or unread. Once a conversation is marked as read, it has a gray background. Touch DONE to remove the check marks. DRAFT For Internal Use Only

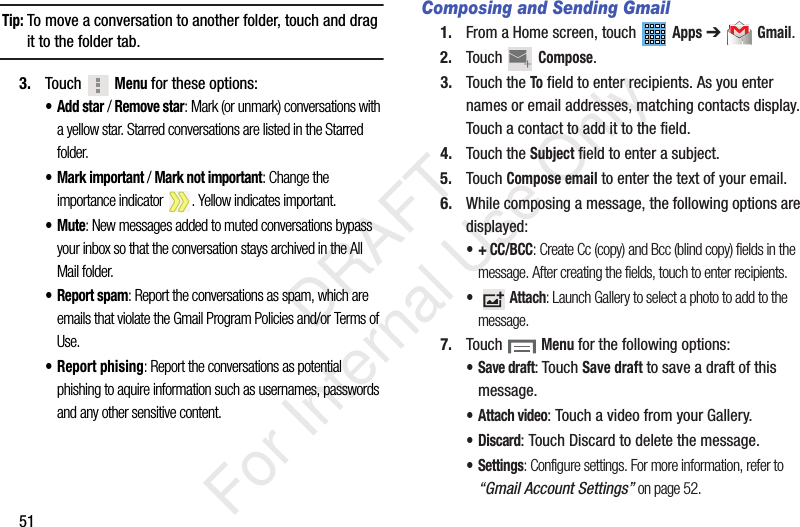

51Tip: To move a conversation to another folder, touch and drag it to the folder tab.3. Touch Menu for these options:•Add star / Remove star: Mark (or unmark) conversations with a yellow star. Starred conversations are listed in the Starred folder. • Mark important / Mark not important: Change the importance indicator . Yellow indicates important.•Mute: New messages added to muted conversations bypass your inbox so that the conversation stays archived in the All Mail folder.•Report spam: Report the conversations as spam, which are emails that violate the Gmail Program Policies and/or Terms of Use.• Report phising: Report the conversations as potential phishing to aquire information such as usernames, passwords and any other sensitive content. Composing and Sending Gmail1. From a Home screen, touch Apps ➔ Gmail.2. Touch Compose.3. Touch the To field to enter recipients. As you enter names or email addresses, matching contacts display. Touch a contact to add it to the field.4. Touch the Subject field to enter a subject.5. Touch Compose email to enter the text of your email.6. While composing a message, the following options are displayed:• + CC/BCC: Create Cc (copy) and Bcc (blind copy) fields in the message. After creating the fields, touch to enter recipients.• Attach: Launch Gallery to select a photo to add to the message.7. Touch Menu for the following options:• Save draft: Touch Save draft to save a draft of this message.• Attach video: Touch a video from your Gallery.•Discard: Touch Discard to delete the message. • Settings: Configure settings. For more information, refer to “Gmail Account Settings” on page 52. DRAFT For Internal Use Only

Messaging 52• Send feedback: Fill out a Google feedback form.•Help: Learn about using Gmail.8. Touch SEND to send this messageGmail Account Settings1. From a Home screen, touch Apps ➔ Gmail.2. Touch Menu ➔ Settings to access your gmail settings.EmailUse Email to view and manage all your email accounts in one application.Setting up Email Accounts1. From a Home screen, touch Email.2. At the Set up email screen, enter an Email address and Password, then touch Next.3. Your account’s incoming server settings are different depending on the kind of email service for the account. If you are asked What type of account?, touch the type of account: POP3 account, IMAP account, or Microsoft Exchange ActiveSync.4. If you are setting up a Microsoft Exchange ActiveSync account, tap Manual setup at the top of your screen.The Server settings screen displays. 5. Enter the required settings and touch Next. The Account options screen is displayed.6. Enter the desired information in the different fields, then tap Next.Note: For Microsoft Exchange ActiveSync accounts, the Activate device administrator? screen may appear. Read the information and touch Activate to continue.7. Enter an account name for the email account just added, which is displayed on the email screen, and enter Your name, if required.8. Touch Done.The device communicates with the appropriate server to set up your account and synchronize your email. When complete, your email appears in the Inbox for the account.Note: To configure email account settings at any time, use Menu ➔Settings. Touch the account to display Account settings. DRAFT For Internal Use Only

53Adding Additional Email AccountsTo add additional email accounts:1. From a Home screen, touch Email.2. Touch Menu ➔Settings ➔ Add account.3. Enter the Email address, Password, and so on.Managing Your Email AccountsYou can view email you receive for all accounts in the Combined view screen or you can view email accounts individually.1. From a Home screen, touch Email.2. Touch the drop-down menu at the top left of the screen to select:• Combined view: View all email in a combined inbox.• Priority sender inbox: Use this setting to assign an email account for all outgoing emails.•<Account Name>: View email for the account.Managing Your Email ConversationsIn addition to managing your Email account, there are options for changing the status of one or more Email conversations in an account.1. From a Home screen, touch Email.2. Touch the box to the left of one or more conversations and then choose one of the following options:•Flagged / Mark as complete / Unflag : Flag an email as important. Touch Mark as complete to add a checkmark to an email. Touch Unflag to remove the flag.• Mark as Read / Mark as Unread : Mark the conversations as read or unread. Once a conversation is marked as read, it has a gray background.•Move to : Relocate the conversations to another folder in the current email account or in a folder within another email account.•Delete : Delete the conversations.3. Touch Menu for these options:•Sort by: Choose a method for listing your email conversations.•View mode: Choose how to view your email conversations. Choices are: Standard view and Conversations view.• Create folder: Create a new main folder or touch an existing folder to create a sub-folder.• Delete all: Delete all items for this email account.•Font size: Select the font size for your email. Choose from, Use device font sizes, Tiny, Small, Normal, Large, or Huge. DRAFT For Internal Use Only

Messaging 54•Settings: Display the settings for this email account. Composing and Sending Email1. From a Home screen, touch Email.2. Touch an account, if you have more than one account set up, then touch Compose.3. Enter the recipient’s email address in the To field.•If you are sending the email message to several recipients, separate the email addresses with a comma. You can add as many message recipients as you want.•Touch to add a contact to the field.•Touch +Cc/Bcc to add additional carbon copy recipients.–Use the Cc field to carbon copy additional recipients.–Use the Bcc field to blind copy additional recipients.•Touch +Me to add yourself as a recipient.4. Touch the Subject field to enter a subject.5. Touch the body of the email to enter the text of your email.6. While composing a message, the following options may be displayed:Scheduling options: Tap the Schedule sending box and then set the Time and date for which the email will be sent.Priority: Set the email priority. Options are: High, Normal, or Low.Attach: Choose an attachment to add to the message from the listed apps, such as My Files, Images, Take picture, Video, Record video, Audio, S Note, Calendar, Contacts, and Location.Undo: Erase the previous input.Redo: Restore the previously erased input.Insert: Choose an item to insert into the message from the listed apps, such as Images, S Note, Calendar, Contacts, and Location.Insert quick response: Insert text that you frequently use in emails. DRAFT For Internal Use Only

557. Touch Save to save the email to the Drafts folder, Send to send the email, or Discard to delete the email.Email SettingsAccount settings lets you configure handling of email on your device.1. From a Home screen, touch Email.2. Touch Menu ➔ Settings to modify your email settings.Google TalkTalk is Google’s instant messaging and audio and video chat service. You can use it to communicate, in real time, with other people who also use Google Talk on another Android tablet or phone or on a computer.Tip: Talk requires that you have a Google account. To set up your Google account on your device use Accounts settings. For more information, refer to “Accounts” on page 146.Open Talk and Sign In1. From a Home screen, touch Apps ➔ Talk.If you are not signed in to a Google account, the Add a Google Account screen displays.2. Touch Existing, if you already have a Google account, or New to create a Google account.For more information, refer to “Setting Up Your Gmail Account” on page 49.Note: If you have already set up your Google account, you are automatically logged in. Just touch the account.Font size: Choose a text font size of 9, 10,12, 14, 17, 21, 24, 28, or 36 points.Bold: Bold the following text. Touch again to turn off bold.Italics: This action italicizes the subsequent entered text.Font color: Set the color of the text font. The bar changes to the selected color.Background color: Set the color of the background of the email. DRAFT For Internal Use Only

Messaging 56Once sign in is complete, the Talk main screen displays.Invite a Friend to ChatYou can invite anyone with a Google Account to become your friend in Google Talk, so you can chat with each other and view each other’s online status.1. While viewing your Friends list, touch Add friend.2. Enter your friend’s Email address and touch DONE.Your friend’s address in Talk is a Gmail or other email address that is configured to connect to Google Talk.If your friend accepts your invitation, they are added to your Friends list in Talk and you can share each others status in Talk and other applications.View and Accept an Invitation to Become a FriendWhen a contact invites you to become a friend in Google Talk, you receive a notification in the System Bar and the invitation displays in your Friends list.1. Touch the invitation.2. Touch Accept, if you want to accept the invitation and chat, Decline, if you do not want to chat with and share your Google Talk status with the sender right now, or Block, if you do not want to receive any more invitations from that person.If you touch Accept, the friend is added to your Friends list in Talk and you can share your status in Talk and other applications.Options While ChattingThere are several options that are available while you are chatting.1. Touch to search your chats for a word, to invite another friend to chat, to invite this friend to video chat, or to invite this friend to voice chat.2. Touch Menu to display the following options, which are available while chatting. For more information, refer to “Additional Talk Options” on page 57.•End chat: End this chat session.• Go off the record/Stop chatting off the record: Set whether you want to stop saving your chat to the chat history. DRAFT For Internal Use Only

57•Friend info: Display information about the friend with which you are chatting. The following options are also displayed:–Block: Keeps this person from sending you messages and removes the person from your Friends list.–Remove: Remove the friend as if you never accepted their invitation. However, the friend is not blocked.•Add to chat: Choose another friend to invite to this conversation.• Clear chat history: Remove the history of this chat from your device.• Settings: Offers various settings for Google talk. For more information, refer to “Google Talk Settings” on page 58.•Help: Displays additional help information.• Send feedback: Fill out a Google feedback form.Note: If you touch the REMOVE option, touch Add friend ➔Send chat invitation to, to make the Friend visible again.Additional Talk Options1. While viewing your Friends list, touch to search your Talk messages. Use the on-screen keyboard to enter a search term. Touch on the keyboard to search your Talk messages.2. Touch Menu to display the following options:• Display options: To set the way your friends list is sorted, touch Availability, Name, or Recency.• End all chats: End all chats in which you are engaged.•Sign out: Sign out of Google Talk and display the Talk main screen.• Settings: Offers various settings for Google talk. For more information, refer to “Google Talk Settings” on page 58.•Help: Displays additional help information.• Send feedback: Fill out a Google feedback form.3. Touch a Friend’s entry to display the Chat entries for that Friend. DRAFT For Internal Use Only

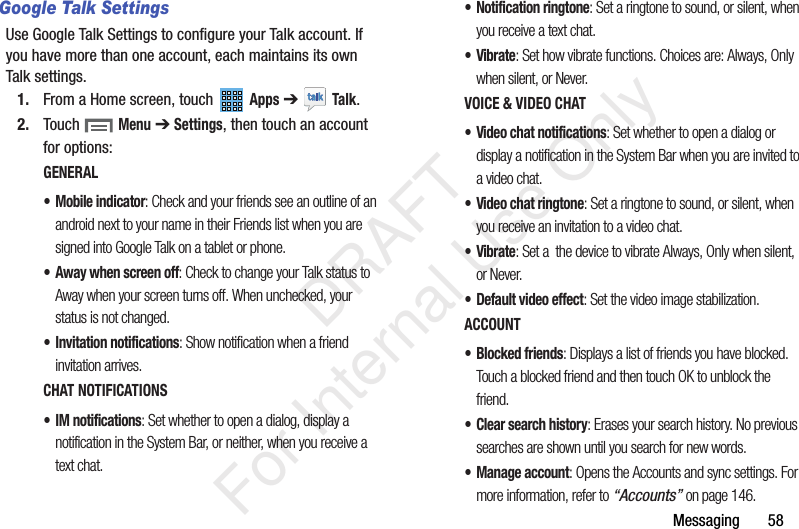

Messaging 58Google Talk SettingsUse Google Talk Settings to configure your Talk account. If you have more than one account, each maintains its own Talk settings.1. From a Home screen, touch Apps ➔ Talk.2. Touch Menu ➔ Settings, then touch an account for options:GENERAL• Mobile indicator: Check and your friends see an outline of an android next to your name in their Friends list when you are signed into Google Talk on a tablet or phone.• Away when screen off: Check to change your Talk status to Away when your screen turns off. When unchecked, your status is not changed.• Invitation notifications: Show notification when a friend invitation arrives.CHAT NOTIFICATIONS• IM notifications: Set whether to open a dialog, display a notification in the System Bar, or neither, when you receive a text chat.• Notification ringtone: Set a ringtone to sound, or silent, when you receive a text chat.•Vibrate: Set how vibrate functions. Choices are: Always, Only when silent, or Never.VOICE & VIDEO CHAT• Video chat notifications: Set whether to open a dialog or display a notification in the System Bar when you are invited to a video chat.• Video chat ringtone: Set a ringtone to sound, or silent, when you receive an invitation to a video chat.•Vibrate: Set a the device to vibrate Always, Only when silent, or Never. • Default video effect: Set the video image stabilization.ACCOUNT• Blocked friends: Displays a list of friends you have blocked. Touch a blocked friend and then touch OK to unblock the friend.• Clear search history: Erases your search history. No previous searches are shown until you search for new words.• Manage account: Opens the Accounts and sync settings. For more information, refer to “Accounts” on page 146. DRAFT For Internal Use Only

59ABOUT•Terms & privacy: Displays the Google Talk terms of use and privacy policies.Google+Share updates and see what is going on around you with Google+ for mobile.• Share your thoughts and location.• Instantly upload your photos and videos as you take them.• Get updates from your circles in the stream.• Check in to a place.• Make plans on-the-go with group messaging.• View posts from people around you.To get started:1. From a Home screen, touch Apps ➔Google+.The Google+ home screen displays.2. Touch Menu ➔ Help and then touch a topic to learn more about using Google+.MessengerWith Google Messenger, you can bring groups of friends together into a simple group conversation, putting everyone on the same page. When you get a new conversation in Messenger, Google+ sends an update to your device.To get started, touch the Messenger icon on the home screen of the Google+ app or use the Messenger icon on your Applications screen.1. From a Home screen, touch Apps ➔Messenger.The Messenger screen displays.2. Touch Menu ➔ Help for more information on getting started.ChatONProvides a global mobile communication service where you can chat with more than 2 buddies via a group chat. Share things such as pictures, videos, animation messages (Scribbles), audio, Contacts, Calendar entries, and Location information. For more information, visit: https://web.samsungchaton.com.1. From a Home screen, touch Apps ➔ ChatON. DRAFT For Internal Use Only

Messaging 602. At the ChatON display, tap Sign in to sign in to your Samsung account if you have not already done so. For more information, refer to “Creating a Samsung Account” on page 11.– or –Tap Skip if you have already signed in to your Samsung account.3. Enter your real name and tap OK.4. Follow the on-screen instructions to add a buddy and begin your chat session. DRAFT For Internal Use Only

61Section 6: MusicThis section explains how to use the music features of your device including the Music app, the Music Player, and the Music Hub.Listening to MusicYou can listen to music by using your device’s built-in speakers, through a wired headset, or through a wireless Bluetooth stereo headset.For more information, refer to “Bluetooth” on page 87.Press the Volume Key on the side of the device to activate on-screen volume control, then touch and drag on the scale to set volume. You can also press the Volume Key to adjust playback volume.Google Play MusicGoogle Play Music is a new service from Google that gives you instant access to your personal music collection on the Internet and your compatible Android devices without the hassle of wires or syncing. For more information, visit music.google.com.1. From the Home screen, tap ➔ Play Music .All music on your device and external SD card is displayed including Music folders that may contain multiple songs.2. Tap a song to start playback.3. From the main Play Music screen, you can tap any of the following tabs for a more detailed listing of songs: Playlists, Recent, Artists, Albums, Songs, and Genres.4. Tap Menu for the following options:•Shuffle all: allows you to play all of your music in a shuffled order.• Settings: allows you to view Open source licenses and the music version for the Play Music application.•Help: allows you to view a help file on the Google Support website. DRAFT For Internal Use Only

Music 62Music HubThe Music Hub app lets you upload your music collection to the cloud, stream and purchase songs from an extensive catalog, and listen to personal radio.Note: You must sign up for an account before accessing some of the Music Hub options.1. Sign on to your Samsung account if you have not already done so. 2. From the Home screen, tap ➔ Music Hub .3. Tap Start.4. The first time you access Music Hub, you are given a free 7-day trial. Tap OK to continue.5. Follow the on-screen instructions to use Music Hub.6. Tap (Search) and use the keyboard to enter a key word or phrase to search for tracks, albums, or artists.7. Press Menu for additional options.Music PlayerMusic Player plays songs stored on your tablet or an installed memory card.1. From a Home screen, touch Apps ➔Music Player.The Music Player application searches your device’s internal storage or on an installed memory card for music and playlists. This can take from a few seconds to several minutes, depending on the amount of new music added since you last opened the application. It then displays your music in several ways.2. Touch a tab, such as Songs, Playlists, Albums, and so on, to change the way you view the contents of your library.3. Touch the Music application icon at the top-left of the Application bar to return to the previous Music screen. DRAFT For Internal Use Only

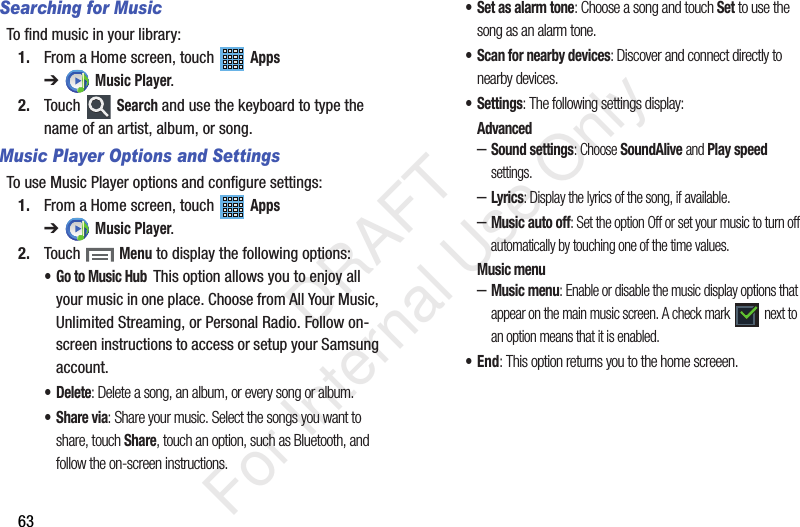

63Searching for MusicTo find music in your library:1. From a Home screen, touch Apps ➔Music Player.2. Touch Search and use the keyboard to type the name of an artist, album, or song.Music Player Options and SettingsTo use Music Player options and configure settings:1. From a Home screen, touch Apps ➔Music Player.2. Touch Menu to display the following options:• Go to Music Hub This option allows you to enjoy all your music in one place. Choose from All Your Music, Unlimited Streaming, or Personal Radio. Follow on-screen instructions to access or setup your Samsung account.•Delete: Delete a song, an album, or every song or album.•Share via: Share your music. Select the songs you want to share, touch Share, touch an option, such as Bluetooth, and follow the on-screen instructions.• Set as alarm tone: Choose a song and touch Set to use the song as an alarm tone.• Scan for nearby devices: Discover and connect directly to nearby devices.• Settings: The following settings display:Advanced–Sound settings: Choose SoundAlive and Play speed settings.–Lyrics: Display the lyrics of the song, if available.–Music auto off: Set the option Off or set your music to turn off automatically by touching one of the time values.Music menu–Music menu: Enable or disable the music display options that appear on the main music screen. A check mark next to an option means that it is enabled.•End: This option returns you to the home screeen. DRAFT For Internal Use Only

Music 64Managing PlaylistsTo create, manage, or delete a playlist: From a Home screen, touch Apps ➔Music Player.Creating a Playlist Touch Add to playlist ➔ Create playlist and use the keyboard to enter a name for the playlist.Renaming a Playlist1. Touch the Playlists tab.2. Touch a playlist, touch Menu ➔ Rename playlist and use the keyboard to enter a new name for the playlist.Adding Songs to Playlists1. Touch Add to playlist and touch a playlist.– or –Touch Playlists, touch a playlist, and then touch Add music or Menu ➔ Add music in portrait mode.All songs are displayed.2. Touch next to each song you want to add or next to Add all to add all songs to the playlist.3. Touch Done to save the playlist.Removing Songs from Playlists1. Touch Add to playlist and touch a playlist.2. Touch to remove a song from the playlist.3. Touch Done to save the playlist.Changing the Order of a Playlist1. Touch the Playlists tab and touch a playlist.2. Touch Change order or Menu ➔ Change order in portrait mode.3. Touch the grid for an entry and drag the entry to a new position in the list.4. Touch Done to change the order and save the playlist.Playing a Playlist1. Touch the Playlists tab.2. Touch Favorites, Most played, or Recently added, or touch a playlist title that you created.3. Touch a song to start playing the playlist at that song. DRAFT For Internal Use Only

65Deleting a Playlist1. Touch the Playlists tab and touch a playlist.2. Touch Delete in the Application bar.3. Touch the box next to a playlist title, touch Remove, and then touch OK.Playing MusicTo play a song:1. From a Home screen, touch Apps ➔Music Player.2. Touch a song or touch an album or genre and then touch a song in the list of songs on the album.The song you touch starts to play. The tracks in the current list play in order until you reach the end of the list (unless you choose a repeat option). Otherwise, playback stops only if you stop it, even when you switch applications.Accessing the Music PlayerIf you navigate away from the Music Player application and music is playing, the Music notification icon is displayed in the System Bar.You can change songs or easily return to the Music Player:1. Touch the Music notification icon in the System Bar.The Status Details pop-up displays.2. Touch the song title to display the Music Player. You can also pause and resume playback and skip to the next or previous song in the panel. For more information, refer to “Notifications” on page 23.Music Player ControlsWhen a song is playing, the Music Player screen displays and various controls are available.1. From a Home screen, touch Apps ➔Music Player.2. Touch a song or playlist to begin playback.The music player displays below (portrait mode) or to the right (landscape mode) of the music listing.3. Touch the music player to enlarge it and touch the screen to display the sound and playlist controls. DRAFT For Internal Use Only

Music 664. During playback, use the sound and playlist controls:•Favorite: Touch the star to mark the current song as a favorite.•Volume: Touch to toggle Silent and Sound mode, then touch and drag on the scale to set volume. You can also press the Volume Key on the side of the device to adjust playback volume.•SoundAlive: Touch to view and set SoundAlive options.•Info: Touch to view information about the current song.•List Mode: Touch to switch to the list of songs.•Shuffle: When enabled, songs play in random order. When disabled, songs play in the order they appear in List view.• Progress Bar: Touch and drag the end of the progress bar to scan forward or backward through the current song.• Playback Controls: These buttons control the playback of songs:–Touch to advance to the next song. Touch and hold to scan forward through the current song.–Touch to go back to the previous song. Touch and hold to scan backward through the current song.–Touch to pause playback. Touch to resume playback.•Repeat: Touch to repeat the current song, repeat all songs, or disable repeat mode. DRAFT For Internal Use Only

67Options While Playing a SongThere are various options and controls available while a song is playing:1. From a Home screen, touch Apps ➔Music Player, touch a song or an album, and then a song.2. Touch the music player to enlarge it.3. Touch Menu to display the following options:• Add to playlist: Add the song to a new playlist or an existing playlist.• Via Bluetooth: Play the current song by using a Bluetooth device.•Share via: Share your music. Touch an option, such as Bluetooth, select the songs you want to share, and touch Share.• Set as alarm tone: Use the current song as an alarm tone.• Scan for nearby devices: Discover and connect directly to nearby devices.• Settings: Displays Music Player settings. For more information, refer to “Music Player Options and Settings” on page 63.•End: This option returns you to the home screeen. DRAFT For Internal Use Only

Photos and Video 68Section 7: Photos and VideoThis section explains how to use your device’s built-in camera and camcorder, the Video Player app to view and manage videos, and the Gallery app to view, capture, and manage photos and videos. It also contains an overview of the PS Touch app, Media Hub, and Video editor apps.CameraUse your device’s built-in camera and camcorder to take photos and record videos.1. From a Home screen, touch Apps ➔ Camera.If a memory card is inserted, the Storage location pop-up displays.2. Touch OK to change the storage location to memory card.– or –Touch Cancel to use the device storage for storing pictures and videos.Note: If memory card storage is used, photos are stored in the /storage/sdcard0/DCIM/Camera folder as jpg files. For more information, refer to “My Files” on page 107.The Camera screen displays. DRAFT For Internal Use Only

69Taking PhotosTo take a photo:1. From a Home screen, touch Apps ➔ Camera.2. Using the display as a viewfinder, compose your photo by aiming the lens at the subject.To configure settings, see “Camera Settings” on page 69.3. To take the photo, touch the Camera button.4. Touch Back to leave the Camera and display the previous screen.Important! Do not take photos of people without their permission.Do not take photos in places where cameras are not allowed.Do not take photos in places where you may interfere with another person’s privacy.Camera SettingsBefore you start taking photos, use the camera settings to configure the camera for best results. Camera settings are represented by icons on the left side of the screen.Editing Camera Settings ShortcutsThe first five icons are actually shortcuts to camera settings. These five shortcuts can be customized to fit your preference. Self-portrait, Shooting mode, Timer Effects, and Exposure value are default settingsshortcuts.To customize these shortcuts:1. Touch Settings ➔ Edit shortcuts.– or –Touch and hold any of the shortcut icons to edit them.2. Touch and hold a setting, then drag and drop it on one of the five settings shortcuts to the left. The replaced setting shortcut displays in the edit list. DRAFT For Internal Use Only

Photos and Video 70Configuring Camera SettingsTo configure Camera settings: While in Camera mode, touch a settings shortcut or touch Settings to configure the following camera settings:• Edit shortcuts: Customize your settings shortcuts. For more information, refer to “Editing Camera Settings Shortcuts” on page 69.• Use the volume key as: Press the volume key to zoom in or zoom out, or to capture the picture.• GPS tag: Touch to switch the GPS tag on or off.•Self-portrait: Touch to switch to the front-facing camera lens and take a photo of yourself.Warning! If the battery is low, the flash is not available. For more information, refer to “Charging the Battery” on page 7.• Shooting mode: Choose an automatic shooting mode, from:–Single shot: Take a single photo.–Panorama: Touch the Camera button to take a photo, then use the on-screen guideline to move the viewfinder and take the next 7 shots automatically.–Share shot: Share photos with other users via Wi-Fi Direct. A Wi-Fi Direct connection is required.–Buddy photo share: Take and share photos with friends via face detection.–Smile shot: Touch the Camera button to automatically focus on the subject’s face and take the photo.–Cartoon: Take a photo with cartoon effects.• Effects: Apply an effect to photos.•Scene mode: Choose a mode to match the kind of pictures you want to take.•Exposure value: Use the slider to set the exposure value from -2.0 to +2.0.• Focus mode: Set the focus mode to Auto focus or Macro.•Timer: Set a delay time to wait between touching the Camera button and taking a photo.•Resolution: Choose a size for the photo.• White balance: Set the light source. DRAFT For Internal Use Only

71•ISO: This value determines how sensitive the light meter is on your digital camera. Use a lower ISO number to make your camera less sensitive to light, a higher ISO number to take photos with less light, or Auto to let the camera automatically adjust the ISO for each of your shots.• Metering: Select a method for measuring light.• Outdoor visibility: When taking outdoor shots in bright settings, enabling Outdoor visibility Illuminates your screen to make it easier to see what you are shooting.Note: What you see on screen will not correspond to the luminance of the actual photograph taken.• Guidelines: Enable or disable an on-screen grid to aid in photo composition.• Contextual filenames: Enable or disable a system generated filename.• Taking photos using voice: Enable or disable an voice command to take a photo.• Save as flipped: Set self-portrait mode and set this option to On to take and save a mirror-image photo.• Image quality: Choose a quality setting for photos.•Storage: Set whether to store you photos on your device or on your memory card, if one is installed.• Reset: Set all Camera settings to the defaults.Viewing Photos with the Image ViewerAfter taking a photo, use the Image Viewer to view, share, delete, or edit photos.1. Touch Image Viewer to view the photo.2. Touch the screen to show or hide Image Viewer options.3. Touch the screen with two fingers or double-tap on the screen to zoom all the way in or out. For more information, refer to “Pinch” on page 20.4. Sweep across the screen to display the next or previous photo. The current photo is outlined in the thumbnails at the bottom of the screen. Touch a thumbnail to view the photo it represents.5. To set the photo as a favorite, touch Favorites.6. Touch Share to share the photo. Touch an option, such as Bluetooth, and follow the on-screen instructions. After using this option, the most recent Share option is displayed in the Application Bar. DRAFT For Internal Use Only

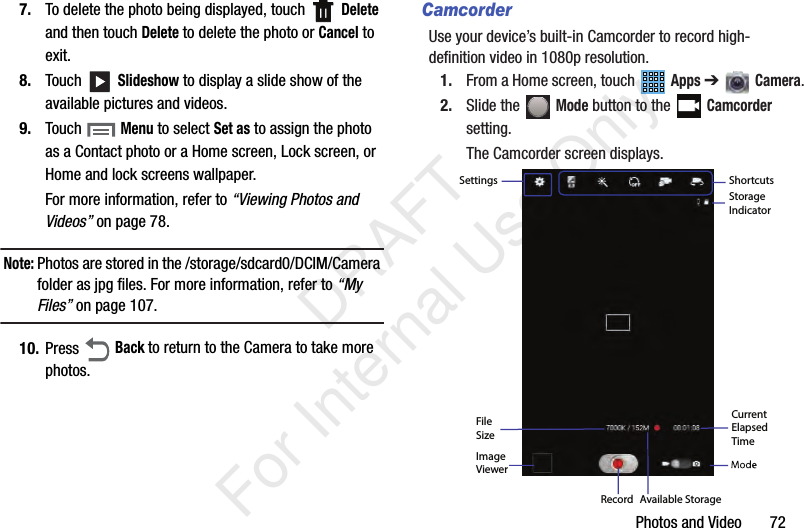

Photos and Video 727. To delete the photo being displayed, touch Delete and then touch Delete to delete the photo or Cancel to exit.8. Touch Slideshow to display a slide show of the available pictures and videos.9. Touch Menu to select Set as to assign the photo as a Contact photo or a Home screen, Lock screen, or Home and lock screens wallpaper.For more information, refer to “Viewing Photos and Videos” on page 78.Note: Photos are stored in the /storage/sdcard0/DCIM/Camera folder as jpg files. For more information, refer to “My Files” on page 107.10. Press Back to return to the Camera to take more photos.CamcorderUse your device’s built-in Camcorder to record high-definition video in 1080p resolution.1. From a Home screen, touch Apps ➔ Camera.2. Slide the Mode button to the Camcorder setting.The Camcorder screen displays.StorageIndicatorFileSizeSettingsImageViewerShortcutsCurrentElapsedTimeAvailable StorageRecord DRAFT For Internal Use Only

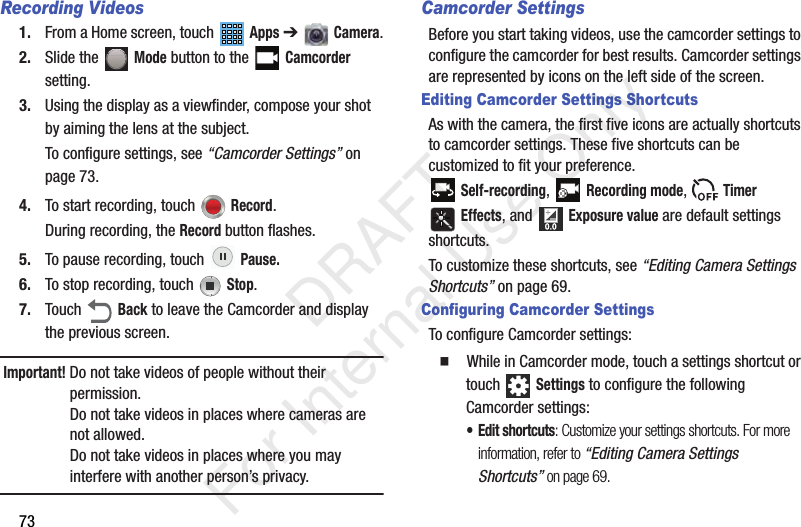

73Recording Videos1. From a Home screen, touch Apps ➔ Camera.2. Slide the Mode button to the Camcorder setting.3. Using the display as a viewfinder, compose your shot by aiming the lens at the subject.To configure settings, see “Camcorder Settings” on page 73.4. To start recording, touch Record.During recording, the Record button flashes.5. To pause recording, touch Pause.6. To stop recording, touch Stop.7. Touch Back to leave the Camcorder and display the previous screen.Important! Do not take videos of people without their permission.Do not take videos in places where cameras are not allowed.Do not take videos in places where you may interfere with another person’s privacy.Camcorder SettingsBefore you start taking videos, use the camcorder settings to configure the camcorder for best results. Camcorder settings are represented by icons on the left side of the screen.Editing Camcorder Settings ShortcutsAs with the camera, the first five icons are actually shortcuts to camcorder settings. These five shortcuts can be customized to fit your preference. Self-recording, Recording mode, Timer Effects, and Exposure value are default settingsshortcuts.To customize these shortcuts, see “Editing Camera Settings Shortcuts” on page 69.Configuring Camcorder SettingsTo configure Camcorder settings: While in Camcorder mode, touch a settings shortcut or touch Settings to configure the following Camcorder settings:• Edit shortcuts: Customize your settings shortcuts. For more information, refer to “Editing Camera Settings Shortcuts” on page 69. DRAFT For Internal Use Only

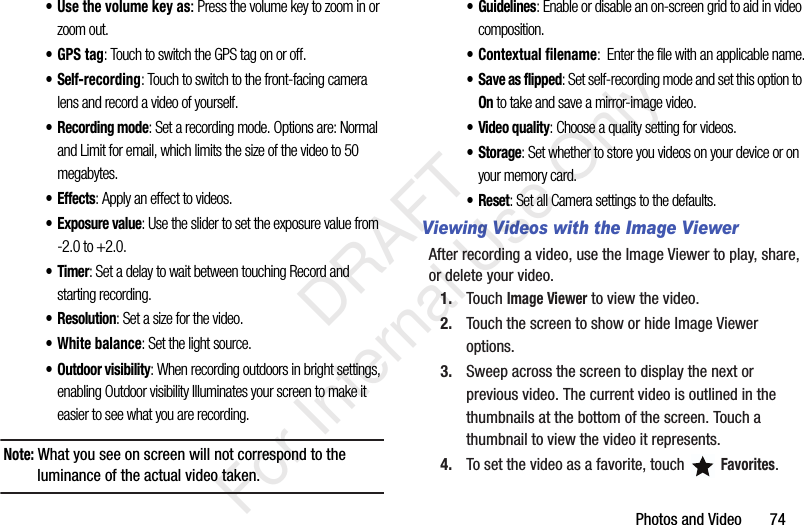

Photos and Video 74• Use the volume key as: Press the volume key to zoom in or zoom out.• GPS tag: Touch to switch the GPS tag on or off.• Self-recording: Touch to switch to the front-facing camera lens and record a video of yourself.• Recording mode: Set a recording mode. Options are: Normal and Limit for email, which limits the size of the video to 50 megabytes.• Effects: Apply an effect to videos.•Exposure value: Use the slider to set the exposure value from -2.0 to +2.0.•Timer: Set a delay to wait between touching Record and starting recording.•Resolution: Set a size for the video.• White balance: Set the light source.• Outdoor visibility: When recording outdoors in bright settings, enabling Outdoor visibility Illuminates your screen to make it easier to see what you are recording.Note: What you see on screen will not correspond to the luminance of the actual video taken.• Guidelines: Enable or disable an on-screen grid to aid in video composition.• Contextual filename: Enter the file with an applicable name.•Save as flipped: Set self-recording mode and set this option to On to take and save a mirror-image video.• Video quality: Choose a quality setting for videos.•Storage: Set whether to store you videos on your device or on your memory card.• Reset: Set all Camera settings to the defaults.Viewing Videos with the Image ViewerAfter recording a video, use the Image Viewer to play, share, or delete your video.1. Touch Image Viewer to view the video.2. Touch the screen to show or hide Image Viewer options.3. Sweep across the screen to display the next or previous video. The current video is outlined in the thumbnails at the bottom of the screen. Touch a thumbnail to view the video it represents.4. To set the video as a favorite, touch Favorites. DRAFT For Internal Use Only

755. Touch Share to share the video. Touch an option, such as Bluetooth, and follow the on-screen instructions. After using this option, the most recent Share option is displayed in the Application Bar.6. Touch Slideshow to display a slide show of the available pictures and videos.7. To delete the video being displayed, touch Delete.Note: Videos are stored in the /storage/sdcard0/DCIM/Camera folder as mp4 files. For more information, refer to “My Files” on page 107.8. To play a video, touch Play. Touch Pause to pause the video and touch Resume to resume playing the video.9. Touch SoundAlive to set the sound quality.10. Touch and drag the white dot on the progress bar to fast forward or rewind the video. Touch the left end of the progress bar to restart the video. Touch the right end of the progress bar to end the video playback.– or –Touch Rewind to restart the video or Fast Forward to end the video.11. Touch Pop up play to play a video as a small pop-up while viewing another screen. Touch and drag the pop-up video to the desired location on the screen. Double-tap the pop-up to return to full screen mode.12. Touch the Bookmark to mark this video.13. Press Back to return to the Camcorder.Video PlayerYour device’s 8.0-inch 1280x800 WXGA TFT (PLS) LCD screen provides playback of videos. Use Video Player to view and manage videos stored on your tablet.1. From a Home screen, touch Apps ➔Video Player.2. Touch the Thumbnails, List, or Folders tab.3. Touch Search and use the keyboard to enter a search term. The current folder is searched and results are displayed. Touch X to remove the search field.4. While viewing the list, touch Menu for options:•List by: Display videos by Name (default), Date, Size, or Type. DRAFT For Internal Use Only

Photos and Video 76•Share via: Share the video. Touch an option, such as Bluetooth, and follow the on-screen instructions.•Delete: Touch videos to select them for deletion or touch Select all to delete all videos.• Auto play next: Touch to enable or disable automatic playing of videos in the order they appear.• Scan for nearby devices: Discover and connect directly to nearby devices.5. Touch a video to play it. While playing a video, touch the screen to display or hide on-screen playback controls.6. Touch the icon in the bottom of the display screen while the video is playing to change the Display Mode from original size to full screen in ratio or full screen.7. Touch SoundAlive to set the sound quality.8. Touch Pop up play to play a video as a small pop-up while viewing another screen. Touch and drag the pop-up video to the desired location on the screen. Double-tap the pop-up to return to full screen mode.9. While the video is playing, touch Bookmark to mark your favorite areas of the video. A yellow mark displays on the progress bar.10. During playback, press Menu for options:•Share via: Share the video. Touch an option, such as Bluetooth, and follow the on-screen instructions.• Chapter preview: If chapter information is recorded in the video file, display the chapters. Touch a chapter to begin playing the video at that point.•Edit: Touch Trim or Video editor (download from Samsung Apps). • Tag buddy: Assign a name to a person in a photo.• Add weather tag: Choose from Sunny day, Cloudy day, Rainy day, Snowy day, or Clear night.• Via Bluetooth: Turn Bluetooth on to use Bluetooth services.• Video auto off: Set the automated stop for the playing video. Choose from Off, After playing, After 15 mins, After 30 mins, After 1 hour, After 1 hour 30 mins, and After 2 hours. • Scan for nearby devices: Discover and connect directly to nearby devices. DRAFT For Internal Use Only

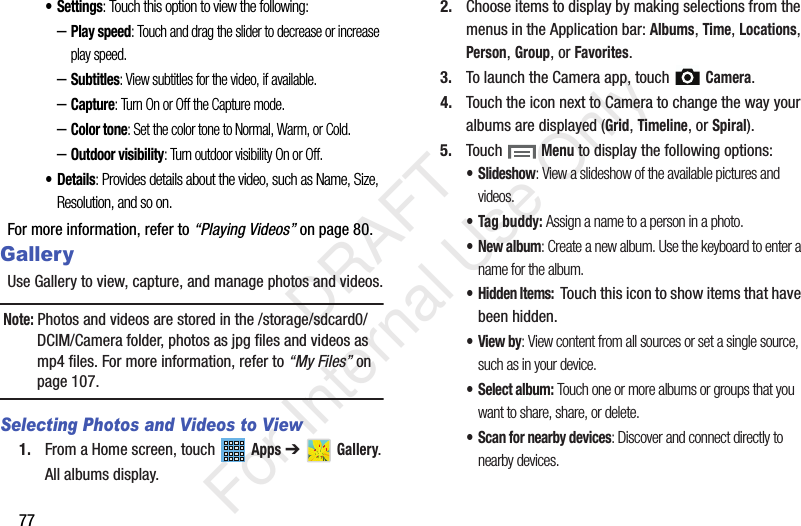

77• Settings: Touch this option to view the following:–Play speed: Touch and drag the slider to decrease or increase play speed.–Subtitles: View subtitles for the video, if available.–Capture: Turn On or Off the Capture mode.–Color tone: Set the color tone to Normal, Warm, or Cold.–Outdoor visibility: Turn outdoor visibility On or Off.•Details: Provides details about the video, such as Name, Size, Resolution, and so on.For more information, refer to “Playing Videos” on page 80.GalleryUse Gallery to view, capture, and manage photos and videos.Note: Photos and videos are stored in the /storage/sdcard0/DCIM/Camera folder, photos as jpg files and videos as mp4 files. For more information, refer to “My Files” on page 107.Selecting Photos and Videos to View1. From a Home screen, touch Apps ➔ Gallery.All albums display.2. Choose items to display by making selections from the menus in the Application bar: Albums, Time, Locations, Person, Group, or Favorites.3. To launch the Camera app, touch Camera.4. Touch the icon next to Camera to change the way your albums are displayed (Grid, Timeline, or Spiral).5. Touch Menu to display the following options:•Slideshow: View a slideshow of the available pictures and videos.• Tag buddy: Assign a name to a person in a photo.•New album: Create a new album. Use the keyboard to enter a name for the album.• Hidden Items: Touch this icon to show items that have been hidden.•View by: View content from all sources or set a single source, such as in your device.•Select album: Touch one or more albums or groups that you want to share, share, or delete.• Scan for nearby devices: Discover and connect directly to nearby devices. DRAFT For Internal Use Only

Photos and Video 78Viewing Groups of Photos and Videos1. From a Home screen, touch Apps ➔ Gallery.2. Touch a category and then a group to view it.Thumbnails for each photo and video in the group display.3. Touch Slideshow to view a slideshow of the available pictures and videos.4. Touch Menu for these options:• Select item: Touch one or more items that you want to share, delete, or use for a slideshow.Viewing Photos and Videos1. From a Home screen, touch Apps ➔ Gallery.2. Touch a category and then a group to view it, and then touch a photo or video thumbnail.3. Touch the screen to show or hide Gallery options.4. Touch the screen with two fingers or double-tap on the screen to zoom all the way in or out. For more information, refer to “Pinch” on page 20.5. Sweep across the screen to display the next or previous photo or video. (Videos are indicated by the Play button.) The current photo or video is outlined in the thumbnails at the bottom of the screen. Touch a thumbnail to view the photo or video it represents.6. Touch to assign this photo of video as a Favorite.7. Touch Share to share the photo or video. Touch an option, such as Bluetooth, and follow the on-screen instructions.8. Touch the to choose from Start slideshow and Slideshow settings..9. To delete the photo or video being displayed, touch Delete.10. Touch Menu to display the following options for photos:• Face tag: Set whether to look for a face in this picture.• Tag buddy: Assign a name to a person in a photo.• Add weather tag: Choose from Sunny day, Cloudy day, Rainy day, Snowy day, or Clear night. DRAFT For Internal Use Only

79•Photo frame: Add a frame to the selected photo. Press Save when completed or Cancel.• Photo note: Add a note to a photo.•Copy to clipboard: Copy the current photo to the clipboard.•Rotate left: Allows you to rotate the photo counterclockwise 90 degrees.• Rotate right: Allows you to rotate the photo clockwise 90 degrees.•Crop: Allows you to crop the image. Touch and drag the crop box or the sides or corners of the crop box to create the crop area, then touch Done. Touch X to stop without cropping the photo.•Edit: Use Photo Editor or Paper Artist to edit your photo.•Set as: Assign the photo as a Contact photo or a Home screen, Lock screen, or Home and lock screens wallpaper.• Buddy photo share: Detect the face in this picture and email that person.•Print: Print the current photo to a Samsung printer.•Rename: Enter an new file name.• Scan for nearby devices: Discover and connect directly to nearby devices.•Details: Provides details about the photo, such as title, time taken, size, and so on.There is only four options for videos that are not playing:• Slideshow: View a slideshow of photos and video thumbnails in the group. Touch the screen to stop the slideshow and view the photo or video being displayed.•Rename: Enter an new file name.• Scan for nearby devices: Discover and connect directly to nearby devices.• Tag buddy: Assign a name to a person in a photo.•Details: Provides details about the video such as Title, Time, Duration, and so on.For menu options while a video is playing and other video options, see “Video Player” on page 75.11. Touch Back to return to the category screen.Setting a Picture AsYou can use the photos you take as a contact’s photo or as wallpaper for the Home or Lock screen:1. From a Home screen, touch Apps ➔ Gallery. DRAFT For Internal Use Only

Photos and Video 802. Touch a category and then a group to view it, and then touch a photo to select it.3. Touch Menu ➔ Set as.4. Touch Contact photo and then touch a contact entry.– or –Touch Home screen, Lock screen, or Home and lock screen.A crop photo screen displays.5. Touch and drag the crop box or the sides or corners of the crop box to create the crop area, then touch Done to save the cropped photo as the contact’s icon or wallpaper. Touch Cancel to stop without cropping the photo.Tip: To remove a contact photo, see “Updating Contacts” on page 35.Tip: To change wallpaper, see “Wallpapers” on page 30.Playing Videos1. From a Home screen, touch Apps ➔ Gallery.2. Touch a category and then a group to view it, and then touch a video thumbnail to play the video.Note: Videos are marked with a Play button.3. Touch Pause to pause the video.4. Touch Resume to resume playing the video.5. Touch and drag the white dot on the progress bar to fast forward or rewind the video. Touch the left end of the progress bar to restart the video. Touch the right end of the progress bar to end the video playback.– or –Touch Rewind to restart the video or Fast Forward to end the video.Sharing Photos and VideosShare photos and videos with your friends.1. From a Home screen, touch Apps ➔ Gallery.2. Touch a category and then a group to display thumbnails.3. Touch Menu ➔ Select item. DRAFT For Internal Use Only

814. Touch one or more photos and videos to highlight them for sharing.5. Touch Share.6. Touch an option, such as Bluetooth, and follow the on-screen instructions. DRAFT For Internal Use Only

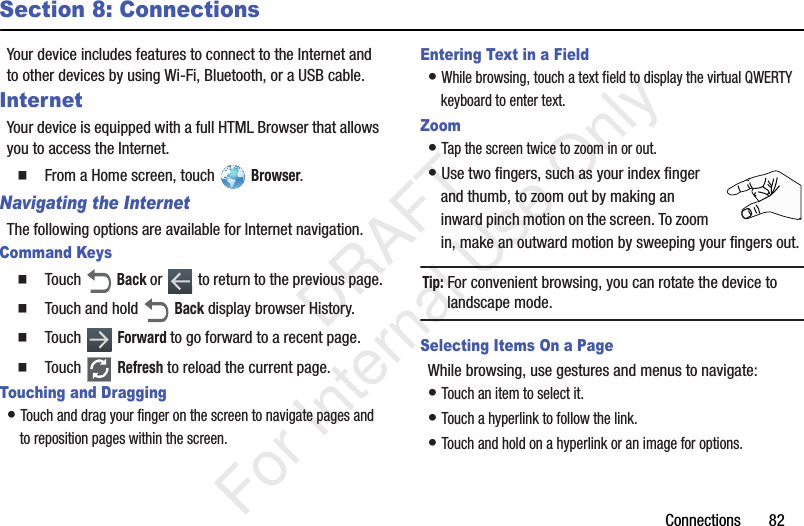

Connections 82Section 8: ConnectionsYour device includes features to connect to the Internet and to other devices by using Wi-Fi, Bluetooth, or a USB cable.InternetYour device is equipped with a full HTML Browser that allows you to access the Internet. From a Home screen, touch Browser.Navigating the InternetThe following options are available for Internet navigation.Command Keys Touch Back or to return to the previous page. Touch and hold Back display browser History. Touch Forward to go forward to a recent page. Touch Refresh to reload the current page.Touching and Dragging• Touch and drag your finger on the screen to navigate pages and to reposition pages within the screen.Entering Text in a Field• While browsing, touch a text field to display the virtual QWERTY keyboard to enter text.Zoom• Tap the screen twice to zoom in or out.• Use two fingers, such as your index finger and thumb, to zoom out by making an inward pinch motion on the screen. To zoom in, make an outward motion by sweeping your fingers out.Tip: For convenient browsing, you can rotate the device to landscape mode.Selecting Items On a PageWhile browsing, use gestures and menus to navigate:• Touch an item to select it.• Touch a hyperlink to follow the link.• Touch and hold on a hyperlink or an image for options. DRAFT For Internal Use Only

83Using Browser WindowsYou can have multiple windows open at one time and easily switch between windows.1. From a Home screen, touch Browser.2. To open a new window, touch at the top of the screen.3. To switch to another open window, touch its tab at the top of the screen.4. To delete an open window, touch the tab at the top of the screen, and then touch .Entering a URLAccess a website quickly by entering the URL.1. From a Home screen, touch Browser.2. Touch the URL field at the top of the screen, then enter the URL using the virtual QWERTY keyboard.As you enter characters, potential matches display.Note: Use the Delete key to clear the URL field, if necessary.3. Touch a match to complete the URL.– or –Continue entering characters and touch the Go key to load the page.Creating BookmarksWhile browsing, bookmark a site to quickly access it later.1. From a Home screen, touch Browser.2. Browse to a website, touch Add bookmark at right of the address field, enter the required information, and touch OK.A gold star displays on the Bookmarked page.Internet MenuWhile viewing a webpage: Touch Menu for options.To configure web settings: Touch Menu ➔ Settings.Follow the on-screen instructions. DRAFT For Internal Use Only

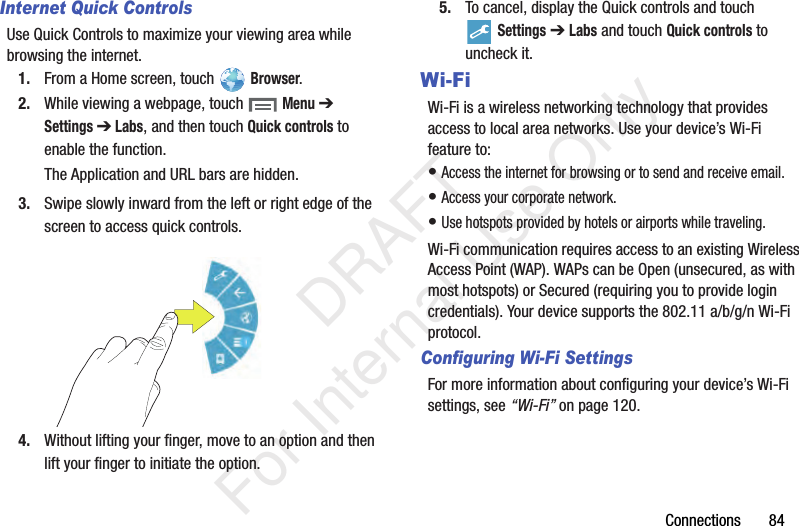

Connections 84Internet Quick ControlsUse Quick Controls to maximize your viewing area while browsing the internet.1. From a Home screen, touch Browser.2. While viewing a webpage, touch Menu ➔ Settings ➔ Labs, and then touch Quick controls to enable the function.The Application and URL bars are hidden.3. Swipe slowly inward from the left or right edge of the screen to access quick controls.4. Without lifting your finger, move to an option and then lift your finger to initiate the option.5. To cancel, display the Quick controls and touch Settings ➔ Labs and touch Quick controls to uncheck it.Wi-FiWi-Fi is a wireless networking technology that provides access to local area networks. Use your device’s Wi-Fi feature to:• Access the internet for browsing or to send and receive email.• Access your corporate network.• Use hotspots provided by hotels or airports while traveling.Wi-Fi communication requires access to an existing Wireless Access Point (WAP). WAPs can be Open (unsecured, as with most hotspots) or Secured (requiring you to provide login credentials). Your device supports the 802.11 a/b/g/n Wi-Fi protocol.Configuring Wi-Fi SettingsFor more information about configuring your device’s Wi-Fi settings, see “Wi-Fi” on page 120. DRAFT For Internal Use Only

85Finding Wi-Fi NetworksYou can have your device automatically notify you of available networks. For more information, refer to “Advanced Settings” on page 121.Turning Wi-Fi OnBy default, your device’s Wi-Fi feature is turned off. Turning Wi-Fi on makes your device able to discover and connect to compatible in-range WAPs.1. From a Home screen, touch Apps ➔Settings ➔ Wi-Fi.2. Tap the ON/OFF slider, located to the right of the Wi-Fi field, to turn Wi-Fi ON .Scanning and Connecting to a Wi-Fi NetworkWhen you turn on Wi-Fi, your device searches for available Wi-Fi connections, then displays them on screen.1. From any screen, touch the Time in the Status Bar.The Status Details displays.2. Touch Wi-Fi to turn Wi-Fi On. Your device automatically scans for available Wireless Access Points.3. When the scan is complete, touch a Wi-Fi network to connect. If the Wi-Fi network is open, your device automatically connects. If the Wi-Fi network is secured, enter the password at the prompt to connect.Adding a Wi-Fi Network Manually1. From a Home screen, touch Apps ➔Settings.2. Under Wireless and network, on the Wi-Fi tab, touch the OFF / ON icon to turn Wi-Fi on.3. Touch Add Wi-Fi network, then enter network information:• Network SSID: Enter the name of the Wi-Fi Wireless Access Point (WAP).• Security: Select the type of security used by the WAP.Note: Depending on the Security protocol used by the WAP, additional network information may be required, such as a Password.• Password: If the WAP is secured, enter the password or hex key.4. Touch Save to save the settings. DRAFT For Internal Use Only

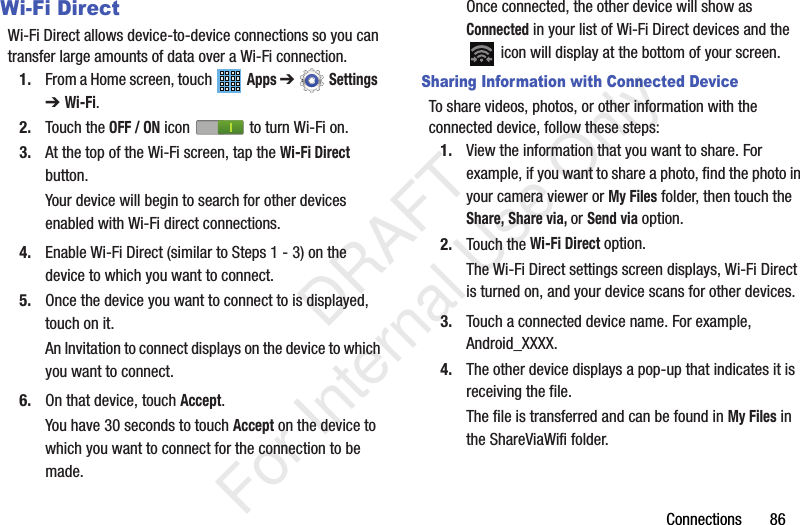

Connections 86Wi-Fi DirectWi-Fi Direct allows device-to-device connections so you can transfer large amounts of data over a Wi-Fi connection.1. From a Home screen, touch Apps ➔ Settings ➔ Wi-Fi.2. Touch the OFF / ON icon to turn Wi-Fi on.3. At the top of the Wi-Fi screen, tap the Wi-Fi Direct button.Your device will begin to search for other devices enabled with Wi-Fi direct connections.4. Enable Wi-Fi Direct (similar to Steps 1 - 3) on the device to which you want to connect.5. Once the device you want to connect to is displayed, touch on it.An Invitation to connect displays on the device to which you want to connect.6. On that device, touch Accept.You have 30 seconds to touch Accept on the device to which you want to connect for the connection to be made.Once connected, the other device will show as Connected in your list of Wi-Fi Direct devices and the icon will display at the bottom of your screen.Sharing Information with Connected DeviceTo share videos, photos, or other information with the connected device, follow these steps:1. View the information that you want to share. For example, if you want to share a photo, find the photo in your camera viewer or My Files folder, then touch the Share, Share via, or Send via option.2. Touch the Wi-Fi Direct option.The Wi-Fi Direct settings screen displays, Wi-Fi Direct is turned on, and your device scans for other devices.3. Touch a connected device name. For example, Android_XXXX.4. The other device displays a pop-up that indicates it is receiving the file.The file is transferred and can be found in My Files in the ShareViaWifi folder. DRAFT For Internal Use Only

87Note: Depending on the other device model, the prompts and shared folder information may differ.BluetoothBluetooth is a short-range wireless communications technology for exchanging information over a distance of about 30 feet.You do not need to line up the devices to send information with Bluetooth. If the devices are in range, you can exchange information between them, even if they are in different rooms.Configuring Bluetooth SettingsConfigure your device’s Bluetooth settings. For more information, refer to “Bluetooth” on page 122.Turning Bluetooth On or OffTo turn Bluetooth on or off:1. From a Home screen, touch Apps ➔Settings.2. Under Wireless and network, on the Bluetooth tab, touch the OFF / ON icon to turn Bluetooth on or off.Note: When Bluetooth is on, the Bluetooth icon displays in the Status Bar.Pairing with a Bluetooth DeviceSearch for a Bluetooth device and pair with it, to exchange information between your device and the target device.Tip: After pairing, your device and the target device recognize each other and exchange information without having to enter a passcode or PIN.1. From a Home screen, touch Apps ➔Settings.2. On the Bluetooth tab, touch the OFF / ON icon to turn Bluetooth on.3. Enable the target device’s discoverable or visible mode.4. Touch the Bluetooth tab and then touch Scan. Touch Stop at any time to stop scanning.5. From the list of found devices, touch the target device, then follow the prompts to complete the pairing: DRAFT For Internal Use Only

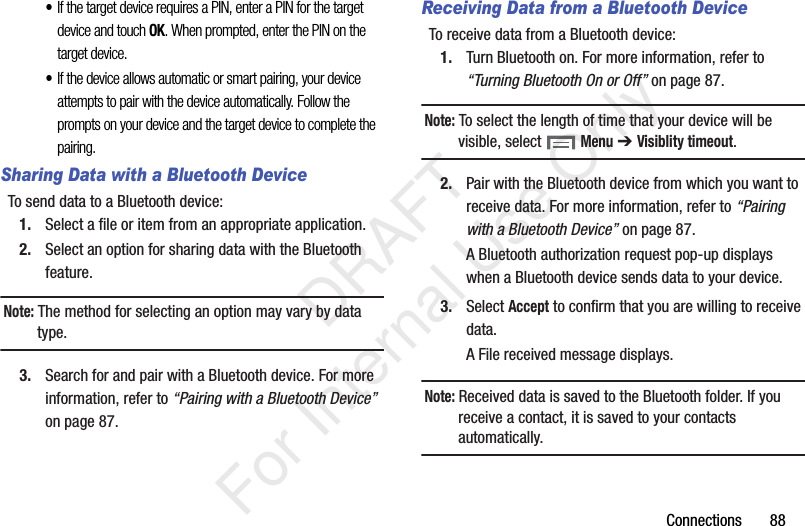

Connections 88•If the target device requires a PIN, enter a PIN for the target device and touch OK. When prompted, enter the PIN on the target device.•If the device allows automatic or smart pairing, your device attempts to pair with the device automatically. Follow the prompts on your device and the target device to complete the pairing.Sharing Data with a Bluetooth DeviceTo send data to a Bluetooth device:1. Select a file or item from an appropriate application.2. Select an option for sharing data with the Bluetooth feature.Note: The method for selecting an option may vary by data type.3. Search for and pair with a Bluetooth device. For more information, refer to “Pairing with a Bluetooth Device” on page 87.Receiving Data from a Bluetooth DeviceTo receive data from a Bluetooth device:1. Turn Bluetooth on. For more information, refer to “Turning Bluetooth On or Off” on page 87.Note: To select the length of time that your device will be visible, select Menu ➔ Visiblity timeout.2. Pair with the Bluetooth device from which you want to receive data. For more information, refer to “Pairing with a Bluetooth Device” on page 87.A Bluetooth authorization request pop-up displays when a Bluetooth device sends data to your device.3. Select Accept to confirm that you are willing to receive data.A File received message displays.Note: Received data is saved to the Bluetooth folder. If you receive a contact, it is saved to your contacts automatically. DRAFT For Internal Use Only

89Managing DownloadsFiles, apps, and other items you download in Internet, Gmail, Email, or in other ways, are stored on your tablet’s internal storage. You can use the Downloads app to view, reopen, or delete what you have downloaded.To manage the demands on their networks or to help you avoid unexpected charges, some mobile networks place restrictions on the size of the files you can download. When you are connected to such networks, and you try to download an oversized-file, you are asked or required to delay downloading the file until the next time you are connected to a Wi-Fi network. At that time, the download resumes automatically. The Downloads app can also be used to view and manage these queued files.Downloaded files are stored in the Download directory in your tablet’s internal storage. You can view and copy files from this directory when connected to a computer with a USB cable.Uninstalling an AppApps come pre-installed on your device and you can download additional apps from Google Play. If you decide to, you can uninstall apps you downloaded from Google Play and other sources.There are several ways to uninstall an app:1. From a Home screen, touch Apps ➔ Settings ➔Application manager.2. Touch the Downloaded tab.3. Touch the app you want to uninstall.4. Touch the Uninstall button.A pop-up displays the message Application will be uninstalled.5. Touch OK to confirm you want to uninstall the app.You can also use Google Play to uninstall apps you downloaded from there (see “Play Store” on page 111).Kies Via Wi-FiSamsung Kies is a software that enables you to update your device firmware, synchronize files, and transfer data to and from your device directly by connecting to the PC.Note: Some features will be supported through the System Updates feature in the future. For more information, refer to “Software Update” on page 155. DRAFT For Internal Use Only

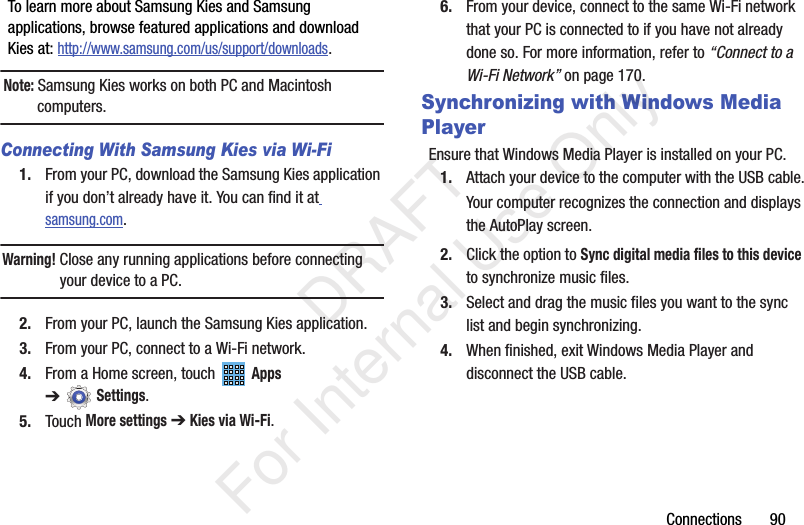

Connections 90To learn more about Samsung Kies and Samsung applications, browse featured applications and download Kies at: http://www.samsung.com/us/support/downloads.Note: Samsung Kies works on both PC and Macintosh computers.Connecting With Samsung Kies via Wi-Fi1. From your PC, download the Samsung Kies application if you don’t already have it. You can find it at samsung.com.Warning! Close any running applications before connecting your device to a PC.2. From your PC, launch the Samsung Kies application.3. From your PC, connect to a Wi-Fi network.4. From a Home screen, touch Apps ➔Settings.5. Touch More settings ➔ Kies via Wi-Fi.6. From your device, connect to the same Wi-Fi network that your PC is connected to if you have not already done so. For more information, refer to “Connect to a Wi-Fi Network” on page 170.Synchronizing with Windows Media PlayerEnsure that Windows Media Player is installed on your PC.1. Attach your device to the computer with the USB cable.Your computer recognizes the connection and displays the AutoPlay screen.2. Click the option to Sync digital media files to this device to synchronize music files.3. Select and drag the music files you want to the sync list and begin synchronizing.4. When finished, exit Windows Media Player and disconnect the USB cable. DRAFT For Internal Use Only

91Connecting as a Mass Storage DeviceYou can connect your device to a PC as a removable disk and access the file directory. If you insert a memory card in the device, you can also access the files directory from the memory card by using the device as a memory card reader.Note: The file directory of the memory card displays as folder Card, separate from the internal memory, which is folder Tablet.1. Insert a memory card into the device to transfer files from or to the memory card.2. Attach your device to the computer with the USB cable.Your computer recognizes the connection and displays the AutoPlay screen.3. Click the option to Open device to view files.You should see a Card and a Tablet folder.4. Copy files from the PC to the memory card (Card folder).5. When finished, close the PC folder and disconnect the USB cable. DRAFT For Internal Use Only

Applications 92Section 9: ApplicationsThis section contains a description of each application that is available on the Apps screen, its function, and how to navigate through that particular application. If the application is already described in another section of this user manual, then a cross reference to that particular section is provided. Various widgets are also described.Tip: To open applications quickly, add the icons of frequently-used applications to one of the Home screens, if it is not there by default. For details, see “App Shortcuts” on page 28.Updating ApplicationsOnce you have registered your device (see “Software Update” on page 155) and signed into your Google account (see “Setting Up Your Gmail Account” on page 49), you may see the Updates Available notification in the Status Bar if there is a new version of one or more apps available or, when you open an application that is preloaded on your device, an Update Available message may be displayed.To update the applications:1. Touch the Time / Status Icons area to display the Status Details panel.The Status Details display.2. Touch Updates available.For more information, refer to “Updates to Downloaded Apps” on page 111.GPS ApplicationsGPS applications allow you to achieve real-time, GPS-enabled, turn-by-turn navigation and to access local searches based on a variety of category parameters.To receive better GPS signals, avoid using your device in the following conditions:• inside a building or between buildings• in a tunnel or underground passage• in poor weather• around high-voltage or electromagnetic fields• in a vehicle with tinted windows DRAFT For Internal Use Only

93Global GPS turn-by-turn navigation, mapping, and Point of Interest content is available for three continents, including North America (U.S., Canada, and Mexico), Western Europe, and China, where wireless coverage is available.Important! If you touch or cover the internal GPS antenna while using GPS services, it may impede the GPS signal resulting in the GPS services not working in an optimal manner. Refer to the following diagram to locate the approximate location of the internal GPS antenna.AlarmSet alarms for reminders or for wake-up times.Adding and Configuring Alarms1. From a Home screen, touch Apps ➔ Alarm.2. Touch Create alarm to display the Create alarm screen.– or –Touch an existing alarm to display the Edit alarm screen.3. Touch fields on the screen to configure the alarm.•Some fields have preset values. Touch the field and touch the desired value.•Other fields have to be input. Touch the field and use the on-screen keyboard to input information.•Touching the check box next to some fields may make additional fields available.4. Touch Save to save the alarm.The main Alarm screen displays showing the new or updated alarm.Activating Alarms1. From a Home screen, touch Apps ➔ Alarm.2. Touch Turn alarm on to activate the alarm. A gray alarm means the alarm is deactivated.3. Touch an alarm to change any of its settings and then touch Save to save the updates.Editing and Deleting Alarms1. From a Home screen, touch Apps ➔ Alarm.2. Touch and hold an alarm and then touch one of the following options:•Edit: Edit the alarm. For more information, refer to “Adding and Configuring Alarms” on page 93. DRAFT For Internal Use Only

Applications 94•Delete: Delete the alarm.– or –Touch Delete, touch the existing alarms you want to delete or touch Select all, and then touch Delete.Turning Off an AlarmWhen the alarm sounds, to turn off the alarm: Touch and drag to the right.Setting the Snooze FeatureTo activate the Snooze feature after an alarm sounds: Touch and slide to the left. Snooze must first be set in the alarm settings.AllShare PlayAllShare Play allows your tablet to stream photos, music, and videos from its memory to other DLNA certified (Digital Living Network Alliance) devices. Your tablet can also play digital content streamed from other DLNA certified devices.Note: To view more information about DLNA certified products visit http://www.dlna.org/home.Configuring AllShare PlayYou must first connect both of your communicating devices to the same Wi-Fi and be using an active and registered Samsung account prior to using this application. For more information, refer to “Turning Wi-Fi On” on page 85. Connect to Wi-Fi, configure AllShare Play settings to identify your device as a server, and set treatment of copied files.Important! The Samsung account manages the access information (username and password) to several applications, such as AllShare Play.1. Connect to a Wi-Fi network. For more information, refer to “Scanning and Connecting to a Wi-Fi Network” on page 85.2. From a Home screen, touch Apps ➔AllShare Play.The AllShare Play Sign In screen displays.3. Touch Sign in. DRAFT For Internal Use Only

95The Samsung account screen displays.-or-Touch Create new account, if you have not set up a Samsung account, or touch Sign in, if you have already set up a Samsung account.For more information, refer to “Signing In to your Samsung Account” on page 147.The AllShare Play main screen displays.4. For more information, touch Menu ➔ FAQ.Amazon KindleThis application allows you to download books, magazines, and newspapers to read on your tablet.1. From a Home screen, touch Apps ➔ Amazon Kindle .2. At the Kindle display, tap Get Kindle for Android.3. Sign on to your Google account if you have not already done so.4. Follow the on-screen instructions to download the application from the Play Store.aNote HDUse ANote HD, to easily and effectively managing your life on the go. Use the tabs to choose the categories for notes, such as creating a shopping list and check things off on-the-go.1. From a Home screen, touch Apps ➔ aNote HD.2. Use the tabs on the left of the screen to touch the category you wish to use. Choose from the following optons.• Quick Memo• Calendar• My Idea• My Diary• Travel Journal• Shopping• To-Do list• Anniversary• My Calendar• Work• Study• Scrap• Email/Print• Recipe• Thoughts DRAFT For Internal Use Only
