Samsung Electronics Co SGHI620 PCS GSM/ EDGE Phone with Bluetooth User Manual i620

Samsung Electronics Co Ltd PCS GSM/ EDGE Phone with Bluetooth i620

UserManual.wiki >

Samsung Electronics Co >

SGHI620 User Manual

Users Manual

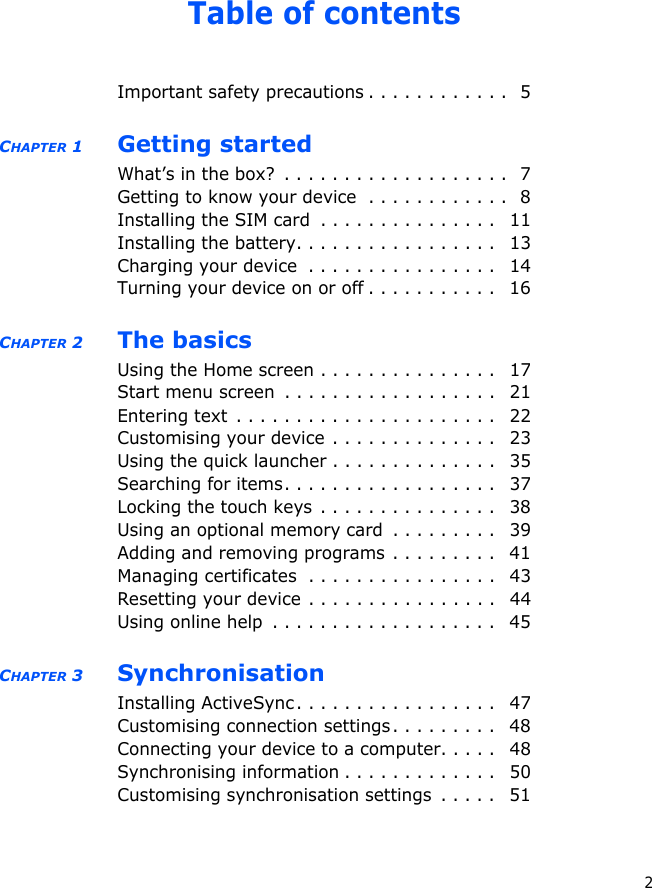

2Table of contentsImportant safety precautions . . . . . . . . . . . . 5CHAPTER 1 Getting startedWhat’s in the box? . . . . . . . . . . . . . . . . . . . 7Getting to know your device . . . . . . . . . . . . 8Installing the SIM card . . . . . . . . . . . . . . . 11Installing the battery. . . . . . . . . . . . . . . . . 13Charging your device . . . . . . . . . . . . . . . . 14Turning your device on or off . . . . . . . . . . . 16CHAPTER 2 The basicsUsing the Home screen . . . . . . . . . . . . . . . 17Start menu screen . . . . . . . . . . . . . . . . . . 21Entering text . . . . . . . . . . . . . . . . . . . . . . 22Customising your device . . . . . . . . . . . . . . 23Using the quick launcher . . . . . . . . . . . . . . 35Searching for items. . . . . . . . . . . . . . . . . . 37Locking the touch keys . . . . . . . . . . . . . . . 38Using an optional memory card . . . . . . . . . 39Adding and removing programs . . . . . . . . . 41Managing certificates . . . . . . . . . . . . . . . . 43Resetting your device . . . . . . . . . . . . . . . . 44Using online help . . . . . . . . . . . . . . . . . . . 45CHAPTER 3 SynchronisationInstalling ActiveSync . . . . . . . . . . . . . . . . . 47Customising connection settings. . . . . . . . . 48Connecting your device to a computer. . . . . 48Synchronising information . . . . . . . . . . . . . 50Customising synchronisation settings . . . . . 51

Table of contents3CHAPTER 4 Call functionsTurning the phone functions on and off . . . . 54Using the Dialling screen . . . . . . . . . . . . . . 55Making a call . . . . . . . . . . . . . . . . . . . . . . 55Advanced calling features . . . . . . . . . . . . . 56Answering or ignoring a call . . . . . . . . . . . . 59Options during a call . . . . . . . . . . . . . . . . . 59Call-related features . . . . . . . . . . . . . . . . . 62Customising your phone functions . . . . . . . 65CHAPTER 5 Messaging, Internet, and MessengerMessaging . . . . . . . . . . . . . . . . . . . . . . . . 71Internet Explorer . . . . . . . . . . . . . . . . . . . 86Windows Live . . . . . . . . . . . . . . . . . . . . . . 91Windows Live Messenger . . . . . . . . . . . . . . 91RSS Reader . . . . . . . . . . . . . . . . . . . . . . . 95CHAPTER 6 OrganiserContacts . . . . . . . . . . . . . . . . . . . . . . . . . 98Alarms . . . . . . . . . . . . . . . . . . . . . . . . . 104Calendar . . . . . . . . . . . . . . . . . . . . . . . . 105D-Day . . . . . . . . . . . . . . . . . . . . . . . . . . 109Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . 110Voice Notes . . . . . . . . . . . . . . . . . . . . . . 112World Clock . . . . . . . . . . . . . . . . . . . . . . 113CHAPTER 7 MultimediaCamera . . . . . . . . . . . . . . . . . . . . . . . . . 115Windows Media Player. . . . . . . . . . . . . . . 121Podcast . . . . . . . . . . . . . . . . . . . . . . . . . 129Adobe Flash Lite . . . . . . . . . . . . . . . . . . . 131Contents Manager. . . . . . . . . . . . . . . . . . 132

Table of contents4CHAPTER 8 Extra programsGames . . . . . . . . . . . . . . . . . . . . . . . . . 137Calculator . . . . . . . . . . . . . . . . . . . . . . . 138Smart Converter. . . . . . . . . . . . . . . . . . . 139Stopwatch . . . . . . . . . . . . . . . . . . . . . . . 140Picsel Viewer . . . . . . . . . . . . . . . . . . . . . 141Office Mobile . . . . . . . . . . . . . . . . . . . . . 143File Manager . . . . . . . . . . . . . . . . . . . . . 149Task Manager. . . . . . . . . . . . . . . . . . . . . 150SIM Manager . . . . . . . . . . . . . . . . . . . . . 151SIM Application Toolkit . . . . . . . . . . . . . . 153CHAPTER 9 Getting connectedBeaming with Bluetooth. . . . . . . . . . . . . . 154Connecting to a computer via USB . . . . . . 158Internet Sharing . . . . . . . . . . . . . . . . . . . 159Connecting to the Internet or your network 160CHAPTER 10 TroubleshootingGeneral problems . . . . . . . . . . . . . . . . . . 165Call problems . . . . . . . . . . . . . . . . . . . . . 168Power and charging problems . . . . . . . . . 169Program problems . . . . . . . . . . . . . . . . . 171CHAPTER 11 Regulatory noticesSAR certification information . . . . . . . . . . 176European Union notice . . . . . . . . . . . . . . 177Important safety information . . . . . . . . . . 178Safety precautions for power supply unit . . 180Care and maintenance . . . . . . . . . . . . . . 180Microsoft End User License Agreement . . . 182DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS. . . . . . . . . . . . . . . . . . 184

5Important safety precautionsRead these guidelines before using your wireless device. Failure to comply with them may be dangerous or illegal.Drive safely at all timesDo not use a hand-held device while driving. Park the vehicle first.Switch off the device when refuellingDo not use the device at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless devices can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the device near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless devices may be subject to interference, which could affect their performance.Be aware of special regulationsMeet any special regulations in force in any area and always switch off your device whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour device is not water-resistant. Keep it dry.

6Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the device is switched on.Emergency callsKey in the emergency number for your present location, then press .Keep your device away from small childrenKeep the device and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you and your device and may be dangerous. CAUTION:• The device could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions.Qualified serviceOnly qualified service personnel may install or repair your device. Failure to do so may invalidate the warranty.For more detailed safety information, see “Important safety information” on page 178.At very high volumes, prolonged listening to a headset can damage your hearing.

71Getting startedCongratulations on the purchase of your new Smartphone! This chapter helps you set up your device, charge the device’s batteries, and familiarise yourself with the different components of your device.What’s in the box?Your package contains the following items:•Device• PC data cable• Battery• Travel adapter•CD-ROM1• Quick Reference GuideIn addition, you can obtain the following accessories for your device from your local Samsung dealer:Note: The items supplied with your device and the accessories available at your Samsung dealer may vary, depending on your country or service provider. 1. It contains Microsoft ActiveSync software, Add-on software and programs.• Car charger or adapter • Standard battery• Travel adapter • Straight headset• PC data cable • Bluetooth USB dongle kit• Micro SD card • Ear microphone• Bluetooth mono & stereo headset• Bluetooth hands-free car kit

Getting started8Getting to know your deviceFront viewThe following illustrations show the main elements of your device:Mouthpiece4-Way Navigation keyEarpieceRight soft key (RSK)End keyDisplayBuilt in Full keyboardFront camera lensBack/Clear keyVolume keysHome key (shortpress)/Task Managerkey (long press)External speakerSend key (short press)/Speakerphone key (longpress during a call)Centre keymicroSD™card slotLeft soft key (LSK)

Getting started9Rear viewKeys of your deviceFlashKey lock (short press)/Camera key (long press)Headset/Power adapter/USB or data cable jackBattery coverRear camera lensMirrorPower ON/OFF button(long press)/Quick Listkey (short press)External speakerKey Description• Press and hold to turn the device on or off.• Press to open the Quick List screen. • Press to switch to the Home screen from a program.• Press and hold to open Task Manager.Press to perform the command shown on the screen immediately above the key.

Getting started10• Press to close the current menu and return to the previous menu or screen.• Press to delete characters in a text input field.• Press to scroll through a list. • Press to move the cursor in a text input field.Press to confirm your selection or input. • Press to open the Dialling screen. • Press to make or answer a call.• Press and hold to activate the speakerphone feature during a call.• Press to end a call.• Press to close the current menu and return to the previous menu or screen. ~ Press to enter numbers, characters, and symbols. Press to delete characters.Press to use characters on the upper half of the keys in a text input field for once. • Press to confirm your selection or input.• Press to start a new line in a text input field. Press to change case in a text input field. Press to switch the text input mode to 123 mode and then back to the previous mode. Press to change the text input mode.Key Description

Getting started12Inserting the SIM card1. Remove the battery cover.2. Insert and slide the SIM card, as shown, ensuring that the gold-coloured contacts of the card are face down.Continue to install the battery. See the next page.Removing the SIM cardTo remove the SIM card, slide the card out of the holder, as shown.

Getting started13Installing the batteryYour device is powered by a rechargeable Li-Ion battery.Installing the battery1. Remove the battery cover, if necessary.2. Insert the battery into the battery compartment, as shown.3. Reattach the battery cover.

Getting started14Removing the battery1. If necessary, press and hold (located at the top-right of your device) until the power-off image displays.2. Remove the battery cover.3. Lift the battery away from the device.Charging your deviceYour device is powered by a rechargeable Li-ion battery. Use the travel adapter to charge the battery, and use only Samsung approved batteries and chargers. Use of the wrong adaptor could damage your device and void your warranty.Note: You must fully charge the battery before using your device for the first time. A discharged battery recharges fully in approximately 200 minutes. You can use the device while the battery is charging, but this causes the device to charge more slowly.1. Plug the connector of the travel adapter into the jack on the right side of the device.

Getting started15Note: The following illustration shows the correct and incorrect method for connecting the adapter. Verify the arrow on the adapter is showing and pointing to the device for a correct connection. If it is not, damage to the accessory port will occur therefore voiding the device’s warranty.2. Plug the travel adapter into a standard AC power outlet. When charging is finished, unplug the adapter from the power outlet. 3. Remove the travel adapter from the device.Note: Do not remove the battery while charging. It may cause malfunctions and may damage the device.

Getting started16Low battery warningWhen the battery is weak and only a few minutes of talk time remain, a warning tone sounds and the “Main Battery very low” message repeats at regular intervals on the display and the battery icon ( ) displays. The backlight turns off to conserve the remaining battery power.When the battery level becomes too low, the device automatically turns off.Turning your device on or offPress and hold to turn on your device. The device is logged into your home network and receives the signal from the network. You can now make or answer calls and use programs on the device.To turn off the device, press and hold .Note: Your device supports HSDPA (High-Speed Downlink Packet Access) connections. Because the HSDPA network configurations are different from country to country, a notification may appear to indicate that your HSDPA options have changed if you move across the boundaries between countries. To apply the new changes, you must restart your device. If you do not, making or receiving calls and transmitting data simultaneously may not work. In some countries, incoming and outgoing voice calls may be limited until the HSDPA networks are upgraded.

172The basicsThis chapter explains basic information about using your device, such as customising your device and using online help.Using the Home screenWhen you turn on your device, the Home screen, the device’s idle screen, appears. You can also access this screen by pressing from any program.Status barOn the top line of the screen, the status bar displays icons to show your device’s current status. Followings are some of the status icons you may see:Icon DescriptionShows the strength of the signal.You can also view the following service status:• : You are out of your service area.• : The phone functions are turned off.Appears when a call is in progress.Appears when a data call is in progress.Appears when the current call is on hold.Appears when a GPRS connection is available in the network. When a GPRS connection is active, appears.

The basics19Accessing information from the Home screenFrom the Home screen, you can:• check the service status and the current time and date• view missed calls or unread messages• view upcoming appointments• play music filesTo access information from the Home screen: 1. From the Home screen, scroll to the item you want by pressing the Navigation keys and press .Appears when a text (SMS) or multimedia (MMS) message has been received.Appears when an instant message has been received.Appears when a new voicemail has been received.• : A new voicemail from line 1.• : A new voicemail from line 2.• : A new voicemail from both lines.Appears when there is a call you have missed.Appears when you have set incoming calls to be diverted to another destination.Icon Description

The basics202. Access items in the selected program by pressing the Navigation keys or sliding the thumbwheel.For more information on these items, see the appropriate instructions for each task in this guide.3. Press or to return to the Home screen.Customising the Home screenYou can customise the Home screen according to your preferences.1. On the Home screen, press the Start soft key.2. Select Settings → Display → Home Screen.3. Press the Up or Down Navigation key to scroll to an option, and press the Left or Right Navigation key to change the setting.The following options are available:• Home screen layout: Select the layout to be used for the Home screen.Note: The Samsung Living World layout is easy to know the current time, signal strength, and country because of its graphical screen.• Colour scheme: Select the colour scheme to be used for the Home screen.• Background image: Select an image to use as a background image on the Home screen.• Time out: Specify the length of time the device waits before returning the display to the Home screen if the device is not used.

The basics214. When you have finished, press the Done soft key.Start menu screenOn the Start menu, you can access all of the programs in your device. On the Home screen, press the Start soft key to open the Start menu screen.You can change the start menu type. Press the Start soft key, and select Settings → Display → Start Menu Style. Then select the option you want.Opening programs or foldersScroll to a program or a folder by pressing the Navigation keys or sliding the thumbwheel, and press to open it.Switching between programsYour device is a multi-tasking device. You can run multiple programs at the same time and switch from one program to another. From any program, press or to switch to the Home screen. Then access another program from the Start menu or quick launcher.Note: Your device supports multiple PDP so that you can activate multiple data connections at the same time. For example, you can use the MMS service while browsing the Internet. However, if a network does not support multiple PDP, you must end the current data connection in order to make a new data connection.

The basics22Closing programsUsing Task Manager, you can end the programs which are currently open. 1. On the Home screen, press and hold .2. Scroll to a program, press the Stop soft key. To close all of the running programs, press the Menu soft key and select Stop All.Entering textYour device is equipped with a Full keyboard to support easy and quick text input. You can enter text as you would when using a computer’s keyboard.The keys are labelled with alphabet on the lower half and numbers and symbols on the upper half. Press the key corresponding to the character you want to enter. To switch between using the upper case characters and lower case characters, press .You can move the cursor by pressing the Navigation keys. To delete a character, press .In addition, you can use the following function keys:• : deletes characters.• : starts a new line.• : changes the text input mode to Upper case mode or Lower case mode.• : switches to 123 mode.

The basics23• : allows you to change the text input mode. You can switch between ABC mode and T9 mode in which displays the word choices for your key presses. 123 mode and Symbol mode are also available for entering numbers and symbols. Using the Languages option, you can change the language for T9 mode.• : press and hold to switch to Symbol mode.Customising your deviceYou can customise the device settings to suit the way you work. Regional settingsYou can change number, currency, and time and date formats appropriate to the countries in question.1. On the Home screen, press the Start soft key.2. Select Settings → More... → Regional Settings.3. Select the option you want in each field.4. When you have finished, press the Done soft key.5. If you changed the Language or Locale option, press the OK soft key. Then you need to turn the device off and then back on to make your changes take effect.

The basics24Time and date settingsThe Date and Time setting enables you to set the date, time, and time zone.1. On the Home screen, press the Start soft key.2. Select Settings → Date and Time.3. Select your time zone and set the current date and time.4. If necessary, select a mode for updating the current time and date in the Time zone updating field:Manual only: you can set the time and date manually.Prompt first: the device will ask you if you want to update time information.Note: When you set the device to automatically update time information, the time zone on the device may appear to be different from the time zone you are in.Automatic: your device will receive time information from the network and automatically update the current time. This option is available only if supported by your network.5. When you have finished, press the Done soft key.Note: You can change the time and date format to be displayed in Regional Settings.

The basics25Power settingsYou can conserve battery power by adjusting the time-out settings for the display.1. On the Home screen, press the Start soft key.2. Select Settings → More... → Power Management.3. Select the power settings:• Battery: You can check the remaining battery power. • Backlight time out: You can select the length of time the display backlight stays on when you do not use the device. • Display time out: You can select the length of time the display stays on. During standby, the device goes to Sleep mode after a specified period of time, so very little power is being consumed.• Display brightness: You can adjust the brightness for the display.• Keypad backlignt time out: you can select the length of the keypad backlight stays on when you do not use the device.• Keypad backlight on: Choose from Any time or Custom time. If you have chosen Custom time, enter the starting time and ending time for the keypad to work.4. When you have finished, press the Done soft key.

The basics26Accessibility settingsYou can configure the options to increase the accessibility to your device’s functions.1. On the Home screen, press the Start soft key.2. Select Settings → More... → More... → Accessibility.3. Select the options you want.• System font size: You can set the size of the font on your screen.• Confirmation time out: You can set the delay before an unconfirmed action times out.• In-call alert volume: You can set the volume of the alert tone that sounds when you are on a call.4. When you have finished, press the Done soft key.Sound settingsYou can customise sound settings for various events on the device.Setting sounds and notificationsYour device reminds you in various ways when you have something to do, receive a message, or press the keys on the device. For example, if you have set up an appointment, you are notified in any of the following ways:• A sound, which you can specify, plays.• Your device vibrates.

The basics27You can change device sounds by choosing types or sounds for each event.To choose a ringtone for the call ringer:1. On the Home screen, press the Start soft key.2. Select Settings → Sounds → Ring tone.3. Select the ringtone you want.4. Press the Done soft key.To choose an alarm tone:1. On the Home screen, press the Start soft key.2. Select Settings → Sounds → Alarm.3. Select the reminder type for the alarm.4. Press the Done soft key.To choose a message notification:1. On the Home screen, press the Start soft key.2. Select Settings → Sounds → Notifications.3. Select a notification for each message type.4. Press the Done soft key.To choose reminder types and sounds:1. On the Home screen, press the Start soft key.2. Select Settings → Sounds → System Sound.

The basics30Error reporting settingYour device has the Error Reporting function which informs you of errors in a program that can give a crash to the device system. You can enable or disable this function.1. On the Home screen, press the Start soft key.2. Select Settings → More... → More... → Error Reporting.3. Select Enable or Disable and press the Done soft key.Security settingsWith options in Security, you can protect your device and SIM card from unauthorised use.Locking the deviceYou can protect your device using the Device Lock feature. Once the feature is enabled, your device is automatically locked after the specified period of inactivity.Note: Even if the device is locked, you will be able to receive calls. To lock the device:1. On the Home screen, press the Start soft key.2. Select Settings → More... → Security → Device Lock.3. Select Prompt if device unused for and select a length of time the device waits for before locking itself when it is not in use.

The basics314. Scroll to the Password type field and select a password type.• Simple PIN: Use a numeric password. A password must be more than 4 characters.• Strong alphanumeric: Use an alphanumeric password. A password must be more than 7 characters and contain at least 3 of uppercase and lowercase letters, numbers, or punctuation marks.5. Enter a password in the Password field.6. Re-enter the same password in the Confirm password field for confirmation. 7. Press the Done soft key.8. Press the Yes soft key.Note: Press and select Lock from the Quick List to manually lock the device.To unlock your device:1. On the Home screen, press the Unlock soft key.2. Enter the password and press the Unlock soft key.Activating the SIM PINWhen SIM PIN is enabled, you must enter your PIN supplied with your device each time you turn the device on or insert the current SIM card into another device. Consequently, any person who does not have your PIN cannot use your device without your approval.1. On the Home screen, press the Start soft key.

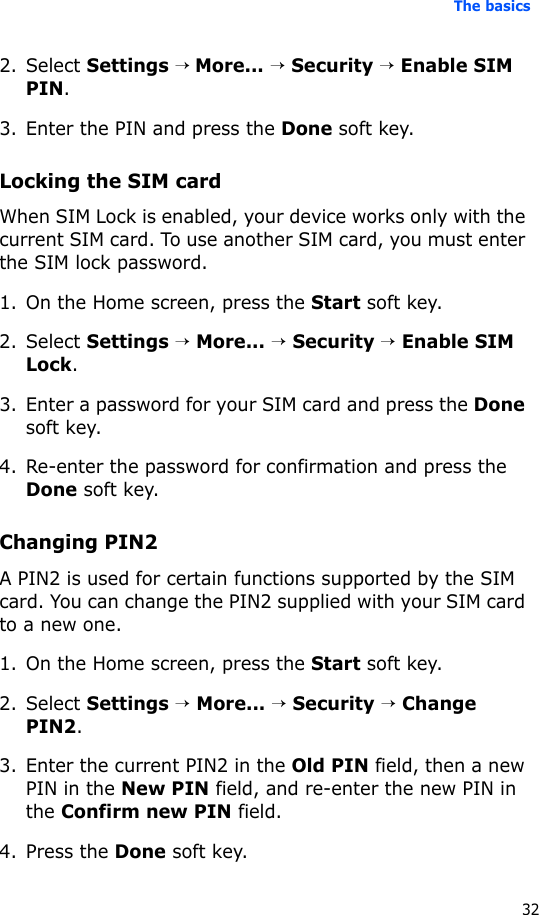

The basics322. Select Settings → More... → Security → Enable SIM PIN.3. Enter the PIN and press the Done soft key.Locking the SIM cardWhen SIM Lock is enabled, your device works only with the current SIM card. To use another SIM card, you must enter the SIM lock password.1. On the Home screen, press the Start soft key.2. Select Settings → More... → Security → Enable SIM Lock.3. Enter a password for your SIM card and press the Done soft key.4. Re-enter the password for confirmation and press the Done soft key. Changing PIN2A PIN2 is used for certain functions supported by the SIM card. You can change the PIN2 supplied with your SIM card to a new one. 1. On the Home screen, press the Start soft key.2. Select Settings → More... → Security → Change PIN2.3. Enter the current PIN2 in the Old PIN field, then a new PIN in the New PIN field, and re-enter the new PIN in the Confirm new PIN field.4. Press the Done soft key.

The basics33Changing the call barring PasswordYou can change the default call barring password supplied by your service provider.1. On the Home screen, press the Start soft key.2. Select Settings → More... → Security → Change Barring Password.3. Enter the old password, then a new password, and re-enter the new one for confirmation.4. Press the Done soft key.Side key settingYou can change the program assigned to the user-defined function key, , to your favourite program.1. On the Home screen, press the Start soft key.2. Select Settings → Side Key Settings.3. Select the program you want.4. Press the Done soft key.

The basics34Menu shortcut settingsIf you have set the Start menu style to List, then number keys can be used as shortcut keys to directly access specific programs that exist in the Start menu.Note: You can also assign phone numbers, email addresses, or web pages in Contacts to the number keys as speed dial entries. For details about setting the speed dial list, see page 62.Assigning a shortcut to a key1. On the Home screen, press the Start soft key.2. Scroll to the program you want to assign to a key.3. Press the Menu soft key and select Add Speed Dial.4. If necessary, enter the name you want in the Name field.5. Select a location in the Keypad assignment field and press the Done soft key.Accessing a menu using its shortcutOn the Home screen, use one of the following ways:• For one-digit shortcut key, press and hold the number key.• For two-digit shortcut keys, press the first number key and then press and hold the last number key.

The basics35Using the quick launcherYour device provides you with the quick launcher, which allows you to set up shortcuts to your favourite programs, website, files, or folders, and quickly access them.To open the quick launcher:In Idle mode, press . You can also press the Start soft key, press the More soft key, and select Accessories → MITs Launcher.Adding items to the quick launcher1. From the quick launcher window, press the Menu soft key and select Add → a type of item to be added.2. Select a program, URL address, file, or folder.3. Repeat steps 2 and 3 to add other items.Accessing items from the quick launcherFrom the quick launcher window, press the Navigation keys to scroll to the item you want and press .Managing the group of the quick launcher1. Form the quick launcher window, press the Menu soft key and select Edit Group.2. To add a new group, press the Menu soft key and select New. Enter a name and press the Done soft key.

The basics36To delete the selected group, press the Menu soft key and select Delete. Press the Yes soft key to confirm the deletion.To change the group name, press the Menu soft key and select Rename. Change the name and press the Done soft key. To change the order of the groups, press the Menu soft key and select Move. Press Up or Down Navigation key to move the selected group to the position you want and press the Done soft key.3. Press the Done soft key.Changing the order of the quick launcher window1. From the quick launcher window, scroll to the item you want.2. Press the Menu soft key and select Move.3. Press the Up or Down Navigation key to move the selected item to the position you want.4. Press the Done soft key.Removing items from the quick launcher1. From the quick launcher window, scroll to the item you want.2. Press the Menu soft key and select Delete.3. Press the Yes soft key to confirm the deletion.

The basics37Searching for itemsYour device provides a search program, Smart Search, to allow you to easily search for data or media files in your device and quickly access them.Searching for an item1. On the Home screen, press the Start soft key and then the More soft key.2. Select Accessories → Smart Search.3. Enter the first few letters of an item name in the Find field and select an item type in the Type field.4. Select Match case and/or Match whole word to allow the device to search for the matching items more quickly.5. Press the Go soft key. The device searches its file directory or programs and lists all matching items.6. Scroll to the one you want and press the Open soft key.Setting up the search optionsYou can change the search options for each item type to provide the device with more specific information to narrow the search items.1. From the Smart Search screen, press the Menu soft key and select Options.

The basics382. Select the item type you want and set each option.• Contact: Select the types of contact information you want to include in your search.• Appointment: Select whether to include notes, or set a date for the device to search for appointments.• Task: Select whether to include notes in your search.• Text message: Select the types of message information you want to include in your search, or set a date for the device to search for text messages.• E-mail: Select the types of email information you want to include in your search, or set a date for the device to search for email messages.• Phone call: Select the types of calls you want to include in your search.• File name: Select the storage locations you want to include in your search.3. When you have finished, press the Done soft key.Locking the touch keysYou can lock the touch keys on the device to keep any accidental key presses from causing a program’s launch or device switch on or off.•To lock the keypad, press .• To unlock the touch keys, press any key except for touch keys.

The basics39Using an optional memory cardYour device has an expansion slot compatible with microSD memory cards, which are primarily used to back up or transfer files and data.Note: Use only compatible memory cards with your device. Using incompatible memory cards, such as Secure Digital (SD) cards, may damage the card, as well as the device, and data stored on the card.Inserting the memory cardPush the memory card into the slot with the label side face down until it clicks into place. The card is secure when it is not protruding from the device.

The basics40Removing the memory cardPush the memory card in and release so that it is disengaged from the slot. Then remove the card from the device.Formatting the memory card1. On the Home screen, press the Start soft key.2. Select Settings → More... → More... → Memory Information.3. Press the Menu soft key and select Format Storage Card.4. Press the Yes soft key to confirm the formatting.

The basics41Adding and removing programsYou can install any program created for your device, as long as the device has enough memory. The most popular place to find software for your device is on the Microsoft web site (http://www.microsoft.com/windowsmobile/smartphone).Adding programs using ActiveSyncYou can install programs downloaded from the Internet or included on the supplied software CD-ROM by performing synchronisation between your device and your computer. First you need to determine what your device and processor type is so that you know which version of the software to install.1. On the Home screen, press the Start soft key and select Settings → More... → More... → About. Check the version of your device.2. Download a program to your computer from the Internet or insert the CD-ROM that contains the program into your computer. Be sure to select the program designed for your device and the device’s processor type.3. Read any installation instructions, Read Me files, or documentation that comes with the program. 4. Connect your device to your computer and make sure that the ActiveSync is running.For more information on ActiveSync, see page 46.

$The basics425. Double-click the *.exe file on the computer.If the file is an installer, the installation wizard will begin. Follow the instructions on the screen. Once the software has been installed, the installer will automatically transfer the software to your device.If the file is not an installer, you will see an error message. You need to move this file to your device by using ActiveSync Explore to copy the program file to the Windows\Start Menu folder on your device. Once installation is completed, you can view and open the program by accessing the Start menu.Adding a program directly from the InternetFirst you need to determine what your device and processor type is so that you know which version of the software to install.1. On the Home screen, press the Start soft key and select Settings → More... → More... → About. Check the version of your device.2. Download the program to your device straight from the Internet using Internet Explorer. Be sure to select the program designed for your device and the device’s processor type.3. Read any installation instructions, Read Me files, or documentation that comes with the program. 4. Select the file, such as a *.xip or *.exe file. The installation wizard will begin.$
