Samsung Electronics Co SGHI858 Single-Band PCS GSM/ EDGE Phone with Bluetooth User Manual 165 213 203 222 10 pda 87 FC
Samsung Electronics Co Ltd Single-Band PCS GSM/ EDGE Phone with Bluetooth 165 213 203 222 10 pda 87 FC
Users Manual
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-xxxxx
English.11/2005. Rev. 1.0
* Depending on the software installed or your service provider or country, some of
the descriptions in this guide may not match your phone exactly.
* Depending on your country, your phone and accessories may appear different
from the illustrations in this guide.
SGH-i858 Series
User’s Guide
Please read this guide before operating your phone,
and keep it for future reference.
Draft version
(2005. 10.
28
)
i
Table of Contents
Important safety precautions . . . . . . . . . . . . . . . . . . . . . . v
C
HAPTER
1
Getting started
What’s in the box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Getting to know your phone . . . . . . . . . . . . . . . . . . . . . . . 8
Using a stylus pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installing SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Charging your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Switching your phone on . . . . . . . . . . . . . . . . . . . . . . . . 17
Installing an optional memory card . . . . . . . . . . . . . . . . . 17
Installing Sync programs . . . . . . . . . . . . . . . . . . . . . . . . 18
C
HAPTER
2
The basics
Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Application Launcher . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Status bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Basic settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Opening an application . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Closing an application . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using the task window . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Actions common to all applications . . . . . . . . . . . . . . . . . 26
Synchronising information . . . . . . . . . . . . . . . . . . . . . . . 30
Beaming information . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Viewing the phone display on a TV . . . . . . . . . . . . . . . . . 36
Resetting your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
ii
C
HAPTER
3
Entering text
Using the touch screen . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using the keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
C
HAPTER
4
Call functions
Turning the phone functions on or off . . . . . . . . . . . . . . . 50
Accessing the Phone screen . . . . . . . . . . . . . . . . . . . . . . 51
Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Quickly switching to Silent mode . . . . . . . . . . . . . . . . . . . 53
Options during a call . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Viewing missed calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Advanced calling features . . . . . . . . . . . . . . . . . . . . . . . . 55
Using call logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Using the speed dial list . . . . . . . . . . . . . . . . . . . . . . . . . 59
Setting phone options . . . . . . . . . . . . . . . . . . . . . . . . . . 59
C
HAPTER
5
Messaging and the Internet
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
eMail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Trace Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
QQ Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
China Mobile services . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
C
HAPTER
6
Personal information management
Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

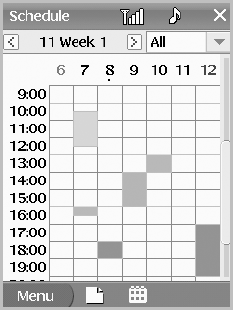

Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
To Do . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Money . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
iii
C
HAPTER
7
Entertainment
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Photo Album . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Fruits Cocktail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
MahJong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
C
HAPTER
8
Tools
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
D-Day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

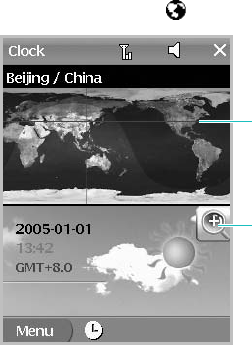

Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Dictionary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
InfASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
TSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Java . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
File Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
C
HAPTER
9
Documents
Picsel Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Text Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
C
HAPTER
10
Health and safety information
SAR certification information . . . . . . . . . . . . . . . . . . . . . 148
Precautions when using batteries . . . . . . . . . . . . . . . . . 149
Road safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Operating environment . . . . . . . . . . . . . . . . . . . . . . . . 150
Electronic devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Potentially explosive Environment . . . . . . . . . . . . . . . . . 153
iv
Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Other important safety information . . . . . . . . . . . . . . . . 154
Care and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 155
v
Important safety precautions
Read these guidelines before using your wireless phone.
Failure to comply with them may be dangerous or illegal.
Drive safely at all times
Do not use a hand-held phone while driving. Park the
vehicle first.
Switch off the phone when refuelling
Do not use the phone at a refuelling point (service station)
or near fuels or chemicals.
Switch off in an aircraft
Wireless phones can cause interference. Using them in an
aircraft is both illegal and dangerous.
Switch off the phone near all medical equipment
Hospitals or health care facilities may be using equipment
that could be sensitive to external radio frequency energy.
Follow any regulations or rules in force.
Interference
All wireless phones may be subject to interference, which
could affect their performance.
Be aware of special regulations
Meet any special regulations in force in any area and always
switch off your phone whenever it is forbidden to use it, or
when it may cause interference or danger.
Water resistance
Your phone is not water-resistant. Keep it dry.
Sensible use
Use only in the normal position (held to the ear). Avoid
unnecessary contact with the antenna when the phone is
switched on.
vi
Emergency calls
Key in the emergency number for your present location,
then press .
Keep your phone away from small children
Keep the phone and all its parts, including accessories, out
of the reach of small children.
Accessories and batteries
Use only Samsung-approved accessories and batteries. Use
of any unauthorised accessories could damage your phone
and may be dangerous.
CAUTION:
• The phone could explode if the battery is replaced with an
incorrect type.
• Dispose of used batteries according to the manufacturer’s
instructions.
Use of authorised software
Use only Samsung-authorised software. The use of any
unauthorised software could damage your phone.
Qualified service
Only qualified service personnel may install or repair your
phone. Failure to do so may invalidate the warranty.
For more detailed safety information, see “Health and
safety information” on page 148.
Notes:
• While using your phone, data may be deleted or corrupted due
to system malfunctions or operating mistakes. Back up your
important data using external storage devices.
• Be careful not to press the reset button or remove the battery
while storing data. Doing this may delete or corrupt your data.
• Extremely high or low temperatures may cause errors in the
screen display or a system malfunction. The phone functions
best in a normal temperature range.
7
1
Getting started
Congratulations on the purchase of your new phone! This
chapter helps you familiarise yourself with the different
components of your phone, set up your phone and charge
the battery.
What’s in the box?
Your package contains the following items:
Note
: Use the purchased accessories with only Samsung-
authorised devices. The use of these accessories with other
devices could cause problems and any repair costs would
not be covered by the warranty.
Headset Travel charger
Leather case PC data able
Software/
Manual CD-ROM User’s Guide &
Quick Reference Guide
Getting started
8
Getting to know your phone
The following illustrations show the main elements of your
phone:
Front view
Microphone
End key
Back key
Receiver
Navigation keys
Alphanumeric keys
Touch screen
Stereo speaker
IrDA port
Voice memo key
OK key
Send key
Volume keys
Application/
Menu keys
Special
function keys
Getting started
9
Rear view
Button(s) Description
Press to open the associated application or
menu.
- : Pop-up menu list
- : Home
- : Address; Press to move through all
of
the Application Launcher tabs from the
Application Launcher. Press and hold to
open the task window.
- : Monternet
Reset button
Charging/
Communication port
Battery
Battery lock
Camera key
Headset jack
Power/Key lock
lever
Memory card slot
Card cover lock
Flash
Camera lens
Stylus pen holder
SIM card slot
Getting started
10
• Press to access the Phone screen.
• Press to make or answer a call.
From the
Phone screen, it shows the call log.
Press
and hold to dial the last number.
Press to move up or down and left or right
through any of the applications,
records, or
options.
Press to confirm your selection or execute
the selected application.
Press to cancel the operation or return to the
previous status or
application.
• Press to end a call or return to Idle mode
from Phone mode.
• Press and hold to turn the phone functions
off or on.
~ • Press to enter alphanumeric characters.
• Press to select options when they are
numbered.
Press and hold to change case when entering
text using the keypad.
• Press and hold to enter or exit Silent mode
in Phone mode.
• Press to enter a space when entering text
using the keypad.
• Press and hold to turn on the camera.
• Press to take a photo or record a video in
Camera.
Button(s) Description
Getting started
11
Desktop charger
• Slide down to turn on the phone.
• Slide down and hold to turn the backlight
on and off, or slide down to switch the
phone to Sleep mode and wake it up when
using the phone.
• Slide up to lock the keys, so that pressing
the exposed keys does not effect your
phone’s functions when the phone is
closed.
To unlock the keys, set this lever
to its centre position.
Press to open
the Recorder application
allowing you to record a voice memo.
• Press to adjust the voice volume during a
call.
• Press to adjust the media volume in Media
Player.
• Press to adjust the system volume in
Phone mode.
• Press to scroll through records or options.
Button(s) Description
Battery
compartment
PC data cable
port
Battery charge LED
Phone
support
Phone
charge LED
Data
connector Charging/
Communication port
Getting started
12
Using a stylus pen
Your phone has many of the same functions as a portable
personal computer, but does not have a keyboard or a
mouse. Instead, use the stylus pen provided with your
phone to access, run, or enter information using the LCD
touch screen.
A stylus pen is stored on the back of the phone so that you
can carry it with the phone. When you aren’t using the
stylus pen, insert it back into the stylus pen holder.
Use the stylus pen to:
Tap
: Softly touch the screen once with the stylus pen to
select or execute a file or command. A tap works like a
mouse click on a computer.
Drag
: Hold the stylus pen on the screen and drag it across
the screen to move text.
Tap-and-hold
: Tap and hold the stylus pen on an item to
see a list of actions available for that item. Tap the action
you want to perform on the pop-up menu that appears.
Note
: To prevent scratches, do not use an actual pen, pencil or
other sharp objects to tap or write on the screen.
stylus pen
holder
Getting started
13
Installing the battery
Your phone is powered by a rechargeable Li-ion battery.
Use only approved batteries and chargers. Ask your local
Samsung dealer for further details.
Inserting the battery
1. Put the battery on the back of the phone, lining it up with
corresponding slots on the phone.
2. Press the battery down until it clicks into place.
Make sure that the battery is securely locked before
switching the phone on.
Removing the battery
To remove the battery, press the battery lock to release the
battery and lift the battery away the phone, as shown.
Getting started
14
Installing SIM card
When you subscribe to a cellular network, you are provided
with a plug-in SIM card loaded with your subscription
details, such as your PIN, any optional services available
and many others.
• Keep all cards out of the reach of small children.
• The card and its contacts can easily be damaged by
scratches or bending, so be careful when handling, inserting
or removing the card.
Inserting the card
1. Open the phone.
2. Slide the card cover lock to the unlock position ( ) and
slide the card cover of the SIM card slot open.
3. Insert and slide the card under the two tabs, ensuring that
the gold-coloured contacts of the card face down into the
phone, as shown.
Getting started
15
4. Slide the cover closed and relock.
Removing the card
1. Open the phone and the card slot cover, referring to step 1
in “Inserting the card” on page 14.
2. Slide the card out of the holder.
Charging your phone
Before using your phone, charge it with the supplied travel
charger or desktop charger.
Using the travel charger
1. Plug the connector of the travel charger into the bottom of
the phone.
2. Plug the charger into a standard AC wall outlet.
Getting started
16
3. The LED on the charger shows the status of the battery
being charged.
• Red: the battery is charging.
• Green: the battery is fully charged.
• Orange: the travel charger is not plugged in correctly.
4. When charging is finished and the LED changes to green,
unplug the charger from the AC wall outlet and remove it
from the phone by pressing the
PUSH
button on the
connector and pulling the connector out.
Conserving battery power
You can conserve power by the following methods:
• Switch the phone to Sleep mode when you don’t use it. Slide
down to activate Sleep mode.
• Turn off the backlight. Slide down and hold.
• Adjust the Backlight settings and Power settings. For details,
see page 24 and page 155.
Getting started
17
Switching your phone on
1. After installing the SIM card and the battery and charging
the phone, slide down to turn the phone on.
2. If you install two SIM cards, select a network and tap
OK
.
The phone initialises the card and receives signals from the
network. The Home screen appears.
Installing an optional memory card
Use a memory card to extend your phone’s capacity. You
can purchase one from your local Samsung dealer or
certain electronics retailers.
A memory card is a ultra small-sized flash memory card
used for extra storage capacity for data, music files, voice
memos, and more. These can be transferred between your
phone and your computer. Use a memory card when it is
inconvenient to perform a PopSync operation.
To insert a memory card:
1. Open the phone, and then the memory card cover by
following step 2 on page 14.
2. Carefully slide the
memory
card into the slot with the label
side face up.
Getting started
18
Guidelines for using a memory card
Follow the instructions that come with the memory card or
contact your memory card manufacturer for more
information.
•Some
memory
cards consume large amounts of power. To
avoid draining the battery completely when using a
memory
card, connect your phone to an AC wall outlet whenever
possible.
• If the battery is very low, do not save data to a
memory
card. This may result in the loss of data. First connect to an
AC power outlet.
• Do not turn your phone off when you are in the middle of
performing an operation, such as saving data to your
memory
card.
• Keep your
memory
card in a protective case when not in use
to protect it from dirt and moisture.
Installing Sync programs
Your phone comes with programs which let you synchronise
and exchange information between your phone and your
computer. Using the supplied CD-ROM, you can install:
•
PopSync
- Sync manager
program
, which allows you to
synchronise between your phone and Mobile Desk and/or
Microsoft Outlook on your computer.
•
Mobile Desk
- Desktop PIMS
program
, which allows you to
manage Address, Schedule, To Do, Memo, and Money data
and browse the phone’s file directory.
•
USB Sync driver
- USB driver for PC, which allows you to
connect the phone to your computer using a PC data link
cable.
Getting started
19
Before installing the Sync programs, make sure that you
have:
• Windows 2000/XP
• 40 MB of hard disk space
• 256 (minimum) /512 (recommended) MB of RAM memory
• Available USB port
To install the programs:
1. Insert the supplied CD-ROM into the CD-ROM drive of your
computer.
The execution file will automatically run. If it doesn’t,
access
My computer
and double-click your CD-ROM drive.
2. Click the item you want to install.
3. Follow the instructions on the screen to install the
programs
.
After installation is complete, the PopSync and Mobile
Desktop icons appear on your Windows desktop.
Note
: For details about the program, please refer to the Sync
user’s guide on the supplied CD-ROM.
20
2
The basics
Home screen
When you turn your phone on for the first time each day,
you’ll see the Home screen. You can also display it by
pressing
or selecting from the launcher.
Application Launcher
Applications on your phone can be accessed from the
Application Launcher.
To access the application screens, tap each icon on the
Application Launcher, or press repeatedly until the
application screen you want opens.
In each screen you can change the view method to either
Icon View or List View by pressing .
Tap to open the Home screen. You can see
important information for the day at a glance.
Tap to access the China Mobile-related
applications.
Tap to view the applications are related to
Personal Information Management (PIM) and
communications, such as Phone, Alarm, QQ
Messengers, SMS, and eMail.
Application
Launcher icons
Quick launcher:
Allows you to access
popular applications.
The basics
21
Status bar
On the top line of the screen, the status bar displays icons
to show your phone’s current status. The following icons
may appear:
Tap to view the entertainment and tool
applications available, such as Camera,
Remote
Control
, Calculator, and Clock.
Tap to access applications you have installed.
Tap to change the various settings of your phone.
Icon Description
Shows the received signal strength. The
greater the number of bars, the better the
signal.
Appears when you turn off the phone
functions. Tap to turn on the phone
functions.
Appears when a call is in progress.
Appears when you are out of a service area.
When it appears, you cannot make or
receive a call.
Appears when the phone is connected to a
GPRS network.
Appears when a call restriction option is
active.
The basics
22
Appears when you are out of your home area
and have logged onto a different network,
when travelling in other countries, for
example.
Appears when a new uni-mail is received in
the server.
Appears when a new uni-mail is received in
the phone.
Appears when a new WAP alert is received.
Appears when a new message is received.
Appears when a new voicemail is received.
Appears when you have set an alarm to ring
at a specified time.
Indicates the call ringer setting:
• : Ring
• : Ring silent
• : Ring then vibration
• : Vibration then ring
• : Ring and vibration
• : Vibration
Appears when Silent mode is active.
Appears when the Bluetooth feature is
active. When the feature is deactivated, this
icon is greyed.
Appears when a memory card is installed
into your phone.
Icon Description
The basics
23
Note
: Tapping each icon allows you to change the settings for the
corresponding feature or shows you information about the
corresponding feature.
Basic settings
Before using your phone, personalise the following basic
settings as your preferences and needs.
Changing the display language
1. From the Application Launcher, tap
and select
语言
/
Language
().
2. Tap the language you want and then
Apply
.
Your phone restarts to apply the language change to the
system.
Shows the level of your battery. The more
bars you see, the more power left in the
battery.
Indicates the text input mode:
• : Chinese Pinyin mode
• : Chinese Stroke mode
• : T9word mode
• : ABC mode
• : Number mode
• : Symbolic mode
Appears when the keys are locked.
Icon Description
The basics
24
Calibrating the screen
The LCD screen of your phone is a touch screen which
recognises your touches on the screen and performs the
appropriate commands. To ensure optimal performance and
to minimise possibility of errors, you should calibrate the
screen when you turn on the phone for the first time.
1. From the Application Launcher, tap and select
Calibration
().
2. Touch the cross hair object on the screen firmly and
accurately as it moves.
If the screen doesn’t recognise your touches or react
incorrectly to your touches while using the phone, you can
recalibrate the phone by doing this.
Customising the display
You can control the screen’s brightness and the light usage.
The backlight drains the battery, so you can conserve
power by reducing the brightness of the screen.
To adjust the brightness of the screen:
1. From the Application Launcher, tap and select
Brightness
().
2. Tap the pick list and select a menu.
3. Adjust the backlight time and the display brightness.
4. Tap
to save the changes and exit screen.
The basics
25
Adjusting the device volume
You can adjust the volume level of the system sounds, such
as the keypad tone, screen touch tone, and error alert
tones.
Tap a ringer icon on the top line of the screen, and then or
. You can also press or from the Phone screen.
Opening an application
On the Application Launcher, tap an Application Launcher
icon and then the application icon you want to use.
Your phone has one or more application buttons located on
the front or side of the phone and the quick launcher on the
Home screen to quickly access the applications.
Closing an application
To close the application you are currently using, use the
following methods:
• Tap at the top right corner of the screen. The application
closes and your settings, if any, are saved automatically.
• Select
Menu
→
Quit
. You can return to the previous screen.
• Press to close the current application. The Phone screen
opens.
The basics
26
Using the task window
Your phone is a multi-tasking device, which means that it
can run multiple application at the same time. If you switch
to another application without closing the application you
were using, the previous application is inactive but still
running.
When you are using several applications at once, you can
quickly access one of the applications you have already
opened. Tap the application name currently open on the top
of the screen or press and hold .
The operating application icons display. Tap the application
icon you want to access. The selected application opens.
If you want to end one of the applications currently open,
tap
Task Manager
, select the application(s), and then tap
Menu
→
End
. For details, see page 156.
Actions common to all applications
Creating a new item in an application
Tap on the command bar at the bottom of the screen or
select
Menu
→
New
.
Tip!
For information on how to enter or change text on your
phone, see “Entering text” on page 38.
The basics
27
Opening an item for viewing
When you are viewing a list of files or folders, tap an item
to open it. You can also tap and hold an item then select
View
from the pop-up menu.
Editing an item
To open an item for editing, you usually need to first open it
for viewing and then tap on the command bar. You can
also tap and hold an item and then select
Edit
from the
pop-up menu, or tap
Menu
→
Edit
, if you want to change
its contents.
You can use the standard editing tools, such as
Cut
,
Paste
,
or
Undo
. Highlight the information you want to edit by
dragging the stylus pen over it. Then tap and hold the
highlighted area to display the pop-up menu with the
editing options.
Deleting an item
Select the item you want to delete, and then tap or tap
Menu
→
Delete
. You can also tap and hold an item, then
select
Delete
from the pop-up menu.
Searching for items
Using Search, you can search for a name, file, folder, or
shortcut. You can also use the Search application in each
application.
1. From the Application Launcher, tap and select
Search
().
2. Enter the keyword in the
Keyword
field.
If you already have a keyword entered, tap the arrow next
to the
Keyword
field and select the keyword you want.
The basics
28
3. Tap the
Type
field and select the application type.
4. When you have finished, tap
Find
.
The phone searches for and displays the items that match
the entered keyword.
5. To make the search more accurate, enter more letters and
the selection moves to the item that best matches the
letters.
6. Tap the item you want to open it.
Making records private
In all basic applications, such as Address, Schedule, To Do,
Money, and Memo, you can make individual records private.
Once you make records “Private”, your phone hides the
records. You must enter a password to display them on the
screen.
Making a record private
When you create a new record or edit a record, check the
Private
box. The record that you mark as private is not
shown on the list.
Displaying private records
1. From the Application Launcher, tap and select
Security
().
2. When the Enter password dialogue box appears, enter the
password by tapping numeric keys and tap
Ok
.
The password is preset to
00000000
at the factory. For
details about changing a password, see page 154.
3. Select
Restriction
from the pick list on the top right.
The basics
29
4. Select
Show
private record
. You can view all of the
private records in any application.
To hide the records again, deselect the check box.
5. Tap
to exit the screen.
Categorising records
You can categorise records in the Address, Schedule, To Do,
Memo, and Money applications for easy retrieval.
Creating application categories
1. In the Address, Schedule, To Do, Memo or Money
application,
tap
Menu
→
Edit Category
.
2. Tap .
3. Enter a new category name. In Address, you can select a
ringtone for the category.
4. Tap
to save the category
.
5. If necessary, repeat steps 2 through 4 to create more
categories.
6. When you have finished, tap to exit the screen.
Assigning the record to a category
1. In an application, tap or
Menu
→
New
to create a new
record.
2. In the new record screen, tap the
Category
field.
3. Select a category from the list.
4. Tap
to save the record
.
5. Tap to exit the screen.
The basics
30
Editing a category
1. In the Address, Schedule, To Do, Memo, or Money
application, tap
Menu
→
Edit category
.
2. On the Category screen select a category you want to edit.
3. When the Edit category dialogue box appears, change the
category name for the category.
4. Tap to save the change.
5. Tap to exit the screen.
Deleting a category
1. In the Address, Schedule, To Do, Memo, or Money
application, tap
Menu
→
Edit Category
.
2. On the Category screen, select the category and tap
Menu
→
Delete
.
3. Tap
Yes
to delete the category.
4. Tap to exit the screen.
Synchronising information
You can synchronise information between your phone and
the Mobile Desktop or Microsoft Outlook program in your
computer.
You can do this using the PopSync program supplied with
your phone. In addition, the program enables you to back
up and restore data, install and remove applications, or
copy files between the phone and the computer. Use the
USB port to connect your phone and computer.
The basics
31
To synchronise information:
1. Place your phone in the supplied desktop charger and plug
the one end of the PC data link cable into the
communication port on the back of the desktop charger.
Or, plug the PC data link cable into the phone.
2. Plug the other end of the PC data link cable into the USB
port on your computer.
The PopSync program is automatically running.
3. In the Popsync window of your Windows desktop, check the
application you want to synchronise.
Note
: For details about synchronising information, please refer to
the Sync user’s guide supplied on the CD.
The basics
32
Beaming information
You can connect your phone to other devices wirelessly and
send and receive data. To do this, use the IrDA technology
or Bluetooth technology.
Using IrDA communications
Your phone is equipped with an IrDA port that you can use
to beam information to another device that is close by and
also has an IrDA port. The IrDA port is located at the top of
the phone.
You can send or receive the following information between
your phone and another device:
• The records currently displayed in Address, Schedule, To Do,
Memo, or File Manager.
• The files, such as sounds, images, videos, and documents.
Beaming a record or a file to another device
1. Locate the record in an application you want to beam.
2. Align the IrDA port on your phone with the IrDA port on
another device.
The basics
33
Tip
: For best results, the IrDA ports between two devices should
be unobstructed and within close range of each other.
3. Tap and hold the record and select
Send
→
Via Beaming
from the pop-up menu.
Wait for the Infrared send dialogue box to indicate that the
transfer is complete before you continue working on your
phone.
Note
: It may take longer than usual to transfer data when you
beam data of large capacity.
Receiving beamed data
1. From the Application Launcher, tap
and select
I.Beam
().
2. Select
Receive all incoming beams
.
3. Align the IrDA port on your phone with the IrDA port on
another device.
4. Wait for the Infrared receive dialogue box to indicate that
the transfer is complete. You can view the name, type and
size of the received information.
5. Tap
Save
to save the data.
The basics
34
Transferring data via Bluetooth
Your phone is equipped with the Bluetooth technology,
which is becoming a wireless communication standard for
mobile devices. Bluetooth allows you to connect your phone
wirelessly with Bluetooth-compatible devices, such as
phones, PDAs, computers or headsets, within 10 metres.
Using Bluetooth connections, you can:
• send or receive data to and from other devices
• talk hands-free
• control your phone remotely
• enjoy music with high quality
• connect to a network using the phone as a wireless modem.
Activating Bluetooth
1. From the Application Launcher, tap and select
Bluetooth
().
2. Tap the button below
Active
.
3. Select
ON
and tap
Ok
.
Connecting the phone with other devices
1. From the Setup Bluetooth screen, tap
Menu
→
Add New
Device
.
2. Tap
Search
to let the phone search for available Bluetooth
devices.
3. Select a device and tap
Connect
.
The basics
35
4. Enter a 1- to 4-digit Bluetooth PIN code and tap
OK
. When
the owner of the other device enters the same PIN code,
the connection is established.
Tap a device from the pairing device list to view the
available service list.
Sending data
You can send data stored in the PIMS applications, such as
Address, Schedule, To Do, and Memo, or manager
applications, such as Photo Album or File Manager.
1. Access an application and select the item you want to send.
2. Tap
Menu
→
Send
→
Via
Bluetooth
.
3. Tap
Search
to let the phone search for available Bluetooth
devices.
4. Select a device and tap
Send
.
5. If necessary, enter a 1- to 4-digit Bluetooth PIN code and
tap
OK
.
Receiving data
When a device request to pair with your phone, enter PIN
and
tap
OK
.
When the phone receive data from another device, a
message confirming if you want to receive the data.
1. Tap
Yes
to confirm the reception.
2. When receiving is complete, tap
Save
. The data is stored in
the appropriate application.
The basics
36
Viewing the phone display on a TV
You can view the display of your phone on a TV screen by
connecting the phone and TV with the supplied TV out
cable.
This enables you to enjoy your photos, videos, music, and
movies stored in the phone’s memory with your family or
friends through the TV.
1. Connect the phone to the TV with the TV out cable.
Match cable connector and TV port colours.
2. Switch the TV to External Output mode. The display
switched to TV Out mode and the phone’s screen appears
on the TV screen.
Notes
:
• Depending on your particular TV model, the location and shape
of the TV ports may vary.
• Do not connect the cable with a wet hand.
3. If necessary, change the TV out mode:
Tap
and select
Display
(). Select
TV out
from the
pick list and then a video system.
Depending on the particular TV model, the image vibrate or
in some other way be less than optimal.
4. Access the application you want and open files.
The basics
37
Resetting your phone
If your phone does not respond to the buttons or tapping
the screen, you need to perform a reset to get your phone
running again.
Press and hold the
Reset
button inside the hole on the right
of the phone. Your phone is now reset.
38
3
Entering text
You can enter text, numbers and special symbols into the
phone using various input modes. Your phone supports the
four screen input modes: Keyboard, Draw Input, FSIM, and
Symbolic. You can also use the six keypad input modes:
Pinyin, CHN S Stroke, T9word, ABC, Number, and Symbolic.
Using the touch screen
When you select a field that requires you to enter text or
numbers in an application, such as Address, Memo, To Do,
or Message, you can open the text entry screen.
To show or hide the text entry screen, tap the text entry
icon.
To change the entry mode, tap the arrow next to the text
entry icon and select the mode from the list.
Text entry icon
Entering text
39
Using the on-screen keyboard
The on-screen keyboard is similar to a keyboard you use on
your computer, except that you need to tap instead of type.
You can enter text directly on the screen by tapping letters,
numbers, and symbols on the keyboard.
To use the on-screen keyboard:
When the text entry icon appears, tap the arrow next to it,
and then select
Keyboard
from the list. By default, the
English keyboard displays.
Entering English characters
Tap the keys with your stylus pen just as you would type
with your fingers on your desktop keyboard.
Switches to Capital
Lock mode.
Shifts case.
Clears the selected
characters.
Clears character.
Switches to the
Chinese keyboard. Inserts a space.
Entering text
40
Entering Chinese characters
You can enter Chinese characters using Pinyin, a system to
write the pronunciation of Chinese words using the Latin
alphabet.
In the character selection field, your phone automatically
presents the letters matching your input.
1. Tap to switch to the Chinese keyboard from the English
keyboard.
2. Tap the keys corresponding to the phonetic spelling. Notice
that the choices in the character selection field change with
each character you enter.
For example, to enter , tap
l
and then
i
from the
highlighted keys.
If you cannot find the you want in the character selection
field, press
or
to scroll through the choices available.
3. When the you want appears, tap it to add it into text.
Character selection
field
Alphabets available
to enter Chinese are
highlighted.
Entering text
41
Using DrawInput mode
Your phone is equipped with a powerful character
recognition software to convert your handwriting into typed
characters accurately and efficiently.
To use DrawInput mode:
When the text entry icon appears, tap the arrow next to it,
and then select
DrawInput
.
Use the following buttons on the screen:
: Allows you to enter Chinese characters.
: Allows you to enter English characters.
: Allows you to enter numbers, symbols, and punctuation
marks.
: Clears characters one by one.
: Enters a space between characters
: Changes the line.
Entering characters
1. After selecting the mode buttons you need, write a
character at a time on the input panel.
2. Tap one of the choices to enter it into text.
Character selection
field
Input panel
Entering text
42
Using FSIM mode
You can write anywhere on the screen using the stylus pen
just as you would a pencil on paper, and FSIM mode
presents characters that resemble your writing from which
you can choose.
To use FSIM mode:
When the text entry icon appears, tap the arrow next to it,
and then select
FSIM
.
Use the following buttons on the screen:
: Allows you to enter Chinese characters.
: Allows you to enter English characters.
: Allows you to enter numbers.
: Allows you to enter symbols and punctuation marks.
: Enters a space between characters.
: Enters a comma.
: Enters a period.
: Clears characters one by one.
: Changes the line.
: Opens the pop-up menu list. The following menus are
available:
•
Black
,
Red
,
Green
, or
Blue
: allows you to change the
text colour.
•
Multi chars
,
Single chars
: allows you to enter words
or a single character. See page 43.
Character selection
field.
Entering text
43
•
Upper chars only
or
Lower chars only
: allows you to
enter uppercase or lowercase characters.
If you selected
Single chars
, the selected letters are
inserted into text immediately.
If you selected
Multi chars
, the selected letters are shown
in the multi-character entry field. You can continue writing
and choosing characters until the completed word displays
in the multi-character entry field, then tap to enter the
word into text.
Entering characters
1. After selecting the mode buttons you need, write the
character anywhere on the screen.
2. Tap one of the choices to enter it into text.
Using Symbolic mode
When you need to enter symbols and punctuation marks,
Symbolic mode allows you to enter them quickly and easily.
To use Symbolic mode:
1. When the Text Entry icon appears, tap the arrow next to it,
and then select
Symbolic
. The symbol list displays.
2. Tap the symbols you want to enter. To display more
symbols, tap or .
Multi-character
entry field.
Entering text
44
Using the keypad
You can enter text by pressing the alphanumeric keys on
the phone, labelled with the Chinese strokes and alphabet.
Changing the text input mode
1. In the text entry screen, press and hold .
2. Select the mode you want. You can select Pinyin and CHN S
Stroke modes for Chinese, and T9word and ABC mode for
English. You can also use Number mode and Symbolic
mode.
Using Chinese Pinyin mode
Pinyin is a system to enter Chinese words by spelling them
phonetically (how they sound) using the Latin alphabet.
With the Pinyin input mode, you can enter Chinese
characters by keying in the pinyin string using the phone’s
keypad.
Entering characters in Pinyin mode
1. Press the keys corresponding to the phonetic spelling,
referring to the letters printed on the keys.
Example
: To enter , press and to enter
ni
.
2. Press the Left or Right navigation key to select alternative
pinyins for the keys you have pressed.
3. If you cannot find the character you want from the display,
press the Up or Down navigation key to scroll through word
choices.
Entering text
45
4. When you find the character, press to activate the
character selection field. The numbers from 1 to 6 are
added to each character.
5. Press the number key corresponding to the character.
Using the tones
You can enter another character by assigning a tone for the
selected pinyin. Entering a tone for a character is optional,
but it is especially useful if the pinyin spelling is similar for
several characters.
1. Press the keys corresponding to the pinyin of the letter you
want.
2. If necessary, press the Left or Right navigation key to select
the pinyin.
3. Press for four tones.
4. If you cannot find the character you want from the display,
press the Up or Down navigation key to scroll through word
choices.
5. Press a key, to , corresponding to the character.
Rapid character entry
To enter zhong guo ( ), enter the first letter using the
following keystrokes; , , , , , and .
You do not have to complete the Pinyin spelling to include
guo ( ). The letter displays automatically.
Entering text
46
Using Chinese Stroke mode
This mode allows you to enter individual Chinese strokes, in
written order, from top to bottom, and from left to right.
The Chinese strokes are classified into five basic
categories; heng, shu, pie, dian, and zhe. The basic strokes
are printed on keys to on the keypad. Refer to
the following table:
Entering strokes and characters in Stroke mode
1. Press the keys that correspond to a character’s component
strokes. Press keys in the order that you would write the
strokes, using one press per stroke.
Example
: To enter , press to enter and to
enter .
2. Press the Up or Down navigation key to scroll through
choices.
Note
: If you are uncertain of the stroke order, press in place
of each questionable stroke. Continue entering strokes
until the character displays or until you finish the character.
3. To select a character and add it to text, press the
corresponding key, to .
Category Keys Strokes represented in each category
Entering text
47
Rapid character entry
Try entering zhong guo ( ) using the following
keystrokes: , , and . Even though the letters
are twelve strokes, your phone allows you to enter the
complete pair in only three key presses.
Using ABC mode
Press the appropriate key until the character you want
appears on the screen.
Key Characters in order displayed
Upper case Lower case
. , - ? ! ’ @ : 1
A B C 2 a b c 2
D E F 3 d e f 3
G H I 4 g h i 4
J K L 5 j k l 5
M N O 6 m n o 6
P Q R S 7 p q r s 7
T U V 8 t u v 8
W X Y Z 9 w x y z 9
0
Entering text
48
Tips for using ABC mode
• To enter the same letter twice or to enter a different letter
on the same key, wait for the cursor to move to the right
automatically, or press the Right navigation key. Then, enter
the next letter.
• Press to insert a space.
• Press to change case. Lower case , Initial capital
, and Capital lock are available.
Using T9word mode
T9word mode allows you to enter text using T9 technology,
which is a predictive text input mode that allows you to key
in any character using single keystrokes.
Entering a word in T9word mode
1. Press to to start entering a word. Press each key
once for each letter.
Example
: Press , , , , and to enter
Hello.
T9 predicts the word that you are typing, and it may change
with each key that you press.
2. Enter the whole word before editing or deleting the
characters.
3. When the word displays correctly, go to step 4. Otherwise,
press to display alternative word choices for the keys
that you have pressed.
Example
: Of and Me use and .
4. Press to insert a space and enter the next word.
Entering text
49
Tips for using T9word mode
• Press to enter periods or apostrophes automatically.
• Press to change case. Lower case , Initial capital
, and Capital lock are available.
Using Number mode
Number mode enables you to enter numbers. Press the
keys corresponding to the digits you want.
Using Symbolic mode
Symbolic mode enables you to enter symbols. When you
select this mode, a symbol list displays, see page 43.
50
4
Call functions
Turning the phone functions on or off
You can turn the phone functions on and off separately from
the PDA functions. You can use the PDA applications on your
phone without turning the phone on at all.
Turning off the phone functions
Press and hold .
When the phone is turned off:
• The signal strength indicator disappears.
appears on
the status bar.
• You cannot make and receive calls.
• You can use all of the PDA features.
• You cannot access the address list in your SIM card.
• You cannot send or receive calls or messages, or access the
Web.
Turning on the phone functions
1. Press and hold .
2. Select the SIM card you want to activate and tap
OK
. The
phone receives signals from the corresponding network.
When the phone is turned on:
• The signal strength indicator ( ) appears on the status
bar.
• You can make and receive calls.
Call functions
51
• You can send or receive messages or e-mails remotely, or
access the wireless web.
• You can use all of the PDA applications while making a phone
call. If you are using an application when the phone rings,
you can answer the call and continue with your work.
Accessing the Phone screen
1. Make sure that appears at the top left of the screen
and that it shows a strong signal.
2. Press or . Or, tap from the Application
Launcher and select
Phone
().
Making a call
Dialling a number
1. On the Phone screen, enter the phone number, including
the area code.
You can open the onscreen keypad by tapping
.
Then,
tap the numbers from the onscreen keypad.
If you make a mistake while entering a number, press
to clear the last digit or press and hold the key to clear all
of the digits.
2. Press to dial the number. When a call is connected, the
call duration displays.
During a call, you can use several call options. For details,
see page 54.
To adjust the earpiece volume during a call, press or
to increase or decrease the level.
Call functions
52
3. When you have finished your call, press or close the
phone.
Redialling the last number
Your phone stores the last phone number you dialled. Press
and hold to redial the number.
If you want to view the list of the recent calls, press .
For details, see page 57.
Answering a call
When someone calls you, the phone alerts you by ringing or
vibrating, depending on the ringer type you have set. To
change the ringer type, see page 157.
When the caller can be identified, the callers phone
number, name, and image, if stored in Address, display.
If a call comes in while your phone is sleeping or you are
working with another application, the incoming call alert
screen displays.
1. To answer a call, press or tap
Menu
→
Answer
.
If you don’t want to answer a call, press or press and
hold / or tap
Menu
→
Reject
.
If you want to silence the ringer, press / or tap
Menu
→
Silence
.
2. To end the call, press .
Call functions
53
Quickly switching to Silent mode
Silent mode disables all sounds on your phone. This feature
is best used in situations where the phone might disturb
others, such as in a meeting, at a library, or in a theatre.
To enter Silent mode, press and hold
on the Phone
screen until
Entering Silent Mode
displays. The Silent
mode icon ( ) appears at the top of the screen.
To exit and reactivate the previous sound settings, press
and hold until
Exit Silent Mode
displays.
Options during a call
Your phone provides a number of functions that you can
use during a call.
Using the Speakerphone feature
You can put the call in Speakerphone mode to listen and
talk to the other person on the phone without holding your
phone.
To activate Speakerphone mode, tap . To deactivate it,
tap the icon again. You can also press and hold .
Muting the microphone
You can mute the microphone so that the other person on
the phone cannot hear anything you say, but you can still
hear the person.
To mute the microphone, tap . To unmute, tap the icon
again.
Call functions
54
Muting key tones
You can mute the keypad to press the keys without hearing
annoying key tones.
To mute keytones, tap . To unmute, tap the icon again.
Using In-call options
You can use the following options by tapping
Menu
at the
bottom of the screen:
Address
: enters Address. You can save a number in
Address or use it to recall a number. For details, see page
88.
Memo
: opens a new memo screen. For details, see page
100.
Call Records
: displays the list of recent calls. For details,
see page 57.
Sound
: allows you to turn the speakephone, key tones, or
microphone on or off.
Send DTMF
: allows you to send the DTMF tones of the
number you have previously stored on the DTMF list. DTMF
tones are the tones that you hear when you press number
keys. For details about storing numbers on the DTMF list,
see page 60.
Send my number
: sends your phone number to the person
with whom you are speaking.
Voice Recording
: records your call conversation. You can
access your call recordings in the Recorder application.
End call
: disconnects the call.
Quit
: exit the menu options.
Call functions
55
Viewing missed calls
If you were unable to answer and missed a call, you can
find out who called you, if the caller ID is transmitted from
the network. The display will show the number of missed
calls, the last caller’s number or name, if stored in Address,
and the date and time of the last call.
Press to dial the last caller you have not answered. If
you press any other keys on this screen, the missed call
notification screen disappears. You can view the missed
calls in the Call Log. See page 57.
Advanced calling features
Three-digit dialling
You can quickly dial a phone number in Address or Call Log
by entering its three consecutive digits. Your phone finds
the entire number for you.
1. Enter the
three
digits of the phone number you want to
dial. The phone searches Address and Call Log for the
numbers containing those digits, and displays the result.
2. Tap the number and press or tap
Call
.
Making a call from Address
You can store the phone numbers you call regularly in
Address. You can then simply recall the number to dial.
1. on the Phone screen, tap
Menu
→
Address
.
2. Scroll to the contact you want and press ,
For details about Address, see page 88.
Call functions
56
Making a call from the speed dial list
When you assign phone numbers to one of the speed
dialling keys, you can dial them easily by pressing a few
keys corresponding to the location number. For details
about storing a speed dial number, see page 59.
You can use the following ways to call speed dial numbers:
• For one-digit locations, press and hold the last digit key.
• For other locations, press the first digit key and hold the last
digit key(s).
To view the number you stored in the speed dial list, tap
Menu
→
Speed dial
.
Making an emergency call
You can make calls to standard emergency numbers, as
120.
You can make an emergency call when the SIM card is not
installed in your phone or locked. On the Phone screen, tap
at the bottom of the screen. Your phone dials
120
.
Making an international call
1. On the Phone screen, press and hold . The preset
international call code displays.
2. Enter the phone number you want to dial.
3. Press to dial the number.
Call functions
57
Pause dialling
When you call an automated system, like a banking service,
you are often required to enter a password or account
number. Instead of entering the numbers each time, you
can enter them in advance before dialling, in order to be
sure that you are sending correct numbers.
To insert a pause in a number, tap
Menu
→
Pause
or press
and hold while entering a number. A
P
displays,
meaning that a pause will occur at that point in the dialling
sequence.
The number after a pause is sent by pressing after
dialling the first number.
Using call logs
You can view a list of most recent received, missed, or
dialled numbers. The last call is saved in the first position.
The oldest calls are automatically deleted from the list to
make room for new calls.
Viewing call logs
1. On the Phone screen, press to access the list of recent
calls.
2. Tap
or select a call type from the top line of the
screen.
Call functions
58
3. Scan through the list until you find the call log you want.
4. Tap the number or name to view detailed information about
the call.
Using call log options
While viewing call details, tap
Menu
to access the following
options:
Talk
: dials the displayed number.
Save
: allows you to save the number in Address.
Edit
: allows you to change the number for dialling or saving
in Address.
Delete
: deletes the call log.
Send Msg
: allows you to send an SMS message to the
number.
Close
: exit the current screen.
Missed call
Outgoing call
Incoming call
Call functions
59
Using the speed dial list
Once you have stored contact cards, you can set up the speed
dial list of the most frequently used numbers so that you can
dial them with only one or two keypresses.
Setting up the speed dial list
1. From the Phone screen, tap
Menu
→
Speed Dial
.
2. Tap the location you want. The list of numbers stored in
Address and on the R-UIM/SIM card opens.
3. Find and select the number you want.
Editing the speed dial list
• To exchange the number in a speed dial location with another
one, select the entry and tap
Menu
→
Replace Number
.
• To remove the speed dial setting for the selected location, tap
Menu
→
Remove
.
• To remove all speed dial settings, tap
Menu
→
Remove all
.
Setting phone options
You can customise various options related to phone functions
using the
Phone Setup
menu.
To access phone setup options:
1. From the Application Launcher, tap and select phone
Setup ( ).
2. Tap a setup memu.
3. Select a submenu from the pick list on the top of the screen.
Call functions
60
General settings
Call Option
: you can set up the options for making and
answering calls.
•
Answering
: allows you to select how to answer an incoming
call, either by pressing , pressing any key except for
or / , or by opening the phone.
•
Connection
: allows you to specify whether the display turns
off or stays on when a call is connected.
DTMF
: you can
set up a list of DTMF tone code numbers, such
as account numbers or PINs. You can retrieve them during a
call to send to a system
. DTMF tones are the tones that you
hear when you press number keys. DTMF tones allow you
to communicate with computerised telephone systems,
such as telebanking services and auto response systems.
Air Time
: shows you the air time measurement for your
calls. You can reset the timers.
Own Number
: allows you to store your phone numbers. This
setting doesn't affect the phone’s actual number.
Call time
Total call time
: shows the total length of calls you have
made or received.
Total sent
: shows the total length of calls you have
received.
Total received
: shows the total length of calls you have
received
Last call time
: shows the length of the last call.
To reset all of these time records, tap
Reset
.
Call functions
61
Call Cost
This service allows you to check the cost of your last call or
all calls, and the maximun cost limit. You can also access
the following options:
Reset counter
: allows you to reset the call cost record to
zero.
Set max cost
: allows you to change the cost limit. If you
reach this limit, you cannot make calls.
Price/Unit
: allows you to change the currency unit per call.
Call diverting
This service allows the phone to forward incoming calls to a
specified destination. You can set call forwarding for the
following conditions:
Divert Always
: forwards all calls.
Busy
: forwards calls when the phone line is engaged with
another call.
No Reply
: forwards calls when you don't answer the phone.
Unreachable
: forwards calls when you are out of your
service area or your phone is off.
To cancel all call diverting settings, select
Cancel All
.
Call barring
This service allows the phone to restrict calls. You can set
call barring for the following call types:
All outgoing
: restricts all outgoing calls.
Internetional
: restricts international calls.
International except to home
: restricts international calls,
except calls to your home country while abroad.
Call functions
62
All incomin
g: restricts all incoming calls.
Incoming while abroad
: restricts incoming calls when you
are roaming.
To cancel all call barring settings, select
Cancel all
.
To change the barring password provided by your service
provider, select
Change
.
Call waiting
This service allows the phone to receive a second call while
a call is in progress.
Network selection
This service allows you to set how the phone selects a
network when roaming.
•
Automatic
: allows the phone to automatically select the
first available network.
•
Manual
: starts searching for all networks and displays
available networks. You can select the one you want.
Call ID
This service allows you to choose whether or not your
phone number displays on the other person's phone. this
funtion is depending on your service provider.
63
5
Messaging and the Internet
Messages
With Messages, you can send and receive text messages via
Short Message Service (SMS) or multimedia messages via
Multimedia Message Service (MMS).
You can also access cell broadcast (CB) messages, which
are text messages related to various topics, such as
weather forecast, traffic, and news report, from networks.
To access Messages:
From the Application Launcher, tap and select
Messages
().
Shows the number of
messages in each box.
Opens the eMail
application.
Messaging and the Internet
64
Sending a message
You can send a text message (SMS) or multimedia message
(MMS) via the SMS or MMS centre provided by your service
provider.
Creating and sending an SMS message
1. On the Messages screen, tap
Create New Message
→
SMS
.
2. Enter the message text. To retrieve a canned sentence,
tap
and select sentence.
3. Check
Save
to save the message in the Outbox folder after
sending.
When scrolling down the screen, you can access the
message setting options. For details, see page 69.
4. Tap
Ok
.
5. Enter destination phone numbers.
You can retrieve a number from Address by tapping
Menu
→
Address
, or from the list of the recipients of numbers
you have sent recently by tapping
Menu
→
Recent
, or on
an input field.
6. Tap
Send
to send the message.
Creating an sending an MMS message
1. On the Messages screen, tap
Create New Message
→
MMS
.
2. Tap the subject field, enter the message subject, and tap
Save
.
3. Tap
Add Image / Video
and select an image type.
Messaging and the Internet
65
4. Select one of the followng options and add an image.
•
Create picture
/
Create video
: take a new photo or
record a new video.
•
My photos
/
My videos
: select one of photos or videos
taken by the camera on the phone.
•
Downloaded images
/
Downloaded videos
: select one
of photos or videos downloaded.
5. Tap
Add text
, enter the message text, and then tap
Save
.
6. Tap
Add sound
.
7. Select one of the followng options and add a sound.
•
Create sound
: record a new voice memo.
•
My Ringtone
: select one of sounds.
•
Downloaded Ringtone
: select one of sounds
downloaded.
8. To add more slide, tap
Menu
→
Slide
→
Add
. You can also
delete a slide or change the slide layout.
9. When you have finished, tap
Menu
→
Send
.
10.Enter phone numbers or e-mail addresses and tap
Send
.
Viewing a received message
When you receive a new message, the phone alerts you by
the following methods:
• Displaying a notice pop-up window.
• Displaying the New Message icon ( ).
• Ringing or vibrating, depending on the ringer type you have
set. To change the ringer type, see page 157.
All received messages are stored in the Inbox folder in the
phone’s memory.
Messaging and the Internet
66
Viewing a message
1. On the Messages home screen, tap
Inbox
,
Outbox
,
Draft
,
or
Sentbox
. To access CB messages from the network, tap
Broadcast Messages
.
If you are working with another application, tap on the
status bar to open the Messages screen.
2. Tap the message you want to view. The selected message
contents display.
These icons show the
message’s location and
the read status.
(for example,
: read message on the
SIM card.
: unread message
in the phone’s memory.)
Tap to send a reply.
Messaging and the Internet
67
Using message options
While viewing a sent or received message, you can access
the following options by tapping
Menu
:
Reply
: (Inbox) allows you to reply to the received
message.
Send again
: (Outbox) allows you to resend the message.
Forward
: (Inbox) allows you to forward the received
message to other people.
Delete
: deletes the message.
Move to card/Move to Device
: allows you to move the
message to the SIM card or the phone’s memory.
Add to block list
: saves the senders’ or recipients’
information to the block list to block messages from them.
Protection On
: locks the message to protect it from being
deleted.
Close
: exit the current screen.
Using message templates
Your phone provides preset SMS or MMS message
templates to allow you to use them for creating messages.
1. From the Messages screen, tap
SMS templates
or
MMS
templates
.
2. Select the template you want and then tap
Menu
→
Send
.
3. Change the contents, if necessary, and then send the
message.
Messaging and the Internet
68
Deleting messages
You can delete your messages one by one or all at the same
time.
Deleting a message
1. From the Messages screen, select a message box.
2. Select the message you want to delete.
3. Tap .
4. Tap
Yes
to confirm the deletion.
Deleting all messages
1. From the Messages screen, select a message box.
2. Tap
Menu
→
Delete all
.
3. Tap
Yes
to confirm the deletion.
Checking memory information
You can check the memory status for messages stored in
the phone’s memory or on the SIM card.
1. From the Messages screen, tap
Menu
→
Memory Status
.
2. Select the memory location you want from the pick list on
the top of the screen.
Messaging and the Internet
69
Configuring message options
1. On the Messages screen, tap
Menu
→
Settings
.
2. Select a setting menu from the pick list.
3. Set each option.
4. When you have finished, tap to save the changes and
exit the screen.
In each menu, you can access the following options:
Text message
Use the flash animation
: allows you to use a flash
animation when sending messages.
Reminder
: You can specify whether or not the phone
repeatedly reminds you of new messages.
Tone
: You can specify how you are informed of any
incoming messages. If you select a ringtone, tap
Play
to
preview the melody.
SC Address
: You can set the address of the SMS centre.
Validate Period
: You can set how long your messages are
saved in the SMS centre.
Reply path
: You can let the recipients send a reply to you
via your SMS centre.
Delivery Report
: You can specify whether or not the SMS
centre informs you when your message has been delivered.
Voice Mail Center
: You can set the number of the
voicemail centre.
Message Class
: You can select a message class.
Save Message
: You can set whether or not the phone
saves sent messages in Sentbox.
Messaging and the Internet
70
Broadcast Receive
: You can enable or diable the receipt of
CB messages. You can also select the languages to be used
for displaying CB messages and set up a list of active CB
channels.
Multimedia messages
Send Settings
: You can set up the options for sending MMS
messages.
•
Delivery Report
:
allows you to specify whether or not
the SMS centre informs you when your message has
been delivered.
•
Address Hiding
:
allows you to
set your phone number to
be hidden on the recipient’s phone.
•
Read Reply
:
allows you to
send a read-reply request with
your messages.
•
Save in Sent Box
:
allows you to set whether or not the
phone saves sent messages in Sentbox.
•
Priority
:
allows you to
set the priority of your messages.
•
Validity Period
:
allows you to set how long your
messages are saved in the MMS centre.
•
Delivery after
: allows you to set a time delay before
messages are sent.
Receive Settings
: You can set up the options for receiving
MMS messages.
•
Anonymous Reject
: rejects messages from unknown
senders.
•
Advert allowed
: allows you to set the phone to receive
advertisements.
•
Information
: allows you to set the phone to receive
advertisements.
•
Report allowed
:
allows you to
determine whether or not
the phone sends a read-reply when an incoming message
has been read.
Messaging and the Internet
71
•
Home reception
:
allows you to
determine if your phone
retrieves new messages automatically when you are in your
home service area
.
•
Roaming reception
:
allows you to
determine if your
phone retrieves new messages automatically when you are
roaming on another network
.
MMS Profile
: You can select a connection profile to be used
for MMS. You can also create or edit a profile by tapping
Setting
.
WAP Push
You can change the settings for receiving push messages
from the wireless web server.
To receive from the server specified
by your service provider, select
SMS-C Specific
.
Auto Signature
You can create your sinature and set it to be added to all
your outgoing messages.
After entering contents of your signature in the
Edit
signature
field, select
Add signature to all message
automatically
to insert it
Block list
You can set up a list of numbers and addresses to block
incoming messages from them.
Tap
Menu
and add numbers or addresses to be blocked,
edit, or change added ones.
Messaging and the Internet
72
eMail
Using eMail, you can send and receive e-mails as you would
in a typical e-mail program on a computer.
To access eMail:
From the Application Launcher, tap and select
eMail
().
Setting up an e-mail service account
By default, your phone provides you with the local service
account preset by your service provider. In addition, you
can set up accounts for using e-mail services offered by
other ISP (Internet Service Provider)s.
Creating a new account
1. From the eMail screen, tap
Menu
→
Settings
.
2. Tap
Menu
→
New
.
3. Enter account information in each field.
•
E-mail
: enter your e-mail address.
•
Name
: enter the account name.
•
Host name
: enter the name of the incoming mail server.
•
Type
: select the protocol of the mail server.
•
Login ID
: enter the login ID.
•
Password
: enter the login password.
•
Use same host name for outgoing
: select to use the
same name for the outgoing mail server. Availability of
the following options depends on this setting.
•
Host name
: enter the name of the incoming mail server
•
Requires authentification
: select to use authentication
for accessing the outgoing mail server.
Messaging and the Internet
73
4. When you have finished, tap .
Editing an account
1. From the eMail screen, tap
Menu
→
Settings
.
2. Select the account you want from the service list.
3. Tap
Menu
→
Edit
.
4. Change the account information.
5. When you have finished, tap .
6. Tap
Yes
to update the account.
Sending an e-mail
You can generate e-mails offline or online.
In Offline mode, you cannot send an e-mail directly from
your phone, but can create and send them later when you
synchronise the phone to your computer. Before creating
an e-mail in Offline mode, you must install the PopSync
program. For details, see page 18.
In addition to synchronising e-mails with your
computer
,
you can send and receive e-mails by connecting to your
mail server. Before using the online e-mail service, you
must configure an e-mail account. When your phone is
connected to the e-mail server, new e-mails are
downloaded to the Inbox folder on your phone and e-mails
in the Draft folder on your phone are sent. When you use
an
IMAP4
server, e-mails which have been deleted on the
e-mail server are removed from the Inbox folder of the
phone.
Messaging and the Internet
74
Sending an e-mail offline
1. On the eMail screen, tap
Inbox
and select any mail box in
the Local account.
2. Tap at the bottom of the screen.
3. Enter an e-mail address on the
To
line.
To have the e-mail sent to multiple addresses, tap and
enter an additional address. You can remove an address by
tapping .
4. Enter the mail subject on the
Subject
line.
5. In the text field, enter the mail text.
To add attachments, tap
Menu
and then
Show
attachment
. Tap and select a file to attach from the
Documents folder.
6. When you have finished, tap to queue the e-mail. The
e-mail is saved in the PopSync folder of the Local service.
To synchronise e-mails:
1. Connect your phone to your computer using a USB cable.
Make sure that the phone is turned on.
2. In the PopSync window, check the
Mail
box and click .
Note that
Outlook
must be selected in
Sync Setup
. For
details about the PopSync program, refer to the PopSync
User’s guide on the CD.
The e-mails in the PopSync folder on your phone are
transferred to Microsoft Outlook on your computer. Then
the Microsoft Outlook program sends your e-mails.
Messaging and the Internet
75
Sending an e-mail online
1. On the eMail screen, tap
Inbox
and select a message box
of your e-mail account.
2. Tap at the bottom of the screen.
3. Create an e-mail. See page 74.
4. When you have finished, tap to send the e-mail. You
can view the e-mail in the Sent folder on your phone.
Receiving an e-mail
As with sending e-mails, you can receive e-mails offline, via
synchronisation, or online.
Viewing an e-mail offline
You can receive e-mails by synchronising with Microsoft
Outlook on your computer.
1. Connect your phone to your computer using an optional
USB cable. The PopSync program automatically runs.
2. In the PopSync window, check the
Mail
box and click .
E-mails are copied from the Inbox folder of Microsoft
Outlook on your
computer
to the Inbox folder on your
phone. Note that attached files will not synchronise.
3. Tap the e-mail you want to view. The selected e-mail
contents display.
Viewing e-mails online
You can receive e-mails through your mail server directly to
your phone.
1. On the eMail screen, tap the message box button and select
an e-mail account.
Messaging and the Internet
76
2. Tap to receive new e-mails from the e-mail server.
3. Tap the e-mail you want to view.
Using e-mail options
While viewing an e-mail, you can access the following
options by tapping
Menu
:
Reply
: allows you to reply to the sender.
Reply all
: allows you to reply to both the sender and all
other recipients.
Forward
: allows you to forward the received e-mail to
other people.
Delete
: deletes the e-mail.
TTS
(Text to speech): reads the e-mail text audibly to you.
Managing e-mail folders
Local mail folders
Messages display in folders preset for the service: Inbox,
Draft, and PopSync.
Inbox
: If you synchronise your phone with Microsoft
Outlook through PopSync, PopSync copies e-mails from the
Microsoft Outlook Inbox.
Draft
: stores draft mails that have not been sent. If you
synchronise your phone with Microsoft Outlook through
PopSync, the e-mails are sent to the Microsoft Outlook
Outbox and then to the specified recipients.
PopSync
: This folder that is synchronised with the PopSync
folder of Microsoft Outlook. The PopSync folder is created
automatically the first time the phone is synchronised with
the computer.
Messaging and the Internet
77
Online mail folders
E-mails display in folders preset for each service: Inbox,
Sent, and Draft, or ones you have created.
Inbox
: stores all of the e-mails received from the mail
server.
Sent
: stores all of the e-mails that have been sent to the
mail server.
Draft
: stores draft mails that have not been sent to the
mail server.
For an IMAP4 server, you can import mail folders from the
server. Tap
Menu
→
Get IMAP Folder
.
Configuring e-mail options
On the eMail screen, tap
Menu
→
Settings
→
Menu
→
Option
. You can configure the following options:
New messages only
: You can set the phone to receive only
new e-mails from the IMAP4 server.
Remove received messages from server(pop3)
: This is
only for a POP3 server. A server removes e-mails after
transferring them to your phone.
Limit message size
: You can set a size limit for your
e-mails. Your phone will not accept an e-mail from the mail
server if it exceeds the set limit.
Language
: You can select the language to be used for
displaying e-mails.
Word Wrap
: If you check this option, your phone
automatically moves words which would extend beyond the
right margin to the following line.
Messaging and the Internet
78
Trace Messenger
Your phone provides the same chat environment as MSN
Messenger or ICQ Messenger on your computer. These
features include:
• seeing who is online.
• sending and receiving instant messages. When a new
message is received, the message icon blinks and you also
hear an alert.
• having an instant message conversation with a group of
contacts.
• telling contacts you are unavailable.
• blocking contacts from seeing your online status.
To chat with other people through Trace Messenger, you
must have a passport to use the MSN Messenger or ICQ
Messenger service.
To access Trace Messenger:
From the Application Launcher, tap and select
Trace
Messenger
().
Signing in to Trace Messenger
1. On the Trace Messenger home screen, tap
Login
.
2. Enter your account ID.
If you use MSN Messenger, check the box next to
MSN ID
and enter the mail address.
If you use ICQ Messenger, check the box next to
ICQ#
and
enter the ICQ number.
Messaging and the Internet
79
3. Enter the password in the
Password
field.
Select the
Save Password
check box to save the
password.
4. Tap
Connect
to sign in to
Trace
Messenger.
Chatting with contacts
1. Make sure that you have signed in to Trace Messenger.
2. On the Buddy List screen, you can chat with the contact by
tapping and holding the contact’s name and then select
Send IM
from the pop-up menu.
To send an e-mail to the contact, tap and hold the contact’s
name and select
Send Mail
.
3. Enter your message.
To enter a preset message, tap
Menu
→
Preset
. For details
about preset messages, see page 80.
If you are an MSN Messenger user, you can invite another
contact to join an ongoing chat. Select the contact you
want to invite, and then tap
Menu
→
Invite
.
4. Tap
Send
to send your message.
Ending a chat
• To sign out of Trace Messenger, tap
Menu
→
Logout
.
•To exit, tap .
Note
: If you do not sign out of
Trace
Messenger, your data
connection will remain open. This may result in additional
charges from your service provider.
Messaging and the Internet
80
Configuring messenger settings
1. On the Trace Messenger home screen or the Messenger
Buddy List screen, tap
Menu
→
Setup
.
2. Configure your MSN or ICQ login number and password.
3. Check the options you want. The following options are
available:
•
Save Password
: saves your password.
•
Hide Offline Buddy
: hides or displays your offline
contacts on the buddy list.
•
Sound On
: selects whether or not the sound is turned on
when you receive a new instant message, the connection
to Trace Messenger is completed, or a contact in the
buddy list sings into Trace Messenger.
•
Notify Buddy Login
: alerts you when a contact on the
buddy list signs into Trace Messenger.
•
Keep Connection
: selects whether or not your phone
maintains a connection to Trace Messenger when you
don’t use the messenger for a specific period.
4. Tap
Ok
to save your settings.
Creating preset messages
You can preset up to five messages that you use most
frequently.
1. On the Trace Messenger home screen or the buddy list
screen, tap
Menu
→
Preset
.
2. Tap an empty entry and enter your text.
3. Tap
Ok
to save the text.
Messaging and the Internet
81
Saving instant messages
You can save your chat as a text file and then view,
manage, or delete the chat.
To save the contents of your chat:
While you are having a conversation, tap
Menu
→
Save
.
The messages are saved as a text file.
To view a saved chat:
1. Tap
Menu
→
History
.
2. Select the file you want to view and tap
View
.
QQ Messenger
Using QQ Messenger, you can have great one-to-one text
"conversations" via Instant Messaging (IM).
To use this application, you first need to register as a QQ
user and receive a user id number and password through
the web browser program on your computer.
To access QQ Messenger:
From the Application Launcher, tap and select
QQ Messenger
().
Signing in to QQ Messenger
1. On the QQ Messenger home screen, enter your number in
the
ID
field.
2. Enter your password in the
Password
field.
Select the
Save password
check box to save the
password.
Messaging and the Internet
82
3. Tap
Login
to sign in to the
QQ
Messenger.
Setting the buddy list
When you have signed in to the QQ Messenger, the buddy
list screen appears. Before starting a chat, set up your
buddy list.
Adding a buddy
You can add a buddy from the Friends group, the Strangers
group, or an online contact list.
To add from the Friends group:
1. Tap
Friends
→
Add buddy
.
2. Enter the number of the contact you want to add and tap
Add
.
To add from an online contact list:
1. From the buddy list screen, tap
Menu
→
Search buddy
.
2. Enter contact information for searching and tap
Search
.
3. Select the contact you want, and then
Add buddy
from the
pop-up menu.
Deleting a buddy
Select a buddy and then select
Delete buddy
from the pop-
up menu.
Viewing online buddies
You can change the buddy list to view the buddies who are
currently signed in to QQ Messenger.
Tap to view online buddies only. Tap the icon again to
view all buddies.
Messaging and the Internet
83
Chatting with contacts
You can start a chat by sending a message to a contact, or
replaying to an incoming message.
Sending a message
1. Make sure that you have signed in to QQ Messenger.
2. On the buddy list, tap a contact and tap .
3. Enter your message.
4. Tap
Send
to send your message.
Replying to a sender
When an instant message comes in, a message icon
appears next to the contact’s number on the buddy list.
1. Tap the icon to view the message.
2. Tap
Reply
.
3. Enter the message and tap
Send
.
Ending a chat
• To sign out of QQ Messenger, tap
Menu
→
Logout
.
•To exit, tap .
Note
: If you do not sign out of QQ Messenger, your data
connection will remain open. This may result in additional
charges from your service provider.
Messaging and the Internet
84
Changing your login status
If you don’t want other contacts to know if you are logged
in or out, change the status display setting.
1. On the buddy list screen, tap
Menu
→
Status
.
2. Select the setting you want.
Viewing chatting notes
QQ Messenger stores your chatting notes containing instant
messages you have sent and received during chats as
chatting logs.
To view a chatting note:
1. On the buddy list, tap
Menu
→
Chatting notes
.
2. Select a note.
China
Mobile services
You can access applications related services given by your
service provider, China Mobile.
Monternet
If your service provider offers over-the-air digital data
coverage in your area,
Monternet service, which is a WAP portal
service of China Mobile
.
To access Monternet:
From the Application Launcher, tap and select
Monternet
( ). The phone is connected to the network
and loads the homepage of the WAP service given by your
service provider.
Messaging and the Internet
85
Navigating the WAP browser
Scroll to an option by pressing the Navigation keys and
access it by pressing or tapping
OK
.
China Mobile in
The China Mobile In provides you with preset links and
menus for various WAP services from your serive provider.
To access China Mobile In, tap from the Application
Launcher and select
China Mobile In
().
The following options are available:
News & Weather
: You can access realtime news and
weather forcast.
Picture & Ringtones
: You can downlaod wallpapers and
ringtones.
Games
: You can access latest game news and download
fun games.
Chat
: You can enjoy chatting with your online contacts.
Finance Online
: You can access online banking or stock
services.
Movie & TV
: You can view streaming movies and TV
channels.
Corporate Mail
: You can access the eMail application.
Phonebook manager
: You can use the online phonebook
manger service. Tap
Menu
→
Enter
.
•
Subscribe/Cancel service
: subscribes to the service or
cancel the subscription.
•
Phonebook update
: synchronises contact cards in the
phone with ones on the online phonebook on a remote
server.
Messaging and the Internet
86
•
Online inquiry
: sends an SMS or network inquiry to
manage the online phonebook.
My Monternet
: You can access Monternet, the WAP potal
service provided by China Mobile.
Customer Service
You can get a variety of information and convenient
services by using the numbers and URLs preset by China
Mobile.
To access this menu, tap from the Application Launcher
and select
Customer Service
().
The following options are avaialble:
Service guide
:
You can access information about your service
centre’s number and its website address.
GoTone club
: You can view update of information on services
provided by China Mobile, including recent promotions, discount
plans and introduction of new services.
Service hotline
: You can dial the hotline number preset in your
phone to contact the customer service centre.
Customer manager
: You can dial the customer manager
number directly.
You first need to set up information about the
customer manager, such as a name or number before using this
service.
Mobile secretary
: You can use the Mobile secretary service
provided by China Mobile, which sends SMS messages for
you, answers incoming calls for you, and gives you travel
information at any time.
Messaging and the Internet
87
•
Send SMS for you
: makes a call to the service when you
are unable to send text messages and give the message
content you need to send. The mobile secretary will send
your message to the designated phone number for you.
•
Call Forward to message
: forwards your incoming calls to
the service when you are unable to answer calls. The mobile
secretary will answer the calls for you and send you the call
contents by SMS messages.
•
Travel Agent
: makes a call to the service to get information
needed for travel, such as flights, hotels, and booking.
My Monternet
: you can get information about Monternet,
SMS or MMS, or unsubscribe from the service.
•
Monternet
: access the preset website to get information on
the Monternet service or cancel the subscription to it.
•
SMS
: send the service code to get information on the SMS
by your service provider or cancel the subscription to it.
•
MMS
: send the service code to get information on the MMS
by your service provider or cancel the subscription to it.
Settings
: In this menu, you can set up service numbers for
the hotline service, customer manager, mobile secretary,
and area code.
•
Service hotline number
: set the number of the hotline
service.
•
Customer manager number
: set the name and number of
your customer manager.
•
Mobile secretary number
: set the number of the Mobile
secretary service.
•
Area code
: set your area code to be used for dialling
service numbers.
88
6
Personal information
management
Address
In Address, you can store a contact card containing a
person’s contact information, such as multiple phone
numbers, e-mail and street addresses, web pages, and
other information. You can also add a personal ring tone or
a thumbnail image to a contact card.
To access Address:
From the Application Launcher,
tap
and select
Address
()
, or press
.
Creating a new contact card
You can create a new contact card either in the Address
application or on the Phone screen, and save it selectively in
the phone’s memory (Address) or on the SIM card.
Creating a new card in Address
1. Tap
at the bottom of the Address screen. The New
Address screen
displays.
2. Set the storage location to
Local
from the
Location
pick
list.
3. To add a caller ID image to the contact card, tap
the image
area and select the source. The following
options are
available:
•
File
: allows you to use an image file currently
stored in
the phone’s memory.
Personal information management
89
•
Camera
: allows you to take a photo using the
camera on
your phone. For details, see page 106. After taking a
photo, tap to add it to the contact card.
•
No image
: removes the added image.
4. Specify contact information in each input field.
5. When you have finished, tap
to save the card.
Creating a new card on your SIM card
If you store your contact information on the SIM card, you
can copy or share all contact information easily by inserting
the card into another device.
1. On the Address screen, tap
.
2. Select a card from the
Location
pick list.
3. At the
Name
and
Phone number
field, enter contact
information.
4. Select the memory location number from the
Location
box.
Tap the upper half of the box to increase the number or the
lower half to decrease the number.
5. When you have finished, tap
to save the contact card.
Creating a new card from the Phone screen
1. From the Phone screen, enter the
number you want to save.
To insert a dialling pause for special phone services,
tap
Menu
→
Pause
.
2. Tap
Menu
→
Save
.
3. Select the phone number type and tap
OK
.
Personal information management
90
4. Enter additional
information about the contact, according to
the selected number type.
Viewing contact cards
When you open the Address application, the Address list
displays the names of your contacts alphabetically, along
with icons indicating the types of contact information
stored, such as a work phone number ( ) or a home
phone number ( ).
Accessing a contact card
1. To view contact cards assigned to a specific category, tap
the category field
at the top right of the screen and select
the category
you want to view.
2. To find a contact card, enter the first few letters of the
contact’s name in the search field at the top left of the
screen.
3. When you find the contact card you want, tap
it.
Stored in Phone’s
Address
Stored on the
SIM card
Personal information management
91
Using contact card options
While viewing card details, you can access the following
options by tapping
Menu
:
Edit
: allows you to change information.
Delete
: removes the selected card from the Address list.
Phone call
: dials the phone number of the contact. You can
choose which number to dial if there is more than one.
Send
: sends the card to another device using the Beaming
or Bluetooth. For details about beaming data, see page 32.
Send Message
: allows you to send an SMS message to a
mobile number.
Close
: exit the current screen.
Editing a contact card
1. On the Address list, tap the contact card you want to
change.
2. Tap
.
3. Make the changes in the same way as you
would when
creating a new card.
4. When you have finished, tap
to save the change(s).
Entering owner information
You can set owner information as a name card. You can
then send it to other devices via Beaming communication
or set it to be displayed when the phone is locked.
Personal information management
92
Creating owner information
1. From the Application Launcher, tap and select
Owner
().
2. Tap .
3. Set personal information in each field, as you would when
creating a contact card in Address.
4. When you have finished, tap .
5. Tap to exit the screen.
Sending your name card
Before sending, make sure that the infrared port is active;
see page 155.
1. Align the infrared ports of your phone and another device.
2. From the Owner screen, tap
Menu
→
Send
→
Via Beaming
.
Deleting contact cards
You can delete contact cards in Address one by one or you
can delete all of the contact cards in a selected category at
the same time.
Deleting a contact card
1. Open the contact card you want to delete.
2. Tap .
3. Tap
Yes
to confirm the deletion.
Personal information management
93
Deleting all contact cards
1. From the contact card list, select a category.
2. Tap
Menu
→
Delete
→
All
.
3. Tap
Yes
to confirm the deletion.
Schedule
You can schedule appointments, including meetings and
other events, and view them by day, week, or month.
To access Schedule:
From the Application Launcher, tap and select
Schedule
().
Scheduling an event
1. On the Schedule screen, tap .
2. Set event information in each field.
Tap the
Type
field to choose the type of event,
Appointment
,
Meeting
,
Telephone
,
Etc
, or
Memorial
Day
. When you select
Memorial Day
, the
All day
option is
checked automatically.
To set the event to recur at regular intervals, select an
option from the
Repeat
pick list.
3. When you have finished, tap
to save the event.
Personal information management
94
Viewing your schedule
On the Schedule screen, your schedule can appear in three
different views: Day, Week, or Month.
When you access Schedule, your schedule appears in
Month view. To change the view mode, tap .
Month view
The Month view provides an overview of your monthly
schedule. Each type of
event
is assigned a square icon with
a different colour:
Red (All day schedule), Blue
(Appointment), Green (Meeting), Orange (Telephone), and
Purple (Etc).
Tap the date containing the event you want to view. The
Day View screen for that date appears. To view the details
on the Day View screen, see page 96.
Personal information management
95
Week view
Week view shows your schedule for the specified week. This
allows you to get a quick indication of your free and
occupied time, and to schedule an event for a selected day
easily.
Coloured time cells indicate that there is a scheduled event:
Blue (Appointment), Green (Meeting), Orange (Telephone),
and Purple (Etc). All day events display as a black dot
below the corresponding date.
Tap the time cell you want to open.
Personal information management
96
Day view
Day view displays events scheduled for the selected day.
The events are shown in chronological order. An all day
event always displays at the top of the Day view. The alarm
indicator ( ) and the repeating event indicator ( ) are
shown next to the event, if they has been set.
Tap the event you want to view.
Editing an event
1. Open the event you want to edit.
2. Tap
.
3. Change the information in the same way as you would
when creating a new appointment.
4. When you have finished, tap
to save the changes and
close the screen.
Personal information management
97
Sending an event
You can beam the current event to another phone using the
IrDA port or Bluetooth. Tap
Menu
→
Send
→
a sending
method.
• To send the event via Beaming, see page 32.
• To send the event via Bluetooth, see page 34.
Setting event alarm options
You can change the settings for event alarms. From any
view mode in Schedule, tap
Menu
→
Settings
.
You can change the alarm melody, and set the phone to
maximise the device volume for sounding event alarms.
Deleting events
You can delete events one by one, or for a specific period,
or all events at the same time.
Deleting an event
1. Open the event you want to delete.
2. Tap .
3. Tap
Yes
to confirm the deletion.
Deleting events for a specific period
1. From any view of Schedule, tap
Menu
→
Delete
→
Events
.
2. Specify the period by selecting the starting day and ending
day.
3. Tap
Delete
to confirm the deletion.
Personal information management
98
Deleting all events
1. From any view of Schedule, tap
Menu
→
Delete
→
All
.
2. Tap
Yes
to confirm the deletion.
To Do
To Do is a convenient place to create reminders and
prioritise the things that you need to do. A task can occur
once or repeatedly.
To access To Do:
From the Application Launcher, tap and select
To Do
().
Creating a task
1. On the To Do screen, tap
.
2. Set task information in each field.
Tap the
Due
field and select the due date.
If you don’t want to set a due date for the task, select
none
from the calendar or check the
No Due Date
check
box.
To set a priority for the task, select the importance rate of
your task from the
Priority
pick list.
Select the starting percentage of the progress on your task
from the
Progress
pick list.
3. When you have finished, tap
to save the task.
Personal information management
99
Viewing tasks
When you access To Do, the task list displays. The task’s
priority displays in front of its title. Title of overdue tasks
are displayed in red.
To mark a task as complete, tap the box in front of the
task. A check mark will appear.
To view the task details, tap the task on the list.
Editing a task
1. Tap the task you want to edit.
2. Tap
.
3. Make the changes in the same way as you would when
creating a new task.
4. When you have finished, tap
to save the changes.
Sending a task
You can beam the current task to another phone using the
IrDA port or Bluetooth. Tap
Menu
→
Send
→ a sending
option.
• To send a task via Beaming, see page 32.
• To send a task via Bluetooth, see page 34.
Personal information management
100
Deleting tasks
You can delete tasks one by one or all tasks at the same
time.
Deleting a task
1. Open the task you want to delete.
2. Tap .
3. Tap
Yes
to confirm the deletion.
Deleting all tasks
1. From the task list, tap
Menu
→
Delete
→
All
.
2. Tap
Yes
to confirm the deletion.
Memo
You can take notes on your phone using your stylus pen,
just as you would use a pen to write on a notepad. Memo
provides a place to take notes that are not associated with
Address, Schedule, or To Do. You can enter text and draw a
picture.
To access Memo:
From the Application Launcher tap and select
Memo
().
Creating a memo
1. On the Memo screen, tap .
2. Enter the text you want.
Personal information management
101
3. To draw a picture, tap
Drawing
. You can use the tools you
need from the tool palette at the top of the screen.
4. When you have finished, tap .
5. Tap
to save the memo.
Viewing a memo
The Memo list displays the first line of each memo you
create. This makes it easy to locate and review specific
memos.
To view a memo, tap the memo. To view the drawing in the
memo on the full screen, tap drawing.
Editing a memo
1. On the Memo list, tap the memo you want to edit.
2. Tap .
Selects a thin
pen stroke.
Selects a thick
pen stroke.
Cancel your last
action.
Changes the stylus
pen’s function as an
eraser.
Erases the entire
drawing.
Personal information management
102
3. Make changes in the same way as you would when creating
a memo.
4. When you are finished, tap to save the changes.
Sending a memo
You can beam the current memo to another phone using
the Beaming or Bluetooth.
Menu
→
Send
→ a sending
option.
• To send the memo via Beaming, see page 32.
• To send the memo via Bluetooth, see page 34.
Using TTS
(Text to Speech)
You can listen to memo contents by using Memo’s TTS
function. The text in a memo is read audibly to you. To
listen to the memo contents, tap on a memo screen.
You can turn TTS on or off by tapping
Menu
from the memo
list and selecting
Settings
.
Deleting memos
You can delete memos one by one or all memos at the
same time.
Deleting a memo
1. Open the memo you want to delete.
2. Tap .
3. Tap
Yes
to confirm the deletion.
Deleting all memos
Personal information management
103
1. From the memo list, tap
Menu
→
Delete
→
All
.
2. Tap
Yes
to confirm the deletion.
Money
Money helps you keep track of your daily, weekly, or
monthly income and expenses, and balance your finances.
You can assign your expenses to categories to organise and
view them in logical groups.
To access Money:
From the Application Launcher, tap and select
Money
().
Creating a new account
1. From the Money screen, tap .
2. Set account information in each field.
You can
record dates, types of expenses, amount spent,
payment method, and other details associated with any
money that you spend or earn.
In the
Amount
field, enter the amount of money you spent
or
earn
ed and set for income or for expenses.
3. When you have finished, tap to save the account.
Personal information management
104
Viewing money accounts
When you access Money, the screen shows a list of
accounts and the total sum of income and expenses.
Tap an account to view its details.
Editing a Money field item
You can preset titles for accounts and places so that you
can easily and quickly select them when creating new
accounts.
1. On the Money screen, tap
Menu
→
Edit Field Item
.
2. Select
Title
or
Place
from the pick list.
3. If you want to add a new item, tap and enter the item.
If you want to change the item’s name, tap the item and
tap
Menu
→
Edit
.
If you want to delete the item, tap the item and tap
Menu
→
Delete
.
4. When you have finished, tap to exit the screen.
Editing an account
1. Open the account you want to edit.
2. Tap .
3. Make changes in the same way as you would when creating
an account.
4. When you have finished, tap .
Personal information management
105
Setting the date range
You can set the date range for money management. The
total sum and accounts displayed on the Money screen will
include only the expenses and income for the specified
period.
1. Tap
Menu
→
Settings
.
2. Select the date range from the pick list.
3. Tap to save the change.
Deleting accounts
You can delete accounts one by one or all accounts at the
same time.
Deleting an account
1. Open the
account
you want to delete.
2. Tap .
3. Tap
Yes
to confirm the deletion.
Deleting all accounts
1. From the account list, tap
Menu
→
Delete
→
All
.
2. Tap
Yes
to confirm the deletion.
106
7
Entertainment
Camera
With the built-in camera, you can take photos of people or
events or record videos while on the move. Your phone’s
camera produces JPEG photos and 3GP videos.
Taking a photo
1. Press and hold to turn on the camera. You can also tap
from the Application Launcher and select
Camera
().
The viewfinder appears in Landscape (horizontal) mode.
Tapping on the viewfinder screen will switches the
viewfinder mode to Grid mode, No icon mode, or Normal
mode.
Entertainment
107
2. Adjust the camera settings using the following icons on the
screen.
Press the Left or Right navigation key to adjust the
image brightness, and the Up or Down navigation key
to zoom in or out.
You can also access camera options by tapping
Menu
. See
the next section.
pressing the
adjusts the focus. The focus frame on the
screen changes to green and back to white.
3. Press and hold or press to take a photo. The photo is
saved automatically.
Icon Description
switches the camera mode: (Single shot)
(Camcorder), (Uni-mail photo),
(Uni-mail video), or (Multi shot)
selects an image resolution.
adjusts the white balance:
(
Auto),
(
Daylight),
(
Cloudy),
(Tungsten),
or (Fluorescent)
selects a scene mode:
(
Auto),
(Night),
(
Macro), or
(
Portrait)
sets a time delay before taking a photo.
opens the
Camera
or
Camcorder
folder in
Photo Album, depending on the current mode.
turns the flash on or off:
(
On) or
(
Off).
Entertainment
108
Options available in Camera mode
When you tap
Menu
from the Camera preview screen, the
following options are available:
Mode
: allows you to change the camera mode.
Single
shot
,
Uni-mail photo
and
Multi shot
are available for
taking a photo, and
Camcorder
and
Uni-mail video
are
available for recording a video.
Resolution
: allows you to select an image resolution.
White balance
: allows you to customise the white balance
to make your photo warmer or cooler, depending on
lighting conditions.
Scene mode
: allows you to change the scene mode for the
type of subject you want to capture.
Self timer
: allows you to set a time delay before the
camera takes a photo.
Flash
: allows you to change the flash settings.
Effect
: allows you to apply a photo effect or a frame effect.
Viewing photos
To view the last photo taken, press from the Camera
screen. You can delete the photo by tapping or return to
the Camera screen by press .
To view all of your photos, tap from the Camera screen.
The
Camera
folder in Photo Album opens and displays
thumbnail images of your photos.
Entertainment
109
Configuring Camera mode
On the Camera preview screen, tap
Menu
→
Settings
to
access the following options for Camera mode:
Save location
: allows you to select a memory location.
File name Prefix
: allows you to set the default name prefix
for photos.
Photo Quality
: allows you to select an image quality
setting.
Instant review
: allows you to immediately see a photo
after taking it. If this option is disabled, the camera will
return to Preview mode after saving the photo
automatically.
Shutter sound
: allows you to select the sound produced
when you press the shutter or .
Date mark
: allows you to set the camera to add a date
stamp to your photos.
Image count
: allows you to check the number of photos
you have taken. Tap
Initialize
to begin a new count.
Recording a video
1. Press and hold to turn on the camera.
2. Switch to Camcorder mode by tapping or
Menu
→
Mode
→
Camcorder
.
3. Adjust the camcorder settings using the onscreen icons.
See page 107.
You can also access camcorder options by tapping
Menu
.
See page 108.
4. Press
and hold or press
to start recording.
Entertainment
110
5. When you have finished recording, press
or
to stop.
The video is saved automatically.
Playing videos
To view all of your videos, tap from the Camcorder
screen. The
Camcorder
folder in Photo Album opens and
displays thumbnail images of your videos.
Configuring Camcorder mode
On the Camcorder screen, tap
Menu
→
Settings
to access
the following options for the default settings of Camcorder
mode:
Save location
: allows you to select a memory location.
File name Prefix
: allows you to set the default name prefix
for videos.
Instant review
: allows you to immediately see a video
after recording it. If this options is disabled, the camera will
return to Preview mode after saving the video
automatically.
Shutter sound
: allows you to select the sound produced
when you press the shutter, or .
Record volume
: allows you to adjust the volume level for
audio recording. If you don't want to record audio, select
Sound off
.
Video count
: allows you to check the number of videos you
have recorded. Tap
Initialize
to begin a new count.
Entertainment
111
Photo Album
In Photo Album, you can access and manage and videos
stored in your phone’s memory, or an optional memory
card.
To access Photo Album:
From the Application Launcher, tap
and select
Album
().
Viewing photos
When you open Photo Album, you can view the photos
you’ve taken in the thumbnail images by default.
1. If necessary, tap and then access the folder you want.
2. Tap the photo you want to open.
The photo displays with:
• the file name and image size.
3. To view the next or previous image in the selected folder,
tap
or
or press the Left or Right navigation key.
For the options available when you are viewing an image,
see the following section.
Options available while viewing a photo
Zooming
• Tap to zoom in or to zoom out. You can also use the
Up or Down navigation key.
• To return to Real size view, tap . To fit the photo to the
screen, tap .
Entertainment
112
• Press to view the photo on the Full screen. Tap the
screen or press again to go back to the initial view.
Viewing a slide show
You can view a slide show of all photos that are stored in
your current folder.
Tap . Your phone displays photos one by one. To stop the
slide show, tap the screen. From the slide list screen, you
can set up the slide show properties by tapping
Menu
→
Settings
.
Rotating a photo
Tap or press to rotate the image 90 degrees
clockwise. Tap or press to rotate the image 90
degrees counterclockwise.
Editing a photo
Tap
Menu
→
Photo studio
. Select
Color tone
or
Brightness
and change the tone of the photo or adjust the brightness.
When you have finished, tap
Menu
→
Save
.
Setting a photo as a caller ID or wallpaper
• To set a photo as a caller ID image, tap
Menu
→
Set as
→
Address photo
. The New address screen opens with the
photo inserted to allow you to create a new contact.
• To set a photo as wallpaper for the Home screen, tap
Menu
→
Set as
→
Home background
.
Sending a photo
You can beam a
to another phone using Email,
Beaming, Bluetooth or Printer. Tap
Menu
→
Send
→ a
sending method.
Entertainment
113
• To send the photo by Email, see page 73.
• To send the photo via Beaming, see page 32.
• To send the photo via Bluetooth, see page 34.
• To send the photo to a printer, see the next section.
Printing a photo
You can print your photos directly from your phone by
connecting the phone to a printer with an optional USB
cable. First you need to enable USB printing in the USB
setup.
1. Connect your phone to the printer with a USB cable.
2. Access Photo Album from the Application Launcher and
select the photo you want to print.
3. Tap
Menu
→
Send
→
To Printer
.
4. Set print properties as you need, such as paper size, date
stamp, and the number of copies.
5. When you have finished, tap
Start print
.
Adding a note to a photo
1. Open the photo you want.
2. Tap
Menu
→
Photo info.
3. From the photo information screen, tap
Edit
.
4. Enter a note and tap .
5. Tap
to exit the screen.
Entertainment
114
Playing videos
1. On the Photo Album screen, tap and the select the
video folder you want.
2. Tap the video you want. The video plays on the Media
Player screen.
During playback, tapping on the viewfinder switches to Full
screen mode.
Deleting photos or videos
You can delete photos and videos in Photo Album one by
one or all of them.
Adjusts the volume
Plays the
previous video. Stops
playback.
Pauses or resumes
playback.
Plays the
next video.
Mutes or unmutes
the speaker.
Entertainment
115
Deleting a photo or video
1. Select a folder.
2. Tap the check box next to the item you want to delete.
3. Tap .
4. Tap
Yes
to confirm the deletion.
To delete all photos or videos
1. Select a folder.
2. Tap to select all of the items in the folder.
3. Tap .
4. Tap
Yes
to confirm the deletion.
Media Player
Using Media Player, you can play MPEG 1/2 and MP3 files.
You can download these files to your phone from a
compatible computer or copy them using an optional
memory card.
To access Media Player:
From the Application Launcher, tap
and select
Media
Player
( ). The Media Player screen displays.
Creating a play list and playing files
1. On the Media Player screen, tap
at the bottom of the
screen.
2. Tap
Menu
→
Add
→
a category
.
Entertainment
116
3. Select files and Tap
Menu
→
Add
→
Selected
or
All
to
add
them to the play list.
•
User files
: Normal music and movie files.
•
VOD files
: Streaming files. For playing these files, you
need to connect to the network and will be charged for
the connection.
•
DRM files
: Files to which accesses are locked by the
Digital Rights Management (DRM) system. To access
these files, you need to acuire the licence keys from the
website which owns the rights to the content.
For DRM files, you can export to or import from a memory
card, if inserted.
4. Tap
Menu
→
play
to start playing.
During playback, tapping on the player screen switches
between Full screen mode in Landscape view for movie files
and Normal view, or between File info and Equalizer views
for music files.
Options available during playback
While playing a file, you can use the following menu
options. Tap
Menu
and select the option you want to use:
Play List
: opens the play list.
Online Playlist
: opens the online playlist to allow you to
play streaming content.
MP3 Caption: displays the lyrics if the MP3 file supports
the caption feature.
Shuffle
: plays files at random.
Repeat
: allows you to select the repeat type.
•
No Repeat
: doesn’t repeat playback.
Entertainment
117
•
Repeat This
: repeats the current file.
•
Repeat All
: repeats all of the files in the playlist.
Full Screen
: displays the file on the full screen. This option
is only available when you play a multimedia file.
SRS WOW
: allows you to activate SRS WOW to improve the
phone’s sound quality.
Button Mapping
: allows you to assign the media player
functions to the keys on your phone. If you delete the
selected map(s), tap
Un-map
or
Un-map All
.
Quit
: exits Media Player.
Removing media files from a play list
You can remove media files from a play list. Removing files
from the play list does not delete them from the phones
memory. To delete a file permanently, you need to delete it
from File Manager.
Removing a file
On the play list screen, select the file you want to remove
and tap
Menu
→
Remove
.
Removing more than one file
On the play list screen, tap
Menu
→
Clear List
to remove all
of the files from the current play list.
If you want to remove more than one file, but not all, select
the files you want. Then tap
Menu
→
Remove
. All of the
selected files are removed.
Entertainment
118
Fruits Cocktail
Your phone provides the Fruits Cocktail game. The goal of
this game is to score as many points as possible by
swapping adjacent fruits to create a set, either horizontal or
vertical, of 3 or more identical fruits. Only one fruits may be
moved at a time.
1. From the Application Launcher, tap and select
Fruits
Cocktail
().
2. To start the game, select
START GAME
on the red bar
or
tap
Menu
and then
New Game
.
On the Fruits Cocktail home screen, you can use the
following options by tapping
Menu
:
•
New Game
: allows you to start a new game.
•
GameMode
: allows you to change the game mode either
Normal or Time Trial.
•
High Scores
: shows the High Scores table.
•
Help
: shows the help file for playing the game.
•
Quit
: exits the Fruits Cocktail game.
3. Tap and drag the fruit you want to move.
While playing the game, if you want to pause, tap
Menu
and select
Pause
. To resume the paused game, tap
PAUSE
on the paused screen.
You can get a hint of the game by tapping
HINT
. Note that
it decreases the energy gauge.
4. To end the game, tap .
5. Tap
Yes
to confirm ending the game.
Entertainment
119
MahJong
You can play the Mahjong game on your phone. The goal of
this game is to build complete suites of threes from 13
tiles.
1. Form the Application Launcher, tap and select
MahJong
()
.
2. Press any key except for or tap anywhere on the
screen.
3. Tap
Game Mode
to select a game mode, or
Quick Game
to start a single round game.
4. If you selected
Game Mode
, select one of the following
mode.
•
New Game
: starts a new game.
•
Load Game
: reloads the game you last played.
5.
Start the game by selecting an option from the pop-up
window.
Tap the option or tile you want quickly twice. Press to
adjust the sound volume during the game.
120
8
Tools
Alarm
You can set an alarm to ring at a specific time or activate an
hourly alert.
Setting an alarm
1. In the Application Launcher, tap and select
Alarm
()
.
2. Select an alarm type,
Alarm
,
Morning call
, or
Hourly
alarm
.
3. Tap the alarm time button below the selected alarm.
4. Set each option.
For an alarm:
•
Time
: allows you to set the time for the alarm to ring.
•
Duration
: allows you to select an repeat option.
•
Melody
: allows you to select an alarm melody. To set the
phone to use the highest volume when sounding the
alarm, select
Max alarm volume
.
For a morning call:
•
Time
: allows you to set the time for the alarm to ring.
•
Duration
: allows you to select an repeat option.
•
Interval
: allows you to how often the alarm repeats.
•
Melody
: allows you to select an alarm melody. To set the
phone to use the highest volume when sounding the
alarm, select
Max alarm volume
.
Tools
121
For the hourly alarm:
•
Range
: allows you to set the starting time and the
ending time for the hourly alarm.
•
Alert
: allows you to select an alert type.
5. Tap to save the alarm.
Stopping an alarm
• When an alarm rings, tap
Stop
.
• To deactivate an alarm, deselect it from the Alarm screen.
D-Day
In the D-Day feature, you can calculate how many days,
hours and minutes are left before or have passed since a
specific event. You can also be alerted when the D-Day
counter expires.
To access D-Day:
From the Application Launcher, tap and select
D-Day
().
Setting a D-Day counter
1. From the D-Day screen, tap .
2. Set counter information in each field.
If you aren't sure of the exact your D-day date, use the
d-day calculator. Tap
D-day
Calculator
and set the
standard date and the number of days before (-) or after
(+) the day. The calculated date is inserted into the
Date
field.
3. When you have finished, tap to save the counter.
Tools
122
Viewing a D-Day counter
From the D-Day screen, tap the counter you want to view.
The counter information appears.
Editing a D-Day counter
1. From the D-Day screen, tap the counter you want to edit.
2. Tap .
3. Make changes as you would when creating a counter.
4. When you have finished, tap to save the changes.
Deleting D-Day counters
You can delete counters one by one or all counters at the
same time.
Deleting a counter
1. Open the counter you want to delete.
2. Tap .
3. Tap
Yes
to confirm the deletion.
Deleting all counters
1. From the counter list, tap
Menu
→
Delete
→
All
.
2. Tap
Yes
to confirm the deletion.
Tools
123
Setting D-Day alarm options
You can change D-Day alarm settings.
1. From the counter list, tap
Menu
→
Settings
.
2. Set each option.
•
Alarm melody
: allows you to select an alarm melody.
•
Max alarm volume
: allows you to set the phone to use
the highest volume when sounding alarms.
3. When you have finished, tap to save the changes and
exit the screen.
Clock
Using Clock, you can set the current date and time, and
view times around the world.
To access Clock:
From the Application Launcher, tap
and select
Clock
()
.
Setting the date and time
In a CDMA network, when you turn on your phone for the
first time, it reads the date and time over the air and
automatically sets them.
In a GSM network, the phone doesn’t receive time
information from the network and you need to set the
current time and date.
1. From the Clock screen,
Menu
→
Date & Time
.
2. Set the date, time, and GMT.
3. When you have finished, tap to save the changes.
Tools
124
Changing the clock background
1. In the Clock screen,
tap
Menu
→
Background
.
2. Select the folder where the desired image file is stored.
3. Select the file in the folder. The image file displays on the
clock screen.
Viewing world time
You can check the current time for major cities around the
world.
1. On the Clock screen, tap .
2. Tap and drag the cross hairs to select a time zone on the
map.
The local date and time display along with an indication of
whether it is day or night in the zone.
3. To apply daylight savings time, tap
Menu
→
DST
.
Tap or drag the line
to select a time zone.
Tap to enlarge or
reduce the world map.
Tools
125
4. Tap
to exit the screen.
Calculator
Using Calculator, you can perform any of the standard
mathematical operations, such as addition, subtraction,
multiplication, division, and many advanced operations.
To access Calculator:
From the Application Launcher, tap
and
select
Calculator
(
)
. The onscreen calculator displays.
You can use the following buttons on the screen:
• : clears the number you entered.
•
C
:
Clears the entire calculation so you can begin a fresh
calculation.
•
CE
:
Clears the last number you entered. If you make a
mistake while entering a number in the middle of a
calculation, you can use this button to reenter the
number without starting the calculation over.
•
MC
: clears any value that is stored in the calculator’s
memory.
•
MR
: recalls the stored value from memory and inserts it into
the current calculation.
•
MS
: saves the current value in the calculator’s memory.
•
M+
: Places the current number into memory. Each new
number you enter with the M+ button is added to the total
already stored in memory.The number you add can be either
a calculated value or any number you enter by pressing the
number buttons. Tapping this button has no effect on the
current calculation(or series of calculations); it merely
places the value into memory until it is recalled.
•
SQRT
: computes the square root of the currently entered
number.
Tools
126
Converter
In Converter, you can convert units of measurement.
Note
: The Converter has limited accuracy and rounding errors
may occur.
To access Converter:
From the Application Launcher, tap
and
select
Converter
(
).
Converting a unit
1. Select the type of converter you want from the pick list on
the top line.
2. Tap the
Input
field to position the cursor and then enter
the data you want to convert on the Text Entry screen.
3. Select the unit you want to convert from the dropdown
arrow below the
Input
field.
4. Select the unit you want to convert to from the dropdown
arrow below the
Output
field.
5. The
Output
field changes automatically to shows you the
converted value.
6. Tap
to exit the screen.
Tools
127
Dictionary
Your phone is equipped with an English-Chinese and
Chinese-English dictionary. Use the dictionary to look up
English or Chinese words anytime anywhere.
To access Dictionary:
From the Application Launcher, tap and select
Dictionary
().
Looking up a word
1. Tap
Menu
→
Mode
→
a dictionary type.
2. Enter the English or Chinese word in the input field at the
top of the Dictionary screen. The corresponding word
appears in the right pane of the screen.
• Tap a related word in the right pane to view the
corresponding Chinese or English word.
• If you are using the English-Chinese dictionary, tap to
listen to the Chinese pronunciation.
• To switch the dictionary language between Simplified
Chinese and Traditional Chinese, tap
Menu
→
Simplified
or
Traditional
.
• To change the view mode of the dictionary, tap or .
• To add the word to your word book, tap .
Viewing your word book
To access words you have added to the word book, tap
Menu
→
Mode
→
Wordbook[E]
or
Wordbook[C]
.
To delete a word from your word book, select the word and
tap .
Tools
128
Remote control
With the Remote control application, you can control and
operate infrared-supported office, entertainment, and
home automation equipment, such as TVs, DVD players,
cable TVs, Karaoke machines, or set top boxes.
Note:
• Before opening Remote control, you must deactivate the IrDA
service.
• Your phone may not be able to access all remote control devices,
depending on the model.
Tips for using your phone as a remote controller
• The IrDA ports on both devices must be facing each other.
• If your phone does not control the device properly, set up
the remote control function again with a different number.
• The remote control function may not work, depending on the
type or version of your device.
• If a device has multiple functions, e.g., a VCR/DVD combo,
the remote controller may not control both device functions.
• Do not use your phone as a remote controller in pubic places
where it can interface with others.
To access
Remote control
:
From the Application Launcher, tap
and select
Remote
Control
().
Tools
129
Setting a remote controller
1. Align the IrDA port on the phone with a device.
2. Select
Room
,
Livingroom
, or
Other
from the pick list of
the top line to designate the area in which the device the
phone will control is located.
3. Tap the device type and tap
Yes
to confirm, or tap
Settings
from the Remote control main screen and then
select device type.
4. Tap the manufacturer of the device.
Note
: If you cannot find the manufacturer or model number
matching your device, you can update the remote
controller data base from the WAP browser.
5. Select the model number for the device from the pick list
and tap
Shot
.
When you select the correct model number for your device,
the device turns on or off.
6. Tap
OK
.
Using the remote controller function
1. Align the IrDA port on the phone with the device.
2. Select
Room
,
Livingroom
, or
Other
from the pick list of
the top line.
Note:
You can turn on or off all of the devices you have registered
to be remotely controlled by the phone at one time. Select
the area you want to control and tap
All power
.
Tools
130
3. Tap the device type or press the number key corresponding
to the device you are controlling.
4. Use the keys to control the device, referring to the image
on the display.
Note:
Tap
Mode
to use other remote controllers.
Recorder
In Recorder, you can record voice memos or other
recordings.
To access Recorder:
From the Application Launcher, tap and select
Recorder
( ) or press .
Making a voice recording
1. From the Recorder screen, select a memory location. Select
Internal
to save the recording in the phone’s memory or
External
to save it to an optional memory card.
2. Tap and make a voice recording by speaking into the
microphone.
3. Tap to stop recording. The voice recording is
automatically saved.
Playing a voice recording
1. On the Recorder screen, select a memory location.
Tools
131
2. Tap the recording you want to listen to. The recording
plays.
Deleting voice recordings
You can delete voice recordings one by one or all recordings at
the same time.
Deleting a recording
1. From the Recorder screen, select the recording you want.
2. Tap .
3. Tap
Yes
to confirm the deletion.
Deleting all recordings
1. From the Recorder screen, select a memory location.
2. Tap
Menu
→
Delete
→
All
.
3. Tap
Yes
to confirm the deletion.
Pauses playback.
Stops
playback.
Adjusts the
volume level.
Tools
132
InfASR
The InfASR application is the voice recognition programme,
which allows you to dial a phone number, search for a
contact card, or access a specific menu just by saying an
associated command.
InfASR uses the speaker-independent recognition system,
meaning that you don't have to programme the phone for
your particular voice or pronunciation, and the phone can
recognise commands from any speaker.
Note
: Your phone can recognise only Chinese commands.
To access InfASR:
From the Application Launcher, tap and select
InfASR
( ). The phone prompts you to say a command.
Name dialling
1. Access InfASR to start voice recognition.
2. When prompted, say (
Name dial
).
3. When prompted, say the full name of the contact as
displayed in Address.
The phone displays a list of up to three names that most
closely match your command, and recites the first choice
audibly.
4. If the name is not the one that you want, say (
No
) until
you hear the correct name.
5. When the recited name is correct, say (
Yes
).
Tools
133
6. If there are multiple numbers for the name, say the
number type you want.
Accessing a menu
1. Access InfASR to start voice recognition.
2. When prompted, say the name of the menu you want to
access. The phone opens the application immediately.
For the menus accessible by voice commands, refer the
Command list
pick list.
Setting Voice Recognition options
You can change the settings for voice recognition to make
the phone recognise your commands better.
1. Tap
Menu
→
Settings
.
2. Set each option.
•
Gender
: allows you to set the gender.
•
N Best
: allows you to set the number of result to be
displayed.
•
language
: allows you to select the Chinese dialect to be
used.
3. When you have finished, tap
Apply
to save the changes.
Tools
134
TSync
Using TSync, you can synchronise your contacts cards in
Address with a remote server.
To access TSync:
From the Application Launcher, tap and then
TSync
().
Setting up server profiles
By default, the CMCC profile is provided for synchronisation
with the online phonebook on the Chine Mobile In service.
You can set up additional servers if neccesary.
Adding a server
1. From the TSync screen, tap
Menu
→
Add Server
.
2. Set each profile parameters for the remote server.
3. When you have finished, tap .
Editign a server profile
1. From the TSync screen, select a profile from the pick list on
the top.
2. Tap
Menu
→
Edit Server Profile
.
3. Change the profile parameters as you need.
4. When you have finished, tap .
Deleting a server
1. From the TSync screen, select a profile from the pick list on
the top.
Tools
135
2. Tap
Menu
→
Delete Server
.
3. Tap
Delete
confirm the deletion.
Performing a synchronisation
1. From the TSync screen, select a profile from the pick list on
the top.
2. Tap
Sync
on the bottom right of the screen.
Java
The Java Box enables you to download various Java
applications from a Java server and to access and manage
them.
To access Java:
From the Application Launcher, tap and then
Java
().
Downloading an application
1.
From the MIDlet List screen, tap
Menu
→
Install
.
2. Enter the URL of the MIDlet you want to install.
Note
: You can enter URL components by tapping the arrow below
the URL line and selecting one from the pick list.
3. When you have finished, tap
Menu
→
Ok
.
The phone is connected to the network and then install the
Java appliation from the specified URL.
Tools
136
Using Java options
From the MIDlet List screen, tap
Menu
to access the
following options. Available options are dependent on your
selection, java application, or folder.
•
Enter
: executes selected java application or change
directory.
•
Install
: allows you to install java application from specified
URL.
•
NewFolder
: allows you to add folders to manage Java
applications.
•
Rename
: allows you to rename selected folder.
•
Delete
: deletes the selected folder or java application.
•
Move
: allows you to move selected midlet to a subdirectory.
•
Manage
: You can see the java application related
information.
•
Update
: allows you to update a exisiting java application to
the latest version.
•
Permission
: You can change various permissions of java
application
•
Exit
: Exit from Java Box.
Tools
137
File Manager
Your phone provides plenty of memory space for
documents, music files, favourite photos, or any other files.
Using File Manager, you can quickly access, organise,
delete, or edit any files on your phone.
To access File Manager:
From the Application Launcher, tap and select
File
Manager
( ). The list of the folders and files displays.
Opening contents
To open the contents of a selected folder or file, tap an item
on the list.
Return to the
previous
directory level.
Tap to view the
directory path of
the current folder.
Tools
138
Using File Manager options
Tap and hold a file, folder, or selected files or folders to
access the following options.
Cut
: cut the selected items.
Copy
: copy the selected items.
Paste
: paste the cut or copied items.
Rename
: allows you to edit the name of the selected file.
Delete
: delete the selected items.
Information
: shows detailed information about the
selected items.
Send
: allows you to beam the selected file to another PDA
phone using Beaming or Bluetooth. If you select an JPG
image, you can send the file to a printer.
Creating a new folder
You can create folders to organise your files.
1. Tap
Menu
→
New Folder
.
2. Enter a folder name and tap
OK
.
Tools
139
Formatting a memory card
You can format your memory card in File Manager. This will
delete all of the data stored on it.
Note
:
• Be sure to carefully check and confirm that you no longer need
the data on the memory card before formatting it.
• Formatting is recommended for any memory card that you
suspects contains corrupted data, or newly purchased memory
cards.
1. Tap
Menu
→
T-flash Format
.
2. Select a file format system and tap
Format
.
Sending a file
You can share your files with other people by sending them
using the Beaming or Bluetooth. For JPG images, you can
send them to a printer. Tap
Menu
→
Send
→
a sending
option.
• To send a file via
Beaming
, see page 32.
• To send a file via Bluetooth, see page 34.
• To print an JPG image, see page 113.
140
9
Documents
Picsel Browser
Picsel Browser enables you to browse document on thin-
client computing platforms or access the Internet using the
HTML browser. Use Picsel Browser to do the following:
• View content on your phone without any file-conversion or
loss of contents.
• Access HTML websites.
To access Picsel Browser:
From the Application Launcher, tap and select Picsel
Browser ( ). By default, the Picsel Browser help opens.
Viewing a document
Picsel Browser supports most common desktop document
formats including PDF, MS Word, Excel, PowerPoint, and so
on.
Opening a document
1. Tap the Picsel Browser Menu icon ( ) on the bottom right
of the screen.
2. Tap the Folder View icon ( ).
Documents
141
3. Select the directory you want to open.
The name of the current folders path location is shown at
the top of the screen and the folders and documents on the
selected folder appear.
Documents looks like sheets of paper in various other
colours, depending on their type.
The following document formats are supported:
Adobe PDF: , Microsoft Word: , Microsoft Power Point:
, Microsoft Excel: , Plain Text: , JPEG/PNG images:
, HTML:
Returns to the
previous
directory level.
Documents
142
4. Tap the document you want to open.
While viewing the document, tap to open the control
bar.
• To zoom in or out of the document, tap and drag the
slider on the left of the screen.
• To rotate the screen on 90 degrees counterclockwise, tap
and .
• To fit the width of the page on screen, tap and .
Opening a document by entering the file path or URL
1. Tap .
2. Tap the Enter URL icon ( ).
3. Enter the file path or URL address.
You can enter one of preset URL components on the screen.
4. Tap
OK
to open the document or the website.
Zooms in/out.
Goes to the previous
file in history.
Fits the document
to the width.
Fits the document
to the length.
Goes to the next
file in history.
Moves to the
next page.
Moves to the
previous page.
Documents
143
Changing the file list view
1. On the file directory screen, tap .
2. Select the appropriate icon.
Viewing history
Picsel Browser shows you previously visited documents as a
small thumbnail image, and the document’s name, location,
and the date of your visit.
Opening a document in history
1. On the Picsel Browser screen, tap .
2. Tap the History View icon ( ).
3. Tap the document you want to open twice.
Lists by file
name.
List by file type. Switches to Icon
view mode.
Switches to List
view mode.
Exit the Picsel
Browser menu
Documents
144
Changing the order of the history list
1. On the History screen, tap .
2. Tap the appropriate icon.
• : Sort by date.
• : Sort by URL.
• : Sort by name.
3. Tap to hide the option icons.
Making and viewing bookmarks
Picsel Browser keeps a list of documents you have
bookmarked.
Making a bookmark
1. While viewing the document, tap .
2. Tap the Bookmark this page icon ( ).
3. Enter a bookmark name.
4. Tap
OK
.
Viewing a bookmark
1. On the Picsel Browser screen, tap .
2. Tap the Bookmark View icon ( ).
The documents you have explicitly added with a bookmark
appear.
3. Tap the document you want to view twice.
Documents
145
Deleting a bookmark
1. On the Picsel Browser screen, tap .
2. Tap the Bookmark View icon ( ).
The documents you have bookmarked appear.
3. Tap the document you want to delete.
4. Tap .
5. Tap
OK
to confirm the deletion.
Changing Picsel Browser settings
1. On the Picsel Browser screen, tap .
2. Tap the Preferences icon ( ).
3. Tap the pick list on the button and select the category you
want to set.
4. Set each tab and change the settings as needed:
•
Home
: Select the item what is displayed on the startup
screen of Picsel Browser when you launch it.
•
Preferences
: Select the page options and set the period
of times after which thumbnail images and descriptions of
pages are purged from the history memory.
•
Internet
: Set the options for Internet connections.
•
Files
: Select file types Picsel Browser will support.
•
About
: View the information about Picsel Browser.
5. Tap
OK
.
Documents
146
Text Reader
Using Text Reader, you can read *.txt files on your phone.
Your phone can read you text audibly by using the TTS
function.
To access Text Reader:
From the Application Launcher, tap select
Text Reader
().
Reading a text file
1. Find the text file you want to read and tap it to open it.
2. Scroll through the text file by dragging the screen with the
stylus pen.
While viewing a file, tap to bookmark the current page.
Using the control bar
You can use the control bar to move the location you want
in a text file. While viewing the text file, tap
Menu
→
Controller
→
Show
. The control bar appears at the bottom
of the screen. Tap or drag the slider or use the buttons to
move to the location you want to view.
Goes back to the
beginning of the
document.
Starts auto
scroll. Skips to the end of
the document.
Fits the document
to the display size.
Documents
147
Opening bookmarked pages
If you have bookmarked pages in text files, you can quickly
access them any time you need.
1. Tap
Menu
→
Bookmark list
.
2. Select a bookmarked page.
Setting Text Reader options
While reading a text document, you can change the Text
Reader’s properties.
Tap
Menu
→
Settings
. The following options are available:
Font Size
: changes the font size.
Font Color
: changes the font color.
Background
: changes the background colour of the
document.
Encoding
: selects a text encoding type.
Scroll Step
: selects the step for auto scroll.
Scroll Speed
: selects the speed for auto scroll.
TTS
: activates or deactivates the TTS (Text To Speech)
feature. Once TTS has been activated, appears. Tapping
the icon will read the text audibly to you.
148
10
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certification Information (SAR)
Your wireless phone is a radio transmitter and receiver. It is designed
and manufactured not to exceed the exposure limits for radio frequency
(RF) energy set by the Federal Communications Commission (FCC) of
the U.S. government. These FCC exposure limits are derived from the
recommendations of two expert organizations, the National Counsel on
Radiation Protection and Measurement (NCRP) and the Institute of
Electrical and Electronics Engineers (IEEE). In both cases, the
recommendations were developed by scientific and engineering experts
drawn from industry, government, and academia after extensive
reviews of the scientific literature related to the biological effects of RF
energy.
The exposure limit set by the FCC for wireless mobile phones employs a
unit of measurement known as the Specific Absorption Rate (SAR). The
SAR is a measure of the rate of absorption of RF energy by the human
body expressed in units of watts per kilogram (W/kg). The FCC requires
wireless phones to comply with a safety limit of 1.6 watts per kilogram
(1.6 W/kg). The FCC exposure limit incorporates a substantial margin
of safety to give additional protection to the public and to account for
any variations in measurements.
SAR tests are conducted using standard operating positions accepted
by the FCC with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is determined at
the highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value. This is because
the phone is designed to operate at multiple power levels so as to use
only the power required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power output.
Before a new model phone is available for sale to the public, it must be
tested and certified to the FCC that it does not exceed the limit
estabilished by the FCC. Tests are performed in positions and
locations(e.g. at the ear and worn on the body) as required by the FCC.
The highest SAR values for this model phone as reported to the FCC are
Head: 0.220 W/Kg, Body-worn: 0.482 W/Kg.
For body worn operation, this model phone has been tested and meets
the FCC RF exposure guidelines when used with a Samsung accessory
Health and safety information
149
designated for this product or when used with an accessory that
contains no metal and that positions the handset a minimum of 1.5 cm
from the body.
Non-compliance with the above restrictions may result in violation of
FCC RF esposure guidelines.
SAR information on this and other model phones can be viewed on-line
at www.fcc.gov/oet/fccid. This site uses the phone FCC ID number,
A3LSGHI858. Sometimes it may be necessary to remove the battery
pack to find the number. Once you have the FCC ID number for a
particular phone, follow the instructions on the website and it should
provide values for typical or maximum SAR for a particular phone.
Additional product specific SAR information can also be obtained at
www.fcc.gov/cgb/sar.
Consumer Information on Wireless Phones
The U.S. Food and Drug Administration (FDA) has published a series of
Questions and Answers for consumers relating to radio frequency (RF)
exposure from wireless phones. The FDA publication includes the
following information:
What kinds of phones are the subject of this update?
The term wireless phone refers here to hand-held wireless phones with
built-in antennas, often called “cell,” “mobile,” or “PCS” phones. These
types of wireless phones can expose the user to measurable radio
frequency energy (RF) because of the short distance between the
phone and the user's head. These RF exposures are limited by Federal
Communications Commission safety guidelines that were developed
with the advice of FDA and other federal health and safety agencies.
When the phone is located at greater distances from the user, the
exposure to RF is drastically lower because a person's RF exposure
decreases rapidly with increasing distance from the source. The so-
called “cordless phones,” which have a base unit connected to the
telephone wiring in a house, typically operate at far lower power levels,
and thus produce RF exposures well within the FCC's compliance limits.
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health
problems are associated with using wireless phones. There is no proof,
however, that wireless phones are absolutely safe. Wireless phones
emit low levels of radio frequency energy (RF) in the microwave range
Health and safety information
150
while being used. They also emit very low levels of RF when in the
stand-by mode. Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that does not produce
heating effects causes no known adverse health effects. Many studies
of low level RF exposures have not found any biological effects. Some
studies have suggested that some biological effects may occur, but
such findings have not been confirmed by additional research. In some
cases, other researchers have had difficulty in reproducing those
studies, or in determining the reasons for inconsistent results.
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting
consumer products such as wireless phones before they can be sold, as
it does with new drugs or medical devices. However, the agency has
authority to take action if wireless phones are shown to emit radio
frequency energy (RF) at a level that is hazardous to the user. In such
a case, FDA could require the manufacturers of wireless phones to
notify users of the health hazard and to repair, replace or recall the
phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory
actions, FDA has urged the wireless phone industry to take a number of
steps, including the following:
• “Support needed research into possible biological effects of RF of
the type emitted by wireless phones;
• “Design wireless phones in a way that minimizes any RF exposure
to the user that is not necessary for device function; and
• “Cooperate in providing users of wireless phones with the best
possible information on possible effects of wireless phone use on
human health.
FDA belongs to an interagency working group of the federal agencies
that have responsibility for different aspects of RF safety to ensure
coordinated efforts at the federal level. The following agencies belong
to this working group:
• “National Institute for Occupational Safety and Health
• “Environmental Protection Agency
• “Federal Communications Commission
• “Occupational Safety and Health Administration
• “National Telecommunications and Information Administration
Health and safety information
151
The National Institutes of Health participates in some interagency
working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with the
Federal Communications Commission (FCC). All phones that are sold in
the United States must comply with FCC safety guidelines that limit RF
exposure. FCC relies on FDA and other health agencies for safety
questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks
rely upon. While these base stations operate at higher power than do
the wireless phones themselves, the RF exposures that people get from
these base stations are typically thousands of times lower than those
they can get from wireless phones. Base stations are thus not the
primary subject of the safety questions discussed in this document.
What are the results of the research done already?
The research done thus far has produced conflicting results, and many
studies have suffered from flaws in their research methods. Animal
experiments investigating the effects of radio frequency energy (RF)
exposures characteristic of wireless phones have yielded conflicting
results that often cannot be repeated in other laboratories. A few
animal studies, however, have suggested that low levels of RF could
accelerate the development of cancer in laboratory animals. However,
many of the studies that showed increased tumor development used
animals that had been genetically engineered or treated with cancer-
causing chemicals so as to be pre-disposed to develop cancer in
absence of RF exposure. Other studies exposed the animals to RF for
up to 22 hours per day. These conditions are not similar to the
conditions under which people use wireless phones, so we don't know
with certainty what the results of such studies mean for human health.
Three large epidemiology studies have been published since December
2000. Between them, the studies investigated any possible association
between the use of wireless phones and primary brain cancer, glioma,
meningioma, or acoustic neuroma, tumors of the brain or salivary
gland, leukemia, or other cancers. None of the studies demonstrated
the existence of any harmful health effects from wireless phones RF
exposures. However, none of the studies can answer questions about
long-term exposures, since the average period of phone use in these
studies was around three years.
What research is needed to decide whether RF exposure from
wireless phones poses a health risk?
A combination of laboratory studies and epidemiological studies of
people actually using wireless phones would provide some of the data
Health and safety information
152
that are needed. Lifetime animal exposure studies could be completed
in a few years. However, very large numbers of animals would be
needed to provide reliable proof of a cancer promoting effect if one
exists. Epidemiological studies can provide data that is directly
applicable to human populations, but ten or more years' follow-up may
be needed to provide answers about some health effects, such as
cancer. This is because the interval between the time of exposure to a
cancer-causing agent and the time tumors develop - if they do - may
be many, many years. The interpretation of epidemiological studies is
hampered by difficulties in measuring actual RF exposure during day-
to-day use of wireless phones. Many factors affect this measurement,
such as the angle at which the phone is held, or which model of phone
is used.
What is FDA doing to find out more about the possible health
effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with
groups of investigators around the world to ensure that high priority
animal studies are conducted to address important questions about the
effects of exposure to radio frequency energy (RF).
FDA has been a leading participant in the World Health Organization
international Electromagnetic Fields (EMF) Project since its inception in
1996. An influential result of this work has been the development of a
detailed agenda of research needs that has driven the establishment of
new research programs around the world. The Project has also helped
develop a series of public information documents on EMF issues.
FDA and Cellular Telecommunications & Internet Association (CTIA)
have a formal Cooperative Research and Development Agreement
(CRADA) to do research on wireless phone safety. FDA provides the
scientific oversight, obtaining input from experts in government,
industry, and academic organizations. CTIA-funded research is
conducted through contracts to independent investigators. The initial
research will include both laboratory studies and studies of wireless
phone users. The CRADA will also include a broad assessment of
additional research needs in the context of the latest research
developments around the world.
What steps can I take to reduce my exposure to radio
frequency energy from my wireless phone?
If there is a risk from these products - and at this point we do not know
that there is - it is probably very small. But if you are concerned about
avoiding even potential risks, you can take a few simple steps to
minimize your exposure to radio frequency energy (RF). Since time is a
Health and safety information
153
key factor in how much exposure a person receives, reducing the
amount of time spent using a wireless phone will reduce RF exposure.
• “If you must conduct extended conversations by wireless phone
every day, you could place more distance between your body and
the source of the RF, since the exposure level drops off dramatically
with distance. For example, you could use a headset and carry the
wireless phone away from your body or use a wireless phone
connected to a remote antenna.
Again, the scientific data do not demonstrate that wireless phones are
harmful. But if you are concerned about the RF exposure from these
products, you can use measures like those described above to reduce
your RF exposure from wireless phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless
phones, including children and teenagers. If you want to take steps to
lower exposure to radio frequency energy (RF), the measures
described above would apply to children and teenagers using wireless
phones. Reducing the time of wireless phone use and increasing the
distance between the user and the RF source will reduce RF exposure.
Some groups sponsored by other national governments have advised
that children be discouraged from using wireless phones at all. For
example, the government in the United Kingdom distributed leaflets
containing such a recommendation in December 2000. They noted that
no evidence exists that using a wireless phone causes brain tumors or
other ill effects. Their recommendation to limit wireless phone use by
children was strictly precautionary; it was not based on scientific
evidence that any health hazard exists.
Do hands-free kits for wireless phones reduce risks from
exposure to RF emissions?
Since there are no known risks from exposure to RF emissions from
wireless phones, there is no reason to believe that hands-free kits
reduce risks. Hands-free kits can be used with wireless phones for
convenience and comfort. These systems reduce the absorption of RF
energy in the head because the phone, which is the source of the RF
emissions, will not be placed against the head. On the other hand, if
the phone is mounted against the waist or other part of the body
during use, then that part of the body will absorb more RF energy.
Wireless phones marketed in the U.S. are required to meet safety
requirements regardless of whether they are used against the head or
Health and safety information
154
against the body. Either configuration should result in compliance with
the safety limit.
Do wireless phone accessories that claim to shield the head
from RF radiation work?
Since there are no known risks from exposure to RF emissions from
wireless phones, there is no reason to believe that accessories that
claim to shield the head from those emissions reduce risks. Some
products that claim to shield the user from RF absorption use special
phone cases, while others involve nothing more than a metallic
accessory attached to the phone. Studies have shown that these
products generally do not work as advertised. Unlike “hand-free” kits,
these so-called “shields” may interfere with proper operation of the
phone. The phone may be forced to boost its power to compensate,
leading to an increase in RF absorption. In February 2002, the Federal
trade Commission (FTC) charged two companies that sold devices that
claimed to protect wireless phone users from radiation with making
false and unsubstantiated claims. According to FTC, these defendants
lacked a reasonable basis to substantiate their claim.
What about wireless phone interference with medical
equipment?
Radio frequency energy (RF) from wireless phones can interact with
some electronic devices. For this reason, FDA helped develop a detailed
test method to measure electromagnetic interference (EMI) of
implanted cardiac pacemakers and defibrillators from wireless
telephones. This test method is now part of a standard sponsored by
the Association for the Advancement of Medical instrumentation
(AAMI). The final draft, a joint effort by FDA, medical device
manufacturers, and many other groups, was completed in late 2000.
This standard will allow manufacturers to ensure that cardiac
pacemakers and defibrillators are safe from wireless phone EMI. FDA
has tested wireless phones and helped develop a voluntary standard
sponsored by the Institute of Electrical and Electronic Engineers (IEEE).
This standard specifies test methods and performance requirements for
hearing aids and wireless phones so that no interference occurs when a
person uses a compatible phone and a compatible hearing aid at the
same time. This standard was approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for possible
interactions with other medical devices. Should harmful interference be
found to occur, FDA will conduct testing to assess the interference and
work to resolve the problem.
Additional information on the safety of RF exposures from various
sources can be obtained from the following organizations:
Health and safety information
155
• FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/
• Environmental Protection Agency (EPA):
http://www.epa.gov/radiation/
• Occupational Safety and Health Administration's (OSHA):
http://www.osha.gov/SLTC/radiofrequencyradiation/index.html
• National institute for Occupational Safety and Health (NIOSH):
http://www.cdc.gov/niosh/emfpg.html
• World health Organization (WHO):
http://www.who.int/peh-emf/
• International Commission on Non-Ionizing Radiation Protection:
http://www.icnirp.de
• National Radiation Protection Board (UK):
http://www.nrpb.org.uk
• Updated 4/3/2002: US food and Drug Administration
http://www.fda.gov/cellphones
Road Safety
Your wireless phone gives you the powerful ability to communicate by
voice, almost anywhere, anytime. But an important responsibility
accompanies the benefits of wireless phones, one that every user must
uphold.
When driving a car, driving is your first responsibility. When using your
wireless phone behind the wheel of a car, practice good common sense
and remember the following tips:
1. Get to know your wireless phone and its features, such as speed
dial and redial. If available, these features help you to place your
call without taking your attention off the road.
2. When available, use a hands-free device. If possible, add an
additional layer of convenience and safety to your wireless phone
with one of the many hands free accessories available today.
3. Position your wireless phone within easy reach. Be able to access
your wireless phone without removing your eyes from the road. If
you get an incoming call at an inconvenient time, let your voice
mail answer it for you.
4. Let the person you are speaking with know you are driving; if
necessary, suspend the call in heavy traffic or hazardous weather
Health and safety information
156
conditions. Rain, sleet, snow, ice and even heavy traffic can be
hazardous.
5. Do not take notes or look up phone numbers while driving. Jotting
down a “to do” list or flipping through your address book takes
attention away from your primary responsibility, driving safely.
6. Dial sensibly and assess the traffic; if possible, place calls when you
are not moving or before pulling into traffic. Try to plan calls when
your car will be stationary. If you need to make a call while moving,
dial only a few numbers, check the road and your mirrors, then
continue.
7. Do not engage in stressful or emotional conversations that may be
distracting. Make people you are talking with aware you are driving
and suspend conversations that have the potential to divert your
attention from the road.
8. Use your wireless phone to call for help. Dial 9-1-1 or other local
emergency number in the case of fire, traffic accident or medical
emergencies. Remember, it is a free call on your wireless phone!
9. Use your wireless phone to help others in emergencies. If you see
an auto accident, crime in progress or other serious emergency
where lives are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
10.Call roadside assistance or a special non-emergency wireless
assistance number when necessary. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor
traffic accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other special non-
emergency number.
“The wireless industry reminds you to use your phone safely
when driving.”
For more information, please call 1-888-901-SAFE, or visit our web-site
www.wow-com.com
Provided by the Cellular Telecommunications & Internet Association
Operating Environment
Remember to follow any special regulations in force in any area and
always switch your phone off whenever it is forbidden to use it, or
when it may cause interference or danger. When connecting the phone
Health and safety information
157
or any accessory to another device, read its user's guide for detailed
safety instructions. Do not connect incompatible products.
As with other mobile radio transmitting equipment, users are advised
that for the satisfactory operation of the equipment and for the safety
of personnel, it is recommended that the equipment should only be
used in the normal operating position (held to your ear with the
antenna pointing over your shoulder).
Using Your Phone Near Other Electronic
Devices
Most modern electronic equipment is shielded from radio frequency
(RF) signals. However, certain electronic equipment may not be
shielded against the RF signals from your wireless phone. Consult the
manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a minimum distance of 15
cm (6 inches) be maintained between a wireless phone and a
pacemaker to avoid potential interference with the pacemaker.
These recommendations are consistent with the independent research
and recommendations of Wireless Technology Research.
Persons with pacemakers:
• should always keep the phone more than 15 cm
(6 inches) from their pacemaker when the phone is switched on.
• should not carry the phone in a breast pocket.
• should use the ear opposite the pacemaker to minimize potential
interference.
If you have any reason to suspect that interference is taking place,
switch your phone off immediately.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In
the event of such interference, you may wish to consult your hearing
aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical devices, consult the
manufacturer of your device to determine if it is adequately shielded
from external RF energy. Your physician may be able to assist you in
Health and safety information
158
obtaining this information. Switch your phone off in health care
facilities when any regulations posted in these areas instruct you to do
so. Hospitals or health care facilities may be using equipment that
could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer or
its representative regarding your vehicle. You should also consult the
manufacturer of any equipment that has been added to your vehicle.
Posted Facilities
Switch your phone off in any facility where posted notices require you
to do so.
Potentially Explosive Environments
Switch your phone off when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas
could cause an explosion or fire resulting in bodily injury or even death.
Users are advised to switch the phone off while at a refueling point
(service station). Users are reminded of the need to observe
restrictions on the use of radio equipment in fuel depots (fuel storage
and distribution areas), chemical plants or where blasting operations
are in progress.
Areas with a potentially explosive atmosphere are often but not always
clearly marked. They include below deck on boats, chemical transfer or
storage facilities, vehicles using liquefied petroleum gas (such as
propane or butane), areas where the air contains chemicals or
particles, such as grain, dust or metal powders, and any other area
where you would normally be advised to turn off your vehicle engine.
Emergency Calls
This phone, like any wireless phone, operates using radio signals,
wireless and landline networks as well as user programmed functions,
which cannot guarantee connection in all conditions. Therefore, you
should never rely solely on any wireless phone for essential
communications (medical emergencies, for example).
Health and safety information
159
Remember, to make or receive any calls the phone must be switched
on and in a service area with adequate signal strength. Emergency
calls may not be possible on all wireless phone networks or when
certain network services and/or phone features are in use. Check with
local service providers.
To make an emergency call:
1. If the phone is not on, switch it on.
2. Key in the emergency number for your present location (for
example, 911 or other official emergency number). Emergency
numbers vary by location.
3. Press .
If certain features are in use (call barring, for example), you may first
need to deactivate those features before you can make an emergency
call. Consult this document and your local cellular service provider.
When making an emergency call, remember to give all the necessary
information as accurately as possible. Remember that your phone may
be the only means of communication at the scene of an accident; do
not cut off the call until given permission to do so.
Restricting Children's access to your Phone
Your phone is not a toy. Children should not be allowed to play with it
because they could hurt themselves and others, damage the phone or
make calls that increase your phone bill.
FCC Notice and Cautions
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
The phone may cause TV or radio interference if used in close proximity
to receiving equipment. The FCC can require you to stop using the
phone if such interference cannot be eliminated.
Health and safety information
160
Vehicles using liquefied petroleum gas (such as propane or butane)
must comply with the National Fire Protection Standard (NFPA-58). For
a copy of this standard, contact the National Fire Protection
Association, One Battery march Park, Quincy, MA 02269, Attn:
Publication Sales Division.
Cautions
Changes or modifications made in the radio phone, not expressly approved
by Samsung, will void the user’s authority to operate the equipment.
Only use approved batteries, antennas and chargers. The use of any
unauthorized accessories may be dangerous and void the phone
warranty if said accessories cause damage or a defect to the phone.
Although your phone is quite sturdy, it is a complex piece of equipment
and can be broken. Avoid dropping, hitting, bending or sitting on it.
Other Important Safety Information
• Only qualified personnel should service the phone or install the
phone in a vehicle. Faulty installation or service may be dangerous
and may invalidate any warranty applicable to the device.
• Check regularly that all wireless phone equipment in your vehicle is
mounted and operating properly.
• Do not store or carry flammable liquids, gases or explosive
materials in the same compartment as the phone, its parts or
accessories.
• For vehicles equipped with an air bag, remember that an air bag
inflates with great force. Do not place objects, including both
installed or portable wireless equipment in the area over the air bag
or in the air bag deployment area. If wireless equipment is
improperly installed and the air bag inflates, serious injury could
result.
• Switch your phone off before boarding an aircraft. The use of
wireless phone in aircraft is illegal and may be dangerous to the
aircraft's operation.
• Failure to observe these instructions may lead to the suspension or
denial of telephone services to the offender, or legal action, or both.
Health and safety information
161
Product Performance
Getting the Most Out of Your Signal Reception
The quality of each call you make or receive depends on the signal
strength in your area. Your phone informs you of the current signal
strength by displaying a number of bars next to the signal strength
icon. The more bars displayed, the stronger the signal.
If you're inside a building, being near a window may give you better
reception.
Understanding the Power Save Feature
If your phone is unable to find a signal after 15 minutes of searching, a
Power Save feature is automatically activated. If your phone is active,
it periodically rechecks service availability or you can check it yourself
by pressing any key.
Anytime the Power Save feature is activated, a message displays on
the screen. When a signal is found, your phone returns to standby
mode.
Understanding How Your Phone Operates
Your phone is basically a radio transmitter and receiver. When it's
turned on, it receives and transmits radio frequency (RF) signals. When
you use your phone, the system handling your call controls the power
level. This power can range from 0.006 watts to 0.2 watts in digital
mode.
Maintaining Your Phone's Peak Performance
For the best care of your phone, only authorized personnel should
service your phone and accessories. Faulty service may void the
warranty.
There are several simple guidelines to operating your phone properly
and maintaining safe, satisfactory service.
• Hold the phone with the antenna raised, fully-extended and over
your shoulder.
• Try not to hold, bend or twist the phone's antenna.
• Don't use the phone if the antenna is damaged.
• Speak directly into the phone's receiver.
Health and safety information
162
• Avoid exposing your phone and accessories to rain or liquid spills. If
your phone does get wet, immediately turn the power off and
remove the battery. If it is inoperable, call Customer Care for
service.
Availability of Various Features/Ring Tones
Many services and features are network dependent and may require
additional subscription and/or usage charges. Not all features are
available for purchase or use in all areas. Downloadable Ring Tones
may be available at an additional cost. Other conditions and restrictions
may apply. See your service provider for additional information.
Battery Standby and Talk Time
Standby and talk times will vary depending on phone usage patterns
and conditions. Battery power consumption depends on factors such as
network configuration, signal strength, operating temperature,
features selected, frequency of calls, and voice, data, and other
application usage patterns.
Battery Precautions
• Never use any charger or battery that is damaged in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network's base station, it uses less
power; talk and standby time are greatly affected by the signal
strength on the cellular network and the parameters set by the
network operator.
• Battery charging time depends on the remaining battery charge
and the type of battery and charger used. The battery can be
charged and discharged hundreds of times, but it will gradually
wear out. When the operation time (talk time and standby time) is
noticeably shorter than normal, it is time to buy a new battery.
• If left unused, a fully charged battery will discharge itself over time.
• Use only Samsung-approved batteries and recharge your battery
only with Samsung-approved chargers. When a charger is not in
use, disconnect it from the power source. Do not leave the battery
Health and safety information
163
connected to a charger for more than a week, since overcharging
may shorten its life.
• Extreme temperatures will affect the charging capacity of your
battery: it may require cooling or warming first.
• Do not leave the battery in hot or cold places, such as in a car in
summer or winter conditions, as you will reduce the capacity and
lifetime of the battery. Always try to keep the battery at room
temperature. A phone with a hot or cold battery may temporarily
not work, even when the battery is fully charged. Li-ion batteries
are particularly affected by temperatures below 0 °C (32 °F).
• Do not short-circuit the battery. Accidental short- circuiting can
occur when a metallic object (coin, clip or pen) causes a direct
connection between the + and - terminals of the battery (metal
strips on the battery), for example when you carry a spare battery
in a pocket or bag. Short-circuiting the terminals may damage the
battery or the object causing the short-circuiting.
• Dispose of used batteries in accordance with local regulations. In
some areas, the disposal of batteries in household or business trash
may be prohibited. For safe disposal options for Li-Ion batteries,
contact your nearest Samsung authorized service center. Always
recycle. Do not dispose of batteries in a fire.
Care and Maintenance
Your phone is a product of superior design and craftsmanship and
should be treated with care. The suggestions below will help you fulfill
any warranty obligations and allow you to enjoy this product for many
years.
• Keep the phone and all its parts and accessories out of the reach of
small children.
• Keep the phone dry. Precipitation, humidity and liquids contain
minerals that will corrode electronic circuits.
• Do not use the phone with a wet hand. Doing so may cause an
electric shock to you or damage to the phone.
• Do not use or store the phone in dusty, dirty areas, as its moving
parts may be damaged.
• Do not store the phone in hot areas. High temperatures can shorten
the life of electronic devices, damage batteries, and warp or melt
certain plastics.
Health and safety information
164
• Do not store the phone in cold areas. When the phone warms up to
its normal operating temperature, moisture can form inside the
phone, which may damage the phone's electronic circuit boards.
• Do not drop, knock or shake the phone. Rough handling can break
internal circuit boards.
• Do not use harsh chemicals, cleaning solvents or strong detergents
to clean the phone. Wipe it with a soft cloth slightly dampened in a
mild soap-and-water solution.
• Do not paint the phone. Paint can clog the device's moving parts
and prevent proper operation.
• Do not put the phone in or on heating devices, such as a microwave
oven, a stove or a radiator. The phone may explode when
overheated.
• When the phone or battery gets wet, the label indicating water
damage inside the phone changes color. In this case, phone repairs
are no longer guaranteed by the manufacturer's warranty, even if
the warranty for your phone has not expired.
• If your phone has a flash or light, do not use it too close to the eyes
of people or animals. This may cause damage to their eyes.
• Use only the supplied or an approved replacement antenna.
Unauthorized antennas or modified accessories may damage the
phone and violate regulations governing radio devices.
• If the phone, battery, charger or any accessory is not working
properly, take it to your nearest qualified service facility. The
personnel there will assist you, and if necessary, arrange for
service.
