Samsung Electronics Co SGHP107 Dual-Band GSM Phone User Manual

Samsung Electronics Co Ltd Dual-Band GSM Phone Users Manual

Users Manual

Dual BandSGH-P107User ManualPlease read this manual before operating your phone, and keep it for future reference.Printed in KoreaCode No.:?????
Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.
Samsung Telecommunications America (STA), Inc.Headquarters:1130 E. Arapaho Road Richardson, TX 75081 Tel: 972-761-7000 Fax: 972-761-7001Customer Care Center:1601 E. Plano Parkway Suite 150 Plano, TX 75047 Tel: 888-987-HELP (4357) Fax: 972-761-7501Internet Address: http://www.samsungusa.com/wireless©2003 Samsung Telecommunications America. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Samsung is a registered trademark of Samsung Electronics America, Inc. and its related entities.

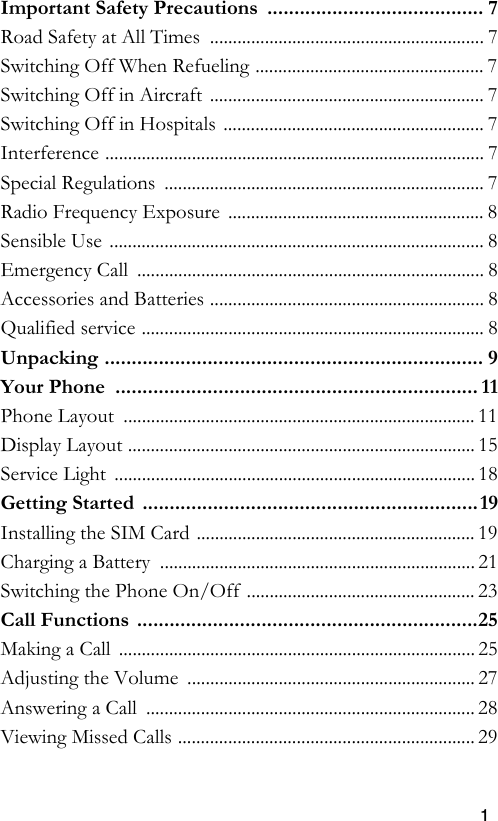

1Important Safety Precautions ........................................ 7Road Safety at All Times ............................................................ 7Switching Off When Refueling .................................................. 7Switching Off in Aircraft ............................................................ 7Switching Off in Hospitals ......................................................... 7Interference ................................................................................... 7Special Regulations ...................................................................... 7Radio Frequency Exposure ........................................................ 8Sensible Use .................................................................................. 8Emergency Call ............................................................................ 8Accessories and Batteries ............................................................ 8Qualified service ........................................................................... 8Unpacking ...................................................................... 9Your Phone ................................................................... 11Phone Layout ............................................................................. 11Display Layout ............................................................................ 15Service Light ............................................................................... 18Getting Started ..............................................................19Installing the SIM Card ............................................................. 19Charging a Battery ..................................................................... 21Switching the Phone On/Off .................................................. 23Call Functions ...............................................................25Making a Call .............................................................................. 25Adjusting the Volume ............................................................... 27Answering a Call ........................................................................ 28Viewing Missed Calls ................................................................. 29
2Switching Quickly to the Silent Mode .................................... 31Selecting Functions and Options .................................33Example: Setting the Display Language ................................. 34Phonebook ....................................................................37Storing a Number with a Name ............................................... 37Using Phonebook Entry Options ........................................... 40Searching for a Number in the Phonebook ........................... 41Editing a Caller Group .............................................................. 43Speed-Dialing ............................................................................. 44Checking Memory Status .......................................................... 45Entering Text ................................................................47Changing the Text Input Mode ............................................... 47Using the T9 Mode .................................................................... 48Using the Upper/Lower-Case Character Mode .................... 49Using the Symbol Mode ........................................................... 50Using the Number Mode .......................................................... 51Options During a Call ...................................................53Putting a Call on Hold .............................................................. 53Switching the Microphone Off (Mute) ................................... 54Muting/Sending DTMF ........................................................... 55Sending DTMF Tones .............................................................. 55Searching for a Number in the Phonebook ........................... 55Using the SMS Service .............................................................. 56Answering a Second Call .......................................................... 56Making a Multiparty Call ........................................................... 57Using the Menus ...........................................................61

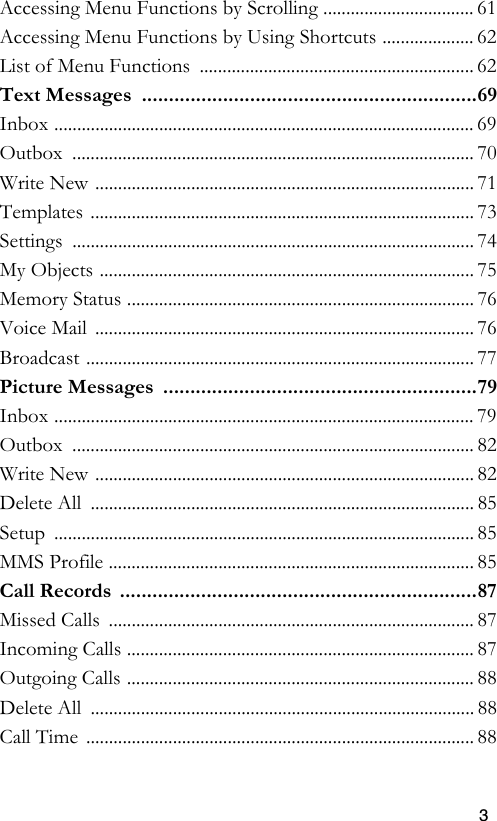

3Accessing Menu Functions by Scrolling ................................. 61Accessing Menu Functions by Using Shortcuts .................... 62List of Menu Functions ............................................................ 62Text Messages ..............................................................69Inbox ............................................................................................ 69Outbox ........................................................................................ 70Write New ................................................................................... 71Templates .................................................................................... 73Settings ........................................................................................ 74My Objects .................................................................................. 75Memory Status ............................................................................ 76Voice Mail ................................................................................... 76Broadcast ..................................................................................... 77Picture Messages ..........................................................79Inbox ............................................................................................ 79Outbox ........................................................................................ 82Write New ................................................................................... 82Delete All .................................................................................... 85Setup ............................................................................................ 85MMS Profile ................................................................................ 85Call Records ..................................................................87Missed Calls ................................................................................ 87Incoming Calls ............................................................................ 87Outgoing Calls ............................................................................ 88Delete All .................................................................................... 88Call Time ..................................................................................... 88
4Call Cost ...................................................................................... 88Camera ..........................................................................91Take and Send ............................................................................ 91New Photo .................................................................................. 92My Photos ................................................................................... 92Sound Settings ..............................................................93Ring Tone .................................................................................... 93Ring Volume ............................................................................... 93Alert Type ................................................................................... 93Keypad Tone .............................................................................. 94Message Tone ............................................................................. 94Extra Tones ................................................................................ 95Phone Settings ..............................................................97Infrared Activate ........................................................................ 97My Settings .................................................................................. 98Greeting Message ....................................................................... 99Own Number ............................................................................. 99Language ................................................................................... 100Security ...................................................................................... 100Display Settings ........................................................................ 103Extra Settings ............................................................................ 104ShortCut .................................................................................... 105Reset Settings ............................................................................ 106Organizer .................................................................... 107Calendar ..................................................................................... 107To Do List ................................................................................ 110
5Time & Date ............................................................................. 112Alarm ......................................................................................... 113Calculator .................................................................................. 114Currency Exchange .................................................................. 115Network Services ........................................................ 117Call Forwarding ........................................................................ 117Call Barring ............................................................................... 118Call Waiting ............................................................................... 120Network Selection ................................................................... 121Caller ID .................................................................................... 122Closed User Group (CUG) .................................................... 122Funbox ........................................................................ 125Games ........................................................................................ 125WAP Browser ........................................................................... 125Downloads ................................................................................ 125Solving Problems ........................................................ 127Access Codes ............................................................... 131Phone Password ....................................................................... 131PIN ............................................................................................. 132PUK ........................................................................................... 132PIN2 .......................................................................................... 133PUK2 ......................................................................................... 133Health and Safety Information ................................... 135Exposure to Radio Frequency (RF) Signals ......................... 135For Body Operation ................................................................ 136Precautions When Using Batteries ........................................ 137
6Road Safety ............................................................................... 139Operating Environment ......................................................... 140Electronic Devices ................................................................... 141Potentially Explosive Environments ....................................143Emergency Calls ....................................................................... 143Other Important Safety Information ....................................144Care and Maintenance ............................................................. 145Appendix A: Certification Information (SAR) ............ 147Appendix B: Guide to Safe and Responsible Wireless Phone Use ................................................................... 149A Guide to Safe and Responsible Wireless Phone Use .....................149Appendix C: Consumer Update on Wireless Phones . 154Standard Limited Warranty ........................................ 164
Important Safety Precautions 7Important Safety PrecautionsRead these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal. For more detailed safety information, see “Health and Safety Information”.Road Safety at All TimesDo not use a hand-held phone while driving; park the vehicle first. Switching Off When RefuelingDo not use the phone at a service station or near fuels or chemicals.Switching Off in AircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switching Off in HospitalsSwitch off your phone near medical equipment. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect its performance.Special RegulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example).
Important Safety Precautions 8Radio Frequency ExposureThe design of this phone complies with FCC (of the U.S. government) requirements relating to radio frequency (RF) exposure. To maintain compliance with these requirements, use only Samsung-supplied or approved accessories. Use of non-approved accessories may violate the requirements.Sensible UseUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency CallEnsure the phone is turned on and in service.Enter the emergency number for your present location, the press <SEND>. If certain features are in use, deactivate those features before you can make an emergency call. Give all necessary information as accurately as possible.Accessories and BatteriesUse only Samsung-approved accessories and batteries. Qualified serviceOnly qualified service personnel may install or repair your phone.For more detailed safety information, see “Health and Safety Information” on page 135.
Unpacking 9UnpackingYour package contains the following items.In addition, you can obtain the following accessories for your phone from your local Samsung dealer: ● Battery charger ● Earphone ● Simple hands-free kit ● Car holder ● Standard battery ● Cigarette lighter adapter
Unpacking 10
Your Phone 11Your PhonePhone LayoutThe following illustrations show the main elements of your phone.
Your Phone 12Key Description In the Menu Mode, scroll through the menu options and phonebook memory.In idle mode, allow you to access your favorite menu options directly (for more information on shortcuts, see “ShortCut” on page 105).In the menu facility, returns to the previous menu level and select the current menu respectively. When entering text, move the cursor left and right respectively. In idle mode, allows you to access your favorite menu options directly (for more information on shortcuts, see “ShortCut” on page 105).
Your Phone 13(soft keys)Perform the functions indicated by the text above them (on the bottom line of the display).In idle mode, launches the WAP Browser directly.Deletes characters from the display.In the menu facility, returns to the previous menu level.Makes or answers a call.When held down in idle mode, recalls the last numbers dialed or received.In the menu facility, selects a menu function or stores information that you have entered (such as a name) in the phone or SIM memory.Ends a call. Also switches the phone on and off when held down for 2 or more seconds.In the menu facility, returns to the idle mode and cancels your input.Key Description (Continued)
Your Phone 14When held down for 3 or more seconds in idle mode, accesses your voice mail.Enter numbers, letters and some special characters.(on the side of the phone) During a call, adjust the earpiece volume.In idle mode, adjust the key volume.In the menu facility, scroll through the menu options and phone book memory.Key Description (Continued)
Your Phone 15Display LayoutThe display is comprised of three areas.Area DescriptionFirst line Displays various icons (see “Icons” on page 16).Middle lines Display messages, instructions and any information that you enter (number to be dialed, for example).Last line Shows the functions currently assigned to the two soft keys.
Your Phone 16IconsIcon DescriptionShows the received signal strength. The greater the number of bars, the better the signal strength.Appears when a call is in progress.Appears when you are connected to the GPRS network.Appears when the Silent mode is active or you set the Alert Type menu option, so that the phone vibrates when you receive a call; for further details, see “Alert Type” on page 93. Appears when a new text message has been received.Appears when a new voice mail message has been received.Appears when you are entering text to indicate the current text input mode.
Your Phone 17BacklightThe display is illuminated by a backlight. When you press any key, the backlight illuminates. It turns off if no key is pressed within a given period of time, depending on the Back Light menu option.To specify the length of time for which the backlight is active, set the Back Light menu option (Menu 6.7.2).You can also set the phone to use the backlight only during a specified period time, via the Auto Light menu option.External DisplayYour phone has an external display on the cover. It indicates that you have an incoming call or a message, and notifies you when you set an alarm at the specified time.Appears when you set the alarm.Shows the level of your battery. The more bars you see, the more power you have left.Appears when the Mute mode is active.Icon Description

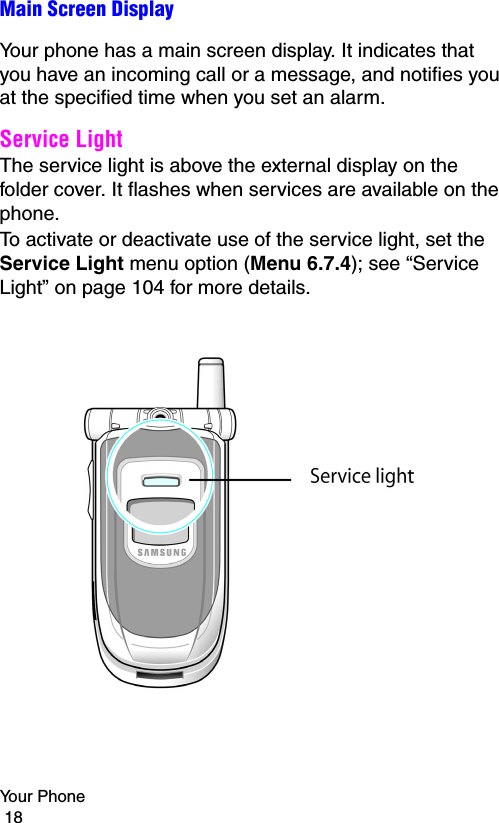

Your Phone 18Main Screen DisplayYour phone has a main screen display. It indicates that you have an incoming call or a message, and notifies you at the specified time when you set an alarm.Service LightThe service light is above the external display on the folder cover. It flashes when services are available on the phone.To activate or deactivate use of the service light, set the Service Light menu option (Menu 6.7.4); see “Service Light” on page 104 for more details.
Getting Started 19Getting StartedInstalling the SIM CardWhen you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, and any optional services available.Note: The plug-in SIM card and its’ contacts can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card. Keep all SIM cards out of reach of small children.1. If necessary, turn the phone off by holding down the key until the power-off image is displayed.2. Remove the battery. To do so: ● Press down the catch above the battery and hold it in this position. ● Slide the battery and lift it away, as shown.
Getting Started 203. Slide the SIM card into the SIM card holder so that the holder locks the card in position. Make sure that the notched corner is at top left and the gold contacts of the card face into the phone.Note: When you need to remove the SIM card, slide it, as shown, and take it out of the holder.
Getting Started 214. Place the battery back, taking care to match the tabs on the battery with the grooves on the phone. 5. Slide the battery towards the top of the phone until it clicks into place. Make sure that the battery is properly installed before switching on the power.Charging a BatteryYour phone is powered by a rechargeable Li-ion battery. A travel adapter is provided with your phone. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.The phone can be used while the battery is charging, but this will cause the phone to charge more slowly.
Getting Started 22Note: You must fully charge the battery before using your phone for the first time. A discharged battery is fully recharged in approximately 200 minutes.1. With the battery in position on the phone, connect the lead from the travel adapter to the bottom of the phone. 2. Connect the adapter to a standard AC wall outlet.3. When charging is finished, disconnect the adapter from the power outlet and from the phone by pressing the gray tabs on both sides of the connector and pulling out the connector.
Getting Started 23Note: Do not remove the battery from the phone without unplugging the adapter while it is charging. If you do this, the phone may be damaged.Low Battery IndicatorWhen the battery is weak and only a few minutes of talk time remain, you will hear a warning tone and a message will be repeated at regular intervals on the display:When the battery becomes too weak for the phone to operate, it switches off automatically.Switching the Phone On/Off1. Open the folder.2. Hold down the key until the phone turns on.3. If the phone asks for a password, key in the password and press the OK soft key. The phone password is factory set to 00000000. For further details, see “Phone Password” on page 131.**Warning**Low BatteryMenu Name

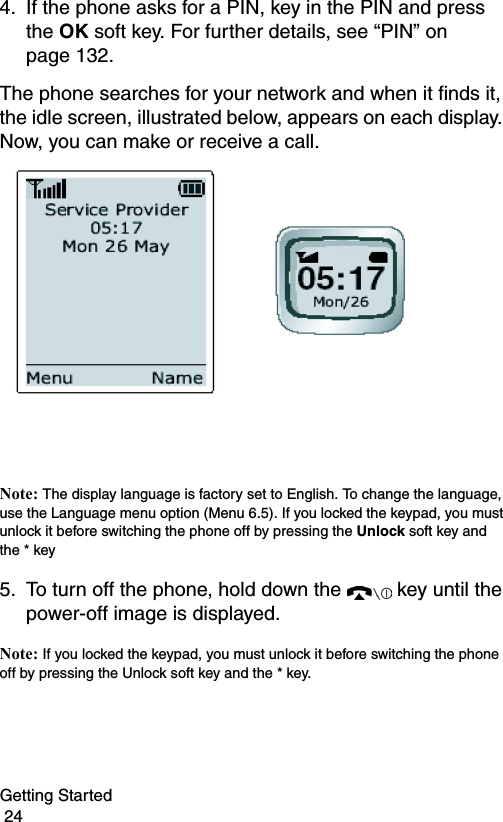

Getting Started 244. If the phone asks for a PIN, key in the PIN and press the OK soft key. For further details, see “PIN” on page 132. The phone searches for your network and when it finds it, the idle screen, illustrated below, appears on each display. Now, you can make or receive a call.Note: The display language is factory set to English. To change the language, use the Language menu option (Menu 6.5). If you locked the keypad, you must unlock it before switching the phone off by pressing the Unlock soft key and the * key5. To turn off the phone, hold down the key until the power-off image is displayed.Note: If you locked the keypad, you must unlock it before switching the phone off by pressing the Unlock soft key and the * key.
Call Functions 25Call FunctionsMaking a CallWhen the idle screen is displayed, key in the area code and phone number, and press the key.Note: If you have checked the Auto Redial option in the Extra Settings menu (Menu 5.6.1), the number is redialed automatically up to ten times when the person does not answer the call or is already on the phone; see “Extra Settings” on page 104 for further details.Making a International Call1. Press and hold down the key. The + character appears.2. Key in the country code, area code and phone number and press the key.
Call Functions 26Correcting the NumberEnding a CallWhen you have finished your call, briefly press the key.Redialing the Last NumberThe phone stores the numbers you dialed, received or missed.To recall any of these numbers, proceed as follows.1. If you have typed any characters on the display, clear the display by holding down the key for more than one second.To clear... Then...The last digit displayed Press the key. Any other digit in the numberPress the or key until the cursor is immediately to the right of the digit to be cleared. Press the key. You can also insert a missing digit simply by pressing the appropriate key.The whole displayHold down the key for more than one second.
Call Functions 272. Press the key to display a list of the last numbers in the order in which the calls were made.3. Use the and keys to scroll through the numbers until the required number is highlighted. Making a Call from the PhonebookYou can store frequently-dialed phone numbers with a name in the SIM card or the phone memory, using the phonebook. You then simply select the required name to recall the associated number. For further details on the Phonebook features, see “Phonebook” on page 37.Adjusting the VolumeDuring a call, if you want to adjust the earpiece volume, use the keys on the left side of the phone. Press the key to increase and the key to decrease the volume.4.To... Then...dial the number highlightedpress the key.edit the number highlightedpress the Options soft key select Edit option and change the number as required.delete the number highlightedpress the Options soft key and select Delete.
Call Functions 28In idle mode, you can adjust the key volume using the and keys.Answering a CallWhen somebody calls you, the phone rings and the following screen appears on each display.If stored in your phonebook, the caller’s phone number or name displays.1. Open the folder and press the key or the Accept soft key to answer the incoming call.If the Anykey Answer option in the Extra Settings menu (Menu 6.8.1) is checked, you can press any key to answer a call except for the key and the Reject soft key.If the Active Folder option in the Extra Settings menu is checked, you can answer the call simply by opening the folder.
Call Functions 29Note: To reject an incoming call, press and hold the volume keys on the left side of the phone before opening the folder.2. End the call by pressing the key.Note: You can answer a call while using the phonebook or menu features.Viewing Missed CallsIf you are unable to answer a call, you can find out who was calling you, provided that this service is available to you. The number of missed calls is displayed on the idle screen immediately after a call was missed.To view the missed call immediately1. Open the folder and press the View soft key.The number corresponding to the most recent missed call is displayed, if available.Editing a Missed Call NumberIf the number corresponding to the missed call is not available, the Edit Number option is not displayed.1. Press the Options soft key.To.... Then press the...scroll through the missed calls or key.call the number displayed key.
Call Functions 302. Press the or key to highlight the Edit option.3. Press the Select soft key.4. Change the number as required. Press the Save soft key. If no change is required press the Exit soft key.Deleting a Missed Call1. Press the Options soft key.2. If necessary, press the or key to highlight the Delete option.3. Press the Select soft key to go to the Options menuYou can press the key at any time to exit the Missed Call feature.Note: You can access the Missed Call feature at any time by selecting the Missed Calls menu option (Menu 3.1); for further details, see “Missed Calls” on page 87.To... Then press the...call the number key.store the number Save soft key and enter the name and location required (for further details, refer to“Storing a Number with a Name” on page 37).

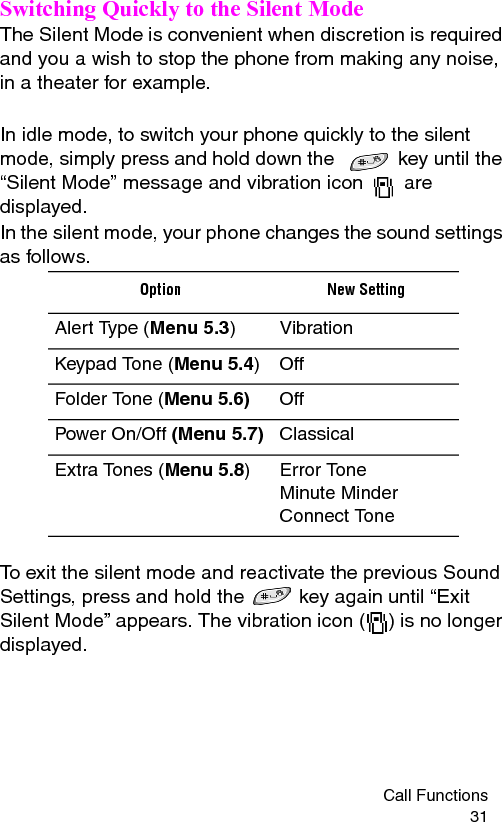

Call Functions 31Switching Quickly to the Silent ModeThe Silent Mode is convenient when discretion is required and you a wish to stop the phone from making any noise, in a theater for example. In idle mode, to switch your phone quickly to the silent mode, simply press and hold down the key until the “Silent Mode” message and vibration icon are displayed.In the silent mode, your phone changes the sound settings as follows.To exit the silent mode and reactivate the previous Sound Settings, press and hold the key again until “Exit Silent Mode” appears. The vibration icon ( ) is no longer displayed.Option New SettingAlert Type (Menu 5.3) VibrationKeypad Tone (Menu 5.4)OffFolder Tone (Menu 5.6) OffPower On/Off (Menu 5.7) ClassicalExtra Tones (Menu 5.8)Error ToneMinute MinderConnect Tone
Call Functions 32
Selecting Functions and Options 33Selecting Functions and OptionsYour phone offers a set of functions that allow you to customize your phone. These functions are arranged in menus and sub-menus, accessed via the two soft keys marked and . Each menu and sub-menu allows you to view and alter the settings of a particular function.The roles of the soft keys vary according to the current context; the label on the bottom line of the display just above each key indicates its current role.Example:
Selecting Functions and Options 34To view the various functions/options available and select the one required, proceed as follows.1. Press the appropriate soft key.In some functions, you may be asked for a password or PIN. Enter the required code and press the OK soft key.Example: Setting the Display Language1. When the idle screen is displayed, press the Menu soft key to access the menus.To.. . Then press the...select the:• Function displayed or• Option highlightedSelect soft key or the key.view the next function or highlight the next option in a list key or key on the left side of the phone. move back to the previous function or option in a list key or key on the left side of the phone. move back up one level in the structure key, soft key or key.exit the structure without changing the settings key.
Selecting Functions and Options 352. Scroll through the menus until you reach the Phone Settings menu, by pressing the or key.3. To select the Phone Settings menu, press the Select soft key or the key.Note: If the menu name is too long for the display, it will scroll when highlighted.4. Scroll through the sub-menus until you reach the Language sub-menu, by pressing the or key.5. To view the languages available, press the Select soft key or the key. The current setting is highlighted.6. Scroll through the list of languages until the appropriate one is highlighted, by pressing the or key.7. Press the Select soft key or the key to confirm your selection.Press the or key twice to exit the menu structure.
Selecting Functions and Options 36
Phonebook 37PhonebookYou can store phone numbers and their corresponding names in the memory of your SIM card. In addition, you can store up to 1000 numbers in the phone memory. The SIM card and phone memories, although physically separate, are used as if they were a single entity, called the Phonebook.Storing a Number with a NameThere are two ways to store a number: 1. Using the Save soft key in idle mode 2. Using the New Entry option in the Phonebook menuStoring a Number in Idle modeAs soon as you start to enter a number, Save appears above the left soft key to allow you to store the number in the phonebook.1. Key in the number to be stored.Note: If you make a mistake while entering a number, correct it using the key. For further details, refer to “Correcting the Number” on page 26.2. When you are sure that it is correct, press the Save soft key.3. Select an entry type to identify the category of number to be stored. Three categories are available: ● Mobile Number ● Work Number ● Home Number
Phonebook 384. To select the category, press the or key, followed by the Select soft key.5. Enter a name and press the OK soft key. The maximum length of a name depends on your SIM card. For information on how to enter characters, see “Entering Text” on page 47.The phone now displays the first free location in the last memory used to save a number and name. If that memory is full, the first free location in the other memory is displayed.6. Press the right soft key, labeled To Card or To Phone to toggle between the phone and card memories.Note: If you change phones, any numbers stored in your SIM card memory will automatically be available with the new phone, whereas any numbers stored in the phone memory must be restored.7. If you do not want to save the number and name in the suggested location, press the key to clear the location number and enter your preferred location by pressing the number keys.8. Press the OK soft key to store the name and number.9. After storing, the phone displays the phonebook entry or name just created.
Phonebook 39Storing a Number Using the Phonebook Menu1. When the idle screen is displayed, press the Name soft key. 2. Scroll to New Entry by pressing the or key and press the Select soft key.3. Select an Entry Type to identify the category of the number to be stored. The following four options are provided: ● Mobile Number ● Work Number ● Home Number ● E-mail AddressNote: The E-mail icon is available in this step. It allows you to save an E-mail address instead of a phone number.4. Continue the procedure from Step 4 on “Enter a name and press the OK soft key.” on page 38 to store the number.To... Then press the...Use the entry options Options soft key.Return to the idle screen key.

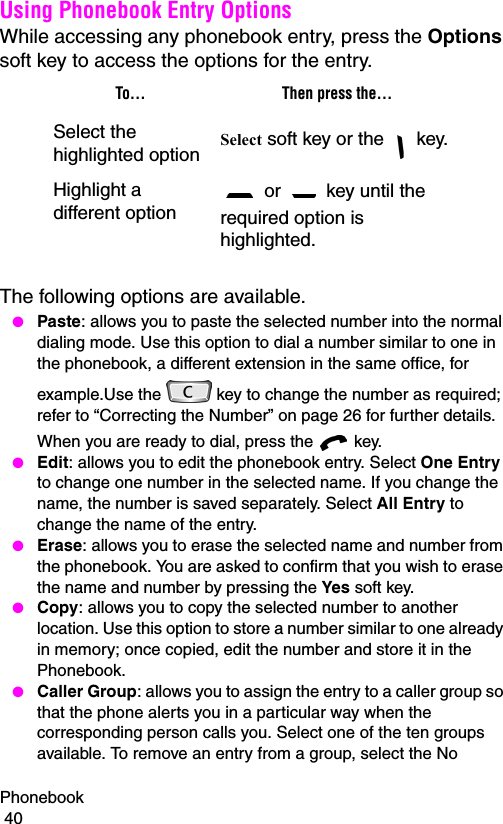

Phonebook 40Using Phonebook Entry OptionsWhile accessing any phonebook entry, press the Options soft key to access the options for the entry.The following options are available. ● Paste: allows you to paste the selected number into the normal dialing mode. Use this option to dial a number similar to one in the phonebook, a different extension in the same office, for example.Use the key to change the number as required; refer to “Correcting the Number” on page 26 for further details. When you are ready to dial, press the key. ● Edit: allows you to edit the phonebook entry. Select One Entry to change one number in the selected name. If you change the name, the number is saved separately. Select All Entry to change the name of the entry. ● Erase: allows you to erase the selected name and number from the phonebook. You are asked to confirm that you wish to erase the name and number by pressing the Yes soft key. ● Copy: allows you to copy the selected number to another location. Use this option to store a number similar to one already in memory; once copied, edit the number and store it in the Phonebook. ● Caller Group: allows you to assign the entry to a caller group so that the phone alerts you in a particular way when the corresponding person calls you. Select one of the ten groups available. To remove an entry from a group, select the No To... Then press the...Select the highlighted option Select soft key or the key.Highlight a different option or key until the required option is highlighted.

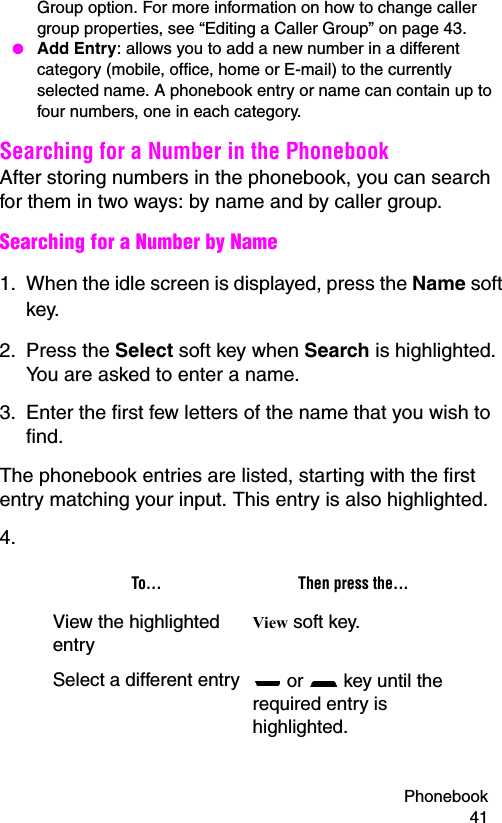

Phonebook 41Group option. For more information on how to change caller group properties, see “Editing a Caller Group” on page 43. ● Add Entry: allows you to add a new number in a different category (mobile, office, home or E-mail) to the currently selected name. A phonebook entry or name can contain up to four numbers, one in each category.Searching for a Number in the PhonebookAfter storing numbers in the phonebook, you can search for them in two ways: by name and by caller group.Searching for a Number by Name1. When the idle screen is displayed, press the Name soft key.2. Press the Select soft key when Search is highlighted. You are asked to enter a name.3. Enter the first few letters of the name that you wish to find.The phonebook entries are listed, starting with the first entry matching your input. This entry is also highlighted.4.To... Then press the...View the highlighted entryView soft key.Select a different entry or key until the required entry is highlighted.
Phonebook 425. Once you have found the required entry, press the key to dial the number, or press the Options soft key to access the phonebook entry options; for further details, see “Using Phonebook Entry Options” on page 40.Searching for a Number by Caller Group1. When the idle screen is displayed, select the Name soft key. Scroll to Group Search by pressing the or key and press the Select soft key. You are asked to enter a group name.2. Enter the first few letters of the group name that you wish to find.The caller groups are listed, starting with the first group matching your input. The group is also highlighted. 3. Scroll to the required group by pressing the or key and press the View soft key.The phonebook entries in the selected caller group are listed.Look for a name starting with a different letterTo clear previously entered text, press the key.To... Then press the...
Phonebook 434.5. Once you have found the required entry, press the key to dial the number, or press the Options soft key to access the phonebook entry options; for further details, see “Using Phonebook Entry Options” on page 40.Editing a Caller Group1. When the idle screen is displayed, select the Name soft key. 2. Scroll to Group Edit by pressing the or key and press the Select soft key.3. Enter the start of the required group name or scroll through the group list by pressing the or key.4. When the required group is highlighted, press the Options soft key.5. Select each option and change the settings, as required. The following options are available.To... Then press the...View the highlighted entryView soft key.Select a different entry or key until the required entry is highlighted.
Phonebook 44 ● Call ring tone: allows you to select the ring tone to be used when you receive a voice call from a person in the group. ● SMS tone: allows you to select the ring tone to be used when you receive a text message from a person in the group. ● Graphic: allows you to select the graphic icon to be displayed when you receive a voice call from a person in the group. ● Group Name: allows you to assign a name to the group; for further details on how to enter characters, see “Entering Text” on page 47.6. When you have finished, press the or key.Speed-DialingOnce you have stored phone numbers in the SIM card, you can set up to eight speed-dial entries and then dial them easily whenever you want, simply by pressing the associated number key.Setting Up Speed-Dial Entries1. When the idle screen is displayed, select the Name soft key.2. Scroll to Speed Dial by pressing the or key and press the OK soft key.3. Select the key to which you wish to assign the speed-dialing feature (keys to ) and press the OK soft key.Note: If you have already assigned a number to the key, the Options soft key replaces the OK soft key. Go to Step 6.4. Select the required Phonebook entry from the list and press the View soft key.
Phonebook 455. Select the required number if the entry has more than one number, by pressing the or key and press the Select soft key.6. Once you have assigned a number to the selected key, four options are available: ● Change: allows you to assign a different number to the key. ● Erase: allows you to clear the setting so that no number is assigned to the key. ● Erase All: allows you to clear the settings for all keys so that no numbers are assigned to any of the keys. ● Number: allows you to view the number assigned to the key.7. When you have finished, press the or key.Speed-Dialing from the PhonebookTo speed-dial the numbers assigned to keys to , press and hold down the appropriate key.Note: Memory location 1 is reserved for your Voice Mail server number and cannot be changed. Checking Memory StatusYou can check how many names and numbers are stored in the phonebook (card and phone memories) or how many free locations remain. 1. When the idle screen is displayed, select the Name soft key.2. Scroll to Memory Status option pressing the 6 or key and press the Select soft key.
Phonebook 463. Press the or keys to view the number of existing and remaining entries in the card and phone memories.

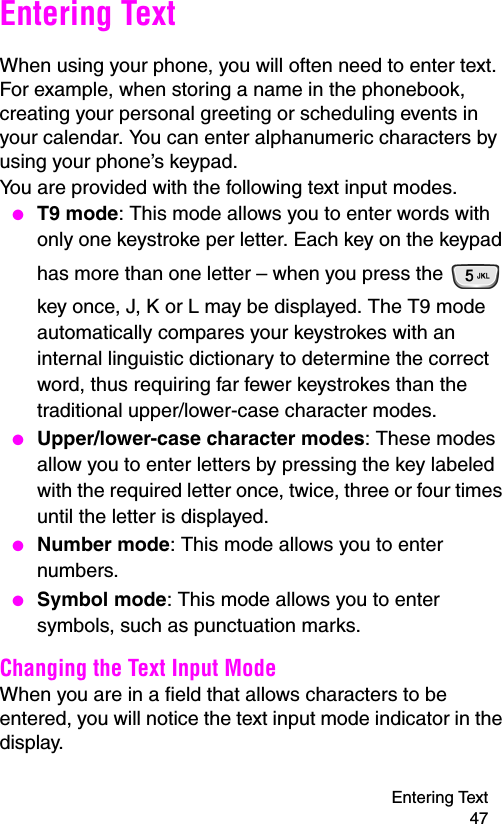

Entering Text 47Entering TextWhen using your phone, you will often need to enter text. For example, when storing a name in the phonebook, creating your personal greeting or scheduling events in your calendar. You can enter alphanumeric characters by using your phone’s keypad.You are provided with the following text input modes. ● T9 mode: This mode allows you to enter words with only one keystroke per letter. Each key on the keypad has more than one letter – when you press the key once, J, K or L may be displayed. The T9 mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word, thus requiring far fewer keystrokes than the traditional upper/lower-case character modes. ● Upper/lower-case character modes: These modes allow you to enter letters by pressing the key labeled with the required letter once, twice, three or four times until the letter is displayed. ● Number mode: This mode allows you to enter numbers. ● Symbol mode: This mode allows you to enter symbols, such as punctuation marks.Changing the Text Input ModeWhen you are in a field that allows characters to be entered, you will notice the text input mode indicator in the display.
Entering Text 48Using the T9 ModeThe T9 predictive text input mode allows you to key in any character using single keystrokes. This text input mode is based on a built-in dictionary.1. When you are in the T9 predictive text input mode, start entering a word by pressing keys to . Press each key only once for one letter. Example:to enter HELLO in the T9 mode, press , , , and .The word that you are typing appears in the display. It may change with each key that you press.2. Enter the whole word before editing or deleting the keystrokes.3. If the word is correct, start entering the next word. To select the... Then press the soft key until...T9 mode displays. Upper-case character modeA displays Lower-case character modea displays Symbol mode displays.Number mode 1 displays
Entering Text 494. Otherwise, press the , or key repeatedly to display alternate word choices for the keys that you have pressed. Example:both OF and ME have the sequence and . The phone displays the most commonly used choice first.5. Complete each word with a space by pressing the key. ● To type words not found in the T9 mode, change the text input mode to the upper/lower-case character input mode. ● To enter full stops, hyphens or apostrophes, press the key. The T9 mode applies grammar rules to ensure that the correct punctuation is used. ● To change the case in the T9 mode, use the * key. ● You can move the cursor by using the and keys. To delete letters, press the key. Press and hold down the key to clear the display.Using the Upper/Lower-Case Character ModeUse the to keys to enter your text. 1. Press the key labeled with the required letter: ● Once for the first letter ● Twice for the second letter, and so on2. Select the other letters in the same way.
Entering Text 50Note: The cursor moves to the right when you press a different key. When entering the same letter twice or a different letter on the same key, just wait for a few seconds for the cursor to move right automatically, and then select the next letter.Refer to the table below for more information about the characters available. ● To insert a space, press the key. ● You can move the cursor by using the and keys. To delete letters, press the key. Press and hold down the key to clear the display. Using the Symbol ModeThe Symbol mode enables you to insert symbols in a text message. Characters in the Order DisplayedKeyUpper CaseUpper Case Lower Case

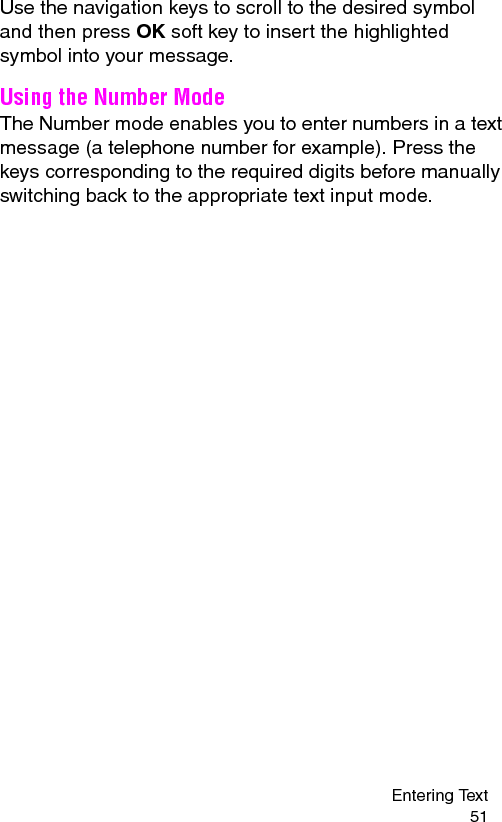

Entering Text 51Use the navigation keys to scroll to the desired symbol and then press OK soft key to insert the highlighted symbol into your message. Using the Number ModeThe Number mode enables you to enter numbers in a text message (a telephone number for example). Press the keys corresponding to the required digits before manually switching back to the appropriate text input mode.
Entering Text 52
Options During a Call 53Options During a CallYour phone provides a number of control functions that you can use during a call.Putting a Call on HoldYou can place the current call on hold at any time. You can make another call while you have a call in progress if this service is supported by the network. Of these two calls, one is active and the other is on hold and you can switch between the calls.To place a call on hold, simply press the Hold soft key. You can reactivate the call whenever you want, by pressing the Unhold soft key.To make a call while you have a call in progress, proceed as follows.1. Key in the phone number that you wish to dial or look it up in the phonebook.2. Press the key to dial the second call.3. The first call is automatically put on hold.Or alternatively, proceed as follows.1. Put the current call on hold by pressing the Hold soft key.2. Make the second call in the normal way.To swap between the two calls, simply press the Swap soft key.
Options During a Call 54The current call is placed on hold and the call on hold is reactivated so that you can continue conversing with the other party.When you have finished, end each call normally by pressing the key.Switching the Microphone Off (Mute)You can temporarily switch your phone’s microphone off, so that the other party cannot hear you.Example: You wish to say something to another person in the room but do not want the other party to hear you.To switch the microphone off temporarily, use the following steps:1. Press the Options soft key.2. If necessary, press the key to highlight the Mute option.3. Press the OK soft key. The other party can no longer hear you.To switch the microphone back on, proceed as follows.1. Press the Options soft key.2. If necessary, press the key to highlight the Unmute option.3. Press the OK soft key. The other party can hear you again.
Options During a Call 55Muting/Sending DTMFThese options allow you to turn the key tones off or on. If the Mute keys option is selected, your phone does not transmit the key tones. It allows you to press keys without hearing any key tones during a call.Note: To communicate with answering machines or computerized telephony systems, the Send keys option must be selected.Sending DTMF TonesYou can send the DTMF (dual tone multi-frequency) tones corresponding to a number entered during a call.This option is helpful when submitting a password or account number to an automated system, like a banking service.To send DTMF tones, use the following steps:1. When you are connected to the teleservice system, press the Options soft key.2. Press the key to highlight the Send DTMF option.3. Press the OK soft key.4. Enter the number you wish to send and press the OK soft key. The tones corresponding to the number displayed are sent.Note: You can also search for a number in the phonebook by pressing the Name soft key. For a ore detailed description of the Phonebook feature, refer to “Storing a Number with a Name” on page 37. Searching for a Number in the PhonebookYou can search for a number in the phonebook during a call.
Options During a Call 561. Press the Options soft key.2. Press the key to highlight the Phonebook option.3. Press the OK soft key.The phonebook entries are listed.4. Enter the name that you wish to find.If you enter the start of the name, the phonebook entries are listed, starting with the first entry matching your input. The entry is also highlighted.5. To view the highlighted entry, press the View soft key.For a more detailed description of the Phonebook feature, refer to “Phonebook” on page 37.Using the SMS ServiceIf you receive an SMS (Short Message Service) message during a call, the message icon ( ) flashes on the display. The Messages option enables you to use this feature.For further details on the SMS service, refer to “Text Messages” on page 69.Answering a Second CallYou can answer an incoming call while you have a call in progress, if this service is supported by the network and you have set the Call Waiting menu option to Activate (see “Call Waiting” on page 120). You will be notified of an incoming call by a call waiting tone.To answer a call while you have a call in progress, proceed as follows:
Options During a Call 571. Press the key to answer the incoming call. The first call is automatically put on hold.2. To switch between the two calls, press the Swap soft key.To end a held call, press the Options soft key and select the End Held Call option.3. To end the current call, press the key.Making a Multiparty CallA multiparty call is a network service that allows up to six people to take part simultaneously in a multiparty or conference call. For more information, contact your service provider.Setting up the Multiparty Call1. Call the first participant in the normal way.2. Call the second participant in the normal way. The first call is automatically put on hold.3. To join the first participant to the multiparty call, press the Options soft key and select the Join option.4. To add a new person to the multiparty call, call the person in the normal way, then press the Options soft key and select the Join option.You can add incoming callers by answering the call and pressing Options, followed by Join. Repeat as required.
Options During a Call 58Having a Private Conversation With One Participant1. Press the Options soft key and choose the Select one option. The list of call participants appears.2. Highlight the required person, by pressing the or key, followed by the Select soft key or the key.3. Select the Private option.Now you can talk privately with that person. The other participants can continue to converse with each other.4. To return to the multiparty call, press the Options soft key and select Conference.All the multiparty call participants can now hear each other.Dropping One Participant1. Press the Options soft key and choose the Select one option. The list of call participants appears.2. Highlight the required person, by pressing the or key, followed by the Select soft key or the key.3. Select Remove. The call is ended with that participant, but you can continue to talk with the other participants.
Options During a Call 594. End the multiparty call by closing the phone or pressing the key.
Options During a Call 60
Using the Menus 61Using the MenusThe phone offers a range of functions that allow you to tailor the phone to your needs. These functions are arranged in menus and sub-menus.The menus and sub-menus can be accessed by scrolling with the navigation keys or by using the shortcuts.Accessing Menu Functions by Scrolling1. In idle mode, press the Menu soft key to access the menu facility. 2. Scroll with the or key to reach the required main menu, Phone Settings for example. Press the Select soft key or the key to enter the menu.3. If the menu contains any sub-menus, Language for example, you can access them by scrolling with the or key and pressing the Select soft key.If the menu that you have selected contains further options, repeat the same procedure.To... Then press the...Scroll through the menus or key or use the and keys on the left side of the phone.Confirm the chosen settingSelect soft key or the key.

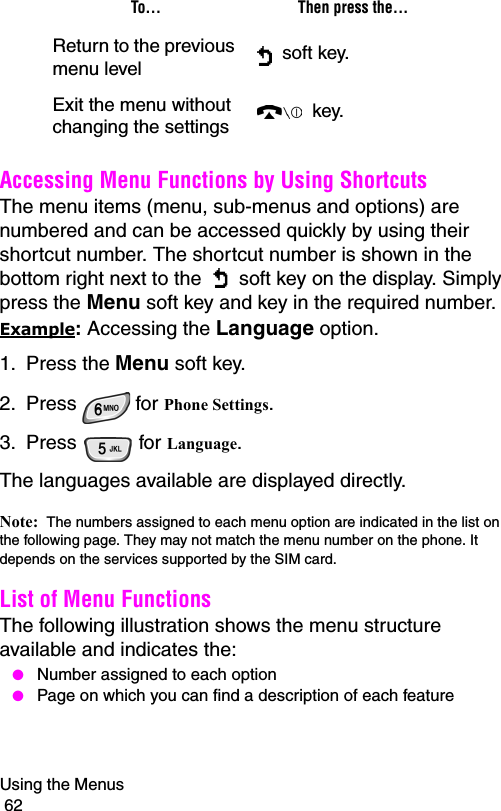

Using the Menus 62Accessing Menu Functions by Using ShortcutsThe menu items (menu, sub-menus and options) are numbered and can be accessed quickly by using their shortcut number. The shortcut number is shown in the bottom right next to the soft key on the display. Simply press the Menu soft key and key in the required number.Example: Accessing the Language option.1. Press the Menu soft key.2. Press for Phone Settings.3. Press for Language.The languages available are displayed directly. Note: The numbers assigned to each menu option are indicated in the list on the following page. They may not match the menu number on the phone. It depends on the services supported by the SIM card.List of Menu FunctionsThe following illustration shows the menu structure available and indicates the: ● Number assigned to each option ● Page on which you can find a description of each featureReturn to the previous menu level soft key.Exit the menu without changing the settings key.To... Then press the...
Using the Menus 63Note: If you use a SIM AT card that provides additional services, the SIM AT menu (x) is displayed first when you press the Menu soft key to enter the menu facility. For further details, refer to your SIM card documentation.1. .Text Messages 1.1 Inbox1.2 Outbox1.3 Write New1.4 Templates1.5 Settings1.5.1 Setting 1 *1.5.2 Setting 2 *1.5.3 Setting 3 *1.5.4 Common Setting1.6 My Objects1.6.1 My EMS Melody1.6.2 My EMS Pictures1.6.3 My EMS Animations1.6.4 Delete All1.7 Memory Status1.7.1 SIM Memory1.7.2 PHONE Memory1.7.3 * CB Memory 1.7.4 Delete All1.8 Voice Mail1.8.1 Connect to Voice Server1.8.2 Voice Server Number1.9 Broadcast *2. Picture Messages 2.1 Inbox2.2 Outbox2.3 Write New2.4 Delete All2.5 Setup2.6 MMS Profile
Using the Menus 643. Call Records 3.1 Missed Calls3.2 Incoming Calls3.3 Outgoing Calls3.4 Delete All3.5 Call Time3.5.1 Last Call Time3.5.2 Total Outgoing3.5.3 Total Incoming3.5.4 Reset Timers3.6 Call Cost3.6.1 Last Call Cost3.6.2 Total Cost3.6.3 Max Cost3.6.4 Reset Counters3.6.5 Set Max Cost3.6.6 Price/Unit4. Camera4.1 Take and Send4.2 New Photo4.3 My Photos5. Sound Settings5.1 Ring Tone5.2 Ring Volume5.3 Alert Type5.3.1 Light only5.3.2 Melody5.3.3 Vibration5.3.4 Vibra+Melody
Using the Menus 655.4 Keypad Tone5.4.1 OFF5.4.2 Cool5.4.3 Piano5.4.4 Tone5.4.5 Beep5.5 Message Tone5.5.1 SMS Tone5.5.2 SMS-CB Tone5.6 Folder Tone5.6.1 Off5.6.2 Future5.6.3 Crystal5.7 Power On/Off5.7.1 Off5.7.2 Classical5.7.3 Cheerful5.8 Extra Tones 5.8.1 Error Tone5.8.2 Minute Minder5.8.3 Connect Tone6. Phone Settings 6.1 Infrared Activate6.2 My Settings6.2.1 Wallpaper6.2.2 Menu Style6.2.2.1 Film Style6.2.2.2 Page Style6.3 Greeting Message6.4 Own Number6.5 Language6.5.1 English6.5.2 Espanol6.5.3 Francais6.5.4 Automatic

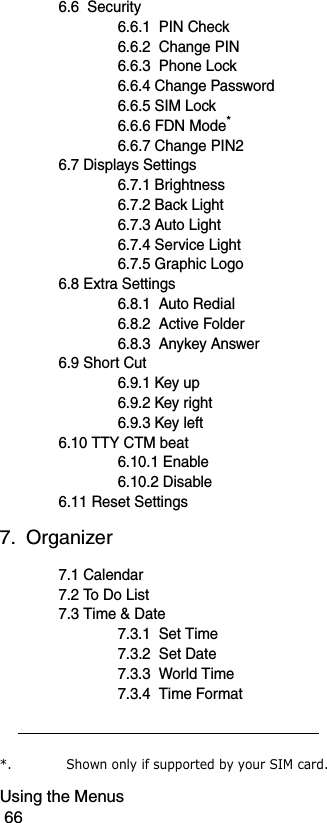

Using the Menus 666.6 Security6.6.1 PIN Check6.6.2 Change PIN6.6.3 Phone Lock6.6.4 Change Password6.6.5 SIM Lock6.6.6 FDN Mode*6.6.7 Change PIN26.7 Displays Settings6.7.1 Brightness6.7.2 Back Light6.7.3 Auto Light6.7.4 Service Light6.7.5 Graphic Logo6.8 Extra Settings6.8.1 Auto Redial6.8.2 Active Folder6.8.3 Anykey Answer6.9 Short Cut6.9.1 Key up6.9.2 Key right6.9.3 Key left6.10 TTY CTM beat6.10.1 Enable6.10.2 Disable6.11 Reset Settings7. Organizer 7.1 Calendar7.2 To Do List7.3 Time & Date7.3.1 Set Time7.3.2 Set Date7.3.3 World Time7.3.4 Time Format*. Shown only if supported by your SIM card.
Using the Menus 677.4 Alarm7.4.1 Once Alarm7.4.2 Daily Alarm7.4.3 Morning Call7.4.4 Remove Alarm7.4.5 Autopower7.5 Calculator7.6 Currency Exchange8. Network Services8.1 Call Forwarding8.1.1 Forward Always8.1.2 Busy8.1.3 No Reply8.1.4 Unreachable8.1.5 Cancel All8.2 Call Barring8.2.1 All Outgoing8.2.2 International8.2.3 International Except to Home8.2.4 All Incoming8.2.5 Incoming While Abroad8.2.6 Cancel All8.2.7 Change Barring Password8.3 Call Waiting8.4 Network Selection8.4.1 Automatic8.4.2 Manual8.5 Caller ID8.5.1 Default8.5.2 Hide Number8.5.3 Send Number8.6 Closed User Group8.6.1 Index List8.6.2 Outside Access8.6.3 Default Group
Using the Menus 689. Funbox 9.1 Games9.2 WAP Browser9.2.1 Home9.2.2 Favorite9.2.3 http://9.2.4 Settings9.2.5 Clear Cache9.2.6 Push Message9.3 Downloads9.3.1 Sounds9.3.2 Pictures1.
Text Messages 69Text MessagesThe SMS (Short Message Service) function is a network service and may not be supported by your network. Messages can be sent by text, fax, Email and paging messaging systems, provided that these services are supported by your network. To send text messages by phone, you must obtain the number of the SMS center from your service provider.When the message icon ( ) appears, you have received new text messages.If the message memory is full, an error message is displayed and you cannot receive any new messages. Use the Delete option in each message box to delete obsolete ones.InboxThis message box is used to store the messages that you have received.When you enter this menu, the list of messages in the box displays with the senders’ phone numbers or names, if available in your Phonebook.1. Select a message from the list and press the View soft key to read the message contents.2. To scroll through the contents, press the 3. To scroll to the previous or next messages, press the or key.While reading a message, you can choose the following options by pressing the Options soft key.
Text Messages 70Delete: allows you to delete obsolete messages.Send: allows you to resend the message.Reply: (inbox only): allows you to reply to the sender by sending a text message. You can also change the SMS center number, if required.Call Back: (inbox only): allows you to call the sender back.Cut Address: allows you to extract a number from the message text, so that you can call the number or save it in the phonebook.Move: allows you to move the message to the phone or SIM memory.Select Objects: allows you to save the objects, such as sounds or images, from the message into your phone. You can then use the objects when writing a message; for details, see “Creating a Message using the Options” on page 72. OutboxThis message box is used to store the messages that you have already sent or will send.When you enter this menu, the list of messages in the box displays with the recipients phone numbers or names, if available in your Phonebook.1. Select a message from the list and press the View soft key to read the message contents.2. To scroll through the contents, press the or 3. To scroll to the previous or next messages, press the or key.
Text Messages 71While Reading a message, you can choose the following options by pressing the Options soft key.Delete: allows you to delete messages.Send: allows you to resend the message.Cut Address: allows you to extract a number from the message text, so that you can call the number or save it in the phonebook.Move: allows you to move the message to the phone or SIM memory.Select Objects: allows you to save the objects, such as sounds or images, from the message into your phone. You can then use the objects when writing a message.Write New In this menu, you can write and send a text message.Note: You can enter up to 918 alphanumeric characters for your message. If you add objects to the message, the number of characters you can enter will be decreased.Creating a Simple Text Message1. Create your message as required.Note: For more information about entering characters, refer to “Entering Text” on page 47.2. When you have completed your message, press the Options soft key. The following options are available. ● Send: allows you to send the message. The message will be deleted after sending. ● Save and Send: allows you to save a copy of the message into the specified memory and then send the message to the destination. You can read the message in your Outbox.
Text Messages 72 ● Save: allows you to save the message into the specified memory so that it can be sent later. You can read the message in your Outbox. ● For information about the Text Formatting, Add Objects, Add Templates, Add Phonebook, Add Bookmark and Language options, see “Creating a Message using the Options” on page 72.3. Select Send Only or Save and Send, and press the Select soft key.If you want just to save the message, select Save. After saving the message, the phone returns to the Messages menu.4. Select the memory where the message is saved and press the OK soft key.5. Enter a destination number and press the OK soft key. The message is sent.Creating a Message using the Options1. Create your message.2. Press the Options soft key.3. Select one of the following options as required by using the Up and Down keys and pressing the Select soft key.Text Formatting: allows you to format the style of the text. For the Size attribute, the Normal, Large and Small sizes are available. For the Underline and Strike through attributes, select On or Off. The attributes can be combined.

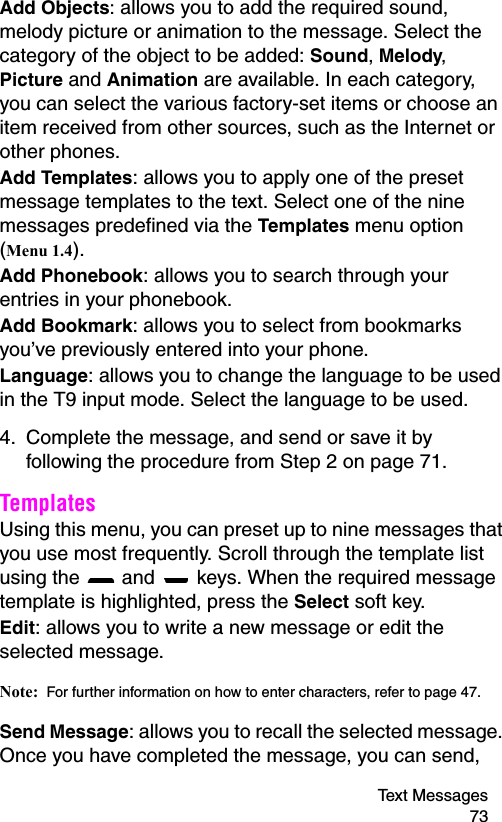

Text Messages 73Add Objects: allows you to add the required sound, melody picture or animation to the message. Select the category of the object to be added: Sound, Melody, Picture and Animation are available. In each category, you can select the various factory-set items or choose an item received from other sources, such as the Internet or other phones.Add Templates: allows you to apply one of the preset message templates to the text. Select one of the nine messages predefined via the Templates menu option (Menu 1.4).Add Phonebook: allows you to search through your entries in your phonebook.Add Bookmark: allows you to select from bookmarks you’ve previously entered into your phone.Language: allows you to change the language to be used in the T9 input mode. Select the language to be used. 4. Complete the message, and send or save it by following the procedure from Step 2 on page 71. Templates Using this menu, you can preset up to nine messages that you use most frequently. Scroll through the template list using the and keys. When the required message template is highlighted, press the Select soft key.Edit: allows you to write a new message or edit the selected message.Note: For further information on how to enter characters, refer to page 47.Send Message: allows you to recall the selected message. Once you have completed the message, you can send,
Text Messages 74save and send, or simply save it. For details on how to send a message, see page 71.Delete: allows you to delete the selected message. You are asked to confirm the deletion by pressing the Yes soft key.Settings In this menu, you can set up default SMS information. A setting group is a collection of settings required to send messages. The number of setting groups available depends on the capacity of your SIM card. Setting x (where x is the setting group number): each group has its own sub-menu.Service center: allows you to store or change the number of your SMS center required when sending messages. You must obtain this number from your service provider.Default Destination: allows you to store the default destination number. the number will automatically display on the Destination screen when you create a message.Default Type: allows you to set the default message type (Text, Fax, Email and Paging). The network can convert the messages into the selected format.Default Validity: allows you to set the length of time for which your text messages will be stored at the message center while attempts are made to deliver them.Setting Name: allows you to give a name to the setting group currently being defined.Common Setting: four options are available.Reply Path: allows the recipient of your SMS message to send you a reply message via your message center, if the service is provided by the network.
Text Messages 75Delivery Reports: allows you to activate or deactivate the report function. When this function is activated, the network informs you whether your message has been delivered or not.Bearer Selection: allows you to choose between GSM and GPRS.My ObjectsAfter saving any objects received from messages into your phone memory, using the Select Objects option, you can see the items in this menu.Three categories of items are available: ● My EMS Melody ● My EMS Picture ● My EMS AnimationYou can forward the items to other people by messages and/or use them for your ring tone or background image.You can delete all of the items using the Delete All option. If you want to delete all of the media items, select All Object.To... Press the keyselect a message box to deleteMark soft keycancel the selection Unmark soft key.delete the items in the selected message boxDelete soft key.
Text Messages 76Memory Status This menu shows how many messages are currently stored in the SIM, phone and CB memories.You can delete all of the messages in each message box using the Delete all option.If you want to delete all of the media items, select All Messages.Voice Mail This menu provides you with a way of accessing your voice mailbox (if provided by your network). The following options are available.Call Voice Server: before using this feature, you must enter the voice server number obtained from your service provider (see menu option 1.8.2). You can then select this option and simply press the OK soft key to listen to your messages. To quickly connect to the voice server, press and hold down the key in idle mode.To... Press the keyselect a message box to deleteMark soft keycancel the selection Unmark soft key.delete the items in the selected message boxDelete soft key.
Text Messages 77Voice Server Number: allows you to change the voice mail server number, if necessary.Note: Voice Mail is a network feature. Please contact your service provider for more information.Broadcast This network service allows you to receive text messages on various topics, such as the weather or traffic. Messages are displayed immediately they are received, provided that: ● The phone is in idle mode ● The Receive option is set to Enable ● The message channel is currently active in the channel listThe following options are available.Read: lets you view the message. Volatile displays the messages from the network, but loses its contents as soon as the phone is switched off. Scroll through the message by using the and keys. While reading a message, press the Save soft key to store the message in the Archive box for later retrieval.To... Then press the...Enter the server numberCorresponding numeric keys.Correct a digit key.Move the cursor to the left/right without clearing the digit or key.

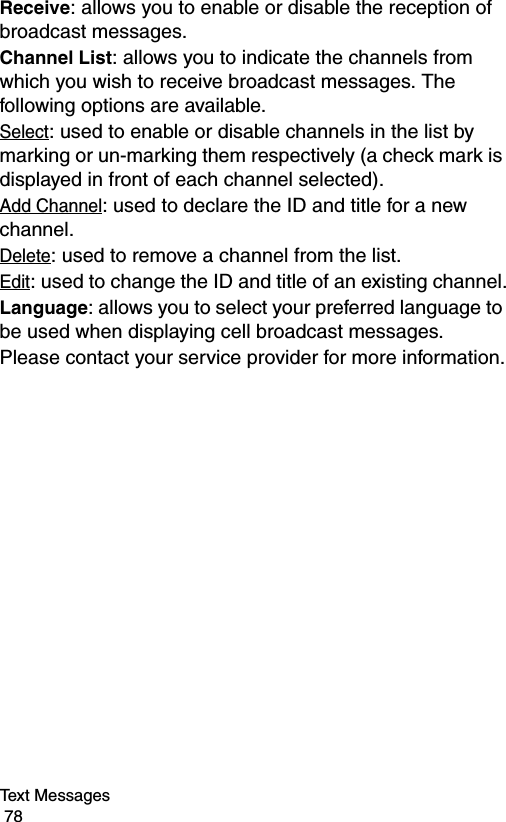

Text Messages 78Receive: allows you to enable or disable the reception of broadcast messages.Channel List: allows you to indicate the channels from which you wish to receive broadcast messages. The following options are available.Select: used to enable or disable channels in the list by marking or un-marking them respectively (a check mark is displayed in front of each channel selected).Add Channel: used to declare the ID and title for a new channel.Delete: used to remove a channel from the list.Edit: used to change the ID and title of an existing channel.Language: allows you to select your preferred language to be used when displaying cell broadcast messages.Please contact your service provider for more information.
Picture Messages 79Picture MessagesMultimedia Message Service (MMS) is a messaging service very similar to Short Message Service (SMS). It provides automatic and immediate delivery of personal multimedia messages from phone to phone or from phone to e-mail. In addition to the familiar text content of text messages, multimedia messages can contain images, graphics, voice and audio clips. An MMS message is a multimedia presentation in a single entry. It is not a text file with attachments. Using the MMS feature, your phone can receive multimedia messages. You can also send picture messages, which are short messages that contain images, such as your photos or graphics you downloaded from the Internet. This function is available only if it is supported by your service provider. Only phones that offer picture message features can receive and display picture messages.Inbox Viewing a Message When You Receive itWhen a new multimedia message comes in, thedisplay shows the text notification along with thesender’s number.1. Press the View soft key to view the message.The display shows brief information about the message, such as the sender’s number, the message size and the subject. If you want to view the message later in theInbox, press the Exit soft key.
Picture Messages 802. To scroll through the message information, press the or key.While viewing the information, press the Options soft key to use the following options:If you are viewing a new message, the options are the same as when you view a message as soon as you receive it. When you are reviewing message, the following options are available:Delete: deletes the message.Reply: allows you to reply to the sender by sending a text or picture message.Call Back: all you to reply to the sender by sending a text or picture message.Cut Address: allows you to extract a number from the message text, so that you can call the number or save it in the Phonebook.Forward: allows you to forward the message to another person.Save Picture: allows you to save an image from the message into your phone. Photos are stored in the My Photos folder and other images are in the Pictures folder in the Downloads menu.Save Sound: allows you to save a sound from the message into the Sounds folder in the Downloads menu.Viewing a Received Message in the InboxWhen you access the Inbox menu option, the list of multimedia messages you received displays with the
Picture Messages 81senders’ phone numbers, if they are available in your Phonebook, or subjects. 1. Select a message and press the Select soft key to view the message.2. To scroll through the message, press the or key.While viewing a message, you can choose the Message options by pressing the Options soft key.If you are viewing a new message, the options are the same as when you view a message as soon as you receive it. See the previous section.When you are reviewing a message, the following options are available:Delete: deletes the message.Reply: allows you to reply to the sender by sending a text or picture message.Callback: allows you to call the sender back.Cut Address: allows you to extract the destination number from the message, so that you can call the number or save it in your Phonebook.Forward: allows you to forward the message to another person.Save Picture: allows you to save an image from the message into your phone. Images are stored in the Pictures folder in the Fun Box menu option.Save Sound: allows you to save a sound from the message into the Sounds folder in the Fun Boxmenu option.

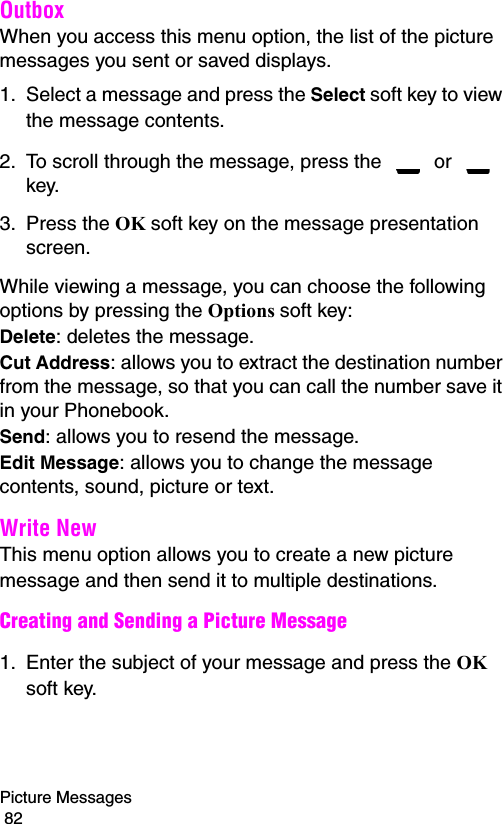

Picture Messages 82Outbox When you access this menu option, the list of the picture messages you sent or saved displays. 1. Select a message and press the Select soft key to view the message contents.2. To scroll through the message, press the or key.3. Press the OK soft key on the message presentation screen.While viewing a message, you can choose the following options by pressing the Options soft key:Delete: deletes the message.Cut Address: allows you to extract the destination number from the message, so that you can call the number save it in your Phonebook.Send: allows you to resend the message.Edit Message: allows you to change the message contents, sound, picture or text.Write New This menu option allows you to create a new picturemessage and then send it to multiple destinations.Creating and Sending a Picture Message1. Enter the subject of your message and press the OK soft key.
Picture Messages 832. When Add Here highlights, press the Options soft key and add the message contents using one of the following options:• Add Text: Enter the message text and press the OK soft key.• Add My Photo: allows you to add a photo you took using the camera on your phone. Select a photo and press the View soft key. Then, press the Select soft key to add. For further details about using the camera, see “Camera” on page 91.• Add Picture: allows you to add a picture stored in the Pictures folder in the Downloads menu. Choose a picture and press the Select soft key.• Send: allows you to send the message. Use this option when you finish creating the message. This option is activated after you add a content to the message.• Save: saves the message in the Draft or Templates box for later use. This option is activated after you add a content to the message.3. When the added content displays, press the key to highlight Add Here.4. Repeat steps 2 and 3 until you finish creating your message.5. If you want to change the added items, press the Up or Down key to highlight one and press the Options soft key. The following options are available:• Edit allows you to change text or replace the image with another one.
Picture Messages 84• Delete: deletes the item from your message.• Send: allows you to send the message.• Save: saves the message in the Draft or Templates box for later use.6. When you finish creating the message, select Send from the options.7. Choose one of the following options and press the Select soft key:• Phone Number: allows you to enter the phone number you want.• E-Mail: allows you to enter the e-mail address of the recipient to send the message as an e-mail.• Phone Book: allows you to recall a number from your Phonebook.8. Enter a number or an e-mail address, or select a number in Phonebook. When the correct number or address is displayed, press the OK soft key.9. If you want to send the message to multiple destinations, select Add Destination and press the Select soft key.10. Repeat steps 7 to 10. You can enter up to 11 destinations.11.After entering the destinations, press the Select soft key when Send Message highlights.12.If you want to edit the destinations, select one and press the Select soft key. You can change or delete it. 12. When you are finished entering the destinations,
Picture Messages 85select Send Message and press the Select soft key. Your phone sends the message.Delete All This menu option allows you to delete all of the picture messages in each message box, Inbox, Outbox and Draft.When a confirming message displays, press the Ye s soft key to confirm. SetupYou can change the default message settings.Turn a give option on or off, press the Select soft key to place or remove a check mark on each optionThe following options are available:Hide ID: When this option is checked, your phone number is not displayed on the recipient’s phone.Delivery Report: When this option is checked, the network informs you whether or not your message has been delivered.Red Reply: When this option is checked, your pone sends a request for a reply along with your message to the recipient.Auto Download: When this option is checked, your phone automatically downloads the received pictures or sounds.MMS ProfileIn this menu, you can configure various settings that are required when you send or receive multimedia messages.The following options are available:
Picture Messages 86Profile Name: Name that you wish to assign to the MMS server.Connection URL: Address of your MMS server.Security: Data transmission mode. Choose Secure to protect your data against unauthorized access; otherwise, choose Non-Secure.IP address: Gateway address required to connect to the MMS server.User name: User ID required to connect to the MMS server.Password: Password required to connect to the MMS server.APN: Access point name used for the address of the MMS server.For further details, contact your service provider.
Call Records 87Call RecordsIn this menu, you can view the: ● Missed, incoming or outgoing calls ● length of the call you made or received ● cost of your callsNote: You can access all numbers in the three types of call records by pressing the key in idle mode.Missed Calls This option lets you view the last 20 unanswered calls. The number and name, if available, are displayed, together with the date and time at which the call was received. By pressing the Options soft key, you can: ● delete the call from the list ● edit the number, if available, and save it in the Phonebook ● Make a call to the numberIncoming Calls This option lets you view the last 20 phone calls answered. The number and name, if available, are displayed, together with the date and time at which the call was received. By pressing the Options soft key, you can: ● Edit the number if available and dial it or save it in the phonebook ● Delete the call from the list ● Make a call to the number.
Call Records 88Outgoing Calls This option lets you view the last 20 numbers dialed. The number and name, if available, are displayed, together with the date and time at which the call was made. By pressing the Options soft key, you can: ● Delete the number ● Edit the number and save it in the phonebook ● make a call to the numberDelete All You can delete all of the numbers stored in each call record. When a confirming message appears, press the Yes soft key to confirm.Call Time This option lets you view the timers for calls made and received. The following timers are available.Last Call Time: length of the last call.Total Outgoing: total length of all calls made since the timer was last reset.Total Inco m i n g : total length of all calls received since the timer was last reset.Reset Timers: option used to reset the call timers; you must first enter the phone password (see “Phone Password” on page 131) and then press the OK soft key.Call CostThis feature lets you view the cost of a call. Depending on your SIM card, this menu option may not be shown.The following options are available:
Call Records 89Last Call Cost: the cost of the last call made.Total Cost: the total cost of all calls made since the cost counter was last reset. If the total cost exceeds the maximum cost set in the Set Max Cost option, you can no longer make any calls until you reset the counter.Max Cost: the maximum cost set in the Set Max Cost option.Reset Counters: the option used to reset the cost counter; you must first enter your PIN2 and then press the OK soft key.Set Max Cost: the option used to enter the maximum cost that you authorize for your calls.Price/Unit: the option used to set the cost of one unit; this price per unit is applied when calculating the cost of your calls.
Call Records 90
Camera 91CameraUsing the camera module built in your phone, you can take pictures of people or events while on the move. Additionally, you can send photos to other people in a picture message or as an e-mail attachment. The camera produces JPEG pictures.Take and SendThis menu allows you to take a picture to send the photo as a picture message to other destinations.Note: When you take a picture in direct sunlight or under too bright illumination, shading may occur on the picture.Taking a Picture to Send a Message1. Accessing this menu turns on the camera at the top center of the phone. You can see the picture to be captured on the display.2. Adjust the picture by rotating the camera module.Use the and keys to adjust the brightness of the picture. Use the and keys to adjust the size of the picture.The and keys on the left side of the phone allow you to flip the picture up and down.3. Press the Take soft key to take a picture.If you want to have the delay time of 10 seconds, press the After 10s soft key.
Camera 924. Press the Save soft key to save the photo.5. Enter a name for your photo and press the OK soft key.6. Follow the procedures on page “Creating and Sending a Picture Message” on page 82 to send the photo as a picture message.New PhotoIn this menu, you can take a picture and save it.Accessing this menu turns on the camera at the top center of the phone.My PhotosThis menu allows you to review your photos.When you access this menu, the latest photo is displayed. Press the or key to scroll through the photos.Pressing the Multi soft key shows the photos as thumbnail images on one screen. In thumbnail view mode, yes the navigation keys to scroll through the photos. To go back to normal view mode, press the View soft key.Press the Options soft key to use the following options:Send: allows you to send the photo as a picture message. Wallpaper: allows you to set the photo to be displayed on the idle screen as a background image.Delete: deletes the photo.Deletes All: deletes all of the photos saved in your phone.Rename: allows you to change the name of the photo.
Sound Settings 93Sound SettingsYou can use the Sound Settings feature to customize various settings, such as the: ● Ring melody, volume and type ● Sounds made when you press a key, make an error or receive a messageRing Tone This option allows you to select the required ring melody. You can choose between many different melodies. Each time you select a melody, it is played for a few seconds. If you have downloaded any sounds from the Internet or Escapers program or received any ring tone messages, you can view the list in this menu. Ring Volume This option allows you to adjust the ring volume to one of five levels. Use the and keys or the and keys on the left side of the phone. Alert Type This option allows you to specify how you are to be informed of any incoming calls. The following options are available. Light only: only the backlight is switched on; the phone neither rings nor vibrates.Melody: the phone rings using the ring melody selected via the Vibration: the phone vibrates but does not ring.
Sound Settings 94Vibra+Melody: the phone first vibrates three times and then starts ringing.Keypad Tone This option allows you to select the tone that the keypad generates when you press a key. The following options are available.Off: the keys do not make any sound.Cool: each key, when pressed, makes the same sound but is a different tone from the Beep option.Piano: each key, when pressed, plays the piano melody.Tone: each key, when pressed, makes a different sound.Beep: each key, when pressed, makes the same sound.Message Tone This option allows you to select how the phone informs you that a new message has been received.SMS ToneThis option allows you to select how the phone informs you that a new SMS message has been received.The following options are available.SMS Tone1~10: the phone uses an SMS tone. You are provided with ten SMS tones.OFF: the phone does not use the SMS tone.Light Only: the service light at the top of the phone flashes.Vibration: the phone vibrates.Single Beep: the phone beeps once.
Sound Settings 95SMS CB ToneThis option allows you to select how the phone informs you that a new cell broadcast (CB) message has been received.The following options are available.OFF: the phone does not use the CB tone.Light Only: the service light at the top of the phone flashes.Vibration: the phone vibrates.Single Beep: the phone beeps once. SMS CB Tone1~10: the phone uses a CB tone. You are provided with ten CB tones.Power On/Off Use this option to chose the sound you prefer when turning your phone on or off. Three options are Off, Classical, and Cheerful.Extra Tones You can customize various other tones used by the phone. To turn a given tone... Then press the...On Mark soft key.A check mark is displayed in front of the option.Off Unmark soft key again.The check mark is no longer displayed.

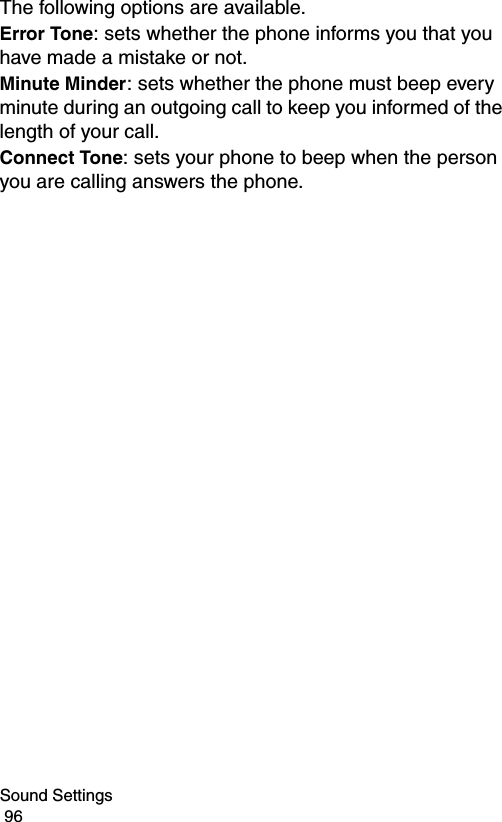

Sound Settings 96The following options are available.Error Tone: sets whether the phone informs you that you have made a mistake or not. Minute Minder: sets whether the phone must beep every minute during an outgoing call to keep you informed of the length of your call.Connect Tone: sets your phone to beep when the person you are calling answers the phone.
Phone Settings 97Phone SettingsMany different features of your phone can be customized to suit your preferences. All of these features are accessed via the Phone Settings menu.Infrared ActivateThis feature allows you to send or receive data through the infrared port. To use an infrared connection, you must: ● configure and activate an IrDA-compliant infrared port on your PC. ● activate the infrared feature on the phone; the IrDA icon appears on the top line of the display. ● align the IrDA port on the phone with the IrDA port on your computer.The connection is ready for data transmission.If there is not communication between your phone and the IrDA-compliant device within 30 seconds of activating the feature, it is automatically deactivated.Note: For the best performance, use the optional data link cable. You can buy one from your local Samsung dealer.
Phone Settings 98My Settings You can change the background image and the color of the components in the display according to your preference.WallpaperThis option allows you to change the background image (wallpaper) to be displayed in idle mode.To change the background image, proceed as follows.1. Scroll through the list by pressing the or key.You have various preset images available. You can also select the blank background and any images downloaded from the Internet or the EasyGPRS program. 2. Press the Select soft key when the required image is highlighted.The selected image is displayed.3. After viewing the image, press the Select soft key to display it on the idle screen. The display asks you if you want to display text on the screen.Menu StyleThis option allows you to select the menu display style. You can choose between Film Style and Page Style.
Phone Settings 99Greeting Message This option allows you to set a greeting message to be displayed briefly when the phone is switched on. The current message is displayed.For further details on how to enter characters, refer to “Entering Text” on page 47. Own Number This feature allows you to: ● Assign a name to each of your own phone numbers registered on your SIM card ● Edit the names and numbersThis function is a memory aid, which you can use to check your own phone numbers if you need to do so.Any changes made here do not in any way affect the actual subscriber numbers on your SIM card.To... Then press the...Clear the existing message key and hold it down until the message is cleared.Enter a new messageAppropriate alphanumeric keys.Change the text input mode soft key.
Phone Settings 100Language You can select a display language. When the language option is set to Automatic, the language is automatically selected according to the language of the SIM card used.Security The Security feature enables you to restrict the use of your phone to: ● The people of your choice ● The types of calls of your choiceVarious codes and passwords are used to protect the features of your phone. PIN CheckWhen the PIN Check feature is enabled, you must enter your PIN each time you switch the phone on. Consequently, any person who does not have your PIN cannot use your phone without your approval.Note: Before disabling the PIN Check feature, you must enter your PIN.To change your PIN, refer to the Change PIN menu option.The following options are available.Disable: the phone connects directly to the network when you switch it on.Enable: you must enter the PIN each time the phone is switched on.Change PINThis feature allows you to change your current PIN to a new one, provided that the PIN Check feature is enabled.

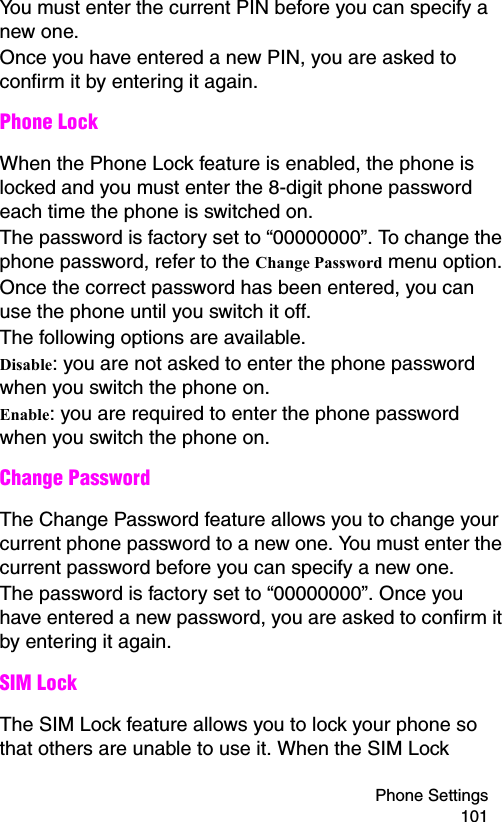

Phone Settings 101You must enter the current PIN before you can specify a new one.Once you have entered a new PIN, you are asked to confirm it by entering it again.Phone LockWhen the Phone Lock feature is enabled, the phone is locked and you must enter the 8-digit phone password each time the phone is switched on.The password is factory set to “00000000”. To change the phone password, refer to the Change Password menu option.Once the correct password has been entered, you can use the phone until you switch it off.The following options are available.Disable: you are not asked to enter the phone password when you switch the phone on.Enable: you are required to enter the phone password when you switch the phone on.Change PasswordThe Change Password feature allows you to change your current phone password to a new one. You must enter the current password before you can specify a new one.The password is factory set to “00000000”. Once you have entered a new password, you are asked to confirm it by entering it again.SIM LockThe SIM Lock feature allows you to lock your phone so that others are unable to use it. When the SIM Lock
Phone Settings 102feature is enabled you must enter the password that you assigned to use your phone. Options available are:Disable: you are not asked to enter the SIM Lock password when you switch the phone on.Enable: you are required to enter the SIM Lock password when you switch the phone on. FDN ModeThe FDN (Fixed Dial Number) mode, if supported by your SIM card, allows you to restrict your outgoing calls to a limited set of phone numbers.The following options are available.Disable: you can phone any number.Enable: you can only call phone numbers stored in the phonebook. You must enter your PIN2.Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu option is not displayed.To change your PIN2, refer to the Change PIN2 menu option.Change PIN2The Change PIN2 feature allows you to change your current PIN2 to a new one. You must enter the current PIN2 before you can specify a new one.Once you have entered a new PIN2, you are asked to confirm it by entering it again.Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu option is not displayed.
Phone Settings 103Display SettingsBrightnessThis option allows you to adjust the contrast of the display and make it lighter or darker.To adjust the display contrast:1. Select the required display, Main LCD or Front LCD, and press the Select soft key.2. Adjust the contrast using the and keys, and press the Select soft key.3. When you have made your choice, press the OK soft key to save the selection.Back LightYou may choose whether or not the phone uses the backlight. marginal increase in standby/talk time can be achieved by turning the backlight off.Select the length of time the backlight is on. Available settings are OFF, 15 or 30 seconds, 1; 3; or 10 minutes. The backlight comes on when you press a key or receive a call or message and remains illuminated for the specified length of time.Auto LightUsing this feature, you can specify the time for which the backlight is to be used. This feature helps conserve your battery power.The following options are available:
Phone Settings 104Disable: the backlight is used according to the setting in the Back Light menu option.Enable: the backlight is used only during the specified period of time. Set the time when the phone will turn on the light and turn it off, using the appropriate number keys.Service LightThis option allows you to select whether or not the service light on the folder is used or which color is flashes.Select one from the seven settings available. When the phone is ready for use, the service light flashes in the appropriate color.Graphic LogoThis option allows yo to display you operator’s logo instead of its name.On: the operator logo stored in your phone is displayed in idle mode; if no logo has been stored, the operator name is displayed.Off: the operator name is displayed in the idle mode.Extra Settings You can turn the automatic redialing or answering features on or off. To turn a feature... Then press the...On ON soft key.A check mark is displayed in front of the option.
Phone Settings 105The following options are available.Auto Redial: when this option is checked, the phone makes up to ten attempts to redial a phone number after an unsuccessful call.Note: The interval between two call attempts varies.Anykey Answer: when this option is checked, you can simply press any key to answer the incoming call.Anykey Answer: when this option is checked, you can answer an incoming call by pressing any key, except the Reject soft key. To reject the call, press the key or the Reject soft key. When this option is unchecked, you can only press the key or Accept soft key.ShortCut The navigation keys can be used as shortcut keys. When held down in idle mode, they allow you to access specific menu options directly.To assign a shortcut to a key, proceed as follows.1. Select the key to be used as a shortcut key by pressing the or key, followed by the Select soft key.Key up ( )Key down ( )Off OFF soft key.The check mark is no longer displayed.To turn a feature... Then press the...
Phone Settings 106Key right ( )Key left ( ) 2. Select the menu option to be assigned to the key by pressing the or key.Note: To deactivate a shortcut key, select the None option.3. Press the Select soft key to save the selection.Reset Settings You can easily reset your phone to its default configuration. To do so, proceed as follows.1. Select the Reset Settings menu option.2. Enter the 8-digit phone password and press the OK soft key.Note: The password is preset to “00000000”. To change this password, refer to “Change Password” on page 101.
Organizer 107OrganizerThe Organizer feature enables you to: ● View the calendar and organize your schedule ● Define a list of things to do ● Set the current date and time ● Set the alarm so that the phone rings at a specific time (to remind you of an appointment for example) ● Use the phone as a calculator for basic mathematical equations or currency exchange operations Calendar With the Calendar feature, you can: ● Consult the calendar ● Write memos to keep track of your schedule and trigger an alarm if necessaryConsulting the CalendarWhen you select the Calendar menu option, the calendar is displayed. The following options are available when you press the Options soft key.Search all: displays all memos set, regardless of the day and starting with the oldest. To scroll through the memos, press the or key.Delete all: allows you to delete all memos. You are asked to confirm your action.Go to date: allows you to jump to a specific date.Exit: exits the Calendar feature and returns to the idle mode.
Organizer 108Writing a MemoTo write or edit a memo on a specific date, proceed as follows.1. Select the required date in the calendar, using the navigation keys.Note: To skip to the previous or next month, press the and keys on the left side of the phone.2. Press the Select soft key. An empty memo screen is displayed to allow you to enter your memo.3. Enter your memo and then press the OK soft key.Note: For further details on how to enter characters, refer to “Entering Text” on page 47.You are asked if you wish to set the alarm.4. If you want the alarm to ring on the chosen day, press the Yes soft key. Otherwise, press the No soft key.5. If you pressed the Ye s soft key, set the time for the alarm and press the OK soft key. The color of the date is changed to green to indicate that a memo exists.Editing a MemoIf you select a day for which a memo already exists, you an press the Edit soft key to edit the memo displayed.
Organizer 109Once you have finished editing the memo, press the OK soft key. The following options are then available when you press the Options soft key.Alarm: allows you to set the alarm to ring on the chosen day.Delete: allows you to delete the memo.Copy to: allows you to copy the memo to another date and/or time.Move to: allows you to change the date and/or time of the memo.Editing a Memo1. To edit a memo, select the Calendar menu option.2. Select the date your memo is set to occur by using the right and left arrow keys. Press the Select soft key.3. Press the Options soft key. 4. Select the Edit menu option and edit the memo appropriately.Once you have finished editing the memo, press the OK soft key. The following options are then available when you press the Options soft key.Alarm: allows you to set the alarm to ring on the chosen day.Delete: allows you to delete the memo.Copy to: allows you to copy the memo to another date and/or time.Move to: allows you to change the date and/or time of the memo.
Organizer 110To Do List This feature allows you to: ● Draw up a list of tasks to be done ● Assign a priority and deadline to each task ● Sort the tasks by priority and status markCreating the To Do List1. Press the New soft key.2. Enter the first task.Note: You can enter up to 40 characters. For further details on how to enter characters, see “Entering Text” on page 47.3. Press the OK soft key.4. Select high, normal or low priority using the or key and press the Select soft key.5. Enter your deadline. If you do not want to set a deadline, press the Skip soft key.6. Press the OK soft key.Editing the To Do ListIf tasks are already defined in the To Do List when you select the To Do Lis t menu option, the current contents are displayed with the status mark and priority.
Organizer 111The following options are available.To... Then...View the details for a specific taskHighlight the task.Press the View soft key.Change the status of a specific taskHighlight the task.Press the key to mark the task as completed as of the current date and time.orHighlight the task. Press the Options soft key.Select the Mark option.Select the appropriate status (Done or Undo).Create a new task Press the Options soft key.Select the New option.Enter the text, priority and deadline for the task. Edit an existing taskHighlight the task.Press the Options soft key.Select the Edit option.Change the text, priority and deadline for the task. Sort the existing tasks by priority or statusPress the Options soft key.Select the Sort option.Select the sort criterion (High, Low, Done or Undo).
Organizer 112Time & Date This option allows you to change the current time and date displayed. You can also check the current time for Greenwich Mean Time (GMT) and 21 major cities around the world.Copy a task Highlight the task.Press the Options soft key.Select the Copy option.Change the text, priority and deadline for the task as required.Copy a task to the calendarHighlight the task.Press the Options soft key.Select the Copy to calendar option.Change the text and deadline for the task and set the alarm as required.Delete a task Highlight the task.Press the Options soft key.Select the Delete option.Delete all tasks Press the Options soft key.Select the Delete all option.Confirm the deletion by pressing OK.Exit the To Do list Press the Options soft key.Select the Exit option.To... Then...
Organizer 113The following options are available.Set Time: allows you to enter the current time. You can choose the time format via the Time Format menu option. Note: Before setting the time, you must specify your time zone, via the World Time menu option (Menu 7.3.3).Set Date: allows you to enter the day, month and year. World Time: allows you to check the current time for Greenwich Mean Time (GMT) and 21 major cities around the world, using the and keys.The screen shows the: ● City name ● Current date and time ● Time difference between the selected city and your city if you have set the local time (see below for further details) or GMT (by default)To select the time zone in which you are located, proceed as follows.1. Select the city corresponding to your time zone by pressing the or key one or more times. The local date and time are displayed.2. Press the Set soft key.Time Format: allows you to change the time format to 24 Hours or 12 Hours.Alarm This feature allows you to: ● Set the alarm to ring at a specific time ● Set the phone to switch on automatically and ring the alarm even if the phone is switched off (Auto power menu option set to Enable)
Organizer 114The following options are available.Once Alarm: the alarm rings only once and is then deactivated.Daily Alarm: the alarm rings every day at the same time.Morning Call: the alarm rings to wake you up in the morning.To set the alarm, proceed as follows.1. Choose the type of alarm to be set.2. Enter the required time and day of the week, if applicable.3. Press the OK soft key.4. If you select Morning Call in Step 1, select the repeat option: Monday to Friday or Monday to Saturday.Remove Alarm: deactivates all alarm settings.Auto power: if this option is set to Enable, the alarm will ring at the specified time, even when the phone is switched off. If the menu option is set to Disable and the phone is switched off at the specified time, the alarm will not ring.To stop the alarm when it rings, press the Exit soft key.When setting or viewing an alarm, the following options are available when you press the Options soft key.Remove Alarm: deactivates the current alarm. Alarm Sound Set: allows you to select the alarm melody this option can be found in each of the Alarm options.Calculator With this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions: addition, subtraction, multiplication and division.
Organizer 115Using the Calculator1. Enter the first number using the numeric keys.2. Press the right soft key until the required arithmetic symbol appears: + (add), - (subtract), x (multiply), / (divide).3. Enter the second number.Repeat Steps 1 to 3 as many times as required.Notes:• To erase any mistakes and clear the display, press the key.• To include a decimal point or a bracket, press the left soft key until the required symbol is displayed.4. To calculate the result, press the key.Currency Exchange Using this menu option, you can make currency conversions.1. Enter the current exchange rate of your source currency and press the OK soft key.You can insert a decimal point by pressing the key.2. Enter the amount for which you wish to conduct the currency conversion and press the OK soft key.The exchange rate amount you entered and equivalent value are displayed.3. Press the Exit soft key to exit the currency convertor.
Organizer 116
Network Services 117Network ServicesThese menu functions are network services. Please contact your service provider to check their availability and subscribe to them, if you wish.Call Forwarding This network service enables incoming calls to be rerouted to the number that you specify.Example:You may wish to forward your business calls to a colleague while you are on holiday.Call forwarding can be set up in the following ways:Forward Always: all calls are forwarded.Busy: calls are forwarded when you are already on another call.No Reply: calls are forwarded when you do not answer the phone.Unreachable: calls are forwarded when you are not in an area covered by your service provider.Cancel All: all call forwarding options are canceled.You can specify individual forwarding options for each of the following call types: ● Voice calls only ● Data calls onlyTo set your call forwarding options:1. Select the type of call forwarding by pressing the Up or Down key, and then press the Select soft key.2. Select the type of calls to be forwarded by pressing the Up or Down key, and then press the Select soft key.
Network Services 118The current status displays. If the option has already been set, the number to which the calls are forwarded displays.4. Enter the number to which the calls are to be forwarded and press the OK soft key. To enter an international code, press the 0 key until the + sign displays.The phone sends your settings to the network and the network’s acknowledgement displays.You can deactivate all call forwarding settings by selecting the Cancel All option.Call BarringThe call barring network service allows you to restrict your calls.Call barring can be setup in the following ways:All Outgoing: calls cannot be made.International: International calls cannot be made.International Except to Home: when abroad, calls can be made on to numbers within the current country and to 3.3.To Press theactivate call forwardingActivate soft key.Go to Step 4.change the call numberChange soft key.Go to Step 4. deactivate call forwardingRemove soft key.
Network Services 119your home country, which is the country where your home network provider is located.All Incoming: calls cannot be received.Incoming While Abroad: calls cannot be received when you are using your phone outside of your home service area.Cancel All: all call barring setting are deactivated; calls can be made and received normally.You can specify individual barring options for each of the following call types: ● Voice calls only ● Data calls onlyTo set your call barring options:1. Select the type of call barring required by pressing the or key until the appropriate option highlights and then press the Select soft key.2. Select the type of calls to be barred by pressing the or key until the appropriate option highlights and then press the Select soft key.3. Press Activate soft key to confirm your settings.4. Enter your call barring password supplied by your service provider.The phone sends your settings to the network and the network’s acknowledgment displays.To deactivate specific call barring settings:1. Select the call barring option to be deactivated.2. Select the type of call to which this option applies.
Network Services 1203. Press the Deactivate soft key.4. Enter your call barring password supplied by your service provider.The phone sends your settings to the network and the network’s acknowledgement displays.You can also deactivate all call barring settings by selecting the Cancel All option.Change Barring Password: you can set and change the call barring password obtained from your service provider using this option. You must enter the current password before you can specify a new one.Once you have entered a new password, you are asked to confirm it by entering it again.Call Waiting This network service informs you when someone is trying to reach you during another call.You can specify individual call waiting options for each of the following call types: ● Voice calls only ● Data calls onlyTo set your call waiting options:1. Select the type of calls to which the call waiting option is to be applied by pressing the or key, and then press the Select soft key.The screen informs you whether call waiting is activated or deactivated.
Network Services 1212. You can activate or deactivate the call waiting feature as necessary by using the Activate or Deactivate soft key respectively. To return to the previous screen, press the Exit soft key.You can also deactivate all call waiting settings by selecting the Cancel All option.Network Selection The Network Selection feature enables you to automatically or manually select the network used when roaming outside of your home area.Note: You can select a network other than your home network only if there is a valid roaming agreement between them.To indicate to automatically or manually select the network when roaming:1. When Network Selection displays, press the Select soft key.2. Press the or key until the appropriate option highlights and then press the OK soft key.If you select Automatic, you are connected to the first available network when roaming.If you select Manual, the phone scans for the available networks. Go to Step 3.3. Press the or key until the preferred network highlights and then press the OK soft key.You are connected to that network.
Network Services 122Caller ID You can prevent your phone number from being displayed on the phone of the person being called.Note: Some networks do not allow the user to change this setting.The following options are available:Default: the default setting provided by the network is used.Hide Number: your number does not display on the other person’s phone.Send Number: your number is sent each time you make a call.Closed User Group (CUG) This network service allows incoming and outgoing calls to be restricted to a selected user group. You may be a member of up to ten user groups. For details on how to create, activate and use a closed user group, contact our service provider.Example: A company lends SIM Cards to its employees and wants to restrict outgoing calls to members of the same team.Activating a Closed User GroupIf you select the Closed User Group menu, you can enter the CUG function. You can now access the following options after pressing the Select soft key.Index List: lets you list, add or delete CUG index numbers. The list of current CUG indexes appears.Add a new CUG index as advised by your service provider or delete the selected group.
Network Services 123Outside Access: lets you enable or disable calls to numbers other than those nominated for the Closed User Group. This feature depends on the nature of your CUG subscription. Please check with your service provider.Default Group: you may set a default CUG with your service provider. If you have done so, you can enable the Default Group option on your phone. When making a call, you are given the option of using your default CUG, instead of selecting one from the list.Deactivate: deactivates the CUG function. This menu appears only when the default group is enabled or a CUG index is selected.To Press thescroll through the existing CUG index or key.add a new CUG indexOptions soft key, select the Add option and enter the index.delete a CUG Options soft key and select the Delete option.activate a CUG indexOptions soft key and select the Activate option.
Network Services 124
Funbox 125FunboxThe Funbox menu contains several fun options.GamesYou can enjoy three games with your phone.Scroll to the required game, using the and keys and press the Select soft key. For further details n the game, refer to the on-screen help.WAP BrowserYour phone is equipped with a WAP Browser to allow you to access and navigate the Wireless Web.For further details on the WAP Browser menu, refer to the WAP Browser User’s Manual supplied with your phone.DownloadsSoundsIn this menu, you can view the list of sounds downloaded from the server. You can set the downloaded sounds as the current ring tone, but cannot send the sounds to other phones.When the memory is full, a warning message is displayed and the phone rejects additional sounds until you erase obsolete ones.PicturesIn this menu, you can view the list of pictures downloaded from the server. You can set the downloaded pictures as the current background image, but cannot send them to other phones.
Funbox 126When the memory is full, a warning message is displayed and the phone rejects additional pictures until you erase obsolete ones.
Solving Problems 127Solving ProblemsBefore contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary service call.When you switch your phone on, the following messages may appear:Insert SIM Card ● Check that the SIM card is correctly installed.Phone Locked Enter Password ● The automatic locking function has been enabled. You must enter the phone’s password before you can use the phone.Enter PIN ● You are using your phone for the first time. You must enter the Personal Identification Number (PIN) supplied with the SIM card. ● The PIN Check feature is enabled. Every time the phone is switched on, the PIN has to be entered. To disable this feature, use the PIN Check menu option (Menu 5.6.1).Enter PUK ● The PIN code was entered incorrectly three times in succession and the phone is now blocked. Enter the PUK supplied by your network operator.“No service,” “Network failure” or “Not done” displays. ● The network connection was lost. You may be in a weak signal area (in a tunnel or surrounded by buildings). Move and try again.
Solving Problems 128 ● You are trying to access an option for which you have not taken out a subscription with your service provider. Contact the service provider for further details.You have entered a number but it was not dialed ● Have you pressed the key? ● Are you accessing the right cellular network?Your correspondent cannot reach you ● Is your phone switched on (the key pressed for more than one second)? ● Are you accessing the right cellular network?Your correspondent cannot hear you speaking• Have you switched off the microphone?• Are you holding the phone close enough to your mouth? The microphone is located at the bottom of the phone.The phone starts beeping and “**Warning** Low Battery” flashes on the display ● The battery is insufficiently charged. Replace the battery and recharge it.The audio quality of the call is poor ● Check the signal strength indicator on the display ( ); the number of bars indicates the signal strength from strong ( ) to weak ( ). ● Try moving the phone slightly or moving closer to a window if you are in a building.

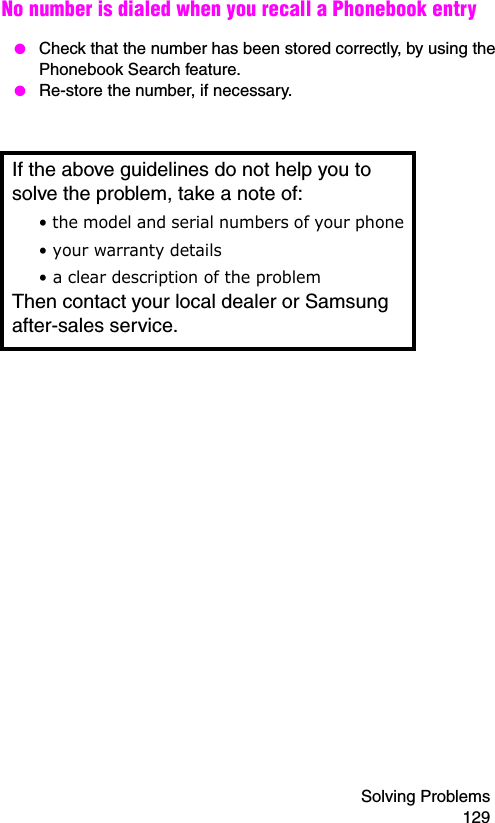

Solving Problems 129No number is dialed when you recall a Phonebook entry ● Check that the number has been stored correctly, by using the Phonebook Search feature. ● Re-store the number, if necessary.If the above guidelines do not help you to solve the problem, take a note of:• the model and serial numbers of your phone• your warranty details• a clear description of the problemThen contact your local dealer or Samsung after-sales service.
Solving Problems 130
Access Codes 131Access CodesThere are several access codes that are used by your phone and its SIM card. These codes help you protect the phone against unauthorized use.When requested for any of the codes explained below, enter the appropriate code (displayed as asterisks) and press the OK soft key. If you make a mistake, press the C key one or more times until the incorrect digit is cleared and then continue entering the correct code.The access codes, except for the PUK and PUK2 codes can be changed using the Security menu option (Menu 5.6). See “Security” on page 100 for further details.Important! Avoid using access codes resembling emergency numbers, such as 911, so that you do not dial an emergency number accidentally.Phone PasswordThe Phone Lock feature uses the phone password to protect your phone against unauthorized use. The phone password is supplied with the phone and is preset to “00000000” at the factory.To Seeactivate/deactivate the Phone Lock feature“Phone Settings” on page 97.change the phone password“Change Password” on page 101.

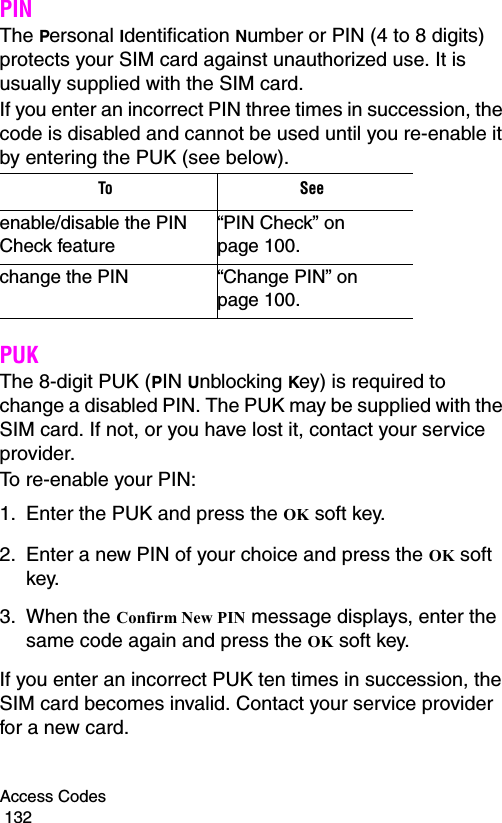

Access Codes 132PINThe Personal Identification Number or PIN (4 to 8 digits) protects your SIM card against unauthorized use. It is usually supplied with the SIM card.If you enter an incorrect PIN three times in succession, the code is disabled and cannot be used until you re-enable it by entering the PUK (see below).PUKThe 8-digit PUK (PIN Unblocking Key) is required to change a disabled PIN. The PUK may be supplied with the SIM card. If not, or you have lost it, contact your service provider.To re-enable your PIN:1. Enter the PUK and press the OK soft key.2. Enter a new PIN of your choice and press the OK soft key.3. When the Confirm New PIN message displays, enter the same code again and press the OK soft key.If you enter an incorrect PUK ten times in succession, the SIM card becomes invalid. Contact your service provider for a new card.To Seeenable/disable the PIN Check feature“PIN Check” on page 100.change the PIN “Change PIN” on page 100.
Access Codes 133PIN2The PIN2 (4 to 8 digits), supplied with some SIM cards, is required to access specific functions, such as setting the maximum cost of a call. These functions are available if supported by your SIM card.If you enter an incorrect PIN2 three times in succession, the code is disabled and you cannot access the functions until you re-enable it by entering the PUK2.To change the PIN2, see “Change PIN2” on page 102 (Menu 6.6.7).PUK2The 8-digit PUK2 (PIN Unblocking Key 2), supplied with some SIM cards, is required to change a disabled PIN2. If you lose the code, contact your service provider.To re-enable your PIN2:1. Enter the PUK2 and press the OK soft key.2. Enter a new PIN2 of your choice and press the OK soft key.3. When the Confirm PIN2 message displays, enter the same code again and press the OK soft key.If you enter an incorrect PUK2 ten times in succession, you will not be able to access the functions requiring the PIN2. Contact your service provider for a new card.
Access Codes 134
Health and Safety Information 135Health and Safety InformationExposure to Radio Frequency (RF) SignalsYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards that were developed by independent scientific organizations through periodic and through evaluation of scientific studies.The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless phones employs a unit of measurement known as Specific Absorption Rate (SAR). The SAR limit recommended by the FCC is 1.6W/kg.1SAR tests are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a 1. In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.
Health and Safety Information 136wireless base station antenna, the lower the power output of the phone. Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement.The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID printed in the label on the phone.FCC certification information for this model phone is attached separation paper.For Body OperationTo maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user's body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic componentsin its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

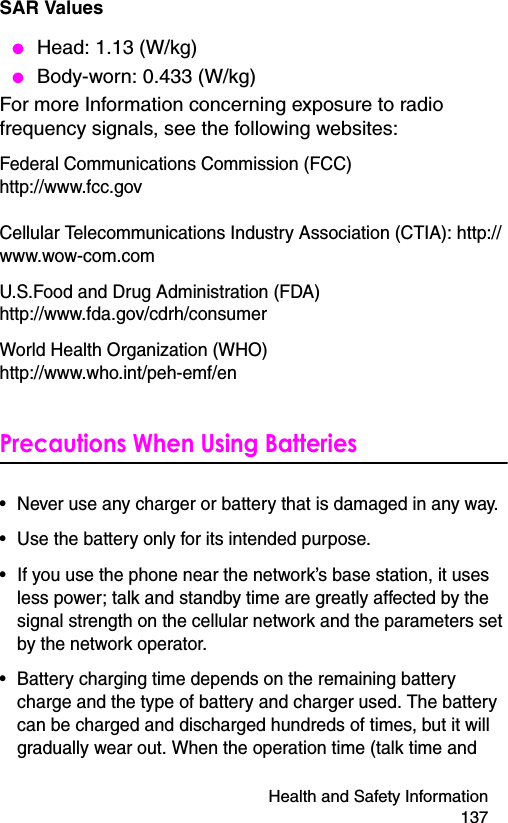

Health and Safety Information 137SAR Values ● Head: 1.13 (W/kg) ● Body-worn: 0.433 (W/kg)For more Information concerning exposure to radio frequency signals, see the following websites:Federal Communications Commission (FCC) http://www.fcc.gov Cellular Telecommunications Industry Association (CTIA): http://www.wow-com.comU.S.Food and Drug Administration (FDA) http://www.fda.gov/cdrh/consumerWorld Health Organization (WHO) http://www.who.int/peh-emf/en Precautions When Using Batteries• Never use any charger or battery that is damaged in any way.• Use the battery only for its intended purpose.• If you use the phone near the network’s base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.• Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and

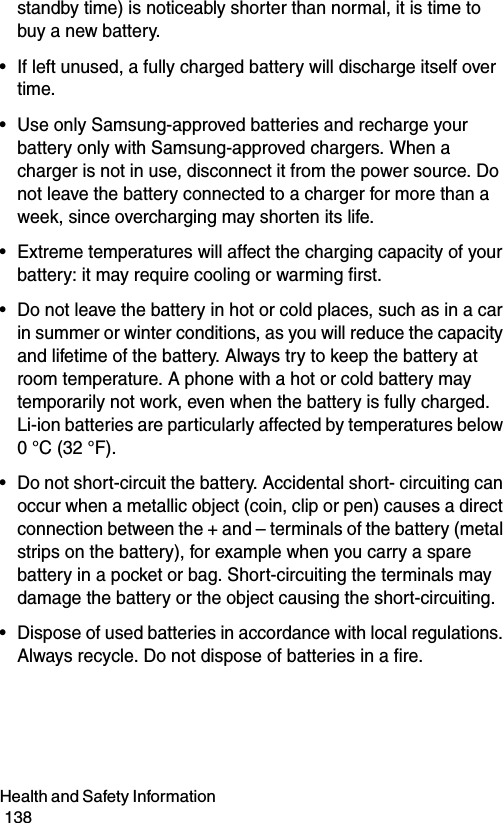

Health and Safety Information 138standby time) is noticeably shorter than normal, it is time to buy a new battery.• If left unused, a fully charged battery will discharge itself over time.• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short- circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and – terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.• Dispose of used batteries in accordance with local regulations. Always recycle. Do not dispose of batteries in a fire.

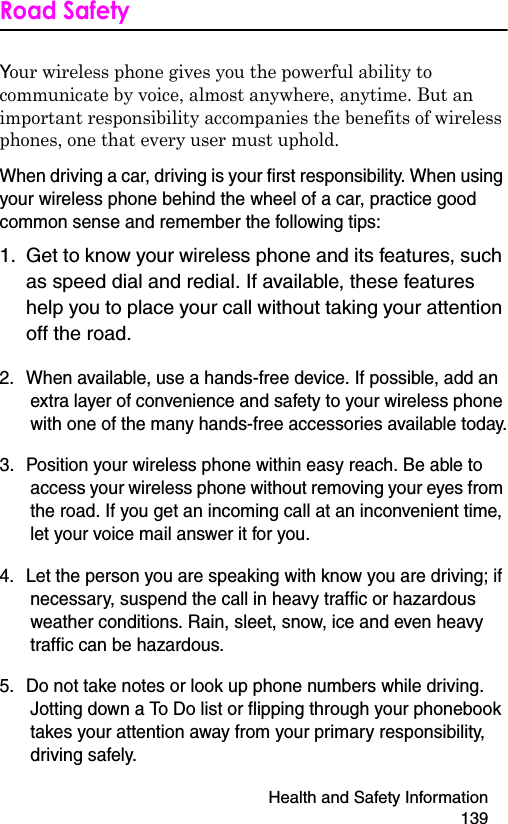

Health and Safety Information 139Road SafetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.2. When available, use a hands-free device. If possible, add an extra layer of convenience and safety to your wireless phone with one of the many hands-free accessories available today.3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.5. Do not take notes or look up phone numbers while driving. Jotting down a To Do list or flipping through your phonebook takes your attention away from your primary responsibility, driving safely.

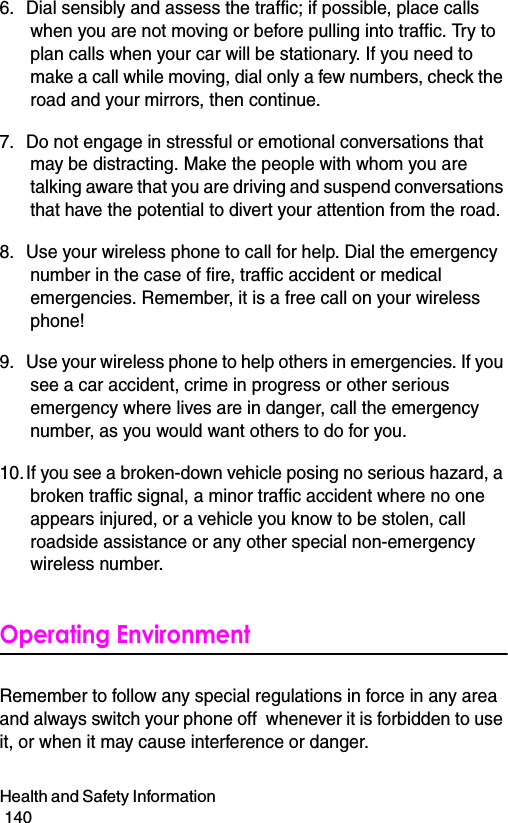

Health and Safety Information 1406. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.7. Do not engage in stressful or emotional conversations that may be distracting. Make the people with whom you are talking aware that you are driving and suspend conversations that have the potential to divert your attention from the road.8. Use your wireless phone to call for help. Dial the emergency number in the case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!9. Use your wireless phone to help others in emergencies. If you see a car accident, crime in progress or other serious emergency where lives are in danger, call the emergency number, as you would want others to do for you.10.If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or any other special non-emergency wireless number.Operating EnvironmentRemember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger.
Health and Safety Information 141When connecting the phone or any accessory to another device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).Electronic DevicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:• should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on.• should not carry the phone in a breast pocket.
Health and Safety Information 142• should use the ear opposite the pacemaker to minimize potential interference.If you have any reason to suspect that interference is taking place, switch your phone off immediately.Hearing AidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your phone off in any facility where posted notices require you to do so.
Health and Safety Information 143Potentially Explosive EnvironmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency CallsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength.
Health and Safety Information 144Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.3. Press the key.If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Other Important Safety Information• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.
Health and Safety Information 145• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your phone off before boarding an aircraft. The use of wireless phones in aircraft is illegal and may be dangerous to the aircraft’s operation.• Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Care and MaintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years• Keep the phone and all its parts and accessories out of the reach of small children’s.• Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.
Health and Safety Information 146• Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone’s electronic circuit boards.• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device’s moving parts and prevent proper operation.• Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.• Use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.• If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.
Appendix A: Certification Information (SAR) 147Appendix A: Certification Information (SAR)THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency(RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on safety standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6 W/kg. SAR Tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.
Appendix A: Certification Information (SAR) 148Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations(e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR values for this model phone as reported to the FCC are Head: 1.13 W/Kg, Body-worn: 0.433 W/Kg. t pr ovide at least 1.5cm separation between the device, including its antenna whether extended or retrx posure g u ide l The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section ofhttp://www.fcc.gov/oet/fccid after searching on FCC ID A3LSGHP107.In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

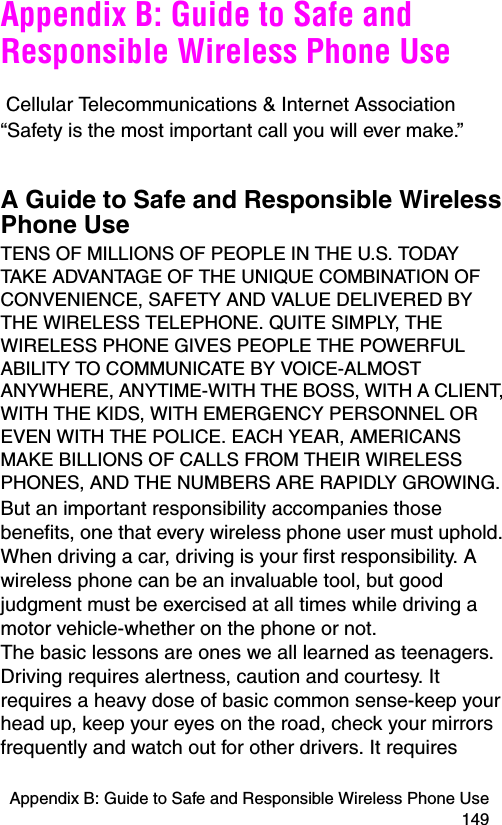

Appendix B: Guide to Safe and Responsible Wireless Phone Use 149Appendix B: Guide to Safe and Responsible Wireless Phone Use Cellular Telecommunications & Internet Association“Safety is the most important call you will ever make.”A Guide to Safe and Responsible Wireless Phone UseTENS OF MILLIONS OF PEOPLE IN THE U.S. TODAY TAKE ADVANTAGE OF THE UNIQUE COMBINATION OF CONVENIENCE, SAFETY AND VALUE DELIVERED BY THE WIRELESS TELEPHONE. QUITE SIMPLY, THE WIRELESS PHONE GIVES PEOPLE THE POWERFUL ABILITY TO COMMUNICATE BY VOICE-ALMOST ANYWHERE, ANYTIME-WITH THE BOSS, WITH A CLIENT, WITH THE KIDS, WITH EMERGENCY PERSONNEL OR EVEN WITH THE POLICE. EACH YEAR, AMERICANS MAKE BILLIONS OF CALLS FROM THEIR WIRELESS PHONES, AND THE NUMBERS ARE RAPIDLY GROWING. But an important responsibility accompanies those benefits, one that every wireless phone user must uphold. When driving a car, driving is your first responsibility. A wireless phone can be an invaluable tool, but good judgment must be exercised at all times while driving a motor vehicle-whether on the phone or not. The basic lessons are ones we all learned as teenagers. Driving requires alertness, caution and courtesy. It requires a heavy dose of basic common sense-keep your head up, keep your eyes on the road, check your mirrors frequently and watch out for other drivers. It requires
Appendix B: Guide to Safe and Responsible Wireless Phone Use 150obeying all traffic signs and signals and staying within the speed limit. It means using seat belts and requiring other passengers to do the same. But with wireless phone use, driving safely means a little more. This brochure is a call to wireless phone users everywhere to make safety their first priority when behind the wheel of a car. Wireless telecommunications is keeping us in touch, simplifying our lives, protecting us in emergencies and providing opportunities to help others in need. When it comes to the use of wireless phones, safety is your most important call. Wireless Phone “Safety Tips” Below are safety tips to follow while driving and using a wireless phone which should be easy to remember:1. Get to know your wireless phone and its features such as speed dial and redial. Carefully read your instruction manual and learn to take advantage of valuable features most phones offer, including automatic redial and memory. Also, work to memorize the phone keypad so you can use the speed dial function without taking your attention off the road. 2. When available, use a hands free device. A number of hands free wireless phone accessories are readily available today. Whether you choose an installed mounted device for your wireless phone or a speaker phone accessory, take advantage of these devices if available to you.
Appendix B: Guide to Safe and Responsible Wireless Phone Use 1513. Position your wireless phone within easy reach. Make sure you place your wireless phone within easy reach and where you can grab it without removing your eyes from the road. If you get an incoming call at an inconvenient time, if possible, let your voice mail answer it for you. 4. Suspend conversations during hazardous driving conditions or situations. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow and ice can be hazardous, but so is heavy traffic. As a driver, your first responsibility is to pay attention to the road. 5. Do not take notes or look up phone numbers while driving. If you are reading an address book or business card, or writing a “to do” list while driving a car, you are not watching where you are going. It’s common sense. Don’t get caught in a dangerous situation because you are reading or writing and not paying attention to the road or nearby vehicles. 6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan your calls before you begin your trip or attempt to coincide your calls with times you may be stopped at a stop sign, red light or otherwise stationary. But if you need to dial while driving, follow this simple tip-dial only a few numbers, check the road and your mirrors, then continue. 7. Do not engage in stressful or emotional conversations that may be distracting. Stressful or emotional
Appendix B: Guide to Safe and Responsible Wireless Phone Use 152conversations and driving do not mix-they are distracting and even dangerous when you are behind the wheel of a car. Make people you are talking with aware you are driving and if necessary, suspend conversations which have the potential to divert your attention from the road.8. Use your wireless phone to call for help. Your wireless phone is one of the greatest tools you can own to protect yourself and your family in dangerous situations-with your phone at your side, help is only three numbers away. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident, road hazard or medical emergency. Remember, it is a free call on your wireless phone! 9. Use your wireless phone to help others in emergencies. Your wireless phone provides you a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you. 10.Call roadside assistance or a special wireless non-emergency assistance number when necessary. Certain situations you encounter while driving may require attention, but are not urgent enough to merit a call for emergency services. But you still can use your wireless phone to lend a hand. If you see a broken-down vehicle posing no serious
Appendix B: Guide to Safe and Responsible Wireless Phone Use 153hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a vehicle you know to be stolen, call roadside assistance or other special non-emergency wireless number.Careless, distracted individuals and people driving irresponsibly represent a hazard to everyone on the road. Since 1984, the Cellular Telecommunications Industry Association and the wireless industry have conducted educational outreach to inform wireless phone users of their responsibilities as safe drivers and good citizens. As we approach a new century, more and more of us will take advantage of the benefits of wireless telephones. And, as we take to the roads, we all have a responsibility to drive safely.“The wireless industry reminds you to use your phone safely when driving.”Cellular Telecommunications & Internet Association For more information, please call 1-888-901-SAFE. For updates:http://www.wow-com.com/consumer/issues/driving/articles.cfm?ID=85
Appendix C: Consumer Update on Wireless Phones 154Appendix C: Consumer Update on Wireless PhonesU.S. Food and Drug Administration1. What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called cell, mobile, or PCS phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user s head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person’s RF exposure decreases rapidly with increasing distance from the source. The so-called “cordless phones,” which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC’s compliance limits.2. Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can
Appendix C: Consumer Update on Wireless Phones 155produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.3. What is FDA’s role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:Support needed research into possible biological effects of RF of the type emitted by wireless phones; Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and
Appendix C: Consumer Update on Wireless Phones 156Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:National Institute for Occupational Safety and Health Environmental Protection Agency Federal Communications Commission Occupational Safety and Health Administration National Telecommunications and Information Administration The National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.
Appendix C: Consumer Update on Wireless Phones 1574. What is FDA doing to find out more about the possible health effects of wireless phone RF?FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.5. What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?

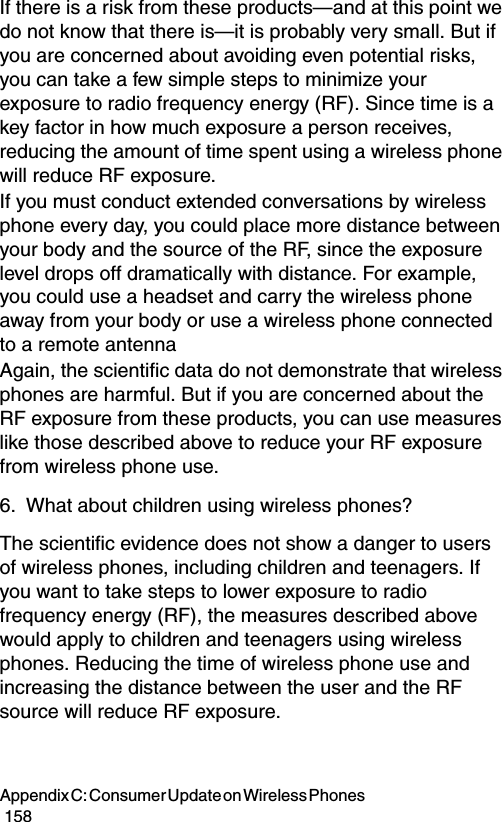

Appendix C: Consumer Update on Wireless Phones 158If there is a risk from these products—and at this point we do not know that there is—it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.6. What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.
Appendix C: Consumer Update on Wireless Phones 159Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.7. Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.8. Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to
Appendix C: Consumer Update on Wireless Phones 160believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike “hand-free” kits, these so-called “shields” may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.9. What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI.FDA has tested hearing aids for interference from handheld wireless phones and helped develop a voluntary
Appendix C: Consumer Update on Wireless Phones 161standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.10.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radiofrequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don t know with certainty what the results of such studies mean for human health.
Appendix C: Consumer Update on Wireless Phones 162Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, gioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phone RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.11.What research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but 10 or more years follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.

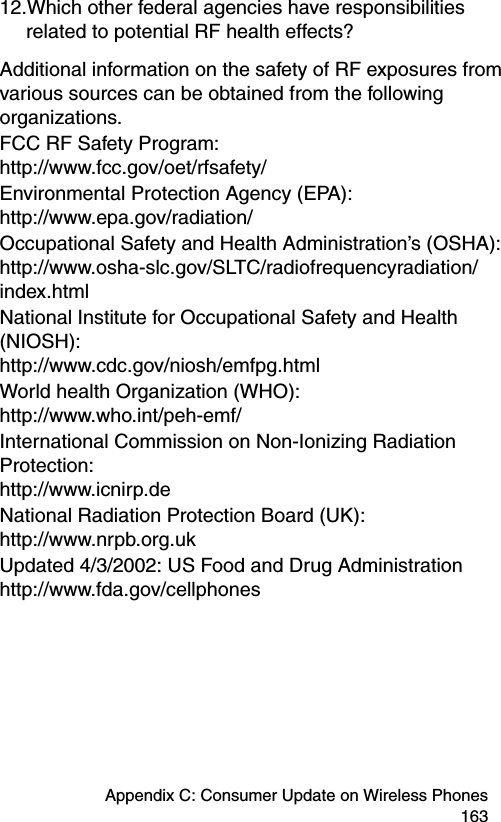

Appendix C: Consumer Update on Wireless Phones 16312.Which other federal agencies have responsibilities related to potential RF health effects?Additional information on the safety of RF exposures from various sources can be obtained from the following organizations.FCC RF Safety Program: http://www.fcc.gov/oet/rfsafety/Environmental Protection Agency (EPA): http://www.epa.gov/radiation/ Occupational Safety and Health Administration’s (OSHA): http://www.osha-slc.gov/SLTC/radiofrequencyradiation/index.htmlNational Institute for Occupational Safety and Health (NIOSH): http://www.cdc.gov/niosh/emfpg.htmlWorld health Organization (WHO): http://www.who.int/peh-emf/ International Commission on Non-Ionizing Radiation Protection: http://www.icnirp.deNational Radiation Protection Board (UK): http://www.nrpb.org.uk Updated 4/3/2002: US Food and Drug Administration http://www.fda.gov/cellphones
Standard Limited Warranty 164Standard Limited WarrantyWhat is Covered and For How Long? SAMSUNG TELECOMMUNICATIONS AMERICA, L.P. (“SAMSUNG”) warrants to the original purchaser (“Purchaser”) that SAMSUNG’s Phones and accessories (“Products”) are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase and continuing for the following specified period of time after that date:What is Not Covered? This Limited Warranty is conditioned upon proper use of Product by Purchaser. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, or modification of any part of Product, including antenna, or cosmetic damage; (b) equipment that has the serial number removed or made illegible; (c) any plastic surfaces or other externally exposed parts that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of Product in conjunction with accessories, products, or ancillary/peripheral equipment not furnished or approved by SAMSUNG; (e) defects or damage from improper testing, operation, maintenance, installation, or adjustment; (f) installation, maintenance, and service of Product, or (g) Product used or purchased outside the Phone 1 YearBatteries 1 YearLeather Case/ Pouch 90 DaysHolster 90 DaysOther Phone Accessories 1 Year
Standard Limited Warranty 165United States or Canada. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery, (ii) any of the seals on the battery are broken or show evidence of tampering, or (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified. What are SAMSUNG’s Obligations? During the applicable warranty period, SAMSUNG will repair or replace, at SAMSUNG’s sole option, without charge to Purchaser, any defective component part of Product. To obtain service under this Limited Warranty, Purchaser must return Product to an authorized phone service facility in an adequate container for shipping, accompanied by Purchaser’s sales receipt or comparable substitute proof of sale showing the date of purchase, the serial number of Product and the sellers’ name and address. To obtain assistance on where to deliver the Product, call Samsung Customer Care at 1-888-987-4357. Upon receipt, SAMSUNG will promptly repair or replace the defective Product. SAMSUNG may, at SAMSUNG’s sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product or replace Product with a rebuilt, reconditioned or new Product. Repaired/replaced leather cases, pouches and holsters will be warranted for a period of ninety (90) days. All other repaired/replaced Product will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer. All replaced parts, components, boards and equipment shall become
Standard Limited Warranty 166the property of SAMSUNG. If SAMSUNG determines that any Product is not covered by this Limited Warranty, Purchaser must pay all parts, shipping, and labor charges for the repair or return of such Product.What Are the Limits On SAMSUNG’s Liability? EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED HEREIN, PURCHASER TAKES THE PRODUCT “AS IS,” AND SAMSUNG MAKES NO WARRANTY OR REPRESENTATION AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO:♦THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE;♦WARRANTIES OF TITLE OR NON-INFRINGEMENT;♦DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT;♦THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR♦COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW, INCLUDING IF APPLICABLE THE IMPLIED WARRANTIES OF MERCHANTABILITY
Standard Limited Warranty 167AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF TIME AS THE EXPRESS WRITTEN WARRANTY STATED HEREIN. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USE THE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM THE USE OR LOSS OF USE OF THE PRODUCT OR FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES ARISING FROM ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY SAMSUNG, ITS AGENTS OR EMPLOYEES, OR FOR ANY BREACH OF CONTRACT OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE/PROVINCE TO PROVINCE. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES
Standard Limited Warranty 168PURCHASER’S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAW PERMITS.THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE THIRD-PARTY SOFTWARE OR EQUIPMENT IN CONJUNCTION WITH THE PRODUCT. SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR EQUIPMENT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT. THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE PURCHASER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT, AS THE CASE MAY BE.This Limited Warranty allocates risk of Product failure between Purchaser and SAMSUNG, and SAMSUNG’s
Standard Limited Warranty 169Product pricing reflects this allocation of risk and the limitations of liability contained in this Limited Warranty. The agents, employees, distributors, and dealers of SAMSUNG are not authorized to make modifications to this Limited Warranty, or make additional warranties binding on SAMSUNG. Accordingly, additional statements such as dealer advertising or presentation, whether oral or written, do not constitute warranties by SAMSUNG and should not be relied upon.Samsung Telecommunications America, L.P. 1130 East Arapaho Road Richardson, Texas 75081 Phone: 1-800-SAMSUNG Phone: 1-888-987-HELP (4357) ©2002 Samsung Telecommunications America. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice. [080802]
Standard Limited Warranty 170
1AAccessories •, 9Active Flip •, 105Alarm (5.4) •, 114Alert type (3.3) •, 93Answeringa call •, 28a second call •, 56Anykey Answer •, 105Auto Power •, 114Auto redial (4.5), 105BBackground Image •, 98Backlight •, 17Batterycharging •, 21low battery indicator •, 23precautions •, 137CCalculator (5.5) •, 114Calendar (5.1) •, 107Caller ID (7.4) •, 122Callsansweringa call • , 28a second call •, 56

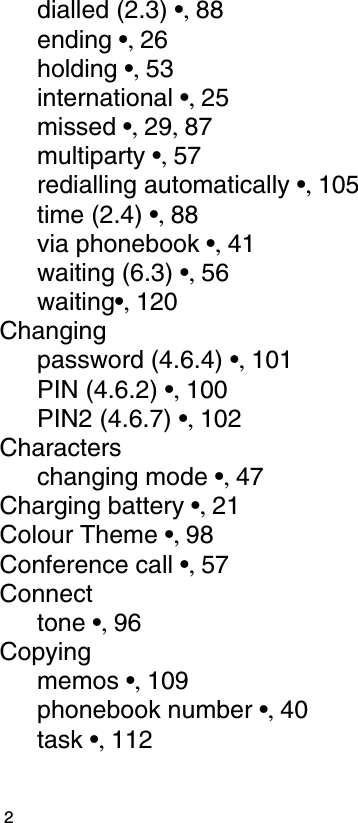

2dialled (2.3) •, 88ending •, 26holding •, 53international •, 25missed •, 29, 87multiparty •, 57redialling automatically •, 105time (2.4) •, 88via phonebook •, 41waiting (6.3) •, 56waiting•, 120Changingpassword (4.6.4) •, 101PIN (4.6.2) •, 100PIN2 (4.6.7) •, 102Characterschanging mode •, 47Charging battery •, 21Colour Theme •, 98Conference call •, 57Connecttone •, 96Copyingmemos •, 109phonebook number •, 40task •, 112

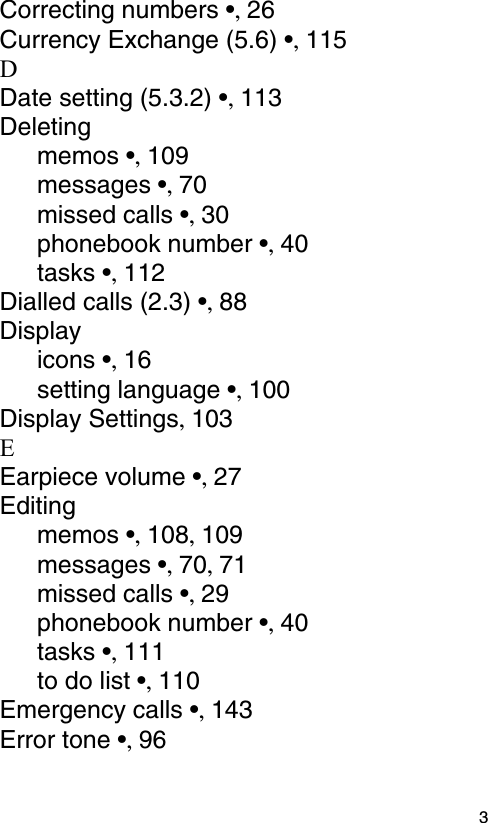

3Correcting numbers •, 26Currency Exchange (5.6) •, 115DDate setting (5.3.2) •, 113Deletingmemos •, 109messages •, 70missed calls •, 30phonebook number •, 40tasks •, 112Dialled calls (2.3) •, 88Displayicons •, 16setting language •, 100Display Settings, 103EEarpiece volume •, 27Editingmemos •, 108, 109messages •, 70, 71missed calls •, 29phonebook number •, 40tasks •, 111to do list •, 110Emergency calls •, 143Error tone •, 96

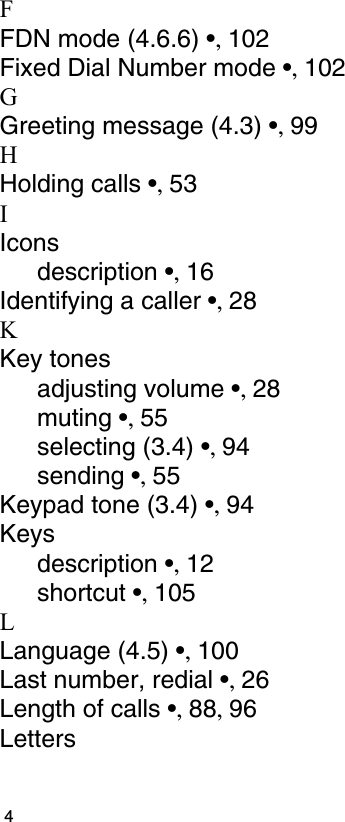

4FFDN mode (4.6.6) •, 102Fixed Dial Number mode •, 102GGreeting message (4.3) •, 99HHolding calls •, 53IIconsdescription •, 16Identifying a caller •, 28KKey tonesadjusting volume •, 28muting •, 55selecting (3.4) •, 94sending •, 55Keypad tone (3.4) •, 94Keysdescription •, 12shortcut •, 105LLanguage (4.5) •, 100Last number, redial •, 26Length of calls •, 88, 96Letters
5changing mode •, 47Lightbacklight •, 17service •, 18LockingSIM card (4.6.5) •, 102Low battery indicator •, 23Lower-case charactersentering •, 49MMemory Statusphonebook •, 45Memoscopying •, 109deleting •, 109editing •, 108, 109writing •, 114Menusaccessing by scroll •, 61accessing by shortcuts •, 62list •, 62Message tone (3.5) •, 94Messagessetup (1.4) •, 74templates (1.3) •, 73writing (1.2) •, 71
6Microphone mute •, 54Minute minder •, 96Missed calls (1.1) •, 29, 87Morning Call, 114Multiparty callsdropping •, 58making •, 57private conversation •, 58Mutingkey tones •, 55microphone •, 54NNamessearching/dialling •, 41storing •, 37Network selection (7.3) •, 121Numberscopying phonebook •, 40correcting •, 26erasing •, 40fixed dial •, 102own •, 99pasting phonebook •, 40searching/dialling •, 41storing •, 37
7OOwn number (4.4) •, 99PPasswordphonechanging •, 101description •, 131Phonecare and maintenance •, 145password •, 131Phonebookcopying •, 40editing •, 40erasing •, 40options •, 40pasting •, 40searching/dialling •, 41speed-dialling •, 44storing numbers/names •, 37PINchanging •, 100checking •, 100description •, 132PIN2changing •, 102description •, 133
8PUK •, 132PUK2 •, 133RRadio-frequency •, 135Rediallingautomatically •, 105last number •, 26Reset setting (4.10) •, 106Ringtone (3.1) •, 93type (3.3) •, 93volume (3.2) •, 93Road safety •, 139Roaming •, 121SSafetyquick guide •, 7Schedule •, 107Searching in phonebook •, 41Sendingkey tones •, 55messages •, 71Service light •, 18Settingalarm (5.4) •, 114date (5.3.2) •, 113

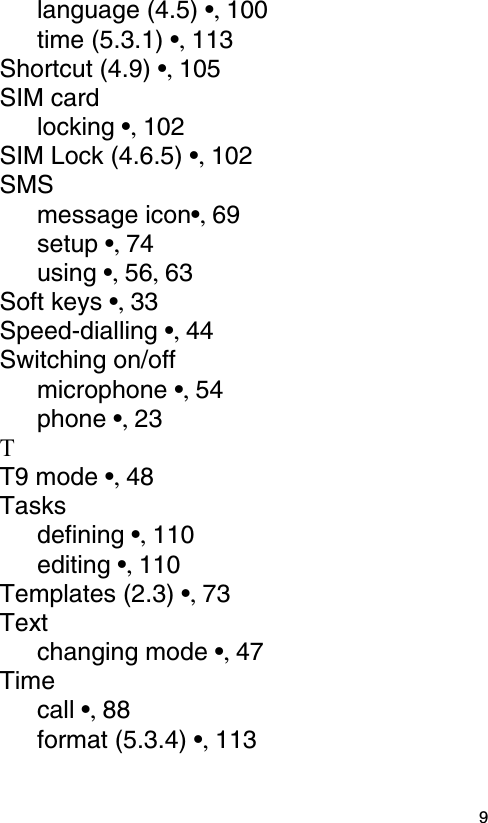

9language (4.5) •, 100time (5.3.1) •, 113Shortcut (4.9) •, 105SIM cardlocking •, 102SIM Lock (4.6.5) •, 102SMSmessage icon•, 69setup •, 74using •, 56, 63Soft keys •, 33Speed-dialling •, 44Switching on/offmicrophone •, 54phone •, 23TT9 mode •, 48Tasksdefining •, 110editing •, 110Templates (2.3) •, 73Textchanging mode •, 47Timecall •, 88format (5.3.4) •, 113
10setting (5.3.1) •, 113world (5.3.3) •, 113To do list (5.2) •, 110Toneconnect •, 96error •, 96keypad •, 94message •, 94ring •, 93Travel adapter •, 21UUnpacking •, 8, 9Upper-case charactersentering •, 49VVibration •, 93Voice server •, 77Volumeadjusting •, 27selecting the ring •, 93WWaitingcall •, 56Waiting call •, 120World time (5.3.3) •, 113Write messages (2.2) •, 71
11Writing memos •, 114
12

Navigation menu
