Samsung Electronics Co SGHS307 GSM 850/1900 Dual Band Mobile Phone User Manual User WAP Manual

Samsung Electronics Co Ltd GSM 850/1900 Dual Band Mobile Phone User WAP Manual

Contents

User WAP Manual

SGH-S307WAP BrowserUser’s ManualELECTRONICS* Some of the contents in this manual may differ from your phone,depending on the software installed or your service provider.Printed in KoreaCode No.: GH68-xxxxxAEnglish. 12/2002. Rev. 1.0World Wide Webhttp://www.samsungmobile.com
2 What is WAP? WAP (Wireless Application Protocol) is the gateway to a new world of mobile data. It provides a universal standard, enabling you to access web-based interactive information services and applications directly from your mobile phone. 3 Contents About the WAP Browser............................ 4Setting Up the WAP Browser..................... 5 Accessing the WAP Browser ...................... 5Configuring the WAP Browser .................... 7Starting the WAP Browser......................... 10Exiting the WAP Browser .......................... 10 Using the WAP Browser ............................ 11 Using the Soft Keys.................................. 11Navigating the WAP Browser ..................... 11Entering Text, Numbers or Symbols ........... 12 Using the WAP Browser Menus ................. 13 Using and Selecting Menu Options ............. 13Reload ................................................... 13Home..................................................... 13Go to URL............................................... 14Show URL............................................... 14Edit Home .............................................. 15Inbox..................................................... 15
4 About the WAP Browser Your phone comes equipped with a WAP (Wireless Application Protocol) browser, making it possible for you to access the Wireless Web.The WAP Browser allows you to:• access up-to-the-minute information via your phone• view specially designed text versions of popular Internet sites including Yahoo! ® , CNN Mobile SM and the Weather Channel ® Browsing the Wireless Web using your phone is unlike using your computer, in that site providers have:• selected only the critical aspects of their site for wireless phone users• removed most graphicsEach time you start the WAP Browser, the phone connects to the Wireless Web and the service indicator icon ( ) appears on the display to inform you that you are:• are connected to the Wireless Web• will be billed accordingly (rates vary according to your service option)The WAP Browser ends the network connection after a certain period of inactivity and automatically reconnects as necessary. For this reason, you may find that you are billed for several network connections within a single session. This is normal and is designed to minimize your bill. 5 Setting Up the WAP Browser Accessing the WAP Browser To enter the WAP Browser menu to access the WAP browser:1. When the idle screen is displayed, press the Menu soft key to enter menu mode.2. Press the or key until the Funbox menu option is displayed, and then press the Select soft key. You can also press the key directly.Service Provider05:17Sat 02 OctMenu Name7FunboxFunbox Network Services MessagesSelect
Setting Up the WAP Browser 6 3. Press the or key one or more times to highlight WAP Browser , then press the Select soft key. You can also press the key directly.4. Press the or key one or more times to highlight the required option and then press the Select soft key. Option DescriptionHome Connects the phone to the network and loads the homepage of the Wireless Web service provider. Favorite Allows you to store the URL addresses of your favourite Web sites. You can access this menu directly by pressing and holding the key while using the WAP Browser. 7.27.1 Funbox Games Downloads WAP BrowserSelect7.2.17.1.2 WAP Browser Home Favorite http:// Settings Clear Cache Select Setting Up the WAP Browser 7 Configuring the WAP Browser To configure the WAP Browser:1. In the WAP Browser menu, highlight Settings using the and keys, and then press the Select soft key. You can also press the key directly. Favorite (continued) To store a URL address, select an empty location and enter the address. Three submenus are available:• Goto URL : quickly accesses you to the site.• Edit : edits the selected address.• Erase : deletes the selected address. http:// Allows you to manually enter the URL address of the website that you want to access. Clear Cache Clears the information stored in the cache (the phone’s temporary memory used to store the most recently accessed Web pages). Push Message Allows you to set whether or not you will receive Web messages from the server, and read or delete the messages received. Option Description

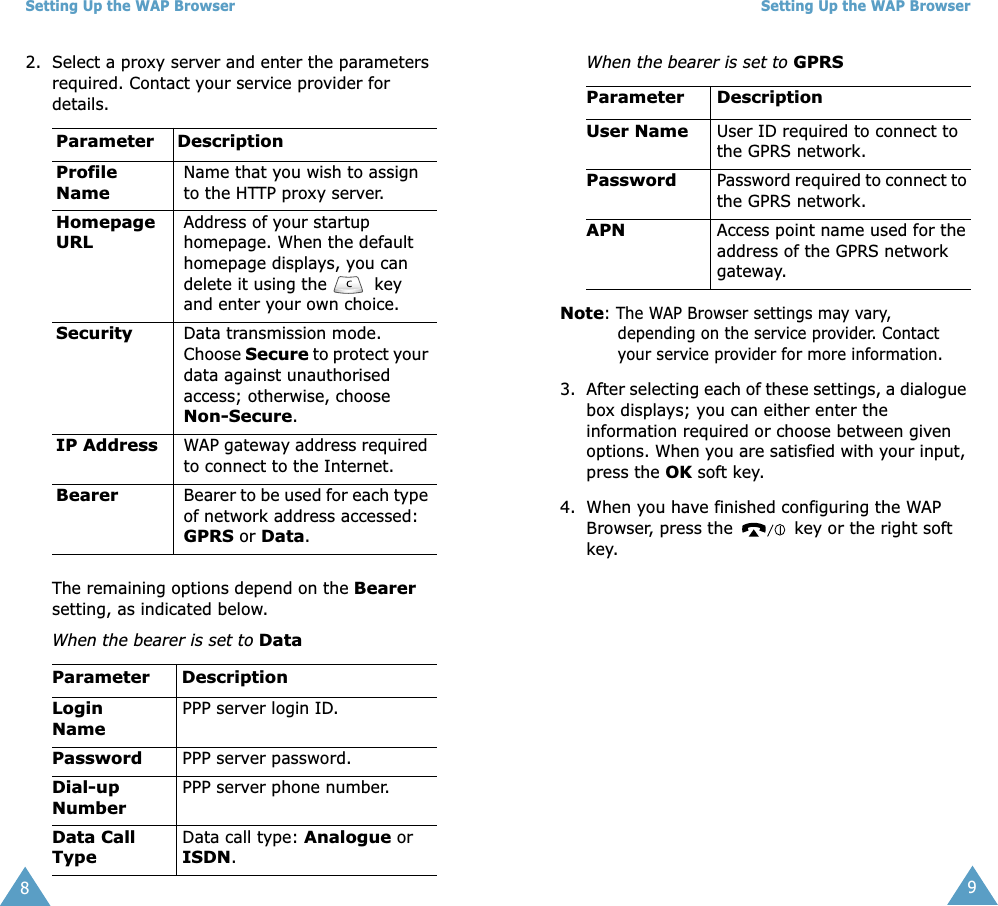

Setting Up the WAP Browser 8 2. Select a proxy server and enter the parameters required. Contact your service provider for details.The remaining options depend on the Bearer setting, as indicated below. When the bearer is set to DataParameter DescriptionProfile Name Name that you wish to assign to the HTTP proxy server. HomepageURL Address of your startup homepage. When the default homepage displays, you can delete it using the key and enter your own choice. Security Data transmission mode. Choose Secure to protect your data against unauthorised access; otherwise, choose Non-Secure . IP Address WAP gateway address required to connect to the Internet. Bearer Bearer to be used for each type of network address accessed: GPRS or Data . Parameter DescriptionLogin Name PPP server login ID. Password PPP server password. Dial-up Number PPP server phone number. Data Call Type Data call type: Analogue or ISDN . Setting Up the WAP Browser 9 When the bearer is set to GPRSNote : The WAP Browser settings may vary, depending on the service provider. Contact your service provider for more information. 3. After selecting each of these settings, a dialogue box displays; you can either enter the information required or choose between given options. When you are satisfied with your input, press the OK soft key.4. When you have finished configuring the WAP Browser, press the key or the right soft key. Parameter DescriptionUser Name User ID required to connect to the GPRS network. Password Password required to connect to the GPRS network. APN Access point name used for the address of the GPRS network gateway.
10 Getting Started Starting the WAP Browser To start the WAP Browser when the idle screen displays, press the key or press the Menu soft key, followed by the , and keys.A connection is established with your service provider and the corresponding homepage displays. The content of the WAP Browser startup homepage depends on your Wireless Web service provider. To scroll through the screen, use the and keys. Note : To access the startup homepage from any other screen in the WAP Browser, use the Home option. For more information on the WAP Browser menus, refer to page 13. Exiting the WAP Browser To exit the browser at any time, simply press the key or press and hold the key. 11 Using the WAP Browser Using the Soft Keys A bar containing browser commands is located at the bottom of the WAP Browser display. The soft keys below the bar are used to execute these commands. The two keys are called soft keys because their function changes depending on the WAP Browser application in use. Navigating the WAP Browser To Then scroll through and select browser itemspress the or key until the symbol points to the required item, and then press the OK soft key to confirm the selection. select a numbered itempress the corresponding numeric key.return to the previous pagepress the Back soft key or the key. return to the startup homepageselect the Home menu option; for more information on this option, refer to page 13.
Using the WAP Browser 12 Entering Text, Numbers or Symbols When you are prompted to enter text, the current text entry mode is indicated on the screen. The following modes are available: Note: To enter symbols, press the key until the required symbol displays. Mode Description Allows you to enter letters in the alphabet. Press the corresponding key until the required letter displays. Allows you to enter numbers. To Then change modespress the key one or more times.enter a spacepress the key.edit text• set the cursor to the right of the character(s) to be corrected.• press the key as required.• enter the correct character(s). 13 Using the WAP Browser Menus Using and Selecting Menu Options Various menu options are available when you are using the WAP Browser to navigate the Wireless Web.To access a menu option:1. Press and hold down the key. A menu displays.2. Highlight the required menu option by pressing the and keys.3. Select the option by pressing the Select soft key.4. If necessary, select the secondary option using the and keys, and press the Select soft key to confirm. Note : The menus may vary, depending on your version of the WAP Browser. Reload This option reloads the current page. Home This option takes you back at any time to the homepage of the Wireless Web service provider.
Using the WAP Browser Menus14Go to URLThis option allows you to manually enter the URL address of the required Web page.After entering an address, press the OK soft key to go there directly.Show URLThis feature displays the URL address of the site to which you are currently connected. It also enables you to declare the current site as the startup homepage. To Press thedeclare the current page as your startup homepageOption soft key, select the Save to Home option and press Select.set a bookmark for the current pageOption soft key, select the Save to Bookmark option and press Select.cancel your settingBack soft key.Using the WAP Browser Menus15Edit HomeWith this feature, you can change the startup homepage manually. To change the homepage, enter the required URL and press the OK soft key.For more information on entering text, numbers or symbols, refer to page 12.InboxThis menu allows you to read messages received from the web server.
