Users Manual 1
UVED1_1.1_WCx495_040905_d1
SGH-x495 Series_Draft
PORTABLE Tri-Mode
TELEPHONE
User Guide
Please read this manual before operating your
phone, and keep it for future reference.
x495.book Page 1 Saturday, April 9, 2005 4:23 PM
Intellectual Property
All Intellectual Property, as defined below, owned by or which is
otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to,
accessories, parts, or software relating there to (the “Phone
System”), is proprietary to Samsung and protected under federal
laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or
unpatentable), patents, trade secrets, copyrights, software,
computer programs, and related documentation and other
works of authorship. You may not infringe or otherwise violate
the rights secured by the Intellectual Property. Moreover, you
agree that you will not (and will not attempt to) modify, prepare
derivative works of, reverse engineer, decompile, disassemble,
or otherwise attempt to create source code from the software. No
title to or ownership in the Intellectual Property is transferred to
you. All applicable rights of the Intellectual Property shall
remain with SAMSUNG and its suppliers.
Samsung Telecommunications America (STA),
L.P.
Headquarters: Customer Care Center:
1301 E. Lookout Drive 1601 E. Plano Parkway, Suite
150
Richardson, TX 75082 Plano, TX 75074
Tel: 972.761.7000 Toll Free Tel:
1.888.987.HELP
Internet Address: http://www.samsungusa.com
©2005 Samsung Telecommunications America, Inc. is a
registered trademark of Samsung Electronics America, Inc. and
its related entities.
Printed in South Korea
x495.book Page 2 Saturday, April 9, 2005 4:23 PM
Openwave® is a registered Trademark of Openwave, Inc.
RSA® is a registered Trademark RSA Security, Inc.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY
CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH
THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS
IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT
TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE
MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR
ANY PARTICULAR PURPOSE OR USE; THE DESIGN,
CONDITION OR QUALITY OF THE PRODUCT; THE
PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP
OF THE PRODUCT OR THE COMPONENTS CONTAINED
THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE
REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR
CONTRACT PERTAINING THERETO. NOTHING
CONTAINED IN THE INSTRUCTION MANUAL SHALL BE
CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT
TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE
LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING
FROM THE PURCHASE OR USE OF THE PRODUCT OR
ARISING FROM THE BREACH OF THE EXPRESS WARRANTY,
INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR
BENEFITS.
x495.book Page 3 Saturday, April 9, 2005 4:23 PM
x495.book Page 4 Saturday, April 9, 2005 4:23 PM
Table of Contents 1
Table of Contents
Table of Contents
Section 1: Getting Started .................................5
Activating Your Phone ......................................................6
Switching the Phone On or Off ........................................10
Setting Up Your Voice Mail .............................................11
Section 2: Understanding Your Phone ............13
Features of Your Phone ..................................................14

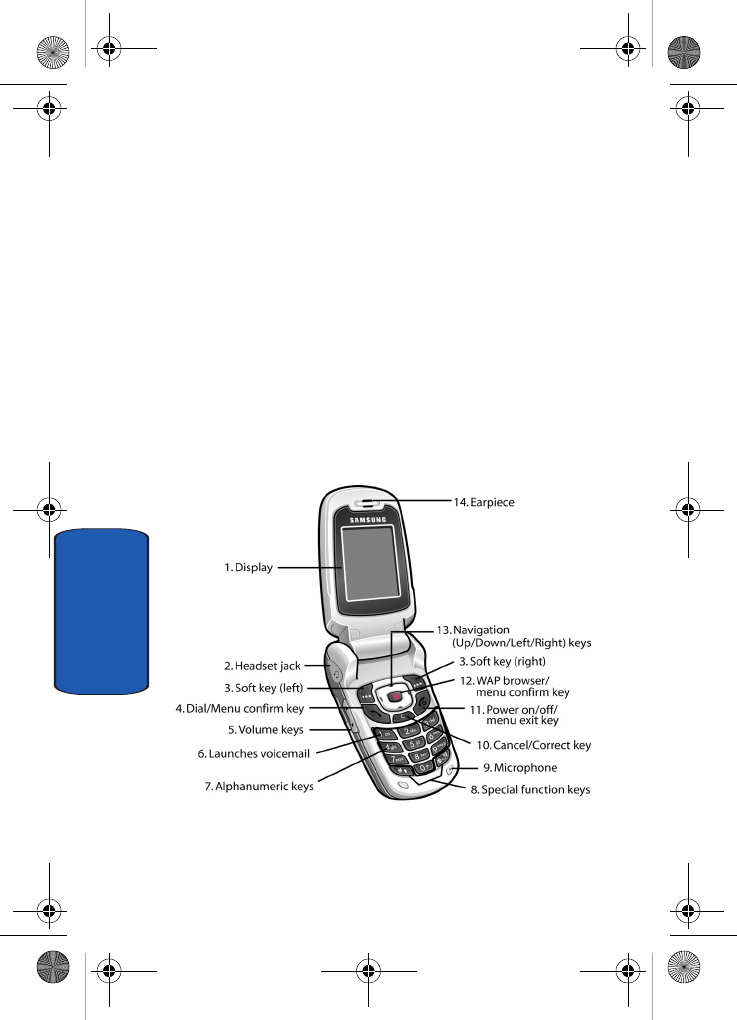

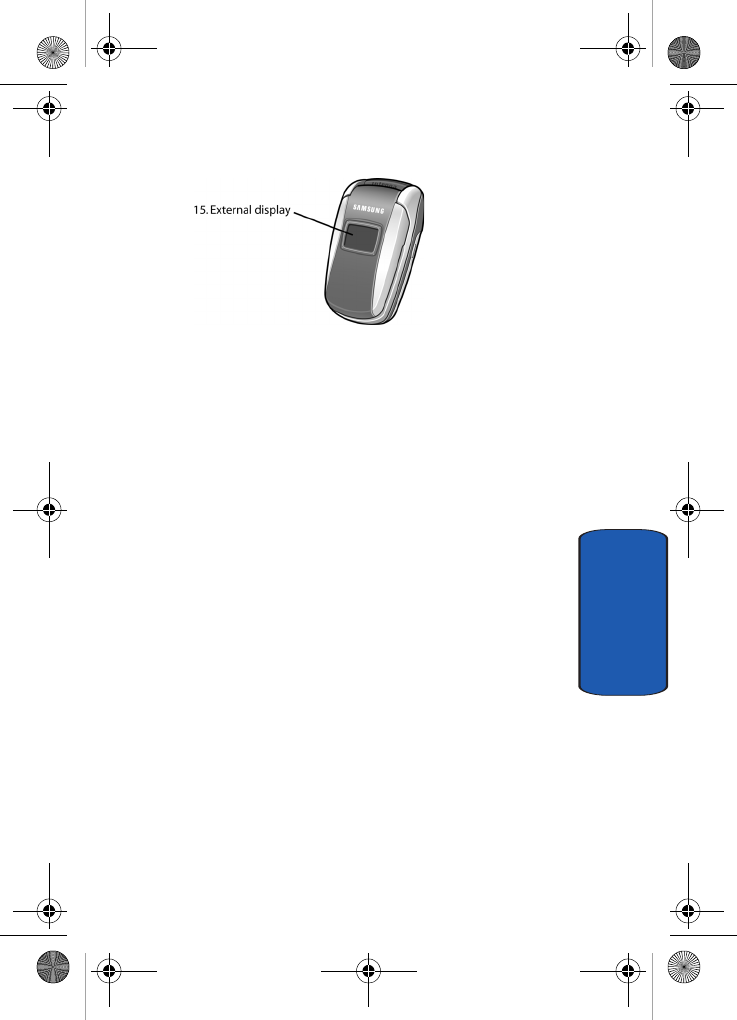

View of Your Phone ........................................................14
Keys ...............................................................................15
Understanding the Display Screen ..................................17
Section 3: Call Functions .................................19
Making a Call .................................................................20
Adjusting the Call Volume ...............................................22
Answering a Call ............................................................22
Call Log ..........................................................................23
Silent Mode ....................................................................25
Selecting Functions and Options ....................................26
Section 4: Menu Navigation ............................35
Menu Navigation ............................................................36
Menu Outline .................................................................37
Section 5: Entering Text ..................................43
Changing the Text Entry Mode ........................................44
Using T9 Mode ...............................................................45
Using ABC Mode ............................................................47
Using Symbols ...............................................................48
Using Numbers ..............................................................49
Section 6: Understanding Your Phonebook ....51
Finding a Phonebook Entry .............................................52
Storing a Number in the Phone’s Memory ......................52
Storing a Number in the SIM Memory .............................54
x495.book Page 1 Saturday, April 9, 2005 4:23 PM
Table of Contents
2
Dialing a Number from Phonebook .................................55
Dialing a Number from the SIM Card ..............................55
Speed Dialing .................................................................55
Copying SIM Phonebook Entries to Phone .......................56
Deleting all Phonebook Entries .......................................57
Group Settings ...............................................................57
Finding My Own Number ................................................58
Checking the Memory Status ..........................................58
Service Dialing Numbers ................................................59
Section 7: Messaging ......................................61
Types of Messages .........................................................62
Voice messages .............................................................62
Text Messages ...............................................................63
Picture Messages ...........................................................68
Browser Messages .........................................................75
Voice Mail Messages ......................................................75
Broadcast Messages (SIM Dependent) ............................75
Settings ..........................................................................76
IM (Instant Messaging) ...................................................78
Memory Status ...............................................................79
Section 8: Changing Your Settings .................85
Sound Settings ...............................................................86
Phone Settings ...............................................................89
Section 9: Organizer ......................................103
Alarm ...........................................................................104
Calendar .......................................................................105
Calculator .....................................................................108
To Do List .....................................................................108
Voice Memo .................................................................110
Conversion ...................................................................111
Timer ...........................................................................112
Stopwatch ....................................................................112
x495.book Page 2 Saturday, April 9, 2005 4:23 PM
Table of Contents 3
Table of Contents
Section 10: Funbox ........................................113
t-zones ........................................................................114
Sounds ........................................................................114
Images .........................................................................114
Games .........................................................................115
Delete All .....................................................................118
Memory Status .............................................................118
Section 11: t-zones ........................................119
t-zones ........................................................................120
Section 12: Health and Safety Information ...129
Health and Safety Information ......................................130
Consumer Information on Wireless Phones ...................132
Road Safety .................................................................142
Operating Environment .................................................144
Using Your Phone Near Other Electronic Devices ..........144
Potentially Explosive Environments ...............................146
Emergency Calls ..........................................................147
FCC Notice and Cautions ..............................................148
Other Important Safety Information ...............................149
Product Performance ...................................................150
Availability of Various Features/Ring Tones ...................151
Battery Standby and Talk Time .....................................152
Battery Precautions ......................................................152
Care and Maintenance .................................................154
Section 13: Warranty Information .................157
Standard Limited Warranty ...........................................158
Intellectual Property Statement ....................................164
Samsung Telecommunications America (STA), L.P. ......165
x495.book Page 3 Saturday, April 9, 2005 4:23 PM
Table of Contents
4
x495.book Page 4 Saturday, April 9, 2005 4:23 PM
Section 1: Getting Started 5
Section 1
Section 1: Getting Started
Topics Covered
• Activating Your Phone
• Switching On or Off the Phone
• Setting Up Your Voicemail
This section allows you to start using your phone by
activating your service and setting up your voice mail.
x495.book Page 5 Saturday, April 9, 2005 4:23 PM
6
Section 1
Activating Your Phone
When you subscribe to a cellular network, you are
provided with a plug-in SIM card loaded with your
subscription details, such as your PIN, any optional
services available, and many others.
Installing the SIM Card
Important! The plug-in SIM card and its contacts can be easily damaged
by scratching or bending, so be careful when handling, inserting, or
removing the card.
Keep all SIM cards out of reach of small children.
If necessary, switch off the phone by holding down the
key until the power-off image displays.
Remove the battery. To do so:
1. Slide the battery lock toward the top of the phone and
hold it in that position.
2. Lift the battery away, as shown.
x495.book Page 6 Saturday, April 9, 2005 4:23 PM
Section 1: Getting Started 7
Activating Your Phone
Section 1

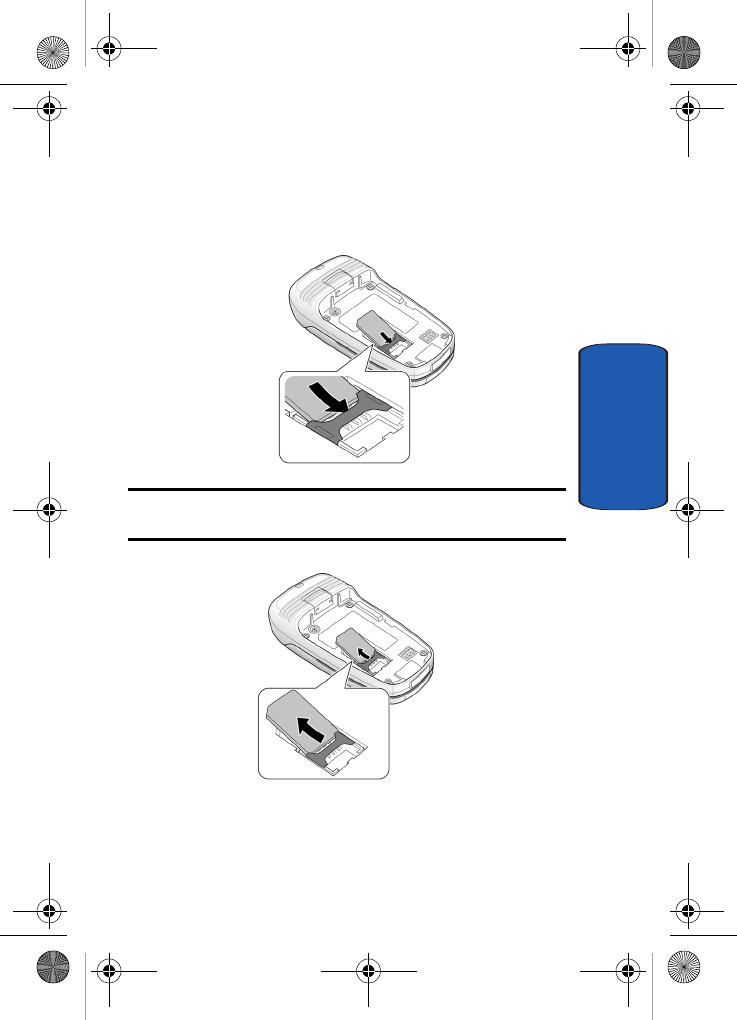

3. Slide the SIM card into the SIM card socket so that the
card locks into place. Make sure the gold contacts of the
card face into the phone.
Note: When you need to remove the SIM card, slide it, as shown, and
take it out of the socket.
x495.book Page 7 Saturday, April 9, 2005 4:23 PM
8
Section 1

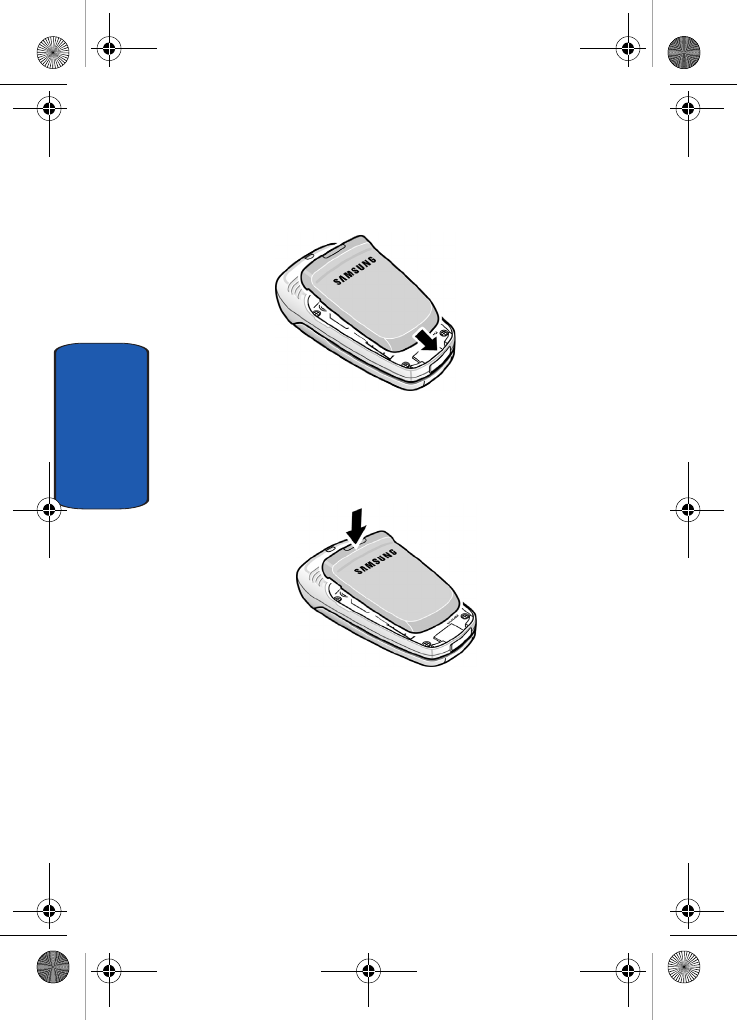

4. Place the battery so that the tabs on the end align with
the slots at the bottom of the phone.
5. Press the battery down until it clicks into place. Make
sure that the battery is properly installed before
switching on the phone.
Charging a Battery
Your phone is powered by a rechargeable Li-ion battery. A
travel adapter comes with your phone for charging the
battery. Use only approved batteries and chargers. Ask
your local Samsung dealer for further details.
You can use the phone while the battery is charging, but
this causes the phone to charge more slowly.
x495.book Page 8 Saturday, April 9, 2005 4:23 PM
Section 1: Getting Started 9
Activating Your Phone
Section 1
Note: You must fully charge the battery before using your phone for the
first time. A discharged battery recharges fully in approximately
200 minutes.
1. With the battery in position on the phone, remove the
jack cover at the bottom of the phone and plug the
connector of the travel adapter into the jack.
2. Plug the adapter into a standard AC wall outlet.
3. When charging is finished, unplug the adapter from the
power outlet and disconnect it from the phone by
pressing the buttons on both sides of the connector (1)
and pulling the connector out (2).
x495.book Page 9 Saturday, April 9, 2005 4:23 PM
10
Section 1
Note: You must unplug the adapter before you remove the battery from the
phone during charging; otherwise, the phone could be damaged.
Low Battery Indicator
When the battery is weak and only a few minutes of talk
time remain, a warning tone sounds and the “Warning
Low Battery” message repeats at regular intervals on the
display. When this happens, your phone turns off the
backlight to conserve the remaining battery power.
When the battery level becomes too low, the phone
automatically turns off.
Switching the Phone On or Off
1. Open the phone.
2. Press and hold the key until the phone switches on.
3. If the phone asks you to enter the phone password, enter
the password and press the OK soft key or the key.
The password is preset to “00000000” at the factory. For
further details, see "Change Password" on page 95.
4. If the phone asks for a PIN, enter the PIN and press the
OK soft key or the key. For further details, see "PIN
Check" on page 94.
The phone searches for your network and after finding it,
the Idle screen appears. Now, you can make or receive
calls.
x495.book Page 10 Saturday, April 9, 2005 4:23 PM
Section 1: Getting Started 11
Setting Up Your Voice Mail
Section 1
Note: The display language is preset to English at the factory. To change
the language, use the Language menu. For further details, see
"Language" on page 93.
5. When you wish to switch off the phone, press and hold
the key until the power-off image displays.
Setting Up Your Voice Mail
To access you voice mail from your keypad, use the
following steps:
1. In Idle mode, press and hold the key on the keypad.
You are prompted to enter the password.
2. Follow the tutorial to create a password, a greeting, and
your name.
Accessing Your Voice Mail
You can access your Voice Mail by pressing the key on
the keypad or by going to the menu. To access Voice Mail
using the menu:
1. In Idle mode, press the Menu soft key to access Menu
mode.
2. Highlight Messages and press the Select soft key or the
key.
3. Highlight Voice mail and press the Select soft key or the
key.
4. Highlight Call voice mail and press the Select soft key
or the key. Your phone dials the specified voice mail
number.
x495.book Page 11 Saturday, April 9, 2005 4:23 PM
12
Section 1
5. When connected, follow the voice prompts from the
voice mail center.
Changing the Voice Mail Number
Your SIM card gives you the default service number of the
voice mail center. However, you may need to change the
number. Use the following procedures to change your
voice mail number.
1. In Idle mode, press the Menu soft key to access the
Menu mode.
2. Highlight Messages and press the Select soft key or the
key.
3. Highlight Voice mail and press the Select soft key or the
key.
4. Highlight Voice server number and press the Select
soft key or the key. Select the Voice server 1 option
and press the Select soft key or the key.
5. Highlight Voice mail and press the Select soft key or the
key.
6. Highlight Edit number and press the Select soft key or
the key.
7. After editing the number, press the OK soft key to save
the update.
You may also select the option to edit the voice mail
name or delete the voice mail number.
8. Press the key to return to Idle mode.
x495.book Page 12 Saturday, April 9, 2005 4:23 PM
Section 2: Understanding Your Phone 13
Section 2
Section 2: Understanding Your Phone
Topics Covered
• Features of Your Phone
• Front View of Your Phone
•Keys
• Understanding the Display Screen
This section outlines some key features of your phone. It
also displays the screen and the icons that are displayed
when the phone is in use.
x495.book Page 13 Saturday, April 9, 2005 4:23 PM
14
Section 2
Features of Your Phone
Your phone is lightweight, easy-to-use and offers many
significant features. The following list outlines a few of
the features included in your phone.
• User friendly, menu driven access to features and options.
• Instant Messaging capability.
• Multimedia capability.
• Organizer feature provides calendar, to-do list, alarms,
calculator, and conversion capability.
View of Your Phone
The following illustrations show the main elements of
your phone:
x495.book Page 14 Saturday, April 9, 2005 4:23 PM
Section 2: Understanding Your Phone 15
Keys
Section 2
Keys
The following list correlates to the illustrations.
1. Display area where text and graphics are displayed.
2. The headset jack is used for the hands-free headset.
3. Performs the functions indicated by the screen text on
the bottom line of the display.
4. Makes or answers a call.
In Idle mode, recalls the last number dialed or received
when held down.
In Menu mode, selects a menu function or stores
information that you have entered, such as a name in
the phone or SIM memory.
5. During a call, adjusts the earpiece volume.
In Idle mode with the phone open, adjusts the keypad
tone volume. With the phone closed, turns on the
external display when held down.
6. In Idle mode, accesses voice mail when held down.
7. Enters numbers, letters, and some special characters.
x495.book Page 15 Saturday, April 9, 2005 4:23 PM
16
Section 2
8. Enters special characters. Performs various functions.
9. The microphone used during phone calls and voice
memo recordings.
10.Deletes characters from the display.
In Menu mode, returns you to the previous menu level.
11.Ends a call. Also switches the phone on and off when
held down.
In Menu mode, cancels your input and returns the phone
to Idle mode.
12.In Idle mode, launches the WAP (Wireless Application
Protocol) browser.
In Menu mode, selects the highlighted menu options.
13.In Menu mode, scrolls through the menus and
Phonebook.
In Idle mode, the Down key allows you to access the
Phonebook Search menu directly. For more information
about shortcuts, see "Using Shortcuts" on page 36.
When entering text, moves the cursor to the left or right,
depending on which side you push.
14.The earpiece is used to listen to audio from your phone.
15.The external display shows the received signal strength,
the phone battery level, the date and time.
x495.book Page 16 Saturday, April 9, 2005 4:23 PM
Section 2: Understanding Your Phone 17
Understanding the Display Screen
Section 2
Understanding the Display Screen
The display has 3 areas:
Icons
Shows the received signal strength. The greater the
number of bars, the stronger the signal.
Appears when a new text message has been received.
Appears when a new voice mail has been received.
Appears when a new multimedia message has been
received.
Appears when a new e-mail has been received.
Appears when you set an alarm to ring at a specified
time. For details, see page "Alarm" on page 104.
Appears when you are out of your service area.
Appears when a call is in progress.
Appears when you are connected to a WAP service.
Appears when the Call Forwarding feature is active. For
details, see page "Call Forwarding" on page 114.
x495.book Page 17 Saturday, April 9, 2005 4:23 PM
18
Section 2
Appears when Alert type is set to vibration.
Appears when Silent mode is active.
Appears when Mute is active.
Shows the level of your battery. The more bars you see,
the more power you have remaining.
Backlight
A backlight illuminates the display and the keypad.
When you press any key or open the phone, the backlight
comes on. It goes off when no keys are pressed within a
given period of time, depending on the setting in the Back
light menu. The display turns off after one minute to
conserve battery power.
To specify the length of time the backlight is active, set the
Back light menu. See "Back Light" on page 92 for further
details.
External Display
Your phone has an external display on the front of the
phone. It indicates when you have an incoming call, a
missed call, or a message. It also alerts you at a specified
time when you have set an alarm. See "Alarm" on page 104
for further details. The backlight turns on and the
corresponding icon appears on the external display.
When you close the phone, the display shows the date and
current time on a digital clock.
x495.book Page 18 Saturday, April 9, 2005 4:23 PM
Section 3: Call Functions 19
Section 3
Section 3: Call Functions
Topics Covered
• Making a Call
• Adjusting the Call Volume
• Answering a Call
•Call Log
• Silent Mode
This section allows you to make or answer a call. It also
includes the features and functionality associated with
making or answering a call.
x495.book Page 19 Saturday, April 9, 2005 4:23 PM
20
Section 3
Making a Call
When the idle screen displays, enter the area code and
phone number, and press the key.
Note: When you activate the Auto redial option in the Extra settings menu,
the phone will automatically redial up to 10 times when the person does
not answer the call or is already on the phone. See "Extra Settings" on
page 97 for further details.
Making an International Call
1. Press and hold the 0 key. The + character appears.
2. Enter the country code, area code, and phone number
and press the key.
Correcting the Number
1. To clear the last digit displayed, press the C key.
2. To clear any other digit in the number, press the Left or
Right key until the cursor is immediately to the right of
the digit to be cleared. Press the C key. You can also
enter a missing digit.
3. To clear the whole display, press and hold the C key.
Ending a Call
When you want to finish your call, briefly press the
key.
Redialing the Last Number
The phone stores the numbers of the calls you’ve dialed,
received, or missed if the call recipient or caller is
identified. See "Caller ID" on page 116 for further details.
To recall any of these numbers:
x495.book Page 20 Saturday, April 9, 2005 4:23 PM
Section 3: Call Functions 21
Making a Call
Section 3
1. If you have typed characters on the display, press the
key to return to Idle mode.
2. Press the key to display a list of the most recent
numbers used in the order you dialed or received them.
3. Use the Up and Down keys to scroll through the
numbers until the number you want highlights.
4. To dial the number, press the key or the key.
Before you dial the number, you also have the following
options:
• To see details of the number, press the Options soft key and
select Details. Press the Select soft key or the key.
• To call back the number, press the Options soft key and select
Call back. Press the Select soft key or the key. The number
is dialed.
• To send a text or picture message to the number, press the
Options soft key and select Send message. Press the Select
soft key or the key.
• To edit the number, press the Options soft key and select Edit.
Press the Select soft key or the key.
• To delete the number, press the Options soft key and select
Delete. Press the Select soft key or the key.
• To delete all of the numbers, press the Options soft key and
select Delete all. Press the Select soft key or the key.
Making a Call from the Phonebook
You can store phone numbers that you use regularly on
the SIM card or in the phone’s memory. These entries are
collectively called Phonebook.
Once you have stored a number in the Phonebook, you
can dial it by pressing a few keys. You can also assign your
x495.book Page 21 Saturday, April 9, 2005 4:23 PM
22
Section 3
most frequently-used numbers to number keys using the
Speed Dial feature.
For further details about the Phonebook feature, see
"Section 6: Understanding Your Phonebook" on page 51.
Adjusting the Call Volume
During a call, if you want to adjust the earpiece volume,
use the Volume keys on the left side of the phone.
Press the key to increase the volume level and the key
to decrease the level.
In Idle mode, you can also adjust the keypad tone volume
using these keys.
Answering a Call
When someone calls you, the phone rings and displays
the incoming call image.
x495.book Page 22 Saturday, April 9, 2005 4:23 PM
Section 3: Call Functions 23
Call Log
Section 3
The caller’s phone number, or name if stored in
Phonebook, displays.
1. If necessary, open the phone. Press the key or the
Accept soft key to answer the incoming call.
If the Anykey answer option is activated, you can press
any key to answer a call except for the key and the
Reject soft key. For further details about the Anykey
answer option, see "Extra Settings" on page 97.
If the Active Flip option is activated, you can answer the
call simply by opening the phone. For further details
about the Active Flip option, see "Extra Settings" on
page 97.
Note: To reject an incoming call, press and hold the Volume keys on the left
side of the phone before opening the phone, or press the Reject soft key or
key.
2. End the call by closing the phone or pressing the
key.
Note: You can answer a call while using the Phonebook or menu features.
After ending the call, the phone returns to the function screen you were
using.
Call Log
All incoming, outgoing and missed calls are listed in the
Call Log.
1. To access the Call Log option, press the key. A list of
calls displays.
x495.book Page 23 Saturday, April 9, 2005 4:23 PM
24
Section 3
2. Highlight one of the calls and press the Options soft key
or the key. You can use the different options to view
call details, call back, send a message, edit, or delete.
3. To place a call, press the key.
Viewing Missed Calls
When you are unable to answer a call for any reason, you
can find out who is calling you, if this service is available,
so that you can call the person back.
The number of calls you have missed displays on the idle
screen and the external display immediately after a call is
missed.
To view a missed call immediately:
1. If the phone is closed, open the phone.
2. Press the View soft key or the key.
The number corresponding to the most recent missed call
displays, if available.
3. To scroll through the missed calls, press the Up or Down
key.
4. To call the number displayed, press the key.
5. To edit or delete a missed call number, press the Select
soft key or the key. See below.
Editing a Missed Call Number
When the number corresponding to the missed call is not
available, the Edit number option does not display.
1. Press the Options soft key or the key.
2. Press the Up or Down key to highlight the Edit option.
x495.book Page 24 Saturday, April 9, 2005 4:23 PM
Section 3: Call Functions 25
Silent Mode
Section 3
3. Press the Select soft key or the key.
4. Change the number.
5. To call the number, press the key.
6. To store the number, press the Save soft key or the
key. Select a new entry, location, and enter a name.
Deleting a Missed Call
1. Press the Options soft key or the key.
2. If necessary, press the Up or Down key to highlight the
Delete option.
3. Press the Select soft key or the key.
You can press the key at any time to exit the Missed
Call feature.
Note: You can access the Missed Call feature at any time by selecting the
Missed calls menu.
Silent Mode
Silent mode is convenient when you wish to prevent the
phone from making noise, in a theater for example.
In Idle mode, press and hold the key until the “Silent
mode On” message and the Silent mode icon ( ) display.
In Silent mode, instead of sounds, your phone will
vibrate.
To exit and reactivate the previous sound settings, press
and hold the key again until the “Exit Silent Mode”
message appears. The Silent mode icon ( ) no longer
displays.
x495.book Page 25 Saturday, April 9, 2005 4:23 PM
26
Section 3
Selecting Functions and Options
Your phone offers a set of functions that allow you to
customize it. These functions are arranged in menus and
sub-menus, accessed using the two soft keys. Each menu
and sub-menu allows you to view and alter the settings of
a particular function.
Soft Keys
The roles of the soft keys vary depending on the function
you are currently using. The labels on the bottom line of
the display just above each key indicate their current role.
The following diagram shows the soft key role while in
Idle mode.
Press the left soft key
for Menu mode.
Press the right soft key
to access the
Ph.Book
menu.
x495.book Page 26 Saturday, April 9, 2005 4:23 PM
Section 3: Call Functions 27
Selecting Functions and Options
Section 3
Selecting Options
To view the various functions and options available and
to select the one you want:
1. Press the appropriate soft key.
2. To select the function displayed or the option highlighted,
press the Select soft key or the key.
3. To view the next function or highlight the next option on a
list, press the Down key or the key on the left side of
the phone.
4. To move back to the previous function or option on a list,
press the Up key or the key on the left side of the
phone.
5. To move back up one level in the menu structure, press
the Left Navigation key or the key.
6. To exit the menu structure without changing the settings,
press the key.
In some functions, you may be asked for a password or
PIN. Enter the code and press the OK soft key or the key.
When you access a list of options, your phone highlights
the currently active option. If, however, there are only two
options, such as On/Off or Enable/Disable, your phone
highlights the option that is not currently active, so that
you can select it directly.
Options During a Call
Your phone provides a number of control functions that
you can use during a call.
x495.book Page 27 Saturday, April 9, 2005 4:23 PM
28
Section 3
Putting a Call on Hold
You can place the current call on hold whenever you want.
You can make another call while you have a call in
progress if your network supports this service.
To place a call on hold:
1. Press the Options soft key or the key.
2. If necessary, press the Down key to highlight the Hold
option.
3. Press the Select soft key or the key.
The call has now been placed on hold.
You can reactivate the call whenever you want, by
pressing the Resume soft key.
To make a call while you have a call in progress:
1. Enter the phone number that you wish to dial or look it up
in the Phonebook.
2. Press the key to dial the second call.
The first call is automatically put on hold.
Or 1. Put the current call on hold by pressing the Hold soft key.
2. Make the second call in the normal way.
When you have an active call and a call on hold, you may
switch between the two calls, changing the one on hold to
active and placing the other on hold.
To switch between the two calls, simply press the Swap
soft key.
x495.book Page 28 Saturday, April 9, 2005 4:23 PM
Section 3: Call Functions 29
Selecting Functions and Options
Section 3
The current call is placed on hold and the call on hold is
reactivated so that you can continue conversing with that
person.
When you want to finish, end each call normally by
pressing the key.
Switching off the Microphone (Mute)
You can temporarily switch your phone’s microphone off,
so that the other person cannot hear you.
Example: You wish to say something to a person in the room but do not
want the person on the phone to hear you.
To switch the microphone off temporarily:
1. Press the Options soft key or the key.
2. Use the navigation keys to highlight the Mute option.
3. Press the Select soft key or the key. The other person
can no longer hear you.
To switch the microphone back on:
1. Press the Opt. soft key or the key.
2. Use the navigation keys to highlight the Unmute option.
3. Press the Select soft key or the key. The other person
can hear you again.
Muting or Sending Key Tones
These options allow you to turn the key tones off or on. If
the Mute keys option is selected, your phone does not
transmit the DTMF (Dual Tone Multi-Frequency) tones
of the keys, which allows you to press keys without
hearing annoying key tones during a call.
x495.book Page 29 Saturday, April 9, 2005 4:23 PM
30
Section 3
Note: To communicate with answering machines or computerized
telephone systems, the Send keys option must be selected.
Searching for a Number in Phonebook
You can search for a number in Phonebook during a call.
1. Press the Options soft key or the key.
2. Press the Down key to highlight the Phonebook option
and press the Select soft key or the key.
3. Press the Down key to highlight the Search option and
press the Select soft key or the key.
The Phonebook entries are listed.
4. Enter the name that you wish to find in the textbox
located below the entries.
5. If you enter the first few letters of the name, the
Phonebook entries are listed starting with the first entry
matching your input.
6. To view the highlighted entry, press the View soft key or
the key.
For further details about the Phonebook feature, see
"Finding a Phonebook Entry" on page 52.
Call Waiting
You can answer an incoming call while you have a call in
progress, if this service is supported by the network and
you have set the Call waiting menu to Activate. You are
notified of an incoming call by a call waiting tone.
To answer a call while you have a call in progress:
x495.book Page 30 Saturday, April 9, 2005 4:23 PM
Section 3: Call Functions 31
Selecting Functions and Options
Section 3
1. Press the key to answer the incoming call. The first
call is automatically put on hold.
2. To switch between the two calls, press the Swap soft
key.
To end a call on hold, press the Options soft key or the
key and select the End held call option.
To end the current call, press the key.
For details on Call Waiting setup, see "Call Waiting" on
page 100.
Making a Multi-Party Call
A multi-party call is a network service that allows up to six
people to take part simultaneously in a multi-party or
conference call.
For further details about subscribing to this service,
contact your service provider.
Setting up a Multi-Party Call
1. Call the first participant in the normal way.
2. Call the second participant in the normal way. The first
call is automatically put on hold.
3. To join the first participant to the multi-party call, press
the Options soft key or the key and select Join.
Press the OK soft key or the key.
4. To add a new person to the multi-party call, call the new
person in the normal way and then press the Options
soft key or the key. Select the Join option and press
the OK soft key or the key.
x495.book Page 31 Saturday, April 9, 2005 4:23 PM
32
Section 3
You can add incoming callers by answering the call and
pressing the Options soft key or the key, and selecting
Join. Repeat as required.
Having a Private Conversation With One Participant
1. Press the Options soft key or the key and highlight
the Split option. Press the Select soft key or the key.
The list of call participants appears.
2. Highlight the call you wish to speak privately with and
press the Select soft key, the key, or the key.
Now you can talk privately to that person. The other
participants can continue to converse with each other.
3. To return to the multi-party call, press the Options soft
key or the key and highlight the Split option. Press the
Select soft key or the key.
All of the multi-party call participants can now hear each
other.
Dropping One Participant
1. Press the Options soft key or the key and highlight
the Split option. Press the Select soft key or the key.
The list of call participants appears.
2. Highlight the call you wish to speak privately with and
press the Select soft key, the key, or the key.
Now you can talk privately to that person.
3. To drop the other participant that is now on hold, press
the Options soft key or the key and highlight the End
held multiparty option. Press the Select soft key or the
key
x495.book Page 32 Saturday, April 9, 2005 4:23 PM
Section 3: Call Functions 33
Selecting Functions and Options
Section 3
The call with that participant ends, but you can continue
to talk to the other participants.
4. When you want to end the multi-party call, close the
phone or press the key.
x495.book Page 33 Saturday, April 9, 2005 4:23 PM
34
Section 3
x495.book Page 34 Saturday, April 9, 2005 4:23 PM
Section 4
Section 4: Menu Navigation 35
Section 4: Menu Navigation
Topics Covered
• Menu Navigation
• Menu Outline
This section explains the menu navigation for your
phone. It also includes an outline of all the available
menus associated with your phone.
x495.book Page 35 Saturday, April 9, 2005 4:23 PM
Section 4
36
Menu Navigation
You can tailor the phone’s range of functions to your
needs using menus and sub-menus. Menus and sub-
menus can be accessed by scrolling using the Navigation
keys or by using the shortcuts.
Accessing a Menu Function by Scrolling
1. In Idle mode, press the Menu soft key to access Menu
mode.
2. Scroll using the Navigation keys to reach a main menu,
Settings for example. Press the Select soft key or the
key to enter the menu.
3. If the menu contains sub-menus, Language for
example, you can access them by pressing the Select
soft key or the key.
If the menu that you have selected contains further
options, repeat this step.
4. To scroll through the menus, press the Up or Down keys.
5. To confirm the chosen setting, press the Select soft key,
or the key.
6. To return to the previous menu level, press the key or
the key.
7. To exit the menu without changing the settings, press the
key.
Using Shortcuts
The menu items, such as menus, sub-menus, and options,
are numbered and can be accessed quickly by using their
shortcut numbers. For the main menus, you can access
x495.book Page 36 Saturday, April 9, 2005 4:23 PM
Section 4: Menu Navigation 37
Menu Outline
Section 4
any one of them by pressing the number keys (1 to 9)
corresponding to their location on the screen.
Example: Accessing the Language menu.
1. Press the Menu soft key.
2. Press the 9 key for Settings.
3. Press the 5 key for Language.
The languages available display.
Menu Outline
The following list shows the menu structure and indicates
the number assigned to each option.
1. Voice messages
2. Call records
2.1 Missed calls
2.2 Incoming calls
2.3 Outgoing calls
2.4 Delete all
2.5 Call time
2.5.1 Last call
2.5.2 Total outgoing
2.5.3 Total incoming
2.5.4 Reset timers
3. t-zones
3.1 Home
x495.book Page 37 Saturday, April 9, 2005 4:23 PM
Section 4
38
3.2 Favorites
3.3 Go to URL
3.4 Clear cache
4. Instant message
5. Messages
5.1 Text messages
5.1.1 Create
5.1.2 Inbox
5.1.3 Outbox
5.1.4 Delete all
5.2 Picture messages
5.2.1 Create
5.2.2 Inbox
5.2.3 Outbox
5.2.4 Draft
5.2.5 Delete all
5.3 Browser messages
5.3.1 Inbox
5.3.2 Receive
5.3.3 Delete all
5.4 Voice mail
5.4.1 Call voice mail
5.4.2 Voice server number
x495.book Page 38 Saturday, April 9, 2005 4:23 PM
Section 4: Menu Navigation 39
Menu Outline
Section 4
5.5 Broadcast*
5.6 Settings
5.6.1 Text messages
5.6.2 Picture messages
5.7 Memory status
5.7.1 Text messages
5.7.2 Picture messages
6. Funbox
6.1 t-zones
6.2 Sounds
6.3 Images
6.4 Games
6.5 Delete all
6.5.1 Sounds
6.5.2 Images
6.6 Memory status
7. Organizer
7.1 Alarm
7.2 Calendar
7.3 Calculator
7.4 To do list
7.5 Voice memo
7.5.1 Record voice
7.5.2 Voice memos
x495.book Page 39 Saturday, April 9, 2005 4:23 PM
Section 4
40
7.5.2 Delete all
7.5.3 Settings
7.5.4 Memory status
7.6 Conversion
7.6.1 Length
7.6.2 Weight
7.6.3 Volume
7.6.4 Area
7.6.5 Temperature
7.7 Timer
7.8 Stopwatch
8. Sound settings
8.1 My MegaTones
8.2 Get More MegaTones
8.3 Ringtones
8.4 Ring volume
8.5 Alert type
8.6 Keypad tone
8.7 Message tone
8.6.1 Text messages
8.6.2 Picture messages
8.8 Power on/off
8.9 Alerts on call
8.0 Extra tones
x495.book Page 40 Saturday, April 9, 2005 4:23 PM
Section 4: Menu Navigation 41
Menu Outline
Section 4
9. Settings
9.1 Time & Date
9.1.1 Set date
9.1.2 World time
9.1.3 Set time
9.1.4 Time format
9.1.5 Auto update
9.2 Display settings
9.2.1 Wallpaper
9.2.2 Interior display
9.2.3 Backlight
9.2.4 Brightness control
9.2.5 Dialing font color
9.3 Get More Help
9.4 Greeting message
9.5 Language
9.5.1 Text language*
9.5.2 Input mode
9.6 Security
9.6.1 PIN check
9.6.2 Change PIN
9.6.3 Phone lock
9.6.4 Change password
9.6.5 Privacy
x495.book Page 41 Saturday, April 9, 2005 4:23 PM
Section 4
42
9.6.6 SIM lock
9.6.7 FDN mode
9.6.8 Change PIN2
9.7 Extra settings
9.8 Reset settings
9.8.1 Sound settings
9.8.2 Phone settings
9.8.3 All settings
9.9 Network services
9.9.1 Call forwarding
9.9.2 Call waiting
9.9.3 Network selection
9.9.4 Caller ID
9.9.5 Band selection
* Shows only if supported by your SIM card.
x495.book Page 42 Saturday, April 9, 2005 4:23 PM
Section 5: Entering Text 43
Section 5
Section 5: Entering Text
Topics Covered
• Changing the Text Input Mode
• Using ABC Mode
• Using T9 Mode
• Using Symbols
• Using Numbers
This section outlines how to select the desired text input
mode when entering characters into your phone. This
section also describes how to use the T9 predictive text
entry system to reduce the number of key strokes
associated with entering text.
x495.book Page 43 Saturday, April 9, 2005 4:23 PM
44
Section 5
Changing the Text Entry Mode
When using your phone, you will often need to enter text,
such as when storing a name in Phonebook, creating your
personal greeting or scheduling events on your calendar.
You can enter alphanumeric characters by using your
phone’s keypad.
Your phone has the following text input modes:

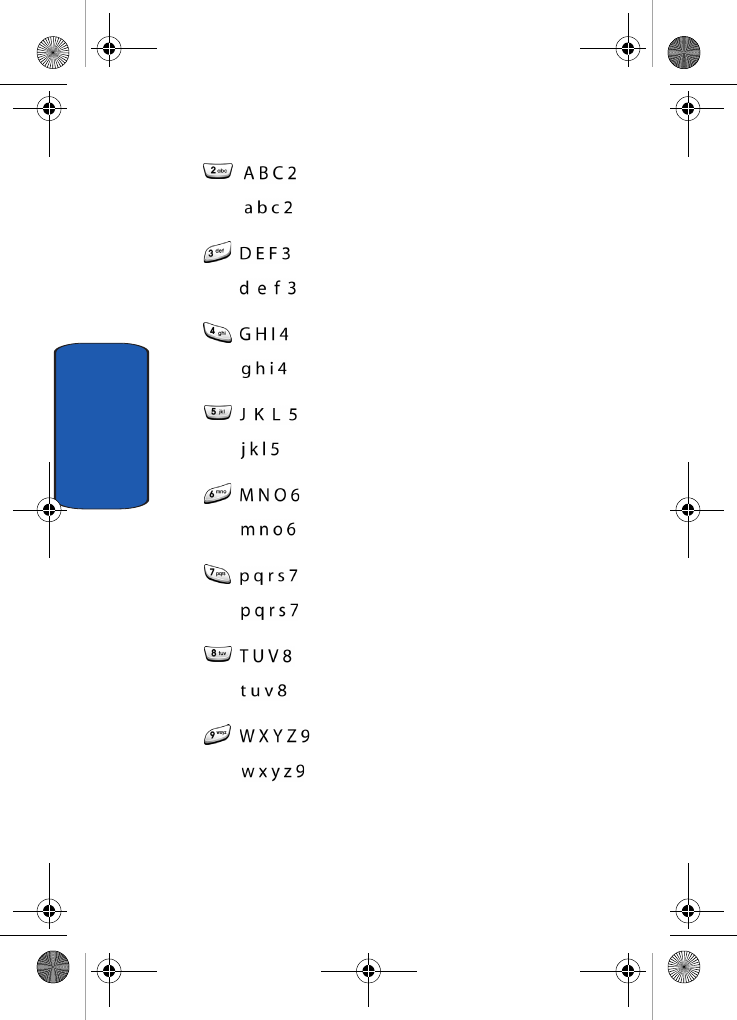

• ABC mode: this mode allows you to enter letters by pressing the
key labeled with the letter you want. Press the key once, twice,
three, or four times until it displays.
• T9 mode: this mode allows you to enter words with only one
keystroke per letter. Each key on the keypad has more than one
letter; for example, pressing the 5 key can enter J, K, or L.
However, the T9 mode automatically compares the series of
keystrokes you make with an internal linguistic dictionary to
determine the most likely word, thus requiring far fewer
keystrokes than the traditional ABC mode.
• Number mode: this mode allows you to enter numbers.
• Symbol mode: this mode allows you to enter symbols, such as
punctuation marks.
Changing the Text Input Mode
When you are in a field that allows characters to be
entered, you will notice the text input mode indicator on
the display.
Example: Writing a text message.
x495.book Page 44 Saturday, April 9, 2005 4:23 PM
Section 5: Entering Text 45
Using T9 Mode
Section 5
1. To select change the text input mode, press the key.
2. Highlight the input option, and press the Select soft key
or the key.
3. Choose from the following options:
: ABC mode
: T9 mode
: Number mode
Using T9 Mode
T9 is a predictive text input mode that allows you to key
in any character using single keystrokes. This text input
mode is based on a built-in dictionary.
To enter a word in T9 mode:
1. When you are in T9 mode, start entering a word by
pressing the 2 to 9 keys. Press each key only once for
each letter.
Text input mode
indicator
x495.book Page 45 Saturday, April 9, 2005 4:23 PM
46
Section 5
Example: To enter “Hello” in T9 mode, press the 4, 3, 5, 5, and 6
keys.
The word that you are typing appears on the display. It
may change with each key that you press.
2. Enter the whole word before editing or deleting the
keystrokes.
3. When the word displays correctly, go to step 4.
If the word doesn’t display correctly, press the 0 key or
the Up or Down key to display alternative word choices
for the keys that you have pressed.
Example: Both “Of” and “Me” have the 6 and 3 keys. The phone displays
the most commonly used choice first.
4. Insert a space by pressing the key and start entering
the next word.
To add a new word into the T9 dictionary:
1. After pressing the keys corresponding to the word you
want to add, press the 0 key or the Up or Down key to
display the alternative words.
2. When you press the 0 key or the Up or Down key at the
last alternative word, the display shows Add on the
bottom line. Press the Add soft key or the key.
3. If necessary, clear the word using the C key and enter
the word you want to add using ABC mode. See page
"Changing the Text Entry Mode" on page 44.
4. Press the OK soft key or the key.
x495.book Page 46 Saturday, April 9, 2005 4:23 PM
Section 5: Entering Text 47
Using ABC Mode
Section 5
The word is added to the T9 dictionary and becomes the
first word for the associated keypress series.
Note: This feature may not be available for some languages.
• To enter periods, hyphens, or apostrophes, press the 1 key. T9
mode applies grammar rules to ensure that correct punctuation
is used.
• To shift case in T9 mode, use the key. There are 3 cases:
Initial capital, Capital lock, and Lower case.
• You can move the cursor by using the Navigation keys. To
delete letters, press the C key. Press and hold the C key to
clear the display.
Using ABC Mode
To use the ABC Mode use the 1 to 0 keys to enter your text.
1. Press the key labeled with the letter you want:
•Once for the first letter
•Twice for the second letter
•And so on
2. Select the other letters in the same way.
Note: The cursor moves to the right when you press a different key. When
entering the same letter twice or a different letter on the same key, just
wait for a few seconds for the cursor to move to the right automatically,
and then select the next letter.
Keys
x495.book Page 47 Saturday, April 9, 2005 4:23 PM
48
Section 5
Using Symbols
x495.book Page 48 Saturday, April 9, 2005 4:23 PM
Section 5: Entering Text 49
Using Numbers
Section 5
Symbol mode enables you to insert symbols and
punctuation marks into text.
1. To select a symbol, press the corresponding number key.
2. To display more symbols, press the Up or Down
Navigation key.
3. To clear the symbol(s), press the C key. When the input
field is empty, this key returns the display to the previous
mode.
4. To insert the symbol(s) into your message, press the OK
soft key or the key.
Using Numbers
Number mode enables you to enter numbers into a text
message. Press the keys corresponding to the digits you
want to enter.
x495.book Page 49 Saturday, April 9, 2005 4:23 PM
50
Section 5
x495.book Page 50 Saturday, April 9, 2005 4:23 PM
Section 6: Understanding Your Phonebook 51
Section 6
Section 6: Understanding Your
Phonebook
Topics Covered
• Finding a Phonebook Entry
• Storing a Number in the Phone’s Memory
• Storing a Number in the SIM Memory
• Dialing a Number from Phonebook
• Dialing a Number from SIM Card
• Speed Dialing
• Copying SIM Phonebook Entries to Phone
• Deleting all Phonebook Entries
• Group Settings
• Finding My Own Number
• Checking the Memory Status
• Service Dialing Numbers (SDN)
This section allows you to manage your daily contacts by
storing their name and number in your Phonebook.
Phonebook entries can be sorted by name, entry, or group.
x495.book Page 51 Saturday, April 9, 2005 4:23 PM
52
Section 6
Finding a Phonebook Entry
You can store phone numbers and their corresponding
names in your SIM card and phone’s memories. They are
physically separate but are used as a single entity, called
Phonebook.
Depending on your particular SIM card, the maximum
number of phone numbers the SIM card can store may
differ.
1. At the Idle screen, press the Ph.Book soft key.
2. Press the Select soft key or the key when Search
highlights. You are asked to enter a name.
3. Enter the first few letters of the name.
The Phonebook entries are listed, starting with the first
entry matching your input.
4. To view the highlighted entry, press the View soft key.
5. Press the key to dial the number, or press the
Options soft key to access the Phonebook entry options.
Storing a Number in the Phone’s Memory
1. At the Idle screen, press the Ph.Book soft key.
2. Scroll to New entry by pressing the Up or Down key and
press the Select soft key or the key.
3. Select the Phone option by pressing the Up or Down key
and press the Select soft key or the key.
4. Select a number type by pressing the Up or Down key,
and press the Select soft key or the key.
The following types are available:
x495.book Page 52 Saturday, April 9, 2005 4:23 PM
Section 6: Understanding Your Phonebook 53
Storing a Number in the Phone’s Memory
Section 6
•Mobile: assigns the number entered to the Mobile entry.
•Home: assigns the number entered to the Home entry.
•Office: assigns the number entered to the Office entry.
•Fax: assigns the number entered to the Fax entry.
•Other: allows you to enter more detailed information for the
entry.
•E-mail: allows you to enter an e-mail address for the number
entered.
5. Enter the number you want to store and press the Save
soft key or the key.
6. Enter a name and press the OK soft key or the key.
For further details about how to enter characters, see
"Create" on page 69.
After storing, the phone displays the Phonebook entry
and name you just created.
7. Tab through the options to assign the Phonebook entry
Group, Image, and Ringtone settings.
8. To use the entry options, press the Options soft key. The
following options are available:
•Send message: allows you to send a message to the selected
number.
•Assign speed dial: allows you to assign a speed dial number to
the phone number you entered. For more information, see
"Speed Dialing" on page 55.
•Edit number: allows you to edit the number.
•Edit Name: allows you to edit the name.
•Delete entry: allows you to delete the name and number from
Phonebook. You are asked to confirm that you wish to delete
the name and number by pressing the Yes soft key.
x495.book Page 53 Saturday, April 9, 2005 4:23 PM
54
Section 6
•Copy to SIM: allows you to copy the number to your SIM card.
9. To return to the Idle screen, press the key.
Storing a Number in the SIM Memory
1. At the Idle screen, press the Ph.Book soft key.
2. Scroll to New entry by pressing the Up or Down key and
press the Select soft key or the key.
3. Select the SIM memory location, by pressing the Up or
Down key and press the Select soft key or the key.
4. Enter a number you want to store and press the Save
soft key or the key.
5. Enter a name and press the OK soft key or the key.
For further details about how to enter characters, see
"Create" on page 64.
After storing, the phone displays the Phonebook entry
number you just created
6. To use the entry options, press the Options soft key.
The following options are available:
•Send message: allows you to send a message to the selected
number.
•Assign speed dial: allows you to assign a speed dial number to
the phone number you entered. For more information, see
"Speed Dialing" on page 55.
•Edit number: allows you to edit the number.
•Edit Name: allows you to edit the name.
•Delete entry: allows you to delete the name and number from
Phonebook. You are asked to confirm that you wish to delete
the name and number by pressing the Yes soft key.
x495.book Page 54 Saturday, April 9, 2005 4:23 PM
Section 6: Understanding Your Phonebook 55
Dialing a Number from Phonebook
Section 6
•Copy to phone: allows you to copy the number to your phone.
7. To return to the Idle screen, press the key.
Dialing a Number from Phonebook
Once you have stored phone numbers in the Phonebook,
you can dial them easily and quickly by using the location
numbers that were assigned to them in the Phonebook.
Note: If you cannot remember a location number, you must go into the
Search menu in the Phonebook menu to search for the entry by name. For
details, "Finding a Phonebook Entry" on page 52.
Dialing a Number from the SIM Card
1. In Idle mode, enter the location number for the phone
number you want to dial and press the key.
The location number in the SIM card appears, with the
desired number displayed.
2. You can press the Up or Down key to find other
numbers on the list.
3. Press the Dial soft key, the key, or the key when
you have selected the number you want.
Speed Dialing
Once you have stored phone numbers from your
Phonebook list, you can set up to 8 speed dial entries and
then dial them easily whenever you want, simply by
pressing the associated numeric key.
Setting Up Speed Dial Entries
1. At the Idle screen, press the Ph.Book soft key.
x495.book Page 55 Saturday, April 9, 2005 4:23 PM
56
Section 6
2. Scroll to Speed Dial by pressing the Up or Down key
and press the Select soft key or the key.
3. Select the key to which you wish to assign the speed-
dialing number, from the 2 to 9 keys, and press the
Select soft key or the key.
Note: Memory location 1 is reserved for your Voice mail server number.
4. Highlight Edit Number and press the Select soft key or
the key. Enter a number or press the Names soft key
to display entries in the Phonebook.
5. Select an entry from the Phonebook list and press the OK
soft key or the key.
6. Press the OK soft key or the key.
Copying SIM Phonebook Entries to Phone
You can copy all SIM entries to the Phone using this
option. When you copy entries to the phone, duplicate
entries are created.
1. Press Ph. Book soft key.
2. Highlight Copy all to phone and press the Select soft
key or the key.
3. When you receive the “Sure to copy all?” message,
press the Yes soft key or the key.
Note: Options are available for phone entries that are not available when
stored to the SIM card. For details see "Storing a Number in the Phone’s
Memory" on page 52.
x495.book Page 56 Saturday, April 9, 2005 4:23 PM
Section 6: Understanding Your Phonebook 57
Deleting all Phonebook Entries
Section 6
Deleting all Phonebook Entries
You can delete all of your entries from your phone’s
memory, your SIM card, or both.
1. At the Idle screen, press the Ph.Book soft key.
2. Scroll to Delete all by pressing the Up or Down key and
press the Select soft key or the key.
3. To place a check mark by the memory location you want
to empty, All, SIM, or Phone, press the Select soft key or
the key.
You can remove the check mark by pressing the Select
soft key or the key.
4. Press the Delete soft key to delete the entries in the
selected memory location. A confirmation “Sure to
delete?” displays. Press Yes to delete or No to cancel.
Group Settings
1. At the Idle screen, press the Ph.Book soft key.
2. Scroll to Group settings by pressing the Up or Down
key and press the Select soft key or the key.
3. Scroll through the group list by pressing the Up or Down
key.
4. When the group you want highlights, press the Select
soft key or the key. You may choose Family, Friends,
Co-workers, VIPS, or Other.
5. Select an option and change the settings, as required.
The following options are available:
x495.book Page 57 Saturday, April 9, 2005 4:23 PM
58
Section 6
•Ringtone: allows you to set the ring tone to be used when you
receive a voice call from a member of that group.
•Edit Name: allows you to rename the selected group setting.
•View Image: allows you to view the graphic displayed when you
receive a voice call from a member of that group.
6. When you are finished, press the C key or the key.
Finding My Own Number
This function is a memory aid, which you can use to check
your own phone number if you need to do so.
You can assign a name to each of your own phone
numbers registered on your SIM card. You can also edit
the names and numbers. Any changes made here do not
in any affect the actual subscriber numbers on your SIM
card.1. At the Idle screen, press the Ph.Book soft key.
2. Select the Own Number option by pressing the Up or
Down key and press the Select soft key or the key.
3. Highlight Edit Number and press the Select soft key or
the key. Enter the phone number you want and press
the OK soft key or the key.
4. Highlight Change Name and press the Select soft key or
the key. Enter the name and press the OK soft key or
the key.
5. Highlight Delete and press the Select soft key or the
key. Select Yes to confirm deletion or No to cancel.
Checking the Memory Status
x495.book Page 58 Saturday, April 9, 2005 4:23 PM
Section 6: Understanding Your Phonebook 59
Service Dialing Numbers
Section 6
You can check how many names and numbers are stored
in Phonebook, in both SIM card and the phone memory.
You can also see the capacity of both memories.
1. At the Idle screen, press the Ph.Book soft key.
2. Select the Memory status option by pressing the Up or
Down key and press the Select soft key or the key.
3. Displayed are the total numbers stored in the Phone and
SIM.
4. When you are finished, press the soft key or the
key.
Service Dialing Numbers
You can view the list of Service Dialing Numbers (SDN)
assigned by your service provider. These numbers
include emergency numbers, directory enquiries and
voice mail numbers.
1. At the Idle screen, press the Ph.Book soft key
2. and press the Select soft key or the key.
3. Select the Service Number option by pressing the Up or
Down key and press the Select soft key or the key.
4. Scroll through the numbers by using the Up or Down
key.
5. To dial the number displayed, press the Select soft key
or the key.
Note: This menu is available only when your SIM card supports Service
Dialing Numbers.
x495.book Page 59 Saturday, April 9, 2005 4:23 PM
60
Section 6
x495.book Page 60 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 61
Section 7
Section 7: Messaging
Topics Covered
• Types of Messages
• Voice Messages
• Text Messages
• Picture Messages
• Browser Messages
• Voice mail Messages
• Broadcast Messages
• Settings
• Instant Messaging
• Memory Status
This section allows you to send or receive different types
of messages. It also includes the features and functionality
associated with messaging.
x495.book Page 61 Saturday, April 9, 2005 4:23 PM
62
Section 7
Types of Messages
Your phone provides the following message types:
• Voice Messages
• Text Messages
• Picture Messages
• Browser Messages
• Voice Mail Messages
Voice messages
In this menu, you can record a voice message of up to 1
minute and then immediately send it by a MMS
(Multimedia Message Service) message. MMS will be
referred to as Picture Messaging.
When you access this menu, a timer appears on the screen.
1. Press the Record soft key to start recording.
2. Record a message by speaking into the microphone.
The display shows the elapsed time and the remaining
time at one time.
3. When you are finished, press the Stop soft key or the
key. Or, when the recording time is expired, the display
switches to the next screen.
4. To choose your destination target, highlight one of the
following options and press the Select soft key or the
keys:
•Recent log: allows you to select a number or an address from
the 5 last destinations you entered for sending the last
messages.
x495.book Page 62 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 63
Text Messages
Section 7
•Phonebook: allows you to retrieve a number from your
Phonebook.
•Phone number: allows you to enter the phone number you
want.
•E-mail address: allows you to enter the e-mail address of the
recipient.
Note: You can access the following options by pressing the Options soft
key:
•Replay: plays back your voice message.
•Re-record: discards the voice message and enables you to
record another one.
•Send: allows you to send the voice message.
•Default destination: allows you to send the voice message
directly without entering another destination. To select a default
destination, press the Select soft key and select from the
available options.
•Save: saves the voice message and continues to the send
options.
5. Enter a number or an e-mail address and press the OK
soft key, or select a destination from the Phonebook.
6. To select a destination from the Phonebook, highlight the
desired number and press the Select soft key or the
key. Press the Send soft key or the key to send the
message.
After your message is sent, it is saved in the Outbox in the
Picture messages menu.
Text Messages
x495.book Page 63 Saturday, April 9, 2005 4:23 PM
64
Section 7
Short Message Service (SMS) allows you to send and
receive short text messages to and from other mobile
phones. In addition, your phone supports the Enhanced
Messaging Service (EMS), which enables you to include
simple pictures, melodies, and animated images in your
messages. To use this feature, you must subscribe to your
service provider’s message service.
When the Message icon ( ) appears, you have received
new text messages. When the memory is full, an error
message displays and you cannot receive any new
messages. Use the Delete option in each message box to
delete obsolete messages.
Create
In this menu, you can write and send a text message.
Creating a Simple Text Message
1. Create your message.
You can create a message using standard Alphabet
characters or special Uni-code characters, depending on
the setting in the Character support menu.
Notes: For further details about entering characters, see "Using ABC
Mode" on page 47.
Regardless of the text input mode that you use, you may enter up to 100
characters in your message.
2. When you finish entering your message, press the
Options soft key or the key. The following options are
available:
•Send: allows you to send the message. The message is
deleted after sending.
x495.book Page 64 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 65
Text Messages
Section 7
•For more information about the Text formatting, Add content, or
Templates, see "Creating a Message Using Options" on page
65.
•Save message: allows you to save a copy of the message to
the Phone or SIM card.
3. Select Send and press the Select soft key or the key.
Note: When the phone fails to send the message, it asks you if you want to
retry. Press the OK soft key to confirm. Otherwise, press the Exit soft key to
return to the message screen.
Creating a Message Using Options
1. Create your message.
2. Press the Options soft key or the key.
3. Select one of the following options by using the Up and
Down keys and pressing the Select soft key or the
key.
•Text formatting: allows you to format the style of the text.
For the Size attribute, Normal, Large, and Small size are
available. Mode options are Normal, Underline, and
Strikethrough. Alignment options are Left, Center, and Right.
The attributes can be combined.
•Add content: allows you to add a picture, melody, or animation
to your message. Select the category of the item to be added.
In each category, you can select from the various factory-set
items or choose an item received from other sources, such as
the Internet or other phones.
Note: When you add media items to a message, the number of characters
you can enter decreases.
x495.book Page 65 Saturday, April 9, 2005 4:23 PM
66
Section 7
•Templates: allows you to apply one of the preset message
templates to the text. Select one of the 4 items stored in the
Templates menu.
4. Complete the message, and select Send or Save
message.
Inbox
This message box is used to store messages that you have
received.
When you enter this menu, the list of messages in the box
displays with the senders’ phone numbers or names, if
available in your Phonebook.
1. Select a text message from the list and press the Select
soft key or the key to read the message contents.
2. To scroll through the contents, press the Up or Down
key.
3. To scroll to the previous or next message, press the Left
and Right Navigation keys.
While reading a message, you can choose the following
options by pressing the Options soft key:
• Text reply: allows you to send a reply to the sender by sending a
text message.
• Call back: allows you to call the sender.
• Delete: allows you to delete the message.
• Save address: allows you to extract the sender’s number and
URL, e-mail addresses or phone numbers from the message
text, so that you can save them in your phone’s memory.
x495.book Page 66 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 67
Text Messages
Section 7
• Forward: allows you to send/resend the message. For further
information about how to send a message, see "Create" on
page 64.
• Select content: allows you to save media items, such as sounds
or images, from the message into your phone’s memory. You
can then use the items when writing a message.
• Move to phone: allows you to move the message from the SIM
card to the phone’s memory. This option is only available for
messages stored in the SIM card.
• Move to SIM: allows you to move the message from the phone’s
memory to the SIM card. This option is only available for
messages stored in the phone’s memory.
Outbox
This message box is used to store messages that you have
sent or will send.
When you enter this menu, the list of messages in the box
displays with the recipients’ phone numbers or names, if
available in your Phonebook.
1. Select a text message from the list and press the Select
soft key or the key to read the message contents.
2. To scroll through the contents, press the Up or Down
Navigation key.
3. To scroll to the previous or next message, press the Left
or Right Navigation key.
While reading a message, you can choose the following
options by pressing the Options soft key:
• Delete: allows you to delete the message.
• Save address: allows you to extract the destination number
and URL, e-mail addresses or phone numbers from the
x495.book Page 67 Saturday, April 9, 2005 4:23 PM
68
Section 7
message text, so that you can save them in your phone’s
memory.
• Send: allows you to send/resend the message. For further
information about how to send a message see "Create" on
page 64.
• Forward: allows you to send/resend the message. For further
information about how to send a message, see "Create" on
page 64.
• Move to phone: allows you to move the message from the SIM
card to the phone’s memory. This option is only available for
messages stored in the SIM card.
• Move to SIM: allows you to move the message from the phone’s
memory to the SIM card. This option is only available for
messages stored in the phone’s memory.
Delete All
This menu allows you to delete all of the text messages in
each message box. You can also delete all of your messages
at one time.
1. To select a text message box to clear, press the Up or
Down key. To delete all of your messages, select All
messages.
2. To place or remove a check mark, press the key.
3. Press the Delete soft key to delete the marked objects.
4. When the phone asks for confirmation again, press the
Yes soft key.
Picture Messages
This menu allows you to use the Multimedia Message
Service.
x495.book Page 68 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 69
Picture Messages
Section 7
Picture Messaging is a messaging service that provides
delivery of personal multimedia messages from phone to
phone or from phone to e-mail.
In addition to the familiar text content of text messages,
multimedia messages can contain images, graphics,
voice, and audio clips. A Picture Messaging message is a
multimedia presentation in a single file. It is not a text file
with attachments.
Using the Picture Messaging feature, your phone can
receive and send messages that contain multimedia files,
such as photos, sounds and images you downloaded from
the Internet and voice messages you recorded. This
function is available only if it is supported by your service
provider. Only phones that offer multimedia messaging
features can receive and display multimedia messages.
Create
This menu allows you to create a new multimedia
message and send to one or multiple destinations.
Creating and Sending a Multimedia Message
1. When you highlight Subject, press the Add soft key or
the key.
2. Enter the subject of your message and press the OK soft
key or the key.
Note: For more information about entering characters, see "Using ABC
Mode" on page 47.
3. To add a picture, highlight the Picture option and press
the Add soft key or the key. Press the Opt. soft key
for the following options:
x495.book Page 69 Saturday, April 9, 2005 4:23 PM
70
Section 7
•Send: sends the Picture Messaging message.
•Preview: allows you to see the message before you send.
•Add page: allows you to add another page for the Picture
Messaging message.
•Page timing: page timing allows you to set how long each page
of the Picture Messaging message is displayed. The default
time is 5 seconds, maximum 99 seconds.
•Text effect: allows you to change the color, size, and style of the
Picture Messaging text.
•Clear picture: allows you to remove the selected picture.
•Delete page: allows you to delete the page selected.
•Save message: allows you to save the Picture Messaging
message
4. To change the text or replace the image or sound with
another one, select a category and press the Opt. soft
key. Depending on the category selected, highlight Clear
picture/sound/message/subject to remove the item.
5. When you have finished creating the message, press the
Opt. key and choose Send. Press the Select soft key or
the key.
6. Choose one of the following options and press the Select
soft key or the key:
•Recent log: allows you to select a number or an address from
the 5 last destinations you entered for sending the last
messages.
•Phonebook: allows you to enter the phone number you want.
•Phone number: allows you enter a phone number or choose
one from the Ph.Book.
•E-mail address: allows you to enter the e-mail address of the
recipient.
x495.book Page 70 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 71
Picture Messages
Section 7
•My Album: allows you to send the message to the My Album
folder.
•My Journal: allows you to send the message to My Journal.
7. Press the Send soft key to send the message. Your
phone sends the message.
Inbox
Viewing a Message When You Receive It
When a new multimedia message comes in, the display
shows the Picture Messaging icon.
1. Press the View soft key or the key to view brief
information about the message, such as the sender’s
number, the message size and the subject. Press the
Select soft key to view the message.
If you want to view the message later in the Inbox, press
the Exit soft key.
2. To scroll through the message information, press the
Right or Left Navigation key.
3. Press the Opt. soft key or the key to access the
following options:
•Reply: allows you to create a message and reply to the sender.
•Replay: if there are multiple screens to this message, allows
you to replay the message from the beginning.
•Delete: deletes the message.
•Forward: allows you to forward this message to another
destination.
•Call back: allows you to dial the number from which this
message was sent.
x495.book Page 71 Saturday, April 9, 2005 4:23 PM
72
Section 7
•Use content: allows you to use the contents of this message
(picture or sound) to send to another destination in a different
message.
•Save address: allows you to store the address from which this
message was sent. You can also reply to the message from
this option.
•Properties: shows you information about the message, such as
the subject, sender’s e-mail address or phone number,
message size, recipient’s e-mail address or phone number, its
priority, and the time and date the message was received.
4. When you are finished, press the key.
Viewing a Received Message in the Inbox
When you access the Inbox menu, a list of multimedia
messages you received displays along with the message
subjects. The icons on the left tell you the status of the
messages.
Picture Messaging notifications that have been opened.
Picture Messaging notifications that have not been opened.
1. .Select a message on the list and press the Select soft
key or the key.
The message displays and scrolls to the next page, if it
has one, after a specified time.
2. To scroll through the message, press the Left or Right
Navigation key.
While viewing a message, you can choose the message
options by pressing the Opt. soft key.
x495.book Page 72 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 73
Picture Messages
Section 7
Outbox
When you access this menu, the list of multimedia
messages that you have sent or saved displays. The icons
on the left tell you the status of each message:
Messages currently being sent
Messages sent
Messages your phone couldn’t send
Messages to be sent
Messages deferred
1. Select a message on the list and press the Select soft
key or the key.
The message displays and scrolls to the next page, if it
has more, after a specified time.
2. To scroll through the message, press the Up or Down
Navigation key.
If the message has more than one page, you can scroll
through the pages by using the Left and Right
Navigation keys.
While viewing a message, you can choose the following
options by pressing the Opt. soft key:
• Delete: allows you to delete the message.
• Replay: allows you to replay the message from the beginning.
• Send: allows you to send/resend the message.
• Properties: shows you information about the message, such
as the time and date, to (recipient number), size, priority, and
class.
x495.book Page 73 Saturday, April 9, 2005 4:23 PM
74
Section 7
Draft
After creating a multimedia message, you can store it in
this message box to be sent at a later time.
For further details about viewing a message in the
Outbox, see "Outbox" on page 73.
Delete All
This menu allows you to delete all of the multimedia
messages in each message box separately. You can also
delete all of your messages at one time.
1. To select Picture messages to clear, press the Up or
Down key.
2. Highlight the message box. Press the Select soft key or
the key. To delete all of your messages, select All
messages.
3. To remove a check mark, press the key.
4. To delete the marked messages, press the Delete soft
key. When a confirmation message displays, press the
Yes soft key to confirm.
x495.book Page 74 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 75
Browser Messages
Section 7
Browser Messages
This menu allows you to receive web messages from the
server, or to set the phone not to receive Web messages.
The following options are available:
• Inbox: allows you to read the messages received from the web
server.
• Receive: allows you to set whether or not your phone receives
web messages.
• Delete all: allows you to delete all of the web messages.
Voice Mail Messages
This menu provides you with a way of accessing your
voice mailbox, if provided by your network.
The following options are available:
• Call voice mail: before using the Voice Mail feature, you must
enter the voice server number obtained from your service
provider. You can then select this option and press the OK soft
key or the key to listen to your messages.
You can connect to the voice server by pressing and holding the
1 key in Idle mode.
• Voice server number: allows you to change the voice mail
server number, if necessary.
Note: Voice mail is a network feature. Please contact your service provider
for further details.
Broadcast Messages (SIM Dependent)
This network service allows you to receive text messages
on various topics, such as the weather or traffic. Cell
x495.book Page 75 Saturday, April 9, 2005 4:23 PM
76
Section 7
Broadcast (CB) messages display as soon as they are
received, provided that:
• the phone is in Idle mode.
• the Receive option is set to Enable.
• the message channel is currently active on the channel list.
The following options are available:
• Read: lets you view the received message.
The Volatile box displays messages from the network, but loses
its contents as soon as the phone is switched off. Scroll
through the message by using the Up and Down keys.
You can save a CB message in the Archive box for later
retrieval. When a text notification appears, press the Options
soft key or the key and select Save.
• Receive: allows you to turn On or Off the reception of broadcast
messages.
• Channel list: allows you to indicate the channels from which
you wish to receive broadcast messages. The following options
are available:
• Select: use to enable or disable channels on the list by
marking or unmarking them, respectively. A check mark
displays in front of each selected channel.
• Add channel: use to enter the ID and title for a new channel.
• Delete channel: use to remove a channel from the list.
• Edit: use to change the ID and title of an existing channel.
• Language: allows you to select your preferred language in
which to display cell broadcast messages.
Please contact your service provider for further details.
Settings
x495.book Page 76 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 77
Settings
Section 7
In this menu, you can set up default text message and
picture message information. The last setting you
accessed is automatically activated for sending
subsequent messages.
Text Messages
• Service center: allows you to store or change the number of
your message center, which is required when sending
messages. You must obtain this number from your service
provider.
• Validity period (SIM dependent): allows you to set the length of
time your text messages are stored at the message center
while attempts are made to deliver them.
• Message type (SIM dependent): allows you to view the type of
message sent.
• Reply path: allows the recipient of your message to send you a
reply message using your message center, if your network
supports this service.
• Delivery report (SIM dependent): allows you to activate or
deactivate the report function. When this function is activated,
the network informs you whether or not your message has
been delivered.
• Character support: allows you to select a character encoding
type, either GSM-alphabet, Uni-code, or Automatic. If you
select Automatic, the phone automatically changes the
encoding type from GSM-alphabet to Uni-code when you enter
a Uni-code character.
When you select Uni-code, the maximum number of
characters that can be in a message is reduced to
approximately half. If your recipient’s phone does not
support Uni-code characters, he/she may not be able to
read your message correctly.
x495.book Page 77 Saturday, April 9, 2005 4:23 PM
78
Section 7
Note: If your phone doesn’t have the Character support menu, the phone
provides the Automatic character encoding by default.
Picture Messages
The following options are used to set Send and Receive
settings for Picture messages.
Send Settings
• Priority: you can select the priority level of your messages.
• Validity period: set the length of time your messages are
stored in the message center while the network attempts to
deliver them.
• Delivery after: you can set a delay time before the phone sends
your messages.
• Delivery report: when this option is enabled, the network
informs you whether or not your message has been delivered.
• Read reply: when this option is enabled, your phone sends a
request for a reply along with your message to the recipient.
Receive Settings
• Msg. reception: you can set your phone to automatically
receive or reject incoming messages.
• Ads reject: you can set your phone to automatically reject or
receive advertising messages.
• Report allowed: you can set the option to receive a delivery
report.
IM (Instant Messaging)
Instant Messenger (IM) is a way of sending short, simple
messages that are delivered immediately to users online
at that moment.
x495.book Page 78 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 79
Memory Status
Section 7
Before using this feature, you need to subscribe to a
messenger service. For further details, contact your
service provider.
Starting your IM
1. Select the messenger service to which you subscribed
using the Left or Right key and press the Select soft key
or the key.
2. Enter your screen name. The name will be displayed on
other people’s phones or PCs.
3. Press the Down key and enter your password to connect
to the service.
4. Press the Sign on soft key to connect to your messenger
service.
Using the Instant Messenger Options
On the sign-on screen of the messenger, press the Menu
soft key to access the following options:
• IM settings: allows you to select whether or not the phone
remembers your password once you sign on to your messenger
service using the Saved password option.
• Saved history: shows the records of your connections to the
messenger service.
• Exit: exits the current screen.
Memory Status
You can check the amount of the memory being used and
the memory remaining for multimedia messages.
x495.book Page 79 Saturday, April 9, 2005 4:23 PM
80
Section 7
The display shows the total space including the used and
free space. You can also view how much space is currently
occupied by each message box.
x495.book Page 80 Saturday, April 9, 2005 4:23 PM
Section 7: Messaging 81
Memory Status
Section 7
x495.book Page 81 Saturday, April 9, 2005 4:23 PM
