Samsung Electronics Co SGHX495 Dual-Band GSM Phone User Manual SGH X497 FCC

Samsung Electronics Co Ltd Dual-Band GSM Phone SGH X497 FCC

Contents

Users Manual 2

82Section 7x495.book Page 82 Saturday, April 9, 2005 4:23 PM

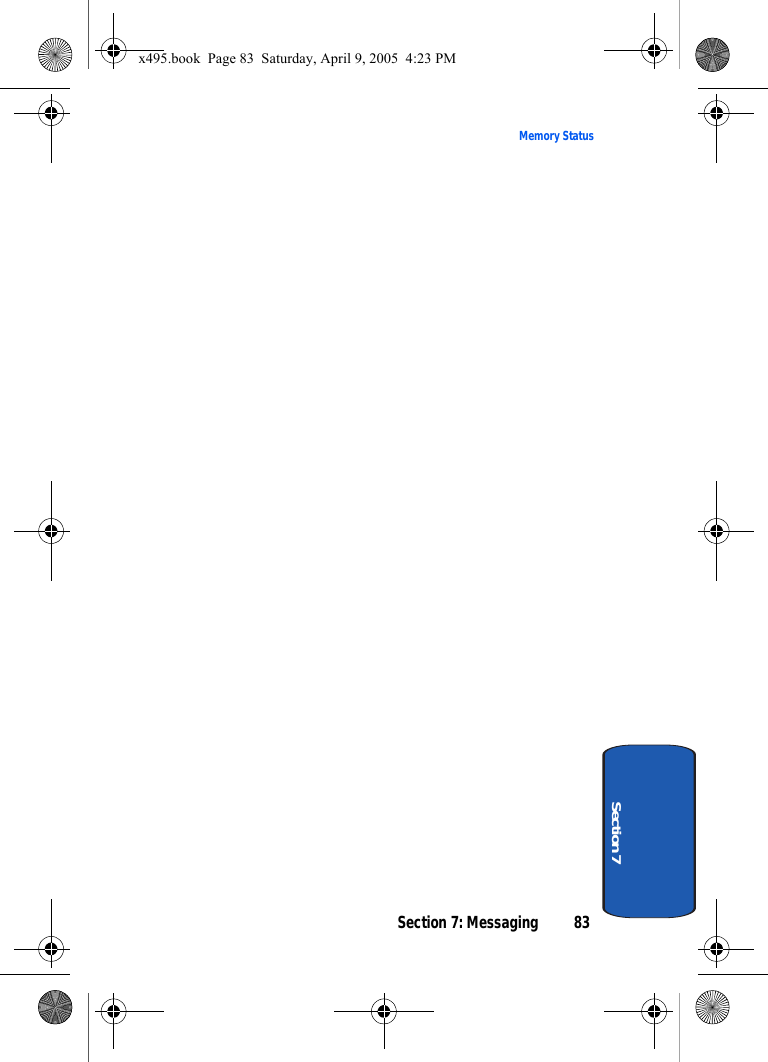

Section 7: Messaging 83Memory StatusSection 7x495.book Page 83 Saturday, April 9, 2005 4:23 PM

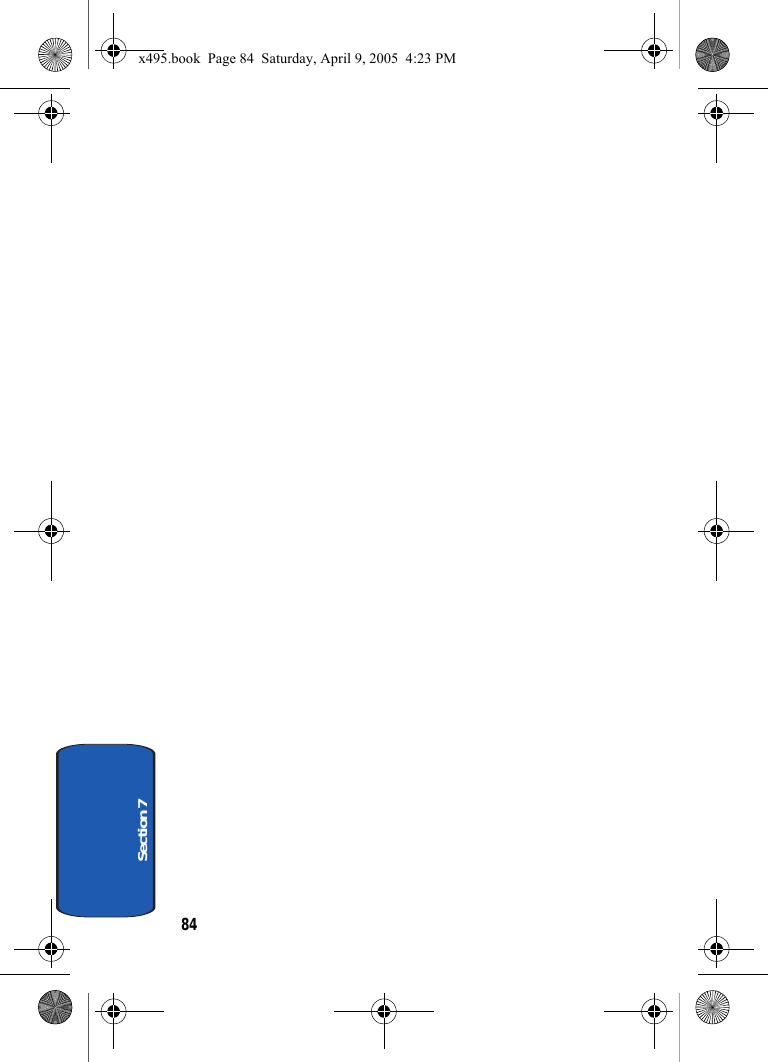

84Section 7x495.book Page 84 Saturday, April 9, 2005 4:23 PM
Section 8Section 8: Changing Your Settings 85Section 8: Changing Your SettingsTopics Covered• Sound Settings• Phone SettingsThis section explains the sound and phone settings for your phone. It includes display settings, security settings, and extra settings associated with your phone.x495.book Page 85 Saturday, April 9, 2005 4:23 PM

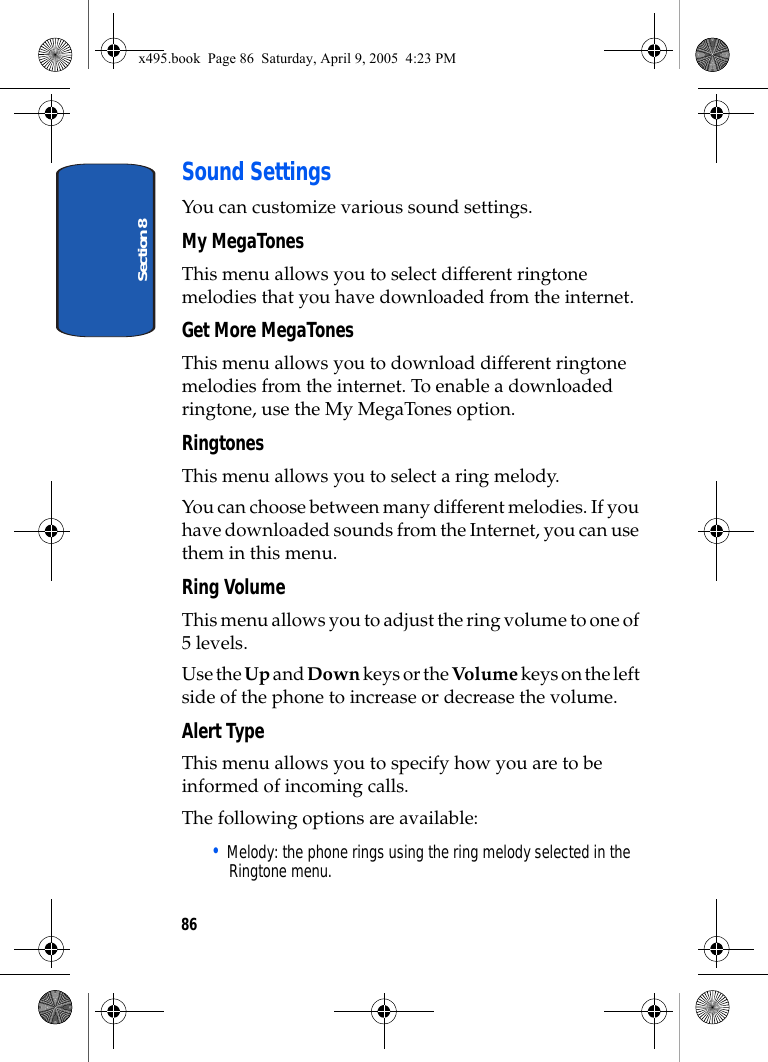

Section 886Sound SettingsYou can customize various sound settings.My MegaTonesThis menu allows you to select different ringtone melodies that you have downloaded from the internet.Get More MegaTonesThis menu allows you to download different ringtone melodies from the internet. To enable a downloaded ringtone, use the My MegaTones option.RingtonesThis menu allows you to select a ring melody. You can choose between many different melodies. If you have downloaded sounds from the Internet, you can use them in this menu. Ring Volume This menu allows you to adjust the ring volume to one of 5 levels.Use the Up and Down keys or the Volume keys on the left side of the phone to increase or decrease the volume.Alert TypeThis menu allows you to specify how you are to be informed of incoming calls. The following options are available:• Melody: the phone rings using the ring melody selected in the Ringtone menu.x495.book Page 86 Saturday, April 9, 2005 4:23 PM

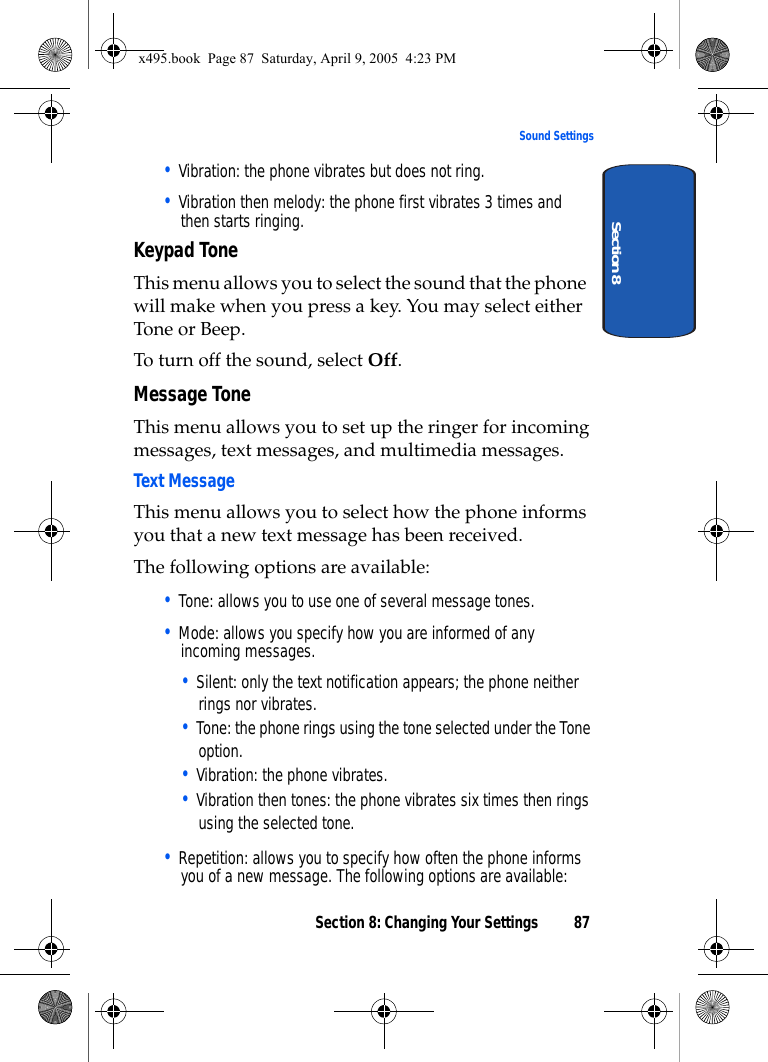

Section 8: Changing Your Settings 87Sound SettingsSection 8• Vibration: the phone vibrates but does not ring. • Vibration then melody: the phone first vibrates 3 times and then starts ringing.Keypad ToneThis menu allows you to select the sound that the phone will make when you press a key. You may select either Tone or Beep.To turn off the sound, select Off.Message ToneThis menu allows you to set up the ringer for incoming messages, text messages, and multimedia messages.Text MessageThis menu allows you to select how the phone informs you that a new text message has been received.The following options are available:• Tone: allows you to use one of several message tones. • Mode: allows you specify how you are informed of any incoming messages. • Silent: only the text notification appears; the phone neither rings nor vibrates.• Tone: the phone rings using the tone selected under the Tone option. • Vibration: the phone vibrates.• Vibration then tones: the phone vibrates six times then rings using the selected tone. • Repetition: allows you to specify how often the phone informs you of a new message. The following options are available:x495.book Page 87 Saturday, April 9, 2005 4:23 PM

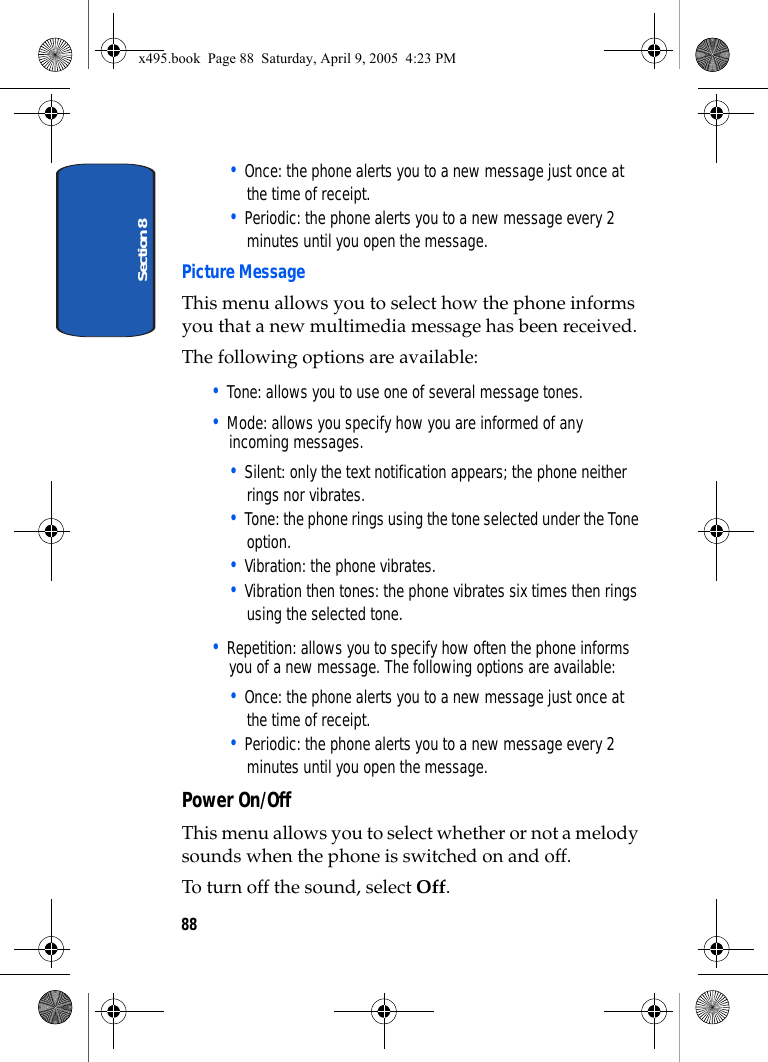

Section 888• Once: the phone alerts you to a new message just once at the time of receipt.• Periodic: the phone alerts you to a new message every 2 minutes until you open the message. Picture MessageThis menu allows you to select how the phone informs you that a new multimedia message has been received.The following options are available:• Tone: allows you to use one of several message tones. • Mode: allows you specify how you are informed of any incoming messages. • Silent: only the text notification appears; the phone neither rings nor vibrates.• Tone: the phone rings using the tone selected under the Tone option. • Vibration: the phone vibrates.• Vibration then tones: the phone vibrates six times then rings using the selected tone. • Repetition: allows you to specify how often the phone informs you of a new message. The following options are available:• Once: the phone alerts you to a new message just once at the time of receipt.• Periodic: the phone alerts you to a new message every 2 minutes until you open the message. Power On/OffThis menu allows you to select whether or not a melody sounds when the phone is switched on and off. To turn off the sound, select Off.x495.book Page 88 Saturday, April 9, 2005 4:23 PM

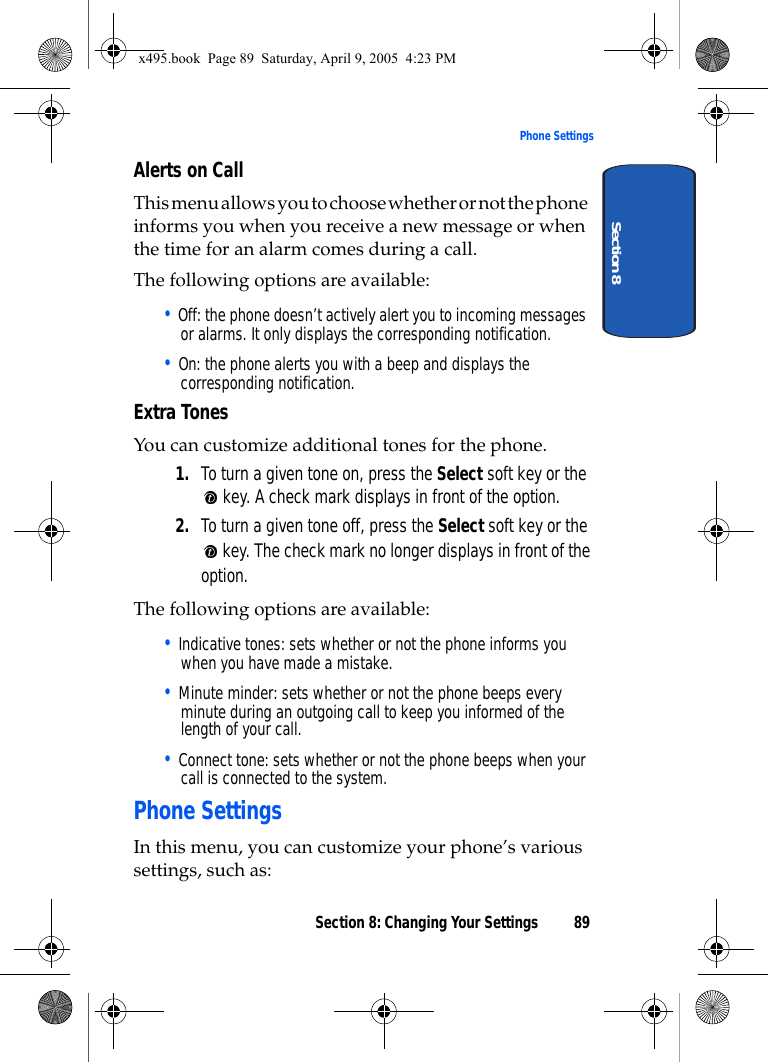

Section 8: Changing Your Settings 89Phone SettingsSection 8Alerts on CallThis menu allows you to choose whether or not the phone informs you when you receive a new message or when the time for an alarm comes during a call.The following options are available:• Off: the phone doesn’t actively alert you to incoming messages or alarms. It only displays the corresponding notification.• On: the phone alerts you with a beep and displays the corresponding notification.Extra TonesYou can customize additional tones for the phone.1. To turn a given tone on, press the Select soft key or the key. A check mark displays in front of the option.2. To turn a given tone off, press the Select soft key or the key. The check mark no longer displays in front of the option.The following options are available:• Indicative tones: sets whether or not the phone informs you when you have made a mistake. • Minute minder: sets whether or not the phone beeps every minute during an outgoing call to keep you informed of the length of your call.• Connect tone: sets whether or not the phone beeps when your call is connected to the system. Phone SettingsIn this menu, you can customize your phone’s various settings, such as:x495.book Page 89 Saturday, April 9, 2005 4:23 PM

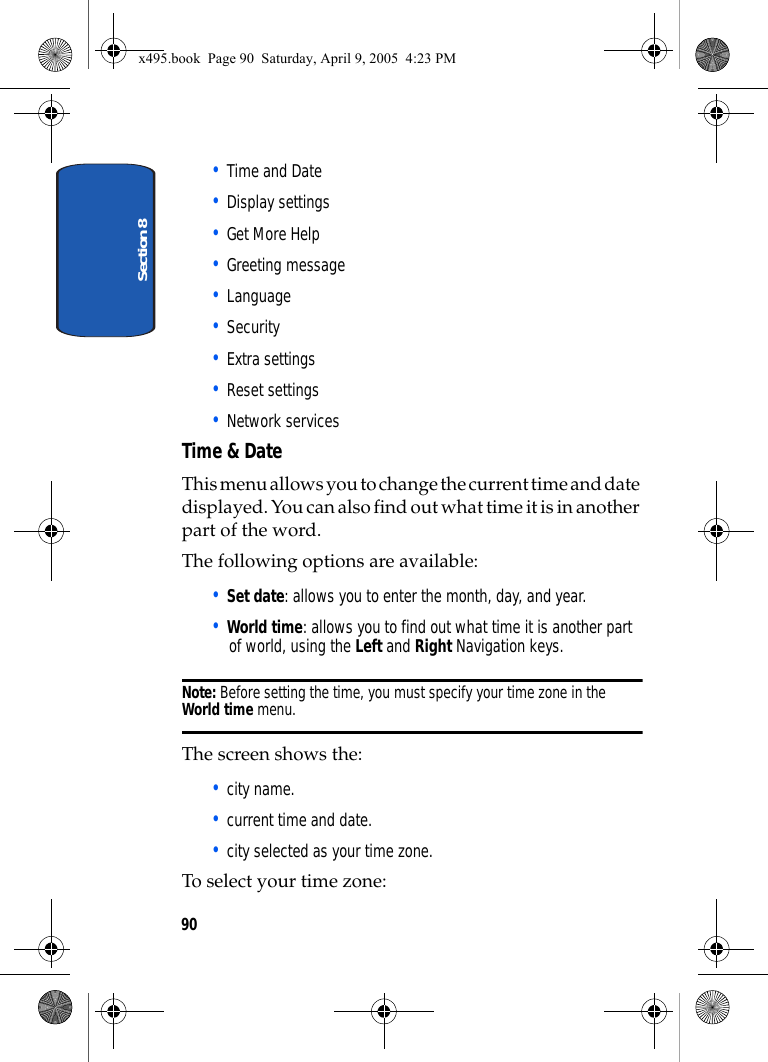

Section 890• Time and Date• Display settings• Get More Help• Greeting message• Language• Security• Extra settings• Reset settings• Network servicesTime & DateThis menu allows you to change the current time and date displayed. You can also find out what time it is in another part of the word.The following options are available:• Set date: allows you to enter the month, day, and year. • World time: allows you to find out what time it is another part of world, using the Left and Right Navigation keys.Note: Before setting the time, you must specify your time zone in the World time menu.The screen shows the:• city name.• current time and date.• city selected as your time zone.To select your time zone:x495.book Page 90 Saturday, April 9, 2005 4:23 PM

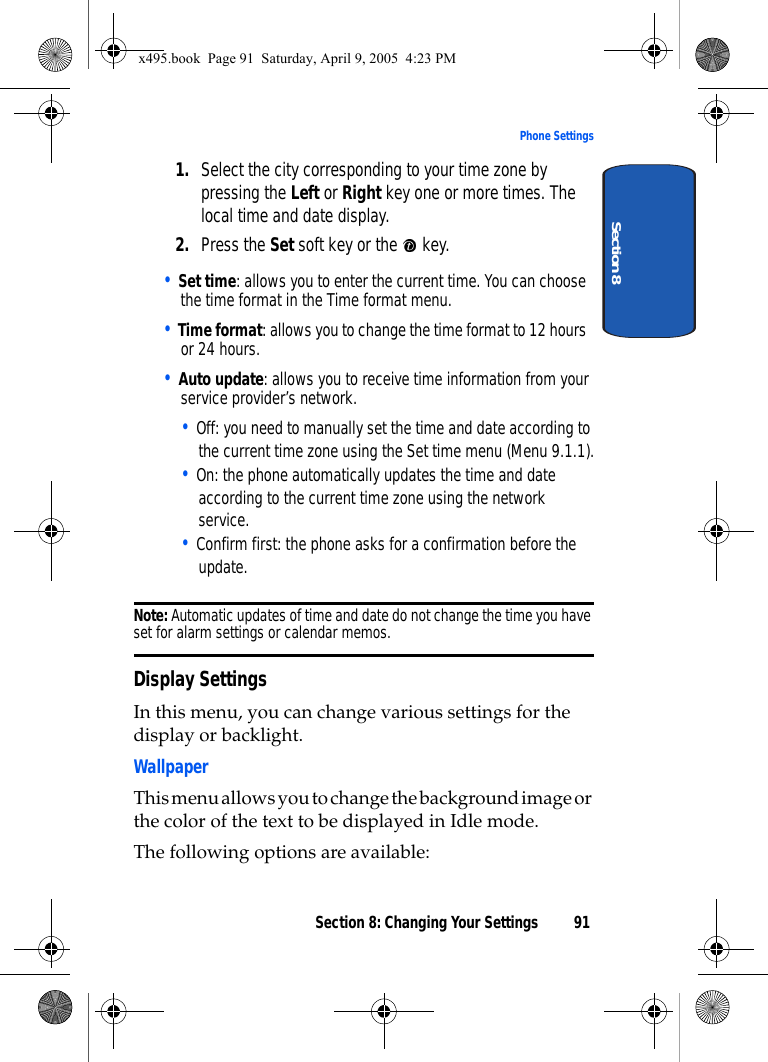

Section 8: Changing Your Settings 91Phone SettingsSection 81. Select the city corresponding to your time zone by pressing the Left or Right key one or more times. The local time and date display.2. Press the Set soft key or the key.• Set time: allows you to enter the current time. You can choose the time format in the Time format menu. • Time format: allows you to change the time format to 12 hours or 24 hours.• Auto update: allows you to receive time information from your service provider’s network.• Off: you need to manually set the time and date according to the current time zone using the Set time menu (Menu 9.1.1).• On: the phone automatically updates the time and date according to the current time zone using the network service.• Confirm first: the phone asks for a confirmation before the update.Note: Automatic updates of time and date do not change the time you have set for alarm settings or calendar memos. Display SettingsIn this menu, you can change various settings for the display or backlight.WallpaperThis menu allows you to change the background image or the color of the text to be displayed in Idle mode.The following options are available:x495.book Page 91 Saturday, April 9, 2005 4:23 PM

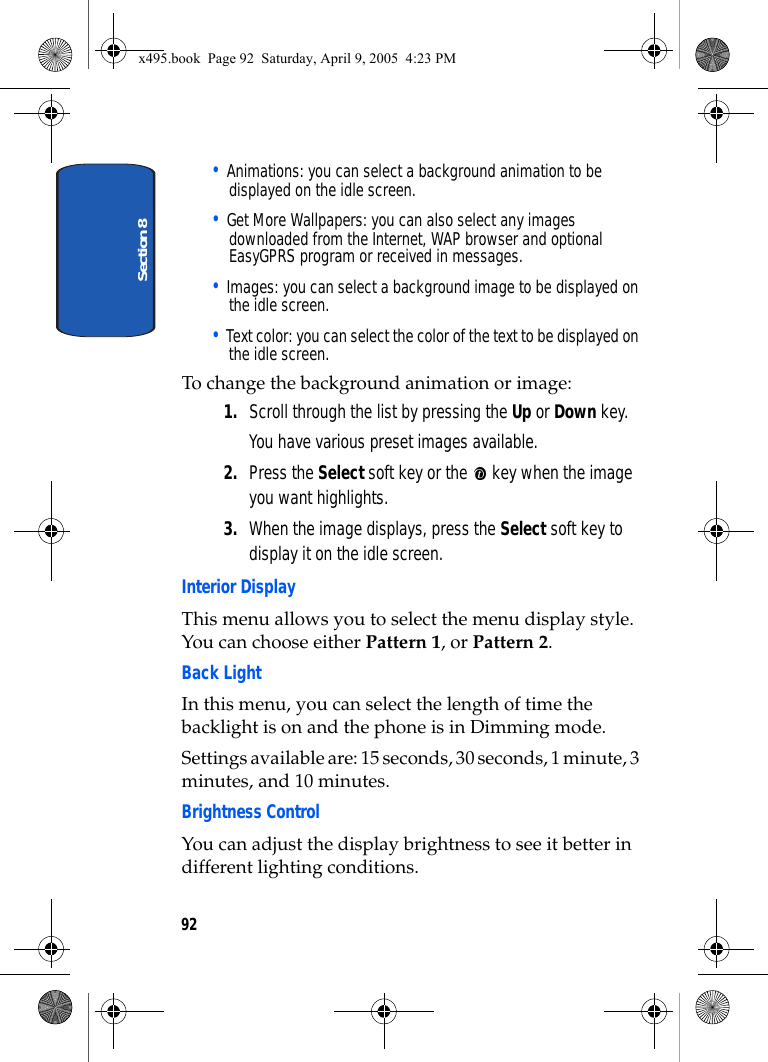

Section 892• Animations: you can select a background animation to be displayed on the idle screen.• Get More Wallpapers: you can also select any images downloaded from the Internet, WAP browser and optional EasyGPRS program or received in messages.• Images: you can select a background image to be displayed on the idle screen.• Text color: you can select the color of the text to be displayed on the idle screen.To change the background animation or image:1. Scroll through the list by pressing the Up or Down key.You have various preset images available. 2. Press the Select soft key or the key when the image you want highlights.3. When the image displays, press the Select soft key to display it on the idle screen.Interior DisplayThis menu allows you to select the menu display style. You can choose either Pattern 1, or Pattern 2. Back LightIn this menu, you can select the length of time the backlight is on and the phone is in Dimming mode.Settings available are: 15 seconds, 30 seconds, 1 minute, 3 minutes, and 10 minutes. Brightness ControlYou can adjust the display brightness to see it better in different lighting conditions.x495.book Page 92 Saturday, April 9, 2005 4:23 PM

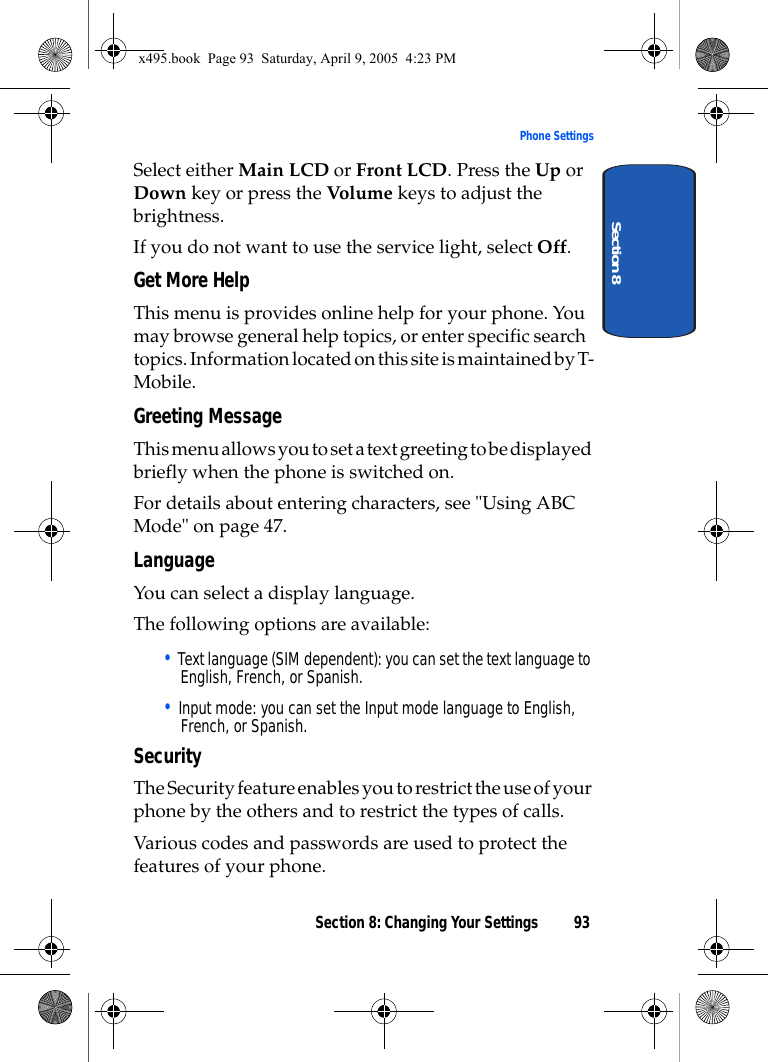

Section 8: Changing Your Settings 93Phone SettingsSection 8Select either Main LCD or Front LCD. Press the Up or Down key or press the Volume keys to adjust the brightness.If you do not want to use the service light, select Off.Get More HelpThis menu is provides online help for your phone. You may browse general help topics, or enter specific search topics. Information located on this site is maintained by T-Mobile. Greeting MessageThis menu allows you to set a text greeting to be displayed briefly when the phone is switched on. For details about entering characters, see "Using ABC Mode" on page 47.LanguageYou can select a display language. The following options are available:• Text language (SIM dependent): you can set the text language to English, French, or Spanish.• Input mode: you can set the Input mode language to English, French, or Spanish.SecurityThe Security feature enables you to restrict the use of your phone by the others and to restrict the types of calls.Various codes and passwords are used to protect the features of your phone. x495.book Page 93 Saturday, April 9, 2005 4:23 PM
Section 894PIN Check When the PIN Check feature is enabled, you must enter your PIN each time you switch on the phone. Consequently, any person who does not have your PIN cannot use your phone without your approval.Note: Before disabling the PIN Check feature, you must enter your PIN.The following options are available:• Disable: the phone connects directly to the network when you switch it on.• Enable: you must enter the PIN each time the phone is switched on.Change PINThis feature allows you to change your current PIN, provided that the PIN Check feature is enabled. You must enter the current PIN before you can specify a new one.Once you have entered a new PIN, you are asked to confirm it by entering it again.Phone Lock When the Phone Lock feature is enabled, the phone is locked and you must enter the 4- to 8-digit phone password each time the phone is switched on.The password is preset to “00000000” at the factory. To change the phone password, see "Change Password" on page 95.Once the correct password has been entered, you can use the phone until you switch it off.The following options are available:x495.book Page 94 Saturday, April 9, 2005 4:23 PM

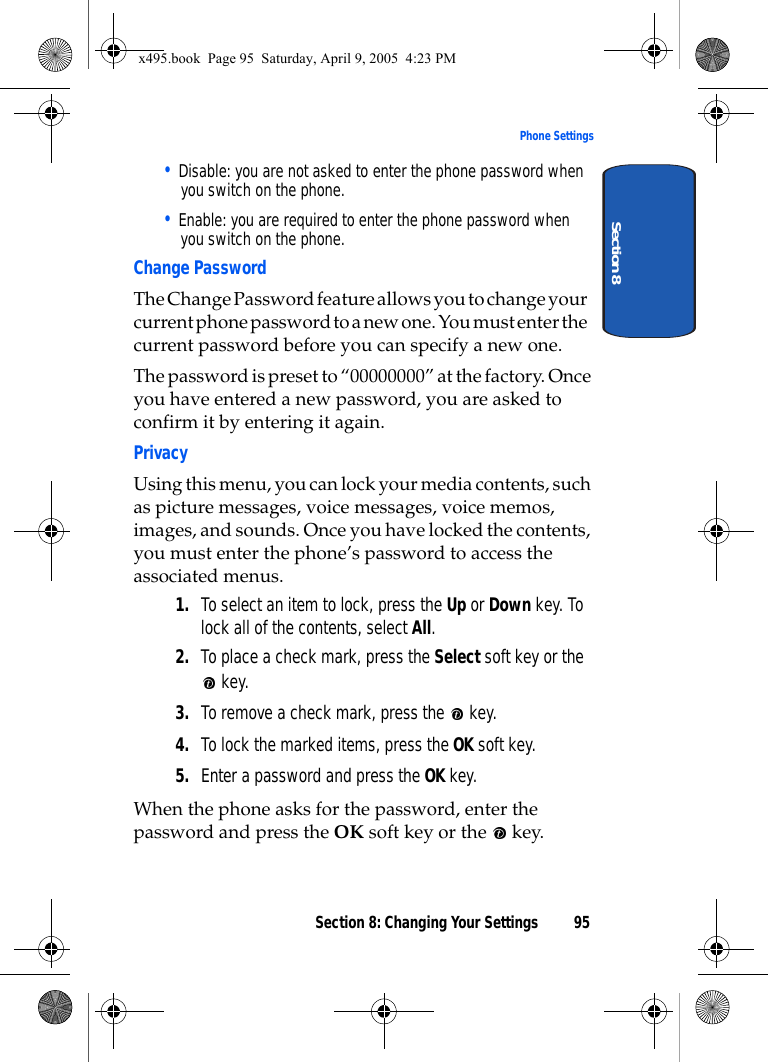

Section 8: Changing Your Settings 95Phone SettingsSection 8• Disable: you are not asked to enter the phone password when you switch on the phone.• Enable: you are required to enter the phone password when you switch on the phone.Change PasswordThe Change Password feature allows you to change your current phone password to a new one. You must enter the current password before you can specify a new one.The password is preset to “00000000” at the factory. Once you have entered a new password, you are asked to confirm it by entering it again.PrivacyUsing this menu, you can lock your media contents, such as picture messages, voice messages, voice memos, images, and sounds. Once you have locked the contents, you must enter the phone’s password to access the associated menus.1. To select an item to lock, press the Up or Down key. To lock all of the contents, select All.2. To place a check mark, press the Select soft key or the key.3. To remove a check mark, press the key.4. To lock the marked items, press the OK soft key.5. Enter a password and press the OK key.When the phone asks for the password, enter the password and press the OK soft key or the key.x495.book Page 95 Saturday, April 9, 2005 4:23 PM
Section 896Note: The password is preset to “00000000” at the factory. To change this password, see "Change Password" on page 95.SIM lockWhen the SIM Lock feature is enabled, your phone only works with the current SIM. You must enter the SIM lock code to unlock the SIM so you can use a different SIM card.Once you have entered the lock code, you are asked to confirm your entry.FDN ModeFDN (Fixed Dial Number) mode, if supported by your SIM card, allows you to restrict your outgoing calls to a limited set of phone numbers.The following options are available:• Disable: you can call any number.• Enable: you can only call phone numbers stored in Phonebook. You must enter your PIN2. The following options are available:• Full length entries or wild cards can be entered in to the FDN list.• A full length number with a specific contact name can be entered into the FDN list.• Wildcard entries allow a range of numbers to be dialed with a single entry: ex. 555 – All dialed numbers that begin with 555 will be allowed. Numbers that do not match the conditions in the FDN list will be restricted. Note: Entering an asterisk (*) is not required for wild card entries. Change PIN2The Change PIN2 feature allows you to change your current PIN2 to a new one. You must enter the current x495.book Page 96 Saturday, April 9, 2005 4:23 PM

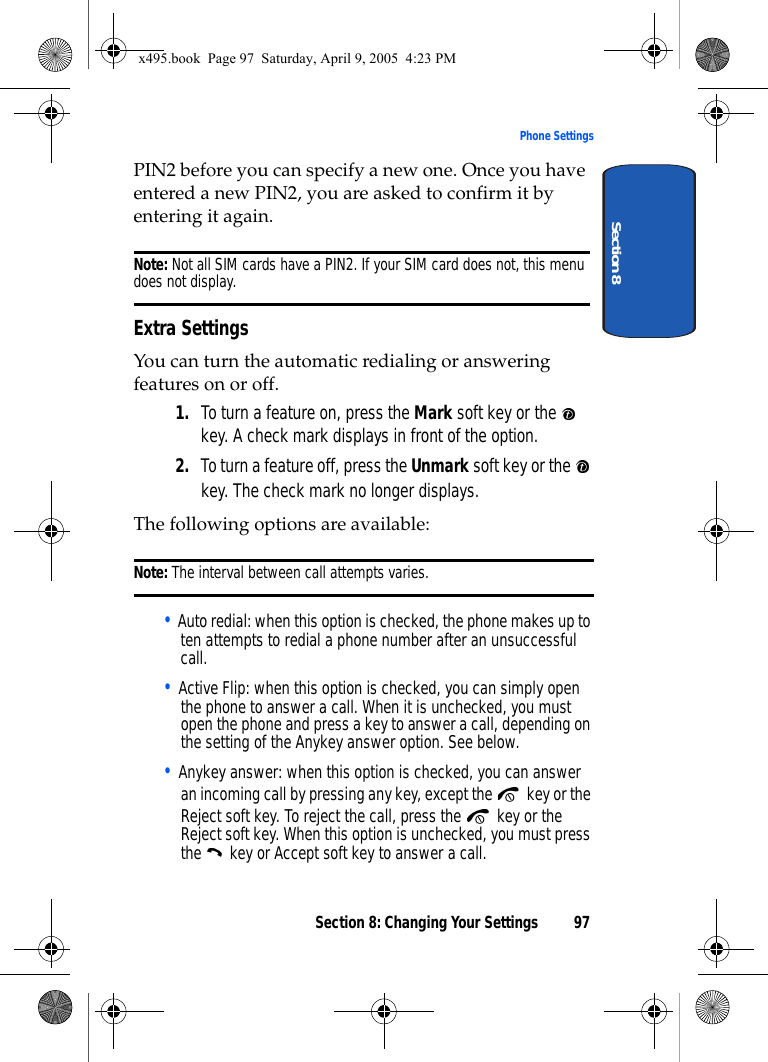

Section 8: Changing Your Settings 97Phone SettingsSection 8PIN2 before you can specify a new one. Once you have entered a new PIN2, you are asked to confirm it by entering it again.Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu does not display.Extra SettingsYou can turn the automatic redialing or answering features on or off.1. To turn a feature on, press the Mark soft key or the key. A check mark displays in front of the option.2. To turn a feature off, press the Unmark soft key or the key. The check mark no longer displays.The following options are available:Note: The interval between call attempts varies.• Auto redial: when this option is checked, the phone makes up to ten attempts to redial a phone number after an unsuccessful call.• Active Flip: when this option is checked, you can simply open the phone to answer a call. When it is unchecked, you must open the phone and press a key to answer a call, depending on the setting of the Anykey answer option. See below.• Anykey answer: when this option is checked, you can answer an incoming call by pressing any key, except the key or the Reject soft key. To reject the call, press the key or the Reject soft key. When this option is unchecked, you must press the key or Accept soft key to answer a call.x495.book Page 97 Saturday, April 9, 2005 4:23 PM

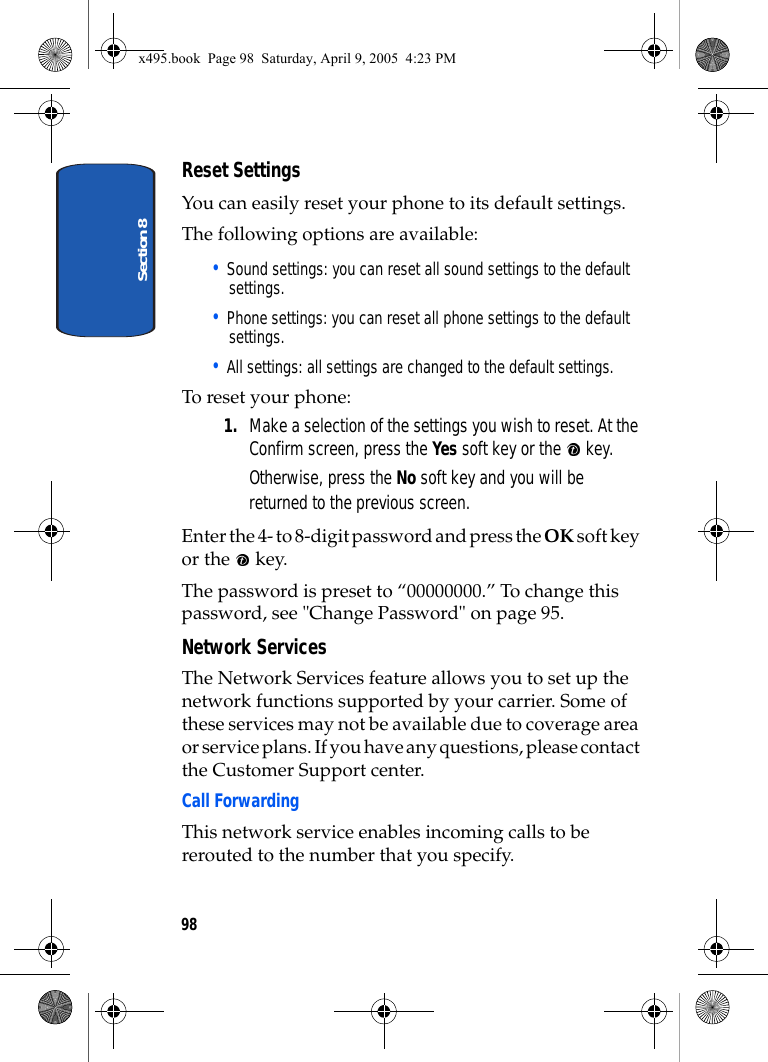

Section 898Reset SettingsYou can easily reset your phone to its default settings. The following options are available:• Sound settings: you can reset all sound settings to the default settings.• Phone settings: you can reset all phone settings to the default settings.• All settings: all settings are changed to the default settings.To reset your phone: 1. Make a selection of the settings you wish to reset. At the Confirm screen, press the Yes soft key or the key.Otherwise, press the No soft key and you will be returned to the previous screen. Enter the 4- to 8-digit password and press the OK soft key or the key.The password is preset to “00000000.” To change this password, see "Change Password" on page 95.Network ServicesThe Network Services feature allows you to set up the network functions supported by your carrier. Some of these services may not be available due to coverage area or service plans. If you have any questions, please contact the Customer Support center.Call ForwardingThis network service enables incoming calls to be rerouted to the number that you specify.x495.book Page 98 Saturday, April 9, 2005 4:23 PM

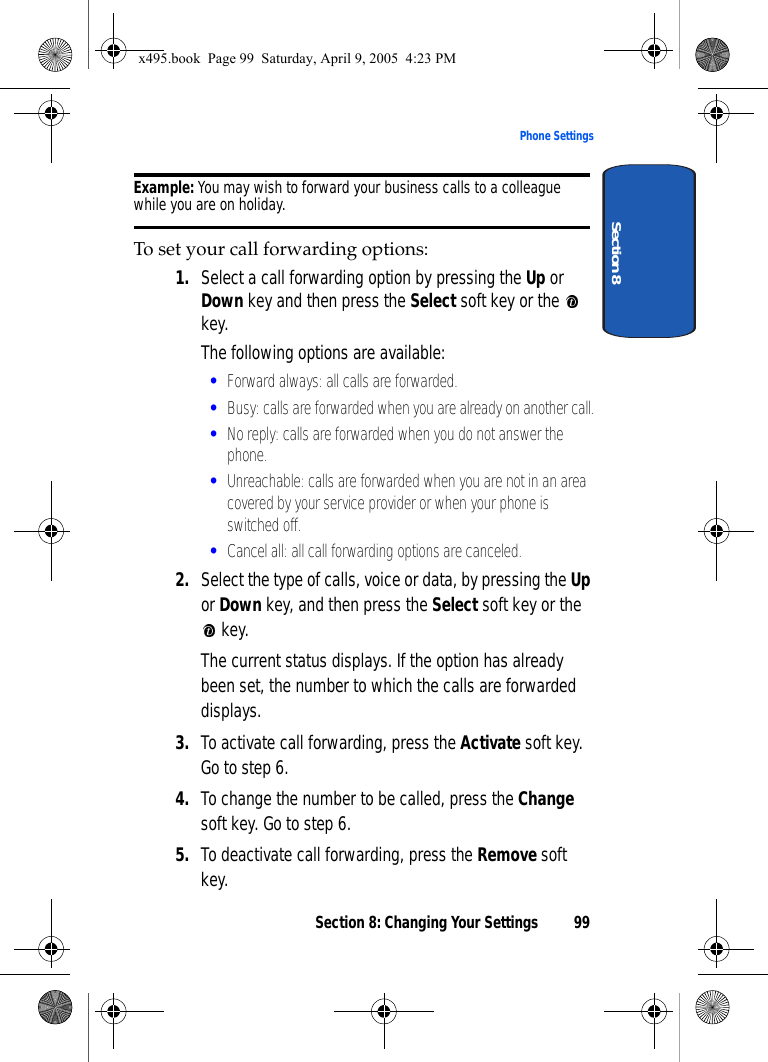

Section 8: Changing Your Settings 99Phone SettingsSection 8Example: You may wish to forward your business calls to a colleague while you are on holiday.To set your call forwarding options:1. Select a call forwarding option by pressing the Up or Down key and then press the Select soft key or the key. The following options are available:•Forward always: all calls are forwarded.•Busy: calls are forwarded when you are already on another call.•No reply: calls are forwarded when you do not answer the phone.•Unreachable: calls are forwarded when you are not in an area covered by your service provider or when your phone is switched off.•Cancel all: all call forwarding options are canceled.2. Select the type of calls, voice or data, by pressing the Up or Down key, and then press the Select soft key or the key.The current status displays. If the option has already been set, the number to which the calls are forwarded displays.3. To activate call forwarding, press the Activate soft key. Go to step 6.4. To change the number to be called, press the Change soft key. Go to step 6.5. To deactivate call forwarding, press the Remove soft key.x495.book Page 99 Saturday, April 9, 2005 4:23 PM

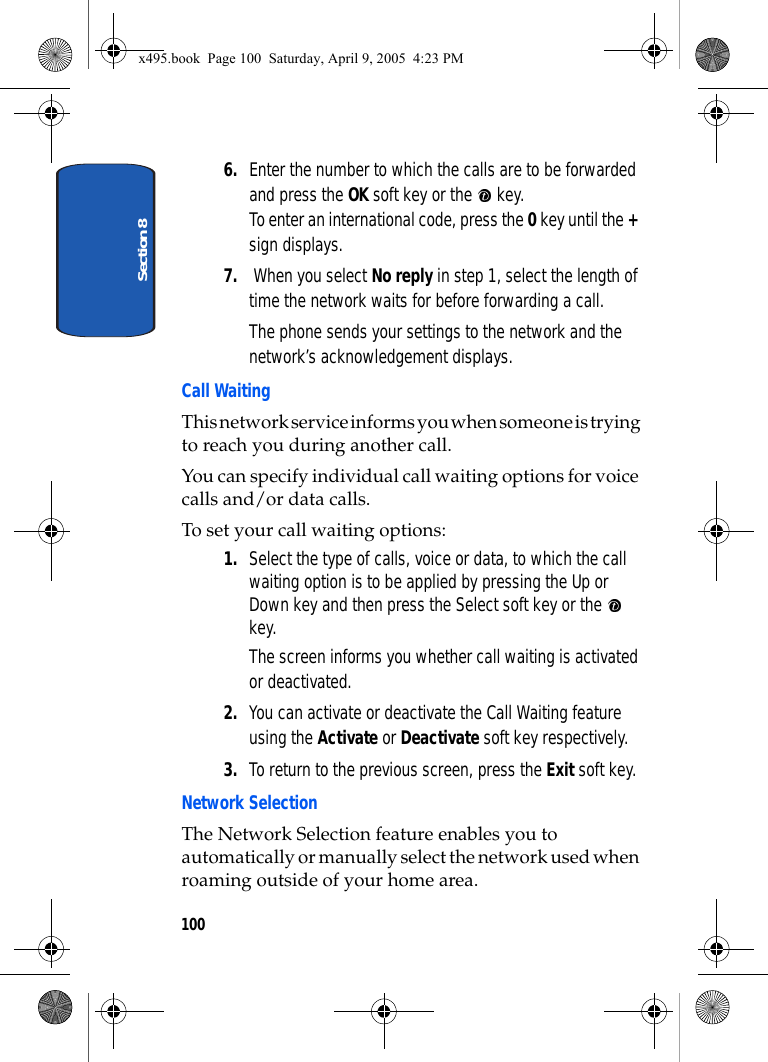

Section 81006. Enter the number to which the calls are to be forwarded and press the OK soft key or the key.To enter an international code, press the 0 key until the + sign displays.7. When you select No reply in step 1, select the length of time the network waits for before forwarding a call.The phone sends your settings to the network and the network’s acknowledgement displays.Call WaitingThis network service informs you when someone is trying to reach you during another call.You can specify individual call waiting options for voice calls and/or data calls.To set your call waiting options:1. Select the type of calls, voice or data, to which the call waiting option is to be applied by pressing the Up or Down key and then press the Select soft key or the key.The screen informs you whether call waiting is activated or deactivated. 2. You can activate or deactivate the Call Waiting feature using the Activate or Deactivate soft key respectively. 3. To return to the previous screen, press the Exit soft key.Network SelectionThe Network Selection feature enables you to automatically or manually select the network used when roaming outside of your home area.x495.book Page 100 Saturday, April 9, 2005 4:23 PM
Section 8: Changing Your Settings 101Phone SettingsSection 8Note: You can select a network other than your home network only if there is a valid roaming agreement between the two.To change the Network Selection mode:1. Highlight the Default setup option then press the Select soft key or the key.If you select Automatic, you are connected to the first available network when roaming.If you select Manual, go to step 2.2. After scanning the network, the phone will display available networks. Highlight the network that you want by pressing the Up or Down key and then press the Select soft key or the key.The phone will scan for that network and you will be connected.Caller IDYou can prevent your phone number from being displayed on the phone of the person being called.Note: Some networks do not allow you to change this setting.The following options are available:• Default: the default setting provided by the network is used.• Hide number: your number does not display on the other person’s phone.• Send number: your number is sent each time you make a call.x495.book Page 101 Saturday, April 9, 2005 4:23 PM
Section 8102Band SelectionThis menu option provides the ability to set the band for your phone. Choose from GSM 850/1900, GSM 1800, or Automatic.x495.book Page 102 Saturday, April 9, 2005 4:23 PM

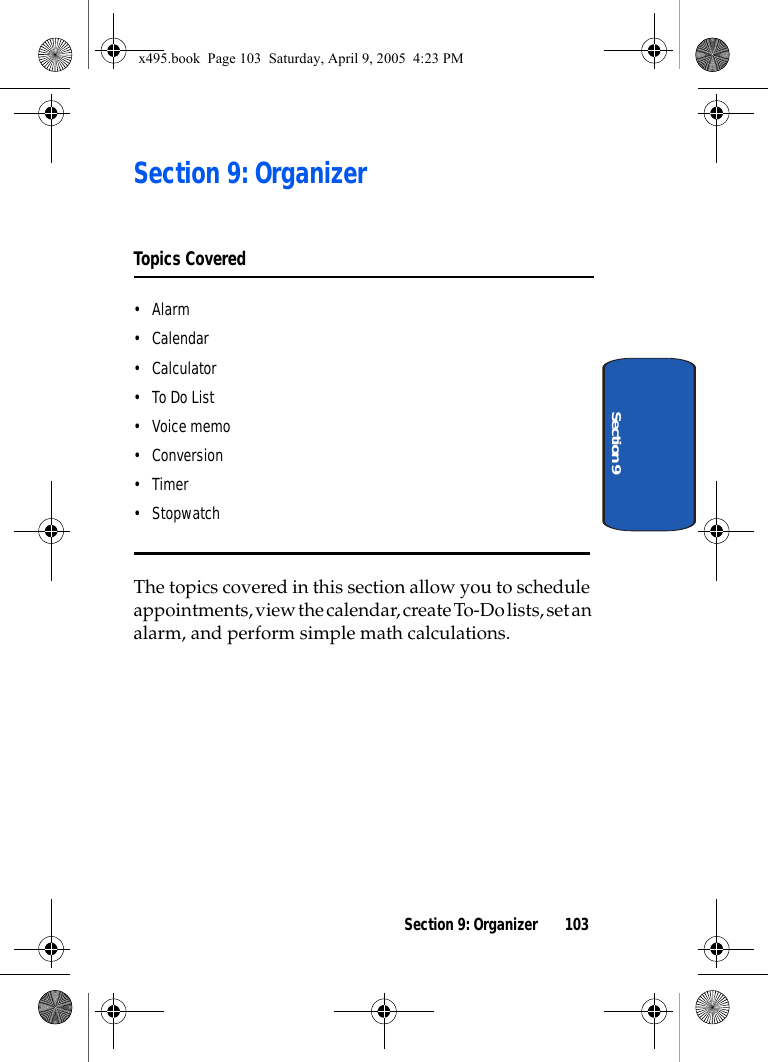

Section 9: Organizer 103Section 9Section 9: OrganizerTopics Covered•Alarm• Calendar•Calculator•To Do List•Voice memo•Conversion•Timer• StopwatchThe topics covered in this section allow you to schedule appointments, view the calendar, create To-Do lists, set an alarm, and perform simple math calculations.x495.book Page 103 Saturday, April 9, 2005 4:23 PM

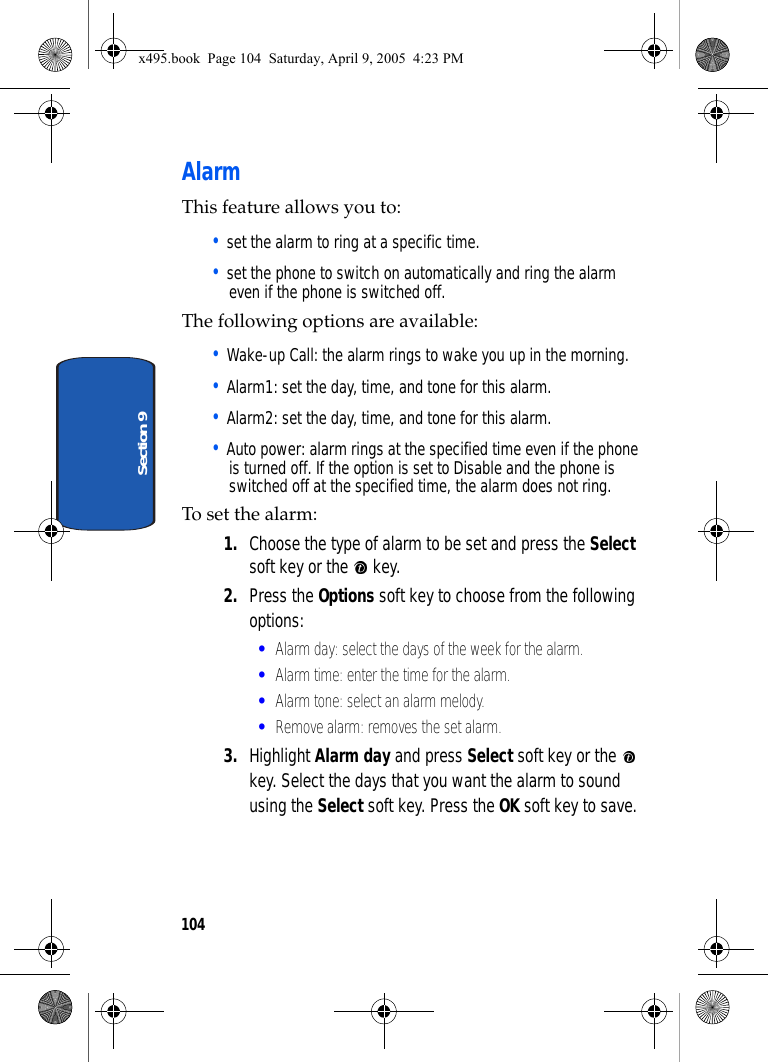

104Section 9AlarmThis feature allows you to:• set the alarm to ring at a specific time.• set the phone to switch on automatically and ring the alarm even if the phone is switched off.The following options are available:• Wake-up Call: the alarm rings to wake you up in the morning.• Alarm1: set the day, time, and tone for this alarm. • Alarm2: set the day, time, and tone for this alarm. • Auto power: alarm rings at the specified time even if the phone is turned off. If the option is set to Disable and the phone is switched off at the specified time, the alarm does not ring.To set the alarm:1. Choose the type of alarm to be set and press the Select soft key or the key.2. Press the Options soft key to choose from the following options:•Alarm day: select the days of the week for the alarm.•Alarm time: enter the time for the alarm.•Alarm tone: select an alarm melody.•Remove alarm: removes the set alarm.3. Highlight Alarm day and press Select soft key or the key. Select the days that you want the alarm to sound using the Select soft key. Press the OK soft key to save. x495.book Page 104 Saturday, April 9, 2005 4:23 PM

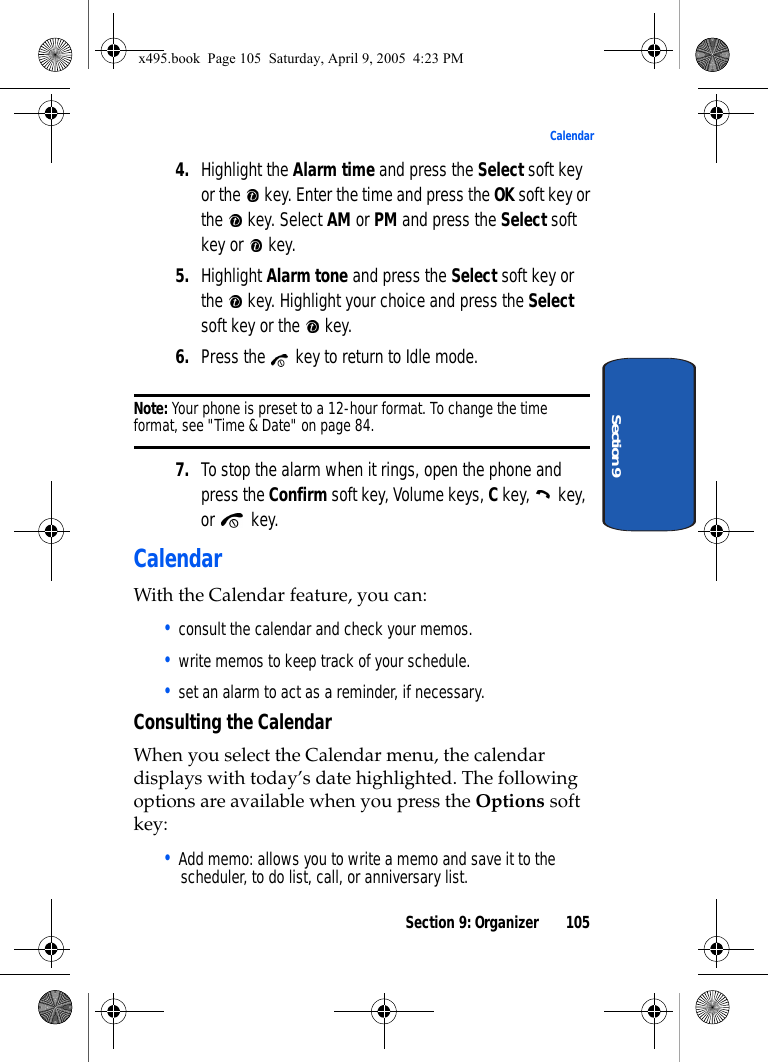

Section 9: Organizer 105CalendarSection 94. Highlight the Alarm time and press the Select soft key or the key. Enter the time and press the OK soft key or the key. Select AM or PM and press the Select soft key or key. 5. Highlight Alarm tone and press the Select soft key or the key. Highlight your choice and press the Select soft key or the key.6. Press the key to return to Idle mode.Note: Your phone is preset to a 12-hour format. To change the time format, see "Time & Date" on page 84.7. To stop the alarm when it rings, open the phone and press the Confirm soft key, Volume keys, C key, key, or key.CalendarWith the Calendar feature, you can: • consult the calendar and check your memos.• write memos to keep track of your schedule.• set an alarm to act as a reminder, if necessary.Consulting the CalendarWhen you select the Calendar menu, the calendar displays with today’s date highlighted. The following options are available when you press the Options soft key:• Add memo: allows you to write a memo and save it to the scheduler, to do list, call, or anniversary list.x495.book Page 105 Saturday, April 9, 2005 4:23 PM

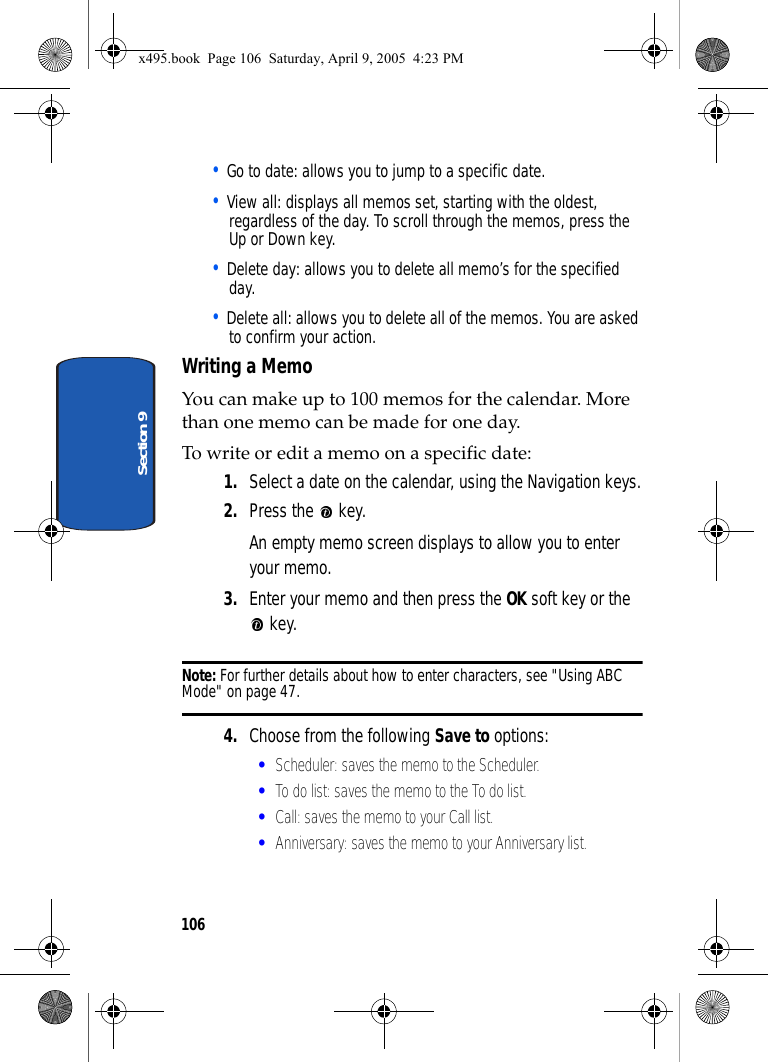

106Section 9• Go to date: allows you to jump to a specific date. • View all: displays all memos set, starting with the oldest, regardless of the day. To scroll through the memos, press the Up or Down key.• Delete day: allows you to delete all memo’s for the specified day.• Delete all: allows you to delete all of the memos. You are asked to confirm your action.Writing a MemoYou can make up to 100 memos for the calendar. More than one memo can be made for one day.To write or edit a memo on a specific date:1. Select a date on the calendar, using the Navigation keys.2. Press the key.An empty memo screen displays to allow you to enter your memo.3. Enter your memo and then press the OK soft key or the key.Note: For further details about how to enter characters, see "Using ABC Mode" on page 47.4. Choose from the following Save to options:•Scheduler: saves the memo to the Scheduler.•To do list: saves the memo to the To do list.•Call: saves the memo to your Call list.•Anniversary: saves the memo to your Anniversary list.x495.book Page 106 Saturday, April 9, 2005 4:23 PM

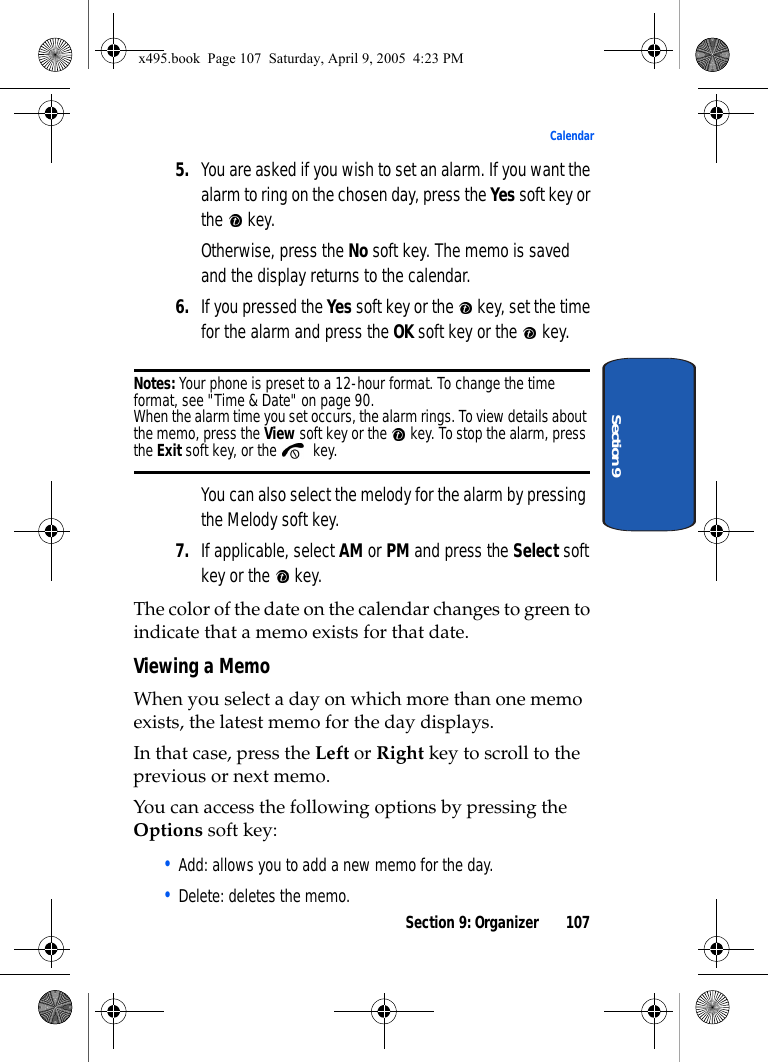

Section 9: Organizer 107CalendarSection 95. You are asked if you wish to set an alarm. If you want the alarm to ring on the chosen day, press the Yes soft key or the key.Otherwise, press the No soft key. The memo is saved and the display returns to the calendar.6. If you pressed the Yes soft key or the key, set the time for the alarm and press the OK soft key or the key.Notes: Your phone is preset to a 12-hour format. To change the time format, see "Time & Date" on page 90.When the alarm time you set occurs, the alarm rings. To view details about the memo, press the View soft key or the key. To stop the alarm, press the Exit soft key, or the key.You can also select the melody for the alarm by pressing the Melody soft key.7. If applicable, select AM or PM and press the Select soft key or the key.The color of the date on the calendar changes to green to indicate that a memo exists for that date.Viewing a MemoWhen you select a day on which more than one memo exists, the latest memo for the day displays.In that case, press the Left or Right key to scroll to the previous or next memo.You can access the following options by pressing the Options soft key:• Add: allows you to add a new memo for the day.• Delete: deletes the memo.x495.book Page 107 Saturday, April 9, 2005 4:23 PM

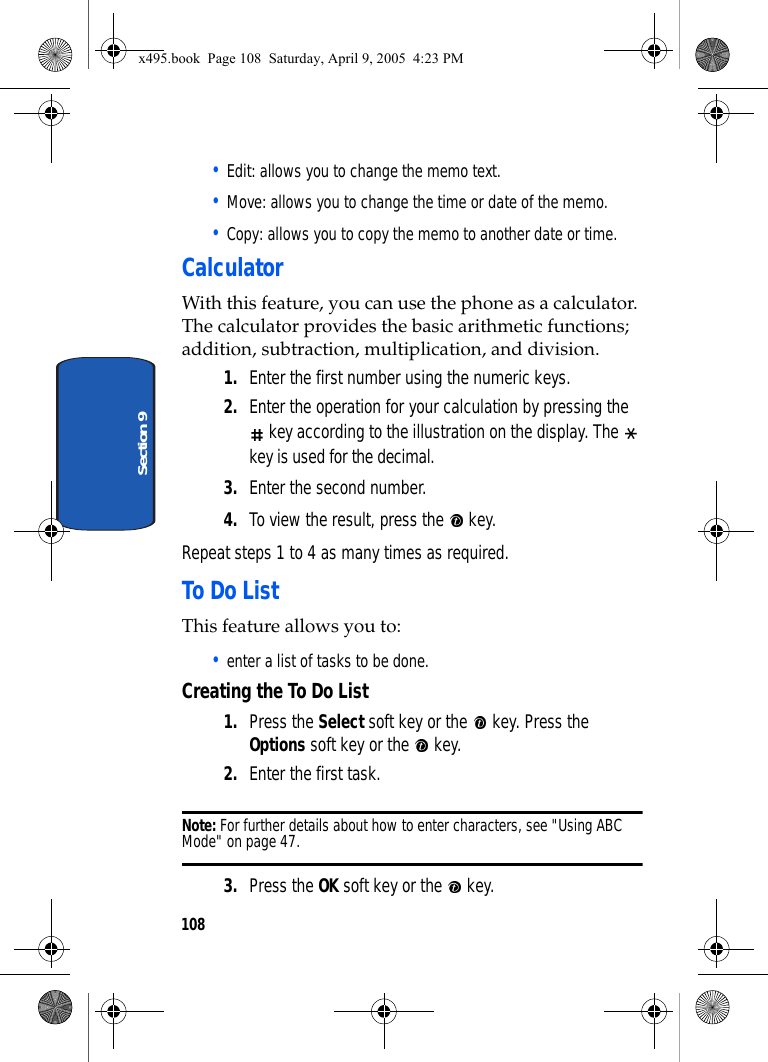

108Section 9• Edit: allows you to change the memo text.• Move: allows you to change the time or date of the memo.• Copy: allows you to copy the memo to another date or time.CalculatorWith this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions; addition, subtraction, multiplication, and division.1. Enter the first number using the numeric keys.2. Enter the operation for your calculation by pressing the key according to the illustration on the display. The key is used for the decimal.3. Enter the second number.4. To view the result, press the key.Repeat steps 1 to 4 as many times as required.To Do ListThis feature allows you to:• enter a list of tasks to be done.Creating the To Do List1. Press the Select soft key or the key. Press the Options soft key or the key.2. Enter the first task.Note: For further details about how to enter characters, see "Using ABC Mode" on page 47.3. Press the OK soft key or the key.x495.book Page 108 Saturday, April 9, 2005 4:23 PM

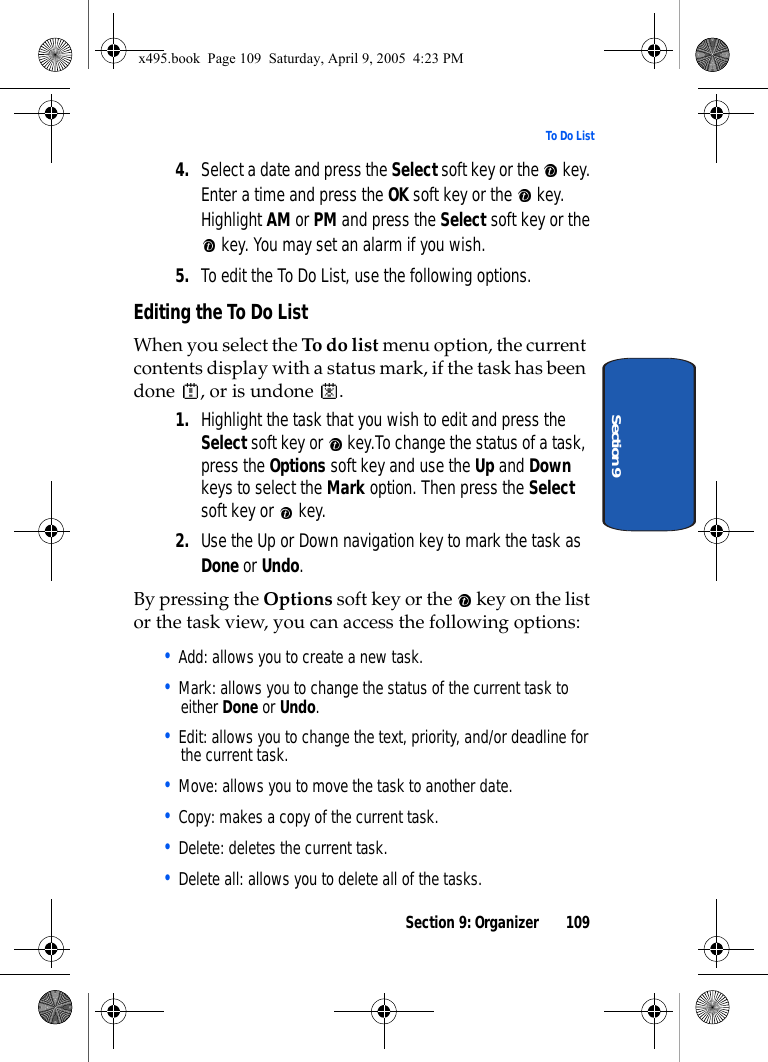

Section 9: Organizer 109To Do ListSection 94. Select a date and press the Select soft key or the key. Enter a time and press the OK soft key or the key. Highlight AM or PM and press the Select soft key or the key. You may set an alarm if you wish.5. To edit the To Do List, use the following options.Editing the To Do ListWhen you select the To do list menu option, the current contents display with a status mark, if the task has been done , or is undone .1. Highlight the task that you wish to edit and press the Select soft key or key.To change the status of a task, press the Options soft key and use the Up and Down keys to select the Mark option. Then press the Select soft key or key.2. Use the Up or Down navigation key to mark the task as Done or Undo. By pressing the Options soft key or the key on the list or the task view, you can access the following options:• Add: allows you to create a new task.• Mark: allows you to change the status of the current task to either Done or Undo.• Edit: allows you to change the text, priority, and/or deadline for the current task.• Move: allows you to move the task to another date. • Copy: makes a copy of the current task.• Delete: deletes the current task.• Delete all: allows you to delete all of the tasks.x495.book Page 109 Saturday, April 9, 2005 4:23 PM

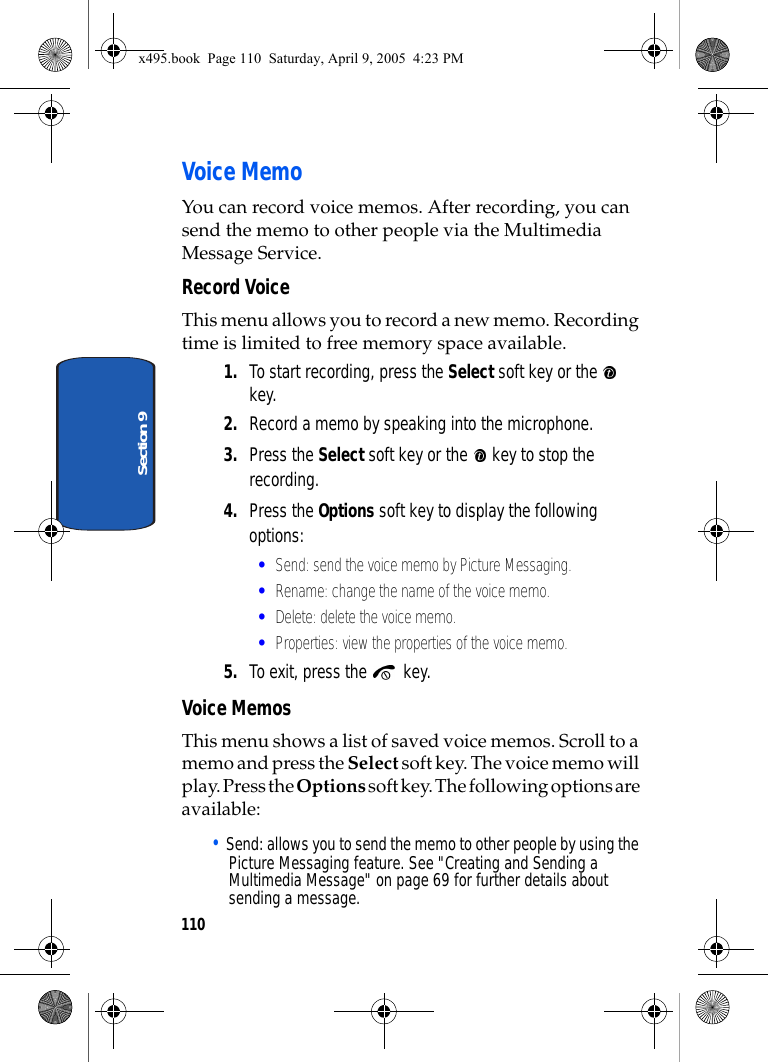

110Section 9Voice MemoYou can record voice memos. After recording, you can send the memo to other people via the Multimedia Message Service.Record Voice This menu allows you to record a new memo. Recording time is limited to free memory space available. 1. To start recording, press the Select soft key or the key. 2. Record a memo by speaking into the microphone.3. Press the Select soft key or the key to stop the recording.4. Press the Options soft key to display the following options:•Send: send the voice memo by Picture Messaging.•Rename: change the name of the voice memo.•Delete: delete the voice memo.•Properties: view the properties of the voice memo.5. To exit, press the key.Voice MemosThis menu shows a list of saved voice memos. Scroll to a memo and press the Select soft key. The voice memo will play. Press the Options soft key. The following options are available:• Send: allows you to send the memo to other people by using the Picture Messaging feature. See "Creating and Sending a Multimedia Message" on page 69 for further details about sending a message.x495.book Page 110 Saturday, April 9, 2005 4:23 PM

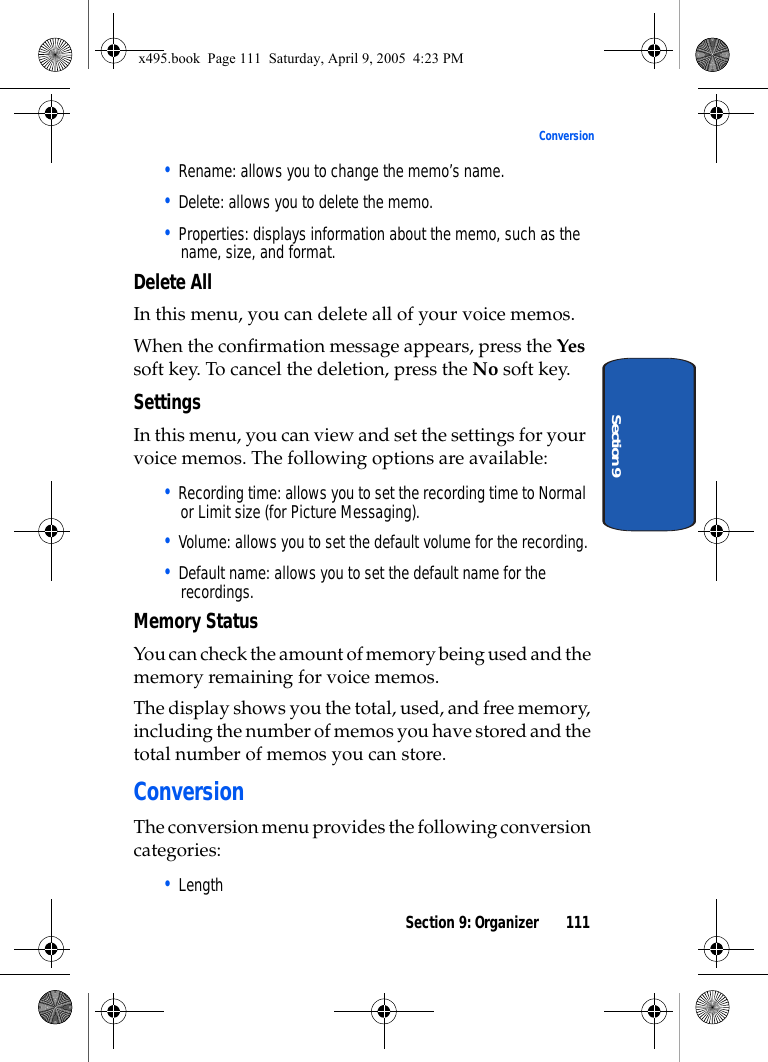

Section 9: Organizer 111ConversionSection 9• Rename: allows you to change the memo’s name.• Delete: allows you to delete the memo.• Properties: displays information about the memo, such as the name, size, and format.Delete All In this menu, you can delete all of your voice memos. When the confirmation message appears, press the Yes soft key. To cancel the deletion, press the No soft key.SettingsIn this menu, you can view and set the settings for your voice memos. The following options are available:• Recording time: allows you to set the recording time to Normal or Limit size (for Picture Messaging).• Volume: allows you to set the default volume for the recording.• Default name: allows you to set the default name for the recordings.Memory StatusYou can check the amount of memory being used and the memory remaining for voice memos.The display shows you the total, used, and free memory, including the number of memos you have stored and the total number of memos you can store.ConversionThe conversion menu provides the following conversion categories:• Lengthx495.book Page 111 Saturday, April 9, 2005 4:23 PM

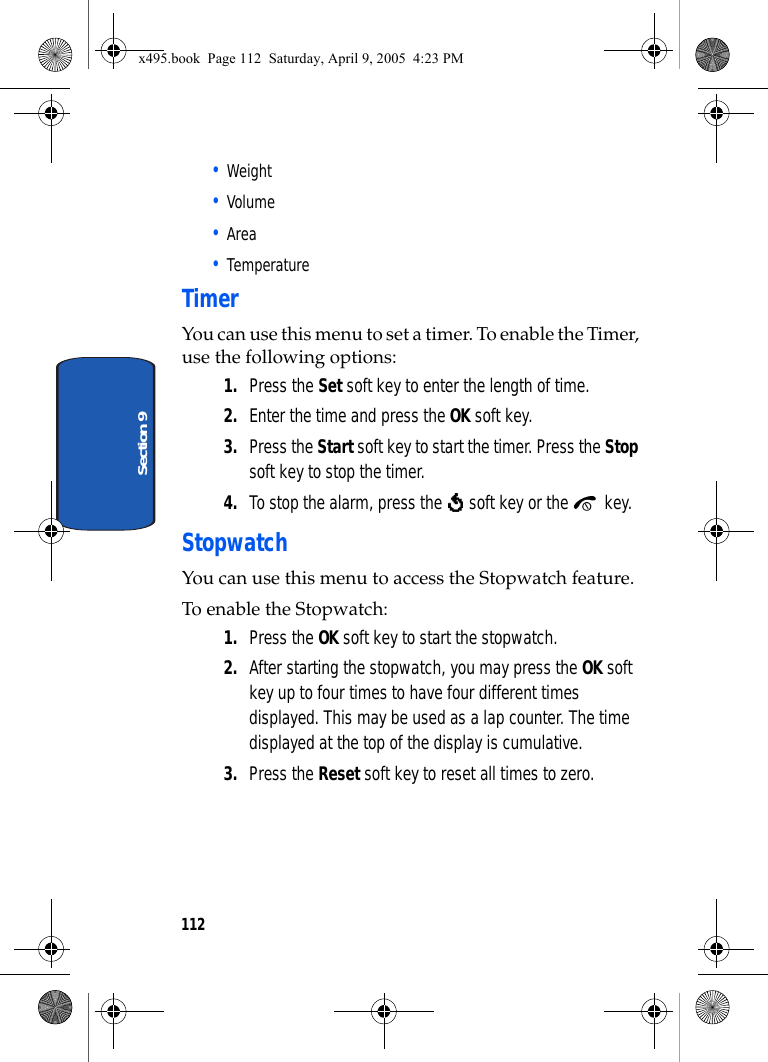

112Section 9• Weight• Volume• Area• TemperatureTimerYou can use this menu to set a timer. To enable the Timer, use the following options:1. Press the Set soft key to enter the length of time. 2. Enter the time and press the OK soft key.3. Press the Start soft key to start the timer. Press the Stop soft key to stop the timer.4. To stop the alarm, press the soft key or the key.StopwatchYou can use this menu to access the Stopwatch feature. To enable the Stopwatch:1. Press the OK soft key to start the stopwatch. 2. After starting the stopwatch, you may press the OK soft key up to four times to have four different times displayed. This may be used as a lap counter. The time displayed at the top of the display is cumulative.3. Press the Reset soft key to reset all times to zero.x495.book Page 112 Saturday, April 9, 2005 4:23 PM

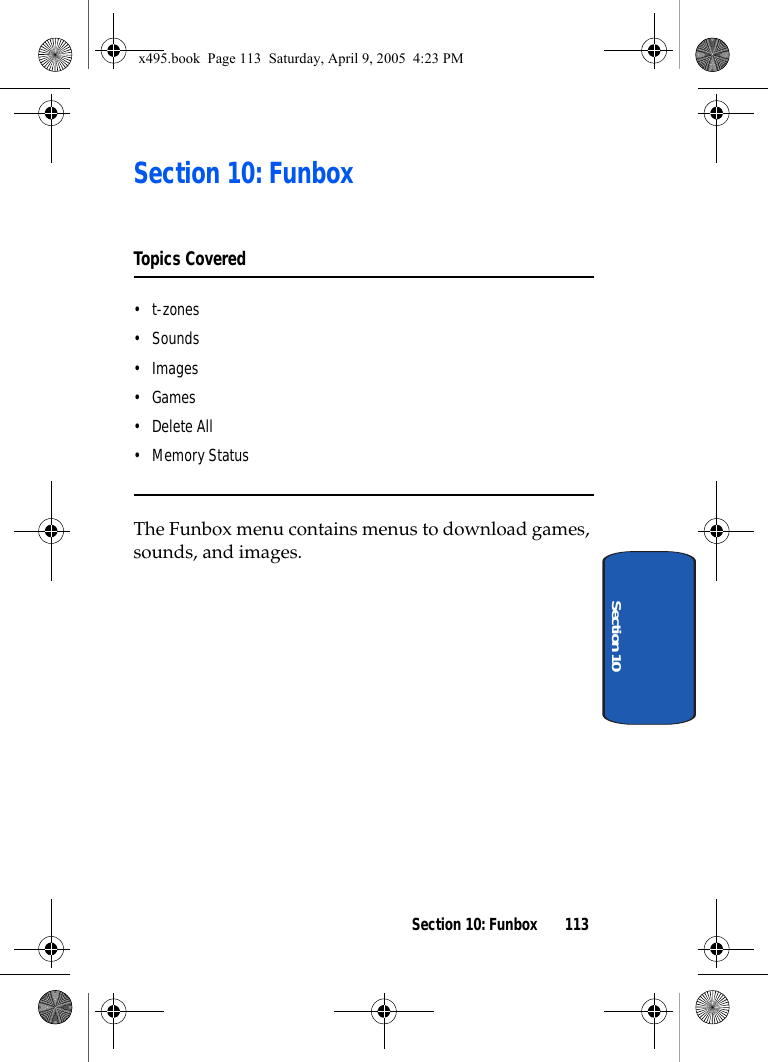

Section 10: Funbox 113Section 10Section 10: FunboxTopics Covered•t-zones• Sounds•Images• Games• Delete All• Memory StatusThe Funbox menu contains menus to download games, sounds, and images.x495.book Page 113 Saturday, April 9, 2005 4:23 PM

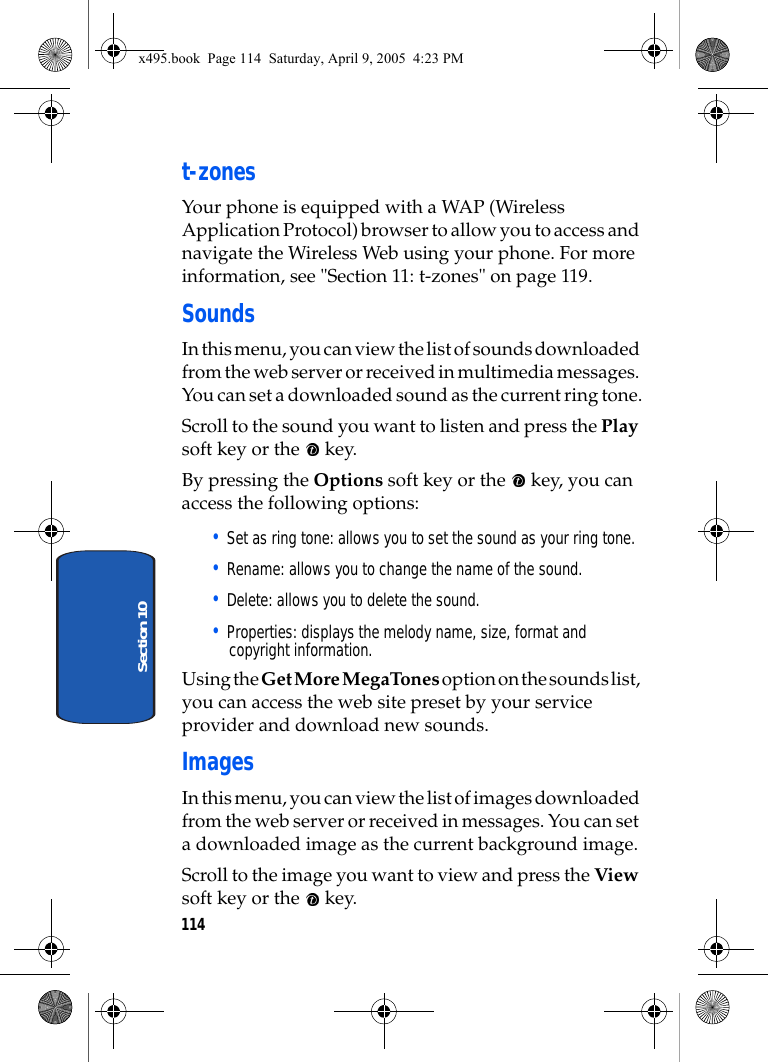

114Section 10t-zonesYour phone is equipped with a WAP (Wireless Application Protocol) browser to allow you to access and navigate the Wireless Web using your phone. For more information, see "Section 11: t-zones" on page 119.SoundsIn this menu, you can view the list of sounds downloaded from the web server or received in multimedia messages. You can set a downloaded sound as the current ring tone.Scroll to the sound you want to listen and press the Play soft key or the key. By pressing the Options soft key or the key, you can access the following options: • Set as ring tone: allows you to set the sound as your ring tone.• Rename: allows you to change the name of the sound.• Delete: allows you to delete the sound.• Properties: displays the melody name, size, format and copyright information.Using the Get More MegaTones option on the sounds list, you can access the web site preset by your service provider and download new sounds.ImagesIn this menu, you can view the list of images downloaded from the web server or received in messages. You can set a downloaded image as the current background image.Scroll to the image you want to view and press the View soft key or the key.x495.book Page 114 Saturday, April 9, 2005 4:23 PM

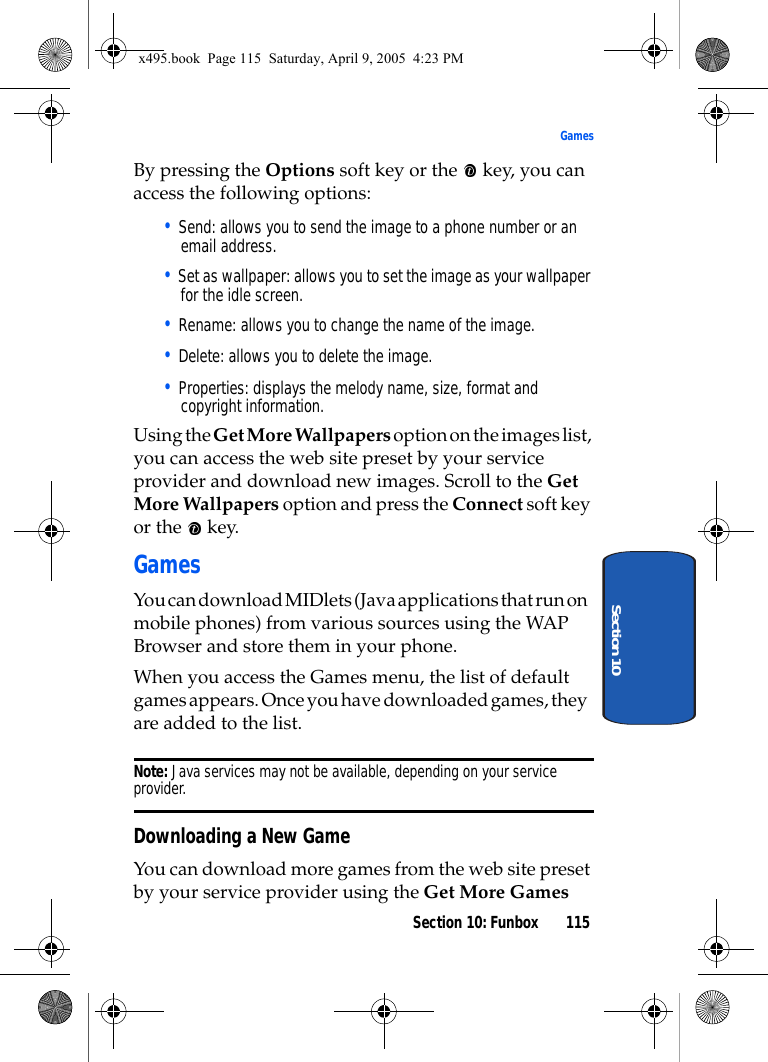

Section 10: Funbox 115GamesSection 10By pressing the Options soft key or the key, you can access the following options:• Send: allows you to send the image to a phone number or an email address.• Set as wallpaper: allows you to set the image as your wallpaper for the idle screen.• Rename: allows you to change the name of the image.• Delete: allows you to delete the image.• Properties: displays the melody name, size, format and copyright information.Using the Get More Wallpapers option on the images list, you can access the web site preset by your service provider and download new images. Scroll to the Get More Wallpapers option and press the Connect soft key or the key.GamesYou can download MIDlets (Java applications that run on mobile phones) from various sources using the WAP Browser and store them in your phone. When you access the Games menu, the list of default games appears. Once you have downloaded games, they are added to the list.Note: Java services may not be available, depending on your service provider.Downloading a New GameYou can download more games from the web site preset by your service provider using the Get More Games x495.book Page 115 Saturday, April 9, 2005 4:23 PM

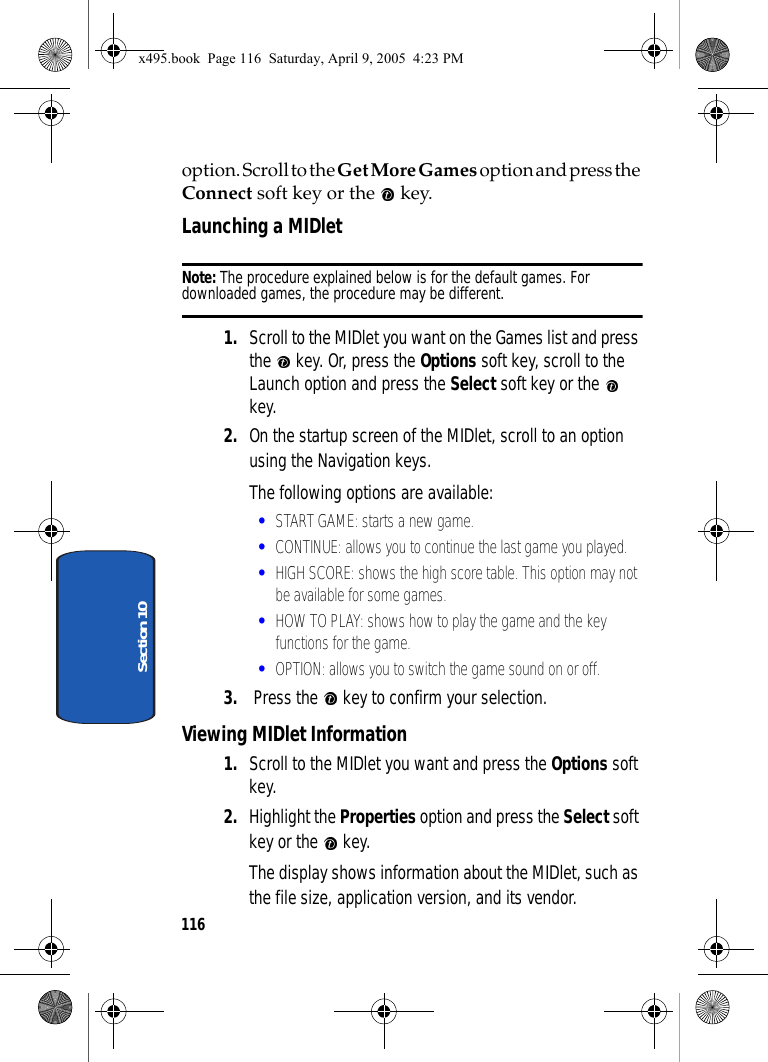

116Section 10option. Scroll to the Get More Games option and press the Connect soft key or the key.Launching a MIDletNote: The procedure explained below is for the default games. For downloaded games, the procedure may be different.1. Scroll to the MIDlet you want on the Games list and press the key. Or, press the Options soft key, scroll to the Launch option and press the Select soft key or the key.2. On the startup screen of the MIDlet, scroll to an option using the Navigation keys.The following options are available:•START GAME: starts a new game.•CONTINUE: allows you to continue the last game you played. •HIGH SCORE: shows the high score table. This option may not be available for some games.•HOW TO PLAY: shows how to play the game and the key functions for the game. •OPTION: allows you to switch the game sound on or off.3. Press the key to confirm your selection.Viewing MIDlet Information1. Scroll to the MIDlet you want and press the Options soft key. 2. Highlight the Properties option and press the Select soft key or the key.The display shows information about the MIDlet, such as the file size, application version, and its vendor.x495.book Page 116 Saturday, April 9, 2005 4:23 PM

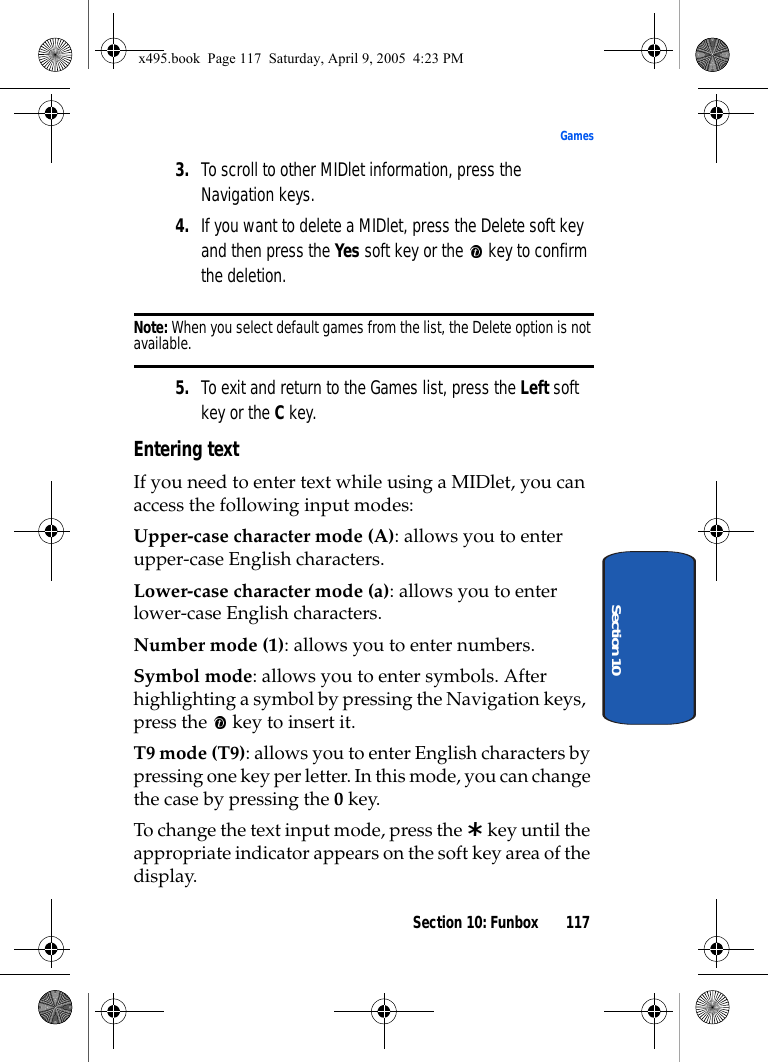

Section 10: Funbox 117GamesSection 103. To scroll to other MIDlet information, press the Navigation keys.4. If you want to delete a MIDlet, press the Delete soft key and then press the Yes soft key or the key to confirm the deletion.Note: When you select default games from the list, the Delete option is not available.5. To exit and return to the Games list, press the Left soft key or the C key.Entering textIf you need to enter text while using a MIDlet, you can access the following input modes:Upper-case character mode (A): allows you to enter upper-case English characters.Lower-case character mode (a): allows you to enter lower-case English characters.Number mode (1): allows you to enter numbers.Symbol mode: allows you to enter symbols. After highlighting a symbol by pressing the Navigation keys, press the key to insert it.T9 mode (T9): allows you to enter English characters by pressing one key per letter. In this mode, you can change the case by pressing the 0 key.To change the text input mode, press the key until the appropriate indicator appears on the soft key area of the display.x495.book Page 117 Saturday, April 9, 2005 4:23 PM

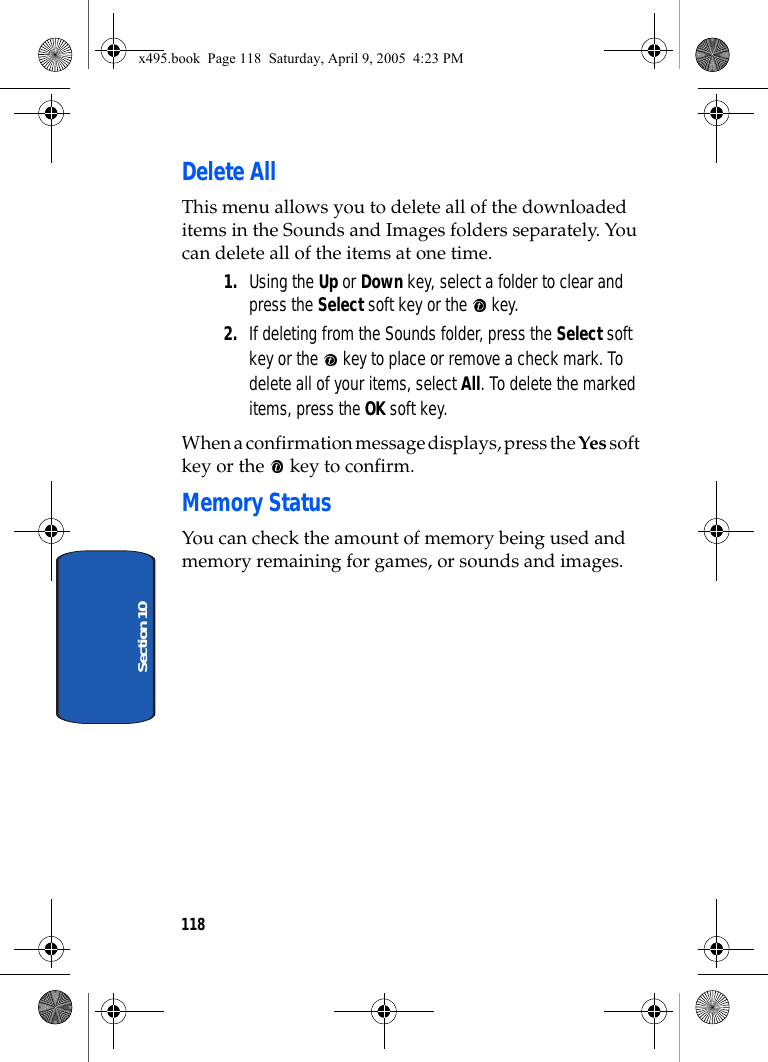

118Section 10Delete AllThis menu allows you to delete all of the downloaded items in the Sounds and Images folders separately. You can delete all of the items at one time.1. Using the Up or Down key, select a folder to clear and press the Select soft key or the key.2. If deleting from the Sounds folder, press the Select soft key or the key to place or remove a check mark. To delete all of your items, select All. To delete the marked items, press the OK soft key.When a confirmation message displays, press the Yes soft key or the key to confirm.Memory StatusYou can check the amount of memory being used and memory remaining for games, or sounds and images.x495.book Page 118 Saturday, April 9, 2005 4:23 PM

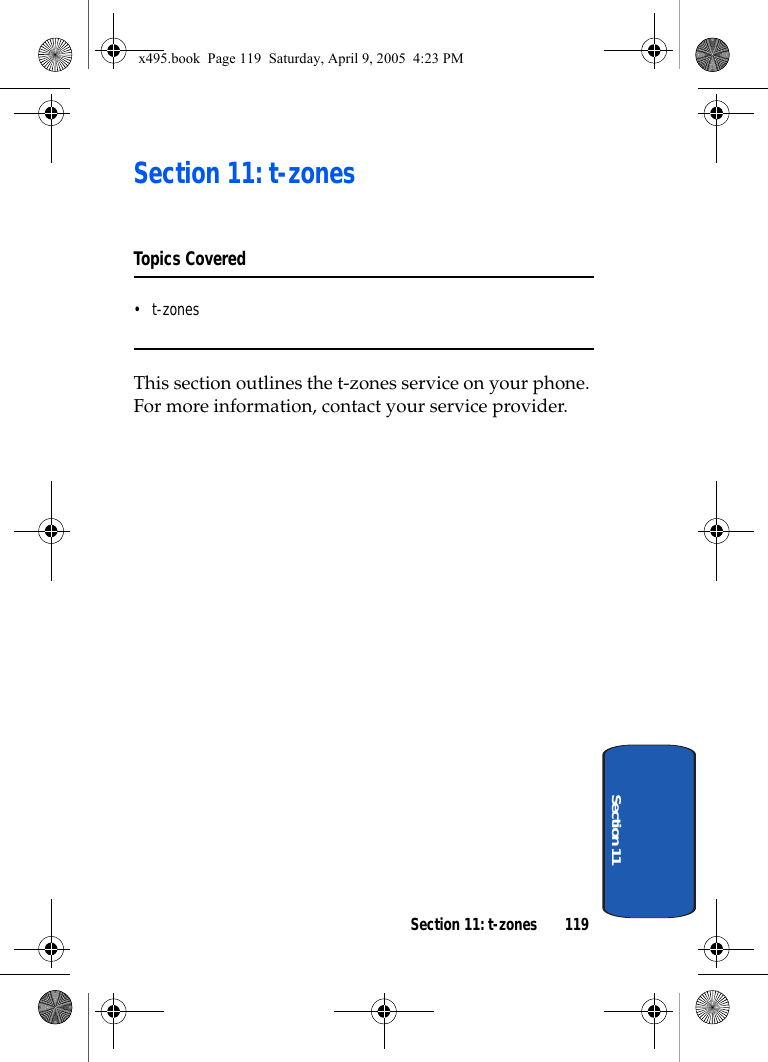

Section 11: t-zones 119Section 11Section 11: t-zonesTopics Covered•t-zonesThis section outlines the t-zones service on your phone. For more information, contact your service provider.x495.book Page 119 Saturday, April 9, 2005 4:23 PM

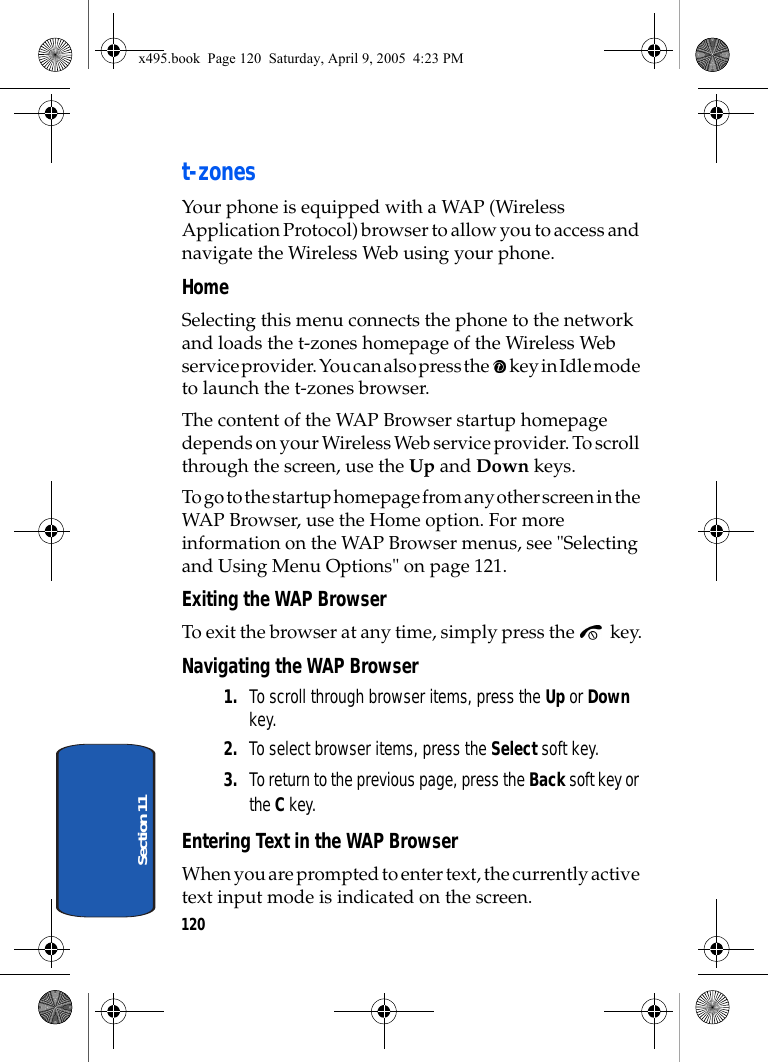

120Section 11t-zonesYour phone is equipped with a WAP (Wireless Application Protocol) browser to allow you to access and navigate the Wireless Web using your phone.HomeSelecting this menu connects the phone to the network and loads the t-zones homepage of the Wireless Web service provider. You can also press the key in Idle mode to launch the t-zones browser.The content of the WAP Browser startup homepage depends on your Wireless Web service provider. To scroll through the screen, use the Up and Down keys.To go to the startup homepage from any other screen in the WAP Browser, use the Home option. For more information on the WAP Browser menus, see "Selecting and Using Menu Options" on page 121.Exiting the WAP BrowserTo exit the browser at any time, simply press the key.Navigating the WAP Browser1. To scroll through browser items, press the Up or Down key.2. To select browser items, press the Select soft key.3. To return to the previous page, press the Back soft key or the C key.Entering Text in the WAP BrowserWhen you are prompted to enter text, the currently active text input mode is indicated on the screen. x495.book Page 120 Saturday, April 9, 2005 4:23 PM

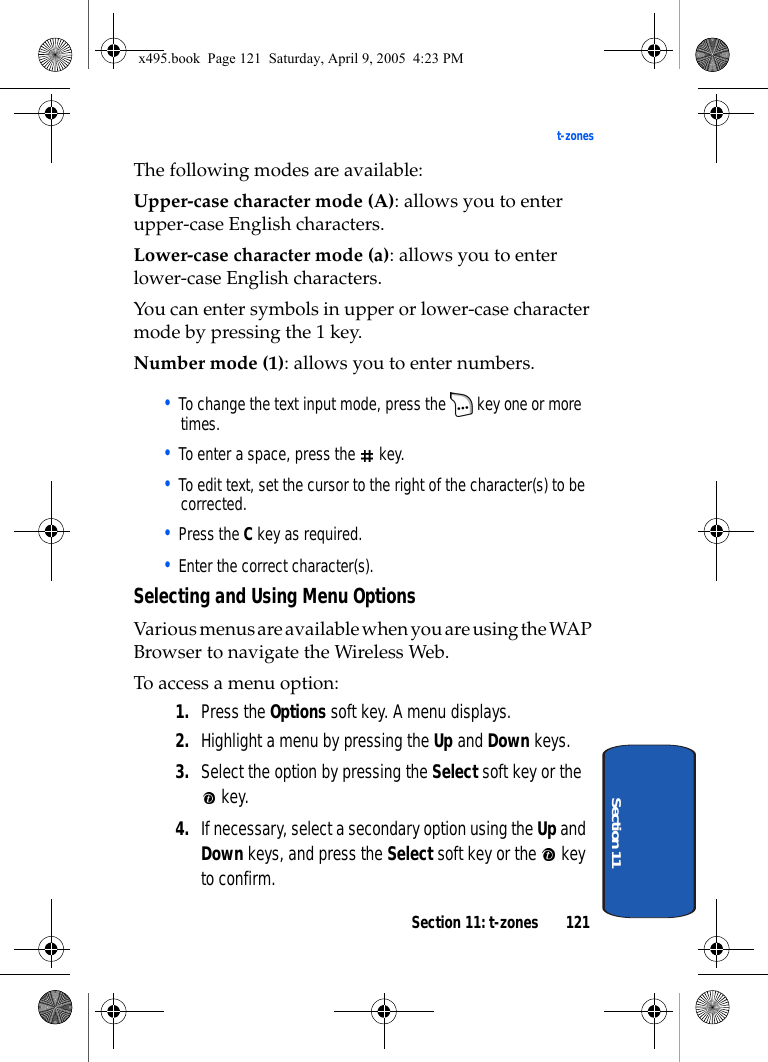

Section 11: t-zones 121t-zonesSection 11The following modes are available:Upper-case character mode (A): allows you to enter upper-case English characters.Lower-case character mode (a): allows you to enter lower-case English characters.You can enter symbols in upper or lower-case character mode by pressing the 1 key.Number mode (1): allows you to enter numbers. • To change the text input mode, press the key one or more times.• To enter a space, press the key.• To edit text, set the cursor to the right of the character(s) to be corrected.• Press the C key as required.• Enter the correct character(s).Selecting and Using Menu OptionsVarious menus are available when you are using the WAP Browser to navigate the Wireless Web.To access a menu option:1. Press the Options soft key. A menu displays.2. Highlight a menu by pressing the Up and Down keys.3. Select the option by pressing the Select soft key or the key.4. If necessary, select a secondary option using the Up and Down keys, and press the Select soft key or the key to confirm.x495.book Page 121 Saturday, April 9, 2005 4:23 PM

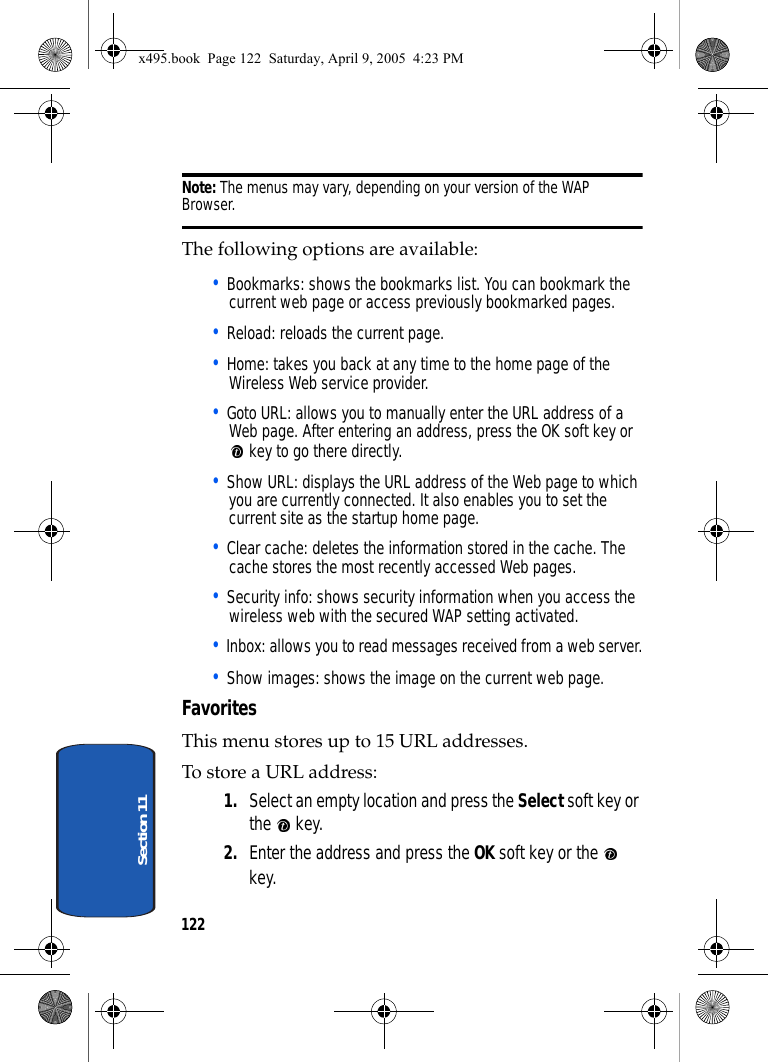

122Section 11Note: The menus may vary, depending on your version of the WAP Browser.The following options are available:• Bookmarks: shows the bookmarks list. You can bookmark the current web page or access previously bookmarked pages.• Reload: reloads the current page.• Home: takes you back at any time to the home page of the Wireless Web service provider.• Goto URL: allows you to manually enter the URL address of a Web page. After entering an address, press the OK soft key or key to go there directly.• Show URL: displays the URL address of the Web page to which you are currently connected. It also enables you to set the current site as the startup home page.• Clear cache: deletes the information stored in the cache. The cache stores the most recently accessed Web pages.• Security info: shows security information when you access the wireless web with the secured WAP setting activated.• Inbox: allows you to read messages received from a web server.• Show images: shows the image on the current web page.Favorites This menu stores up to 15 URL addresses.To store a URL address:1. Select an empty location and press the Select soft key or the key.2. Enter the address and press the OK soft key or the key.x495.book Page 122 Saturday, April 9, 2005 4:23 PM

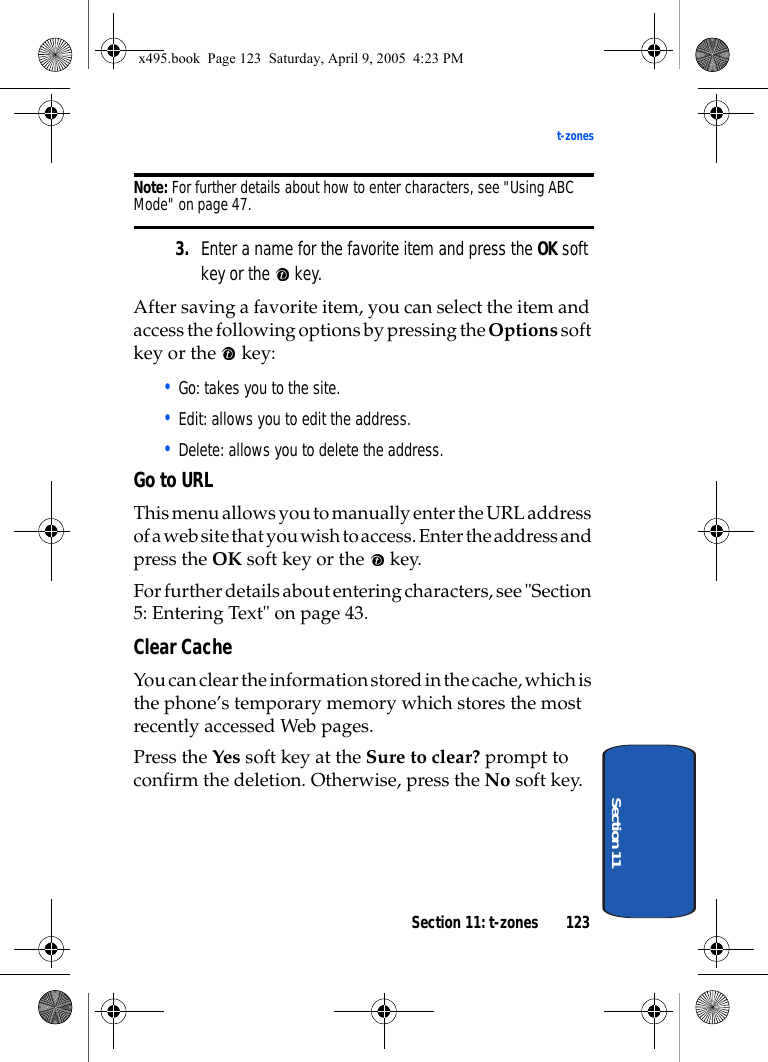

Section 11: t-zones 123t-zonesSection 11Note: For further details about how to enter characters, see "Using ABC Mode" on page 47.3. Enter a name for the favorite item and press the OK soft key or the key.After saving a favorite item, you can select the item and access the following options by pressing the Options soft key or the key:• Go: takes you to the site.• Edit: allows you to edit the address.• Delete: allows you to delete the address.Go to URLThis menu allows you to manually enter the URL address of a web site that you wish to access. Enter the address and press the OK soft key or the key. For further details about entering characters, see "Section 5: Entering Text" on page 43.Clear Cache You can clear the information stored in the cache, which is the phone’s temporary memory which stores the most recently accessed Web pages.Press the Yes soft key at the Sure to clear? prompt to confirm the deletion. Otherwise, press the No soft key.x495.book Page 123 Saturday, April 9, 2005 4:23 PM
124Section 11x495.book Page 124 Saturday, April 9, 2005 4:23 PM

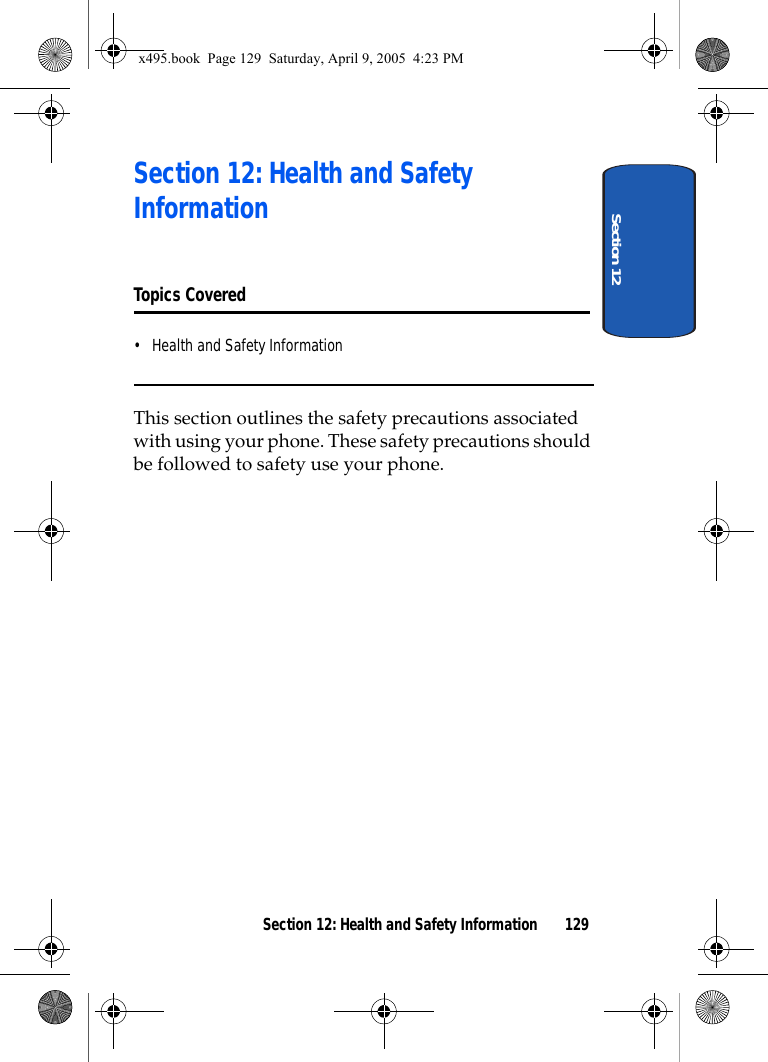

Section 12Section 12: Health and Safety Information 129Section 12: Health and Safety InformationTopics Covered• Health and Safety InformationThis section outlines the safety precautions associated with using your phone. These safety precautions should be followed to safety use your phone.x495.book Page 129 Saturday, April 9, 2005 4:23 PM

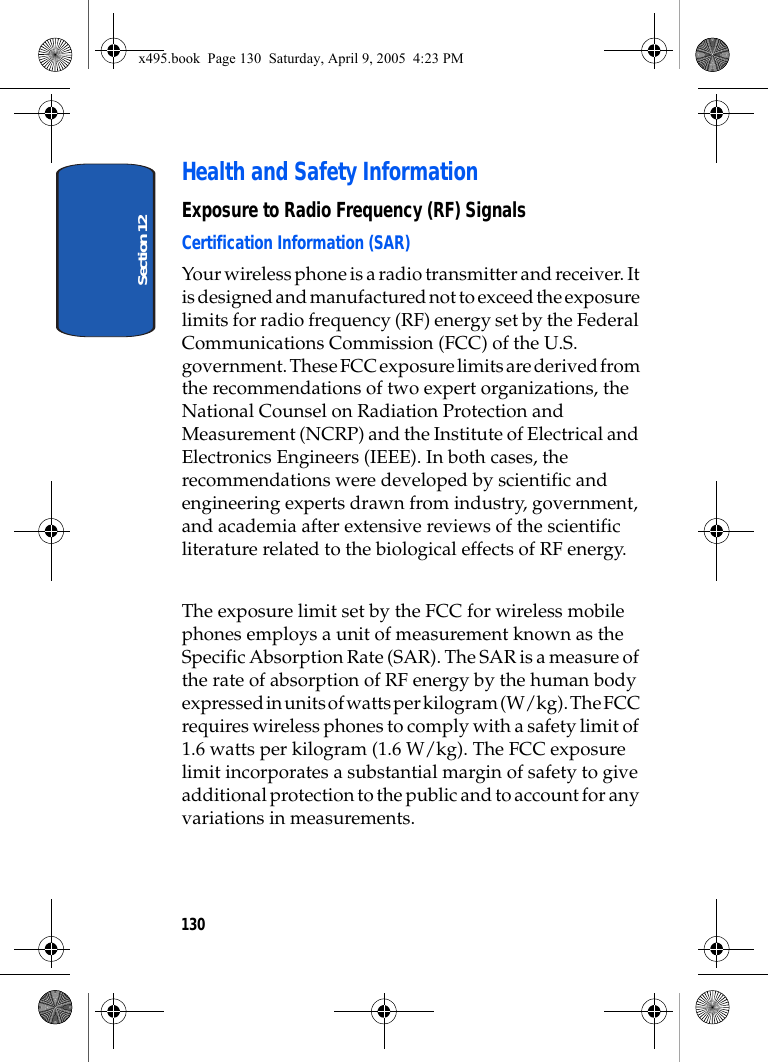

Section 12130Health and Safety InformationExposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements. x495.book Page 130 Saturday, April 9, 2005 4:23 PM

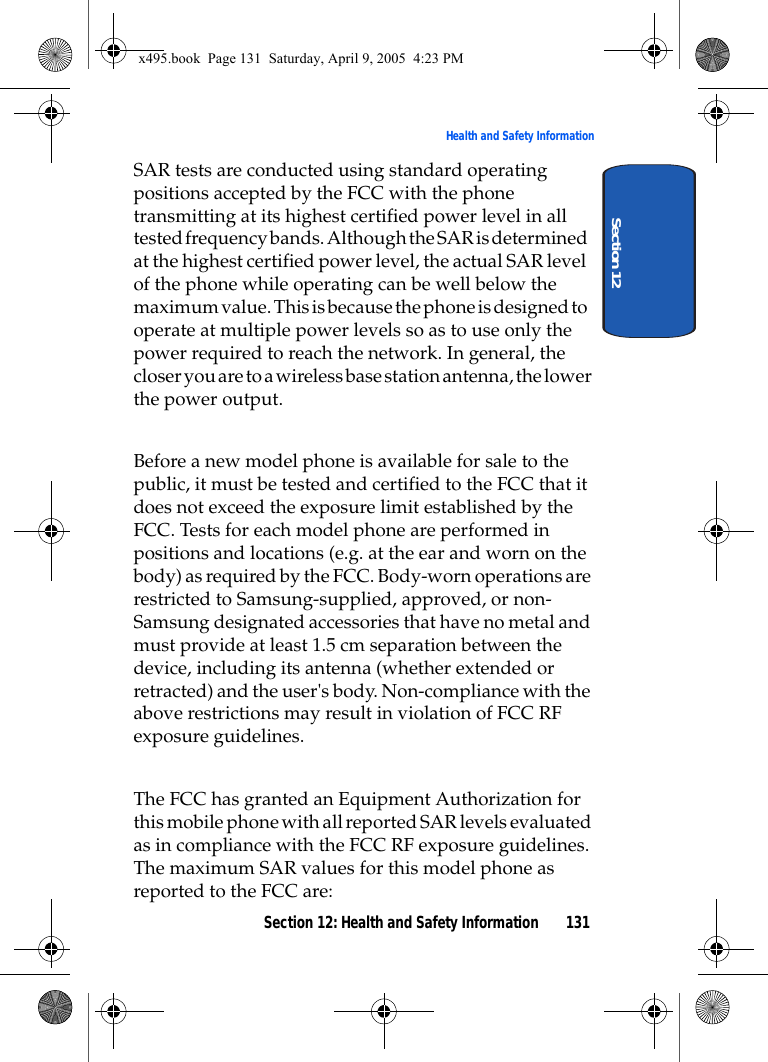

Section 12: Health and Safety Information 131Health and Safety InformationSection 12SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. Body-worn operations are restricted to Samsung-supplied, approved, or non-Samsung designated accessories that have no metal and must provide at least 1.5 cm separation between the device, including its antenna (whether extended or retracted) and the user's body. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines. The FCC has granted an Equipment Authorization for this mobile phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. The maximum SAR values for this model phone as reported to the FCC are:x495.book Page 131 Saturday, April 9, 2005 4:23 PM

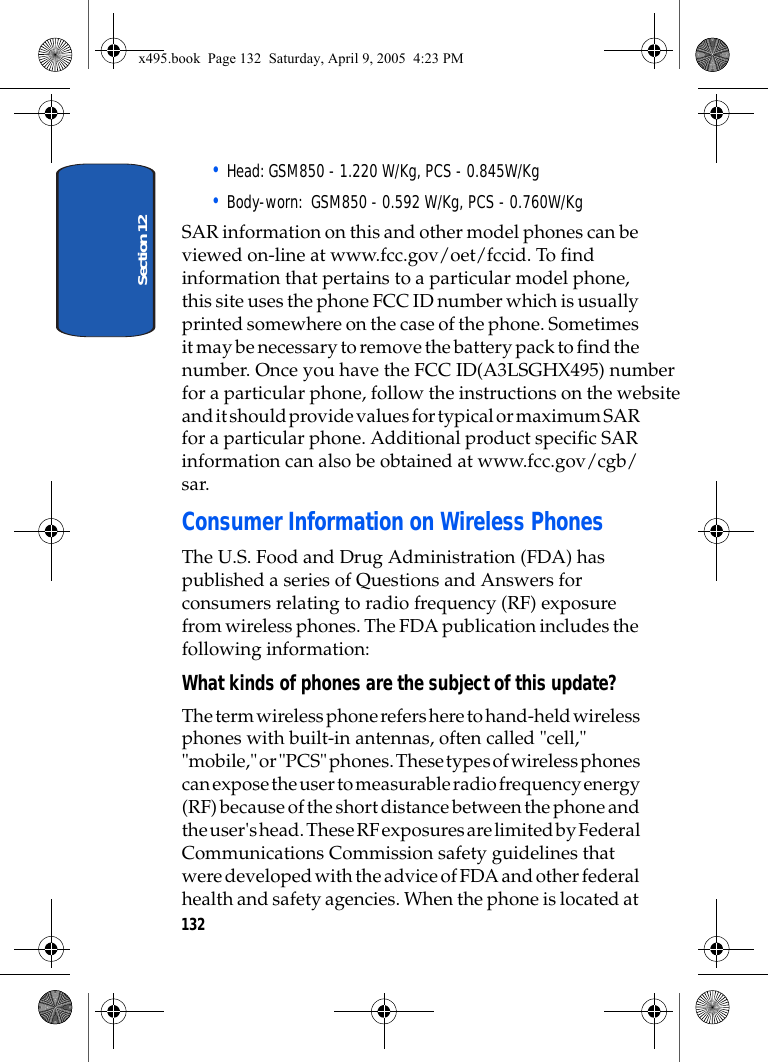

Section 12132• Head: GSM850 - 1.220 W/Kg, PCS - 0.845W/Kg• Body-worn: GSM850 - 0.592 W/Kg, PCS - 0.760W/KgSAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. To find information that pertains to a particular model phone, this site uses the phone FCC ID number which is usually printed somewhere on the case of the phone. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID(A3LSGHX495) numberfor a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar. Consumer Information on Wireless PhonesThe U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called "cell," "mobile," or "PCS" phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at x495.book Page 132 Saturday, April 9, 2005 4:23 PM

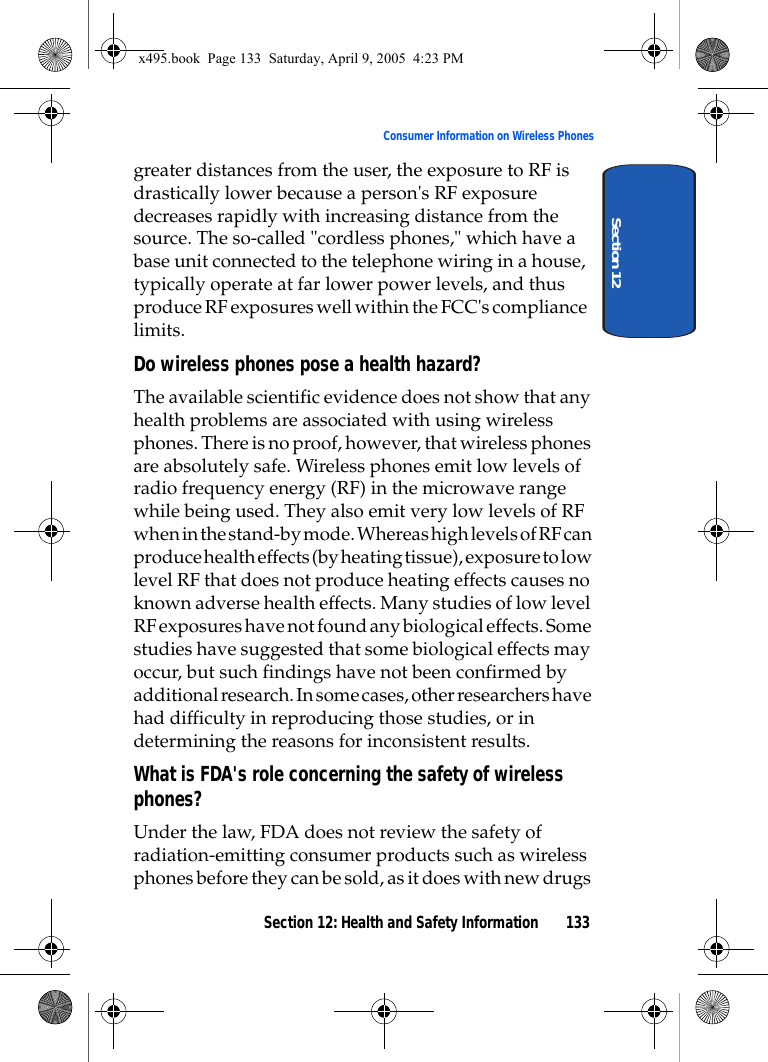

Section 12: Health and Safety Information 133Consumer Information on Wireless PhonesSection 12greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called "cordless phones," which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs x495.book Page 133 Saturday, April 9, 2005 4:23 PM

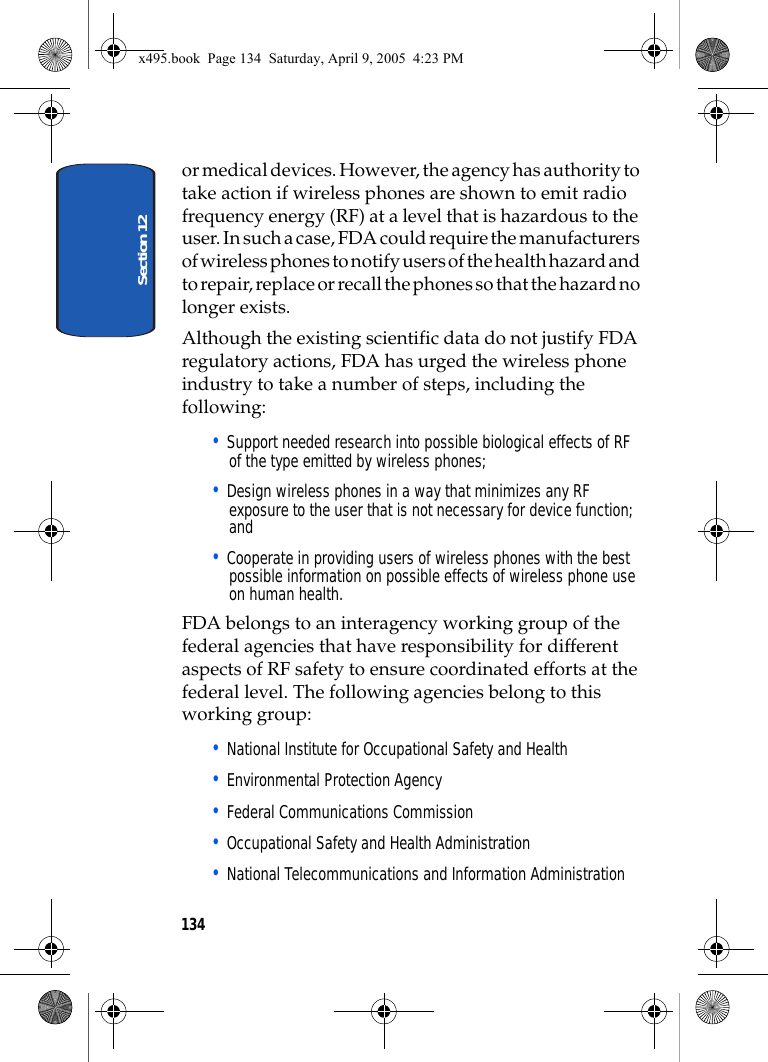

Section 12134or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:• Support needed research into possible biological effects of RF of the type emitted by wireless phones;• Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and• Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:• National Institute for Occupational Safety and Health • Environmental Protection Agency• Federal Communications Commission• Occupational Safety and Health Administration• National Telecommunications and Information Administrationx495.book Page 134 Saturday, April 9, 2005 4:23 PM

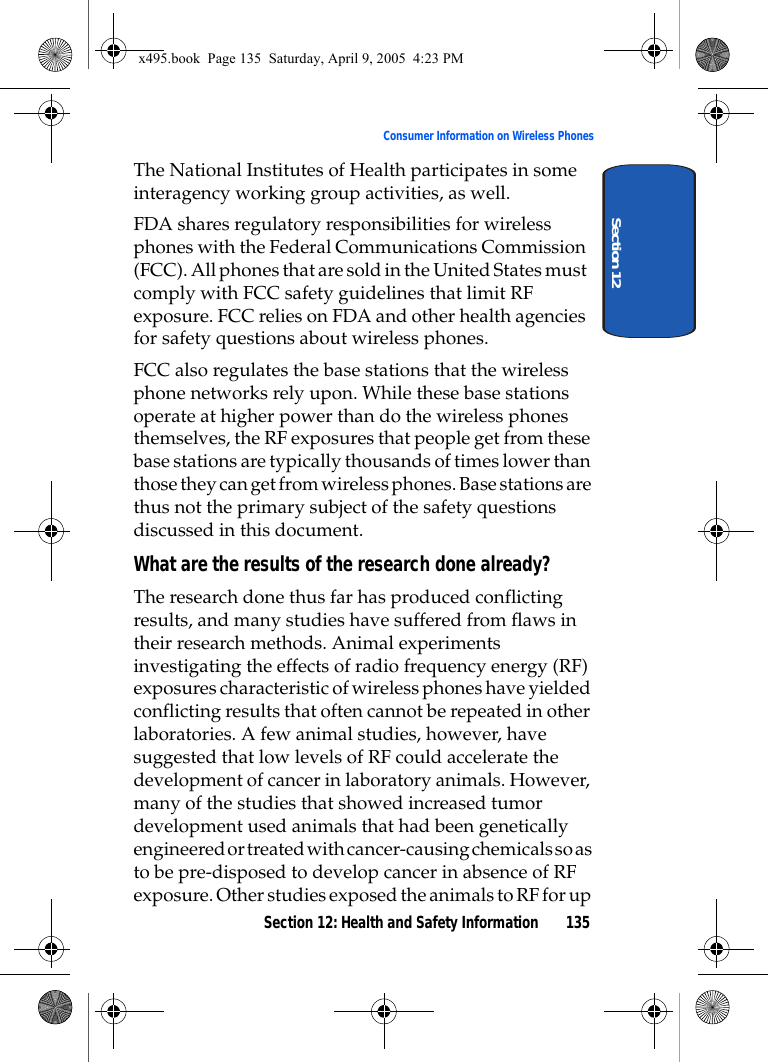

Section 12: Health and Safety Information 135Consumer Information on Wireless PhonesSection 12The National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the animals to RF for up x495.book Page 135 Saturday, April 9, 2005 4:23 PM
Section 12136to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.What research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in x495.book Page 136 Saturday, April 9, 2005 4:23 PM
Section 12: Health and Safety Information 137Consumer Information on Wireless PhonesSection 12measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.What is FDA doing to find out more about the possible health effects of wireless phone RF?FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.x495.book Page 137 Saturday, April 9, 2005 4:23 PM

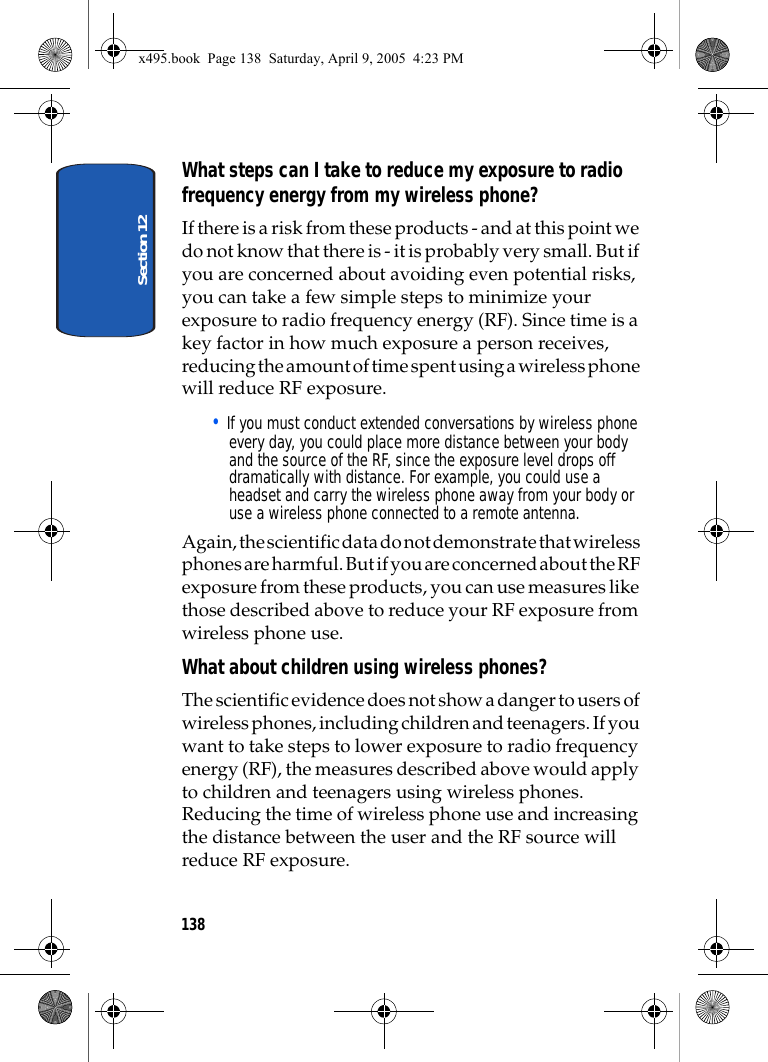

Section 12138What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.• If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.x495.book Page 138 Saturday, April 9, 2005 4:23 PM

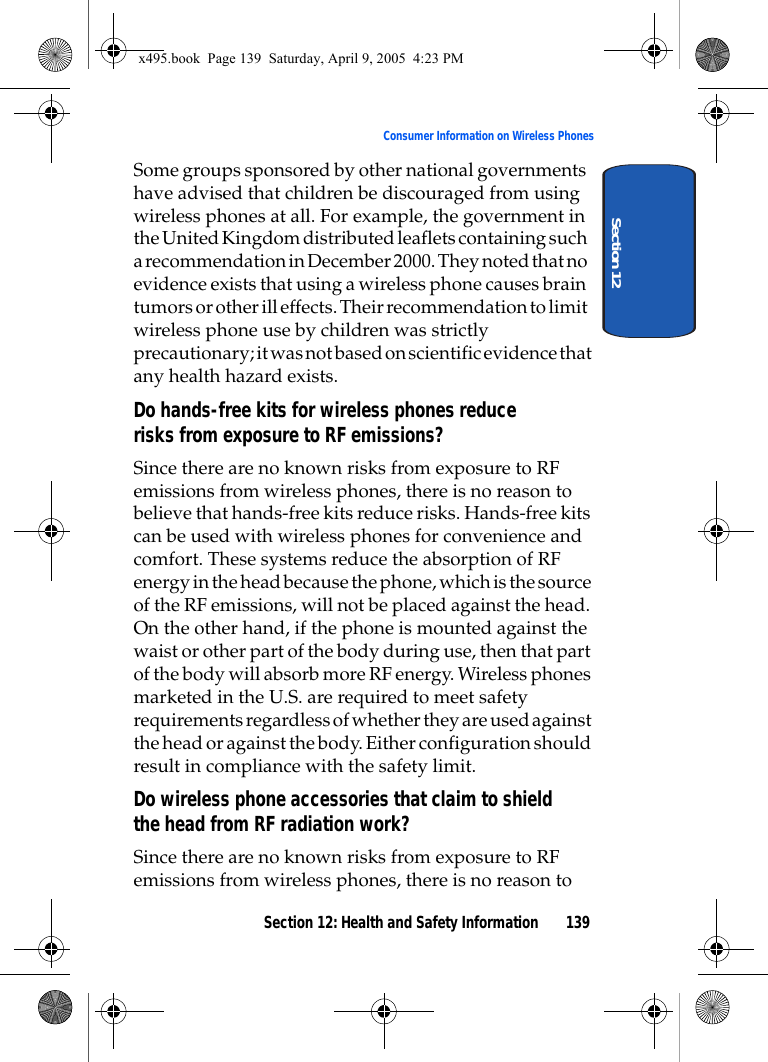

Section 12: Health and Safety Information 139Consumer Information on Wireless PhonesSection 12Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to x495.book Page 139 Saturday, April 9, 2005 4:23 PM

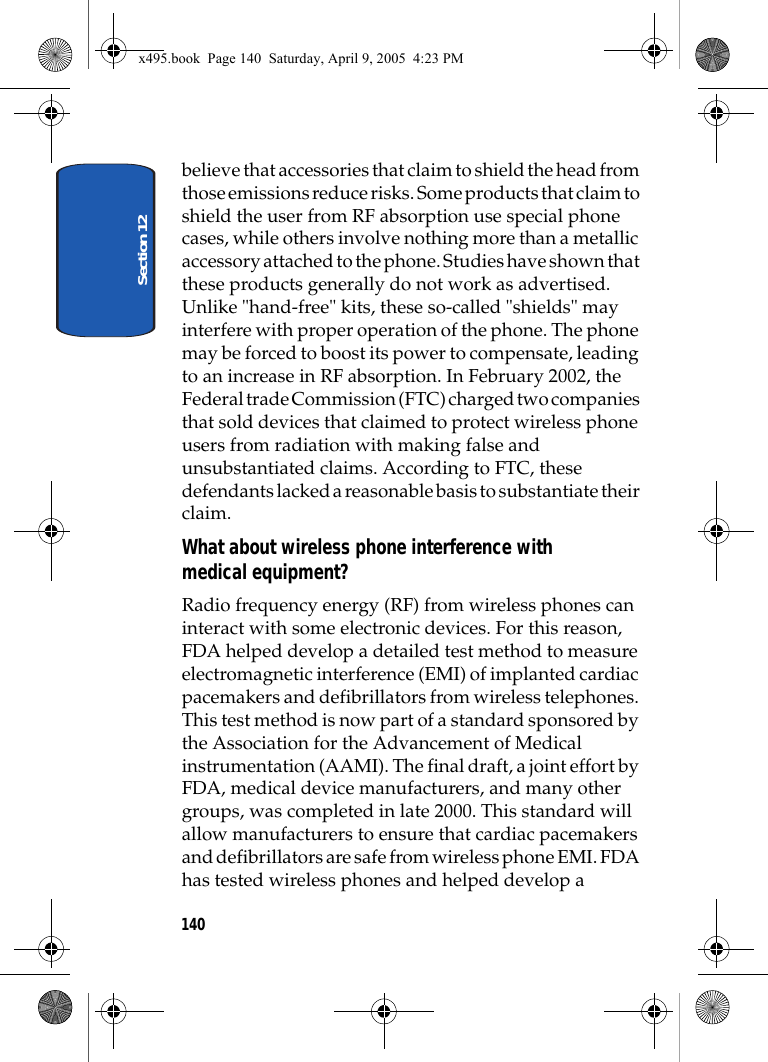

Section 12140believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike "hand-free" kits, these so-called "shields" may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a x495.book Page 140 Saturday, April 9, 2005 4:23 PM

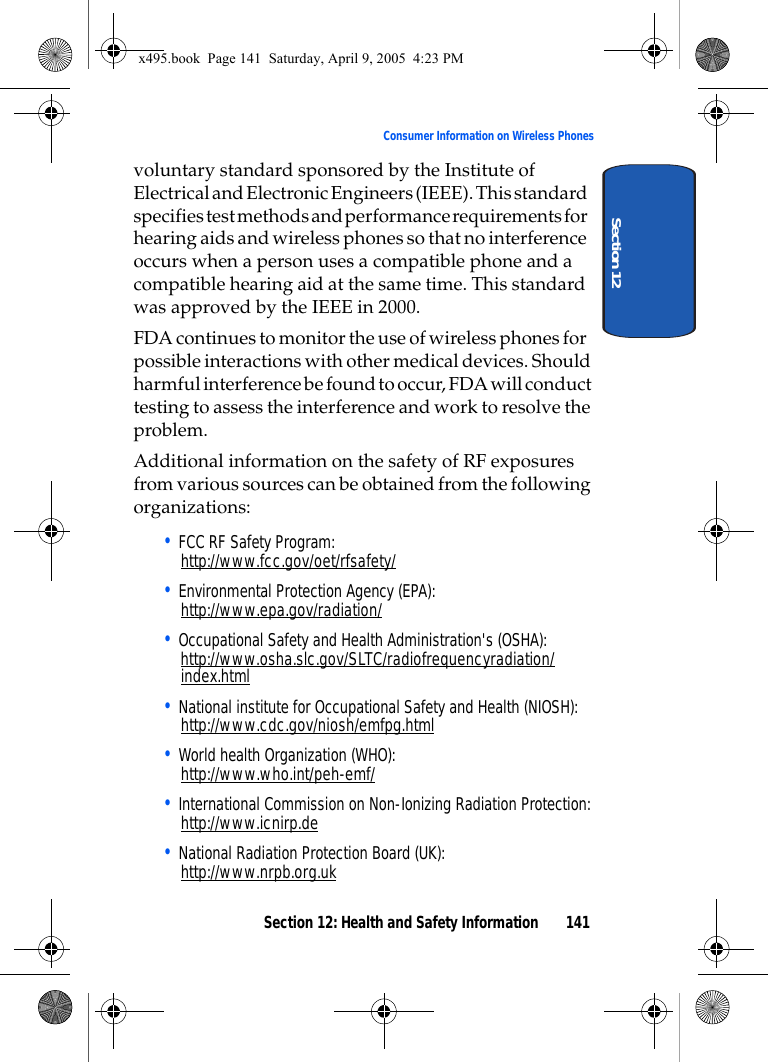

Section 12: Health and Safety Information 141Consumer Information on Wireless PhonesSection 12voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations:• FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/• Environmental Protection Agency (EPA):http://www.epa.gov/radiation/• Occupational Safety and Health Administration's (OSHA):http://www.osha.slc.gov/SLTC/radiofrequencyradiation/index.html• National institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/emfpg.html• World health Organization (WHO):http://www.who.int/peh-emf/• International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.de• National Radiation Protection Board (UK):http://www.nrpb.org.ukx495.book Page 141 Saturday, April 9, 2005 4:23 PM

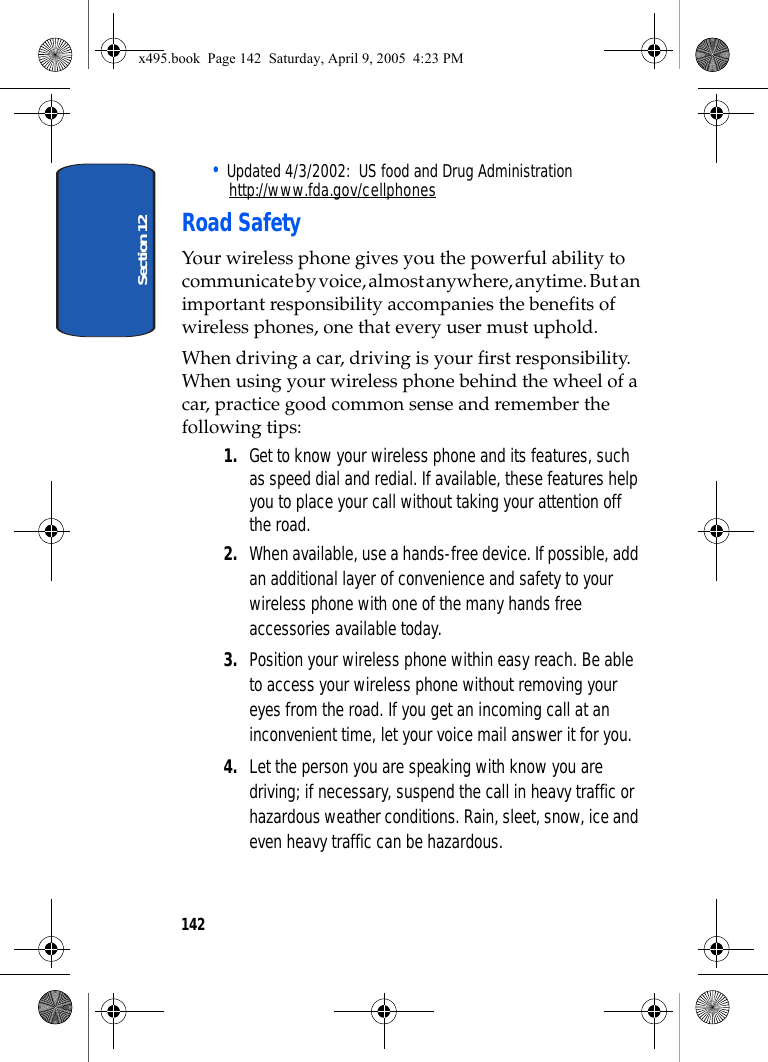

Section 12142• Updated 4/3/2002: US food and Drug Administrationhttp://www.fda.gov/cellphonesRoad SafetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.2. When available, use a hands-free device. If possible, add an additional layer of convenience and safety to your wireless phone with one of the many hands free accessories available today.3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.x495.book Page 142 Saturday, April 9, 2005 4:23 PM

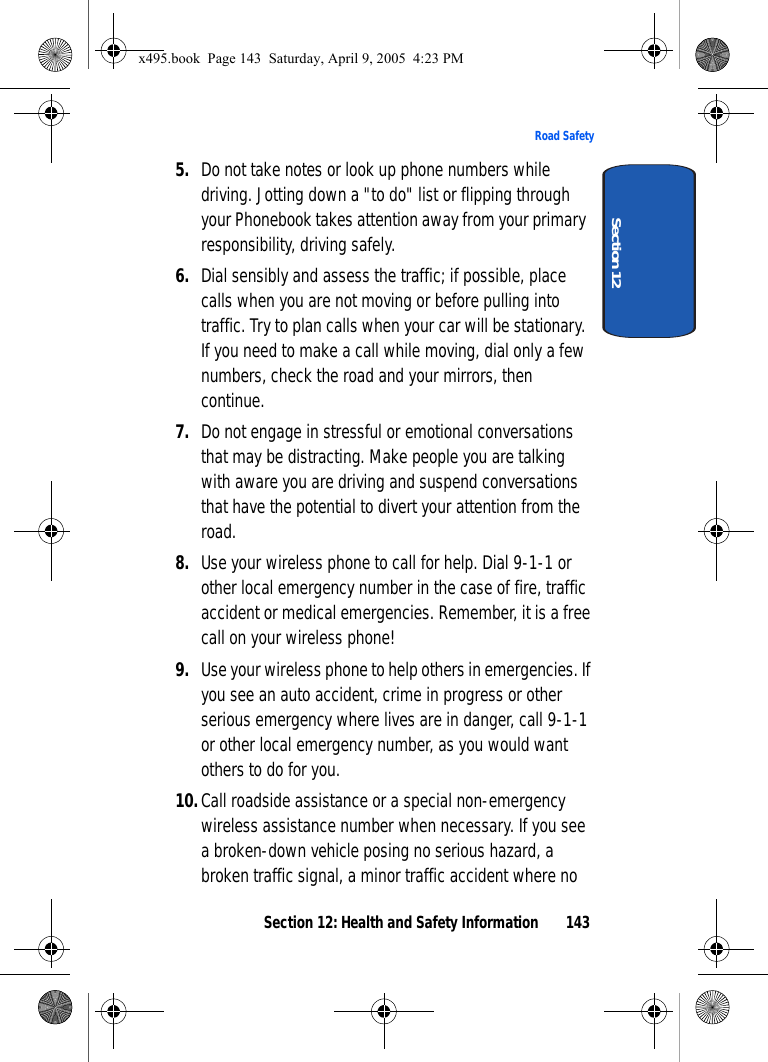

Section 12: Health and Safety Information 143Road SafetySection 125. Do not take notes or look up phone numbers while driving. Jotting down a "to do" list or flipping through your Phonebook takes attention away from your primary responsibility, driving safely.6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.7. Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.8. Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!9. Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you.10.Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no x495.book Page 143 Saturday, April 9, 2005 4:23 PM
Section 12144one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency number."The wireless industry reminds you to use your phone safely when driving."For more information, please call 1-888-901-SAFE, or visit our web-site www.wow-com.com Provided by the Cellular Telecommunications & Internet AssociationOperating EnvironmentRemember to follow any special regulations in force in any areaand always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the phone or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment andfor the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).Using Your Phone Near Other Electronic DevicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals x495.book Page 144 Saturday, April 9, 2005 4:23 PM

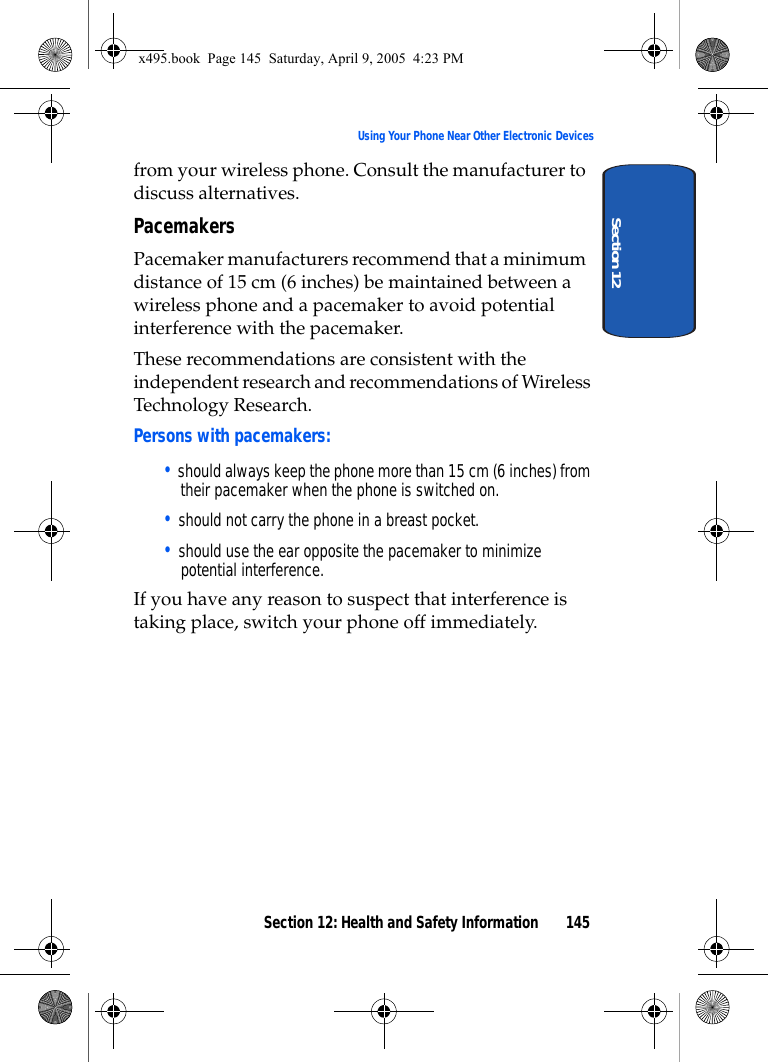

Section 12: Health and Safety Information 145Using Your Phone Near Other Electronic DevicesSection 12from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker.These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:• should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on.• should not carry the phone in a breast pocket.• should use the ear opposite the pacemaker to minimize potential interference.If you have any reason to suspect that interference is taking place, switch your phone off immediately.x495.book Page 145 Saturday, April 9, 2005 4:23 PM

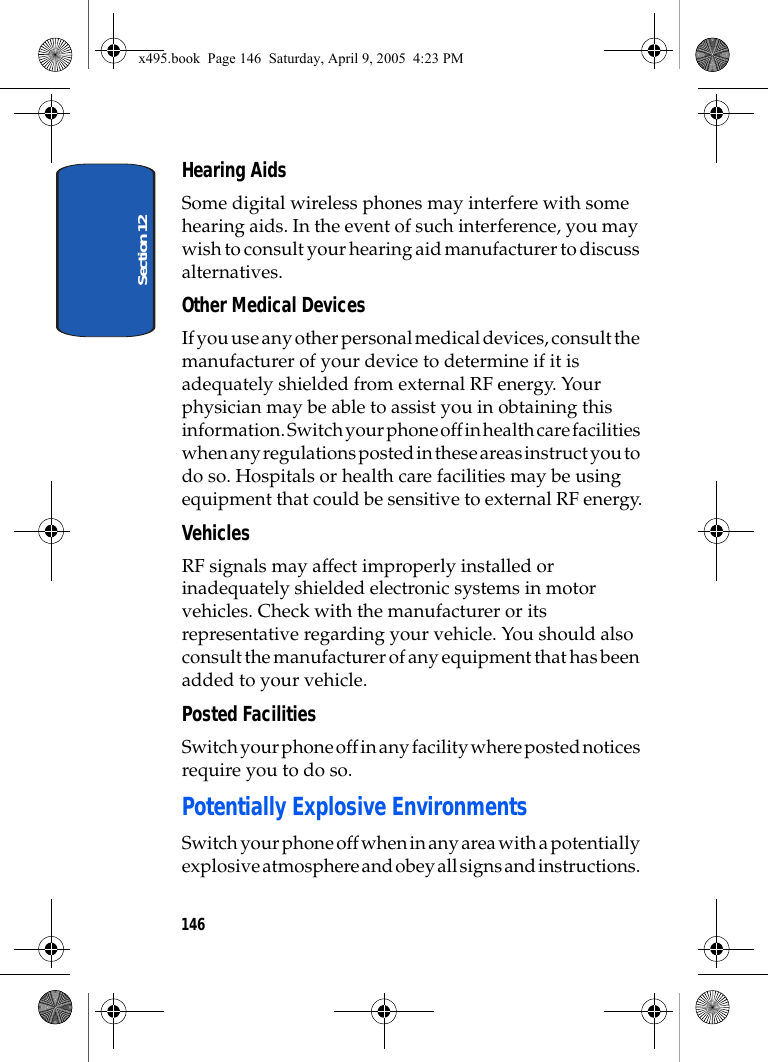

Section 12146Hearing AidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your phone off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. x495.book Page 146 Saturday, April 9, 2005 4:23 PM

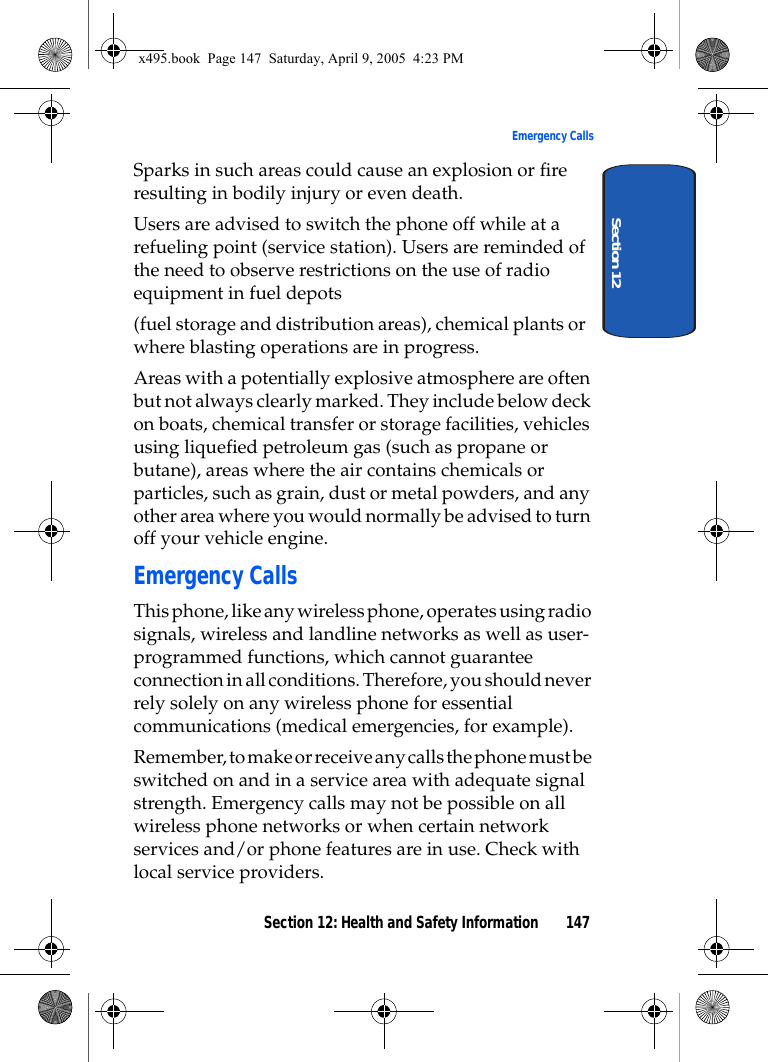

Section 12: Health and Safety Information 147Emergency CallsSection 12Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots(fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency CallsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.x495.book Page 147 Saturday, April 9, 2005 4:23 PM

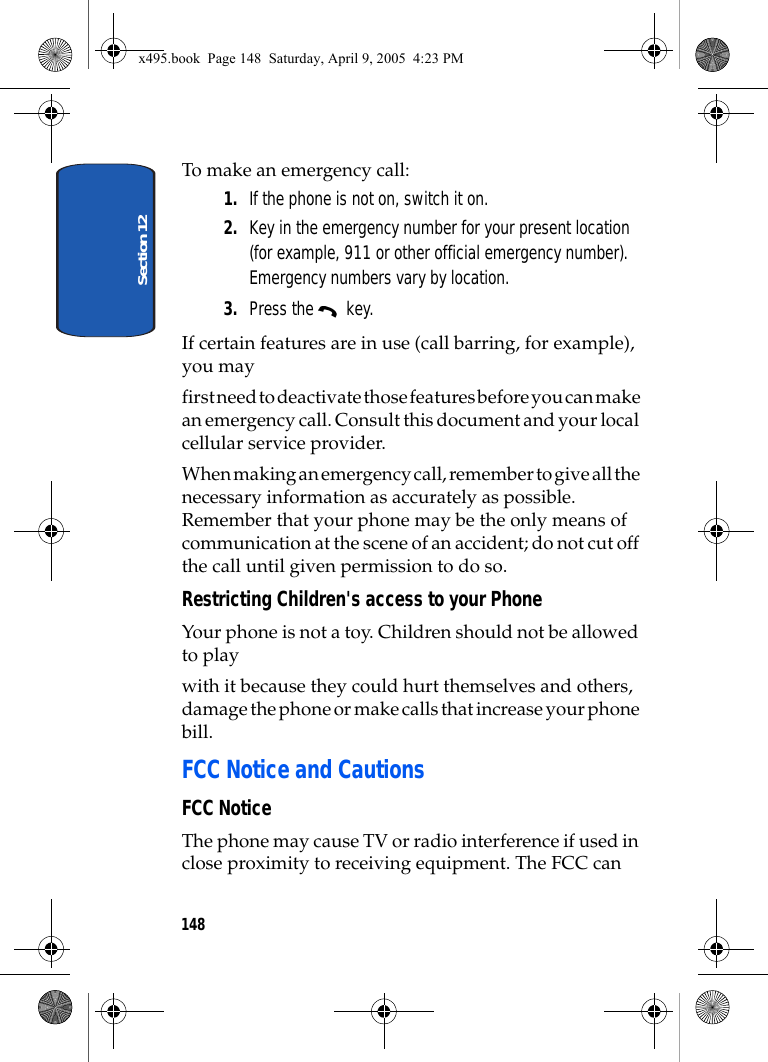

Section 12148To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.3. Press the key.If certain features are in use (call barring, for example), you mayfirst need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Restricting Children's access to your PhoneYour phone is not a toy. Children should not be allowed to play with it because they could hurt themselves and others, damage the phone or make calls that increase your phone bill.FCC Notice and CautionsFCC NoticeThe phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can x495.book Page 148 Saturday, April 9, 2005 4:23 PM

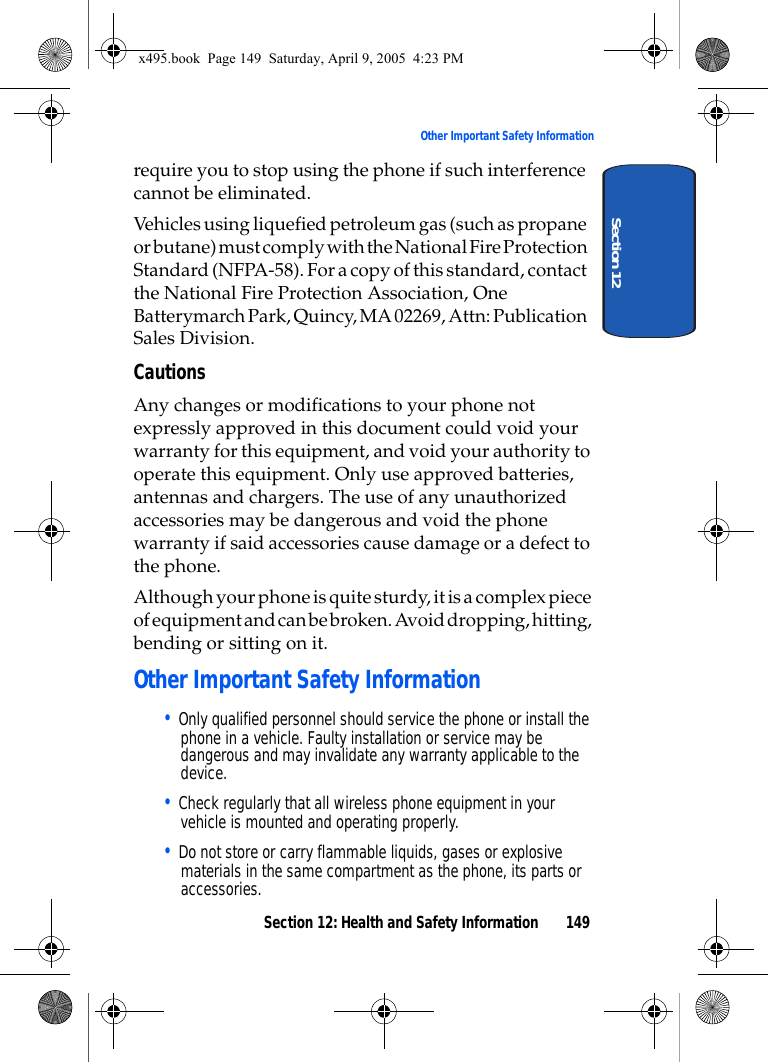

Section 12: Health and Safety Information 149Other Important Safety InformationSection 12require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269, Attn: Publication Sales Division.CautionsAny changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment, and void your authority to operate this equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.Other Important Safety Information• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.x495.book Page 149 Saturday, April 9, 2005 4:23 PM

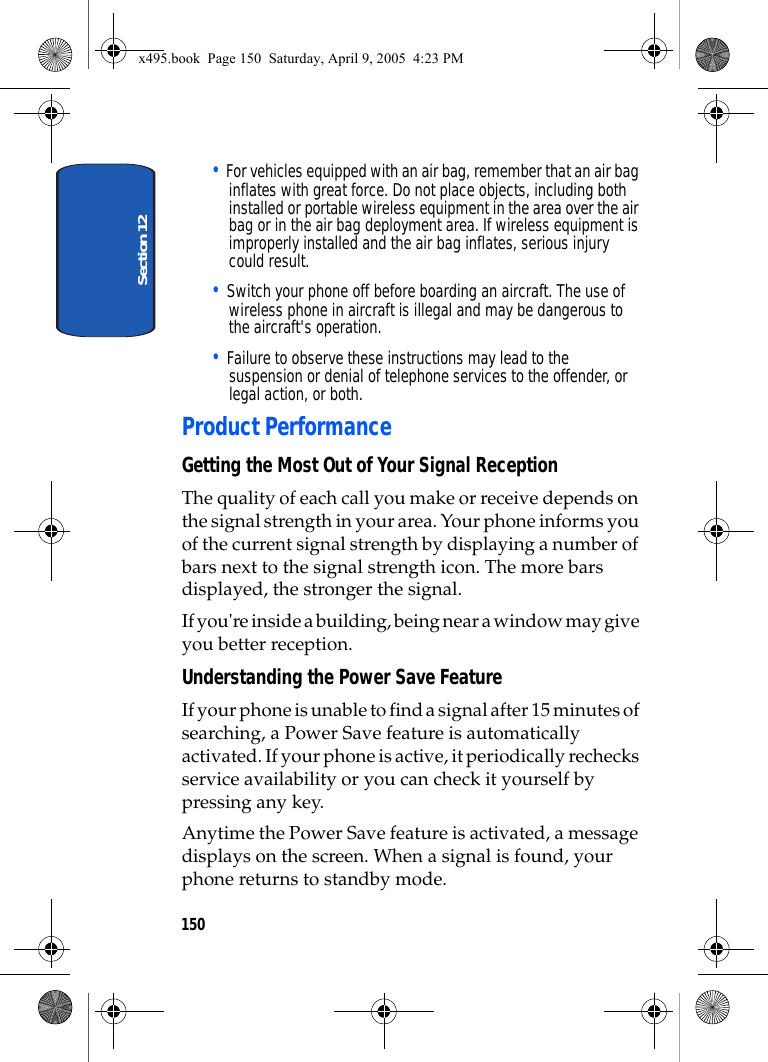

Section 12150• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your phone off before boarding an aircraft. The use of wireless phone in aircraft is illegal and may be dangerous to the aircraft's operation.• Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Product PerformanceGetting the Most Out of Your Signal ReceptionThe quality of each call you make or receive depends on the signal strength in your area. Your phone informs you of the current signal strength by displaying a number of bars next to the signal strength icon. The more bars displayed, the stronger the signal.If you're inside a building, being near a window may give you better reception.Understanding the Power Save FeatureIf your phone is unable to find a signal after 15 minutes of searching, a Power Save feature is automatically activated. If your phone is active, it periodically rechecks service availability or you can check it yourself by pressing any key.Anytime the Power Save feature is activated, a message displays on the screen. When a signal is found, your phone returns to standby mode.x495.book Page 150 Saturday, April 9, 2005 4:23 PM

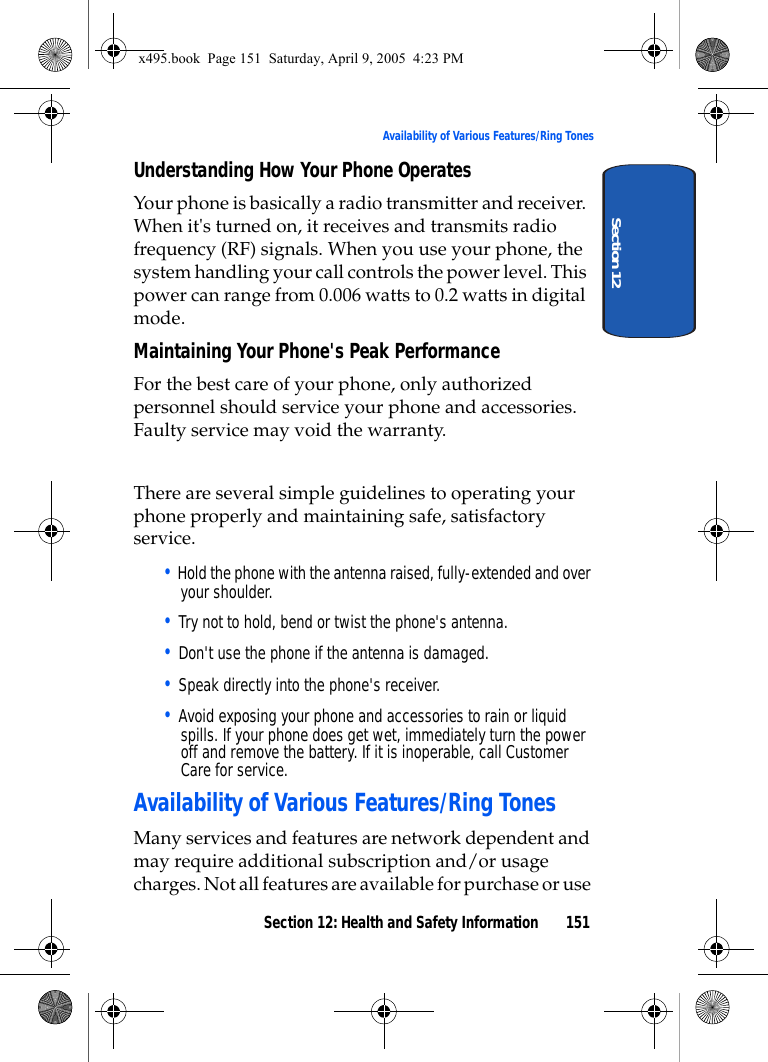

Section 12: Health and Safety Information 151Availability of Various Features/Ring TonesSection 12Understanding How Your Phone OperatesYour phone is basically a radio transmitter and receiver. When it's turned on, it receives and transmits radio frequency (RF) signals. When you use your phone, the system handling your call controls the power level. This power can range from 0.006 watts to 0.2 watts in digital mode.Maintaining Your Phone's Peak PerformanceFor the best care of your phone, only authorized personnel should service your phone and accessories. Faulty service may void the warranty.There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service.• Hold the phone with the antenna raised, fully-extended and over your shoulder.• Try not to hold, bend or twist the phone's antenna.• Don't use the phone if the antenna is damaged.• Speak directly into the phone's receiver.• Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. If it is inoperable, call Customer Care for service.Availability of Various Features/Ring TonesMany services and features are network dependent and may require additional subscription and/or usage charges. Not all features are available for purchase or use x495.book Page 151 Saturday, April 9, 2005 4:23 PM

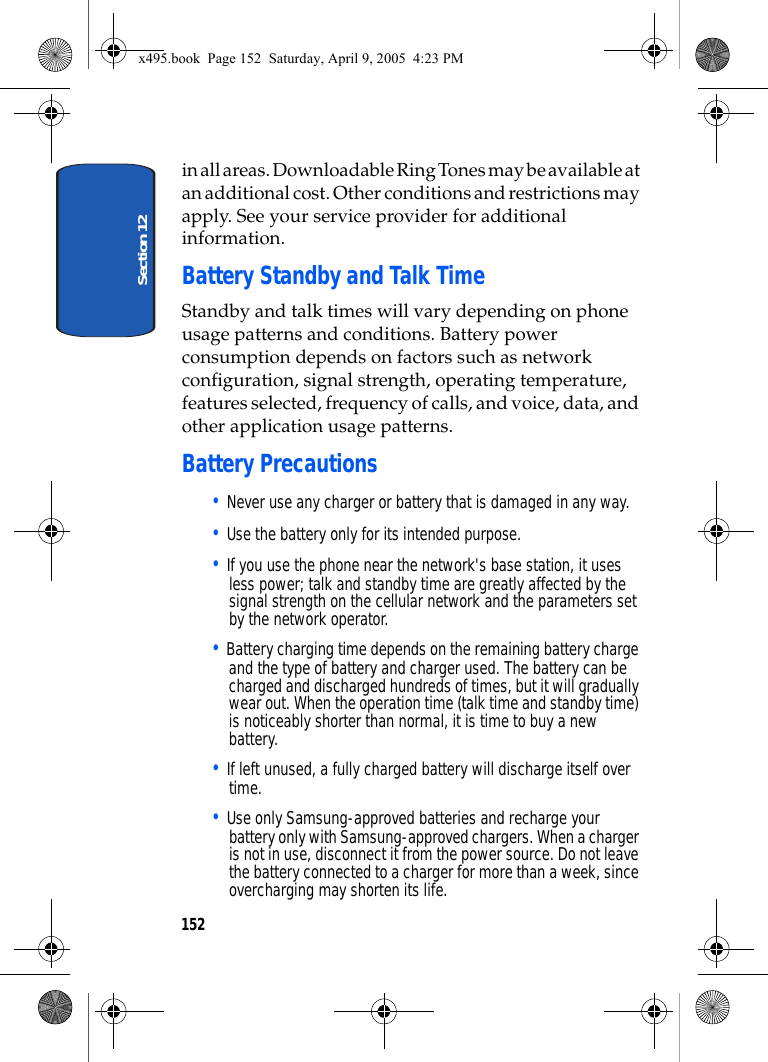

Section 12152in all areas. Downloadable Ring Tones may be available at an additional cost. Other conditions and restrictions may apply. See your service provider for additional information.Battery Standby and Talk TimeStandby and talk times will vary depending on phone usage patterns and conditions. Battery power consumption depends on factors such as network configuration, signal strength, operating temperature, features selected, frequency of calls, and voice, data, and other application usage patterns.Battery Precautions• Never use any charger or battery that is damaged in any way.• Use the battery only for its intended purpose.• If you use the phone near the network's base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.• Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.• If left unused, a fully charged battery will discharge itself over time.• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.x495.book Page 152 Saturday, April 9, 2005 4:23 PM

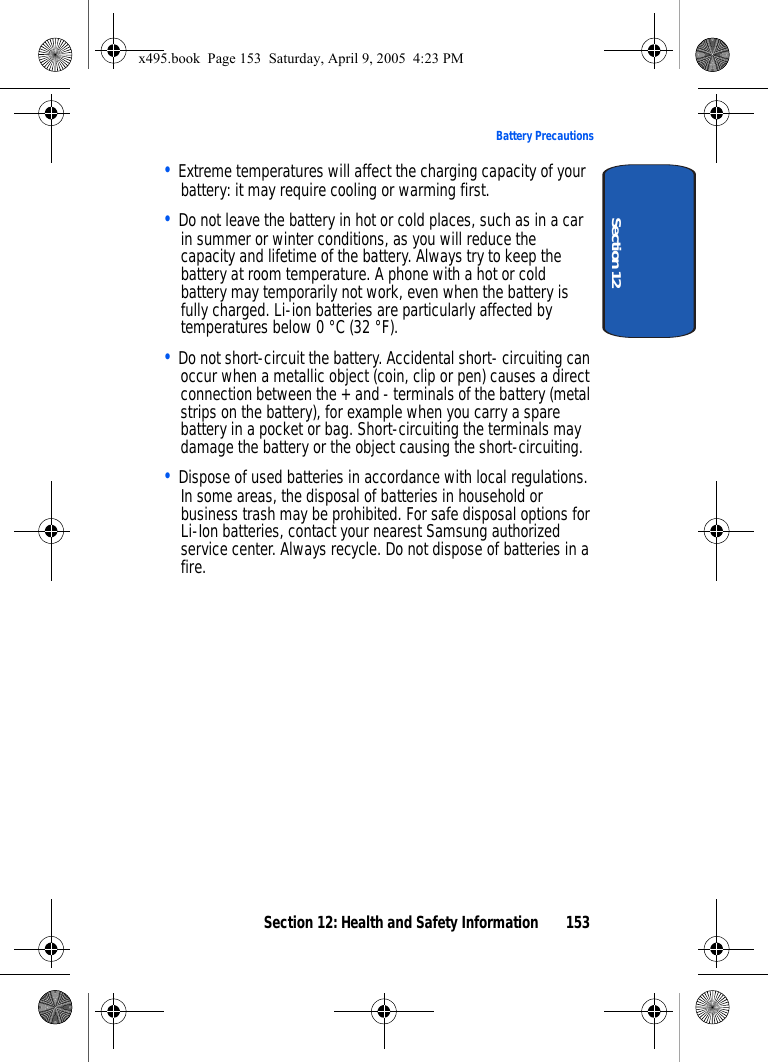

Section 12: Health and Safety Information 153Battery PrecautionsSection 12• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short- circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.• Dispose of used batteries in accordance with local regulations. In some areas, the disposal of batteries in household or business trash may be prohibited. For safe disposal options for Li-Ion batteries, contact your nearest Samsung authorized service center. Always recycle. Do not dispose of batteries in a fire.x495.book Page 153 Saturday, April 9, 2005 4:23 PM

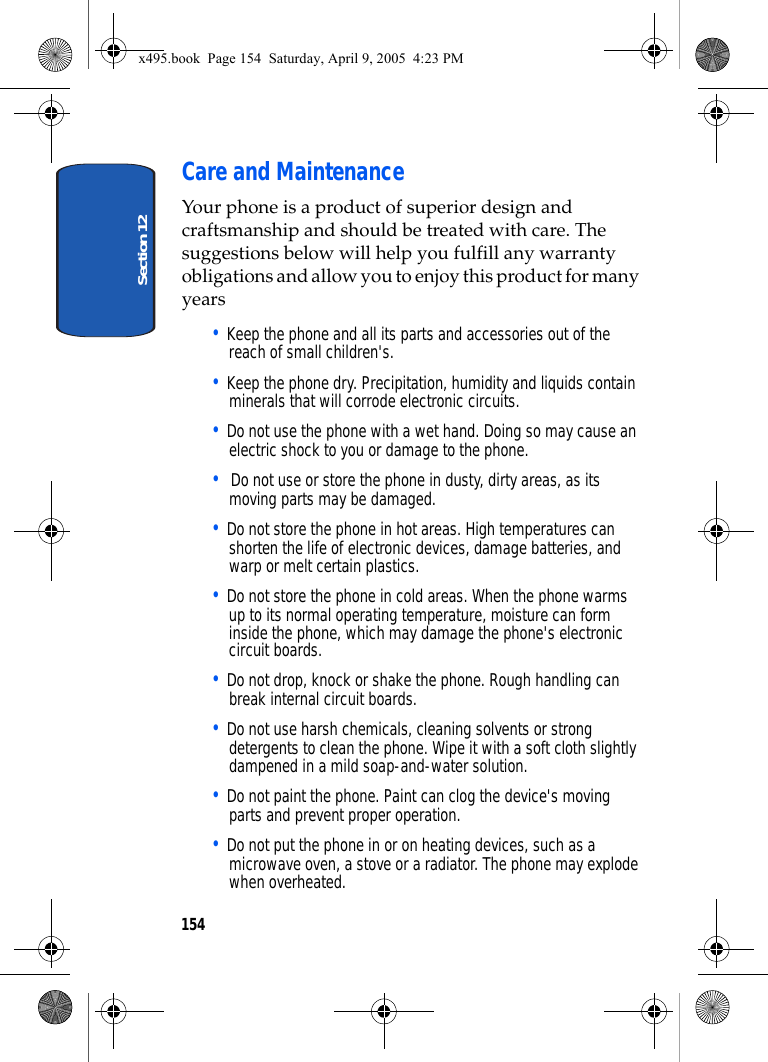

Section 12154Care and MaintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years• Keep the phone and all its parts and accessories out of the reach of small children's.• Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.• Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone's electronic circuit boards.• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device's moving parts and prevent proper operation.• Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.x495.book Page 154 Saturday, April 9, 2005 4:23 PM

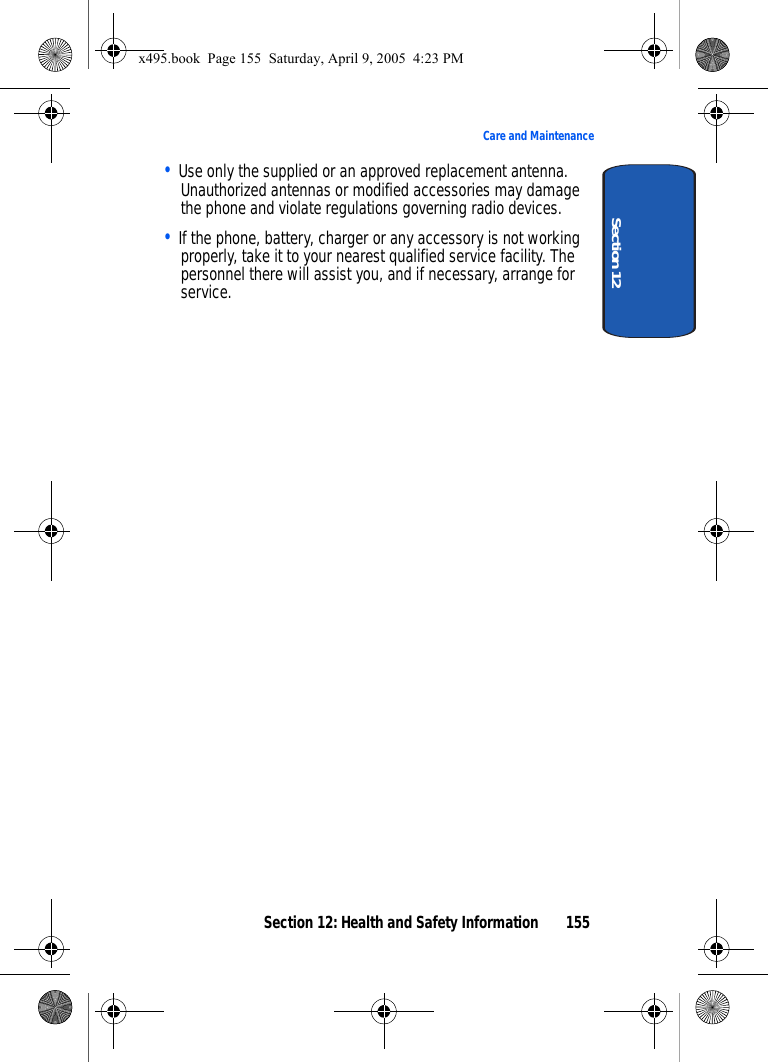

Section 12: Health and Safety Information 155Care and MaintenanceSection 12• Use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.• If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.x495.book Page 155 Saturday, April 9, 2005 4:23 PM

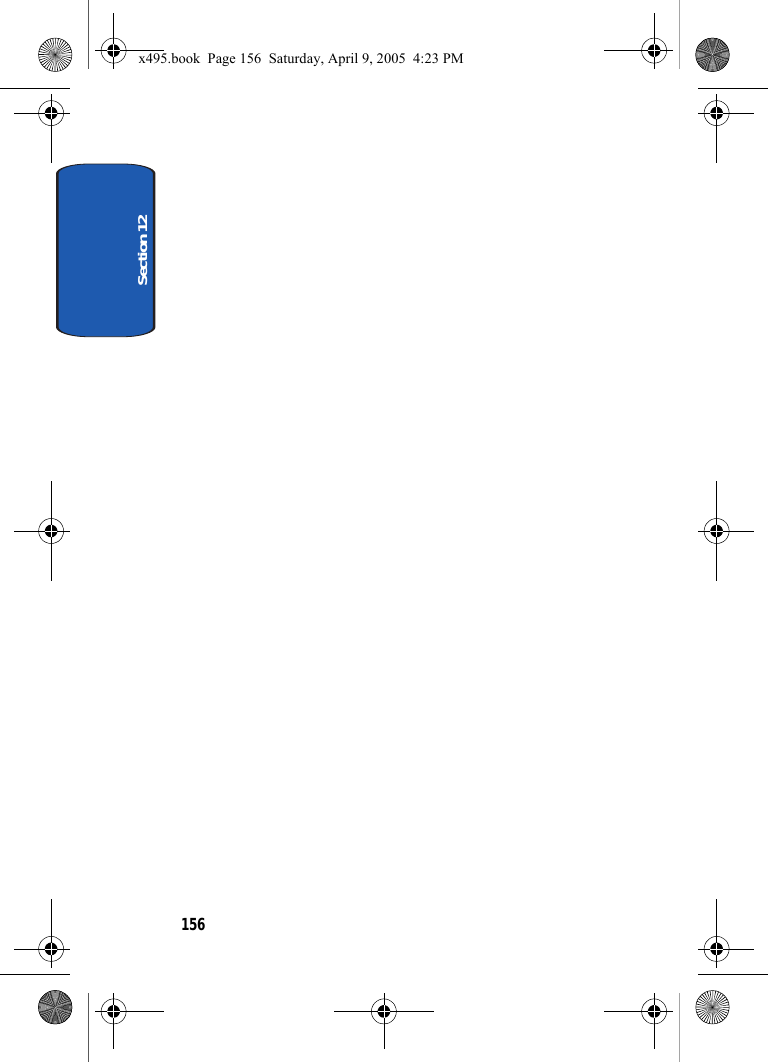

Section 12156x495.book Page 156 Saturday, April 9, 2005 4:23 PM

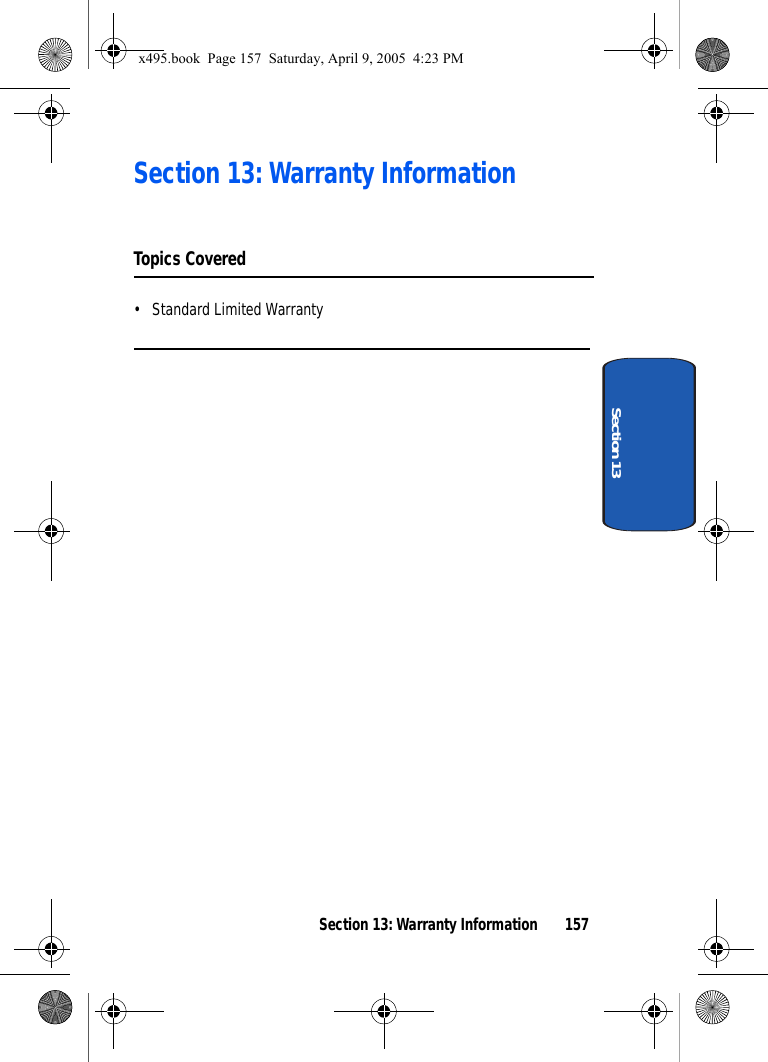

Section 13: Warranty Information 157Section 13Section 13: Warranty InformationTopics Covered• Standard Limited Warrantyx495.book Page 157 Saturday, April 9, 2005 4:23 PM

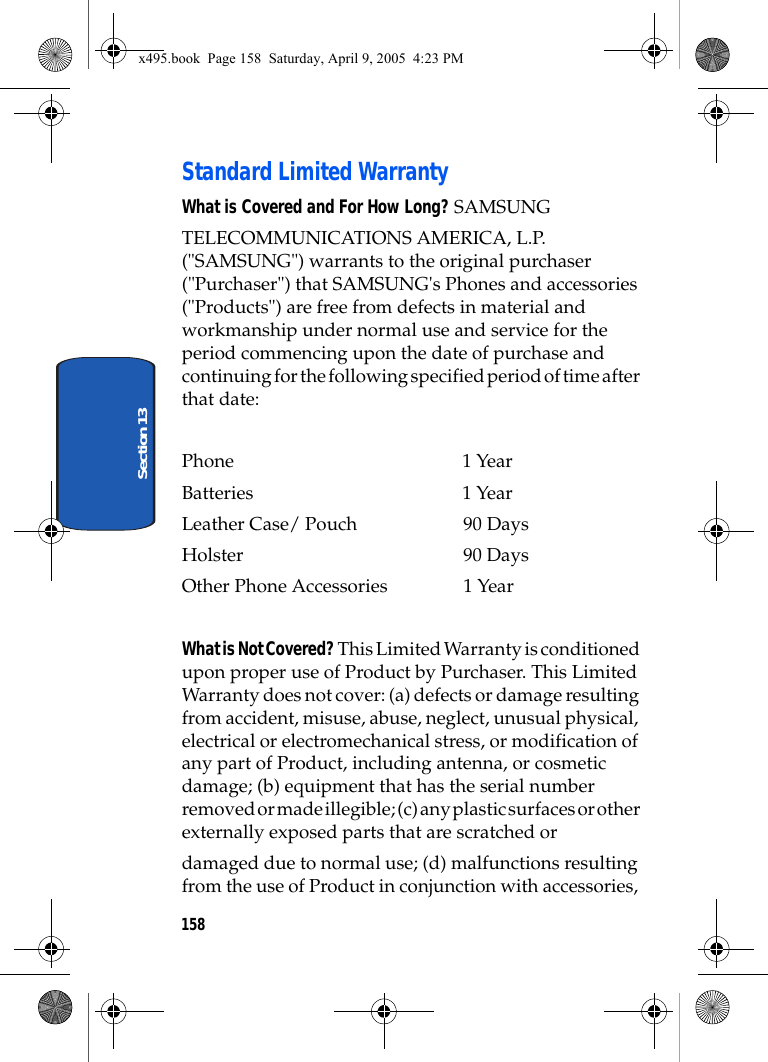

158Section 13Standard Limited WarrantyWhat is Covered and For How Long? SAMSUNGTELECOMMUNICATIONS AMERICA, L.P. ("SAMSUNG") warrants to the original purchaser ("Purchaser") that SAMSUNG's Phones and accessories ("Products") are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase and continuing for the following specified period of time after that date:Phone 1 YearBatteries 1 YearLeather Case/ Pouch 90 DaysHolster 90 DaysOther Phone Accessories 1 YearWhat is Not Covered? This Limited Warranty is conditioned upon proper use of Product by Purchaser. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, or modification of any part of Product, including antenna, or cosmetic damage; (b) equipment that has the serial number removed or made illegible; (c) any plastic surfaces or other externally exposed parts that are scratched ordamaged due to normal use; (d) malfunctions resulting from the use of Product in conjunction with accessories, x495.book Page 158 Saturday, April 9, 2005 4:23 PM

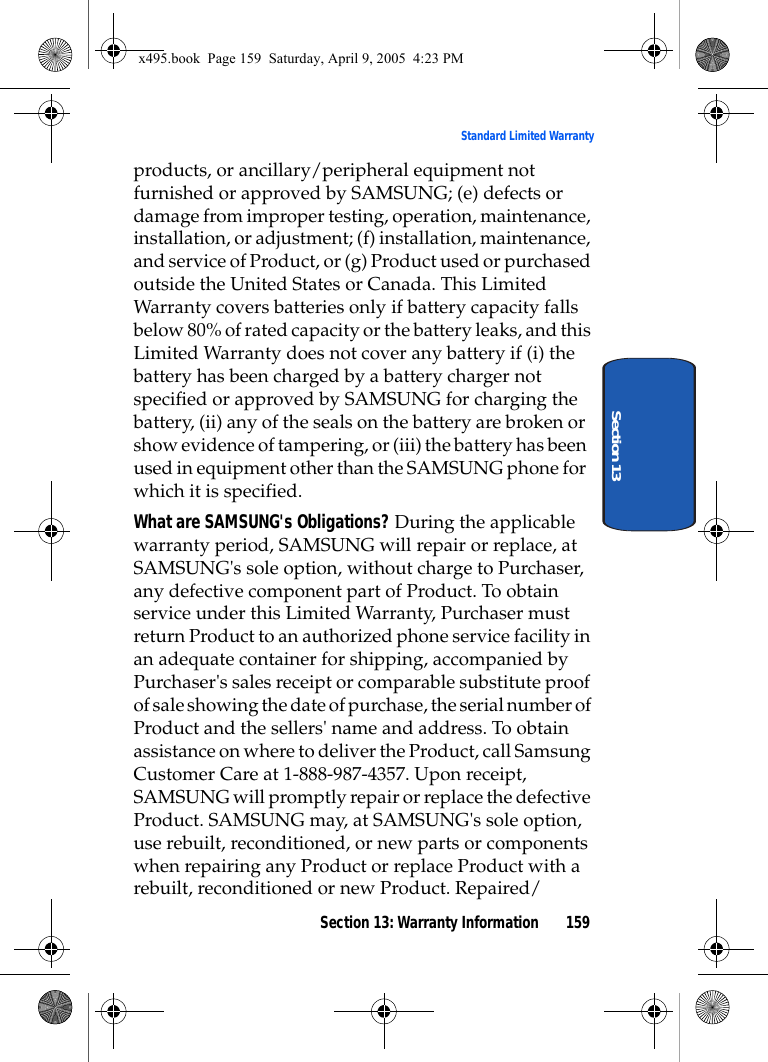

Section 13: Warranty Information 159Standard Limited WarrantySection 13products, or ancillary/peripheral equipment not furnished or approved by SAMSUNG; (e) defects or damage from improper testing, operation, maintenance, installation, or adjustment; (f) installation, maintenance, and service of Product, or (g) Product used or purchased outside the United States or Canada. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery, (ii) any of the seals on the battery are broken or show evidence of tampering, or (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified.What are SAMSUNG's Obligations? During the applicable warranty period, SAMSUNG will repair or replace, at SAMSUNG's sole option, without charge to Purchaser, any defective component part of Product. To obtain service under this Limited Warranty, Purchaser must return Product to an authorized phone service facility in an adequate container for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase, the serial number of Product and the sellers' name and address. To obtain assistance on where to deliver the Product, call Samsung Customer Care at 1-888-987-4357. Upon receipt, SAMSUNG will promptly repair or replace the defective Product. SAMSUNG may, at SAMSUNG's sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product or replace Product with a rebuilt, reconditioned or new Product. Repaired/x495.book Page 159 Saturday, April 9, 2005 4:23 PM

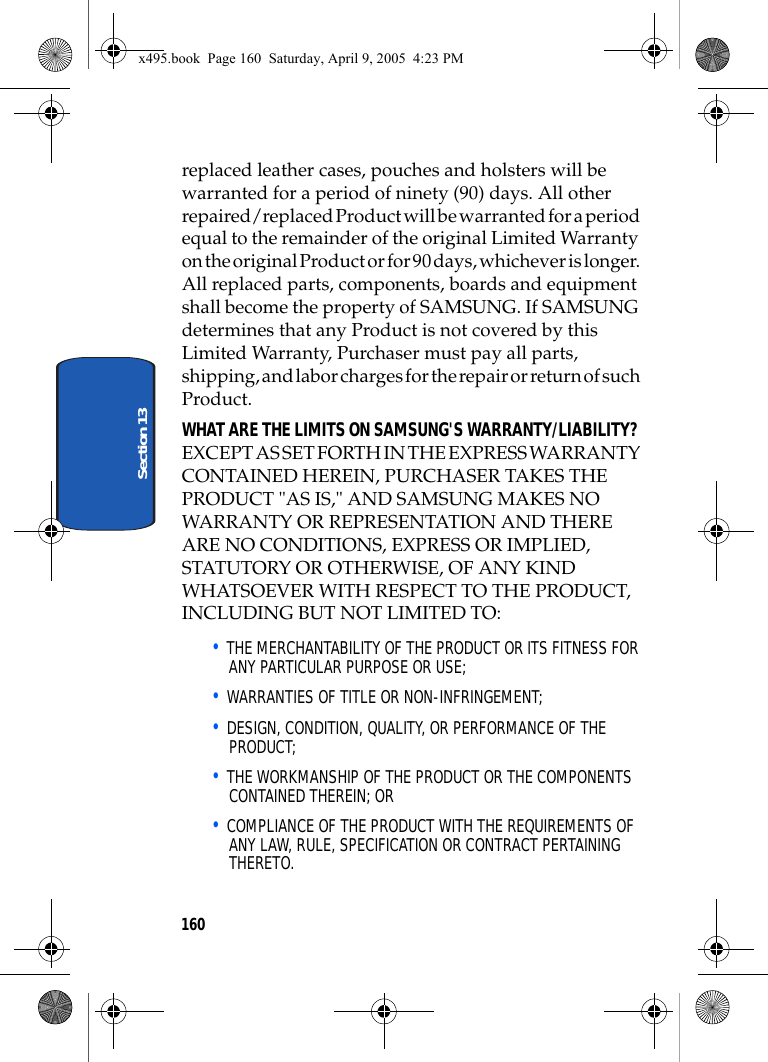

160Section 13replaced leather cases, pouches and holsters will be warranted for a period of ninety (90) days. All other repaired/replaced Product will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer. All replaced parts, components, boards and equipment shall become the property of SAMSUNG. If SAMSUNG determines that any Product is not covered by this Limited Warranty, Purchaser must pay all parts, shipping, and labor charges for the repair or return of such Product.WHAT ARE THE LIMITS ON SAMSUNG'S WARRANTY/LIABILITY? EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED HEREIN, PURCHASER TAKES THE PRODUCT "AS IS," AND SAMSUNG MAKES NO WARRANTY OR REPRESENTATION AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO:• THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE;• WARRANTIES OF TITLE OR NON-INFRINGEMENT;• DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT;• THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR• COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO.x495.book Page 160 Saturday, April 9, 2005 4:23 PM

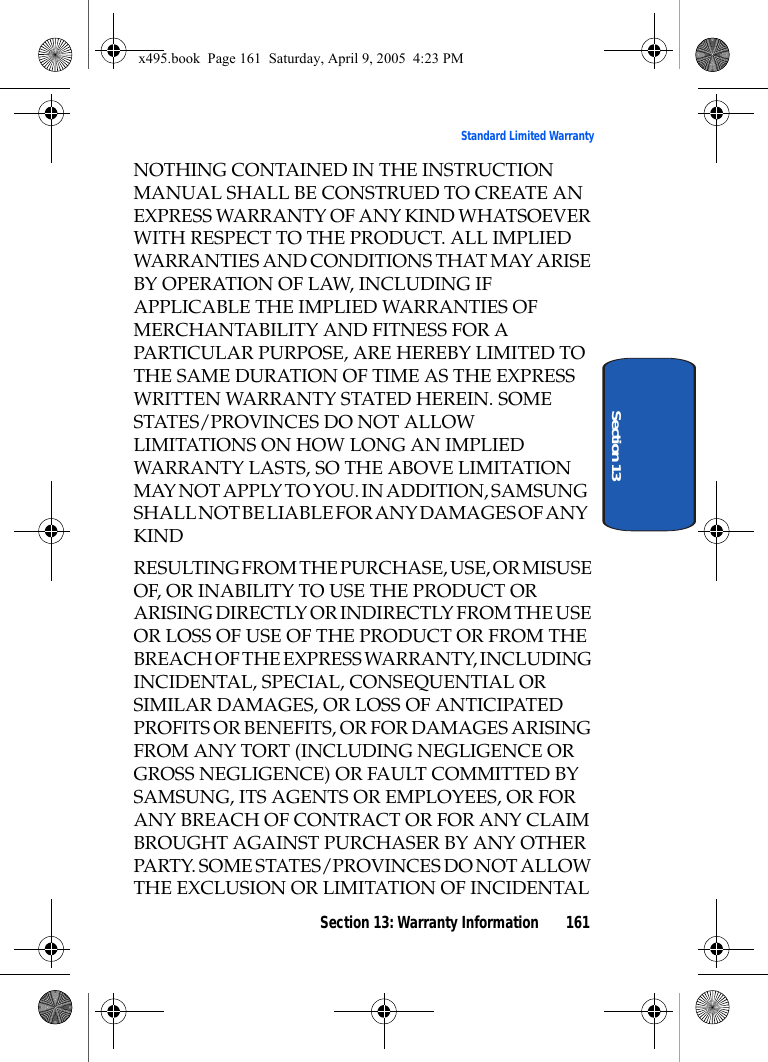

Section 13: Warranty Information 161Standard Limited WarrantySection 13NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW, INCLUDING IF APPLICABLE THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF TIME AS THE EXPRESS WRITTEN WARRANTY STATED HEREIN. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KINDRESULTING FROM THE PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USE THE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM THE USE OR LOSS OF USE OF THE PRODUCT OR FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES ARISING FROM ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY SAMSUNG, ITS AGENTS OR EMPLOYEES, OR FOR ANY BREACH OF CONTRACT OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL x495.book Page 161 Saturday, April 9, 2005 4:23 PM

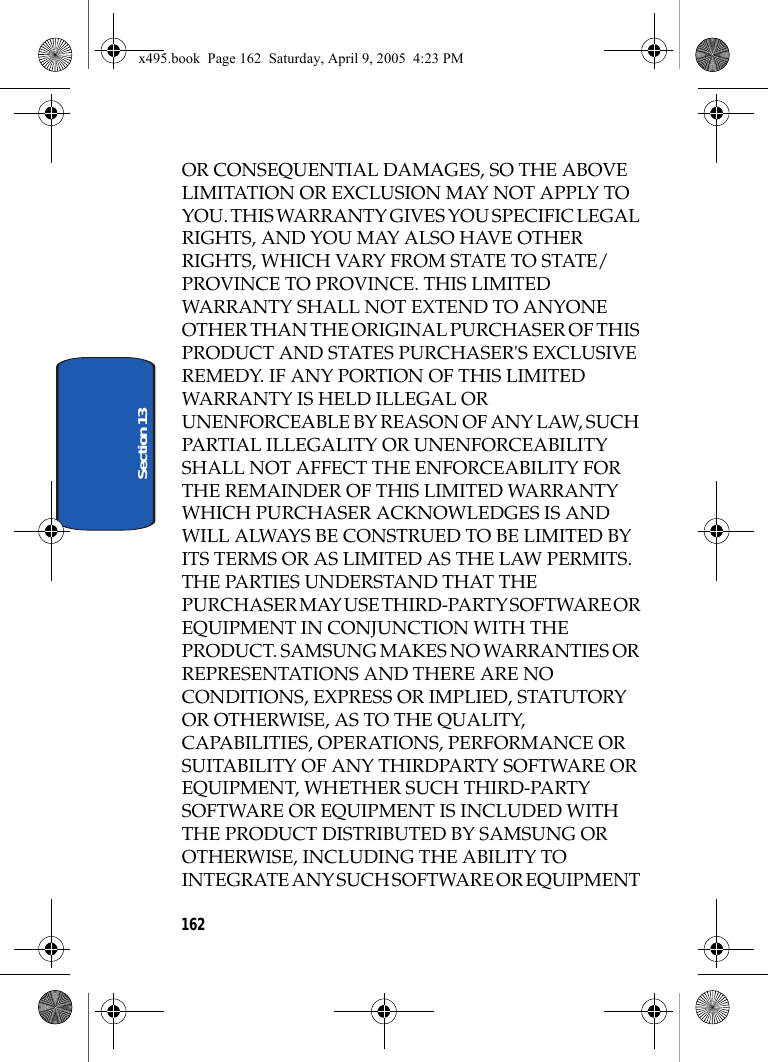

162Section 13OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE/PROVINCE TO PROVINCE. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES PURCHASER'S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAW PERMITS. THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE THIRD-PARTY SOFTWARE OR EQUIPMENT IN CONJUNCTION WITH THE PRODUCT. SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRDPARTY SOFTWARE OR EQUIPMENT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT x495.book Page 162 Saturday, April 9, 2005 4:23 PM

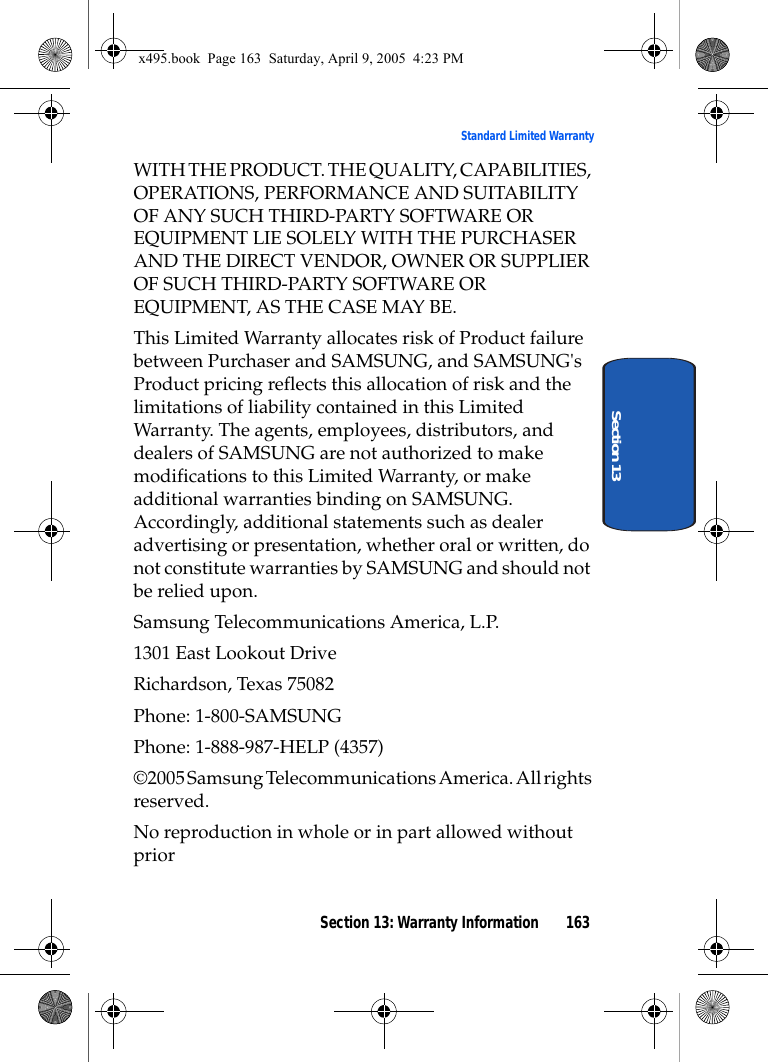

Section 13: Warranty Information 163Standard Limited WarrantySection 13WITH THE PRODUCT. THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE PURCHASER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT, AS THE CASE MAY BE.This Limited Warranty allocates risk of Product failure between Purchaser and SAMSUNG, and SAMSUNG's Product pricing reflects this allocation of risk and the limitations of liability contained in this Limited Warranty. The agents, employees, distributors, and dealers of SAMSUNG are not authorized to make modifications to this Limited Warranty, or make additional warranties binding on SAMSUNG. Accordingly, additional statements such as dealer advertising or presentation, whether oral or written, do not constitute warranties by SAMSUNG and should not be relied upon.Samsung Telecommunications America, L.P.1301 East Lookout DriveRichardson, Texas 75082Phone: 1-800-SAMSUNGPhone: 1-888-987-HELP (4357)©2005 Samsung Telecommunications America. All rights reserved.No reproduction in whole or in part allowed without priorx495.book Page 163 Saturday, April 9, 2005 4:23 PM

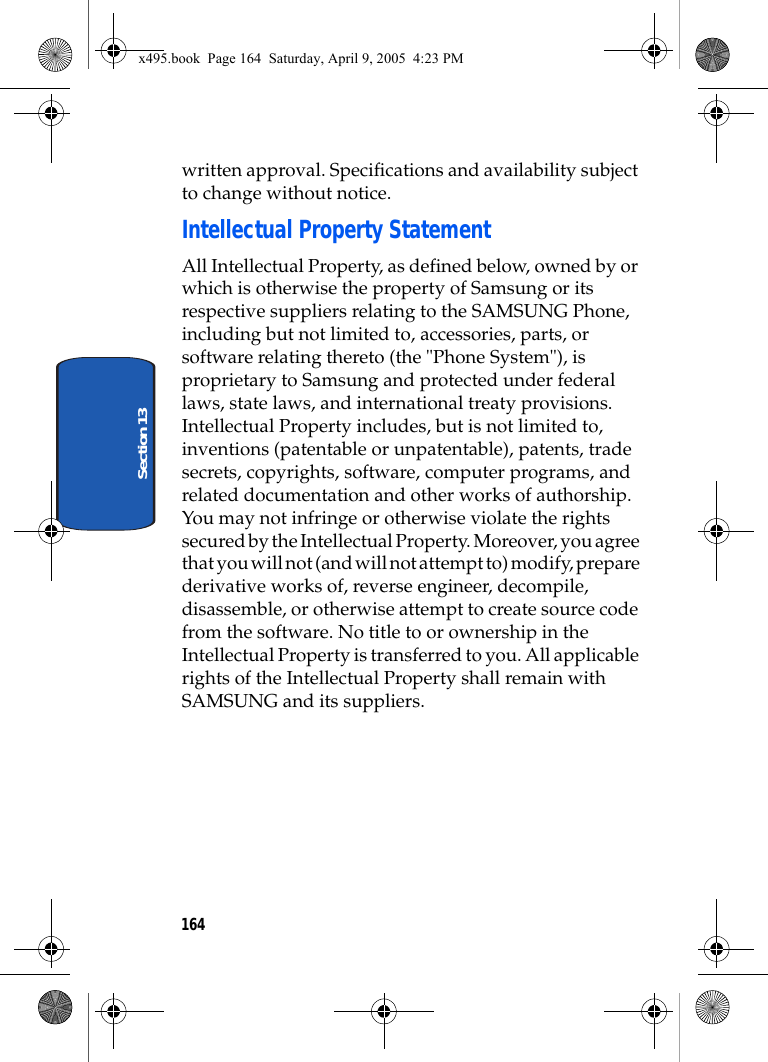

164Section 13written approval. Specifications and availability subject to change without notice.Intellectual Property StatementAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the "Phone System"), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.x495.book Page 164 Saturday, April 9, 2005 4:23 PM

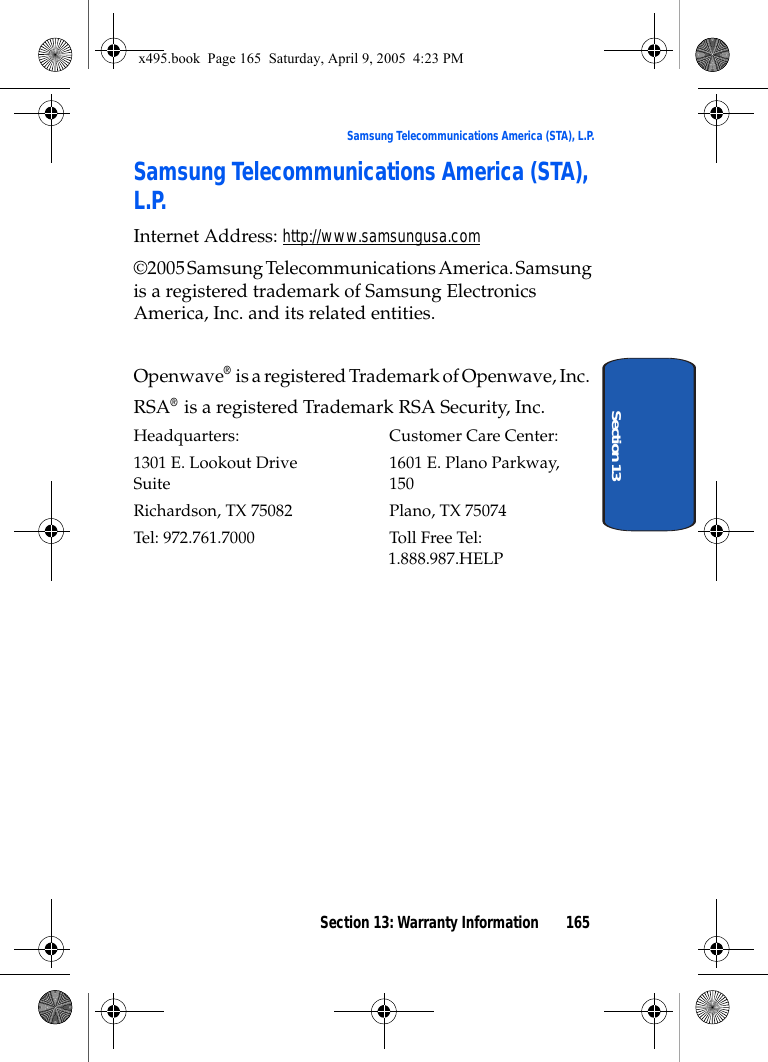

Section 13: Warranty Information 165Samsung Telecommunications America (STA), L.P.Section 13Samsung Telecommunications America (STA), L.P.Internet Address: http://www.samsungusa.com©2005 Samsung Telecommunications America. Samsung is a registered trademark of Samsung Electronics America, Inc. and its related entities.Openwave® is a registered Trademark of Openwave, Inc.RSA® is a registered Trademark RSA Security, Inc.Headquarters: Customer Care Center:1301 E. Lookout Drive 1601 E. Plano Parkway, Suite 150Richardson, TX 75082 Plano, TX 75074Tel: 972.761.7000 Toll Free Tel: 1.888.987.HELP x495.book Page 165 Saturday, April 9, 2005 4:23 PM

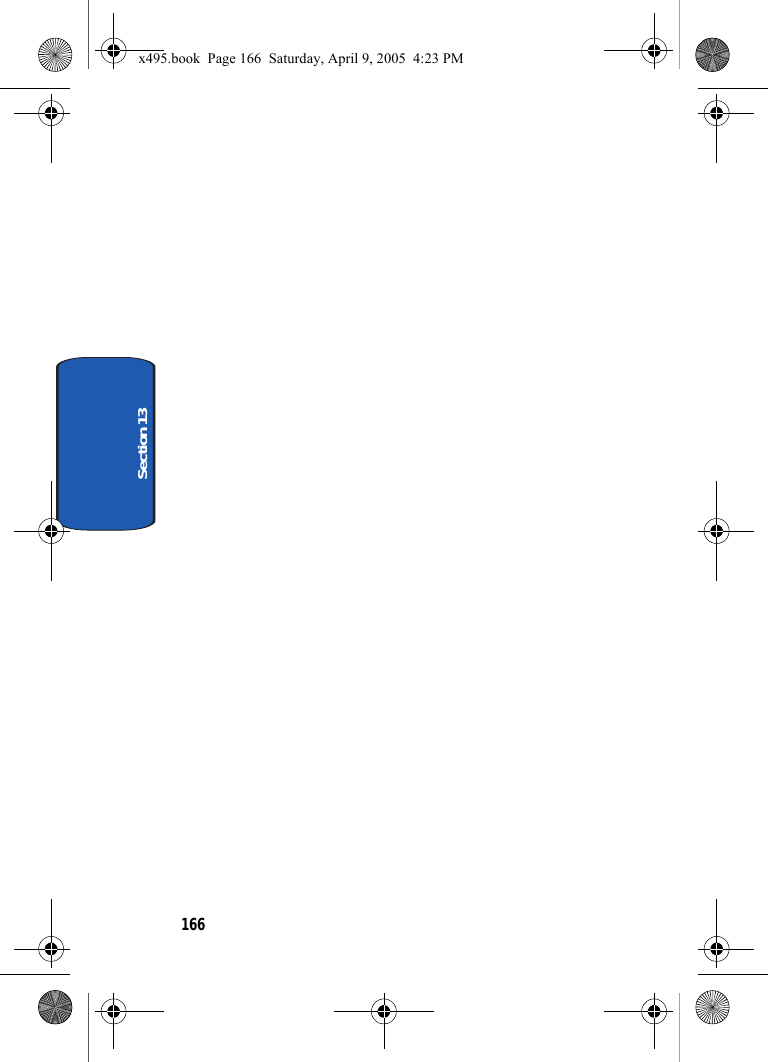

166Section 13x495.book Page 166 Saturday, April 9, 2005 4:23 PM

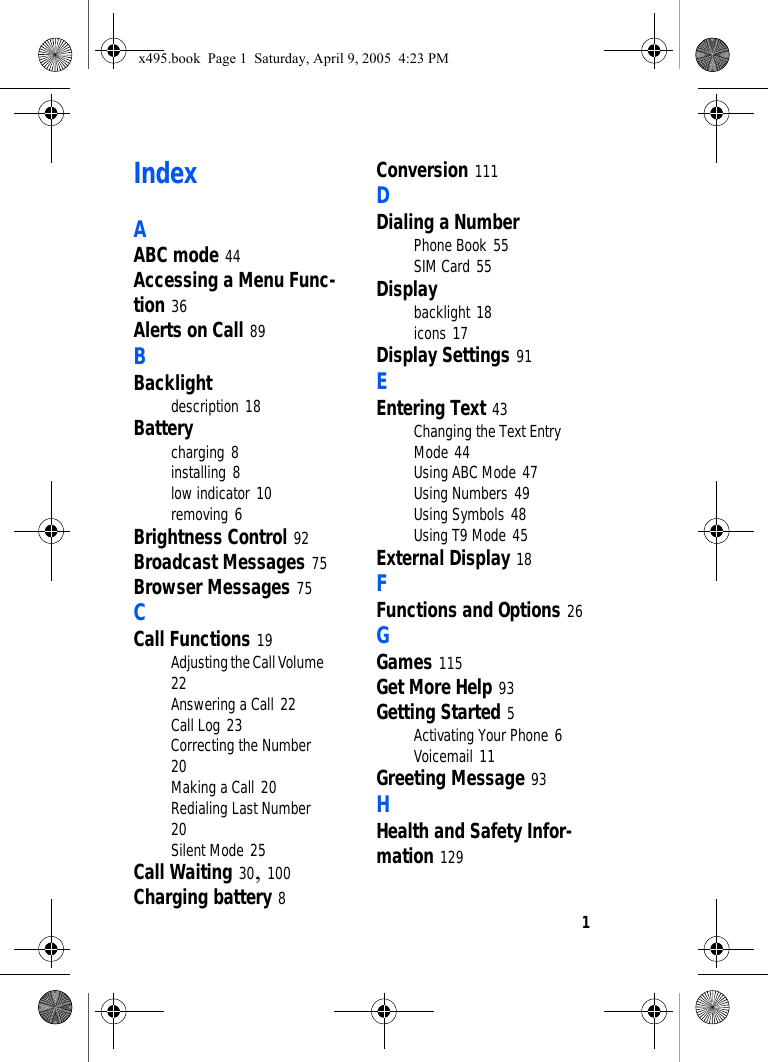

1IndexAABC mode 44Accessing a Menu Func-tion 36Alerts on Call 89BBacklightdescription 18Batterycharging 8installing 8low indicator 10removing 6Brightness Control 92Broadcast Messages 75Browser Messages 75CCall Functions 19Adjusting the Call Volume 22Answering a Call 22Call Log 23Correcting the Number 20Making a Call 20Redialing Last Number 20Silent Mode 25Call Waiting 30, 100Charging battery 8Conversion 111DDialing a NumberPhone Book 55SIM Card 55Displaybacklight 18icons 17Display Settings 91EEntering Text 43Changing the Text Entry Mode 44Using ABC Mode 47Using Numbers 49Using Symbols 48Using T9 Mode 45External Display 18FFunctions and Options 26GGames 115Get More Help 93Getting Started 5Activating Your Phone 6Voicemail 11Greeting Message 93HHealth and Safety Infor-mation 129x495.book Page 1 Saturday, April 9, 2005 4:23 PM

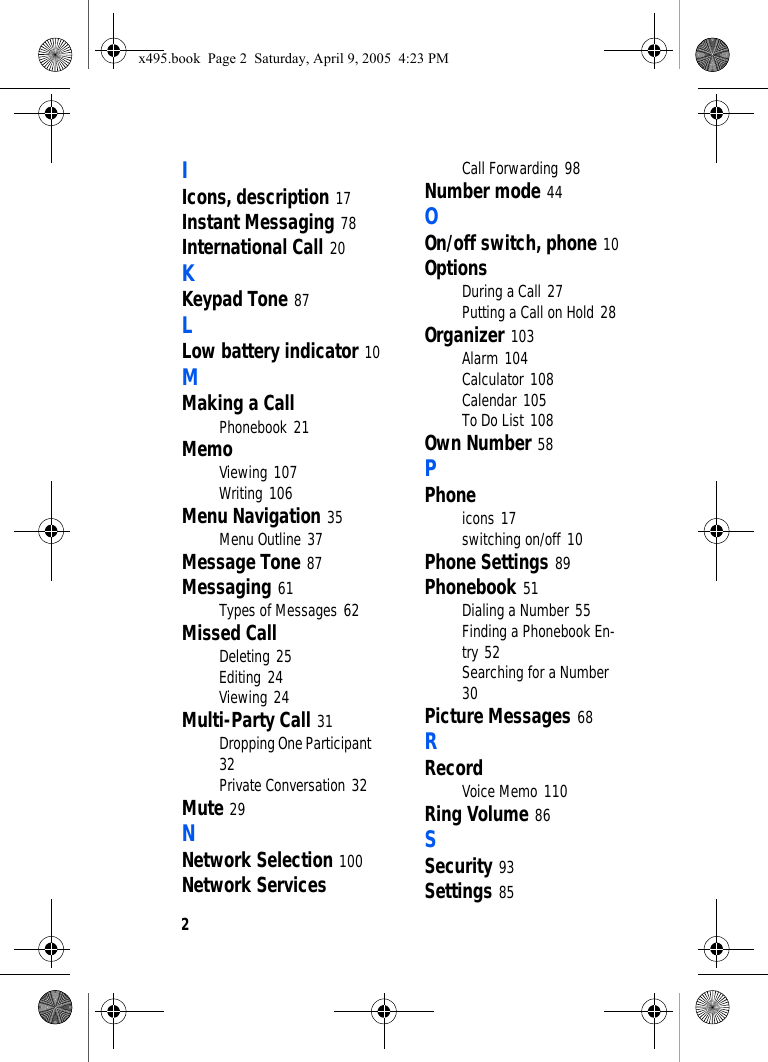

2IIcons, description 17Instant Messaging 78International Call 20KKeypad Tone 87LLow battery indicator 10MMaking a CallPhonebook 21MemoViewing 107Writing 106Menu Navigation 35Menu Outline 37Message Tone 87Messaging 61Types of Messages 62Missed CallDeleting 25Editing 24Viewing 24Multi-Party Call 31Dropping One Participant 32Private Conversation 32Mute 29NNetwork Selection 100Network ServicesCall Forwarding 98Number mode 44OOn/off switch, phone 10OptionsDuring a Call 27Putting a Call on Hold 28Organizer 103Alarm 104Calculator 108Calendar 105To Do List 108Own Number 58PPhoneicons 17switching on/off 10Phone Settings 89Phonebook 51Dialing a Number 55Finding a Phonebook En-try 52Searching for a Number 30Picture Messages 68RRecordVoice Memo 110Ring Volume 86SSecurity 93Settings 85x495.book Page 2 Saturday, April 9, 2005 4:23 PM

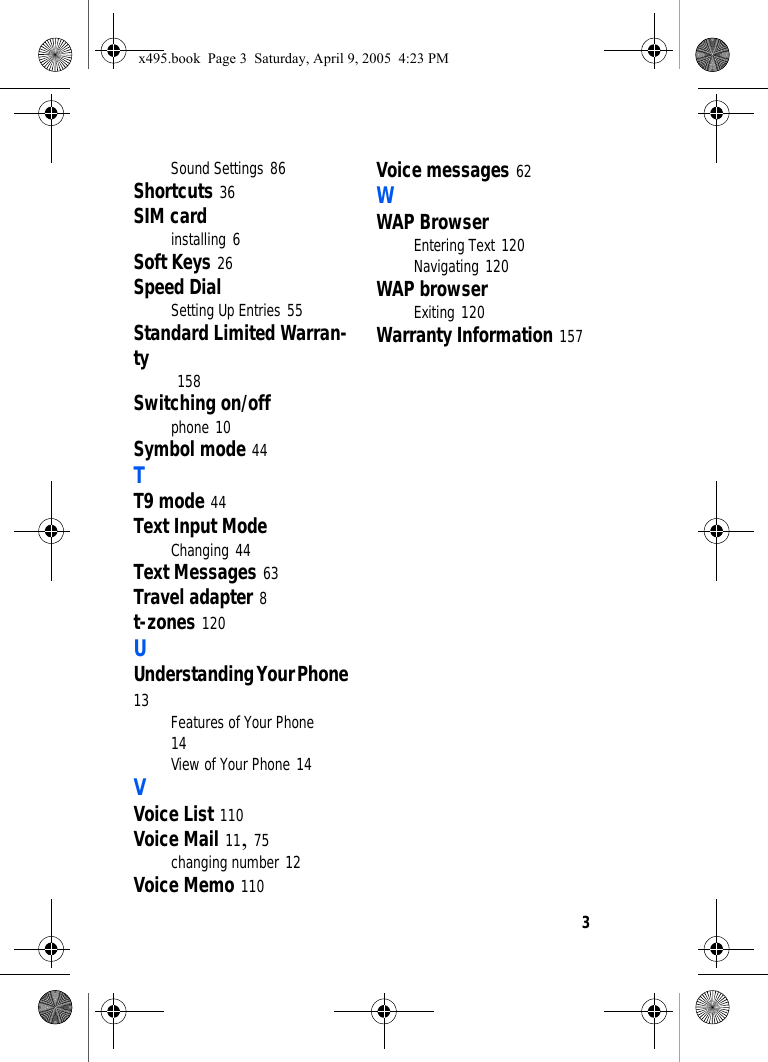

3Sound Settings 86Shortcuts 36SIM cardinstalling 6Soft Keys 26Speed DialSetting Up Entries 55Standard Limited Warran-ty 158Switching on/offphone 10Symbol mode 44TT9 mode 44Text Input ModeChanging 44Text Messages 63Travel adapter 8t-zones 120UUnderstanding Your Phone 13 Features of Your Phone 14View of Your Phone 14VVoice List 110Voice Mail 11, 75changing number 12Voice Memo 110Voice messages 62WWAP BrowserEntering Text 120Navigating 120WAP browserExiting 120Warranty Information 157x495.book Page 3 Saturday, April 9, 2005 4:23 PM

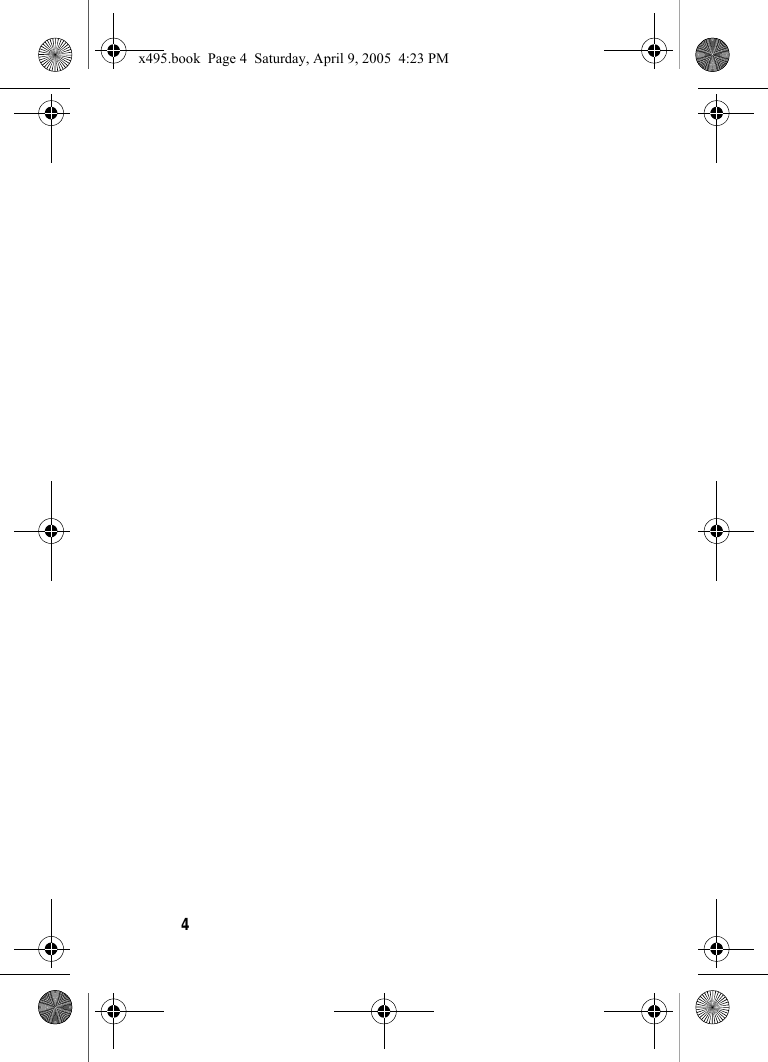

4x495.book Page 4 Saturday, April 9, 2005 4:23 PM
