Samsung Electronics Co SGHX495H Single-Band PCS GSM Phone User Manual SGH X497 FCC

Samsung Electronics Co Ltd Single-Band PCS GSM Phone SGH X497 FCC

Contents

Users Manual 1

UVEH1_1.2_WCx495H_081805_F1 SGH-x495H SeriesPORTABLE Dual-BandTELEPHONEUser GuidePlease read this manual before operating yourphone, and keep it for future reference.x495.book Page 1 Thursday, August 18, 2005 12:23 PM

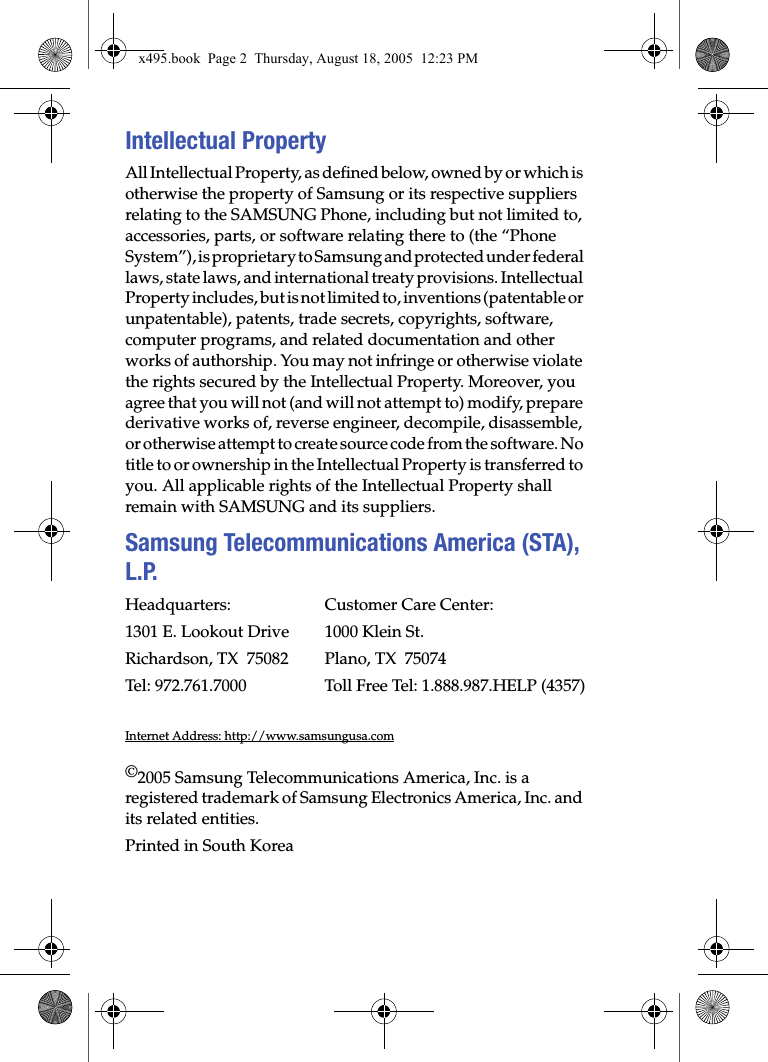

Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Samsung Telecommunications America (STA), L.P.Headquarters: Customer Care Center:1301 E. Lookout Drive 1000 Klein St.Richardson, TX 75082 Plano, TX 75074Tel: 972.761.7000 Toll Free Tel: 1.888.987.HELP (4357)Internet Address: http://www.samsungusa.com©2005 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities.Printed in South Koreax495.book Page 2 Thursday, August 18, 2005 12:23 PM
GH68-08137AOpenwave® is a registered Trademark of Openwave, Inc.RSA® is a registered Trademark RSA Security, Inc.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.x495.book Page 3 Thursday, August 18, 2005 12:23 PM
x495.book Page 4 Thursday, August 18, 2005 12:23 PM
Table of Contents 1Table of ContentsTable of ContentsSection 1: Getting Started .................................. 5Activating Your Phone ......................................................6Switching the Phone On or Off ........................................10Setting Up Your Voice Mail .............................................11Section 2: Understanding Your Phone............. 15Features of Your Phone ..................................................16View of Your Phone ........................................................ 16Keys ...............................................................................17Understanding the Display Screen ..................................19Section 3: Call Functions.................................. 21Making a Call .................................................................22Adjusting the Call Volume ...............................................24Answering a Call ............................................................24Call Log ..........................................................................25Call Records ...................................................................27Silent Mode ....................................................................30Selecting Functions and Options ....................................30Section 4: Menu Navigation ............................. 39Menu Navigation ............................................................40Menu Outline .................................................................41Section 5: Entering Text ................................... 47Changing the Text Input Mode ........................................48Using T9 Mode ...............................................................49Using ABC Mode ............................................................51Using Symbols ...............................................................53Using Numbers ..............................................................53Section 6: Understanding Your Phonebook..... 55Finding a Phonebook Entry .............................................56Storing a Number in the Phone’s Memory ......................56x495.book Page 1 Thursday, August 18, 2005 12:23 PM
Table of Contents2Storing a Number in the SIM Memory .............................58Dialing a Number from the Phonebook ...........................59Dialing a Number from the SIM Card ..............................59Speed Dialing .................................................................59Copying SIM Phonebook Entries to Phone .......................60Deleting all Phonebook Entries .......................................61Group Settings ...............................................................61Finding My Own Number ................................................62Checking the Memory Status ..........................................63Service Dialing Numbers ................................................63Section 7: Messaging ....................................... 65Types of Messages .........................................................66Voice messages .............................................................66Text Messages ...............................................................68Picture Messages ...........................................................73Browser Messages .........................................................79Voice Mail Messages ......................................................80Broadcast Messages (SIM Dependent) ............................80Settings ..........................................................................80Memory Status ...............................................................82IM (Instant Messaging) ...................................................82Section 8: Changing Your Settings .................. 85Sound Settings ...............................................................86Phone Settings ...............................................................89Section 9: Organizer ....................................... 103Alarm ...........................................................................104Calendar .......................................................................105Calculator .....................................................................108To Do List .....................................................................108Voice Memo .................................................................110Conversion ...................................................................112Timer ...........................................................................112x495.book Page 2 Thursday, August 18, 2005 12:23 PM
Table of Contents 3Table of ContentsStopwatch ....................................................................113Section 10: Funbox......................................... 115t-zones ........................................................................116Sounds ........................................................................116Images .........................................................................117Games .........................................................................117Delete All .....................................................................120Memory Status .............................................................120Section 11: t-zones......................................... 121t-zones ........................................................................122Section 12: Health and Safety Information.... 127Health and Safety Information ......................................128Consumer Information on Wireless Phones ...................130Road Safety .................................................................140Operating Environment .................................................142Using Your Phone Near Other Electronic Devices ..........142Potentially Explosive Environments ...............................144Emergency Calls ..........................................................145FCC Notice and Cautions ..............................................146Other Important Safety Information ...............................147Product Performance ...................................................148Availability of Various Features/Ring Tones ...................149Battery Standby and Talk Time .....................................150Battery Precautions ......................................................150Care and Maintenance .................................................152Section 13: Warranty Information.................. 155Standard Limited Warranty ...........................................156Intellectual Property Statement ....................................162Samsung Telecommunications America (STA), L.P. ...... 163Index ............................................................... 165x495.book Page 3 Thursday, August 18, 2005 12:23 PM
Table of Contents4x495.book Page 4 Thursday, August 18, 2005 12:23 PM
Section 1: Getting Started 5Section 1Section 1: Getting StartedTopics Covered• Activating Your Phone• Switching the Phone On or Off • Setting Up Your VoicemailThis section allows you to start using your phone by activating your service and setting up your voice mail. x495.book Page 5 Thursday, August 18, 2005 12:23 PM
6Section 1Activating Your PhoneWhen you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available, and many others.Installing the SIM CardImportant! The plug-in SIM card and its contacts can be easily damaged by scratching or bending, so be careful when handling, inserting, or removing the card.Keep all SIM cards out of reach of small children.If necessary, switch off the phone by holding down the key until the power-off image displays.Remove the battery. To do so:1. Slide the battery lock toward the top of the phone and hold it in that position.2. Lift the battery away, as shown.x495.book Page 6 Thursday, August 18, 2005 12:23 PM
Section 1: Getting Started 7Activating Your PhoneSection 13. Slide the SIM card into the SIM card socket so that the card locks into place. Make sure the gold contacts of the card face into the phone.Note: When you need to remove the SIM card, slide it, as shown, and take it out of the socket.x495.book Page 7 Thursday, August 18, 2005 12:23 PM
8Section 14. Place the battery so that the tabs on the end align with the slots at the bottom of the phone. 5. Press the battery down until it clicks into place. Make sure that the battery is properly installed before switching on the phone.Charging a BatteryYour phone is powered by a rechargeable Li-ion battery. A travel adapter comes with your phone for charging the battery. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.You can use the phone while the battery is charging, but this causes the phone to charge more slowly.x495.book Page 8 Thursday, August 18, 2005 12:23 PM
Section 1: Getting Started 9Activating Your PhoneSection 1Note: You must fully charge the battery before using your phone for the first time. A discharged battery recharges fully in approximately 200 minutes.1. With the battery in position on the phone, remove the jack cover at the bottom of the phone and plug the connector of the travel adapter into the jack. 2. Plug the adapter into a standard AC wall outlet.3. When charging is finished, unplug the adapter from the power outlet and disconnect it from the phone by pressing the buttons on both sides of the connector (1) and pulling the connector out (2). x495.book Page 9 Thursday, August 18, 2005 12:23 PM
10Section 1Note: You must unplug the adapter before you remove the battery from the phone during charging; otherwise, the phone could be damaged. Low Battery IndicatorWhen the battery is weak and only a few minutes of talk time remain, a warning tone sounds and the “Warning Low Battery” message repeats at regular intervals on the display. When this happens, your phone turns off the backlight to conserve the remaining battery power. When the battery level becomes too low, the phone automatically turns off.Switching the Phone On or Off 1. Open the phone. 2. Press and hold the key until the phone switches on.3. If the phone asks you to enter the phone password, enter the password and press the OK soft key or the key. The password is preset to “00000000” at the factory. For further details, see "Change Password" on page 95.4. If the phone asks for a PIN, enter the PIN and press the OK soft key or the key. For further details, see "PIN Check" on page 94.The phone searches for your network and after finding it, the Idle screen appears. Now, you can make or receive calls.x495.book Page 10 Thursday, August 18, 2005 12:23 PM
Section 1: Getting Started 11Setting Up Your Voice MailSection 1Note: The display language is preset to English at the factory. To change the language, use the Language menu. For further details, see "Language" on page 94.5. When you wish to switch off the phone, press and hold the key until the power-off image displays.Setting Up Your Voice MailFor new users, follow the instructions below to set up voicemail:1. In Idle mode, press and hold the key on the keypad.You are prompted to enter the password.2. Follow the voice mail prompts to create a password, a greeting, and your voice mail greeting.Note: These steps may be different depending on your network.Accessing Your Voice MailYou can access your Voice Mail by pressing the key on the keypad or by going to the menu. To access Voice Mail using the menu:1. In Idle mode, press the Menu soft key to access Menu mode.2. Highlight Messages and press the Select soft key or the key.3. Highlight Voice mail and press the Select soft key or the key.x495.book Page 11 Thursday, August 18, 2005 12:23 PM
12Section 14. Highlight Call voice mail and press the Select soft key or the key. Your phone dials the specified voice mail number.5. When connected, follow the voice prompts from the voice mail center.Changing the Voice Mail NumberYour SIM card gives you the default service number of the voice mail center. However, you may need to change the number. Use the following procedures to change your voice mail number.1. In Idle mode, press the Menu soft key to access the Menu mode.2. Highlight Messages and press the Select soft key or the key.3. Highlight Voice mail and press the Select soft key or the key.4. Highlight Voice server number and press the Select soft key or the key. 5. Select the Empty option and press the Select soft key or the key.Note: After your phone has been activated by your service provider, the Empty option will appear as the Voice mail option.6. Highlight Edit number and press the Select soft key or the key.7. After editing the number, press the OK soft key to save the update.x495.book Page 12 Thursday, August 18, 2005 12:23 PM
Section 1: Getting Started 13Setting Up Your Voice MailSection 1You may also select the option to edit the voice mail name or delete the voice mail number.8. Press the key to return to Idle mode.x495.book Page 13 Thursday, August 18, 2005 12:23 PM
14Section 1x495.book Page 14 Thursday, August 18, 2005 12:23 PM
Section 2: Understanding Your Phone 15Section 2Section 2: Understanding Your PhoneTopics Covered• Features of Your Phone• View of Your Phone•Keys• Understanding the Display ScreenThis section outlines some key features of your phone. It also displays the screen and the icons that are displayed when the phone is in use.x495.book Page 15 Thursday, August 18, 2005 12:23 PM
16Section 2Features of Your PhoneYour phone is lightweight, easy-to-use and offers many significant features. The following list outlines a few of the features included in your phone.• User friendly, menu driven access to features and options.• Instant Messaging capability.• Multimedia capability.• Organizer feature provides calendar, to-do list, alarms, calculator, and conversion capability.View of Your PhoneThe following illustrations show the main elements of your phone:x495.book Page 16 Thursday, August 18, 2005 12:23 PM

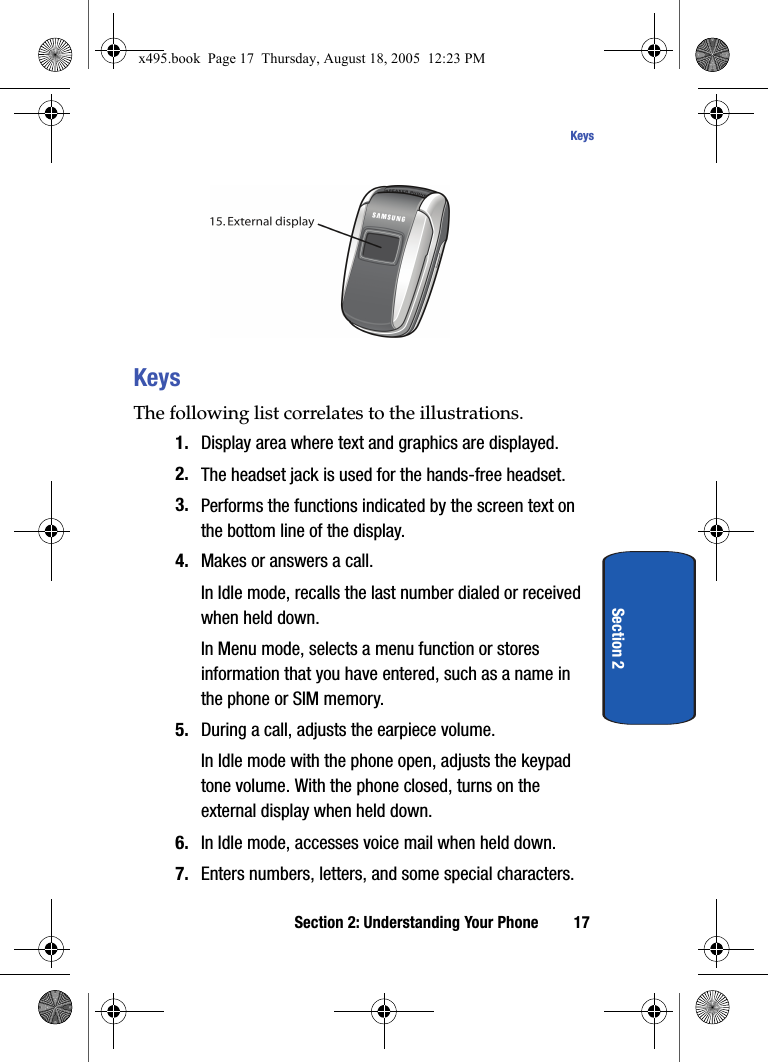

Section 2: Understanding Your Phone 17KeysSection 2KeysThe following list correlates to the illustrations.1. Display area where text and graphics are displayed.2. The headset jack is used for the hands-free headset.3. Performs the functions indicated by the screen text on the bottom line of the display.4. Makes or answers a call.In Idle mode, recalls the last number dialed or received when held down.In Menu mode, selects a menu function or stores information that you have entered, such as a name in the phone or SIM memory.5. During a call, adjusts the earpiece volume.In Idle mode with the phone open, adjusts the keypad tone volume. With the phone closed, turns on the external display when held down.6. In Idle mode, accesses voice mail when held down.7. Enters numbers, letters, and some special characters.x495.book Page 17 Thursday, August 18, 2005 12:23 PM

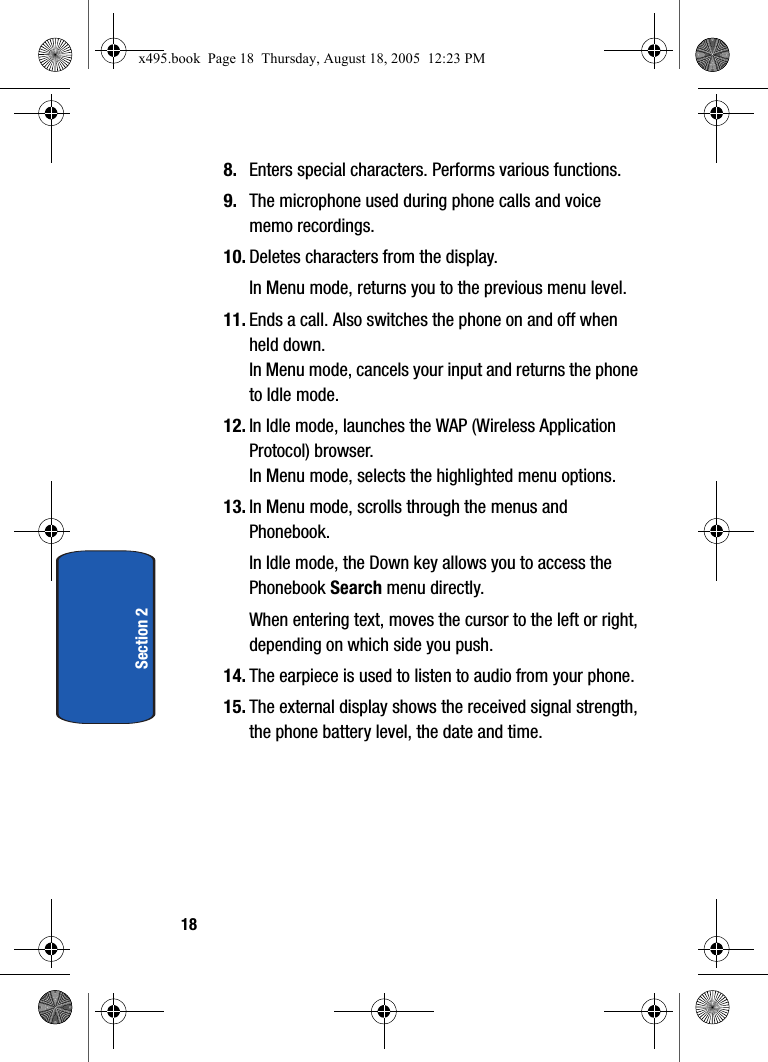

18Section 28. Enters special characters. Performs various functions.9. The microphone used during phone calls and voice memo recordings.10. Deletes characters from the display. In Menu mode, returns you to the previous menu level.11. Ends a call. Also switches the phone on and off when held down. In Menu mode, cancels your input and returns the phone to Idle mode.12. In Idle mode, launches the WAP (Wireless Application Protocol) browser. In Menu mode, selects the highlighted menu options.13. In Menu mode, scrolls through the menus and Phonebook. In Idle mode, the Down key allows you to access the Phonebook Search menu directly. When entering text, moves the cursor to the left or right, depending on which side you push.14. The earpiece is used to listen to audio from your phone.15. The external display shows the received signal strength, the phone battery level, the date and time.x495.book Page 18 Thursday, August 18, 2005 12:23 PM
Section 2: Understanding Your Phone 19Understanding the Display ScreenSection 2Understanding the Display ScreenThe display has 3 areas:IconsShows the received signal strength. The greater the number of bars, the stronger the signal.Appears when a new text message has been received.Appears when a new voice mail has been received.Appears when a new multimedia message has been received. Appears when you set an alarm to ring at a specified time. For details, see page "Alarm" on page 104.Appears when you are out of your service area.Appears when a call is in progress.Appears when you are connected to a WAP service.Appears when the Call Forwarding feature is active. For details, see "Call Forwarding" on page 99.Appears when Alert type is set to vibration. x495.book Page 19 Thursday, August 18, 2005 12:23 PM
20Section 2Appears when Silent mode is active.Appears when Mute is active.Shows the level of your battery. The more bars you see, the more power you have remaining.BacklightA backlight illuminates the display and the keypad. When you press any key or open the phone, the backlight comes on. It goes off when no keys are pressed within a given period of time, depending on the setting in the Back light menu. The display turns off after one minute to conserve battery power. To specify the length of time the backlight is active, set the Back light menu. See "Back Light" on page 93 for further details.External DisplayYour phone has an external display on the front of the phone. It indicates when you have an incoming call, a missed call, or a message. It also alerts you at a specified time when you have set an alarm. See "Alarm" on page 104 for further details. The backlight turns on and the corresponding icon appears on the external display.When you close the phone, the display shows the date and current time on a digital clock.x495.book Page 20 Thursday, August 18, 2005 12:23 PM
Section 3: Call Functions 21Section 3Section 3: Call FunctionsTopics Covered• Making a Call• Adjusting the Call Volume• Answering a Call•Call Log•Call Records• Silent Mode• Selecting Functions and OptionsThis section allows you to make or answer a call. It also includes the features and functionality associated with making or answering a call.x495.book Page 21 Thursday, August 18, 2005 12:23 PM
22Section 3Making a CallWhen the idle screen displays, enter the area code and phone number, and press the key.Note: When you activate the Auto redial option in the Extra settings menu, the phone will automatically redial up to 10 times when the person does not answer the call or is already on the phone. See "Extra Settings" on page 97 for further details.Making an International Call1. Press and hold the 0 key. The + character appears.2. Enter the country code, area code, and phone number and press the key.Correcting the Number1. To clear the last digit displayed, press the C key.2. To clear any other digit in the number, press the Left or Right key until the cursor is immediately to the right of the digit to be cleared. Press the C key. You can also enter a missing digit.3. To clear the whole display, press and hold the C key. Ending a CallWhen you want to finish your call, briefly press the key.Redialing the Last NumberThe phone stores the numbers of the calls you’ve dialed, received, or missed if the call recipient or caller is identified. See "Caller ID" on page 101 for further details. To recall any of these numbers:x495.book Page 22 Thursday, August 18, 2005 12:23 PM
Section 3: Call Functions 23Making a CallSection 31. If you have typed characters on the display, press the key to return to Idle mode. 2. Press the key to display a list of the most recent numbers used in the order you dialed or received them.3. Use the Up and Down keys to scroll through the numbers until the number you want highlights.4. To dial the number, press the key or the key.Before you dial the number, you also have the following options:• To see details of the number, press the Options soft key and select Details. Press the Select soft key or the key.• To call back the number, press the Options soft key and select Call back. Press the Select soft key or the key. The number is dialed.• To send a text or picture message to the number, press the Options soft key and select Send message. Press the Select soft key or the key.•To edit the number, press the Options soft key and select Edit. Press the Select soft key or the key.•To delete the number, press the Options soft key and select Delete. Press the Select soft key or the key.•To delete all of the numbers, press the Options soft key and select Delete all. Press the Select soft key or the key.Making a Call from the PhonebookYou can store phone numbers that you use regularly on the SIM card or in the phone’s memory. These entries are collectively called Phonebook. Once you have stored a number in the Phonebook, you can dial it by pressing a few keys. You can also assign your x495.book Page 23 Thursday, August 18, 2005 12:23 PM
24Section 3most frequently-used numbers to number keys using the Speed Dial feature. For further details about the Phonebook feature, see "Section 6: Understanding Your Phonebook" on page 55.Adjusting the Call VolumeDuring a call, if you want to adjust the earpiece volume, use the Volume keys on the left side of the phone.Press the key to increase the volume level and the key to decrease the level.In Idle mode, you can also adjust the keypad tone volume using these keys.Answering a CallWhen someone calls you, the phone rings and displays the incoming call image.x495.book Page 24 Thursday, August 18, 2005 12:23 PM
Section 3: Call Functions 25Call LogSection 3The caller’s phone number, or name if stored in Phonebook, displays.1. If necessary, open the phone. Press the key or the Accept soft key to answer the incoming call.If the Anykey answer option is activated, you can press any key to answer a call except for the key and the Reject soft key. For further details about the Anykey answer option, see "Extra Settings" on page 97.If the Active Flip option is activated, you can answer the call simply by opening the phone. For further details about the Active Flip option, see "Extra Settings" on page 97.Note: To reject an incoming call, press and hold the Volume keys on the left side of the phone before opening the phone, or press the Reject soft key or key. 2. End the call by closing the phone or pressing the key.Note: You can answer a call while using the Phonebook or menu features. After ending the call, the phone returns to the function screen you were using.Call LogAll incoming, outgoing and missed calls are listed in the Call Log. 1. To access the Call Log option, press the key. A list of calls displays. x495.book Page 25 Thursday, August 18, 2005 12:23 PM
26Section 32. Highlight one of the calls and press the Options soft key or the key. You can use the different options to view call details, call back, send a message, edit, or delete.3. To place a call, press the key.Viewing Missed CallsWhen you are unable to answer a call for any reason, you can find out who is calling you, if this service is available, so that you can call the person back. The number of calls you have missed displays on the idle screen and the external display immediately after a call is missed.To view a missed call immediately:1. If the phone is closed, open the phone.2. Press the View soft key.The number corresponding to the most recent missed call displays, if available.3. To scroll through the missed calls, press the Up or Down key.4. To call the number displayed, press the key.5. To edit or delete a missed call number, highlight the number and press the Select soft key or the key. See procedures below.Editing a Missed Call NumberTo edit a missed call number:1. Press the Options soft key and select Edit.x495.book Page 26 Thursday, August 18, 2005 12:23 PM
Section 3: Call Functions 27Call RecordsSection 32. Change the number and press the Save soft key or the key. 3. Select a location (SIM or Phone) and press the Select soft key or the key.4. If you saved the number to Phone, highlight a phone type and press the Select soft key or the key.5. Enter a name and press the OK soft key or the key.6. Press the Options soft key to Send message, Assign speed dial, Edit number or name, Delete entry, or Copy to SIM or Phone.Deleting a Missed Call1. Press the Options soft key or the key.2. If necessary, press the Up or Down key to highlight the Delete option.3. Press the Select soft key or the key.4. When you receive the Sure to delete? confirmation message, select the Yes soft key to confirm deletion, or the No soft key to cancel.You can press the key at any time to exit the Missed Call feature.Note: You can access the Missed Call feature at any time by selecting the Missed calls menu.Call RecordsIn this menu, you can view:• missed calls, incoming calls, and outgoing calls.x495.book Page 27 Thursday, August 18, 2005 12:23 PM
28Section 3• length of your calls.Note: You can access the call records of incoming, outgoing, and missed calls by pressing the key in Idle mode.Note: The number of call records the phone can store may vary, depending on your SIM card.Missed callsThis menu lets you view the 20 most recent calls you received, but did not answer. The number and name, if already stored in your Phonebook, displays with the time and date the call was received. Incoming callsThis menu lets you view the 20 most recent calls you received. The number and name, if already stored in your Phonebook, displays with the time and date the call was received. Outgoing callsThis menu lets you view the 20 most recent calls you dialed.The number and name, if already stored in your Phonebook, displays with the time and date the call was made. x495.book Page 28 Thursday, August 18, 2005 12:23 PM
Section 3: Call Functions 29Call RecordsSection 3Delete allThis menu allows you to delete all of the records in each call record separately, or you can delete all of your call records at one time.1. Highlight the type of calls you want to delete and press the Select soft key or the key to make a check mark. 2. Press the OK soft key to delete the calls.3. When a confirmation message displays, press the Yes soft key or key to confirm.Call timeThis menu lets you view the time log for calls made and received. Note: The actual time invoiced by your service provider may vary, depending on network features, rounding-off for billing purposes, and so on.The following time logs are available:• Last call: shows the length of your last call.• Total outgoing: shows the total length of all calls you have made since the timer was last reset.• Total incoming: shows the total length of all calls you have received since the timer was last reset.• Life time: shows the total length of time for incoming and outgoing calls. The length of call time must be at least 1 minute to increment this field. This information cannot be cleared.• Reset timers: allows you to reset the call timers. You must first enter the phone password and then press the OK soft key or key.x495.book Page 29 Thursday, August 18, 2005 12:23 PM
30Section 3Note: The password is preset to “00000000” at the factory. To change this password, see "Change Password" on page 95. Note: This will not reset the Life time timer option.Silent ModeSilent mode is convenient when you wish to prevent the phone from making noise, in a theater for example.In Idle mode, press and hold the key until the “Silent Mode On” message and the Silent mode icon ( ) display.In Silent mode, instead of sounds, your phone will vibrate.To exit and reactivate the previous sound settings, press and hold the key again until the “Exit Silent Mode” message appears. The Silent mode icon ( ) no longer displays.Selecting Functions and OptionsYour phone offers a set of functions that allow you to customize it. These functions are arranged in menus and sub-menus, accessed using the two soft keys. Each menu and sub-menu allows you to view and alter the settings of a particular function.Soft KeysThe roles of the soft keys vary depending on the function you are currently using. The labels on the bottom line of the display just above each key indicate their current role. x495.book Page 30 Thursday, August 18, 2005 12:23 PM

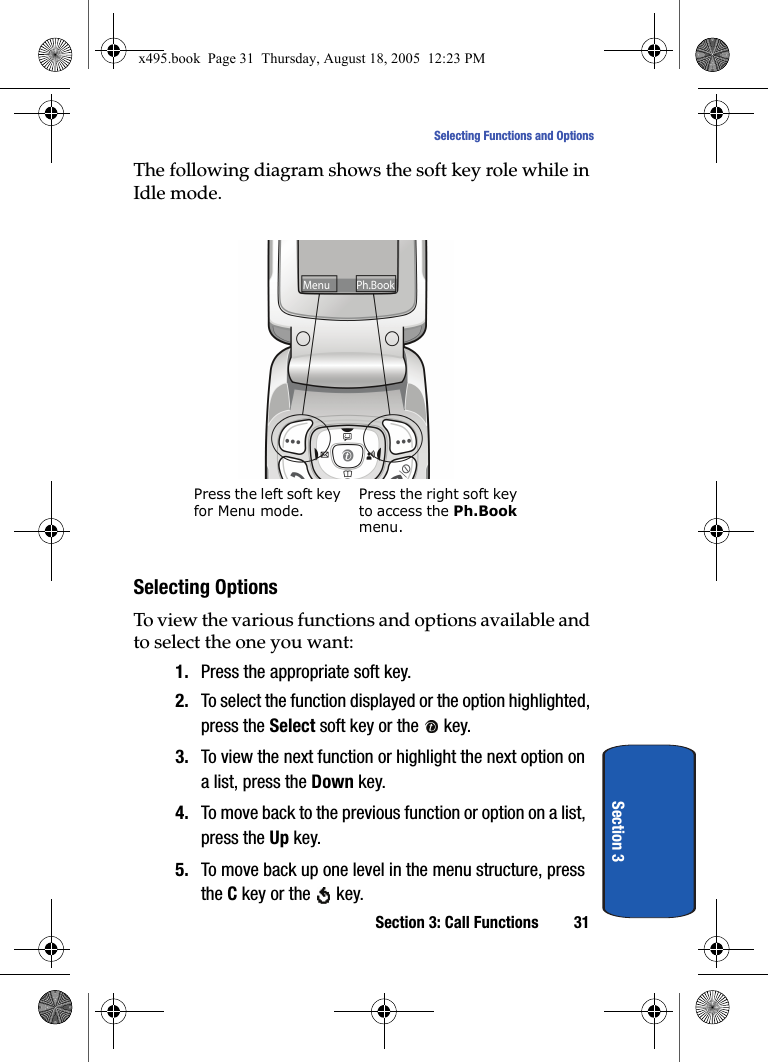

Section 3: Call Functions 31Selecting Functions and OptionsSection 3The following diagram shows the soft key role while in Idle mode.Selecting OptionsTo view the various functions and options available and to select the one you want:1. Press the appropriate soft key.2. To select the function displayed or the option highlighted, press the Select soft key or the key.3. To view the next function or highlight the next option on a list, press the Down key.4. To move back to the previous function or option on a list, press the Up key.5. To move back up one level in the menu structure, press the C key or the key.Press the left soft key for Menu mode.Press the right soft key to access the Ph.Book menu.x495.book Page 31 Thursday, August 18, 2005 12:23 PM

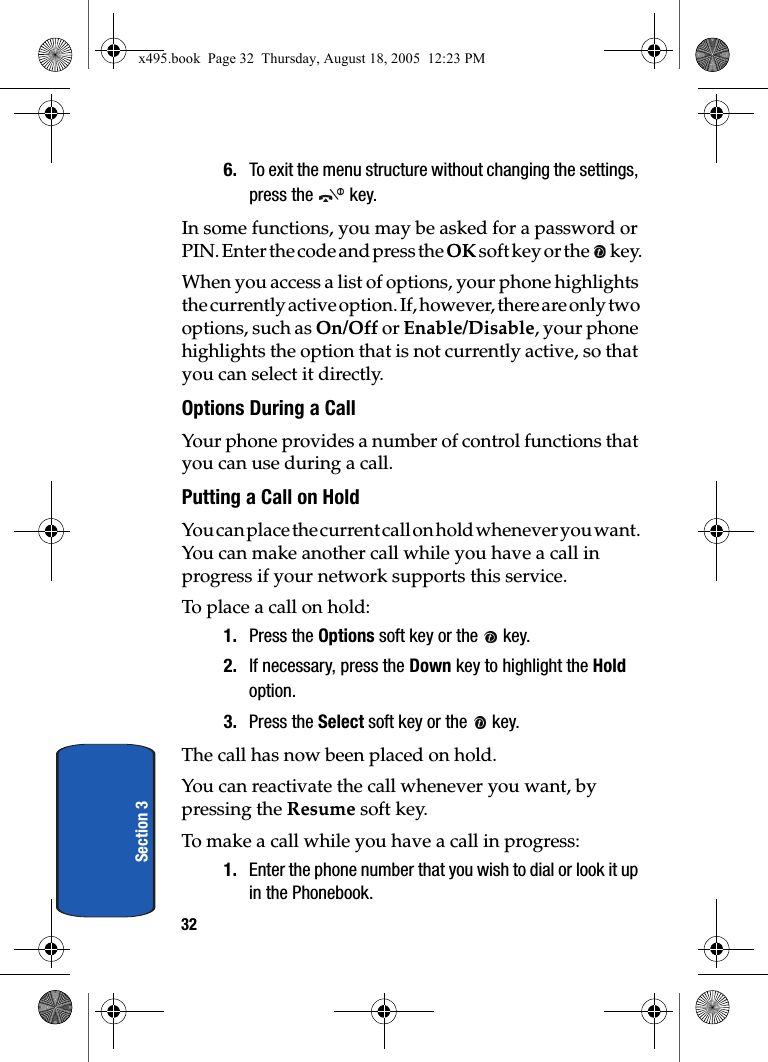

32Section 36. To exit the menu structure without changing the settings, press the key.In some functions, you may be asked for a password or PIN. Enter the code and press the OK soft key or the key.When you access a list of options, your phone highlights the currently active option. If, however, there are only two options, such as On/Off or Enable/Disable, your phone highlights the option that is not currently active, so that you can select it directly.Options During a CallYour phone provides a number of control functions that you can use during a call.Putting a Call on HoldYou can place the current call on hold whenever you want. You can make another call while you have a call in progress if your network supports this service.To place a call on hold:1. Press the Options soft key or the key.2. If necessary, press the Down key to highlight the Hold option.3. Press the Select soft key or the key.The call has now been placed on hold.You can reactivate the call whenever you want, by pressing the Resume soft key.To make a call while you have a call in progress:1. Enter the phone number that you wish to dial or look it up in the Phonebook.x495.book Page 32 Thursday, August 18, 2005 12:23 PM
Section 3: Call Functions 33Selecting Functions and OptionsSection 32. Press the key to dial the second call. The first call is automatically put on hold.When you have an active call and a call on hold, you may switch between the two calls, changing the one on hold to active and placing the other on hold.To switch between the two calls, simply press the Swap soft key.The current call is placed on hold and the call on hold is reactivated so that you can continue conversing with that person.When you want to finish, end each call normally by pressing the key.Switching off the Microphone (Mute)You can temporarily switch your phone’s microphone off, so that the other person cannot hear you.Example: You wish to say something to a person in the room but do not want the person on the phone to hear you.To switch the microphone off temporarily:1. Press the Options soft key or the key.2. Use the Navigation keys to highlight the Mute option.3. Press the Select soft key or the key. The other person can no longer hear you.To switch the microphone back on:1. Press the Opt. soft key or the key.2. Use the Navigation keys to highlight the Unmute option.x495.book Page 33 Thursday, August 18, 2005 12:23 PM
34Section 33. Press the Select soft key or the key. The other person can hear you again.Using the SpeakerphoneWhile on a call, you can use your Speakerphone by following these steps:1. Press the Spkr on soft key.2. You will receive the confirmation, Speaker on?3. Press the Yes soft key.4. To turn the Speakerphone off, press the Spkr off soft key.Muting or Sending Key TonesThese options allow you to turn the key tones off or on. If the Mute keys option is selected, your phone does not transmit the DTMF (Dual Tone Multi-Frequency) tones of the keys, which allows you to press keys without hearing annoying key tones during a call.Note: To communicate with answering machines or computerized telephone systems, the Send keys option must be selected.Searching for a Number in PhonebookYou can search for a number in Phonebook during a call.1. Press the Options soft key or the key.2. Press the Down key to highlight the Phonebook option and press the Select soft key or the key.3. Press the Down key to highlight the Search option and press the Select soft key or the key.x495.book Page 34 Thursday, August 18, 2005 12:23 PM
Section 3: Call Functions 35Selecting Functions and OptionsSection 3The Phonebook entries are listed.4. Enter the name that you wish to find in the textbox located below the entries.If you enter the first few letters of the name, the Phonebook entries are listed starting with the first entry matching your input.5. To view the highlighted entry, press the View soft key or the key.For further details about the Phonebook feature, see "Finding a Phonebook Entry" on page 56.Call WaitingYou can answer an incoming call while you have a call in progress if this service is supported by the network and you have set the Call waiting menu to Activate. You are notified of an incoming call by a call waiting tone.To answer a call while you have a call in progress:1. Press the key to answer the incoming call. The first call is automatically put on hold.2. To switch between the two calls, press the Swap soft key.To end a call on hold, press the Options soft key or the key and select the End held call option.To end the current call, press the key.For details on Call Waiting setup, see "Call Waiting" on page 100.x495.book Page 35 Thursday, August 18, 2005 12:23 PM
36Section 3Making a Multi-Party CallA multi-party call is a network service that allows up to six people to take part simultaneously in a multi-party or conference call.For further details about subscribing to this service, contact your service provider.Setting up a Multi-Party Call1. Call the first participant in the normal way. 2. Call the second participant in the normal way. The first call is automatically put on hold.3. To join the first participant to the multi-party call, press the Options soft key or the key and select Join. Press the OK soft key or the key.4. To add a new person to the multi-party call, call the new person in the normal way and then press the Options soft key or the key. Select the Join option and press the OK soft key or the key.You can add incoming callers by answering the call and pressing the Options soft key or the key, and selecting Join. Repeat as required.Having a Private Conversation With One Participant1. Press the Options soft key or the key and highlight the Split option. Press the Select soft key or the key.The list of call participants appears.2. Highlight the call you wish to speak privately with and press the Select soft key, the key, or the key.x495.book Page 36 Thursday, August 18, 2005 12:23 PM
Section 3: Call Functions 37Selecting Functions and OptionsSection 3Now you can talk privately to that person. The other participants can continue to converse with each other.3. To return to the multi-party call, press the Options soft key or the key and highlight the Join option. Press the Select soft key or the key.All of the multi-party call participants can now hear each other.Dropping One Participant1. Press the Options soft key or the key and highlight the Split option. Press the Select soft key or the key.The list of call participants appears.2. Highlight the call you wish to speak privately with and press the Select soft key, the key, or the key.Now you can talk privately to that person. 3. To drop the other participant that is now on hold, press the Options soft key or the key and highlight the End held multiparty option. Press the Select soft key or the keyThe call with that participant ends, but you can continue to talk to the other participants.4. When you want to end the multi-party call, close the phone or press the key.x495.book Page 37 Thursday, August 18, 2005 12:23 PM
38Section 3x495.book Page 38 Thursday, August 18, 2005 12:23 PM

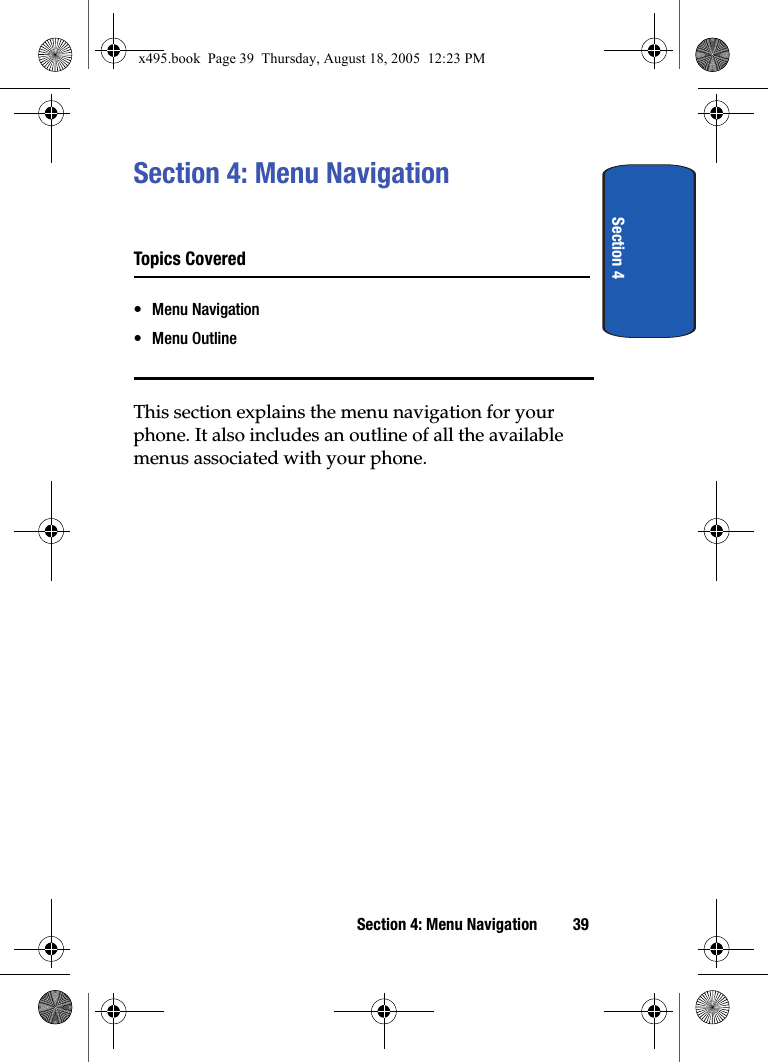

Section 4Section 4: Menu Navigation 39Section 4: Menu NavigationTopics Covered• Menu Navigation• Menu OutlineThis section explains the menu navigation for your phone. It also includes an outline of all the available menus associated with your phone.x495.book Page 39 Thursday, August 18, 2005 12:23 PM
