Samsung Electronics Co SGHX830 Single-Band PCS GSM/ EDGE Phone with Bluetooth User Manual
Samsung Electronics Co Ltd Single-Band PCS GSM/ EDGE Phone with Bluetooth Users Manual
Users Manual
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-XXXXXA
English (EU). 06/2006. Rev. 1.0
* Depending on the software installed or your service provider or country, some of the
descriptions in this guide may not match your phone exactly.
* Depending on your country, your phone and accessories may appear different from
the illustrations in this guide.
SGH-X830
User’s Guide
Draft_1st
2006. 06. 15
Version: X830XXFE2
Important
safety
precautions
Failure to comply with the following
precautions may be dangerous or
illegal.
Drive safely at all times
Do not use a hand-held phone while driving.
Park the vehicle first.
Switch off the phone when refuelling
Do not use the phone at a refuelling point
(service station) or near fuels or chemicals.
Switch off in an aircraft
Wireless phones can cause interference.
Using them in an aircraft is both illegal and
dangerous.
Switch off the phone near all medical
equipment
Hospitals or health care facilities may be
using equipment that could be sensitive to
external radio frequency energy. Follow any
regulations or rules in force.
Interference
All wireless phones may be subject to
interference, which could affect their
performance.
1
Important safety precautions
Be aware of special regulations
Meet any special regulations in force in any
area and always switch off your phone
whenever it is forbidden to use it, or when it
may cause interference or danger.
Water resistance
Your phone is not water-resistant. Keep it
dry.
Sensible use
Use only in the normal position (held to the
ear). Avoid unnecessary contact with the
antenna when the phone is switched on.
Emergency calls
Key in the emergency number for your
present location, then press .
Keep your phone away from small
children
Keep the phone and all its parts, including
accessories, out of the reach of small
children.
Accessories and batteries
Use only Samsung-approved accessories
and batteries. Use of any unauthorised
accessories could damage you and your
phone and may be dangerous.
Qualified service
Only qualified service personnel may repair
your phone.
For more detailed safety information, see
"Health and safety information" on page 86.
• The phone could explode if the battery is
replaced with an incorrect type.
• Dispose of used batteries according to the
manufacturer’s instructions.
At very high volumes, prolonged
listening to a headset can damage
your hearing.
2
About this Guide
This User’s Guide provides you with
condensed information about how to use
your phone. To quickly learn the basics for
your phone, please refer to “Get started”
and “Step outside the phone.”
In this guide, the following instruction icons
appear:
Indicates that you need to pay
careful attention to the subsequent
information regarding safety or
phone features.
Indicates that you can get more
information on the referenced page.
→
Indicates that you need to press the
Navigation keys to scroll to the
specified option and then select it.
[ ]
Indicates a key on the phone. For
example,
[]
< >
Indicates a soft key, whose function
is displayed on the phone screen. For
example, <
Menu
>
• Camera and camcorder
Use the camera module
on your phone to take a
photo or record a video.
Special
features of your phone
• Music player
Play music files using your
phone as a music player.
•Bluetooth
Transfer media files and
personal data and connect
to other devices using
free, wireless Bluetooth
technology.
• File viewer
Open documents in
various formats on the
phone without corruption.
3
Special features of your phone
• Web browser
Access the wireless web
to get up-to-the-minute
information and a wide
variety of media content.
• Offline mode
Switch your phone to
offline to use its
non-wireless functions in
an airplane.
• Multimedia Message
Service (MMS)
Send and receive MMS
messages with a
combination of text,
image, video, and audio.
•Get personal with
photo caller ID
See who’s calling you
when their very own
photo displays.
•Name card
Create name cards with
yournumber and profile.
Whenever introducing
yourself to others, usethis
convenient electronic
name card.
•Java
Enjoy Java
™
-based
embedded games and
download new games.
•Voice recorder
Record memos or sounds.
•Organiser
Keep track of your daily,
weekly, and monthly
schedule.
4
Contents
Unpack 6
Make sure you have each item
Your phone 6
Keys, features, and locations
Get started 7
First steps to operating your phone
Install and charge the phone ...................... 7
Power on or off......................................... 8
Keys and display ...................................... 9
Access menu functions ............................ 12
Customise your phone............................. 13
Make/Answer calls .................................. 15
Step outside the phone 16
Begin with your camera, the music player, the
web, and other special features
Use the camera ...................................... 16
Play music ............................................. 17
Browse the web...................................... 18
Use Phonebook....................................... 18
Send messages....................................... 20
View messages ....................................... 21
Use Bluetooth ......................................... 21
Enter text 23
AB, T9, Number, and Symbol modes
Call functions 25
Advanced calling features
Menu functions 29
All menu options listed
Solve problems 84
Help and personal needs
Health and safety information 86
Index 93
5
Overview of menu functions
To access Menu mode, press <
Menu
> in Idle mode.
1 Call log
p. 29
1 Recent contacts
2 Missed calls
3 Dialled calls
4 Received calls
5 Delete all
6 Call time
7 Call costs
1
p. 29
p. 30
p. 30
p. 30
p. 30
p. 30
p. 31
2 Phonebook
p. 31
1 Contact list
2 Create contact
3 Group
4 Speed dial
5 My namecard
6 Own number
7 Management
8 Service number
p. 5
p. 31
p. 32
p. 33
p. 34
p. 34
p. 35
p. 35
p. 35
3 Applications
p. 35
1 Music player
2 Calendar
3 Voice recorder
4 Java world
5 World clock
6 Alarm
7 Calculator
8 Converter
9 Timer
p. 35
p. 38
p. 41
p. 42
p. 43
p. 43
p. 44
p. 44
p. 45
3 Applications
(continued)
10 Stopwatch
11 Key management
12 Memo
13 SIM AT
1
p. 45
p. 45
p. 46
p. 46
4 Browser
p. 46
1 Home
2 Enter URL
3 Bookmarks
4 Saved pages
5 History
6 Clear cache
7 Browser settings
p. 47
p. 48
p. 48
p. 49
p. 49
p. 49
p. 49
5 Messages
p. 49
1 Create message
2 My messages
3 Templates
4 Delete all
5 Settings
6 Memory status
p. 49
p. 52
p. 56
p. 57
p. 57
p. 60
6 My files
p. 60
1 Images
2 Videos
3 Music
4 Sounds
p. 61
p. 62
p. 63
p. 63
6 My files
(continued)
5 Other files
6 Memory status
p. 64
p. 65
7 Camera
p. 66
8 Settings
p. 71
1 Time and date
2 Phone settings
3 Display settings
4 Sound settings
5 Light settings
6 Network services
7 Bluetooth
8 Security
9 Connection settings
10 Reset settings
p. 71
p. 72
p. 73
p. 73
p. 75
p. 75
p. 77
p. 80
p. 82
p. 83
1 Shows only if supported by your
SIM card.
6
Unpack
Make sure you have each item
You can obtain various
accessories from your local
Samsung dealer.
Phone Travel Adapter
Battery User’s Guide
The items supplied with
your phone and the
accessories available at
your Samsung dealer may
vary, depending on your
country or service
provider.
Your phone
Keys, features, and locations
Special
function keys
Earpiece
Display
Dial key
Alphanumeric
keys
Web access/
Confirm key
(Centre)
Left soft key
Microphone
Navigation
keys (Up/
Down/Left/
Right)/
Jog disc
Right soft key
Camera
Power on/off/
Menu exit key
Key lock key
Headset/
Adapter jack
Correct/
Camera key
Volume keys
7
Get started
First steps to operating your phone
SIM card information
When you subscribe to a cellular network,
you receive a plug-in SIM (Subscriber
Identity Module) card loaded with your
subscription details, such as your PIN, and
available optional services.
Install and charge the phone
Remove the
battery cover.
If the phone is
already on, first
turn it off by
pressing and
holding [ ].
Insert the SIM
card.
Make sure that the
gold-coloured
contacts on the
card are face
down.
Install the battery. Plug the travel
adapter into the
phone.
Plug the adapter into a standard AC wall
outlet.
When the phone is completely charged
(the battery icon becomes still), unplug
the adapter from the power outlet.
Get started
8
Low battery indicator
When the battery is low:
• a warning tone sounds,
• the low battery message displays, and
• the empty battery icon blinks.
If the battery level becomes too low, the
phone automatically turns off. Recharge
your battery.
Power on or off
Remove the adapter from the phone.
Switch on
Do not turn
on the phone
when mobile
phone use is
prohibited.
1. Open the phone.
2. Press and hold [ ].
3. If necessary, enter the
PIN and press <
OK
>.
Switch off
1. Open the phone.
2. Press and hold [ ].
Get started
9
Offline mode
You can switch the phone to Offline mode, in
which the phone functions requiring network
connection are deactivated. This mode is
helpful when you want to use your phone in
a place where you are not allowed to use
mobile devices, such as in an airplane and at
a hospital.
To switch to Offline mode, press <
Menu
>
and select
Settings
→
Phone settings
→
Offline mode
→
On
.
In Offline mode, you can use non-wireless
functions, such as games, calendar, camera,
and music player.
Keys and display
Keys
In Idle mode, access your
favourite menus directly.
p. 72
In Menu mode, scroll through
menu options. You can rotate
the jog disc to scroll through
numbered menu options.
In Idle mode, launch the web
browser. With the phone closed,
press and hold to launch or close
the music player.
In Menu mode, select the
highlighted menu option or
confirm input.
Perform the function indicated
on the bottom line of the
display.
Get started
10
Delete characters from the
display or items in an
application.
In Idle mode, press and hold to
turn on the camera. In Camera
mode, take a photo or record a
video.
Make or answer a call.
In Idle mode, retrieve numbers
recently dialled, missed, or
received.
Press and hold to switch the
phone on or off.
End a call.
In Menu mode, cancel input and
return the phone to Idle mode.
Enter numbers, letters, and
some special characters.
In Idle mode, press and hold
[1]
to access your voicemail server.
Press and hold [
0
] to enter an
international call prefix.
Enter special characters.
In Idle mode, press and hold
[ ] to activate or deactivate
Silent mode. Press and hold [ ]
to enter a pause between
numbers.
Adjust the phone volume.
In Idle mode, adjust the key
tone volume. With the phone
closed, press and hold to turn on
tne display.
In music player, with the phone
closed, press and hold to lock
the exposed keys.
Get started
11
Display
Layout
Icons
1
Received signal strength
GPRS network
Connecting to GPRS
network
Transferring data in GPRS
network
EDGE network
Connecting to EDGE
network
Transfe rri ng data in E DGE
network
Text and graphics
display messages,
instructions, and
information you
enter.
Soft key function
indicators
show the current
functions assigned
to the soft keys.
Menu Contacts
Icons
display various
icons.
Call in progress
Out of your service area;
you cannot make or
receive calls
Connected to Internet
Connected to a secured
web page
Synchronised with PC
Call diverting feature
active
p. 76
Home Zone, if registered
for the appropriate
service
Office Zone, if registered
for the appropriate
service
Roaming network
SMS message
MMS message
E-mail
Voicemail
Configuration message
Get started
12
Access menu functions
Bluetooth hands-free
car
kit or headset
connected
p. 78
Bluetooth active
p. 78
Music playback in
progress
Music playback paused
Alarm set
p. 43
Silent mode (Vibration)
Silent mode (Mute)
Call ringer set to vibrate
Mute mode, during a call
Battery power level
1 Depending on your country or service provider,
the icons shown on the display may vary.
Use the
soft keys
The roles of the soft keys vary
depending on the function
you are using. The bottom
line of the display indicates
their current role.
Press the left
soft key to select
the highlighted
option.
Press the right
soft key to
return to the
previous menu
level.
Select Back
Get started
13
Customise your phone
Select an
option
1. Press a desired soft key.
2. Press the Navigation keys
to move to the next or
previous option.
3. Press <
Select
> or
[Centre] to confirm the
function displayed or
option highlighted.
4. To exit, choose either of
the following methods.
• Press <
Back
> to
move up one level.
• Press [ ] to return
to Idle mode.
Use
shortcuts
Press the number key
corresponding to the option
you want. For the menu
numbers 10, 11, and 12,
press [
0
], [] and []
respectively.
1. In Idle mode, press
<
Menu
> and select
Settings
→
Phone
settings
→
Language
.
2. Select a language.
1. In Idle mode, press
<
Menu
> and select
Settings
→
Sound
settings
→
Incoming
call
→
Ringtone
.
2. Select a ringtone
category.
3. Select a ringtone.
4. Press <
Save
>.
Display
language
Call ringer
melody
Get started
14
You can set wallpaper for the
idle screen.
1. In Idle mode, press
<
Menu
> and select
Settings
→
Display
settings
→
Wallpaper
→
Main display
.
2. Select an image or video
category.
3. Select an image or a
video clip.
4. Press <
Select
>.
5. Press <
Save
>.
Idle mode
wallpaper
You can set the Navigation
keys to function as shortcuts
to access your favourite
menus.
1. In Idle mode, press
<
Menu
> and select
Settings
→
Phone
settings
→
Shortcuts
.
2. Select a key.
3. Select a menu to be
assigned to the key.
You can switch the phone to
Silent mode to avoid
disturbing other people.
Press and hold [ ] in Idle
mode.
Menu
shortcuts
Silent mode
Get started
15
Make/Answer calls
You can protect the phone
against unauthorised use with
a phone password. The phone
will require the password on
power-up.
1. In Idle mode, press
<
Menu
> and select
Settings
→
Security
→
Change password
.
2. Enter the default
password,
00000000
,
and press <
OK
>.
3. Enter a new 4- to 8-digit
password and press
<
OK
>.
4. Enter the new password
again and press <
OK
>.
5. Select
Phone lock
.
6. Select
Enable
.
7. Enter the password and
press <
OK
>.
Phone lock
1. In Idle mode, enter an
area code and phone
number.
2. Press [ ].
3. To end the call, press
[].
1. When the phone rings,
press [ ].
2. To end the call, press
[].
Press [
+
/
-
].
Make a call
Answer a
call
Adjust the
volume
during
a call
16
Step outside the phone
Begin with your camera, the music player, the
web, and other special features
Use the camera
1. Open the phone.
2. In Idle mode, press and
hold [ ] to turn on the
camera.
3. Aim the lens at the
subject and make any
desired adjustments.
4. Press [ ] or [Centre]
to take a photo. The photo
is saved automatically.
5. Press <
Preview
> to take
another photo.
Take a
1. In Idle mode, press
<
Menu
> and select
My
files
→
Images
→
My
photos
.
2. Select the photo you
want.
1. In Idle mode, press and
hold [ ] to turn on the
camera.
2. Press [
1
] to switch to
Record mode.
3. Press [ ] or [Centre]
to start recording.
4. Press [ ] or < > to
stop recording. The video
is saved automatically.
5. Press <
Back
> to record
another video.
View a
Record a
video
Step outside the phone
17
Play music
1. In Idle mode, press
<
Menu
> and select
My
files
→
Videos
→
My
video clips
.
2. Select the video you
want.
Use these methods:
• Download from the
wireless web
p. 46
• Download from a
computer using the
optional Samsung PC
Studio
Samsung PC
Studio User’s Guide
• Receive via Bluetooth
p. 80
Play a video
Copy music
files to the
phone
1. Close the phone.
2. In Idle mode, press and
hold [Centre].
3. Select
Add music files
.
4. Press [Centre] to select
the files you want and
press <
Select
>.
5. Press <
Back
> to return
to the music player
screen.
1. From the music player
screen, press [Centre].
2. During playback, use the
following keys:
• Centre: pauses or
resumes playback.
• Left: returns to the
previous file. Moves
backward in a file
when held down.
Create a
play list
Play music
files
Step outside the phone
18
Browse the web
Using a built-in web browser, you can easily
access the wireless web to get a variety of
up-to-date services and information and to
download web content.
Use Phonebook
• Right: skips to the
next file. Skips
forward in a file when
held down.
• Up: opens the play
list.
•
+
/
-
: adjusts the
volume.
• Down: stops
playback.
In Idle mode, press [Centre].
Play music
files
(continued)
Launch the
web
browser
• To scroll through browser
items, press [Up] or
[Down].
• To select an item, press
[Centre].
• To return to the previous
page, press <
Back
>.
• To move to the next page,
press <
Options
> and
select
Go
→
Forward
.
• To access browser options,
press <
Options
>.
To the phone’s memory:
1. In Idle mode, enter a
phone number and press
<
Options
>.
2. Select
Save contact
→
Phone
→
New
→
a
number type.
Navigate
the web
Add a
contact
Step outside the phone
19
3. Specify contact
information: First name,
Last name, Mobile, Home,
Office, Fax, Other, Email,
Caller ID, Ringtone,
Group, and Note.
4. Press <
Save
> to save the
contact.
To the SIM card:
1. In Idle mode, enter a
phone number and press
<
Options
>.
2. Select
Save contact
→
SIM
→
New
.
3. Enter a name.
4. Press <
Save
> to save the
contact.
1. In Idle mode, press
<
Contacts
>.
2. Enter the first few letters
of the name you want.
3. Select a contact.
4. Scroll to a number and
press
[]
to dial, or
press [Centre] to edit
contact information.
1. In Idle mode, press
<
Menu
> and select
Phonebook
→
My
namecard
.
2. Specify your contact
information.
3. Press <
Save
> to save
the name card.
4. To send the name card,
press <
Options
> and
select
Send via
→
a
sending method.
Find a
contact
Create and
send a
name card
Step outside the phone
20
Send messages
1. In Idle mode, press
<
Menu
> and select
Messages
→
Create
message
→
Text
message
.
2. Enter the message text.
3. Press <
Options
> and
select
Save and send
or
Send only
.
4. Enter destination
numbers.
5. Press [Centre] to send the
message.
1. In Idle mode, press
<
Menu
> and select
Messages
→
Create
message
→
Multimedia
message
.
2. Select
Subject
.
Send a text
message
(SMS)
Send a
multimedia
message
(MMS)
3. Enter the message
subject and press
[Centre].
4. Select
Image and video
or
Sound
.
5. For
Image and video
,
select
Add image
or
Add
video
and add an image
or video clip.
For
Sound
, select
Add
sound
and add a sound
clip.
6. Select
Message
.
7. Enter the message text
and press [Centre].
8. Press <
Options
> and
select
Send
.
9. Enter destination
numbers or addresses.
10. Press [Centre] to send
the message.
Step outside the phone
21
View messages
Use Bluetooth
Your phone is equipped with Bluetooth
technology, enabling you to connect the
phone wirelessly to other Bluetooth devices
and exchange data with them, talk hands-
free, or control the phone remotely.
When a notification appears:
1. Press <
View
>.
2. Select the message from
the Inbox.
From the Inbox:
1. In Idle mode, press
<
Menu
> and select
Messages
→
My
messages
→
Inbox
.
2. Select an SMS message
().
When a notification appears:
1. Press <
View
>.
2. Press <
Options
> and
select
Retrieve
.
3. Select the message from
the Inbox.
View a text
message
View a
multimedia
message
From the Inbox:
1. In Idle mode, press
<
Menu
> and select
Messages
→
My
messages
→
Inbox
.
2. Select an MMS message
().
1. In Idle mode, press
<
Menu
> and select
Settings
→
Bluetooth
→
Activation
→
On
.
2. Select
My phone’s
visibility
→
On
to allow
other devices to find your
phone.
Turn on
Bluetooth
Step outside the phone
22
1. In Idle mode, press
<
Menu
> and select
Settings
→
Bluetooth
→
My devices
→
Search
for new devices
.
2. Select a device.
3. Enter a Bluetooth PIN or
the other device’s
Bluetooth PIN, if it has
one, and press <
OK
>.
When the owner of the
other device enters the
same code, pairing is
complete.
1. Access an application,
Phonebook
,
My files
,
Memo
, or
Calendar
.
2. Scroll to an item.
Search for
and pair
with a
Bluetooth
device
Send data
3. Press <
Options
> and
select
Send via
→
Bluetooth
.
4. Select a device.
5. If necessary, enter the
Bluetooth PIN and press
<
OK
>.
To receive data via Bluetooth,
your phone’s Bluetooth
feature must be active.
1. When a device attempts
to access your phone,
press <
Yes
> to permit
the connection.
2. If necessary, press
<
Yes
> to confirm that
you are willing to receive.
Receive
data
23
Enter text
AB, T9, Number, and Symbol modes
You can enter text for some features, such
as Messages, Phonebook, or Calendar, using
AB mode, T9 mode, Number mode, and
Symbol mode.
Changing the text input mode
• Press and hold [ ] to switch between T9
mode ( ) and AB mode ( ).
Depending on your country, you may
also be able to access an input mode for
your specific language.
• Press [ ] to change case or switch to
Number mode ( ).
• Press and hold [ ] to switch to Symbol
mode.
Using AB mode
Press the appropriate key until the character
you want appears on the display.
(Creating an SMS message with GSM-Alphabet
encoding)
Other AB mode operations
• To enter the same letter twice or to enter
a different letter on the same key, wait
for the cursor to move to the right
automatically or press [Right]. Then,
enter the next letter.
• Press [ ] to insert a space.

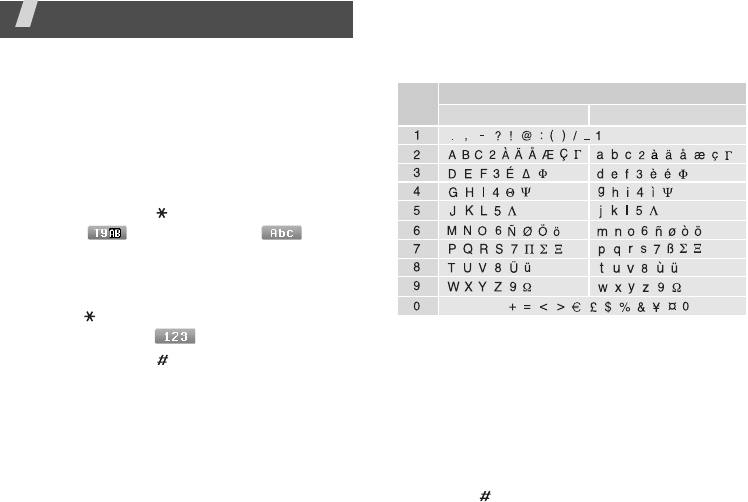

Characters in order displayed
Key Upper case Lower case
24
Enter text
• Press the Navigation keys to move the
cursor.
• Press [ ] to delete characters one by
one. Press and hold [ ] to clear the
display.
Using T9 mode
T9 is a predictive text input mode that
allows you to key in any character using
single keystrokes.
Entering a word in T9 mode
1. Press [
2
] to [
9
]
to start entering a word.
Press each key once for each letter.
For example, press [
4
], [
3
], [
5
], [
5
],
and [
6
] to enter Hello in T9 mode.
T9 predicts the word that you are typing,
and it may change with each key that
you press.
2. Enter the whole word before editing or
deleting characters.
3. When the word displays correctly, go to
step 4. Otherwise, press [
0
] to display
alternative word choices for the keys
that you have pressed.
For example, Of and Me use [
6
] and [
3
].
4. Press [ ] to insert a space and enter the
next word.
Other T9 mode operations
• Press [
1
] to enter periods or apostrophes
automatically.
• Press [ ] to insert a space.
• Press the Navigation keys to move the
cursor.
• Press [ ] to delete characters one by
one. Press and hold [ ] to clear the
display.
Adding a new word to the T9
dictionary
This feature may not be available for some
languages.
1. Enter the word that you want to add.
2. Press [
0
] to display alternative words for
your key presses. When there are no
more alternative words,
Add
appears on
the bottom line.
3. Press <
Add
>.
4. Enter the word you want using AB mode
and press <
OK
>.
25
Using Number mode
Number mode enables you to enter
numbers.
Press the keys corresponding to the digits
you want.
Using Symbol mode
Symbol mode enables you to insert symbols.
Call functions
Advanced calling features
Making a call
1. In Idle mode, enter the area code and
phone number.
2. Press [ ].
3. When you want to end the call, press
[].
Making an international call
1. In Idle mode, press and hold [
0
]. The
+
character appears.
2. Enter the country code, area code, and
phone number, then press [ ].
Redialling recent numbers
1. In Idle mode, press [ ] to display the
list of recent numbers.
To Press
display more
symbols
[Up] or [Down].
select a symbol the corresponding
number key.
clear the entered
symbols
[
C
].
insert the symbols <
OK
>.
• Press [ ] to clear the last digit
or press and hold [ ] to clear
the whole display.
• Press and hold [ ] to enter a
pause between numbers.
26
Call functions
2. Scroll to the number you want and press
[].
Making a call from Phonebook
Once you have stored a number in
Phonebook, you can dial the number by
selecting it from Phonebook.
p. 31
You can also use the speed dial feature to
assign your most frequently dialled numbers
to specific number keys.
p. 34
You can quickly dial a number from the SIM
card using its location number assigned
when stored.
1. In Idle mode, enter a location number
and press [ ].
2. Press [Left] or [Right] to scroll through
other numbers.
3. Press <
Dial
> or [ ] to dial the number
you want.
Answering a call
When you receive an incoming call, the
phone rings and displays the incoming call
image.
Press <
Accept
> or [ ] to answer the call.
Tips for answering a call
• When
Anykey
answer
is active, you can
press any key, except for <
Reject
> and
[].
p. 72
• Press <
Reject
> or [ ] to reject a call.
• Press and hold [
+
/
-
] to reject a call or
mute the ringer, depending on the
Volume key
setting.
p. 72
Viewing missed calls
If you have missed calls, the screen displays
how many calls you have missed.
1. Press <
View
>.
2. If necessary, scroll through the missed
calls.
3. Press [ ] to dial the number you want.
27
Call functions
27
Using the headset
Use the headset to make or answer calls
without holding the phone.
Connect the headset to the jack on the left
side of the phone. The button on the
headset works as follows:
Options during a call
You can access a number of functions during
a call.
Adjusting the volume during a call
Use [
+
/
-
] to adjust the earpiece volume
during a call.
Press [
+
] to increase the volume level and
[
-
] to decrease the volume level.
Placing a call on hold/Retrieving
Press <
Hold
> to place a call on hold, or
press <
Retrieve
> to retrieve the call.
Making a second call
You can make another call if your network
supports this function.
1. Press <
Hold
> to put the call on hold.
2. Make the second call in the normal way.
3. Press <
Swap
> to switch between the
calls.
4. Press <
Options
> and select
End
held
call
to end the call on hold.
5. To end the current call, press [ ].
Answering a second call
You can answer an incoming call while
already on the phone, if your network
supports this function and you have
activated the call waiting feature.
p. 76
1. Press [ ] to answer the call. The first
call is automatically put on hold.
2. Press <
Swap
> to switch between the
calls.
To Press
redial the last call the button twice.
answer a call the button.
end a call the button.
28
Call functions
3. Press <
Options
> and select
End
held
call
to end the call on hold.
4. To end the current call, press [ ].
Using the speakerphone feature
Use the external speaker on the back of the
phone to talk and listen with the phone a
short distance away. Press [Centre] and
then <
Yes
> to activate the speakerphone
feature. Press [Centre] again to switch back
to the earpiece.
Using In-call options
Press <
Options
> to access the following
options during a call:
•
Speaker on
/
Normal
: turn on the
speakerphone feature or switch back to
Normal mode.
•
Menu
: access the phone's menu
functions.
•
Voice off
/
Voice on
: switch off the
phone's microphone so that the other
person on the phone cannot hear you, or
switch it back on.
•
Mute keys
/
Send keys
: switch the key
tones off or on.
•
Send DTMF
: send the DTMF (Dual tone
multi-frequency) tones as a group. The
DTMF tones are the tones used in phones
for tone dialling, sounding when you
press the number keys. This option is
helpful for entering a password or an
account number when you call an
automated system, like a banking
service.
•
Phonebook
: access the contact list.
•
Switch to headset
/
Switch to phone
:
transfer the call to a Bluetooth headset
or hands-free car kit, or back to the
phone.
p. 78
To communicate with answering
machines or computerised telephone
systems,
Send keys
must be selected.
29
•
SIM service
: access special services,
such as news, weather forecasts,
entertainment, and location services,
provided by your SIM card. This option is
available when you use a SIM card
supporting SIM Application Toolkit
menus.
•
Join
: set up a multi-party call by adding
a caller on hold to a currently active call.
You can include up to 5 people on a
multi-party call.
•
Private
: have a private conversation
with one multi-party call participant. The
other participants can converse with
each other. After the private
conversation, select
Join
to return both
private participants to the multi-party
call.
•
Removed
: disconnect one multi-party
call participant.
Menu functions
All menu options listed
Call log
(Menu 1)
Use this menu to view the calls you have
dialled, received, or missed, and the length
of the calls. You can also check the cost of
your calls,
if your SIM card supports this
function.
To access this menu, press <
Menu
> in Idle
mode and select
Call log
.
Recent contacts
(Menu 1.1)
This menu displays the most recent calls
dialled, received, or missed.
Accessing a call log
1. Press [Left] or [Right] to move to
another call type.
2. Press [Up] or [Down] to scroll through
the call list.
3. Press [Centre] to view the details of a
call, or [ ] to dial a number.
30
Menu functions
Using call log options
While viewing call details, press <
Options
>
to access the following options:
•
Call
: edit the number and dial it.
•
Add to Phonebook
: save the number to
Phonebook.
•
Send
: send an SMS or MMS message to
the selected number.
•
Delete
: delete the selected call log or all
logs.
Missed calls
(Menu 1.2)
This menu displays the most recent calls you
did not answer.
Dialled calls
(Menu 1.3)
This menu displays the most recent calls you
have dialled.
Received calls
(Menu 1.4)
This menu displays the most recent calls you
have received.
Delete all
(Menu 1.5)
Use this menu to delete all of the records in
each call type.
1. Press [Centre] to select the call types to
be cleared.
2. Press <
Delete
>.
3. Press <
Yes
> to confirm the deletion.
Call time
(Menu 1.6)
This menu displays the time log for calls
made and received. The actual time invoiced
by your service provider will vary.
•
Last
call
time
: check the length of your
last call.
•
Total
dialled calls
: check the total
length of all the calls you have dialled.
•
Total
received calls
: check the total
length of all the calls you have received.
To reset the call timers, press <
Reset
>. You
need to enter the phone password.
The password is preset to
00000000
. You
can change this password.
p. 81
31
Menu functions
Phonebook
(Menu 2)
31
Call costs
(Menu 1.7)
This network feature displays the cost of
calls. This menu is available only if
supported by your SIM card. Note that this is
not intended to be used for billing purposes.
•
Last
call
cost
: check the cost of your
last call.
•
Total
cost
: check the total cost of all of
your calls. If the total cost exceeds the
maximum cost set in
Set
max.
cost
,
you must reset the counter before you
can make another call.
•
Max.
cost
: check the maximum cost
limit.
•
Reset
counters
: reset the cost
counters.
•
Set
max.
cost
: set the maximum cost
authorised for your calls.
•
Price/Unit
: set the price per unit that is
applied when the cost of your calls is
calculated.
Phonebook
(Menu 2)
You can store phone numbers on your SIM
card and in your phone’s memory. The SIM
card and phone’s memory are physically
separate, but they are used as a single
entity called Phonebook.
To access this menu, press <
Menu
> in Idle
mode and select
Phonebook
.
Contact list
(Menu 2.1)
Use this menu to search for contacts in
Phonebook.
Finding a contact
1. Enter the first few letters of the name
that you want to find.
2. Select a contact from the list.
3. Scroll to a number and press [ ] to dial,
or press [Centre] to edit contact
information.
You can quickly access this menu by
pressing <
Contacts
> in Idle mode.
32
Menu functions
Finding a contact in Idle mode
You can find contacts in Idle mode, by the
spelling of a contact name. The phone
searches for the contact names starting with
the letters labelled on any of the keys you
pressed.
1. In Idle mode, press the number keys
containing the letters you want.
2. Press <
Options
> and select
Search as
spelling
.
The phone searches Phonebook for the
matching contacts and shows results.
Using Phonebook options
While viewing contact details, press
<
Options
> to access the following options:
•
Edit
: edit contact information.
•
Send message
: send an SMS or MMS
message to the selected number, or an
MMS message to the selected address.
•
Copy to
: copy the contact to the phone’s
memory or to the SIM card.
•
Send via
: send the contact via SMS,
MMS, or Bluetooth.
•
Delete
: delete the selected contact.
Create contact
(Menu 2.2)
Use this menu to add a new contact to
Phonebook.
Storing a contact in the phone’s
memory
1. Select
Phone
.
2. Change the settings or enter information
about the contact.
•
First name
/
Last name
: assign a
name.
•
Mobile
/
Home
/
Office
/
Fax
/
Other
:
add a number in any type.
•
Email
: assign an e-mail address.
•
Caller ID
: assign an image or video
to alert you to a call from the person.
•
Ringtone
: assign a ringtone to alert
you to a call from the person.
•
Group
: assign the number to a caller
group.
33
Menu functions
Phonebook
(Menu 2)
33
•
Note
: add a memo about the person.
3. Press <
Save
> to save the contact.
Storing a contact on the SIM card
1. Select
SIM
.
2. Enter information about the contact.
•
Name
: assign a name.
•
Phone number
: add a number.
•
Location
: assign a location number.
3. Press <
Save
> to save the contact.
Group
(Menu 2.3)
Use this menu to organise your contacts in
caller groups.
Creating a new caller group
1. Press <
Options
> and select
Create
group
.
2. Enter a name for the group.
3. Select the caller ID line and set an image
or a video clip.
4. Select the ringtone line and set a ring
tone.
5. Press <
Save
> to save the group.
Adding members to a caller group
1. Select a group.
2. Press <
Add
>.
3. Press [Centre] to select the contacts to
be added.
4. Press <
Select
>.
Managing caller groups
While viewing the group list, press
<
Options
> to access the following options:
•
View
: display the members of the
selected group.
•
Create group
: add a new group.
•
Edit
: change the group properties.
•
Send message
: send an SMS, MMS, or
e-mail message to the group members
you want.
•
Delete
: delete the selected group or all
groups. Group members, however, will
not be deleted from Phonebook.
To assign a caller ID image or video,
ringtone, or group, the contact must be
saved to the phone’s memory.
34
Menu functions
Speed dial
(Menu 2.4)
Use this menu to assign a speed dial number
(2 to 9) for 8 of your most frequently dialled
numbers.
Assigning speed dial numbers
1. Select a key location from
2
to
9
. Key
1
is reserved for your voicemail server.
2. Select a contact from the contact list.
3. Select a number, if the contact has more
than one number.
Managing speed dial entries
From the Speed dial screen, press
<
Options
> to access the following options:
•
Add
: assign a number to an unassigned
key.
•
View
: check the name and number
assigned to a key.
•
Change
: assign a different number to a
key.
•
Remove
: clear the speed dial setting for
a key.
Dialling speed dial numbers
In Idle mode, press and hold the appropriate
key.
My namecard
(Menu 2.5)
Use this menu to create a name card and
send it to other people.
Saving your name card
The procedure for creating your name card
is the same as the one for saving a phone
number in the phone’s memory.
p. 32
Using name card options
After saving your name card, press
<
Options
> to access the following options:
•
Edit
: edit the name card.
•
Send via
: send the name card via SMS,
MMS, or Bluetooth.
•
Exchange namecard
: exchange name
cards with another person via Bluetooth.
•
Delete
: delete the name card.
35
Menu functions
Applications
(Menu 3)
35
Own number
(Menu 2.6)
Use this feature to check your phone
numbers, or to assign a name to each of the
numbers. Changes made here do not affect
the actual subscriber numbers on your SIM
card.
Management
(Menu 2.7)
Use this menu to manage contacts in
Phonebook.
•
Save new contact to
: select a default
memory location for saving contacts. If
you select
Always ask
, the phone will
ask you to select a memory location each
time you save a number.
•
Copy all to
: copy all of the contacts
stored on the SIM card to the phone’s
memory, or vice versa.
•
Delete all
: delete all of the contacts
from your phone’s memory, your SIM
card, or both.
•
Memory status
: check the number of
contacts you have stored in the phone’s
memory and on the SIM card.
Service number
(Menu 2.8)
Use this menu to view the list of Service
Dialling Numbers (SDN) assigned by your
service provider, including emergency
numbers and numbers for directory
enquiries. This menu is available if your SIM
card supports SDN.
1. Scroll to the number you want and press
<
View
>.
2. Press <
Dial
> or [ ].
Applications
(Menu 3)
Use this menu to play music files or play
Java games. You can also use convenient
features, such as voice recorder, alarm
clock, calculator, converter, and stopwatch.
To access this menu, press <
Menu
> in Idle
mode and select
Applications
.
Music player
(Menu 3.1)
Use this menu to enjoy music. First, you
need to save music files into your phone’s
memory.
36
Menu functions
To enjoy high quality music, you can use an
optional Bluetooth stereo headset.
Downloading or receiving music files
You can play *.mp3, *.aac, *.aac+, *.m4a,
and *.wma files.
Use the following methods to save music
files to your phone’s memory:
• Download from the wireless web
p. 46
• Download from a computer using the
optional Samsung PC Studio
Samsung PC Studio User’s Guide
• Receive via an active Bluetooth
connection
p. 80
The downloaded or received files are stored
in the
Music
folder.
p. 63
Creating a play list
1. Access the
Music player
menu and
close the phone.
2. Select
Add music files
.
3. Press [Centre] to select the files to be
added and press <
Select
>.
4. Press <
Back
> to return to the music
player screen.
Playing music files
1. From the music player screen, press
<
Options
> and select
Play via
.
2. Select
Phone
to use the phone speaker.
Select
Bluetooth stereo headset
to
use a Bluetooth stereo headset and then
search for and connect the phone to the
headset.
During playback, use the following keys:
Normal headsets and Bluetooth mono
headsets are not compatible with the music
player.
Key Function
Centre Pauses or resumes playback.
Stops playback when held
down.
Left Returns to the previous file.
Moves backward in a file when
held down.
Right Skips to the next file. Skips
forward in a file when held
down.
Up Opens the play list.
37
Menu functions
Applications
(Menu 3)
37
Using music player options
From the music player screen, press
<
Options
> to access the following options:
•
Play
/
Pause
: begin or pause playback.
•
Transfer to Bluetooth stereo
headset
/
Transfer to phone
: switch
the sound output to a Bluetooth stereo
headset or the phone speaker.
•
Open playlist
: access the play list of the
current album or album list. On the
album list, you can set up multiple
albums.
•
Activate key
: get a licence key when
the key for the selected DRM files
expires.
•
Remove from playlist
: remove the
selected file from the play list.
•
Settings
: change the default settings for
playing music files.
Repeat mode
: select a repeat mode.
Shuffle
: set the music player to play
music at random.
Music player overrides other sounds
:
set the music player to continue
playback even if you exit it.
Equaliser
: select an equaliser setting.
3D sound
: turn 3D sound on or off.
Visualisation
: change the playback
animation.
Volume
: select a volume level.
•
Details
: access the file properties.
•
Key management
: manage the licence
keys you have acquired.
+
/
-
Adjusts the volume.
Down Stops playback.
1
Changes the repeat mode.
2
Changes the playback
animation.
3
Turns Shuffle mode on or off.
5
Changes the skin type.
Key Function
38
Menu functions
Accessing the play list
From the music player screen, press
[Centre].
Press <
Options
> to access the following
options:
•
Play via
: play the currently selected file.
•
Add music from
: add files to the play
list.
•
Move to
: move the selected file to
another album.
•
Copy to
: copy the selected file to
another album.
•
Move track in playlist
: move the
selected file to the position you want
within the play list.
•
Activate key
: get a licence key when
the key for the selected DRM file expires.
•
Remove
: remove the selected file or all
files from the play list.
•
Details
: access the file properties.
•
Key management
: manage the licence
keys you have acquired.
Calendar
(Menu 3.2)
Use this menu to keep track of your
schedule.
Selecting a day on the calendar
When you enter the
Calendar
menu, the
calendar in Month view appears with today’s
date indicated by an gray box.
• Press [Left] or [Right] to move by day.
• Press [Up] or [Down] to move by week.
• Press [
+
/
-
] to move by month.
Creating an item
You can store appointments, anniversaries,
and tasks on the calendar. More than one
item per day can be stored.
Entering an appointment
1. Select a date on the calendar.
2. Press <
Options
> and select
Create
→
Appointment
.
3. Enter information or change the settings:
•
Subject
: enter a title for the
appointment.
•
Details
: enter the appointment
details.
39
Menu functions
Applications
(Menu 3)
39
•
Start date
and
Start time
: enter
the starting date and time for the
appointment.
•
AM/PM
: select
AM
or
PM
in 12-hour
time format.
•
End date
and
End time
: enter the
ending date and time for the
appointment.
•
AM/PM
: select
AM
or
PM
in 12-hour
time format.
•
Location
: enter information about
the appointed location.
•
Alarm
: set an alarm for the
appointment.
•
Before
: set how long before the
appointment the alarm is to alert
you.
•
Alarm tone
: select an alarm tone.
•
Repeat
: set the appointment to
recur and select a repeat unit.
•
Until
: set the ending date, if the
appointment will recur.
4. Press <
Save
> to save the appointment.
Entering an anniversary
1. Select a date on the calendar.
2. Press <
Options
> and select
Create
→
Anniversary
.
3. Enter information or change the settings:
•
Occasion
: enter information about
the anniversary.
•
Date
: enter the date.
•
Alarm
: select to set an alarm for the
anniversary.
•
Before
: set how long before the
anniversary the alarm is to alert you.
•
Alarm time
: enter the time for the
alarm to ring.
•
AM/PM
: select
AM
or
PM
in 12-hour
time format.
•
Alarm tone
: select an alarm tone.
•
Repeat every year
: set the phone
to remind you of the anniversary
every year.
4. Press <
Save
> to save the anniversary.
Entering a task
1. Select a date on the calendar.
40
Menu functions
2. Press <
Options
> and select
Create
→
Task
.
3. Enter information or change the settings:
•
Task
: enter information about the
task.
•
Start date
: enter the starting date.
•
Due date
: enter the ending date.
•
Select priority
: select a priority
level.
4. Press <
Save
> to save the task.
Consulting the calendar
Once you have created items, the type icons
and the number of items for a specific day
appear at the bottom of the calendar.
• Appointment
• Anniversary
• Task
Viewing an item
1. Select a date on the calendar to display
the items for the day.
2. Select an item to view its details.
3. Press [Left] or [Right] to access the
other items scheduled for the selected
day.
While viewing an item, press <
Options
> to
access the following options:
•
Edit
: edit the item.
•
Create
: add a new item.
•
Send via
: send the item via SMS, MMS,
or Bluetooth.
•
View by
: change the view mode of the
calendar.
p. 41
•
Delete
: delete the item.
•
Memory status
: access memory
information for the items stored on the
calendar.
Using calendar options
On the calendar, press <
Options
> to access
the following options:
•
View by
: change the view mode of the
calendar.
next section
•
Create
: add a new item.
•
Go to
: select today’s date or enter a
specific date.
•
Event list
: sort items by type of item.
41
Menu functions
Applications
(Menu 3)
41
•
Delete
: delete the items stored on the
calendar by using various deleting
options.
•
Missed alarm events
: view items
whose alarms you have missed.
•
Memory status
: access memory
information for the items stored on the
calendar.
Viewing items in a different mode
You can change the calendar display to Day
view or Week view. Press <
Options
> and
select
View by
→
a view mode.
Day view
You can view items for the selected date.
Select an item to view its details.
The following icons may display to indicate
the item status:
• Alarm set
• Recurring item
• Task priority (Red: high,
Blue: normal, Grey: low)
• Completed task
Week view
You can view items for the selected week. A
cell on the timetable indicates the presence
of a schedule item. Select a cell in the day
you want.
Voice recorder
(Menu 3.3)
Use this menu to record voice memos. A
voice memo can be up to one hour long.
Recording a voice memo
1. Press [Centre] to start recording.
2. Speak into the microphone.
Press [Centre] to pause or resume
recording.
3. Press <
Stop
> or [Down] to end
recording. The voice memo is saved
automatically.
4. Press [Centre] to review the voice
memo, or [Up] to record a new memo.
Playing a voice memo
1. From the Voice recorder screen, press
<
Options
> and select
Go to My voice
clips
.
You can delete recurring items in Day
view only.
42
Menu functions
2. Select a voice memo.
During playback, use the following keys:
Changing the recording mode
You can change the recording mode of the
voice recorder. The maximum recording time
is determined by this setting. Before
recording a memo, press <
Options
> and
select
Settings
→
a recording mode:
•
Limit for multimedia message
: You
can record a voice memo for adding to
an MMS message.
•
Maximum 1 hour
: You can record a
voice memo of up to one hour.
Java world
(Menu 3.4)
Use this menu to access the embedded Java
games and downloaded Java applications.
Accessing an embedded game
1. Select
My games
→
a game.
2. If necessary, press [Centre].
Using Java application options
From the application list, press <
Options
>
to access the following options:
•
Start
: launch the selected application.
•
Move to
: move the application to
another folder.
•
Delete
: delete the selected application
or all applications, except for the
embedded games.
•
Protection
: lock the application to
protect it from being deleted, or unlock
the application.
•
Details
: access the application
properties.
Key Function
Centre Pauses or resumes playback.
Left Returns to the previous
memo. Moves backward in a
memo when held down.
Right Skips to the next memo.
Skips forward in a memo
when held down.
+
/
-
Adjusts the volume.
Down Stops playback.
43
Menu functions
Applications
(Menu 3)
43
•
Permissions
: set permission settings
for services charging you additional
costs, such as network access and SMS.
•
Upgrade
: upgrade the application to the
latest version.
•
Send information via Text message
:
send the URL containing the application
via SMS.
•
Memory status
: access memory
information for applications.
•
Settings
: select a connection profile to
be used for applications requiring
network access. You can also create or
edit a profile.
p. 82
World clock
(Menu 3.5)
Use this menu to set your local time zone
and find out the current time in another part
of the world.
Viewing world time
1. From the world map, press [Left] or
[Right] to scroll to the city you want. As
the time line moves, the time and date of
the given zone display.
2. Press [Centre] to save the city as your
local time zone.
Applying daylight saving time
1. From the world map, press <
Options
>
and select
Apply daylight saving time
.
2. Press [Centre] to select the time zones
you want.
3. Press <
Save
>.
Alarm
(Menu 3.6)
Use this menu to set alarms. The alert type
for a normal alarm corresponds to the call
alert type settings. A wake-up alarm is not
affected by your sound settings.
Setting an alarm
1. Select the type of alarm.
2. Set each alarm option:
•
Alarm
: activate the alarm.
•
Alarm time
: enter the time for the
alarm to ring.
•
AM/PM
: set
AM
or
PM
in 12-hour
format.
•
Repeat
: select a repeat option.
44
Menu functions
•
Alarm tone
: select an alarm tone.
3. Press <
Save
>.
Stopping an alarm
• For a non-wake-up alarm, press any key.
• For a wake-up alarm, press <
Confirm
>
or [Centre].
Press any key, except for <
Confirm
>
and [Centre], to cause it to sound again
after 5 minutes. You can do this a
maximum of 5 times.
Deactivating an alarm
1. Select the alarm you want to deactivate.
2. Select
Off
on the
Alarm
line.
3. Press <
Save
>.
Setting alarms to sound when the
phone is off
From the Alarm screen, select
Auto power
→
On
.
If the phone is off when it is time for the
alarm to sound, the phone switches on and
sounds the alarm.
Calculator
(Menu 3.7)
Use this menu to perform basic arithmetic
functions, such as addition, subtraction,
multiplication, and division.
1. Enter the first number.
• Press <
.()
> to insert a decimal point
or bracket.
• Press [ ] or [ ] to move the cursor.
2. Press one of the Navigation keys to
access the math function you want.
3. Enter the second number.
4. Press [Centre] to view the result.
5. If necessary, repeat from step 2 to
continue the calculation.
Converter
(Menu 3.8)
Use this menu for common conversions,
such as currency and temperature.
1. Select a converter.
2. Press [Left] or [Right] to select the
original unit and press [Down].
3. Enter the value to be converted and
press [Down].
45
Menu functions
Applications
(Menu 3)
45
• Press [ ] to insert a decimal point.
• Press [ ] to change the temperature
to above zero (+) or below zero (-).
4. Press [Left] or [Right] to select the unit
to which you want to convert.
The equivalent value for the amount you
entered displays.
Timer
(Menu 3.9)
Use this menu to set a period of time for the
phone to count down. The phone sounds an
alarm when the specified period of time
expires.
Starting the timer
1. Press <
Set
>.
2. Enter the length of time you want to
count down and press <
OK
>.
3. Press [Centre] to start counting down.
Stopping the timer
• Press any key when the timer rings.
• Press [Centre] on the Timer screen to
stop the timer before it rings.
Stopwatch
(Menu 3.10)
Use this menu to measure elapsed time. The
maximum time is 10 hours.
1. Press [Centre] to start the stopwatch.
2. Press [Centre] to check an interval. You
can repeat this step for a total of 4
intervals.
Key management
(Menu 3.11)
Use this menu to manage the licence keys
you have acquired to activate media
contents locked by DRM systems.
Press <
Options
> to access the following
options:
•
View
/
Play
: open the corresponding
media content.
•
Delete
: delete the selected licence key
or all licence keys.
•
Go to My messages
: access the
message that contains the media
content.
For the currency converter, you can view
and set currency rates by pressing
<
View rate
>.
46
Menu functions
•
Go to my item
: access the
corresponding file folder.
•
Details
: access the properties of the
licence key.
Memo
(Menu 3.12)
Use this menu to make memos of important
things and manage them.
Creating a memo
1. Press <
Options
> and select
Create
.
2. Enter the memo text and press [Centre].
Viewing a memo
Select the memo you want to view.
While viewing memo details, press
<
Options
> to access the following options:
•
Edit
: change the memo text.
•
Send via
: send the selected memo via
SMS, MMS, or Bluetooth.
•
Delete
: delete the memo.
•
Memory status
: check how many
memos you have created.
SIM AT
(Menu 3.13)
This menu is available if you use a SIM AT
card that supports SIM Application Toolkit
menus and provides additional services,
such as news, weather, sports,
entertainment, and location services.
Available services may vary, depending on
your service provider’s plans. For details,
see your SIM card instructions or contact
your service provider.
Browser
(Menu 4)
The Wireless Application Protocol (WAP)
browser on your phone allows you to access
the wireless web. From the wireless web,
you can access up-to-date information and a
wide variety of media content, such as
games, wallpapers, ringtones, and music
files.
To access this menu, press <
Menu
> in Idle
mode and select
Browser
.
47
Menu functions
Browser
(Menu 4)
47
Home
(Menu 4.1)
Use this menu to connect your phone to the
network and load the homepage of the
wireless web service provider. You can also
press [Centre] in Idle mode.
Navigating the web
Using page options
From any web page, press <
Options
> to
access the following options:
•
Go to
: access the linked web page.
•
Go to homepage
: return to the
homepage.
•
Keys to buy
: send a request for buying
a licence key for a DRM file. This option
will be available only when you access
the web browser from a message
containing a DRM file.
•
Enter URL
: enter a URL address
manually.
•
Go
: move backward or forward through
pages in history.
•
Reload
: reload the current page with
updated information.
•
Bookmarks
: bookmark the current
page or access the bookmark list.
•
Send URL
: send the URL of the current
page via SMS.
•
To SmartFit view
/
To Desktop view
:
change the display mode of the browser.
•
Save
: save the selected image or page.
•
Page details
: access the page
properties.
•
Browser options
: change the various
settings for the browser.
To Press
scroll through
browser items
[Up] or [Down].
select a browser
item
[Centre], or
<
Options
> and
select
Go to
.
return to the
previous page
<
Back
>, or
<
Options
> and
select
Go
→
Back
.
move to the next
page
<
Options
> and
select
Go
→
Forward
.
48
Menu functions
Cache
: change the cache mode or clear
the cache. The cache is a temporary
memory site that stores recently
accessed web pages.
Cookies
: change the cookie acceptance
mode or delete cookies. Cookies are
pieces of personal information sent to a
web server while navigating the web.
Preferences
: change the browser
display and sound settings.
Certificates
: access certificate
information.
About browser
: access version and
copyright information about the browser.
Exiting the browser
Press [ ] to end the network connection
and close the browser.
Enter URL
(Menu 4.2)
Use this menu to manually enter a URL
address and access the associated web
page.
You can add the entered URL to the
bookmark list by selecting
Add bookmark
.
Bookmarks
(Menu 4.3)
Use this menu to save URL addresses in
order to quickly access web pages.
Adding a bookmark
1. Press <
Add
>. If a bookmark has already
been saved, press <
Options
> and
select
Add bookmark
.
2. Enter a title for the bookmark and press
[Down].
3. Enter a URL address and press <
Save
>.
Accessing a bookmarked page
Selecting a bookmark item launches the web
browser and accesses the associated web
page.
Using bookmark options
From the Bookmarks screen, press
<
Options
> to access the following options:
•
Go to
: access the bookmarked web
page.
•
Go to homepage
: access the
homepage.
•
Enter URL
: enter a URL address
manually.
49
Menu functions
Messages
(Menu 5)
49
•
Edit bookmark
: edit the URL address
and title of the bookmark.
•
Add bookmark
: add a new bookmark.
•
Send URL
: send the URL address of the
bookmark via SMS.
•
Delete
: delete the selected bookmark or
all bookmarks.
Saved pages
(Menu 4.4)
You can access the list of pages you have
saved while online.
If you select a link on the page, the phone
switches to online to access the linked page.
History
(Menu 4.5)
You can access the list of pages you have
accessed recently.
Select a URL from the list to access the
corresponding web page.
Clear cache
(Menu 4.6)
Use this menu to clear information stored in
the cache, a temporary memory site that
stores recently accessed web pages.
Browser settings
(Menu 4.7)
Use this menu to select a connection profile
to be used for accessing the wireless web.
You can also create or edit a profile.
p. 82
Messages
(Menu 5)
Use the
Messages
menu to send and
receive text messages and multimedia
messages. You can also access push
messages and cell broadcast messages.
To access this menu, press <
Menu
> in Idle
mode and select
Messages
.
Create message
(Menu 5.1)
Use this menu to create and send messages.
Text message
(Menu 5.1.1)
Short Message Service (SMS) allows you to
send or receive text messages that may
include simple pictures, animated images,
and melodies.
50
Menu functions
Creating and sending an SMS message
1. Enter your message and press [Centre].
2. Enter a destination number.
To send the message to more than one
recipient, fill in additional destination
fields.
3. Press [Centre] to send the message.
Using options while composing an SMS
message
While composing a message, press
<
Options
> to access the following options:
•
Send only
: just send the message.
•
Save and send
: send the message and
then save it in the
Sentbox
folder.
•
Preview as vivid message
: view the
message in 3D view mode. The phone
converts message text to 3D vivid
graphics. This option is available only
when the message consists of a single
page.
•
Insert
: add a template, Phonebook
entry, or bookmark.
•
Add image
/
Add animation
/
Add
melody
: attach a simple image, an
animated image, or a melody.
•
Attach
: attach a Phonebook entry as a
name card or a calendar data as a data
format attachment.
•
Save in
: save the message in another
message folder.
•
Input language
: change the language
to be used in T9 input mode.
•
Text style
: change the text attributes.
•
Input method
: change the text input
mode.
• The maximum number of
characters allowed in a message
varies by service provider. If your
message exceeds the maximum
number of characters, the phone
will split the message.
• You can use various options by
pressing <
Options
>.
next section
51
Menu functions
Messages
(Menu 5)
51
Multimedia message
(Menu 5.1.2)
Multimedia Message Service (MMS) delivers
messages containing a combination of text,
image, video, and audio, from phone to
phone or from phone to e-mail.
Creating and sending an MMS message
1. Select the
Subject
line.
2. Enter the message subject and press
[Centre].
3. Select the
Image and video
line.
4. Select
Add image
or
Add video
and
add an image or video clip.
5. Select the
Sound
line.
6. Select
Add sound
and add a sound clip.
7. Select the
Message
line.
8. Enter the message text and press
[Centre].
9. When you have finished, press
<
Options
> and select
Send
.
10. Enter a phone number or an e-mail
address.
To send the message to more than one
recipient, fill in additional destination
fields.
11. Press [Centre] to send the message.
Using options while composing an MMS
message
While composing a message, press
<
Options
> to access the following options:
•
Add
: add the message subject or
message text.
•
Add image
/
Add video
/
Add sound
:
add a image, video clip, or sound clip.
You can use various options by pressing
<
Options
> in each field.
next section
• The maximum size allowed for a
message can differ, depending on
your service provider.
• Depending on the file type or DRM
(Digital Rights Management)
system, some files may not be able
to be forwarded.
52
Menu functions
•
Change image
/
Change video
/
Change
sound
: replace an added item.
•
Edit
: edit the message subject or text.
•
Preview
: view the message as it will be
shown on the recipient’s phone.
•
View
: open the selected attachment.
•
Send
: send the message.
•
Save in
: save the message in another
message folder.
•
Add page
: add pages. Move to each
page by pressing [Left] or [Right].
•
Delete page
: delete an added page.
•
Edit page
: change the duration of page
display or move the page forward among
the other pages.
•
Attach
: attach a Phonebook entry as a
name card, a calender data as a data
format attachment, or a document file
stored in the
Other files
folder.
•
Remove subject
/
Remove message
/
Remove media
/
Remove sound
/
Remove
: remove an added item.
My messages
(Menu 5.2)
Use this menu to access messages you have
received, sent, or which have failed in
sending.
Inbox
(Menu 5.2.1)
This folder stores all of the messages you
have received.
Viewing a message
The following icons may appear on the
message list to show the message type:
• SMS
• MMS
• MMS notification ( : Being
retrieved, : Failed to retrieve)
• Voicemail
• Push message from web servers
• Configuration message, containing
network parameters from your
service provider
• CB (Cell broadcast) message from
your service provider
53
Menu functions
Messages
(Menu 5)
53
• Delivery report for your sent
messages
Using message options
While viewing a message, press <
Options
>
to access the following options:
SMS messages
•
Reply via text message
: reply to the
sender via SMS.
•
Reply via multimedia message to
:
reply to the sender via MMS.
•
Forward
: forward the message to other
people.
•
Zoom view
: reduce the font size so that
you can view more text on one screen.
•
View as vivid message
/
View as text
message
: view the message in 3D view
mode or switch back to normal view
mode. This option is available only when
the message consists of a single page.
•
Delete
: delete the message.
•
Move to phone
/
Move to SIM
: move
the message between the SIM card and
the phone’s memory.
•
Cut address
: extract URL addresses,
e-mail addresses, or phone numbers
from the message.
•
Cut media
: save media content from
the message to your phone’s memory.
•
Lock
/
Unlock
: lock the message to
prevent it from being deleted, or unlock
the message. You can protect only those
messages stored in the phone’s memory.
•
Add to Block list
: add the sender’s
number to the block list to reject the
messages from the sender.
MMS messages
•
Retrieve
: retrieve the MMS message
from the MMS server.
• Depending on the DRM (Digital
Rights Management)
system,
messages having web content may
not be
able to be forwarded.
• A
!
icon next to a message means
that the message is of high priority.
A grey-coloured message icon
indicates low priority.
54
Menu functions
•
Reply via text message
: reply to the
sender via SMS.
•
Reply via multimedia message to
:
reply to the sender or all other recipients
of the message via MMS.
•
Forward
: forward the message to other
people.
•
Delete
: delete the message.
•
Cut address
: extract URL addresses,
e-mail addresses, or phone numbers
from the message.
•
Cut media
: save media content from
the message to your phone’s memory.
•
Lock
/
Unlock
: lock the message to
prevent it from being deleted, or unlock
the message.
•
Details
: access the message properties.
Configuration messages
•
Install
: apply the configuration specified
in the message to your phone.
•
Delete
: delete the message.
•
Lock
/
Unlock
: lock the message to
prevent it from being deleted, or unlock
the message.
Push messages
•
Go to URL
: connect to the URL address
specified in the message.
•
Cut address
: extract URLs, e-mail
addresses, or phone numbers from the
message.
•
Delete
: delete the message.
•
Lock
/
Unlock
: lock the message to
prevent it from being deleted, or unlock
the message.
Broadcast messages
•
Save
: save the message to the phone’s
memory.
•
Cut address
: extract URL addresses,
e-mail addresses, or phone numbers
from the message.
•
Delete
: delete the message.
Delivery reports
•
Cut address
: extract URL addresses,
e-mail addresses, or phone numbers
from the report.
•
Delete
: delete the report.
•
Lock
/
Unlock
: lock the message to
prevent it from being deleted, or unlock
the message.
55
Menu functions
Messages
(Menu 5)
55
Drafts
(Menu 5.2.2)
This folder stores messages you have saved
to send at a later time.
When you select a message, it opens in Edit
mode so that you can edit and send the
message.
Outbox
(Menu 5.2.3)
This folder stores messages that the phone
is attempting to send or has failed to send.
The following icons are available to show the
message status:
• Being sent
• Failed to be sent
While viewing a message, press <
Options
>
to access the following options:
•
Send again
: retry sending the message.
•
Forward
: forward the message to other
people.
•
Zoom view
: reduce the font size so that
you can view more text on one screen.
•
Cut address
: extract URLs, e-mail
addresses, or phone numbers from the
message.
•
Delete
: delete the message.
•
Move to phone
/
Move to SIM
: move
the message between the SIM card and
the phone’s memory.
•
Lock
/
Unlock
: lock the message to
prevent it from being deleted, or unlock
the message.
Sentbox
(Menu 5.2.4)
This folder stores messages that you have
sent.
While viewing a message, press <
Options
>
to access the following options:
•
Forward
: forward the message to other
people.
•
Zoom view
: reduce the font size so that
you can view more text on one screen.
•
Cut address
: extract URLs, e-mail
addresses, or phone numbers from the
message.
•
Delete
: delete the message.
•
Move to phone
/
Move to SIM
: move
the message between the SIM card and
the phone’s memory.
56
Menu functions
•
Lock
/
Unlock
: lock the message to
prevent it from being deleted, or unlock
the message.
My folders
(Menu 5.2.5)
Use this menu to create new folders and
organise your messages.
Creating a folder
1. Press <
Yes
>.
2. Enter a folder name and press <
OK
>.
Using folder options
On the folder list, press <
Options
> to
access the following options:
•
Open
: open the selected folder.
•
Create folder
: add a new folder.
•
Rename folder
: change the folder
name.
•
Delete
: delete the selected folder.
Templates
(Menu 5.3)
Use this menu to make and use templates of
frequently used messages or passages.
Text message templates
(Menu 5.3.1)
You can create SMS templates with the
sentences you use frequently so that you
can retrieve and insert them when
composing an SMS message.
Creating a template
1. Select an empty location.
2. Enter a message and press <
OK
>.
Using template options
From the template list, press <
Options
> to
access the following options:
•
Edit
: edit the selected template.
•
Send message
: create and send a new
message using the selected template.
•
Delete
: delete the selected template.
•
Add new
: add a new template.
Multimedia message templates
(Menu 5.3.2)
You can access embedded MMS templates or
ones you have saved so that you can use
them when composing an MMS message.
57
Menu functions
Messages
(Menu 5)
57
From the template list, press <
Options
> to
access the following options:
•
View
: open the selected template.
•
Edit
: create and send a new message
using the selected template.
•
Send message
: send the selected
template.
•
Delete
: delete the selected template or
all templates, except for the embedded
ones.
Delete all
(Menu 5.4)
Use this menu to delete messages in each
message folder all at once.
1. Press [Centre] to select the message
folders to be cleared.
Pressing the key twice displays the
message types so that you can specify
the ones to be cleared.
2. Press <
Delete
>.
3. Press [Centre] to select the check box to
delete protected messages, and then
press <
Yes
>.
4. Press <
Yes
> to confirm the deletion.
Settings
(Menu 5.5)
Use this menu to set up various options for
using the messaging service.
Text messages
(Menu 5.5.1)
You can configure SMS settings.
•
Sending options
: set up the options for
sending SMS messages:
Reply path
: allow recipients to reply to
you through your SMS server.
Delivery report
: set the network to
inform you when your messages have
been delivered.
Character support
: select a character
encoding type. When you select
Automatic
, the phone switches the
encoding type from GSM-Alphabet to
UniCode if you enter a Unicode character.
Use of Unicode encoding will reduce the
maximum number of characters in a
message to about half. If this menu is
not shown, your phone provides
automatic character encoding by default.
58
Menu functions
Bearer selection
: select either
GSM
or
GPRS preferred
, depending on your
network.
•
Receiving options
: activate 3D view
mode for displaying received messages.
The phone will convert message text to
3D vivid graphics. This option is available
only when the message consists of a
single page.
•
Block list
: store the phone numbers
from which you want to reject messages.
•
Current profile
: check or select an SMS
setting profile.
•
Profile settings
: set the properties of
each profile.
Service centre
: store or change the
number of your SMS server.
Default destination
: enter the default
destination. It will be automatically
entered on the recipient list.
Default type
: set the default message
type. The network can convert the
messages into the selected format.
Default validity
: set the length of time
your messages are stored in the SMS
server.
Setting name
: enter a profile name.
Multimedia messages
(Menu 5.5.2)
You can configure MMS settings.
•
Sending options
: set up the options for
sending MMS messages:
Delivery report
: set the network to
inform you when your messages have
been delivered.
Hide address
: set your address to be
hidden from the recipient’s phone.
Read reply
: send a read-reply request
along with your messages.
Priority
: set the priority level of
messages.
Expiry date
: set the length of time
messages are stored in the MMS server.
Delivery time
: set a time delay before
messages are sent.
Outgoing message size
: select a
maximum size allowed for composing
messages.
59
Menu functions
Messages
(Menu 5)
59
•
Retrieving options
: set up the options
for receiving MMS messages:
Reject unknown senders
: reject
messages from unknown senders.
Allow adverts
: accept advertisements.
Allow information
: accept information
messages.
Allow report
: set the network to inform
the sender when a message has been
delivered to you.
Recep. in home network
: determine if
your phone retrieves new messages
automatically when you are in your
home service area.
Reception when abroad
: determine if
your phone retrieves new messages
automatically when you are roaming on
another network.
Reception within home network or
abroad has the following options:
-
Manual
: the phone displays
notifications. Use the
Retrieve
option
to manually download new messages.
-
Automatic
: the phone automatically
retrieves messages from the server.
-
Reject
: the phone rejects all
messages.
•
Block list
: store phone numbers and e-
mail addresses from which you want to
reject messages.
•
Multimedia message profiles
: select a
connection profile to be used for MMS.
You can also create or edit a profile.
p. 82
Push messages
(Menu 5.5.3)
You can change the settings for receiving
push messages from the wireless web
server.
•
Receive
: set how your phone receives
push messages. If you select
Black list
,
the phone will not accept messages from
the specified addresses on the Black list.
•
Black list
: manage blocked server
addresses.
60
Menu functions
Broadcast messages
(Menu 5.5.4)
You can change the settings for receiving
broadcast messages.
•
Receive
: select to receive broadcast
messages, or not.
•
Channel list
: indicate the channels from
which you wish to receive broadcast
messages. Please contact your service
provider for further details.
•
Language
: select the preferred
languages in which broadcast messages
display.
Memory status
(Menu 5.6)
Use this menu to view the amount of
memory currently in use in each message
folder.
My files
(Menu 6)
The
My files
menu allows you to access
images, videos, music files, and sound files
stored in the phone’s memory or on a
memory card.
To access this menu, press <
Menu
> in Idle
mode and select
My files
.
Tips for Digital Rights Management
As a result of the Digital Rights Management
(DRM) system, some of the media items you
download from the Internet or receive by
MMS may require a licence key to access
them.
You can acquire the key from the website
which owns the rights to the content; use
the
Activate key
option.
Note the following icons on the list:
• : Forwardable item with a valid key.
• : Forwardable item without a valid
key.
• : Unforwardable item with a valid
key.
• : Unforwardable item without a valid
key.
61
Menu functions
My files
(Menu 6)
61
Your service provider supports only count-
based or unlimited-access DRM files.
Images
(Menu 6.1)
This menu displays photos you have taken
and images you have downloaded, received
in messages, or imported from a computer.
Viewing an image
1. Select an image folder.
2. Select an image.
Viewing a slide show
You can view your photos as a slide show, a
sequential presentation of each photo in the
current folder.
1. Select
My
photos
.
2. Press <
Options
> and select
Slide
show
.
3. Select an interval option.
The slide show begins.
4. Press <
Stop
> to stop the slide show.
Using image options
While viewing an image, press <
Options
>
to access the following options:
•
List
: return to the image list.
•
Send via
: send the file via MMS or
Bluetooth.
•
Set as
: set the image as wallpaper for
the display or as a caller ID image for a
Phonebook entry.
•
Activate key
: get a licence key when
the key for the selected DRM file expires.
•
Delete
: delete the file.
•
Rename
: change the file name.
•
Move to Favourite images
/
Move to
Downloaded images
/
Move to
Photos
: move the file to another folder.
•
Visible to Bluetooth
: share the file or
the files you want with other Bluetooth
devices.
•
Lock
/
Unlock
: lock the file to prevent it
from being deleted, or unlock the file.
•
Details
: access the file properties.
•
Key management
: manage the licence
keys you have acquired.
62
Menu functions
Videos
(Menu 6.2)
This menu displays video clips you have
recorded, downloaded, received in
messages, or imported from a computer.
Playing a video clip
1. Select a video folder.
2. Select a video clip.
During playback, use the following keys:
Using video options
After playback, press <
Options
> to access
the following options:
•
List
: return to the video list.
•
Send via
: send the file via MMS or
Bluetooth.
•
Set as
: set the video clip, if saved as a
3gp file, as wallpaper for the display or
caller ID image for a Phonebook entry.
•
Activate key
: get a new licence key
when the key for the selected DRM file
expires.
•
Delete
: delete the file.
•
Rename
: change the file name.
•
Move to Favourite videos
/
Move to
Downloaded videos
/
Move to Video
clips
: move the file to another folder.
•
Visible to Bluetooth
: share the
selected file or the files you want with
other Bluetooth devices.
•
Lock
/
Unlock
: lock the file to prevent it
from being deleted, or unlock the file.
•
Details
: access the file properties.
Video clips recorded on other devices, such
as camcorders, may not play correctly.
Key Function
Centre Pauses or resumes playback.
Left Returns to the previous file.
Moves backward in a file when
held down.
Right Skips to the next file. Moves
forward in a file when held down.
+
/
-
Adjusts the volume.
Down Stops playback.
63
Menu functions
My files
(Menu 6)
63
•
Key management
: manage the licence
keys you have acquired.
Music
(Menu 6.3)
This menu displays music files you have
downloaded or imported from a computer.
Select a file. The music player opens.
p. 36
Sounds
(Menu 6.4)
This menu displays voice memos you have
recorded, and sound files you have
downloaded, received in messages, or
imported from a computer.
Playing a sound clip
1. Select a sound folder.
2. Select a sound clip. For a voice memo,
see
Voice recorder
.
p. 41
Using sound options
While playing a sound clip, press
<
Options
> to access the following options:
•
List
: return to the sound list.
•
Send via
: send the file via MMS or
Bluetooth.
•
Set as
: set the file as your ringtone or
as a ringtone for a Phonebook entry.
•
Activate key
: get a new licence key
when the key for the selected DRM file
expires.
•
Delete
: delete the file.
•
Rename
: change the file name.
•
Move to Favourite sounds
/
Move to
Downloaded sounds
/
Move to Voice
recorder files
: move the file to another
folder.
•
Visible to Bluetooth
: share the
selected file or the files you want with
other Bluetooth devices.
•
Lock
/
Unlock
: lock the file to prevent it
from being deleted, or unlock the file.
•
Details
: access the file properties.
When you play a file from this menu,
without first adding it to the play list in the
music player, background play is not
supported.
64
Menu functions
•
Key management
: manage the licence
keys you have acquired.
Other files
(Menu 6.5)
Use this menu to view, without corruption,
various document files and files stored in the
phone’s memory. Available file formats are
*.doc, *.xls, *.ppt, *.pdf, and *.txt.
Viewing a document
Select a file. Picsel File Viewer runs to open
the document.
Use the following keys to view the
document:
• Depending on the file size or memory
capacity of
Picsel File Viewer, some
files may not open properly.
• If a document file contains languages
unsupported by Picsel File Viewer, the
content of
the document will not
display correctly.
Key Function
Up/Down/
Left/Right
Pans around the page.
Centre Fits the document to the
page size.
+
/
-
Zooms in or out.
1
Searches forward through
the document for the text
you want.
2
Returns to the first page.
3
Searches backward through
the document for the text
you want.
4
Returns to the previous
page.
5
Rotates the document.
6
Moves to the next page.
8
Moves to the last page.
9
Shows or hides the map of
the current page.
#
Changes the display to Full
screen view or Normal
screen view.
Key Function
65
Menu functions
My files
(Menu 6)
65
Using document options
While viewing a document, press
<
Options
> or < > to access the following
options:
•
Full screen view
/
Normal view
: view
the document on a full screen, or return
to Normal view mode.
•
Zoom
: zoom in or out.
•
Fit to
: fit the document to the page size,
screen width, or screen height.
•
Go to
: move to another page of the
document.
•
Search word
: search for text in the
document.
•
Rotate
: rotate the document.
•
Screen panning
/
Normal panning
:
change the panning mode to by screen
or by preset pixel.
•
Flow mode
: switch the screen to Flow
mode. The text is rearranged for easy
viewing in a text file (*.txt). You can
scroll through the text only by pressing
[Up] or [Down].
•
Hide controller
/
Show controller
: hide
or show the shortcut tool bar of the file
viewer.
•
Send via
: send the file via MMS or
Bluetooth.
•
Delete
: delete the selected file.
•
Rename
: change the file name.
•
Visible to Bluetooth
: share the file or
the files you want with other Bluetooth
devices.
•
Lock
/
Unlock
: lock the file to prevent it
from being deleted, or unlock the file.
•
Details
: access the file properties.
•
Shortcuts
: view the functions of the
keys you can use in Picsel File Viewer.
Memory status
(Menu 6.6)
Use this menu to view memory information
for media items in the phone’s memory or
on a memory card. For the phone’s memory,
press [Left] or [Right] to view the memory
status by size or number of items.
66
Menu functions
Camera
(Menu 8)
You can use the camera module embedded
in your phone to take photos and record
videos.
To access this menu, press <
Menu
> in Idle
mode and select
Camera
, or press and hold
[
]
in Idle mode.
Taking a photo
You can take photos in various modes. The
camera produces JPEG photos.
Taking a photo
1. Access the
Camera
menu or press and
hold [
]
to turn on the camera.
2. Make any desired adjustments.
• Press < > to access camera
options.
next section
• Use the keypad to change the camera
settings or switch to other modes.
p. 68
3. Press [Centre] or [
]
to take a photo.
The photo is saved in the
My photos
folder.
Using camera options in Capture
mode
In Capture mode, press < > to access the
following options:
•
Record video
: switch to Record mode.
• Do not take photos of people without
their permission.
• Do not take photos in a place where
cameras are not allowed.
• Do not take photos in a place where
you may interfere with another
person’s privacy.
When you take a photo in direct sunlight or
in bright conditions, shadows may appear on
the photo.
4.
To Press
access photo
options
<
Options
>.
p. 68
delete the photo [ ] and then
<
Yes
>.
return to Capture
mode
<
Preview
> or
<
Back
>.
67
Menu functions
Camera
(Menu 8)
67
•
Shooting mode
: take a photo in the
following modes:
Single shot
: take a photo in Normal
mode. You can select whether or not the
camera automatically saves a photo.
Multi-shot
: take a series of action stills.
You can select the number of photos the
camera will take and the shooting speed.
Mosaic shot
: take several stills and
save them in one frame. You can select
the layout.
•
Effects
: change the colour tone or apply
a special effect.
•
Frames
: apply a decorative frame.
•
Timer
: set a time delay before the
camera takes a photo.
•
Go to My photos
: access the
My
photos
folder.
•
Camera settings
: change the default
settings for taking a photo.
Size
: select an image size.
Quality
: select an image quality setting.
Viewfinder
: select a preview screen.
Scene programs
: set whether or not to
use Night shot mode.
Shutter sound
: select the sound that
you hear when you press the shutter
release key, [Centre] or [
]
.
Zoom sound
: turn the sound effect for
zooming on or off.
Brightness sound
: turn the sound
effect for brightness adjustment on or
off.
White balance
: adjust the colour
balance of the image. You can make your
photo appear warmer or cooler.
ISO
: change the ISO setting, which
controls the sensitivity of your camera.
For low light situations, select a higher
ISO number. The higher the ISO number,
the faster the camera shutter functions
and the more sensitive the camera is to
light. Higher ISO settings may bring
some distortion to an image.
•
Camera shortcuts
: view the functions
of the keys you can use in Capture
mode.
68
Menu functions
Using the keypad in Capture mode
You can use the keypad to customise your
camera settings in Capture mode.
Using photo options
After saving a photo, press <
Options
> to
access the following options:
•
View
: access one of the multi-shot
photos.
•
Viewfinder
: return to Capture mode.
•
Send via
: send the file via MMS or
Bluetooth.
•
Set as
: set the photo as wallpaper for
the display or as a caller ID image for a
Phonebook entry.
•
Delete
: delete the file.
•
Rename
: change the file name.
•
Go to My photos
: access the
My
photos
folder.
p. 61
•
Lock
/
Unlock
: lock the file to prevent it
from being deleted, or unlock the file.
Key Function
Left/Right Adjusts the brightness.
Up/Down Zooms in or out.
+
Flips the image vertically.
-
Shows the mirror image.
1
Switches to Record mode.
p. 69
2
Changes the image size.
3
Changes the image quality.
4
Changes the shooting mode.
5
Changes the colour tone or
applies a special effect.
6
Changes the white balance.
7
Selects a decorative frame.
8
Sets the timer.
9
Changes the ISO settings.
Sets whether or not to use
Night shot mode.
0
Goes to the
My
photos
folder.
Changes the preview screen.
Key Function
69
Menu functions
Camera
(Menu 8)
69
•
Details
: access the file properties.
Recording a video
You can record a video of what is displayed
on the camera screen and save it.
Recording a video
1. In Capture mode, press [
1
].
2. Make any desired adjustments.
• Press < > to access camera
options.
next section
• Use the keypad to change the camera
settings or switch to other modes.
p. 70
3. Press [Centre] or [
]
to start
recording.
4. Press [Centre], < >, or [
]
to stop
recording. The video is automatically
saved in the
My video clips
folder.
Using camera options in Record mode
In Record mode, press < > to access the
following options:
•
Take photo
: switch to Capture mode.
•
Effects
: change the colour tone or apply
a special effect.
•
Timer
: set a time delay before the
camera starts recording.
•
Go to My video clips
: access the
My
video clips
folder.
•
Camcorder settings
: change the
following settings for recording a video:
Recording mode
: select a video
recording mode.
Select
Normal
to record a video within
the limit of the currently available
memory. The video clip is saved in mp4
format.
5.
To Press
play back the video
clip
[Centre].
access video options <
Options
>.
p. 71
delete the video [ ] and
then <
Yes
>.
return to Record mode <
Back
>.
5.
To Press
70
Menu functions
Select
Limit for
multimedia
messages/wallpaper
to record a video
suitable for messaging or for setting as
wallpaper or caller ID image. The video
clip is saved in 3gp format.
Size
: select a frame size.
Quality
: select an image quality setting.
Viewfinder
: select a preview screen.
Audio record
: record a video with
audio.
Zoom sound
: turn the sound effect for
zooming on or off.
Brightness sound
: turn the sound
effect for brightness adjustment on or
off.
White balance
: adjust the colour
balance of the image. You can make your
video appear warmer or cooler.
•
Camcorder shortcuts
: view the
functions of the keys you can use in
Record mode.
Using the keypad in Record mode
You can use the keypad to customise your
camera settings in Record mode.
Key Function
Left/Right Adjusts the brightness.
Up/Down Zooms in or out.
+
Flips the image vertically.
-
Shows the mirror image.
1
Switches to Capture mode.
p. 66
2
Changes the frame size.
3
Changes the image quality.
4
Changes the video recording
mode.
5
Changes the colour tone or
applies a special effect.
6
Changes the white balance.
7
Mutes or unmutes audio.
8
Sets the timer.
71
Menu functions
Settings
(Menu 9)
71
Using video options
After saving a video clip, press <
Options
>
to access the following options:
•
Viewfinder
: return to Record mode.
•
Send via
: send the file via MMS or
Bluetooth.
•
Set as
: set the video clip, if saved as a
3gp file, as wallpaper for the display or a
caller ID image for a Phonbook entry.
•
Delete
: delete the file.
•
Rename
: change the file name.
•
Go to My video clips
: access the
My
video clips
folder.
p. 62
•
Lock
/
Unlock
: lock the file to prevent it
from being deleted, or unlock the file.
•
Details
: access the file properties.
Settings
(Menu 9)
The
Settings
menu provides you with
various setting options to customise the
phone to your preferences and needs. You
can also reset the settings to their default
status.
To access this menu, press <
Menu
> in Idle
mode and select
Settings
.
Time and date
(Menu 9.1)
Use this menu to change the time and date
displayed on your phone. Before setting the
time and date, specify your time zone in the
World clock
menu.
p. 43
•
Time
: enter the current time.
•
AM/PM
: select
AM
or
PM
in 12-hour
time format.
•
Time format
: select a time format.
•
Date
: enter the current date.
•
Date format
: select a date format.
•
Calendar starting day
: set which day
of the week the calendar starts with.
•
Auto update
: select to receive time
information from the network.
0
Goes to the
My video clips
folder.
Changes the preview screen.
Key Function
72
Menu functions
Phone settings
(Menu 9.2)
Many different features of your phone’s
system can be customised to suit your
preferences.
Language
(Menu 9.2.1)
Use this menu to select a language for the
display text. If you select
Automatic
, the
phone uses the same language as the SIM
card.
Greeting message
(Menu 9.2.2)
Use this menu to enter the greeting that is
displayed briefly when the phone is switched
on.
Shortcuts
(Menu 9.2.3)
You can use the Navigation keys as
shortcuts to access specific menus directly
from Idle mode. Use this menu to assign a
shortcut to a key.
Assigning a shortcut menu
1. Select a key to be used as a shortcut
key.
2. Select a menu to be assigned to the key.
Using shortcut options
Press <
Options
> to access the following
options:
•
Change
: assign or change a shortcut
menu.
•
Remove
: deactivate the shortcut
assignment to the selected key.
•
Remove all
: deactivate all shortcut
assignments.
Volume key
(Menu 9.2.4)
Use this menu to set whether the phone
mutes the call ringer or rejects a call if you
press and hold [
+
/
-
] when a call comes in.
Extra settings
(Menu 9.2.5)
You can turn the automatic redialling or
answering feature on or off.
•
Auto redial
: set the phone to make up
to ten attempts to redial a phone number
after an unsuccessful call.
•
Anykey
answer
: answer an incoming
call by pressing any key, except for
<
Reject
> and [ ].
Some menus may not be available,
depending on your service provider.
73
Menu functions
Settings
(Menu 9)
73
Offline mode
(Menu 9.2.6)
Use this menu to switch the phone to Offline
mode or back to Online mode.
Display settings
(Menu 9.3)
Use this menu to change settings for the
display and backlight.
Wallpaper
(Menu 9.3.1)
You can set up the idle screen on the display.
•
Main display
: select an image or video
clip to be displayed on the display.
•
Text position
: select a text position. If
you do not want to display text in Idle
mode, select
Off
.
•
Text mode
: select a font style.
•
Text colour
: select a font colour.
•
Graphic logo
: set the phone to display a
graphic icon instead of the service
provider’s logo on the idle screen. This is
only available if a graphic icon has been
received in a message.
Main menu style
(Menu 9.3.2)
You can select a display style for the main
menu screen.
Brightness
(Menu 9.3.3)
You can adjust the brightness of the display
for varying lighting conditions.
Dialing display
(Menu 9.3.4)
Use this menu to select a font type, and
colour and size for the numbers, and
background colour of the display while
dialling.
Show caller information
(Menu 9.3.5)
Use this menu to set the phone to display
missed call notifications with the most
recently missed caller’s information.
Sound settings
(Menu 9.4)
Use this menu to customise various sound
settings.
Incoming call
(Menu 9.4.1)
Use this menu to change the sound settings
for incoming calls.
•
Ringtone
: select a ringtone to be used
for the call ringer.
•
Volume
: select a ringtone volume.
74
Menu functions
•
Alert type
: specify how you are to be
informed of incoming calls.
Keypad tone
(Menu 9.4.2)
Use this menu to select the tone that the
phone sounds when you press a key.
Message tone
(Menu 9.4.3)
Use this menu to change the sound settings
for incoming SMS messages, MMS
messages, and broadcast messages
individually.
•
Tone
: select one of several message
tones.
•
Alert type
: specify how you are to be
informed when a message comes in.
•
Repetition
: specify how often the phone
informs you of a new message.
Power on/off
(Menu 9.4.4)
Use this menu to select the melody that the
phone sounds when it is switched on or off.
Slide tone
(Menu 9.4.5)
Use this menu to select the tone that the
phone sounds when you open or close the
phone.
Silent mode
(Menu 9.4.6)
Use this menu to set how the phone acts to
alert you to a specific event while in Silent
mode.
Extra tones
(Menu 9.4.7)
Use this menu to customise additional tones
for the phone.
•
Minute
minder
: set the phone to beep
every minute during an outgoing call to
keep you informed of the length of your
call.
•
Connection
tone
: set the phone to
beep when an outgoing call connects to
the system.
•
Alert on call
: set the phone to beep
when you receive a new message or
when the time for an alarm comes during
a call.
•
Indicative
tone
: set the phone to beep
when a pop-up window displays.
You can adjust the key tone volume using
[
+
/
-
] in Idle mode.
75
Menu functions
Settings
(Menu 9)
75
Light settings
(Menu 9.5)
Use this menu to change the settings for the
light.
Backlight time
(Menu 9.5.1)
You can select the length of time the
backlight or display stays on.
•
Normal
: select the length of time the
backlight stays on.
•
Dimmed
: select the length of time the
display stays on in Dim mode after the
backlight turns off. After a specified time,
the display turns off.
Keypad light
(Menu 9.5.2)
Use this menu to set how the phone controls
the use of the keypad light. Select one of the
following options in the
Use at
line:
•
Any time
: the keypad light is always
used.
•
Night time
: the keypad light is used
only between 5:00 PM and 9:00 AM.
•
Custom time
: you can specify the time
period that the keypad light is used.
Network services
(Menu 9.6)
Use this menu to access network services.
Please contact your service provider to
check their availability and subscribe to
them, if you wish.
Call diverting
(Menu 9.6.1)
This network service reroutes incoming calls
to a phone number that you specify.
1. Select a call diverting option:
•
Divert always
: divert all calls.
•
Busy
: divert calls when you are on
another call.
•
No
reply
: divert calls when you do
not answer the phone.
•
Unreachable
: divert calls when you
are not in your service area or when
your phone is switched off.
•
Cancel
all
: cancel all call diverting
options.
2. Select the type of calls to be diverted.
3. Select
Activate
. To deactivate call
diverting, select
Deactivate
.
4. Move to the
Divert to
line.
76
Menu functions
5. Enter the number to which calls are to be
diverted.
6. If you selected
No reply
, move to the
Seconds
line and select the length of
time the network delays before diverting
a call.
7. Press <
Select
>.
Call barring
(Menu 9.6.2)
This network service allows you to restrict
your calls.
1. Select a call barring option:
•
All
outgoing calls
: prohibit all
outgoing calls.
•
International
: prohibit international
calls.
•
International except home
: only
allow calls to numbers within the
current country when you are
abroad, and to your home service
area.
•
All
incoming calls
: prohibit
incoming calls.
•
Incoming
while
abroad
: prohibit
incoming calls when you use your
phone outside of your home service
area.
•
Cancel
all
: cancel all call barring
settings, allowing calls to be sent and
received normally.
•
Change barring password
: change
the call barring password obtained
from your service provider.
2. Select the type of calls to be barred.
3. Select
Activate
. To deactivate call
barring, select
Deactivate
.
4. Enter the call barring password supplied
by your service provider and press
<
Select
>.
Call waiting
(Menu 9.6.3)
This network service informs you when
someone is trying to reach you while you are
on another call.
1. Select the type of calls to which call
waiting option will apply.
2. Select
Activate
. To deactivate call
waiting, select
Deactivate
.
Network selection
(Menu 9.6.4)
This network service allows you to manually
select the network to be used while roaming
outside of your home area, or to let the
network be chosen automatically.
77
Menu functions
Settings
(Menu 9)
77
You can select a network other than your
home network only if there is a valid
roaming agreement between the two.
Caller ID
(Menu 9.6.5)
This network service allows you to hide your
phone number from the person you are
calling. If you select
Default
, the phone will
use the default setting provided by the
network.
Voice mail server
(Menu 9.6.6)
Use this menu to store the number of the
voicemail server and access your voicemails.
•
Connect to voice server
: connect to
the voicemail server to listen to your
messages.
•
Voice server number
: enter the
voicemail server number.
Closed user group
(Menu 9.6.7)
Use this menu to set incoming and outgoing
calls to be restricted to a selected user
group. For details about how to create a
closed user group (CUG), contact your
service provider.
•
Index list
: add, delete, or activate CUG
index numbers.
•
Outside access
: enable calls to
numbers other than those in the closed
user group. This feature depends on the
nature of your CUG subscription.
•
Default group
: enable the default CUG,
if you have set one with your service
provider. When making a call, you are
given the option of using your default
CUG, instead of selecting one from the
list.
Bluetooth
(Menu 9.7)
Using the Bluetooth feature, you can
connect the phone wirelessly to other
Bluetooth devices and exchange data with
them, talk hands-free, or control the phone
remotely.
Some networks may not allow you to
change this setting.
You must store the voicemail server number
before accessing the server. Your service
provider can give you the number.
78
Menu functions
Bluetooth technology allows free wireless
connections between all Bluetooth-compliant
devices within a range of 10 meters. Since
the devices communicate using radio waves,
they do not need to be in line of sight to
each other.
Setting up the Bluetooth feature
The
Bluetooth
menu provides the following
options:
•
Activation
: activate or deactivate the
Bluetooth feature.
•
My devices
: search for connectable
Bluetooth devices.
•
My phone’s visibility
: allow other
Bluetooth devices to search for your
phone.
•
My phone’s name
: assign a Bluetooth
device name to your phone, which is
then displayed on other devices.
•
Secure mode
: determine if the phone
asks for your confirmation when other
devices access your data.
•
Bluetooth services
: display available
Bluetooth services.
Searching for and pairing with a
Bluetooth device
1. From the
Bluetooth
menu, select
My
devices
.
2. Select
Search for new devices
.
After searching, a list of devices to which
you can connect displays. The following
icons indicate the type of device:
• Stereo headset
• PDA
• Mobile phone
• Unknown device
• If there are obstacles between the
devices, the operating distance may be
reduced.
• It is recommended that you do not use
the Bluetooth feature while using
multimedia
features, such as voice
recorder, camera, and music player, or
vice versa, for better performance.
• Some devices may not be compatible
with your phone.
79
Menu functions
Settings
(Menu 9)
79
• Computer
• Printer
• Hands-free car kit /Mono headset
The colour of the icon indicates the
status of the the device:
• Grey for unpaired devices
• Blue for paired devices
• Red for devices that are currently
connected to your phone
3. Select a device.
4. Enter a Bluetooth PIN and press <
OK
>.
This code is used just once and you do
not need to memorise it.
When the owner of the other device
enters the same code, pairing is
complete.
Using device options
From the device list, press <
Options
> to
access the following options:
•
Connect
: connect to a headset or
hands-free car kit.
•
Disconnect
: end the connection with
the connected device.
•
Browse files
: search for data from the
device and import data directly to your
phone.
•
Service list
: access the Bluetooth
service list of the device.
•
Rename
: rename the paired device.
•
Authorise device
/
Unauthorised
device
: determine whether or not the
phone asks you to permit connection
when other devices try to connect to
your phone.
•
Delete
: remove the selected device or
all devices from the list.
Sending data via Bluetooth
1. Activate the Bluetooth feature.
2. Select the application in which the item
you want to send is stored.
3. Scroll to the item you want and press
<
Options
>.
Some devices, especially headsets or hands-
free car kits, may have a fixed Bluetooth
PIN, such as
0000
. If the other device has a
code, you must enter it.
80
Menu functions
4. Select
Send
via
→
Bluetooth
→
Search
for new devices
.
The phone searches for devices within
range and displays a list of available
devices.
5. Select a device.
6. If necessary, enter the Bluetooth PIN
needed for pairing and press <
OK
>.
Receiving data via Bluetooth
To receive data via Bluetooth, your phone’s
Bluetooth feature must be active and its
visibility must be enabled.
1. If an unauthorised Bluetooth device
sends data to your phone, press <
Yes
>
to allow the device to access your phone.
2. Press <
Yes
> to receive data.
Security
(Menu 9.8)
Use this menu to protect the phone against
unauthorised use by managing the several
access codes of your phone and SIM card.
PIN check
(Menu 9.8.1)
The 4- to 8-digit PIN (Personal Identification
Number) protects your SIM card against
unauthorised use. When this feature is
enabled, the phone requires your PIN each
time it is switched on.
Change PIN code
(Menu 9.8.2)
Use this menu to change your PIN. The PIN
check feature must be enabled to change
the PIN.
Phone lock
(Menu 9.8.3)
Use this menu to lock the phone from
unauthorised use.
When this feature is enabled, you must
enter a 4- to 8-digit phone password each
time the phone is switched on.
The password is preset to
00000000
. To
change the password, use the
Change
password
menu.
If you enter an incorrect PIN/PIN2 three
times, the SIM card is blocked. To unblock
it, you need to enter your PUK/PUK2
(Personal Unblocking Key). The codes are
supplied by your service provider.
81
Menu functions
Settings
(Menu 9)
81
Change password
(Menu 9.8.4)
Use this menu to change your phone
password.
Privacy
(Menu 9.8.5)
Use this menu to lock access to messages,
media files, all menu functions on the
phone, except for call functions.
When a privacy option is enabled, you must
enter the phone password to access the
locked items or functions.
SIM lock
(Menu 9.8.6)
This menu allows your phone to work only
with the current SIM by assigning a SIM lock
code. You must enter the SIM lock code to
use a different SIM card.
Fixed dialling mode
(Menu 9.8.7)
If supported by your SIM card, Fixed Dialling
Number (FDN) mode restricts your outgoing
calls to a limited set of phone numbers.
When this feature is enabled, you can make
calls only to phone numbers stored on the
SIM card.
Change PIN2 code
(Menu 9.8.8)
If supported by your SIM card, use this
menu to change your current PIN2.
Mobile tracker
(Menu 9.8.9)
When someone tries to use your phone with
another USIM/SIM card, the phone will
automatically send the preset tracking
message to your family or friends. You can
check the phone number from which the
messages are sent and then track your
phone. This feature is useful when the phone
is stolen or lost.
1. Enter the phone password and press
<
OK
>.
2. Specify the following options:
•
Mobile tracker
: activate the Mobile
tracker feature.
Sendingof the tracking message will be
billedto the user of the unauthorised USIM/
SIM card. To use your phone with any other
USIM/SIM card, you must first deactivate
the Mobile tracker feature.
82
Menu functions
•
Recipients
: specify phone numbers
to which you want to send the
tracking messages.
•
Sender
: enter the sender’s name.
•
Message
: check the preset tracking
message text.
3. When you have finished, press <
Save
>.
Connection settings
(Menu 9.9)
Use this menu to create and customise the
profiles containing the settings for
connecting your phone to the network. You
need these settings to use the web browser
or send MMS messages or e-mails.
Creating a profile
1. Press <
New
>. If a profile has already
been saved, press <
Options
> and
select
Add new connection
.
2. Specify profile parameters:
•
Profile name
: enter a profile name.
•
Homepage URL
: enter the URL
address of the page to be used as
your homepage.
•
Proxy
: activate or deactivate the
proxy server.
•
IP address
: enter the IP address of
the proxy server.
•
Port
: enter the port number of the
proxy server.
•
Linger time
: set a time period after
which the network is disconnected if
there has been no new data traffic in
that time.
•
DNS
: activate or deactivate the DNS
(Domain Name Server) addresses.
•
DNS 1
and
DNS 2
: enter the primary
and secondary DNS addresses.
•
Bearer
: select the network bearer
type.
•
Advanced settings
: change the
advanced options. Depending on the
bearer setting, available options vary.
Your phone is set by default for connecting
to the network by default. If you change the
settings without first checking with your
service provider, the web browser, MMS, and
e-mail features may not work properly.
83
Menu functions
Settings
(Menu 9)
83
When the bearer is set to
GPRS
:
APN
: enter the access point name.
Login ID
: enter the login ID.
Password
: enter the login
password.
When the bearer is set to
GSM
:
Dial number
: enter the PPP phone
number.
Login ID
: enter the login ID.
Password
: enter the login
password.
Data call type
: select a call type for
data transmission.
3. Press <
Save
> to save the profile.
Using profile options
Press <
Options
> to access the following
options:
•
Edit
: edit the selected profile.
•
Delete
: delete the profile.
•
Add new connection
: add a new
profile.
Reset settings
(Menu 9.10)
Use this menu to reset the phone’s settings
you have changed.
1. Press [Centre] to select the setting
categories to be reset.
2. Press <
Reset
>.
3. Press <
OK
> to confirm the reset.
4. Enter the phone password and press
<
OK
>.
The password is preset to
00000000
.
You can change this password.
p. 81
84
Solve problems
Help and personal needs
To save the time and expense of an
unnecessary service call, perform the simple
checks in this section before contacting a
service professional.
When you switch on your phone, the
following messages may appear:
“Insert SIM card”
• Be sure that the SIM card is correctly
installed.
“Enter password”
• The automatic locking function has been
enabled. You must enter the phone’s
password before you can use the phone.
“Enter PIN”
• You are using your phone for the first
time. You must enter the PIN supplied
with the SIM card.
• The PIN check feature is enabled. Every
time the phone is switched on, the PIN
has to be entered. To disable this
feature, use the
PIN check
menu.
“Enter PUK”
• The PIN has been entered incorrectly
three times in succession, and the SIM
card is now blocked. Enter the PUK
supplied by your service provider.
“No service,” “Network failure,”
or “Not done” displays
• The network connection has been lost.
You may be in a weak signal area. Move
and try again.
• You are trying to access an option for
which you have no subscription with your
service provider. Contact the service
provider for further details.
You have entered a number but it was
not dialled
• Be sure that you have pressed [ ].
• Be sure that you have accessed the right
cellular network.
• Be sure that you have not set an
outgoing call barring option.
Your correspondent cannot reach you
• Be sure that your phone is switched on.
([ ] pressed for more than one
second.)
85
Solve problems
• Be sure that you are accessing the
correct cellular network.
• Be sure that you have not set an
incoming call barring option.
Your correspondent cannot hear you
speaking
• Be sure that you have switched on the
microphone.
• Be sure that you are holding the phone
close enough to your mouth. The
microphone is located at the bottom of
the phone.
The phone starts beeping and
“Warning. Low battery” flashes on the
display
• Your battery is insufficiently charged.
Recharge the battery.
The audio quality of the call is poor
• Check the signal strength indicator on
the display ( ). The number of bars
indicates the signal strength from strong
( ) to weak ( ).
• Try moving the phone slightly or moving
closer to a window if you are in a
building.
No number is dialled when you re-call a
Phonebook entry
•Use the
Contact list
menu to ensure the
number has been stored correctly.
• Re-store the number, if necessary.
The battery does not charge properly or
the phone sometimes turns itself off
• Wipe the charging contacts both on the
phone and on the battery with a clean
soft cloth.
If the above guidelines do not help you
to solve the problem, take note of:
• The model and serial numbers of your
phone
• Your warranty details
• A clear description of the problem
Then contact your local dealer or Samsung
after-sales service.
90
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certification Information (SAR)
Your wireless phone is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
exposure limits for radio frequency (RF) energy set by
the Federal Communications Commission (FCC) of the
U.S. government. These FCC exposure limits are
derived from the recommendations of two expert
organizations, the National Counsel on Radiation
Protection and Measurement (NCRP) and the Institute
of Electrical and Electronics Engineers (IEEE). In both
cases, the recommendations were developed by
scientific and engineering experts drawn from
industry, government, and academia after extensive
reviews of the scientific literature related to the
biological effects of RF energy.
The exposure limit set by the FCC for wireless mobile
phones employs a unit of measurement known as the
Specific Absorption Rate (SAR). The SAR is a measure
of the rate of absorption of RF energy by the human
body expressed in units of watts per kilogram (W/kg).
The FCC requires wireless phones to comply with a
safety limit of 1.6 watts per kilogram (1.6 W/kg). The
FCC exposure limit incorporates a substantial margin
of safety to give additional protection to the public and
to account for any variations in measurements.
SAR tests are conducted using standard operating
positions accepted by the FCC with the phone
transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power levels
so as to use only the power required to reach the
network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
NorthAmerica_Cingular_T-mobile.fm Page 9 Monday, September 26, 2005 2:42 AM
Health and safety information
91
Before a new model phone is available for sale to the
public, it must be tested and certified to the FCC that
it does not exceed the exposure limit established by
the FCC. Tests for each model phone are performed in
positions and locations (e.g. at the ear and worn on
the body) as required by the FCC. Body-worn
operations are restricted to Samsung-supplied,
approved, or non- Samsung designated accessories
that have no metal and must provide at least 1.5 cm
separation between the device, including its antenna
(whether extended or retracted) and the user's body.
Non-compliance with the above restrictions may result
in violation of FCC RF exposure guidelines.
The FCC has granted an Equipment Authorization for
this mobile phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure
guidelines. The maximum SAR values for this model
phone as reported to the FCC are:
GSM 1900
• Head: 0.185 W/Kg.
• Body-worn: 0.650 W/Kg.
SAR information on this and other model phones can
be viewed on-line at www.fcc.gov/oet/fccid. This site
uses the phone FCC ID number, A3LSGHX830.
Sometimes it may be necessary to remove the battery
pack to find the number. Once you have the FCC ID
number for a particular phone, follow the instructions
on the website and it should provide values for typical
or maximum SAR for a particular phone. Additional
product specific SAR information can also be obtained
at www.fcc.gov/cgb/sar.
사본 - NorthAmerica_Cingular_T-mobile.fm Page 10 Monday, September 26, 2005 6:47 AM
92
Health and safety information
Consumer Information on Wireless Phones
The U.S. Food and Drug Administration (FDA) has
published a series of Questions and Answers for
consumers relating to radio frequency (RF) exposure
from wireless phones. The FDA publication includes
the following information:
What kinds of phones are the subject of this
update?
The term wireless phone refers here to hand-held
wireless phones with built-in antennas, often called
“cell,” “mobile,” or “PCS” phones. These types of
wireless phones can expose the user to measurable
radio frequency energy (RF) because of the short
distance between the phone and the user's head.
These RF exposures are limited by Federal
Communications Commission safety guidelines that
were developed with the advice of FDA and other
federal health and safety agencies. When the phone is
located at greater distances from the user, the
exposure to RF is drastically lower because a person's
RF exposure decreases rapidly with increasing
distance from the source. The so-called “cordless
phones,” which have a base unit connected to the
telephone wiring in a house, typically operate at far
lower power levels, and thus produce RF exposures
well within the FCC's compliance limits.
Do wireless phones pose a health hazard?
The available scientific evidence does not show that
any health problems are associated with using
wireless phones. There is no proof, however, that
wireless phones are absolutely safe. Wireless phones
emit low levels of radio frequency energy (RF) in the
microwave range while being used. They also emit
very low levels of RF when in the stand-by mode.
Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that does
not produce heating effects causes no known adverse
health effects. Many studies of low level RF exposures
have not found any biological effects. Some studies
have suggested that some biological effects may
occur, but such findings have not been confirmed by
additional research. In some cases, other researchers
have had difficulty in reproducing those studies, or in
determining the reasons for inconsistent results.
NorthAmerica_Cingular_T-mobile.fm Page 11 Monday, September 26, 2005 2:42 AM
Health and safety information
93
What is FDA's role concerning the safety of
wireless phones?
Under the law, FDA does not review the safety of
radiation-emitting consumer products such as wireless
phones before they can be sold, as it does with new
drugs or medical devices. However, the agency has
authority to take action if wireless phones are shown
to emit radio frequency energy (RF) at a level that is
hazardous to the user. In such a case, FDA could
require the manufacturers of wireless phones to notify
users of the health hazard and to repair, replace or
recall the phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone
industry to take a number of steps, including the
following:
• “Support needed research into possible biological
effects of RF of the type emitted by wireless
phones;
• “Design wireless phones in a way that minimizes
any RF exposure to the user that is not necessary
for device function; and
• “Cooperate in providing users of wireless phones
with the best possible information on possible
effects of wireless phone use on human health.
FDA belongs to an interagency working group of the
federal agencies that have responsibility for different
aspects of RF safety to ensure coordinated efforts at
the federal level. The following agencies belong to this
working group:
• “National Institute for Occupational Safety and
Health
• “Environmental Protection Agency
• “Federal Communications Commission
• “Occupational Safety and Health Administration
• “National Telecommunications and Information
Administration
The National Institutes of Health participates in some
interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless
phones with the Federal Communications Commission
(FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF
NorthAmerica_Cingular_T-mobile.fm Page 12 Monday, September 26, 2005 2:42 AM
94
Health and safety information
exposure. FCC relies on FDA and other health agencies
for safety questions about wireless phones.
FCC also regulates the base stations that the wireless
phone networks rely upon. While these base stations
operate at higher power than do the wireless phones
themselves, the RF exposures that people get from
these base stations are typically thousands of times
lower than those they can get from wireless phones.
Base stations are thus not the primary subject of the
safety questions discussed in this document.
What are the results of the research done
already?
The research done thus far has produced conflicting
results, and many studies have suffered from flaws in
their research methods. Animal experiments
investigating the effects of radio frequency energy
(RF) exposures characteristic of wireless phones have
yielded conflicting results that often cannot be
repeated in other laboratories. A few animal studies,
however, have suggested that low levels of RF could
accelerate the development of cancer in laboratory
animals. However, many of the studies that showed
increased tumor development used animals that had
been genetically engineered or treated with cancer-
causing chemicals so as to be pre-disposed to develop
cancer in absence of RF exposure. Other studies
exposed the animals to RF for up to 22 hours per day.
These conditions are not similar to the conditions
under which people use wireless phones, so we don't
know with certainty what the results of such studies
mean for human health.
Three large epidemiology studies have been published
since December 2000. Between them, the studies
investigated any possible association between the use
of wireless phones and primary brain cancer, glioma,
meningioma, or acoustic neuroma, tumors of the brain
or salivary gland, leukemia, or other cancers. None of
the studies demonstrated the existence of any harmful
health effects from wireless phones RF exposures.
However, none of the studies can answer questions
about long-term exposures, since the average period
of phone use in these studies was around three years.
NorthAmerica_Cingular_T-mobile.fm Page 13 Monday, September 26, 2005 2:42 AM
Health and safety information
95
What research is needed to decide whether RF
exposure from wireless phones poses a health
risk?
A combination of laboratory studies and
epidemiological studies of people actually using
wireless phones would provide some of the data that
are needed. Lifetime animal exposure studies could be
completed in a few years. However, very large
numbers of animals would be needed to provide
reliable proof of a cancer promoting effect if one
exists. Epidemiological studies can provide data that is
directly applicable to human populations, but ten or
more years' follow-up may be needed to provide
answers about some health effects, such as cancer.
This is because the interval between the time of
exposure to a cancer-causing agent and the time
tumors develop - if they do - may be many, many
years. The interpretation of epidemiological studies is
hampered by difficulties in measuring actual RF
exposure during day-to-day use of wireless phones.
Many factors affect this measurement, such as the
angle at which the phone is held, or which model of
phone is used.
What is FDA doing to find out more about the
possible health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology
Program and with groups of investigators around the
world to ensure that high priority animal studies are
conducted to address important questions about the
effects of exposure to radio frequency energy (RF).
FDA has been a leading participant in the World Health
Organization international Electromagnetic Fields
(EMF) Project since its inception in 1996. An influential
result of this work has been the development of a
detailed agenda of research needs that has driven the
establishment of new research programs around the
world. The Project has also helped develop a series of
public information documents on EMF issues.
FDA and Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative
Research and Development Agreement (CRADA) to do
research on wireless phone safety. FDA provides the
scientific oversight, obtaining input from experts in
government, industry, and academic organizations.
CTIA-funded research is conducted through contracts
NorthAmerica_Cingular_T-mobile.fm Page 14 Monday, September 26, 2005 2:42 AM
96
Health and safety information
to independent investigators. The initial research will
include both laboratory studies and studies of wireless
phone users. The CRADA will also include a broad
assessment of additional research needs in the
context of the latest research developments around
the world.
What steps can I take to reduce my exposure
to radio frequency energy from my wireless
phone?
If there is a risk from these products - and at this
point we do not know that there is - it is probably very
small. But if you are concerned about avoiding even
potential risks, you can take a few simple steps to
minimize your exposure to radio frequency energy
(RF). Since time is a key factor in how much exposure
a person receives, reducing the amount of time spent
using a wireless phone will reduce RF exposure.
• “If you must conduct extended conversations by
wireless phone every day, you could place more
distance between your body and the source of the
RF, since the exposure level drops off dramatically
with distance. For example, you could use a
headset and carry the wireless phone away from
your body or use a wireless phone connected to a
remote antenna.
Again, the scientific data do not demonstrate that
wireless phones are harmful. But if you are concerned
about the RF exposure from these products, you can
use measures like those described above to reduce
your RF exposure from wireless phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to
users of wireless phones, including children and
teenagers. If you want to take steps to lower exposure
to radio frequency energy (RF), the measures
described above would apply to children and
teenagers using wireless phones. Reducing the time of
wireless phone use and increasing the distance
between the user and the RF source will reduce RF
exposure.
Some groups sponsored by other national
governments have advised that children be
discouraged from using wireless phones at all. For
NorthAmerica_Cingular_T-mobile.fm Page 15 Monday, September 26, 2005 2:42 AM
Health and safety information
97
example, the government in the United Kingdom
distributed leaflets containing such a recommendation
in December 2000. They noted that no evidence exists
that using a wireless phone causes brain tumors or
other ill effects. Their recommendation to limit
wireless phone use by children was strictly
precautionary; it was not based on scientific evidence
that any health hazard exists.
Do hands-free kits for wireless phones reduce
risks from exposure to RF emissions?
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason to
believe that hands-free kits reduce risks. Hands-free
kits can be used with wireless phones for convenience
and comfort. These systems reduce the absorption of
RF energy in the head because the phone, which is the
source of the RF emissions, will not be placed against
the head. On the other hand, if the phone is mounted
against the waist or other part of the body during use,
then that part of the body will absorb more RF energy.
Wireless phones marketed in the U.S. are required to
meet safety requirements regardless of whether they
are used against the head or against the body. Either
configuration should result in compliance with the
safety limit.
Do wireless phone accessories that claim to
shield the head from RF radiation work?
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason to
believe that accessories that claim to shield the head
from those emissions reduce risks. Some products
that claim to shield the user from RF absorption use
special phone cases, while others involve nothing
more than a metallic accessory attached to the phone.
Studies have shown that these products generally do
not work as advertised. Unlike “hand-free” kits, these
so-called “shields” may interfere with proper operation
of the phone. The phone may be forced to boost its
power to compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade
Commission (FTC) charged two companies that sold
devices that claimed to protect wireless phone users
from radiation with making false and unsubstantiated
NorthAmerica_Cingular_T-mobile.fm Page 16 Monday, September 26, 2005 2:42 AM
98
Health and safety information
claims. According to FTC, these defendants lacked a
reasonable basis to substantiate their claim.
What about wireless phone interference with
medical equipment?
Radio frequency energy (RF) from wireless phones can
interact with some electronic devices. For this reason,
FDA helped develop a detailed test method to measure
electromagnetic interference (EMI) of implanted
cardiac pacemakers and defibrillators from wireless
telephones. This test method is now part of a standard
sponsored by the Association for the Advancement of
Medical instrumentation (AAMI). The final draft, a joint
effort by FDA, medical device manufacturers, and
many other groups, was completed in late 2000. This
standard will allow manufacturers to ensure that
cardiac pacemakers and defibrillators are safe from
wireless phone EMI. FDA has tested wireless phones
and helped develop a voluntary standard sponsored by
the Institute of Electrical and Electronic Engineers
(IEEE). This standard specifies test methods and
performance requirements for hearing aids and
wireless phones so that no interference occurs when a
person uses a compatible phone and a compatible
hearing aid at the same time. This standard was
approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones
for possible interactions with other medical devices.
Should harmful interference be found to occur, FDA
will conduct testing to assess the interference and
work to resolve the problem.
Additional information on the safety of RF exposures
from various sources can be obtained from the
following organizations:
• FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/
• Environmental Protection Agency (EPA):
http://www.epa.gov/radiation/
• Occupational Safety and Health Administration's
(OSHA):
http://www.osha.gov/SLTC/
radiofrequencyradiation/index.html
NorthAmerica_Cingular_T-mobile.fm Page 17 Monday, September 26, 2005 2:42 AM
Health and safety information
99
• National institute for Occupational Safety and
Health (NIOSH):
http://www.cdc.gov/niosh/emfpg.html
• World health Organization (WHO):
http://www.who.int/peh-emf/
• International Commission on Non-Ionizing
Radiation Protection:
http://www.icnirp.de
• National Radiation Protection Board (UK):
http://www.nrpb.org.uk
• Updated 4/3/2002: US food and Drug
Administration
http://www.fda.gov/cellphones
Road Safety
Your wireless phone gives you the powerful ability to
communicate by voice, almost anywhere, anytime.
But an important responsibility accompanies the
benefits of wireless phones, one that every user must
uphold.
When driving a car, driving is your first responsibility.
When using your wireless phone behind the wheel of a
car, practice good common sense and remember the
following tips:
1. Get to know your wireless phone and its features,
such as speed dial and redial. If available, these
features help you to place your call without taking
your attention off the road.
2. When available, use a hands-free device. If
possible, add an additional layer of convenience
and safety to your wireless phone with one of the
many hands free accessories available today.
NorthAmerica_Cingular_T-mobile.fm Page 18 Monday, September 26, 2005 2:42 AM
101
Health and safety information
3. Position your wireless phone within easy reach. Be
able to access your wireless phone without
removing your eyes from the road. If you get an
incoming call at an inconvenient time, let your
voice mail answer it for you.
4. Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions. Rain,
sleet, snow, ice and even heavy traffic can be
hazardous.
5. Do not take notes or look up phone numbers while
driving. Jotting down a “to do” list or flipping
through your address book takes attention away
from your primary responsibility, driving safely.
6. Dial sensibly and assess the traffic; if possible,
place calls when you are not moving or before
pulling into traffic. Try to plan calls when your car
will be stationary. If you need to make a call while
moving, dial only a few numbers, check the road
and your mirrors, then continue.
7. Do not engage in stressful or emotional
conversations that may be distracting. Make
people you are talking with aware you are driving
and suspend conversations that have the potential
to divert your attention from the road.
8. Use your wireless phone to call for help. Dial 9-1-1
or other local emergency number in the case of
fire, traffic accident or medical emergencies.
Remember, it is a free call on your wireless phone!
9. Use your wireless phone to help others in
emergencies. If you see an auto accident, crime in
progress or other serious emergency where lives
are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
10. Call roadside assistance or a special non-
emergency wireless assistance number when
necessary. If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a
minor traffic accident where no one appears
injured, or a vehicle you know to be stolen, call
roadside assistance or other special non-
emergency number.
NorthAmerica_Cingular_T-mobile.fm Page 19 Monday, September 26, 2005 2:42 AM
Health and safety information
102
“The wireless industry reminds you to use your
phone safely when driving.”
For more information, please call 1-888-901-SAFE, or
visit our web-site www.wow-com.com
Provided by the Cellular Telecommunications &
Internet Association
Operating Environment
Remember to follow any special regulations in force in
any area and always switch your phone off whenever it
is forbidden to use it, or when it may cause
interference or danger. When connecting the phone or
any accessory to another device, read its user's guide
for detailed safety instructions. Do not connect
incompatible products.
As with other mobile radio transmitting equipment,
users are advised that for the satisfactory operation of
the equipment and for the safety of personnel, it is
recommended that the equipment should only be used
in the normal operating position (held to your ear with
the antenna pointing over your shoulder).
Using Your Phone Near Other Electronic
Devices
Most modern electronic equipment is shielded from
radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against the
RF signals from your wireless phone. Consult the
manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a
minimum distance of 15 cm (6 inches) be maintained
between a wireless phone and a pacemaker to avoid
potential interference with the pacemaker.
These recommendations are consistent with the
independent research and recommendations of
Wireless Technology Research.
Persons with pacemakers:
• should always keep the phone more than 15 cm
(6 inches) from their pacemaker when the phone is
switched on.
• should not carry the phone in a breast pocket.
NorthAmerica_Cingular_T-mobile.fm Page 20 Monday, September 26, 2005 2:42 AM
103
Health and safety information
• should use the ear opposite the pacemaker to
minimize potential interference.
If you have any reason to suspect that interference is
taking place, switch your phone off immediately.
Hearing Aids
Some digital wireless phones may interfere with some
hearing aids. In the event of such interference, you
may wish to consult your hearing aid manufacturer to
discuss alternatives.
Other Medical Devices
If you use any other personal medical devices, consult
the manufacturer of your device to determine if it is
adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this
information. Switch your phone off in health care
facilities when any regulations posted in these areas
instruct you to do so. Hospitals or health care facilities
may be using equipment that could be sensitive to
external RF energy.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
representative regarding your vehicle. You should also
consult the manufacturer of any equipment that has
been added to your vehicle.
Posted Facilities
Switch your phone off in any facility where posted
notices require you to do so.
Potentially Explosive Environments
Switch your phone off when in any area with a
potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even
death.
Users are advised to switch the phone off while at a
refueling point (service station). Users are reminded of
the need to observe restrictions on the use of radio
equipment in fuel depots (fuel storage and distribution
NorthAmerica_Cingular_T-mobile.fm Page 21 Monday, September 26, 2005 2:42 AM
104
areas), chemical plants or where blasting operations
are in progress.
Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include
below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such
as propane or butane), areas where the air contains
chemicals or particles, such as grain, dust or metal
powders, and any other area where you would
normally be advised to turn off your vehicle engine.
Emergency Calls
This phone, like any wireless phone, operates using
radio signals, wireless and landline networks as well as
user programmed functions, which cannot guarantee
connection in all conditions. Therefore, you should
never rely solely on any wireless phone for essential
communications (medical emergencies, for example).
Remember, to make or receive any calls the phone
must be switched on and in a service area with
adequate signal strength. Emergency calls may not be
possible on all wireless phone networks or when
certain network services and/or phone features are in
use. Check with local service providers.
To make an emergency call:
1. If the phone is not on, switch it on.
2. Key in the emergency number for your present
location (for example, 911 or other official
emergency number). Emergency numbers vary by
location.
3. Press .
If certain features are in use (call barring, for
example), you may first need to deactivate those
features before you can make an emergency call.
Consult this document and your local cellular service
provider.
When making an emergency call, remember to give all
the necessary information as accurately as possible.
Remember that your phone may be the only means of
communication at the scene of an accident; do not cut
off the call until given permission to do so.
NorthAmerica_Cingular_T-mobile.fm Page 22 Monday, September 26, 2005 2:42 AM
78
Health and safety information
Restricting Children's access to your Phone
Your phone is not a toy. Children should not be allowed
to play with it because they could hurt themselves and
others, damage the phone or make calls that increase
your phone bill.
FCC Notice and Cautions
FCC Notice
• This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
• This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment
and receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV
technician for help
79
The phone may cause TV or radio interference if used
in close proximity to receiving equipment. The FCC
can require you to stop using the phone if such
interference cannot be eliminated.
Vehicles using liquefied petroleum gas (such as
propane or butane) must comply with the National Fire
Protection Standard (NFPA-58). For a copy of this
standard, contact the National Fire Protection
Association, One Battery march Park, Quincy, MA
02269, Attn: Publication Sales Division .
103
Cautions
Changes or modifications made in the radio phone, not
expressly approved by Samsung, will void the user’s
authority to operate the equipment.
Only use approved batteries, antennas and chargers.
The use of any unauthorized accessories may be
dangerous and void the phone warranty if said
accessories cause damage or a defect to the phone.
Although your phone is quite sturdy, it is a complex
piece of equipment and can be broken. Avoid
dropping, hitting, bending or sitting on it.
80
Health and safety information
Settings
Other Important Safety Information
• Only qualified personnel should service the phone
or install the phone in a vehicle. Faulty installation
or service may be dangerous and may invalidate
any warranty applicable to the device.
• Check regularly that all wireless phone equipment
in your vehicle is mounted and operating properly.
• Do not store or carry flammable liquids, gases or
explosive materials in the same compartment as
the phone, its parts or accessories.
• For vehicles equipped with an air bag, remember
that an air bag inflates with great force. Do not
place objects, including both installed or portable
wireless equipment in the area over the air bag or
in the air bag deployment area. If wireless
equipment is improperly installed and the air bag
inflates, serious injury could result.
• Switch your phone off before boarding an aircraft.
The use of wireless phone in aircraft is illegal and
may be dangerous to the aircraft's operation.
• Failure to observe these instructions may lead to
the suspension or denial of telephone services to
the offender, or legal action, or both.
Product Performance
Getting the Most Out of Your Signal Reception
The quality of each call you make or receive depends
on the signal strength in your area. Your phone
informs you of the current signal strength by
displaying a number of bars next to the signal strength
icon. The more bars displayed, the stronger the signal.
If you're inside a building, being near a window may
give you better reception.
Understanding the Power Save Feature
If your phone is unable to find a signal after 15
minutes of searching, a Power Save feature is
automatically activated. If your phone is active, it
periodically rechecks service availability or you can
check it yourself by pressing any key.
Anytime the Power Save feature is activated, a
message displays on the screen. When a signal is
found, your phone returns to standby mode.
81
Health and safety information
Understanding How Your Phone Operates
Your phone is basically a radio transmitter and
receiver. When it's turned on, it receives and transmits
radio frequency (RF) signals. When you use your
phone, the system handling your call controls the
power level. This power can range from 0.006 watts to
0.2 watts in digital mode.
Maintaining Your Phone's Peak Performance
For the best care of your phone, only authorized
personnel should service your phone and accessories.
Faulty service may void the warranty.
There are several simple guidelines to operating your
phone properly and maintaining safe, satisfactory
service.
• Hold the phone with the antenna raised, fully-
extended and over your shoulder.
• Try not to hold, bend or twist the phone's antenna.
• Don't use the phone if the antenna is damaged.
• Speak directly into the phone's receiver.
• Avoid exposing your phone and accessories to rain
or liquid spills. If your phone does get wet,
immediately turn the power off and remove the
battery. If it is inoperable, call Customer Care for
service.
Availability of Various Features/Ring
Tones
Many services and features are network dependent
and may require additional subscription and/or usage
charges. Not all features are available for purchase or
use in all areas. Downloadable Ring Tones may be
available at an additional cost. Other conditions and
restrictions may apply. See your service provider for
additional information.
Battery Standby and Talk Time
Standby and talk times will vary depending on phone
usage patterns and conditions. Battery power
consumption depends on factors such as network
configuration, signal strength, operating temperature,
82
Health and safety information
Settings
features selected, frequency of calls, and voice, data,
and other application usage patterns.
Battery Precautions
• Never use any charger or battery that is damaged
in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network's base
station, it uses less power; talk and standby time
are greatly affected by the signal strength on the
cellular network and the parameters set by the
network operator.
• Battery charging time depends on the remaining
battery charge and the type of battery and charger
used. The battery can be charged and discharged
hundreds of times, but it will gradually wear out.
When the operation time (talk time and standby
time) is noticeably shorter than normal, it is time
to buy a new battery.
• If left unused, a fully charged battery will
discharge itself over time.
• Use only Samsung-approved batteries and
recharge your battery only with Samsung-
approved chargers. When a charger is not in use,
disconnect it from the power source. Do not leave
the battery connected to a charger for more than a
week, since overcharging may shorten its life.
• Extreme temperatures will affect the charging
capacity of your battery: it may require cooling or
warming first.
• Do not leave the battery in hot or cold places, such
as in a car in summer or winter conditions, as you
will reduce the capacity and lifetime of the battery.
Always try to keep the battery at room
temperature. A phone with a hot or cold battery
may temporarily not work, even when the battery
is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C (32 °F).
• Do not short-circuit the battery. Accidental short-
circuiting can occur when a metallic object (coin,
clip or pen) causes a direct connection between the
+ and - terminals of the battery (metal strips on
the battery), for example when you carry a spare
83
Health and safety information
battery in a pocket or bag. Short-circuiting the
terminals may damage the battery or the object
causing the short-circuiting.
• Dispose of used batteries in accordance with local
regulations. In some areas, the disposal of
batteries in household or business trash may be
prohibited. For safe disposal options for Li-Ion
batteries, contact your nearest Samsung
authorized service center. Always recycle. Do not
dispose of batteries in a fire.
Care and Maintenance
Your phone is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for
many years.
• Keep the phone and all its parts and accessories
out of the reach of small children.
• Keep the phone dry. Precipitation, humidity and
liquids contain minerals that will corrode electronic
circuits.
• Do not use the phone with a wet hand. Doing so
may cause an electric shock to you or damage to
the phone.
• Do not use or store the phone in dusty, dirty areas,
as its moving parts may be damaged.
• Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt
certain plastics.
• Do not store the phone in cold areas. When the
phone warms up to its normal operating
temperature, moisture can form inside the phone,
which may damage the phone's electronic circuit
boards.
• Do not drop, knock or shake the phone. Rough
handling can break internal circuit boards.
• Do not use harsh chemicals, cleaning solvents or
strong detergents to clean the phone. Wipe it with
a soft cloth slightly dampened in a mild soap-and-
water solution.
84
Health and safety information
Settings
• Do not paint the phone. Paint can clog the device's
moving parts and prevent proper operation.
• Do not put the phone in or on heating devices,
such as a microwave oven, a stove or a radiator.
The phone may explode when overheated.
• When the phone or battery gets wet, the label
indicating water damage inside the phone changes
color. In this case, phone repairs are no longer
guaranteed by the manufacturer's warranty, even
if the warranty for your phone has not expired.
• If your phone has a flash or light, do not use it too
close to the eyes of people or animals. This may
cause damage to their eyes.
• Use only the supplied or an approved replacement
antenna. Unauthorized antennas or modified
accessories may damage the phone and violate
regulations governing radio devices.
• If the phone, battery, charger or any accessory is
not working properly, take it to your nearest
qualified service facility. The personnel there will
assist you, and if necessary, arrange for service.
93
Index
A
AB mode, text input •
23
Alarm •
43
Answering
call •
26
second call •
27
Anykey answer •
72
Auto redial •
72
B
Background image •
73
Backlight, set
display •
75
keypad •
75
Barring, calls •
76
Battery
charging •
7
low indicator •
8
precautions •
87
Bluetooth
receiving, data •
80
sending, data •
79
settings •
78
Broadcast messages •
54
,
60
Browser, web •
46
C
Calculator •
44
Calendar •
38
Call cost •
31
Call log
dialled •
30
missed •
30
received •
30
Call time •
30
Caller groups •
33
Caller ID •
73
,
77
Calls
answering •
26
barring •
76
diverting •
75
holding •
27
redialling •
25
rejecting •
26
waiting •
76
Camera
photos •
66
videos •
69
CB (Cell Broadcast) messages •
54
,
60
Characters, enter •
23
Configuration messages •
52
Connection tone •
74
Converter •
44
Creating messages
MMS •
51
SMS •
49
CUG (Closed User Group) •
77
D
Date, set •
71
Deleting
call log •
29
e-mail •
55
,
57
events •
40
MMS •
54
,
55
,
57
phonebook •
32
,
35
SMS •
53
,
55
,
57
Dialled calls •
30
Dialling font, set •
73
Display
brightness •
73
icons •
11
language •
72
layout •
11
settings •
73
Diverting, calls •
75
Document files •
64
DRM (Digital Rights Management)
•
60
DTMF tones, send •
28
E
Emergency calls •
90
F
FDN (Fixed Dialling Number)
mode •
81
File manager •
60
94
Index
File viewer •
64
G
Games •
42
Greeting message •
72
H
Health and safety •
86
Holding, call •
27
I
Icons, description •
11
Images, downloaded •
61
Inbox, messages
MMS/SMS •
52
International calls •
25
Internet •
46
J
Java applications •
42
K
Keypad tones
selecting •
74
sending/muting •
28
L
Language, select •
72
Last number, redial •
25
Light settings •
75
Locking
menu functions •
81
phone •
80
SIM card •
81
Low battery indicator •
8
M
Memory status
downloaded items •
65
file manager •
65
messages •
60
phonebook
35
Menu style •
73
Message tone •
74
Messages
cell broadcast •
54
,
60
configuration •
54
greeting •
72
MMS •
51
,
53
push •
54
,
59
SMS •
49
,
53
Minute minder •
74
Missed calls •
30
MMS messages
creating/sending •
51
deleting •
54
setting •
58
viewing •
52
Mobile tracker •
81
Multiparty-call •
29
Music player •
35
Music, downloaded •
63
N
Name card •
34
Names
entering •
23
searching •
31
Network selection •
76
Network services •
75
O
Outbox, messages •
55
P
Password
call barring •
76
phone •
81
Phone
care and maintenance •
91
display •
11
icons •
11
locking •
80
password •
81
resetting •
83
switching on/off •
8
unpacking •
6
Phonebook
adding •
32
deleting •
32
,
35
finding •
31
managing •
35
options •
32
speed dialling •
34
Photos
taking •
66
viewing •
61
PIN, change •
80
PIN2, change •
81
Power on/off tone •
74
Privacy •
81
Problems, solve •
84
95
Index
95
Push messages •
54
,
59
Q
Quiet mode
setting •
74
switching •
14
R
Received calls •
30
Received messages
MMS/SMS •
52
Recording
videos •
69
voice memos •
41
Redialling
automatically •
72
manually •
25
Resetting phone •
83
Ringer
incoming calls •
73
messages •
74
Road safety •
88
Roaming •
76
S
Safety
information •
86
precautions •
1
Security, calls •
80
Sent messages •
55
Shortcut •
72
SIM card
inserting •
7
locking •
81
Slide tone •
74
SMS messages
creating/sending •
49
deleting •
53
setting •
57
viewing •
52
Sound settings •
73
Sounds, downloaded •
63
Speakerphone •
28
Speed dial •
34
Stopwatch •
45
Switching on/off
phone •
8
T
T9 mode, text input •
24
Templates, message •
56
Text, enter •
23
Time, set •
71
Timer •
45
V
Videos
playing •
62
recording •
69
Voice recorder
playing •
41
recording •
41
Voicemail server •
77
W
Waiting call •
76
Wallpaper •
73
Web browser
access •
46
bookmarks •
48
World time •
43
