SAMSUNG Proprietary and Confidential LTE CM User’s Guide LTE Connection Manager User’s Guide Copyright ⓒ 2009 Samsung Electronics Co.,LTD 1/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide Contents MINIMUM REQUIREMENT..................................................오류! 책갈피가 정의되어 있지 않습니다. 1. ......................................................................4 INSTALL/UNINSTALL LTE CONNECTION PROGRAM1.1. ..........................................................................................................................4 LTE DEVICE DRIVER1.1.1. ..............................................................................................................................4 Install1.1.2. ..........................................................................................................................7 Uninstall1.2. ..............................................................................................................9 LTE CONNECTION PROGRAM1.2.1. ..............................................................................................................................9 Install1.2.2. ........................................................................................................................10 Uninstall2. .........................................................................................................11 LTE CONNECTION MANAGER2.1. ............................................................................................11 LTE CONNECTION MANAGER OVERVIEW2.2. ................................................................................................11 TO USE LTE CONNECTION MANAGER2.2.1. .............................................................................11 Running LTE Connection Manager2.2.1.1. ...............................................................................................11 Running on Desktop2.2.2. ..................................................................................................12 Screen Configuration2.2.2.1. .............................................................................................................12 Main Screen2.2.2.2. ........................................................................................................12 Setting Screen2.2.2.3. .............................................................................................................14 Tray Screen2.2.3. .......................................................................................15 Connecting to LTE Network2.2.4. .......................................................................................16 Disconnecting LTE Network2.2.5. ................................................................................................................................17 Exit2.2.6. .....................................................................................................................17 Using Tray2.2.7. ..................................................................................................17 Tray Icon Description3. ............................................................................................19 HEALTH AND SAFETY INFORMATION 2/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide Minimum Requirement PC OS Microsoft Windows XP CPU Over Intel Pentium 1.7 GHz Memory Over 512MB 3/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 1. Install/Uninstall LTE Connection Program 1.1. LTE Device Driver 1.1.1. Install ▪ Select BatchInstall.zip ▪ Extract driver files from the compressed file. ▪ Before installing LTE Device Driver, insert LTE data card into USB slot on the laptop. After USB card is inseted, hardware wizard window is appeard as a following picture. 4/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide - Close this window to click ‘Cancel’ ▪ Execute Install.bat ▪ When executing Install.bat, Windows command window is appeard as a following 5/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide picture. ▪ After installation is complete, the command window will be closed by itself. ▪ Check LTE device driver is in the Network adaters after the installation is complete. Select [Start] – [Settings] – [Control Panel] – [System] – [Hardware] – [Device Manager]. When LTE device driver is installed, Device Manager is shown as a following picture. ▪ It is also possible to use command ‘ipconfig’ on Windows command window to check if the installation is properly complete as a following picture. 6/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 1.1.2. Uninstall ▪ To uninstall LTE driver, Execute Uninstall.bat ▪ When uninstall.bat is executed, Windows command window appears as a following 7/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide picture. ▪ If uninstallation is complete, Windows command window is closed by itself. ▪ Check if LTE device driver is deleted after the uninstallation is complete. Select [Start] – [Settings] – [Control Panel] – [System] – [Hardware] – [Device Manager]. When LTE device driver is uninstalled, Device Manager is shown as a following picture. 8/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 1.2. LTE Connection Program 1.2.1. Install ▪ Select LCM ▪ Extract LCM files from the compressed LCM file. ▪ SecLCM.exe is an executable file for LCM. 9/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 10/21 ▪ SecLCM.exe is executed, LCM is shown as a following picture. If 1.2.2. Uninstall To uninstall LCM, simply remove the directory where LCM related files exist.

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 2. LTE Connection Manager 2.1. LTE Connection Manager Overview LTE Connection Manager is a Windows OS-based application supporting LTE network connection and it performs LTE network attachment/detachment and other LTE-related functions. 2.2. LTE Connection Manager 2.2.1. Running LTE Connection Manager 2.2.1.1. Running on Desktop Execute [Samsung LTE CM] icon on Desktop. 11/21

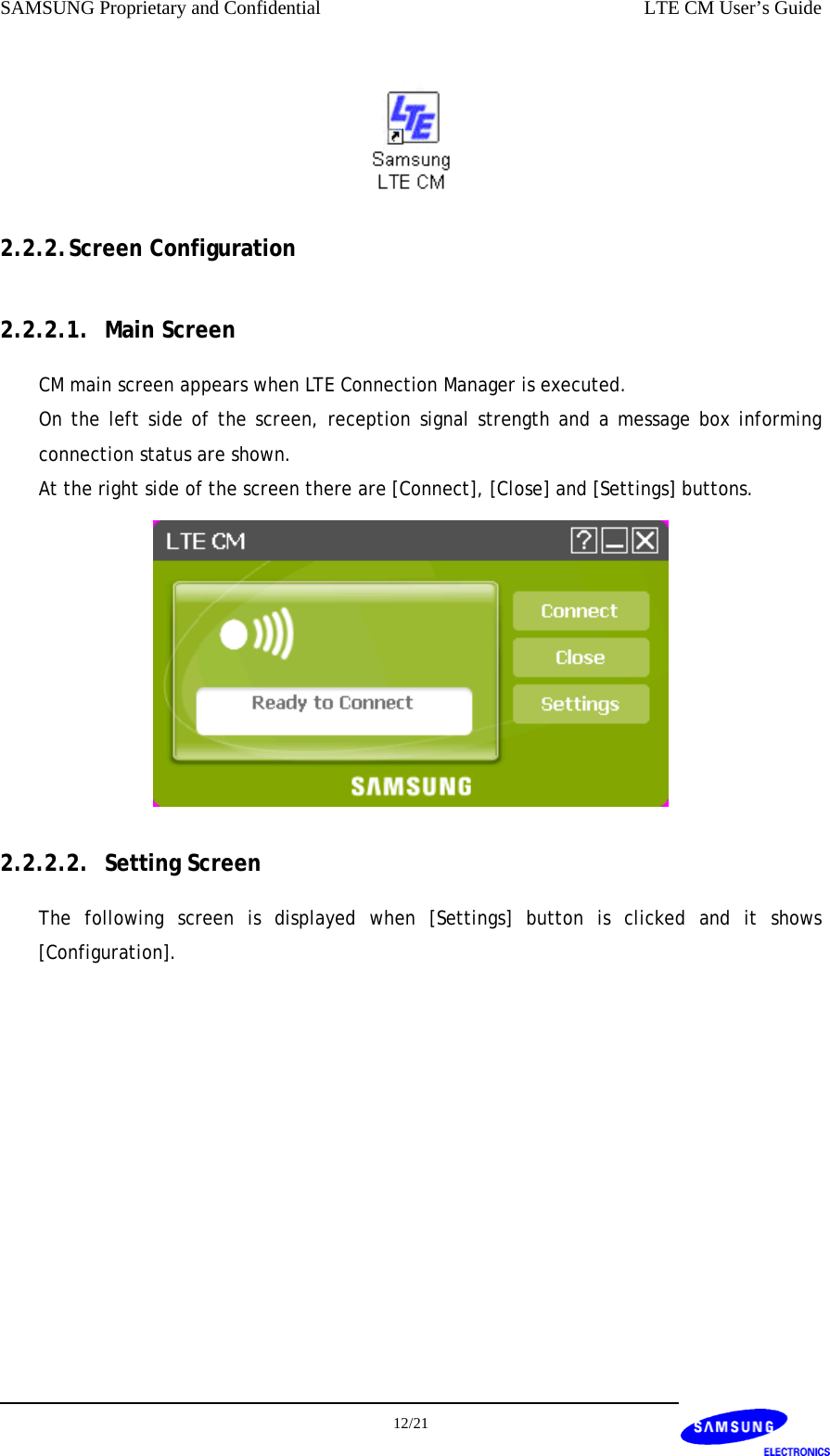

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 2.2.2. Screen Configuration 2.2.2.1. Main Screen CM main screen appears when LTE Connection Manager is executed. On the left side of the screen, reception signal strength and a message box informing connection status are shown. At the right side of the screen there are [Connect], [Close] and [Settings] buttons. 2.2.2.2. Setting Screen The following screen is displayed when [Settings] button is clicked and it shows [Configuration]. 12/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide - [Connection Info] 13/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide - [Network Info] - [About LTE CM]. 2.2.2.3. Tray Screen When [Close] or [Minimize] button is clicked on the main screen, main screen disappears and the program runs as a tray icon. 14/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 2.2.3. Connecting to LTE Network On the main screen, press [Connect] button. “Connecting to LTE” message is displayed as a following picture. - Connection Success If the LTE Network connection succeeds, the following screen is displayed. 15/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide - Connection Failure If the LTE connection fails, the following screen is displayed. 2.2.4. Disconnecting LTE Network When [Disconnect] button is clicked on the main screen, LTE connection is cut off and the status changes to “Ready to Connect”. 16/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 2.2.5. Exit Click the right button of the mouse with the mouse point on tray screen to see a pop-up menu. And click [Exit] to finish the program. 2.2.6. Using Tray - Switching tray screen to main screen Click the right button of the mouse with the mouse point on tray screen to see a pop-up menu. And click [Open] to run it on the main screen. 2.2.7. Tray Icon Description Signal strength is low Signal strength is weak Signal strength is good Signal strength is very good Signal strength is best Standby 17/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide Signal strength is low Signal strength is weak Signal strength is good Signal strength is very good Signal strength is best Online No service area 18/21

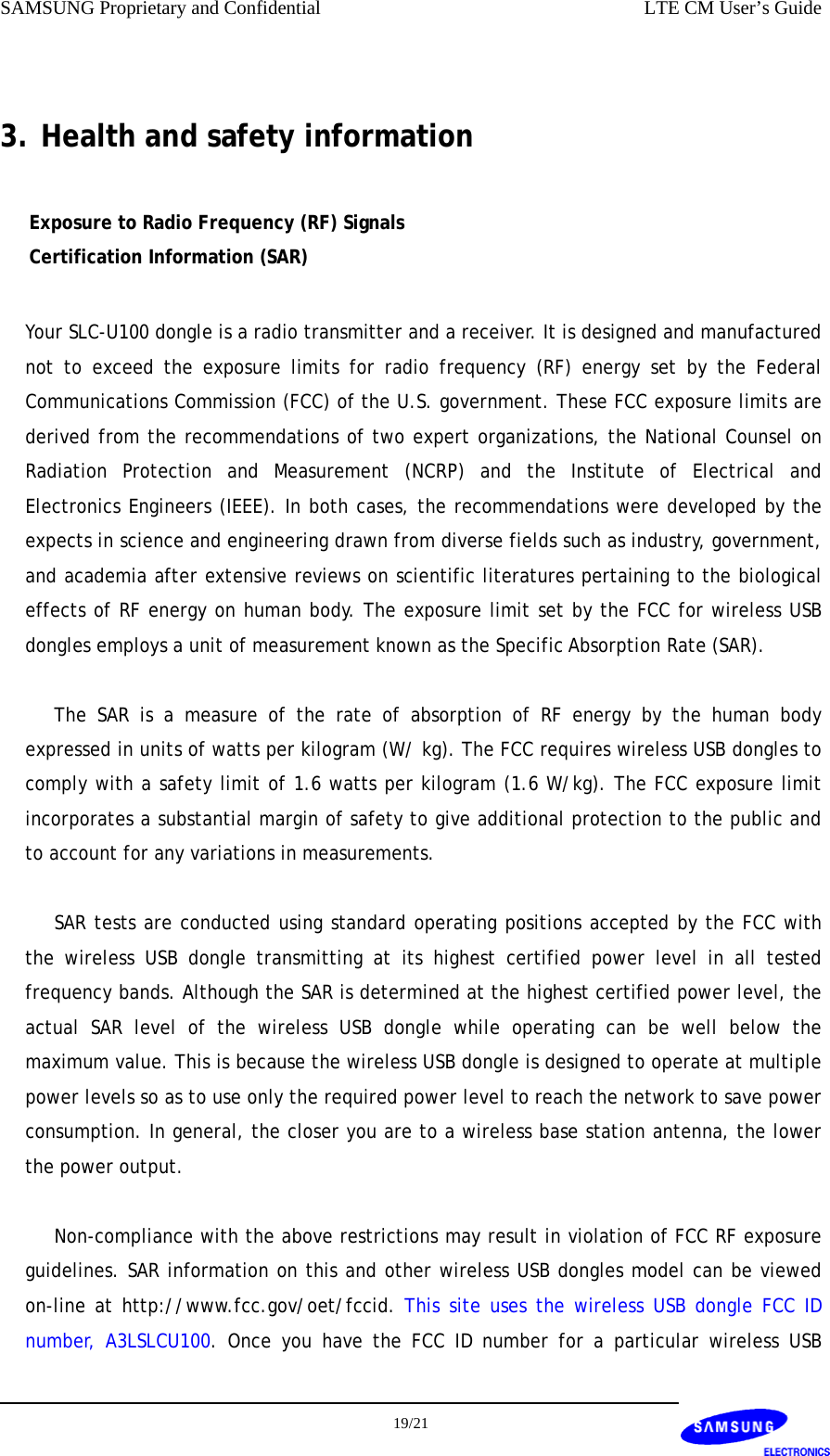

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 3. Health and safety information Exposure to Radio Frequency (RF) Signals Certification Information (SAR) Your SLC-U100 dongle is a radio transmitter and a receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by the expects in science and engineering drawn from diverse fields such as industry, government, and academia after extensive reviews on scientific literatures pertaining to the biological effects of RF energy on human body. The exposure limit set by the FCC for wireless USB dongles employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/ kg). The FCC requires wireless USB dongles to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements. SAR tests are conducted using standard operating positions accepted by the FCC with the wireless USB dongle transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the wireless USB dongle while operating can be well below the maximum value. This is because the wireless USB dongle is designed to operate at multiple power levels so as to use only the required power level to reach the network to save power consumption. In general, the closer you are to a wireless base station antenna, the lower the power output. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines. SAR information on this and other wireless USB dongles model can be viewed on-line at http://www.fcc.gov/oet/fccid. This site uses the wireless USB dongle FCC ID number, A3LSLCU100. Once you have the FCC ID number for a particular wireless USB 19/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide dongle, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular wireless USB dongle. Additional product specific SAR information can also be obtained at http://www.fcc.gov/cgb/sar. This Mobile Broadband USB dongle, model SLC-U100, is approved for use in normal size labtop computers only (typically with 12” or larger display screens). To comply with FCC RF exposure requirements, this modem should not be used in configurations that cannot maintain at least 5mm (approximately 0.2 inch) distance from users and bystanders. The SLC-U100 USB dongle can be used in laptop computers with substantially similar physical dimensions, construction, and electrical and characteristics. This USB dongle must not be used with any other antenna or transmitter that has not been approved to operate in conjuction with this dongle. For details contact http://www.fcc.gov/cgb/ Restricting Children's access to your Wireless USB dongle Your wireless USB dongle is not a toy. Children should not be allowed to play with it because they could hurt themselves and others, damage the wireless USB dongle or make calls that increase your wireless USB dongle bill. Cautions Changes or modifications made in the radio USB dongle, not expressly approved by Samsung, will void the user’s authority to operate the equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the wireless USB dongle warranty if said accessories cause damage or a defect to the wireless USB dongle. Although your wireless USB dongle is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it. Other Important Safety Information Only qualified personnel should service the wireless USB dongle or install the wireless USB dongle in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device. Check regularly that all wireless USB dongle equipment in your vehicle is mounted and operating properly. Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the wireless USB dongle, its parts or accessories. For vehicles equipped with an air bag, remember that an air bag inflates with great force. 20/21

SAMSUNG Proprietary and Confidential LTE CM User’s Guide 21/21 Do not place objects, including both installed and portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result. The use of wireless USB dongle in aircraft is illegal and may be dangerous to the aircraft's operation. Failure to observe these instructions may lead to the suspension or denial of USB dongle services to the offender, or legal action, or both. Acknowledging Special Precautions and the FCC Notice and Caution ▶ All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.
