Samsung Electronics Co SLS-BD10JQ RRH (Remote Radio Head) User Manual Smart MBS RRH B8 Installation Manual

Samsung Electronics Co Ltd RRH (Remote Radio Head) Smart MBS RRH B8 Installation Manual

User Manual

Ver. 1.0 Smart MBS RRH-B8 Installation Manual
Ver. 1.0 COPYRIGHT This manual is proprietary to SAMSUNG Electronics Co., Ltd. and is protected by copyright. No information contained herein may be copied, translated, transcribed or duplicated for any commercial purposes or disclosed to the third party in any form without the prior written consent of SAMSUNG Electronics Co., Ltd. TRADEMARKS Product names mentioned in this manual may be trademarks and/or registered trademarks of their respective companies. This manual should be read and used as a guideline for properly installing and operating the product. This manual may be changed for the system improvement, standardization and other technical reasons without prior notice. If you need updated manuals or have any questions concerning the contents of the manuals, contact our Document Center at the following address or Web site: Address: Document Center 3rd Floor Jeong-bo-tong-sin-dong. Dong-Suwon P.O. Box 105, 416, Maetan-3dong Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-600 Homepage: http://www.samsungdocs.com ©2013 SAMSUNG Electronics Co., Ltd. All rights reserved.
Ver. Smart MBS RRH-B8 Installation Manual 1.0 INTRODUCTION Purpose This manual describes procedure and method for installing Smart MBS RRH-B8. Document Content and Organization This manual consists of 2 Chapters, 6 Annex and Abbreviation as follows: CHAPTER 1. Before Installation This chapter introduces safety rules that must be understood for installing RRH-B8 and describes the configuration of RRH-B8. CHAPTER 2. Installation of RRH-B8 This chapter describes the procedure to install RRH-B8. ANNEX A. Sector Antenna Installation This annex describes sector antenna configurations and its installation requirements. ANNEX B. Feeder Line Work This annex describes cautions and allowed radius of curvature when installing feeder line. ANNEX C. Assembling connector This annex describes the procedure of assembling connector. ANNEX D. Cleaning Optic Connector This annex describes the procedure of cleaning the optic connector and cleaning tool. ANNEX E. Pressure Terminal Assembly This annex describes the procedure of assembling the pressure terminal. © SAMSUNG Electronics Co., Ltd. I
Ver. INTRODUCTION 1.0 ANNEX F. Standard Torque This annex describes the standard torque when assembling the fixing materials. ABBREVIATION Describes the acronyms used in this manual. Conventions The following types of paragraphs contain special information that must be carefully read and thoroughly understood. Such information may or may not be enclosed in a rectangular box, separating it from the main text, but is always preceded by an icon and/or a bold title. WARNING Provides information or instructions that the reader should follow in order to avoid personal injury or fatality. CAUTION Provides information or instructions that the reader should follow in order to avoid a service failure or damage to the system. CHECKPOINT Provides the operator with checkpoints for stable system operation. NOTE Indicates additional information as a reference. II © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Revision History VERSION DATE OF ISSUE REMARKS 1.0 09. 2013. First Edition © SAMSUNG Electronics Co., Ltd. III
Ver. INTRODUCTION 1.0 This page is intentionally left blank. IV © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual 1.0 SAFETY CONCERNS The purpose of the Safety Concerns section is to ensure the safety of users and prevent property damage. Please read this document carefully for proper use. Symbols Caution Indication of a general caution Restriction Indication for prohibiting an action for a product Instruction Indication for commanding a specifically required action © SAMSUNG Electronics Co., Ltd. V
Ver. SAFETY CONCERNS 1.0 Warning Power and Grounding Watches, Rings, and Other Metallic Accessories Do not wear accessories such as watches and rings in order to prevent electrical shock. Connecting Ground Cable In cabling, the connection of cables without the connection to the ground cable may cause the damage of the equipment or the bodily injury of the worker. Connect the ground cable first. Installation General Caution for Laser Beam of Optical Module and Cable The optical module and cable used in the system emit bright laser beams. Always handle them with care as there is risk of serious injury if the eyes are exposed to the laser beam of the optical cable. Wearing protection gloves and goggles Make sure to wear protection gloves and goggles to prevent damages from debris while drilling holes in a wall or ceiling. WARNING VI © SAMSUNG Electronics Co., Ltd.

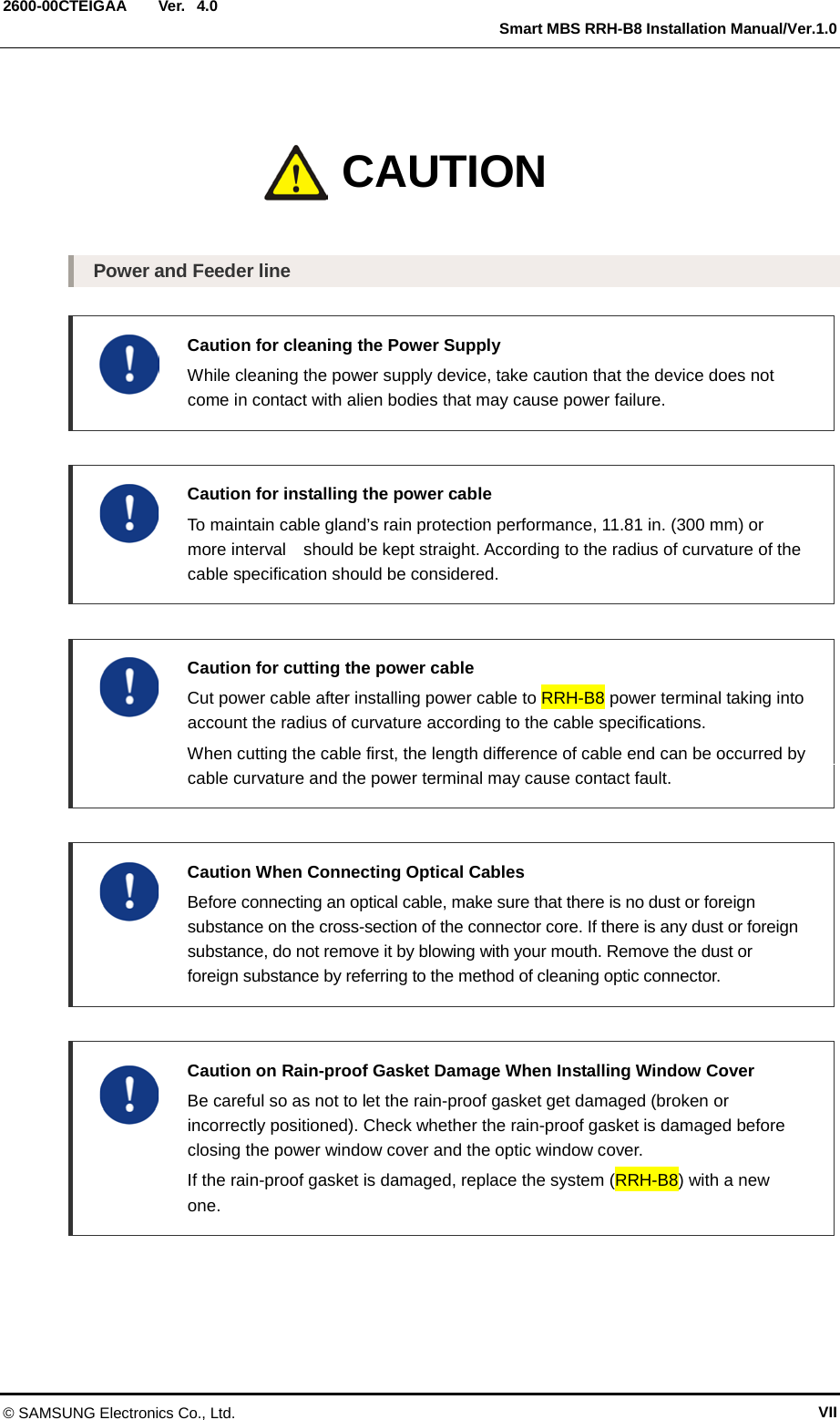

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Caution Power and Feeder line Caution for cleaning the Power Supply While cleaning the power supply device, take caution that the device does not come in contact with alien bodies that may cause power failure. Caution for installing the power cable To maintain cable gland’s rain protection performance, 11.81 in. (300 mm) or more interval should be kept straight. According to the radius of curvature of the cable specification should be considered. Caution for cutting the power cable Cut power cable after installing power cable to RRH-B8 power terminal taking into account the radius of curvature according to the cable specifications. When cutting the cable first, the length difference of cable end can be occurred by cable curvature and the power terminal may cause contact fault. Caution When Connecting Optical Cables Before connecting an optical cable, make sure that there is no dust or foreign substance on the cross-section of the connector core. If there is any dust or foreign substance, do not remove it by blowing with your mouth. Remove the dust or foreign substance by referring to the method of cleaning optic connector. Caution on Rain-proof Gasket Damage When Installing Window Cover Be careful so as not to let the rain-proof gasket get damaged (broken or incorrectly positioned). Check whether the rain-proof gasket is damaged before closing the power window cover and the optic window cover. If the rain-proof gasket is damaged, replace the system (RRH-B8) with a new one. CAUTION © SAMSUNG Electronics Co., Ltd. VII
Ver. SAFETY CONCERNS 1.0 Radius of Curvature of Feeder Line When installing a feeder line, the radius of curvature of the sections where cables bent should be larger than the allowed radius of curvature. If the radius of curvature for the feeder line installation is less than the allowed radius of curvature, it may affect the performance of the system. Connection of Feeder Cable Connector Connecting the feeder cable connector is critical process, so the qualified workers who finished the related education should perform. Caution When Connecting RET Cable Make sure to turn off the breaker connected to the RRH-B8 power of the DU cabinet before connecting the RET cable between the antenna RET port and the RRH-B8 RET port. If you connect or disconnect the RET cable while the breaker is turned on, it may cause an electric short circuit resulting in damage to the RET function. Installation General Managing unused port Finish unused port of UADU by dust-cap, not making the alien substance flowed. Finishing Cable Insertion Hole Finishing work is required on cable insertion holes (Cable gland, Conduit and etc.) to prevent entering of any foreign substance, external air and moisture. - Unused cable insertion hole: Finish cable insertion hole using fishing materials such as dust cap, rubber packing and etc. - Cable-installed insertion hole: After installing cable, finish insertion hole using tape, compressed sponge, rubber packing, silicon, etc. to prevent empty space. VIII © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Caution when assembling the cable gland Ensure that all parts of the cable gland are assembled in the correct sequence. Incorrect assembly may result in influx of external air or moisture into the system and may cause corrosion, system malfunction and/or critical failure of the cooling system. Caution when installing the cable in the cable gland Only one cable of permitted specification (radius) should be installed in the cable gland. - Installing a cable of smaller radius than the permitted specification may result in influx of external air or moisture into the system and may cause corrosion or system malfunction. - Installing a cable thicker than the permitted specification or installing two or more cables in the gland may damage the gland. Caution when loosen and tighten the Cable Gland Nut In case of assembling the cable gland and cabling, do not loosen and tighten by turning the cable gland body or other parts. turning the cable gland body may cause corrosion and system failure by entering of any external air and moisture. Checking assembly state of the unused cable gland All components of the unused cable gland must be secured in the original factory configuration. If the cable gland nut is fitted without the rain protection filler or the protection cover in place, reassemble them as illustrated in ‘Figure 2.7.’ Do not work by yourself Do not work by yourself in any key process. Caution for cleaning the Rack Make sure that worker does not damage installed cables while cleaning the rack. Cautions When Connecting the CRPI Cable Failure to observe the CPRI cable connection specified in Table 2.5 may impair the communication between the CDMA and LTE FDD terminal. © SAMSUNG Electronics Co., Ltd. IX

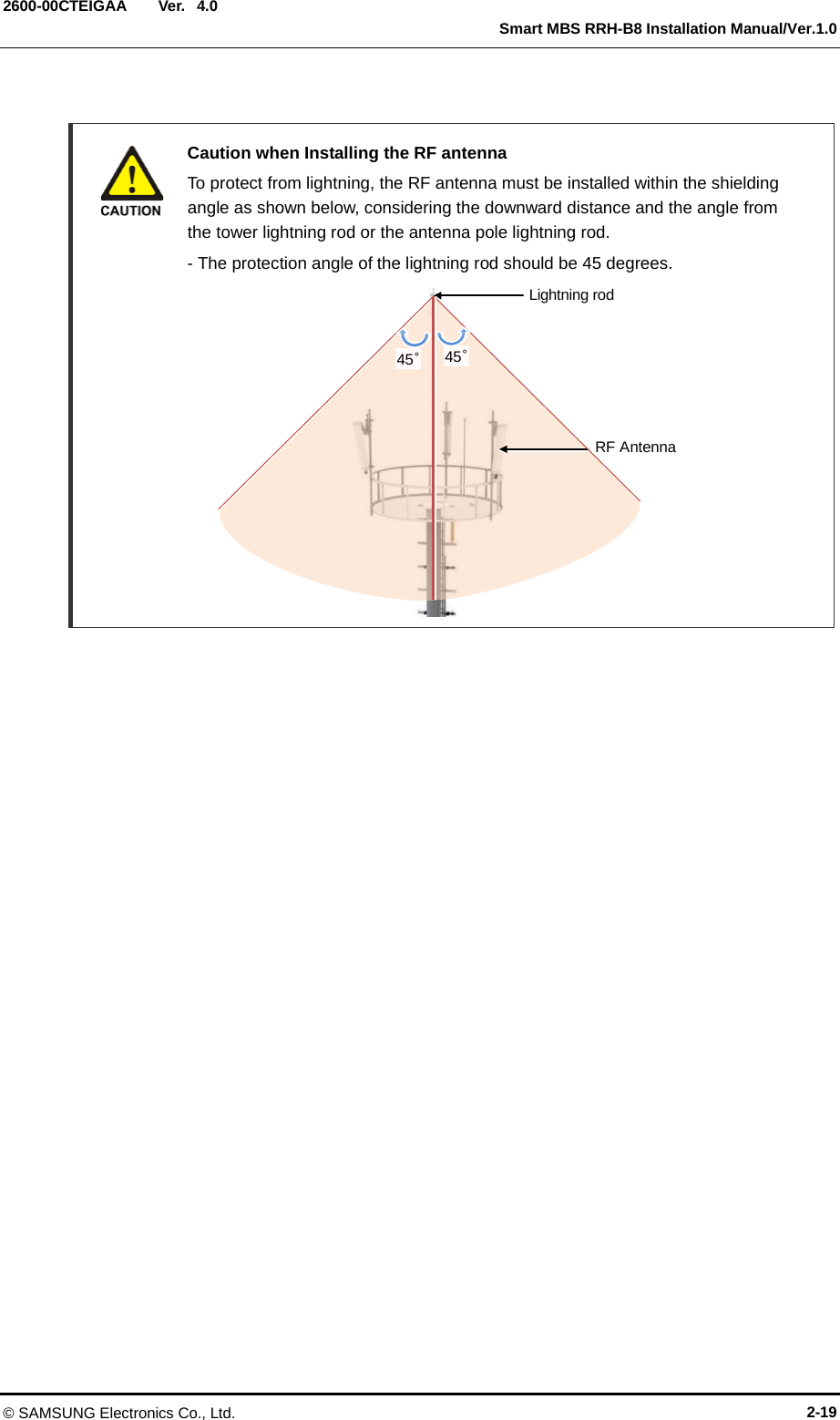

Ver. SAFETY CONCERNS 1.0 Caution when Installing the RF antenna To protect from lightning, the RF antenna must be installed within the shielding angle as shown below, considering the downward distance and the angle from the tower lightning rod or the antenna pole lightning rod. - The protection angle of the lightning rod should be 45 degrees. Finishing Heat Shrink Tube of a Sector Antenna 1) Insert an antenna protection plate. 2) Place the heat shrink tube on the connection point and shrink the heat shrink tube using a heat gun. 3) Avoid aiming the heating gun toward the antenna’s body. California USA Only This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA ‘Perchlorate Material-special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.’ X © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual 1.0 TABLE OF CONTENTS INTRODUCTION I Purpose I Document Content and Organization ....................................................................................................... I Conventions ............................................................................................................................................... II Revision History ....................................................................................................................................... III SAFETY CONCERNS V Symbols ..................................................................................................................................................... V Warning VI Caution VII California USA Only .................................................................................................................................. X CHAPTER 1. Before Installation 1-1 1.1 System Configuration ............................................................................................................ 1-1 1.2 Specifications......................................................................................................................... 1-3 1.3 Cabling .................................................................................................................................... 1-5 1.4 Installation Precaution .......................................................................................................... 1-7 1.5 Installation Tool .................................................................................................................... 1-12 CHAPTER 2. Installation of RRH-B8 2-1 2.1 Installation Procedure ........................................................................................................... 2-1 2.2 Foundation Work ................................................................................................................... 2-2 2.2.1 Equipment Arrangement .......................................................................................................... 2-2 2.3 Unpacking and Transporting ................................................................................................ 2-3 2.3.1 Importing Items......................................................................................................................... 2-3 2.3.2 Unpacking Items ...................................................................................................................... 2-3 2.4 Fixing the System .................................................................................................................. 2-4 2.4.1 Fixing Unit Mounting Bracket ................................................................................................ 2-4 2.4.2 Fixing Wall Mount ................................................................................................................... 2-7 © SAMSUNG Electronics Co., Ltd. XI

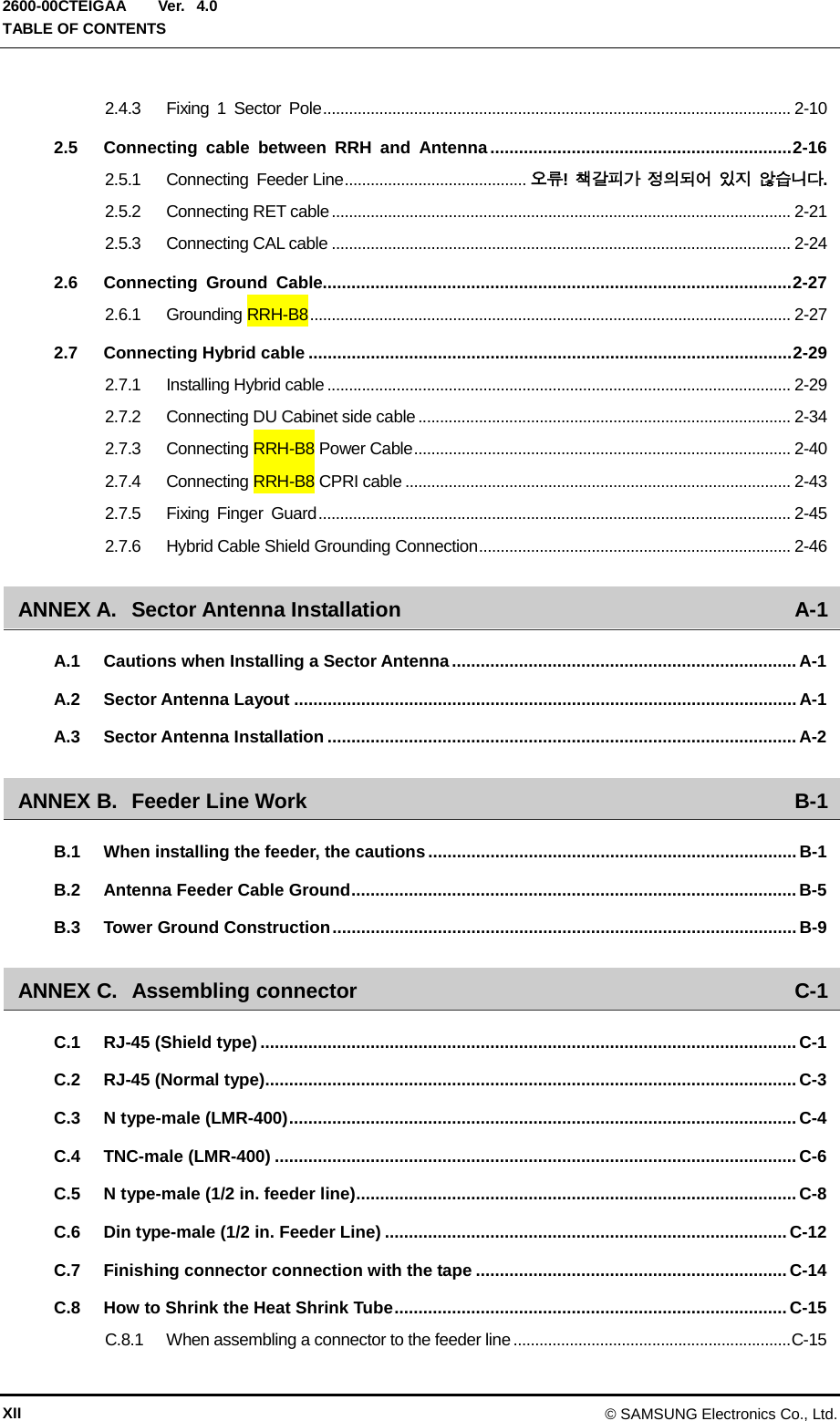

Ver. TABLE OF CONTENTS 2600-00CTEIGAA 4.0 2.4.3 Fixing 1 Sector Pole ............................................................................................................ 2-10 2.5 Connecting cable between RRH and Antenna ............................................................... 2-16 2.5.1 Connecting Feeder Line .......................................... 오류! 책갈피가 정의되어 있지 않습니다. 2.5.2 Connecting RET cable .......................................................................................................... 2-21 2.5.3 Connecting CAL cable .......................................................................................................... 2-24 2.6 Connecting Ground Cable.................................................................................................. 2-27 2.6.1 Grounding RRH-B8 ............................................................................................................... 2-27 2.7 Connecting Hybrid cable ..................................................................................................... 2-29 2.7.1 Installing Hybrid cable ........................................................................................................... 2-29 2.7.2 Connecting DU Cabinet side cable ...................................................................................... 2-34 2.7.3 Connecting RRH-B8 Power Cable ....................................................................................... 2-40 2.7.4 Connecting RRH-B8 CPRI cable ......................................................................................... 2-43 2.7.5 Fixing Finger Guard ............................................................................................................. 2-45 2.7.6 Hybrid Cable Shield Grounding Connection ........................................................................ 2-46 ANNEX A. Sector Antenna Installation A-1 A.1 Cautions when Installing a Sector Antenna ........................................................................ A-1 A.2 Sector Antenna Layout ......................................................................................................... A-1 A.3 Sector Antenna Installation .................................................................................................. A-2 ANNEX B. Feeder Line Work B-1 B.1 When installing the feeder, the cautions ............................................................................. B-1 B.2 Antenna Feeder Cable Ground ............................................................................................. B-5 B.3 Tower Ground Construction ................................................................................................. B-9 ANNEX C. Assembling connector C-1 C.1 RJ-45 (Shield type) ................................................................................................................ C-1 C.2 RJ-45 (Normal type) ............................................................................................................... C-3 C.3 N type-male (LMR-400) .......................................................................................................... C-4 C.4 TNC-male (LMR-400) ............................................................................................................. C-6 C.5 N type-male (1/2 in. feeder line) ............................................................................................ C-8 C.6 Din type-male (1/2 in. Feeder Line) .................................................................................... C-12 C.7 Finishing connector connection with the tape ................................................................. C-14 C.8 How to Shrink the Heat Shrink Tube .................................................................................. C-15 C.8.1 When assembling a connector to the feeder line ................................................................ C-15 XII © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 C.8.2 When connecting a connector to another connector .......................................................... C-17 ANNEX D. Cleaning Optic Connector D-1 D.1 Cleaning Optic Connector ..................................................................................................... D-1 D.2 IBCTM Brand Cleaner .............................................................................................................. D-3 D.2.1 IBCTM brand type cleaner (P/N 9393) .................................................................................... D-3 ANNEX E. Pressure Terminal Assembly E-1 E.1 Preparations ........................................................................................................................... E-1 E.2 Pressure Reference Table ..................................................................................................... E-2 E.3 Assembling Pressure Terminal............................................................................................. E-5 ANNEX F. Standard Torque F-1 ABBREVIATION I C I D I E I G I I I L I M I R I T II U II LIST OF FIGURES Figure 1.1 RRH-B8 Configuration ........................................................................................... 1-1 Figure 1.2 External Interfaces of RRH-B8 .............................................................................. 1-2 Figure 1.3 Cabling Diagram.................................................................................................... 1-5 Figure 2.1 System Installation & Cable Connection Procedure .............................................. 2-1 Figure 2.2 RRH-B8 Installation Space (pole type) ................................................................. 2-2 Figure 2.3 Fixing Unit Mounting Bracket (1) ......................................................................... 2-4 Figure 2.4 Fixing Unit Mounting Bracket (2) ......................................................................... 2-5 Figure 2.5 Fixing Wall Mount (1) ........................................................................................... 2-7 © SAMSUNG Electronics Co., Ltd. XIII
Ver. TABLE OF CONTENTS 2600-00CTEIGAA 4.0 Figure 2.6 Fixing Wall Mount (2) ............................................................................................ 2-8 Figure 2.7 Fixing 1 sector pole (1) ........................................................................................ 2-10 Figure 2.8 Fixing 1 sector pole (2) .............................. 오류! 책갈피가 정의되어 있지 않습니다. Figure 2.9 Fixing 1 sector pole (3) ........................................................................................ 2-12 Figure 2.10 Fixing 1 sector pole (4) ...................................................................................... 2-13 Figure 2.11 Fixing 1 sector pole (5) ....................................................................................... 2-14 Figure 2.12 Fixing 1 sector pole (6) ...................................................................................... 2-15 Figure 2.13 Connecting RF cable(1) ..................................................................................... 2-16 Figure 2.14 Connecting RF cable(2) ..................................................................................... 2-17 Figure 2.15 Connecting RF cable(3) ..................................................................................... 2-18 Figure 2.16 Connecting RET cable ....................................................................................... 2-21 Figure 2.17 RET Cable connector ......................................................................................... 2-22 Figure 2.18 Connecting CAL cable(1) ................................................................................... 2-24 Figure 2.19 Connecting CAL cable(2) ................................................................................... 2-25 Figure 2.20 Connecting CAL cable(3) ................................................................................... 2-26 Figure 2.21 Connecting RRH-B8 Ground cable .................................................................... 2-27 Figure 2.22 Installing Hybrid cable (1) .................................................................................. 2-29 Figure 2.23 Installing Hybrid cable (2) .................................................................................. 2-30 Figure 2.24 Installing Hybrid cable (3) .................................................................................. 2-31 Figure 2.25 Installing Hybrid cable (4) .................................................................................. 2-32 Figure 2.26 Peeling off the Hybrid Cable Sheath .................................................................. 2-35 Figure 2.27 Connecting Hybrid cable (1) .............................................................................. 2-36 Figure 2.28 Connecting Hybrid cable (2) .............................................................................. 2-37 Figure 2.29 Connecting Hybrid cable (3) .............................................................................. 2-38 Figure 2.30 Connecting Hybrid cable (4) .............................................................................. 2-38 Figure 2.31 Connecting RRH-B8 Power Cable(1) ................................................................. 2-40 Figure 2.32 Connecting RRH-B8 Power Cable(2) ................................................................. 2-41 Figure 2.33 Connecting RRH-B8 CPRI cable ....................................................................... 2-43 Figure 2.34 Fixing Finger Guard ........................................................................................... 2-45 Figure 2.35 Hybrid Cable Shield Grounding Connection_DU Cabinet .................................. 2-46 Figure 2.36 Hybrid Cable Shield Grounding Connection_Tower Ground Bar........................ 2-47 Figure A.1 Sector Antenna ..................................................................................................... A-2 Figure B.1 Feeder Cable Grounding (1) ................................................................................. B-5 Figure B.2 Feeder Cable Grounding (2) ................................................................................. B-6 Figure B.3 Feeder Cable Grounding (3) ................................................................................. B-7 Figure B.4 Feeder Cable Grounding (4) ................................................................................. B-8 Figure B.5 Connecting the Tower Ground Cable .................................................................... B-9 Figure C.1 Assembling the RJ-45 Connector (Shield Type) (1) ............................................. C-1 Figure C.2 Assembling the RJ-45 Connector (Shield Type) (2) ............................................. C-2 XIV © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure C.3 Assembling the RJ-45 connector (Normal type) ................................................... C-3 Figure C.4 Assembling the N type-male connector (LMR-400) (1) ......................................... C-4 Figure C.5 Assembling the N type-male connector (LMR-400) (2) ......................................... C-5 Figure C.6 Assembling the TNC-male connector (1) .............................................................. C-6 Figure C.7 Assembling the TNC-male connector (2) .............................................................. C-7 Figure C.8 Assembling the N type-male Connector (1/2 in. Feeder Line) (1) ......................... C-8 Figure C.9 Assembling the N type-male Connector (1/2 in. Feeder Line) (2) ......................... C-9 Figure C.10 Assembling the N type-male Connector (1/2 in. Feeder Line) (3) ..................... C-10 Figure C.11 Assembling the N type-male Connector (1/2 in. Feeder Line) (4) ..................... C-11 Figure C.12 Assembling the Din type-male Connector (1/2 in. Feeder Line) (1) .................. C-12 Figure C.13 Assembling the Din type-male Connector (1/2 in. Feeder Line) (2) .................. C-13 Figure C.14 Finishing connector connection with the tape ................................................... C-14 Figure C.15 Shrinking the Heat Shrink Tube-Feeder line (1) ................................................ C-15 Figure C.16 Shrinking the Heat Shrink Tube-Feeder line (2) ................................................ C-16 Figure C.17 Shrinking the Heat Shrink Tube-Connector (1) ................................................. C-17 Figure C.18 Shrinking the Heat Shrink Tube-Connector (2) ................................................. C-18 Figure C.19 Shrinking the Heat Shrink Tube-Connector (3) ................................................. C-19 Figure D.1 Optic Connector Cleaner (IBCTM Brand Type Cleaner: P/N 9393) ........................ D-3 Figure D.2 Optic Module Cleaning (LC type Jack) ................................................................. D-4 Figure D.3 Optic Cable Connector Cleaning (LC type plug) ................................................... D-5 Figure D.4 Measuring the Optical Output and Connecting the Optic Connector .................... D-6 Figure E.1 Preparations.......................................................................................................... E-1 Figure E.2 Pressure Reference Drawing (Handheld Compressor) ......................................... E-2 Figure E.3 Pressure Reference Drawing (Hydraulic Press) ................................................... E-3 Figure E.4 Stripping Cable Sheath (1) ................................................................................... E-5 Figure E.5 Stripping Cable Sheath (2) ................................................................................... E-6 Figure E.6 Fixing Pressure Terminal_Handheld Compressor (1) ........................................... E-8 Figure E.7 Fixing Pressure Terminal_Handheld Compressor (2) ........................................... E-9 Figure E.8 Fixing Pressure Terminal_Hydraulic Press (1) .................................................... E-11 Figure E.9 Fixing Pressure Terminal_Hydraulic Press (2) .................................................... E-12 Figure E.10 Assembling Heat Shrink Tube ........................................................................... E-14 LIST OF TABLES Table 1.1 System Cabling ....................................................................................................... 1-6 Table 1.2 Minimum Allowed Cable Bend Radius .................................................................... 1-9 Table 1.3 Basic Installation Tools .......................................................................................... 1-12 Table 2.1 Recommended Distances for System Arrangement ............................................... 2-2 Table 2.2 GPS Identification Tag of Feeder line .................................................................... 2-20 © SAMSUNG Electronics Co., Ltd. XV
Ver. TABLE OF CONTENTS 2600-00CTEIGAA 4.0 Table 2.3 RET Cable-Side Connector Pin Map ..................................................................... 2-22 Table 2.4 Hybrid Cable Color Map ........................................................................................ 2-37 Table 2.8 Construction Status Checklist ................................................................................ 2-48 Table B.1 Curvature Radius of Feeder Cable for Outdoor...................................................... B-2 Table B.2 Curvature Radius of Feeder Cable for Indoor ........................................................ B-3 Table B.3 Curvature Radius of LMR-400 (Based on Times Microwave system) .................... B-3 Table B.4 Connector Connection Torque Value ...................................................................... B-4 Table B.5 TGB Installation Example ....................................................................................... B-8 Table E.1 Pressure Reference Table for Pressure Terminal ................................................... E-2 Table E.2 Compressor Specifications per Cable Thickness ................................................... E-4 Table F.1 Standard Torque Value for Tightening Bolts ............................................................ F-1 Table F.2 Brass Bolts Torque .................................................................................................. F-1 XVI © SAMSUNG Electronics Co., Ltd.

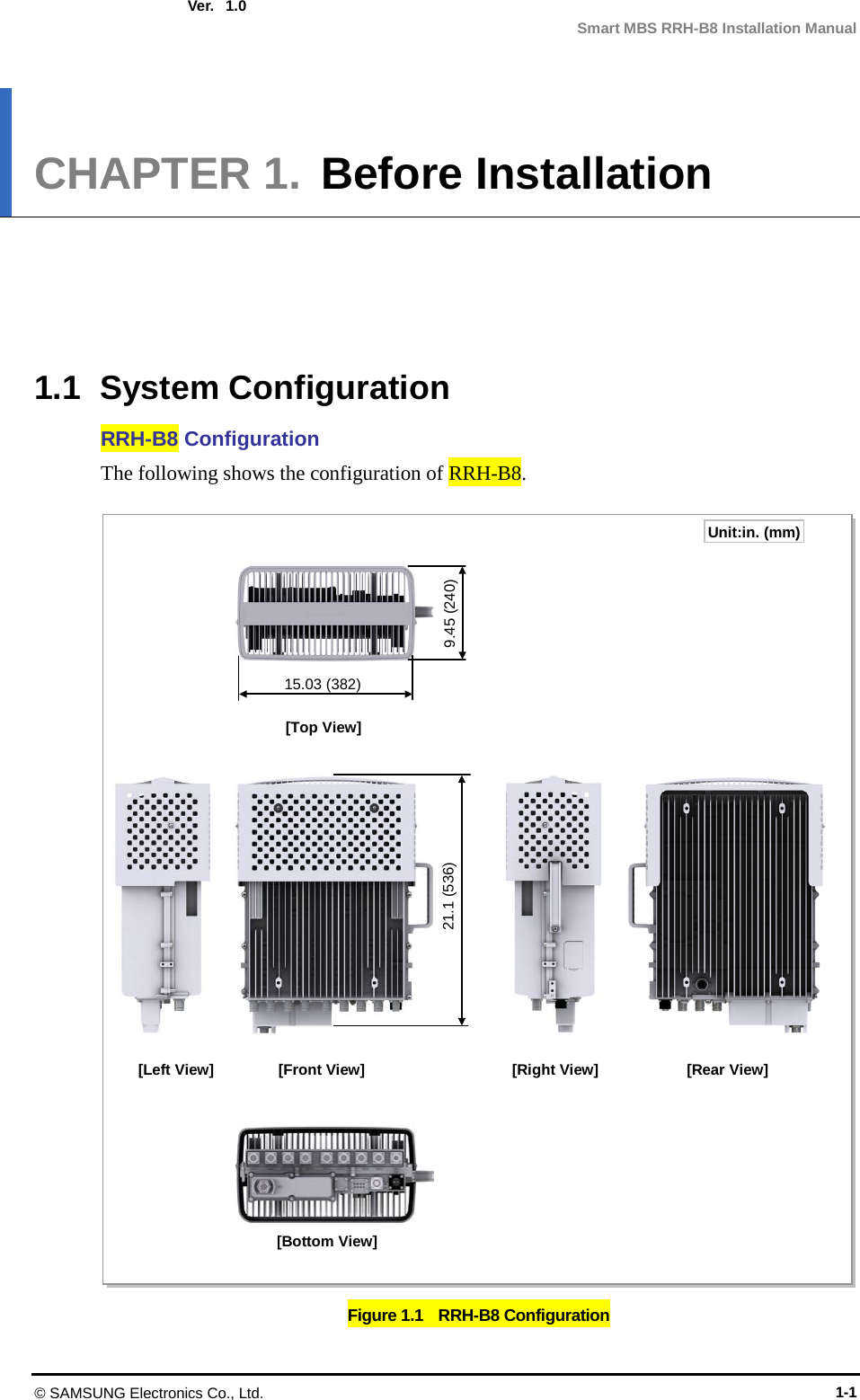

Ver. Smart MBS RRH-B8 Installation Manual 1.0 CHAPTER 1. Before Installation 1.1 System Configuration RRH-B8 Configuration The following shows the configuration of RRH-B8. Figure 1.1 RRH-B8 Configuration [Top View] [Front View] [Bottom View] [Right View] [Left View] [Rear View] 21.1 (536) 9.45 (240) 15.03 (382) Unit:in. (mm) © SAMSUNG Electronics Co., Ltd. 1-1
Ver. CHAPTER 1. Before Installation 2600-00CTEIGAA 4.0 External Interfaces of RRH-B8 The following shows the external interfaces of RRH-B8. Figure 1.2 External Interfaces of RRH-B8 [Bottom View] PWR [-48 V] Ground ANT_0 ANT_1 ANT_2 ANT_3 ANT_4 ANT_5 ANT_6 ANT_7 CAL RET MPO(CPRI) 1-2 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 1.2 Specifications Capacity The following table shows the specifications for RRH-B8. Item Specifications Air specification LTE TDD Operating Frequency 2496~2690 MHz Channel Bandwidth 20 MHz Capacity - 3 Carriers @ 8T8R - 6 Carriers @ 4T8R RF Power per Sector a) 40 W × 4Tx (Total 160 W) Multiple Antenna 8T8R/4T8R DU~RRH-B8 Interface 10 Gbps, CPRI 4.0 (Optic) a) Output power at the RU antenna port. (Not external filter antenna port) Input Power The following table shows the power specifications for RRH-B8. RRH-B8 complies with UL60950 safety standard for electrical equipment. Item Specifications Input voltage -48 V DC: -36~-56 V DC Current consumption 20.3 A Unit Size and Weight The following table shows the size and weight of RRH-B8. Item Specifications Size (W × D × H) 13.78 × 6.75 × 17.72 (in.) 350 × 171.5 × 450 (mm) Without. Finger guard, MPO Box 15.03× 9.45 × 21.1 (in.) 382 × 240 × 536 (mm) With. Finger guard, MPO Box Weight 59.52 lb (27 kg) or less © SAMSUNG Electronics Co., Ltd. 1-3
Ver. CHAPTER 1. Before Installation 2600-00CTEIGAA 4.0 Ambient Conditions This section describes the operating temperature, humidity level and other ambient conditions and related standard of RRH-B8. The following table shows the ambient conditions and related standard of RRH-B8. Item Range Temperaturea) -40~131°F (-40~55°C) without solar load Humiditya) 10~95 % The moisture content must not exceed 0.024 kg per 1 kg of air. Altitude 0~1800 m (0~6000 ft) Vibration GR-63-CORE Sec.4.4 Earthquake Office Vibration Transportation Vibration Noise (sound pressure level) Max. 65 dBA at distance of 5 ft (1.5 m) and height of 3 ft (1.0 m) Electromagnetic compatibility (EMC) FCC Title47 Part 15 Class B US Federal Regulation FCC Title47 Part27 a) Temperature and humidity are measured at 59 in. (1.5 m) above the floor and at 15.8 in. (400 mm) away from the front panel of the RRH-B8. Cautions for Antenna Installation Do not use base station's antenna within the distance of 500cm from people and do not co-locate nor operate in conjunction with any other antenna or transmitters for the protection of general public from exposure to radio frequency electromagnetic fields. 1-4 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 1.3 Cabling The following shows the cables connected to RRH-B8. Figure 1.3 Cabling Diagram [RF Antenna] 1) TGB Ground Cable [TGB] Feeder Line Ground Cable (Ground Kit/7/8 in. Feeder Line or more) ※ TGB and Ground Kit are used in case of the 7/8 in. feeder line or more. [Rectifier] [UADU] 7) CPRI Cable 2) RF Cable 4) CAL Cable 3) RET Cable 6) Power Cable 5) RRH-B8 Ground Cable © SAMSUNG Electronics Co., Ltd. 1-5
Ver. CHAPTER 1. Before Installation 2600-00CTEIGAA 4.0 Table 1.1 System Cabling From To Cable Underground Ground TGB (Tower Ground Bar) 1) TGB Ground Cable : AWG2, GV 25 mm2 × 1C (However, This can be different, defending on the standard of service provider) RRH-B8 Antenna 2) RF Cable : 1/2 in. or 7/8 in. Feeder Line Mini Din-Male Connector(10feet, 3m ;Site Dependant) 3) RET Cable Assembly (Shield Cable) 4) CAL Cable : 1/2 in. or 7/8 in. Feeder Line N Type-Male Connector(10 feet, 3m;Site Dependant) TGB 5) RRH-B8 Ground Cable : AWG8, GV 6 mm2 × 1C Power 6) Power Cable : AWG8,6 mm2 × 2C UADU 7) CPRI Cable : Optic Cable (Single Mode) 1-6 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 1.4 Installation Precaution The following precaution must be observed to prevent accidents during RRH-B8 installation. Before Installation  Install a high voltage warning sign near the area where high voltage cable is located.  Install a restricted entry warning sign near the potential accident area.  Cover exposed areas such as junctions, ceilings, footholds etc. with safety rails or fence off the area.  Study use of the fire alarm and the location of the fire extinguisher and how to use it.  Check the location of the nearest emergency exit. During Installation  Cut all equipment power before installation.  Always wear protection gloves and goggles when drilling holes into the wall or ceiling. To prevent electric shocks from metallic objects, remove all accessories such as watches or rings. Wearing protection gloves and goggles Make sure to wear protection gloves and goggles to prevent damages from debris while drilling holes in a wall or ceiling. Watches, Rings, and Other Metallic Accessories Do not wear accessories such as watches and rings in order to prevent electrical shock. Do not work by yourself Do not work by yourself in any key process. © SAMSUNG Electronics Co., Ltd. 1-7

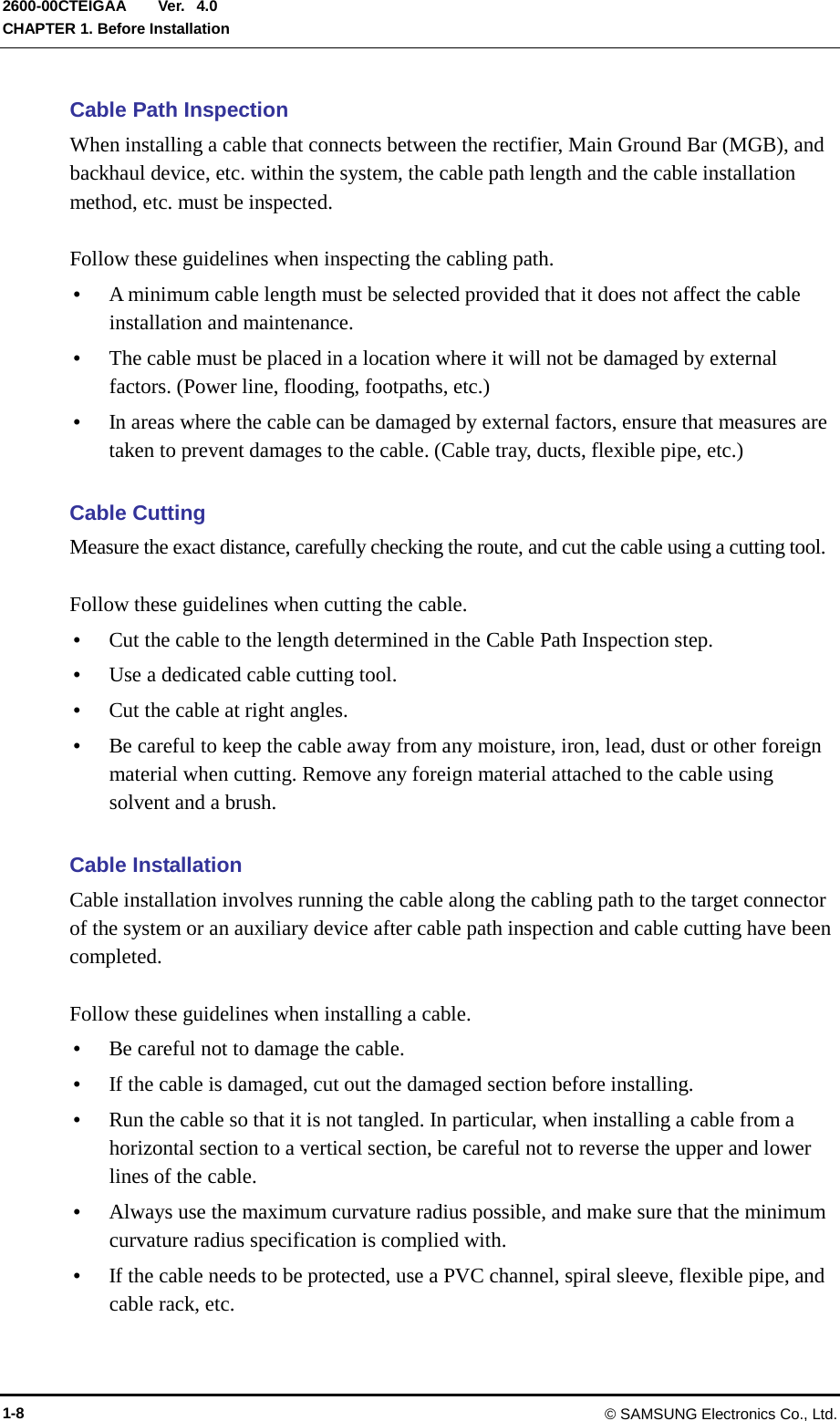

Ver. CHAPTER 1. Before Installation 2600-00CTEIGAA 4.0 Cable Path Inspection When installing a cable that connects between the rectifier, Main Ground Bar (MGB), and backhaul device, etc. within the system, the cable path length and the cable installation method, etc. must be inspected. Follow these guidelines when inspecting the cabling path.  A minimum cable length must be selected provided that it does not affect the cable installation and maintenance.  The cable must be placed in a location where it will not be damaged by external factors. (Power line, flooding, footpaths, etc.)  In areas where the cable can be damaged by external factors, ensure that measures are taken to prevent damages to the cable. (Cable tray, ducts, flexible pipe, etc.) Cable Cutting Measure the exact distance, carefully checking the route, and cut the cable using a cutting tool. Follow these guidelines when cutting the cable.  Cut the cable to the length determined in the Cable Path Inspection step.  Use a dedicated cable cutting tool.  Cut the cable at right angles.  Be careful to keep the cable away from any moisture, iron, lead, dust or other foreign material when cutting. Remove any foreign material attached to the cable using solvent and a brush. Cable Installation Cable installation involves running the cable along the cabling path to the target connector of the system or an auxiliary device after cable path inspection and cable cutting have been completed. Follow these guidelines when installing a cable.  Be careful not to damage the cable.  If the cable is damaged, cut out the damaged section before installing.  Run the cable so that it is not tangled. In particular, when installing a cable from a horizontal section to a vertical section, be careful not to reverse the upper and lower lines of the cable.  Always use the maximum curvature radius possible, and make sure that the minimum curvature radius specification is complied with.  If the cable needs to be protected, use a PVC channel, spiral sleeve, flexible pipe, and cable rack, etc. 1-8 © SAMSUNG Electronics Co., Ltd.

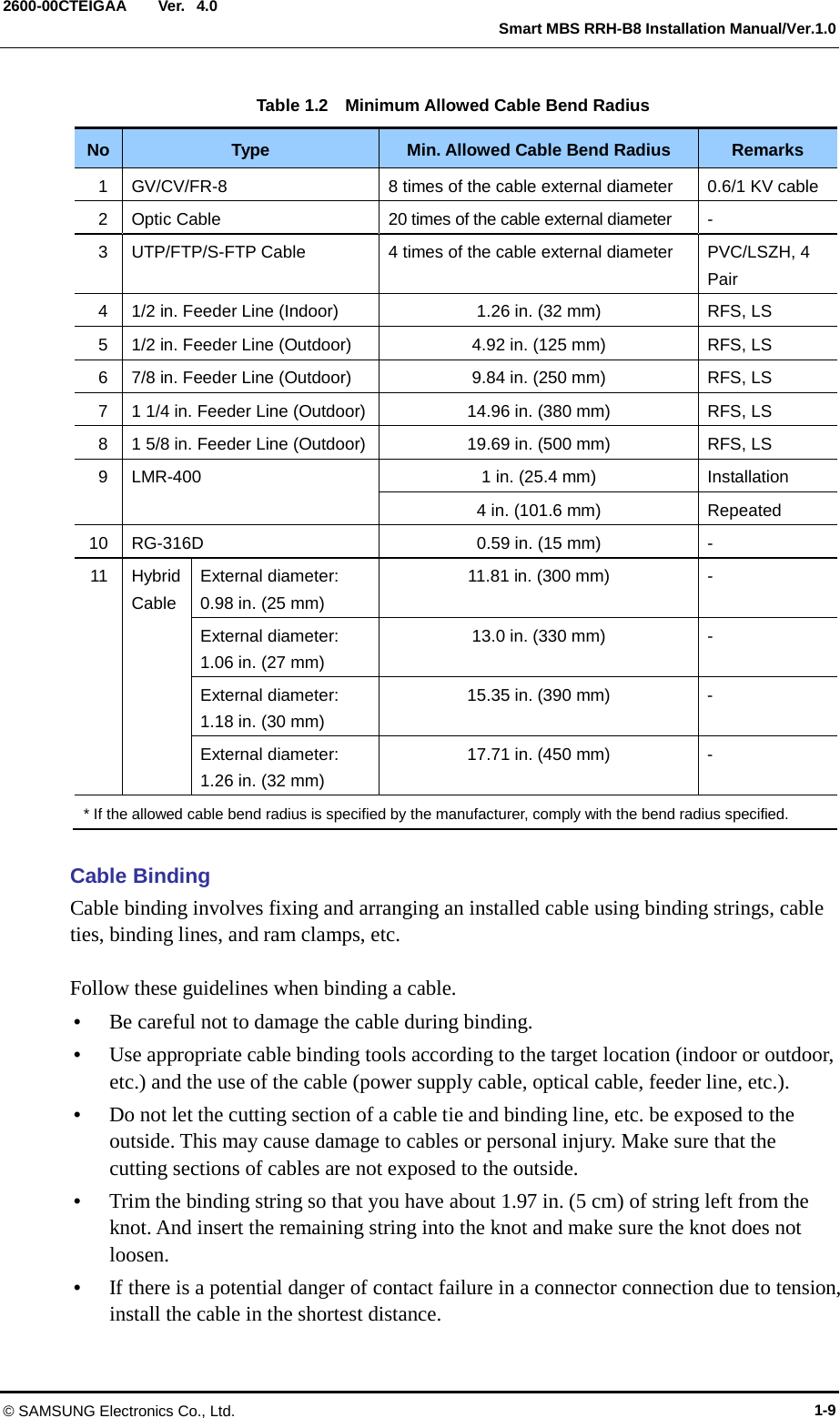

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Table 1.2 Minimum Allowed Cable Bend Radius No Type Min. Allowed Cable Bend Radius Remarks 1 GV/CV/FR-8 8 times of the cable external diameter 0.6/1 KV cable 2 Optic Cable 20 times of the cable external diameter - 3 UTP/FTP/S-FTP Cable 4 times of the cable external diameter PVC/LSZH, 4 Pair 4 1/2 in. Feeder Line (Indoor) 1.26 in. (32 mm) RFS, LS 5 1/2 in. Feeder Line (Outdoor) 4.92 in. (125 mm) RFS, LS 6 7/8 in. Feeder Line (Outdoor) 9.84 in. (250 mm) RFS, LS 7 1 1/4 in. Feeder Line (Outdoor) 14.96 in. (380 mm) RFS, LS 8 1 5/8 in. Feeder Line (Outdoor) 19.69 in. (500 mm) RFS, LS 9 LMR-400 1 in. (25.4 mm) Installation 4 in. (101.6 mm) Repeated 10 RG-316D 0.59 in. (15 mm) - 11 Hybrid Cable External diameter: 0.98 in. (25 mm) 11.81 in. (300 mm) - External diameter: 1.06 in. (27 mm) 13.0 in. (330 mm) - External diameter: 1.18 in. (30 mm) 15.35 in. (390 mm) - External diameter: 1.26 in. (32 mm) 17.71 in. (450 mm) - * If the allowed cable bend radius is specified by the manufacturer, comply with the bend radius specified. Cable Binding Cable binding involves fixing and arranging an installed cable using binding strings, cable ties, binding lines, and ram clamps, etc. Follow these guidelines when binding a cable.  Be careful not to damage the cable during binding.  Use appropriate cable binding tools according to the target location (indoor or outdoor, etc.) and the use of the cable (power supply cable, optical cable, feeder line, etc.).  Do not let the cutting section of a cable tie and binding line, etc. be exposed to the outside. This may cause damage to cables or personal injury. Make sure that the cutting sections of cables are not exposed to the outside.  Trim the binding string so that you have about 1.97 in. (5 cm) of string left from the knot. And insert the remaining string into the knot and make sure the knot does not loosen.  If there is a potential danger of contact failure in a connector connection due to tension, install the cable in the shortest distance. © SAMSUNG Electronics Co., Ltd. 1-9
Ver. CHAPTER 1. Before Installation 2600-00CTEIGAA 4.0 Connector Attachment Connector attachment involves assembling a connector to an installed cable or to a device on the site. Follow these guidelines when attaching a connector.  Make sure you are fully aware of the connector assembly method before assembling a connector. Assemble the connector in accordance with its pin map.  Each connector has a hook to prevent its core positions from being changed.  Use a heat shrink tube at a connector connection for cables that are installed outdoor, such as feeder lines, to prevent water leakage and corrosion from occurring at the part exposed to the outside.  Connect each cable of the connector assembly in a straight line.  Be careful when connecting a cable not to trigger contact failure at a connector connection due to tension. Identification Tag Attachment Identification tag attachment involves attaching a marker cable tie, nameplate, and label, etc. to the both ends of a cable (connections to a connector) to identify its use and cabling path. Marker Cable Tie On the marker cable tie, a label can be attached. The appearance and specification may differ depending on the type and manufacturer. Follow these guidelines when attaching an identification tag.  When installing a cable outdoor, use relief engraving and coated labels, etc. to prevent markings from being erased.  Since the form and attachment method for identification tags are different for each provider, consult with the provider before attaching them. Connecting Ground Cable In cabling, the connection of cables without the connection to the ground cable may cause the damage of the equipment or the bodily injury of the worker. Connect the ground cable first. Cable Installation Checklist When installing, take care not to overlap or tangle the cables; also, consider future expansion. Install the DC power cable and data transmission cable away from the AC power cable to prevent electromagnetic induction. 1-10 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Cable Works The cable works require knowledge for the cabling works such as cable installation/binding. After Installation  Cover the cable hole on the floor with a solid cover.  Remove all installation residues; clean the area. Caution for Laser Beam of Optical Module and Cable The optical module and cable used in the system emit bright laser beams. Always handle them with care as there is risk of serious injury if the eyes are exposed to the laser beam of the optical cable. Caution for cleaning the Rack Make sure that worker does not damage installed cables while cleaning the rack. Caution for cleaning the Power Supply While cleaning the power supply device, take caution that the device does not come in contact with alien bodies that may cause power failure. Damage Prevention For handling devices sensitive to static electricity, be aware of the followings to avoid damages of various board elements.  The board should be kept away from materials prone to static electricity such as plastic, acrylic plates, paper, Styrofoam etc.  The board should be kept in a static electricity prevention storage box. © SAMSUNG Electronics Co., Ltd. 1-11
Ver. CHAPTER 1. Before Installation 2600-00CTEIGAA 4.0 1.5 Installation Tool The basic tools for installation are listed in the table below. The additional tools required for each installation procedure need to be identified and prepared before starting installation. Table 1.3 Basic Installation Tools No. Name Specification 1 Torque driver set No.0~+ No.3 (M2.6~M6 ‘+’ Driver) 0.07~4.34 lbf·ft (1.0~60 kgf.cm) 2 Torque wrench set M6~M12 0.72~2.17 lbf·ft (10~30 kgf.cm), 7.23~36.15 lbf·ft (100~500 kgf.cm), Replaceable head 3 Torx Driver T20 4 Nut driver set 0.24~0.39 in. (6~10 mm) 5 Hacksaw Frame/Blade Normal/HIS 6 Level/Plumb bobs Normal/1.10 lb (500g) 7 Heating gun 122~572°F (50~300°C) 8 Solder 30~130 W 9 Power extension cable 98.42 ft (30 m) 10 Tape measure 16.4 ft/164 ft (5 m/50 m) 11 Cable cutter 12.8 in. (325 mm) 12 Silicon gun/Silicon Normal/Gray & Colorless 13 Spanner 0.75 in. 0.94 in. 1.42 in. (19 mm, 24 mm, 36 mm) 14 Hexagonal wrench bolt - 15 Hoisting wire 82 ft (25 m) 16 Flare Nut Wrench Hexagon 7/8 in. Precautions for use of Installation Tools The required installation tools may vary depending on the conditions at the site. In addition to the basic tools, a protractor, compass, GPS receiver, ladder, safety equipment, cleaning tools etc. should also be prepared in consideration of the site conditions. 1-12 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual 1.0 CHAPTER 2. Installation of RRH-B8 2.1 Installation Procedure The following diagram shows RRH-B8 installation procedure. Figure 2.1 System Installation & Cable Connection Procedure Cabling in the Cabinet Cabling the Hybrid Cable Check * This procedure may be omitted when using an existing installation. If required, additional work can be done through the standard procedure, and thus will not be described in this manual. Antenna Installation Material Check * Antenna Mounting System Installation Cabling from Antenna to RRH RRH Installation * Buss bar Installation RRH Grounding Cabling in the RRH © SAMSUNG Electronics Co., Ltd. 2-1
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 2.2 Foundation Work 2.2.1 Equipment Arrangement A minimum distance must be secured around the RRH-B8 in each direction for installation and maintenance. Table 2.1 Recommended Distances for System Arrangement Item Recommended Distances Front/Rear 31.5 in. (800 mm) or more Sides 23.62 in. (600 mm) or more Figure 2.2 RRH-B8 Installation Space (pole type) Equipment Installation Space The figure above illustrates the installation space using a 4 in. (101.6 mm)/90 A diameter pole. The measures may differ depending on the diameter of the pole. 22.98(583.6) Pole (Φ 3~4.5 in./Φ 76.3~114.3 mm) 5.57(141.6) 15.03(382) Unit: in. (mm) 9.09(231) 2-2 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 2.3 Unpacking and Transporting This paragraph describes the work to unpack cabinets and other components and transport them to the place to be installed. The cabinet is externally packed and cabinet and other components are individually packed.  The external packing should be unpacked outside of the building. If necessary, it can be unpacked after transporting to the area near installation place.  Transport the cabinet to the installation place. Be aware of the damage of walls, pillars, and bottom of the passage when transporting the cabinet.  Transport other components with packing and sort by types. 2.3.1 Importing Items To import items, be aware of the followings:  Regarding equipment weight and size, check the path to bring the equipment.  Lay Iron and veneer boards on stairs or doorsills to make the transportation easy.  When bring in equipment, beware of damage or impairment of main entrance, walls, pillars, and floors of the station. Prepare protection materials and fix them with a high-strength adhesive.  Carry boards in packing status, and unpack them when installing or mounting. Vibration Level for Transportation  When carrying the system, fasten the system firmly not to exceed the proper vibration level from 1 to 500 Hz.  When carrying system, use a lift to prevent accidents. However, if the system should be carried by people, enough people are required to carry the system.  Before moving the system, check the storage place for the system and remove obstacles in advance. While moving system, boards and other devices should not be shocked physically and damaged caused by dust, moisture, and static electricity. When installing the items imported, abide by the following:  System should be installed in a location whose access is not easy from outside. 2.3.2 Unpacking Items The procedure to unpack items is as follows:  The packing items should be packed until they reach the installation place.  The items are classified in accordance with each job specification and stored on a place with no interference on working.  Unpacked systems should be installed immediately. If not installed immediately, the systems should be stored in the installation place temporarily.  Unpack the inner packaging after each system is placed on its installation location.  Unpack the inner packaging after each system is placed on its installation location.  Do not recycle the packaging waste. Dispose of them pursuant to the rules. © SAMSUNG Electronics Co., Ltd. 2-3
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 2.4 Fixing the System 2.4.1 Fixing Unit Mounting Bracket Follow the steps below to fix the unit mounting bracket to the RRH-B8. Figure 2.3 Fixing Unit Mounting Bracket (1) 1) Allign the bakelite and unit mounting bracket_top to the upper rear fixing holes of RRH-B8 and fix them firmly in place using insulation bushings, plain washers, spring washers, and M8 hex. bolts. Bakelite Unit Mounting Bracket_Top M8 Insulation Bushing M8 Plain Washer M8 Spring Washer M8 x 30L Hex. Bolt 2-4 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.4 Fixing Unit Mounting Bracket (2) 2) Allign the bakelite and unit mounting bracket_bottom to the lower rear fixing holes of RRH-B8 and fix them firmly in place using insulation bushings, plain washers, spring washers, and M8 hex. bolts. Bakelite Unit Mounting Bracket_Top M8 Insulation Bushing M8 Plain Washer M8 Spring Washer M8 x 30L Hex. Bolt © SAMSUNG Electronics Co., Ltd. 2-5
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Unit Mounting Bracket Configuration Check Unit mounting brackets are categorized as top and bottom. [Unit Mounting Bracket_Top] [Unit Mounting Bracket_Bottom] Unit Mounting Bracket_Top Unit Mounting Bracket_Bottom 2-6 © SAMSUNG Electronics Co., Ltd.

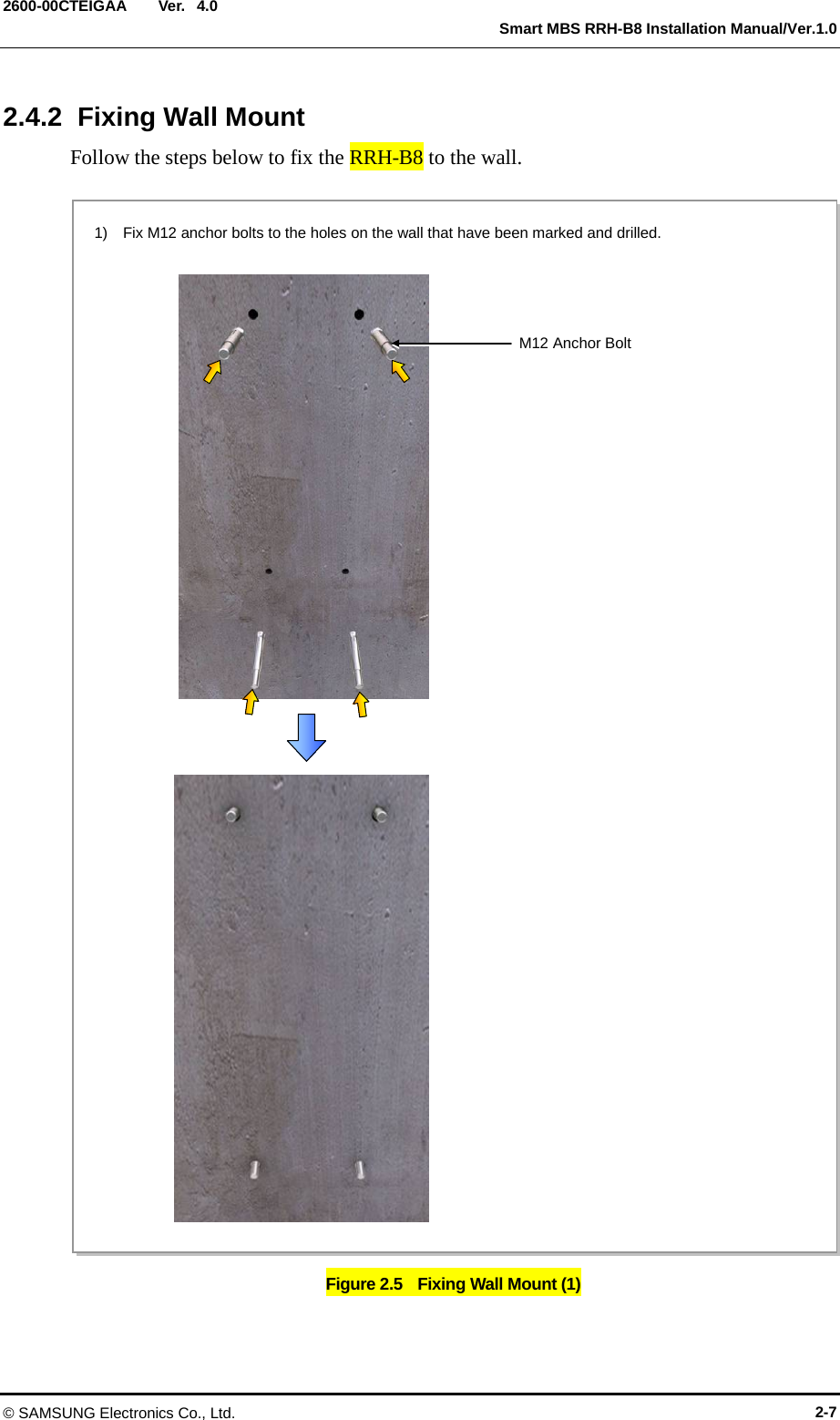

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 2.4.2 Fixing Wall Mount Follow the steps below to fix the RRH-B8 to the wall. Figure 2.5 Fixing Wall Mount (1) 1) Fix M12 anchor bolts to the holes on the wall that have been marked and drilled. M12 Anchor Bolt © SAMSUNG Electronics Co., Ltd. 2-7
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Figure 2.6 Fixing Wall Mount (2) 2) Hang the RRH-B8 unit mounting brackets by alligning the bracket holes to the M12 anchor bolts that are fixed onto the wall and fix them in place using M12 plain washers, spring washers, and hex. bolts. M12 Anchor Bolt M12 Plain Washer M12 Spring Washer M12 Hex. Nut M12 Plain Washer M12 Spring Washer M12 Hex. Nut 2-8 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Cautions When Using Wall Mount Fasteners The fasteners used to attach the wall mount, including the anchor bolts, spring washers, plain washers and hex. nuts must be made of stainless steel (STS 304). Otherwise, it may cause corrosion and rust to fixing materials. © SAMSUNG Electronics Co., Ltd. 2-9

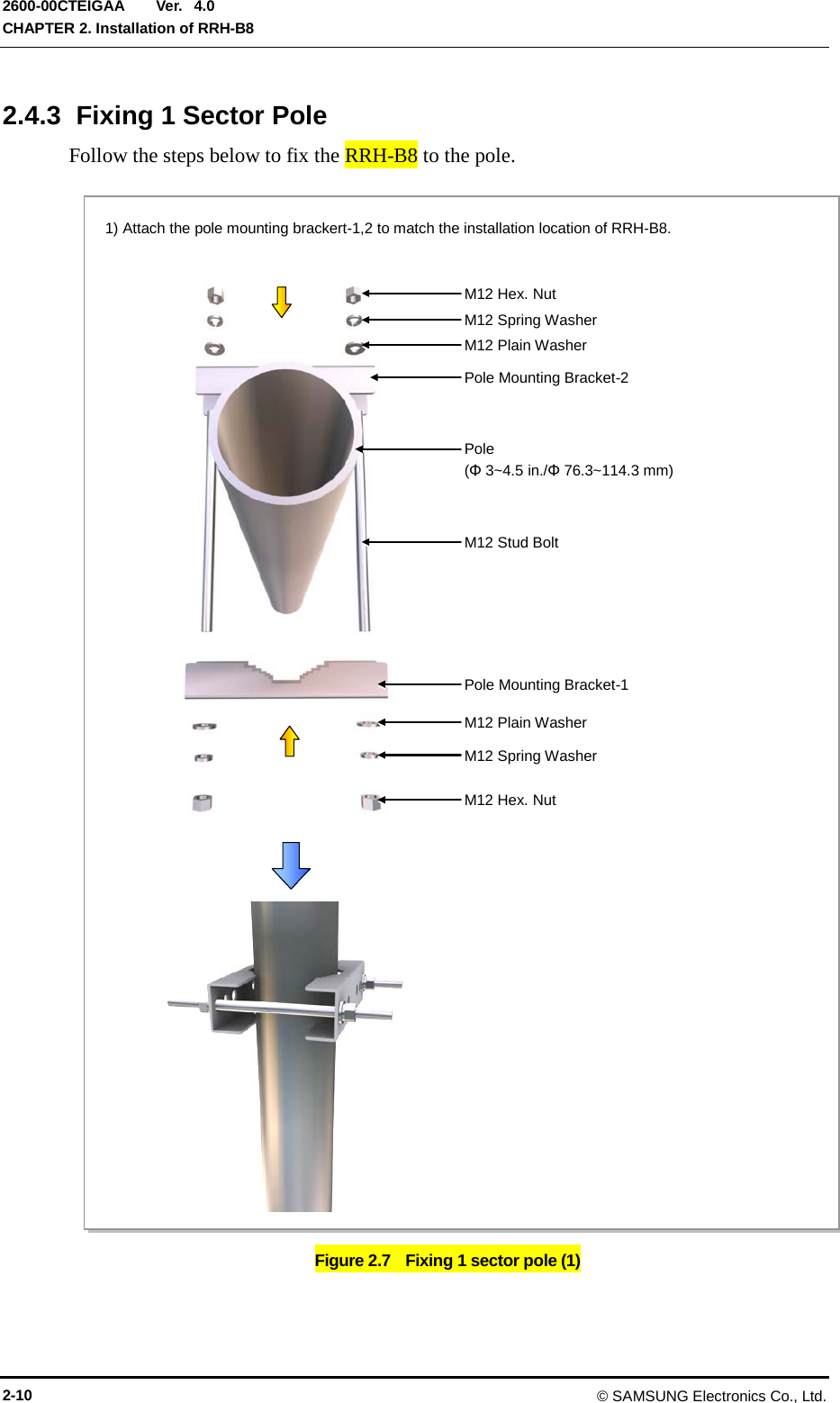

Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 2.4.3 Fixing 1 Sector Pole Follow the steps below to fix the RRH-B8 to the pole. Figure 2.7 Fixing 1 sector pole (1) 1) Attach the pole mounting brackert-1,2 to match the installation location of RRH-B8. Pole Mounting Bracket-1 M12 Plain Washer M12 Spring Washer M12 Hex. Nut M12 Stud Bolt Pole Mounting Bracket-2 M12 Plain Washer M12 Spring Washer M12 Hex. Nut Pole (Φ 3~4.5 in./Φ 76.3~114.3 mm) 2-10 © SAMSUNG Electronics Co., Ltd.

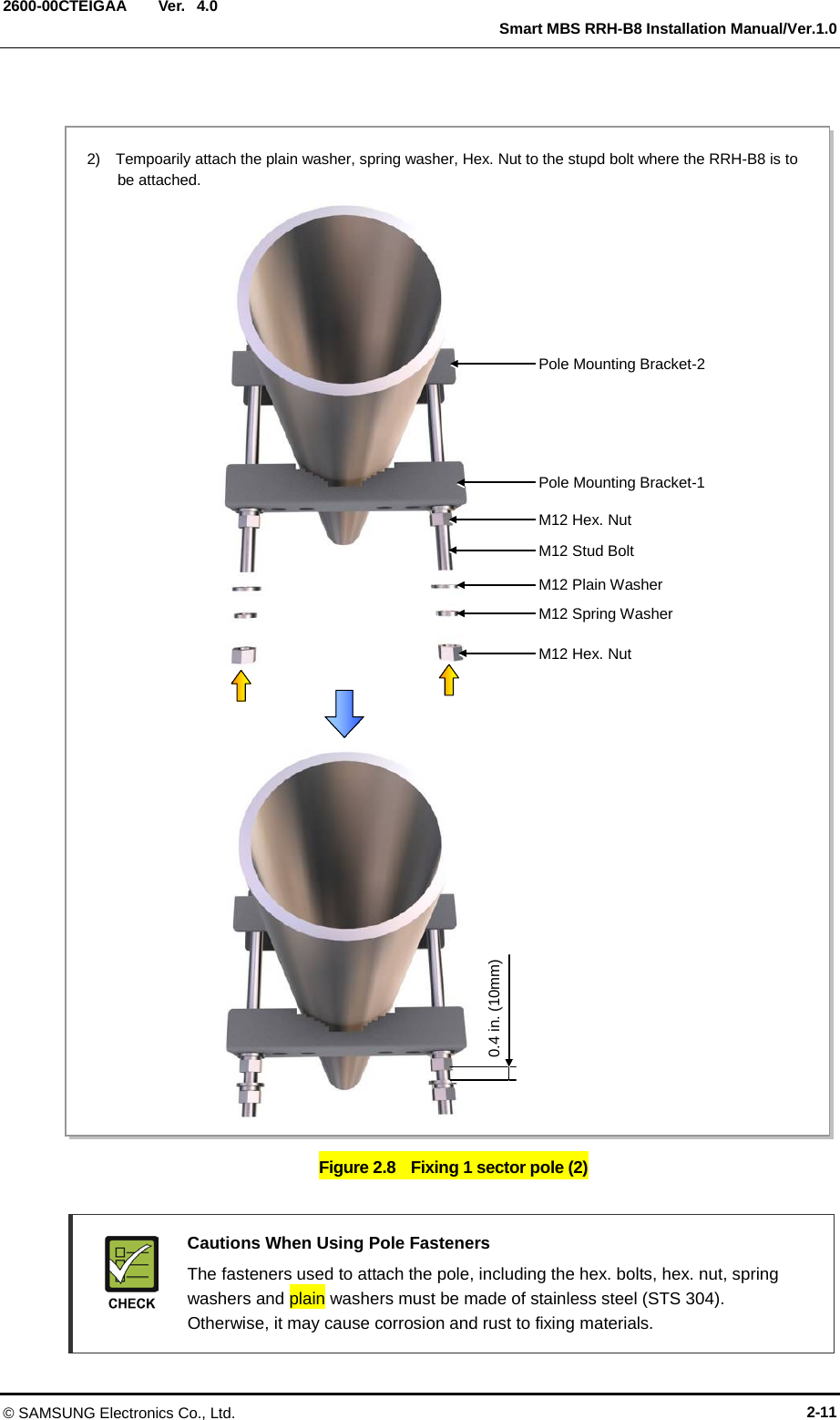

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.8 Fixing 1 sector pole (2) Cautions When Using Pole Fasteners The fasteners used to attach the pole, including the hex. bolts, hex. nut, spring washers and plain washers must be made of stainless steel (STS 304). Otherwise, it may cause corrosion and rust to fixing materials. 2) Tempoarily attach the plain washer, spring washer, Hex. Nut to the stupd bolt where the RRH-B8 is to be attached. Pole Mounting Bracket-1 M12 Hex. Nut M12 Plain Washer M12 Spring Washer M12 Hex. Nut M12 Stud Bolt 0.4 in. (10mm) Pole Mounting Bracket-2 © SAMSUNG Electronics Co., Ltd. 2-11
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Figure 2.9 Fixing 1 sector pole (3) 3) Attach the M12 Hex. Nut to the point 1.96 in. (50mm) from one end of the M12 stud bolt. M12 Stud Bolt 1.96 in. (50mm) M12 Hex. Nut 4) Insert the M12 stud bolt into the hole of the Pole mounting bracket-3 and use plain washer, spring washer, Hex. Nut to fasten it hard. M12 Hex. Nut M12 Stud Bolt Pole Mounting Bracket-3 Pole Mounting Bracket-3 M12 Hex. Nut M12 Spring Washer M12 Plain Washer Pole Mounting Bracket Assembly 2-12 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.10 Fixing 1 sector pole (4) 5) Attach the pole mounting bracket assembly to the RRH-B8 unit mounting bracket-bottom. M12 Hex. Nut Pole Mounting Bracket assembly Unit Mounting Bracket-Bottom M12 Spring Washer M12 Plain Washer © SAMSUNG Electronics Co., Ltd. 2-13

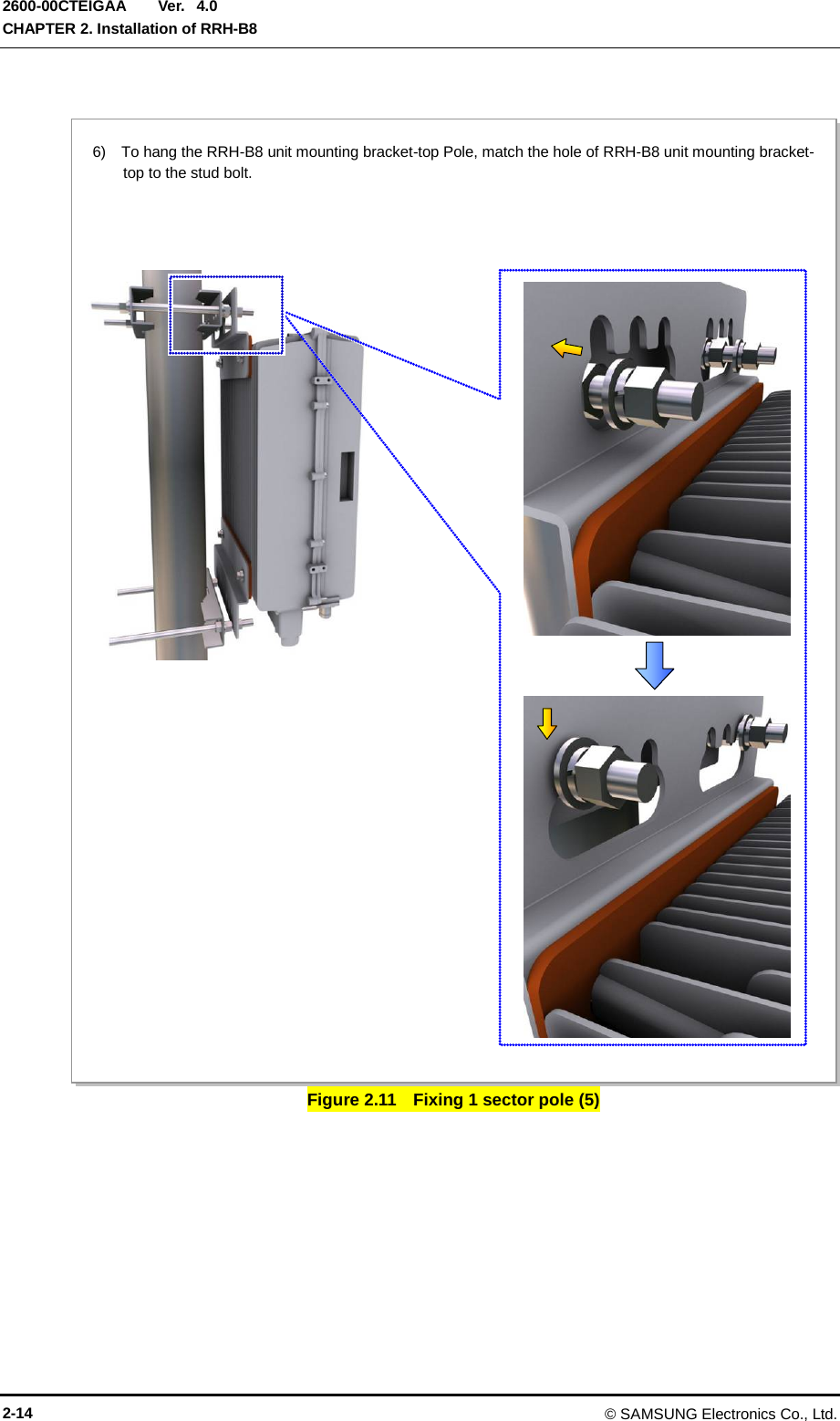

Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Figure 2.11 Fixing 1 sector pole (5) 6) To hang the RRH-B8 unit mounting bracket-top Pole, match the hole of RRH-B8 unit mounting bracket-top to the stud bolt. 2-14 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.12 Fixing 1 sector pole (6) 7) Attach the pole mounting bracket assembly on the lower part of RRH-B8 and the pole mounting bracket-4. Pole Mounting Bracket-4 M12 Plain Washer M12 Spring Washer M12 Hex. Nut Pole Mounting Bracket Assembly © SAMSUNG Electronics Co., Ltd. 2-15

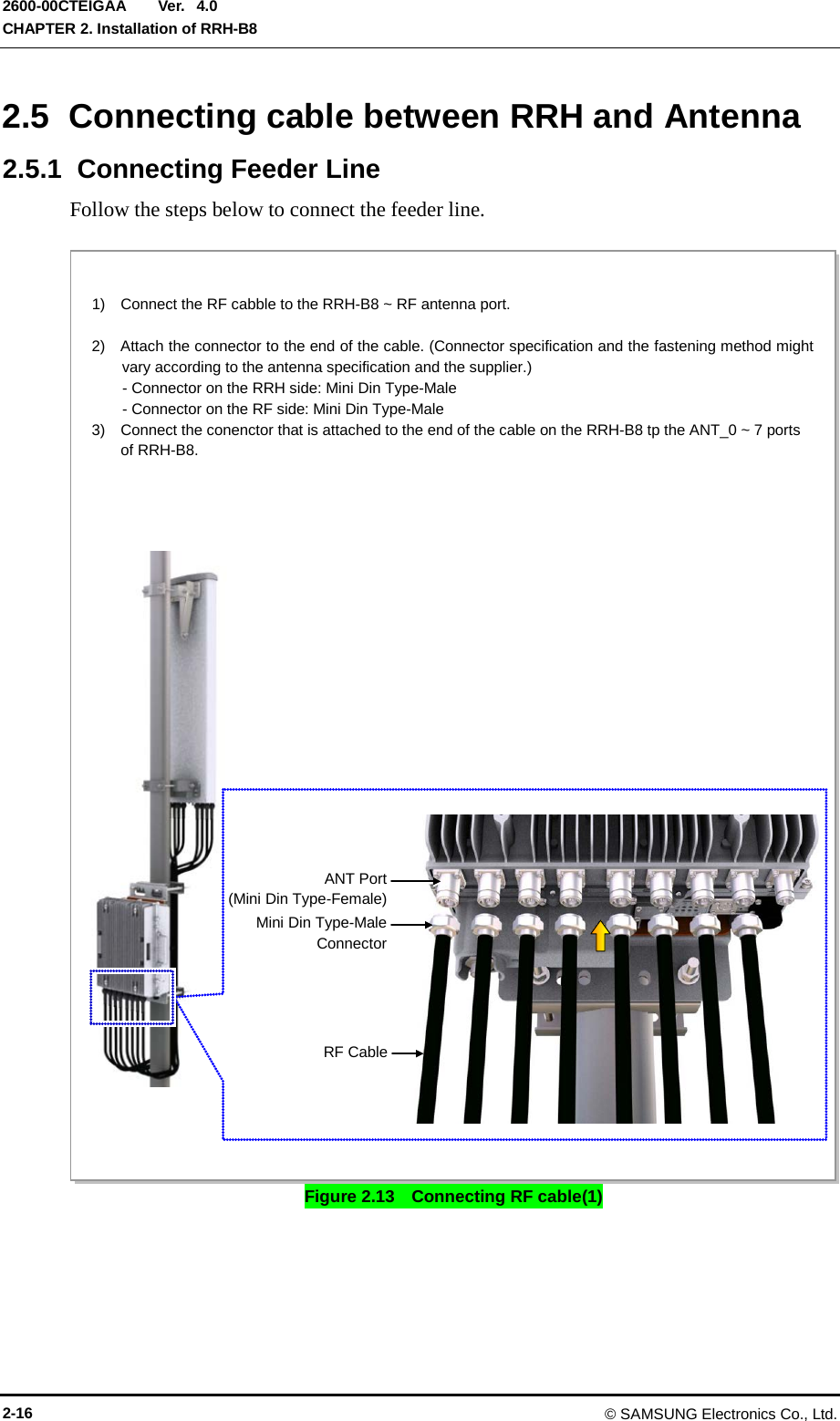

Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 2.5 Connecting cable between RRH and Antenna 2.5.1 Connecting Feeder Line Follow the steps below to connect the feeder line. Figure 2.13 Connecting RF cable(1) 1) Connect the RF cabble to the RRH-B8 ~ RF antenna port. 2) Attach the connector to the end of the cable. (Connector specification and the fastening method might vary according to the antenna specification and the supplier.) - Connector on the RRH side: Mini Din Type-Male - Connector on the RF side: Mini Din Type-Male 3) Connect the conenctor that is attached to the end of the cable on the RRH-B8 tp the ANT_0 ~ 7 ports of RRH-B8. RF Cable Mini Din Type-Male Connector ANT Port (Mini Din Type-Female) 2-16 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.14 Connecting RF cable(2) Mini Din Type-Male Connector Butyl Rubber Tape (Thickness: 0.5 mm, Width: 19~20 mm) Insulating Tape 50 mm 4) When the connector is connected, wind the butyl rubber tape (Thickness: 0.5 mm, Width: 19~20 mm) more than two times around the connector on the system side and the point 50mm under the connector. 5) Using the insulating tape, wind more than two times around the part that is taped with the Butyl rubber tape as the same way as the above step. 6) Tie the end of the insulating tape with a cable tie or apply glue or silicon so that the tape does not become loose. Butyl Rubber Tape Cable Tie Cable Tie © SAMSUNG Electronics Co., Ltd. 2-17
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Figure 2.15 Connecting RF cable(3) Caution for connecting and disconnecting Feeder Line Connector - Check whether the system is turned off before connecting or disconnecting a feeder line connector to or from the RRH-B8 RF port and the RF antenna. - When connecting the feeder line between RRH-B8 RF port and RF antenna, each port and the feeder line connector should be tighten by 14.46 lbf.ft (200 kgf.cm) torque to minimize influence of PIMD. 7) Connect the connector that is attached to the end of the cable to the antenna insertion port RF. 8) When the connector is connected, complete the process as done for the connector of RRH-B8. Antenna Input Port (Mini Din Type-Female) Cable Tie Cable Tie Mini Din Type-Male RF Cable 2-18 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Caution when Installing the RF antenna To protect from lightning, the RF antenna must be installed within the shielding angle as shown below, considering the downward distance and the angle from the tower lightning rod or the antenna pole lightning rod. - The protection angle of the lightning rod should be 45 degrees. Lightning rod 45° 45° RF Antenna © SAMSUNG Electronics Co., Ltd. 2-19
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Checking Feeder line Connection After connecting the feeder line, perform the continuity test and feeder cable return loss to check if the feeder cable is changed and measure VSWR of antenna and feeder cable. Take measurements for the sections - for all of the cables. The standing wave ratio must be equal to or less than the reference value. If not, the cable must be removed, measured for each section again, and necessary actions be taken. VSWR Standard The standing wave ratio (VSWR) of the cable and connector between the system’s RF port to the antenna port must be smaller than 1.5 (return loss: 14 dB). If a separate standard has been established with the career, the established standard will take precedence. Identification tag installation Attach the identification tag in the below table to the feeder line. Table 2.2 GPS Identification Tag of Feeder line Category Description Installation position Attach the identification tag to the both ends of the antenna. Materials Use the material of aluminum coated by vinyl for the identification tag. Fixing method Fix the feeder cable to the 2 holes on the identification tag with the black cable tie. Marking The markings must be prevented from being erased by using relief engraving or coated labels. Antenna System’s external ‘I connector’ connection 2-20 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 2.5.2 Connecting RET cable Follow the steps below to connect the Remote Electrical Tilting (RET) cable used to control the tilting angle of the antenna from the distance. Figure 2.16 Connecting RET cable RET Cable(Shield Type) 1) Connect the AISG Male connector of the RET cable assembly to the RET port on the lower part of the RRH-B8. 2) Connect the AISG Female connector of the RET cable assembly to the RET port on the lower part of the RF antenna. AISG Female Connector RET Cable(Shield Type) AISG Male Connector © SAMSUNG Electronics Co., Ltd. 2-21
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Figure 2.17 RET Cable connector Table 2.3 RET Cable-Side Connector Pin Map Amphenol AISG Connector Male Function Female 1 +12 V Optional (N.C) 1 2 N.C 2 3 RS485 B 3 4 RS485 GND 4 5 RS485 A 5 6 +21 V 6 7 +21 V RTN 7 8 N.C 8 Caution When Connecting RET Cable Make sure to turn off the breaker connected to the RRH-B8 power of the DU cabinet before connecting the RET cable between the antenna RET port and the RRH-B8 RET port. If you connect or disconnect the RET cable while the breaker is turned on, it may cause an electric short circuit resulting in damage to the RET function. [RRH-B8-side Connector: AISG Male] [Antenna-side Connector: AISG Female] 6 8 1 4 2 5 3 7 8 6 1 4 2 7 3 5 2-22 © SAMSUNG Electronics Co., Ltd.

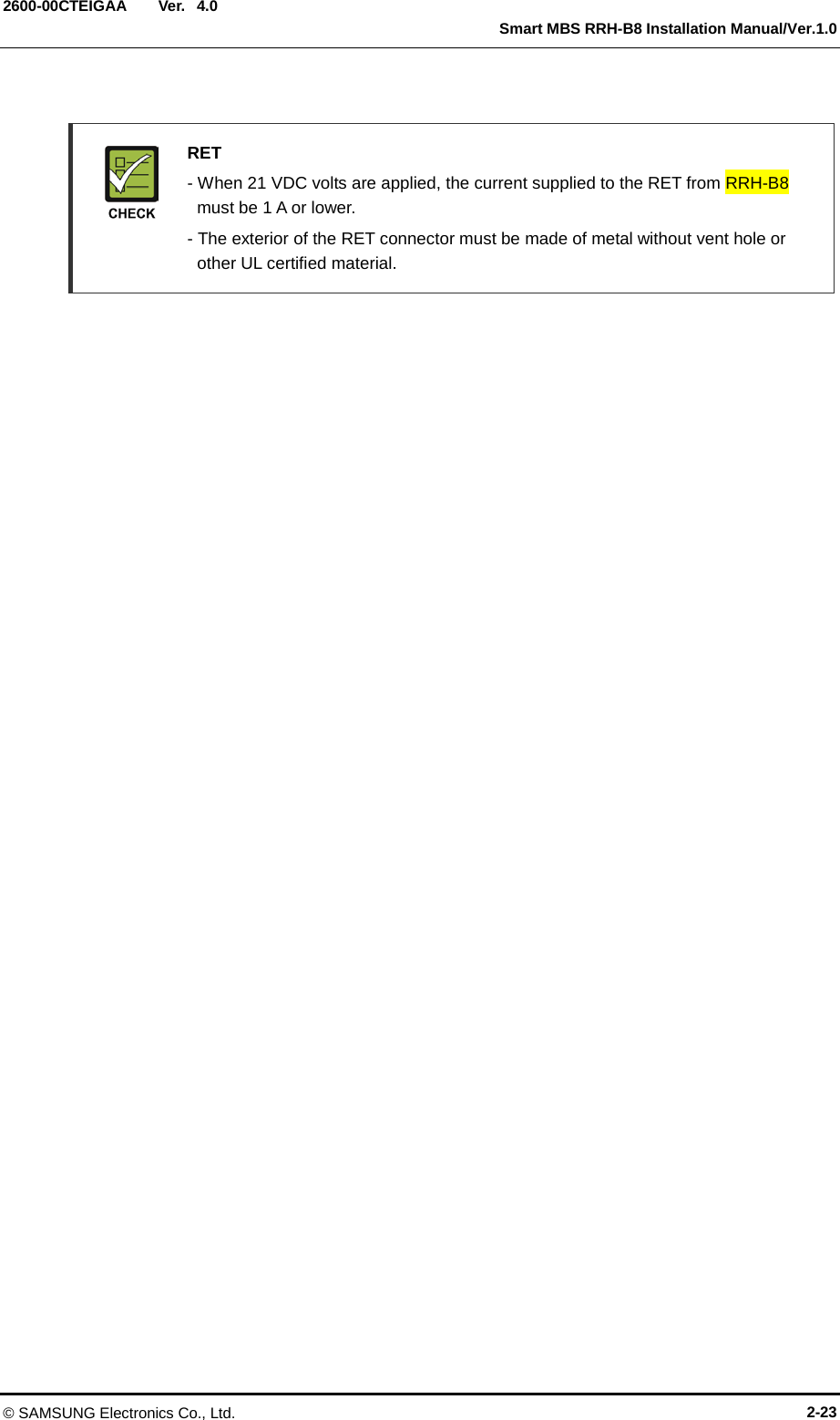

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 RET - When 21 VDC volts are applied, the current supplied to the RET from RRH-B8 must be 1 A or lower. - The exterior of the RET connector must be made of metal without vent hole or other UL certified material. © SAMSUNG Electronics Co., Ltd. 2-23

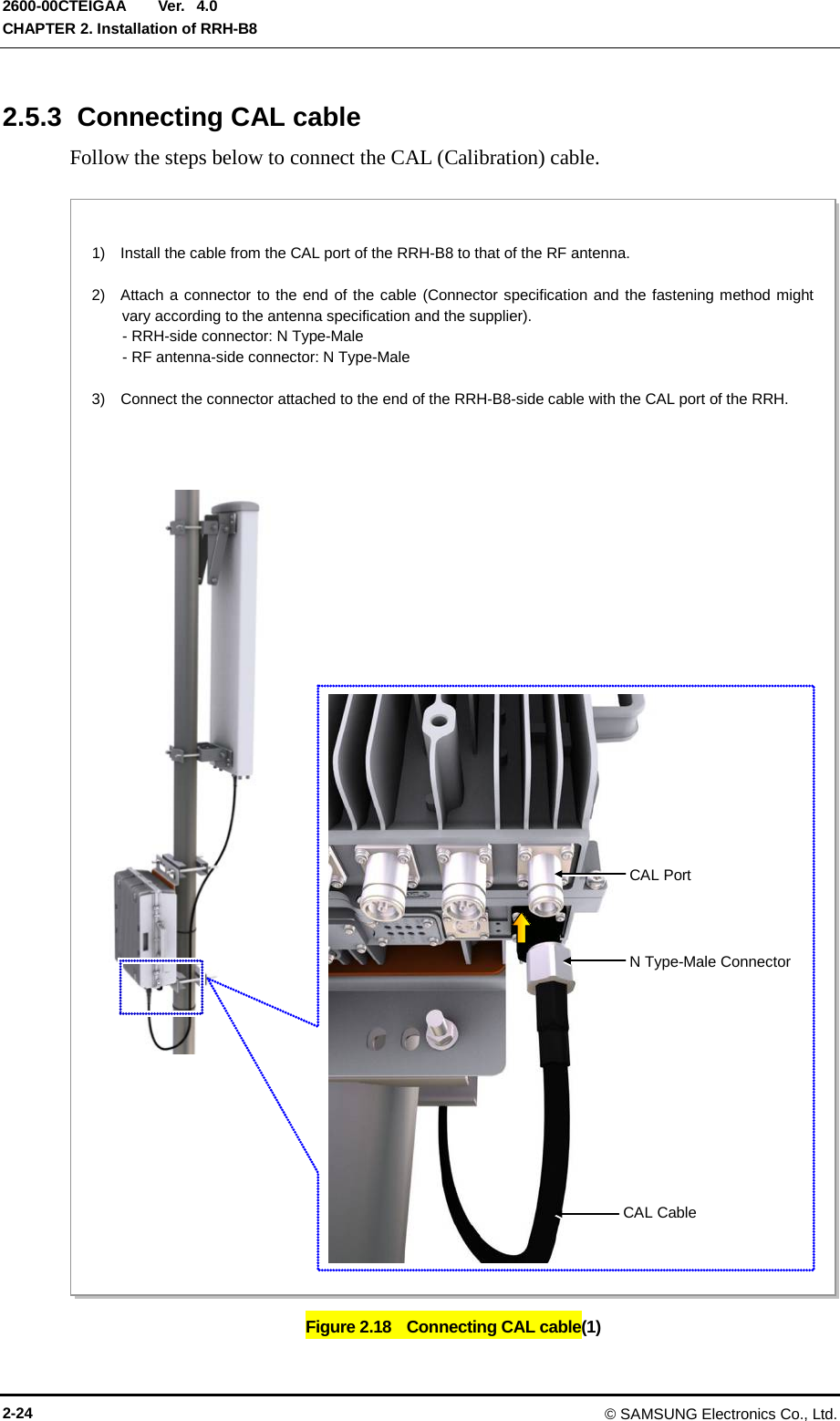

Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 2.5.3 Connecting CAL cable Follow the steps below to connect the CAL (Calibration) cable. Figure 2.18 Connecting CAL cable(1) 1) Install the cable from the CAL port of the RRH-B8 to that of the RF antenna. 2) Attach a connector to the end of the cable (Connector specification and the fastening method might vary according to the antenna specification and the supplier). - RRH-side connector: N Type-Male - RF antenna-side connector: N Type-Male 3) Connect the connector attached to the end of the RRH-B8-side cable with the CAL port of the RRH. CAL Cable CAL Port N Type-Male Connector 2-24 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.19 Connecting CAL cable(2) N Type-Male Connector CAL Cable Butyl Rubber Tape (thickness: 0.5 mm, width: 19~20 mm) Insulating tape 50 mm Cable Tie 4) When the connector is connected, put the butyl rubber tape (thickness: 0.5 mm, width: 19 – 20 mm) around the connector more than twice starting fromn the system-side connector to the point 50 mm below the connector. 5) Put the insulating tape around the part with the butyl rubber tape more than twice as shown in the figure below. 6) Tie the end of the insulating tape with a cable tie or apply adhesive or silicon on it so that the tape would not be loosened. Butyl Rubber Tape (thickness: 0.5 mm, width: Cable Tie © SAMSUNG Electronics Co., Ltd. 2-25

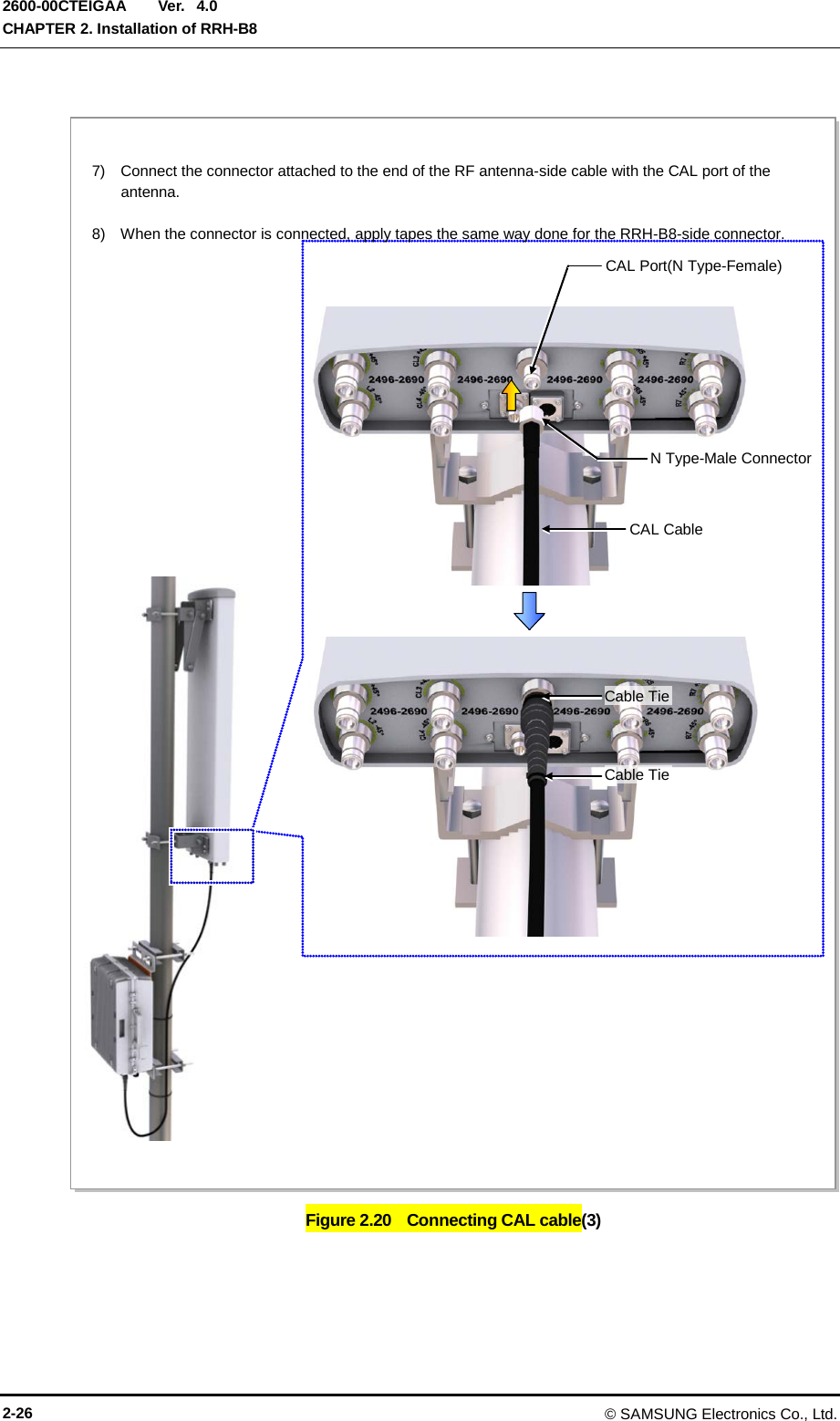

Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Figure 2.20 Connecting CAL cable(3) 7) Connect the connector attached to the end of the RF antenna-side cable with the CAL port of the antenna. 8) When the connector is connected, apply tapes the same way done for the RRH-B8-side connector. CAL Port(N Type-Female) N Type-Male Connector CAL Cable Cable Tie Cable Tie 2-26 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 2.6 Connecting Ground Cable 2.6.1 Grounding RRH-B8 Follow the steps below to connect the RRH-B8 ground cable. Figure 2.21 Connecting RRH-B8 Ground cable 1) Install one ground cable (AWG8, GV 6 mm2 × 1 C) from TGB to the ground terminal at the right of RRH-B8. 2) Install the pressure terminal and the heat shrink tube at the end of the cable. - Pressure Terminal: 6 mm2, 2hole, Hole Diameter: 1.4 in. (6.3 mm), Hole Distance: 0.63 in. (16 mm) 3) Place the pressure terminal at one end of the ground cable of RRH-B8 aligning with the fixing holes and fix it using M6 SEMS. (When being tighten by screw, apply 2.76~3.37 lbf.ft (38.16~46.64 kgf.cm) torque.) RRH-B8 Ground Cable [MGB] M6 × 10L SEMS Ground Cable (AWG8, GV 6 mm2 × 1C) From TGB (Tower Ground Bar) Heat Shrink Tube (Green) 6 mm2 Pressure Terminal (2Hole, Hole diameter: 1/4 in., Hole distance: 0.63 in.) © SAMSUNG Electronics Co., Ltd. 2-27
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Pressure terminal As for the pressure terminal or the cable, the UL Listed products or equivalent should be used. Ex) Manufacturer-Panduit RRH-B8: 6 mm2 Pressure Terminal (LCD8-14A-L) 2-28 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 2.7 Connecting Hybrid cable 2.7.1 Installing Hybrid cable Follow the steps below to install the hybrid cable. 1) Unpack the box. (A-D) 2) Pull up the tower. (E-F) Figure 2.22 Installing Hybrid cable (1) A) Use a crowbar to open the wooden box cover. After opening the cover, ensure to remove the remaining nails as they may cause injury. B) Hold both ends of the hybrid cable and lift it out of the box. Tape the power cable and optic cable separately at 3.28 ft (1 m) interval. Also, tape the exposed optic connector to prevent damage. 3.28 ft (1 m) ... Tape 3.28 ft (1 m) Cover Crowbar Wooden Box © SAMSUNG Electronics Co., Ltd. 2-29
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Figure 2.23 Installing Hybrid cable (2) C) Take the cable out of the box paying attention not to impact the junction box and the jumper cable. Be careful not to drag the jumper cable on the floor. D) Lay the hybrid cable on the floor. Junction Box Jumper Cable 2-30 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.24 Installing Hybrid cable (3) E) Install pulling wire to the 3.28 ft (1 m) point of (RRH side) hybrid cable’s junction box (breakout point) bottom. Wind the pulling wire by 7 times or more to the 3.28 ft (1 m) or more length of hybrid cable. Junction Box (Breakout Point) Min. 1 m Pulling Wire Min. 3.28 ft (1 m) 1 2 3 4 5 6 7 © SAMSUNG Electronics Co., Ltd. 2-31
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Figure 2.25 Installing Hybrid cable (4) F) Fix the cable to the hoisting wire with a cable tie at regular intervals [within 3.28 ft (1 m)] to prevent impact or tension to the upper side of the junction box when lifting the hoist. Maintain hoisting wire in a straight line, separate the RRH-side cable’s curve from the hoisting wire with 5.9 in. (150 mm) or more distance. And fix cable and wire with cable tie. (When lifting the hoist, be careful not to apply tension to other areas of the hybrid cable except where the pulling wire is attached.) Max. 3.28 ft (1 m) Junction Box (Breakout Point) Pulling Wire Hoisting Wire Max. 3.28 ft (1 m) Max. 3.28 ft (1 m) Hoisting Wire Hybrid Cable More than 5.95 in. (150 mm) 2-32 © SAMSUNG Electronics Co., Ltd.

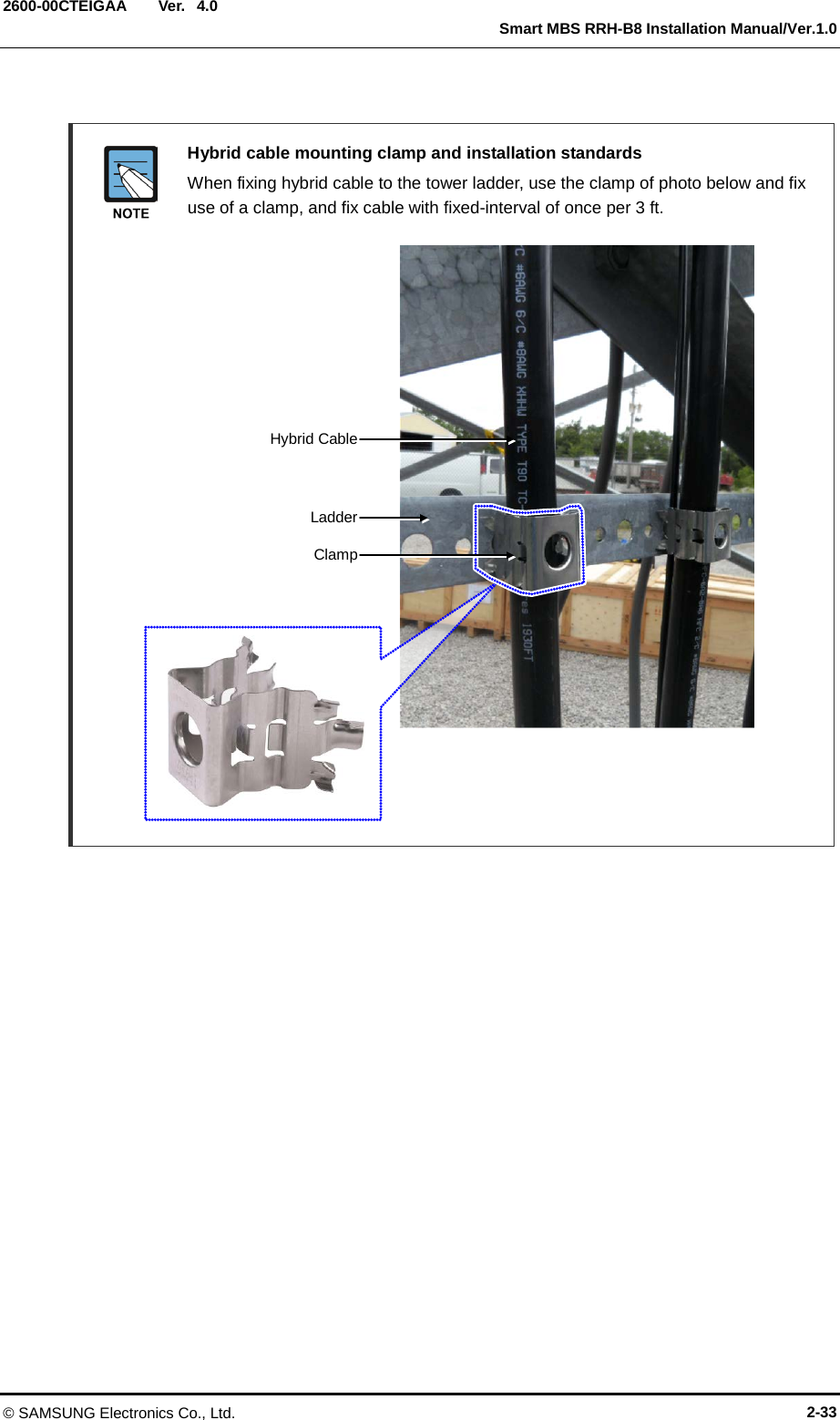

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Hybrid cable mounting clamp and installation standards When fixing hybrid cable to the tower ladder, use the clamp of photo below and fix use of a clamp, and fix cable with fixed-interval of once per 3 ft. Clamp Ladder Hybrid Cable © SAMSUNG Electronics Co., Ltd. 2-33
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 2.7.2 Connecting DU Cabinet side cable If the length of the hybrid cable is inadequate for the installation: 1) Measure the hybrid cable’s excess length. (With a white marker pen, mark the area of the cable where the double-layer sheath will be peeled when positioned in the conduit fitting.) 2) Using a knife, peel off the heat shrink tube that binds the cables together. 3) Pull the peeling wire in the inside of the hybrid cable’s double-layer sheath down to the previously marked area. 4) Peel off the hybrid cable’s sheath. 5) Peel off the aluminum foil wrapped around the inner cable. 6) For all power cables, leave 23.62 in. (600 mm) from where the double-layer sheath has been peeled off and cut the excess length off. 7) Unsheathe the end of the power cable wire at 0.59 in. (15 mm). 8) Using a conduit, insert the hybrid cable’s power cable and optic cable together into the cabinet. Be careful not to damage the optic cable’s connector. 9) From the inside of the cabinet, pull the optic cable to the right side of the system and attach temporarily with a cable tie. 10) Using a flat-head screwdriver (-, 1x100), turn the RRH power terminal’s screw counter-clockwise twice to 3 times. 11) Insert the power cable to the terminal according to its use and polarity, then fasten the screw with a torque of 1.3~1.59 lbf.ft (18~22 kgf.cm). 12) Bind two cables (-48 V, RTN) at 3.94 in. (100 mm) from the terminal using a cable tie. 13) Bury the optic cable following the system’s inner-right wall up to the UADU#0 side and bind using a cable tie. 14) Connect the connector of the optic cable to UADU’s designated port. (Loop the optic cable’s excess length respecting the bending radius ‘R=4.33 in. (110 mm)’, and arrange it in the cable tray box. Be careful not to damage the optic cable during other works.) 2-34 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.26 Peeling off the Hybrid Cable Sheath Knife 1) Using a knife, peel off the heat shrink tube that binds the cables together. 1 Heat Shrink Tube Peeling Wire Hybrid Cable Sheath 2) Pull the peeling wire to cut the hybrid cable’s sheath. 2 3) Peel off the hybrid cable’s sheath. Hybrid Cable Sheath 3 4 4) Peel off the aluminum foil wrapped around the inner cable. © SAMSUNG Electronics Co., Ltd. 2-35
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 If the length of the hybrid cable is adequate for the installation: 1) For all power cables, leave 23.62 in. (600 mm) from where the double-layer sheath has been peeled off and cut the excess length off. 2) Unsheathe the end of the power cable wire at 0.59 in. (15 mm) length. 3) Using a conduit, insert the hybrid cable’s power cable and optic cable together into the cabinet. Be careful not to damage the optic cable’s connector. 4) From the inside of the cabinet, pull the optic cable to the right side of the system and attach temporarily with a cable tie. 5) Using a flat-head screwdriver (-, 1x100), turn the RRH power terminal’s screw counter-clockwise 2 to 3 times. 6) Insert the power cable to the terminal according to its usage and polarity, then fasten the screw. 7) Bind two cables (-48 V, RTN) at 3.94 in. (100 mm) from the terminal using a cable tie. 8) Bury the optic cable following the system’s inner-right wall up to the UADU#0 side and bind using a cable tie. 9) Connect the connector of the optic cable to UADU’s designated port. (Loop the optic cable’s excess length respecting the bending radius ‘R=4.33 in. (110 mm)’, and arrange it in the cable tray box. Be careful not to damage the optic cable during other works.) Figure 2.27 Connecting Hybrid cable (1) [Baseband Rack Right View] RRH Power Terminal Double-layer Sheath Peel-off Point 23.62 in. (600 mm) RRH CPRI Cable (Optic Cable) Flexible Pipe (2 in.) Max. 39.37 in. (1,000 mm) Butyl Rubber Tape Hybrid Cable DC Power Cable 2-36 © SAMSUNG Electronics Co., Ltd.

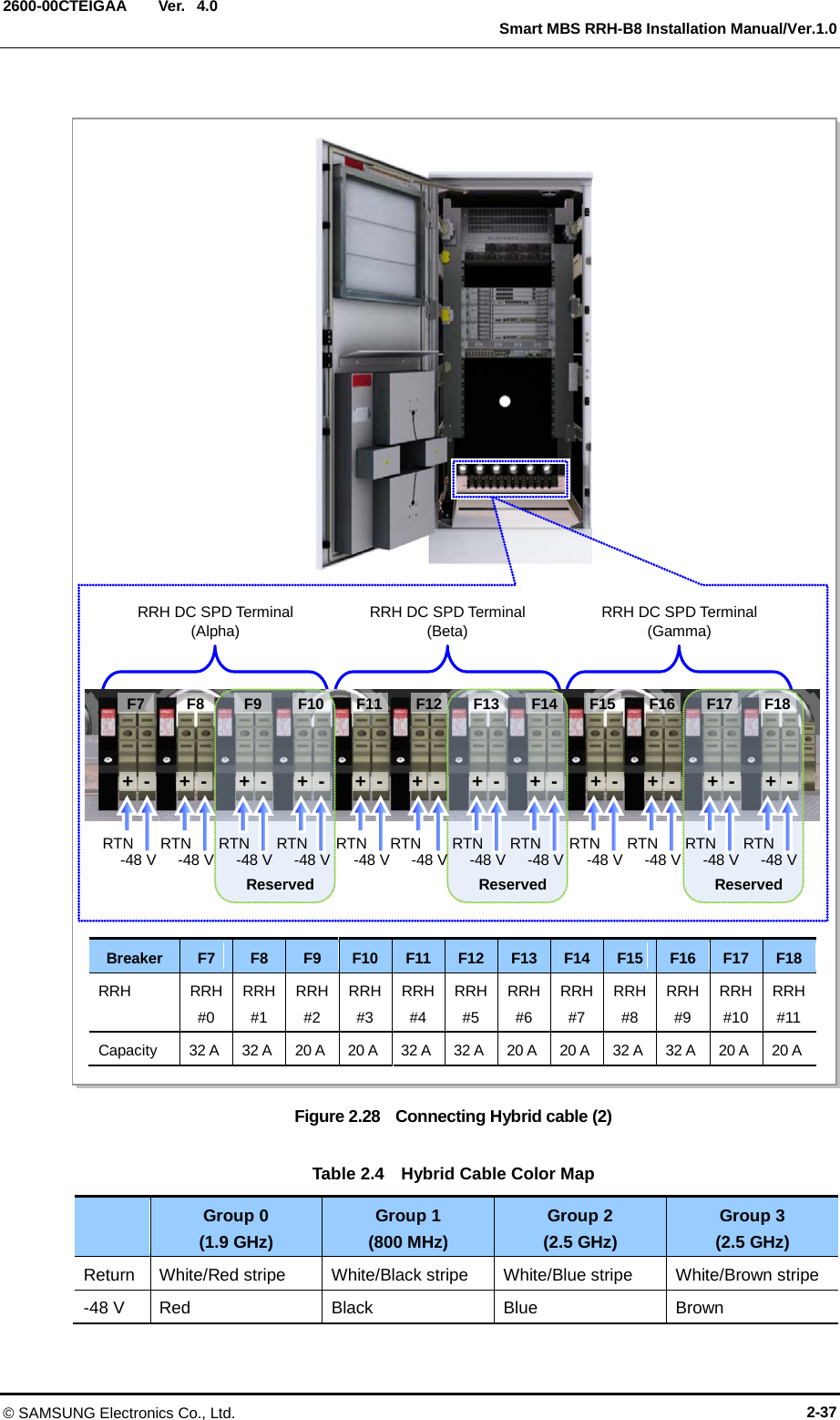

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.28 Connecting Hybrid cable (2) Table 2.4 Hybrid Cable Color Map Group 0 (1.9 GHz) Group 1 (800 MHz) Group 2 (2.5 GHz) Group 3 (2.5 GHz) Return White/Red stripe White/Black stripe White/Blue stripe White/Brown stripe -48 V Red Black Blue Brown Breaker F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 RRH RRH#0 RRH#1 RRH#2 RRH#3 RRH#4 RRH#5 RRH#6 RRH#7 RRH#8 RRH#9 RRH#10 RRH#11 Capacity 32 A 32 A 20 A 20 A 32 A 32 A 20 A 20 A 32 A 32 A 20 A 20 A RRH DC SPD Terminal (Alpha) RRH DC SPD Terminal (Beta) RRH DC SPD Terminal (Gamma) Reserved Reserved Reserved RTN -48 V RTN -48 V RTN -48 V RTN -48 V RTN -48 V RTN -48 V RTN -48 V RTN -48 V RTN -48 V RTN -48 V RTN -48 V RTN -48 V + - + - + - + - + - + - + - + - + - + - + - + - F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 © SAMSUNG Electronics Co., Ltd. 2-37
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Figure 2.29 Connecting Hybrid cable (3) Figure 2.30 Connecting Hybrid cable (4) RRH_α Power Cable Conduit #4 (Gamma) Conduit #3 (Beta) Conduit #2 (Alpha) RRH_β Power Cable RRH_γ Power Cable RRH SPD Terminal (20/32 A) C절 RRH Interface Connector (LC/PC) RRH Interface (CPRI) Cable (Hybrid Cable) L9CA-B4T L0~2 Port 2-38 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Managing unused port Finish unused port of UADU by dust-cap, not making the alien substance flowed. Finishing Cable Insertion Hole Finishing work is required on cable insertion holes (Cable gland, Conduit and etc.) to prevent entering of any foreign substance, external air and moisture. - Unused cable insertion hole: Finish cable insertion hole using fishing materials such as dust cap, rubber packing and etc. - Cable-installed insertion hole: After installing cable, finish insertion hole using tape, compressed sponge, rubber packing, silicon, etc. to prevent empty space. © SAMSUNG Electronics Co., Ltd. 2-39
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 2.7.3 Connecting RRH-B8 Power Cable Follow the steps below to connect the power cable to RRH-B8. Figure 2.31 Connecting RRH-B8 Power Cable(1) 1) Connect the power cable to the Power ~ RRH-B8 poweer input port (PWR). 2) Attach a connector at the end of the power cable of RRH-B8. 3) Connect the power cable that is attached with the cable to the RRU power input port. Power Input Port(PWR) Power (-48 VDC) RRH-B8 Power Cable DC Power Connector RRH Power Cable 2-40 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure 2.32 Connecting RRH-B8 Power Cable(2) Power Connector DC Power Cable 4) When the connector is connected, wind the butyl rubber tape (thickness: 0.5 mm, width: 19~20 mm) more than two times around the system connector and the point 50mm under the connector. 5) Using the insulating tape, wind more than two times around the part that is taped with the Butyl rubber tape as the same way as the above step. 6) Tie the end of the insulating tape with a cable tie or apply glue or silicon so that the tape does not become loose. Butyl Rubber Tape (Thickness: 0.5 mm, Width: 19~20 mm) 50 mm Cable Tie Insulating tape Butyl Rubber Tape (Thickness: 0.5 mm, Width: 19~20 mm) Cable Tie © SAMSUNG Electronics Co., Ltd. 2-41
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Installing the Circuit Breaker To ensure stability in power supply, a circuit breaker must be installed on the power cable connected to the rectifier (or power distributor). Capacity of -48 VDC circuit breaker is 32 A. 2-42 © SAMSUNG Electronics Co., Ltd.

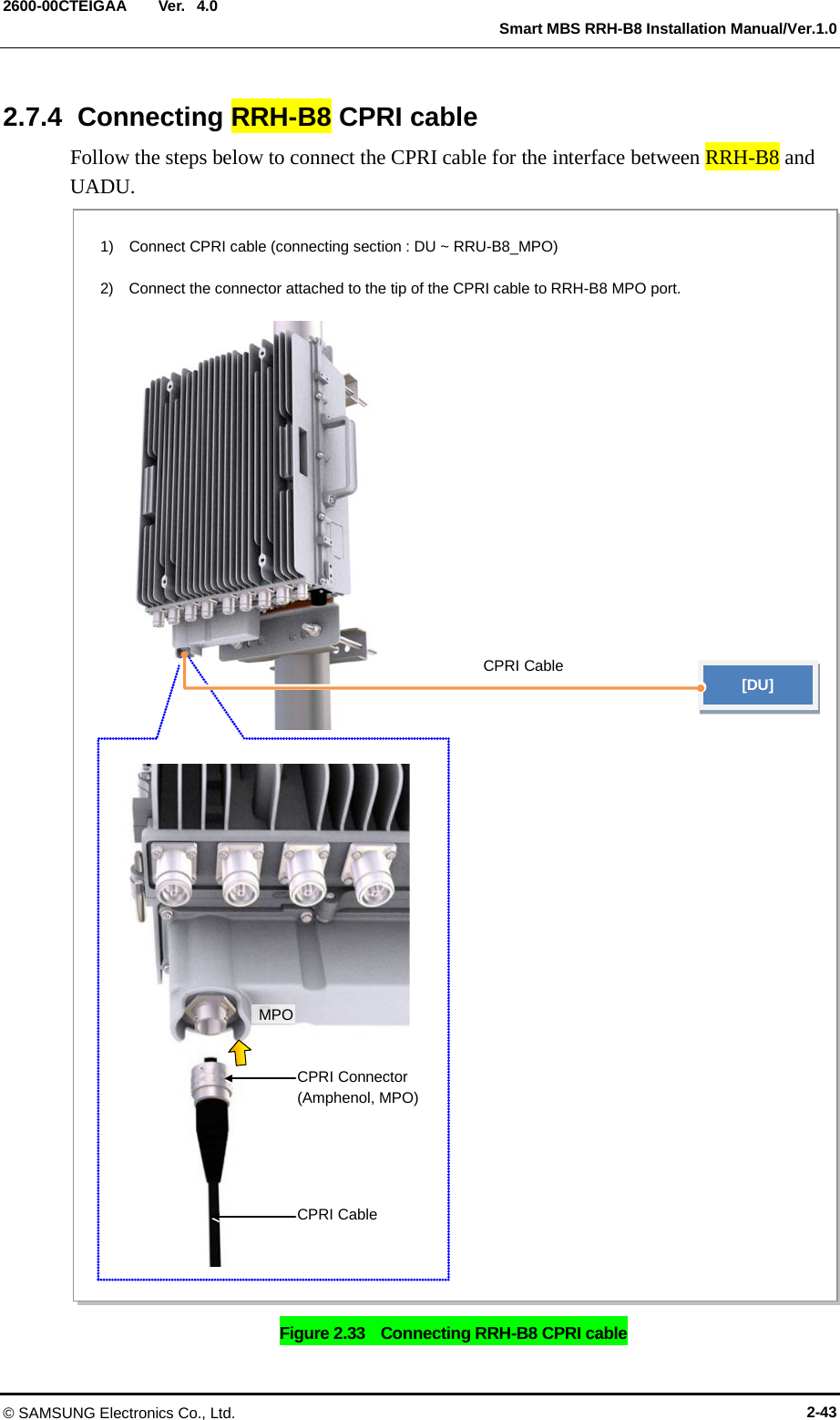

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 2.7.4 Connecting RRH-B8 CPRI cable Follow the steps below to connect the CPRI cable for the interface between RRH-B8 and UADU. Figure 2.33 Connecting RRH-B8 CPRI cable 1) Connect CPRI cable (connecting section : DU ~ RRU-B8_MPO) 2) Connect the connector attached to the tip of the CPRI cable to RRH-B8 MPO port. [DU] CPRI Cable CPRI Connector (Amphenol, MPO) MPO CPRI Cable © SAMSUNG Electronics Co., Ltd. 2-43

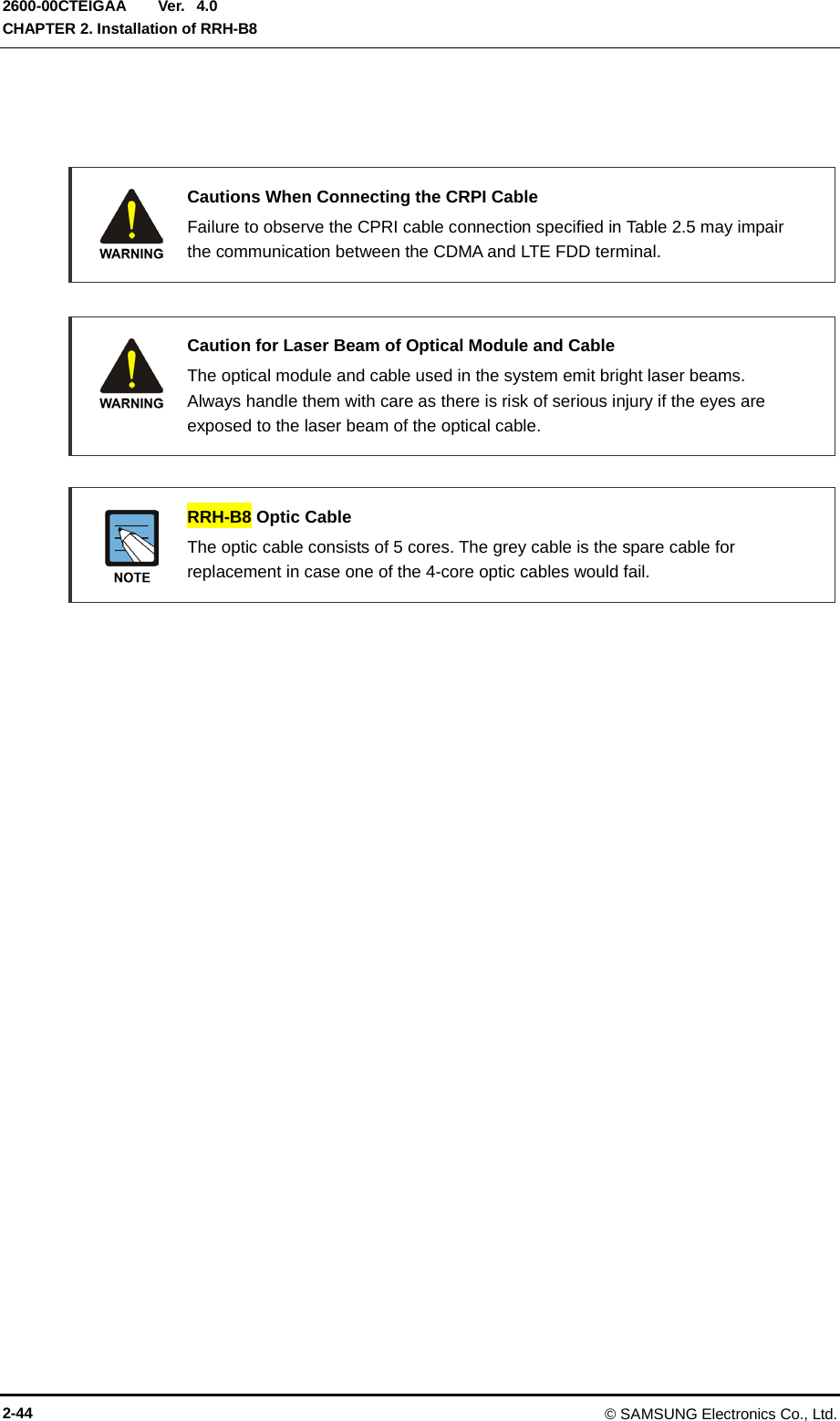

Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Cautions When Connecting the CRPI Cable Failure to observe the CPRI cable connection specified in Table 2.5 may impair the communication between the CDMA and LTE FDD terminal. Caution for Laser Beam of Optical Module and Cable The optical module and cable used in the system emit bright laser beams. Always handle them with care as there is risk of serious injury if the eyes are exposed to the laser beam of the optical cable. RRH-B8 Optic Cable The optic cable consists of 5 cores. The grey cable is the spare cable for replacement in case one of the 4-core optic cables would fail. 2-44 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 2.7.5 Fixing Finger Guard Follow the steps below to fix the finger guard to RRH-B8 Figure 2.34 Fixing Finger Guard 1) Allign and orient the finger guard to RRH-B8 fixing hole. 2) Fix the finger guard by screwing the frontal left/right RRH-B8 fixing holes. Fingler Guard Screw Screw © SAMSUNG Electronics Co., Ltd. 2-45
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 2.7.6 Hybrid Cable Shield Grounding Connection Follow the steps below to connect the shield ground cable of hybrid cable to the ground bar in the DU cabinet. Figure 2.35 Hybrid Cable Shield Grounding Connection_DU Cabinet 1) Install the shield ground cable of hybrid cable to the ground bar on the left of the DU cabinet. 2) Remove the M6 Hex. nuts and lock washers installed in the ground bar. 3) Align the pressure terminal assembled on the cable to the insert bolt of the ground bar, and fasten it using the removed M6 Hex. nut and lock washer. Shield Ground Cable of Hybrid Cable M6 Lock Washer M6 Hex. Nut Shield Ground Cable of Hybrid Cable #2 Shield Ground Cable of Hybrid Cable #1 Shield Ground Cable of Hybrid Cable #0 Ground Bar (in DU Cabinet) Pressure Terminal 2-46 © SAMSUNG Electronics Co., Ltd.

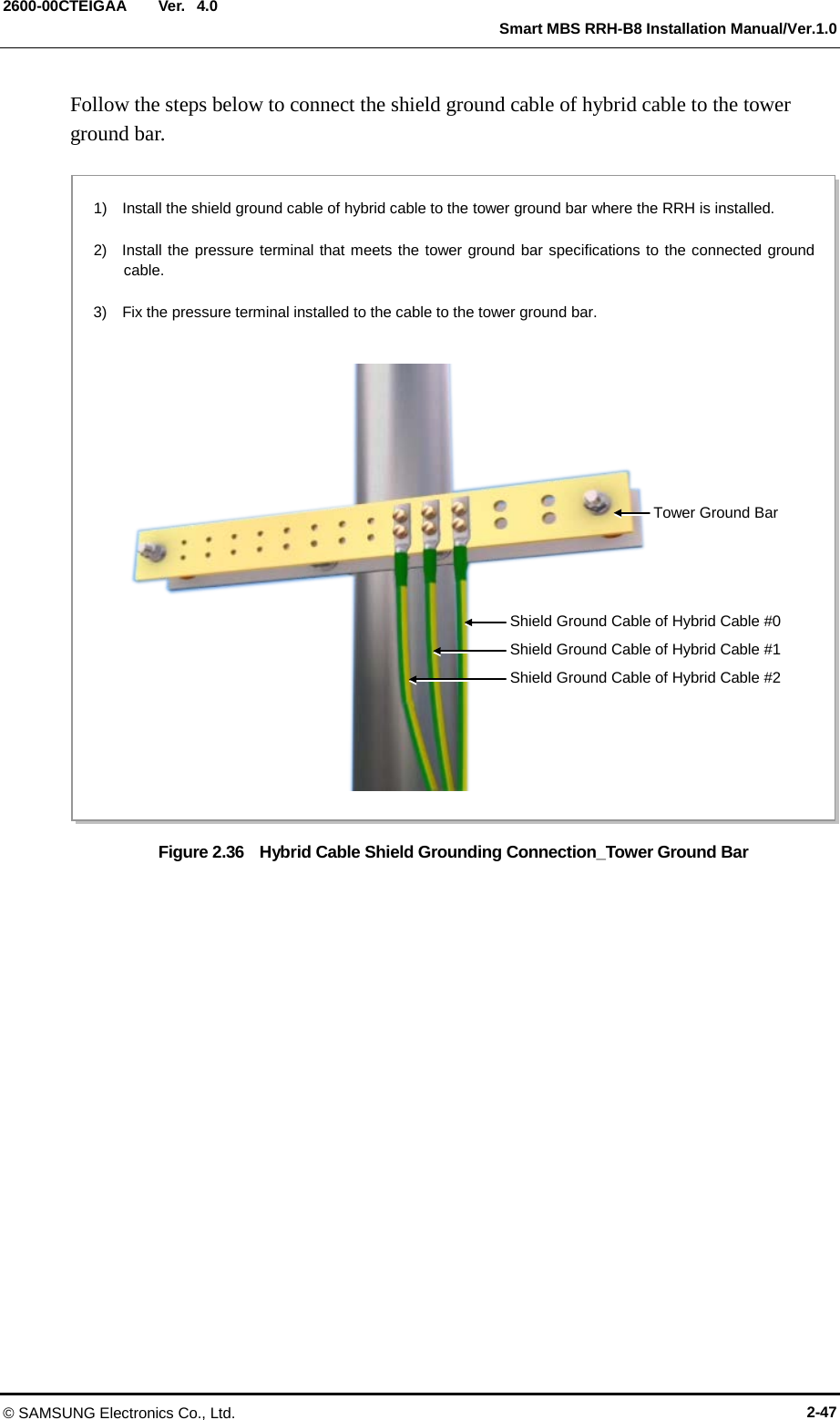

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Follow the steps below to connect the shield ground cable of hybrid cable to the tower ground bar. Figure 2.36 Hybrid Cable Shield Grounding Connection_Tower Ground Bar 1) Install the shield ground cable of hybrid cable to the tower ground bar where the RRH is installed. 2) Install the pressure terminal that meets the tower ground bar specifications to the connected ground cable. 3) Fix the pressure terminal installed to the cable to the tower ground bar. Tower Ground Bar Shield Ground Cable of Hybrid Cable #0 Shield Ground Cable of Hybrid Cable #1 Shield Ground Cable of Hybrid Cable #2 © SAMSUNG Electronics Co., Ltd. 2-47
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 Table 2.5 Construction Status Checklist Category Check Items Criteria Result Remarks Pass Fail System Installation System fixing status (Vertical and horizontal) Horizontal and vertical locations System arrangement status Horizontal and vertical locations Locking status and standard compatibility of bolts/nuts/washers Visual inspection and magnet test External wiring and other wirings Visual inspection for twist, array and arrangement System cable installation status Checking twist, distortion and installation status External connector connection Visual inspection to check poor contact (Tightening status) Other appurtenant work (Cable duct installation and others) Visual inspection Power Acceptance Equipment’s power cable specification Visual inspection Rectifier ↔ System Visual inspection Cabling Status Visual inspection for twisted or entangled status Damage of cable sheath Visual inspection System power connector - Visual inspection to check whether the power connector is connected normally without separation. - Inspection for the power connector shaking status System input voltage (BATT voltage) Measurement by digital meter (voltmeter) External interface Optic Cabling Status Visual inspection Ground Construction Ground line standard Visual inspection Ground bar ↔ System Visual inspection Ground line cabling status Cabling status check Termination treatment of the ground line (Pressure Terminal) Visual inspection 2-48 © SAMSUNG Electronics Co., Ltd.

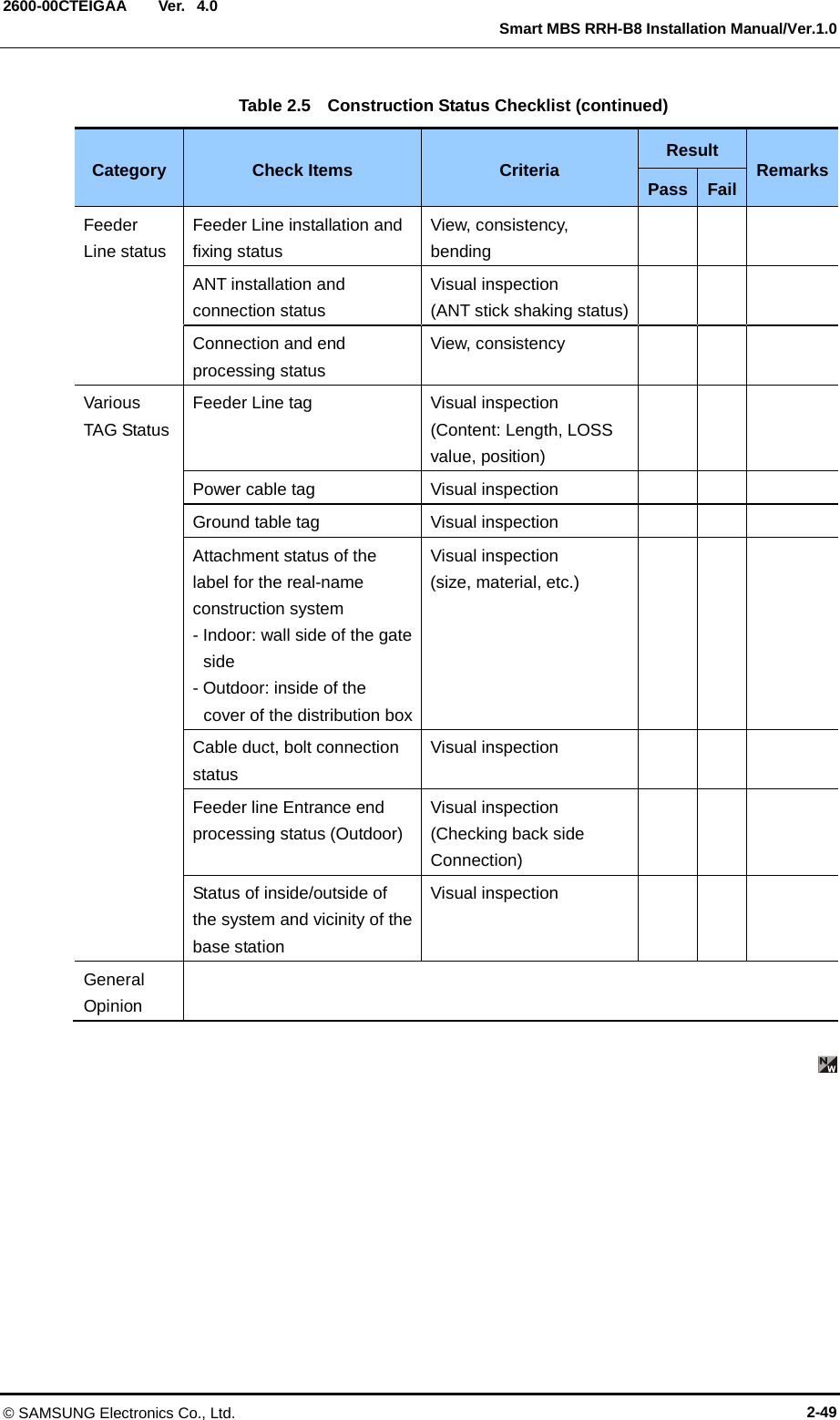

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Table 2.5 Construction Status Checklist (continued) Category Check Items Criteria Result Remarks Pass Fail Feeder Line status Feeder Line installation and fixing status View, consistency, bending ANT installation and connection status Visual inspection (ANT stick shaking status) Connection and end processing status View, consistency Various TAG Status Feeder Line tag Visual inspection (Content: Length, LOSS value, position) Power cable tag Visual inspection Ground table tag Visual inspection Attachment status of the label for the real-name construction system - Indoor: wall side of the gate side - Outdoor: inside of the cover of the distribution box Visual inspection (size, material, etc.) Cable duct, bolt connection status Visual inspection Feeder line Entrance end processing status (Outdoor) Visual inspection (Checking back side Connection) Status of inside/outside of the system and vicinity of the base station Visual inspection General Opinion © SAMSUNG Electronics Co., Ltd. 2-49
Ver. CHAPTER 2. Installation of RRH-B8 2600-00CTEIGAA 4.0 This page is intentionally left blank. 2-50 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual 1.0 ANNEX A. Sector Antenna Installation A.1 Cautions when Installing a Sector Antenna Precautions of antenna installation are as follows.  Sector antennas should be installed vertically. (±1°)  Antenna is the precise material, so be careful not to make damage or form change.  When moving antenna, use the tool suitable to rating. In addition, use the rated carrying device which is at least 200 % or more than antenna considering the stability.  Be careful not to give too much strength to the antenna.  If it rains, suspend connecting the feeder cable and antenna.  Fix it after adjusting the direction of antenna exactly.  Distance between steel tower and antenna and the distance between send-receive antennas are based on the antenna layout.  Attach the antenna on the position specified in the drawing.  Install the antenna not to make a feature change of the antenna considering the direction of the radiation  When connect the connector to the antenna, not making the alien substance flowed and is not under the influence of PIMD.  Measure VSWR of all antennas and the value should be within the regulated value. A.2 Sector Antenna Layout The method of sector antenna layout is as follows. 1) Use the transit to adjust the antenna installation direction exactly. 2) Fix the direction of the sector antenna, same as the angle settled when designing the cell after installing the steel tower. 3) Arrange the antennas of each sector to the sector directional angle at right angles by adjusting the distance between antenna and steel tower. In the event of the station whose the direction between sectors is not 120°, install it to make the steel tower and antenna direction different being careful of the tilt and azimuth. 4) For circular platform, separate the antenna interval at maximum. © SAMSUNG Electronics Co., Ltd. A-1
Ver. ANNEX A. Sector Antenna Installation 2600-00CTEIGAA 4.0 A.3 Sector Antenna Installation The method of sector antenna installation is as follows. 1) Put up an antenna pole and insert the sector antenna into the antenna pole using a fixing clamp. 2) Set the antenna’s up/down tilt to 0° and fix the fixing clamps at the top and bottom. 3) After tightening the fixing clamp, adjust the antenna up/down (tilt) depending on the signal strength. The bolt of the guide clamp must be loosened, so the antenna angle can be adjusted. 4) After setting the antenna angle, fasten the bolt of the guide clamp, which was loosened previously. Regarding the nut, the double nut mounting should be used to prevent the nut from coming loose. Figure A.1 Sector Antenna Antenna Input Port Pole Main Radiation Direction Upper Fixing Clamp Lower Fixing Clamp Upper Guide Clamp Lower Guide Clamp Guide Clamp Bolt_2 Guide Clamp Bolt_1 Guide Clamp Bolt_3 Guide Clamp Bolt_4 A-2 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Caution when Installing the RF antenna To protect from lightning, the RF antenna must be installed within the shielding angle as shown below, considering the downward distance and the angle from the tower lightning rod or the antenna pole lightning rod. - The protection angle of the lightning rod should be 45 degrees. Lightning Rod 45° 45° RF Antenna © SAMSUNG Electronics Co., Ltd. A-3
Ver. ANNEX A. Sector Antenna Installation 2600-00CTEIGAA 4.0 This page is intentionally left blank. A-4 © SAMSUNG Electronics Co., Ltd.

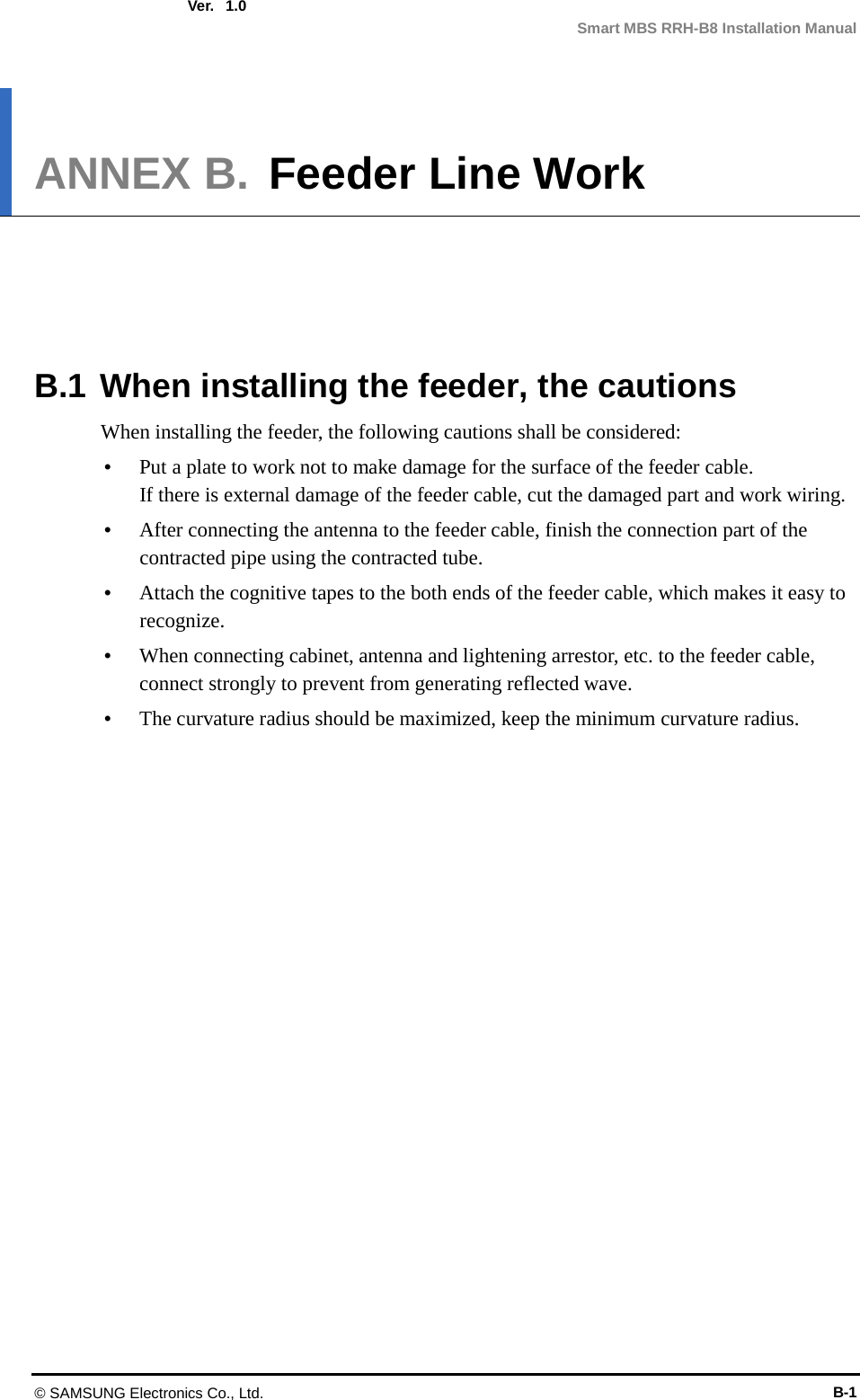

Ver. Smart MBS RRH-B8 Installation Manual 1.0 ANNEX B. Feeder Line Work B.1 When installing the feeder, the cautions When installing the feeder, the following cautions shall be considered:  Put a plate to work not to make damage for the surface of the feeder cable. If there is external damage of the feeder cable, cut the damaged part and work wiring.  After connecting the antenna to the feeder cable, finish the connection part of the contracted pipe using the contracted tube.  Attach the cognitive tapes to the both ends of the feeder cable, which makes it easy to recognize.  When connecting cabinet, antenna and lightening arrestor, etc. to the feeder cable, connect strongly to prevent from generating reflected wave.  The curvature radius should be maximized, keep the minimum curvature radius. © SAMSUNG Electronics Co., Ltd. B-1
Ver. ANNEX B. Feeder Line Work 2600-00CTEIGAA 4.0 Table B.1 Curvature Radius of Feeder Cable for Outdoor Specification Allowed Radius of Curvature Remark LS Feeder Line HFC-12D 1/2 in. 4.02 in. (125 mm) Outdoor HFC-22D 7/8 in. 9.84 in. (250 mm) HFC-33D 1-1/4 in. 14.96 in. (380 mm) HFC-42D 1-5/8 in. 20.08 in. (510 mm) RFS Feeder Line LCF12-50 1/2 in. 4.92 in. (125 mm) LCF78-50 7/8 in. 9.84 in. (250 mm) LCFS114-50 1-1/4 in. 14.96 in. (380 mm) LCF158-50 1-5/8 in. 19.69 in. (500 mm) B-2 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Table B.2 Curvature Radius of Feeder Cable for Indoor Specification Allowed Radius of Curvature Remark LS Feeder Line HFSC 6D 1/4 in. 0.98 in. (25 mm) Indoor HFSC 10D 3/8 in. 0.98 in. (25 mm) HFSC 12D 1/2 in. 1.26 in. (32 mm) HFSC 22D 7/8 in. 4.92 in. (125 mm) RFS Feeder Line SCF14-50 1/4 in. 0.98 in. (25 mm) SCF38-50 3/8 in. 0.98 in. (25 mm) SCF12-50 1/2 in. 1.26 in. (32 mm) UCF78-50 7/8 in. 4.92 in. (125 mm) Table B.3 Curvature Radius of LMR-400 (Based on Times Microwave system) Specification Allowed Radius of Curvature Remark LMR-400 1 in. (25.4 mm) Installation 4 in. (101.6 mm) Repeated Radius of Curvature of Feeder Line When installing a feeder line, the radius of curvature of the sections where cables bent should be larger than the allowed radius of curvature. If the radius of curvature for the feeder line installation is less than the allowed radius of curvature, it may affect the performance of the system. © SAMSUNG Electronics Co., Ltd. B-3
Ver. ANNEX B. Feeder Line Work 2600-00CTEIGAA 4.0  Ensure that the feeder cable does not interfere with steel towers, ladders and in the areas chiefly used by people.  Connect the connector to the antenna in a straight line and after connecting, do not apply excessive force.  Use the vinyl tape for electricity and heat shrink tube for the external exposed part of the connector not to avoid leak water.  Wind the self-bonding rubber tape overlapping (keep a distance as the half size of rubber tape) to the connector connection part and wind the vinyl tape for electricity to the 2 times or more and then cover with the heat shrink tube. Connection of Feeder Cable Connector Connecting the feeder cable connector is critical process, so the qualified workers who finished the related education should perform. Table B.4 Connector Connection Torque Value Connector Torque Value SMA connector 0.18 lbf·ft (2.5 kgf·cm) TNC connector 0.65 lbf·ft (9 kgf·cm) N-type connector 1.45 lbf·ft (20 kgf·cm) Din-type connector 14.46 lbf·ft (200 kgf·cm) B-4 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 B.2 Antenna Feeder Cable Ground Ground the antenna feeder line using the grounding kit located under the Tower Ground Bar (TGB) installed in the lower section of the tower or in the antenna feeder line duct. The way to connect the ground kit of feeder is as follows: Figure B.1 Feeder Cable Grounding (1) M6 Hex. Nut Ground Kit Insulation Tape Rubber Tape M6 × 25L Hex. Bolt M6 Spring Washer M6 Plain Washer M6 Plain Washer M6 Spring Washer 2.17 in. (55 mm) 1) Remove about 55 mm of the sheath of cable when the 2.17 in. (55 mm). feeder cable is used. 2) Open it by returning hook of the clamp fixing for Ground kit in the left direction. 1 2 © SAMSUNG Electronics Co., Ltd. B-5
Ver. ANNEX B. Feeder Line Work 2600-00CTEIGAA 4.0 Figure B.2 Feeder Cable Grounding (2) Protrusion Clamp Lock Feeder Line Ground Kit Clamp Scissors (knife) Rubber Tape Insulation Tape 3) Insert the ground kit clamp into the place from which the feeder line sheath is removed. 4) Pull the clamp lock to the upward so that the lock can be hung on the global protrusion area on the side. 5) Overlap the exposed part of the ground kit clamp using rubber tape (Keep a distance as the half size of rubber tape) and press it with your hands lightly to make rubber tape adhere well. 6) Wrap the part where the rubber tape is attached using insulation tape two times or more. When cutting off the tape, cut it off neatly using a cutting device such as scissors or a knife. 3 4 5 6 B-6 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure B.3 Feeder Cable Grounding (3) 7.87 in. (200 mm) Heating Gun Heat Shrink Tube Heat Shrink Tube 7) Align the heat shrink tube, inserted when installing the feeder line, into the fixing part of the ground kit. - Heat shrink tube: Φ 1.65 in., 7.87 in (Φ 42 mm, 200 mm) 8) Shrink the heat shrink tube [jelly type, 7.87 in. (200 mm)] by heating gun. 7 8 © SAMSUNG Electronics Co., Ltd. B-7
Ver. ANNEX B. Feeder Line Work 2600-00CTEIGAA 4.0 Figure B.4 Feeder Cable Grounding (4) Check Ground Kit and TGB Specifications The specifications, clamp, and pressure terminal type of the ground kit and TGB differ depending on manufacturers. Make sure to check the specifications of the ground kit and TGB, and identify the installation method before installing it. Table B.5 TGB Installation Example Category Description TGB Usage Earth terminal board for feeder cable for grounding in using the feeder cable of more than 7/8 in. TGB Location Lower section of cable rack in feeder cable duck - less than 65.62 ft (20 m): 1 (Ex. steel tower lower section) - more than 65.62 ft (20 m): 2 (Ex. steel tower lower and upper section) Material Pure copper Installation Method Using the insulator to separate from the steel tower electrically Connection Method Extract the AWG2, GV 25 mm2 ground cable to the direction of the floor and weld it to the tower’s ground cable. 9) After the ground kit has been installed to the feeder line, attach the pressure terminal (1 hole) of the ground cable connected to the ground kit to the TGB. 10) When attaching the pressure terminal, use M6 × 25L hex. Bolts. TGB (Tower Ground Bar) TGB Ground Cable (AWG2, GV 25 mm2 × 1C) M6 × 25L Hex. Bolt (STS304) Ground kit 7/8 in. Feeder Line Pressure Terminal (1 Hole) B-8 © SAMSUNG Electronics Co., Ltd.

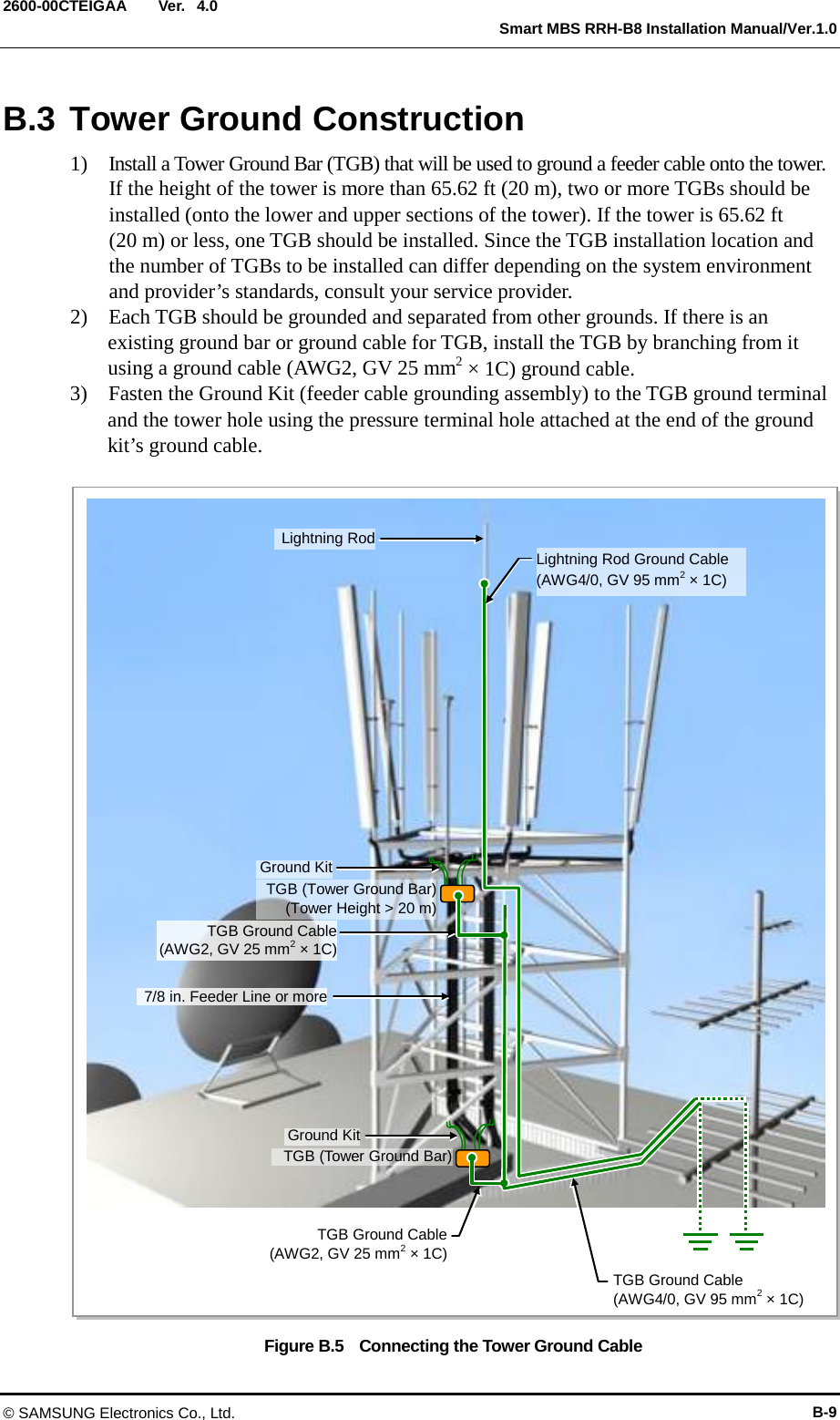

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 B.3 Tower Ground Construction 1) Install a Tower Ground Bar (TGB) that will be used to ground a feeder cable onto the tower. If the height of the tower is more than 65.62 ft (20 m), two or more TGBs should be installed (onto the lower and upper sections of the tower). If the tower is 65.62 ft (20 m) or less, one TGB should be installed. Since the TGB installation location and the number of TGBs to be installed can differ depending on the system environment and provider’s standards, consult your service provider. 2) Each TGB should be grounded and separated from other grounds. If there is an existing ground bar or ground cable for TGB, install the TGB by branching from it using a ground cable (AWG2, GV 25 mm2 × 1C) ground cable. 3) Fasten the Ground Kit (feeder cable grounding assembly) to the TGB ground terminal and the tower hole using the pressure terminal hole attached at the end of the ground kit’s ground cable. Figure B.5 Connecting the Tower Ground Cable Lightning Rod 7/8 in. Feeder Line or more Ground Kit TGB (Tower Ground Bar) (Tower Height > 20 m) TGB Ground Cable (AWG2, GV 25 mm2 × 1C) Lightning Rod Ground Cable (AWG4/0, GV 95 mm2 × 1C) TGB (Tower Ground Bar) Ground Kit TGB Ground Cable (AWG2, GV 25 mm2 × 1C) TGB Ground Cable (AWG4/0, GV 95 mm2 × 1C) © SAMSUNG Electronics Co., Ltd. B-9
Ver. ANNEX B. Feeder Line Work 2600-00CTEIGAA 4.0 This page is intentionally left blank. B-10 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual 1.0 ANNEX C. Assembling connector C.1 RJ-45 (Shield type) Below is the method for assembling the RJ-45 (Shield type) connector. Figure C.1 Assembling the RJ-45 Connector (Shield Type) (1) 1), 2) Prepare work tools and materials. 4) Pass the cable through the RJ-45 cap. 5) Remove the coating 0.67 in. (17 mm) from the end. 6) Push the shield backward, and cut the aluminum shield. 7) Cut the shield leaving a 0.2 in. (5 mm) of it. 8) Arrange the cable in reference to the pin map. 9) Cut the cable to make it 0.47 in. (12 mm) long. 3) Pass the cable through the marking tube. 1 2 3 4 5 6 7 8 9 © SAMSUNG Electronics Co., Ltd. C-1
Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 Figure C.2 Assembling the RJ-45 Connector (Shield Type) (2) 10) Insert the RJ-45 modular jack. 11) Make sure that the shield does not get in the RJ-45 modular jack. 12) Insert the cable completely into the RJ-45 modular jack. 13) Compress the jack using the tool. 14) Push the RJ-45 cap to the connector. Compress the marking tube to finish the assembly. 10 11 12 13 14 C-2 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 C.2 RJ-45 (Normal type) Below is the method for assembling the RJ-45 (Normal type) connector. Figure C.3 Assembling the RJ-45 connector (Normal type) 1) Prepare work tools and materials. 2) Insert the RJ-45 cap into the cable 3) Remove a 0.67 in. (17 mm) length of the sheath. 4) Arrange the cable referring to the pin map 5) Cut the cable so that the length of it is about 0.47 in. (12 mm). 1 2 3 4 5 6 7 8 7) Compress the jack using the tool. 6) Insert the cable up to the end of the RJ-45 modular jack. 8) Raise RJ-45 cap to connector side. © SAMSUNG Electronics Co., Ltd. C-3
Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 C.3 N type-male (LMR-400) Below is the method for assembling the N type-male connector to the LMR-400 cable. Figure C.4 Assembling the N type-male connector (LMR-400) (1) 1) N type-male connector consists of the N type-male body, clamp ring, and heat shrink tube. 2) Insert a heat shrink tube and clamp ring to the cable; insert the cable to the ‘End1’ of the prep/strip tool, and remove the shield and sheath except for the center conductor at the end of cable by rotating the tool clockwise. 3) Insert the cable to the ‘End2’ of the prep/strip tool again, and remove the sheath by rotating the tool. 4) Trim the end of the center conductor by using a deburring tool. Heat Shrink Tube Clamp Ring N type-Male Body LMR-400 LMR-400 Prep/strip tool End1 Prep/strip tool End2 Deburring tool Center Conductor Shield Clamp Ring Heat Shrink Tube C-4 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure C.5 Assembling the N type-male connector (LMR-400) (2) 5) Push the N Type-male body into the end of the cable until it is solidly inserted to the pin connection part of the N Type-male body. Make the shield overlap over the N Type-male body. Then pull out the clamp ring and reset it to the original position to make the remaining shield folded. 6) Cut off the folded remaining shield using a cutting device so that it does not protrude outside when the clamp ring is inserted. After arranging the shield, push up the clamp ring toward a connector until the entire shield is covered. 7) Using a compressor and hexagonal dies, pressurize the clamp ring to fix the cable and connector. 8) Lift the heat shrink tube up to the connection point on the connector, and shrink the heat shrink tube using a heating gun. © SAMSUNG Electronics Co., Ltd. C-5
Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 C.4 TNC-male (LMR-400) Below is the method for assembling the TNC-male connector to the LMR-400 cable. Figure C.6 Assembling the TNC-male connector (1) 1) The TNC male connector consists of the TNC male body, clamp ring, and heat shrink tube. 2) Insert a heat shrink tube and clamp ring to the cable; insert the cable to the ‘End1’ of the prep/strip tool, and remove the shield and sheath except for the center conductor at the end of cable by rotating the tool clockwise. 3) Insert the cable to the ‘End2’ of the prep/strip tool again, and remove the sheath by rotating the tool. 4) Trim the end of the center conductor by using a deburring tool. Heat Shrink Tube Clamp Ring TNC-Male Body LMR-400 Prep/strip tool End1 Prep/strip tool End2 Deburring tool Clamp Ring Heat Shrink Tube LMR-400 Center Conductor Shield C-6 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure C.7 Assembling the TNC-male connector (2) 5) Push the TNC male body into the end of the cable until it is solidly inserted to the pin connection part of the TNC male body. Make the shield overlap over the TNC male body. Then pull out the clamp ring and reset it to the original position to make the remaining shield folded. 6) Cut off the folded remaining shield using a cutting device so that it does not protrude outside when the clamp ring is inserted. After arranging the shield, push up the clamp ring toward a connector until the entire shield is covered. 7) Using a compressor and hexagonal dies, pressurize the clamp ring to fix the cable and connector. 8) Lift the heat shrink tube up to the connection point on the connector, and shrink the heat shrink tube using a heating gun. © SAMSUNG Electronics Co., Ltd. C-7
Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 C.5 N type-male (1/2 in. feeder line) Below is the method for assembling the N-type-male connector to the 1/2 in. feeder line. Figure C.8 Assembling the N type-male Connector (1/2 in. Feeder Line) (1) 1) The components of the N type-male are an N type-male body, an insert ring, a clamp nut, O-ring, and a heat shrink tube, and it is assembled using the wire stripper, trimming tool, spanner, etc. 2) Using a stripping tool or a knife, strip the 1/2 in. feeder line by 1 in. (25.4 mm) from the end, as shown in the figure below. 1 in. (25.4 mm) 1/2 in. Feeder Line Conductor 1/2 in. Feeder Line Jacket Trimming Tool Heat Shrink Tube [1.1 in. (28 mm)] Insert Ring N type-Male Body Clamping Nut 1/2 in. Feeder Line O-Ring C-8 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure C.9 Assembling the N type-male Connector (1/2 in. Feeder Line) (2) Trimming Tool 3) Remove the end 0.43 in. (11 mm) of the external conductor using a trimming tool. Collet 4) Insert the internal conductor into the deburring hole at the bottom of the trimming tool to trim it. 0.94 in. (24 mm) 0.43 in. (11 mm) © SAMSUNG Electronics Co., Ltd. C-9
Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 Figure C.10 Assembling the N type-male Connector (1/2 in. Feeder Line) (3) 5) Insert the o-ring, clamping nut, insert ring and N type-male body to the stripped 1/2 in. feeder line in this order. 6) Tighten the clamping nut and N type-male body inserted into the 1/2 in. feeder line firmly using a spanner. The recommended torque for tightening the clamping nut and N type-male body is 306~510 lbf·ft (30~50 N.m). (Note that it should only be fastened by rotating the clamping nut with the external body in a fixed and stable position.) Insert Ring N type-Male Body Clamping Nut O-Ring Maintainging fixing status C-10 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure C.11 Assembling the N type-male Connector (1/2 in. Feeder Line) (4) Checking to carry out when assembling the N type-male connector The shape, tool and assembly method may differ depending on the connector type and manufacturer. Make sure to check the user manual provided by the manufacturer before assembling. Clamping Nut 7) Insert the heat shrink tube into the 1/2 in. feeder line fitted with the N type-male connector as shown in the figure below. - Heat shrink tube: Φ 1.1 in., 3.94 in. (Φ 28 mm, 100 mm) 8) Shrink the heat shrink tube inserted into the 1/2 in. feeder line using a heating gun. Heating Gun Heat Shrink Tube [1.1 in. (28 mm)] © SAMSUNG Electronics Co., Ltd. C-11
Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 C.6 Din type-male (1/2 in. Feeder Line) Below is the method for assembling the Din type-male connector to the 1/2 in. feeder line. Figure C.12 Assembling the Din type-male Connector (1/2 in. Feeder Line) (1) 2) Straighten the cable, then, using a suitable tool, strip it to the connector’s wire strip length. When cutting the sheath, hold the cable firmly with one hand and cut the cable pulling the cutting tool inwards with the other hand. Gently rotate the tool several times (do not pull it too hard), so that the internal copper line is not damaged. 3) Using a cutter, cut the sheath from the stripped edge to the end of the cable and completely strip the sheath. Cutting Tool Cutter Feeder Line 1) The components of the Din type-male are an Din type-male body, a pin , an insert ring, a clamp nut, o-ring and a heat shrink tube, and it is assembled using the wire stripper, trimming tool, wrench, etc. 4) Insert the O-ring, clamping nut, insert ring, pin and Din type-male body into the stripped feeder line in this order. Din type-male Body Pin Insert Ring Clamping Nut O-Ring Feeder Line Heat Shrink Tube C-12 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure C.13 Assembling the Din type-male Connector (1/2 in. Feeder Line) (2) Checking to carry out when assembling the Din type-male connector The shape, tool and assembly method may differ depending on the connector type and manufacturer. Make sure to check the user manual provided by the manufacturer before assembling. Spanner (Maintaining fixing status) 5) Tighten firmly the clamping nut and Din type-male body inserted to the 1/2 in. feeder line using a wrench. The recommended torque for tightening the clamping nut and Din type-male body is 306~510 lbf·ft (30~50 N.m). (Note that it should only be fastened by rotating the clamping nut with the external body in a fixed and stable position.) Clamping Nut Din type-Male Body 6) Insert the heat shrink tube (28 mm/10 cm) to the 1/2 in. feeder line fitted with the Din type-male connector; and shrink the heat shrink tube inserted into the feeder line using a heating gun. - Heat shrink tube: Φ 1.1 in., 3.94 in. (Φ 28 mm, 100 mm) Heating Gun Heat Shrink Tube © SAMSUNG Electronics Co., Ltd. C-13

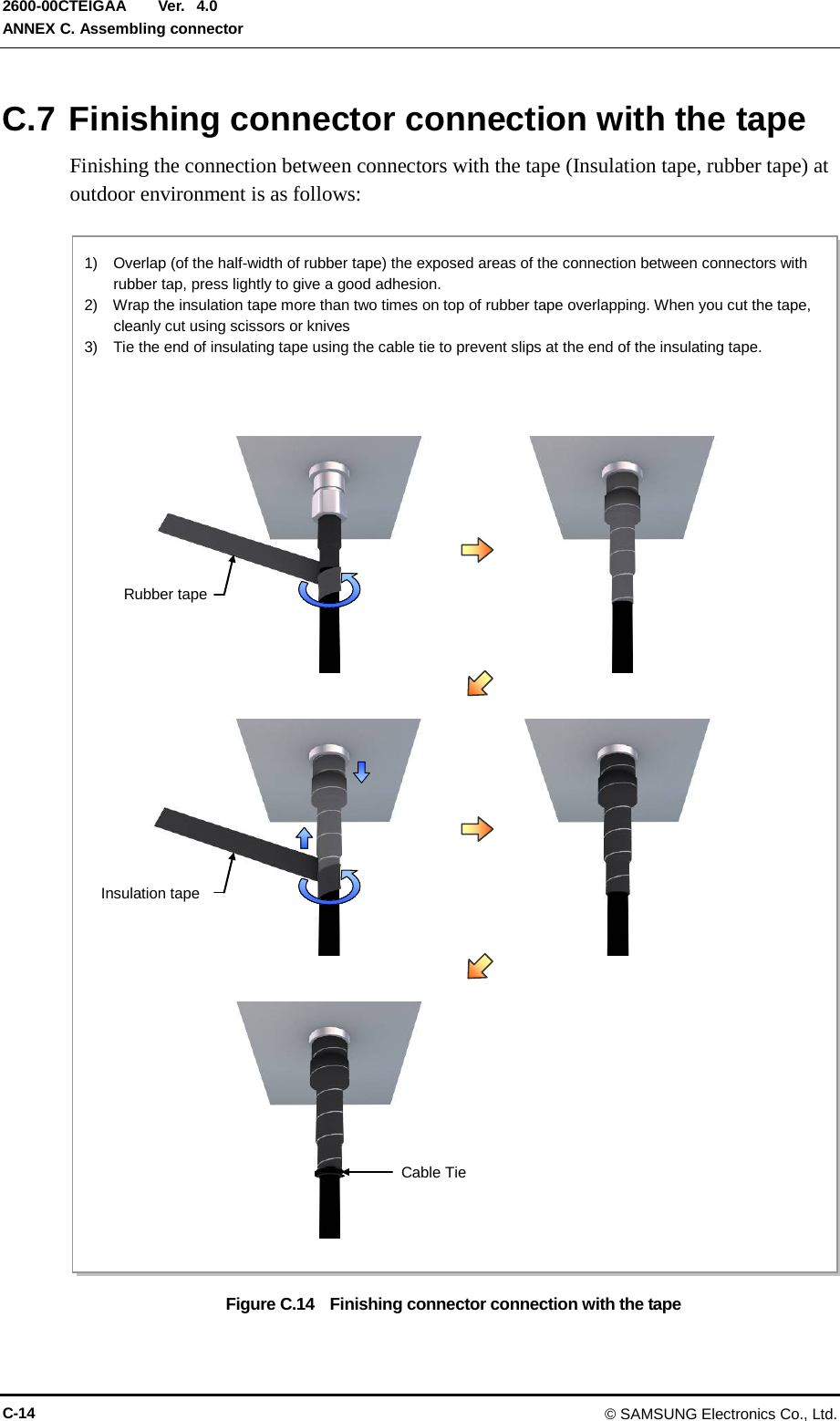

Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 C.7 Finishing connector connection with the tape Finishing the connection between connectors with the tape (Insulation tape, rubber tape) at outdoor environment is as follows: Figure C.14 Finishing connector connection with the tape Cable Tie Rubber tape Insulation tape 1) Overlap (of the half-width of rubber tape) the exposed areas of the connection between connectors with rubber tap, press lightly to give a good adhesion. 2) Wrap the insulation tape more than two times on top of rubber tape overlapping. When you cut the tape, cleanly cut using scissors or knives 3) Tie the end of insulating tape using the cable tie to prevent slips at the end of the insulating tape. C-14 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 C.8 How to Shrink the Heat Shrink Tube C.8.1 When assembling a connector to the feeder line Below is the procedure for shrinking the heat shrink tube. Figure C.15 Shrinking the Heat Shrink Tube-Feeder line (1) 1) Prepare a 1/2 in. feeder line, heat shrink tube, and heating gun to finish the cable using a heat shrink tube. 2) Insert the heat shrink tube into the 1/2 in. feeder line, and then place the heat shrink tube at the end of the cutting area of the connector where the tool will be used. 3) Set the heating gun to 482~572°F (250~300°C). Heat Shrink Tube (Jelly Type) 28/6 × 5.9 in. (150 mm) 1/2 in. Connector Heating Gun Cutting Area © SAMSUNG Electronics Co., Ltd. C-15
Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 Figure C.16 Shrinking the Heat Shrink Tube-Feeder line (2) 6) Shrink the heat shrink tube until jelly appears at the end part of it (refer the figure below) and finish it. 4) Holding one end of the heat shrink tube with your hand, apply heat starting from the connector using the heating gun. 5) Rotate the heating gun so that heat is evenly distributed to prevent that bubbles are generated or heat is concentrated to a specific part. Heat Shrink Tube Heating Gun Jelly C-16 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 C.8.2 When connecting a connector to another connector Below is the procedure for shrinking the heat shrink tube. Figure C.17 Shrinking the Heat Shrink Tube-Connector (1) 1) Prepare a 1/2 in. feeder line, 7/8 in. feeder line, heat shrink tube, and heating gun to finish the cable using a heat shrink tube. 3) Insert the heat shrink tube, placing connector part (where 1/2 in. and 7/8 in. feeder line will be connected) in the center, and mark the center part. Heat Shrink Tube (Jelly Type) 38/12 × 11.81 in. (300 mm) 7/8 in. Feeder Line Connector 1/2 in. Feeder Line Heating Gun 2) Inset the heat shrink tube to one end of the feeder line and connect the connector. © SAMSUNG Electronics Co., Ltd. C-17
Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 Figure C.18 Shrinking the Heat Shrink Tube-Connector (2) 4) Set the heating gun to 482~572°F (250~300°C). 5) Holding one end of the heat shrink tube with your hand, apply heat starting from the marked part at the center using the heating gun. 6) Rotate the heating gun so that heat is evenly distributed to prevent that bubbles are generated or heat is concentrated to a specific part. Heat Shrink Tube Heating Gun C-18 © SAMSUNG Electronics Co., Ltd.

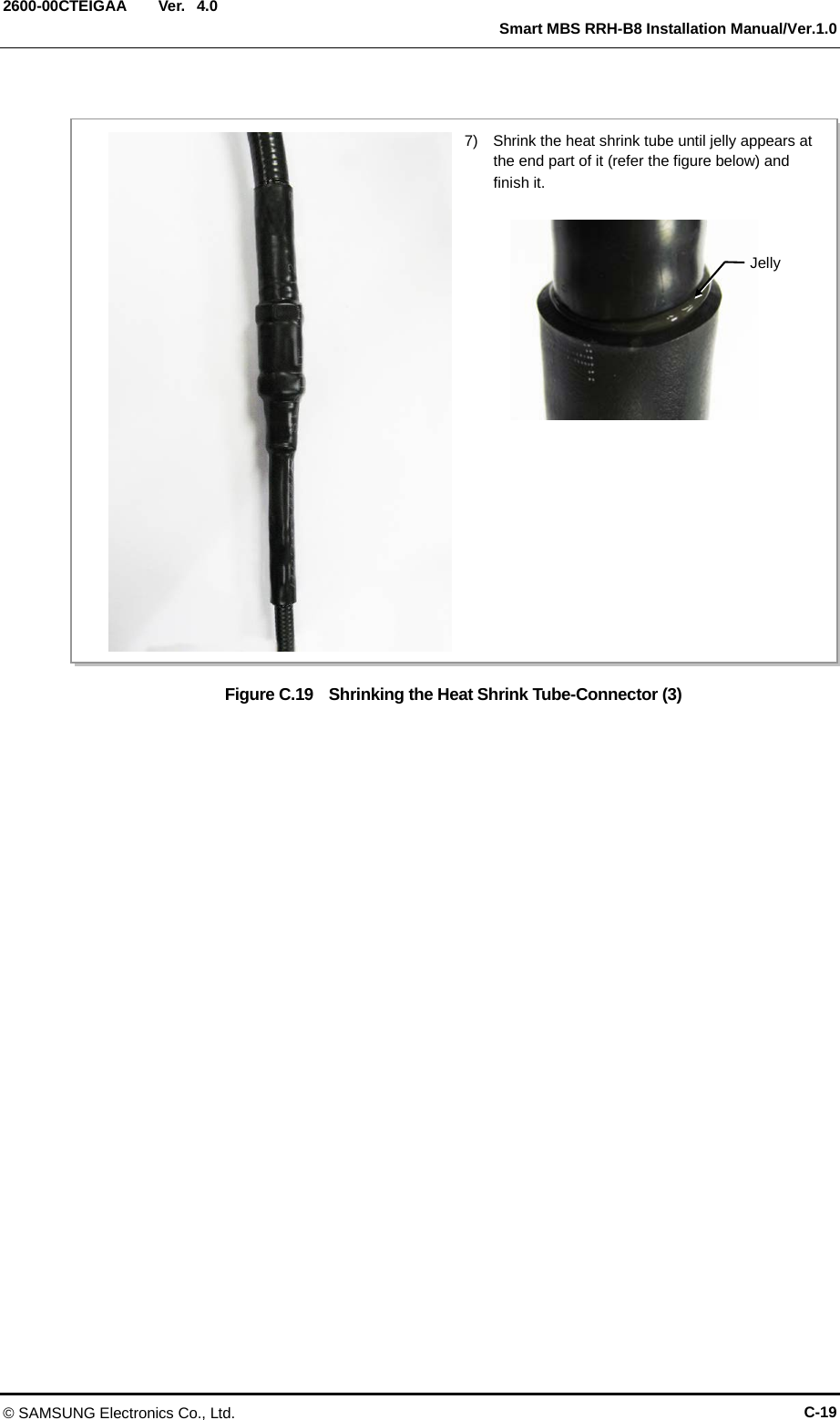

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure C.19 Shrinking the Heat Shrink Tube-Connector (3) 7) Shrink the heat shrink tube until jelly appears at the end part of it (refer the figure below) and finish it. Jelly © SAMSUNG Electronics Co., Ltd. C-19
Ver. ANNEX C. Assembling connector 2600-00CTEIGAA 4.0 Check for Working with the Heat Shrink Tube - If you work without holding one end of the heat shrink tube, the location of the heat shrink tube may be changed. Therefore, make sure to hold one end of it when applying heat. - The connector part where 1/2 in. and 7/8 in. feeder line are connected must be the center of the heat shrink tube. After inserting the heat shrink tube, mark the center part. - If jelly does not appear on the end of the heat shrink tube, it may mean that it is not shrunk properly. Apply heat until jelly appears using a heating gun. Jelly C-20 © SAMSUNG Electronics Co., Ltd.

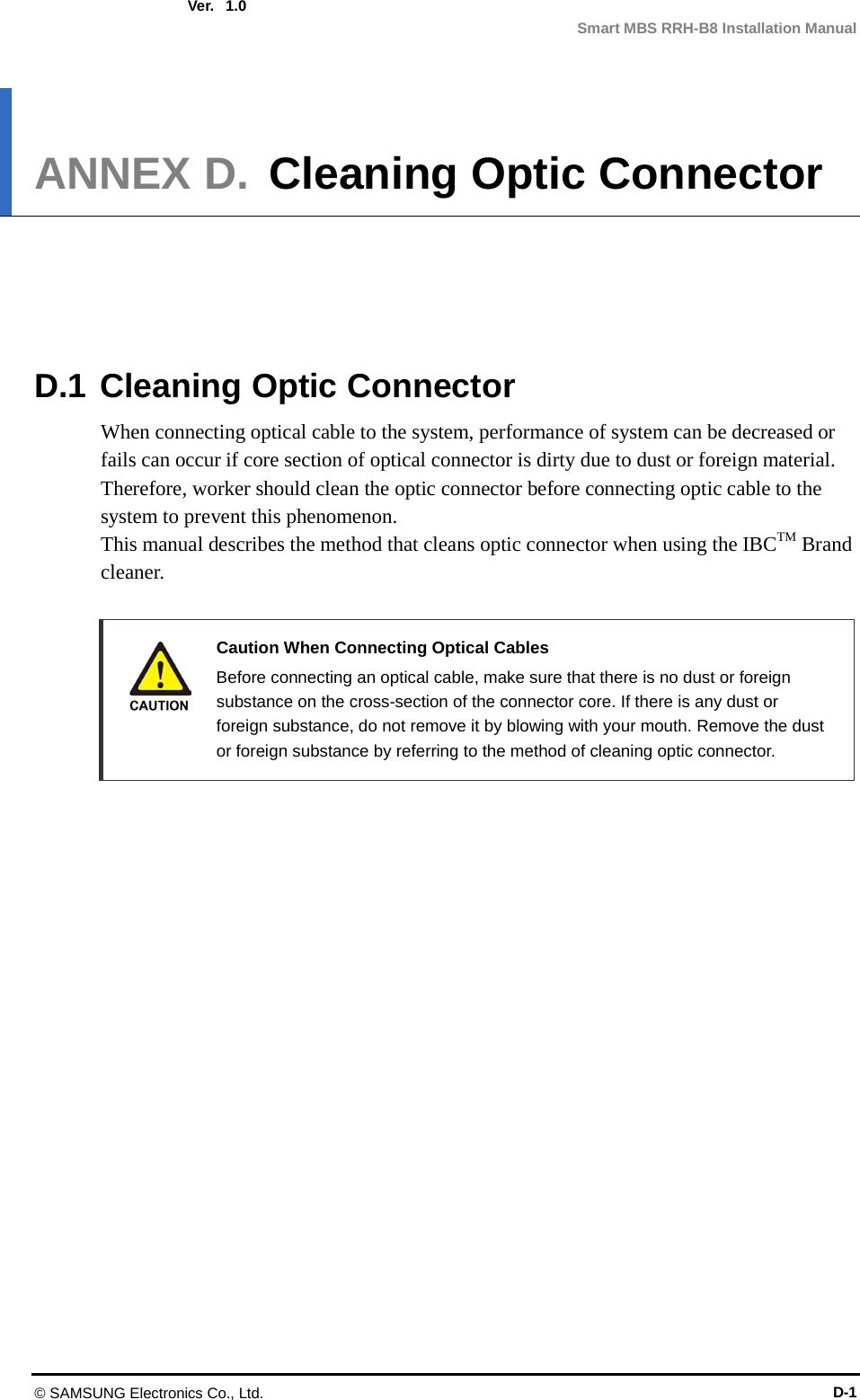

Ver. Smart MBS RRH-B8 Installation Manual 1.0 ANNEX D. Cleaning Optic Connector D.1 Cleaning Optic Connector When connecting optical cable to the system, performance of system can be decreased or fails can occur if core section of optical connector is dirty due to dust or foreign material. Therefore, worker should clean the optic connector before connecting optic cable to the system to prevent this phenomenon. This manual describes the method that cleans optic connector when using the IBCTM Brand cleaner. Caution When Connecting Optical Cables Before connecting an optical cable, make sure that there is no dust or foreign substance on the cross-section of the connector core. If there is any dust or foreign substance, do not remove it by blowing with your mouth. Remove the dust or foreign substance by referring to the method of cleaning optic connector. © SAMSUNG Electronics Co., Ltd. D-1

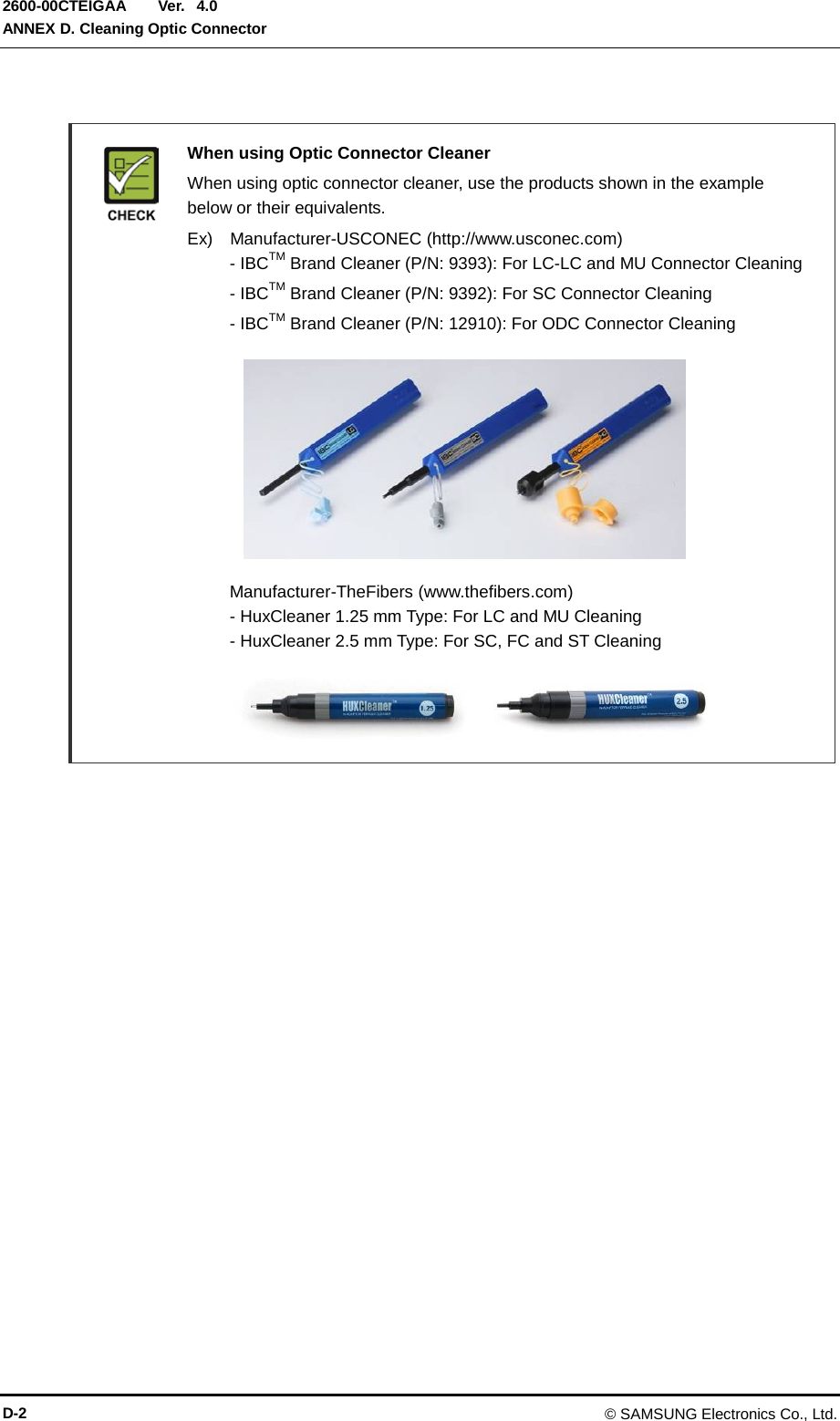

Ver. ANNEX D. Cleaning Optic Connector 2600-00CTEIGAA 4.0 When using Optic Connector Cleaner When using optic connector cleaner, use the products shown in the example below or their equivalents. Ex) Manufacturer-USCONEC (http://www.usconec.com) - IBCTM Brand Cleaner (P/N: 9393): For LC-LC and MU Connector Cleaning - IBCTM Brand Cleaner (P/N: 9392): For SC Connector Cleaning - IBCTM Brand Cleaner (P/N: 12910): For ODC Connector Cleaning Manufacturer-TheFibers (www.thefibers.com) - HuxCleaner 1.25 mm Type: For LC and MU Cleaning - HuxCleaner 2.5 mm Type: For SC, FC and ST Cleaning D-2 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 D.2 IBCTM Brand Cleaner Method that uses IBCTM Brand Cleaner is as follows: D.2.1 IBCTM brand type cleaner (P/N 9393) Method that uses IBCTM Brand Cleaner (P/N 9393) for LC-LC and MU connector is as follows: Figure D.1 Optic Connector Cleaner (IBCTM Brand Type Cleaner: P/N 9393) Outer Shell [Optic Connector Cleaner Configuration] Nozzle Guide Cap Lock Button (for Extend Nozzle) [Nozzle Extension] [In Case of LC type Connector (Plug)] Guide Cap Guide Cap Cover [In Case of LC type Connector (Jack)] Guide Cap Lock Button (for Extend Nozzle) © SAMSUNG Electronics Co., Ltd. D-3
Ver. ANNEX D. Cleaning Optic Connector 2600-00CTEIGAA 4.0 Optic Module Cleaning (LC type Jack) Figure D.2 Optic Module Cleaning (LC type Jack) Guide Cap 1) To clean the optic module, remove the guide cap from the cleaner (P/N: 9393). 2) Insert a cleaner guide cap to every core of the optic module. Clean it by pushing the outer shell toward the nozzle until you hear the sound of the detergent being sprayed. (Repeat once or twice.) Outer Shell Nozzle Nozzle Outer Shell Optic Module [IBC Brand Cleaner: P/N 9393] D-4 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Optic Cable Connector Cleaning (LC type plug) Figure D.3 Optic Cable Connector Cleaning (LC type plug) Guide Cap Guide Cap Cover 1) To clean the optic cable connector, open the guide cap cover from the cleaner (P/N: 9393). 2) Insert a cleaner guide cap to every core of the optic cable connector. Clean it by pushing the outer shell toward the nozzle until you hear the sound of the detergent being sprayed. (Repeat once or twice.) Outer Shell Nozzle Guide Cap Nozzle Outer Shell LC Type Connector [IBC Brand Cleaner: P/N 9393] © SAMSUNG Electronics Co., Ltd. D-5
Ver. ANNEX D. Cleaning Optic Connector 2600-00CTEIGAA 4.0 Measuring the Optical Output and Connecting the Optic Connector Figure D.4 Measuring the Optical Output and Connecting the Optic Connector [Optic Powermeter] [LC/PC Plug] 1) Check the optical output again using an optic power meter. 2) If the optical output measurement result meets the reference value, clean the connector again and connect it. If the measurement result does not meet the reference value, discard the cable, replace it with a new cable, and then clean the new one and connect it to the system. D-6 © SAMSUNG Electronics Co., Ltd.

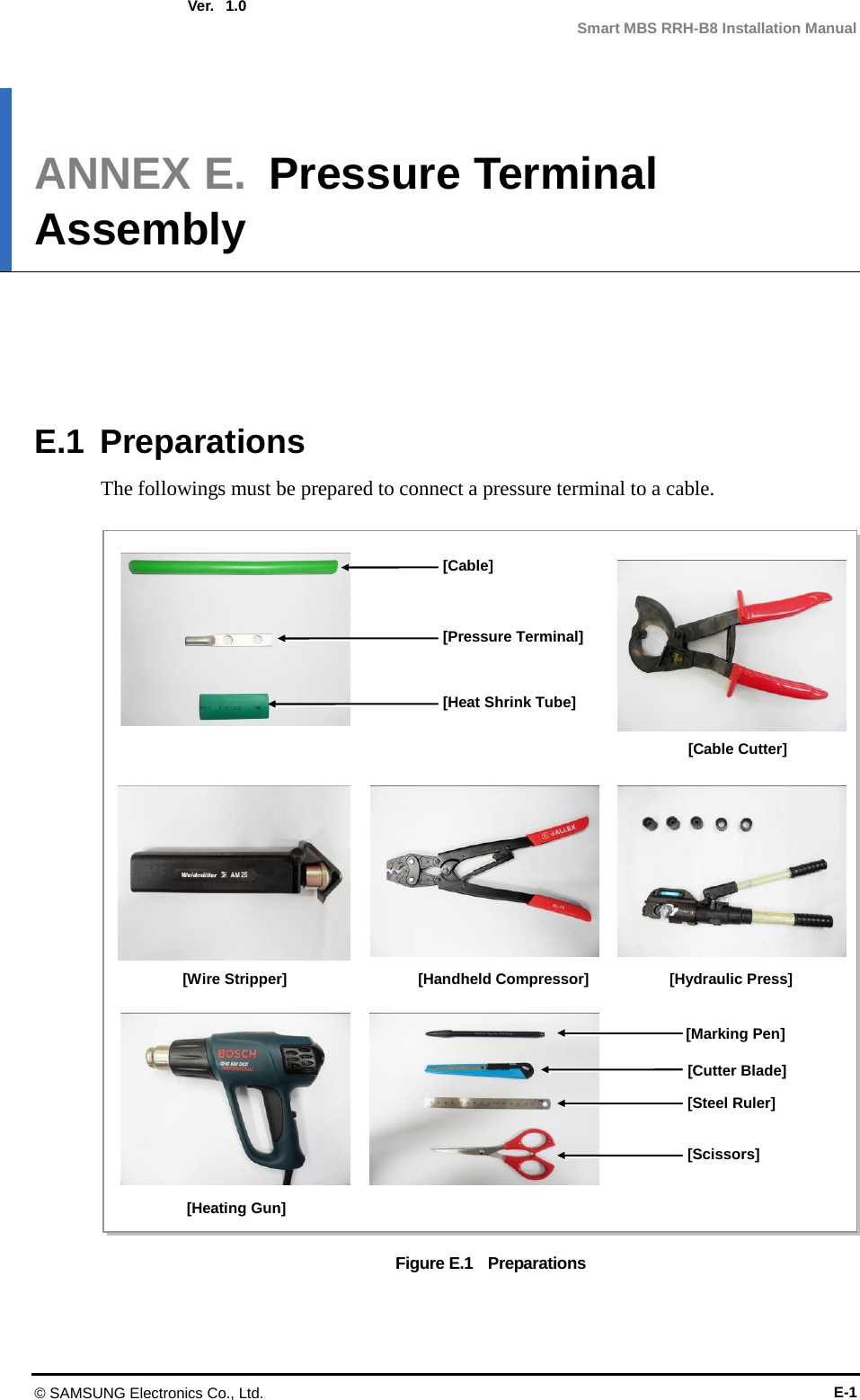

Ver. Smart MBS RRH-B8 Installation Manual 1.0 ANNEX E. Pressure Terminal Assembly E.1 Preparations The followings must be prepared to connect a pressure terminal to a cable. Figure E.1 Preparations [Cable Cutter] [Wire Stripper] [Handheld Compressor] [Hydraulic Press] [Heating Gun] [Marking Pen] [Cutter Blade] [Steel Ruler] [Scissors] [Cable] [Pressure Terminal] [Heat Shrink Tube] © SAMSUNG Electronics Co., Ltd. E-1
Ver. ANNEX E. Pressure Terminal Assembly 2600-00CTEIGAA 4.0 E.2 Pressure Reference Table The pressure reference table used to assemble a pressure terminal to a cable is shown below. Table E.1 Pressure Reference Table for Pressure Terminal Category Copper tube length of a pressure terminal Number of pressure points In. mm Hand 0.43 in. or less 11 mm or less 1 Hand 0.47~0.59 in. 12~15 mm 2 Hand 0.63~0.91 in. 16~23 mm 3 Hand 0.94~1.26 in. 24~32 mm 4 Hand 1.3 in. or more 33 mm or more 5 Hydraulic 1.18 in. or less 30 mm or less 2 Hydraulic 1.22~1.85 in. 31~47 mm 3 Hydraulic 1.89~2.48 in. 48~63 mm 4 Hydraulic 2.52 in. or more 64 mm or more 5 Figure E.2 Pressure Reference Drawing (Handheld Compressor) [1-spot] [2-spot] [3-spot] [4-spot] Unit: in. (mm) 0.43 (11) 0.18 (4.5) 0.47 (12) 0.59 (15) 0.63 (16) 0.91 (23) 0.94 in. (24) 1.26 (32) 0.63 (16) 0.18 (4.5) Copper Tube Starting Middle of Copper Tube Arbitrary Fixing Reference Points E-2 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure E.3 Pressure Reference Drawing (Hydraulic Press) Unit: in. (mm) [2-spot] [3-spot] [4-spot] 1.18 (30) [4-spot] Copper Tube Starting Duplicate Pressure Arbitrary Fixing Reference Points 0.53 (13.5) 1.22 (31) 0.53 (13.5) 1.22 (31) 1.85 (47) 1.89 (48) 2.48 (63) 2.52 (64) © SAMSUNG Electronics Co., Ltd. E-3
Ver. ANNEX E. Pressure Terminal Assembly 2600-00CTEIGAA 4.0 Table E.2 Compressor Specifications per Cable Thickness Cable Size Press Size AWG mm2 Small Handheld Press Large Handheld Press (AK-38, 100) Hydraulic Press (IZUMI Hexagonal Dies) 12 2.5 2 X X 10 4 2 X X 8 6 5.5 X X 6 10 8 8 X 4 16 14 14 16 2 25 22 22 25 1 35 38 38 35 1/0 50 X 60 50 3/0 70 X 80 70 4/0 95 X 100 95~300 E-4 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 E.3 Assembling Pressure Terminal The procedures for assembling a pressure terminal to a cable are as follows: Strip the Cable Sheath Figure E.4 Stripping Cable Sheath (1) 4) Put a cable into a clamp, locate a blade on a marking position, and push it into the sheath. 5) Align the stripper to be perpendicular to the cable and rotate it more than two laps. 1) After checking the inside length of a pressure terminal, mark the cable. 2) Adjust the length of a cutter blade according to the sheath thickness of the cable. 3) Push the clamp with a thumb a ccording to the cable size to secure a space for the cable. © SAMSUNG Electronics Co., Ltd. E-5
Ver. ANNEX E. Pressure Terminal Assembly 2600-00CTEIGAA 4.0 Figure E.5 Stripping Cable Sheath (2) 6) Push the lever of the stripper to the right to turn its blade at 90°. 8) Remove the sheath. 7) Move the stripper up to the end of cable while maintaining the stripper to be perpendicular to the cable. E-6 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Checking When Using A Wire Stripper A wire stripper is used differently depending on its manufacturer or type. Therefore, refer to the user manual enclosed with the product. The specifications and cautions of a wire stripper described in this manual are as follows:  Vender: Weidmuller  Model: Weidmuller-AM25 (Order No-9001080000)  Specifications: For outer diameter 0.24-0.94 in. (6-24 mm) PVC clothing Up to 0.18 in. (4.5 mm) clothing cutting depth - To prevent the cutter blade of a wire stripper from touching the cable conductor, adjust the length of cutter blade by checking the cable sheath thickness. - Make sure that the cutter blade goes into the cable sheath completely. - Rotate the wire stripper perpendicularly to the cable. [X] [O] © SAMSUNG Electronics Co., Ltd. E-7
Ver. ANNEX E. Pressure Terminal Assembly 2600-00CTEIGAA 4.0 Fixing Pressure Terminal (Handheld Compressor) Figure E.6 Fixing Pressure Terminal_Handheld Compressor (1) 1) Insert the conductor of the cable with the sheath stripped to the internal end of pressure terminal. For a ring type pressure terminal, push it in until the conduct comes out 0.04 in. (1 mm) from the end of the terminal. 2) From the holes of handheld compressor, select one that fits to the pressure terminal. 3) Insert the pressure terminal to the selected hole. 4) Fix the pressure terminal and cable temporarily so the position can be changed later by pressing the compressor. E-8 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Figure E.7 Fixing Pressure Terminal_Handheld Compressor (2) 5) After complementary of the cable which is temporary fixed, align it to the hole and firmly compress the pressure terminal to secure fix it. 6) Separate the pressure terminal from the handheld compressor. Press down the handle of compressor until a clicking sound is heard to be unlocked. © SAMSUNG Electronics Co., Ltd. E-9
Ver. ANNEX E. Pressure Terminal Assembly 2600-00CTEIGAA 4.0 Checking When Using A Handheld Compressor A handheld compressor is used differently depending on its manufacturer or type. Therefore, refer to the user manual enclosed with the product. The specifications and cautions of a handheld compressor described in this manual are as follows:  Vender: GALLEX  Model: GL-2045A-22  Specification: 5.5 mm2, 8 mm2, 14 mm2, 22 mm2 (JIS), 6 mm2, 10 mm2, 16 mm2, 25 mm2 (DIN) E-10 © SAMSUNG Electronics Co., Ltd.

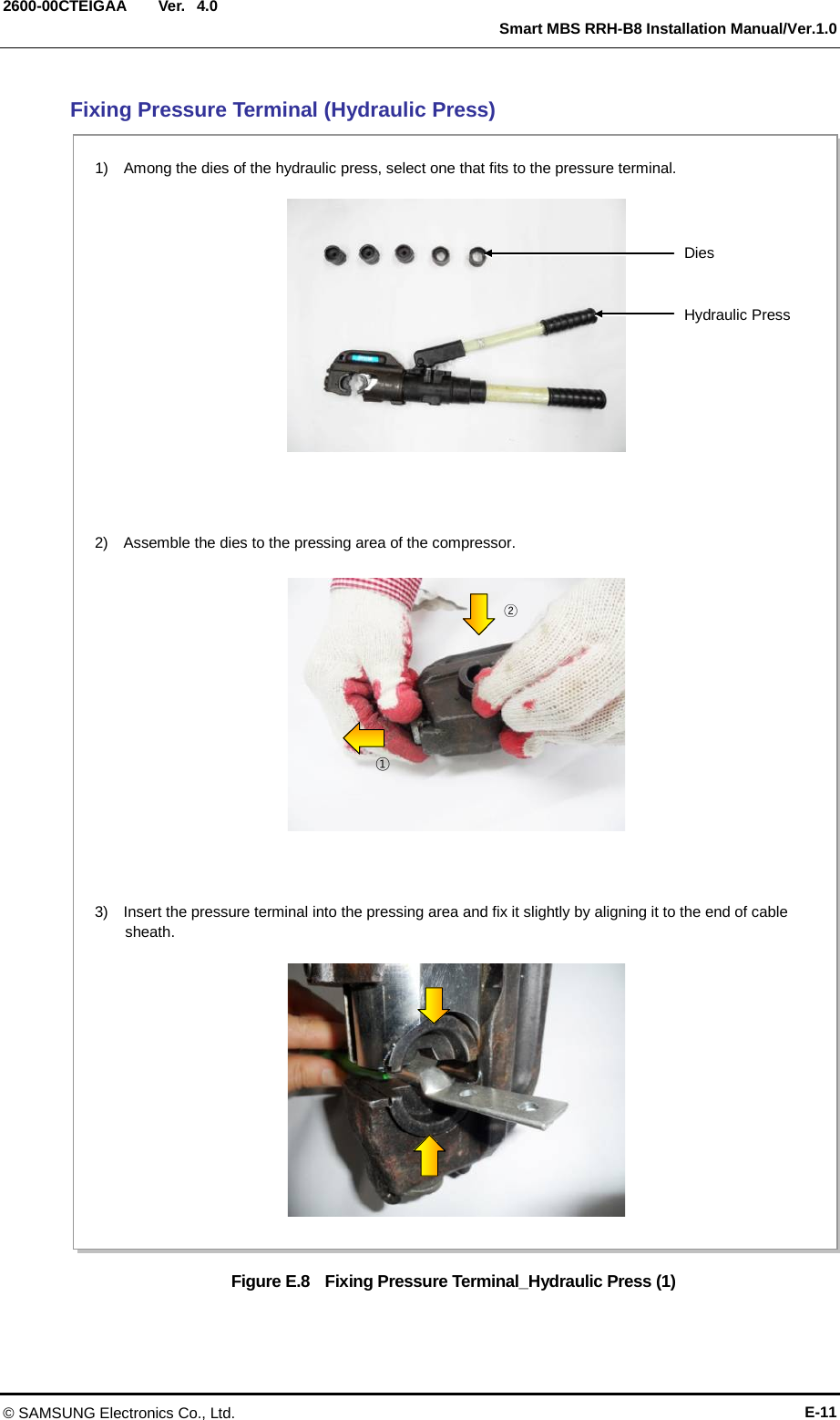

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Fixing Pressure Terminal (Hydraulic Press) Figure E.8 Fixing Pressure Terminal_Hydraulic Press (1) 1) Among the dies of the hydraulic press, select one that fits to the pressure terminal. Dies Hydraulic Press 2) Assemble the dies to the pressing area of the compressor. ② ① 3) Insert the pressure terminal into the pressing area and fix it slightly by aligning it to the end of cable sheath. © SAMSUNG Electronics Co., Ltd. E-11
Ver. ANNEX E. Pressure Terminal Assembly 2600-00CTEIGAA 4.0 Figure E.9 Fixing Pressure Terminal_Hydraulic Press (2) 4) Move the compressor lever up and down to press the pressure terminal firmly. 5) Turn the top compressing lever clockwise and then push it down. When the pressing area of compressor is loosened, remove the pressure terminal. E-12 © SAMSUNG Electronics Co., Ltd.

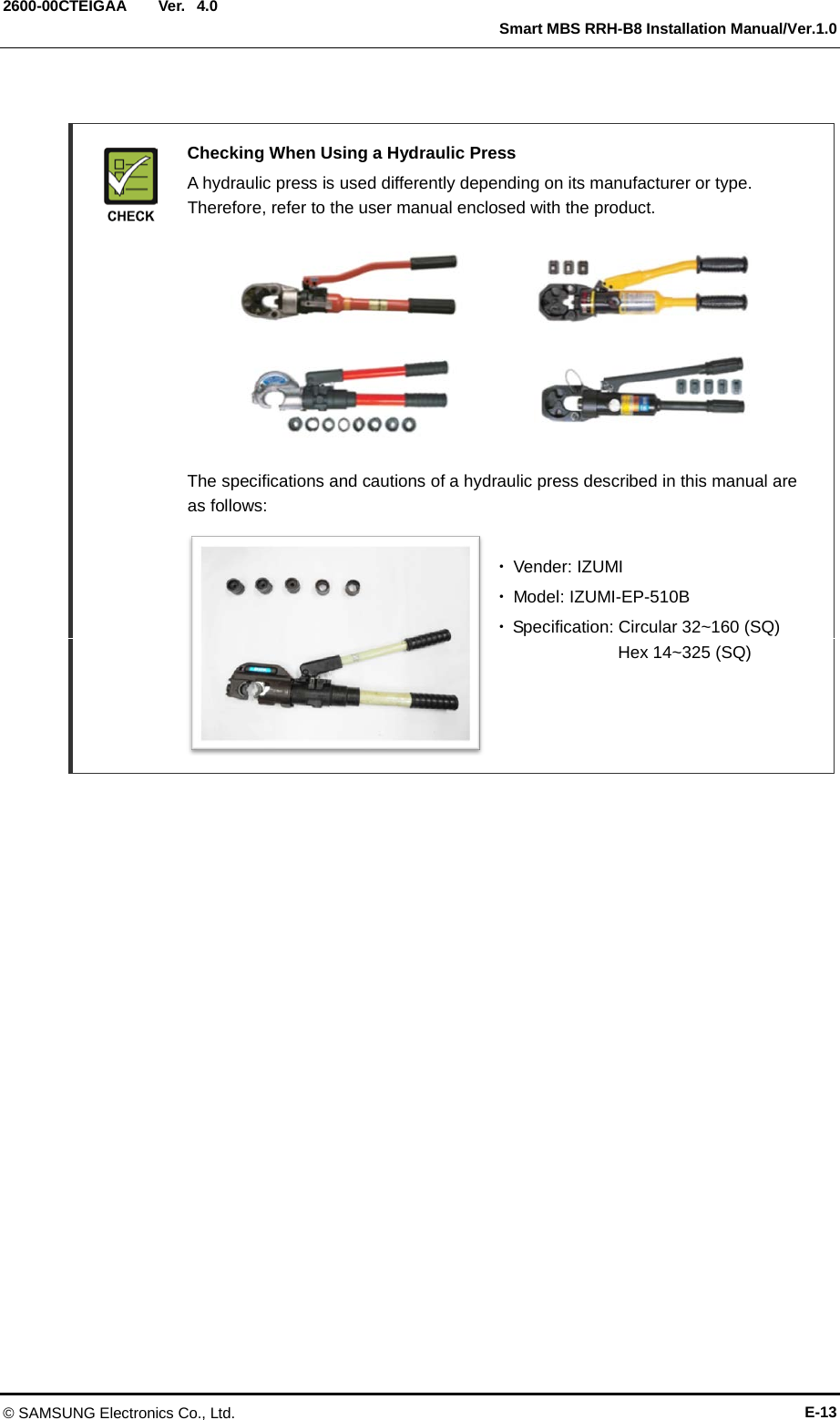

Ver. Smart MBS RRH-B8 Installation Manual/Ver.1.0 2600-00CTEIGAA 4.0 Checking When Using a Hydraulic Press A hydraulic press is used differently depending on its manufacturer or type. Therefore, refer to the user manual enclosed with the product. The specifications and cautions of a hydraulic press described in this manual are as follows:  Vender: IZUMI  Model: IZUMI-EP-510B  Specification: Circular 32~160 (SQ) Hex 14~325 (SQ) © SAMSUNG Electronics Co., Ltd. E-13
Ver. ANNEX E. Pressure Terminal Assembly 2600-00CTEIGAA 4.0 Assembling Heat Shrink Tube Figure E.10 Assembling Heat Shrink Tube 2) Set the temperature of the heat gun to 356~392°F(180~200°C). 3) Locate a heat shrink tube to cover the entire copper tube of the pressure terminal. 4) Rotate a heat gun 360° to apply heat evenly to shrink the tube. (Because the pressure terminal and the cable is hot due to the heat of a heating gun, be careful not to have a burn.) 1) After assembling a pressure terminal, move the heat shrink tube, inserted to the cable, to the end of pressure terminal copper tube. Heat Shrink Tube Pressure Terminal E-14 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual 1.0 ANNEX F. Standard Torque When you fasten the bolt, refer to the standard torque value below to prevent the equipment and bolt from damage and fasten tightly. When the torque value for each connection part is defined already, refer to the defined value. Table F.1 Standard Torque Value for Tightening Bolts Bolt Spec. Torque (kgf.cm) Torque (N.m) Torque (lbf.ft) M3 4.08~6.12 0.40~0.60 0.29~0.44 M4 9.52~14.28 0.93~1.40 0.69~1.03 M5 20.0~30.0 1.96~2.94 1.45~2.17 M6 33.28~49.92 3.26~4.90 2.41~3.61 M8 82.4~123.6 8.08~12.12 5.96~8.94 M10 166.4~249.6 16.32~24.48 12.03~18.05 M12 292.0~438.0 28.64~42.65 21.11~31.67 Table F.2 Brass Bolts Torque Bolt Spec. Torque (kgf.cm) Torque (N.m) Torque (lbf.ft) M6 29.98 ± 10 % 2.94 ± 10 % 2.17 ± 10 % M8 64.26 ± 10 % 6.3 ±1 0 % 4.16 ± 10 % Check When Applying standard torque value The torque value can change depending on the equipment and materials, properties and specifications of the fastening bolts. Therefore, you must check the appropriate torque value of each equipment and fastening bolts according to its spec. © SAMSUNG Electronics Co., Ltd. F-1
Ver. ANNEX F. Standard Torque 2600-00CTEIGAA 4.0 This page is intentionally left blank. F-2 © SAMSUNG Electronics Co., Ltd.
Ver. Smart MBS RRH-B8 Installation Manual 1.0 ABBREVIATION C CDMA Code Division Multiple Access CPRI Common Public Radio Interface D DC Direct Current E EMC Electromagnetic Compatibility G GPS Global Positioning Satellite I I/O In/Out L LTE Long Term Evolution M MGB Main Ground Bar R RET Remote Electrical Tilting RF Radio Frequency RRH-B8 Remote Radio Head-PCS band 4Tx/4Rx © SAMSUNG Electronics Co., Ltd. I

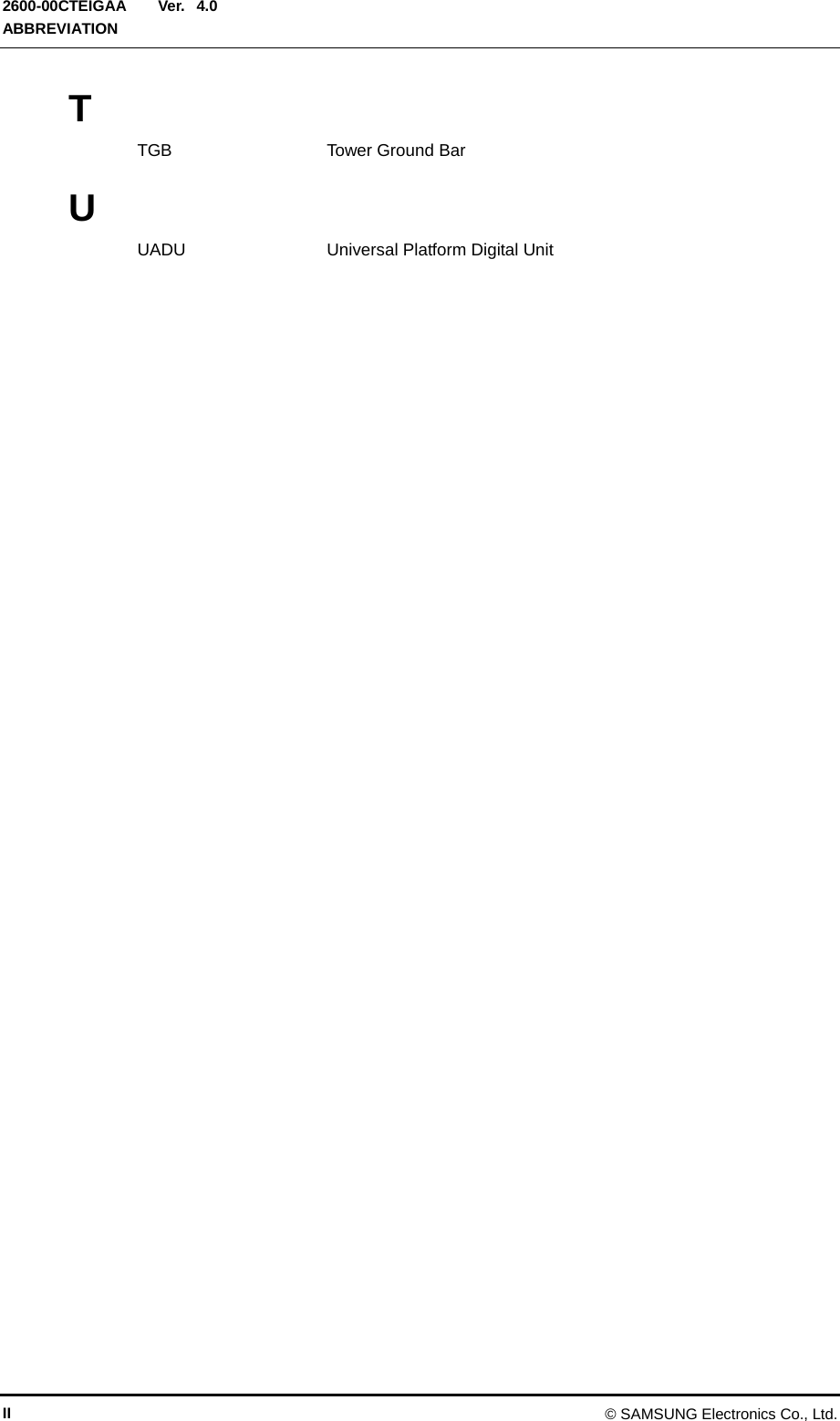

Ver. ABBREVIATION 2600-00CTEIGAA 4.0 T TGB Tower Ground Bar U UADU Universal Platform Digital Unit II © SAMSUNG Electronics Co., Ltd.
Ver. 2600-00CTEIGAA 4.0 Smart MBS RRH-B8 Installation Manual ©2011~2012 Samsung Electronics Co., Ltd. All rights reserved. Information in this manual is proprietary to SAMSUNG Electronics Co., Ltd. No information contained here may be copied, translated, transcribed or duplicated by any form without the prior written consent of SAMSUNG. Information in this manual is subject to change without notice.
