www.samsung.com
User Manual
SM-C101
2
About this manual
This device provides high quality mobile communication and entertainment using Samsung’s
high standards and technological expertise. This user manual is specially designed to detail
the device’s functions and features.
r
Please read this manual before using the device to ensure safe and proper use.
r
Descriptions are based on the device’s default settings.
r
Images and screenshots may differ in appearance from the actual product.
r
Content may differ from the final product, or from software provided by service providers
or carriers, and is subject to change without prior notice. For the latest version of the
manual, refer to the Samsung website,
www.samsung.com
.
r
Content (high quality content) that requires high CPU and RAM usage will affect the
overall performance of the device. Applications related to the content may not work

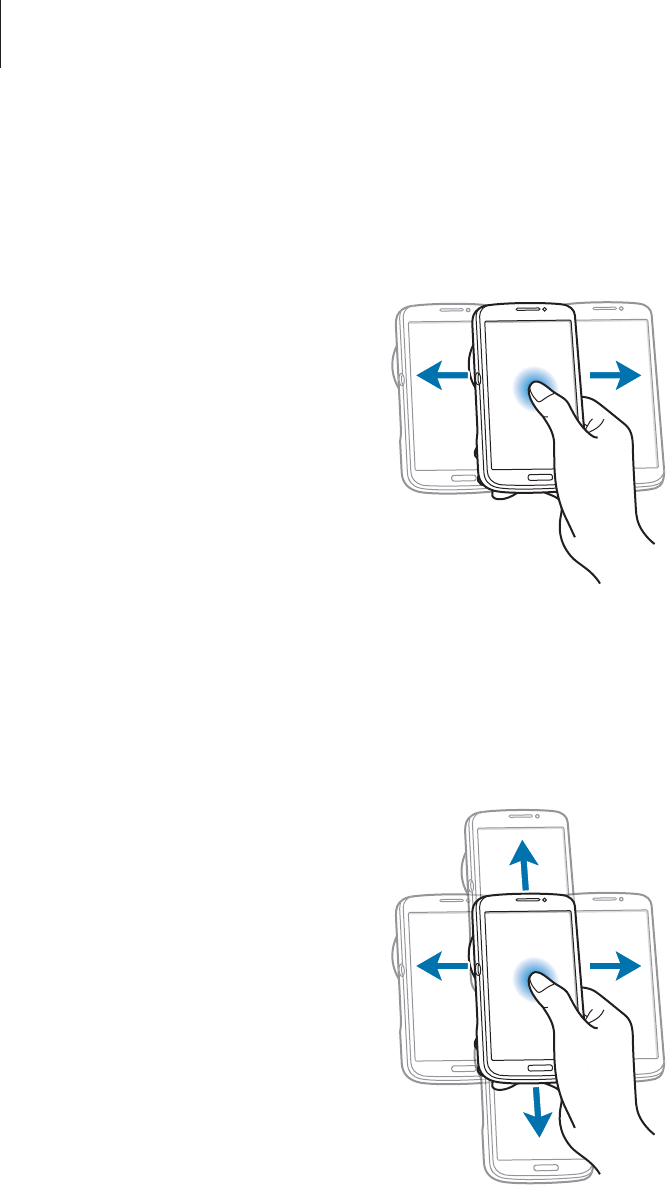

properly depending on the device’s specifications and the environment that it is used in.
r
Available features and additional services may vary by device, software, or service
provider.
r
Applications and their functions may vary by country, region, or hardware specifications.
Samsung is not liable for performance issues caused by applications from any provider
other than Samsung.
r
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the device or applications to work improperly.
r
Software, sound sources, wallpapers, images, and other media provided with this device
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal

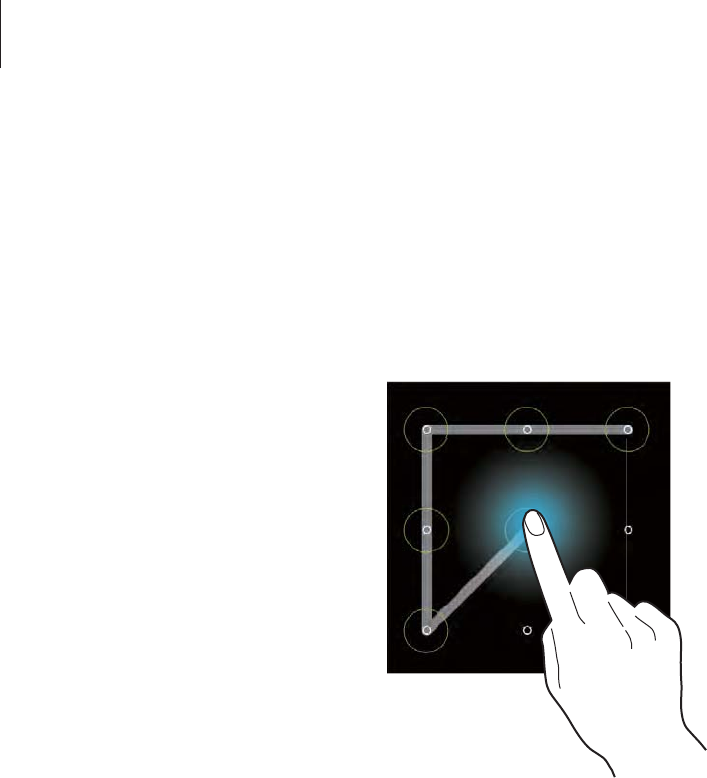

use of media.
r
You may incur additional charges for data services, such as messaging, uploading and
downloading, auto-syncing, or using location services. To avoid additional charges, select
an appropriate data tariff plan. For details, contact your service provider.
About this manual
3
r
Default applications that come with the device are subject to updates and may no longer
be supported without prior notice. If you have questions about an application provided
with the device, contact a Samsung Service Centre. For user-installed applications,
contact service providers.
r
Modifying the device’s operating system or installing softwares from unofficial sources
may result in device malfunctions and data corruption or loss. These actions are violations
of your Samsung licence agreement and will void your warranty.
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Note: notes, usage tips, or additional information
Copyright
Copyright © 2013 Samsung Electronics
This guide is protected under international copyright laws.
No part of this guide may be reproduced, distributed, translated, or transmitted in any form or
by any means, electronic or mechanical, including photocopying, recording, or storing in any
information storage and retrieval system, without the prior written permission of Samsung
Electronics.
About this manual
4
Trademarks
r
SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
r
The Android logo, Google
™
, Google Maps
™
, Google Mail
™
, YouTube
™
, Google Play
™
Store, and Google Talk
™
are trademarks of Google, Inc.
r
Bluetooth
®
is a registered trademark of Bluetooth SIG, Inc. worldwide.
r
Wi-Fi
®
, Wi-Fi Protected Setup
™
, Wi-Fi Direct
™
, Wi-Fi CERTIFIED
™
, and the Wi-Fi logo are
registered trademarks of the Wi-Fi Alliance.
r
All other trademarks and copyrights are the property of their respective owners.
5
Table of Contents
Getting started
8 Device layout
9 Buttons
10 Package contents
11 Installing the SIM or USIM card and
battery
15 Charging the battery
17 Inserting a memory card
19 Attaching a hand strap
20 Turning the device on and off
20 Holding the device
21 Locking and unlocking the device
21 Adjusting the volume
21 Switching to silent mode
Basics
22 Indicator icons
23 Using the touch screen
26 Control motions
30 Activating glove mode
30 Notifications
30 Quick setting panel
31 Home screen
34 Locked screen
35 Using applications
35 Applications screen
37 Help
37 Entering text
39 Connecting to a Wi-Fi network
40 Setting up accounts
41 Transferring files
42 Securing the device
44 Upgrading the device
Communication
45 Phone
51 Contacts
54 Messaging
55 Email
57 Google Mail
58 Talk
59 Google+
59 Messenger
60 ChatON
Web & network
61 Internet
62 Chrome
63 Bluetooth
64 Screen Mirroring
65 AllShare Play
Table of Contents
6
96 ISO (sensitivity)
97 WB (light source)
98 Metering
99 Drive
100 Flash
100 Focus mode
101 Focus area
101 Face detection
102 Quality
102 Image Adjust
102 Timer
103 OIS (anti-shake)
104 Video recording options
104 Sharing options
104 Camera settings
Media
106 Gallery
109 Video
110 Story Album
112 Music
114 YouTube
115 Flipboard
Application & media stores
116 Play Store
117 Samsung Hub
117 Samsung Apps
118 Play Music
66 Group Play
67 NFC
68 WatchON
Camera: Basic functions
70 Launching Camera
72 Taking photos
72 Taking videos
73 Viewing photos and videos
73 Zooming in and out
73 Taking photos with voice commands
74 Taking photos or videos with filter
effects
74 Changing shooting options quickly
75 Reducing camera shake
75 Using face detection
76 Tips for taking clearer photos
Camera: Shooting modes
80 Auto
81 Expert
83 Smart
94 My mode
Camera: Shooting options
and settings
95 Changing shooting options
95 EV (brightness)
Table of Contents
7
Utilities
119 S Memo

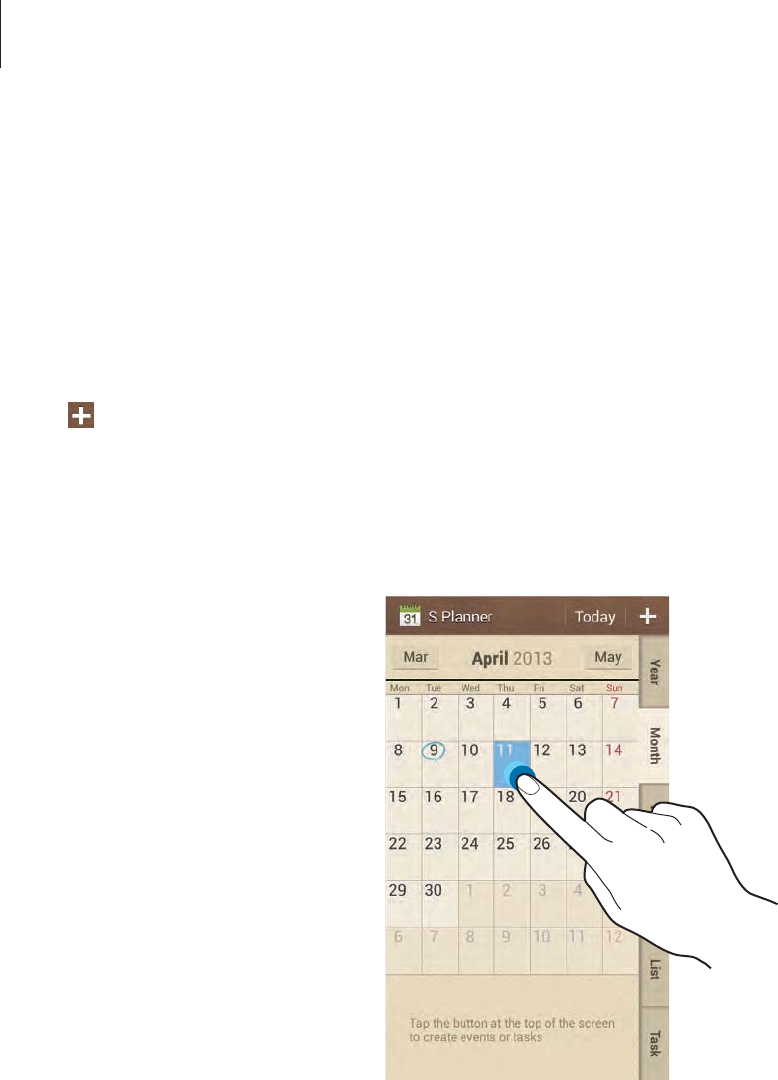

122 S Planner
124 Dropbox
125 Clock
127 Calculator
127 S Health
129 S Translator
130 Voice Recorder
131 S Voice
132 Google
133 Voice Search
133 My Files
134 Downloads
134 TripAdvisor
134 TourWrist
Travel & local
135 Maps
136 Local
137 Navigation
Settings
138 About Settings
138 Connections
142 My device
153 Accounts
154 More
Troubleshooting
Cleaning the device
8
Getting started
Device layout
Shutter button
Microphone
Earpiece
Multipurpose jack
Front camera
Power button
Home button
Headset jack
Back button
Volume button
Touch screen
Proximity/Light
sensor
Menu button
Speaker
Main antenna
IrLED
GPS antenna
Lens
Focus/Zoom ring
Tripod mount
Microphone for
sound recording
AF-assist light
Flash
Memory card slot
Getting started
9
The microphone at the top of the device is active only when you record voice memos or take
videos.
r
Do not cover the antenna area with your hands or other objects. This may cause
connectivity problems or drain the battery.
r
Do not use a screen protector. This causes sensor malfunctions.
r
Do not allow water to contact the touch screen. The touch screen may malfunction
in humid conditions or when exposed to water.
Do not use the device if it is cracked or broken. Broken glass or acrylic could cause
injury to your hands and face. Take the device to a Samsung Service Centre to have it
repaired.
Buttons
Button Function
Power
r
Press and hold to turn the device on or off.
r
Press and hold for more than 7 seconds to reset the device if
it has fatal errors or hang-ups, or freezes.
r
Press to lock or unlock the device. The device goes into lock
mode when the touch screen turns off.
Menu
r
Tap to open a list of options available for the current screen.
r
Tap and hold on the Home screen to launch Google search.
Home
r
Press to return to the Home screen.
r
Press and hold to open the list of recent applications.
Back
r
Tap to return to the previous screen.
Volume
r
Press to adjust the device volume.

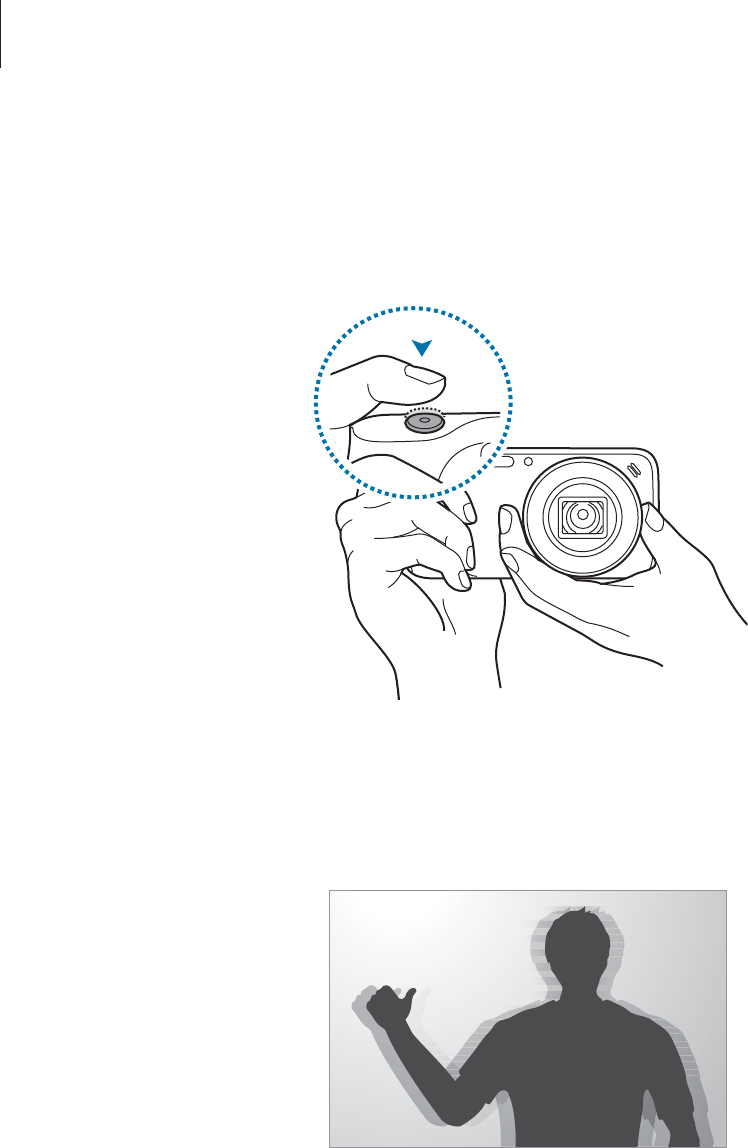

Shutter
r
On the Home screen, press and hold to turn the camera on.
r
In the camera application, half-press to focus on the subject.
When the subject is in focus, the focus frame turns green.
Press to take the photo.
Getting started
10
Package contents
Check the product box for the following items:
r
Device
r
Battery
r
Quick start guide
r
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
r
The supplied items are designed only for this device and may not be compatible
with other devices.
r
Appearances and specifications are subject to change without prior notice.
r
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
r
Other accessories may not be compatible with your device.
r
Use only Samsung-approved accessories. Malfunctions caused by using
unapproved accessories are not covered by the warranty service.
r
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.
Getting started
11
Installing the SIM or USIM card and battery
Insert the SIM or USIM card provided by the mobile telephone service provider, and the
included battery.
Only microSIM cards work with the device.
1
Remove the battery cover.
Be careful not to damage your fingernails when you remove the battery cover.
Do not bend or twist the battery cover excessively. Doing so may damage the cover.
2
Insert the SIM or USIM card with the gold-coloured contacts facing upwards.
Getting started
12
3
Push the SIM or USIM card into the slot until it locks in place.
r
Do not insert a memory card into the SIM card slot. If a memory card happens to
be lodged in the SIM card slot, take the device to a Samsung Service Centre to
remove the memory card.
r
Use caution not to lose or let others use the SIM or USIM card. Samsung is not
responsible for any damages or inconveniences caused by lost or stolen cards.
4
Slide the battery lock to the right to unlock it.
5
Insert the battery.
Make sure to properly align the battery’s gold-coloured contacts when inserting the
battery.
Getting started
13
6
Slide the battery lock to the left to lock it.
7
Replace the battery cover.
Getting started
14

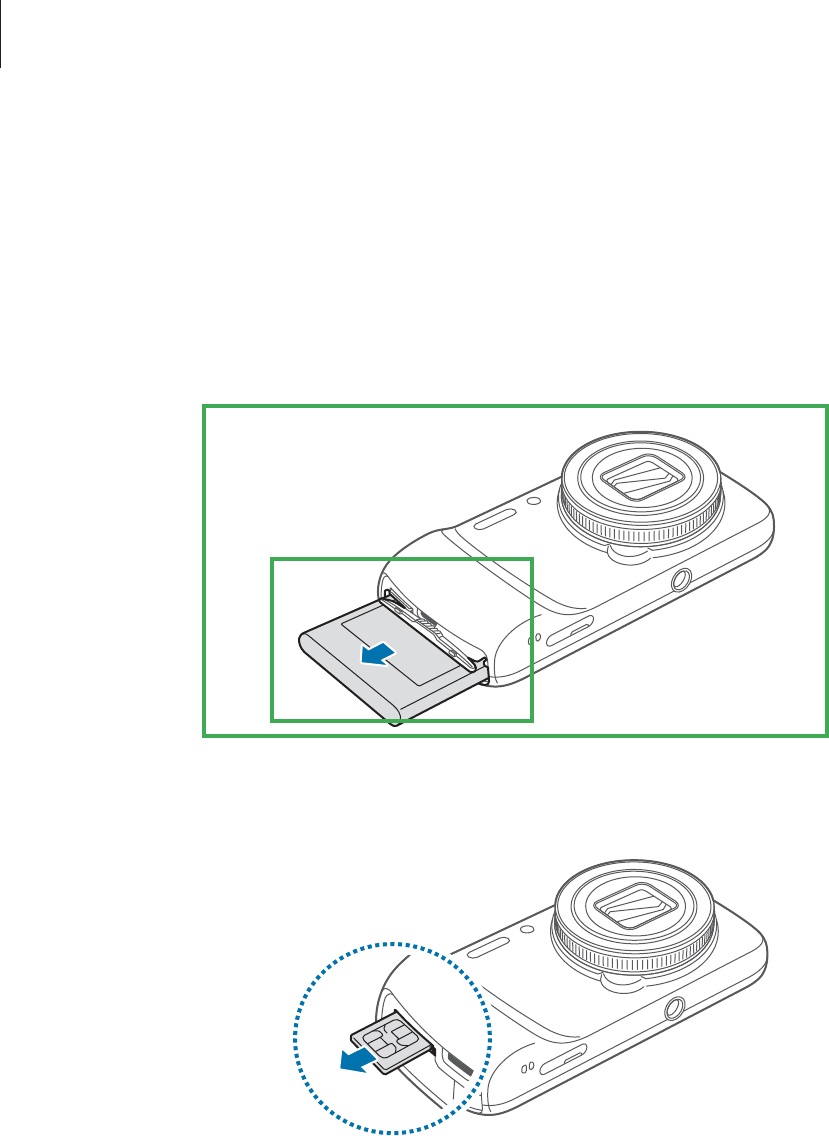

Removing the SIM or USIM card and battery
1
Remove the battery cover.
2
Slide the battery lock to the left to unlock it.
3
Pull out the battery.
4
Push the SIM or USIM card until it disengages from the device, and then pull it out.
Getting started
15

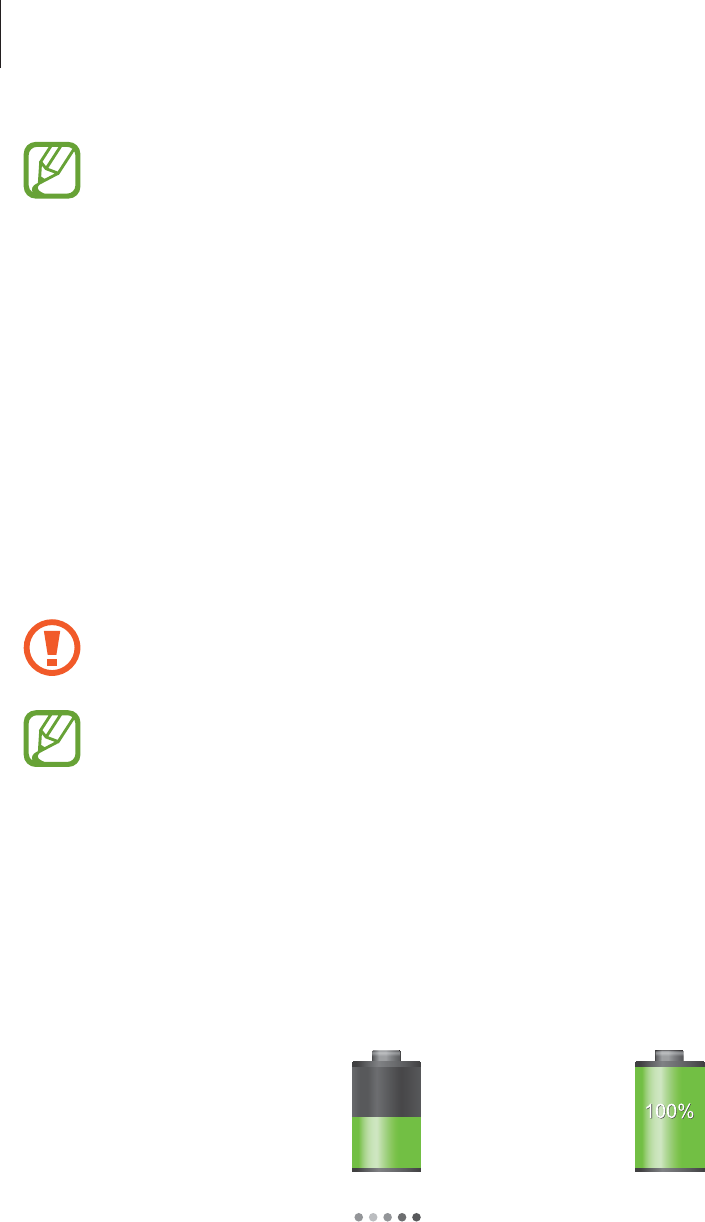

Charging the battery
Use the charger to charge the battery before using it for the first time. A computer can be also
used to charge the device by connecting them via the USB cable.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the device.
r
When the battery power is low, the device emits a warning tone and displays a low
battery power message.
r
If the battery is completely discharged, the device cannot be turned on
immediately when the charger is connected. Allow a depleted battery to charge for
a few minutes before turning on the device.
Charging with the charger
Connect the USB cable to the USB power adaptor and then plug the end of the USB cable into
the multipurpose jack.
Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
Getting started
16
r
The device can be used while it is charging, but it may take longer to fully charge
the battery.
r
If the device receives an unstable power supply while charging, the touch screen
may not function. If this happens, unplug the charger from the device.
r
While charging, the device may heat up. This is normal and should not affect the
device’s lifespan or performance. If the battery gets hotter than usual, the charger
may stop charging.
r
If the device is not charging properly, take the device and the charger to a
Samsung Service Centre.
After fully charging, disconnect the device from the charger. First unplug the charger from the
device, and then unplug it from the electric socket.
Do not remove the battery before removing the charger. This may damage the
device.
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The device should remain close to the electric socket
while charging.
Checking the battery charge status
When you charge the battery while the device is off, the following icons will show the current
battery charge status:
Charging Fully charged
Getting started
17
Reducing the battery consumption
Your device provides options that help you save battery power. By customising these options
and deactivating features in the background, you can use the device longer between charges:
r
When you are not using the device, switch to sleep mode by pressing the Power button.
r
Close unnecessary applications with the task manager.
r
Deactivate the Bluetooth feature.
r
Deactivate the Wi-Fi feature.
r
Deactivate auto-syncing of applications.
r
Decrease the backlight time.
r
Decrease the brightness of the display.
Inserting a memory card
Your device accepts memory cards with maximum capacities of GB. Depending on the
memory card manufacturer and type, some memory cards may not be compatible with your
device.
r
Some memory cards may not be fully compatible with the device. Using an
incompatible card may damage the device or the memory card, or corrupt the data
stored in it.
r
Use caution to insert the memory card right-side up.
r
The device supports the FAT and the exFAT file systems for memory cards. When
inserting a card formatted in a different file system, the device asks to reformat the
memory card.
r
Frequent writing and erasing of data shortens the lifespan of memory cards.
r
When inserting a memory card into the device, the memory card’s file directory
appears in the
SD memory card
folder under the internal memory.
Getting started
18
1
Insert a memory card with the gold-coloured contacts facing upwards.
2
Push the memory card into the slot until it locks in place.
Removing the memory card
Before removing the memory card, first unmount it for safe removal. On the Home screen, tap
Apps
Settings
More
Storage
Unmount SD card
.
Push the memory card until it disengages from the device, and then pull it out.
Do not remove the memory card while the device is transferring or accessing
information. Doing so can cause data to be lost or corrupted or damage to the
memory card or device. Samsung is not responsible for losses that result from the
misuse of damaged memory cards, including the loss of data.
Getting started
19
Formatting the memory card
A memory card formatted on a computer may not be compatible with the device. Format the
memory card on the device.
On the Home screen, tap
Apps
Settings
More
Storage
Format SD card
Format SD card
Erase everything
.
Before formatting the memory card, remember to make backup copies of all
important data stored on the device. The manufacturer’s warranty does not cover loss
of data resulting from user actions.

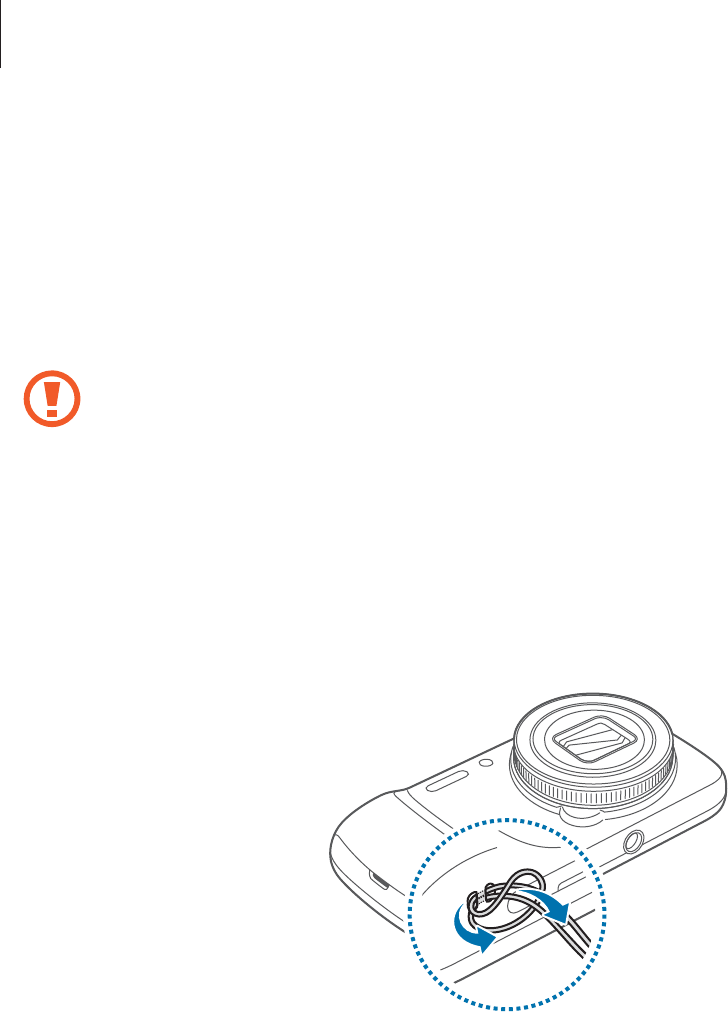

Attaching a hand strap
Slide a hand strap through the slot and hook it over the small projection.
Getting started
20
Turning the device on and off
When turning on the device for the first time, follow the on-screen instructions to set up your
device.
Press and hold the Power button for a few seconds to turn on the device.
r
Follow all posted warnings and directions from authorised personnel in areas
where the use of wireless devices is restricted, such as aeroplanes and hospitals.
r
Press and hold the Power button and tap
Flight mode
to disable the wireless
features.
To turn off the device, press and hold the Power button, and then tap
Power off
.

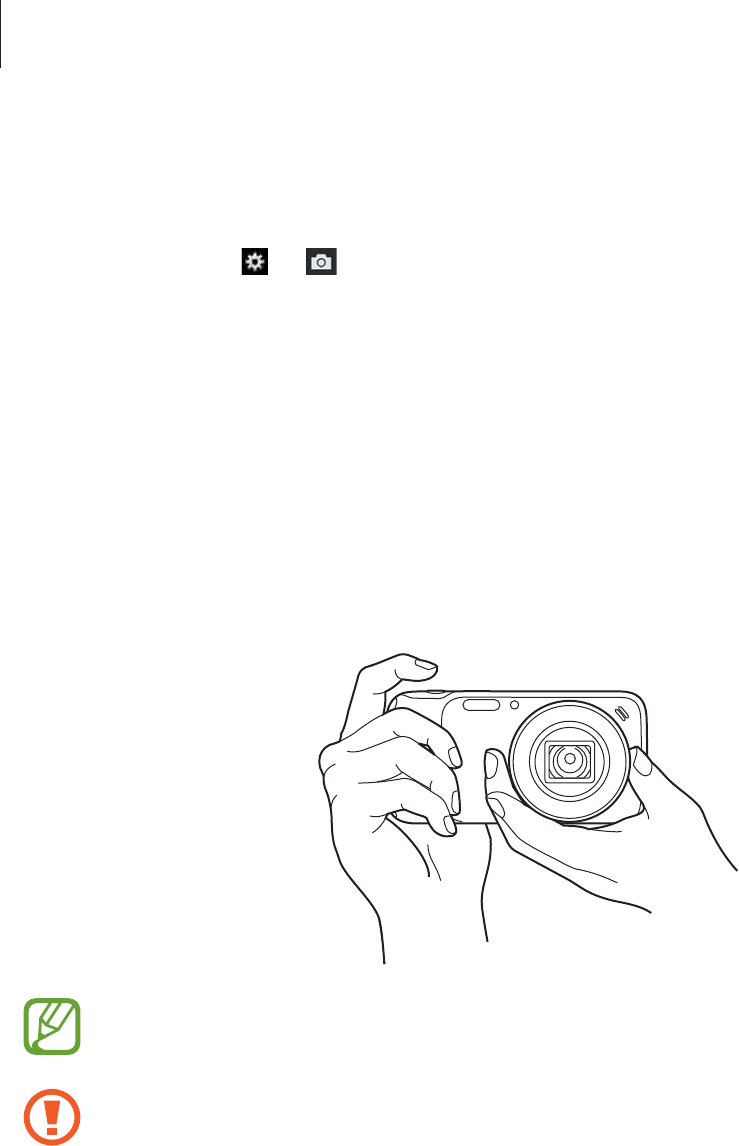

Holding the device
Do not cover the antenna area with your hands or other objects. This may cause connectivity
problems or drain the battery.
Getting started
21
Locking and unlocking the device
When not in use, lock the device to prevent unwanted operation. Pressing the Power button
turns off the screen and puts the device into lock mode. The device automatically gets locked
if it is not used for a specified period.

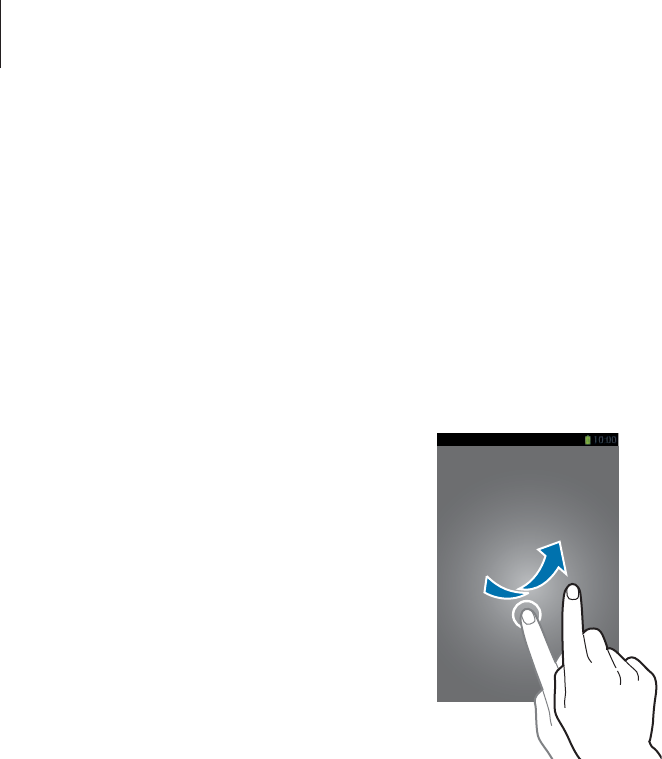

To unlock the device, press the Power button or the Home button and flick your finger in any
direction within the unlock screen area at the lower part of the screen.
Adjusting the volume
Press the Volume button up or down to adjust the ringtone volume, or to adjust the sound
volume when playing music or video.
Switching to silent mode
Use one of the following methods:
r
Press and hold the Volume button down until it switches to silent mode.
r
Press and hold the Power button, and then tap
Mute
or
Vibrate
.
r
Open the notifications panel at the top of the screen, and then tap
Sound
or
Vibrate
.
22
Basics
Indicator icons
The icons displayed at the top of the screen provide information about the status of the
device. The icons listed in the table below are most common.
Icon Meaning
No signal
Signal strength
Roaming (outside of normal service area)
GPRS network connected
EDGE network connected
UMTS network connected
HSDPA network connected
HSPA+ network connected
Wi-Fi connected
Bluetooth feature activated
GPS activated
Call in progress
Missed call
Synced with the web
Connected to computer
No SIM or USIM card
Basics
23
Icon Meaning
New text or multimedia message
Alarm activated
Silent mode activated
Vibration mode activated
Flight mode activated
Error occurred or caution required
Battery power level
Using the touch screen
Use only fingers to use the touch screen.
r
Do not allow the touch screen to come into contact with other electrical devices.
Electrostatic discharges can cause the touch screen to malfunction.
r
Do not allow the touch screen to contact water. The touch screen may malfunction
in humid conditions or when exposed to water.
r
To avoid damaging the touch screen, do not tap it with anything sharp or apply
excessive pressure to it with your fingertips.
r
Leaving the touch screen idle for extended periods may result in afterimages
(screen burn-in) or ghosting. Turn off the touch screen when you do not use the
device.
Basics
24
Finger gestures
Tapping
To open an application, to select a menu item, to press an on-screen button, or to enter a
character using the on-screen keyboard, tap it with a finger.
Dragging
To move an icon, thumbnail, or preview to a new location, tap and hold it and drag it to the
target position.
Basics
25

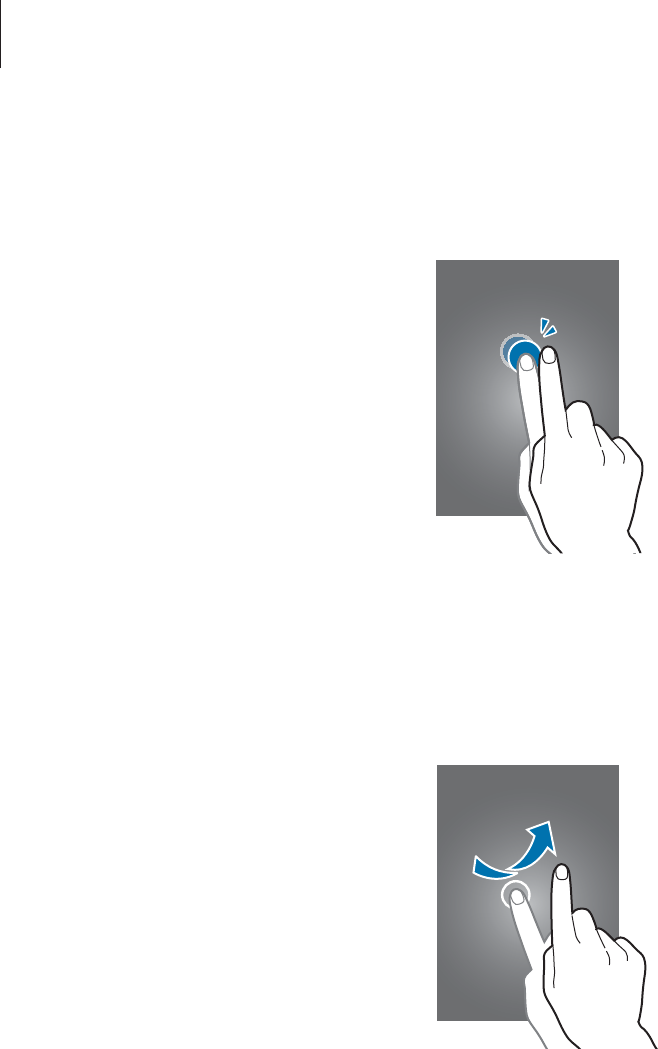

Double-tapping
Double-tap on a webpage, map, or image to zoom in a part. Double-tap again to return.
Flicking
Flick left or right on the Home screen or the Applications screen to see another panel. Flick up
or down to scroll through a webpage or a list, such as contacts.
Basics
26
Pinching
Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.
Control motions
Simple motions allow easy control of the device.
Before using motions, make sure the motion feature is activated. On the Home screen, tap
Apps
Settings
My device
Motions and gestures
Motion
, and then drag the
Motion
switch to the right.
Excessive shaking or impact to the device may result in unintended inputs. Control
motions properly.
Rotating the screen
Many applications allow display in either portrait or landscape orientation. Rotating the
device causes the display to automatically adjust to fit the new screen orientation.
Basics
27
To prevent the display from rotating automatically, open the notifications panel and deselect
Screen rotation
.
r
Some applications do not allow screen rotation.
r
Some applications display a different screen depending on the orientation. The
calculator turns into a scientific calculator when rotated to landscape.

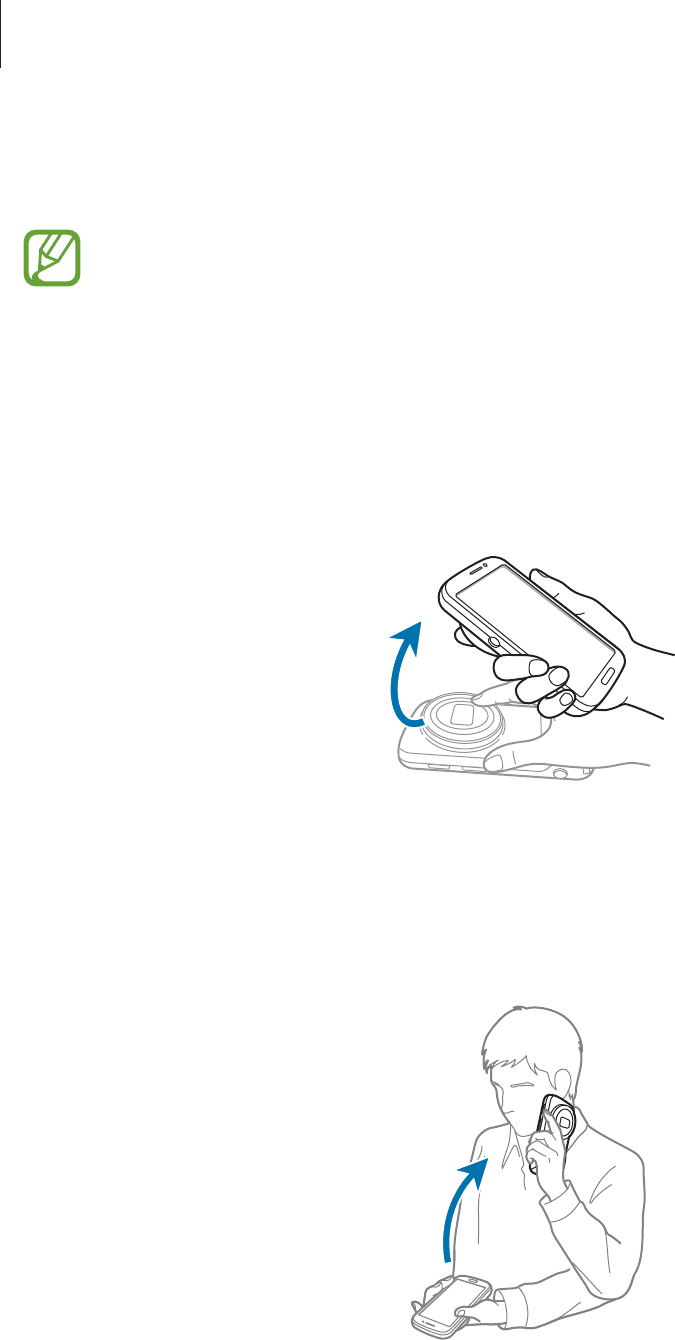

Picking up
When you pick up the device after it has been idle for some time or when the screen has
turned off, it vibrates if you have missed calls or new messages.
Holding to ear
While viewing call, message, or contact details, pick up and hold the device to your ear to
make a call.
Basics
28
Panning to move
Tap and hold an item, and then move the device to the left or right to move the item to
another panel on the Home screen or the Applications screen.
Panning to browse
When an image is zoomed in, tap and hold a point on the screen, and then move the device
in any direction to browse the image.
Basics
29
Turning over
Turn over the device to mute ringtone or pause media playback.
Tilting
Tap and hold two points on the screen, and then tilt the device back and forth to zoom in or
out.
Basics
30
Activating glove mode
Activate this mode to use the touch screen with gloves on.
On the Home screen, tap
Apps
Settings
My device
Display
, and then tick
High
touch sensitivity
.
r
Use leather gloves for better recognition while touching the screen. Other types of
material may not be recognised.
r
For best results, tap the screen firmly while wearing gloves.
r
Unintended touch inputs may occur without gloves in glove mode.
Notifications
Notification icons appear on the status bar at the top of the screen to report missed calls, new
messages, calendar events, device status, and more. Drag down from the status bar to open
the notifications panel. Scroll the list to see additional alerts. To close the notifications panel,
drag up the bar that is at the bottom of the screen.
Quick setting panel
From the quick setting panel, you can view your device’s current settings. Drag down from
the status bar, tap to open the quick setting panel, and then use the following options:
r
Wi-Fi
: Activate or deactivate the Wi-Fi feature.
r
GPS
: Activate or deactivate the GPS feature.
r
Sound
: Activate or deactivate silent mode. You can vibrate or mute your device in silent
mode.
r
Screen rotation
: Allow or prevent the interface from rotating when you rotate the device.
r
Bluetooth
: Activate or deactivate the Bluetooth feature.
r
Mobile data
: Activate or deactivate the data connection.
Basics
31
r
Blocking mode
: Activate or deactivate blocking mode. In blocking mode, the device
will block notifications. To select which notifications will be blocked, tap
Settings
My
device
Blocking mode
.
r
Power saving
: Activate or deactivate power-saving mode.
r
Screen Mirroring
: Activate or deactivate the screen mirroring feature.
r
Wi-Fi hotspot
: Activate or deactivate the Wi-Fi tethering feature.
r
NFC
: Activate or deactivate the NFC feature.
r
Driving mode
: Activate or deactivate driving mode.
r
Smart stay
: Activate or deactivate the smart stay feature.
r
Sync
: Activate or deactivate auto-syncing of applications.
r
Flight mode
: Activate or deactivate flight mode.
The available options may vary depending on the region or service provider.
To rearrange the options on the notifications panel, open the notifications panel, tap
, tap and hold an item, and then drag it to another location.
Home screen
The Home screen is the starting point to access all of the device’s features. It displays indicator
icons, widgets, shortcuts to applications, and others.
The Home screen can have multiple panels. To view other panels, scroll left or right.
Rearranging items
Adding an application icon
On the Home screen, tap
Apps
, tap and hold an application icon, and then drag it into a panel
preview.
Basics
32
Adding an item
Customise the Home screen by adding widgets, folders, or pages.
Tap and hold the empty area on the Home screen, and then select one of the following
categories:
r
Apps and widgets
: Add widgets or applications to the Home screen.
r
Folder
: Create a new folder.
r
Page
: Create a new page.
Moving an item
Tap and hold an item and drag it to a new location. To move it to another panel, drag it to the
side of the screen.
Removing an item
Tap and hold an item, and drag it to the rubbish bin that appears at the top of the Home
screen. When the rubbish bin turns red, release the item.
Rearranging panels
Adding a new panel
Tap
Edit page
.
Moving a panel
Tap
Edit page
, tap and hold a panel preview, and then drag it to a new location.
Removing a panel
Tap
Edit page
, tap and hold a panel preview, and then drag it to the rubbish bin at the
top of the screen.
Basics
33
Setting wallpaper
Set an image or photo stored in the device as wallpaper for the Home screen.
On the Home screen, tap
Set wallpaper
Home screen
, and then select one of the
following:
r
Gallery
: See photos taken by the device’s camera or images downloaded from the
Internet.
r
Live wallpapers
: See animated images.
r
Wallpapers
: See wallpaper images.
Then, select an image and tap
Set wallpaper
. Or, select an image, resize it by dragging the
frame, and then tap .
Using widgets
Widgets are small applications that provide convenient functions and information on your
Home screen. To use them, add widgets from the widgets panel to the Home screen.
r
Some widgets connect to web services. Using a web-based widget may result in
additional charges.
r
The widgets available may vary depending on the region or service provider.
Adding widgets to the Home screen
On the Home screen, tap
Apps
Widgets
. Scroll left or right on the widgets panel, and then
tap and hold a widget to add it to the Home screen.
Using the setting shortcut widget
On the Home screen, tap
Apps
Widgets
, and then tap and hold
Settings Shortcut
to open
a list of setting options. Select a setting option to add it to the Home screen as a shortcut.
Basics
34
Locked screen
The locked screen prevents the device from unwanted operation when not in use and also
allows you to add convenient widgets.
Adding widgets
To use widgets when the screen is locked, on the Applications screen, tap
Settings
My
device
Lock screen
, and then tick
Multiple widgets
.
You cannot use widgets on the locked screen in easy mode or when the security
features are activated..
Drag the widgets panel down to expand it. Scroll right to the last page, tap , and then select
a widget to add to the locked screen.
Rearranging panels
Moving a panel
Drag the widgets panel down, scroll left or right, tap and hold a panel preview, and then drag
it to a new location.
Removing a panel
Drag the widgets panel down, scroll left or right, tap and hold a panel preview, and then drag
it to the rubbish bin at the top of the screen.
Basics
35
Using applications
This device can run many different types of applications, ranging from media to Internet
applications.
Opening an application
On the Home screen or the Applications screen, select an application icon to open it.
Opening from recently-used applications
Press and hold the Home button to open the list of recently-used applications.
Select an application icon to open.
Closing an application
Close applications not in use to save battery power and maintain device performance.
Press and hold the Home button, tap , and then tap
End
next to an application to close it.
To close all running applications, tap
End all
. Alternatively, press and hold the Home button,
and then tap .
Applications screen
The Applications screen displays icons for all applications, including any new applications
installed.
On the Home screen, tap
Apps
to open the Applications screen.
To view other panels, scroll left or right.
Rearranging applications
Tap
Edit
, tap and hold an application, and then drag it to a new location. To move it to
another panel, drag it to the side of the screen.
Basics
36
Organising with folders
Put related applications together in a folder for convenience.
Tap
Edit
, tap and hold an application, and then drag it to
Create folder
. Enter a folder
name and then tap
OK
. Put applications into the new folder by dragging, and then tap
Save
to save the arrangement.
Rearranging panels
Pinch on the screen, tap and hold a panel preview, and then drag it to a new location.
Installing applications
Use application stores, such as
Samsung Apps
, to download and install applications.
Uninstalling applications
Tap
Uninstall
, and then select an application to uninstall it.
Default applications that come with the device cannot be uninstalled.
Sharing applications
Share downloaded applications with other users via email, Bluetooth, or other methods.
Tap
Share app
, select applications, tap
Done
, and then select a sharing method. The
next steps vary depending on the method selected.
Basics
37
Help
Access help information to learn how to use the device and applications or configure
important settings.
Tap
Help
on the Applications screen. Select a category to view tips.
To sort categories by an alphabetical order, tap .
To search for keywords, tap .
Entering text
Use the Samsung keyboard or the voice input feature to enter text.
Text entry is not supported in some languages. To enter text, you must change the
input language to one of the supported languages.
Changing the keyboard type
Tap any text field, open the notifications panel, tap
Choose input method
, and then select
the type of keyboard to use.
Basics
38
Using the Samsung keyboard
Changing the keyboard layout
Tap
Portrait keyboard types
, and then tap
Qwerty keyboard
or
3x4 keyboard
.
On the 3x4 keyboard, a key has three or four characters. To enter a character, tap
repeatedly the key corresponding to the character.
Break to the next line.
Delete a preceding character.
Enter numerals and punctuation
marks.
Enter uppercase.
Set options for the Samsung
keyboard.
Enter a space.
Entering uppercase
Tap before entering a character. For all caps, tap it twice.
Changing language keyboards
Add languages to the keyboard, and then slide the space key left or right to change language
keyboards.
Entering text by voice
Activate the voice input feature and then speak into the microphone. The device displays
what you speak.
If the device does not recognise your words correctly, tap the underlined text and select an
alternative word or phrase from the dropdown list.
To change the language or add languages for the voice recognition, tap the current language.
Basics
39
Copying and pasting
Tap and hold over text, drag or to select more or less text, and then tap
Copy
to copy or
Cut
to cut. The selected text is copied to the clipboard.
To paste it into a text entry field, tap and hold at the point where it should be inserted, and
then tap
Paste
.
Connecting to a Wi-Fi network
Connect the device to a Wi-Fi network to use the Internet or share media files with other
devices. (p. 138)
Turning Wi-Fi on and off
Open the notifications panel, and then tap
Wi-Fi
to turn it on or off.
r
Your device uses a non-harmonised frequency and is intended for use in all
European countries. The WLAN can be operated in the EU without restriction
indoors, but cannot be operated outdoors.
r
Turn off Wi-Fi to save the battery when not in use.
Joining Wi-Fi networks
On the Applications screen, tap
Settings
Connections
Wi-Fi
, and then drag the
Wi-Fi
switch to the right.
Select a network from the list of detected Wi-Fi networks, enter a password if necessary, and
then tap
Connect
. Networks that require a password appear with a lock icon. After the device
connects to a Wi-Fi network, the device will automatically connect to it any time it is available.
Basics
40
Adding Wi-Fi networks
If the desired network does not appear in the networks list, tap
Add Wi-Fi network
at the
bottom of the networks list. Enter the network name in
Network SSID
, select the security
type and enter the password if it is not an open network, and then tap
Connect
.
Forgetting Wi-Fi networks
Any network that has ever been used, including the current network, can be forgotten so the
device will not automatically connect to it. Select the network in the networks list, and then
tap
Forget
.
Setting up accounts
Google applications, such as
Play Store
, require a Google account, and
Samsung Apps
requires a Samsung account. Create Google and Samsung accounts to have the best
experience with the device.
Adding accounts
Follow the instructions that appear when opening a Google application without signing in to
set up a Google account.
To sign in with or sign up for a Google account, on the Applications screen, tap
Settings
Accounts
Add account
Google
. After that, tap
New
to sign up, or tap
Existing
, and
then follow on-screen instructions to complete the account setup. More than one Google
account can be used on the device.
Set up a Samsung account as well.
Removing accounts
On the Applications screen, tap
Settings
Accounts
, select an account name under
My
accounts
, select the account to remove, and then tap
Remove account
.
Basics
41
Transferring files
Move audio, video, image, or other types of files from the device to the computer, or vice
versa.
The following file formats are supported by some applications. Some file formats are
not supported depending on the version of the device’s software or the computer
operating system.
r
Music: mp3, m4a, mp4, 3gp, 3ga, wma, ogg, oga, aac, and flac
r
Image: bmp, gif, jpg, and png
r
Video: 3gp, mp4, avi, wmv, flv, and mkv
r
Document: doc, docx, xls, xlsx, ppt, pptx, pdf, and txt
Connecting with Samsung Kies
Samsung Kies is a computer application that manages media libraries, contacts, and
calendars, and syncs them with Samsung devices. Download the latest Samsung Kies from
the Samsung website.
1
Connect the device to the computer using the USB cable.
Samsung Kies launches on the computer automatically. If Samsung Kies does not launch,
double-click the Samsung Kies icon on the computer.
2
Transfer files between your device and the computer.
Refer to the Samsung Kies help for more information.
Connecting with Windows Media Player
Ensure that Windows Media Player is installed on the computer.
1
Connect the device to the computer using the USB cable.
2
Open Windows Media Player and sync music files.
Basics
42
Connecting as a media device
1
Connect the device to the computer using the USB cable.
2
Open the notifications panel, and then tap
Connected as a media device
Media
device (MTP)
.
Tap
Camera (PTP)
if your computer does not support Media Transfer Protocol (MTP) or
not have any appropriate driver installed.
3
Transfer files between your device and the computer.
Securing the device
Prevent others from using or accessing personal data and information stored in the device by
using the security features. The device requires an unlock code whenever unlocking it.
Setting a face unlock
On the Applications screen, tap
Settings
My device
Lock screen
Screen lock
Face unlock
.
Fit your face in the frame to be captured. Then, set a backup unlock PIN or pattern to unlock
the screen in case the face unlock fails.
Setting a face and voice unlock
On the Applications screen, tap
Settings
My device
Lock screen
Screen lock
Face and voice
.
Fit your face in the frame to be captured and then set a voice command. Then, set a backup
unlock PIN or pattern to unlock the screen in case the face and voice unlock fails.
Basics
43
Setting a pattern
On the Applications screen, tap
Settings
My device
Lock screen
Screen lock
Pattern
.
Draw a pattern by connecting four dots or more, and then draw the pattern again to verify it.
Set a backup unlock PIN to unlock the screen when you forget the pattern.
Setting a PIN
On the Applications screen, tap
Settings
My device
Lock screen
Screen lock
PIN
.
Enter at least four numbers, and then enter the password again to verify it.
Setting a password
On the Applications screen, tap
Settings
My device
Lock screen
Screen lock
Password
.
Enter at least four characters including numbers and symbols, and then enter the password
again to verify it.
Basics
44
Unlocking the device
Turn on the screen by pressing the Power button or the Home button, and enter the unlock
code.
If the unlock code is forgotten, take the device to a Samsung Service Centre to reset it.
Upgrading the device
The device can be upgraded to the latest software.
This feature may not be available depending on the region or service provider.
Upgrading with Samsung Kies
Launch Samsung Kies and connect the device to the computer. Samsung Kies automatically
recognises the device and shows available updates in a dialogue box, if any. Click the Update
button in the dialogue box to start upgrading. Refer to the Samsung Kies help for details on
how to upgrade.
r
Do not turn off the computer or disconnect the USB cable while the device is
upgrading.
r
While upgrading the device, do not connect other media devices to the computer.
Doing so may interfere with the update process.
Upgrading over the air
The device can be directly upgraded to the latest software by the firmware over-the-air
(FOTA) service.
On the Applications screen, tap
Settings
More
About device
Software update
Update
.
45
Communication
Phone
Use this application to make or answer a call.
Tap
Phone
on the Applications screen.
Making calls
Making a call
Use one of the following methods:
r
Keypad
: Enter the number using the keypad, and then tap .
r
Logs
: Make a call from the history of incoming and outgoing calls and messages.
r
Favourites
: Make a call from the list of favourite contacts.
r
Contacts
: Make a call from the contacts list.
Speed dial numbers
For speed dial numbers, tap and hold the corresponding digit.
Number prediction
When entering numbers on the keypad, automatic predictions appear. Select one of these to
make a call.
Communication
46
Finding contacts
Enter a name, phone number, or email address to find a contact in the contacts list. As
characters are entered, predicted contacts appear. Select one to place a call to it.
Making an international call
Tap and hold 0 until the + sign appears. Enter the country code, area code, and phone
number, and then tap .

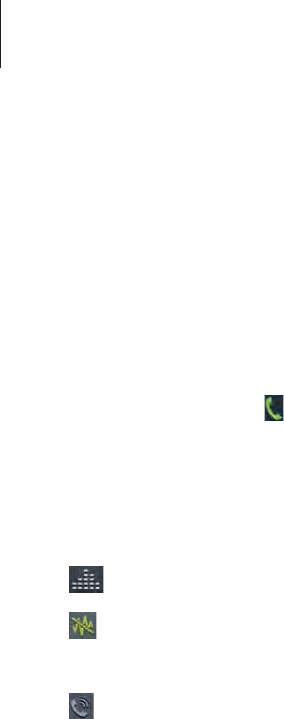

During a call
The following actions are available:
r
: Select an equaliser option for use during a call.
r
: Deactivate the noise reduction feature that removes background noise so that the
other party can hear you more clearly.
r
: Increase the volume.
r
Hold
: Hold a call. Or press and hold the headset button. Tap
Unhold
to retrieve the held
call, or press and hold the headset button.
r
Add call
: Dial a second call.
r
Keypad
: Open the keypad.
r
End call
: End the current call.
r
Speaker
: Activate the speakerphone. Keep the device away from your ears when using
the speakerphone.
r
Mute
: Turn off the microphone so that the other party cannot hear you.
r
Headset
: Switch to a Bluetooth headset if it is connected to the device.
r
Swap
: Switch between two calls.
r
Merge
: Make a multiparty call when connected to two calls. Repeat this to add more
parties. This feature is available only if the multiparty call service is active.
Communication
47
r
Contacts
: Open the contacts list.
r
Memo
: Create a memo.
r
Message
: Send a message.
r
Transfer
: Connect the first party to the second party. This disconnects you from
the conversation.
r
Manage conference call
: Have a private conversation with one party during a
multiparty call or disconnect one party form the multiparty call.
Adding contacts
To add a phone number to the contacts list from the keypad, enter the number and tap
Add
to contacts
.
Viewing call logs
Tap
Logs
to view the history of incoming and outgoing calls.
To filter a call log, tap
View by
, and then select an option.
Fixed dialling number
The device can be set to restrict outgoing calls only to numbers with specified prefixes. Those
prefixes are stored in the SIM or USIM card.
Tap
Call settings
Additional settings
Fixed Dialling Numbers
Enable FDN
,
and then enter the PIN2 supplied with the SIM or USIM card. Tap
FDN list
and add numbers.
Call barring
The device can be set to prevent certain calls from being made. For example, international
calling can be disabled.
Tap
Call settings
Additional settings
Call barring
, select a call type, select a call
barring option, and then enter a password.
Communication
48
Receiving calls
Answering a call
When a call comes in, drag outside the large circle, or press the headset button.
If the call waiting service is active, another call can be made. When the second call is
answered, the first call is put on hold.
Rejecting a call
When a call comes in, drag outside the large circle, or press and hold the headset button.
To send a message when rejecting an incoming call, drag the reject message bar upwards. To
create the rejection message, tap
Call settings
Set up call reject messages
.
Automatically rejecting calls from unwanted numbers
Tap
Call settings
Call rejection
Auto reject mode
Auto reject numbers
, and
then tap
Auto reject list
. Tap
Create
, enter a number, assign a category, and then tap
Save
.
Missed calls
If a call is missed, appears on the status bar. Open the notifications panel to view the list of
missed calls.
Call waiting
Call waiting is a service provided by the service provider. A user can use this service to
suspend a current call and switch to an incoming call. This service is not available for video
calls.
To make use of this service, tap
Call settings
Additional settings
Call waiting
.
Call forwarding
The device can be set to send incoming calls to a specified number.
Tap
Call settings
Additional settings
Call forwarding
, and then select a call
type and condition. Enter a number and tap
Enable
.
Communication
49
Ending a call
Tap
End call
to end a call. Or press the headset button.
Video calls
Making a video call
Enter the number or select a contact from the contacts list, and then tap to make a video
call.
During a video call
The following actions are available:
r
Switch camera
: Switch between the front and rear camera.
r
Mute
: Turn off the microphone so that the other party cannot hear you.
r
End call
: End the current call.
r
Hide me
: Hide your image from the other party.
r
Outgoing image
: Select an image to show it to the other party.
r
Keypad
: Open the keypad.
r
Switch to headset
: Switch to a Bluetooth headset if it is connected to the device.
r
Speaker off
: Deactivate the speakerphone feature.
r
Animated emotions
: Apply emotional icons to your image.
r
Theme view
: Apply decorative icons to your image.
r
Enable cartoon view
: Change the view mode to the cartoon view.
r
Dual camera
: Use the front and rear cameras so that the other party can see you
and your surroundings.
Video calling with dual camera mode will be provided for up to 3 minutes. After
3 minutes the device will turn off the rear camera for optimal performance.
Communication
50
Tap and hold the other party’s image to access the following options:
r
Capture image
: Capture the other party’s image.
r
Record video
: Take a video of the other party’s images.
It is illegal in many countries to record a call without the other party’s prior
permission.
Tap and hold your image to access the following options:
r
Switch camera
: Switch between the front and rear camera.
r
Outgoing image
: Select an image to show it to the other party.

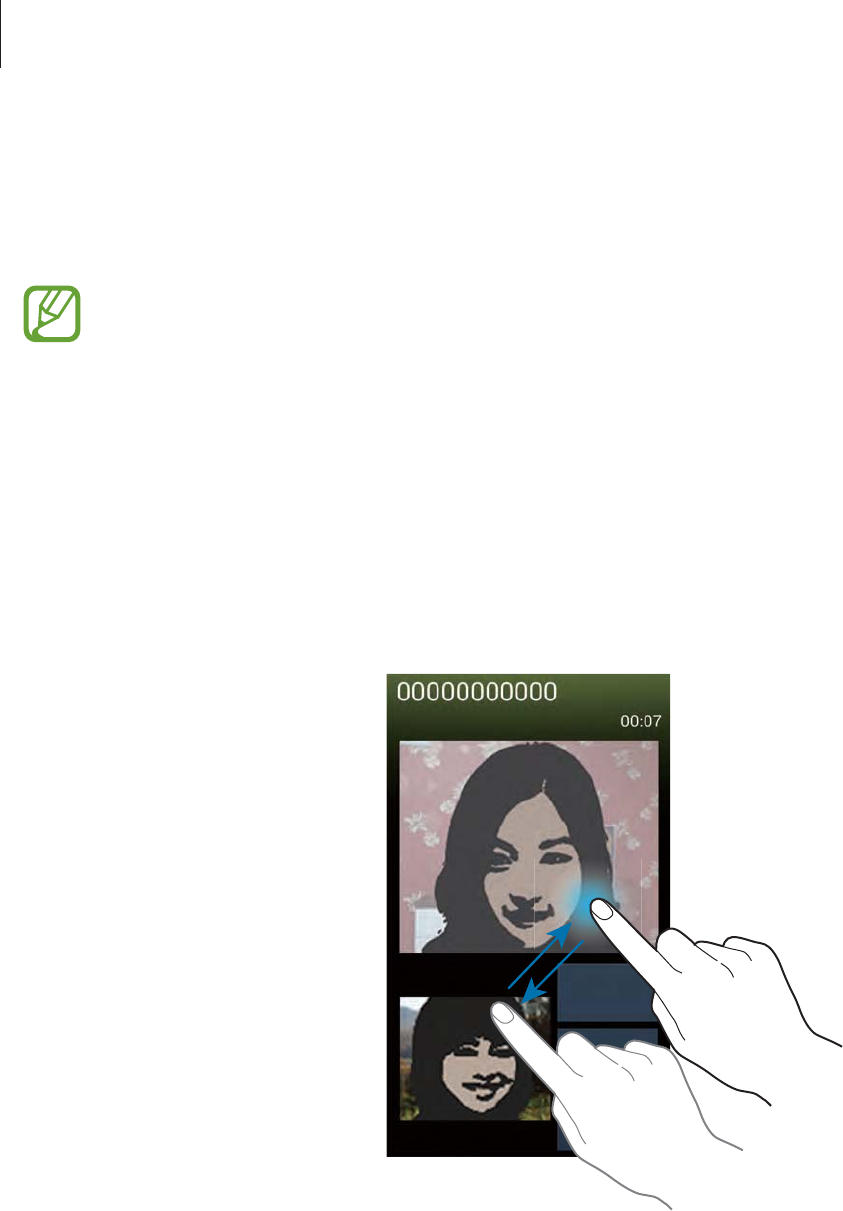

Swapping images
Drag an image of either party onto the other party’s image to swap the images.
Communication
51
Contacts
Use this application to manage contacts, including phone numbers, email addresses, and
others.
Tap
Contacts
on the Applications screen.
Managing contacts
Creating a contact
Tap and enter contact information.
r
: Add an image.
r
/ : Add or delete a contact field.
Editing a contact
Select a contact to edit, and then tap .
Deleting a contact
Tap
Delete
.
Setting a speed dial number
Tap
Speed dial setting
, select a speed dial number, and then select a contact for it. To
remove a speed dial number, tap and hold it, and then tap
Remove
.
Searching for contacts
Use one of the following search methods:
r
Scroll up or down the contacts list.
r
Use the index at the right side of the contacts list for quick scrolling, by dragging a finger
along it.
r
Tap the search field at the top of the contacts list and enter search criteria.
Communication
52
Once a contact is selected, take one of the following actions:
r
: Add to favourite contacts.
r
/ : Make a voice or video call.
r
: Compose a message.
r
: Compose an email.
Displaying contacts
By default, the device shows all saved contacts on the device, the SIM or USIM card, or
another account.
Tap
Contacts to display
, and then select a location where contacts are saved.
Moving contacts
Moving contacts to Google
Tap
Merge accounts
Merge with Google
.
Contacts moved to Google Contacts appear with in the contacts list.
Moving contacts to Samsung
Tap
Merge accounts
Merge with Samsung
.
Contacts moved to Samsung Contacts appear with in the contacts list.
Importing and exporting contacts
Importing contacts
Tap
Import/Export
Import from SIM card
,
Import from SD card
, or
Import from
USB storage
.
Exporting contacts
Tap
Import/Export
Export to SIM card
,
Export to SD card
, or
Export to USB
storage
.
Communication
53
Sharing contacts
Tap
Import/Export
Share namecard via
, select contacts, tap
Done
, and then select
a sharing method.
Favourite contacts
Tap , and then take one of the following actions:
r
Search
: Search for contacts.
r
Add to favourites
: Add contacts to favourites.
r
Remove from favourites
: Remove contacts from favourites.
r
Grid view
/
List view
: View contacts in grid or list form.
r
Help
: Access help information about using contacts.
Contact groups
Adding contacts to a group
Select a group, and then tap . Select contacts to add, and then tap
Done
.
Managing groups
Tap , and then take one of the following actions:
r
Create
: Make a new group.
r
Search
: Search for contacts.
r
Change order
: Tap and hold next to the group name, drag it up or down to another
position, and then tap
Done
.
r
Delete groups
: Select user-added groups, and then tap
Delete
. Default groups cannot be
deleted.
r
Help
: Access help information about using contacts.
Sending a message or email to a group’s members
Select a group, tap
Send message
or
Send email
, select members, and then tap
Done
.
Communication
54
Business card
Create a business card and send it to others.
Tap
Set up my profile
, enter details, such as phone number, email address, and postal
address, and then tap
Save
. If user information has been saved when you set up the device,
select the business card in
ME
, and then tap to edit.
Tap
Share namecard via
, and then select a sharing method.
Messaging
Use this application to send text messages (SMS) or multimedia messages (MMS).
Tap
Messaging
on the Applications screen.
You may incur additional charges for sending or receiving messages while you are
outside your home service area. For details, contact your service provider.
Sending messages
Tap , add recipients, enter a message, and then tap .
Use the following methods to add recipients:
r
Enter a phone number.
r
Tap , select contacts, and then tap
Done
.
Use the following methods to make a multimedia message:
r
Tap and attach images, videos, contacts, memos, events, and others.
r
Tap
Add subject
to enter a subject.
Translating and sending messages
To use the translating feature while composing a message, tap
Translate
, drag the
Translate
switch to the right, set a language pair, and then tap
OK
.
Tap to translate the message, and then tap
Done
. The translated message will replace the
message of the source language.
Communication
55
Viewing incoming messages
Incoming messages are grouped into message threads by contact.
Select a contact to view the person’s message.
Listening to a voice message
Tap and hold 1 on the keypad, and then follow the instructions from your service provider.
Email
Use this application to send or view email messages.
Tap
Email
on the Applications screen.
Setting up email accounts
Set up an email account when opening
Email
for the first time.
Enter the email address and password. Tap
Next
for a private email account, such as Google
Mail, or tap
Manual setup
for a company email account. After that, follow on-screen
instructions to complete the setup.
To set up another email account, tap
Settings
Add account
.
Sending messages
Tap the email account to use, and then tap at the bottom of the screen. Enter recipients,
subject, and message, and then tap .
Tap to add a recipient from the contacts list.
Tap to attach images, videos, contacts, memos, events, and others.
Tap to insert images, events, contacts, location information, and others into the message.
Communication
56
Sending scheduled messages
While composing a message, tap
Schedule sending
. Tick
Schedule sending
, set a
time and date, and then tap
Done
. The device will send the message at the specified time and
date.
r
If the device is turned off at the scheduled time, is not connected to the network,
or the network is unstable, the message will not be sent.
r
This feature is based on the time and date set on the device. The time and date
may be incorrect if you move across time zones and the network does not update
the information.
Reading messages
Select an email account to use, and new messages are retrieved. To manually retrieve new
messages, tap .
Tap a message to read.
Open attachments.
Reply to the message.
Add this email address to the
contacts list.
Mark the message as a reminder.
Reply to all recipients.
Forward the message. Delete the message.
Go to the previous or next
message.
Tap the attachment tab to open attachments, and then tap
Save
to save it.
Communication
57
Google Mail
Use this application to quickly and directly access the Google Mail service.
Tap
Google Mail
on the Applications screen.
r
This application may not be available depending on the region or service provider.
r
This application may be labelled differently depending on the region or service
provider.
Sending messages
In any mailbox, tap , enter recipients, a subject, and a message, and then tap .
Tap
Attach picture
to attach images.
Tap
Attach video
to attach videos.
Tap
Add Cc/Bcc
to add more recipients.
Tap
Save draft
to save the message for later delivery.
Tap
Discard
to start over.
Reading messages
Mark the message as unread.
Add a label to this message.
Preview attachment.
Keep this message for long-term
storage.
Mark the message as a reminder.
Delete this message.
Reply to this message.
Reply to all recipients or forward
this message to others.
Add this email address to the
contacts list.
Communication
58
Labels
Google Mail does not use actual folders, but uses labels instead. When Google Mail is
launched, it displays messages labelled Inbox.
Tap to view messages in other labels.
To add a label to a message, select the message, tap , and then select the label to assign.
Talk
Use this application to chat with others via Google Talk.
Tap
Talk
on the Applications screen.
This application may not be available depending on the region or service provider.
Public profile
Tap the account ID at the top of the friends list to change the availability status, image, or
status message.
Adding friends
Tap , enter the email address of the friend to add, and then tap
DONE
.
Chatting with friends
Select a friend from the friends list, enter a message in the field at the bottom of the screen,
and then tap .
To add a friend to chat, tap
Add to chat
.
To end the chat, tap
End chat
.
Communication
59
Switching between chats
Scroll left or right.
Deleting chat history
Chats are automatically saved. To delete the chat history, tap
Clear chat history
.
Google+
Use this application to stay connected with people via Google’s social network service.
Tap
Google+
on the Applications screen.
This application may not be available depending on the region or service provider.
Tap
All circles
to change the category, and then scroll up or down to view posts from your
circles.
Tap to use other social network features.
Messenger
Use this application to chat with others via Google+ instant messaging service.
Tap
Messenger
on the Applications screen.
This application may not be available depending on the region or service provider.
Select a friend from the friends list, enter a message in the field at the bottom of the screen,
and then tap .
Communication
60
ChatON
Use this application to chat with any device. To use this application, you must sign in to your
Samsung account.
Tap
ChatON
on the Applications screen.
This application may not be available depending on the region or service provider.
Create a buddies list by entering phone numbers or Samsung account email addresses, or by
selecting buddies from the list of suggestions. Alternatively, tap
Contact sync
to manually
sync contacts from the device.
Tap
Chats
Start chat
and select a buddy to start chatting.
61
Web & network
Internet
Use this application to browse the Internet.
Tap
Internet
on the Applications screen.
Viewing webpages
Tap the address field, enter the web address, and then tap
Go
.
Tap to share, save, or print the current webpage while viewing a webpage.
To change the search engine, tap the address field, and then tap the search engine icon next
to the web address.
Opening a new page
Tap
New window
.
To go to another webpage, tap , scroll up or down, and tap the page to select it.
Bookmarks
To bookmark the current webpage, tap
Add bookmark
.
To open a bookmarked webpage, tap , and then select one.
History
Tap
History
to open a webpage from the list of recently-visited webpages. To clear the
history, tap
Clear history
.
Web & network
62
Links
Tap and hold a link on the webpage to open it in a new page, save, or copy.
To view saved links, use
Downloads
. (p. 134)
Sharing webpages
To share a webpage address with others, tap
Share via
.
To share a part of a webpage, tap and hold the desired text, and then tap
Share
.
Chrome
Use this application to search for information and browse webpages.
Tap
Chrome
on the Applications screen.
This application may not be available depending on the region or service provider.
Viewing webpages
Tap the address field, and then enter a web address or search criteria.
Opening a new page
Tap
New tab
.
To go to another webpage, tap
a webpage.
Searching the web by voice
Tap the address field, tap , speak a keyword, and then select one of the suggested keywords
that appear.
Web & network
63
Syncing with other devices
Sync open tabs and bookmarks to use with Chrome on another device, when you are logged
in with the same Google account.
To view open tabs on other devices, tap
Other devices
. Select a webpage to open.
To view bookmarks, tap .
Bluetooth
Bluetooth creates a direct wireless connection between two devices over short distances. Use
Bluetooth to exchange data or media files with other devices.
r
Samsung is not responsible for the loss, interception, or misuse of data sent or
received via the Bluetooth feature.
r
Always ensure that you share and receive data with devices that are trusted
and properly secured. If there are obstacles between the devices, the operating
distance may be reduced.
r
Some devices, especially those that are not tested or approved by the Bluetooth
SIG, may be incompatible with your device.
r
Do not use the Bluetooth feature for illegal purposes (for example, pirating copies
of files or illegally tapping communications for commercial purposes).
Samsung is not responsible for the repercussion of illegal use of the Bluetooth
feature.
To activate Bluetooth, on the Applications screen, tap
Settings
Connections
Bluetooth
, and then drag the
Bluetooth
switch to the right.
Pairing with other Bluetooth devices
On the Applications screen, tap
Settings
Connections
Bluetooth
Scan
, and
detected devices are listed. Select the device you want to pair with, and then accept the auto-
generated passkey on both devices to confirm.
Web & network
64
Sending and receiving data
Many applications support data transfer via Bluetooth. An example is
Gallery
. Open
Gallery
,
select an image, tap
Bluetooth
, and then select one of the Bluetooth devices. After
that, accept the Bluetooth authorisation request on the other device to receive the image.
The transferred file is saved in the
Bluetooth
folder. If a contact is received, it is added to the
contacts list automatically.
Screen Mirroring
Use this feature to connect your device to a large screen with an AllShare Cast dongle or
HomeSync and then share your contents. You can also use this feature with other devices that
support the Wi-Fi Miracast feature.
r
This feature may not be available depending on the region or service provider.
r
Miracast-enabled devices that do not support High-bandwidth Digital Content
Protection (HDCP) may not be compatible with this feature.
r
Some files may be buffered during playback, depending on the network
connection.
r
To save energy, deactivate this feature when not in use.
r
If you specify a Wi-Fi frequency, AllShare Cast dongles or HomeSync may not be
discovered or connected.
r
If you play videos or games on a TV, select an appropriate TV mode to get the best
experience.
On the Applications screen, tap
Settings
Connections
Screen Mirroring
, and then
drag the
Screen Mirroring
switch to the right. Select a device, open or play a file, and then
control the display with the keys on your device. To connect to a device using a PIN, tap and
hold the device name to enter the PIN.
Web & network
65
AllShare Play
Use this application to play contents saved on various devices over the Internet. You can play
and send any file on any device to another device or web storage service.
To use this application, you must sign in to your Samsung account and register two or more
devices as file servers. The registration methods may vary depending on the device type. To
get more details, tap
Settings
Customer support
.
Tap
AllShare Play
on the Applications screen.
This application may not be available depending on the region or service provider.
Sending files
Select a device or web storage, select a file, and then tap .
Sharing files
Select a device or web storage, select a file, tap , and then use the following options:
r
Group Play
: Share screens with multiple devices that are connected to the same Wi-Fi
network.
r
Facebook
/
Twitter
/
Flickr
/
Picasa
: Upload files to a social network site.
Playing files on a remote device
Select a device or web storage, select a file, tap , and then select a device.
r
Supported file formats may differ depending on connected devices as a media
player.
r
Some files may be buffered while playing depending on the network connection.
Web & network
66
Using the Group Play feature
Share screens with multiple devices that are connected to the same Wi-Fi network. Select a
media category, select files by ticking, and then tap
Group Play
. A new group for Group
Play is created and the files are shared with other devices that joined the Group Play.
Managing contents on a web storage server
Select a web storage server, and then view and manage your files.
Group Play
Use this application to share screens with multiple devices. Create or join a Group Play
session, and then share images, documents, or music.
Tap
Group Play
on the Applications screen.
r
This application may not be available depending on the region or service provider.
r
While using this application, you cannot use the Internet.
Creating a group for Group Play
Tap
Create group
, and then use the following features:
r
Share music
: Select music files to share. You can connect two or more devices and use
them to achieve a sound effect.
r
Share pictures
: Select images to share.
r
Share documents
: Select documents to share.
r
Play games
: Play online games with friends.
Web & network
67
Tap and write a note or draw on the screen. All participants can see what you create.
Tap to view all shared images in mosaic layout.
Tap to select more images or documents.
Tap to view the group participants.
Joining Group Play
r
Tap
Join group
, and then select a Group Play session to join. Select a media category and
the content that is currently being shared will appear on the device.
r
Activate the NFC feature, and touch the back of your device to the back of another device
that is opening a session.
NFC
Your device allows you to read near field communication (NFC) tags that contain information
about products. You can also use this feature to make payments and buy tickets for
transportation or events after downloading the required applications.
The device contains a built-in NFC antenna. Handle the device carefully to avoid
damaging the NFC antenna.
If the screen is locked, your device will not read NFC tags or receive data.
To activate the NFC feature, on the Applications screen, tap
Settings
Connections
NFC
.
Drag the
NFC
switch to the right.
Reading information from an NFC tag
Place the NFC antenna area on the back of your device near an NFC tag. The information from
the tag will appear.
Web & network
68
Sending data via Android Beam
Use the Android Beam feature to send data, such as webpages and contacts, to NFC-enabled
devices.
On the Applications screen, tap
Settings
Connections
NFC
. Drag the
Android Beam
switch to the right.
Select an item, touch the back of your device to the back of the other device, and then tap
your device’s screen.
WatchON
Use this application to connect to a TV to watch your favourite shows and movies.
Tap
WatchON
on the Applications screen.
You must first connect the device to a network and ensure that the device’s infrared port is
facing the TV.
Connecting to a TV
Connect to a TV to display the device’s screen onto a large surface and control the TV
remotely with the device.
Select a country and a region. Tap
Set Up Now
, and then follow the on-screen
instructions to register the TV to the device. The steps vary depending on the options you
choose.
To connect to other devices, tap
Settings
My room
Add devices
.
Web & network
69
Watching TV
Select from the TV programme suggestions based on your choice when registering a TV or
select a category at the top of the screen. Select a TV programme and then tap
Watch now
.
The selected programme will show up on the connected TV.
Tap and open the control panel to control the TV.
Setting programme reminders
Tap the time at the bottom of the screen and select a time for a TV programme you want to
watch. Select a programme, tap
Reminder
, and then set an alarm time to remind you of the
TV programme.
70
Camera: Basic functions
Launching Camera
Use this application to take photos or videos.
Tap
Camera
on the Applications screen.
Use
Gallery
to view photos and videos taken with the device. (p. 106)
The camera automatically shuts off when unused.
Camera etiquette
r
Do not take photos or videos of other people without their permission.
r
Do not take photos or videos where legally prohibited.
r
Do not take photos or videos in places where you may violate other people’s privacy.
Learning the preview screen
Display current
mode.
Display icons for
shooting options.
Change the modes.
Start taking videos.
Take photos.
Open the effects
panel.
Tap, or tap and drag
the focus frame.
Switch between the
front and rear
camera.
Open Gallery to view
photos and videos.
Change shooting
options quickly.
Change the camera
settings.
Camera: Basic functions
71
Learning icons
The icons displayed on the preview screen provide information about current shooting
options and settings. The icons listed in the table below are the most common.
Icon Meaning
Shutter speed
Aperture value
Exposure value
ISO sensitivity
Timer
Flash
Macro
Metering
White balance
Continuous shooting
Bracket mode
Voice control
Geotagging
Share shot
Buddy photo share
ChatON photo share
Remote viewfinder
Camera: Basic functions
72
Taking photos
Half-press the Shutter button to focus on the subject. When the subject is in focus, the focus
frame turns green. Press the Shutter button to take the photo.
Or, tap the image on the preview screen where the camera should focus. When the subject is
in focus, the focus frame turns green. Tap to take the photo.
Taking videos
Tap to take a video. To stop recording, tap .
While recording, tap where you want to focus to change the focus. To set the camera to focus
automatically, tap .
r
You can take videos up to 25 minutes at one time.
r
When using a memory card with a slow writing speed, the device may not be able
to save the video properly. It may stop recording, or recorded video frames may
become corrupted.
r
Memory cards with slow writing speeds do not support high-resolution video. To
record high-resolution video, use memory cards with faster writing speeds (micro
SDHC Class10 or higher).
r
The video frame size may appear smaller depending on video resolution and frame
rate.
r
If you set the image stabiliser option, the image stabiliser sound may be recorded.
r
If the zoom function is activated when taking videos, the device may record the
noise of the zoom operating. To decrease the zoom noise, activate the quiet zoom
feature. (p. 104)
r
If you change the shooting angle of the camera suddenly while taking a video, the
device may not be able to record images accurately.
Camera: Basic functions
73
Viewing photos and videos
To view taken photos or videos, tap the image viewer. Scroll left or right to view the next or
previous image. (p. 106)
Zooming in and out
Rotate the focus/zoom ring clockwise or anticlockwise to zoom in or out.
r
The zoom function may not be available when shooting at the highest resolution.
r
The zoom in/out effect is available when using the zoom feature while shooting a
video.
Taking photos with voice commands
Use the voice control to take photos with voice commands.
Tap
.
Say a shooting command, such as Smile, Cheese, or Capture.
Camera: Basic functions
74
Taking photos or videos with filter effects
Use the filter effects to take unique photos or videos.
Tap and select a filter effect. The available options vary by mode.
r
No effect
: No effect.
r
Vignette
: This effect applies the retro-looking colours, high contrast, and strong vignette
effect of Lomo cameras.
r
Greyscale
: This effect makes the image black and white.
r
Sepia
: This effect red-shifts the background scenery.
r
Vintage
: This effect gives the image a vintage look and feel.
r
Faded colours
: This effect fades the colour of the image.
r
Turquoise
: This effect applies a soft turquoise colour effect.
r
Tint
: This effect applies a colour tint effect.
r
Cartoon
: This effect applies a cartoon painting effect.
r
Moody
: This effect applies a mono cartoon painting effect.
r
Rugged
: This effect applies a rugged effect.
r
Oil pastel
: This effect applies an oil painting effect.
r
Fisheye
: This effect blackens the edges of the frame and distorts objects to imitate the
visual effect of a fisheye lens.
Changing shooting options quickly
Tap to change shooting options quickly. The available options vary by mode.
r
: Configure settings for Camera.
r
: Activate or deactivate the flash.
r
: Use this to set delayed-time shots.
r
: Activate or deactivate the GPS feature.
r
: Access help information about using the camera.
r
: Activate or deactivate the voice control to take photos.
r
: Activate or deactivate the sharing options.
Camera: Basic functions
75
Reducing camera shake
Use the Optical Image Stabiliser (OIS) feature to reduce or eliminate blurriness from camera
shake.
In expert mode, tap
OIS (anti-shake)
, and select an option.
Before correction After correction
Using face detection
Taking a smile shot
The device automatically detects a smiling face, and releases the shutter.
In expert mode, tap
Focus area
Smile shot
.
Aim the device at a human subject, and press the Shutter button. When the device detects a
smiling face, the device automatically takes the photo.
Face detected Smile detected
Camera: Basic functions
76
Detecting eye blinking
If the device detects closed eyes, it automatically takes more photos in succession.
In expert mode, tap
Focus area
Blink detection
.
Aim the device at a human subject. When the device detects a human face, a white frame
appears around the face. If the eyes are closed at the exact moment when the Shutter button
is pressed, the device automatically takes more photos in succession.
Tips for taking clearer photos
Holding the camera correctly
Make sure not to block the screen, lens, flash, or microphone.
Make sure not to expose the lens to direct sunlight. This may discolour the image
sensor, or cause it to malfunction.
Camera: Basic functions
77
Half-pressing the Shutter button
Press the Shutter button halfway down to adjust the focus. The camera adjusts the focus
automatically, and the focus frame turns green. The focus frame turns red if not focused.
Reducing camera shake
Set the Optical Image Stabiliser (OIS) option to reduce camera shake optically. (p. 75)
Camera: Basic functions
78
Keeping the subject in focus
Focusing on the subject may be difficult in the following conditions:
r
When the contrast between the subject and background is low. For example, the subject
is wearing clothing that is similar in colour to the background.
r
The light behind the subject is too bright.
r
The subject is shiny or reflective.
r
The subject includes horizontal patterns, such as blinds.
r
The subject is not positioned in the centre of the frame.
Using the focus lock
Half-press the Shutter button to focus. When the subject is focused, you can change the
composition. When you are ready, press the Shutter button to take the photo.
Camera: Basic functions
79
When taking photos in low-light conditions
r
Turn the flash on to take photos in low-light conditions. (p. 100)
r
Adjust the ISO sensitivity. (p. 96)
When subjects are moving rapidly
Use the continuous shooting option to take photos of moving subjects. (p. 83)
To take several photos continuously, use memory cards with faster writing speeds
(micro SDHC Class10 or higher).
80
Camera: Shooting modes
Auto
Use this to take photos with scene modes selected automatically by the camera. In this
mode, the camera recognises surrounding conditions and automatically adjusts factors that
contribute to exposure, including the shutter speed, aperture value, metering, and white
balance. As the camera controls most of the functions, some shooting options are limited.
This mode is useful for capturing quick snapshots with the least amount of adjustment.
Tap
MODE
Auto
.
To display an icon for a scene mode at the top right of the preview screen when you half-
press the Shutter button, tap
Detection display
On
.
r
The camera may detect different scenes, even the same subjects, depending on
external factors such as camera shake, lighting, and distance to the subject.
r
If the camera does not recognise an appropriate scene mode, it uses the default
settings for this mode.
r
Even if it detects a face, the camera may not select a portrait mode depending on
the subject’s position or lighting.
r
In this mode, the camera consumes more battery power due to constant changing
of settings when selecting appropriate modes.
Camera: Shooting modes
81
Expert
Use this to take photos and videos with manual adjustment of various shooting options,
including the shutter speed, aperture value, exposure value, and ISO sensitivity.
Return to the
previous screen.
Display descriptions
of modes and
functions.
Rotate to change the
value for the
shooting option. Rotate to select a
shooting option.
Use aperture priority
mode.
Use program mode.
Use user mode.
Program mode
In this mode, the camera automatically adjusts the shutter speed and aperture value so that
an optimal exposure value can be achieved. This mode is useful when you want to capture
shots of constant exposure while being able to adjust other settings.
Tap
MODE
Expert
P
, and set the desired shooting options.
Camera: Shooting modes
82
Aperture priority mode
In this mode, the camera automatically calculates shutter speed according to the aperture
value you choose. You can adjust the depth of field (DOF) by changing the aperture value.
This mode is useful for taking portraits and landscape shots.
Tap
MODE
Expert
C
, and set the desired shooting options.
In low-light settings, you may need to increase the ISO sensitivity to prevent blurry
photos.
About aperture
The aperture is a hole that lets light into the camera, and widening or narrowing the aperture
controls the amount of light that enters. The photo is brighter when the aperture value is
smaller, and darker when the aperture value is larger.
Small aperture value Large aperture value
Manual mode
This mode lets you adjust the shutter speed and aperture value manually. In this mode, you
can fully control the exposure of your photos. This mode is useful in controlled shooting
environments, such as a studio, or when it is necessary to fine-tune camera settings. This
mode is also recommended for shooting night scenes or fireworks.
Tap
MODE
Expert
M
, and set the desired shooting options.
r
If you set a high ISO value or open the shutter for a long time, image noise may
increase.
r
Use a tripod and shutter release to prevent your camera from shaking.
r
The longer you open the shutter, the longer it takes to save a photo. Do not turn
the camera off while the camera saves a photo.
Camera: Shooting modes
83
Smart
Use this to take photos with predefined settings for various scenes.
Beauty face
Use this to take photos with lightened faces for gentler images.
Tap
MODE
Smart
Beauty face
.
Press the Shutter button to take a photo, and the camera automatically adjusts the photo,
and then saves it.
Best photo
Use this to take multiple photos in a short time, and then choose the best photos among
them.
Tap
MODE
Smart
Best photo
.
Press the Shutter button to take multiple photos. When
Gallery
opens, tap and hold
thumbnails of photos to save, and then tap
Save
.
Continuous shot
Use this to take a series of photos of moving subjects.
Tap
MODE
Smart
Continuous shot
.
While holding the camera steady, press and hold the Shutter button to take several photos
continuously.
To take several photos continuously, use memory cards with faster writing speeds
(micro SDHC Class10 or higher).
Camera: Shooting modes
84
Best face
Use this to take multiple group shots at the same time and combine them to create the best
possible image.
Tap
MODE
Smart
Best face
.
Press the Shutter button to take multiple photos. To get the best shot, hold the camera steady
and remain still while taking photos. When
Gallery
opens, tap the yellow frame on each face,
and choose the best individual face for the subject. After choosing a face for each individual,
tap
Save
to merge the images into a single photo, and save it.
Baby
Use this to play a funny sound to get a baby’s attention when shooting.
Tap
MODE
Smart
Baby
.
Press the Shutter button. The camera emits the attention sound and takes multiple photos
when it detects a smiling face.
To change the attention sound, tap
Attention sound
.
Camera: Shooting modes
85
Landscape
Use this to take photos of blue skies and landscapes with richer colours.
Tap
MODE
Smart
Landscape
.
Dawn
Use this to take photos of the dawn sky in subtle colours.
Tap
MODE
Smart
Dawn
.
Snow
Use this to take brighter photos of snow scenery.
Tap
MODE
Smart
Snow
.
Camera: Shooting modes
86
Macro
Use this to take photos of very close subjects.
Tap
MODE
Smart
Macro
.
r
Hold the camera steady to prevent blurry photos.
r
Turn the flash off if the distance to the subject is too close.
Food
Use this to take photos of food in more colourful tones.
Tap
MODE
Smart
Food
.
Party/Indoor
Use this to take crisp indoor photos.
Tap
MODE
Smart
Party/Indoor
.
Camera: Shooting modes
87
Action freeze
Use this to take photos of subjects moving at high speed.
Tap
MODE
Smart
Action freeze
.
Use in bright daylight is recommended.
Rich tone
Use this to take photos without losing details in bright and dark areas. The camera
automatically takes several photos with various exposure values, and then merges them into
one photo.
Tap
MODE
Smart
Rich tone
.
While holding the camera steady, press the Shutter button to take multiple photos.
Without effect With effect
Camera: Shooting modes
88
r
This feature may be affected by camera shake, lighting, movement of the subject,
and shooting environment.
r
The flash is disabled in this feature.
r
When taking a photo of moving subjects, an afterimage may appear.
r
Using a tripod is recommended.
Panorama
Use this to take wide panoramic photos.
Tap
MODE
Smart
Panorama
.
Press the Shutter button to take a photo, and then move the camera in one direction. When
the blue frame aligns with the preview screen, the camera automatically takes another shot
in the panoramic sequence. To stop shooting, press the Shutter button again. Photos are
automatically combined into one panoramic image.
Camera: Shooting modes
89
r
Avoid the following for best results:
–
Moving the camera too quickly or too slowly.
–
Moving the camera too little to take the next photo.
–
Moving the camera at irregular speeds.
–
Shaking the camera.
–
Changing the camera direction while taking a photo.
–
Taking photos in low-light conditions.
–
Taking photos of moving subjects.
–
Taking photos where the brightness or colour of the light changes.
–
Taking photos of a subject in front of unrecognisable backgrounds, such as
empty skies or plain walls.
r
Photos are automatically saved, and shooting is stopped under following
conditions:
–
Changing the distance from the subject while shooting.
–
Moving the camera too quickly.
–
Not moving the camera.
r
The camera may stop taking photos due to composition or movement within the
scene.
r
The camera may not take the last scene entirely if you stop moving the camera at
the exact position where you want the scene to end. To take the entire scene, move
the camera slightly beyond the position you want the scene to end.
Waterfall
Use this to take photos of waterfalls.
Tap
MODE
Smart
Waterfall
.
The image may appear blurry due to the slow shutter speed when the camera takes
photos. Make sure to use a tripod.
Camera: Shooting modes
90
Cinema photo
Use this to create a photo in which a few selected objects move by freezing or animating
moving objects automatically detected by the camera.
Tap
MODE
Smart
Cinema photo
.
Press the Shutter button to take a photo. Tap
Animate
or
Freeze
, and then rub the screen
to animate or freeze the detected moving objects. Tap
Trim
to adjust the range to trim, or
Direction
to change the direction of the animation. Then, tap
Save
to save the file.
Drama
Use this to take a series of photos and combine them to create an image that shows trails of
the movement.
Tap
MODE
Smart
Drama
.
While holding the camera steady, press the Shutter button to take several photos
continuously.
To get the best shot, follow these tips. The camera may not take photos properly in
other shooting conditions.
r
Hold the camera steady and remain still while taking photos.
r
Take photos of a subject that is moving in one direction.
r
Take photos with backgrounds that are free of moving objects.
r
Avoid taking photos of a subject and background with similar colours.
r
Avoid taking photos of a subject that is too close or too far away to fit within the
viewfinder or that is too long such as a bus or a train.
Camera: Shooting modes
91
Eraser
Use this to erase the movements of moving subjects in the background.
Tap
MODE
Smart
Eraser
.
Press the Shutter button to take a series of photos. The camera erases traces of movement
from a moving subject. To restore the erased moving objects, tap
Show moving objects
, tap
the highlighted area, and then tap
Save
.
To get the best shot, follow these tips.
r
Hold the camera steady and remain still while taking photos.
r
Avoid taking photos of a subject and background with similar colours.
r
When taking photos of a subject that is moving very little or moving a great deal,
the camera may not recognise all of the movements.
r
If there are multiple subjects moving in the background, the camera may not
recognise all of the movement.
Sound & shot
Use this to take a photo with sound.
Tap
MODE
Smart
Sound & shot
.
The camera records a few seconds of audio before taking a photo.
While taking photos in this mode, sound is recorded by the internal microphone.
Camera: Shooting modes
92
Silhouette
Use this to take photos of dark shapes against a light background.
Tap
MODE
Smart
Silhouette
.
To maximise the silhouette effect, take photos at a location that is bright.
Sunset
Use this to take photos of the sunset.
Tap
MODE
Smart
Sunset
.
Night
Use this to take photos in low-light conditions, without using the flash.
Tap
MODE
Smart
Night
.
While holding the camera steady, press the Shutter button to take multiple photos. Photos
are automatically merged into a single photo.
The image may appear blurry due to the slow shutter speed when the camera takes
photos. Make sure to use a tripod.
Camera: Shooting modes
93
Fireworks
Use this to take photos of fireworks.
Tap
MODE
Smart
Fireworks
.
The image may appear blurry due to the slow shutter speed when the camera takes
photos. Make sure to use a tripod.
Light trace
Use this to take photos of the light trailing in low-light conditions.
Tap
MODE
Smart
Light trace
.
The image may appear blurry due to the slow shutter speed when the camera takes
photos. Make sure to use a tripod.
Camera: Shooting modes
94
Smart Suggest
Use this to take photos with one of smart modes that the camera suggests automatically.
Tap
MODE
Smart
Smart Suggest
.
Half-press the Shutter button, select a mode from the suggested list, and then press the
Shutter button to take a photo.
My mode
Use this to register your favourite shooting modes and select them conveniently.
Tap
MODE
My mode
Add
, and then select your favourite shooting modes. After
completing your selection, tap
Done
to save it.
95
Camera: Shooting options and
settings
Changing shooting options
Various shooting options are provided with your camera. With them, you can take more
customised photos and videos.
Tap to access shooting options. Depending on the mode selected, you may tap
.
Select an option, and then save it.
r
Available options may differ depending on the shooting mode, the lens you are
using, and the shooting conditions.
r
Depending on the option selected, some settings may not be available.
EV (brightness)
The camera automatically sets the exposure by measuring the levels of light from the photo’s
composition and the position of a subject. If the exposure set by the camera is higher or lower
than you expected, you can adjust the exposure value manually.
Tap
MODE
Expert
P
/
M
/
C
. Rotate the shooting options dial to
EV (brightness)
, and
adjust the exposure value.
Darker (-) Neutral (0) Brighter (+)
Camera: Shooting options and settings
96
r
When taking a photo, if the appropriate exposure value cannot be decided, use the
bracketed photo option to take multiple photos with different exposure values.
r
Taking photos with higher exposure value may result in blurry photos, due to
slower shutter speed.
ISO (sensitivity)
The ISO sensitivity value represents the sensitivity of camera to light.
The higher the ISO sensitivity, the more sensitive the camera is to light. Consequently, by
selecting a higher ISO sensitivity, you can take photos in dim or dark places at faster shutter
speeds. However, this may increase electronic noise and result in a grainy photo.
Tap
MODE
Expert
P
/
M
. Rotate the shooting options dial to
ISO (sensitivity)
, and
select an ISO sensitivity.
Examples
ISO 100 ISO 400
ISO 800 ISO 3200
Increase the ISO value in places where flash use is prohibited. You can take a clear
photo by setting a high ISO value without having to secure more light.
Camera: Shooting options and settings
97
WB (light source)
White balance represents the light source that influences on the colour of a photo.
The colour of a photo depends on the type and quality of the light source. If you want the
colour of your photo to be realistic, select an appropriate lighting condition to calibrate the
white balance, or adjust colour temperature manually. You can also adjust colour for the
preset light sources so that the colours of the photo match the actual scene under mixed
lighting conditions.
Tap
WB (light source)
, and then select an option.
r
Auto
: Use automatic settings depending on the lighting conditions.
r
Daylight
: Use this for sunny days. This option results in photos closest to the natural
colours of the scene.
r
Cloudy
: Use this for cloudy days or in shadows. Photos taken on cloudy days tend to be
more bluish than on sunny days. This option offsets that effect.
r
Fluorescent_H
: Use this under daylight fluorescent or 3-way fluorescent lights.
r
Fluorescent_L
: Use this under white fluorescent lights.
r
Tungsten
: Use this under incandescent bulbs or halogen lamps. Incandescent tungsten
bulbs tend to have a reddish hue. This option offsets that effect.
r
Custom set
: Use this to set a custom white balance. Aim the lens at a piece of white
surface, and then press the Shutter button.
r
K
: Use this to manually adjust the colour temperature of the light source. Colour
temperature is a measurement in degrees Kelvin that indicates the specific type of light
source. As the colour temperature increases, the colour distribution becomes cooler.
Alternatively, as the colour temperature decreases, the colour distribution becomes
warmer. Tap +/- to adjust the colour temperature.
Clear sky
10,000 K
8,000 K
6,000 K
5,000 K
4,000 K
3,000 K
2,000 K
Fluorescent H
Cloudy
Daylight
Fluorescent L
Halogen lamp
Tungsten
Candle light
Camera: Shooting options and settings
98
Examples
Auto WB Daylight
Fluorescent daylight Tungsten
Metering
The metering mode refers to the method the camera measures the quantity of light.
The camera measures the amount of light in a scene, and in many of its modes, uses the
measurement to adjust various settings. For example, if a subject looks darker than its actual
colour, the camera takes an overexposed photo of it. If a subject looks lighter than its actual
colour, the camera takes an underexposed photo of it.
In expert mode, tap
Metering
, and then select an option.
r
Multi
: The camera calculates the amount of light in multiple areas. When light is sufficient
or insufficient, the camera adjusts the exposure by averaging the overall brightness of the
scene. This mode is suitable for general photos.
Camera: Shooting options and settings
99
r
Spot
: The camera calculates the amount of light in the centre. When you take a photo
in conditions where there is a strong backlight behind a subject, the camera adjusts the
exposure to shoot a subject correctly.
r
Centre-weighted
: The camera calculates a broader area than the camera does in spot
mode. It sums up the amount of light in the centre portion of the shot (60–80 %) and that
of the rest of the shot (20–40 %).
Drive
Use this option to set the shooting method. Continuous shots are recommended for shooting
the rapid motion of fast moving subjects, such as racing cars.
In expert mode, tap
Drive
, and select an option.
r
Single shot
: Use this to take a single photo.
r
Continuous shot
: Use this to take a series of photos of moving subjects.
r
AE BKT
: Use the auto exposure bracketing option to take three consecutive photos with
different exposure values (the original, one a step darker, and one a step lighter). Use a
tripod to prevent blurry photos as the camera takes three photos continuously.
r
Saving photos may take longer depending on memory card capacity and
performance when taking photos continuously.
r
Using a tripod is recommended when taking photos continuously.
Camera: Shooting options and settings
100
Flash
To take a realistic photo of a subject, the amount of light should be constant. When the light
source varies, you can use a flash and supply a constant amount of light.
Tap (or
)
Flash
, and select an option.
r
Off
: Use this to turn the flash off.
r
Auto
: Use this to automatically use the flash. The flash fires when the subject or
background is dark.
r
Red-eye
: Use this to prevent a red glow in the subject’s eyes.
r
Fill in
: Use this to always use the flash.
r
Slow sync
: Use this to keep details of the background.
r
Red-eye fix
: Use this to correct a red glow in the subject’s eyes.
r
There is an interval between two bursts of the flash. Do not move until the flash
fires a second time.
r
If light from the flash is reflected, or if a substantial amount of dust is in the air, tiny
spots may appear in the photo.
Focus mode
Use this option to select a focus mode appropriate to the subject.
In expert mode, tap
Focus mode
, and select an option.
r
Auto focus (normal)
: Use this to capture a still subject. When you half-press the Shutter
button, the focus fixes in the focus area. The area turns green when the focus is achieved.
r
Macro
: Use this to capture very close objects.
r
Manual focus
: Use this to manually focus on a subject by rotating the focus ring on the
lens.
Camera: Shooting options and settings
101
Focus area
Use this option to change the positions of the focus area.
Generally, cameras focus on the nearest subject. When there are a lot of subjects, however,
unwanted subjects can be in focus. To prevent unwanted subjects from being in focus,
change the focus area so that a desired subject is in focus. You can get a clearer and sharper
photo by selecting an appropriate focus area.
In expert mode, tap
Focus area
, and select an option.
r
Center AF
: Use this to focus on the centre of the frame.
r
Multi AF
: Use this to focus on multiple areas. The photo is divided into two or more areas,
and the camera obtains focus points of each area and displays a green rectangle in places
where focus is set correctly. It is recommended for scenery photos.
Face detection
Use this option to select a face detection mode.
In expert mode, tap
Focus area
, and select an option.
r
Normal
: Use this to measure exposure on a human face.
r
Smile shot
: Use this to recognise and helps taking people’s smiling faces. (p. 75)
r
Blink detection
: Use this to detect closed eyes and automatically takes additional photos.
(p. 76)
r
When a face is detected, the camera tracks the face automatically.
r
This feature may not be effective in the following conditions:
–
The subject is too far from the camera.
–
The lighting is too bright or too dark.
–
The subject is not facing the camera.
–
The subject is wearing sunglasses or a mask.
–
The subject’s facial expression changes drastically.
–
The subject is backlit, or the lighting conditions are unstable.
Camera: Shooting options and settings
102
Photo size
As you increase the resolution, your photo will include more pixels, so it can be printed on
larger paper or displayed on a larger screen. When you use a high resolution, the file size
will also increase. Select a low resolution for photos that will be displayed in a digital picture
frame or uploaded to the web.
Tap (or
)
Photo size
, and select an option.
Quality
Use this option to select a higher photo quality for better photos. Selecting a higher photo
quality also increases the file size.
In expert mode, tap
Quality
, and select an option.
Image Adjust
Use this option to adjust the colour, saturation, sharpness, or contrast of your photos.
In expert mode, tap
Image Adjust
, and drag the slider or tap +/- for each value.
Timer
Use this option to take photos with a delay of time.
Tap (or
)
Timer
, and select an option.
Press the Shutter button to start the timer. The camera takes photos after a specified length of
time. Press the Shutter button to cancel the timer.
Camera: Shooting options and settings
103
OIS (anti-shake)
Use the Optical Image Stabiliser (OIS) option to reduce or eliminate blurriness from camera
shake.
In expert mode, tap
OIS (anti-shake)
, and select an option.
r
Off
: Use to turn this option off.
r
On
: Use this to always apply the OIS feature.
Without OIS correction With OIS correction
r
This feature may not function properly in the following conditions:
–
When moving the camera to follow a moving subject.
–
If the camera is shaking too much.
–
When the shutter speed is slow (for example, when taking photos in low-light
conditions).
–
If the battery power is low.
–
When taking close-up photos.
r
Using this feature with a tripod may blur photos because of vibration from the OIS
sensor. Deactivate this feature when using a tripod.
r
The display may be blurry if the device is hit or dropped. When this happens,
restart the device.
Camera: Shooting options and settings
104
Video recording options
Tap (or
)
, and configure the settings for video recording.
r
Movie size
: Select a resolution for videos. Use higher resolution for higher quality. Higher
resolution videos take up more memory.
r
Sound
: Use this to decrease zoom noise when taking videos.
Sharing options
Share photos as they are taken by setting sharing options. Tap (or
)
, and
select an option.
r
Share shot
: Send a photo directly to another device via Wi-Fi Direct.
r
Buddy photo share
: Set the camera to recognise a person’s face that you have tagged in
a photo and send it to that person.
r
ChatON photo share
: Send a photo directly to another device via ChatON.
r
Remote viewfinder
: Set the device to control the camera remotely.
Camera settings
Tap (or
)
, and configure the settings for Camera.
r
Shutter Sound
: Adjust the auto focus sound.
r
Beep
: Activate or deactivate beep sounds.
r
Description
: Display mode descriptions.
r
Guidelines
: Display viewfinder guides to help composition when selecting subjects.
r
Display brightness
: Set the brightness of the screen.
r
Auto screen off
: Set the length of time the device waits before turning off the display’s
backlight.
r
Review
: Briefly display photos or videos taken.
r
Date/time Imprint
: Use this to imprint the date and/or the time on the photos when
taking them.
Camera: Shooting options and settings
105
r
GPS tag
: Attach a GPS location tag to the photo. Activate this feature when taking photos
to create albums in
Story Album
.
r
To improve GPS signals, avoid shooting in locations where the signal may be
obstructed, such as between buildings or in low-lying areas, or in poor weather
conditions.
r
Your location may appear on your photos when you upload them to the Internet.
To avoid this, deactivate the GPS tag setting.
r
Voice control
: Activate or deactivate the voice control to take photos.
r
AF lamp
: Use this to activate the AF-assist light in low-light conditions.
r
Power-on mode
: Select the default camera mode that launches when the device is
turned on.
r
Storage
: Select the memory location for storage.
r
Reset
: Reset the camera settings.
106
Media
Gallery
Use this application to view images and videos.
Tap
Gallery
on the Applications screen.
r
Some file formats are not supported depending on the software installed on the
device.
r
Some files may not play properly depending on the encoding method used.
Viewing images
Launching
Gallery
displays available folders. When another application, such as
Email
, saves
an image, the
Download
folder is automatically created to contain the image. Likewise,
capturing a screenshot automatically creates the
Screenshots
folder. Select a folder to open
it.
In a folder, images are displayed by creation date. Select an image to view it in full screen.
Scroll left or right to view the next or previous image.
Zooming in and out
Use one of the following methods to zoom in an image:
r
Double-tap anywhere to zoom in.
r
Spread two fingers apart on any place to zoom in. Pinch to zoom out, or double-tap to
return.
Viewing images using the motion feature
Use the motion feature to execute a function with particular motion.
On the Applications screen, tap
Settings
My device
Motions and gestures
Motion
,
drag the
Motion
switch to the right, and then turn on the switch for each feature.
To stop using a motion feature, turn off the switch for the feature.
Media
107
Playing videos
Video files show the icon on the preview. Select a video to watch it and tap .
Editing images
When viewing an image, tap and use the following functions:
r
Edit
: Launch
Paper Artist
application.
r
Details
: View image details.
r
Slideshow
: Start a slideshow with the images in the current folder.
r
Favourite
: Add the image to favourites.
r
Copy to clipboard
: Copy to clipboard.
r
Rotate left
: Rotate anticlockwise.
r
Rotate right
: Rotate clockwise.
r
Crop
: Resize the blue frame to crop and save the image in it.
r
Set as
: Set the image as wallpaper or a contact image.
r
Buddy photo share
: Send the image to a person whose face is tagged in the image.
r
Print
: Print the image via a USB or Wi-Fi connection. The device is only compatible with
some Samsung printers.
r
Rename
: Rename the file.
r
Scan for nearby devices
: Search for devices that have media sharing activated.
r
Settings
: Change the Gallery settings.
Favourite images
When viewing an image, tap
Favourite
to add the image to the favourites list.
Media
108
Deleting images
Use one of the following methods:
r
In a folder, tap
Select item
, select images by ticking, and then tap .
r
When viewing an image, tap .
Sharing images
Use one of the following methods:
r
In a folder, tap
Select item
, select images by ticking, and then tap to send them
to others.
r
When viewing an image, tap to send it to others or share it via social network services.
Setting as wallpaper
When viewing an image, tap
Set as
to set the image as wallpaper or to assign it to a
contact.
Tagging faces
Tap
Settings
, and then tick
Face tag
. A yellow frame appears around the recognised
face on an image. Tap the face, tap
Add name
, and then select or add a contact.
When the face tag appears on an image, tap the face tag and use available options, such as
making calls or sending messages.
Face recognition may fail depending on the face angle, face size, skin colour, facial
expression, light conditions, or accessories the subject is wearing.
Media
109
Video
Use this application to play video files.
Tap
Video
on the Applications screen.
r
Some file formats are not supported depending on the device's software.
r
Some files may not play properly depending on the encoding method used.
Playing videos
Select a video to play.
Change screen ratio.
Move forwards or
backwards by
dragging the bar.
Scan DLNA-enabled
devices.
Restart the current
video or skip to the
previous video. Tap
and hold to move
backwards quickly.
Skip to the next
video. Tap and hold
to move forwards
quickly.
Adjust the volume.
Reduce the size of
the video screen.
Pause and resume
playback.
Deleting videos
Tap
Delete
, select videos by ticking, and then tap
Delete
.
Sharing videos
Tap
Share via
, select videos by ticking, tap
Done
, and then select a sharing method.
Media
110
Using Popup Video player
Use this feature to use other applications without closing the video player. While watching
videos, tap to use the pop-up player.
Spread two fingers apart on the screen to enlarge the player or pinch to reduce it. To move
the player, drag the player to another location.
Story Album
Use this application to create your own digital album to keep your stories by organising the
images neatly and automatically.
Tap
Story Album
on the Applications screen.
Creating story albums
Tap
Create album
By tag information
to create a story album automatically. Select
criteria, and then tap
Find pictures
. Enter a title for the album, select a theme, and then tap
Create album
.
To create it manually, tap
Create album
From Gallery
.
Creating recommended albums
When you take photos at one location, the device automatically sorts your photos into
albums based on your specified criteria and suggests making the new albums.
Tap
Settings
Home city
, and then set a method for recognising your location.
Select an album type and set a minimum number of photos.
When you take photos that meet the criteria you set, the device will suggest making an
album.
Tap
Create album
From suggestions
. Select an album, enter a title for the album, and
then tap
Save
.
The device will recommend making story albums when you surpass the preset
number of photos in a single day.
Media
111
Viewing story albums
Select a story album. The cover image appears on the first page. Scroll left or right to view
images in the story album.
When viewing an image, tap and use the following functions:
r
Add content
: Add more content to the current page.
r
Remove content
: Delete content on the current page.
r
Change theme
: Change the theme for the page layout.
r
Slideshow
: Start a slideshow with the images in the current album.
r
Share via
: Send the album to others.
r
Print
: Print the album via a USB or Wi-Fi connection. The device is only compatible with
some Samsung printers.
r
Order photo book
: Place an order for a printed album.
r
Export
: Export the album to other storage locations.
r
Delete album
: Delete the album.
Editing images
Tap the image of the page in an album.
To add a caption, tap .
To send the image to others, tap .
To delete the image, tap .
To apply effects to the image, tap .
To start a slideshow, tap
Slideshow
Start slideshow
.
To set the image as an album cover image, tap
Set as cover
.
To rotate the image anticlockwise, tap
Rotate left
.
To rotate the image clockwise, tap
Rotate right
.
Media
112
Music
Use this application to listen to music.
Tap
Music
on the Applications screen.
r
Some file formats are not supported depending on the device’s software version.
r
Some files may not play properly depending on the encoding method used.
Playing music
Select a music category, and then select a song to play.
Tap the album image at the bottom of the screen to open the music player screen.
Skip to the next song. Tap and
hold to move forwards quickly.
Pause and resume playback.
Adjust the volume.
Open the playlist.
Change the repeat mode.
Restart the currently-playing
song or skip to the previous
song. Tap and hold to move
backwards quickly.
Turn on shue.
Hide the music player screen.
Scan DLNA-enabled devices.
Set the le as your favourite
song.
Media
113
To listen to songs at equal volume levels, tap
Settings
Smart Volume
.
When
Smart Volume
is activated, the volume may end up louder than the device
volume level. Use caution to avoid long-term exposure to loud sounds to prevent
damage to your hearing.
To set a personalised sound while listening to songs with a headset, tap
Settings
Adapt Sound
On
. When you turn the volume up to level 14 or higher, the adapt sound
option is not applied to music playback. If you turn the volume down to level 13 or lower, the
option is reapplied.
Setting a song as ringtone
To use the currently-playing song as ringtone, tap
Set as
Phone ringtone
.
Creating playlists
Make an own selection of songs.
Tap
Playlists
, and then tap
Create playlist
. Enter a title and tap
OK
. Tap
Add music
,
select songs to include, and then tap
Done
.
To add the currently-playing song to a playlist, tap
Add to playlist
.
Playing music by mood
Play music grouped by mood. The playlist is automatically created by the device. When a new
song is added, tap
Music square
Library update
.
Tap
Music square
and select a cell of mood. Or select multiple cells by dragging your finger.
Media
114
YouTube
Use this application to watch videos from the YouTube website.
Tap
YouTube
on the Applications screen.
This application may not be available depending on the region or service provider.
Watching videos
Tap , and then enter a keyword. Select one of the returned search results to watch a video.
Rotate the device to landscape orientation to display full screen.
Pause or resume
playback.
Move forwards or
backwards by
dragging the bar.
Change display
quality.
Add the video to
the playlist.
Search for videos.
Rotate the screen
to portrait
orientation.
Send the URL to
others.
Media
115
Sharing videos
Select the video to view, tap , and then select a sharing method.
Uploading videos
Select your account, tap , select a video, enter information for the video, and then tap .
Flipboard
Use this application to access your personalised magazines.
Tap
Flipboard
on the Applications screen.
This application may not be available depending on the region or service provider.
To start your Flipboard, flick up on the greeting page, tap
Get Started
, select news topics, and
then tap
Done
.
Select a cover story or a topic, flick through the Flipboard pages, and then select an article to
read.
While reading an article, use the following icons:
r
: Go to the previous page.
r
: Set the article as your likes in Facebook.
r
: Add the article to the favourites list in Twitter.
r
: View others’ comments about the article.
r
: Share the article via Twitter.
r
: Share the article with others.
116
Application & media stores
Play Store
Use this application to purchase and download applications and games that are able to run
on the device.
Tap
Play Store
on the Applications screen.
This application may not be available depending on the region or service provider.
Installing applications
Browse applications by category, or tap to search with a keyword.
Select an application to view information. To download it, tap
Install
. If there is a charge for
the application, tap the price, and follow on-screen instructions to complete the purchase
process.
r
When a new version is available for any installed application, an update icon
appears at the top of the screen to alert you to the update. Open the notifications
panel and tap the icon to update the application.
r
To install applications that you downloaded from other sources, on the
Applications screen, tap
Settings
More
Security
Unknown sources
.
Uninstalling applications
Uninstall the applications purchased from
Play Store
.
Tap
My apps
, select an application to delete in the list of installed applications, and
then tap
Uninstall
.
Application & media stores
117
Samsung Hub
Use this application to purchase and download multimedia content. You can also manage the
content on the device.
Tap
Samsung Hub
on the Applications screen.
Purchasing multimedia content
Select a service category, select media content, and then complete the purchase process.
Managing content on the device
Select a service category, scroll left, and then manage content on the device.
Samsung Apps
Use this application to purchase and download dedicated Samsung applications. For more
information, visit
www.samsungapps.com
.
Tap
Samsung Apps
on the Applications screen.
This application may not be available depending on the region or service provider.
Installing applications
Browse applications by category. Tap to select a category.
To search for an application, tap at the top of the screen, and then enter a keyword in the
search field.
Select an application to view information. To download it, tap
Get
or
Buy
.
When a new version is available for any installed application, an update icon appears
at the top of the screen to alert you to the update. Open the notifications panel and
tap the icon to update the application.
Application & media stores
118
Play Music
Use this application to listen to music from the device or stream music from the Google cloud
service.
Tap
Play Music
on the Applications screen.
This application may not be available depending on the region or service provider.
Play music by selecting a music category or share songs with others by uploading them to
the Google cloud storage.
119
Utilities
S Memo
Use this application to create a memo using images and voice recordings.
Tap
S Memo
on the Applications screen.
Composing memos
Create memos with enriched content by drawing sketches with your finger or adding images
or voice memos.
Tap to write or draw on the screen, or tap to enter text with the keyboard.
Append another page to the
current memo.
Undo and redo the last action.
Insert a multimedia le.
Enter a memo.
Jot down or draw a memo.
Switch to view mode.
Erase the handwritten memo.
Make a voice recording to insert.
Utilities
120
When jotting down a memo, tap once more to change the pen type, line thickness, or pen
colour.
When erasing the handwritten memo, tap once more to change the eraser size or clear the
memo.
View more colours.
Change the line thickness.
Change the pen colour.
Save the current setting as a pen
profile.
Change the pen type.
To change the sheet background, tap
Change background
.
To add tags, tap
Add tag
.
Inserting multimedia files or a voice recording
Tap to insert multimedia files. Tap to insert a voice recording.
Browsing memos
Browse memo thumbnails by scrolling up or down.
To search for a memo, tap
Search
.
To delete memos, tap
Delete
.
To sort memos by date, title, tag, or others, tap
Sort by
.
Utilities
121
To change the view mode, tap
List view
.
To create a memo by importing a file, tap
Import
.
To export memos as another file format, tap
Export
.
To create a folder, tap
Create folder
.
To move memos to another folder, tap
Move
.
To copy memos, tap
Copy
.
To change the S Memo settings, tap
Settings
.
To access help information for S Memo, tap
Help
.
Viewing a memo
Tap the memo thumbnail to open it.
To delete memos, tap
Delete
.
To send the memo to others, tap
Share via
.
To save the memo as an image file or a PDF file, tap
Export
.
To add the memo as your favourites list, tap
Add to Favourites
.
To save the memo as an event, tap
Create event
.
To set the memo as a widget or wallpaper for the Home screen, tap
Set as
.
To print the memo via a USB or Wi-Fi connection, tap
Print
. The device is only
compatible with some Samsung printers.
To edit the memo, tap .
To play the voice recording, tap .
Utilities
122
S Planner
Use this application to manage events and tasks.
Tap
S Planner
on the Applications screen.
Creating events or tasks
Tap , and then use one of the following methods:
r
Add event
: Enter an event with an optional repeat setting.
r
Add task
: Enter a task with an optional priority setting.
To add an event or task more briefly, tap a date to select it and tap it again.
Enter a title and specify which calendar to use or sync with. Then tap
Edit event details
or
Edit task details
to add more details, such as how often the event repeats, when it has an
advance alert, or where it takes place.
Utilities
123
Attach a map showing the location of the event. Enter the location in the
Location
field, tap
next to the field, and then pinpoint the precise location by tapping and holding on the
map that appears.
Attach an image. Tap
Images
, and then take a photo or select one of the existing images.
Syncing with Google Calendar
On the Applications screen, tap
Settings
Accounts
Google
under
My accounts
a
Google account
Sync Calendar
. To manually sync for updating, on the Applications screen,
tap
S Planner
Sync
.
To display synced event or tasks, tap
Settings
Calendars
Display
, tick the Google
account, and then tap
Done
.
Changing calendar type
Select one from among different types of calendars including year, month, week, and others
at the right side of the screen. A pinch gesture can be used to change calendar type. For
example, pinch to change from the monthly calendar to the yearly calendar, and spread apart
to change yearly calendar back to monthly calendar.
Searching for events
Tap
Search
, and then enter a keyword to search for.
To view today’s events, tap
Today
at the top of the screen.
Utilities
124
Deleting events
Select a date or event, and then tap
Delete
.
Sharing events
Select an event, tap
Share via
, and then select a sharing method.
Dropbox
Use this application to save and share files with others via the Dropbox cloud storage. When
you save files to Dropbox, your device automatically syncs with the web server and any other
computers that have Dropbox installed.
Tap
Dropbox
on the Applications screen.
This application may not be available depending on the region or service provider.
When running Dropbox for the first time, tap
Start
to activate it. Follow the on-screen
instructions to complete the setup.
Once Dropbox is activated, photos and videos taken with the device’s camera are uploaded to
Dropbox automatically. To view the uploaded photos or videos, tap . To share or delete files
or create albums, tap , and then select files.
To upload files to Dropbox, tap
Upload here
Photos or videos
or
Other files
.
To open files in Dropbox, select a file.
While viewing images or videos, tap to add it to the favourites list. To open files in the
favourites list, tap .
Utilities
125
Clock
Use this application to set alarms, check the time in any location in the world, measure the
duration of an event, set a timer, or use as the desk clock.
Tap
Clock
on the Applications screen.
Turn this alarm on or off.
Alarm
Setting alarms
Tap
Create alarm
, set a time for the alarm to go off, select days for the alarm to repeat, and
then tap
Save
.
r
Location alarm
: Set a location. The alarm goes off only when you are in the location.
r
Snooze
: Set an interval and the number of times for the alarm to repeat after the preset
time.
r
Smart alarm
: Set a time for the alarm to go off before the preset time.
Utilities
126
Stopping alarms
Drag outside the large circle to stop an alarm. Drag outside the large circle to repeat
the alarm after a specified length of time.
Deleting alarms
Tap and hold the alarm, and then tap
Delete
.
World clock
Creating clocks
Tap
Add city
, and then enter a city name or select a city from the cities list.
To apply summer time, tap and hold a clock, and then tap
DST settings
.
Deleting clocks
Tap and hold the clock, and then tap
Delete
.
Stopwatch
Tap
Start
to time an event. Tap
Lap
to record lap times.
Tap
Reset
to clear lap time records.
Timer
Set the duration, and then tap
Start
.
Drag outside the large circle when the timer goes off.
Desk clock
Tap to view in full screen.
Utilities
127
Calculator
Use this application for simple or complex calculations.
Tap
Calculator
on the Applications screen.
Rotate the device to landscape orientation to display the scientific calculator. If
Screen
rotation
is disabled, tap
Scientific calculator
.
To see the calculation history, tap to hide the keypad.
To clear the history, tap
Clear history
.
To change the character size for the history, tap
Text size
.
S Health
Use this application to monitor your health.
Tap
S Health
on the Applications screen.
Setting profile
Tap
Next
, read and agree to the terms and conditions, and then tap
Next
. Enter your physical
statistics and then tap
Start
.
Based on your physical statistics, the device calculates your basal metabolic rate
(BMR) and recommends a daily caloric intake. The recommendation may not be
accurate for all ages, body compositions, or nutritional needs.
Checking your health information
You can view your information on the health board screen. Select one of the following to
view details:
r
Calories burnt
: View how many calories you have burned.
r
Calorie intake
: View how many calories you have ingested.
Utilities
128
Managing calories
Tap
Walking mate
to count your steps, or tap
Exercise mate
and enter your exercise
history. You can view consumed calories. To view exercise history on a graph, tap the icon at
the bottom right.
r
You may experience a brief delay while the walking mate monitors your steps and
then displays your step count.
r
If you use the walking mate while travelling by car or train, vibration may affect
your step count.
Tap
Food tracker
and enter the foods you have eaten. You can view your calorie intake.
To view calorie history on a graph, tap the icon at the bottom right.
Managing vital statistics
Tap
Weight
, and then enter a value.
You can view current statistics. To view statistic history on a graph, tap the icon at the bottom
right.
To add menus to the S Health menu bar, tap
Settings
Add more features
.
Configuring settings for S Health
Tap
Settings
, and then select one of the following:
r
Edit profile
: Edit your physical statistics.
r
Security
: Set a PIN to lock or unlock S Health.
r
Unit settings
: Set unit options.
r
Add more features
: Select and download additional menus that appear on the S Health
menu bar.
r
Calories burnt shortcut
: Set a menu to move when you tap
Calories burnt
on the health
board screen.
Utilities
129
r
Compatible products
: View and manage device connections.
r
Reset data
: Reset S Health data.
r
Terms of use
: View the terms and conditions, including personal information and data
retention policies.
r
About S Health
: View information about S Health.
S Translator
Use this application to translate text into other languages.
Tap
S Translator
on the Applications screen.
Using S Translator
Set the source and target languages, enter text in the input field, and then tap .
To add a language pair to your favourites list, tap .
To send a language pair to others, tap .
Starting a conversation with the translator
Tap the buttons at the bottom of the screen to communicate with another person via spoken
translation.
Tap
Speak
for your language, and then speak into the microphone. The device will translate
what you say. Tap in the target language field to let the device read the translation out
loud.
Then, tap
Speak
for the language of the person you are talking with and let the person reply
in their language. The device will translate what they say. Tap in the source language field
to let the device read it back to you.
Utilities
130
Voice Recorder
Use this application to record or play voice memos.
Tap
Voice Recorder
on the Applications screen.
Recording voice memos
Tap to start recording. Speak into the microphone at the top of the device. Tap to pause
recording. Tap to finish recording.
Change the recording quality.
Recording elapsed time
Display the list of voice memos.
Start recording.
Playing voice memos
Select a voice memo to play.
r
: Trim the voice memo.
r
: Adjust the playback speed.
r
: Pause playback.
r
/ : Skip 60 seconds backwards or forwards.
r
/ : Skip to the previous or next voice memo.
To send a voice memo to others, tap
Share via
, and then select a sharing method.
Utilities
131
Managing voice memos
In the list of voice memos, tap and select one of the following:
r
Share via
: Select voice memos to send, and then select a sharing method.
r
Delete
: Select voice memos to delete.
r
Settings
: Change the voice recorder settings.
r
End
: Close the voice recorder.
Saving files with contextual tags
In the list of voice memos, tap
Settings
Contextual filename
On
.
S Voice
Use this application to command the device by voice to dial a number, send a message, write
a memo, and more.
Tap
S Voice
on the Applications screen. Alternatively, press the Home button twice.
This application may not be available depending on the region or service provider.
Here are several examples of spoken commands:
r
Open music
r
Launch calculator
r
Call Lulu mobile
r
Dial Lulu work
r
Check schedule
Utilities
132
Tips for better voice recognition
r
Speak clearly.
r
Speak in quiet places.
r
Do not use offensive or slang words.
r
Avoid speaking in dialectal accents.
The device may not recognise your commands or may perform unwanted commands
depending on your surroundings or how you speak.
Google
Use this application to search not only the Internet, but also applications and their contents
on the device as well.
Tap
Google
on the Applications screen.
Searching the device
Tap the search field, and then enter a keyword. Alternatively, tap , and then speak a
keyword.
If no results are returned from the applications, the web browser appears, displaying the
search results.
Searching with images
To search with an image, tap
Search with camera
. Aim the rear camera at an image,
and then tap .
This feature may not be available depending on the region or service provider.
Search scope
To select what applications to search, tap
Settings
Phone search
, and then tick the
items to search for.
Utilities
133
Google Now
Launch Google search to view Google Now cards that show the current weather, public
transit info, your next appointment, and more when you are most likely to need it.
Join Google Now when opening Google search for the first time. To change Google Now
settings, tap
Settings
Google Now
.
This feature may not be available depending on the region or service provider.
Voice Search
Use this application to search webpages by speaking.
Tap
Voice Search
on the Applications screen.
This application may not be available depending on the region or service provider.
Speak a keyword or phrase when
Speak now
appears on the screen.
My Files
Use this application to access all kinds of files stored in the device, including images, videos,
songs, and sound clips.
Tap
My Files
on the Applications screen.
Viewing files
Select a folder to open it. To go back to the parent folder, tap . To return to the root
directory, tap .
In a folder, tap , and then use one of the following options:
r
Select all
: Select all files to apply the same option to them at once.
r
Create folder
: Create a folder.
r
Search
: Search for files.
Utilities
134
r
View by
: Change the view mode.
r
Sort by
: Sort files or folders.
r
Settings
: Change the file manager settings.
Adding shortcuts to folders
Add a shortcut of frequently-used folders to the root directory. Tap
Add shortcut
, enter
a shortcut name, select a folder, and then tap
Set here
.
Downloads
Use this application to see what files are downloaded through the applications.
Tap
Downloads
on the Applications screen.
This application may not be available depending on the region or service provider.
Select a file to open it with an appropriate application.
To sort the files by size, tap
Sort by size
.
To sort the files by date, tap
Sort by date
.
TripAdvisor
Use this application to get travel information such as destination or hotel. You can also book
for a room and share your reviews with others.
Tap
TripAdvisor
on the Applications screen.
TourWrist
Use this application to experience the world in 360-degree panoramas. You can also preview
virtual tours of hotels, restaurants, and other points of interest.
Tap
TourWrist
on the Applications screen.
135
Travel & local
Maps
Use this application to pinpoint the location of the device, search for places, or get directions.
Tap
Maps
on the Applications screen.
This application may not be available depending on the region or service provider.
Searching for locations
Tap , enter an address, and then tap . Select a location to view the detailed location
information. To search for nearby locations, tap .
Once the location is found, tap and use one of the following functions:
r
Clear Map
: Clear the map.
r
Make available offline
: Save the map of a specified area to view it offline.
r
Directions
: Get directions for the location.
r
Layers
: Overlay multiple layers including satellite images, traffic information, and more.
r
Settings
: Change the map settings.
r
Help
: View information about using the map.
To view current location, tap .
Travel & local
136
Getting directions for a destination
1
Tap .
2
Tap , and then select a method to enter starting and ending locations:
r
My current location
: Use current location for starting location.
r
Contacts
: Select from the contacts list.
r
Point on map
: Pinpoint by tapping on the map.
r
My Places
: Select from the list of favourite places.
3
Select a travel method, such as driving, public transit, or walking, and then tap
GET
DIRECTIONS
.
4
Select one of the routes that appear, and then tap
MAP VIEW
to view details.
Local
Use this application to search for nearby restaurants, banks, bus stops, and more.
Tap
Local
on the Applications screen.
This application may not be available depending on the region or service provider.
Select a place category, and then select a place from the list of search results.
r
Map
: Pinpoint the place on the map.
r
Directions
: Search for a route to the place.
r
Call
: Call the place’s phone number.
To add a place category, tap
Add a search
on the category list, and then enter a
keyword to search into the text field.
Travel & local
137
Navigation
Use this application to search for a route to a destination.
Tap
Navigation
on the Applications screen.
r
Navigation maps, your current location, and other navigational data may differ
from actual location information. You should always pay attention to road
conditions, traffic, and any other factors that may affect your driving. Follow all
safety warnings and regulations while driving.
r
This application may not be available depending on the region or service provider.
Specify the destination by using one of the following methods:
r
Speak the destination address.
r
Enter the destination address.
r
Select the destination address from the contacts list.
r
Select the destination from the list of starred places.
Once a route is found, follow on-screen instructions to navigate to the destination.
138
Settings
About Settings
Use this application to configure the device, set application options, and add accounts.
Tap
Settings
on the Applications screen.
Connections
Wi-Fi
Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or other
network devices.
To use options, tap
Wi-Fi
.
r
Advanced
: Customise Wi-Fi settings.
r
WPS push button
: Connect to a secured Wi-Fi network with a WPS button.
r
WPS PIN entry
: Connect to a secured Wi-Fi network with a WPS PIN.
r
Help
: Access help information for Wi-Fi.
Setting Wi-Fi sleep policy
Tap
Wi-Fi
Advanced
Keep Wi-Fi on during sleep
.
When the screen is turned off, the device automatically turns off Wi-Fi connections.
When this happens, the device automatically accesses data networks if it is set to use
them. This may incur data transfer fees. To avoid data-usage bills, set this option to
Always
.
Settings
139
Setting Network notification
The device can detect open Wi-Fi networks and display an icon on the status bar to notify
when available.
Tap
Wi-Fi
Advanced
and tick
Network notification
to activate this feature.
Wi-Fi Direct
Wi-Fi Direct connects two devices directly via a Wi-Fi network without requiring an access
point.
Tap
Wi-Fi
Wi-Fi Direct
.
Bluetooth
Activate the Bluetooth feature to exchange information over short distances.
To use more options, tap .
r
Visibility timeout
: Set duration that the device is visible.
r
Received files
: View received files via the Bluetooth feature.
r
Help
: Access help information for Bluetooth.
Data usage
Keep track of your data usage amount, and customise the settings for the limitation.
r
Mobile data
: Set the device to use data connections on any mobile network.
r
Set mobile data limit
: Set a limit for the mobile data usage.
r
Data usage cycle
: Enter monthly reset date to monitor your data usage.
To use more options, tap .
r
Data roaming
: Set the device to use data connections when you are roaming.
r
Restrict background data
: Set the device to disable sync in the background while using
a mobile network.
r
Auto sync data
: Activate or deactivate auto-syncing of applications. You can select what
information to sync for each account in
Settings
Accounts
.
Settings
140
r
Show Wi-Fi usage
: Set the device to show your data usage via Wi-Fi.
r
Mobile hotspots
: Select Wi-Fi hotspots to prevent applications that are running in the
background from using them.
More networks
Customise settings to control networks.
Flight mode
This disables all wireless functions on your device. You can use only non-network services.
Smart network
This disables all data network functions on your device when the screen is turned off, and
disconnects applications, such as SNS applications or Email. When the screen in turned on, all
new notifications that were not received while the screen was off are retrieved.
You can save battery power by turning on this feature.
Mobile networks
r
Mobile data
: Use to allow packet switching data networks for network services.
r
Data roaming
: Use the device to connect to another network when you are roaming or
your home network is not available.
r
Access Point Names
: Set up access point names (APNs).
r
Network mode
: Select a network type.
r
Network operators
: Search for available networks and select a network for roaming.
Tethering and portable hotspot
r
Portable Wi-Fi hotspot
: Use the portable Wi-Fi hotspot to share the device’s mobile
network connection with computers or other devices through the Wi-Fi network.
r
USB tethering
: Use USB tethering to share the device’s mobile network connection with
a computer via USB. When connected to a computer, the device is used as a wireless
modem for the computer.
Settings
141
r
Bluetooth tethering
: Use the Bluetooth tethering to share the device’s mobile network
connection with computers via Bluetooth.
r
Help
: Learn more about USB, Wi-Fi, and Bluetooth tethering.
VPN
Set up and connect to virtual private networks (VPNs).
NFC
r
NFC
: Activate the NFC feature to read or write NFC tags that contain information.
r
Android Beam
: Turn on the Android Beam feature to send data, such as webpages and
contacts, to NFC-enabled devices.
Nearby devices
r
File sharing
: Activate media sharing to allow other DLNA-enabled devices to access
media files on your device.
r
Shared contents
: Set the device to share your content with other devices.
r
Allowed devices list
: View the list of devices that can access your device.
r
Not-allowed devices list
: View the list of devices that are blocked from accessing your
device.
r
Download to
: Select a memory location for saving media files.
r
Upload from other devices
: Set the device to accept uploads from other devices.
Screen Mirroring
Activate the screen mirroring feature and share your display with others.
Kies via Wi-Fi
Connect the device to Samsung Kies via a Wi-Fi network.
Settings
142
My device
Lock screen
Change settings for the locked screen.
r
Screen lock
: Activate the screen lock feature. The following options may vary depending
on the screen lock feature selected.
r
Multiple widgets
: Set the device to allow use of widgets on the locked screen.
r
Lock screen widgets
:
–
Favourite apps or Camera
: Set the device to show shortcuts for each application or
launch the camera application automatically when you swipe panels to the left on the
locked screen.
–
Clock or personal message
: Set the device to show a clock or personal message on
the locked screen. The following options may vary, depending on your selection.
For a personal message:
–
Edit personal message
: Edit the personal message.
For a clock:
–
Dual clock
: Set the device to show the dual clock.
–
Clock size
: Change the size of the clock.
–
Show date
: Set the device to show the date with the clock.
–
Owner information
: Enter your information that is shown with the clock.
r
Shortcuts
: Set the device to show and edit application shortcuts on the locked screen.
This feature may not be available depending on the region or service provider.
Settings
143
r
Unlock effect
: Select an effect when you unlock the screen.
r
Help text
: Set the device to show the help text on the locked screen.
r
Wake up in lock screen
: Set the device to recognise your wake up command when the
screen is locked.
r
Set wake-up command
: Set a wake up command to launch
S Voice
or perform a
specified function.
Display
Change the settings for the display.
r
Wallpaper
:
–
Home screen
: Select a background image for the Home screen.
–
Lock screen
: Select a background image for the locked screen.
–
Home and lock screens
: Select a background image for the Home screen and the
locked screen.
r
Notification panel
: Customise the items that appear on the notifications panel.
r
Screen mode
:
–
Adapt display
: Use this mode for optimising the display according to the display
settings.
–
Dynamic
: Use this mode to make the display tone more vivid.
–
Standard
: Use this mode for normal surroundings.
–
Professional photo
: Use this mode to make the display tone look like real colours.
–
Movie
: Use this mode for dim surroundings, such as in a dark room.
r
Brightness
: Set the brightness of the display.
r
Auto-rotate screen
: Set the content to rotate automatically when the device is turned.
r
Screen timeout
: Set the length of time the device waits before turning off the display’s
backlight.
r
Daydream
: Set the device to launch a screensaver when your device is connected to a
desktop dock or charging.
r
Font style
: Change the font type for display text.
Settings
144
r
Font size
: Change the font size.
r
Touch key light duration
: Set the duration for the touch button backlight.
r
Display battery percentage
: Set the device to display the remaining battery life.
r
Edit after screen capture
: Set the device to edit the screenshot after capturing it.
r
Auto adjust screen tone
: Set the device to save power by adjusting the brightness of the
display.
r
High touch sensitivity
: Set the device to increase the sensitivity so you can use the touch
screen with gloves on.
Depending on the type of material you wear while touching the device, some
commands may not be recognised.
Sound
Change settings for various sounds on the device.
r
Volume
: Adjust the volume level for call ringtones, music and videos, system sounds, and
notifications.
r
Ringtones
: Select a ringtone to alert you to incoming calls.
r
Vibrations
: Add or select a vibration pattern.
r
Default notification sound
: Select a ringtone for events, such as incoming messages and
missed calls.
r
Vibrate when ringing
: Set the device to vibrate and play a ringtone for incoming calls.
r
Dialling keypad tone
: Set the device to sound when tapping the buttons on the keypad.
r
Touch sounds
: Set the device to sound when selecting an application or option on the
touch screen.
r
Screen lock sound
: Set the device to sound when locking or unlocking the touch screen.
r
Adapt Sound
: Personalise the sound for the ear you use most during calls or while
listening to music.
Home screen mode
Select a Home screen mode (standard or easy).
Settings
145
Call
Customise the settings for calling features.
r
Call rejection
: Reject calls from specified phone numbers automatically. Add phone
numbers to the reject list.
r
Set up call reject messages
: Add or edit the message sent when you reject a call.
r
Answering/ending calls
:
–
The home key answers calls
: Set the device to answer an incoming call when
pressing the Home button.
–
The power key ends calls
: Set the device to end a call when pressing the Power
button.
r
Turn off screen during calls
: Set the device to turn on the proximity sensor during a call.
r
Call alerts
:
–
Answer vibration
: Set the device to vibrate when the other party answers a call.
–
Call-end vibration
: Set the device to vibrate when the other party ends a call.
–
Call connect tone
: Activate or deactivate the call connection tone.
–
Minute minder
: Activate or deactivate the minute minder tone.
–
Call end tone
: Activate or deactivate the call disconnection tone.
–
Alerts during calls
: Set the device to alert you to events during a call.
r
Call accessories
:
–
Automatic answering
: Set the device to answer automatically after a specified period
(available only when a headset is connected).
–
Automatic answering timer
: Select the length of time that the device waits before
answering calls.
–
Outgoing call conditions
: Set the device to allow outgoing calls with a Bluetooth
headset, even when your device is locked.
–
Outgoing call type
: Select the type of outgoing calls to make you use a Bluetooth
headset.
Settings
146
r
Additional settings
:
–
Caller ID
: Display your caller ID to other parties for outgoing calls.
–
Call forwarding
: Divert incoming calls to another number.
–
Auto area code
: Set the device to insert a prefix (area or country code) automatically
before a phone number.
–
Call barring
: Block incoming or outgoing calls.
–
Call waiting
: Allow incoming call alerts when a call is in progress.
–
Auto redial
: Activate auto redial for calls that were not connected or that were cut off.
–
Fixed Dialling Numbers
: Activate or deactivate FDN mode to restrict calls to numbers
in the FDN list. Enter the PIN2 supplied with your SIM or USIM card.
r
Ringtones and keypad tones
:
–
Ringtones
: Select a ringtone to alert you to incoming calls.
–
Vibrations
: Add or select a vibration pattern.
–
Vibrate when ringing
: Set the device to vibrate and play a ringtone for incoming calls.
–
Keypad tones
: Set the device to sound when tapping the buttons on the keypad.
r
Personalise call sound
: Select a type of call sound to use with a headset.
r
Increase volume in pocket
: Set the device to raise the ringtone volume when the device
is in an enclosed, such as a bag or pocket.
r
Video call image
: Select an image to be shown to the other party.
r
Use call fail options
: Choose to try a voice call when a video call fails to connect.
r
Voicemail service
: Select or set your voicemail service provider.
r
Voicemail settings
: Enter the number to access the voicemail service. Obtain this number
from the service provider.
r
Sound
: Select a ringtone to alert you to new voicemails.
r
Vibrate
: Set the device to vibrate when voicemails are received.
r
Accounts
: Set the device to accept IP calls and set up your accounts for IP call services.
r
Use Internet calling
: Set whether to use IP call services for all calls or only for IP calls.
Settings
147
Blocking mode
Select which notifications will be blocked or set to allow notifications for calls from specified
contacts in blocking mode.
Power saving mode
Activate power-saving mode and change the settings for power-saving mode.
r
CPU power saving
: Set the device to limit some system resource usage.
r
Screen power saving
: Set the device to decrease the brightness of the display.
r
Learn about Power saving mode
: Discover how to reduce battery consumption.
Accessory
Change the accessory settings.
r
Automatic unlock
: Set the device to unlock automatically when the cover is flipped
open.
r
Audio output
: Select a sound output format to use when connecting your device to
HDMI devices. Some devices may not support the surround sound setting.
Accessibility
Accessibility services are special features for those with certain physical disabilities. Access
and alert the following settings to improve accessibility to the device.
r
Auto-rotate screen
: Set the interface to rotate automatically when you rotate the device.
r
Screen timeout
: Set the length of time the device waits before turning off the display’s
backlight.
r
Speak passwords
: Set the device to read aloud passwords you enter with Talkback.
r
Answering/ending calls
:
–
The home key answers calls
: Set the device to answer an incoming call when
pressing the Home button.
–
Answer calls by tapping
: Set the device to answer an incoming call when tapping the
call accept button twice.
–
The power key ends calls
: Set the device to end a call when pressing the Power
button.
Settings
148
r
Show shortcut
: Add a shortcut to
Accessibility
on the quick menu that appears when
you press and hold the Power button.
r
Manage accessibility
: Export or import the accessibility settings to share them with
other devices.
r
TalkBack
: Activate Talkback, which provides voice feedback.
r
Font size
: Change the font size.
r
Magnification gestures
: Set the device to zoom in and out with finger gestures.
r
Negative colours
: Reverse the display colours to improve visibility.
r
Colour adjustment
: Adjust the colour scheme for the screen when the device determines
that you are colour blind or having difficulty reading content.
r
Accessibility shortcut
: Set the device to activate Talkback when you press and hold the
Power button, and then tap and hold the screen with two fingers.
r
Text-to-speech options
:
–
Preferred TTS engine
: Select a speech synthesis engine. To change the settings for
speech synthesis engines, tap .
–
Speech rate
: Select a speed for the text-to-speech feature.
–
Listen to an example
: Listen to the spoken text for an example.
r
Enhance web accessibility
: Set applications to install web scripts to make their web
content more accessible.
r
Sound balance
: Adjust the sound balance when using a dual headset.
r
Mono audio
: Enable mono sound when listening to audio with one earbud.
r
Turn off all sounds
: Mute all device sounds.
r
Assistant menu
: Set the device to show the assistive shortcut icon that helps you access
functions supported by external buttons or features on the notifications panel. You can
also edit the menu on the shortcut icon.
r
Tap and hold delay
: Set the recognition time for tapping and holding the screen.
r
Interaction control
: Set an area of the screen to be excluded from touch inputs.
Settings
149
Language and input
Change the settings for text input. Some options may not be available depending on the
selected language.
Language
Select a display language for all menus and applications.
Default
Select a default keyboard type for text input.
Google voice typing
To change the voice input settings, tap .
r
Choose input languages
: Select input languages for text input.
r
Block offensive words
: Set the device to prevent the device from recognising offensive
words in voice inputs.
r
Download offline speech recognition
: Download and install language data for offline
voice input.
Samsung keyboard
To change the Samsung keyboard settings, tap .
The available options may vary depending on the region or service provider.
r
Portrait keyboard types
: Change the keyboard layout.
r
Input languages
: Select languages for text input.
r
Predictive text
: Activate predictive text mode to predict words based on your input and
show word suggestions. You can also customise the word prediction settings.
r
Continuous input
: Set the device to enter text by sweeping on the keyboard.
r
Keyboard swipe
: Enable or disable the keyboard sweeping feature for the text input
mode. Switch between input modes by scrolling left or right on the keyboard.
This feature may not be available depending on the region or service provider.
Settings
150
r
Handwriting
: Customise settings for handwriting mode, such as recognition time, pen
thickness, or pen colour.
r
Advanced
:
–
Auto capitalisation
: Set the device to automatically capitalise the first character after
a final punctuation mark, such as a full stop, question mark, or exclamation mark.
–
Auto spacing
: Set the device to automatically insert a space between words.
–
Auto-punctuate
: Set the device to insert a full stop when you double-tap the space
bar.
–
Character preview
: Set the device to display a large image of each character tapped.
–
Key-tap sound
: Set the device to sound when a key is touched.
r
Help
: Access help information for using the Samsung keyboard.
r
Reset settings
: Reset Samsung keyboard settings.
Voice recogniser
Select a voice recognition engine.
Voice search
For Samsung voice recognition, use the following options:
r
Language
: Select a language for the voice recognition.
r
Open via the home key
: Set the device to launch
S Voice
by pressing the Home button
twice.
r
Use location data
: Set the device to use location information for voice search results.
r
Hide offensive words
: Hide offensive words from voice search results.
r
Help
: Access help information for
S Voice
.
r
About
: View version information.
r
Auto-start speaker
: Set the device to automatically turn on the speakerphone when
making a call with
S Voice
.
r
Show body of message
: Set the device to display the text of a new message received
while in driving mode.
Settings
151
r
Wake up command
: Set the device to start voice recognition by saying a wake up
command while using
S Voice
.
r
Wake up in lock screen
: Set the device to recognise your wake up command when the
screen is locked.
r
Set wake-up command
: Set a wake up command to launch
S Voice
or perform a
specified function.
r
Check missed events
: Set the device to check missed calls, messages, or events when
S
Voice
is launched by pressing the headset button.
r
Home address
: Enter your home address to use location information with the voice
command feature.
r
Log in to Facebook
: Enter your Facebook account information to use Facebook with
S
Voice
.
r
Log in to Twitter
: Enter your Twitter account information to use Twitter with
S Voice
.
For Google voice recognition, use the following options:
r
Language
: Select a language for the voice recognition.
r
Speech output
: Set the device to provide voice feedback to alert you to the current
action.
r
Block offensive words
: Hide offensive words from voice search results.
r
Download offline speech recognition
: Download and install language data for offline
voice input.
r
Bluetooth headset
: Set the device to allow a voice search with a Bluetooth headset,
when it is connected to the device.
Text-to-speech options
r
Preferred TTS engine
: Select a speech synthesis engine. To change the settings for
speech synthesis engines, tap .
r
Speech rate
: Select a speed for the text-to-speech feature.
r
Listen to an example
: Listen to the spoken text for an example.
Pointer speed
Adjust the pointer speed for the mouse or trackpad connected to your device.
Settings
152
Motions and gestures
Activate the motion recognition feature and change the settings that control motion
recognition on your device.
r
Motion
:
–
Direct call
: Set the device to make a voice call by picking up and holding the device
near your ear while viewing call, message, or contact details.
–
Smart alert
: Set the device to alert you if you have missed calls or new messages
when you pick up the device.
–
Zoom
: Set the device to zoom in or out while viewing images in
Gallery
or browsing
webpages, when you tap and hold two points with your fingers and then tilt the
device back and forth.
–
Move an icon
: Set the device to move an item to another page when tapping and
holding the item and then panning the device to the left or right.
–
Browse an image
: Set the device to scroll through an image by moving the device in
any direction when the image is zoomed in.
–
Mute/Pause
: Set the device to mute incoming calls, alarms, and music by placing the
device face down.
r
Gyroscope calibration
: Calibrate the gyroscope so your device can correctly recognise
rotation.
r
Place the device on a stable surface during calibration. The calibration process may
fail if the device vibrates or moves.
r
Calibrate the gyroscope when you experience drifting or unintended movements
when using tilting or panning motions or motion-enabled games.
Settings
153
Smart screen
r
Smart stay
: Set the device to prevent the display backlight from turning off while you are
looking at the display.
r
Smart rotation
: Set the interface not to rotate according to the orientation of your face.
Voice control
Change settings to control options by voice commands.
Accounts
Add account
Add email or SNS accounts.
Backup and reset
Change the settings for managing settings and data.
r
Back up my data
: Set the device to back up settings and application data to the Google
server.
r
Backup account
: Set up or edit your Google backup account.
r
Automatic restore
: Set the device to restore settings and application data when the
applications are reinstalled on the device.
r
Factory data reset
: Reset settings to the factory default values and delete all data.
Settings
154
More
Customise settings for location services, security, and other options.
Location services
Change settings for location information permissions.
r
Access to my location
: Set the device to allow applications to use your current location
information.
r
Use GPS satellites
: Set the device to use the GPS satellite for finding the current location.
r
Use wireless networks
: Set the device to allow location data collection and to determine
the location of your lost or stolen device via Wi-Fi or mobile network.
r
My places
: Set up profiles that will be used for specific locations when you use GPS, Wi-Fi,
or Bluetooth features to find your current location.
Security
Change settings for securing the device and the SIM or USIM card.
r
Encrypt device
: Set a password to encrypt data saved on the device. You must enter the
password each time you turn on the device.
Charge the battery before enabling this setting because it may take more than an
hour to encrypt your data.
r
Encrypt external SD card
:
–
Encrypt
: Set the device to encrypt files when you save them to a memory card.
–
Full encryption
: Set the device to encrypt all files on a memory card.
–
Exclude multimedia files
: Set the device to encrypt all files on a memory card, except
for media files.
If you reset your device to the factory defaults with this setting enabled, the device
will not be able to read your encrypted files. Disable this setting before resetting the
device.
Settings
155
r
Remote controls
: Set the device to allow control of your lost or stolen device remotely
via the Internet. To use this feature, you must sign in to your Samsung account.
–
Account registration
: Add or view your Samsung account.
–
Use wireless networks
: Set the device to allow location data collection and to
determine the location of your lost or stolen device via Wi-Fi or mobile network.
r
SIM Change Alert
: Activate or deactivate the Find my mobile feature which helps locate
the device when lost or stolen.
r
Find my mobile web page
: Access the SamsungDive website (
www.samsungdive.com
).
You can track and control your lost or stolen device on the SamsungDive website.
r
Set up SIM card lock
:
–
Lock SIM card
: Activate or deactivate the PIN lock feature to require the PIN before
using the device.
–
Change SIM PIN
: Change the PIN used to access SIM or USIM data.
r
Make passwords visible
: By default, the device hides passwords for security. Set the
device to display passwords as they are entered.
r
Device administrators
: View device administrators installed on the device. You can allow
device administrators to apply new policies to the device.
r
Unknown sources
: Choose to install applications from any source. If not chosen,
download applications only from
Play Store
.
r
Verify apps
: Set this to allow Google to check the application for harmful behaviour
before installing it.
r
Trusted credentials
: Use certificates and credentials to ensure secure use of various
applications.
r
Install from device storage
: Install encrypted certificates stored on the USB storage.
r
Clear credentials
: Erase the credential contents from the device and reset the password.
Application manager
View and manage the applications on your device.
Settings
156
Battery
View the amount of battery power consumed by your device.
Storage
View memory information for your device and memory card, or format a memory card.
Formatting a memory card permanently deletes all data from it.
The actual available capacity of the internal memory is less than the specified
capacity because the operating system and default applications occupy part of the
memory.
Date and time
Access and alter the following settings to control how the device displays the time and date.
If the battery remains fully discharged or removed from the device, the time and date
is reset.
r
Automatic date and time
: Automatically update the time and date when moving across
time zones.
r
Set date
: Set the current date manually.
r
Set time
: Set the current time manually.
r
Automatic time zone
: Set the device to receive time zone information from the network
when you move across time zones.
r
Select time zone
: Set the home time zone.
r
Use 24-hour format
: Display time in 24-hour format.
r
Select date format
: Select a date format.
Settings
157
Developer options
Change the settings for application development.
r
Make bug report
: Collect information on the device and send it via email.
r
Desktop backup password
: Set a password to secure your backup data.
r
Stay awake
: Set the screen to remain on while you are charging the battery.
r
Protect SD card
: Set the device to request a confirmation when reading data from a
memory card.
r
USB debugging
: Activate USB debugging mode to connect your device to a computer
with a USB cable.
r
Include bug reports in power menu
: Set the device to display the bug reporting option
on the device’s power menu.
r
Allow mock locations
: Allow mock locations and service information to be sent to a
Location Manager service for testing.
r
Select debug app
: Select applications to debug and prevent errors when you pause
debugging.
r
Wait for debugger
: Set the device to prevent the selected application from loading until
the debugger is ready.
r
Verify apps via USB
: Set the device to check the application for harmful behaviour before
installing it.
r
Show touches
: Set the device to show the pointer when you touch the screen.
r
Show pointer location
: Set the device to show the coordinates and traces of the pointer
when you touch the screen.
r
Show layout boundaries
: Set the device to show boundaries.
r
Show GPU view updates
: Set the device to flash areas of the screen when they are
updated with the GPU.
r
Show hardware layers updates
: Set the device to flash areas of the screen when
hardware layers updates.
r
Show GPU overdraw
: Set the device to paint areas of the screen in different colours to
indicate where overdraw occurs.
Settings
158
r
Show screen updates
: Set the device to flash areas of the screen when they are updated.
r
Window animation scale
: Select a speed for opening and closing pop-up windows.
r
Transition animation scale
: Select a speed for switching between screens.
r
Animator duration scale
: Select how long pop-up windows will be shown.
r
Disable hardware overlays
: Set the device to hide hardware overlays.
r
Force GPU rendering
: Set the device to use 2D hardware acceleration to improve graphic
performance.
r
Enable 4x MSAA
: Set the device to enable 4x multisample anti-aliasing (MSAA) in
OpenGL applications to improve image quality.
r
Simulate secondary displays
: Set the device to show one or more overlay windows.
r
Strict mode
: Set the device to flash the screen when applications perform long
operations.
r
Show CPU usage
: Set the device to list all active processes.
r
Profile GPU rendering
: Set the device to check the time of GPU rendering time.
r
Enable OpenGL traces
: Set the device to capture traces of OpenGL application activity.
r
Enable traces
: Set the device to capture traces of application and system performance.
r
Do not keep activities
: Set the device to end a running application when you launch a
new application.
r
Limit background processes
: Set the device to limit the number of processes that can
run in the background.
r
Show all ANRs
: Set the device to alert you to unresponsive applications that are running
in the background.
About device
Access device information and update device software.
159
Troubleshooting
The subject’s eyes appear red
Red eyes occur when the subject’s eyes reflect light from the camera flash.
Set the flash option to
Red-eye
or
Red-eye fix
.
Photos have dust spots
If dust particles are present in the air, you may capture them in photos when you use the
flash.
r
Turn the flash off or avoid capturing photos in a dusty place.
r
Adjust the ISO sensitivity. (p. 96)
Photos are blurred
Blurring can occur if you capture photos in low-light conditions or hold the device incorrectly.
r
Half-press the Shutter button to ensure the subject is focused.
r
Set the image stabiliser option.
Photos are blurred when shooting at night
As the camera tries to let in more light, the shutter speed slows. This can make it difficult to
hold the camera steady long enough to take a clear picture and may result in device shake.
r
Set
Night
in smart mode.
r
Turn the flash on.
r
Adjust the ISO sensitivity. (p. 96)
r
Use a tripod to prevent your device from shaking.
Troubleshooting
160
Subjects come out too dark because of backlighting
When the light source is behind the subject or when there is a high contrast between light
and dark areas, the subject may appear too dark.
r
Avoid shooting toward the sun.
r
Set the flash option to
Fill in
.
r
Adjust the exposure.
r
Set the metering option to
Spot
if a subject is in the centre of the frame.
When you cannot turn on the device
r
Ensure that the battery is inserted. (p. 11)
r
Charge the battery.
When you cannot take photos or videos
r
Your storage may be full. Delete unnecessary files, or insert a new memory card.
r
Format the memory card.
r
The memory card may be defective. Purchase a new card.
r
Ensure that the device is turned on.
r
Charge the battery.
r
Ensure that the battery is inserted. (p. 11)
When the flash is not functional
r
The flash option may be set to
Off
. (p. 100)
r
In some modes, the flash is disabled.
Troubleshooting
161
When the flash fires unexpectedly
The flash may fire unexpectedly due to static electricity. The device is not malfunctioning.
When the colours in the photo do not match the actual scene
Select an appropriate white balance option to suit the light source. (p. 97)
When the photo is too bright
r
Turn the flash off. (p. 100)
r
Adjust the ISO sensitivity. (p. 96)
r
Adjust the exposure value. (p. 95)
When the photo is too dark
r
Turn the flash on. (p. 100)
r
Adjust the ISO sensitivity. (p. 96)
r
Adjust the exposure value. (p. 95)
When you turn on your device or while you are using the device, it
prompts you to enter one of the following codes:
r
Password: When the device lock feature is enabled, you must enter the password you set
for the device.
r
PIN: When using the device for the first time or when the PIN requirement is enabled, you
must enter the PIN supplied with the SIM or USIM card. You can disable this feature by
using the Lock SIM card menu.
r
PUK: Your SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly
several times. You must enter the PUK supplied by your service provider.
r
PIN2: When you access a menu requiring the PIN2, you must enter the PIN2 supplied with
the SIM or USIM card. For details, contact your service provider.
Troubleshooting
162
Your device displays network or service error messages
r
When you are in areas with weak signals or poor reception, you may lose reception. Move
to another area and try again.
r
You cannot access some options without a subscription. Contact your service provider for
more details.
The lens barrel does not retract even when the power is off
When you turn the power off while holding the lens barrel, the lens barrel may not be able
to retract into the body. If this happens, do not force the lens barrel into the body. Take the
device to your local Samsung Service Centre.
The touch screen responds slowly or improperly
If your device has a touch screen and the touch screen is not responding properly, try the
following:
r
Remove any protective covers from the touch screen. Protective covers may prevent the
device from recognising your inputs and are not recommended for touch screen devices.
r
Ensure that your hands are clean and dry when tapping the touch screen.
r
Restart your device to clear any temporary software bugs.
r
Ensure that your device software is upgraded to the latest version.
r
If the touch screen is scratched or damaged, take it to your local Samsung Service Centre.
Your device freezes or has fatal errors
If your device freezes or hangs, you may need to close programs or reset the device to regain
functionality. If your device is frozen and unresponsive, press and hold the Power button for
more than 7 seconds. The device reboots automatically.
If this does not solve the problem, perform a factory data reset. On the Applications screen,
tap
Settings
Accounts
Backup and reset
Factory data reset
Reset device
Erase everything
.
Troubleshooting
163
Calls are being dropped
When you are in areas with weak signals or poor reception, you may lose your connection to
the network. Move to another area and try again.
Outgoing calls are not connected
r
Ensure that you have pressed the Dial key.
r
Ensure that you have accessed the right cellular network.
r
Ensure that you have not set call barring for the phone number you are dialling.
Incoming calls are not connected
r
Ensure that your device is turned on.
r
Ensure that you have accessed the right cellular network.
r
Ensure that you have not set call barring for the incoming phone number.
Others cannot hear you speaking on a call
r
Ensure that you are not covering the built-in microphone.
r
Ensure that the microphone is close to your mouth.
r
If using a headset, ensure that it is properly connected.
Audio quality is poor
r
Ensure that you are not blocking the device’s internal antenna.
r
When you are in areas with weak signals or poor reception, you may lose reception. Move
to another area and try again.
When dialling from contacts, the call is not connected
r
Ensure that the correct number is stored in the contact list.
r
Re-enter and save the number, if necessary.
r
Ensure that you have not set call barring for the contact’s phone number.
Troubleshooting
164
The device beeps and the battery icon is empty
Your battery is low. Recharge or replace the battery to continue using the device.
The battery does not charge properly or the device turns off
r
The battery terminals may be dirty. Wipe both gold-coloured contacts with a clean, soft
cloth and try charging the battery again.
r
If the battery no longer charges completely, dispose of the old battery properly
and replace it with a new battery (refer to your local ordinances for proper disposal
instructions).
Your device is hot to the touch
When you use applications that require more power or use applications on your device for an
extended period of time, your device may feel hot to the touch. This is normal and should not
affect your device’s lifespan or performance.
Error messages appear when launching the camera
Your Samsung device must have sufficient available memory and battery power to operate
the camera application. If you receive error messages when launching the camera, try the
following:
r
Charge the battery or replace it with a battery that is fully charged.
r
Free some memory by transferring files to a computer or deleting files from your device.
r
Restart the device. If you are still having trouble with the camera application after trying
these tips, contact a Samsung Service Centre.
Error messages appear when opening music files
Some music files may not play on your Samsung device for a variety of reasons. If you receive
error messages when opening music files on your device, try the following:
r
Free some memory by transferring files to a computer or deleting files from your device.
r
Ensure that the music file is not Digital Rights Management (DRM)-protected. If the file is
DRM-protected, ensure that you have the appropriate licence or key to play the file.
r
Ensure that your device supports the file type.
Troubleshooting
165
Another Bluetooth device is not located
r
Ensure that the Bluetooth wireless feature is activated on your device.
r
Ensure that the Bluetooth wireless feature is activated on the device you wish to connect
to, if necessary.
r
Ensure that your device and the other Bluetooth device are within the maximum
Bluetooth range (10 m).
If the tips above do not solve the problem, contact a Samsung Service Centre.
A connection is not established when you connect the device to a
computer
r
Ensure that the USB cable you are using is compatible with your device.
r
Ensure that you have the proper drivers installed and updated on your computer.
r
If you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher
installed on your computer.
r
Ensure that you have Samsung Kies 2.0 or Windows Media Player 10 or higher installed
on your computer.
A small gap appears around the outside of the device case
r
This gap is a necessary manufacturing feature and some minor rocking or vibration of
parts may occur.
r
Over time, friction between parts may cause this gap to expand slightly.
166
Cleaning the device
Use a blower brush to remove dust, and then wipe the lens gently with a soft cloth. If any dust
remains, apply lens cleaning liquid to a lens cleaning paper, and wipe gently.
Do not press on the lens cover, or use a blower brush on the lens cover.
Never use benzene, thinners, or alcohol to clean the device. These solutions can
damage the camera or cause it to malfunction.
English (EU). 05/2013. Rev. 1.0
Some content may differ from your device depending on the region, service provider, or
software version, and is subject to change without prior notice.
www.samsung.com
16
Safety information
This safety information contains content for mobile devices.
Some content may be not applicable to your device. To
prevent injury to yourself and others or damage to your
device, read the safety information about your device before
using the device.
Warning
Failure to comply with safety warnings and
regulations can cause serious injury or death
Do not use damaged power cords or plugs, or loose electrical
sockets
Unsecured connections can cause electric shock or fire.
Do not touch the power cord with wet hands or disconnect the
charger by pulling the cord
Doing so may result in electrocution.
Do not bend or damage the power cord
Doing so may cause electric shock or fire.
Do not use your device while it is charging or touch your
device with wet hands
Doing so may cause electric shock.
17
Safety information
Do not short-circuit the charger or the device
Doing so may cause electric shock or fire, or the battery may
malfunction or explode.
Do not use your device outdoor during a thunderstorm
Doing so may result in electric shock or device malfunction.
Use manufacturer-approved batteries, chargers, accessories,
and supplies
t Using generic batteries or chargers may shorten the life of your
device or cause the device to malfunction. They may also cause
a fire or cause the battery to explode.
t Use only Samsung-approved battery and charger specifically
designed for your device. Incompatible battery and charger can
cause serious injuries or damage to your device.
t Samsung cannot be responsible for the user’s safety when using
accessories or supplies that are not approved by Samsung.
Do not drop or cause an impact to the charger or the device
Handle and dispose of the device and charger with care
t Never dispose of the battery or device in a fire. Never place the
battery or device on or in heating devices, such as microwave
ovens, stoves, or radiators. The device may explode when
overheated. Follow all local regulations when disposing of used
battery or device.
t Never crush or puncture the device.
t Avoid exposing the device to high external pressure, which can
lead to an internal short circuit and overheating.
18
Safety information
Protect the device, battery and charger from damage
t Avoid exposing your device and battery to very cold or very hot
temperatures.
t Extreme temperatures can damage the device and reduce the
charging capacity and life of your device and battery.
t Prevent the battery from coming into contact with metal
objects, as this can create a connection between the + and –
terminals of your battery and lead to temporary or permanent
battery damage.
t Never use a damaged charger or battery.
Do not store your device near or in heaters, microwaves, hot
cooking equipment, or high pressure containers
t The battery may leak.
t Your device may overheat and cause a fire.
Do not use or store your device in areas with high
concentrations of dust or airborne materials
Dust or foreign materials can cause your device to malfunction and
may result in fire or electric shock.
Do not bite or suck the device or the battery
t Doing so may damage the device or result in an explosion or fire.
t Children or animals can choke on small parts.
t If children use the device, make sure that they use the device
properly.
Do not insert the device or supplied accessories into the eyes,
ears, or mouth
Doing so may cause suffocation or serious injuries.
19
Safety information
Do not handle a damaged or leaking Lithium Ion (Li-Ion)
battery
For safe disposal of your Li-Ion battery, contact your nearest
authorised service centre.
Caution
Failure to comply with safety cautions and
regulations can cause injury or property
damage
Do not use your device near other electronic devices
t Most electronic devices use radio frequency signals. Your device
may interfere with other electronic devices.
t Using an LTE data connection may cause interference with other
devices, such as audio equipment and telephones.
Do not use your device in a hospital, on an aircraft, or in an
automotive equipment that can be interfered with by radio
frequency
t Avoid using your device within a 15 cm range of a pacemaker, if
possible, as your device can interfere with the pacemaker.
t To minimise possible interference with a pacemaker, use
your device only on the side of your body that is opposite the
pacemaker.
t If you use medical equipment, contact the equipment
manufacturer before using your device to determine whether or
not the equipment will be affected by radio frequencies emitted
by the device.
20
Safety information
t On an aircraft, using electronic devices can interfere with the
aircraft’s electronic navigational instruments. Make sure the
device is turned off during takeoff and landing. After takeoff,
you can use the device in flight mode if allowed by aircraft
personnel.
t Electronic devices in your car may malfunction, due to radio
interference from your device. Contact the manufacturer for
more information.
Do not expose the device to heavy smoke or fumes
Doing so may damage the outside of the device or cause it to
malfunction.
If you use a hearing aid, contact the manufacturer for
information about radio interference
The radio frequency emitted by your device may interfere
with some hearing aids. Before using your device, contact the
manufacturer to determine whether or not your hearing aid will be
affected by radio frequencies emitted by the device.
Do not use your device near devices or apparatuses that emit
radio frequencies, such as sound systems or radio towers
Radio frequencies may cause your device to malfunction.
Turn off the device in potentially explosive environments
t Turn off your device in potentially explosive environments
instead of removing the battery.
t Always comply with regulations, instructions and signs in
potentially explosive environments.
t Do not use your device at refuelling points (petrol stations), near
fuels or chemicals, or in blasting areas.
t Do not store or carry flammable liquids, gases, or explosive
materials in the same compartment as the device, its parts, or
accessories.
21
Safety information
If you notice strange smells or sounds coming from your
device or the battery, or if you see smoke or liquids leaking
from the device or battery, stop using the device immediately
and take it to a Samsung Service Centre
Failure to do so may result in fire or explosion.
Comply with all safety warnings and regulations regarding
mobile device usage while operating a vehicle
While driving, safely operating the vehicle is your first
responsibility. Never use your mobile device while driving, if it is
prohibited by law. For your safety and the safety of others, use your
common sense and remember the following tips:
t Get to know your device and its convenience features, such as
speed dial and redial. These features help you reduce the time
needed to place or receive calls on your mobile device.
t Position your device within easy reach. Make sure you can access
your wireless device without taking your eyes off the road. If
you receive an incoming call at an inconvenient time, let your
voicemail answer it for you.
t Suspend calls in heavy traffic or hazardous weather conditions.
Rain, sleet, snow, ice, and heavy traffic can be hazardous.
t Do not take notes or look up phone numbers. Jotting down a
“to do” list or flipping through your address book takes attention
away from your primary responsibility of driving safely.
t Dial sensibly and assess the traffic. Place calls when you are not
moving or before pulling into traffic. Try to plan calls when your
car will be stationary.
t Do not engage in stressful or emotional conversations that
may be distracting. Make the person you are talking to aware
that you are driving and suspend conversations that could
potentially divert your attention from the road.
22
Safety information
Care and use your mobile device properly
Keep your device dry
t Humidity and liquids may damage the parts or electronic
circuits in your device.
t Do not turn on your device if it is wet. If your device is already
on, turn it off and remove the battery immediately (if the device
will not turn off or you cannot remove the battery, leave it as-is).
Then, dry the device with a towel and take it to a service centre.
t Liquids will change the colour of the label that indicates water
damage inside the device. Water damage to your device can
void your manufacturer’s warranty.
Store your device only on flat surfaces
If your device falls, it may be damaged.
Do not store your device in very hot or very cold areas. It is
recommended to use your device at temperatures from 5 °C
to 35 °C
t Do not store your device in very hot areas such as inside a car in
the summertime. Doing so may cause the screen to malfunction,
result in damage to the device, or cause the battery to explode.
t Do not expose your device to direct sunlight for extended
periods of time (on the dashboard of a car, for example).
t Store the battery at temperatures from 0 °C to 45 °C.
Do not store your device with metal objects, such as coins,
keys, and necklaces
t Your device may be scratched or may malfunction.
t If the battery terminals come into contact with metal objects,
this may cause a fire.
23
Safety information
Do not store your device near magnetic fields
t Your device may malfunction or the battery may discharge from
exposure to magnetic fields.
t Magnetic stripe cards, including credit cards, phone cards,
passbooks, and boarding passes, may be damaged by magnetic
fields.
Do not use your device or applications for a while if the device
is overheated
Prolonged exposure of your skin to an overheated device may
cause low temperature burn symptoms, such as red spots and
pigmentation.
Do not use your device with the back cover removed
The battery may fall out of the device, which may result in damage
or malfunction.
If your device has a camera flash or light, do not use it close to
the eyes of people or pets
Using a flash close to the eyes may cause temporary loss of vision
or damage to the eyes.
Use caution when exposed to flashing lights
t While using your device, leave some lights on in the room and
do not hold the screen too close to your eyes.
t Seizures or blackouts can occur when you are exposed to
flashing lights while watching videos or playing Flash-based
games for extended periods. If you feel any discomfort, stop
using the device immediately.
t If anyone related to you has experienced seizures or blackouts
while using a similar device, consult a physician before using
the device.
24
Safety information
t If you feel discomfort, such as a muscle spasm, or disoriented,
stop using the device immediately and consult a physician.
t To prevent eye strain, take frequent breaks while using the
device.
Reduce the risk of repetitive motion injuries
When you repetitively perform actions, such as pressing keys,
drawing characters on a touch screen with your fingers, or playing
games, you may experience occasional discomfort in your hands,
neck, shoulders, or other parts of your body. When using your
device for extended periods, hold the device with a relaxed grip,
press the keys lightly, and take frequent breaks. If you continue to
have discomfort during or after such use, stop using the device
and consult a physician.
Protect your hearing and ears when using a headset
t Excessive exposure to loud sounds can cause
hearing damage.
t Exposure to loud sounds while walking may
distract your attention and cause an accident.
t Always turn the volume down before plugging the earphones
into an audio source and use only the minimum volume setting
necessary to hear your conversation or music.
t In dry environments, static electricity can build up in the
headset. Avoid using headsets in dry environments or touch a
metal object to discharge static electricity before connecting a
headset to the device.
t Do not use a headset while driving or riding. Doing so may
distract your attention and cause an accident, or may be illegal
depending on your region.
25
Safety information
Use caution when using the device while walking or moving
t Always be aware of your surroundings to avoid injury to yourself
or others.
t Make sure the headset cable does not become entangled in
your arms or on nearby objects.
Do not carry your device in your back pockets or around your
waist
You could be injured or damage the device if you fall.
Do not paint or put stickers on your device
t Paint and stickers can clog moving parts and prevent proper
operation.
t If you are allergic to paint or metal parts of the device, you may
experience itching, eczema, or swelling of the skin. When this
happens, stop using the device and consult your physician.
Do not use the device if the screen is cracked or broken
Broken glass or acrylic could cause injury to your hands and face.
Take the device to a Samsung Service Centre to have it repaired.
Install mobile devices and equipment with caution
t Ensure that any mobile devices or related equipment installed in
your vehicle are securely mounted.
t Avoid placing your device and accessories near or in an airbag
deployment area. Improperly installed wireless equipment can
cause serious injury when airbags inflate rapidly.
Do not drop your device or cause impacts to your device
t Your device may be damaged or may malfunction.
t If bent or deformed, your device may be damaged or parts may
malfunction.
26
Safety information
Ensure maximum battery and charger life
t Avoid charging your device for more than a week, as
overcharging may shorten battery life.
t Over time, unused device will discharge and must be recharged
before use.
t Disconnect the charger from power sources when not in use.
t Use the battery only for their intended purposes.
t Leaving batteries unused over time may reduce their lifespan
and performance. It may also cause the batteries to malfunction
or explode, or cause a fire.
t Follow all instructions in this manual to ensure the longest
lifespan of your device and battery. Damages or poor
performance caused by failure to follow warnings and
instructions can void your manufacturer’s warranty.
t Your device may wear out over time. Some parts and repairs are
covered by the warranty within the validity period, but damages
or deterioration caused by using unapproved accessories are
not.
When using the device, mind the following
t Hold the device upright, as you would with a traditional phone.
t Speak directly into the microphone.
t Do not cover the antenna area with your hands or other objects.
This may cause connectivity problems or drain the battery.
Do not disassemble, modify, or repair your device
t Any changes or modifications to your device can void your
manufacturer’s warranty. If your device needs servicing, take
your device to a Samsung Service Centre.
t Do not disassemble or puncture the battery, as this can cause
explosion or fire.
27
Safety information
t Turn off the device before removing the battery. If you remove
the battery with the device turned on, it may cause the device
to malfunction.
When cleaning your device, mind the following
t Wipe your device or charger with a towel or an eraser.
t Clean the battery terminals with a cotton ball or a towel.
t Do not use chemicals or detergents. Doing so may discolour or
corrode the outside the device or may result in electric shock
or fire.
Do not use the device for anything other than its intended use
Your device may malfunction.
Avoid disturbing others when using the device in public
Allow only qualified personnel to service your device
Allowing unqualified personnel to service your device may result in
damage to your device and will void your manufacturer’s warranty.
Handle SIM cards, memory cards, or cables with care
t When inserting a card or connecting a cable to your device,
make sure that the card is inserted or the cable is connected to
the proper side.
t Do not remove a card while the device is transferring or
accessing information, as this could result in loss of data and/or
damage to the card or device.
t Protect cards from strong shocks, static electricity, and electrical
noise from other devices.
t Do not touch gold-coloured contacts or terminals with your
fingers or metal objects. If dirty, wipe the card with a soft cloth.
t Inserting a card or connecting a cable by force or improperly
may result in damage to the multipurpose jack or other parts
of the device.
28
Safety information
Ensure access to emergency services
Emergency calls from your device may not be possible in some
areas or circumstances. Before travelling in remote or undeveloped
areas, plan an alternative method of contacting emergency
services personnel.
Protect your personal data and prevent leakage or misuse of
sensitive information
t While using your device, be sure to back up important data.
Samsung is not responsible for the loss of any data.
t When disposing of your device, back up all data and then reset
your device to prevent misuse of your personal information.
t Carefully read the permissions screen when downloading
applications. Be particularly cautious with applications that have
access to many functions or to a significant amount of your
personal information.
t Check your accounts regularly for unapproved or suspicious
use. If you find any sign of misuse of your personal information,
contact your service provider to delete or change your account
information.
t In the event your device is lost or stolen, change the passwords
on your accounts to protect your personal information.
t Avoid using applications from unknown sources and lock your
device with a pattern, password, or PIN.
Do not distribute copyright-protected material
Do not distribute copyright-protected material without the
permission of the content owners. Doing this may violate
copyright laws. The manufacturer is not liable for any legal issues
caused by the user’s illegal use of copyrighted material.
29
Safety information
Malware and viruses
To protect your device from malware and viruses, follow these
usage tips. Failure to do so may result in damages or loss of
data that may not be covered by the warranty service
t Do not download unknown applications.
t Do not visit untrusted websites.
t Delete suspicious messages or email from unknown senders.
t Set a password and change it regularly.
t Deactivate wireless features, such as Bluetooth, when not in use.
t If the device behaves abnormally, run an antivirus program to
check for infection.
t Run an antivirus program on your device before you launch
newly-downloaded applications and files.
t Install antivirus programs on your computer and run them
regularly to check for infection.
t Do not edit registry settings or modify the device’s operating
system.
Specific Absorption Rate (SAR) certification
information
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR
EXPOSURE TO RADIO WAVES
Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves (radio
frequency electromagnetic fields) recommended by international
guidelines. The guidelines were developed by an independent
scientific organisation (ICNIRP) and include a substantial safety
margin designed to assure the safety of all persons, regardless of
age and health.
30
Safety information
The radio wave exposure guidelines use a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit for
mobile devices is 2.0 W/kg. Tests for SAR are conducted using
standard operating positions with the device transmitting at its
highest certified power level in all tested frequency bands.
Maximum SAR for this model and conditions under which it
was recorded
Head SAR X.XXX W/kg
Body-worn SAR X.XXX W/kg
During use, the actual SAR values for this device are usually well
below the values stated above. This is because, for purposes of
system efficiency and to minimise interference on the network, the
operating power of your mobile device is automatically decreased
when full power is not needed for the call. The lower the power
output of the device, the lower its SAR value.
A body-worn SAR test has been performed on this device at a
separation distance of 1. cm. To meet RF exposure guidelines
during body-worn operation, the device must be positioned at
least 1. cm away from the body.
Organisations such as the World Health Organisation and the
US Food and Drug Administration have suggested that if people
are concerned and want to reduce their exposure, they could
use a hands-free accessory to keep the wireless device away
from the head and body during use, or reduce the amount
of time spent using the device. For more information, visit
www.samsung.com/sar
and search for your device with the model
number.
31
Safety information
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection
systems)
This marking on the product, accessories or literature
indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be
disposed of with other household waste.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate these items
from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details
of where and how they can take these items for environmentally
safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial
wastes for disposal.
This EEE is compliant with RoHS.
32
Safety information
Correct disposal of batteries in this product
(Applicable in countries with separate collection
systems)
This marking on the battery, manual or packaging
indicates that the batteries in this product should not
be disposed of with other household waste. Where
marked, the chemical symbols Hg, Cd or Pb indicate that the
battery contains mercury, cadmium or lead above the reference
levels in EC Directive 2006/66. If batteries are not properly
disposed of, these substances can cause harm to human health or
the environment.
To protect natural resources and to promote material reuse, please
separate batteries from other types of waste and recycle them
through your local, free battery return system.
Disclaimer
Some content and services accessible through this device belong
to third parties and are protected by copyright, patent, trademark
and/or other intellectual property laws. Such content and services
are provided solely for your personal non-commercial use.
You may not use any content or services in a manner that has
not been authorised by the content owner or service provider.
Without limiting the foregoing, unless expressly authorised by the
applicable content owner or service provider, you may not modify,
copy, republish, upload, post, transmit, translate, sell, create
derivative works, exploit, or distribute in any manner or medium
any content or services displayed through this device.
33
Safety information
“THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS
IS.” SAMSUNG DOES NOT WARRANT CONTENT OR SERVICES
SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY
PURPOSE. SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY,
TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT
OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND
UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL
SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES
ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION
CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR
SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.”
Third party services may be terminated or interrupted at any
time, and Samsung makes no representation or warranty that
any content or service will remain available for any period of time.
Content and services are transmitted by third parties by means
of networks and transmission facilities over which Samsung has
no control. Without limiting the generality of this disclaimer,
Samsung expressly disclaims any responsibility or liability for
any interruption or suspension of any content or service made
available through this device.
Samsung is neither responsible nor liable for customer service
related to the content and services. Any question or request for
service relating to the content or services should be made directly
to the respective content and service providers.
FCC Notice and Cautions
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
z This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The phone may cause TV or radio interference if used in close proximity to receiving
equipment. The FCC can require you to stop using the phone if such interference
cannot be eliminated.
Vehicles using liquefied petroleum gas (such as propane or butane) must comply
with the National Fire Protection Standard (NFPA-58). For a copy of this standard,
contact the National Fire Protection Association, One Battery march Park, Quincy,
MA 02269, Attn: Publication Sales Division.
Cautions
Changes or modifications made in the radio phone, not expressly approved by
Samsung, will void the user’s authority to operate the equipment.
The use of any unauthorized accessories may be dangerous and void the phone
warranty if said accessories cause damage or a defect to the phone.
Although your phone is quite sturdy, it is a complex piece of equipment and can be
broken. Avoid dropping, hitting, bending or sitting on it.
Other Important Safety Information
z Only qualified personnel should service the phone or install the phone in a
vehicle. Faulty installation or service may be dangerous and may invalidate
any warranty applicable to the device.
z Check regularly that all wireless phone equipment in your vehicle is mounted
and operating properly.
z Do not store or carry flammable liquids, gases or explosive materials in the
same compartment as the phone, its parts or accessories.
z For vehicles equipped with an air bag, remember that an air bag inflates with
great force. Do not place objects, including both installed or portable wireless
equipment in the area over the air bag or in the air bag deployment area. If
wireless equipment is improperly installed and the air bag inflates, serious
injury could result.
z Switch your phone off before boarding an aircraft. The use of wireless phone
in aircraft is illegal and may be dangerous to the aircraft's operation.
z Failure to observe these instructions may lead to the suspension or denial of
telephone services to the offender, or legal action, or both.
Product Performance
Getting the Most Out of Your Signal Reception
The quality of each call you make or receive depends on the signal strength in your
area. Your phone informs you of the current signal strength by displaying a number
of bars next to the signal strength icon. The more bars displayed, the stronger the
signal.
If you're inside a building, being near a window may give you better reception.
Understanding the Power Save Feature
If your phone is unable to find a signal after 15 minutes of searching, a Power Save
feature is automatically activated. If your phone is active, it periodically rechecks
service availability or you can check it yourself by pressing any key.
Anytime the Power Save feature is activated, a message displays on the screen.
When a signal is found, your phone returns to standby mode.
Maintaining Your Phone's Peak Performance
For the best care of your phone, only authorized personnel should service your
phone and accessories. Faulty service may void the warranty.
There are several simple guidelines to operating your phone properly and
maintaining safe, satisfactory service.
z Place the mobile phone's acoustic output next to your ear for proper
orientation.
z Do not tamper or alter the phone's antenna.
z Don't use the phone if the antenna is damaged.
z Speak directly into the phone's receiver.
z Avoid exposing your phone and accessories to rain or liquid spills. If your
phone does get wet, immediately turn the power off and remove the battery.
If it is inoperable, call Customer Care for service.
Availability of Various Features/Ring Tones
Many services and features are network dependent and may require additional
subscription and/or usage charges. Not all features are available for purchase or use
in all areas. Downloadable Ring Tones may be available at an additional cost. Other
conditions and restrictions may apply. See your service provider for additional
information.
7KLVGHYLFHLVFDSDEOHRIRSHUDWLQJLQDQPRGH)RUDQGHYLFHVRSHUDWLQJLQWKH
IUHTXHQF\UDQJHRI*+]WKH\DUHUHVWULFWHGIRULQGRRURSHUDWLRQVWRUHGXFHDQ\
SRWHQWLDOKDUPIXOLQWHUIHUHQFHIRU0RELOH6DWHOOLWH6HUYLFHV066LQWKH86 :,),$FFHVV
3RLQWVWKDWDUHFDSDEOHRIDOORZLQJ\RXUGHYLFHWRRSHUDWHLQDQPRGH*+]
EDQGDUHRSWLPL]HGIRULQGRRUXVHRQO\,I\RXU:,),QHWZRUNLVFDSDEOHRIRSHUDWLQJLQWKLV
PRGHSOHDVHUHVWULFW\RXU:,),XVHLQGRRUVWRQRWYLRODWHIHGHUDOUHJXODWLRQVWRSURWHFW
0RELOH6DWHOOLWH6HUYLFHV
