Samsung Electronics Co SMG1650 Multi-Band GSM/EDGE/UMTS/LTE Phone with WLAN and Bluetooth User Manual
Samsung Electronics Co Ltd Multi-Band GSM/EDGE/UMTS/LTE Phone with WLAN and Bluetooth Users Manual
Users Manual
2
Table of Contents
Basics
4 Read me first
5 Device overheating situations and
solutions
8 Package contents
9 Device layout
12 Battery
18 SIM or USIM card (nano-SIM card)
21 Memory card (microSD card)
23 Attaching a hand strap
23 Turning the device on and off
24 Touchscreen

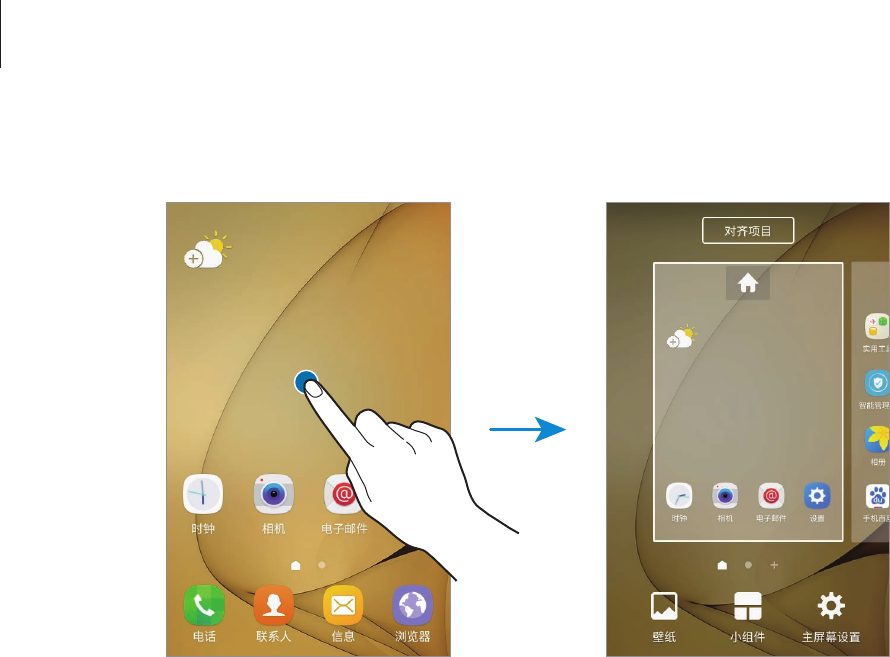

27 Home screen
31 Lock screen
32 Notification panel
34 Entering text
36 Screen capture
37 Opening apps
37 Samsung account
39 Transferring data from your previous
device
41 Device and data management
Applications
44 Installing or uninstalling apps
45 Phone
49 Contacts
51 Messages
53 Internet
55 Email

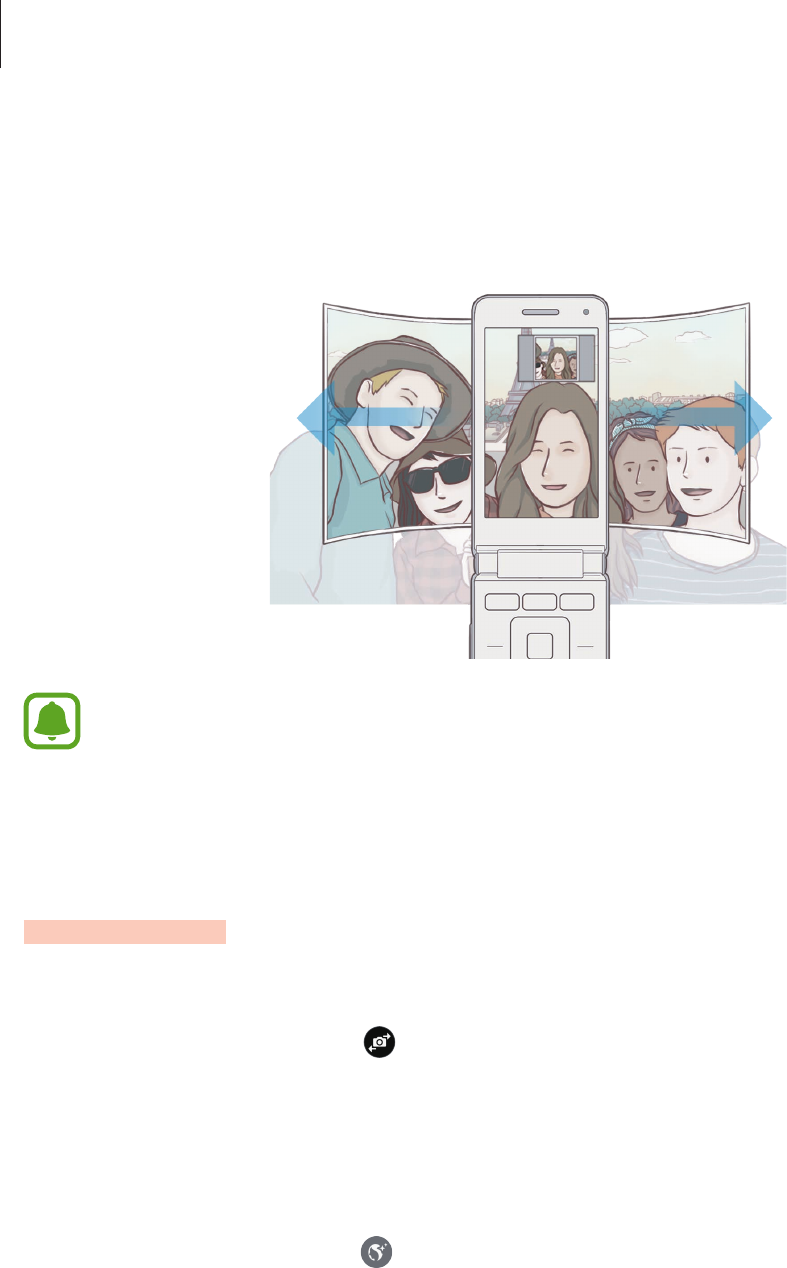

56 Camera
64 Gallery
66 Smart Manager
68 Samsung Members
69 Samsung Notes
70 S Planner
72 S Assistant
73 Music
73 Samsung Video
74 Voice Recorder
75 My Files
75 Clock
77 Calculator
77 Radio
Table of Contents
3
Appendix
97 Troubleshooting
102 Notices
Settings
79 Introduction
79 WLAN
81 Bluetooth
82 Airplane mode
83 WLAN hotspot and tethering
84 Data usage
85 SIM card manager
85 Mobile networks
86 More connection settings
87 Sounds and vibrations
87 Notifications
88 Do not disturb
88 Display
89 Advanced features
89 Applications
89 Wallpaper
90 Home screen
90 Lock screen and security
91 Location
91 Easy mode
92 Accessibility
92 Accounts
93 Samsung Cloud
94 Backup and reset
94 Language and input
95 Battery
95 Storage
96 Date and time
96 User manual
96 About device
4
Basics
Read me first
Please read this manual before using the device to ensure safe and proper use.
•
Descriptions are based on the device’s default settings.
•
Content (high quality content) that requires high CPU and RAM usage will affect the
overall performance of the device. Apps related to the content may not work properly
depending on the device’s specifications and the environment that it is used in.
•
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the device or apps to work improperly.
•
Software, sound sources, wallpapers, images, and other media provided with this device
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal
use of media.
•
You may incur additional charges for data services, such as messaging, uploading and
downloading, auto-syncing, or using location services depending on your data plan. For
large data transfers, it is recommended to use the Wi-Fi feature.
•
If you have questions about an app provided with the device, contact a Samsung Service
Centre. For user-installed apps, contact service providers.
•
Do not modify the device’s operating system or install an operating system from
an unofficial source to avoid device malfunctions, data corruption or loss, or
incompatibility. Violations of the above regulation will void your warranty.
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Notice: notes, usage tips, or additional information
Basics
5
Device overheating situations and solutions
When the device heats up while charging the battery
While charging, the device and the charger may become hot. This does not affect the device’s
lifespan or performance and is in the device’s normal range of operation. If the battery
becomes too hot, the charger may stop charging.
Do the following when the device heats up:
•
Disconnect the charger from the device and close any running apps. Wait for the
device to cool down and then begin charging the device again.
•
If the lower part of the device overheats, it could be because the connected USB
cable is damaged. Replace the damaged USB cable with a new Samsung-approved
one.
When the device heats up during use
When you use features or apps that require more power or use them for extended periods,
your device may temporarily heat up due to increased battery consumption. Close any
running apps and do not use the device for a while.
The following are examples of situations in which the device may overheat. Depending on
the functions and apps you use, these examples may not apply to your model.
•
During the initial setup after purchase or when restoring data
•
When downloading large files
•
When using apps that require more power or using apps for extended periods
–
When playing high-quality games for extended periods
–
When recording videos for extended periods
–
When streaming videos while using the maximum brightness setting
–
When connecting to a TV
Basics
6
•
While multitasking (or, when running many apps in the background)
–
When using Multi window
–
When updating or installing apps while recording videos
–
When downloading large files during a video call
–
When recording videos while using a navigation app
•
When using large amount of data for syncing with the cloud, email, or other accounts
•
When using a navigation app in a car while the device is placed in direct sunlight
•
When using the mobile hotspot and tethering feature
•
When using the device in areas with weak signals or no reception
•
When charging the battery with a damaged USB cable
•
When the device’s multipurpose jack is damaged or exposed to foreign materials, such as
liquid, dust, metal powder, and pencil lead
•
When you are roaming
Do the following when the device heats up:
•
Keep the device updated with the latest software.
•
Conflicts between running apps may cause the device to heat up. Restart the device.
•
Deactivate the Wi-Fi, GPS, and Bluetooth features when not using them.
•
Close apps that increase battery consumption or that run in the background when
not in use.
•
Delete unnecessary files or unused apps.
•
Decrease the screen brightness.
•
If the device overheats or feels hot for a prolonged period, do not use it for a while. If
the device continues to overheat, contact a Samsung Service Centre.
Basics
7
Device limitations when the device overheats
When the device heats up, the features and performance may be limited or the device may
turn off to cool down. The feature is only available on supported models.
•
If the device becomes hotter than usual, a device overheating message will appear. To
lower the device’s temperature, the screen brightness and the performance speed will be
limited and battery charging will stop. Running apps will be closed and you will only be
able to make emergency calls until the device cools down.
•
If the device overheats or feels hot for a prolonged period, a power off message will
appear. Turn off the device, and wait until it cools down.
Precautions for operating environment
Your device may heat up due to the environment in the following conditions. Use caution to
avoid shortening the battery’s lifespan, damaging the device, or causing a fire.
•
Do not store your device in very cold or very hot temperatures.
•
Do not expose your device to direct sunlight for extended periods.
•
Do not use or store your device for extended periods in very hot areas, such as inside a
car in the summertime.
•
Do not place the device in any areas that may overheat, such as on an electric heating
mat.
•
Do not store your device near or in heaters, microwaves, hot cooking equipment, or high
pressure containers.
•
Never use a damaged charger or battery.
Basics
8
Package contents
Check the product box for the following items:
•
Device
•
Battery
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Using unapproved accessories may cause
the performance problems and malfunctions that are not covered by the warranty.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.
Basics
9
Device layout
Front camera
Proximity
Navigation key
Touchscreen
SIM card switching key
Messages key
Power key
Alphanumeric keys
Back key
Camera key
Social app key
Silent mode key
Home key
Speaker
Recents key
Confirm key
Dial key
App shortcuts panel key
Microphone
Multipurpose jack
/Headset jack
Delete key
Basics
10
Rear camera
Flash
LED indicator
Volume key
Back cover
Main antenna
GPS antenna
Speaker
•
Connectivity problems and battery drain may occur in the following situations:
–
If you attach metallic stickers on the antenna area of the device
–
If you attach a device cover made with metallic material to the device
–
If you cover the device’s antenna area with your hands or other objects while
using certain features, such as calls or the mobile data connection
•
Using a Samsung-approved screen protector is recommended. Unapproved screen
protectors may cause the sensors to malfunction.
•
Do not allow water to contact the touchscreen. The touchscreen may malfunction
in humid conditions or when exposed to water.
Basics
11
Keys
Key Function
Power
•
Press and hold to turn the device on or off.
•
Press to end a call.
•
Press to return to the Home screen.
Recents
•
Press to open the list of recent apps.
Home
•
Press to return to the Home screen.
•
Press and hold to launch a preset app.
Back
•
Press to return to the previous screen.
SIM card
switching
•
Press to change between SIM cards for call.
•
Press and hold to launch
SIM card manger
.
Messages
•
Press to launch
Messages
.
Camera
•
Press to launch
Camera
.
•
Press to take a photo or capture an image from a video
while recording in
Camera
.
Social app
•
Press to launch a preset social app.
Navigation
•
Press to scroll through options.
Confirm
•
Press to select the highlighted option or confirm an input.
Dial
•
Press to make or answer a call in
Phone
.
•
Press to view the history of incoming and outgoing calls.
•
Press and hold to make a call to the number previously
called.
Delete
•
Press in a text field to delete a preceding character.
•
Press to return to the previous screen.
Alphanumeric
•
Press to enter characters, numbers, and symbols.
•
Press and hold the 1 key on the Home screen to access
voicemails.
Basics
12
Key Function
App shortcuts
panel
•
Press and hold to display the app shortcuts panel.
•
Press in a text field to open the symbols panel.
Silent mode
•
Press and hold on the Home screen to switch to silent
mode.
•
Press in a text field to switch between text input modes.
Volume
•
Press to adjust the device volume.
Battery
Installing the battery
1 Remove the back cover.
Be careful not to damage your fingernails when you remove the back cover.
Do not bend or twist the back cover excessively. Doing so may damage the cover.
Basics
13

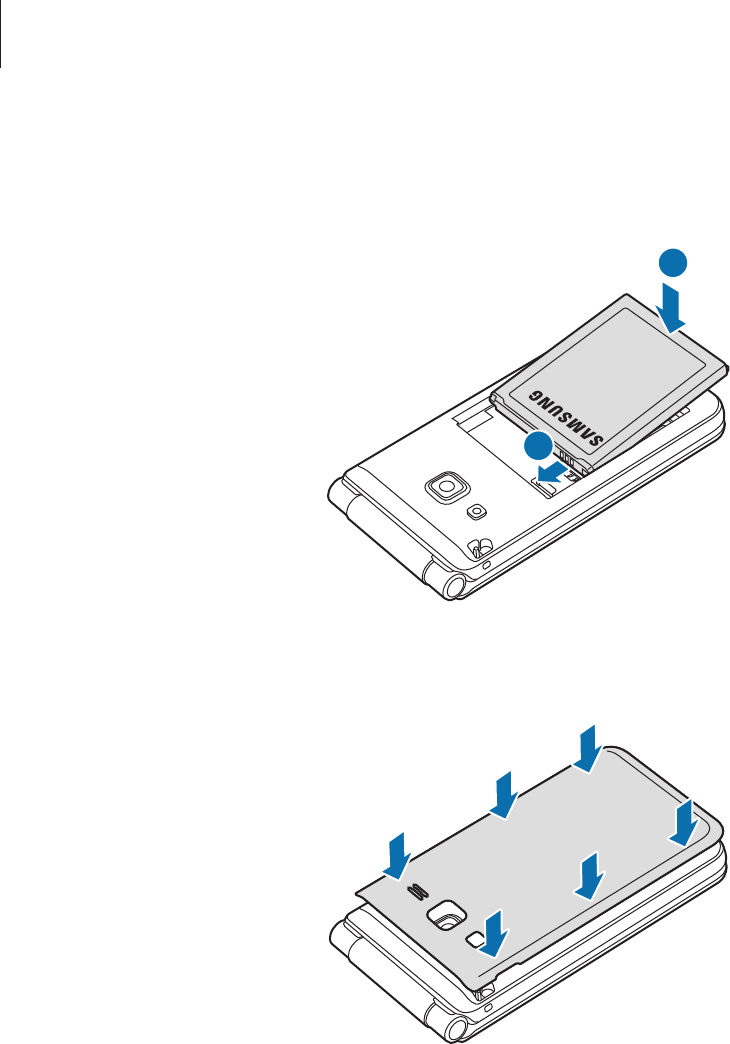

2 Insert the battery with the battery’s gold-coloured contacts properly aligned with the
device’s contacts.
1
2
3 Replace the back cover.
Basics
14

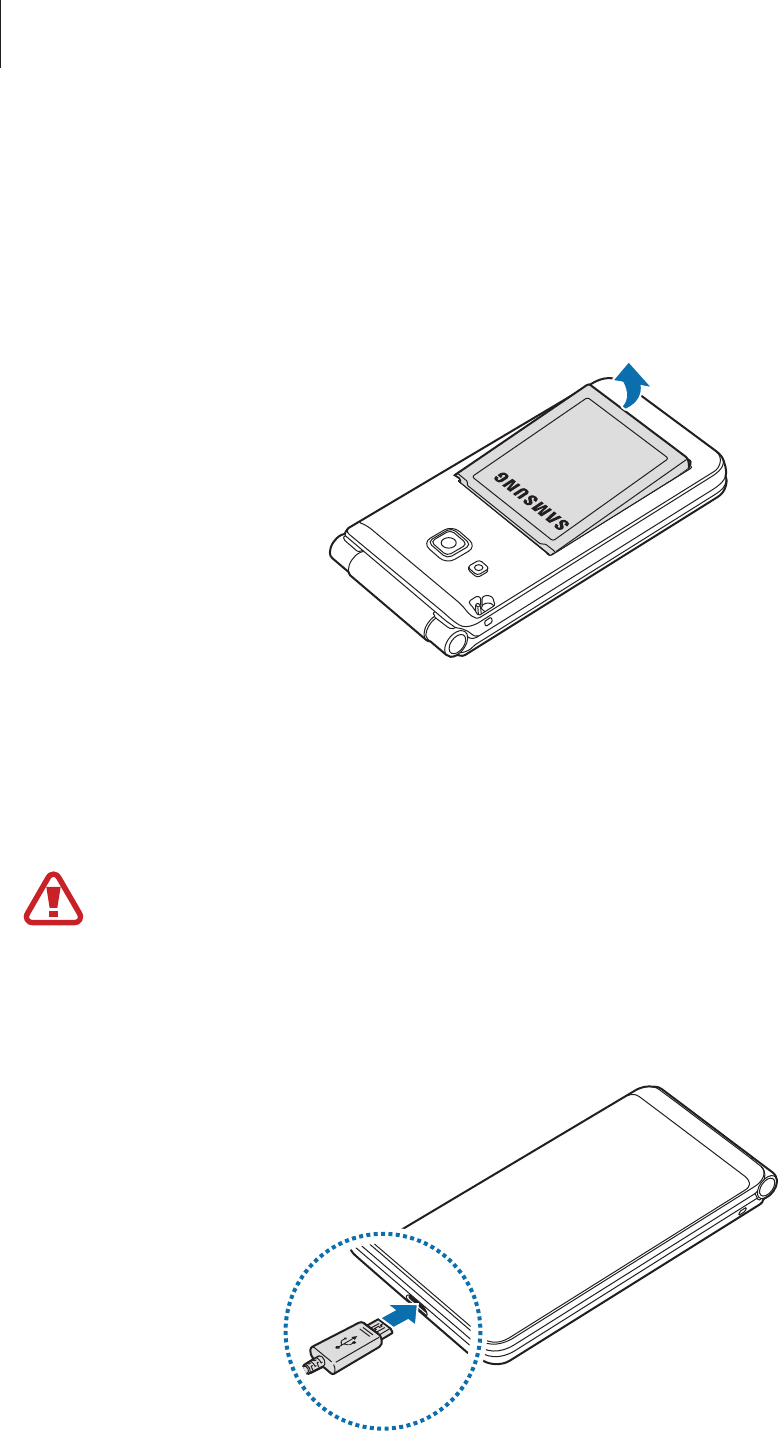

Removing the battery
1 Remove the back cover.
2 Pull out the battery.
Charging the battery
Charge the battery before using it for the first time or when it has been unused for extended
periods.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the device.
1 Connect the USB cable to the USB power adaptor, and then plug the end of the USB cable
into the multipurpose jack.
Basics
15
•

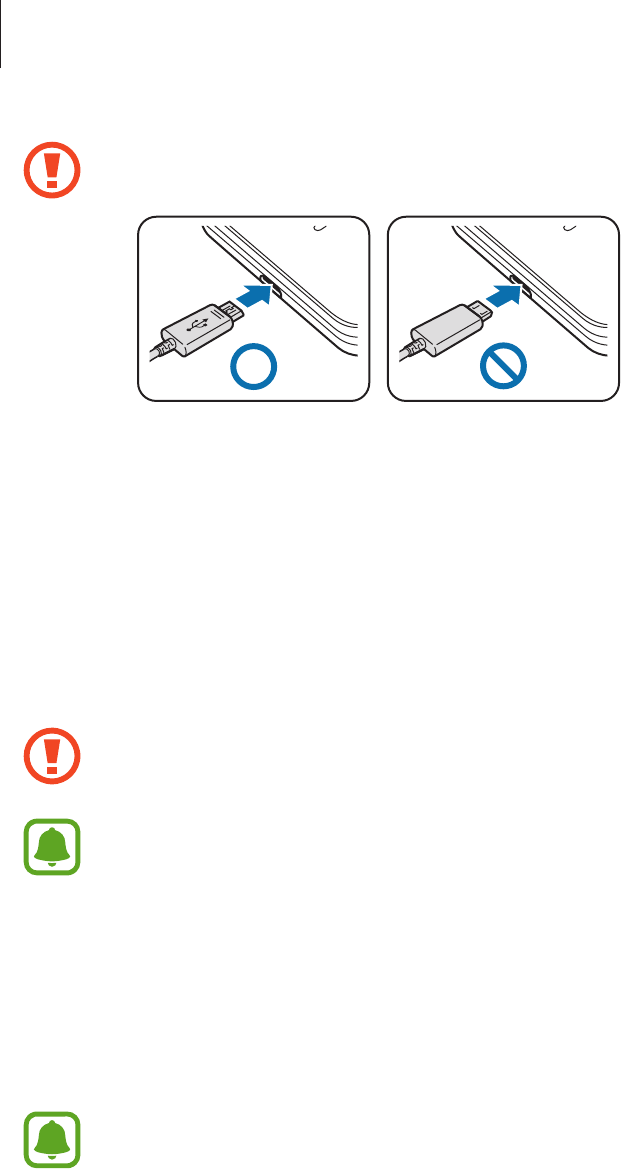

Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
•
Ensure that the back cover are closed tightly to prevent water and dust entering
the device. Open or loose covers may allow water and dust to enter the device and
cause damage.
2 Plug the USB power adaptor into an electric socket.
3 After fully charging, disconnect the device from the charger. First unplug the charger
from the device, and then unplug it from the electric socket.
Do not remove the battery before removing the charger. This may damage the
device.
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.
Viewing the remaining charging time
While charging, open the Home screen and tap
Settings
→
Battery
.
The actual charging time may vary depending on the status of your device and the
charging conditions. The remaining charging time may not be displayed when you
charge the device in very cold or very hot conditions.
Basics
16
Reducing the battery consumption
Your device provides various options that help you conserve battery power.
•
Optimise the device using the Smart manager.
•
Activate power saving mode.
•
Close unnecessary apps.
•
Deactivate the Bluetooth feature when not in use.
•
Deactivate the Wi-Fi feature when not in use.
•
Deactivate auto-syncing of apps that need to be synced, such as emails.
•
Decrease the backlight time.
•
Decrease the screen brightness.
Battery charging tips and precautions
•
When the battery power is low, the battery icon appears empty.
•
If the battery is completely discharged, the device cannot be turned on immediately
when the charger is connected. Allow a depleted battery to charge for a few minutes
before turning on the device.
•
If you use multiple apps at once, network apps, or apps that need a connection to
another device, the battery will drain quickly. To avoid losing power during a data
transfer, always use these apps after fully charging the battery.
•
Using a power source other than the charger, such as a computer, may result in a slower
charging speed due to a lower electric current.
•
The device can be used while it is charging, but it may take longer to fully charge the
battery.
•
If the device receives an unstable power supply while charging, the touchscreen may not
function. If this happens, unplug the charger from the device.
•
While charging, the device and the charger may heat up. This is normal and should not
affect the device’s lifespan or performance. If the battery gets hotter than usual, the
charger may stop charging.
•
If you charge the device while the multipurpose jack is wet, the device may be damaged.
Thoroughly dry the multipurpose jack before charging the device.
•
If the device is not charging properly, take the device and the charger to a Samsung
Service Centre.
Basics
17
Power saving mode
Activate power saving mode to extend the battery’s usage time.
1 On the Home screen, tap
Settings
→
Battery
→
MID
.
2 Tap
CUSTOMIZE
to change the power saving settings before entering power saving
mode.
3 Tap
APPLY
.
Maximum power saving mode
In maximum power saving mode, the device decreases battery consumption by applying the
dark theme and limiting the apps and features available. Network connections, except for the
mobile network, will be deactivated.
1 On the Home screen, tap
Settings
→
Battery
→
MAX
.
2 Tap
CUSTOMIZE
to change the power saving settings before entering maximum power
saving mode.
Basics
18
SIM or USIM card (nano-SIM card)
Installing the SIM or USIM card
Insert the SIM or USIM card provided by the mobile telephone service provider.
Use caution not to lose or let others use the SIM or USIM card. Samsung is not
responsible for any damages or inconveniences caused by lost or stolen cards.
•
Only nano-SIM cards work with the device.
•
In some areas, data transfer speeds may be slower if two SIM cards are inserted in
the device than when one SIM card is inserted.
•
Some LTE services may not be available depending on the service provider. For
more information about service availability, contact your service provider.
1 Remove the back cover and battery.
2 Insert the SIM or USIM card with the gold-coloured contacts facing downwards.
Insert the primary SIM or USIM card into SIM card slot 1 ( 1 ) and the secondary SIM or
USIM card into SIM card slot 2 ( 2 ).
21
Basics
19
•
Do not insert a memory card into the SIM card slot. If a memory card happens to
be lodged in the SIM card slot, take the device to a Samsung Service Centre to
remove the memory card.
•
Use caution not to lose or let others use the SIM or USIM card. Samsung is not
responsible for any damages or inconveniences caused by lost or stolen cards.
•
The phone cannot support two CDMA cards at the same time in China.
•
When you insert the China Telecom (CTC) card and your other service provider’s
SIM card on your device, the CTC card will automatically connect to a 4G network
and the other SIM card will connect to a 2G network. If you use your other SIM card
for a 4G network, your CTC card will be connected to a 2G network.
3 Replace the battery and back cover.
Ensure that the back cover is closed tightly.
Removing the SIM or USIM card
1 Remove the back cover and battery.
2 Pull out the SIM or USIM card.
Basics
20
Using dual SIM or USIM cards
If you insert two SIM or USIM cards, you can have two phone numbers or service providers for
a single device.
Activating SIM or USIM cards
On the Home screen, tap
Settings
→
SIM card manager
. Select a SIM or USIM card and tap
the switch to activate it.
If both cards are activated, you can receive calls and messages on each card. However,
if you are on a call using one card, the other card cannot be used to receive new calls.
These situations apply to voice and video calls.
Customising SIM or USIM cards
On the Home screen, tap
Settings
→
SIM card manager
. Select a SIM or USIM card to access
the following options:
•
Icon
: Change the icon of the SIM or USIM card.
•
Name
: Change the display name of the SIM or USIM card.
•
Network mode
: Select a network type to use with the SIM or USIM card.
Setting preferred SIM or USIM cards
When two cards are activated, you can assign voice calls, messaging, and data services to
specific cards.
On the Home screen, tap
Settings
→
SIM card manager
and set the feature preferences for
your cards in
Preferred SIM card
.
Basics
21
Memory card (microSD card)
Installing a memory card
Your device’s memory card capacity may vary from other models and some memory cards
may not be compatible with your device depending on the memory card manufacturer and
type. To view your device’s maximum memory card capacity, refer to the Samsung website.
•
Some memory cards may not be fully compatible with the device. Using an
incompatible card may damage the device or the memory card, or corrupt the data
stored in it.
•
Use caution to insert the memory card right-side up.
•
The device supports the FAT and the exFAT file systems for memory cards. When
inserting a card formatted in a different file system, the device asks to reformat the
memory card.
•
Frequent writing and erasing of data shortens the lifespan of memory cards.
•
When inserting a memory card into the device, the memory card’s file directory
appears in the
My Files
→
SD card
folder.
1 Remove the back cover and battery.
2 Insert a memory card with the gold-coloured contacts facing downwards.
3 Replace the battery and back cover.
Basics
22
Removing the memory card
Before removing the memory card, first unmount it for safe removal.
On the Home screen, tap
Settings
→
Storage
→
MORE
→
Storage settings
→
SD card
→
Unmount
.
1 Remove the back cover and battery.
2 Pull out the memory card.
3 Replace the battery and back cover.
Do not remove the memory card while the device is transferring or accessing
information. Doing so can cause data to be lost or corrupted or damage to the
memory card or device. Samsung is not responsible for losses that result from the
misuse of damaged memory cards, including the loss of data.
Formatting the memory card
A memory card formatted on a computer may not be compatible with the device. Format the
memory card on the device.
On the Home screen, tap
Settings
→
Storage
→
MORE
→
Storage settings
→
SD card
→
Format
→
FORMAT
.
Before formatting the memory card, remember to make backup copies of all
important data stored in the memory card. The manufacturer’s warranty does not
cover loss of data resulting from user actions.
Basics
23
Attaching a hand strap
1 Remove the back cover.
2 Slide a hand strap through the slot and hook it over the small projection.
3 Replace the back cover.
Turning the device on and off
Press and hold the Power key for a few seconds to turn on the device.
When you turn on your device for the first time or after performing a data reset, follow the on-
screen instructions to set up your device.
To turn off the device, press and hold the Power key, and then tap
Power off
.
Follow all posted warnings and directions from authorised personnel in areas where
the use of wireless devices is restricted, such as aeroplanes and hospitals.
Basics
24

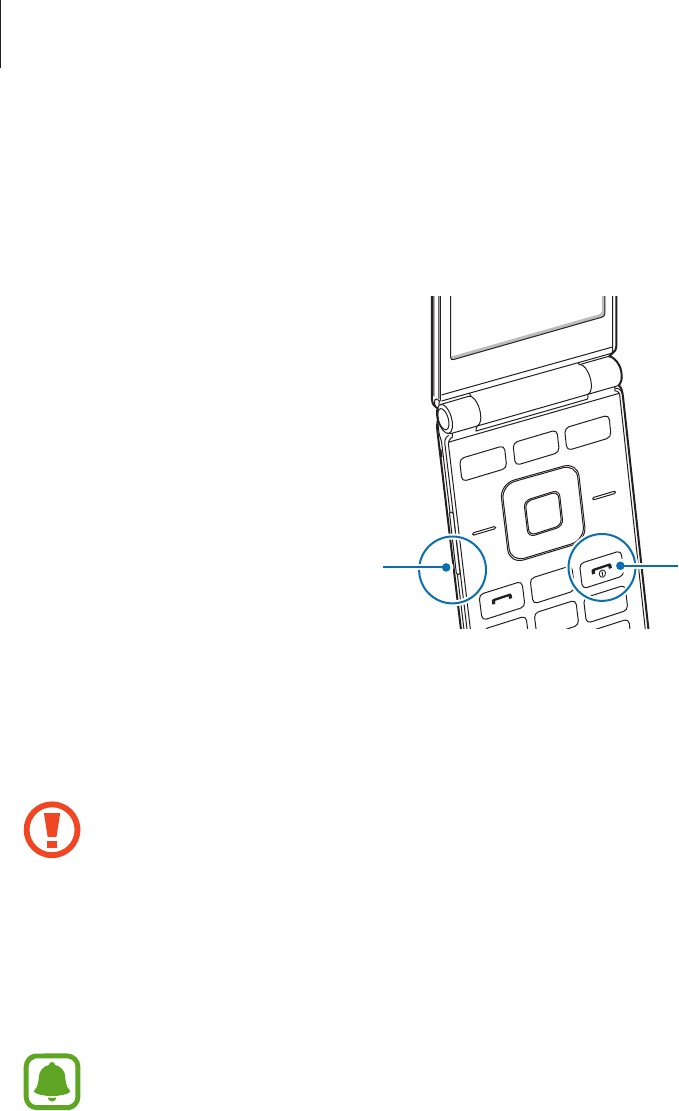

Restarting the device
If your device is frozen and unresponsive, press and hold the Power key and the Volume
Down key simultaneously for more than 7 seconds to restart it.
Power key
Volume Down key
Touchscreen
•
Do not allow the touchscreen to come into contact with other electrical devices.
Electrostatic discharges can cause the touchscreen to malfunction.
•
Do not allow the touchscreen to contact water. The touchscreen may malfunction
in humid conditions or when exposed to water.
•
To avoid damaging the touchscreen, do not tap it with anything sharp or apply
excessive pressure to it with your fingertips.
•
The device may not recognise touch inputs close to the edges of the screen, which
are outside of the touch input area.
•
Leaving the touchscreen idle for extended periods may result in afterimages
(screen burn-in) or ghosting. Turn off the touchscreen when you do not use the
device.
•
It is recommended to use fingers when you use the touchscreen.
Basics
25
Tapping
To open an app, to select a menu item, to press an on-screen button, or to enter a character
using the keyboard on the screen, tap it with your finger.
Tapping and holding
Tap and hold an item or the screen for more than 2 seconds to access available options.
Dragging
To move an item, tap and hold it and drag it to the target position.
Basics
26
Double-tapping
Double-tap on a webpage or image to zoom in. Double-tap again to return.
Swiping
Swipe to the left or right on the Home screen to view other panels. Swipe upwards or
downwards to scroll through a webpage or a list of items, such as contacts.
Spreading and pinching
Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.
Basics
27
Home screen
Home screen
The Home screen is the starting point for accessing all of the device’s features. It displays
widgets, icons for all apps, and more.
To view other panels, swipe to the left or right.
A widget
Screen indicators
Favourite apps
An app
Home screen options
On the Home screen, tap
Settings
→
Home screen
to access the available options.
Alternatively, on the Home screen, tap and hold an empty area. Customise the Home screen
by adding, deleting, or rearranging Home screen panels. You can also set the Home screen
wallpaper, add widgets to the Home screen, and more.
•
Wallpapers
: Change the wallpaper settings for the Home screen and the locked screen.
•
Widgets
: Add widgets to the Home screen. Widgets are small apps that launch specific
app functions to provide information and convenient access on your Home screen. Tap
and hold a widget, and then drag it to the Home screen.
Basics
28
•
Home screen settings
: Display all apps on the Home screen.
Moving items
Tap and hold an item on the Home screen, and then drag it to a new location.
You can also move frequently used apps to the shortcuts area at the bottom of the Home
screen.
To move the item to another panel, drag it to the side of the screen.
To move an item more easily, tap and hold an item, and drag it to
Move apps
at the top of the
screen. The item will move to the panel at the top of the screen. Swipe to the left or right to
move to another panel and drag the item to a new location.

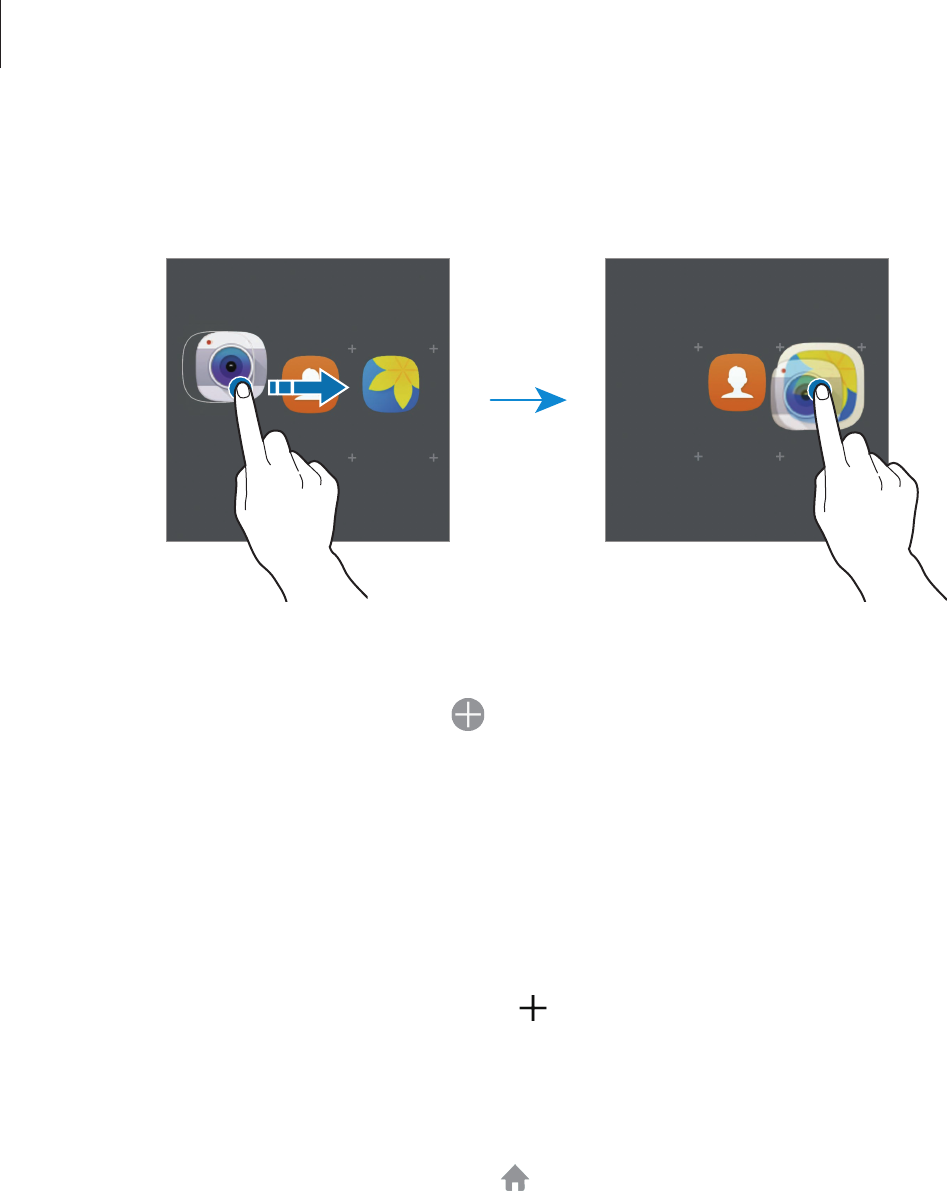

Creating folders
Create folders and gather similar applications to quickly access and launch apps.
1 On the Home screen, tap and hold an app, and then drag it over another app.
Basics
29
2 Drop the app when a folder frame appears around the apps.
A new folder containing the selected apps will be created.
3 Tap
Enter folder name
and enter a folder name.
To add more apps to the folder, tap , tick the apps, and then tap
ADD
. You can also add
an app by dragging it to the folder on the Home screen.
To move apps from a folder to the Home screen, tap the folder, and then drag an app to the
Home screen.
Managing panels
On the Home screen, tap and hold an empty area to add, move, or remove a panel.
To add a panel, swipe to the left, and then tap .
To move a panel, tap and hold a panel preview, and then drag it to a new location.
To remove a panel, tap and hold a panel preview, and then drag it to
Remove
at the top of
the screen.
To set a panel as the main Home screen, tap .
Aligning items
You can organise items on the Home screen when they are scattered on the screen.
On the Home screen, tap and hold an empty area, and then tap
ALIGN ITEMS
. Your icons will
be aligned and straightened.
Basics
30
Indicator icons
Indicator icons appear on the status bar at the top of the screen. The icons listed in the table
below are most common.
The status bar may not appear at the top of the screen in some apps. To display the
status bar, drag down from the top of the screen.
Icon Meaning
No signal
/ Signal strength
/ Currently accessing SIM or USIM card
/ Roaming (outside of normal service area)
GPRS network connected
EDGE network connected
UMTS network connected
HSDPA network connected
HSPA+ network connected
/ LTE network connected
Wi-Fi connected
Bluetooth feature activated
GPS activated
Call in progress
Missed call
New text or multimedia message
Alarm activated
Mute mode activated
Vibration mode activated
Flight mode activated
Error occurred or caution required
Battery power level
Basics
31
Lock screen
If the device is open, the screen will be unlocked. If the device is closed, the screen will be
locked.
The screen turns off and automatically locks if the device is not used for a specified period.
You can set the screen to be locked even if the device is open.
To change the screen lock method, on the Home screen, tap
Settings
→
Lock screen and
security
→
Screen lock type
, and then select a method.
When you set a pattern, PIN, or password for the screen lock method, you can protect your
personal information by preventing others from accessing your device. After setting the
screen lock method, the device will require an unlock code whenever unlocking it.
•
Swipe
: Swipe in any direction on the screen to unlock it.
•
Pattern
: Draw a pattern with four or more dots to unlock the screen.
•
PIN
: Enter a PIN with at least four numbers to unlock the screen.
•
Password
: Enter a password with at least four characters, numbers, or symbols to unlock
the screen.
•
None
: Do not set a screen lock method.
•
If the unlock code is forgotten, take the device to a Samsung Service Centre to
reset it.
•
You can set your device to perform a factory data reset if you enter the unlock code
incorrectly several times in a row and reach the attempt limit. On the Home screen,
tap
Settings
→
Lock screen and security
→
Secure lock settings
and tap the
Auto factory reset
switch to activate it.
Basics
32
Notification panel
Using the notification panel
When you receive new notifications, such as messages or missed calls, indicator icons appear
on the status bar. To see more information about the icons, open the notification panel and
view the details.
To open the notification panel, drag the status bar downwards. To close the notification panel,
swipe upwards on the screen.
You can use the following functions on the notification panel.
Tap a notification and perform
various actions.
Clear all notifications.
Adjust the brightness and view
the current data usage.
Launch Settings.
SIM and USIM card feature
preferences. Tap to access the
SIM card manager.
Access the notification settings.
Quick setting buttons
Basics
33
Using quick setting buttons
Tap quick setting buttons to activate some features. Swipe to the left or right on the buttons
area, or swipe downwards on the screen to view more buttons. To view more detailed
settings, tap and hold a button.
To rearrange buttons, swipe downwards on the screen and tap
EDIT
. Then, tap and hold a
button and drag it to another location.
S Finder
Search for a wide variety of content with a keyword.
Searching for content on the device
Open the notification panel, swipe downwards on the screen and tap
S Finder
.
Enter a keyword in the search field.
To get more refined results, tap
Filter
under the search field, and then select filter details.
Setting search categories
You can set search categories to search for content in specific search fields.
Tap
MORE
→
Select search locations
and select categories.
Basics
34
Entering text
Keyboard layout
A keyboard appears automatically when you enter text to send messages, create memos, and
more.
Text entry is not supported in some languages. To enter text, you must change the
input language to one of the supported languages.
Break to the next line.
Delete a preceding character.
Enter symbols.
Enter numbers. Change the input language.
Enter a space.
Hide the keyboard.
Additional keyboard functions
Changing the input language
Tap the input language key to switch between the input languages. Tap
→
Add input
languages
, and then select the languages to use.
Changing the keyboard layout
Tap , select a language under
Languages and types
, and then select a keyboard layout to
use.
On
3x4 keyboard
, a key has three or four characters. To enter a character, tap the
corresponding key repeatedly until the desired character appears.
Basics
35
Additional keyboard functions
•
: Add an item from the clipboard.
•
→
PY. QWERTY
: Switch to qwerty pinyin mode.
•
→
PINYIN 3 x 4
: Switch to 3x4 pinyin mode. To enter a character, tap the
corresponding key repeatedly until the desired character appears.
•
→
SHUANGPIN
: Switch to shuangpin mode. To view the character input map, open
the Home screen and tap
Settings
→
Language and input
→
Samsung keyboard
→
Chinese input options
→
ShuangPin keyboard
.
•
→
WUBI
: Switch to wubi mode.
•
→
STROKE
: Switch to stroke mode. Tap stroke keys to enter a character. Tap when
you are unsure about which stroke to enter.
•
→
HALF-SCREEN HANDWRITING
or
FULL-SCREEN HANDWRITING
: Switch to
handwriting mode.
This feature may not be available depending on the region or service provider.
•
: Enter emoticons.
•
: Open the text editing panel.
•
: Change the keyboard settings.
Copying and pasting
1 Tap and hold over text.
2 Drag or to select the desired text, or tap
Select all
to select all text.
3 Tap
Copy
or
Cut
.
The selected text is copied to the clipboard.
4 Tap and hold where the text is to be inserted and tap
Paste
.
To paste text that you have previously copied, tap
Clipboard
and select the text.
Basics
36
Dictionary
Look up definitions for words while using certain features, such as when browsing webpages.
1 Tap and hold over a word that you want to look up.
If the word you want to look up is not selected, drag or to select the desired text.
2 Tap
Dictionary
on the options list.
If a dictionary is not preinstalled on the device, tap
Move to Manage dictionaries
→
next to a dictionary to download it.
3 View the definition in the dictionary pop-up window.
To switch to the full screen view, tap . Tap the definition on the screen to view more
definitions. In the detailed view, tap to add the word to your favourite words list or tap
Search Web
to use the word as a search term.
Screen capture
Capture a screenshot while using the device.
Capturing screenshots
Press and hold the Home key and the Power key simultaneously. You can view captured
images in
Gallery
.
It is not possible to capture a screenshot while using some apps and features.
Smart capture
You can capture the current screen and scrollable area. You can also immediately crop and
share the captured screen.
If this feature is not activated, open the Home screen, tap
Settings
→
Advanced features
→
Smart capture
, tap the switch to activate it, and then capture a screenshot. On the screen you
are capturing, use one of the following options:
•
Capture more
: Capture more content that continues across multiple screens, such as a
web page. The screen will automatically scroll down and more content will be captured.
•
Share
: Share the screenshot.
•
Crop
: Crop a portion from the screenshot.
Basics
37
Opening apps
On the Home screen, select an app icon to open it.
To open an app from the list of recently used apps, press the Recents key and select a recent
app window.
Closing an app
Press the Recents key and drag a recent app window to the left or right to close it. To close all
running apps, tap
CLOSE ALL
.
You can lock running apps to prevent them from closing. Tap to lock the app.
Samsung account
Introduction
Your Samsung account is an integrated account service that allows you to use a variety of
Samsung services provided by mobile devices, TVs, and the Samsung website. Once your
Samsung account has been registered, you can use apps provided by Samsung, without
signing in to your account.
Create your Samsung account with your email address.
To check the list of services that can be used with your Samsung account, visit
account.samsung.com. For more information on Samsung accounts, open the Home screen
and tap
Settings
→
Accounts
→
Samsung account
→
Help
.
Registering your Samsung account
Registering a new Samsung account
If you do not have a Samsung account, you should create one.
1 On the Home screen, tap
Settings
→
Accounts
→
Add account
.
2 Tap
Samsung account
→
CREATE ACCOUNT
.
3 Follow the on-screen instructions to complete creating your account.
Basics
38
Registering an existing Samsung account
If you already have a Samsung account, register it to the device.
1 On the Home screen, tap
Settings
→
Accounts
→
Add account
.
2 Tap
Samsung account
.
3 Enter your email address and password, and then tap
SIGN IN
.
If you forget your account information, tap
Forgot your ID or password?
You can find
your account information when you enter the required information and security code
displayed that is on the screen.
Removing your Samsung account
When you remove your registered Samsung account from the device, your data, such as
contacts or events, will also be removed.
1 On the Home screen, tap
Settings
→
Accounts
.
2 Tap
Samsung account
and tap the account to remove.
3 Tap
MORE
→
Remove account
→
REMOVE ACCOUNT
.
4 Enter your Samsung account password and tap
CONFIRM
.
5 Tap
REMOVE ACCOUNT
.
Basics
39
Transferring data from your previous device
You can transfer data from a previous device to your device via Samsung Smart Switch.
The following versions of Samsung Smart Switch are available.
•
Mobile version: Transfer data between mobile devices. You can download the app from
Galaxy Apps
.
•
Computer version: Transfer data between your device and a computer. You can download
the app from www.samsung.com/cn/smartswitch.
•
Samsung Smart Switch is not supported on some devices or computers.
•
Limitations apply. Visit www.samsung.com/cn/smartswitch for details. Samsung
takes copyright seriously. Only transfer content that you own or have the right to
transfer.
Transferring data wirelessly
Transfer data from your previous device to your device.
1 On both devices, download and install Smart Switch from
Galaxy Apps
.
2 Place the devices near each other.
3 Launch
Smart Switch
on both devices.
4 Follow the on-screen instructions to transfer data from your previous device.
Basics
40
Transferring backup data from a computer
Back up data from your previous device to a computer and import the data to your device.
1 On the computer, visit www.samsung.com/cn/smartswitch to download Smart Switch.
2 On the computer, launch Smart Switch.
If your previous device is not a Samsung device, back up data to a computer using a
program provided by the device’s manufacturer. Then, skip to the fifth step.
3 Connect your previous device to the computer using the USB cable.
4 On the computer, follow the on-screen instructions to back up data from the device.
Then, disconnect your previous device from the computer.
5 Connect your device to the computer using the USB cable.
6 Open the notification panel, and then tap
Transferring media files via USB
→
Transferring media files
.
7 On the computer, follow the on-screen instructions to transfer data to your device.
Basics
41
Device and data management
Connecting the device to a computer for data transfer
Move audio, video, image, or other types of files from the device to the computer, or vice
versa.
Do not disconnect the USB cable from the device when you are transferring files.
Doing so may cause data loss or device damage.
The devices may not connect properly if they are connected via a USB hub. Directly
connect the device to the computer’s USB port.
1 Connect the device to the computer using the USB cable.
2 Open the notification panel, and then tap
Transferring media files via USB
→
Transferring media files
.
If the computer cannot recognise your device, tap
Transferring images
.
3 Tap
ALLOW
to permit the computer to access your device’s data.
When the computer recognises your device, the device will appear in My PC.
4 Transfer files between your device and the computer.
Updating the device
The device can be updated to the latest software.
The device supports only authorised operating system updates. Do not update an
unauthorised operating system. Doing so may make your personal information
vulnerable to leakage or theft.
Updating over the air
The device can be directly updated to the latest software by the firmware over-the-air (FOTA)
service.
On the Home screen, tap
Settings
→
About device
→
Download updates manually
.
When you tap the
Download updates automatically
switch to activate it, updates
will be downloaded when the device is connected to a Wi-Fi network.
Basics
42
Updating with Smart Switch
Connect the device to a computer and update the device to the latest software.
1 On the computer, visit www.samsung.com/cn/smartswitch to download and install
Smart Switch.
2 On the computer, launch Smart Switch.
3 Connect the device to the computer using a USB cable.
4 If a software update is available, follow the on-screen instructions to update the device.
•
Do not turn off the computer or disconnect the USB cable while the device is
updating.
•
While updating the device, do not connect other media devices to the computer.
Doing so may interfere with the update process. Before updating, disconnect all
other media devices from the computer.
Backing up and restoring data
Keep your personal information, app data, and settings safe on your device. You can back up
your sensitive information to a backup account and access it later. You must sign in to your
Samsung account to back up or restore data. Refer to Samsung account and Accounts for
more information.
Using a Samsung account
On the Home screen, tap
Settings
→
Backup and reset
→
Back up my data
for the Samsung
account, tap the switches next to the items you want to back up to activate them, and then
tap
BACK UP NOW
.
To set the device to automatically back up data, tap the
Auto back up
switch to activate it.
To restore data using a Samsung account, tap
Restore
. Current data will be deleted from the
device to restore the selected items.
Basics
43
Performing a data reset
Delete all settings and data on the device. Before performing a factory data reset, ensure you
back up all important data stored on the device. Refer to Backing up and restoring data for
more information.
On the Home screen, tap
Settings
→
Backup and reset
→
Factory data reset
→
RESET
DEVICE
→
DELETE ALL
. The device automatically restarts.
44
Applications
Installing or uninstalling apps
Galaxy Apps
Purchase and download apps. You can download apps that are specialised for Samsung
Galaxy devices.
Tap
Galaxy Apps
on the Home screen.
This app may not be available depending on the region or service provider.
Installing apps
Browse apps by category or tap the search field to search for a keyword.
Select an app to view information about it. To download free apps, tap
INSTALL
. To purchase
and download apps where charges apply, tap the price and follow the on-screen instructions.
To change the auto update settings, tap
→
Settings
→
Auto update apps
, and
then select an option.
Managing apps
Uninstalling or disabling apps
On the Home screen, tap and hold an app, and then drag it to
Disable
or
Uninstall
at the
top of the screen. Alternatively, on the Home screen, tap
Settings
→
Applications
→
Application manager
, select an app, and then tap
DISABLE
or
UNINSTALL
.
•
DISABLE
: Disable selected default apps that cannot be uninstalled from the device.
•
UNINSTALL
: Uninstall downloaded apps.
Enabling apps
On the Home screen, tap
Settings
→
Applications
→
Application manager
→
→
Disabled
, select an app, and then tap
ENABLE
.
Applications
45
Setting app permissions
For some apps to operate properly, they may need permission to access or use information
on your device. When you open an app, a pop-up window may appear and request access to
certain features or information. Tap
ALLOW
on the pop-up window to grant permissions to
the app.
To view your app permission settings, open the Home screen and tap
Settings
→
Applications
→
Application manager
. Select an app and tap
Permissions
. You can view the
app’s permissions list and change its permissions.
To view or change app permission settings by permission category, open the Home screen,
tap
Smart Manager
→
App permissions
. Select an item and tap the switches next to apps to
grant permissions.
If you do not grant permissions to apps, the basic features of the apps may not
function properly.
Phone
Introduction
Make or answer voice calls.
Making calls
1 Tap
Phone
on the Home screen. Or, press the Dial key.
2 Enter a phone number.
You can use the Alphanumeric keys to enter a number directly, without launching the
Phone app.
Applications
46
3 Tap or , or press the Dial key to make a voice call.
Yellow Pages search results
Preview the phone number.
Hide the input field.
Access additional options.
Send a message.
Using speed dial
Set speed dial numbers to quickly make calls.
To set a number to speed dial, tap
MORE
→
Speed dial
, select a speed dial number, and then
select a contact.
To make a call, press and hold a speed dial number on the keypad. For speed dial numbers 10
and up, press the first digit(s) of the number, and then press and hold the last digit.
For example, if you set the number 123 as a speed dial number, press 1, press 2, and then
press and hold 3.
Making calls from call logs or contacts list
Tap
LOG
or
CONTACTS
, and then swipe to the right on a contact or a phone number to make
a call.
Applications
47
Making calls using Yellow Pages
You can easily search for businesses and then call them using the call ID data provided by
Yellow Pages.
Tap
YELLOW PAGES
and enter numbers or characters in the search field. The device
automatically displays the businesses identified in the search. Select a business to call.
Making an international call
1 Press and hold 0 until the + sign appears.
2 Enter the country code, area code, and phone number, and then tap or , or press
the Dial key.
Receiving calls
Answering a call
1 Open the device.
2 Drag outside the large circle or press the Dial key.
Rejecting a call
1 Open the device.
2 Drag outside the large circle or press the Power key.
To send a message when rejecting an incoming call, drag the reject message bar upwards.
To create various rejection messages, open the Home screen, tap
Phone
→
MORE
→
Settings
→
Call blocking
→
Call-reject messages
, enter a message, and then tap .
Missed calls
If a call is missed, the icon appears on the status bar. Open the notification panel to view
the list of missed calls. Alternatively, on the Home screen, tap
Phone
→
LOG
to view missed
calls.
Applications
48
Blocking phone numbers
Block calls from specific numbers added to your block list.
1 On the Home screen, tap
Phone
→
MORE
→
Settings
→
Call blocking
→
Black list
.
2 Tap
BLACK LIST
→
.
3 Tap
Add from Contacts/Phone log
to select contacts, and then tap
DONE
.
To manually enter a number, tap
Add manually
, and then enter a phone number.
When blocked numbers try to contact you, you will not receive notifications. The calls will be
logged in the call log.
You can also block incoming calls from people that do not show their caller ID. Tap
BLACK LIST
→
SETTINGS
and tap the
Block anonymous calls
switch to activate the
feature.

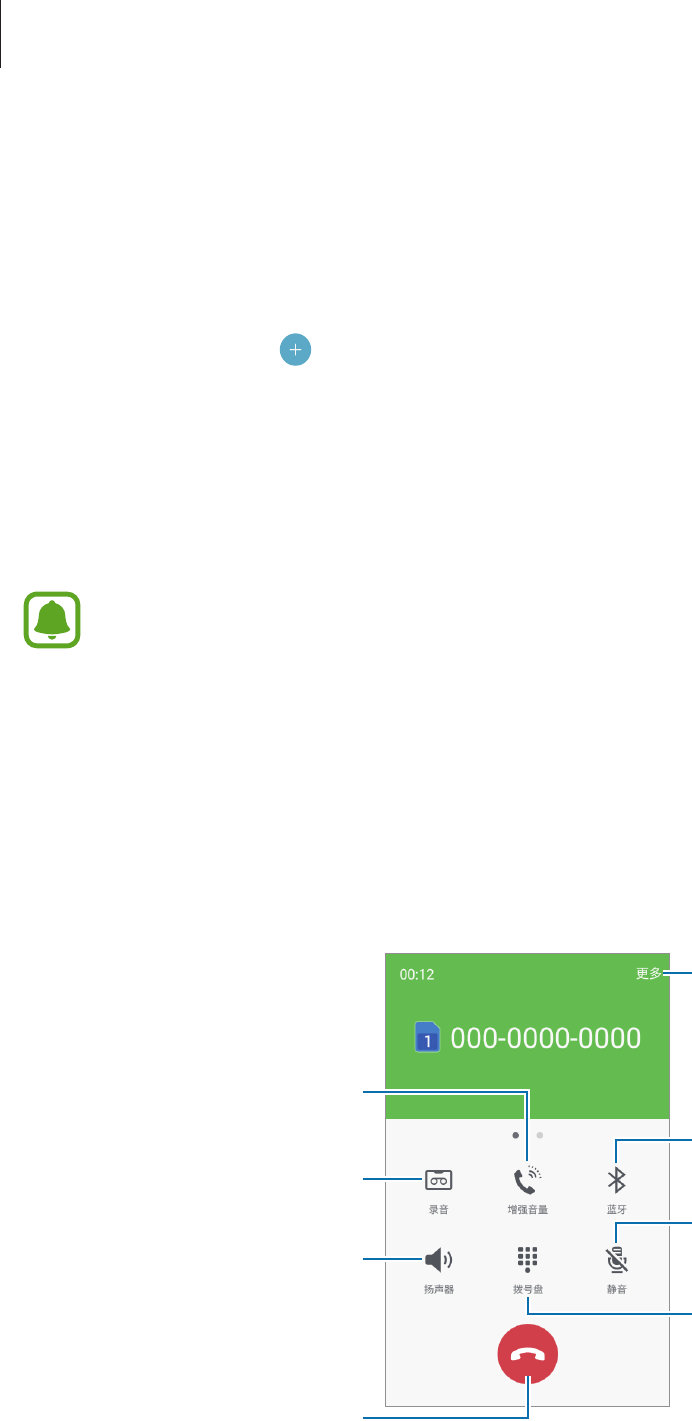

Options during calls
During a voice call
The following actions are available:
Switch to a Bluetooth headset if
it is connected to the device.
Turn off the microphone so that
the other party cannot hear you.
Open or close the keypad.
Activate or deactivate the
speakerphone.
End the current call.
Record a call conversation.
Increase the volume.
Access additional options.
Applications
49
Contacts
Introduction
Create new contacts or manage contacts on the device.
Adding contacts
Creating contacts manually
1 Tap
Contacts
on the Home screen.
2 Tap and select a storage location.
3 Enter contact information.
•
: Add an image.
•
/ : Add or delete a contact field.
4 Tap
SAVE
.
To add a phone number to the contacts list from the keypad, open the device, enter the
number, and tap
Add to Contacts
.
To add a phone number to the contacts list from received calls, open the Home screen and
tap
Phone
→
LOG
→
a contact
→
CREATE CONTACT
.
Creating contacts from Yellow Pages
You can easily search for businesses and add them to your contacts list.
1 On the Home screen, tap
Contacts
.
2 Tap
Yellow Pages
and enter numbers or characters in the search field. The device
automatically displays the businesses identified in the search.
3 Select a business and tap
MORE
→
Add to Contacts
.
Applications
50
Importing contacts
Add contacts by importing them from other storages to your device.
1 Tap
Contacts
on the Home screen.
2 Tap
MORE
→
Settings
→
Import/Export contacts
→
IMPORT
.
3 Select a storage location to import contacts from.
4 Select a storage location to save contacts to.
5 Tick VCF files or contacts to import and tap
DONE
.
Searching for contacts
On the Home screen, tap
Contacts
.
Use one of the following search methods:
•
Scroll up or down the contacts list.
•
Drag a finger along the index at the right side of the contacts list to scroll through it
quickly.
•
Tap the search field at the top of the contacts list and enter search criteria.
Once a contact is selected, take one of the following actions:
•
: Add to favourite contacts.
•
: Make a voice call.
•
: Make an IP call.
•
: Compose a message.
•
: Compose an email.
Applications
51
Sharing contacts
You can share contacts with others by using various sharing options.
1 Tap
Contacts
on the Home screen.
2 Tap
MORE
→
Share
.
3 Tick contacts and tap
SHARE
.
4 Select a sharing method.
Messages
Introduction
Send and view messages by conversation.
Sending messages
You may incur additional charges for sending messages when you are roaming.
1 Tap
Messages
on the Home screen. Or, press the Messages key.
2 Tap .
3 Add recipients and enter a message.
Access additional options.
Enter a message.
Select contacts from the
contacts list.
Enter emoticons.
Enter recipients.
Attach files.
Send the message.
4 Tap or to send the message.
Applications
52
Viewing messages
Messages are grouped into message threads by contact.
You may incur additional charges for receiving messages when you are roaming.
1 Tap
Messages
on the Home screen.
2 On the messages list, select a contact.
3 View your conversation.
Blocking unwanted messages
Block messages from specific numbers or messages that contain phrases added to your block
list.
1 Tap
Messages
on the Home screen.
2 Tap
MORE
→
Settings
→
Block messages
.
3 Tap
Black list
.
To add phrases to block, tap
Block phrases
.
4 Tap
BLACK LIST
→
.
5 Tap
Add from Contacts/Phone log
to select contacts, and then tap
DONE
.
To manually enter a number, tap
Add manually
, and then enter a phone number.
When you receive messages from the blocked numbers or messages including blocked
phrases, you will not be notified. To view blocked messages, tap
MORE
→
Settings
→
Block
messages
→
Blocked messages
.
Applications
53
Setting the message notification
You can change notification sound, display options, and more.
1 Tap
Messages
on the Home screen.
2 Tap
MORE
→
Settings
→
Notifications
, and then tap the switch to activate it.
3 Change the notification settings.
•
Notification sound
: Change the notification sound.
•
Vibrations
: Set the device to vibrate when you receive messages.
•
Pop-up display
: Set the device to display messages in pop-up windows.
•
Preview message
: Set the device to display message content on the locked screen
and in pop-up windows.
Setting a message reminder
You can set an alert at an interval to let you know that you have unchecked notifications.
If this feature is not activated, open the Home screen, tap
Settings
→
Accessibility
→
Notification reminder
, and then tap the switch to activate it. Then, tap the
Messages
switch
to activate it.
Internet
Introduction
Browse the Internet to search for information and bookmark your favourite webpages to
access them conveniently.
Browsing webpages
1 Tap
Internet
on the Home screen.
2 Tap the address field.
Applications
54
3 Enter the web address or a keyword, and then tap
Go
.
To view the toolbars, drag your finger downwards slightly on the screen.
Open the homepage.
Move to the previously visited
page.
Open the browser's tab
manager.
Access additional options.
Refresh the current webpage.
View your bookmarks, saved
webpages, and recent browsing
history.
Using secret mode
In secret mode, you can separately save and manage open tabs, bookmarks, and saved pages.
You can lock secret mode using a password.
Activating secret mode
In the toolbar at the bottom of the screen, tap
Tabs
→
TURN ON SECRET MODE
. If you are
using this feature for the first time, set whether to use a password for secret mode.
In secret mode, you cannot use some features, such as screen capture.
In secret mode, the device will change the colour of the toolbars.
Changing security settings
You can change your password.
Tap
→
Settings
→
Privacy
→
Secret mode security
→
Change password
.
Deactivating secret mode
In the toolbar at the bottom of the screen, tap
Tabs
→
TURN OFF SECRET MODE
.
Applications
55
Email
Setting up email accounts
Set up an email account when opening
Email
for the first time.
1 Tap
Email
on the Home screen.
2 Select an email service, enter the email address and password, and then tap
SIGN IN
.
To manually register a company email account, tap
MANUAL SETUP
.
3 Follow the on-screen instructions to complete the setup.
To set up another email account, tap
MORE
→
Settings
→
Add account
.
If you have more than one email account, you can set one as the default account. Tap
MORE
→
Settings
→
MORE
→
Set default account
.
Sending emails
1 Tap to compose an email.
2 Add recipients and enter an email text.
3 Tap
SEND
to send the mail.
Reading emails
When
Email
is open, the device will automatically retrieve new emails. To manually retrieve
emails, swipe downwards on the screen.
Tap an email on the screen to read it.
If email syncing is disabled, new emails cannot be retrieved. To enable email syncing,
tap
MORE
→
Settings
→
your account name, and then tap the
Sync account
switch
to activate it.
Applications
56
Camera
Introduction
Take photos and record videos using various modes and settings.
Basic shooting
You can take photos or record videos. View your photos and videos in
Gallery
.
Tap
Camera
on the Home screen.
Camera etiquette
•
Do not take photos or record videos of other people without their permission.
•
Do not take photos or record videos where legally prohibited.
•
Do not take photos or record videos in places where you may violate other people’s
privacy.
Taking photos or recording videos
1 Tap the image on the preview screen where the camera should focus.
2 Tap to take a photo or tap to record a video. Or, press the Confirm key or Camera
key to take a photo.
•
Spread two fingers apart on the screen to zoom in, and pinch to zoom out.
•
To capture an image from the video while recording, tap
Capture
.
•
To change the focus while recording a video, tap where you want to focus. To focus on
the centre of the screen, tap .
Applications
57
Camera settings
Hide or show the
setting icons.
Quick settings
Record a video.
Take a photo.
Switch between the
front and rear
cameras.
Shooting modes
Preview thumbnail
Current mode
On the preview screen, swipe to the right to access the list of shooting modes. Or, swipe to
the left to view photos and videos you have captured.
•
The preview screen may vary depending on the shooting mode and which camera
is being used.
•
The camera automatically shuts off when unused.
•
Make sure that the lens is clean. Otherwise, the device may not work properly in
some modes that require high resolutions.
•
The front camera features a wide-angle lens. Minor distortion may occur in wide-
angle photos and does not indicate device performance problems.
Launching Camera quickly
Press the Home key twice quickly or press the Camera key to launch
Camera
.
Some camera features are not available when you launch
Camera
from the locked
screen or when the screen is turned off while the security features are activated.
Customising shooting modes
On the preview screen, tap
MODE
and select a mode.
To view information for each mode, tap
INFO
.
Auto mode
Auto mode allows the camera to evaluate the surroundings and determine the ideal mode
for the photo.
On the preview screen, tap
MODE
→
Auto
.
Applications
58
Pro mode
Take photos while manually adjusting various shooting options, such as exposure value and
ISO value.
On the preview screen, tap
MODE
→
Pro
. Select options and customise the settings, and
then tap to take a photo.
•
: Select an appropriate white balance, so images have a true-to-life colour range.
•
: Select an ISO value. This controls camera light sensitivity. Low values are for
stationary or brightly lit objects. Higher values are for fast-moving or poorly lit objects.
However, higher ISO settings can result in noise in photos.
•
: Change the exposure value. This determines how much light the camera’s sensor
receives. For low-light situations, use a higher exposure.
Panorama
Take a series of photos horizontally or vertically and then stitch them together to create a
wide scene.
On the preview screen, tap
MODE
→
Panorama
.
To get the best shots using panorama mode, follow these tips:
•
Move the camera slowly in one direction.
•
Keep the image within the frame on the camera’s viewfinder. If the preview
image is out of the guide frame or you do not move the device, the device will
automatically stop taking photos.
•
Avoid taking photos of indistinct backgrounds, such as an empty sky or a plain
wall.
Continuous shot
Take a series of photos of moving subjects.
On the preview screen, tap
MODE
→
Continuous shot
. Tap and hold to take several
photos continuously.
Anti-fog
Take a photo or video in misty conditions.
On the preview screen, tap
MODE
→
Anti-fog
.
Applications
59
Beauty face
Take a photo with lightened faces for gentler images.
On the preview screen, tap
MODE
→
Beauty face
.
Sound & shot
Take a photo with sound. The device identifies the photos with in Gallery.
On the preview screen, tap
MODE
→
Sound & shot
.
Sports
Take a photo of fast-moving subjects.
On the preview screen, tap
MODE
→
Sports
.
Animated GIF
Create an animated photo from a series of photos.
On the preview screen, tap
MODE
→
Animated GIF
.
Selfie
Take self-portraits with the front camera. You can preview various beauty effects on the
screen.
1 On the preview screen, tap to switch to the front camera for self-portraits.
2 Tap
MODE
→
Selfie
.
3 Face the front camera lens.
4 When the device detects your face, tap the screen to take a photo of yourself.
Alternatively, show your palm to the front camera. After recognising your palm, a
countdown timer will appear. When the time is up, the device will take a photo.
To take a photo using your palm, tap and tap the
Gesture control
switch to activate it.
Applications
60
Applying beauty effects
You can modify facial features, such as your skin tone or face shape, before taking self-
portraits.
This feature is available only in
Selfie
and
Interval shot
modes.
1 On the preview screen, tap .
2 Select the options below to apply beauty effects to your face on the preview screen and
take a photo of yourself.
•
Skin Tone
: Make your skin appear brighter and clearer.
•
Large Eyes
: Make your eyes appear bigger.
•
Slim Face
: Adjust the face shape and make your face appear slimmer.
Wide selfie
Take a wide self-portrait to include more people in the photo and avoid leaving people out.
1 On the preview screen, tap to switch to the front camera for self-portraits.
2 Tap
MODE
→
Wide selfie
.
3 Face the front camera lens.
4 When the device detects your face, tap the screen to take a photo of yourself.
Alternatively, show your palm to the front camera. After recognising your palm, a
countdown timer will appear. When the time is up, the device will take a photo.
To take a photo using your palm, tap and tap the
Gesture control
switch to activate it.
Applications
61
5 Slowly swivel the device left and then right or vice versa to take a wide self-portrait.
The device will take additional photos when the white frame moves to each end of the
viewfinder window.
•
Make sure to keep the white frame inside the viewfinder window.
•
The subjects should remain still while taking wide self-portraits.
•
The top and bottom parts of the image displayed on the preview screen may be
cut out of the photo depending on the shooting conditions.
Interval shot
Take series of self-portraits at an interval and save photos you want.
1 On the preview screen, tap to switch to the front camera for self-portraits.
2 Tap
MODE
→
Interval shot
.
3 Face the front camera lens.
4 To apply beauty effect, tap and select options. Refer to Applying beauty effects for
more information.
Applications
62
5 When the device detects your face, tap the screen to take a photo of yourself. The device
will take four photos at the two-second intervals.
To take a photo using your palm, tap and tap the
Gesture control
switch to activate it.
Show your palm to the front camera. After recognising your palm, the device will take a
photo after a few seconds.
6 Tick photos you want to save and tap
SAVE
.
Camera settings
Quick settings
On the preview screen, use the following quick settings.
The available options may vary depending on the shooting mode and which camera
is being used.
•
: Select a filter effect to use when taking photos or recording videos.
•
: Select a metering method. This determines how light values are calculated.
Center-
weighted
uses the light in the centre portion of the shot to calculate the exposure of
the shot.
Spot
uses the light in a concentrated centre area of the shot to calculate the
exposure of the shot.
Matrix
averages the entire scene.
•
: Select the length of the delay before the camera automatically takes a photo.
•
: Activate or deactivate the flash.
•
: Select a resolution for photos. Using a higher resolution will result in higher quality
photos, but they will take up more memory.
The resolution of a photo may be affected by lighting conditions when taking photos
with the front camera.
•
: Adjust the slide bar to take clearer photos in foggy conditions.
•
: Set the device to record sound before or after taking a photo.
Applications
63
Camera settings
On the preview screen, tap .
The available options may vary depending on the shooting mode and which camera
is being used.
•
Video size (rear)
/
Video size (front)
: Select a resolution for videos. Using a higher
resolution will result in higher quality videos, but they will take up more memory.
•
Gesture control
: Set the device to detect your palm, so you can use it to take self-
portraits.
If the distance between your palm and the front camera is too far or too short, the
device may not recognise your palm. Keep the proper distance between your palm
and the front camera.
•
Save pictures as previewed
: Invert the image to create a mirror-image of the original
scene, when taking photos with the front camera.
•
Grid lines
: Display viewfinder guides to help composition when selecting subjects.
•
Location tags
: Attach a GPS location tag to the photo.
•
GPS signal strength may decrease in locations where the signal is obstructed, such
as between buildings or in low-lying areas, or in poor weather conditions.
•
Your location may appear on your photos when you upload them to the Internet.
To avoid this, deactivate the location tag setting.
•
Review pictures
: Set the device to show photos after capturing them.
•
Quick launch
: Set the device to launch the camera by pressing the Home key twice
quickly.
•
Storage location
: Select the memory location for storage.
•
Volume keys function
: Set the device to use the Volume key to control the shutter or
zoom function.
•
Shutter sound
: Enable or disable the shutter sound.
•
Reset settings
: Reset the camera settings.
Applications
64
Gallery
Introduction
View and manage photos and videos stored in the device.
Viewing images
1 Tap
Gallery
on the Home screen.
2 Select an image.
Access additional options.
Move to the previous screen.
Share the image with others. Delete the image.
Modify the image.
Add the image to favourites.
To hide or show the menus, tap the screen.
Applications
65
Viewing videos
1 Tap
Gallery
on the Home screen.
2 Select a video to play. Video files show the icon on the preview thumbnail.
Change screen ratio.
Pause and resume
playback.
Display your videos.
Skip to the previous
video. Tap and hold to
rewind.
Skip to the next video.
Tap and hold to
fast-forward.
Access additional
options.
Switch to the pop-up
video player.
Rewind or
fast-forward by
dragging the bar.
Drag your finger up or down on the left side of the playback screen to adjust the brightness,
or drag your finger up or down on the right side of the playback screen to adjust the volume.
To rewind or fast-forward, swipe to the left or right on the playback screen.
Deleting images or videos
Deleting an image or a video
Select an image or a video and tap
Delete
at the bottom of the screen.
Deleting multiple images and videos
1 On the main Gallery screen, tap and hold an image or a video to delete.
2 Tick the images or videos to delete.
3 Tap
MORE
→
Delete
.
Applications
66
Sharing images or videos
Select an image or a video, tap
Share
at the bottom of the screen, and then select a sharing
method.
Smart Manager
The Smart manager provides an overview of the status of your device’s battery, storage, RAM,
and system security. You can also automatically optimise the device with a tap of your finger.
Battery
Storage RAM
Data usage
Blocked calls/msgs
Device security
App management
App permissions
Using the quick optimisation feature
On the Home screen, tap
Smart Manager
→
Tap here to optimize your device.
The quick optimisation feature improves device performance through the following actions.
•
Clearing some memory.
•
Deleting unnecessary files and closing apps running in the background.
•
Managing abnormal battery usage.
•
Scanning for malware.
Applications
67
Battery
On the Home screen, tap
Smart Manager
→
Battery
.
Check the remaining battery power and time to use the device. For devices with low battery
levels, conserve battery power by activating power saving features.
•
The usage time left shows the time remaining before the battery power runs
out. Usage time left may vary depending on your device settings and operating
conditions.
•
You cannot receive notifications from apps that use power saving mode.
Storage
Check the status of the used and available memory.
On the Home screen, tap
Smart Manager
→
Storage
.
Managing the memory
To delete residual files, such as cache, tap
CLEAN NOW
. To delete files or uninstall apps that
you do not use any more, select an option under
User data
and perform the desired action.
RAM
On the Home screen, tap
Smart Manager
→
RAM
.
To speed up your device by reducing the amount of RAM you are using, tap
CLEAN NOW
to
close the checked background apps.
Device security
Check the device’s security status. This feature scans your device for malware.
On the Home screen, tap
Smart Manager
→
Device security
.
Data usage
Check the device’s data usage amount. You can customise the settings for the limitation.
On the Home screen, tap
Smart Manager
→
Data usage
.
Applications
68
Blocked calls/msgs
Reject calls or messages from specified phone numbers or reject messages containing
specified text.
On the Home screen, tap
Smart Manager
→
Blocked calls/msgs
.
App permissions
Specify functions to use for each app.
On the Home screen, tap
Smart Manager
→
App permissions
.
App management
Manage the app settings for auto run, notifications, or locking apps.
On the Home screen, tap
Smart Manager
→
App management
, and then tap the button
under each feature.
•
Auto run apps
: Turn off auto run for each app to prevent them from running in the
background.
•
Notifications
: Change the notification settings for each app.
•
App lock
: Set a lock method to prevent others from accessing selected apps.
Samsung Members
Samsung Members
provides support services for customers, such as device problem
diagnosis, service centre search, and remote servicing. You can also ask our consultants one-
on-one questions and send error reports for unusual device performance.
Applications
69
Samsung Notes
Introduction
Create notes by entering text from the keyboard or by writing or drawing on the screen. You
can also insert images or voice recordings into your notes.
Creating notes
1 Tap
Samsung Notes
on the Home screen.
2 Tap
ALL
→
.
3 Select an input method from the toolbar at the top of the screen and compose a note.
Tap
to insert an image by selecting from
Gallery
or by taking a photo.
Tap
Voice
to record a voice recording and insert it into the note. Voice recording will start
immediately.
Enter text using the keyboard.
Write or draw with pens.
Paint with brushes.
Insert a voice recording.
Insert an image.
4 When you are finished composing the note, tap
→
Save
.
Deleting notes
1 Tap
Samsung Notes
on the Home screen and then tap
ALL
, or tap
COLLECTIONS
, and
then select a category.
2 Tap and hold a note to delete.
To delete multiple notes, tick more notes to delete.
3 Tap
→
Delete
.
Applications
70
S Planner
Introduction
Manage your schedule by entering upcoming events in your planner.
Creating events
1 Tap
S Planner
on the Home screen.
2 Tap or double-tap a date.
If the date already has saved events or tasks in it, tap the date and tap .
3 Enter event details.
Select a calendar to use or sync
with.
Attach a map showing the
location of the event.
Enter the location of the event.
Enter a title.
Set a start and end date for the
event.
Add more details.
Set an alarm.
4 Tap
SAVE
to save the event.
Applications
71
Creating tasks
1 Tap
S Planner
on the Home screen.
2 Tap
→
Tasks
.
3 Enter task details and tap
TODAY
or
TOMORROW
to set a due date.
To add more details, tap .
4 Tap
SAVE
to save the task.
Syncing events and tasks with your accounts
On the Home screen, tap
Settings
→
Accounts
, select an account service, and then tap the
Sync Calendar
switch to sync events and tasks with the account.
To add accounts to sync with, open the Home screen and tap
S Planner
→
MORE
→
Manage
calendars
→
Add account
. Then, select an account to sync with and sign in. When an
account is added, it will appear on the list.
Applications
72
S Assistant
S Assistant helps you to organise your daily schedule. You can use recommended services and
remember events by receiving reminder cards. You can also use convenient assistant services
to do things, like make hotel reservations or track deliveries.
Tap
S Assistant
on the Home screen.
You can set up your profile to receive more specific reminder cards. Tap
MY PAGE
→
Profile
and customise settings, such as your favourite places, sleep time, and work
time.
Creating custom reminders
1 On the S Assistant screen, tap
REMINDERS
→
.
2 Enter reminder details.
3 Tap
SAVE
to save the reminder.
You will receive the reminder card at the time you set.
Viewing reminder cards
When you receive reminder cards, a card notification will appear on the notification panel.
1 Open the notification panel and select a card notification.
2 Swipe upwards or downwards on the card to view its information and recommended
actions.
Using assistant services
You can use convenient assistant services to do things, like making hotel reservations or
tracking deliveries.
On the S Assistant screen, tap
LIFE SERVICES
and select a service to use.
Applications
73
Music
Listen to music sorted by category and customise playback settings.
Tap
Music
on the Home screen.
Select a category from the top of the screen, and then select a song to play.
Tap the album image at the bottom of the screen to open the music player screen.
Change the repeat mode.
Skip to the next song. Tap and
hold to fast-forward.
Pause and resume playback.
Access the sound quality and
effects settings.
Access additional options.
Adjust the volume.
Skip to the previous song. Tap
and hold to rewind.
Turn on shuffle.
Set the file as your favourite
song.
Open the playlist.
Samsung Video
Watch videos stored on your device and stream online video content from various Video On
Demand (VOD) services.
Tap
Samsung Video
on the Home screen.
Tap one of the following options:
•
CATEGORY
: View online videos by category.
•
RECOMMENDED
: View recommended online videos.
•
MY VIDEOS
: View videos stored on your device.
Applications
74
Voice Recorder
Introduction
Use this app to record or play voice memos.
Making voice recordings
1 On the Home screen, tap 实用工具
→
Voice Recorder
.
2 Tap to start recording. Speak into the microphone.
Tap to pause recording.
While making a voice recording, tap
BOOKMARK
to insert a bookmark.
Tap
MORE
→
Settings
and tap the
Block calls while recording
switch to automatically
reject incoming calls while recording a voice memo.
Start recording.
3 Tap to finish recording.
4 Enter a file name and tap
SAVE
.
Applications
75
My Files
Access and manage various files stored in the device.
On the Home screen, tap 实用工具
→
My Files
.
View files by category or view files stored in the device.
To check the status of used and available memory, tap
STORAGE USAGE
.
To search for files or folders, tap
SEARCH
.
Clock
Introduction
Set alarms, check the current time in many cities around the world, time an event, or set a
specific duration.
ALARM
On the Home screen, tap
Clock
→
ALARM
.
Setting alarms
Tap
ADD
, set an alarm time, and tap
SAVE
.
To open the keypad to enter an alarm time, tap the time input field.
To set an alarm with various alarm options, set alarm options under the time input field, and
then tap
SAVE
.
To activate or deactivate alarms, tap the switch next to the alarm in the alarms list.
Stopping alarms
Tap
DISMISS
to stop an alarm. If you have previously enabled the snooze option, tap
SNOOZE
to repeat the alarm after a specified length of time.
Deleting alarms
Tap and hold an alarm, tick alarms to delete, and then tap
DELETE
.
Applications
76
WORLD CLOCK
On the Home screen, tap
Clock
→
WORLD CLOCK
.
Creating clocks
Tap
ADD
and enter a city name or select a city from the cities list.
Deleting clocks
Tap and hold a clock, tick clocks to delete, and then tap
DELETE
.
STOPWATCH
1 On the Home screen, tap
Clock
→
STOPWATCH
.
2 Tap
START
to time an event.
To record lap times while timing an event, tap
LAP
.
3 Tap
STOP
to stop timing.
To restart the timing, tap
RESUME
.
To clear lap times, tap
RESET
.
TIMER
1 On the Home screen, tap
Clock
→
TIMER
.
2 Set the duration, and then tap
START
.
To open the keypad to enter the duration, tap the duration input field.
Alternatively, you can add and select preset timer.
3 Tap
DISMISS
when the timer goes off.
Applications
77
Calculator
Perform simple or complex calculations.
Tap 实用工具
→
Calculator
on the Home screen.
Rotate the device to landscape orientation to display the scientific calculator. Tap to
display the scientific calculator.
To see the calculation history, tap
HISTORY
. To close the calculation history panel, tap
KEYPAD
.
To clear the history, tap
HISTORY
→
CLEAR HISTORY
.
Radio
Listening to the FM radio
Tap
Radio
on the Home screen.
Before you use this app, you must connect a headset, which serves as the radio antenna.
The FM radio scans and saves available stations automatically when running for the
first time.
Tap to turn on the FM radio. Select the radio station you want from the stations list.
View the list of favourites
stations.
Scan and save available stations
automatically.
Enter radio station frequency
manually.
Fine-tune the frequency.
Record a song from the FM radio.
View the list of available stations.
Access additional options.
Add the current radio station to
the favourites list.
Search for an available radio
station.
Turn the FM radio on or off.
Applications
78
Scanning radio stations
Tap
Radio
on the Home screen.
Tap
SCAN
, and then select a scan option. The FM radio scans and saves available stations
automatically.
Select the radio station you want from the stations list.
79
Settings
Introduction
Customise settings for functions and apps. You can make your device more personalised by
configuring various setting options.
On the Home screen, tap
Settings
.
To search for settings by entering keywords, tap
SEARCH
.
To edit the list of frequently used settings, tap
EDIT
. Then, tick items to add or deselect items
to remove.
WLAN
Connecting to a Wi-Fi network
Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or other
network devices.
Turn off Wi-Fi to save the battery when not in use.
1 On the Settings screen, tap
WLAN
, and then tap the switch to activate it.
2 Select a network from the Wi-Fi networks list.
Networks that require a password appear with a lock icon.
3 Tap
CONNECT
.
•
Once the device connects to a Wi-Fi network, the device will reconnect to that
network each time it is available without requiring a password. To prevent the
device connecting to the network automatically, select it from the list of networks
and tap
FORGET
.
•
If you cannot connect to a Wi-Fi network properly, restart your device’s Wi-Fi feature
or the wireless router.
Settings
80
WLAN Direct
Wi-Fi Direct connects devices directly via a Wi-Fi network without requiring an access point.
1 On the Settings screen, tap
WLAN
, and then tap the switch to activate it.
2 Tap
WLAN Direct
.
The detected devices are listed.
If the device you want to connect to is not in the list, request that the device turns on its
Wi-Fi Direct feature.
3 Select a device to connect to.
The devices will be connected when the other device accepts the Wi-Fi Direct
connections request.
Sending and receiving data
You can share data, such as contacts or media files, with other devices. The following actions
are an example of sending an image to another device.
1 Tap
Gallery
on the Home screen.
2 Select an image.
3 Tap
Share
→
WLAN Direct
and select a device to transfer the image to.
4 Accept the Wi-Fi Direct connection request on the other device.
If the devices are already connected, the image will be sent to the other device without
the connection request procedure.
Ending the device connection
1 Tap
WLAN
on the Settings screen.
2 Tap
WLAN Direct
.
The device displays the connected devices in the list.
3 Tap the device name to disconnect the devices.
Settings
81
Bluetooth
Introduction
Use Bluetooth to exchange data or media files with other Bluetooth-enabled devices.
•
Samsung is not responsible for the loss, interception, or misuse of data sent or
received via Bluetooth.
•
Always ensure that you share and receive data with devices that are trusted
and properly secured. If there are obstacles between the devices, the operating
distance may be reduced.
•
Some devices, especially those that are not tested or approved by the Bluetooth
SIG, may be incompatible with your device.
•
Do not use the Bluetooth feature for illegal purposes (for example, pirating copies
of files or illegally tapping communications for commercial purposes).
Samsung is not responsible for the repercussion of illegal use of the Bluetooth
feature.
Pairing with other Bluetooth devices
1 On the Settings screen, tap
Bluetooth
, and then tap the switch to activate it.
The detected devices are listed.
2 Select a device to pair with.
If the device you want to pair with is not in the list, request that the device turns on its
visibility option. Refer to the other device’s user manuals.
Your device is visible to other devices while the Bluetooth settings screen is open.
3 Accept the Bluetooth connection request on your device to confirm.
The devices will be connected when the other device accepts the Bluetooth connection
request.
Settings
82
Sending and receiving data
Many apps support data transfer via Bluetooth. You can share data, such as contacts or media
files, with other Bluetooth devices. The following actions are an example of sending an image
to another device.
1 Tap
Gallery
on the Home screen.
2 Select an image.
3 Tap
Share
→
Bluetooth
, and then select a device to transfer the image to.
If your device has paired with the device before, tap the device name without confirming
the auto-generated passkey.
If the device you want to pair with is not in the list, request that the device turns on its
visibility option.
4 Accept the Bluetooth connection request on the other device.
Unpairing Bluetooth devices
1 Tap
Bluetooth
on the Settings screen.
The device displays the paired devices in the list.
2 Tap next to the device name to unpair.
3 Tap
Unpair
.
Airplane mode
This disables all wireless functions on your device. You can use only non-network services.
On the Settings screen, tap
Airplane mode
.
Make sure the device is turned off during takeoff and landing.
Settings
83
WLAN hotspot and tethering
Use the device as a mobile hotspot to share the device’s mobile data connection with other
devices when the network connection is not available. Connections can be made via Wi-Fi,
USB, or Bluetooth.
On the Settings screen, tap
WLAN hotspot and tethering
.
You may incur additional charges when using this feature.
•
Mobile hotspot
: Use the mobile hotspot to share the device’s mobile data connection
with computers or other devices.
•
Bluetooth tethering
: Use Bluetooth tethering to share the device’s mobile data
connection with computers or other devices via Bluetooth.
•
USB tethering
: Use USB tethering to share the device’s mobile data connection with
a computer via USB. When connected to a computer, the device is used as a wireless
modem for the computer.
Using the mobile hotspot
Use your device as a mobile hotspot to share your device’s mobile data connection with other
devices.
1 On the Settings screen, tap
WLAN hotspot and tethering
→
Mobile hotspot
.
2 Tap the switch to activate it.
The icon appears on the status bar. Other devices can find your device in the Wi-Fi
networks list.
To set a password for the mobile hotspot, tap
MORE
→
Configure Mobile hotspot
and
select the level of security. Then, enter a password and tap
SAVE
.
3 On the other device’s screen, search for and select your device from the Wi-Fi networks
list.
4 On the connected device, use the device’s mobile data connection to access the Internet.
Settings
84
Data usage
Keep track of your data usage amount and customise the settings for the limitation.
On the Settings screen, tap
Data usage
.
•
Mobile data
: Set the device to use data connections on any mobile network.
•
Set data usage limit
: Set a limit for mobile data usage.
•
Manage app data
: Set network connection settings for each app to prevent them from
using WLAN or mobile network data.
•
Data compression
: Activate the Opera Max data compression feature to compress
Internet data when using the mobile network.
•
Enter usage data
: Manually enter your data usage.
•
Real-time network speed
: Set the device to display the real-time mobile network speed
on the status bar.
•
Data usage notifications
: Set the device to receive notifications of used WLAN or mobile
data amount by applications when your device is locked for more than five minutes.
To change the monthly reset date for the monitoring period, tap
Set data usage limit
→
Set
plan billing date
.
Limiting data usage
Set the device to automatically disable the mobile data connection when the amount of
mobile data you have used reaches your specified limit.
1 On the Settings screen, tap
Data usage
→
Set data usage limit
and tap the switch to
activate it.
2 Tap
Monthly data usage limit
, enter the limit, and then tap
SET
.
3 Tap
Data usage warning
and select an option.
The device will alert you when the warning percentage is reached.
To set the device to automatically turn off the data connection, tap the
Limit data usage
switch to activate it.
Settings
85
SIM card manager
Activate your SIM or USIM cards and customise the SIM card settings. Refer to Using dual SIM
or USIM cards for more information.
On the Settings screen, tap
SIM card manager
.
•
Calls
: Select a SIM or USIM card for voice calls.
•
Text messages
: Select a SIM or USIM for messaging.
•
Mobile data
: Select a SIM or USIM card for data service.
•
Dual SIM always on
: Set the device to allow incoming calls from the other SIM or USIM
card during a call.
When this feature is enabled, you may incur additional charges for call forwarding
depending on the region or service provider.
Mobile networks
Configure your mobile network settings.
On the Settings screen, tap
Mobile networks
.
•
Data roaming
: Set the device to use data connections when you are roaming.
•
Preferred networks
: Set up the preferred networks list.
•
Network mode SIM
卡
1
/
Network mode SIM
卡
2
: Select a network type.
•
Access Point Names
: Set up access point names (APNs).
•
Network operators
: Search for available networks and manually register a network.
Settings
86
More connection settings
Options
Customise settings to control other features.
On the Settings screen, tap
More connection settings
.
•
Nearby device scanning
: Set the device to scan for nearby devices to connect to.
•
Printing
: Configure settings for printer plug-ins installed on the device. You can search
for available printers or add one manually to print files. Refer to Printing for more
information.
•
VPN
: Set up and connect to virtual private networks (VPNs).
Printing
Configure settings for printer plug-ins installed on the device. You can connect the device to a
printer via Wi-Fi or Wi-Fi Direct, and print images or documents.
Some printers may not be compatible with the device.
1 Download and install printer plug-ins from
Galaxy Apps
or another apps store.
2 On the Settings screen, tap
More connection settings
→
Printing
.
3 Select a printer plug-in and tap the switch to activate it.
The device searches for printers that are connected to the same Wi-Fi network as your
device.
To add printers manually, tap
MORE
→
Add printer
→
ADD PRINTER
.
To change print settings, tap
MORE
→
Printing settings
.
Printing content
While viewing content, such as images or documents, tap
Share
→
Print
→
→
All
printers
, and then select a printer.
Settings
87
Sounds and vibrations
Change settings for various sounds on the device.
On the Settings screen, tap
Sounds and vibrations
.
•
Sound mode
: Set the device to use sound mode or silent mode.
•
Vibrate while ringing
: Set the device to vibrate and play a ringtone for incoming calls.
•
Volume
: Adjust the volume level for call ringtones, music and videos, system sounds, and
notifications.
•
Ringtone
: Change the ringtone and notification sound settings.
•
Vibration pattern
: Select a vibration pattern.
•
Notification sounds
: Select a default notification sound. You can also change the
notification settings for each app.
•
Touch sounds
: Set the device to sound when you select an app or option on the
touchscreen.
•
Screen lock sounds
: Set the device to sound when you lock or unlock the touchscreen.
•
Charging sound
: Set the device to sound when it is connected to a charger.
•
Dialing keypad tones
: Set the device to sound when you tap the buttons on the keypad.
•
Keyboard sound
: Set the device to sound when a key is touched.
•
Sound quality and effects
: Configure additional sound settings.
Notifications
Change the notification settings for each app.
On the Settings screen, tap
Notifications
.
To customise notification settings, tap
ADVANCED
and select an app.
•
Allow notifications
: Allow notifications from the selected app.
•
Set as priority
: Display notifications at the top of the notification panel and include them
in the allowed list when
Do not disturb
is activated.
•
Previews in pop-ups
: Display notification previews in pop-up windows.
•
Show on lock screen
: Display notifications from the selected app on t he locked screen.
Settings
88
•
Show on status bar
: Display the notification icon for the selected app on the status bar.
•
Show content on lock screen
: Display the content of notifications from the selected app
on the locked screen.
•
More settings
: Customise additional notification settings for the selected app.
Do not disturb
Set the device to mute incoming calls and notification sounds, except for allowed exceptions.
On the Settings screen, tap
Do not disturb
.
•
Turn on now
: Activate Do not disturb mode immediately.
•
Turn on as scheduled
: Activate Do not disturb mode at preset times. You can select days
and set the start and end times.
•
Allow exceptions
: Customise the settings for allowed exceptions.
Display
Change the display settings.
On the Settings screen, tap
Display
.
•
Brightness
: Adjust the brightness of the display.
•
Outdoor mode
: Activate outdoor mode to make the display easier to see in bright
conditions.
•
Font
: Change the font size and type.
•
Icon frames
: Set whether to display shaded backgrounds to make icons stand out.
•
LED indicator
: Set the device to turn on the LED indicator while the battery is charging,
when you have notifications, or when you make voice recordings.
•
Screen timeout
: Set the length of time the device waits before turning off the display’s
backlight.
•
Screen saver
: Set the device to launch a screensaver when the device is charging or
connected to a dock.
•
Keyboard backlight duration
: Set the duration for the keypad backlight.
Settings
89
Advanced features
Activate advanced features and change the settings that control them.
On the Settings screen, tap
Advanced features
.
Excessive shaking or impact to the device may cause unintended input for some
features.
•
Call/message spam filter
: Set the device to reject calls or messages from specified phone
numbers or reject messages containing specified text.
•
Hongbao assistant
: Set the device to notify you when you receive a hongbao via
WeChat. This feature will help you quickly open hongbaos.
•
Quick launch Camera
: Set the device to launch the camera by pressing the Home key
twice quickly.
•
Smart capture
: Set the device to capture content that continues across multiple screens,
and crop and share the screenshot immediately. Refer to Smart capture for more
information.
•
Direct share
: Set the device to display contact icons on the sharing options panel to
allow you to share content with your contacts directly.
Applications
Manage the device’s apps and change their settings.
On the Settings screen, tap
Applications
.
•
Application manager
: View and manage the apps on your device.
•
Default applications
: Select a default setting for using apps.
•
Application settings
: Customise the settings for each app.
Wallpaper
Change the wallpaper settings for the Home screen and the locked screen.
On the Settings screen, tap
Wallpaper
.
Settings
90
Home screen
Customise the Home screen by adding, deleting, or rearranging Home screen panels, and
more. Refer to Home screen options for more information.
On the Settings screen, tap
Home screen
.
Lock screen and security
Change the settings for securing the device and the SIM or USIM card.
On the Settings screen, tap
Lock screen and security
.
The available options may vary depending on the screen lock method selected.
•
Screen lock type
: Change the screen lock method.
•
Info and app shortcuts
: Change settings for the items displayed on the locked screen.
•
Notifications on lock screen
: Set whether or not to show notification content on the
locked screen and select which notifications to display.
•
Secure lock settings
: Change screen lock settings for the selected lock method.
•
Find My Mobile
: Activate or deactivate the Find My Mobile feature. Access the Find
my mobile website (findmymobile.samsung.cn) to track and control your lost or stolen
device.
•
Unknown sources
: Set the device to allow the installation of apps from unknown
sources.
•
Secure startup
: Protect your device by setting it to require a pattern when turning on
the device. You must draw the pattern to start your device and receive messages and
notifications.
•
Encrypt SD card
: Set the device to encrypt files on a memory card.
If you reset your device to the factory defaults with this setting enabled, the device
will not be able to read your encrypted files. Disable this setting before resetting the
device.
•
Other security settings
: Configure additional security settings.
Settings
91
Location
Change settings for location information permissions.
On the Settings screen, tap
Location
.
•
Locating method
: Select a network to use for locating your device.
•
Improve accuracy
: Set the device to use the Wi-Fi or Bluetooth feature to increase the
accuracy of your location information, even when the features are deactivated.
•
Recent location requests
: View which apps request your current location information
and their battery usage.
Easy mode
Easy mode provides an easier user experience by using a simpler layout and bigger icons on
the Home screen.
Some app features may not be available in easy mode.
Switching to easy mode
1 On the Settings screen, tap
Easy mode
→
Easy mode
.
2 Select apps under
Easy applications
to apply a simpler layout.
3 Tap
DONE
.
Returning to standard mode
Swipe to the left on the Home screen and tap
Settings
→
Easy mode
→
Standard mode
→
DONE
.
Managing shortcuts
To add a shortcut to an app to the Home screen, swipe to the left, tap , and then select an
app.
To add a shortcut to a contact on the Home screen, swipe to the right and tap .
To delete a shortcut from the Home screen, tap
EDIT
and select an app or contact with .
Settings
92
Accessibility
Configure various settings to improve accessibility to the device.
On the Settings screen, tap
Accessibility
.
•
Vision
: Customise the settings to improve accessibility for visually impaired users.
•
Hearing
: Customise the settings to improve accessibility for users with hearing
impairment.
•
Dexterity and interaction
: Customise the settings to improve accessibility for users who
have reduced dexterity.
•
Direction lock
: Change the directional combination settings for unlocking the screen.
•
Direct access
: Set the device to open selected accessibility menus when you press the
Home key three times quickly.
•
Notification reminder
: Set the device to alert you to notifications that you have not
checked at the interval.
•
Single tap mode
: Set the device to control incoming calls or notifications by tapping the
button instead of dragging it.
•
Manage accessibility
: Export or import the accessibility settings to share them with
other devices.
•
Services
: View accessibility services installed on the device.
Accounts
Add your Samsung account and other accounts to sync with them.
Adding accounts
Some apps used on your device require a registered account. Create accounts to have the
best experience with your device.
1 On the Settings screen, tap
Accounts
→
Add account
.
2 Select an account service.
3 Follow the on-screen instructions to complete the account setup.
To sync content with your accounts, select an account and select items to sync.
Settings
93
Removing accounts
On the Settings screen, tap
Accounts
, select an account name, select the account to remove,
and then tap
MORE
→
Remove account
.
Samsung Cloud
Options
You can manage the content that you want to store securely in Samsung Cloud. Check the
usage status of your Samsung Cloud storage, and sync, back up, and restore your data.
On the Settings screen, tap
Samsung Cloud
.
•
Cloud usage
: View the amount of storage space you are currently using in Samsung
Cloud and the amount of usage by data type. You can also delete backup data from old
devices after restoring data.
•
Sync settings
: Customise the sync settings of your data, such as contacts, calendar
events, images, and videos.
•
Backup and restore
: Keep your personal information, app data, and settings safe on your
device. You can back up your sensitive information and access it later. You must sign in to
your Samsung account to back up or restore data. Refer to Backup and restore for more
information.
Backup and restore
Keep your personal information, app data, and settings safe on your device. You can back up
your sensitive information and access it later. You must sign in to your Samsung account to
back up or restore data.
Using a Samsung account
On the Settings screen, tap
Samsung Cloud
→
Back up my data
, and tap the switches next
to the items you want to back up to activate them, and then tap
BACK UP NOW
.
Data will be backed up to Samsung Cloud.
To set the device to automatically back up data, tap the
Auto back up
switch to activate it.
To restore backup data from Samsung Cloud using a Samsung account, tap
Restore
. Select a
device and the data types you want to restore and tap
RESTORE NOW
. The selected data will
be restored to your device.
Settings
94
Backup and reset
Change the settings for managing settings and data.
On the Settings screen, tap
Backup and reset
.
•
Back up my data
: Back up your personal information and app data to the Samsung
server. You can also set the device to automatically back up data.
•
Restore
: Restore previously backed up personal information and app data from your
Samsung account.
•
Auto turn on/off
: Set the device to automatically turn on or off at a preset time.
•
Reset settings
: Return the device’s settings to the factory default settings without
deleting data.
•
Reset network settings
: Return the network connection settings to the factory default
settings.
•
Factory data reset
: Return the device to the factory default settings and delete all data.
Language and input
Select device languages and change settings, such as keyboards and voice input types. Some
options may not be available depending on the selected language.
On the Settings screen, tap
Language and input
.
•
Language
: Select a display language for all menus and apps.
•
Default keyboard
: Select a default keyboard type for text input.
•
Samsung keyboard
: Change the Samsung keyboard settings.
•
Text-to-speech
: Change the text-to-speech settings.
•
Pointer speed
: Adjust the pointer speed for the mouse or trackpad connected to your
device.
Settings
95
Battery
View battery power information and change power saving options.
On the Settings screen, tap
Battery
.
The usage time left shows the time remaining before the battery power runs
out. Usage time left may vary depending on your device settings and operating
conditions.
•
BATTERY USAGE
: View the amount of battery power consumed by your device.
•
Power saving mode
: Activate power-saving mode and change the settings for power-
saving mode. Refer to Power saving mode for more information.
•
App power monitor
: Set the device to save the battery by preventing apps that are
running in background from using battery power when they are not being used.
•
Unmonitored apps
: View and add the applications not to be stopped by the App power
monitor feature even if they are not being used.
Storage
View memory information for your device.
On the Settings screen, tap
Storage
.
The actual available capacity of the internal memory is less than the specified
capacity because the operating system and default apps occupy part of the memory.
The available capacity may change when you update the device.
Settings
96
Date and time
Access and alter the following settings to control how the device displays the time and date.
On the Settings screen, tap
Date and time
.
If the battery remains fully discharged or removed from the device, the time and date
is reset.
•
Automatic date and time
: Automatically update the time and date when moving across
time zones. When this feature is deactivated, you can manually set the date, time, and
time zone.
•
Use 24-hour format
: Display time in 24-hour format.
User manual
View help information to learn how to use the device and apps or configure important
settings.
On the Settings screen, tap
User manual
.
About device
Access device information, edit the device name, or update device software.
On the Settings screen, tap
About device
.
97
Appendix
Troubleshooting
Before contacting a Samsung Service Centre, please attempt the following solutions. Some
situations may not apply to your device.
When you turn on your device or while you are using the device, it
prompts you to enter one of the following codes:
•
Password: When the device lock feature is enabled, you must enter the password you set
for the device.
•
PIN: When using the device for the first time or when the PIN requirement is enabled, you
must enter the PIN supplied with the SIM or USIM card. You can disable this feature by
using the Lock SIM card menu.
•
PUK: Your SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly
several times. You must enter the PUK supplied by your service provider.
•
PIN2: When you access a menu requiring the PIN2, you must enter the PIN2 supplied with
the SIM or USIM card. For more information, contact your service provider.
Your device displays network or service error messages
•
When you are in areas with weak signals or poor reception, you may lose reception. Move
to another area and try again. While moving, error messages may appear repeatedly.
•
You cannot access some options without a subscription. For more information, contact
your service provider.
Your device does not turn on
•
When the battery is completely discharged, your device will not turn on. Fully charge the
battery before turning on the device.
•
The battery may not be inserted properly. Insert the battery again.
•
Wipe both gold-coloured contacts and insert the battery again.
Appendix
98
The touchscreen responds slowly or improperly
•
If you attach a screen protector or optional accessories to the touchscreen, the
touchscreen may not function properly.
•
If you are wearing gloves, if your hands are not clean while touching the touchscreen,
or if you tap the screen with sharp objects or your fingertips, the touchscreen may
malfunction.
•
The touchscreen may malfunction in humid conditions or when exposed to water.
•
Restart your device to clear any temporary software bugs.
•
Ensure that your device software is updated to the latest version.
•
If the touchscreen is scratched or damaged, visit a Samsung Service Centre.
Your device freezes or encounters a fatal error
Try the following solutions. If the problem is still not resolved, contact a Samsung Service
Centre.
Restarting the device
If your device freezes or hangs, you may need to close apps or turn off the device and turn it
on again.
Forcing restart
If your device is frozen and unresponsive, press and hold the Power key and the Volume
Down key simultaneously for more than 7 seconds to restart it.
Resetting the device
If the methods above do not solve your problem, perform a factory data reset.
On the Home screen, tap
Settings
→
Backup and reset
→
Factory data reset
→
RESET
DEVICE
→
DELETE ALL
. Before performing the factory data reset, remember to make backup
copies of all important data stored in the device.
Calls are not connected
•
Ensure that you have accessed the right cellular network.
•
Ensure that you have not set call barring for the phone number you are dialling.
•
Ensure that you have not set call barring for the incoming phone number.
Appendix
99
Others cannot hear you speaking on a call
•
Ensure that you are not covering the built-in microphone.
•
Ensure that the microphone is close to your mouth.
•
If using a headset, ensure that it is properly connected.
Sound echoes during a call
Adjust the volume by pressing the Volume key or move to another area.
A cellular network or the Internet is often disconnected or audio
quality is poor
•
Ensure that you are not blocking the device’s internal antenna.
•
When you are in areas with weak signals or poor reception, you may lose reception. You
may have connectivity problems due to issues with the service provider’s base station.
Move to another area and try again.
•
When using the device while moving, wireless network services may be disabled due to
issues with the service provider’s network.
The battery icon is empty
Your battery is low. Charge the battery.
The battery does not charge properly (For Samsung-approved
chargers)
•
Ensure that the charger is connected properly.
•
If the battery terminals are dirty, the battery may not charge properly or the device may
turn off. Wipe both gold-coloured contacts and try charging the battery again.
The battery depletes faster than when first purchased
•
When you expose the device or the battery to very cold or very hot temperatures, the
useful charge may be reduced.
•
Battery consumption increases when you use messaging features or some apps, such as
games or the Internet.
•
The battery is consumable and the useful charge will get shorter over time.
Appendix
100
Error messages appear when launching the camera
Your device must have sufficient available memory and battery power to operate the camera
app. If you receive error messages when launching the camera, try the following:
•
Charge the battery.
•
Free some memory by transferring files to a computer or deleting files from your device.
•
Restart the device. If you are still having trouble with the camera app after trying these
tips, contact a Samsung Service Centre.
Photo quality is poorer than the preview
•
The quality of your photos may vary, depending on the surroundings and the
photography techniques you use.
•
If you take photos in dark areas, at night, or indoors, image noise may occur or images
may be out of focus.
Error messages appear when opening multimedia files
If you receive error messages or multimedia files do not play when you open them on your
device, try the following:
•
Free some memory by transferring files to a computer or deleting files from your device.
•
Ensure that the music file is not Digital Rights Management (DRM)-protected. If the file is
DRM-protected, ensure that you have the appropriate licence or key to play the file.
•
Ensure that the file formats are supported by the device. If a file format is not supported,
such as DivX or AC3, install an app that supports it. To confirm the file formats that your
device supports, visit www.samsung.com/cn.
•
Your device supports photos and videos captured with the device. Photos and videos
captured by other devices may not work properly.
•
Your device supports multimedia files that are authorised by your network service
provider or providers of additional services. Some content circulated on the Internet,
such as ringtones, videos, or wallpapers, may not work properly.
Appendix
101
Another Bluetooth device is not located
•
Ensure that the Bluetooth wireless feature is activated on your device.
•
Ensure that the Bluetooth wireless feature is activated on the device you wish to connect
to.
•
Ensure that your device and the other Bluetooth device are within the maximum
Bluetooth range (10 m).
If the tips above do not solve the problem, contact a Samsung Service Centre.
A connection is not established when you connect the device to a
computer
•
Ensure that the USB cable you are using is compatible with your device.
•
Ensure that you have the proper driver installed and updated on your computer.
•
If you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher
installed on your computer.
Your device cannot find your current location
GPS signals may be obstructed in some locations, such as indoors. Set the device to use Wi-Fi
or a mobile network to find your current location in these situations.
Data stored in the device has been lost
Always make backup copies of all important data stored in the device. Otherwise, you cannot
restore data if it is corrupted or lost. Samsung is not responsible for the loss of data stored in
the device.
A small gap appears around the outside of the device case
•
This gap is a necessary manufacturing feature and some minor rocking or vibration of
parts may occur.
•
Over time, friction between parts may cause this gap to expand slightly.
There is not enough space in the device’s storage
Delete unnecessary data, such as cache, using the Smart manager or manually delete unused
apps or files to free up storage space.
Appendix
102
Notices
The names and content of toxic and hazardous substances or elements
Part Toxic and hazardous substances or elements
Pb Hg Cd Cr6+ PBB PBDE
PBA XOOOOO
Plastic OOOOOO
Metal XOOOOO
Battery XOOOOO
Accessory XOOOOO
O: Indicates that the toxic or hazardous substance contained in all of the homogeneous materials for this
part is below the limit specified in GB/T 26572.
X: Indicates that the toxic or hazardous substance contained in at least one of the homogeneous materials
used for this part is above the limit specified in GB/T 26572.
The information provided in this table is based on figures presented by supply manufacturers
and tests conducted by Samsung. All toxic and hazardous substances or elements are used at
the minimum level allowed by current technology. Samsung continues to make every effort
to reduce the need for these substances or elements through improved technology.
The “environmental protection use period” for this product is 20 years and
the corresponding logo is as shown on the left. Exchangeable parts, such
as batteries, may have different periods of warranty. The “environmental
protection use period” is valid only when the product is used under normal
conditions, as described in the manual.
FCC Part 15.19 Statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certification Information (SAR)
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the exposure limits for radio frequency (RF) energy set
by the Federal Communications Commission (FCC) of the U.S. government. These
FCC exposure limits are derived from the recommendations of two expert
organizations, the National Counsel on Radiation Protection and Measurement
(NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both
cases, the recommendations were developed by scientific and engineering experts
drawn from industry, government, and academia after extensive reviews of the
scientific literature related to the biological effects of RF energy.
The exposure limit set by the FCC for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate (SAR). The SAR is a measure
of the rate of absorption of RF energy by the human body expressed in units of watts
per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit
of 1.6 watts per kilogram (1.6 W/ kg). The FCC exposure limit incorporates a
substantial margin of safety to give additional protection to the public and to account
for any variations in measurements.
SAR tests are conducted using standard operating positions accepted by the FCC
with the phone transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the
actual SAR level of the phone while operating can be well below the maximum value.
This is because the phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a new model phone is available for sale to the public, it must be tested and
certified to the FCC that it does not exceed the exposure limit established by the
FCC. Tests for each model phone are performed in positions and locations (e.g. at
the ear and worn on the body) as required by the FCC.
For body worn operation, this model phone has been tested and meets the FCC RF
exposure guidelines when used with a Samsung accessory designated for this
product or when used with an accessory that contains no metal and that positions
the handset a minimum of 1.5 cm from the body.
Non-compliance with the above restrictions may result in violation of FCC RF
exposure guidelines.
SAR information on this and other model phones can be viewed on-line at
http://www.fcc.gov/oet/ea/fccid/. Please use the phone FCC ID number for search,
(
A3LSMG1650 ). Sometimes it may be necessary to remove the battery pack to find
the number. Once you have the FCC ID number for a particular phone, follow the
instructions on the website and it should provide values for typical or maximum SAR
for a particular phone. Additional product specific SAR information can also be
obtained at http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones
Copyright
Copyright © 2017 Samsung Electronics
This manual is protected under international copyright laws.
No part of this manual may be reproduced, distributed, translated, or transmitted in any form
or by any means, electronic or mechanical, including photocopying, recording, or storing
in any information storage and retrieval system, without the prior written permission of
Samsung Electronics.
Trademarks
•
SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
•
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
•
All other trademarks and copyrights are the property of their respective owners.
