SMG870A User Manual

Users Manual

User ManualPlease read this manual before operating yourphone, and keep it for future reference. DRAFT DRAFT DRAFT

Warning! This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Open Source SoftwareSome software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:http://opensource.samsung.com.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR DRAFT

ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.Modification of SoftwareSAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS.IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT UNAUTHORIZED SOFTWARE HAS BEEN DETECTED. YOU SHOULD THEN POWER DOWN THE DEVICE AND CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS.SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network DRAFT

connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe.Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] Samsung Telecommunications America (STA), LLCHeadquarters:1301 E. Lookout DriveRichardson, TX 75082 DRAFT

through AT&T, AT&T offers privacy controls that let you decide how an application may use the location of your phone and other phones on your account. However, AT&T's privacy tools do not apply to applications available outside of AT&T. Please review the terms and conditions and the associated privacy policy for each location-based service to learn how location information will be used and protected.Your phone may be used to access the Internet and to download, and/or purchase goods, applications, and services from AT&T or elsewhere from third parties. AT&T provides tools for you to control access to the Internet and certain Internet content. These controls may not be available for certain devices which bypass AT&T controls.AT&T may collect certain types of information from your device when you use AT&T services to provide customer support and to improve its services. For more information on AT&T's Privacy Policy, visit http://www.att.com/privacy. Your phone features earSmart™, an intelligent voice processor that delivers a clear voice experience, allowing you to hear and be heard™ in nearly any environment. earSmart technology uses the science of human hearing to distinguish sounds, identify your voice and suppress surrounding noise, for clear conversations just about anywhere.How Does It Work?• The earSmart voice processor in your phone captures your voice and all the sounds around you.• Working like the human ear, it processes and distinguishes these sounds, isolates your voice conversation, and removes background noise - from both ends of a call.• It also automatically equalizes and adjusts voice volume so you can hear and talk naturally, even in the noisiest places.• With earSmart technology, you can talk where you want, and have clear conversations for mobile calls, video chats, even speakerphone calls, without worrying about surrounding noise. DRAFT

1Table of ContentsSection 1: Getting Started ............................. 6Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . 6Charging a Battery . . . . . . . . . . . . . . . . . . . . . . . . 9Switching the Phone On or Off . . . . . . . . . . . . . . 11Locking and Unlocking the Touch Screen . . . . . . 12Configuring your Phone . . . . . . . . . . . . . . . . . . . 12Creating a New Google Account . . . . . . . . . . . . . 12Creating a Samsung Account . . . . . . . . . . . . . . . 13Setting Up Your Voice Mail . . . . . . . . . . . . . . . . . 13Section 2: Understanding Your Phone ........14Features of Your Phone . . . . . . . . . . . . . . . . . . . 14Front View of Your Phone . . . . . . . . . . . . . . . . . . 15Side Views of Your Phone . . . . . . . . . . . . . . . . . . 16Rear View of Your Phone . . . . . . . . . . . . . . . . . . 17Display Layout . . . . . . . . . . . . . . . . . . . . . . . . . . 18Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . 22Using Motions and Gestures . . . . . . . . . . . . . . . . 23Using the Multi Window . . . . . . . . . . . . . . . . . . . 26Customizing Your Home Screen . . . . . . . . . . . . . 30Notification Bar . . . . . . . . . . . . . . . . . . . . . . . . . . 35Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 36Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Using the Google Voice Typing Feature . . . . . . . . 41Entering Text Using Swype . . . . . . . . . . . . . . . . . 41Section 3: Call Functions .............................43Displaying Your Phone Number . . . . . . . . . . . . . . 43Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . 43Making Emergency Calls . . . . . . . . . . . . . . . . . . . 44Making a Call Using Speed Dial . . . . . . . . . . . . . . 45Making a Call from the Address Book . . . . . . . . . 45Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . 46Dialing Options . . . . . . . . . . . . . . . . . . . . . . . . . . 47Call Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47Call Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49Options During a Call . . . . . . . . . . . . . . . . . . . . . . 50Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54Section 4: Contacts and Your Address Book ..........................................................55AT&T Address Book Activation . . . . . . . . . . . . . . . 55Adding a New Contact . . . . . . . . . . . . . . . . . . . . . 56 DRAFT

2Editing an Existing Contact . . . . . . . . . . . . . . . . . 58Using Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . 58Linking Contacts . . . . . . . . . . . . . . . . . . . . . . . . . 59Synchronizing Accounts . . . . . . . . . . . . . . . . . . . 61Address Book Options . . . . . . . . . . . . . . . . . . . . . 61Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63Address Book Favorites . . . . . . . . . . . . . . . . . . . . 64Managing Address Book Contacts . . . . . . . . . . . . 65Section 5: Multimedia ..................................68Samsung Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . 68Samsung Link . . . . . . . . . . . . . . . . . . . . . . . . . . . 71AT&T Locker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75Using Playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . 77Google Play Music . . . . . . . . . . . . . . . . . . . . . . . . 78Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79Play Movies & TV . . . . . . . . . . . . . . . . . . . . . . . . 80Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83Using the Camera . . . . . . . . . . . . . . . . . . . . . . . . 84Camera Modes . . . . . . . . . . . . . . . . . . . . . . . . . . 85Quick Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 86Camera and Camcorder Settings . . . . . . . . . . . . .87Editing a Photo . . . . . . . . . . . . . . . . . . . . . . . . . . .89Using the Camcorder . . . . . . . . . . . . . . . . . . . . . .90Section 6: Messaging .................................. 92Types of Messages . . . . . . . . . . . . . . . . . . . . . . .92Creating and Sending Messages . . . . . . . . . . . . .92Message Options . . . . . . . . . . . . . . . . . . . . . . . . .93Viewing New Received Messages . . . . . . . . . . . .96Deleting Messages . . . . . . . . . . . . . . . . . . . . . . . .97Message Search . . . . . . . . . . . . . . . . . . . . . . . . .97Messaging Settings . . . . . . . . . . . . . . . . . . . . . . .98Using Email . . . . . . . . . . . . . . . . . . . . . . . . . . . .101Using Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . .102Hangouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104Google + . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104Messages App . . . . . . . . . . . . . . . . . . . . . . . . . .105ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105Section 7: Changing Your Settings ........... 106Accessing Settings . . . . . . . . . . . . . . . . . . . . . . .106Settings Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . .106Wi-Fi Settings . . . . . . . . . . . . . . . . . . . . . . . . . .107Bluetooth settings . . . . . . . . . . . . . . . . . . . . . . .108Data Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . .109 DRAFT

3More networks . . . . . . . . . . . . . . . . . . . . . . . . . 109NFC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114S Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115Nearby devices . . . . . . . . . . . . . . . . . . . . . . . . . 115Screen Mirroring . . . . . . . . . . . . . . . . . . . . . . . 115Lock Screen Settings . . . . . . . . . . . . . . . . . . . . 116Display Settings . . . . . . . . . . . . . . . . . . . . . . . . 117LED indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 119Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . 119Home screen mode . . . . . . . . . . . . . . . . . . . . . 121Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 122Blocking Mode . . . . . . . . . . . . . . . . . . . . . . . . . 127Hands-free Mode . . . . . . . . . . . . . . . . . . . . . . . 127Power saving mode . . . . . . . . . . . . . . . . . . . . . 128Accessory Settings . . . . . . . . . . . . . . . . . . . . . . 129Accessibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 129Language and input . . . . . . . . . . . . . . . . . . . . . 131Motions and Gestures . . . . . . . . . . . . . . . . . . . . 137Smart screen . . . . . . . . . . . . . . . . . . . . . . . . . . 139Air view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . 140Add Account . . . . . . . . . . . . . . . . . . . . . . . . . . . 140Back up and reset . . . . . . . . . . . . . . . . . . . . . . 142Location services . . . . . . . . . . . . . . . . . . . . . . . 143Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143Application Manager . . . . . . . . . . . . . . . . . . . . . 148Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150Date and time . . . . . . . . . . . . . . . . . . . . . . . . . . 151About Device . . . . . . . . . . . . . . . . . . . . . . . . . . . 151Section 8: Connections ..............................154Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154NFC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158PC Connections . . . . . . . . . . . . . . . . . . . . . . . . . 162Section 9: Applications ..............................164Amazon Kindle . . . . . . . . . . . . . . . . . . . . . . . . . 164AT&T DriveMode . . . . . . . . . . . . . . . . . . . . . . . . 164AT&T FamilyMap . . . . . . . . . . . . . . . . . . . . . . . . 165AT&T Locker . . . . . . . . . . . . . . . . . . . . . . . . . . . 165AT&T Mobile Locate . . . . . . . . . . . . . . . . . . . . . 165AT&T Navigator . . . . . . . . . . . . . . . . . . . . . . . . . 166AT&T Smart Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . 166Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 DRAFT

4ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169Chrome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173Flipboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173G+ Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173Google . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174Google Settings . . . . . . . . . . . . . . . . . . . . . . . . . 174Google + . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174Group Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174Hangouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176Lookout Security . . . . . . . . . . . . . . . . . . . . . . . . 179Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180Mobile Hotspot . . . . . . . . . . . . . . . . . . . . . . . . . 180Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180My Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180myAT&T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181Optical Reader . . . . . . . . . . . . . . . . . . . . . . . . . .181Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181Play Books . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182Play Games . . . . . . . . . . . . . . . . . . . . . . . . . . . .182Play Magazines . . . . . . . . . . . . . . . . . . . . . . . . .182Play Movies & TV . . . . . . . . . . . . . . . . . . . . . . . .183Play Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183Play Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183POLARIS Office 5 . . . . . . . . . . . . . . . . . . . . . . . .183S Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .184S Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185S Translator . . . . . . . . . . . . . . . . . . . . . . . . . . . .187S Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187Samsung Apps . . . . . . . . . . . . . . . . . . . . . . . . . .188Samsung Hub . . . . . . . . . . . . . . . . . . . . . . . . . .188Samsung Link . . . . . . . . . . . . . . . . . . . . . . . . . .188Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .188Story Album . . . . . . . . . . . . . . . . . . . . . . . . . . . .189TripAdvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189Usage Manager . . . . . . . . . . . . . . . . . . . . . . . . .189 DRAFT

5Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189Voice Recorder . . . . . . . . . . . . . . . . . . . . . . . . . 189Voice Search . . . . . . . . . . . . . . . . . . . . . . . . . . 190WatchON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195YP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195Section 10: Health and Safety Information ............................................. 197Exposure to Radio Frequency (RF) Signals . . . . 197Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . . . . . . . . . . . . . . . . . 202FCC Part 15 Information to User . . . . . . . . . . . . 204Commercial Mobile Alerting System (CMAS) . . . 204Smart Practices While Driving . . . . . . . . . . . . . 204Battery Use and Safety . . . . . . . . . . . . . . . . . . . 206Samsung Mobile Products and Recycling . . . . . 208UL Certified Travel Charger . . . . . . . . . . . . . . . . 209Display / Touch-Screen . . . . . . . . . . . . . . . . . . 209GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210Emergency Calls . . . . . . . . . . . . . . . . . . . . . . . . 210Care and Maintenance . . . . . . . . . . . . . . . . . . . 211Responsible Listening . . . . . . . . . . . . . . . . . . . . 212Operating Environment . . . . . . . . . . . . . . . . . . . 214FCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices . . . . . . . . . . 216Restricting Children's Access to Your Mobile Device . . . . . . . . . . . . . . . . . . . . . . . . 218FCC Notice and Cautions . . . . . . . . . . . . . . . . . . 218Other Important Safety Information . . . . . . . . . . 218Section 11: Warranty Information .............221Standard Limited Warranty . . . . . . . . . . . . . . . . 221End User License Agreement for Software . . . . . 226Section 12: Samsung Product Registration .............................................232Index ............................................................233 DRAFT DRAFT

Getting Started 6Section 1: Getting StartedThis section explains how to start using your phone by first configuring your hardware, activating your service, and then setting up your voice mail.Setting Up Your PhonePrior to use it is necessary to install both the battery and SIM into their corresponding internal compartments. The microSD™ card slot is also located in this same internal area.1. Remove the back cover by inserting a fingernail into the slot on the top of your phone (1). 2. Lift the cover up (2) and to the right of the phone. Caution! Do not bend or twist the back cover excessively. Doing so may damage the cover.Installing the SIM CardWhen you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, available optional services, and many others features. DRAFT

7Important! The plug-in SIM card information and its contacts can be easily damaged by scratching or bending, so be careful when handling, inserting, or removing the card. Keep all SIM cards out of reach of small children. Carefully slide the SIM card into the SIM card socket (as shown) until the card locks into place. •Make sure that the card’s gold contacts face into the phone and that the upper-left angled corner of the card is positioned as shown.Note: If the card is not inserted correctly, the phone will not detect the SIM card. Re-orient the card back into the slot if the SIM is not detected.Installing the Battery1. Insert the battery into the opening on the back of the phone, making sure the connectors align (1). 2. Gently press down to secure the battery (2). DRAFT

Getting Started 8Removing and Installing the Memory CardYou can use a microSD (SD) or microSDHC card to expand available memory space if you desire. This secure digital card enables you to exchange images, music, and data between SD-compatible devices. This type of memory card is designed for use with this mobile phone and other devices.Note: Your phone has been tested to support up to a 64GB memory card.Installing the Memory Card Push the microSD card into the slot until it clicks (as shown). •Make sure the microSD’s gold contact pins face downward and the card is securely inserted.For more information on Memory Cards, see “Memory Card” on page 36.Removing the Memory Card1. Push on the memory card until it clicks and is released. 2. Grasp the memory card and remove it from the phone. DRAFT

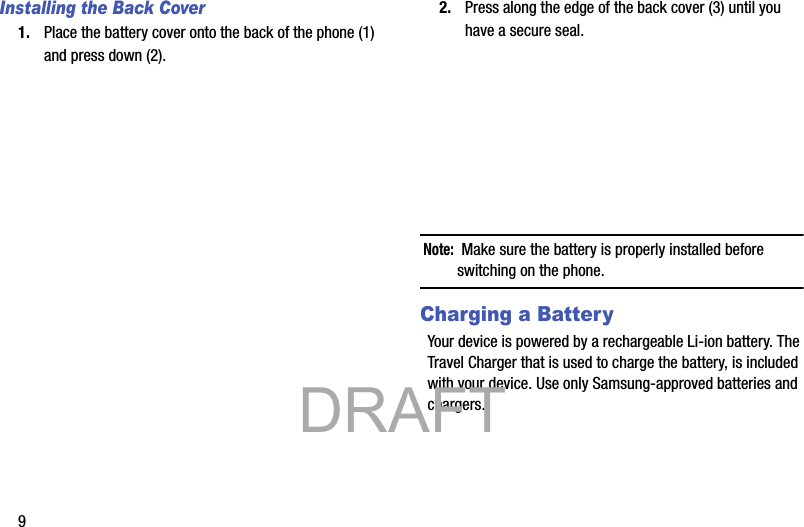

9Installing the Back Cover1. Place the battery cover onto the back of the phone (1) and press down (2).2. Press along the edge of the back cover (3) until you have a secure seal.Note: Make sure the battery is properly installed before switching on the phone.Charging a BatteryYour device is powered by a rechargeable Li-ion battery. The Travel Charger that is used to charge the battery, is included with your device. Use only Samsung-approved batteries and chargers. DRAFT

Getting Started 10Note: You must fully charge the battery before using your phone for the first time. A discharged battery recharges fully in approximately 4 hours.Note: Long backlight settings, searching for service, vibrate mode, web browser use, and other variables may reduce the battery’s talk and standby times.Although you can use the phone while the battery is charging, doing so will require additional charging time. Using the Travel ChargerImportant! Verify that the handset battery is installed prior to connection. If the battery is not properly installed and the wall charger is connected, the handset may power off and on continuously, preventing proper operation.1. Plug the flat end of the Travel Charger into the Power/Accessory Interface connector and the other end into a standard AC wall outlet.2. When charging is finished, remove the flat end from the interface connector jack on the phone. DRAFT

11Warning! If your handset has a touch screen display, please note that a touch screen responds best to a light touch from the pad of your finger. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, refer to “Standard Limited Warranty” on page 221.Note: Failure to unplug the wall charger before you remove the battery, can cause damage to the phone.Low Battery IndicatorWhen the battery is weak and only a few minutes of talk time remain, the battery icon ( ) blinks and the device sounds a warning tone at regular intervals. In this condition, your phone conserves its remaining battery power, not by turning off the backlight, but by entering the dimming mode. For a quick check of your battery level, glance at the battery charge indicator located in the upper-right corner of your device’s display. Solid color ( ) indicates a full charge.When the battery level becomes too low, the phone automatically turns off.You can also choose to display a percentage value. Having a percentage value on-screen can provide a better idea of the remaining charge on the battery. From the Home screen, tap ➔ Settings ➔ My device ➔ Display ➔ Show battery percentage. Switching the Phone On or Off1. Press and hold until the phone switches on.2. Swipe your finger across the screen to unlock the phone. DRAFT

Getting Started 12Note: The display language is preset to English at the factory. To change the language, use the Language menu. For more information, refer to “Changing Your Settings” on page 106.3. To switch off the phone, press and hold , until the Device options screen displays.4. Tap Power off to switch off the phone.5. At the Power off prompt, tap OK.Locking and Unlocking the Touch Screen1. Press to lock the touch screen.2. Press again to display the lock screen then swipe your finger across the screen to unlock.Note: Swipe is the default screen locking method. To change your screen lock, see “Lock Screen Settings” on page 116.Configuring your PhoneWhen you first turn on your phone, you will need to set up a few things.1. The Welcome to AT&T Ready2Go! screen displays. The default language for your phone is English. If you would like to select another language, tap English and scroll up or down to select one of the listed languages.2. Tap the Accessibility box at the bottom of the screen to modify any of the Accessibility function if you desire. For more information, refer to “Accessory Settings” on page 129.3. Tap Next and follow the instructions on each screen to set up your phone.Creating a New Google AccountIn order to utilize your device to the fullest extent, you will need to create a Google™ Account when you first use your device. With a Google Account, Google applications will always be in sync between your phone and computer.If you did not create a new account during the setup procedure when you first turned your phone on, follow these steps: DRAFT

131. From the Home screen, tap ➔ Gmail.The Add a Google Account screen displays.2. Tap New to create a new Google account.– or –If you already have a Google account, tap Existing to sign in and add the account to your phone.3. Follow the on-screen instructions to add a Google Account.Note: Once you have created a Google account, you only need Note: These steps may be different depending on your network.Accessing Your Voice Mail1. From the Home screen, tap , then tap .You may be prompted to enter a password.2. When connected, follow the voice prompts from the voice mail center. Accessing Your Voice Mail From Another Phone1. Dial your wireless phone number.2. When you hear your voicemail greeting, press the asterisk key on the phone you are using.3. Enter your password. DRAFT

Understanding Your Phone 14Section 2: Understanding Your PhoneThis section outlines some key features of your phone and describes the screen and the icons that appear when the phone is in use. It also shows how to navigate through the phone and provides information on using a memory card.Features of Your PhoneYour phone is lightweight, easy-to-use and offers many useful features. The following list outlines a few of the features included in your phone. DRAFT

15Front View of Your Phone 1.Status light: displays red when charging or the battery is low, blue when a notification has arrived or you are voice recording, and green when fully charged.2.Light (RGB) Sensor: lets you use the ambient light level to adjust the screen brightness/contrast. This sensor decreases screen brightness in dim light.3.External speaker: allows you to hear the caller.4. Application icons: you can place shortcuts to your favorite applications on the Home screen.5. Primary shortcuts: allows quick access to important features such as Phone, Contacts, Messaging, Internet, and Apps. For more information, refer to “Primary Shortcuts” on page 18.6. Menu key: allows you to access sub-menus with additional options for different features and applications such as Home screen, Phone, Contacts, Messaging, and Web.7. Home key: allows you to return to the main Home screen from any Home screen or menu. Press and hold to display Recent apps, Task Manager, and Google Search. Quickly press twice to activate the S Voice application.8. Back key: allows you step backwards when navigating a menu or web page. DRAFT

Understanding Your Phone 169.Home screen indicator: shows which Home screen is presently displayed.10. Google Quick Search bar: a shortcut to Google Search that allows you to search for items on the internet.11. Weather widget: displays Time, Day, Date, Temperature and weather conditions for your area.12. Indicator icons: shows the information needed to operate your phone, such as the received signal strength, phone battery level, time, unread Emails, missed calls, etc.13.Front facing camera: allows you to take pictures of yourself when you set the camera shooting mode to Self shot.14.Proximity and Light sensors: uses the ambient light level to adjust keypad access. If the light path is blocked, for example, when holding the phone close to your ear, the touch screen will turn off.Side Views of Your Phone DRAFT

171.3.5mm Headset jack: allows you to plug in headphones.2.Volume keys: allow you to adjust the ringer volume while in standby mode or adjust the voice volume during a call. When receiving an incoming call, briefly press down either volume key ( ) to mute the ring tone. Adjusts text size when reading a message.3.Microphone: allows other callers to hear you when you are speaking to them. It is also used for the Speakerphone.4. Power/Accessory Interface connector: allows you to connect a Travel Charger or other optional accessories such as a USB/data cable or a hands-free headset for convenient, hands-free conversations.5. Power/Lock key: ( ) lets you power your phone on and off. Also allows you to lock or unlock the touch screen. For more information on locking your phone, see “Locking and Unlocking the Phone” on page 25.6.Infrared Blaster: Used to emit infrared signals used for controlling external devices. 7.Microphone: used for noise cancellation and stereo recording.Rear View of Your Phone 1.Camera lens: is used to take pictures and shoot videos.2.External speaker: allows you to hear when the Speakerphone is turned on.3.Flash: is used to provide adequate light when taking pictures in dark places. DRAFT

Understanding Your Phone 18Display LayoutYour display screen provides a wealth of information about the phone’s status and options, as well as providing access to application icons. For more information, refer to “Front View of Your Phone” on page 15. Primary ShortcutsThere are four non-movable Application Shortcuts that appear at the bottom of all Home screens. The default shortcuts are:• Phone for dialing a number.• Contacts for managing your contacts in your Address Book.• Messaging for creating and viewing Messages.• Internet for surfing the Internet.• Apps for accessing the applications on your phone. You can change the Phone, Contacts, Messaging, and Internet application shortcuts to any icon that is displayed in the Apps menu.For more information, refer to “Adding and Removing Primary Shortcuts” on page 32.Indicator IconsThis list identifies the symbols you’ll see on your phone’s display and Indicator area: Displays your current signal strength. The greater the number of bars, the stronger the signal.Indicates that the Airplane Mode is active. You cannot send or receive any calls or access online information.Displays when there is no SIM card in the phone.Displays when there is no network available.Displays when your phone is in Blocking mode.Displays when there is a system error or alert.Displays to indicate a security warning. You are prompted to set a screen lock password.Displays when a call is in progress. DRAFT

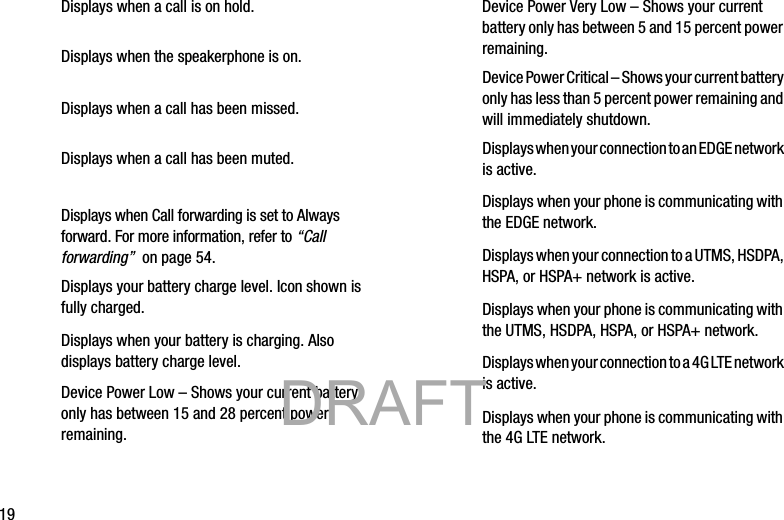

19Displays when a call is on hold.Displays when the speakerphone is on.Displays when a call has been missed.Displays when a call has been muted.Displays when Call forwarding is set to Always forward. For more information, refer to “Call forwarding” on page 54.Displays your battery charge level. Icon shown is fully charged.Displays when your battery is charging. Also displays battery charge level.Device Power Low – Shows your current battery only has between 15 and 28 percent power remaining.Device Power Very Low – Shows your current battery only has between 5 and 15 percent power remaining.Device Power Critical – Shows your current battery only has less than 5 percent power remaining and will immediately shutdown.Displays when your connection to an EDGE network is active.Displays when your phone is communicating with the EDGE network.Displays when your connection to a UTMS, HSDPA, HSPA, or HSPA+ network is active.Displays when your phone is communicating with the UTMS, HSDPA, HSPA, or HSPA+ network.Displays when your connection to a 4G LTE network is active.Displays when your phone is communicating with the 4G LTE network. DRAFT

21For more details on configuring your phone’s settings, see “Changing Your Settings” on page 106.Displays when there is a Wi-Fi access point available but you are not connected to it. May also display if there is a communication issue with the target Wireless Access Point (WAP).Displays when Wi-Fi Direct is active and your phone is connected to another device.Displays when your phone as been configured as a portable Wi-Fi hotspot.Displays when GPS is active and acquiring a signal.Displays when data synchronization and application sync is active and synchronization is in progress for Gmail, Calendar, and Contacts.Displays when your phone is connecting to the Device Management server when you first turn on your phone.Displays when Near Field Communication (NFC) has been activated.Displays when your device is connected being used to control streaming media and is connected to a Digital Living Network Alliance (DLNA) certified device using the Samsung Link application.Displays when your device is currently sharing/streaming media to a paired device using the Samsung Link application.Displays when TTY device has been inserted.Displays when a screen capture has been taken.Displays when the keypad is active.Displays when an emergency call is taking place. DRAFT

Understanding Your Phone 22Google Search BarThe Google Search Bar provides you an on-screen Internet search engine powered by Google™. 1. From the main Home screen, tap the Google Search bar .2. Use the on-screen keypad to enter the item you want to search for, then tap .3. Tap to use Google Voice Search. Follow the on-screen instructions.Menu NavigationYou can tailor the phone’s range of functions to fit your needs using both menus and widgets. Menus, sub-menus, and features can be accessed by scrolling through the available on-screen menus. Your phone originally has three home screens but you can expand up to seven home screens.Command KeysMenu KeyPress Menu to display a context-sensitive menu of options for the current screen or feature.Home KeyPress Home to display the main Home screen. Press and hold to display recently used apps and access the Task manager.Back KeyPress Back to return to the previous screen, option or step.Terms used in this user manualTapLightly touch items to select or launch them. For example:• Tap the on screen keyboard to enter characters or text.• Tap a menu item to select it.• Tap an application’s icon to launch the application.Touch and HoldActivate on-screen items by a touch and hold gesture. For example: • Touch and hold a widget on the home screen to move it.• Touch and hold on a field to display a pop-up menu of options. DRAFT

23Swipe and Palm SwipeTo swipe, lightly drag your finger vertically or horizontally across the screen. Use swipe when:• Unlocking the screen• Scrolling through the Home screen or a menuTo palm swipe, swipe the side of your hand horizontally across the screen. Use palm swipe when:• Capturing the screenPanningTo pan, touch and hold a selected icon, then move the device to the left or right to reposition it to another page. You must first activate Motion on your device. Use panning to:• Move icons on your Home screens or Application Menus to another page.TiltTo activate the tilt feature, press and hold two points on the screen then tilt the device back and forth to reduce or enlarge the screen. Use tilt to:• Reduce or enlarge the screen in the Gallery or Browser.Turn overTurn your phone over so that the screen faces downward. For example:• Mute incoming calls and playing sounds by turning your phone over.Using Motions and GesturesBy activating the various motion and gesture features, you can access a variety of time saving functions.Caution! Excessive shaking or impact to the device may cause unintended results. To learn how to properly control motions, tap Apps ➔ Settings ➔ My device ➔ Motions and gestures. When tapped, each entry comes with an on-screen tutorial.• Air gesture: Allows you to control your device by performing motions above the sensor (without touching the device).•Motion: Allows you to control your device using natural movements (on the screen).• Palm motion: Allows you to control your device by touching the screen with your entire hand. DRAFT

Understanding Your Phone 24To activate Air gesture:1. From the Home screen, press and then tap Settings ➔ My device ➔ Motions and gestures ➔ Air gesture.2. Tap the ON/OFF slider located to the right of Air gesture to turn it on .The Air gesture icon will appear in the status bar.3. Read the on-screen notification and tap OK.Note: At least one feature must be activated before Air gesture Note: At least one feature must be activated before Motion can be activated.4. Tap the ON/OFF slider located to the right of each feature to turn it on .To activate Palm Motion:1. From the Home screen, press and then tap Settings ➔ My device ➔ Motions and gestures.2. In a single motion touch and slide the Palm motion slider to the right to turn it on. 3. Read the on-screen notification and tap OK.Note: At least one feature must be activated before Palm motion can be activated.4. Tap the ON/OFF slider located to the right of each feature to turn it on .For more information, refer to “Motions and Gestures” on page 137. DRAFT

25Locking and Unlocking the PhoneTo unlock your phone:1. Press the lock button located on the upper right side of your phone.2. The lock screen will display with Swipe screen to unlock displayed at the bottom of the screen.3. Swipe the touch screen in any direction.4. The Home screen will be displayed.Note: There are several additional ways you can lock your screen. For more information, refer to “Lock Screen Settings” on page 116.Home Screen OverviewThe main home screen is the starting point for many applications and functions, and it allows you to add items like application icons, shortcuts, folders, or Google widgets to give you instant access to information and applications. This is the default page and accessible from any menu by pressing .Navigating Through the Home ScreensYour phone originally has three home screens but you can expand up to seven home screens. If you like, you can place different applications on each of the home screens. From the main Home screen, sweep the screen with your finger in either direction. The main Home Screen is located in the middle with a Home screen on each side.Navigating Through the Application MenusYour phone initially has three Application Menus available. Follow these steps to navigate through the Application Menus:1. At the Home screen, tap . The first Application Menu will be displayed.2. Sweep the screen left or right to access the other two menus.3. Tap one of the application icons.Note: As you add applications, the number of Application menus that you have available will increase. DRAFT

Understanding Your Phone 26Navigating Using Sub-MenusSub-menus are available when you are at any Home screen or have selected a feature or application such as Phone, Contacts, Messaging, or Internet.To access a sub-menu:1. Press .A sub-menu will appear at the bottom of the phone screen.2. Tap an option.Accessing Recently-Used Apps1. Press and hold from any screen to open the recently-used applications window.2. Tap an icon to open the selected application.– or –Tap to go to the Task manager.– or –Tap to go to Google Search.– or –Tap to delete the record of all recently used applications.Using the Multi WindowThis feature allows you to run multiple applications on the current screen at the same time. Note: Only applications found within the Multi window panel can be active atop another current application on the screen.When launching applications that contain multimedia files (music/video), audio from both files will be played simultaneously.Activating and Deactivating Multi windowThere are two different ways you can activate and deactivate the Multi window feature:To activate Multi window via the Notification screen:1. In a single motion, touch the Status bar to reveal the Notifications tab, and then drag it to the bottom of the screen to open the Notifications screen.2. Swipe the row of icons to the left until the Multi window icon is displayed.3. Tap the Multi window entry to activate the feature. The icon turns green when active. DRAFT

274. Tap Home to return to the Home screen.5. Tap the tab to open the application panel showing all the available Multi window apps.Note: Once you have turned the Multi window option on in step 3, you only need to press and hold the Back key ( ) to re-activate the Multi window feature.To activate Multi window via the Settings menu:1. From the Home screen, tap ➔ Settings ➔ My device ➔ Display ➔ Multi window.2. Tap the ON/OFF slider, located to the right of the Multi window field, to turn the feature on . 3. Tap Home to return to the Home screen.4. Tap the tab to open the application panel showing all the available Multi window apps.To deactivate Multi window: Press and hold the Back key ( ). This action hides the Multi window tab from view.Repositioning the Multi WindowThe Multi window contains two components: tab and apps panel. The tab can be manually moved across the screen. The apps panel (containing the scrollable apps) can be relocated to lock onto the different sides of the screen (top/bottom/left/right).To move the tab:1. Activate the Multi window feature.2. In a single motion, touch and hold the tab for approximately one-second, then slowly drag it to its new location along the current screen edge.Note: This is a quick way to get the tab out of the way if you can’t get to a button or option behind it. To relocate the Multi window apps panel:1. Activate the Multi window feature.2. Tap the tab to display the apps panel (containing the scrollable apps). DRAFT

Understanding Your Phone 283. In a single motion, touch and hold the tab for approximately one-second to detach it from the screen, then slowly drag it to its new location along any other available screen edge. You can move it to the top, bottom, or either side.Customizing the Multi Window appsThe applications found within the apps panel of the Multi window can be organized by either being rearranged or removed.To rearrange the Multi window applications:1. Activate the Multi window feature.2. Tap the tab to display the apps panel (containing the scrollable apps).3. In a single motion, touch and hold a desired app until it detaches from the panel, then carefully drag it to a new location in the list of apps. Lift your finger or stylus off the screen to let go of the app and drop it into its new location.To remove a Multi window application:1. Activate the Multi window feature.2. Tap the tab to display the apps panel (containing the scrollable apps).3. Tap the Edit button (located at the bottom of the list) to reveal a staging area that can house any removed applications from the Multi window panel.4. Tap Done once you have completed the removal process.To restore a Multi window application:1. Activate the Multi window feature.2. Tap the tab to display the apps panel (containing the scrollable apps).3. Tap the Edit button (located at the bottom of the list) to reveal the staging area containing any previously removed apps.4. Locate the desired application.5. In a single motion, touch and hold a desired app until it detaches from the staging area, then carefully drag it to a new location in the current list of apps. DRAFT

29Using Multi Window to run multiple apps on the same screenAny of the apps found within the Multi window panel can be run at the same time as a current on-screen app. Once multiple apps are running on the same screen, you can then choose to either swap their positions or maximize a desired app.Note: Only applications found within the Multi-window panel can be active atop another current application on the screen.When launching applications that contain multimedia files (music/video), audio from both files will be played simultaneously.In this example we will be launching both the Internet and Maps applications.1. Launch an application such as Internet.2. Activate the Multi window feature.3. Tap the tab to display the apps panel.4. Touch and hold the desired app, such as Maps, until it detaches from the panel.5. In a single motion, drag it over the current app and drop the new Multi window app over either the top or bottom area of the current on-screen app. Note: Once two applications are running, the device displays a split screen view containing both the initial app and the new Multi window app. Each application is still independent of the other. DRAFT

Understanding Your Phone 30To switch the arrangement of the applications:1. With the two applications shown in a split screen, tap the Border bar to show the on-screen icons.2. Tap the desired application area (top or bottom).3. Locate and tap (Switch app location). The current apps are switched.To increase the size of a desired application window:1. With the two applications shown in a split screen, locate the Border bar indicating the edge of the app window.2. In a single motion, touch and hold the Border bar then drag it to resize the desired window.To split the current applications:1. With the two applications shown in a split screen, tap the Border bar to show the on-screen icons.2. Tap the desired application area (top or bottom).3. Locate and tap (Maximize the app). The current apps are the both maximized. To exit the Multi window app, tap .Customizing Your Home ScreenYou can customize your Home screen by doing the following: • Creating Shortcuts• Adding and Removing Primary Shortcuts• Adding and Removing Widgets• Moving Icons in the Apps Menu• Creating Application Folders• Adding a New Page to the Application Menu• Changing the Wallpaper• Adding and Deleting Home Screens• Moving Home Screens DRAFT

Note: To move a shortcut from one screen to another, it must first be deleted from its current screen. Navigate to the new screen, then add the shortcut.Adding a shortcut from the Apps Menu1. Press to activate the main Home screen. 2. Navigate to the desired Home Page.3. Tap to display your current applications.4. Scroll through the list and locate your desired application.5. Touch and hold the application icon. This creates an immediate shortcut of the selected icon and closes the Apps tab.6. While still holding the on-screen icon, position it on the current page. Once complete, release the screen to lock the new shortcut into its new position on the current screen.Adding a shortcut via the Add to Home screen1. Press to activate the main Home screen.2. Navigate to the desired Home Page.3. Touch and hold on an empty area of the Home screen.4. Tap Apps and widgets, Folder, or Page.5. Press and hold a shortcut from the available list and position it on the current screen.Deleting a shortcut1. Press to activate the main Home screen. 2. Touch and hold the desired shortcut. This unlocks it from its location on the current screen.3. Drag the icon over the Remove icon and release it.As you place the shortcut into the Trash, both items turn red.Note: This action does not delete the shortcut, it just removes it from the current screen. DRAFT

Understanding Your Phone 32Adding and Removing Primary ShortcutsYou can change any of your primary shortcuts with the exception of the Apps shortcut.1. Press to activate the main Home screen. 2. Touch and hold the primary shortcut you want to replace, then drag it to an empty space on any Home screen.3. Scroll through the App menu to find the shortcut you want to add as the new primary short cut.4. Touch and hold the new shortcut, then drag it to the empty space in the row of primary shortcuts.The new primary shortcut will now appear on all Home screens. Adding and Removing WidgetsWidgets are self-contained applications that reside in either your Widgets tab or on the main or extended Home screens. Unlike a shortcut, the Widget appears as an on-screen application.Adding a Widget1. Press to activate the main Home screen.2. Navigate to the desired Home Page.3. Touch and hold on an empty area of the screen.4. Tap Apps and widgets.5. Tap the Widgets tab at the top of the screen.6. Press and hold an available Widget to position it on the current screen, then release the Widget.Removing a Widget1. Touch and hold a Widget until you can move it around on the screen.2. Drag the Widget up to the Remove icon and release it.As you place the Widget into the Trash, both items turn red.Note: This action does not actually delete the Widget, it just removes it from the current Home screen.Moving Icons in the Apps Menu1. Press to activate the main Home screen. 2. Tap to display your current applications.3. Tap the Apps tab at the top of the screen if it is not already selected. DRAFT

334. Press and tap View type.5. Tap Customizable grid. A green circle will appear next to the option.6. Press and tap Edit.7. Scroll through the list and locate the icon you wish to move.8. Touch and drag the icon to the position that you want. To move to a different page, drag the icon to the edge of the page until the page scrolls to the desired page.9. Tap Save.10. Press to return to the Home screen.Creating Application FoldersYou can create application folders to hold similar applications if you wish.To create a folder follow these steps:1. Press to activate the main Home screen.2. Tap to display your current applications.3. Tap the Apps tab at the top of the screen if it is not already selected.4. Press and tap Edit.5. Touch and hold the first application that you would like to move to a folder.6. Drag the icon down to the Create folder icon.7. Enter a folder name and tap OK.A folder is displayed in the original place of the application icon with the application icon displayed on top of it. You can now drag other Apps into the folder.8. To view information on an App, drag the App icon up to the App info icon to view information on the application.9. Tap Save.Adding a New Page to the Application MenuYou can add a new page to your application menu by following these steps:1. Press to activate the main Home screen.2. Tap to display your current applications.3. Tap the Apps tab at the top of the screen if it is not already selected.4. Press and tap Edit.5. Touch and hold the first application that you would like to move to a new page. DRAFT

Understanding Your Phone 346. Drag the icon down to the Create page icon.7. Tap Save.The app will appear on a new page.Changing the WallpaperYou can change the Wallpaper (background) of your home screens by following these steps:1. From any Home screen, touch and hold on an empty area of the screen.The Home screen window is displayed.2. Tap Set wallpaper.3. Select the location where you would like to change the wallpaper. Tap Home screen, Lock screen, or Home and lock screens.4. Tap one of the following options:•Gallery: select a wallpaper from photographs you have taken with your camera.• Live wallpapers: select an animated wallpaper. This option is not available for the Lock screen option.• Wallpapers: select from many still-life wallpapers.5. Select a wallpaper and tap Set wallpaper, Done, or Cancel.Adding and Deleting Home ScreensYou can add and delete Home screens. You can have up to seven Home screens.To add a new Home screen:1. Press to activate the main Home screen. 2. Press and tap Edit page.3. Tap the Home screen that contains .A new screen is added.4. If desired, touch and hold the new screen and drag it to a different location.5. Press to return to the main Home screen.You can now add items to your new Home screen.To delete a Home screen:1. Press to activate the main Home screen. 2. Press and tap Edit page.3. Touch and hold the Home screen you want to delete. 4. Drag it to the trash can located at the top of the screen. The page will turn red.5. If there are items on the Home screen, the Remove home screen page prompt is displayed. DRAFT

356. Tap OK to delete the page and its contents, otherwise tap Cancel.7. Press to return to the main Home screen.Moving Home ScreensYou can arrange your Home screens in any order that you want.To move a Home screen, follow these steps:1. Press to activate the main Home screen. 2. Press and tap Edit page.3. Touch and hold the Home screen you want to move.4. Drag it to the location that you would like to place it.In this example, the top right screen is moved to the middle left position.When you move a Home screen, the other Home screens are re-ordered automatically.5. Press to return to the main Home screen.Notification BarThe Notification Bar includes a pull-down list to show information about processes that are running, recent notifications, and alerts. To display the Status indicator: On the Home screen, touch and hold the Notification Bar until the pull-down displays, then drag down vertically.Clearing NotificationsTo clear all notifications from the Notification panel:1. From the Home screen, touch and hold the Notification Bar until the pull-down displays, then drag down vertically.2. Tap the Clear button.The notifications are cleared and the panel closes. DRAFT

Understanding Your Phone 36Accessing Additional Panel FunctionsIn addition to notifications, the Notification panel also provides quick and ready access to separate device functions. These can be quickly activated or deactivated by toggling them on or off. You can choose the functions that will be displayed.1. From the notification panel, tap to display additional options. The following functions (default) are located in the top two rows and can either be activated (green) or deactivated (gray): Wi-Fi, GPS, Sound, Screen rotation, Bluetooth, Reading mode, Blocking mode, Power saving, Multi window, and Screen Mirroring.2. Tap then locate the Notifications panel area located at the bottom of the Notifications panel screen.3. In a single motion, touch and hold a desired function from the bottom two rows and then drag it to the top two rows. Additional functions are S Beam, NFC, Air view, Air gesture, Hands-free mode, Smart stay, Smart pause, Smart scroll, Sync, and Airplane mode.4. Tap Brightness adjustment to create a checkmark if you want to be able to adjust the screen brightness via the Notification panel.5. Tap and then tap to display only your primary functions.Memory CardYour device lets you use a microSD (SD) or microSDHC card to expand available memory space. This secure digital card enables you to exchange images, music, and data between SD-compatible devices. This section addresses the features and options of your device’s SD functionality. The device has a USB SD card mode.Mounting the SD CardTo store additional photos, music, videos, and other applications, you must mount (install) the SD card prior to use. Mounting the SD card establishes a USB connection with your computer.1. Insert the SD card into the external, SD card slot. For more information, refer to “Removing and Installing the Memory Card” on page 8.2. Your SD card is scanned to see the available information on it. DRAFT

37Unmounting the SD cardUnmounting the SD card prevents corruption and damage to the SD card while removing it from the slot.1. From the Home screen, tap ➔ Settings ➔ More ➔ Storage.2. Scroll to the bottom of the display and tap Unmount SD card.3. Tap OK.For more information, refer to “Removing and Installing the Memory Card” on page 8.SD card Available Memory StatusTo view the memory allocation for your external SD card:1. From the Home screen, tap ➔ Settings ➔ More ➔ Storage.2. The available memory for Device and SD card displays under the Total space and Available space headings.Erasing Files from the SD cardYou can erase files from the SD card using the phone.1. Ensure the SD card is mounted. For more information, refer to “Mounting the SD Card” on page 36.1. From the Home screen, tap ➔ Settings ➔ More ➔ Storage.2. Tap Format SD card.3. At the Format SD card confirmation prompt, tap Format SD card. DRAFT

Understanding Your Phone 38Entering TextThis section describes how to select the desired text input method when entering characters into your phone. This section also describes the predictive text entry system that reduces the amount of key strokes associated with entering text.Your phone comes equipped with an orientation detector that can tell if the phone is being held in an upright (Portrait) or sideways (Landscape) orientation. This is useful when entering text.Text Input MethodsThere are three text input methods available:• Google Voice typing: allows you to enter text by speaking. • Samsung keyboard (default): Samsung’s on-screen QWERTY keypad that can be used in both portrait and landscape orientation.• Swype: a new way to enter text on touch screens. Instead of tapping each key, use your finger to trace over each letter of a word.To change the input method, see “Keyboards and Input Methods” on page 131.Entering Text Using the Samsung KeyboardFrom a screen where you can enter text, rotate your phone counterclockwise to a Landscape orientation. The on-screen QWERTY keypad will display. DRAFT

Sym mode, the Abc/ABC/abc button will appear.Using ABC Mode1. If desired, rotate your phone counterclockwise to a Landscape orientation.2. When you tap the Enter message field, the following screen displays:3. Tap the desired alphabetic characters.4. The screen initially opens in ABC mode. After typing the first letter, the shift key ( ) will change to and following letters will be lowercase. 5. Tap to input another upper-case letter or tap twice to switch to ABC mode. The shift key will change to in ABC mode. All following letters will be uppercase until you tap the shift key again.Using Symbol/Numeric ModeUse Symbol/Numeric Mode to add numbers, symbols, or emoticons.1. Rotate your phone counterclockwise to a Landscape orientation.2. Tap at the bottom of the screen. The following screen displays:3. Tap the desired number, symbol, or emoticon characters. 4. Tap the button to access additional symbols. 5. Tap to return to Abc mode.Symbol/Numeric Mode: activates the number, symbol, and emoticon keys.ABC Mode: activates the default alphabet keys. Can also be set to Abc or abc by using the shift () key. DRAFT

Understanding Your Phone 40Predictive TextBy using the Predictive Text option, you can have next-letter prediction and regional error correction, which compensates for pressing the wrong keys on the QWERTY keyboard. Predictive text is turned on by default.1. Press and hold on the keyboard, then tap .2. Tap the ON/OFF slider, located to the right of the Predictive text field, to .3. In the text portion of the message screen, begin typing a word. A list of word options is displayed. Tap one of the words to replace the word that has already been typed or scroll the line of words to the left for more word choices.4. Continue typing your message. Tap to send the message or press for more options. For more information, refer to “Creating and Sending Messages” on page 92. DRAFT

41Samsung Keyboard SettingsFor information on how you can configure your Samsung keyboard settings, see “Samsung Keyboard settings” on page 132.Using the Google Voice Typing FeatureYou can use your voice to enter text using the Google Voice typing feature.1. Tap on the keyboard.2. At the Speak now prompt, speak clearly and distinctly into the microphone.3. If the red microphone turns gray, then the feature has timed out and you should tap the microphone icon to start again.The text is displayed in the message as you are speaking.4. After you have quit speaking for several seconds, tap to return to the keyboard.down into smaller segments.Entering Text Using SwypeSwype™ is a text input method that allows you to enter a word by sliding your finger or stylus from letter to letter, lifting your finger between words. Swype uses error correcting algorithms and a language model to predict the next word. Swype also includes a tapping predictive text system.The following example shows how to enter the word “This”. Put your finger down on the “T”, and without lifting, glide it to the “h”, then to the “i” then over to the “s”. DRAFT

Understanding Your Phone 42Enabling and Configuring SwypeThe Samsung keyboard is the default text input method, so to use Swype, you must first change the default keyboard setting. To enable Swype:1. From a screen where you can enter text, touch and drag down from the Notifications area then tap Select input method.2. Tap the Swype radio button. It will turn green.The Swype keyboard is displayed.Swype SettingsFor information on how you can configure your Swype settings, see “Swype Keypad Settings” on page 134.Swype Text Entry TipsYou can access the SwypeTips application and watch a video or tutorial on using Swype. You can also use the following Swype text entry tips.• Create a squiggle (like an S shape) to create a double letter (such as pp in apple).• Touch and hold a key to view the punctuation menu then make a selection.• Move your finger or stylus over the apostrophe to enter contractions.• Double-tap on the word you want to change to correct a misspelled word, then tap the delete key to erase one character. Touch and hold the delete key to erase an entire word. DRAFT

Section 3: Call FunctionsThis section describes how to make or answer a call. It also includes the features and functionality associated with making or answering a call.For more information, refer to “Call Settings” on page 122.Displaying Your Phone Number Tap ➔ Settings ➔ More ➔ About device ➔ Status. Your phone number is displayed in the My phone number field.Making a Call1. From the Home screen, tap and use the on-screen keypad to enter the number you wish to dial.2. Tap to make the call.Note: When you activate the Auto redial option in the Voice Call menu, the phone will automatically redial up to 10 times when the person does not answer the call or is already on the phone. For more information, refer to “Call Tip: You can create pauses longer than three seconds by entering multiple three second pauses. DRAFT

Call Functions 444. Select Add wait to add a wait. A wait will pause the calling sequence until you enter a number or press a key.5. Tap to make the call.For more information, refer to “Adding Pauses to Contact Numbers” on page 57.Correcting an Entered NumberUse the following steps to correct a mis-typed entry when dialing.  After entering a number using the keypad:•If you make a mistake, tap to erase a single character.•Press and hold to erase the entire string of numbers.Ending a Call Tap the key.Dialing a Recent NumberAll incoming, outgoing and missed calls are recorded in the Call log. If the number or caller is listed in your Address Book, the associated name is also displayed. 1. From the Home screen, tap .2. Tap the Logs tab. A list of recent calls is displayed.3. Tap the desired Contact to enter the Details page, then tap to make a call.Making Emergency CallsIf you do not have a SIM card installed the first time you turn on the phone, the Insert SIM card to make calls message displays and an animated tutorial shows you how to install the SIM card.Without a SIM card, you can only make an emergency call with the phone; normal cell phone service is not available. Making an Emergency Call without a SIM card1. Tap Emergency call from the on-screen display to make an emergency call.2. Enter 9-1-1 and tap . Complete your call. During this type of call, you will have access to the Speaker mode, Keypad, and End Call features.3. Tap to exit this calling mode. DRAFT

45Making an Emergency Call with a SIM cardThe Emergency calling mode makes redialing an emergency number a 1-tap process. Before you can resume normal calling operations, you should first exit this mode.1. From the Home screen, tap .2. Enter the emergency number (example: 911) and then tap .3. Complete your call. During this type of call, you will have access to the Speaker mode, Keypad, and End Call features. Note: This mode can drain your battery power more rapidly DRAFT

Call Functions 46Answering a CallWhen a call is received the phone rings and displays the caller’s phone number, or name if stored in the Address Book.1. At the incoming call screen:•Touch and drag in any direction to answer the call.•Touch and drag in any direction to reject the call and send it to your voicemail.•Touch and drag the Reject call with message tab upward and tap a predefined text message to send to the caller.–I’m driving–I’m at the movie theater–I’m in class–I’m in a meeting–Sorry, I’m busy. Call back later.– or ––Tap Create new message to compose a new message.2. Tap to end the call. DRAFT

47Dialing OptionsFrom the Home screen and Application menus, you have the option to access the Dialer and initiate a call by tapping ➔ Keypad. From the Dialer and the Contacts screen, the following tabs are located at the top of your screen:• Keypad: dials the current number entered using the on-screen keypad.• Logs: displays a list of all dialed, received, and missed calls.• Favorites: displays your contacts that you have marked as Favorites.• Contacts: takes you to your Address Book where you can select a contact to call.After you begin to enter numbers, the Add to contacts option appears so you can save the Contact if needed.Call LogThe phone stores the numbers of the calls you’ve dialed, received, or missed in the Call log. The Call log displays the details of the call.1. From the Home screen, tap .2. Tap the Logs tab. A list of recent calls is displayed. If the number or caller is listed in your Address Book, the associated name is displayed.All calls made, received, and missed are listed. Types of calls are identified by the following icons:Calling Back a Missed Call To call back a missed call number:1. From the Home screen, tap ➔ Logs . A list of recent calls is displayed. If the number or caller is listed in your Address Book, the associated name is displayed.• Incoming Calls: • Outgoing Calls: • Missed Calls: • Rejected Calls:• Auto Rejected Calls: DRAFT

Call Functions 482. Swipe the desired missed call to the right to call. – or –Swipe the desired missed call to the left to message.Saving a Recent Call to your Address Book 1. From the Home screen, tap ➔ Logs . A list of recent calls is displayed. 2. Tap the call you want to save to your Address Book. 3. The call detail page is displayed. Tap Create contact to add the call to your Address Book.The Create contact screen is displayed.– or –If you want to replace the number for an existing contact, tap Update existing.4. Enter information into the various fields using the keypad.5. Tap Save to save when you are finished.For further details about the Address Book feature, see “Adding a New Contact” on page 56.Sending a Message to a Recent Call1. From the Home screen, tap ➔ Logs . A list of recent calls is displayed. 2. Swipe the entry you want to message to the left. DRAFT

493. At the Message screen, tap the empty text field and use the on-screen keypad to type in a message.4. When you are done with your message, tap to send. For more information, refer to “Creating and Sending Messages” on page 92.Deleting a Call from the Call Log1. From the Home screen, tap ➔ Logs . A list of recent calls is displayed. 2. Touch and hold the call you want to delete from the Call log.3. Tap Delete.4. At the Delete log prompt, tap Delete.The call is deleted from the Call log.Adding a Call to the Reject List1. From the Home screen, tap ➔ Logs . A list of recent calls is displayed. 2. Touch and hold the call you want to add to the Reject List. 3. Tap Add to reject list.4. At the Add to reject list prompt, tap OK.Future calls from this number will be rejected and sent to your voicemail.Call Duration1. From the Home screen, tap ➔ Logs . 2. Press ➔ Call duration.3. The following times are displayed for Voice and Data: •Last call: shows the length of time for the last call.• Dialed calls: shows the total length of time for all calls made.• Received calls: shows the total length of time for all calls received.• All calls: shows the total length of time for all calls made and received.4. You may reset these times to zero by pressing then tapping Reset. DRAFT

Call Functions 50Options During a CallYour phone provides a number of control functions that you can use during a call.Adjusting the Call VolumeDuring a call, to adjust the volume, use the Volume keys on the left side of the phone. Press the Up volume key to increase the volume level and press the Down volume key to decrease the volume level.– or –Quickly add more volume to the incoming audio by tapping the on-screen Extra volume button .From the Home screen, you can also adjust the ringer volume using these same keys.In-Call OptionsDuring an active call there are several functions available by tapping a corresponding on-screen button.• Hold: place the current active call on hold.• Add call: displays the dialer so you can call another person.• Keypad: displays the on-screen keypad, where you can enter number using DTMF (Dual Tone Multi-Frequency).• End call: terminates the call.• Speaker: routes the phone’s audio through either the speaker or through the earpiece.–Tap Speaker to route the audio through the speaker. (You can adjust the speaker volume using the volume keys.) A green line will appear under the Speaker button.–Tap Speaker again to use the phone’s earpiece (see “Using the Speakerphone During an Active Call” on page 53). The green line will disappear when Speaker is not activated.• Mute/Unmute turn the onboard microphone either on or off.–Tap Mute during a call to mute the microphone. A green line will appear under the Mute button.–Tap Mute again to unmute the microphone. The green line will disappear when Mute is not activated.• Headset connects to a Bluetooth headset.–Tap Headset during a call to activate a Bluetooth headset. A green line will appear under the Headset button.–Tap Headset again to de-activate the Bluetooth headset. The green line will disappear when the Headset is not activated.• Press for more options:–Contacts: allows you to go to your Contact list.–Memo: allows you to write a memo.–Message: allows you to write a message during a call. DRAFT

51Personalizing the Call Sound SettingDuring a call it may be necessary to adjust the sound of the incoming call by selecting an audio equalizer setting for the current call.1. From the call screen, tap .2. Confirm the option is enabled . 3. Select an available option. Choose from: Adapt Sound, Soft sound, Clear sound, and Off.Activating Noise ReductionDuring a call it may be necessary to activate the noise reduction feature. Activating this feature can improve the quality of your conversation by reducing ambient noise. Noise reduction in on by default.1. Press to turn Noise reduction off.2. Press to turn Noise reduction on.Placing a Call on HoldYou can place the current call on hold at any point during a conversation. You can also make another call while you have a call in progress if your network supports this service.1. While on a call, tap Hold . This action places the current caller on hold.2. You can later reactivate this call by tapping Unhold .To make a new call while you have a call in progress1. Tap Hold .2. Tap Add call to display the dialer.3. Enter the new number and tap .Once connected, the active call will appear in a large box at the top of your screen and the call on hold will appear in a smaller box in the middle of your screen.Switching Between CallsWhen you have an active call and a call on hold, you may switch between the two calls, changing the one on hold to active and placing the other on hold. 1. Tap Swap. The current call (caller #2) is placed on hold and the previous call on hold (caller #1) is then reactivated so that you can continue conversing with that person. The active call will appear in a green box.2. Tap to end the currently active call. DRAFT

Call Functions 52To end a specific call1. Tap Swap until the call you want to end appears in a green box.2. Tap to end the specific call.3. Tap to end the remaining call. To answer a call while you have a call in progressYou can answer another call while you have a call in progress if you have activated your Call waiting feature. Otherwise, the other call will go to your Voicemail box. For more information, refer to “Additional settings” on page 123.1. Tap and slide to the right to answer another call.2. Tap Putting "Name/Number" on hold to put the first call on hold.– or –Tap Ending call with "Name/Number" to end the first call.3. To switch between the two calls, tap Swap.•Swap: Places the current call on hold and then activates the previous call. The active call will appear in a green box. Tap Swap again to switch back.To end a call on hold1. Tap to disconnect the active call. 2. The call on hold will now become the active call. Tap to end the call.3-Way Calling (Multi-Party Calling)The 3-Way or Multi-Party feature allows you to answer a series of incoming calls and place them on hold. If this service is supported by the network, all calls can be joined together. You are notified of an incoming call by a call waiting tone. DRAFT

533. Tap Putting "Name/Number" on hold to put the first call on hold.4. Join the first two callers into a single multi-party call by tapping Merge .5. To temporarily leave the conference call, tap Hold . To rejoin the conference call tap Unhold .6. Tap to end the call.Using the Speakerphone During an Active CallWhile in an active call, it is possible to enable the speakerphone feature.1. Tap Speaker .The Speaker button now appears as and the speakerphone is activated.2. Use the Volume keys (located on the left side of your phone) to adjust the volume.3. To deactivate the speakerphone, tap Speaker . DRAFT

Call Functions 54Searching for a Number in Address Book1. During the active call, press then tap Contacts.2. Tap the Address Book entry.For further details about the Address Book feature, see “Finding an Address Book Entry” on page 58.Call waitingThe Call Waiting feature allows you to answer an incoming call while you have a call in progress, if this service is supported by the network, and you must first activate the Call Waiting feature: From the Home screen, tap ➔ ➔ Call settings ➔ Additional settings ➔Call waiting.You are notified of an incoming call by a call waiting tone.Call forwarding1. From the Home screen, tap ➔ ➔ Call settings ➔ Additional settings ➔ Call forwarding.2. Tap one of the following options:• Always forward: allows you to forward all voice calls.• Forward when busy allows you to forward voice calls to a designated number instead of your voice mail number if you are on another phone call. • Forward when unanswered: allows you to forward voice calls to a designated number instead of your voicemail number when there is no answer on your phone. You can also select the amount of time that the phone delays before forwarding.• Forward when unreachable: allows you to forward voice calls to a designated number instead of your voicemail number when you are not in an area covered by your service provider or when your phone is switched off.Call SettingsTo access the Call settings menu: From the Home screen, tap ➔ ➔ Call settings.– or – From the Home screen, tap ➔ Settings ➔ My device ➔ Call.For detailed information on all of the call settings, see “Call Settings” on page 122. DRAFT

Section 4: Contacts and Your Address BookThis section allows you to manage your daily contacts by storing their name and number in your Address Book. Address Book entries can be sorted by name, entry, or group. AT&T Address Book ActivationWhen you access the AT&T Address Book, the network backup service, contacts are automatically synchronized between your phone and online address book. The changes you make are automatically saved and if you ever upgrade, damage, or lose your phone, you can easily restore your contacts onto your new phone.To activate the AT&T Address Book:1. From the Home screen, tap Contacts .Your Address Book is displayed.2. If you have not synchronized your phone with your online AT&T Address Book recently, the AT&T Address Book screen is displayed. Tap Start Sync if you want to synchronize your Address Book.3. Follow the on-screen instructions.Your AT&T Address Book is Ready to Use. You can now make a call or send a message through your Address Book.You can also manage your Address Book on the web at http://www..Synchronizing your AT&T Address BookIf you ever upgrade, damage, or lose your phone, you can easily restore your contacts onto your new phone by following these steps:1. From the Home screen, tap Contacts .2. Press ➔ Settings ➔ AT&T Address Book.3. At the AT&T Address Book screen, tap Yes to synchronize your phone with your online Address Book.4. If there are existing contacts on your phone, you will be prompted if you would like to remove them first. Tap Yes or No.Note: You must first copy any contacts that exist on your SIM card to your phone. For more information, refer to “Copying Contacts to the Phone” on page 66.Your phone is synchronized. DRAFT

Contacts and Your Address Book 565. At the Your AT&T Address Book is Ready for Use prompt, tap OK.Your Contact list is displayed.Adding a New ContactUse the following procedure to add a new contact to your Address Book. Saving a Number from the Home screen1. From the Home screen, tap Contacts ➔ .2. At the Save contact to prompt, tap on Device, SIM, or Account name.3. Tap the image icon and assign a picture to the new entry by choosing one of three options:•Image: retrieve a previously stored image from your Gallery or from your My files folder and assign it to this entry. Tap an image to assign the image to the contact, then tap Done.• Pictures by people: retrieve a previously shared image from your Gallery.• Take picture: use the camera to take a new picture and assign it to this entry, then tap Done.•S Memo: use an image from one of your S Memos.•Remove: although not an option with a new entry, deletes any previously assigned image on an existing contact.4. Tap the Name field and use the on-screen keypad to enter the full name. For more information, refer to “Entering Text” on page 62.– or –Tap next to the Name field to display additional name fields.5. Tap the Phone number field.The numerical keypad is displayed.The Mobile button initially displays next to the Phone number field. If you want to add a phone number that is not a mobile number, tap the Mobile button and select from Mobile, Home, Work, Work fax, Home Fax, Pager, Other, Custom (add your own label), or Callback.6. Enter the phone number.Tap to add another Phone number field or tap to delete a field.7. Tap the Email address field.The keyboard is displayed. DRAFT

57The Home button initially displays next to the Email field. If you want to add an Email address that is not a Home email address, tap the Home button and select another Email address type.8. Enter the Email address.Tap to add another Email address field or tap to delete a field.9. Tap any of the following fields that you want to add to your new contact:•Groups: assign the contact to Not assigned, Favorites, ICE - emergency contacts, Co-workers, Family, or Friends.•Ringtone: adds a field used to assign a message tone that will sound when messages are received from this contact.• Message alert: allows you to set the ringtone for your message alerts.• Vibration pattern: allows you to set the specific type of vibration. • Add another field: tap this button to add another field such as Phonetic name, Organization, IM, Address, Notes, Nickname, Website, Internet call, Events, or Relationship.10. Tap Save to save the new contact.Adding Pauses to Contact NumbersWhen you call automated systems, you are often required to enter a password or account number. Instead of manually entering the numbers each time, you can store the numbers in your Contacts along with special characters called pauses and waits. A pause will stop the calling sequence for two seconds and a wait will pause the calling sequence until you enter a number or press a key.To add a pause or a wait to an existing Contact:1. From the Home screen, tap Contacts , and then tap the name or number to open the Contact.2. Tap to edit.3. Tap the phone number field.4. Tap the screen at the position where the pause or wait needs to be added.5. Tap . 6. Tap Pause to add a two-second pause or tap Wait to add a wait, and use the keypad to enter the additional numbers. A pause will be displayed as a comma (,) and a wait will be displayed as a semi-colon (;).7. Tap Save to save your changes, or tap Cancel to discard. DRAFT

Contacts and Your Address Book 58Editing an Existing ContactWhen editing an existing contact, you can tap a field and change or delete the information, or you can add additional fields to the contact’s list of information.1. From the Home screen, tap Contacts . 2. Tap the Contact that you want to edit.3. Tap to edit.4. Tap any of the fields to add, change, or delete information.5. Tap Save to save the edited information.Using ContactsDialing or Messaging from Address BookOnce you have stored phone numbers in the Address Book, you can dial them easily and quickly by either using their SIM card location number or by using the Search field to locate the entry. From the Address book, you can also send messages.Finding an Address Book EntryYou can store phone numbers and their corresponding names onto your SIM card and phone’s onboard memory. The two locations are physically separate but are used as a single entity, called the Address Book.Depending on your particular SIM card, the maximum number of phone numbers the SIM card can store and how they are stored may differ.1. From the Home screen, tap Contacts .2. Within the Contacts list (sorted alphabetically), tap a letter on the right side of the display to quickly jump to the contacts beginning with that letter.3. Tap the contact you wish to call or message.4. Tap the phone icon to make a phone call or tap the message icon to send a message.For more information, refer to “Creating and Sending Messages” on page 92. DRAFT

59Linking ContactsLinking Contact InformationMany people now maintain multiple email accounts, social networking logins, and other similar account information. For example, a Facebook account login name might differ from a corporate email account login because they are maintained separately and for different groups of people.This device can synchronize with multiple accounts such as Facebook, Twitter, MySpace, Corporate email, and Google. When you synchronize your phone with these accounts, each account creates a separate contact entry in the Contacts list.If one of your contacts (Amy Smith, for example) has a regular email account that you maintain in Gmail, but also has a Facebook account under her maiden and married name, as well as a Yahoo! chat account, when you merge these accounts into your Contacts list you can link all of her entries and view the information in one record.The next time you synchronize your phone with your accounts, any updates that contacts make to email account names, email addresses, etc. automatically update in your contacts list.For more information about synchronizing accounts, see “Synchronizing Accounts” on page 61.1. From the Home screen, tap Contacts .2. Tap a contact name (the name you want to link to another entry). Note: typically this is the same contact with a different name or account information.3. Press ➔ Link contact.The contact list is displayed.Note: Only contacts stored on your phone can be linked.4. Tap the second contact entry (the entry in which to link). The second contact is now linked with the first and the account information is merged into one screen.Note: The information is still maintained in both entries, but displays in one record for easier viewing when you link the contacts. DRAFT

Contacts and Your Address Book 605. Tap the link icon under the Connection bar to view the contact information you joined. The contacts and information displays with an icon next to the contact name to indicate what type of account information is contained in the entry.Unjoining a Contact1. From the Home screen, tap Contacts .2. Tap a contact name (the account name from which you want to unlink an entry). Note: typically this is the same contact with a different name or account information.3. Tap the link icon under the Connection bar.4. Tap the minus sign next to entry in which you want to unjoin. 5. At the Separate contact prompt, tap OK.The contact is now separated and no longer displays in the merged record screen.Marking a Contact as DefaultWhen you use messaging type applications, the application needs to know which information is primary (default) in a contact entry list. For example, you may have three different contact records for John Smith, so the application will be looking for the “default” number or entry.1. From the Home screen, tap Contacts .2. Tap a Contact name.3. Press ➔ Mark as default. The Mark as default screen displays radio buttons next to the contact names or phone numbers of all the linked contacts. The radio button next to the default contact will be green.4. To change the default contact, tap the radio button next to another entry that you want to be the default. The radio button will turn green, then tap Done. DRAFT

61Synchronizing AccountsFrom the Accounts menu you decide if you want applications to synchronize, send, and receive data at any given time, or if you want the applications to synchronize automatically. After determining how you want the accounts to synchronize, indicate which account to synchronize with your Contacts list.1. From the Home screen, tap Contacts .2. Press then tap Accounts.If you have previously added any accounts, the Sync settings prompt is displayed with your current accounts listed. 3. Tap an account that you would like to synchronize.4. At the Sync settings screen, tap the options that you would like to synchronize for that account.5. Tap Sync now to synchronize the account.The account is synchronized.6. Press to return to the Contacts list. Note: You can also synchronize your accounts using the Settings menu. For more information, refer to “Synchronizing Accounts” on page 141.Address Book OptionsYou can access Address Book options while at the main Address Book page or while in the details page for a specific entry.Options in Address Book1. From the Home screen, tap Contacts then press .2. The following options are displayed:• Delete: allows you to delete 1 or more of your contacts.• SIM Management: allows you to copy contacts from your phone to your SIM card or from your SIM card to your phone. You can also delete contacts from your SIM.•Import/Export: allows you to move contacts to or from your memory card or USB storage.• Share namecard via: allows you to send the contact’s information via Bluetooth, ChatON, Email, Gmail, Messaging, or Wi-Fi Direct. DRAFT

Contacts and Your Address Book 62• Accounts: allows you to add and manage your Samsung, ChatON, Google, LDAP (Lightweight Directory Access Protocol), and Microsoft Exchange ActiveSync accounts. Tap Add account and then follow the on-screen instructions.• Speed dial setting: allows you to set up speed-dialing. For more information, refer to “Making a Call Using Speed Dial” on page 45.• Send message/email: allows you to send a text or message.• Contacts to display: You can choose to display all of your contacts or only display contacts on your Phone, SIM, or contacts stored to other accounts. You can also tap Customized list to change other options on how your contacts are displayed.•Settings: allows you to choose set the following options:–Only contacts with phones: allows you to only display contacts that have phone numbers.–List by: allows you to sort by First name or Last name.–Display contacts by: allows you to sort by First name or Last name first.–Service numbers: allows you to display or edit your service numbers.–Contact sharing settings: allows you to send all or individual contacts via Bluetooth in the form of namecards.–AT&T Address Book: allows you to access the AT&T Address Book so you can sync your contacts.•Help: provides additional information on using your contacts.Options at Selected Contact Screen1. From the Home screen, tap Contacts .2. Tap a contact and at the contact’s display screen, press .3. The following options are displayed:•History: allows you to view the phone and message history for the contact.•Edit: allows you to edit the contact’s information.• Delete: allows you to delete the contact from your Address Book.• Link contact: allows you to link contacts with other contacts.• Separate contact: allows you to separate contacts that have been linked. This option only appears if the contact has been linked. DRAFT

63• Mark as default: when you have multiple contacts linked together, you can mark one of them as default (only displays when contact is saved to the phone). For more information, refer to “Marking a Contact as Default” on page 60.• Assign speed dial: allows you to assign this contact to your speed dial list. For more information, refer to “Making a Call Using Speed Dial” on page 45.• Share namecard via: allows you to send the contact’s information via Bluetooth, ChatON, Email, Gmail, Messaging, or Wi-Fi Direct.• Add to/Remove from reject list: allows you to add or remove the contact from your reject list. If they call while being on the reject list, the call will be sent directly to voice mail.• Add shortcut to home: allows you to place a shortcut for this contact on your Home screen.GroupsAdding a Contact to a Group1. From the Home screen, tap Contacts .2. Tap the Contact that you want to add to a group.3. Tap to edit.4. Tap Groups.5. Tap the group that you would like to add the contact to. You may select as many groups as you like.6. Tap Save.7. After returning to the main edit screen, tap Save again.The contact is added to the group.Removing a Contact From a Group1. From the Home screen, tap Contacts ➔ Groups .2. Tap a group entry.3. Press ➔ Remove member.4. Tap all of the contacts you want to remove from this group. A green checkmark will appear next to their name.5. Tap Done.The contacts are now removed from the group. DRAFT

Contacts and Your Address Book 64Creating a New Group1. From the Home screen, tap Contacts ➔ Groups ➔ ➔ Create.2. Tap the Group name field and use the on-screen keypad to enter a new group name. For more information, refer to “Entering Text” on page 62.3. Tap Group ringtone to choose a ringtone for assignment to this new group. Tap a ringtone to hear how it sounds, then tap OK.– or –Tap Add to select a ringtone from your music files.4. Tap Message alert to choose an alert tone for assignment to this new group, then tap OK.5. Tap Vibration pattern to choose a vibration audio file for assignment to this new group, then tap OK.– or –Tap Create and follow the on-screen instructions to create your own vibration pattern.6. Tap Add member to add contacts to the new group.7. Tap each contact you want to add to create a checkmark. You can also tap Select all.8. Tap Done.9. Tap Save to save the new Group category.Editing a Caller GroupTo edit a Group entry, there must be at least one member as part of the selected group.1. From the Home screen, tap Contacts ➔ Groups .2. Tap a group entry.3. Press ➔ Edit group.4. Make modifications to the Group name, Group ringtone, or Vibration pattern fields. 5. Tap Add member to add more contacts to this group.6. Tap Done.7. Tap Save to save the edited Group category.Address Book FavoritesOnce you have stored phone numbers in the Address Book, you can add them to your Favorites list.To view your Favorites list: From the Home screen, tap Contacts ➔ Favorites . DRAFT

65Adding Favorites to your Address Book1. From the Home screen, tap Contacts ➔ Favorites .2. Press ➔ Add to favorites.3. When the Contacts list is displayed, tap a contact that you want to add to your favorites list. You may select more than one.4. Tap Done.5. A gold star will appear next to the contact image in the Address Book.Removing Favorites from your Address Book1. From the Home screen, tap Contacts .2. Within the Contacts list, tap a contact that you want to remove from your favorites list. Contacts in your Favorites list will have a gold star.3. Tap the gold star in the top right corner of the display.4. The gold star will change to a white star and the contact is removed from your Favorites list. It will no longer appear next to the contact image in the Address Book.Managing Address Book ContactsYou can copy, delete, and view the memory status for the Phone and SIM contacts on your phone.Copying Contacts to the SIM Card Note: When storing an Address Book entry into the SIM card, only the name, phone number, and email address are available as fields. Also, if you move the SIM card to another phone that does not support additional fields on the SIM card, this additional information may not be available.1. From the Home screen, tap Contacts ➔ ➔ SIM Management.2. Tap Copy Contacts to SIM.The phone then displays a list of your current phone contacts.3. Tap the contacts to place a checkmark adjacent to those entries you wish to have copied to the SIM card. •Repeat this step for all individual entries you wish copied to the SIM or tap Select all to place a checkmark alongside all entries. DRAFT

Contacts and Your Address Book 664. Tap Done to copy.5. At the Copy to SIM display, tap OK.The selected numbers are copied to the SIM card. Copying Contacts to the Phone1. From the Home screen, tap Contacts ➔ ➔ SIM Management.2. Tap Copy Contacts from SIM.3. At the Create contact under account prompt, tap on Device or an account name that you would like to copy the contact to.The phone then displays a list of your current contacts stored on your SIM card.4. Tap the contacts to place a checkmark adjacent to those entries you wish to have copied to your phone. •Repeat this step for all individual entries you wish copied to your phone or tap Select all to place a checkmark alongside all entries.5. Tap Done to copy.The selected numbers are copied. Deleting Contacts from the SIM card1. From the Home screen, tap Contacts ➔ ➔ SIM Management.2. Tap Delete Contacts from SIM.The phone then displays a list of your current SIM contacts.3. Tap the contacts to place a checkmark adjacent to those entries you wish to have deleted from the SIM card. •Repeat this step for all individual entries you wish copied to the SIM or tap Select all to place a checkmark alongside all entries.4. Tap Delete.5. At the Delete Contacts from SIM prompt, tap OK.The selected numbers are deleted from the SIM card.Deleting Address Book Entries from the PhoneYou can delete Phone or SIM entries from your phone’s memory.1. From the Home screen, tap Contacts .2. Within the Contacts list, touch and hold a contact that you want to delete. DRAFT

673. Tap Delete on the displayed list.4. At the Delete prompt, tap OK to delete the contact or Cancel to exit.Using the Service Dialing NumbersYou can view the list of Service Dialing Numbers (SDN) assigned by your service provider. These numbers may include emergency numbers, customer service numbers, and directory inquiries.1. From the Home screen, tap Contacts ➔ ➔ Settings.2. Tap Service numbers.3. Scroll through the available numbers (if available).4. Tap a number and the call is made.Note: This menu is available only when your SIM card supports Service Dialing Numbers. DRAFT

Section 5: MultimediaThis section explains how to use the multimedia features of your phone, including Samsung Hub, Samsung Link, AT&T Locker, Music, Google Play Music, Video, Play Movies & TV, Gallery, Camera, and Camcorder.Samsung HubSamsung Hub makes it easy to find, sample, and purchase movies, TV shows, books, games, and music, in one user-friendly location. With hundreds of titles available, entertaining your family on-the-go has never been easier. You can rent or purchase your favorite content and watch from any location. Samsung Hub is your gateway to mobile entertainment.You must have an active Samsung Account to purchase and rent content via Samsung Hub.Note: Samsung Hub usage is based on service availability.Important! You must be using an active Wi-Fi/4G/LTE connection to preview and download a media file. The internal memory acts as a storage location for your downloaded rental or purchase.Important! The Samsung account manages the access information (username/password) to several applications, such as Samsung Link, Chat On, and Samsung Hub.Creating a New Samsung Hub AccountBefore you can rent or buy media, you must first create an account. Enter the required information.1. Confirm you have already logged in to your Samsung account. 2. From the Home screen, tap ➔ Samsung Hub .3. When prompted to connect via mobile networks, select either Cancel or Connect. DRAFT

Multimedia 703. To purchase or view featured content in more detail, tap on any content (Thumbnail or text) to navigate to the product detail page.4. Depending on the content, you can either purchase, rent, or stream the content directly from the product detail page.5. Choose a payment method, then follow the on-screen instructions.Samsung Hub Notices• Any media item (Media Content) may be rented or purchased after you create an account in Samsung Hub. • Media Content that is purchased and downloaded may be viewed concurrently on up to five (5) devices with Samsung Hub (or “the service”) that are also registered to the same account. • You may remove a device from your account no more than once every 90 days. • You may remove Media Content from a device as many times as you’d like. You will have the ability to re-download the Media Content later subject to content re-download availability and content provider permissions. • You may need network coverage to access Media Content you have acquired through the Service. • You can use 3G, 4G, or Wi-Fi connectivity to download Media Content. • Unlike purchased Media Content, rented Media Content will be viewable on only 1 device in your account at a time. • Media Content is downloaded and saved to your authorized device's SD card. No SD Card included out of box.• Your Media Content may pause/stop or not download in networks where there is a weak signal. • You may begin watching downloaded Media Content as soon as a) license acquisition has occurred and b) sufficient amount of the Media Content has been buffered.• You must finish watching Media Content within the time limit set out for each piece of content (which may be as short as 24 consecutive hours).•Stopping, pausing or restarting rented Media Content does not extend the available viewing time. DRAFT

71•In no event will rented Media Content be available for a period of more than thirty (30) days (or shorter on a title-by-title basis) after the Media Content has been rented (e.g., if you begin viewing rented Media Content on the 29th day after the rental transaction, but do not finish viewing the entire title, that rented Media Content may not be available for the entire twenty-four (24) consecutive hour period if such period would extend the viewable time beyond the thirty (30) day rental window).• Unless otherwise restricted by the Content Providers, you can download Media Content to your TV using HDMI connections; otherwise, you cannot play Media Content downloaded from your mobile device output.Samsung LinkThis application wirelessly synchronizes your Samsung device with your TV, streams content, and even keeps tabs on who calls or sends text messages with real-time, on-screen monitoring. Samsung Link makes staying connected easy.Samsung Link allows users to share their in-device media content with other external devices using DLNA certified™ (Digital Living Network Alliance) Devices. These external devices must also be DLNA-compliant. Wi-Fi capability can be provided to TVs via a digital multimedia streamer.Important! You must first connect both of your communicating devices to the same Wi-Fi and be using an active/registered Samsung account prior to using this application. For more information, refer to “Wi-Fi Settings” on page 107. For more information, refer to “Creating a Samsung Account” on page 13.1. From the Home screen, tap ➔ Samsung Link .2. Tap Sign in to sign into your Samsung Account if you have not already done so.3. If prompted, read the on-screen message about network charges and tap OK to continue and return to the main Samsung Link screen.4. Tap Get started and follow the on-screen prompts. DRAFT

Multimedia 725. Scroll across the application screen to view either MY RECENT CONTENT or DEVICES & STORAGE.6. The DEVICES & STORAGE screen contains two separate streaming media options:• Registered devices: allows you to stream/share selected multimedia content from your device to DLNA compliant device connected to the same Wireless Access Point.•Registered storage: allows you to receive and playback media stored externally (server, laptop, etc.) directly on your device by allowing you to add a Web storage service for streaming content. Configuring Samsung Link SettingsSamsung Link must first be configured prior to its initial use. You must setup parameters such as connected Wi-Fi, Items to share, source server address, and external device acceptance rights.1. From the Home screen, tap ➔ Samsung Link .2. Press and then tap Settings and configure the following settings as desired:•Registered storage: allows you to add a Web storage location. Without a storage service/location added, you will not be able to use Samsung Link.•Save to: allows you to save your media to your internal phone memory or to an SD card.• Auto upload: allows you to enable automatic upload of images from your device to those storage locations specified within the Web storage list. Move the slider to the on position to activate the feature.• Video optimization: allows you to setup the video quality for streamed video content. Move the slider to the on position to activate the feature.•Password lock: allows you to restrict access to Samsung Link by requiring a user enter the currently active and associated Samsung account password. Move the slider to the on position to activate the feature.•My account: displays Samsung account information.• About this service: displays application information. DRAFT

73Setting Up Web StorageWeb storage services allow you to use storage space to store your files and share them on the “Cloud”. Note: If you are using another Web storage service, log into that service first before using Samsung Link.1. From the Home screen, tap ➔ Samsung Link .Note: When adding storage, an N Drive is added.2. Tap Add storage and choose from: SugarSync, Dropbox, or SkyDrive.3. Follow the on-screen instructions to register or log into your cloud service.4. Once the process is successfully completed, the Web storage icon or name appears in the Web storage area of the main screen.5. From the main screen, select a connected device and then tap on the media that you would like to share. •A file with in the upper-left indicates it is stored remotely on a Web storage location. Selecting this media causes your device to access the file currently stored on your services’ servers.To de-register Web storage service:1. From the Samsung Link application, press and then tap Settings ➔ Registered storage.2. Tap at the top right corner of your screen, then tap next to the web storage service that you want to delete.3. At the Notification prompt, tap OK.Sharing Media via Samsung Link to a Target DeviceImportant! Make sure all communicating devices are connected to the same Wi-Fi.1. Launch AllShare Play/Samsung Link on the target device (such as an Internet TV, Samsung Tablet, etc.).2. From the Home screen, tap ➔ Samsung Link . DRAFT

Multimedia 74Note: You must be signed in to your Samsung Account before you can use this feature.3. Tap your device name from the Registered devices area.4. Tap an available category tab (Photos, Music, Video, Document, or Files) and select a file.•A file with in the upper-left indicates it is stored remotely on a Web storage location. Selecting this media causes your device to access the file currently stored on your services’ servers.5. Tap an available on-screen file, image, or video to place a green check mark alongside it.6. Tap (Stream to connected devices) and select an available target device to begin streaming.7. On a target device (ex: Internet TV) select the on-screen Allow button to continue.Note: At this stage your device is requesting access to share media with the external source.8. Confirm (Samsung Link Controller enabled) appears in the Notification area at the top of the device to indicate you are using your device as the media source.AT&T LockerAT&T Locker allows you to store, share, and sync all of your photos, videos, and documents in one safe, convenient place; the AT&T cloud. 1. Sign on to your Google account if you are not already signed on. For more information, refer to “Creating a New Google Account” on page 12.2. From the Home screen, tap ➔ AT&T Locker .3. At the AT&T Locker home screen, tap Sign Up to create an account or tap Log In if you already have an account.4. Follow the on-screen instructions to use AT&T Locker. DRAFT

75MusicMusic is an application that can play music files. Music supports files with extensions AAC, AAC+, eAAC+, MP3, WMA, 3GP, MP4, and M4A. Launching Music allows you to navigate through your music library, play songs, and create playlists (music files bigger than 300 KB are displayed).Playing Music1. Tap ➔ Music .2. Tap a library category at the top of the screen (Songs, Playlists, Albums, Artists, Music square, or Folders) to view the available music files. 3. Scroll through the list of songs and tap an entry to begin playback.4. The following Music controls are available:Music OptionsTo access additional options, follow these steps:1. While in Music, press .2. The follow options are available before you play music:Pause the song.Start the song after pausing.Press and hold to rewind the song. Tap to go to previous song.Press and hold to fast-forward the song. Tap to go to next song.Volume control and SoundAlive.Volume control showing volume muted.Plays the entire song list once.Replays the current list when the list ends.Repeats the currently playing song.Shuffles the current list of songs randomly.Songs play in order and are not shuffled.Lists the current playlist songs.Displays the current song in the player window.Assign the current song as a Favorite.Streams the current music file to another device via Samsung Link. DRAFT

Multimedia 76Note: The following options may or may not appear depending on whether or not music is actually playing. Also, options will be different if the song you are listening to is in a playlist. •Add to playlist: allows you to add the current music file to a selected playlist.• Via Bluetooth: scans for devices and pairs with a Bluetooth headset.•Delete: deletes the music file.•Search: allows you to search your device for a certain song.• Scan for nearby devices: allows you to scan for nearby devices that you can connect with.•Settings: allows you to change your Music settings. For more information, refer to “Music Settings” on page 76.•End: allows you to end the Music app.Music SettingsThe Music Settings menu allows you to set preferences for the Music app such as whether you want the music to play in the background, sound effects, and how the music menu displays.1. From the Home screen, tap ➔ Music .2. Press ➔ Settings.3. Select one of the following settings:• Music menu: this menu allows you to select which categories you want to display. Choices are: Albums, Artists, Genres, Music square, Folders, Composers, Years, Most played, Recently played, or Recently added. Tap each item that you want to display in the Music menu.•SoundAlive: set a type of equalization such as Normal, Pop, Rock, Jazz, Dance, Classic, etc.• Adapt Sound: allows you to set Adapt Sound on when your are listening with earphones to alert of incoming calls and notifications.• Play speed: set the play speed anywhere between 0.5X and 2.0X using the slider. DRAFT

77• Music auto off: when activated, music will automatically turn off after a set interval.•Lyrics: when activated, displays lyrics when available.• Smart volume: automatically adjusts each track’s volume to an equal level.• Voice control: allows you to use voice commands to control the Music app.Using PlaylistsPlaylists are used to assign songs to a list of preferred media which can then be grouped into a list for later playback. These Playlists can be created via either the handset’s Music options menu or from within a 3rd party music application (such as Windows Media Player) and then downloaded to the handset.Creating a Playlist1. From the Home screen, tap ➔ Music .2. Tap the Playlists tab.3. Press ➔ Create playlist.4. Type a name for this playlist in the field and tap OK.Adding Music to a PlaylistTo add files to the playlist:1. From the Home screen, tap ➔ Music .2. Tap the Playlists tab.3. Tap the playlist name in which to add music.4. Tap (Add music).5. Tap a music file, or tap Select all to add all the music tracks to this playlist then tap Done.Removing Music from a PlaylistTo remove music files from a playlist:1. From the Home screen, tap ➔ Music .2. Tap the Playlists tab.3. Tap the playlist name in which to delete music.4. Press ➔ Remove.5. Tap the checkbox to the left of each track you want to remove from this playlist, or tap Select all to remove all the music tracks from this playlist, then tap Remove. DRAFT

Multimedia 78Editing a PlaylistBesides adding and removing music files in a playlist, you can also rename the playlist.To edit a playlist:1. From the Home screen, tap ➔ Music .2. Tap Playlists.3. Press ➔ Edit title.4. Tap a playlist name to edit.5. Enter a new name for the playlist then tap OK.For information on downloading music for your phone, see “Google Play Music” on page 78.Google Play MusicWith Google Play Music, you can play music that you have added to your music file as well as any music you copied from your PC. While offline, you can listen to music you have copied from your PC.1. From the Home screen, tap ➔ Play Music .2. Log on to your Google account if you have not already done so. For more information, refer to “Creating a New Google Account” on page 12.3. At the Google play screen, tap Add account if you have not previously used Play Music, and follow the on-screen instructions to create your account and use Play Music.Mobile TVMobile TV is a subscription service that allows you to watch your favorite TV shows using your handset.Note: This feature requires a paid subscription. See your AT&T Customer Service Representative for more information.1. Tap ➔ Mobile TV .Note: The first time you use Mobile TV, you will need to download the application from the Play Store. For more information, refer to “Play Store” on page 183.2. The Play Store displays the Mobile TV application. Tap Update.3. Tap Accept & download.4. Tap Open.5. Read the Terms and Conditions and tap Accept & Start Trial to continue or Exit to exit. DRAFT

796. The Mobile TV main page displays. Follow the on-screen instructions to watch TV.Note: Mobile TV will use a large amount of data and you are responsible for all data charges. It is strongly recommended that you upgrade to a large data plan in addition to this purchase.VideoThe Video application plays video files stored on your phone or microSD card.1. Tap ➔ Video .All videos that you have on your phone and memory card will be displayed. 2. Tap the video that you want to play.The video will begin to play.3. The following video controls are available:Pause the video.Start the video after being paused.Press and hold to rewind the video. Tap to go to previous video.Press and hold to fast-forward the video. Tap to go to next video.Volume control.PIP (Picture In Picture) view. The video will be played in a small window so you can use your phone for other purposes while watching the video. Double-tap screen to return to previous size.Original size view. The video will be played in its original size.Full-screen in ratio view. The video is enlarged as much as possible without becoming distorted.Keep aspect ratio view.Full-screen view. The entire screen is used, which may cause some minor distortion.Streams the video to another device via Samsung Link. DRAFT

Multimedia 80Note: The screen view icons are a three-way toggle. The icon that is displayed, is the mode that will appear after the icon is tapped. For more information on downloading videos for your phone, see “Samsung Hub” on page 68.Play Movies & TVWith Google Play Movies & TV, you can rent thousands of different movies and television shows. You can watch instantly, or download your movie or show for offline viewing at a later time. 1. From the Home screen, tap ➔Play Movies & TV .2. Log on to your Google account if you have not already done so. 3. Following the on-screen instructions for renting and viewing movies and TV shows.4. Press for additional options.GalleryThe Gallery is where you view photos and play back videos. For photos, you can also perform basic editing tasks, view a slideshow, set photos as wallpaper or contact image, and share as a picture message.1. Tap ➔ Gallery .All of the Albums that hold your pictures and videos will be displayed with folder name and number of files.2. Tap an Album and thumbnails of the contents will be displayed.Note: If your device displays that the memory is full when you access Gallery, delete some of the files by using My Files or other file management applications and try again. For more information, refer to “My Files” on page 180.Viewing Pictures1. From the main gallery, press ➔ Slideshow to see a slideshow of all of your pictures.2. Tap a thumbnail to view a single picture. DRAFT

Note: If no control icons are displayed on the screen in addition to the picture, tap anywhere on the screen to display them.3. The following options are available at the top of the screen:• Change player : allows you to change the device the picture is displayed on if you are using AllShare/Samsung Link.•Share via : allows you to share the picture via ChatON, Group Play, AT&T Locker, Bluetooth, Email, Flipboard, Gmail, Google+, Hangouts, Messaging, Picasa, S Memo, or Wi-Fi Direct.• Delete : allows you to delete the picture.•Camera : activates the camera.4. Press for additional options.Viewing VideosNote: If no control icons are displayed on the screen in addition to the picture, tap anywhere on the screen to display them.1. Tap a video to select it. 2. Tap to play the video.3. Press for additional options.For video player controls, see “Video” on page 79.Using S Beam to Share PicturesThis feature (when activated via NFC) allows you to beam large files directly to another compatible device that is in direct contact. These files can be larger, such as Videos, HD pictures, and other large files.You can beam images and videos from your gallery, music files from your Music, and more.1. From the Home screen, tap ➔ Settings.2. If not already active, in a single motion touch and slide the NFC slider to the right to turn it on . 3. Tap S Beam and make sure the feature is turned on. DRAFT

Multimedia 824. If not already active, in a single motion touch and slide the S Beam slider to the right to turn it on . 5. On the source device (containing the desired image or video), tap ➔ Gallery .6. Locate and tap the selected image to open it in the preview window.Important! Neither device must be in Lock mode or displaying the Lock screen. They must both be active and unlocked. It is recommended that the target device be on the Home screen.7. Place the two active NFC-enabled devices back to back to begin (1).Place devices back to backTap the source image DRAFT

83Note: If the Touch to beam screen does not appear on the source device:- Pull them apart- Verify the image is visible in the preview window on the source device (providing the file)- Place them together again8. From the Touch to beam screen, tap the reduced image preview to begin the transfer (2). 9. When prompted, separate the two devices. After a few seconds (depending on file size) the recipient with then see the transferred file displayed on their screen.To share multiple pictures via S Beam:1. On the source device (containing the desired image or video), tap ➔ Gallery .2. Locate the selected folder.3. Touch and hold the first image and place a checkmark on it and all desired images.4. Place the two active NFC-enabled devices back to back to begin.5. From the Touch to beam screen, tap the reduced image preview to begin the transfer. 6. When prompted, separate the two devices.7. The picture(s) is transferred to the other device.CameraThis section explains how to use the camera on your phone. You can take photographs and shoot video by using the built-in camera functionality. Your 13 megapixel camera produces photos in JPEG format.Important! Do not take photos of people without their permission.Do not take photos in places where cameras are not allowed.Do not take photos in places where you may interfere with another person’s privacy. DRAFT

Multimedia 84Using the CameraTaking PhotosTaking pictures with your device’s built-in camera is as simple as choosing a subject, pointing the camera, then pressing the camera key.Note: When taking a photo in direct sunlight or in bright conditions, shadows may appear on the photo.1. From the main Home screen, tap ➔ Camera to activate the camera mode.2. Using the phone’s main display screen as a viewfinder, adjust the image by aiming the camera at the subject.3. Before you take a picture, use the Up and Down Volume keys to zoom in or out. You can magnify the picture up to x4 (400 percent).– or –Pinch the screen to zoom out or pinch outwards to zoom in.4. If desired, before taking the photo, you can tap on-screen icons to access various camera options and settings. 5. You can also tap the screen to move the focus to the area you touch.6. Press the Camera key ( ) until the shutter sounds. (The picture is automatically stored within your designated storage location. If no microSD is installed, all pictures are stored on the Phone.) 7. While viewing a picture, after you have taken it, pinch the screen outwards to zoom in or pinch the screen inwards to zoom out.You can magnify the picture up to x4. DRAFT

858. Press to return to the viewfinder. Taking Dual Camera PhotosWith the Dual Camera feature, you can take a picture with both the front and rear cameras at the same time.To take a Dual Camera picture:1. From the camera viewfinder, tap the Dual Camera icon located at the top left side of the screen.The camera viewfinder displays an image from the front-facing camera within a postage stamp picture frame on top of the main image displayed from the rear-facing camera.2. Press the Camera key ( ) to take the picture.To resize the front camera image:  Touch and hold the postage stamp picture frame until the resize handles appear, then drag a corner to enlarge the image.To reposition the front camera image  Touch and hold the postage stamp picture frame to detach it and then move it to a desired location.Camera ModesThere are many different camera modes that you can use to help optimize your photos depending on the conditions and your experience.1. From the camera viewfinder, tap the Mode button to change the mode to one of the following:–Auto: Automatically adjusts your camera to optimize color and brightness. This is the default setting–Beauty face: Use this to take photos with lightened faces for gentler images.–Best photo: Use this to take multiple photos in a short time, and then choose the best photos among them. Press the Shutter button to take multiple photos. When Gallery opens, tap and hold thumbnails of photos to save, and then tap Done.–Best face: Use this to take multiple group shots at the same time and combine them to create the best possible image. Press the Shutter button to take multiple photos. When Gallery opens, tap the yellow frame on each face, and choose the best individual face for the subject. After choosing a pose for each individual, tap Done to merge the images into a single photo, and tap Save. DRAFT

Multimedia 86–Sound & shot: Use this mode to enrich pictures by adding background sounds for a few seconds. The background sound is recorded for up to 9 seconds after taking the photo.–Drama: Use this to take a series of photos of a moving object and then merge them together into one image.–Animated photo: Use this to create a picture in which a few selected static objects move by animating objects detected by the device.–Rich tone (HDR): Use this to take photos with richer colors and contrasts.–Eraser: Saves the best of 5 taken pictures and removes any passers by.–Panorama: Use this to take wide panoramic photos. Press the Shutter button to take a photo, and then move the camera in any direction. When the blue frame aligns with the preview screen, the camera automatically takes another shot in the panoramic sequence. To stop shooting, press the Shutter button again.–Sports: Use this to take fast action photos.–Night: Use this to take photos in low-light conditions, without using the flash. Press the Shutter button to take multiple photos. Photos are automatically merged into a single photo.Quick SettingsTap at the top of the display to quickly change Camera settings. Not all of the following options are available in both still camera and video camera modes. The available options vary by mode.Configure Camera settings.Activate or deactivate the flash.Use this to activate or deactivate night detection.Activate or deactivate the voice control to take photos.Select a resolution for videos.Activate or deactivate the sharing options.Hide Quick settings. DRAFT

87Camera and Camcorder SettingsThis section describes the different settings that you can configure on your camera. Not all of the following options are available in both still camera and video camera modes. The available options vary by mode.1. From the viewfinder, tap (Quick Settings) ➔ (Camera Settings). 2. The follow settings are located under the Camera, Camcorder, Share, and General tabs. The settings that are displayed will depend on what camera mode you are in.Camera:•Photo size: Select a resolution for photos. Use higher resolution for higher quality. Higher resolution photos take up more memory.• Burst shot: allows several photographs to be captured in quick succession by touching and holding the Camera button.• Face detection: allows you to adjust the camera focus based on face detection technology.• Metering: allows you to set how the camera measures or meters the light source: Center-weighted, Matrix, or Spot.•ISO: determines how sensitive the light meter is on your digital camera. Choose from Auto, 100, 200, 400, or 800. Use a lower ISO number to make your camera less sensitive to light, a higher ISO number to take photos with less light, or Auto to let the camera automatically adjust the ISO for each of your shots.•Anti-Shake: compensates for camera movement.• Auto night detection: activates or deactivates the night detection feature.• Save as: allows you to assign rich tone usage to an image.Camcorder:•Video size: Select a resolution for videos. Use higher resolution for higher quality. Higher resolution videos take up more memory.• Video stabilization: Activate or deactivate Optical Image Stabilization. DRAFT

Multimedia 88Settings:•Location tag: attach a location tag to the photo. To improve GPS signals, avoid shooting in locations where the signal may be obstructed, such as between buildings or in low-lying areas, or in poor weather conditions. Your location may appear on your photos when you upload them to the Internet. To avoid this, deactivate the GPS tag setting.•Review: set this option if you want to view each picture after you take it. Select a time value.•Volume key: assigns a function to the volume key. Choose from The zoom key, The camera key, or The record key.•Timer: Use this for delayed-time shots. You can set the timer to Off, 2 sec, 5 sec, or 10 sec.• White balance: Select an appropriate white balance, so images have a true-to-life colour range. The settings are designed for specific lighting situations. These settings are similar to the heat range for white-balance exposure in professional cameras.•Exposure value: allows you to adjust the brightness level by moving the slider.• Guidelines: Display viewfinder guides to help composition when selecting subjects.•Flash: activate or deactivate the flash.• Voice control: activates/deactivates voice control feature that allows you to verbally take a photo.• Contextual filename: allows you to have your location added as part of the filename. You must first activate GPS tag described above.•Save as flipped: when set to On, this option allows you to take and save a mirror-image video when using self-recording mode.•Storage: Select the memory location for storage.•Shutter sound: Turn the shutter sound on or off.• Reset: Reset the camera settings. Viewing your PicturesAfter you take a photo, you can access various options from the Image Viewer. The Image Viewer uses your Gallery. For more information, refer to “Gallery” on page 80. DRAFT

89Editing a PhotoYou can edit your photos using the built-in Photo editor application on your device. The photo editor application provides basic editing functions for pictures that you take on your phone. Along with basic image tuning like brightness, contrast, and color it also provides a wide variety of effects used for editing the picture.1. From the Home screen, tap ➔ Gallery .2. Select a folder location and tap a file to open it.3. With the image displayed, press ➔ Edit to launch the Photo editor.Note: To select the picture area, touch and hold the current picture.4. Select an image area by touching and holding the image and then selecting an available option:• Selection mode: provides several on-screen selection options such as: Select area, Inverse selection, Selection size, and Selection mode (Magnetic, Lasso, Brush, Round, and Square).• Select all: select the entire area of the current image.•Clipboard: copies the currently selected area to your device’s clipboard.5. Use the following editor controls to edit your picture:Previous: move to previous photo project.Next: move to next photo project.Rotate: allows you to rotate a photo in all 4 directions. You can also mirror image a photo.Crop: allows you to crop (cut-out) an area of a photo.Color: allows you to Auto adjust color, Brightness, Contrast, Saturation, Adjust RGB, Temperature, Exposure, and Hue of a photo.Effects: allows you to add various effects to your photo.Portrait: allows you to apply various face correction effects such as: Red-eye fix, Airbrush face, Face brightness, Out-of-focus, Beauty face, Face reshaper, or Spot healing. DRAFT

Multimedia 906. Press to access the following options:•Save as: allows you to rename your current image and save it to your gallery.• Select image: allows you to select a new image for editing. • Take picture: allows you to activate the camera and take a new image for editing. •Share via: allows you to share your saved photo via AT&T Locker, Bluetooth, ChatON, Email, Flipboard, Gmail, Google+, Group Play, Hangouts, Messaging, Picasa, S Memo, or Wi-Fi Direct.•Set as: assigns the currently saved image as either a: Contact photo, Home and lock screens, Home screen, or Lock screen.Using the CamcorderIn addition to taking photos, the camera also doubles as a camcorder that also allows you to record, view, and send videos.Note: The camera may not be able to properly record videos to a memory card with a slow transfer speed.Shooting VideoTip: When shooting video in direct sunlight or in bright conditions, it is recommended that you provide your subject with sufficient light by having the light source behind you.1. From the main Home screen, tap Camera to activate the camera mode.2. Using the camera’s main display screen as a viewfinder, adjust the image by aiming the camcorder at the subject.3. Before you take a video, use the Volume control buttons to zoom in or out. You can magnify the video up to x4 (400 percent).Sticker: allows you to place various pre-created on-screen stickers atop your current image.Drawing: allows you to add draw directly on your current picture by using either a brush/pen or eraser.Frame: places a pre-created border style atop your current image. DRAFT

914. Tap the Video key ( ) to begin shooting video. The red light will blink while recording.5. You can tap the screen to move the focus to the area you touch.6. target area.7. To capture an image from the video while recording, tap . This feature is not available while the anti-shake feature is activated.8. Tap the Pause key ( ) to stop the recording and save the video file to your Camera folder.9. Tap the Stop key ( ) to stop the recording and save the video file to your Camera folder.10. Once the file has been saved, tap the image viewer, then tap to play your video.11. Press to return to the viewer.Viewing your VideosAfter you take a video, you can access various options from the Image Viewer. The Image Viewer uses your Gallery and the Video player. For more information, refer to “Gallery” on page 80. Also, see“Video” on page 79. DRAFT

Messaging 92Section 6: MessagingThis section describes how to send and receive different types of messages. It also includes the features and functionality associated with messaging.Types of MessagesYour phone provides the following message types:• Text Messages • Multimedia (Picture, Video, and Audio) Messages • Email and Gmail Messages• AT&T Messages• Hangouts• Google+ • ChatONThe Short Message Service (SMS) lets you send and receive text messages to and from other mobile phones or email addresses. To use this feature, you may need to subscribe to your service provider’s message service.The Multimedia Messaging Service (MMS) lets you send and receive multimedia messages (such as picture, video, and audio messages) to and from other mobile phones or email addresses. To use this feature, you may need to subscribe to your service provider’s multimedia message service.Important! When creating a message, adding an image, a sound file, or a video clip to a text message changes the message from a text message to a multimedia message.Messaging icons are displayed at the top of the screen and indicate when messages are received and their type. For more information, refer to “Indicator Icons” on page 18.Creating and Sending Messages1. From the main Home screen, tap Messaging ➔ Compose. DRAFT

93Note: The main Home screen initially contains the Messaging icon. If you delete it, or if you want to access Messaging from another Home screen, you must tap Apps ➔ Messaging .2. Tap on the Enter recipient field to manually enter a recipient or tap to select a recipient from your Contacts. You can also select the recipient based on Groups, Favorites, or Logs.3. If adding a recipient from your Contacts, tap the contact to place a checkmark then tap Done.The contact will be placed in the recipient field.Note: For the Group option, if the number of recipients is less than 10, all members in the group will be added. You will need to delete any unnecessary members in the list by selecting the trash can icon and deleting unwanted entries.Note: Enter additional recipients by separating each entry with a semicolon (;) then using the previous procedure.4. Tap the Enter message field and use the on-screen keypad to enter a message. For more information, refer to “Entering Text” on page 62.5. Add more recipients by tapping the recipient field.6. Review your message and tap Send .Note: If you exit a message before you send it, it will be automatically saved as a draft.Message OptionsOptions before composing a message1. From the main Home screen, tap Messaging .2. Before composing a message, press to reveal additional messaging options:•Search: allows you to search through all of your messages for a certain word or string of words. Enter a search string in the Messaging Search window and tap .• Delete threads: allows you to delete any message thread. Select the messages to delete and a green checkmark will appear next to the message. Tap Delete.•Draft messages: displays the draft messages folder and its contents. DRAFT

Messaging 94• Locked messages: displays the locked messages folder and its contents.• Scheduled messages: displays the scheduled messages folder and its contents.• Spam messages: displays the spam messages folder and its contents.•Settings: allows you to access Messaging settings. For more information, refer to “Messaging Settings” on page 98.Options while composing a message1. While composing a message, press to reveal additional messaging options.•Insert smiley: allows you to add emoticons, such as a happy face to your message.•Add text: allows you to copy text from your contacts, calendar, or from a memo to add to your message. This is a convenient feature for adding names, phone numbers, events, etc. to your message. For more information, refer to “Adding Additional Text” on page 95.• Add to Contacts: allows you to add the recipient to your Contacts list. This option only appears if the recipient is not already in your Contacts list.•View contact: allows you to see information on the recipient. This option only appears if the recipient is in your Contacts list.• Add slide: allows you to add a new page to a message.• Add recipients: allows you to add additional recipients.• Scheduling allows you to assign the current message for scheduled delivery at a designated time.• Add to spam numbers: allows you to tag a number as spam so that these messages can be directly delivered to your spam folder.• Remove from spam numbers allows you to unregister a number from the spam number list. This option only appears if the number was previously registered as spam.•Discard: allows you to delete the current message.•Translate: launches a Translate popup menu. Here you can both assign the sender’s original language and assign a target language for the recipient (they will receive your message in the designated language). Other options include, Check Incoming messages only, and Include original text in outgoing message. Tap to create a checkmark. DRAFT

95Adding attachments to a messageTo add an attachment to your message, tap and select one of the following options:• Image: allows you to tap an existing image from your Pictures list to add it to your message.• Take a picture: allows you to temporarily exit the message, take a photo with phone’s camera, and then add it to your message by tapping Save.• Video: allows you to choose an existing video from the Videos list, then add it to your message.• Record video: allows you to temporarily exit the message, record a video clip using the phone’s camera, and then add it to your message by tapping Save.• Audio: allows you to choose an existing audio file from the Audio list, then add it to your message by tapping the circle to the right of the audio so that it turns green, then tapping Done.• Record audio: allows you to temporarily exit the message and record an audio clip using the phone’s microphone. It is then automatically attached to the message.• S Memo: allows you to add an S Memo that you have created.• Calendar: allows you to add an event from your calendar. Select the desired event and tap Done.• Location: allows you to attach a thumbnail of a map showing your location.• Contacts: allows you to tap on an existing Address Book entry, then add it to your message by tapping Done.Adding Additional TextYou can copy text such as names, phone numbers, and events from your Contacts, Calendar or a Memo.1. While composing a message, press ➔ Add text.2. At the Add text screen, select one of the following:•S Memo: allows you to insert text from an existing S Memo.•Calendar: allows you to add the name, date, and time of a calendar event to your message.•Location: allows you to add an address and the link to the location on Google Maps.•Contacts: allows you to add the name and phone number of any of your contacts to your message.• Text templates: allows you to add pre-defined phrases and sentences.The information is added to your message. DRAFT

Messaging 96Viewing New Received Messages1. When you receive a new message, the new message icon will appear at the top of your screen.2. Open the Notification Bar and select the message. For more information, refer to “Notification Bar” on page 35.– or –From the main Home screen, tap Messaging then tap the new message to view it.The selected message appears in the display. 3. To play a multimedia message, tap .•To pause playback of the multimedia message, tap .4. To scroll through the message (if additional text pages have been added), touch the screen and in a single motion, scroll up or down the page.Message ThreadsSent and received text and picture messages are grouped into message threads. Threaded messages allow you to see all the messages exchanged (similar to a chat program) and displays a contact on the screen. Message threads are listed in the order in which they were received, with the latest message displayed at the top.To access message thread options: From the main Messaging screen, touch and hold the message to display the following options:•View contact: displays the Contact’s Overview page.•Add to contact: begins the process of adding the new number to your Contacts list.• Delete: deletes the currently selected message thread.•Add to spam numbers: adds the current sender to a spam list. ny new texts from this sender are automatically blocked.To access additional Bubble options: Touch and hold the message bubble within an active message conversation to display the following options:• Delete: deletes any currently selected message bubble from the thread. DRAFT

97•Copy: copies the currently selected message bubble from the thread.•Lock/Unlock: locks or unlocks the currently selected message bubble from being accidentally deleted.•Forward: allows you to forward the currently selected message bubble to an external recipient.•Copy to SIM: copies the currently selected message bubble as a single text message within the SIM card.• View message details: displays details for the currently selected message bubble.•Translate: translates the text from the currently selected bubble into a desired language.Deleting MessagesDeleting a single message thread1. From the main Home screen, tap Messaging .2. Touch and hold a message, then tap Delete. 3. At the Delete prompt, tap OK to delete or Cancel to cancel.Deleting multiple message threads1. From the main Home screen, tap Messaging .2. Press ➔ Delete threads.3. Tap each message you want to delete. A checkmark will appear beside each message you select.4. Tap Delete.5. At the Delete prompt, tap OK to delete or Cancel to cancel.Message SearchYou can search through your messages by using the Message Search feature.1. From the main Home screen, tap Messaging .2. Tap ➔ Search.3. Use the on-screen keypad to enter a word or phrase to search for, then tap .4. All messages that contain the search string you entered are displayed. DRAFT

Messaging 98Messaging SettingsTo configure the settings for text messages, multimedia messages, Voice mails, and Push messages.1. From the main Home screen, tap Messaging ➔ ➔ Settings. 2. The following Messaging settings are available:General settings:• Delete old messages: deletes old messages when the limit is reached, rather than having them overwritten.• Text message limit: allows you to set a limit on how many text messages can be in one conversation.• Multimedia message limit: allows you to set a limit on how many multimedia messages can be in one conversation.• Text templates: allows you to edit or add new text templates to use in your messaging.Text message (SMS) settings:• Manage SIM card messages: allows you to manage the messages that you have stored on your SIM card.• Message center: allows you to enter the number of your Message center where your messages reside while the system is attempting to deliver them.• Input mode: allows you to set the input mode for your text messages. Choose between GSM Alphabet, Unicode, or Automatic.Multimedia message (MMS) settings:•Group messaging: allows you to send a single message to multiple recipients.•Auto retrieve: allows the message system to retrieve messages automatically.•Creation mode: allows you to select the creation mode, Free, Restricted, or Warning.–Restricted: you can only create and submit messages with content belonging to the Core MM Content Domain.–Warning: the phone will warn you via pop up messages that you are creating a multimedia message which does not fit the Core MM Content Domain.–Free: you may add any content to the message.• MMS alert: allows you to receive an alert when MMS mode becomes active. DRAFT

99Display:• Bubble style: allows you to choose from several bubble styles for your messages. Bubbles are the rounded boxes that surround each message.• Background style: allows you to choose from several background styles for your messages.• Use the volume key: allows you to change the text size by using the up or down volume keys.Push message settings:• Push messages: allows you to receive push messages from the network.Cell Broadcast (CB) settings:• CB activation: allows you to receive Cell Broadcast (CB) messages.• Channel configuration: allows you to set up the channel that you will receive CB messages on.Notifications settings:• Notifications: allows you to see message notifications on your status bar.• Select ringtone: allows you to set the ringtone for your message notifications.•Vibrate: allows you to configure the vibration mode associated with message alerts.• Message alert repetition: allows you to set the interval for new message alerts. Choose from: Once, Every 2 minutes, or Every 10 minutes.• Preview message: when enabled, allows you to view a preview of new message text on the Status bar.Emergency message settings:• Emergency alerts: allows you to receive wireless emergency alerts from the Commercial Mobile Alerting System (CMAS). For more information, refer to “Emergency Alerts” on page 100.• Emergency notification review: allows you to play the emergency alert tone so you will know what to expect when an alert is received.• Alert reminder: allows you to set reminders after you receive an alert. You can select Once, Every 2 minutes, Every 15 minutes, or Off (default). DRAFT

Messaging 100Signature settings:• Add signature: when enabled, this feature allows you to create a signature at the end of your outgoing text messages.• Signature text: allows you to enter a desired signature for your message.Spam message settings:• Spam settings: when enabled, allows you to configure available spam settings such as:• Add to spam numbers: allows you to manually enter and assign a phone number as being sent from a spam source.• Add to spam phrases: allows you to assign a specific text phrase as belonging to a spam message. Ex: Dear friend.• Block unknown senders: when active, automatically blocks incoming messages from unknown sources or blocked numbers.Emergency AlertsThis device is designed to receive wireless emergency alerts from the Commercial Mobile Alerting System (CMAS) which may also be known as the Personal Localized Alerting Network (PLAN). If your wireless provider has chosen to participate in CMAS/PLAN, alerts are available while in the provider's coverage area. If you travel outside your provider's coverage area, wireless emergency alerts may not be available. For more information, please contact your wireless provider.Emergency Alerts allows customers to receive geographically-targeted messages. Alert messages are provided by the US Department of Homeland Security and will alert customers of imminent threats to their safety within their area. There is no charge for receiving an Emergency Alert message.There are three types of Emergency Alerts:• Alerts issued by the President• Alerts involving imminent threats to safety of life (Extreme and Severe)• AMBER Alerts (missing child alert)Customers may choose not to receive Imminent Threats (Extreme and Severe) and AMBER Alerts. Alerts issued by the President can not be disabled. To disable Imminent Threats and AMBER Alerts, follow the instructions below:1. From the main Home screen, tap Messaging .2. Press ➔ Settings.3. Scroll to the bottom and tap Emergency alerts. DRAFT DRAFT

1014. All alerts are enabled by default (checkmark showing). Tap on an alert option to disable the alert and remove the checkmark.Using EmailEmail enables you to review and create email using various email services. You can also receive text message alerts when you receive an important email.Creating an Email Account1. From the Home screen, tap Email .Your accounts screen displays with an Email setup screen displayed.2. Enter you email address in the Email address field.3. Enter your password in the Password field.4. If you want to see your password as it is being typed, tap Show password to create a checkmark.5. Tap Next.6. At the Account options screen, tap any of the options you would like.7. Tap Next.8. Enter a name for this email account (optional).9. Tap Done.Creating a Corporate Email AccountUse the following procedure to configure your phone to synchronize with a corporate email account.1. From the Home screen, tap Email .Your accounts screen displays with an Email setup screen displayed.2. Enter you email address in the Email address field.3. Enter your password in the Password field.4. If you want to see your password as it is being typed, tap Show password to create a checkmark.5. If you want all of your emails sent from this email account by default, tap the checkbox to create a checkmark. This checkbox only appears if you have previously set up an email account.6. Tap Manual setup.7. Tap the Microsoft Exchange ActiveSync field.8. Enter all the Exchange server information, Domain, User name and Password, then tap Next.9. At the Activation prompt, tap OK.The Account options screen is displayed. DRAFT

Messaging 10210. Enter the desired information in the different fields, then tap Next.11. Enter an Account name for this account (Optional) and tap Done.Wait for the Inbox to synchronize before use.12. Press ➔ Settings to change the account settings.Creating Additional Email AccountsTo create additional email accounts after setting up your first account, follow these steps:1. From the Home screen, tap Email .Your Email screen displays showing your emails from the active account.2. Press ➔ Settings.3. Tap Add account to add another email account.4. Enter the information required to set up another account. For more information, refer to “Creating an Email Account” on page 101.Switching Between Email Accounts1. From the Home screen, tap Email .Your Email screen displays showing your emails from the active account.2. Tap the Inbox button at the top of your screen.Your Email accounts screen is displayed.3. Tap the Email account Inbox you would like to switch to. You can also select Combined inbox which will display email messages from all accounts.4. The new Email account is displayed.Using GmailGmail is Google’s web-based email. When you first setup the phone, Gmail is configured. Depending on the synchronization settings, Gmail is automatically synchronized with your Gmail account.Signing into Your GmailNote: You must sign in to your Gmail account in order to access Gmail. DRAFT

1031. Sign on to your Google account if you are not already signed on. For more information, refer to “Creating a New Google Account” on page 12.2. From the Home screen, tap ➔ Gmail .3. Follow the on-screen instructions.The Inbox loads conversations and email.Creating a Gmail Message1. From the Gmail Inbox, tap at the bottom of the screen to create a new message.2. Enter the recipients Email address in the To field.Separate multiple recipient email addresses with a comma.3. Tap and select Add Cc/Bcc to add a carbon or blind copy.4. Enter the subject of this message in the Subject field.5. Tap the Compose email field and begin composing your message.6. Tap to send.Viewing a Gmail Message1. From the Gmail Inbox, tap a message to view it.2. The following options are available at the bottom of the screen after a message has been selected:•Archive : archives the selected message.• Delete : deletes the message.•Mark Unread : after reading a message, marks as unread.•Newer: swipe your screen to the right to see newer messages.•Older: swipe your screen to the left to see older messages.3. Press for additional options. DRAFT

Messaging 104HangoutsHangouts is a free Windows and web-based application for instant messaging offered by Google. You can connect with your friends across computers and various Android devices. You can have conversations or video calls with up to 10 friends.Note: The first time you use Hangouts, you will need to download the updated application from the Play Store. When the Play Store page displays, tap Update. For more information, refer to “Play Store” on page 183.1. Log on to your Google account if you have not already done so. For more information, refer to “Creating a New Google Account” on page 12.2. From the Home screen, tap ➔ Hangouts .3. The first time you access Hangouts, tap Confirm to confirm your mobile number. If the number is not correct, tap Edit Number to change it.4. Begin using Hangouts.5. Press ➔ Help for more information on using Hangouts.Google +Google+ makes messaging and sharing with your friends a lot easier. You can set up Circles of friends, visit the Stream to get updates from your Circles, use Messenger for fast messaging with everyone in your Circles, or use Instant Upload to automatically upload videos and photos to your own private album on Google+.1. Sign on to your Google account. For more information, refer to “Creating a New Google Account” on page 12.2. From the Home screen, tap ➔ Google+ .3. Select the account you want to use to sign in to Google+.– or –Tap Add account to create another account.4. Follow the on-screen instructions to use Google+.5. Visit www.google.com/mobile/+/ for more information. DRAFT

105Messages AppAT&T Messages brings your texts, calls, and voicemail messages together into a single conversation thread and is accessible by phone or computer.1. From the Home screen, tap ➔ Messages .2. The first time you use AT&T Messages, tap Update AT&T Messages.3. Sign on to your Google account if you are not already signed on. For more information, refer to “Creating a New Google Account” on page 12.Note: The first time you use the AT&T Messages app, you will need to download the updated application from the Play Store. When the Play Store page displays, tap Update then follow the on-screen instructions. For more information, refer to “Play Store” on page 183.4. At the Legal stuff... screen, tap Accept to continue.5. Tap Call Voicemail to record a personal greeting and set up your app.6. Follow the on-screen instructions to use the AT&T Messages app.ChatONProvides a global mobile communication service where you can chat with more than 2 buddies via a group chat. Share things such as pictures, videos, animation messages (Scribbles), audio, Contacts, Calendar entries, and Location information. 1. From the Home screen, tap ➔ ChatON .2. Sign on to your Samsung account if you have not already done so. For more information, refer to “Creating a Samsung Account” on page 13.3. Read the introduction and tap Next.Note: The first time you use the ChatON app, you will need to download the updated application from the Play Store. When the Play Store page displays, tap Update then follow the on-screen instructions. For more information, refer to “Play Store” on page 183.4. Follow the on-screen instructions to register and use the ChatON app.For more information, visit: https://web.samsungchaton.com. DRAFT

Changing Your Settings 106Section 7: Changing Your SettingsThis section explains the settings used for customizing your device.Accessing Settings1. From any Home screen, tap ➔ Settings .– or –From any Home screen, press ➔ Settings.Settings TabsThe Settings are divided into 4 main groups. When the Settings screen displays, the following 4 tabs are located at the top of the screen: Connections:This tab allows you to see all of settings related to the connection of your device to external sources. Features include: Wi-Fi, Bluetooth, Data usage, More networks (Airplane mode, Mobile networks, Tethering and portable hotspot, and VPN), NFC, S Beam, Nearby devices, and Screen Mirroring. My device:This tab provides access to device configuration and customization features. Features include: Lock screen, Display, LED indicator, Sound, Home screen mode, Call, Blocking mode, Hands-free mode, Power saving mode, Accessory, Accessibility, Language and input, Motions and gestures, Smart screen, Air view, and Voice control. Accounts:This tab provides both the ability to create and modify your accounts (example; Samsung account, Email, Google account, etc.) and access Backup and reset features. More:This tab provides access to the remaining set of device settings not listed under the other three tabs. These include Location services, Security, Application manager, Battery, Storage, Date and time, and About device. DRAFT

107Note: The settings for your device are described below in the order that they appear within the Settings menu. Options under the Connections tab are listed first, followed by My device, Accounts, and More settings.Wi-Fi SettingsThis section describes the Wi-Fi settings. For information on how to use Wi-Fi, see “Wi-Fi” on page 154.Activating Wi-Fi1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi.2. Tap the ON/OFF slider, located to the right of the Wi-Fi field, to turn Wi-Fi ON .3. Tap Scan to scan for available Wi-Fi networks. For more information, refer to “Connect to a Wi-Fi Network” on page 154.Activating Wi-Fi DirectWi-Fi Direct allows device-to-device connections so you can transfer large amounts of data over a Wi-Fi connection.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi.2. Tap the ON/OFF slider, located to the right of the Wi-Fi field, to turn Wi-Fi ON . 3. At the bottom of the Wi-Fi screen, tap the Wi-Fi Direct button.For more information, refer to “Wi-Fi Direct” on page 156.Advanced Wi-Fi SettingsThe advanced Wi-Fi settings allow you to set up and manage wireless access points.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi.2. Press ➔ Advanced.The following options are available:• Network notification: alerts you when a new WAP is available.• Passpoint: allows you to connect to passpoint-enabled Wi-Fi Access Points automatically. Touch and slide the slider to the right to turn it on .•Sort by: allows you to sort by Alphabet or Signal strength.• Keep Wi-Fi on during sleep: allows you to specify when to disconnect from Wi-Fi. DRAFT

Changing Your Settings 108• Always allow scanning: allows the Google location service and other apps to scan for networks, even when Wi-Fi is turned off.• Auto network switch: allows the device to automatically switch between a Wi-Fi network or a cellular network.•Auto connect: allows you to be automatically connected to an AT&T Wi-Fi Hotspot as soon as your phone detects it.• Install certificates: allows you to install security certificates that you have on a MicroSD card.•MAC address: view your device’s MAC address, required when connecting to some secured networks (not configurable).•IP address: view your device’s IP address.Bluetooth settingsIn this menu you can activate Bluetooth, view or assign a device name, activate your phone so other Bluetooth devices can discover it, or scan for other, available Bluetooth devices with which to pair.Activating Bluetooth1. From the Home screen, tap ➔ Settings ➔ Connections.2. Tap the ON/OFF slider, located to the right of the Bluetooth field, to turn Bluetooth ON . The Bluetooth icon is displayed on the status bar.Additional Bluetooth SettingsWhen Bluetooth is on, additional settings are available.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Bluetooth.2. Tap Scan to scan for nearby discoverable devices. After searching, tap a device to pair with it. For more information, refer to “Pairing Bluetooth Devices” on page 160.3. Press and select a Bluetooth setting to configure:• Visibility timeout: Use this setting to control when to automatically turn off the Discoverable option: 2 minutes, 5 minutes, 1 hour, or Never time out.• Received files: Shows the list of files received by using Bluetooth. DRAFT

109• Help: Provides additional information on Bluetooth and Bluetooth settings.4. Tap the checkbox next to SAMSUNG-xxxxxx if you do not want your phone visible to other Bluetooth devices.Data UsageFrom this screen you can view your Mobile data usage and turn your Mobile data capability On or Off.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Data usage.2. Tap Mobile data to create a checkmark and turn Mobile data usage on. 3. Tap Set mobile data limit to create a checkmark and allow a data limit to be set.4. Touch and drag the orange limit bar to the GB limit that you desire.5. Tap the Data usage cycle drop-down menu and select a date.The data usage displays as a visual (chart) and also displays a list of each application with a breakdown of how much data was used per application.Note: Data is measured by your device. Your service provider may account for data usage differently.6. Press to display additional options. Tap to activate.• Data roaming: enables data roaming on your device.• Restrict background data: restricts some apps and services from working unless you are connected to a Wi-Fi network.• Auto-sync data: allows your accounts to automatically sync•Show Wi-Fi usage: displays a Wi-Fi tab that shows Wi-Fi usage.• Mobile hotspots: displays available mobile hotspots.More networksThis option displays additional Connectivity information. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks.Options display for Airplane mode, Mobile networks, Tethering and portable hotspots, and VPN. DRAFT

Changing Your Settings 110Airplane modeAirplane mode allows you to use many of your phone’s features, such as Camera, Games, and more, when you are in an airplane or in any other area where making or receiving calls or data is prohibited.Important! When your phone is in Airplane Mode, it cannot send or receive any calls or access online information or applications.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks.2. Tap the Airplane mode checkbox to create a checkmark and activate the feature. 3. At the Turn on Airplane mode prompt, tap OK.The Airplane mode icon is displayed at the top of your screen.Mobile networksBefore you use applications such as Google Maps and find your location or search for places of interest, you must enable the Mobile networks options.Mobile dataTo enable data access over the mobile network, this option must be selected. It is set on by default.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks ➔ Mobile networks.2. Tap Mobile data to create a checkmark and activate the feature.Data RoamingData roaming allows you to connect to your service provider’s partner networks and access data services when you are out of your service providers area of coverage.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks ➔ Mobile networks.2. Tap Data roaming to create a checkmark and activate the feature.Access Point NamesTo use Wi-Fi you need access to a wireless access point (hotspot).1. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks ➔ Mobile networks.2. Tap Access Point Names. DRAFT

111A list of the Access Point names display. The active access point displays a green, filled circle to the right of the name.Network OperatorsUsing this feature you can view the current network connection. You can also scan and select a network operator manually, or set the network selection to Automatic.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks ➔ Mobile networks.2. Tap Network operators.The current network connection displays at the bottom of the list.Important! You must deactivate data service prior to searching for an available network.Note: Connecting to 2G networks slows the data transfer speed and time.Default setup optionsYour phone default is set to Automatic (to automatically search for an available network. You can set this option to Manual to select a network each time you connect.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks ➔ Mobile networks.2. Tap Network operators.3. Tap Default setup.4. Tap Manual to locate and connect to a network manually, or tap Automatic to allow the device to automatically select a network.Tethering & portable hotspotThis option allows you to share your phones’s mobile data connection via USB or as a portable Wi-Fi hotspot.USB tetheringNote: To enable USB tethering on your phone, dial 611 or go to att.com/mywireless to set up the service.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks ➔ Tethering and portable hotspot. DRAFT

Changing Your Settings 1122. Connect your phone to your PC using a USB cable.3. Tap USB tethering to add a checkmark and activate the feature. The USB tethering icon is displayed at the top of your screen.Mobile HotspotNote: To enable Mobile Hotspot on your phone, dial 611 or go to att.com/mywireless to set up the service.1. From the Home screen, tap ➔ Mobile Hotspot .– or –From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks ➔ Tethering and portable hotspot ➔ Mobile Hotspot.2. Turn Mobile Hotspot on by tapping the slider so that it changes to the ON position .The Mobile Hotspot icon is displayed at the top of your screen.3. Tap Configure at the bottom of the screen.4. Enter or edit the Network SSID, Hide my device, Security setting, and Password.5. Tap Show password and Show advanced options to see them displayed.6. Tap Save.7. Press for the following option:•Timeout settings: allows you to set the time your device will be available as a portable Wi-Fi hotspot.Connecting to Portable Wi-Fi hotspot from other devices1. Activate Wi-Fi on the device that wants to connect to your phone.2. Find GALAXY_S4_XXXX in the Wi-Fi network list and connect to it. XXXX are four randomly generated digits that will appear when you set up a Portable Wi-Fi hotspot on your device.The connected device can now use internet through your Portable Wi-Fi hotspot. Note: Activating Wi-Fi and connecting to your phone will be different depending on the type of the other device. DRAFT

113Help From the Tethering and portable hotspot menu, tap Help for additional informationVPN settingsThe VPN settings menu allows you to set up and manage Virtual Private Networks (VPNs).Important! Before you can use a VPN you must establish and configure one.Adding a Basic VPNBefore you add a VPN you must determine which VPN protocol to use: PPTP (Point-to-Point Tunneling Protocol), L2TP (Layer 2 Tunneling Protocol), L2TP/IPSec PSK (Pre-shared key based L2TP/IPSec), or L2TP/IPSec CRT (Certificate based L2TP/IPSec).1. Before using VPN, you must first set up a screen unlock PIN or password. For more information, refer to “Lock Screen Settings” on page 116.2. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks ➔ VPN.3. Tap Basic VPN.4. Tap (Add VPN network).5. Enter a name for the VPN network in the Name field.6. Select a VPN type from the Type drop-down menu. The options are:•PPTP (Point-to-Point Tunneling Protocol)•L2TP/IPSec PSK (Layer 2 Tunneling Protocol / Internet Protocol Security Pre-Shared Key)•L2TP/IPSec RSA•IPSec Xauth PSK•IPSec Xauth RSA•IPSec Hybrid RSA7. Enter the Server address and any other required fields that are dependent upon the Type you entered previously.8. Tap the Show advanced options check box to display additional VPN options.9. Tap Save to save your VPN settings. DRAFT

Changing Your Settings 114Adding an IPsec VPN1. Before using VPN, you must first set up a screen unlock PIN or password. For more information, refer to “Lock Screen Settings” on page 116.2. From the Home screen, tap ➔ Settings ➔ Connections ➔ More networks ➔ VPN.3. Tap Advanced IPsec VPN.4. Tap Add VPN connection.5. Enter a password, confirm the password, and tap OK.6. Enter a name for the VPN connection in the VPN connection name field.7. Select a IPsec type from the drop-down menu.8. Enter any other required information.9. Tap the Show advanced options check box to display additional VPN options.10. Tap Save to save your VPN settings.NFCNFC (Near Field Communication) allows data exchange when you touch your device with another compatible device. This is used for applications such as Android Beam and S Beam.To activate NFC, follow these steps:1. From the Home screen, tap ➔ Settings ➔ Connections ➔ NFC.2. Tap the ON/OFF slider, located to the right of the NFC field, to turn NFC ON . Android BeamWhen Android Beam is activated, you can beam app content to another NFC-capable device by holding the devices close together. You can beam browser pages, YouTube videos, contacts, and more.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ NFC ➔ Android Beam.2. Tap the OFF / ON icon to turn Android Beam ON .3. Touch the back of your device with another NFC-capable device and the content is transferred. DRAFT

115S BeamWhen S Beam is activated, you can beam files to another NFC-capable device by holding the devices close together. You can beam images and videos from your Gallery, music files from your Music app, and more.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ S Beam.2. Tap the OFF / ON icon to turn S Beam on .3. Touch the back of your device with another NFC-capable device and the content is transferred.Nearby devicesThis option allows you to share your media files with nearby devices using DLNA and connected to the same Wi-Fi.1. Connect to a Wi-Fi network. For more information, refer to “Activating Wi-Fi” on page 107.2. From the Home screen, tap ➔ Settings ➔ Connections ➔ Nearby devices.3. Tap the OFF / ON icon to turn Nearby devices on .4. Verify (Nearby devices) appears at the top of the screen.5. At the Nearby devices prompt, tap OK.6. Tap Shared contents, then check the media you would like to share. Tap OK.7. Tap Allowed devices list, then select the connected devices you would like to allow. 8. Tap Not-allowed devices list, then select the connected devices you would like to not allow. 9. Tap Download to, then select the destination of any downloaded (shared) content. Choose from Device or SD card.10. Tap Upload from other devices, then select the actions you’ll take when you upload content from other devices. Choose from either Always accept, Always ask, or Always reject.Screen MirroringThe Screen Mirroring feature allows you to share the media files on your device screen with an HDMI device such as an HDMI TV. DRAFT

Changing Your Settings 116Note: This feature requires the optional AllShare Cast dongle which is available as an accessory. See your AT&T Customer Service Representative for more information.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Screen Mirroring.2. Connect the AllShare Cast dongle to the HDMI device using an HDMI A-to-A cable.3. Press ➔ Help for information on using Screen Mirroring.Lock Screen SettingsChoose settings for unlocking your screen. For more information about using the lock and unlock features, see “Locking and Unlocking the Touch Screen” on page 12.Screen Lock1. From the Home screen, tap ➔ Settings ➔ My device ➔ Lock screen.2. Tap Screen lock for these options then follow the on-screen instructions to set up your Screen lock:•Swipe: Swipe the screen to unlock it.• Face unlock: Look at your phone to unlock it. • Face and voice: Look at your phone and speak to unlock.•Pattern: A screen unlock pattern is a touch gesture you create and use to unlock your device. Follow the prompts to create or change your screen unlock pattern.•PIN: Select a PIN to use for unlocking the screen.•Password: Create a password for unlocking the screen.•None: No pattern, PIN, or password is required. The screen will never lock.Lock screen optionsActivate or deactivates various Unlock screen functions. Note: The Lock screen options will differ depending on what type of Screen Lock you have selected in step 2.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Lock screen.2. The following options are available depending on the Screen Lock type that you have selected:Swipe options• Multiple widgets allows you to display multiple widgets on your lock screen. Appears as an options after a lock mode is enabled. DRAFT

117• Lock screen widgets allows you to lock the widgets that are displayed on your home screens.•Shortcuts sets shortcuts to appear at the bottom of the Lock screen. Touch and slide the slider to the right to turn it on .• Unlock effect sets the effect you receive when unlocking the phone. You can select None, Ripple effect, or Light effect.•Help text shows help information on the Lock screen.• Wake up in lock screen requires that you say a command to wake-up your phone.• Set wake-up command designates your wake-up commands. Tap Set wake-up command and follow the on-screen prompts to create a new verbal command.Face unlock options• Lock screen widgets allows you to lock the widgets that are displayed on your home screens.• Improve facial recognition allows you to improve your device’s face matching capability by capturing your face in different lighting, with or without glasses, and bearded or clean-shaven. Follow the on-screen instructions.• Presence check requires that you blink when using the Face unlock feature. This will increase the security of the feature.• Secured lock time allows you to set a time-out for lock screen.Pattern options• Lock screen widgets allows you to lock the widgets that are displayed on your home screens.• Make pattern visible allows you to see the pattern as you draw it.• Secured lock time allows you to set a time-out for lock screen.PIN and Password options• Lock screen widgets allows you to lock the widgets that are displayed on your home screens.• Secured lock time allows you to set a time-out for lock screen.Display SettingsIn this menu, you can change various settings for the display. From the Home screen, tap ➔ Settings ➔ My device ➔ Display.The following options display:•Wallpaper: allows you to set the Wallpaper for your Home screen, Lock screen, or both. For more information, refer to “Changing the Wallpaper” on page 34. DRAFT

Changing Your Settings 118• Notification panel: allows you to set the brightness of your notification panel and also select the quick setting buttons that you want to display at the top of the notification panel. For more information, refer to “Notification Bar” on page 35.•Multi window: tap this option to enable/disable the automatic Multi window feature.• Screen mode: allows you to select from several different color modes.• Reading mode: allows you to activate an optimized reading mode for selected applications. This menu allows you to assign available applications (such as Calculator, Camera, Contacts, etc...) for enhancement using the Reader mode. Tap the OFF / ON icon next to Reading mode to turn it on .•Brightness: configures the LCD Brightness levels. Tap Automatic brightness to allow the phone to self-adjust or drag the slider and tap OK.• Auto-rotate screen: allows you to switch the display orientation automatically when you rotate the phone.• Screen timeout: adjusts the delay time before the screen automatically turns off. Selections are: 15 seconds, 30 seconds, 1 minute, 3 minutes, 5 minutes, and 10 minutes.•Daydream: allows you to control what your screen does when your device is docked or sleeping. Tap the OFF / ON icon next to Daydream to turn it on . Follow the on-screen instructions.• Font style: allows you to set the font style that your phone will use. You can also tap Get fonts online to choose from a wider selection.•Font size: allows you to select which size of font is displayed.• Touch key light duration: allows you to adjust the delay before the Touch key light automatically turns off.• Show battery percentage: allows you to see the battery charge percentage next to the battery charge icon at the top of the display.• Edit after screen capture: allows you to go edit a screen immediately after taking a screen capture.• Auto adjust screen tone: allows you to save power because the phone analyzes the displayed screen image and adjusts the LCD brightness.• Increase touch sensitivity: allows you to adjust the touch sensitivity of your phone automatically depending on the type of material on the display. DRAFT

119LED indicatorThis option allows you to turn on your LED lights for charging, missed events, and incoming notifications. The light will turn on by default unless you turn them off. From the Home screen, tap ➔ Settings ➔ My device ➔ LED indicator.3. Tap the following LED indicator options to create a checkmark and turn them on or off:•Charging: LED lights up when the device is connected to the charger.• Low battery: LED lights up when the battery level is low.• Notifications: LED lights up when you have missed calls, messages, or application events.• Voice recording: LED lights up when you are recording voice. The LED only lights up when the screen is off.Sound SettingsFrom this menu you can control the sounds on the phone. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound.The following options display:VolumeThe Volume option allows you to change the volume for all phone sounds in one easy location.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound ➔ Volume.2. Touch and drag the slider to adjust the sound volume for Media, Ringtone, Notifications, and System.3. Tap OK.Vibration intensityVibration intensity allows you to select how intense the vibration is for different options.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound ➔ Vibration intensity.2. Touch and drag the slider to adjust the Vibration intensity for Incoming call, Notification, and Haptic feedback. DRAFT

Changing Your Settings 120RingtonesThis option allows you to set the ringtone.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound.2. Tap Ringtones.3. Tap a ringtone and tap OK.– or –Tap Add to select a file from your music files.VibrationsThis option allows you to set your phone to vibrate and ring.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound.2. Tap Vibrations. 3. Select a vibration pattern and tap OK.– or –Tap Create and follow the on-screen instructions to create your own vibration.Default notification soundThis option allows you to set the ringtone that will sound for notifications and alarms.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound.2. Tap Default notification sound.3. Tap a ringtone and tap OK.Vibrate when ringingThis option allows you to enable your phone to vibrate whenever it rings.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound.2. Tap Vibrate when ringing to create a checkmark and enable the feature.System Tone SettingsThe System tone settings are used when you use the dialing pad, make a screen selection, lock your screen, or tap the screen.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound. DRAFT

1212. Tap any of the following options to create a checkmark and activate the feature:• Dialing keypad tone: makes a sound when you tap a key on the keyboard.• Touch sounds: makes a sound when you touch the screen.• Screen lock sound: makes a sound when your screen is locked or unlocked.• Haptic feedback: makes a vibration when you tap soft keys and on certain UI interactions.Samsung Keyboard SettingsThe Samsung keyboard settings are used when you use the dialing pad, make a screen selection, lock your screen, or tap the screen.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound.2. Tap any of the following options to create a checkmark and activate the feature:•Key-tap sound: makes a sound when you tap a key on the Samsung keyboard.• Key-tap vibration: makes a vibration when you tap a key on the Samsung keyboard.Audio OutputThis sound feature configures the audio output. 1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound ➔ Audio output.2. Choose from either Stereo or Surround.Adapt soundThe Adapt sound feature allows you to customize your call sounds. 1. From the Home screen, tap ➔ Settings ➔ My device ➔ Sound ➔ Adapt sound.2. Read the instructions and tap Start.3. Follow the on-screen instructions to set up your personal call sound.Home screen modeHome screen mode allows you to set your display to the conventional layout of Standard mode or provide an easier user experience for the first-time smartphone users using Easy mode.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Home screen mode. DRAFT

Changing Your Settings 1222. Tap the pull-down dropbox and select one of the following options:• Standard mode: provides conventional layout for the apps and widgets on your home screens.• Easy mode: provides easier user experience for first-time smartphone users on the home screens.3. Tap Apply.Call SettingsTo access the Call settings menu: From the Home screen, tap ➔ Settings ➔ My device ➔ Call.– or – From the Home screen, tap ➔ ➔ Call settings.Call rejection1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Call rejection.2. Tap the OFF / ON icon to turn Auto reject mode on .3. Tap Auto reject mode and tap one of the following options:•Off: to turn Auto reject mode off.• All numbers: to reject all calls.• Auto reject numbers: to reject all calls in your Reject list.4. Tap Auto reject list.5. Tap to manually add numbers to the Reject list.6. Tap Unknown, to create a checkmark and automatically reject all calls that are not in your Contacts list.Set up call rejection messages1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Set up call rejection messages.2. Tap to manually add a reject message.– or –Tap one of the pre-written messages to be displayed when you want the call to be rejected. You can edit the message if desired.3. Tap Save to save the reject message.Answering/ending calls1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Answering/ending calls.2. The following options are available: DRAFT

123• The home key answers calls: Tap this option to be able to accept incoming calls by pressing the Home key.• Voice control: Tap this option to be able to accept incoming calls by using your voice.• The power key ends calls: This option will allow you to end a call by pressing the power key without turning off the screen. Turn off screen during callsThis option turns on the proximity sensor during calls so that your phone will know to turn the screen off to save power. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Turn off screen during calls to create a checkmark and enable the feature.Call alerts1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Call alerts.2. Tap the following options to create a checkmark and activate the features:• Answer vibration: enables your phone to vibrate when the called party answers the phone.• Call-end vibration: enables your phone to vibrate when the call ends.• Call connect tone: plays a tone when a call is connected.• Minute minder: beeps twice every minute that you are on a call.•Call end tone: plays a tone when a call is ended.• Alerts on calls: turns on alarm and message notifications during a call.Call Accessories1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Call accessories.2. The following options are available:• Automatic answering: configures the device to automatically answer and incoming call when a headset is detected.• Automatic answering timer: configures the time delay before the device automatically accepts the incoming call.• Outgoing call conditions: allows you to make calls even when the device is locked.Additional settings1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Additional settings.2. Tap one of the following options: DRAFT

Changing Your Settings 124•Caller ID: allows you to choose how your Caller ID will be displayed. Select Network default, Hide number, or Show number.• Call forwarding: allows you to forward your calls to another number.• Auto area code: allows you to automatically prepend a specific area code to all outbound calls.• Call waiting: the network service informs you when someone is trying to reach you during another call. Tap to activate.• Auto redial: automatically redials the last number if the call was either cut off or was unable to connect. Tap to activate.• Fixed dialing numbers: allows you to restrict outgoing calls to a limited set of phone numbers.Using Fixed Dialing NumbersEnabling FDN1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Additional settings ➔ Fixed dialing numbers.2. Tap Turn on FDN.3. At the prompt, enter your PIN2 code and tap OK.FDN is enabled.4. To enable FDN after it has been disabled, tap Turn off FDN, enter your PIN2 code and tap OK.Important! Not all SIM cards use a PIN2 code. If your SIM card does not, this menu does not display.The PIN2 code is provided by your carrier. Entering an incorrect PIN2 code could cause the phone to lock. Contact customer service for assistance.Changing the PIN2 Code1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Additional settings ➔ Fixed dialing numbers.2. Tap Change PIN2.3. At the prompt, enter your old PIN2 code.4. At the prompt, enter a new PIN2 code.5. Confirm your PIN2 code.Managing the FDN ListWhen this feature is enabled, you can make calls only to phone numbers stored in the FDN list on the SIM card. DRAFT

125Note: Before you can manage an FDN list a list must be created.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Additional settings ➔ Fixed dialing numbers.2. Tap FDN list.3. A list of all existing FDN numbers will be displayed.Ringtones and keypad tones1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Ringtones and keypad tones.2. Tap Ringtones, select a ringtone, and tap OK.3. Tap Vibrations, select a vibration type, and tap OK.4. Tap Vibrate when ringing to create a checkmark if you want your phone to vibrate when a call is incoming.5. Tap Dialing keypad tone to create a checkmark if you want tones to play when the keypad is pressed.Personalize call soundThis option allows you to personalize the sounds you hear during a call with and without earphones.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Personalize call sound.2. At the Personalize call sound display, tap one of the following options:• Adapt sound: allows you to customize your sounds. Follow the on-screen instructions to set up your personal call sound.• Soft sound: plays a softer sound when the other party is in a noisy environment.•Clear sound: plays a clearer sound when the other party sounds unclear or muffled.•Off: turns off your customized call sound and plays the default sounds.Noise reductionThis option helps to suppress background noise from your side during a call. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Noise reduction to create a checkmark and enable the feature. DRAFT

Changing Your Settings 126Increase volume in pocketThis option increases the ringtone volume when the device is in a pocket or a bag. It uses the proximity sensor to detect its location. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Increase volume in pocket to create a checkmark and enable the feature.Voicemail service1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Voicemail Service.Voicemail service provided by your carrier is the default.2. Tap My carrier to remove the carrier Voicemail service.Voicemail settingsYou can view or modify your voicemail number from this menu.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Voicemail settings.2. Tap the Voice mail number field, backspace to erase the digits, and enter a new voicemail number using the keypad, then tap OK.3. Tap OK.Sound1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ Sound.2. Tap a ringtone to hear it played.3. Select a ringtone and tap OK.VibrateThis option allows you select vibration settings.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call.2. Tap Vibrate to create a checkmark and activate the Vibrate feature.TTY ModeA TTY (also known as a TDD or Text Telephone) is a telecommunications device that allows people who are deaf, hard of hearing, or who have speech or language disabilities, to communicate by telephone. Your phone is compatible with select TTY devices. Please check with the manufacturer of your TTY device to ensure that it is compatible with digital cell phones. DRAFT

127Your phone and TTY device will connect via a special cable that plugs into your phone’s headset jack. If this cable was not provided with your TTY device, contact your TTY device manufacturer to purchase the connector cable.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Call ➔ TTY mode.2. Tap TTY Full, TTY HCO, or TTY VCO. A green checkmark will appear. Tap TTY Off to turn it off.Blocking ModeWhen Blocking mode is enabled, notifications for selected features will be disabled. You will only receive notifications of incoming calls from people on your allowed list.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Blocking mode.2. In a single motion touch and slide the Blocking mode slider to the right to turn it on . Confirm that the Blocking mode active icon appears in the Status bar.3. Place a green checkmark adjacent to those features you would like to enable. Choose from: Disable incoming calls, Disable notifications, Disable alarm and timer, Disable LED indicator.4. Configure a timeframe for these features to be active. Remove the checkmark from the Always field to configure the From and To time fields.5. Tap Allowed contacts to assign those contacts that are exempted from these rules. Choose from None, All contacts, Favorites, or Custom. Allowed contacts will then appear in the Allowed contact list.Hands-free ModeWhen Hands-free mode is enabled, incoming calls and notifications will be read out automatically.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Hands-free mode.2. Tap the OFF / ON icon next to Hands-free mode to the right to turn it on . Confirm that the Hands-free mode active icon appears in the Status bar. DRAFT

Changing Your Settings 128All incoming calls and notifications will be read out automatically.3. The following options are available:• Incoming call: read out callers’ information when receiving incoming calls.•ChatON: read out callers’ information when receiving incoming ChatON messages. • Air call-accept: wave your hand over the screen to accept incoming calls.• Message: read out senders’ information when receiving incoming calls.•Alarm: read out alarm information when alarms sound.• Schedule: read out scheduled alarm information when alarms sound.4. You can disable Hands-free mode by saying “Hands-free mode off” while in S voice, or by accessing the Settings menu and sliding the Hands-free mode slider to the off position or by using the Notification panel.Power saving modePower saving mode allows you to manage your phone to conserve power.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Power saving mode.2. Tap the OFF / ON icon next to Power saving mode to turn Power saving mode on .3. Tap the following options to create a checkmark and conserve power:• CPU power saving: allows you to limit the maximum performance of the CPU.• Screen power saving: allows you to lower the screen power level.• Turn off haptic feedback: allows you to turn off vibration when you tap or touch the screen.•Auto enable: automatically turns on Power saving mode when the battery falls below 20% even if Power saving mode is off.4. Tap Learn about power saving to learn about various ways to conserve battery power. DRAFT

129Accessory SettingsThis menu allows you to select the Audio output mode whenusing a car or desk dock.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Accessory.2. Tap Dock sound to play sounds when inserting or removing the phone from the dock.3. Tap Audio output mode to use the external dock speakers when the phone is docked.4. Tap Desk home screen display to display the desk home screen whenever the phone is docked.5. Tap Automatic unlock if you are using a phone cover and you want your phone to unlock when you open the cover.6. Tap Audio output to set your Audio output to Stereo or Surround.AccessibilityAccessibility services are special features to make using the device easier for those with certain physical disabilities. Use the Accessibility settings to activate these services.Note: You can download accessibility applications from Play Store and manage their use here.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Accessibility.2. The following options are available:• Auto rotate screen: automatically rotate the screen from landscape to portrait when you rotate your phone.• Screen timeout: timeout the accessibility feature after a defined amount of time.• Secured lock time: allows you to set the time of inactivity that passes before your screen locks. This option only appears if you have set your screen lock feature to any option other than None or Swipe. For more information, refer to “Screen Lock” on page 116.• Speak passwords: reads out password information. DRAFT

Changing Your Settings 130• Answering/ending calls: accept incoming calls by pressing the home key or end calls using the power key.• Easy touch mode: allows you to easily tap the screen to stop snooze alarms, calendar events and timers, and accept/reject incoming calls.•Show shortcut: allow the accessibility shortcut under the device options to be used by pressing and holding the power key.• Manage accessibility: save and update your accessibility settings or share them with another device. You can export your settings, import a previously saved file, or share your file with another device.• TalkBack: activate the TalkBack feature.Note: TalkBack, when installed and enabled, speaks feedback to help blind and low-vision users.Important! TalkBack can collect all of the text you enter, except passwords, including personal data and credit card numbers. It may also log your user interface interactions with the device.•Font size: change the size of the fonts used on the device within menus, options, etc. Choose from: Tiny, Small, Normal, Large, or Huge.• Magnification gestures: use exaggerated gestures such as triple-tapping, double pinching, and dragging two fingers across the screen.• Negative colors: reverse the display of on-screen colors from White text on a Black background to Black text on a White background.• Color adjustment: allows you to adjust the display colors if you are color blind and have difficulty reading the display because of the colors. Touch and slide the slider to the right to turn it on . Follow the on-screen instructions.• Notification reminder: plays a beep when you have unread notifications. Touch and slide the slider to the right to turn it on . • Accessibility shortcut: allows you to quickly enable accessibility features in 2 quick steps. Touch and slide the slider to the right to turn it on . Follow the on-screen instructions. DRAFT

131• Text-to-speech options: allows you to adjust your text-to-speech settings. For more information, refer to “Speech Settings” on page 136.• Sound balance: allows you to use the slider to set the Left and Right balance when using a stereo device.• Mono audio: allows you to enable stereo audio to be compressed into a single mono audio stream for use with a single earbud/earphone.• Turn off all sounds: allows you to mute every sound made by the device during taps, selections, notifications, etc.• Hearing aids: allows you to improve the sound quality of your device for use with hearing aids.• Flash notification: allows you to set your camera light to blink whenever you receive a notification.• Assistant menu: allows you to improve the device accessibility for users with reduced dexterity. Touch and slide the slider to the right to turn it on . Follow the on-screen instructions.• Press and hold delay: allows you to select a time interval for this action. Choose from: Short, Medium, Long, or Custom.• Interaction control: allows you to enable or disable motions and screen timeout. You can also block areas of the screen from touch interaction. Touch and slide the slider to the right to turn it on . Follow the on-screen instructions.Language and inputThis menu allows you to configure the language in which to display the menus. You can also set on-screen keyboard options.LanguageYou can change the language used by your device by following these steps:1. From the Home screen, tap ➔ Settings ➔ My device ➔ Language and input ➔ Language.2. Tap a language from the list.Keyboards and Input MethodsYou can change the keyboard used by your device by following these steps:1. From the Home screen, tap ➔ Settings ➔ My device ➔ Language and input.2. Tap Default and select a keyboard.Select Samsung keyboard or Swype. DRAFT

Changing Your Settings 1323. Tap Set up input methods.4. Tap the icon next to the input method that you would like to configure the settings for.5. Based on your selection of input method, the appropriate settings will appear and are explained below.Samsung Keyboard settingsFrom this menu you can set Samsung keyboard options.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Language and input.2. Tap the icon next to Samsung keyboard.3. Set any of the following options:• Input languages settings is used to setup the language you will be using for input.–English is the default language. Whatever language you select in the Select input languages option below, will be displayed here.–Select input languages sets the input language. Tap a language from the available list. The keyboard is updated to the selected language.• Smart typing settings provides access to additional typing settings.–Predictive text enables predictive text entry mode. This must be enabled to gain access to the advanced settings. Touch and hold to access the advanced settings. Touch and slide the slider to the right to turn it on .–Auto replacement automatically completes or replaces the current word with the most probable word match after tapping the space bar or entering a punctuation mark. Touch and slide the slider to the right to turn it on .–Auto capitalization automatically capitalizes the first letter of the first word in each sentence (standard English style). –Auto spacing automatically inserts space between words.–Auto punctuate automatically inserts a full stop in a sentence by tapping the space bar twice when using the on-screen QWERTY keyboard. •Keyboard swipe: allows you to combine the Samsung keyboard with an additional input method choose from:–None leaves text input as only via the on-screen keyboard. DRAFT

133–SwiftKey Flow like using Swipe, allows you to enter text by sliding your fingers across the on-screen keyboard. This feature is optimized for use with the on-screen QWERTY keyboard. –Cursor control when enabled, allows you to control your on-screen cursor by moving your finger across the keyboard.• Key-tap feedback provides feedback functions to be enabled such as: –Sound enables auditory feedback when you tap an on-screen key.–Vibration enables vibration feedback when you tap an on-screen key.–Character preview provides an automatic preview of the current character selection within the text string. This is helpful when multiple characters are available within one key.• More settings provides access to additional access to more settings.–Help launches a brief on-screen help tutorial covering the main concepts related to the Samsung keyboard.• Reset settings resets the keyboard settings back to their original configuration.Predictive Text SettingsFrom this menu you can set Predictive Text settings.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Language and input.2. Tap the icon next to Samsung keyboard. 3. Tap the ON/OFF slider, located to the right of the Predictive text field, to turn it ON . 4. Tap Predictive text.5. The following options are available:• Live word update allows the device to automatically update its word database with popular new words every day.• Personalized data: allows you to use personal language that you have added to make your prediction results better.• Learn from Facebook: allows you to login to your Facebook account so your phone can learn your Facebook style.• Learn from Gmail: allows you to login to your Gmail account so your phone can learn your Gmail style.• Learn from Twitter: allows you to login to your Twitter account so your phone can learn your Twitter style.• Learn from Messages: allows your device to learn from your Messages. DRAFT

Changing Your Settings 134• Learn from Contacts: allows your device to learn from your Contacts.• Clear remote data: deletes anonymous data that is stored on the personalization server.• Clear personal data: removes all personalized data that you have entered.• Privacy policy: click the link to read the privacy policy. Follow the on-screen instructions.Swype Keypad SettingsTo configure Swype settings:1. From the Home screen, tap ➔ Settings ➔ My device ➔ Language and input.2. Tap the icon next to Swype.3. Tap Settings on the left side of the screen to alter these settings:• Vibrate on keypress: activates a vibration sensation as you enter text using the keypad.• Sound on keypress: turns on sounds generated by the Swype application.• Pop-up on keypress: displays the character above the key when typing.• Show complete trace: once enabled, sets wether or not to display the complete Swype path.• Auto-capitalization: automatically capitalizes the first letter of every sentence.•Auto-spacing: automatically inserts a space between words. When you finish a word, just lift your finger or stylus and start the next word.• Next word prediction: once enabled, predicts the next word in your text string based on your current text entries.• Show Voice key: once enabled, displays the Voice icon on your Swype keyboard so you can use the Voice input option. 4. Tap My Words on the left side of the screen to access the following options:• Backup & Sync: allows you to backup your Swype dictionary and sync your Swype dictionary across multiple devices.• Living Language: when enabled, this feature automatically updates your Swype dictionary with popular new words.• Social integration: allows you to learn information from your Facebook, Twitter, and Gmail accounts to help you while using Swype. DRAFT

135• Edit my dictionary: allows you to edit your personal Swype dictionary.• Clear language data: deletes all of your personal language data, including your words.• Contribute usage data: when enabled, allows the Nuance® application to collect usage data for better word predictions.•Cellular data: when enabled, activates cellular data usage by the Swype application so it can receive program updates, language downloads, and other related features via your existing data connection.5. Tap Languages on the left side of the screen to activate and select the current text input language. Default language is English. Touch Download languages, to download additional languages.6. Tap Gestures on the left side of the screen to view helpful information on using gestures while using Swype.7. Tap Help on the left side of the screen to see the following options:•How to Swype: provides tips on how to learn to use Swype.• Show helpful tips: once enabled, displays helpful tips and hints as you are using Swype.•Version: displays the software version information.8. Tap Updates on the left side of the screen to download any new Swype updates. If an update is available, it will display under the updates heading. If no updates are displayed, then check back later to see any available updates.Google voice typing settingsFrom this menu you can set Samsung keyboard options.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Language and input.2. Tap the icon next to Google voice typing. 3. The following options are available:• Choose input languages: tap on a language that you want to input. Select Automatic to use the local language or select a language from the list.• Block offensive words: tap to create a checkmark and enable the blocking of recognized offensive words from the results of your voice-input Google typing. DRAFT

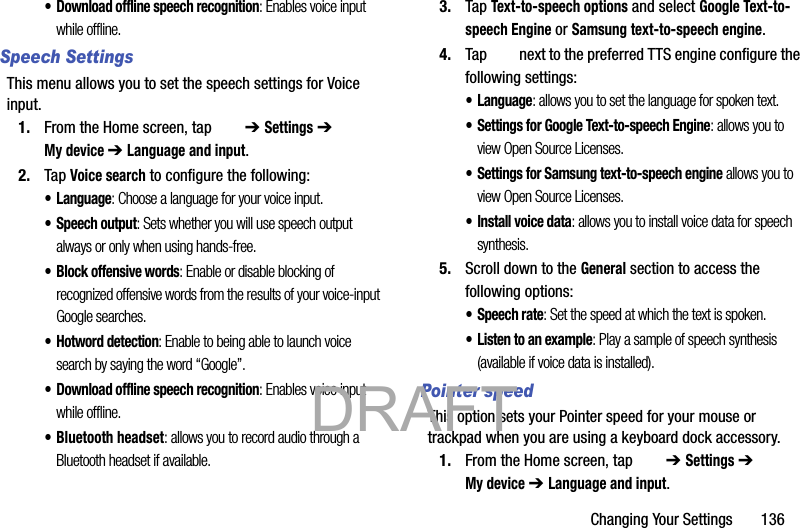

Changing Your Settings 136• Download offline speech recognition: Enables voice input while offline.Speech SettingsThis menu allows you to set the speech settings for Voice input.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Language and input.2. Tap Voice search to configure the following:• Language: Choose a language for your voice input.• Speech output: Sets whether you will use speech output always or only when using hands-free.• Block offensive words: Enable or disable blocking of recognized offensive words from the results of your voice-input Google searches.• Hotword detection: Enable to being able to launch voice search by saying the word “Google”.• Download offline speech recognition: Enables voice input while offline.• Bluetooth headset: allows you to record audio through a Bluetooth headset if available.3. Tap Text-to-speech options and select Google Text-to-speech Engine or Samsung text-to-speech engine.4. Tap next to the preferred TTS engine configure the following settings:• Language: allows you to set the language for spoken text.• Settings for Google Text-to-speech Engine: allows you to view Open Source Licenses.• Settings for Samsung text-to-speech engine allows you to view Open Source Licenses.• Install voice data: allows you to install voice data for speech synthesis.5. Scroll down to the General section to access the following options:• Speech rate: Set the speed at which the text is spoken.• Listen to an example: Play a sample of speech synthesis (available if voice data is installed).Pointer speedThis option sets your Pointer speed for your mouse or trackpad when you are using a keyboard dock accessory.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Language and input. DRAFT

1372. Tap Pointer speed then drag the slider to the right to go faster or to the left to go slower.3. Tap OK to save your setting.Motions and GesturesThe Motions and Gestures settings allow you to set up various Motion activation services. For more information on using gestures, see “Using Motions and Gestures” on page 23. From the Home screen, tap ➔ Settings ➔ My device ➔ Motions and gestures.Air gestureAir gesture allows you to control your device by performing motions above the sensor.1. From the Motions and gestures screen, tap Air gesture.2. Tap the ON/OFF icon at the top of your screen to activate Air gesture.3. Tap Learn about the sensor and icon to learn more about the Air gesture sensor and its location.4. The following Air gesture features are available:• Quick glance: when your screen is off, reach towards your device and it will display information such as time, date, missed calls, incoming messages, and battery strength. Tap the ON/OFF icon to turn it on.• Air jump: move your hand up or down above the sensor to jump to the top or bottom of a page or list. Tap the ON/OFF icon to turn it on.• Air browse: move your hand to the right or left above the sensor to move to the previous or next item such as pictures or web pages. Tap the ON/OFF icon to turn it on.• Air move: use one hand to press and hold an icon then move your other hand to the left or to the right above the sensor to move the icon to another page. You can also use this feature in your calendar to move events to another day. Tap the ON/OFF icon to turn it on.• Air call-accept: wave your hand above the sensor to accept an incoming call. Tap the ON/OFF icon to turn it on.5. Press ➔ Help for additional information.MotionMotion allows you to control your device by performing natural movements. DRAFT

Changing Your Settings 1381. From the Motions and gestures screen, tap Motion.2. Tap the ON/OFF icon at the top of your screen to activate Motion.3. The following options are available:• Direct call: Once enabled, the device will dial the currently displayed on-screen Contact entry as soon as you place the device to your ear. Tap the ON/OFF icon to turn it on.•Smart alert: Once enabled, pickup the device to be alerted and notified of you have missed any calls or messages. Tap the ON/OFF icon to turn it on.• Zoom: Once enabled, you must be on a screen where content can be zoomed. In a single motion, touch and hold two points on the display then tilt the tilt the device back and forth to zoom in or out. Tap the ON/OFF icon to turn it on.• Browse an image: Once enabled, touch and hold a desired on-screen image to pan around it. Move the device left or right to pan vertically or up and down to pan horizontally. Tap the ON/OFF icon to turn it on.• Mute/pause: Once enabled, mute incoming calls and any playing sounds by turning the device display down on a surface. Tap the ON/OFF icon to turn it on.4. Press ➔ Help for additional information.Palm motionPalm motion allows you to control your device by touching your screen with the palm of your hand.1. From the Motions and gestures screen, tap Palm motion.2. Tap the ON/OFF icon at the top of your screen to activate Palm motion.3. The following options are available:• Capture screen: Once enabled, you can capture any on-screen information swiping across the screen. In a single motion, press the side of your hand on the screen and swipe form left to right. The image is then copied to the clipboard. Tap the ON/OFF icon to turn it on.• Mute/pause: Once enabled, you can pause any on-screen video or mute any current sound by simply covering the screen with your hand. Once you remove your hand from the screen, the device goes back to normal by either continuing to play the current video or unmuting the current sound. Tap the ON/OFF icon to turn it on.4. Press ➔ Help for additional information. DRAFT

139Smart screenThe Smart screen options allow you to customize your screen settings to make the screen more responsive and easier to use.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Smart screen.2. Tap any of the following options to create a checkmark and activate the features:•Smart stay: disables the screen timeout if your phone detects that your face is watching the screen.• Smart rotation: disables the auto screen rotation by checking the orientation of your face and the device.• Smart pause: pauses videos when your device detects that your head has moved away from the screen.• Smart scroll: the screen will scroll depending on the phone’s tilt angle once your eyes have been detected. Tap the ON/OFF icon to turn it on.Air viewWith the Air view feature, you can hover your finger over the screen and Air view features will be displayed. For example, you can hover your finger over a scheduled item in your calendar to see more details. 1. From the Home screen, tap ➔ Settings ➔ My device ➔ Air view.2. Tap the ON/OFF icon at the top of your screen to activate Air view.3. The following options are available. Tap an option to create a checkmark and activate the feature.• Information preview: allows you to see information previews, extended text, and enlarged images when you hover your finger over the screen.• Progress preview: allows you to preview a scene or show elapsed time when you hover your finger over the progress bar while watching a video.• Speed dial preview: allows you to see the contacts and their speed dial numbers when you hover your finger over them in your contacts list. DRAFT

Changing Your Settings 140• Webpage magnifier: allows you to see magnified links on webpages when you hover your finger over them.• Sound and haptic feedback: allows you to play sound and feel vibration when you hover your finger over Air view items.Voice controlThe Voice control settings allow you to set up voice commands to control your device.1. From the Home screen, tap ➔ Settings ➔ My device ➔ Voice control.2. Tap the ON/OFF icon at the top of your screen to activate Voice control.3. The following options are available. Tap an option to create a checkmark and activate the feature.• Incoming calls: allows you to answer or reject calls using the commands Answer and Reject.•ChatON: allows you to answer or reject calls using the commands Answer and Reject. •Alarm: allows you to stop or snooze an alarm by using the commands Stop and Snooze.•Camera: allows you to take pictures using the voice commands Smile, Cheese, Capture, or Shoot.•Music: allows you to control your Music app using the voice commands Next, Previous, Pause, Play, Volume Up, and Volume Down.Note: If you set the alert type for calls or alarms to vibration, voice control will not be available.Add AccountThis menu allows you to set up, manage, and synchronize accounts, including your Google and email accounts.Adding an Account1. From a Home screen, tap ➔ Settings ➔ Accounts ➔ Add account.2. Tap one of the account types.3. Use the keyboard and follow the prompts to enter your credentials and set up the account.A green circle will appear next to the account type once you have created an account. Your email account will also be displayed in the My accounts section of the main Accounts menu. DRAFT

141Removing an AccountImportant! Removing an account also deletes all of its messages, contacts, and other data from the device.1. From a Home screen, tap ➔ Settings ➔ Accounts.2. Tap the account which is located in the My accounts section.3. Tap the account name.4. At the bottom of the screen, tap Remove account, then tap Remove account at the prompt to remove the account and delete all its messages, contacts, and other data.Synchronizing AccountsSelect the items you want to synchronize on your account such as Books, Calendar, Contacts, and more.1. From a Home screen, tap ➔ Settings ➔ Accounts.2. Tap the account which is located in the My accounts section.3. Tap the account name.4. Tap Sync now to synchronize your account or only tap the Sync items that you want to synchronize.5. Tap Cancel sync to stop the synchronization.6. Tap Account settings to access your account settings.7. Tap Storage usage to see your storage usage for different applications. DRAFT

Changing Your Settings 142Back up and resetThe Back up and reset settings allow you to back up your data, back up accounts, automatically restore your phone, and reset your phone settings to the factory settings.Back Up My DataBy setting this option, the Google server will back up all of your settings and data.1. From the Home screen, tap ➔ Settings ➔ Accounts ➔ Back up and reset.2. Tap Back up my data to enable or disable back up of application data, WI-Fi passwords, and other settings to the Google server.Backup AccountIf you have enabled the Back up my data option, then the Backup account option is available.1. From the Home screen, tap ➔ Settings ➔ Accounts ➔ Back up and reset.2. Tap Backup account and tap your Google Gmail account or tap Add account to set your Google Gmail account to be backed up to the Google server.Automatic RestoreBy setting this option, when you reinstall an application, all of your backed up settings and data will be restored.1. From the Home screen, tap ➔ Settings ➔ Accounts ➔ Back up and reset.2. Tap Automatic restore to enable or disable automatic restoration of settings from the Google server.Factory Data ResetFrom this menu you can reset your phone and sound settings to the factory default settings.1. From the Home screen, tap ➔ Settings ➔ Accounts ➔ Back up and reset.2. Tap Factory data reset.The Factory data reset screen displays reset information.3. Tap Reset device, then follow the prompts to perform the reset. DRAFT

143Warning! Performing a Factory data reset will erase all data from your phone and internal SD card, including your Google account, system and application data and settings, and downloaded applications. It will not erase current system software, bundled applications, and external SD card files such as music and photos.Location servicesThe Location services settings allow you to set up how the phone will determine your location and the sensor settings for your phone.1. From the Home screen, tap ➔ Settings ➔ More ➔ Location services.2. Tap any of the following options to create a checkmark and activate the service:• Access to my location: allows apps that have asked your permission to use your location information. Tap the ON/OFF icon to turn it on.• Use GPS satellites: allows applications to use GPS to pinpoint your location.• Use wireless networks: allows applications to use data from mobile networks and Wi-Fi to help determine your location.• My places: allows you to add location information for your Home, Office, and Car.SecurityThe Security settings allow you to determine the security level for your phone.EncryptionTo require a numeric PIN or password to decrypt your phone each time you power it on or encrypt the data on your SD card each time it is connected:1. From the Home screen, tap ➔ Settings ➔ More ➔ Security.2. You must first set up a screen lock type if you haven’t already done so. For more information, refer to “Screen Lock” on page 116.3. Tap Encrypt device. For more information, read the displayed help screen.4. Tap Encrypt external SD card to enable the encryption on SD card data that requires a password be entered each time the microSD card is connected. DRAFT

Changing Your Settings 144Tip: Make sure your battery is charged more than 80 percent. Encryption may take an hour or more.Set up/change passwordUse this option to set up your password when one is first required or change your current password. 1. From the Home screen, tap ➔ Settings ➔ More ➔ Security ➔ Set up/change password.2. Enter a new password and tap Confirm.3. Enter the new password again and tap Confirm.Set up SIM card lockPrevent another user from using your SIM card to make unauthorized calls or from accessing information stored on your SIM card by protecting the information using a PIN code.When enabled, your phone will ask for a PIN number each time you use the phone. Using this option you can also change your SIM PIN number.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security.2. Tap Set up SIM card lock.3. Tap Lock SIM card, enter your SIM PIN code, then tap OK.Note: You must activate Lock SIM card before you can change your SIM PIN code.4. Tap Change SIM PIN.5. Enter your old SIM PIN code and tap OK.6. Enter your new SIM PIN code and tap OK.7. Re-type your new SIM PIN code and tap OK.Forgotten SIM PIN passwordIf you enter the wrong SIM PIN more than 3 times, you will need to contact your AT&T Customer Service Representative to get the PUK code for your device.1. Each time you enter a wrong SIM PIN number the phone will display how many attempts you have remaining the next time you try and enter the SIM PIN number.2. After the third incorrect attempt, SIM is now disabled, Enter PUK code to continue. Contact carrier for details displays and your SIM card is locked. DRAFT

1453. Enter the new PUK code that you received from your AT&T Customer Service Representative on the keypad that is displayed.4. Enter a new PIN code on the keypad that is displayed and tap OK.5. Enter the new PIN code again in the Confirm PIN code field and tap OK.Note: While your SIM PIN is locked, you will still be able to make Emergency calls if necessary.Make passwords visibleWhen enabled, password characters display briefly as you touch them while entering passwords.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security.2. Tap Make passwords visible to create a checkmark and enable or disable the display of password characters.Device AdministratorsThe Device Administration feature allows you to select one or more administration applications that control your device for security purposes (for example, if your phone is lost of stolen). These applications enforce remote or local device security policies.Some of the features a device administration application might control are:• Setting the number of failed password attempts before the device is restored to factory settings.• Automatically locking the device.• Restoring factory settings on the device.Note: If a device uses multiple enabled administration applications, the strictest policy is enforced.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security.2. Tap Device administrators.3. Select a device administrator and follow the prompts. If no device administrators are listed, you can download them from the Play Store. DRAFT

Changing Your Settings 146Unknown sourcesThis feature allows you to download and install non-Market applications.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security.2. Tap Unknown sources.A check mark is displayed to indicate it is active.Warning! Enabling this option causes your phone and personal data to be more vulnerable to attack by applications from unknown sources.Verify appsThis feature allows you to either block or warn you before installing apps that may cause harm to your phone.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security.2. Tap Verify apps.A check mark is displayed to indicate it is active.Change security levelThis option allows you to set the security level for your phone.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security ➔ Change security level.2. Select High or Normal (default).Security policy updatesWhen you activate this feature, your phone will automatically check for changes to the security policy and download any updates to improve security and service.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security.2. Tap Security policy updates to create a checkmark and activate the feature.Via Wi-Fi onlyWhen you activate this feature, your phone will automatically check for changes to the security policy and download any updates to improve security and service but only when connected to a Wi-Fi network.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security. DRAFT

1472. Tap Via Wi-Fi only to create a checkmark and activate the feature.Storage typeThis option allows you to select where you will back up your credentials.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security ➔ Storage type.2. Select the backup storage location for your credentials.Trusted CredentialsIf a certificate authority (CA) certificate gets compromised or for some other reason you do not trust it, you can disable or remove it.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security.2. Tap Trusted credentials.The trusted credentials screen has two tabs:• System: Displays CA certificates that are permanently installed in the ROM of your device.•User: Displays any CA certificates that you installed, for example, in the process of installing a client certificate.3. Tap a CA certificate to examine its details.A scrolling screen displays the details.4. Scroll to the bottom of the details screen and tap Turn off to disable a System certificate or Remove to remove a User certificate.Caution! When you disable a system CA certificate, the Turn off button changes to Turn on, so you can enable the certificate again, if necessary. When you remove a user-installed CA certificate, it is permanently deleted and must be re-installed, if needed.5. Tap OK to return to the certificate list.When enabled, a check mark appears in the check box.Install from device storageInstall encrypted certificates from an installed memory card.Note: You must have installed a memory card containing encrypted certificates to use this feature.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security. DRAFT

Changing Your Settings 1482. Tap Install from device storage, then choose a certificate and follow the prompts to install.Clear credentialsClear stored credentials.Note: This setting only appears if you have installed encrypted certificates.1. From the Home screen, tap ➔ Settings ➔ More ➔ Security.2. Tap Clear credentials to remove all certificates.Application ManagerYou can download and install applications from Play Store or create applications using the Android SDK and install them on your device. Use Application manager settings to manage applications.Warning! Because this device can be configured with system software not provided by or supported by Google or any other company, end-users operate these devices at their own risk.Memory UsageSee how memory is being used by Downloaded or Running applications.1. From a Home screen, tap ➔ Settings ➔ More ➔ Application manager.2. Tap DOWNLOADED, SD CARD, RUNNING, or ALL to display memory usage for that category of applications.The graph at the bottom of the Downloaded tab shows used and free device memory. The graph at the bottom of the Running tab shows used and free RAM.DownloadedDisplays apps you have downloaded onto your device.1. From a Home screen, tap ➔ Settings ➔ More ➔ Application manager.2. Tap the DOWNLOADED tab to view a list of all the downloaded applications on your device.3. To switch the order of the lists displayed in the Downloaded tabs, press ➔ Sort by size or Sort by name. DRAFT

1494. To reset your application preferences, press ➔ Reset app preferences.Note: This will reset the preferences for disabled apps, disabled app notifications, default applications for actions, and background data restrictions for apps. You will not lose any app data.5. Tap an application to view and update information about the application, including memory usage, default settings, and permissions.SD CardDisplays apps you have downloaded onto your SD card.1. From a Home screen, tap ➔ Settings ➔ More ➔ Application manager.2. Tap the SD CARD tab to view a list of all the downloaded applications on your device.3. To switch the order of the lists displayed in the On SD card tab, press ➔ Sort by size or Sort by name.4. To reset your application preferences, press ➔ Reset app preferences.Note: When you Reset app preferences, you will not lose any app data.5. Tap an application to view and update information about the application, including memory usage, default settings, and permissions.Running ServicesView and control services running on your device.1. From a Home screen, tap ➔ Settings ➔ More ➔ Application manager.2. Tap the RUNNING tab. All the applications that are currently running on the device display.3. Tap Show cached processes to display all the cached processes that are running. Tap Show services in use to switch back.4. Tap one of the applications to view application information.The following options display:•Stop: Stops the application from running on the device. This is usually done prior to uninstalling the application. DRAFT

Changing Your Settings 150Warning! Not all services can be stopped. Stopping services may have undesirable consequences on the application or Android System.•Report: Report failure and other application information.Note: Options vary by application.BatterySee how much battery power is used for device activities.1. From the Home screen, tap ➔ Settings ➔ More ➔ Battery.The battery level displays in percentage. The amount of time the battery was used also displays. Battery usage displays in percentages per application.2. Tap Screen, Android OS, Cell standby or any other listed application to view how it is affecting battery use.Note: Other applications may be running that affect battery use.3. From the upper-right tap (Refresh) to update the list.4. Tap the Show battery percentage check box to have the battery percentage displayed on your battery charge icon on your status bar.StorageFrom this menu you can view the memory allocation for the memory card and USB as well as mount or unmount the SD card.For more information about mounting or unmounting the SD card, see “Memory Card” on page 36.To view the memory allocation for your external SD card: From the Home screen, tap ➔ Settings ➔ More ➔ Storage.The available memory displays under the Total space and Available space headings for both Device memory and SD card. DRAFT

151SD card Tap Unmount SD card to unmount your SD card so that you can safely remove it, then tap OK.– or –1. Tap Format SD card to format your SD card. This will delete all data on your SD card including music, videos, and photos.2. Tap Format SD card again.3. Tap Delete all to continue or press to cancel.Note: The Format SD card option is only available when your SD card is mounted.Date and timeThis menu allows you to change the current time and date displayed.1. From the Home screen, tap ➔ Settings ➔ More ➔ Date and time.2. Tap Automatic date and time to allow the network to set the date and time.3. Tap Automatic time zone to allow the network to set the time zone.Important! Deactivate Automatic date and time to manually set the rest of the options.4. Tap Set date and tap the up and down arrows to set the Month, Day, and Year then tap Set.5. Tap Set time and tap the up and down arrows to set the Hour, Minute, and PM/AM, then tap Set.6. Tap Select time zone, then tap a time zone.7. Optional: Tap Use 24-hour format. If this is not selected the phone automatically uses a 12-hour format.8. Tap Select date format and tap the date format type.About DeviceThis menu contains legal information, system tutorial information, and other phone information such as the model number, firmware version, baseband version, kernal version, and software build number. To access phone information:1. From the Home screen, tap ➔ Settings ➔ More ➔ About device. DRAFT

Changing Your Settings 1522. The following information displays:• Software update: allows you to update your phone software, if available. For more information, refer to “Software Update” on page 153.• Status: displays the Battery status, Battery level (percentage), Network, Signal strength, Mobile network type, Service state, Roaming status, Mobile network state, the phone number for this device (My phone number), IMEI number, IMEISV number, IP address, Wi-Fi MAC address, Bluetooth address, Serial number, Up time, and Device status.• Legal information: This option displays information about Open source licenses, Google legal information, and License settings. This information clearly provides copyright and distribution legal information and facts as well as Google Terms of Service, Terms of Service for Android-powered Phones, and much more pertinent information as a reference. It also provides the registration process for DivX VOD. Read the information and terms, then press to return to the Settings menu.•Device name: displays the phone’s model name.• Model number: displays the phone’s model number.• Android version: displays the android version loaded on this handset.• Baseband version: displays the baseband version loaded on this handset.•Kernel version: displays the kernel version loaded on this handset.• Build number: displays the software, build number.•SELinux status: displays the status of SELinux. SELinux is a set of security policies/modules which is applied to the device to improve the overall security.• Secure boot status: displays the status of the Secure boot.Note: Baseband, kernal and build numbers are usually used for updates to the handset or support. For additional information please contact your AT&T service representative. DRAFT

153Software UpdateThe AT&T Software Update feature enables you to use your phone to connect to the network and upload any new phone software directly to your phone. The phone automatically updates with the latest available software when you access this option.1. From the Home screen, tap ➔ Settings ➔ More ➔ About device ➔ Software update.2. Tap Check for updates.3. At the AT&T Software update prompt, tap OK to continue.4. The phone automatically updates the software (if available), otherwise, when the Current software is up to date prompt is displayed, tap OK.5. When updating software, once the update file is downloaded, you can delay the update on the start screen by postponing it for a certain period of time. If you want to resume the update before the selected time, tap Continue update. DRAFT

Connections 154Section 8: ConnectionsThis section describes the various connections your phone can make including Wi-Fi, Bluetooth, and Connecting your PC.Wi-Fi About Wi-FiWi-Fi (short for "wireless fidelity"and sometimes referred to as wifi) is a term used for certain types of Wireless Local Area Networks (WLAN). These device types use an 802.11 wireless specification to transmit and receive wireless data. Wi-Fi communication requires access to an existing and accessible Wireless Access Point (WAP). These WAPs can either be Open (unsecured) as within most Hot Spots, or Secured (requiring knowledge of the Router name and password).Turning Wi-Fi OnBy default, your device’s Wi-Fi feature is turned off. Turning Wi-Fi on makes your device able to discover and connect to compatible in-range WAPs.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi.2. Tap the ON/OFF slider, located to the right of the Wi-Fi field, to turn Wi-Fi ON .Connect to a Wi-Fi Network1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi.The network names and security settings (Open network or Secured with WEP) of detected Wi-Fi networks are displayed in the Wi-Fi networks section.2. Tap the network you want to connect to.Note: When you select an open network, you will be automatically connected to the network.3. Enter a wireless password if necessary. DRAFT

155Manually add your new network connection1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi.2. Tap Add Wi-Fi network.3. Enter the Network SSID. This is the name of your Wireless Access Point.4. Tap the Security field and select a security option. This must match the current security setting on your target WAP.5. If secured, you will also need to enter your WAP’s password.6. Tap Show advanced options, if you need to add advanced options such as Proxy settings, IP settings, or Key management.7. Tap Connect to store the new information and connect to your target WAP.Note: The next time your device connects to a previously accessed or secured wireless network, you are not prompted to enter the WAP key again, unless you reset your device back to its factory default settings.Turning Wi-Fi Off1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi.2. Tap the ON/OFF slider, located to the right of the Wi-Fi field, to turn Wi-Fi OFF . Note: Use of wireless data connections such as Wi-Fi and Bluetooth can cause an added drain to your battery and reduce your use times.Manually Scan for a Wi-Fi Network1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi.2. Tap Scan.All available Wi-Fi networks are displayed.Wi-Fi Status IndicatorsThe following icons show your Wi-Fi connection status at a glance: Displays when Wi-Fi is connected, active, and communicating with a Wireless Access Point (WAP). DRAFT

Connections 156Displays when there is a Wi-Fi access point available but you are not connected to it. May also display if there is a communication issue with the target Wireless Access Point (WAP). Displays when connected to another device using Wi-Fi Direct. For more information, refer to “Wi-Fi Direct” on page 156.Wi-Fi Advanced SettingsThe Advanced Wi-Fi menu allows you to set up many of your device’s advanced Wi-Fi services.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi.2. Press ➔ Advanced.The following options are available:• Network notification: alerts you when a new WAP is available.•Passpoint: allows you to connect to passpoint-enabled Wi-Fi Access Points automatically. Touch and slide the slider to the right to turn it on .•Sort by: allows you to sort by alphabet or RSSI.• Keep Wi-Fi on during sleep: allows you to specify when to disconnect from Wi-Fi.• Always allow scanning: allows the Google location service and other apps to scan for networks, even when Wi-Fi is turned off.• Auto network switch: allows the device to automatically switch between a Wi-Fi network or a cellular network.•Auto connect: allows you to be automatically connected to an AT&T Wi-Fi Hotspot as soon as your phone detects it.• Install certificates: allows you to install security certificates that you have on a MicroSD card.•MAC address: view your device’s MAC address, required when connecting to some secured networks (not configurable).•IP address: view your device’s IP address.Wi-Fi Direct Wi-Fi Direct allows device-to-device connections so you can transfer large amounts of data over a Wi-Fi connection.Note: See your service plan for applicable charges for Wi-Fi Direct.1. From the Home screen, tap ➔ Settings ➔ Connections ➔ Wi-Fi. DRAFT

1572. Tap the ON/OFF slider, located to the right of the Wi-Fi field, to turn Wi-Fi ON .3. At the bottom of the Wi-Fi screen, tap the Wi-Fi Direct button.4. Repeat steps 1 - 3 on the other device you want to connect with. The steps on a different model of phone, may be different.5. On your phone, tap Scan.The device scans for other Wi-Fi Direct devices.6. Once the device you want to connect to is displayed, tap on it.7. The other device has 2 minutes to tap Accept for the connection to be made.8. Once connected, the other device will show as Connected in your list of Wi-Fi Direct devices and the icon will display at the top of your screen.9. For additional information about Wi-Fi Direct, press ➔ Help.Sharing Information with Connected DeviceTo share Videos, Photos, or other information with the connected device, follow these steps:1. View the information that you want to share. For example, if you want to share a photo, find the photo in your camera viewer or My Files folder, then tap the Share, Share via, or Send via option.2. Tap the Wi-Fi Direct option.3. Tap the connected device name. For example, Android_49ba.4. Tap Done.5. The file is transferred and the other device will receive a screen notification that a Wi-Fi file has been received. The file can be found in My Files ➔ All files ➔ Device storage in the ShareViaWifi folder.Note: Depending on the other device model, the prompts and shared folder information may differ. DRAFT

Connections 158AT&T Smart Wi-Fi With AT&T Smart Wi-Fi, you can maximize your battery performance, maximize your data, simplify access to AT&T Hot Spots and Wi-Fi networks, automate your Wi-Fi connections, and track your data use.1. From the Home screen, tap ➔ AT&T Smart Wi-Fi .2. The first time you access AT&T Smart Wi-Fi, you will need to install it. Tap OK at the prompt.3. Sign on to your Google account if you have not already done so.4. The Play Store displays the AT&T Smart Wi-Fi application. Tap Update.5. Tap Accept & download.6. Follow the on-screen instructions to use AT&T Wi-Fi.For more information on how to use this application, go to www.att.com/smartwifi.NFCNFC (Near Field Communication) allows data exchange when you touch your device with another compatible device. This is used for applications such as S Beam. To activate NFC on your device, see “NFC” on page 114.S BeamWhen S Beam is activated, you can beam files to another NFC-capable device by holding the devices close together. You can beam images and videos from your Gallery, music files from your Music app, and more. For more information, refer to “S Beam” on page 115.BluetoothAbout BluetoothBluetooth is a short-range communications technology that allows you to connect wirelessly to a number of Bluetooth devices, such as headsets and hands-free car kits, and Bluetooth-enabled handhelds, computers, printers, and wireless devices. The Bluetooth communication range is usually up to approximately 30 feet. DRAFT

159Turning Bluetooth On and OffTo turn Bluetooth on:1. From the Home screen, tap ➔ Settings ➔ Connections.2. Tap the ON/OFF slider, located to the right of the Bluetooth field, to turn Bluetooth ON .When active, appears within the Status area.To turn Bluetooth off:1. From the Home screen, tap ➔ Settings ➔ Connections.2. Tap the ON/OFF slider, located to the right of the Bluetooth field, to turn Bluetooth OFF .Bluetooth Status IndicatorsThe following icons show your Bluetooth connection status at a glance:Displays when Bluetooth is active.Displays when Bluetooth is connected (paired) and communicating.Bluetooth SettingsThe Bluetooth settings menu allows you to set up many of the characteristics of your device’s Bluetooth service, including:• Entering or changing the name your device uses for Bluetooth communication and description• Setting your device’s visibility (or “discoverability”) for other Bluetooth devicesTo access the Bluetooth Settings menu:1. From the Home screen, tap ➔ Settings ➔ Connections.2. Verify your Bluetooth is ON .3. Tap Bluetooth.To change your Bluetooth name:1. From the Home screen, tap ➔ Settings ➔ More ➔ About device ➔ Device name.2. Use the keyboard to modify your device name and tap OK.To make your device visible:1. From the Bluetooth settings page, press ➔ Visibility time-out. DRAFT

Connections 160•Making your device visible allows it to be detected by other devices for pairing and communication.2. Select a time that you would like your device visibility to time-out.To show received files: From the Bluetooth settings page, press ➔ Received files.A list of all files received from Bluetooth is displayed.To scan for Bluetooth devices:1. Verify your Bluetooth is active.2. From the Bluetooth settings page, tap Scan to search for visible external Bluetooth-compatible devices such as headsets, devices, printers, and computers.Pairing Bluetooth DevicesThe Bluetooth pairing process allows you to establish trusted connections between your device and another Bluetooth device. When you pair devices, they share a passkey, allowing for fast, secure connections while bypassing the discovery and authentication process.To pair your device with another Bluetooth device:1. Verify your Bluetooth is active.2. Tap Scan. Your device will display a list of discovered in-range Bluetooth devices.3. Tap a device from the list to initiate pairing.4. Enter the passkey or PIN code, if needed, and tap OK.5. The external device will then have to also accept the connection and enter your device’s PIN code.Once successfully paired to an external device, appears within the Status area.Note: Due to different specifications and features of other Bluetooth-compatible devices, display and operations may be different, and functions such as transfer or exchange may not be possible with all Bluetooth compatible devices. DRAFT

161Note: Pairing between two Bluetooth devices is a one-time process. Once a pairing has been created, the devices will continue to recognize their partnership and exchange information without having to re-enter a passcode again.Disconnecting a paired deviceDisconnecting a paired device breaks the connection between the device and your phone, but retains the knowledge of the pairing. At a later point when you wish to reconnect the device, there is no need to setup the connection information again.1. Verify your Bluetooth is active.2. From the Bluetooth settings page, tap the previously paired device (from the bottom of the page).3. Tap OK to confirm disconnection.Note: Disconnections are manually done but often occur automatically if the paired device goes out of range of your phone or it is powered off.Deleting a paired device (unpair)Deleting a device from your list removes its “connection record” and upon reconnection would require that you re-enter all the previous pairing information.1. Verify your Bluetooth is active.2. From the Bluetooth settings page, tap next to the previously paired device. This opens the connected device’s menu options.3. Tap Unpair to delete the paired device.4. Tap Rename to change the name of the paired device.5. Tap Call audio to enable or disable call audio from the paired device.6. Tap Media audio to enable or disable media audio from the paired device. DRAFT

Connections 162Sending Contacts via BluetoothDepending on your paired devices’ settings and capabilities, you may be able to send pictures, Contact information, or other items using a Bluetooth connection.Note: Prior to using this feature, Bluetooth must first be enabled, and the recipient’s device must be visible.1. Verify your Bluetooth is active.2. From the Home screen, tap Contacts .3. Press ➔ Share namecard via.4. Tap each contact that you would like to send via Bluetooth. A green checkmark will appear next to each entry you select.5. Tap Done.6. Tap Bluetooth.7. Select the paired device to send the contacts to.Note: The external Bluetooth device must be visible and communicating for the pairing to be successful.8. A Bluetooth share notification will appear in your notifications list.PC ConnectionsYou can connect your device to a PC using your PC data cable using various USB connection modes.Storage: allows you to use the onboard storage capacity of the phone to store and upload files. This option allows your computer to detect the phone as a removable storage drive.Kies: allows you to manage music, movies and photos. You can also backup precious contacts and calendars, download apps and podcasts and automatically upgrade device firmware. Kies conveniently syncs your life across all your devices.Note: To sync your device to your PC, it is highly recommended that you install Samsung Kies which is available at http://www.samsung.com/kies (for Windows/ Mac). DRAFT

163Note: If you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher installed on your computer. Also, ensure that you have Samsung Kies 2.0 or Windows Media Player 10 or higher installed on your computer.Connecting as a Storage DeviceYou can connect your device to a PC as a removable disk and access the file directory. If you insert a memory card in the device, you can also access the files directory from the memory card by using the device as a memory card reader.Note: The file directory of the memory card displays as a removable disk, separate from the internal memory.1. Connect the USB cable to the device and connect the cable to the computer. After a few seconds, a pop-up window displays on the PC when connected.2. On the PC pop-up, click Open device to view files.3. Copy files from the PC to the memory card. DRAFT

Applications 164Section 9: ApplicationsThis section contains a description of each application that is available in the Apps Menu, its function, and how to navigate through that particular application. If the application is already described in another section of this user manual, then a cross reference to that particular section is provided.Note: This manual only addresses applications that have been loaded on your device as of the date of purchase. Information concerning third party applications that you may choose to download from the Google Play Store or otherwise should be obtained from the application provider directly and not from Samsung.Tip: To open applications quickly, add the icons of frequently-used applications to one of the Home screens. For details, see “Customizing Your Home Screen” on page 30.Amazon KindleThis application allows you to download books, magazines, and newspapers to read on your phone.1. From the Home screen, tap ➔ Amazon Kindle .2. At the Kindle display, tap Get Kindle for Android.3. Sign on to your Google account if you have not already done so. For more information, refer to “Creating a New Google Account” on page 12.4. Follow the on-screen instructions to download the application from the Play Store.AT&T DriveModeWith the AT&T DriveMode application, you can set your phone to auto reply when you are driving and don’t want to answer the phone. You can set auto reply to Messages, Emails, and Phone Calls. You can also allow up to five of your contacts to contact you while you are in Drive mode.1. From the Home screen, tap ➔ AT&T DriveMode .The AT&T DriveMode screen is displayed. DRAFT

1652. Read the Terms and Conditions and Privacy Policy and tap I Accept to continue.3. Read the additional information and tap Continue.4. Follow the on-screen instructions to set up your AT&T DriveMode options.AT&T FamilyMapAT&T FamilyMap provides peace of mind by being able to conveniently locate a family member from your wireless phone or PC and know that your family's location information is secure and private.Note: FamilyMap requires a paid subscription. To sign up for service, visit http://www.att.com/familymap for more information or contact your AT&T Customer Service Representative.1. From the Home screen, tap ➔ AT&T FamilyMap .2. Sign on to your Google account if you have not already done so. For more information, refer to “Creating a New Google Account” on page 12.3. The first time you use AT&T Family Map, tap Get FamilyMap and follow the onscreen instructions to download the application from the Play Store.4. At the AT&T FamilyMap Sign In webpage, tap Get Started to create an account.– or –Tap Sign In if you already have an account.5. Follow the on-screen instructions.AT&T LockerAT&T Locker allows you to store, share, and sync all of your photos, videos, and documents in one safe, convenient place; the AT&T cloud. For more information, refer to “AT&T Locker” on page 74.AT&T Mobile LocateWith the AT&T Mobile Locate app you can access the Mobile Protection Pack and with a paid subscription, replace your phone if it is lost or damaged, locate your phone if it is lost, and receive backup and phone support. DRAFT

Applications 166Important! In order to take advantage of the AT&T Mobile Locate application, you must purchase the Mobile Protection Pack within 30 days of purchase/activation of a new device. For more information, visit att.com/mpp.1. Purchase the application by visiting att.com/mpp.2. From the Home screen, tap ➔ AT&T Mobile Locate .3. Follow the on-screen instructions to use AT&T Mobile Locate.AT&T NavigatorAT&T Navigator provides you with access to real-time GPS-driven applications. These programs not only allow you to achieve turn-by-turn navigation, but also access local searches.Important! You must have a data plan to use this feature.Note: These services require the purchase of a subscription.To launch the AT&T Navigator application, follow these steps:1. From the Home screen, tap ➔ AT&T Navigator .2. Read the Terms of Service and tap I Accept to acknowledge the terms of use.The first time that you use AT&T Navigator, the necessary files will be downloaded. The AT&T Navigator main screen displays.3. Tap an AT&T Navigator plan that you choose to purchase.4. Follow the on-screen instructions.AT&T Smart Wi-FiWith AT&T Smart Wi-Fi, you can maximize your battery performance, maximize your data, simplify access to AT&T Hot Spots and Wi-Fi networks, automate your Wi-Fi connections, and track your data use. For more information, refer to “AT&T Smart Wi-Fi” on page 158. DRAFT

167CalculatorWith this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions; addition, subtraction, multiplication, and division. The Calculator also keeps a history of recent calculations.1. From the Home screen, tap ➔ Calculator .2. Enter the first number using the on-screen numeric keys.3. Enter the operation for your calculation by tapping the corresponding on-screen arithmetic function key. 4. Enter the second number.5. To view the result, tap equals (=).6. To view calculator history, tap located at the top of the calculator buttons. A history of your past calculations is displayed. Tap again to display the calculator keypad.7. To clear the calculator history, press ➔ Clear history.8. Turn your phone sideways to the landscape position to display the scientific calculator.CalendarWith the Calendar feature, you can consult the calendar by day, week, or month, create events, and set an alarm to act as a reminder, if necessary.To access the Calendar:1. From the Home screen, tap ➔ Calendar .2. The following tabs are available on the right side of the display:•Year: displays the Year view.•Month: displays the Month view.• Week: displays the Week view.•Day: displays the Day view.•List: displays the List view.•Task: allows you to search for tasks.3. Tap (Create event) to create a new Calendar event.4. Tap Today to display the current date indicated by a blue box.5. Press and select one of the following options:•Go to: displays a specific date. DRAFT

Applications 168•Delete: allows you to delete All events, All events before today, or an individual event.• Delete memo: allows you to delete a memo stored in your Calendar memo list.•Search: allows you to search within your current events.•Sync: allows you to synchronize your calendar with one or all of your accounts. This option only appears when an account has been opened.•Calendars: allows you to view the current Calendar accounts.•Settings: displays a list of configurable settings.Calendar Settings1. From any Calendar view, press ➔ Settings.2. Tap View styles and select an option.•Tap Month view styles and select an option.•Tap Week view and select a type.3. Tap First day of week and select either Local default, Saturday, Sunday or Monday.4. Tap Hide declined events to activate this option. A check mark indicates selection.5. Tap Lock time zone (to lock event time based on your current user-selected time zone). Select a time zone from within the Select time zone field.6. Tap Show week number to display the week numbers along the side of the week entries.7. Tap Weather to have weather symbols displayed on your calendar. A check mark indicates selection.8. Tap Set alerts and notifications to adjust the event notification method. Choose from: Alert, Status bar notification, and Off.9. Tap Select ringtone to assign a ringtone to a calendar event notification.10. Tap Vibration to set the Event notification tone to vibrate.11. Tap Quick responses to select quick responses to emailing guests.CameraUse your 13.0 megapixel camera feature to produce photos in a JPEG format. Your phone also functions as a Camcorder to take videos. For more information, refer to “Camera” on page 83. DRAFT

169ChatONWith the ChatON application, you can interact with friends and family with text, images, hand-written notes and video shared instantly. You can chat in groups, while a Web client will allow the easy sharing of content and conversations between your phone and PC. For more information, refer to “ChatON” on page 105.ChromeThe Google Chrome app allows you to use the Google Chrome web browser on your phone.1. From the Home screen, tap ➔ Chrome .2. Read the Google Chrome Terms of Service and tap Accept and Continue.3. If you have an existing Chrome account, tap Sign in to bring your open tabs, bookmarks, and omnibox data from your computer to your phone, otherwise tap No thanks.4. Follow the on-screen instructions to use Google Chrome.ClockThe Clock application allows you to access alarms, view the World Clock, set a stopwatch, use a timer, and set up your desk clock.AlarmThis feature allows you to set an alarm to ring at a specific time.1. From the Home screen, tap ➔ Clock ➔ Alarm ➔ Create alarm . The following options display:•Time: tap (Up) or (Down) to set the new time for the alarm to sound. Tap AM or PM.•Alarm repeat: use this option to set the repeating status for the alarm by tapping on the days that you want the alarm to sound. Tap the Repeat weekly checkbox to have the alarm repeat weekly.•Alarm type: sets the way in which the alarm sounds when activated (Melody, Vibration, Vibration and melody, and Briefing).•Alarm tone: sets the sound file which is played when the alarm is activated. Select an option or tap Add for additional options. DRAFT

Applications 170• Alarm volume: drag the slider to adjust the alarm’s volume.• Location alarm: when activated, the alarm only sounds when you are at a specific location. Touch and slide the slider to the right to turn it on then follow the on-screen instructions to enter a location.• Snooze: use this option to set a Duration (3, 5, 10, 15, or 30 Minutes) and Snooze repeat (1, 2, 3, 5, or 10 Times). Tap the ON/OFF slider to activate.• Smart alarm: tracks body movements and calculates the best time for sounding the alarm. Place the phone somewhere on your bed then the phone's movement sensor (also known as accelerometer) is sensitive enough to work from any part of the bed. Set the Interval and the Tone. Tap the ON/OFF slider to activate.•Name: allows you to use a specific name for the alarm. The name will appear on the display when the alarm activates. 2. Tap Save to store the alarm details.Turning Off an Alarm To stop an alarm when it sounds, touch and sweep the icon to the right.Setting the Snooze Feature To activate the Snooze feature after an alarm sounds, touch and sweep the icon to the left. Snooze must first be set in the alarm settings. For more information, refer to “Alarm” on page 169.Deleting AlarmsTo delete an alarm, follow these steps:1. From the Home screen, tap ➔ Clock ➔ Alarm ➔ ➔ Delete.2. Tap the alarm or alarms you wish to delete. A green checkmark will appear next to each selection. Tap Select all to delete all alarms.3. Tap Delete.World ClockWorld Clock allows you to view the time of day or night in other parts of the world. World Clock displays time in hundreds of different cities, within all 24 time zones around the world. 1. From the Home screen, tap ➔ Clock ➔ World Clock. The clock for your time zone is displayed.2. Tap Add city to add another city to the World Clock. DRAFT DRAFT

1713. Scroll through the list of cities to find the city you want to add, or tap the Search bar and use the keypad to enter a city to search for.4. Tap the city you want to add. The clock for that city will display.5. To set Daylight Savings time, press and hold a city, then tap DST settings.6. Select Automatic, Off, or 1 hour.7. If Daylight Savings Time is selected, a sun symbol on the World Clock listing will appear.Deleting a World Clock Entry1. From the Home screen, tap ➔ Clock ➔ World Clock ➔ ➔ Delete.2. Press and hold the city clocks you wish to delete.3. Tap Delete.StopwatchYou can use this option to measure intervals of time. 1. From the Home screen, tap ➔ Clock ➔ Stopwatch.2. Tap Start to start the stopwatch and tap Lap to mark a unit of time per lap. 3. Tap Stop to stop the stopwatch.4. Tap Restart to continue or tap Reset to erase all times recorded.TimerYou can use this option to set a countdown timer. Use a timer to count down to an event based on a preset time length (hours, minutes, and seconds).1. From the Home screen, tap ➔ Clock ➔ Timer.2. The Minutes field is highlighted and set to 1 minute. Use the keypad to set the number of minutes you want.3. Tap the Hours field to set hours if desired. As you tap different fields, they will become highlighted.4. Tap the Seconds field to set seconds.5. Tap Start to begin the timer and tap Stop to pause the timer.6. After stopping, tap Restart to continue or tap Reset to set the timer back to the original setting. DRAFT

Applications 172Desk clockYou can use the Desk clock when you have a desk dock and you want your phone to display the time, day, date, location, and weather conditions when it is docked. 1. From the Home screen, tap ➔ Clock ➔ Desk clock.The default Desk clock is displayed.2. Tap to display the Desk clock in full-screen mode.3. To make changes, tap ➔ Settings.4. The following options are displayed while in full-screen mode:•Hide status bar: when this is checked, the status bar is hidden from view.• Wallpaper: tap to select Desk clock wallpaper from Default, Gallery, or Same as home screen.•Calendar: when this is checked, the calendar is displayed. Tap to uncheck.• Weather: when this is activated, the location, temperature, and weather condition is displayed. Touch and slide the slider to the right to turn it on .•Dock: allows you to set your Dock settings such as Dock sound, Audio output mode, Desk home screen display, Automatic unlock, and Audio output.ContactsYou can manage your daily contacts by storing their name and number in your Address Book. Address Book entries can be sorted by name, entry, or group.You can also synchronize your phone Address Book with AT&T Address Book, the network backup service.For more information, refer to “Contacts and Your Address Book” on page 55.DownloadsProvides quick access to tabs containing a list of your current downloaded files (Internet and Other).1. From the Home screen, tap ➔ Downloads .All of your downloads are listed.2. Tap an available file and select it for use.3. Choose an available action such as Share, Delete, Sort by size, or Clear list. DRAFT

Applications 174GoogleThe Google Search application is the same on-screen Internet search engine that is on the Google Search Bar on your main Home screen. For more information, refer to “Google Search Bar” on page 22.Google SettingsAs Google has become more intertwined with other applications, this menu provides a quick and ready access point to configure preferences for Google+, Maps & Latitude, Locations, etc. You can also use the Search function to initiate a Google Search from this menu.1. From the Home screen, tap ➔ Google Settings and select an on-screen option.2. Tap one of the Google Settings options.3. Follow the on-screen prompts to modify your Google Settings.Google +Google+ makes messaging and sharing with your friends a lot easier. You can set up Circles of friends, visit the Stream to get updates from your Circles, use Messenger for fast messaging with everyone in your Circles, or use Instant Upload to automatically upload videos and photos to your own private album on Google+. For more information, refer to “Google +” on page 104.Group PlayGroup Play allows you to share pictures, music, and documents in real-time with your friends. You can create a group from your device or join other groups. You can also play games with your friends.1. From the Home screen, tap ➔ Group Play .2. The first time you access Group Play, read the Disclaimer and tap Agree.The Group Play main screen is displayed. DRAFT

175Creating a groupIf you have media you want to share, create a group.1. From the Group Play main screen, if you want to set a group password, tap the Set group password checkbox.2. Tap Create group.3. If you selected the Set group password checkbox in step 1, enter a group password at the Set group password prompt, and tap OK.Mobile AP is enabled.4. Tap one of the media items listed under the Share and play content heading.5. Tap the items you want to share to create a checkmark, then tap Done or OK.6. Have your friends sign onto Group Play from their devices and they can view your media using you as a Mobile AP.7. Press ➔ Info for information on the device that is hosting the Mobile AP.8. Press ➔ Help for additional information.Joining a groupIf you want to see media from your friend’s phone, join a group.1. From the Group Play main screen, tap Join group.2. Your phone scans for available groups for you to join.3. Tap a group to join.You will now be able to see your group’s shared media.4. Press ➔ Info for information on the device that is hosting the Mobile AP.HangoutsHangouts is a free Windows and web-based application for instant messaging offered by Google. You can connect with your friends across computers and various Android devices. You can have conversations or video calls with up to 10 friends. For more information, refer to “Hangouts” on page 104.HelpThe Help application provides detailed help for using your phone and the included features and applications.1. From the Home screen, tap ➔ Help .2. Tap one of the following for more information: DRAFT

Applications 176• New features: provides help on all of the new features and applications such as Motion, Camera, Group Play, Story Album, and S Health.•Basics: provides basic information on using your device.•Applications: provides information on how to use basic applications like Contacts, Email, S Memo, Internet, Camera, etc.•Settings: provides information on settings for Wi-Fi, Bluetooth, Ringtone, Power saving mode, NFC, Air gesture, Air view, Smart screen, Motion, Screen Mirroring, and Portable Wi-Fi hotspot.• Online help: provides more detailed online help for additional questions you may have.• Available accessories: provides information on accessories for your phone that are available for purchase.InternetThe Browser is your access to the mobile web. This section explains how to navigate the Browser and introduces you to the basic features.Accessing the Mobile WebTo access the Browser: From the Home screen, tap Internet .The AT&T/YAHOO! mobile homepage displays.Navigating with the Browser1. To select an item, tap an entry.2. To scroll through a website, sweep the screen with your finger in an up or down motion.3. Sweep the screen left to right to move laterally across a web page.4. To return to a previous page, press .5. To move forward to a web page, press .Browser Options From any web page, press to access your browser options. DRAFT

Applications 176• New features: provides help on all of the new features and applications such as Motion, Camera, Group Play, Story Album, and S Health.•Basics: provides basic information on using your device.•Applications: provides information on how to use basic applications like Contacts, Email, S Memo, Internet, Camera, etc.•Settings: provides information on settings for Wi-Fi, Bluetooth, Ringtone, Power saving mode, NFC, Air gesture, Air view, Smart screen, Motion, Screen Mirroring, and Portable Wi-Fi hotspot.• Online help: provides more detailed online help for additional questions you may have.• Available accessories: provides information on accessories for your phone that are available for purchase.InternetThe Browser is your access to the mobile web. This section explains how to navigate the Browser and introduces you to the basic features.Accessing the Mobile WebTo access the Browser: From the Home screen, tap Internet .The AT&T/YAHOO! mobile homepage displays.Navigating with the Browser1. To select an item, tap an entry.2. To scroll through a website, sweep the screen with your finger in an up or down motion.3. Sweep the screen left to right to move laterally across a web page.4. To return to a previous page, press .5. To move forward to a web page, press .Browser Options From any web page, press to access your browser options. DRAFT

179Lookout SecurityLookout Security™ provides mobile device-specific security features that are coupled with a minimal performance hit. Lookout Mobile Security provides key security options that are unique to the mobile market. Along with the antivirus and anti-malware tech, there's a lost and stolen phone locator service, an application privacy adviser, and a backup service.1. From the Home screen, tap ➔ Lookout Security .2. Read the on-screen information, then tap Get started.3. Read the on-screen descriptions and activate those desired features. Tap Next to progress to the next screen.4. Tap New user or Existing user.5. Create a Lookout account by entering an email address and account password. 6. Re-enter the password and tap Start Lookout.7. Follow the on-screen instructions.MapsDepending on your location, you can view basic, custom, and satellite maps and local business information, including locations, contact information, and driving directions. You can also post public messages about a location and track your friends.Important! Before using Google Maps you must have at least an active data connection. The Maps application does not cover every country or city.Enabling a Location SourceBefore you use Google Maps and find your location or search for places of interest, you must enable a location source. To enable the location source you must enable the wireless network, or enable the GPS satellites.1. From the Home screen, tap ➔ Settings ➔ More ➔ Location services.2. Tap the Use GPS satellites field. A green checkmark will display next to the field. DRAFT DRAFT DRAFT

Applications 180Note: Selecting Use GPS satellites allows you to locate places of interest at the street-level. However, this also requires a clear view of the sky and uses more battery power.To receive better GPS signals, avoid using your device in the following conditions:• inside a building or between buildings• in a tunnel or underground passage• in poor weather• around high-voltage or electromagnetic fields• in a vehicle with tinted windowsUsing Maps1. From the Home screen, tap ➔ Maps .A map will display with your location in the very center.2. Follow the on-screen instructions to use the Maps application.MessagesThe AT&T Messages app brings your texts, calls, and voicemail messages together into a single conversation thread and is accessible by phone or computer. For more information, refer to “Messages App” on page 105.MessagingYou can send and receive different types of messages. For more information, refer to “Messaging” on page 92.Mobile HotspotThis application allows you to share your phones’s mobile data connection via USB or as a portable Wi-Fi hotspot. For more information, refer to “Tethering & portable hotspot” on page 111.Mobile TVMobile TV is a subscription service that allows you to watch your favorite TV shows using your handset. For more information, refer to “Mobile TV” on page 78.MusicMusic allows you to play music files that you have stored on your phone and memory card. You can also create playlists. For more information, refer to “Music” on page 75.My FilesMy Files allows you to manage your sounds, images, videos, bluetooth files, Android files, and other memory card data in one convenient location. DRAFT DRAFT DRAFT

1811. From the Home screen, tap ➔ My Files ➔ All files.2. Tap Device storage to see the contents of your internal SD card. Note: If you do not have an external SD card inserted, this option will not display. All files shown will be from your internal storage.Note: Different folders may appear depending on how your phone is configured.3. If you have an external SD card inserted, tap SD memory card to see the contents of your external SD card (memory card).myAT&TThe myAT&T application allows you to manage your own AT&T account. You can review and pay your bill, check minutes and data usage, upgrade to a new device, or change your rate plan.1. From the Home screen, tap ➔ myAT&T .The myAT&T page is displayed.2. Read the Terms and Conditions and tap Accept to continue.3. Enter your User ID and Password using the onscreen keypad, then tap Login.4. Follow the on-screen instructions.Optical ReaderThe Optical reader allows you to use your camera to identify text and extract useful information.1. From the Home screen, tap ➔ Optical Reader .2. Aim the camera at an object containing written words.3. Align the on-screen box atop the target text. Once detected, the device shows on-screen information such as link and descriptions.PhoneThe Phone application allows you to access the dialer keypad, call logs, and favorites. For more information, refer to “Call Functions” on page 43. DRAFT DRAFT DRAFT

Applications 182Play BooksWith Google Play Books, you can find more than 3 million free e-books and hundreds of thousands more to buy in the eBookstore.1. From the Home screen, tap ➔ Play Books .2. Log on to your Google account. For more information, refer to “Creating a New Google Account” on page 12.3. Follow the on-screen instructions for using the Play Books application.Play GamesThis application takes you directly to the Play Store Games area where you can download games.1. From the Home screen, tap ➔ Play Games .2. Log on to your Google account if you have not already done so.3. Select an available on-screen option and follow the on-screen instructions.Play MagazinesWith Google Play Magazines, you can subscribe to your favorite magazines and have them available to read on your phone at any time or any place.1. From the Home screen, tap ➔ Play Magazines .2. Log on to your Google account if you have not already done so. For more information, refer to “Creating a New Google Account” on page 12.3. Sweep the screen to the left to view different categories of magazines.4. Tap a magazine to see more information and subscribe.5. Follow the on-screen instructions to subscribe, read, shop, or access your library.6. Press for additional options. DRAFT DRAFT DRAFT

183Play Movies & TVWith Google Play Movies & TV, you can rent thousands of different movies and television shows. You can watch instantly, or download your movie or show for offline viewing at a later time. For more information, refer to “Play Movies & TV” on page 80.Play MusicWith Google Play Music, you can play music that you have added to your music file as well as any music you copied from your PC. While offline, you can listen to music you have copied from your PC. For more information, refer to “Google Play Music” on page 78.Play StorePlay Store provides access to downloadable applications and games to install on your phone. Play Store also allows you to provide feedback and comments about an application, or flag an application that might be incompatible with your phone. Before using the Play Store you must have a Google Account. For more information, refer to “Using Gmail” on page 102.1. From the main Home screen, tap Play Store .2. Sign in to your Google account.3. The first time you sign in, the Play Store Terms of Service will be displayed. Tap Accept to continue or Decline to exit.4. Tap Apps, Games, or AT&T to download or purchase games or applications. You can also download updates to existing applications.5. Follow on the on-screen instructions.POLARIS Office 5POLARIS® Office Mobile for Android is a Microsoft Office compatible office suite. This application provides a central place for managing your documents online or offline. The application can also open Adobe PDF (Portable Document Format) files.1. From the Home screen, tap ➔ POLORIS Office 5 .2. Enter your Email information (if desired) and touch Register to complete the process.– or –Touch Skip to ignore this registration.The main POLARIS Office 5 screen displays. DRAFT DRAFT DRAFT

Applications 1843. Follow the on-screen instructions to use POLARIS Office 5.S HealthS Health is a wellness application that allows you to better manage your health by providing you with relevant information.1. From the Home screen, tap ➔ S Health .2. Read the introduction and tap Start.3. Read the Use of S Health, Connecting Third Party Devices and Programs, Information Used, Proprietary Rights and Licences, and Disclaimer of Warranty.4. Tap the Agree checkbox.5. Tap Next.6. Sign in to your Samsung account if you have not already done so. For more information, refer to “Creating a Samsung Account” on page 12.7. Follow the on-screen instructions to use S Health.8. Tap ➔ Help for more detailed information. Before You Start ExercisingThis app can be used to monitor your exercise. While moderate physical activity, such as brisk walking, is safe for most people, health experts suggest that you talk with your doctor before you start an exercise program, particularly if you have any of the following conditions: • Heart disease;• Asthma or lung disease;• Diabetes, or liver or kidney disease;• Arthritis.You should also check with your doctor if you have symptoms suggestive of heart, lung, or other serious disease, such as:• Pain or discomfort in your chest, neck, jaw, or arms during physical activity;• Dizziness or loss of consciousness;• Shortness of breath with mild exertion or at rest, or when lying down or going to bed;• Ankle swelling, especially at night;• A heart murmur or a rapid or pronounced heartbeat;• Muscle pain when walking upstairs or up a hill that goes away when you rest. DRAFT DRAFT DRAFT

185Finally, the American College of Sports Medicine recommends that you see your doctor before engaging in vigorous exercise if two or more of the following apply:• You are a man older than age 45 or a woman older than age 55;• You have a family history of heart disease before age 55;• You smoke or quit smoking in the past six months;• You have not exercised for three months or more;• You are overweight or obese;• You have high blood pressure or high cholesterol;• You have impaired glucose tolerance, also called pre-diabetes.When in Doubt - Check it OutIf you are unsure of your health status, have several health problems, or are pregnant, you should speak with your doctor before starting a new exercise program. Working with your doctor ahead of time is a good way to plan an exercise program that is right and safe for you. Consider it the first step on your path to physical fitness. S MemoThe S Memo application allows you to create memos using the keypad, your finger, or both. You can add images, voice recordings, and text all in one place.Creating a New Memo1. From the Home screen, tap ➔ S Memo .2. Tap an existing Memo to open it then tap the screen to enter edit mode.– or –Tap to start a new memo in text mode with the keypad displayed or tap to start a new memo in drawing mode using your finger or a compatible on-screen writing tool. You can change back and forth in a memo to add text with the keypad and the pen. DRAFT DRAFT DRAFT

Applications 186The icons that you see displayed on the screen are described in the following table:3. When you are finished creating your memo, tap Save on the top menu bar.4. Press to access additional options.Changes the view mode.Allows you to add free-format drawing.Displays the keypad to you can add text.Eraser tool allows you to erase marks and drawings. Undo the last action.Redo the last action that was undone.Make a voice recording to add to the memo. This option is not available in free-format drawing mode.Provides access to a quick selection bar. Choose from: Take picture, Images, Clipboard, Maps, and Clip art. These elements can be used within the memo.Add an additional page to the memo. DRAFT DRAFT DRAFT

187S TranslatorWith the S Translator you can easily translate words and phrases into many different languages.1. Sign in with your Samsung Account if you have not already done so. For more information, refer to “Creating a Samsung Account” on page 13.2. From the Home screen, tap ➔ S Translator .3. At the S Translator screen, tap the top language bar and enter your language. 4. Tap the language bar at the bottom of the screen to select the language that you would like to translate to. 5. Enter text into the upper box and tap .It will be translated into the language of the upper box.– or –Enter text into the lower box and tap .It will be translated into the language of the lower box.6. Tap either of the Speak buttons at the bottom of the screen to translate using either language by using your voice. The translation will appear automatically in the appropriate box.7. Press for additional options.S VoiceWith the S Voice application you can use your voice to perform operations that you would normally have to do by hand such as dialing a phone number, texting a message, playing music, etc.1. From the Home screen, tap ➔ S Voice .2. Read the Samsung Disclaimer then tap Confirm to continue.3. Read the Vlingo Terms of Service then tap Agree to continue.4. Read the information on the About S Voice screen, then tap Next.5. Read the information on the Say what you want screen, then tap Next.6. Read the information on the Wake up S Voice screen, then tap Next.7. Read the information on the Edit what you said screen, then tap Next.8. Read the information on the Help screen, then tap Finish. DRAFT DRAFT DRAFT

Applications 1889. At the S Voice screen, tap or say “Hi Galaxy” to wake up S voice.10. Speak into the phone and follow the on-screen instructions.11. Press for additional options.Samsung AppsWith Samsung Apps, you can download hundred of applications from a variety of categories.1. Sign on to your Samsung account if you have not already done so.2. From the Home screen, tap ➔ Samsung Apps .3. Tap an application that you would like, then tap Free or Price (depending on whether it is free or not).4. Tap Accept and download.The application is downloaded to your device. You can find the app icon in your app menu.5. Press ➔ Help for additional information.Samsung HubSamsung Hub is Samsung’s integrated store for media content that offers a comprehensive and consistent media service experience. You can browse and purchase all media content within a single store front. For more information, refer to “Samsung Hub” on page 68.Samsung LinkWith the Samsung Link app, you can share and play content across smart devices anytime and anywhere. For more information, refer to “Samsung Link” on page 71.SettingsThis widget navigates to the sound and phone settings for your phone. It includes such settings as: display, security, memory, and any extra settings associated with your phone. For more information, refer to “Changing Your Settings” on page 106. DRAFT DRAFT DRAFT

189Story AlbumWith Story Album, you can create a digital Album of your story in media. Special moments will be on a timeline, and if you wish, you can have your album published as a hard copy.1. From the Home screen, tap ➔ Story Album .2. Read the introductory information and tap Next.3. Tap Start to begin your Story Album.4. Follow the on-screen instructions.5. Press ➔ Help for additional information.TripAdvisorWith the TripAdvisor, you can plan and have your perfect trip. With over 75 million reviews and opinions by travelers, it is easy to find the best hotels, restaurants, and fun things to do. 1. From the Home screen, tap ➔ TripAdvisor .2. Sign in with your Samsung Account if you have not already done so.3. Follow the on-screen instructions to use TripAdvisor.4. Press for additional options.Usage ManagerThis app is a shortcut to your Data usage settings so you can manage your data. Tap ➔ Usage Manager .For more information, refer to “Data Usage” on page 109.VideoThe Video application plays video files stored on your memory card. For more information, refer to “Video” on page 79.Voice RecorderThe Voice Recorder allows you to record an audio file up to one minute long and then immediately share it using Wi-Fi Direct, Messaging, Gmail, or via Bluetooth. Recording time will vary based on the available memory within the phone.1. From the Home screen, tap ➔ Voice Recorder .2. To start recording, tap Record and speak into the microphone. DRAFT DRAFT DRAFT

Applications 1903. During the recording process you can either tap Stop to stop and save the recording or Pause to temporarily halt the recording. After pausing, tap Record to resume recording. Once the audio recording has stopped, the message is automatically saved. Tap Cancel to cancel the recording without saving.4. Tap List to display a list of all your voice recordings. Tap a voice recording to play it.5. On the bottom left corner of the display, is the recording quality icon. Tap to toggle between Normal and High quality recording.6. Press for additional options.Voice SearchThe Google Voice Search application allows you to search the web using only your voice.1. From the Home screen, tap ➔ Voice Search . 2. When the Google Voice Search screen displays, speak the word or words that you would like to search for on the internet.3. If the timer expires and the mic icon changes from red to gray, tap the mic icon and speak the word or words that you would like to search for on the internet. Results are displayed on your phone.4. The following options are available at the bottom of your screen:• Web: After selecting a different option, tap Web to return to the original search results.• Images: Displays images for your search.• News: Displays news items related to your search.• More: After tapping More, sweep your screen to the left to see additional options such as Shopping, Videos, Blogs, Discussions, Books, and Applications.• Phone: Displays a phone number if applicable. DRAFT DRAFT DRAFT

1939. If prompted to personalize your experience, follow the on-screen instructions.Using WatchONTo change channels:1. Sign into your Samsung account. 2. From the Home screen, tap ➔ WatchON .3. From the top of the main screen, tap (Remote Control). This launches an on-screen remote control. •Easy remote: provides the most common used control features. Scroll down to view additional functions.4. In a single motion touch and drag up from the bottom-right of the screen to access additional remote tabs Choose from one of the following:•TV: provides access to control functions specific to your TV.• [Set top box]: displays customized control specific to your configured set top box. Ex: satellite dish remote control functions.5. From the remote screen press and then tap (Change room) to choose from different receivers/boxes in different rooms. Ex: Living Room box, Bedroom box, etc.6. Press (Back) to return to the main menu.Locating your favorite programming:1. Sign into your Samsung account. 2. From the main WatchON screen, tap (Combined View) to reveal available media categories.3. Select an available category.– or –Tap Channel Guide to display on your TV an on-screen listing of available set top box shows. For additional information on the WatchON application, press and then select Help.WatchOn Settings From the main WatchON screen, press and then select an available on-screen option:• Change room: allows you to select a previously configured room.• Edit channels: allows you to add or remove channels from your custom list. Press and hold a channel number to update the channel entry.• Settings: provides access to the Samsung WatchON settings menu. DRAFT DRAFT DRAFT

195YouTubeYouTube™ is a video sharing website on which users can upload and share videos. The site is used to display a wide variety of user-generated video content, including movie clips, TV clips, and music videos, as well as video content such as video blogging, informational shorts and other original videos.Note: YouTube is a data-intensive feature. It is recommended that you upgrade to a large data plan to avoid additional data charges.1. From the Home screen, tap ➔ YouTube . 2. Tap the search field to search for specific videos, scroll down to browse through the main page thumbnails, or scroll to the bottom to explore additional options.3. To view a video, tap an available preview thumbnail or tap the title link.4. Press for additional options.Note: It is not necessary to sign in to the YouTube site to view content. However, if you wish to sign in to access additional options, tap Sign in at the top left corner, enter your YouTube or Google username and password, and tap Sign in.YPThe Yellowpages Mobile application provides quick and ready access to businesses, map locations, and storage of your favorite searches. This application allows you to tap into local businesses, locations, and events, connecting you to your search in real-time.Note: The first time you use YP, you will need to download the updated application from the Play Store. When the Play Store page displays, tap Update or Install then follow the on-screen instructions. For more information, refer to “Play Store” on page 183.1. From the Home screen, tap ➔ YP . 2. Sign on to your Google account if you have not already done so. For more information, refer to “Creating a New Google Account” on page 12. DRAFT DRAFT DRAFT

Applications 1963. The first time you access YP, tap Take a Tour! to learn more about the YP app, or tap Skip.4. Sign in using an email account or your Facebook account or tap Skip to Home.5. Tap the What do you want to find? field to start a search.6. Results will be displayed.7. Follow the on-screen instructions to use the YP app.8. Tap to display additional options. DRAFT DRAFT DRAFT

197Section 10: Health and Safety InformationThis device is capable of operating in Wi-Fi™ mode in the 2.4 and 5 GHz bands. The FCC requires that devices operating within 5.15-5.25 GHz may only be used indoors, not outside, in order to avoid interference with Mobile Satellite Services (MSS). Therefore, this device is restricted from being used outdoors when operating in frequencies between 5.15-5.25 GHz.This section outlines the safety precautions associated with using your phone. The terms “mobile device” or “cell phone” are used in this section to refer to your phone. Read this information before using your mobile device.Exposure to Radio Frequency (RF) SignalsThe U.S. Food and Drug Administration (FDA) has published information for consumers relating to Radio Frequency (RF) exposure from wireless phones. The FDA publication includes the following information:Do cell phones pose a health hazard?Many people are concerned that cell phone radiation will cause cancer or other serious health hazards. The weight of scientific evidence has not linked cell phones with any health problems.Cell phones emit low levels of Radio Frequency (RF) energy. Over the past 15 years, scientists have conducted hundreds of studies looking at the biological effects of the radio frequency energy emitted by cell phones. While some researchers have reported biological changes associated with RF energy, these studies have failed to be replicated. The majority of studies published have failed to show an association between exposure to radio frequency from a cell phone and health problems.The low levels of RF cell phones emit while in use are in the microwave frequency range. They also emit RF at substantially reduced time intervals when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. DRAFT DRAFT DRAFT

Health and Safety Information 198The biological effects of radio frequency energy should not be confused with the effects from other types of electromagnetic energy.Very high levels of electromagnetic energy, such as is found in X-rays and gamma rays, can ionize biological tissues. Ionization is a process where electrons are stripped away from their normal locations in atoms and molecules. It can permanently damage biological tissues including DNA, the genetic material.The energy levels associated with radio frequency energy, including both radio waves and microwaves, are not great enough to cause ionization of atoms and molecules. Therefore, RF energy is a type of non-ionizing radiation. Other types of non-ionizing radiation include visible light, infrared radiation (heat), and other forms of electromagnetic radiation with relatively low frequencies.While RF energy does not ionize particles, large amounts can increase body temperatures and cause tissue damage. Two areas of the body, the eyes and the testes, are particularly vulnerable to RF heating because there is relatively little blood flow in them to carry away excess heat.Research Results to Date: Is there a connection between RF and certain health problems?The results of most studies conducted to date say no. In addition, attempts to replicate and confirm the few studies that have shown a connection have failed.The scientific community at large therefore believes that the weight of scientific evidence does not show an association between exposure to Radio Frequency (RF) from cell phones and adverse health outcomes. Still the scientific community has supported additional research to address gaps in knowledge. Some of these studies are described below.Interphone StudyInterphone is a large international study designed to determine whether cell phones increase the risk of head and neck cancer. A report published in the International Journal of Epidemiology (June, 2010) compared cell phone usage for more than 5,000 people with brain tumors (glioma and meningioma) and a similar number of healthy controls.Results of this study did NOT show that cell phones caused brain cancer. In this study, most people had no increased risk of brain cancer from using cell phones. For people with the heaviest use of cell phones (an average of more than ½ hour per day, every day, for over 10 years) the study suggested a DRAFT DRAFT DRAFT

199slight increase in brain cancer. However, the authors determined that biases and errors prevented any conclusions being drawn from this data. Additional information about Interphone can be found athttp://www.iarc.fr/en/media-centre/pr/2010/pdfs/pr200_E.pdf.Interphone is the largest cell phone study to date, but it did not answer all questions about cell phone safety. Additional research is being conducted around the world, and the FDA continues to monitor developments in this field.International Cohort Study on Mobile Phone Users (COSMOS)The COSMOS study aims to conduct long-term health monitoring of a large group of people to determine if there are any health issues linked to long-term exposure to radio frequency energy from cell phone use. The COSMOS study will follow approximately 300,000 adult cell phone users in Europe for 20 to 30 years. Additional information about the COSMOS study can be found athttp://www.ukcosmos.org/index.html.Risk of Brain Cancer from Exposure to Radio Frequency Fields in Childhood and Adolescence (MOBI-KIDS)MOBI-KIDS is an international study investigating the relationship between exposure to radio frequency energy from communication technologies including cell phones and brain cancer in young people. This is an international multi-center study involving 14 European and non-European countries. Additional information about MOBI-KIDS can be found athttp://www.creal.cat/programes-recerca/en_projectes-creal/view.php?ID=39.Surveillance, Epidemiology, and End Results (SEER) Program of the National Cancer InstituteThe National Cancer Institute (NCI) actively follows cancer statistics in the United States to detect any change in rates of new cases for brain cancer. If cell phones play a role in risk for brain cancer, rates should go up, because heavy cell phone use has been common for quite some time in the U.S. Between 1987 and 2005, the overall age-adjusted incidence of brain cancer did not increase. Additional information about SEER can be found at http://seer.cancer.gov/. DRAFT DRAFT DRAFT

Health and Safety Information 200Cell Phone Industry ActionsAlthough the existing scientific data do not justify FDA regulatory actions, the FDA has urged the cell phone industry to take a number of steps, including the following:•Support-needed research on possible biological effects of RF for the type of signal emitted by cell phones;•Design cell phones in a way that minimizes any RF exposure to the user; and•Cooperate in providing users of cell phones with the current information on cell phone use and human health concerns.The FDA also is working with voluntary standard-setting bodies such as the Institute of Electrical and Electronics Engineers (IEEE), the International Commission on Non-Ionizing Radiation Protection (ICNIRP), and others to assure that safety standards continue to adequately protect the public.Reducing Exposure: Hands-Free Kits and Other AccessoriesSteps to Reduce Exposure to Radio Frequency EnergyIf there is a risk from being exposed to radio frequency energy (RF) from cell phones - and at this point we do not know that there is - it is probably very small. But, if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your RF exposure.• Reduce the amount of time spent using your cell phone;• Use speaker mode or a headset to place more distance between your head and the cell phone.Hands-Free KitsHands-free kits may include audio or Bluetooth® headsets and various types of body-worn accessories such as belt-clips and holsters. Combinations of these can be used to reduce RF energy absorption from cell phones.Headsets can substantially reduce exposure because the phone is held away from the head in the user's hand or in approved body-worn accessories. Cell phones marketed in the U.S. are required to meet RF exposure compliance requirements when used against the head and against the body. DRAFT DRAFT DRAFT

201Because there are no known risks from exposure to RF emissions from cell phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used for convenience and comfort. They are also required by law in many states if you want to use your phone while driving.Cell Phone Accessories that Claim to Shield the Head from RF RadiationBecause there are no known risks from exposure to RF emissions from cell phones, there is no reason to believe that accessories which claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike “hands-free” kits, these so-called “shields” may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption.Children and Cell PhonesThe scientific evidence does not show a danger to any users of cell phones from RF exposure, including children and teenagers. The steps adults can take to reduce RF exposure apply to children and teenagers as well.• Reduce the amount of time spent on the cell phone;• Use speaker mode or a headset to place more distance between the head and the cell phone.Some groups sponsored by other national governments have advised that children be discouraged from using cell phones at all. For example, The Stewart Report from the United Kingdom made such a recommendation in December 2000. In this report, a group of independent experts noted that no evidence exists that using a cell phone causes brain tumors or other ill effects. Their recommendation to limit cell phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations (updated 10/1/2010):• FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/. DRAFT DRAFT DRAFT

Health and Safety Information 202• Environmental Protection Agency (EPA):http://www.epa.gov/radtown/wireless-tech.html.• Occupational Safety and Health Administration (OSHA): http://www.osha.gov/SLTC/radiofrequencyradiation/.(Note: This web address is case sensitive.)• National Institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/.• World Health Organization (WHO): http://www.who.int/peh-emf/en/.• International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.de.• Health Protection Agency: http://www.hpa.org.uk/Topics/Radiation/.• US Food and Drug Administration: http://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/HomeBusinessandEntertainment/CellPhones/default.htm.Specific Absorption Rate (SAR) Certification InformationYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for Radio Frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government.These FCC RF exposure limits are derived from the recommendations of two expert organizations: the National Council on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The RF exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). DRAFT DRAFT DRAFT

203The FCC SAR limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum reported value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the phone.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the SAR limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. For body-worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the mobile device a minimum of 1.0 cm from the body.Use of other accessories may not ensure compliance with FCC RF exposure guidelines. The FCC has granted an Equipment Authorization for this mobile device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. This [mobile phone/tablet/device] has a FCC ID number: A3LSGHM457 [Model Number: SGH-M457] and the specific SAR levels for this [mobile phone/tablet/device] can be found at the following FCC website:http://www.fcc.gov/oet/ea/.The SAR information for this device can also be found on Samsung’s website: http://www.samsung.com/sar. SAR information on this and other model phones can be accessed online on the FCC's website through http://transition.fcc.gov/oet/rfsafety/sar.html. To find information that pertains to a particular model phone, this site uses the phone FCC ID number which is usually printed somewhere on the case of the phone. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional SAR information can also be obtained at http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones. DRAFT DRAFT DRAFT

Health and Safety Information 204FCC Part 15 Information to UserPursuant to part 15.21 of the FCC Rules, you are cautioned that changes or modifications not expressly approved by Samsung could void your authority to operate the device.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Commercial Mobile Alerting System (CMAS)This device is designed to receive wireless emergency alerts from the Commercial Mobile Alerting System ("CMAS"; which may also be known as the Personal Localized Alerting Network ("PLAN")). If your wireless provider has chosen to participate in CMAS/PLAN, alerts are available while in the provider's coverage area. If you travel outside your provider's coverage area, wireless emergency alerts may not be available. For more information, please contact your wireless provider.Smart Practices While DrivingOn the Road - Off the PhoneThe primary responsibility of every driver is the safe operation of his or her vehicle. DRAFT DRAFT DRAFT

205Responsible drivers understand that no secondary task should be performed while driving whether it be eating, drinking, talking to passengers, or talking on a mobile phone - unless the driver has assessed the driving conditions and is confident that the secondary task will not interfere with their primary responsibility. Do not engage in any activity while driving a moving vehicle which may cause you to take your eyes off the road or become so absorbed in the activity that your ability to concentrate on the act of driving becomes impaired. Samsung is committed to promoting responsible driving and giving drivers the tools they need to understand and address distractions.Check the laws and regulations on the use of mobile devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. For example, only hands-free use may be permitted in certain areas.Before answering calls, consider your circumstances. Let the call go to voicemail when driving conditions require. Remember, driving comes first, not the call!If you consider a call necessary and appropriate, follow these tips:• Use a hands-free device;• Secure your phone within easy reach;• Place calls when you are not moving;• Plan calls when your car will be stationary;• Do not engage in stressful or emotional conversations;• Let the person with whom you are speaking know that you are driving and will suspend the call if necessary;• Do not take notes or look up phone numbers while driving;Notice regarding legal restrictions on mounting this device in an automobile:Laws in some states may prohibit mounting this device on or near the windshield of an automobile. In other states, the law may permit mounting this device only in specific locations in the automobile. Be sure to consult the state and local laws or ordinances where you drive before mounting this device in an automobile. Failure to comply with these restrictions could result in fines, penalties, or other damages.Never mount this device in a manner that will obstruct the driver's clear view of the street and traffic. DRAFT DRAFT DRAFT

Health and Safety Information 206Never use wireless data services such as text messaging, Web browsing, or e-mail while operating a vehicle.Never watch videos, such as a movie or clip, or play video games while operating a vehicle.For more information, go to http://www.ctia.org.Battery Use and SafetyImportant! Handle and store batteries properly to avoid injury or damage. Most battery issues arise from improper handling of batteries and, particularly, from the continued use of damaged batteries.• Do not disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery. Do not put a high degree of pressure on the battery. This can cause leakage or an internal short-circuit, resulting in overheating.• Do not let the phone or battery come in contact with liquids. Liquids can get into the phone's circuits, leading to corrosion. Even when the phone appears to be dry and appears to operate normally, the circuitry could slowly corrode and pose a safety hazard. If the phone and/or battery get wet, have them checked by your service provider or contact Samsung, even if they appear to be working properly.• Do not place your battery in or near a heat source. Excessive heating can damage the phone or the battery and could cause the phone or the battery to explode. Do not dry a wet or damp battery with an appliance or heat source such as a microwave oven, hair dryer, iron, or radiator. Avoid leaving your phone in your car in high temperatures.• Do not dispose of the phone or the battery in a fire. The phone or the battery may explode when overheated.• Do not handle a damaged or leaking battery. Do not let leaking battery fluid come in contact with your eyes, skin or clothing. For safe disposal options, contact your nearest Samsung-authorized service center. DRAFT DRAFT DRAFT

207• Avoid dropping the cell phone. Dropping the phone or the battery, especially on a hard surface, can potentially cause damage to the phone and battery. If you suspect damage to the phone or battery, take it to a service center for inspection.• Never use any charger or battery that is damaged in any way.• Do not allow the battery to touch metal objects. Accidental short-circuiting can occur when a metallic object (coin, key, jewelry, clip, or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.Important! Use only Samsung-approved batteries, and recharge your battery only with Samsung-approved chargers which are specifically designed for your phone.WARNING!Use of a non-Samsung-approved battery or charger may present a risk of fire, explosion, leakage, or other hazard. Samsung's warranty does not cover damage to the phone caused by non-Samsung-approved batteries and/or chargers.• Do not use incompatible cell phone batteries and chargers. Some websites and second-hand dealers not associated with reputable manufacturers and carriers, might be selling incompatible or even counterfeit batteries and chargers. Consumers should purchase manufacturer or carrier-recommended products and accessories. If unsure about whether a replacement battery or charger is compatible, contact the manufacturer of the battery or charger.• Misuse or use of incompatible phones, batteries, and charging devices could result in damage to the equipment and a possible risk of fire, explosion, or leakage, leading to serious injuries, damages to your phone, or other serious hazard. DRAFT DRAFT DRAFT

Health and Safety Information 208Samsung Mobile Products and RecyclingSamsung cares for the environment and encourages its customers to recycle Samsung mobile devices and genuine Samsung accessories.Proper disposal of your mobile device and its battery is not only important for safety, it benefits the environment. Batteries must be recycled or disposed of properly.Recycling programs for your mobile device, batteries, and accessories may not be available in your area.We've made it easy for you to recycle your old Samsung mobile device by working with respected take-back companies in every state in the country.Drop It OffYou can drop off your Samsung-branded mobile device and batteries for recycling at one of our numerous Samsung Recycling Direct (SM) locations. A list of these locations may be found at: http://pages.samsung.com/us/recyclingdirect/usactivities_environment_samsungrecyclingdirect_locations.jsp.Samsung-branded devices and batteries will be accepted at these locations for no fee.Consumers may also recycle their used mobile device or batteries at many retail or carrier-provided locations where mobile devices and batteries are sold. Additional information regarding specific locations may be found at: http://www.epa.gov/epawaste/partnerships/plugin/cellphone/index.htm or at http://www.call2recycle.org/.Mail It InThe Samsung Mobile Take-Back Program will provide Samsung customers with a free recycling mailing label. Just go tohttp://fun.samsungmobileusa.com/recycling/index.jsp.Dispose of unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect Or call, (877) 278-0799. DRAFT DRAFT DRAFT

209Follow local regulations regarding disposal of mobile devices and batteriesDispose of your mobile device and batteries in accordance with local regulations. In some areas, the disposal of these items in household or business trash may be prohibited. Help us protect the environment - recycle!Warning! Never dispose of batteries in a fire because they may explode.UL Certified Travel ChargerThe Travel Charger for this phone has met applicable UL safety requirements. Please adhere to the following safety instructions per UL guidelines:FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE.IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS.DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.FOR CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE AN ATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION FOR THE POWER OUTLET.THIS POWER UNIT IS INTENDED TO BE CORRECTLY ORIENTED IN A VERTICAL OR HORIZONTAL OR FLOOR MOUNT POSITION.Display / Touch-ScreenPlease note the following information when using your mobile device:WARNING REGARDING DISPLAYThe display on your mobile device is made of glass or acrylic and could break if your mobile device is dropped or if it receives significant impact. Do not use if screen is broken or cracked as this could cause injury to you. DRAFT DRAFT DRAFT

Health and Safety Information 210WARRANTY DISCLAIMER: PROPER USE OF A TOUCH-SCREEN MOBILE DEVICEIf your mobile device has a touch-screen display, please note that a touch-screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch-screen may damage the tempered glass surface and void the warranty. For more information, please refer to the “Standard Limited Warranty”.GPSCertain Samsung mobile devices can use a Global Positioning System (GPS) signal for location-based applications. A GPS uses satellites controlled by the U.S. Government that are subject to changes implemented in accordance with the Department of Defense policy and the 2008 Federal Radio navigation Plan (FRP). Changes may affect the performance of location-based technology on your mobile device.Even with GPS, when you make an emergency call:• Always tell the emergency responder your location to the best of your ability; and• Remain on the mobile device for as long as the emergency responder instructs you.NavigationMaps, directions, and other navigation-data, including data relating to your current location, may contain inaccurate or incomplete data, and circumstances can and do change over time. In some areas, complete information may not be available. Therefore, you should always visually confirm that the navigational instructions are consistent with what you see before following them. All users should pay attention to road conditions, closures, traffic, and all other factors that may impact safe driving or walking. Always obey posted road signs.Emergency CallsThis mobile device, like any wireless mobile device, operates using radio signals, wireless and landline networks, as well as user-programmed functions, which cannot guarantee connection in all conditions, areas, or circumstances. Therefore, you should never rely solely on any wireless mobile device for essential communications (medical emergencies, for example). Before traveling in remote or underdeveloped areas, plan an alternate method of contacting emergency services personnel. Remember, to DRAFT DRAFT DRAFT

211make or receive any calls, the mobile device must be switched on and in a service area with adequate signal strength.Emergency calls may not be possible on all wireless mobile device networks or when certain network services and/or mobile device features are in use. Check with local service providers.To make an emergency call:1. If the phone is not on, switch it on.2. From the Home screen, tap . The dialer is displayed.3. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.4. Tap the key.If certain features are in use (call blocking, for example), you may first need to deactivate those features before you can make an emergency call. Consult your User Manual and your local cellular service provider. When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your mobile device may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Care and MaintenanceYour mobile device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years:Keep your Samsung Mobile Device away from:Liquids of any kindKeep the mobile device dry. Precipitation, humidity, and liquids contain minerals that will corrode electronic circuits. If the mobile device does get wet, do not accelerate drying with the use of an oven, microwave, or dryer, because this may damage the mobile device and could cause a fire or explosion. Do not use the mobile device with a wet hand. Doing so may cause an electric shock to you or damage to the mobile device. DRAFT DRAFT DRAFT

Health and Safety Information 212Extreme heat or coldAvoid temperatures below 0°C / 32°F or above 45°C / 113°F.MicrowavesDo not try to dry your mobile device in a microwave oven. Doing so may cause a fire or explosion.Dust and dirtDo not expose your mobile device to dust, dirt, or sand.Cleaning solutionsDo not use harsh chemicals, cleaning solvents, or strong detergents to clean the mobile device. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.Shock or vibrationDo not drop, knock, or shake the mobile device. Rough handling can break internal circuit boards.PaintDo not paint the mobile device. Paint can clog the device’s moving parts or ventilation openings and prevent proper operation.Responsible ListeningCaution! Avoid potential hearing loss.Damage to hearing occurs when a person is exposed to loud sounds over time. The risk of hearing loss increases as sound is played louder and for longer durations. Prolonged exposure to loud sounds (including music) is the most common cause of preventable hearing loss. Some scientific research suggests that using portable audio devices, such as portable music players and cell phones, at high volume settings for long durations may lead to permanent noise-induced hearing loss. This includes the use of headphones (including headsets, earbuds, and Bluetooth® or other wireless devices). Exposure to very loud sound has also been associated in some studies with tinnitus (a ringing in the ear), hypersensitivity to sound, and distorted hearing. Individual susceptibility to noise-induced hearing loss and potential hearing problem varies. Additionally, the amount of sound produced by a portable audio device varies depending on the nature of the sound, the device settings, and the headphones DRAFT DRAFT DRAFT

213that are used. As a result, there is no single volume setting that is appropriate for everyone or for every combination of sound, settings, and equipment.You should follow some common sense recommendations when using any portable audio device:• Always turn the volume down before plugging the earphones into an audio source.• Set the volume in a quiet environment and select the lowest volume at which you can hear adequately.• Be aware that you can adapt to higher volume settings over time, not realizing that the higher volume may be harmful to your hearing.• When using headphones, turn the volume down if you cannot hear the people speaking near you or if the person sitting next to you can hear what you are listening to.• Do not turn the volume up to block out noisy surroundings. If you choose to listen to your portable device in a noisy environment, use noise-cancelling headphones to block out background environmental noise. By blocking background environment noise, noise cancelling headphones should allow you to hear the music at lower volumes than when using earbuds.• Limit the amount of time you listen. As the volume increases, less time is required before you hearing could be affected.• Avoid using headphones after exposure to extremely loud noises, such as rock concerts, that might cause temporary hearing loss. Temporary hearing loss might cause unsafe volumes to sound normal.• Do not listen at any volume that causes you discomfort. If you experience ringing in your ears, hear muffled speech, or experience any temporary hearing difficulty after listening to your portable audio device, discontinue use and consult your doctor.You can obtain additional information on this subject from the following sources:American Academy of Audiology11730 Plaza American Drive, Suite 300Reston, VA 20190Voice: (800) 222-2336Email: info@audiology.orgInternet: http://www.audiology.org/Pages/default.aspx DRAFT DRAFT DRAFT

Health and Safety Information 214Operating EnvironmentRemember to follow any special regulations in force in any area, and always switch your mobile device off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the mobile device or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.Using Your Mobile Device Near Other Electronic DevicesMost modern electronic equipment is shielded from Radio Frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless mobile device. Consult the manufacturer to discuss alternatives.National Institute on Deafness and Other Communication DisordersNational Institutes of Health31 Center Drive, MSC 2320Bethesda, MD 20892-2320Email: nidcdinfo@nih.govInternet: http://www.nidcd.nih.gov/National Institute for Occupational Safety and Health (NIOSH)395 E Street, S.W., Suite 9200Patriots Plaza BuildingWashington, DC 20201Voice: 1-800-35-NIOSH (1-800-356-4674)1-800-CDC-INFO (1-800-232-4636)Outside the U.S. 513-533-8328Email: cdcinfo@cdc.govInternet:http://www.cdc.gov/niosh/topics/noise/default.html1-888-232-6348 TTY DRAFT DRAFT DRAFT

215Implantable Medical DevicesA minimum separation of six (6) inches should be maintained between a handheld wireless mobile device and an implantable medical device, such as a pacemaker or implantable cardioverter defibrillator, to avoid potential interference with the device.Persons who have such devices:• Should ALWAYS keep the mobile device more than six (6) inches from their implantable medical device when the mobile device is turned ON;• Should not carry the mobile device in a breast pocket;• Should use the ear opposite the implantable medical device to minimize the potential for interference;• Should turn the mobile device OFF immediately if there is any reason to suspect that interference is taking place;• Should read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your wireless mobile device with an implantable medical device, consult your health care provider.For more information see: http://www.fcc.gov/oet/rfsafety/rf-faqs.html#.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your mobile device off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle before using your mobile device in a motor vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your mobile device off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your mobile device off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion DRAFT DRAFT DRAFT

Health and Safety Information 216or fire resulting in bodily injury or even death. Users are advised to switch the mobile device off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust, or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.When your Device is WetDo not turn on your device if it is wet. If your device is already on, turn it off and remove the battery immediately (if the device will not turn off or you cannot remove the battery, leave it as-is). Then, dry the device with a towel and take it to a service center.FCC Hearing Aid Compatibility (HAC) Regulations for Wireless DevicesThe U.S. Federal Communications Commission (FCC) has established requirements for digital wireless mobile devices to be compatible with hearing aids and other assistive hearing devices.When individuals employing some assistive hearing devices (hearing aids and cochlear implants) use wireless mobile devices, they may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and mobile devices also vary in the amount of interference they generate.The wireless telephone industry has developed a rating system for wireless mobile devices to assist hearing device users find mobile devices that may be compatible with their hearing devices. Not all mobile devices have been rated. Mobile devices that are rated have the rating on their box or a label located on the box.The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not DRAFT DRAFT DRAFT

217be able to use a rated mobile device successfully. Trying out the mobile device with your hearing device is the best way to evaluate it for your personal needs.M-Ratings: Wireless mobile devices rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than mobile devices that are not labeled. M4 is the better/higher of the two ratings. M-ratings refer to enabling acoustic coupling with hearing aids that do not operate in telecoil mode.T-Ratings: Mobile devices rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than mobile devices that are not labeled. T4 is the better/higher of the two ratings. T-ratings refer to enabling inductive coupling with hearing aids operating in telecoil mode.Hearing devices may also be rated. Your hearing aid manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. Under the current industry standard, American National Standards Institute (ANSI) C63.19, the hearing aid and wireless mobile device rating values are added together to indicate how usable they are together. For example, if a hearing aid meets the M2 level rating and the wireless mobile device meets the M3 level rating, the sum of the two values equals M5. Under the standard, this should provide the hearing aid user with normal use while using the hearing aid with the particular wireless mobile device. A sum of 6 or more would indicate excellent performance. However, these are not guarantees that all users will be satisfied. T ratings work similarly. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.M3 + M2 = 5T3 + T2 = 5 DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT

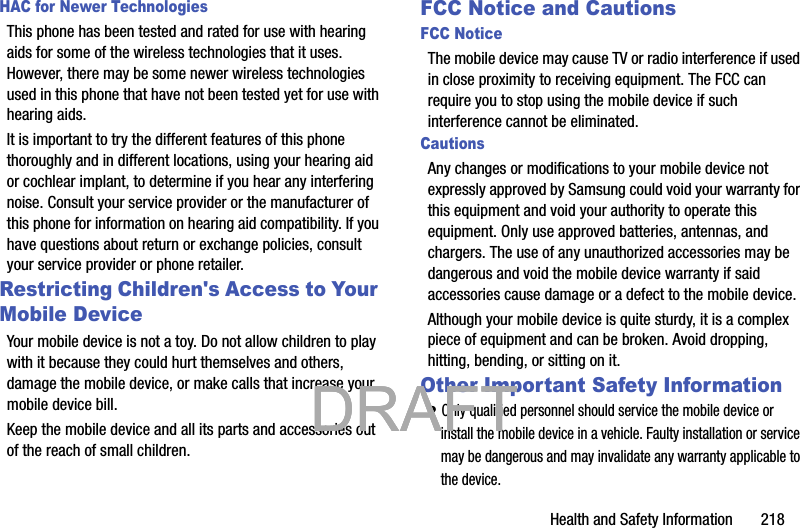

Health and Safety Information 218HAC for Newer TechnologiesThis phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this phone for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer.Restricting Children's Access to Your Mobile DeviceYour mobile device is not a toy. Do not allow children to play with it because they could hurt themselves and others, damage the mobile device, or make calls that increase your mobile device bill.Keep the mobile device and all its parts and accessories out of the reach of small children.FCC Notice and CautionsFCC NoticeThe mobile device may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the mobile device if such interference cannot be eliminated. CautionsAny changes or modifications to your mobile device not expressly approved by Samsung could void your warranty for this equipment and void your authority to operate this equipment. Only use approved batteries, antennas, and chargers. The use of any unauthorized accessories may be dangerous and void the mobile device warranty if said accessories cause damage or a defect to the mobile device. Although your mobile device is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it.Other Important Safety Information• Only qualified personnel should service the mobile device or install the mobile device in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device. DRAFT DRAFT DRAFT

219• Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted.• Check regularly that all wireless mobile device equipment in your vehicle is mounted and operating properly.• When using a headset in dry environments, static electricity can build up in the headset and cause a small quick static electrical shock. To minimize the risk of electrostatic discharge from the headset avoid using the headset in extremely dry environments or touch a grounded unpainted metal object to discharge static electricity before inserting the headset.• Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the mobile device, its parts, or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including installed or portable wireless equipment near or in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your mobile device off before boarding an aircraft. The use of wireless mobile devices in aircraft is illegal and may be dangerous to the aircraft's operation. Check with appropriate authorities before using any function of a mobile device while on an aircraft.• Failure to observe these instructions may lead to the suspension or denial of cell phone services to the offender, or legal action, or both.• While using your device, leave some lights on in the room and do not hold the screen too close to your eyes.• Seizures or blackouts can occur when you are exposed to flashing lights while watching videos or playing games for extended periods. If you feel any discomfort, stop using the device immediately.• Reduce risk of repetitive motion injuries. When you repetitively perform actions, such as pressing keys, drawing characters on a touch screen with your fingers, or playing games, you may experience occasional discomfort in your hands, neck, shoulders, or other parts of your body. When using your device for extended periods, hold the device with a relaxed grip, press the keys lightly, and take frequent breaks. If you continue to have discomfort during or after such use, stop use and see a physician. DRAFT DRAFT DRAFT

Health and Safety Information 220• If your device has a camera flash or light, do not use the flash or light close to the eyes of people or pets. [122011] DRAFT DRAFT DRAFT

221Section 11: Warranty InformationStandard Limited WarrantyWhat is covered and for how long?SAMSUNG TELECOMMUNICATIONS AMERICA, LLC (“SAMSUNG”) warrants that SAMSUNG’s handsets and accessories (“Products”) are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase by the first consumer purchaser and continuing for the following specified period of time after that date:*If applicable.What is not covered?This Limited Warranty is conditioned upon proper use of the Product. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abnormal use, abnormal conditions, improper storage, exposure to liquid, moisture, dampness, sand or dirt, neglect, or unusual physical, electrical or electromechanical stress; (b) scratches, dents and cosmetic damage, unless caused by SAMSUNG; (c) defects or damage resulting from excessive force or use of a metallic object when pressing on a touch screen; (d) equipment that has the serial number or the enhancement data code removed, defaced, damaged, altered or made illegible; (e) ordinary wear and tear; (f) defects or damage resulting from the use of Product in conjunction or connection with accessories, products, or ancillary/peripheral equipment not furnished or approved by SAMSUNG; (g) defects or damage resulting from improper testing, operation, maintenance, installation, service, or adjustment not furnished or approved by SAMSUNG; (h) defects or damage resulting from external causes such as collision with an object, fire, flooding, dirt, windstorm, lightning, earthquake, exposure to weather conditions, theft, blown fuse, or improper use of any electrical source; (i) defects or damage resulting from cellular signal reception Device 1 YearBattery(ies)* 1 YearCase/Pouch/Holster* 90 DaysOther Device Accessories*1 Year DRAFT DRAFT DRAFT

Warranty Information 222or transmission, or viruses or other software problems introduced into the Product; or (j) Product used or purchased outside the United States. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery; (ii) any of the seals on the battery are broken or show evidence of tampering; or (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified.What are SAMSUNG’s obligations?During the applicable warranty period, provided the Product is returned in accordance with the terms of this Limited Warranty, SAMSUNG will repair or replace the Product, at SAMSUNG’s sole option, without charge. SAMSUNG may, at SAMSUNG’s sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product, or may replace the Product with a rebuilt, reconditioned or new Product. Repaired/replaced cases, pouches and holsters will be warranted for a period of ninety (90) days. All other repaired/replaced Products will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for ninety (90) days, whichever is longer. All replaced Products, parts, components, boards and equipment shall become the property of SAMSUNG. Except to any extent expressly allowed by applicable law, transfer or assignment of this Limited Warranty is prohibited.What must you do to obtain warranty service?To obtain service under this Limited Warranty, you must return the Product to an authorized phone service facility in an adequate container for shipping, accompanied by the sales receipt or comparable proof of sale showing the original date of purchase, the serial number of the Product and the seller’s name and address. To obtain assistance on where to deliver the Product, please call SAMSUNG Customer Care at 1-888-987-4357. If SAMSUNG determines that any Product is not covered by this Limited Warranty, you must pay all parts, shipping, and labor charges for the repair or return of such Product.You should keep a separate backup copy of any contents of the Product before delivering the Product to SAMSUNG for warranty service, as some or all of the contents may be deleted or reformatted during the course of warranty service. DRAFT DRAFT DRAFT

223What are the limits on SAMSUNG’s liability?THIS LIMITED WARRANTY SETS OUT THE FULL EXTENT OF SAMSUNG’S RESPONSIBILITIES, AND THE EXCLUSIVE REMEDY REGARDING THE PRODUCTS. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL SAMSUNG BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR FOR, WITHOUT LIMITATION, COMMERCIAL LOSS OF ANY SORT; LOSS OF USE, TIME, DATA, REPUTATION, OPPORTUNITY, GOODWILL, PROFITS OR SAVINGS; INCONVENIENCE; INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES; OR DAMAGES ARISING FROM THE USE OR INABILITY TO USE THE PRODUCT. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND DISCLAIMERS MAY NOT APPLY TO YOU.SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR EQUIPMENT USED IN CONJUNCTION WITH THE PRODUCT, OR THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE. RESPONSIBILITY FOR THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT RESTS SOLELY WITH THE USER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT.Nothing in the Product instructions or information shall be construed to create an express warranty of any kind with respect to the Products. No agent, employee, dealer, representative or reseller is authorized to modify or extend this Limited Warranty or to make binding representations or claims, whether in advertising, presentations or otherwise, on behalf of SAMSUNG regarding the Products or this Limited Warranty.This Limited Warranty gives you specific legal rights, and you may also have other rights that vary from state to state. DRAFT DRAFT DRAFT

Warranty Information 224What is the procedure for resolving disputes?ALL DISPUTES WITH SAMSUNG ARISING IN ANY WAY FROM THIS LIMITED WARRANTY OR THE SALE, CONDITION OR PERFORMANCE OF THE PRODUCTS SHALL BE RESOLVED EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR JURY. Any such dispute shall not be combined or consolidated with a dispute involving any other person’s or entity’s Product or claim, and specifically, without limitation of the foregoing, shall not under any circumstances proceed as part of a class action. The arbitration shall be conducted before a single arbitrator, whose award may not exceed, in form or amount, the relief allowed by the applicable law. The arbitration shall be conducted according to the American Arbitration Association (AAA) Commercial Arbitration Rules applicable to consumer disputes. This arbitration provision is entered pursuant to the Federal Arbitration Act. The laws of the State of Texas, without reference to its choice of laws principles, shall govern the interpretation of the Limited Warranty and all disputes that are subject to this arbitration provision. The arbitrator shall decide all issues of interpretation and application of this arbitration provision and the Limited Warranty.For any arbitration in which your total damage claims, exclusive of attorney fees and expert witness fees, are $5,000.00 or less (“Small Claim”), the arbitrator may, if you prevail, award your reasonable attorney fees, expert witness fees and costs as part of any award, but may not grant SAMSUNG its attorney fees, expert witness fees or costs unless it is determined that the claim was brought in bad faith. In a Small Claim case, you shall be required to pay no more than half of the total administrative, facility and arbitrator fees, or $50.00 of such fees, whichever is less, and SAMSUNG shall pay the remainder of such fees. Administrative, facility and arbitrator fees for arbitrations in which your total damage claims, exclusive of attorney fees and expert witness fees, exceed $5,000.00 (“Large Claim”) shall be determined according to AAA rules. In a Large Claim case, the arbitrator may grant to the prevailing party, or apportion among the parties, reasonable attorney fees, expert witness fees and costs. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction.This arbitration provision also applies to claims against SAMSUNG’s employees, representatives and affiliates if any such claim arises from the Product’s sale, condition or performance. DRAFT DRAFT DRAFT

225You may opt out of this dispute resolution procedure by providing notice to SAMSUNG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product. To opt out, you must send notice by e-mail to optout@sta.samsung.com, with the subject line: “Arbitration Opt Out.” You must include in the opt out e-mail (a) your name and address; (b) the date on which the Product was purchased; (c) the Product model name or model number; and (d) the IMEI or MEID or Serial Number, as applicable, if you have it (the IMEI or MEID or Serial Number can be found (i) on the Product box; (ii) on the Product information screen, which can be found under “Settings;” (iii) on a label on the back of the Product beneath the battery, if the battery is removable; and (iv) on the outside of the Product if the battery is not removable). Alternatively, you may opt out by calling 1-888-987-4357 no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product and providing the same information. These are the only two forms of notice that will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the benefits of the Limited Warranty.SeverabilityIf any portion of this Limited Warranty is held to be illegal or unenforceable, such partial illegality or unenforceability shall not affect the enforceability of the remainder of the Limited Warranty.Precautions for Transfer and DisposalIf data stored on this device is deleted or reformatted using the standard methods, the data only appears to be removed on a superficial level, and it may be possible for someone to retrieve and reuse the data by means of special software.To avoid unintended information leaks and other problems of this sort, it is recommended that the device be returned to Samsung’s Customer Care Center for an Extended File System (EFS) Clear which will eliminate all user memory and return all settings to default settings. Please contact the Samsung Customer Care Center for details.Important! Please provide warranty information (proof of purchase) to Samsung’s Customer Care Center in order to provide this service at no charge. If the warranty has expired on the device, charges may apply. DRAFT DRAFT DRAFT

Warranty Information 226Samsung Telecommunications America, LLC1301 E. Lookout DriveRichardson, Texas 75082Phone: 1-800-SAMSUNGPhone: 1-888-987-HELP (4357)No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice. [111611]End User License Agreement for SoftwareIMPORTANT. READ CAREFULLY: This End User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Samsung Electronics Co., Ltd. ("Samsung") for software, owned by Samsung and its affiliated companies and its third party suppliers and licensors, that accompanies this EULA, which includes computer software and may include associated media, printed materials, "online" or electronic documentation in connection with your use of this device ("Software"). This device requires the use of preloaded software in its normal operation. BY USING THE DEVICE OR ITS PRELOADED SOFTWARE, YOU ACCEPT THE TERMS OF THIS EULA. IF YOU DO NOT ACCEPT THESE TERMS, DO NOT USE THE DEVICE OR THE SOFTWARE. 1. GRANT OF LICENSE. Samsung grants you the following rights provided that you comply with all terms and conditions of this EULA: You may install, use, access, display and run one copy of the Software on the local hard disk(s) or other permanent storage media of one computer and use the Software on a single computer or a mobile device at a time, and you may not make the Software available over a network where it could be used by multiple computers at the same time. You may make one copy of the Software in machine readable form for backup purposes only; provided that the backup copy must include all copyright or other proprietary notices contained on the original.Certain items of the Software may be subject to open source licenses. The open source license provisions may override some of the terms of this EULA. We make the applicable open source licenses available to you on the Legal Notices section of the Settings menu of your device. DRAFT DRAFT DRAFT

2272. RESERVATION OF RIGHTS AND OWNERSHIP. Samsung reserves all rights not expressly granted to you in this EULA. The Software is protected by copyright and other intellectual property laws and treaties. Samsung or its suppliers own the title, copyright and other intellectual property rights in the Software. The Software is licensed, not sold.3. LIMITATIONS ON END USER RIGHTS. You may not reverse engineer, decompile, disassemble, or otherwise attempt to discover the source code or algorithms of, the Software (except and only to the extent that such activity is expressly permitted by applicable law not withstanding this limitation), or modify, or disable any features of, the Software, or create derivative works based on the Software. You may not rent, lease, lend, sublicense or provide commercial hosting services with the Software.4. CONSENT TO USE OF DATA. You agree that Samsung and its affiliates may collect and use technical information gathered as part of the product support services related to the Software provided to you, if any, such as IMEI (your device’s unique identification number), device number, model name, customer code, access recording, your device’s current SW version, MCC (Mobile Country Code), MNC (Mobile Network Code). Samsung and its affiliates may use this information solely to improve their products or to provide customized services or technologies to you and will not disclose this information in a form that personally identifies you. At all times your information will be treated in accordance with Samsung’s Privacy Policy, which can be viewed at: http://account.samsung.com/membership/pp.5. SOFTWARE UPDATES. Samsung may provide to you or make available to you updates, upgrades, supplements and add-on components (if any) of the Software, including bug fixes, service upgrades (parts or whole), products or devices, and updates and enhancements to any software previously installed (including entirely new versions), (collectively “Update”) after the date you obtain your initial copy of the Software to improve the Software and ultimately enhance your user experience with your device. This EULA applies to all and any component of the Update that Samsung may provide to you or make available to you after the date you obtain your initial copy of the Software, unless we provide other terms along with such Update. To use Software provided through Update, you must first be licensed for the Software identified by Samsung as eligible for the Update. After the Update, you may no longer use the Software that formed the basis for your Update eligibility. The updated Software version may add new functions and, in some limited cases, may delete existing functions. DRAFT DRAFT DRAFT

Warranty Information 228While the Update will be generally available, in some limited circumstances, the Software updates will only be offered by your network carrier, and such Software updates will be governed by your contractual relationship with your network carrier.We recommend that you check availability of any new Updates periodically for optimal use of your device.6. SOFTWARE TRANSFER. You may not transfer this EULA or the rights to the Software granted herein to any third party unless it is in connection with the sale of the mobile device which the Software accompanied. In such event, the transfer must include all of the Software (including all component parts, the media and printed materials, any upgrades, this EULA) and you may not retain any copies of the Software. The transfer may not be an indirect transfer, such as a consignment. Prior to the transfer, the end user receiving the Software must agree to all the EULA terms.7. EXPORT RESTRICTIONS. You acknowledge that the Software is subject to export restrictions of various countries. You agree to comply with all applicable international and national laws that apply to the Software, including all the applicable export restriction laws and regulations.8. TERMINATION. This EULA is effective until terminated. Your rights under this License will terminate automatically without notice from Samsung if you fail to comply with any of the terms and conditions of this EULA. Upon termination of this EULA, you must cease all use of the Software and destroy all copies, full or partial, of the Software.9. DISCLAIMER OF WARRANTY. UNLESS SEPARATELY STATED IN A WRITTEN EXPRESS LIMITED WARRANTY ACCOMPANYING YOUR DEVICE, ALL SOFTWARE PROVIDED BY SAMSUNG WITH THIS MOBILE DEVICE (WHETHER INCLUDED WITH THE DEVICE, DOWNLOADED, OR OTHERWISE OBTAINED) IS PROVIDED "AS IS" AND ON AN "AS AVAILABLE" BASIS, WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG, EITHER EXPRESS OR IMPLIED. TO THE FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE LAW, SAMSUNG DISCLAIMS ALL WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY OR WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK OF VIRUSES, QUIET ENJOYMENT, NON INFRINGEMENT OF THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS. SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR LIMITATIONS OF IMPLIED DRAFT DRAFT DRAFT

229WARRANTIES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN, OBTAINED BY YOU FROM SAMSUNG OR ITS AFFILIATES SHALL BE DEEMED TO ALTER THIS DISCLAIMER BY SAMSUNG OF WARRANTY REGARDING THE SOFTWARE, OR TO CREATE ANY WARRANTY OF ANY SORT FROM SAMSUNG. 10. LIMITATION OF LIABILITY. SAMSUNG WILL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND ARISING OUT OF OR RELATING TO THE USE OR THE INABILITY TO USE THE SOFTWARE OR ANY THIRD PARTY APPLICATION, ITS CONTENT OR FUNCTIONALITY, INCLUDING BUT NOT LIMITED TO DAMAGES CAUSED BY OR RELATED TO ERRORS, OMISSIONS, INTERRUPTIONS, DEFECTS, DELAY IN OPERATION OR TRANSMISSION, COMPUTER VIRUS, FAILURE TO CONNECT, NETWORK CHARGES, IN-APP PURCHASES, AND ALL OTHER DIRECT, INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NOTWITHSTANDING THE FOREGOING, SAMSUNG ELECTRONIC CO.'S TOTAL LIABILITY TO YOU FOR ALL LOSSES, DAMAGES, CAUSES OF ACTION, INCLUDING BUT NOT LIMITED TO THOSE BASED ON CONTRACT, TORT, OR OTHERWISE, ARISING OUT OF YOUR USE OF THE SOFTWARE OR THIRD PARTY APPLICATIONS ON THIS MOBILE DEVICE, OR ANY OTHER PROVISION OF THIS EULA, SHALL NOT EXCEED THE AMOUNT PURCHASER PAID SPECIFICALLY FOR THIS MOBILE DEVICE OR ANY SUCH THIRD PARTY APPLICATION THAT WAS INCLUDED WITH THIS MOBILE DEVICE. THE FOREGOING LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS (INCLUDING SECTIONS 10, 11, 12 AND 13) SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.11. U.S. GOVERNMENT END USERS RESTRICTED RIGHTS. The Software is licensed only with "restricted rights" and as "commercial items" consisting of "commercial software" and "commercial software documentation" with only those rights as are granted to all other end users pursuant to the terms and conditions herein. All Products are provided only with "restricted rights" with only those rights as are granted to all other end users pursuant to the terms and conditions herein. All Software and Products are provided subject to Federal Acquisition Regulation (FAR) 52.227.19. DRAFT DRAFT DRAFT

Warranty Information 23012. APPLICABLE LAW. This EULA is governed by the laws of the jurisdiction where you are a resident or, if a resident of the United States, by the laws of the state of Texas, without regard to its conflict of law provisions. This EULA shall not be governed by the UN Convention on Contracts for the International Sale of Goods, the application of which is expressly excluded. 13. DISPUTE RESOLUTION. (a) Non-United States residents. If a dispute, controversy or difference arising in any way from this EULA or your use of the Software is not amicably settled, it shall be subject to the non-exclusive jurisdiction of the courts of the jurisdiction where you are a resident. Notwithstanding the foregoing, Samsung may apply for injunctive remedies (or an equivalent type of urgent legal relief) in any jurisdiction.(b) United States residents. ALL DISPUTES WITH SAMSUNG ARISING IN ANY WAY FROM THIS EULA OR YOUR USE OF THE SOFTWARE SHALL BE RESOLVED EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR JURY. Any such dispute shall not be combined or consolidated with any other person’s or entity’s claim or dispute, and specifically, without limitation of the foregoing, shall not under any circumstances proceed as part of a class action. The arbitration shall be conducted before a single arbitrator, whose award may not exceed, in form or amount, the relief allowed by the applicable law. The arbitration shall be conducted according to the American Arbitration Association (AAA) Commercial Arbitration Rules applicable to consumer disputes. This arbitration provision is entered pursuant to the Federal Arbitration Act. The laws of the State of Texas, without reference to its choice of laws principles, shall govern the interpretation of the EULA and all disputes that are subject to this arbitration provision. The arbitrator shall decide all issues of interpretation and application of this arbitration provision and the EULA. For any arbitration in which your total damage claims, exclusive of attorney fees and expert witness fees, are $5,000.00 or less ("Small Claim"), the arbitrator may, if you prevail, award your reasonable attorney fees, expert witness fees and costs as part of any award, but may not grant Samsung its attorney fees, expert witness fees or costs unless it is determined that the claim was brought in bad faith. In a Small Claim case, you shall be required to pay no more than half of the total administrative, facility and arbitrator fees, or $50.00 of such fees, whichever is less, and Samsung shall pay the remainder of such fees. Administrative, facility and arbitrator fees for arbitrations in which your total damage claims, DRAFT DRAFT DRAFT

231exclusive of attorney fees and expert witness fees, exceed $5,000.00 ("Large Claim") shall be determined according to AAA rules. In a Large Claim case, the arbitrator may grant to the prevailing party, or apportion among the parties, reasonable attorney fees, expert witness fees and costs. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. This arbitration provision also applies to claims against Samsung’s employees, representatives and affiliates if any such claim arises from the licensing or use of the Software. You may opt out of this dispute resolution procedure by providing notice to Samsung no later than 30 calendar days from the date of the first consumer purchaser’s purchase of this device. To opt out, you must send notice by e-mail to optout@sta.samsung.com, with the subject line: "Arbitration Opt Out." You must include in the opt out e-mail (a) your name and address; (b) the date on which the device was purchased; (c) the device model name or model number; and (d) the IMEI or MEID or Serial Number, as applicable, if you have it (the IMEI or MEID or Serial Number can be found (i) on the device box; (ii) on the device information screen, which can be found under "Home;" (iii) on a label on the back of the device beneath the battery, if the battery is removable; and (iv) on the outside of the device if the battery is not removable). Alternatively, you may opt out by calling 1-888-987-4357 no later than 30 calendar days from the date of the first consumer purchaser's purchase of the device and providing the same information. These are the only two forms of notice that will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect your use of the device or its preloaded Software, and you will continue to enjoy the benefits of this license.14. ENTIRE AGREEMENT; SEVERABILITY. This EULA is the entire agreement between you and Samsung relating to the Software and supersedes all prior or contemporaneous oral or written communications, proposals and representations with respect to the Software or any other subject matter covered by this EULA. If any provision of this EULA is held to be void, invalid, unenforceable or illegal, the other provisions shall continue in full force and effect. [050113] DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT
