2Table of ContentsBasics3 Read me first4 About the Gear IconX6 Package contents7 Device layout8 Preparing the earbuds for use10 Battery14 Indicator lights identificationUsing the earbuds16 Entering earbuds Bluetooth pairing mode17 Connecting the earbuds to a mobile device19 Wearing the earbuds correctly20 Using the earbuds without a mobile device20 Using the touchpad22 Transferring music files to the earbuds27 Listening to music29 Setting the exercise earbud29 Recording exercise information33 Using call features34 Using ambient sound modeSamsung Gear and Gear IconX PC Manager35 Samsung Gear41 Gear IconX PC ManagerAppendix43 Troubleshooting46 Turning off and restarting the earbuds47 Removing the battery
3BasicsRead me firstPlease read this manual before using this device to ensure safe and proper use.•Images may differ in appearance from the actual product. Content is subject to change without prior notice. You can access the full user manual for more information. Visit www.samsung.com to view device information, the user manual, and more.•Before using other devices, make sure they are compatible with the earbuds. Visit www.samsung.com to see a list of compatible mobile devices.•Prevent the device from being submerged in liquid or exposed to pressurised water jets, such as from a shower. Do not wear the device during activities, such as showering or swimming. Doing so can damage the device.•This product includes certain free/open source software. To see the instructions for viewing the open source license, go to the Samsung website (opensource.samsung.com).Instructional iconsWarning: situations that could cause injury to yourself or othersCaution: situations that could cause damage to your device or other equipmentNotice: notes, usage tips, or additional information
Basics4About the Gear IconXGear IconX wireless sports earbuds allow you to track your activity levels as well as play music. You can save music files to the Gear IconX earbuds and play them directly from the earbuds, or listen to music played from your connected mobile device. The Gear IconX earbuds also record exercise information, such as the activity duration, and the number of calories you have burnt, using the built-in sensor.Do not wear the earbuds in high-traffic areas, such as roads or crosswalks. Doing so may result in accidents due to slowed reaction times.Using the Gear IconX earbuds aloneYou can listen to music saved on your Gear IconX earbuds. The Gear IconX earbuds also record exercise information.
Basics5Using the Gear IconX earbuds with your mobile deviceYou can listen to music saved on your connected mobile device and answer incoming calls. You can also view your recorded exercise information via the Samsung Health app on your mobile device.
Basics6Package contentsCheck the product box for the following items:•Earbud (L/R)•Charging case•Wingtip (3 sets, S/M/L)•Earbud tip (3 sets, S/M/L)•USB cable•USB connector (USB Type-B)•USB connector (USB Type-C)•Quick start guide•The items supplied with the earbuds and any available accessories may vary depending on the region or service provider.•The supplied items are designed only for this earbuds and may not be compatible with other devices.•Appearances and specifications are subject to change without prior notice.•You can purchase additional accessories from the Samsung website. Make sure they are compatible with the earbuds before purchase.•Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.•Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website (www.samsung.com).
Basics7Device layoutEarbudEarbud tipWingtipCharging contactsMicrophoneTouchpadTouch-sensitive sensorMicrophoneCharging caseMultipurpose jackConnect buttonCharging contacts (right)Charging case coverCharging case indicator lightCover open buttonCharging contacts (left)Earbud indicator light (right)Earbud indicator light (left)If there is sweat or liquid on the charging contacts, corrosion may occur on the earbuds. Clean the charging contacts and earbuds before storing the earbuds in the charging case.
Basics8Preparing the earbuds for useAttaching an earbud tip to the earbud1 Select the earbud tip that fits your ear.2 Cover the latch at the bottom of the earbud with the earbud tip.•Do not put the earbuds in your ears without earbud tips. Doing so may hurt your ears.•Do not pull the earbud tip excessively. The earbud tip may tear.3 Follow the same procedure for the opposite earbud.
Basics9Attaching a wingtip to the earbud1 Select the wingtip that fits your ear.2 Select the wingtip for the left or right ear.3 Cover the earbud with the wingtip.•Do not put the earbuds in your ears without wingtips. Doing so may hurt your ears.•Do not pull the wingtip excessively. The wingtip may tear. Do not put the wingtips on the earbuds in the wrong direction. The earbuds will not fit in your ears properly.4 Follow the same procedure for the opposite earbud.
Basics10BatteryCharging the batteryFully charge the battery before using the earbuds for the first time or when they have been unused for extended periods. The earbuds will power on while charging. When the battery is completely discharged, it needs at least 10 minutes to turn on.The charging case, which has a built-in battery, is charged along with the earbuds.You can charge the earbuds by placing them into the charging case without connecting it to an electric socket.Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the earbuds.•Chargers are sold separately.•You cannot use your earbuds’ wireless features while charging the battery.•When there is sweat or liquid on the charging terminal or earbuds, clean them before charging the battery.1 Push the cover open button to open the charging case cover.2 Check the direction of each earbud and insert them into the corresponding slots.RL

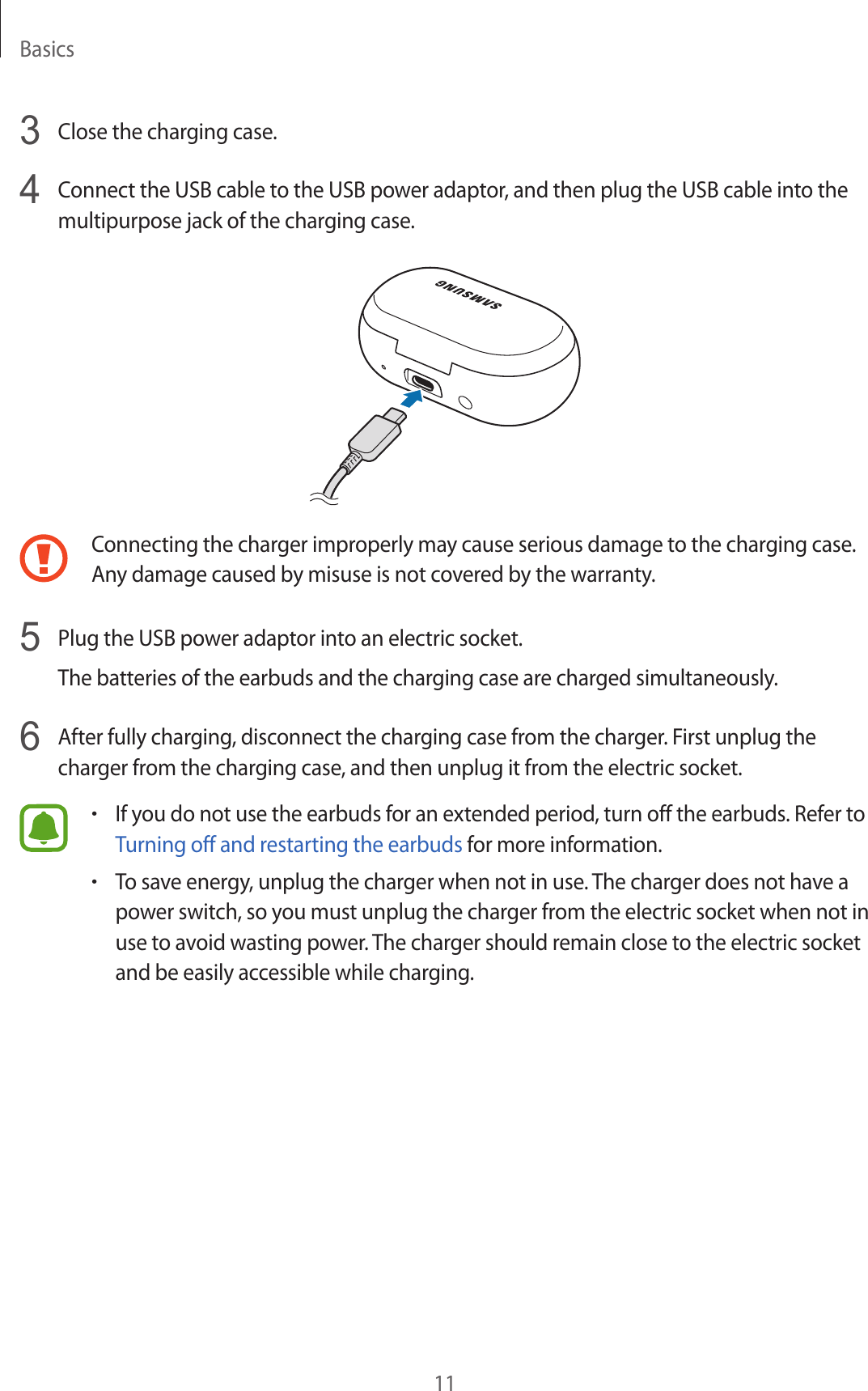

Basics113 Close the charging case.4 Connect the USB cable to the USB power adaptor, and then plug the USB cable into the multipurpose jack of the charging case.Connecting the charger improperly may cause serious damage to the charging case. Any damage caused by misuse is not covered by the warranty.5 Plug the USB power adaptor into an electric socket.The batteries of the earbuds and the charging case are charged simultaneously.6 After fully charging, disconnect the charging case from the charger. First unplug the charger from the charging case, and then unplug it from the electric socket.•If you do not use the earbuds for an extended period, turn off the earbuds. Refer to Turning off and restarting the earbuds for more information.•To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and be easily accessible while charging.
Basics12Reducing the battery consumptionYour earbuds provide two options that help you conserve battery power.•When you are not using the earbuds, store them in the charging case. The touch-sensitive sensor will continue to work while wearing the earbuds and reduce the usage time.•After connecting the earbuds to your mobile device, launch the Samsung Gear app and tap SETTINGS → Notifications, and then tap the ON switch to deactivate it. You can reduce the battery consumption by disabling voice notifications.Battery charging tips and precautions•If there is sweat or liquid on the charging contacts, corrosion may occur on the contacts. When there is sweat or liquid on the charging terminal or earbuds, clean them before charging the battery.•Using a power source other than the charger, such as a computer, may result in a slower charging speed due to a lower electric current.•While charging, the earbuds and the charging case may heat up. This is normal and should not affect the earbuds’ lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.•If the earbuds and charging case are not charging properly, take them with the charger to a Samsung Service Centre.•Avoid bending the charger. Doing so may damage or reduce the lifespan of the charger. Never use a damaged charger.•For more information about the battery, such as the usage time, refer to the Samsung website (www.samsung.com).
Basics13Checking the battery levelChecking via voice guideWhen the battery level drops below 10 %, a voice guide will inform you of the battery level. Save your exercise information to your mobile device in advance while you are working out before the battery discharges completely.Viewing the battery level from the connected mobile deviceConnect the earbuds to your mobile device, launch the Samsung Gear app and select Right or Left in SETTINGS → Exercise → Exercise earbud to view the battery status of each earbud on the Earbuds card. Refer to Connecting the earbuds to a mobile device for more information.•When the remaining battery level is low, a notification will appear on the mobile device’s notification panel.•Before the battery is completely discharged, connect the earbuds with the mobile device and save your exercise information to the mobile device. Then, charge the battery.
Basics14Indicator lights identificationThe indicator lights inform you of your earbuds and the charging case’s charging status.Two earbud indicator lights are located on the left and right side of the charging case’s open button and show the charging status of each earbud, respectively. The charging case indicator light next to the multipurpose jack indicates the charging status of the case itself.Earbud indicator lightsEarbud indicator lightsColour StatusContinuously on red•ChargingContinuously on green•Fully chargedFlashes red (rapid pace)•Charging disabled due to abnormal temperaturesFlashes red (medium pace)•Charging disabled due to an error in connecting to the charging contacts•Charging disabled due to low charging case battery
Basics15Charging case indicator lightCharging case indicator lightColour StatusContinuously on red•ChargingContinuously on green•Fully chargedFlashes red (rapid pace)•Charging blocked due to abnormal temperaturesFlashes red (slow pace)•Low batteryRed → Green → Blue•Waiting for the mobile device to connectRed (5 seconds after connecting the charger)•Battery power is low (lower than 30 %)Yellow (5 seconds after connecting the charger)•Battery power is moderate (between 30 % and 60 %)Green (5 seconds after connecting the charger)•Battery power is high (more than 60 %)Flashes blue•Updating software•If power is lost, the indicator lights will flash red about for 30 seconds and turn off.•If the indicator lights do not work as described, disconnect the charger from the charging case and reconnect it.
16Using the earbudsEntering earbuds Bluetooth pairing modeInsert the earbuds into the charging case when you connect them for the first time. When you open the charging case again, the earbuds will automatically enter Bluetooth pairing mode.Earbuds will enter Bluetooth pairing mode and the charging case’s indicator light will flash in green, red, and blue in turn.•If the earbuds do not connect to a mobile device within three minutes, Bluetooth pairing mode will be deactivated. To enter Bluetooth pairing mode again, insert the earbuds into the charging case and close it. Then, press and hold the charging case’s Connect button.•If the charging case’s indicator light flashes red, charge the charging case for 20 minutes or more.•After the connection has been completed for the first time, insert the earbuds into the charging case and close it. Then, press and hold the charging case’s Connect button to enter earbuds Bluetooth pairing mode again.
Using the earbuds17Connecting the earbuds to a mobile deviceInstalling the Samsung Gear appTo connect your earbuds to a mobile device, install the Samsung Gear app on your mobile device. Depending on your device, you can download the Samsung Gear app from the following places:•Samsung Android devices: Galaxy Apps, Play Store•Other Android devices: Play Store•You can download the Samsung Gear app only on mobile devices running Android operating system 4.4 (API 19) or later, and with 1.5 GB of RAM or more. Visit www.samsung.com to see a list of compatible mobile devices.•You can change the language of the Samsung Gear app on your connected mobile device. On your mobile device, launch Settings → General management → Language and input → Language. English may appear by default if the selected language on the Settings screen is not supported on the Samsung Gear app.Connecting to a mobile device via Bluetooth Earbuds 1 Insert the earbuds into the charging case and close it.2 Press and hold the charging case’s Connect button.Your earbuds will enter Bluetooth pairing mode.If the earbuds do not connect to a mobile device within three minutes, Bluetooth pairing mode will be deactivated. To enter Bluetooth pairing mode again, insert the earbuds into the charging case and close it. Then, press and hold the charging case’s Connect button.
Using the earbuds18 Mobile device 3 Launch the Samsung Gear app on your mobile device.If necessary, update the Samsung Gear app to the latest version.4 Tap START THE JOURNEY.5 Select your Gear type on the screen.If you cannot find your Gear type, tap MINE’S NOT HERE.6 Follow the on-screen instructions to complete the connection, and then take the earbuds out of the charging case.Connection will be completed.Once the earbuds are connected to your mobile device, they will automatically attempt to connect to your mobile device whenever you take them out of the charging case.•If the Bluetooth connection fails or the mobile device cannot scan the earbuds, unpair devices that were previously paired with your mobile device. Then, try to connect again.•Connection methods may vary depending on your device and software version.Notices for using BluetoothBluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to various devices over short distances. It can connect and exchange data with other Bluetooth enabled devices, such as mobile devices, without connecting via cables.•To avoid problems when connecting your earbuds to another device, place the devices close to each other.•Ensure that your earbuds and the other Bluetooth device are within the Bluetooth connection range (5 m). The distance may vary depending on the environment the devices are used in.•Ensure that there are no obstacles between the earbuds and a connected device, including human bodies, walls, corners, or fences.
Using the earbuds19•Do not touch the Bluetooth antenna of a connected device.•Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products and interference may occur when making connections near these types of products.•Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with the earbuds.•Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally taping communications for commercial purposes).Wearing the earbuds correctlyBefore wearing the earbuds, make sure to attach the earbud tips and wingtips to the earbuds.1 Check the direction of each earbud and put them in your ears with the wingtip facing upwards until they sit conformably in your ears.2 Adjust the earbuds by rotating them to the left or right to fit your ears.The touch-sensitive sensor will automatically detect that you are wearing the earbuds when you put them on. Then, the earbuds will emit a sound.•If the touch-sensitive sensor does not make contact with your ear, the earbud may not work. Use the wingtips and earbuds tips that fit your ears.•Follow all posted warnings and directions from authorised personnel in areas, such as aeroplanes and hospitals.
Using the earbuds20Using the earbuds without a mobile deviceYou can use the earbuds without connecting them to a mobile device. Some features like receiving call or saving exercise information are not available. If you want to save your exercise information, connect the earbuds with your mobile device after finishing workout. Refer to Connecting the earbuds to a mobile device for more information.Using the touchpadYou can control music playback and answer or reject calls with the touchpad.Touchpad•To avoid hurting your ears, do not apply excessive pressure to the touchpad with your fingertips.•To avoid damaging the touchpad, do not tap it with anything sharp.The direction in which you wear the earbuds will affect the direction of your drag on the touchpad. Wear the earbuds correctly. Refer to Wearing the earbuds correctly for more information.
Using the earbuds21Single tap•Play or pause track.Double tap•Play next track.•Answer or end a call.•Place the current call on hold and answer the second call.•Switch between the current call and the held call.Triple tap•Play previous track.–If you triple-tap three seconds after a track begins playing, it will start the track from beginning. Triple-tap the touchpad within three seconds of when a track begins playing to play the previous track.Tap and hold•Decline call.•The microphone on or off during a call.–This will not display anything on the mobile device.•Retrieve a held call after ending a current call.•Read out menu options.Double tap and hold•Go to the next playlist if you’re wearing both earbudsSwipe up/down•Volume up/down.

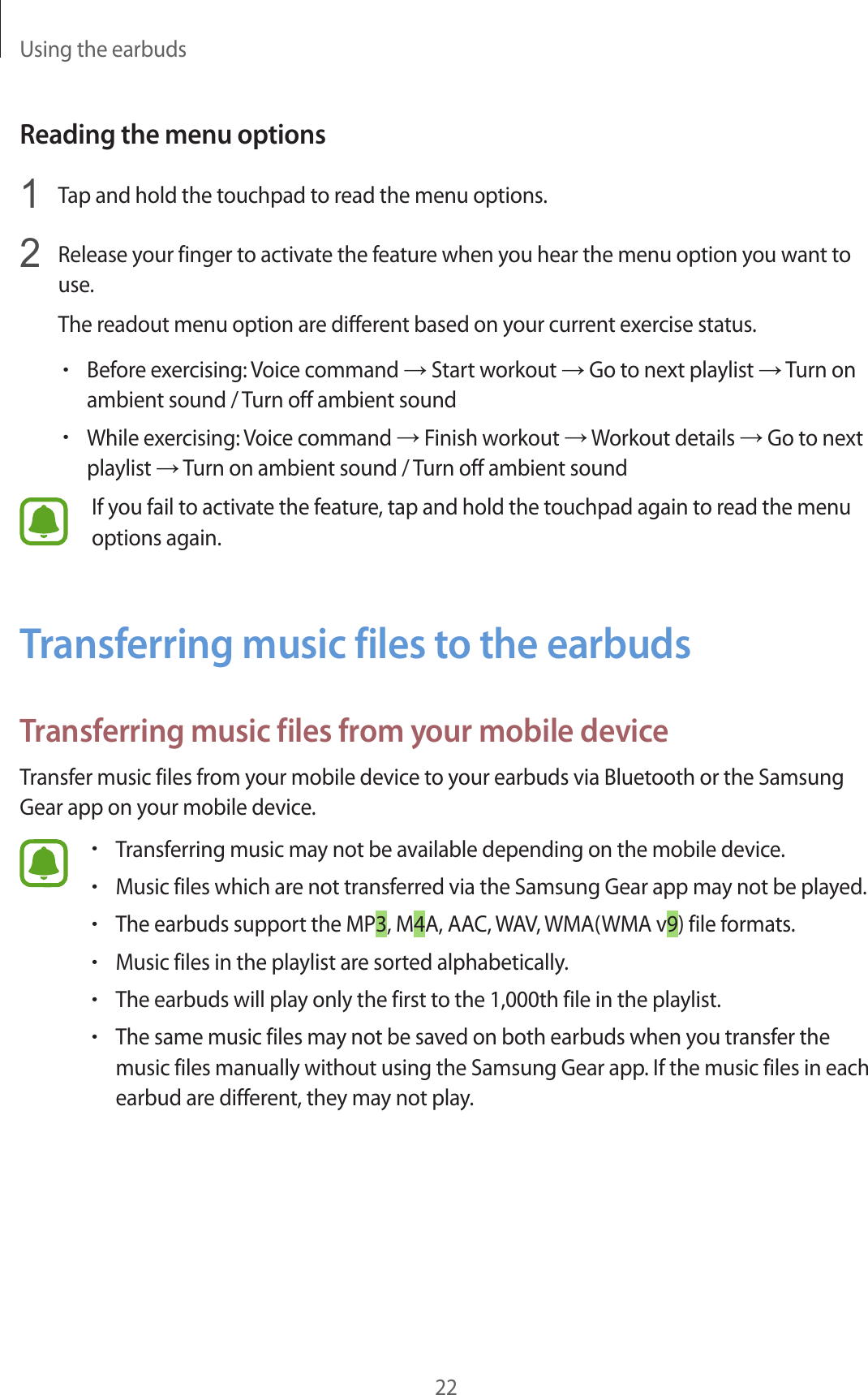

Using the earbuds22Reading the menu options1 Tap and hold the touchpad to read the menu options.2 Release your finger to activate the feature when you hear the menu option you want to use.The readout menu option are different based on your current exercise status.•Before exercising: Voice command → Start workout → Go to next playlist → Turn on ambient sound / Turn off ambient sound•While exercising: Voice command → Finish workout → Workout details → Go to next playlist → Turn on ambient sound / Turn off ambient soundIf you fail to activate the feature, tap and hold the touchpad again to read the menu options again.Transferring music files to the earbudsTransferring music files from your mobile deviceTransfer music files from your mobile device to your earbuds via Bluetooth or the Samsung Gear app on your mobile device.•Transferring music may not be available depending on the mobile device.•Music files which are not transferred via the Samsung Gear app may not be played.•The earbuds support the MP3, M4A, AAC, WAV, WMA(WMA v9) file formats.•Music files in the playlist are sorted alphabetically.•The earbuds will play only the first to the 1,000th file in the playlist.•The same music files may not be saved on both earbuds when you transfer the music files manually without using the Samsung Gear app. If the music files in each earbud are different, they may not play.
Using the earbuds231 Insert the earbuds into the charging case and close the charging case cover.If one of the earbuds does not touch the case’s charging contact, Gear IconX PC Manager will not recognise the earbuds.2 Plug the USB connector into the multipurpose jack of your mobile device. Connect the charging case and the mobile device using the USB cable.12USB connectorGear IconX Mobile deviceUSB cable•You must plug the USB connector into your mobile device. If you plug the USB connector into the charging case, you cannot transfer your music files to the earbuds. If your mobile device does not support the USB connector, you cannot transfer music files to the earbuds.•Transferring data with the USB connector increases the battery power consumption. Ensure that the battery is fully charged before transferring data. If the battery power is low, data transfer may be interrupted.•If the USB connector provided with the earbuds is not compatible with your mobile device, use a USB connector compatible with your mobile device.3 Launch the Samsung Gear app on the mobile device.
Using the earbuds244 Tap SETTINGS → Music or tap INFO → MUSIC SETTINGS on the MUSIC ON GEAR ICONX card, and tap Transfer tracks to Gear.5 Tick music files to transfer tap ADD and select the category.Music files are saved in the MUSIC folder of the earbuds. Do not change the folder name or create a new folder. If you make any changes to the file directory of the earbuds, the music files may not play.Do not disconnect the USB cable or USB connector from the earbuds or mobile device when you are transferring files. Doing so may cause data loss or device damage.Transferring music files from your computerTransfer music files from your computer to your earbuds via the Gear IconX PC Manager on your computer. Transfer music files from your computer to the earbuds using the earbuds as a removable disk for data transfer.•Music files which are not transferred via the Gear IconX PC Manager may not play.•The same music files may not be saved in both earbuds when you transfer the music files manually without using the Gear IconX PC Manager. If the music files in each earbud are different, they may not play.
Using the earbuds25Connecting the earbuds with the computerTo connect the earbuds to your computer, you must install Gear IconX PC Manager on your computer. Refer to Installing Gear IconX PC Manager for more information.Transferring music files from your computer1 Insert the earbuds into the charging case and close the charging case cover.If any one of the earbuds does not make contacts with the charging contacts, the Gear IconX PC Manager will not recognise the earbuds.2 Connect the charging case to the computer via the USB cable.3 In the computer, run Gear IconX and click Add new tracks.When the software update pop-up window appears, tap Update to update it to the latest version if necessary. If the pop-up window does not appear, tap More → About PC software → Update to view the Gear IconX PC Manager’s version information, and update it.4 Select music files to transfer and click Open.Music files are saved in the MUSIC folder of the earbuds. Do not change the folder name or create a new folder. If you make any changes to the file directory of the earbuds, the music files may not play.Do not disconnect the USB cable from the earbuds or computer when you are transferring files. Doing so may cause data loss or device damage.
Using the earbuds26Syncing data between earbudsSync the earbuds so that they have the same music files when you manually transfer music files without using the Samsung Gear app or the Gear IconX PC Manager.1 Insert the earbuds into the charging case and close the charging case cover.If one of the earbuds does not touch with the charging case’s contact, Gear IconX PC Manager will not recognise the earbuds.2 Connect the charging case and the computer via the USB cable.3 On your computer’s desktop, click Gear IconX → More → Balance earbud data.The music files are automatically stored in both earbuds.Only the data in the main earbud can be synced. The data in the other earbud cannot be synced.Making playlistsYou can make playlists with the music files transferred from your mobile device or computer.1 Launch the Samsung Gear app on the mobile device and select INFO → MUSIC ON GEAR ICONX, and then tap the music file.The playlist screen will appear.2 Tap TRACKS.3 Tap and hold the file you want.4 Tick the files you want to add to other playlist.5 Tap Add and select the playlist you want.
Using the earbuds27Listening to musicPlaying music files saved on the earbudsListen to music saved on your earbuds without connecting them to your mobile device.Tap the touchpad to play music.Playing or pausing the trackTap the touchpad to play and pause the track.Playing the next trackDouble-tap the touchpad to play the next track during playback.Playing the previous trackTap the touchpad three times to play the previous track during playback.If you triple-tap three seconds after a track begins playing, it will start the track from beginning. Triple-tap the touchpad within three seconds of when a track begins playing to play the previous track.Playing the next playlistDouble tap and hold the touchpad to play the next playlist.Adjusting the volumeDrag your finger upwards or downwards on the touchpad to adjust the volume during playback.If using the earbuds alone, the earbuds will emit a sound when the volume is near the maximum level. Reduce the volume, even if you can turn up the volume more, to prevent the hearing damage.

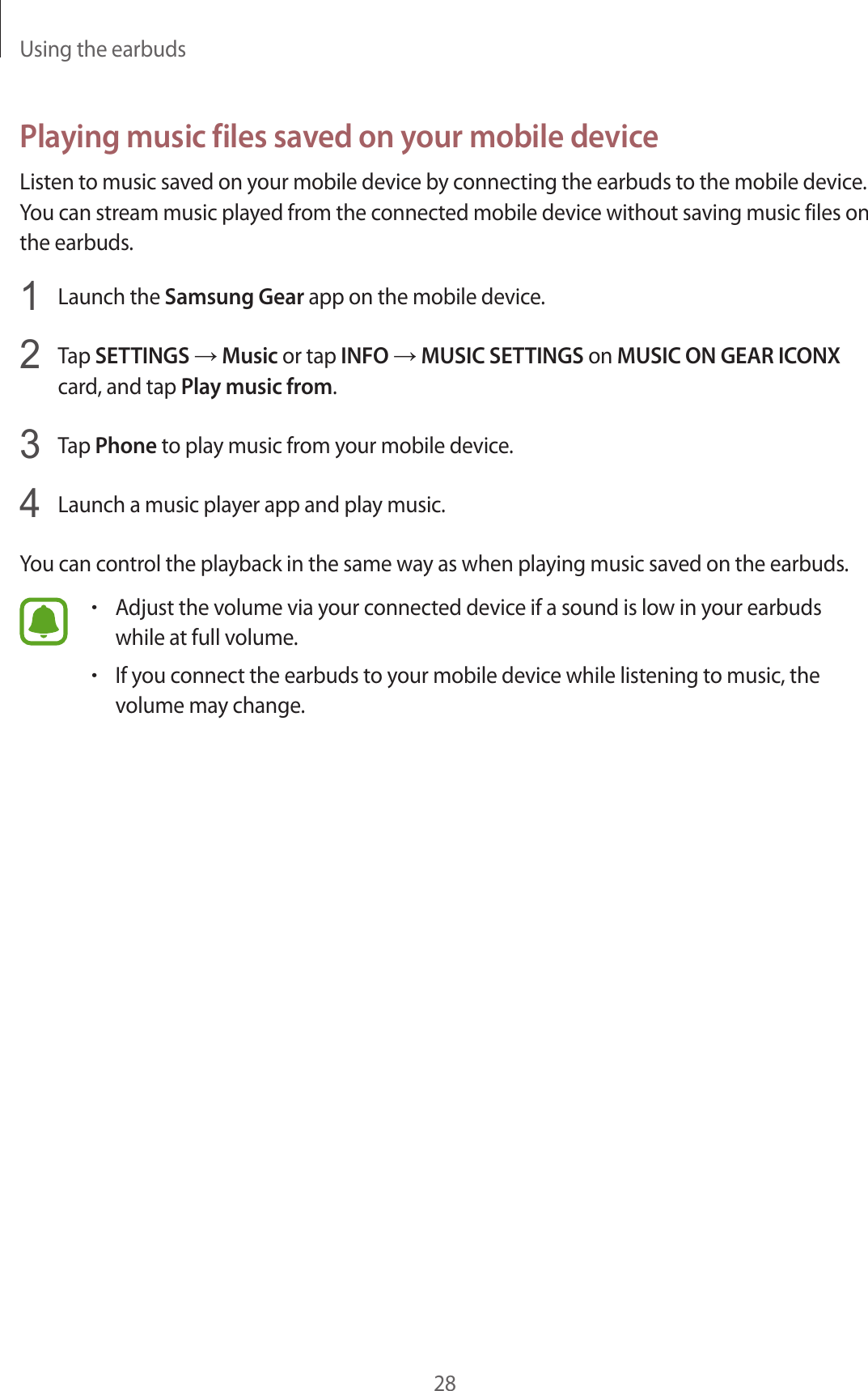

Using the earbuds28Playing music files saved on your mobile deviceListen to music saved on your mobile device by connecting the earbuds to the mobile device. You can stream music played from the connected mobile device without saving music files on the earbuds.1 Launch the Samsung Gear app on the mobile device.2 Tap SETTINGS → Music or tap INFO → MUSIC SETTINGS on MUSIC ON GEAR ICONX card, and tap Play music from.3 Tap Phone to play music from your mobile device.4 Launch a music player app and play music.You can control the playback in the same way as when playing music saved on the earbuds.•Adjust the volume via your connected device if a sound is low in your earbuds while at full volume.•If you connect the earbuds to your mobile device while listening to music, the volume may change.
Using the earbuds29Setting the exercise earbudSet the exercise earbud to record exercise information. The right earbud records exercise information by default.1 Launch the Samsung Gear app on the connected mobile device.2 Select Right or Left on the SETTINGS → Exercise → Exercise earbud.•After you change the exercise earbud, the earbuds may not automatically reconnect to your mobile device. If this happens, on your mobile device, select Settings → Connections → Bluetooth, and then search for the earbuds and connect the device manually.•If you change the exercise earbud while working out, the exercise information will not be saved in the new exercise earbud. When you are working out, you must complete the exercise and save the exercise information before changing the exercise earbud.•In Gear IconX PC Manager, click More → Device settings, and select Right or Left to specify the exercise earbud. First, install Gear IconX PC Manager on your computer. Refer to Gear IconX PC Manager for more information.•You must manually search for the earbuds and reconnect them to your device when you change the exercise earbud via Gear IconX PC Manager.Recording exercise informationStarting a workoutRecord and save exercise information, such as the activity duration, and the number of calories you burnt, without connecting the earbuds to your mobile device.1 Put both earbuds in your ears.You will hear a sound informing that you are wearing the earbuds.2 Tap and hold the touchpad and release it when you hear “Start workout”.

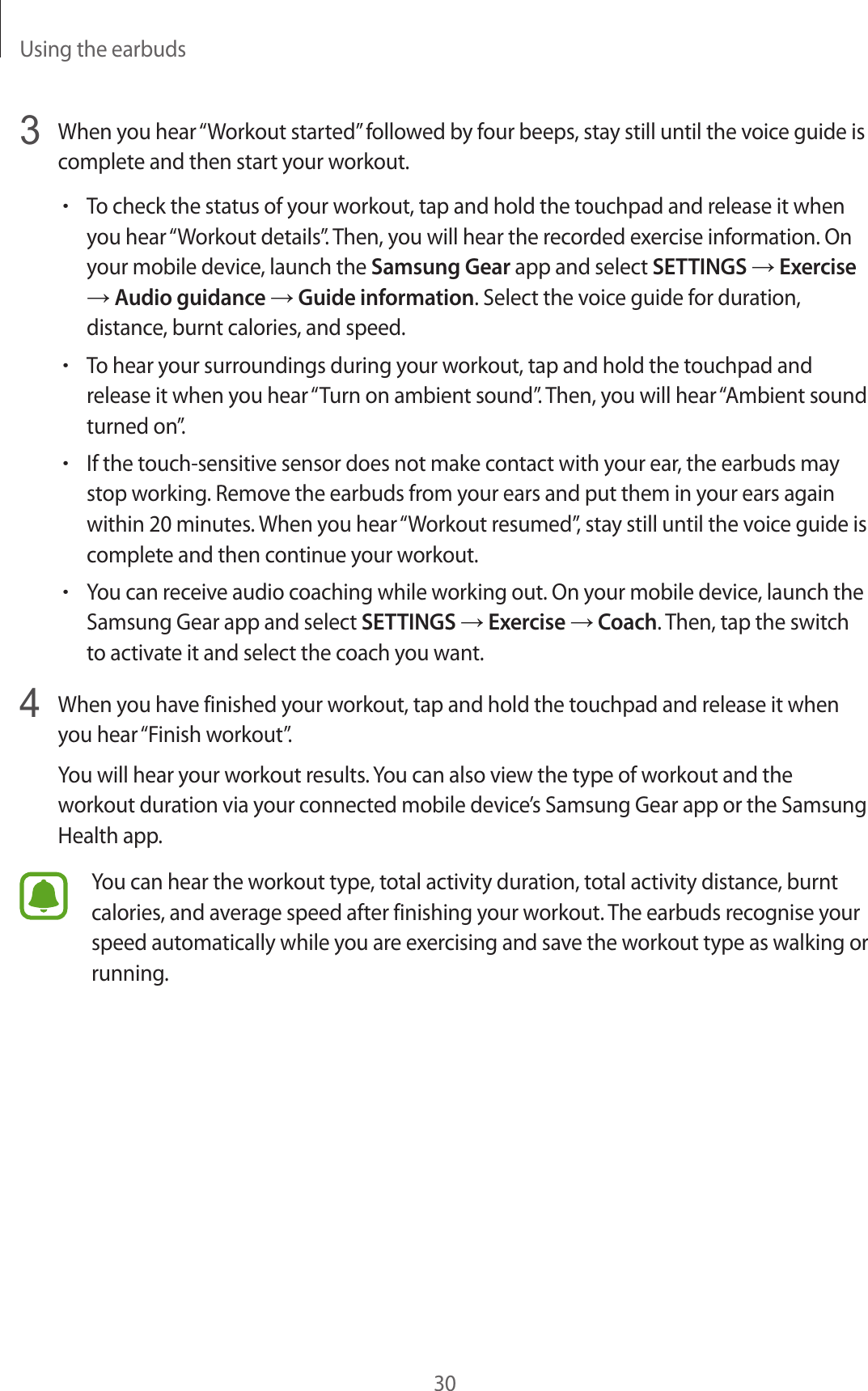

Using the earbuds303 When you hear “Workout started” followed by four beeps, stay still until the voice guide is complete and then start your workout.•To check the status of your workout, tap and hold the touchpad and release it when you hear “Workout details”. Then, you will hear the recorded exercise information. On your mobile device, launch the Samsung Gear app and select SETTINGS → Exercise → Audio guidance → Guide information. Select the voice guide for duration, distance, burnt calories, and speed.•To hear your surroundings during your workout, tap and hold the touchpad and release it when you hear “Turn on ambient sound”. Then, you will hear “Ambient sound turned on”.•If the touch-sensitive sensor does not make contact with your ear, the earbuds may stop working. Remove the earbuds from your ears and put them in your ears again within 20 minutes. When you hear “Workout resumed”, stay still until the voice guide is complete and then continue your workout.•You can receive audio coaching while working out. On your mobile device, launch the Samsung Gear app and select SETTINGS → Exercise → Coach. Then, tap the switch to activate it and select the coach you want.4 When you have finished your workout, tap and hold the touchpad and release it when you hear “Finish workout”.You will hear your workout results. You can also view the type of workout and the workout duration via your connected mobile device’s Samsung Gear app or the Samsung Health app.You can hear the workout type, total activity duration, total activity distance, burnt calories, and average speed after finishing your workout. The earbuds recognise your speed automatically while you are exercising and save the workout type as walking or running.
Using the earbuds31Starting a workout with the earbuds connected to your mobile deviceWhen you work out with the earbuds connected to your mobile device’s exercise apps, you can check the details and history of your exercise information on the Samsung Health app of the connected mobile device.If you already started a workout from the earbuds, you cannot control your workout session via the mobile device’s Samsung Health app. End the current session by tapping and holding the touchpad and releasing it when you hear “Finish workout”.1 Connect the earbuds to your mobile device. Refer to Connecting the earbuds to a mobile device for more information.2 Launch Samsung Health on the mobile device.The Gear IconX is automatically added to the Samsung Health app’s accessories list.3 In the Samsung Health app, tap START on the activity tracker.The 3-second countdown timer will start. When the timer reaches “0”, start your workout.•If the distance between the earbuds and the mobile device is more than 5 m, the earbuds and the mobile device will disconnect and a voice guide will say “Disconnected”. To resume your workout, bring the devices within 5 m of each other. When you hear “Connected”, and then “Workout resumed”, stay still until the voice guide is complete and then continue your workout.4 When you have finished your workout, tap PAUSE → STOP on the activity tracker.The earbuds will stop recording exercise information and the workout result will be displayed.The profile and the distance unit set in the Samsung Health app will be used for the earbuds and Samsung Gear app. If Samsung Health is not up to date, it may not connect to the earbuds. Check Samsung Health’s version information and update to the latest version.
Using the earbuds32Additional information•Samsung Health is intended for fitness and wellness purposes only and is not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention of disease.•The available functions, features and addable applications for Samsung Health may vary from country to country due to different local laws and regulations. You should check the features and applications available in your specific region before use.•Samsung Health applications and its service can be changed or discontinued without prior notice.•The purpose for such data collection is limited to providing the service that you have requested, including providing additional information to enhance your wellness, back up/sync data, data analysis and statistics or to develop and provide better services. (But if you sign in to your Samsung account from Samsung Health, your data may be saved on the server for data backup purposes.) Personal information may be stored until the completion of such purposes. To delete any data you have shared with social networks or transferred to storage devices, you must delete them separately.•You assume full responsibility for the inappropriate use of data shared on social networks or transmitted to others. Use caution when sharing your personal data with others.•If the earbuds are connected to a mobile device, verify the communication protocol to confirm proper operation. If you use a wireless connection, such as Bluetooth, the earbuds may be affected by electronic interference from other devices. Avoid using the earbuds near other devices that transmit radio waves.•Please read Terms and Conditions and Privacy Policy of Samsung Health carefully before using it.•Measured distance may differ from the actual distance due to uneven strides, walking in place, and pacing around.•Only records from the past 30 days are saved. You can view previous data on the mobile device where the Samsung Health app is installed.
Using the earbuds33Using call featuresWhen the earbuds are connected to a mobile device, you can answer and control calls from the connected mobile device.Answering or declining a callWhen a call comes in while you are wearing the earbuds, they will emit a sound.To answer the call, double-tap the touchpad.To decline the call, tap and hold the touchpad.You can hear the other party’s voice only via the main earbud.Adjusting the volumeDrag your finger upwards or downwards on the touchpad to adjust the volume during a call.Answering a second callWhen a second call comes in during a call, the earbuds will emit a sound.To end the current call and answer the second call, tap and hold the touchpad.To place the current call on hold and answer the second call, double-tap the touchpad.To switch between the current call and the held call, double-tap the touchpad.Turning off the microphoneTap and hold the touchpad to turn off the microphone so that the other party cannot hear you.Ending a callDouble-tap the touchpad to end the current call.

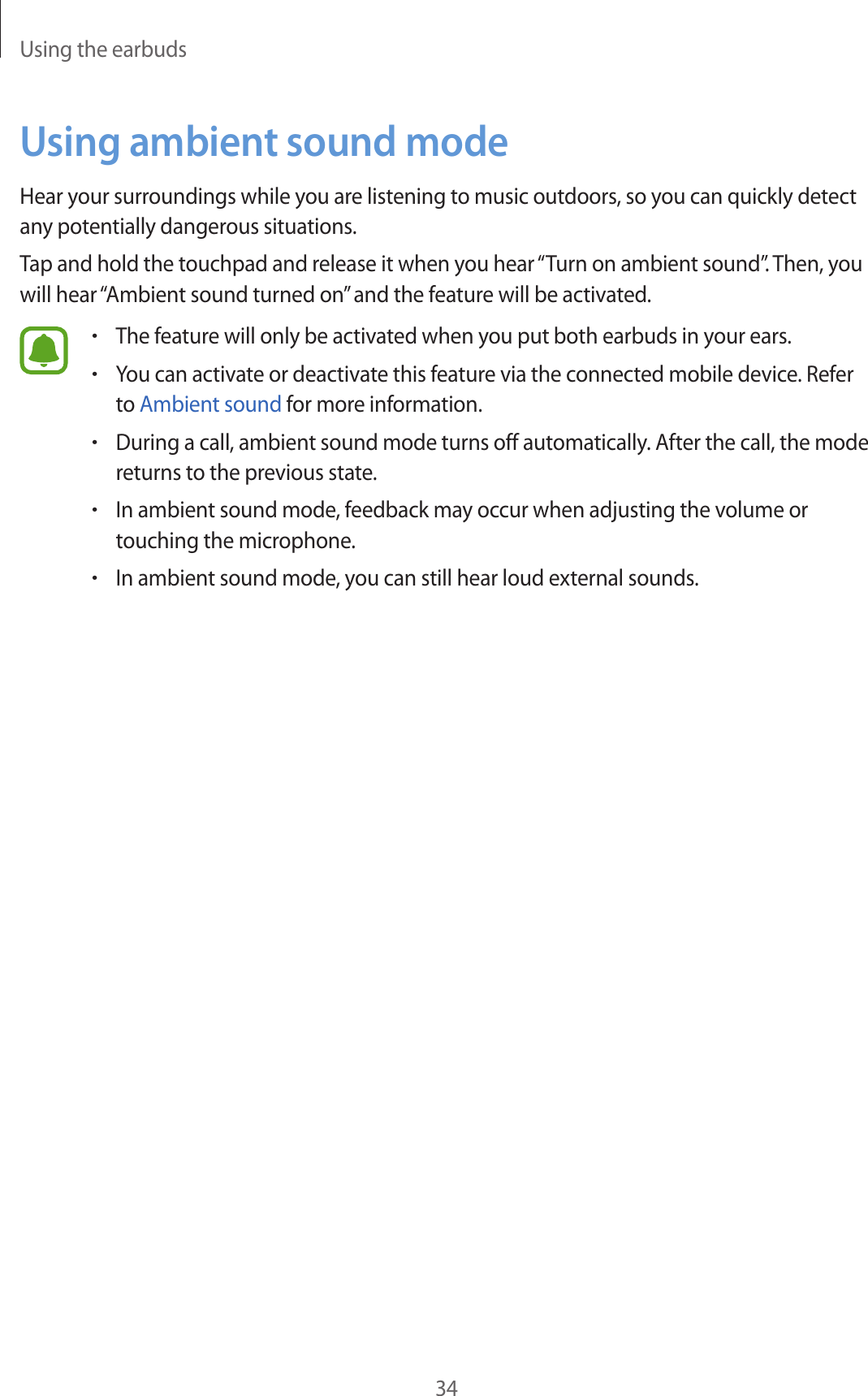

Using the earbuds34Using ambient sound modeHear your surroundings while you are listening to music outdoors, so you can quickly detect any potentially dangerous situations.Tap and hold the touchpad and release it when you hear “Turn on ambient sound”. Then, you will hear “Ambient sound turned on” and the feature will be activated.•The feature will only be activated when you put both earbuds in your ears.•You can activate or deactivate this feature via the connected mobile device. Refer to Ambient sound for more information.•During a call, ambient sound mode turns off automatically. After the call, the mode returns to the previous state.•In ambient sound mode, feedback may occur when adjusting the volume or touching the microphone.•In ambient sound mode, you can still hear loud external sounds.

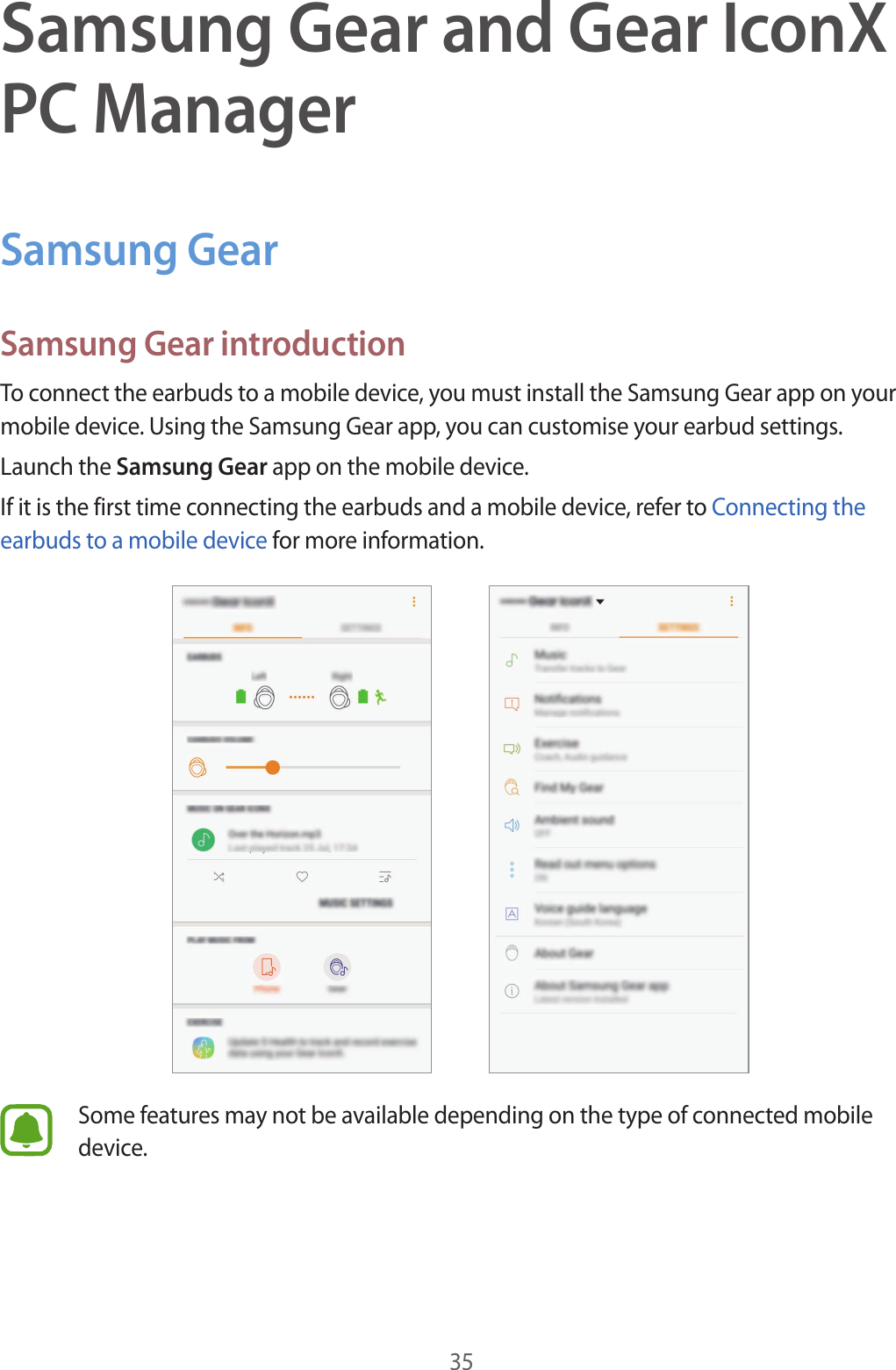

35Samsung Gear and Gear IconX PC ManagerSamsung GearSamsung Gear introductionTo connect the earbuds to a mobile device, you must install the Samsung Gear app on your mobile device. Using the Samsung Gear app, you can customise your earbud settings.Launch the Samsung Gear app on the mobile device.If it is the first time connecting the earbuds and a mobile device, refer to Connecting the earbuds to a mobile device for more information.Some features may not be available depending on the type of connected mobile device.
Samsung Gear and Gear IconX PC Manager36Disconnecting devices from the earbudsRemove the earbuds from your ears to end the current connection. The Bluetooth connection will end after five seconds.If the earbuds are removed during a call, the Bluetooth connection will end immediately. If the earbuds are removed during a workout, the Bluetooth connection will end after 10 seconds. The exercise information saved in the earbuds will be sent to mobile device in 10 seconds before ending the connection.To manually disconnect the earbuds from your mobile device, put the earbuds in your ears. Launch the Samsung Gear app on the mobile device and select → Disconnect. Or, on your mobile device, select Settings → Connections → Bluetooth and unpair the earbuds and your mobile device.The earbuds do not have a power-on/off function. If the earbuds are not used for a predefined length of time after removed from your ears, the earbuds will enter sleep mode and the mobile device will be disconnected. To enter Bluetooth pairing mode again, insert the earbuds into the charging case and close it. Then, press and hold the charging case’s Connect button.Reconnecting devices and the earbudsOnce the earbuds are paired with your mobile device, they will automatically attempt to connect to the mobile device whenever you insert them into the charging case again, and press and hold the charging case’s Connect button.To manually reconnect the earbuds to your mobile device, launch the Samsung Gear app on the mobile device and select → Connect.Connecting with new earbudsYou can disconnect the earbuds from your mobile device and connect new ones.Launch the Samsung Gear app on the mobile device and select → Connect new Gear.
Samsung Gear and Gear IconX PC Manager37Connecting with other devicesLaunch the Samsung Gear app on the mobile device and select → Disconnect. Or, on your mobile device, select Settings → Connections → Bluetooth and unpair the earbuds and your mobile device.The Bluetooth connection between the earbuds and previous mobile device will end.After disconnecting earbuds from the previous mobile device, you can connect the earbuds with another mobile device.Refer to Connecting the earbuds to a mobile device for more information.Checking the user manualYou can check the earbuds’ user manual on your mobile device.Launch the Samsung Gear app on the mobile device and select → User manual.Viewing earbud statusView and customise the status of the earbuds connected to your mobile device.Launch the Samsung Gear app on the mobile device and tap INFO.•EARBUDS: View the connection status and the remaining battery level of the earbuds.•EARBUDS VOLUME: Check and adjust the earbud volume.•MUSIC ON GEAR ICONX: View the file name of the currently playing music or tap MUSIC SETTINGS to change the music playback settings. Also, view the earbud’s storage capacity and the number of music files saved in the earbuds.The actual available capacity of the earbud may differ from the capacity displayed on the Samsung Gear app. The available capacity may change when you update the app.•PLAY MUSIC FROM: Select whether to listen to music through your earbuds or mobile device.•EXERCISE: View your exercise information detected by the earbuds.
Samsung Gear and Gear IconX PC Manager38Customising settingsView and customise the settings of the earbuds connected to your mobile device.Launch the Samsung Gear app on the mobile device and tap SETTINGS.Music•Transfer tracks to Gear: Transfer music files from your mobile device to the earbuds. Refer to Transferring music files to the earbuds for more information.•Music control feedback: Select Voice or Beeping for the feedback type your hear when you touch the touchpad to control music playback.•Play music from: Select whether to play music from the earbuds or your mobile device. If you play music from the earbuds, you will not hear music or the Samsung Health app’s voice guide from your mobile device.NotificationsYou will receive notifications from the mobile device’s apps via the earbuds. Even if you deactivate notifications, you will still receive notifications for incoming calls and alarms.•Manage notifications: Select the apps you want to receive notifications from and change the notification settings for each app.•Read out while using phone: You can set the earbuds to receive notifications of the mobile device even when you are using the mobile device.ExerciseYou can record your exercise information, such as the duration, distance, and calories burnt, depending on the type of exercise performed.If the touch-sensitive sensor does not make contact with your ear, the earbud may not work. Use the wingtips and earbuds tips that fit your ears.•Coach: Select a coach to receive audio coaching during the exercise. If you want to use this feature, tap the switch to activate it.•Audio guidance: Activate the audio guide to hear exercise information during your workout, and select an interval for the audio guide messages. If you want to use this feature, tap the switch to activate it.
Samsung Gear and Gear IconX PC Manager39•Exercise earbud: Set an earbud as the exercise earbud to record exercise information. The right earbud is set as the exercise earbud by default.•Workout detection alerts: Receive notifications for automatically saved exercise results. If you want to use this feature, tap the switch to activate it.•Welcome message: If you have not exercised for a few days, you can set an audio greeting. If you want to use this feature, tap the switch to activate it.Find My GearIf you misplace your earbuds, use the Samsung Gear app on your mobile device to find it.1 Launch the Samsung Gear app on the mobile device and select SETTINGS → Find My Gear.2 Tap .A beeping sound from your earbuds will gradually get louder.3 Tap on your mobile device to stop the beeping sound.Do not use this feature when wearing the earbuds as it may result in hearing damage.Ambient soundHear your surroundings while you are listening to music outdoors, so you can quickly detect any potentially dangerous situations.Read out menu optionsSet the read out menu options through the earbuds. You can select the menu items to use or reorder them.To reorder the read out menu options, drag next to the options you want to reorder and move it to the place you want.
Samsung Gear and Gear IconX PC Manager40Voice guide languageSelect the language for the voice feedback you receive from the earbuds.The voice guide supports 9 languages. English may be used if the language selected on the Settings screen is not supported.About GearView your earbud’s status, back up or restore data, or update the earbud’s software.•Update Gear software: Update the Gear to the latest software.•Legal information: View the legal information for the Gear.•Device name: Check the name of the earbuds.•Reset Gear: If you experience a problem while using the earbuds, such as an unresponsive touchpad, or when you want to connect the earbuds to a new mobile device, you can reset the earbuds.•Tips: Check the tips for the earbuds.•Battery information: Check the earbuds and charging case’s battery information.About Samsung Gear appView the Samsung Gear app’s version information. If necessary, tap Updates available to update the Samsung Gear app to the latest version.
Samsung Gear and Gear IconX PC Manager41Gear IconX PC ManagerInstalling Gear IconX PC ManagerTo send musics from a computer to the earbuds, you must install Gear IconX PC Manager on your computer.1 Insert the earbuds into the charging case and close the charging case cover.2 Connect the charging case to the computer via the USB cable.3 On your computer’s desktop, click → Computer.4 Open IconX_R or IconX_L → TOOLS, and then double-click the Gear IconX PC Manager installation file.5 Follow the on-screen instructions to complete the installation.You can also download Gear IconX PC Manager from the Samsung website (www.samsung.com).
Samsung Gear and Gear IconX PC Manager42Gear IconX PC Manager introductionYou can customise your earbud settings with Gear IconX PC Manager.If you replace a lost earbud, place the earbuds in the charging case and connect the case to your computer. Then, use Gear IconX PC Manager to pair the two earbuds.Insert the earbuds into the charging case and connect the case to your computer. Then, tap Gear IconX → More.Device settingsSet an earbud as the main earbud to be used for answering calls and recording exercise information. The right earbud is the main earbud by default.About PC softwareView the Gear IconX PC Manager’s version information. If necessary, tap Update to update Gear IconX PC Manager to the latest version.Balance earbud dataTap Balance earbud data to store the music in both earbuds automatically when you manually transfer the music files to your mobile device.
43AppendixTroubleshootingBefore contacting a Samsung Service Centre, please attempt the following solutions. Some situations may not apply to your earbuds.Your earbuds do not work•The battery may be completely discharged. Charge the battery completely before using the earbuds.•If an earbud’s touch-sensitive sensor does not make contact with your ear, the earbud may not work. If you do not hear a sound informing you that the earbuds are detected, remove the earbuds from your ears and put them in again.Another Bluetooth device cannot locate your earbuds•Insert the earbuds into the charging case and close it. Then, press and hold the charging case’s Connect button.•Ensure that your earbuds and the other Bluetooth device are within the Bluetooth connection range (5 m). The distance may vary depending on the environment the devices are used in.If the tips above do not solve the problem, contact a Samsung Service Centre.
Appendix44A Bluetooth connection is not established or your earbuds and the mobile device are disconnected•Ensure there are no obstacles, such as walls or electrical equipment, between the devices.•Ensure that the latest version of the Samsung Gear app is installed on the mobile device. If necessary, update the Samsung Gear app to the latest version.•Ensure that your earbuds and the other Bluetooth device are within the Bluetooth connection range (5 m). The distance may vary depending on the environment the devices are used in.•Restart the mobile device and relaunch the Samsung Gear app.The battery does not charge properly (For Samsung-approved chargers)•Ensure that the charging contacts of the earbuds and the charging case are in contact with each other.•Ensure that the charger is connected properly.•If the battery contacts are dirty, the battery may not charge properly. Wipe both gold-coloured contacts and try charging the battery again.•Visit a Samsung Service Centre and have the battery replaced.The charging time and the battery life is different between the earbuds•The main earbud’s battery life will be less than the other earbud because it operates more features.•The main earbud takes longer to charge than the other one.The battery depletes faster than when first purchased•When you expose the earbuds or the battery to very cold or very hot temperatures, the useful charge may be reduced.•The battery is consumable and the useful charge will get shorter over time.
Appendix45You cannot hear others speaking•Adjust the earbud volume.•Adjust the volume on the connected device when you cannot hear sounds on your earbuds at full volume.Sound echoes during a callAdjust the volume by dragging your finger upwards or downwards on the touchpad, or move to another area.Audio quality is poor•Wireless network services may be disabled due to issues with the service provider’s network. Ensure to keep the earbuds away from electromagnetic waves.•Ensure that your earbuds and the other Bluetooth device are within the maximum Bluetooth range (5 m). The distance may vary depending on the environment the devices are used in.•You may experience drops in volume or noise depending on the connected device’s volume. To avoid this, appropriately adjust the connected device’s sound.Your earbuds are hot to the touchWhen you use the earbuds for an extended period of time, it may feel hot to the touch. This is normal and should not affect your earbuds’ lifespan or performance.If the earbuds overheat or feel hot for a prolonged period, do not use them for a while. If the earbuds continue to overheat, contact a Samsung Service Centre.A small gap appears around the outside of the earbud case•This gap is a necessary manufacturing feature and some minor rocking or vibration of parts may occur.•Over time, friction between parts may cause this gap to expand slightly.
Appendix46Turning off and restarting the earbudsIf you do not use the earbuds for an extended period, turn off the earbuds. If the touchpad becomes unresponsive or the earbuds do not work properly, turn off and restart the earbuds.1 Remove the wingtip from an earbud. Then, use a paper clip to press and hold the Restart button above the earbuds for more than six seconds.The earbuds will be deactivated.Restart button2 Follow the same procedure for the other earbud to turn it off.3 Press and hold the Restart button again.The earbud will restart after the indicator light flashes three times.4 Follow the same procedure for the other earbud to restart it.You can also restart the earbuds by inserting the earbuds in the charging case, closing the charging case cover, and then removing the earbuds from the case.
Appendix47Removing the battery•To remove the battery, contact an authorised service centre. To obtain battery removal instructions, please visit www.samsung.com/global/ecodesign_energy.•For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe.•Samsung does not accept liability for any damage or loss (whether in contract or tort, including negligence) which may arise from failure to precisely follow these warnings and instructions, other than death or personal injury caused by Samsung’s negligence.
