User Manual VZW_R765V_R775V_EN_UM_TN_PI5_030117_R1_enabled

DRAFT–FOR INTERNAL USE ONLY
WEARABLE
User Manual
Please read this manual before operating
your device and keep it for future reference.
This document is watermarked because certain important information in the document has not yet been verified.
This document has been sent to you as a draft and for informational purposes only.
The document should only be used for internal purposes and may not be distributed outside of the company.
Distributing the document outside of the company could result in legal exposure to the company if the preliminary,
unverified information in the draft turns out to be inaccurate.
DRAFT–FOR INTERNAL USE ONLY
ii
Special Features ..............................1
IP68 ........................................2
Military Specification .........................2
Getting Started .............................. 3
Set Up Your Device .............................4
Assemble Your Device ........................5
Start Using Your Device .......................9
Set Up Your Device ..........................10
Samsung Gear App ..........................11
Learn About YourDevice .......................14
Front View ..................................15
Back View ..................................17
Status Panel ................................19
Notifications ............................... 22
Customize Your Home Screen ............... 24
Navigation ................................ 26

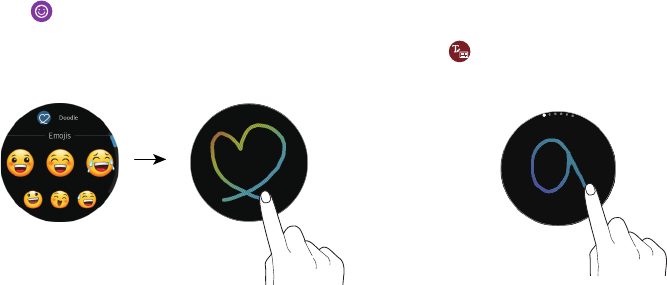

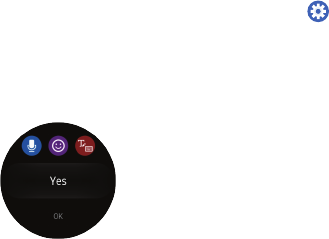

Entering Text .............................. 28
Apps .........................................33
Using Apps ................................ 34
Alarm ..................................... 37
Alti-Barometer ............................ 38
Contacts .................................. 39
Table of Contents
VZW_R765V_R775V_EN_UM_TN_PI5_030117_R1
DRAFT–FOR INTERNAL USE ONLY
iii Table of Contents
Email ......................................41
Find My Phone ............................. 42
Gallery .................................... 43
Messages ................................. 45
Music Player ............................... 49
News Briefing ..............................51
Phone ..................................... 52
Reminders ................................ 56
S Health ................................... 57
S Voice .................................... 66
Samsung Pay .............................. 68
Schedule .................................. 70
Weather ....................................71
World Clock ................................72
Settings .....................................73
How to Use Settings .........................74
Connections ..................................75
Bluetooth ..................................76
Mobile Networks ............................77
Wi-Fi .......................................77
NFC ....................................... 79
Alerts .....................................80
Airplane Mode .............................80
Data Usage ................................80
Location ....................................81
Connect to a Phone .........................81
Connect to a New Phone .................... 82
Sounds and Vibration ......................... 83
Sound Mode.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
DRAFT–FOR INTERNAL USE ONLY
iv Table of Contents
Vibrations .................................84
Volume ...................................86
Ringtone ..................................86
Notification Sounds ........................86
Touch Sounds .............................. 86
Display ...................................... 87
Style ......................................88
Device Maintenance ......................... 89
Gear Status ................................90
Power Saving ..............................90
Lock Screen and Security ..................... 92
Set a Screen Lock .......................... 93
Reactivation Lock .......................... 93
Control remotely .......................... 94
Accessibility ................................. 95
Vision ..................................... 96
Hearing ................................... 96
Direct Access .............................. 97
Other Settings ............................... 98
Device .................................... 99
Gear Info .................................. 99
Getting Help ...............................100
Videos ....................................101
Simulators ................................101
Tips .......................................101
Samsung Support ..........................101
Verizon Glossary ...........................101
Legal ........................................102
Legal Information ......................... 103
DRAFT–FOR INTERNAL USE ONLY
Learn about your mobile device’s
special features.
Special Features
DRAFT–FOR INTERNAL USE ONLY
2Special Features
IP68
This device is rated IP68 using the Ingress Protection
rating system. For more information, see “Maintaining
Water and DustResistance” on page106.
Military Specification
This device passed military specification
(MIL-STD-810G) testing. For more information, see
“Legal Information” on page103.
DRAFT–FOR INTERNAL USE ONLY
Learn about your mobile device
hardware, assemblyprocedures,
and how to get started usingyour
new device.
Getting Started
DRAFT–FOR INTERNAL USE ONLY
Set Up Your
Device
Learn how to set up your device for the firsttime.
DRAFT–FOR INTERNAL USE ONLY
Set Up Your Device 5
Assemble Your Device
This section helps you to assemble your device.
Wireless Charger
USB charger port
Wireless charging surface
LED indicator
DRAFT–FOR INTERNAL USE ONLY
Set Up Your Device 6
Charge the Battery
Your device is powered by a rechargeable, standard
Li-Ion battery.
Warning: Do not disassemble, modify, or repair your
device. Placing objects, such as magnetic stripe cards,
including credit cards, phone cards, passbooks, and
boarding passes, next to the device or charger may
cause damage from the charger or device’s magnetic
field.
The battery comes partially charged. You can use the
device while charging.
1. Insert the USB cable into the USB charger port.
2. Connect the USB cable to the charging head, and
then plug the charging head into a standard outlet.
3. Place the Gear onto the wireless charger dock.
Note: Prevent the USB charger port and the small
end of the charger from coming into contact with
conductive materials, such as liquids, dust, metal
powders, and pencil leads.
DRAFT–FOR INTERNAL USE ONLY
Set Up Your Device 7
While charging the device and the charger may
become hot. This does not affect the device’s lifespan
or performance and is in the device’s normal range of
operation.
The charger may stop charging if the battery becomes
too hot.
If the device heats up while charging the battery:
1. Disconnect the charger from the device and close
any running apps.
2. Wait for the device to cool down and then begin
charging the device again.
Check the Charge Status
When you connect the Gear and the wireless charger
dock, the wireless charger dock’s LED indicator flashes
certain colors to indicate the battery level.
• Red > Green > Orange: Standby mode
• Red: Charging.
• Green: Fully charged
• Orange: Connected to a low-charger head
Note: When a wireless charger dock error occurs, the
LED indicator flashes red. Disconnect the Gear from the
wireless charger dock, and then reconnect. If the error
occurs again, contact a Samsung Service Center for
service support.
DRAFT–FOR INTERNAL USE ONLY
Set Up Your Device 8
Wear the Gear
1. Open the buckle and place the strap around
yourwrist.
2. Fit the strap to your wrist, insert the pin into an
adjustment hole, and then secure the buckle to
close it.
Strap Tips and Precautions
• Some people may experience discomfort when
wearing the Gear for prolonged periods.
• If you have sensitive skin or fasten the Gear too
tightly, you may feel some discomfort.
• Do not expose the straps to very wet conditions.
Wet straps can cause skin irritations. Dry the straps
first. If you experience skin irritation when wearing
the device, stop wearing the device and consult a
physician.
Replace the Strap
Detach the strap from the Gear to replace it with a new
one.
1. Slide the strap’s spring bar inwards and pull the
strap away from the Gear.
DRAFT–FOR INTERNAL USE ONLY
Set Up Your Device 9
2. Insert one end of the spring bar into the lug, slide
the spring bar inwards, and connect the strap. Start Using Your Device
Turn Your Device On or Off
The instructions below explain how to turn your device
on or off.
To turn the device on:
►Press and hold the Power button until the device
turnson.
To turn the device off:
1. Press and hold the Power button until the
Deviceoptions menu is displayed.
2. Tap Power off, and confirm if prompted.
DRAFT–FOR INTERNAL USE ONLY
Set Up Your Device 10
Lock or Unlock Your Device
Use your device’s screen lock features to secure your
device.
To lock the device:
►Press the Power key.
The default Screen lock on your device is None. To
choose a more secure screen lock, see
“Set a Screen Lock” on page93.
To unlock the device:
►Press the Power button or Back button.
Set Up Your Device
Use the Set Up Wizard
When you turn on the Gear for the first time or reset it,
a pop-up window is displayed.
Follow the prompts to choose a default language,
connect to a Wi-Fi® network, set up accounts, choose
location services, learn about your device’s features,
and more.
Standalone Mode
When you are not connected to the smartphone, this
is called Standalone mode. You will be able to send
and receive calls and messages from the Gear phone
number only.
DRAFT–FOR INTERNAL USE ONLY
Set Up Your Device 11
Samsung Gear App
To connect your Gear to a smartphone, install the
SamsungGear app on the smartphone.
Download and Install Gear Manager
To connect your Gear to a smartphone, install the
Samsung Gear app on the smartphone.
Launch Galaxy Apps or visit apps.samsung.com/
gear from your smartphone to downloadit. For
non-Samsung devices, download the Samsung Gear
app from the Google Play™ store.
Compatible with select devices using Android 4.4 and
later or iOS 9.0 and later, with at least 1.5 GB RAM.
Supported devices may vary by carrier and device.
Some features may not be available. For best results,
connect with compatible Samsung Galaxy devices. For
a list of compatible smartphones, please visit samsung.
com/gearS3
Connect the Gear to a Smartphone
1. Turn on the Gear.
2. From the Apps screen of the smartphone, tap
SamsungGear.
• If necessary, update the Samsung Gear app to
the latest version.
3. Tap Connect to Gear.
4. When the Bluetooth® pairing request window is
displayed, confirm the passkeys displayed on your
Gear and smartphone match, and then tap the
checkmark.
5. Follow the prompts to complete the connection.
When the devices are connected, a tutorial is displayed
on the Gear’s screen. Follow the prompts to learn the
Gear’s basic controls.
DRAFT–FOR INTERNAL USE ONLY
Set Up Your Device 12
Connect the Gear to a New Smartphone
When you connect the Gear to another smartphone, the
Gear automatically resets and all data is removed from
its memory. Make sure you back up any important data
stored on yourGear.
1. Back up your Gear’s data on your smartphone as
follows:
• From the Apps screen of the smartphone, tap
SamsungGear > Settings tab > About Gear >
Backup and restore > Backup data.
2. End the connection between your Gear and
smartphone.
3. Connect your Gear to another smartphone.
Remote Connection
You can remotely connect the Gear to your smartphone
when a Bluetooth connection is not available. For more
information see “Automatic Remote Connection” on
page76.
Connect a New Gear
If you are currently using another Gear, you can
disconnect it from the smartphone and connect a
newone.
1. From the Apps screen of the smartphone, tap
SamsungGear.
2. Tap More > Connect new Gear, and then select a
new Gear.
DRAFT–FOR INTERNAL USE ONLY
Set Up Your Device 13
Auto Switch Device
If you have connected two or more wearable devices
to your smartphone, they are remembered in the
Samsung Gear app. If a connected wearable device
is disconnected, the Samsung Gear app searches for
another remembered wearable device and connects
to it.
1. From the Apps screen of the smartphone, tap
SamsungGear.
2. Tap More > Auto switch device, and tap On/Off to
enable the feature.
Disconnect
1. From the Apps screen of the smartphone, tap
SamsungGear.
2. Tap More > Disconnect. The Gear disconnects from
your smartphone.
3. Tap More > Connect to reconnect the Gear.
DRAFT–FOR INTERNAL USE ONLY
Learn About
Your Device
Learn some of the key features of your mobile
device, including the screens and icons, as well
as how to navigate the deviceand enter text
using the keyboard.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 15
Front View
Microphone
(behind)
Back button
Bezel
Power button
Microphone
(behind)
Back button
Power button
Bezel
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 16
• Power key
-Press and hold to turn the Gear on or off.
-Press to turn on the screen.
-Press and hold for more than seven seconds to
restart the Gear.
-Press to open the Apps screen when you are on
the Watch screen.
-Press to open the Watch screen when you are on
any other screen.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 17
Back View
Speaker
Heart rate sensor
GPS antenna
Speaker
Heart rate sensor
GPS antenna
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 18
Watch Screen and Widgets
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 19
Status Panel
TMO
Call forwarding
Status bar
Brightness
Sound
Music player
Airplane mode Do not disturb
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 20
To open the Status panel:
►On the Watch screen, swipe downward from the top
edge of the screen.
Status Bar
Indicator icons display at the top of the screen in the
Status bar. The icons listed in this table are most
common.
Indicator Icons
Battery full
4G LTE™ active
Signal strength
Airplane mode
Wi-Fi connected
Bluetooth connected
Bluetooth headset connected
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 21
Adjust the Brightness
You can adjust the Gear’s display brightness to suit the
environment.
►On the status panel, tap Brightness and adjust
the brightness by rotating the bezel.
Adjust the Sound
You can adjust the Gear’s sound settings.
►On the status panel, tap Sound and adjust the
sound by rotating the bezel.
Do Not Disturb Mode
You can set the Gear not to vibrate and turn off the
screen when a notification is received (except for
alarms).
►On the status panel, tap Do not disturb.
• The Do not disturb icon is displayed at the
top of the Watch screen.
Airplane Mode
Airplane mode disconnects your device from all
networks and turns off connectivity features, such as
phone calls and Wi-Fi.
►On the status panel, tap Airplane mode.
• The Airplane mode icon is displayed at the
top of the Watch screen.
Call Forwarding
You can forward call from your smartphone to your
Gear.
►On the status panel, tap Call forwarding.
Play Music
You can play music saved on the Gear or smartphone.
►On the status panel, tap Music player.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 22
Notifications
Stay up to date with events, notifications, and
messages from your smartphone.
View Notifications
When you receive a notification, it is displayed at the
top of the screen and disappears after a few seconds
and the Gear vibrates.
To view notifications:
1. Rotate the bezel left.
2. Tap the notification screen to view the notification’s
detail.
View Other Notifications
1. Rotate the bezel left to view notifications.
2. Tap the number at the bottom of the screen.
Delete Notifications
1. Rotate the bezel left to view notifications.
2. Swipe upward from the bottom edge of the screen
to delete all notifications.
Block Notifications
1. Select a notification from the app you want to
block.
2. Tap the notification to view the details.
3. Tap More options, rotate the bezel to Block app
and tap Block app.
• The Gear no longer receives notifications from
the app.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 23
Notification Settings
Change settings for the notification feature. Stay up to
date with a variety of events, such as new messages
received on the smartphone.
This feature is only available when the Gear’s screen
is turned on. Some smartphones do not support this
feature. The smartphone must be unlocked to view
details when the screen is locked.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab > Notifications.
2. Tap On/Off to activate it, and then tap to select
items:
• Manage notifications: Select apps on the
smartphone to send notifications to the Gear.
• Show only while wearing Gear: Show
notifications on your Gear only while it is being
worn.
• Show while using phone: Show notifications
from your phone on your Gear while you are
using your phone.
• Turn on screen: Set the Gear to turn on the
screen when the notification is received.
• Auto show details: Set the Gear to show details
for notifications when they are received.
• Notification indicator: Show a yellow indicator
on the watch face when there are unread
notifications.
• Smart relay: Set the smartphone to display
notification information from the Gear when you
pick up the smartphone.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 24
Customize Your Home
Screen
The Watch screen is the starting point for the Home
screens. Rotate the bezel to view items on the screen,
such as notifications and widgets.
Change the Watch Face
1. Touch and hold the Watch screen, and then rotate
the bezel to view available watch faces.
• You can add more watch faces by rotating to the
last screen and tapping Get more watch faces.
2. Tap the watch face to select it.
• You can customize the watch face by tapping
Stylize.
You can also change the Gear’s watch face on your
smartphone:
1. From the Apps screen of the smartphone, tap
SamsungGear> Settings tab > Watch faces.
2. Tap a desired watch type. The watch face you
selected is applied on the Watch screen.
3. Tap Stylize to select a background and items to
display on the watch face.
Suggested Watch Faces
View recommended watch faces available to download.
1. From the Apps screen of the smartphone, tap
SamsungGear > Info tab.
2. Tap View more watch faces to see options.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 25
Widgets
You can add widgets to the Home screens. Widgets are
small apps that offer limited functionality to provide
information and convenient access.
Add Widgets
You can add more widgets on the Home screen.
►Rotate the bezel to the end of the Widgets, and tap
Add widget and select a widget.
• The selected widget is displayed in a new panel.
Remove Widgets
►Touch and hold a widget and then tap Delete.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 26
Navigation
Learn the basics for how to navigate through your
device.

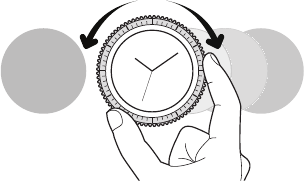

Bezel Navigation
Rotate the bezel to navigate through screens and to
select options.
Touchscreen Navigation
Please note that a touch screen responds best to a
light touch from the pad of your finger or a capacitive
stylus. Using excessive force or a metallic object
when pressing on the touch screen may damage the
tempered glass surface and void the warranty.
Use the following motions and gestures on your
touchscreen to navigate the device.
Tap
Lightly tap items to select or launch them.
• Tap the keyboard to enter characters ortext.
• Tap an item to select it.
• Tap an app shortcut to launch the application.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 27
Touch and Hold
Touch and hold items on the screen to activate them.
• Touch and hold a widget on a Home screen to
moveit.
• Touch and hold a field to display a pop-up menu of
options.
Swipe
Lightly drag your finger vertically or horizontally across
the screen.
• Swipe the screen to unlock the device.
• Swipe the screen to scroll through the Homescreens
or menu options.
Drag
Touch and hold an item, and then move it to a new
location.
• Drag an app shortcut to add it to a Home screen.
• Drag a widget to place it in a new location on a
Homescreen.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 28

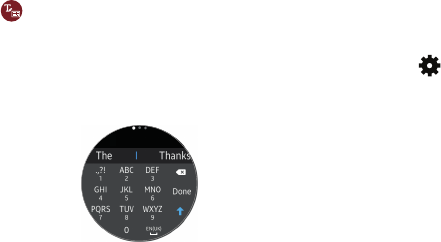

Entering Text
Text can be entered by speaking or by using a keyboard.
You can also select emojis.
A text input screen is displayed automatically when
you are able to enter text. Select an emoticon or text
template to enter a message. You can also use voice
input or the keyboard to type texts.
Default keyboard
Select a default keyboard type for text input.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Input > Default keyboard and select your
default keyboard.
Note: This option is only available if you have
downloaded additional keyboards from Galaxy Apps.
Change the Input Mode
►Rotate the bezel to change the input mode.
• You can switch between handwriting mode,
character mode, number mode, punctuation
mode, and voice input.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 29
Voice Input
1. Tap Voice input and speak the message you
want to enter. Tap Send when you are finished.
2. Tap More options > Input languages to change
the language.
Voice input is not supported in some languages.
When the Gear is connected to a smartphone using
Bluetooth, the language settings applied on the
smartphone are applied to the Gear.
For better voice recognition:
-Speak clearly.
-Speak in quiet places.
-The Gear may not recognize your commands or
may perform unwanted commands depending on
your surroundings or how you speak.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 30
Emojis
You can add emojis to your message.
►Tap Emojis, and select an emoji to include in
your message.
• To draw your own image, tap Doodle.
Keyboard
Use the keyboard to enter your message.
Handwriting Mode
►Tap Keyboard, and then use your finger to write
text.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 31
Enter Characters
1. Tap Keyboard, and then rotate the bezel to
character mode.
2. Tap the corresponding key repeatedly until the
desired character is displayed.
Add Input Languages
1. Rotate the bezel to change the input mode to
number mode or punctuation mode.
2. Tap Settings > Select input languages and
select a language to add.
• You can use up to two languages.
• You can also add more languages from the
Settings screen.
Change the Input Language
►Slide the space key left or right.
DRAFT–FOR INTERNAL USE ONLY
Learn About YourDevice 32
Keyboard Settings
Change the Samsung keyboard settings.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Input > Keyboard settings and tap options to
customize:
• English (US): Choose the keyboard layout.
• Select input languages: Select languages for
text input.
• Check for updates: Set the Gear to check for
and download the latest version of the Samsung
keyboard.
• Handwriting: Enable handwriting mode.
• Smart typing:
-Predictive text: Activate predictive text
mode to predict English words based on
your input and display word suggestions.
-Auto capitalize: Set the Gear to
automatically capitalize the first character
after a final punctuation mark, such as a
period, question mark, or exclamation mark.
-Auto punctuate: Set the Gear to insert a
period when you double-tap the space bar.
• Key-tap feedback:
-Sound: Set the Gear to play sounds when
you tap a key.
-Vibration: Set the Gear to vibrate when you
tap a key.
• Reset keyboard settings: Reset the Samsung
keyboard settings.
• Clear personalized data: Clear word predictions
and other data.
DRAFT–FOR INTERNAL USE ONLY
Learn how to change the way
apps are displayed and uninstall
or disable apps.
Apps
DRAFT–FOR INTERNAL USE ONLY
34Apps
Using Apps
The Apps list displays all preloaded apps and apps that
you downloaded. You can uninstall, disable, or hide
apps from view.
Access Apps
The Apps screen displays icons for all apps.
1. From the Watch screen, press the Home button to
go to the Apps screen.
2. To view other panels, rotate the bezel. You can also
tap Apps screen or swipe the screen to the left
orright.
Open Apps
On the Apps screen, tap an app icon to open the app.
To open an app from the list of recently used apps:
►From the Apps screen, rotate the bezel to
Recent apps, and select the recent app window.
Close Apps
1. From the Apps screen, rotate the bezel to
Recent apps.
2. Rotate the bezel to highlight the app you want to
close, and then tap Close.
• Tap Close all to close all running apps.
DRAFT–FOR INTERNAL USE ONLY
35Apps
Move Items
On the Gear:
►From the Apps screen, touch and hold an app, and
then drag it to the desired location.
From your Smartphone:
1. From the Apps screen of the smartphone, tap
Samsunggear > Settings tab >Apps.
2. Tap More > Reorder next to an app and drag it up or
down to another position.
Change the App Layout
Change the Samsung keyboard settings.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Display > Apps layout and tap an option:
• Customize: Manually arrange your apps.
• Sort by recent: Arrange the apps in order of use.
Install Apps
You can purchase and download apps specially
designed for the Gear. To use this feature, your Gear and
smartphone must be connected.
►From the Apps screen, rotate the bezel to
Get more apps.
• The Samsung Gear Apps store automatically
launches on your smartphone. From the store,
you can browse and download apps.
You can also download apps for your Gear from your
smartphone in the Samsung gear app:
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab > Samsung
Galaxy apps.
2. Browse by category and select an app to download.
DRAFT–FOR INTERNAL USE ONLY
36Apps
Suggested Apps
View recommended apps available to download in the
Samsung gear app.
1. From the Apps screen of the smartphone, tap
SamsungGear > Info tab.
2. Tap View more apps toview options.
Download History
View your app download history from the Samsung
Gear app.
1. From the Apps screen of the smartphone, tap
Samsunggear > Settings tab >Apps.
2. Tap More > Download history to view your
download history.
UninstallApps
Remove apps that you have installed.
1. From the Apps screen of the smartphone, tap
Samsunggear > Settings tab >Apps.
2. Tap More > Uninstall, and then select apps to
remove from theGear.
DRAFT–FOR INTERNAL USE ONLY
37Apps
Alarm
Set an Alarm
1. From the Apps screen, rotate the bezel to
Alarm.
2. Tap Add alarm and enter the time.
3. Tap Next, and select the days to repeat the alarm.
4. Tap Next, and select an alarm notification.
5. Tap Save when finished.
Stop an Alarm
►Drag Cancel to the right or rotate the bezel
clockwise to stop an alarm.
• Rotate the bezel counterclockwise to snooze.
Delete an Alarm
1. From the Apps screen, rotate the bezel to
Alarm.
2. Tap and hold an alarm, and then tap Delete.
DRAFT–FOR INTERNAL USE ONLY
38Apps
Alti-Barometer
Measure the altitude and atmospheric pressure in your
current location.
Measure Altitude
►From the Apps screen, rotate the bezel to
Alti-barometer to view the altimeter and
measure the altitude.
Measure Atmospheric Pressure
1. From the Apps screen, rotate the bezel to
Alti-barometer.
2. Rotate the bezel to the barometer screen to view
the atmospheric pressure.
Customize Settings
1. From the Apps screen, rotate the bezel to
Alti-barometer.
2. Rotate the bezel to the Settings screen, and then
tap Change.
3. Tap an option to customize:
• Manual calibration: Tap to enable manual
calibration and enter the altitude and sea level
pressure.
• Pressure alerts: Enable pressure alerts when
the atmospheric pressure drops more than
4hPA within a 3 hour period.
• Distance unit: Customize the unit of
measurement.
DRAFT–FOR INTERNAL USE ONLY
39Apps
Contacts
View your smartphone’s contact list.
Find a Contact
You can search for a contact or scroll through the list to
find one by name.
1. From the Apps screen, rotate the bezel to
Contacts.
2. Tap Search, and then enter characters to find
contacts that match.
– or –
Rotate the bezel to find the contact.
Add Emergency Contacts
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab > Send SOS
requests.
2. Tap Send SOS messages to.
3. Tap Add > Create contact and enter contact
information.
– or –
Tap Add > Select from contacts to add an existing
contact as a primary contact.
DRAFT–FOR INTERNAL USE ONLY
40Apps
Call or Message a Contact
You can send a message or make a phone call from
Contacts.
1. From the Apps screen, rotate the bezel to
Contacts.
2. Tap the contact you want to connect with, and tap
an option:
• Call: Begin a phone call with the contact.
• Message: Type a message to the contact.
DRAFT–FOR INTERNAL USE ONLY
41Apps
Email
View emails received on the smartphone and reply
tothem.
Read Emails
1. From the Apps screen, rotate the bezel to Email.
2. Tap an email to open the email screen.
3. Tap Moreoptions for additional options:
• Reply: Compose a reply email from your Gear.
• Star: Mark the email as a Favorite.
• Show on phone: View the email on your
smartphone.
• Delete: Delete the email.
Note: You may not be able to reply to emails depending
on the smartphone that you connect to the Gear.
Reply to Emails
1. From the Apps screen, rotate the bezel to Email.
2. Tap an email to open the email screen.
3. Scroll to the bottom of the email and tap Reply.
4. Compose your email and send.
Delete Emails
1. From the Apps screen, rotate the bezel to Email.
2. Scroll through the inbox to the email you want to
delete.
3. Tap Moreoptions > Delete.
4. Select the email again, and then tap Delete.
DRAFT–FOR INTERNAL USE ONLY
42Apps
Find My Phone
If you misplace your smartphone, the Gear can help you
find it.
1. From the Apps screen, rotate the bezel to
Findmy phone.
2. Tap Start.
• The smartphone emits sounds and turns on
thescreen.
3. Drag the Stop outwards on the smartphone
– or –
Tap Stop on the Gear.
Find Your Gear
You can also locate your Gear by making it light up and
make sounds from the Samsung gear app.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab > Find my gear.
2. Tap Start.
• The Gear vibrates and the screen turns on.
3. Rotate the bezel on the Gear, or tap Stop on the
smartphone.
DRAFT–FOR INTERNAL USE ONLY
43Apps
Gallery
View and manage images stored on the Gear.
View Images
1. From the Apps screen, rotate the bezel to
Gallery.
2. Rotate the bezel to scroll through the image list
and then tap an image to view it.
Zoom In or Out
While viewing an image:
►Double-tap the image to zoom in or out.
Delete Images
1. From the Apps screen, rotate the bezel to
Gallery.
2. Touch and hold an image to delete.
– or –
Tap More options > Delete.
3. Tap Delete, and then tap the checkmark to confirm.
DRAFT–FOR INTERNAL USE ONLY
44Apps
Import and Export Images
Images can exchanged between your Gear and
smartphone.
Export Images to Your Smartphone
1. From the Apps screen, rotate the bezel to
Gallery.
2. Tap the image you want to send to the smartphone.
3. Tap More options > Send to phone.
Import Images from Your Smartphone
Send images from your smartphone to your Gear.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab.
2. Tap Send content to Gear.
3. Tap Select photos.
4. Select files and tap Done.
To sync images on your smartphone with your Gear:
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab.
2. Tap Send content to Gear > Auto sync under Photos
to enable.
3. Tap Albums to sync, and then select albums to
import to theGear.
• The selected albums are synchronized while the
Gear is charging.
DRAFT–FOR INTERNAL USE ONLY
45Apps
Messages
View messages and reply to or call the sender using the
Gear.
Send Messages
1. From the Apps screen, rotate the bezel to
Messages.
2. Tap Compose.
3. Tap Gear or Phone to decide which number
you want to send the message from.
• In Standalone mode you can only send and
receive messages from the Gear phone number,
and the Phone option will not be available.
4. Add recipients and tap Next.
5. Enter text using one of the available methods.
• If you use the bezel to view the one-word
messages, the message is automatically sent to
the recipients when you tap it.
• If you choose an emoticon, the message is
automatically sent to the recipients when you
tap it.
• If you create a message using voice input or the
keyboard, tap Send to send the message.
DRAFT–FOR INTERNAL USE ONLY
46Apps
Quick Messages
Edit or add templates used for replying to messages.
1. From the Apps screen of the smartphone,
tap SamsungGear > Settings tab >
Quickmessages.
2. Tap Quick responses or Call-decline messages.
3. Select a template to edit.
• To create additional templates, tap Add.
4. Edit the template and tap Save.
Send SOS Requests
In an emergency situation, quickly press the Gear’s
Home button three times. The device sends messages
or makes calls to your primary contacts.
The messages includes your location information.
Youcan also send sound recordings along with the
message to the recipients.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab > Send SOS
requests.
2. Tap On/Off to enable this feature, and then
customize options:
• Send SOS messages to: Follow the prompts
to add an emergency contact to send SOS
messages to.
• Count down before sending: Wait 5 seconds
before sending SOS requests to allow them to be
cancelled.
DRAFT–FOR INTERNAL USE ONLY
47Apps
Read Messages
1. From the Apps screen, rotate the bezel to
Messages.
2. Tap a conversation to view it.
3. Tap Moreoptions for additional options:
• Reply: Compose a reply message from your Gear.
• Call: Call the sender.
• Show on phone: View the email on your
smartphone.
• Block number: Block all messages from this
sender.
• Delete: Delete the email.
Note: You may not be able to reply to emails depending
on the smartphone that you connect to the Gear.
Reply to Emails
1. From the Apps screen, rotate the bezel to
Messages.
2. Tap a conversation to view it.
3. Scroll to the bottom of the conversation and tap
Reply.
4. Compose your message and send.
DRAFT–FOR INTERNAL USE ONLY
48Apps
Message Settings
Change the message feature settings.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Messages and select an option:
• Send as audio: Use voice input to send
messages.
• Block list: View and edit blocked numbers and
messages.
• Emergency alerts: Tap Alert types to customize
which alerts you want to receive. Tap Alert
reminder to set the frequency.
DRAFT–FOR INTERNAL USE ONLY
49Apps
Music Player
Output
Fast-forward
More options
Playlist
Play/Pause
Rewind
Volume
DRAFT–FOR INTERNAL USE ONLY
50Apps
Import Music
Import music saved in your smartphone to your Gear.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab.
2. Tap Send content to Gear > Select tracks.
3. Select files and tap Done.
To sync music in your smartphone with your Gear
automatically:
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab.
2. Tap Send content to Gear > Auto sync under Music
to enable.
Play Music from Your Gear
1. From the Apps screen, rotate the bezel to
Music player.
2. Tap Output to change it to the Gear icon.
3. Swipe up from the bottom of the screen to access
your playlist.
4. Tap a category, and select a song to begin playing.
5. Swipe down from the top of the screen to view the
controls.
Control Music on Your Phone
1. Play music on your Phone.
2. From the Apps screen, rotate the bezel to
Music player.
3. Tap Output to change it to the Phone icon.
4. Use the controls on the screen.
DRAFT–FOR INTERNAL USE ONLY
51Apps
News Briefing
Create and access your personalized magazines.
1. From the Apps screen, rotate the bezel to
NewsBriefing.
2. Rotate the bezel to search through trending
articles.
DRAFT–FOR INTERNAL USE ONLY
52Apps
Phone
Contacts
More options
Keypad
Call log
DRAFT–FOR INTERNAL USE ONLY
53Apps
Depending on your Call settings, you can use your Gear
device to initiate outgoing calls, answer calls, and to
complete conversations.
Make Calls
In Standalone mode, you can make and receive calls
from the Gear phone number only, and the calls will be
made through your Gear.
If you are connected to a smartphone the call feature
will automatically launch on your smartphone.
1. From the Apps screen, rotate the bezel to
Phone.
2. Use one of the following methods to make a call:
• Tap Keypad, enter a number using the
keypad, and then tap Call.
• Tap Contacts, select a contact, and then tap
Dial or select a phone number.
• Scroll through the log list, tap a log entry, and
then tap Dial.
Receive Calls
Answer a Call
►Drag Answer to the right to answer a call.
– or –
►If the voice control feature is activated, say
“Answer” to answer the call.
– or –
►Rotate the bezel right to answer an incoming call.
DRAFT–FOR INTERNAL USE ONLY
54Apps
Reject a Call
Reject an incoming call and send a rejection message
to the caller.
►Drag Reject to the left to reject a call. To send
a message when rejecting an incoming call, swipe
upward from Decline messages.
– or –
►If the voice control feature is activated, say“Reject”
to reject the call.
– or –
►Rotate the bezel left to reject an incoming call.
Missed Calls
If a call is missed, a notification is displayed on the
screen.
►From the Watch screen, rotate the bezel left to view
missed call notifications.
– or –
On the Apps screen, rotate the bezel to Phone
to view missed calls in the Call log.
DRAFT–FOR INTERNAL USE ONLY
55Apps
Auto Call Forwarding
Forward unanswered incoming calls from your
smartphone to your Gear.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab.
2. Tap Auto call forwarding and tap On/Off to enable.
3. Tap an option:
• Number setting: Enter your Gear phone number.
• Help: View additional information about Call
forwarding.
Call Settings
Change the call feature settings.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Call and select an option:
• Auto call forwarding: Forward calls from your
smartphone to your Gear.
• Outgoing number: Display your Gear’s outgoing
number.
• Voice answer: Set your Gear to answer or reject
calls using voice commands.
• Show my caller ID: Set up your caller ID.
• Call waiting: Manage call waiting settings.
• Voicemail: Access and customize your voicemail.
• Block list: View and edit blocked numbers.
DRAFT–FOR INTERNAL USE ONLY
56Apps
Reminders
Add reminders for events, and set alarms outside of the
Calendar app.
Create a Reminder
1. From the Apps screen, rotate the bezel to
Reminders.
2. Tap Create reminder and choose a keyboard.
3. Enter the title of your reminder, and then set the
time you want to be reminded.
4. Tap Save when finished.
Complete a Reminder
To mark a reminder as complete:
1. From the Apps screen, rotate the bezel to
Reminders.
2. Tap the reminder you want to complete.
3. Tap the checkbox to mark it as complete.
• To delete the reminder, tap More options >
Delete.
DRAFT–FOR INTERNAL USE ONLY
57Apps
S Health
S Health helps you manage your wellness and fitness.
Set fitness goals and regularly record and check your
progress.
When the Gear is synced with the S Health app, you
can use additional features that include checking your
heart rate logs individually, and more.
Only your most recent activity records are stored
on your Gear. You can view previous data on the
smartphone where the SHealth app is installed.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab.
2. Tap S Health to access the S Health app.
Caution: The information gathered from this device, S
Health, or related software is not intended for use in
the diagnosis of disease or other conditions, or in the
cure, mitigation, treatment or prevention of disease.
The accuracy of the information and data provided
by this device and its related software, including
heart rate readings, may be affected by factors such
as environmental conditions, skin condition, specific
activity performed while using/wearing the device,
settings of the device, user configuration/user-
provided information, placement of the sensor on
the body, and other end-user interactions. For more
information on proper wear and use, see:
samsung.com/us/heartratesensor.
DRAFT–FOR INTERNAL USE ONLY
58Apps
Before You Start Exercising
Although the S Health application is a great companion
to your exercise routine, it is always best to make sure
you consult with your physician before beginning any
exercise regimen. While moderate physical activity,
such as brisk walking, is safe for most people, health
experts suggest that you talk with your doctor before
you start an exercise program, particularly if you have
any of the following conditions:
• Heart disease; Asthma or lung disease; Diabetes, or
liver or kidney disease; and Arthritis.
Before beginning your exercise regimen check with
your doctor if you have symptoms suggestive of heart,
lung, or other serious disease, such as:
• Pain or discomfort in your chest, neck, jaw, or arms
during physical activity;
• Dizziness or loss of consciousness;
• Shortness of breath with mild exertion or at rest, or
when lying down or going to bed;
• Ankle swelling, especially at night;
• A heart murmur or a rapid or pronounced heartbeat;
• Muscle pain when walking upstairs or up a hill that
goes away when you rest.
It is recommended that before engaging in an exercise
routine, you consult with your doctor or medical
practitioner. If you are unsure of your health status,
have several health problems, or are pregnant, you
should speak with your doctor before starting a new
exercise program.
DRAFT–FOR INTERNAL USE ONLY
59Apps
Wear the Gear Correctly
Wear the Gear firmly around your lower arm just above
your wrist as shown below. Do not fasten the Gear too
tightly.
Warning: If you feel discomfort while using the device,
stop using it. If your device becomes hot, please
remove it until it cools.
24-Hour Activity Tracker
Your Gear can monitor and record your activities during
the day and encourage you to stay healthy.
1. From the Apps screen, rotate the bezel to
SHealth.
2. Tap the screen and rotate the bezel to view the
details of your activity log.
DRAFT–FOR INTERNAL USE ONLY
60Apps
• Healthy activity: Indicates whether you are
walking or running. If you have made more than
100 steps per minute for at least 10consecutive
minutes, the Gear encourages you to keep going.
• Light activity: Indicates the time you spend
doing light activity, but not doing hard exercise.
• Inactive time: Indicates the time you spend
not walking or moving at all. If you sit idle for
50 minutes or more, the Gear prompts you to
movemore.
Steps Tracker
The Gear counts the number of steps you have taken
and measures the distance traveled.
1. From the Apps screen, rotate the bezel to
SHealth.
2. Rotate the bezel to the steps tracker panel.
3. Tap the screen to view a graph of your step count
records.
• Rotate the bezel to view records by day.
Floors
Record and track the number of floors you walk up.
1. From the Apps screen, rotate the bezel to
SHealth.
2. Rotate the bezel right and open the floors panel.
3. Tap the screen to view a graph of your
floor-climbing records.
• Rotate the bezel to view records by day.
DRAFT–FOR INTERNAL USE ONLY
61Apps
Exercise Tracker
Record your exercise information and calories burned
using S Health’s exercise feature.
When your Gear and smartphone are connected, this
feature uses your smartphone’s location information.
Exercise with the Gear
1. From the Apps screen, rotate the bezel to
SHealth.
2. Rotate the bezel right to the exercise tracker
screen.
3. Tap the screen and enter the exercise information:
• Activity type: Enter the activity you want to
track.
• Target: Set the target duration, calories, or
workout type for your activity.
• Location: Enable location features to accurately
track your workout.
• Auto pause: Automatically pause the workout
when the Gear detects no movement.
• Coaching msgs: Enable coaching messages to
display during your exercise.
• Guide at intervals: Set an interval for
encouragement during your workout.
• View log: View your workout log.
4. Tap Start to start monitoring your exercise.
Yourheart rate measurement begins.
• When you rotate the bezel to the right you can
view exercise information, such as calories
burned and current speed.
• Rotate the bezel left to listen to music.
5. Tap the Back button to pause the workout.
• Tap the Back button again to resume the
workout.
• Tap Finish to complete your workout and view
your workout summary.
DRAFT–FOR INTERNAL USE ONLY
62Apps
Note: Measured distance may differ from the actual
distance due to uneven strides, walking in place, and
pacing around.
Heart Rate Tracker
Measure and record your heart rate. Take heart rate
measurements when you are seated and relaxed.
Warning: Do not look directly at the heart rate sensor’s
lights. Doing so may impair your vision.
Measure Your Heart Rate
1. From the Apps screen, rotate the bezel to
SHealth.
2. Rotate the bezel right and open the heart rate
tracker screen.
3. Tap Measure to begin measuring your
heartrate.
• After a moment, your current heart rate is
displayed on the screen.
4. Tap Tag to select a status tag for your measured
heart rate.
• The Gear displays information about your heart
rate in relation to your selected tag.
5. Tap the screen to view a graph of your records.
Rotate the bezel to view records by day.
DRAFT–FOR INTERNAL USE ONLY
63Apps
Track Your Heart Rate
The Gear can automatically measure and track your
heart rate. Your Gear measures your heart rate at
regular intervals.
Note: This feature may not function properly while you
are moving.
To activate or deactivate this feature:
1. From the Apps screen, rotate the bezel to
SHealth.
2. Rotate the bezel to the settings screen.
3. Tap Options > Auto HR and tap Auto HR.
Water Tracker
Record and track how many glasses of water you drink.
1. From the Apps screen, rotate the bezel to
SHealth.
2. Rotate the bezel right and open the water tracker
screen.
3. Tap Add when you drink a glass of water.
• If you accidentally added an incorrect value, tap
Remove.
4. Tap the screen to view a graph of your records.
Rotate the bezel to view records by day.
DRAFT–FOR INTERNAL USE ONLY
64Apps
Caffeine Tracker
Record and track how many cups of caffeinated
beverages you drink each day.
1. From the Apps screen, rotate the bezel to
SHealth.
2. Rotate the bezel right and open the caffeine tracker
screen.
3. Tap Add when you drink a caffeinated beverage.
• If you accidentally added an incorrect value, tap
Remove.
4. Tap the screen to view a graph of your records.
Rotate the bezel to view records by day.
Together
Compete with other S Health users.
Steps Leaderboard
Add the Steps leaderboard and set challenges through
the S Health app on your smartphone.
►On the Apps screen of the smartphone, tap
SHealth, and then follow the prompts to add
the Steps leaderboard.
Challenges
Set your challenges and view your status on the Steps
leaderboard.
1. From the Apps screen, rotate the bezel to
SHealth.
2. Rotate the bezel to the Together screen.
• Your current rank is displayed. Below that is the
steps leaderboard.
• Tap a list to see your challenges.
DRAFT–FOR INTERNAL USE ONLY
65Apps
Settings
Customize your S Health settings.
1. From the Apps screen, rotate the bezel to
SHealth.
2. Rotate the bezel to the Settings screen.
3. Tap Options, and then tap an item to customize:
• Profile: Update your personal profile.
• Health nudges: Set your Gear to prompt you at
set intervals to do certain activities.
• Workout detection: Set the Gear to recognize
and encourage you when it detects that you are
exercising.
• Step target: Set a target goal for steps.
• Floor target: Set a target goal for climbing
floors.
• Auto HR: Set your Gear to automatically
measure your heart rate throughout the day.
• Water target: Set a target water intake.
• Caffeine limit: Set a limit for caffeine intake.
• Help: View help topics for S Health.
DRAFT–FOR INTERNAL USE ONLY
66Apps
S Voice
Speak to perform operations or searches on your
device.
Set a Wake-Up Command
You can launch S Voice™ using your own wake-up
command.
Note: You can only use this feature when your Gear’s
screen is turned on.
1. From the Apps screen, rotate the bezel to
SVoice.
2. Tap Moreoptions > Set wake-up command to
set a custom wake-up command.
Use S Voice
1. From the Apps screen, rotate the bezel to
SVoice.
– or –
Say the preset wake-up command.
2. Say a voice command.
• If the Gear recognizes the command, the Gear
performs the corresponding action.
• Tap Microphone to repeat a voice command
or to speak a different command.
DRAFT–FOR INTERNAL USE ONLY
67Apps
Tips for Better Voice Recognition
• Speak clearly.
• Speak in quiet places.
The Gear may not recognize your commands or may
perform unwanted commands depending on your
surroundings or how you speak.
Set the Language
Customize the language used in the S Voice app. The
selected language is applied to S Voice only (not to the
language displayed on the Gear).
1. From the Apps screen, rotate the bezel to
SVoice.
2. Tap Moreoptions > Language, and then
select a language.
DRAFT–FOR INTERNAL USE ONLY
68Apps
Samsung Pay
Pay using your Gear almost anywhere you can slide or
tap your card.
Register frequently used cards to Samsung Pay, a
mobile payment service, to make payments quickly and
securely. Samsung Pay is accepted almost anywhere
you can swipe or tap your credit card.
You can view more information, such as cards that
support this feature at
www.samsung.com/samsungpay.
Note: You must first register cards to Samsung Pay on
your connected smartphone. For more information,
refer to the mobile device’s user manual.
Set up Samsung Pay on your Gear
You must activate NFC and set Samsung Pay as your
default payment method before using Samsung Pay on
your Gear.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > NFC and then tap the NFC to
activate it.
3. Tap Tap and pay > Samsung Pay.
DRAFT–FOR INTERNAL USE ONLY
69Apps
Make Payments
Use your Gear to make payments using Samsung Pay.
Note: Samsung Pay and your Gear support magnetic
secure transmission (MST) as well as near field
communication (NFC) to allow payment through most
standard credit card readers.
1. From the Apps screen, rotate the bezel to
Samsung Pay.
– or –
Press and hold the Back button.
2. Scroll through the cards list, select a card and then
tap Pay.
3. Touch the top of the Gear to the card reader.
– or –
Place the watch screen close to where you swipe
the card.
Note: Use the Samsung Pay application for up to 5
transactions without the smartphone. This may vary
depending on the bank/institution issuing the account.
Top card reader Card swipe reader
DRAFT–FOR INTERNAL USE ONLY
70Apps
Schedule
View the events scheduled on the smartphone.
1. From the Apps screen, rotate the bezel to
Schedule.
2. Rotate the bezel to view other months.
3. Tap a day on the monthly calendar.
• The day’s events list is displayed.
• Tap an event to view its details
4. Rotate the bezel to view other scheduled events.
DRAFT–FOR INTERNAL USE ONLY
71Apps
Weather
View weather information on the Gear for locations set
on the smartphone when the devices are connected.
When your Gear and smartphone are connected, this
feature uses your smartphone’s location information.
1. From the Apps screen, rotate the bezel to
Weather.
2. Tap the screen and rotate the bezel to view today’s
weather information.
3. Rotate the bezel right to add other cities’ weather
information.
DRAFT–FOR INTERNAL USE ONLY
72Apps
World Clock
The World clock lets you keep track of the current time
in multiple cities around the globe.
Add Cities
1. From the Apps screen, rotate the bezel to
Worldclock.
2. Tap Add city to add a city to your World clock.
3. Tap a location on the map.
– or –
Tap All cities to search for the city you want to add.
4. Tap the city to add it to your World clock.
• To add more cities, tap Add.
Remove Cities
1. From the Apps screen, rotate the bezel to
Worldclock.
2. Tap More options by the city you want to remove.
3. Tap Delete, and select the city again.
4. Tap Delete to confirm.
DRAFT–FOR INTERNAL USE ONLY
Configure your device’s connections
and settings, addaccounts, and
customize Home screens, apps,
andfeatures.
Settings
DRAFT–FOR INTERNAL USE ONLY
Settings 74
How to Use Settings
Access Settings
You can personalize your device by configuring various
setting options.
To access Settings:
►From the Apps screen, rotate the bezel to
Settings.
DRAFT–FOR INTERNAL USE ONLY
Connections
Manage connections between your device
and a variety of networks and other devices.
DRAFT–FOR INTERNAL USE ONLY
Settings 76
Bluetooth
Use Bluetooth to exchange data or media files with
other Bluetooth-enabled devices.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > Bluetooth.
• Bluetooth: Turn the Bluetooth feature on or off.
• BT headset: Search for Bluetooth headsets and
connect them to the Gear.
Note: The headset can be only used for playing music
on the Gear.
Automatic Remote Connection
Set the Gear to remotely connect to the smartphone
when a Bluetooth connection between the devices is
not available.
With this connection, you can still receive notifications
from your smartphone. This feature is automatically
activated when you connect to your smartphone using
Bluetooth for the first time.
To enable or disable this feature:
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab.
2. Tap Gear connection > Remote connection.
DRAFT–FOR INTERNAL USE ONLY
Settings 77
Mobile Networks
Control your device’s access to networks and mobile
data service.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > Mobile networks.
• Mobile networks: Turn the Mobile networks
feature on or off.
• Mobile data: Enable mobile data.
• Data roaming: Customize options for roaming.
• Network mode: View your network connection
mode.
• Network operators: Choose a preferred
network operator.
• Access point names: Choose or add APNs.
Wi-Fi
Activate the Wi-Fi feature to connect to a Wi-Fi
network.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > Wi-Fi.
3. Tap Wi-Fi again, to turn Wi-Fi on or off.
DRAFT–FOR INTERNAL USE ONLY
Settings 78
Connect to a Wi-Fi Network
This feature is available when the Gear is not connected
to the smartphone through Bluetooth.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > Wi-Fi.
3. Tap Wi-Fi networks > Scan.
4. Select a network from the Wi-Fi networks list.
• Networks that require a password display a
lockicon.
5. Tap Connect.
Note: Once the Gear connects to a Wi-Fi network,
the Gear reconnects to that network each time it is
available without requiring a password. To prevent the
Gear connecting to the network automatically, select
the network, and then tap Forget.
Sync Wi-Fi Profiles
Set the device to sync the list of saved Wi-Fi networks
with your Gear.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab.
2. Tap Gear connection > Sync Wi-Fi profiles.
DRAFT–FOR INTERNAL USE ONLY
Settings 79
NFC
The Gear lets you use the built-in technology to make
payments and buy tickets for transportation or events
after downloading and configuring the requiredapps.
Note: Samsung Pay and your Gear support magnetic
secure transmission (MST) as well as near field
communication (NFC) to allow payment through most
standard credit card readers.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > NFC.
• NFC: Activate the NFC feature to link your Gear
to your credit or debit card.
• Tap and pay: Set the default payment app for
mobile payments.
Make Payments with the NFC
Feature
Before you can use the NFC feature to make payments,
you must register for the mobile payment service.
Toregister or get more information about the service,
contact your service provider.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > NFC.
3. Tap NFC again to enable the feature.
4. Touch the top of the Gear’s touchscreen to the card
reader.
Note: The payment services list may not include all
available payment apps.
DRAFT–FOR INTERNAL USE ONLY
Settings 80
Alerts
Receive alerts when disconnected from Bluetooth.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > Alerts to enable or disable this
option.
Airplane Mode
Airplane mode disconnects your device from all
networks and turns off connectivity features, such as
phone calls and Wi-Fi.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > Airplane mode to enable or
disable this option.
Data Usage
Set the Gear to monitor your mobile data usage.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > Data usage, and tap an option:
• Mobile data: Enable mobile data.
• Data usage limit: Turn off your mobile data
connection once a specified time limit has been
reached.
• Data usage cycle: Choose a time period for data
usage.
• Start date: Select a date to start viewing the
data usage.
• Usage details: View your data usage.
DRAFT–FOR INTERNAL USE ONLY
Settings 81
Location
Some apps may require location services to be turned
on for full functionality.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connections > Location.
3. Tap Location again to enable, and select a mode.
• GPS & wireless networks: Use GPS and wireless
networks.
• Wireless networks: Use wireless networks only.
• GPS: Use GPS only.
Connect to a Phone
Connecting to your phone is the best way to get the
most out of your Gear.
This option is displayed only if you are in Standalone
mode and not connected to a smartphone.
To connect to a phone:
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connect to phone and follow the prompts.
DRAFT–FOR INTERNAL USE ONLY
Settings 82
Connect to a New
Phone
Connect your Gear to a new mobile device. The Gear can
connect to another mobile device after performing a
light reset to delete data.
This option is displayed only if you are already
connected to a mobile device.
To connect to a new phone:
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Connect to new phone and follow the prompts.
DRAFT–FOR INTERNAL USE ONLY
Sounds and
Vibration
Configure the sounds and vibrations used to
indicate notifications, screen touches, and
other interactions.
DRAFT–FOR INTERNAL USE ONLY
Settings 84
Sound Mode.
Set the sound mode for the device.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Sound mode and select an option:
• Sound: Turn the sound feature on or off.
• Vibrate: Use vibration for notifications.
• Mute: Mute all sounds.
Vibrations
Set your vibration preferences for the device.
Vibrate with Sound
The device can vibrate and play sounds for
notifications.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Vibrate with sound toenable.
DRAFT–FOR INTERNAL USE ONLY
Settings 85
Vibration Intensity
Configure the vibration intensity.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Vibration intensity, and select
Strongor Light.
Long Buzz
Increase the duration of the vibration.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Long buzz to enable.
Ringtone Vibration
Vibrate for calls.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Ringtone vibration and select a
vibration pattern.
Notification Vibration
Vibrate for new notifications.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Notification vibration and select a
vibration pattern.
DRAFT–FOR INTERNAL USE ONLY
Settings 86
Volume
Adjust the volume level of your device.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Volume and adjust the volume by
rotating the bezel or tapping the icons.
Ringtone
Customize the sound for calls.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Ringtones and select a sound.
Notification Sounds
Customize the sound for new notifications.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Notification sound and select a sound.
Touch Sounds
Play sounds while touching options on the screen.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Sound > Touch sounds to enable this feature.
DRAFT–FOR INTERNAL USE ONLY
Display
Configure your display’s brightness, screen
timeout delay, and other displaysettings.
DRAFT–FOR INTERNAL USE ONLY
Settings 88
Style
Change the style settings.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Style, and select an option:
• Watch faces: Select a watch type.
• Watch always on: Set the Gear to display a
watch when the screen is turned off.
• Notification indicator: Enable or disable the
notification indicator.
• Background style: Select a background.
• Font: Change the font type and size.
Adjust Screen Brightness
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Display and select an option:
• Brightness: Manually adjust the brightness of
the display.
• Auto low brightness: Set the Gear to
automatically adjust the brightness depending
on ambient light conditions.
Set the Screen Timeout
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Display > Screen timeout, and set the length of
time the Gear waits before turning off the display’s
backlight.
DRAFT–FOR INTERNAL USE ONLY
Device
Maintenance
Get an overview of the status of your device’s
battery, storage, RAM, and device security.
You can also automatically optimize your
device’s system resources.
DRAFT–FOR INTERNAL USE ONLY
Settings 90
Gear Status
Access information about the Gear.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab > About Gear.
2. Tap the icons at the top of the screen to view
Battery, Storage, and RAM information.
3. Tap an option below for additional information:
• Update Gear software: Update the Gear to the
latest software.
• Back up and restore: Back up the stored data on
the Gear or restore backup data.
• Legal information: View the legal information
for the Gear.
• Unknown sources: Set the Gear to allow the
installation of apps from unknown sources.
• Samsung account: View the Samsung account
that is tied to your Gear.
• Device name: Change the Gear’s name.
Power Saving
Activate power saving mode to save battery power by
limiting the Gear’s functions.
Use the Power saving mode to save battery power by:
• Turning off all functions except notifications.
• Turning off Wi-Fi.
• Limiting maximum performance.
DRAFT–FOR INTERNAL USE ONLY
Settings 91
To enable Power saving mode:
►From the Apps screen, rotate the bezel to
Settings > Powersaving, and then tap the
checkmark.
– or –
Press the Power key, tap Powersaving, and then tap
the checkmark.
To disable Power saving mode:
►From the Home screen, tap Off, and then tap the
checkmark.
DRAFT–FOR INTERNAL USE ONLY
Lock Screen and
Security
Secure your device and protect your data
with Lock Screen and Security settings.
DRAFT–FOR INTERNAL USE ONLY
Settings 93
Set a Screen Lock
It is recommended that you secure your device using a
Screen lock.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Security > Screen lock.
3. Tap Screen lock type to select a screen lock type:
• PIN: Set a PIN to use for unlocking the device
when it removed from your wrist and the screen
is turned off.
• None: Do not lock the screen.
4. Tap Help to view help information for using the
screen lock feature.
Reactivation Lock
Set the Gear to require your Samsung account
information after being reset. This prevents others
from reactivating your device if it is lost or stolen.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab > Find my gear.
2. Tap Reactivation lock and tap On/Off to enable.
Note: You should remove your Google™ Account before
shipping your device to Samsung or any other service
provider for service and before resetting the device
to factory settings. If your paired device is running
Android 5.1 or later, your smartphone does not have the
Reactivation lock setting.
DRAFT–FOR INTERNAL USE ONLY
Settings 94
Control remotely
Control your Gear remotely while both your smartphone
and Gear are connected to a network, or Bluetooth.
1. From the Apps screen of the smartphone, tap
SamsungGear > Settings tab > Find my gear.
2. Tap Control remotely and tap On/Off to enable.
3. Tap an option:
• Locate Gear: Use your smartphone to scan for
the Gear’s location.
• Lock Gear: Remotely lock the Gear to prevent
unauthorized access. This feature can be
activated when the Bluetooth connection
between the Gear and smartphone ends while a
remote connection is activated.
• Reset Gear: Remotely delete all personal
information stored in the Gear. After the Gear is
reset, you cannot restore the information or use
the Find My Gear feature.
DRAFT–FOR INTERNAL USE ONLY
Accessibility
Accessibility services are special features
that make using the device easier for those
with certain physical disabilities.
For more information about Accessibility
for Samsung products, please contact us at
accessibility@sea.samsung.com.
DRAFT–FOR INTERNAL USE ONLY
Settings 96
Vision
To set accessibility settings related to vision:
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Accessibility > Vision and select a mode.
• Screen reader: This feature provides audible
commentary that describes each screen. Tap any
item to hear it described. Double-tap to initiate
the described function.
• Screen reader help: Get help for using the
screen reader.
• Dark screen: Keep the screen turned off at all
times.
• Zoom: Magnify the screen.
• Grayscale: Change all colors to gray.
• Negative colors: Reverse the display of colors
from white text on a black background to black
text on a white background.
Hearing
To set accessibility settings related to hearing:
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Accessibility > Hearing and select a mode.
• Turn off all sounds: For privacy, turn off all
notifications and audio.
• Mono audio: Switch audio from stereo to mono
for use with one earphone.
DRAFT–FOR INTERNAL USE ONLY
Settings 97
Direct Access
Triple-tap the screen with two fingers to open the
screen reader.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Accessibility > Directaccess to enable
thefeature.
DRAFT–FOR INTERNAL USE ONLY
Other Settings
Configure features on your device that make
it easier to use.
DRAFT–FOR INTERNAL USE ONLY
Settings 99
Device
Change the Gear’s button and motion settings.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Device and select an option:
• Double press home key: Select an action to
perform.
• Wake-up gesture: Set the Gear to turn on the
screen when you raise your wrist.
• Touch sensitivity: Set the Gear to allow use of
the touch screen with gloves on.
• Do not disturb: Set the device to mute incoming
calls and notification sounds.
• Auto open apps: Focusing on an icon in the
Appsscreen will open the app automatically.
• Date and time: Set the date and time.
Gear Info
View the Gear’s information.
1. From the Apps screen, rotate the bezel to
Settings.
2. Tap Gear info to view information about your Gear.
• About device: Access information about
theGear.
• Reset gear: Reset settings to their factory
default values and delete all data.
• Debugging: Activate or deactivate USB
debugging mode when developing apps for
theGear.
DRAFT–FOR INTERNAL USE ONLY
Additional resources for your device.
Getting Help
DRAFT–FOR INTERNAL USE ONLY
101 VideosGetting Help
Videos
samsung.com/spsn
Simulators
samsungsimulator.com/
Tips
samsung.com/us/support/tips/galaxy/
Samsung Support
samsung.com/us/support
Verizon Glossary
verizonwireless.com/support/glossary
DRAFT–FOR INTERNAL USE ONLY
View legal information
foryourdevice.
Legal
DRAFT–FOR INTERNAL USE ONLY
103Legal
Legal Information
Important legal information can be accessed in writing,
on the mobile device, or at: samsung.com
READ THIS INFORMATION BEFORE USING YOUR
MOBILE DEVICE.
Samsung Limited Warranty - This product is
covered under the applicable Samsung Limited
Warranty INCLUDING THE DISPUTE RESOLUTION
PROCEDURE FOR WARRANTY AND OTHER
CLAIMS, and your right to opt out of arbitration
within 30 calendar days of the first consumer
purchase. You may opt out by either sending
an email to optout@sea.samsung.com with the
subject line “Arbitration Opt Out” or by calling
1-800-SAMSUNG (726-7864). For more detailed
procedures, please refer to the “Dispute Resolution
Procedures and Arbitration and Opt Out” section
ofthe Limited Warranty.
End User License Agreement for
Software (EULA)
The End User License Agreement (EULA) for this device
is found in the Samsung Gear application, which is
required for operation of your device. You may also
access this EULA at:
samsung.com/us/Legal/SamsungLegal-EULAGEAR
Note: This device passed military specification
(MIL-STD-810G) testing against a subset of 10 specific
conditions, including drops from 4.9 feet, extreme
temperatures, dust, shock/vibration, and low pressure/
high altitude. Device may not perform as shown in all
extreme conditions.
DRAFT–FOR INTERNAL USE ONLY
104Legal
Intellectual Property
All Intellectual Property, as defined below, owned by
or which is otherwise the property of Samsung or its
respective suppliers relating to the SAMSUNG Phone,
including but not limited to, accessories, parts, or
software relating thereto (the “Phone System”), is
proprietary to Samsung and protected under federal
laws, state laws, and international treaty provisions.
Intellectual Property includes, but is not limited to,
inventions (patentable or unpatentable), patents, trade
secrets, copyrights, software, computer programs, and
related documentation and other works of authorship.
You may not infringe or otherwise violate the rights
secured by the Intellectual Property. Moreover, you
agree that you will not (and will not attempt to)
modify, prepare derivative works of, reverse engineer,
decompile, disassemble, or otherwise attempt to create
source code from the software. No title to or ownership
in the Intellectual Property is transferred to you. All
applicable rights of the Intellectual Property shall
remain with SAMSUNG and its suppliers.
Open Source Software
Some software components of this product, including
but not limited to ‘PowerTOP’ and ‘e2fsprogs’,
incorporate source code covered under GNU General
Public License (GPL), GNU Lesser General Public
License (LGPL), OpenSSL License, BSD License and
other open source licenses. To obtain the source code
covered under the open source licenses, please visit:
opensource.samsung.com
DRAFT–FOR INTERNAL USE ONLY
105Legal
Disclaimer of Warranties; Exclusion
of Liability
The information below explains that a user accepts
this device as sold, including the hardware and
software components as created and packaged for
sale. If the user changes these parameters through
a unique modification, Samsung will not be held
responsible for damages or issues that result from
these end-user changes.
Except as set forth in the express warranty contained
on the warranty page enclosed with the product, the
purchaser takes the product “as is”, and Samsung
makes no express or implied warranty of any kind
whatsoever with respect to the product, including
but not limited to the:
• merchantability of the product or its fitness for
any particular purpose or use;
• design, condition or quality of the product;
• performance of the product;
• workmanship of the product or the components
contained therein; or
• compliance of the product with the requirements
of any law, rule, specification or contract
pertaining thereto.
Nothing contained in the instruction manual shall be
construed to create an express or implied warranty
of any kind whatsoever with respect to the product.
In addition, Samsung shall not be liable for any
damages of any kind resulting from the purchase or
use of the product or arising from the breach of the
express warranty, including incidental, special or
consequential damages, or loss of anticipated profits
or benefits.
Modification of Software
Samsung is not liable for performance issues or
incompatibilities caused by your editing of registry
settings, or your modification of Operating System
(OS) software.
DRAFT–FOR INTERNAL USE ONLY
106Legal
Using custom OS software may cause your device and
applications to work improperly. Your carrier may not
permit users to download certain software, such as
custom OS.
If your carrier prohibits this, and if you attempt
to download software onto the device without
authorization; you will be notified on the screen that
the device will no longer operate and you will then
be instructed to power down the device. You must
then contact your carrier to restore the device to the
carrier authorized settings.
Samsung Knox
Samsung Knox is Samsung’s security platform and is
a mark for a Samsung device tested for security with
enterprise use in mind. Additional licensing fee may be
required. For more information about Knox, please refer
to: samsung.com/us/knox
Maintaining Water and
DustResistance
This device is rated IP68 using the Ingress Protection
rating system.
Your device has been tested in a controlled
environment and shown to be water and dust resistant
in certain circumstances (meets requirements of
classification IP68 as described by the international
standard IEC 60529 – Degrees of Protection provided
by Enclosures [IP Code]; test conditions: 15-35°C,
86-106 kPa, 5.0 feet, for 30 minutes). Despite this
classification, your device is not impervious to water
damage in any situation. It is important that all
compartments are closed tightly.
Note: If any liquid is found to have entered your device
components or an internally sealed system, this
condition will void your device warranty.
Follow these tips carefully to prevent damage to the
device.
DRAFT–FOR INTERNAL USE ONLY
107Legal
• Any device which uses accessible compartments
or ports that can be opened, should have these
sealed or closed tightly to prevent liquid from
entering the system.
• Whenever your device gets wet, dry it thoroughly
with a clean, soft cloth. If your device has gotten
wet, you should dry the inside of the charging port
before inserting a power connector to charge your
device. If the charging port is not fully dry, your
device may operate abnormally. For example, it may
charge more slowly or overheat.
• Do not expose the device to salt water or ionized
water, or to water over 5.0 feet deep for more than
30 minutes. If your device is exposed to fresh water,
dry it thoroughly with a clean, soft cloth. If the
device is exposed to any liquid other than fresh
water, rinse the device with fresh water immediately
and dry it thoroughly with a clean, soft cloth.
Failure to rinse the device in fresh water and dry it
as instructed may cause the device to suffer from
operability or cosmetic issues.
• Do not expose the device to water at high pressure.
• If the device is dropped or receives an impact, the
water and dust resistant features of the device
may be damaged.
• To maintain the water-resistant and dust-resistant
features of your device, if an S Pen is available
for use, verify it is securely inserted prior to any
exposure to liquids.
• The touchscreen and other features may not work
properly if the device is used in water or in other
liquids. [110116]
DRAFT–FOR INTERNAL USE ONLY
108Legal
Restricting Children’s Access to
YourMobile Device
Your device is not a toy. Do not allow children to
play with it because they could hurt themselves and
others, damage the device, or make calls that increase
your device bill. Keep the device and all its parts and
accessories out of the reach of small children.
Samsung Electronics America, Inc.
Address:
85 Challenger Road
Ridgefield Park,
New Jersey 07660
Phone: 1-800-SAMSUNG (726-7864)
Internet: samsung.com
©2017 Samsung Electronics America, Inc.
Samsung, SHealth, Samsung Gear, SVoice,
and Samsung Pay are all trademarks of
SamsungElectronics Co., Ltd.
Other marks are the property of their
respectiveowners.
Some multimedia (audio/video) files contain Digital
Rights Management (DRM) technology to verify you
have the right to use the files. Preloaded apps on your
device may not be compatible with DRM-protected
files.
Screen images are simulated. Appearance of device
may vary.
The actual available capacity of the internal memory is
less than the specified capacity because the operating
system and default applications occupy part of the
memory. The available capacity may change when you
upgrade the device.

Navigation menu
