Users Manual
2
Table of Contents
Read me first
Getting started
6 Package contents
7 Device layout
9 Using the SIM or USIM card and
battery
12 Using a memory card
14 Turning the device on and off
15 Locking and unlocking the screen
Basics
16 Using the touch screen
19 Home screen layout
23 Notifications panel
25 Opening apps
25 Installing or uninstalling apps
27 Entering text
29 Screen capture
29 My Files
30 Power saving feature
Network connectivity
31 Mobile data
31 Wi-Fi
32 Mobile hotspot and tethering
Motions & usability features
34 Motions and gestures
Personalising
36 Managing the Home and Apps screens
37 Setting wallpaper and ringtones
38 Changing the screen lock method
39 Private mode
40 Setting up accounts
DRAFT, Not Final
Table of Contents
3
Connecting with other
devices
63 Bluetooth
65 Wi-Fi Direct
67 Quick Connect
68 SideSync 3.0
75 Screen Mirroring
77 Mobile printing
Device & data manager
78 Transferring data from your previous
device
80 Using the device as a removable disk
for data transfer
80 Updating the device
81 Backing up and restoring data
82 Performing a data reset
Settings
83 About Settings
83 Connections
86 Device
88 Personal
92 System
Appendix
95 Troubleshooting
100 Removing the battery (non-removable
type)
Contacts
44 Adding contacts
44 Importing and exporting contacts
45 Searching for contacts
Messages & email
46 Messages
47 Email
Camera
49 Basic shooting
50 Shooting modes
52 Camera settings
Gallery
53 Viewing content on the device
Useful apps and features
54 S Finder
54 S Planner
56 Internet
57 Music
58 Video
59 Clock
60 Calculator
60 Memo
61 Google apps
DRAFT, Not Final
4
Read me first
Please read this manual before using the device to ensure safe and proper use.
•
Descriptions are based on the device’s default settings.
•
Some content may differ from your device depending on the region, service provider, or
device’s software.
•
Content (high quality content) that requires high CPU and RAM usage will affect the
overall performance of the device. Apps related to the content may not work properly
depending on the device’s specifications and the environment that it is used in.
•
Samsung is not liable for performance issues caused by apps supplied by providers other
than Samsung.
•
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the device or apps to work improperly.
•
Software, sound sources, wallpapers, images, and other media provided with this device
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal
use of media.
•
You may incur additional charges for data services, such as messaging, uploading and
downloading, auto-syncing, or using location services depending on your data plan. For
large data transfers, it is recommended to use the Wi-Fi feature.
•
Default apps that come with the device are subject to updates and may no longer be
supported without prior notice. If you have questions about an app provided with
the device, contact a Samsung Service Centre. For user-installed apps, contact service
providers.
•
Modifying the device’s operating system or installing softwares from unofficial sources
may result in device malfunctions and data corruption or loss. These actions are violations
of your Samsung licence agreement and will void your warranty.
DRAFT, Not Final
Read me first
5
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Note: notes, usage tips, or additional information
DRAFT, Not Final
6
Getting started
Package contents
Check the product box for the following items:
•
Device
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Using unapproved accessories may cause
the performance problems and malfunctions that are not covered by the warranty.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.
DRAFT, Not Final
Getting started
7
Device layout
Touch screen
Proximity/Light sensor
Recent apps button
Home button
Back button
Microphone
Headset jack
Volume button
Power button
Microphone
Front camera
Multipurpose jack
Memory card slot
SIM card slot
Rear camera
Speaker
GPS antenna
Main antenna
Push clip
Push clip
DRAFT, Not Final
Getting started
8
•
Do not cover the antenna area with your hands or other objects. This may cause
connectivity problems or drain the battery.
•
Using a Samsung-approved screen protector is recommended. Unapproved screen
protectors may cause the sensors to malfunction.
•
Do not allow water to contact the touch screen. The touch screen may malfunction
in humid conditions or when exposed to water.
Buttons
Button Function
Power
•
Press and hold to turn the device on or off.
•
Press to turn on or lock the screen.
Recent apps
•
Tap to open the list of recent apps.
Home
•
Press to turn on the screen while the screen is locked.
•
Press to return to the Home screen.
•
Press and hold to launch
Google
.
Back
•
Tap to return to the previous screen.
Volume
•
Press to adjust the device volume.
DRAFT, Not Final
Getting started
9
Using the SIM or USIM card and battery
Installing the SIM or USIM card
Insert the SIM or USIM card provided by the mobile telephone service provider.
•
Only microSIM cards work with the device.
•
Some LTE services may not be available depending on the service provider. For
more information about service availability, contact your service provider.
1 Open the cover of the SIM card slot.
2 Insert the SIM or USIM card with the gold-coloured contacts facing downwards.
3 Push the SIM or USIM card into the slot until it locks in place.
•
Do not insert a memory card into the SIM card slot. If a memory card happens to
be lodged in the SIM card slot, take the device to a Samsung Service Centre to
remove the memory card.
•
Use caution not to lose or let others use the SIM or USIM card. Samsung is not
responsible for any damages or inconveniences caused by lost or stolen cards.
4 Close the cover of the SIM card slot.
DRAFT, Not Final
Getting started
10
Removing the SIM or USIM card
1 Open the cover of the SIM card slot.
2 Press the SIM or USIM card with your finger, and then pull it out.
3 Close the cover of the SIM card slot.
Charging the battery
Use the charger to charge the battery before using it for the first time. A computer can be also
used to charge the battery by connecting them via the USB cable.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the device.
•
When the battery power is low, the battery icon appears empty.
•
If the battery is completely discharged, the device cannot be turned on
immediately when the charger is connected. Allow a depleted battery to charge for
a few minutes before turning on the device.
•
If you use multiple apps at once, network apps, or apps that need a connection
to another device, the battery will drain quickly. To avoid disconnecting from the
network or losing power during a data transfer, always use these apps after fully
charging the battery.
DRAFT, Not Final
Getting started
11
Connect the USB cable to the USB power adaptor and then plug the end of the USB cable into
the multipurpose jack.
Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
•
The device can be used while it is charging, but it may take longer to fully charge
the battery.
•
If the device receives an unstable power supply while charging, the touch screen
may not function. If this happens, unplug the charger from the device.
•
While charging, the device may heat up. This is normal and should not affect the
device’s lifespan or performance. If the battery gets hotter than usual, the charger
may stop charging.
•
If the device is not charging properly, take the device and the charger to a
Samsung Service Centre.
After fully charging, disconnect the device from the charger. First unplug the charger from the
device, and then unplug it from the electric socket.
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.
DRAFT, Not Final
Getting started
12
Reducing the battery consumption
Your device provides options that help you save the battery power. By customising these
options and deactivating features in the background, you can use the device longer between
charges:
•
When you are not using the device, switch to sleep mode by pressing the Power button.
•
Close unnecessary apps using the task manager.
•
Deactivate the Bluetooth feature.
•
Deactivate the Wi-Fi feature.
•
Deactivate auto-syncing of apps.
•
Decrease the backlight time.
•
Decrease the screen brightness.
Using a memory card
Installing a memory card
Your device accepts memory cards with maximum capacities of 128 GB. Depending on the
memory card manufacturer and type, some memory cards may not be compatible with your
device.
•
Some memory cards may not be fully compatible with the device. Using an
incompatible card may damage the device or the memory card, or corrupt the data
stored in it.
•
Use caution to insert the memory card right-side up.
•
The device supports the FAT and the exFAT file systems for memory cards. When
inserting a card formatted in a different file system, the device asks to reformat the
memory card.
•
Frequent writing and erasing of data shortens the lifespan of memory cards.
•
When inserting a memory card into the device, the memory card’s file directory
appears in the
My Files
→
SD card
folder.
DRAFT, Not Final
Getting started
13
1 Open the cover of the memory card slot.
2 Insert a memory card with the gold-coloured contacts facing downwards.
3 Push the memory card into the slot until it locks in place.
4 Close the cover of the memory card slot.
Removing the memory card
Before removing the memory card, first unmount it for safe removal. On the Home screen, tap
Apps
→
Settings
→
Storage
→
Unmount SD card
.
1 Open the cover of the memory card slot.
2 Push the memory card until it disengages from the device, and then pull it out.
3 Close the cover of the memory card slot.
Do not remove the memory card while the device is transferring or accessing
information. Doing so can cause data to be lost or corrupted or can damage the
memory card or device. Samsung is not responsible for losses that result from the
misuse of damaged memory cards, including the loss of data.
DRAFT, Not Final
Getting started
14
Formatting the memory card
A memory card formatted on a computer may not be compatible with the device. Format the
memory card on the device.
On the Home screen, tap
Apps
→
Settings
→
Storage
→
Format SD card
→
FORMAT SD
CARD
→
ERASE EVERYTHING
.
Before formatting the memory card, remember to make backup copies of all
important data stored in the device. The manufacturer’s warranty does not cover loss
of data resulting from user actions.
Turning the device on and off
Press and hold the Power button for a few seconds to turn on the device.
When you turn on your device for the first time or after performing a data reset, follow the on-
screen instructions to set up your device.
To turn off the device, press and hold the Power button, and then tap
Power off
.
Follow all posted warnings and directions from authorised personnel in areas where
the use of wireless devices is restricted, such as aeroplanes and hospitals.
DRAFT, Not Final
Getting started
15
Locking and unlocking the screen
Pressing the Power button turns off the screen and locks it. Also, the screen turns off and
automatically locks if the device is not used for a specified period.
To unlock the screen, press the Power button or the Home button and flick your finger in any
direction within the unlock screen area.
You can change the unlock code to unlock the screen. Refer to Changing the screen lock
method for more information.
DRAFT, Not Final
16
Basics
Using the touch screen
•
Do not allow the touch screen to come into contact with other electrical devices.
Electrostatic discharges can cause the touch screen to malfunction.
•
To avoid damaging the touch screen, do not tap it with anything sharp or apply
excessive pressure to it with your fingertips.
•
The device may not recognise touch inputs close to the edges of the screen, which
are outside of the touch input area.
•
Leaving the touch screen idle for extended periods may result in afterimages
(screen burn-in) or ghosting. Turn off the touch screen when you do not use the
device.
•
It is recommended to use fingers when you use the touch screen.

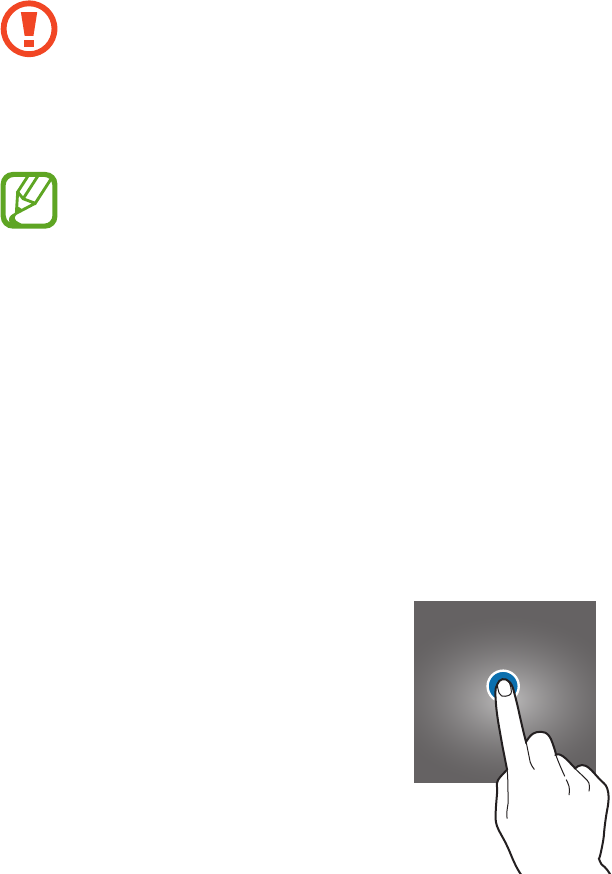

Tapping
To open an app, to select a menu item, to press an on-screen button, or to enter a character
using the keyboard on the screen, tap it with a finger.
DRAFT, Not Final
Basics
17

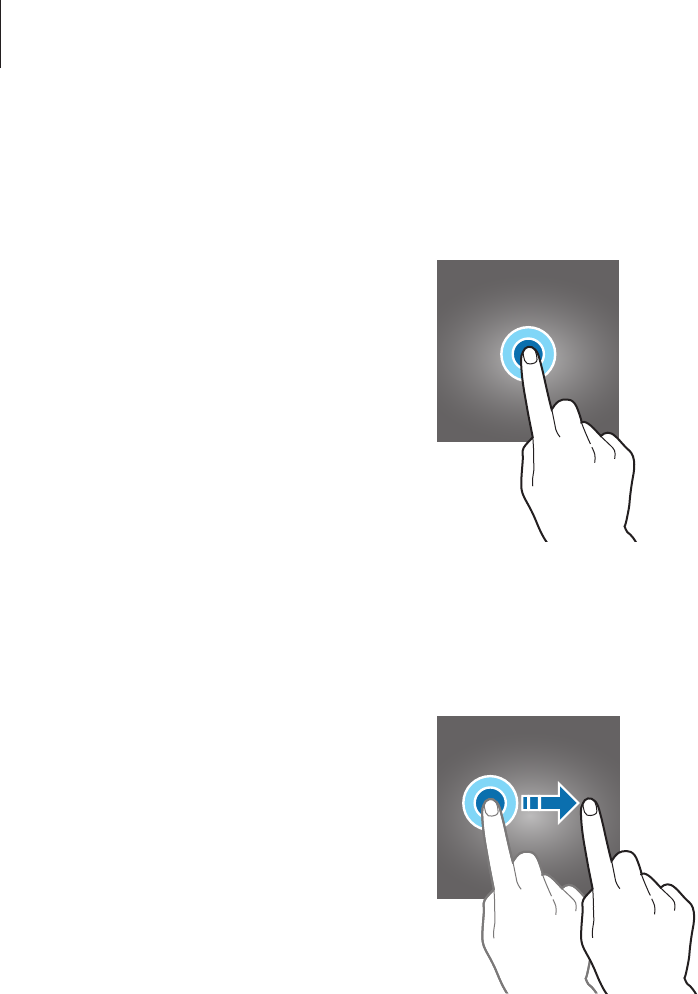

Tapping and holding
Tap and hold an item or the screen for more than 2 seconds to access available options.
Dragging
To move an item, tap and hold it and drag it to the target position.
DRAFT, Not Final
Basics
18

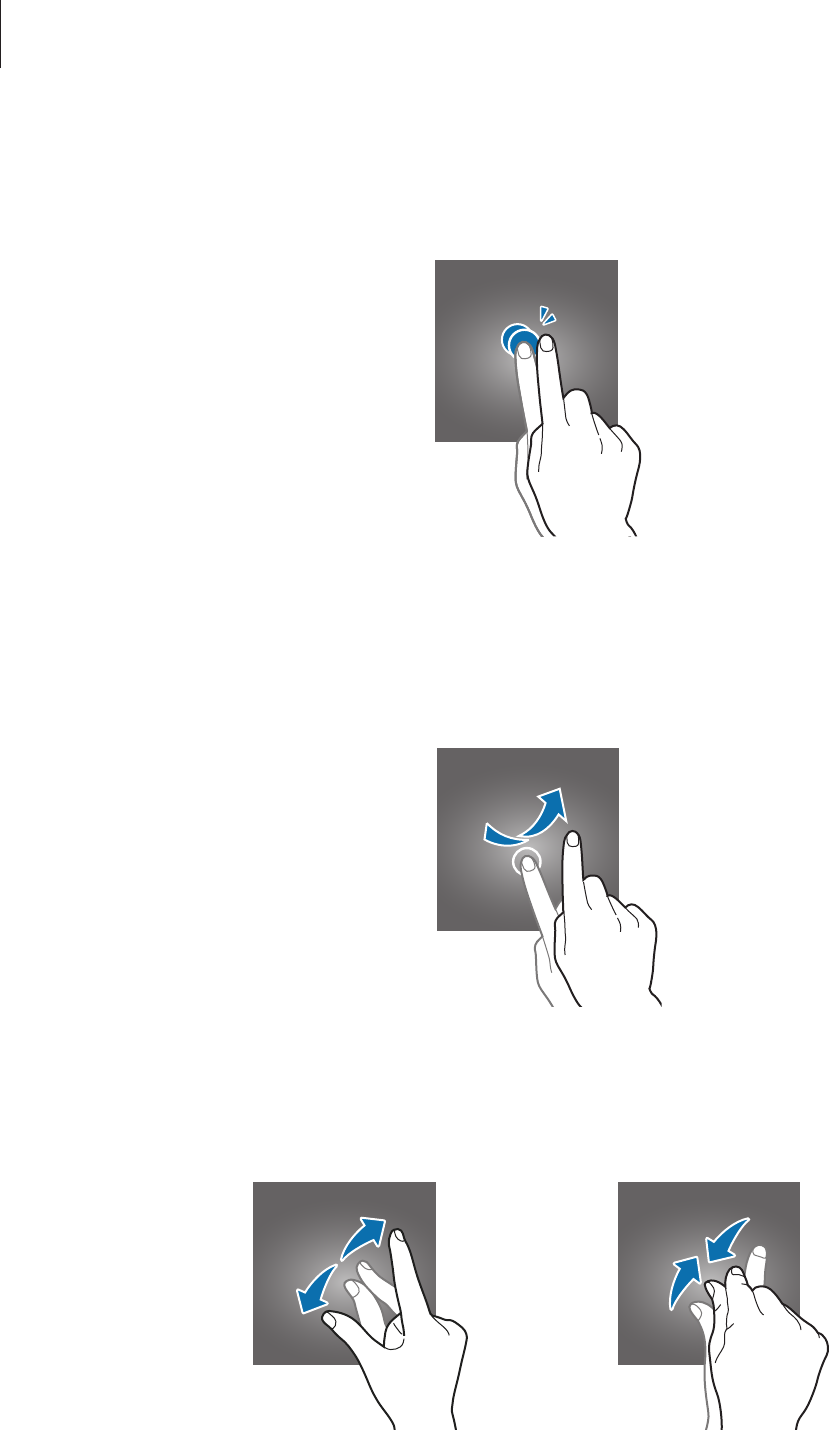

Double-tapping
Double-tap on a webpage or image to zoom in. Double-tap again to return.
Flicking
Flick left or right on the Home screen or the Apps screen to see another panel. Flick up or
down to scroll through a webpage or a list of items, such as contacts.
Spreading and pinching
Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.
DRAFT, Not Final
Basics
19
Home screen layout
Home screen
The Home screen is the starting point for accessing all of the device’s features. It displays
widgets, shortcuts to apps, and more. Widgets are small apps that launch specific app
functions to provide information and convenient access on your Home screen.
To view other panels, scroll left or right, or tap one of the screen indicators at the bottom of
the screen. To customise the Home screen, refer to Managing the Home screen.
A widget
A folder
An app
Screen indicators
DRAFT, Not Final
Basics
20
Home screen options
On the Home screen, tap and hold an empty area, or pinch your fingers together to access
the available options.
Flipboard Briefing
Use this feature to view the latest articles in various categories. You can get up to date on
news that interests you using this feature.
1 On the Home screen, tap or swipe to the right to open
Flipboard Briefing
.
2 Tap
START READING
when launching this feature for the first time.
3 Swipe upwards to browse articles in each news category.
DRAFT, Not Final
Basics
21
Apps screen
The Apps screen displays icons for all apps, including newly installed apps.
On the Home screen, tap
Apps
to open the Apps screen. To view other panels, scroll left or
right, or select a screen indicator at the bottom of the screen. To customise the Apps screen,
refer to Managing the Apps screen.
Access additional
options.
An app
A screen indicator
DRAFT, Not Final
Basics
22
Indicator icons
Indicator icons appear on the status bar at the top of the screen. The icons listed in the table
below are most common.
The status bar may not appear at the top of the screen in some apps. To display the
status bar, drag down from the top of the screen.
Icon Meaning
No signal
Signal strength
Roaming (outside of normal service area)
GPRS network connected
EDGE network connected
UMTS network connected
HSDPA network connected
HSPA+ network connected
/ LTE network connected
Wi-Fi connected
Bluetooth feature activated
GPS activated
Synced with the web
New text or multimedia message
Alarm activated
Mute mode activated
Vibration mode activated
Flight mode activated
Error occurred or caution required
Battery power level
DRAFT, Not Final
Basics
23
Notifications panel
Using the notifications panel
When you receive new notifications, such as messages or missed calls, indicator icons appear
on the status bar. To see more information about the icons, open the notifications panel and
view the details.
To open the notifications panel, drag the status bar downwards. To close the notifications
panel, drag the bar from the bottom of the screen upwards.
You can use the following functions on the notifications panel.
Launch Settings.
Clear all notifications.
Adjust the brightness.
Launch S Finder. Launch Quick Connect.
Activate or deactivate options.
Tap and hold a button to view
more detailed settings.
View all quick setting buttons
and rearrange buttons.
Tap a notification and perform
various actions.
DRAFT, Not Final
Basics
24
Rearranging quick setting buttons
To rearrange quick setting buttons on the notifications panel, tap
EDIT
, tap and hold an item,
drag the item to another location, and then tap
DONE
.
Using the quick setting buttons
You can activate or deactivate some features on the notifications panel. Tap the following
options to activate or deactivate them. You can view more detailed settings if you tap and
hold a button.
•
Wi-Fi
: Refer to Wi-Fi for more information.
•
Location
: Activate or deactivate the GPS feature.
•
Sound
/
Vibrate
/
Mute
: Select a sound mode.
•
Screen rotation
: Allow or prevent the interface from rotating when you rotate the device.
Some apps do not allow screen rotation.
•
Bluetooth
: Refer to Bluetooth for more information.
•
Mobile data
: Refer to Data usage or Mobile networks for more information.
•
Power saving
: Refer to Power saving feature for more information.
•
Flight mode
: Refer to Flight mode for more information.
•
Do not disturb
: Activate or deactivate blocking mode. In blocking mode, the device will
block notifications. To select which notifications will be blocked, tap
Settings
→
Sounds
and notifications
→
Do not disturb
.
•
U. power saving
: Refer to Ultra power saving mode for more information.
•
Mobile hotspot
: Refer to Mobile hotspot and tethering for more information.
•
Smart stay
: When you activate this feature, the screen stays on as long as you look at it.
•
Private mode
: Refer to Private mode for more information.
•

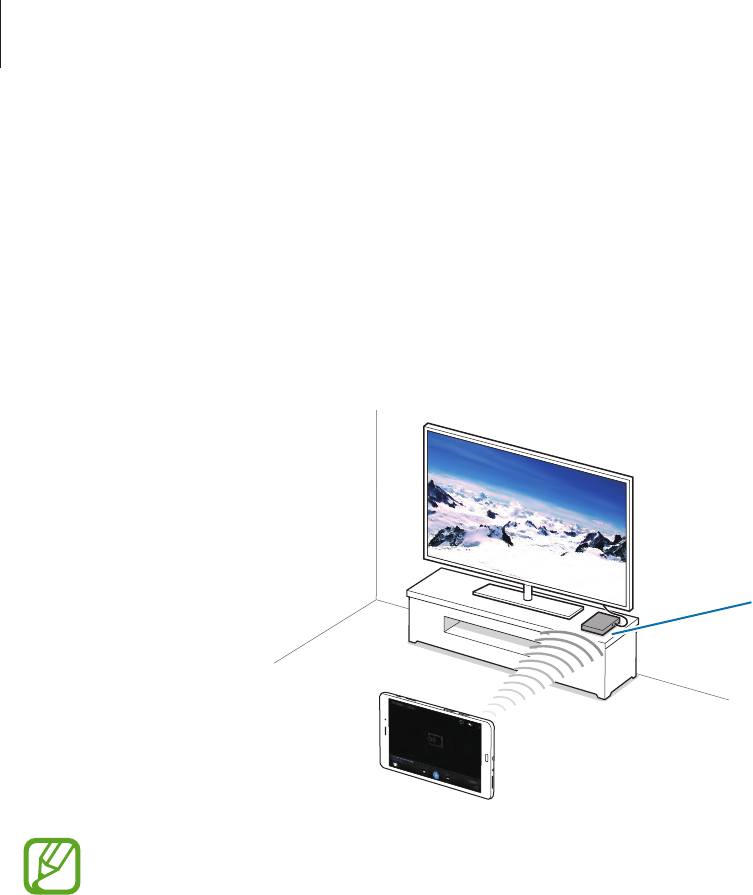

Screen Mirroring
: Refer to Screen Mirroring for more information.
•
Sync
: When you activate this feature, the device automatically syncs apps, such as
calendar or email.
DRAFT, Not Final
Basics
25
Opening apps
On the Home screen or the Apps screen, select an app icon to open it.
To open the list of recently-used apps, tap and select an app icon to open.
Closing an app
Tap and drag an app icon to the left or right to close it. To close all running apps, tap
CLOSE ALL
.
Installing or uninstalling apps
Samsung GALAXY Apps
Use this app to purchase and download apps.
Tap
Galaxy Apps
on the Apps screen.
This app may not be available depending on the region or service provider.
Installing apps
Browse apps by category or tap
SEARCH
to search for a keyword.
Select an app to view information about it. To download free apps, tap
Install
. To purchase
and download apps where charges apply, tap the button that shows the app’s price.
To change the auto update settings, tap
→
Settings
→
Auto update apps
, and
then select an option.
DRAFT, Not Final
Basics
26
Play Store
Use this app to purchase and download apps.
Tap
Play Store
on the Apps screen.
Installing apps
Browse apps by category or tap to search for a keyword.
Select an app to view information about it. To download free apps, tap
INSTALL
. To purchase
and download apps where charges apply, tap the price and follow the on-screen instructions.
To change the auto update settings, tap
→
Settings
→
Auto-update apps
, and
then select an option.
Managing apps
Uninstalling or disabling apps
To disable default apps, open the Apps screen and tap
EDIT
. appears on the apps that you
can disable. Select an app and tap
DISABLE
→
DONE
.
To uninstall downloaded apps, open the Apps screen and tap
EDIT
→
→
UNINSTALL
→
DONE
. Alternatively, on the Apps screen, tap
Settings
→
Applications
→
Application
manager
, select an app, and then tap
UNINSTALL
.
Enabling apps
On the Apps screen, tap
Settings
→
Applications
→
Application manager
, scroll to
DISABLED
, select an app, and then tap
ENABLE
.
•
Disabling apps: Disable selected default apps that cannot be uninstalled from the
device. You cannot use disabled apps.
•
Uninstalling apps: Uninstall downloaded apps.
DRAFT, Not Final
Basics
27
Entering text
Keyboard layout
A keyboard appears automatically when you enter text to send messages, create memos, and
more.
Text entry is not supported in some languages. To enter text, you must change the
input language to one of the supported languages.
Break to the next line.
Move the cursor.
Delete a preceding character.
Enter punctuation marks.
Enter uppercase. For all caps,
tap it twice.
Change the keyboard settings. Enter a space.
Changing the input language
Tap
→
Select input languages
, and then select the languages to use. If you select two or
more languages, you can switch between the input languages by sliding the space key left or
right.
Using additional keyboard functions
Tap and hold to use various functions. Other icons may appear instead of depending on
the last function that was used.
•
: Enter text by voice.
Change the language.
Open the keyboard.
Start or pause entering text by
voice.
DRAFT, Not Final
Basics
28
•
: Switch to handwriting mode.
Switch to the standard
keyboard.
•
: Add an item from the clipboard.
•
: Enter emoticons.
•
: Switch to the floating or split keyboard.
•
: Change the keyboard settings.
Copying and pasting
1 Tap and hold over text.
2 Drag or to select the desired text, or tap
Select all
to select all text.
3 Tap
Copy
or
Cut
. The selected text is copied to the clipboard.
4 Place the cursor where the text is to be inserted and tap
→
Paste
. To paste text that
you have previously copied, tap
→
Clipboard
and select the text.
DRAFT, Not Final
Basics
29
Screen capture
Capture a screenshot while using the device.
Press and hold the Home button and the Power button simultaneously. You can view
captured images in
Gallery
. After capturing a screenshot, you can edit the image and share it
with others.
You can also capture screenshots using other methods. Refer to Palm swipe to capture for
more information.
It is not possible to capture a screenshot while using some apps.
My Files
Use this app to access various files stored in the device or in other locations, such as cloud
storage services.
Tap
My Files
on the Apps screen.
Search for files or folders.
View files saved in cloud
storage services.
View storage information.
View files by categories.
View recent files.
View files stored in the device.
DRAFT, Not Final
Basics
30
Power saving feature
Power saving mode
Save the battery power by limiting the device’s functions.
On the Apps screen, tap
Settings
→
Battery
→
Power saving mode
, and then tap the switch
to activate it.
Select from the following options:
•
Start power saving
: Select a power level at which the device automatically switches to
power-saving mode.
Ultra power saving mode
Use this mode to extend the device’s battery power. In ultra power saving mode, the device
performs the following:
•
Restricts the available apps to essential and selected apps only.
•
Deactivates the mobile data connection when the screen turns off.
•
Deactivates the Wi-Fi and Bluetooth features.
On the Apps screen, tap
Settings
→
Battery
→
Ultra power saving mode
, and tap switch to
activate it.
To add an app to the Home screen, tap and select an app.
To remove an app from the Home screen, tap
MORE
→
Remove
, select an app with , and
then tap
DONE
.
To change the settings for ultra power saving mode, such as network connectivity or sound,
tap
MORE
→
Settings
.
To deactivate ultra power saving mode, tap
MORE
→
Disable ultra power saving mode
.
The estimated maximum standby time shows the time remaining before the battery
power runs out if the device is not used. Standby time may vary depending on your
device settings and operating conditions.
DRAFT, Not Final
31
Network connectivity
Mobile data
Connect the device to a mobile network to use the Internet or share media files with other
devices. Refer to Data usage for additional options.
On the Apps screen, tap
Settings
→
Data usage
, and then tap the
Mobile data
switch to
activate it.
Wi-Fi
Connect the device to a Wi-Fi network to use the Internet or share media files with other
devices. Refer to Wi-Fi for additional options.
•
Your device uses a non-harmonised frequency and is intended for use in all
European countries. The WLAN can be operated in the EU without restriction
indoors, but cannot be operated outdoors.
•
Turn off Wi-Fi to save the battery when not in use.
1 On the Apps screen, tap
Settings
→
Wi-Fi
, and then tap the switch to activate it.
2 Select a network from the Wi-Fi networks list. Networks that require a password appear
with a lock icon.
3 Tap
CONNECT
.
Once the device connects to a Wi-Fi network, the device will reconnect to that
network each time it is available without requiring a password. To prevent the device
connecting to the network automatically, select it from the list of networks and tap
FORGET
.
DRAFT, Not Final
Network connectivity
32
Mobile hotspot and tethering
About tethering and mobile hotspots
Use this feature to share the device’s mobile data connection with computers and other
devices if an Internet connection is unavailable. Connections can be made via the Wi-Fi, USB,
or Bluetooth.
You may incur additional charges when using this feature.
Using the mobile hotspot
Use your device as a mobile hotspot to share your device’s mobile data connection with other
devices.
1 On the Apps screen, tap
Settings
→
Mobile hotspot and tethering
→
Mobile hotspot
.
2 Tap the switch to activate it.
•
appears on the status bar. Other devices can find your device in the Wi-Fi networks
list.
•
To set a password for the mobile hotspot, tap
CONFIGURE MOBILE HOTSPOT
and
select the level of security. Then, enter a password and tap
SAVE
.
3 On the other device’s screen, search for and select your device from the Wi-Fi networks
list.
4 On the connected device, use the device’s mobile data connection to access the Internet.
DRAFT, Not Final
Network connectivity
33
Using USB tethering
Share the device’s mobile data connection with other devices via a USB cable.
1 On the Apps screen, tap
Settings
→
Mobile hotspot and tethering
.
2 Connect your device to the computer via the USB cable.
3 Tap the
USB tethering
switch to activate it.
appears on the status bar when the two devices are connected.
4 On the computer, use your device’s mobile data connection.
Using Bluetooth tethering
Share the device’s mobile data connection with other devices via Bluetooth. Ensure that the
computer that you connect to supports the Bluetooth feature.
1 Pair your device with the other device via Bluetooth. Refer to Pairing with other Bluetooth
devices for more information.
2 On the Apps screen of your device, tap
Settings
→
Mobile hotspot and tethering
.
3 Tap the
Bluetooth tethering
switch to activate it.
4 On the connected device, open the Bluetooth settings screen, tap
→
Internet access
.
appears on the status bar when the two devices are connected.
5 On the connected device, use the device’s mobile data connection to access the Internet.
The connection methods may vary depending on the connected devices.
DRAFT, Not Final
34
Motions & usability features
Motions and gestures
Excessive shaking or impact on the device may result in unintended inputs. Control
motions properly.
Smart alert
On the Apps screen, tap
Settings
→
Motions and gestures
, and then tap the
Smart alert
switch to activate it.
If you have missed calls or new messages, the device will vibrate when you pick it up.
This feature may not work if the screen is turned on or the device is not on a flat
surface.
DRAFT, Not Final
Motions & usability features
35
Mute
On the Apps screen, tap
Settings
→
Motions and gestures
, and then tap the
Mute
switch to
activate it.
Cover the screen with your palm or turn the device over to mute incoming calls or alarms.
Palm swipe to capture
On the Apps screen, tap
Settings
→
Motions and gestures
, and then tap the
Palm swipe to
capture
switch to activate it.
Place the side of your hand on the screen and sweep it across the screen from the right to
the left or vice versa to capture a screenshot. You can view captured images in
Gallery
. After
capturing a screenshot, you can edit the image and share it with others.
It is not possible to capture a screenshot while using some apps.
DRAFT, Not Final
36
Personalising
Managing the Home and Apps screens
Managing the Home screen
Adding items
Tap and hold an app or a folder from the Apps screen, and then drag it to the Home screen.
To add widgets, open the Home screen, tap and hold an empty area, tap
Widgets
, tap and
hold a widget, and then drag it to the Home screen.
Moving and removing an item
Tap and hold an item on the Home screen, and then drag it to a new location.
To move the item to another panel, drag it to the side of the screen.
You can also move frequently-used apps to the shortcuts area at the bottom of the Home
screen.
To remove an item, tap and hold the item. Then, drag it to
Remove
that appears at the top of
the screen.
Creating a folder
1 On the Home screen, tap and hold an app, and then drag it to the other app.
2 Enter a folder name.
Managing panels
On the Home screen, tap and hold an empty area to add, move, or remove a panel.
To add a panel, scroll left to the last panel, and then tap .
To move a panel, tap and hold a panel preview, and then drag it to a new location.
To remove a panel, tap and hold a panel preview, and then drag it to
Remove
at the top of
the screen.
To set a panel as the main Home screen, tap .
DRAFT, Not Final
Personalising
37
Managing the Apps screen
Moving items
On the Apps screen, tap
EDIT
. Tap and hold an item and drag it to a new location.
To move the item to another panel, drag it to the side of the screen.
Setting wallpaper and ringtones
Setting wallpaper
Set an image or photo stored in the device as wallpaper for the Home screen or the locked
screen.
1 On the Home screen, tap and hold an empty area, and then tap
Wallpapers
. Alternatively,
on the Apps screen, tap
Settings
→
Wallpaper
.
2 Select a screen to change or apply wallpaper to.
3 Scroll left or right and select from images displayed at the bottom of the screen.
To select photos taken by the device’s camera or other images, tap
From Gallery
.
4 Tap
SET AS WALLPAPER
or
SET WALLPAPER
.
Changing ringtones
Change ringtones for incoming calls and notifications.
On the Apps screen, tap
Settings
→
Sounds and notifications
.
To set a ringtone for incoming calls, tap
Ringtones and sounds
→
Ringtone
, select a
ringtone, and then tap
OK
. To use a song stored in the device or in your account as a ringtone,
tap
ADD
.
To set a ringtone for notifications, tap
Ringtones and sounds
→
Default notification sound
,
select a ringtone, and then tap
OK
.
DRAFT, Not Final
Personalising
38
Changing the screen lock method
You can change the way that you lock the screen to prevent others from accessing your
personal information.
On the Apps screen, tap
Settings
→
Lock screen and security
→
Screen lock type
, and then
select a screen lock method. The device requires an unlock code whenever unlocking it.
If the unlock code is forgotten, take the device to a Samsung Service Centre to reset it.
Pattern
Draw a pattern by connecting four dots or more, and then draw the pattern again to verify it.
Set a backup PIN to unlock the screen when you forget the pattern.
PIN
A PIN consists of numbers only. Enter at least four numbers, and then enter the password
again to verify it.
Password
A password consists of characters and numbers. Enter at least four characters including
numbers and symbols, and then enter the password again to verify it.
DRAFT, Not Final
Personalising
39
Private mode
About private mode
Use this mode to prevent others from using or accessing specific content, such as images and
documents, stored on the device. You can save content to a specific location and deactivate
private mode to hide items securely.
Hiding content
1 On the Apps screen, tap
Settings
→
Privacy and safety
→
Private mode
, and then tap
the switch to activate it.
When you activate private mode for the first time, set an unlock code and a backup PIN.
2 Enter the private mode unlock code.
When this mode is activated, appears at the top of the screen.
3 To select items to hide, tap and hold an item in the list, tick items to select, and then tap
MORE
→
Move to Private
, or tap
Move
→
Private
→
MOVE HERE
.
Items that are moved to private mode appear with on them.
4 When you have selected the items to hide, open the Apps screen, tap
Settings
→
Privacy
and safety
→
Private mode
, and then tap the switch to deactivate it.
The selected items will disappear from the screen.
Ensure that all files are saved or moved properly before deactivating private mode.
DRAFT, Not Final
Personalising
40
Viewing hidden content
You can only view hidden items when private mode is activated.
1 On the Apps screen, tap
Settings
→
Privacy and safety
→
Private mode
, and then tap
the switch to activate it.
2 Enter the private mode unlock code.
3 On the Apps screen, tap
My Files
→
Private
.
All items moved in private mode appear on the screen.
Setting up accounts
Adding accounts
Some apps used on your device require a registered account. Create accounts to have the
best experience with your device.
On the Apps screen, tap
Settings
→
Accounts
→
Add account
and select an account service.
Then, follow the on-screen instructions to complete the account setup.
To sync content with your accounts, select an account and select items to sync.
Removing accounts
On the Apps screen, tap
Settings
→
Accounts
, select an account, and then tap
MORE
→
Remove account
.
DRAFT, Not Final
44
Contacts
Adding contacts
Moving contacts from other devices
You can move contacts from other devices to your device. Refer to Transferring data from
your previous device for more information.
Creating contacts manually
1 On the Apps screen, tap
Contacts
→
Contacts
.
2 Tap and enter contact information.
•
: Add an image.
•
/ : Add or delete a contact field.
3 Tap
SAVE
.
Importing and exporting contacts
Import contacts from storage services to your device or export contacts from the device to
storage services.
On the Apps screen, tap
Contacts
→
Contacts
.
Tap
MORE
→
Settings
→
Manage & back up contacts
→
Import/Export contacts
, and then
select an import or export option.
DRAFT, Not Final
Contacts
45
Searching for contacts
On the Apps screen, tap
Contacts
→
Contacts
.
Use one of the following search methods:
•
Scroll up or down the contacts list.
•
Drag a finger along the index at the left side of the contacts list to scroll through it
quickly.
•
Tap the search field at the top of the contacts list and enter search criteria.
Once a contact is selected, take one of the following actions:
•
: Add to favourite contacts.
•
/ : Make a voice or video call.
•
: Compose a message.
•
: Compose an email.
Adding shortcuts for contacts to the Home screen
Add shortcuts to contacts that you frequently communicate with on the Home screen.
1 On the Apps screen, tap
Contacts
→
Contacts
.
2 Select a contact.
3 Tap
MORE
→
Add shortcut on home screen
.
DRAFT, Not Final
46
Messages & email
Messages
Sending messages
Send text messages (SMS) or multimedia messages (MMS).
You may incur additional charges for sending or receiving messages when you are
roaming.
1 Tap
Messages
on the Apps screen.
2 Tap .
3 Add recipients and enter a message.
Enter a message.
Select contacts from the
contacts list.
Enter recipients.
Attach files. Send the message.
Enter emoticons.
4 Tap
SEND
to send the message.
DRAFT, Not Final
Messages & email
47
Viewing incoming messages
Incoming messages are grouped into message threads by contact. Select a contact to view
the person’s messages.
You may incur additional charges for sending or receiving messages when you are
roaming.
While viewing a message, tap
MORE
to view more options.
Email
Setting up email accounts
Tap
Email
on the Apps screen.
Set up an email account when opening
Email
for the first time.
Enter the email address and password. Tap
NEXT
for a private email account or tap
MANUAL
SETUP
for a company email account. After that, follow the on-screen instructions to complete
the setup.
To set up another email account, tap
MORE
→
Settings
→
Add account
.
If you have more than one email account, you can set one as the default account. Tap
MORE
→
Settings
→
MORE
→
Set default accout
, select an account, and then tap
DONE
.
DRAFT, Not Final
Messages & email
48
Sending emails
Tap
Email
on the Apps screen.
Tap at the bottom of the screen to compose an email.
Add a CC or BCC.
Add recipients.
Add recipients from the
contacts list.
Enter the email text.
Enter a subject.
Send the email.
Access additional options.
Attach images, videos and
others.
Reading emails
Tap
Email
on the Apps screen.
Select an email account to use, and new emails are retrieved.
Tap an email to read.
Open attachments.
Reply to the email.
Add this email address to the
contacts list or view other
options.
Mark the email as a reminder.
Reply to all recipients.
Go to the previous or next
email.
Delete the email.
Forward the email.
Access additional options.
DRAFT, Not Final
49
Camera
Basic shooting
Taking photos or recording videos
1 Tap
Camera
on the Apps screen.
2 Tap the image on the preview screen where the camera should focus.
3 Tap to take a photo or tap to record a video.
•
Spread two fingers apart on the screen to zoom in, and pinch to zoom out.
•
To capture an image from the video while recording, tap
Capture
.
•
To change the focus while recording a video, tap where you want to focus. To focus on
the centre of the screen, tap .
Display current
DRAFT, Not Final
Camera
50
•
The camera automatically shuts off when unused.
•
Make sure that the lens is clean. Otherwise, the device may not work properly in
some modes that require high resolutions.
•
The front camera lens is suitable for taking wide-angle photos. Minor distortion
may occur in wide-angle photos and does not indicate device performance
problems.
Launching Camera on the locked screen
To quickly take photos of special moments, launch
Camera
on the locked screen.
On the locked screen, drag outside the large circle.
This feature may not be available depending on the region or service provider.
Camera etiquette
•
Do not take photos or record videos of other people without their permission.
•
Do not take photos or record videos where legally prohibited.
•
Do not take photos or record videos in places where you may violate other people’s
privacy.
Shooting modes
Auto
Use this mode to allow the camera to evaluate the surroundings and determine the ideal
mode for the photo.
On the Apps screen, tap
Camera
→
MODE
→
Auto
.
DRAFT, Not Final
Camera
51
Panorama
Use this mode to take a photo composed of many photos strung together. The device
identifies the photo with in
Gallery
.
On the Apps screen, tap
Camera
→
MODE
→
Panorama
.
To get the best shot, follow these tips:
•
Move the camera slowly in one direction.
•
Keep the image within the frame on the camera’s viewfinder.
•
Avoid taking photos of indistinct backgrounds, such as an empty sky or a plain
wall.
Beauty face
Use this mode to take a photo with lightened faces for gentler images.
On the Apps screen, tap
Camera
→
MODE
→
Beauty face
.
Selfie
Use this mode to take a self-portrait using the front camera.
On the Apps screen, tap
Camera
→
→
MODE
→
Selfie
.
When the camera detects your face, tap to take a photo of yourself.
Interval shot
Use this mode to take a series of photos and save the best one. To view other photos in the
series, scroll left or right. The device recommends the best photo and identifies it with .
On the Apps screen, tap
Camera
→
→
MODE
→
Interval shot
.
Sound & shot
Use this mode to take a photo with sound. The device identifies the photos with in
Gallery
.
On the Apps screen, tap
Camera
→
MODE
→
Sound & shot
.
Sports
Use this mode to take a photo of fast-moving subjects.
On the Apps screen, tap
Camera
→
MODE
→
Sports
.
DRAFT, Not Final
Camera
52
Continuous shot
Use this mode to take a series of photos of moving subjects.
On the Apps screen, tap
Camera
→
MODE
→
Continuous shot
.
Tap and hold to take several photos continuously.
Camera settings
On the Apps screen, tap
Camera
→
. Not all of the following options are available in both
still camera and video camera modes.
•
Picture size (front)
/
Picture size (rear)
: Select a resolution. Higher resolutions result in
higher quality photos, however they will take up more memory.
•
Video size (front)
/
Video size (rear)
: Select a resolution. Higher resolutions result in
higher quality videos, however they will take up more memory.
•
Gesture control
: Set the device to detect your palm, so you can use it to take self-
portraits.
•
Save as horizontally flipped
: Invert the image to create a mirror-image of the original
scene, when taking photos with the front camera.
•
Grid lines
: Display viewfinder guides to help composition when selecting subjects.
•
Location tags
: Set the device to attach the location tag to the photo.
•
To improve GPS signals, avoid shooting in locations where the signal may be
obstructed, such as between buildings or in low-lying areas, or in poor weather
conditions.
•
When you share a photo with the location tag attached, the location information
may be exposed to others. To avoid this, when viewing the photo, tap
MORE
→
Details
→
EDIT
, and then tap under
Location
to delete your location
information.
•
Review pictures
: Set the device to show photos after capturing them.
•
Storage location
: Select the memory location for storage.
•
Volume keys function
: Set the device to use the Volume button to control the shutter or
zoom function.
•
Reset settings
: Reset the camera settings.
The available options vary depending on the mode used.
DRAFT, Not Final
53
Gallery
Viewing content on the device
On the Apps screen, tap
Gallery
and select an image or a video.
Video files show the icon on the preview thumbnail.
To hide or show the menu bar, and then tap the screen.
Access additional options.
Move to the previous screen.
Delete the image.
Add to the favourites list.
Modify the image.
Share the image to others.
DRAFT, Not Final
54
Useful apps and features
S Finder
Use this app to search for content on the device. You can apply various filters and view the
search history.
Open the notifications panel and tap
S Finder
.
Searching for content
Tap the search field and enter a keyword, or tap and say a keyword.
To get more refined results, tap filters under the search field.
To select search categories, tap
MORE
→
Select search locations
.
S Planner
Creating events
1 Tap
S Planner
on the Apps screen.
2 Tap . Alternatively, select a date with no events in it and tap the date again.
If the date already has saved events in it, tap the date and tap .
DRAFT, Not Final
Useful apps and features
55
3 Enter event details.
Enter a title.
Enter the location of the event.
Add more details.
Select a calendar to use or
sync with.
Set a start and end date for the
event.
Set a reminder for the event.
Attach a map showing the
location of the event.
4 Tap
SAVE
to save the event.
Creating tasks
1 Tap
S Planner
on the Apps screen.
2 Tap
TASK
, enter details, and then tap
TODAY
or
TOMORROW
to set a due date.
To add more details, tap .
3 Tap
SAVE
to save the task.
Syncing events and tasks with your accounts
Tap
S Planner
on the Apps screen.
To add accounts to sync with, tap
MORE
→
Manage calendars
→
Add account
. Then, select
an account to sync with and sign in.
To change an account’s syncing option, open the Apps screen, tap
Settings
→
Accounts
, and
then select an account service.
DRAFT, Not Final
Useful apps and features
56
Internet
1 Tap
Internet
on the Apps screen.
2 Tap the address field.
3 Enter the web address or a keyword, and then tap
Go
.
To view the toolbars, drag your finger downwards slightly on the screen.
Close the tab.
Move to the previously-visited
page.
Open a new tab.
Read an article in reading
mode.
Refresh the current webpage.
View your bookmarks, saved
pages, and recent Internet
history.
Open the homepage.
Access additional options.
DRAFT, Not Final
Useful apps and features
57
Music
Playing music
Tap
Music
on the Apps screen.
Select a music category, and then select a song to play.
Turn on shuffle.
Pause and resume playback.
Set the file as your favourite
song.
Skip to the previous song. Tap
and hold to move backwards
quickly.
Skip to the next song. Tap and
hold to move forwards
quickly.
Access additional options.
Change the repeat mode.
Adjust the volume.
Open the playlist.
To listen to songs at equal volume levels, tap
MORE
→
Settings
, and then tap the
Smart
volume
switch to activate it.
When
Smart volume
is activated, the volume may end up louder than the device
volume level. Use caution to avoid long-term exposure to loud sounds to prevent
damage to your hearing.
Smart volume
may not be activated for some files.
DRAFT, Not Final
Useful apps and features
58
Video
Playing videos
Tap
Video
on the Apps screen.
Select a video to play.
Move the control panel
to the left.
Move forwards or
backwards by dragging
the bar.
Change screen ratio.
Skip to the previous
video. Tap and hold to
move backwards
quickly.
Skip to the next video.
Tap and hold to move
forwards quickly.
Access additional
options.
Move the control panel
to the right.
Pause and resume
playback.
Adjust the volume.
Switch to the pop-up
video player.
Open the playlist.
DRAFT, Not Final
Useful apps and features
59
Clock
ALARM
On the Apps screen, tap
Clock
→
ALARM
.
Setting alarms
Set an alarm time and tap
OPTIONS
to set other various alarm options, and then tap
SAVE
. To
activate or deactivate alarms, tap next to the alarm in the alarms list.
•
Snooze
: Set an interval and the number of times for the alarm to repeat after the preset
time.
•
Increasing volume
: Set a time and tone for the smart alarm. A smart alarm starts at a low
volume a few minutes before a preset alarm is scheduled to sound. The volume of the
smart alarm increases gradually until you turn it off or the preset alarm sounds.
Stopping alarms
Tap
DISMISS
to stop an alarm. If you have previously enabled the snooze option, tap
SNOOZE
to repeat the alarm after a specified length of time.
Deleting alarms
Select alarms, and then tap .
WORLD CLOCK
On the Apps screen, tap
Clock
→
WORLD CLOCK
.
Creating clocks
Select a city from the globe, and then tap .
Deleting clocks
Select clocks, and then tap .
DRAFT, Not Final
Useful apps and features
60
STOPWATCH
On the Apps screen, tap
Clock
→
STOPWATCH
.
Tap
START
to time an event. Tap
LAP
to record lap times.
Tap
STOP
to stop timing. To clear lap times, tap
RESET
.
TIMER
On the Apps screen, tap
Clock
→
TIMER
.
Set the duration, and then tap
START
.
Tap
DISMISS
when the timer goes off.
Calculator
Use this app for simple or complex calculations.
Tap
Calculator
on the Apps screen.
To clear the history, tap
CLEAR HISTORY
.
Memo
Use this app to create memos and organise them by category.
Tap
Memo
on the Apps screen.
Composing memos
Tap on the memos list and enter a memo. While composing a memo, use the following
options:
•
Category
: Create or set a category.
•
: Insert images.
•
Voice
: Make a voice recording to insert.
•
Tasks
: Add tasks to do.
To save the memo, tap
SAVE
.
To edit a memo, tap a memo, and then tap the content of the memo.
DRAFT, Not Final
Useful apps and features
61
Searching for memos
Tap
SEARCH
on the memos list and enter a keyword to search for memos that include the
keyword.
Google apps
Google provides entertainment, social network, and business apps. You may require a Google
account to access some apps. Refer to Setting up accounts for more information.
To view more app information, access each app’s help menu.
Some apps may not be available or may be labelled differently depending on the
region or service provider.
Chrome
Search for information and browse webpages.
Gmail
Send or receive emails via the Google Mail service.
Google+
Share your news and follow updates that your family, friends, and others share. You can also
back up your photos and videos, and more.
Maps
Find your location on the map, search for locations, and view location information for various
places.
Play Music
Discover, listen to, and share music on your device.
Play Movies & TV
Watch videos stored on your device and download various content to watch from
Play Store
.
DRAFT, Not Final
Useful apps and features
62
Play Books
Download various books from
Play Store
and read them.
Play Newsstand
Read news and magazines that interest you in one convenient location.
Play Games
Download games from
Play Store
and play them with others.
Drive
Store your content on the cloud, access it from anywhere, and share it with others.
YouTube
Watch or create videos and share them with others.
Photos
Manage photos, albums, and videos that you have saved on the device and uploaded to
Google+
.
Hangouts
Chat with your friends individually or in groups and use images, emoticons, and video calls
while you are chatting.
Google
Search quickly for items on the Internet or your device.
Voice Search
Search quickly for items by saying a keyword or phrase.
Google Settings
Configure settings for some features provided by Google.
DRAFT, Not Final
63
Connecting with other devices
Bluetooth
About Bluetooth
Bluetooth creates a direct wireless connection between two devices over short distances. Use
Bluetooth to exchange data or media files with other devices.
•
Samsung is not responsible for the loss, interception, or misuse of data sent or
received via Bluetooth.
•
Always ensure that you share and receive data with devices that are trusted
and properly secured. If there are obstacles between the devices, the operating
distance may be reduced.
•
Some devices, especially those that are not tested or approved by the Bluetooth
SIG, may be incompatible with your device.
•
Do not use the Bluetooth feature for illegal purposes (for example, pirating copies
of files or illegally tapping communications for commercial purposes).
Samsung is not responsible for the repercussion of illegal use of the Bluetooth
feature.
DRAFT, Not Final
Connecting with other devices
64
Pairing with other Bluetooth devices
1 On the Apps screen, tap
Settings
→
Bluetooth
, and then tap the switch to activate it.
The detected devices are listed.
2 Select a device to pair with.
If your device has paired with the device before, tap the device name without confirming
the auto-generated passkey.
If the device you want to pair with is not in the list, request that the device turns on its
visibility option.
3 Accept the Bluetooth authorisation request on both devices to confirm.
Sending and receiving data
Many apps support data transfer via Bluetooth. You can share data, such as contacts or media
files, with other Bluetooth devices. The following actions are an example of sending an image
to another device.
Sending an image
1 On the Apps screen, tap
Gallery
.
2 Select an image.
3 Tap
Share
→
Bluetooth
, and then select a device to transfer the image to.
If the device you want to pair with is not in the list, request that the device turns on its
visibility option.
4 Accept the Bluetooth authorisation request on the other device.
DRAFT, Not Final
Connecting with other devices
65
Receiving an image
When another device sends you an image, accept the Bluetooth authorisation request. You
can view received images in
Gallery
.
Unpairing Bluetooth devices
1 On the Apps screen, tap
Settings
→
Bluetooth
.
The device displays the paired devices in the list.
2 Tap next to the device’s name to unpair.
3 Tap
Unpair
.
Wi-Fi Direct
About Wi-Fi Direct
Wi-Fi Direct connects devices directly via a Wi-Fi network without requiring an access point.
Connecting to other devices
1 On the Apps screen, tap
Settings
→
Wi-Fi
, and then tap the switch to activate it.
2 Tap
Wi-Fi Direct
.
The detected devices are listed.
3 Select a device to connect to.
4 Accept the Wi-Fi Direct authorisation request on the other device to confirm.
DRAFT, Not Final
Connecting with other devices
66
Sending and receiving data
You can share data, such as contacts or media files, with other devices. The following actions
are an example of sending an image to another device.
Sending an image
1 On the Apps screen, tap
Gallery
.
2 Select an image.
3 Tap
Share
→
Wi-Fi Direct
, select a device to transfer the image to, and then tap
SHARE
.
4 Accept the Wi-Fi Direct authorisation request on the other device.
Receiving an image
When another device sends you an image, accept the Wi-Fi Direct authorisation request. You
can view received images in
Gallery
.
Ending the device connection
1 On the Apps screen, tap
Settings
→
Wi-Fi
.
2 Tap
Wi-Fi Direct
.
The device displays the connected devices in the list.
3 Tap a device name to disconnect the devices.
DRAFT, Not Final
Connecting with other devices
67
Quick Connect
About Quick connect
Use this feature to easily search and connect to nearby devices.
•
When connecting to a device that does not support the Quick connect feature,
ensure that Wi-Fi Direct or the Bluetooth feature is activated.
•
Connection methods may vary depending on the type of connected devices or the
shared content.
•
Device name may vary depending on the Bluetooth devices to pair with. For
example, the device name can be shown as BT MAC.
Connecting to other devices
1 Open the notifications panel and tap
Quick Connect
.
2 Select a visibility option, and then tap
ENABLE QUICK CONNECT
.
When the panel opens, the Wi-Fi and Bluetooth features are activated automatically and
the device searches for nearby devices.
3 Select a device to connect to.
The next steps may vary depending on the connected device. Follow the on-screen
instructions to complete the connection between the devices.
To allow nearby devices to search for your device and connect to it, tap
SETTINGS
→
Device visibility
, and then select an option.
Re-searching for devices
If the desired device does not appear in the list, search for the device.
Tap
REFRESH
and select the device from the list of detected devices.
Deactivating the Quick connect feature
Tap .
DRAFT, Not Final
Connecting with other devices
68
Sharing content
Share content with the connected devices.
1 Open the notifications panel and tap
Quick Connect
.
2 Select a device from the list of detected devices.
3 Tap
Share content
and select a media category.
4 Select the content to share and tap
DONE
.
Your device sends the content to the connected device.
SideSync 3.0
About SideSync 3.0
Use this app to control a smartphone’s screen with a virtual smartphone screen on your
tablet.
•
On your tablet, view messages or use the smartphone’s chat room.
•
On your tablet, watch a video playing on the smartphone on a larger display.
•
Easily transfer files between your tablet and smartphone by dragging and dropping the
files.
Before using this app
•
Your tablet and smartphone must support Wi-Fi Direct.
•
SideSync 3.0 must be installed on both your tablet and smartphone.
If it is not installed on any device, download and install it from
Galaxy Apps
or
Play Store
.
•
SideSync 3.0 operates only on devices with Android version 4.4 or higher.
DRAFT, Not Final
Connecting with other devices
69
Connecting your tablet and a smartphone
1 On your tablet, tap
SideSync 3.0
on the Apps screen.
2 Launch
SideSync 3.0
on a smartphone.
3 The tablet searches for available smartphones automatically.
Select one of the detected smartphones.
4 Tap
OK
on the smartphone screen.
DRAFT, Not Final
Connecting with other devices
70
5 The smartphone’s virtual screen is displayed on your tablet and the smartphone’s screen
is turned off.
DRAFT, Not Final
Connecting with other devices
71
Using the virtual smartphone screen
Browse the screen and use apps in the virtual smartphone screen. You can send or receive
messages, or chat with others.
•
Some features, such as
Screen Mirroring
, may not work in the virtual smartphone
screen.
•
The smartphone’s virtual screen may differ depending on the smartphone.
Close SideSync 3.0.
Virtual smartphone screen
Back button
Home button
Recent apps button
Screen rotation
Access additional options.
Screen capture
Open the same webpage in
the web browser of your
tablet.
Minimise the screen.
Maximise the screen to fit your
tablet's screen.
DRAFT, Not Final
Connecting with other devices
72
Moving the virtual smartphone screen
Tap and drag the top edge of the virtual smartphone screen to move it to another location.
Adjusting the size of the virtual smartphone screen
1 Tap and hold at the bottom right of the virtual smartphone screen.
2 When the frame appears, drag the frame to adjust the size.
Entering text
When you enter text in the virtual smartphone screen, the tablet’s keyboard appears. Enter
text using the keyboard.
DRAFT, Not Final
Connecting with other devices
73
Switching between the smartphone screen and the virtual smartphone
screen
It is not possible to use the smartphone screen and the virtual smartphone screen at the
same time. When you are using the virtual smartphone screen on the tablet, the smartphone
screen turns off.
Using the smartphone screen
Press the Home button on the smartphone to turn on the smartphone screen and turn off the
virtual smartphone screen on the tablet.
Using the virtual smartphone screen
Tap
SWITCH TO TABLET
on the tablet’s screen to turn on the virtual smartphone screen and
turn off the smartphone screen.
Playing music or videos on the tablet
Play music or videos stored in the smartphone via the screen and speaker of the tablet.
1 Open a music or video file in the virtual smartphone screen on the tablet.
2 The selected file is played using the tablet’s screen and speaker.
Adjust the volume on the virtual smartphone screen or the tablet during playback.
DRAFT, Not Final
Connecting with other devices
74
Copying files between devices
Copying files from the smartphone to the tablet
1 Tap and hold a file on the virtual smartphone screen.
2 Select the files to copy, tap and hold any selected file, and then drag it to the tablet’s
screen.
3
My Files
is launched on the tablet’s screen. Select a folder to save the file in and tap
DONE
.
Copying files from the tablet to the smartphone
1 Tap and hold a file on the tablet’s screen.
2 Select the files to copy, tap and hold any selected file, and then drag it to the virtual
smartphone screen.
3
My Files
is launched on the virtual smartphone screen. Select a folder to save the file in
and tap
DONE
.
DRAFT, Not Final
Connecting with other devices
75
Screen Mirroring
About Screen Mirroring
Use this feature to connect your device to a large screen with an AllShare Cast dongle or
HomeSync and then share your contents.
Screen Mirroring
-enabled devices
(AllShare Cast dongle,
HomeSync)
•
This feature may not be available depending on the region or service provider.
•
Some files may be buffered during playback, depending on the network
connection.
•
To save energy, deactivate this feature when not in use.
•
If you specify a Wi-Fi frequency, AllShare Cast dongles or HomeSync may not be
detected or connected.
•
If you play videos or games on a TV, select an appropriate TV mode to get the best
experience.
DRAFT, Not Final
Connecting with other devices
76
Viewing content on a TV
Before you connect your device to a TV, connect the screen mirroring-enabled device to the
TV. To set up the connection, refer to the device’s user manual. The following actions are an
example of viewing content on a TV connected via an AllShare Cast dongle.
1 Connect the AllShare Cast dongle to the TV using an HDMI cable.
2 On the TV, select a connection mode, such as HDMI mode, to connect an external device.
3 Open the notifications panel and tap
EDIT
→
Screen Mirroring
→
ENABLE
.
The detected devices are listed.
4 Select a device to connect to.
Your device’s screen appears on the TV screen.
If you connect the device for the first time, tap and hold the dongle’s name in the list and
enter the PIN shown on the TV screen.
5 Open or play a file, and then control the display with the keys on your device.
DRAFT, Not Final
Connecting with other devices
77
Mobile printing
Connect the device to a printer via Wi-Fi or Wi-Fi Direct, and print images or documents.
Some printers may not be compatible with the device.
Adding printer plug-ins
Add printer plug-ins for printers you want to connect the device to.
On the Apps screen, tap
Settings
→
More connection settings
→
Printing
→
Download
plug-in
, and search for a printer plug-in in
Play Store
. Select a printer plug-in and install it.
Connecting to a printer
On the Apps screen, tap
Settings
→
More connection settings
→
Printing
, select a printer
plug-in, and then tap the switch to activate it. The device searches for printers that are
connected to the same Wi-Fi network as your device.
To add printers manually, select a printer plug-in, tap
MORE
→
Add printer
→
ADD
PRINTER
, enter details, and then tap
OK
.
To change print settings, select a printer plug-in and tap
MORE
→
Printing settings
.
Printing content
While viewing content, such as images or documents, tap
Share
→
Print
→
→
All
printers
, and then select a printer.
DRAFT, Not Final
78
Device & data manager
Transferring data from your previous device
You can transfer data from a previous device to your new device via Samsung Smart Switch.
The following versions of Samsung Smart Switch are available.
•
Mobile version (Smart Switch Mobile): Transfer data between mobile devices. You can
download the app from
Galaxy Apps
or
Play Store
.
•
Computer version: Transfer data between your device and a computer. You can download
the app from www.samsung.com/smartswitch.
•
Samsung Smart Switch is not supported on some devices or computers.
•
Limitations apply. Visit www.samsung.com/smartswitch for details. Samsung
takes copyright seriously. Only transfer content that you own or have the right to
transfer.
Transferring data from a mobile device
Transfer data from your previous device to your new device.
The following actions are an example of transferring data from your previous Android device.
To import data from a mobile device with a different operating system, refer to the on-screen
instructions.
1 When you turn on your new device for the first time, tap
START
in the Smart Switch
installation pop-up window to install the app.
If the Smart Switch installation pop-up window does not appear on the screen, you
can download the app from
Galaxy Apps
or
Play Store
.
2 On your previous device, download and install Smart Switch from
Galaxy Apps
or
Play
Store
.
3 Launch
Smart Switch Mobile
on both devices.
4 On your previous device, tap
ANDROID TO GALAXY
→
SEND CONTENT
.
The devices will automatically connect.
DRAFT, Not Final
Device & data manager
79
5 On your previous device, select data to send to your new device and tap
SEND
.
6 On your new device, tap
RECEIVE
on the connection request pop-up window to receive
the data.
The data transfer will begin.
7 On both devices, tap
FINISH
when the data transfer is complete.
Transferring data from a computer
Back up data from your previous device to a computer and import the data to your new
device.
1 On the computer, visit www.samsung.com/smartswitch to download Smart Switch.
2 On the computer, launch Smart Switch.
If your previous device is not a Samsung device, back up data to a computer using a
program provided by the device’s manufacturer. Then, skip to the fifth step.
3 Connect your previous device to the computer using the USB cable.
4 On the computer, follow the on-screen instructions to back up data from the device.
Then, disconnect your previous device from the computer.
To select data to back up, click Settings
→
Back up, and then select data.
5 Connect your new device to the computer using the USB cable.
6 On the computer, follow the on-screen instructions to transfer data to your new device.
DRAFT, Not Final
Device & data manager
80
Using the device as a removable disk for data
transfer
Move audio, video, image, or other types of files from the device to the computer, or vice
versa.
Do not disconnect the USB cable from the device when you are transferring files.
Doing so may cause data loss or device damage.
The devices may not connect properly if they are connected via a USB hub. Directly
connect the device to the computer’s USB port.
1 Connect the device to the computer using the USB cable.
2 Open the notifications panel, and then tap
Connected as a media device
→
Media
device (MTP)
.
Tap
Camera (PTP)
if your computer does not support Media Transfer Protocol (MTP) or
not have any appropriate driver installed.
3 Transfer files between your device and the computer.
Updating the device
The device can be updated to the latest software.
Updating over the air
The device can be directly updated to the latest software by the firmware over-the-air (FOTA)
service.
On the Apps screen, tap
Settings
→
About device
→
Software update
→
Update now
.
To automatically check for available updates, tap the
Auto update
switch to activate
it. To download updates only when a Wi-Fi connection is activated, tap the
Wi-Fi only
switch to activate it.
DRAFT, Not Final
Device & data manager
81
Updating with Smart Switch
Connect the device to a computer and update the device to the latest software.
1 On the computer, visit www.samsung.com/smartswitch to download and install Smart
Switch.
2 On the computer, launch Smart Switch.
3 Connect the device to the computer using a USB cable.
4 On the computer, click the update button in the connection window.
•
Do not turn off the computer or disconnect the USB cable while the device is
updating.
•
While updating the device, do not connect other media devices to the computer.
Doing so may interfere with the update process. Before updating, disconnect all
other media devices from the computer.
Backing up and restoring data
Keep your personal information, app data, and settings safe on your device. You can back up
your sensitive information to a backup account and access it later. You must sign in to your
Google or Samsung account to back up or restore data. Refer to Setting up accounts for more
information.
Using a Samsung account
On the Apps screen, tap
Settings
→
Backup and reset
→
Back up my data
, select the items
to back up, and then tap
BACK UP NOW
.
To set the device to automatically back up data, tap the
Auto back up
switch to activate it.
To restore data using a Samsung account, tap
Restore
. Current data will be deleted from the
device to restore the selected items.
DRAFT, Not Final
Device & data manager
82
Using a Google account
On the Apps screen, tap
Settings
→
Backup and reset
, and then tap the
Back up my data
switch to activate it. Tap
Backup account
and select an account as the backup account.
To restore data using a Google account, tap the
Automatic restore
switch to activate it. When
you reinstall apps, backed up settings and data will be restored.
Performing a data reset
Delete all settings and data on the device. Before performing a factory data reset, ensure you
back up all important data stored on the device. Refer to Backing up and restoring data for
more information.
On the Apps screen, tap
Settings
→
Backup and reset
→
Factory data reset
→
RESET
DEVICE
→
ERASE EVERYTHING
. The device automatically restarts.
DRAFT, Not Final
83
Settings
About Settings
Use this app to configure the device, set app options, and add accounts.
Tap
Settings
on the Apps screen.
To search for settings by entering keywords, tap
SEARCH
.
Connections
Wi-Fi
Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or other
network devices.
On the Settings screen, tap
Wi-Fi
, and then tap the switch to activate it.
The device can maintain a stable network connection by automatically selecting either
the Wi-Fi or mobile network to use the strongest signal. To automatically switch between
networks, tap
MORE
→
Smart network switch
→
On
.
To use options, tap
MORE
.
Setting Wi-Fi sleep policy
Tap
MORE
→
Keep Wi-Fi on during sleep
.
When the screen is turned off, the device automatically turns off Wi-Fi connections.
When this happens, the device automatically accesses mobile networks if it is set
to use them. This may incur data transfer fees. To avoid additional charges, set this
option to
Always
.
DRAFT, Not Final
Settings
84
Bluetooth
Activate the Bluetooth feature to exchange information over short distances.
On the Settings screen, tap
Bluetooth
, and then tap the switch to activate it.
Flight mode
This disables all wireless functions on your device. You can use only non-network services.
On the Settings screen, tap
Flight mode
, and then tap the switch to activate it.
Mobile hotspot and tethering
Use the device as a mobile hotspot to share the device’s mobile data connection with other
devices. Refer to Mobile hotspot and tethering for more information.
On the Settings screen, tap
Mobile hotspot and tethering
.
•
Mobile hotspot
: Use the mobile hotspot to share the device’s mobile data connection
with computers or other devices through the Wi-Fi network. You can use this feature
when the network connection is not available.
•
Bluetooth tethering
: Use Bluetooth tethering to share the device’s mobile data
connection with computers or other devices via Bluetooth.
•
USB tethering
: Use USB tethering to share the device’s mobile data connection with
a computer via USB. When connected to a computer, the device is used as a wireless
modem for the computer.
Data usage
Keep track of your data usage amount and customise the settings for the limitation.
On the Settings screen, tap
Data usage
.
•
Mobile data
: Set the device to use data connections on any mobile network.
•
Set mobile data limit
: Set a limit for mobile data usage.
To use more options, tap
MORE
.
•
Restrict background data
: Set the device to disable sync in the background while using
a mobile network.
•
Show Wi-Fi usage
: Set the device to show your data usage via Wi-Fi.
•
Restrict networks
: Set the device to disable sync in the background while using Wi-Fi
network.
DRAFT, Not Final
Settings
85
Mobile networks
Customise the mobile network settings.
On the Settings screen, tap
Mobile networks
.
•
Data roaming
: Set the device to use data connections when you are roaming.
•
Access Point Names
: Set up access point names (APNs).
•
Network mode
: Select a network type.
•
Network operators
: Search for available networks and manually register a network.
More connection settings
Customise settings to control networks.
On the Settings screen, tap
More connection settings
.
Printing
Configure settings for printer plug-ins installed on the device. You can search for available
printers or add one manually to print files.
VPN
Set up and connect to virtual private networks (VPNs).
Default messaging app
Select the default app to use for messaging.
Ethernet
The Ethernet option is available when an Ethernet adaptor is connected to the device. Use
this option to activate the Ethernet feature and configure network settings.
DRAFT, Not Final
Settings
86
Device
Sounds and notifications
Change settings for various sounds on the device.
On the Settings screen, tap
Sounds and notifications
.
•
Sound mode
: Set the device to use sound mode or silent mode.
•
Volume
: Adjust the volume level for call ringtones, music and videos, system sounds, and
notifications.
•
Ringtones and sounds
: Change settings for ringtones and system sounds.
•
Vibrations
: Add or select a vibration pattern.
•
Sound quality and effects
: Select a sound effect to apply when you adjust to music.
•
Do not disturb
: Activate or deactivate blocking mode. Select which notifications will be
blocked and how long to block them.
•
Notifications on lock screen
: Set the device to show notifications on the locked screen.
•
App notifications
: Change the notification settings for each app.
Display
Change the display settings.
On the Settings screen, tap
Display
.
•
Brightness
: Set the brightness of the display.
•
Font
: Change the font size and type.
•
Screen timeout
: Set the length of time the device waits before turning off the display’s
backlight.
•
Smart stay
: Set the device to prevent the display backlight from turning off while you are
looking at the display.
•
Screen mode
: Change the screen mode.
•
Daydream
: Set the device to launch a screensaver when the device is charging or
connected to a desktop dock.
DRAFT, Not Final
Settings
87
Motions and gestures
Activate the motion recognition feature and change the settings that control motion
recognition on your device.
On the Settings screen, tap
Motions and gestures
.
•
Smart alert
: Set the device to alert you if you have missed calls or new messages when
you pick up the device.
•
Mute
: Set the device to mute incoming calls or alarms by using palm motions or placing
the device face down.
•
Palm swipe to capture
: Set the device to capture a screenshot when you sweep your
hand to the left or right across the screen.
Applications
Application manager
View and manage the apps on your device.
Default applications
Select a default setting for using apps.
Application settings
Customise the settings for each app.
DRAFT, Not Final
Settings
88
Personal
Wallpaper
Change the wallpaper settings.
On the Settings screen, tap
Wallpaper
.
•
Home screen
: Select a background image for the Home screen.
•
Lock screen
: Select a background image for the locked screen.
•
Home and lock screens
: Select a background image for the Home screen and the locked
screen.
Lock screen and security
Change settings for securing the device and the SIM or USIM card.
On the Settings screen, tap
Lock screen and security
.
•
Screen lock type
: Change the screen lock method.
•
Show information
: Change settings for the items displayed on the locked screen.
•
Unlock effect
: Select an effect that you see when you unlock the screen.
•
Device security
: Scan for and remove malware from the device. You can also activate the
real-time scanning feature to block phishing attacks and malicious websites.
•
Find My Mobile
: Access the Find my mobile website (findmymobile.samsung.com). You
can track and control your lost or stolen device from the Find my mobile website.
•
Unknown sources
: Set the device to allow the installation of apps from unknown
sources.
•
Other security settings
: Configure additional security settings.
DRAFT, Not Final
Settings
89
Privacy and safety
On the Settings screen, tap
Privacy and safety
.
•
Location
: Change settings for location information permissions.
•
Private mode
: Set the device to prevent others from accessing your personal content by
activating private mode.
•
Report diagnostic info
: Set the device to automatically send the device’s diagnostic and
usage information to Samsung.
Accessibility
Use this feature to improve accessibility to the device.
On the Settings screen, tap
Accessibility
.
•
Vision
: Customise the settings to improve accessibility for visually impaired users.
–
Galaxy TalkBack
: Activate TalkBack, which provides voice feedback.
–
Galaxy TalkBack help
: View help information to learn how to use Galaxy TalkBack.
–
Dark screen
: Set the device to turn the screen off at all times to keep the content on
your screen private.
–
Rapid key input
: Set the device to enter a character when you release your finger
from the character on the keyboard. You can use this feature to enter characters
instead of releasing your finger and double-tapping on the screen.
–
Speak passwords
: Set the device to read the password aloud when you enter the
password while TalkBack is activated.
–
Font size
: Change the font size.
–
Magnification gestures
: Set the device to magnify the screen and to zoom in on a
specific area.
–
Greyscale
: Display colours on the screen as grey tones.
–
Negative colours
: Reverse the display colours to improve visibility.
–
Colour adjustment
: Adjust the colour scheme for the screen when the device
determines that you are colour blind or having difficulty reading content.
DRAFT, Not Final
Settings
90
–
Accessibility shortcut
: Set the device to activate TalkBack when you press and hold
the Power button, and then tap and hold the screen with two fingers.
–
Text-to-speech options
: Change the settings for text-to-speech features used when
TalkBack is activated, such as languages, speed, and more.
•
Hearing
: Customise the settings to improve accessibility for users with hearing
impairment.
–
Turn off all sounds
: Set the device to mute all device sounds, such as media sounds,
and the caller’s voice during a call.
–
Samsung subtitles (CC)
: Set the device to display closed captions on content
supported by Samsung and to change the closed caption settings.
–
Google subtitles (CC)
: Set the device to display closed captions on content supported
by Google and to change the closed caption settings.
–
Left/right sound balance
: Set the device to adjust the sound balance when using a
headset.
–
Mono audio
: Set the device to switch the sound output from stereo to mono when a
headset is connected.
•
Dexterity and interaction
: Customise the settings to improve accessibility for users who
have reduced dexterity.
–
Universal switch
: Set the device to scan and highlight items on the screen. You can
control the touch screen by connecting an external switch, tapping the screen, or by
using head movements and face gestures.
–
Assistant menu
: Set the device to show the assistive shortcut icon that helps you
access functions supported by external buttons or features on the notifications panel.
You can also edit the menu on the shortcut icon.
–
Tap and hold delay
: Set the recognition time for tapping and holding the screen.
–
Interaction control
: Activate interaction control mode to restrict the device’s reaction
to inputs while using apps.
DRAFT, Not Final
Settings
91
•
Direct access
: Set the device to open selected accessibility menus when you press the
Home button three times quickly.
•
Notification reminder
: Set the device to alert you to notifications that you have not
checked at the interval.
•
Answering and ending calls
: Change the method of answering or ending calls.
•
Single tap mode
: Set the device to control incoming calls or notifications by tapping the
button instead of dragging it.
•
Manage accessibility
: Export or import the accessibility settings to share them with
other devices.
•
Services
: View accessibility services installed on the device.
Accounts
Add email or SNS accounts.
On the Settings screen, tap
Accounts
.
Backup and reset
Change the settings for managing settings and data.
On the Settings screen, tap
Backup and reset
.
•
Back up my data
: Set the device to back up settings and app data to your Samsung
account.
•
Restore
: Set up or edit your Samsung backup account.
•
Backup account
: Set up or edit your Google backup account.
•
Back up my data
: Set the device to back up settings and app data to the Google server.
•
Automatic restore
: Set the device to restore settings and app data when the apps are
reinstalled on the device.
•
Factory data reset
: Reset settings to the factory default values and delete all data.
DRAFT, Not Final
Settings
92
System
Language and input
Change the settings for text input. Some options may not be available depending on the
selected language.
On the Settings screen, tap
Language and input
.
•
Language
: Select a display language for all menus and apps.
•
Default keyboard
: Select a default keyboard type for text input.
•
Samsung keyboard
: Change the Samsung keyboard settings.
The available options may vary depending on the region or service provider.
•
Google voice typing
: Change the voice input settings.
•
Voice input
: Change the settings for the voice recogniser.
•
Text-to-speech options
: Change the text-to-speech settings.
•
Pointer speed
: Adjust the pointer speed for the mouse or trackpad connected to your
device.
Battery
View battery power information and change power saving options.
On the Settings screen, tap
Battery
.
•
Power saving mode
: Activate power-saving mode and change the settings for power-
saving mode.
•
Ultra power saving mode
: Extend standby time and reduce battery consumption by
displaying a simpler layout and allowing limited access to an app.
•
Display battery percentage
: Set the device to display the remaining battery life.
The estimated maximum standby time shows the time remaining before the battery
power runs out if the device is not used. Standby time may vary depending on your
device settings and operating conditions.
DRAFT, Not Final
Settings
93
Storage
View memory information for your device and memory card, or format a memory card.
On the Settings screen, tap
Storage
.
Formatting a memory card permanently deletes all data from it.
The actual available capacity of the internal memory is less than the specified
capacity because the operating system and default apps occupy part of the memory.
The available capacity may change when you upgrade the device.
Accessories
Change the accessory settings.
On the Settings screen, tap
Accessories
.
•
Automatic unlock
: Set the device to unlock automatically when the cover is flipped
open. You can use this feature only for some screen lock methods.
Date and time
Access and alter the following settings to control how the device displays the time and date.
On the Settings screen, tap
Date and time
.
If the battery remains fully discharged or removed from the device, the time and date
is reset.
•
Automatic date and time
: Automatically update the time and date when moving across
time zones.
•
Automatic time zone
: Set the device to receive time zone information from the network
when you move across time zones.
•
Set date
: Set the current date manually.
•
Set time
: Set the current time manually.
•
Select time zone
: Set the home time zone.
•
Use 24-hour format
: Display time in 24-hour format.
•
Select date format
: Select a date format.
DRAFT, Not Final
Settings
94
User manual
View more information about using the device.
On the Settings screen, tap
User manual
.
The user manual may not be available depending on the web browser or service
provider.
About device
Access device information, edit the device name, or update device software.
On the Settings screen, tap
About device
.
DRAFT, Not Final
95
Appendix
Troubleshooting
Before contacting a Samsung Service Centre, please attempt the following solutions. Some
situations may not apply to your device.
When you turn on your device or while you are using the device, it
prompts you to enter one of the following codes:
•
Password: When the device lock feature is enabled, you must enter the password you set
for the device.
•
PIN: When using the device for the first time or when the PIN requirement is enabled, you
must enter the PIN supplied with the SIM or USIM card. You can disable this feature by
using the Lock SIM card menu.
•
PUK: Your SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly
several times. You must enter the PUK supplied by your service provider.
•
PIN2: When you access a menu requiring the PIN2, you must enter the PIN2 supplied with
the SIM or USIM card. For more information, contact your service provider.
Your device displays network or service error messages
•
When you are in areas with weak signals or poor reception, you may lose reception. Move
to another area and try again. While moving, error messages may appear repeatedly.
•
You cannot access some options without a subscription. For more information, contact
your service provider.
Your device does not turn on
When the battery is completely discharged, your device will not turn on. Fully charge the
battery before turning on the device.
DRAFT, Not Final
Appendix
96
The touch screen responds slowly or improperly
•
If you attach a protective cover or optional accessories to the touch screen, the touch
screen may not function properly.
•
If you are wearing gloves, if your hands are not clean while touching the touch screen,
or if you tap the screen with sharp objects or your fingertips, the touch screen may
malfunction.
•
The touch screen may malfunction in humid conditions or when exposed to water.
•
Restart your device to clear any temporary software bugs.
•
Ensure that your device software is upgraded to the latest version.
•
If the touch screen is scratched or damaged, visit a Samsung Service Centre.
Your device freezes or has fatal errors
If your device freezes or hangs, you may need to close apps or turn off the device and turn it
on again. If your device is frozen and unresponsive, press and hold the Power button and the
Volume button down simultaneously for more than 7 seconds to restart it.
If this does not solve the problem, perform a factory data reset. On the Apps screen,
tap
Settings
→
Backup and reset
→
Factory data reset
→
RESET DEVICE
→
ERASE
EVERYTHING
. Before performing the factory data reset, remember to make backup copies of
all important data stored in the device.
If the problem is still not resolved, contact a Samsung Service Centre.
DRAFT, Not Final
Appendix
97
A cellular network or the Internet is often disconnected or audio
quality is poor
•
Ensure that you are not blocking the device’s internal antenna.
•
When you are in areas with weak signals or poor reception, you may lose reception. You
may have connectivity problems due to issues with the service provider’s base station.
Move to another area and try again.
•
When using the device while moving, wireless network services may be disabled due to
issues with the service provider’s network.
The battery icon is empty
Your battery is low. Charge the battery.
The battery does not charge properly (For Samsung-approved
chargers)
•
Ensure that the charger is connected properly.
•
Visit a Samsung Service Centre and have the battery replaced.
The battery depletes faster than when first purchased
•
When you expose the device or the battery to very cold or very hot temperatures, the
useful charge may be reduced.
•
Battery consumption increases when you use messaging features or some apps, such as
games or the Internet.
•
The battery is consumable and the useful charge will get shorter over time.
DRAFT, Not Final
Appendix
98
Your device is hot to the touch
When you use apps that require more power or use apps on your device for an extended
period of time, your device may feel hot to the touch. This is normal and should not affect
your device’s lifespan or performance.
Error messages appear when launching the camera
Your device must have sufficient available memory and battery power to operate the camera
app. If you receive error messages when launching the camera, try the following:
•
Charge the battery.
•
Free some memory by transferring files to a computer or deleting files from your device.
•
Restart the device. If you are still having trouble with the camera app after trying these
tips, contact a Samsung Service Centre.
Photo quality is poorer than the preview
•
The quality of your photos may vary, depending on the surroundings and the
photography techniques you use.
•
If you take photos in dark areas, at night, or indoors, image noise may occur or images
may be out of focus.
Error messages appear when opening multimedia files
If you receive error messages or multimedia files do not play when you open them on your
device, try the following:
•
Free some memory by transferring files to a computer or deleting files from your device.
•
Ensure that the music file is not Digital Rights Management (DRM)-protected. If the file is
DRM-protected, ensure that you have the appropriate licence or key to play the file.
•
Ensure that the file formats are supported by the device. If a file format is not supported,
such as DivX or AC3, install an app that supports it. To confirm the file formats that your
device supports, visit www.samsung.com.
DRAFT, Not Final
Appendix
99
•
Your device supports photos and videos captured with the device. Photos and videos
captured by other devices may not work properly.
•
Your device supports multimedia files that are authorised by your network service
provider or providers of additional services. Some content circulated on the Internet,
such as ringtones, videos, or wallpapers, may not work properly.
Another Bluetooth device is not located
•
Ensure that the Bluetooth wireless feature is activated on your device.
•
Ensure that the Bluetooth wireless feature is activated on the device you wish to connect
to.
•
Ensure that your device and the other Bluetooth device are within the maximum
Bluetooth range (10 m).
If the tips above do not solve the problem, contact a Samsung Service Centre.
A connection is not established when you connect the device to a
computer
•
Ensure that the USB cable you are using is compatible with your device.
•
Ensure that you have the proper driver installed and updated on your computer.
•
If you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher
installed on your computer.
•
Ensure that you have Samsung Kies or Windows Media Player 10 or higher installed on
your computer.
Your device cannot find your current location
GPS signals may be obstructed in some locations, such as indoors. Set the device to use Wi-Fi
or a mobile network to find your current location in these situations.
DRAFT, Not Final
Appendix
100
Data stored in the device has been lost
Always make backup copies of all important data stored in the device. Otherwise, you cannot
restore data if it is corrupted or lost. Samsung is not responsible for the loss of data stored in
the device.
A small gap appears around the outside of the device case
•
This gap is a necessary manufacturing feature and some minor rocking or vibration of
parts may occur.
•
Over time, friction between parts may cause this gap to expand slightly.
Removing the battery (non-removable type)
•
These instructions are only for your service provider or an authorised repair agent.
•
Damage or faults caused by the unauthorised removal of the battery are not
covered by the warranty.
•
To remove or replace the battery, contact your service provider or an authorised
repair agent.
1 Insert the device opening tool into the gap between the device’s screen and the back
cover.
Then, start separating the screen from the back cover by using the tool to pry them apart
as shown in the image below.
TBD
Take care when inserting the tool to avoid damaging the device’s internal
components.
DRAFT, Not Final
Appendix
101
2 Continue reinserting the tool and prying the screen and the back cover apart at close
intervals around the device.
Rotate the back cover carefully and ensure that the hooks are not damaged.
3 When the screen is disengaged, separate the screen and the back cover.
Then, put the back cover aside and place the screen face down on a flat work surface.
4 Loosen and remove the screws.
TBD
5 Disconnect the battery connectors as shown in the image below.
TBD
DRAFT, Not Final
Appendix
102
6 Peel the flap from the battery, and then pull it to remove the battery.
TBD
DRAFT, Not Final
SAR information on this and other model can
be viewed on-line at http://www.fcc.gov/oet/ea/fccid/.
This site uses the FCC ID number
A3LSMT385.
48
Exposure to Radio Frequency (RF) Signals
Your wireless device is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
exposure limits for radio frequency (RF) energy set by
the Federal Communications Commission (FCC) of the
U.S. government. These FCC exposure limits are derived
from the recommendations of two expert organizations,
the National Counsel on Radiation Protection and
Measurement (NCRP) and the Institute of Electrical
and Electronics Engineers (IEEE). In both cases, the
engineering experts drawn from industry, government,
The exposure limit set by the FCC for wireless mobile
devices employs a unit of measurement known as the
the rate of absorption of RF energy by the human body
expressed in units of watts per kilogram (W/kg). The FCC
requires wireless devices to comply with a safety limit
of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure
limit incorporates a substantial margin of safety to give
additional protection to the public and to account for
any variations in measurements.
SAR tests are conducted using recommended operating
positions accepted by the FCC with the
tested frequency bands. Although the SAR is determined
of the whi e operating can be we l below the
maximum value. This is because the is designed
to operate at multiple power levels so as to use only the
power required to reach the network. In general, the
closer you are to a wireless base station antenna, the
lower the power output.
Before a new model device is available for sale to the
it does not exceed the exposure limit established by
the FCC. Tests for each model are per ormed in
positions and locations (e.g. near the body) as required
by the FCC.
Health and safety information
For typical operations, this model has been
tested and meets the FCC exposure guidelines.
You can check the FCC ID on the rear case.
Once you have the FCC ID number for a particular ,
follow the instructions on the website and it should
provide values for typical or maximum SAR for
a particular
SAR information can also be obtained at www.fcc.gov/
cgb/sar.
Operating Environment
Remember to follow any special regulations in force in
any area and always switch your
forbidden to use it, or when it may cause interference or
danger. When connecting the or any a cessor to
another device, read its user’s guide for detailed safety
instructions. Do not connect incompatible products.
DRAFT, Not Final
FCC Notice and Cautions
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device may cause TV or radio interference if used in close proximity to
receiving equipment. The FCC can require you to stop using the device if such
interference cannot be eliminated. Vehicles using petroleum gas (such as
propane or butane) must comply with the National Fire Protection Standard
(NFPA-58). For a copy of this standard, contact the National Fire Protection
Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales
Division.
Cautions
Changes or modifications made in the radio device, not expressly approved by
Samsung, will void the user’s authority to operate the equipment.
The use of any unauthorized accessories may be dangerous and void the device
warranty if said accessories cause damage or a defect to the device. Although
your device is quite sturdy, it is a complex piece of equipment and can be broken.
Avoid dropping, hitting, bending or sitting on it.
DRAFT, Not Final
Copyright
Copyright © 2015 Samsung Electronics
This manual is protected under international copyright laws.
No part of this manual may be reproduced, distributed, translated, or transmitted in any form
or by any means, electronic or mechanical, including photocopying, recording, or storing
in any information storage and retrieval system, without the prior written permission of
Samsung Electronics.
Trademarks
•
SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
•
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
•
Wi-Fi®, Wi-Fi Protected Setup™, Wi-Fi CERTIFIED Passpoint™, Wi-Fi Direct™, Wi-Fi
CERTIFIED™, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.
•
All other trademarks and copyrights are the property of their respective owners.
DRAFT, Not Final
