Users Manual
2
Table of Contents
Basics
4 Read me first
5 Package contents
6 Device layout
9 Battery
12 SIM or USIM card (mobile network-
enabled models)
14 Memory card
16 Turning the device on and off
16 Touchscreen
19 Home screen
24 Lock screen
25 Notification panel
28 Entering text
30 Screen capture
30 Opening apps
31 Multi window
36 Device and data management
40 Connecting to a TV
Applications
42 Installing or uninstalling apps
44 Video
45 Music
46 Internet
47 My Files
47 Family Square
49 Camera
52 Gallery
53 Email
54 Contacts
56 Smart Manager
58 S Planner
60 SideSync
68 Memo
69 Clock
71 Calculator
71 Google apps
Settings
73 Introduction
73 Wi-Fi
75 Bluetooth
77 Flight mode
77 Mobile hotspot and tethering (mobile
network-enabled models)
78 Data usage
78 Data usage (mobile network-enabled
models)
79 Mobile networks (mobile network-
enabled models)
79 More connection settings
81 Sounds and notifications
82 Display
82 Applications
4
Basics
Read me first
Please read this manual before using the device to ensure safe and proper use.
•
Descriptions are based on the device’s default settings.
•
Some content may differ from your device depending on the region, service provider,
model specifications, or device’s software.
•
Content (high quality content) that requires high CPU and RAM usage will affect the
overall performance of the device. Apps related to the content may not work properly
depending on the device’s specifications and the environment that it is used in.
•
Samsung is not liable for performance issues caused by apps supplied by providers other
than Samsung.
•
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the device or apps to work improperly.
•
Software, sound sources, wallpapers, images, and other media provided with this device
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal
use of media.
•
You may incur additional charges for data services, such as messaging, uploading and
downloading, auto-syncing, or using location services depending on your data plan. For
large data transfers, it is recommended to use the Wi-Fi feature.
•
Default apps that come with the device are subject to updates and may no longer be
supported without prior notice. If you have questions about an app provided with
the device, contact a Samsung Service Centre. For user-installed apps, contact service
providers.
•
Modifying the device’s operating system or installing softwares from unofficial sources
may result in device malfunctions and data corruption or loss. These actions are violations
of your Samsung licence agreement and will void your warranty.
Basics
5
•
Depending on the region or model, some devices are required to receive approval from
the Federal Communications Commission (FCC). If your device is approved by the FCC,
you can view the FCC ID of the device. To view the FCC ID, tap
Apps
→
Settings
→
About device
.
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Notice: notes, usage tips, or additional information
Package contents
Check the product box for the following items:
•
Device
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Using unapproved accessories may cause
the performance problems and malfunctions that are not covered by the warranty.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.
Basics
6
Device layout
Device
Touchscreen
Volume key
Power key
Camera
Light sensor
Loud speaker
Microphone
Microphone
Loud speaker
Card slot cover
Main antenna
(mobile
network-enabled
models)
GPS antenna
Headset jack
USB port
DC jack
•
Do not cover the antenna area with your hands or other objects. This may cause
connectivity problems or drain the battery.
•
Using a Samsung-approved screen protector is recommended. Unapproved screen
protectors may cause the sensors to malfunction.
•
Do not allow water to contact the touchscreen. The touchscreen may malfunction
in humid conditions or when exposed to water.
Basics
7
Keys
Key Function
Power
•
Press and hold to turn the device on or off.
•
Press to turn on or lock the screen.
Volume
•
Press to adjust the device volume.
Stand
Use you device as a monitor for watching TV or movies, or for sharing content. You can also
use the handle on the stand to carry the device.
Always leave the stand attached to the device.
Using the stand
When you stand the device up, always ensure that the upper part of the stand and the device
are connected. Also, place the device on a flat surface. If you do not, the device may fall and
be damaged.
Basics
8

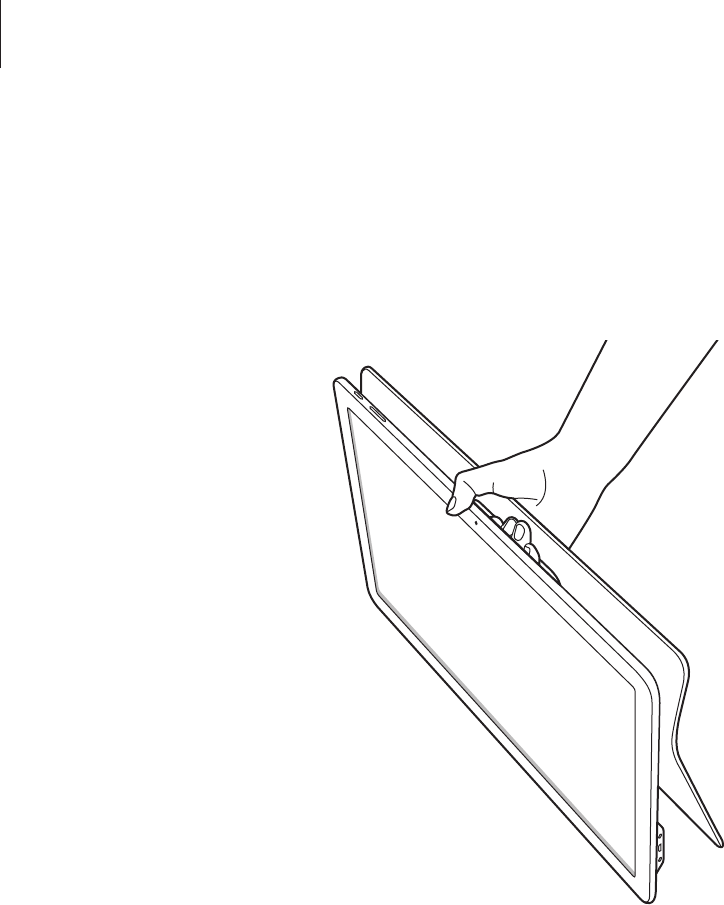

Carrying the device
You can hold the stand’s handle and carry the device.
To hold the device safely, put your fingers through the handle and place them between the
device and the stand.
Basics
9
Battery
Charging the battery
Charge the battery before using it for the first time or when it has been unused for extended
periods.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the device.
You cannot charge the battery using a USB cable. Use the charger to charge the
battery.

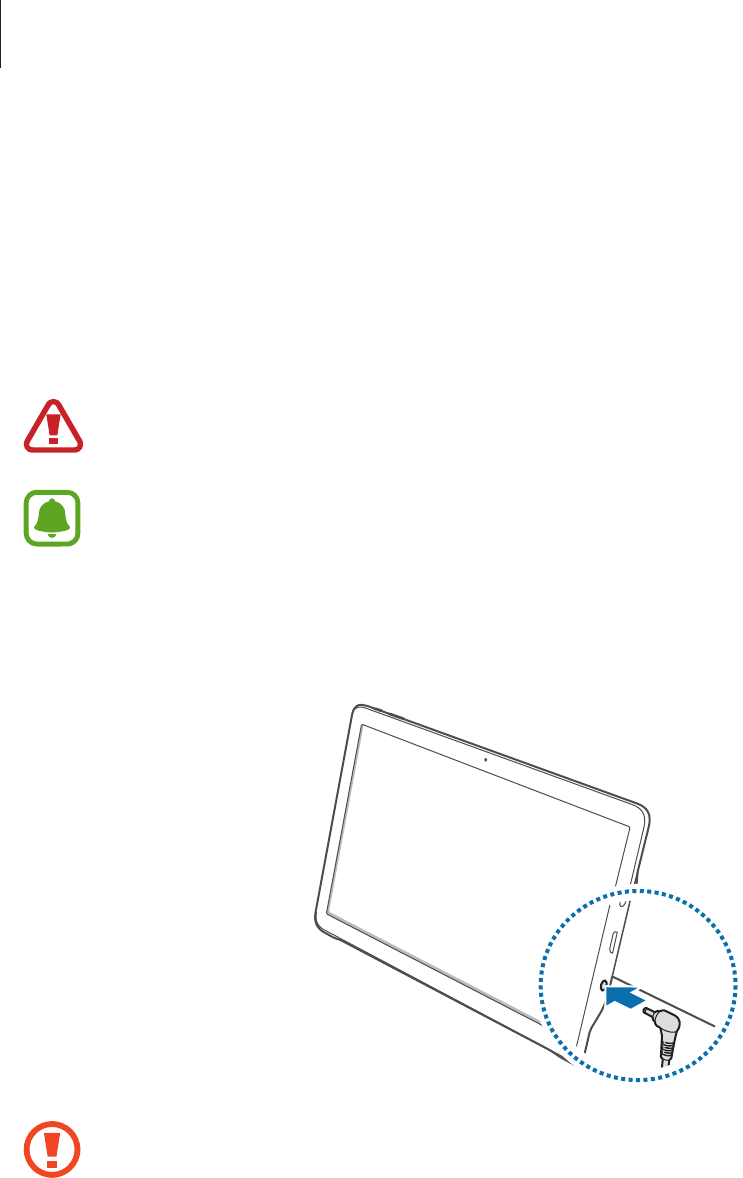

1 Plug the small end of the charger into the DC jack of the device, and plug the large end of
the charger into an electric socket.
•
Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
•
Do not plug the charger into the headset jack.
Basics
10
2 After fully charging, disconnect the device from the charger. First unplug the charger
from the device, and then unplug it from the electric socket.
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.
Viewing the remaining charging time
While charging, open the Home screen and tap
Apps
→
Settings
→
Battery
.
The actual charging time may vary depending on the status of your device and the
charging conditions. The remaining charging time may not be displayed when you
charge the device in very cold or very hot conditions.
Reducing the battery consumption
Your device provides various options that help you conserve battery power.
•
Optimise the device using the Smart manager.
•
When you are not using the device, switch to sleep mode by pressing the Power key.
•
Activate power saving mode.
•
Close unnecessary apps.
•
Deactivate the Bluetooth feature when not in use.
•
Deactivate the Wi-Fi feature when not in use.
•
Deactivate auto-syncing of apps.
•
Decrease the backlight time.
•
Decrease the screen brightness.
Basics
11
Battery charging tips and precautions
•
When the battery power is low, the battery icon appears empty.
•
If the battery is completely discharged, the device cannot be turned on immediately
when the charger is connected. Allow a depleted battery to charge for a few minutes
before turning on the device.
•
If you use multiple apps at once, network apps, or apps that need a connection to
another device, the battery will drain quickly. To avoid disconnecting from the network
or losing power during a data transfer, always use these apps after fully charging the
battery.
•
The device can be used while it is charging, but it may take longer to fully charge the
battery.
•
If the device receives an unstable power supply while charging, the touchscreen may not
function. If this happens, unplug the charger from the device.
•
While charging, the device and the charger may heat up. This is normal and should not
affect the device’s lifespan or performance. If the battery gets hotter than usual, the
charger may stop charging.
•
If the device is not charging properly, take the device and the charger to a Samsung
Service Centre.
Power saving mode
Save the battery power by limiting the device’s functions.
On the Home screen, tap
Apps
→
Settings
→
Battery
→
Power saving mode
, and then tap
the switch to activate it.
To automatically activate power saving mode when the remaining battery power reaches the
preset level, tap
Start power saving
and select an option.
Basics
12
SIM or USIM card (mobile network-enabled
models)
Installing the SIM or USIM card
Insert the SIM or USIM card provided by the mobile telephone service provider.
•
Only nano-SIM cards work with the device.
•
Some LTE services may not be available depending on the service provider. For
more information about service availability, contact your service provider.
2
13

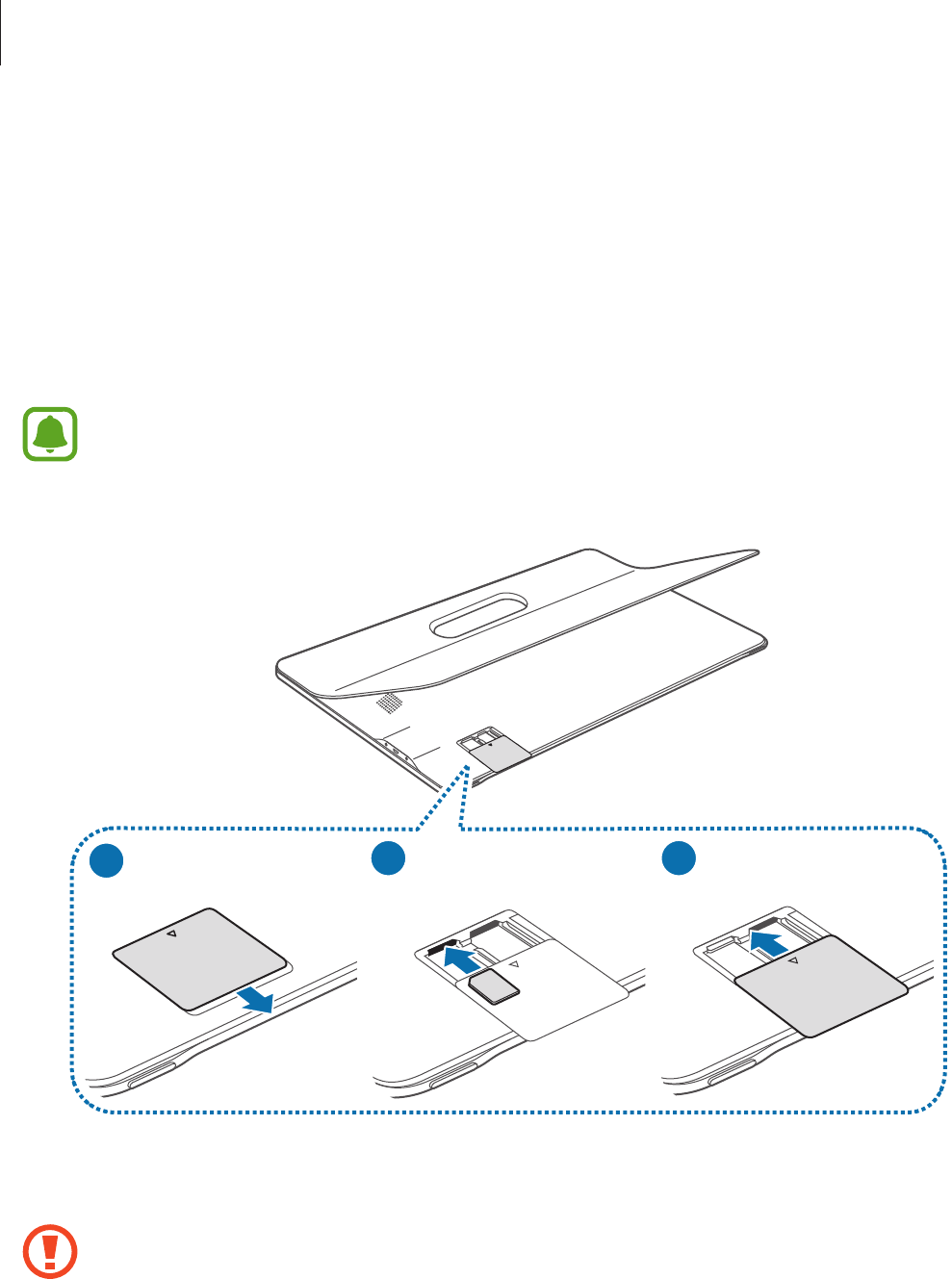

1 Slide the card slot cover to open.
The card slot cover is not detachable. If you forcibly remove the card slot cover, the
cover and the device may be damaged. Do not slide the cover excessively.
Basics
13
2 Insert the SIM or USIM card with the gold-coloured contacts facing downwards. Then,
push the SIM or USIM card into the slot until it locks in place.
•
Do not insert a memory card into the SIM card slot. If a memory card happens to
be lodged in the SIM card slot, take the device to a Samsung Service Centre to
remove the memory card.
•
Use caution not to lose or let others use the SIM or USIM card. Samsung is not
responsible for any damages or inconveniences caused by lost or stolen cards.
3 Slide the card slot cover to close.
Removing the SIM or USIM card
1 Slide the card slot cover to open.
2 Push the SIM or USIM card until it disengaged from the slot, and then pull it out.
3 Slide the card slot cover to close.
Basics
14
Memory card
Installing a memory card
Your device accepts memory cards with maximum capacities of 128 GB. Depending on the
memory card manufacturer and type, some memory cards may not be compatible with your
device.
•
Some memory cards may not be fully compatible with the device. Using an
incompatible card may damage the device or the memory card, or corrupt the data
stored in it.
•
Use caution to insert the memory card right-side up.
•
The device supports the FAT and the exFAT file systems for memory cards. When
inserting a card formatted in a different file system, the device asks to reformat the
memory card.
•
Frequent writing and erasing of data shortens the lifespan of memory cards.
•
When inserting a memory card into the device, the memory card’s file directory
appears in the
My Files
→
SD card
folder.
2
13
Basics
15

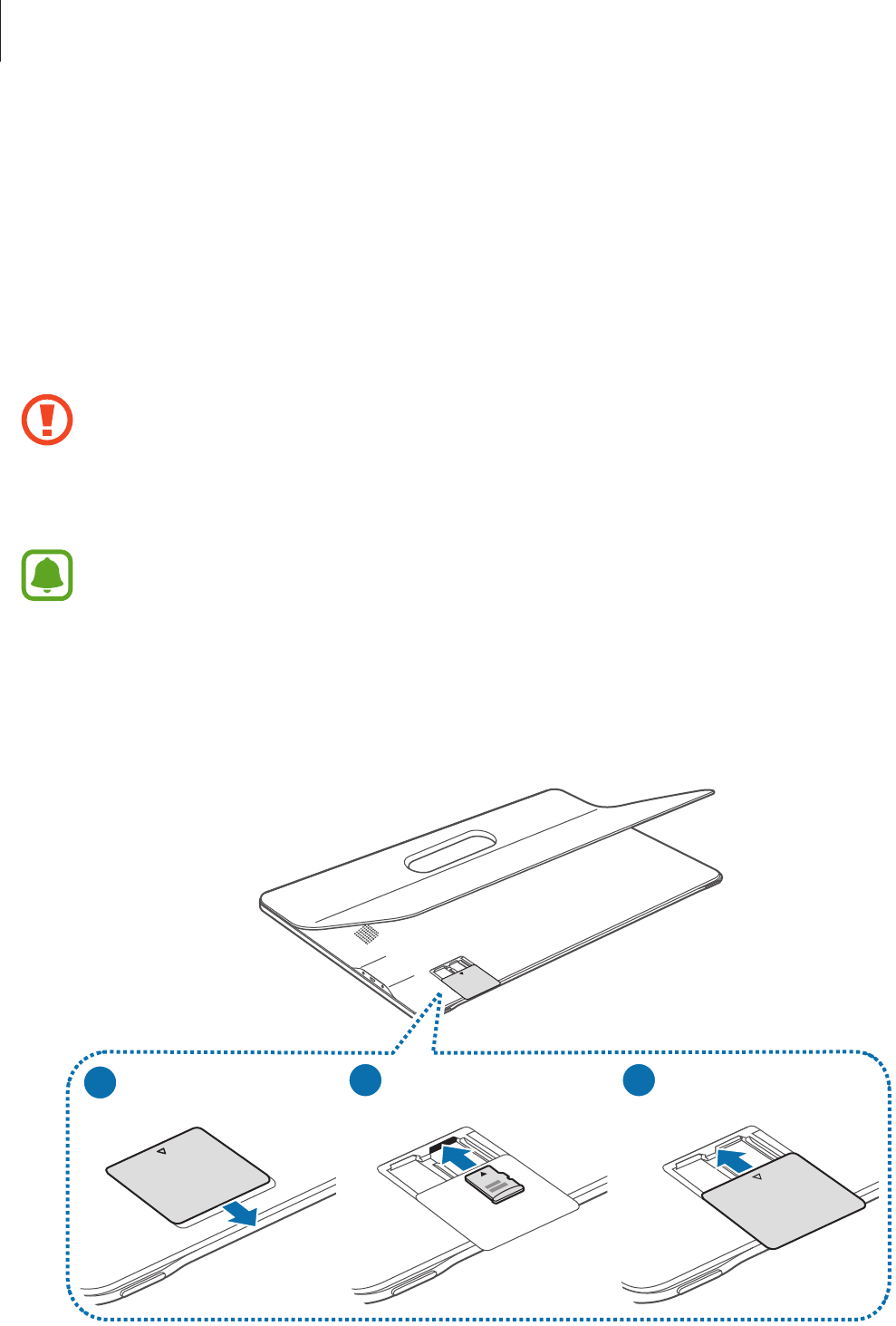

1 Slide the card slot cover to open.
The card slot cover is not detachable. If you forcibly remove the card slot cover, the
cover and the device may be damaged. Do not slide the cover excessively.
2 Insert a memory card with the gold-coloured contacts facing downwards. Then, push the
memory card into the slot until it locks in place.
3 Slide the card slot cover to close.
Removing the memory card
Before removing the memory card, first unmount it for safe removal.
On the Home screen, tap
Apps
→
Settings
→
Storage
→
Unmount SD card
.

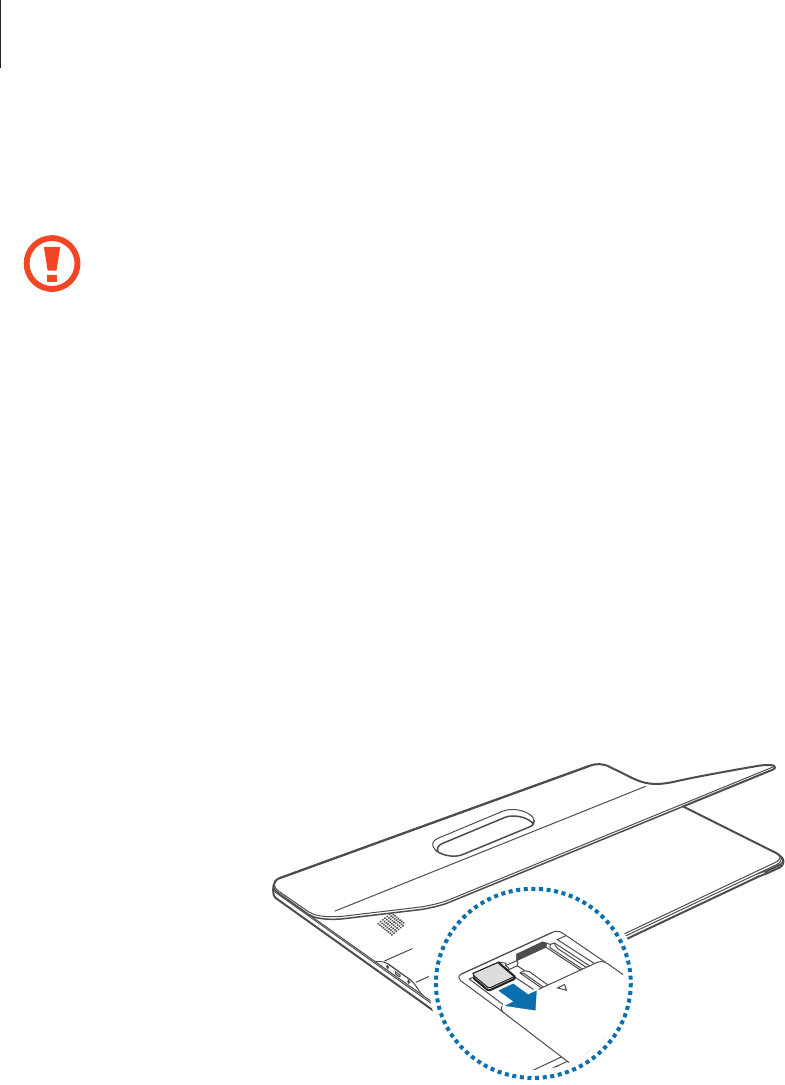

1 Slide the card slot cover to open.
2 Push the memory card until it disengages from the slot, and then pull it out.
3 Slide the card slot cover to close.
Do not remove the memory card while the device is transferring or accessing
information. Doing so can cause data to be lost or corrupted or damage to the
memory card or device. Samsung is not responsible for losses that result from the
misuse of damaged memory cards, including the loss of data.
Formatting the memory card
A memory card formatted on a computer may not be compatible with the device. Format the
memory card on the device.
On the Home screen, tap
Apps
→
Settings
→
Storage
→
Format SD card
→
FORMAT SD
CARD
→
ERASE EVERYTHING
.
Before formatting the memory card, remember to make backup copies of all
important data stored in the memory card. The manufacturer’s warranty does not
cover loss of data resulting from user actions.
Basics
16
Turning the device on and off
Press and hold the Power key for a few seconds to turn on the device.
When you turn on your device for the first time or after performing a data reset, follow the on-
screen instructions to set up your device.
To turn off the device, press and hold the Power key, and then tap
Power off
.
•
If your device is frozen and unresponsive, press and hold the Power key and the
Volume key down simultaneously for more than 7 seconds to restart it.
•
Follow all posted warnings and directions from authorised personnel in areas
where the use of wireless devices is restricted, such as aeroplanes and hospitals.
Touchscreen
•
Do not allow the touchscreen to come into contact with other electrical devices.
Electrostatic discharges can cause the touchscreen to malfunction.
•
To avoid damaging the touchscreen, do not tap it with anything sharp or apply
excessive pressure to it with your fingertips.
•
The device may not recognise touch inputs close to the edges of the screen, which
are outside of the touch input area.
•
Leaving the touchscreen idle for extended periods may result in afterimages
(screen burn-in) or ghosting. Turn off the touchscreen when you do not use the
device.
•
It is recommended to use fingers when you use the touchscreen.
Basics
17
Tapping
To open an app, to select a menu item, to press an on-screen button, or to enter a character
using the keyboard on the screen, tap it with your finger.
Tapping and holding
Tap and hold an item or the screen for more than 2 seconds to access available options.
Dragging
To move an item, tap and hold it and drag it to the target position.
Basics
18
Double-tapping
Double-tap on a webpage or image to zoom in. Double-tap again to return.
Swiping
Swipe to the left or right on the Home screen or the Apps screen to view other panels. Swipe
upwards or downwards to scroll through a webpage or a list of items, such as contacts.
Spreading and pinching
Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.
Basics
19
Home screen
Home screen
The Home screen is the starting point for accessing all of the device’s features. It displays
widgets, shortcuts to apps, and more.
To view other panels, swipe to the left or right.
A widget
A folder
Screen indicators
Favourite apps Apps screen icon
Keys
Keys
Key Function
Recents
•
Tap to open the list of recent apps.
•
Tap and hold to launch the split screen view.
Home
•
Tap to return to the Home screen.
•
Tap and hold to launch
Google
.
Back
•
Tap to return to the previous screen.
Basics
20
Home screen options
On the Home screen, tap and hold an empty area, or pinch your fingers together to access
the available options. Customise the Home screen by adding, deleting, or rearranging Home
screen panels. You can also set the Home screen wallpaper, add widgets to the Home screen,
and more.
•
Wallpapers
: Change the wallpaper settings for the Home screen and the locked screen.
•
Widgets
: Add widgets to the Home screen. Widgets are small apps that launch specific
app functions to provide information and convenient access on your Home screen.
Adding items
Tap and hold an app or a folder from the Apps screen, and then drag it to the Home screen.
To add widgets, tap and hold an empty area on the Home screen, tap
Widgets
, tap and hold a
widget, and then drag it to the Home screen.
Moving and removing an item
Tap and hold an item on the Home screen, and then drag it to a new location.
To move the item to another panel, drag it to the side of the screen.
You can also move frequently used apps to the shortcuts area at the bottom of the Home
screen.
To remove an item, tap and hold the item. Then, drag it to
Remove
at the top of the screen.
Basics
21
Creating folders
1 On the Home screen, tap and hold an app, and then drag it over another app.
2 Drop the app when a folder frame appears around the apps.
A new folder containing the selected apps will be created.
3 Tap
Enter folder name
and enter a folder name.
To change the folder colour, tap .
To add more apps to the folder, tap and hold another app, and then drag it to the folder.
Managing panels
On the Home screen, tap and hold an empty area to add, move, or remove a panel.
To add a panel, swipe to the left, and then tap .
To move a panel, tap and hold a panel preview, and then drag it to a new location.
To remove a panel, tap and hold a panel preview, and then drag it to
Remove
at the top of
the screen.
Basics
22
Apps screen
The Apps screen displays icons for all apps, including newly installed apps.
On the Home screen, tap
Apps
to open the Apps screen. To view other panels, swipe to the
left or right.
Moving items
This feature may not be available depending on the region or service provider.
On the Apps screen, tap
EDIT
. Tap and hold an item and drag it to a new location.
To move the item to another panel, drag it to the side of the screen.
Creating folders
This feature may not be available depending on the region or service provider.
1 On the Apps screen, tap
EDIT
.
2 Tap and hold an app, and then drag it over another app.
3 Drop the app when a folder frame appears around the apps.
A new folder containing the selected apps will be created.
4 Tap
Enter folder name
and enter a folder name.
To change the folder colour, tap .
To add more apps to the folder, tap and hold another app, and then drag it to the folder.
Basics
23
Indicator icons
Indicator icons appear on the status bar at the top of the screen. The icons listed in the table
below are most common.
The status bar may not appear at the top of the screen in some apps. To display the
status bar, drag down from the top of the screen.
Icon Meaning
No signal (mobile network-enabled models)
Signal strength (mobile network-enabled models)
Roaming (outside of normal service area) (mobile network-enabled
models)
GPRS network connected (mobile network-enabled models)
EDGE network connected (mobile network-enabled models)
UMTS network connected (mobile network-enabled models)
HSDPA network connected (mobile network-enabled models)
HSPA+ network connected (mobile network-enabled models)
/ LTE network connected (mobile network-enabled models)
Wi-Fi connected
Bluetooth feature activated
GPS activated
Alarm activated
Mute mode activated
Flight mode activated
Error occurred or caution required
Battery power level
Basics
24
Lock screen
Pressing the Power key turns off the screen and locks it. Also, the screen turns off and
automatically locks if the device is not used for a specified period.
You can change the way that you lock the screen to prevent others from accessing your
personal information.
On the Apps screen, tap
Settings
→
Lock screen and security
→
Screen lock type
, and then
select a screen lock method. The device requires an unlock code whenever unlocking it.
If the unlock code is forgotten, take the device to a Samsung Service Centre to reset it.
Pattern
Draw a pattern by connecting four dots or more, and then draw the pattern again to verify it.
Set a backup PIN to unlock the screen when you forget the pattern.
PIN
A PIN consists of numbers only. Enter at least four numbers, and then enter the password
again to verify it.
Password
A password consists of characters and numbers. Enter at least four characters including
numbers and symbols, and then enter the password again to verify it.
Basics
25
Notification panel
Using the notification panel
When you receive new notifications, indicator icons appear on the status bar. To see more
information about the icons, open the notification panel and view the details.
To open the notification panel, drag the status bar downwards. To close the notification panel,
swipe upwards on the screen.
You can use the following functions on the notification panel.
Launch Settings.
Switch between
user accounts or add
new user accounts.
Launch S Finder.
Tap a notification
and perform various
actions. Clear all
notifications.
Adjust the
brightness.
Rearrange quick
setting buttons.
Quick setting
buttons
Launch Quick
connect.
Basics
26
Using quick setting buttons
Tap quick setting buttons to activate some features. Swipe to the left or right on the buttons
area to view more buttons. To view more detailed settings, tap and hold a button.
To rearrange buttons, tap
EDIT
, tap and hold a button, and then drag it to another location.
S Finder
Search for a wide variety of content with a keyword.
Searching for content on the device
Open the notification panel and tap
S Finder
.
Enter a keyword in the search field or tap and say a keyword.
To get more refined results, tap the filter buttons under the search field, and then select filter
details.
Setting search categories
You can set search categories to search for content in specific search fields.
Tap
MORE
→
Select search locations
and select categories.
Quick connect
Automatically search for nearby devices and quickly connect to them.
•
If the device you want to connect does not support the Quick connect feature,
activate its Wi-Fi Direct feature before launching
Quick connect
on your device.
•
Connection methods may vary depending on the type of connected devices or the
shared content.
Basics
27
Connecting to other devices
1 Open the notification panel and tap
Quick connect
.
If you are using this feature for the first time, select a visibility option and tap
ENABLE
QUICK CONNECT
.
When the panel opens, the Wi-Fi feature is activated automatically and the device
searches for nearby devices.
If you have installed Samsung Link on your device, the list of devices registered
with Samsung Link will appear at the top of the screen. For more information about
Samsung Link, visit link.samsung.com.
2 Select a device from the list and connect to it by following the on-screen instructions.
The next steps may vary depending on the connected device.
To change your device’s visibility setting, tap
SETTINGS
→
Device visibility
, and then
select an option.
Re-searching for devices
If the desired device does not appear in the list, search for the device.
Tap
REFRESH
and select the device from the list of detected devices.
Sharing content
Share content with the connected devices.
1 Open the notification panel and tap
Quick connect
.
2 Select a device from the list of detected devices.
3 Tap
Share content
and select a media category.
4 Follow the on-screen instructions to send content to the connected device.
The next steps may vary depending on the selected media category.
Basics
28
Entering text
Keyboard layout
A keyboard appears automatically when you enter text to send emails, create memos, and
more.
Text entry is not supported in some languages. To enter text, you must change the
input language to one of the supported languages.
Break to the next
line.
Enter numbers.
Move the cursor.
Delete a preceding
character.
Hide the keyboard.
Enter punctuation
marks.
Enter uppercase.
Enter uppercase. For
all caps, tap it twice.
Change the
keyboard settings.
Enter a space.
Changing the input language
Tap
→
Input languages
→
Add input languages
, and then select the languages to use.
When you select two or more languages, you can switch between the input languages by
swiping to the left or right on the space key.
Basics
29
Additional keyboard functions
Tap and hold to use various functions. Other icons may appear instead of the icon
depending on the last function that was used.
•
: Enter text by voice.
Open the keyboard.
Start or pause
entering text by
voice.
•
: Switch to handwriting mode.
Switch between
number mode and
character mode.
Switch to the
standard keyboard.
This feature may not be available depending on the region or service provider.
•
: Add an item from the clipboard.
•
: Enter emoticons.
•
: Switch to the floating or split keyboard. You can move the keyboard to another
location by dragging the tab.
•
: Change the keyboard settings.
Basics
30
Copying and pasting
1 Tap and hold over text.
2 Drag or to select the desired text, or tap
Select all
to select all text.
3 Tap
Copy
or
Cut
.
The selected text is copied to the clipboard.
4 Tap and hold where the text is to be inserted and tap
Paste
.
To paste text that you have previously copied, tap
Clipboard
and select the text.
Screen capture
Capture a screenshot while using the device.
Press and hold the Power key and the Volume key down simultaneously. You can view
captured images in
Gallery
.
It is not possible to capture a screenshot while using some apps and features.
Opening apps
On the Home screen or the Apps screen, select an app icon to open it.
To open an app from the list of recently used apps, tap and select a recent app window.
Closing an app
Tap and drag a recent app window up or down to close it. To close all running apps, tap
CLOSE ALL
.
Basics
31
Multi window
Introduction
Multi window lets you run two apps at the same time in the split screen view. You can also run
multiple apps at the same time in the pop-up view.
Some apps may not support this feature.
Split screen view Pop-up view
Split screen view
1 Tap to open the list of recently used apps.
2 Swipe to the left or right and tap on a recent app window.
The selected app will launch in the left window.
Basics
32
3 Select another app to launch.
You can also launch the split screen view by tapping and holding .
Using additional options
When using apps in the split screen view, select an app window and tap the circle between
the app windows to access the following options:
•
: Switch locations between app windows.
Basics
33
•
: Drag and drop text or copied images from one window to another. Tap and hold an
item in the selected window and drag it to a location in another window.
Some apps may not support this feature.
•
: Minimise the window.
•
: Maximise the window.
•
: Close the app.
Basics
34
Adjusting the window size
Drag the circle between the app windows to the left or right to adjust the size of the
windows.
Pop-up view
1 On the Apps screen, launch an app to use in the pop-up view.
2 Drag down diagonally from either end of the top edge.
The app screen will appear in the pop-up view.
Minimise the
window.
Close the app.
Maximise the
window.
Drag and drop
content.
Basics
35
Moving pop-up windows
To move a pop-up window, tap and hold the circle on a window and drag it to a new location.
Launching the pop-up view from the split screen view
1 On the split screen view, tap an app window to launch it in the pop-up view.
2 Tap and hold the circle between the app windows.
The selected app will launch in a pop-up window.
Basics
36
Device and data management
Transferring data from your previous device
You can transfer data from a previous device to your new device via Samsung Smart Switch.
The following versions of Samsung Smart Switch are available.
•
Mobile version: Transfer data between mobile devices. You can download the app from
Galaxy Apps
or
Play Store
.
•
Computer version: Transfer data between your device and a computer. You can download
the app from www.samsung.com/smartswitch.
•
Samsung Smart Switch is not supported on some devices or computers.
•
Limitations apply. Visit www.samsung.com/smartswitch for details. Samsung
takes copyright seriously. Only transfer content that you own or have the right to
transfer.
Transferring data from a mobile device
Transfer data from your previous device to your new device.
When you turn on your new device for the first time, tap
DOWNLOAD AND OPEN
in the
Smart Switch installation pop-up window to install the app. Alternatively, download and
install Smart Switch from
Galaxy Apps
or
Play Store
.
Launch
Smart Switch
and follow the on-screen instructions to transfer data from your
previous device.
Transferring data from a computer
Back up data from your previous device to a computer and import the data to your new
device.
1 On the computer, visit www.samsung.com/smartswitch to download Smart Switch.
Basics
37
2 On the computer, launch Smart Switch.
If your previous device is not a Samsung device, back up data to a computer using a
program provided by the device’s manufacturer. Then, skip to the fifth step.
3 Connect your previous device to the computer using the USB cable.
4 On the computer, follow the on-screen instructions to back up data from the device.
Then, disconnect your previous device from the computer.
5 Connect your new device to the computer using the USB cable.
6 On the computer, follow the on-screen instructions to transfer data to your new device.
Using the device as a removable disk for data transfer
Move audio, video, image, or other types of files from the device to the computer, or vice
versa.
Do not disconnect the USB cable from the device when you are transferring files.
Doing so may cause data loss or device damage.
The devices may not connect properly if they are connected via a USB hub. Directly
connect the device to the computer’s USB port.
1 Connect the device to the computer using the USB cable.
2 Open the notification panel, and then tap
Connected as a media device
→
Media
device (MTP)
.
Tap
Camera (PTP)
if your computer does not support Media Transfer Protocol (MTP) or
not have any appropriate driver installed.
3 Transfer files between your device and the computer.
Basics
38
Updating the device
The device can be updated to the latest software.
Updating over the air
The device can be directly updated to the latest software by the firmware over-the-air (FOTA)
service.
On the Apps screen, tap
Settings
→
About device
→
Software update
→
Update now
.
To automatically check for available updates, tap the
Auto update
switch to activate
it.
Updating with Smart Switch
Connect the device to a computer and update the device to the latest software.
1 On the computer, visit www.samsung.com/smartswitch to download and install Smart
Switch.
2 On the computer, launch Smart Switch.
3 Connect the device to the computer using a USB cable.
4 If a software update is available, follow the on-screen instructions to update the device.
•
Do not turn off the computer or disconnect the USB cable while the device is
updating.
•
While updating the device, do not connect other media devices to the computer.
Doing so may interfere with the update process. Before updating, disconnect all
other media devices from the computer.
Basics
39
Backing up and restoring data
Keep your personal information, app data, and settings safe on your device. You can back
up your sensitive information to a backup account and access it later. You must sign in to
your Google or Samsung account to back up or restore data. Refer to Accounts for more
information.
Using a Samsung account
On the Apps screen, tap
Settings
→
Backup and reset
→
Back up my data
, select the items
to back up, and then tap
BACK UP NOW
.
To set the device to automatically back up data, tap the
Auto back up
switch to activate it.
To restore data using a Samsung account, tap
Restore
. Current data will be deleted from the
device to restore the selected items.
Using a Google account
On the Apps screen, tap
Settings
→
Backup and reset
, and then tap the
Back up my data
switch to activate it. Tap
Backup account
and select an account as the backup account.
To restore data using a Google account, tap the
Automatic restore
switch to activate it. When
you reinstall apps, backed up settings and data will be restored.
Performing a data reset
Delete all settings and data on the device. Before performing a factory data reset, ensure you
back up all important data stored on the device. Refer to Backing up and restoring data for
more information.
On the Apps screen, tap
Settings
→
Backup and reset
→
Factory data reset
→
RESET
DEVICE
→
ERASE EVERYTHING
. The device automatically restarts.
Basics
40
Connecting to a TV
Introduction
Register a TV to your device to easily share content between them.
•
This feature is compatible with Samsung Smart TVs released in 2015 or later that
support the Bluetooth Low Energy (BLE) feature.
•
Some files may be buffered during playback, depending on the network
connection.
Registering a TV
Register a TV to your device. Once you register a TV, you can easily share the screen between
your device and TV and use the Briefing on TV feature.
1 Turn on the TV and place your device close to the TV.
2 Open the notification panel and tap
Quick connect
.
3 Select the TV and tap
Register TV
.
Sharing screen
You can mirror your device’s screen on a TV or vice versa.
Mirroring your device’s screen to a TV
When your device recognises the registered TV while you are watching a video, the icon
will appear on the device. Tap the icon to stream the video from your device to your TV.
If the TV is turned off and registered with
Quick connect
, it will automatically turn on and
your device’s screen will appear on the TV screen.
This feature is supported by the default video player app only.
Basics
41
Mirroring a TV screen to your device
1 Open the notification panel and tap
Quick connect
.
The registered TV appears on the list.
2 Select the registered TV.
3 Tap
TV to mobile device
.
The TV screen will appear on your device.
Using the Briefing on TV feature
Your registered TV turns on automatically according to the preset time set on your device and
displays the time, weather, and your schedule information on the screen. To use this feature,
your device and the TV must be connected to the same access point.
1 Open the notification panel and tap
Quick connect
.
The registered TV will appear on the list.
2 Select the registered TV.
3 Tap
Briefing on TV
and set a time and day to use the Briefing on TV feature.
Time, weather, and schedule information will be displayed on the right side of the TV
screen at the preset time.
42
Applications
Installing or uninstalling apps
Galaxy Apps
Purchase and download apps. You can download apps that are specialised for Samsung
Galaxy devices.
Tap
Galaxy Apps
on the Apps screen.
This app may not be available depending on the region or service provider.
Installing apps
Browse apps by category or tap
SEARCH
to search for a keyword.
Select an app to view information about it. To download free apps, tap
INSTALL
. To purchase
and download apps where charges apply, tap the price and follow the on-screen instructions.
To change the auto update settings, tap
→
Settings
→
Auto update apps
, and
then select an option.
Play Store
Purchase and download apps.
Tap
Play Store
on the Apps screen.
Installing apps
Browse apps by category or tap the search field to search for a keyword.
Select an app to view information about it. To download free apps, tap
INSTALL
. To purchase
and download apps where charges apply, tap the price and follow the on-screen instructions.
To change the auto update settings, tap
→
Settings
→
Auto-update apps
, and
then select an option.
Applications
43
Managing apps
Uninstalling or disabling apps
On the Apps screen, tap
EDIT
. The icon appears on the apps that you can disable or
uninstall. Select an app and tap
DISABLE
or
UNINSTALL
. Alternatively, on the Apps screen,
tap
Settings
→
Applications
→
Application manager
, select an app, and then tap
DISABLE
or
UNINSTALL
.
•
DISABLE
: Disable selected default apps that cannot be uninstalled from the device.
•
UNINSTALL
: Uninstall downloaded apps.
Enabling apps
On the Apps screen, tap
Settings
→
Applications
→
Application manager
, scroll to
DISABLED
, select an app, and then tap
ENABLE
.
Applications
44
Video
Watch videos stored in the device and customise playback settings.
Tap
Video
on the Apps screen.
Select a video to play.
Change screen ratio.
Move the control
panel to the left.
Rewind or
fast-forward by
dragging the bar.
Skip to the previous
video. Tap and hold
to rewind. Skip to the next
video. Tap and hold
to fast-forward.
Access additional
options.
Open the playlist.
Move the control
panel to the right.
Switch to the
pop-up video player.
Pause and resume
playback.
Adjust the volume.
Drag your finger up or down on the left side of the playback screen to adjust the brightness,
or drag your finger up or down on the right side of the playback screen to adjust the volume.
To rewind or fast-forward, swipe to the left or right on the playback screen.
Applications
45
Music
Listen to music sorted by category and customise playback settings.
Tap
Music
on the Apps screen.
Select a category, and then select a song to play.
Tap the album image at the bottom of the screen to open the music player screen.
Change the repeat
mode.
Skip to the next
song. Tap and hold
to fast-forward.
Pause and resume
playback.
Access additional
options.
Adjust the volume.
Skip to the previous
song. Tap and hold
to rewind.
Turn on shuffle.
Set the file as your
favourite song.
Open the playlist.
Access the sound
quality and effects
settings.
Applications
46
Internet
Browse the Internet to search for information and bookmark your favourite webpages to
access them conveniently.
1 Tap
Internet
on the Apps screen.
2 Tap the address field.
3 Enter the web address or a keyword, and then tap
Go
.
To view the toolbars, drag your finger downwards slightly on the screen.
Move to the
previously visited
page.
Open a new tab.
Close the tab.
Access additional
options.
Refresh the current
webpage.
Open the
homepage.
View your
bookmarks, saved
webpages, and
recent history.
Applications
47
My Files
Access and manage various files stored in the device or in other locations, such as cloud
storage services.
On the Apps screen, tap
My Files
.
•
Recent files
: View recent files.
•
Category
: View files by category.
•
Local storage
: View files stored in the device.
•
Cloud storage
: View files stored in the cloud storage service.
•
STORAGE USAGE
: View your device’s memory information.
To search for files or folders, tap
SEARCH
.
Family Square
Introduction
Share images and videos with your family using this app to stay connected with them. You
can also view shared content and content stored in your device as a slideshow.
Tap
Family Square
on the Apps screen.
•
You may incur additional charges when sharing content via the mobile network.
•
This app is compatible only with Samsung Android devices running Android OS
Lollipop or higher.
•
This app may not be compatible with some devices.
Applications
48
Inviting your family members
Your family members must install the Family Square app on their devices before you can
share content with them. Send them an invitation to help them install the app.
1 On the Apps screen, tap
Family Square
→
CREATE FAMILY GROUP
.
2 Enter your family member’s phone number and tap
SEND
.
An invitation message will be sent to the members.
3 On your family member’s device, view the message to access
Galaxy Apps
and download
the Family Square app.
Adding and managing content in your inbox
Create content to share with your family. When you create or select content to share, a
notification will appear on your family members’ devices.
On the Apps screen, tap
Family Square
.
Adding images
In your inbox, tap .
•
: Take a photo, tap
OK
, draw on the image or add text, and then tap
SAVE
.
•
: Select an image in
Gallery
, draw on the file or add text, and then tap
SAVE
.
Managing content
To delete content from inbox, tap
MORE
→
Delete
.
To view content by filter, tap
MORE
→
Filter
.
To hide content from the image slideshow, tap .
Applications
49
Viewing images as a slideshow
On the Apps screen, tap
Family Square
→
VIEW
. The images pinned with the icon will
play in a slideshow.
To play more images, open your inbox, tap
MORE
→
Settings
→
Image settings
, and then
select sources to display images from.
To return to the inbox, tap the screen.
Camera
Introduction
Take photos and record videos using various settings.
Basic shooting
You can take photos or record videos. View your photos and videos in
Gallery
.
Tap
Camera
on the Apps screen.
Camera etiquette
•
Do not take photos or record videos of other people without their permission.
•
Do not take photos or record videos where legally prohibited.
•
Do not take photos or record videos in places where you may violate other people’s
privacy.
Applications
50
Taking photos or recording videos
1 Tap the image on the preview screen where the camera should focus.
2 Tap to take a photo or tap to record a video.
To capture an image from the video while recording, tap
Capture
.
Camera settings
Quick settings
Record a video.
Take a photo.
Preview thumbnail
•
The camera automatically shuts off when unused.
•
Make sure that the lens is clean. Otherwise, the device may not work properly in
some modes that require high resolutions.
Camera settings
Quick settings
On the preview screen, use the following quick settings.
•
: Select a filter effect to use when taking photos or recording videos.
•
: Select the length of the delay before the camera automatically takes a photo.
•
: Take a photo with lightened faces for gentler images.
•
: Select a resolution for photos. Using a higher resolution will result in higher quality
photos, but they will take up more memory.
Applications
51
Camera settings
On the preview screen, tap .
•
Video size (front)
: Select a resolution for videos. Using a higher resolution will result in
higher quality videos, but they will take up more memory.
•
Gesture control
: Set the device to detect your palm, so you can use it to take self-
portraits.
•
Save pictures as previewed
: Invert the image to create a mirror-image of the original
scene, when taking photos with the front camera.
•
Grid lines
: Display viewfinder guides to help composition when selecting subjects.
•
Location tags
: Attach a GPS location tag to the photo.
•
GPS signal strength may decrease in locations where the signal is obstructed, such
as between buildings or in low-lying areas, or in poor weather conditions.
•
Your location may appear on your photos when you upload them to the Internet.
To avoid this, deactivate the location tag setting.
•
Review pictures
: Set the device to show photos after capturing them.
•
Storage location
: Select the memory location for storage.
•
Reset settings
: Reset the camera settings.
Applications
52
Gallery
Introduction
View and manage photos and videos stored in the device.
Viewing images or videos
1 Tap
Gallery
on the Apps screen.
2 Select an image or a video.
Video files show the icon on the preview thumbnail. To play a video, tap .
More options
Move to the
previous screen.
Add the image to
favourites.
Share the image
with others.
Delete the image.
Modify the image.
To hide or show the menus, tap the screen.
Applications
53
Deleting images or videos
Deleting an image or a video
Select an image or a video and tap
Delete
at the bottom of the screen.
Deleting multiple images and videos
1 On the Gallery main screen, tap and hold an image or a video to delete.
2 Tick the images or videos to delete.
3 Tap
DELETE
.
Email
Setting up email accounts
Set up an email account when opening
Email
for the first time.
1 Tap
Email
on the Apps screen.
2 Enter the email address and password, and then tap
NEXT
.
To manually register a company email account, tap
MANUAL SETUP
.
3 Follow the on-screen instructions to complete the setup.
To set up another email account, tap
MORE
→
Settings
→
Add account
.
If you have more than one email account, you can set one as the default account. Tap
MORE
→
Settings
→
SET DEFAULT ACCOUNT
.
Applications
54
Sending emails
1 Tap to compose an email.
2 Add recipients and enter an email text.
3 Tap
SEND
to send the mail.
Reading emails
On the emails list, tap an email to read.
Contacts
Introduction
Create new contacts or manage contacts on the device.
Adding contacts
Creating contacts manually
1 Tap
Contacts
on the Apps screen.
2 Tap and select a storage location.
3 Enter contact information.
•
: Add an image.
•
/ : Add or delete a contact field.
4 Tap
SAVE
.
Applications
55
Importing contacts
Import contacts from storage services to your device.
1 Tap
Contacts
on the Apps screen.
2 On the contacts list, tap
MORE
→
Settings
→
Import/Export contacts
→
IMPORT
and
select an import option.
Searching for contacts
On the Apps screen, tap
Contacts
.
Use one of the following search methods:
•
Scroll up or down the contacts list.
•
Drag a finger along the index at the left side of the contacts list to scroll through it
quickly.
•
Tap the search field at the top of the contacts list and enter search criteria.
Once a contact is selected, take one of the following actions:
•
: Add to favourite contacts.
•
: Compose an email.
Applications
56
Smart Manager
Introduction
The Smart manager provides an overview of the status of your device’s battery, storage, RAM,
and system security. You can also automatically optimise the device with one tap of your
finger.
Using the quick optimisation feature
On the Apps screen, tap
Smart Manager
→
CLEAN ALL
.
The quick optimisation feature improves device performance through the following actions.
•
Identifying apps that use excessive battery power and clearing some memory.
•
Deleting unnecessary files and closing apps running in the background.
•
Scanning for malware.
Applications
57
Using the Smart manager
On the Apps screen, tap
Smart Manager
and select a feature.
Battery
Check the remaining battery power and time to use the device. For devices with low battery
levels, conserve battery power by activating power saving features and closing apps that are
consuming an excessive amount of battery power.
The usage time left shows the time remaining before the battery power runs
out. Usage time left may vary depending on your device settings and operating
conditions.
Storage
Check the status of used and available memory capacity. You can delete unused and residual
files or uninstall apps that you do not use any more.
RAM
Check the amount of available RAM. You can close background apps and reduce the amount
of RAM you are using to speed up your device.
Device security
Check the device’s security status. This feature scans your device for malware.
Applications
58
S Planner
Introduction
Manage your schedule by entering upcoming events or tasks in your planner.
Creating events
1 Tap
S Planner
on the Apps screen.
2 Tap or double-tap a date.
If the date already has saved events or tasks in it, tap the date and tap .
3 Enter event details.
Select a calendar to
use or sync with.
Attach a map
showing the
location of the
event.
Enter the location of
the event.
Enter a title.
Set a start and end
date for the event.
Add more details.
Set an alarm.
4 Tap
SAVE
to save the event.
Applications
59
Creating tasks
1 Tap
S Planner
on the Apps screen.
2 Tap
TASKS
.
3 Enter task details and tap
TODAY
or
TOMORROW
to set a due date.
To add more details, tap .
4 Tap
SAVE
to save the task.
Syncing events and tasks with your accounts
On the Apps screen, tap
Settings
→
Accounts
, select an account service, and then tap the
Sync Calendar
switch to sync events and tasks with the account.
To add accounts to sync with, open the Apps screen and tap
S Planner
→
MORE
→
Manage
calendars
→
Add account
. Then, select an account to sync with and sign in. When an
account is added, a green circle is displayed next to the account name.
Applications
60
SideSync
Introduction
SideSync allows you to easily share your screen and data between Samsung Android
smartphones, tablets, and any computers. After you connect your devices, a virtual screen will
appear on the connected tablet or computer. You can check notifications, such as messages,
from the dashboard or in pop-up windows.
Before you start
•
The SideSync app must be installed on both devices that you want to connect. If
SideSync is not installed, use one of the following methods to download and install it:
–
To download and install SideSync on your Samsung Android tablet or smartphone,
search for SideSync in
Galaxy Apps
or
Play Store
. If your device does not support
SideSync, you may not be able to find the app.
–
To download and install SideSync on your computer, visit
www.samsung.com/sidesync. On the webpage, you can also find the information
about SideSync system requirements.
•
To wirelessly connect devices, they must support Wi-Fi Direct and be connected to the
same access point.
Applications
61
Connecting to computers or smartphones
Connecting to a computer
1 Connect your tablet to your computer using a USB cable.
Alternatively, connect both devices to the same access point.
2 Launch
SideSync
on both devices.
3 Tap
START
on your tablet.
Both devices will scan each other and connect. Then, the dashboard will appear on your
computer.
Connecting to a smartphone via Wi-Fi Direct
1 Launch
SideSync
on both your tablet and smartphone.
2 Tap
START
on both devices.
Both devices will scan each other and connect.
Applications
62
3 On your tablet, select your smartphone from the detected devices list.
4 On the smartphone, accept the connection request.
The dashboard will appear on your tablet.
Connecting devices automatically
When two devices have been previously connected, you can set them to reconnect
automatically. Connecting the devices via USB or Wi-Fi Direct automatically launches
SideSync
. If the devices are connected to the same access point, place them near each other
to connect them.
To stop using the auto connection feature, on the tablet, tap
SideSync
→
MORE
→
Settings
, and then tap the
Auto connect devices
switch to deactivate it. Alternatively, on
the dashboard, tap
MORE
→
Settings
→
Connections
and deactivate the auto connection
feature.
Applications
63
Using the dashboard
Launch frequently used apps or view notifications from your tablet.
When you tap a notification, the related app or program will launch. The following is an image
of the tablet’s dashboard on the computer.
Turn on the virtual tablet screen.
Access additional options.
Close the dashboard.
Add more applications.
Minimise the dashboard.
Tap a notification and perform
various actions.
You can rearrange or delete apps when you right-click on an app icon.
Continuing media playback
You can pause music or videos on your tablet and continue playback on another device.
On the dashboard, select the play button on the music controller or a video notification.
Playback will pause on your tablet and start playing on your other device.
The connected device’s music controller and a video notification will appear only
when you play media files via the default music or video app.
Sharing a webpage
You can open a webpage on your tablet and display it in the web browser of the connected
device.
While browsing webpages on your tablet, a web access notification will appear on the
dashboard. On the dashboard, select the notification. Then, the same webpage will appear on
your connected device.
Applications
64
Sharing your tablet’s hotspot (mobile network-enabled models)
You can share your tablet’s mobile data connection with computers if an Internet connection
is not available.
You may incur additional charges when using this feature.
On the dashboard, tap
MORE
→
Enable Mobile hotspot
. The tablet’s mobile hotspot will be
activated.
Using the virtual screen
SideSync mirrors a device’s screen on another device. You can use a device’s functions via the
virtual screen. The following is an image of the virtual tablet screen on the computer.
On the dashboard, tap
Tablet screen
.
•
Some functions may not work through the virtual screen.
•
The appearance and functions of the virtual screen may vary depending on the
connected device.
Close the virtual screen.
Minimise the virtual
screen.
Maximise the virtual
screen.
Applications
65
Tap to use the following options:
•
Always on top
: Set the virtual screen to always stay on top.
•
Rotate
: Rotate the screen.
•
Capture
: Capture a screenshot.
•
Enable Presentation mode
: Turn on the tablet’s screen to control it from both your
computer and tablet. This feature may not be available depending on the connected
device.
To move the virtual screen, click and drag the top of the virtual screen to a new location.
To adjust the size of the virtual screen, place the mouse pointer over the edge of the virtual
screen, then click and drag it.
Switching between screens
To use your tablet’s actual screen, press the Power key on your tablet. The virtual screen turns
off and the tablet’s screen turns on.
To return to the virtual screen, click the virtual tablet screen on the computer. The actual
screen turns off and the virtual screen turns on.
You can view and control the virtual screen and the connected device’s screen
simultaneously. On the virtual screen, tap
→
Enable Presentation mode
to turn
on the connected device’s screen. This feature may not be available depending on the
connected device.
Sharing files and clipboard
Copying files to the computer
1 Click and hold a file to enter edit mode on the virtual tablet screen.
2 Tick more files to copy.
3 Click and hold the selected files, and then drag and drop them outside of the virtual
screen.
The files will be copied to the intended location.
Applications
66
For example, when you move an image from your tablet to an open Word document on your
computer, the image will be inserted into the Word document.
Copying files to your tablet
Select files on the computer and drag them to the dashboard or the virtual tablet screen. The
files will be saved in the
My Files
→
Device storage
→
SideSync
folder.
While composing a message or an email on the virtual screen, the copied files will be
attached to the message or email being composed.
When the tablet’s virtual screen and actual screen are turned on, you cannot share
files.
Sharing clipboard
You can conveniently copy and paste text between the connected devices via the clipboard
sharing feature. Copy or cut text from the virtual screen and paste it into a text field outside of
the virtual screen, or vice versa.
Applications
67
Sharing the computer’s keyboard and mouse
Use your tablet’s screen as a dual monitor and control it with the computer’s keyboard and
mouse.
1 On the dashboard, tap
MORE
→
Enable Keyboard and mouse sharing
.
If the virtual screen is open, it will disappear from the computer’s screen.
2 Move the mouse pointer to the left or right edge of the computer’s screen to go to your
tablet’s screen.
The mouse pointer will appear on your tablet’s screen.
3 On your tablet, use the computer’s keyboard and mouse to perform actions, such as
entering text, copying and pasting, and selecting items.
To control the computer with the mouse again, return the pointer to the computer’s
screen.
Applications
68
Memo
Create memos and organise them by category.
On the Apps screen, tap
Memo
.
Composing memos
Tap on the memos list and enter a memo. While composing a memo, use the following
options:
•
Category
: Create or set a category.
•
: Insert images.
•
Voice
: Make a voice recording to insert.
•
Tasks
: Add tick boxes at the beginning of each row to create a list of tasks.
To save the memo, tap
SAVE
.
To edit a memo, tap a memo, and then tap the content of the memo.
Searching for memos
Tap
SEARCH
on the memos list and enter a keyword to search for memos that include the
keyword.
Applications
69
Clock
Introduction
Set alarms, check the current time in many cities around the world, time an event, or set a
specific duration.
ALARM
On the Apps screen, tap
Clock
→
ALARM
.
Setting alarms
Set an alarm time and tap
SAVE
.
To open the keypad to enter an alarm time, tap
KEYPAD
.
To activate or deactivate alarms, tap the clock icon next to the alarm in the alarms list.
Stopping alarms
Tap
DISMISS
to stop an alarm. If you have previously enabled the snooze option, tap
SNOOZE
to repeat the alarm after a specified length of time.
Deleting alarms
Tap on an alarm in the list of alarms.
Applications
70
WORLD CLOCK
On the Apps screen, tap
Clock
→
WORLD CLOCK
.
Creating clocks
Enter a city name or select a city from the globe, and then tap .
Deleting clocks
Tap on a clock.
STOPWATCH
1 On the Apps screen, tap
Clock
→
STOPWATCH
.
2 Tap
START
to time an event.
To record lap times while timing an event, tap
LAP
.
3 Tap
STOP
to stop timing.
To restart the timing, tap
RESUME
.
To clear lap times, tap
RESET
.
TIMER
1 On the Apps screen, tap
Clock
→
TIMER
.
2 Set the duration, and then tap
START
.
To open the keypad to enter the duration, tap
KEYPAD
.
3 Tap
DISMISS
when the timer goes off.
Applications
71
Calculator
Perform simple or complex calculations.
Tap
Calculator
on the Apps screen.
To see the calculation history, tap
HISTORY
. To close the calculation history panel, tap
KEYPAD
.
To clear the history, tap
HISTORY
→
CLEAR HISTORY
.
Google apps
Google provides entertainment, social network, and business apps. You may require a Google
account to access some apps. Refer to Accounts for more information.
To view more app information, access each app’s help menu.
Some apps may not be available or may be labelled differently depending on the
region or service provider.
Chrome
Search for information and browse webpages.
Gmail
Send or receive emails via the Google Mail service.
Maps
Find your location on the map, search for locations, and view location information for various
places.
Play Music
Discover, listen to, and share music on your device.
Applications
72
Play Movies & TV
Watch videos stored on your device and download various content to watch from
Play Store
.
Drive
Store your content on the cloud, access it from anywhere, and share it with others.
YouTube
Watch or create videos and share them with others.
Photos
Search for, manage, and edit all your photos and videos from various sources in one place.
Hangouts
Chat with your friends individually or in groups and use images, emoticons, and video calls
while you are chatting.
Google
Search quickly for items on the Internet or your device.
Voice Search
Search quickly for items by saying a keyword or phrase.
Google Settings
Configure settings for some features provided by Google.
73
Settings
Introduction
Customise settings for functions and apps. You can make your device more personalised by
configuring various setting options.
On the Apps screen, tap
Settings
.
To search for settings by entering keywords, tap
SEARCH
.
Wi-Fi
Connecting to a Wi-Fi network
Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or other
network devices.
•
Your device uses a non-harmonised frequency and is intended for use in all
European countries. The WLAN can be operated in the EU without restriction
indoors, but cannot be operated outdoors.
•
Turn off Wi-Fi to save the battery when not in use.
1 On the Settings screen, tap
Wi-Fi
, and then tap the switch to activate it.
2 Select a network from the Wi-Fi networks list.
Networks that require a password appear with a lock icon.
Settings
74
3 Tap
CONNECT
.
Once the device connects to a Wi-Fi network, the device will reconnect to that
network each time it is available without requiring a password. To prevent the device
connecting to the network automatically, select it from the list of networks and tap
FORGET
.
Wi-Fi Direct
Wi-Fi Direct connects devices directly via a Wi-Fi network without requiring an access point.
1 On the Settings screen, tap
Wi-Fi
, and then tap the switch to activate it.
2 Tap
Wi-Fi Direct
.
The detected devices are listed.
If the device you want to connect to is not in the list, request that the device turns on its
Wi-Fi Direct feature.
3 Select a device to connect to.
The devices will be connected when the other device accepts the Wi-Fi Direct connection
request.
Sending and receiving data
You can share data, such as contacts or media files, with other devices. The following actions
are an example of sending an image to another device.
1 Tap
Gallery
on the Apps screen.
2 Select an image.
3 Tap
Share
→
Wi-Fi Direct
, select a device to transfer the image to, and then tap
SHARE
.
4 Accept the Wi-Fi Direct connection request on the other device.
If the devices are already connected, the image will be sent to the other device without
the connection request procedure.
Settings
75
Ending the device connection
1 Tap
Wi-Fi
on the Settings screen.
2 Tap
Wi-Fi Direct
.
The device displays the connected devices in the list.
3 Tap the device name to disconnect the devices.
Bluetooth
Introduction
Use Bluetooth to exchange data or media files with other Bluetooth-enabled devices.
•
Samsung is not responsible for the loss, interception, or misuse of data sent or
received via Bluetooth.
•
Always ensure that you share and receive data with devices that are trusted
and properly secured. If there are obstacles between the devices, the operating
distance may be reduced.
•
Some devices, especially those that are not tested or approved by the Bluetooth
SIG, may be incompatible with your device.
•
Do not use the Bluetooth feature for illegal purposes (for example, pirating copies
of files or illegally tapping communications for commercial purposes).
Samsung is not responsible for the repercussion of illegal use of the Bluetooth
feature.
Settings
76
Pairing with other Bluetooth devices
1 On the Settings screen, tap
Bluetooth
, and then tap the switch to activate it.
The detected devices are listed.
2 Select a device to pair with.
If the device you want to pair with is not in the list, request that the device turns on its
visibility option. Refer to the other device’s user manuals.
Your device is visible to other devices while the Bluetooth settings screen is open.
3 Accept the Bluetooth connection request on your device to confirm.
The devices will be connected when the other device accepts the Bluetooth connection
request.
Sending and receiving data
Many apps support data transfer via Bluetooth. You can share data, such as contacts or media
files, with other Bluetooth devices. The following actions are an example of sending an image
to another device.
1 Tap
Gallery
on the Apps screen.
2 Select an image.
3 Tap
Share
→
Bluetooth
, and then select a device to transfer the image to.
If your device has paired with the device before, tap the device name without confirming
the auto-generated passkey.
If the device you want to pair with is not in the list, request that the device turns on its
visibility option.
4 Accept the Bluetooth connection request on the other device.
Settings
77
Unpairing Bluetooth devices
1 Tap
Bluetooth
on the Settings screen.
The device displays the paired devices in the list.
2 Tap next to the device name to unpair.
3 Tap
Unpair
.
Flight mode
This disables all wireless functions on your device. You can use only non-network services.
On the Settings screen, tap
Flight mode
.
Mobile hotspot and tethering (mobile network-
enabled models)
Use the device as a mobile hotspot to share the device’s mobile data connection with other
devices when the network connection is not available. Connections can be made via Wi-Fi,
USB, or Bluetooth.
On the Settings screen, tap
Mobile hotspot and tethering
.
You may incur additional charges when using this feature.
•
Mobile Hotspot
: Use the mobile hotspot to share the device’s mobile data connection
with computers or other devices.
•
Bluetooth tethering
: Use Bluetooth tethering to share the device’s mobile data
connection with computers or other devices via Bluetooth.
•
USB tethering
: Use USB tethering to share the device’s mobile data connection with
a computer via USB. When connected to a computer, the device is used as a wireless
modem for the computer.
Settings
78
Using the mobile hotspot
Use your device as a mobile hotspot to share your device’s mobile data connection with other
devices.
1 On the Settings screen, tap
Mobile hotspot and tethering
→
Mobile Hotspot
.
2 Tap the switch to activate it.
The icon appears on the status bar. Other devices can find your device in the Wi-Fi
networks list.
To set a password for the mobile hotspot, tap
MORE
→
Configure Mobile Hotspot
and
select the level of security. Then, enter a password and tap
SAVE
.
3 On the other device’s screen, search for and select your device from the Wi-Fi networks
list.
4 On the connected device, use the device’s mobile data connection to access the Internet.
Data usage
Keep track of your data usage amount.
On the Settings screen, tap
Data usage
.
Data usage (mobile network-enabled models)
Keep track of your data usage amount and customise the settings for the limitation.
On the Settings screen, tap
Data usage
.
•
Mobile data
: Set the device to use data connections on any mobile network.
•
Set mobile data limit
: Set a limit for mobile data usage.
•
Background data
: Prevent apps that are running in the background from using a mobile
data connection.
To change the monthly reset date for the monitoring period, tap
→
Change cycle
.
Settings
79
Limiting data usage
1 On the Settings screen, tap
Data usage
and tap the
Set mobile data limit
switch to
activate it.
2 Drag the limit adjustment bar upwards or downwards to set the limit.
3 Drag the warning adjustment bar upwards or downwards to set a data usage alert level.
The device will alert you when the warning level is reached.
Mobile networks (mobile network-enabled
models)
Configure your mobile network settings.
On the Settings screen, tap
Mobile networks
.
•
Data roaming
: Set the device to use data connections when you are roaming.
•
Access Point Names
: Set up access point names (APNs).
•
Network mode
: Select a network type.
•
Network operators
: Search for available networks and manually register a network.
More connection settings
Options
Customise settings to control other features.
On the Settings screen, tap
More connection settings
.
•
Printing
: Configure settings for printer plug-ins installed on the device. You can search
for available printers or add one manually to print files. Refer to Printing for more
information.
Settings
80
•
Download booster
(mobile network-enabled models): Set the device to download
files larger than 30 MB, faster via Wi-Fi and mobile networks simultaneously. Refer to
Download booster for more information.
•
VPN
: Set up and connect to virtual private networks (VPNs).
Printing
Configure settings for printer plug-ins installed on the device. You can connect the device to a
printer via Wi-Fi or Wi-Fi Direct, and print images or documents.
Some printers may not be compatible with the device.
Adding printer plug-ins
Add printer plug-ins for printers you want to connect the device to.
1 On the Settings screen, tap
More connection settings
→
Printing
→
Download plug-in
.
2 Search for a printer plug-in in
Play Store
.
3 Select a printer plug-in and install it.
4 Select the printer plug-in and tap the switch to activate it.
The device searches for printers that are connected to the same Wi-Fi network as your
device.
To add printers manually, tap
MORE
→
Add printer
→
ADD PRINTER
.
To change print settings, tap
MORE
→
Printing settings
.
Printing content
While viewing content, such as images or documents, tap
Share
→
Print
→
→
All
printers
, and then select a printer.
Settings
81
Download booster
Set the device to download files larger than 30 MB, faster via Wi-Fi and mobile networks
simultaneously. A stronger Wi-Fi signal will provide a faster download speed.
On the Settings screen, tap
More connection settings
→
Download booster
.
•
This feature may not be supported by some devices.
•
You may incur additional charges when downloading files via the mobile network.
•
When you download large files, the device may heat up. If the device exceeds a set
temperature, the feature will turn off.
•
If network signals are unstable, the speed and performance of this feature may be
affected.
•
If the Wi-Fi and mobile network connections have significantly different data
transfer speeds, the device may use only the fastest connection.
•
This feature supports Hypertext Transmission Protocol (HTTP) 1.1 and Hypertext
Transmission Protocol Secure (HTTPS). The feature cannot be used with other
protocols, such as FTP.
Sounds and notifications
Change settings for various sounds on the device.
On the Settings screen, tap
Sounds and notifications
.
•
Sound mode
: Set the device to use sound mode or silent mode.
•
Volume
: Adjust the volume level for music and videos, system sounds, and notifications.
•
Sounds
: Change the ringtone and system sound settings.
•
Sound quality and effects
: Configure additional sound settings.
•
Do not disturb
: Set the device to mute notification sounds, except for allowed
exceptions.
•
Notifications on lock screen
: Set whether or not to show the content of notifications on
the locked screen.
•
App notifications
: Change the notification settings for each app.
Settings
82
Display
Change the display settings.
On the Settings screen, tap
Display
.
•
Brightness
: Adjust the brightness of the display.
•
Font
: Change the font size and type.
•
Screen timeout
: Set the length of time the device waits before turning off the display’s
backlight.
•
Daydream
: Set the device to launch a screensaver when the device is charging.
Applications
Manage the device’s apps and change their settings.
On the Settings screen, tap
Applications
.
•
Application manager
: View and manage the apps on your device.
•
Default applications
: Select a default setting for using apps.
•
Application settings
: Customise the settings for each app.
Users
Set up additional user accounts for other users to use the device with personalised settings,
such as email accounts, wallpaper preferences, and more. Following types of user accounts
are available:
•
Owner
: The owner account is created only when setting up the device for the first
time, and cannot be created more than one. This account has full control of the device
including user account management. You can add or delete user accounts only when
using this account.
Settings
83
•
Guest
: This account allows guests to access the device. Information and data used during
a guest session is temporarily stored. Each time you use this account, you are asked
whether to continue the previous guest session or reset it.
•
User
: This account allows users to access their own apps and content, and customise the
device settings that affect all accounts.
•
User (restricted profile)
: A restricted account can only access the apps and content
allowed by the owner account, and cannot use the services that require logging in.
Adding users
1 On the Settings screen, tap
Users
.
2 Tap
Add user or profile
→
User
→
SET UP NOW
.
The device will switch to a new user account and the default locked screen will appear on
the screen.
3 Unlock the device and follow the on-screen instructions to complete the account setup.
Adding restricted profiles
1 On the Settings screen, tap
Users
.
2 Tap
Add user or profile
→
User (restricted profile)
.
If you are not using a secure screen lock method with the owner account, follow the on-
screen instructions to set one up.
3 Select the apps and content that restricted users are allowed to access.
Settings
84
Switching users
Tap the user account icon at the top of the locked screen or the notification panel, and then
select an account to switch to.
Locked screen Notification panel
Managing users
When using the owner account, you can delete accounts or change the settings for restricted
accounts.
To delete a user account, tap next to an account to delete it.
To change the settings for a restricted account, tap next to an account. You can delete the
account by tapping .
Wallpaper
Change the wallpaper settings for the Home screen and the locked screen.
On the Settings screen, tap
Wallpaper
.
Settings
85
Lock screen and security
Change the settings for securing the device.
On the Settings screen, tap
Lock screen and security
.
The available options may vary depending on the screen lock method selected.
•
Screen lock type
: Change the screen lock method.
•
Show information
: Change settings for the items displayed on the locked screen.
•
Unlock effect
: Select an effect that you see when you unlock the screen.
•
Secure lock settings
: Change screen lock settings for the selected lock method.
•
Find My Mobile
: Activate or deactivate the Find My Mobile feature. This feature can
help you locate your device if it is lost or stolen. You can also access the Find my mobile
website (findmymobile.samsung.com) to track and control your lost or stolen device.
•
Unknown sources
: Set the device to allow the installation of apps from unknown
sources.
•
Other security settings
: Configure additional security settings.
Privacy
Change the settings for maintaining your privacy.
On the Settings screen, tap
Privacy
.
•
Location
: Change settings for location information permissions.
•
Report diagnostic info
: Set the device to automatically send the device’s diagnostic and
usage information to Samsung.
Settings
86
Accessibility
Configure various settings to improve accessibility to the device.
On the Settings screen, tap
Accessibility
.
•
Vision
: Customise the settings to improve accessibility for visually impaired users.
•
Hearing
: Customise the settings to improve accessibility for users with hearing
impairment.
•
Dexterity
: Customise the settings to improve accessibility for users who have reduced
dexterity.
•
Direction lock
: Change the directional combination settings for unlocking the screen.
•
Notification reminder
: Set the device to alert you to notifications that you have not
checked at the interval.
•
Single tap mode
: Set the device to control notifications by tapping the button instead of
dragging it.
•
Manage accessibility
: Export or import the accessibility settings to share them with
other devices.
•
Services
: View accessibility services installed on the device.
Accounts
Add your Samsung and Google accounts, or other accounts, to sync with.
Adding accounts
Some apps used on your device require a registered account. Create accounts to have the
best experience with your device.
1 On the Settings screen, tap
Accounts
→
Add account
.
2 Select an account service.
Settings
87
3 Follow the on-screen instructions to complete the account setup.
To sync content with your accounts, select an account and select items to sync.
Registering Samsung accounts
You need a Samsung account when using some Samsung apps. You can back up or restore
data saved in the device to your Samsung account. Register your Samsung account to the
device to conveniently use Samsung services.
1 On the Settings screen, tap
Accounts
→
Add account
.
2 Tap
Samsung account
.
3 Follow the on-screen instructions to complete the account setup.
Once your Samsung account has been registered, you can use apps requiring your Samsung
account without the sign in procedure.
Removing accounts
On the Settings screen, tap
Accounts
, select an account name, select the account to remove,
and then tap
MORE
→
Remove account
.
Backup and reset
Change the settings for managing settings and data.
On the Settings screen, tap
Backup and reset
.
•
Back up my data
: Back up your personal information and app data to the Samsung
server. You can also set the device to automatically back up data.
•
Restore
: Restore previously backed up personal information and app data from your
Samsung account.
Settings
88
•
Backup account
: Set up or edit your Google backup account.
•
Back up my data
: Set the device to back up settings and app data to the Google server.
•
Automatic restore
: Set the device to automatically restore settings and app data from
the Google server when apps are reinstalled.
•
Auto restart
: Set the device to automatically optimise and restart itself at preset times for
optimal performance.
•
Factory data reset
: Reset settings to the factory default values and delete all data.
Language and input
Change the settings for text input. Some options may not be available depending on the
selected language.
On the Settings screen, tap
Language and input
.
•
Language
: Select a display language for all menus and apps.
•
Default keyboard
: Select a default keyboard type for text input.
•
Samsung keyboard
: Change the Samsung keyboard settings.
•
Google voice typing
: Change the voice input settings.
•
Voice input
: Select a default voice input service. You can also change settings for each
service.
•
Text-to-speech options
: Change the text-to-speech settings.
•
Pointer speed
: Adjust the pointer speed for the mouse or trackpad connected to your
device.
Settings
89
Battery
View battery power information and change power saving options.
On the Settings screen, tap
Battery
.
The usage time left shows the time remaining before the battery power runs
out. Usage time left may vary depending on your device settings and operating
conditions.
•
Power saving mode
: Activate power-saving mode and change the settings for power-
saving mode. Refer to Power saving mode for more information.
•
Display battery percentage
: Set the device to display the remaining battery life.
Storage
View memory information for your device.
On the Settings screen, tap
Storage
.
The actual available capacity of the internal memory is less than the specified
capacity because the operating system and default apps occupy part of the memory.
The available capacity may change when you update the device.
Settings
90
Date and time
Access and alter the following settings to control how the device displays the time and date.
On the Settings screen, tap
Date and time
.
If the battery remains fully discharged or removed from the device, the time and date
is reset.
•
Automatic date and time
: Automatically update the time and date when moving across
time zones.
•
Automatic time zone
(mobile network-enabled models): Set the device to receive time
zone information from the network when you move across time zones.
•
Set date
: Set the current date manually.
•
Set time
: Set the current time manually.
•
Select time zone
: Set the home time zone.
•
Use 24-hour format
: Display time in 24-hour format.
User manual
View help information to learn how to use the device and apps or configure important
settings.
On the Settings screen, tap
User manual
.
About device
Access device information, edit the device name, or update device software.
On the Settings screen, tap
About device
.
91
Appendix
Troubleshooting
Before contacting a Samsung Service Centre, please attempt the following solutions. Some
situations may not apply to your device.
When you turn on your device or while you are using the device, it
prompts you to enter one of the following codes:
•
Password: When the device lock feature is enabled, you must enter the password you set
for the device.
•
PIN: When using the device for the first time or when the PIN requirement is enabled, you
must enter the PIN supplied with the SIM or USIM card. You can disable this feature by
using the Lock SIM card menu.
•
PUK: Your SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly
several times. You must enter the PUK supplied by your service provider.
•
PIN2: When you access a menu requiring the PIN2, you must enter the PIN2 supplied with
the SIM or USIM card. For more information, contact your service provider.
Your device displays network or service error messages
•
When you are in areas with weak signals or poor reception, you may lose reception. Move
to another area and try again. While moving, error messages may appear repeatedly.
•
You cannot access some options without a subscription. For more information, contact
your service provider.
Your device does not turn on
When the battery is completely discharged, your device will not turn on. Fully charge the
battery before turning on the device.
Appendix
92
The touchscreen responds slowly or improperly
•
If you attach a protective cover or optional accessories to the touchscreen, the
touchscreen may not function properly.
•
If you are wearing gloves, if your hands are not clean while touching the touchscreen,
or if you tap the screen with sharp objects or your fingertips, the touchscreen may
malfunction.
•
The touchscreen may malfunction in humid conditions or when exposed to water.
•
Restart your device to clear any temporary software bugs.
•
Ensure that your device software is updated to the latest version.
•
If the touchscreen is scratched or damaged, visit a Samsung Service Centre.
Your device freezes or has fatal errors
If your device freezes or hangs, you may need to close apps or turn off the device and turn
it on again. If your device is frozen and unresponsive, press and hold the Power key and the
Volume key down simultaneously for more than 7 seconds to restart it.
If this does not solve the problem, perform a factory data reset. On the Apps screen,
tap
Settings
→
Backup and reset
→
Factory data reset
→
RESET DEVICE
→
ERASE
EVERYTHING
. Before performing the factory data reset, remember to make backup copies of
all important data stored in the device.
If the problem is still not resolved, contact a Samsung Service Centre.
The Internet is often disconnected
•
Ensure that you are not blocking the device’s internal antenna.
•
When you are in areas with weak signals or poor reception, you may lose reception. You
may have connectivity problems due to issues with the service provider’s base station.
Move to another area and try again.
•
When using the device while moving, wireless network services may be disabled due to
issues with the service provider’s network.
Appendix
93
The battery icon is empty
Your battery is low. Charge the battery.
The battery does not charge properly (For Samsung-approved
chargers)
•
Ensure that the charger is connected properly.
•
Visit a Samsung Service Centre and have the battery replaced.
The battery depletes faster than when first purchased
•
When you expose the device or the battery to very cold or very hot temperatures, the
useful charge may be reduced.
•
Battery consumption increases when you use messaging features or some apps, such as
games or the Internet.
•
The battery is consumable and the useful charge will get shorter over time.
Your device is hot to the touch
When you use apps that require more power or use apps on your device for an extended
period of time, your device may feel hot to the touch. This is normal and should not affect
your device’s lifespan or performance.
Error messages appear when launching the camera
Your device must have sufficient available memory and battery power to operate the camera
app. If you receive error messages when launching the camera, try the following:
•
Charge the battery.
•
Free some memory by transferring files to a computer or deleting files from your device.
•
Restart the device. If you are still having trouble with the camera app after trying these
tips, contact a Samsung Service Centre.
Appendix
94
Photo quality is poorer than the preview
•
The quality of your photos may vary, depending on the surroundings and the
photography techniques you use.
•
If you take photos in dark areas, at night, or indoors, image noise may occur or images
may be out of focus.
Error messages appear when opening multimedia files
If you receive error messages or multimedia files do not play when you open them on your
device, try the following:
•
Free some memory by transferring files to a computer or deleting files from your device.
•
Ensure that the music file is not Digital Rights Management (DRM)-protected. If the file is
DRM-protected, ensure that you have the appropriate licence or key to play the file.
•
Ensure that the file formats are supported by the device. If a file format is not supported,
such as DivX or AC3, install an app that supports it. To confirm the file formats that your
device supports, visit www.samsung.com.
•
Your device supports photos and videos captured with the device. Photos and videos
captured by other devices may not work properly.
•
Your device supports multimedia files that are authorised by your network service
provider or providers of additional services. Some content circulated on the Internet,
such as ringtones, videos, or wallpapers, may not work properly.
Another Bluetooth device is not located
•
Ensure that the Bluetooth wireless feature is activated on your device.
•
Ensure that the Bluetooth wireless feature is activated on the device you wish to connect
to.
•
Ensure that your device and the other Bluetooth device are within the maximum
Bluetooth range (10 m).
If the tips above do not solve the problem, contact a Samsung Service Centre.
Appendix
95
A connection is not established when you connect the device to a
computer
•
Ensure that the USB cable you are using is compatible with your device.
•
Ensure that you have the proper driver installed and updated on your computer.
•
If you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher
installed on your computer.
Your device cannot find your current location
GPS signals may be obstructed in some locations, such as indoors. Set the device to use Wi-Fi
or a mobile network to find your current location in these situations.
Data stored in the device has been lost
Always make backup copies of all important data stored in the device. Otherwise, you cannot
restore data if it is corrupted or lost. Samsung is not responsible for the loss of data stored in
the device.
A small gap appears around the outside of the device case
•
This gap is a necessary manufacturing feature and some minor rocking or vibration of
parts may occur.
•
Over time, friction between parts may cause this gap to expand slightly.
Appendix
96
Removing the battery
•
To remove the battery, you must visit an authorised service centre with the provided
instructions.
•
For your safety, you must not attempt to remove the battery. If the battery is not
properly removed, it may lead to damage to the battery and device, cause personal
injury, and/or result in the device being unsafe.
•
Samsung does not accept liability for any damage or loss (whether in contract or tort,
including negligence) which may arise from failure to precisely follow these warnings and
instructions, other than death or personal injury caused by Samsung’s negligence.
1 Remove the stand.
2 Loosen and remove the screws at the location points and remove the back cover.
3 Loosen and remove the screws from the battery.
4 Disconnect the battery connector and remove the battery.
ANDROID DEVICE
Health & Safety and Warranty Guide
Please read this manual before operating your
device and keep it for future reference.
T677V
Location of Legal Information on the device:
Health and Safety Information
• Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Health and
Safety
Warranty
• Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Warranty
End User License Agreement (EULA)
• Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ End User
License Agreement
T677V
Warning!
This product contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm. For more information,
please call 1-800-SAMSUNG (726-7864).
Intellectual Property
All Intellectual Property, as defined below, owned by or which is otherwise the
property of Samsung or its respective suppliers relating to the SAMSUNG mobile
device, including but not limited to, accessories, parts, or software relating thereto
(the “mobile device”), is proprietary to Samsung and protected under federal laws,
state laws, and international treaty provisions. Intellectual Property includes, but is
not limited to, inventions (patentable or unpatentable), patents, trade secrets,
copyrights, software, computer programs, and related documentation and other
T677V
works of authorship. You may not infringe or otherwise violate the rights secured by
the Intellectual Property. Moreover, you agree that you will not (and will not attempt
to) modify, prepare derivative works of, reverse engineer, decompile, disassemble,
or otherwise attempt to create source code from the software. No title to or
ownership in the Intellectual Property is transferred to you. All applicable rights of
the Intellectual Property shall remain with SAMSUNG and its suppliers.
Open Source Software
Some software components of this product incorporate source code covered under
GNU General Public License (GPL), GNU Lesser General Public License (LGPL),
OpenSSL License, BSD License and other open source licenses. To obtain the
source code covered under the open source licenses, please visit:
http://opensource.samsung.com
T677V
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE
WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE
PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF
ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT
LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY
PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE
PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE
PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE
PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR
CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION
MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY
OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION,
T677V
SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING
FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH
OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.
Modification of Software
SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES
CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF
OPERATING SYSTEM SOFTWARE.
USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND
APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO
DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS.
T677V
IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE
ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE
SCREEN THAT UNAUTHORIZED SOFTWARE HAS BEEN DETECTED. YOU SHOULD
THEN POWER DOWN THE DEVICE AND CONTACT YOUR CARRIER TO RESTORE THE
DEVICE TO THE CARRIER AUTHORIZED SETTINGS.
Diagnostic Software
This device is equipped with diagnostic software reporting usage and performance
information used solely to deliver improved network quality and overall device
experience to AT&T customers. Please refer to your AT&T Wireless Customer
Agreement and/or the AT&T Privacy Policy (
www.att.com/privacy
) for more
information.
T677V
Samsung Electronics America (SEA), Inc
Address:
85 Challenger Road
Ridgefield Park,
New Jersey 07660
Phone:
1-800-SAMSUNG (726-7864)
Internet Address:
www.samsung.com
T677V
©2015 Samsung Electronics America, Inc. Samsung is a registered trademark of
Samsung Electronics Co., Ltd.
Do you have questions about your Samsung Mobile Device?
For 24 hour information and assistance, we offer a new FAQ/ARS System
(Automated Response System) at:
www.samsung.com/us/support
T677V
1
Table of Contents
Section 1: Health and Safety Information ....................................... 2
Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . . . . . . 3
FCC Part 15 Information to User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Samsung Mobile Products and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . 10
Restricting Children's Access to Your Mobile Device . . . . . . . . . . . . . . . . . 15
Section 2: Online Legal Information .............................................16
End User License Agreement for Software . . . . . . . . . . . . . . . . . . . . . . . . 17
Health/Safety and Warranty Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Section 3: Samsung Product Registration ....................................18
Index ...............................................................................................19
T677V
2
Section 1: Health and Safety Information
This section outlines the safety precautions associated with using your device. The
terms “device” or “mobile device” are used in this section to refer to your device.
Read this information before using your mobile device.
Note:
Carefully slide out the card compartment cover to gain access to the internal
card slots. Any internal cards should be securely inserted with the label side up
(connectors down).
T677V
Health and Safety Information 3
This device is capable of operating in Wi-Fi
™
mode in the 2.4 and 5 GHz bands. The
FCC requires that devices operating within 5.15-5.25 GHz may only be used
indoors, not outside, in order to avoid interference with Mobile Satellite Services
(MSS). Therefore, this device is restricted from being used outdoors when operating
in frequencies between 5.15-5.25 GHz.
Specific Absorption Rate (SAR) Certification
Information
Your wireless mobile device is a radio transmitter and receiver. It is designed and
manufactured not to exceed the exposure limits for Radio Frequency (RF) energy set
by the Federal Communications Commission (FCC) of the U.S. Government.
T677V
4
These FCC RF exposure limits are derived from the recommendations of two expert
organizations: the National Council on Radiation Protection and Measurement
(NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases,
the recommendations were developed by scientific and engineering experts drawn
from industry, government, and academia after extensive reviews of the scientific
literature related to the biological effects of RF energy.
The RF exposure limit set by the FCC for wireless mobile devices employs a unit of
measurement known as the Specific Absorption Rate (SAR). The SAR is a measure
of the rate of absorption of RF energy by the human body expressed in units of
watts per kilogram (W/kg). The FCC requires wireless devices to comply with a
safety limit of 1.6 watts per kilogram (1.6 W/kg).
The FCC SAR limit incorporates a substantial margin of safety to give additional
protection to the public and to account for any variations in measurements.
T677V
Health and Safety Information 5
SAR tests are conducted using standard operating positions accepted by the FCC
with the mobile device transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the mobile device while operating can be well below
the maximum reported value. This is because the mobile device is designed to
operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower
the power output of the mobile device.
Before a new model device is available for sale to the public, it must be tested and
certified to the FCC that it does not exceed the SAR limit established by the FCC.
Tests for each model mobile device are performed in positions and locations (e.g.
near the body) as required by the FCC.
T677V
Health and Safety Information 7
SAR information on this and other model mobile devices can be accessed online on
the FCC's website through
http://transition.fcc.gov/oet/rfsafety/sar.html
. To find information that pertains to a
particular model mobile device, this site uses the mobile device FCC ID number,
which is usually printed somewhere on the case of the mobile device.
Once you have the FCC ID number for a particular mobile device, follow the
instructions on the website and it should provide values for typical or maximum SAR
for a particular mobile device. Additional SAR information can also be obtained at
www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones.
T677V
8
FCC Part 15 Information to User
Pursuant to part 15.21 of the FCC Rules, you are cautioned that changes or
modifications not expressly approved by Samsung could void your authority to
operate the device.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
T677V
Health and Safety Information 9
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
T677V
10
•
Consult the dealer or an experienced radio/TV technician for help.
Samsung Mobile Products and Recycling
Samsung cares for the environment and encourages its customers to recycle
Samsung mobile devices and genuine Samsung accessories.
Proper disposal of your mobile device and its battery is not only important for safety,
it benefits the environment.
Batteries must be recycled or disposed of properly.
Note:
Dispose of unwanted electronics through an approved recycler.
We've made it easy for you to recycle your old Samsung mobile device by working
with respected take-back companies in every state in the country.
T677V
Health and Safety Information 11
Note:
Most carriers will provide a take-back option for products to be properly
disposed when purchasing new products.
Drop It Off
You can drop off your Samsung-branded mobile device and batteries for
recycling at one of our numerous Samsung Recycling Direct (SM) locations.
For battery recycling,
go to call2recycle.org
or call 1-800-822-8837.
T677V
12
Note:
Samsung-branded devices and batteries will be accepted at these locations for
no fee.
To find the nearest recycling location, go to any of the following:
•
www.samsung.com/recyclingdirect
or call 1-877-278-0799.
•
PLUG-IN to eCYCLING with EPA:
www.call2recycle.org/
Mail It In
The Samsung Mobile Take-Back Program will provide Samsung customers with
a free recycling mailing label.
For more information, go to:
https://pages.samsung.com/recycling/index.jsp
and follow the on-screen instructions
or call 1-800-822-8837.
T677V
Health and Safety Information 13
Follow local regulations regarding disposal of mobile devices and
batteries
Dispose of your mobile device and batteries in accordance with local regulations. In
some areas, the disposal of these items in household or business trash may be
prohibited. Help us protect the environment - recycle!
Warning!
Never dispose of batteries in a fire because they may explode.
T677V
14
Caution! Some applications or prolonged usage may increase device temperature.
Prolonged skin contact with a device that is hot to the touch may produce
skin discomfort or redness, or low-temperature burns. If the device feels hot
to the touch, discontinue use and close all applications or turn off the device
until it cools. Always ensure that the device has adequate ventilation and air
flow. Covering the device with bedding, your body, thick clothing or any
other materials that significantly affect air flow may affect the performance
of the device and poses a possible risk of fire or explosion, which could lead
to serious bodily injuries or damage to property.
T677V
Health and Safety Information 15
Restricting Children's Access to Your Mobile Device
Your mobile device is not a toy. Do not allow children under the age of 3 to play with
it because they could hurt themselves or others or damage the mobile device. If
parents choose to allow children 3 or older to use the device, they should make sure
that there is adequate supervision of children while using the mobile device to guard
against damage to the device and use of services that may increase wireless or
other charges.
Parental control settings should be enabled to ensure that children do not have
access to services or content not approved by the parent. Routinely check this
mobile device to ensure that the device is working properly and is safe for children
to use.
T677V
16
Section 2: Online Legal Information
SAMSUNG ELECTRONICS AMERICA, INC. (“SAMSUNG”) warrants that SAMSUNG’s
devices and accessories (“Products”) are free from defects in material and
workmanship under normal use and service.
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefield Park, New Jersey 07660
Phone: 1-800-SAMSUNG (726-7864)
T677V
Online Legal Information 17
End User License Agreement for Software
The EULA for this device can be found:
Online at:
www.samsung.com/us/Legal/SamsungLegal-EULA4
.
Health/Safety and Warranty Guide
The online version of the Health/Safety and Warranty guide for your device can be
found at:
English:
www.samsung.com/us/Legal/Tablet-HSGuide
.
Spanish:
www.samsung.com/us/Legal/Tablet-HSGuide-SP
.
T677V
18
Section 3: Samsung Product Registration
T677V
19
Index
H
Health and Safety Information 2
O
Online Legal Information 16
R
Restricting Children's Access to Your
Mobile device 15
S
Samsung Mobile Products and
Recycling 10
Specific Absorption Rate (SAR)
Certification Information 3
T677V
