www.samsung.comUser ManualSM-T817Aa ana  ana  na and  a dd a n  aa   and a n na  d a and   a a  ad Cellular Network,  dn DRAFT, not FINAL

2About this manualThis device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features.rPlease read this manual before using the device to ensure safe and proper use.rDescriptions are based on the device’s default settings.rImages and screenshots may differ in appearance from the actual product.rContent may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com.rContent (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in.rAvailable features and additional services may vary by device, software, or service provider.rApplications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung.rSamsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly.rSoftware, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media.DRAFT, not FINAL

About this manual3rDefault applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers.rModifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty.Instructional iconsWarning: situations that could cause injury to yourself or othersCaution: situations that could cause damage to your device or other equipmentNote: notes, usage tips, or additional informationCopyrightCopyright © 2014 Samsung ElectronicsThis guide is protected under international copyright laws.No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.DRAFT, not FINAL

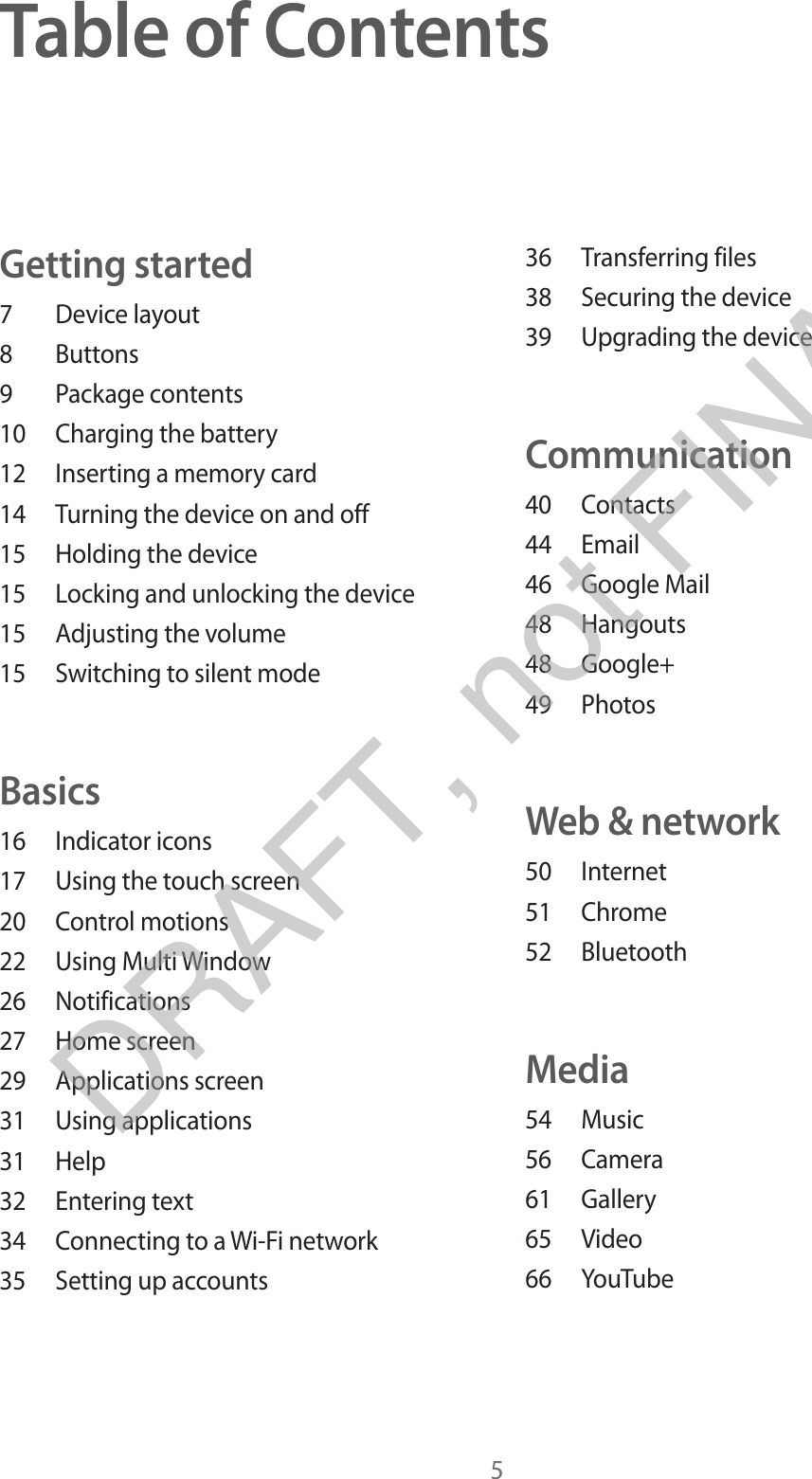

5Table of ContentsGetting started7 Device layout8 Buttons9 Package contents10 Charging the battery12 Inserting a memory card14 Turning the device on and off15 Holding the device15 Locking and unlocking the device15 Adjusting the volume15 Switching to silent modeBasics16 Indicator icons17 Using the touch screen20 Control motions22 Using Multi Window26 Notifications27 Home screen29 Applications screen31 Using applications31 Help32 Entering text34 Connecting to a Wi-Fi network35 Setting up accounts36 Transferring files38 Securing the device39 Upgrading the deviceCommunication40 Contacts44 Email46 Google Mail48 Hangouts48 Google+49 PhotosWeb & network50 Internet51 Chrome52 BluetoothMedia54 Music56 Camera61 Gallery65 Video66 YouTubeDRAFT, not FINAL

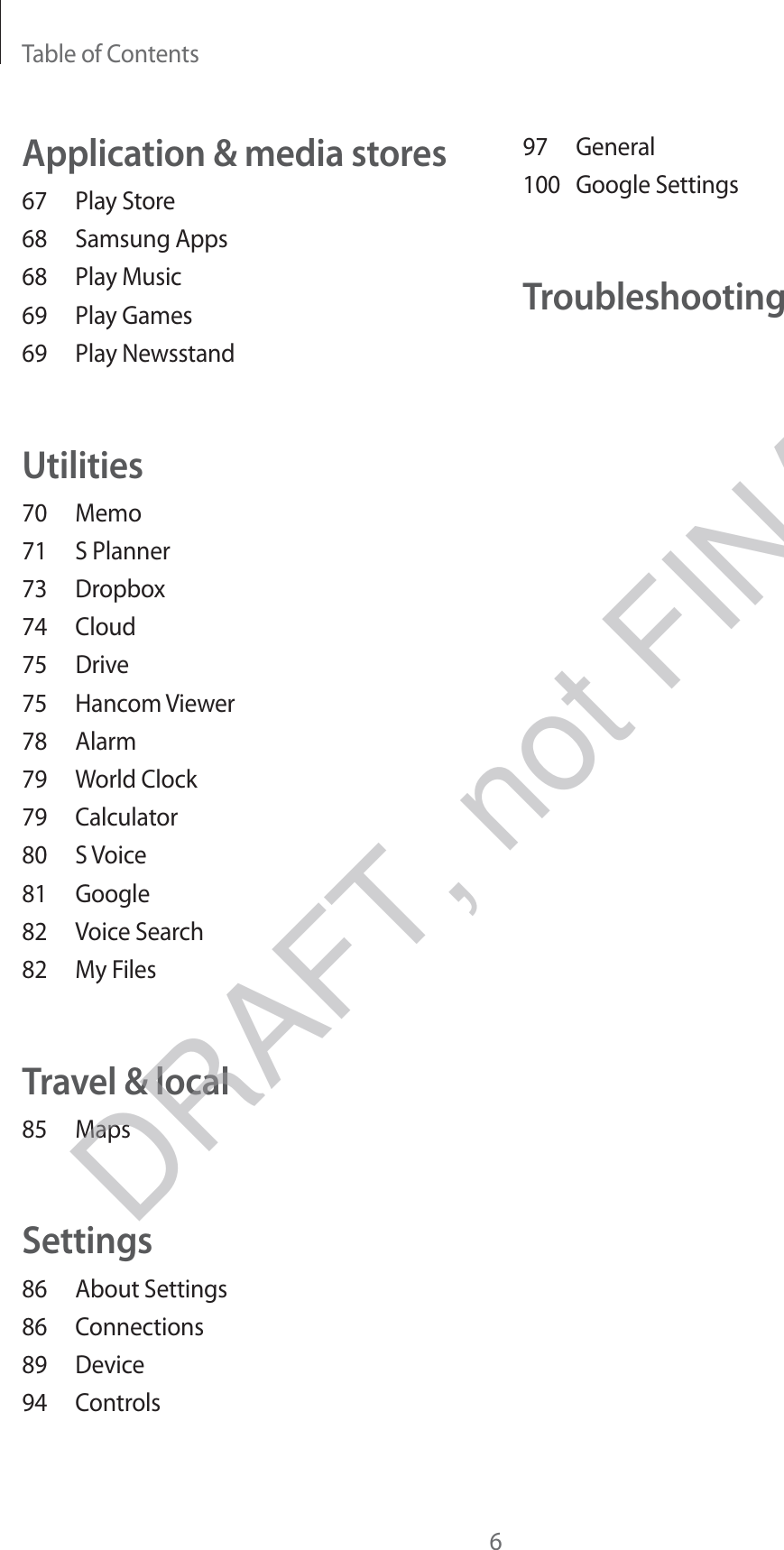

Table of Contents697 General100 Google SettingsTroubleshootingApplication & media stores67 Play Store68 Samsung Apps68 Play Music69 Play Games69 Play NewsstandUtilities70 Memo71 S Planner73 Dropbox74 Cloud75 Drive75 Hancom Viewer78 Alarm79 World Clock79 Calculator80 S Voice81 Google82 Voice Search82 My FilesTravel & local85 MapsSettings86 About Settings86 Connections89 Device94 ControlsDRAFT, not FINAL

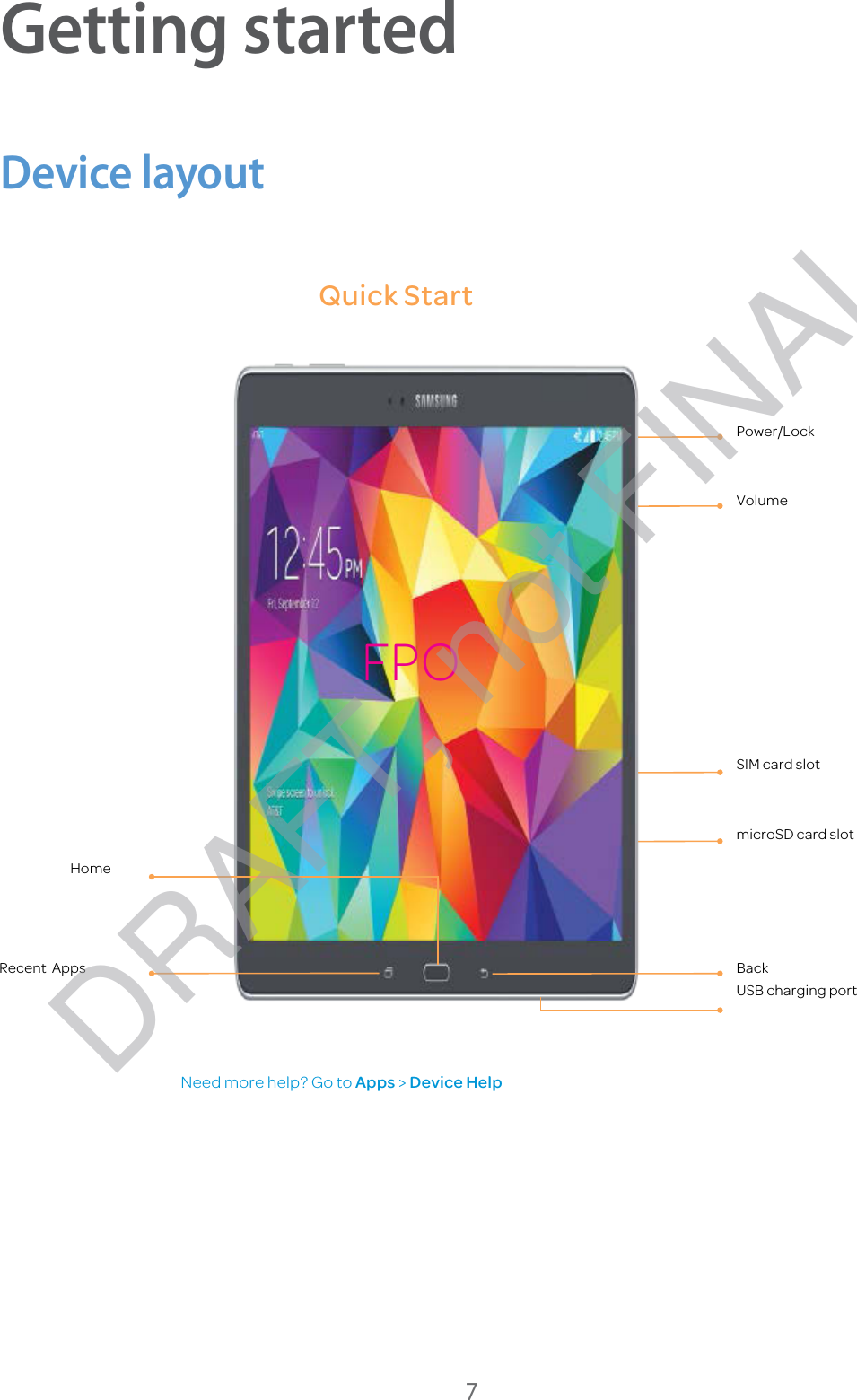

7Getting startedDevice layoutQuick StartNeed more help? Go to Apps > Device HelpPower/LockmicroSD card slotSIM card slotVolumeBackUSB charging portHomeRecent AppsFPODRAFT, not FINAL

Getting started8rDo not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery.rDo not use a screen protector. This causes sensor malfunctions.rDo not allow water to contact the touch screen. The touch screen may malfunction in humid conditions or when exposed to water.ButtonsButton FunctionPowerrPress and hold to turn the device on or off.rPress and hold for 8 seconds to reset the device if it has fatal errors or hang-ups, or freezes.rPress to lock or unlock the device. The device goes into lock mode when the touch screen turns off.Recent appsrTap to open the list of recent applications.HomerPress to return to the Home screen.rPress and hold to launch Google search.BackrTap to return to the previous screen.VolumerPress to adjust the device volume.DRAFT, not FINAL

Getting started9Package contentsCheck the product box for the following items:rDevicerQuick start guiderThe items supplied with the device and any available accessories may vary depending on the region or service provider.rThe supplied items are designed only for this device and may not be compatible with other devices.rAppearances and specifications are subject to change without prior notice.rYou can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.rOther accessories may not be compatible with your device.rUse only Samsung-approved accessories. Malfunctions caused by using unapproved accessories are not covered by the warranty service.rAvailability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.DRAFT, not FINAL

Getting started10Charging the batteryUse the charger to charge the battery before using it for the first time.Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.rWhen the battery power is low, the battery icon appears empty.rIf the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.rIf you use multiple applications at once, network applications, or applications that need a connection to another device, the battery will drain quickly. To avoid disconnecting from the network or losing power during a data transfer, always use these applications after fully charging the battery.Charging with the chargerConnect the USB cable to the USB power adaptor and then plug the end of the USB cable into the multipurpose jack.DRAFT, not FINAL

Getting started11Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.rThe device can be used while it is charging, but it may take longer to fully charge the battery.rIf the device receives an unstable power supply while charging, the touch screen may not function. If this happens, unplug the charger from the device.rWhile charging, the device may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.rIf the device is not charging properly, take the device and the charger to a Samsung Service Centre.After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.Checking the battery charge statusWhen you charge the battery while the device is off, the following icons will show the current battery charge status:Charging Fully chargedDRAFT, not FINAL

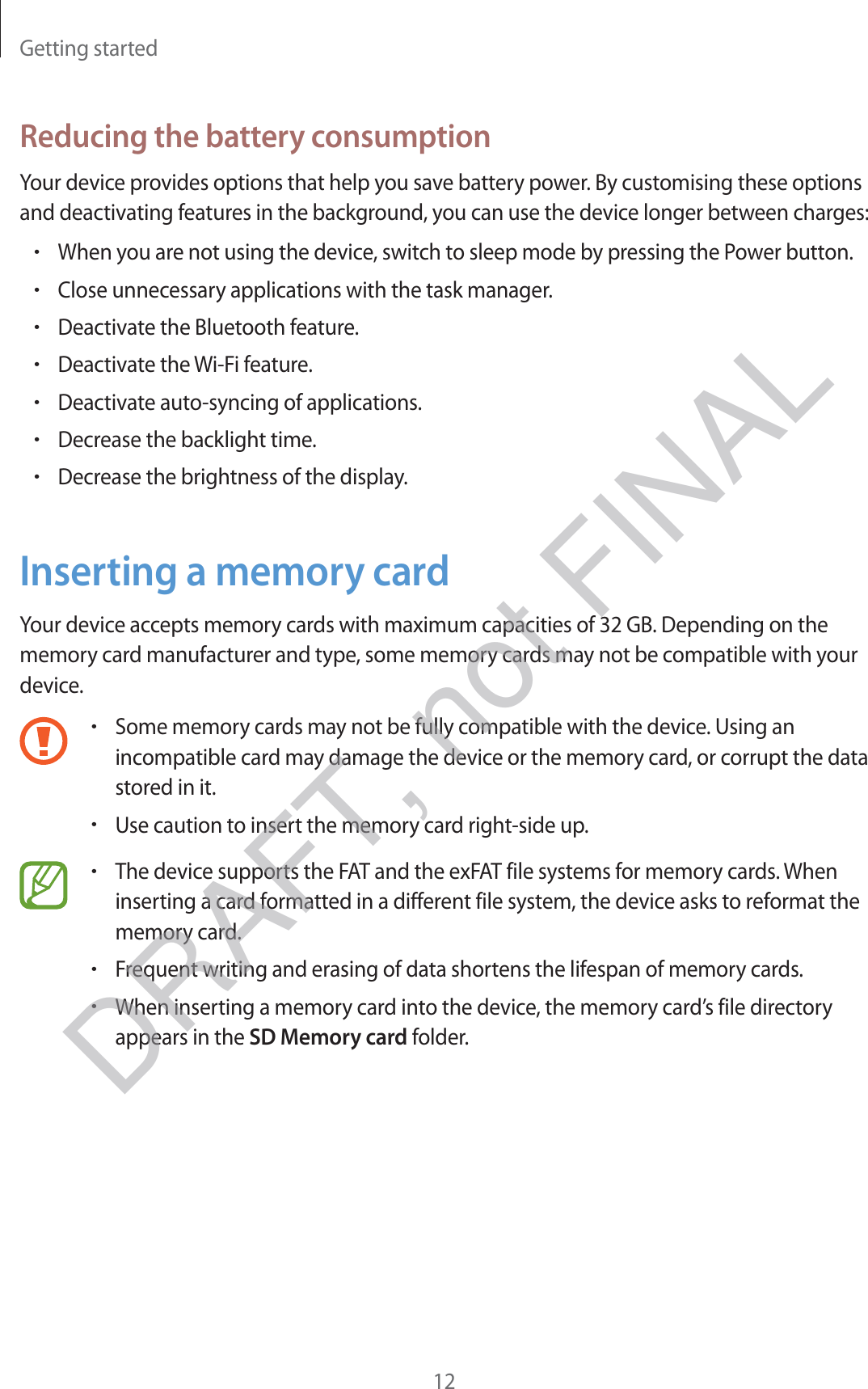

Getting started12Reducing the battery consumptionYour device provides options that help you save battery power. By customising these options and deactivating features in the background, you can use the device longer between charges:rWhen you are not using the device, switch to sleep mode by pressing the Power button.rClose unnecessary applications with the task manager.rDeactivate the Bluetooth feature.rDeactivate the Wi-Fi feature.rDeactivate auto-syncing of applications.rDecrease the backlight time.rDecrease the brightness of the display.Inserting a memory cardYour device accepts memory cards with maximum capacities of 32 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.rSome memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.rUse caution to insert the memory card right-side up.rThe device supports the FAT and the exFAT file systems for memory cards. When inserting a card formatted in a different file system, the device asks to reformat the memory card.rFrequent writing and erasing of data shortens the lifespan of memory cards.rWhen inserting a memory card into the device, the memory card’s file directory appears in the SD Memory card folder.DRAFT, not FINAL

Getting started131 Open the cover of the memory card slot.2 Insert a memory card with the gold-coloured contacts facing downwards.3 Push the memory card into the slot until it locks in place.4 Close the cover of the memory card slot.Removing the memory cardBefore removing the memory card, first unmount it for safe removal. On the Home screen, tap → Settings → General → Storage → Unmount SD card.1 Open the cover of the memory card slot.2 Push the memory card until it disengages from the device, and then pull it out.3 Close the cover of the memory card slot.Do not remove the memory card while the device is transferring or accessing information. Doing so can cause data to be lost or corrupted or damage to the memory card or device. Samsung is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data.DRAFT, not FINAL

Getting started14Formatting the memory cardA memory card formatted on a computer may not be compatible with the device. Format the memory card on the device.On the Home screen, tap → Settings → General → Storage → Format SD card → Format SD card → Erase everything.Before formatting the memory card, remember to make backup copies of all important data stored on the device. The manufacturer’s warranty does not cover loss of data resulting from user actions.Turning the device on and offWhen turning on the device for the first time, follow the on-screen instructions to set up your device.Press and hold the Power button for a few seconds to turn on the device.rFollow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.rPress and hold the Power button and tap Flight mode to disable the wireless features.To turn off the device, press and hold the Power button, and then tap Power off.DRAFT, not FINAL

Getting started15Holding the deviceDo not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery.Locking and unlocking the deviceWhen not in use, lock the device to prevent unwanted operation. Pressing the Power button turns off the screen and puts the device into lock mode. The device automatically gets locked if it is not used for a specified period.To unlock the device, press the Power button or the Home button when the touch screen is turned off, tap anywhere on the screen, and then flick your finger in any direction.Adjusting the volumePress the Volume button up or down to adjust the sound volume when playing music or video.Switching to silent modeUse one of the following methods:rPress and hold the Volume button down until it switches to silent mode.rPress and hold the Power button, and then tap Mute.rOpen the notifications panel at the top of the screen, and then tap Sound.DRAFT, not FINAL

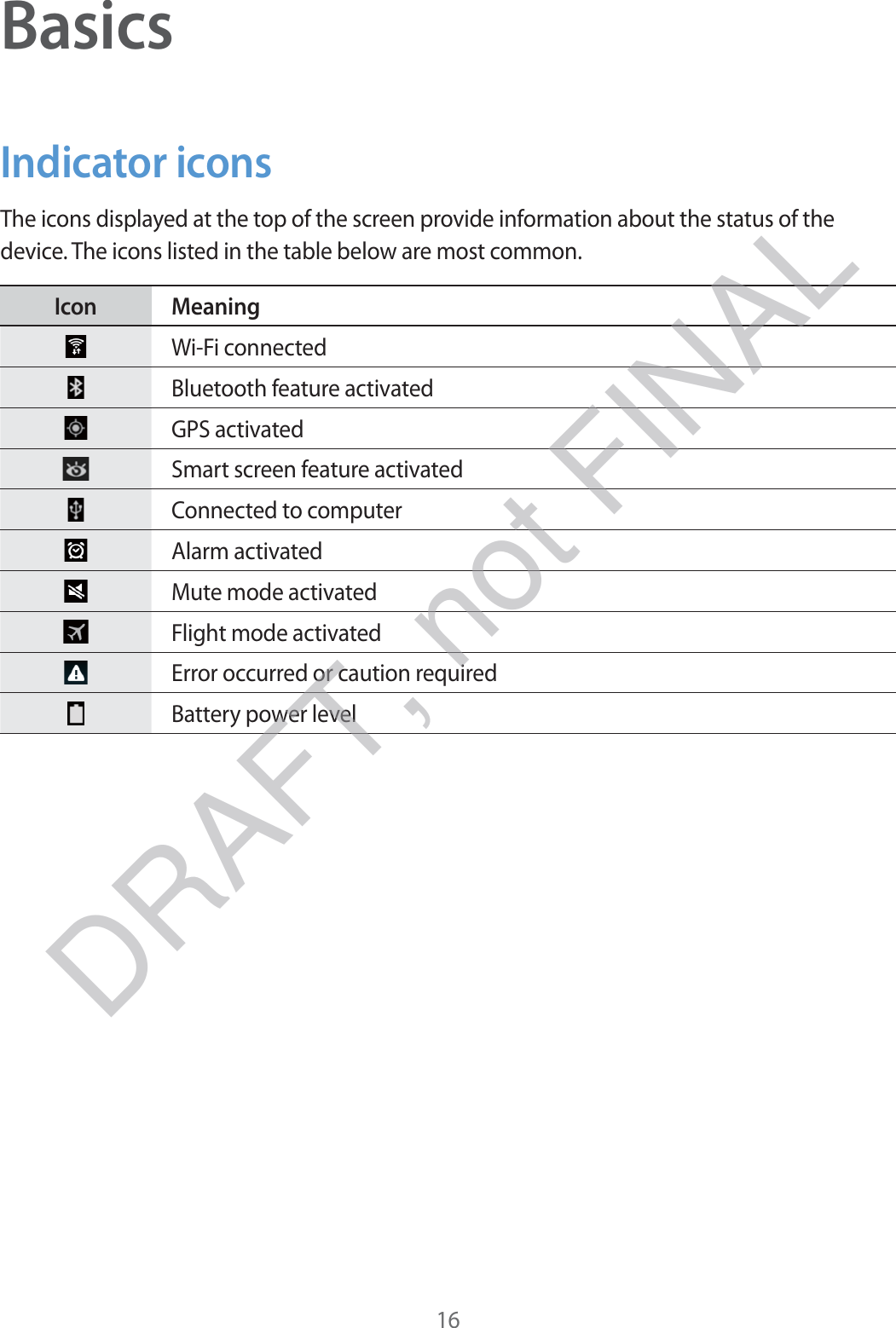

16BasicsIndicator iconsThe icons displayed at the top of the screen provide information about the status of the device. The icons listed in the table below are most common.Icon MeaningWi-Fi connectedBluetooth feature activatedGPS activatedSmart screen feature activatedConnected to computerAlarm activatedMute mode activatedFlight mode activatedError occurred or caution requiredBattery power levelDRAFT, not FINAL

Basics17Using the touch screenUse only fingers to use the touch screen.rDo not allow the touch screen to come into contact with other electrical devices. Electrostatic discharges can cause the touch screen to malfunction.rTo avoid damaging the touch screen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.rThe device may not recognise touch inputs close to the edges of the screen, which are outside of the touch input area.rLeaving the touch screen idle for extended periods may result in afterimages (screen burn-in) or ghosting. Turn off the touch screen when you do not use the device.Finger gesturesTappingTo open an application, to select a menu item, to press an on-screen button, or to enter a character using the on-screen keyboard, tap it with a finger.DRAFT, not FINAL

Basics18Tapping and holdingTap and hold an item for more than 2 seconds to access available options.DraggingTo move an icon, thumbnail, or preview to a new location, tap and hold it and drag it to the target position.Double-tappingDouble-tap on a webpage or image to zoom in a part. Double-tap again to return.DRAFT, not FINAL

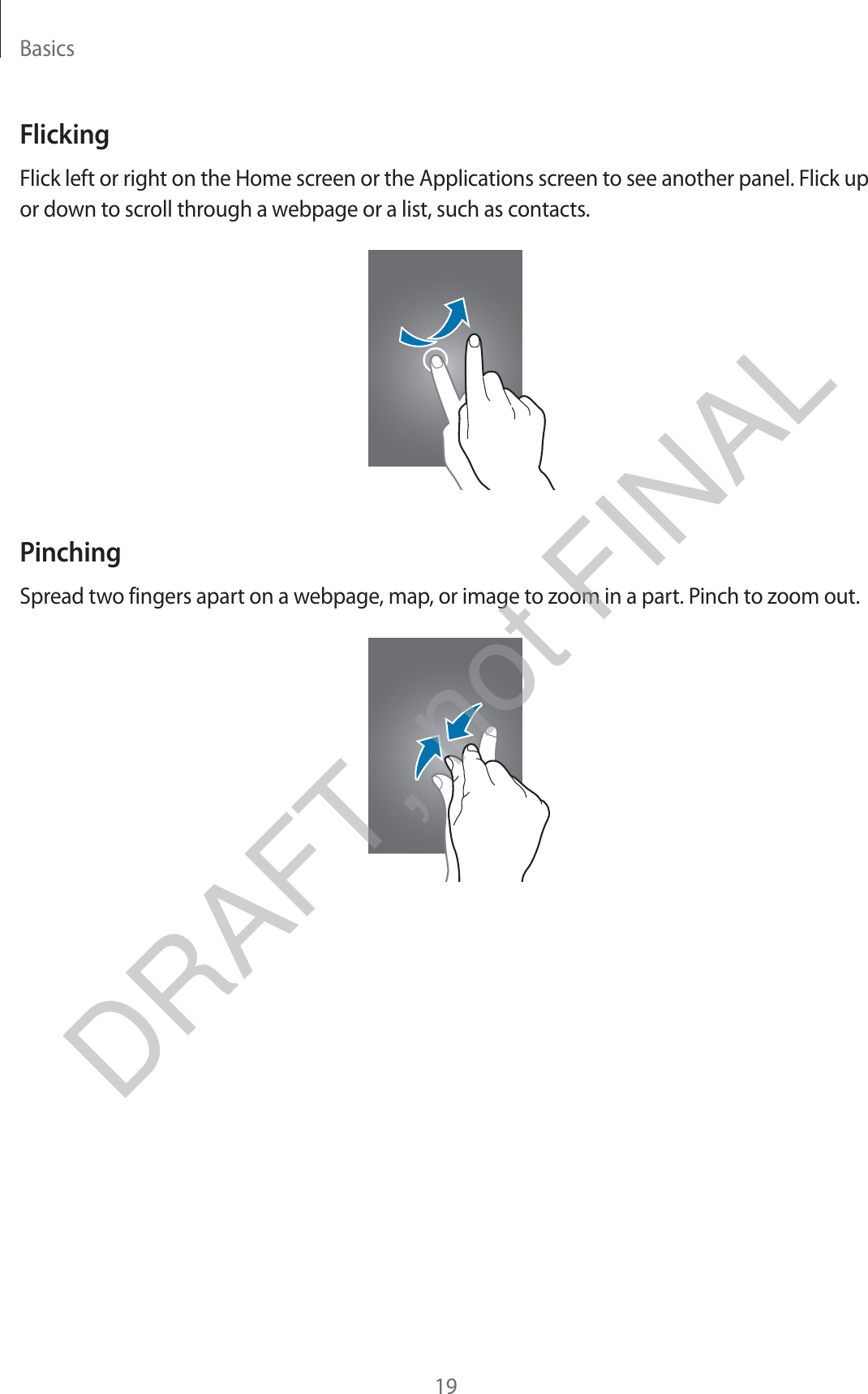

Basics19FlickingFlick left or right on the Home screen or the Applications screen to see another panel. Flick up or down to scroll through a webpage or a list, such as contacts.PinchingSpread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.DRAFT, not FINAL

Basics20Control motionsSimple motions allow easy control of the device.Before using motions, make sure the motion feature is activated. On the Home screen, tap → Settings → Controls → Palm motion, and then drag the Palm motion switch to the right.Excessive shaking or impact to the device may result in unintended inputs. Control motions properly.Rotating the screenMany applications allow display in either portrait or landscape orientation. Rotating the device causes the display to automatically adjust to fit the new screen orientation.To prevent the display from rotating automatically, open the notifications panel and deselect Screen rotation.rSome applications do not allow screen rotation.rSome applications display a different screen depending on the orientation. The calculator turns into a scientific calculator when rotated to landscape.DRAFT, not FINAL

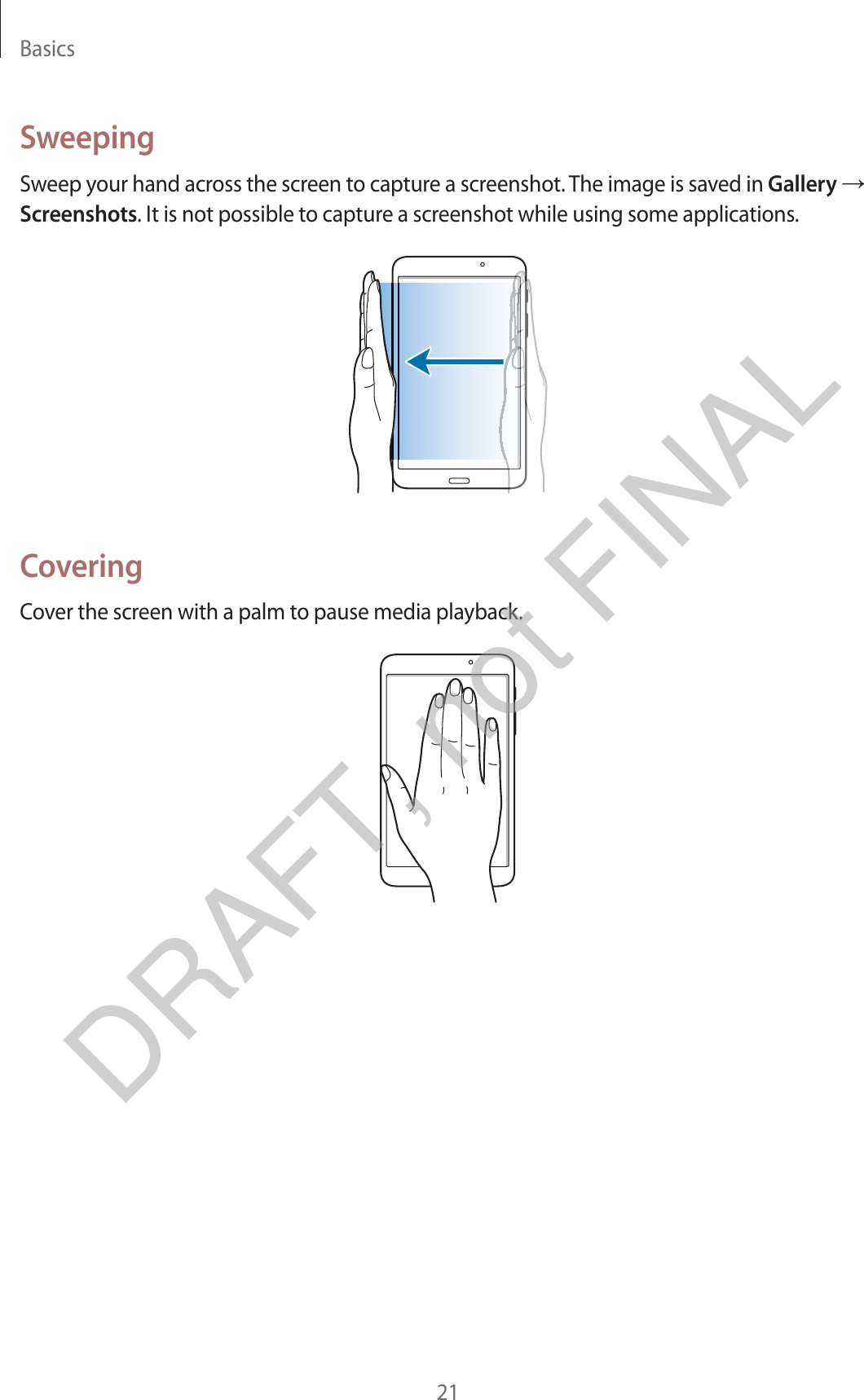

Basics21SweepingSweep your hand across the screen to capture a screenshot. The image is saved in Gallery → Screenshots. It is not possible to capture a screenshot while using some applications.CoveringCover the screen with a palm to pause media playback.DRAFT, not FINAL

Basics22Using Multi WindowUse this feature to run multiple applications on the screen at the same time.rOnly applications on the Multi Window tray can run.rThis feature may not be available depending on the region or service provider.To use Multi Window, on the Home screen, tap → Settings → Device → Multi window, and then drag the Multi window switch to the right.Using a split screen Multi WindowUse this feature to run applications in a split screen.Launching applications in a split screen Multi Window1 Drag your finger from the right edge of the screen towards the middle of the screen. Alternatively, tap and hold .The Multi Window tray appears at the right side of the screen.Multi Window trayDRAFT, not FINAL

Basics232 Tap and hold an application icon on the Multi Window tray, and then drag it to the screen.Release the application icon when the screen turns blue.3 Tap and hold another application icon on the Multi Window tray, and then drag it to a new location.DRAFT, not FINAL

Basics24Sharing content between applicationsYou can easily share content between applications, such as Email and Internet, by dragging and dropping them.Some applications may not support this feature.1 Launch Email and Internet in a split screen Multi Window.Access the Multi Window options2 Tap the circle between the application windows, and then tap .Tap the circle between application windows to access the following options:r : Switch locations between Multi Window applications.r : Share items, such as images, text, or links, between application windows by dragging and dropping them.r : Maximise the window.r : Close the application.DRAFT, not FINAL

Basics253 Tap and hold an item in the Internet window and drag it to a location in the Email window.DRAFT, not FINAL

Basics26NotificationsNotification icons appear on the status bar at the top of the screen to report new messages, calendar events, device status, and more. Drag down from the status bar to open the notifications panel. Scroll the list to see additional alerts. To close the notifications panel, drag up the bar that is at the bottom of the screen.From the notifications panel, you can view your device’s current settings. Drag down from the status bar, and then tap to use the following options:rWi-Fi: Activate or deactivate the Wi-Fi feature.rLocation: Activate or deactivate the GPS feature.rSound: Activate or deactivate silent mode.rScreen rotation: Allow or prevent the interface from rotating when you rotate the device.rBluetooth: Activate or deactivate the Bluetooth feature.rMulti window: Set the device to use Multi Window.rSync: Activate or deactivate auto-syncing of applications.rSmart stay: Activate or deactivate the smart stay feature.rPower saving: Activate or deactivate power-saving mode.rBlocking mode: Activate or deactivate blocking mode. In blocking mode, the device will block notifications. To select which notifications will be blocked, tap Settings → Device → Blocking mode.rFlight mode: Activate or deactivate flight mode.rHands-free mode: Activate or deactivate hands-free mode.The available options may vary depending on the region or service provider.To rearrange the options on the notifications panel, open the notifications panel, tap → , tap and hold an item, and then drag the item to another location.DRAFT, not FINAL

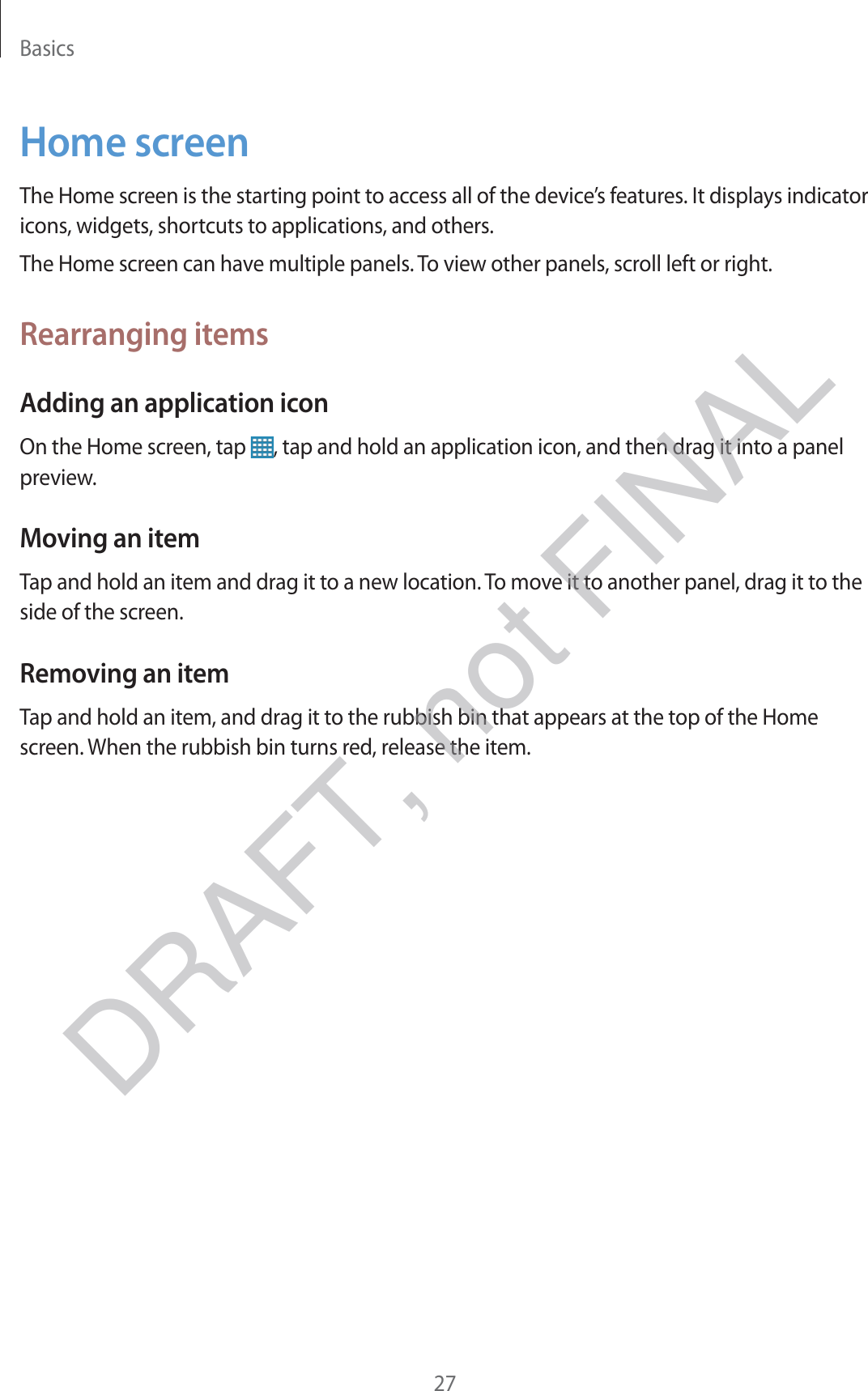

Basics27Home screenThe Home screen is the starting point to access all of the device’s features. It displays indicator icons, widgets, shortcuts to applications, and others.The Home screen can have multiple panels. To view other panels, scroll left or right.Rearranging itemsAdding an application iconOn the Home screen, tap , tap and hold an application icon, and then drag it into a panel preview.Moving an itemTap and hold an item and drag it to a new location. To move it to another panel, drag it to the side of the screen.Removing an itemTap and hold an item, and drag it to the rubbish bin that appears at the top of the Home screen. When the rubbish bin turns red, release the item.DRAFT, not FINAL

Basics28Rearranging panelsAdding a new panelPinch on the screen and tap .Moving a panelPinch on the screen, tap and hold a panel preview, and then drag it to a new location.Removing a panelPinch on the screen, tap and hold a panel preview, and then drag it to the rubbish bin at the top of the screen.Setting wallpaperSet an image or photo stored in the device as wallpaper for the Home screen.On the Home screen, tap and hold the empty area, tap Set wallpaper → Home screen, and then select one of the following:rGallery: See photos taken by the device’s camera or images downloaded from the Internet.rLive wallpapers: See animated images.rPhotos: See images in Photos.rWallpapers: See wallpaper images.Select an image, resize the frame if necessary, and then set it as wallpaper.DRAFT, not FINAL

Basics29Using widgetsWidgets are small applications that provide convenient functions and information on your Home screen. To use them, add widgets from the widgets panel to the Home screen.rSome widgets connect to web services. Using a web-based widget may result in additional charges.rThe widgets available may vary depending on the region or service provider.On the Home screen, tap → Widgets. Scroll left or right on the widgets panel, and then tap and hold a widget to add it to the Home screen. Put it on a location you want, resize it by dragging the frame if necessary, and then tap anywhere on the screen to save the location of the widget.Applications screenThe Applications screen displays icons for all applications, including any new applications installed.On the Home screen, tap to open the Applications screen.To view other panels, scroll left or right.Rearranging applicationsThis feature is available only in the customisable grid view.Tap → Edit, tap and hold an application, and then drag it to a new location. To move it to another panel, drag it to the side of the screen.DRAFT, not FINAL

Basics30Organising with foldersPut related applications together in a folder for convenience.Tap → Edit, tap and hold an application, and then drag it to Create folder. Enter a folder name and then tap OK. Put applications into the new folder by dragging, and then tap Save to save the arrangement.Rearranging panelsPinch on the screen, tap and hold a panel preview, and then drag it to a new location.Installing applicationsUse application stores, such as Samsung Apps, to download and install applications.Uninstalling applicationsTap → Uninstall/disable apps, and then select an application to uninstall it.Default applications that come with the device cannot be uninstalled.Disabling applicationsTap → Uninstall/disable apps, and then select an application to disable it.To enable applications, on the Applications screen, tap → Show disabled apps, select the applications, and then tap Done.rDownloaded applications and some default applications that come with the device cannot be disabled.rWhen you use this feature, disabled applications disappear from the Applications screen but are still stored in the device.DRAFT, not FINAL

Basics31Using applicationsThis device can run many different types of applications, ranging from media to Internet applications.Opening an applicationOn the Home screen or the Applications screen, select an application icon to open it.Some applications are grouped into folders. Tap a folder, and then tap an application to open it.Opening from recently-used applicationsTap to open the list of recently-used applications.Select an application icon to open.Closing an applicationClose applications not in use to save battery power and maintain device performance.Tap → Task manager, and then tap End next to an application to close it. To close all running applications, tap End all. Alternatively, tap → Close all.HelpAccess help information to learn how to use the device and applications or configure important settings.Tap Help on the Applications screen. Select a category to view tips.To sort categories by an alphabetical order, tap .To search for keywords, tap .DRAFT, not FINAL

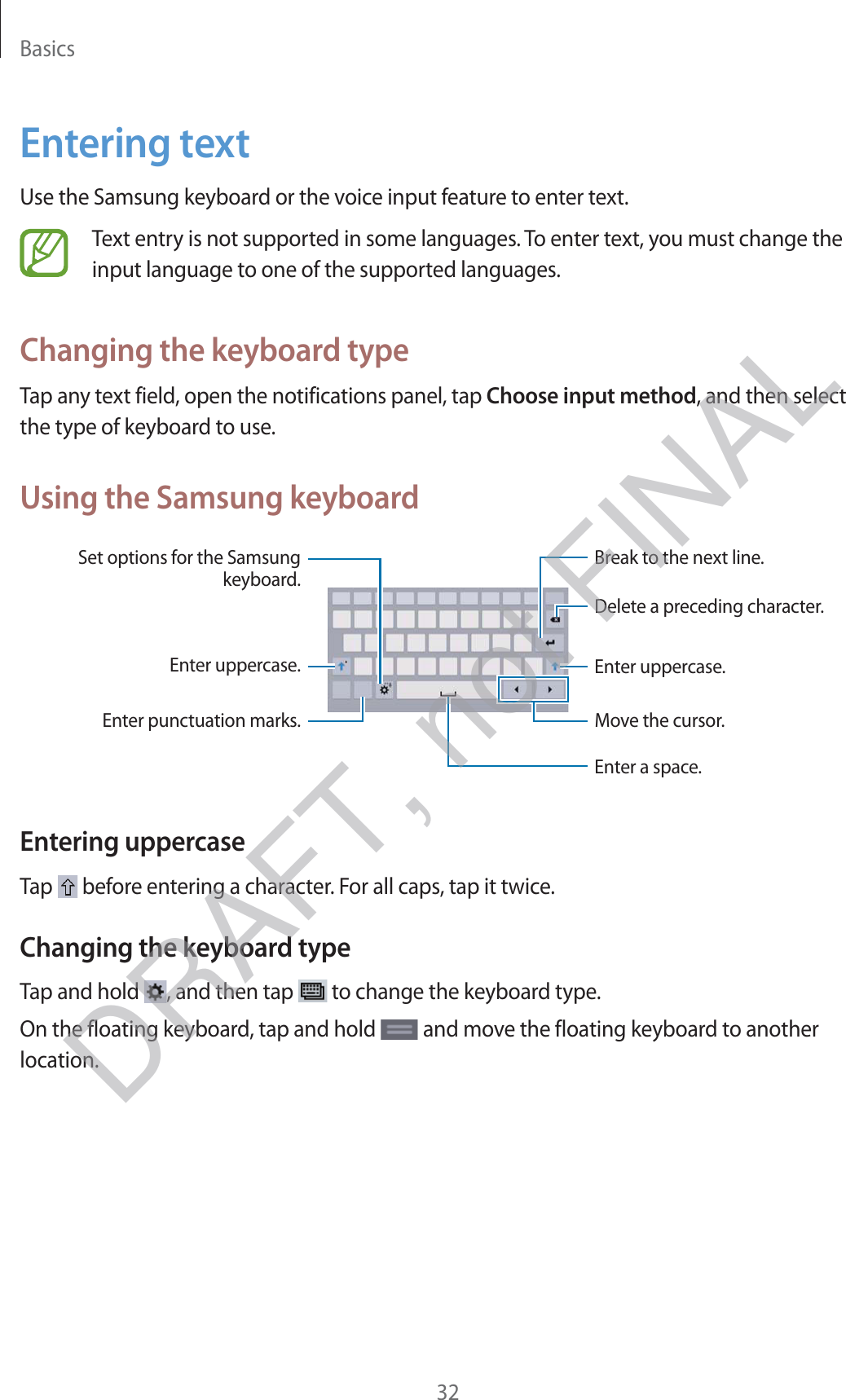

Basics32Entering textUse the Samsung keyboard or the voice input feature to enter text.Text entry is not supported in some languages. To enter text, you must change the input language to one of the supported languages.Changing the keyboard typeTap any text field, open the notifications panel, tap Choose input method, and then select the type of keyboard to use.Using the Samsung keyboardBreak to the next line.Delete a preceding character.Enter punctuation marks.Enter uppercase.Set options for the Samsung keyboard.Enter a space.Enter uppercase.Move the cursor.Entering uppercaseTap before entering a character. For all caps, tap it twice.Changing the keyboard typeTap and hold , and then tap to change the keyboard type.On the floating keyboard, tap and hold and move the floating keyboard to another location.DRAFT, not FINAL

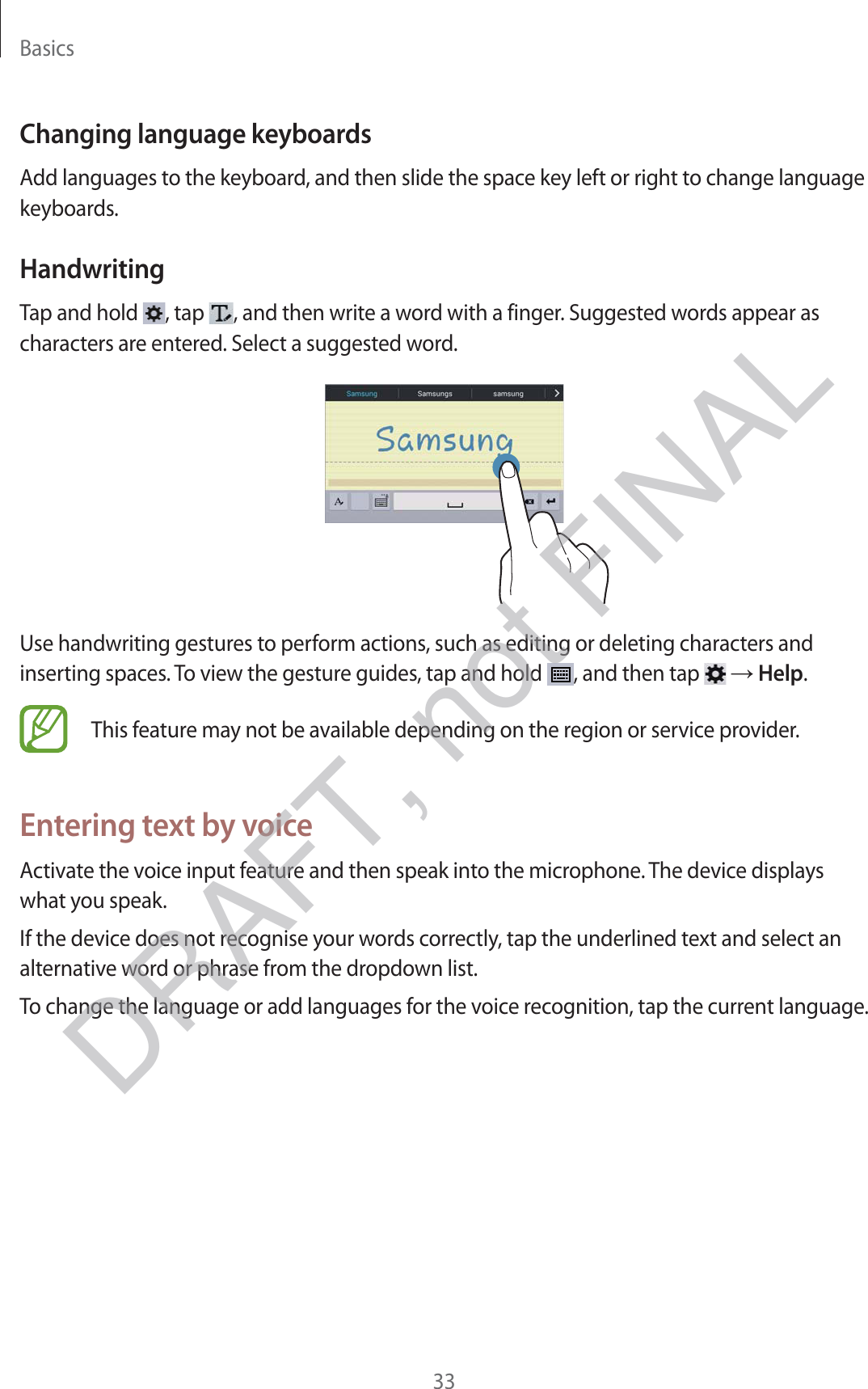

Basics33Changing language keyboardsAdd languages to the keyboard, and then slide the space key left or right to change language keyboards.HandwritingTap and hold , tap , and then write a word with a finger. Suggested words appear as characters are entered. Select a suggested word.Use handwriting gestures to perform actions, such as editing or deleting characters and inserting spaces. To view the gesture guides, tap and hold , and then tap → Help.This feature may not be available depending on the region or service provider.Entering text by voiceActivate the voice input feature and then speak into the microphone. The device displays what you speak.If the device does not recognise your words correctly, tap the underlined text and select an alternative word or phrase from the dropdown list.To change the language or add languages for the voice recognition, tap the current language.DRAFT, not FINAL

Basics34Copying and pastingTap and hold over text, drag or to select more or less text, and then tap Copy to copy or Cut to cut. The selected text is copied to the clipboard.To paste it into a text entry field, place the cursor at the point where it should be inserted, and then tap → Paste.Connecting to a Wi-Fi networkConnect the device to a Wi-Fi network to use the Internet or share media files with other devices. (p. 86)Ensure that the Wi-Fi connection is active before using Internet applications.Turning Wi-Fi on and offOpen the notifications panel, and then tap Wi-Fi to turn it on or off.rYour device uses a non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors.rTurn off Wi-Fi to save the battery when not in use.Joining Wi-Fi networksOn the Applications screen, tap Settings → Connections → Wi-Fi, and then drag the Wi-Fi switch to the right.Select a network from the list of detected Wi-Fi networks, enter a password if necessary, and then tap Connect. Networks that require a password appear with a lock icon. After the device connects to a Wi-Fi network, the device will automatically connect to it any time it is available.DRAFT, not FINAL

Basics35Adding Wi-Fi networksIf the desired network does not appear in the networks list, tap Add Wi-Fi network at the bottom of the networks list. Enter the network name in Network SSID, select the security type and enter the password if it is not an open network, and then tap Connect.Forgetting Wi-Fi networksAny network that has ever been used, including the current network, can be forgotten so the device will not automatically connect to it. Select the network in the networks list, and then tap Forget.Setting up accountsGoogle applications, such as Play Store, require a Google account, and Samsung Apps requires a Samsung account. Create Google and Samsung accounts to have the best experience with the device.Adding accountsFollow the instructions that appear when opening a Google application without signing in to set up a Google account.To sign in with or sign up for a Google account, on the Applications screen, tap Settings → General → Accounts → Add account → Google. After that, tap New to sign up, or tap Existing, and then follow the on-screen instructions to complete the account setup. More than one Google account can be used on the device.Set up a Samsung account as well.Removing accountsOn the Applications screen, tap Settings → General → Accounts, select an account name under MY ACCOUNTS, select the account to remove, and then tap Remove account.DRAFT, not FINAL

Basics36Transferring filesMove audio, video, image, or other types of files from the device to the computer, or vice versa.The following file formats are supported by some applications. Some file formats are not supported depending on the version of the device’s software or the computer operating system.rMusic: mp3, m4a, 3ga, aac, ogg, oga, wav, wma, amr, awb, flac, mid, midi, xmf, mxmf, imy, rtttl, rtx, and otarImage: bmp, gif, jpg, and pngrVideo: mp4, m4v, 3gp, 3g2, wmv, asf, avi, flv, mkv, webm, and tsrDocument: rtf, dot, doc, docx, dotx, hwdt, show, hsdt, htheme, pptx, ppt, thmx, potx, cell, csv, hcdt, html, htm, prn, tsv, xls, xlt, xlsb, xlsm, xltx, xlsx, xltm, hwp, hwt, hml, hwpx, bak, and txtIf the applications cannot play files in divx or ac3 format, install applications that support them.Connecting with Samsung KiesSamsung Kies is a computer application that manages media contents and personal information with Samsung devices. Download the latest Samsung Kies from the Samsung website.1 Connect the device to the computer using the USB cable.Samsung Kies launches on the computer automatically. If Samsung Kies does not launch, double-click the Samsung Kies icon on the computer.2 Transfer files between your device and the computer.Refer to the Samsung Kies help for more information.DRAFT, not FINAL

Basics37Connecting with Windows Media PlayerEnsure that Windows Media Player is installed on the computer.1 Connect the device to the computer using the USB cable.2 Open Windows Media Player and sync music files.Connecting as a media device1 Connect the device to the computer using the USB cable.2 Open the notifications panel, and then tap Connected as a media device → Media device (MTP).Tap Camera (PTP) if your computer does not support Media Transfer Protocol (MTP) or not have any appropriate driver installed.3 Transfer files between your device and the computer.DRAFT, not FINAL

Basics38Securing the devicePrevent others from using or accessing personal data and information stored in the device by using the security features. The device requires an unlock code whenever unlocking it.Setting a patternOn the Applications screen, tap Settings → Device → Lock screen → Screen lock → Pattern.Draw a pattern by connecting four dots or more, and then draw the pattern again to verify it. Set a backup unlock PIN to unlock the screen when you forget the pattern.Setting a PINOn the Applications screen, tap Settings → Device → Lock screen → Screen lock → PIN.Enter at least four numbers, and then enter the password again to verify it.Setting a passwordOn the Applications screen, tap Settings → Device → Lock screen → Screen lock → Password.Enter at least four characters including numbers and symbols, and then enter the password again to verify it.DRAFT, not FINAL

Basics39Unlocking the deviceTurn on the screen by pressing the Power button or the Home button, and enter the unlock code.If the unlock code is forgotten, take the device to a Samsung Service Centre to reset it.Upgrading the deviceThe device can be upgraded to the latest software.This feature may not be available depending on the region or service provider.Upgrading with Samsung KiesLaunch Samsung Kies and connect the device to the computer. Samsung Kies automatically recognises the device and shows available updates in a dialogue box, if any. Click the Update button in the dialogue box to start upgrading. Refer to the Samsung Kies help for details on how to upgrade.rDo not turn off the computer or disconnect the USB cable while the device is upgrading.rWhile upgrading the device, do not connect other media devices to the computer. Doing so may interfere with the update process.Upgrading over the airThe device can be directly upgraded to the latest software by the firmware over-the-air (FOTA) service.On the Applications screen, tap Settings → General → About device → Software update → Update now.DRAFT, not FINAL

40CommunicationContactsUse this application to manage contacts, including phone numbers, email addresses, and others.Tap Contacts on the Applications screen.Managing contactsTap Contacts.Creating a contactTap and enter contact information.r : Add an image.r / : Add or delete a contact field.Editing a contactSelect a contact to edit, and then tap .Deleting a contactTap .DRAFT, not FINAL

Communication41Searching for contactsTap Contacts.Use one of the following search methods:rScroll up or down the contacts list.rUse the index at the left side of the contacts list for quick scrolling, by dragging a finger along it.rTap the search field at the top of the contacts list and enter search criteria.Once a contact is selected, take one of the following actions:r : Add to favourite contacts.r : Compose an email.Displaying contactsTap Contacts.By default, the device shows all saved contacts.Tap → Settings → Contacts to display, and then select a location where contacts are saved.Moving contactsTap Contacts.Moving contacts to GoogleTap → Merge accounts → Merge with Google.Contacts moved to Google Contacts appear with in the contacts list.Moving contacts to SamsungTap → Merge accounts → Merge with Samsung.Contacts moved to Samsung Contacts appear with in the contacts list.DRAFT, not FINAL

Communication42Importing and exporting contactsTap Contacts.Importing contactsTap → Settings → Import/Export, and then select an import option.Exporting contactsTap → Settings → Import/Export, and then select an export option.Sharing contactsTap → Share namecard via → Multiple contacts, select contacts, tap Done, and then select a sharing method.Favourite contactsTap Favourites.Tap to add contacts to favourites.Tap , and then take one of the following actions:rSearch: Search for contacts.rRemove from favourites: Remove contacts from favourites.rList view / Grid view: View contacts in grid or list form.rHelp: Access help information about using contacts.DRAFT, not FINAL

Communication43Contact groupsTap Groups.Creating a groupTap , set details for the group, add contacts, and then tap Save.Adding contacts to a groupSelect a group, and then tap → Add member. Select contacts to add, and then tap Done.Managing groupsTap , and then take one of the following actions:rSearch: Search for contacts.rDelete groups: Select user-added groups, and then tap Done. Default groups cannot be deleted.rEdit: Change the group settings.rAdd member: Add members to the group.rRemove member: Remove members from the group.rSend email: Send an email to a group’s members.rChange order: Tap and hold next to the group name, drag it up or down to another position, and then tap Done.rHelp: Access help information about using contacts.Sending an email to a group’s membersSelect a group, tap → Send email, select members, and then tap Done.DRAFT, not FINAL

Communication45Sending scheduled messagesWhile composing a message, tap → Schedule sending. Tick Schedule sending, set a time and date, and then tap Done. The device will send the message at the specified time and date.rIf the device is turned off at the scheduled time, is not connected to the network, or the network is unstable, the message will not be sent.rThis feature is based on the time and date set on the device. The time and date may be incorrect if you move across time zones and the network does not update the information.Reading messagesSelect an email account to use, and new messages are retrieved. To manually retrieve new messages, tap .Tap a message to read.Open attachments.Go to the previous or next message.Delete the message.Compose a message.Reply to the message.Access additional options.Add this email address to the contacts list.Forward the message.Mark the message as a reminder.Tap the attachment tab to open attachments, and then tap Save to save it.DRAFT, not FINAL

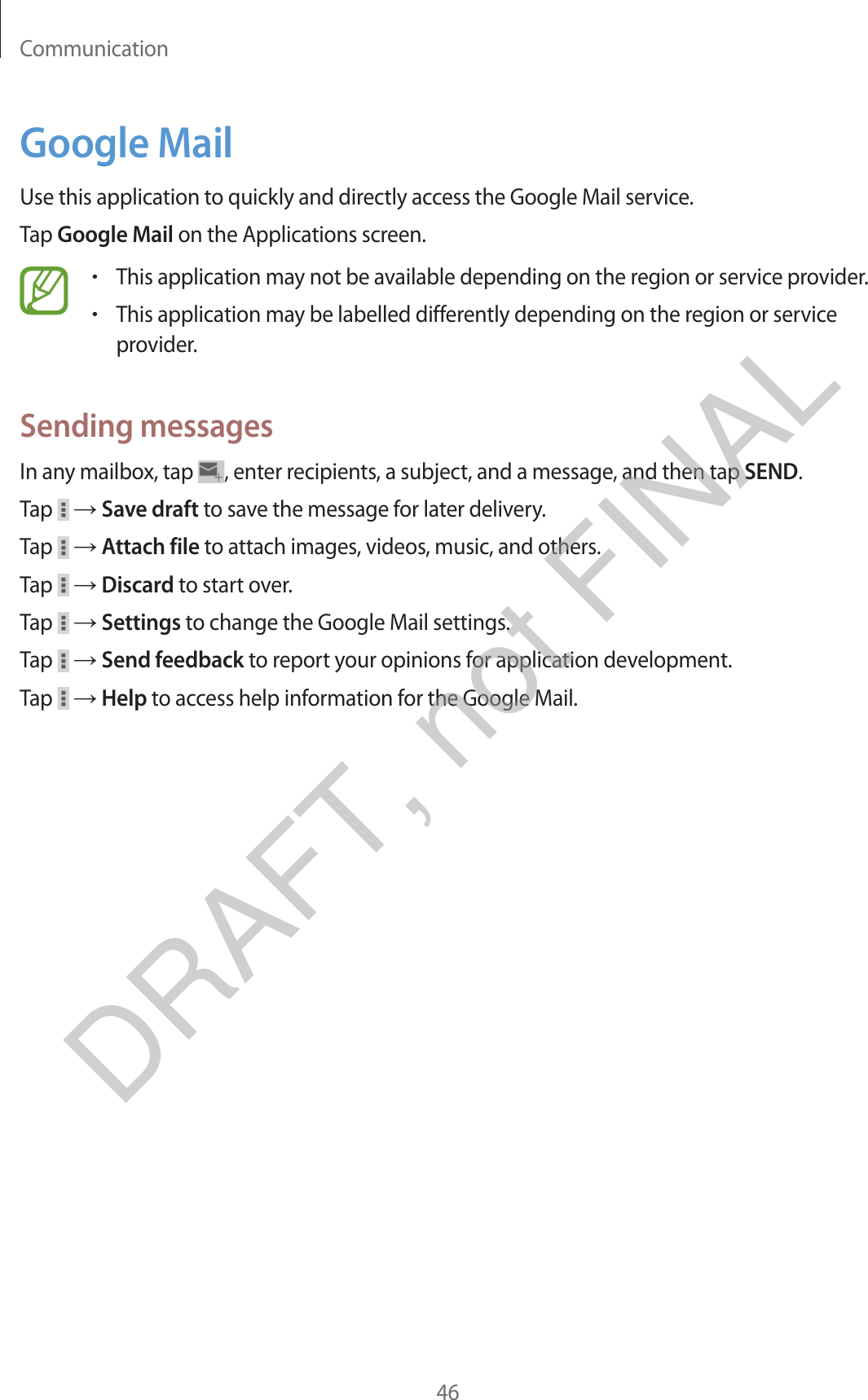

Communication46Google MailUse this application to quickly and directly access the Google Mail service.Tap Google Mail on the Applications screen.rThis application may not be available depending on the region or service provider.rThis application may be labelled differently depending on the region or service provider.Sending messagesIn any mailbox, tap , enter recipients, a subject, and a message, and then tap SEND.Tap → Save draft to save the message for later delivery.Tap → Attach file to attach images, videos, music, and others.Tap → Discard to start over.Tap → Settings to change the Google Mail settings.Tap → Send feedback to report your opinions for application development.Tap → Help to access help information for the Google Mail.DRAFT, not FINAL

Communication47Reading messagesPreview attachment.Delete the message.Keep the message for long-term storage.Reply to the message.Mark the message as unread.Move the message to another mailbox.Reply to all recipients or print the message.Forward the message to others.Mark the message as a reminder.Access additional options.LabelsGoogle Mail does not use actual folders, but uses labels instead. When Google Mail is launched, it displays messages labelled Inbox.Tap → Refresh to manually retrieve new messages.Tap to view messages in other labels.To add a label to a message, select the message, tap → Change labels, and then select the label to assign.DRAFT, not FINAL

Communication48HangoutsUse this application to chat with others.Tap Hangouts on the Applications screen.This application may not be available depending on the region or service provider.Select a friend from the friends list or enter data to search and select a friend from the results to start chatting.Google+Use this application to stay connected with people via Google’s social network service.Tap Google+ on the Applications screen.This application may not be available depending on the region or service provider.Tap All to change the category, and then scroll up or down to view posts from your circles.DRAFT, not FINAL

Communication49PhotosUse this application to view and share images or videos via Google’s social network services.Tap Photos on the Applications screen.This application may not be available depending on the region or service provider.Select one of the following categories:rCAMERA: View all the images or videos that are taken or downloaded to the device.rHIGHLIGHTS: View images or videos grouped by date or album. Tap to view all of the images or videos in the group.Then, select an image or video.While viewing it, use one of the following icons:r : Modify the image.r : Share the image or video with others.r : Delete the image or video.DRAFT, not FINAL

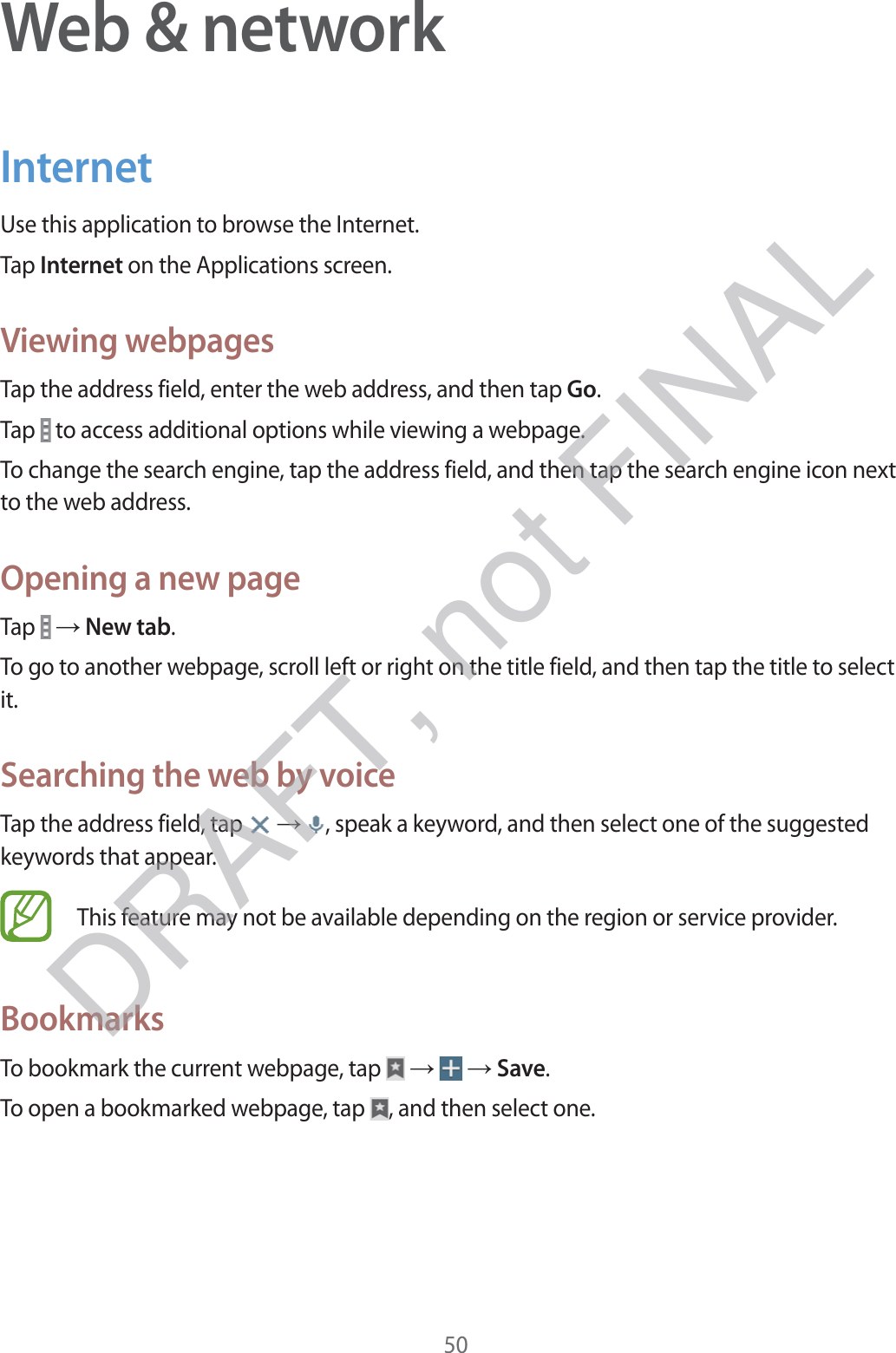

50Web & networkInternetUse this application to browse the Internet.Tap Internet on the Applications screen.Viewing webpagesTap the address field, enter the web address, and then tap Go.Tap to access additional options while viewing a webpage.To change the search engine, tap the address field, and then tap the search engine icon next to the web address.Opening a new pageTap → New tab.To go to another webpage, scroll left or right on the title field, and then tap the title to select it.Searching the web by voiceTap the address field, tap → , speak a keyword, and then select one of the suggested keywords that appear.This feature may not be available depending on the region or service provider.BookmarksTo bookmark the current webpage, tap → → Save.To open a bookmarked webpage, tap , and then select one.DRAFT, not FINAL

Web & network51HistoryTap → Bookmarks → History to open a webpage from the list of recently-visited webpages. To clear the history, tap .Saved pagesTo view saved webpages, tap → Bookmarks → Saved pages.LinksTap and hold a link on the webpage to open it in a new page, save, or copy.To view saved links, on the Applications screen, tap My Files → Download history.Sharing webpagesTo share a webpage address with others, tap → Share via.To share a part of a webpage, tap and hold the desired text, and then tap Share via.ChromeUse this application to search for information and browse webpages.Tap Chrome on the Applications screen.This application may not be available depending on the region or service provider.Viewing webpagesTap the address field, and then enter a web address or search criteria.Opening a new pageTap → New tab.To go to another webpage, scroll left or right on the title field, and tap the title to select it.DRAFT, not FINAL

Web & network52BookmarksTo bookmark the current webpage, tap → Save.To open a bookmarked webpage, tap → Bookmarks, and then select one.Searching the web by voiceTap , speak a keyword, and then select one of the suggested keywords that appear.Syncing with other devicesSync open tabs and bookmarks to use with Chrome on another device, when you are logged in with the same Google account.To view open tabs on other devices, tap → Other devices. Select a webpage to open.To view bookmarks, tap BOOKMARKS.BluetoothBluetooth creates a direct wireless connection between two devices over short distances. Use Bluetooth to exchange data or media files with other devices.rSamsung is not responsible for the loss, interception, or misuse of data sent or received via the Bluetooth feature.rAlways ensure that you share and receive data with devices that are trusted and properly secured. If there are obstacles between the devices, the operating distance may be reduced.rSome devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your device.rDo not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally tapping communications for commercial purposes).Samsung is not responsible for the repercussion of illegal use of the Bluetooth feature.To activate Bluetooth, on the Applications screen, tap Settings → Connections → Bluetooth, and then drag the Bluetooth switch to the right.DRAFT, not FINAL

Web & network53Pairing with other Bluetooth devicesOn the Applications screen, tap Settings → Connections → Bluetooth → Scan, and detected devices are listed. Select the device you want to pair with, and then accept the auto-generated passkey on both devices to confirm.Sending and receiving dataMany applications support data transfer via Bluetooth. An example is Gallery. Open Gallery, select an image, tap → Bluetooth, and then select one of the Bluetooth devices. After that, accept the Bluetooth authorisation request on the other device to receive the image.When another device sends you data, accept the Bluetooth authorisation request made by another device. Received files are saved in the Download folder. If a contact is received, it is added to the contacts list automatically.DRAFT, not FINAL

54MediaMusicUse this application to listen to music.Tap Music on the Applications screen.rSome file formats are not supported depending on the software installed on the device.rSome files may not play properly depending on the encoding method used.Playing musicSelect a music category, and then select a song to play.Tap the album image at the bottom of the screen to open the music player screen.Skip to the next song. Tap and hold to move forwards quickly.Pause and resume playback.Adjust the volume.Access additional options.Change the repeat mode.Restart the currently-playing song or skip to the previous song. Tap and hold to move backwards quickly.Turn on shuffle.Open the playlist.Search for other devices to play the file.Set the file as your favourite song.DRAFT, not FINAL

Media55To listen to songs at equal volume levels, tap → Settings → Player → Smart Volume.When Smart Volume is activated, the volume may end up louder than the device volume level. Use caution to avoid long-term exposure to loud sounds to prevent damage to your hearing. Smart Volume may not be activated for some files.To set a personalised sound while listening to songs with a headset, tap → Settings → Player → Adapt Sound → On. When you turn the volume up to level 14 or higher, the adapt sound option is not applied to music playback. If you turn the volume down to level 13 or lower, the option is reapplied.Setting a song as alarm ringtoneTo use the currently-playing song as alarm ringtone, tap → Set as alarm tone.Creating playlistsMake an own selection of songs.Tap Playlists, and then tap → Create playlist. Enter a title and tap OK. Tap Add tracks, select songs to include, and then tap Done.To add the currently-playing song to a playlist, tap → Add to playlist.Playing music by moodPlay music grouped by mood. The playlist is automatically created by the device.Tap → Music square, and select a cell of mood. Or select multiple cells by dragging your finger.DRAFT, not FINAL

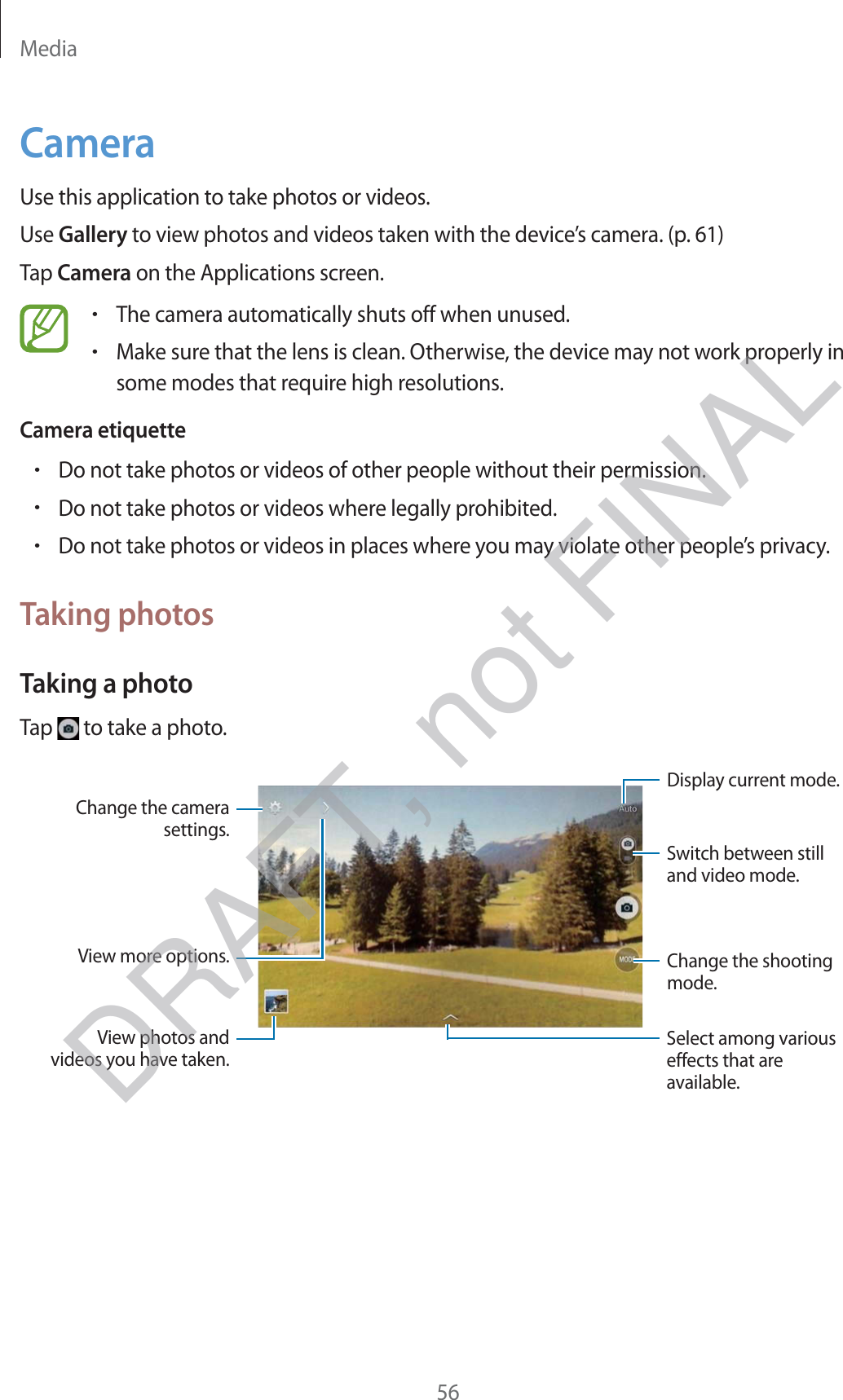

Media56CameraUse this application to take photos or videos.Use Gallery to view photos and videos taken with the device’s camera. (p. 61)Tap Camera on the Applications screen.rThe camera automatically shuts off when unused.rMake sure that the lens is clean. Otherwise, the device may not work properly in some modes that require high resolutions.Camera etiquetterDo not take photos or videos of other people without their permission.rDo not take photos or videos where legally prohibited.rDo not take photos or videos in places where you may violate other people’s privacy.Taking photosTaking a photoTap to take a photo.Display current mode.Change the shooting mode.Change the camera settings.Select among various effects that are available.View more options.Switch between still and video mode.View photos and videos you have taken.DRAFT, not FINAL

Media57Shooting modeSeveral photo effects are available.Tap MODE, and then scroll up or down the screen at the right side of the screen.rAuto: Use this to allow the camera to evaluate the surroundings and determine the ideal mode for the photo.rBeauty face: Take a photo with lightened faces for gentler images.rSound & shot: Use this to take a photo with sound.Tap to take a photo. The device records a few seconds of audio after taking a photo.While taking photos in this mode, sound is recorded by the internal microphone.rPanorama: Take a photo composed of many photos strung together.To get the best shot, follow these tips.–Move the camera slowly in one direction.–Keep the camera’s viewfinder within the guide frame.rSports: Use this setting for fast-moving subjects.rNight: Use this setting for images taken in darker conditions.Panoramic photosA panoramic photo is a wide landscape image consisting of multiple shots.Tap MODE → Panorama.Tap and move the camera in one direction. When two panorama guide frames are aligned, the camera automatically takes another shot in a panoramic sequence. To stop shooting, tap .If the viewfinder is out of the direction, the device stops shooting.DRAFT, not FINAL

Media58Applying filter effectsUse the filter effects to take unique photos or videos.Tap and select a filter effect. The available options vary by mode.Taking videosTaking a videoSlide the still-video switch to the video icon, and then tap to take a video. To pause recording, tap . To stop recording, tap .rManual focus is not available in video mode.rThe zoom function may not be available when recording at the highest resolution.Recording modeView photos and videos you have taken. Select among various effects that are available.Change the camera settings.View more options.Display current mode.Switch between still and video mode.DRAFT, not FINAL

Media59Zooming in and outUse one of the following methods:rUse the Volume button to zoom in or out.rSpread two fingers apart on the screen to zoom in, and pinch to zoom out.The zoom in/out effect is available when using the zoom feature while shooting video.Share shotTap → , and then select one of the following:rShare shot: Send a photo directly to another device via Wi-Fi Direct.rBuddy photo share: Set the device to recognise a person’s face that you have tagged in a photo and send it to that person.DRAFT, not FINAL

Media60Configuring settings for CameraTap to configure settings for Camera. Not all of the following options are available in both still camera and video camera modes. The available options vary depending on the mode used.rPhoto size / Video size: Select a resolution. Use higher resolution for higher quality. But it takes up more memory.rMetering modes: Select a metering method. This determines how light values are calculated. Centre-weighted measures background light in the centre of the scene. Spot measures the light value at a specific location. Matrix averages the entire scene.rLocation tag: Attach a GPS location tag to the photo.rTo improve GPS signals, avoid shooting in locations where the signal may be obstructed, such as between buildings or in low-lying areas, or in poor weather conditions.rYour location may appear on your photos when you upload them to the Internet. To avoid this, deactivate the GPS tag setting.rReview pics/videos: Set the device to show photos or videos after taking them.rVolume key: Set the device to use the Volume button to control the shutter or zoom function.rTimer: Use this for delayed-time shots.rWhite balance: Select an appropriate white balance, so images have a true-to-life colour range. The settings are designed for specific lighting situations. These settings are similar to the heat range for white-balance exposure in professional cameras.rBrightness: Change the brightness.DRAFT, not FINAL

Media61rGuidelines: Display viewfinder guides to help composition when selecting subjects.rContextual filename: Set the camera to display contextual tags. Activate this to use Tag Buddy in Gallery.rSave as flipped: Invert the image to create a mirror-image of the original scene.rStorage: Select the memory location for storage.rReset: Reset the camera settings.rHelp: Access help information for using the camera.ShortcutsReorganise shortcuts for easy access to the camera’s various options.Tap and tap and hold a shortcut icon.Tap and hold an option and drag it to a slot at the top of the screen.GalleryUse this application to view images and videos.Tap Gallery on the Applications screen.rSome file formats are not supported depending on the software installed on the device.rSome files may not play properly depending on the encoding method used.DRAFT, not FINAL

Media62Viewing imagesLaunching Gallery displays available folders. When another application, such as Email, saves an image, the Download folder is automatically created to contain the image. Likewise, capturing a screenshot automatically creates the Screenshots folder. Select a folder to open it.In a folder, images are displayed by creation date. Select an image to view it in full screen.Scroll left or right to view the next or previous image.Zooming in and outUse one of the following methods to zoom in an image:rDouble-tap anywhere to zoom in.rSpread two fingers apart on any place to zoom in. Pinch to zoom out, or double-tap to return.Playing videosVideo files show the icon on the preview. Select a video to watch it and tap .Trimming segments of a videoSelect a video and tap . Move the start bracket to the desired starting point, move the end bracket to the desired ending point, and then save the video.Editing imagesWhen viewing an image, tap and use the following functions:rFavourite: Add to the favourites list.rSlideshow: Start a slideshow with the images in the current folder.rPhoto frame: Use this to add a frame and a note to an image. The edited image is saved in the Photo frame folder.rPhoto note: Use this to write a note on the back of the image. Tap to edit the note.rCopy to clipboard: Copy to clipboard.DRAFT, not FINAL

Media63rPrint: Print the image by connecting the device to a printer. Some printers may not be compatible with the device.rRename: Rename the file.rBuddy photo share: Send the image to a person whose face is tagged in the image.rRotate left: Rotate anticlockwise.rRotate right: Rotate clockwise.rCrop: Resize the blue frame to crop and save the image in it.rSet as: Set the image as wallpaper or a contact image.rDetails: View image details.rSettings: Change the Gallery settings.Favourite imagesWhen viewing an image, tap → Favourite to add the image to the favourites list.Deleting imagesUse one of the following methods:rIn a folder, tap → Select item, select images, and then tap .rWhen viewing an image, tap .Sharing imagesUse one of the following methods:rIn a folder, tap → Select item, select images, and then tap to send them to others or share them via social network services.rWhen viewing an image, tap to send it to others or share it via social network services.DRAFT, not FINAL

Media64Setting as wallpaperWhen viewing an image, tap → Set as to set the image as wallpaper or to assign it to a contact.Tagging facesWhen viewing an image, tap → Settings → Tags, and then tick Face tag. A yellow frame appears around the recognised face. Tap the face, tap Add name, and then select or add a contact.When the face tag appears on an image, tap the face tag and use available options, such as sending messages.Face recognition may fail depending on the face angle, face size, skin colour, facial expression, light conditions, or accessories the subject is wearing.Using Tag buddyTap → Settings → Tags → Tag buddy, and then drag the Tag buddy switch to the right to display a contextual tag (weather, location, date, and person’s name) when opening an image.Organising with foldersCreate a folder to organise images or videos stored in the device. You can copy or move files from one folder to another.To create a new folder, tap . Enter a name for the folder, tap OK, and then tick images or videos. Tap and hold any selected image or video, drag it to the new folder, and then tap Done. Tap Copy to copy or Move to move.DRAFT, not FINAL

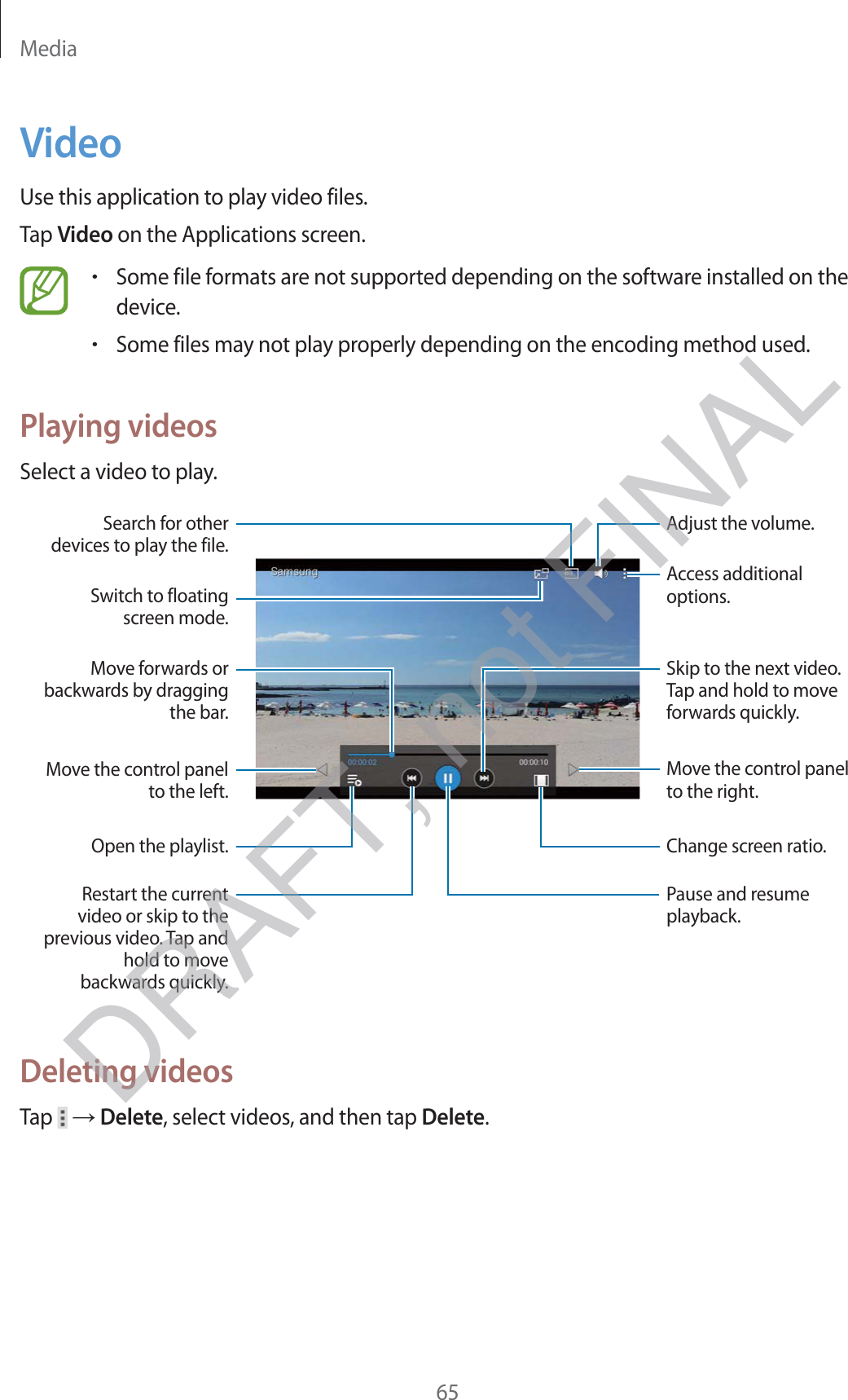

Media65VideoUse this application to play video files.Tap Video on the Applications screen.rSome file formats are not supported depending on the software installed on the device.rSome files may not play properly depending on the encoding method used.Playing videosSelect a video to play.Move the control panel to the left.Open the playlist.Move forwards or backwards by dragging the bar.Search for other devices to play the file.Restart the current video or skip to the previous video. Tap and hold to move backwards quickly.Skip to the next video. Tap and hold to move forwards quickly.Adjust the volume.Pause and resume playback.Access additional options.Switch to floating screen mode.Change screen ratio.Move the control panel to the right.Deleting videosTap → Delete, select videos, and then tap Delete.DRAFT, not FINAL

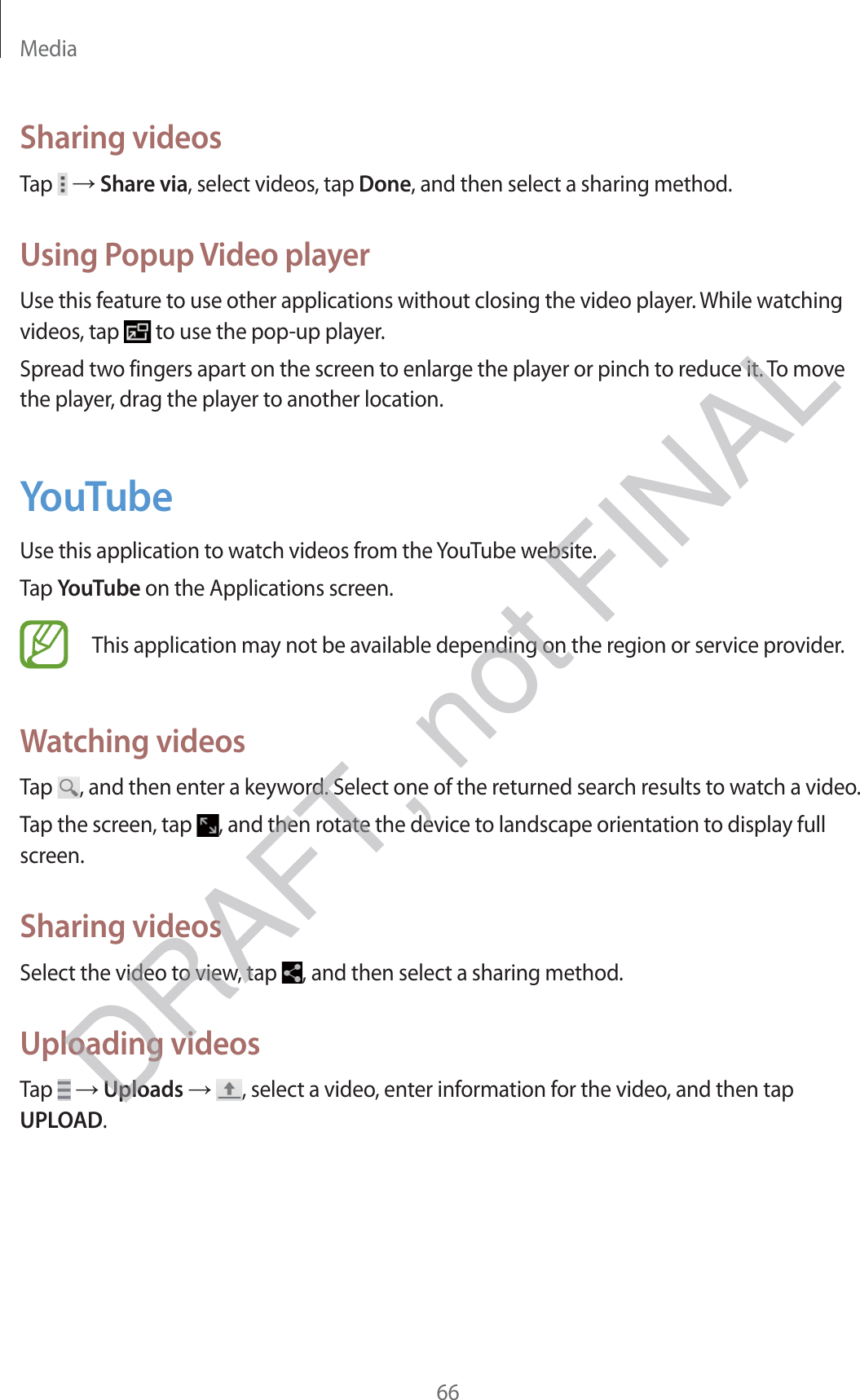

Media66Sharing videosTap → Share via, select videos, tap Done, and then select a sharing method.Using Popup Video playerUse this feature to use other applications without closing the video player. While watching videos, tap to use the pop-up player.Spread two fingers apart on the screen to enlarge the player or pinch to reduce it. To move the player, drag the player to another location.YouTubeUse this application to watch videos from the YouTube website.Tap YouTube on the Applications screen.This application may not be available depending on the region or service provider.Watching videosTap , and then enter a keyword. Select one of the returned search results to watch a video.Tap the screen, tap , and then rotate the device to landscape orientation to display full screen.Sharing videosSelect the video to view, tap , and then select a sharing method.Uploading videosTap → Uploads → , select a video, enter information for the video, and then tap UPLOAD.DRAFT, not FINAL

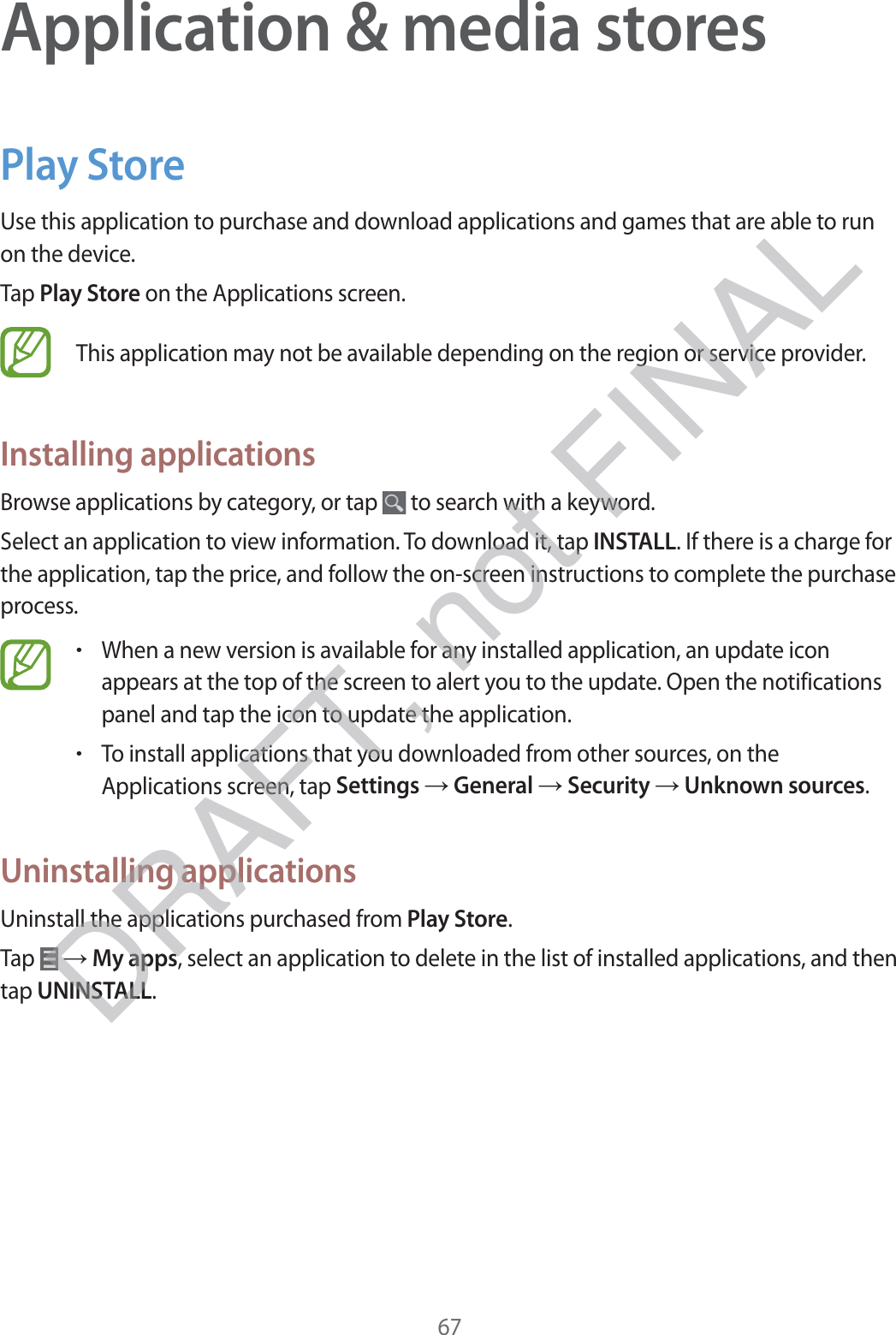

67Application & media storesPlay StoreUse this application to purchase and download applications and games that are able to run on the device.Tap Play Store on the Applications screen.This application may not be available depending on the region or service provider.Installing applicationsBrowse applications by category, or tap to search with a keyword.Select an application to view information. To download it, tap INSTALL. If there is a charge for the application, tap the price, and follow the on-screen instructions to complete the purchase process.rWhen a new version is available for any installed application, an update icon appears at the top of the screen to alert you to the update. Open the notifications panel and tap the icon to update the application.rTo install applications that you downloaded from other sources, on the Applications screen, tap Settings → General → Security → Unknown sources.Uninstalling applicationsUninstall the applications purchased from Play Store.Tap → My apps, select an application to delete in the list of installed applications, and then tap UNINSTALL.DRAFT, not FINAL

Application & media stores68Samsung AppsUse this application to purchase and download dedicated Samsung applications. For more information, visit apps.samsung.com.Tap Samsung Apps on the Applications screen.This application may not be available depending on the region or service provider.Installing applicationsBrowse applications by category. Tap CATEGORY to select a category.To search for an application, tap at the top of the screen, and then enter a keyword in the search field.Select an application to view information. To download it, tap Free. If there is a charge for the application, tap the price, and follow the on-screen instructions to complete the purchase process.When a new version is available for any installed application, an update icon appears at the top of the screen to alert you to the update. Open the notifications panel and tap the icon to update the application.Play MusicUse this application to listen to music from the device or stream music from the Google cloud service.Tap Play Music on the Applications screen.This application may not be available depending on the region or service provider.DRAFT, not FINAL

Application & media stores69Play GamesUse this application to download and play games.Tap Play Games on the Applications screen.This application may not be available depending on the region or service provider.Play NewsstandUse this application to read the latest news articles.Tap Play Newsstand on the Applications screen.This application may not be available depending on the region or service provider.DRAFT, not FINAL

70UtilitiesMemoUse this application to record important information to save and view at a later date.Tap Memo on the Applications screen.Adding and managing categoriesCreate categories to sort and manage your memos.To add a new category, tap → Add category, enter a category name, and then tap OK.To delete a category, tap → Edit categories, and then tap next to the category.To rename a category, select a category, tap → Rename category, enter a new name for the category, and then tap OK.To change the category order, tap → Edit categories, and then tap next to a category and drag it up or down to another position.Composing memosTap on the memos list and enter a memo. While composing a memo, use the following options:r : Create or set a category.r : Insert images.r : Make a voice recording to insert.To save the memo, tap Save.To edit a memo, tap a memo, and then tap the content of the memo.DRAFT, not FINAL

Utilities71Browsing memosBrowse memo thumbnails by scrolling up or down.To search for a memo, tap .To send memos to others, tap → Select, select memos, and then tap .To print memos, tap → Select, select memos, and then tap . Some printers may not be compatible with the device.To delete memos, tap → Select, select memos, and then tap .Viewing a memoTap a memo thumbnail to open it.To delete the memo, tap .To send the memo to others, tap .To print the memo by connecting the device to a printer, tap . Some printers may not be compatible with the device.S PlannerUse this application to manage events and tasks.Tap S Planner on the Applications screen.Creating events or tasksTap , and then use one of the following methods:rEvent: Enter an event with an optional repeat setting.rTask: Enter a task with an optional priority setting.DRAFT, not FINAL

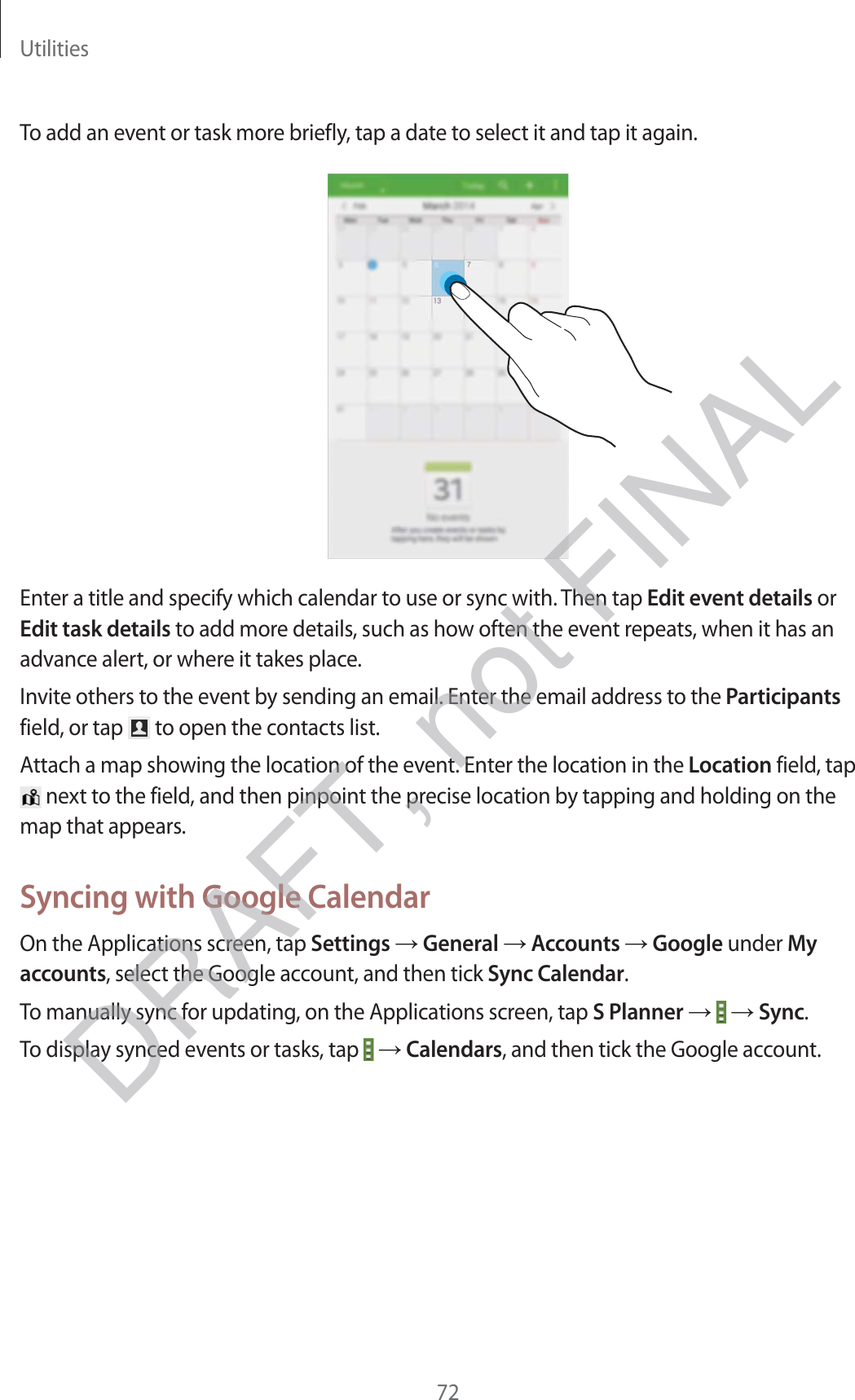

Utilities72To add an event or task more briefly, tap a date to select it and tap it again.Enter a title and specify which calendar to use or sync with. Then tap Edit event details or Edit task details to add more details, such as how often the event repeats, when it has an advance alert, or where it takes place.Invite others to the event by sending an email. Enter the email address to the Participants field, or tap to open the contacts list.Attach a map showing the location of the event. Enter the location in the Location field, tap next to the field, and then pinpoint the precise location by tapping and holding on the map that appears.Syncing with Google CalendarOn the Applications screen, tap Settings → General → Accounts → Google under My accounts, select the Google account, and then tick Sync Calendar.To manually sync for updating, on the Applications screen, tap S Planner → → Sync.To display synced events or tasks, tap → Calendars, and then tick the Google account.DRAFT, not FINAL

Utilities73Changing calendar typeTap the top left of the screen, and then select one from among different types of calendars including year, month, week, and others.Searching for events or tasksTap , and then enter a keyword to search for.To view today’s events or tasks, tap Today at the top of the screen.Deleting events or tasksSelect an event or task, and then tap → Delete.Sharing events or tasksSelect an event or task, tap → Share via, and then select a sharing method.DropboxUse this application to save and share files with others via the Dropbox cloud storage. When you save files to Dropbox, your device automatically syncs with the web server and any other computers that have Dropbox installed.Tap Dropbox on the Applications screen.This application may not be available depending on the region or service provider.DRAFT, not FINAL

Utilities74Scroll left to the last page, tap Sign in!, enter a user name or password, and then tap Sign in.Once Dropbox is activated, tap Turn on Camera Upload to upload photos and videos taken with the device’s camera to Dropbox automatically. To view the uploaded photos or videos, tap . To share or delete files or create albums, tap , and then select files.To upload files to Dropbox, tap → → Upload here → Photos or videos or Other files. To open files in Dropbox, select a file.While viewing images or videos, tap to add it to the favourites list. To open files in the favourites list, tap .CloudUse this feature to sync files with your Samsung account or Dropbox.On the Applications screen, tap Settings → General → Cloud.This feature may not be available depending on the region or service provider.Syncing with the Samsung accountTap your Samsung account or Sync settings to sync files.Backing up or restoring dataTap Backup or Restore to back up or restore data with your Samsung account.Syncing with DropboxTap Link Dropbox account, and then enter the Dropbox account. Follow the on-screen instructions to complete the setup.Once you sign in, tap Allow and the device automatically syncs files with Dropbox whenever you make some changes.DRAFT, not FINAL

Utilities75DriveUse this application to create and edit documents and share them with others via Google Drive storage. When you create documents or upload files to Google Drive, your device automatically syncs with the web server and any other computer with Google Drive installed. Access your files without transferring or downloading.Tap Drive on the Applications screen.This application may not be available depending on the region or service provider.Hancom ViewerUse this application to view documents in various formats, including spreadsheets and presentations.Tap Hancom Viewer on the Applications screen.This application may not be available depending on the region or service provider.Searching documentsTap Open to browse a document.While browsing a document, use one of the following options:r : Create a folder.r : Retrieve new documents.r : Sort documents and folders.r : Change the view mode.r : Select documents or folders.To search for recently-used documents, tap Recent Documents.DRAFT, not FINAL

Utilities76Reading documentsTap a document in Recent Documents or in a folder.Tap or , and then use one of the following functions:Word processorrFind: Search for text.rZoom: Change the view size.rDocument Info: View document details such as title, date, and author.rPrint: Print the document by connecting the device to a printer. Some printers may not be compatible with the device.rSend: Send the document to others or share it.rHelp: View information about Hancom Viewer.PresentationrFind: Search for text.rZoom: Change the view size.rDocument Info: View document details such as title, date, and author.rSlide Show: Start a slideshow from the first page.rFrom Current Slide: Start a slideshow from the current page.rShow Presenter View: Display presentation tools on the device when it is connected to an external monitor.rPrint: Print the document by connecting the device to a printer. Some printers may not be compatible with the device.rSend: Send the document to others or share it.rHelp: View information about Hancom Viewer.DRAFT, not FINAL

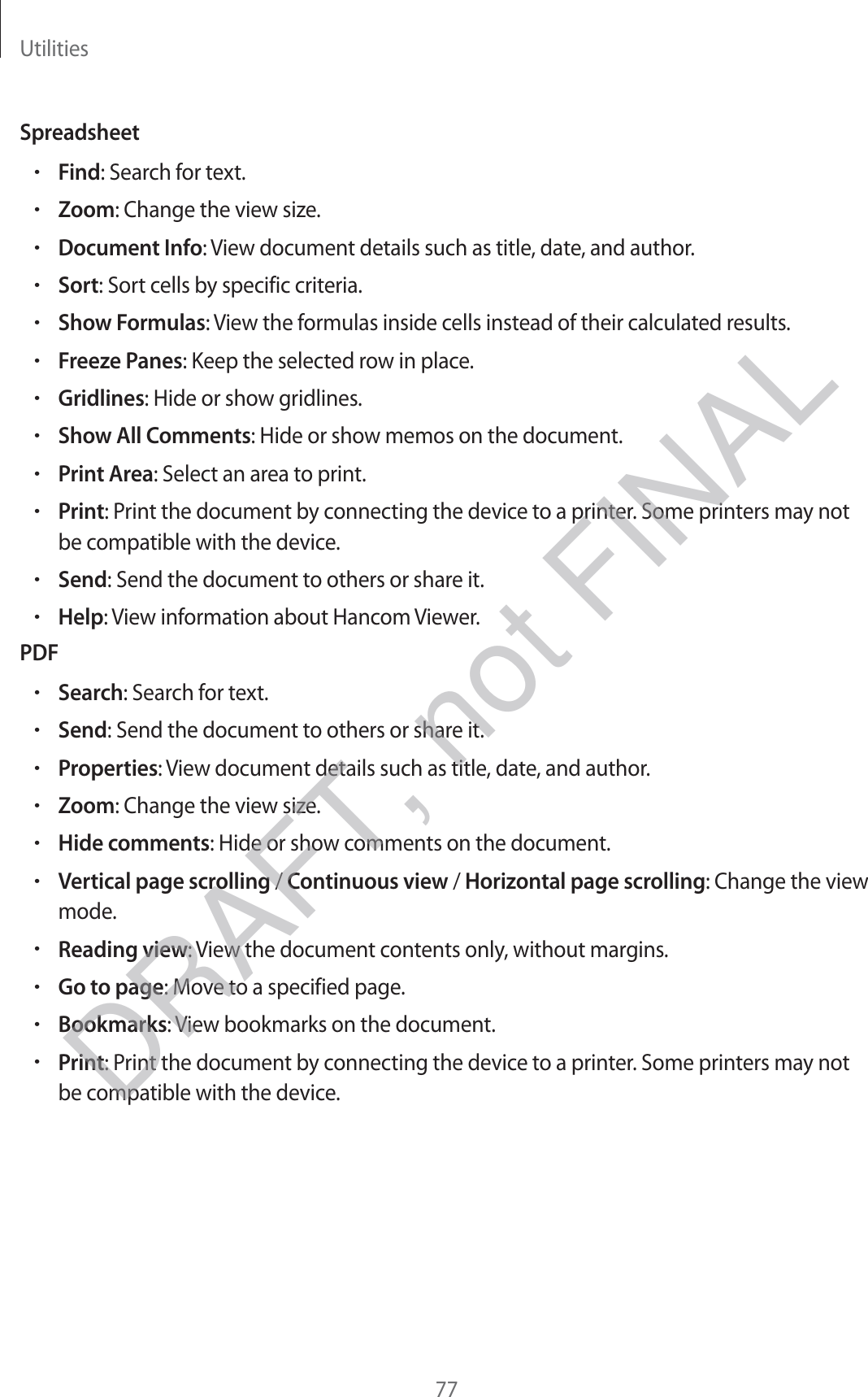

Utilities77SpreadsheetrFind: Search for text.rZoom: Change the view size.rDocument Info: View document details such as title, date, and author.rSort: Sort cells by specific criteria.rShow Formulas: View the formulas inside cells instead of their calculated results.rFreeze Panes: Keep the selected row in place.rGridlines: Hide or show gridlines.rShow All Comments: Hide or show memos on the document.rPrint Area: Select an area to print.rPrint: Print the document by connecting the device to a printer. Some printers may not be compatible with the device.rSend: Send the document to others or share it.rHelp: View information about Hancom Viewer.PDFrSearch: Search for text.rSend: Send the document to others or share it.rProperties: View document details such as title, date, and author.rZoom: Change the view size.rHide comments: Hide or show comments on the document.rVertical page scrolling / Continuous view / Horizontal page scrolling: Change the view mode.rReading view: View the document contents only, without margins.rGo to page: Move to a specified page.rBookmarks: View bookmarks on the document.rPrint: Print the document by connecting the device to a printer. Some printers may not be compatible with the device.DRAFT, not FINAL

Utilities78AlarmUse this application to set alarms for important events.Tap Alarm on the Applications screen.Turn this alarm on or off.Setting alarmsTap , set a time for the alarm to go off, select days for the alarm to repeat, and then tap Save.rSnooze: Set an interval and the number of times for the alarm to repeat after the preset time.rSmart alarm: Set a time for the alarm to go off before the preset time.DRAFT, not FINAL

Utilities79Stopping alarmsDrag outside the large circle to stop an alarm. Drag outside the large circle to repeat the alarm after a specified length of time.Deleting alarmsTap and hold the alarm, and then tap .World ClockUse this application to check the time of many major cities in the world.Tap World Clock on the Applications screen.Creating clocksTap and enter a city name or select a city from the cities list.To apply summer time, tap → Select, select a clock, and then tap .Deleting clocksTap and hold the clock, and then tap .CalculatorUse this application for simple or complex calculations.Tap Calculator on the Applications screen.Rotate the device to landscape orientation to display the scientific calculator. If Screen rotation is disabled, tap → Scientific calculator.To see the calculation history, tap to hide the keypad.To clear the history, tap → Clear history.DRAFT, not FINAL

Utilities80S VoiceUse this application to command the device by voice to perform various features.Tap S Voice on the Applications screen. Alternatively, press the Home button twice.rThis application may not be available depending on the region or service provider.rThis application is not supported in some languages.Here are several examples of spoken commands:rOpen musicrLaunch calculatorrCheck scheduleTips for better voice recognitionrSpeak clearly.rSpeak in quiet places.rDo not use offensive or slang words.rAvoid speaking in dialectal accents.The device may not recognise your commands or may perform unwanted commands depending on your surroundings or how you speak.Hands-free modeIn hands-free mode, the device will read content aloud when you have messages and notifications so you can use the device without hands while driving.To activate hands-free mode, say “Hands-free mode on.”Deactivate hands-free mode when not in use to prevent the device from reading content aloud. To deactivate hands-free mode, say “Hands-free mode off.”DRAFT, not FINAL

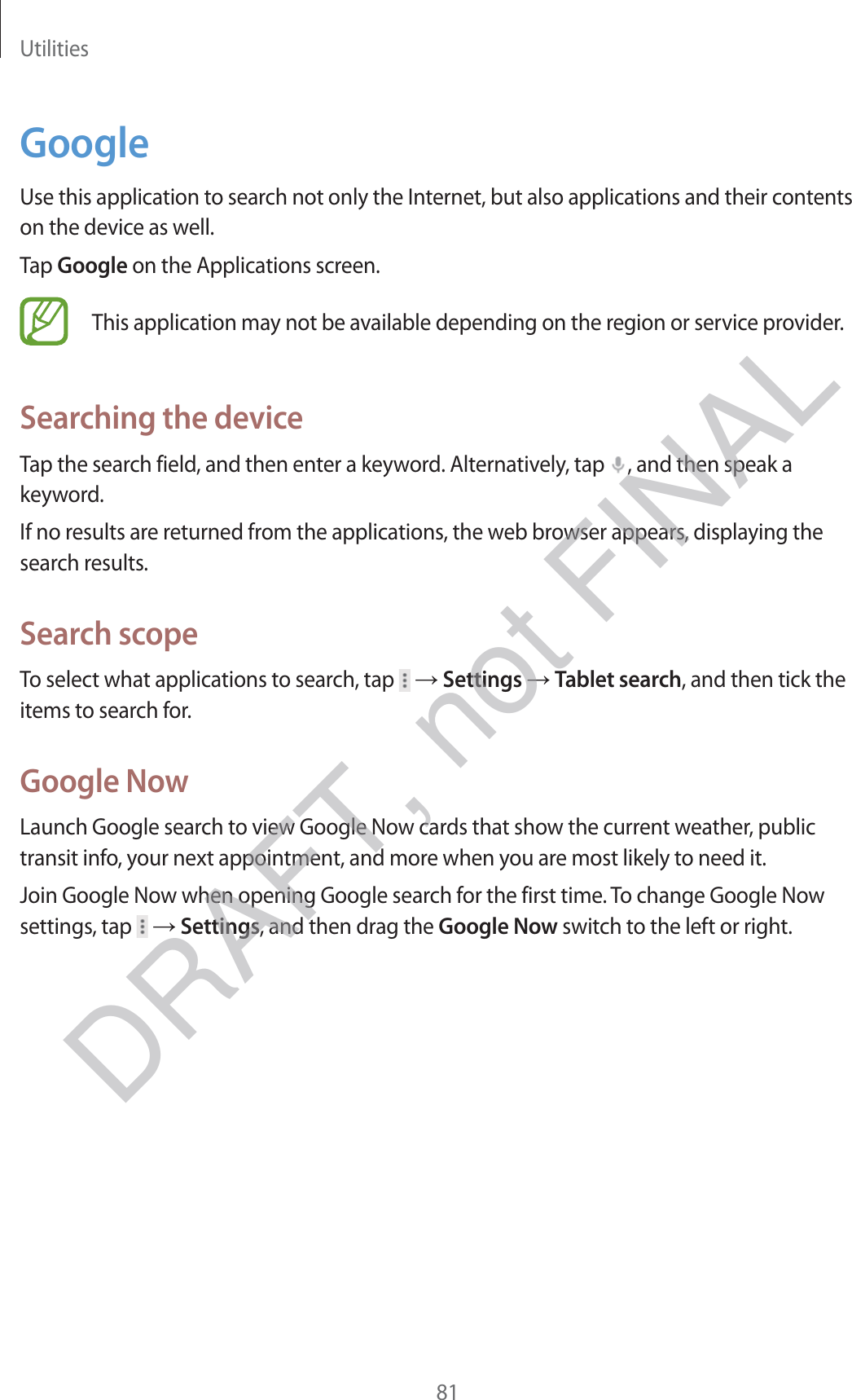

Utilities81GoogleUse this application to search not only the Internet, but also applications and their contents on the device as well.Tap Google on the Applications screen.This application may not be available depending on the region or service provider.Searching the deviceTap the search field, and then enter a keyword. Alternatively, tap , and then speak a keyword.If no results are returned from the applications, the web browser appears, displaying the search results.Search scopeTo select what applications to search, tap → Settings → Tablet search, and then tick the items to search for.Google NowLaunch Google search to view Google Now cards that show the current weather, public transit info, your next appointment, and more when you are most likely to need it.Join Google Now when opening Google search for the first time. To change Google Now settings, tap → Settings, and then drag the Google Now switch to the left or right.DRAFT, not FINAL

Utilities82Voice SearchUse this application to search webpages by speaking.Tap Voice Search on the Applications screen.This application may not be available depending on the region or service provider.Speak a keyword or phrase when Speak now appears on the screen.My FilesUse this application to access all kinds of files stored in the device, including images, videos, songs, and sound clips.Tap My Files on the Applications screen.Viewing filesFiles stored in the device are sorted by criteria. From the left pane of the screen, select one of the following categories:rTimeline: View files that are grouped by date.rFavourite folders: View shortcuts to folders.rFolders: View files stored in the internal memory or a memory card, and shortcuts to FTP servers.rCategories: View files sorted by their types.rApps: View files stored or created in specific applications.Select a category, and then select a file or folder to open it.DRAFT, not FINAL

Utilities83After selecting a category, tap , and then use one of the following options:rSelect: Select files or folders.rSort by: Sort files or folders.rAdd to favourite folders: Add a shortcut to the folder in Favourite folders.rAdd shortcut to home: Add a shortcut to a file or folder to the Home screen.rAdd FTP: Add an FTP server shortcut in Folders.rScan for Nearby Devices: Search for devices that have media sharing activated.rDisplay options: Change the file display options.Tap → Select, select a file or folder, and then use one of the following functions:r : Send files to others or share them.r : Delete files or folders.r : Move files or folders to another folder.r : Copy files or folders to another folder.r → Go to folder: Go to the folder that the selected file is in.r → Rename: Rename a file or folder.r → Add to favourite folders: Add a shortcut to the folder in Favourite folders.r → Add shortcut to home: Add a shortcut to a file or folder to the Home screen.r → Zip: Compress files or folders to create a zip file.r → Details: View file or folder details.Searching for a fileTap , and then enter search criteria.Viewing storage informationTap to view memory information for your device and memory card.DRAFT, not FINAL

Utilities84Changing the view modeTap to change the view mode.Creating foldersTap , enter a name for the folder, and then tap OK.Adding shortcuts to foldersAdd a shortcut to frequently-used folders in Favourite folders. Select a folder and tap → Add to favourite folders.Adding FTP server shortcuts to the deviceAdd an FTP server shortcut in Folders. Tap → Add FTP, enter details for the FTP server, and then tap Done.DRAFT, not FINAL

85Travel & localMapsUse this application to pinpoint the location of the device, search for places, or get directions.Tap Maps on the Applications screen.This application may not be available depending on the region or service provider.Searching for locationsSearch for locations by entering an address or a keyword. Once the location is found, select a location to view the detailed information. Refer to the help for more information.Getting directions for a destinationTap to set starting and ending locations, and then select a travel method. The device shows the routes to get to the destination.DRAFT, not FINAL

86SettingsAbout SettingsUse this application to configure the device, set application options, and add accounts.Tap Settings on the Applications screen.ConnectionsWi-FiActivate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or other network devices.To use options, tap .rAdvanced: Customise Wi-Fi settings.rWPS push button: Connect to a secured Wi-Fi network with a WPS button.rWPS PIN entry: Connect to a secured Wi-Fi network with a WPS PIN.rHelp: Access help information for Wi-Fi.Setting Wi-Fi sleep policyOn the Settings screen, tap Connections → Wi-Fi → → Advanced → Keep Wi-Fi on during sleep.DRAFT, not FINAL

Settings87Setting Network notificationThe device can detect open Wi-Fi networks and display an icon on the status bar to notify when available.On the Settings screen, tap Connections → Wi-Fi → → Advanced and tick Network notification to activate this feature.Wi-Fi DirectWi-Fi Direct connects two devices directly via a Wi-Fi network without requiring an access point.On the Settings screen, tap Connections → Wi-Fi → Wi-Fi Direct.BluetoothActivate the Bluetooth feature to exchange information over short distances.To use more options, tap .rVisibility timeout: Set duration that the device is visible.rReceived files: View received files via the Bluetooth feature.rRename device: Change the device name.rHelp: Access help information for Bluetooth.Flight modeThis disables all wireless functions on your device. You can use only non-network services.DRAFT, not FINAL

Settings88Data usageKeep track of your data usage amount.rData usage cycle: Enter monthly reset date to monitor your data usage.To use more options, tap .rAuto sync data: Activate or deactivate auto-syncing of applications. You can select what information to sync for each account in Settings → General → Accounts.rMobile hotspots: Select Wi-Fi hotspots to prevent applications that are running in the background from using them.LocationChange settings for location information permissions.rMode: Select a method to collect your location data.rRECENT LOCATION REQUESTS: View which apps request your current location information and their battery usage.rLOCATION SERVICES: View the location services your device is using.rMy places: Set up profiles that will be used for specific locations when you use GPS, Wi-Fi, or Bluetooth features to find your current location.rTAG CURRENT LOCATION: Select applications to allow them to use your current location information.More networksCustomise settings to control connections with other devices or networks.PrintingConfigure settings for printer plug-ins installed on the device. You can search for available printers or add one manually to print files via Wi-Fi or cloud services.DRAFT, not FINAL

Settings89VPNSet up and connect to virtual private networks (VPNs).Nearby devicesrDEVICE NAME: View the device name.rShared contents: Set the device to share your content with other devices.rAllowed devices: View the list of devices that can access your device.rDenied devices: View the list of devices that are blocked from accessing your device.rDownload to: Select a memory location for saving media files.rDownload from other devices: Set the device to accept uploads from other devices.DeviceSoundChange settings for various sounds on the device.rVolume: Adjust the volume level for music and videos, system sounds, and notifications.rNotifications: Select a ringtone for events, such as incoming messages.rTouch sounds: Set the device to sound when selecting an application or option on the touch screen.rScreen lock sound: Set the device to sound when locking or unlocking the touch screen.rSAMSUNG APPLICATIONS: Change the notification settings for each application.rSound when tapped: Set the device to sound when a key is touched.rAdapt Sound: Personalise the sound for the ear you use most while listening to music.DRAFT, not FINAL

Settings90DisplayChange the settings for the display.rBrightness: Set the brightness of the display.rScreen timeout: Set the length of time the device waits before turning off the display’s backlight.rDaydream: Set the device to launch a screensaver when your device is connected to a desktop dock or charging.rDisplay battery percentage: Set the device to display the remaining battery life.Multi windowActivate the Multi Window feature to run multiple applications on the screen at the same time.rOpen in multi window view: Set the device to activate the Multi Window feature when you open files from My Files or Video. Also, the device activates this feature when you view attachments in messages.Lock screenChange settings for the locked screen.rScreen lock: Activate the screen lock feature. The following options may vary depending on the screen lock feature selected.rClock widget options: Configure settings for the clock widget.–Clock size: Change the size of the clock.–Show date: Set the device to show the date with the clock.rShortcuts: Set the device to show and edit application shortcuts on the locked screen.This feature may not be available depending on the region or service provider.DRAFT, not FINAL

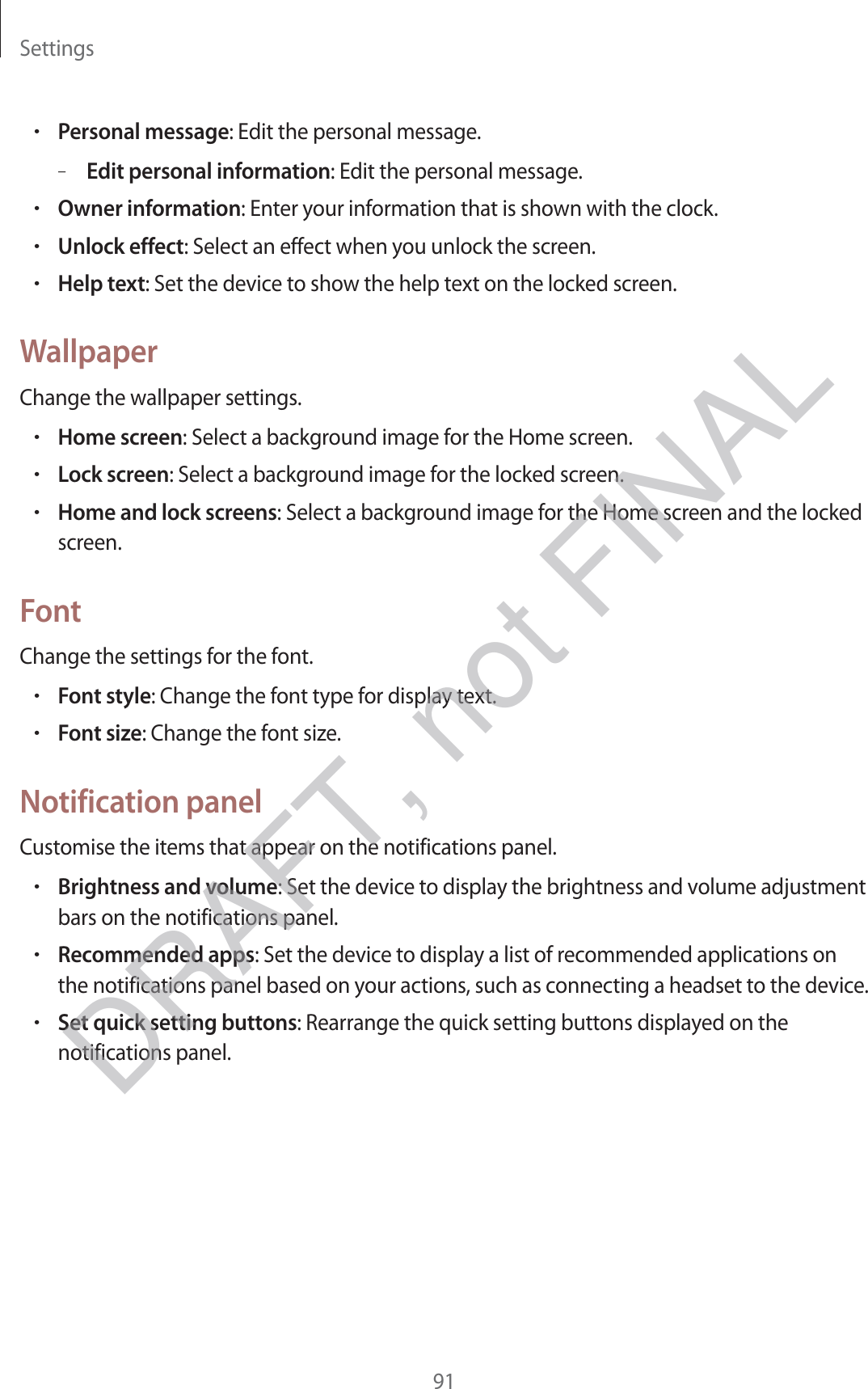

Settings91rPersonal message: Edit the personal message.–Edit personal information: Edit the personal message.rOwner information: Enter your information that is shown with the clock.rUnlock effect: Select an effect when you unlock the screen.rHelp text: Set the device to show the help text on the locked screen.WallpaperChange the wallpaper settings.rHome screen: Select a background image for the Home screen.rLock screen: Select a background image for the locked screen.rHome and lock screens: Select a background image for the Home screen and the locked screen.FontChange the settings for the font.rFont style: Change the font type for display text.rFont size: Change the font size.Notification panelCustomise the items that appear on the notifications panel.rBrightness and volume: Set the device to display the brightness and volume adjustment bars on the notifications panel.rRecommended apps: Set the device to display a list of recommended applications on the notifications panel based on your actions, such as connecting a headset to the device.rSet quick setting buttons: Rearrange the quick setting buttons displayed on the notifications panel.DRAFT, not FINAL

Settings92AccessibilityAccessibility services are special features for those with certain physical disabilities. Access and alert the following settings to improve accessibility to the device.rAuto rotate screen: Set the interface to rotate automatically when you rotate the device.rScreen timeout: Set the length of time the device waits before turning off the display’s backlight.rSpeak passwords: Set the device to read aloud passwords you enter with TalkBack.rSingle tap mode: Set the device to control notifications by tapping the button instead of dragging it.rShow shortcut: Add a shortcut to Accessibility or TalkBack on the quick menu that appears when you press and hold the Power button.rManage accessibility: Export or import the accessibility settings to share them with other devices.–Export: Export the current accessibility settings as a file.–Update: Import the current accessibility settings as a file.–Share via: Send the accessibility settings file to others.rTalkBack: Activate TalkBack, which provides voice feedback.rFont size: Change the font size.rMagnification gestures: Set the device to zoom in and out with finger gestures.rNegative colours: Reverse the display colours to improve visibility.rNotification reminder: Set the device to alert you when you have missed notifications and set an interval for repeating the alert.rAccessibility shortcut: Set the device to activate TalkBack when you press and hold the Power button, and then tap and hold the screen with two fingers.DRAFT, not FINAL

Settings93rText-to-speech options:–PREFERRED TTS ENGINE: Select a speech synthesis engine. To change the settings for speech synthesis engines, tap .–Speech rate: Select a speed for the text-to-speech feature.–Listen to an example: Listen to the spoken text for an example.–Default language status: View the status of the default language for the text-to-speech feature.rSound balance: Adjust the sound balance when using a dual headset.rMono audio: Enable mono sound when listening to audio with one earbud.rTurn off all sounds: Mute all device sounds.rGoogle subtitles (CC): Set the device to display closed captions on content supported by Google and to change the closed caption settings.rSamsung subtitles (CC): Set the device to display closed captions on content supported by Samsung and to change the closed caption settings.rAssistant menu: Set the device to show the assistive shortcut icon that helps you access functions supported by external buttons or features on the notifications panel. You can also edit the menu on the shortcut icon.–Dominant hand: Select the left or right hand for easy assistant menu use.–Edit: Customise the items that appear on the assistant menu.rTap and hold delay: Set the recognition time for tapping and holding the screen.rInteraction control: Activate interaction control mode to restrict the reaction of the device for inputs in an application.Blocking modeSelect which notifications will be blocked and how long to block them.DRAFT, not FINAL

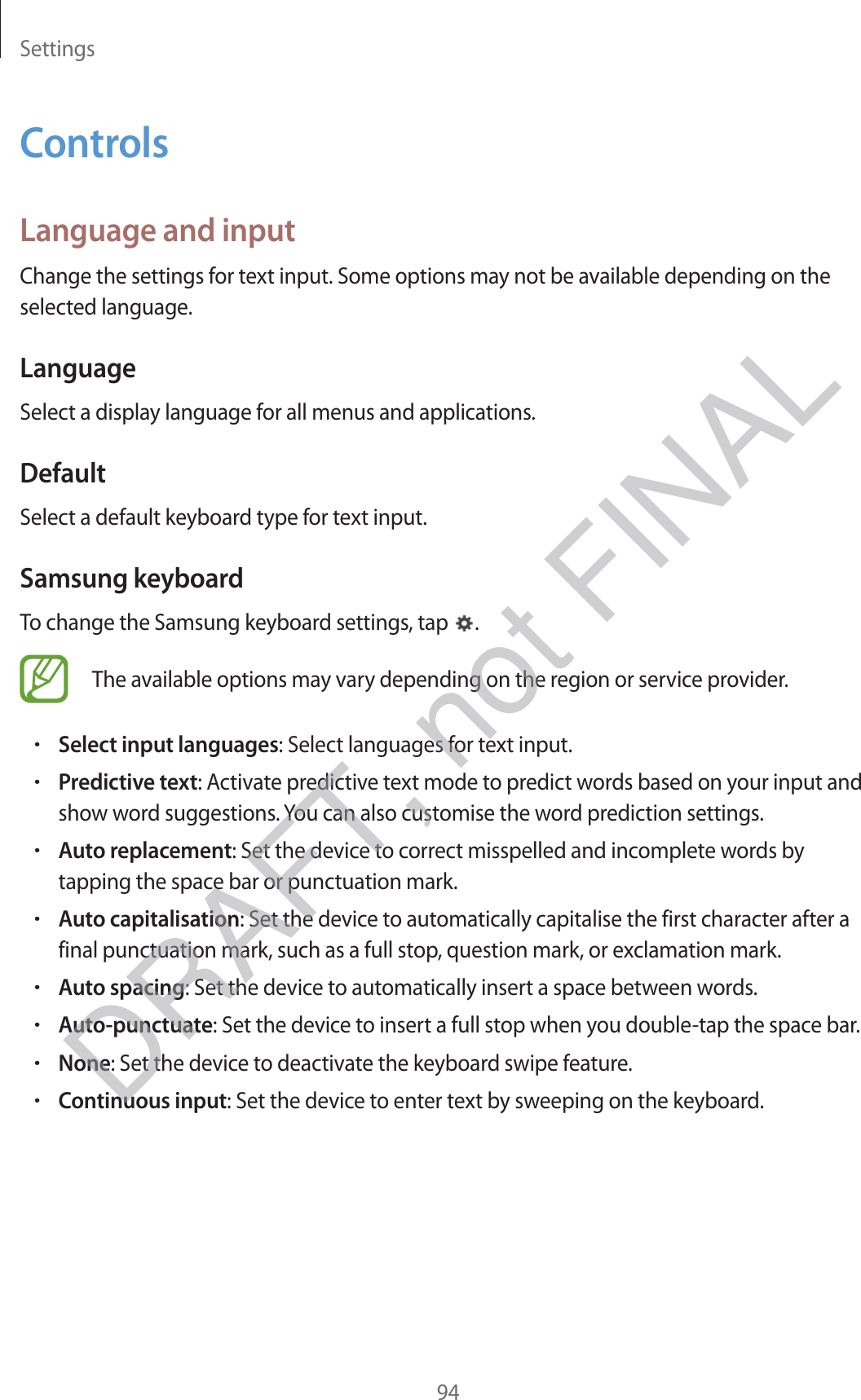

Settings94ControlsLanguage and inputChange the settings for text input. Some options may not be available depending on the selected language.LanguageSelect a display language for all menus and applications.DefaultSelect a default keyboard type for text input.Samsung keyboardTo change the Samsung keyboard settings, tap .The available options may vary depending on the region or service provider.rSelect input languages: Select languages for text input.rPredictive text: Activate predictive text mode to predict words based on your input and show word suggestions. You can also customise the word prediction settings.rAuto replacement: Set the device to correct misspelled and incomplete words by tapping the space bar or punctuation mark.rAuto capitalisation: Set the device to automatically capitalise the first character after a final punctuation mark, such as a full stop, question mark, or exclamation mark.rAuto spacing: Set the device to automatically insert a space between words.rAuto-punctuate: Set the device to insert a full stop when you double-tap the space bar.rNone: Set the device to deactivate the keyboard swipe feature.rContinuous input: Set the device to enter text by sweeping on the keyboard.DRAFT, not FINAL

Settings95rCursor control: Enable the smart keyboard navigation feature to move the cursor by scrolling the keyboard.rSound: Set the device to sound when a key is touched.rCharacter preview: Set the device to display a large image of each character tapped.rHelp: Access help information for using the Samsung keyboard.rReset settings: Reset Samsung keyboard settings.Google voice typingTo change the voice input settings, tap .rChoose input languages: Select input languages for text input.rBlock offensive words: Set the device to prevent the device from recognising offensive words in voice inputs.rOffline speech recognition: Download and install language data for offline voice input.Voice recogniserSelect a voice recognition engine.This feature appears once you use a voice recognition application.Voice searchFor Samsung voice recognition, use the following options:rLanguage: Select a language for the voice recognition.rHide offensive words: Hide offensive words from voice search results.rAbout: View version information.rOpen via the home key: Set the device to launch S Voice when you press the Home button twice.rVoice wake-up: Set the device to start voice recognition by saying a wake up command while using S Voice.DRAFT, not FINAL

Settings96rShow body of message: Set the device to display the text of a new message.rCheck missed events: Set the device to check missed messages or events when S Voice is launched by pressing the headset button.rHome address: Enter your home address to use location information with the voice command feature.rLog in to Facebook: Enter your Facebook account information to use Facebook with S Voice.rLog in to Twitter: Enter your Twitter account information to use Twitter with S Voice.For Google voice recognition, use the following options:rLanguage: Select a language for the voice recognition.rSpeech output: Set the device to provide voice feedback to alert you to the current action.rBlock offensive words: Hide offensive words from voice search results.rHotword detection: Set the device to begin voice recognition when you say the wake up command while using the search application.rOffline speech recognition: Download and install language data for offline voice input.rBluetooth headset: Set the device to allow a voice search with a Bluetooth headset, when one is connected to the device.Text-to-speech optionsrPREFERRED TTS ENGINE: Select a speech synthesis engine. To change the settings for speech synthesis engines, tap .rSpeech rate: Select a speed for the text-to-speech feature.rListen to an example: Listen to the spoken text for an example.rDefault language status: View the status of the default language for the text-to-speech feature.Pointer speedAdjust the pointer speed for the mouse or trackpad connected to your device.DRAFT, not FINAL

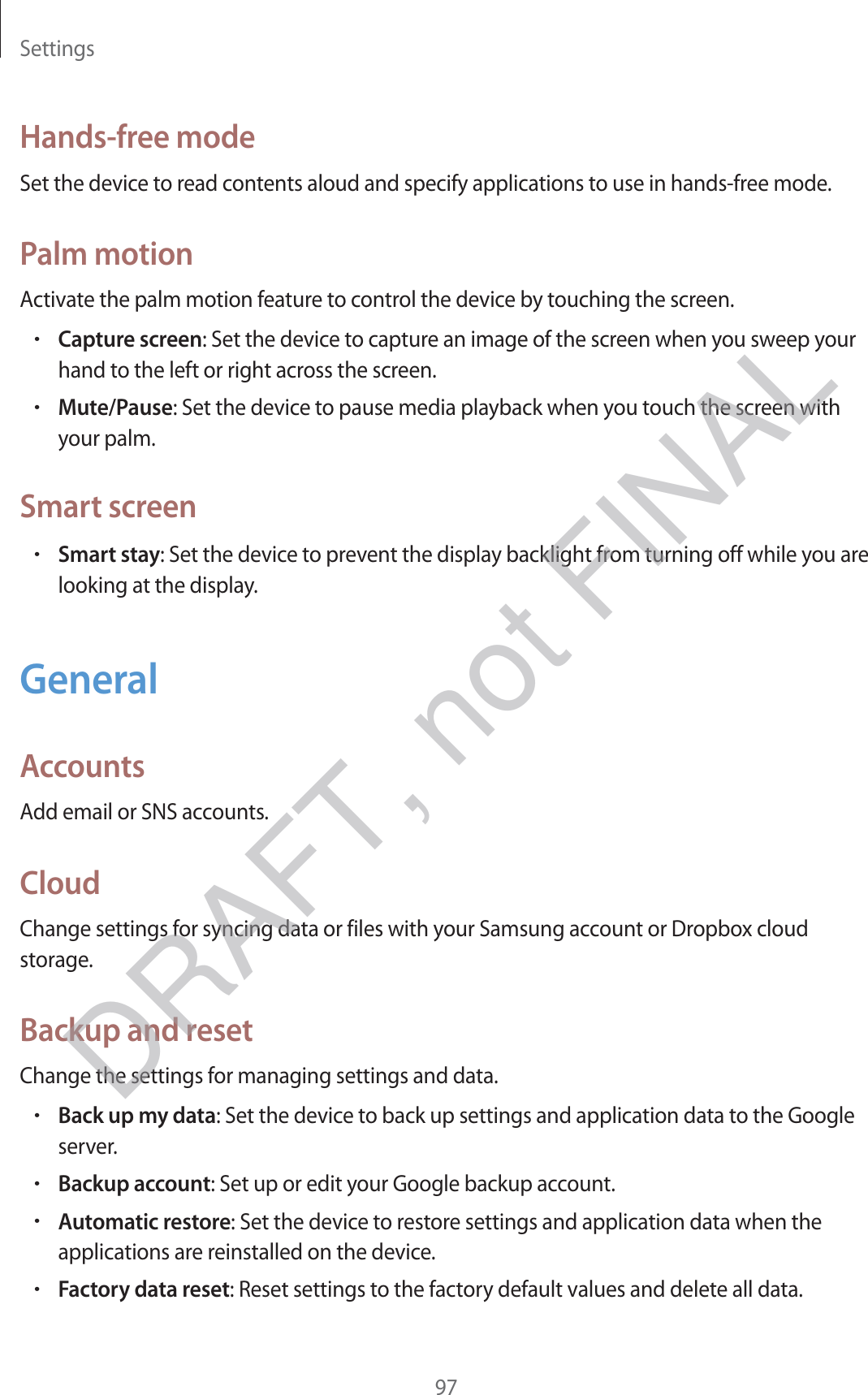

Settings97Hands-free modeSet the device to read contents aloud and specify applications to use in hands-free mode.Palm motionActivate the palm motion feature to control the device by touching the screen.rCapture screen: Set the device to capture an image of the screen when you sweep your hand to the left or right across the screen.rMute/Pause: Set the device to pause media playback when you touch the screen with your palm.Smart screenrSmart stay: Set the device to prevent the display backlight from turning off while you are looking at the display.GeneralAccountsAdd email or SNS accounts.CloudChange settings for syncing data or files with your Samsung account or Dropbox cloud storage.Backup and resetChange the settings for managing settings and data.rBack up my data: Set the device to back up settings and application data to the Google server.rBackup account: Set up or edit your Google backup account.rAutomatic restore: Set the device to restore settings and application data when the applications are reinstalled on the device.rFactory data reset: Reset settings to the factory default values and delete all data.DRAFT, not FINAL

Settings98Date and timeAccess and alter the following settings to control how the device displays the time and date.If the battery remains fully discharged or removed from the device, the time and date is reset.rSet date: Set the current date manually.rSet time: Set the current time manually.rSelect time zone: Set the home time zone.rUse 24-hour format: Display time in 24-hour format.rSelect date format: Select a date format.AccessoriesChange the accessory settings.rDock sound: Set the device to play a sound when your device is connected to or removed from a desktop dock.rAudio output mode: Set the device to use the dock speaker when your device is connected to a desktop dock.Application managerView and manage the applications on your device.Default applicationsrHome: Select a default Home screen mode.BatteryView the amount of battery power consumed by your device.rDisplay battery percentage: Set the device to display the remaining battery life.DRAFT, not FINAL

Settings99Power saving modeActivate power-saving mode and change the settings for power-saving mode.rCPU performance: Set the device to limit some system resource usage.rScreen output: Set the device to decrease the brightness of the display.rLearn about Power saving: Discover how to reduce battery consumption.StorageView memory information for your device and memory card, or format a memory card.Formatting a memory card permanently deletes all data from it.The actual available capacity of the internal memory is less than the specified capacity because the operating system and default applications occupy part of the memory. The available capacity may change when you upgrade the device.SecurityChange settings for securing the device.rEncrypt device: Set a password to encrypt data saved on the device. You must enter the password each time you turn on the device.Charge the battery before enabling this setting because it may take more than an hour to encrypt your data.rEncrypt external SD card: Set the device to encrypt files on a memory card.If you reset your device to the factory defaults with this setting enabled, the device will not be able to read your encrypted files. Disable this setting before resetting the device.rRemote controls: Set the device to allow control of your lost or stolen device remotely via the Internet. To use this feature, you must sign in to your Samsung account.–ACCOUNT REGISTRATION: Add or view your Samsung account.–Use wireless networks: Set the device to allow location data collection or to determine the location of your lost or stolen device via Wi-Fi.DRAFT, not FINAL

Settings100rGo to website: Access the Find my mobile website (findmymobile.samsung.com). You can track and control your lost or stolen device on the Find my mobile website.rMake passwords visible: Set the device to display passwords as they are entered.rDevice administrators: View device administrators installed on the device. You can allow device administrators to apply new policies to the device.rUnknown sources: Choose to install applications from any source. If not chosen, download applications only from Play Store.rVerify apps: Set the device to allow Google to check applications for harmful behaviour before installing them.rStorage type: Set a storage type for credential files.rTrusted credentials: Use certificates and credentials to ensure secure use of various applications.rInstall from device storage: Install encrypted certificates stored on the USB storage.rClear credentials: Erase the credential contents from the device and reset the password.About deviceAccess device information, edit the device name, or update device software.Google SettingsUse this application to configure settings for some features provided by Google.Tap Google Settings on the Applications screen.DRAFT, not FINAL

101TroubleshootingBefore contacting a Samsung Service Centre, please attempt the following solutions. Some situations may not apply to your device.When you turn on your device or while you are using the device, it prompts you to enter one of the following codes:rPassword: When the device lock feature is enabled, you must enter the password you set for the device.rPIN: When using the device for the first time or when the PIN requirement is enabled, you must enter the PIN supplied with the SIM or USIM card. You can disable this feature by using the Lock SIM card menu.rPUK: Your SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly several times. You must enter the PUK supplied by your service provider.rPIN2: When you access a menu requiring the PIN2, you must enter the PIN2 supplied with the SIM or USIM card. For details, contact your service provider.Your device displays network or service error messagesrWhen you are in areas with weak signals or poor reception, you may lose reception. Move to another area and try again. While moving, error messages may appear repeatedly.rYou cannot access some options without a subscription. Contact your service provider for more details.Your device does not turn onrWhen the battery is completely discharged, your device will not turn on. Charge the battery completely before turning on the device.rThe battery may not be inserted properly. Insert the battery again.rWipe both gold-coloured contacts and insert the battery again.DRAFT, not FINAL

Troubleshooting102The touch screen responds slowly or improperlyrIf you attach a protective cover or optional accessories to the touch screen, the touch screen may not function properly.rIf you are wearing gloves, if your hands are not clean while touching the touch screen, or if you tap the screen with sharp objects or your fingertips, the touch screen may malfunction.rThe touch screen may malfunction in humid conditions or when exposed to water.rRestart your device to clear any temporary software bugs.rEnsure that your device software is upgraded to the latest version.rIf the touch screen is scratched or damaged, visit a Samsung Service Centre.Your device freezes or has fatal errorsIf your device freezes or hangs, you may need to close applications or reinsert the battery and turn on the device to regain functionality. If your device is frozen and unresponsive, press and hold the Power button for 8 seconds to reboot.If this does not solve the problem, perform a factory data reset. On the Applications screen, tap Settings → General → Backup and reset → Factory data reset → Reset device → Erase everything. Before performing the factory data reset, remember to make backup copies of all important data stored on the device.If the problem is still not resolved, contact a Samsung Service Centre.DRAFT, not FINAL

Troubleshooting103The battery icon is emptyYour battery is low. Recharge or replace the battery.The battery does not charge properly (For Samsung-approved chargers)rEnsure that the charger is connected properly.rIf the battery terminals are dirty, the battery may not charge properly or the device may turn off. Wipe both gold-coloured contacts and try charging the battery again.rThe batteries in some devices are not user-replaceable. To have the battery replaced, visit a Samsung Service Centre.The battery depletes faster than when first purchasedrWhen you expose the battery to very cold or very hot temperatures, the useful charge may be reduced.rBattery consumption increases when you use messaging features or some applications, such as games or the Internet.rThe battery is consumable and the useful charge will get shorter over time.DRAFT, not FINAL

Troubleshooting104Your device is hot to the touchWhen you use applications that require more power or use applications on your device for an extended period of time, your device may feel hot to the touch. This is normal and should not affect your device’s lifespan or performance.Error messages appear when launching the cameraYour device must have sufficient available memory and battery power to operate the camera application. If you receive error messages when launching the camera, try the following:rCharge the battery or replace it with a battery that is fully charged.rFree some memory by transferring files to a computer or deleting files from your device.rRestart the device. If you are still having trouble with the camera application after trying these tips, contact a Samsung Service Centre.Photo quality is poorer than the previewrThe quality of your photos may vary, depending on the surroundings and the photography techniques you use.rIf you take photos in dark areas, at night, or indoors, image noise may occur or images may be out of focus.Error messages appear when opening multimedia filesIf you receive error messages or files do not play, when opening multimedia files on your device, try the following:rFree some memory by transferring files to a computer or deleting files from your device.rEnsure that the music file is not Digital Rights Management (DRM)-protected. If the file is DRM-protected, ensure that you have the appropriate licence or key to play the file.rEnsure that your device supports the file type.DRAFT, not FINAL

Troubleshooting105rYour device supports photos and videos captured with the device. Photos and videos captured by other devices may not work properly.rYour device supports multimedia files that are authorised by your network service provider or providers of additional services. Some content circulated on the Internet, such as ringtones, videos, or wallpapers, may not work properly.Another Bluetooth device is not locatedrEnsure that the Bluetooth wireless feature is activated on your device.rEnsure that the Bluetooth wireless feature is activated on the device you wish to connect to.rEnsure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).If the tips above do not solve the problem, contact a Samsung Service Centre.A connection is not established when you connect the device to a computerrEnsure that the USB cable you are using is compatible with your device.rEnsure that you have the proper driver installed and updated on your computer.rIf you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher installed on your computer.rEnsure that you have Samsung Kies or Windows Media Player 10 or higher installed on your computer.Your device cannot find your current locationGPS signals may be obstructed in some locations, such as indoors. Set the device to use Wi-Fi or a mobile network to find your current location in these situations.DRAFT, not FINAL

Troubleshooting106Data stored on the device has been lostAlways make backup copies of all important data stored on the device. Otherwise, you cannot restore data if it is corrupted or lost. Samsung is not responsible for the loss of data stored on the device.A small gap appears around the outside of the device caserThis gap is a necessary manufacturing feature and some minor rocking or vibration of parts may occur.rOver time, friction between parts may cause this gap to expand slightly.DRAFT, not FINAL

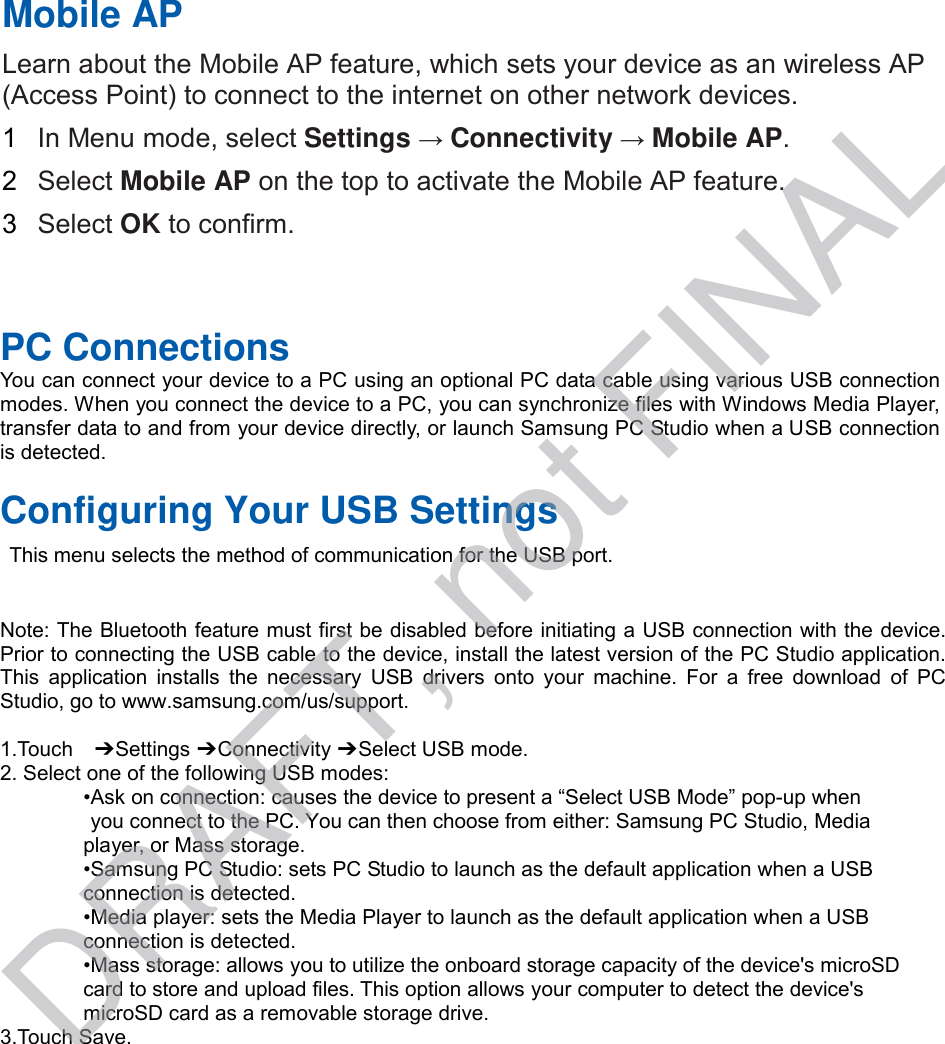

PC Connections You can connect your device to a PC using an optional PC data cable using various USB connection modes. When you connect the device to a PC, you can synchronize files with Windows Media Player, transfer data to and from your device directly, or launch Samsung PC Studio when a USB connection is detected. Configuring Your USB Settings This menu selects the method of communication for the USB port. Note: The Bluetooth feature must first be disabled before initiating a USB connection with the device. Prior to connecting the USB cable to the device, install the latest version of the PC Studio application. This application installs the necessary USB drivers onto your machine. For a free download of PC Studio, go to www.samsung.com/us/support. 1.Touch ➔ Settings ➔ Connectivity ➔ Select USB mode. 2. Select one of the following USB modes:•Ask on connection: causes the device to present a “Select USB Mode” pop-up whenyou connect to the PC. You can then choose from either: Samsung PC Studio, Mediaplayer, or Mass storage. •Samsung PC Studio: sets PC Studio to launch as the default application when a USBconnection is detected. •Media player: sets the Media Player to launch as the default application when a USBconnection is detected. •Mass storage: allows you to utilize the onboard storage capacity of the device's microSDcard to store and upload files. This option allows your computer to detect the device's microSD card as a removable storage drive. 3.Touch Save.Mobile AP Learn about the Mobile AP feature, which sets your device as an wireless AP (Access Point) to connect to the internet on other network devices. 1 In Menu mode, select Settings → Connectivity → Mobile AP. 2 Select Mobile AP on the top to activate the Mobile AP feature. 3 Select OK to confirm. DRAFT, not FINAL

Some content may differ from your device depending on the region, service provider, or software version, and is subject to change without prior notice.www.samsung.com English (EU). 03/2014. Rev.1.0DRAFT, not FINAL
