Contents

Users Manual

Get to Know
Your Tablet
Welcome to Verizon Wireless. You’re now part of a
growing movement that’s about speed, signal and
strength. This guide will show you how to set up and use
your phone, access special features, and find help.
Step 1. Insert the SIM Card
1. Hold the device securely.
2. Use the SIM removal tool that came with your phone
to open the SIM card tray.
3. Carefully place the new SIM card into the tray with
the carrier logo facing up.
Setting Up Your Phone
FPO

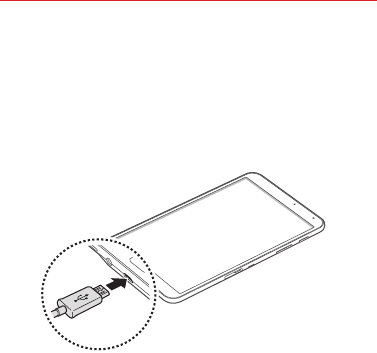

Step 2. Charge the Phone
Before turning on your tablet charge it fully. Your tablet
comes with an Adaptive Fast Charging charger and a
USB cable. Plug the smaller end of the cable into the
USB/charger port on your phone and the other end into
the charger. Then plug the charger into an electrical
outlet to charge the device.
WARNING! Please use only an approved charging accessory to charge
your tablet. Improper handling of the charging port, as well as the use of
an incompatible charger, may cause damage to your device and void the
warranty.
FPO
Optional: Insert the microSD Card
If you have a microSD card, slide the microSD card into
the microSD card slot.
1. Hold the tablet securely.
2. Use the SIM removal tool that came with your
phone to open the microSD card tray.
3. Carefully place the microSD card into the tray
with the carrier logo facing up.
NOTE: The microSD card is sold separately.
FPO
NOTE: Devices and software are constantly evolving—the screen images and
icons you see here are for reference only.
Volume
Home
Recent
apps Multipurpose jack
Back
microSD
card
slot
Power/
Lock
FPO
Volume
Home
Recent
apps Multipurpose jack
Back
microSD
card
slot
Power/
Lock
FPO
Turning Your Phone On/Off
To power on your tablet:
Press and hold the Power/Lock key on the top of your
tablet.
To power off your tablet:
1. Press and hold the Power/Lock key until the tablet
options screen appears.
2. Tap Power off g OK.
Using Your Tablet
Using Verizon Wireless Service – Activate
Your Tablet
Activate your tablet to use the Internet on Verizon’s
super-fast 4G LTE network.
1. Make sure your SIM card is inserted and turn on
your tablet.
2. Follow the onscreen instructions in the Setup
Wizard to sign up for a data plan.
Initial Device Configuration
1. Select a language and tap or tap
ACCESSIBILITY if you are visually impaired or
hard of hearing.
2. Follow the prompts to complete the setup
process.
Customize
1. Tap and hold a blank space on one of the home
screens and choose:
• Wallpapers allows you to assign the current
wallpaper for the Home screen, Lock screen, or
Home and lock screens.
• Widgets allows you to quickly access the Widget
tab where you can then drag a selected widget to
an available area on a selected screen.
NOTE: To remove a Widget from a Home screen, tap and hold the Widget and
drag it to the top trash can icon to remove.
© 2015 Verizon Wireless. All Rights Reserved.
Locking/Unlocking Your Tablet
To lock the screen:
≠Press the Power/Lock key.
To unlock the screen:
≠Press the Power/Lock key. Then drag your finger
across the screen in any direction.
Using the Touch Screen
Use touch gestures to move around the screen, open
menus, select items, zoom in or out on Web pages, and
more.
Swipe—Swipe by quickly sliding your finger in any
direction.
Drag—Drag by touching an item and sliding it to a new
position.
Double-Tap—Tap two times rapidly to zoom in or out on
a web page or picture.
Multi-Touch—Pinch or spread your thumb and index
finger to zoom in or out.
Connecting to Wi-Fi
1. g g From the Home screen, tap Apps
g Settings g Wi-Fi.
2. Slide the Wi-Fi slider to the right to turn it on.
3. Tap an available Wi-Fi network.
If the Wi-Fi network is open, you will be
automatically connected. If the Wi-Fi network
is secured, enter the password at the prompt to
connect.
Connecting to Bluetooth® Devices
1. g g From the Home screen, tap Apps
g Settings g Bluetooth.
2. Slide the Bluetooth slider to the right to turn it on.
When active, appears in the status area of the
screen.
3. Make sure the other device you are pairing with is
in discoverable mode.
NOTE: Refer to the guide that came with the other device for details.
4. The tablet will automatically scan for nearby
devices.
5. Tap a device to connect.
6. If necessary, tap Pair, or enter the device passkey
(commonly 0000) to connect to the device. When
the device is connected, appears in the status
area.
Taking Photos
1. From the Home screen, tap Camera.
2. Aim your camera and use your tablet’s screen to
compose your shot.
3. Tap the screen to focus.
4. Tap Camera icon to take the picture.
Setting Up Email
1. g From the Home screen, tap
Apps g Email.
2. Choose an account to setup.
3. Enter the requested information and follow the
prompts to complete.
Browsing the Web
Take the Internet with you on the go. You can reach the
latest news, get the weather and follow your stocks.
From the Home screen, tap Chrome.
Google Play Store
Choose from thousands of available apps.
From the Home screen, tap Play Store.
Installing Apps
1. From the Home screen, tap Play Store g
APPS.
2. Tap an app you want to download and tap Install or
the app’s price.
3. Tap Accept after reviewing the app’s permissions.
Viewing Apps
1. From the Home screen, tap Play Store.
2. Tap in the upper left corner, and then tap
My apps to view your downloaded apps.
Uninstalling Apps
1. From the Home screen, tap Apps.
2. Tap and hold the app you want to uninstall and drag
it to the trash can.
Adjust accessibility settings to assist users who have
impaired vision or hearing or reduced dexterity.
1. g g From the Home screen, tap Apps
g Settings g Accessibility.
2. Tap a category and set the desired options to
improve accessibility.
Using TalkBack
TalkBack provides screen reading to assist people
with impaired vision.
1. g g From the Home screen, tap Apps
g Settings g Accessibility g Vision.
2. Tap TalkBack, then tap the TalkBack switch to turn
it on.
3. Tap Settings at the bottom of the screen to adjust
the TalkBack settings.
NOTE: When TalkBack is on, double-tap when you hear the item you want. (You
can change to single-tap in Settings.)
Improving Accessibility
My Verizon Mobile App
Manage your account, track your usage, edit
account information, pay your bill and more.
Get Help Using Your Phone
Use your Help app to get assistance at your
fingertips, right from your phone.
From your computer, visit
verizonwireless.com/support.
Customer Service
Call (800) 922-0204.
Follow us @VZWSupport.
More Information
Download a User Guide from verizonwireless.
com/support or call (XXX) XXX-XXXX to order
a copy.
Support & More
User Guide
Your Wireless Device and Third Party Services
Verizon Wireless is the mobile carrier associated with this wireless device, but
many services and features offered through this wireless device are provided
by or in conjunction with third parties. Verizon Wireless is not responsible
for your use of this wireless device or any non–Verizon Wireless applications,
services and products, including any personal information you choose to use,
submit or share with others. Specific third-party terms and conditions, terms
of use, and privacy policies shall apply. Please review carefully all applicable
terms and conditions and policies prior to using this wireless device and any
associated application, product or service.
