Users Manual

SAMSUNG SN-308 CD-RW/DVD ROM Drive User's Guide The information below is provided by the supplier of the referenced device without independent verification by Dell and is subject to the restrictions and disclaimers noted below. Information in this document is subject to change without notice. © 2001 SAMSUNG Electronics Co.,LTD. All rights reserved. Trademarks used in this text: SAMSUNG is trademarks of SAMSUNG Electronics Co.,LTD.; Dell and the DELL logo are trademarks of Dell Computer Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. Restrictions and Disclaimers The information contained in this document, including all instructions, cautions, and regulatory approvals and certifications, is provided by the supplier and has not been independently verified or tested by Dell. Dell cannot be responsible for damage caused as a result of either following or failing to follow these instructions. All statements or claims regarding the properties, capabilities, speeds or qualifications of the part referenced in this document are made by the supplier and not by Dell. Dell specifically disclaims knowledge of the accuracy, completeness or substantiation for any such statements. All questions or comments relating to such statements or claims should be directed to the supplier. Initial release: May, 2001 IntroductionSetupUsing the CD-RW/DVD ROM DriveTroubleshootingSpecificationsDrive ConnectorsRegulatoryFCC ComplianceThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordancewith the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be deter-mined by turningthe equipment off and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: Re-orient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
Back to Contents Page Introduction: SAMSUNG SN-308 CD-RW/DVD ROM Drive User's Guide Manufacturer model name and number • Drive speed • Bus interface • Types of disc formats supported • Software support • Features • Configuration • Front View Drive has capability of reading CD, DVD and writing CD-R and CD-RW media through the use of Standard sofware required to operate traditional CD, CD-RW and DVD Drives. Manufacturer model name and number SAMSUNG SN-308 Drive speed Read : DVD : 8X CD-ROM : 24X CD-RW : 8X Write : CD-R : 2X. 4X. 8X CD-RW : 2X. 4X, 8X Bus interface ATAPI BUS(IDE) Types of disc formats supported DVD : DVD-5 : single-sided, single -layer format (4.3 GB) DVD-9 : single-sided, dual-layer format (~ 7.9 GB) DVD-10 : double-sided, single-layer format (~ 8.7 GB) DVD-18 : double-sided, dual-layer format (~ 15.9 GB) DVD-R : V1.9 CD : CD-DA
CD-ROM(Mode-1,2) CD-ROM XA(Mode-2, Form-1,2) Photo-CD(Single, Multi-Session) VIDEO-CD ready CD-I(FMV) CD-Plus CD Extra CD-R(Read/Write) CD-RW(Read/Write) CD-TEXT Software support ?Easy CD Creator Ver 4.04d10 or higher ?CLONE Ver 2.67 or higher ?Winon CD Ver 3.7 or higher ?Juggler Ver 3.0 or higher Features ?Disc loading mechanism This drive uses motor solenoid mechanism. ?3-way disc ejection Eject button, Software and Emergency Eject Hole ?Average access time ?Audio capability Audio capability follows the industry standard CD-Audio format. ?MPC3 compatibility Compatible Configuration This CD-RW/DVD ROM drive should be used only in its current hardware and software configuration. Front View DVD 120msec (1/3 stroke)CD-R/RW 120msec (1/3 stroke)
1. LED This indicator lights green while data is being read. 2. Eject button 3. Emergency Eject Hole If the disc tray does not open when you press the Eject button, insert a small, metal rod(an unwound paper clip for example) into this hole to eject the disc. * This function should only be performed when the computer is powered OFF. 4. Disc Tray The Disc Tray will be open a little when you press the Eject button. Then you should pull the Tray open completely. * When you place a disc in the tray, make sure that the label on the disc is facing upwards. Please read all restrictions and disclaimers. Back to Contents Page
Back to Contents Page Setup: SAMSUNG SN-308 CD-RW/DVD ROM Drive User's Guide Dell Installed Drives • Drives Purchased Separately as Customer Kits Dell Installed Drives Dell performs the installation and setup on CD-RW/DVD ROM drives that are shipped as part of a system, including loading the appropriate device drivers when the operating system is installed. The drive is ready for use when you receive your system. No further installation or configuration is necessary. Drives Purchased Separately as Customer Kits Installing the Drive ?Install and configure the drive according to the instructions provided in the Dell documentation for your system. Verify Drive Operation by playing an Audio CD 1. Insert an Audio CD into the CD Tray. 2. Press the CD Tray until the tray is closed completely. 3. Audio CD will start playing (If Audio CD does not start-up, see Troubleshooting section). Please read all restrictions and disclaimers. Back to Contents Page Note: To help avoid possible damage to the system board, unplug the computer system and wait 15 to 20 seconds for the standby power to dissipate before adding or removing any components from the system.Note: If customer has an older version of the NT file called cdaudio.sys this older version will not play audio CD's and in some cases won't even read data CD's such as Kodak Photo CD's. In addition, if the customer has the "Autorun feature" turned off, the drive will not automatically start playing the CD.
Back to Contents Page Using the CD-RW/DVD ROM Drive : SAMSUNG SN-308 CD-RW/DVD ROM Drive User's Guide Operating the Drive • Regional Coding • Handling Media • Cleaning Media Operating the Drive Drive operation: Inserting a CD 1. Press the Eject button, and you will hear sound like "tick". Then you should pull the tray open completely. 2.Place the disc on the center of the tray with the label side facing upwards.
3. Push the tray until it is closed completely. Removing a CD 1. Press the Eject button. The Disc tray will be ejected. 2. Remove the disc. 3. Push the tray until it is closed completely. Usage guidelines ?Do not press down on the disc tray when opening or closing it. ?Do not place objects on the disc tray. NOTE: If an eject prohibit command has been received from the computer, the CD tray will not be ejected even if the Eject button is pressed.
?Never use a damaged, broken, or deformed disc. ?Do not press the Eject button while the computer is accessing the disc. ?Keep the disc tray closed when not using the CD-RW/DVD ROM drive. ?Do not press the Eject button while the drive is playing a CD movie. To stop a CD movie, click Stop button in the CD player application program. Emergency Ejection The procedure described below can be used to remove a disc from the CD-RW/DVD ROM Drive if the Eject button is disabled by software or a power failure occurs. 1. Turn off the power to the computer installed the CD-RW/DVD ROM Drive. 2. Insert a steel rod (about 1.3mm in diameter) into the emergency eject hole and push hard. NOTE : High-speed drives spin the disc at a high rotational speed. If a CD has printing on only half of the disc, or if there is a slight imbalance in the CD, the imbalance is greatly magnified by the high speed, causing the drive to vibrate or produce a fan-like noise.These effects are inherent in the high-speed technology and do not indicate a problem with the drive.WARNING : The Discs in this unit operate at a very high speed!DO NOT use damaged, cracked or warped discs. The drive's optical unit may be damaged if they break. DO NOT use non-standard discs. Non-standard discs may not play or store data properly.
3. The Disc tray is ejected by about 10mm. Pull it all the way open by hand. A stiff paper clip may be used as a steel rod. Regional Coding Region Protection Coding (RPC) of DVD Discs: This feature is supported on DVD Players and is used with DVD-Video Discs (ie. movies). Currently, the motion picture industry has divided the world into different regional "zones". These regions or "zones" correlate to the regional markets into which the motion picture industry releases movies. Simply put, RPC Codes are placed on Movie Discs marketed throughout the world based on the region of the world they are being sold into. These RPC codes help to control and prevent the pirating of new release movies into other motion picture market regions prior to their true release dates within those markets. SN-308 CD-RW/DVD ROM drive supports RPC phase II. The local code of RPC-2 mode can be changed by users. It is possible for users to change the zone code up to five times on MPEG Application. Handling Media DVD media is sensitive to dust and fingerprints. Carefully handle media by its edges only. If a DVD movie skips or hangs during playback, clean the media. Most DVD video playback issues are media-related and can be remedied by proper handling and care of media.

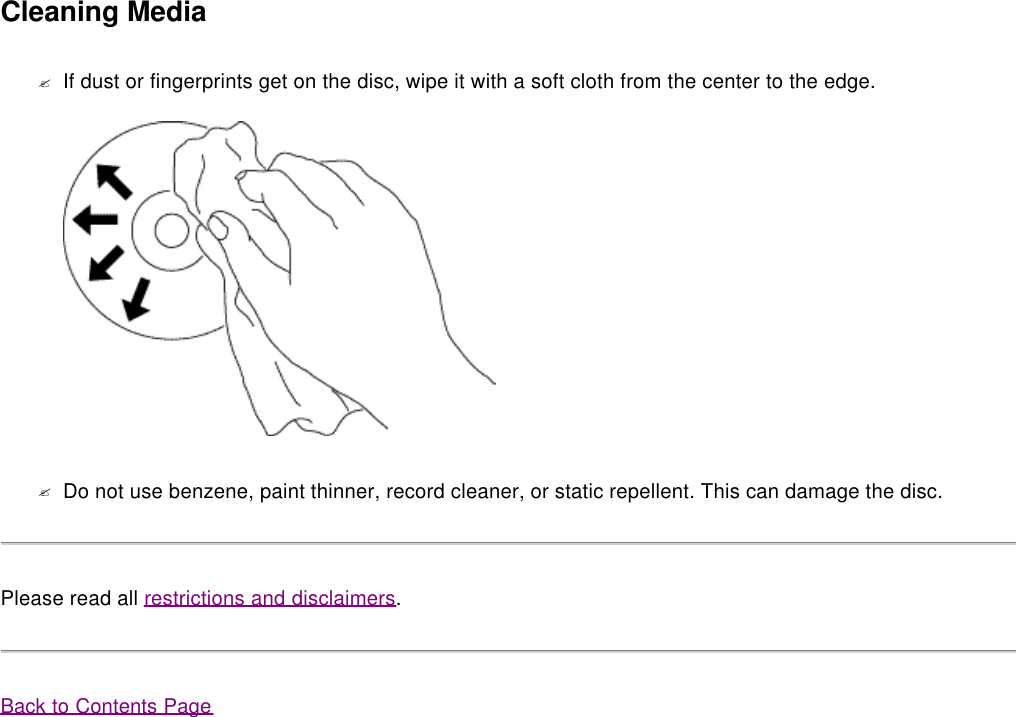

Cleaning Media ?If dust or fingerprints get on the disc, wipe it with a soft cloth from the center to the edge. ?Do not use benzene, paint thinner, record cleaner, or static repellent. This can damage the disc. Please read all restrictions and disclaimers. Back to Contents Page
Back to Contents Page Troubleshooting: SAMSUNG SN-308 CD-RW/DVD ROM Drive User's Guide Please read all restrictions and disclaimers. Back to Contents Page Symptoms Solutions 1. Drive is not recognized by system. 1. Is the CD-RW/DVD drive connected properly ? Ensure: Drive module inserted correctly into notebook. 2. CD is not being recognized by computer or drive. 1. Is the disc the correct format for the system that you are using? 2. Do you have the correct software applications and drivers installed? 3. Is the CD dirty or does it have fingerprints on the surface. 3. Disc tray cannot be opened. 1. Check that there is power to the CD-RW/DVD drive. 2. Use Emergency Eject Instructions to open the tray. 4. Certain types of discs do not play. 1. This drive only supports discs with the formats indicated in the "Introduction" and "Specifications" sections. It cannot read the data on discs with other formats. Check the disc's format. 5. Cannot Read or Write Discs. 1. Is the condition of everything else in the system (CPU, hard disc, and others) as it should be? 2. Does the CD-R/RW or DVD disc have dirt or scratches? 3. Did a screen saver or other application operate while writing to the disc? 4. Is there enough free space on the CD-R/RW or DVD disc? 5. Does writing fail even using the simulation test? 6. Is the disc loaded in the drive with the read/write surface facing the right direction? (label up) 7. Is the drive installed in the correct orientation? 8. Was the drive or disc moved from a low temperature environment to a high temperature environment? (There is a possibility of condensation on the lens in the drive or on the surface of the disc.) NOTE: Consult the Dell documentation for your system for additional information on troubleshooting CD-RW/DVD ROM drive problems.

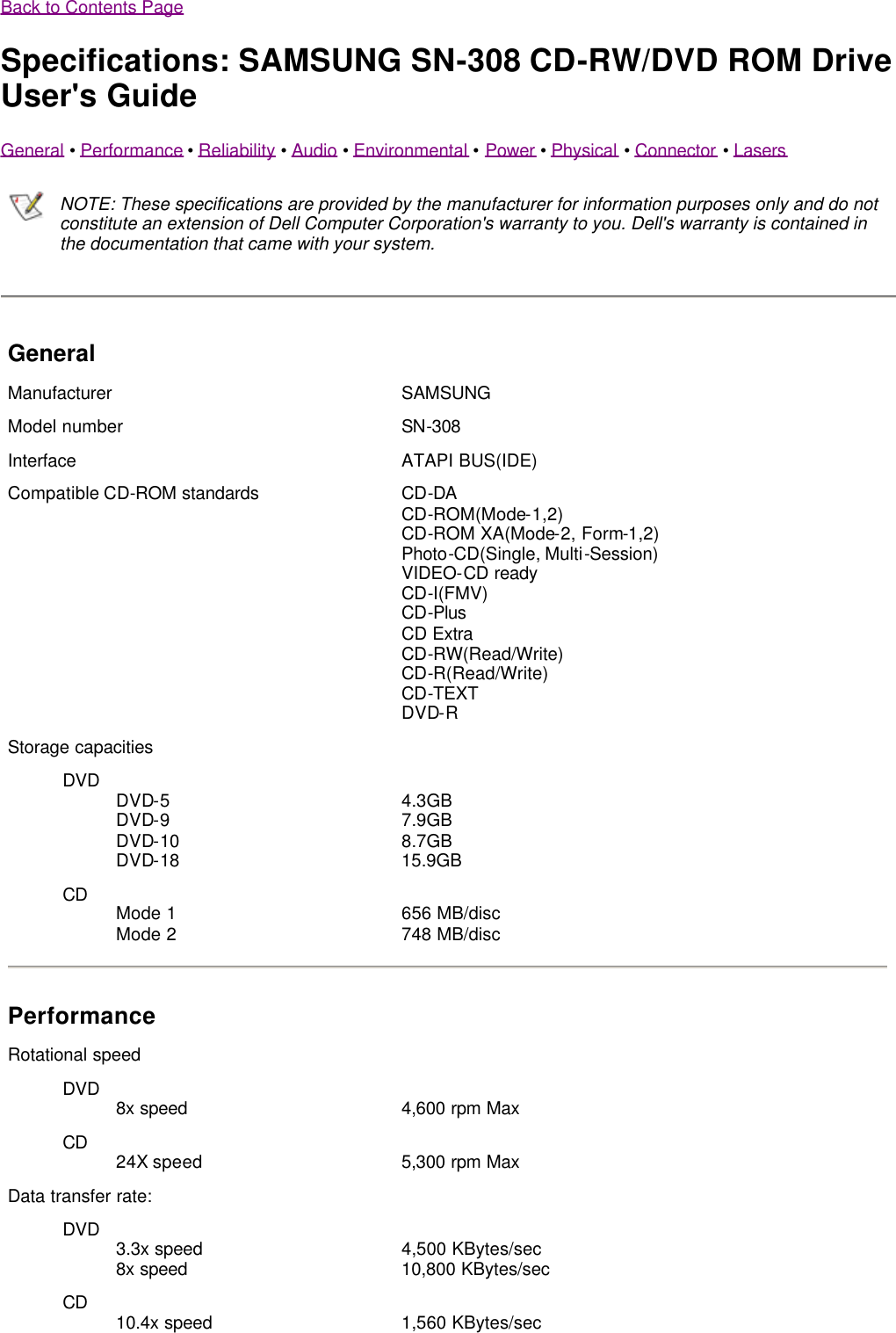

Back to Contents Page Specifications: SAMSUNG SN-308 CD-RW/DVD ROM Drive User's Guide General • Performance • Reliability • Audio • Environmental • Power • Physical • Connector • Lasers NOTE: These specifications are provided by the manufacturer for information purposes only and do not constitute an extension of Dell Computer Corporation's warranty to you. Dell's warranty is contained in the documentation that came with your system.General Manufacturer SAMSUNGModel number SN-308Interface ATAPI BUS(IDE)Compatible CD-ROM standards CD-DA CD-ROM(Mode-1,2) CD-ROM XA(Mode-2, Form-1,2) Photo-CD(Single, Multi-Session) VIDEO-CD ready CD-I(FMV) CD-Plus CD Extra CD-RW(Read/Write) CD-R(Read/Write) CD-TEXT DVD-RStorage capacitiesDVD DVD-5 DVD-9 DVD-10 DVD-18 4.3GB 7.9GB 8.7GB 15.9GBCD Mode 1 Mode 2 656 MB/disc 748 MB/discPerformance Rotational speedDVD 8x speed 4,600 rpm MaxCD 24X speed 5,300 rpm MaxData transfer rate: DVD 3.3x speed 8x speed 4,500 KBytes/sec 10,800 KBytes/secCD 10.4x speed 1,560 KBytes/sec
24x speed 3,600 KBytes/secIDE interface burst transfer ratePIO mode 0 PIO mode 1 PIO mode 2 PIO mode 3 PIO mode 4 Multiword DMA mode 2 UDMA mode 2 3.3 MBytes/sec 5.3 MBytes/sec 8.3 MBytes/sec 11.1 MBytes/sec 16.6 MBytes/sec Max 16.6 MBytes/sec Max 33.0 MBytes/sec MaxAccess timeDVD 120 msec ( 1/3 stroke)CD 120 msec ( 1/3 stroke)Total Number of blocksCD 336,150 blocks/disc 74min 42Buffer size 2048 KBDAE(Digital Audio Extraction) rateCD Audio Extraction Audio Play CD-RW Video CD, CD I 12x(CAV) 4x(CLV) 16x 16x(CAV)Reliability MTBF 100,000 POH(Duty 25%)User error rates:DVD 10-15 block/bitsCD Mode 1 Mode 2 10-12 block/bits 10-9 block/bitsDVD/CD Seek error rate 10-6 block/bitsAudio Sampling frequency 44.1 KHzNumber of channels 2 channelsFrequency response 20 to 20,000 Hz(±3 dB)Signal/noise ratio Line out : 75db (1KHz)Total harmonic distortion 0.1% (1KHz)Line output 700 ±20% mV (1KHz)Environmental Ambient temperature:Operating 5 ~ 50 °C
Please read all restrictions and disclaimers. Back to Contents Page Storage -20 ~ 65 °CRelative humidity:Operating 8 ~ 80 % (No Condensation)Storage 5 ~ 95 % (No Condensation)Acoustical noiseDrive on (seeking) 48dB MaxPower Voltage +5V DC CurrentIdle Mode Continuous Read Mode Random Read Mode 0.95A 1.05A 1.2APhysical (With Bezel) Height 12.7 mmWidth 129 mmDepth 128 mmWeight 200 gConnector System connector 60 pinLasers DVDFOCUSING TRACKING Wave Length Optical output Astigmatism Method DPD(Differential Phase Detection) Method 650 ±10 nm 10 mW (MAX)CDFOCUSING TRACKING Wave Length Optical output Astigmatism Method DPP Method 785 [+5, -15nm] 120 mW (MAX)
Back to Contents Page Drive Connectors : SAMSUNG SN-308 CD-ROM Drive User's Guide Rear of Drive and Pin Pin Arrangement Please read all restrictions and disclaimers. Back to Contents Page
Back to Contents Page Regulatory: SAMSUNG SN-308 CD-RW/DVD ROM Drive User's Guide Safety • EMC(EMI+EMS) • Laser Safety Safety Approval The Product will satisfy the safety standard below: ?c-UL - USA , CANADA ?TUV - EN60825-1, EN60950 ?CE(LVD)- EN60825, EN60950 ?NEMKO - EN60950(1992) A1/A2/A3/A4/A11, EMKO-TSE(74-SCE) 207/94 ?CB(Certification Body) - IEC60950:1991+A1+A2+A3+A4 , IEC60825-1:1993+A1 ?GOST(RUSSIA) EMC(EMI+EMS) Approval The product complies with applicable technical requirements as specified below: ?FCC(USA) - FCC Part 15 Class B Digital Device ?CE(EMC) - European ?VCCI(Japan) ?C-TICK(Australia) ?BSMI (Taiwan) ?MIC (Korea EMC) ?GOST(RUSSIA) Laser Safety The product will satisfy all the requirements for the laser specified below: ?DHHS : CFR 21 Chapter 1, Subchapter J ?IEC60825-1:1993 with Amend. 1:1997 CLAUSE 8 AND 9 The CLASS 1 LASER PRODUCT label is located at the top of the enclosure. Please read all restrictions and disclaimers. Back to Contents Page
