BN68-00326A-00(ENG)Owner s InstructionsSPM4227

Thank you for choosing Samsung! Your new Samsung product represents the latest in television technol-ogy. We designed it with easy-to-use on-screen menus and closed captioning capabilities, making itone of the best products in its class. We are proud to offer you a product that will provide convenient,dependable service and enjoyment for years to come.Important Safety InformationAlways be careful when using your Monitor. To reduce the risk of fire, electrical shock, and otherinjuries, keep these safety precautions in mind when installing, using, and maintaining your machine.• Read all safety and operating instructions before operating your Monitor.• Keep the safety and operating instructions for future reference.• Heed all warnings on the Monitor and in the operating instructions.• Follow all operating and use instructions.• Unplug the Monitor from the wall outlet before cleaning. Use a damp cloth; do not use liquid oraerosol cleaners.• Never add any attachments and/or equipment without approval of the manufacturer. Such additionscan increase the risk of fire, electric shock, or other personal injury.• Do not use the Monitor where contact with or immersion in water is a possibility, such as near bathtubs, sinks, washing machines, swimming pools, etc.• Do not place the Monitor on an unstable cart, stand, tripod, bracket,table, or floor where it can fall. A falling Monitor can cause seriousinjury to a child or adult, and serious damage to the appliance. Useonly with a cart, stand, tripod, bracket, or table recommended by themanufacturer or sold with the Monitor. Follow the manufacturer'sinstructions when mounting the unit, and use a mounting accessoryrecommended by the manufacturer. Move the Monitor and cart withcare. Quick stops, excessive force, and uneven surfaces can make theunit and cart unsteady and likely to overturn.• Provide ventilation for the Monitor. The unit is designed with slots in the cabinet for ventilation to pro-tect it from overheating. Do not block these openings with any object, and do not place the Monitoron a bed, sofa, rug, or other similar surface. Do not place it near a radiator or heat register. If youplace the Monitor on a rack or bookcase, ensure that there is adequate ventilation and that you'vefollowed the manufacturer's instructions for mounting.• Operate your Monitor only from the type of power source indicated on the marking label. If you arenot sure of the type of power supplied to your home, consult your appliance dealer or local powercompany.• Use only a grounded or polarized outlet. For your safety, this Monitor is equipped with a polarizedalternating current line plug having one blade wider than the other. This plug will fit into the poweroutlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. Ifthe plug still does not fit, contact your electrician to replace your outlet. Warning! Important Safety Instructions32CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol indicates high voltage is present inside. It is dangerous to make any kind of contactwith any inside part of this product.This symbol alerts you that important literature concerning operation and maintenance has beenincluded with this product.Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Arti-cle 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that providesguidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to thegrounding system of the building as close to the point of cable entry as practical.Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment mayvoid the user's authority to operate it.Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug.Attention: pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne corre-spondante de la prise et pousser jusqu'au fond.Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is aninfringement of U.S. copyright laws.Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in partmay be in violation of these rights. TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THISAPPLIANCE TO RAIN OR MOISTURE.Thank You for Choosing Samsung

SetupYour New Plasma Display Panel........................10Remote Control Buttons ....................................12Turning the Monitor(PDP) On and Off ................14Connection (Connecting Speakers /Receiver) Connecting Speakers ......................................18Connecting a VCR/Cable Box ..........................19Connecting a DVD ..........................................20Connecting a Set-Top Box ................................21Picture ControlCustomizing the Picture ....................................24Using Automatic Picture Settings........................25Viewing the Picture-in-Picture ............................26Changing the Screen Size ................................29Freezing the Picture..........................................30Sound ControlCustomizing the Sound ....................................32Using Automatic Sound Settings ........................33Using the Surround ........................................34Time SettingSetting the Clock ............................................36Setting the Sleep Timer ....................................37Setting the Timers ............................................38Connecting PC and OperationConnecting to a PC..........................................42Adjusting the PC Screen ..................................46Changing the Position of the Image....................47Changing the Size of the Image ........................48Enlarging the Image (Zoom)..............................49Moving the Zoom Picture..................................50Picture Quality Adjustment................................51Information ....................................................54Power Saver (PC mode only) ............................55Function DescriptionSelecting a Menu Language..............................58Setting the Multi Control ..................................59Using the Key Lock ..........................................60Setting up Your Remote Control ........................61AppendixTroubleshooting ..............................................64Care and Maintenance ....................................65Specifications ................................................66s7User Instructions Screen Image retentionDo not display a still image (such as on a video game or when hooking up a PC to this Monitor) on theplasma monitor panel for more than several minutes as it can cause screen image retention. This imageretention is also known as “screen burn”. To avoid such image retention, refer to page 28 of this manual toreduce the degree of brightness and contrast of this screen when displaying a still image.Cell DefectThe plasma display panel consists of fine cells. Although the panels are produced with more than 99.9 percent active cells, there may be some cells that do not produce light or remain lit.AltitudeThe PDP will not operate normally at altitude above 6500 ft.WarrantyWarranty Period: One year starting from the purchase of your Monitor.Warranty does not cover any damage caused by image retention.6Table of Contents

PLASMA DISPLAY PANELSetupYour New Plasma Display Panel ....................................................10Remote Control Buttons ................................................................12Turning the Monitor(PDP) On and Off ............................................14

Front Panel11Your New Plasma Display Panel10Rear PanelŒExternal Speaker Out jacksConnect external speakers.´PC(RGB) Input jack (15pin)Connect to the video output jack on your PC.ˇComponent Video Input jacks ( Y/Pb/Pr)Component 1 inputs are for 480i/480pComponent 2 inputs are for 480p/720p/ 1080i.¨Video Input jackConnect a video signal from external sourcessuch as VCRs or DVD players.ˆS-Video Input jackConnect a S-Video signal from an S-VHSVCR or DVD player.ØAudio Input(Video/Component1/2/PC(RGB)) jacksConnect a audio signal from externalsources such as VCRs, PC or DVD players.∏Service JackOnly for service.”Power Input jackConnect the supplied power cord.Remote Control Signal Receiver Aim the remote control towards this spot on the Monitor.• SOURCE buttonPress to display all of the available video sources (ie., Video, S-Video, Component1, Component2, PC ).• MENU buttonDisplays the main on-screen menu.• VOL(+,-) buttonPress to increase or decrease the volume. Also used toadjust items on the on-screen menu.• SELECT(▲,▼) buttonUsed to adjust items on the on-screen menu.• POWER buttonPress to turn the PDP on and off.Swivel StandThis stand can turn left, rightup to 25 degrees respectively.So you can adjust the set'sangle while viewing.SpeakersChecking PartsRemote Control/AAA BatteriesPower Cord S-VIDEO Cable Ferrite Cores(4EA)PC Cable Video CableVideo/Audio CablesOwner’s Instructions

ıVCR control buttonsControls VCR tape functions: Stop, Rewind,Play/Pause, Fast Forward.˜SET buttonUsed during setup of this remote control, so that it willwork compatibly with other devices (VCR, cable box,DVD, etc.)¯Clock set buttonPress to set clock.˘PIP control buttonsSource : Press to select one of the available signalsources for the PIP window.S.Sel : Press to select the Audio (PIP or Main).Locate : Press to move the PIP window to any on thescreen.¿PC control buttonsAuto AdjustScalingZoom/Pan¸S.Mode buttonAdjust the PDP sound by selecting one of the presetfactory settings (or select your personal, customizedsound settings.)˛Sleep buttonPress to select a preset time interval for automatic shutoff.S.Sel13Remote Control ButtonsŒPower buttonTurns the PDP on and off.´Number buttonsˇDisplay buttonPress to display information on the PDP screen.¨Menu buttonDisplays the main on-screen menu.ˆCH (Channel) and VOL (Volume) buttonsChannel and Volume buttons are used for selectingmenu items in menu mode.ØMute buttonPress to mute the PDP sound.∏P.Mode buttonAdjust the PDP picture by selecting one of the presetfactory settings (or select your personal, customizedpicture settings.)”Aspect buttonPress to change the screen size.’Mode buttonSelects a target device to be controlled by the Sam-sung remote control (ie., VCR, Cable, or DVD players).˝Clock Display buttonPress to display clock on the PDP screen.ÔSource buttonPress to display all of the available video sources (ie., Video, S-Video, Component1, Component2, PC(RGB)).Joystick buttonUse to highlight on-screen menu items and changemenu values.ÒStill buttonPress to pause the current screen.ÚPIP buttonActivates picture in picture.ÆSource selection buttonsPress to directly select Video, S-Video, Component1,Component2 or PC(RGB). 12Remote ControlFlip the cover openin the arrow direction.Installing the Batteries in Your Remote Control1Slide the back coverto open the batterycompartment of theremote control3Slide the cover back intoplace.2Install two AAA size batter-ies. Make sure to match the“+” and “-” ends of the bat-teries with the diagraminside the compartment.Remote Control Operation Range.You can use your remote control within a distance of 23 feet and an angle of 30 degreesfrom the left and right sides of the remote control receiver of the monitor.

Displaying Status InformationPress the Display button on the remote control. The PDP willdisplay the Screen size, Resolution, Current time, and screenmode.Displaying ClockPress the Clock Display button on the remote control. The Current time will be displayed on the screen.15Turning the Monitor(PDP) On and OffTurning the Monitor(PDP) On and OffPress the Power button on the remote control.The PDP will be turned on and you will be ready to use it’s features.You can also use the Power button on the front of the PDP.Notes: •If your Monitor isn’t turned on when the power button ispressed: Press the MODE button to check if the Monitormode has been chosen ( ). Viewing the Menus and DisplaysYour PDP has a simple, easy-to-use menu system that appears on the PDP screen. This system makes it con-venient and fast to use features on the PDP. Your PDP also lets you display the status of many of your PDP’sfeatures.Viewing the Menus1 With the power on, press the Menu button on theremote control. The main menu appears on the screen. The Video menu is selected.2 Use the joystick (up, down) button to move items in themenu. Use the joystick (left, right) button to display, change, or use the selected items.Use the joystick ( ) button to enter items in the menu. On screen menus disappear from the screen automatically after about thirty seconds, or you can press the Menu button on your remote control to exit the menu.14VIDEO SelectContrastBrightnessSharpnessColorTint R 50Move Enter ExitCustom 100 50 50 50 G 50Main : VideoSUB : Not AvailableP.MODE : CustomScaling : WideS.MODE : CustomResolution : 720 X 480 60HzDISPLAY10 : 30 AM

PLASMA DISPLAY PANELConnections(Connecting Speakers / Receiver)Connecting Speakers....................................................................18Connecting a VCR/Cable Box ......................................................19Connecting a DVD ......................................................................20Connecting a Set-Top Box..............................................................21

19Connecting Speakers18Speaker Audio CableSpeaker Audio CableConnect the speaker audio cable to the external speaker output jack on the rear of the PDP,matching the “+” and “-” ends of the cable with the diagram on the PDP. How to ConnectConnecting a VCR/Cable BoxS-Video CableAudio CableVideo CableConnect Video/S-Video cable between the Video/S-Video Output jack on the VCR/Cablebox and the Video Input jack on the PDP. • For better video, use on S-Video cable.Connect an Audio cable between the Audio Output jacks on the VCR/Cable box and theAudio Input jacks (Video) on the PDP. Videotape Playback:1. Turn on PDP and press the Video or S-Video(if S-Video jack is connected.) button on yourremote control.2. Turn on your VCR, insert a videotape and press the Play button.How to ConnectPower PlugFerrite Core12✱ External speakers MUST have a power handling capability of 7 watts minimum (impedance 8 ohm).

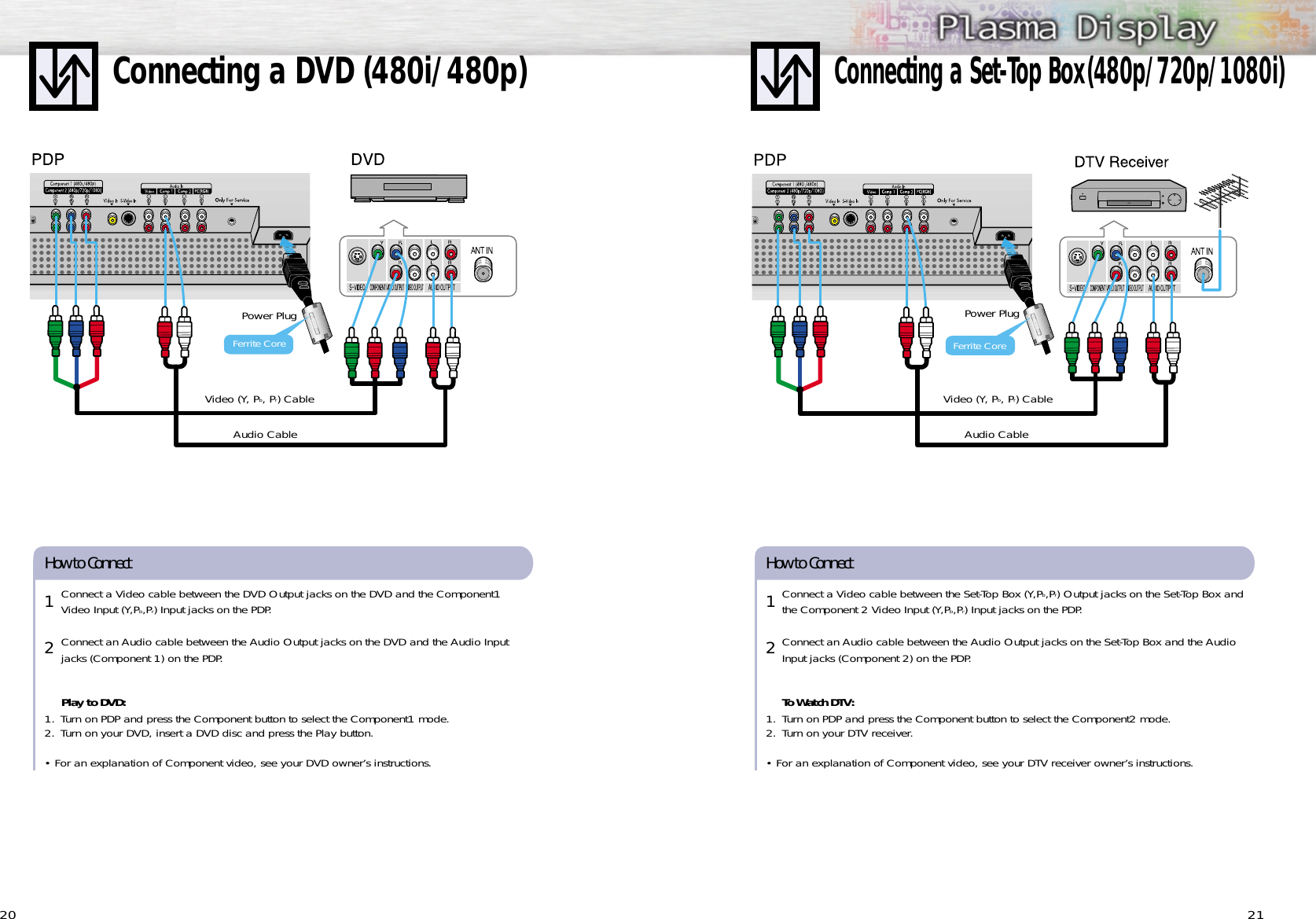

21Connecting a DVD (480i/480p) 20Audio CableVideo (Y, Pb, Pr) CablePower PlugConnect a Video cable between the DVD Output jacks on the DVD and the Component1Video Input (Y,Pb,Pr) Input jacks on the PDP. Connect an Audio cable between the Audio Output jacks on the DVD and the Audio Inputjacks (Component 1) on the PDP. Play to DVD:1. Turn on PDP and press the Component button to select the Component1 mode.2. Turn on your DVD, insert a DVD disc and press the Play button.• For an explanation of Component video, see your DVD owner’s instructions.How to Connect12Connecting a Set-Top Box(480p/720p/1080i)Audio CableVideo (Y, Pb, Pr) CablePower PlugConnect a Video cable between the Set-Top Box (Y,Pb,Pr) Output jacks on the Set-Top Box andthe Component 2 Video Input (Y,Pb,Pr) Input jacks on the PDP. Connect an Audio cable between the Audio Output jacks on the Set-Top Box and the AudioInput jacks (Component 2) on the PDP. To Watch DTV:1. Turn on PDP and press the Component button to select the Component2 mode.2. Turn on your DTV receiver.• For an explanation of Component video, see your DTV receiver owner’s instructions.How to Connect12Ferrite Core Ferrite Core

PLASMA DISPLAY PANELPicture ControlCustomizing the Picture ................................................................24Using Automatic Picture Settings ....................................................25Viewing the Picture-in-Picture..........................................................26Changing the Screen Size ............................................................29Freezing the Picture ......................................................................30

Customizing the PictureYou can use the on-screen menus to change the Brightness, Contrast, Sharpness, Color, andTint settings of your PDP. 251 Press the Menu button, then press the joystick toenter.2 Move the joystick left or right to select “Custom”,“Standard”, “Mild”, or “Dynamic” picture setting.• You can select “High,” “Middle,” “Low,” or “Custom” in PC mode.3 Press the Menu button to exit.Using Automatic Picture SettingsYour PDP has automatic picture settings that allow you to adjust the video display easily.VIDEO SelectContrastBrightnessSharpnessColorTint R 50Custom 100 50 50 50 G 50Move Adjust ExitVIDEO Select Standardselect Exit241 Press the Menu button, then press the joystick toenter.2 Move the joystick left or right to select “Custom”.You will also see the items “Contrast”, “Brightness”,“Sharpness”, “Color” and “Tint”.3 Move the joystick up or down to select the item youwish to change.4 Move the joystick left or right to change the value ofthe item.5 Press the Menu button to exit.Note• In the PC mode, you can’t adjust the sharpness, color and tint.VIDEO SelectContrastBrightnessSharpnessColorTint R 50Custom 100 50 50 50 G 50Move Adjust ExitVIDEO SelectContrastBrightnessSharpnessColorTint R 50Custom 100 50 50 50 G 50Move Adjust ExitVIDEO SelectContrastBrightnessSharpnessColorTint R 50Custom 100 50 50 50 G 50Move Adjust ExitContrast 60Quick way to access the picture setting: Justpress “P.Mode” on the remote control.!

Viewing the Picture-in-Picture27Selecting an External SignalYou can use PIP to view a signal from an external source, such as a VCR. 1 Press the Menu button. Move the joystick up ordown to select “PIP”, then press the joystick to enter.2 Move the joystick up or down to select “Source”,then move the joystick left or right to enter.3 Move the joystick up or down to select an externalsignal, then move the joystick left or right. 4 Press the Menu button to exit.PIPSelect OnLocateSourceMove Adjust ExitPIPSelect OnLocateSourceMove Adjust ExitPIPVIDEOS-VIDEOMove Exit26Selecting the PIP Screen1 Press the Menu button. Move the joystick up or down toselect “PIP”, then press the joystick to enter.2 Move the joystick left or right to select “On”. The PIP image will appear in the corner of the screen.3 Press the Menu button to exit.Note• The PIP function operates in PC mode or Component2 mode only.PIPSelect OffMove Enter ExitPIPSelect OnLocateSourceMove Adjust ExitQuick way to access the PIP: Just press “PIP”on the remote control.!Quick way to access the PIP source: Just press“Source” in the cover on the remote control.!

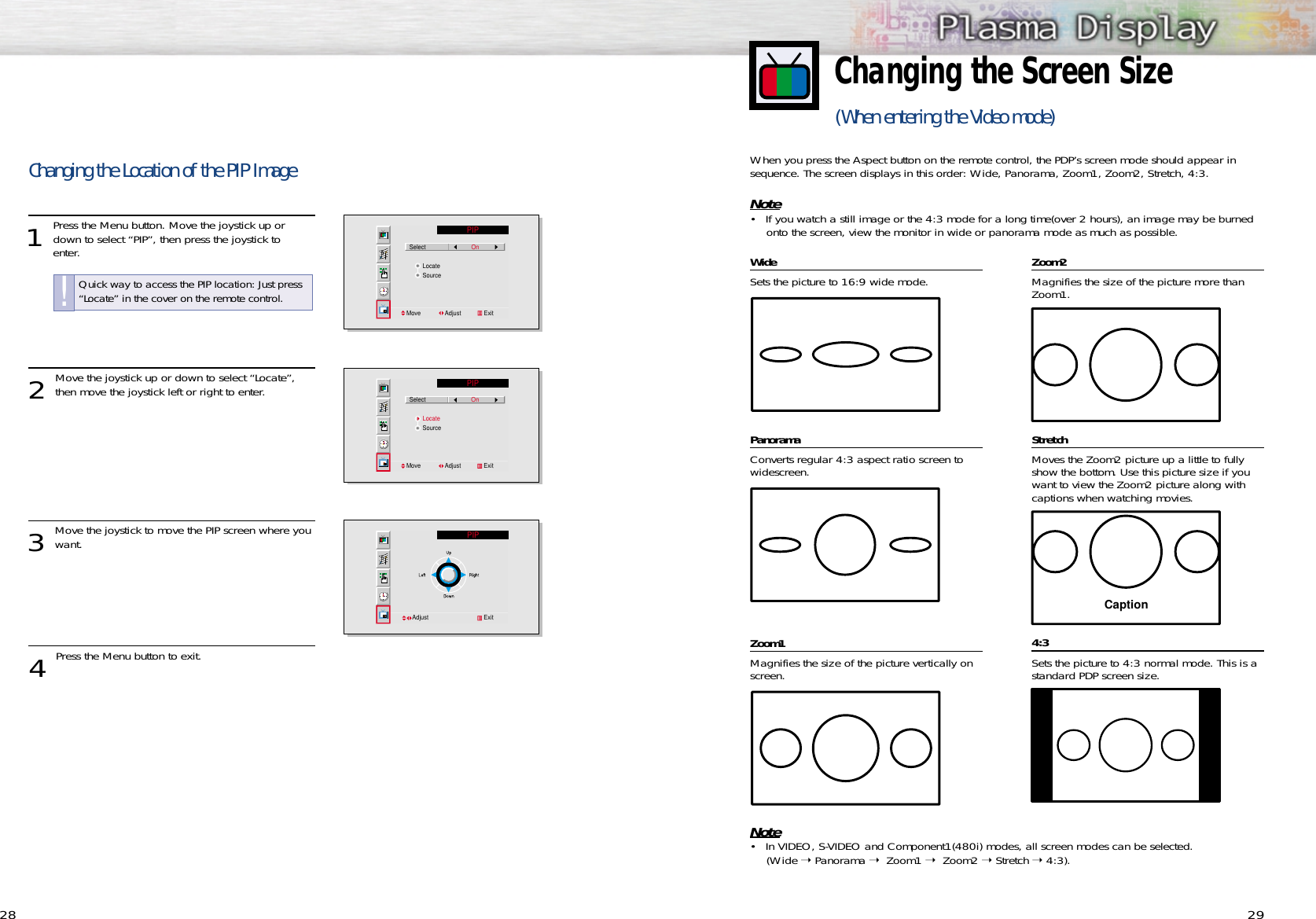

29WideSets the picture to 16:9 wide mode.PanoramaConverts regular 4:3 aspect ratio screen towidescreen.Zoom1Magnifies the size of the picture vertically onscreen.Zoom2Magnifies the size of the picture more thanZoom1.StretchMoves the Zoom2 picture up a little to fullyshow the bottom. Use this picture size if youwant to view the Zoom2 picture along withcaptions when watching movies.4:3Sets the picture to 4:3 normal mode. This is astandard PDP screen size.Changing the Screen Size(When entering the Video mode) CaptionNote• In VIDEO, S-VIDEO and Component1(480i) modes, all screen modes can be selected.(Wide ➝ Panorama ➝ Zoom1 ➝ Zoom2 ➝ Stretch ➝ 4:3).When you press the Aspect button on the remote control, the PDP’s screen mode should appear insequence. The screen displays in this order: Wide, Panorama, Zoom1, Zoom2, Stretch, 4:3.Note• If you watch a still image or the 4:3 mode for a long time(over 2 hours), an image may be burnedonto the screen, view the monitor in wide or panorama mode as much as possible.28Changing the Location of the PIP Image1 Press the Menu button. Move the joystick up ordown to select “PIP”, then press the joystick to enter.2 Move the joystick up or down to select “Locate”,then move the joystick left or right to enter.3 Move the joystick to move the PIP screen where youwant. 4 Press the Menu button to exit.PIPSelect OnLocateSourceMove Adjust ExitPIPSelect OnLocateSourceMove Adjust ExitAdjust ExitPIPQuick way to access the PIP location: Just press“Locate” in the cover on the remote control.!

Freezing the Picture30StillPress the Still button on the remote control to freeze a mov-ing picture. Press again to cancel.PLASMA DISPLAY PANELSound ControlCustomizing the Sound ................................................................32Using Automatic Sound Settings ....................................................33Using the Surround ......................................................................34

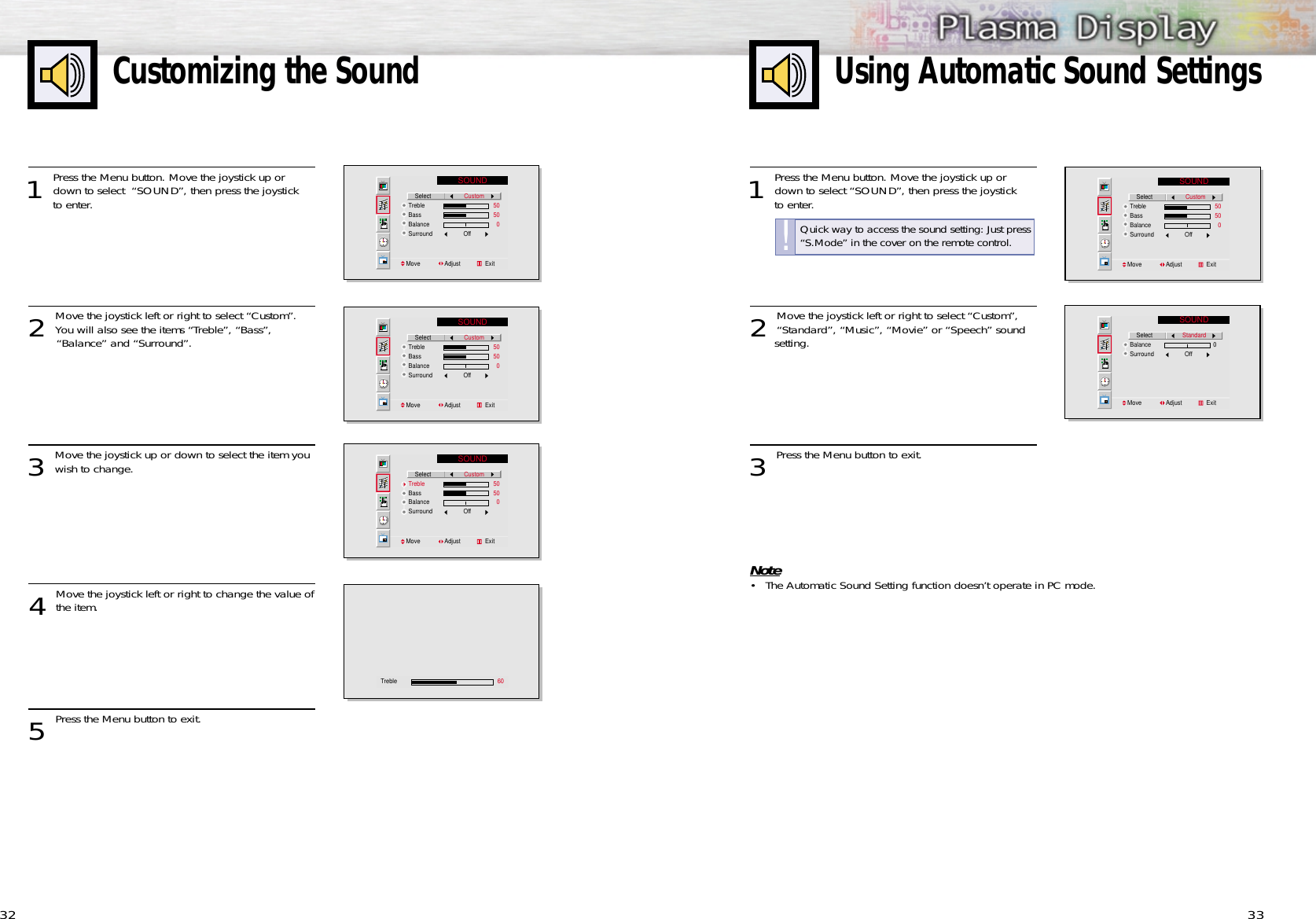

33Customizing the Sound321 Press the Menu button. Move the joystick up ordown to select “SOUND”, then press the joystick to enter. 2 Move the joystick left or right to select “Custom”,“Standard”, “Music”, “Movie” or “Speech” sound setting.3 Press the Menu button to exit.Note•The Automatic Sound Setting function doesn’t operate in PC mode.Using Automatic Sound SettingsSOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0SOUND SelectBalanceSurround OffMove Adjust ExitStandard 01 Press the Menu button. Move the joystick up ordown to select “SOUND”, then press the joystick to enter. 2 Move the joystick left or right to select “Custom”.You will also see the items “Treble”, “Bass”, “Balance” and “Surround”.3 Move the joystick up or down to select the item youwish to change.4 Move the joystick left or right to change the value ofthe item.5 Press the Menu button to exit.SOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0SOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0SOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0Treble 60Quick way to access the sound setting: Just press“S.Mode” in the cover on the remote control.!

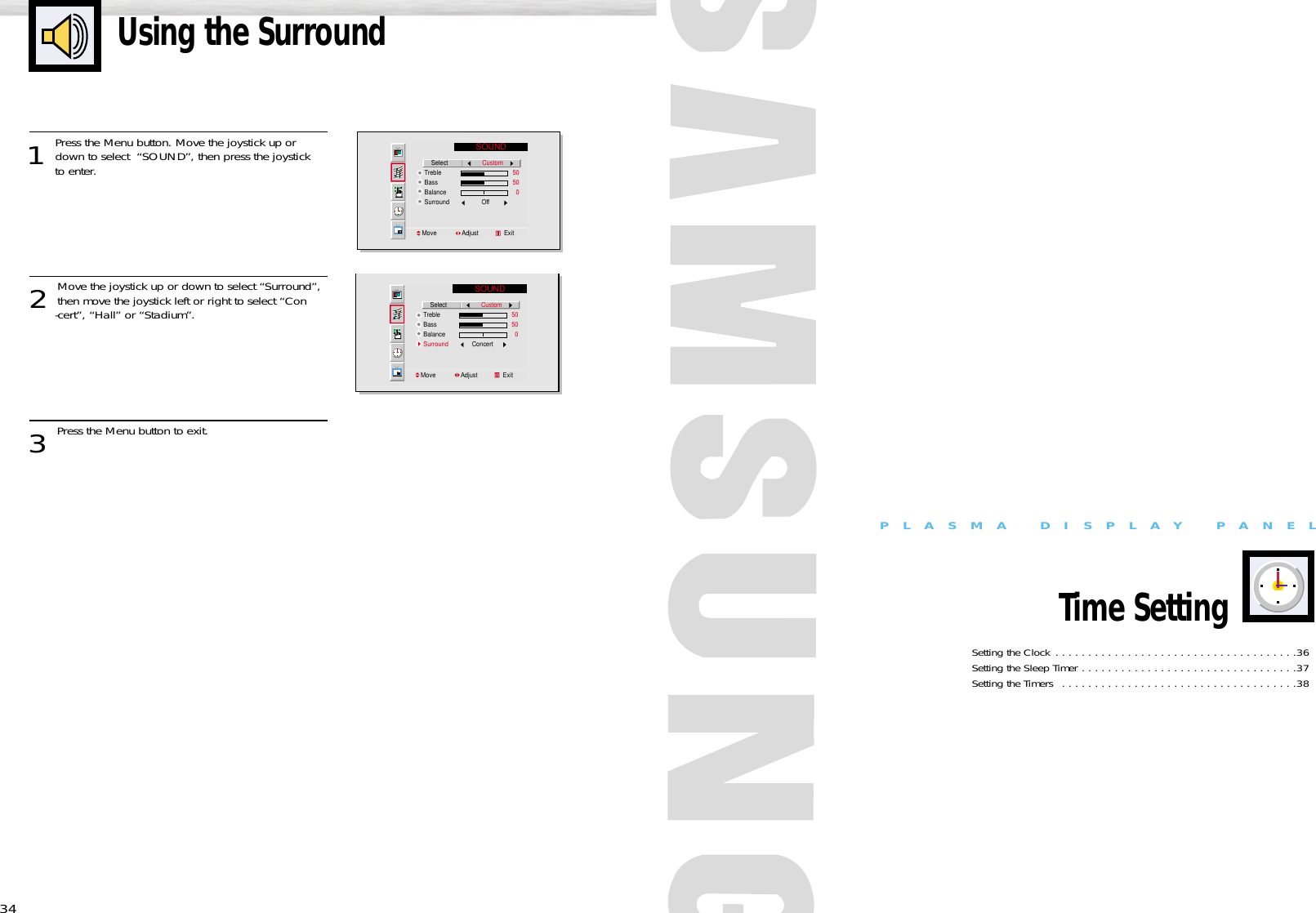

PLASMA DISPLAY PANELTime SettingSetting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37Setting the Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38Using the Surround 341 Press the Menu button. Move the joystick up ordown to select “SOUND”, then press the joystick to enter. 2 Move the joystick up or down to select “Surround”,then move the joystick left or right to select “Con-cert”, “Hall” or “Stadium”. 3 Press the Menu button to exit.SOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0SOUND SelectTrebleBassBalanceSurround ConcertMove Adjust ExitCustom 50 50 0

Setting the Clock37You can set your PDP to automatically turn off after a preset interval.1 Press the Menu button. Move the joystick up ordown to select “TIME”, then press the joystick to enter. 2 Move the joystick up or down to select “SleepTimer”.3 Move the joystick left or right to select the time inter-val for the PDP to stay on. The interval ranges from 10 to 360 minutes.4 Press the Menu button to exit.Setting the Sleep TimerTIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display12 : 00 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 10 Min.36This PDP has a built-in clock that will appear on screen when you press the Clock Display button on theremote control. 1 Press the Menu button. Move the joystick up ordown to select “TIME”, then press the joystick to enter. 2 Move the joystick left or right to select hour, thenmove the joystick up or down to select the correct hour.3 Move the joystick left or right to select minute, thenmove the joystick up or down to select the correct minute.4 Move the joystick left or right to select “AM”, thenmove the joystick up or down to select “AM” or “PM”.•If you want to display the Clock on screen, movethe joystick down to select “Clock Display”, thenmove the joystick right.5 Press the Menu button to exit.TIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display12 : 00 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 00 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 OffQuick way to access the sleep timer: Just press“Sleep” in the cover on the remote control.!Quick way to access the clock display: Justpress “Clock Display” on the remote control.!Quick way to access the Clock Set : Just press“Clock Set” in the cover on the remote control.!

Setting the Timers396 Move the joystick left or right to select “Off”, thenmove the joystick up or down to select “On”.7 If you want to set the Off Time, move the joystickdown to select “Off Time”.Set the “Off Time” just as you set “On Time”.•If you want to set the volume level when the PDPturns on, move the joystick down to select “Ontime volume”. Move the joystick right to set thevolume level you want when the PDP turns on.8 Press the Menu button to exit.TIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM 6 : 30 AM On12 : 00 AM Off 10 OffTIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 Off38This PDP can be set to turn on or off automatically at specific times that you choose. Before using thetimers, you must set the PDP’s clock, as described previously.Setting the On/Off Timer1 Press the Menu button. Move the joystick up ordown to select “TIME”, then press the joystick to enter. 2 Move the joystick up or down to select “On time”,then move the joystick left or right.3 Move the joystick left or right to select hour, thenmove the joystick up or down to select the correct hour.4 Move the joystick left or right to select minute, thenmove the joystick up or down to select the correct minute.5 Move the joystick left or right to select “AM”, thenmove the joystick up or down to select “AM” or “PM”.TIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display12 : 00 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM 6 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM 6 : 30 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM 6 : 30 AM Off12 : 00 AM Off 10 Off

PLASMA DISPLAY PANELConnecting PC and OperationConnecting to a PC ......................................................................42Adjusting the PC Screen................................................................46Changing the Position of the Image ................................................47Changing the Size of the Image ....................................................48Enlarging the Image (Zoom) ..........................................................49Moving the Zoom Picture ..............................................................50Picture Quality Adjustment ............................................................51Information..................................................................................54Power Saver (PC mode only)..........................................................55

Pin Configuration• 15Pin Signal Cable (based on protruded pin)Setting up Your Monitor (Plug and Play)Our adoption of the new VESAPlug and Play solution eliminates complicated and time consumingsetup. It allows you to install your monitor in a Plug and Play compatible system, without the usual setuphassles and confusion. Your PC system can easily identify and configure itself for use with your display.This monitor automatically tells the PC system its Extended Display Identification data (EDID) using Display Data Channel (DDC) protocols. Connecting to a PCThis PDP is not compatible with Macintosh PC.4342Connect a PC (15pin) cable between the Video Output jack on the PC and the PC Input jack(15p D-SUB) on the PDP. • For an explanation of Component video, see your PC owner’s instructions.Connect a Audio cable between the Audio Output jack on the PC and the Audio Input (PC)on the PDP. To watch the PC screen:1. Turn on PDP and press the RGB button on the remote to select the PC mode.2. Turn on PC and check for PC system requirements.(Refer to pages 48 and 49 for PC system requirements.)3. Adjust the PC screen. (Refer to page 50.)Connecting a PC to the PDPPC (15pin) Cable Audio Cable Power Plug12

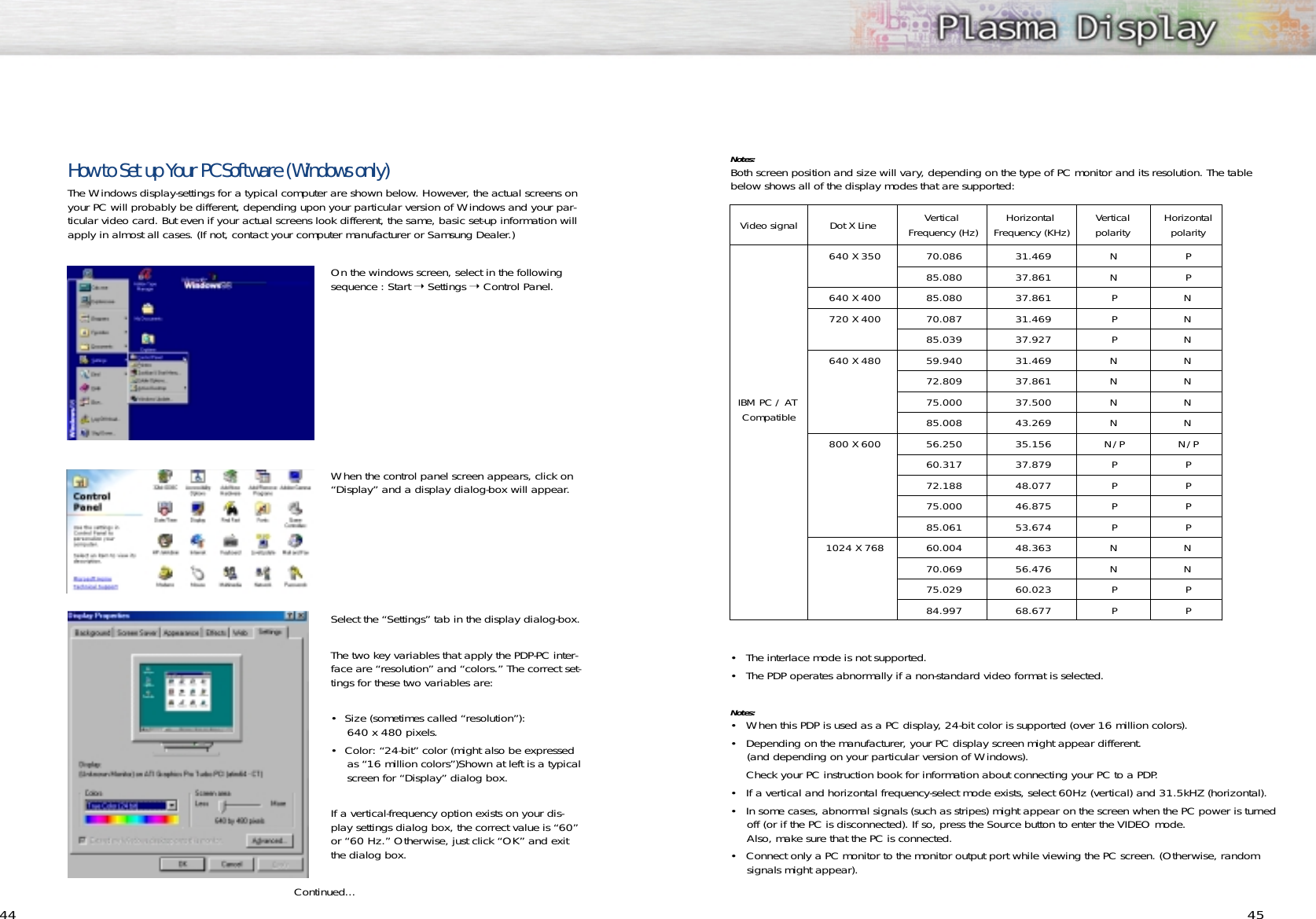

4544Notes: Both screen position and size will vary, depending on the type of PC monitor and its resolution. The tablebelow shows all of the display modes that are supported:• The interlace mode is not supported.• The PDP operates abnormally if a non-standard video format is selected.Notes: • When this PDP is used as a PC display, 24-bit color is supported (over 16 million colors).• Depending on the manufacturer, your PC display screen might appear different. (and depending on your particular version of Windows). Check your PC instruction book for information about connecting your PC to a PDP.• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHZ (horizontal).• In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turnedoff (or if the PC is disconnected). If so, press the Source button to enter the VIDEO mode. Also, make sure that the PC is connected.• Connect only a PC monitor to the monitor output port while viewing the PC screen. (Otherwise, randomsignals might appear).Video signal Dot X Line640 X 350640 X 400720 X 400640 X 480800 X 6001024 X 76870.08685.08085.08070.08785.03959.94072.80975.00085.00856.25060.31772.18875.00085.06160.00470.06975.02984.99731.46937.86137.86131.46937.92731.46937.86137.50043.26935.15637.87948.07746.87553.67448.36356.47660.02368.677NNPPPNNNNN/PPPPPNNPPPPNNNNNNNN/PPPPPNNPPVertical Frequency (Hz) Horizontal Frequency (KHz) Verticalpolarity HorizontalpolarityIBM PC / AT CompatibleHow to Set up Your PC Software (Windows only)The Windows display-settings for a typical computer are shown below. However, the actual screens onyour PC will probably be different, depending upon your particular version of Windows and your par-ticular video card. But even if your actual screens look different, the same, basic set-up information willapply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)On the windows screen, select in the followingsequence : Start ➝ Settings ➝ Control Panel.When the control panel screen appears, click on“Display” and a display dialog-box will appear.Select the “Settings” tab in the display dialog-box.The two key variables that apply the PDP-PC inter-face are “resolution” and “colors.” The correct set-tings for these two variables are:• Size (sometimes called “resolution”): 640 x 480 pixels.• Color: “24-bit” color (might also be expressedas “16 million colors”)Shown at left is a typicalscreen for “Display” dialog box. If a vertical-frequency option exists on your dis-play settings dialog box, the correct value is “60”or “60 Hz.” Otherwise, just click “OK” and exitthe dialog box.Continued...

47After connecting the PDP to your PC, adjust the position of screen if it is not well-aligned.Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter. 2 Move the joystick left or right to select “Position”,then adjust the position of screen by using the joystick button. 3 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitAdjust Exit46Adjusting the R.G.BPreset: •Press the RGB button to select the PC mode. 1 Press the Menu button, then press the joystick toenter.2 Move the joystick up or down to select “Color Control”, then move the joystick left or right to enter.3 Move the joystick up or down to select the item youwant to change.4 Move the joystick right or left to change the value ofthe item, using the on-screen gauge as your guide.5 Press the Menu button to exit.Adjusting the PC ScreenVIDEO SelectContrastBrightnessColor ControlMove Adjust ExitCustom 100 50VIDEO SelectContrastBrightnessColor ControlMove Adjust ExitCustom 100 50VIDEORGB505050Move Adjust ExitVIDEORGB705050Move Adjust ExitChanging the Position of the Image

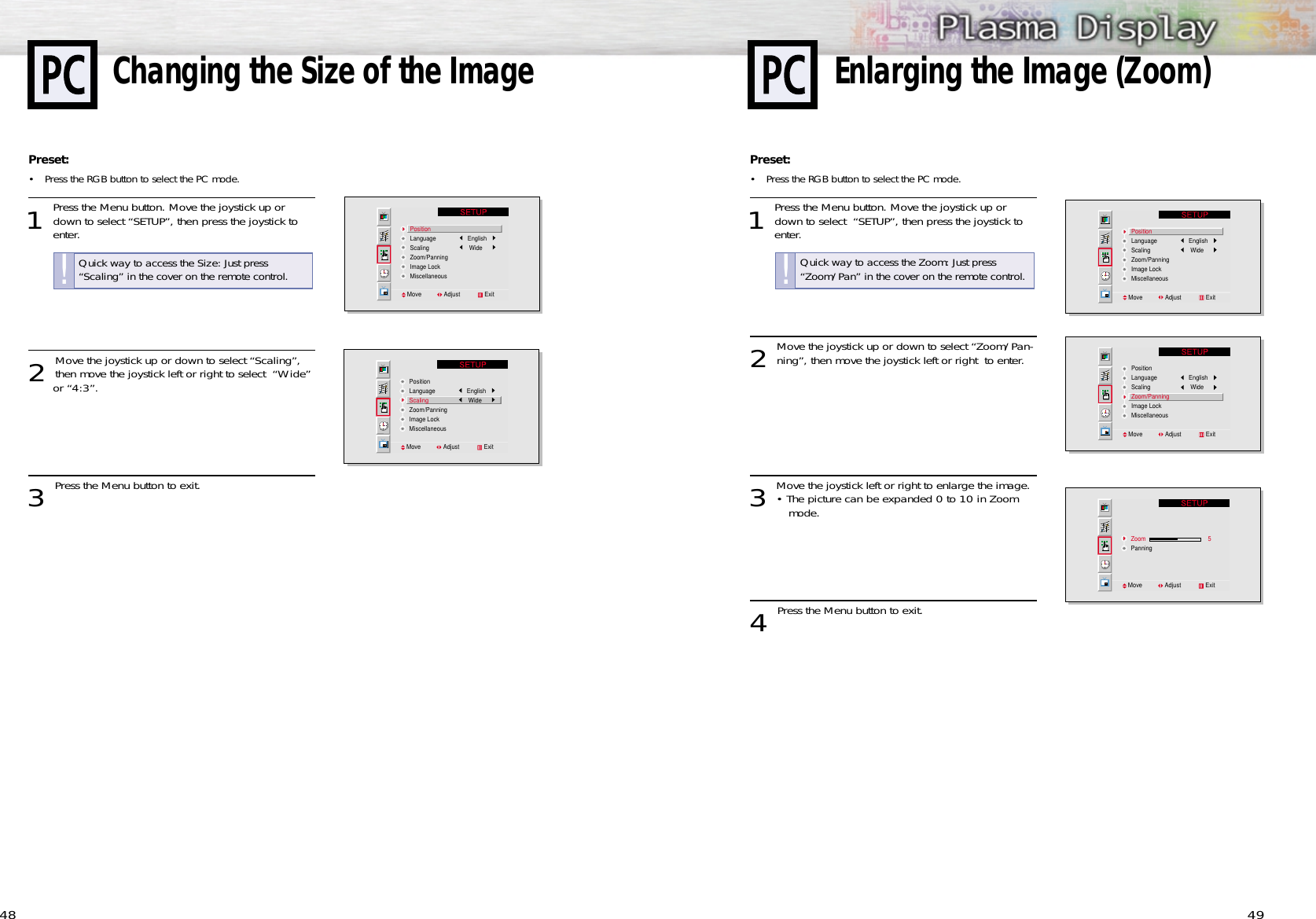

49Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter. 2 Move the joystick up or down to select “Zoom/Pan-ning”, then move the joystick left or right to enter.3 Move the joystick left or right to enlarge the image.• The picture can be expanded 0 to 10 in Zoom mode.4 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitZoom 5PanningMove Adjust Exit48Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter. 2 Move the joystick up or down to select “Scaling”,then move the joystick left or right to select “Wide” or “4:3”. 3 Press the Menu button to exit.Changing the Size of the ImagePositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitEnlarging the Image (Zoom)Quick way to access the Zoom: Just press “Zoom/Pan” in the cover on the remote control.!Quick way to access the Size: Just press “Scaling” in the cover on the remote control.!

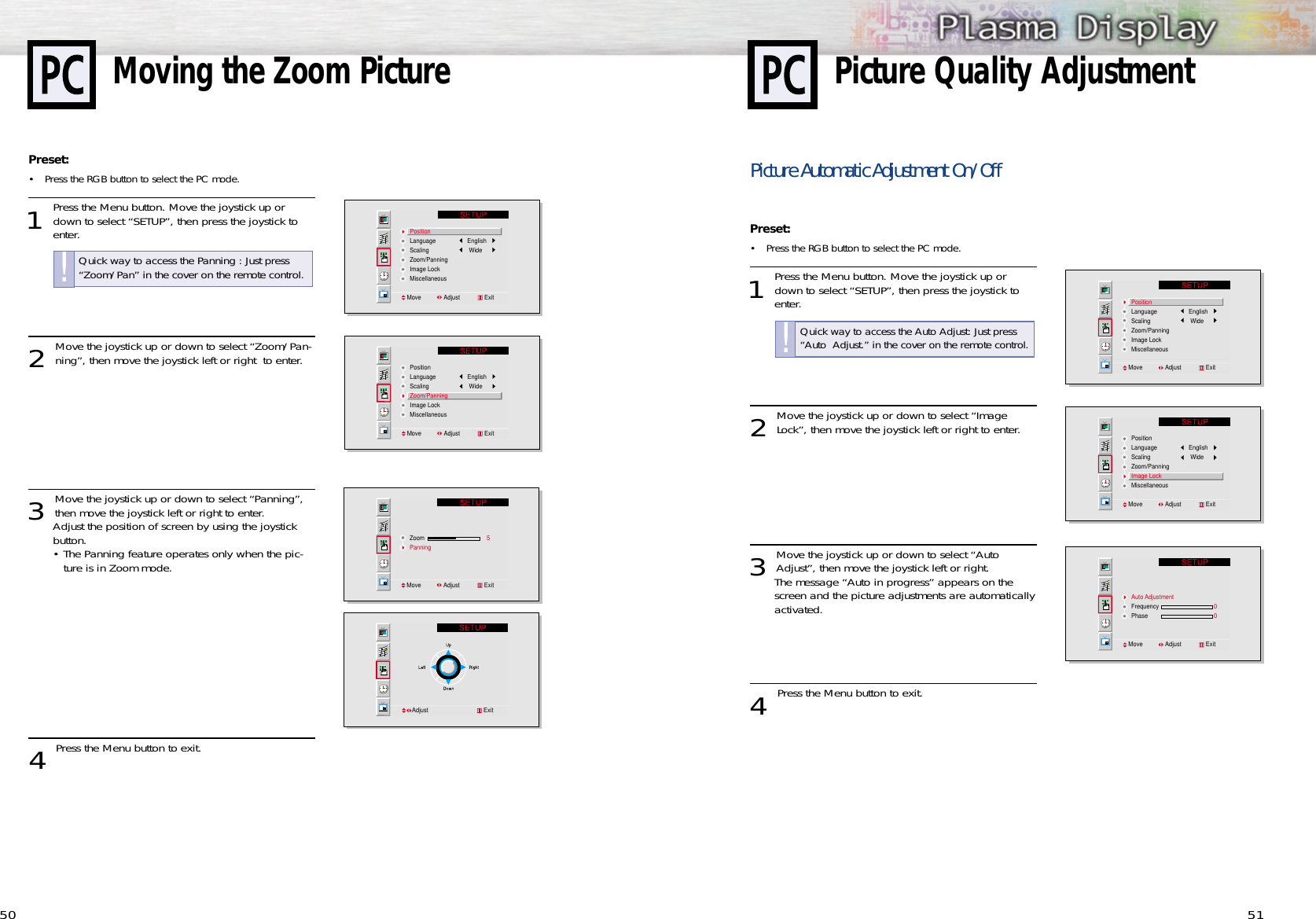

51Picture Automatic Adjustment On/OffPreset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter. 2 Move the joystick up or down to select “ImageLock”, then move the joystick left or right to enter.3 Move the joystick up or down to select “AutoAdjust”, then move the joystick left or right. The message “Auto in progress” appears on the screen and the picture adjustments are automaticallyactivated. 4 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitAuto AdjustmentFrequency 0Phase 0Move Adjust Exit50Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter. 2 Move the joystick up or down to select “Zoom/Pan-ning”, then move the joystick left or right to enter.3 Move the joystick up or down to select “Panning”,then move the joystick left or right to enter.Adjust the position of screen by using the joystick button. • The Panning feature operates only when the pic-ture is in Zoom mode.4 Press the Menu button to exit.Moving the Zoom PicturePositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitZoom 5PanningMove Adjust ExitAdjust ExitPicture Quality AdjustmentQuick way to access the Panning : Just press “Zoom/Pan” in the cover on the remote control.!Quick way to access the Auto Adjust: Just press“Auto Adjust.” in the cover on the remote control.!

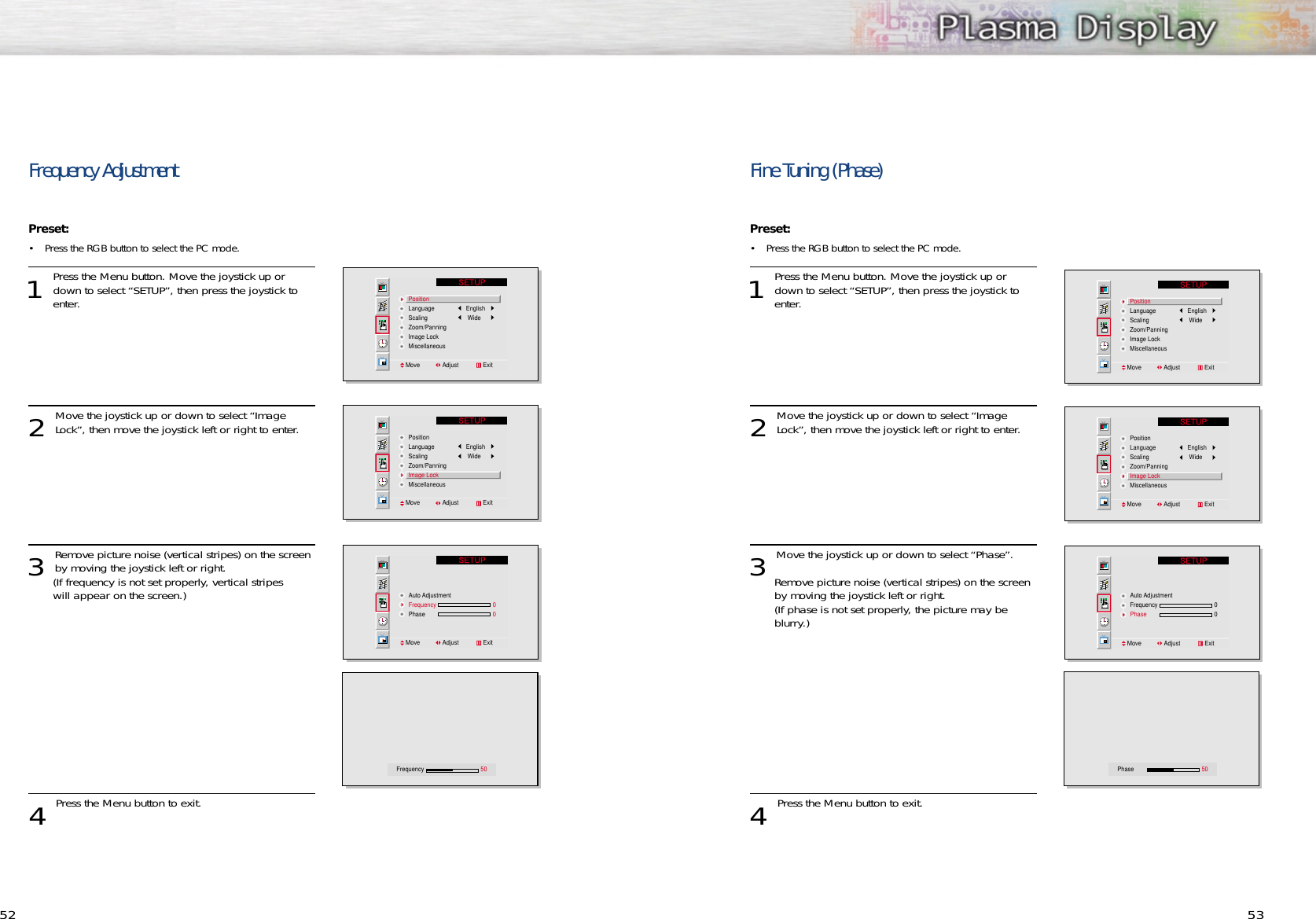

53Fine Tuning (Phase)Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter. 2 Move the joystick up or down to select “ImageLock”, then move the joystick left or right to enter.3 Move the joystick up or down to select “Phase”.Remove picture noise (vertical stripes) on the screen by moving the joystick left or right. (If phase is not set properly, the picture may be blurry.)4 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitAuto AdjustmentFrequency 0Phase 0 Move Adjust ExitPhase 5052Frequency AdjustmentPreset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter. 2 Move the joystick up or down to select “ImageLock”, then move the joystick left or right to enter.3 Remove picture noise (vertical stripes) on the screenby moving the joystick left or right. (If frequency is not set properly, vertical stripes will appear on the screen.)4 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitAuto AdjustmentFrequency 0Phase 0 Move Adjust ExitFrequency 50

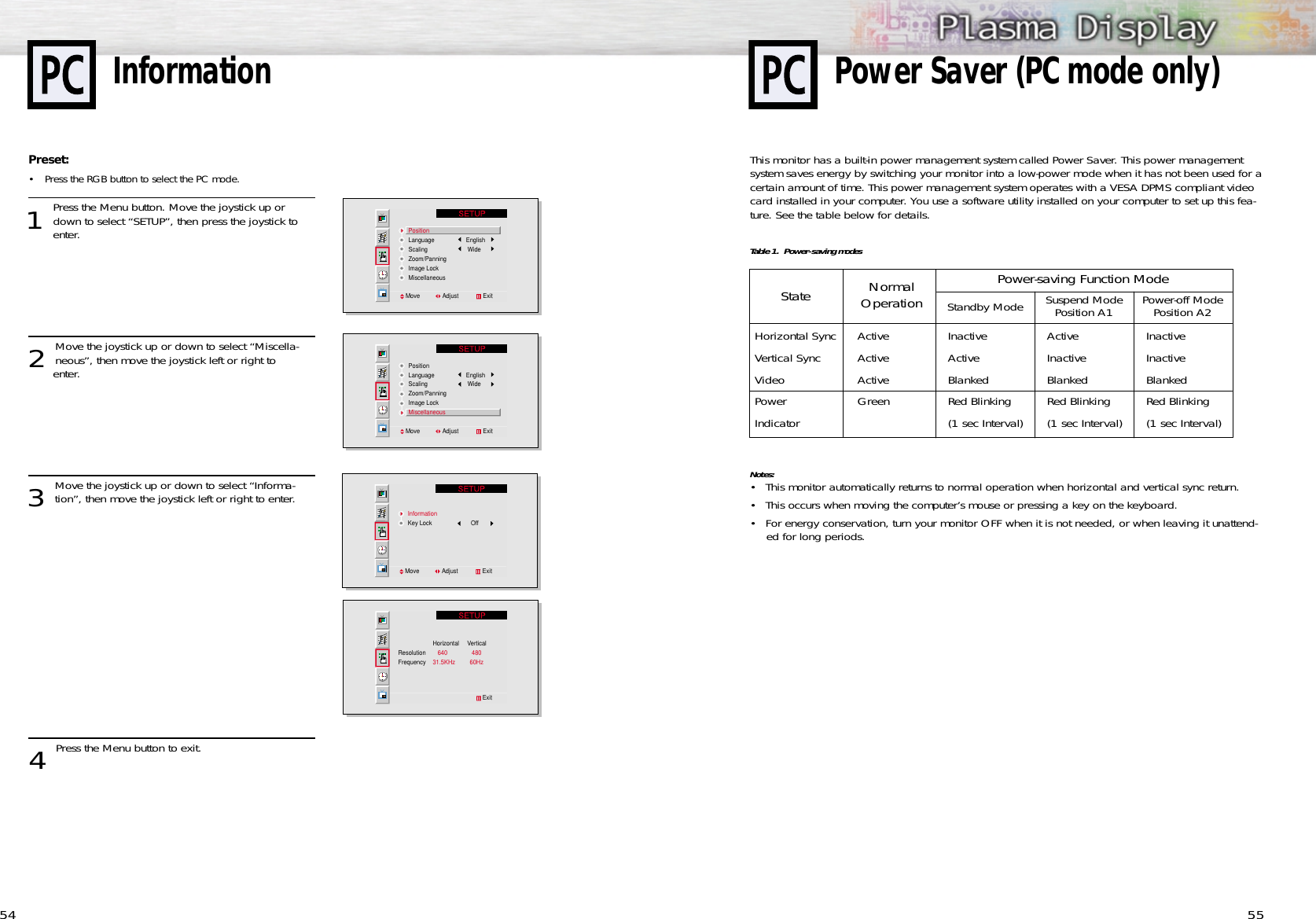

5554Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter. 2 Move the joystick up or down to select “Miscella-neous”, then move the joystick left or right to enter.3 Move the joystick up or down to select “Informa-tion”, then move the joystick left or right to enter.4 Press the Menu button to exit.Information Power Saver (PC mode only)PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitInformationKey Lock OffMove Adjust ExitResolutionFrequencyHorizontal Vertical 640 48031.5KHz 60HzExitThis monitor has a built-in power management system called Power Saver. This power management system saves energy by switching your monitor into a low-power mode when it has not been used for acertain amount of time. This power management system operates with a VESA DPMS compliant videocard installed in your computer. You use a software utility installed on your computer to set up this fea-ture. See the table below for details.Table 1. Power-saving modesNotes: •This monitor automatically returns to normal operation when horizontal and vertical sync return.•This occurs when moving the computer’s mouse or pressing a key on the keyboard.•For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattend-ed for long periods.State NormalOperationPower-saving Function ModeInactiveActiveBlankedRed Blinking(1 sec Interval)ActiveInactiveBlankedRed Blinking(1 sec Interval)InactiveInactiveBlankedRed Blinking(1 sec Interval)Horizontal SyncVertical SyncVideoPowerIndicatorActiveActiveActiveGreenStandby Mode Suspend ModePosition A1 Power-off ModePosition A2

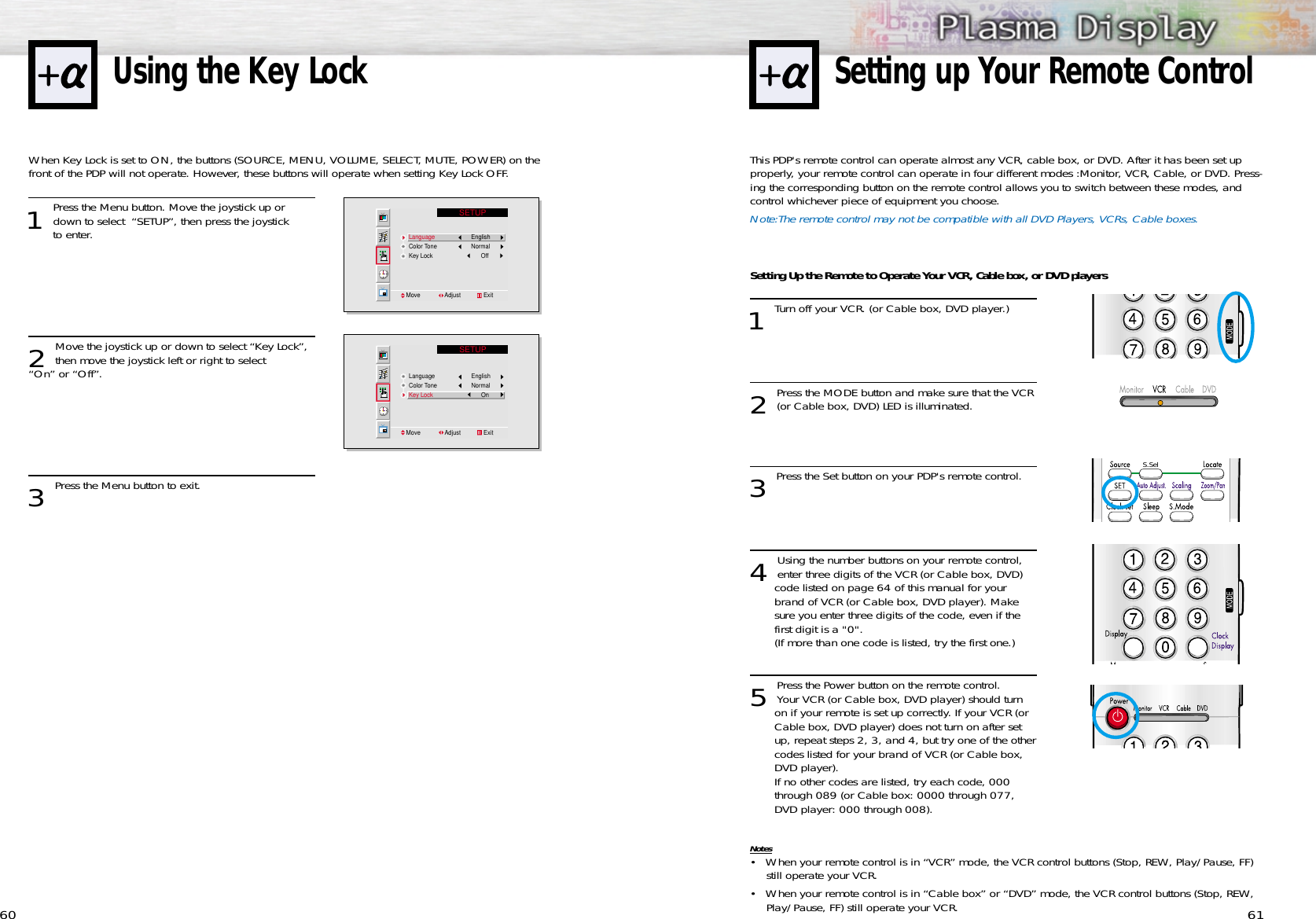

Selecting a Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58Setting the Multi Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59Using the Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60Setting up Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . .61PLASMA DISPLAY PANELFunction Description

Selecting a Menu Language5958Setting the Color Tone1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter.2 Move the joystick left or right to select the appropri-ate language: English, Spanish, or French. 3 Press the Menu button to exit.SETUPMove Adjust ExitLanguage EnglishColor Tone Normal Key Lock Off1Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter.2Move the joystick up or down to select “Color Tone”.3Move the joystick left or right to select the ColorTone : Normal, Warm1, Warm2, Cool1, Cool2. 4Press the Menu button to exit.Note• In the PC mode, you can’t adjust the Color Tone.SETUPMove Adjust ExitLanguage EnglishColor Tone Normal Key Lock OffSETUPMove Adjust ExitLanguage EnglishColor Tone Normal Key Lock OffWarm1

PLASMA DISPLAY PANELAppendixTroubleshooting............................................................................64Care and Maintenance ................................................................65Specifications ..............................................................................6662Remote Control CodesVCR CodesCable Box CodesDVD Codes

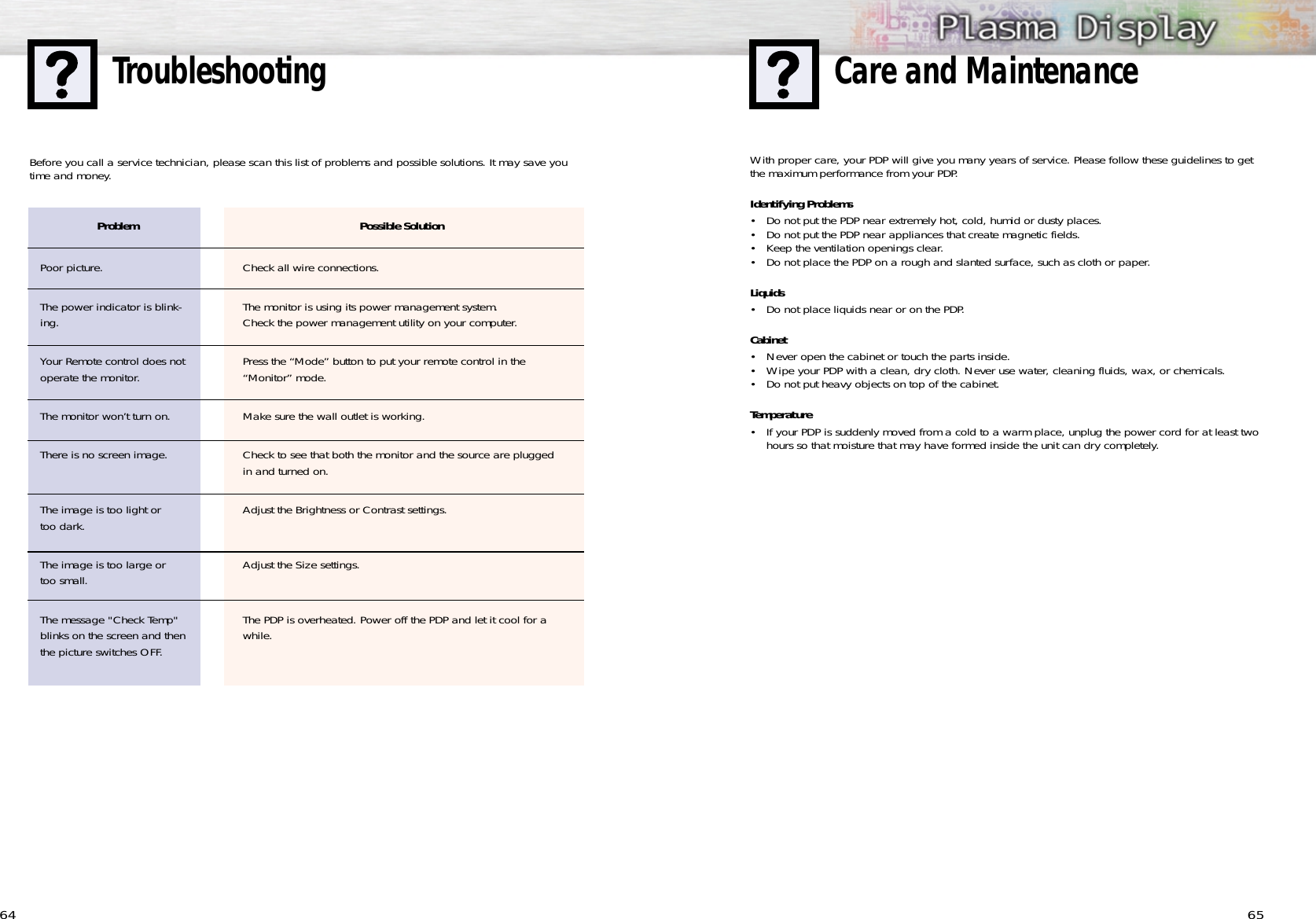

6564TroubleshootingProblemPoor picture.The power indicator is blink-ing.Your Remote control does notoperate the monitor.The monitor won’t turn on.There is no screen image.The image is too light or too dark. The image is too large or too small.The message "Check Temp"blinks on the screen and thenthe picture switches OFF.Before you call a service technician, please scan this list of problems and possible solutions. It may save youtime and money.Possible SolutionCheck all wire connections.The monitor is using its power management system. Check the power management utility on your computer.Press the “Mode” button to put your remote control in the“Monitor” mode.Make sure the wall outlet is working.Check to see that both the monitor and the source are pluggedin and turned on.Adjust the Brightness or Contrast settings.Adjust the Size settings.The PDP is overheated. Power off the PDP and let it cool for awhile.With proper care, your PDP will give you many years of service. Please follow these guidelines to getthe maximum performance from your PDP.Identifying Problems•Do not put the PDP near extremely hot, cold, humid or dusty places.•Do not put the PDP near appliances that create magnetic fields.•Keep the ventilation openings clear.•Do not place the PDP on a rough and slanted surface, such as cloth or paper.Liquids•Do not place liquids near or on the PDP.Cabinet•Never open the cabinet or touch the parts inside.•Wipe your PDP with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.•Do not put heavy objects on top of the cabinet.Temperature•If your PDP is suddenly moved from a cold to a warm place, unplug the power cord for at least twohours so that moisture that may have formed inside the unit can dry completely.Care and Maintenance

6766SpecificationsExterior design and product specifications are subject to change without prior notice to improve theperformance of this product.This PDP applies to Class B digital device.(Note: Class B system is for home use.)This PDP has been registered for residential use in terms of EMI. So it can be used in all areas as wellas residential areas.SPM42271153 (W) X 78 (D) X 759 (H) mm ; 43.39 (W) X 3.07 (D) X 29.88(H) inches1153 (W) X 160 (D) X 530.6 (H) mm ; 45.39 (W) X 6.3 (D) X 20.39 (H) inches54 (W) X 31.5 (D) X 220 (H) mm ; 2.13 (W) X 1.24 (D) X 8.66 (H) inches35kg ; 77316lbs30.2kg ; 66.58lbs150g (including batteries) ; 0.33lbs100-240V~, 50/60Hz, 4A300 Watts852(H) x 480(V) 106 Cm/42 inches VIDEO / S-VIDEOCOMPONENT 1COMPONENT 2PC (RGB)7W + 7W (8 Ω)VIDEOS-VIDEOCOMPONENT 1 - 480i / 480pCOMPONENT 2 - 480p / 720p / 1080iRGB : D-SUB 15PModelDimensions DisplayStandRemote ControlWeight DisplayStandRemote ControlVoltagePower ConsumptionNumber of PixelsScreen SizeAUDIO inputAUDIO outputVIDEO inputMemo
