User Manual
SPW-B4319U
802.11b/g/n WLAN Module
Specification
REV 0.1 Samsung Electronics 2/17
Revision History
Revision Date Descriptions
0.1 2011-09-01 Created
0.2 2011-09-26 Update the module Picture and table for WLAN Spec.
0.3 2011-10-10 Update the Power Table
Specification
REV 0.1 Samsung Electronics 3/17
Table of Contents
REVISION HISTORY .................................................................................................................. 2
1 GENERAL DESCRIPTION ..................................................................................................... 4
1.1 FUNCTIONAL DESCRIPTION .......................................................................................................... 4
1.2 FEATURES ............................................................................................................................... 4
1.3 APPLICATIONS .......................................................................................................................... 5
1.4 DIMENSION AND PIN ASSIGNMENTS ............................................................................................... 5
2 OPERATING CONDITIONS .................................................................................................. 7
2.1 MAXIMUM POWER SUPPLY RATING ................................................................................................ 7
2.2 CONNECTION TO HOST ............................................................................................................. 7
2.3 GROUND CONNECTION ............................................................................................................... 7
2.4 STORAGE CONDITION ................................................................................................................ 7
2.5 ABSOLUTE MAXIMUM RATINGS ..................................................................................................... 8
2.6 CURRENT CONSUMPTION ............................................................................................................ 8
3 RF SPECIFICATION ............................................................................................................ 9
3.1 SUPPORTABLE MODULATION SCHEME & DATA RATES ......................................................................... 9
3.2 11B RF SPECIFICATION ............................................................................................................ 10
3.3 CHANNEL & CENTER FREQUENCY ................................................................................................ 10
FCC COMPLIANCE ................................................................. 오류! 책갈피가 정의되어 있지 않습니다.
Specification
REV 0.1 Samsung Electronics 4/17
1 General Description
1.1 Functional Description
SPW-B4319U is the low power USB 2.0 module for 802.11b/g/n wireless LAN (WLAN) aimed at
embedded applications. SPW-B431U is the USB 2.0 module that adopts a single-chip wireless local area
network (WLAN) medium-access controller (MAC) spread-spectrum baseband processor and 2.4 GHz RF
radio.
SPW-B4319U supports IEEE 802.11b, 802.11g and 802.11n standards.
SPW-B4319 supports only 20MHz band width.
SPW-B4319 supports 1 Tx and 1 Rx Antenna (1x1, SISO).
SPW-B4319 supports 2412 ~ 2462 MHz.
SPW-B4319U provides crucial power management functionality and requires only a single 3.3V or 5.0 V
supply voltage.

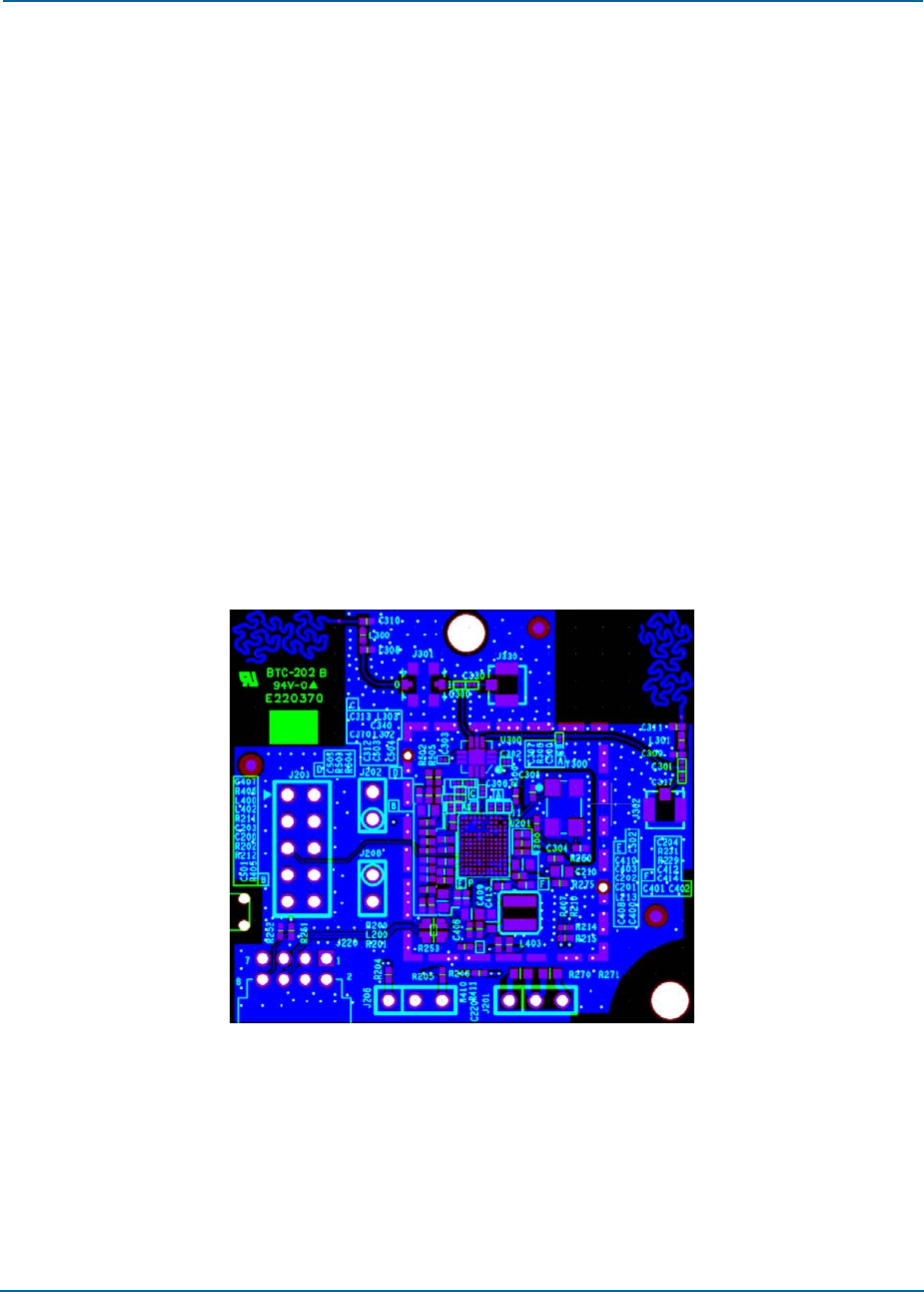

Figure 1-1 SPW-B4319U
1.2 Features
Wi-Fi compliant
Security: WEP, WPA-PSK, WPA2-PSK, WMM, WMM-PS, TKIP, and AES hardware acceleration
Host interface: USB 2.0
Low power consumption
Specification
REV 0.1 Samsung Electronics 5/17
Single 3.3V or 5.0 V external supply voltage required
1.3 Applications
This WLAN module is installed into the Samsung Wi-Fi printer through USB interface
between this WLAN module and the system board of the Samsung printer set.
1.4 Dimension and Pin Assignments
1.4.1 Mechanical Dimension

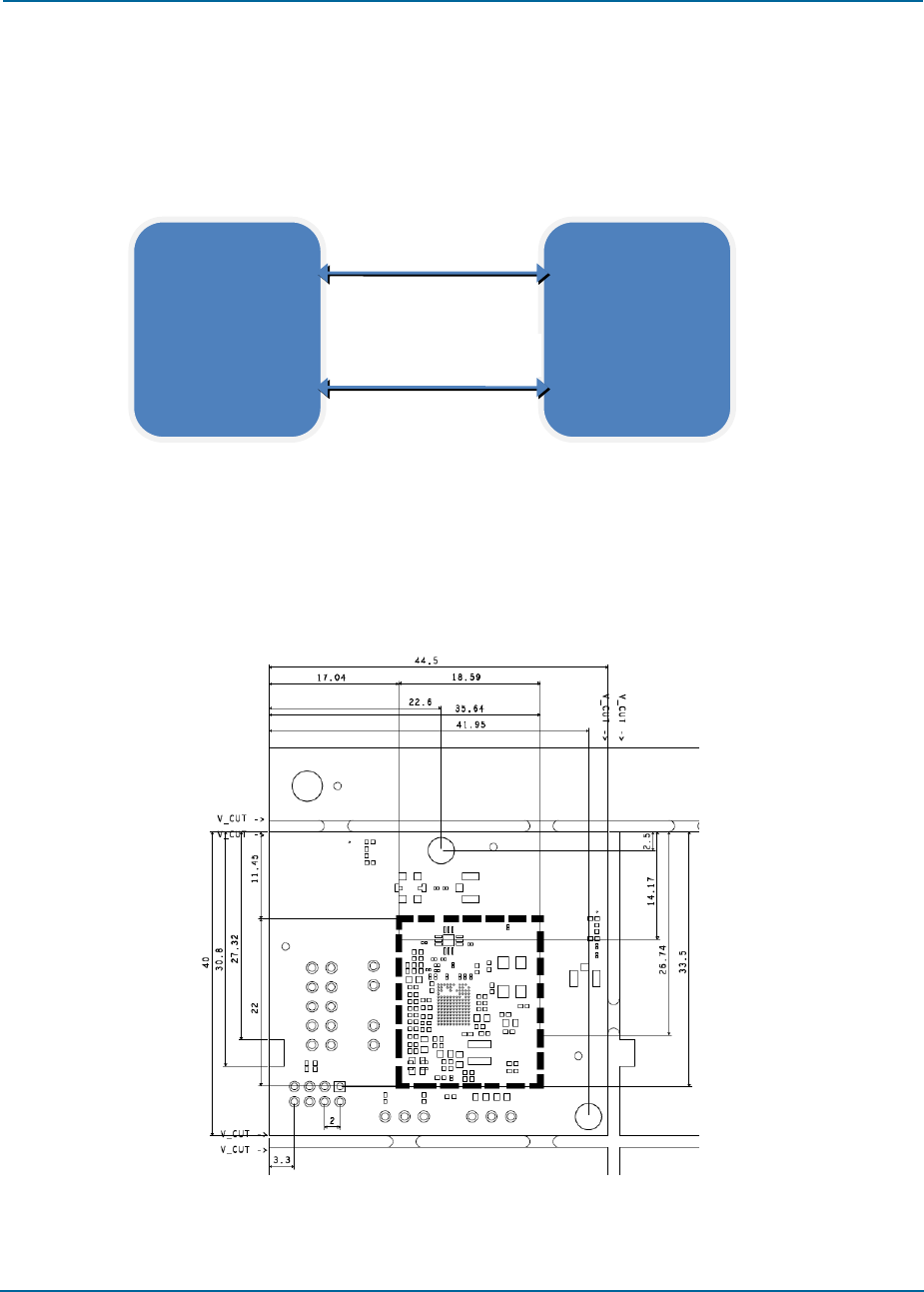

Figure 1-2 SPW-B4319U
WIFI Module
(BCM4319)
Printer
System Board
USB Interface
3.3V Power Su
pp
l
y
Specification
REV 0.1 Samsung Electronics 6/17
1.4.2 HOST Interface
USB Interface : 8pin
Table 1-1 CON1 PIN Description
No. Pin Name Description
1,2 VDD_USB VDD 3.3V or 5V from HOST
3,4 GND Drain wire, to GND
5 USB_DM USB Data+
6 USB_DP USB Data-
7 WLAN_REG_ON WLAN REG
8 GPIO_8 General Purpose I/O
Specification
REV 0.1 Samsung Electronics 7/17
2 Operating Conditions
2.1 Maximum Power Supply Rating
The supply Voltage of SPW-B4319U is 5V, do follow the Maximum Rating in 3.1.
2.2 Connection to HOST
SPW-B4319U will work properly only if connecting to USB2.0 Interface.
2.3 Ground Connection
SPW-B4319U does not need special ground, but uses the ground wire in HOST Interface.
2.4 Storage Condition
It needs proper condition for protecting the rust.
- Temperature : 0 ~ +50 °C
- Humidity : lower level recommended , 25% ~ 65%RH
- Max Storage Limit : Within 6 Month from Production
Specification
REV 0.1 Samsung Electronics 8/17
2.5 Absolute Maximum Ratings
Symbol Parameter Conditions Min. Nom. Max. Unit
DC supply DC supply voltage from HOST 3.3V applied +3.1 +3.3 +3.5 V
5V applied +4.85 +5.0 +5.25 V
DC for I/O USB2.0 Compliant - - - -
ESD* Electro-static discharge voltage
IEC1000-4~2
POINT: CON1, CON12
AIR 5K V
Contact
1K V
TS Storage temperature -20 - +85 °C
TO Operating temperature 0 - +60 °C
* Final specification will be fixed later.
2.6 Current Consumption
Symbol Parameter Min. Nom. Max. Unit
Current
consumption * Transmit current value 11b (Tx pwr: 13 dBm) 300 <350 mA
11g/n (Tx pwr: 14 dBm) 250 <300 mA
* It can be different to test condition.
Specification
REV 0.1 Samsung Electronics 9/17
3 RF Specification
All measurements are made under nominal power supply and room temperature 25 °C unless specified.
RF specification of SPW-B4319U was defined according to 802.11b/g mandatory
3.1 Supportable Modulation Scheme & Data Rates
Spacing Rate
Data rates
(Mbps) Remark
802.11n
OFDM
20MHz
MCS0 6.5
Mandatory
MCS1 13
MCS2 19.5
MCS3 26
MCS4 39
MCS5 52
MCS6 58.5
MCS7 65
40MHz
MCS0 15
Not Supported
MCS1 30
MCS2 45
MCS3 60
MCS4 90
MCS5 120
MCS6 135
MCS7 150
Modulation Coding rate
Data rates
(Mbps) Remark
802.11g
OFDM
BPSK 1/2 6 Supported
BPSK 3/4 9 Supported
QPSK 1/2 12 Supported
QPSK 3/4 18 Supported
16-QAM 1/2 24 Supported
16-QAM 3/4 36 Supported
64-QAM 1/2 48 Supported
64-QAM 3/4 54 Supported
802.11b
DBPSK NA 1
Supported
DQPSK NA 2
CCK NA 5.5
NA 11
Specification
REV 0.1 Samsung Electronics 10/17
3.2 11b RF Specification
Data Rate
/ TRx Item Min Nom Max Unit
11Mbps/Tx Power 12 13 14 dBm
54Mbps/Tx Power 11 12 13 dBm
65Mbps/Tx Power 10 11 12 dBm
11Mbps/Tx Freq. Tolerance -25 3 25 ppm
54Mbps/Tx Freq. Tolerance -25 3 25 ppm
65Mbps/Tx Freq. Tolerance -25 3 25 ppm
11Mbps/Tx EVM 0 12 16 %
54Mbps/Tx EVM -45 -32 -25 dB
65Mbps/Tx EVM -45 -30 -28 dB
11Mbps/Rx Sensitivity N/A -86 -75 dBm
54Mbps/Rx Sensitivity N/A -74 -65 dBm
65Mbps/Rx Sensitivity N/A -72 -65 dBm
3.3 Channel & Center Frequency
Channel No Center Frequency
[Mbps] FCC, IC ETSI
Korea
1 2412 O O
2 2417 O O
3 2422 O O
4 2427 O O
5 2432 O O
6 2437 O O
7 2442 O O
8 2447 O O
9 2452 O O
10 2457 O O
11 2462 O O
12 2467 - O
13 2472 - O
Specification
REV 0.1 Samsung Electronics 11/17
FCC Compliance
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Caution
Any changes or modifications NOT explicitly APPROVED by Samsung Electronics Co.,
Ltd. could cause the SPW-B4319U module to cease to comply with FCC rules part 15,
and thus void the user's authority to operate the equipment.
RF-exposure statement
These modular transmitters, SPW-B4319U, comply with FCC radiation exposure limits
set forth for an uncontrolled environment. The SPW-B4319U should be installed and
operated with minimum distance 20cm between the antenna and the body of the user or
nearby persons. The OEM integrator has to be aware not to provide information to the
end user regarding how to install or remove this RF module in the users manual of the
end product which integrate this module.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna
and users, and 2) The transmitter module may not be co-located with any other
transmitter or antenna.
As long as the 2 conditions above are met, further transmitter testing will not be required.
However, the OEM integrator is still responsible for testing their end product for any
additional compliance requirements required with this module installed (for example,
digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID and IC number cannot be
used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter).
Antenna
These modular transmitters are for OEM integrations only. The end-user product will be
installed in such a manner that only the authorized antennas are used.
Specification
REV 0.1 Samsung Electronics 12/17
Label and manual requirements for the End Product
For an end product using the SPW-B4319U there must be a label containing, at least,
the following information:
For FCCID For IC number
The label must be affixed on an exterior surface of the end product such that it will be
visible upon inspection in compliance with the modular approval guidelines.
Where the SPW-B4319U will be installed in final products larger than 8cm x 10cm
following statements has to be placed ONTO the device.
The users manual for end users must include the following information in a prominent
location "IMPORTANT NOTE: To comply with RF exposure compliance requirements,
the antenna used for this transmitter must be installed to provide a separation distance
of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter."
IC NOTICE TO USER: This device complies with Industry Canada license-exempt RSS
standard(s).Operation is subject to the following two conditions: (1) this device may
notcauseinterference, and (2) this device must accept any interference,
includinginterferencethat may cause undesired operation of the device.
RÉGLEMENTATION IC : Cet appareil est conforme avec Industrie Canada RSS
standard exempts delicense (s). Son fonctionnement esiddiii(1)ild'ifé(2)ildiit soumis aux
deux conditions suivantes: (1)cet appareil ne peut pas provoquer d'interférences et (2)
cet appareil doitaccepter toute interférence, y compris les interférences qui peuvent
causer unmauvais fonctionnement du dispositif.
This device contains
FCC ID : A3LSPWB4319U This device contains
IC ID : 649E-SPWB4319U
Specification
REV 0.1 Samsung Electronics 13/17
EU Compliance
Regulatory compliance of the SPW-B4319U
The SPW-B4319U are made for OEM integrations only. The European regulations
applying to the SPW-B4319U is the R&TTE Directive 1999/5/EC.

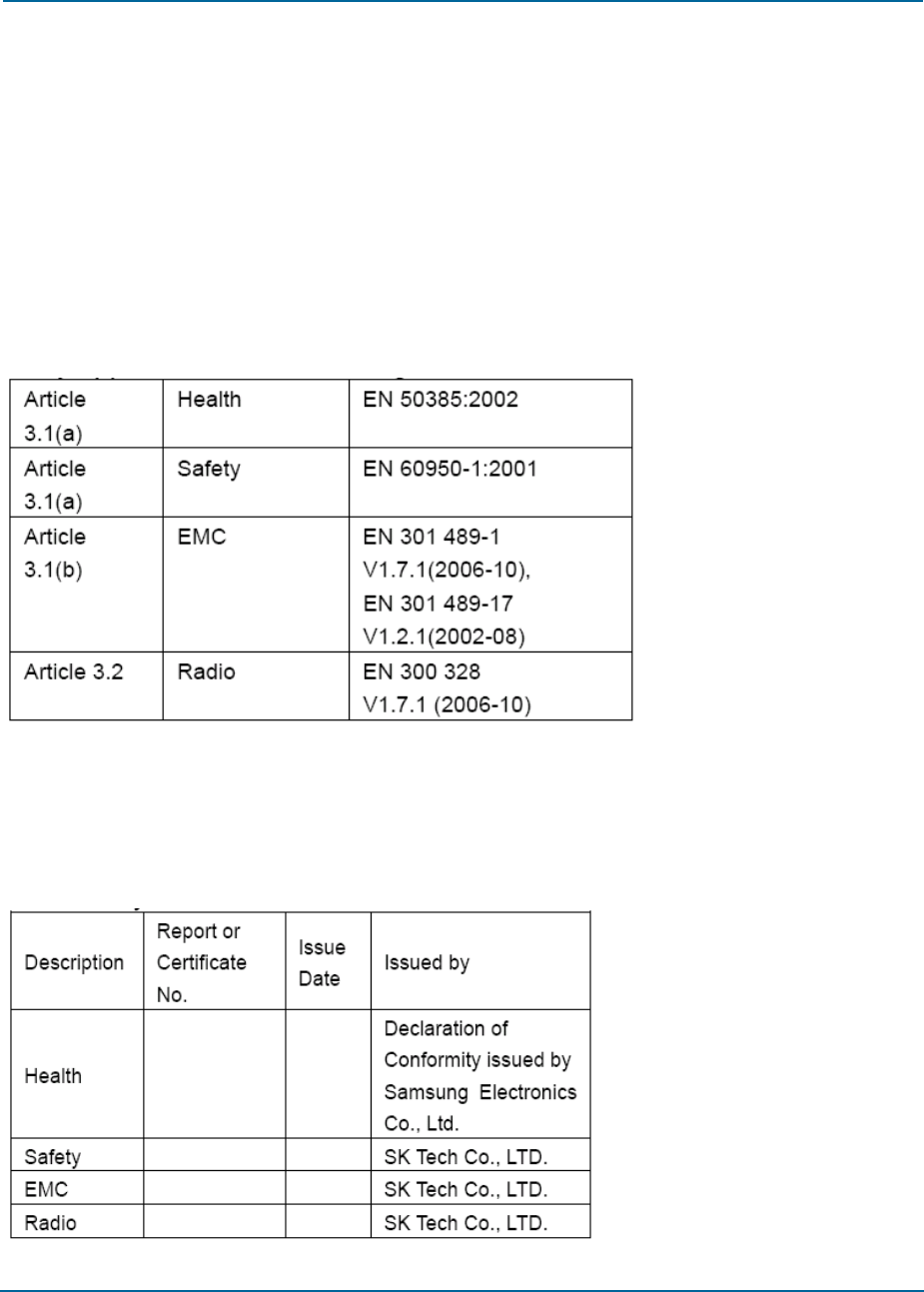

SPW-B4319U meets the following requirements of the R&TTE Directive.
The conformity assessment for the SPW-B4319U were completed in accordance with
the R&TTE Directive Annex IV procedures, and the EC Declaration of Conformity is
attached to this manual.
Cautions regarding regulatory compliance when integrating the SPW-B4319U
The person integrating the SPW-B4319U becomes the manufacturer of the final product
and is therefore responsible for demonstrating compliance of the product with the
essential requirements of the R&TTE Directive.

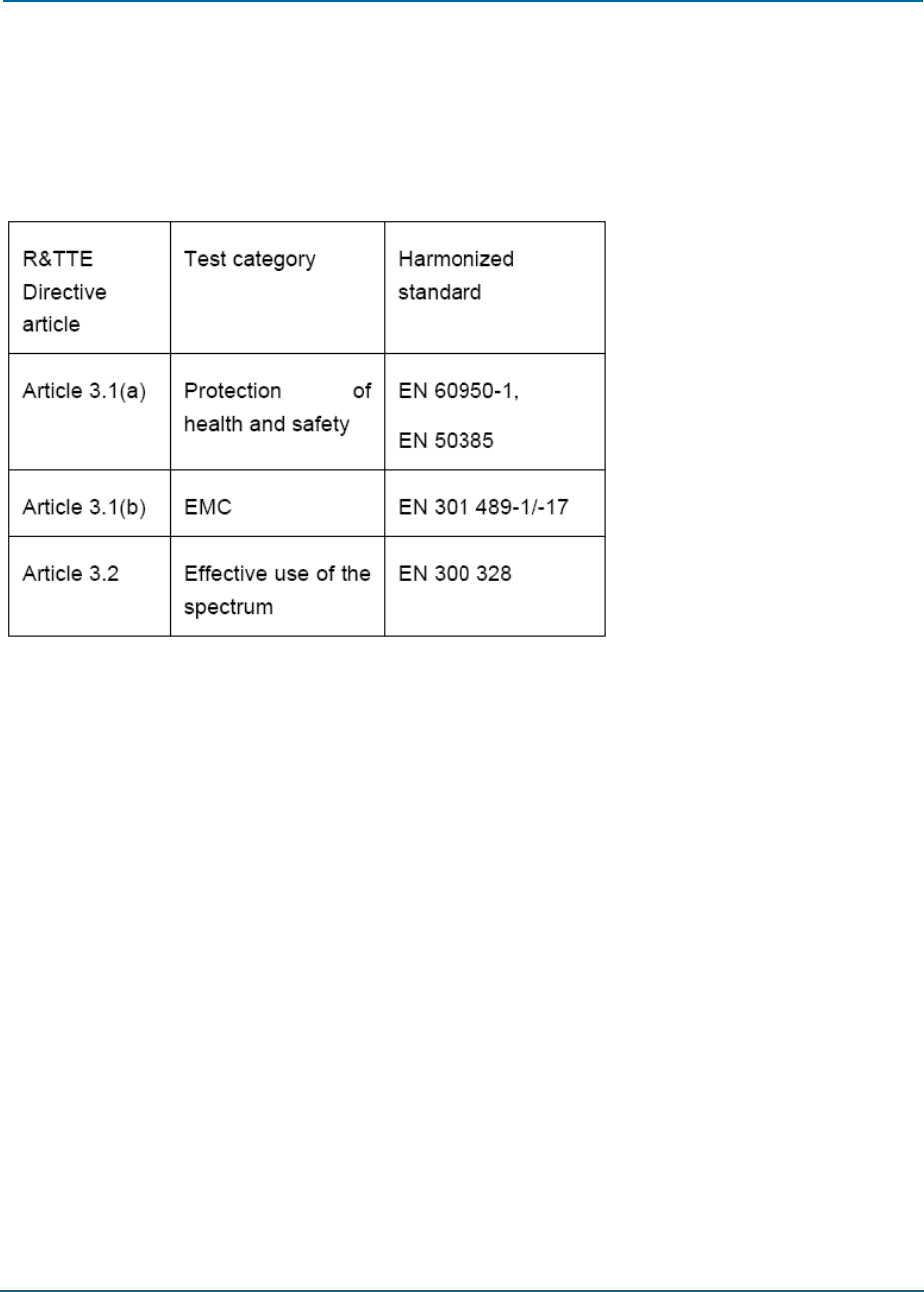

In all cases assessment of the final product must be made against the Essential
requirements of the R&TTE Directive Article 3.1(a) and (b), safety and EMC respectively,
and any relevant Article
3.3 requirements
This device is intended only for OEM integrators under the following conditions:
1. This appliance and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
2. A minimum separation distance of 20 cm must be maintained between the antenna
and the person for this appliance to satisfy the RF exposure requirements of the Council
recommendation 1999/519/EC of 12 July 1999.
As long as the 2 conditions above are met, no further evaluation under Article 3.2 of the
Specification
REV 0.1 Samsung Electronics 14/17
R&TTE Directive and do not require further involvement of an R&TTE Directive Notified
Body for the final product. In all other cases, or if the manufacturer of the final product is
in doubt then the equipment integrating the radio module must be assessed against
Article 3.2 of the R&TTE Directive.
Please note that this product, SPW-B4319U, uses radio frequency bands not
harmonized throughout the Community. This product is classified as Class 2 radio
equipment for which some Member States apply restrictions on placing on the market
and in use. Any parties putting Class 2 radio equipment on the market must notify the
relevant national spectrum management authority of their intention, and the radio
equipment must be given a Class Identifier (alert symbol).
Antenna
This product, SPW-B4319U, is for OEM integrations only. The end-user product will be
installed in such a manner that only the authorized antennas are used.
Enclosure
This product, SPW-B4319U, is made for integrating in another final product. For this
reason, there are some parts of the final product on which the SPW-B4319U depends
for regulatory compliance regarding EMC and safety. The SPW-B4319U is mounted on
the circuit board of the final product, and must be contained inside the case of the final
product. Integrated the SPW-B4319U in the final product so that its surfaces are not in
contact with the outside.
Documentation
In the documentation for the conformity assessment of the final product, state clearly
that the SPW-B4319U is integrated in the system.
Conformity Assessment of the Products integrating the SPW-B4319U
The following is a supplementary explanation of conformity assessments for final
products integrating the radio modules such as the SPW-B4319U, that have passed
conformity assessments in accordance with the R&TTE Directive. The procedures for
conformity assessment in accordance with the R&TTE Directive are the responsibility of
the manufacturer of the final product. With final products integrating radio modules, the
person who integrates the module in the system becomes the manufacturer of the final
product, and it is their responsibility to certify that the requirements of the R&TTE
Directive and met.
Exemption from conformity assessment
However, if radio modules that meet the requirements of the R&TTE Directive and that
have passed the conformity assessment are integrated in a final product that follows the
cautions concerning integrating radio modules, they are exempted from the conformity
Specification
REV 0.1 Samsung Electronics 15/17
assessment for R&TTE Directive Article 3.2 (efficient use of the radio spectrum).

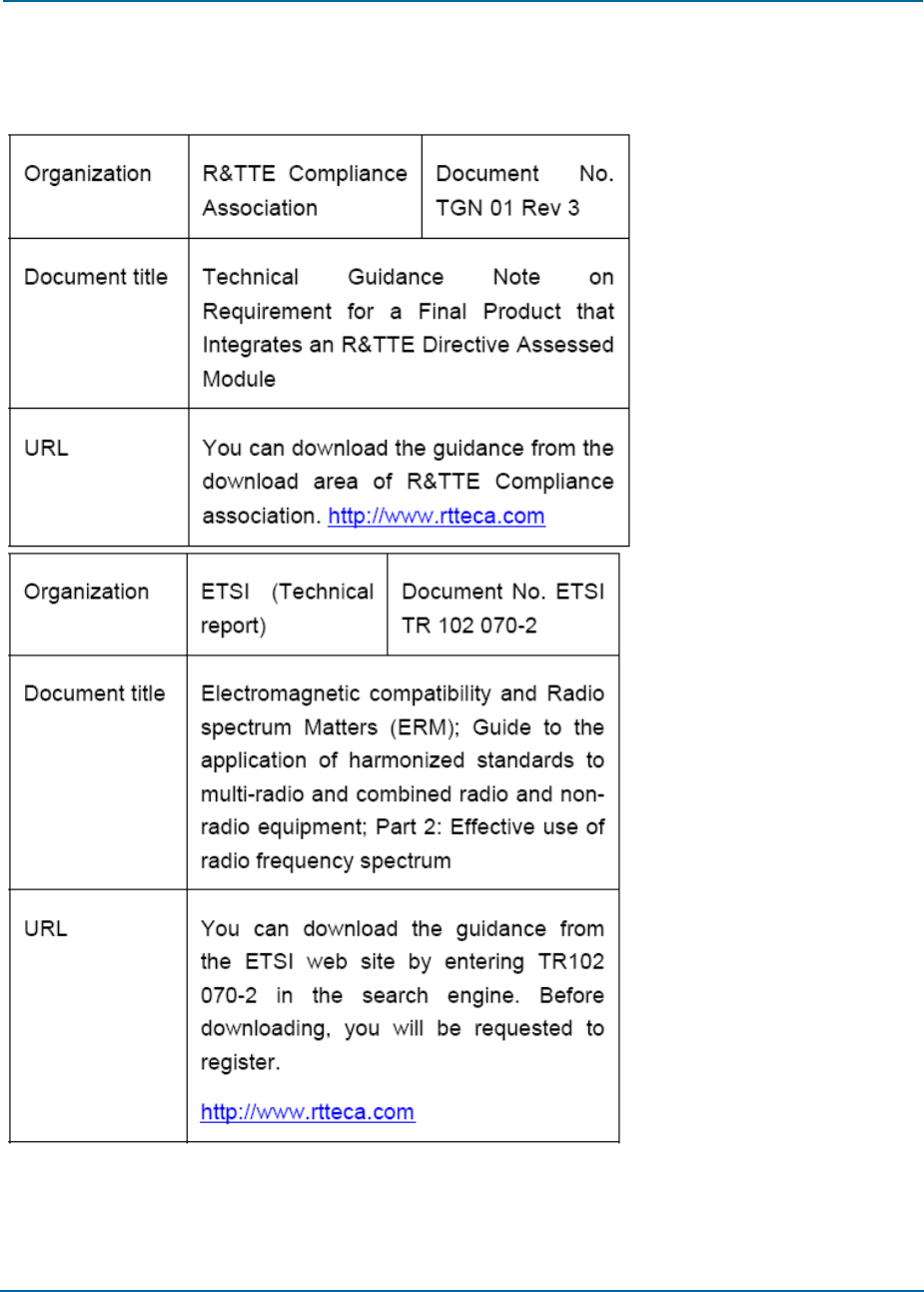

For details, refer to the following Guidance and ETSI Technical Report from the R&TTE
Compliance Association, and check whether your case applies.
Specification
REV 0.1 Samsung Electronics 16/17
Conformity assessment procedures for final products exempted from R&TTE
Directive Article 3.2
In every case, the manufacturer of a final product must follow the procedures for
conformity assessment of the final product with the requirements of R&TTE Directive
Article 3.1(a) and (b), for safety and EMC. The conformity assessment for Article 3.2
is carried out in accordance with the following:
1) Attach the EN 300 328 test report of the assessed radio module and the EC
Declaration of Conformity to the conformity assessment of the final product (The
Declaration of Conformity is attached to the manual).
2) Specify on the conformity assessment of the end product that the assessed radio
module was integrated in the system without any changes, in accordance with the
installation directions of the manufacturer.
Notification of the final product
Please note that this product, SPW-B4319U, uses radio frequency bands not
harmonized throughout the Community. The notification required by R&TTE Directive
Article 6(4) is necessary. It is the responsibility of the manufacturer of the final product
to notify the relevant national spectrum management authority of the intention to place
the final product on the market.
CE marking
It is necessary to attach the CE mark to the final product to indicate that it conforms with
all the directives that apply to the final product. It must be given a Class Identifier (alert
symbol) in addition to the CE mark.
Exemption clause
Samsung Electronics Co., Ltd. does not guarantee the accuracy of the information
above. In case of doubt or uncertainty, we recommend that you check with the
authorities or official certification organizations of the relevant countries.
Specification
REV 0.1 Samsung Electronics 17/17
EC Declaration of Conformity
Samsung Electronics Co., Ltd.
of #416 Maetandong, Youngtonggu, Suwonsi, Gyeonggido, Korea of Samsung
declares under our sole responsibility that the product
WLAN Module
model " SPW-B4319U "
to which this declaration relates is in conformity
with
R&TTE Directive 1999/5/EC
By application of the following standards
Notified UL Apex Co., Ltd.
Body
4383-326, Asama-cho, Ise-shi, Mie 516-0021, JAPAN
EU Identification Number: 0983
Documentary evidence to demonstrate conformity
