DVD-MULTIUser s ManualB-Class DeviceThis device is made for home use and electromagneticallycompatible. It can be used in all places, including residential areas.Note: A-Class devices are devices made for businessuse, and B-Class devices are those that produce a lowerlevel of electromagnetic wave than the A-Class devices.BG68-00418A Rev.00

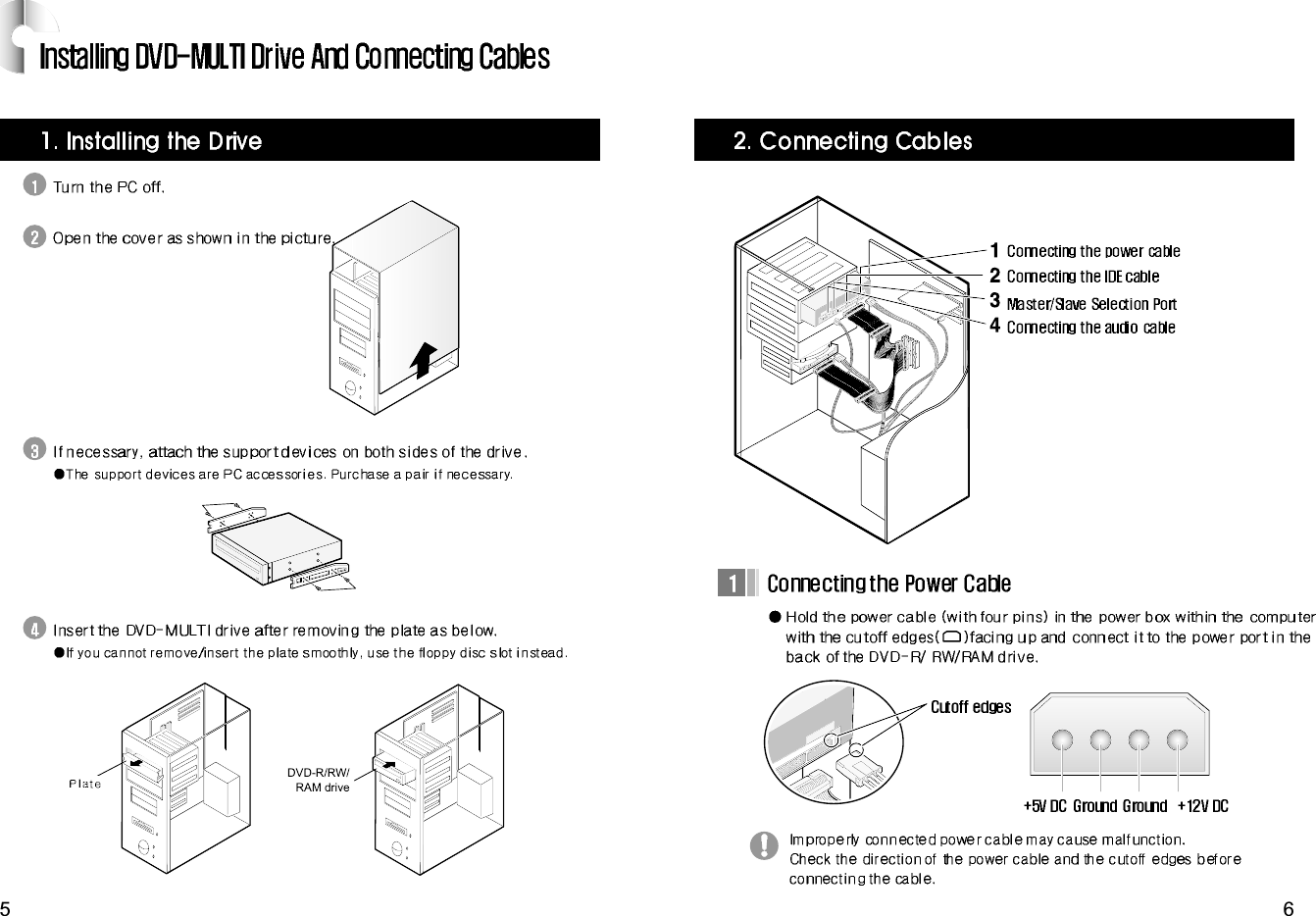

Installing DVD-MULTI Drive And Connecting CablesInstalling Drive 5Connecting Cables 6FeaturesExterior 3System Requirements 3Features 4User s ManualSafety PrecautionsSafety Labels 1Electromagnetic Wave Standards 1During Installation/Operating/Others 2Installing Device Driver And Confirming The InstallationWindows98/Me/XP 10Windows2000 10Confirming the Installation of Supporting Utilities 11Confirming the Installation of Device Driver 11How To Use The DVD-MULTI DriveHow to Use the Drive 13DVD-RAM Disk Format 15Format Type 16Properties of DVD-RAM by Disc Type 17Utilities 18Adding/Deleting UtilitiesAdding/Deleting Utilities 22TroubleshootingTroubleshooting 24Product SpecificationsProduct Specifications 26Storing/Cleaning Drive And DiscCleaning the Drive 22Storing the Disc 23Cleaning the RAM Disc and Other Discs 23User s ManualSR-T03Table of Contents
1Safety Precautions1. Electro m agnetic Wave Standards2. Safety PrecautionsClass ı Laser ProductThis Samsung DVD-MULTI drive is guaranteed to be in compliance with Subchapter J, Chapter I,DHHS Regulation 21 CFR in terms of the effect of production date. This product is classified as Class | Laser, safe touse and generates no harmful electromagnetic wave.Laser RequirementsClass | Laser ProductWave length: 655-666nm, 775-815nmLaser Power Level: No harmful laser radiation due to the safety protection feature.Always make sure that the disc does not have a crack before use. If the disc has a crack (especially around thecenter hole), it is recommended to make a copy immediately and use the copy instead. When a cracked disc is usedcontinuously, the size of the crack is likely to grow and this will eventually result in irreparable damage to the disc.Important to read and understand at all times.This symbol indicates explanations about extremely dangerous matters.If users ignore this symbol and handle the device the wrong way, serious injury or death could result.Do not open the top cover of the DVD-MULTI drive.Do not touch the interior components. You may be exposed to invisible electromagnetic wave.Do not look inside the inside of the DVD-MULTI drive.Do not attempt to execute procedures that are not specified in the manual.It may cause harmful laser radiation.Important to read and understand at all timesDo not disassembleWarningThis symbol indicates explanations about dangerous matters.If users ignore this symbol and handle the device the wrong way, damage to home or property could result.CautionDo not drop the drive, andprotect it fromsevere shocks.It can damage the drive orcause it to malfunction.Do not place the drive indirect sunlight.Avoid low-or high-temperatureenvironments.Avoid high-humidityenvironments.Handle with caution to preventdamage from external shock.It can damage the drive orcause it to malfunction.Do not drop the drive, and protect it fromsevere shocks.It can damage the drive orcause it to malfunction.Installation While Operating Other Do not move the drive while inoperation and do not attempt to openthe disc tray by force. Make sure toclose all working programs beforeattempting to open the tray andalways use the open/close button.Do not use cracked, distortedor damaged discs.In particular, a disc with a crack on theinner tracks may break while in use.Never allow food particles orforeign substances to enter thedrive casing.To protect against the risk offire, do ot spill such liquidsas alcohol and benzene onthe drive.Do not disassemble, attempt to repair ormodify the device without expressapproval as directed in the manual.To reduce the risk of damage,electric shock, and fire,.2Do not insert a pin into the emergencyopening while in operation.

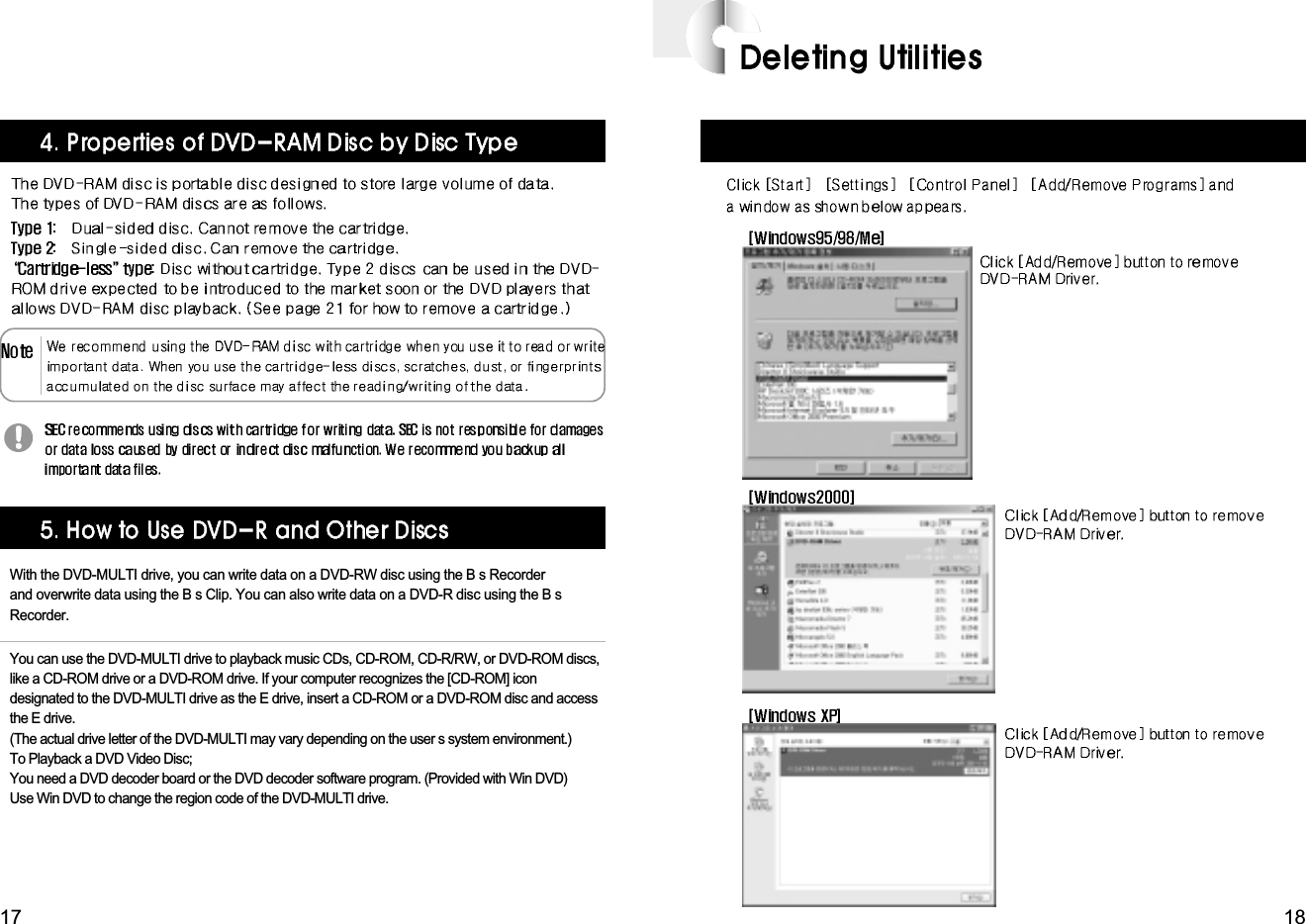

4DVD-RAM: Read/Write DVD-R: Read/Write (no overwrite allowed)DVD-RW: Read/Write Supports Read (playback) for various types of discsDVD-RAM 2.6BG FormatCD-ROM(support XA)CD-R/RW(support MultiRead)CD-DACD-EXTRAPhoto CD(supports Multisession)VIDEO CDCD-I/FMVDVD-RAM : 9.4GB(both sides),4.7GB(one side)DVD-RAM : 5.2GB(both sides),2.6GB(one side)DVD-RAM : 2.8GB(both sides),1.4GB(one side)DVD-VIDEODVD-ROMDVD-R : 4.7GB (FOR GENERAL Ver 2.0)DVD-R : 4.7GB (FOR AUTHORING : Disc-at Once mode) DVD-R : 3.95GB (FOR AUTHORING : Disc-at Once mode) DVD-RW 4.7GB For General Ver 1.0DVD-RW 4.7GB For General Ver 1.1DVD-RW 3.95GB, 4.7GB For AuthoringDisc Type WriteRead(Playback)DVDForm : Formatting software program.Formats the DVD-RAM discs in the UDF or FAT format.3Eject pin, screw, device driver, I/F cable, and audio cableBlank discs : DVD-RAM, DVD-RW, and DVD-RSoftware Programs: DVD-RAM device driver, B s recorder, B s clip, B s DVD, WIN DVD, andDVD MovieAlbumSoftware program for recording for Samsung DVD-MULTIOS: Microsoft Windows 95/98/2000/Me/XP/NT 4.0 (SP 3.0 or higher)CPU: 500MHz or greater IBM-compatible PCRAM: 128Mbytes or greaterHDD: Access time 19 msec, transfer speed 6 Gbps or fasterYou need to have an IBM-compatible PC with the following specifications.
65DVD-R/RW/RAM drive
87Connect the IDE cable (with 40 pins) connected to the hard discto the interface port.(Place the cable so that where the red wire is goes to pin No. 1)Master DriveSlave Drive (Select the SL jumper)PRI 1SEC 1Master drive :(Select the MA jumper)Master driveSlave drive :(Select the SL jumper)(Select the MA jumper)(Select the SL jumper)Master driveMaster drive :(Select the MA jumper)PRI 1SEC 1
109Connect the jumper to the slot in the back of the DVD-MULTI drive.When you connect the jumper to MA (Master), the drive runs as the master, and when you connect it to SL (Slave), the drive runs as the slave.When you connect it to CS (CSEL), you can control the device using the hostinterface signal CSEL.(Connection to MA is recommended.)Connect the Sound Output Port in the back of the DVD-MULTI drive to the audioinput port of the sound card using the audio cable (with four pins) to hear the soundfrom the drive.CS : Cable Select(CSEL)SL : SlaveMA: MasterInsert the CD provided with the DVD-MULTI drive to install the device program.The program runs automatically. If the automatic start fails, find the setup.exe file in the CD-ROM drivefolder using Windows Explorer and double-click it.1Steps 1 & 2 are the same as in Windows 98/Me.Click [Finish] after completing Steps 1 & 2.1Click [Driver and Formatter Setup]Once the installation process begins,follow the instructions.2Check [Yes, I want to restart mycomputer now] and click [Finish].Use the DVD-MULTI drive afterrebooting the system.See page 12 to confirm that theprogram is installed properly.Use the DVD-MULTI drive after rebooting the system.See page 12 to confirm that the program is installed properly.3When you click [Finish], the systemautomatically detects the DVD-RAM device.2Click [Yes] if a dialogue box messageshown in the left appears after installing theDVD-RAM drive.3
12111. Click [Start] - [Settings] — [Control Panel] -[System]2. Click on the [Device Manager] tab in the SystemProperties window.3. Click Disc Drive and CD-ROM in the DeviceManager window.1 & 2 in the picture in the left appear if the driveris installed properly.1. Click [Start] - [Settings] — [Control Panel]- [System]2. Click on the [Hardware] tab in the SystemProperties window and then click on the[Device Manager] tab.3. Click Disc Drive and DVD/CD-ROM in theDevice Manager window.1 & 2 in the picture in the left appear ifthe driver is installed properly.1. Go to [Start] - [Settings] - [Control Panel] -[Performance and Maintenance]2.Click [Administrative Tools] icon in the Performanceand Maintenance window.3. Click [Computer Management] icon in theAdministrative Tools window.4. Click [Device Manger] icon in the AdministrativeTools window and then click DVD/CD-ROM drive.
141312341234B123451234
1615UniversalDisk Format(UDF 1.5)4.7GB/9.4GB2.6GB/5.2GB8cm DVD-RAMWindows 95/98/MEWindows NT/2000Windows XPWindows 95/98/MEWindows NT/2000Windows XPWindows 95/98/MEWindows NT/2000UniversalDisk Format(UDF 2.0)What is UDF formatting?UDF, or Universal Disk Format is a new file system that supports a new generation of dominant disc formats such as CD-RW, DVD-ROMand DVD-Video. UDF is superior to the existing methods in large-volume file support and frequently used for large-volume storage devicesuch as the DVD.4.7GB/9.4GB8cm DVD-RAMFDISK FAT-162.0 GB4.7GB/9.4GB2.6GB/5.2GB8cm DVD-RAMWindows 95/98/MEWindows 2000Windows XPFAT-324.7GB/9.4GB2.6GB/5.2GB8cm DVD-RAMWindows NT/2000FDISK FAT-162.32 GB2.6GB/5.2GBWindows NT/2000FDISK FAT-164.0 GB4.7GB/9.4GB
1817You can use the DVD-MULTI drive to playback music CDs, CD-ROM, CD-R/RW, or DVD-ROM discs,like a CD-ROM drive or a DVD-ROM drive. If your computer recognizes the [CD-ROM] icondesignated to the DVD-MULTI drive as the E drive, insert a CD-ROM or a DVD-ROM disc and accessthe E drive.(The actual drive letter of the DVD-MULTI may vary depending on the user s system environment.)To Playback a DVD Video Disc;You need a DVD decoder board or the DVD decoder software program. (Provided with Win DVD)Use Win DVD to change the region code of the DVD-MULTI drive.With the DVD-MULTI drive, you can write data on a DVD-RW disc using the B s Recorderand overwrite data using the B s Clip. You can also write data on a DVD-R disc using the B sRecorder.
19 20

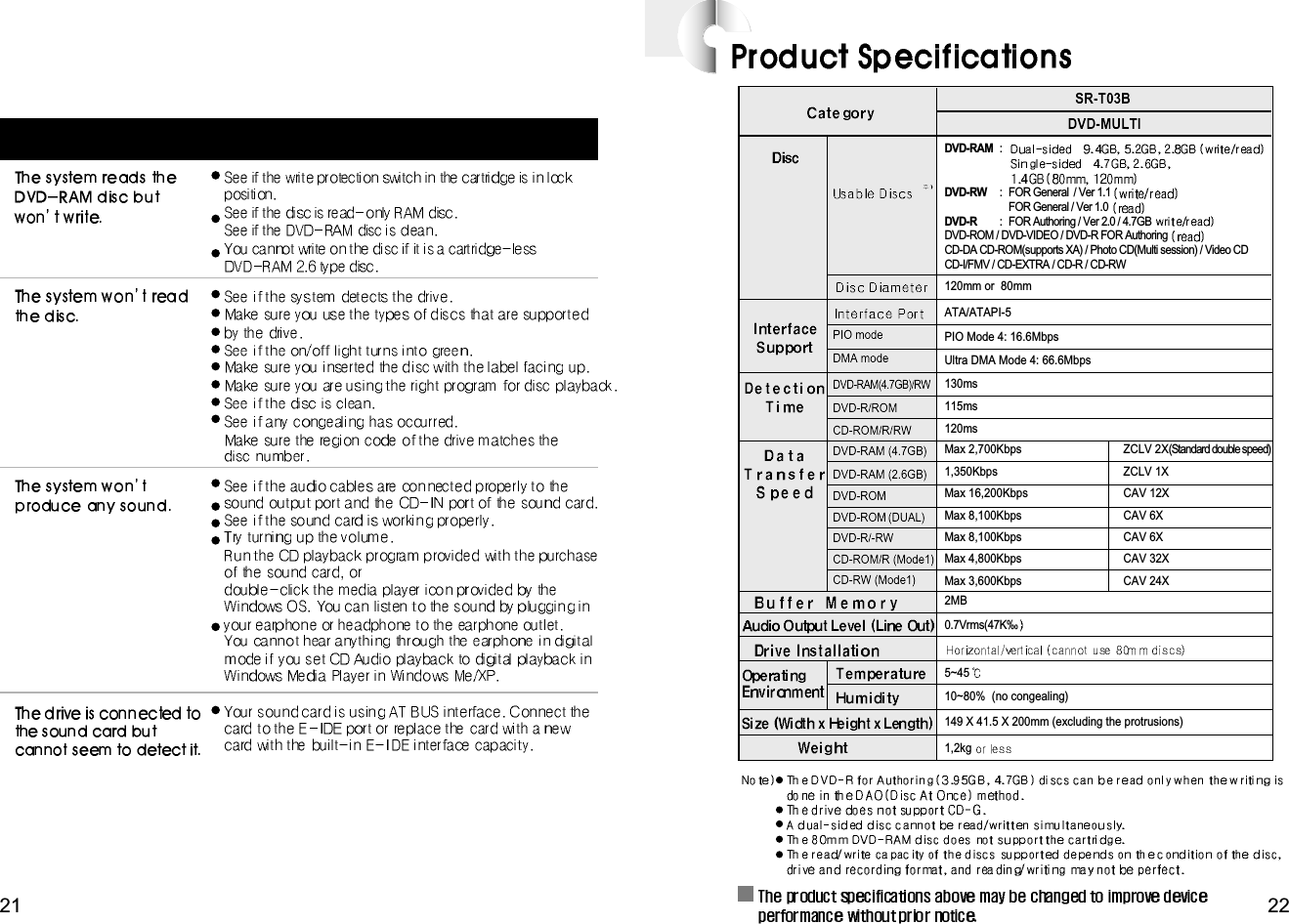

2221DVD-MULTI SR-T03B120mm or 80mmATA/ATAPI-5DVD-RAM(4.7GB)/RW130msDVD-R/ROM 115msCD-ROM/R/RW 120msDVD-RAM (4.7GB) Max 2,700Kbps ZCLV 2X(Standard double speed)1,350Kbps ZCLV 1XMax 16,200Kbps CAV 12XMax 8,100Kbps CAV 6XMax 8,100Kbps CAV 6XMax 4,800Kbps CAV 32XMax 3,600Kbps CAV 24XDVD-RAM (2.6GB)DVD-ROMDVD-ROM (DUAL)DVD-R/-RWCD-ROM/R (Mode1)CD-RW (Mode1)2MB0.7Vrms(47K‰5~4510~80% (no congealing) 149 X 41.5 X 200mm (excluding the protrusions) 1,2kg PIO mode PIO Mode 4: 16.6Mbps DMA mode Ultra DMA Mode 4: 66.6MbpsDVD-RAM :DVD-RW : FOR General / Ver 1.1 FOR General / Ver 1.0 DVD-R : FOR Authoring / Ver 2.0 / 4.7GBDVD-ROM / DVD-VIDEO / DVD-R FOR Authoring CD-DA CD-ROM(supports XA) / Photo CD(Multi session) / Video CDCD-I/FMV / CD-EXTRA / CD-R / CD-RW
24This is designed for supporting persons with the copyright for WinDVD orthe express approval of the copyright holder to copy.If the person does not have the copyright or did not obtain the expressapproval of the copyright holder to copy, he or she is in violation of theCopyright Act and therefore must indemnify the copyright holder fordamages. Consult your legal advisor if you are unclear about mattersconcerning the user s rights..

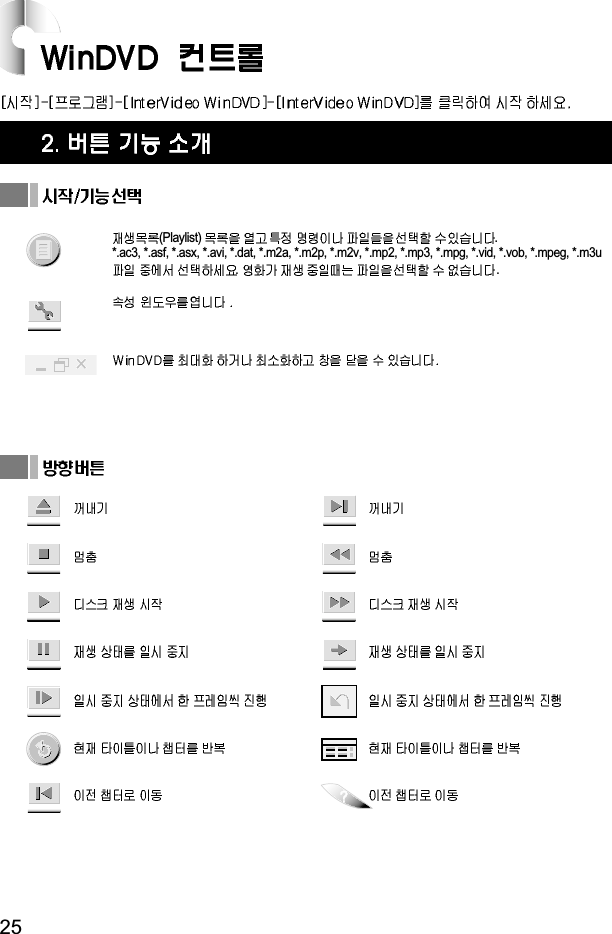

25(Playlist) .*.ac3, *.asf, *.asx, *.avi, *.dat, *.m2a, *.m2p, *.m2v, *.mp2, *.mp3, *.mpg, *.vid, *.vob, *.mpeg, *.m3u. .
