Users Manual
Features
The SSG-4100GB, SSG-4100GBW 3D glasses enable you to view 3D images. The Samsung
3D glasses communicate with Samsung 3D TVs via the 2.4GHz RF band.
✎The Samsung 3D glasses can be used only with for all 2011, 2012 and 2013 Samsung
D,E and F series 3D TV, or a 3D TV product with the or logo on it,
and can't be used with any other wireless communication products.
✎The "Full HD 3D Glasses™" Logo signifies compatibility between display products and 3D Glasses that
are compliant with the "Full HD 3D Glasses™" format and does not indicate the picture quality of the 3D
images visible using the glasses, which depends on the quality of the display products.
Parts
Components
3D Active glasses
(Frame body, Temple)
Button Battery
(CR2025)
Cleaning Cloth
LED Indicator & Power Button
Liquid crystal shutter
SSG-5 1 0 0 GB

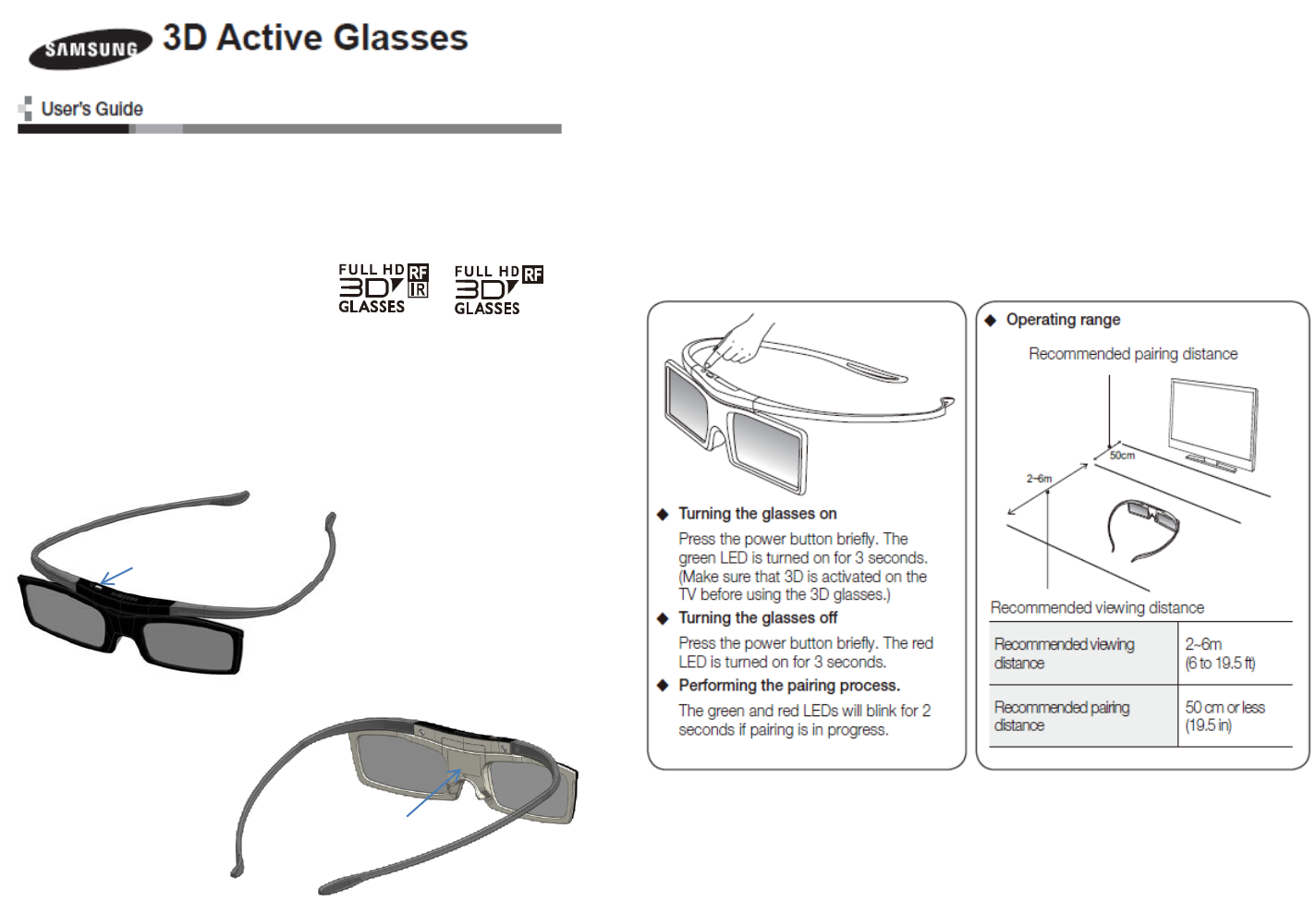

Pairing 3D Active Glasses
✎What is Pairing? Pairing is a process of connecting 3D glasses and a 3D TV so that the
two devices can exchange data.
✎Ensure your Samsung TV and 3D glasses are no farther than 19.5 in (50 cm) apart from
each another while pairing is in progress..
✎The working distance depends on obstacles (a person, metal, walls, etc.) or electromagnetic waves.
✎Turn off the 3D glasses while they are not in use. If you leave the 3D glasses on, the battery lifespan
decreases.
Battery cover
.Pairing steps
1. Turn on the TV, and then move the glasses within 19.5 inches of the TV.
2. Press the power button on the 3D glasses for more than 1 second. The 3D glasses will power on
and pairing will start.
3. The message “3D glasses are connected to TV.” will be displayed on the TV screen when the
pairing is successfully completed.
✎If the pairing failed, the 3D glasses will power off.
✎If the first attempt to pair fails, power the TV off and on again and perform step 2.
✎How to pair again: Press the power button on the 3D glasses for more than 1 seconds.
<Pairing is needed again in the following situations:>
–If the 3D glasses do not function, even when the power button is pressed on the 3D TV after
repair.
–If you want to view a 3D video on a different for all 2011 and 2012 Samsung D,E and
ES series 3D TV.

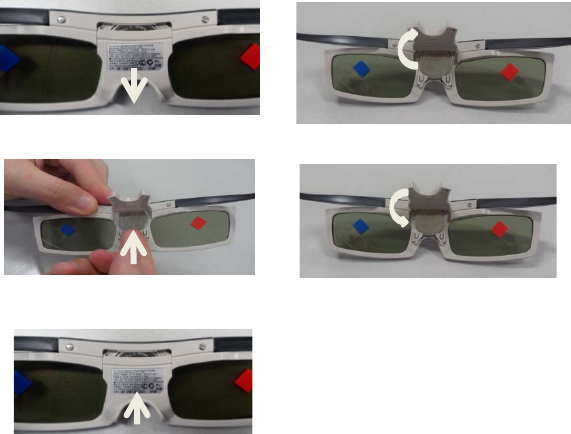

.Replacing the Batteries
If the red LED blinks every two seconds continually, replace the batteries with new ones.
1
Push out the flap
2
Swing the flap open
3
Replace the battery with a new one
4
Put the flap back on
5
Push the flap down until it clicks
✎Please insert the battery in the same direction as indicated.
.Viewing guidelines
• When viewing a 3D video under a fluorescent lamp (50 Hz –60 Hz) or 3-wavelength lamp, you may
notice a small amount of screen flickering.
※ If this occurs, dim or turn off the light.
• Switching the input mode while watching a 3D movie may disable the 3D function on the TV. As a
result, the 3D glasses may not function and the movie may not be displayed properly.
• If the 3D glasses are moved outside of their working distance, the signal from the TV will disconnect
and the glasses' 3D function will turn off after several seconds. The 3D glasses will power off after the
3D function turns off. When this happens, the red LED will turn on for 3 seconds.
※ Under some circumstances, the 3D glasses may malfunction due to interference from other devices.
• Ensure you are within the working distance of the glasses when you view a 3D video.
※ The images may not be viewable in 3D if you move outside of the working distance for 3 seconds.
• If you lie on your side while watching TV with 3D active glasses, the picture may appear dark or may
not be visible.
• The 3D glasses may not work properly due to interference from other 3D products or electronic
devices that operate on the 2.4GHz frequency such as a microwave oven or Internet AP. If the 3D
function malfunctions due to interference, please move all other electronic or wireless communication
devices as far away from the glasses and the TV as possible.
• The 3D effect may be experienced differently depending on the viewer. You may not notice the 3D
effect at all if you wear glasses and have an unusual prescription.
• If a part of the 3D glasses or lenses is defective or damaged, it cannot be repaired and the glasses
should be replaced. If the glasses stop working within the warranty period, the glasses can be repaired
or replaced for free. If the glasses have been damaged due to the fault of the customer or the warranty
period has expired, a new pair of glasses will have to be purchased.
CAUTION!
IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D IMAGES. READ THE FOLLOWING CAUTIONS
BEFORE YOU OR YOUR CHILD USE THE 3D FUNCTION.
• Adults should frequently check on children who are using the 3D function. If there are any complaints of
tired eyes, headaches, dizziness or nausea, stop the child from viewing the 3D TV and ensure that they rest.
• Do not use the 3D glasses for other purposes such as general wear, sunglasses, protective goggles, etc.
• Some viewers may experience discomfort such as dizziness, nausea and headaches while viewing 3D TV.
If you experience any of these symptoms, stop viewing the 3D TV, remove the 3D glasses and rest for
awhile.
• Watching 3D pictures for an extended period of time may cause eye strain. If you experience any eye
strain, stop viewing the 3D TV, remove the 3D glasses and rest for awhile.
• Do not use the 3D function or 3D glasses while walking or moving around. Using the 3D function or 3D
Active Glasses while moving around may result in injury from running into objects, tripping, and/or falling.
SAFETY PRECAUTIONS
The following safety instructions are to ensure your personal safety and prevent property damage.
Please read them to ensure the proper use of the product.
• Do not place the product in a location exposed to direct sunlight, heat, fire or water. This may
result in a product malfunction or fire.
• Do not apply force to the lenses of the 3D glasses. Do not drop or bend the product. This may
result in a product malfunction.
• Use only the specified standard batteries. When replacing the battery, insert the battery so that
its polarity (+, –) is correct. Failing to do so may damage the battery or result in fire, personal
injury or environmental damage caused by liquid leaking from the battery.
• Keep the used battery out of the reach of children so that they do not accidently swallow the
battery. If your child has swallowed the battery, consult your doctor immediately.
• When cleaning the product, do not spray water or cleaner directly onto the surface of the
product. Spraying water or cleaner directly onto the glasses may result in fire or electric shock,
damage to the product's surface, or cause the indicator labels on the product's surface to come
loose.
• Do not use chemicals containing alcohol, solvents, or surfactants, or chemicals such
as wax, benzene, thinner, mosquito repellant, lubricant or cleaners. These may cause a
discoloration of or cracks in the product surface and cause the indicator labels on the product's
surface to come loose.
• Since the product surface and lens are easily scratched, make sure to use a clean soft cloth (the
cleaning cloth supplied with the product, a cloth consisting of superfine fibers or cotton flannel)
when cleaning to avoid scratching either the surface or the lens. As the product may become
scratched if there are any foreign items on the cloth, make sure to shake off any dust before
using it.
• Never disassemble, repair, or modify the 3D glasses yourself. Do not use the glasses when they
are out of order or broken.
• Take care that you do not injure your eyes with the edges of the frame of the 3D glasses when
wearing them.
• Use your hands when wearing or take off the 3D glasses.

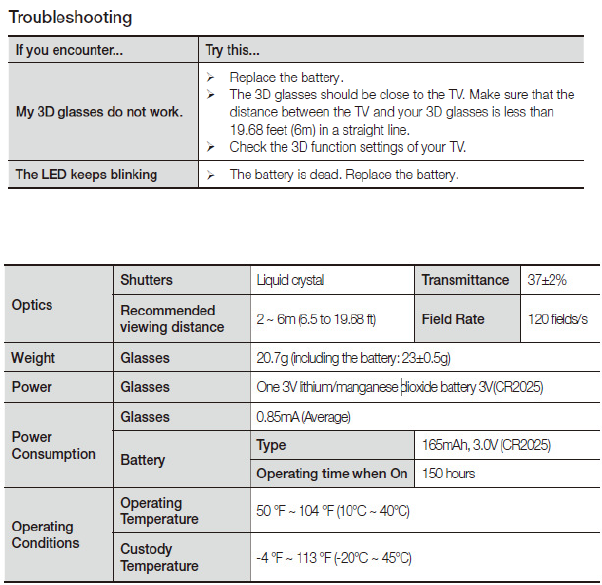

Specifications (Model Number: SSG-5100GB)
✎Product specifications may be changed without notice in order to enhance product
performance.
✎The continuous operating time may differ depending on the wireless
communication environment and usage conditions.
Notice
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe Best conforme á la norme NMB-003 du Canada.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.
