CD-R/RW DRIVESW-240User's Guide FCC ComplianceThis equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be deter-mined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:Re-orient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.Consult the dealer or an experienced radio/TV technician for help.
Contents2Safety Precautions3ENGLISHThe following diagrams illustrate the precautions to be taken when usingyour CD-R/RW drive. ✱Changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.You must not use the drive in any manner other than that specified in this guide.Avoid exposing your eyes or skin to direct or scattered radiation.CAUTION Do not attempt to repair the CD-R/RW drive yourself.Contact your dealer or local SAMSUNG representative for all repairs.If you make any adjustments or perform any operations other than thosespecified in this guide, you run the risk of exposure to hazardous radiation.WARRANTY Please refer to the Samsung limited warranty statements.PRECAUTIONS 1. To reduce the risk of fire or electric shock, do not expose thisappliance to rain or moisture.2. Always check each disc for cracks before using it. If there arecracks on the surfaces, especially around the border of the centerhole, we recommend that you make a copy of the disc immediatelyand then stop using it. If you continue using the disc, it will probablydevelop more cracks and eventually cause irreparable damage.3. Do not use poor quality discs:From unknown sourcesWithout any copyrightScratched or damaged in any waySafety Precautions 3Your CD-R/RW Drive 4Upgrading the Firmware Flash Memory 5System Requirements 5Installing the CD-R/RW Drive 6Connecting the Cables 6Installing the CD Record Utility 9Installing the Device Driver 9Setting Up the Device Driver 10Using the CD-R/RW Drive 11Storing and Cleaning Your Discs 11Solving Recording Problems 12Caution with errors 13Recommended Disc Types 14Term Description 14Solving Technical Problems 15Technical Specifications 17* All product names mentioned in this document are trademarks orregistered trademarks of their respective owners.

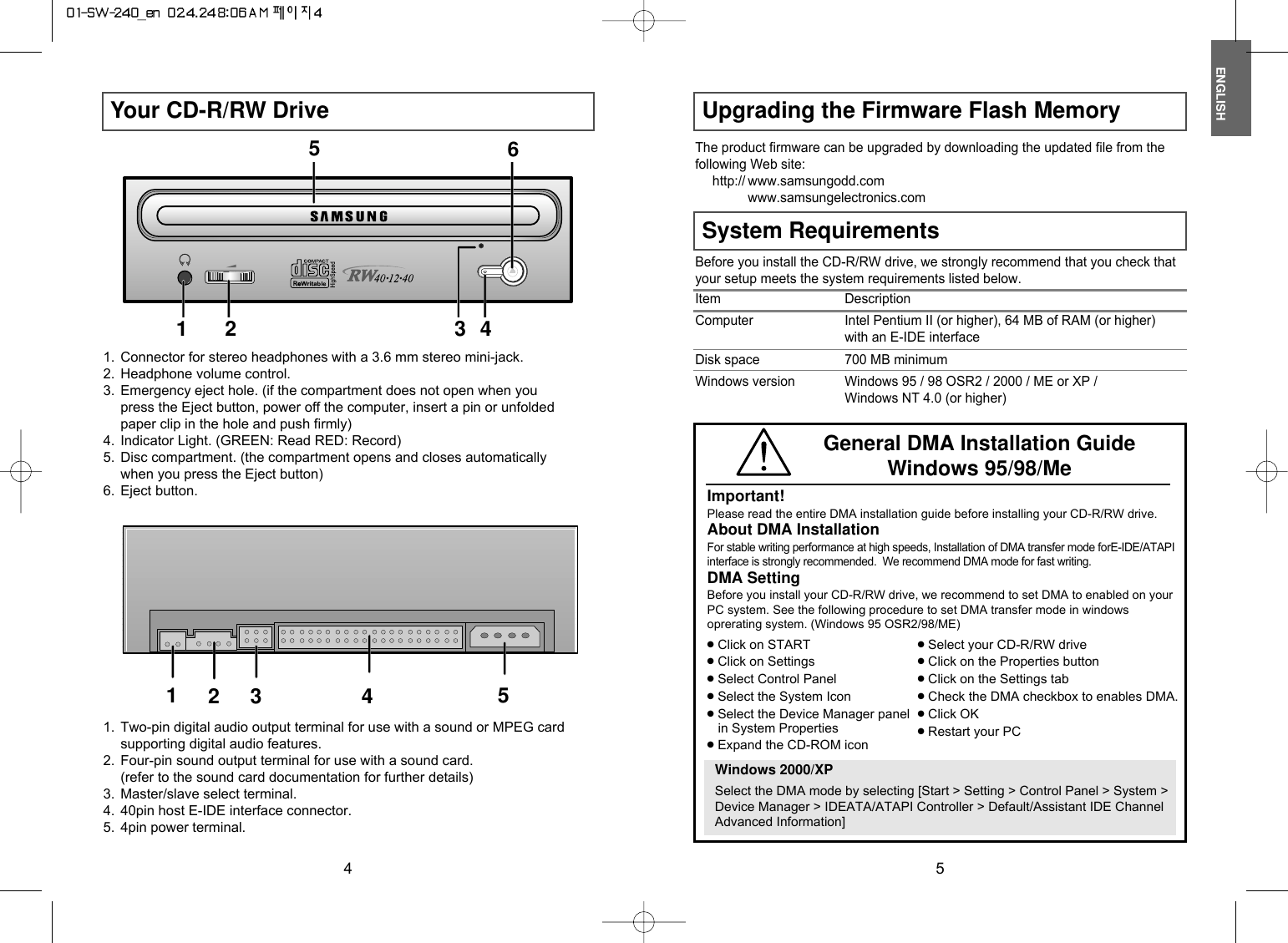

ENGLISH5Upgrading the Firmware Flash MemoryYour CD-R/RW Drive41. Connector for stereo headphones with a 3.6 mm stereo mini-jack.2. Headphone volume control.3. Emergency eject hole. (if the compartment does not open when youpress the Eject button, power off the computer, insert a pin or unfoldedpaper clip in the hole and push firmly)4. Indicator Light. (GREEN: Read RED: Record)5. Disc compartment. (the compartment opens and closes automaticallywhen you press the Eject button)6. Eject button.The product firmware can be upgraded by downloading the updated file from thefollowing Web site:http:// www.samsungodd.comwww.samsungelectronics.comSystem RequirementsBefore you install the CD-R/RW drive, we strongly recommend that you check thatyour setup meets the system requirements listed below.Item DescriptionComputer Intel Pentium II (or higher), 64 MB of RAM (or higher)with an E-IDE interfaceDisk space 700 MB minimumWindows version Windows 95 / 98 OSR2 / 2000 / ME or XP /Windows NT 4.0 (or higher)1. Two-pin digital audio output terminal for use with a sound or MPEG cardsupporting digital audio features.2. Four-pin sound output terminal for use with a sound card.(refer to the sound card documentation for further details)3. Master/slave select terminal.4. 40pin host E-IDE interface connector.5. 4pin power terminal.12 3456123 4 5General DMA Installation GuideWindows 95/98/MeImportant!Please read the entire DMA installation guide before installing your CD-R/RW drive.About DMA InstallationFor stable writing performance at high speeds, Installation of DMA transfer mode forE-IDE/ATAPIinterface is strongly recommended. We recommend DMA mode for fast writing.DMA SettingBefore you install your CD-R/RW drive, we recommend to set DMA to enabled on yourPC system. See the following procedure to set DMA transfer mode in windowsoprerating system. (Windows 95 OSR2/98/ME)●Click on START●Click on Settings●Select Control Panel●Select the System Icon●Select the Device Manager panel in System Properties●Expand the CD-ROM icon●Select your CD-R/RW drive●Click on the Properties button●Click on the Settings tab●Check the DMA checkbox to enables DMA.●Click OK●Restart your PCWindows 2000/XPSelect the DMA mode by selecting [Start > Setting > Control Panel > System >Device Manager > IDEATA/ATAPI Controller > Default/Assistant IDE ChannelAdvanced Information]
ENGLISH76Installing the CD-R/RW DriveConnecting the CablesTo install your CD-R/RW drive in the PC, proceed as follows.1Make sure that the PC is powered off and disconnected from any power source.1Connecting the power cableThe 4-pin power cable from the internal power unit of your computer must beconnected to the power terminal on the rear of the CD-R/RW drive.Note:An improperly connected power cable may cause trouble. Check the direction ofthe power connector and the incline side of the CD-R/RW drive before connecting.Cut side2Connecting the E-IDE cableInsert the IDE cable (40-pin), which is connected to the hard disk to the interfaceterminal. (Place the red line of the cable close to the Pin 1.)Connect the cable to the SL (Slave) of the Master/Slave Select Terminal atthe rear of the CD-R/RW drive.When using one E-IDE cableWhen using two E-IDE cable2If necessary, attach a horizontal bracket toboth sides of the drive.Use of the brackets depends on your computer model;you can purchase these accessories separately fromyour computer dealer.3Remove the cover from a free expansion slotand install the CD-R/RW drive,as shown in the illustration.If you have no free expansion slot,install the drive in place of thediskette drive.Power cableE-IDE cableMaster/slave select terminalAudio cablePin 1Key SlotRed LineHDDSlave Drive (Choose the SL Jumper)MotherboardCD-R/RWdrivecoverIf there is only one CD-R/RW drive, select MA (Master).HDDMaster Drive (Choose the MA Jumper)Master Drive (Choose the MA Jumper)Slave Drive (Choose the SL Jumper)SEC 1PRI1MotherboardIf there is two CD-R/RW drive, select MA (Master) / SL (Slave).HDD(Choose the MA jumper) (Choose the SL jumper)SEC 1PRI1Motherboard+12V DCGroundGround +5V DC
ENGLISH98Installing the CD Record UtilityInstalling the Device Driver3Installing a jumper on the master/slave select terminalConnect a jumper to the rear side of the CD-R/RW.If the jumper is connected to MA (Master), it will work in the Master mode.If the jumper is connected to SL (Slave), it will work in the Slave mode.If the jumper is connected to CS (CSEL), you can control the device by usingthe host interface signal CSEL. (In general, connection to MA is recommended.)CS : Cable Select(CSEL)SL : SlaveMA : Master4Connecting the audio cable from a sound cardConnect the 4-pin audio cable between the sound output terminal on theCD-R/RW drive and the audio input terminal on the sound card.For clearer sound, use a digital output terminal.(Available only for the CAID that supports digital output)This may not be available for general sound cards.Sound CardSound Output Terminal Digital Output TerminalAudio Input Terminalof the Sound CardTo record data on a CD-R or CD-RW disc in the CD-R/RW drive, you must firstinstall the CD record utility. For compatibility reasons, you are recommended touninstall any existing software of the same type before installing this utility.No additional device driver is needed for Windows 95/98/2000/ME/XP/NT4.0,as the default Windows device driver is used. You can check that the CD-R/RWdrive has been correctly detected by Windows. To do so, proceed as follows.The SAMSUNG device driver enables discs in the CD-R/RW drive to be read but notrecorded in an MS-DOS environment; the driver is located in the D driver folder on theCD record utility disc.1Insert the disc supplied with the CD-R/RW drive in the drive.1Double-click on the My Computer icon on your desktop.2Double-click on the Control Panel folder.3Double-click on the System icon.4Click on the Device Manager tab.5Expand the CD-ROM branch.The SAMSUNG CD-R/RW SW - *** device name is displayed.2Follow the instructions displayed on the screen to install the utility.Refer to the separate utility documentation for further details.3Store the utility disc in a safe place.
ENGLISH11Using the CD-R/RW DriveStoring and Cleaning Your DiscsSetting Up the Device Driver10◆ Automatic Setup1Insert the setup diskette in the diskette drive and change the directory to A:,where A: is the diskette drive.To do so, type A: after the C:\ prompt and press [Enter].2Type CDSETUP and press [Enter].3Reboot the computer.◆ Manual Setup1Make the C:\SAMSUNG directory.2Copy the files from the diskette to the C:\SAMSUNG directory.To do so, type COPY A: * . * C:\SAMSUNG after the C:\prompt and press[Enter].3Edit the CONFIG.SYS file.Add the DEVICE=C:\SAMSUNG\SSCDROM.SYS \D:SSCD000/V entry.LAST DRIVE = Z- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - DEVICE = C :\SAMSUNG\SSCDROM.SYS/D : SSCD000/V4Edit the AUTOEXEC.BAT file.Add the C:\SAMSUNG\MSCDEX/D:SSCD000 entry.5Reboot the computer.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - C :\SAMSUNG\MSCDEX /D:SSCD000To play audio or video CDs in your CD-R/RW drive, proceed as follows.Playing Audio CDsRun the CD player supplied with Windows or your sound card.You can listen to the CD by connecting headphones to the appropriate connector.If you have installed the appropriate player, such as Microsoft Windows MediaPlayer, you can adjust the volume using the headphone volume control on thedrive front panel.If you select DIGITAL at CD Audio Play in Media Player of Windows ME,the earphone does not appear in the Digital Mode.To ensure a long service life for your discs and drive, follow the pre-cautionsbelow when storing and cleaning your discs.1Push the power button and boot the computer.2After booting the computer, open the disccompartment by pressing the Eject button.3Insert the disc (CD) with the label on the discfacing upwards and close the disc compartmentby pressing the Eject button.The indicator light comes on.4Play the disc (CD).1Do not place a disc in direct sunlight.2Store a disc vertically in a well-ventilated and stable location.3Do not write or attach a label on a disc.4Do not drop a disc or place heavy objects on it.5Do not touch the surface of a disc; hold it by the edges.6To clean a disc, polish lightly from the inside of the disc to the outside with a soft cotton cloth.7Do not leave the disc compartment open when you are not using it.
ENGLISH12Caution with errors13Solving Recording ProblemsIf you have any problems recording via your CD-R/RW drive,follow the appropriate instructions below for the source that you are using.Every CD-R or CD-RW drive records data by applying recording laser onto a CD.If the CD is damaged or recording data is not possible, you need to remove thefollowing causes of the error before using the CD.◆ Hard Drive1Check whether the source file is corrupted.◆ Network Drive1Copy the network drive contents to the hard disk and then from the hard diskto the CD-R/RW drive.◆ CD-ROM Drive1Clean the source CD, if necessary.2Create an image file and then copy the image file to the CD-R/RW drive.4If the transfer speed of the CD-ROM drive is slower than the record speed,reduce the record speed.3Check the CD-ROM drive record speed.There are two recording methods :Low-speed (file by file)High-speed (transfer of an image file from the hard disk)2Optimize the hard disk by using the Windows defragmenter feature:START / PROGRAMS / ACCESSORIES / SYSTEM TOOLS / DISC DEFRAGMENTER3Decompress the hard disk if it is compressed.4Make sure that the space available on the hard disk is at least twice thesize of the largest file to be recorded on the disc.5If you wish to record more than 1000 small files:First create an image file and copy the image file to the disc.Choose the low record speedCompress small files and then record themIt is recommended to set a CD-R or CD-RW drive as follows.1Do not work on a multi-tasking environment and remove screen savers.If you work on a multi-tasking environment while the CD-RW driveis recording/deleting data, Buffer Under-Run may occur.2Do not allow any external access to the Host PC while recording data.If another user accesses your printer through a network while you arerecording data, errors may occur.5Use an E-IDE cable, which has the specified length (46cm).Using E-IDE cables longer than 46cm may cause errors during data transaction.3Remove the Auto-Run function of the CD.If you insert a CD that has the Auto-Run function to a drive connected to aPC while recording/deleting data, this may cause errors.How to cancel (select) the Auto-Run functionCancel (Select) the Auto-Run function in [Start > Setting > Control Panel >System > Device Manager > CD-ROM Setting]6Use only one recording software program.To install a software program for recording, uninstall any other types or versionsof recording software programs first and then reboot the computer.Make sure you use the recording software CD (Nero Burning Rom /Roxio Easy CD Creator) provided by us.Using our software program with others may cause errors in recording.Not compatible with Windows 95 in case of Roxio Software.4Use image files when you record many small files.If you use a lot of small size files for recording, this may reduce the transactionrate of the PC. Although Justlink function is often run, the recording qualitymay become low.If you copy a CD from another, you do not require making available space in thehard disk. However, when you use image files, you need to copy them on the harddisk first and then copy to a CD. In this case, you need to ensure maximum 700MBof available space in the hard disk for reliable recording process.

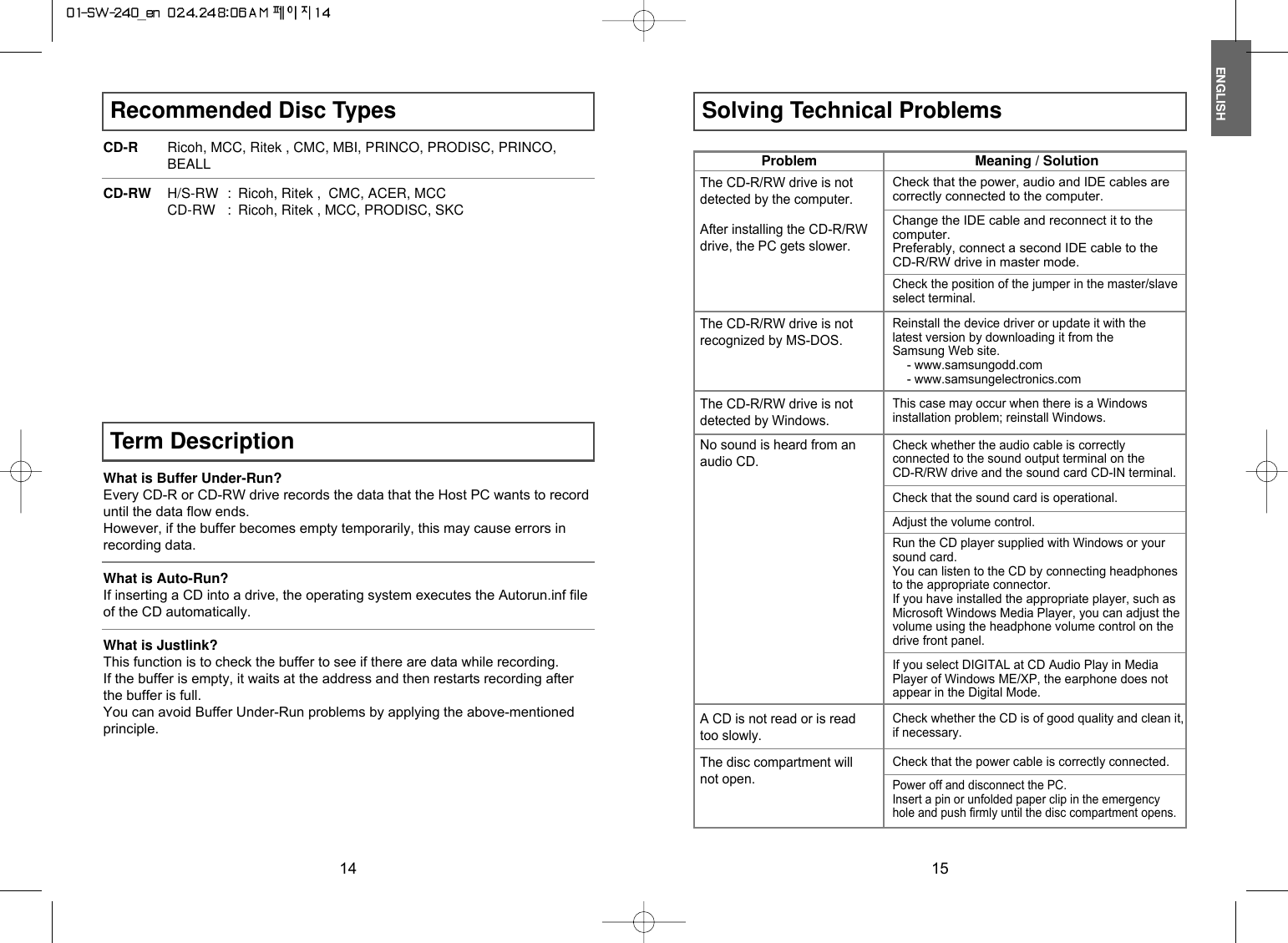

14What is Buffer Under-Run?Every CD-R or CD-RW drive records the data that the Host PC wants to recorduntil the data flow ends.However, if the buffer becomes empty temporarily, this may cause errors inrecording data.What is Auto-Run?If inserting a CD into a drive, the operating system executes the Autorun.inf fileof the CD automatically.What is Justlink?This function is to check the buffer to see if there are data while recording.If the buffer is empty, it waits at the address and then restarts recording afterthe buffer is full.You can avoid Buffer Under-Run problems by applying the above-mentionedprinciple.Solving Technical Problems15ENGLISHRecommended Disc TypesTerm DescriptionProblemThe CD-R/RW drive is notdetected by the computer.After installing the CD-R/RWdrive, the PC gets slower.Check that the power, audio and IDE cables arecorrectly connected to the computer.Change the IDE cable and reconnect it to thecomputer.Preferably, connect a second IDE cable to theCD-R/RW drive in master mode.Meaning / SolutionThe CD-R/RW drive is notrecognized by MS-DOS.Reinstall the device driver or update it with thelatest version by downloading it from theSamsung Web site.- www.samsungodd.com- www.samsungelectronics.comThe CD-R/RW drive is notdetected by Windows.This case may occur when there is a Windowsinstallation problem; reinstall Windows.No sound is heard from anaudio CD.Check whether the audio cable is correctlyconnected to the sound output terminal on theCD-R/RW drive and the sound card CD-IN terminal.A CD is not read or is readtoo slowly.Check whether the CD is of good quality and clean it,if necessary.The disc compartment willnot open.Check that the power cable is correctly connected.Power off and disconnect the PC.Insert a pin or unfolded paper clip in the emergencyhole and push firmly until the disc compartment opens.Check that the sound card is operational.Adjust the volume control.Run the CD player supplied with Windows or yoursound card.You can listen to the CD by connecting headphonesto the appropriate connector.If you have installed the appropriate player, such asMicrosoft Windows Media Player, you can adjust thevolume using the headphone volume control on thedrive front panel.If you select DIGITAL at CD Audio Play in MediaPlayer of Windows ME/XP, the earphone does notappear in the Digital Mode.Check the position of the jumper in the master/slaveselect terminal.CD-RRicoh, MCC, Ritek , CMC, MBI, PRINCO, PRODISC, PRINCO,BEALLCD-RWH/S-RW:Ricoh, Ritek , CMC, ACER, MCCCD-RW:Ricoh, Ritek , MCC, PRODISC, SKC
16Technical Specifications17ENGLISHSAMSUNG continually strives to improve its products. Both the design specificationsand these user instructions are thus subject to change without notice.DISCGENERALRELIABILITYDRIVEPERFORMANCEFRONT PANELREAR PANELOPERATINGENVIRONMENTDisc types supportedin write modeErasing disc typesDisc diameterDisc types supportedin read modeData transfer rateAccess time (typical)RecordingReadingCD-R : 600KB/sec. (4X), 1800 KB/sec. (12X),1800 KB/sec. (12X), 2,400 KB/sec. (16X), 3600 KB/sec. (24X), 4,800 KB/sec. (32X), 6000 KB/sec. (40X),CD-R W: 1800 KB/sec. (12X), 1500 KB/sec. (10X),600 KB/sec. (4X),CD: CAV 40 Access Time CD-RW : CAV 32 Access TimePIO Mode 4:16.6MB/sec, Multiword DMA mode 2:16.6MB/sec110ms (typical)Data Buffer 8MBLaser Semiconductor laserSlide mechanism Stepping motorSpindle motor Brushless motorLoad mechanismERROR RATEEject buttonIndicatorHeadphone outputVolume controlRequired powerInterface connectorAudio outputJumper blockTray. DC motor (Soft Eject).Mode 1: 1 block/1012, Mode 2: 1 block/109Auto eject or Auto injectPlay / Read (GREEN) Record (RED), Operation LEDStereo mini-jack (Ø 3.6 mm) 0.65±20% (vrms) 33ΩDial type+5 VDC: 1.5 A (max.), +12 VDC: 1.5 A (max.)ATAPI (E-IDE)Line out 0.75±20% (vrms) : 47KΩDevice configuration jumperOperationsTemperature: 5~45°C Humidity: 10~80%StorageTemperature: -25~55°C Humidity: 10~90%Dimensions Net weightMTBFCD-DA, CD-ROM mode 1, CD-ROM XA mode 2, Form 1,Form 2, CD-Plus, CD-Extra, Photo-CD (Single, Multi-session),Video CD ready, Enhanced CD, CD-I/Fmv, CD-R, CD-RW,CD-TEXTCD-R, CD-RWCD-RW120 mm or 80 mm148.2 (W) x 42 (H) x 184 (D) mm (including bezel)750 g125,000 POH(Duty 20%)ITEM SW-240ProblemWhen the MPEG softwareplays a Video CD, thepictures are not regular andthe running speed is too slow.Adjust the size of the replay screen.The Disc is not in message isdisplayed even though a dischas been inserted.The computer may not recognize the disc if youstart playback too quickly after inserting the disc.Open and close the disc compartment and try again.The CD-R/RW drive is notdetected after it is connectedto a sound card.The interface mode of the sound card is AT-BUS.You must therefore connect the CD-R/RW drive tothe IDE port on the PC mother board, rather thanto the sound card, or install an E-IDE compatiblesound card.Clean the disc and try again.After checking the display resolution, adjust it,if necessary.Meaning / SolutionIN CD has the FormattedDisc Eject function.Right-click the mouse on TRAY ICON (right side ofthe menu bar at the bottom of the monitor) and thenselect "Eject" to take the CD out.Select the drive where the disc is inserted fromWindows Explorer.Right-click the mouse and select "Eject" to takethe CD out.When recording NERO,it will be recorded not on aCD but a form of image file.This seems to occur when you select the recordingfunction as the system selects "Image Recorder"instead of SW-240.In this case, select a recorder from the menu itemsat the upper part of NERO and then select SW-240from the Recorder Selection window.The Recorder cannotrecognize the disc.Use the firmware automatic upgrade functionavailable at the ODD service website to downloadthe newest firmware and then reinstall the recordingsoftware which is included in the bundle.- www.samsungodd.com- www.samsungelectronics.comWhen installing the recording software, try not toinstall the software before the ROM drive as thismakes the Image Recorder selected.
