Samsung Electronics Co SWDS5200 Cellular/PCS GSM/EDGE Phone with Bluetooth User Manual S3500

Samsung Electronics Co Ltd Cellular/PCS GSM/EDGE Phone with Bluetooth S3500

Users Manual

Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider.World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GHXX-XXXXXAEnglish (EU). 01/2009. Rev. 1.0
GT-S5200user manual

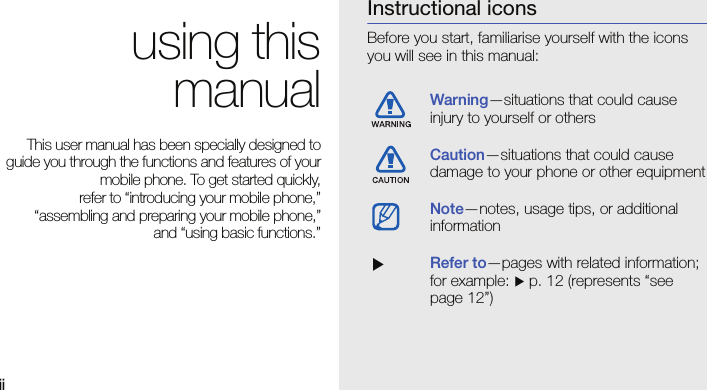

iiusing thismanualThis user manual has been specially designed toguide you through the functions and features of yourmobile phone. To get started quickly,refer to “introducing your mobile phone,”“assembling and preparing your mobile phone,”and “using basic functions.”Instructional iconsBefore you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or othersCaution—situations that could cause damage to your phone or other equipmentNote—notes, usage tips, or additional information XRefer to—pages with related information; for example: X p. 12 (represents “see page 12”)
using this manualiiiCopyright informationRights to all technologies and products that comprise this device are the property of their respective owners:•Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide—Bluetooth QD ID: BXXXXXX.• Java™ is a trademark of Sun Microsystems, Inc.→Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages → Create message (represents Messages, followed by Create message)[ ]Square brackets—phone keys; for example: [ ] (represents the Power/ Menu exit key)< >Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey)
ivcontentssafety and usage information 2Safety warnings .......................................... 2Safety precautions ...................................... 4Important usage information ....................... 7introducing your mobile phone 11Unpack ..................................................... 11Phone layout .............................................12Keys .........................................................13Display ......................................................14Icons ......................................................... 14assembling and preparing your mobile phone 16Install the SIM card and battery ................. 16Charge the battery .................................... 18Insert a memory card (optional) ................. 19
contentsvusing basic functions 20Turn your phone on and off ....................... 20Access menus .......................................... 21Customise your phone .............................. 21Use basic call functions ............................ 24Send and view messages ......................... 25Add and find contacts ............................... 27Use basic camera functions ...................... 28Listen to music ......................................... 29Browse the web ........................................ 30using advanced functions 32Use advanced call functions ..................... 32Use advanced phonebook functions ......... 34Use advanced messaging functions ..........35Use advanced music functions ................. 37using tools and applications 40Use the Bluetooth wireless feature ............ 40Activate and send an SOS message ......... 41Activate the mobile tracker ........................ 42Make fake calls ......................................... 43Record and play voice memos .................. 44Use Java-powered games and applications .............................................. 44Create and view world clocks ................... 45Set and use alarms ................................... 46Use the calculator ..................................... 47Convert currencies or measurements .......47Set a countdown timer ............................. 48Use the stopwatch .................................... 48Create a new task ..................................... 48Create a text memo .................................. 48Manage your calendar .............................. 49troubleshooting aindex d
1safety and usageinformation Comply with the following precautions to avoiddangerous or illegal situations and ensure peakperformance of your mobile phone.Exposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of Safety warnings
safety and usage information2the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg).The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. The highest SAR values for this model phone as reported to the FCC are:GSM850 Head:0.301 W/Kg, Body-worn: 0.576 W/Kg; GSM1900 Head: 0.556 W/Kg, Body-worn: 0.558 W/Kg.For body worn operation, this model phone has been tested and meets the FCC RF exposure guidelines whenused with a Samsung accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.SAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. This site uses the phone FCC ID number, A3LSWDS5200. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar.Consumer Information on Wireless Phones
3safety and usage informationThe U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called “cell”,”mobile” or ”PCS” phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called °×cordless phones,°± which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require
safety and usage information4the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:• “Support needed research into possible biological effects of RF of the type emitted by wireless phones;• “Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and“Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:• “National Institute for Occupational Safety and Health• “Environmental Protection Agency• “Federal Communications Commission• “Occupational Safety and Health Administration• “National Telecommunications and Information AdministrationThe National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RFexposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.

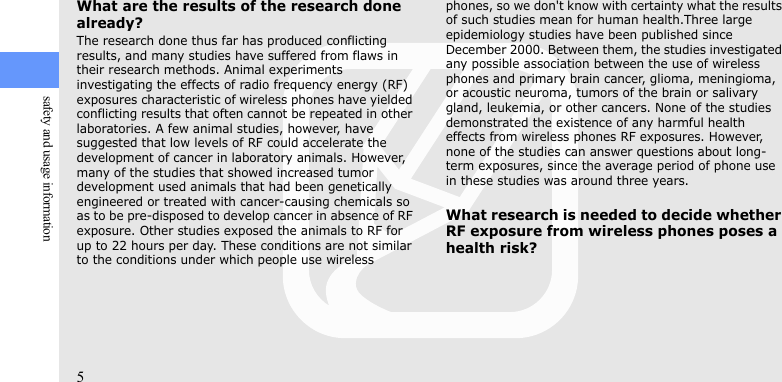

5safety and usage informationWhat are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.What research is needed to decide whether RF exposure from wireless phones poses a health risk?
safety and usage information6A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.What is FDA doing to find out more about the possible health effects of wireless phone RF? FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.
7safety and usage informationWhat steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.“If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna. Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.
safety and usage information8Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike °×hand-free°± kits, these so-called °×shields°± may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason,
9safety and usage informationFDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations:• FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/• .Environmental Protection Agency (EPA):http://www.epa.gov/radiation/.• Occupational Safety and Health Administration's (OSHA): http://www.osha.gov/SLTC/radiofrequencyradiation/index.html• National institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/emfpg.html .• World health Organization (WHO):http://www.who.int/peh-emf/.• International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.de.• National Radiation Protection Board (UK):http://www.nrpb.org.uk.Updated 4/3/2002: US food and Drug Administrationhttp://www.fda.gov/cellphones
safety and usage information10Road safetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When you are driving a car, driving is your first responsibility. When using your wireless phone while driving, follow local regulations in the country or region you are in.Operating environmentRemember to follow any special regulations in force in the area you are in, and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.°×Federal Communications CommissionWhen connecting the phone or any accessory to another device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).Electronic devicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research and recommendations of Wireless Technology Research. If you have any reason to suspect that
11safety and usage informationinterference is taking place, switch off your phone immediately.Hearing aidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other medical devicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch off your phone in health care facilities when regulations posted in these areas instruct you to do so. VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle.You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted facilitiesSwitch off your phone in any facility where posted notices require you to do so.Potentially explosive environmentsSwitch off your phone when in any area with a potentially explosive atmosphere, and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch off the phone while at a refuelling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include the areas below decks on boats, chemical transfer or storage
safety and usage information12facilities, vehicles using liquefied petroleum gas, such as propane or butane, areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency callsThis phone, like any wireless phone, operates using radio signals, wireless, and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications like medical emergencies.To make or receive calls, the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.To make an emergency call:1. Switch on the phone.2. Key in the emergency number for your present location. Emergency numbers vary by location.3. Press [].Certain features like Call Barring may need to be deactivated before you can make an emergency call. Consult this document and your local cellular service provider.FCC Notice and CautionsFCC Notice
13safety and usage information. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.
safety and usage information14The phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division.CautionsChanges or modifications made in the radio phone, not expressly approved by Samsung, will void the user°Øs authority to operate the equipment.Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.Other important safety information• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. Improperly installed wireless equipment could result in serious injury if the air bag inflates.Switch off your phone before boarding an aircraft. It is dangerous and illegal to use wireless phones in an aircraft because they can interfere with the operation of the aircraft.
15safety and usage informationFailure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Care and maintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years. • Keep your phone and all its parts and accessories out of the reach of small children and pets. They may accidentally damage these things or choke on small parts.• Keep the phone dry. Precipitation, humidity, and liquids contain minerals that corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone. Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.
safety and usage information16• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone’s electronic circuit boards.• Do not drop, knock, or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone. Wipe it with a soft cloth.• Do not paint the phone. Paint can clog the device’s moving parts and prevent proper operation.• Do not put the phone in or on heating devices, such as a microwave oven, stove, or radiator. The phone may explode when overheated.When the phone or battery gets wet, the label indicating water damage inside the phone changes• colour. In this case, phone repairs are no longer guaranteed by the manufacturer's warranty, even if the warranty for your phone has not expired.• If your phone has a flash or light, do not use it too close to the eyes of people or animals. This may cause damage to their eyes.• Use only the supplied or an approved replacement antenna. Unauthorised antennas or modified accessories may damage the phone and violate regulations governing radio devices.If the phone, battery, charger, or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.

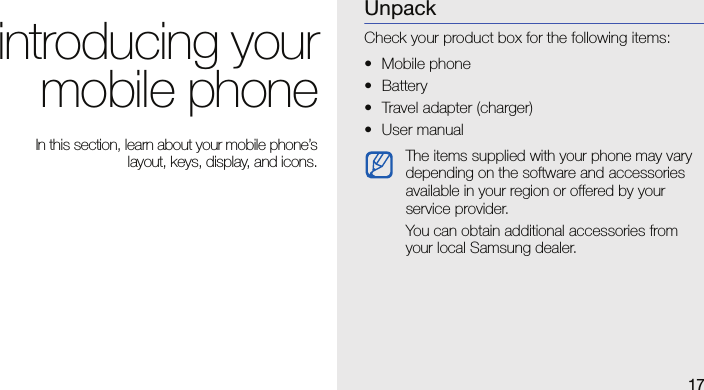

17introducing yourmobile phone In this section, learn about your mobile phone’slayout, keys, display, and icons.UnpackCheck your product box for the following items:• Mobile phone• Battery• Travel adapter (charger)• User manual The items supplied with your phone may vary depending on the software and accessories available in your region or offered by your service provider.You can obtain additional accessories from your local Samsung dealer.
18using basicfunctions Learn how to perform basic operations and use themain features of your mobile phone.Turn your phone on and offTo turn your phone on,1. Slide open the phone.2. Press and hold [ ].3. Enter your PIN and press <OK> (if necessary).4. When the setup wizard opens, customise your phone as desired by following the screen.To turn your phone off, repeat steps 1 and 2 above.Switch to the offline profileBy switching to the offline profile, you can use your phone’s non-network services in areas where wireless devices are prohibited, such as aeroplane and hospitals.
19using basic functionsTo switch to the offline profile, in Menu mode, select Settings → Phone profiles → Offline.Access menusTo access your phone’s menus,1. In Idle mode, press the Confirm key to access Menu mode.2. Use the navigation key to scroll to a menu or option.3. Press the Confirm key, <Select>, or <OK> to confirm the highlighted option.4. Press <Back> to move up one level; Press [ ] to return to Idle mode.Customise your phoneGet more from your phone by customising it to match your preferences.Adjust the volume of the key tonesIn Idle mode, press the Volume key up or down to adjust the key tone volume.Switch to or from the silent profileIn Idle mode, press and hold [ ] to silence or unsilence your phone.Change your ringtone1. In Menu mode, select Settings → Phone profiles.2. Scroll to the profile you are using.3. Press <Options> → Edit → Voice call ringtone.Follow all posted warnings and directions from official personnel when in areas where wireless devices are prohibited.

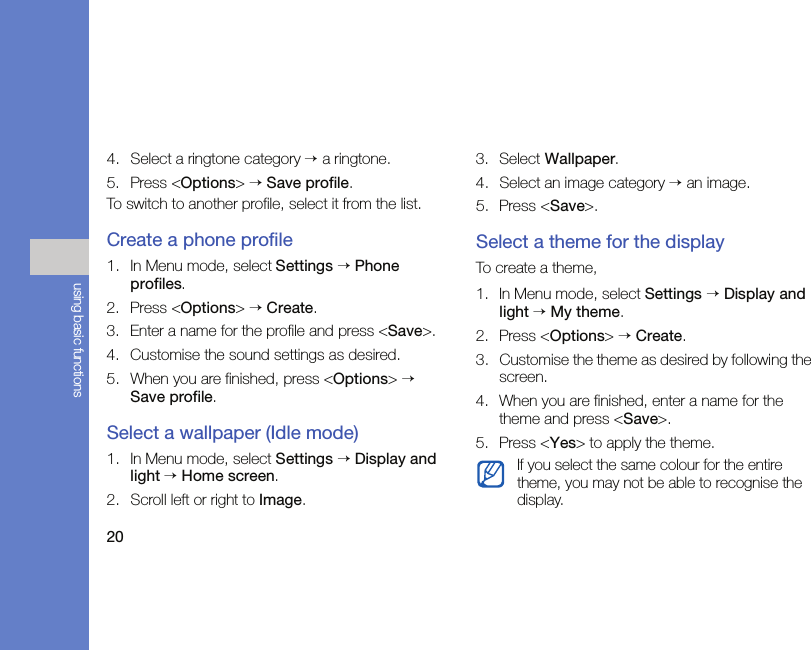

20using basic functions4. Select a ringtone category → a ringtone.5. Press <Options> → Save profile.To switch to another profile, select it from the list.Create a phone profile1. In Menu mode, select Settings → Phone profiles.2. Press <Options> → Create.3. Enter a name for the profile and press <Save>.4. Customise the sound settings as desired.5. When you are finished, press <Options> → Save profile.Select a wallpaper (Idle mode)1. In Menu mode, select Settings → Display and light → Home screen.2. Scroll left or right to Image.3. Select Wallpaper.4. Select an image category → an image.5. Press <Save>.Select a theme for the displayTo create a theme,1. In Menu mode, select Settings → Display and light → My theme.2. Press <Options> → Create.3. Customise the theme as desired by following the screen.4. When you are finished, enter a name for the theme and press <Save>.5. Press <Yes> to apply the theme.If you select the same colour for the entire theme, you may not be able to recognise the display.

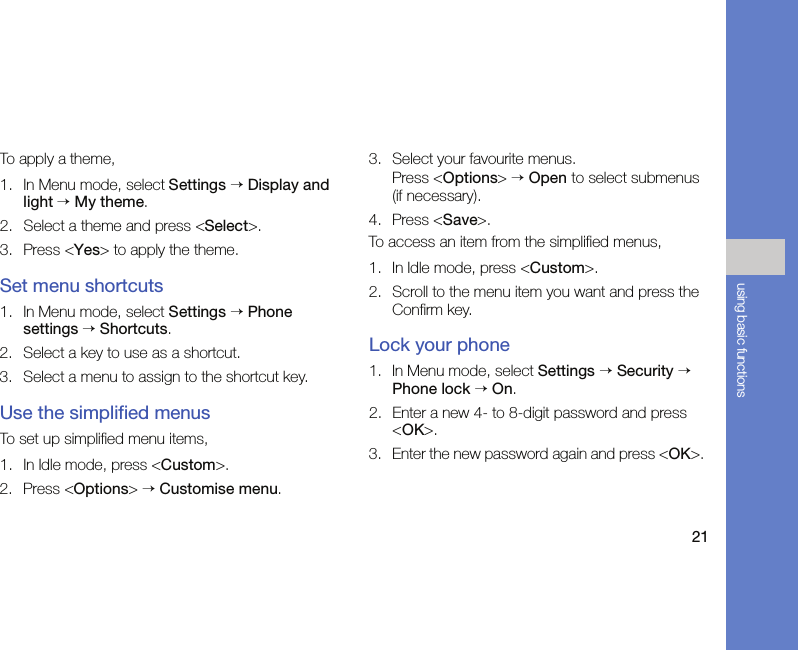

21using basic functionsTo apply a theme,1. In Menu mode, select Settings → Display and light → My theme.2. Select a theme and press <Select>.3. Press <Yes> to apply the theme.Set menu shortcuts1. In Menu mode, select Settings → Phone settings → Shortcuts.2. Select a key to use as a shortcut.3. Select a menu to assign to the shortcut key.Use the simplified menusTo set up simplified menu items,1. In Idle mode, press <Custom>.2. Press <Options> → Customise menu.3. Select your favourite menus.Press <Options> → Open to select submenus (if necessary).4. Press <Save>.To access an item from the simplified menus,1. In Idle mode, press <Custom>.2. Scroll to the menu item you want and press the Confirm key.Lock your phone1. In Menu mode, select Settings → Security → Phone lock → On.2. Enter a new 4- to 8-digit password and press <OK>.3. Enter the new password again and press <OK>.
22using basic functionsUse basic call functionsLearn to make or answer calls and use basic call functions.Make a call1. In Idle mode, enter an area code and a phone number.2. Press [ ] to dial the number3. To end the call, press [ ]. Answer a call1. When a call comes in, press [ ].2. To end the call, press [ ].Adjust the volumeTo adjust the volume during a call, press the Volume key up or down.Use the speakerphone feature1. During a call, press the Confirm key → <Yes> to activate the speaker.2. To switch back to the earpiece, press the Confirm key again.Record a conversation1. During a call, press <Options> → Menu → Applications → Voice recorder.2. Press the Confirm key to start recording.3. Press the navigation key down to stop recording.In noisy environment, you may have difficulty hearing the calls while using the speakerphone feature. For better performance, use the normal phone mode.This feature may not be available depending on your region or service provider.
23using basic functionsUse the headsetBy plugging the supplied headset into the multifunction jack, you can make and answer calls:• To redial the last call, press the headset button twice.• To answer a call, press the headset button.• To end a call, press the headset button.Send and view messagesLearn to send or view text (SMS), multimedia (MMS), or email messages.Send a text or multimedia message1. In Menu mode, select Messages → Create message → Message.2. Enter a destination number or an email address and scroll down.3. Enter your message text. X p. 26For sending as a text message, skip to step 5.For attaching multimedia, continue with step 4.4. Press <Options> → Add multimedia and add an item.5. Press the Confirm key to send the message.Send an email1. In Menu mode, select Messages → Create message → Email.2. Enter an email address and scroll down.3. Enter a subject and scroll down.4. Enter your email text.5. Press <Options> → Attach multimedia and attach a file (if necessary).6. Press the Confirm key to send the message.
24using basic functionsEnter textWhen entering text, you can change the text input mode:• Press and hold [ ] to switch between T9 and ABC modes. • Press [ ] to change case or switch to Number mode.• Press [ ] to switch to Symbol mode.• Press and hold [ ] and select Input method (T9 Ab) to select an input mode.• Press and hold [ ] and select Writing language to select an input language.Enter text in one of the following modes:View text or multimedia messages1. In Menu mode, select Messages → Inbox.2. Select a text or multimedia message.Mode FunctionABCPress the appropriate alphanumeric key until the character you want appears on the display.T91. Press the appropriate alphanumeric keys to enter an entire word.2. When the word displays correctly, press [0] to insert a space. If the correct word does not display, select an alternate word from the list that appears.NumberPress the appropriate alphanumeric key to enter a number.SymbolPress the appropriate alphanumeric key to select a symbol.Mode Function

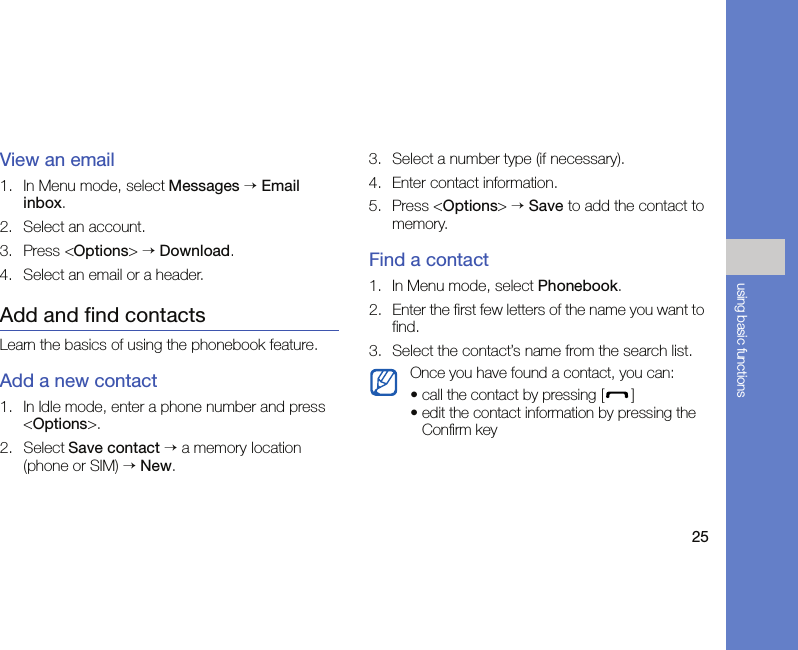

25using basic functionsView an email1. In Menu mode, select Messages → Email inbox.2. Select an account.3. Press <Options> → Download.4. Select an email or a header.Add and find contactsLearn the basics of using the phonebook feature.Add a new contact1. In Idle mode, enter a phone number and press <Options>.2. Select Save contact → a memory location (phone or SIM) → New. 3. Select a number type (if necessary).4. Enter contact information.5. Press <Options> → Save to add the contact to memory.Find a contact1. In Menu mode, select Phonebook.2. Enter the first few letters of the name you want to find.3. Select the contact’s name from the search list.Once you have found a contact, you can:• call the contact by pressing []• edit the contact information by pressing the Confirm key

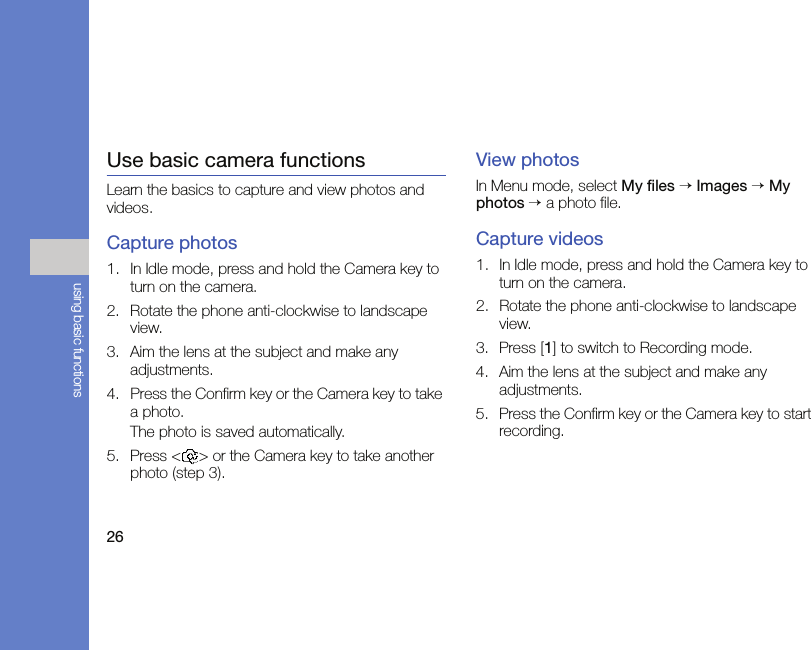

26using basic functionsUse basic camera functionsLearn the basics to capture and view photos and videos.Capture photos1. In Idle mode, press and hold the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Aim the lens at the subject and make any adjustments.4. Press the Confirm key or the Camera key to take a photo. The photo is saved automatically.5. Press < > or the Camera key to take another photo (step 3).View photosIn Menu mode, select My files → Images → My photos → a photo file.Capture videos1. In Idle mode, press and hold the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Press [1] to switch to Recording mode.4. Aim the lens at the subject and make any adjustments.5. Press the Confirm key or the Camera key to start recording.

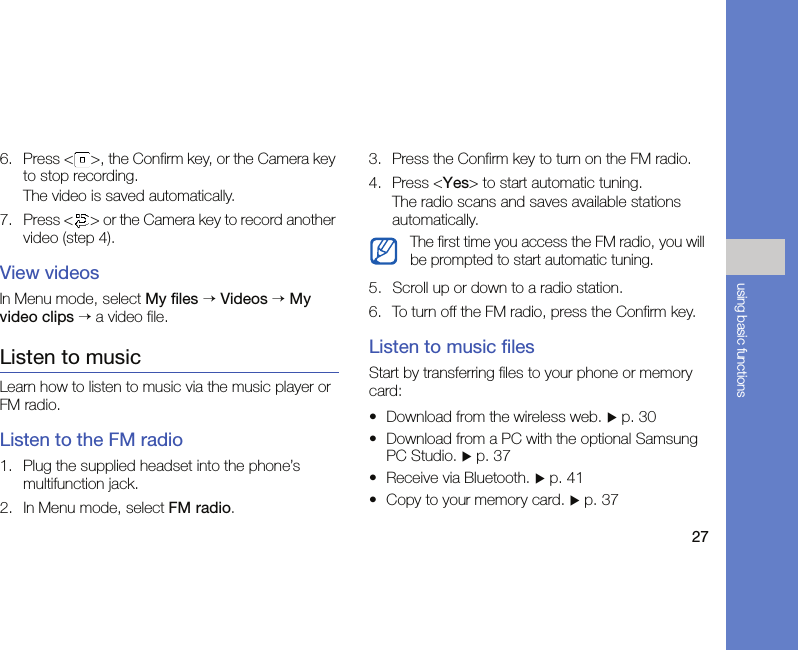

27using basic functions6. Press < >, the Confirm key, or the Camera key to stop recording. The video is saved automatically.7. Press < > or the Camera key to record another video (step 4).View videosIn Menu mode, select My files → Videos → My video clips → a video file.Listen to musicLearn how to listen to music via the music player or FM radio.Listen to the FM radio1. Plug the supplied headset into the phone’s multifunction jack.2. In Menu mode, select FM radio.3. Press the Confirm key to turn on the FM radio.4. Press <Yes> to start automatic tuning.The radio scans and saves available stations automatically.5. Scroll up or down to a radio station.6. To turn off the FM radio, press the Confirm key.Listen to music filesStart by transferring files to your phone or memory card:• Download from the wireless web. X p. 30• Download from a PC with the optional Samsung PC Studio. X p. 37• Receive via Bluetooth. X p. 41• Copy to your memory card. X p. 37The first time you access the FM radio, you will be prompted to start automatic tuning.
using basic functionsAfter transferring music files to your phone or memory card,1. In Menu mode, select Music player.2. Select a music category → a music file.3. Control playback using the following keys:Browse the webLearn to access and bookmark your favourite web pages.Browse web pages1. In Menu mode, select Browser → Home to launch your service provider’s homepage.2. Navigate web pages using the following keys:Key FunctionConfirmPause or resume playbackVolumeAdjust the volume up or downNavigation• Left: Restart playback; Skip backward (press within 3 seconds); Scan backward in a file (press and hold)• Right: Skip forward; Scan forward in a file (press and hold)• Up: Open the playlist• Down: Stop playbackIf you select My files → Memory card → a music file, you cannot skip forward or backward during playback.Key FunctionNavigationScroll up or down on a web pageConfirmSelect an item<Back>Return to the previous page<Options>Access a list of browser options28

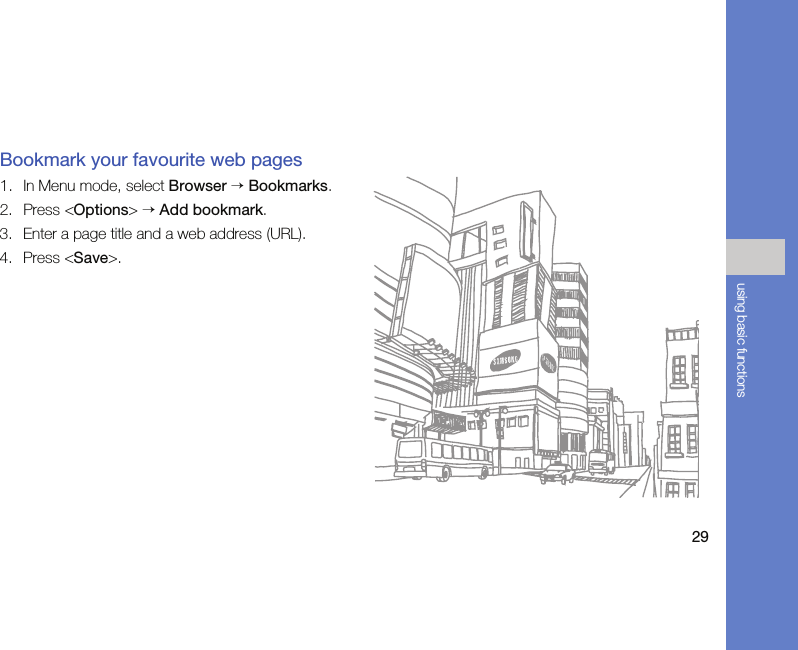

29using basic functionsBookmark your favourite web pages1. In Menu mode, select Browser → Bookmarks.2. Press <Options> → Add bookmark. 3. Enter a page title and a web address (URL).4. Press <Save>.
30using advancedfunctions Learn how to perform advanced operations and useadditional features of your mobile phone.Use advanced call functionsLearn about your phone’s additional calling capabilities. View and dial missed callsYour phone will display calls you have missed on the display. To dial the number of a missed call,1. Press <View>.2. Scroll to the missed call you want to dial.3. Press [ ] to dial.Call a recently dialled number1. In Idle mode, press [ ] to display a list of recent numbers.2. Scroll to the number you want and press [ ] to dial.
31using advanced functionsHold a call or retrieve a held callPress <Hold> to place a call on hold or press <Retrieve> to retrieve a held call.Dial a second callIf your network supports this function, you can dial another number during a call:1. Press <Hold> to place the first call on hold.2. Enter the second number to dial and press [].3. Press <Swap> to switch between the two calls.4. To end the call on hold, press <Options> → End held call.5. To end the current call, press [ ].Answer a second callIf your network supports this function, you can answer a second incoming call:1. Press [ ] to answer the second call.The first call is automatically placed on hold.2. Press <Swap> to switch between the calls.Make a multiparty call (conference call)1. Call the first party you want to add to the multiparty call.2. While connected to the first party, call the second party.The first party is automatically placed on hold.3. When connected to the second party, press <Options> → Join.
32using advanced functions4. Repeat steps 2 and 3 to add more parties (if necessary).5. To end the multiparty call, press [ ].Call an international number1. In Idle mode, press and hold [0] to insert the + character.2. Enter the complete number you want to dial (country code, area code, and phone number), and then press [ ] to dial. Call a contact from the phonebookYou can call numbers directly from the phonebook using stored contacts. X p. 271. In Menu mode, select Phonebook.2. Scroll to the number you want to dial and press [] to dial. Use advanced phonebook functionsLearn to create namecards, set speed dial numbers, and create groups of contacts.Create a namecard1. In Menu mode, select Phonebook.2. Press <Options> → My namecard.3. Enter your personal details and press <Options> → Save.Set speed dial numbers1. In Menu mode, select Phonebook.2. Press <Options> → Settings→ Speed dial.3. Scroll to a number you want to set (2-9) and press the Confirm key.You can send your namecard by attaching it to a message or email or transferring it via the Bluetooth wireless feature.
33using advanced functions4. Select a contact → a number (if necessary) to assign to the number.The contact is saved to the speed dial number.Create a group of contactsBy creating groups of contacts, you can assign ringtones and caller ID photos to each group or send messages to an entire group. Start by creating a group:1. In Menu mode, select Phonebook.2. Scroll left or right to Groups.3. Press <Options> → Create group.4. Enter a group name.5. To set the caller ID image, scroll down and press the Confirm key → an image category → an image.6. To set a group ringtone, scroll down and press the Confirm key → a ringtone category → a ringtone.7. Press <Save>.Use advanced messaging functionsLearn to create templates, use templates to create new messages, and use the messenger.Create a text template1. In Menu mode, select Messages → Templates → Text message templates.2. Press <Create> to open a new template window.3. Enter your text and press the Confirm key to save the template.You can now call this contact from Idle mode by pressing and holding the assigned speed dial number.
34using advanced functionsCreate a multimedia template1. In Menu mode, select Messages → Create message → Message.2. Create a multimedia message, with a subject and desired attachments, to use as your template. X p. 25 3. Press <Options> → Save in → Templates to save the template.Insert text templates in new messages1. To start a new message, in Menu mode, select Messages → Create message → a message type.2. In the text field, press <Options> → Add text → Template → a template.Create a message from a multimedia template1. In Menu mode, select Messages → Templates → Multimedia message templates.2. Scroll to the template you want and press <Options> → Send.Your template opens as a new multimedia message.Use the Bluetooth messengerLearn to chat with your family or friends instantly via the Bluetooth wireless feature.1. In Menu mode, select Messages → Bluetooth messenger.2. Press <Yes> to turn on the Bluetooth wireless feature (if necessary).
35using advanced functions3. Press <Options> → Search Bluetooth contact → Search for new devices.4. Scroll to a device and press <Select>.5. Enter a PIN for the Bluetooth wireless feature or the other device’s Bluetooth PIN, if it has one, and press <OK>.When the owner of the other device enters the same PIN or accepts the connection, pairing is complete.6. Enter your message and press the Confirm key.Use advanced music functionsLearn to prepare music files, create playlists, and store radio stations.Copy music files via Samsung PC Studio1. Using an optional PC data cable, connect the multifunction jack on your phone to a PC.2. Run Samsung PC Studio and copy files from the PC to the phone.Refer to the Samsung PC Studio help for more information.Copy music files to a memory card1. Insert a memory card.2. Using an optional PC data cable, connect the multifunction jack on your phone to a PC.When connected, a pop-up window will appear on the PC.3. Select Open folder to view files in the pop-up window on the PC.4. Copy files from the PC to the memory card.

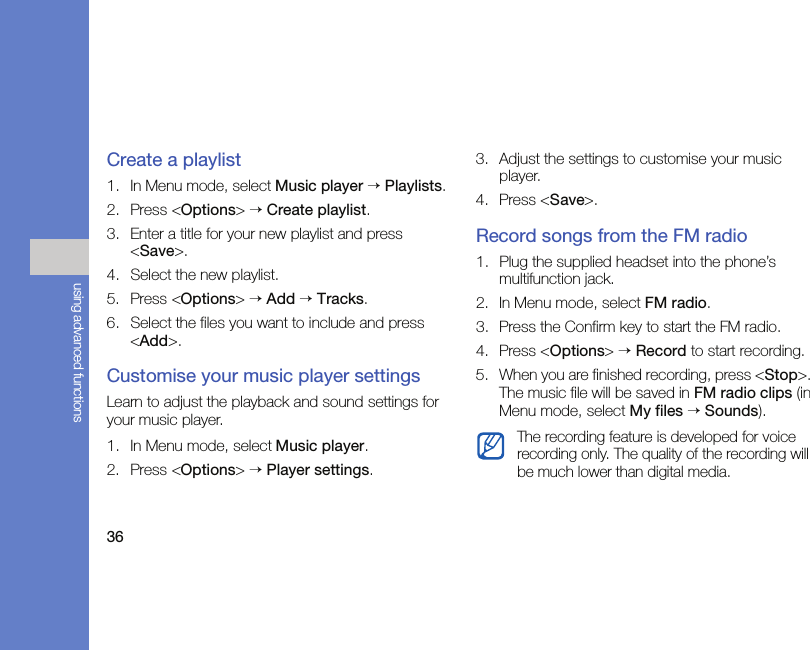

36using advanced functionsCreate a playlist1. In Menu mode, select Music player → Playlists.2. Press <Options> → Create playlist.3. Enter a title for your new playlist and press <Save>.4. Select the new playlist.5. Press <Options> → Add → Tracks.6. Select the files you want to include and press <Add>.Customise your music player settingsLearn to adjust the playback and sound settings for your music player.1. In Menu mode, select Music player.2. Press <Options> → Player settings.3. Adjust the settings to customise your music player. 4. Press <Save>.Record songs from the FM radio1. Plug the supplied headset into the phone’s multifunction jack.2. In Menu mode, select FM radio.3. Press the Confirm key to start the FM radio.4. Press <Options> → Record to start recording.5. When you are finished recording, press <Stop>. The music file will be saved in FM radio clips (in Menu mode, select My files → Sounds).The recording feature is developed for voice recording only. The quality of the recording will be much lower than digital media.
37using advanced functionsStore radio stations automatically1. Plug the supplied headset into the phone’s multifunction jack.2. In Menu mode, select FM radio.3. Press the Confirm key to start the FM radio.4. Press <Options> → Self-tuning.5. Press <Yes> to confirm (if necessary).The radio scans and saves available stations automatically.

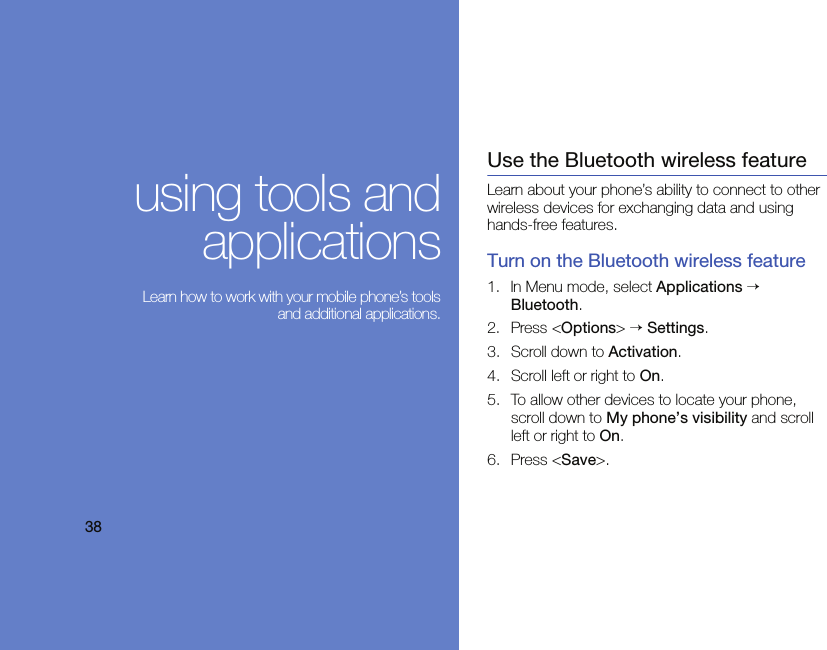

using tools andapplications Learn how to work with your mobile phone’s toolsand additional applications.Use the Bluetooth wireless featureLearn about your phone’s ability to connect to other wireless devices for exchanging data and using hands-free features.Turn on the Bluetooth wireless feature1. In Menu mode, select Applications → Bluetooth.2. Press <Options> → Settings.3. Scroll down to Activation.4. Scroll left or right to On.5. To allow other devices to locate your phone, scroll down to My phone’s visibility and scroll left or right to On.6. Press <Save>.38
39using tools and applicationsFind and pair with other Bluetooth-enabled devices1. In Menu mode, select Applications → Bluetooth → Search for new devices.2. Scroll to a device and press <Select>.3. Enter a PIN for the Bluetooth wireless feature or the other device’s Bluetooth PIN, if it has one, and press <OK>.When the owner of the other device enters the same PIN or accepts the connection, pairing is complete.Send data using the Bluetooth wireless feature1. Select the file or item from one of your phone’s applications that you want to send.2. Press <Options> → Send via or Send namecard via → Bluetooth (when sending contact data, specify which data to send).Receive data using the Bluetooth wireless feature1. Enter the PIN for the Bluetooth wireless feature and press <OK> (if necessary).2. Press <Yes> to confirm that you are willing to receive data from the device (if necessary).Activate and send an SOS messageWhen you have an emergency, you can send an SOS message asking for help.1. In Menu mode, select Messages → Settings → SOS messages → Sending options.2. Scroll left or right to On.
40using tools and applications3. Scroll down and press the Confirm key to open the recipient list.4. Press the Confirm key to open your contact list.5. Scroll to a contact and press the Confirm key.6. Select a number (if necessary).7. When you are finished selecting contacts, press <Select> to return to the recipient list.8. Press the Confirm key to save the recipients.9. Scroll down and set the number of times to repeat the SOS message.10. Press <Save> → <Yes>.To send an SOS message, the phone must be closed and the keys locked. Press the Volume key four times.Activate the mobile trackerWhen someone inserts a new SIM card in your phone, the mobile tracker feature will automatically send the contact number to two recipients to help you locate and recover your phone.To activate the mobile tracker,1. In Menu mode, select Settings → Security → Mobile tracker.2. Enter your password and press <OK>.3. Scroll left or right to On.4. Scroll down and press the Confirm key to open the recipient list.5. Press <Options> → Phonebook to open your contact list.6. Scroll to a contact and press the Confirm key.7. Select a number (if necessary).Once you send an SOS message, all phone functions will be suspended until you press [].

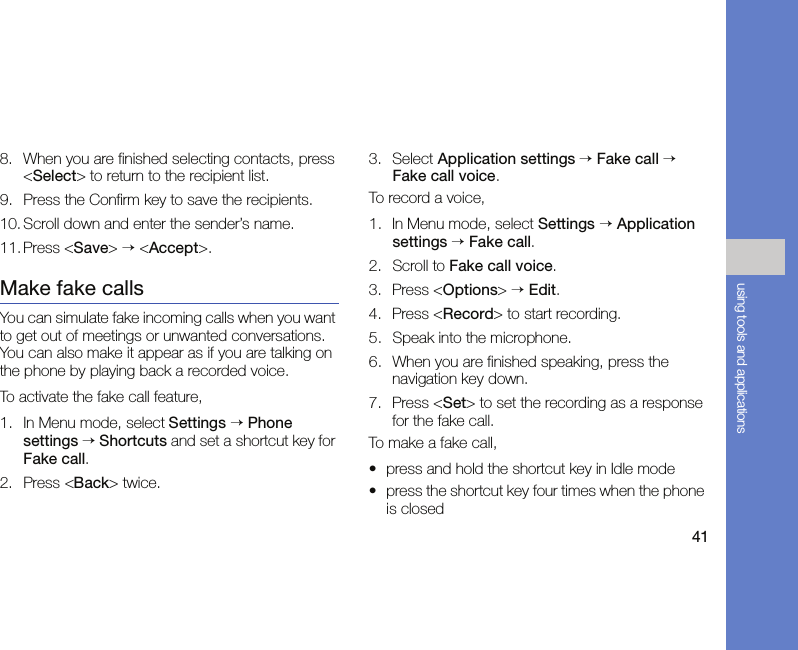

41using tools and applications8. When you are finished selecting contacts, press <Select> to return to the recipient list.9. Press the Confirm key to save the recipients.10. Scroll down and enter the sender’s name.11. Press <Save> → <Accept>.Make fake callsYou can simulate fake incoming calls when you want to get out of meetings or unwanted conversations. You can also make it appear as if you are talking on the phone by playing back a recorded voice.To activate the fake call feature,1. In Menu mode, select Settings → Phone settings → Shortcuts and set a shortcut key for Fake call.2. Press <Back> twice.3. Select Application settings → Fake call → Fake call voice.To record a voice,1. In Menu mode, select Settings → Application settings → Fake call.2. Scroll to Fake call voice.3. Press <Options> → Edit.4. Press <Record> to start recording.5. Speak into the microphone.6. When you are finished speaking, press the navigation key down.7. Press <Set> to set the recording as a response for the fake call.To make a fake call,• press and hold the shortcut key in Idle mode• press the shortcut key four times when the phone is closed

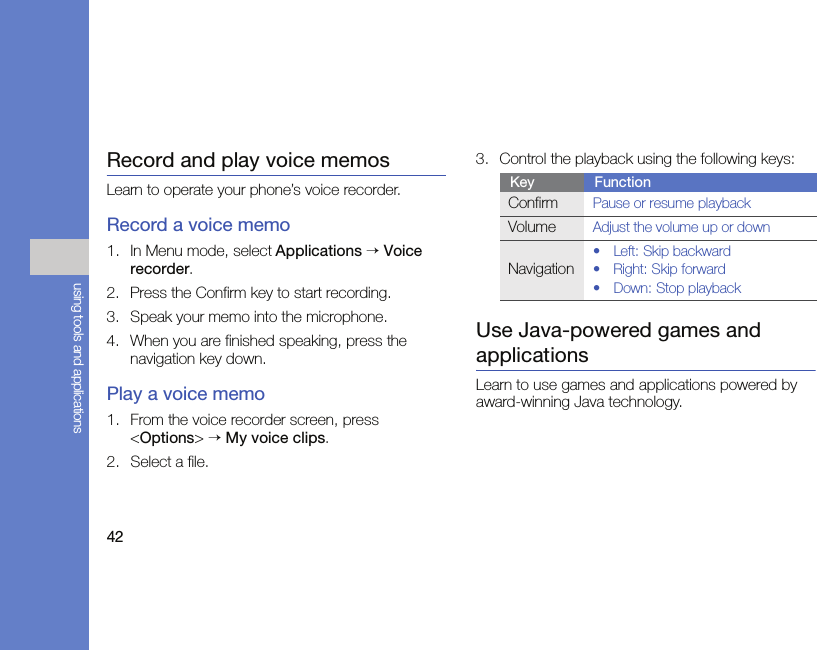

42using tools and applicationsRecord and play voice memosLearn to operate your phone’s voice recorder.Record a voice memo1. In Menu mode, select Applications → Voice recorder.2. Press the Confirm key to start recording.3. Speak your memo into the microphone.4. When you are finished speaking, press the navigation key down.Play a voice memo1. From the voice recorder screen, press <Options> → My voice clips.2. Select a file.3. Control the playback using the following keys:Use Java-powered games and applicationsLearn to use games and applications powered by award-winning Java technology.Key FunctionConfirmPause or resume playbackVolumeAdjust the volume up or downNavigation• Left: Skip backward• Right: Skip forward• Down: Stop playback
43using tools and applicationsPlay games1. In Menu mode, select Applications → Games and more → My games.2. Select a game from the list and follow the on-screen instructions.Launch applications1. In Menu mode, select Applications → Games and more → an application.2. Press <Options> to access a list of various options and settings for your application.Create and view world clocksLearn to view the time in another city and set world clocks to appear on your display.Create a world clock1. In Menu mode, select Organiser → World clock.2. Press <Options> → Add.3. Scroll left or right to a time zone.4. To set daylight saving time, scroll down and press the Confirm key.5. Press <Save> to create your world clock.The world clock is set as the second clock.6. To add more world clocks, repeat steps 2-5 above.Available games may vary, depending on your region or service provider. Game controls and options may vary.
44using tools and applicationsAdd a world clock to your displayIn Dual Clock Display mode, you can view clocks with two different time zones on your display.After you have created world clocks,1. In Menu mode, select Organiser → World clock.2. Scroll to the world clock you want to add and press <Options> → Set as second clock.3. Press <Options> → Clock display setting.4. Scroll left or right to Dual.5. Scroll down, and then scroll left or right to select a dual clock style.6. Press <Save>.Set and use alarmsLearn to set and control alarms for important events.Set a new alarm1. In Menu mode, select Alarms.2. Scroll to an empty alarm location and press the Confirm key.3. Set alarm details.You can set either the FM radio or a sound for the alarm tone.4. Press <Save>.If Clock display setting is deactivated, set your wallpaper to Image. X p. 22 The auto power-up feature sets the phone to automatically turn on and sound the alarm at the designated time if the phone is turned off.

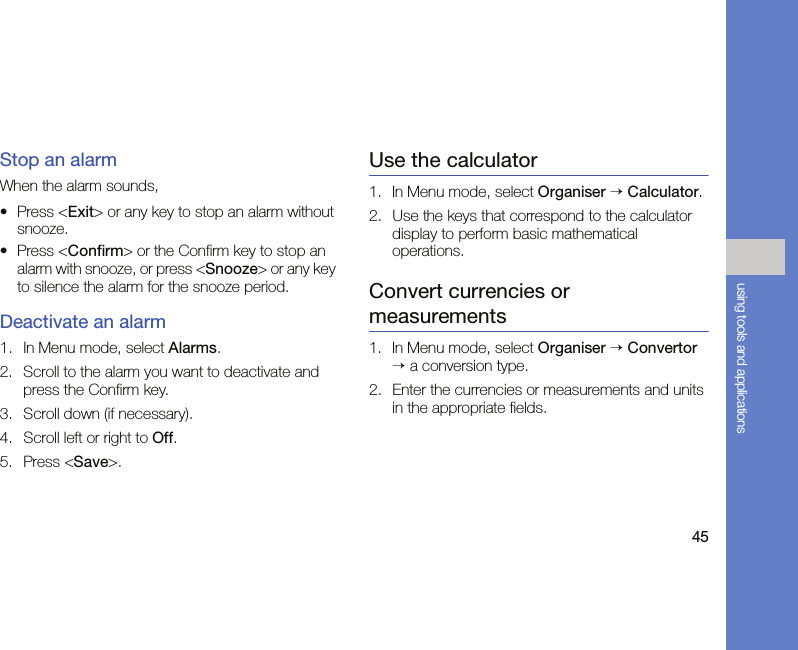

45using tools and applicationsStop an alarmWhen the alarm sounds,• Press <Exit> or any key to stop an alarm without snooze.• Press <Confirm> or the Confirm key to stop an alarm with snooze, or press <Snooze> or any key to silence the alarm for the snooze period.Deactivate an alarm1. In Menu mode, select Alarms.2. Scroll to the alarm you want to deactivate and press the Confirm key.3. Scroll down (if necessary).4. Scroll left or right to Off.5. Press <Save>.Use the calculator1. In Menu mode, select Organiser → Calculator.2. Use the keys that correspond to the calculator display to perform basic mathematical operations.Convert currencies or measurements1. In Menu mode, select Organiser → Convertor → a conversion type.2. Enter the currencies or measurements and units in the appropriate fields.

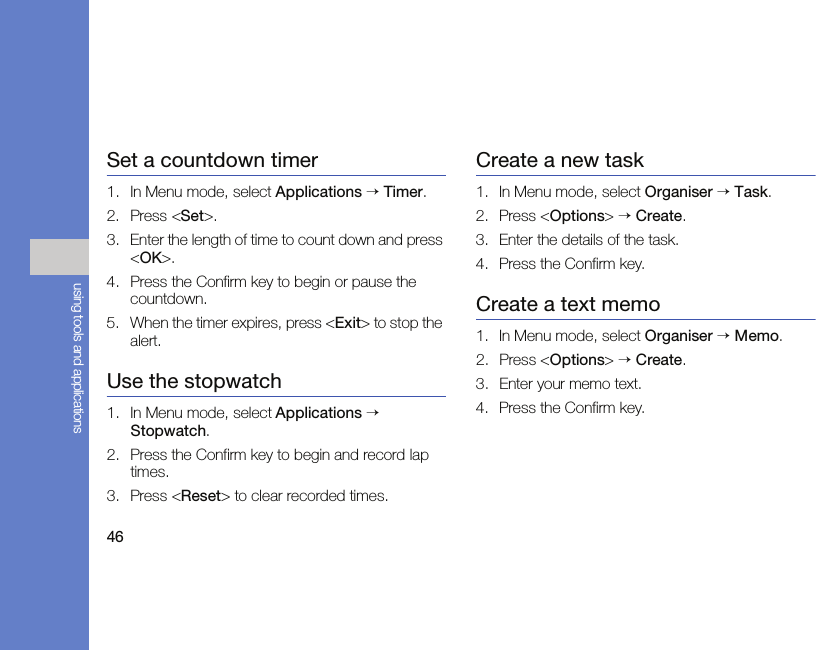

46using tools and applicationsSet a countdown timer1. In Menu mode, select Applications → Timer.2. Press <Set>.3. Enter the length of time to count down and press <OK>.4. Press the Confirm key to begin or pause the countdown.5. When the timer expires, press <Exit> to stop the alert.Use the stopwatch1. In Menu mode, select Applications → Stopwatch.2. Press the Confirm key to begin and record lap times.3. Press <Reset> to clear recorded times.Create a new task1. In Menu mode, select Organiser → Task.2. Press <Options> → Create.3. Enter the details of the task.4. Press the Confirm key.Create a text memo1. In Menu mode, select Organiser → Memo.2. Press <Options> → Create.3. Enter your memo text.4. Press the Confirm key.
47using tools and applicationsManage your calendarLearn to change the calendar view and create events.Change the calendar view1. In Menu mode, select Organiser → Calendar.2. Press <Options> → View by → Day or Week.Create an event1. In Menu mode, select Organiser → Calendar.2. Press <Options> → Create → an event type.3. Enter the details of the event as required.4. Press the Confirm key.

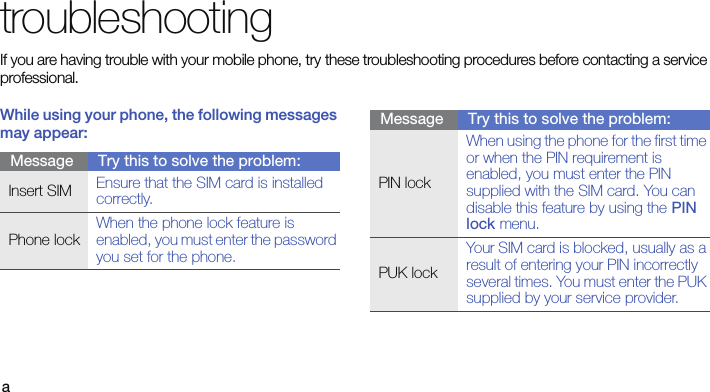

atroubleshootingIf you are having trouble with your mobile phone, try these troubleshooting procedures before contacting a service professional.While using your phone, the following messages may appear:Message Try this to solve the problem:Insert SIM Ensure that the SIM card is installed correctly.Phone lockWhen the phone lock feature is enabled, you must enter the password you set for the phone.PIN lockWhen using the phone for the first time or when the PIN requirement is enabled, you must enter the PIN supplied with the SIM card. You can disable this feature by using the PIN lock menu.PUK lockYour SIM card is blocked, usually as a result of entering your PIN incorrectly several times. You must enter the PUK supplied by your service provider. Message Try this to solve the problem:
btroubleshootingYour phone displays “Service unavailable” or “Not done.”• When you are in areas with weak signals or poor reception, you may lose reception. Move to another area and try again.• You cannot access some options without a subscription. Contact your service provider for more details.You enter a number, but the call is not dialled.• Ensure that you have pressed the Dial key: [ ].• Ensure that you have accessed the right cellular network.• Ensure that you have not set call barring for the phone number.Another caller cannot reach you.• Ensure that your phone is turned on.• Ensure that you have accessed the right cellular network.• Ensure that you have not set call barring for the phone number.Another caller cannot hear you speaking.• Ensure that you are not covering the built-in microphone.• Ensure that the microphone is close to your mouth.• If using a headset, ensure that it is properly connected.The phone beeps and the battery icon flashes.Your battery is low. Recharge or replace the battery to continue using the phone.
ctroubleshootingThe audio quality of the call is poor.• Ensure that you are not blocking the phone’s internal antenna.• When you are in areas with weak signals or poor reception, you may lose reception. Move to another area and try again.You select a contact to call, but the call is not dialled.• Ensure that the correct number is stored in the contact list.• Re-enter and save the number, if necessary.The battery does not charge properly or sometimes the phone turns itself off.• The battery terminals may be dirty. Wipe both gold-coloured contacts with a clean, soft cloth and try charging the battery again.• If the battery will no longer charge completely, dispose of the old battery properly and replace it with a new battery.Your phone is hot to the touch.When you use several applications at once, your phone requires more power and may heat up.This is normal and should not affect your phone’s lifespan or performance.
dindexalarmscreating, 46deactivating, 47stopping, 47batterycharging, 18installing, 16low battery indicator, 18Bluetoothactivating, 40receiving data, 41sending data, 41Bluetooth messenger 36browsersee web browsercalculatorsee tools, calculatorcalendarsee tools, calendarcallsadvanced functions, 32answering additional calls, 33answering, 24basic functions, 24dialling additional calls, 33dialling missed calls, 32from the phonebook, 34international numbers, 34making fake calls, 43making, 24multiparty, 33placing on hold, 33recently dialled, 32recording conversations, 24retrieving held calls, 33viewing missed, 32conference callssee calls, multipartycontactsadding, 27creating groups, 35finding, 27
eindexconvertorsee tools, convertorcountdown timersee tools, countdown timerfake callssee calls, making fake callsFM radiolistening to, 29recording songs, 38storing stations, 39headset 25internetsee web browserJavaaccessing applications, 45launching games, 45key tones 21locksee phone lockmemosee text or voice memosmemory card 19messagessending email, 25sending instant (Bluetooth messenger), 36sending multimedia, 25viewing email, 27viewing multimedia, 26viewing text, 26mobile tracker 42multimediasee messagesmusic playercreating playlists, 38customising, 38listening to music, 29namecards 34offline profile 20phone lock 23photoscapturing, 28viewing, 28radiosee FM radioringtone 21Samsung PC Studio 37shortcut keyssee shortcuts
findexshortcuts 23silent profile 21SIM card 16simplified menu 23SOS message 41stopwatchsee tools, stopwatchtasksee tools, tasktemplatesinserting, 36multimedia, 36text, 35textcreating memos, 48entering, 26messages, 25theme 22timersee tools, countdown timertoolsalarm, 46calculator, 47calendar, 49convertor, 47countdown timer, 48stopwatch, 48task, 48videoscapturing, 28viewing, 29voice memosplaying, 44recording, 44volumecall volume, 24key tone volume, 21wallpaper 22web browseradding bookmarks, 31launching homepage, 30world clockcreating, 45setting dual display, 46
Declaration of Conformity (R&TTE)We, Samsung Electronicsdeclare under our sole responsibility that the productGSM Mobile Phone : GT-S5200to which this declaration relates, is in conformity with the following standards and/or other normative documents.SAFETY EN EMC EN EN EN SAR EN EN RADIO EN EN We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.The conformity assessment procedure referred to in Article 10 and detailed in Annex[IV] of Directive 1999/5/EC has been followed with the involvement of the following Notified Body(ies):BABT, Balfour House, Churchfield Road,Walton-on-Thames, Surrey, KT12 2TD, UK*Identification mark: 0168The technical documentation kept at :Samsung Electronics QA Lab.which will be made available upon request.(Representative in the EU)Samsung Electronics Euro QA Lab.Blackbushe Business Park, Saxony Way,Yateley, Hampshire, GU46 6GG, UK*2009.XX.XX Yong-Sang Park / S. Manager(place and date of issue) (name and signature of authorised person)* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your phone.
