1 General Description
1.1 Functional Description
CLX-NWA20L is the low power USB 2.0 module for 802.11b/g/n wireless LAN (WLAN) aimed at
embedded applications. CLX-NWA20L is the USB 2.0 module that adopts a single-chip wireless local area
network (WLAN) medium-access controller (MAC) spread-spectrum baseband processor and 2.4 GHz RF
radio.
CLX-NWA20L supports IEEE 802.11b, 802.11g and 802.11n standards.
CLX-NWA20L provides crucial power management functionality and requires only a single 3.3V or 5.0 V
supply voltage.

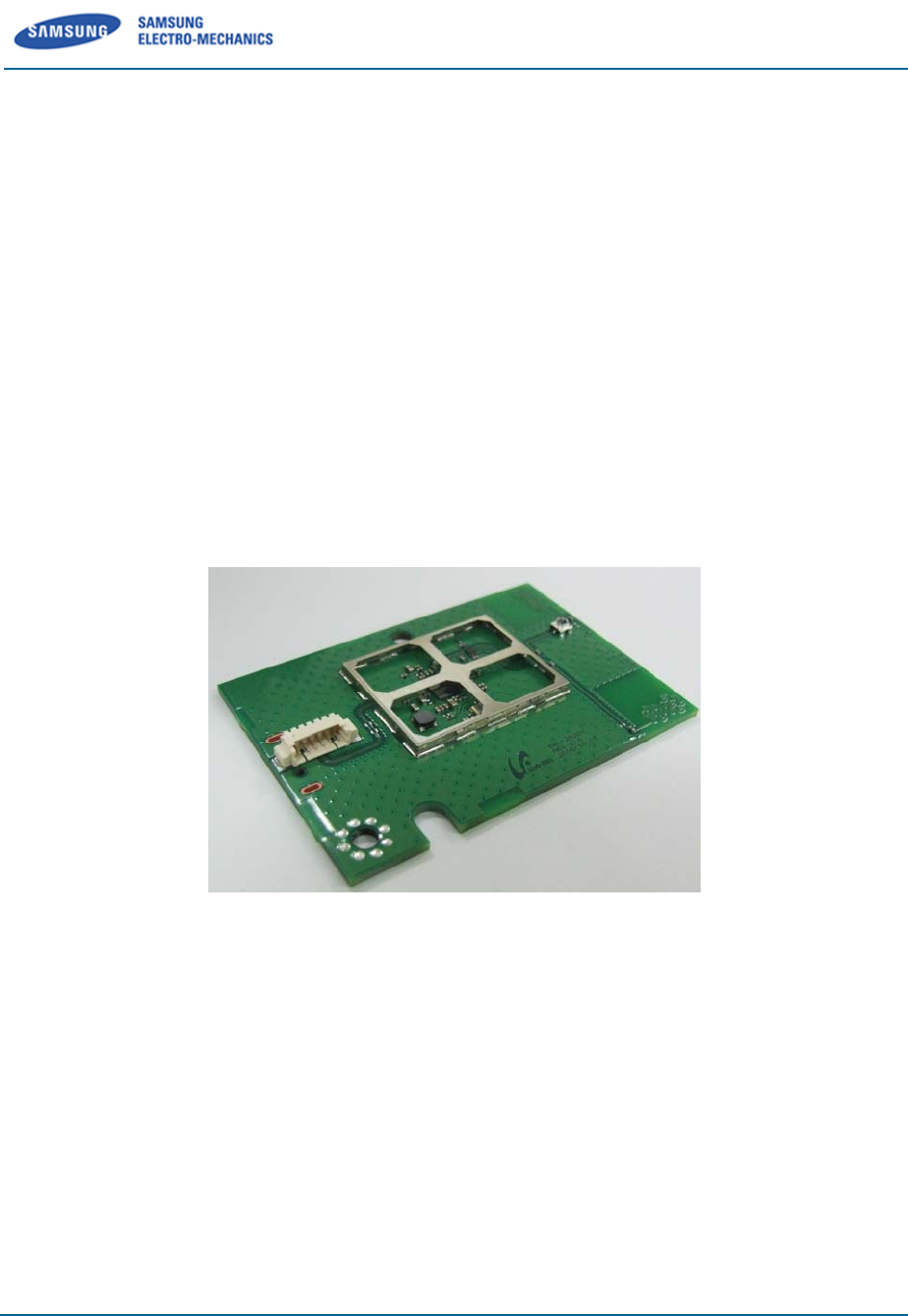

Figure 1-1 CLX-NWA20L Picture
1.2 Features
Wi-Fi compliant
Security: WEP, WPA-PSK, WPA2-PSK, WMM, WMM-PS, TKIP, and AES hardware acceleration
Host interface: USB 2.0
Low power consumption
Single 3.3V or 5.0 V external supply voltage required
1.3 Applications
Network printer servers with WLAN connectivity
Set-top boxes that need WLAN connectivity
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 5/14
1.4 Dimension and Pin Assignments
1.4.1 Mechanical Dimension
W X L X H = 45mm X 65mm X 5.1mm

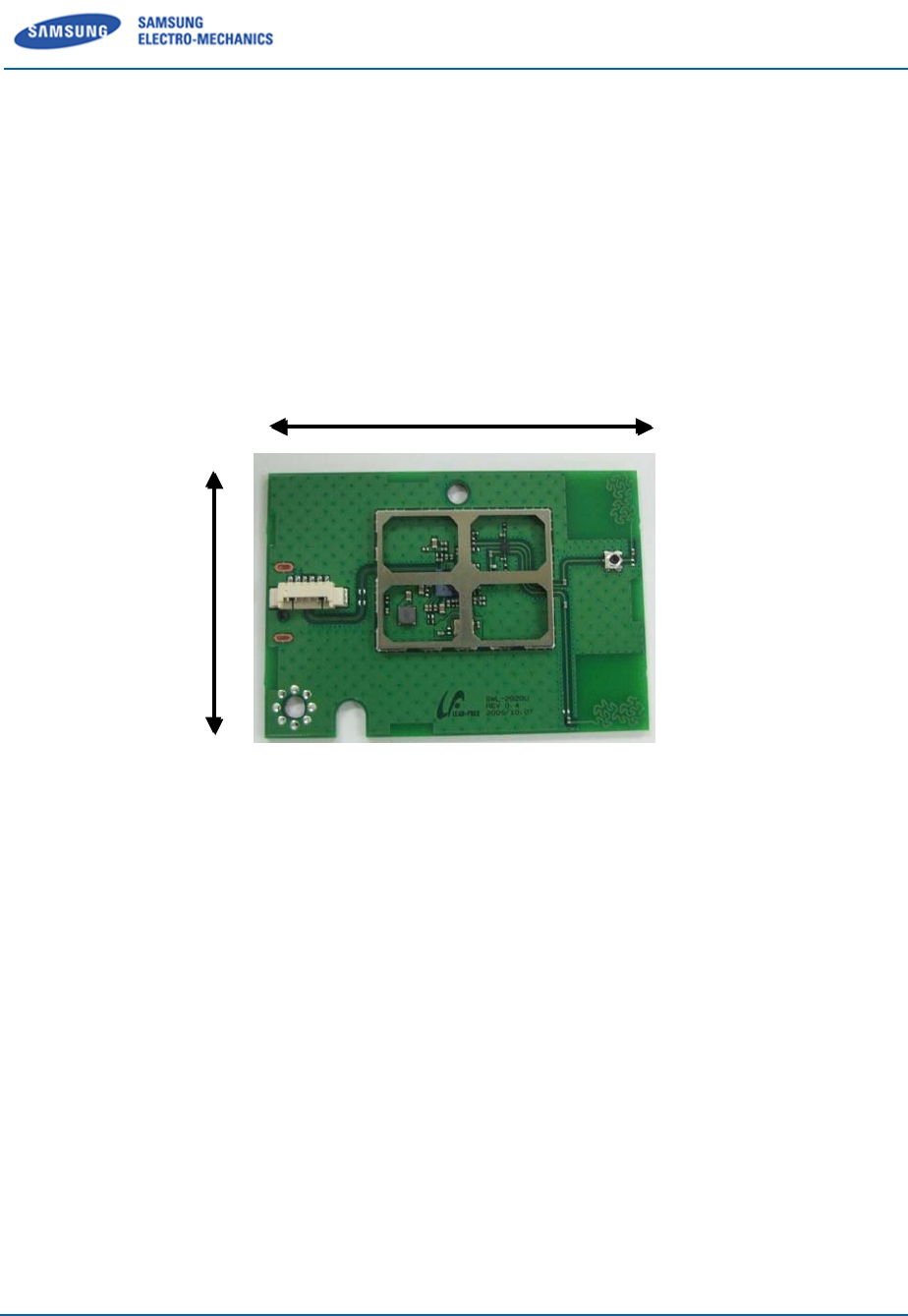

Figure 1-2 CLX-NWA20L Top
45mm
65mm
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 6/14
1.4.2 HOST Interface
USB Interface : Molex 53261-0671, 6pin, Right Angle, SMT
* SIZE : 5.2 x 12.65 x 3.4 mm
Pin-1
Pin-6

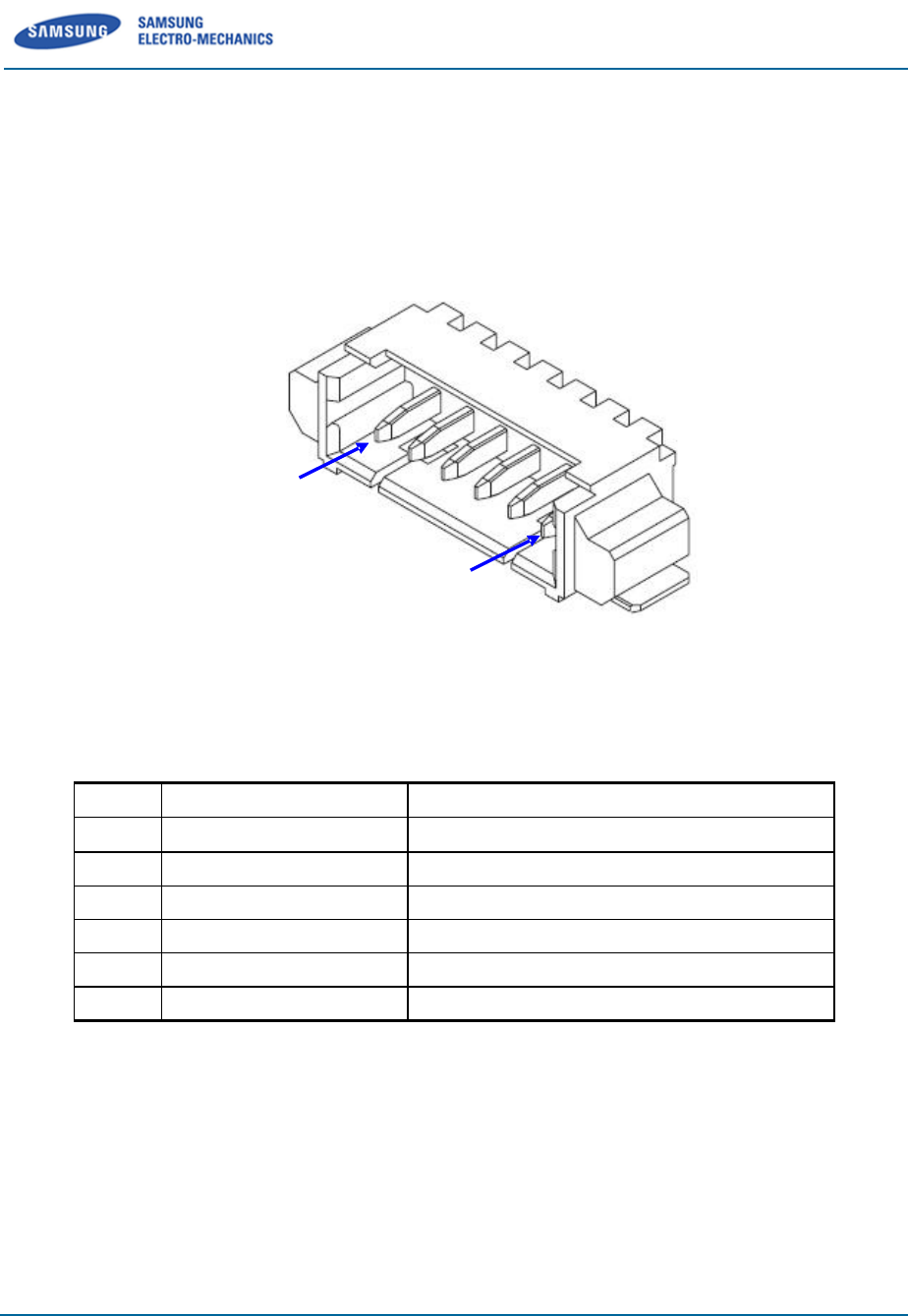

Figure 1-3 CLX-NWA20L CON1 Connector PIN Assignment
Table 1-1 CON1 PIN Description
No. Pin Name Description
1 Shell Drain wire, to GND
2 VBUS RED, 5V from HOST
3 D- White, USB data Negative
4 D+ Green, USB data Positive
5 GND Black, signal ground
6 Shell Drain wire, to GND
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 7/14
2 Operating Conditions
2.1 Maximum Power Supply Rating
The supply Voltage of CLX-NWA20L is 5V , do follow the Maximum Rating in 3.1.
2.2 Connection to HOST
CLX-NWA20L will work properly only if connecting to USB2.0 Interface as defined at 1.5.2 .
2.3 Ground Connection
CLX-NWA20L does not need special ground, but uses the ground wire in HOST Interface.
2.4 Storage Condition
It needs proper condition for protecting the rust.
- Temperature : 0 ~ +50 °C
- Humidity : lower level recommended , 25% ~ 65%RH
- Max Storage Limit : Within 6 Month from Production
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 8/14
2.5 Absolute Maximum Ratings
Symbol Parameter Conditions Min. Nom. Max. Unit
3.3V applied +3.1 +3.3 +3.5 V
DC supply DC supply voltage from HOST 5V applied +4.85 +5.0 +5.25 V
DC for I/O USB2.0 Compliant - - - -
AIR 5K V
ESD* Electro-static discharge voltage
IEC1000-4~2
POINT: CON1, CON12 Contact
1K V
TS Storage temperature -20 - +85 °C
TO Operating temperature 0 - +60 °C
* Final specification will be fixed later.
2.6 Current Consumption
Symbol Parameter Min. Nom. Max. Unit
11b (Tx pwr: 17 dBm) 290 <500 mA
Current
consumption * Transmit current value 11g/n (Tx pwr: 13 dBm) 230 <500 mA
* It can be different to test condition.
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 9/14
3 RF Specification
All measurements are made under nominal power supply and room temperature 25 °C unless specified.
RF specification of CLX-NWA20L was defined according to 802.11b/g mandatory
3.1 Supportable Modulation Scheme & Data Rates
Spacing Rate
Data rates
(Mbps) Remark
MCS0 6.5
MCS1 13
MCS2 19.5
MCS3 26
MCS4 39
MCS5 52
MCS6 58.5
20MHz
MCS7 65
Mandatory
MCS0 15
MCS1 30
MCS2 45
MCS3 60
MCS4 90
MCS5 120
MCS6 135
802.11n
OFDM
40MHz
MCS7 150
Optional
Modulation Coding rate
Data rates
(Mbps) Remark
BPSK 1/2 6 mandatory
BPSK 3/4 9 optional
QPSK 1/2 12 mandatory
QPSK 3/4 18 optional
16-QAM 1/2 24 mandatory
16-QAM 3/4 36 optional
64-QAM 1/2 48 optional
802.11g
OFDM
64-QAM 3/4 54 optional
DBPSK NA 1
DQPSK NA 2
NA 5.5
802.11b
CCK NA 11
-
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 10/14
3.2 11b RF Specification
Data Rate
/ TRx Item IEEE
802.11b/g Min Nom Max Unit
11Mbps/Tx Power 18.4.7.1 15 17 20 dBm
11Mbps/Tx Frequency
Tolerance 18.4.7.4 -25 -6 +25 ppm
11Mbps/Tx EVM 18.4.7.8 13 35 %
11Mbps/Tx Spectrum Mask
1st Side Lobe 18.4.7.3 40 30 dBc
11Mbps/Tx Spectrum Mask
2nd Side Lobe 18.4.7.3 60 50 dBc
11Mbps/Rx Rx Sensitivity
Level 18.4.8.1 -85 -83 -76 dBm
3.3 11g RF Specification
Data Rate
/ TRx Item IEEE
802.11b/g Min Nom Max Unit
48Mbps/Tx Power 19.4.7.1 10 13 15 dBm
48Mbps/Tx Frequency
Tolerance 19.4.7.2 -25 -6 +25 ppm
48Mbps/Tx EVM 17.3.2.2
17.3.8~17.3.9 -27 -22 dB
48Mbps/Tx Spectrum Mask
1st Side Lobe 19.5.4 40 20 dBc
48Mbps/Tx Spectrum Mask
2nd Side Lobe 19.5.4 50 28 dBc
48Mbps/Tx Spectrum Mask
3rd Side Lobe 19.5.4 50 40 dBc
54Mbps/Rx Rx Sensitivity
Level 19.5.1 -76 -73 -65 dBm
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 11/14
3.4 11n RF Specification
Data Rate
/ TRx Item IEEE
802.11n Min Nom Max Unit
65Mbps/Tx Power 10 13 15 dBm
65Mbps/Tx Frequency
Tolerance -25 -6 +25 ppm
65Mbps/Tx EVM -30 -28 dB
65Mbps/Tx Spectrum Mask
1st Side Lobe 40 20 dBc
65Mbps/Tx Spectrum Mask
2nd Side Lobe 50 28 dBc
65Mbps/Tx Spectrum Mask
3rd Side Lobe 50 40 dBc
65Mbps/Rx Rx Sensitivity
Level -75 -72 -64 dBm
3.5 Channel & Center Frequency
Channel No Center Frequency
[Mbps] FCC, IC ETSI
Korea
1 2412 O O
2 2417 O O
3 2422 O O
4 2427 O O
5 2432 O O
6 2437 O O
7 2442 O O
8 2447 O O
9 2452 O O
10 2457 O O
11 2462 O O
12 2467 - O
13 2472 - O
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 12/14
3.6 ANTENNA Specifications

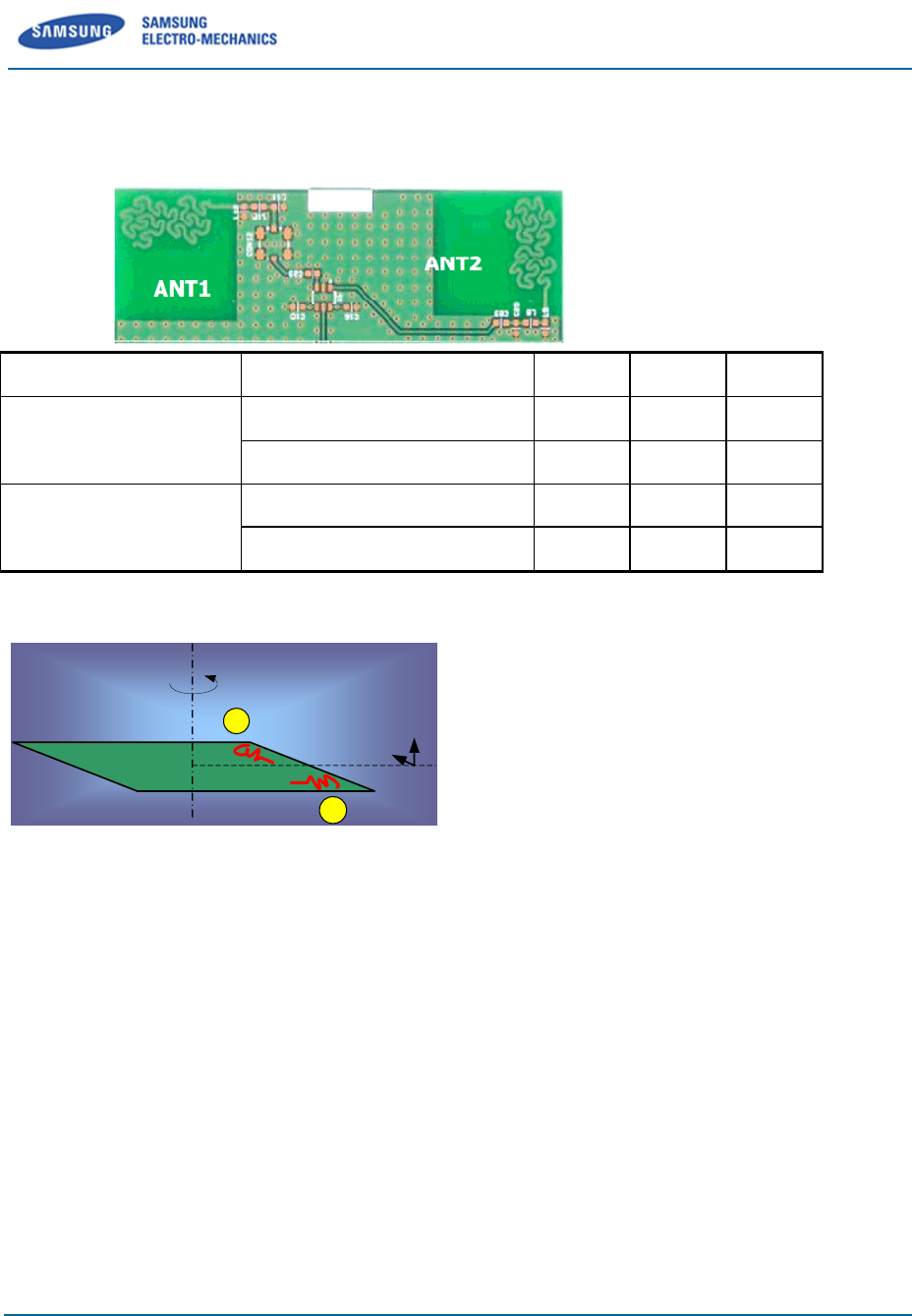

2 Fractal Antennas on PCB that support Diversity
ANTENNA Polarization AVG Max. Unit
Horizontal -1.57 2.57 dBi
ANT1 Vertical - - dBi
Horizontal -1.66 2.66 dBi
ANT2 Vertical - - dBi
All measurement is done with bare PCB.
It can be different to ANTENNA direction & measurement set-up.
For better performance, the Antennas should be apart more than 5mm from other material.
A1
A2
V
H
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 13/14
4 REGULATORY INFORMATION
4.1 FCC AND IC COMPLIANCE
● Compliance Statement
This device complies with Part 15 of the FCC Rules, and Industry Canada RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
● Caution
Any changes or modifications NOT explicitly APPROVED by SAMSUNG ELECTRONICS CO., LTD. could cause
the CLX-NWA20L module to cease to comply with FCC rules part 15 and Industry Canada RSS-210, and thus void
the user's authority to operate the equipment.
● RF-exposure statement
These modular transmitters, CLX-NWA20L, comply with FCC and IC radiation exposure limits set forth for an
uncontrolled environment. The CLX-NWA20L should be installed and operated with minimum distance 20cm
between the antenna and the body of the user or nearby persons. The OEM integrator has to be aware not to
provide information to the end user regarding how to install or remove this RF module in the users manual of the
end product which integrate this module.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The
transmitter module may not be co-located with any other transmitter or antenna.
As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM
integrator is still responsible for testing their end product for any additional compliance requirements required with
this module installed (for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC and/or IC authorization is no longer
considered valid and the FCC ID and/or IC certification number cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC and/or IC equipment authorization.
● Antenna
These modular transmitters are for OEM integrations only. The end-user product will be installed in such a manner
that only the authorized antennas are used.
SWL-2920U Datasheet
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 14/14
● Label and manual requirements for the End Product
For an end product using the CLX-NWA20L there must be a label containing, at least, the following information:
FCC ID and IC certification number for model CLX-NWA20L
The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in
compliance with the modular approval guidelines developed by the FCC and/or Industry Canada.
Where the CLX-NWA20L will be installed in final products larger than 8cm x 10cm following statements has to be
placed ONTO the device.
"Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation."
In case where the final product will be installed in locations where the end consumer is not able to see the FCC ID,
IC certification number, and/or this statement, the FCC ID, IC certification number, and the statement shall also be
included in the end-product manual. The users manual for end users must include the following information in a
prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the
antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from
all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."
This device contains
FCC ID : A3LSWL-2920U This device contains
IC : 649E-SWL2920U
