Samsung Electronics Co WB350F Digital Camera User Manual

Samsung Electronics Co Ltd Digital Camera

User Manual

USER MANUALWB350FClick a topic This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly.Basic troubleshooting Quick reference ContentsBasic functions Extended functions Shooting optionsPlayback/Editing Wireless network SettingsAppendixes Index
1Warning—situations that could cause injury to yourself or othersDo not disassemble or attempt to repair your camera.This may result in electric shock or damage to the camera.Do not use your camera near ammable or explosive gases and liquids.This may cause a fire or explosion. Do not insert ammable materials into the camera or store these materials near the camera.This may cause a fire or electric shock.Do not handle your camera with wet hands.This may result in electric shock.Prevent damage to subjects’ eyesight.Do not use the ash in close proximity (closer than 1 m/3 ft) to people or animals. If you use the ash too close to your subject’s eyes, you can cause temporary or permanent eyesight damage.Keep your camera away from small children and pets.Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.Do not expose the camera to direct sunlight or high temperatures for an extended period of time.Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components.Health and safety informationAlways comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.
2 Health and safety informationAvoid covering the camera or charger with blankets or clothes.The camera may overheat, which may distort the camera or cause a re.Do not handle the power supply cord or go near the charger during a thunderstorm.This may result in electric shock.If liquid or foreign objects enter your camera, immediately disconnect all power sources, such as the battery or charger, and then contact a Samsung service center.Comply with any regulations that restrict the use of a camera in a certain area.Avoid interference with other electronic devices.Turn o the camera when in an aircraft. Your camera can cause interference with aircraft equipment. Follow all airline regulations and turn o your camera when directed by airline personnel.Turn o the camera near medical equipment. Your camera can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel.Avoid interference with pacemakers.Maintain the distance between this camera and all pacemakers to avoid potential interference, as recommended by the manufacturer and research groups. If you have any reason to suspect that your camera is interfering with a pacemaker or other medical device, turn o the camera immediately and contact the manufacturer of the pacemaker or medical device for guidance.
3 Health and safety informationCaution—situations that could cause damage to your camera or other equipmentRemove the batteries from your camera when storing it for an extended period of time.Installed batteries may leak or corrode over time and cause serious damage to your camera.Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries. Do not damage or heat the battery.Inauthentic, damaged, or heated batteries may cause a re or personal injury.Use only Samsung-approved batteries, chargers, cables and accessories.Using unauthorized batteries, chargers, cables or accessories can cause batteries to explode, damage your camera, or cause injury.Samsung is not responsible for damage or injuries caused by unapproved batteries, chargers, cables or accessories.Use the battery only for its intended purpose.Misusing the battery may cause a fire or electric shock.Do not touch the ash while it res.The ash is very hot when red and may burn your skin.When you use the AC charger, turn o the camera before you disconnect the power to the AC charger.Failing to do so may result in re or electric shock.Disconnect the charger from the wall socket when not in use.Failing to do so may result in re or electric shock.Do not use a damaged power supply cord, plug, or loose outlet when you charge batteries.This may cause a fire or electric shock.Do not allow the AC charger to come in contact with the +/- terminals on the battery.This may cause a re or electric shock.
4 Health and safety informationDo not drop or subject the camera to strong impacts.Doing so may damage the screen or external or internal components.Exercise caution when you connect cables or adapters and install batteries and memory cards.If you force the connectors, improperly connect cables, or improperly install batteries and memory cards, you can damage ports, connectors, and accessories.Keep cards with magnetic strips away from the camera case.Information stored on the card may be damaged or erased.Never use a damaged charger, battery, or memory card.This may result in electric shock or camera malfunction or cause a re.Do not place the camera in or near magnetic elds.Doing so may cause the camera to malfunction. Do not use the camera if the screen is damaged. If the glass or acrylic parts are broken, visit a Samsung Electronics Service Center to have the camera repaired.Check that the camera is operating properly before use.The manufacturer takes no responsibility for any loss of les or damage that may result from camera malfunction or improper use.You must plug the small end of the USB cable into your camera.If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.Avoid interference with other electronic devices.Your camera emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience. To prevent unwanted interference, use only Samsung-approved devices or accessories.Use your camera in the normal position.Avoid contact with your camera’s internal antenna.Data transference and your responsibilitiesData transferred via WLAN can be hacked, so avoid transferring sensitive data in public areas or on open networks.The camera manufacturer is not liable for any data transfers that infringe on copyrights, trademarks, intellectual property laws, or public decency ordinances.
5Outline of the User ManualBasic functions 19Learn about your camera’s layout, icons, and basic functions for shooting.Extended functions 43Learn how to capture a photo and record a video by selecting a mode.Shooting options 63Learn how to set the options in Shooting mode.Playback/Editing 86Learn how to play back photos or videos, and edit photos. Also, learn how to connect your camera to your computer or TV.Wireless network 110Learn how to connect to wireless local area networks (WLANs) and use functions. Settings 129Refer to options to congure your camera’s settings.Appendixes 135Get information about error messages, specications, and maintenance.Copyright informationMicrosoft Windows and the Windows logo are registered trademarks of the Microsoft Corporation.Mac and Apple App Store are registered trademarks of the Apple Corporation.Google Play Store is a registered trademark of Google, Inc.microSD™, microSDHC™, and microSDXC™ are registered trademarks of the SD Association.Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.Trademarks and trade names used in this manual are the property of their respective owners.Camera specications or contents of this manual may be changed without prior notice due to an upgrade of the camera's functions.We recommend using your camera within the country where you purchased it.Use this camera responsibly and adhere to all laws and regulations concerning its use.You are not allowed to reuse or distribute any part of this manual without prior permission.
6Indicators used in this manualMode IndicatorSmart AutoTProgrampAperture Priority, Shutter Priority, ManualGSmartsBest FaceiMagic PlusgSettingsnWi-FiwShooting mode iconsThese icons appear in the text when a function is available in a mode. See the example below. Note: The s or g mode may not support functions for all scenes or modes.For example:Available in Program, Aperture Priority, and Shutter Priority modesIcons used in this manualIcon FunctionAdditional informationSafety warnings and precautions[] Camera buttons. For example, [Shutter] represents the shutter button.() Page number of related information→The order of options or menus you must select to perform a step; for example: Select Face Detection → Normal (represents Select Face Detection, and then select Normal).*Annotation
7Pressing the shutterHalf-press [Shutter]: Press the shutter halfway downPress [Shutter]: Press the shutter all the way downHalf-press [Shutter] Press [Shutter]Subject, background, and compositionSubject: The main object in a scene, such as a person, animal, or still life Background: The objects around the subjectComposition: The combination of a subject and backgroundCompositionBackgroundSubjectExposure (Brightness)The amount of light that enters your camera determines the exposure. You can alter the exposure by changing the shutter speed, aperture value, or ISO sensitivity. By altering the exposure, your photos will be darker or lighter.S Normal exposureS Overexposure (too bright)Expressions used in this manual
8Special features of your cameraSetting a DIRECT LINK button optionYou can select a Wi-Fi function to launch when you press the DIRECT LINK button.1 Access Settings.2 Access the DIRECT LINK button option.3 Select a Wi-Fi feature from the list.Using the Touch screen and camera buttonsYou can operate the camera by either touching the screen or pressing the camera buttons.Using the DIRECT LINK buttonPress the DIRECT LINK button to activate the Wi-Fi function that you have designated.
9Special features of your cameraUsing AutoShareWhen you capture a photo with your camera, the photo is saved to the smart phone automatically. The camera connects to a smart phone wirelessly.4 Select the camera from the list and connect the smart phone to the camera.If a pop-up message appears on your camera, allow the smart phone to connect to your camera.5 Capture a photo.The captured photo is saved to the camera, and then transferred to the smart phone.1 Install Samsung SMART CAMERA App on the smart phone.2 Turn on the AutoShare feature.3 Launch Samsung SMART CAMERA App on the smart phone.
10Special features of your cameraUsing MobileLinkYou can send les easily from your camera to a smart phone. The camera connects wirelessly to smart phones that support the MobileLink feature.4 Select the camera from the list and connect the smart phone to the camera.If a pop-up message appears on your camera, allow the smart phone to connect to your camera.5 On the smart phone or camera, select les to transfer from the camera.6 On the smart phone, touch the copy button or on the camera, select Share.1 Install Samsung SMART CAMERA App on the smart phone.2 Access the MobileLink mode.If a pop-up message appears, select an option.3 Launch Samsung SMART CAMERA App on the smart phone.
11Special features of your cameraUsing Remote ViewnderYou can remotely control your camera from a smart phone. The camera connects to a smart phone wirelessly. Use the smart phone as a remote shutter release with the Remote Viewnder feature. The captured photo will appear on the smart phone. 4 Select the camera from the list and connect the smart phone to the camera.If a pop-up message appears on your camera, allow the smart phone to connect to your camera. 5 Touch and hold to focus, and then release it to capture a photo.6 Touch the thumbnail to view the photo.1 Install Samsung SMART CAMERA App on the smart phone.2 Access the Remote Viewnder mode.3 Launch Samsung SMART CAMERA App on the smart phone.
12Shooting samples – MacroYou can capture close up shots of small subjects, such as owers or insects.The example image may dier from the actual photo that you capture.1 Select the macro option ( ).2 Capture a photo.Special features of your camera
13Basic troubleshootingLearn to solve common problems by setting shooting options.The subject’s eyes appear red.Red eye occurs when the subject's eyes reect light from the camera ash.Set the ash option to Red-eye or Red-eye Fix. (p. 66)If the photo has already been captured, select Red-eye Fix in the edit menu. (p. 99)Photos have dust spots. If dust particles are present in the air, you may capture them in photos when you use the ash.Turn o the ash or avoid capturing photos in a dusty place.Set ISO sensitivity options. (p. 69)Photos are blurred. Blurring can occur if you capture photos in low light conditions or hold the camera incorrectly. Use the OIS function or half-press [Shutter] to ensure the subject is in focus. (p. 41)Photos are blurred when shooting at night.As the camera tries to let in more light, the shutter speed slows. This can make it dicult to hold the camera steady long enough to capture a clear photo and may result in camera shake.Select Low Light Shot in s mode. (p. 51)Turn on the ash. (p. 67)Set ISO sensitivity options. (p. 69)Use a tripod to prevent your camera from shaking.Subjects come out too dark because of backlighting.When the light source is behind the subject or when there is a high contrast between light and dark areas, the subject may appear too dark.Avoid shooting toward the sun.Set the ash option to Fill in. (p. 67)Adjust the exposure. (p. 77)Set the Auto Contrast Balance (ACB) option. (p. 78)Set the metering option to Spot if a subject is in the center of the frame. (p. 78)
14Quick referenceCapturing photos of people s mode > Beauty Face f 51 i mode f 54Red-eye/Red-eye Fix (to prevent or correct red-eye) f 66Face Detection f 75Self-Portrait f 75Capturing photos at night or in the dark s mode > Silhouette, Fireworks, Light Trace, Low Light Shot f 51Flash options f 67ISO sensitivity (to adjust the sensitivity to light) f 69Capturing action photosShutter Priority mode f 49 s mode > Action Freeze, Continuous Shot f 51Continuous f 82Capturing photos of text, insects, or owers s mode > Macro f 51Macro f 70Adjusting the exposure (brightness) s mode > Rich Tones f 51ISO sensitivity (to adjust the sensitivity to light) f 69EV (to adjust exposure) f 77ACB (to compensate for subjects against bright backgrounds) f 78Metering f 78AE Bracket (to capture 3 photos of the same scene with dierent exposures) f 83Capturing photos of scenery s mode > Landscape, Waterfall f 51 s mode > Panorama f 52Applying eects to photos g mode > My Magic Frame f 55 g mode > Motion Photo f 57 g mode > Photo Filter f 58Image Adjust (to adjust Sharpness, Contrast, or Saturation) f 84Applying eects to videos g mode > Movie Filter f 59Reducing camera shakeOptical Image Stabilization (OIS) f 40Viewing les as thumbnails f 89Viewing les by category f 89Deleting all les on the memory f 91Viewing les as a slide show f 93Viewing les on a TV f 100Connecting your camera to a computer f 101Sending photos or videos via email f 123Using photo or video sharing websites f 124Adjusting sound and volume f 131Adjusting the brightness of the display f 131Changing the display language f 133Setting the date and time f 133Before contacting a service center f 147
15ContentsExtended functions ....................................................................................................... 43Using the Smart Auto mode ................................................................................. 44Using the Program mode ...................................................................................... 46Using the Aperture Priority, Shutter Priority, or Manual mode ............... 47Using the Aperture Priority mode ....................................................................... 48Using the Shutter Priority mode .......................................................................... 49Using the Manual mode ........................................................................................ 50Using the Smart mode ............................................................................................ 51Using the Panorama mode ................................................................................... 52Using the Best Face mode ..................................................................................... 54Using the Magic Plus mode .................................................................................. 55Using the My Magic Frame mode ........................................................................ 55Using the Motion Photo mode ............................................................................ 57Using the Photo Filter mode ................................................................................ 58Using the Movie Filter mode ................................................................................ 59Recording a video .................................................................................................... 60Recording a video with the Smart Scene Detection function ........................ 61Basic functions ................................................................................................................. 19Unpacking ................................................................................................................... 20Camera layout ............................................................................................................ 21Using the DIRECT LINK button ............................................................................. 23Inserting the battery and memory card .......................................................... 24Charging the battery and turning on your camera ..................................... 25Charging the battery ............................................................................................. 25Turning on your camera ........................................................................................ 25Performing the initial setup ................................................................................. 26Learning icons ........................................................................................................... 28Selecting modes ....................................................................................................... 29Icons on the Mode screen ..................................................................................... 29Selecting options or menus .................................................................................. 31Selecting with buttons .......................................................................................... 31Selecting by touch ................................................................................................. 32Using Smart Panel .................................................................................................. 34Setting the display and sound ............................................................................. 35Setting the display type ........................................................................................ 35Setting the sound ................................................................................................... 36Capturing photos ..................................................................................................... 37Zooming .................................................................................................................. 38Reducing camera shake (OIS) ............................................................................... 40Tips for getting a clearer photo ........................................................................... 41
16ContentsShooting options ............................................................................................................ 63Selecting a resolution and quality ..................................................................... 64Selecting a resolution ............................................................................................ 64Selecting a photo quality ...................................................................................... 65Shooting in the dark ................................................................................................ 66Preventing red-eye ................................................................................................. 66Using the ash ........................................................................................................ 66Setting a ash option ............................................................................................. 67Adjusting the ISO sensitivity ................................................................................. 69Changing the camera’s focus ............................................................................... 70Using macro ............................................................................................................ 70Using auto focus ..................................................................................................... 70Adjusting the focus area ....................................................................................... 72Adjusting the focus by touch ............................................................................... 72Using Face Detection .............................................................................................. 75Detecting faces ....................................................................................................... 75Capturing a self portrait shot ............................................................................... 75Capturing a smile shot ........................................................................................... 76Tips for detecting faces ......................................................................................... 76Adjusting brightness and color ........................................................................... 77Adjusting the exposure manually (EV) ............................................................... 77Compensating for backlighting (ACB) ................................................................ 78Changing the metering option ............................................................................ 78Selecting a White Balance setting ....................................................................... 79Using burst modes ................................................................................................... 82Capturing continuous photos .............................................................................. 82Using the timer ....................................................................................................... 83Capturing bracketed photos ................................................................................ 83Adjusting images ..................................................................................................... 84Reducing the sound of the zoom ....................................................................... 85
17 ContentsPlayback/Editing ............................................................................................................. 86Viewing photos or videos in Playback mode ................................................. 87Starting Playback mode ........................................................................................ 87Viewing photos ....................................................................................................... 92Playing a video ........................................................................................................ 94Editing a photo .......................................................................................................... 96Resizing photos ...................................................................................................... 96Rotating a photo .................................................................................................... 96Cropping a photo ................................................................................................... 97Applying Smart Filter eects ................................................................................ 97Adjusting your photos ........................................................................................... 98Viewing les on a TV ............................................................................................. 100Transferring les to the computer ................................................................... 101Transferring les to your Windows OS computer ........................................... 101Transferring les to your Mac OS computer .................................................... 102Using programs on a computer ........................................................................ 104Installing i-Launcher ............................................................................................ 104Using i-Launcher .................................................................................................. 105Wireless network ..........................................................................................................110Connecting to a WLAN and conguring network settings ..................... 111Connecting to a WLAN ........................................................................................ 111Using the login browser ...................................................................................... 112Network connection tips .................................................................................... 113Entering text .......................................................................................................... 114Saving les to a smart phone automatically ................................................ 115Sending photos or videos to a smart phone ................................................ 116Using a smart phone as a remote shutter release ...................................... 117Using Auto Backup to send photos or videos .............................................. 119Installing the program for Auto Backup on your PC ....................................... 119Sending photos or videos to a PC ..................................................................... 119Sending photos or videos via email ................................................................ 121Changing email settings ..................................................................................... 121Sending photos or videos via email .................................................................. 123Using photo or video sharing websites ......................................................... 124Accessing a website ............................................................................................. 124Uploading photos or videos ............................................................................... 124Using AllShare Play to send les ....................................................................... 126Uploading photos to online storage ................................................................. 126Viewing photos or videos on devices that support Samsung Link. ............. 127
18 ContentsSettings ............................................................................................................................. 129Settings menu ......................................................................................................... 130Accessing the settings menu ............................................................................. 130Sound ..................................................................................................................... 131Display .................................................................................................................... 131Connectivity .......................................................................................................... 132General ................................................................................................................... 133Appendixes .....................................................................................................................135Error messages ........................................................................................................ 136Camera maintenance ............................................................................................ 138Cleaning your camera .......................................................................................... 138Using or storing the camera ............................................................................... 139About memory cards ........................................................................................... 140About the battery ................................................................................................. 143Before contacting a service center ................................................................... 147Camera specications ........................................................................................... 150Glossary ..................................................................................................................... 154Index ........................................................................................................................... 159
Unpacking ……………………………………… 20Camera layout …………………………………… 21Using the DIRECT LINK button ………………… 23Inserting the battery and memory card ……… 24Charging the battery and turning on your camera ……………………………………… 25Charging the battery …………………………… 25Turning on your camera ……………………… 25Performing the initial setup …………………… 26Learning icons …………………………………… 28Selecting modes ………………………………… 29Icons on the Mode screen ……………………… 29Selecting options or menus …………………… 31Selecting with buttons ………………………… 31Selecting by touch ……………………………… 32Using Smart Panel ……………………………… 34Setting the display and sound ………………… 35Setting the display type ………………………… 35Setting the sound ……………………………… 36Capturing photos ……………………………… 37Zooming ……………………………………… 38Reducing camera shake (OIS) ………………… 40Tips for getting a clearer photo ………………… 41Basic functionsLearn about your camera’s layout, icons, and basic functions for shooting.

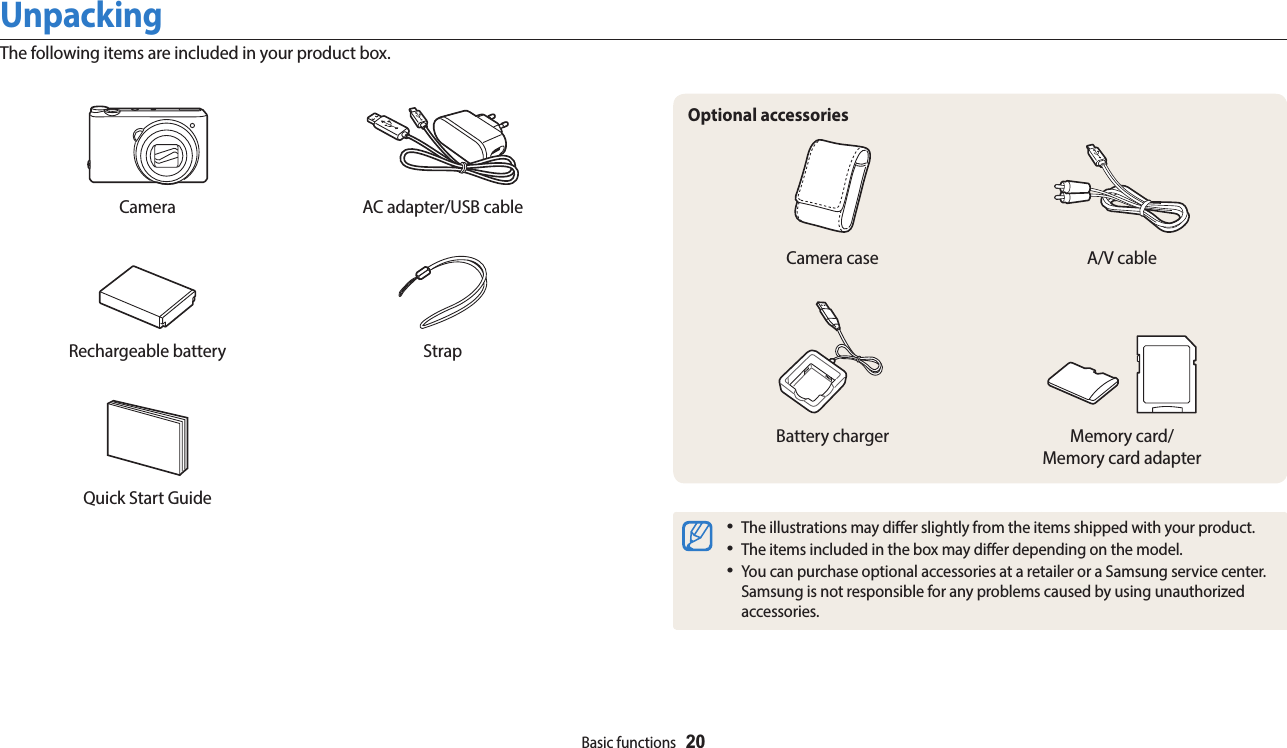

Basic functions 20UnpackingThe following items are included in your product box.Camera AC adapter/USB cableRechargeable battery StrapQuick Start GuideOptional accessoriesCamera case A/V cable Battery charger Memory card/ Memory card adapterThe illustrations may dier slightly from the items shipped with your product.The items included in the box may dier depending on the model.You can purchase optional accessories at a retailer or a Samsung service center. Samsung is not responsible for any problems caused by using unauthorized accessories.
Basic functions 21Camera layoutBefore you start, familiarize yourself with your camera’s parts and their functions.Tripod mountPower buttonInternal antenna** Avoid contact with the internal antenna while using the wireless network.LensShutter buttonAF-assist light/Timer lampFlash** While not in use, keep the ash unit closed to prevent damage. Forcing to open the ash unit may cause damage to your camera.USB and A/V portAccepts USB cable and A/V cableMicrophoneBattery chamber coverInsert a memory card and batteryMode dial(p. 29)Attaching the strapxySpeaker
Camera layoutBasic functions 22Buttons(p. 23)Status lampBlinking: When the camera is saving a photo or video, being read by a computer, when the image is out of focus, there is a problem charging the battery, or when the camera is connecting to WLAN or sending a photoSteady: When the camera is connected to a computer, charging the battery, or when the image is in focusDisplayZoom buttonIn Shooting mode: Zoom in or outIn Playback mode: Zoom in on part of a photo or view les as thumbnails, or adjust the volumeDIRECT LINK buttonStart a preset Wi-Fi functionNFC tagFlash pop-up button
Camera layoutBasic functions 23ButtonsButton Description Start recording a video.Access options or menus.Go back.Basic functions Other functionsDChange the display option. Move upcChange the macro option. Move downFChange the ash option. Move lefttChange the timer and burst options. Move rightConrm the highlighted option or menu.Enter Playback mode.Open Smart Panel in Shooting mode.Delete les in Playback mode.Using the DIRECT LINK buttonYou can turn on the Wi-Fi feature conveniently with [DIRECT LINK]. Press [DIRECT LINK] to activate the Wi-Fi function that you have designated. Press [DIRECT LINK] again to return to the previous mode.Setting a DIRECT LINK button optionYou can select a Wi-Fi function to launch when you press [DIRECT LINK].1 Rotate the mode dial to n.2 Select General → DIRECT LINK (Wi-Fi Button). 3 Select a Wi-Fi feature. (p. 134)
Basic functions 24Inserting the battery and memory cardLearn how to insert the battery and an optional memory card into the camera.Removing the battery and memory cardRechargeable batteryBattery lockSlide the lock down to release the battery.Memory cardPush the card gently until it disengages from the camera, and then pull it out of the slot.Memory cardInsert a memory card with the gold-colored contacts facing up.Rechargeable batteryInsert the battery with the Samsung logo facing up.
Basic functions 25Charging the battery and turning on your cameraTurning on your cameraPress [X] to turn your camera on or o.The initial setup screen appears when you turn on the camera for the rst time. (p. 26)Turning on your camera in Playback modePress [P]. The camera turns on and immediately accesses Playback mode.Charging the batteryBefore you use the camera for the rst time, you must charge the battery. Plug the small end of the USB cable into your camera, and then plug the other end of the USB cable into the AC adapter.Status lampRed light on: ChargingRed light o: Fully chargedRed light blinking: ErrorUse only the AC adapter and USB cable supplied with your camera. If you use another AC adapter (such as SAC-48), the camera battery may not charge or work properly.
Basic functions 26Performing the initial setupWhen you turn on your camera for the rst time, the initial setup screen appears. Follow the steps below to congure the camera’s basic settings. The language is preset for the country or region where the camera is sold. You can change the language as desired. You can also select an item by touching it on the screen.5 Press [c] to select Date/Time Set, and then press [t] or [o].Cancel SetDate/Time SetYear Month Day Hr Min DSTThe screen may dier depending on the language selected.6 Press [F/t] to select an item.7 Press [D/c] to set the date, time, and daylight-saving time, and then press [o].1 Press [c] to select Time Zone, and then press [t] or [o].2 Press [D/c] to select Home, and then press [o].When you travel to another country, select Visit, and then select a new time zone.3 Press [D/c] to select a time zone, and then press [o].Time ZoneBack Set[GMT +00:00] London[GMT +01:00] Berlin, Paris, Rome[GMT +02:00] Athens, Helsinki[GMT +03:00] Moscow4 Press [b].
Performing the initial setupBasic functions 278 Press [c] to select Date Type, and then press [t] or [o].9 Press [D/c] to select a date type, and then press [o].10 Press [c] to select Time Type, and then press [t] or [o].11 Press [D/c] to select a time type, and then press [o]. 12 Press [b] to nish the initial setup.
Basic functions 28Learning iconsThe icons the camera displays on the screen change according to the mode you select or the options you set. If you change a shooting option, the corresponding icon will blink briey in yellow.123Icon DescriptionFrame rate (per second)Sound Alive onIntelli zoom onOptical Image Stabilization (OIS)MeteringBurst optionTimerWhite balanceImage adjustment (sharpness, contrast, and saturation)Focus areaFocus optionFace detection3 Shooting option (touch)Icon DescriptionAutoShare OnTouch AF optionmShooting optionsfOpen Smart PanelIcon DescriptionMemory card inserted: Fully charged  : Partially charged: Empty (Recharge): Charging (Connected with the charger)Auto focus frameCamera shakeZoom indicatorPhoto resolution when the Intelli zoom is onZoom ratioHistogram (p. 35)2 Shooting optionIcon DescriptionISO sensitivityFlashPhoto resolutionVideo resolution1 Shooting informationIcon DescriptionShooting modeAperture valueShutter speedAvailable recording timeExposure valueCurrent dateCurrent timeContinuous auto focus activatedAvailable number of photos
Basic functions 29Selecting modesUse the mode dial to select a shooting mode or function. Rotate the mode dial to a desired mode. You can also select an icon on the Mode screen in some modes.Icons on the Mode screenIcon DescriptionTSmart Auto: Capture a photo with a Scene mode selected automatically by the camera. (p. 44)pProgram: Capture a photo with settings you have adjusted manually. (p. 46)GAperture Priority: Set the aperture value manually while the camera automatically selects an appropriate shutter speed. (p. 48)Shutter Priority: Set the shutter speed manually while the camera automatically selects an appropriate aperture value. (p. 49)Manual: Adjust both the aperture value and the shutter speed manually. (p. 50)sSmart: Capture a photo with options that are preset for a specic scene. (p. 51)iBest Face: Capture multiple photos and replace faces to create the best possible image. (p. 54)My Magic FramePhoto FilterSplit ShotMovie FilterPhoto EditorMotion Photo21My MaFramPhoto FilterSplit ShotMovie FilterPhoto EditorMotion PhotoMyMyŸ For example: When you select My Magic Frame in Magic Plus modeNo. Description1Current Mode screenRotate the mode dial to go to another mode screen.2Mode iconsPress [D/c/F/t] to scroll to a desired mode, and then press [o] to access the mode.Touch an icon to access a mode or function.
Selecting modesBasic functions 30Icon DescriptionwMobileLink: Send photos or videos to a smart phone. (p. 116)Remote Viewnder: Use a smart phone as a remote shutter release and see a preview on your smart phone of an image from your camera. (p. 117)Baby MonitoringAuto Backup: Send photos or videos that you captured with the camera to a PC wirelessly. (p. 119)Email: Send photos or videos stored on the camera via email. (p. 121)SNS & Cloud: Upload photos or videos to le sharing websites. (p. 124)Samsung Link: Upload photos to AllShare Play online storage or view les on other AllShare Play supported devices. (p. 126)Icon DescriptiongMy Magic Frame: Capture a photo and select an area to make it transparent. Overlay a newly captured photo onto the area. (p. 55)Motion Photo: Capture and combine a series of photos, and then select an area to be animated to create a GIF animation. (p. 57)Photo Filter: Capture a photo with various lter eects. (p. 58)Movie Filter: Record a video with various lter eects. (p. 59)Eect ArtistColor BrushPhoto Editor: Edit photos with various eects. (p. 96)nSettings: Adjust settings to match your preferences. (p. 129)
Basic functions 31Selecting options or menusPress [m] or [ /f] to select an option or a menu. You can also touch the screen to select an option or a menu.For example, to select a White Balance option in Program mode:1 Rotate the mode dial to p.2 Press [m].Exit SelectEVWhite BalanceISOFlashFocusSelecting with buttonsPress [m], and then press [D/c/F/t] or [o] to select an option or a menu.1 In Shooting or Playback mode, press [m].2 Scroll to an option or a menu.To move up or down, press [D] or [c].To move left or right, press [F] or [t].3 Press [o] to conrm the highlighted option or menu.Press [b] to go back to the previous menu. Half-press [Shutter] to return to Shooting mode.
Selecting options or menusBasic functions 323 Press [D/c] to select White Balance, and then press [t] or [o].EVWhite BalanceISOFlashFocusExit Select4 Press [F/t] to select a White Balance option.Back AdjustWhite Balance : Daylight5 Press [o] to save your settings.Selecting by touchTouch m on the screen, drag the option list up or down, and then touch an option to select it.1 In Shooting or Playback mode, touch m on the screen.2 Drag the option list up or down, and then touch an option.ACBMeteringDrive/TimerAE Bracket SetImage AdjustExit Select
Selecting options or menusBasic functions 33Flicking: Gently ick your nger across the screen.The touch screen may not recognize your inputs if you touch multiple items at the same time.When you touch or drag the screen, discolorations may occur. This is not a malfunction, but a characteristic of the touch screen. Touch or drag lightly to minimize the discolorations.The touch screen may not work properly if you use the camera in extremely humid environments.The touch screen may not work properly if you apply screen protection lm or other accessories to the screen.Depending on the viewing angle, the screen may appear dim. Adjust the brightness or viewing angle to improve the resolution.Learning touch gesturesDo not use sharp objects, such as pens or pencils, to touch the screen. You can damage the screen.Touching: Touch an icon to select a menu or option.My Magic FramePhoto FilterSplit ShotMovie FilterPhoto EditorMotion PhotoMnnMoDragging: Touch and hold an area on the screen, and then drag your nger.ACBMeteringDrive/TimerAE Bracket SetImage AdjustExit Select
Selecting options or menusBasic functions 34Using Smart PanelPress [ /f] or touch f on the screen to select an option or a menu. Some options are not available depending on the menu you select.For example, to select a White Balance option in Program mode:1 Rotate the mode dial to p.2 Press [ /f] or touch f on the screen.3 Press [D/c/F/t] to scroll to .White Balance : Auto WBExit Adjust4 Press [o].For some items, you can directly select an option by rotating [Zoom] to the left or right without having to press [o].5 Press [F/t] to select a White Balance option.White Balance : DaylightBack Adjust6 Press [o] to save your settings.
Basic functions 35Setting the display typeYou can select a display type for the Shooting or Playback mode. Each type displays dierent shooting or playback information. See the table below.Press [D] repeatedly to change the display type.Mode Display typeShootingHide all information about shooting options.Show all information about shooting options.Show all information about shooting options and a histogram. PlaybackShow information except shooting information and histogram.Show all information about the current le.About histogramsA histogram is a graph that illustrates how light is distributed in your photo. If the histogram has a high peak on the left, the photo is underexposed and will appear dark. A peak on the right of the graph means that the photo is overexposed and will appear washed out. The height of the peaks is related to color information. The more of a particular color, the taller the peak.S Under-exposedS Well-exposedS Over-exposedSetting the display and soundLearn how to change the basic display information and sound settings.

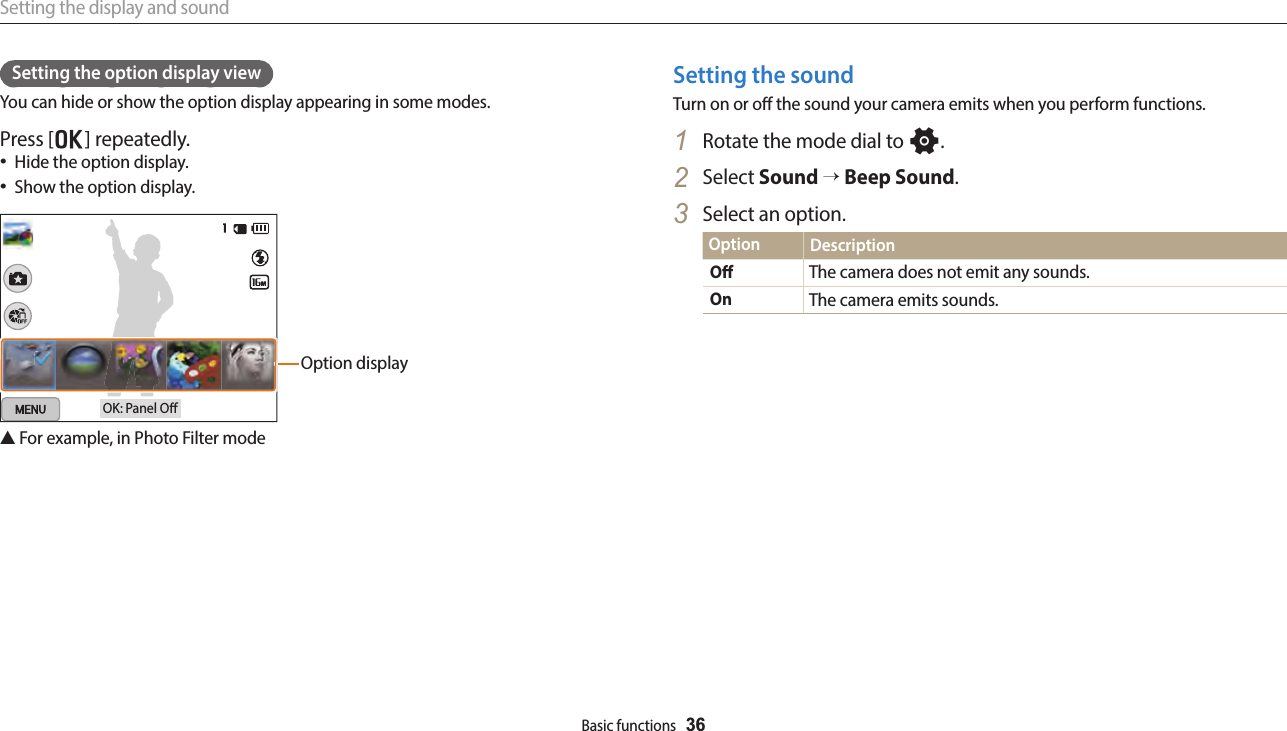

Setting the display and soundBasic functions 36Setting the option display viewYou can hide or show the option display appearing in some modes.Press [o] repeatedly.Hide the option display.Show the option display.Option displayOK: Panel O▲ For example, in Photo Filter modeSetting the soundTurn on or o the sound your camera emits when you perform functions.1 Rotate the mode dial to n.2 Select Sound → Beep Sound.3 Select an option.Option DescriptionO The camera does not emit any sounds.On The camera emits sounds.

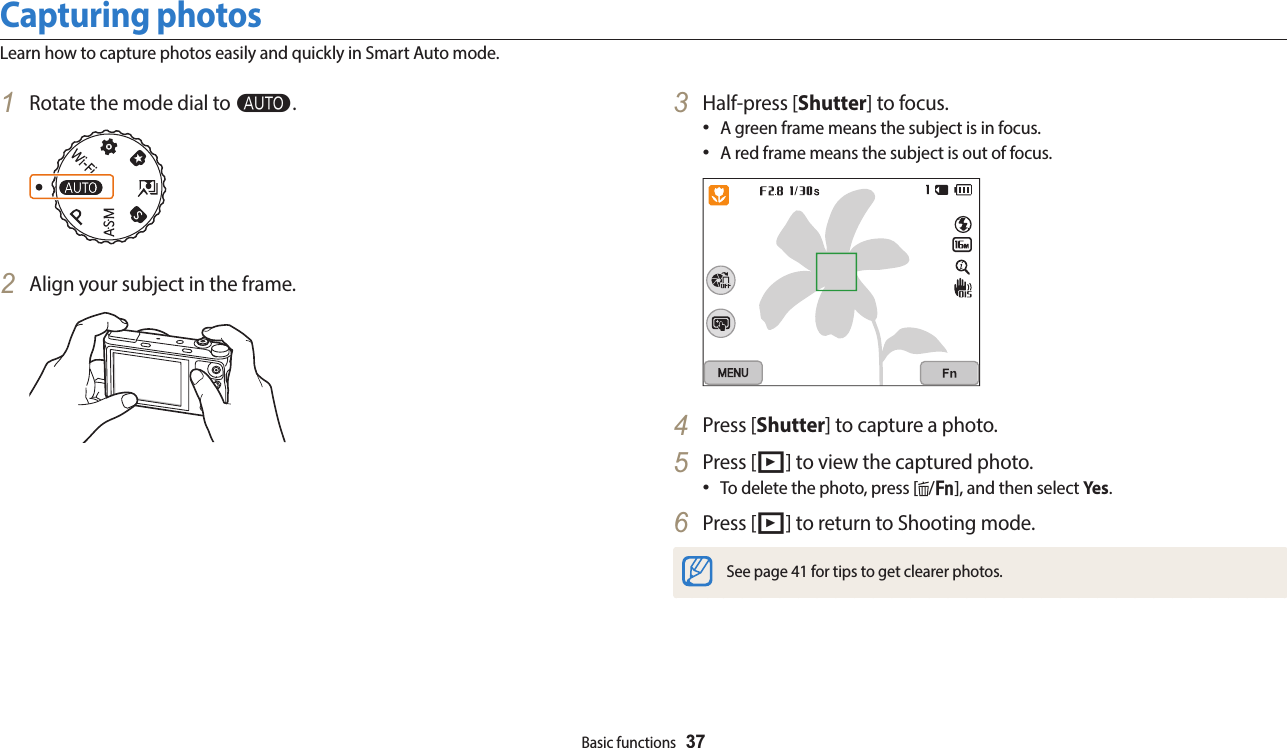

Basic functions 371 Rotate the mode dial to T.2 Align your subject in the frame.3 Half-press [Shutter] to focus.A green frame means the subject is in focus.A red frame means the subject is out of focus.4 Press [Shutter] to capture a photo.5 Press [P] to view the captured photo.To delete the photo, press [ /f], and then select Ye s.6 Press [P] to return to Shooting mode.See page 41 for tips to get clearer photos.Capturing photosLearn how to capture photos easily and quickly in Smart Auto mode.
Capturing photosBasic functions 38ZoomingYou can capture close-up photos by adjusting the zoom.Zoom out Zoom inZoom ratioWhen you rotate the zoom button, the zoom ratio shown on the screen may change inconsistently.Digital zoomThe Digital zoom is supported by default in Shooting mode. If you zoom in on a subject in Shooting mode and the zoom indicator is in the digital range, your camera is using the Digital zoom. By using both the 21X Optical zoom and 5X Digital zoom, you can zoom in up to 105 times.Zoom indicatorOptical rangeDigital rangeIf you capture a photo with the Digital zoom, the photo quality may be lower than normal. pAhM

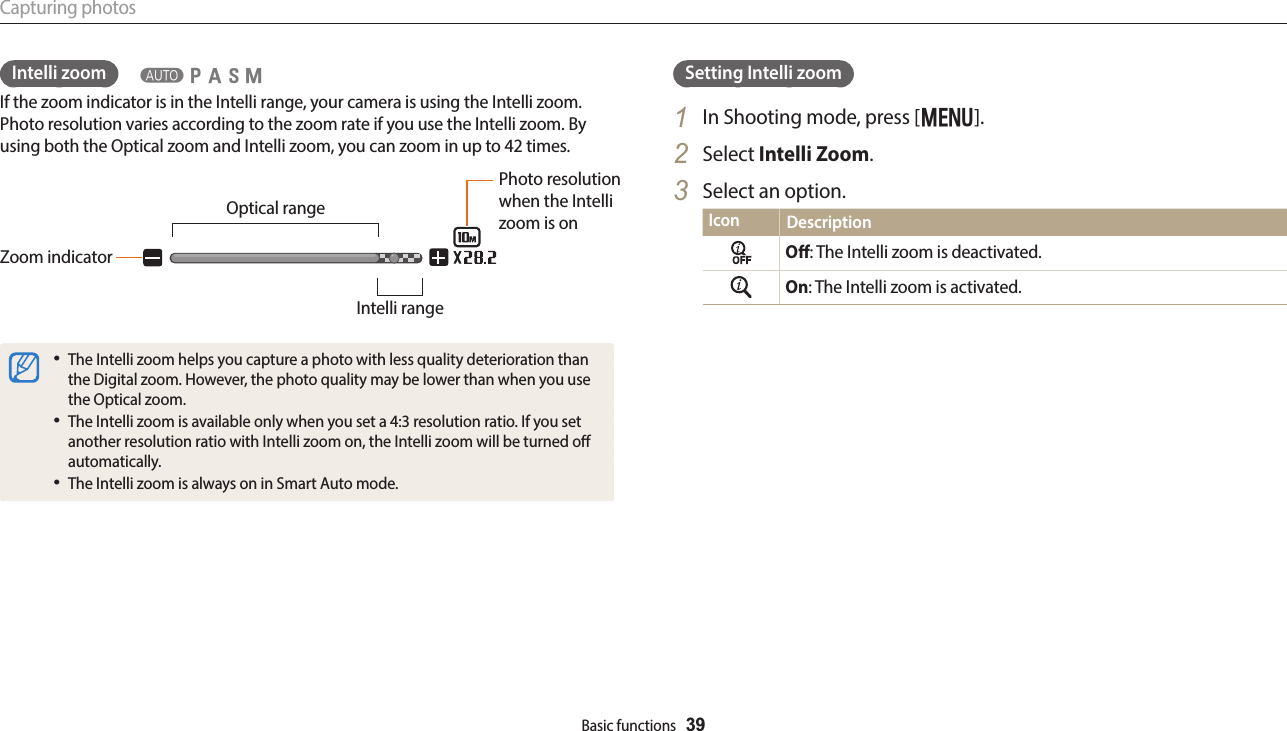

Capturing photosBasic functions 39Intelli zoomIf the zoom indicator is in the Intelli range, your camera is using the Intelli zoom. Photo resolution varies according to the zoom rate if you use the Intelli zoom. By using both the Optical zoom and Intelli zoom, you can zoom in up to 42 times.Zoom indicatorOptical rangeIntelli rangePhoto resolution when the Intelli zoom is onThe Intelli zoom helps you capture a photo with less quality deterioration than the Digital zoom. However, the photo quality may be lower than when you use the Optical zoom.The Intelli zoom is available only when you set a 4:3 resolution ratio. If you set another resolution ratio with Intelli zoom on, the Intelli zoom will be turned o automatically.The Intelli zoom is always on in Smart Auto mode. TpAhMSetting Intelli zoom1 In Shooting mode, press [m].2 Select Intelli Zoom.3 Select an option.Icon DescriptionO: The Intelli zoom is deactivated.On: The Intelli zoom is activated.

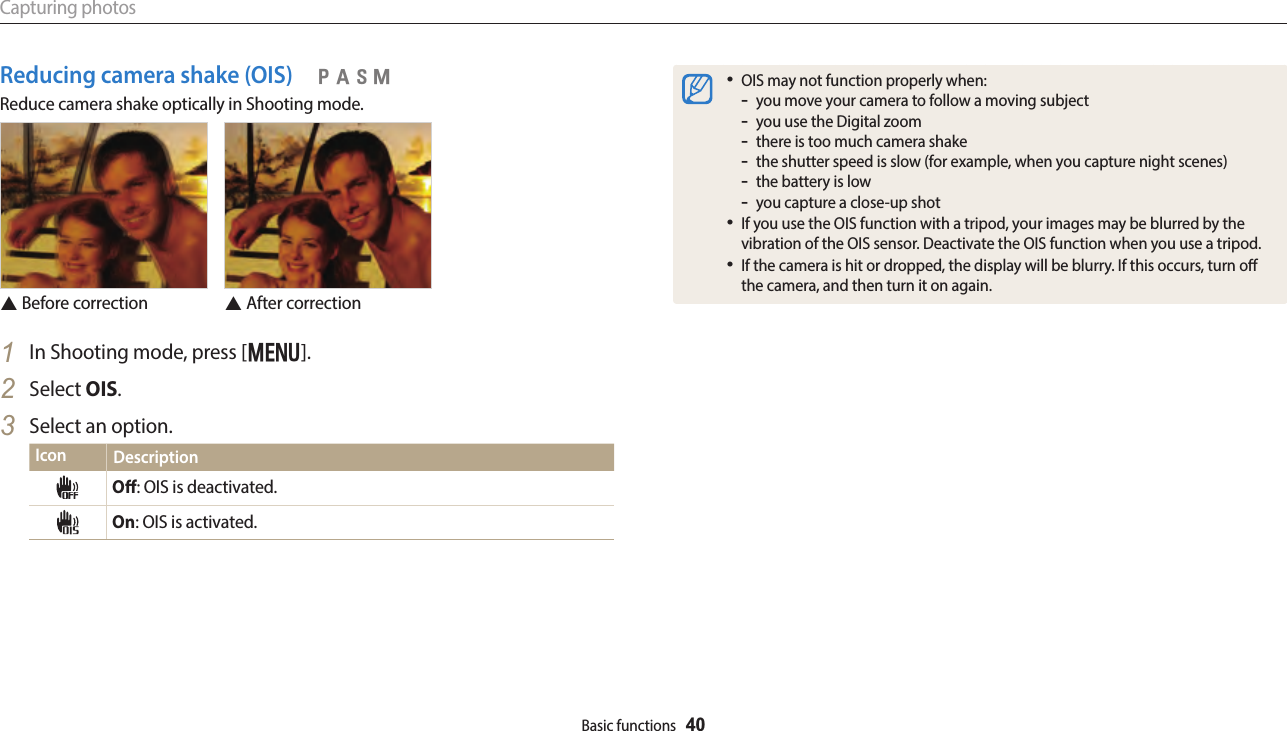

Capturing photosBasic functions 40Reducing camera shake (OIS)Reduce camera shake optically in Shooting mode.S Before correctionS After correction1 In Shooting mode, press [m].2 Select OIS.3 Select an option.Icon DescriptionO: OIS is deactivated.On: OIS is activated. pAhM OIS may not function properly when:-you move your camera to follow a moving subject-you use the Digital zoom-there is too much camera shake-the shutter speed is slow (for example, when you capture night scenes)-the battery is low-you capture a close-up shotIf you use the OIS function with a tripod, your images may be blurred by the vibration of the OIS sensor. Deactivate the OIS function when you use a tripod.If the camera is hit or dropped, the display will be blurry. If this occurs, turn o the camera, and then turn it on again.
Basic functions 41 Holding your camera correctlyEnsure nothing is blocking the lens, ash, or microphone. Half-pressing the shutter buttonHalf-press [Shutter] and adjust the focus. The camera adjusts the focus and exposure automatically.The camera sets the aperture value and shutter speed automatically.Focus framePress [Shutter] to capture the photo if the focus frame appears in green.Change the composition and half-press [Shutter] again if the focus frame appears in red. Reducing camera shakeSet the Optical Image Stabilization option to reduce camera shake optically. (p. 40) When is displayedCamera shakeWhen you shoot in the dark, avoid setting the ash option to Slow Sync or O. The aperture remains open longer and it may be harder to hold the camera steady long enough to capture a clear photo.Use a tripod or set the ash option to Fill in. (p. 67)Set ISO sensitivity options. (p. 69)Tips for getting a clearer photo
Basic functions 42 Preventing your subject from being out of focusIt may be dicult to get your subject in focus when:-there is little contrast between the subject and background (for example, when your subject is wearing clothing that is similar in color to the background)-the light source behind the subject is too bright-the subject is shiny or reective-the subject includes horizontal patterns, such as blinds-the subject is not positioned in the center of the frameWhen you capture photos in low lightTurn on the ash. (p. 67)When subjects are moving rapidlyUse the Continuous shooting function. (p. 82)Using the focus lockHalf-press [Shutter] to focus. When the subject is in focus, you can reposition the frame to change the composition. When you are ready, press [Shutter] to capture your photo.
Using the Smart Auto mode …………………… 44Using the Program mode ……………………… 46Using the Aperture Priority, Shutter Priority, or Manual mode …………………………………… 47Using the Aperture Priority mode ……………… 48Using the Shutter Priority mode ……………… 49Using the Manual mode ……………………… 50Using the Smart mode ………………………… 51Using the Panorama mode …………………… 52Using the Best Face mode ……………………… 54Using the Magic Plus mode …………………… 55Using the My Magic Frame mode ……………… 55Using the Motion Photo mode ………………… 57Using the Photo Filter mode …………………… 58Using the Movie Filter mode …………………… 59Recording a video ……………………………… 60Recording a video with the Smart Scene Detection function …………………………… 61Extended functionsLearn how to capture a photo and record a video by selecting a mode.
Extended functions 441 Rotate the mode dial to T.2 Align your subject in the frame.The camera automatically selects a scene. An appropriate scene icon appears at the top left of the screen. The icons are listed below.Icon DescriptionLandscapesScenes with bright white backgroundsLandscapes at nightPortraits at nightLandscapes with backlightingIcon DescriptionPortraits with backlightingPortraitsClose-up photos of objectsClose-up photos of textSunsetsIndoors, darkPartially litClose-up with spot lightingPortraits with spot lightingBlue skiesForested areasClose-up photos of colorful subjectsCamera is stabilized or on a tripod (when shooting in the dark)Actively moving subjectsFireworks (when using a tripod)Using the Smart Auto modeIn Smart Auto mode, your camera automatically chooses the appropriate camera settings based on the type of scene it detects. The Smart Auto mode is helpful if you are not familiar with the camera settings for various scenes.
Using the Smart Auto modeExtended functions 453 Half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.If the camera does not recognize an appropriate scene mode, it uses the default settings for the Smart Auto mode.Even if it detects a face, the camera may not select a portrait mode depending on the subject's position or lighting.The camera may not select the correct scene depending on the shooting conditions, such as camera shake, lighting, or distance to the subject.Even if you use a tripod, the camera may not detect the mode if the subject is moving.The camera consumes more battery power, because it changes settings often to select appropriate scenes.
Extended functions 46Using the Program modeIn Program mode, you can set most options, except the shutter speed and aperture value, which the camera sets automatically.1 Rotate the mode dial to p.2 Set the desired options. For a list of options, refer to "Shooting options". (p. 63)3 Align your subject in the frame, and then half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.
Extended functions 47Aperture valueThe aperture is a hole that lets light into the camera. The aperture housing contains thin, metal plates that open and close, widening or narrowing the aperture, and controlling the amount of light that enters the camera. The size of the aperture is closely related to the brightness of a photo: the larger the aperture, the brighter the photo; the smaller the aperture, the darker the photo. Note that the larger the aperture value, the smaller the aperture size. For example, an aperture set to 5.6 is larger than an aperture set to 11.S Small aperture value (The size of the aperture is large.)S Large aperture value (The size of the aperture is small.)Shutter speedShutter speed, which is an important factor in the brightness of a photo, refers to the amount of time it takes to open and close the shutter. A slow shutter speed allows more time to let light in. All things being equal, photos are brighter, but fast moving objects tend to blur. On the other hand, a fast shutter speed allows less time to let light in. Photos are darker, but objects in motion are captured more clearly.S Slow shutter speedS Fast shutter speedUsing the Aperture Priority, Shutter Priority, or Manual modeAdjust the aperture value or shutter speed to control the exposure of your photos. You can use these options in the Aperture Priority, Shutter Priority, and Manual modes.

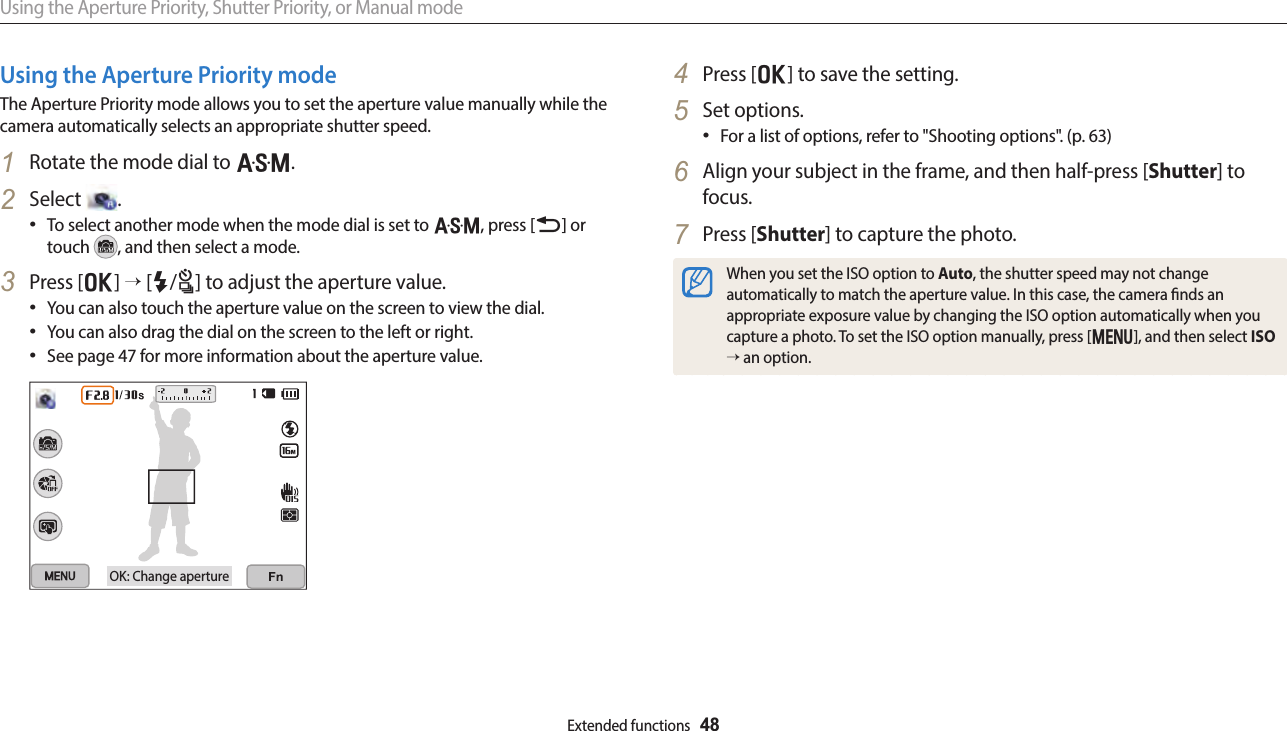

Using the Aperture Priority, Shutter Priority, or Manual modeExtended functions 48Using the Aperture Priority modeThe Aperture Priority mode allows you to set the aperture value manually while the camera automatically selects an appropriate shutter speed.1 Rotate the mode dial to G.2 Select .To select another mode when the mode dial is set to G, press [b] or touch , and then select a mode.3 Press [o] → [F/t] to adjust the aperture value.You can also touch the aperture value on the screen to view the dial.You can also drag the dial on the screen to the left or right.See page 47 for more information about the aperture value.OK: Change aperture4 Press [o] to save the setting.5 Set options. For a list of options, refer to "Shooting options". (p. 63)6 Align your subject in the frame, and then half-press [Shutter] to focus.7 Press [Shutter] to capture the photo.When you set the ISO option to Auto, the shutter speed may not change automatically to match the aperture value. In this case, the camera nds an appropriate exposure value by changing the ISO option automatically when you capture a photo. To set the ISO option manually, press [m], and then select ISO → an option.
Using the Aperture Priority, Shutter Priority, or Manual modeExtended functions 49Using the Shutter Priority modeThe Shutter Priority mode allows you to set the shutter speed manually while the camera automatically selects an appropriate aperture value.1 Rotate the mode dial to G.2 Select .To select another mode when the mode dial is set to G, press [b] or touch , and then select a mode.3 Press [o] → [F/t] to adjust the shutter speed.You can also touch the shutter speed on the screen to view the dial.You can also drag the dial on the screen to the left or right.See page 47 for more information about the shutter speed.OK: Change shutter speed4 Press [o] to save the setting.5 Set options. For a list of options, refer to "Shooting options". (p. 63)6 Align your subject in the frame, and then half-press [Shutter] to focus.7 Press [Shutter] to capture the photo.When you set the ISO option to Auto, the aperture value may not change automatically to match the shutter speed. In this case, the camera nds an appropriate exposure value by changing the ISO option automatically when you capture a photo. To set the ISO option manually, press [m], and then select ISO → an option.
Using the Aperture Priority, Shutter Priority, or Manual modeExtended functions 50Using the Manual modeThe Manual mode allows you to adjust both the aperture value and the shutter speed manually.1 Rotate the mode dial to G.2 Select .To select another mode when the mode dial is set to G, press [b] or touch , and then select a mode.3 Press [o] → [D/c] to select the aperture value or shutter speed.You can also touch the aperture value or shutter speed on the screen to view the dial.OK: Change aperture/shutter speed4 Press [F/t] to adjust the aperture value or shutter speed.You can also drag the dials on the screen to the left or right.5 Press [o] to save the setting.6 Set options. For a list of options, refer to "Shooting options". (p. 63)7 Align your subject in the frame, and then half-press [Shutter] to focus.8 Press [Shutter] to capture the photo.
Extended functions 51Using the Smart modeIn Smart mode, you can capture a photo with options that are preset for a specic scene.Option DescriptionPanorama Capture a wide panoramic scene in a single photo.Waterfall Capture scenes with waterfalls.Silhouette Capture subjects as dark shapes against a light background.Sunset Capture scenes at sunset, with natural-looking reds and yellows.Low Light ShotCapture multiple photos in low light conditions without a ash. The camera combines them to create a single image that is brighter and has less blurring.Fireworks Capture scenes with reworks.Light Trace Capture scenes with the light trailing in low-light conditions.3 Align your subject in the frame, and then half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.1 Rotate the mode dial to s.2 Select a scene.To select another mode when the mode dial is set to s, press [b] or touch , and then select a mode. Smart : Beauty FaceSetOption DescriptionBeauty Face Capture a portrait with options to hide facial imperfections.Continuous Shot Capture photos continuously.Landscape Capture still-life scenes and landscapes.Macro Capture small or close-up subjects.Action Freeze Capture subjects moving at high speed.Rich Tones Capture a photo with vibrant colors.
Using the Smart modeExtended functions 525 With [Shutter] pressed, slowly move the camera in the direction that will let it capture the rest of the panorama.Arrows toward the direction of motion are displayed, and the entire shooting image is displayed in the preview box.When the scenes are aligned, the camera captures the next photo automatically.Shakiness6 When you are nished, release [Shutter].When you have captured all the necessary shots, the camera combines them into one panoramic photo.Using the Panorama modeIn Panorama mode, you can capture a wide panoramic scene in a single photo. Capture and combine a series of photos to create a panoramic image.S Shooting example1 Rotate the mode dial to s.2 Select Panorama.3 Align your subject in the frame, and then half-press [Shutter] to focus.Align the camera with the far left or the far right, or very top or bottom, of the scene you want to capture.4 Press and hold [Shutter] to start shooting.
Using the Smart modeExtended functions 53For best results when capturing panoramic photos, avoid the following:-moving the camera too quickly or too slowly-moving the camera too little to capture the next image-moving the camera at irregular speeds -shaking the camera-shooting in dark places-capturing moving subjects nearby-shooting conditions where the brightness or color of light is changingPhotos taken are automatically saved, and shooting is stopped under the following conditions: -if you change the shooting direction while shooting -if you move the camera too rapidly -if you don't move the cameraSelecting Panorama mode will disable the digital and optical zoom functions. If you select Panorama mode while the lens is zoomed in, the camera automatically zooms out to the default position.Some shooting options are not available.The camera may stop shooting due to the shooting composition or movement within the scene.Your camera may not capture the last scene in its entirety if you stop moving the camera exactly where you want the scene to end. To capture the entire scene, move your camera slightly beyond the point where you want the scene to end.
Extended functions 54Using the Best Face modeIn Best Face mode, you can capture multiple photos and replace faces to create the best possible image. Use this mode to select the best image for each individual when capturing group photos.5 Touch the best image from the 5 faces that were captured.Repeat steps 4 and 5 to replace the rest faces of the photo.The icon will appear on the image that the camera recommends.6 Touch to save the photo.Use a tripod to prevent your camera from shaking.The resolution is set to or smaller.1 Rotate the mode dial to i.2 Align your subject in the frame, and then half-press [Shutter] to focus.3 Press [Shutter] to capture the photo.The camera captures 5 photos consecutively.The rst photo is set as the background image.The camera automatically detects faces after shooting.4 Touch a face to replace.
Extended functions 55Using the My Magic Frame modeIn My Magic Frame mode, you can make part of the photo transparent, and then capture a new photo within the transparent area.1 Rotate the mode dial to g.2 Select .To select another mode when the mode dial is set to g, press [b] or touch , and then select a mode.3 Half-press [Shutter] to focus, and then press [Shutter] to capture a background photo.To select a background photo from your saved photos, press [m] and then select Open Image → an image. You cannot select a video le, GIF le, or a photo captured in Panorama mode. 4 Touch Use.To recapture a background photo, touch Retake.Retake Use5 Select a frame.To draw a new frame and set the thickness of the pen, touch .6 Drag the corner of the box to adjust the size.Using the Magic Plus modeIn the Magic Plus mode, you can capture a photo with various eects.
Using the Magic Plus modeExtended functions 567 Drag the selected frame to place it to a desired location.8 Press [o].9 Adjust the transparency by moving the sliders or touching the +/- icons to adjust.Transparency10 Align your subject in the frame, and then half-press [Shutter] to focus.To recapture a background photo, touch .11 Press [Shutter] to capture a photo.Press [b] to return to the previous screen.12 Touch to save the photo.Some shooting options are not available. The focus is set to the transparent area in the frame.The resolution is xed at .

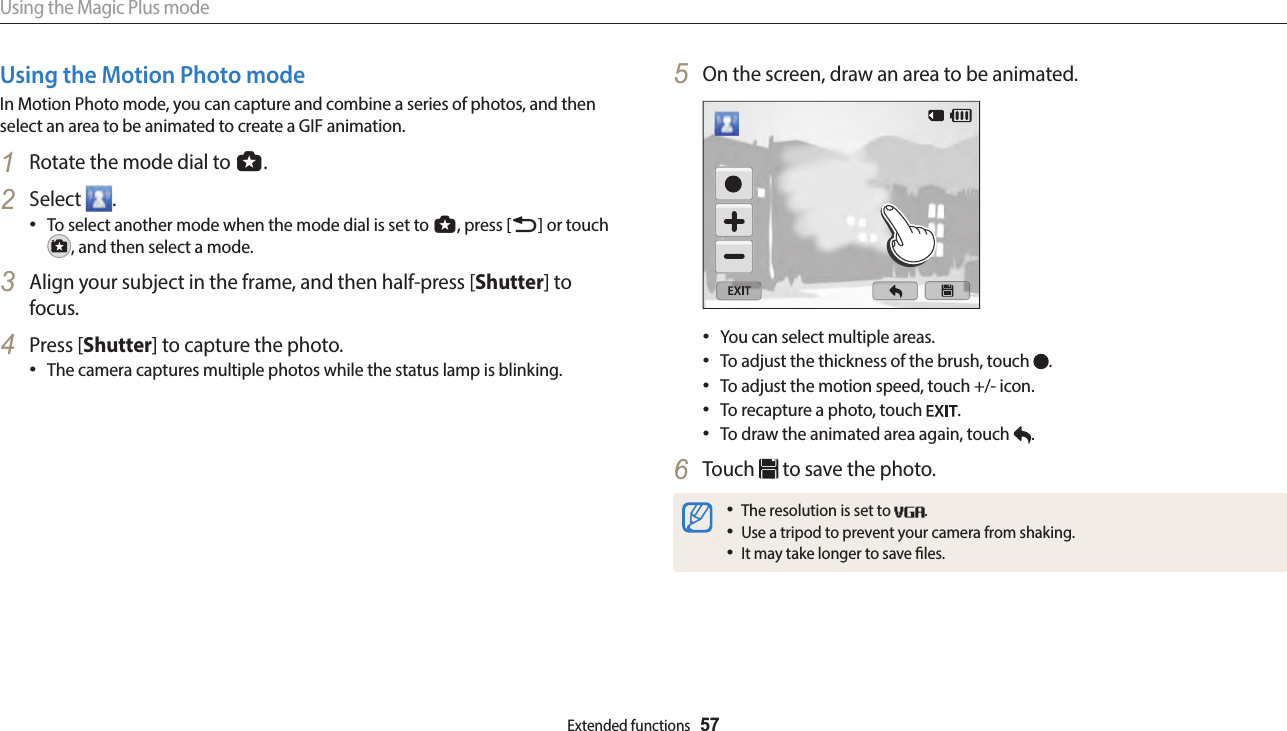

Using the Magic Plus modeExtended functions 57Using the Motion Photo modeIn Motion Photo mode, you can capture and combine a series of photos, and then select an area to be animated to create a GIF animation.1 Rotate the mode dial to g.2 Select .To select another mode when the mode dial is set to g, press [b] or touch , and then select a mode.3 Align your subject in the frame, and then half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.The camera captures multiple photos while the status lamp is blinking.5 On the screen, draw an area to be animated.You can select multiple areas.To adjust the thickness of the brush, touch .To adjust the motion speed, touch +/- icon.To recapture a photo, touch .To draw the animated area again, touch .6 Touch to save the photo.The resolution is set to .Use a tripod to prevent your camera from shaking.It may take longer to save les.
Using the Magic Plus modeExtended functions 58Using the Photo Filter modeApply various lter eects to your photos to create unique images.Miniature VignettingFish-eye Sketch1 Rotate the mode dial to g.2 Select .To select another mode when the mode dial is set to g, press [b] or touch , and then select a mode.3 Select an eect.Option DescriptionMiniature Apply a tilt-shift eect to make the subject appear in miniature.Vignetting Apply the retro-looking colors, high contrast, and strong vignette eect of Lomo cameras.Ink Painting Apply a watercolor painting eect.Oil Painting Apply an oil painting eect.Cartoon Apply a cartoon painting eect.Cross Filter Add lines that radiate outward from bright objects to imitate the visual eect of a cross lter.Sketch Apply a pen sketch eect.Soft Focus Hide facial imperfections or apply dreamy eects.Fish-eye Blacken the edges of the frame and distort objects to imitate the visual eect of a sheye lens.Classic Apply a black and white eect.Retro Apply a sepia tone eect.Zooming Shot Blur the edges of a photo to emphasize the subjects in the center.
Using the Magic Plus modeExtended functions 594 Align your subject in the frame, and then half-press [Shutter] to focus.5 Press [Shutter] to capture a photo.Depending on the option you select, the resolution may change to or smaller automatically.To apply lter eects to saved photos, press [m] and then select Open Image → an image.Using the Movie Filter modeApply various lter eects to your videos to create unique images.1 Rotate the mode dial to g.2 Select .To select another mode when the mode dial is set to g, press [b] or touch , and then select a mode.3 Select an eect.Option DescriptionMiniature Apply a tilt-shift eect to make the subject appear in miniature.Option DescriptionVignetting Apply the retro-looking colors, high contrast, and strong vignette eect of Lomo cameras.Sketch Apply a pen sketch eect.Fish-eye Distort close objects to imitate the visual eect of a sheye lens.Classic Apply a black and white eect.Retro Apply a sepia tone eect.Palette Eect 1 Create a vivid look with sharp contrast and strong color.Palette Eect 2 Make scenes clean and clear.Palette Eect 3 Apply a soft brown tone.Palette Eect 4 Create a cold and monotone eect.4 Press (Video recording) to start recording.5 Press (Video recording) again to stop recording.If you select Miniature, playback speed will increase.If you select Miniature, you cannot record the sound in the video.Depending on the option you select, the recording resolution may change to or smaller automatically.
Extended functions 601 Rotate the mode dial to p, G, s, i, g or T.This feature may not be supported in some modes.2 Set desired options.For a list of options, refer to "Shooting options". (p. 63)3 Press (Video recording) to start recording.While recording a video, press [c] once to cancel the continuous auto focus function and once again to activate the function.4 Press (Video recording) again to stop recording.Pause recordingThe camera allows you to temporarily pause a video while recording. With this function, you can record separate scenes as a single video.Press [o] to pause while recording.Press [o] to resume.Recording a videoRecord Full HD videos (1920 X 1080) of up to 20 minutes. The camera saves recorded videos as MP4 (H.264) les.H.264 (MPEG-4 part10/AVC) is a high-compression video format established by the international standards organizations ISO-IEC and ITU-T.If you use memory cards with slow write speeds, the camera may not save videos properly. Video recordings may be corrupted or fail to play back correctly.Memory cards with slow writing speeds will not support high-resolution videos. To record high-resolution videos, use memory cards with faster write speeds.If you activate the Image Stabilization function while recording a video, the camera may record the operating sound of the Image Stabilization function.If you use the zoom function when recording a video, the camera may record the noise of the zoom operating. To decrease zoom noise, use the Sound Alive function. (p. 85)
Recording a videoExtended functions 61Capturing still images while recording a videoYou can capture still images while recording a video without switching to the photo shooting modes (up to 6 photos).Images captured while recording a videoPress [Shutter] to capture images while recording a video. Captured images will be saved automatically.Captured images will be automatically resized, depending on the size of the recorded video. You cannot capture still images when you pause the video recording. The quality of images captured while recording a video may be lower than those captured normally.This feature may not be supported in some modes. Recording a video with the Smart Scene Detection functionIn Smart Auto mode, your camera automatically chooses the appropriate camera settings based on the scene it has detected.1 Rotate the mode dial to T.2 Set the desired options.For a list of options, refer to "Shooting options". (p. 63)3 Align your subject in the frame.The camera automatically selects a scene. An appropriate scene icon will appear at the top left of the screen.
Recording a videoExtended functions 62Icon DescriptionLandscapesSunsetsBlue skiesForested areas4 Press (Video recording) to start recording.5 Press (Video recording) again to stop recording.If the camera does not recognize an appropriate scene mode, it uses the default settings for the Smart Scene Detection mode.The camera may not select the correct scene depending on the shooting conditions, such as camera shake, lighting, and distance to the subject.
Selecting a resolution and quality …………… 64Selecting a resolution ………………………… 64Selecting a photo quality ……………………… 65Shooting in the dark …………………………… 66Preventing red-eye …………………………… 66Using the ash ………………………………… 66Setting a ash option …………………………… 67Adjusting the ISO sensitivity …………………… 69Changing the camera’s focus …………………… 70Using macro …………………………………… 70Using auto focus ……………………………… 70Adjusting the focus area ……………………… 72Adjusting the focus by touch ………………… 72Using Face Detection …………………………… 75Detecting faces ………………………………… 75Capturing a self portrait shot ………………… 75Capturing a smile shot ………………………… 76Tips for detecting faces ………………………… 76Adjusting brightness and color ………………… 77Adjusting the exposure manually (EV) ………… 77Compensating for backlighting (ACB) ………… 78Changing the metering option ………………… 78Selecting a White Balance setting ……………… 79Using burst modes ……………………………… 82Capturing continuous photos ………………… 82Using the timer ………………………………… 83Capturing bracketed photos …………………… 83Adjusting images ………………………………… 84Reducing the sound of the zoom ……………… 85Shooting optionsLearn how to set the options in Shooting mode.
Shooting options 64Selecting a resolution and qualityLearn how to change the image resolution and quality settings.Setting the video resolution1 In Shooting mode, press [m].2 Select Movie Size.3 Select an option.Icon Description1920 X 1080: High-quality HD les to play back on an HDTV.1280 X 720: HD les to play back on an HDTV.640 X 480: SD les to play back on an analog TV.For Sharing: Post on a website using the wireless network (30 seconds maximum).Selecting a resolutionAs you increase the resolution, your photo or video will include more pixels, so it can be printed on larger paper or displayed on a larger screen. When you use a high resolution, the le size will also increase.Setting the photo resolution1 In Shooting mode, press [m].2 Select Photo Size. 3 Select an option.Icon Description4608 X 3456: Print on A1 paper.4608 X 3072: Print on A1 paper in wide ratio (3:2).4608 X 2592: Print on A1 paper in panorama ratio (16:9) or play back on an HDTV.3648 X 2736: Print on A2 paper.2832 X 2832: Print on A3 paper in 1:1 ratio.2592 X 1944: Print on A4 paper.1984 X 1488: Print on A5 paper.1920 X 1080: Print on A5 paper in panorama ratio (16:9) or play back on an HDTV.1024 X 768: Attach to an email. TpAhMsig
Selecting a resolution and qualityShooting options 65Selecting a photo qualitySet a photo quality settings. Higher image quality settings will result in larger le sizes. The camera compresses and saves the photos you capture in the JPEG format.1 In Shooting mode, press [m].2 Select Quality.3 Select an option.Icon DescriptionSuper Fine: Capture photos in super high quality.Fine: Capture photos in high quality.Normal: Capture photos in normal quality. pAhMig
Shooting options 66Shooting in the darkLearn how to capture photos at night or in low light conditions.Using the ashPress the ash pop-up button to pop the ash up. When the ash unit pops up, the ash res in accordance with the option you have selected. If you select O, the ash does not re even when it is popped up.While not in use, keep the ash unit closed to prevent damage.Forcing to open the ash unit may cause damage to your camera. Press down gently to close it.Preventing red-eyeWhen the ash res when you capture a photo of a person in the dark, a red glow may appear in the person’s eyes. To prevent this, select Red-eye or Red-eye Fix. Refer to ash options in “Setting a ash option.”S Before correctionS After correction ps
Shooting in the darkShooting options 67Setting a ash optionUse the ash when you capture photos in the dark or when you need more light in your photos.1 Press the ash pop-up button to open the ash.2 In Shooting mode, press [F]. TpAhMsg3 Select an option.Icon DescriptionO:The ash will not re.The camera will display the shake warning when you are shooting in low light.Auto: The camera will select a proper ash setting for the scene it detects in Smart Auto mode.Auto: The ash will re automatically when the subject or background is dark.Red-eye:The ash will re twice when the subject or background is dark to reduce the red-eye eect.There is an interval between the 2 bursts of the ash. Do not move until the ash res a second time.Fill in:The ash always res.The camera automatically adjusts light intensity.

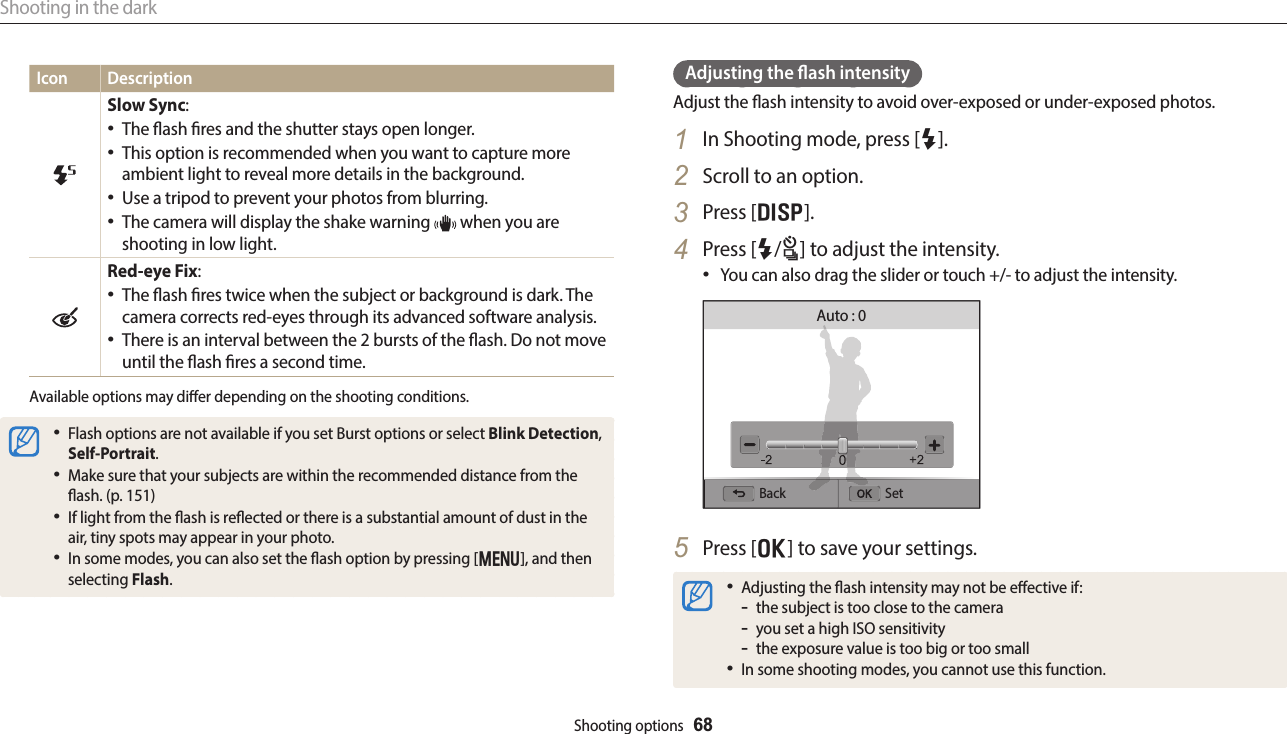

Shooting in the darkShooting options 68Icon DescriptionSlow Sync:The ash res and the shutter stays open longer.This option is recommended when you want to capture more ambient light to reveal more details in the background.Use a tripod to prevent your photos from blurring.The camera will display the shake warning when you are shooting in low light.Red-eye Fix:The ash res twice when the subject or background is dark. The camera corrects red-eyes through its advanced software analysis.There is an interval between the 2 bursts of the ash. Do not move until the ash res a second time.Available options may dier depending on the shooting conditions.Flash options are not available if you set Burst options or select Blink Detection, Self-Portrait.Make sure that your subjects are within the recommended distance from the ash. (p. 151)If light from the ash is reected or there is a substantial amount of dust in the air, tiny spots may appear in your photo.In some modes, you can also set the ash option by pressing [m], and then selecting Flash.Adjusting the ash intensityAdjust the ash intensity to avoid over-exposed or under-exposed photos.1 In Shooting mode, press [F]. 2 Scroll to an option. 3 Press [D]. 4 Press [F/t] to adjust the intensity.You can also drag the slider or touch +/- to adjust the intensity.Auto : 0Back Set5 Press [o] to save your settings.Adjusting the ash intensity may not be eective if:-the subject is too close to the camera-you set a high ISO sensitivity-the exposure value is too big or too smallIn some shooting modes, you cannot use this function.
Shooting in the darkShooting options 69Adjusting the ISO sensitivityThe ISO sensitivity is the measure of a lm’s sensitivity to light as dened by the International Organization for Standardization (ISO). The higher ISO sensitivity you select, the more sensitive to light your camera becomes. Use a higher ISO sensitivity to capture better photos and reduce camera shake when not using the ash.1 In Shooting mode, press [m].2 Select ISO.3 Select an option.Select to use an appropriate ISO sensitivity based on the brightness of the subject and lighting.Higher ISO sensitivities may result in more image noise. pAhM
Shooting options 70Using macroUse macro to capture close-up photos of subjects, such as owers or insects.Try to hold the camera rmly to prevent blurry photos.Turn o the ash if the distance to the subject is less than 15.7 in. (40 cm). pAhMgUsing auto focusTo capture sharp photos, select the appropriate focus option according to your distance from the subject.1 In Shooting mode, press [c].Focus : Normal (AF)Exit Set TpAhMsgChanging the camera’s focusLearn how to adjust the camera’s focus to suit the subject and the shooting conditions.
Changing the camera’s focusShooting options 71Adjusting the focus distance manually1 In Shooting mode, press [c].2 Select Manual Focus.3 Press [F/t] to adjust the focus distance.You can also drag the slider or touch +/- to adjust the focus distance.Back SetManual Focus : 504 Press [o] to save your settings.When you adjust the focus distance manually and the subject is out of focus, the photo may be blurry. pAhM2 Select an option.Icon DescriptionNormal (AF): Focus on a subject farther than 31 in. (80 cm) away. Farther than 138 in. (350 cm) away when you use the zoom.Manual Focus: Focus on a subject by adjusting the focus distance manually. (p. 71) Macro: Focus on a subject that is 4-31 in. (10–80 cm) from the camera. 59-138 in. (150–350 cm) when you use the zoom.Auto Macro: Focus on a subject farther than 4 in. (10 cm) away. Farther than 59 in. (150 cm) away when you use the zoom.Auto Macro is set automatically in some shooting modes.Available options may dier depending on the shooting conditions.In some modes, you can also set the focus option by pressing [m], and then selecting Focus.

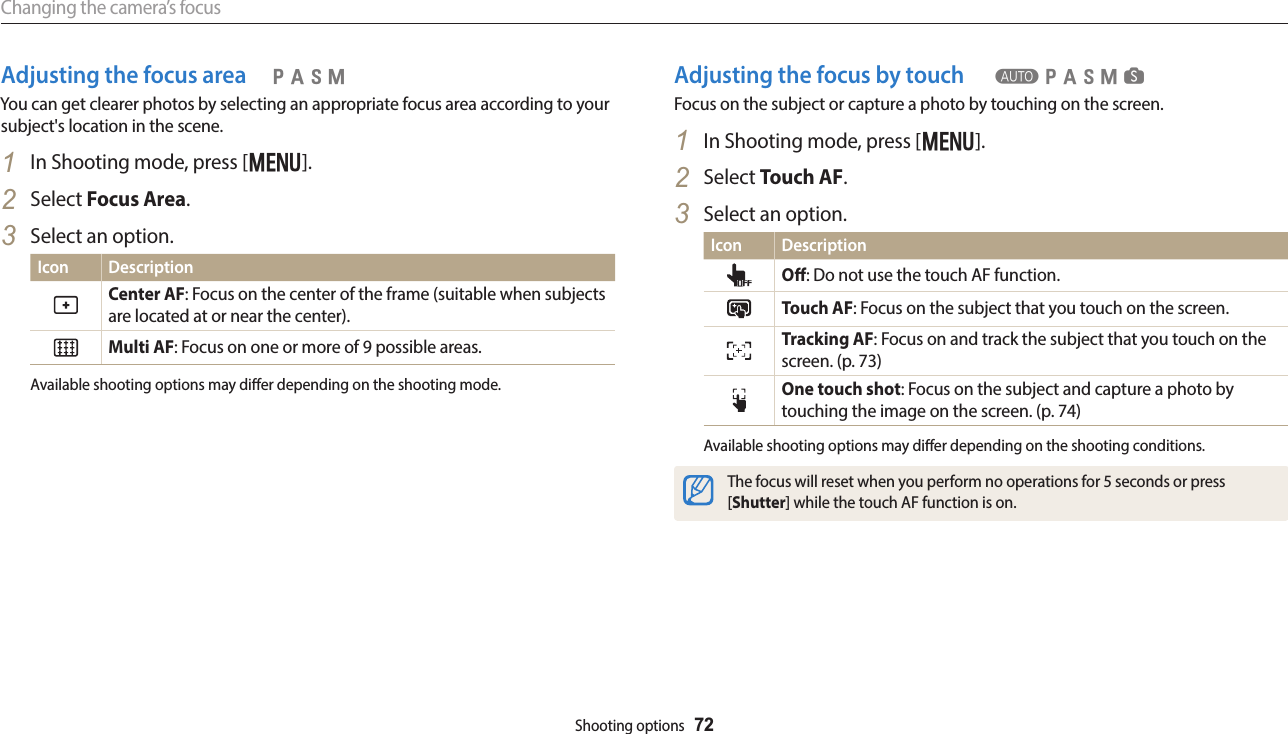

Changing the camera’s focusShooting options 72Adjusting the focus areaYou can get clearer photos by selecting an appropriate focus area according to your subject's location in the scene.1 In Shooting mode, press [m].2 Select Focus Area.3 Select an option.Icon DescriptionCenter AF: Focus on the center of the frame (suitable when subjects are located at or near the center).Multi AF: Focus on one or more of 9 possible areas.Available shooting options may dier depending on the shooting mode. pAhMAdjusting the focus by touchFocus on the subject or capture a photo by touching on the screen. 1 In Shooting mode, press [m].2 Select Touch AF.3 Select an option.Icon DescriptionO: Do not use the touch AF function.Touch AF: Focus on the subject that you touch on the screen.Tracking AF: Focus on and track the subject that you touch on the screen. (p. 73)One touch shot: Focus on the subject and capture a photo by touching the image on the screen. (p. 74)Available shooting options may dier depending on the shooting conditions.The focus will reset when you perform no operations for 5 seconds or press [Shutter] while the touch AF function is on. TpAhMs
Changing the camera’s focusShooting options 73If you do not select a focus area, the focus frame will appear in the center of the screen.Tracking a subject may fail when:-the subject is too small -the subject moves excessively-the subject is backlit or you are shooting in a dark place-colors or patterns on the subject and the background are the same-the subject includes horizontal patterns, such as blinds-the camera shakes excessivelyWhen tracking fails, the feature will be reset.If the camera fails to track the subject, you must reselect the subject to track.If the camera fails to focus, the focus frame will change to red and the focus will be reset.Using tracking auto focusTracking AF allows you to track and automatically focus on your subject, even when you are moving.1 In Shooting mode, press [m].2 Select Touch AF → Tracking AF.3 Touch the subject you want to track in the touch area.A focus frame appears on the subject and follows the subject as you move the camera.The white frame means that your camera is tracking the subject.When you half-press [Shutter], the green frame means that your subject is in focus.The red frame means that your camera failed to focus.4 Press [Shutter] to capture the photo.
Changing the camera’s focusShooting options 74Using One Touch ShotYou can capture a photo with the touch of your nger. As you touch on a subject, the camera focuses on the subject automatically and captures a photo. 1 In Shooting mode, press [m].2 Select Touch AF → One touch shot.3 Touch the subject to capture a photo.If you use this function, you cannot set Timer, Intelli zoom, and Burst options.
Shooting options 75Detecting facesYour camera automatically detects up to 10 human faces in one scene.1 In Shooting mode, press [m].2 Select Face Detection → Normal.The face nearest the camera or nearest the center of the scene appears in a white focus frame and the rest of the faces appear in gray focus frames.The closer you are to the subjects, the quicker your camera will detect faces.Capturing a self portrait shotCapture photos of yourself. The camera sets the focus distance to close-up, and then emits a beep when ready.1 In Shooting mode, press [m].2 Select Face Detection → Self-Portrait.3 Compose your shot with the lens facing you.4 When you hear a quick beep, press [Shutter].When faces are located in the center, the camera beeps rapidly.If you turn Volume o in the sound settings, the camera will not emit a beep. (p. 131)Using Face DetectionIf you use Face Detection options, your camera can automatically detect a human face. When you focus on a human face, the camera adjusts the exposure automatically. Use Blink Detection to detect closed eyes or Smile Shot to capture a smiling face. pAhMs
Using Face DetectionShooting options 76Capturing a smile shotThe camera automatically releases the shutter when it detects a smiling face.1 In Shooting mode, press [m].2 Select Face Detection → Smile Shot.3 Compose your shot.The camera automatically releases the shutter when it detects a smiling face.When your subject smiles broadly, your camera can detect the smile more easily.Tips for detecting facesWhen your camera detects a face, it tracks the detected face automatically. Face Detection may not be eective when:-the subject is far from the camera (The focus frame will appear orange for Smile Shot and Blink Detection.)-it is too bright or too dark-the subject is not facing the camera-the subject is wearing sunglasses or a mask-the subject’s facial expression changes drastically-the subject is backlit or the lighting conditions are unstableWhen you set Face Detection options, the AF area is automatically set to Multi AF.Depending on the Face Detection options you selected, some Shooting options may not be available.
Shooting options 77Adjusting brightness and colorLearn how to adjust the brightness and color for better image quality.3 Press [F/t] to adjust the exposure.You can also drag the slider or touch +/- to adjust the exposure.The photo will be brighter as the exposure value increases.Cancel SetEV : 04 Press [o] to save your settings.Once you adjust the exposure, the setting will be stored automatically. You may need to change the exposure value later to avoid overexposure or underexposure.If you cannot decide on an appropriate exposure, select the AE Bracket (Auto Exposure Bracket) option. The camera will capture 3 consecutive photos, each with a dierent exposure: normal, underexposed, and overexposed. (p. 83)Adjusting the exposure manually (EV)Depending on the intensity of the ambient light, your photos may be too bright or dark. In these cases, you can adjust the exposure to get a better photo.S Darker (-)S Neutral (0)S Brighter (+)1 In Shooting mode, press [m].2 Select EV.You can also touch the exposure value on the screen to open the adjustment window. pAh
Adjusting brightness and colorShooting options 78Compensating for backlighting (ACB)When the light source is behind your subject or there is high contrast between your subject and the background, your subject is likely to appear dark in the photo. In this case, set the Auto Contrast Balance (ACB) option.▲ Without ACB ▲ With ACB1 In Shooting mode, press [m].2 Select ACB. 3 Select an option.Icon DescriptionO: ACB (Auto Contrast Balance) is deactivated.On: ACB (Auto Contrast Balance) is activated.The ACB feature is always on in Smart Auto mode. pAhMChanging the metering optionThe metering mode refers to the way in which a camera measures the quantity of light. The brightness and lighting of your photos will vary depending on the metering mode you select.1 In Shooting mode, press [m].2 Select Metering.3 Select an option.Icon DescriptionMulti:Your camera divides the frame into several areas, and then measures the light intensity of each area.Suitable for general photos.Spot:Your camera measures only the light intensity at the very center of the frame.If a subject is not in the center of the frame, your photo may be improperly exposed.Suitable for a subject with backlighting.Center-weighted:Your camera averages the meter reading of the entire frame with emphasis placed on the center.Suitable for photos with subjects in the center of the frame. pAhM
Adjusting brightness and colorShooting options 79Selecting a White Balance settingThe color of your photo depends on the type and quality of the light source. If you want the color of your photo to be realistic, select a White Balance setting that is appropriate for the lighting conditions, such as Auto WB, Daylight, Cloudy, or Tungsten. Auto WB Daylight Cloudy Tungsten pAhM1 In Shooting mode, press [m].2 Select White Balance.3 Select an option.Icon DescriptionAuto WB: Automatically set the White Balance based on the lighting conditions.Daylight: For outdoor photos on a sunny day.Cloudy: For outdoor photos on a cloudy day or in shadows.Fluorescent_H: For shooting under a daylight uorescent or 3-way uorescent light.Fluorescent_L: For shooting under white uorescent light.Tungsten: For shooting indoor photos under incandescent bulbs or halogen lamps.Color Temp.: To adjust the color temperature of the light source. (p. 80)Custom Set: To use White Balance settings that you dene. (p. 81)
Adjusting brightness and colorShooting options 80Customizing preset White Balance optionsYou can customize preset White Balance options except Auto WB and Custom Set.1 In Shooting mode, press [m].2 Select White Balance.3 Scroll to a desired option.4 Press [D].5 Press [D/c/F/t] to adjust the value on the coordinates.You can also touch an area on the screen.G: GreenA: AmberM: MagentaB: BlueBack SetWhite Balance : Daylight6 Press [o] to save your settings.Adjusting color temperature1 In Shooting mode, press [m].2 Select White Balance → Color Temp..3 Press [D].4 Press [F/t] to adjust the color temperature to match your light source.You can also drag the slider or touch +/- to adjust the color temperature.You can capture a warmer photo with a higher color temperature setting (more yellow/red), and a cooler photo with a lower color temperature setting (more blue).Color Temp. : 6500 KBack Set5 Press [o] to save your settings.
Adjusting brightness and colorShooting options 81Dening your own White BalanceYou can customize the White Balance by capturing a photo of a white surface, such as a piece of paper, under the lighting conditions in which you intend to capture a photo. The White Balance feature will help you to match the colors in your photo with the actual scene.1 In Shooting mode, press [m].2 Select White Balance → Custom Set.3 Aim the lens at a piece of white paper, and then press [Shutter].
Shooting options 82Using burst modesIt can be dicult to capture photos of fast-moving subjects or capture natural facial expressions and gestures of your subjects in photos. Also, it can be dicult to adjust the exposure correctly and select a proper light source. In these cases, select one of the burst modes. You can also set the timer to delay shooting. pAhMsig3 Align your subject in the frame, and then half-press [Shutter] to focus.4 Press and hold [Shutter]. While you are pressing [Shutter], the camera captures photos continuously.Available options may dier depending on the shooting conditions.Depending on the Face Detection options you selected, some shooting options may not be available.It may take longer to save the photos depending on the memory card capacity and performance.In some modes, you can also set the shooting option by pressing [m], and then selecting Drive/Timer.Capturing continuous photos1 In Shooting mode, press [t].2 Select an option.Icon Description Continuous (7.1 fps): Capture 7.1 photos per second continuously. (You can capture up to 6 photos in one burst.)Continuous (3 fps): Capture 3 photos per second continuously. (You can capture up to 6 photos in one burst.)Single: Capture a single photo. (Single is not a burst option.)
Using burst modesShooting options 83Using the timer1 In Shooting mode, press [t].2 Select an option.Icon Option 2 Sec: Capture a photo after a 2-second delay.10 Sec: Capture a photo after a 10-second delay.Press [Shutter] to cancel the timer. In some modes, you can also set the shooting option by pressing [m], and then selecting Drive/Timer or Timer.Capturing bracketed photosYou can use the automatic exposure bracketing feature to capture multiple photos of the same subject with dierent exposure values.1 In Shooting mode, press [t].2 Select AE Bracket.When you press [Shutter], the camera captures 3 consecutive photos, each with a dierent exposure: normal, underexposed, and overexposed.Press [m], and then select AE Bracket Set to select exposure values.It may take longer to capture the photo. Use a tripod for best results.
Shooting options 84Adjusting imagesAdjust the sharpness, contrast, or saturation of your photos. pAhM4 Press [F/t] to adjust each value.You can also drag the sliders or touch +/- to adjust the values.Sharpness Description–Soften the edges on your photos (suitable for editing the photos on your computer).+Sharpen the edges to improve the clarity of your photos. (This may also increase the noise in your photos.)Contrast Description–Decrease the color and brightness.+Increase the color and brightness.Saturation Description–Decrease the saturation.+Increase the saturation.5 Press [o] to save your settings.Select 0 if you do not want to apply any eects (suitable for printing).1 In Shooting mode, press [m].2 Select Image Adjust.3 Select an option.SharpnessContrastSaturationImage Adjust : SharpnessBack SetSharpnessContrastSaturation
Shooting options 85Reducing the sound of the zoomWhen you use the zoom while recording videos, the camera can record the sound of the zoom. Use the Sound Alive function to reduce the zoom noise. TpAhMsig1 In Shooting mode, press [m].2 Select Voice.3 Select an option.Icon DescriptionSound Alive On: Turn on the Sound Alive function to reduce the zoom noise.Sound Alive O: Turn o the Sound Alive function. The camera can record the zoom noise.Do not block the microphone when you use the Sound Alive function.Recordings made with Sound Alive may dier from actual sounds.
Viewing photos or videos in Playback mode … 87Starting Playback mode ……………………… 87Viewing photos ………………………………… 92Playing a video ………………………………… 94Editing a photo ………………………………… 96Resizing photos ………………………………… 96Rotating a photo ……………………………… 96Cropping a photo ……………………………… 97Applying Smart Filter eects …………………… 97Adjusting your photos ………………………… 98Viewing les on a TV …………………………… 100Transferring les to the computer …………… 101Transferring les to your Windows OS computer ……………………………………… 101Transferring les to your Mac OS computer …… 102Using programs on a computer ……………… 104Installing i-Launcher …………………………… 104Using i-Launcher ……………………………… 105Playback/EditingLearn how to play back photos or videos, and edit photos. Also, learn how to connect your camera to your computer or TV.
Playback/Editing 87Starting Playback modeView photos or play videos stored in your camera.1 Press [P].The most recent le will be displayed.If the camera is o, it will turn on and display the most recent le.2 Press [F/t] to scroll through les.You can also drag the image left or right to move to another le.Press and hold [F/t] to scroll through les quickly.If you want to view les stored in the internal memory, remove your memory card.You may not be able to edit or play back les that were captured with other cameras, due to unsupported sizes (image size, etc) or codecs. Use a computer or another device to edit or play back these les.Photos or videos captured in portrait orientation do not rotate automatically and are displayed in landscape orientation by the camera and other devices.Photo le informationFile InformationHistogramMemory in useIcon DescriptionCurrent le/Total lesFolder name-File nameGIF lePhoto captured continuously (See "Viewing les as a folder", p. 88)Protected leView les as thumbnails (p. 89)To display le information on the screen, press [D].Viewing photos or videos in Playback modeLearn how to play back photos or videos and how to manage les.
Viewing photos or videos in Playback modePlayback/Editing 88Video le informationFile InformationIcon DescriptionCurrent le/Total lesFolder name-File nameVideo leProtected lePlay videosTo display le information on the screen, press [D].Viewing les as a folderPhotos captured continuously appear as a folder.1 In Playback mode, press [F/t] or drag the image left or right to move to a desired folder.The camera will automatically play back photos in the folder. Single View2 Press [o] or rotate [Zoom] to the right to open the folder.You can also touch Single View on the screen to open the folder.3 Press [F/t] or drag the image left or right to move to another le.4 Press [o] or rotate [Zoom] to the left to return to Playback mode.
Viewing photos or videos in Playback modePlayback/Editing 89Viewing les as thumbnailsScan thumbnails of les.In Playback mode, rotate [Zoom] to the left to view thumbnails (12 at a time). Rotate [Zoom] to the left once more to display more thumbnails (24 at a time). Rotate [Zoom] to the right to return to the previous view.Touch a le to display it in full screen view.Press [D/c/F/t] or drag the screen up or down to move to the previous or next page of thumbnails.Viewing les by categoryView les by category, such as date or le type.1 In Playback mode, rotate [Zoom] to the left.2 Press [m], and then select Filter → a category. You can also touch FILTER to select a category.AllDateFile TypeFilterBack SetIcon DescriptionAll: View les normally.Date: View les by the date they were saved.File Type: View les by the le type.
Viewing photos or videos in Playback modePlayback/Editing 903 Select a list to open it.4 Select a le to view it.5 Rotate [Zoom] to the left to return to the previous view.If you change the category, it may take some time for the camera to reorganize les depending on the number of les.Protecting a leProtect a le from accidental deletion.1 In Playback mode, select a le to protect.2 Press [m], and then select Protect → On.3 Repeat steps 1 and 2 to protect additional les.You cannot delete or rotate a protected le.Deleting lesSelect les to delete in Playback mode.Deleting a single leYou can select one le, and then delete it.1 In Playback mode, select a le, and then press [ /f].2 When the pop-up message appears, select Ye s .You can also delete les in Playback mode by pressing [m], and then selecting Delete → Delete → Yes .
Viewing photos or videos in Playback modePlayback/Editing 91Deleting multiple lesYou can select multiple les, and then delete them at once.1 In Playback mode, press [m].When in thumbnails view, press [m], select Delete → Select, and then skip to step 3, or press [ /f], select Select, and then skip to step 3.2 Select Delete → Multiple Delete.3 Scroll to each le you want to delete, and then press [o].Press [o] again to cancel your selection.You can also select les by touching them.4 Press [ /f].5 When the pop-up message appears, select Ye s .Deleting all lesYou can select all les, and then delete them at once.1 In Playback mode, press [m].When in thumbnails view, press [m], select Delete → Delete All, and then skip to step 3, or press [ /f], select Delete All, and then skip to step 3.2 Select Delete → Delete All.3 When the pop-up message appears, select Ye s .All unprotected les are deleted.
Viewing photos or videos in Playback modePlayback/Editing 92Viewing photosEnlarge part of a photo or view photos as a slide show.Enlarging a photoIn Playback mode, rotate [Zoom] to the right to enlarge a portion of the photo. Rotate [Zoom] to the left to zoom out.Enlarged areaBack CropTo DescriptionMove the enlarged areaPress [D/c/F/t].Drag the screen to see another part of the photo.Trim the enlarged photoPress [o], and then select Ye s. (The trimmed photo will be saved as a new le. The original photo is retained in its original form.)When you view photos that were captured by another camera, the zoom ratio may dier.
Viewing photos or videos in Playback modePlayback/Editing 93Viewing panoramic photosView photos captured in Panorama mode.1 In Playback mode, scroll to a panoramic photo.The entire panoramic photo appears on the screen.2 Press [o] or touch .The camera automatically scrolls through the photo from left to right for a horizontal panoramic photo and from top to bottom for a vertical panoramic photo. The camera then switches to Playback mode.While playing back a panoramic photo, press [o] to pause or resume.After you have paused the playback of a panoramic photo, press [D/c/F/t] or drag the image to move the photo horizontally or vertically, depending on the direction you moved when capturing the photo.3 Press [b] to return to Playback mode.You can play the panoramic photo by pressing [o] or touching only if the longest side of the photo is two or more times longer than the shortest side.Viewing animated photosView animated GIF les repeatedly that were captured in Motion Photo mode. 1 In Playback mode, scroll to a GIF le.2 Press [o] or touch .3 Press [b] to return to Playback mode.Playing a slide showApply eects and audio to a slide show of your photos. The slide show function does not work for videos and GIF les.1 In Playback mode, press [m].2 Select Slide Show Options.3 Select a slide show eect option.Skip to step 4 to start a slide show with no eects.* DefaultOption DescriptionPlay Mode Set whether or not to repeat the slide show. (One Play*, Repeat)IntervalSet the interval between photos. (1 sec*, 3 sec, 5 sec, 10 sec)You must set the Eect option to O to set the interval.
Viewing photos or videos in Playback modePlayback/Editing 94* DefaultOption DescriptionEectSet a scene change eect between photos. (O, Calm*, Shine, Relax, Lively, Sweet)Select O to cancel eects.When you use the Eect option, the interval between photos will be set to 1 second.4 Press [b].5 Select Start Slide Show.6 View the slide show.Press [o] to pause the slide show.Press [o] again to resume the slide show.Press [b] to stop the slide show and return to Playback mode.Rotate [Zoom] to the left or right or touch at the bottom of the screen to adjust the volume level.Playing a videoIn Playback mode, you can view a video, and then capture or trim parts of the playing video. You can save the captured or trimmed segments as new les.1 In Playback mode, select a video, and then press [o] or touch .2 View the video.Current playback time/Video lengthStopIcon Description/Move to the previous le/Scan backward. (Each time you touch the scan backward icon, you change the scan speed in this order: 2X, 4X, 8X.)/Pause or resume playback.
Viewing photos or videos in Playback modePlayback/Editing 95Icon Description/Move to the next le/Scan forward. (Each time you touch the scan forward icon, you change the scan speed in this order: 2X, 4X, 8X.)Adjust the volume or mute the sound.When playing a movie, you can begin using features such a scanning backward or scanning forward after the video has run for 2 seconds.Trimming a video1 In Playback mode, select a video, and then press [m].2 Select Trim Movie.3 Press [o] or touch to start playing the video.4 Press [o] or touch at the point where you want the trimming to begin.5 Press [c] or touch Start Point.6 Press [o] or touch to resume playing the video.7 Press [o] or touch at the point where you want the trimming to end.8 Press [c] or touch End Point.9 Press [c] or touch Trim to trim a video.You can adjust the scene to be cropped by dragging the handles that appear on the progress bar.10 When the pop-up message appears, select Ye s .The original video should be at least 10 seconds long.The camera will save the edited video as a new le and leave the original video intact.Capturing an image from video1 While viewing a video, press [o] or touch at the point where you want to capture an image.2 Press [c] or touch Capture.The resolution of the captured image will be the same as the original video.The captured image is saved as a new le.
Playback/Editing 96Resizing photosChange the size of a photo and save it as a new le.1 Rotate the mode dial to g, and then select .You can also press [m], and then select Edit Image.2 Rotate [Zoom] to the left or touch to select a photo.3 Touch , and then touch an option.Resize : 2592 X 19444 Touch to save.Available resize options dier depending on the original size of the photo.Rotating a photo1 Rotate the mode dial to g, and then select .You can also press [m], and then select Edit Image.2 Rotate [Zoom] to the left or touch to select a photo.3 Touch , and then touch an option.Rotate : Right 90˚4 Touch to save.The camera will overwrite the original le.Editing a photoLearn how to edit photos.The camera will save edited photos as new les.When you edit photos, the camera will automatically convert them to a lower resolution. Photos that you rotate or resize manually are not automatically converted to a lower resolution.You cannot edit photos while viewing les as a folder. Open the folder and select a photo to edit each photo.Photos captured in some modes cannot be edited.
Editing a photoPlayback/Editing 97Cropping a photo1 Rotate the mode dial to g, and then select .You can also press [m], and then select Edit Image.2 Rotate [Zoom] to the left or touch to select a photo.3 Touch , and then select an area to drag and crop.4 Adjust the size of the area by dragging the corners of the box.5 Touch to save.Applying Smart Filter eectsApply special eects to your photos.1 Rotate the mode dial to g, and then select .You can also press [m], and then select Edit Image.2 Rotate [Zoom] to the left or touch to select a photo.3 Touch , and then touch an option.4 Touch o.Smart Filter : MiniatureOption DescriptionO No eectMiniature Apply a tilt-shift eect to make the subject appear in miniature. (The top and bottom of the photo will be blurred.)
Editing a photoPlayback/Editing 98Option DescriptionVignetting Apply the retro-looking colors, high contrast, and strong vignette eect of Lomo cameras.Ink Painting Apply a watercolor painting eect.Oil Painting Apply an oil painting eect.Cartoon Apply a cartoon painting eect.Cross Filter Add lines that radiate outward from bright objects to imitate the visual eect of a cross lter.Sketch Apply a pen sketch eect.Soft Focus Hide facial imperfections or apply dreamy eects.Fish-eye Distort close objects to imitate the visual eect of a sheye lens.Classic Apply a black and white eect.Retro Apply a sepia tone eect.Zooming Shot Blur the edges of a photo to emphasize the subjects in the center.5 Touch to save.Adjusting your photosLearn how to adjust the brightness, contrast, or saturation or how to correct the red-eye eect. If the center of a photo is dark, you can adjust it to be brighter. The camera will save an edited photo as a new le, but may convert it to a lower resolution. You can adjust brightness, contrast, and saturation and apply Smart Filter eects at the same time.You cannot apply the ACB, Face Retouch, and Red-eye Fix eects at the same time.If you have applied the ACB eect, you cannot adjust brightness, contrast, or saturation. If you have adjusted brightness, contrast, or saturation, you cannot apply the ACB eect.Adjusting dark subjects, brightness, contrast, or saturation1 Rotate the mode dial to g, and then select .You can also press [m], and then select Edit Image.2 Rotate [Zoom] to the left or touch to select a photo.
Editing a photoPlayback/Editing 993 Touch , and then select an adjusting option.Icon DescriptionACB (Adjust dark subjects)BrightnessContrastSaturationIf you selected , skip to step 6.4 Press [F/t] to adjust the option.You can also drag the slider or touch +/- to adjust the option.5 Touch o.6 Touch to save.Retouching faces1 Rotate the mode dial to g, and then select .You can also press [m], and then select Edit Image.2 Rotate [Zoom] to the left or touch to select a photo.3 Touch , and then touch Face Retouch.4 Press [o].5 Press [F/t] to adjust the option.You can also drag the slider or touch +/- to adjust the option.As the number increases, the skin tone becomes brighter and smoother.6 Press [o].7 Touch to save.Removing red-eye1 Rotate the mode dial to g, and then select .You can also press [m], and then select Edit Image.2 Rotate [Zoom] to the left or touch to select a photo.3 Touch , and then touch Red-eye Fix.4 Touch to save.
Playback/Editing 100Viewing les on a TVPlay back photos or videos by connecting your camera to a TV with the A/V cable.6 Turn on your TV, and then select the A/V video source with the TV remote control.7 Turn on your camera.The camera automatically enters into Playback mode when you connect it to a TV.8 View photos or play videos using the camera buttons.Depending on the TV model, you may see some digital noise or part of an image may not appear.Images may not be centered on the TV screen depending on your TV settings.1 Rotate the mode dial to n.2 Select Connectivity → Video Out.3 Select the video signal output for your country or region. (p. 132)4 Turn o your camera and TV.5 Connect your camera to your TV with the A/V cable.VideoAudio
Playback/Editing 101Transferring les to your Windows OS computerConnect the camera to your computer as a removable disk.Your computer must be running Windows XP, Windows Vista, Windows 7, or Windows 8 for you to connect the camera as a removable disk.1 Rotate the mode dial to n.2 Select Connectivity → i-Launcher → O.3 Turn o the camera.4 Connect the camera to your computer with the USB cable.You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.5 Turn on the camera.The computer recognizes the camera automatically.6 On your computer, select My Computer → Removable Disk → DCIM → 100PHOTO.7 Drag or save les to your computer.Transferring les to the computerConnect the camera to a computer to transfer les from the camera's memory card to the computer.
Transferring les to the computerPlayback/Editing 102Disconnecting the camera (for Windows XP)With Windows Vista, Windows 7 and Windows 8, the methods for disconnecting the camera are similar.1 If the status lamp on your camera is blinking, wait until it stops.2 Click on the tool bar at the bottom right of your computer screen.3 Click the pop-up message.4 Click the message box that indicates the camera can be removed safely.5 Remove the USB cable.Transferring les to your Mac OS computerWhen you connect the camera to your Mac OS computer, the computer will automatically recognize the device. You can transfer les directly from the camera to the computer without installing any programs.Mac OS 10.5 or later is supported.1 Turn o the camera.2 Connect your camera to your Mac OS computer with the USB cable.You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.
Transferring les to the computerPlayback/Editing 1033 Turn on the camera.The computer recognizes the camera automatically and displays a removable disk icon.4 Open the removable disk.5 Drag or save les to your computer.
Playback/Editing 104Using programs on a computeri-Launcher allows you to play back les with Multimedia Viewer and provides links so that you can download useful programs.5 Turn on the camera.6 When the pop-up window prompts you to install i-Launcher, select Yes.If a pop-up window prompting you to run iLinker.exe appears, run it rst.When you connect the camera to a computer with i-Launcher installed, the program will launch automatically.7 Follow the on-screen instructions to complete the installation.An i-Launcher shortcut will appear on the computer.Before installing the program, ensure that the PC is connected to a network.To install i-Launcher on your Mac OS computer, click Devices → i-Launcher → Mac → iLinker.Installing i-Launcher1 Rotate the mode dial to n.2 Select Connectivity → i-Launcher → On.3 Turn o the camera.4 Connect the camera to your computer with the USB cable.You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.
Using programs on a computerPlayback/Editing 105Windows OS RequirementsItem RequirementsCPU Intel® Core™ 2 Duo 1.66 GHz or higher/ AMD Athlon X2 Dual-Core 2.2 GHz or higher RAM Minimum 512 MB RAM (1 GB or more recommended)OS* Windows XP SP2, Windows Vista, Windows 7, or Windows 8 Hard disk capacity 250 MB or more (1 GB and above recommended)Others1024 X 768 pixels, 16-bit color display compatible monitor (1280 X 1024 pixels, 32-bit color display recommended)USB 2.0 portnVIDIA Geforce 7600GT or higher/ ATI X1600 series or higherMicrosoft DirectX 9.0c or higher* A 32-bit version of i-Launcher will be installed—even on 64-bit editions of Windows XP, Windows Vista, Windows 7, and Windows 8.Available programs when using i-LauncherOption DescriptionMultimedia Viewer You can view les with Multimedia Viewer.Firmware Upgrade You can update the rmware of your camera.PC Auto Backupi-Launcher provides a link for downloading the PC Auto Backup program when you connect the camera to a computer. You can send photos or videos that you captured with the camera to a PC wirelessly.If you use a Mac OS computer, only Firmware Upgrade and PC Auto Backup are available.Using i-Launcheri-Launcher allows you to play back les with Multimedia Viewer and provides a link to download the PC Auto Backup program.The requirements are recommendation only. i-Launcher may not work properly even when the computer meets the requirements, depending on the condition of your computer.If your computer does not meet the requirements, videos may not play correctly.The manufacturer is not responsible for any damage that results from using unqualied computers such as a computer you assembled yourself.
Using programs on a computerPlayback/Editing 106Opening i-LauncherOn your computer, select Start → All Programs → Samsung → i-Launcher → Samsung i-Launcher. On your Mac, click Applications → Samsung → i-Launcher.Mac OS requirementsItem RequirementsOS Mac OS 10.5 or higher (except PowerPC)RAM Minimum 256 MB RAM (512 MB or more recommended)Hard disk capacity Minimum 110 MBOthers USB 2.0 port
Using programs on a computerPlayback/Editing 107Using Multimedia ViewerMultimedia Viewer allows you to play back les. From the Samsung i-Launcher screen, click Multimedia Viewer.Multimedia Viewer supports the following formats:-Videos: MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9), AVI (MJPEG)-Photos: JPG, GIF, BMP, PNG, TIFF, MPOFiles that have been recorded with other manufacturers’ devices may not play back smoothly.Viewing photos326790!8 541No. Description1File name2Enlarged area3Histogram4Open the selected le.5Histogram button6Rotate to the left/Rotate to the right.7Move to the previous le/Move to the next le.8Fit the photo to the screen.9View the photo in its original size. 0Zoom in/Zoom out!Switches between 2D and 3D mode.
Using programs on a computerPlayback/Editing 108Viewing videos16854372No. Description1File name2Adjust the volume.3Open the selected le.4Move to the next le.5Stop6Pause7Move to the previous le.8Progress bar
Using programs on a computerPlayback/Editing 109Updating the rmwareFrom the Samsung i-Launcher screen, click Firmware Upgrade.Downloading the PC Auto Backup programFrom the Samsung i-Launcher screen, click PC Auto Backup. For information about installing the PC Auto Backup program, refer to page 119.
Connecting to a WLAN and conguring network settings ………………………………… 111Connecting to a WLAN ………………………… 111Using the login browser ……………………… 112Network connection tips ……………………… 113Entering text …………………………………… 114Saving les to a smart phone automatically … 115Sending photos or videos to a smart phone … 116Using a smart phone as a remote shutter release …………………………………… 117Using Auto Backup to send photos or videos … 119Installing the program for Auto Backup on your PC ……………………………………… 119Sending photos or videos to a PC ……………… 119Sending photos or videos via email …………… 121Changing email settings ……………………… 121Sending photos or videos via email …………… 123Using photo or video sharing websites ……… 124Accessing a website …………………………… 124Uploading photos or videos …………………… 124Using AllShare Play to send les ……………… 126Uploading photos to online storage …………… 126Viewing photos or videos on devices that support Samsung Link. ………………………… 127Wireless networkLearn how to connect to wireless local area networks (WLANs) and use functions.
Wireless network 111Connecting to a WLAN and conguring network settingsLearn to connect via an access point (AP) when you are in a range of a WLAN. You can also congure network settings.Icon DescriptionAd hoc APSecured APWPS APSignal strengthPress [t] or touch to open AP setting optionsWhen you select a secured AP, a pop-up window appears. Enter the required passwords to connect to the WLAN. For information about entering text, refer to "Entering text". (p. 114)When a login page appears, refer to "Using the login browser". (p. 112)When you select an unsecured AP, the camera will connect to the WLAN.If you select a WPS prole supported AP, select → WPS PIN connection, and then enter a PIN on the AP device. You can also connect to a WPS prole supported AP by selecting → WPS button connection on the camera, and then pushing the WPS button on the AP device. Connecting to a WLAN1 Rotate the mode dial to w.2 Select , , , , or .3 Press [m], and then select Wi-Fi Setting.In some modes, follow the on-screen instructions until the Wi-Fi Setting screen appears.The camera automatically searches for available AP devices.4 Select an AP.RefreshBackSelect Refresh to refresh connectable APs.Select Add wireless network to add an AP manually. Your AP name must be in English to add the AP manually.
Connecting to a WLAN and conguring network settingsWireless network 112Setting network options1 In the Wi-Fi Setting screen, move to an AP, and then press [t] or touch .2 Select each option, and then enter the required information.Option DescriptionNetwork Password Enter the network password.IP Setting Set the IP address automatically or manually.Manually setting the IP address1 In the Wi-Fi Setting screen, move to an AP, and then press [t] or touch .2 Select IP Setting → Manual.3 Select each option, and then enter the required information.Option DescriptionIP Enter the static IP address.Subnet Mask Enter the subnet mask.Gateway Enter the gateway.DNS Server Enter the DNS address.Using the login browserYou can enter your login information via the login browser when connecting to some APs, sharing sites, or cloud servers.Button/Icon Description[D/c/F/t]Move to an item or scroll the page.[o] Select an item.Close the login browser.Move to the previous page.Move to the next page.Stop loading the page.Reload the page.You may not be able to select some items depending on the page you connected to. This does not indicate a malfunction.The login browser may not close automatically after you log into some pages. If this occurs, close the login browser by pressing [b] or touching , and then proceed with the desired operation.It may take longer to load the login page due to the page size or network speed. If this occurs, wait until the login information input window appears.
Connecting to a WLAN and conguring network settingsWireless network 113Network connection tipsSome Wi-Fi features are not available if you do not insert a memory card.The quality of the network connection will be determined by the AP.The further the distance between your camera and the AP, the longer it will take to connect to the network.If a nearby device is using the same radio frequency signal as your camera, it may interrupt your connection.If your AP name is not in English, the camera may not be able to locate the device or the name may appear incorrectly.For network settings or a password, contact your network administrator or network service provider.If a WLAN requires authentication from the service provider, you may not be able to connect to it. To connect the WLAN, contact your network service provider.Depending on the encryption type, the number of digits in the password may dier.A WLAN connection may not be possible in all surroundings.The camera may display a WLAN enabled printer on the AP List. You cannot connect to a network via a printer.You cannot connect your camera to a network and a TV simultaneously.Connecting to a network may incur additional charges. Costs will vary based on the conditions of your contract.If you cannot connect to a WLAN, try another AP from the available AP list.A login page may appear when you select free WLANs provided by some network service providers. Enter your ID and password to connect to the WLAN. For information about registering or the service, contact the network service providers.Be cautious when you enter personal information for an AP connection. Do not enter any payment or credit card information on your camera. The manufacturer is not liable for any problem caused by entering such information.Available network connections may dier by country.The WLAN feature of your camera must comply with radio transmission laws in your region. To ensure compliance, use the WLAN feature only in the country where you purchased the camera.The process for adjusting network settings may dier, depending on network conditions.Do not access a network that you are not authorized to use.Before you connect to a network, ensure your battery is fully charged.You cannot upload or send les captured in some modes.Files that you transfer to another device may not be supported by the device. In this case, use a computer to play back the les.
Connecting to a WLAN and conguring network settingsWireless network 114Entering textLearn how to enter text. The icons in the table below let you move the cursor, change the case, etc. Press [D/c/F/t] to move to a desired key, and then press [o] to enter the key. You can also touch a key to enter it.XCancel DoneXCancelDoneIcon DescriptionMove the cursor.In ABC mode, change the case.XDelete the last letter.Cancel Stop entering text and return to the previous page.Icon DescriptionSwitch between Symbol mode and ABC mode. Enter a space.Done Save the displayed text.You can use only the English alphabets in some modes, regardless of the display language.To move to Done directly, press [P].You can enter up to 64 characters.The screen may dier depending on the input mode.

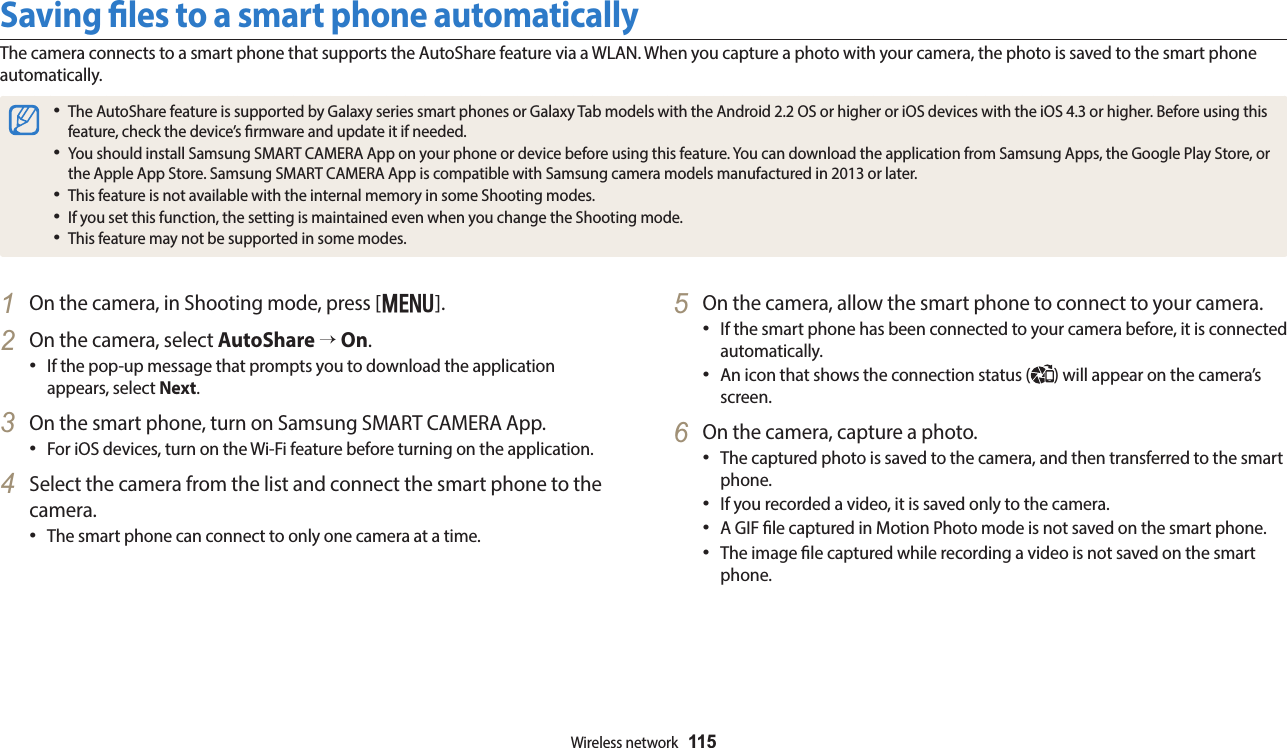

Wireless network 115Saving les to a smart phone automaticallyThe camera connects to a smart phone that supports the AutoShare feature via a WLAN. When you capture a photo with your camera, the photo is saved to the smart phone automatically.The AutoShare feature is supported by Galaxy series smart phones or Galaxy Tab models with the Android 2.2 OS or higher or iOS devices with the iOS 4.3 or higher. Before using this feature, check the device’s rmware and update it if needed.You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.This feature is not available with the internal memory in some Shooting modes.If you set this function, the setting is maintained even when you change the Shooting mode.This feature may not be supported in some modes.5 On the camera, allow the smart phone to connect to your camera.If the smart phone has been connected to your camera before, it is connected automatically.An icon that shows the connection status ( ) will appear on the camera’s screen.6 On the camera, capture a photo.The captured photo is saved to the camera, and then transferred to the smart phone.If you recorded a video, it is saved only to the camera.A GIF le captured in Motion Photo mode is not saved on the smart phone.The image le captured while recording a video is not saved on the smart phone.1 On the camera, in Shooting mode, press [m].2 On the camera, select AutoShare → On.If the pop-up message that prompts you to download the application appears, select Next.3 On the smart phone, turn on Samsung SMART CAMERA App.For iOS devices, turn on the Wi-Fi feature before turning on the application. 4 Select the camera from the list and connect the smart phone to the camera.The smart phone can connect to only one camera at a time.

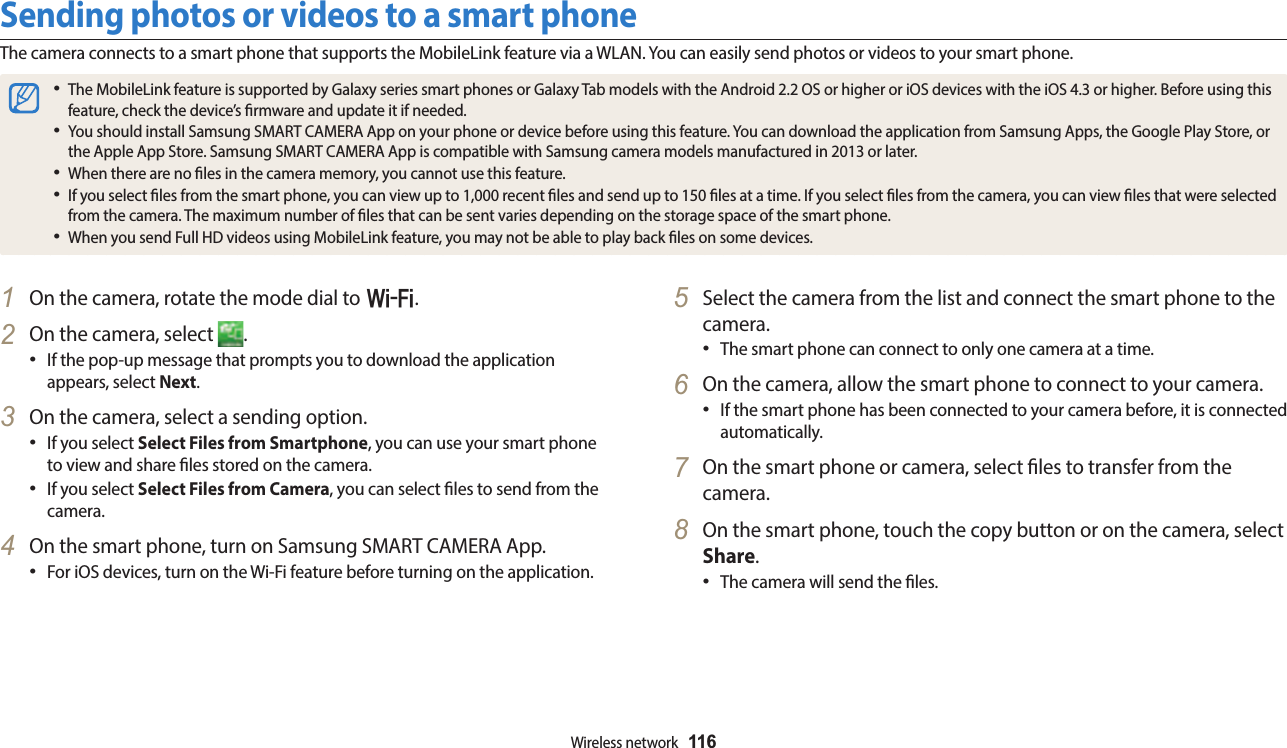

Wireless network 116Sending photos or videos to a smart phoneThe camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your smart phone.The MobileLink feature is supported by Galaxy series smart phones or Galaxy Tab models with the Android 2.2 OS or higher or iOS devices with the iOS 4.3 or higher. Before using this feature, check the device’s rmware and update it if needed.You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.When there are no les in the camera memory, you cannot use this feature.If you select les from the smart phone, you can view up to 1,000 recent les and send up to 150 les at a time. If you select les from the camera, you can view les that were selected from the camera. The maximum number of les that can be sent varies depending on the storage space of the smart phone.When you send Full HD videos using MobileLink feature, you may not be able to play back les on some devices.5 Select the camera from the list and connect the smart phone to the camera.The smart phone can connect to only one camera at a time.6 On the camera, allow the smart phone to connect to your camera.If the smart phone has been connected to your camera before, it is connected automatically.7 On the smart phone or camera, select les to transfer from the camera.8 On the smart phone, touch the copy button or on the camera, select Share.The camera will send the les.1 On the camera, rotate the mode dial to w.2 On the camera, select .If the pop-up message that prompts you to download the application appears, select Next.3 On the camera, select a sending option. If you select Select Files from Smartphone, you can use your smart phone to view and share les stored on the camera.If you select Select Files from Camera, you can select les to send from the camera.4 On the smart phone, turn on Samsung SMART CAMERA App.For iOS devices, turn on the Wi-Fi feature before turning on the application.
Wireless network 1171 On the camera, rotate the mode dial to w.2 On the camera, select .If the pop-up message that prompts you to download the application appears, select Next.3 On the smart phone, turn on Samsung SMART CAMERA App.For iOS devices, turn on the Wi-Fi feature before turning on the application.4 Select the camera from the list and connect the smart phone to the camera.The smart phone can connect to only one camera at a time.5 On the camera, allow the smart phone to connect to your camera.If the smart phone has been connected to your camera before, it is connected automatically.6 On the smart phone, set the following shooting options.Icon DescriptionFlash optionTimer optionPhoto sizeSaving locationZoom ratioWhile using this feature, some buttons are not available on your camera.The zoom button and the shutter button on your smart phone will not function when using this feature.Remote Viewnder mode supports the and photo sizes only.Using a smart phone as a remote shutter releaseThe camera connects to a smart phone that supports the Remote Viewnder feature via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewnder feature. The captured photo will display on the smart phone.The Remote Viewnder feature is supported by Galaxy series smart phones or Galaxy Tab models with the Android 2.2 OS or higher or iOS devices with the iOS 4.3 or higher. Before using this feature, check the device’s rmware and update it if needed.You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
Using a smart phone as a remote shutter releaseWireless network 1187 On the smart phone, touch and hold to focus.The focus is automatically set to Multi AF.8 Release to capture the photo.The photo will be resized to 640 X 360 when it is stored to the smart phone.When you use this feature, the ideal distance between the camera and the smart phone may vary, depending on your surroundings.The smart phone must be within 7 m of the camera to use this feature.It will take some time to capture the photo after you release on the smart phone.The Remote Viewnder function will deactivate when:-there is an incoming call on the smart phone-either the camera or the smart phone turns o-the memory is full-either device loses its connection to the WLAN-the Wi-Fi connection is poor or unstable
Wireless network 119Using Auto Backup to send photos or videosYou can send photos or videos that you captured with the camera to a PC wirelessly.Sending photos or videos to a PC1 Rotate the mode dial to w.2 Select .If the the pop-up message that prompts you to download the application appears, select Next.You must congure the backup PC information to use the Auto Backup feature. For more details, refer to “Installing the program for Auto Backup on your PC”. (p. 119) If the Auto Backup program is installed on your PC, save the PC information via USB cable or Wi-Fi connection.The camera will automatically attempt to connect to a WLAN via the most recently connected AP device. If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 111)Installing the program for Auto Backup on your PC1 Install i-Launcher on the PC. (p. 104)2 Connect the camera to the PC with the USB cable.3 When the Auto Backup program icon appears, click it.The Auto Backup program is installed on the PC and the information about the PC will be stored to the camera. Follow the on-screen instructions to complete the installation.You can also save the information about the PC to the camera by connecting the PC and the camera via Wi-Fi.4 Remove the USB cable.Before installing the program, ensure that the PC is connected to a network.
Using Auto Backup to send photos or videosWireless network 1203 Select a backup PC.If you have performed a backup before, skip to step 4.4 Select OK.To cancel sending, select Cancel.You cannot select individual les to backup. This function backs up only new les on the camera.The backup's progress will be shown on the PC monitor.When the transfer is completed, the camera will turn o automatically in approximately 30 seconds. Select Cancel to return to the previous screen and prevent the camera from turning o automatically.To turn o your PC automatically after the transfer is complete, select Shut down PC after backup → On.To change the backup PC, select .When you connect the camera to the WLAN, select the AP that is connected to the PC.The camera will search for available access points even if you are connecting to the same access point again.If you turn o the camera or remove the battery while sending les, the le transfer will be interrupted.While you are using this feature, the shutter control is disabled on your camera.You can connect only one camera to the PC at a time for sending les.The backup may be canceled due to network conditions.Photos or videos can be sent to a PC one time only. Files cannot be sent again even if you reconnect your camera to another PC.When there are no les in the camera memory, you cannot use this feature.You must turn o Windows Firewall and any other rewalls before using this feature.You can send up to 1,000 recent les.On the PC software, the server name must be entered in the Latin alphabet and can contain no more than 48 characters.When multiple le types are created at once, only the image les (JPG) will be sent to the PC with this feature.
Wireless network 121Changing email settingsIn the email menu, you can change settings for storing your information. You can also set or change the email password. For information about entering text, refer to "Entering text". (p. 114)Storing your information1 Rotate the mode dial to w.2 Select .The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 111)3 Press [m].4 Select Sender Setting.5 Select the Name box, enter your name, and then select Done.Sender SettingNameEmailSave Reset6 Select the Email box, enter your email address, and then select Done.7 Select Save to save your changes.To delete your information, select Reset.Sending photos or videos via emailYou can change settings in the email menu and send photos or videos stored on the camera via email.
Sending photos or videos via emailWireless network 122Setting an email password1 Rotate the mode dial to w.2 Select .The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 111)3 Press [m].4 Select Setting Password → On.To deactivate the password, select O.5 When the pop-up appears, select OK.The pop-up disappears automatically even if you do not select OK.6 Enter a 4-digit password.7 Enter the password again.8 When the pop-up appears, select OK.If you lost your password, you can reset it by selecting Reset on the password setting screen. When you reset the information, the previously saved user’s setting information, email address, and recently sent email list will be deleted.Changing the email password1 Rotate the mode dial to w.2 Select .The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 111)3 Press [m].4 Select Change Password.5 Enter your current 4-digit password.6 Enter a new 4-digit password.7 Enter the new password again.8 When the pop-up appears, select OK.
Sending photos or videos via emailWireless network 123Sending photos or videos via emailYou can send photos or videos stored on the camera via email. For information about entering text, refer to "Entering text". (p. 114)1 Rotate the mode dial to w.2 Select .The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 111)3 Select the Sender box, enter your email address, and then select Done.If you have previously saved your information, it will be inserted automatically. (p. 121)To use an address from the list of previous senders, select → an address.4 Select the Receiver box, enter an email address, and then select Done.To use an address from the list of previous recipients, select → an address.Select to add additional recipients. You can input up to 30 recipients.Select to delete an address from the list.5 Select Next.6 Select les to send.You can select up to 20 les. The total size must be 7 MB or less.7 Select Next.8 Select the comment box, enter your comments, and then select Done.9 Select Send.The camera will send the email.Even if a photo appears to have transferred successfully, errors with the recipient’s email account may cause the photo to be rejected or recognized as spam.You may not be able to send an email if no network connection is available or if your email account settings are incorrect.You cannot send an email if the le size exceeds the limit. The maximum photo resolution you can send is 2M and the longest video you can upload is 30 seconds at resolution or a video recorded using . If the selected photo resolution is higher than 2M, it will be automatically resized to a lower resolution.If you cannot send an email because of rewall or user authentication settings, contact your network administrator or network service provider.When there are no les in the camera memory, you cannot use this feature.You can also send an email in Playback mode by pressing [m], and then selecting Share(Wi-Fi) → Email.
Wireless network 124Accessing a website1 Rotate the mode dial to w.2 Select .3 Select a website.If the pop-up message that prompts you to create an account appears, select OK.The camera will automatically attempt to connect to a WLAN via the most recently connected AP device. If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 111)4 Enter your ID and password to log in.For information about entering text, refer to "Entering text". (p. 114)If you connected to SkyDrive, refer to "Using the login browser". (p. 112)To select an ID from the list, select → an ID.If you have previously logged in to the website, you may be logged in automatically.You must have an existing account on the le sharing website to use this feature.Uploading photos or videos1 Access the website with your camera.2 Select les to upload.You can select up to 20 les. The total size must be 10 MB or less. (On some websites, the total size or number of les may vary.)3 Select Upload.On some websites, you can enter your comments by selecting the comment box. For information about entering text, refer to "Entering text". (p. 114)Using photo or video sharing websitesUpload your photos or videos to le sharing websites. Available websites will be displayed on your camera. To upload les to some websites, you must visit the website and register before connecting your camera.
Using photo or video sharing websitesWireless network 125You can set an upload folder for Facebook by pressing [m], and then selecting Upload Folder (Facebook) on the website's list screen. You cannot upload les if the le size exceeds the limit. The maximum photo resolution you can upload is 2M, and the longest video you can upload is 30 seconds at resolution or a video recorded using . If the selected photo resolution is higher than 2M, it will be automatically resized to a lower resolution. (On some websites, the maximum photo resolution may vary.)The method of uploading photos or videos may dier depending on the selected website.If you cannot access a website because of rewall or user authentication settings, contact your network administrator or network service provider.Uploaded photos or videos may be automatically titled with the date they were captured.The speed of your internet connection may aect how quickly photos upload or web pages open.When there are no les in the camera memory, you cannot use this feature.You can also upload photos or videos to le sharing websites in Playback mode by pressing [m], and then selecting Share(Wi-Fi) → a desired website.You cannot upload videos to some websites. When you upload photos to SkyDrive, they will be resized to 2M while maintaining their aspect ratios.
Wireless network 126Using AllShare Play to send lesYou can upload les from your camera to AllShare Play online storage or view les on an AllShare Play device connected to the same AP.3 Enter your ID and password, and then select Login → OK.For information about entering text, refer to "Entering text". (p. 114)To select an ID from the list, select → an ID.If you have previously logged in to the website, you may be logged in automatically.To use this feature, you must create an AllShare Play account and an account with an aliated online storage service using your PC. After nishing creating accounts, add your online storage account to AllShare Play.4 Select les to upload, and then select Upload.If you have registered more than one web storage, select a web storage rst.You cannot upload video les to AllShare Play online storage. When there are no les in the camera memory, you cannot use this feature. You can upload up to 20 les.You can also upload photos in Playback mode by pressing [m], and then selecting Share(Wi-Fi) → Samsung Link.Uploading photos to online storage1 Rotate the mode dial to w.2 Select → Web storage.If the guide message appears, select OK.The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 111)To change the size for uploaded photos, press [m], and then select Upload Image Size.If you have registered more than one web storage, you can select from the list by pressing [m], and then selecting Change Web storage.
Using AllShare Play to send lesWireless network 127Viewing photos or videos on devices that support Samsung Link1 Rotate the mode dial to w.2 Select → Nearby devices.If the guide message appears, select OK.The camera will automatically attempt to connect to a WLAN via the most recently connected AP device. If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 111)You can set to allow only selected devices or all devices to connect by pressing [m], and then selecting DLNA Access Control on the screen.A sharing le list is created. Wait until other devices can nd your camera.3 Connect the AllShare Play device to a network, and then turn on the AllShare Play feature.Refer to your device's user manual for more information.4 On the camera, allow the AllShare Play device to connect to your camera.5 On the AllShare Play device, select a camera to connect.6 On the AllShare Play device, browse the shared photos or videos.For information about searching for the camera and browsing the photos or videos on the AllShare Play device, refer to the device's user manual.Videos may not play smoothly depending on the type of AllShare Play device or the network condition. If this happens, re-record the video in 640 X 480 or smaller quality and play it again. If videos do not play smoothly on your device over the wireless connection, try connecting the camera to the device with an A/V cable.APŸ A camera is connected to a TV that supports AllShare Play via WLAN.
Using AllShare Play to send lesWireless network 128Depending on the number of photos or videos you want to share, it may take some time to load your photos or videos and complete the initial set-up process.While viewing photos or videos on the AllShare Play device, continuously using the device's remote or performing additional operations on the device may prevent this feature from working properly.If you reorder or sort les on the camera while viewing them on an AllShare Play device, you must repeat the initial set-up process to update the list of les on the device.When there are no les in the camera memory, you cannot use this feature. We recommend you use a network cable to connect your AllShare Play device to your AP. This will minimize any video ‘Stuttering’ you may experience when streaming content.To view les on an AllShare Play device using the Nearby devices feature, enable multicast mode on your APYou can share up to 1,000 recent les.On an AllShare Play device, you can view only photos or videos captured with your camera.The range of the wireless connection between your camera and an AllShare Play device may vary depending on the specications of the AP.If the camera is connected to 2 AllShare Play devices, playback may be slower.Photos or videos will be shared in their original sizes.You can use this feature only with devices that support AllShare Play.Shared photos or videos will not be stored on the AllShare Play device, but they can be stored in the camera to meet the device's specications.Transferring photos or videos to the AllShare Play device may take some time depending on the network connection, the number of les to be shared, or the sizes of the les.If you power o the camera abnormally while viewing photos or videos on an AllShare Play device (for example, by removing the battery), the device considers the camera to still be connected.The order of photos or videos on the camera may be dierent than on the AllShare Play device.
Settings menu …………………………………………………… 130Accessing the settings menu ……………………………… 130Sound ………………………………………………………… 131Display ……………………………………………………… 131Connectivity ………………………………………………… 132General ……………………………………………………… 133SettingsRefer to options to congure your camera’s settings.
Settings 130Settings menuLearn to congure your camera's settings.3 Select an item.Back SelectMediumOnSound 1OSoundVolumeBeep SoundShutter SoundStart Sound4 Select an option.Back SetVolumeOLowMediumHigh5 Press [b] to return to the previous screen.Accessing the settings menu1 Rotate the mode dial to n.2 Select a menu.SoundDisplayConnectivityGeneralSettingsOption DescriptionSound Set various camera sounds and the volume. (p. 131)Display Customize the display settings. (p. 131)Connectivity Set the connection options. (p. 132)General Change the settings for the camera system such as memory format and default le name. (p. 133)
Settings menuSettings 131Sound* DefaultItem DescriptionVolume Set the volume of all sounds. (O, Low, Medium*, High)Beep Sound Set the sound the camera emits when you press the buttons, switch modes, or touch the screen on or o. (O, On*)Shutter SoundSet the sound the camera emits when you press the shutter button. (O, Sound 1*, Sound 2, Sound 3)AF Sound Set the sound the camera emits when you half-press the shutter button on or o. (O, On*)Display* DefaultItem DescriptionStart ImageSet a start image to display when the camera turns on.O*: Display no start image.Logo: Display a default image stored in the internal memory.Guide Line Select a guide to help you compose a scene. (O*, 3 X 3, 2 X 2, Cross, Diagonal)Date/Time DisplaySet whether or not to display the date and time on the camera's display. (O*, On)Help Guide Display Display a brief description of an option or menu. (O, On*)Display BrightnessAdjust the brightness of the screen. (Auto*, Dark, Normal, Bright)Normal is xed in Playback mode even if you have selected Auto.
Settings menuSettings 132* DefaultItem DescriptionQuick ViewSet whether or not to review a captured image before returning to the Shooting mode. (O, On*)This feature does not work in some modes.Power SaveIf you perform no operations for 30 seconds, the camera automatically switches to Power save mode. (O*, On)In Power save mode, press any button other than [X] to resume using the camera.Connectivity* DefaultItem DescriptionAnynet+ (HDMI-CEC)Turn on to control the camera with a TV remote control when you connect it to an HDTV that supports the Anynet+(CEC) prole.O: View les without using an HDTV remote control. On*: Control the camera with an HDTV remote control.HDMI SizeSet the resolution of photos when the camera plays back les on an HDTV via the HDMI cable.(NTSC: 1080i*, 720p, 480p/ PAL: 1080i*, 720p, 576p)If the HDTV does not support the selected resolution, the HDTV automatically selects the next lower resolution.Video OutSet the video signal output for your region.NTSC: USA, Canada, Japan, Korea, Taiwan, Mexico, etcPAL (supports only BDGHI): Australia, Austria, Belgium, China, Denmark, England, Finland, France, Germany, Italy, Kuwait, Malaysia, Netherlands, New Zealand, Norway, Singapore, Spain, Sweden, Switzerland, Thailand, etci-Launcher Set i-Launcher to launch automatically when you connect your camera to your computer. (O, On*)
Settings menuSettings 133General* DefaultItem DescriptionNetwork InformationView the Mac address and network certication number of your camera.Language Set a language for the display text.Time ZoneSet the time zone for your location. When you travel to another country, select Visit, and then select the appropriate time zone. (Home*, Visit)Date/Time Set Set the date and time.Date TypeSet a date format. (YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY)The default date type may dier depending on the language selected.Time TypeSet the time format. (12 Hr, 24 Hr)The default time type may dier depending on the language selected.* DefaultItem DescriptionFile No.Specify how to name les.Reset: Set the le number to start from 0001 when you insert a new memory card, format a memory card, or delete all les.Series*: Set the le number to resume from the previous le number when you insert a new memory card, format a memory card, or delete all les.The default name of the rst folder is 100PHOTO and the default name of the rst le is SAM_0001.The le number increases by one, from SAM_0001 to SAM_9999, each time you capture a photo or record a video.The folder number increases by one, from 100PHOTO to 999PHOTO, each time a folder is full.The maximum number of les that can be stored in one folder is 9,999.The camera denes le names according to the Design rule for Camera File system (DCF) standard. If you intentionally change le names, the camera may not play back the les.
Settings menuSettings 134* DefaultItem DescriptionImprintSet whether or not to display the date and time on captured photos. (O*, Date, Date & Time)The date and time will be displayed on the bottom right corner of the photo.Some printer models may not print the date and time properly.The photo will not display the date and time if:-you select i mode-you select Panorama in s mode-you select My Magic Frame or Motion Photo in g modeAuto Power OSet the camera to automatically turn o when you perform no operations for a specied period. (O, 1 min, 3 min*, 5 min, 10 min)Your settings will not change when you replace the battery.The camera will not automatically turn o when the camera is connected to a computer, or WLAN, and when you are playing a slide show or videos.DIRECT LINK (Wi-Fi Button)Start a preset Wi-Fi function by pressing [DIRECT LINK]. (AutoShare*, MobileLink, Remote Viewnder, Baby Monitoring, Auto Backup, Email, SNS & Cloud, Samsung Link) * DefaultItem DescriptionAF Lamp Set a light to automatically turn on in dark places to help you focus. (O, On*)FormatFormat the memory. Formatting will delete all les, including protected les. (Yes , No)Errors can occur if you use a memory card formatted by another brand of camera, a memory card reader, or a computer. Please format memory cards in the camera before using them to capture photos.Reset Reset menus and shooting options. Date, time, language, and video output settings will not be reset. (Yes, No)Open Source Licenses View open source licenses.
Error messages …………………………………………………… 136Camera maintenance …………………………………………… 138Cleaning your camera ……………………………………… 138Using or storing the camera ………………………………… 139About memory cards ………………………………………… 140About the battery …………………………………………… 143Before contacting a service center …………………………… 147Camera specications …………………………………………… 150Glossary ………………………………………………………… 154Index ……………………………………………………………… 159AppendixesGet information about error messages, specications, and maintenance.
Appendixes 136Error messagesWhen the following error messages appear, try these remedies.Error message Suggested remediesDevice disconnected. Network connection disconnected while transferring photos. Reselect a device that supports AllShare Play.File Error Delete the damaged le or contact a service center.File system not supported.Your camera does not support the FAT le structure of the inserted memory card. Format the memory card on the camera.Initialization failed.The camera has failed to locate a device that supports AllShare Play. Turn on devices on the network that support AllShare Play.Password Incorrect The password for transferring les to another camera is wrong. Enter the correct password.Low Battery Insert a charged battery or recharge the battery.Memory Full Delete unnecessary les or insert a new memory card.Error message Suggested remediesCard ErrorTurn o your camera, and then turn it on again.Remove your memory card, and then insert it again.Format your memory card.Card not supported.The inserted memory card is not supported by your camera. Insert a microSD, microSDHC, or microSDXC memory card.Connection failed.The camera cannot connect to the network using the selected access point. Select another AP and try again.The camera has failed to connect to the other devices. Try connecting again.DCF Full ErrorFile names do not match the DCF standard. Transfer the les from the memory card to your computer and format the card. Then, open the Settings menu and select File No. → Reset. (p. 133)

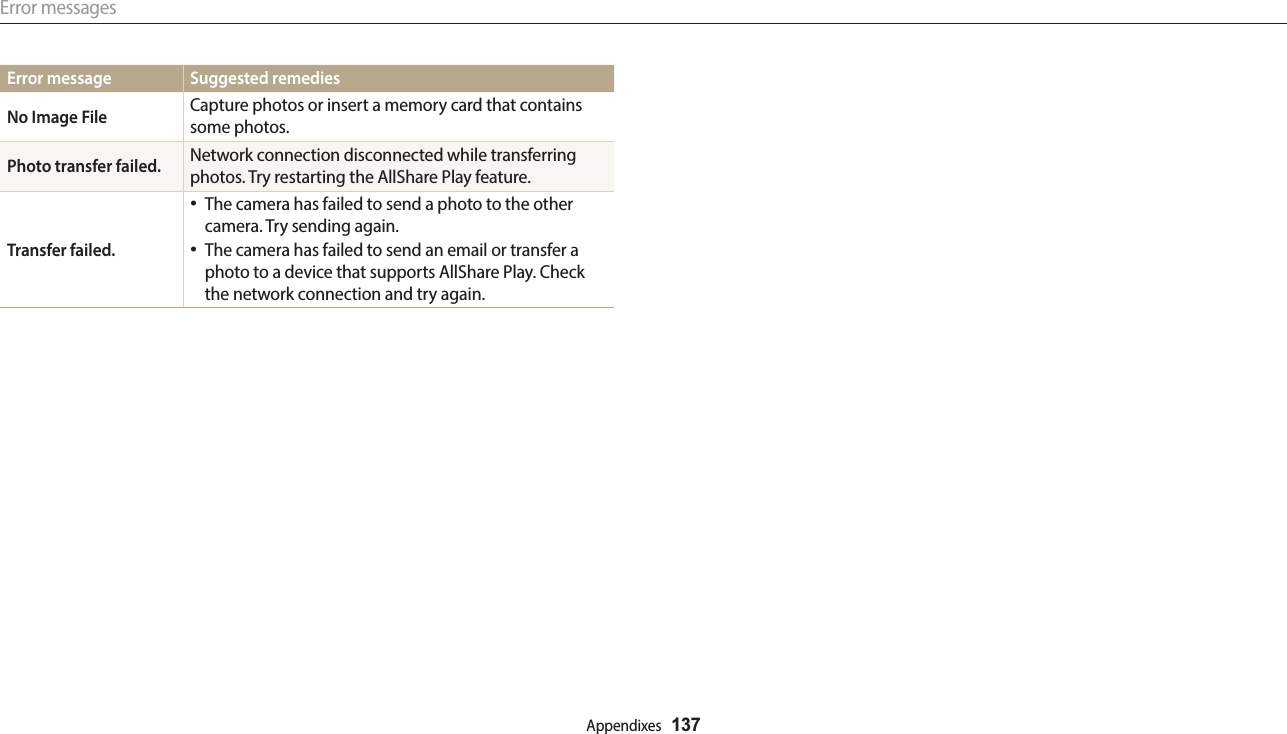

Error messagesAppendixes 137Error message Suggested remediesNo Image File Capture photos or insert a memory card that contains some photos.Photo transfer failed. Network connection disconnected while transferring photos. Try restarting the AllShare Play feature.Transfer failed.The camera has failed to send a photo to the other camera. Try sending again.The camera has failed to send an email or transfer a photo to a device that supports AllShare Play. Check the network connection and try again.
Appendixes 138Camera maintenanceCamera bodyWipe gently with a soft, dry cloth.Never use benzene, thinners, or alcohol to clean the device. These solutions can damage the camera or cause it to malfunction.Do not press on the lens cover or use a blower brush on the lens cover.Cleaning your cameraCamera lens and displayUse a blower brush to remove dust and wipe the lens gently with a soft cloth. If any dust remains, apply lens cleaning liquid to a piece of lens cleaning paper and wipe gently.
Camera maintenanceAppendixes 139Using or storing the cameraInappropriate places to use or store the cameraAvoid exposing the camera to very cold or very hot temperatures.Avoid using your camera in areas with extremely high humidity, or where the humidity changes drastically.Avoid exposing the camera to direct sunlight and storing it in hot, poorly-ventilated areas, such as in a car during summer time.Protect your camera and the display from impact, rough handling, and excessive vibration to avoid serious damage.Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.Do not use your camera near fuels, combustibles, or ammable chemicals. Do not store or carry ammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.Do not store the camera where there are mothballs.Using on beaches or shoresProtect your camera from sand and dirt when you use it on beaches or in similar areas.Your camera is not waterproof. Do not handle the battery, adapter, or memory card with wet hands. Operating the camera with wet hands may cause damage to your camera.Storing for extended period of timeWhen you store the camera for an extended period, place it in a sealed container with an absorbent material, such as silica gel.Over time, unused batteries will discharge and must be recharged before use.You must reset the date and time when you turn the camera on after the camera and battery have been separated for a prolonged period.Using the camera with caution in humid environmentsWhen you transfer the camera from a cold environment to a warm one, condensation can form on the lens or internal components of the camera. In this situation, turn o the camera and wait for at least 1 hour. If condensation forms on the memory card, remove the memory card from the camera and wait until all moisture has evaporated before reinserting it.Other cautionsDo not swing your camera by the strap. This may cause injury to yourself or others or damage to your camera.Do not paint your camera, as paint can clog moving parts and prevent proper operation.Turn o the camera when not using it.
Camera maintenanceAppendixes 140Your camera contains delicate parts. Avoid impacts to the camera.Protect the display from external force by keeping it in the case when not in use. Protect the camera from scratches by keeping it away from sand, sharp implements, or loose change.Do not use the camera if the screen is cracked or broken. Broken glass or acrylic could cause injury to your hands and face. Take the camera to a Samsung service center to have it repaired.Never place cameras, batteries, chargers, or accessories near, on, or in heating devices, such as microwave ovens, stoves, or radiators. These devices may be deformed and can overheat and cause a re or explosion.Do not expose the lens to direct sunlight, as this may discolor the image sensor or cause it to malfunction.Protect the lens from ngerprints and scratches. Clean the lens with a soft, clean, debris-free lens cloth.The camera may turn o if struck or dropped. This is to protect the memory card. Turn on the camera to use it again.While you use the camera, it may heat up. This is normal and should not aect your camera’s lifespan or performance.When you use the camera in low temperatures, it may take some time to turn on, the color of the display may be changed temporarily, or after-images may appear. These conditions are not malfunctions and they will correct themselves when the camera is returned to milder temperatures.Paint or metal on the outside of the camera may cause allergies, itchy skin, eczema, or swelling for people with sensitive skin. If you experience any of these symptoms, stop using the camera immediately and consult a doctor.Do not insert foreign objects into any of your camera’s compartments, slots, or access points. Damage due to improper use may not be covered by your warranty.Do not allow unqualied personnel to service the camera or attempt to service the camera yourself. Any damage that results from unqualied service is not covered by your warranty.About memory cardsSupported memory cardsYour camera supports microSD (Secure Digital), microSDHC (Secure Digital High Capacity), or microSDXC (Secure Digital eXtended Capacity) memory cards.Memory cardMemory card adapterTo read data with a PC or memory card reader, insert the memory card into a memory card adapter.
Camera maintenanceAppendixes 141Memory card capacityThe memory capacity may dier depending on the scenes you shoot or shooting conditions. These capacities are based on a 2 GB microSD card:PhotoSize Super Fine Fine Normal219 432 640245 483 715288 567 836341 669 984418 817 1,196638 1,228 1,7771,006 1,897 2,6921,329 2,461 3,4372,508 4,359 5,780VideoSize 30 fps1920 X 1080 Approx. 18' 03"1280 X 720 Approx. 25' 53"640 X 480 Approx. 46' 12"For SharingApprox. 257' 31"The gures above are measured without using the zoom function. Available recording time may vary if you use the zoom. Several videos were recorded in succession to determine the total recording time.
Camera maintenanceAppendixes 142Cautions when using memory cardsAvoid exposing memory cards to very cold or very hot temperatures (below 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can cause memory cards to malfunction.Insert a memory card in the correct direction. Inserting a memory card in the wrong direction may damage your camera and memory card.Do not use memory cards that have been formatted by other cameras or by a computer. Reformat the memory card with your camera.Turn o the camera before you insert or remove the memory card.Do not remove the memory card or turn o your camera while the lamp is blinking, as this may damage your data.When the lifespan of a memory card has expired, you cannot store any more photos on the card. Use a new memory card.Do not bend, drop, or subject memory cards to heavy impact or pressure.Avoid using or storing memory cards near strong magnetic elds.Avoid using or keeping memory cards in areas with high temperatures, high humidity, or corrosive substances.Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before you insert the memory card into your camera.Do not allow liquids, dirt, or foreign substances to come in contact with memory cards or the memory card slot. Doing so may cause memory cards or the camera to malfunction.When you carry a memory card, use a case to protect the card from electrostatic discharges.Transfer important data to other media, such as a hard disk, CD, or DVD.When you use the camera for an extended period, the memory card may become warm. This is normal and does not indicate a malfunction.The manufacturer is not responsible for any loss of data.
Camera maintenanceAppendixes 143About the batteryUse only Samsung-approved batteries.Battery specicationsSpecication DescriptionModel SLB-10AType Lithium-ion batteryCell capacity 1,030 mAhVoltage 3.7 VCharging time* (when the camera is switched o) Approximately 240 min* Charging the battery by connecting it to a computer may take longer.Battery lifeAverage shooting time/Number of photosTest conditions (when the battery is fully charged)PhotosApproximately 140 min/Approximately 280 photosThe battery life was measured under the following conditions: in p mode, in darkness, resolution, Fine quality, OIS on.1. Set the ash option to Fill in, take a single shot, and zoom in or out.2. Set the ash option to O, take a single shot, and zoom in or out.3. Perform steps 1 and 2, waiting 30 seconds between each step. Repeat the process for 5 minutes, and then turn o the camera for 1 minute.4. Repeat steps 1 to 3.Videos Approximately 100 min Record videos at resolution and 30 fps.The gures above are measured by Samsung’s standards. Your results may dier, depending on your actual usage.Several videos were recorded in succession to determine the total recording time.When using network functions, the battery will be depleted more quickly.
Camera maintenanceAppendixes 144Low battery messageWhen the battery has fully discharged, the battery icon will turn red and the "Low Battery" message will appear.Notes about using the batteryAvoid exposing batteries to very cold or very hot temperatures (below 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can reduce the charging capacity of your batteries.When you use the camera for an extended period, the area around the battery chamber may become warm. This does not aect the normal use of the camera.Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a re or electric shock.In temperatures below 0 °C/32 °F, battery capacity and battery life may decrease.Battery capacity may decrease in low temperatures, but will return to normal in milder temperatures.Remove the batteries from your camera when storing it for an extended period. Installed batteries may leak or corrode over time and cause serious damage to your camera. Storing the camera for extended periods with the battery installed causes the battery to discharge. You may not be able to recharge a fully discharged battery.When you do not use the camera for an extended period (3 months or more), check the battery and recharge it regularly. If you let the battery discharge continually, its capacity and life may decrease, which can lead to a malfunction, re, or explosion.Cautions about using the batteryProtect batteries, chargers, and memory cards from damage.Prevent batteries from making contact with metal objects, as this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage and may cause a re or electric shock.Notes about charging the batteryIf the status lamp is o, make sure that the battery is inserted correctly.If the camera is on while charging, the battery may not fully charge. Turn o the camera before charging the battery.Do not use your camera when you are charging the battery. This may cause a re or electric shock.Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a re or electric shock.Let the battery charge for at least 10 minutes before turning on the camera.If you connect the camera to an external power source when the battery is depleted, using high energy-consuming functions will cause the camera to turn o. To use the camera normally, recharge the battery.
Camera maintenanceAppendixes 145If you reconnect the power cable when the battery is fully charged, the status lamp turns on for approximately 30 minutes.Using the ash or recording videos depletes the battery quickly. Charge the battery until the red status lamp turns o.If the status lamp blinks in red, reconnect the cable, or remove the battery and insert it again.If you charge the battery when the cable is overheated or the temperature is too high, the status lamp may blink in red. Charging will start when the battery cools down.Overcharging batteries may shorten battery life. After charging is nished, disconnect the cable from your camera.Do not bend or place heavy objects on the AC cable. Doing so may damage the cable.Notes about charging with a computer connectedUse only the provided USB cable.The battery may not charge when:-you use a USB hub-other USB devices are connected to your computer-you connect the cable to the port on the front side of your computer-the USB port of your computer does not support the power output standard (5 V, 500 mA) Handle and dispose of batteries and chargers with careNever dispose of batteries in a re. Follow all local regulations when you dispose of used batteries.Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when they are overheated.
Camera maintenanceAppendixes 146Personal injury or death can occur if the battery is handled carelessly or improperly. For your safety, follow these instructions for proper battery handling:The battery can ignite or explode if not handled properly. If you notice any deformities, cracks, or other abnormalities in the battery, immediately discontinue use of the battery and contact a service center.Use only authentic, manufacturer-recommend battery chargers and adapters and charge the battery only by the methods described in this user manual.Do not place the battery near heating devices or expose it to excessively warm environments, such as the inside of an enclosed car in the summertime.Do not place the battery in a microwave oven.Avoid storing or using the battery in hot, humid places, such as spas or shower enclosures. Do not rest the camera on ammable surfaces, such as bedding, carpets, or electric blankets for a prolonged period. When the camera is switched on, do not leave it in any conned space for a prolonged period.Do not allow battery terminals to come in contact with metallic objects, such as necklaces, coins, keys, or watches.Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries.Do not disassemble the battery or puncture it with any sharp object.Avoid exposing the battery to high pressure or crushing forces.Avoid exposing the battery to major impacts, such as dropping it from high places.Do not expose the battery to temperatures of 60 °C (140 °F) or above.Do not allow the battery to come in contact with moisture or liquids.Do not expose the battery to sources of excessive heat such as sunshine, re or the like. Disposal guidelinesDispose of the battery with care.Do not dispose of the battery in a re.Disposal regulations may dier by country or region. Dispose of the battery in accordance with all local and federal regulations.Guidelines for charging the batteryCharge the battery only by the methods described in this user manual. The battery can ignite or explode if not charged properly.
Appendixes 147Before contacting a service centerIf you are having trouble with your camera, try these troubleshooting procedures before you contact a service center. If you have attempted the suggested remedy and are still having problems with your device, contact your local dealer or service center.When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery.Situation Suggested remediesCannot capture photosThere is no space on the memory card. Delete unnecessary les or insert a new card.Format the memory card. The memory card is defective. Get a new memory card.Make sure that the camera is switched on.Charge the battery.Make sure that the battery is inserted correctly.The camera freezes Remove the battery and insert it again.The camera heats upWhile you use the camera, it may heat up. This is normal and should not aect your camera’s lifespan or performance.The ash does not workThe ash option may be set to O. (p. 67)You cannot use the ash in some modes.The ash res unexpectedly The ash may re due to static electricity. The camera is not malfunctioning. Situation Suggested remediesCannot turn on the cameraEnsure that the battery is inserted.Ensure that the battery is inserted correctly. (p. 24)Charge the battery.The power turns o suddenlyCharge the battery.Your camera may be in Auto Power O mode. (p. 134)The camera may turn o to prevent the memory card from being damaged due to an impact. Turn on your camera again.The camera is losing battery power quicklyThe battery may lose power more quickly in low temperatures (below 0 °C/32 °F). Keep the battery warm by putting it into your pocket.Using the ash or recording videos depletes the battery quickly. Recharge if needed.Batteries are consumable parts that must be replaced over time. Get a new battery if the battery life is diminishing quickly.
Before contacting a service centerAppendixes 148Situation Suggested remediesThe date and time are incorrectSet the date and time in the display settings. (p. 133)The display or buttons do not work Remove the battery, and then insert it again.The camera display responds poorlyIf you use your camera at very low temperatures, it may cause the camera screen to malfunction or discolor. For better performance of your camera screen, use your camera in moderate temperatures.The memory card has an errorTurn o your camera, and then turn it on again.Remove your memory card, and then insert it again.Format your memory card.See “Cautions when using memory cards” for more detail. (p. 142)Cannot play back lesIf you change the name of a le, your camera may not play the le (the name of the le should meet the DCF standard). If you encounter this situation, play back the les on your computer.Situation Suggested remediesThe photo is blurryMake sure that the focus option you set is suitable for close-up shots. (p. 70)Make sure that the lens is clean. If not, clean the lens. (p. 138)Make sure that the subject is within range of the ash. (p. 151)The colors in the photo do not match the actual sceneAn incorrect White Balance can create unrealistic color. Select the proper White Balance option to suit the light source. (p. 79)The photo is too brightYour photo is overexposed.Turn o the ash. (p. 67)Adjust the ISO sensitivity. (p. 69)Adjust the exposure value. (p. 77)The photo is too darkYour photo is underexposed.Turn on the ash. (p. 67)Adjust the ISO sensitivity. (p. 69)Adjust the exposure value. (p. 77)
Before contacting a service centerAppendixes 149Situation Suggested remediesThe TV does not display your photosMake sure that the camera is correctly connected to the TV with the A/V cable.Make sure that your memory card contains photos.Your computer does not recognize your cameraMake sure that the USB cable is connected correctly.Make sure that your camera is switched on.Make sure that you are using a supported operating system.Your computer disconnects the camera while transferring lesThe le transmission may be interrupted by static electricity. Disconnect the USB cable and connect it again.Your computer cannot play videosVideos may not play on some video player programs. To play video les captured with your camera, use the Multimedia Viewer program that you can install with the i-Launcher program on your computer.Situation Suggested remediesi-Launcher is not functioning properlyEnd i-Launcher and restart the program.Make sure that i-Launcher is set to On in the settings menu. (p. 132)Depending on your computer's specications and environment, the program may not launch automatically. In this case, click Start → All Programs → Samsung → i-Launcher → Samsung i-Launcher on your Windows computer. (For Windows 8, open Start screen, and then select All apps → Samsung i-Launcher.) Or, click Applications → Samsung → i-Launcher on your Mac OS computer.Your TV or computer cannot display photos and videos that are stored on an microSDXC memory card.microSDXC memory cards use the exFAT le system. Ensure that the external device is compatible with the exFAT le system before connecting the camera to the device.Your computer does not recognize an microSDXC memory card.microSDXC memory cards use the exFAT le system. To use microSDXC memory cards on a Windows XP computer, download and update the exFAT le system driver from the Microsoft website.
Appendixes 150Image sensorType 1/2.3" (Approximately 7.76 mm) BSI CMOSEective pixels Approximately 16.3 mega-pixelsTotal pixels Approximately 17.0 mega-pixelsLensFocal length Samsung Lens f = 4.1–86.1 mm (35 mm lm equivalent: 23–483 mm) F-stop range F2.8(W)–F5.9(T)ZoomStill image mode: 1.0–21.0X (Optical zoom X Digital zoom: 105.0X, Optical zoom X Intelli zoom: 42.0X)Playback mode: 1.0–9.4X (depending on image size)DisplayType TFT LCDFeature 3.0" (75.0 mm) 460KFocusingTypeTTL auto focus (Center AF, Multi AF, Tracking AF, Face Detection AF, Selection AF), Manual Focus, Video continuous auto focusRangeWide (W) Tele (T)Normal (AF) 31 in. (80 cm)-innity 138 in. (350 cm)-innityMacro 4-31 in. (10–80 cm) 59-138 in. (150–350 cm)Auto Macro 4 in. (10 cm)-innity 59 in. (150 cm)-innityManual Focus 4 in. (10 cm)-innity 59 in. (150 cm)-innityShutter speedAuto: 1/8–1/2,000 sec.Program: 1–1/2,000 sec.Night: 8–1/2,000 sec. Manual: 16–1/2,000 sec.ExposureControl Program AE, Aperture Priority AE, Shutter Priority AE, Manual ExposureMetering Multi, Spot, Center-weighted, Face DetectionCompensation ±2EV (1/3 EV Step)ISO equivalent Auto, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200Camera specications
Camera specicationsAppendixes 151FlashMode Auto, Red-eye, Fill in, Slow Sync, O, Red-eye FixRangeWide: 11.81-157.48 in. (0.3–4.1 m) (ISO Auto)Tele: 19.69-74.80 in. (0.5–2.9 m) (ISO Auto)Recharging time Approximately 4 sec.Shake reductionOptical Image Stabilization (OIS)EectPhoto Shooting modePhoto Filter (Smart Filter): Miniature, Vignetting, Ink Painting, Oil Painting, Cartoon, Cross Filter, Sketch, Soft Focus, Fish-eye, Classic, Retro, Zooming ShotImage Adjust: Sharpness, Contrast, SaturationVideo Shooting modeMovie Filter (Smart Filter): Miniature, Vignetting, Sketch, Fish-eye, Classic, Retro, Palette Eect 1, Palette Eect 2, Palette Eect 3, Palette Eect 4White BalanceAuto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Set, Color Temp.Date ImprintingDate & Time, Date, OShootingPhotosModes: Smart Auto (Portrait, Night Portrait, Backlight Portrait, Night, Backlight, Landscape, White, Natural Green, Blue Sky, Sunset, Macro, Macro text, Macro Color, Tripod, Action, Fireworks, Candle, Spotlight, Spotlight (Macro), Spotlight (Portrait)), Program, Aperture Priority, Shutter Priority, Manual, Smart (Beauty Face, Continuous Shot, Landscape, Macro, Action Freeze, Rich Tones, Panorama, Waterfall, Silhouette, Sunset, Low Light Shot, Fireworks, Light Trace), Best Face, Magic Plus (My Magic Frame, Motion Photo, Photo Filter, Eect Artist, Color Brush)Burst: Single, Continuous (3 fps), Continuous (7.1 fps), AE BracketTimer: O, 10 Sec, 2 SecVideosModes: Smart Scene Detection (Landscape, Blue Sky, Natural Green, Sunset), Magic Plus (Movie Filter)Format: MP4 (H.264) (Max recording time: 20 min)Size: 1920 X 1080, 1280 X 720, 640 X 480, 240 WebFrame Rate: 30 fpsSound Alive: Sound Alive On, Sound Alive OCapturing during recordingOIS: On, OVideo editing (embedded): Pause during recording, Still image capture
Camera specicationsAppendixes 152PlaybackPhotosType: Single image, Thumbnails, Multi Slide Show with Music and Eect, Movie clipEdit: Resize, Rotate, Smart Filter, CropEect: Image Adjust (Brightness, Contrast, Saturation, ACB, Face Retouch, Red-eye Fix), Smart Filter (O, Miniature, Vignetting, Ink Painting, Oil Painting, Cartoon, Cross Filter, Sketch, Soft Focus, Fish-eye, Classic, Retro, Zooming Shot)Videos Edit: Still image capture, Time trimmingStorageMediaInternal memory: Approximately 9.5 MBExternal memory (Optional): microSD card (2 GB guaranteed), microSDHC card (up to 32 GB guaranteed), microSDXC card (up to 64 GB guaranteed)Internal memory capacity may not match these specications.File formatStill Image: JPEG (DCF), EXIF 2.21Movie Clip: MP4 (Video: MPEG-4.AVC/H.264, Audio: AAC)Image sizeIcon Size4608 X 34564608 X 30724608 X 25923648 X 27362832 X 28322592 X 19441984 X 14881920 X 10801024 X 768
Camera specicationsAppendixes 153Wireless networkMobileLink, Remote Viewnder, SNS & Cloud, Baby Monitoring, Email, S/W Upgrade Notier, Auto Backup, Samsung LinkNFCYesInterfaceDigital output connector USB 2.0Audio input/output Internal speaker (Mono), Microphone (Mono)Video output A/V: NTSC, PAL (selectable)DC power input connector 5.0 VPower sourceRechargeable battery Lithium-ion battery (SLB-10A, 1,030 mAh)Connector type Micro USB (5 pin)The power source may dier depending on your region.Dimensions (W X H X D)4.47 X 2.56 X 0.96 in. (113.5 X 65 X 24.5 mm) (without protrusions)WeightX oz (XXX g) (without battery and memory card)Operating Temperature0–40 °C (32-104 °F)Operating Humidity5–85 %Softwarei-LauncherSpecications may change without notice to improve performance.
Appendixes 154ACB (Auto Contrast Balance)This feature automatically improves the contrast of your images when the subject is backlit or when there is a high contrast between your subject and the background.AEB (Auto Exposure Bracket)This feature automatically captures several images at dierent exposures to help you capture a properly-exposed image.AF (Auto Focus)A system that automatically focuses the camera lens on the subject. Your camera uses the contrast to focus automatically.ApertureThe aperture controls the amount of light that reaches the camera’s sensor.Camera shake (Blur)If the camera is moved while the shutter is open, the entire image may appear blurred. This occurs more often when the shutter speed is slow. Prevent camera shake by raising the sensitivity, using the ash, or using a faster shutter speed. Alternately, use a tripod, the DIS or OIS function to stabilize the camera.CompositionComposition in photography means arranging objects in a photo. Usually, abiding by the rule of thirds leads to a good composition.DCF (Design rule for Camera File system)A specication to dene a le format and le system for digital cameras created by the Japan Electronics and Information Technology Industries Association (JEITA).Depth of eldThe distance between the nearest and farthest points that can be acceptably focused in a photograph. Depth of eld varies with lens aperture, focal length, and distance from the camera to the subject. Selecting a smaller aperture, for example, will increase the depth of eld and blur the background of a composition.Digital zoomA feature that articially increases the amount of zoom available with a zoom lens (Optical zoom). When using the Digital zoom, the image quality will deteriorate as the magnication increases.Glossary
GlossaryAppendixes 155EV CompensationAll the combinations of the camera’s shutter speed and lens aperture that result in the same exposure.EV (Exposure Value)This feature allows you to quickly adjust the exposure value measured by the camera, in limited increments, to improve the exposure of your photos. Set the EV compensation to -1.0 EV to adjust the value one step darker and 1.0 EV to one step brighter.Exif (Exchangeable Image File Format)A specication to dene an image le format for digital cameras created by the Japan Electronic Industries Development Association (JEIDA).ExposureThe amount of light allowed to reach the camera’s sensor. Exposure is controlled by a combination of the shutter speed, the aperture value, and ISO sensitivity.FlashA speed light that helps to create adequate exposure in low-light conditions.Focal lengthThe distance from the middle of the lens to its focal point (in millimeters). Longer focal lengths result in narrower angles of view and the subject is magnied. Shorter focal lengths result in wider angles of view.HistogramA graphical representation of the brightness of an image. The horizontal axis represents the brightness and the vertical axis represents the number of pixels. High points at the left (too dark) and right (too bright) on the histogram indicate a photo that is improperly exposed.H.264/MPEG-4A high-compression video format established by international standard organizations ISO-IEC and ITU-T and developed by the Joint Video Team (JVT). This codec is capable of providing good video quality at low bit rates.
GlossaryAppendixes 156Image sensorThe physical part of a digital camera that contains a photosite for each pixel in the image. Each photosite records the brightness of the light that strikes it during an exposure. Common sensor types are CCD (Charge-coupled Device) and CMOS (Complementary Metal Oxide Semiconductor).ISO sensitivityThe sensitivity of the camera to light, based on the equivalent lm speed used in a lm camera. At higher ISO sensitivity settings, the camera uses a higher shutter speed, which can reduce blur caused by camera shake and low light. However, images with high sensitivity are more susceptible to noise.JPEG (Joint Photographic Experts Group)A lossy method of compression for digital images. JPEG images are compressed to reduce their overall le size with minimal deterioration of the image resolution.LCD (Liquid Crystal Display)A visual display commonly used in consumer electronics. This display needs a separate backlight, such as CCFL or LED, to reproduce colors.MacroThis feature allows you to capture close-up photos of very small objects. When using the macro feature, the camera can maintain a sharp focus on small objects at a near life-size ratio (1:1).MeteringThe metering refers to the way in which the camera measures the quantity of light to set the exposure.MJPEG (Motion JPEG)A video format which is compressed as a JPEG image.NoiseMisinterpreted pixels in a digital image that may appear as misplaced or random, bright pixels. Noise usually occurs when photos are shot with a high sensitivity or when a sensitivity is automatically set in a dark place.OIS (Optical Image Stabilization)This feature compensates in real-time for shaking and vibrating while shooting. There is no image degradation compared to Digital Image Stabilization feature.
GlossaryAppendixes 157Optical zoomThis is a general zoom which can enlarge images with a lens and does not degrade the quality of images.QualityAn expression of the rate of compression used in a digital image. Higher quality images have a lower rate of compression, which usually results in a larger le size.ResolutionThe number of pixels present in a digital image. High resolution images contain more pixels and typically show more detail than low resolution images.Shutter speedShutter speed refers to the amount of time it takes to open and close the shutter, and it is an important factor in the brightness of a photo, as it controls the amount of light which passes through the aperture before it reaches the image sensor. A fast shutter speed allows less time to let light in and the photo becomes darker and more easily freezes subjects in motion.VignettingA reduction of an image’s brightness or saturation at the periphery (outer edges) compared to the center of the image. Vignetting can draw interest to subjects positioned in the center of an image.White balance (color balance)An adjustment of the intensities of colors (typically the primary colors red, green, and blue), in an image. The goal of adjusting the white balance, or color balance, is to correctly render the colors in an image.
Appendixes 158Correct Disposal of This Product Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.PlanetFirst represents Samsung Electronics' commitment to sustainable development and social responsibility through eco-driven business and management activities.Correct disposal of batteries in this product (Applicable in countries with separate collection systems) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.
Appendixes 159AAF-assist lightLocation 21Settings 134AF Sound 131Anynet+ 132Aperture Priority mode 48Aperture value 47Auto Backup 119Auto Contrast Balance (ACB)Playback mode 98Shooting mode 78AutoShare 115A/V port 21BBatteryCaution 144Charging 25Inserting 24Best face mode 54BrightnessPlayback mode 98Shooting mode 77CCamera maintenance 138Camera specications 150Capturing an image from video 95Charging 25CleaningCamera body 138Display 138Lens 138Connecting to your Mac computer 102ContrastPlayback mode 98Shooting mode 84DDate/Time Set 133Deleting les 90Digital zoom 38DIRECT LINK button 23Disconnecting the camera 102Display brightness 131Display type 35EEditing photos 96Editing videosCapturing 95Trimming 95Enlarging 92Error messages 136Exposure 77FFace Detection 75FlashAuto 67Fill in 67O 67Red-eye 67Red-eye Fix 68Slow Sync 68Index
Appendixes 160Focus areaCenter AF 72Multi AF 72Formatting 134Function button 23GGuide Line 131HHalf-press shutter 41IIconsPlayback mode 87Shooting mode 28Image AdjustmentBrightnessPlayback mode 99Shooting mode 77ContrastPlayback mode 99Shooting mode 84Red-eye 99SaturationPlayback mode 99Shooting mode 84Sharpness 84Imprint 134Intelli zoom 39ISO sensitivity 69LLanguage settings 133MMacroAuto Macro 71Macro 71Manual Focus 71Magic Plus modeMotion Photo 57Movie Filter 59My Magic Frame 55Photo Filter 58Manual mode 50Memory cardCaution 142Insert 24Menu button 23MeteringCenter-weighted 78Multi 78Spot 78MobileLink 116Mode dial 21Movie mode 60OOne touch shooting 74Optical Image Stabilization (OIS) 40Optional accessories 20PPanorama mode 52Playback button 23Playback mode 87Index
Appendixes 161Power button 21Power save mode 132Program mode 46Protecting les 90QQuick view 132RRed-eyePlayback mode 99Shooting mode 66Remote Viewnder 117Reset 134ResolutionPlayback mode 96Shooting mode 64Retouching faces 99Rotating 96SSamsung Link 126SaturationPlayback mode 99Shooting mode 84Self portrait 75Service center 147Settings 133Sharpness 84Shooting portraitsFace Detection 75Self portrait 75Smile Shot 76Shutter button 21Shutter Priority mode 49Slide show 93Smart Auto mode 44Smart FilterPhoto shooting mode 58Playback mode 97Video recording mode 59Smart mode 51Smart Scene Detection mode 61Smile Shot 76Sound settings 36Start Image 131Status lamp 22TThumbnails 89Timer 83Time settings 26Time zone settings 26, 133Touch screenDragging 33Flicking 33Touching 33Tracking AF 73Transferring lesAuto Backup 119Email 121Mac 102Windows 101Tripod mount 21Index
Appendixes 162UUnpacking 20USB port 21VVideoPlayback mode 94Shooting mode 60Video out 132Viewing lesAnimated photos 93Category 89Folder 88Panoramic photos 93Slide show 93Thumbnails 89TV 100WWebsiteAccessing 124Uploading photos or videos 124White Balance 79Wireless network 111ZZoomUsing the zoom 38Zoom button 22Zoom sound settings 85Index
FCC Notice FCC ID: A3LWB350FCaution:Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void theuser's authority to operate the equipment.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorientate, or relocate, the receiving antenna.• Increase the distance between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that towhich the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.Caution:Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could voiduser’s authority to operate the equipment.
IC: 649E-WB350FThis device complies with Industry Canada License-Exempt RSS standard (S)Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and(2) This device must accept any interference received,including interference that may cause undesired operation.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.RF du FCC d'exposition aux radiations: Cet équipement est conforme à l'exposition de la FCC rayonnements RF limites établies pour un environnement non contrôlé.Cet appareil et son antenne ne doivent pas être co-localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur.
Please refer to the warranty that came with your product or visit our website, www.samsung.com, for after-sales service or inquiries.

Navigation menu
