Samsung Electronics Co WCK730B Wi-Fi/BT Transceiver User Manual
Samsung Electronics Co Ltd Wi-Fi/BT Transceiver Users Manual
Users Manual
Manual For WCK730B
Operation Description for WCK730B
1. Introduction
This module is is a Wi-Fi/Bluetooth Combo module compliant with IEEE802.11a/b/g/n/ac
MAC/baseband/radio and Bluetooth 4.1+HS optimized for low-power application.
The core chipset is from Broadcom, part number BCM43569.
2. Operational Description [WiFi - 2.4GHz]
(1) Description for 2.4GHz
Description
Frequency
• 2412~2462
DFS attestations
• Client without radar detection capability
Frequency tolerance
• 802.11 b / g / n : ± 20 ppm
IEEE802.11 mode
• b/g/n
Data rate
• up to 300Mbps defined by the IEEE 802.11 b/g/n
Channel bandwidth
• 20MHz, 40MHz
Scan behavior
Frequency (MHz)
Active Scanning
Passive Scanning
2412-2462
▣
Yes, □ No
□ Yes,
▣
No
DFS channel
• Not support
Ad-hoc/WiFi direct
• Support
Wifi display
• Support
Type of MIMO
• 2x2 MIMO
• 802.11b/g : uncorrelated signal(1*Tx),
• 802.11n(MCS0~MCS7) : correlated signals
• (2*Tx CDD or 2*Tx STBC)
• 802.11n (MCS8~MCS15) : uncorrelated signals(2*Tx SDM)
Data Modulation
• DSSS : CCK, BPSK, QPSK for 802.11b
• OFDM : BPSK, QPSK,16QAM, 64QAM for 802.11g/n
(2) Power Table for 2.4GHz
- The power output is made under conducted conditions
Parameter
Conditions
Min
Nom
Max
Unit
802.11b
All
rates
-
-
12.33
dBm
802.11g
All
rates
-
-
12.57
dBm
802.11n
2.4GHz, HT20, MCS0 ~ 7
-
-
12.57
dBm
2.4GHz, HT20, MCS8 ~ 15
-
-
12.57
dBm
2.4GHz, HT40, MCS0 ~ 7
-
-
10.68
dBm
2.4GHz, HT40, MCS8 ~ 15
-
-
10.50
dBm
1
/
7
3. Operational Description [WiFi - 5GHz]
(1) Description for 5GHz
Description
Frequency
• 5150-5850
DFS attestations
• Client without radar detection capability
Frequency tolerance
• 802.11 a/n/ac : ± 18ppm
IEEE802.11 mode
• a /n/ac
Data rate
• up to 867Mbps defined by the IEEE 802.11 a/n/ac
Channel bandwidth
• 20MHz , 40MHz , 80MHz
DFS channel
• Use DFS range, No ability of radar detection
Scan behavior
Frequency (MHz)
Active Scanning
Passive Scanning
5180-5240
▣
Yes, □ No
□ Yes,
▣
No
5260-5320
□ Yes,
▣
No
▣
Yes, □ No
5500-5700
□ Yes,
▣
No
▣
Yes, □ No
5745-5825
▣
Yes, □ No
□ Yes,
▣
No
Ad-hoc/WiFi direct
• Support (not support in DFS bands)
Wifi display
• Support
Type of MIMO
• 2x2 MIMO
• 802.11a : uncorrelated signal(1*Tx),
• 802.11n(MCS0~MCS7) : correlated signals
• (2*Tx CDD or 2*Tx STBC),
• 802.11n(MCS8~MCS15) : uncorrelated signals(2*Tx SDM),
• 802.11ac (MCS0~MCS9 NSS1) : correlated signals
• (2*Tx CDD or 2*Tx STBC),
• 802.11ac (MCS0~MCS9 NSS2) : uncorrelated signals
• (2*Tx SDM)
Data Modulation
• OFDM : BPSK, QPSK,16QAM, 64QAM, 256QAM
• for 802.11a/n/ac
(2) Power Table for 5GHz
- The power output is made under conducted conditions
Parameter
Conditions
Min
Nom
Max
Unit
UNⅡ-1
(5150~5250MHz)
802.11a
-
-
15.18
dBm
802.11n, HT20, MCS0 ~ 7
-
-
15.03
dBm
802.11n, HT20, MCS8 ~ 15
-
-
14.86
dBm
802.11n, HT40, MCS0 ~ 7
-
-
15.49
dBm
802.11n, HT40, MCS8 ~ 15
-
-
15.07
dBm
802.11ac, VHT20, MCS0 ~ 9 NSS1
-
-
15.16
dBm
802.11ac, VHT20, MCS0 ~ 9 NSS2
-
-
15.08
dBm
802.11ac, VHT40, MCS0 ~ 9 NSS1
-
-
15.54
dBm
802.11ac, VHT40, MCS0 ~ 9 NSS2
-
-
15.39
dBm
802.11ac, VHT80, MCS0 ~ 9 NSS1
-
-
13.84
dBm
802.11ac, VHT80, MCS0 ~ 9 NSS2
-
-
13.63
dBm
2
/
7
UNⅡ-2A
(5250~5350MHz)
802.11a
-
-
15.51
dBm
802.11n, HT20, MCS0 ~ 7
-
-
15.07
dBm
802.11n, HT20, MCS8 ~ 15
-
-
14.86
dBm
802.11n, HT40, MCS0 ~ 7
-
-
15.38
dBm
802.11n, HT40, MCS8 ~ 15
-
-
15.09
dBm
802.11ac, VHT20, MCS0 ~ 9 NSS1
-
-
15.18
dBm
802.11ac, VHT20, MCS0 ~ 9 NSS2
-
-
15.05
dBm
802.11ac, VHT40, MCS0 ~ 9 NSS1
-
-
15.55
dBm
802.11ac, VHT40, MCS0 ~ 9 NSS2
-
-
15.39
dBm
802.11ac, VHT80, MCS0 ~ 9 NSS1
-
-
14.03
dBm
802.11ac, VHT80, MCS0 ~ 9 NSS2
-
-
13.82
dBm
UNⅡ-2C
(5470~5725MHz)
802.11a
-
-
14.93
dBm
802.11n, HT20, MCS0 ~ 7
-
-
15.08
dBm
802.11n, HT20, MCS8 ~ 15
-
-
14.82
dBm
802.11n, HT40, MCS0 ~ 7
-
-
15.45
dBm
802.11n, HT40, MCS8 ~ 15
-
-
15.02
dBm
802.11ac, VHT20, MCS0 ~ 9 NSS1
-
-
15.03
dBm
802.11ac, VHT20, MCS0 ~ 9 NSS2
-
-
14.98
dBm
802.11ac, VHT40, MCS0 ~ 9 NSS1
-
-
15.02
dBm
802.11ac, VHT40, MCS0 ~ 9 NSS2
-
-
14.83
dBm
802.11ac, VHT80, MCS0 ~ 9 NSS1
-
-
10.91
dBm
802.11ac, VHT80, MCS0 ~ 9 NSS2
-
-
13.91
dBm
UNⅡ-3
(5725~5850MHz)
802.11a
-
-
5.79
dBm
802.11n, HT20, MCS0 ~ 7
-
-
2.85
dBm
802.11n, HT20, MCS8 ~ 15
-
-
2.73
dBm
802.11n, HT40, MCS0 ~ 7
-
-
5.85
dBm
802.11n, HT40, MCS8 ~ 15
-
-
5.41
dBm
802.11ac, VHT20, MCS0 ~ 9 NSS1
-
-
5.67
dBm
802.11ac, VHT20, MCS0 ~ 9 NSS2
-
-
5.58
dBm
802.11ac, VHT40, MCS0 ~ 9 NSS1
-
-
5.87
dBm
802.11ac, VHT40, MCS0 ~ 9 NSS2
-
-
5.78
dBm
802.11ac, VHT80, MCS0 ~ 9 NSS1
-
-
5.30
dBm
802.11ac, VHT80, MCS0 ~ 9 NSS2
-
-
5.09
dBm
3
/
7
4. Operational Description [Bluetooth]
(1) Description for Bluetooth
Description
Frequency
• 2402-2480
Power Class
• Class 1 or 2
Bluetooth Standard
• Bluetooth 4.1 + EDR
Data rate
• up to 3Mbps defined by the Enhanced Data Rate
Data Modulation
• FHSS : GFSK, OQPSK, 8DPSK, π/4DPSK for Bluetooth
(2) Power Table for Bluetooth
Parameter
Conditions
Min
Nom
Max
Unit
BDR
TRM/CA/01/C 1DH5
5
11
14
dBm
EDR
TRM/CA/10/C 2DH5
3
7
11
dBm
(3) Simultaneous transmission
BT
BT
LE
2.4GHz
Wi-Fi
5GHz
Wi-Fi
BT
O
O
O
BT LE
O
O
O
2.4GHz
Wi-Fi
O
O
N/A
5GHz
Wi-Fi
O
O
N/A
4
/
7
5. Hardware Architecture
1) Main Chipset Information
Item
Vendor
Part Number
MAC/BBP/Radio Transceiver/PA
Broadcom
BCM43569PKFFBG

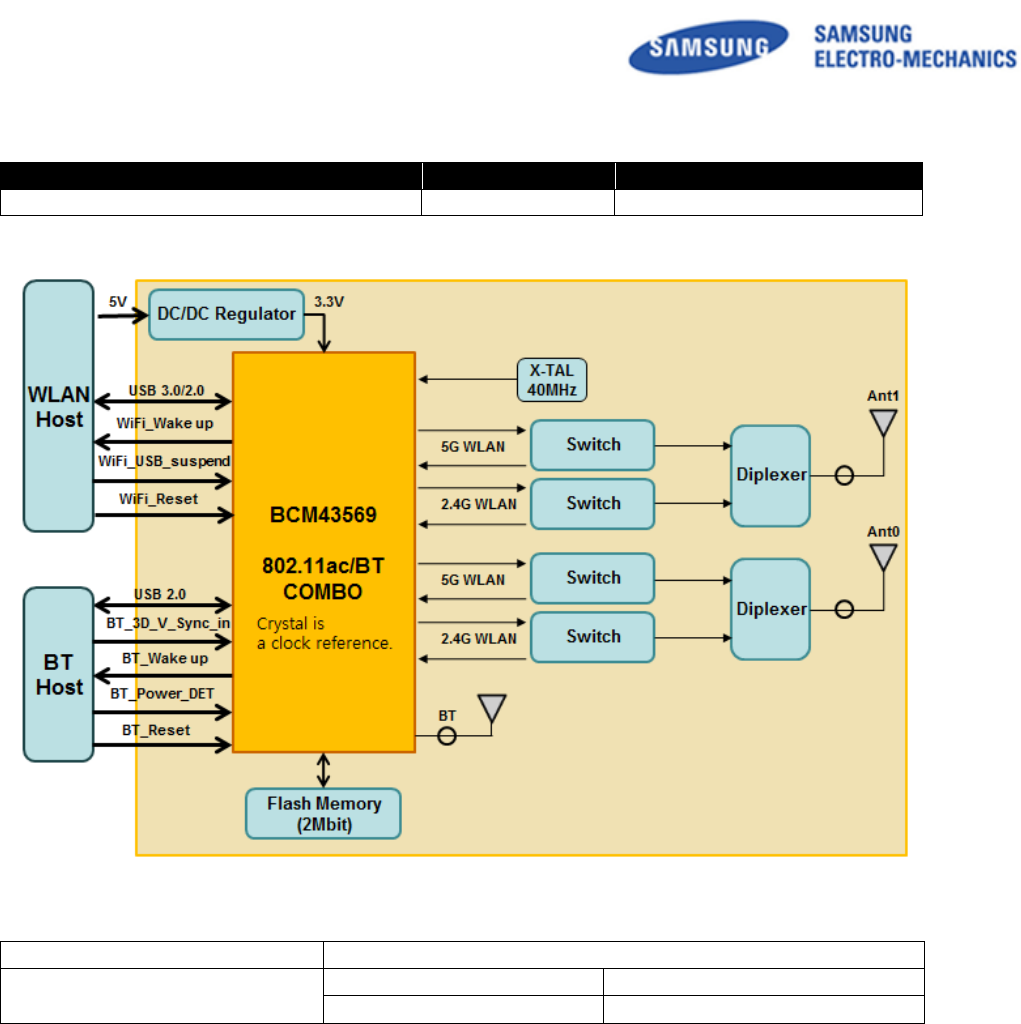

2) Block Diagram
3) Hardware and Software version
Hardware
Software
0.9
WiFi
106
BT
61
4) Description for Hardware
(1) General Description
This is the 802.11a/b/g/n/ac + Bluetooth 4.1 Combo module that acts as a communication
controller for users of a wireless device to connect to SMART TV.
(2) Features summary
- IEEE 802.11ac compliant
- Dual band 2.4GHz / 5GHz
- Two-stream spatial multiplexing up to 867Mbps
- Supports MCS0-15 modulation and coding rates
- Supports 20MHz, 40MHz and 80MHz channels with optional SGI(256QAM modulation)
- On chip power amplifiers and low noise amplifier for both band.
5
/
7
- Complies with Bluetooth Core Specification Version 4.1 +HS
- Adaptive frequency hopping(AFH) for reducing radio frequency interference
[ External Switch ]
- RTC6603 for 2.4GHz ( Richwave )
The RTC6603 is a switch (SPDT) designed for 0.1 ~3.0GHz frequency range,
compatible with 802.11b/g/n wireless LAN system. The device is manufactured
based on advanced CMOS SOI(silicon-on-insulator) technology. The RTC6603
features low insertion loss, high isolation and positive voltage operation with low
power consumption.
- RTC6608O for 5GHz ( Richwave )
The RTC6608O is a switch (SPDT) designed for 0.1~6GHz frequency range, compatible
with 802.11a/b/g/n wireless LAN system. The device is manufactured based on GaAs PHET
technology. The RTC6608O exhibits low insertion loss, high isolation and low DC
power consumption characteristics over broadband range.
[ DC/DC Regulator]
- AX3811A ( axelite )
The AX3811A develops high efficiency synchronous step down DC-DC converter
capable of delivering 2A load current. AX3811A adopts the instant PWM architecture
to achieve fast transient responses for high step down applications and high
efficiency at light loads. It operates at pseudo-constant frequency of 500KHz under
heavy load conditions.
[ X-tal ]
- 40MHz ( Hosonic )
For IF and RF frequency, a crystal(40MHz) is a clock reference.
6
/
7
Approval Statement
CE Statement
Hereby, we declare that this device is in compliance with the essential requirements and other relevant provisions
of directive 1999/5/EC.
FCC Statement
To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product.
Contains Transmitter module FCC ID: A3LWCK730B
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
A3LWCK730B”
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesirable
operation.
FCC Radiation Exposure Statement;
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
body.
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC
compliance
Requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the
host
this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for
an
population / uncontrolled environment can be satisfied.
Any change or modifications not expressly approved by the manufacturer could voic the user’s authority
to
Operate this equipment.
In the users manual of the end of product, the end user has to be informed to keep at least 20cm
separation
with the antenna while this end product is installed and operated.
The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled
environment can be satisfied. The end user has to also be informed that any changes or modifications
not expressly approved by the manufacturer could void the user’s authority to operate this equipment.i f
the size
Of the end product is smaller than 8x10cm,then additional FCC part15.19statement is required to be
available in the users manual; This device complies with Part15 of FCC rules.
IC Information
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the
7
/
7
device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). L'opération est soumise
aux deux conditions suivantes:
(1) cet appareil ne peut causer d'interférences, et
(2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais
fonctionnement de l'appareil.
The end product must be labeled to display the Industry Canada certification number of the module.
Contains transmitter module IC: 649E-WCK730B
Le dispositif d'accueil doivent être étiquetés pour afficher le numéro de certification d'Industrie Canada du module.
Contient module émetteur IC : 649E-WCK730B
For product available in the USA/Canada market, only channel 1~11 can be operated and these
channel
Assignments deal with only the 2.4GHz range
This device and its antenna(s) must not be co-located or operation in conjuction with
Any other antenna or transmitter.
This device is going to be operated in 5.15~5.25GHz frequency range,it is restricted in indoor
environment only
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC
compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for
the host this module is integrated into. Under such configuration, the IC RSS- 102 radiation
exposure limits set forth for an population/uncontrolled environment can be satisfied.
The final end product must be labeled in a visible area with the following " Contains TX IC : 649E-
WCK730B”
User Information
This device complies with FCC & IC radiation exposure limits set forth for an uncontrolled environment. This
device should be installed and must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20cm is maintained between the antenna and users.
2) This module may not be co-located with any other transmitters or antennas.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is
still responsible for testing their end-product for any additional compliance requirements with this module installed.
In the event that these conditions cannot be met, then the FCC & IC authorizations are no longer
considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product including this module and obtaining separate FCC & IC
authorizations.
Cet appareil est conforme aux limites d'exposition rayonnement de la FCC et IC définies pour un environnement
non contrôlé . Cet appareil doit être installé et ne doit pas être co- localisées ou opérant en conjonction avec une
autre antenne ou émetteur .
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes :
1 ) L' antenne doit être installée de telle sorte que 20 cm est maintenue entre l'antenne et les utilisateurs .
2 ) Ce module ne peut pas être co-localisé avec d'autres émetteurs ou des antennes .
Tant que deux conditions ci-dessus sont remplies , nouvel essai de l'émetteur ne sera pas tenu . Cependant ,
l'intégrateur OEM est toujours responsable de tester leur produit final pour les exigences de conformité
supplémentaires avec ce module installé .Dans le cas où ces conditions ne peuvent être remplies, les
autorisations de la FCC et IC ne sont plus considérés comme valides et l'ID FCC ne peuvent pas être utilisés sur
le produit final . Dans ces circonstances , l'intégrateur OEM sera chargé de réévaluer le produit final incluant ce
module et l'obtention des autorisations de la FCC et IC distincts .
Any changed or modifications not expressly approved by the party responsible for compliance could void the
8
/
7
user`s authority to operate this equipment.
Toute changé ou modifications non expressément approuvés par la partie responsable de la conformité
pourraient annuler l'utilisateur `autorité de faire fonctionner cet équipement.
It is noticed the device is stated to be not able to be operated at 5600-5650.
This module use for Samsung TV and AV products with indoor condition
9
/
7
