APC Operation Manual - Professional Installation Guide 2 of 2
![](/img.php?id=2529411&img=bg1.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 301 of 628
7.6 Spectrum Analysis
A non-802.11 device such as microwave oven, bluetooth, or Closed Circuit Television
(CCTV), etc. deteriorates data transmitting/receiving performance because it causes
interference in a wireless LAN environment. As a function that measures surrounding
interference, the spectrum analysis analyzes wireless or Radio Frequency (RF) signals to
resolve interference problem instantly.
7.6.1 Retrieving Spectrum Analysis Data
The spectrum analysis function of APC provides the following data.
Sample report: Wireless capture data converted into Fast Fourier Transform (FFT)
Duty cycle report: Channel utilization rate
Interference report: Interference signal information
The FFT report provides the information of an AP and maximum 13 available channels and
also maximum/minimum values of Received Signal Strength Indicator (RSSI) for each
channel. The duty cycle report provides AP information and affected channel information.
In addition, it provides duty cycle transmission data that indirectly provides channel
utilization rate.
The interference report provides AP information, affected channel, or configuration
information of an interferer and also interference information (RSSI or maximum/minimum
frequency of an interference signal) in real-time.
Configuration using CLI
By using the following command, you can check each data.
show spectrum-analysis report [DATA] ap [AP_ID]
Parameter
Description
DATA
Spectrum analysis data type (sample/duty_cycle/interference)
AP_ID
AP ID (range: 1-500)
An example of command execution and its execution result are as follows:
FFT report
APC# show spectrum-analysis report sample ap 1
FFT (Fast Fourier Transform) Reporting Enabled
AP ID 1 Description:
MAC Address...................................... 00:11:22:33:44:55
Name............................................. AP_ 01122334455
IP Address....................................... 100.100.100.220
Mode............................................. General
![](/img.php?id=2529411&img=bg2.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 302 of 628
Operational Status............................... Up
Map Location......................................
Channel Information:
Channel Interval.................................. 2000 ms
Channel........................................... 1 2 3 4 5 6 7 8
9 10 11 12 13
Channel ID........................................... 1
-----------------------------
Num Maximum RSSI Average RSSI
--- ------------ ------------
1 -120 -120
2 -120 -120
3 -120 -120
4 -120 -120
5 -120 -120
6 -120 -120
7 -120 -120
8 -120 -120
9 -120 -120
10 -120 -120
11 -120 -120
12 -120 -120
13 -120 -120
14 -120 -120
15 -120 -120
16 -120 -120
17 -120 -120
18 -120 -120
19 -120 -120
20 -120 -120
21 -120 -120
22 -120 -120
23 -120 -120
24 -120 -120
25 -120 -120
26 -120 -120
27 -120 -120
28 -120 -120
29 -120 -120
30 -120 -120
Press any key to continue (q : quit | enter : next line) :
Duty cycle report
APC# show spectrum-analysis report duty_cycle ap 1
Duty Cycle Reporting Enabled
AP ID 1 Description:
MAC Address...................................... 00:11:22:33:44:55
Name............................................. AP_ 01122334455
![](/img.php?id=2529411&img=bg3.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 303 of 628
IP Address....................................... 100.100.100.220
Mode............................................. General
Operational Status............................... Up
Map Location.....................................
Affected Channels:
Channel Interval................................. 2000 ms
Channel.......................................... 1 2 3 4 5 6 7 8 9
10 11 12 13
Real Time Duty Cycle Report:
Current Time : 2012-06-29 00:40:13
--------------------------------------------------------------------
Channel: 1.......................................... D: 100 %
Channel: 2.......................................... D: 100 %
Channel: 3.......................................... D: 100 %
Channel: 4.......................................... D: 100 %
Channel: 5.......................................... D: 30 %
Channel: 6.......................................... D: 100 %
Channel: 7.......................................... D: 100 %
Channel: 8.......................................... D: 100 %
Channel: 9.......................................... D: 100 %
Channel: 10.......................................... D: 50 %
Channel: 11.......................................... D: 97 %
Channel: 12.......................................... D: 70 %
Channel: 13.......................................... D: 100 %
--------------------------------------------------------------------
Interference report
APC# show spectrum-analysis report interference ap 1
Interference Reporting Enabled
AP ID 1 Description:
MAC Address..........................................
00:11:22:33:44:55
Name................................................. AP_
01122334455
IP Address...........................................
100.100.100.220
Mode................................................. General
Operational Status................................... Up
Map Location.........................................
Affected Channels:
Channel Interval..................................... 2000 ms
Channel.............................................. 1 2 3 4 5 6 7
8 9 10 11 12 13
Affected Interferers:
BlueTooth......................................... Enabled
Microwave Oven.................................... Enabled
802.11bgn Continuous Transmitter.................. Enabled
802.11bgn DECT-like Phone......................... Enabled
![](/img.php?id=2529411&img=bg4.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 304 of 628
802.11bgn Video Camera........................... Enabled
ZigBee........................................... Enabled
802.11an Continuous Transmitter.................. Enabled
802.11an DECT-like Phone......................... Enabled
802.11an Video Camera............................ Enabled
Real Time Interference Report:
Number of Interferers................................. 1
Num Evoke Time Interferer Type RSSI Minimum Frequency Maximum
Frequency
--- ------------------- -------------------------------- ---- --------
--------- -----------------
1 2012-06-29 08:52:47 802.11bgn Video Camera -80 2401 2401
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Monitor> and then select the
<Interference Device> menu in the sub-menus. You can retrieve the interference report.
Figure 144. Spectrum Analysis Data
7.6.2 Spectrum Analysis Configuration
You can configure the spectrum analysis function and also a spectrum analysis channel that
will be applied to each spectrum report. The channel information is as follows:
Radio
Channel
2.4 GHz
All, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
5 GHz Low
All, 36, 40, 44, 48, 52, 56, 60, 64
5 GHz Mid
All, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136,140
5 GHz High
All, 149, 153, 157, 161, 165
To configure the spectrum analysis related function, you must go to the configuration mode
of an AP for which the spectrum analysis function will be configured by executing the
command as follows:
APC# configure terminal
APC/configure# spectrum-analysis ap 1
APC/configure/spectrum-analysis/ap 1#
![](/img.php?id=2529411&img=bg5.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 305 of 628
[Enable/Disable Spectrum]
The command that enables or disables the spectrum analysis function is shown below.
service [MODE]
Parameter
Description
MODE
Enables or disables spectrum analysis
- enable: Enable (default)
- disable: Disable
[Spectrum Analysis Report Configuration]
The command used to enable or disable each spectrum analysis data item is shown below.
configuration-request [DATA] [MODE]
Parameter
Description
DATA
Type of a report to configure (sample/duty-cycle/interference)
- sample: FFT report (default: disabled)
- duty-cycle: Duty cycle report (default: disabled)
- interference: Interference report (default: enable)
MODE
Enables or disables each report function.
- enable: Enable
- disable: Disable
[Channel Report Interval Configuration]
The command is shown below.
channel-interval [INTERVAL]
Parameter
Description
INTERVAL
Channel report interval (range: 1000-60000 ms, default: 1000)
[Changing Channel]
By using the following command, you can change a channel for which the spectrum
analysis will be executed.
(The default is ‘All’ channels.)
dot11b: 2.4 GHz wireless bandwidth
dot11aLow: 5 GHz low wireless bandwidth
dot11aMid: 5 GHz mid wireless bandwidth
dot11aHigh: 5 GHz high wireless bandwidth
![](/img.php?id=2529411&img=bg6.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 306 of 628
7.6.3 Interference Type Configuration
The interference type of 2.4 GHz or 5 GHz that can be detected by the W-EP wireless LAN
is shown below.
Wireless bandwidth
Interference type
2.4 GHz
continuous_transmitter, cordless_phone, video_camera
5 GHz
bluetooth, continuous_transmitter, cordless_phone, microwave_oven,
video_camera, zigbee
To configure an interference type, execute the command as follows:
1) Go to configure mode of CLI.
APC# configure terminal
APC/configure#
2) Configure an interference type. The default value of all the interference types is
‘enabled’.
interferer 80211b zigbee: 2.4 GHz configuration
interferer 80211a cordless_phone: 5 GHz configuration
![](/img.php?id=2529411&img=bg7.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 307 of 628
7.7 Controlling Usage per User
A wireless terminal can control traffic usage per user by receiving a QoS profile that
specifies traffic usage (bandwidth) from the RADIUS server at the authentication stage.
You can configure upward and downward usage per wireless terminal.
Configuration using CLI
The procedure of configuring a usage to a profile is as follows:
1) Go to configure mode of CLI.
APC# configure terminal
2) Create a QoS profile.
APC/configure# qos [PROFILE_NAME]
APC/configure/qos samsung#
Parameter
Description
PROFILE_NAME
Name of a QoS profile to create
3) Configure the downward usage in kbps.
bw-contract-downstream [VALUE]
Parameter
Description
VALUE
Downward usage
4) Configure the upward usage in kbps.
bw-contract-upstream [VALUE]
Parameter
Description
VALUE
Upward usage
5) To check the configured profile information, use the ‘show qos profile’ command.
![](/img.php?id=2529411&img=bg8.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 308 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<QoS> menu in the sub-menus. To create a QoS profile to apply to a terminal, click the
<Add> button in the initial window.
The QoS addition window consists of the following QoS parameters. By entering each QoS
parameter, you can configure the QoS profile of a specific terminal or configure the usage
control function for each user.
Figure 145. Controlling Usage per User
ID: ID (range: 1-16)
PROFILE NAME: Profile name
DESCRIPTION: Profile description
MAX. DOT1P TAG: Maximum allowed 802.1p tag (range: 0-7)
PER-USER UPSTREAM BANDWIDTH CONTRACT: Maximum upward usage
(range: 0-450000)
PER-USER DOWNSTREAM BANDWIDTH CONTRACT: Maximum downward
usage (range: 0-450000)
VOICE/VIDEO/BEST EFFORT/BACKGROUND: Enter 802.1P TAG (range: 0-7)
and DSCP TAG (range: 0-64) for each item.
![](/img.php?id=2529411&img=bg9.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 309 of 628
7.8 Remote Packet Capture
APC can capture a packet exchanged between the wireless terminals on a remote PC in
real-time by using the remote packet capture protocol.
To configure the remote packet capture function, you must go to the pcap mode by
executing the command as follows:
APC# configure terminal
APC/configure# pcap
Configuring the MAC address of a wireless terminal
Configure the MAC address of a wireless terminal whose packets will be captured.
APC/configure/pcap# config-filter
APC/configure/pcap/config-filter# station-mac [MAC_ADDRESS]
APC/configure/pcap/config-filter# enable-station-mac [INDEX]
Parameter
Description
MAC_ADDRESS
MAC address (11:22:33:44:55:66 format)
INDEX
Index number of MAC address (range: 1-10)
Configuring AP MAC address
Configure the MAC address of an AP whose packets will be captured.
APC/configure/pcap# config-filter
APC/configure/pcap/config-filter# ap-mac [MAC_ADDRESS]
APC/configure/pcap/config-filter# enable-ap-mac [INDEX]
Parameter
Description
MAC_ADDRESS
MAC address (11:22:33:44:55:66 format)
INDEX
Index number of MAC address (range: 1-10)
Configuring Filtering Mode
Capture target can be specified by configuring the filtering mode
APC/configure/pcap# filtering-mode [FILTERING MODE]
Parameter
Description
FILTERING MODE
Filtering mode
- station-only: Use only the configured station MAC information.
- ap-only: Use only the configured AP MAC information.
![](/img.php?id=2529411&img=bga.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 310 of 628
Starting Service
You must start the remote packet capture service to connect to a device using a program
that supports the remote packet capture protocol on a remote PC.
The related commands are given below.
APC/configure/pcap# start-service
Retrieving Configuration Information
Use the ‘show pcap current-config’ command to retrieve the remote packet capture
configuration information.
APC# show pcap current-config detail
- Current status : Idle
- Filtering mode : station-only
- Configured AP’s MAC Information
No. MAC Addr. Filtering Matched Count
Inbound Rate Outbound Rate
===== ===================== =========== =============================
================ ================
1 F4:D9:FB:23:66:00 --------> ON 0
0.0 0.0
ID Prf. AP Name IPv4 Addr
------ ----------- ----------------------- ---------------
2 ap_2 AP_f4d9fb236600 10.10.10.20
- Configured Station’s MAC Information
No. MAC Addr. Filtering Matched Count
Inbound Rate Outbound Rate
===== ===================== =========== =============================
================ ================
1 78:47:1D:C5:4C:85 OFF <------- 0
0.0 0.0
AP WN SSID IPv4 Addr
---- ---- --------------------------- ---------------
2 2 Ajay_2_2_4G 20.20.20.30
2 FC:A1:3E:47:59:E7 OFF <------- 0
0.0 0.0
AP WN SSID IPv4 Addr
---- ---- --------------------------- ---------------
2 2 Ajay_2_2_4G 20.20.20.25
WEC8500#
![](/img.php?id=2529411&img=bgb.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 311 of 628
7.9 Clustering
The clustering function comprehensively manages several APC systems in a single wireless
LAN when several APC systems are used to manage a wireless LAN that cannot be
managed by a single APC. The inter-APC handover function is provided by using
clustering. In other words, it can provide the handover function between wireless LANs
managed by different APC systems.
However, if a model is different, it is not interoperated through clustering.
Configuration using CLI
[Cluster Setting]
To use the clustering function, you must configure each APC according to the following
procedure. Maximum 12 WEC8500 can be grouped in a cluster. Maximum 2 WEC8050
can be grouped in a cluster.
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) Set the interval and the number of retries to transmit the Keep-alive messages between
APCs in the cluster.
cluster keep-alive-interval [INTERVAL]
cluster keep-alive-retry-count [RETRY_COUNT]
Parameter
Description
INTERVAL
Interval to transmit the Keep-alive message
(Unit: s, range: 1-30, default: 10)
RETRY_COUNT
Maximum number of the transmission retries when there is no
response to the Keep-alive message (range: 3-20, default: 3)
3) Enable the cluster
cluster enable: Enable
no cluster enable: Disable
4) To check the configuration information, use the ‘show cluster config’ command.
WEC8500# show cluster config
========================================================
CLUSTER CONFIGURATION INFORMATION
========================================================
KEEP-ALIVE-INTERVAL : 10
KEEP-ALIVE-RETRY-COUNT : 3
![](/img.php?id=2529411&img=bgc.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 312 of 628
ENABLE : YES
OWN-APC-INDEX : 1
========================================================
[Adding APC to APC List]
To add an APC to the cluster, the APC must be added to the APC list first. APC information
is automatically added to the APC list.
1) Go to apc-list configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure# apc apc-list
WEC8500/configure/apc/apc-list#
2) Add the APC to the APC list.
add-apc [APC_NAME] [MAC_ADDRESS]
Parameter
Description
APC_NAME
APC name to be added to the APC list
MAC_ADDRESS
MAC address of the APC to be added to the APC list
(system mac address output parameter value of the ‘show
system info’ command in the APC)
[Adding APC to cluster]
After adding APC to the APC list, the APC must be added to a cluster.
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) Add the APC to a cluster.
cluster add-apc [INDEX] [APC_NAME] [IPV4_ADDRESS] [DB_REFRESH_
INTERVAL]
Parameter
Description
INDEX
Index in cluster (range: 1-12)
APC_NAME
APC name (maximum 18 characters)
IPV4_ADDRESS
IPv4 address
DB_REFRESH_INTERVAL
Database update interval (Unit: s, range: 60-5000, default: 120)
![](/img.php?id=2529411&img=bgd.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 313 of 628
[Deleting APC from cluster]
Delete the APC added in cluster. To delete an APC from a cluster, you must delete the APC
from the cluster configuration of all the APCs in the cluster.
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) Delete an APC from the cluster. To delete all the APC systems in a cluster, enter the
‘cluster del-apc-all’ command.
cluster del-apc [INDEX]
cluster del-apc-all
Parameter
Description
INDEX
Index in cluster (range: 1-12)
[Retrieving APC information added in cluster]
You can check the added APC information using the ‘show cluster list-apc’ command.
WEC8500# show cluster list-apc
======================================================================
INDEX APC-NAME IPv4-ADDRESS DB-REF-INT CONNECT-STATUS
======================================================================
1 APC-1 192.168.87.146 120 CONNECTED[1]
2 APC-2 192.168.87.217 120 CONNECTED[1]
======================================================================
![](/img.php?id=2529411&img=bge.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 314 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Mobility Management> <Clustering> menu in the sub-menus.
The Clustering window is shown below.
Figure 146. Clustering window
Configure a clustering configuration value in the <Information> item and then click the
<Apply> button to apply. The Clustering Members item shows all the clustering members.
Click the <Add> or <Delete> button to add or delete a clustering member.
The clustering addition window is shown below.
Figure 147. Clustering addition window
![](/img.php?id=2529411&img=bgf.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 315 of 628
7.10 Limiting the Number of Connected Users
The W-EP wireless LAN system limits the number of wireless terminals connected to each AP.
The limitation is per radio (2.4/5 GHz bandwidth) or WLAN for each AP.
7.10.1 Limiting Connections per Radio
Configuration using CLI
1) Go to configure mode of CLI.
APC# configure terminal
APC/configure#
2) Configure connection limitation.
[RADIO] max-associated-stations [MAX_STATION] global: Configures connection
limitation per wireless bandwidth. When you enter the ‘global’ parameter at the end,
connection limitation is applied to all the APs.
[RADIO] max-associated-stations [MAX_STATION] [TARGET] [AP_ID]:
Configures connection limitation to a specific AP.
Parameter
Description
RADIO
Wireless area to configure
[80211bg/80211a]
- 80211bg: 2.4 GHz area
- 80211a: 5 GHz area
MAX-STATION
Maximum number of wireless terminals that can be connected
(default: 127)
TARGET
Configuration range
- AP: Index of an AP to configure
- Global: All APs connected to an APC
AP_ID
AP ID (range: 1-500)
3) To check the configuration information, use the ‘show 80211bg radio-config global’
command.
![](/img.php?id=2529411&img=bg10.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 316 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Radio> <802.11a/n> or <802.11b/g/n> <General> menu in the sub-menus.
Figure 148. Configuring connection limitation per radio
After configuring MAX CLIENT COUNTS, click the <Apply> button.
7.10.2 Connection Limitation per WLAN
Configuration using CLI
To configure connection limitation per WLAN, execute the command as follows:
1) Go to configure wlan configuration mode of CLI.
APC# configure terminal
APC/configure# wlan 1
APC/configure/wlan 1#
2) Disable the WLAN.
APC/configure/wlan 1# no enable
3) Configure connection limitation.
max-associated-stations [MAX-STATION]
Parameter
Description
MAX-STATION
Maximum number of wireless terminals that can be connected (default: 127)
![](/img.php?id=2529411&img=bg11.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 317 of 628
4) Enable the WLAN.
APC/configure/wlan 1# enable
5) To check the configured connection limitation, use the ‘show wlan detail’ command.
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Radio> <802.11a/n> or <802.11b/g/n> <General> menu in the sub-menus.
Figure 149. Configuring connection limitation per WLAN
After configuring MAXIMUM CONNECTIONS, click the <Apply> button.
![](/img.php?id=2529411&img=bg12.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 318 of 628
7.11 Voice Statistics and Communication Failure
Detection
Because APC provides voice statistics and the WLAN-based communication failure
detection function, you can easily know communication failure reason.
7.11.1 Voice Statistics Function
It provides the number of successful voice communication and call time.
When the CAC function is enabled, the CAC statistics is also provided.
Configuration using CLI
Use the following command to check voice statistics.
APC# show 80211bg voip-stats ap 2
VoIP Stats
Cumulative Number of Calls ................ 4
Cumulative Time of Calls .................. 0:0:23
Number of Active Calls .................... 2
CAC Stats
Calls In Progress ......................... 2
Handover Calls In Progress ................ 0
Calls Since AP Joined ..................... 4
Handover Calls Since AP Joined ............ 0
Calls Rejected Since AP Joined ............ 0
Handover Calls Rejected Since AP Joined ... 0
Calls On Invite ........................... 0
Preferred Calls Received .................. 0
Preferred Calls Accepted .................. 0
![](/img.php?id=2529411&img=bg13.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 319 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Monitor> and then select the <Access
Points> <Radio> <802.11a/n> or <802.11b/g/n> AP menu in the sub-menus.
Figure 150. Voice statistics
![](/img.php?id=2529411&img=bg14.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 320 of 628
7.11.2 Detecting WLAN-based Communication Failure
You can configure whether to detect WLAN-based communication failure.
Configuration using CLI
1) Go to configure mode of CLI.
APC# configure terminal
APC/configure#
2) Enable or disable communication failure detection.
[no] call-fail-detect [WLAN_ID]
Parameter
Description
WLAN_ID
WLAN ID (range: 1-240)
3) To check the configured connection limitation information, use the ‘show voip config
[WLAN_ID]’ command.
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<WLANs> menu in the sub-menus. Select a WLAN ID to change in the WLANs screen
and go to the <Advanced> tab.
Figure 151. Detecting WLAN-based communication failure
After configuring the VOIP FAILURE DETECT item, click the <Apply> button.
![](/img.php?id=2529411&img=bg15.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 321 of 628
7.12 Voice Signal and Media Monitoring
For voice call fault analysis, the APC provides VoIP wireless terminal, call information,
event and RTP media voice quality statistics.
7.12.1 Checking Voice Related Wireless Information
Configuration using CLI
Execute the following command to check voice related fault analysis statistics.
1) Check the connection status of a voice wireless terminal.
WEC8500# show voice station summary
MAC Address IP Address Tel-no AP BSS WLAN
Proto Server IP Reg Call
----------------- -------------- --------- --- ----------------- ----
------ ------------- ----------- ----------
50:01:BB:FD:96:E1 10.10.10.5 9922 3 F4:D9:FB:24:C8:C2 1
SIP(UDP) 90.90.1.100 Registered Established
78:47:1D:C2:18:11 10.10.10.10 9907 3 F4:D9:FB:24:C8:D1 1
SIP(UDP) 90.90.1.100 Registered Not calling
WEC8500#
2) Check the connection status of an active call.
WEC8500# show voice active-call summary
MAC Address IP Address Tel-No AP BSS WLAN
Caller Callee Dir Status Dur(sec) Start Time MOS
----------------- -------------- ---------- --- ---------------- ----
---------- ----------- --- -------- ------ -------- ---
C8:19:F7:70:89:04 10.10.10.65 9961 3 F4:D9:FB:24:C8:C2 1
9907 9961 In Established 48 05-12 21:16:13 3.95
50:01:BB:FD:96:E1 10.10.10.5 9922 3 F4:D9:FB:24:C8:C2 1
9922 9950 Out Established 336 05-12 21:11:25 3.95
78:47:1D:C2:18:11 10.10.10.10 9907 3 F4:D9:FB:24:C8:D1 1
9907 9961 Out Established 48 05-12 21:16:13 3.77
----------------- -------------- ---------- --- ----------------- ----
---------- ----------- --- -------- ------ -------- ---#
![](/img.php?id=2529411&img=bg16.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 322 of 628
3) Check the information of a completed call.
WEC8500# show voice complete-call summary
CONN Start Time Dur AP SSID MAC Address
Tel-no IPv4 Address Port Rat MOS LQ/CQ/PQ Pkt Cnt
==== ==================== ==== ==== =============== === ==============
========== =============== ===== ==== ============== ===============
0 2013/05/11-17:24:23 26 1 uready Caller D4:88:90:1B:3C:E2
10.10.10.194 23143 GOOD 4.01/3.95/3.84 225,664
Callee 3C:8B:FE:2E:6F:6A
10.10.10.193 10617 POOR 2.31/2.17/2.90 221,708
----------------------------------------------------------------------
----------------------------------------------------------------------
1 2013/05/11-17:25:16 10 1 uready Caller 3C:8B:FE:2E:6F:6A
10.10.10.193 10617 FAIR 3.57/3.11/3.63 90,300
Callee D4:88:90:1B:3C:E2
10.10.10.194 23143 GOOD 4.06/3.91/3.94 85,140
----------------------------------------------------------------------
----------------------------------------------------------------------
2 2013/05/11-19:02:10 28 1 uready Caller D4:88:90:1B:3C:E2
10.10.10.194 23143 POOR 3.21/2.92/3.44 244,756
Callee 3C:8B:FE:2E:6F:6A
10.10.10.193 10617 POOR 1.97/1.66/2.68 240,800
----------------------------------------------------------------------
----------------------------------------------------------------------
4) Check the voice signal related log.
WEC8500/configure# show voice sipmsg-log
Time MAC Address Msg Type Dir
SRC IP DST IP AP BSS WLAN Contents
--------------------- ---------------- ------------- -----
----------- ----------- ---- ---------------- ----- -------------
--------
2013-05-12 21:26:45 c8:19:f7:70:89:04 INVITE SEND
10.10.10.65 90.90.1.100 3 f4:d9:fb:24:c8:c2 1 F:9922, T:995
0, RTP:10.10.10.65:21120
2013-05-12 21:26:44 c8:19:f7:70:89:04 200(REGISTER) RECV
90.90.1.100 10.10.10.65 3 f4:d9:fb:24:c8:c2 1 F:9961, T:996
1, Expire:600
2013-05-12 21:26:44 c8:19:f7:70:89:04 REGISTER SEND
10.10.10.65 90.90.1.100 3 f4:d9:fb:24:c8:c2 1 F:9961, T:996
1, Expire:600
2013-05-12 21:26:44 c8:19:f7:70:89:04 401(REGISTER) RECV
90.90.1.100 10.10.10.65 3 f4:d9:fb:24:c8:c2 1 F:9961, T:996
1, Expire:0
2013-05-12 21:26:44 c8:19:f7:70:89:04 REGISTER SEND
10.10.10.65 90.90.1.100 3 f4:d9:fb:24:c8:c2 1 F:9961, T:996
1, Expire:
![](/img.php?id=2529411&img=bg17.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 323 of 628
5) Check a WLAN event related to a voice.
WEC8500# show voice event
Event Type MAC Address AP BSS WLAN
Time Contents
------------------- ---------------- ---- ----------------- ---
-------------------- ----------------------------
Deassoc During Call 78:47:1D:C2:18:11 3 F4:D9:FB:24:C8:D1 1
2013-05-12 21:22:04 wlan disconncted in AP(3) BSSID(f4:d9:fb:24:c8:d1)
during call caller(9907) callee(9950) duration(5)sec
CallStop C8:19:F7:70:89:04 3 F4:D9:FB:24:C8:C2 1
2013-05-12 21:22:04 caller(9922) callee(9950) duration(62)sec
CallConnect 78:47:1D:C2:18:11 3 F4:D9:FB:24:C8:D1 1
2013-05-12 21:22:01 caller(9907) callee(9950)
CallSetup 78:47:1D:C2:18:11 3 F4:D9:FB:24:C8:D1 1
2013-05-12 21:21:59 caller(9907) callee(9950)
CallStop 78:47:1D:C2:18:11 3 F4:D9:FB:24:C8:D1 1
2013-05-12 21:21:47 caller(9907) callee(9950) duration(6)sec
CallConnect 78:47:1D:C2:18:11 3 F4:D9:FB:24:C8:D1 1
2013-05-12 21:21:47 caller(9907) callee(9950)
6) Check the voice related statistics.
WEC8500# show voice statistics radio
RADIO (5G) Voice Statistis
------ ------ ------- ------ ----- --- ------ ------ --- ------ ------
Type Total Success Failed Active UpstreamTime Downstream
Calls Call Call Call MOS Jitter Delay MOS Jitter Delay
------ ------ ------- ------ ----- --- ------ ------ --- ------ ------
Total 8 6 0 2 0.0 0 0 0.0 0 0
5 Min 0 0 0 0 0.0 0 0 0.0 0 0
15 Min 0 0 0 0 0.0 0 0 0.0 0 0
1 Hour 0 0 0 0 0.0 0 0 0.0 0 0
1 Day 8 6 0 2 0.0 0 0 0.0 0 0
RADIO (2.4G) Voice Statistis
------ ------ ------- ------ ----- --- ------ ------ --- ------ ------
Type Total Success Failed Active UpstreamTime Downstream
Calls Call Call Call MOS Jitter Delay MOS Jitter Delay
------ ------ ------ ------ ------ --- ------ ------ --- ------ ------
Total 3 3 0 0 0.0 0 0 0.0 0 0
5 Min 0 0 0 0 0.0 0 0 0.0 0 0
15 Min 0 0 0 0 0.0 0 0 0.0 0 0
1 Hour 0 0 0 0 0.0 0 0 0.0 0 0
1 Day 3 3 0 0 0.0 0 0 0.0 0 0
WEC8500# show voice statistics wlan 1
![](/img.php?id=2529411&img=bg18.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 324 of 628
WLAN (A_toanyone_1) Voice Statistis
------ ------ ------- ------ ----- --- ------ ------ --- ------ ------
Type Total Success Failed Active UpstreamTime Downstream
Calls Call Call Call MOS Jitter Delay MOS Jitter Delay
------ ------ ----- ------ ------ --- ------ ------ --- ------ ------
Total 11 9 0 2 0.0 0 0 0.0 0 0
5 Min 0 0 0 0 0.0 0 0 0.0 0 0
15 Min 0 0 0 0 0.0 0 0 0.0 0 0
1 Hour 0 0 0 0 0.0 0 0 0.0 0 0
1 Day 11 9 0 2 0.0 0 0 0.0 0 0
WEC8500# show voice statistics device
DEVICE ( Model Name:SHV-E210L, OS Ver:4.1.1 Build Ver:E210LKLJLK1 )
Voice Statistis
---------- ------ ------ ------ ------ --- ------ ------ --- ------ --
----
Type Total Success Failed Active UpstreamTime Downstream
Calls Call Call Call MOS Jitter Delay MOS Jitter Delay
------ ------ ----- ------ ------ --- ------ ------ --- ------ ------
Total 8 6 0 2 0.0 0 0 0.0 0 0
5 Min 0 0 0 0 0.0 0 0 0.0 0 0
15 Min 0 0 0 0 0.0 0 0 0.0 0 0
1 Hour 0 0 0 0 0.0 0 0 0.0 0 0
1 Day 8 6 0 2 0.0 0 0 0.0 0 0
WEC8500#
Configuration using Web UI
1) Check the connection status of a voice wireless terminal.
In the menu bar of <WEC Main window>, select <Monitor> and then select the
<VoIP Call> <VoIP Stations> <Active Calls> <Complete Calls> menu in the
sub-menus.
Figure 152. VoIP Stations Retrieval Screen
![](/img.php?id=2529411&img=bg19.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 325 of 628
2) Check the connection status of an active call.
In the menu bar of <WEC Main window>, select <Monitor> and then select the
<VoIP Call> <Active Calls>menu in the sub-menus.
Figure 153. Active Call Retrieval Screen
3) Check the information of a completed call.
In the menu bar of <WEC Main window>, select <Monitor> and then select the
<VoIP Call> <Complete Calls>menu in the sub-menus.
Figure 154. Complete Calls Retrieval Screen
![](/img.php?id=2529411&img=bg1a.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 326 of 628
7.12.2 Checking Voice Related Quality Information
Configuration using CLI
Execute the following command to check the voice related quality analysis (Voice Quality
Monitoring) information.
1) Operator can check the voice quality analysis information of a wireless terminal that
has an active call.
WEC8500# show voice vqm current-stats brief
========================================================
[CONN-740 Start Time=2013/7/19.14:47:27, Duration=47 sec(s)
Call-ID[f03c77b50564418855587192e12b889d <-> ca371fce-6e10-401a-
9a4e-dd53678804c6@ug1.scm.com] Session id :0
SRC [I/F=ge4 Phone-No=9960, IP=20.20.20.30:22458]
DST [I/F=ge4 Phone-No=9910, IP=20.20.20.25:25407]
RTP Flow Quality Metrics:
[Flow-1] DIR=Forward Quality Ratings=Poor [MOS-LQ=3.06, MOS-
CQ=2.82, MOS-PQ=3.35]
RTP Flow Quality Metrics:
[Flow-2] DIR=Reverse Quality Ratings=Good [MOS-LQ=4.04, MOS-
CQ=3.95, MOS-PQ=3.89]
WEC8500#
2) Operator can check the voice quality analysis information of a wireless terminal that
has a completed call.
WEC8500# show voice vqm history-stats brief
========================================================
[CONN-1 Start Time=2013/7/19.14:47:27, Duration=75 sec(s)
Station Mac [78:47:1d:c5:4c:85:fc:a1:3e:47:59:e7:] startBssid
[f4:d9:fb:23:66:10f4:d9:fb:23:66:10] endBssid
[f4:d9:fb:23:66:10f4:d9:fb:23:66:10]
ssid [Ajay_2_2_4GAjay_2_2_4G] Direction [12] wlanId [22]
startApId [22] endApId [22]
Session id :0
SRC [I/F=ge4 Call-ID=f03c77b50564418855587192e12b889d Phone-No=9960,
IP=20.20.20.30:22458]
DST [I/F=ge4 Call-ID=ca371fce-6e10-401a-9a4e-dd53678804c6@ug1.scm.com
Phone-No=9910, IP=20.20.20.25:25407]
RTP Flow Quality Metrics:
[Flow-1] DIR==Forward Quality Ratings=Poor [MOS-LQ=2.21, MOS-CQ=1.33,
MOS-PQ=2.84]
RTP Flow Quality Metrics:
[Flow-2] DIR==Reverse Quality Ratings=Poor [MOS-LQ=2.46, MOS-CQ=1.50,
MOS-PQ=3.00]
========================================================
[CONN-2 Start Time=2013/7/19.14:52:36, Duration=30 sec(s)
Station Mac [fc:a1:3e:47:59:e7:78:47:1d:c5:4c:85:] startBssid
[f4:d9:fb:23:66:10f4:d9:fb:23:66:10] endBssid
[f4:d9:fb:23:66:10f4:d9:fb:23:66:10]
![](/img.php?id=2529411&img=bg1b.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 327 of 628
ssid [Ajay_2_2_4GAjay_2_2_4G] Direction [12] wlanId [22]
startApId [22] endApId [22]
Session id :1
SRC [I/F=ge4 Call-ID=035be38a40032eb8edb0b94e944d58d4 Phone-No=9910,
IP=20.20.20.25:25407]
DST [I/F=ge4 Call-ID=917a913e-83ae-497f-ad84-bf0ee80edf36@ug1.scm.com
Phone-No=9960, IP=20.20.20.30:22458]
RTP Flow Quality Metrics:
[Flow-1] DIR==Forward Quality Ratings=Fair [MOS-LQ=3.73, MOS-CQ=3.65,
MOS-PQ=3.72]
RTP Flow Quality Metrics:
[Flow-2] DIR==Reverse Quality Ratings=Poor [MOS-LQ=3.30, MOS-CQ=3.06,
MOS-PQ=3.49]
========================================================
[CONN-3 Start Time=2013/7/19.14:53:12, Duration=24 sec(s)
Station Mac [78:47:1d:c5:4c:85:fc:a1:3e:47:59:e7:] startBssid
[f4:d9:fb:23:66:10f4:d9:fb:23:66:10] endBssid
[f4:d9:fb:23:66:10f4:d9:fb:23:66:10]
ssid [Ajay_2_2_4GAjay_2_2_4G] Direction [12] wlanId [22]
startApId [22] endApId [22]
Session id :2
SRC [I/F=ge4 Call-ID=a47241e5f5d3d6b7f942d0aaeddbd8ef Phone-No=9960,
IP=20.20.20.30:22458]
DST [I/F=ge4 Call-ID=65031276-a4dd-4b1c-a718-4ed3188e44a5@ug1.scm.com
Phone-No=9910, IP=20.20.20.25:25407]
RTP Flow Quality Metrics:
[Flow-1] DIR==Forward Quality Ratings=Poor [MOS-LQ=3.25, MOS-CQ=2.96,
MOS-PQ=3.47]
RTP Flow Quality Metrics:
[Flow-2] DIR==Reverse Quality Ratings=Fair [MOS-LQ=3.65, MOS-CQ=3.57,
MOS-PQ=3.68]
WEC8500#
3) Operator can check the call statistics information.
WEC8500# show voice vqm summary-stats
========================================================
VQM Summary Stats for last YEAR:0 MONTH:0 DAY:0 0 HR:26 MN:44 SEC
Calls Active = 0
Calls Terminated = 3
Flows Quality Summary (Total/Good/Fair/Poor) = 6/0/2/4
Listening Call Quality (MOS) min/ave/max = 2.21/3.10/3.73
Conversational Call Quality (MOS) min/ave/max = 1.33/2.68/3.65
P.862 Raw Quality (MOS) min/ave/max = 2.84/3.36/3.72
Listening Call Quality (R-factor) min/ave/max = 45/63/77
Conversational Call Quality (R-factor) min/ave/max = 24/53/75
Packet Delay Variation (msec) ave/max = 13/25
Packet Received/Processed/Lost/Discarded = 12980/12909/93/1154
Packet Duplicate/OutOfseq = 0/135
Packet Error Stats: Ignored/Errors = 71/1
System Error Stats: Resource Unavail/Filter Mismatch/Limit Exceeded =
0/0/0
Voice Quality Alerts: Low R-factor/Excess Loss/Excess Delay/Upload =
1/6/5/0
![](/img.php?id=2529411&img=bg1c.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 328 of 628
Upload Count = 1141
Upload Ok Count = 0
Upload Fail Count = 0
Requested Count = 1141
WEC8500#
4) Operator can check the alarm information that occurs during call.
WEC8500# show voice vqm alarms brief
========================================================
VQM ActiveRfactor/ActivePktLoss/ActivePktDly/ActiveMos = 1/1/1/1
VQM QualityThresh/LossThresh/DelayThresh/MOSThresh = 50/50/195/35
ALARMS REPORTED :
Src Call Id = f03c77b50564418855587192e12b889d Dst Call Id =
ca371fce-6e10-401a-9a4e-dd53678804c6@ug1.scm.com Session = 0
Direction :Forward Type : [Low-Quality] [Excessive Burst]
[Excessive delay]
Direction :Reverse Type : [Excessive Burst] [Excessive delay]
ALARMS REPORTED :
Src Call Id = 035be38a40032eb8edb0b94e944d58d4 Dst Call Id =
917a913e-83ae-497f-ad84-bf0ee80edf36@ug1.scm.com Session = 1
Direction :Forward Type : [Excessive Burst]
Direction :Reverse Type : [Excessive Burst] [Excessive delay]
ALARMS REPORTED :
Src Call Id = a47241e5f5d3d6b7f942d0aaeddbd8ef Dst Call Id =
65031276-a4dd-4b1c-a718-4ed3188e44a5@ug1.scm.com Session = 2
Direction :Forward Type : [Excessive Burst]
Direction :Reverse Type : [Excessive Burst]
WEC8500#
![](/img.php?id=2529411&img=bg1d.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 329 of 628
7.13 Multicast Stream Admission Control
The multicast stream admission control is provided to protect the currently running
multicast streams from new streams that flow into the wireless LAN. When the maximum
allowed usage of streams or channels per radio is reached, the APC does not allow any
additional streams.
7.13.1 Configuring Admission Control
The multicast stream admission control function configures the maximum number of
streams or the maximum usage of channels to protect the currently running multicast
streams. It denies multicast streaming requests once the maximum number of streams or
the maximum usage of channels is reached. You can set the number of marginal streams or
the usage of channels with consideration for handover.
Configuration using CLI
To set multicast stream admission control, execute the following commands:
1) Configuration mode of CLI enter the multicast stream admission control mode of
the desired wireless section.
APC# configure terminal
APC/configure# [80211a/80211bg] msac
APC/configure/80211a/msac#
2) Enable or disable the multicast stream admission control function.
acm [MODE]
Parameter
Description
Mode
Whether or not to use the multicast stream admission control
(enable/disable)
- enable: Enable
- disable: Disable
3) Configure the maximum allowed number of streams.
max-streams [VALUE]
Parameter
Description
VALUE
Maximum allowed number of streams
![](/img.php?id=2529411&img=bg1e.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 330 of 628
4) Set the maximum allowed usage of channels.
max-chan-util [VALUE]
Parameter
Description
VALUE
Maximum allowed usage of channels
5) Configure the number of marginal streams with consideration for handover.
reserved-ho-streams [VALUE]
Parameter
Description
VALUE
Number of marginal streams with consideration for handover
6) Configure the usage of marginal channels with consideration for handover.
reserved-ho-chan-util [VALUE]
Parameter
Description
VALUE
Usage of marginal channels with consideration for handover
7) You can view the information you configured by using the ‘show[80211a | 80211bg]
msac configuration’ command.
Configuration using Web UI
From the menu bar of <WEC Main Window>, select <Configuration> and then select
<Radio> <802.11a/n> or <802.11b/g/n> <Admission Control> in the submenus.
Figure 155. 802.11a/n Admission Control Configuration Window
![](/img.php?id=2529411&img=bg1f.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 331 of 628
After configuring the items below in the Multicast Stream Admission Control, click the
<Apply> button.
ADMISSION CONTROL: Configure the CAC function
METHOD: Select the method of admission control
MAX STREAMS: Maximum allowed number of streams (range: 1-20)
HANDOVER STREAMS: Number of marginal streams with consideration for
handover (range: 0-6)
The maximum allowed number of streams becomes MAX STREAMS-HANDOVER
STREAMS.
MAX CHANNEL UTILIZATION (%): Maximum allowed usage of channels (range:
5-85)
HANDOVER CHANNEL UTILIZATION (%): Usage of marginal channels with
consideration for handover (range: 0-30)
7.14 Wi-Fi Band Steering
This is a function of leading a UE which supports the Dual Band (2.4/5.0 GHz) to be
connected to 2.4 GHz or 5.0 GHz to secure more stabilized performance if many resources
are used in a specific radio.
7.14.1 Activating Band Steering Function
You can activate the Band Steering function by WLAN and the 5.0 GHz band steering is
set as default upon Band Steering On.
Configuration using CLI
To activate or deactivate the Band Steering function, execute the command as follows:
1) Configure a specific WLAN which requires the steering band.
APC# configure terminal
APC/configure# wlan 1
APC/configure/wlan 1#
2) Activate or deactivate the Band Steering function.
band-steering [MODE]
Parameter
Description
Mode
Whether to configure the Band Steering function
- enable: Setting
- disable: Release (by default)
![](/img.php?id=2529411&img=bg20.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 332 of 628
WEC8500/configure/wlan 1# band-steering enable
WLAN (1) band steering is On (5-GHz preferred)
WEC8500/configure/wlan 1# no band-steering enable
WLAN (1) band steering is Off
3) Select a steering band.
band-steering [VALUE]
Parameter
Description
VALUE
1 (5.0 GHz), 2 (2.4 GHz)
WEC8500/configure/wlan 1# band-steering 1
WLAN (1) band steering is On (5-GHz preferred)
WEC8500/configure/wlan 1# band-steering 2
WLAN (1) band steering is On (2.4-GHz preferred)
4) Add an entry to the dual band station database.
band-steering add-station [MAC]
Parameter
Description
MAC
Station MAC Address
WEC8500/configure/wlan 1# band-steering add-station 00:00:00:00:00:01
WLAN(1): add station(00:00:00:00:00:01), prefer a band(5-GHz) are set
5) Delete an entry from the dual band station database.
band-steering delete-station [MAC]
Parameter
Description
MAC
Station MAC Address
WEC8500/configure/wlan 1# band-steering delete-station
00:00:00:00:00:01
Deleted...
6) Delete all entries from the dual band station database.
band-steering delete-all
WEC8500/configure/wlan 1# band-steering delete-all
WLAN(1): all stations are deleted...
![](/img.php?id=2529411&img=bg21.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 333 of 628
Configuration using Web UI
WLAN > Advanced > BAND STEERING [Disable][2.4 GHz preferred][5 GHz preferred]
Figure 156. Band Steering Function On/Off and Band Setting
![](/img.php?id=2529411&img=bg22.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 334 of 628
7.15 Wi-Fi Load Balancing
The load balancing function in the AP Controller is a function of load balancing by
transferring the message that the connections to wireless stations among APs have been
permitted or cannot be permitted based on the set threshold value and then controlling the
number of stations connected to APs.
7.15.1 Activating Load Balancing Function
The setting can be made based on the WLAN and it is possible to check the load balancing
function among APs for stations attempting at association to APs with the threshold value
and the maximum denial count value based on station count.
Configuration using CLI
For the load balancing function, execute the command as follows:
1) Configure a specific WLAN which requires load balancing.
APC# configure terminal
APC/configure# wlan 1
APC/configure/wlan 1#
2) Activate or deactivate the Load Balancing function.
load-balancing [MODE]
Parameter
Description
Mode
Whether to configure the Load Balancing function
- enable: Setting
- disable: Release (by default)
WEC8500/configure/wlan 1# load-balancing enable
WLAN (1), Wi-Fi Load Balancing: Enable
WEC8500/configure/wlan 1# no load-balancing enable
WLAN (1), Wi-Fi Load Balancing: Disable
3) Configure the load balancing station count threshold value.
load-balancing threshold_station [VALUE]
Parameter
Description
VALUE
1-127 (127 by default)
![](/img.php?id=2529411&img=bg23.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 335 of 628
WEC8500/configure/wlan 1# load-balancing threshold_station 100
Wi-Fi Load Balancing threshold: 100 stations
4) Configure the maximum denial count value.
load-balancing denial_count [VALUE]
Parameter
Description
VALUE
1-10 (2 by default)
WEC8500/configure/wlan 1# load-balancing denial_count 4
Wi-Fi Load Balancing MAX denial count: 4
Configuration using Web UI
Configure WLAN > Advanced > LOAD BALANCING[Enable] [Disable]
WLAN > Advanced > THRESHOLD[Value]
WLAN > Advanced > MAXIMUM DENIAL COUNT[Value].
Figure 157. Configuring Load Balancing Function
![](/img.php?id=2529411&img=bg24.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 336 of 628
7.16 Station-based Adaptive Load Balancing
Station-based Adaptive Load Balancing performs load balancing based on the number of
stations and RSSI in an individual radio unit of the AP group. Configuring Basic Function
and Setting Load Balancing Parameters of AP Group are available and the settings of the
load balancing parameters in individual APs are available to apply a different value set only
for a specific AP.
7.16.1 Basic Setting of Station-based Adaptive Load Balancing
Station-based Adaptive Load Balancing operates only when it is enabled in the setting of
the basic functions and configures options applied to the overall function operation.
Configuration using CLI
To configure the basic function, execute the commands as follows:
1) Go to the configure load-balancing configuration mode of CLI.
APC# configure terminal
APC/configure# load-balancing
APC/configure/load-balancing#
2) Activate the Station-based Adaptive Load Balancing function.
enable
3) If a function of distributing stations uniformly among APs is necessary, activate the
Active Load Balancing function (Default: no active).
active
4) To activate the Active Load Balancing function, set up the interval for attempting to
distribute uniformly.
interval [NUMBER]
Parameter
Description
NUMBER
Interval for performing active load balancing (sec)
5) To allow load balancing among APs which use the same channel, set the following
option (Default: no allow-channel):
allow-channel
![](/img.php?id=2529411&img=bg25.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 337 of 628
6) To calibrate the RSSI value depending on types of stations, the calibration value must
be set.
calibration mobile [NUMBER]
calibration pc [NUMBER]
calibration others [NUMBER]
Parameter
Description
NUMBER
RSSI calibration value (-dbm)
- Default value: 0 dbm
7) To exclude stations where the traffic occurs from load balancing, the following option
must be set (Default: no idle-station):
idle-station
7.16.2 Setting AP Group Parameter
Station-based Adaptive Load Balancing must set operating parameters to the radio of the
corresponding AP group because it operates in a radio unit of the AP group.
Configuration using CLI
To set AP group parameters, execute the command as follows:
1) Go to the load-balancing configuration mode in configure AP Group of CLI.
APC# configure terminal
APC/configure# ap-group lb
APC/configure/ap-group lb# load-balancing
APC/configure/ap-group lb/load-balancing#
2) Go to the radio to perform the Station-based Adaptive Load Balancing function.
APC/configure/ap-group lb/load-balancing# radio 1
APC/configure/ap-group lb/load-balancing/radio 1#
3) Activate load balancing in the corresponding radio.
enable
4) Set the interval to attempt at the Load Balancing function.
interval [NUMBER]
Parameter
Description
NUMBER
Interval for performing load balancing (sec)
![](/img.php?id=2529411&img=bg26.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 338 of 628
5) Set the station threshold to perform the Load Balancing function.
threshold [NUMBER]
Parameter
Description
NUMBER
Station threshold as the standard for the performance of load
balancing
6) Set the time of blocking the reconnection after the load of the station is now balanced.
kickout-timeout [NUMBER]
Parameter
Description
NUMBER
Reconnection limit time (0~100 sec.)
7) To lead the station which performs load balancing to connect to a specific AP, set the
probe response limit time to other APs.
no-probe-timeout [NUMBER]
Parameter
Description
NUMBER
Probe response limit time (0~100 sec.)
8) The rssi-high value is a criterion for excluding candidates for load balancing to be
selected. The station with the RSSI value higher than the set value does not attempt at
load balancing (In case of the active mode, N/A).
rssi-high [NUMBER]
Parameter
Description
NUMBER
RSSI reference value (-100~0 dbm)
9) The rssi-low value is a criterion for selecting a sticky station. The station with the
RSSI value lower than the set value always attempts at load balancing.
rssi-low [NUMBER]
Parameter
Description
NUMBER
RSSI reference value (-100~0 dbm)
![](/img.php?id=2529411&img=bg27.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 339 of 628
7.16.3 Setting AP Parameters
Station-based Adaptive Load Balancing operates as the default value of the setting of the
AP group but it is possible to set other parameter value to an individual AP. Because it
operates in a radio unit, the parameters to change must be set to the individual radio of the
corresponding AP must be set.
Configuration using CLI
To set AP parameters, execute the command as follows:
1) Go to the load-balancing configuration mode in configure AP of CLI.
APC# configure terminal
APC/configure# ap ap_1
APC/configure/ap ap_1# load-balancing
APC/configure/ap ap_1/load-balancing#
2) Go to the radio to perform the Station-based Adaptive Load Balancing function.
APC/configure/ap ap_1/load-balancing# radio 1
APC/configure/ap ap_1/load-balancing/radio 1#
3) Activate load balancing in the corresponding radio.
enable
4) Set the station threshold to perform the Load Balancing function.
interval [NUMBER]
Parameter
Description
NUMBER
Interval for performing load balancing (sec)
5) Set the station threshold to perform the Load Balancing function.
threshold [NUMBER]
Parameter
Description
NUMBER
Station threshold as the standard for the performance of load
balancing
![](/img.php?id=2529411&img=bg28.png)
CHAPTER 7. WLAN Additional Services
© SAMSUNG Electronics Co., Ltd. page 340 of 628
6) Set the time of blocking the reconnection after the load of the station is now balanced.
kickout-timeout [NUMBER]
Parameter
Description
NUMBER
Reconnection limit time (0~100 sec.)
7) To lead the station which performs load balancing to connect to a specific AP, set the
probe response limit time to other APs.
no-probe-timeout [NUMBER]
Parameter
Description
NUMBER
Probe response limit time (0~100 sec.)
8) The rssi-high value is a criterion for excluding candidates for load balancing to be
selected. The station with the RSSI value higher than the set value does not attempt at
load balancing (In case of the active mode, N/A).
rssi-high [NUMBER]
Parameter
Description
NUMBER
Probe response limit time (0~100 sec.)
9) The rssi-high value is a criterion for excluding candidates for load balancing to be
selected. The station with the RSSI value higher than the set value does not attempt at
load balancing (In case of the active mode, N/A).
rssi-low [NUMBER]
Parameter
Description
NUMBER
RSSI reference value (-100~0 dbm)
![](/img.php?id=2529411&img=bg29.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 341 of 628
CHAPTER 8. Security
The W-EP wireless LAN system supports the security function, required in a wire/wireless
network environment, such as RADIUS server interoperation function, system user
management, guest connection service, unauthorized AP/terminal detection and simple
blocking function, firewall, access control (ACL), etc.
In this chapter, how to configure various security functions supported in the system is
described.
8.1 RADIUS Server Configuration
The W-EP wireless LAN system provides the security and authentication function by
interoperating with an external RADIUS server. The WEC8050 also provides the internal
RADIUS server function.
8.1.1 External RADIUS Server
The W-EP wireless LAN system provides the security and authentication function by
interoperating with an external RADIUS server. Follow the below procedure to interoperate
with a RADIUS server.
8.1.1.1 Basic Settings
The basic steps for configuring a RADIUS server are as follows:
Configuration using CLI
1) Go to configure security radius configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# security
WEC8500/configure/wlan 1/security# radius 1
WEC8500/configure/security/radius 1#
2) Configure the IP address of a RADIUS server.
WEC8500/configure/security/radius 1# serverIp [IP_ADDRESS]
![](/img.php?id=2529411&img=bg2a.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 342 of 628
Parameter
Description
IP_ADDRESS
The IP address of a RADIUS server
3) Configure the key of a RADIUS server.
WEC8500/configure/security/radius 1# secret [KEY_TYPE] [KEY_STRING]
Parameter
Description
KEY_TYPE
RADIUS server key input format
- ASCII: ASCII character string
- HEX: Hexadecimal value
KEY_STRING
RADIUS server key
4) Enable the accounting function of a RADIUS server and configure the port number.
WEC8500/configure/security/radius 1# acct [PORT_NUMBER]
Parameter
Description
PORT_NUMBER
Accounting port number of a RADIUS server
(range: 1-65535, default: 1813)
5) Configure the authentication port number of a RADIUS server.
WEC8500/configure/security/radius 1# auth [PORT_NUMBER]
Parameter
Description
PORT_NUMBER
Accounting port number of a RADIUS server
(range: 1-65535, default: 1812)
6) Configure the items related to retransmissions in RADIUS communications. You can
use default values without changing configuration.
WEC8500/configure/security/radius 1# retransmit-interval
[RETRY_INTERVAL]
WEC8500/configure/security/radius 1# retransmit-count [RETRY_COUNT]
WEC8500/configure/security/radius 1# fo-retransmit-count
[FO_RETRY_COUNT]
![](/img.php?id=2529411&img=bg2b.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 343 of 628
Parameter
Description
RETRY_INTERVAL
Retransmission interval for a RADIUS message
(unit: seconds, range: 1-60, default value: 2)
RETRY_COUNT
Maximum retransmission count of a RADIUS message
(range: 1-20, default value: 10)
FO_RETRY_COUNT
Maximum retransmission count of a RADIUS message before
a RADIUS server failover is attempted
Must smaller than the RETRY_COUNT value (range: 1-10,
default value: 3)
7) Exit RADIUS server configuration and security configuration mode.
WEC8500/configure/security/radius 1# exit
WEC8500/configure/security# exit
8) To check the configuration information, use the ‘show security radius-server summary’
command.
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Security> <AAA> <RADIUS> menu in the sub-menus.
If you click the <Add> button in the RADIUS initial window, you can add a RADIUS
server.
The server addition window is shown below.
Figure 158. RADIUS server configuration
![](/img.php?id=2529411&img=bg2c.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 344 of 628
Item
Description
INDEX
ID that distinguishes RADIUS server configurations
TYPE
Selects the type of the RADIUS server
- Auth: Performs authentication
- Acct: Performs accounting
- Auth/Acct: Performs authentication and accounting
IP ADDRESS
IP address of the RADIUS server
SHARED SECRET FORMAT
Key input format for communications with the RADIUS server
- ASCII: ASCII strings
- HEX: Hexadecimal values
SHARED SECRET
Key for RADIUS server communications
CONFIRM SHARED SECRET
Re-enters the key for RADIUS server communications for
confirmation
AUTH PORT NUMBER
Number of the communication port for RADIUS server
authentication
(range: 1-65,535, default value: 1,812)
ACCT PORT NUMBER
Number of the communication port for RADIUS server
accounting
(range: 1-65,535, default value: 1,813)
RETRANSMIT INTERVAL
Retransmission interval for a RADIUS message
(range: 1-60, default value: 2, unit: seconds)
TOTAL RETRANSMIT COUNT
Maximum retransmission count of a RADIUS message
(range: 1-20, default value: 10)
RETRANSMIT COUNT
FAILOVER
Maximum retransmission count of a RADIUS message before
a RADIUS server failover is attempted
(range: 1-10, default value: 3, must be smaller than the TOTAL
RETRANSMIT value)
8.1.1.2 Configuring MAC Authentication
The MAC authentication of a RADIUS server is configured as follows:
Configuration using CLI
1) Go to configure security radius configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# security
WEC8500/configure/wlan 1/security# radius 1
WEC8500/configure/security/radius 1#
![](/img.php?id=2529411&img=bg2d.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 345 of 628
2) Set the password type that will be used for the MAC authentication of the device.
WEC8500/configure/security/radius 1# mac-auth-pw-type [PW_TYPE]
Parameter
Description
PW_TYPE
Password type (default value: mac)
- mac: MAC address of the device. Note: it must be a string whose
type must be the same as that of the MAC string which is used as a
user ID when the MAC authentication of the device is performed
- shared-secret: Key shared between the APC and RADIUS server
3) Set the type of separator of the device’s MAC string which is used as a user ID when
the MAC authentication of the device is performed.
WEC8500/configure/security/radius 1# mac-auth-delimiter
[DELIMITER_TYPE]
Parameter
Description
DELIMITER_TYPE
Type of the MAC string separator (default: none)
- none: no separator (xxxxxxxxxxxx)
- colon: Uses ‘:’ as a separator (xx:xx:xx:xx:xx:xx)
- hyphen: Uses ‘-’ as a separator (xx-xx-xx-xx-xx-xx)
- single-hyphen: Uses only one ‘-’ in the middle (xxxxxx-xxxxxx)
4) Configure whether to use lowercase characters or uppercase characters for the device’s
MAC string that will be used as an ID upon the MAC authentication of the device.
WEC8500/configure/security/radius 1# mac-auth-case [CASE_TYPE]
Parameter
Description
CASE_TYPE
Case type of the device’s MAC string (default value: lower)
- lower: Uses lowercase
- upper: Uses uppercase
5) Exit RADIUS server configuration and then security configuration mode.
WEC8500/configure/security/radius 1# exit
WEC8500/configure/security# exit
6) You can view configuration information by using the ‘show security radius-server
detail <server-id>’ command.
![](/img.php?id=2529411&img=bg2e.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 346 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select
<Security> <AAA> <RADIUS> menus in the sub-menus.
After selecting a RADIUS server to configure, configure the MAC authentication item.
Figure 159. RADIUS Server MAC Authentication Configuration Window
Item
Description
PASSWORD TYPE
Password type
- MAC Address: MAC address of the UE. The string in a type
same to the MAC string used as a user ID upon the
authentication of the MAC of the UE
- APC Shared Secret: The shared key between the APC and
the RADIUS server
MAC DELIMITER
MAC string delimiter type
- No Delimiter: No delimiter (xxxxxxxxxxxx)
- Colon: ‘:’ used as delimiter (xx:xx:xx:xx:xx:xx)
- Hyphen: ‘-’ used as delimiter (xx-xx-xx-xx-xx-xx)
- Single Hyphen: Only one ‘-’ used in the middle (xxxxxx-
xxxxxx)
MAC CASE
English upper case and lower case types of the MAC string
- Lower: Lower case used
- Upper: Upper case used
![](/img.php?id=2529411&img=bg2f.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 347 of 628
8.1.2 Internal RADIUS Server
The W-EP wireless LAN system provides the security and authentication function by
interoperating with an internal RADIUS server.
To use the internal RADIUS server, operator can add, delete, or edit a user
(WEC8500: maximum 2048 users, WEC8050: maximum 512 users).
Configuration using CLI
To configure a local network user related function, enter into the ‘radiuscm’ of configure
mode by executing the following command.
WEC8050# configure terminal
WEC8050/configure# radiuscm
Operator can execute various commands for Local Net Users.
[Adding User]
To add a user to the Local Net Users, execute the following command.
Add-local-userdb {username} {password} [name] [email] [department] [home_phone]
[work_phone] [mobile_phone]
Parameter
Description
Username
Login ID of a user
- Character varying (1-63)
- MANDATORY
- Korean is not allowed.
- Special characters {, }, (, ), ,, ;, +=, -=,:=, =, !=, >=, >, <=, <, = - , !
- , =*, !*, ==, #, “”, ‘‘, ``, *, ?, \, space, & Cannot be used.
Password
User’s password
- Character varying (1-63)
- MANDATORY
- Korean is not allowed.
- Special characters {, }, (, ), ,, ;, +=, -=,:=, =, !=, >=, >, <=, <, = - , !
- , =*, !*, ==, #, “”, ‘‘, ``, *, ?, \, space, & Cannot be used.
Name
Name
- Character varying (1-63)
- OPTIONAL
- Korean is not allowed.
- Special characters ‘, *, ?, \, ; cannot be used.
email
email address
- Character varying (1-63)
- OPTIONAL
![](/img.php?id=2529411&img=bg30.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 348 of 628
Parameter
Description
- Korean is not allowed.
- Special characters ‘, *, ?, \, ; cannot be used.
department
Division information
- Character varying (1-63)
- OPTIONAL
- Korean is not allowed.
- Special characters ‘, *, ?, \, ; cannot be used.
Home_phone
Home phone number
- Character varying (1-63)
- OPTIONAL
- Korean is not allowed.
- Special characters ‘, *, ?, \, ; cannot be used.
Work_phone
Office phone number
- Character varying (1-63)
- OPTIONAL
- Korean is not allowed.
- Special characters ‘, *, ?, \, ; cannot be used.
Mobile_phone
Mobile phone number.
- Character varying (1-63)
- OPTIONAL
- Korean is not allowed.
- Special characters ‘, *, ?, \, ; cannot be used.
[Modifying User]
To modify a user from the Local Net Users, execute the following command.
modify-local-userdb {username} {password} [name] [email] [department]
[home_phone] [work_phone] [mobile_phone]
[Deleting User]
To delete one user from the Local Net Users, execute the following command.
delete-local-userdb {username}
Parameter
Description
Username
User’s ID
- Character varying (1-63)
- MANDATORY
- Korean is not allowed.
- Special characters {, }, (, ), ,, ;, +=, -=,:=, =, !=, >=, >, <=, <, = - , !
- , =*, !*, ==, #, “”, ‘‘, ``, *, ?, \, space, & Cannot be used.
To delete all the users from the Local Net Users, execute the following command.
Remove-all-local-userdb
![](/img.php?id=2529411&img=bg31.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 349 of 628
[Importing User]
To import the Local Net Users list file, execute the following command.
Import-local-userdb {filename}
Parameter
Description
Filename
File to import
- CSV file format
- Filename (1-512)
[Exporting User]
To export the Local Net Users list file, execute the following command.
Export-local-userdb {filename}
Parameter
Description
Filename
File to export
- CSV file format
- Filename (1-512)
[Checking User]
To check one local net user, execute the following command.
Show radiuscm username {username}
To check all the local net users, execute the following command.
Show radiuscm all-user
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Security> <AAA> <Local User> menu in the sub-menus.
![](/img.php?id=2529411&img=bg32.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 350 of 628
To add a user, click the <Add> button.
1) Enter an item according to each parameter description, and click the <Apply> button.
ID: ID of a user to add
PASSWORD: User’s initial password
CONFIRM PASSWORD: Repeat Password
FULL NAME: User’s name (option)
DEPARTMENT: User’s department information (option)
OFFICE PHONE: Office phone number (option)
CELL PHONE: Mobile phone number (option)
HOME PHONE: Home phone number (option)
E-MAIL: email (option)
2) Importing a local net user list
Operator can import or export the list of local users. The user list is in the CSV format.
An existing data is deleted if there is new importing.
3) Exporting a local net user list
Operator can export the list of local users in the CSV format file.
![](/img.php?id=2529411&img=bg33.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 351 of 628
8.2 Unauthorized AP/Terminal Detection and
Blocking
As the security function, the W-EP wireless LAN device provides the detection service for
an unauthorized AP using the Wireless Intrusion Detection System (WIDS)/WIPS function.
This function detects any AP that is illegally installed without an administrator’s approval
and also any wireless terminals connected to the AP. If an authorized wireless terminal is
connected to an unauthorized AP, some information may be exposed or the wireless LAN
may be attacked in some ways. Therefore, it is important to manage the risk.
8.2.1 Enabling Detection Function
The procedure of enabling the unauthorized AP and terminal detection function is shown
below.
Configuration using CLI
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Enable the detection function.
WEC8500/configure# wi enable
3) To check the configured information, use the following command.
show wi current-config
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Wireless Intrusion> <General> menu in the sub-menus.
Click Apply after selecting Enable or Disable, then operator can configure the Wireless
Intrusion service status.
Figure 160. Wireless Intrusion General Configuration Window
![](/img.php?id=2529411&img=bg34.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 352 of 628
8.2.2 Detection
The W-EP wireless LAN system detects all the packets in a wireless LAN network,
classifies unauthorized APs and wireless terminals, and creates related alarms and logs.
The detected unauthorized APs are classified as follows according to the configured
classification policy.
Classification type
Description
Managed AP
AP that is allowed to be used by an administrator among the detected
unauthorized APs
- Configures the managed AP classification policy.
- An administrator can classify a specific AP as a managed AP among the
manually detected unauthorized APs.
Unmanage AP
AP that is not allowed to be used by an administrator among the detected
unauthorized APs and AP that can be used maliciously
- Configures the unmanaged AP classification policy.
- An administrator can classify a specific AP as a unmanaged AP among
the manually detected unauthorized APs.
8.2.2.1 Configuring the managed AP classification policy
To configure the managed type authorized AP classification policy, execute the command
as follows:
Configuration using CLI
1) Go to configure wi device configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wi
WEC8500/configure/wi# device
WEC8500/configure/wi/device#
2) Configure the managed type authorized AP policy.
add-classification-rule- managed [RULE_NAME] enable [PRIORITY]
[SSID_TYPE] [SSID]
Parameter
Description
RULE_NAME
Classification policy name
PRIORITY
Priority number
SSID_TYPE
SSID type
- managed-ssid: SSID that is used in an authorized AP that is connected to
the APC.
- user-configured-ssid [SSID]: Entered SSID (An AP that has SSID as
SSID_NAME is classified as a friendly type unauthorized AP.)
![](/img.php?id=2529411&img=bg35.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 353 of 628
Parameter
Description
SSID_NAME
SSID that is used when the SSID_TYPE is entered as user-configured-ssid
3) To check the configured information, use the ‘show wids device rule managed’
command.
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Wireless Intrusion> <Policy> <User Defined Rule> menu in the sub-menus. And
then, select <Managed> at the upper tab.
1) By using Add, Delete, or Change, operator can add, delete, or change user defined rules.
Figure 161. Managed Rule Configuration Window
2) In the rule addition screen, operator can add a rule by entering the information and
click Apply.
Figure 162. Managed Addition Window
![](/img.php?id=2529411&img=bg36.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 354 of 628
8.2.2.2 Configuring the unmanaged AP classification policy
To configure the unmanaged type unauthorized AP classification policy, execute the
command as follows:
Configuration using CLI
1) Go to configure wi device configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wi
WEC8500/configure/wi# device
WEC8500/configure/wi/device#
2) Configure the unmanaged type unauthorized AP policy.
add-classification-rule-unmanaged [RULE_NAME] enable [PRIORITY]
[MATCH_TYPE] [MIN_RSSI] [MIN_DURATION] [NO_OF_MIN_ASSOC CL
IENTS] [ENCRYPTION] [SSID_TYPE] [SSID]
Parameter
Description
RULE_NAME
Classification policy name
PRIORITY
Rule priority number
MATCH_TYPE
Enter either match-all or match-any.
- match-all: Classifies as a unmanaged unauthorized AP when the
detection criteria entered thereafter are all satisfied.
- match-any: Classifies as a unmanaged unauthorized AP when any
one of the detection criteria entered thereafter is satisfied.
MIN_RSSI
Minimum RSSI. When the RSSI value is higher than this value, it is
classified as a unmanaged unauthorized AP.
MIN_DURATION
Minimum lasting time (unit: s). When the signal lasting time is higher
than this value, it is classified as a unmanaged unauthorized AP.
NO_OF_MIN_ASSOCCL
IENTS
Minimum number of connected terminals When the number of
connected terminals is higher than this value, it is classified as a
unmanaged unauthorized AP.
ENCRYPTION
Whether to use encryption
- 0: Does not use encryption. If encryption is not used, it is classified
as a unmanaged unauthorized AP.
- 1: Uses encryption. If encryption is used, it is classified as a
malicious unauthorized AP.
SSID TYPE
SSID type
- managed-ssid: SSID that is used in an authorized AP that is
connected to the APC.
- user-configured-ssid [SSID]: Entered SSID (An AP that has SSID as
SSID_NAME is classified as a friendly type unauthorized AP.)
SSID_ NAME
SSID that is used when the SSID_TYPE is entered as user-
configured-ssid
![](/img.php?id=2529411&img=bg37.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 355 of 628
3) To check the configured information, use the ‘show wids device rule unmanaged’
command.
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Wireless Intrusion> <Policy> <User Defined Rule> menu in the sub-menus. And
then, select <Unmanaged> at the upper tab.
1) By using Add, Delete, or Change, operator can add, delete, or change user defined rules.
Figure 163. Unmanaged Rule Configuration Window
2) In the rule addition screen, operator can add a rule by entering the information and
click Apply.
Figure 164. Unmanaged Rule Addition Window
![](/img.php?id=2529411&img=bg38.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 356 of 628
8.2.2.3 Manual configuration (Move)
A user can change the classification of an unauthorized AP that is detected by the WI or
that is classified according to the rule configured by a user.
Configuration using CLI
1) Go to configure wi device configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wi
WEC8500/configure/wi# device
WEC8500/configure/wi/device#
By using the MAC of an unauthorized AP to change, execute the move command.
move [MAC] [FROM] [TO]
Parameter
Description
MAC
MAC address of a detected AP
FROM
Previous classification of a MAC
TO
Classification to change
2) To check the changed configuration, use the following command.
show wi device ap list managed
show wi device ap list unmanaged
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Monitor> and then select the
<Wireless Intrusion> <AP> menu in the sub-menus. And when the AP list is displayed,
select one out of the AP list to go to the detail view screen. In the detail view screen,
operator can manually change the classification of an AP by using the top down menu of
MOVE CLASSIFICATION MANUALLY.
![](/img.php?id=2529411&img=bg39.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 357 of 628
1) In the AP list screen, go to the detail view screen by clicking a MAC address.
Figure 165. List Window to Manually Change Classification
2) In the AP detail screen, change the classification and click Apply, then the
configuration is changed.
Figure 166. Classification Change Window in AP Detail Screen
![](/img.php?id=2529411&img=bg3a.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 358 of 628
8.2.2.4 Manual configuration (Remove)
A user can manually change the status of an unauthorized AP to ‘Removed’, that is
detected by the WIDS or that is classified according to the rule configured by a user.
Configuration using CLI
1) Go to configure wi device configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wi
WEC8500/configure/wi# device
WEC8500/configure/wi/device#
2) By using the MAC of an unauthorized AP to change, execute the remove command.
remove [MAC]
Parameter
Description
MAC
MAC address of an unauthorized AP
3) To check the changed configuration, use the following command.
show wi device ap list removed
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Monitor> and then select the
<Wireless Intrusion> <AP> menu in the sub-menus. And when the AP list is displayed,
check a desired MAC in the list and click the <Remove> button to manually remove an AP.
In addition, after going into the detail view screen by selecting one out of the AP list,
operator can also remove an AP by changing the REMOVE MANUALLY option to On.
1) In the AP list screen, operator can change the status of several APs to ‘Removed’ by
clicking <Remove> button.
Figure 167. List Window to Manually Remove
![](/img.php?id=2529411&img=bg3b.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 359 of 628
2) If you change the setting of REMOVE MANUALLY to ‘On’ in the AP detail screen
and click Apply, the AP status is changed to ‘Removed’.
Figure 168. Manual Remove Change Window in AP Detail Screen
8.2.2.5 Unauthorized AP detection option
Operator can enable or disable the AP detection option pre-defined in the system.
Configuration using CLI
1) Go to configure wi device ap configuration mode.
WEC8500# configure terminal
WEC8500/configure# wi
WEC8500/configure/wi# device
WEC8500/configure/wi/device# ap
WEC8500/configure/wi/device/ap#
2) Using the following command, configure the unauthorized AP detection option.
[OPTION] [NOTI_TYPE]
Parameter
Description
OPTION
Unauthorized AP detection option
NOTI_TYPE
Event save option
- notify: Notify the state with alarm
- detect: Save the state with sys log
![](/img.php?id=2529411&img=bg3c.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 360 of 628
The description of OPTION parameter is as follows:
Parameter
Description
ap-blacklist-check
Allocates Rogue ID = 101 by checking a rogue included in the
black list.
managed_ssid_invalid_security
Allocates Rogue ID = 102 for an AP that uses a managed
SSID and its managed client is in the association status.
fakeap-beacon-on-invalid-channel
Allocates rogue ID = 103 for an AP whose UIC is invalid and
that uses a SSID that is not in the ssid white list among the
APs that use a managed MAC.
fakeap-beacon-without-ssid
Allocates Rogue ID = 104 for an AP whose UIC is invalid and
its SSID is hidden among the APs that use a managed MAC.
fakeap-managed-ssid
Allocates Rogue ID = 105 for an AP whose UIC is invalid and
its channel is not in the channel validation list among the APs
that use a managed MAC.
illegal-channel
Allocates Rogue ID = 106 if an AP uses a channel that is not
in the channel validation list among detected APs.
managedap-invalid-ssid
Allocates Rogue ID = 107 for an AP that uses a SSID that is
not in the ssid-whitelist among the APs that use a managed
MAC and its UIC is valid.
unknownap-managed-ssid-
withauth-client
Allocates Rogue ID = 108 by checking the association status
between an unauthorized AP and a managed client.
3) To check the changed configuration, use the following command.
show wi device ap current-config
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Wireless Intrusion> <Policy> <Static Rule> menu in the sub-menus. And then,
operator can change the setting by selecting <AP> at the upper tab and clicking Apply.
In the configuration screen, operator can check Option and click Apply for configuration.
Figure 169. Configuration Window for Unauthorized AP Detection Option
![](/img.php?id=2529411&img=bg3d.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 361 of 628
8.2.2.6 Unauthorized client detection option
Operator can enable or disable the client detection option pre-defined in the system.
Configuration using CLI
1) Go to configure wi device client configuration mode.
WEC8500# configure terminal
WEC8500/configure# wi
WEC8500/configure/wi# rogue
WEC8500/configure/wi/device# client
WEC8500/configure/wi/device /client#
2) Configure the unauthorized client detection option by using the following command.
[OPTION] [NOTI_TYPE]
Parameter
Description
OPTION
Rogue Client detect option
NOTI_TYPE
Event save option
- notify: Notify the state with alarm
- detect: Save the state with sys log
The description of OPTION parameter is as follows:
Parameter
Description
assoc-fail-det
Classifies a client that exceeds the association fail threshold
as an unauthorized client.
auth-fail-det
Classifies a client that exceeds the authentication fail
threshold as an unauthorized client.
auth-request-det
Classifies a client that exceeds the authentication request
threshold as an unauthorized client.
deauth-request-det
Classifies a client that exceeds the de-authentication request
threshold as an unauthorized client.
exclusion-list-check
Classifies a MAC that does not exist in the client blacklist as
an unauthorized client.
oneXauth-fail-det
Classifies a client that exceeds the 802.1X authentication fail
threshold as an unauthorized client.
oui-list-check
Classifies an OUI that does not exist in the OUI list white list
as an unauthorized client.
probe-request-det
Classifies a client that exceeds the probe request threshold
as an unauthorized client.
webauth-fail-det
Classifies a client that exceeds the WEB authentication fail
threshold as an unauthorized client.
![](/img.php?id=2529411&img=bg3e.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 362 of 628
3) To check the changed configuration, use the following command.
show wi device client current-config
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Wireless Intrusion> <Policy> <Static Rule> menu in the sub-menus. And then,
operator can change the setting by selecting <Station> at the upper tab and clicking Apply.
In the configuration screen, operator can check Option and click Apply for configuration.
Figure 170. Configuration Window for Unauthorized Station Detection Option
8.2.2.7 Unauthorized Channel Validation Configuration
The unauthorized channel validation function helps an operator detect an AP that uses an
unauthorized channel other than configured channels. The configuration procedure is as
follows:
Configuration using CLI
1) Go to configure wi channel-validation configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wi
WEC8500/configure/wi# channel-validation
2) Enable the unauthorized channel validation function.
WEC8500/configure/wi/channel-validation# enable
3) Configure an authorized channel.
add [CHANNEL]
![](/img.php?id=2529411&img=bg3f.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 363 of 628
Parameter
Description
CHANNEL
Authorized channel number (e.g. add 2, 3, 4)
4) To check the changed configuration, execute the following command.
show wi current-config
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Wireless Intrusion> <Channel Validation> menu in the sub-menus. And then,
operator can configure the SERVICE STATE and Valid Channel List in the screen.
Operator can change configuration after changing the SERVICE STATE and Valid Channel
List and clicking Apply.
Figure 171. Configuration Window for Channel Validation
8.2.2.8 Configuring and Searching Black/White List
Operator can configure classification to distinguish authorized and unauthorized
APs/stations. The administrator configurable lists include <AP black-list, Station black-list,
Managed OUI, Managed/Neighbor AP>. The <Managed AP, Managed Station, Managed
SSID> are automatically configured and can be used only for search.
Configuration using CLI
1) Go to the configure wids configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wi
![](/img.php?id=2529411&img=bg40.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 364 of 628
2) Configure the AP black-list.
ap-blacklist [MAC]
Parameter
Description
MAC
MAC address that will be used as AP black-list
3) Configure the station black-list.
client-black-list [MAC]
Parameter
Description
MAC
MAC address that will be used as a black-list of the station
4) Configure the Managed Organizationally Unique Identifier (OUI).
oui-whitelist [OUI]
Parameter
Description
OUI
First 3 bytes of station MAC address
5) Configure the Managed/Neighbor AP.
Managed [MAC] [TYPE]
Parameter
Description
MAC
AP MAC address of Managed/Neighbor AP
TYPE
- Managed: Indicates that the address is located internally
during configuration
- Neighbor: Indicates that the address is located externally
during configuration
6) To check the changed configuration, execute the following command.
show wi lists managed-ap
show wi lists ap-blacklist
show wi lists managed-stat
show wi lists client-blacklist
show wi lists managed ssid
show wi lists oui-list
show wi lists neighbor-ap
![](/img.php?id=2529411&img=bg41.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 365 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Wireless Intrusion> <Classifiation> menu in the sub-menus. And then, operator can
configure and search by using the upper tab in the screen.
1) In the [AP Blacklist] tab, operator can add an AP blacklist by entering a MAC and
click Add. Operator can also delete it by using Delete.
Figure 172. AP blacklist Configuration Window
2) In the [Managed AP] tab, operator can search for a Managed AP.
Figure 173. Managed AP Window
![](/img.php?id=2529411&img=bg42.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 366 of 628
3) In the [Station Blacklist] tab, operator can add a station blacklist by entering a MAC
and click Add. Operator can also delete it by using Delete.
Figure 174. Station blacklist Search/Configuration Window
4) In the [Managed Station] tab, operator can search Managed Station.
Figure 175. Managed Station Search Window
![](/img.php?id=2529411&img=bg43.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 367 of 628
5) In the [Managed OUI] tab, operator can add a Managed OUI by entering an OUI and
click Add. Operator can also delete it by using Delete.
6) In the [Managed SSID] tab, you can check the SSID that the WLAN is using.
Figure 176. Managed SSID Window
![](/img.php?id=2529411&img=bg44.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 368 of 628
7) If you click Add in the [Managed/Neighbor AP] tab, operator can go to the Managed/
Neighbor AP list addition screen and can add a Managed/Neighbor AP list.
Operator can also delete it by using Delete.
[Managed/Neighbor AP] tab main screen
Figure 177. Managed/Neighbor AP Search/Configuration Window
Managed/Neighbor AP list addition screen
Figure 178. Managed/Neighbor AP List Addition Window
8.2.2.9 Station Allow Limit
The WIDS counts the number of frames and number of authentication failures to
distinguish a station that generates too many management frames in a network or that is
continuously failed for authentication. A threshold value is defined for the count and a
station is recognized as an unauthorized station if the count exceeds the threshold.
Configuration using CLI
1) Go to the configure wi device client configuration mode.
WEC8500# configure terminal
WEC8500/configure# wi
WEC8500/configure/wi# device
WEC8500/configure/wi/device# client
WEC8500/configure/wi/device/client#
![](/img.php?id=2529411&img=bg45.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 369 of 628
2) Configure a threshold.
allowed-limit [OPTION] [COUNT]
Parameter
Description
OPTION
- 80211-auth-req: Authentication requests threshold per second
- 80211-probe-req: Probe requests threshold per second
- 80211-deauth-req: De-authentication requests threshold per second
- 80211-assoc-fail: Association failures threshold per second
- 80211-auth-fail: Authentication failures threshold per second
- 8021x-auth-fail: 802.1x authentication failures threshold per WIDS interval
- web-auth-fail: Web authentication failures threshold that occurs continuously
COUNT
Threshold value of [OPTION] ranging from 3 to 20
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Wireless Intrusion> <Station Allow Limit> menu in the sub-menus. And then, enter
a threshold value and click Apply to configure the value in the screen.
Figure 179. Station Allowed Limit Configuration Window
![](/img.php?id=2529411&img=bg46.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 370 of 628
8.2.3 Enabling Blocking Function
The setting of enabling the blocking function is as follows:
Configuration using CLI
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Enable the blocking function.
WEC8500/configure# wids containment enable
3) To check the configuration information, execute the following command.
show wids containment current-config
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select
<Wireless Intrusion> <Containment> <General> menus in the sub-menus.
Select Enable and Disable and press Apply to activate and deactivate the wireless intrusion
blocking policy.
Figure 180. Wireless Intrusion Containment General Configuration Window
8.2.4 Blocking
The W-EP WLAN system performs blocking to the detected AP and the wireless device.
The method for blocking is classified as follows:
Blocking Method
Description
Manual blocking
The administrator performs blocking manually to APs or UEs.
Automatic blocking
APs or UEs are automatically blocked by the policy defined by the
administrator.
![](/img.php?id=2529411&img=bg47.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 371 of 628
8.2.4.1 Configuring Manual Blocking
To configure manual blocking, execute the command as follows:
Configuration using CLI
1) Go to configure wids containment configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wids
WEC8500/configure/wids# containment
WEC8500/configure/wids/containment#
2) Configure manual blocking.
manual[TARGET] enable[MAC]
Parameter
Description
TARGET
Select either AP or station which is the target for manual blocking.
MAC
MAC address of the target for manual blocking
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Monitor> and then select <Wireless
Intrusion> menu in the sub-menus.
Select the target and perform containment to perform manual blocking.
1) After selecting an AP in the AP list, possible to block by using the containment.
Figure 181. List Window for Blocking AP
![](/img.php?id=2529411&img=bg48.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 372 of 628
2) After selecting a station in the station list, possible to block by using the containment.
Figure 182. List Window for Blocking Station
8.2.4.2 Configuring Automatic Blocking
To configure automatic blocking, execute the command as follows:
Configuration using CLI
1) Go to configure wids containment configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wids
WEC8500/configure/wids# containment
WEC8500/configure/wids/containment#
2) Configure automatic blocking.
auto[OPTION]
The description of OPTION parameter is as follows:
Parameter
Description
adhoc-connection
If adhoc is detected, it is automatically blocked.
managed-station-associated-with-
friendly-external
If the managed station and the neighbor AP are connected, it
is automatically blocked.
rogue-ap-with-auth-station
If the managed station and the unmanaged AP are
connected, it is automatically blocked.
![](/img.php?id=2529411&img=bg49.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 373 of 628
Parameter
Description
rogue-ap-with-managed-ssid
If the honeypot is detected, it is automatically blocked.
unmanaged-ap
If the unmanaged AP is detected, it is automatically blocked.
3) To check the configuration of automatic blocking, it is possible to use the following
command:
show wids containment current-config
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select
<Wireless Intrusion> <Containment> menus in the sub-menus.
Select the target and press Apply to configure automatic blocking.
Figure 183. Automatic Blocking Configuration Window
![](/img.php?id=2529411&img=bg4a.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 374 of 628
8.3 Captive Portal
The W-EP WLAN system provides the Captive Portal function. A guest user can receive a
normal service after connected to a specific WLAN (SSID) and going through user
authentication.
8.3.1 Configuring Guest Authentication
Configuration using CLI
To configure guest authentication, go to the Configure mode and execute the command.
1) Go to configure security captive-portal configuration mode of CLI.
APC# configure terminal
APC/configure# security
APC/configure/security# captive-portal
APC/configure/security/captive-portal#
2) The command to add a guest user is as follows:
guest add [ID][PASSWD][START_TIME][END_TIME]
Parameter
Description
ID
Login ID of a user
PASSWD
Password
START_TIME
Start time (YYYY-MM-DD:HH:MM:SS format)
END_TIME
End time (YYYY-MM-DD:HH:MM:SS format)
3) The command to add a guest user is as follows:
guest delete [ID]
Parameter
Description
ID
User ID
4) To select the authentication method for a guest service, execute the command as follows:
auth-type[FLAG]
Parameter
Description
FLAG
Authentication method
- local-only: Uses internal authentication.
- radius-only: Uses the authentication of the RADIUS server.
- local-radius: Uses the authentication of the RADIUS if the
internal authentication is failed.
![](/img.php?id=2529411&img=bg4b.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 375 of 628
Parameter
Description
- radius-local: Uses the internal authentication if the RADIUS
server authentication is failed.
5) For RADIUS authentication, the operator can configure the primary and secondary
servers by using a profile ID.
radius-primary [PROFILE_ID]
radius-secondary [PROFILE_ID]
Parameter
Description
PROFILE_ID
Profile ID
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select
<Security> <CaptivePortal> <Guest Users> menus in the sub-menus.
Figure 184. Guest User Configuration Window
![](/img.php?id=2529411&img=bg4c.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 376 of 628
The operator can check and delete a guest created in the <Guest Users> menu.
Figure 185. Guest User List Window
In the <Guest Users> menu, the operator can select Auth Type and also PRIMARY
RADIUS and SECONDARY RADIUS servers.
Figure 186. Guest Auth Configuration Window
8.3.2 Configuring Guest ACL
To operate the captive portal services, redirection must be basically performed and if a drop
occurs by the Pre-Auth ACL of the WLAN, the redirection is performed.
Accordingly, the proper configuration of the ACL for guests is necessary depending on
types of captive portal services.
For the guest ACL, the DNS permit rule, and the permit rule for the web service address
used by the captive portal are basically necessary and the permit rule of the address of the
external web server is additionally necessary if the external web server is used.
Configuration using CLI
To configure the guest ACL, execute the following command:
1) Go to configure fqm-mode configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# fqm-mode
2) Configure an access list.
WEC8500/configure/fqm-mode#
WEC8500/configure/fqm-mode# access-list ip guest_acl permit seq 1 udp
any eq * any eq 53 os-aware *
WEC8500/configure/fqm-mode# access-list ip guest_acl permit seq 2 tcp
192.168.20.10 255.255.255.255 eq 80 any eq * os-aware *
WEC8500/configure/fqm-mode# access-list ip guest_acl permit seq 3 tcp
any eq * 192.168.20.10 255.255.255.255 eq 80 os-aware *
![](/img.php?id=2529411&img=bg4d.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 377 of 628
WEC8500/configure/fqm-mode# access-list ip guest_acl permit seq 4 tcp
90.90.100.120 255.255.255.255 eq 80 any eq * os-aware *
WEC8500/configure/fqm-mode# access-list ip guest_acl permit seq 5 tcp
any eq * 90.90.100.120 255.255.255.255 eq 80 os-aware *
WEC8500/configure/fqm-mode# access-list ip guest_acl permit seq 6 udp
any eq * any eq * os-aware *
WEC8500/configure/fqm-mode# access-list ip guest_acl permit seq 7 tcp
192.168.10.10 255.255.255.255 eq 80 any eq * os-aware *
WEC8500/configure/fqm-mode# access-list ip guest_acl permit seq 8 tcp
any eq * 192.168.10.10 255.255.255.255 eq 80 os-aware *
WEC8500/configure/fqm-mode# access-list ip guest_acl permit seq 10 tcp
192.168.0.0 255.255.0.0 eq * any eq 443 os-aware *
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<IP ACL> menu in the <Access Control Lists> sub-menu of <Security> in the sub-
menus.
Select Add on the <IP ACL> screen and then configure the ACL.
Figure 187. Access List Addition Window
Figure 188. Access List Entry Addition Window
![](/img.php?id=2529411&img=bg4e.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 378 of 628
8.3.3 Configuring Web Authentication
To provide the web authentication service, the security L3 item of the WLAN and the web
authentication of the captive portal must be configured.
Configuration using CLI
[WLAN Configuration]
To configure web authentication in the WLAN, execute the command as follows:
1) Go to configure WLAN configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wlan 1
2) Configure a guest flag (default: disabled).
guest-flag
WEC8500/configure/wlan 1# guest-flag
3) Go to configure WLAN security layer 3 configuration mode of CLI.
WEC8500/configure/wlan 1# security
WEC8500/configure/wlan 1/security# layer3
WEC8500/configure/wlan 1/security/layer3#
4) Enable the WEB authentication (default: disabled).
web-policy authentication
WEC8500/configure/wlan 1/security/layer3# web-policy authentication
5) Configure the Pre-Authentication ACL.
pre-auth-acl [ACL]
Parameter
Description
ACL
ACL applied before the guest is authenticated
6) To change the redirection of the basic captive portal configuration to another address,
configure an overriding URL.
redirect-URL-override [URL]
![](/img.php?id=2529411&img=bg4f.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 379 of 628
Parameter
Description
URL
URL to which the guest is redirected
7) To check the configuration, use the ‘show wlan security detail’ command.
WEC8500# show wlan security detail 1
[Captive Portal Configuration]
1) Go to configure security captive-portal configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# security
WEC8500/configure/security# captive-portal
WEC8500/configure/security/captive-portal#
2) To configure the web authentication method of web authentication in the captive
portal, execute the command as follows:
web-auth web-type [FLAG]
web-auth external-url [URL]
Parameter
Description
FLAG
Web Authentication Method
- internal: Uses the internal authentication page.
- external: Uses the authentication page of an external web
server.
- downloaded: Uses the authentication page downloaded
from the system.
- customized: Uses the authentication page created through
configuration.
URL
Address of an external authentication server
3) To configure the operation after authentication, execute the command as follows:
web-auth after-auth [FLAG]
web-auth redirect-url [URL]
Parameter
Description
FLAG
Operation after authentication
- redirect: Redirect to a specified URL
- request: Redirect to a requested URL
URL
URL specified as the operation after authentication
![](/img.php?id=2529411&img=bg50.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 380 of 628
4) To check the configuration, use the ‘show security captive-portal web-auth’ command.
WEC8500# show security captive-portal web-auth
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<WLANs> menu in the sub-menus. In the WLANs screen, select WLAN ID and enable
the <GUEST SERVICE> option.
Figure 189. WLAN Guest Configuration Window
Go to the <L3> of the <Security> tab.
Enable <WEB POLICY> and select the Web Authentication item and then designate the
ACL set in the guest ACL to <PRE-AUTHENTICATION ACL>.
To change a URL, enable <OVERRIDING REDIRECT ACL> and configure <URL>.
Figure 190. WLAN Web Policy Configuration Window
In the <CaptivePortal> <Web Authentication> menu, the operator can select web
authentication method. The operator can also configure Redirect as the operation after
authentication.
Figure 191. Web Auth Configuration Window
![](/img.php?id=2529411&img=bg51.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 381 of 628
8.3.4 Configuring Web Authentication on MAC Authentication
Failure
To provide the service of Web Authentication on MAC Authentication Failure, the MAC
Authentication of security L2 of the WLAN must be enabled and the web policy of L3 and
the web authentication of the captive portal must be configured.
Configuration using CLI
[WLAN Configuration]
To configure Web Authentication on MAC Authentication Failure in the WLAN, execute
the command as follows:
1) Go to configure WLAN configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wlan 1
2) Configure a guest flag (default: disabled).
guest-flag
WEC8500/configure/wlan 1# guest-flag
3) Go to configure WLAN security layer 3 configuration mode of CLI.
WEC8500/configure/wlan 1# security
WEC8500/configure/wlan 1/security# layer3
WEC8500/configure/wlan 1/security/layer3#
4) Enable the WEB authentication (default: disabled).
web-policy authentication
WEC8500/configure/wlan 1/security/layer3# web-policy macAuthFailure
5) Configure the Pre-Authentication ACL.
pre-auth-acl [ACL]
Parameter
Description
ACL
ACL applied before the guest is authenticated
![](/img.php?id=2529411&img=bg52.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 382 of 628
6) To change the redirection of the basic captive portal configuration to another address,
configure an overriding URL.
redirect-URL-override [URL]
Parameter
Description
URL
URL to which the guest is redirected
7) To check the configuration, use the ‘show wlan security detail’ command.
WEC8500# show wlan security detail 1
[Captive Portal Configuration]
1) Go to configure security captive-portal configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# security
WEC8500/configure/security# captive-portal
WEC8500/configure/security/captive-portal#
2) To configure the web authentication method of web authentication in the captive
portal, execute the command as follows:
web-auth web-type [FLAG]
web-auth external-url [URL]
Parameter
Description
FLAG
Web Authentication Method
- internal: Uses the internal authentication page.
- external: Uses the authentication page of an external web
server.
- downloaded: Uses the authentication page downloaded
from the system.
- customized: Uses the authentication page created through
configuration.
URL
Address of an external authentication server
3) To configure the operation after authentication, execute the command as follows:
web-auth after-auth [FLAG]
web-auth redirect-url [URL]
![](/img.php?id=2529411&img=bg53.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 383 of 628
Parameter
Description
FLAG
Operation after authentication
- redirect: Redirect to a specified URL
- request: Redirect to a requested URL
URL
URL specified as the operation after authentication
4) To check the configuration, use the ‘show security captive-portal web-auth’ command.
WEC8500# show security captive-portal web-auth
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<WLANs> menu in the sub-menus. In the WLANs screen, select WLAN ID and enable
the <GUEST SERVICE> option.
Figure 192. WLAN Guest Configuration Window
Go to the <L2> of the <Security> tab.
Enable <MAC AUTHENTICATION>.
Figure 193. WLAN Layer 2 Security Configuration Window
Go to the <L3> of the <Security> tab.
Enable <WEB POLICY> and select the Web Authentication on MAC Authentication
Failure item and then designate the ACL set in the guest ACL to <PRE-
AUTHENTICATION ACL>.
To change a URL, enable <OVERRIDING REDIRECT ACL> and configure <URL>.
![](/img.php?id=2529411&img=bg54.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 384 of 628
Figure 194. WLAN Web Policy Configuration Window
In the <CaptivePortal> <Web Authentication> menu, the operator can select web
authentication method. The operator can also configure Redirect as the operation after
authentication.
Figure 195. Web Auth Configuration Window
![](/img.php?id=2529411&img=bg55.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 385 of 628
8.3.5 Configuring Web Pass-through
The APC provides the web pass-through function to move to a specific address all the time
when the user uses the web.
Configuration using CLI
[WLAN Configuration]
To configure web pass-through in the WLAN, execute the command as follows:
1) Go to configure WLAN configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wlan 1
2) Configure a guest flag (default: disabled).
guest-flag
WEC8500/configure/wlan 1# guest-flag
3) Go to configure WLAN security layer 3 configuration mode of CLI.
WEC8500/configure/wlan 1# security
WEC8500/configure/wlan 1/security# layer3
WEC8500/configure/wlan 1/security/layer3#
4) Enable the WEB authentication (default: disabled).
web-policy pass-through
WEC8500/configure/wlan 1/security/layer3# web-policy pass-through
5) Configure the Pre-Authentication ACL.
pre-auth-acl [ACL]
Parameter
Description
ACL
ACL for occurrence of redirection
6) To change the redirection of the basic captive portal configuration to another address,
configure an overriding URL.
redirect-URL-override [URL]
![](/img.php?id=2529411&img=bg56.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 386 of 628
Parameter
Description
URL
URL to which the guest is redirected
7) To check the configuration, use the ‘show wlan security detail’ command.
WEC8500# show wlan security detail 1
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<WLANs> menu in the sub-menus. In the WLANs screen, select WLAN ID and enable
the <GUEST SERVICE> option.
Figure 196. WLAN Guest Configuration Window
Go to the <L3> of the <Security> tab.
Enable <WEB POLICY> and select Web PassThrough.
Enable <OVERRIDING REDIRECT URL> and configure <URL>.
Figure 197. Web Pass-through Configuration Window
![](/img.php?id=2529411&img=bg57.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 387 of 628
8.3.6 Configuring One Time Redirection
To provide the One Time Redirection service, the security L3 of the WLAN must be
configured.
Configuration using CLI
[WLAN Configuration]
To configure one time redirection in the WLAN, execute the command as follows:
1) Go to configure WLAN configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# wlan 1
2) Configure a guest flag (default: disabled).
guest-flag
WEC8500/configure/wlan 1# guest-flag
3) Go to configure WLAN security layer 3 configuration mode of CLI.
WEC8500/configure/wlan 1# security
WEC8500/configure/wlan 1/security# layer3
WEC8500/configure/wlan 1/security/layer3#
4) Enable the WEB authentication (default: disabled).
web-policy oneTimeRedirection
WEC8500/configure/wlan 1/security/layer3# web-policy
oneTimeRedirection
5) Configure the Pre-Authentication ACL.
pre-auth-acl [ACL]
Parameter
Description
ACL
ACL to perform redirection
6) To change the redirection of the basic captive portal configuration to another address,
configure an overriding URL.
redirect-URL-override [URL]
![](/img.php?id=2529411&img=bg58.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 388 of 628
Parameter
Description
URL
URL to which the guest is redirected
7) To check the configuration, use the ‘show wlan security detail’ command.
WEC8500# show wlan security detail 1
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<WLANs> menu in the sub-menus. In the WLANs screen, select WLAN ID and enable
the <GUEST SERVICE> option.
Figure 198. WLAN Guest Configuration Window
Go to the <L3> of the <Security> tab.
Enable <WEB POLICY> and select One Time Redirection.
Enable <OVERRIDING REDIRECT URL> and configure <URL>.
Figure 199. One Time Redirection Configuration Window
![](/img.php?id=2529411&img=bg59.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 389 of 628
8.3.7 Redirection Address Format
The Captive Portal attempts at first redirection for the request of the web service of the
station.
The redirection address transmitted by the station in the APC to perform redirection is
formed as follows:
1) Redirection Address Format
Destination Address + Redirection Option Information
2) Redirection Address Option
Option
Description
forward
The address of the APC to receive the station information in case of the external
web authentication
redirect
URL to move to after authentication
essid
ESS ID to which the station is connected
bssid
BSS ID to which the station is connected
apname
The name of the AP to which the station is connected
client_ip
IP address of the station
client_mac
MAC Address of the station
osname
OS information of the station, effective when the OS Aware function is configured.
model_name
Model information of the station, effective in case of the FMC station.
os_version
OS version of the station, effective in case of the FMC station.
build_num
OS build number of the station, effective in case of the FMC station.
![](/img.php?id=2529411&img=bg5a.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 390 of 628
8.4 NAT and Firewall Configuration
The APC provides the NAT and firewall function to provide stable network to a WLAN user.
8.4.1 Firewall Configuration
Configuration using CLI
[Firewall Configuration]
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Configure the accelerator function of a firewall.
WEC8500/configure# firewall enable
[Firewall Configuration using Access List]
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Create an access-list.
WEC8500/configure# access-list fw fw4 deny tcp any any eq 23
3) Configure a firewall to the interface using an access-list.
WEC8500/configure# interface vlan1.10
WEC8500/configure/interface vlan1.10# ip access-group fw forward fw4
WEC8500/configure/interface vlan1.10# exit
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Security> <Firewall> <General> menu in the sub-menus. You can configure
whether to use a firewall.
Figure 200. Firewall configuration (1)
![](/img.php?id=2529411&img=bg5b.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 391 of 628
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Security> <Firewall> <Interface> menu in the sub-menus.
You can configure an interface for which a firewall will be applied by clicking the <Add>
button of Interface window.
Figure 201. Firewall configuration (2)
8.4.2 Access List Configuration
Configuration using CLI
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) Create an access-list.
access-list fw [ACL_NAME] [ACTION] [SRC_ADDRESS (SRC_PORT)]
[DST_ADDRESS (DST_PORT)] [PROTOCOL]
Parameter
Description
ACL_NAME
ACL name to configure
ACTION
Action configuration (deny/permit)
SRC_ADDRESS(SRC_PORT)
Source IP address and port
DST_ADDRESS(DST_PORT)
Destination IP address and port
PROTOCOL
Protocol
![](/img.php?id=2529411&img=bg5c.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 392 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Security> <Firewall> <<Policy> menu in the sub-menus. Click the <Add> button
to configure the firewall Policy.
Figure 202. Access-list configuration
8.4.3 NAT Configuration
Configuration using CLI
[SNAT Configuration using Access List]
To add Source NAT (SNAT) using an access-list, execute the command as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Create an access-list.
WEC8500/configure# access-list fw fw1 deny any 10.10.10.10/32 any
3) Create a NAT pool.
WEC8500/configure# ip nat pool pool1 30.30.30.1 30.30.30.1
255.255.255.0
4) Configure a NAT to the interface.
WEC8500/configure# interface vlan1.30
WEC8500/configure/interface vlan1.30# ip nat inside
WEC8500/configure/interface vlan1.30#exit
5) Add the NAT rule by using access-list and pool.
WEC8500/configure# ip nat outside source list fw1 pool pool1
![](/img.php?id=2529411&img=bg5d.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 393 of 628
[SNAT Configuration using Static IP]
To add SNAT using a static IP, execute the command as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Configure a NAT to the interface.
WEC8500/configure# interface vlan1.30
WEC8500/configure/interface vlan1.30#ip nat outside
WEC8500/configure/interface vlan1.30#exit
3) Configure a NAT rule using a static IP.
WEC8500/configure# ip nat outside source static 10.10.10.10 30.30.30.1
[DNAT Configuration using Access List]
To add Destination NAT (DNAT) using an access-list, execute the command as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Create a NAT pool.
WEC8500/configure# ip nat pool pool2 10.10.10.10 10.10.10.10
255.255.255.0
3) Configure a NAT to the interface.
WEC8500/configure# interface vlan1.30
WEC8500/configure/interface vlan1.30#ip nat outside
WEC8500/configure/interface vlan1.30#exit
4) Add the NAT rule by using access-list and pool.
WEC8500/configure# ip nat outside destination list fw6 pool pool2
![](/img.php?id=2529411&img=bg5e.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 394 of 628
[DNAT Configuration using Static IP]
To add DNAT using a static IP, execute the command as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Configure a NAT to the interface.
WEC8500/configure# interface vlan1.30
WEC8500/configure/interface vlan1.30#ip nat outside
WEC8500/configure/interface vlan1.30#exit
3) Configure a NAT rule using a static IP (A port can be also specified for DNAT).
WEC8500/configure# ip nat outside destination static tcp 10.10.10.1
4300 30.30.30.2 23
[Checking NAT Configuration]
To check the created NAT, use the following command.
WEC8500/configure# show nat
Configuration using Web UI
1) In the menu bar of <WEC Main window>, select <Configuration> and then select
the <Security> <NAT> <Pool> menu in the sub-menus. Click the <Add>
button and configure the NAT pool.
Figure 203. NAT configuration (1)
![](/img.php?id=2529411&img=bg5f.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 395 of 628
2) Click the <Add> button in the Translation Rule window and configure the Translation
Rule. Select NAT TYPE as either SNAT or DANT. Select STATIC checkbox to
configure Static and configure the values of Original IP Addr: Port and Translated IP
Addr: Port.
Figure 204. NAT configuration (2)
To proceed with NAT configuration, you must create an access list first.
![](/img.php?id=2529411&img=bg60.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 396 of 628
8.5 MAC Filter
The W-EP wireless LAN system provides the MAC filter function. A user may experience
connection restriction due to MAC filtering when connecting to a specific WLAN (SSID).
Configuration using CLI
To configure a MAC list for connection control by the MAC filter, execute the command as
follows:
1) Go to configure security configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# security
2) Creates a MAC filter list.
WEC8500/configure/security# mac-filter [ID]
Parameter
Description
ID
MAC filter list table ID (range: 1-20)
3) Configure the filtering policy.
WEC8500/configure/security/mac-filter 1# policy [POLICY]
Parameter
Description
POLICY
Table policy of MAC filtering list
4) Configure a MAC entry.
WEC8500/configure/security/mac-filter 1# mac [MAC_ADDRESS]
Parameter
Description
MAC_ADDRESS
MAC address (XX:XX:XX:XX:XX:XX format)
5) Specify the MAC filter ID that is configured in the WLAN to which a MAC filter will
be applied.
WEC8500/configure/wlan 1/security# mac-filter <MAC_FILTER_ID>
![](/img.php?id=2529411&img=bg61.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 397 of 628
Parameter
Description
MAC_FILTER_ID
MAC FILTER ID (range: 1-20)
6) You can check the configured information below.
show security mac-filter summary
WEC8500# show security mac-filter detail
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<Security> <MAC Filter> menu in the sub-menus.
You can create a MAC filter table for station access control by clicking the <Add> button.
Figure 205. MAC configuration
The procedure for MAC entry configuration is given below.
1) In the MAC Filter initial window, select an INDEX item to switch to the Edit screen
and then click the <Add> button to configure a MAC entry.
Figure 206. MAC entry configuration window(1)
![](/img.php?id=2529411&img=bg62.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 398 of 628
2) Configure the policy in the Edit configuration screen by selecting the index of MAC
filter list.
Figure 207. MAC entry configuration(2)
3) Select a WLAN for which the MAC filter will be applied. Check a MAC FILTER ID
to apply in the Security > L2 configuration screen.
To apply the configuration, click the <Apply> button.
Figure 208. MAC entry configuration(3)
![](/img.php?id=2529411&img=bg63.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 399 of 628
8.6 Operator Authentication through
Interoperation with TACACS+ Server
A W-EP wireless LAN system provides an operator authentication function by
interoperating with an external TACACS+ server.
8.6.1 Configuring External TACACS+ Server
A W-EP wireless LAN system provides an operator authentication function by
interoperating with an external TACACS+ server and the procedure detailed below is
carried out for interoperation with a TACACS+ server.
8.6.1.1 Basic Settings
The default configuration of the TACACS+ server is as follows:
Configuration using CLI
1) Go to configure security tacacs configuration mode of CLI.
WEC8500# configure terminal
WEC8500/configure# security
WEC8500/configure/security# tacacs 1
WEC8500/configure/security/tacacs 1#
2) Configure the IP address of the TACACS+ server.
WEC8500/configure/security/tacacs 1# server-ip [IP_ADDRESS]
Parameter
Description
IP_ADDRESS
IP address of the TACACS+ server
3) Set the public key of the TACACS+ server.
WEC8500/configure/security/tacacs 1# shared-secret [KEY_STRING]
Parameter
Description
KEY_STRING
Public key of the TACACS+ server
4) Configure the port number of the TACACS+ server.
WEC8500/configure/security/tacacs 1# server-port [PORT_NUMBER]
![](/img.php?id=2529411&img=bg64.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 400 of 628
Parameter
Description
PORT_NUMBER
Port number of the TACACS+ server
(range: 1-65,535, default value: 49)
5) Configure the items related to retransmissions in TACACS+ communications.
You can use default values without changing configuration.
WEC8500/configure/security/tacacs 1# retransmit-interval
[RETRY_INTERVAL]
WEC8500/configure/security/tacacs 1# retransmit-count [FO_RETRY_COUNT]
Parameter
Description
RETRY_INTERVAL
Retransmission interval for a TACACS+ message
(unit: seconds, range: 1-5, default value: 3)
FO_RETRY_COUNT
Maximum message retransmission count before a TACACS+
server failover is attempted (range: 0-3, default value: 2)
6) If necessary, configure the source IP address of the TACACS+ message.
WEC8500/configure/security/tacacs 1# source-ip [IP_ADDRESS]
Parameter
Description
IP_ADDRESS
Source IP address of the TACACS+ message
Note: it must be one of the IP addresses configured in the W-
EP wireless LAN system.
7) Configure whether to transfer packets to the TACACS+ server. You can use default
values without changing configuration.
WEC8500/configure/security/tacacs 1# status [STATUS]
Parameter
Description
STATUS
Status indicating whether packets are transferred to the
TACACS+ server (default value: enable)
8) Exit TACACS+ server configuration and then security configuration mode.
WEC8500/configure/security/tacacs 1# exit
WEC8500/configure/security# exit
![](/img.php?id=2529411&img=bg65.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 401 of 628
9) You can view configuration information by using the ‘show security tacacs server
config’ and ‘show security tacacs server detail [SERVER ID]’ commands.
Configuration using Web UI
In the menu bar of <WEC Main Window>, select <Configuration>, and then select
<Security> <AAA> <TACACS+> in the submenus.
If you click the <Add> button in the TACACS+ initial window, you can add a TACACS+
server.
The server addition window is shown below.
Figure 209. TTACACS+ Server Configuration Window
Item
Description
INDEX (PRIORITY)
ID that distinguishes TACACS+ server configurations
IP ADDRESS
IP address of the TACACS+ server
SHARED SECRET
Public key of the TACACS+ server
CONFIRM SHARED
SECRET
Re-enters the key for TACACS+ server communications for
confirmation
PORT NUMBER
Communication port number of the TACACS+ server
(range: 1-65,535, default value: 49)
RETRANSMIT
INTERVAL
Retransmission interval for a TACACS+ message
(range: 1-5, default value: 2, unit: seconds)
RETRANSMIT COUNT
BEFORE FAILOVER
Maximum message retransmission count before a TACACS+ server
failover is attempted (range: 0-3, default value: 2)
SOURCE IP ADDRESS
Source IP address of the TACACS+ message
- Note: it must be one of the IP addresses configured in the W-EP
wireless LAN system.
STATUS
Status indicating whether packets are transferred to the TACACS+
server (default value: enable)
![](/img.php?id=2529411&img=bg66.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 402 of 628
8.6.2 Configuring Authentication Type of Operator Account
The steps for configuring the authentication type of the operator account are as follows:
Configuration using CLI
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) Configure the type of operator account authentication.
WEC8500/configure# mgmt-user auth-type [AUTH_TYPE]
Parameter
Description
AUTH_TYPE
Authentication type of the operator account (default value: local)
- local: Authentication is performed using the database stored inside.
- tacacs: Authentication is performed using the TACACS+ server.
- local-tacacs: Authentication is performed using the database stored
inside first, and, failing that, an authentication request is transmitted to
the TACACS+ server.
- tacacs-local: An authentication request is transmitted to the TACACS+
server first, and, failing that, authentication is performed using the DB
stored inside.
3) You can view the configuration information by using the ‘show mgmt-users auth-type’
command.
Configuration using Web UI
In the menu bar of <WEC Main Window>, select <Configuration>, and then select
<Security> <AAA> <Management User> in the submenus.
Figure 210. Operator Account Authentication Type Configuration Window
![](/img.php?id=2529411&img=bg67.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 403 of 628
8.7 Role Based Access Control
The W-EP WLAN system can manage the user's access authority depending on a
designated role.
It can designate ACL, limit the bandwidth, designate the interface, or manage redirecting
URL, etc. by user.
8.7.1 Configuring Role Profile
The W-EP WLAN system can designate the configuration of ACL, QoS, VLAN, and URL
and manage as a profile.
To provide a service of a role desired to a specific user or a user group, it can use a role
profile.
8.7.1.1 Configuring Profile
The basic settings of the role profile are as follows:
Configuration using CLI
Example:
WEC8500# configure terminal
WEC8500/configure# rbac
WEC8500/configure/rbac# role-profile role_01
WEC8500/configure/rbac/role-profile role_01# acl acl1
WEC8500/configure/rbac/role-profile role_01# qos 1
WEC8500/configure/rbac/role-profile role_01# vlan 10
WEC8500/configure/rbac/role-profile role_01# url http://www.role1
WEC8500/configure/rbac/role- profile role_01# end
WEC8500# configure terminal
WEC8500/configure# rbac
WEC8500/configure/rbac# no role-profile role_01
WEC8500/configure/rbac# end
CLI for confirming configuration:
WEC8500# show rbac role-profile summary
===== Role Profile Summary =====
Id ProfileName Acl Qos Vlan Url
== =========== ========== === ==== ====================
1 role_01 acl1 1 10 http://www.role1
![](/img.php?id=2529411&img=bg68.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 404 of 628
Configuration using Web UI
Configuration > Security > Role Based Access Control > Role Profile
Example:
Figure 211. Role Profile Configuration
Figure 212. Role Profile Add Configuration
8.7.2 Configuring Derivation Profile
The W-EP WLAN system can edit conditions to allocate roles and manage by profile.
It can manage a role by user depending on the edited conditions.
8.7.2.1 Configuring Profile
The basic settings of the derivation profile are as follows:
Configuration using CLI
Example:
WEC8500# configure terminal
WEC8500/configure# rbac
WEC8500/configure/rbac# derivation-profile derivation_1
WEC8500/configure/rbac/derivation-profile derivation_1# condition
priority 11 user equal derivationUser role role_1
WEC8500/configure/rbac/derivation-profile derivation_1# condition
priority 12 user start-with derivation role role_2
WEC8500/configure/rbac/derivation-profile derivation_1# condition
priority 13 user contain vation role role_3
![](/img.php?id=2529411&img=bg69.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 405 of 628
WEC8500/configure/rbac/derivation-profile derivation_1# condition
priority 14 user end-with User role role_4
WEC8500/configure/rbac/derivation-profile derivation_1# condition
priority 15 user not-equal samsung role role_5
WEC8500/configure/rbac/derivation-profile derivation_1# exit
WEC8500/configure/rbac# derivation-profile derivation_2
WEC8500/configure/rbac/derivation-profile derivation_2# end
WEC8500# configure terminal
WEC8500/configure# rbac
WEC8500/configure/rbac# no derivation-profile derivation_2
WEC8500/configure/rbac# end
CLI for confirming configuration:
WEC8500# show rbac derivation-profile summary
derivation-profile derivation_1
condition priority 11 user equal derivationUser role role_1
condition priority 12 user start-with derivation role role_2
condition priority 13 user contain vation role role_3
condition priority 14 user end-with User role role_4
condition priority 15 user not-equal samsung role role_5
Configuration using Web UI
Configuration > Security > Role Based Access Control > Derivation Profile
Example:
Figure 213. Derivation Profile Configuration
Figure 214. Derivation Profile Add Configuration
![](/img.php?id=2529411&img=bg6a.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 406 of 628
Figure 215. Derivation Profile Configuration
Figure 216. Derivation Profile Add Configuration
8.7.2.2 WLAN Configuration
The method for configuring a derivation profile in the WLAN is as follows:
Configuration using CLI
Example:
WEC8500# configure terminal
WEC8500/configure# wlan 1
WEC8500/configure/wlan 1# derivation-profile ieee8021x derivation_1
WEC8500/configure/wlan 1# end
CLI for confirming configuration:
WEC8500# show rbac wlan-derivation-config
================ RbacDerivationConfigForWlan ================
WlanId Owner DerivationProfileId
====== ================ ===================
1 Global 0
1 Open 0
1 Radius 1
1 CaptivePotal 0
![](/img.php?id=2529411&img=bg6b.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 407 of 628
Configuration using Web UI
Configuration > WLANs > Security > Radius
Example:
Figure 217. Wlan Derivation Profile Configuration
8.7.3 Configuring ACL Profile
The W-EP WLAN system can manage ACL to apply to a user if the AP of the remote group
operates as local bridge.
![](/img.php?id=2529411&img=bg6c.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 408 of 628
8.7.3.1 Configuring Profile
The basic settings of the ACL profile are as follows:
Configuration using CLI
Example:
WEC8500# configure terminal
WEC8500/configure# rbac
WEC8500/configure/rbac# acl-profile aclPro_1
WEC8500/configure/rbac/acl-profile aclPro_1# add-acl acl1
WEC8500/configure/rbac/acl-profile aclPro_1# add-acl acl2
WEC8500/configure/rbac/acl-profile aclPro_1# exit
WEC8500/configure/rbac# acl-profile aclPro_2
WEC8500/configure/rbac/acl-profile aclPro_2# end
WEC8500# configure terminal
WEC8500/configure# rbac
WEC8500/configure/rbac# no acl-profile aclPro_2
WEC8500/configure/rbac# end
CLI for confirming configuration:
WEC8500# show rbac acl-profile summary
================ LocalSwAclProfile ================
Id ProfileName TotalRuleCnt AclCnt RmtCnt
== =========== ============ ====== ======
1 aclPro_ 1 2 2 0
Configuration using Web UI
Configuration > Security > Role Based Access Control > Derivation Profile
Example:
Figure 218. Acl Profile Configuration
![](/img.php?id=2529411&img=bg6d.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 409 of 628
Figure 219. Acl Profile Add Configuration
Figure 220. Acl Profile Edit Configuration
8.7.3.2 Remote Ap Group Configuration
The method for configuring the ACL profile to the remote AP group is as follows:
Configuration using CLI
Example:
WEC8500# configure terminal
WEC8500/configure# ap-group apg_1
WEC8500/configure/ap-group apg_1# remote
WEC8500/configure/ap-group apg_1/remote# acl-profile aclPro_1
WEC8500/configure/ap-group apg_1/remote# end
CLI for confirming configuration:
WEC8500# show rbac remote-group summary
GRP_ID GRP_NAME PRO_ID Role Config File Name
====== ================== ====== ==========================
2 apg_1 1
etc/rmtapgrp/rbac_cfg_rmtapgrp2_XXXX.tar
![](/img.php?id=2529411&img=bg6e.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 410 of 628
Configuration using Web UI
Configuration > AP Groups > Remote AP Group > ACL Profile
Change the configuration of the ACL PROFILE NAME and then press Apply.
After that, press Send To APs to transmit the ACL profile and the relevant settings to APs.
Example:
Figure 221. Remote Ap Group-Alc Profile Configuration
![](/img.php?id=2529411&img=bg6f.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 411 of 628
8.7.4 Configuration Synchronization (Remote AP Group)
The W-EP WLAN system provides a function of synchronizing the configuration of the AP
of the remote group and ACL if the AP of the remote group operates as a local bridge.
8.7.4.1 Requesting Synchronization
If the remote AP operates with the local switching mode, the configuration of the ACL
between APC and AP must be synchronized. If AP and CAPWAP run, the configuration of
the ACL is automatically synchronized, but if the operator changes the ACL of the APC,
the synchronization of ACL configuration must be performed as follows:
Configuration using CLI
The synchronization of the AP of the remote group uses the following CLI:
WEC8500# configure terminal
WEC8500/configure# rbac
WEC8500/configure/rbac# sync-config ?
acl-profile Sync-config Acl profile
all Sync-config All
ap Sync-config Remote Ap Group
remote-ap-group Sync-config Remote Ap Group
all: Perform synchronization for all APs of the remote group.
remote-ap-group [group-name]: Performs synchronization only for the APs included in
the corresponding remote group.
acl-profile [profile-name]: Performs synchronization only for the APs included in the
remote group which uses the corresponding ACL profile (CLI only).
ap [ap-profile-name]: Performs synchronization only for a specific AP (CLI only).
Synchronization can be confirmed as follows:
WEC8500# show rbac remote-group summary
GRP_ID GRP_NAME PRO_ID Role Config File Name
====== ================== ====== ==========================
2 rmt_grp_01 1
etc/rmtapgrp/rbac_cfg_20140305094752849046.tar
![](/img.php?id=2529411&img=bg70.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 412 of 628
Configuration using Web UI
Configuration > Security > Role Based Access Control > ACL Profile
‘Send To APs’
Figure 222. ACL Configuration Synchronization - All
Configuration > AP Groups > Remote AP Group > ACL Profile
‘Send To APs’
Figure 223. ACL Configuration Synchronization - Remote Group
![](/img.php?id=2529411&img=bg71.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 413 of 628
Configuration > Access Points > Remote AP
‘Send To APs’
Figure 224. ACL Configuration Synchronization - Remote AP
![](/img.php?id=2529411&img=bg72.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 414 of 628
8.8 External BYOD Server
The W-EP WLAN system provides a function of interoperating with the external BYOD
server. To use the BYOD function, a separate BYOD server is necessary. Employees and
guest users can receive a service after being connected to a specific WLAN (SSID) and
going through authentication.
(The external BYOD server now supported is only AirCuve BYOD.)
8.8.1 Configuring External BYOD Server
Configuration using CLI
To configure the interoperation with external BYOD, execute the command as follows:
1) Go to configure security byod of CLI.
WEC8500# configure terminal
WEC8500/configure# security byod
2) Enter the IP address of the BYOD server.
WEC8500/configure/security/byod# address1 10.10.10.20
To interoperate with AirCuve BYOD Suite, enter Airfront IP in address1 and Byfront
IP in address2.
3) Enable the function of interoperating with the external BYOD server.
WEC8500/configure/security/byod# enable
4) Configure a HTTPS request URL.
Upon the interoperation with AirCuve BYOD Suite, the HTTPS request URL is
necessary to update the list of all authentications. The basically set value is used and if
change is required in the future, change as follows:
WEC8500/configure/security/byod# https-requrl
regist.do?cmd=dhcpTableXMLReceiver
5) To check the configured environment, use the ‘show security byod configuration’
command.
![](/img.php?id=2529411&img=bg73.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 415 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select
<Security> <AAA> <External BYOD Server> in the sub-menus.
Figure 225. External BYOD Server Configuration Window
1) Service
Enable the function of interoperating with the external BYOD server.
2) Server IP Address 1
Enter the IP address of the BYOD server. Enter the Airfront IP upon the interoperation
with AirCuve BYOD Suite.
3) Server IP Address 2
Enter the Byfront IP upon the interoperation with AirCuve BYOD Suite.
4) Requested URL
It is necessary to update the list of all authentications upon the interoperation with
AirCuve BYOD Suite. Basically use the set value and enter a new URL if change is
required.
5) SYNC. Status
Display the result value of updating the list of all authentications.
The status value has one of the following four items:
0: Idle, 1: In progress, 2: Success, 3: Failure
6) SYNC. Failure Reason
If the update of the list of all authentications fails, display the reason of failure.
Failure reason items
None: No failure.
No response: When there is no response from the BYOD server
Invalid data format: When the BYOD server failed to send the data on the list of all
authentications or in the invalid format
![](/img.php?id=2529411&img=bg74.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 416 of 628
8.8.2 Captive Portal Configuration
To use the external BYOD service, the External Web Authentication of the Captive Portal
is necessary to be configured. The Captive Portal service must configure ACL basically and
apply the ACL to L3 security of the WLAN. Below is an example of how to configure the
captive portal to use the BYOD service.
Configuration using CLI
1) Configuring PreAuthentication ACL
PRE-AUTH ACL must have the basic permit rules for the HTTP port to DNS and web
servers.
WEC8500# configure terminal
WEC8500/configure# fqm-mode
WEC8500/configure/fqm-mode # access-list ip preauth permit seq 1 udp
any eq * any eq 53 os-aware *
WEC8500/configure/fqm-mode # access-list ip preauth permit seq 2 tcp
192.168.20.10 255.255.255.255 eq 80 any eq * os-aware *
WEC8500/configure/fqm-mode # access-list ip preauth permit seq 3 tcp
any eq * 192.168.20.10 255.255.255.255 eq 80 os-aware *
WEC8500/configure/fqm-mode # access-list ip preauth permit seq 4 tcp
90.90.100.120 255.255.255.255 eq 80 any eq * os-aware *
WEC8500/configure/fqm-mode # access-list ip preauth permit seq 5 tcp
any eq * 90.90.100.120 255.255.255.255 eq 80 os-aware *
WEC8500/configure/fqm-mode # ip access-group wireless preauth
WEC8500/configure/wlan 1/security/layer3# pre-auth-acl preauth
2) Configuring WLAN
To configure WLAN, set a guest flag and designate the configuration of the web
policy of Layer 3 as authentication.
WEC8500# configure terminal
WEC8500/configure# wlan 1
WEC8500/configure/ wlan 1# guest-flag
WEC8500/configure/ wlan 1# security
WEC8500/configure/ wlan 1/security# layer3
configure/wlan 1/security/layer3# web-policy authentication
![](/img.php?id=2529411&img=bg75.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 417 of 628
3) Configuring Web Authentication Type
WEC8500/configure/security/captive-portal # web-auth
WEC8500/configure/security/captive-portal/web-auth#auth-type external
WEC8500/configure/security/captive-portal/web-auth#external-url
http://90.90.100.120/pc/zero_page.jsp
Configuration using Web UI
1) Configuring PreAuthentication ACL
PRE-AUTH ACL must have the basic permit rules for the HTTP port to DNS and web
servers.
2) Configuring WLAN
To create WLAN to use for guests, the guest service must be enabled.
To use the Captive Portal function, enable a web policy in Security of WLAN > L3 tab
and select Web Authentication. Designate the pre-set ACL for Captive Portal as PRE-
AUTHENTICATION ACL on the bottom.
![](/img.php?id=2529411&img=bg76.png)
CHAPTER 8. Security
© SAMSUNG Electronics Co., Ltd. page 418 of 628
3) Configuring Web Authentication Type
To use the External BYOD function, External Web Auth must be configured.
Designate the type as External in Security > Captive Portal > Web Authentication and
designate the external BYOD server as URL.
![](/img.php?id=2529411&img=bg77.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 419 of 628
CHAPTER 9. IP Application
In this chapter, the IP application functions available in the APC and each configuration
method are described.
9.1 DNS
The DNS is a network service that interprets a domain or host name into an IP address.
The APC gets DNS information from a DNS server and provides the DNS relay function
that relays the DNS server and a client. If a wireless terminal connected to the APC
configures the APC as a DNS server, it can receive the DNS service.
If a DNS server is connected to the APC and a DNS proxy is configured, a station
connected to the APC can receive the DNS service by configuring the APC as a DNS server.
9.1.1 DNS Client Configuration
Configuration using CLI
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Configure a DNS client.
ip dns client enable: Enable
no ip dns client enable: Disable
3) Configure a DNS server to which DNS will be requested. You can enter maximum 3
DNS server addresses.
ip dns name-server [A.B.C.D]: Configures a DNS server.
no ip dns name-server [A.B.C.D]: Deletes a configured DNS server.
no ip dns name-server all: Deletes all the DNS servers.
![](/img.php?id=2529411&img=bg78.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 420 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<DNS> menu in the sub-menus.
Figure 226. DNS client
You can enable or disable a DNS client using the QUERY of a DNS SERVER item.
In the 1ST DNS SERVER, 2ND DNS SERVER, and 3RD DNS SERVER boxes, you can
configure 3 name servers.
9.1.2 DNS Proxy Configuration
You can configure the DNS relay function or a cache for relay. The cache is a temporary
space where the APC saves the DNS information obtained from a DNS server.
You can configure maximum number of entries as 10000-100000. The DNS relay is related
to the DNS client configuration. If you disable the DNS client function or delete all the
name servers, the DNS relay function is not working.
Configuration using CLI
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Configure a DNS relay. Configure the cache to a default, i.e. 10000.
ip dns relay enable: Enables a relay.
no ip dns relay enable: Disables a relay.
3) To change cache configuration, enter as follows:
ip dns relay enable cache: Configures a DNS relay and configures the cache to a
default, i.e. 10000.
ip dns relay enable cache 20000: Configures a DNS relay and configures the cache
to 20000.
ip dns relay enable no-cache: Configures a DNS relay and disables the cache
settings.
![](/img.php?id=2529411&img=bg79.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 421 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<DNS> menu in the sub-menus.
Figure 227. DNS proxy
The DNS Relay item supports DNS Proxy configuration. In the SERVICE, you can enable
or disable a DNS proxy and configure the cache size of the DNS proxy in the CACHING
SIZE. If the cache size is 0, disable the cache.
![](/img.php?id=2529411&img=bg7a.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 422 of 628
9.2 NTP
The Network Time Protocol (NTP) is a protocol used to receive time from a configured
server and synchronize the local time.
The APC can operate as a NTP server and a client. If you configure the APC as a NTP
client, it receives the Coordinated Universal Time (UTC) information from the configured
NTP server and synchronizes the local time. In addition, if you configure the APC as a NTP
server, it transmits a local time when it receives a NTP request from a NTP client.
Configuration using CLI
[Configuring NTP Client]
The time server that is referred to when the APC is working as a NTP client can be used
based on a domain name and IP address. But, if it is working based on a domain name,
there must be a configured DNS server.
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Enable or disable a NTP client.
ntp client enable: Enable
no ntp client enable: Disable
3) Configure the interval of a NTP client.
ntp client interval [INTERVAL]: Configures an interval.
no ntp client interval: Disables an interval.
Parameter
Description
INTERVAL
Interval (range: 3-14)
4) Configure a server that a NTP client will refer to.
[Configuring based on a domain name]
Enables or disables.
ntp client server-addr hostname <WORD>: Enable
no ntp client server-addr hostname <WORD>: Disable
Configure the index of a server that a NTP client will refer to. (Use a default value 1 if it is
not configured.)
ntp client server-addr hostname <WORD> index [INDEX]: Enable
no ntp client server-addr hostname <WORD> index [INDEX]: Disable
![](/img.php?id=2529411&img=bg7b.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 423 of 628
Parameter
Description
INDEX
Server index (range: 1-5)
Configure the version of a server that a NTP client will refer to. (Use a default value 1 if it
is not configured.)
ntp client server-addr hostname <WORD> version [1-4]: Enable
no ntp client server-addr hostname <WORD> version [1-4]: Disable
[Configuring based on IP address]
Enable or disable.
ntp client server-addr ip <A.B.C.D>: Enable
no ntp client server-addr ip <A.B.C.D>: Disable
Configure the index of a server that a NTP client will refer to. (Use a default value 1 if it is
not configured.)
ntp client server-addr ip <A.B.C.D> index [1-5]: Enable
no ntp client server-addr ip <A.B.C.D> index [1-5]: Disable
Configure the version of a server that a NTP client will refer to. (Use a default value 1 if it
is not configured.)
ntp client server-addr ip <A.B.C.D> version [1-4]
no ntp client server-addr ip <A.B.C.D> version [1-4]
You can proceed with configurations simultaneously as shown below.
ntp client server-addr hostname <WORD> index [1-5] version [1-4]
ntp client server-addr hostname <WORD> version [1-4] index [1-5]
ntp client server-addr ip <A.B.C.D> index [1-5] version [1-4]
ntp client server-addr ip <A.B.C.D> version [1-4] index [1-5]
no ntp client server-addr hostname <WORD> index [1-5] version [1-4]
no ntp client server-addr hostname <WORD> version [1-4] index [1-5]
no ntp client server-addr ip <A.B.C.D> index [1-5] version [1-4]
no ntp client server-addr ip <A.B.C.D> version [1-4] index [1-5]
![](/img.php?id=2529411&img=bg7c.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 424 of 628
[NTP Server Configuration]
The NTP server configuration is as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Configure a NTP server.
ntp server enable: Configures a NTP server.
no ntp server enable: Disables a NTP server.
[Checking NTP Configuration Status]
To check the status of a NTP client or server, enter the ‘show ntp’ command.
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<NTP> menu in the sub-menus.
The NTP initial window is shown below.
Figure 228. NTP client configuration
The Enable/Disable of a NTP server can be performed using a radio box.
You can configure polling interval enable/disable of a NTP client and also configure the
polling interval during enabling. The range of polling interval is 3-14.
Click the <Add> or <Delete> button to add or delete a NTP proxy server. Click the <Add>
button to configure a specific ‘Server IP’ or ‘Server DOMAIN NAME’ that will be used by
a NTP proxy.
![](/img.php?id=2529411&img=bg7d.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 425 of 628
9.3 FTP/sFTP
The FTP is a network service for file transmission. The APC support the client and server
function for FTP and sFTP (Secure FTP).
Configuration using CLI
[SFTP Server Configuration]
The secure FTP server configuration is as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Enable or disable the sFTP server.
sftp-server enable: Enable
no sftp-server enable: Disable
3) Enter as follows to change a user’s ID and password.
sftp-server chguser [ID] [PASSWORD]
Parameter
Description
ID
User ID of a server
PASSWORD
User password of a server
4) To check the status of sFTP server, enter the ‘show sftp-server’ command.
[FTP Server Configuration]
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Enable or disable the sFTP server.
ftp-server enable: Enable
no ftp-server enable: Disable
3) Enter as follows to change a user’s ID and password.
ftp-server chguser [ID] [PASSWORD]
Parameter
Description
ID
User ID of a server
PASSWORD
User password of a server
![](/img.php?id=2529411&img=bg7e.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 426 of 628
4) To change the idle timeout, enter the command below. The unit of timeout is minutes
and the default value is 15 minutes.
ftp-server idle-timeout [timeout]
5) To check the status of FTP server, enter the ‘show ftp-server’ command.
[Using as Client]
Using the following commands, you can download or upload a file using a FTP/sFTP client.
file download
file upload
A usage example is provided below.
File download using a sFTP client
WEC8500# file download samsung Samsung 90.90.21.108 wec8500 wec8500
sftp
File upload using a sFTP client
WEC8500# file upload samsung Samsung 90.90.21.108 wec8500 wec8500 sftp
File download using a FTP client
WEC8500# file download samsung Samsung 90.90.21.108 wec8500 wec8500
File upload using a FTP client
WEC8500# file upload samsung Samsung 90.90.21.108 wec8500 wec8500
![](/img.php?id=2529411&img=bg7f.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 427 of 628
Configuration using Web UI
To configure the FTP/SFTP server configuration, in the menu bar of <WEC Main window>,
select <Administrator> and then select the <FTP-SFTP> menu in the sub-menus.

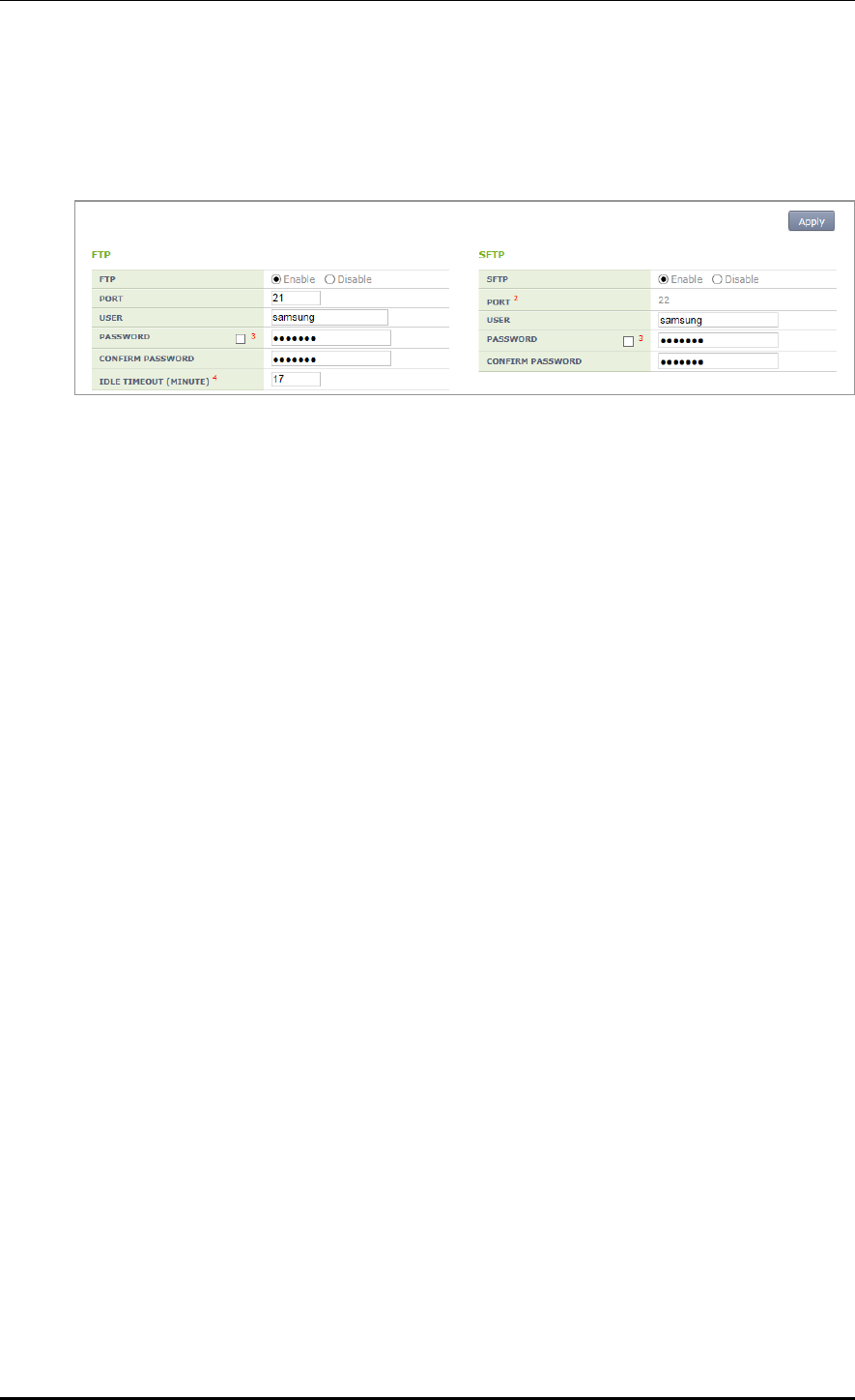

Figure 229. FTP/SFTP server configuration
The FTP and SFTP can be configured using the Enable/Disable radio box.
For FTP, you can configure a port number that will be used for FTP by using ‘PORT’ and
can change the user name and password of a FTP server by entering ‘USER’,
‘PASSWORD’, or ‘CONFIRM PASSWORD’. Enter an idle timeout value in ‘IDLE
TIMEOUT’.
Also for SFTP, you can change the user name and password of a SFTP server by entering
‘USER’, ‘PASSWORD’, or ‘CONFIRM PASSWORD’.
![](/img.php?id=2529411&img=bg80.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 428 of 628
9.4 Telnet/SSH
The telnet or Secure Shell (SSH) is an Internet protocol that helps login to another
computer in a network or connects to a virtual remote system. Using telnet or SSH, you can
connect to another computer while staying at a current computer.
Because the SSH can access a remote system and transmit an encrypted message by using
public key-based encryption method, it provides better security.
Configuration using CLI
[Telnet Server Configuration]
The Telnet server configuration is as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Enable or disable the telnet service. If you configure the telnet service, you can use the
APC as a telnet server.
telnet-server enable: Enable
no telnet-server enable: Disable
3) If you configure the telnet service, specify the port number of telnet server.
telnet-server port [PORT_NUMBER]
Parameter
Description
PORT_NUMBER
Port number to configure (range: 1-65535)
[SSH Server Configuration]
The SSH server configuration is as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Enable or disable the SSH server.
ssh-server enable: Enable
no ssh-server enable: Disable
3) Specify the port number of SSH server.
ssh-server port [PORT_NUMBER]
Parameter
Description
PORT_NUMBER
Port number to configure (range: 1-65535)
![](/img.php?id=2529411&img=bg81.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 429 of 628
[Checking Server Configuration Status]
To check the status of telnet or ssh server, enter the following command. You can retrieve
the configured port number as well as server status.
show ssh-server: Retrieves the status of SSH server
show telnet-server: Retrieves the status of telnet server
[Using as Client]
By using the APC as a telnet or SSH client, you can connect to a server.
Enter as follows in CLI.
telnet [IP_ADDRESS] [PORT_NUMBER]
ssh [IP_ADDRESS] [ID] [PORT_NUMBER]
Parameter
Description
IP_ADDRESS
IP address or domain name of a server to connect
ID
login ID
PORT_NUMBER
Port number (range: 1-65535)
If the port number is not entered, its default is shown below.
- telnet: 23
- ssh: 22
Configuration using Web UI
To configure the Telnet/SSH server configuration, in the menu bar of <WEC Main
window>, select <Administrator> and then select the <Telnet-SSH> menu in the sub-
menus.
Figure 230. Telnet/SSH server configuration
You can configure the service by using the Enable/Disable radio box of ‘TELNET
SERVICE’ or ‘SSH SERVICE’.
You can configure the port number of service by using ‘TELNET PORT’ or ‘SSH PORT’.
By using ‘SESSION TIMEOUT’, you can configure the session timeout of TELNET or
SSH in min. and can also configure maximum number of sessions by using ‘MAXIMUM
NUMBER OF SESSIONS’.
![](/img.php?id=2529411&img=bg82.png)
CHAPTER 9. IP Application
© SAMSUNG Electronics Co., Ltd. page 430 of 628
9.5 Utilities
The APC provides the functions such as ping, traceroute, or tcpdump to check a network
and its problems.
[ping]
Used to check network connection status.
ping [IP_ADDRESS]
[traceroute]
Used to check a route path.
traceroute [IP_ADDRESS]
[tcpdump]
Used to check the packet of a specific interface.
tcpdump [INTERFACE_NAME]
![](/img.php?id=2529411&img=bg83.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 431 of 628
CHAPTER 10. System Management
In this chapter, the various functions used by an operator to manage the system and
troubleshooting method are described. In addition, the configurations required for system
operation such as system configuration management, resource management, alarm
management, and package management, etc. and checking methods are described.
10.1 SNMP Configuration
10.1.1 SNMP Community
To use an external management server or to manage the system through a web server after
initial system installation, you must configure the SNMP community using CLI.
When creating the SNMP community, you can restrict configuration privilege by allocating
the access right such as read-only or read-write and can also restrict an IP to connect.
You can configure maximum 10 SNMP communities.
Configuration using CLI
To add a SNMP community, execute the command as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) Use the ‘snmp community’ command to add a SNMP community.
snmp community [COMMUNITY_NAME] [ACCESS] [IP_VERSION]
[IP_ADDRESS] [NET MAST]
Parameter
Description
COMMUNITY_NAME
Name of a community to add
ACCESS
Access privilege (rw/ro)
- rw: read-write privilege
- ro: read-only privilege
IP_VERSION
IP address version type (v4/v6)
IP_ADDRESS, NETMAST
IP address area that can be connected
3) To check the created SNMP community, use the ‘show snmp community’ command.
![](/img.php?id=2529411&img=bg84.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 432 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Administrator> and then select the
<SNMP> <Community> menu in the sub-menus. When you click the <Add> button in
the Community window, the community creation window is displayed. When you enter a
configuration value and click the <Apply> button, the configuration is applied.
Figure 231. Adding SNMP community
10.1.2 SNMP Trap
All the alarms of the APC system are basically transmitted to outside through the SNMP
trap. Therefore, to receive a system alarm from an external management server, the server
address must be registered as a trap target. The trap supports v1/v2.
Configuration using CLI
To add a SNMP trap target, execute the command as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) Add a SNMP trap target.
snmp trap [TRAP_VERSION] [COMMUNITY_NAME] [IP_VERSION]
[IP_ADDRESS] [PORT_NUMBER]
Parameter
Description
TRAP_VERSION
Trap version (v1/v2)
COMMUNITY_NAME
Name of a community to be transmitted
IP_VERSION
IP address type (v4/v6)
IP_ADDRESS
IP address to which a trap will be transmitted
PORT_NUMBER
Port number to which a trap will be transmitted (default: 162)
3) To check the added trap target, use the ‘show snmp trap’ command.
![](/img.php?id=2529411&img=bg85.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 433 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Administrator> and then select the
<SNMP> <Trap Receiver> menu in the sub-menus.
When you click the <Add> button in the Trap Receiver window, the trap creation window
is displayed. When you enter a configuration value and click the <Apply> button, the
configuration is applied.
Figure 232. SNMP trap configuration
![](/img.php?id=2529411&img=bg86.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 434 of 628
10.2 System Management
10.2.1 Retrieving System Information
Retrieving with CLI
By using the ‘show system info’ command, you can check the system configuration
information of the APC system such as version information, memory information, disk
information, temperature sensor and fan status, etc.
The execution results of the command in WEC8500 are as follows:
WEC8500/configure# show system info
-----------------------------------------------------
Item System Info
-----------------------------------------------------
System Info :
model type WEC8500
system description Samsung AP Controller
board version 0.1
cpld version 0.5
system mac address 00:7e:37:00:1e:70
system total memory 16046580 KBytes
system total disk 13520032 KBytes
Temperature Sensor Status :
cpu upside sensor OK
cpu downside sensor OK
board sensor OK
Fan Status :
fan[0] OK
fan[1] OK
fan[2] OK
fan[3] OK
Power Supply Status :
Power Supply[0] Equipped
Status OK
Power Supply[1] Not Equipped
Status -
-----------------------------------------------------
![](/img.php?id=2529411&img=bg87.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 435 of 628
The execution results of the command in WEC8050 are as follows:
WEC8050# show system info
-----------------------------------------------------
Item System Info
-----------------------------------------------------
System Info :
model type WEC8050
system description Samsung AP Controller
board version 0.0
cpld version 0.1
serial number
system mac address 00:7e:37:00:21:d4
system total memory 4855272 KBytes
system total disk 12191593 KBytes
Temperature Sensor Status :
CPU sensor1 OK
CPU sensor2 OK
Fan Status :
fan[0] OK
fan[1] OK
-----------------------------------------------------
The descriptions of the output parameters are as follows:
[System Info]
Parameter
Description
model type
Product model name
system description
Product type
board version
Hardware version of a board
cpld version
System cpld version
system mac address
System MAC address
system total memory
System total memory capacity
system total disk
System total disk capacity
[Temperature Sensor Status]
Parameter
Description
cpu upside sensor
CPU upside sensor status (OK, NOK)
cpu downside sensor
CPU downside sensor status (OK, NOK)
board sensor
Board sensor status (OK, NOK)
![](/img.php?id=2529411&img=bg88.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 436 of 628
[Fan Status]
For WEC8500:
Parameter
Description
Fan [0]~[3]
Fan operation status (OK, NOK)
For WEC8050:
Parameter
Description
Fan [0]~[1]
Fan operation status (OK, NOK)
[Power Supply Status]
The WEC8500 has dual detachable power module as shown below.
Parameter
Description
Power Supply [0]~[1]
Whether a power module is equipped (Equipped, Not Equipped)
Status
Power module operation status (OK, NOK)
The WEC8050 has only one power module as shown below.
Parameter
Description
Power Supply Status
Power module operation status (OK, NOK)
![](/img.php?id=2529411&img=bg89.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 437 of 628
Retrieving with Web UI
In the menu bar of <WEC Main window>, select <Monitor> and then select the
<Summary> menu in the sub-menus. It provides a wide range of information, status
retrieving event and alarm retrieving function of the WEC8500 system.

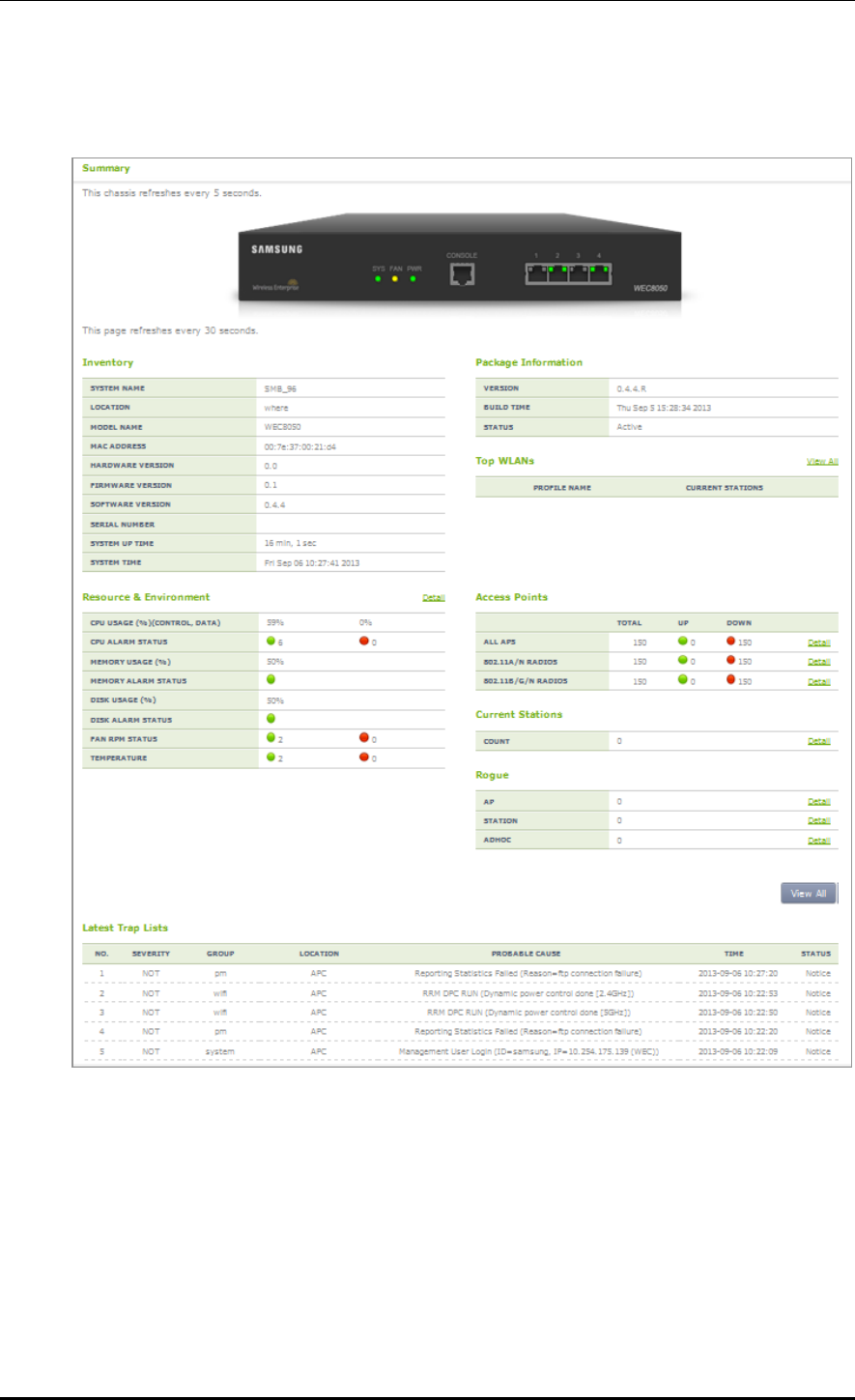

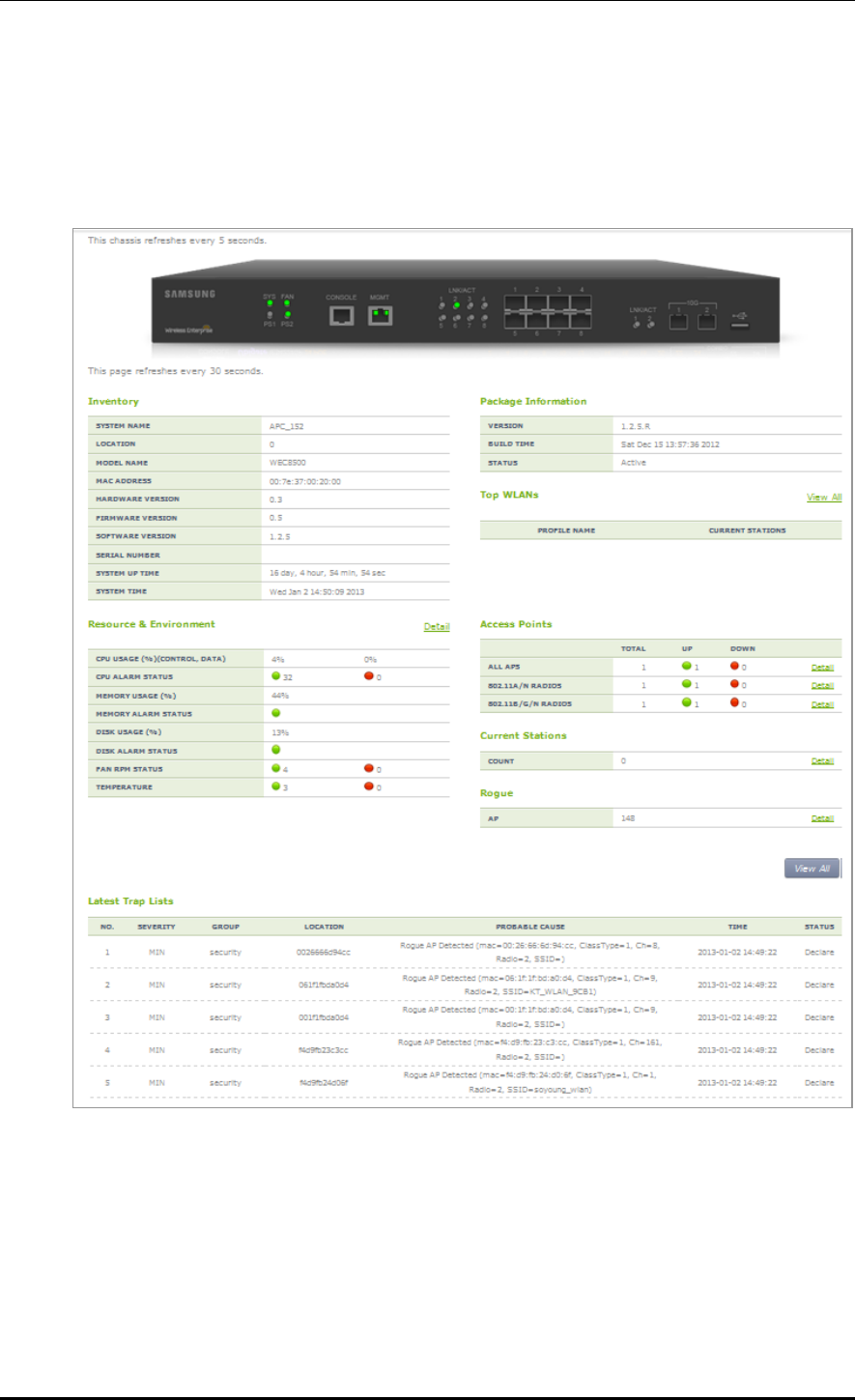

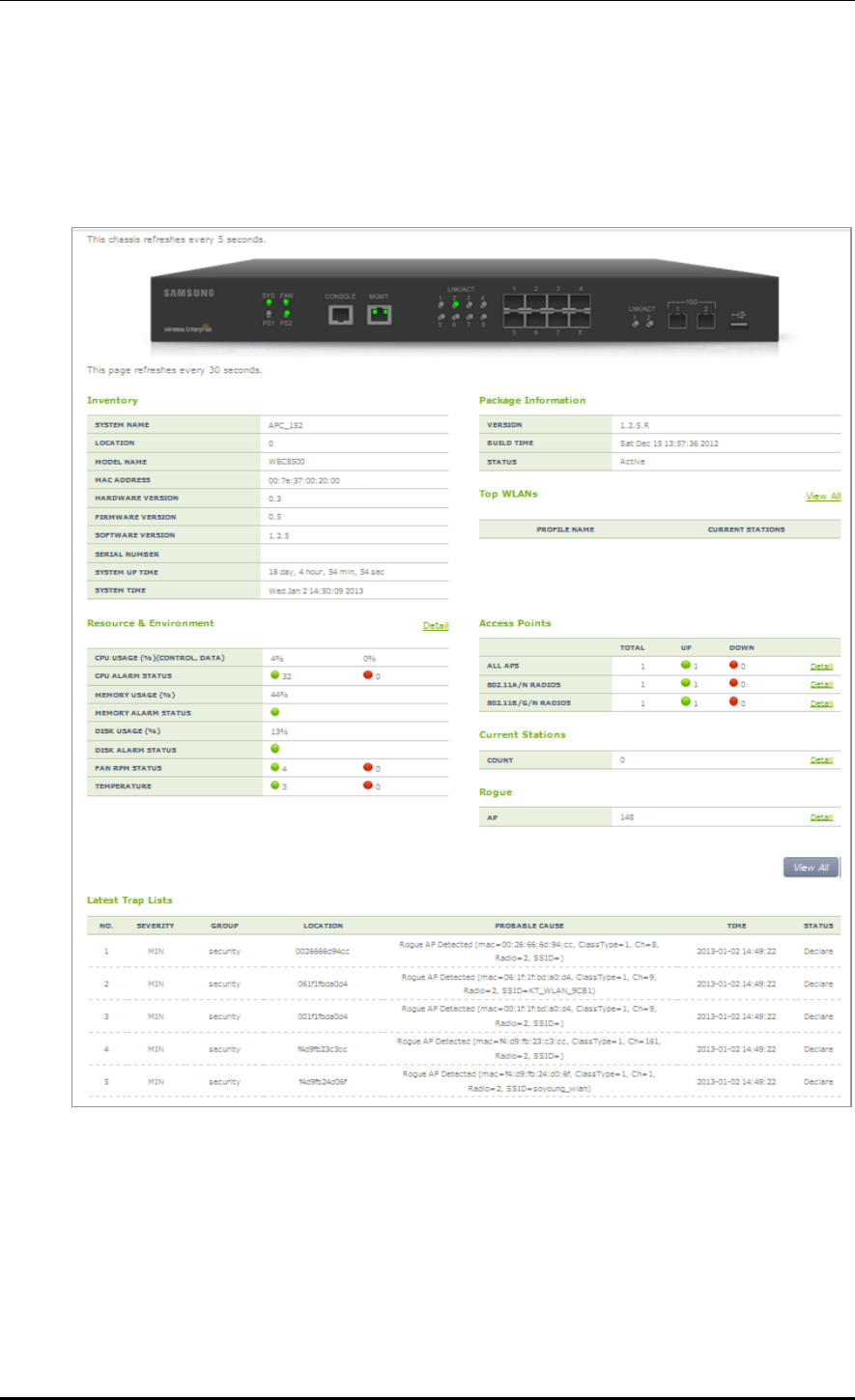

Figure 233. System information
![](/img.php?id=2529411&img=bg8a.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 438 of 628
It provides various information, status retrieving event and alarm retrieving function of the
WEC8050 system.
![](/img.php?id=2529411&img=bg8b.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 439 of 628
10.2.2 System Reboot
There is a command that can reboot the system. Rebooting can be reserved and you can
cancel or retrieve the reservation.
Configuration using CLI
Use the ‘reboot’ command to reboot the system.
WEC8500# reboot
Use the ‘reboot in HH:MM:SS’ command to reserve system reboot. Once the reservation is
completed, the system is rebooted after a specified time (HH:MM:SS).
WEC8500# reboot in 12:00:00
Do you want to save the configuration? (y/n): y
Do you want to restart the system? (y/n): y
Notice: The system WILL reboot in 12:00:00.
WEC8500# show reboot schedule
The reboot has scheduled in 11:58:41.
To cancel the reservation, enter the ‘no reboot’ command.
WEC8500# no reboot
Configuration using Web UI
To configure a reboot related function, in the menu bar of <WEC Main window>, select
<Administrator> and then select the <Reboot> menu in the sub-menus.
The Reboot window is shown below.
[APC]
Figure 234. Reboot (APC)
![](/img.php?id=2529411&img=bg8c.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 440 of 628
[AP]

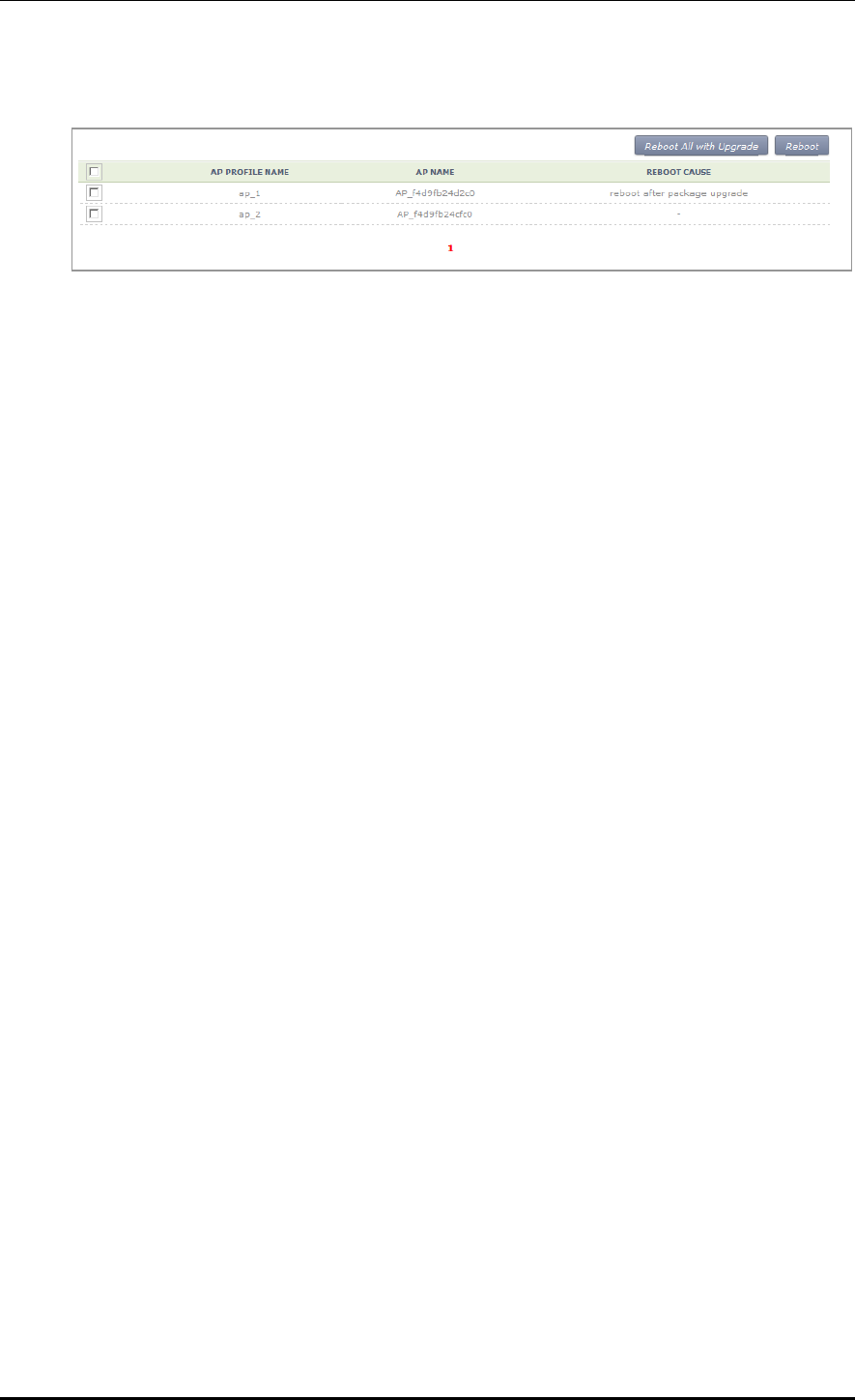

Figure 235. Reboot (AP)
![](/img.php?id=2529411&img=bg8d.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 441 of 628
10.3 System Resource Management
10.3.1 Retrieving System Status
Retrieving with CLI
By using the ‘show system’ command, you can check the status of each system resource
such as CPU load, memory usage, disk usage, Fan RPM level, or system temperature, etc.
show system cpu: Retrieves CPU load. If there are several cores, the CPU load of each
core is displayed.
show system memory: Retrieves memory usage.
show system disk: Retrieves disk usage.
show system fan: Retrieves system fan speed (RPM level range: 0-3)
show system temp: Retrieves system temperature (°C).
The result of system status retrieval using each command is as follows:
[CPU Load]
The retrieving CLI execution result of WEC8500 is as follows:
WEC8500# show system cpu
Average CPU usage (%)
control plane : 3.84
data plane : 0.00
WEC8500# show system cpu detail
-----------------------------------------------------------------
Average CPU usage (%)
control plane 2.12
data plane 0.00
-----------------------------------------------------------------
Detail CPU usage (%)
control plane
[10.00] [04.23] [00.00] [02.74] [00.00] [00.00] [00.00] [00.00]
data plane
[00.00] [00.00] [00.00] [00.00] [00.00] [00.00] [00.00] [00.00]
[00.00] [00.00] [00.00] [00.00] [00.00] [00.00] [00.00] [00.00]
The retrieving CLI execution result of WEC8050 is as follows:
WEC8050# show system cpu
Average CPU usage (%)
control plane : 39.43
data plane : 0.01
WEC8050# show system cpu detail
-----------------------------------------------------------------
Average CPU usage (%)
control plane 21.97
data plane 0.01
![](/img.php?id=2529411&img=bg8e.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 442 of 628
-----------------------------------------------------------------
Detail CPU usage (%)
control plane
[23.29] [25.71] [16.90]
data plane
[00.01] [00.00] [00.00]
[Memory usage]
WEC8500# show system memory
Total Memory : 7657960 KBytes
Used Memory : 3341868 KBytes
Available Memory : 4316092 KBytes
Reserved Memory : 8900608 Kbytes
[Disk usage]
WEC8500# show system disk
Total Disk : 13520032 KBytes
Used Disk : 4338296 KBytes
Free Disk : 9181736 KBytes
[Fan RPM Level]
The retrieving CLI execution result of WEC8500 is as follows:
WEC8500# show system fan
FAN ID rpm Level(0-3)
------- --------------
FAN[0] 1 level
FAN[1] 1 level
FAN[2] 1 level
FAN[3] 1 level
The retrieving CLI execution result of WEC8050 is as follows:
WEC8050# show system fan
FAN ID rpm Level(0-3)
------- --------------
FAN[0] 1 level
FAN[1] 1 level
![](/img.php?id=2529411&img=bg8f.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 443 of 628
[System Temperature (°C)]
The retrieving CLI execution result of WEC8500 is as follows:
WEC8500# show system temp
Sensor Location Temperature
--------------- -----------
CPU sensor 1 33
CPU sensor 2 38
Board 29
The retrieving CLI execution result of WEC8050 is as follows:
WEC8050# show system temp
Sensor Location Temperature(‘C)
--------------- ---------------
CPU sensor 1 45
CPU sensor 2 52
Retrieving with Web UI
In the menu bar of <WEC Main window>, select <Monitor> and then select the
<Summary> menu in the sub-menus. For more information about detail window, see
‘10.2.1 Retrieving System Information’.
![](/img.php?id=2529411&img=bg90.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 444 of 628
10.3.2 Retrieving and Configuring Threshold
If each resource of the system exceeds its configured threshold, there occurs an alarm.
The APC helps an operator check and configure each threshold.
Configuration using CLI
To check each threshold, use the below command.
show system threshold cpu: CPU load (%)
show system threshold memory: Memory usage (%)
show system threshold disk: Disk usage (%)
show system threshold fan: Fan RPM level
show system threshold temp: Retrieves system temperature (°C).
To change a threshold related to CPU load or memory usage, enter the command as
follows:
system monitor cpu threshold [THRESHOLD]: Configures the CPU load threshold.
system monitor memory threshold [THRESHOLD]: Configures the memory usage
threshold.
Parameter
Description
THRESHOLD
Threshold to configure (%)
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Administrator> and then select the
<SNMP> <Trap Control> <Alarm Threshold> menu in the sub-menus.
You can retrieve and configure a threshold at which CPU load, disk usage, temperature
alarm, memory usage, or fan alarm occurs. Enter a value for each item, and click the
<Apply> button to make the configuration applied.
Figure 236. Configuring SNMP alarm threshold
![](/img.php?id=2529411&img=bg91.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 445 of 628
10.4 Managing Alarm and Event
The system alarms and events are saved into a system log and transmitted to an external
server according to the filtering policy. An alarm is managed in terms of occurrence and
release and an event is managed in the report format.
The alarm and event are managed according to group or level. Each group or level is
classified into the following item. You can select an item to retrieve.
Alarm, event group
Group
Description
system
Retrieves system alarm or event.
pm
Retrieves performance monitoring alarm or event.
ap
Retrieves AP related alarm or event.
wlan
Retrieves WLAN related alarm or event.
wifi
Retrieves WI-FI related alarm or event.
security
Retrieves security related alarm or event.
network
Retrieves network related alarm or event.
interface
Retrieves interface related alarm or event.
se
Retrieves system engine related alarm or event.
list
Retrieves alarm or event list information.
Alarm level
Level
Description
critical
Retrieves a critical alarm. A critical alarm is a system log that
could give a critical effect to a service.
major
Retrieves a major alarm. A major alarm is a system log that
could give a major effect to a service.
minor
Retrieves a minor alarm. A minor alarm is a system log that
could give a minor effect to a service.
![](/img.php?id=2529411&img=bg92.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 446 of 628
10.4.1 Retrieving Current Alarm
All the system alarms are basically recorded into a system log. The procedure of retrieving
current alarms is as follows:
Retrieving with CLI
To retrieve current alarms, execute the command as follows:
WEC8500# show alarm list all
1 network 2012-12-17 09:56:13 MAJ APC ge8 1301 NET Link dn
AdminStatus[up] OperStatus[down]
2 network 2012-12-17 09:56:13 MAJ APC xe1 1301 NET Link dn
AdminStatus[up] OperStatus[down]
3 network 2012-12-17 09:56:13 MAJ APC xe2 1301 NET Link dn
AdminStatus[up] OperStatus[down]
…
To selectively retrieve a group or level, execute the command as follows:
WEC8500# show alarm list group network
1 network 2012-12-17 09:56:13 MAJ APC ge8 1301 NET Link dn
AdminStatus[up] OperStatus[down]
WEC8500# show alarm history level major
1 network 2012-12-17 09:56:13 MAJ APC ge8 1301 NET Link dn
AdminStatus[up] OperStatus[down]
Retrieving with Web UI
To retrieve the list of current alarms, in the menu bar of <WEC Main window>, select
<Monitor> and then select the <Active Alarm> menu in the sub-menus.
Figure 237. Current alarm
![](/img.php?id=2529411&img=bg93.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 447 of 628
10.4.2 Retrieving History
Retrieving with CLI
The APC retrieves the history of alarm and event using the following command.
[Alarm History]
WEC8500# show alarm history all
1 ap 2012-12-20 13:13:25 MAJ AP_f4:d9:fb:24:cf:80 r=1 AP RADIO
CARD TX FAIL Clear radio(1)
2 ap 2012-12-20 13:13:25 MAJ AP_f4:d9:fb:24:cf:80 r=2 AP RADIO
CARD TX FAIL Clear radio(2)
3 ap 2012-12-20 13:13:25 MAJ AP_f4:d9:fb:24:cf:80 r=1,w=1 BSS
…
Because all the alarms are managed per group or level, you can retrieve it selectively using
the following command.
WEC8500# show alarm history group system
1 system 2012-12-21 17:49:45 MAJ APC core2 CPU Load Alarm Declare
LOAD(100.00)
…
WEC8500# show alarm history level major
1 system 2012-12-21 17:49:45 MAJ APC core 2 CPU Load Alarm Declare
LOAD(100.00)
…
[Event History]
You can retrieve event information using the following command.
WEC8500# show event
1 system 2012-08-31 13:59:46 NOT APC MGMT User Login ID=samsung,
IP=192.168.0.91
2 system 2012-08-31 13:48:33 NOT SWM:system Boot Complete -
…
An event is managed per group and you can retrieve it selectively using the following
command.
WEC8500# show event group interface
1 interface 2012-08-31 13:48:32 NOT APC Index[1] Name[ge1] IF Admin No
Shut AdminStatus[up] OperStatus[up]
…
![](/img.php?id=2529411&img=bg94.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 448 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Monitor> and then select the
<Summary> menu in the sub-menus. It provides status retrieving event and alarm
retrieving function.
Figure 238. History
![](/img.php?id=2529411&img=bg95.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 449 of 628
10.4.3 External Transmission Configuration
All the alarms and events in the system are transmitted to outside through the SNMP trap
and syslog. If the alarm filter information is configured, only filtered alarm is transmitted to
an external management server.
10.4.4 Alarm Filter and Level Configuration
An alarm filter can be configured per group or level (severity). The filtered alarms are
transmitted to an external server through the SNMP trap and syslog.
Configuration using CLI
The procedure of alarm filter configuration is as follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) Configure group information.
WEC8500/configure# alarm group system
3) Configure level information.
WEC8500/configure# alarm level major
4) To check the configured alarm filter information, use the ‘show alarm conf’ command.
![](/img.php?id=2529411&img=bg96.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 450 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Administrator> and then select the
<SNMP> <Trap Control> <Alarm Information> menu in the sub-menus.
You can retrieve the configuration related to alarm filter and alarm level.
Figure 239. Configuring alarm filter and level
![](/img.php?id=2529411&img=bg97.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 451 of 628
10.5 Managing Traffic Performance
You can manage the traffic performance statistics information and accumulated data for the
APC system and the interface of each AP.
10.5.1 Managing History Information
When the traffic performance information management is enabled, the APC system creates
history information at every 5 minute. But, if the FTP server information is not configured,
the history information is not transmitted to outside although it is created.
Collecting information
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) Configure the traffic performance information.
WEC8500/configure# stats-report enable
3) Configure a FTP server to transmit history information.
stats-report target ip [IP_ADDRESS] port [PORT_NUMBER] id [ID] password
[PASSWORD] path [PATH]
Parameter
Description
IP_ADDRESS
IP address of a target server
PORT_NUMBER
Port number of a target server
ID
User ID of a target server
PASSWORD
User password of a target server
PATH
File storage path of a target server
4) To check the information of traffic performance information management, use the
‘show stats-report conf’ command.
5) Configure so that the performance information is uploaded to the FTP server.
But, because the default is the ‘start’ status, this step may be skipped.
WEC8500/configure# stats-report upload start
![](/img.php?id=2529411&img=bg98.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 452 of 628
Stopping information collection
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) ‘Disable’ the traffic performance information management.
WEC8500/configure# no stats-report enable
3) To check the configured information, use the ‘show stats-report conf’ command.
10.5.2 Managing Real-time Information Collection
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) To collect real-time information, execute the following command. At this time, you
must specify the name and status of an interface whose information will be collected.
stats-report current-stats [INTERFACE_NAME] [STATE]
Parameter
Description
INTERFACE_NAME
Name of an interface to collect or stop collection
STATE
Status of real-time information (start/stop)
- start: Starts real-time information collection
- stop: Stops or initializes the real-time information collection.
3) To check the entered information, use the ‘show stats-report conf’ command.
4) To check the information of a configured interface when the real-time information
collection is configured, execute the following command.
show stats-report current-stats [INTERFACE_NAME]
If the real-time information collection is suspended or initialized, you cannot check the
real-time information of the interface.
WEC8500/configure# show stats-report current-stats ge3
Error: This interface was not configured to gather statistics.
![](/img.php?id=2529411&img=bg99.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 453 of 628
10.6 Managing License Key
The Samsung Electronics Common License Method (SLM) is applied to Version 1.5 or
newer of the APC system.
Therefore, SLM licensing is applied to new websites that are installed using Version 1.5 or
later.
However, if Version 1.4 is upgraded to Version 1.5, the existing license key is used without
any modification. The existing license which is not SLM must be installed and used also in
the case of expanding or reissuing the APC system.
In this document, license keys supported by Version 1.4 or later are referred to as ‘old
license keys’ and license keys supported by Version 1.5 or later are referred to as
‘Activation keys’.
These details are summarized in the table below.
Initially installed
version
Reinstalling the
license
Expanding/reissuing
After an upgrade
APC Version 1.4
or below
Install the old license
Install the old license
Re-use the old license
APC 1.5 or higher
Install the SLM
license
Install the SLM
license
Re-use the SLM license
If an APC system is shipped out without a license installed, only the following services are
offered:
System Model
Number of APs
VQM
Firewall
WEC8050
5 units connected
Not provided
Not provided
WEC8500
2 units connected
Not provided
Not provided
10.6.1 Managing SLM License (Activation) Key
An SLM activation key can have differences in regard to the number of manageable APs,
whether to support the VQM function, whether to support the firewall function, and the
period of use of a function.
Every system has a unique activation key and activation keys are provided in the form of
encrypted files.
To clear an SLM activation key installed in a system, the deactivation command needs to
be executed and after the execution of the command, a deactivation key is issued to notify
that clearing has been completed successfully.
![](/img.php?id=2529411&img=bg9a.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 454 of 628
Installation
Only two activation keys can be installed/registered in an APC system.
If two unexpired activation keys co-exist, available services are offered as shown
in the following example:
(Example)
- Activation Key 1: AP (100 units), VQM (Disable), Firewall (Disable)
- Activation Key 2: AP (50 units), VQM (Enable), Firewall (Disable)
- result: AP (100 units), VQM (Enable), Firewall (Disable)
Period of Use
Each activation key has its own information regarding the start and end times,
and if the current time is not within the set period, the activation key expires.
Application
An activation key only functions correctly after the system is rebooted after
deletion or installation of a key.
Configuration using CLI
To configure an activation key, first execute the following commands and enter license mode:
WEC8500# configure terminal
WEC8500/configure# system license
WEC8500/configure/system/license#
[Installing Activation Key]
When the system is shipped out, there is no registered license key. Therefore, you must
install the license key you received immediately after the first system installation. You can
install a license key directly or remotely using CLI.
activate-key [Fullpath filename]
Registers an activation key file. If a license key file exists in a specified folder, use the
license key file for registration.
When entering the file name of an activation key, you must enter the file name
including its full path.
[Clearing Activation Key]
no activate-key [the activation key’s license key]
Clears an activation key registered in the system.
You can view the license key information of an activation key in the ‘License’ field of
the activation key by executing the ‘show system license-key’ command.
After clearance, you can view information about the deactivation key in the ‘License
Key’ of the key after executing the ‘show system license-key’ command.
![](/img.php?id=2529411&img=bg9b.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 455 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<License> menu in the sub-menus.
In the figure below, the ‘SLM License Key Status’ shows the installation and application
statuses of SLM activation keys.
In the ‘License Control’ section, the operator can select an activation key stored in their PC
and install it in the system.
In addition, the operator can also deactivate an installed activation key. The operator can
clear an installed activation key by selecting Deactivation in ‘License Control’ and then
entering the license key shown in ‘SLM License Key Status’.
Figure 240. SLM License Search and Configuration Window
![](/img.php?id=2529411&img=bg9c.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 456 of 628
10.6.2 Managing Old License Key
An old license key can differ in regard to the number of manageable APs, whether to
support the VQM function, whether to support the firewall function, and the period of use
of a function.
A license key is unique for each system and it consists of encrypted 53 characters.
A license key is distributed in a file or text format.
Installation
APC system can install/register only one official license key and one temporary
license key. A license key (temporary license Key) with time duration can be
installed only 3 times.
Use period
An official license key has no restriction on use period.
A temporary license key has a restriction on use period and the period can be 1,
30, or 60-day.
Apply
A license key becomes active only after system rebooting after the key is installed
or deleted.
Configuration using CLI
To configure a license key related function, go to license mode by executing the following
command.
WEC8500# configure terminal
WEC8500/configure# system license
WEC8500/configure/system/license#
[Installing License Key]
When the system is shipped out, basically there is no registered license key. Therefore, you
must install the license key you received right after the first system installation. You can
install a license key directly or remotely using CLI.
install-key: Registers a file. If a license key file exists in a specified folder, use the
license key file for registration. Once it is installed, the license key file is deleted from
the system.
install-key [LICENSE_KEY]: Direct registration
install-key [IP_ADDRESS] [PORT_NUMBER] [ID] [PASSWORD] [PATH]: Remote
registration
![](/img.php?id=2529411&img=bg9d.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 457 of 628
Parameter
Description
LICENSE_KEY
Issued license key
IP_ADDRESS
IP address
PORT_NUMBER
Port number
ID
login ID
PASSWORD
Password
PATH
Server path
[Deleting License Key]
You can delete a license key directly.
no install-key [LICENSE_KEY]
Parameter
Description
LICENSE_KEY
License key to delete
[Retrieving License Key Information]
To check the license key information, use the ‘show system license-key’ command.
===== Current System Status ======
Number of APs : 2
VQM : Disabled
Firewall : Disabled
===== License Information ======
* Old License - Official License Key
License Key : YNHSHPWP-5MNMTE04-UJHKDO4U-A2WGSBGX-
OJZ2MJ5R-7Z5DBYMT
MAC Address : F4D9FB236C01
System Model : Any
Lifetime : Permanet
Number of APs : 75
VQM : Eanbed
Firewall : Eanbed
Installation Time : 00
[Analyzing License Key]
Before registering a license key to the system, you can check the functions supported by
the license key.
analyze-key [LICENSE-KEY]
Parameter
Description
LICENSE_KEY
License key
![](/img.php?id=2529411&img=bg9e.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 458 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select the
<License> menu in the sub-menus.
From the APC Version 1.5 and later, in respect of old license keys, the web UI does not
provide input/deletion functions and shows only whether they are installed properly.
In the figure below, ‘License Key Status’ is the section that shows whether old license keys
are installed properly and ‘Current System Status’ shows license information currently
applied to the system.
Figure 241. Old License Installation Check Window
![](/img.php?id=2529411&img=bg9f.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 459 of 628
10.7 Syslog Configuration
The system log (syslog) configuration is required to transmit an event, alarm, and system
log information to a target syslog server. You can configure maximum two target syslog
servers in the system and you can configure the IP address and port number independently.
In addition, because you can configure a filter level, only filtered log information is
transmitted to the syslog server.
Configuration using CLI
To transmit an alarm, event, and system log to the syslog server, executes the command as
follows:
1) Go to configure mode of CLI.
WEC8500# configure terminal
2) To transmit an alarm, event, and system log information to the syslog server, specify
‘enable’ as a parameter.
WEC8500/configure# syslog enable
3) Configure the IP address and UDP port of a target syslog server (The default of the
UDP port is ‘514’.).
WEC8500/configure# syslog add 192.168.0.91
WEC8500/configure# syslog add 192.168.0.99 udpport 510
4) Configure a log level to filter.
WEC8500/configure# syslog level information
5) To check the configured syslog information, use the ‘show syslog conf’ command.
![](/img.php?id=2529411&img=bga0.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 460 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Administrator> and then select the
<Logs> <SysLog Configuration> menu in the sub-menus.
It provides syslog related configuration and retrieving function.

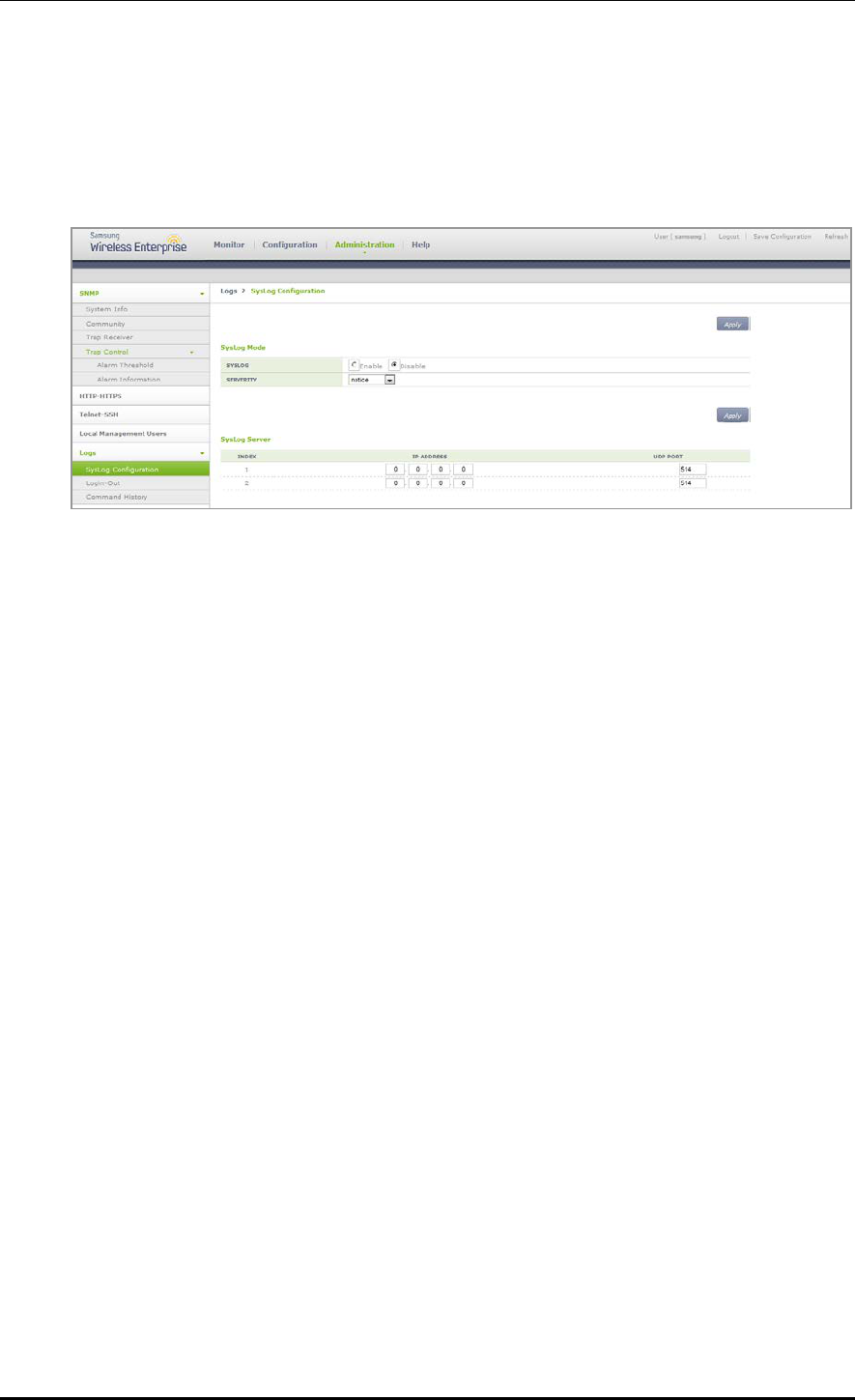

Figure 242. Syslog window
![](/img.php?id=2529411&img=bga1.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 461 of 628
10.8 Upgrade
The APC provides the upgrade function and version checking function that applies a new
version of package when it is distributed.
10.8.1 Checking Package Version
You can check the version of a current system by using the following command.
show version
The following shows the execution results of the command:
WEC8500# show version
Samsung package version information
Primary (currently running)
ver : 1.4.4.R
buildTime : Fri Sep 6 06:08:35 2013
builder : apcbuild
buildDir : /home2/apcbuild/release/wec8500_1.4.4
Backup
ver : 1.4.4.R
buildTime : Fri Sep 6 06:08:35 2013
builder : apcbuild
buildDir : /home2/apcbuild/release/wec8500_1.4.4
Boot rom version information
ver : GC15
10.8.2 System Upgrade
The APC does system upgrade using CLI and Web UI.
Configuration using CLI
Apply a new package to the system by using the following command.
1) Go to configure mode of CLI.
WEC8500# configure terminal
WEC8500/configure#
2) Perform upgrade by using a package.
package upgrade [FILE_NAME]
Parameter
Description
FILE_NAME
Package file to upgrade
The package must be located in the /user/package directory.
![](/img.php?id=2529411&img=bga2.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 462 of 628
A usage example is provided below. When the upgrade is completed, the system is
rebooted to apply the package.
When executing the package upgrade command, the message recommending to save
the configuration file is displayed.
If you save the current configuration, operator can use it for any future version
downgrade.
If there is a configuration file saved during previous upgrade, the message asking
whether you are going to use the file is displayed.
WEC8500/configure# package upgrade wec8500_1.4.4.R.bin
Notice: It is recommended that you save the configuration before
upgrade.
You can reapply the configuration, if you need to downgrade.
Do you want to save the configuration? (y/n): y
Previous configuration file is existed. Do you want to use it?
(y/n): y
Package Validation check ... success
Package Upgrade ............................................... done
Success
3) If package upgrade fails, upgrade is cancelled.
Possible causes and the troubleshooting methods are described below.
Possible Cause
Error Message
Troubleshooting
File does not exist
Error: no exist ‘wec8500_
1.3.11.R.bin’ file
Download the package to be upgraded again as
the package error has occurred during the
package downloading.
Checksum error
on the file
Error: Package validation
check
Upgrade
terminated due to
an internal error
Error: Internal error
1) Execute the ‘show process status’ command
to check the process status.
2) Execute the ‘show system cpu detail’
command to check the CPU status.
3) Transmit the logs above to the Samsung
Technical Support.
Upgrade
terminated due to
timeout
saving the configuration-
failed (time-out)
1) Execute the ‘show process status’ command
to check the process status.
2) Execute the ‘show system cpu detail’
command to check the CPU status.
3) Transmit the logs above to the Samsung
Technical Support.
![](/img.php?id=2529411&img=bga3.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 463 of 628
4) After system rebooting, check if the new package is applied to the system.
WEC8500# show reboot cause
Reboot Cause: Block: Upgrade/ Code: Package Upgrade
WEC8500# show version
Samsung package version information
Primary (currently running)
ver : 0.7.1.R
buildTime : Mon Aug 20 11:35:43 2012
builder : gampul
buildDir : /data/nome/ymkim/apc_0817
Backup
ver : 0.7.1.R
buildTime : Mon Aug 20 11:35:43 2012
builder : gampul
buildDir : /data/nome/ymkim/apc_0817
Boot rom version information
ver : unknown
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Administrator> and then select the
<Package Upgrade> <APC> menu in the sub-menus.
Figure 243. Package upgrade (APC)
![](/img.php?id=2529411&img=bga4.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 464 of 628
10.9 Configuration Management
The APC supports the following functions for configuration management.
Saves the current configuration information.
Exports/imports the current configuration information (import/export).
Initializes system
Configuration using CLI
To save the current configuration information in the system, execute the command as
follows:
WEC8500# save local
To transmit the current configuration information in the system to outside, execute the
command as follows: When you execute the command, the configuration information is
compressed into the entered ‘FILENAME’ as a file.
WEC8500# export [FILENAME]
In addition, to apply a file (‘FILENAME’) from outside to the current system, execute the
command as follows:
WEC8500# import [FILENAME]
To initialize the current configuration information to the factory default, execute the
command as follows: If the ‘full-erase’ parameter is not entered, only the configuration
information is initialized.
WEC8500# factory-reset (full-erase)
![](/img.php?id=2529411&img=bga5.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 465 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Administrator> and then select the
<DB backup/restore> menu in the sub-menus.
Figure 244. DB Backup/Restore
In the DB backup/restore window, enter FILE NAME and click the <Apply> button to
create the configuration information as a file or apply an external configuration information
file. The STATUS shows the execution results of backup/restore function.
![](/img.php?id=2529411&img=bga6.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 466 of 628
10.10 Debug and Diagnosis
10.10.1 Process
The APC can retrieve the status of an active process in the system and an error associated
with each process.
Retrieving the Process Status
WEC8500# show processes
Processes Info.
Status: D - usually IO, R - Running, S - Sleep
T - Stop, X - Dead, Z - Zombie
up - Active, down - Inactive
dis - Disable
id name pid activationTime status reStart
-- -------- ---- --------------- ------ ------
0 swmmon 6222 2012-08-31 14:38:21 up(S) 0
1 evm 1759 2012-08-31 13:47:08 up(S) 0
2 evmlogd 1760 2012-08-31 13:47:08 up(S) 0
3 db 1807 2012-08-31 13:47:14 up(S) 0
4 license 1838 2012-08-31 13:47:34 up(S) 0
5 pcap 1839 2012-08-31 13:47:34 up(S) 0
6 filemgr 1840 2012-08-31 13:47:34 up(S) 0
7 filemib 1841 2012-08-31 13:47:34 up(S) 0
8 cm 1846 2012-08-31 13:47:34 up(S) 0
9 iim 1847 2012-08-31 13:47:34 up(S) 0
10 iimp 1850 2012-08-31 13:47:34 up(S) 0
11 nsm 1902 2012-08-31 13:47:35 up(S) 0
12 mstpd 1903 2012-08-31 13:47:35 up(S) 0
13 pimd 1904 2012-08-31 13:47:35 up(S) 0
14 ripd 1905 2012-08-31 13:47:35 up(S) 0
15 ospfd 1906 2012-08-31 13:47:35 up(S) 0
16 lacpd 1907 2012-08-31 13:47:35 up(S) 0
17 fqm 1909 2012-08-31 13:47:35 up(S) 0
18 imi 1942 2012-08-31 13:47:35 up(S) 0
19 zebosm 2188 2012-08-31 13:47:55 up(S) 0
20 awmb 2226 2012-08-31 13:48:00 up(S) 0
21 apm 2385 2012-08-31 13:48:30 up(S) 0
22 capwap 2386 2012-08-31 13:48:30 up(S) 0
23 hostapd 2387 2012-08-31 13:48:30 up(S) 0
24 eqm 2388 2012-08-31 13:48:30 up(S) 0
![](/img.php?id=2529411&img=bga7.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 467 of 628
Checking process error log
You can check the log of errors that occurred in a current process
WEC8500# show processes log
id date name pid signal backtrace reason
----- -------------------- ----------- ---- ------------ ---------- ---------
2509. 2012-12-21 15:59:50 iimp 1800 SIGTERM(15) traced signal
2510. 2012-12-21 15:59:50 sipalg 2377 SIGTERM(15) traced signal
2511. 2012-12-21 15:59:50 apclt 2375 SIGTERM(15) traced signal
2511. 2012-12-21 15:59:50 apccluster 2217 SIGTERM(15) traced signal
2512. 2012-12-21 15:59:50 evmlogd 1766 SIGTERM(15) traced signal
2513. 2012-12-21 15:59:50 imi 1893 SIGTERM(15) traced signal
2514. 2012-12-21 15:59:50 wids 2293 SIGTERM(15) traced signal
2515. 2012-12-21 15:59:50 ipwlogd 2416 SIGTERM(15) traced signal
2516. 2012-12-21 15:59:50 nfm 2417 SIGTERM(15) traced signal
2517. 2012-12-21 15:59:50 httprd 2379 SIGTERM(15) traced signal
2518. 2012-12-21 15:59:50 fqm 1882 SIGTERM(15) traced signal
2519. 2012-12-21 15:59:50 irfm 2297 SIGTERM(15) traced signal
2520. 2012-12-21 15:59:50 filemib 1770 SIGTERM(15) traced signal
2520. 2012-12-21 15:59:50 pm 2376 SIGTERM(15) traced signal
2521. 2012-12-21 15:59:50 salh 2415 SIGTERM(15) traced signal
2522. 2012-12-21 15:59:50 guestService 2294 SIGTERM(15)
In addition, you can check the detail information corresponding to the ‘id’ of each error log
by using the following command.
WEC8500# show processes log id 15
id date name pid signal backtrace reason
----- ------------------- ------------ ----- ----------- ----------- ---------
15. 2012-08-02 18:39:08 eqm 2311 NONE(0) - coredump
detail (additional info.)
core_dump (comm:eqm, signr:11, pid:2311)
detected unixtime: 1343900344 -> Thu Aug 2 18:39:04 2012
id date name pid signal backtrace reason
----- ------------------- ------------ ----- ----------- ----------- ---------
15. 2012-08-09 12:37:09 eqm 30103 NONE(0) - coredump
detail (additional info.)
core_dump (comm:eqm, signr:11, pid:30103)
![](/img.php?id=2529411&img=bga8.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 468 of 628
10.10.2 Retrieving Crash Information
When a critical problem occurs in the system platform during operation, the APC saves
important system information at that time to provide the crash information that can be used
for post mortem analysis. The crash information includes the Crash Detect and Report
(CDR) information that has the context about the crash status and the core dump
information that has the memory dump about the crash status of a user process.
10.10.2.1 Managing CDR Information
To manage the CDR information, the system provides the following function.
Retrieving CDR Information
Exports CDR history information
Deletes CDR history information
[Retrieving Summarized CDR History Information]
To retrieve the entire history information for all the rebooting including rebooting due to a
crash, enter the ‘show debug reboot summary’ command.
show debug reboot summary
WEC8500# show debug reboot summary
======================================================================
====================================
ID EVENT_NAME EVENT_DESCRIPTION
REBOOT_TIME
======================================================================
====================================
0001 DIE DIE_VAL[1] - Unhandled kernel unaligned access
03:56:00, Aug 22 2012
0000 PANIC softlockup: hung tasks
03:51:51, Aug 22 2012
[Retrieving Detail CDR History Information]
To check the detail crash information, execute the ‘show debug reboot info [id/all]’
command. By using this command, you can view the key information including a kernel
log that exists before the system is rebooted due to a critical crash. The description of each
parameter is shown below.
show debug reboot info [DATA]
Parameter
Description
DATA
Selects crash information (id/all)
- id: A specific CDR ID value to view
- all: Retrieve all the CDR histories
![](/img.php?id=2529411&img=bga9.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 469 of 628
If no parameter is entered, the most recent reboot information is retrieved.
WEC8500# show debug reboot info
######################################################################
[REBOOT_SUMMARY]======================================================
ID : 0001
EVENT NAME : DIE
EVENT DESC : DIE_VAL[1] - Unhandled kernel unaligned access
REBOOT TIME : 03:56:00, Aug 22 2012
[KERNEL_LOG]==========================================================
console [cdr-1] enabled
Creating 1 MTD partitions on “nor0”:
0x000000dc0000-0x000000fc0000 : “crash_raw”
CDR connector initialized (ID = {8.1})
…
…
[Exporting CDR history information]
The crash information of system can be extracted to text file for post analysis.
By entering the ‘show debug reboot export’ command, you can send the system crash
information created in a text file to outside using the ‘transfer’ command.
show debug reboot export
[Deleting CDR history information]
To delete CDR information remaining in a device, execute the following command.
debug reboot erase [DATA]
Parameter
Description
DATA
If there is no reboot information selection (id/all)
option, the most recent system reboot information is deleted.
- id: A specific CDR ID value to delete
- all: Delete all the CDR histories
![](/img.php?id=2529411&img=bgaa.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 470 of 628
10.10.2.2 Retrieving Core Dump Information
Use the ‘show debug coredump summary’ command to retrieve the status of core dump.
WEC8500# show debug coredump summary
CORE_DUMP : enable
DUMP_QUOTA : 1024 (MB)
CORE_SIZE : 204800 (KB)
POLL_PERIOD : 60 (sec)
THRESHOLD : 80 (%)
----------------------------------------------------------------------
--------------------------------------------------
PROCESS | SIGNAL | TIME |
CORE_FILE
----------------------------------------------------------------------
--------------------------------------------------
eqm Segmentation fault Wed Aug 22 03:05:16 2012 core-eqm-
11-1345572316-2437.gz
hostapd Aborted Wed Aug 22 03:06:02 2012 core-hostapd-6-
1345572362-2436.gz
nsm Bus error Wed Aug 22 03:07:21 2012 core-nsm-10-
1345572441-2013.gz
![](/img.php?id=2529411&img=bgab.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 471 of 628
10.11 File Management
The APC provides the file management functions of copying, moving, or retrieving a file
and also file download and upload. In addition, it checks the integrity of a package file and
provides version retrieving method.
To use a file related command, go to the file mode first. The command is basically used as
follows:
1) Go to the file mode of CLI.
WEC8500# file
WEC8500/file#
2) Use each command. The following commands are used in the file mode.
Command
Description
cd
Changes the current directory.
copy
Copies a file.
df
Retrieves the brief information of a storage media connected to the system.
download
Downloads a file using FTP protocol.
dump
Shows the content of a file.
ls
Retrieves the list of files or directories in a specified path.
move
Changes the name of a file.
pwd
Shows the current directory.
remove
Deletes a file.
upload
Uploads a file using FTP protocol.
verify
Checks the integrity of a package file and shows the result.
version
Shows the information of a package file.
10.11.1 Retrieving Configuration of Current Directory
The file management command supports both a relative path and an absolute path based on
the current (working) directory. The current directory is a path that is a reference of a
relative path. For example, if the current directory is ‘disk:/’, the ‘copy test1 test2’ is the
same as the ‘copy disk:/test1 disk:/test2’ command.
To retrieve a current directory, enter the ‘pwd’ command.
WEC8500/file# pwd
disk:/
![](/img.php?id=2529411&img=bgac.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 472 of 628
To change a directory, use the ‘cd [TARGET_DIR]’ command.
WEC8500/file# cd etc
WEC8500/file# pwd
disk:/etc
Parameter
Description
TARGET_DIR
Name of a directory to change
10.11.2 Retrieving Directory List
To retrieve a file or directory in a specific directory, use the ‘ls’ command. If you enter only
‘ls’, all the contents in the current directory are displayed.
To check only a specific directory, enter the ‘ls [TARGET_DIR]’ command.
A usage example is provided below.
WEC8500/file# ls
Current working directory: disk:/
directory 4.0K Jul 5 13:49:49 etc
directory 16K Jan 1 09:00:39 lost+found
directory 4.0K Jun 9 15:36:02 opt
directory 4.0K Jun 9 16:46:59 stats
directory 4.0K Jun 12 01:11:01 var
WEC8500/file# ls etc
Current working directory: disk:/
directory 4.0K Jun 9 15:36:02 ap
directory 4.0K Jun 9 15:36:02 config
directory 4.0K Jun 9 15:36:02 db
file 168 Jul 5 13:49:49 PKG_INFO_STANDBY
WEC8500/file# ls disk:/etc
Current working directory: disk:/
directory 4.0K Jun 9 15:36:02 ap
directory 4.0K Jun 9 15:36:02 config
directory 4.0K Jun 9 15:36:02 db
file 168 Jul 5 13:49:49 P KG_INFO_STANDBY
WEC8500/file#
![](/img.php?id=2529411&img=bgad.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 473 of 628
10.11.3 Revising File
To copy a file, use the ‘copy [SRC_FILENAME] [DES_FILENAME]’ command.
The below command copies the ‘test’ file into ‘disk:/test2’.
WEC8500/file# copy test disk:/test2
To delete a file, use the ‘remove [FILENAME]’ command. If you enter the below
command and enter ‘y’, the ‘test2’ file is deleted.
WEC8500/file# remove test2
‘disk:/test2’ Do you really want to remove it ? (y/n)
y
To change a filename, use the ‘move [SRC_FILENAME] [DES_FILENAME]’ command.
If you enter the below command, the ‘test’ file is changed to ‘test2’.
WEC8500/file# move test test2
10.11.4 Retrieve File Content
To retrieve the content of a file, use the ‘dump’ command. It can be displayed in the hexa
or ascii format.
WEC8500/file# dump test2
0000000 7f45 4c46 0202 0100 0000 0000 0000 0000 |.ELF............ |
0000010 0002 0008 0000 0001 0000 0001 2000 4950 |............ .IP |
0000020 0000 0000 0000 0040 0000 0000 0002 9600 |.......@........ |
0000030 808d 0007 0040 0038 0007 0040 001e 001d |.....@.8...@.... |
0000040 0000 0006 0000 0005 0000 0000 0000 0040 |...............@ |
0000050 0000 0001 2000 0040 0000 0001 2000 0040 |.... ..@.... ..@ |
0000060 0000 0000 0000 0188 0000 0000 0000 0188 |................ |
0000070 0000 0000 0000 0008 0000 0003 0000 0004 |................ |
0000080 0000 0000 0002 5b40 0000 0001 2002 5b40 |......[@.... .[@ |
0000090 0000 0001 2002 5b40 0000 0000 0000 000f |.... .[@........ |
![](/img.php?id=2529411&img=bgae.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 474 of 628
10.11.5 File Download and Upload
A file is downloaded or uploaded through FTP protocol.
To download a file, use the ‘download’ command. An example of downloading the ‘test’
file from ‘192.168.1.1’ to ‘disk:/test’ is shown below.
WEC8500/file# download guest guest 192.168.1.1 test disk:/test
To upload a file, use the ‘upload’ command.
An example of uploading the ‘disk:/uploadtest’ file to ‘192.168.1.1’ is shown below.
WEC8500/file# upload guest guest 192.168.1.1 disk:/uploadtest
uploadtest
10.11.6 Package File
You can use a package file by downloading it from a network or copying it from a USB
memory. The APC checks the integrity of a package file and provides the information
retrieving function.
Checking the integrity of a package file
Checking if a package file is damaged is called integrity checking. An example of checking
integrity using the ‘verify’ command is shown below.
[Checking APC package file]
WEC8500/file# verify package/wec8500_0.3.0.R.bin
Verify: success!!
[Checking AP package file]
WEC8500/file# verify package/ap/wea302.img
Verify: success!!
![](/img.php?id=2529411&img=bgaf.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 475 of 628
Retrieving the information of a package file
A package file includes the information such as version information, model information,
package build information, etc. To check the content of a package file, use the ‘version’
command.
[Retrieving the information of APC package file]
WEC8500/file# version package/wec8500_0.3.0.R.bin
=====================================================
Model : WEC8500
Version : 0.3.0.R
Build Date : Sat Jun 30 15:57:09 2012
Builder : apcbuild
Build Path : /home2/apcbuild/release/apc
MD5SUM : b715450abf1be81616fd7e6391e12cee
[Retrieving the information of AP package file]
WEC8500/file# version package/ap/wea302.img
=====================================================
Model : wea302
Version : 0.1.0.R
Build Date : Fri Apr 13 18:41:26 KST 2012
Sisze : 31998080
CRC : d5aa76ad
![](/img.php?id=2529411&img=bgb0.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 476 of 628
10.11.7 Retrieving Storage Media
The WEC8500 supports a disk and USB memory as a storage media. And the WEC8050
supports only a disk as a storage media. Both current directory-based relative path and
absolute path are all supported during command execution and the path of each device is
shown in the below table.
Device
Path
Description
Disk
disk:/
Uses the system disk as a storage media.
(basic path)
USB memory
usb [N]:/
Uses a USB memory as a storage media.
(‘N’ represents a partition number in a USB memory.)
The check the information of a storage media connected to the APC, use the ‘df’ command.
WEC8500/file# df
Device : disk
Filesystem : ext4
Total size : 12.9G Free space: 11.3G
Device : usb1
Filesystem : vfat
Total size : 7.4G Free space: 7.0G
Using the results of entering the above command, an operator can check the below
information.
The disk and USB memory are connected.
Disk free space: 11.3 GB
USB memory free space: 7 GB
![](/img.php?id=2529411&img=bgb1.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 477 of 628
10.11.8 Managing File in Web UI
10.11.8.1 File Uploading and Downloading
In the menu bar of <WEC Main window>, select < Administration > and then select the
<File Management> <APC-Local PC> menu in the sub-menus.
Figure 245. File management window
The File Management window provides the following functions:
Retrieving a file list
Select a desired path in the path selection menu, which is categorized based on the
following criteria:
disk: Select this to retrieve the entire files in the SSD disk of APC.
APC Package: Select this to retrieve an APC package file.
AP Package: Select this to retrieve an AP package file.
Log: Select this to retrieve a log file.
Stats: Select this to retrieve a statistics file.
USBN: Select this to retrieve a file in a USB memory connected to the APC.
(The N represents a partition number in a USB memory. )
Copying a file
After selecting the checkbox of a file to copy, click the <Copy> button. Then a popup
window is displayed. In the popup window, specify a location where the file will be copied.
Moving a file
After selecting the checkbox of a file to move, click the <Move> button. Then a popup
window is displayed. In the popup window, specify a location where the file will be moved.
Path selection
menu
![](/img.php?id=2529411&img=bgb2.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 478 of 628
Deleting a file
After selecting the checkbox of a file to delete, click the <Delete> button.
Changing a filename
After selecting the checkbox of a file to change its name, click the <Rename> button.
Then a popup window is displayed. In the popup window, enter a file name to change.
Downloading a file
After selecting the checkbox of a file to download, click the <Download> button.
Uploading a file
When you click the <Upload> button, the popup window where you can select a file to
upload is displayed. After selecting a file in the upload window, click the <Upload> button.
Retrieving a package file
In the path selection menu, select <APC Package>. After selecting the checkbox of a
package file to retrieve, click the <Package Info> button. The package file information is
displayed in the popup window.
Checking the integrity of a package file
In the path selection menu, select <APC Package>. After selecting the checkbox of a
package file to retrieve, click the <Package Verify> button. The result of checking the
integrity of a package file is displayed in the popup window.
10.11.8.2 Configuring Language for Imported and Exported Files
The APC system provides a function of exporting information set in the APC to a PC or
importing from a PC to the system by using the WEC. The operator can export and import
the following information in an Excel file.
Local Net User List
Captive Portal User List
Mac Filter List
If the language encoding method of the PC is different from that of the APC system, some
characters, however, cannot be read.
For example, if the encoding method of the PC is Korean (EUC-KR), and the information
on the configuration of the APC system is exported to the WEC, Korean cannot be seen as
unidentifiable characters. Because the APC system use the UTF-8 method and the encoded
file in the UTF-8 method cannot be displayed in the PC which uses EUC-KR.
To correct such problem, it provides a function of configuring a method for encoding in the
PC.
![](/img.php?id=2529411&img=bgb3.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 479 of 628
When the operator configures an encoding method, the APC system automatically converts
the encoding method of the file and allows the exported file to the WEC to be properly
displayed in the PC. In addition, if the file stored in the PC is imported to the system
through the WEC, it is properly processed in the system.
To configure an encoding method, it is possible to select <Administration> in the menu
bar of <WEC Main window> and then configure in <File Management> <Character
Encoding> in the sub-menus.
![](/img.php?id=2529411&img=bgb4.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 480 of 628
10.11.9 Statistics Function
It provides the statistics calculation function for statistics for group optimization.
It collects statistics for each statistical item by AP/radio, radio, WLAN (SSID), device type,
and RF and again by time interval. The time intervals include 5 minutes, one hour, and 24
hours and the statistical value calculated by time is displayed when the statistics items are
retrieved in WEC and CLI.
VoIP Statistics
It shows relevant statistics if VoIP is used with the SIP FMC terminal.
Configuration using CLI
1) Enable VoIP Statistics.
WEC8500/configure/network-stats/statistics/voip# enable
2) If the call setup, call drop, and MoS values of specific APs are monitored for a
specific time and such values fail to reach the reference values, an event can be
generated.
ex.) call-setup: If the call setup success rate is less than 50%, an event is generated.
../network-stats/alert/voip/call-setup# enable
../network-stats/alert/voip/call-setup# threadhold 50
3) Retrieve the status of configuration of the VoIP statistics.
WEC8500# show network-stats statistics voip configuration
4) Retrieve the status of configuration of the VoIP alert.
WEC8500# show network-stats alert voip configuration
5) Retrieve call statistics by radio.
WEC8500# show network-stats statistics voip radio
6) Retrieve call statistics by AP.
WEC8500# show network-stats statistics voip ap
![](/img.php?id=2529411&img=bgb5.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 481 of 628
7) Retrieve call statistics by WLAN.
WEC8500# show network-stats statistics voip wlan
8) Retrieve call statistics by device type.
WEC8500# show network-stats statistics voip de vice
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Monitoring> and then select
<Statistics> <Network Quality> <by Radio> <802.11a/n/ac> <VoIP> in the
sub-menus.
![](/img.php?id=2529411&img=bgb6.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 482 of 628
In the menu bar of <WEC Main window>, select <Monitoring> and then select
<Statistics> <Network Quality> <by AP> <802.11a/n/ac> <VoIP> in the
sub-menus.
Radio Frequency (RF) Statistics
The statistics of RF show the statistics by channel for Channel-Utilization and Air-Quality
and by radio for Rx(Tx)-Utilization and Noise-Level.
They show the minimum, maximum, and average values and error count exceeding the
threshold by 5 min., one hour, 24 hours, and total period.
If the error count exceeds the threshold by each period, an alert occurs.
Configuration using CLI
1) Enable/Disable: Configure whether to operate RF Statistics.
(Enable: Function operation, Disable: No function operation)
WEC8500/configure/network-stats/statistics/rf-value# enable
![](/img.php?id=2529411&img=bgb7.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 483 of 628
2) enable-alert: Configure whether an alert occurs regarding Channel-Utilization, Air-
Quality, and Noise-Level.
ex.) air-quality alert
../network-stats/alert/rf-value/enable-alert# air-quality enable
../network-stats/alert/rf-value/enable-alert# no air-quality enable
3) threshold: Configure the alert threshold of each RF value by radio.
ex.) air-quality 5G threshold 90
../network-stats/alert/rf-value/threshold/80211a# air-quality 90
4) count-alert: An error count threshold to generate an alert in RF Statistics
If the error count is greater than the threshold by statistical period due to the RF values
exceeding the threshold,
an alert occurs. If the value is 0, the alert of the corresponding period does not occur.
ex.) error count threshold per day 720
../network-stats/alert/rf-value/count-alert# day1-threshold 720
5) Retrieve the status of configuration of the RF statistics.
WEC8500# show network-stats statistics rf-value summary
6) Retrieve the RF statistics of the RF values by AP.
ex.) Statistics of air-quality of AP 43
WEC8500# show network-stats statistics rf-value air-quality 43
![](/img.php?id=2529411&img=bgb8.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 484 of 628
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select <
Statistics> <Network Quality> <APs> <802.11a/n/ac> <RF> in the sub-
menus.
Data Traffic Statistics
Data traffic statistics on the air section. Possible to retrieve in a unit of AP. The statistics
provide information on Control, User Data, Tx/Rx, Unicast/Muticast/Broadcast,
Background/Best Effort/Video/Voice, and Peak-rate (Kbps) as detailed items. They also
provide statistical information on Real-time Transport Protocol (RTP) as voice traffic as
well.
![](/img.php?id=2529411&img=bgb9.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 485 of 628
Configuration using CLI
1) Check the configuration of the data traffic statistics and if the status is set to be
disabled, set to be enabled.
WEC8500# show network-stats statistics data current-config
WEC8500/configure/network-stats/statistics/data# enable
2) To retrieve the statistical information of a specific AP, enter as follows:
WEC8500# show network-stats statistics data ap-stat 1
3) To retrieve the statistical information of RTP of a specific AP, give a RTP option as
follows:
WEC8500# show network-stats statistics data ap-stat 1 rtp
4) To retrieve the statistical information of all APs, enter as follows:
WEC8500# show network-stats statistics data apc-stat
5) To retrieve the statistical information of RTP of all APs, give a RTP option as follows:
WEC8500# show network-stats statistics data apc-stat rtp
6) To generate a packet loss alert from the AP, enter as follows:
WEC8500/configure/network-stats/alert/data# packet-loss-alert enable
7) To generate a packet retry alert from the AP, enter as follows:
WEC8500/configure/network-stats/alert/data# packet-retry-alert enable
Configuration using Web UI
In the menu bar of <WEC Main window>, select <Configuration> and then select <
Statistics> <Network Quality> <APs> <802.11a/n/ac> <Data Traffic> in the
sub-menus.
![](/img.php?id=2529411&img=bgba.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 486 of 628
Station Statistics
They provide the statistics of the network optimization to check service, tracking,
debugging, status transition, etc. of a station. Main statistics items provided include station
latency upon connection and handover, attempt count, statistics by failure reason, RSSI,
success rate, data rate by AP, Disassoc/Deauth statistics, statistics by reason, handover path
statistics, kickout statistics by AP, number of users, scanning statistics by AP, etc. and
provide such statistics by 5 min., one hour, 24 hours, and total period by WLAN, AP, Radio,
and Device Type.
Configuration using CLI
1) Enable or disable station network statistics.
network-stats statistics station [MODE]
Parameter
Description
Mode
Whether to configure network statistics
- enable: Setting
- disable: Release (by default)
APC# configure terminal
APC/configure# network-stats statistics station enable
Enabled Station Net-Stats
APC/configure# no network-stats statistics station enable
Disabled Station Net-Stat
2) Enable or disable station statistics alert.
network-stats alert station [MODE]
Parameter
Description
Mode
Whether to configure network statistics alert
- enable: Set (by default)
- disable: Cleared
APC/configure# network-stats alert station enable
Enabled Station Net-Stats Alert
APC/configure# no network-stats alert station enable
Disabled Station Net-Stats Alert
![](/img.php?id=2529411&img=bgbb.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 487 of 628
3) Configure the alert period (Duration).
network-stats alert station alert-duration [VALUE]
Parameter
Description
VALUE
30~60 Min. (default: 30 min)
APC/configure# network-stats alert station alert-duration 40
Alert Duration: 40
4) Configure the alert boundary value of the assoc. success rate.
network-stats alert station alert-assoc-rate [VALUE]
Parameter
Description
VALUE
10-90 % (default: 30 %)
APC/configure# network-stats alert station alert-assoc-rate 50
Assoc. Success Rate Alert Threshold: 50 %
5) Configure the alert boundary value of the assoc. RSSI.
network-stats alert station alert-assoc-rssi [VALUE]
Parameter
Description
VALUE
-100~-50 dBm (default: -85 dBm)
APC/configure# network-stats alert station alert-assoc-rssi -90
Assoc & Reassoc RSSI Alert Threshold: -90 %
6) Configure the alert boundary value of the disassoc. attempt count.
network-stats alert station alert-assoc-try [VALUE]
Parameter
Description
VALUE
10~1000 (default: 30)
APC/configure# network-stats alert station alert-assoc-try 40
Assoc Try Alert Threshold: 40
![](/img.php?id=2529411&img=bgbc.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 488 of 628
7) Configure the alert boundary value of the disassoc. attempt count.
network-stats alert station alert-disassoc-try [VALUE]
Parameter
Description
VALUE
2~1000 (default: 30)
APC/configure# network-stats alert station alert-disassoc-try 40
Disassoc Try Alert Threshold: 40
8) Configure the alert boundary value of the handover success rate.
network-stats alert station alert-handover-rate [VALUE]
Parameter
Description
VALUE
10-90 % (default: 50 %)
APC/configure# network-stats alert station alert-handover-rate 50
Handover Rate Alert Threshold: 50 %
9) Configure the alert boundary value of the handover attempt count.
network-stats alert station alert-handover-try [VALUE]
Parameter
Description
VALUE
10~1000 (default: 30)
APC/configure# network-stats alert station alert-handover-try 40
Handover Try Alert Threshold: 40
10) Configure the max entry value of the target in the station network statistics.
network-stats alert station alert-max-db [MODE]
Parameter
Description
VALUE
1000~50000 (default: 10000)
APC/configure# network-stats alert station alert-max-db 5000
Max Alert DB Number : 5000
![](/img.php?id=2529411&img=bgbd.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 489 of 628
Checking Statistical Information Using CLI
1) Check the station association latency (by AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station association latency wlan 1
Station Association Latency [WLAN ID (1)]:
[Total]
Station Association Latency Minimum............... 0 ms
Station Association Latency Maximum............... 0 ms
Station Association Latency Average............... 0 ms
Station Association Latency Total Count........... 0
[5 Min]
Station Association Latency Minimum............... 0 ms
Station Association Latency Maximum............... 0 ms
Station Association Latency Average............... 0 ms
Station Association Latency Total Count........... 0
[1 Hour]
Station Association Latency Minimum............... 0 ms
Station Association Latency Maximum............... 0 ms
Station Association Latency Average............... 0 ms
Station Association Latency Total Count........... 0
[1 Day]
Station Association Latency Minimum............... 0 ms
Station Association Latency Maximum............... 0 ms
Station Association Latency Average............... 0 ms
Station Association Latency Total Count........... 0
2) Check the station association attempt count (by AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station association num-of-attempt-
assoc wlan 1
[WLAN ID (1)]
Reason Total 5Min 1Hour 1Day
======================================================================
========
AssocAttempt 0 0 0 0
![](/img.php?id=2529411&img=bgbe.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 490 of 628
3) Check the statistics by station association failure reason (by AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station association num-of-fail-by-
reason wlan 1
[WLAN ID (1)]
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNSPECIFIED 0 0 0 0
PREV_AUTH_NOT_VALID 0 0 0 0
DEAUTH_LEAVING 0 0 0 0
DISASSOC_DUE_TO_INACTIVITY 0 0 0 0
DISASSOC_AP_BUSY 0 0 0 0
CLASS2_FRAME_FROM_NONAUTH_STA 0 0 0 0
CLASS3_FRAME_FROM_NONASSOC_STA 0 0 0 0
DISASSOC_STA_HAS_LEFT 0 0 0 0
STA_REQ_ASSOC_WITHOUT_AUTH 0 0 0 0
PWR_CAPABILITY_NOT_VALID 0 0 0 0
SUPPORTED_CHANNEL_NOT_VALID 0 0 0 0
INVALID_IE 0 0 0 0
MICHAEL_MIC_FAILURE 0 0 0 0
4WAY_HANDSHAKE_TIMEOUT 0 0 0 0
GROUP_KEY_UPDATE_TIMEOUT 0 0 0 0
IE_IN_4WAY_DIFFERS 0 0 0 0
GROUP_CIPHER_NOT_VALID 0 0 0 0
PAIRWISE_CIPHER_NOT_VALID 0 0 0 0
AKMP_NOT_VALID 0 0 0 0
UNSUPPORTED_RSN_IE_VERSION 0 0 0 0
INVALID_RSN_IE_CAPAB 0 0 0 0
IEEE_802_1X_AUTH_FAILED 0 0 0 0
CIPHER_SUITE_REJECTED 0 0 0 0
TDLS_TEARDOWN_UNREACHABLE 0 0 0 0
TDLS_TEARDOWN_UNSPECIFIED 0 0 0 0
TOO_MANY 0 0 0 0
STAION_RETRY_THRESHOLD 0 0 0 0
ACL_KICKOUT 0 0 0 0
AUTH_IDLE_TIMEOUT 0 0 0 0
AUTH_IN_ASSOC_STATE 0 0 0 0
WRONG_STA 0 0 0 0
EXPIRED_SERVICE_TIME 0 0 0 0
MAC_AUTH_TIMEOUT 0 0 0 0
MAC_AUTH_REJECT 0 0 0 0
MANUAL_KICKOUT 0 0 0 0
MALICIOUS_STA_STATISTICS 0 0 0 0
KICKOUT_MAC_FILTER 0 0 0 0
KICKOUT_INVALID_IP 0 0 0 0
KICKOUT_ACL 0 0 0 0
INTER_APC_HO 0 0 0 0
CLUSTER_DOWN 0 0 0 0
VAP_DOWN 0 0 0 0
![](/img.php?id=2529411&img=bgbf.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 491 of 628
4) Check the station association RSSI MIN/MAX/AVG statistics (by
AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station association rssi wlan 1
[WLAN ID (1)]
Reason Total 5Min 1Hour 1Day
======================================================================
========
Minimum 0 0 0 0
Maximum 0 0 0 0
Average 0 0 0 0
5) Check the station association success rate statistics (by AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station association success-rate
wlan 1
Station Association Success Rate [WLAN ID (1)]:
[Total]
Station Association Succ Try...................... 0
Station Association Succ Success.................. 0
Station Association Succ Failure.................. 0
Station Association Succ Rate(%).................. 0.000000 %
[5 Min]
Station Association Succ Try...................... 0
Station Association Succ Success.................. 0
Station Association Succ Failure.................. 0
Station Association Succ Rate(%).................. 0.000000 %
[1 Hour]
Station Association Succ Try...................... 0
Station Association Succ Success.................. 0
Station Association Succ Failure.................. 0
Station Association Succ Rate(%).................. 0.000000 %
[1 Day]
Station Association Succ Try...................... 0
Station Association Succ Success.................. 0
Station Association Succ Failure.................. 0
Station Association Succ Rate(%).................. 0.000000 %
6) Check the statistics of station data rate (by AP/Radio).
ex.) by AP/Radio
APC# show network-stats statistics station data-rate 1
[AP ID (1), Radio 5-GHz]
802.11b/g_TxCount
![](/img.php?id=2529411&img=bgc0.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 492 of 628
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11b/g_1M 0 0 0 0
802.11b/g_2M 0 0 0 0
802.11b/g_5.5M 0 0 0 0
802.11b/g_11M 0 0 0 0
802.11b/g_TxFailedCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11b/g_1M 0 0 0 0
802.11b/g_2M 0 0 0 0
802.11b/g_5.5M 0 0 0 0
802.11b/g_11M 0 0 0 0
802.11b/g_RxCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11b/g_1M 0 0 0 0
802.11b/g_2M 0 0 0 0
802.11b/g_5.5M 0 0 0 0
802.11b/g_11M 0 0 0 0
802.11g_TxCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11g_6M 0 0 0 0
802.11g_9M 0 0 0 0
802.11g_12M 0 0 0 0
802.11g_18M 0 0 0 0
802.11g_24M 0 0 0 0
802.11g_36M 0 0 0 0
802.11g_48M 0 0 0 0
802.11g_54M 0 0 0 0
802.11g_TxFailedCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11g_6M 0 0 0 0
802.11g_9M 0 0 0 0
802.11g_12M 0 0 0 0
802.11g_18M 0 0 0 0
802.11g_24M 0 0 0 0
802.11g_36M 0 0 0 0
802.11g_48M 0 0 0 0
802.11g_54M 0 0 0 0
![](/img.php?id=2529411&img=bgc1.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 493 of 628
802.11g_RxCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11g_6M 0 0 0 0
802.11g_9M 0 0 0 0
802.11g_12M 0 0 0 0
802.11g_18M 0 0 0 0
802.11g_24M 0 0 0 0
802.11g_36M 0 0 0 0
802.11g_48M 0 0 0 0
802.11g_54M 0 0 0 0
TxHtMcs
Reason Total 5Min 1Hour 1Day
======================================================================
========
MCS_0 0 0 0 0
MCS_1 0 0 0 0
MCS_2 0 0 0 0
MCS_3 0 0 0 0
MCS_4 0 0 0 0
MCS_5 0 0 0 0
MCS_6 0 0 0 0
MCS_7 0 0 0 0
MCS_8 0 0 0 0
MCS_9 0 0 0 0
MCS_10 0 0 0 0
MCS_11 0 0 0 0
MCS_12 0 0 0 0
MCS_13 0 0 0 0
MCS_14 0 0 0 0
MCS_15 0 0 0 0
MCS_16 0 0 0 0
MCS_17 0 0 0 0
MCS_18 0 0 0 0
MCS_19 0 0 0 0
MCS_20 0 0 0 0
MCS_21 0 0 0 0
MCS_22 0 0 0 0
MCS_23 0 0 0 0
TxHtMcsFailed
Reason Total 5Min 1Hour 1Day
======================================================================
========
MCS_0 0 0 0 0
MCS_1 0 0 0 0
MCS_2 0 0 0 0
MCS_3 0 0 0 0
MCS_4 0 0 0 0
MCS_5 0 0 0 0
![](/img.php?id=2529411&img=bgc2.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 494 of 628
MCS_6 0 0 0 0
MCS_7 0 0 0 0
MCS_8 0 0 0 0
MCS_9 0 0 0 0
MCS_10 0 0 0 0
MCS_11 0 0 0 0
MCS_12 0 0 0 0
MCS_13 0 0 0 0
MCS_14 0 0 0 0
MCS_15 0 0 0 0
MCS_16 0 0 0 0
MCS_17 0 0 0 0
MCS_18 0 0 0 0
MCS_19 0 0 0 0
MCS_20 0 0 0 0
MCS_21 0 0 0 0
MCS_22 0 0 0 0
MCS_23 0 0 0 0
RxHtMcs
Reason Total 5Min 1Hour 1Day
======================================================================
========
MCS_0 0 0 0 0
MCS_1 0 0 0 0
MCS_2 0 0 0 0
MCS_3 0 0 0 0
MCS_4 0 0 0 0
MCS_5 0 0 0 0
MCS_6 0 0 0 0
MCS_7 0 0 0 0
MCS_8 0 0 0 0
MCS_9 0 0 0 0
MCS_10 0 0 0 0
MCS_11 0 0 0 0
MCS_12 0 0 0 0
MCS_13 0 0 0 0
MCS_14 0 0 0 0
MCS_15 0 0 0 0
MCS_16 0 0 0 0
MCS_17 0 0 0 0
MCS_18 0 0 0 0
MCS_19 0 0 0 0
MCS_20 0 0 0 0
MCS_21 0 0 0 0
MCS_22 0 0 0 0
MCS_23 0 0 0 0
TxVhtMcs
Reason Total 5Min 1Hour 1Day
======================================================================
========
![](/img.php?id=2529411&img=bgc3.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 495 of 628
11AC_MCS[0][0] 0 0 0 0
11AC_MCS[0][1] 0 0 0 0
11AC_MCS[0][2] 0 0 0 0
11AC_MCS[0][3] 0 0 0 0
11AC_MCS[0][4] 0 0 0 0
11AC_MCS[0][5] 0 0 0 0
11AC_MCS[0][6] 0 0 0 0
11AC_MCS[0][7] 0 0 0 0
11AC_MCS[0][8] 0 0 0 0
11AC_MCS[0][9] 0 0 0 0
11AC_MCS[1][0] 0 0 0 0
11AC_MCS[1][1] 0 0 0 0
11AC_MCS[1][2] 0 0 0 0
11AC_MCS[1][3] 0 0 0 0
11AC_MCS[1][4] 0 0 0 0
11AC_MCS[1][5] 0 0 0 0
11AC_MCS[1][6] 0 0 0 0
11AC_MCS[1][7] 0 0 0 0
11AC_MCS[1][8] 0 0 0 0
11AC_MCS[1][9] 0 0 0 0
11AC_MCS[2][0] 0 0 0 0
11AC_MCS[2][1] 0 0 0 0
11AC_MCS[2][2] 0 0 0 0
11AC_MCS[2][3] 0 0 0 0
11AC_MCS[2][4] 0 0 0 0
11AC_MCS[2][5] 0 0 0 0
11AC_MCS[2][6] 0 0 0 0
11AC_MCS[2][7] 0 0 0 0
11AC_MCS[2][8] 0 0 0 0
11AC_MCS[2][9] 0 0 0 0
TxVhtMcsFailed
Reason Total 5Min 1Hour 1Day
======================================================================
========
11AC_MCS[0][0] 0 0 0 0
11AC_MCS[0][1] 0 0 0 0
11AC_MCS[0][2] 0 0 0 0
11AC_MCS[0][3] 0 0 0 0
11AC_MCS[0][4] 0 0 0 0
11AC_MCS[0][5] 0 0 0 0
11AC_MCS[0][6] 0 0 0 0
11AC_MCS[0][7] 0 0 0 0
11AC_MCS[0][8] 0 0 0 0
11AC_MCS[0][9] 0 0 0 0
11AC_MCS[1][0] 0 0 0 0
11AC_MCS[1][1] 0 0 0 0
11AC_MCS[1][2] 0 0 0 0
11AC_MCS[1][3] 0 0 0 0
11AC_MCS[1][4] 0 0 0 0
11AC_MCS[1][5] 0 0 0 0
11AC_MCS[1][6] 0 0 0 0
![](/img.php?id=2529411&img=bgc4.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 496 of 628
11AC_MCS[1][7] 0 0 0 0
11AC_MCS[1][8] 0 0 0 0
11AC_MCS[1][9] 0 0 0 0
11AC_MCS[2][0] 0 0 0 0
11AC_MCS[2][1] 0 0 0 0
11AC_MCS[2][2] 0 0 0 0
11AC_MCS[2][3] 0 0 0 0
11AC_MCS[2][4] 0 0 0 0
11AC_MCS[2][5] 0 0 0 0
11AC_MCS[2][6] 0 0 0 0
11AC_MCS[2][7] 0 0 0 0
11AC_MCS[2][8] 0 0 0 0
11AC_MCS[2][9] 0 0 0 0
RxVhtMcs
Reason Total 5Min 1Hour 1Day
======================================================================
========
11AC_MCS[0][0] 0 0 0 0
11AC_MCS[0][1] 0 0 0 0
11AC_MCS[0][2] 0 0 0 0
11AC_MCS[0][3] 0 0 0 0
11AC_MCS[0][4] 0 0 0 0
11AC_MCS[0][5] 0 0 0 0
11AC_MCS[0][6] 0 0 0 0
11AC_MCS[0][7] 0 0 0 0
11AC_MCS[0][8] 0 0 0 0
11AC_MCS[0][9] 0 0 0 0
11AC_MCS[1][0] 0 0 0 0
11AC_MCS[1][1] 0 0 0 0
11AC_MCS[1][2] 0 0 0 0
11AC_MCS[1][3] 0 0 0 0
11AC_MCS[1][4] 0 0 0 0
11AC_MCS[1][5] 0 0 0 0
11AC_MCS[1][6] 0 0 0 0
11AC_MCS[1][7] 0 0 0 0
11AC_MCS[1][8] 0 0 0 0
11AC_MCS[1][9] 0 0 0 0
11AC_MCS[2][0] 0 0 0 0
11AC_MCS[2][1] 0 0 0 0
11AC_MCS[2][2] 0 0 0 0
11AC_MCS[2][3] 0 0 0 0
11AC_MCS[2][4] 0 0 0 0
11AC_MCS[2][5] 0 0 0 0
11AC_MCS[2][6] 0 0 0 0
11AC_MCS[2][7] 0 0 0 0
11AC_MCS[2][8] 0 0 0 0
11AC_MCS[2][9] 0 0 0 0
[AP ID (1), Radio 2.4-GHz]
802.11b/g_TxCount
Reason Total 5Min 1Hour 1Day
![](/img.php?id=2529411&img=bgc5.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 497 of 628
======================================================================
========
802.11b/g_1M 0 0 0 0
802.11b/g_2M 0 0 0 0
802.11b/g_5.5M 0 0 0 0
802.11b/g_11M 0 0 0 0
802.11b/g_TxFailedCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11b/g_1M 0 0 0 0
802.11b/g_2M 0 0 0 0
802.11b/g_5.5M 0 0 0 0
802.11b/g_11M 0 0 0 0
802.11b/g_RxCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11b/g_1M 0 0 0 0
802.11b/g_2M 0 0 0 0
802.11b/g_5.5M 0 0 0 0
802.11b/g_11M 0 0 0 0
802.11g_TxCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11g_6M 0 0 0 0
802.11g_9M 0 0 0 0
802.11g_12M 0 0 0 0
802.11g_18M 0 0 0 0
802.11g_24M 0 0 0 0
802.11g_36M 0 0 0 0
802.11g_48M 0 0 0 0
802.11g_54M 0 0 0 0
802.11g_TxFailedCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11g_6M 0 0 0 0
802.11g_9M 0 0 0 0
802.11g_12M 0 0 0 0
802.11g_18M 0 0 0 0
802.11g_24M 0 0 0 0
802.11g_36M 0 0 0 0
802.11g_48M 0 0 0 0
802.11g_54M 0 0 0 0
![](/img.php?id=2529411&img=bgc6.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 498 of 628
802.11g_RxCount
Reason Total 5Min 1Hour 1Day
======================================================================
========
802.11g_6M 0 0 0 0
802.11g_9M 0 0 0 0
802.11g_12M 0 0 0 0
802.11g_18M 0 0 0 0
802.11g_24M 0 0 0 0
802.11g_36M 0 0 0 0
802.11g_48M 0 0 0 0
802.11g_54M 0 0 0 0
TxHtMcs
Reason Total 5Min 1Hour 1Day
======================================================================
========
MCS_0 0 0 0 0
MCS_1 0 0 0 0
MCS_2 0 0 0 0
MCS_3 0 0 0 0
MCS_4 0 0 0 0
MCS_5 0 0 0 0
MCS_6 0 0 0 0
MCS_7 0 0 0 0
MCS_8 0 0 0 0
MCS_9 0 0 0 0
MCS_10 0 0 0 0
MCS_11 0 0 0 0
MCS_12 0 0 0 0
MCS_13 0 0 0 0
MCS_14 0 0 0 0
MCS_15 0 0 0 0
MCS_16 0 0 0 0
MCS_17 0 0 0 0
MCS_18 0 0 0 0
MCS_19 0 0 0 0
MCS_20 0 0 0 0
MCS_21 0 0 0 0
MCS_22 0 0 0 0
MCS_23 0 0 0 0
TxHtMcsFailed
Reason Total 5Min 1Hour 1Day
======================================================================
========
MCS_0 0 0 0 0
MCS_1 0 0 0 0
MCS_2 0 0 0 0
MCS_3 0 0 0 0
MCS_4 0 0 0 0
![](/img.php?id=2529411&img=bgc7.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 499 of 628
MCS_5 0 0 0 0
MCS_6 0 0 0 0
MCS_7 0 0 0 0
MCS_8 0 0 0 0
MCS_9 0 0 0 0
MCS_10 0 0 0 0
MCS_11 0 0 0 0
MCS_12 0 0 0 0
MCS_13 0 0 0 0
MCS_14 0 0 0 0
MCS_15 0 0 0 0
MCS_16 0 0 0 0
MCS_17 0 0 0 0
MCS_18 0 0 0 0
MCS_19 0 0 0 0
MCS_20 0 0 0 0
MCS_21 0 0 0 0
MCS_22 0 0 0 0
MCS_23 0 0 0 0
RxHtMcs
Reason Total 5Min 1Hour 1Day
======================================================================
========
MCS_0 0 0 0 0
MCS_1 0 0 0 0
MCS_2 0 0 0 0
MCS_3 0 0 0 0
MCS_4 0 0 0 0
MCS_5 0 0 0 0
MCS_6 0 0 0 0
MCS_7 0 0 0 0
MCS_8 0 0 0 0
MCS_9 0 0 0 0
MCS_10 0 0 0 0
MCS_11 0 0 0 0
MCS_12 0 0 0 0
MCS_13 0 0 0 0
MCS_14 0 0 0 0
MCS_15 0 0 0 0
MCS_16 0 0 0 0
MCS_17 0 0 0 0
MCS_18 0 0 0 0
MCS_19 0 0 0 0
MCS_20 0 0 0 0
MCS_21 0 0 0 0
MCS_22 0 0 0 0
MCS_23 0 0 0 0
TxVhtMcs
Reason Total 5Min 1Hour 1Day
![](/img.php?id=2529411&img=bgc8.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 500 of 628
======================================================================
========
11AC_MCS[0][0] 0 0 0 0
11AC_MCS[0][1] 0 0 0 0
11AC_MCS[0][2] 0 0 0 0
11AC_MCS[0][3] 0 0 0 0
11AC_MCS[0][4] 0 0 0 0
11AC_MCS[0][5] 0 0 0 0
11AC_MCS[0][6] 0 0 0 0
11AC_MCS[0][7] 0 0 0 0
11AC_MCS[0][8] 0 0 0 0
11AC_MCS[0][9] 0 0 0 0
11AC_MCS[1][0] 0 0 0 0
11AC_MCS[1][1] 0 0 0 0
11AC_MCS[1][2] 0 0 0 0
11AC_MCS[1][3] 0 0 0 0
11AC_MCS[1][4] 0 0 0 0
11AC_MCS[1][5] 0 0 0 0
11AC_MCS[1][6] 0 0 0 0
11AC_MCS[1][7] 0 0 0 0
11AC_MCS[1][8] 0 0 0 0
11AC_MCS[1][9] 0 0 0 0
11AC_MCS[2][0] 0 0 0 0
11AC_MCS[2][1] 0 0 0 0
11AC_MCS[2][2] 0 0 0 0
11AC_MCS[2][3] 0 0 0 0
11AC_MCS[2][4] 0 0 0 0
11AC_MCS[2][5] 0 0 0 0
11AC_MCS[2][6] 0 0 0 0
11AC_MCS[2][7] 0 0 0 0
11AC_MCS[2][8] 0 0 0 0
11AC_MCS[2][9] 0 0 0 0
TxVhtMcsFailed
Reason Total 5Min 1Hour 1Day
======================================================================
========
11AC_MCS[0][0] 0 0 0 0
11AC_MCS[0][1] 0 0 0 0
11AC_MCS[0][2] 0 0 0 0
11AC_MCS[0][3] 0 0 0 0
11AC_MCS[0][4] 0 0 0 0
11AC_MCS[0][5] 0 0 0 0
11AC_MCS[0][6] 0 0 0 0
11AC_MCS[0][7] 0 0 0 0
11AC_MCS[0][8] 0 0 0 0
11AC_MCS[0][9] 0 0 0 0
11AC_MCS[1][0] 0 0 0 0
11AC_MCS[1][1] 0 0 0 0
11AC_MCS[1][2] 0 0 0 0
11AC_MCS[1][3] 0 0 0 0
11AC_MCS[1][4] 0 0 0 0
![](/img.php?id=2529411&img=bgc9.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 501 of 628
11AC_MCS[1][5] 0 0 0 0
11AC_MCS[1][6] 0 0 0 0
11AC_MCS[1][7] 0 0 0 0
11AC_MCS[1][8] 0 0 0 0
11AC_MCS[1][9] 0 0 0 0
11AC_MCS[2][0] 0 0 0 0
11AC_MCS[2][1] 0 0 0 0
11AC_MCS[2][2] 0 0 0 0
11AC_MCS[2][3] 0 0 0 0
11AC_MCS[2][4] 0 0 0 0
11AC_MCS[2][5] 0 0 0 0
11AC_MCS[2][6] 0 0 0 0
11AC_MCS[2][7] 0 0 0 0
11AC_MCS[2][8] 0 0 0 0
11AC_MCS[2][9] 0 0 0 0
RxVhtMcs
Reason Total 5Min 1Hour 1Day
======================================================================
========
11AC_MCS[0][0] 0 0 0 0
11AC_MCS[0][1] 0 0 0 0
11AC_MCS[0][2] 0 0 0 0
11AC_MCS[0][3] 0 0 0 0
11AC_MCS[0][4] 0 0 0 0
11AC_MCS[0][5] 0 0 0 0
11AC_MCS[0][6] 0 0 0 0
11AC_MCS[0][7] 0 0 0 0
11AC_MCS[0][8] 0 0 0 0
11AC_MCS[0][9] 0 0 0 0
11AC_MCS[1][0] 0 0 0 0
11AC_MCS[1][1] 0 0 0 0
11AC_MCS[1][2] 0 0 0 0
11AC_MCS[1][3] 0 0 0 0
11AC_MCS[1][4] 0 0 0 0
11AC_MCS[1][5] 0 0 0 0
11AC_MCS[1][6] 0 0 0 0
11AC_MCS[1][7] 0 0 0 0
11AC_MCS[1][8] 0 0 0 0
11AC_MCS[1][9] 0 0 0 0
11AC_MCS[2][0] 0 0 0 0
11AC_MCS[2][1] 0 0 0 0
11AC_MCS[2][2] 0 0 0 0
11AC_MCS[2][3] 0 0 0 0
11AC_MCS[2][4] 0 0 0 0
11AC_MCS[2][5] 0 0 0 0
11AC_MCS[2][6] 0 0 0 0
11AC_MCS[2][7] 0 0 0 0
11AC_MCS[2][8] 0 0 0 0
11AC_MCS[2][9] 0 0 0 0
![](/img.php?id=2529411&img=bgca.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 502 of 628
7) Check the statistics by station disassoc./Deauth reason (by AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station disassoc-deauth wlan 1
[WLAN ID (1)]
number of In/Out
Reason Total 5Min 1Hour 1Day
======================================================================
========
DisassocIn 0 0 0 0
DeauthIn 0 0 0 0
DisassocOut 0 0 0 0
DeauthOut 0 0 0 0
DisassocInReason
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNSPECIFIED 0 0 0 0
PREV_AUTH_NOT_VALID 0 0 0 0
DEAUTH_LEAVING 0 0 0 0
DISASSOC_DUE_TO_INACTIVITY 0 0 0 0
DISASSOC_AP_BUSY 0 0 0 0
CLASS2_FRAME_FROM_NONAUTH_STA 0 0 0 0
CLASS3_FRAME_FROM_NONASSOC_STA 0 0 0 0
DISASSOC_STA_HAS_LEFT 0 0 0 0
STA_REQ_ASSOC_WITHOUT_AUTH 0 0 0 0
PWR_CAPABILITY_NOT_VALID 0 0 0 0
SUPPORTED_CHANNEL_NOT_VALID 0 0 0 0
INVALID_IE 0 0 0 0
MICHAEL_MIC_FAILURE 0 0 0 0
4WAY_HANDSHAKE_TIMEOUT 0 0 0 0
GROUP_KEY_UPDATE_TIMEOUT 0 0 0 0
IE_IN_4WAY_DIFFERS 0 0 0 0
GROUP_CIPHER_NOT_VALID 0 0 0 0
PAIRWISE_CIPHER_NOT_VALID 0 0 0 0
AKMP_NOT_VALID 0 0 0 0
UNSUPPORTED_RSN_IE_VERSION 0 0 0 0
INVALID_RSN_IE_CAPAB 0 0 0 0
IEEE_802_1X_AUTH_FAILED 0 0 0 0
CIPHER_SUITE_REJECTED 0 0 0 0
TDLS_TEARDOWN_UNREACHABLE 0 0 0 0
TDLS_TEARDOWN_UNSPECIFIED 0 0 0 0
TOO_MANY 0 0 0 0
STAION_RETRY_THRESHOLD 0 0 0 0
ACL_KICKOUT 0 0 0 0
AUTH_IDLE_TIMEOUT 0 0 0 0
AUTH_IN_ASSOC_STATE 0 0 0 0
WRONG_STA 0 0 0 0
EXPIRED_SERVICE_TIME 0 0 0 0
MAC_AUTH_TIMEOUT 0 0 0 0
![](/img.php?id=2529411&img=bgcb.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 503 of 628
MAC_AUTH_REJECT 0 0 0 0
MANUAL_KICKOUT 0 0 0 0
MALICIOUS_STA_STATISTICS 0 0 0 0
KICKOUT_MAC_FILTER 0 0 0 0
KICKOUT_INVALID_IP 0 0 0 0
KICKOUT_ACL 0 0 0 0
INTER_APC_HO 0 0 0 0
CLUSTER_DOWN 0 0 0 0
VAP_DOWN 0 0 0 0
DeauthInReason
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNSPECIFIED 0 0 0 0
PREV_AUTH_NOT_VALID 0 0 0 0
DEAUTH_LEAVING 0 0 0 0
DISASSOC_DUE_TO_INACTIVITY 0 0 0 0
DISASSOC_AP_BUSY 0 0 0 0
CLASS2_FRAME_FROM_NONAUTH_STA 0 0 0 0
CLASS3_FRAME_FROM_NONASSOC_STA 0 0 0 0
DISASSOC_STA_HAS_LEFT 0 0 0 0
STA_REQ_ASSOC_WITHOUT_AUTH 0 0 0 0
PWR_CAPABILITY_NOT_VALID 0 0 0 0
SUPPORTED_CHANNEL_NOT_VALID 0 0 0 0
INVALID_IE 0 0 0 0
MICHAEL_MIC_FAILURE 0 0 0 0
4WAY_HANDSHAKE_TIMEOUT 0 0 0 0
GROUP_KEY_UPDATE_TIMEOUT 0 0 0 0
IE_IN_4WAY_DIFFERS 0 0 0 0
GROUP_CIPHER_NOT_VALID 0 0 0 0
PAIRWISE_CIPHER_NOT_VALID 0 0 0 0
AKMP_NOT_VALID 0 0 0 0
UNSUPPORTED_RSN_IE_VERSION 0 0 0 0
INVALID_RSN_IE_CAPAB 0 0 0 0
IEEE_802_1X_AUTH_FAILED 0 0 0 0
CIPHER_SUITE_REJECTED 0 0 0 0
TDLS_TEARDOWN_UNREACHABLE 0 0 0 0
TDLS_TEARDOWN_UNSPECIFIED 0 0 0 0
TOO_MANY 0 0 0 0
STAION_RETRY_THRESHOLD 0 0 0 0
ACL_KICKOUT 0 0 0 0
AUTH_IDLE_TIMEOUT 0 0 0 0
AUTH_IN_ASSOC_STATE 0 0 0 0
WRONG_STA 0 0 0 0
EXPIRED_SERVICE_TIME 0 0 0 0
MAC_AUTH_TIMEOUT 0 0 0 0
MAC_AUTH_REJECT 0 0 0 0
MANUAL_KICKOUT 0 0 0 0
MALICIOUS_STA_STATISTICS 0 0 0 0
KICKOUT_MAC_FILTER 0 0 0 0
KICKOUT_INVALID_IP 0 0 0 0
KICKOUT_ACL 0 0 0 0
![](/img.php?id=2529411&img=bgcc.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 504 of 628
INTER_APC_HO 0 0 0 0
CLUSTER_DOWN 0 0 0 0
VAP_DOWN 0 0 0 0
DisassocOutReason
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNSPECIFIED 0 0 0 0
PREV_AUTH_NOT_VALID 0 0 0 0
DEAUTH_LEAVING 0 0 0 0
DISASSOC_DUE_TO_INACTIVITY 0 0 0 0
DISASSOC_AP_BUSY 0 0 0 0
CLASS2_FRAME_FROM_NONAUTH_STA 0 0 0 0
CLASS3_FRAME_FROM_NONASSOC_STA 0 0 0 0
DISASSOC_STA_HAS_LEFT 0 0 0 0
STA_REQ_ASSOC_WITHOUT_AUTH 0 0 0 0
PWR_CAPABILITY_NOT_VALID 0 0 0 0
SUPPORTED_CHANNEL_NOT_VALID 0 0 0 0
INVALID_IE 0 0 0 0
MICHAEL_MIC_FAILURE 0 0 0 0
4WAY_HANDSHAKE_TIMEOUT 0 0 0 0
GROUP_KEY_UPDATE_TIMEOUT 0 0 0 0
IE_IN_4WAY_DIFFERS 0 0 0 0
GROUP_CIPHER_NOT_VALID 0 0 0 0
PAIRWISE_CIPHER_NOT_VALID 0 0 0 0
AKMP_NOT_VALID 0 0 0 0
UNSUPPORTED_RSN_IE_VERSION 0 0 0 0
INVALID_RSN_IE_CAPAB 0 0 0 0
IEEE_802_1X_AUTH_FAILED 0 0 0 0
CIPHER_SUITE_REJECTED 0 0 0 0
TDLS_TEARDOWN_UNREACHABLE 0 0 0 0
TDLS_TEARDOWN_UNSPECIFIED 0 0 0 0
TOO_MANY 0 0 0 0
STAION_RETRY_THRESHOLD 0 0 0 0
ACL_KICKOUT 0 0 0 0
AUTH_IDLE_TIMEOUT 0 0 0 0
AUTH_IN_ASSOC_STATE 0 0 0 0
WRONG_STA 0 0 0 0
EXPIRED_SERVICE_TIME 0 0 0 0
MAC_AUTH_TIMEOUT 0 0 0 0
MAC_AUTH_REJECT 0 0 0 0
MANUAL_KICKOUT 0 0 0 0
MALICIOUS_STA_STATISTICS 0 0 0 0
KICKOUT_MAC_FILTER 0 0 0 0
KICKOUT_INVALID_IP 0 0 0 0
KICKOUT_ACL 0 0 0 0
INTER_APC_HO 0 0 0 0
CLUSTER_DOWN 0 0 0 0
VAP_DOWN 0 0 0 0
![](/img.php?id=2529411&img=bgcd.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 505 of 628
DeauthOutReason
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNSPECIFIED 0 0 0 0
PREV_AUTH_NOT_VALID 0 0 0 0
DEAUTH_LEAVING 0 0 0 0
DISASSOC_DUE_TO_INACTIVITY 0 0 0 0
DISASSOC_AP_BUSY 0 0 0 0
CLASS2_FRAME_FROM_NONAUTH_STA 0 0 0 0
CLASS3_FRAME_FROM_NONASSOC_STA 0 0 0 0
DISASSOC_STA_HAS_LEFT 0 0 0 0
STA_REQ_ASSOC_WITHOUT_AUTH 0 0 0 0
PWR_CAPABILITY_NOT_VALID 0 0 0 0
SUPPORTED_CHANNEL_NOT_VALID 0 0 0 0
INVALID_IE 0 0 0 0
MICHAEL_MIC_FAILURE 0 0 0 0
4WAY_HANDSHAKE_TIMEOUT 0 0 0 0
GROUP_KEY_UPDATE_TIMEOUT 0 0 0 0
IE_IN_4WAY_DIFFERS 0 0 0 0
GROUP_CIPHER_NOT_VALID 0 0 0 0
PAIRWISE_CIPHER_NOT_VALID 0 0 0 0
AKMP_NOT_VALID 0 0 0 0
UNSUPPORTED_RSN_IE_VERSION 0 0 0 0
INVALID_RSN_IE_CAPAB 0 0 0 0
IEEE_802_1X_AUTH_FAILED 0 0 0 0
CIPHER_SUITE_REJECTED 0 0 0 0
TDLS_TEARDOWN_UNREACHABLE 0 0 0 0
TDLS_TEARDOWN_UNSPECIFIED 0 0 0 0
TOO_MANY 0 0 0 0
STAION_RETRY_THRESHOLD 0 0 0 0
ACL_KICKOUT 0 0 0 0
AUTH_IDLE_TIMEOUT 0 0 0 0
AUTH_IN_ASSOC_STATE 0 0 0 0
WRONG_STA 0 0 0 0
EXPIRED_SERVICE_TIME 0 0 0 0
MAC_AUTH_TIMEOUT 0 0 0 0
MAC_AUTH_REJECT 0 0 0 0
MANUAL_KICKOUT 0 0 0 0
MALICIOUS_STA_STATISTICS 0 0 0 0
KICKOUT_MAC_FILTER 0 0 0 0
KICKOUT_INVALID_IP 0 0 0 0
KICKOUT_ACL 0 0 0 0
INTER_APC_HO 0 0 0 0
CLUSTER_DOWN 0 0 0 0
VAP_DOWN 0 0 0 0
DisassocStateInReason
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNKNOWN 0 0 0 0
![](/img.php?id=2529411&img=bgce.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 506 of 628
AUTH 0 0 0 0
AUTH_SUCCESS 0 0 0 0
AUTH_FAILURE 0 0 0 0
IPFAIL 0 0 0 0
NORMAL 0 0 0 0
DeauthStateInReason
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNKNOWN 0 0 0 0
AUTH 0 0 0 0
AUTH_SUCCESS 0 0 0 0
AUTH_FAILURE 0 0 0 0
IPFAIL 0 0 0 0
NORMAL 0 0 0 0
DsassocStateOutReason
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNKNOWN 0 0 0 0
AUTH 0 0 0 0
AUTH_SUCCESS 0 0 0 0
AUTH_FAILURE 0 0 0 0
IPFAIL 0 0 0 0
NORMAL 0 0 0 0
DeauthStateOutReason
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNKNOWN 0 0 0 0
AUTH 0 0 0 0
AUTH_SUCCESS 0 0 0 0
AUTH_FAILURE 0 0 0 0
IPFAIL 0 0 0 0
NORMAL 0 0 0 0
8) Check the station handover latency (by AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station hand-over latency wlan 1
Station H/O Latency [WLAN ID (1)]:
[Total]
Station H/O Latency Minimum....................... 0 ms
Station H/O Latency Maximum....................... 0 ms
Station H/O Latency Average....................... 0 ms
Station H/O Latency Total Count................... 0
![](/img.php?id=2529411&img=bgcf.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 507 of 628
[5 Min]
Station H/O Latency Minimum....................... 0 ms
Station H/O Latency Maximum....................... 0 ms
Station H/O Latency Average....................... 0 ms
Station H/O Latency Total Count................... 0
[1 Hour]
Station H/O Latency Minimum....................... 0 ms
Station H/O Latency Maximum....................... 0 ms
Station H/O Latency Average....................... 0 ms
Station H/O Latency Total Count................... 0
[1 Day]
Station H/O Latency Minimum....................... 0 ms
Station H/O Latency Maximum....................... 0 ms
Station H/O Latency Average....................... 0 ms
Station H/O Latency Total Count................... 0
9) Check the station handover attempt count (by AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station hand-over num-of-attempt-ho
wlan 1
[WLAN ID (1)]
Reason Total 5Min 1Hour 1Day
======================================================================
========
HandoverAttempt 0 0 0 0
10) Check the statistics by station handover failure reason (by AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station hand-over num-of-fail-by-
reason wlan 1
[WLAN ID (1)]
Reason Total 5Min 1Hour 1Day
======================================================================
========
UNSPECIFIED 0 0 0 0
PREV_AUTH_NOT_VALID 0 0 0 0
DEAUTH_LEAVING 0 0 0 0
DISASSOC_DUE_TO_INACTIVITY 0 0 0 0
DISASSOC_AP_BUSY 0 0 0 0
CLASS2_FRAME_FROM_NONAUTH_STA 0 0 0 0
CLASS3_FRAME_FROM_NONASSOC_STA 0 0 0 0
DISASSOC_STA_HAS_LEFT 0 0 0 0
STA_REQ_ASSOC_WITHOUT_AUTH 0 0 0 0
![](/img.php?id=2529411&img=bgd0.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 508 of 628
PWR_CAPABILITY_NOT_VALID 0 0 0 0
SUPPORTED_CHANNEL_NOT_VALID 0 0 0 0
INVALID_IE 0 0 0 0
MICHAEL_MIC_FAILURE 0 0 0 0
4WAY_HANDSHAKE_TIMEOUT 0 0 0 0
GROUP_KEY_UPDATE_TIMEOUT 0 0 0 0
IE_IN_4WAY_DIFFERS 0 0 0 0
GROUP_CIPHER_NOT_VALID 0 0 0 0
PAIRWISE_CIPHER_NOT_VALID 0 0 0 0
AKMP_NOT_VALID 0 0 0 0
UNSUPPORTED_RSN_IE_VERSION 0 0 0 0
INVALID_RSN_IE_CAPAB 0 0 0 0
IEEE_802_1X_AUTH_FAILED 0 0 0 0
CIPHER_SUITE_REJECTED 0 0 0 0
TDLS_TEARDOWN_UNREACHABLE 0 0 0 0
TDLS_TEARDOWN_UNSPECIFIED 0 0 0 0
TOO_MANY 0 0 0 0
STAION_RETRY_THRESHOLD 0 0 0 0
ACL_KICKOUT 0 0 0 0
AUTH_IDLE_TIMEOUT 0 0 0 0
AUTH_IN_ASSOC_STATE 0 0 0 0
WRONG_STA 0 0 0 0
EXPIRED_SERVICE_TIME 0 0 0 0
MAC_AUTH_TIMEOUT 0 0 0 0
MAC_AUTH_REJECT 0 0 0 0
MANUAL_KICKOUT 0 0 0 0
MALICIOUS_STA_STATISTICS 0 0 0 0
KICKOUT_MAC_FILTER 0 0 0 0
KICKOUT_INVALID_IP 0 0 0 0
KICKOUT_ACL 0 0 0 0
INTER_APC_HO 0 0 0 0
CLUSTER_DOWN 0 0 0 0
VAP_DOWN 0 0 0 0
11) Check the station handover RSSI MIN/MAX/AVG statistics (by AP/Device/Radio/
WLAN).
ex.) by WLAN
APC# show network-stats statistics station hand-over rssi wlan 1
[WLAN ID (1)]
Reason Total 5Min 1Hour 1Day
======================================================================
========
Minimum 0 0 0 0
Maximum 0 0 0 0
Average 0 0 0 0
![](/img.php?id=2529411&img=bgd1.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 509 of 628
12) Check the statistics of the station handover success rate (by AP/Device/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station hand-over success-rate wlan
1
Station H/O Success Rate [WLAN ID (1)]:
[Total]
Station H/O Succ Try.............................. 0
Station H/O Succ Success.......................... 0
Station H/O Succ Failure.......................... 0
Station H/O Succ Rate(%).......................... 0.000000 %
[5 Min]
Station H/O Succ Try.............................. 0
Station H/O Succ Success.......................... 0
Station H/O Succ Failure.......................... 0
Station H/O Succ Rate(%).......................... 0.000000 %
[1 Hour]
Station H/O Succ Try.............................. 0
Station H/O Succ Success.......................... 0
Station H/O Succ Failure.......................... 0
Station H/O Succ Rate(%).......................... 0.000000 %
[1 Day]
Station H/O Succ Try.............................. 0
Station H/O Succ Success.......................... 0
Station H/O Succ Failure.......................... 0
Station H/O Succ Rate(%).......................... 0.000000 %
13) Check the statistics of station handover path tracking (by AP/Radio).
ex.) by AP/Radio
APC# show network-stats statistics station hand-over trace 1
[AP ID (1), Radio 5-GHz]
Reason Total 5Min 1Hour 1Day
======================================================================
========
destAp(1)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(2)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(3)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(4)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(5)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(6)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(7)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(8)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(9)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(10)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(11)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(12)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(13)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(14)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
![](/img.php?id=2529411&img=bgd2.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 510 of 628
destAp(15)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(16)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(17)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(18)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(19)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(20)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(21)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(22)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(23)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(24)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(25)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(26)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(27)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(28)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(29)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(30)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(31)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(32)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
[AP ID (1), Radio 2.4-GHz]
Reason Total 5Min 1Hour 1Day
======================================================================
========
destAp(1)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(2)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(3)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(4)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(5)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(6)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(7)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(8)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(9)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(10)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(11)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(12)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(13)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(14)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(15)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(16)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(17)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(18)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(19)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(20)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(21)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(22)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(23)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(24)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(25)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(26)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(27)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(28)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(29)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
![](/img.php?id=2529411&img=bgd3.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 511 of 628
destAp(30)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(31)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
destAp(32)[destAp/statsCnt] 0/ 0 0/ 0 0/ 0 0/ 0
14) Check the station kickout statistics (by AP/Radio).
ex.) by AP/Radio
APC# show network-stats statistics station kick-out 1
[AP ID (1), Radio 5-GHz]
Reason Total 5Min 1Hour 1Day
======================================================================
========
retryCount 0 0 0 0
exceedConsecutiveRetryCount 0 0 0 0
stationKickOutCount 0 0 0 0
[AP ID (1), Radio 2.4-GHz]
Reason Total 5Min 1Hour 1Day
======================================================================
========
retryCount 0 0 0 0
exceedConsecutiveRetryCount 0 0 0 0
stationKickOutCount 0 0 0 0
15) Check the number of users connecting with the station (MIN/MAX/AVG) (by
AP/Radio/WLAN).
ex.) by WLAN
APC# show network-stats statistics station num-of-station wlan 1
[WLAN ID (1)]
Reason Total 5Min 1Hour 1Day
======================================================================
========
Minimum 0 0 0 0
Maximum 0 0 0 0
Average 0 0 0 0
![](/img.php?id=2529411&img=bgd4.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 512 of 628
16) Check the station scanning count statistics (by AP/Radio).
ex.) by AP/Radio
APC# show network-stats statistics station scan 1
[AP ID (1), Radio 5-GHz]
Reason Total 5Min 1Hour 1Day
======================================================================
========
ScanStat 0 0 0 0
[AP ID (1), Radio 2.4-GHz]
Reason Total 5Min 1Hour 1Day
======================================================================
========
ScanStat 0 0 0
17) Check the AP packet loss statistics (by AP/Radio).
ex.) by AP/Radio
APC# show network-stats statistics station ap-packet-loss ap 1
Station Statistics for AP Packet Loss Data [AP ID (1)]:
[RADIO 5-GHz]
AP Packet Loss Tx Failure Count................... 0
AP Packet Loss Tx Retry Succes Count.............. 0
AP Packet Loss Tx Success Count................... 0
AP Packet Loss Tx Fail Rate....................... 0.000000%
AP Packet Loss Tx Retry Rate...................... 0.000000%
[RADIO 2.4-GHz]
AP Packet Loss Tx Failure Count................... 0
AP Packet Loss Tx Retry Succes Count.............. 0
AP Packet Loss Tx Success Count................... 0
AP Packet Loss Tx Fail Rate....................... 0.000000%
AP Packet Loss Tx Retry Rate...................... 0.000000%
18) Check the AP packet loss raw data statistics (by AP/Radio).
ex.) by AP/Radio
APC# show network-stats statistics station ap-packet-loss-raw ap 1
Station Statistics for AP Packet Loss Raw Data [AP ID (1)]:
[RADIO 5-GHz]
AP Total Transmitted Success Data Frame Count .... 0
AP Total Transmission Failure Data Frame Count ... 0
AP Total Retry Success Data Frame Count .......... 0
AP Total Transmitted Success Mgmt Frame Count .... 0
![](/img.php?id=2529411&img=bgd5.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 513 of 628
AP Total Transmission Failure Mgmt Frame Count ... 0
AP Total Retry Success Mgmt Frame Count .......... 0
[RADIO 2.4-GHz]
AP Total Transmitted Success Data Frame Count .... 0
AP Total Transmission Failure Data Frame Count ... 0
AP Total Retry Success Data Frame Count .......... 0
AP Total Transmitted Success Mgmt Frame Count .... 0
AP Total Transmission Failure Mgmt Frame Count ... 0
AP Total Retry Success Mgmt Frame Count .......... 0
Checking and Configuring Using Web UI
Configure and check an alert.
Alert configuration: [Configuration Management] > [Statistics] > [Network
Quality] > Association/Handover
![](/img.php?id=2529411&img=bgd6.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 514 of 628
Alert checking: [Monitoring] > [Network Quality] > Alert List
Checking Statistical Value of Network
Network Statistics Root Path: [Monitoring] > [Statistics] > [Network Quality]
1) Check the station association latency and success rate (by AP/Device/Radio/WLAN).
ex.) by WLAN
[Monitoring] > [Statistics] > [Network Quality] > [by WLAN] >
[Association/Handover] > General
![](/img.php?id=2529411&img=bgd7.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 515 of 628
2) Check the station association and handover statistics (by AP/Device/Radio/WLAN).
ex.) by WLAN
[Monitoring] > [Statistics] > [Network Quality] > [by WLAN] >
[Association/Handover] > General
3) Check the station handover latency and success rate (by AP/Device/Radio/WLAN).
ex.) by WLAN
[Monitoring] > [Statistics] > [Network Quality] > [by WLAN] >
[Association/Handover] > General
4) Check the number of users connecting to the station (by AP/Radio/WLAN).
ex.) by WLAN
[Monitoring] > [Statistics] > [Network Quality] > [by WLAN] >
[Association/Handover] > General
5) Check the minimum, maximum, and average statistics of station association and
handover RSSI
(by AP/Device/Radio/WLAN).
ex.) by WLAN
[Monitoring] > [Statistics] > [Network Quality] > [by WLAN] >
[Association/Handover] > RSSI/SKO
![](/img.php?id=2529411&img=bgd8.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 516 of 628
6) Check the statistics by cause of station association and handover failure (by
AP/Device/Radio/WLAN).
ex.) by WLAN
[Monitoring] > [Statistics] > [Network Quality] > [by WLAN] >
[Association/Handover] > Cause of Failure
※ Check the association/handover statistics by using the tab on the top of the right.
![](/img.php?id=2529411&img=bgd9.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 517 of 628
7) Check the statistics of disassoc. and deauth count (by AP/Device/Radio/WLAN).
ex.) by WLAN
[Monitoring] > [Statistics] > [Network Quality] > [by WLAN] >
[Association/Handover] > Disassoc/Deauth
※ Check the disassoc/deauth statistics by station/system by using the tab on the top
of the right.
8) Check the statistics of disassoc. count of the UE by cause (by AP/Device/Radio/
WLAN).
ex.) by WLAN
[Monitoring] > [Statistics] > [Network Quality] > [by WLAN] >
[Association/Handover] > Disassoc/Deauth
※ Check the disassoc/deauth statistics by station/system by using the tab on the top
of the right.
![](/img.php?id=2529411&img=bgda.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 518 of 628
9) Check the statistics of disassoc. count of the UE by status (by AP/Device/Radio/
WLAN).
ex.) by WLAN
[Monitoring] > [Statistics] > [Network Quality] > [by WLAN] >
[Association/Handover] > Disassoc/Deauth
※ Check the disassoc/deauth statistics by station/system by using the tab on the top
of the right.
![](/img.php?id=2529411&img=bgdb.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 519 of 628
10) Check the statistics of disassoc. count of the UE by status (by AP/Radio).
ex.) by AP/Radio
[Monitoring] > [Statistics] > [Network Quality] > [by AP] > [802.11a/n/ac] >
Transmission Speed
※ To change a radio, press 'Convert Radio' button by using the tab on the top of the
right.
![](/img.php?id=2529411&img=bgdc.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 520 of 628
11) Check the statistics of disassoc. count of the UE by status (by AP/Radio).
ex.) by AP/Radio
[Monitoring] > [Statistics] > [Network Quality] > [by AP] > [802.11a/n/ac] >
Handover Trace
※ To change a radio, press 'Convert Radio' button by using the tab on the top of the
right.
![](/img.php?id=2529411&img=bgdd.png)
CHAPTER 10. System Management
© SAMSUNG Electronics Co., Ltd. page 521 of 628
12) Check the statistics of scan count of the UE (by AP/Radio).
ex.) by AP/Radio
[Monitoring] > [Statistics] > [Network Quality] > [by AP] > [802.11a/n/ac] >
[Association/Handover] > RSSI/SKO
※ To change a radio, press 'Convert Radio' button by using the tab on the top of the right.
13) Check the statistics of extracted UEs (by AP/Radio).
ex.) by AP/Radio
[Monitoring] > [Statistics] > [Network Quality] > [by AP] > [802.11a/n/ac] >
[Association/Handover] > RSSI/SKO
※ To change a radio, press 'Convert Radio' button by using the tab on the top of the
right.
14) Check the statistics of wireless packet loss (by AP/Radio).
ex.) by AP/Radio
[Monitoring] > [Statistics] > [Network Quality] > [by AP] > [802.11a/n/ac] > Data
Traffic
※ To change a radio, press 'Convert Radio' button by using the tab on the top of the
right.
![](/img.php?id=2529411&img=bgde.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 522 of 628
ANNEX A. CLI Command Structure
The structure of CLI command is as follows.
A.1 configure
|-- configure
| |-- spectrum-analysis
| | |-- ap
| | | |-- service
| | | |-- channel-request
| | | | |-- channel-interval
| | | | |-- channel-control
| | | | | |-- dot11b
| | | | | |-- dot11aLow
| | | | | |-- dot11aMid
| | | | | |-- dot11aHigh
| | | |-- configuration-request
| | | | |-- sample
| | | | |-- interference
| | | | |-- duty-cycle
| |-- interferer
| | |-- 80211a
| | | |-- continuous_transmitter
| | | |-- cordless_phone
| | | |-- video_camera
| | |-- 80211b
| | | |-- bluetooth
| | | |-- microwave_oven
| | | |-- continuous_transmitter
| | | |-- cordless_phone
| | | |-- video_camera
| | | |-- zigbee
| | |-- unknown
| |-- hostname
| |-- call-fail-detect
![](/img.php?id=2529411&img=bgdf.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 523 of 628
| |-- mgmt-user-password
| |-- mgmt-user
| |-- telnet-timeout
| |-- console-timeout
| |-- system
| | |-- monitor
| | | |-- cpu
| | | | |-- threshold
| | | |-- memory
| | | | |-- threshold
| | |-- license
| | | |-- install-key
| | | |-- analyze-key
| |-- qos
| | |-- description
| | |-- max-dot1p
| | |-- ac
| | |-- bw-contract-downstream
| | |-- bw-contract-upstream
| | |-- call-test
| |-- country
| | |-- set-global
| | |-- set-ap
| | |-- add-channel
| | |-- del-channel
| | |-- max-tx-power
| |-- handover
| | |-- time
| | | |-- ho-decision
| | | |-- command
| | | |-- scan-suppress
| | |-- mode
| | |-- opmode
| | |-- scan-trigger-level
| | |-- scan-report-level
| | |-- scan-time-channel
| | |-- scan-time-service
| | |-- scan-time-interleave
| | |-- number-of-proreq
| | |-- number-of-channel
| | |-- buffered-forwarding
| | |-- handover-timer
| | |-- command
![](/img.php?id=2529411&img=bge0.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 524 of 628
| | |-- scanmode-clear
| | |-- start-buffering
| | |-- fwd-buffering
| | |-- upload-data
| | |-- decision-delta
| | |-- station-decision-delta
| | |-- nchostats-req
| | |-- inter-apc
| |-- station
| | |-- number-of-assoc-tracking
| | |-- stats-req
| | |-- device_type
| | |-- data
| | | |-- collection
| | | |-- assoc-latency-threshold
| | | |-- ho-latency-threshold
| | | |-- assoc-fail-threshold
| | | |-- ho-fail-threshold
| |-- security
| | |-- radius
| | | |-- auth
| | | |-- acct
| | | |-- serverIp
| | | |-- secret
| | | |-- fo-retransmit-count
| | | |-- retransmit-count
| | | |-- retransmit-interval
| | | |-- use-vip
| | |-- advanced
| | | |-- eap-retransmit-interval
| | | |-- eap-retransmit-count
| | | |-- eap-key-retransmit-interval
| | | |-- eap-key-retransmit-interval-1st
| | | |-- eap-key-retransmit-count
| | | |-- allow-last-eap-key-timeout
| | | |-- rsn-ie-ptksa-replay-counter
| | | |-- rsn-ie-gtksa-replay-counter
| | | |-- sta-info-free-timer-after-disassoc
| | | |-- log-mic-error
| | | |-- sta-auth-session-limit
| | | |-- eap-failure-quiet-period
| | |-- guestaccess
| | | |-- enable
![](/img.php?id=2529411&img=bge1.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 525 of 628
| | | |-- secure-auth-enable
| | | |-- idle-session-timeout
| | | |-- add-user
| | | |-- del-user
| | | |-- db-access-flag
| | | |-- ext-primary-radius-server
| | | |-- ext-secondary-radius-server
| | | |-- web-server
| | |-- captive-portal
| | | |-- web-auth
| | | | |-- auth-type
| | | | |-- after-auth
| | | | |-- redirect-url
| | | | |-- external-url
| | | | |-- downloaded-url
| | | | |-- title
| | | | |-- content
| | | | |-- message
| | | |-- enable
| | | |-- guest-auth
| | | |-- radius-primary
| | | |-- radius-secondary
| | | |-- web-server
| | | |-- add-user
| | | |-- del-user
| | |-- mac-filter
| | | |-- policy
| | | |-- mac
| | | |-- wlan_id
| | | |-- name
| | |-- ext-wips
| | | |-- enable
| | | |-- interval
| | | |-- primary
| | | |-- secondary
| | | |-- port
| | | |-- user
| | | |-- password
| |-- remote-ap-group
| | |-- add-ap
| | |-- local-auth
| | |-- primary-radius
| | |-- secondary-radius
![](/img.php?id=2529411&img=bge2.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 526 of 628
| |-- ap-group
| | |-- add-wlan
| | |-- add-ap
| | |-- profile
| | | |-- echo-interval
| | | |-- discovery-interval
| | | |-- report-interval
| | | |-- statistics-timer
| | | |-- retransmit-interval
| | | |-- max-retransmit
| | | |-- echo-retransmit-interval
| | | |-- max-echo-retransmit
| | | |-- ip-mode
| | | |-- primary-apc
| | | |-- secondary-apc
| | | |-- tertiary-apc
| | | |-- vlan-support
| | | |-- native-vlanId
| | | |-- auto-mode
| | | |-- description
| | | |-- telnet-enable
| | | |-- ssh-enable
| | | |-- led-config
| | | |-- fragment-size
| | | |-- discovery
| | | |-- time-config
| | | | |-- mode
| | | | |-- ac-stamp-interval
| | | | |-- timezone
| | |-- airmove
| | | |-- enable
| | | |-- target-ap
| | | |-- scan-trigger-level
| | | |-- scan-time-channel
| | | |-- scan-time-service
| | | |-- scan-time-interleave
| | | |-- number-of-proreq
| | | |-- number-of-channel
| | | |-- decision-delta
| |-- if-group
| | |-- add-if
| |-- wlan
| | |-- band-steering
![](/img.php?id=2529411&img=bge3.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 527 of 628
| | |-- load-balancing
| | |-- multicast-to-unicast
| | | |-- enable
| | | |-- discard
| | | |-- max-entry
| | |-- enable
| | |-- guest-flag
| | |-- radio
| | |-- ssid
| | |-- security
| | | |-- apply
| | | |-- wpa
| | | |-- psk
| | | |-- wpa2
| | | |-- ieee8021x
| | | |-- keymgmt
| | | |-- wep
| | | |-- okc
| | | |-- dynamicVlan
| | | |-- setDefault
| | | |-- grpRekeyTime
| | | |-- pmkLifeTime
| | | |-- radius-server
| | | | |-- auth-servers
| | | | |-- acct-servers
| | | |-- eapReauthTime
| | | |-- eapolVersion
| | | |-- radiusPrimaryRetryInterval
| | | |-- acct_interim_interval
| | | |-- layer3
| | | | |-- web-policy
| | | | |-- pre-auth-acl
| | | | |-- redirect-URL-override
| | | |-- mac-filter
| | |-- iuts
| | | |-- mode
| | | |-- latency
| | | |-- queue-length
| | | |-- filter-mode
| | | |-- codec-list
| | |-- if-group
| | |-- acl
| | |-- aaa-override
![](/img.php?id=2529411&img=bge4.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 528 of 628
| | |-- mac-type
| | |-- tunnel-mode
| | |-- qos-class
| | |-- ext-wips
| | |-- suppress-ssid
| | |-- dls-allowed
| | |-- local-vlan
| | |-- max-associated-stations
| | |-- vdm
| | | |-- multicast-info
| | | |-- station-policy
| | | |-- mode
| | | |-- threshold
| | | |-- default-policy
| | | |-- join-gap
| | | |-- session-timeout
| | | |-- multiframing_threshold
| | | |-- limit
| | | |-- retry-limit
| | | |-- schedule-interval
| | | |-- min-mux-packets
| | | |-- mux-skip-limit
| | | |-- station-queue-limit
| | | |-- packet-lifetime
| | | |-- pifs-access
| | | |-- tx-rate
| | | |-- retry-ratio-update-period
| | | |-- stop-threshold
| | | |-- stop-interval
| | | |-- start-rssi
| | | |-- seq-list-size
| | | |-- nack-interval
| | | |-- rx-timeout
| | |-- sds
| | | |-- weight
| | |-- dhcp-override
| | |-- ampdu
| | |-- reject-probe-mode
| |-- ap
| | |-- profile
| | | |-- dtls-policy
| | | |-- discovery
| | | |-- mac
![](/img.php?id=2529411&img=bge5.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 529 of 628
| | | |-- location
| | | |-- name
| | | |-- echo-interval
| | | |-- discovery-interval
| | | |-- report-interval
| | | |-- statistics-timer
| | | |-- retransmit-interval
| | | |-- max-retransmit
| | | |-- echo-retransmit-interval
| | | |-- max-echo-retransmit
| | | |-- ap-mode
| | | |-- ip-mode
| | | |-- static-ip
| | | |-- sync-group
| | | |-- primary-apc
| | | |-- secondary-apc
| | | |-- tertiary-apc
| | | |-- ap-stats-history-enable
| | | |-- vlan-support
| | | |-- native-vlanId
| | | |-- telnet-enable
| | | |-- ssh-enable
| | | |-- led-config
| | | |-- edge-ap
| | | |-- fragment-size
| | | |-- client-ip
| | | |-- repeater-whitelist
| | | |-- wlan-vlanId
| | | |-- time-config
| | | | |-- mode
| | | | |-- ac-stamp-interval
| | | | |-- timezone
| | |-- reboot
| | |-- upgrade-request
| | |-- tech-support
| | | |-- get-all
| | | |-- get-crash-file
| | | |-- get-coredump
| | | |-- get-log-file
| | | |-- get-system-report
| | |-- get-if-stats
| | |-- syslog-config
| | |-- shutdown
![](/img.php?id=2529411&img=bge6.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 530 of 628
| | |-- audit
| | | |-- wlan-reprovisioning
| | | |-- bss-status
| | |-- airmove
| | | |-- config-priority
| | | |-- scan-trigger-level
| | | |-- scan-time-channel
| | | |-- scan-time-service
| | | |-- scan-time-interleave
| | | |-- number-of-proreq
| | | |-- number-of-channel
| | | |-- decision-delta
| |-- ap-all
| | |-- upgrade
| | | |-- transfer-protocol
| | | |-- start
| | | |-- stop
| | | |-- max-retry
| | | |-- max-download
| | | |-- select-package
| | | |-- target
| | |-- reboot
| |-- apc
| | |-- security-auth-type
| | |-- R-MAC
| | |-- apc-list
| | | |-- add-apc
| | | |-- del-apc
| | | |-- change-name
| | | |-- change-mac
| | |-- ap-mgmt-if
| | |-- capwap
| | | |-- ctr-src-port
| | | |-- window-size
| | | |-- change-state-pending-timer
| | | |-- data-check-timer
| | | |-- dtls-session-delete
| | | |-- retransmit-interval
| | | |-- wait-dtls-timer
| | | |-- wait-join-timer
| | | |-- discovery-del-timer
| | | |-- max-retransmit
| | | |-- mutal-auth-enable
![](/img.php?id=2529411&img=bge7.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 531 of 628
| | | |-- discovery-by-multicast
| | | |-- add-multicast-if
| | | |-- discovery-by-broadcast
| | | |-- auto-discovery
| | | |-- auto-discovery-ap-group
| | | |-- add-admin-user
| | | |-- add-user
| | | |-- ecn-support
| | |-- tech-support
| | | |-- mode
| | | |-- max-retry
| | |-- ap-stats-history
| | | |-- mode
| | | |-- period
| | | |-- max-retry
| | | |-- enable
| | |-- ap-if-stats
| | | |-- period
| | |-- ap-time-config
| | | |-- add-ntp
| | | |-- ntp-interval
| | |-- service
| | | |-- wlan-reprovisioning
| | | |-- wlan-reprovisioning-count
| | | |-- wlan-reprovisioning-interval
| |-- redundancy
| | |-- fallback-enable
| | |-- fallback-interval
| | |-- add-apc
| | |-- del-apc
| |-- 80211a
| | |-- max-associated-stations
| | |-- edca-parameters
| | |-- qos
| | | |-- protocol
| | | |-- edca-profile
| | | | |-- cw-min
| | | | |-- cw-max
| | | | |-- aifsn
| | | | |-- txop-limit
| | | | |-- msdu-lifetime
| | | |-- policy
| | | | |-- dot1p
![](/img.php?id=2529411&img=bge8.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 532 of 628
| | | | | |-- enable
| | | | | |-- policy
| | | | |-- dscp
| | | | | |-- enable
| | | | | |-- policy
| | | |-- dot1p-tag
| | | |-- dscp-tag
| | | |-- ap-tags
| | | |-- qap-missing-ack-retry-limit
| | | |-- edca-avg-period
| | | |-- reset-edca-profiles
| | |-- cac
| | | |-- acm
| | | |-- reserved-ho-calls
| | | |-- max-calls
| | | |-- alarming-count
| | |-- rate
| | | |-- basic
| | | |-- supported
| | |-- txPower
| | |-- channel
| | |-- 11n-support
| | | |-- enable
| | | |-- mcs
| | | |-- forty-mhz
| | | |-- guard-interval
| | | |-- rifs
| | | |-- forty-mhz-intolerant
| | | |-- phy-format
| | | |-- tx-stbc
| | | |-- rx-stbc
| | | |-- beamforming
| | | |-- tx-mcs-set
| | | |-- protection
| | | |-- spatial-stream
| | |-- retry-limit
| | | |-- short
| | | |-- long
| | |-- threshold
| | | |-- rts
| | | |-- fragmentation
| | |-- msdu-lifetime
| | | |-- tx
![](/img.php?id=2529411&img=bge9.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 533 of 628
| | | |-- rx
| | |-- beacon
| | | |-- period
| | |-- ofdm
| | | |-- channel-width
| | | |-- channel-starting-factor
| | | |-- ti-threshold
| | |-- sds
| | | |-- enable
| | | |-- ampdu-control
| | | |-- schedule-interval
| | | |-- ac
| | | | |-- scheduler
| | | | |-- wfq-metric
| | | | |-- sq-max-length
| | | | |-- sq-drop-option
| | | | |-- token-unit
| | | | |-- fs-direction
| | | | |-- sq-retry-limit
| | | | |-- long-retry-limit
| | | | |-- short-retry-limit
| | | | |-- ampdu-tx-time-limit
| | |-- enable
| | |-- cvo
| | | |-- enable
| | | |-- local-call-enable
| | | |-- edit-profile
| | | | |-- aifsn
| | | | |-- cw-min
| | | | |-- cw-max
| | | | |-- txop-limit
| | | | |-- ampdu-limit
| | | |-- set-profile
| | |-- rate-control
| | | |-- voice
| | | | |-- max-rate
| | | | |-- probe-interval
| | | | |-- weight
| | | | |-- threshold
| | | |-- video
| | | | |-- max-rate
| | | | |-- probe-interval
| | | | |-- weight
![](/img.php?id=2529411&img=bgea.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 534 of 628
| | | | |-- threshold
| | |-- antenna
| | |-- station-kickout
| |-- 80211bg
| | |-- max-associated-stations
| | |-- edca-parameters
| | |-- qos
| | | |-- protocol
| | | |-- edca-profile
| | | | |-- cw-min
| | | | |-- cw-max
| | | | |-- aifsn
| | | | |-- txop-limit
| | | | |-- msdu-lifetime
| | | |-- policy
| | | | |-- dot1p
| | | | | |-- enable
| | | | | |-- policy
| | | | |-- dscp
| | | | | |-- enable
| | | | | |-- policy
| | | |-- dot1p-tag
| | | |-- dscp-tag
| | | |-- ap-tags
| | | |-- qap-missing-ack-retry-limit
| | | |-- edca-avg-period
| | | |-- reset-edca-profiles
| | |-- cac
| | | |-- acm
| | | |-- reserved-ho-calls
| | | |-- max-calls
| | | |-- alarming-count
| | |-- rate
| | | |-- basic
| | | |-- supported
| | |-- txPower
| | |-- channel
| | |-- 11n-support
| | | |-- enable
| | | |-- mcs
| | | |-- guard-interval
| | | |-- rifs
| | | |-- forty-mhz-intolerant
![](/img.php?id=2529411&img=bgeb.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 535 of 628
| | | |-- phy-format
| | | |-- tx-stbc
| | | |-- rx-stbc
| | | |-- beamforming
| | | |-- tx-mcs-set
| | | |-- protection
| | | |-- spatial-stream
| | |-- 11g-support
| | | |-- enable
| | |-- retry-limit
| | | |-- short
| | | |-- long
| | |-- threshold
| | | |-- rts
| | | |-- fragmentation
| | |-- msdu-lifetime
| | | |-- tx
| | | |-- rx
| | |-- beacon
| | | |-- period
| | |-- cca
| | | |-- mode
| | | |-- threshold
| | |-- sds
| | | |-- enable
| | | |-- ampdu-control
| | | |-- schedule-interval
| | | |-- ac
| | | | |-- scheduler
| | | | |-- wfq-metric
| | | | |-- sq-max-length
| | | | |-- sq-drop-option
| | | | |-- token-unit
| | | | |-- fs-direction
| | | | |-- sq-retry-limit
| | | | |-- long-retry-limit
| | | | |-- short-retry-limit
| | | | |-- ampdu-tx-time-limit
| | |-- enable
| | |-- cvo
| | | |-- enable
| | | |-- local-call-enable
| | | |-- edit-profile
![](/img.php?id=2529411&img=bgec.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 536 of 628
| | | | |-- aifsn
| | | | |-- cw-min
| | | | |-- cw-max
| | | | |-- txop-limit
| | | | |-- ampdu-limit
| | | |-- set-profile
| | |-- rate-control
| | | |-- voice
| | | | |-- max-rate
| | | | |-- probe-interval
| | | | |-- weight
| | | | |-- threshold
| | | |-- video
| | | | |-- max-rate
| | | | |-- probe-interval
| | | | |-- weight
| | | | |-- threshold
| | |-- antenna
| | |-- station-kickout
| |-- 80211h
| | |-- no-possess-time
| | |-- channel-switch
| | |-- power-constraint
| |-- alarm
| | |-- level
| | |-- group
| | |-- logsize
| | |-- logcount
| | |-- dump
| | |-- backupIP
| | |-- stdout
| | |-- current-terminal
| |-- event-filter
| | |-- enable
| |-- web-service-port
| |-- ip
| | |-- dhcp
| | | |-- pool
| | | | |-- network
| | | | |-- range
| | | | |-- lease
| | | | |-- domain-name
| | | | |-- dns-server
![](/img.php?id=2529411&img=bged.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 537 of 628
| | | | |-- default-router
| | | | |-- fix-address
| | | | |-- ntp-server
| | | | |-- user-option
| | | | |-- ping-check
| | | | |-- capwap-dhcp-option
| | | |-- enable
| | | |-- server-ip
| | |-- dhcp-proxy
| | | |-- timeout
| | | |-- default-dhcp-server
| | | |-- enable
| | |-- dns
| | | |-- client
| | | |-- relay
| | | |-- name-server
| | |-- igmp
| | | |-- limit
| | | |-- snooping
| | | |-- ssm-map
| | | | |-- enable
| | | | |-- static
| | |-- route
| | |-- multicast-routing
| | |-- pim
| | | |-- accept-register
| | | |-- anycast-rp
| | | |-- bsr-candidate
| | | |-- cisco-register-checksum
| | | |-- crp-cisco-prefix
| | | |-- ignore-rp-set-priority
| | | |-- jp-timer
| | | |-- register-rate-limit
| | | |-- register-rp-reachability
| | | |-- register-source
| | | |-- register-suppression
| | | |-- rp-address
| | | |-- rp-register-kat
| | | |-- spt-threshold
| | | |-- rp-candidate
| | | | |-- interval
| | | | | |-- priority
| | | | | | |-- group-list
![](/img.php?id=2529411&img=bgee.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 538 of 628
| | |-- nat
| |-- access-list
| |-- http
| |-- https
| |-- arp
| |-- firewall
| |-- wlan-arp-mode
| |-- package
| | |-- upgrade
| |-- stats-report
| | |-- enable
| | |-- upload
| | |-- target
| | |-- current-stats
| |-- telnet-server
| | |-- enable
| | |-- port
| |-- ssh-server
| | |-- enable
| | |-- port
| |-- sftp-server
| | |-- enable
| | |-- chguser
| |-- ftp-server
| | |-- enable
| | |-- port
| | |-- chguser
| |-- clock
| | |-- set
| | |-- timezone
| |-- ntp
| | |-- server
| | | |-- enable
| | |-- client
| | | |-- enable
| | | |-- interval
| | | |-- server-addr
| | | | |-- ip
| | | | |-- hostname
| |-- syslog
| | |-- enable
| | |-- add
| | |-- del
![](/img.php?id=2529411&img=bgef.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 539 of 628
| | |-- level
| |-- bridge
| | |-- protocol
| | | |-- ieee
| | | |-- mstp
| | | |-- rstp
| | |-- ageing-time
| | |-- address
| | | |-- discard
| | | | |-- vlan
| | | |-- forward
| | | | |-- vlan
| | |-- max-age
| | |-- forward-time
| | |-- hello-time
| | |-- instance
| | |-- max-hops
| | |-- spanning-tree
| | | |-- enable
| | | |-- errdisable-timeout
| | | | |-- enable
| | | | |-- interval
| | | |-- portfast
| | | | |-- bpdu-filter
| | | | |-- bpdu-guard
| | |-- rapid-spanning-tree
| | | |-- enable
| | |-- multiple-spanning-tree
| | | |-- enable
| | |-- priority
| | |-- transmit-holdcount
| |-- spanning-tree
| | |-- bridge
| | | |-- instance
| | | | |-- vlan
| | | |-- region
| | | |-- revision
| |-- vlan
| | |-- vlan
| |-- interface
| | |-- switchport
| | | |-- mode
| | | |-- access
![](/img.php?id=2529411&img=bgf0.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 540 of 628
| | | |-- trunk
| | | | |-- add
| | | | |-- except
| | | | |-- remove
| | | | |-- all
| | | | |-- none
| | | |-- hybrid
| | | | |-- allowed
| | | | | |-- add
| | | | | |-- remove
| | | | | |-- all
| | | | | |-- none
| | | | |-- vlan
| | |-- static-channel-group
| | |-- channel-group
| | |-- flowcontrol
| | |-- storm-control
| | | |-- level
| | |-- bridge-group
| | | |-- instance
| | | | |-- path-cost
| | | | |-- priority
| | | |-- priority
| | | |-- path-cost
| | |-- mirror
| | | |-- interface
| | | | |-- direction
| | |-- ip
| | | |-- address
| | | |-- igmp
| | | | |-- ra-option
| | | | |-- access-group
| | | | |-- immediate-leave
| | | | |-- last-member-query-count
| | | | |-- last-member-query-interval
| | | | |-- limit
| | | | | |-- except
| | | | |-- mroute-proxy
| | | | |-- querier-timeout
| | | | |-- query-interval
| | | | |-- query-max-response-time
| | | | |-- robustness-variable
| | | | |-- snooping
![](/img.php?id=2529411&img=bgf1.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 541 of 628
| | | | | |-- fast-leave
| | | | | |-- mrouter
| | | | | |-- querier
| | | | | |-- report-suppression
| | | | |-- static-group
| | | | | |-- interface
| | | | | |-- source
| | | | | | |-- interface
| | | | |-- version
| | | |-- pim
| | | | |-- sparse-mode
| | | | |-- bsr-border
| | | | |-- dr-priority
| | | | |-- exclude-genid
| | | | |-- hello-holdtime
| | | | |-- hello-interval
| | | | |-- neighbor-filter
| | | | |-- propagation-delay
| | | | |-- unicast-bsm
| | | |-- access-group
| | | |-- nat
| | | |-- proxy-arp
| | | |-- tcp-adjust-mss
| | | |-- rip
| | | | |-- authentication
| | | | | |-- key-chain
| | | | | |-- mode
| | | | | |-- string
| | | | |-- receive
| | | | | |-- version
| | | | |-- receive-packet
| | | | |-- send
| | | | | |-- version
| | | | |-- send-packet
| | | | |-- split-horizon
| | | |-- ospf
| | | | |-- address
| | | | | |-- authentication
| | | | | |-- authentication-key
| | | | | |-- cost
| | | | | |-- database-filter
| | | | | |-- dead-interval
| | | | | |-- hello-interval
![](/img.php?id=2529411&img=bgf2.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 542 of 628
| | | | | |-- message-digest-key
| | | | | | |-- md5
| | | | | |-- mtu-ignore
| | | | | |-- priority
| | | | | |-- retransmit-interval
| | | | | |-- transmit-delay
| | | | |-- authentication
| | | | |-- authentication-key
| | | | |-- cost
| | | | |-- database-filter
| | | | |-- dead-interval
| | | | |-- hello-interval
| | | | |-- message-digest-key
| | | | | |-- md5
| | | | |-- mtu-ignore
| | | | |-- priority
| | | | |-- retransmit-interval
| | | | |-- transmit-delay
| | | | |-- disable
| | | | |-- mtu
| | | | |-- network
| | |-- shutdown
| | |-- traffic-shape
| | |-- service-policy
| | |-- dhcp
| | | |-- server
| | | |-- option-82
| | |-- arp-ageing-timeout
| | |-- speed-duplex
| | |-- mtu
| | |-- spanning-tree
| | | |-- autoedge
| | | |-- edgeport
| | | |-- force-version
| | | |-- guard
| | | |-- hello-time
| | | |-- instance
| | | | |-- path-cost
| | | | |-- priority
| | | | |-- restricted-role
| | | | |-- restricted-tcn
| | | |-- link-type
| | | |-- path-cost
![](/img.php?id=2529411&img=bgf3.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 543 of 628
| | | |-- portfast
| | | | |-- bpdu-filter
| | | | |-- bpdu-guard
| | | |-- priority
| | | |-- restricted-role
| | | |-- restricted-tcn
| | | |-- transmit-holdcount
| |-- vrrp
| |-- router
| | |-- rip
| | | |-- cisco-metric-behavior
| | | |-- default-information
| | | |-- default-metric
| | | |-- distance
| | | |-- distribute-list
| | | |-- maximum-prefix
| | | |-- neighbor
| | | |-- network
| | | |-- offset-list
| | | |-- passive-interface
| | | |-- recv-buffer-size
| | | |-- redistribute
| | | | |-- metric
| | | | |-- route-map
| | | |-- route
| | | |-- timers
| | | | |-- basic
| | | |-- version
| | |-- ospf
| | | |-- area
| | | | |-- authentication
| | | | |-- default-cost
| | | | |-- filter-list
| | | | |-- nssa
| | | | | |-- default-information-originate
| | | | | | |-- metric
| | | | | | |-- metric-type
| | | | | | |-- no-redistribution
| | | | | | |-- no-summary
| | | | | | |-- translator-role
| | | | | |-- no-redistribution
| | | | | |-- no-summary
| | | | | |-- translator-role
![](/img.php?id=2529411&img=bgf4.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 544 of 628
| | | | |-- range
| | | | |-- shortcut
| | | | |-- stub
| | | | |-- virtual-link
| | | | | |-- authentication
| | | | | |-- authentication-key
| | | | | |-- dead-interval
| | | | | |-- hello-interval
| | | | | |-- message-digest-key
| | | | | | |-- md5
| | | | | |-- retransmit-interval
| | | | | |-- transmit-delay
| | | |-- auto-cost
| | | |-- capability
| | | | |-- opaque
| | | |-- compatible
| | | |-- default-information
| | | | |-- always
| | | | |-- metric
| | | | |-- metric-type
| | | | |-- route-map
| | | |-- default-metric
| | | |-- distance
| | | | |-- admin
| | | | |-- ospf
| | | |-- distribute-list
| | | | |-- in
| | | | |-- out
| | | |-- host
| | | | |-- area
| | | |-- max-concurrent-dd
| | | |-- maximum-area
| | | |-- neighbor
| | | | |-- cost
| | | | |-- poll-interval
| | | | |-- priority
| | | |-- network
| | | | |-- area
| | | |-- ospf
| | | | |-- abr-type
| | | | |-- router-id
| | | |-- overflow
| | | | |-- database
![](/img.php?id=2529411&img=bgf5.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 545 of 628
| | | |-- passive-interface
| | | |-- redistribute
| | | | |-- metric
| | | | |-- metric-type
| | | | |-- route-map
| | | | |-- tag
| | | |-- router-id
| | | |-- summary-address
| | | |-- timers
| | | | |-- spf
| | | | | |-- exp
| | |-- vrrp
| | | |-- advertisement-interval
| | | |-- circuit-failover
| | | |-- disable
| | | |-- enable
| | | |-- preempt-mode
| | | |-- preempt-delay
| | | |-- priority
| | | |-- virtual-ip
| |-- os-aware
| | |-- os-aware
| | |-- delete
| | |-- update
| |-- ipwatch
| |-- ftp
| |-- stationtracking
| | |-- station
| | |-- on
| | |-- off
| |-- fqm-mode
| | |-- access-list
| | |-- class-map
| | | |-- match
| | | | |-- access-group
| | | | |-- class
| | | | |-- cos
| | | | |-- dst
| | | | |-- ip
| | | | | |-- dscp
| | | | | |-- precedence
| | | | | |-- tos
| | | | |-- protocol
![](/img.php?id=2529411&img=bgf6.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 546 of 628
| | | | |-- src
| | | |-- match-type
| | |-- no
| | |-- policy-map
| | | |-- class
| | | | |-- police
| | | | | |-- cir
| | | | |-- mark
| | | | | |-- cos
| | | | | |-- ip
| | | | | | |-- dscp
| | | | | | |-- precdence
| | | | | |-- priority
| | | | |-- bandwidth
| | | | |-- shape-peak
| | | | |-- queue-limit
| | |-- ip
| | |-- time-profile
| | | |-- day-start
| | |-- update
| | | |-- access-list
| |-- if-arbiter
| |-- sipalg
| | |-- enable
| | |-- sip-error-resp-enable
| | |-- monitor-port
| | |-- sip-detect-long-call-enable
| | |-- sip-long-call-timeout
| |-- rrm
| | |-- enable
| | |-- 80211a
| | | |-- dpc
| | | | |-- enable
| | | | |-- periodic-interval
| | | | |-- rssi-threshold
| | | | |-- txPower
| | | |-- dcs
| | | | |-- enable
| | | | |-- periodic-interval
| | | | |-- anchor-time
| | | | |-- interference-level-threshold
| | | | |-- channel-utilization-threshold
| | | | |-- my-utilization-threshold
![](/img.php?id=2529411&img=bgf7.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 547 of 628
| | | | |-- channel
| | | | |-- aware-option
| | | | |-- delayed-channel-change
| | | |-- chdc
| | | | |-- enable
| | | | |-- statsCollectEnable
| | | | |-- statsWarningEnable
| | | | |-- statsActionEnable
| | | | |-- statsCollectInterval
| | | | |-- rssi-threshold
| | | | |-- min-failed-client-count
| | | | |-- percent-failed-client-count
| | |-- 80211b
| | | |-- dpc
| | | | |-- enable
| | | | |-- periodic-interval
| | | | |-- rssi-threshold
| | | | |-- txPower
| | | |-- dcs
| | | | |-- enable
| | | | |-- periodic-interval
| | | | |-- anchor-time
| | | | |-- interference-level-threshold
| | | | |-- channel-utilization-threshold
| | | | |-- my-utilization-threshold
| | | | |-- channel
| | | | |-- aware-option
| | | | |-- delayed-channel-change
| | | |-- chdc
| | | | |-- enable
| | | | |-- statsCollectEnable
| | | | |-- statsWarningEnable
| | | | |-- statsActionEnable
| | | | |-- statsCollectInterval
| | | | |-- rssi-threshold
| | | | |-- min-failed-client-count
| | | | |-- percent-failed-client-count
| | |-- rf-group-name
| | |-- sub-channel-group
| | | |-- enable
| | | |-- disable
| | | |-- group-name
| | | |-- add-ap
![](/img.php?id=2529411&img=bgf8.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 548 of 628
| | | |-- del-ap
| | | |-- add-channel
| | | |-- del-channel
| |-- cluster
| | |-- keep-alive-interval
| | |-- keep-alive-retry-count
| | |-- enable
| | |-- add-apc
| | |-- del-apc
| | |-- del-apc-all
| |-- wids
| | |-- enable
| | |-- ap-blacklist
| | |-- client-blacklist
| | |-- ssid-whitelist
| | |-- oui-whitelist
| | |-- friendlylist
| | |-- rogue
| | | |-- expiration-timeout
| | | |-- remove
| | | |-- move
| | | |-- modify-state
| | | |-- adhoc-connection-detection
| | | |-- ap
| | | | |-- ap-blacklist-check
| | | | |-- managed_ssid_invalid_security
| | | | |-- illegal-channel-detection
| | | | |-- unknownap
| | | | | |-- managed-ssid-withauth-client-det
| | | | | |-- wired-netwrok-detection
| | | | |-- fakeap
| | | | | |-- managed-ssid-detection
| | | | | |-- beacon-without-ssid-detection
| | | | | |-- beacon-on-invalid-channel-detection
| | | | |-- managedap
| | | | | |-- invalid-ssid-detection
| | | |-- client
| | | | |-- oui-list-check
| | | | |-- auth-request-det
| | | | |-- probe-request-det
| | | | |-- deauth-request-det
| | | | |-- assoc-fail-det
| | | | |-- auth-fail-det
![](/img.php?id=2529411&img=bgf9.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 549 of 628
| | | | |-- oneXauth-fail-det
| | | | |-- webauth-fail-det
| | | | |-- exclusion-list-check
| | | | |-- allowed-limit
| | | |-- add-friendly-rule
| | | |-- del-friendly-rule
| | | |-- modify-friendly-rule
| | | |-- add-malicious-rule
| | | |-- del-malicious-rule
| | | |-- modify-malicious-rule
| | |-- channel-validation
| | | |-- enable
| | | |-- add
| | | |-- delete
| |-- monitor-radio
| | |-- scan-interval
| | |-- periodic-interval
| |-- snmp
| | |-- community
| | |-- user
| | |-- trap
| | |-- trap-source-ip
| |-- pcap
| | |-- mode
| | |-- start-service
| | |-- filter
| | | |-- station-mac
| | | |-- enable-station-mac
| | | |-- ap-mac
| | | |-- enable-ap-mac
| |-- wlan-radio-service
| | |-- sta-idle-timeout
| | |-- wmm-mode
| | |-- dtim
| |-- preferred-calls
| | |-- add
| | |-- del
| |-- locationtrack
| | |-- autotrace
| | |-- algorithm
| | |-- enable
| | |-- ap
| | |-- station
![](/img.php?id=2529411&img=bgfa.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 550 of 628
| | |-- rogueap
| | |-- roguestation
| | |-- expiryhistory
| |-- vcc
| | |-- scme-if
| | |-- add-user
| | |-- handover
| | |-- enable
| |-- voice
| | |-- monitor
| | | |-- enable
| | | |-- interval
| | | |-- fieldType
| | | | |-- ip
| | | | |-- mac
| | | | |-- user-name
| | | | |-- phone-no
| | |-- vqm
| | | |-- enable
| | | |-- connection-limit
| | | |-- reporting-mode
| | | |-- periodic-timer
| | | |-- session-idle-timer
| | | |-- rtp-port-range
| | | |-- alarm
| | | | |-- enable
| | | | |-- threshold
| | | |-- upload
| | | | |-- enable
| | | | |-- server
| | | | |-- interval
| | | | |-- mode
| | | | |-- user-login
| | | | |-- target-directory
| | | | |-- file-size
| | | | |-- immediate-upload
| | | |-- filter
| | | | |-- prefix
| |-- router-id
| |-- route-map
| | |-- match
| | | |-- interface
| | | |-- ip
![](/img.php?id=2529411&img=bgfb.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 551 of 628
| | | |-- metric
| | | |-- route-type
| | | |-- tag
| | |-- set
| | | |-- dampening
| | | |-- ip
| | | |-- metric
| | | |-- metric-type
| | | |-- tag
![](/img.php?id=2529411&img=bgfc.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 552 of 628
A.2 show
|-- show
| |-- band-steering
| |-- load-balancing
| |-- air-quality
| | |-- count
| | | |-- interferers
| | | |-- worst-interferers
| |-- spectrum-analysis
| | |-- config
| | | |-- ap
| | |-- report
| | | |-- duty_cycle
| | | | |-- ap
| | | |-- sample
| | | | |-- ap
| | | |-- interference
| | | | |-- ap
| |-- mgmt-users
| |-- command-log
| |-- cli-idle-timeout
| |-- cli-sessions
| |-- country
| | |-- global-config
| | |-- ap-config
| | |-- information
| |-- voip
| | |-- config
| | |-- call-info
| |-- vcc
| | |-- connect-status
| | |-- msg-counts
| |-- 80211a
| | |-- cac
| | | |-- configuration
| | |-- summary
| | |-- qos
| | | |-- policy
| | | |-- ac-profile
| | | |-- edca-parameters
| | | |-- radio-configuration
| | |-- radio-config
| | |-- voip-stats
![](/img.php?id=2529411&img=bgfd.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 553 of 628
| | |-- cvo
| | | |-- profile
| | | |-- config
| | | |-- neighbors
| | | |-- channel-info
| | | |-- call-count
| | | |-- heads
| |-- 80211bg
| | |-- cac
| | | |-- configuration
| | |-- summary
| | |-- qos
| | | |-- policy
| | | |-- ac-profile
| | | |-- edca-parameters
| | | |-- radio-configuration
| | |-- radio-config
| | |-- voip-stats
| | |-- cvo
| | | |-- profile
| | | |-- config
| | | |-- neighbors
| | | |-- channel-info
| | | |-- call-count
| | | |-- heads
| |-- 80211h
| | |-- configuration
| | |-- prohibit-channels
| |-- qos
| | |-- profile
| |-- wlan-radio-service
| | |-- config
| | |-- msg-counts
| |-- handover
| |-- airmove
| | |-- ap
| | |-- group
| |-- station
| | |-- stats
| | | |-- management_frame
| | | | |-- all
| | | |-- NCHO
| | | | |-- all
![](/img.php?id=2529411&img=bgfe.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 554 of 628
| | | |-- IAHO
| | | | |-- all
| | | |-- debug
| | | | |-- all
| | | |-- ap-80211-stats
| | |-- association
| | | |-- history
| | |-- summary
| | | |-- ap
| | | |-- bssid
| | | |-- wlan
| | |-- detail
| | |-- data
| | | |-- configuration
| | | |-- wlan
| | | |-- radio
| | | |-- ap
| | | |-- ap-packet-loss
| | | |-- ap-packet-loss-raw
| | | |-- device
| | | |-- worst_wlan
| | | |-- worst_radio
| | | |-- global_stats
| |-- system
| | |-- info
| | |-- uptime
| | |-- load
| | |-- cpu
| | |-- memory
| | |-- disk
| | |-- fan
| | |-- temp
| | |-- threshold
| | | |-- cpu
| | | |-- memory
| | | |-- disk
| | | |-- fan
| | | |-- temp
| | |-- fancontrol
| | |-- license-key
| |-- remote-ap-group
| | |-- summary
| | |-- user-state
![](/img.php?id=2529411&img=bgff.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 555 of 628
| | |-- detail
| |-- ap-group
| | |-- summary
| | |-- detail
| | |-- time-config
| |-- ap
| | |-- upgrade
| | | |-- summary
| | | |-- list
| | |-- summary
| | |-- detail
| | |-- wlan-vlan
| | |-- stats-history
| | |-- if-stats
| | |-- join-stats
| | |-- capwap-stats
| | |-- radio-stats
| | |-- tech-support
| | |-- time-config
| | |-- syslog-config
| |-- apc
| | |-- summary
| | |-- list
| | |-- capwap
| | | |-- summary
| | |-- ap-if-stats
| |-- redundancy
| | |-- summary
| | |-- priority-list
| |-- wlan
| | |-- summary
| | |-- detail
| | |-- security
| | | |-- summary
| | | |-- detail
| |-- vap
| |-- if-group
| |-- alarm
| | |-- info
| | |-- conf
| | |-- list
| | | |-- all
| | | |-- level
![](/img.php?id=2529411&img=bg100.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 556 of 628
| | | |-- group
| | |-- history
| | | |-- all
| | | |-- level
| | | |-- group
| | |-- backup
| |-- event
| |-- running-config
| | |-- system
| | |-- cli-idle-timeout
| | |-- alarm
| | |-- network
| | |-- snmp
| | |-- wifim
| | |-- vqm
| | |-- voice-vqm
| | |-- apc
| | |-- capwap
| | |-- if-group
| | |-- wlan
| | |-- wlan-security
| |-- tech-support
| | |-- version
| | |-- uptime
| | |-- system
| | |-- cpu
| | |-- load
| | |-- memory
| | |-- disk
| | |-- process
| | |-- processlog
| | |-- processmemory
| | |-- coredump
| | |-- crash
| | |-- swm-log
| | |-- alarm
| | |-- debug
| | |-- cluster
| | |-- redundancy
| | |-- cli-idle-timeout
| | |-- network
| | |-- snmp
| | |-- wifim
![](/img.php?id=2529411&img=bg101.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 557 of 628
| | |-- vqm
| | |-- apc
| | |-- capwap
| | |-- if-group
| | |-- wlan
| | |-- wlan-security
| | |-- rrm
| | |-- alarmhistory
| | |-- event
| | |-- wids
| |-- ip
| | |-- dhcp
| | | |-- pool
| | | |-- lease
| | | |-- proxy-lease
| | | |-- statistics
| | | |-- process
| | |-- dhcp-proxy
| | |-- dns
| | | |-- name-server
| | | |-- relay
| | | | |-- cache
| | | | |-- cache-info
| | |-- igmp
| | | |-- groups
| | | |-- interface
| | | |-- snooping
| | | | |-- mroute
| | | | |-- statistics
| | | |-- ssm-map
| | |-- route
| | |-- interface
| | |-- rip
| | |-- protocols
| | |-- nat
| | |-- access-list
| | |-- filter
| | |-- pim
| | | |-- sparse-mode
| | | | |-- bsr-router
| | | | |-- interface
| | | | |-- local-members
| | | | |-- mroute
![](/img.php?id=2529411&img=bg102.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 558 of 628
| | | | |-- neighbor
| | | | |-- nexthop
| | | | |-- rp
| | | | |-- rp-hash
| | |-- ospf
| | | |-- border-routers
| | | |-- database
| | | | |-- adv-router
| | | | |-- asbr-summary
| | | | |-- external
| | | | |-- max-age
| | | | |-- network
| | | | |-- nssa-external
| | | | |-- opaque-area
| | | | |-- opaque-as
| | | | |-- opaque-link
| | | | |-- router
| | | | |-- self-originate
| | | | |-- summary
| | | |-- neighbor
| | | |-- route
| | | |-- virtual-links
| |-- access-list
| |-- arp
| |-- wireless-acl-list
| |-- multi2uni-list
| |-- interface
| |-- vlan
| |-- mirror
| |-- reboot
| |-- processes
| | |-- status
| | |-- log
| | |-- memory
| |-- version
| |-- syslog
| |-- debug
| | |-- coredump
| | | |-- summary
| | |-- reboot
| | | |-- info
| | | |-- summary
| | | |-- export
![](/img.php?id=2529411&img=bg103.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 559 of 628
| | |-- log
| | | |-- all
| | | |-- level
| | | |-- module
| | | |-- conf
| | | |-- backup
| | | |-- keyword
| | | |-- detail
| | | | |-- all
| | | | |-- level
| | | | |-- module
| | | | |-- backup
| | | | |-- conf
| | | | |-- keyword
| | | | |-- before
| | | | |-- after
| | | | |-- start-time
| | | |-- before
| | | |-- after
| | | |-- start-time
| | |-- swm-log
| | |-- processes
| | |-- apm
| | | |-- msg-count
| | | |-- disk-size
| | | |-- timer
| | | |-- test-result
| | | |-- end-message
| | | |-- shared-memory
| | |-- event
| |-- ssh-server
| |-- telnet-server
| |-- ftp-server
| |-- filter
| |-- filter-stats
| |-- policy-map
| |-- class-map
| |-- firewall
| |-- sftp-server
| |-- ntp
| |-- timezone
| |-- clock
| |-- event-filter
![](/img.php?id=2529411&img=bg104.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 560 of 628
| |-- security
| | |-- radius-server
| | | |-- config
| | | |-- summary
| | | |-- detail
| | | |-- stats
| | |-- advanced
| | |-- hapd-stats
| | |-- hapd-ap-stats
| | |-- guestaccess
| | | |-- help
| | | |-- current-config
| | | |-- config-user-detail
| | |-- captive-portal
| | | |-- stats
| | | |-- running-info
| | | |-- config
| | | |-- guest
| | | |-- web-auth
| | | |-- rad-msg
| | | |-- rad-retrans
| | | |-- failed-sta
| | |-- mac-filter
| | | |-- summary
| | | |-- detail
| | |-- ext-wips
| | | |-- config
| | | |-- list
| |-- vrrp
| |-- static-channel-group
| |-- bridge
| |-- etherchannel
| |-- spanning-tree
| | |-- mst
| | | |-- config
| | | |-- detail
| | | | |-- interface
| | | |-- instance
| | | | |-- interface
| | | |-- interface
| | |-- interface
| |-- sipalg
| | |-- configuration
![](/img.php?id=2529411&img=bg105.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 561 of 628
| | |-- stats
| | |-- call
| | | |-- summary
| | | |-- detail
| |-- rrm
| | |-- config-summary
| | |-- help
| | |-- neighbor-list
| | |-- channel-status
| | |-- rrm-history
| | |-- sub-channel-group
| |-- locationtrack
| | |-- help
| | |-- config
| | |-- ap
| | |-- floor
| | |-- station
| | |-- rogueap
| | |-- roguestation
| |-- debugging
| | |-- lacp
| |-- port
| |-- lacp
| |-- http
| |-- https
| |-- snmp
| | |-- community
| | |-- user
| | |-- trap
| |-- pcap
| | |-- current-config
| |-- cluster
| | |-- config
| | |-- current-stats-all
| | |-- current-stats-apc
| | |-- help
| | |-- list-apc
| | |-- list-station
| | |-- summary-stats-all
| | |-- summary-stats-apc
| |-- wids
| | |-- help
| | |-- statistics
![](/img.php?id=2529411&img=bg106.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 562 of 628
| | |-- current-config
| | |-- lists
| | | |-- ap-whitelist
| | | |-- ap-blacklist
| | | |-- client-whitelist
| | | |-- client-blacklist
| | | |-- friendlylist
| | | |-- oui-list
| | | |-- ssid-whitelist
| | |-- rogue
| | | |-- ap
| | | | |-- current-config
| | | | |-- list
| | | | |-- detail
| | | |-- client
| | | | |-- current-config
| | | | |-- allow-limit
| | | | |-- list
| | | | |-- detail
| | | |-- adhoc
| | | | |-- list
| | | | |-- detail
| | | |-- rule
| | | | |-- friendly
| | | | |-- malicious
| |-- wips
| | |-- help
| | |-- current-config
| |-- stats-report
| | |-- conf
| | |-- current-stats
| |-- stationtracking
| | |-- station
| | |-- conf
| |-- preferred-calls
| |-- vdm
| | |-- config
| | |-- policy-for-station
| |-- sds
| | |-- radio
| | |-- wlan
| |-- config-files
| |-- rate-control
![](/img.php?id=2529411&img=bg107.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 563 of 628
| |-- tx-power-range
| |-- os-aware
| |-- os-aware-all
| |-- monitor-radio
| |-- voice
| | |-- station
| | | |-- summary
| | | |-- detail
| | | | |-- mac
| | | | |-- ip
| | | | |-- user-name
| | | | |-- tel-no
| | |-- active-call
| | | |-- summary
| | | |-- detail
| | | | |-- mac
| | | | |-- ip
| | | | |-- user-name
| | | | |-- tel-no
| | |-- complete-call
| | | |-- summary
| | | |-- detail
| | | | |-- mac
| | | | |-- ip
| | | | |-- user-name
| | | | |-- tel-no
| | |-- vqm
| | | |-- help
| | | |-- current-config
| | | |-- summary-stats
| | | |-- debug-stats
| | | |-- current-stats
| | | |-- history-stats
| | | |-- alarms
| | |-- statistics
| | | |-- ap
| | | |-- radio
| | | |-- wlan
| | | |-- device
| | | |-- station
| | |-- event
| | |-- sipmsg-log
| | |-- device
| | |-- debug-stats
| |-- bss-if
![](/img.php?id=2529411&img=bg108.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 564 of 628
A.3 clear
|-- clear
| |-- air-quality
| | |-- count
| | | |-- interferers
| |-- stats
| | |-- station
| | | |-- globally
| | | |-- individually
| |-- interference
| | |-- report
| |-- vap
| |-- ip
| | |-- igmp
| | | |-- group
| | | |-- interface
| | |-- rip
| | |-- pim
| | | |-- sparse-mode
| | |-- nat
| | |-- ospf
| |-- spanning-tree
| | |-- bridge
| | |-- interface
| |-- 80211a
| | |-- voip-stats
| |-- 80211bg
| | |-- voip-stats
| |-- preferred-calls
| |-- wlan-radio-service
| |-- vcc-msg-counts
| |-- cli-session
| |-- interface
| |-- arp-cache
| |-- voice
| | |-- vqm
| | | |-- all
| | | |-- history-stats
| | | |-- summary-stats
| | | |-- current-stats
| | | |-- history-file
| | | |-- debug-stats
| | |-- active-call
![](/img.php?id=2529411&img=bg109.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 565 of 628
| | |-- statistics
| | |-- event
| | |-- sipmsg-log
| | |-- debug-stats
| |-- sipalg
| | |-- stats
| |-- pcap-stat
| |-- security
| | |-- radius-server
| | | |-- stats
| | |-- hapd-stats
| | |-- hapd-ap-stats
| | |-- captive-portal
| | | |-- stats
| |-- cluster
| | |-- clear-all
| | |-- clear-apc
| |-- log
| | |-- debug
| | | |-- current
| | | |-- all
| | | |-- detail
| | | | |-- current
| | | | |-- all
| | |-- alarm
| | |-- actalarm
| | |-- alarminfo
| |-- vrrp
![](/img.php?id=2529411&img=bg10a.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 566 of 628
A.4 debug
|-- debug
| |-- processes
| | |-- config
| |-- crash
| | |-- erase
| |-- igmp
| |-- lacp
| |-- pim
| | |-- sparse-mode
| |-- fqm
| | |-- acl
| | |-- function
| | |-- message
| | |-- qos
| |-- nsm
| | |-- all
| | |-- events
| | |-- kernel
| | |-- mcast
| | |-- packet
| |-- rip
| | |-- all
| | |-- events
| | |-- nsm
| | |-- packet
| |-- mstp
| | |-- all
| | |-- cli
| | |-- packet
| | |-- protocol
| | |-- timer
| |-- vrrp
| |-- ospf
| | |-- all
| | |-- events
| | |-- ifsm
| | |-- lsa
| | |-- nfsm
| | |-- nsm
| | |-- packet
| | |-- route
| |-- traceroute
![](/img.php?id=2529411&img=bg10b.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 567 of 628
| |-- tcpdump
| |-- irfm
| | |-- module
| |-- rfsgw
| |-- wids
| |-- locationtracking
| |-- cluster
| | |-- all
| |-- guestaccess
| | |-- all
| |-- log
| | |-- level
| | |-- logsize
| | |-- logcount
| | |-- on
| | |-- off
| | |-- detail
| | | |-- level
| | | |-- logsize
| | | |-- logcount
| | | |-- on
| | | |-- off
| | |-- mstdout
| | | |-- module
| | | |-- level
| | | |-- on
| | | |-- off
| |-- dhcp-info
| |-- capwap
| | |-- trace
| | |-- log
| | |-- status
| | |-- ip
| | |-- statistics
| |-- sipalg
| | |-- enable
| |-- apm
| | |-- clear
| | |-- block-endmsg
| | |-- fail-endmsg
| | |-- capwap-result-code
| | |-- event
| | | |-- AP_UPGRADE_STATUS
![](/img.php?id=2529411&img=bg10c.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 568 of 628
| | |-- shared-memory
| | | |-- clear
| | | |-- add-ap
| | | |-- del-ap
| | | |-- findApIdListWithWlanProfileId
| | | |-- findWlanIdWithApgIdAndWlanProfileId
| | | |-- findWlanIdWithApIdAndWlanProfileId
| | | |-- findWlanProfileIdWithApIdAndWlanId
| | | |-- findWlanIdSetListWithApgId
| | | |-- findWlanIdSetListWithAp
| | |-- wlan
| | | |-- reject-probe
| | | | |-- rssi
| | | | |-- time
![](/img.php?id=2529411&img=bg10d.png)
ANNEX A. CLI Command Structure
© SAMSUNG Electronics Co., Ltd. page 569 of 628
A.5 file
|-- file
| |-- download
| |-- upload
| |-- copy
| |-- remove
| |-- move
| |-- ls
| |-- pwd
| |-- cd
| |-- dump
| |-- df
| |-- verify
| |-- version
A.6 Etc
|-- reboot
|-- save
| |-- local
|-- factory-reset
|-- export
|-- import
|-- ping
|-- traceroute
|-- tcpdump
|-- telnet
|-- ssh
![](/img.php?id=2529411&img=bg10e.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 570 of 628
ANNEX B. Open Source
Announcement (WEC8500/WEC8050)
Some software components of this product incorporate source code covered under the
GNU General Public License (GPL), the GNU Lesser General Public License (LGPL) and
BSD License etc.
Acknowledgement:
This product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)
The software included in this product contains copyrighted software that is licensed under
the GPL/LGPL. You may obtain the complete Corresponding Source code from us for a
period of three years after our last shipment of this product by sending email to:
oss.request@samsung.com
If you want to obtain the complete Corresponding Source code in the physical medium
such as CD-ROM, the cost of physically performing source distribution may be charged.
You may also find a copy of the source at
http://www.samsungnetwork.com/Home/Opensource
This offer is valid to anyone in receipt of this information.
Below is the list of components covered under GNU General Public License, the GNU
Lesser General Public License and BSD License etc.
Open Source Software
License
Apache HTTP Server
Apache License 2.0
lz4mt
BSD License
CyoEncode
BSD License
EventLog Library
BSD License
hostap-ct
BSD License
hostapd
BSD License
Libedit
BSD License
![](/img.php?id=2529411&img=bg10f.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 571 of 628
Open Source Software
License
libssh2
BSD License
Net SNMP-net-snmp
BSD License
OpenSSH
BSD License
Pure-FTPd
BSD License
Telnet
BSD License
ISC DHCP
DHCP License
Free Radius
GPL 2.0
Dproxy-Caching DNS Proxy
GPL 2.0
IP Utils
GPL 2.0
IPwatchD
GPL 2.0
NTP-The Network Time Protocol
GPL 2.0
TFTP Server and Client
GPL 2.0
Traceroute for Linux
GPL 2.0
Sys V Init
GPL 2.0
Linux Kernel
GPL 2.0
NetHogs-‘net top’ per process
GPL 2.0
compcache
GPL 2.0
DUMA library
GPL 2.0
GnuWin32-gzip
GPL 2.0
GNU Core Utils
GPL 2.0
ISC DHCP
ISIC License (BSD-)
FTP Lib Alt
LGPL 2.1
libnl-Netlink Library
LGPL 2.1
OSIP Library
LGPL 2.1
LIBSMI-Main
Libsmi License
libxml
libxml2 License
libxslt
MIT v2 with Ad Clause License
OpenSSL
OpenSSL Combined License
Zlib License
zlib License
![](/img.php?id=2529411&img=bg110.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 572 of 628
Apache License
Version 2.0, January 2004
http://www.apache.org/licenses/
TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION
1. Definitions.
“License” shall mean the terms and conditions for use, reproduction, and distribution as
defined by Sections 1 through 9 of this document.
“Licensor” shall mean the copyright owner or entity authorized by the copyright owner that
is granting the License.
“Legal Entity” shall mean the union of the acting entity and all other entities that control,
are controlled by, or are under common control with that entity. For the purposes of this
definition, “control” means (i) the power, direct or indirect, to cause the direction or
management of such entity, whether by contract or
otherwise, or (ii) ownership of fifty percent (50 %) or more of the outstanding shares, or
(iii) beneficial ownership of such entity. “You” (or “Your”) shall mean an individual or
Legal Entity exercising permissions granted by this License. “Source” form shall mean the
preferred form for making modifications, including but not limited to software source code,
documentation source, and configuration files.
“Object” form shall mean any form resulting from mechanical transformation or translation
of a Source form, including but not limited to compiled object code, generated
documentation, and conversions to other media types.
“Work” shall mean the work of authorship, whether in Source or Object form, made
available under the License, as indicated by a copyright notice that is included in or
attached to the work (an example is provided in the Appendix below).
“Derivative Works” shall mean any work, whether in Source or Object form, that is based
on (or derived from) the Work and for which the editorial revisions, annotations,
elaborations, or other modifications represent, as a whole, an original work of authorship.
For the purposes of this License, Derivative Works shall not include works that remain
separable from, or merely link (or bind by name) to the interfaces of, the Work and
Derivative Works thereof.
“Contribution” shall mean any work of authorship, including the original version of the
Work and any modifications or additions to that Work or Derivative Works thereof, that is
intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by
an individual or Legal Entity authorized to submit on behalf of the copyright owner.
![](/img.php?id=2529411&img=bg111.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 573 of 628
For the purposes of this definition, “submitted” means any form of electronic, verbal, or
written communication sent to the Licensor or its representatives, including but not limited
to communication on electronic mailing lists, source code control systems, and issue
tracking systems that are managed by, or on behalf of, the Licensor for the purpose of
discussing and improving the Work, but excluding communication that is conspicuously
marked or otherwise designated in writing by the copyright owner as “Not a Contribution.”
“Contributor” shall mean Licensor and any individual or Legal Entity on behalf of whom a
Contribution has been received by Licensor and subsequently incorporated within the Work.
2. Grant of Copyright License.
Subject to the terms and conditions of this License, each Contributor hereby grants to You a
perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license
to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense,
and distribute the Work and such Derivative Works in Source or Object form.
3. Grant of Patent License.
Subject to the terms and conditions of this License, each Contributor hereby grants to You a
perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated
in this section) patent license to make, have made, use, offer to sell, sell, import, and
otherwise transfer the Work, where such license applies only to those patent claims
licensable by such Contributor that are necessarily infringed by their Contribution(s) alone
or by combination of their Contribution(s) with the Work to which such Contribution(s)
was submitted. If You institute patent litigation against any entity (including a cross-claim
or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within
the Work constitutes direct or contributory patent infringement, then any patent licenses
granted to You under this License for that Work shall terminate as of the date such litigation
is filed.
4. Redistribution.
You may reproduce and distribute copies of the Work or Derivative Works thereof in any
medium, with or without modifications, and in Source or Object form, provided that You
meet the following conditions:
(a) You must give any other recipients of the Work or Derivative Works a copy of this
License; and
(b) You must cause any modified files to carry prominent notices stating that You changed
the files; and
(c) You must retain, in the Source form of any Derivative Works that You distribute, all
copyright, patent, trademark, and attribution notices from the Source form of the Work,
excluding those notices that do not pertain to any part of the Derivative Works; and
(d) If the Work includes a “NOTICE” text file as part of its distribution, then any
Derivative Works that You distribute must include a readable copy of the attribution
notices contained within such NOTICE file, excluding those notices that do not pertain
to any part of the Derivative Works, in at least one of the following places:
![](/img.php?id=2529411&img=bg112.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 574 of 628
within a NOTICE text file distributed as part of the Derivative Works; within the Source
form or documentation, if provided along with the Derivative Works; or, within a
display generated by the Derivative Works, if and wherever such third-party notices
normally appear. The contents of the NOTICE file are for informational purposes only
and do not modify the License. You may add Your own attribution notices within
Derivative Works that You distribute, alongside or as an addendum to the NOTICE text
from the Work, provided that such additional attribution notices cannot be construed as
modifying the License.
You may add Your own copyright statement to Your modifications and provide additional
or different license terms and conditions use, reproduction, or distribution of Your
modifications, or any such Derivative Works as a whole, provided Your use, roduction, and
distribution of the Work otherwise complies with the conditions stated in this License.
5. Submission of Contributions.
Unless You explicitly state otherwise, Contribution intentionally submitted for inclusion in
the Work by You to the Licensor shall be under the terms and conditions of this License,
without any additional terms or conditions. Notwithstanding the above, nothing herein shall
supersede or modify the terms of any separate license agreement you may have executed
with Licensor regarding such Contributions.
6. Trademarks.
This License does not grant permission to use the trade names, trademarks, service marks,
or product names of the Licensor, except as required for reasonable and customary use in
describing the origin of the Work and reproducing the content of the NOTICE file.
7. Disclaimer of Warranty.
Unless required by applicable law or agreed to in writing, Licensor provides the Work (and
each Contributor provides its Contributions) on an “AS IS” BASIS, WITHOUT
WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including,
without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT,
MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely
responsible for determining the appropriateness of using or redistributing the Work and
assume any risks associated with Your exercise of permissions under this License.
8. Limitation of Liability.
In no event and under no legal theory, whether in tort (including negligence), contract, or
otherwise, unless required by applicable law (such as deliberate and grossly negligent acts)
or agreed to in writing, shall any Contributor be liable to You for damages, including any
direct, indirect, special, incidental, or consequential damages of any character arising as a
result of this License or out of the use or inability to use the Work (including but not
limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or
any and all other commercial damages or losses), even if such Contributor has been
advised of the possibility of such damages.
![](/img.php?id=2529411&img=bg113.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 575 of 628
9. Accepting Warranty or Additional Liability.
While redistributing the Work or Derivative Works thereof, You may choose to offer, and
charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations
and/or rights consistent with this License. However, in accepting such obligations, You
may act only on Your own behalf and on Your sole responsibility, not on behalf of any
other Contributor, and only if You agree to indemnify, defend, and hold each Contributor
harmless for any liability incurred by, or claims asserted against, such Contributor by
reason of your accepting any such warranty or additional liability.
END OF TERMS AND CONDITIONS
APPENDIX: How to apply the Apache License to your work.
To apply the Apache License to your work, attach the following boilerplate notice, with the
fields enclosed by brackets “[]” replaced with your own identifying information.
(Don’t include the brackets!) The text should be enclosed in the appropriate comment
syntax for the file format. We also recommend that a file or class name and description of
purpose be included on the same “printed page” as the copyright notice for easier
identification within third-party archives.
Copyright [yyyy] [name of copyright owner]
Licensed under the Apache License, Version 2.0 (the “License”); you may not use this file
except in compliance with the License. You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software distributed under the License
is distributed on an “AS IS” BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied. See the License for the specific language governing
permissions and limitations under the License.
![](/img.php?id=2529411&img=bg114.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 576 of 628
BSD 2.0 License
Copyright(c) <YEAR>, <OWNER>
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
Neither the name of the <ORGANIZATION> nor the names of its contributors may be
used to endorse or promote products derived from this software without specific prior
written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
![](/img.php?id=2529411&img=bg115.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 577 of 628
DHCP License
Copyright(c) 2004 by Internet Systems Consortium, Inc. (“ISC”)
Copyright(c) 1996-2003 by Internet Software Consortium
Permission to use, copy, modify, and distribute this software for any purpose with or
without fee is hereby granted, provided that the above copyright notice and this permission
notice appear in all copies.
THE SOFTWARE IS PROVIDED “AS IS” AND ISC DISCLAIMS ALL WARRANTIES
WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL ISC BE LIABLE
FOR ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR
ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR
PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER
TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE.
Internet Systems Consortium, Inc.
950 Charter Street
Redwood City, CA 94063
<info@isc.org>
http://www.isc.org/
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright(c) 1989, 1991 Free Software Foundation, Inc.
51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but
changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change
it. By contrast, the GNU General Public License is intended to guarantee your freedom to
share and change free software--to make sure the software is free for all its users.
This General Public License applies to most of the Free Software Foundation’s software
and to any other program whose authors commit to using it. (Some other Free Software
Foundation software is covered by the GNU Library General Public License instead.)
You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public
Licenses are designed to make sure that you have the freedom to distribute copies of free
software (and charge for this service if you wish), that you receive source code or can get it
if you want it, that you can change the software or use pieces of it in new free programs;
and that you know you can do these things.
![](/img.php?id=2529411&img=bg116.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 578 of 628
To protect your rights, we need to make restrictions that forbid anyone to deny you these
rights or to ask you to surrender the rights. These restrictions translate to certain
responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you
must give the recipients all the rights that you have. You must make sure that they, too,
receive or can get the source code. And you must show them these terms so they know their
rights.
We protect your rights with two steps:
(1) copyright the software, and (2) offer you this license which gives you legal permission
to copy, distribute and/or modify the software. Also, for each author’s protection and ours,
we want to make certain that everyone understands that there is no warranty for this free
software.
If the software is modified by someone else and passed on, we want its recipients to know
that what they have is not the original, so that any problems introduced by others will not
reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents.
We wish to avoid the danger that redistributors of a free program will individually obtain
patent licenses, in effect making the program proprietary. To prevent this, we have made it
clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0) This License applies to any program or other work which contains a notice placed by
the copyright holder saying it may be distributed under the terms of this General
Public License. The “Program”, below, refers to any such program or work, and a
“work based on the Program” means either the Program or any derivative work under
copyright law: that is to say, a work containing the Program or a portion of it, either
verbatim or with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the term “modification”.)
Each licensee is addressed as “you”.
Activities other than copying, distribution and modification are not covered by this
License; they are outside its scope. The act of running the Program is not restricted,
and the output from the Program is covered only if its contents constitute a work based
on the Program (independent of having been made by running the Program).
Whether that is true depends on what the Program does.
1) You may copy and distribute verbatim copies of the Program’s source code as you
receive it, in any medium, provided that you conspicuously and appropriately publish
on each copy an appropriate copyright notice and disclaimer of warranty; keep intact
all the notices that refer to this License and to the absence of any warranty; and give
any other recipients of the Program a copy of this License along with the Program.
![](/img.php?id=2529411&img=bg117.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 579 of 628
You may charge a fee for the physical act of transferring a copy, and you may at your
option offer warranty protection in exchange for a fee.
2) You may modify your copy or copies of the Program or any portion of it, thus forming
a work based on the Program, and copy and distribute such modifications or work
under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you
changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part
contains or is derived from the Program or any part thereof, to be licensed as a
whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you
must cause it, when started running for such interactive use in the most ordinary
way, to print or display an announcement including an appropriate copyright
notice and a notice that there is no warranty (or else, saying that you provide a
warranty) and that users may redistribute the program under these conditions, and
telling the user how to view a copy of this License. (Exception: if the Program
itself is interactive but does not normally print such an announcement, your work
based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole.
If identifiable sections of that work are not derived from the Program, and can be
reasonably considered independent and separate works in themselves, then this
License, and its terms, do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as part of a whole which is
a work based on the Program, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work
written entirely by you; rather, the intent is to exercise the right to control the
distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the
Program (or with a work based on the Program) on a volume of a storage or
distribution medium does not bring the other work under the scope of this License.
3) You may copy and distribute the Program (or a work based on it, under Section 2) in
object code or executable form under the terms of Sections 1 and 2 above provided
that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code,
which must be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third
party, for a charge no more than your cost of physically performing source
distribution, a complete machine-readable copy of the corresponding source code,
to be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
![](/img.php?id=2529411&img=bg118.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 580 of 628
c) Accompany it with the information you received as to the offer to distribute
corresponding source code. (This alternative is allowed only for noncommercial
distribution and only if you received the program in object code or executable
form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making
modifications to it. For an executable work, complete source code means all the
source code for all modules it contains, plus any associated interface definition
files, plus the scripts used to control compilation and installation of the executable.
However, as a special exception, the source code distributed need not include
anything that is normally distributed (in either source or binary form) with the
major components (compiler, kernel, and so on) of the operating system on which
the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy
from a designated place, then offering equivalent access to copy the source code
from the same place counts as distribution of the source code, even though third
parties are not compelled to copy the source along with the object code.
4) You may not copy, modify, sublicense, or distribute the Program except as expressly
provided under this License. Any attempt otherwise to copy, modify, sublicense or
distribute the Program is void, and will automatically terminate your rights under this
License. However, parties who have received copies, or rights, from you under this
License will not have their licenses terminated so long as such parties remain in full
compliance.
5) You are not required to accept this License, since you have not signed it.
However, nothing else grants you permission to modify or distribute the Program or its
derivative works. These actions are prohibited by law if you do not accept this License.
Therefore, by modifying or distributing the Program (or any work based on the
Program), you indicate your acceptance of this License to do so, and all its terms and
conditions for copying, distributing or modifying the Program or works based on it.
6) Each time you redistribute the Program (or any work based on the Program), the
recipient automatically receives a license from the original licensor to copy, distribute
or modify the Program subject to these terms and conditions. You may not impose any
further restrictions on the recipients’ exercise of the rights granted herein. You are not
responsible for enforcing compliance by third parties to this License.
7) If, as a consequence of a court judgment or allegation of patent infringement or for any
other reason (not limited to patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise) that contradict the conditions of this License, they
do not excuse you from the conditions of this License.
If you cannot distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you may not
distribute the Program at all. For example, if a patent license would not permit royalty-
free redistribution of the Program by all those who receive copies directly or indirectly
through you, then the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Program.
![](/img.php?id=2529411&img=bg119.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 581 of 628
If any portion of this section is held invalid or unenforceable under any particular
circumstance, the balance of the section is intended to apply and the section as a whole
is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other
property right claims or to contest validity of any such claims; this section has the sole
purpose of protecting the integrity of the free software distribution system, which is
implemented by public license practices. Many people have made generous
contributions to the wide range of software distributed through that system in reliance
on consistent application of that system; it is up to the author/donor to decide if he or
she is willing to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence
of the rest of this License.
8) If the distribution and/or use of the Program is restricted in certain countries either by
patents or by copyrighted interfaces, the original copyright holder who places the
Program under this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or among countries
not thus excluded. In such case, this License incorporates the limitation as if written in
the body of this License.
9) The Free Software Foundation may publish revised and/or new versions of the General
Public License from time to time. Such new versions will be similar in spirit to the
present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a
version number of this License which applies to it and “any later version”, you have
the option of following the terms and conditions either of that version or of any later
version published by the Free Software Foundation.
If the Program does not specify a version number of this License, you may choose any
version ever published by the Free Software Foundation.
10) If you wish to incorporate parts of the Program into other free programs whose
distribution conditions are different, write to the author to ask for permission.
For software which is copyrighted by the Free Software Foundation, write to the Free
Software Foundation; we sometimes make exceptions for this. Our decision will be
guided by the two goals of preserving the free status of all derivatives of our free
software and of promoting the sharing and reuse of software generally.
![](/img.php?id=2529411&img=bg11a.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 582 of 628
NO WARRANTY
11) BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM
“AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM
IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12) IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO
MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF
THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT
LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE
PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the
public, the best way to achieve this is to make it free software which everyone can
redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start
of each source file to most effectively convey the exclusion of warranty; and each file
should have at least the “copyright” line and a pointer to where the full notice is found.
<one line to give the program’s name and a brief idea of what it does.>
Copyright(c) <year> <name of author>
This program is free software; you can redistribute it and/or modify it under the terms of the
GNU General Public License as published by the Free Software Foundation; either version 2 of
the License, or(at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;
without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE.
See the GNU General Public License for more details.
![](/img.php?id=2529411&img=bg11b.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 583 of 628
You should have received a copy of the GNU General Public License along with this program;
if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-
1301 USA.
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an
interactive mode:
Gnomovision version 69, Copyright(c) year name of author Gnomovision comes with
ABSOLUTELY NO WARRANTY; for details type ‘show w’.
This is free software, and you are welcome to redistribute it under certain conditions; type
‘show c’ for details.
ISIC License (BSD-)
ISIC is Copyright(c) 1999 Mike Frantzen, Chicago, IL, USA.
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1) Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
2) Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS”
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS
OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
![](/img.php?id=2529411&img=bg11c.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 584 of 628
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright(c) 1991, 1999 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but
changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the
GNU Library Public License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change
it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom
to share and change free software--to make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated
software packages--typically libraries--of the Free Software Foundation and other authors
who decide to use it. You can use it too, but we suggest you first think carefully about
whether this license or the ordinary General Public License is the better strategy to use in
any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price.
Our General Public Licenses are designed to make sure that you have the freedom to
distribute copies of free software (and charge for this service if you wish); that you receive
source code or can get it if you want it; that you can change the software and use pieces of
it in new free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you
these rights or to ask you to surrender these rights. These restrictions translate to certain
responsibilities for you if you distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must
give the recipients all the rights that we gave you. You must make sure that they, too,
receive or can get the source code.
If you link other code with the library, you must provide complete object files to the
recipients, so that they can relink them with the library after making changes to the library
and recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we
offer you this license, which gives you legal permission to copy, distribute and/or modify
the library.
To protect each distributor, we want to make it very clear that there is no warranty for the
free library.
![](/img.php?id=2529411&img=bg11d.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 585 of 628
Also, if the library is modified by someone else and passed on, the recipients should know
that what they have is not the original version, so that the original author’s reputation will
not be affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program.
We wish to make sure that a company cannot effectively restrict the users of a free program
by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent
license obtained for a version of the library must be consistent with the full freedom of use
specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General
Public License.
This license, the GNU Lesser General Public License, applies to certain designated
libraries, and is quite different from the ordinary General Public License. We use this
license for certain libraries in order to permit linking those libraries into non-free programs.
When a program is linked with a library, whether statically or using a shared library, the
combination of the two is legally speaking a combined work, a derivative of the original
library. The ordinary General Public License therefore permits such linking only if the
entire combination fits its criteria of freedom. The Lesser General Public License permits
more lax criteria for linking other code with the library.
We call this license the “Lesser” General Public License because it does Less to protect the
user’s freedom than the ordinary General Public License. It also provides other free
software developers Less of an advantage over competing non-free programs.
These disadvantages are the reason we use the ordinary General Public License for many
libraries. However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest
possible use of a certain library, so that it becomes a de-facto standard. To achieve this,
non-free programs must be allowed to use the library. A more frequent case is that a free
library does the same job as widely used non-free libraries. In this case, there is little to
gain by limiting the free library to free software only, so we use the Lesser General Public
License.
In other cases, permission to use a particular library in non-free programs enables a greater
number of people to use a large body of free software. For example, permission to use the
GNU C Library in non-free programs enables many more people to use the whole GNU
operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users’ freedom, it
does ensure that the user of a program that is linked with the Library has the freedom and
the wherewithal to run that program using a modified version of the Library.
The precise terms and conditions for copying, distribution and modification follow.
Pay close attention to the difference between a “work based on the library” and a “work
that uses the library”.
The former contains code derived from the library, whereas the latter must be combined
with the library in order to run.
![](/img.php?id=2529411&img=bg11e.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 586 of 628
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0) This License Agreement applies to any software library or other program which
contains a notice placed by the copyright holder or other authorized party saying it
may be distributed under the terms of this Lesser General Public License (also called
“this License”). Each licensee is addressed as “you”.
A “library” means a collection of software functions and/or data prepared so as to be
conveniently linked with application programs (which use some of those functions and
data) to form executables.
The “Library”, below, refers to any such software library or work which has been
distributed under these terms. A “work based on the Library” means either the Library
or any derivative work under copyright law: that is to say, a work containing the
Library or a portion of it, either verbatim or with modifications and/or translated
straightforwardly into another language. (Hereinafter, translation is included without
limitation in the term “modification”.)
“Source code” for a work means the preferred form of the work for making
modifications to it. For a library, complete source code means all the source code for
all modules it contains, plus any associated interface definition files, plus the scripts
used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this
License; they are outside its scope. The act of running a program using the Library is
not restricted, and output from such a program is covered only if its contents constitute
a work based on the Library (independent of the use of the Library in a tool for writing
it). Whether that is true depends on what the Library does and what the program that
uses the Library does.
1) You may copy and distribute verbatim copies of the Library’s complete source code as
you receive it, in any medium, provided that you conspicuously and appropriately
publish on each copy an appropriate copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and to the absence of any warranty; and
distribute a copy of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your
option offer warranty protection in exchange for a fee.
2) You may modify your copy or copies of the Library or any portion of it, thus forming a
work based on the Library, and copy and distribute such modifications or work under
the terms of Section 1 above, provided that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you
changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third
parties under the terms of this License.
![](/img.php?id=2529411&img=bg11f.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 587 of 628
d) If a facility in the modified Library refers to a function or a table of data to be
supplied by an application program that uses the facility, other than as an
argument passed when the facility is invoked, then you must make a good faith
effort to ensure that, in the event an application does not supply such function or
table, the facility still operates, and performs whatever part of its purpose remains
meaningful. (For example, a function in a library to compute square roots has a
purpose that is entirely well-defined independent of the application.
Therefore, Subsection 2d requires that any application-supplied function or table
used by this function must be optional: if the application does not supply it, the
square root function must still compute square roots.) These requirements apply to
the modified work as a whole. If identifiable sections of that work are not derived
from the Library, and can be reasonably considered independent and separate
works in themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works.
But when you distribute the same sections as part of a whole which is a work
based on the Library, the distribution of the whole must be on the terms of this
License, whose permissions for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote it. Thus, it is not the intent of
this section to claim rights or contest your rights to work written entirely by you;
rather, the intent is to exercise the right to control the distribution of derivative or
collective works based on the Library. In addition, mere aggregation of another
work not based on the Library with the Library (or with a work based on the
Library) on a volume of a storage or distribution medium does not bring the other
work under the scope of this License.
3) You may opt to apply the terms of the ordinary GNU General Public License instead
of this License to a given copy of the Library. To do this, you must alter all the notices
that refer to this License, so that they refer to the ordinary GNU General Public
License, version 2, instead of to this License. (If a newer version than version 2 of the
ordinary GNU General Public License has appeared, then you can specify that version
instead if you wish.) Do not make any other change in these notices. Once this change
is made in a given copy, it is irreversible for that copy, so the ordinary GNU General
Public License applies to all subsequent copies and derivative works made from that
copy.
This option is useful when you wish to copy part of the code of the Library into a
program that is not a library.
4) You may copy and distribute the Library (or a portion or derivative of it, under Section
2) in object code or executable form under the terms of Sections 1 and 2 above
provided that you accompany it with the complete corresponding machine-readable
source code, which must be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated
place, then offering equivalent access to copy the source code from the same place
satisfies the requirement to distribute the source code, even though third parties are not
compelled to copy the source along with the object code.
![](/img.php?id=2529411&img=bg120.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 588 of 628
5) A program that contains no derivative of any portion of the Library, but is designed to
work with the Library by being compiled or linked with it, is called a “work that uses
the Library”. Such a work, in isolation, is not a derivative work of the Library, and
therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library creates an executable
that is a derivative of the Library (because it contains portions of the Library), rather
than a “work that uses the library”.
The executable is therefore covered by this License. Section 6 states terms for
distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the
Library, the object code for the work may be a derivative work of the Library even
though the source code is not. Whether this is true is especially significant if the work
can be linked without the Library, or if the work is itself a library.
The threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and
accessors, and small macros and small inline functions (ten lines or less in length),
then the use of the object file is unrestricted, regardless of whether it is legally a
derivative work. (Executables containing this object code plus portions of the Library
will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object
code for the work under the terms of Section 6. Any executables containing that work
also fall under Section 6, whether or not they are linked directly with the Library itself.
6) As an exception to the Sections above, you may also combine or link a “work that uses
the Library” with the Library to produce a work containing portions of the Library, and
distribute that work under terms of your choice, provided that the terms permit
modification of the work for the customer’s own use and reverse engineering for
debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in
it and that the Library and its use are covered by this License. You must supply a copy
of this License. If the work during execution displays copyright notices, you must
include the copyright notice for the Library among them, as well as a reference
directing the user to the copy of this License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source
code for the Library including whatever changes were used in the work (which
must be distributed under Sections 1 and 2 above); and, if the work is an
executable linked with the Library, with the complete machine-readable “work
that uses the Library”, as object code and/or source code, so that the user can
modify the Library and then relink to produce a modified executable containing
the modified Library. (It is understood that the user who changes the contents of
definitions files in the Library will not necessarily be able to recompile the
application to use the modified definitions.)
![](/img.php?id=2529411&img=bg121.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 589 of 628
b) Use a suitable shared library mechanism for linking with the Library.
A suitable mechanism is one that (1) uses at run time a copy of the library already
present on the user’s computer system, rather than copying library functions into
the executable, and (2) will operate properly with a modified version of the library,
if the user installs one, as long as the modified version is interface-compatible
with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the
same user the materials specified in Subsection 6a, above, for a charge no more
than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated
place, offer equivalent access to copy the above specified materials from the same
place.
e) Verify that the user has already received a copy of these materials or that you have
already sent this user a copy. For an executable, the required form of the “work
that uses the Library” must include any data and utility programs needed for
reproducing the executable from it. However, as a special exception, the materials
to be distributed need not include anything that is normally distributed (in either
source or binary form) with the major components (compiler, kernel, and so on) of
the operating system on which the executable runs, unless that component itself
accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other
proprietary libraries that do not normally accompany the operating system.
Such a contradiction means you cannot use both them and the Library together in an
executable that you distribute.
7) You may place library facilities that are a work based on the Library side-by-side in a
single library together with other library facilities not covered by this License, and
distribute such a combined library, provided that the separate distribution of the work
based on the Library and of the other library facilities is otherwise permitted, and
provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the
Library, uncombined with any other library facilities. This must be distributed
under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a
work based on the Library, and explaining where to find the accompanying
uncombined form of the same work.
8) You may not copy, modify, sublicense, link with, or distribute the Library except as
expressly provided under this License. Any attempt otherwise to copy, modify,
sublicense, link with, or distribute the Library is void, and will automatically terminate
your rights under this License. However, parties who have received copies, or rights,
from you under this License will not have their licenses terminated so long as such
parties remain in full compliance.
![](/img.php?id=2529411&img=bg122.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 590 of 628
9) You are not required to accept this License, since you have not signed it.
However, nothing else grants you permission to modify or distribute the Library or its
derivative works. These actions are prohibited by law if you do not accept this License.
Therefore, by modifying or distributing the Library (or any work based on the Library),
you indicate your acceptance of this License to do so, and all its terms and conditions
for copying, distributing or modifying the Library or works based on it.
10) Each time you redistribute the Library (or any work based on the Library), the recipient
automatically receives a license from the original licensor to copy, distribute, link with
or modify the Library subject to these terms and conditions. You may not impose any
further restrictions on the recipients’ exercise of the rights granted herein. You are not
responsible for enforcing compliance by third parties with this License.
11) If, as a consequence of a court judgment or allegation of patent infringement or for any
other reason (not limited to patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise) that contradict the conditions of this License, they
do not excuse you from the conditions of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this License and any other pertinent
obligations, then as a consequence you may not distribute the Library at all.
For example, if a patent license would not permit royalty-free redistribution of the
Library by all those who receive copies directly or indirectly through you, then the only
way you could satisfy both it and this License would be to refrain entirely from
distribution of the Library. If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section is intended to apply, and
the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other
property right claims or to contest validity of any such claims; this section has the sole
purpose of protecting the integrity of the free software distribution system which is
implemented by public license practices. Many people have made generous
contributions to the wide range of software distributed through that system in reliance
on consistent application of that system; it is up to the author/donor to decide if he or
she is willing to distribute software through any other system and a licensee cannot
impose that choice. This section is intended to make thoroughly clear what is believed
to be a consequence of the rest of this License.
12) If the distribution and/or use of the Library is restricted in certain countries either by
patents or by copyrighted interfaces, the original copyright holder who places the
Library under this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or among countries
not thus excluded. In such case, this License incorporates the limitation as if written in
the body of this License.
![](/img.php?id=2529411&img=bg123.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 591 of 628
13) The Free Software Foundation may publish revised and/or new versions of the Lesser
General Public License from time to time. Such new versions will be similar in spirit to
the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version
number of this License which applies to it and “any later version”, you have the option
of following the terms and conditions either of that version or of any later version
published by the Free Software Foundation. If the Library does not specify a license
version number, you may choose any version ever published by the Free Software
Foundation.
14) If you wish to incorporate parts of the Library into other free programs whose
distribution conditions are incompatible with these, write to the author to ask for
permission. For software which is copyrighted by the Free Software Foundation, write
to the Free Software Foundation; we sometimes make exceptions for this. Our decision
will be guided by the two goals of preserving the free status of all derivatives of our
free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
15) BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY
“AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY
IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16) IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO
MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF
THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT
LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE
LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
END OF TERMS AND CONDITIONS
![](/img.php?id=2529411&img=bg124.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 592 of 628
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public,
we recommend making it free software that everyone can redistribute and change. You can
do so by permitting redistribution under these terms (or, alternatively, under the terms of
the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them
to the start of each source file to most effectively convey the exclusion of warranty; and
each file should have at least the “copyright” line and a pointer to where the full notice is
found.
one line to give the library’s name and an idea of what it does.
Copyright(c) year name of author
This library is free software; you can redistribute it and/or modify it under the terms of the GNU
Lesser General Public License as published by the Free Software Foundation; either version
2.1 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;
without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE.
See the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this
library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston,
MA 02110-1301 USA.
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to
sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library ‘Frob’ (a library for tweaking
knobs) written by James Random Hacker.
Signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice
That’s all there is to it!
![](/img.php?id=2529411&img=bg125.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 593 of 628
libsmi license
Copyright(c) 1999-2002 Frank Strauss, Technical University of Braunschweig.
This software is copyrighted by Frank Strauss, the Technical University of Braunschweig,
and other parties. The following terms apply to all files associated with the software unless
explicitly disclaimed in individual files.
The authors hereby grant permission to use, copy, modify, distribute, and license this
software and its documentation for any purpose, provided that existing copyright notices
are retained in all copies and that this notice is included verbatim in any distributions.
No written agreement, license, or royalty fee is required for any of the authorized uses.
Modifications to this software may be copyrighted by their authors and need not follow the
licensing terms described here, provided that the new terms are clearly indicated on the
first page of each file where they apply.
IN NO EVENT SHALL THE AUTHORS OR DISTRIBUTORS BE LIABLE TO ANY
PARTY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS SOFTWARE, ITS
DOCUMENTATION, OR ANY DERIVATIVES THEREOF, EVEN IF THE AUTHORS
HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
THE AUTHORS AND DISTRIBUTORS SPECIFICALLY DISCLAIM ANY
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-
INFRINGEMENT. THIS SOFTWARE IS PROVIDED ON AN “AS IS” BASIS, AND
THE AUTHORS AND DISTRIBUTORS HAVE NO OBLIGATION TO PROVIDE
MAINTENANCE, SUPPORT, UPDATES, ENHANCEMENTS, OR MODIFICATIONS.
![](/img.php?id=2529411&img=bg126.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 594 of 628
libxml2 License
Except where otherwise noted in the source code (e.g. the files hash.c, list.c and the trio
files, which are covered by a similar licence but with different Copyright notices) all the
files are:
Copyright(c) 1998-2003 Daniel Veillard. All Rights Reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this
software and associated documentation files (the “Software”), to deal in the Software
without restriction, including without limitation the rights to use, copy, modify, merge,
publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to
whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or
substantial portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE DANIEL VEILLARD BE LIABLE
FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION
OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
Except as contained in this notice, the name of Daniel Veillard shall not be used in
advertising or otherwise to promote the sale, use or other dealings in this Software without
prior written authorization from him.
![](/img.php?id=2529411&img=bg127.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 595 of 628
MIT v2 with Ad Clause License
Permission is hereby granted, free of charge, to any person obtaining a copy of this
software and associated documentation files (the “Software”), to deal in the Software
without restriction, including without limitation the rights to use, copy, modify, merge,
publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to
whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or
substantial portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS BE LIABLE FOR
ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
Except as contained in this notice, the names of the authors or their institutions shall not be
used in advertising or otherwise to promote the sale, use or other dealings in this Software
without prior written authorization from the authors.
![](/img.php?id=2529411&img=bg128.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 596 of 628
LICENSE ISSUES
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL
License and the original SSLeay license apply to the toolkit. See below for the actual
license texts. Actually both licenses are BSD-style Open Source licenses. In case of any
license issues related to OpenSSL please contact openssl-core@openssl.org.
OpenSSL License
Copyright(c) 1998-2004 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1) Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
2) Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
3) All advertising materials mentioning features or use of this software must display the
following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (http://www.openssl.org/)”
4) The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or
promote products derived from this software without prior written permission.
For written permission, please contact openssl-core@openssl.org.
5) Products derived from this software may not be called “OpenSSL” nor may
“OpenSSL” appear in their names without prior written permission of the OpenSSL
Project.
6) Redistributions of any form whatsoever must retain the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit (http://www.openssl.org/)”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY
EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL
PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
This product includes software written by Tim Hudson (tjh@cryptsoft.com).
![](/img.php?id=2529411&img=bg129.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 597 of 628
Original SSLeay License
Copyright(c) 1995-1998 Eric Young (eay@cryptsoft.com)
All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following
conditions are adheared to. The following conditions apply to all code found in this
distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL
documentation included with this distribution is covered by the same copyright terms except
that the holder is Tim Hudson (tjh@cryptsoft.com). Copyright remains Eric Young’s, and
as such any Copyright notices in the code are not to be removed. If this package is used in a
product, Eric Young should be given attribution as the author of the parts of the library used.
This can be in the form of a textual message at program startup or in documentation (online
or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1) Redistributions of source code must retain the copyright notice, this list of conditions
and the following disclaimer.
2) Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
3) All advertising materials mentioning features or use of this software must display the
following acknowledgement:
“This product includes cryptographic software written by Eric Young
(eay@cryptsoft.com)”
The word ‘cryptographic’ can be left out if the rouines from the library being used are
not cryptographic related:-).
4) If you include any Windows specific code (or a derivative thereof) from the apps
directory (application code) you must include an acknowledgement: “This product
includes software written by Tim Hudson (tjh@cryptsoft.com)”
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
![](/img.php?id=2529411&img=bg12a.png)
ANNEX B. Open Source Announcement (WEC8500/WEC8050)
© SAMSUNG Electronics Co., Ltd. page 598 of 628
The license and distribution terms for any publically available version or derivative of this
code cannot be changed. i.e. this code cannot simply be copied and put under another
distribution license [including the GNU Public Licence.]
The zlib/libpng License
Copyright(c) <year> <copyright holders>
This software is provided ‘as-is’, without any express or implied warranty. In no event will
the authors be held liable for any damages arising from the use of this software.
Permission is granted to anyone to use this software for any purpose, including commercial
applications, and to alter it and redistribute it freely, subject to the following restrictions:
1) The origin of this software must not be misrepresented; you must not claim that you
wrote the original software. If you use this software in a product, an acknowledgment
in the product documentation would be appreciated but is not required.
2) Altered source versions must be plainly marked as such, and must not be
misrepresented as being the original software.
3) This notice may not be removed or altered from any source distribution.
![](/img.php?id=2529411&img=bg12b.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 599 of 628
ANNEX C. Open Source
Announcement (WEA302/WEA303/
WEA312/WEA313/WEA403/WEA412)
Some software components of this product incorporate source code covered under the
GNU General Public License (GPL), the GNU Lesser General Public License (LGPL) and
BSD License etc.
Acknowledgement:
This product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)
The software included in this product contains copyrighted software that is licensed under
the GPL/LGPL. You may obtain the complete Corresponding Source code from us for a
period of three years after our last shipment of this product by sending email to:
oss.request@samsung.com
If you want to obtain the complete Corresponding Source code in the physical medium
such as CD-ROM, the cost of physically performing source distribution may be charged.
You may also find a copy of the source at
http://www.samsungnetwork.com/Home/Opensource
This offer is valid to anyone in receipt of this information.
Below is the list of components covered under GNU General Public License, the GNU
Lesser General Public License and BSD License etc.
Open Source Software
License
hostap-ct
BSD License
wpa_supplicant
BSD License
hostapd
BSD License
The tcpdump project
BSD License
hostapd
BSD License
![](/img.php?id=2529411&img=bg12c.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 600 of 628
Open Source Software
License
ICS DHCP
BSD License
mini_httpd-small HTTP server
BSD License
netkit-routed
BSD License
WIDE Project
BSD License
The libpcap project
BSD License
net-snmp
BSD License
OpenSSH
BSD License
Radvd
BSD License
ISC DHCP
DHCP License
RedBoot
eCos license version 2.0
Bridge-Utils
GPL 2.0
BusyBox
GPL 2.0
GNU Core Utils
GPL 2.0
Free Radius
GPL 2.0
GNU grep
GPL 2.0
buildroot
GPL 2.0
memtester
GPL 2.0
module-init-tools
GPL 2.0
mtd utils
GPL 2.0
linux net-tools
GPL 2.0
NMAP
GPL 2.0
ntpclient
GPL 2.0
procps
GPL 2.0
socat
GPL 2.0
wpa_supplicant
GPL 2.0
Sys k Logd
GPL 2.0
Sys stat
GPL 2.0
Sys V Init
GPL 2.0
GNU Term Cap
GPL 2.0
Util Linux
GPL 2.0
wireless-tools
GPL 2.0
dhcpd
GPL 2.0
Linux Kernel
GPL 2.0
GNU Wget
GPL 2.0
wput
GPL 2.0
Dnsmasq
GPL 2.0
Ethernet bridge tables-ebtables
GPL 2.0
![](/img.php?id=2529411&img=bg12d.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 601 of 628
Open Source Software
License
IGMPproxy
GPL 2.0
inadyn
GPL 2.0
iproute2
GPL 2.0
IPTables
GPL 2.0
NTFS-3G driver
GPL 2.0
NX-ROUTED
GPL 2.0
pppoe
GPL 2.0
TspctPlugin
GPL 2.0
Zebra
GPL 2.0
Netfilter
GPL 2.0
Bash
GPL 2.0
GNU awk
GPL 2.0
inetutils
GPL 2.0
GNU sed
GPL 2.0
Iperf
Iperf License
Atheros-based WiFi Hardware Abstraction Layer
Kaffe ISC License
libnl
LGPL 2.1
LZMA SDK
LGPL 2.1
OpenSSL
OpenSSL Combined License
Vim
Vim Charityware License v 5.3
zlib
zlib License
![](/img.php?id=2529411&img=bg12e.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 602 of 628
BSD 2.0 License
Copyright(c) <YEAR>, <OWNER>
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
Neither the name of the <ORGANIZATION> nor the names of its contributors may be
used to endorse or promote products derived from this software without specific prior
written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
DHCP License
Copyright(c) 2004 by Internet Systems Consortium, Inc. (“ISC”)
Copyright(c) 1996-2003 by Internet Software Consortium
Permission to use, copy, modify, and distribute this software for any purpose with or
without fee is hereby granted, provided that the above copyright notice and this permission
notice appear in all copies.
THE SOFTWARE IS PROVIDED “AS IS” AND ISC DISCLAIMS ALL WARRANTIES
WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL ISC BE LIABLE
FOR ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR
ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR
PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER
TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE.
![](/img.php?id=2529411&img=bg12f.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 603 of 628
Internet Systems Consortium, Inc.
950 Charter Street
Redwood City, CA 94063
info@isc.org
http://www.isc.org/
Full eCos license
This is the full text of the license as found on files within eCos covered by the eCos license.
It should be read in conjuction with the GNU General Public License (GPL) on which it
depends.
This file is part of eCos, the Embedded Configurable Operating System. Copyright(c) 1998,
1999, 2000, 2001, 2002, 2003 Red Hat, Inc. Copyright(c) 2002, 2003 John Dallaway
Copyright(c) 2002, 2003 Nick Garnett Copyright(c) 2002, 2003 Jonathan Larmour
Copyright(c) 2002, 2003 Andrew Lunn Copyright(c) 2002, 2003 Gary Thomas
Copyright(c) 2002, 2003 Bart Veer
eCos is free software; you can redistribute it and/or modify it under the terms of the GNU
General Public License as published by the Free Software Foundation; either version 2 or
(at your option) any later version.
eCos is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;
without even the implied warranty of MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with eCos; if
not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA
02111-1307 USA.
As a special exception, if other files instantiate templates or use macros or inline functions
from this file, or you compile this file and link it with other works to produce a work based
on this file, this file does not by itself cause the resulting work to be covered by the GNU
General Public License. However the source code for this file must still be made available
in accordance with section (3) of the GNU General Public License.
This exception does not invalidate any other reasons why a work based on this file might
be covered by the GNU General Public License.
![](/img.php?id=2529411&img=bg130.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 604 of 628
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright(c) 1989, 1991 Free Software Foundation, Inc.
51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but
changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change
it. By contrast, the GNU General Public License is intended to guarantee your freedom to
share and change free software--to make sure the software is free for all its users.
This General Public License applies to most of the Free Software Foundation’s software
and to any other program whose authors commit to using it. (Some other Free Software
Foundation software is covered by the GNU Library General Public License instead.)
You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public
Licenses are designed to make sure that you have the freedom to distribute copies of free
software (and charge for this service if you wish), that you receive source code or can get it
if you want it, that you can change the software or use pieces of it in new free programs;
and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these
rights or to ask you to surrender the rights. These restrictions translate to certain
responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must
give the recipients all the rights that you have. You must make sure that they, too, receive
or can get the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps:
(1) copyright the software, and (2) offer you this license which gives you legal permission
to copy, distribute and/or modify the software. Also, for each author’s protection and ours,
we want to make certain that everyone understands that there is no warranty for this free
software.
If the software is modified by someone else and passed on, we want its recipients to know
that what they have is not the original, so that any problems introduced by others will not
reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents.
We wish to avoid the danger that redistributors of a free program will individually obtain
patent licenses, in effect making the program proprietary.
To prevent this, we have made it clear that any patent must be licensed for everyone’s free
use or not licensed at all.
![](/img.php?id=2529411&img=bg131.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 605 of 628
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0) This License applies to any program or other work which contains a notice placed by
the copyright holder saying it may be distributed under the terms of this General
Public License. The “Program”, below, refers to any such program or work, and a
“work based on the Program” means either the Program or any derivative work under
copyright law: that is to say, a work containing the Program or a portion of it, either
verbatim or with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the term “modification”.)
Each licensee is addressed as “you”.
Activities other than copying, distribution and modification are not covered by this
License; they are outside its scope. The act of running the Program is not restricted,
and the output from the Program is covered only if its contents constitute a work based
on the Program (independent of having been made by running the Program).
Whether that is true depends on what the Program does.
1) You may copy and distribute verbatim copies of the Program’s source code as you
receive it, in any medium, provided that you conspicuously and appropriately publish
on each copy an appropriate copyright notice and disclaimer of warranty; keep intact
all the notices that refer to this License and to the absence of any warranty; and give
any other recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your
option offer warranty protection in exchange for a fee.
2) You may modify your copy or copies of the Program or any portion of it, thus forming
a work based on the Program, and copy and distribute such modifications or work
under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you
changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part
contains or is derived from the Program or any part thereof, to be licensed as a
whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you
must cause it, when started running for such interactive use in the most ordinary
way, to print or display an announcement including an appropriate copyright
notice and a notice that there is no warranty (or else, saying that you provide a
warranty) and that users may redistribute the program under these conditions, and
telling the user how to view a copy of this License. (Exception: if the Program
itself is interactive but does not normally print such an announcement, your work
based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole.
If identifiable sections of that work are not derived from the Program, and can be
reasonably considered independent and separate works in themselves, then this
License, and its terms, do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as part of a whole which is
a work based on the Program, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote it.
![](/img.php?id=2529411&img=bg132.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 606 of 628
Thus, it is not the intent of this section to claim rights or contest your rights to work
written entirely by you; rather, the intent is to exercise the right to control the
distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the
Program (or with a work based on the Program) on a volume of a storage or
distribution medium does not bring the other work under the scope of this License.
3) You may copy and distribute the Program (or a work based on it, under Section 2) in
object code or executable form under the terms of Sections 1 and 2 above provided
that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code,
which must be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third
party, for a charge no more than your cost of physically performing source
distribution, a complete machine-readable copy of the corresponding source code,
to be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute
corresponding source code. (This alternative is allowed only for noncommercial
distribution and only if you received the program in object code or executable
form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making
modifications to it. For an executable work, complete source code means all the source
code for all modules it contains, plus any associated interface definition files, plus the
scripts used to control compilation and installation of the executable. However, as a
special exception, the source code distributed need not include anything that is
normally distributed (in either source or binary form) with the major components
(compiler, kernel, and so on) of the operating system on which the executable runs,
unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a
designated place, then offering equivalent access to copy the source code from the
same place counts as distribution of the source code, even though third parties are not
compelled to copy the source along with the object code.
4) You may not copy, modify, sublicense, or distribute the Program except as expressly
provided under this License. Any attempt otherwise to copy, modify, sublicense or
distribute the Program is void, and will automatically terminate your rights under this
License. However, parties who have received copies, or rights, from you under this
License will not have their licenses terminated so long as such parties remain in full
compliance.
5) You are not required to accept this License, since you have not signed it.
However, nothing else grants you permission to modify or distribute the Program or its
derivative works. These actions are prohibited by law if you do not accept this License.
Therefore, by modifying or distributing the Program (or any work based on the
Program), you indicate your acceptance of this License to do so, and all its terms and
conditions for copying, distributing or modifying the Program or works based on it.
![](/img.php?id=2529411&img=bg133.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 607 of 628
6) Each time you redistribute the Program (or any work based on the Program), the
recipient automatically receives a license from the original licensor to copy, distribute
or modify the Program subject to these terms and conditions. You may not impose any
further restrictions on the recipients’ exercise of the rights granted herein. You are not
responsible for enforcing compliance by third parties to this License.
7) If, as a consequence of a court judgment or allegation of patent infringement or for any
other reason (not limited to patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise) that contradict the conditions of this License, they
do not excuse you from the conditions of this License.
If you cannot distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you may not
distribute the Program at all. For example, if a patent license would not permit royalty-
free redistribution of the Program by all those who receive copies directly or indirectly
through you, then the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular
circumstance, the balance of the section is intended to apply and the section as a whole
is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other
property right claims or to contest validity of any such claims; this section has the sole
purpose of protecting the integrity of the free software distribution system, which is
implemented by public license practices. Many people have made generous
contributions to the wide range of software distributed through that system in reliance
on consistent application of that system; it is up to the author/donor to decide if he or
she is willing to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence
of the rest of this License.
8) If the distribution and/or use of the Program is restricted in certain countries either by
patents or by copyrighted interfaces, the original copyright holder who places the
Program under this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or among countries
not thus excluded. In such case, this License incorporates the limitation as if written in
the body of this License.
9) The Free Software Foundation may publish revised and/or new versions of the General
Public License from time to time. Such new versions will be similar in spirit to the
present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a
version number of this License which applies to it and “any later version”, you have
the option of following the terms and conditions either of that version or of any later
version published by the Free Software Foundation.
If the Program does not specify a version number of this License, you may choose any
version ever published by the Free Software Foundation.
![](/img.php?id=2529411&img=bg134.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 608 of 628
10) If you wish to incorporate parts of the Program into other free programs whose
distribution conditions are different, write to the author to ask for permission.
For software which is copyrighted by the Free Software Foundation, write to the Free
Software Foundation; we sometimes make exceptions for this. Our decision will be
guided by the two goals of preserving the free status of all derivatives of our free
software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11) BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM
“AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM
IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12) IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO
MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF
THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT
LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE
PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
END OF TERMS AND CONDITIONS
![](/img.php?id=2529411&img=bg135.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 609 of 628
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the
public, the best way to achieve this is to make it free software which everyone can
redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start
of each source file to most effectively convey the exclusion of warranty; and each file
should have at least the “copyright” line and a pointer to where the full notice is found.
<one line to give the program’s name and a brief idea of what it does.>
Copyright(c) <year> <name of author>
This program is free software; you can redistribute it and/or modify it under the terms of the
GNU General Public License as published by the Free Software Foundation; either version 2 of
the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;
without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE.
See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if
not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-
1301 USA.
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an
interactive mode:
Gnomovision version 69, Copyright(c) year name of author Gnomovision comes with
ABSOLUTELY NO WARRANTY; for details type ‘show w’.
This is free software, and you are welcome to redistribute it under certain conditions; type
‘show c’ for details.
![](/img.php?id=2529411&img=bg136.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 610 of 628
Iperf License
Copyright(c) 1999-2007, The Board of Trustees of the University of Illinois
All Rights Reserved.
Iperf performance test
Mark Gates
Ajay Tirumala
Jim Ferguson
Jon Dugan
Feng Qin
Kevin Gibbs
John Estabrook
National Laboratory for Applied Network Research
National Center for Supercomputing Applications
University of Illinois at Urbana-Champaign
http://www.ncsa.uiuc.edu
Permission is hereby granted, free of charge, to any person obtaining a copy of this
software (Iperf) and associated documentation files (the “Software”), to deal in the
Software without restriction, including without limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit
persons to whom the Software is furnished to do so, subject to the following conditions:
Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimers.
Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimers in the documentation and/or other materials
provided with the distribution.
Neither the names of the University of Illinois, NCSA, nor the names of its contributors
may be used to endorse or promote products derived from this Software without specific
prior written permission. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
CONTIBUTORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
![](/img.php?id=2529411&img=bg137.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 611 of 628
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright(c) 1991, 1999 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but
changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the
GNU Library Public License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change
it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom
to share and change free software--to make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated
software packages--typically libraries--of the Free Software Foundation and other authors
who decide to use it. You can use it too, but we suggest you first think carefully about
whether this license or the ordinary General Public License is the better strategy to use in
any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price.
Our General Public Licenses are designed to make sure that you have the freedom to
distribute copies of free software (and charge for this service if you wish); that you receive
source code or can get it if you want it; that you can change the software and use pieces of
it in new free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you
these rights or to ask you to surrender these rights. These restrictions translate to certain
responsibilities for you if you distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must
give the recipients all the rights that we gave you. You must make sure that they, too,
receive or can get the source code.
If you link other code with the library, you must provide complete object files to the
recipients, so that they can relink them with the library after making changes to the library
and recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we
offer you this license, which gives you legal permission to copy, distribute and/or modify
the library.
To protect each distributor, we want to make it very clear that there is no warranty for the
free library.
Also, if the library is modified by someone else and passed on, the recipients should know
that what they have is not the original version, so that the original author’s reputation will
not be affected by problems that might be introduced by others.
![](/img.php?id=2529411&img=bg138.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 612 of 628
Finally, software patents pose a constant threat to the existence of any free program.
We wish to make sure that a company cannot effectively restrict the users of a free program
by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent
license obtained for a version of the library must be consistent with the full freedom of use
specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General
Public License.
This license, the GNU Lesser General Public License, applies to certain designated
libraries, and is quite different from the ordinary General Public License. We use this
license for certain libraries in order to permit linking those libraries into non-free programs.
When a program is linked with a library, whether statically or using a shared library, the
combination of the two is legally speaking a combined work, a derivative of the original
library. The ordinary General Public License therefore permits such linking only if the
entire combination fits its criteria of freedom. The Lesser General Public License permits
more lax criteria for linking other code with the library.
We call this license the “Lesser” General Public License because it does Less to protect the
user’s freedom than the ordinary General Public License. It also provides other free
software developers Less of an advantage over competing non-free programs.
These disadvantages are the reason we use the ordinary General Public License for many
libraries. However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest
possible use of a certain library, so that it becomes a de-facto standard. To achieve this,
non-free programs must be allowed to use the library. A more frequent case is that a free
library does the same job as widely used non-free libraries. In this case, there is little to
gain by limiting the free library to free software only, so we use the Lesser General Public
License.
In other cases, permission to use a particular library in non-free programs enables a greater
number of people to use a large body of free software. For example, permission to use the
GNU C Library in non-free programs enables many more people to use the whole GNU
operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users’ freedom, it
does ensure that the user of a program that is linked with the Library has the freedom and
the wherewithal to run that program using a modified version of the Library.
The precise terms and conditions for copying, distribution and modification follow.
Pay close attention to the difference between a “work based on the library” and a “work
that uses the library”. The former contains code derived from the library, whereas the latter
must be combined with the library in order to run.
![](/img.php?id=2529411&img=bg139.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 613 of 628
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0) This License Agreement applies to any software library or other program which
contains a notice placed by the copyright holder or other authorized party saying it
may be distributed under the terms of this Lesser General Public License (also called
“this License”). Each licensee is addressed as “you”.
A “library” means a collection of software functions and/or data prepared so as to be
conveniently linked with application programs (which use some of those functions and
data) to form executables.
The “Library”, below, refers to any such software library or work which has been
distributed under these terms. A “work based on the Library” means either the Library
or any derivative work under copyright law: that is to say, a work containing the
Library or a portion of it, either verbatim or with modifications and/or translated
straightforwardly into another language. (Hereinafter, translation is included without
limitation in the term “modification”.)
“Source code” for a work means the preferred form of the work for making
modifications to it. For a library, complete source code means all the source code for
all modules it contains, plus any associated interface definition files, plus the scripts
used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this
License; they are outside its scope. The act of running a program using the Library is
not restricted, and output from such a program is covered only if its contents constitute
a work based on the Library (independent of the use of the Library in a tool for writing
it). Whether that is true depends on what the Library does and what the program that
uses the Library does.
1) You may copy and distribute verbatim copies of the Library’s complete source code as
you receive it, in any medium, provided that you conspicuously and appropriately
publish on each copy an appropriate copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and to the absence of any warranty; and
distribute a copy of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your
option offer warranty protection in exchange for a fee.
2) You may modify your copy or copies of the Library or any portion of it, thus forming a
work based on the Library, and copy and distribute such modifications or work under
the terms of Section 1 above, provided that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you
changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third
parties under the terms of this License.
![](/img.php?id=2529411&img=bg13a.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 614 of 628
d) If a facility in the modified Library refers to a function or a table of data to be
supplied by an application program that uses the facility, other than as an argument
passed when the facility is invoked, then you must make a good faith effort to
ensure that, in the event an application does not supply such function or table, the
facility still operates, and performs whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is
entirely well-defined independent of the application. Therefore, Subsection 2d
requires that any application-supplied function or table used by this function must
be optional: if the application does not supply it, the square root function must
still compute square roots.) These requirements apply to the modified work as a
whole. If identifiable sections of that work are not derived from the Library, and
can be reasonably considered independent and separate works in themselves, then
this License, and its terms, do not apply to those sections when you distribute
them as separate works.
But when you distribute the same sections as part of a whole which is a work
based on the Library, the distribution of the whole must be on the terms of this
License, whose permissions for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote it. Thus, it is not the intent of
this section to claim rights or contest your rights to work written entirely by you;
rather, the intent is to exercise the right to control the distribution of derivative or
collective works based on the Library. In addition, mere aggregation of another
work not based on the Library with the Library (or with a work based on the
Library) on a volume of a storage or distribution medium does not bring the other
work under the scope of this License.
3) You may opt to apply the terms of the ordinary GNU General Public License instead
of this License to a given copy of the Library. To do this, you must alter all the notices
that refer to this License, so that they refer to the ordinary GNU General Public License,
version 2, instead of to this License. (If a newer version than version 2 of the ordinary
GNU General Public License has appeared, then you can specify that version instead if
you wish.) Do not make any other change in these notices. Once this change is made in
a given copy, it is irreversible for that copy, so the ordinary GNU General Public
License applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a
program that is not a library.
4) You may copy and distribute the Library (or a portion or derivative of it, under Section
2) in object code or executable form under the terms of Sections 1 and 2 above
provided that you accompany it with the complete corresponding machine-readable
source code, which must be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated
place, then offering equivalent access to copy the source code from the same place
satisfies the requirement to distribute the source code, even though third parties are not
compelled to copy the source along with the object code.
![](/img.php?id=2529411&img=bg13b.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 615 of 628
5) A program that contains no derivative of any portion of the Library, but is designed to
work with the Library by being compiled or linked with it, is called a “work that uses
the Library”. Such a work, in isolation, is not a derivative work of the Library, and
therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library creates an executable
that is a derivative of the Library (because it contains portions of the Library), rather
than a “work that uses the library”.
The executable is therefore covered by this License. Section 6 states terms for
distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the
Library, the object code for the work may be a derivative work of the Library even
though the source code is not. Whether this is true is especially significant if the work
can be linked without the Library, or if the work is itself a library.
The threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and
accessors, and small macros and small inline functions (ten lines or less in length),
then the use of the object file is unrestricted, regardless of whether it is legally a
derivative work. (Executables containing this object code plus portions of the Library
will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object
code for the work under the terms of Section 6. Any executables containing that work
also fall under Section 6, whether or not they are linked directly with the Library itself.
6) As an exception to the Sections above, you may also combine or link a “work that uses
the Library” with the Library to produce a work containing portions of the Library, and
distribute that work under terms of your choice, provided that the terms permit
modification of the work for the customer’s own use and reverse engineering for
debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in
it and that the Library and its use are covered by this License. You must supply a copy
of this License. If the work during execution displays copyright notices, you must
include the copyright notice for the Library among them, as well as a reference
directing the user to the copy of this License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source
code for the Library including whatever changes were used in the work (which
must be distributed under Sections 1 and 2 above); and, if the work is an
executable linked with the Library, with the complete machine-readable “work
that uses the Library”, as object code and/or source code, so that the user can
modify the Library and then relink to produce a modified executable containing
the modified Library. (It is understood that the user who changes the contents of
definitions files in the Library will not necessarily be able to recompile the
application to use the modified definitions.)
![](/img.php?id=2529411&img=bg13c.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 616 of 628
b) Use a suitable shared library mechanism for linking with the Library. A suitable
mechanism is one that (1) uses at run time a copy of the library already present on
the user’s computer system, rather than copying library functions into the
executable, and (2) will operate properly with a modified version of the library, if
the user installs one, as long as the modified version is interface-compatible with
the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the
same user the materials specified in Subsection 6a, above, for a charge no more
than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated
place, offer equivalent access to copy the above specified materials from the same
place.
e) Verify that the user has already received a copy of these materials or that you have
already sent this user a copy. For an executable, the required form of the “work
that uses the Library” must include any data and utility programs needed for
reproducing the executable from it. However, as a special exception, the materials
to be distributed need not include anything that is normally distributed (in either
source or binary form) with the major components (compiler, kernel, and so on)
of the operating system on which the executable runs, unless that component itself
accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other
proprietary libraries that do not normally accompany the operating system. Such a
contradiction means you cannot use both them and the Library together in an
executable that you distribute.
7) You may place library facilities that are a work based on the Library side-by-side in a
single library together with other library facilities not covered by this License, and
distribute such a combined library, provided that the separate distribution of the work
based on the Library and of the other library facilities is otherwise permitted, and
provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the
Library, uncombined with any other library facilities. This must be distributed
under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a
work based on the Library, and explaining where to find the accompanying
uncombined form of the same work.
8) You may not copy, modify, sublicense, link with, or distribute the Library except as
expressly provided under this License. Any attempt otherwise to copy, modify,
sublicense, link with, or distribute the Library is void, and will automatically terminate
your rights under this License. However, parties who have received copies, or rights,
from you under this License will not have their licenses terminated so long as such
parties remain in full compliance.
![](/img.php?id=2529411&img=bg13d.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 617 of 628
9) You are not required to accept this License, since you have not signed it.
However, nothing else grants you permission to modify or distribute the Library or its
derivative works.
These actions are prohibited by law if you do not accept this License.
Therefore, by modifying or distributing the Library (or any work based on the Library),
you indicate your acceptance of this License to do so, and all its terms and conditions
for copying, distributing or modifying the Library or works based on it.
10) Each time you redistribute the Library (or any work based on the Library), the recipient
automatically receives a license from the original licensor to copy, distribute, link with
or modify the Library subject to these terms and conditions. You may not impose any
further restrictions on the recipients’ exercise of the rights granted herein. You are not
responsible for enforcing compliance by third parties with this License.
11) If, as a consequence of a court judgment or allegation of patent infringement or for any
other reason (not limited to patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise) that contradict the conditions of this License, they
do not excuse you from the conditions of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this License and any other pertinent
obligations, then as a consequence you may not distribute the Library at all.
For example, if a patent license would not permit royalty-free redistribution of the
Library by all those who receive copies directly or indirectly through you, then the only
way you could satisfy both it and this License would be to refrain entirely from
distribution of the Library. If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section is intended to apply, and
the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other
property right claims or to contest validity of any such claims; this section has the sole
purpose of protecting the integrity of the free software distribution system which is
implemented by public license practices. Many people have made generous
contributions to the wide range of software distributed through that system in reliance
on consistent application of that system; it is up to the author/donor to decide if he or
she is willing to distribute software through any other system and a licensee cannot
impose that choice. This section is intended to make thoroughly clear what is believed
to be a consequence of the rest of this License.
12) If the distribution and/or use of the Library is restricted in certain countries either by
patents or by copyrighted interfaces, the original copyright holder who places the
Library under this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or among countries
not thus excluded. In such case, this License incorporates the limitation as if written in
the body of this License.
13) The Free Software Foundation may publish revised and/or new versions of the Lesser
General Public License from time to time. Such new versions will be similar in spirit to
the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version
number of this License which applies to it and “any later version”, you have the option
of following the terms and conditions either of that version or of any later version
published by the Free Software Foundation.
If the Library does not specify a license version number, you may choose any version
ever published by the Free Software Foundation.
![](/img.php?id=2529411&img=bg13e.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 618 of 628
14) If you wish to incorporate parts of the Library into other free programs whose
distribution conditions are incompatible with these, write to the author to ask for
permission. For software which is copyrighted by the Free Software Foundation, write
to the Free Software Foundation; we sometimes make exceptions for this. Our decision
will be guided by the two goals of preserving the free status of all derivatives of our
free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
15) BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY
“AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE
LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU
ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR
CORRECTION.
16) IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO
MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF
THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT
LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE
LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
END OF TERMS AND CONDITIONS
![](/img.php?id=2529411&img=bg13f.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 619 of 628
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public,
we recommend making it free software that everyone can redistribute and change. You can
do so by permitting redistribution under these terms (or, alternatively, under the terms of
the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them
to the start of each source file to most effectively convey the exclusion of warranty; and
each file should have at least the “copyright” line and a pointer to where the full notice is
found.
one line to give the library’s name and an idea of what it does.
Copyright(c) year name of author
This library is free software; you can redistribute it and/or modify it under the terms of the GNU
Lesser General Public License as published by the Free Software Foundation; either version
2.1 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;
without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE.
See the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this
library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston,
MA 02110-1301 USA.
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to
sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library ‘Frob’ (a library for tweaking
knobs) written by James Random Hacker.
Signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice
That’s all there is to it!
![](/img.php?id=2529411&img=bg140.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 620 of 628
LICENSE ISSUES
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL
License and the original SSLeay license apply to the toolkit. See below for the actual
license texts. Actually both licenses are BSD-style Open Source licenses. In case of any
license issues related to OpenSSL please contact openssl-core@openssl.org.
OpenSSL License
Copyright(c) 1998-2004 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1) Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
2) Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
3) All advertising materials mentioning features or use of this software must display the
following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (http://www.openssl.org/)”
4) The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or
promote products derived from this software without prior written permission.
For written permission, please contact openssl-core@openssl.org.
5) Products derived from this software may not be called “OpenSSL” nor may
“OpenSSL” appear in their names without prior written permission of the OpenSSL
Project.
6) Redistributions of any form whatsoever must retain the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit (http://www.openssl.org/)”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY
EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL
PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
This product includes software written by Tim Hudson (tjh@cryptsoft.com).
![](/img.php?id=2529411&img=bg141.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 621 of 628
Original SSLeay License
Copyright(c) 1995-1998 Eric Young (eay@cryptsoft.com)
All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following
conditions are adheared to. The following conditions apply to all code found in this
distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL
documentation included with this distribution is covered by the same copyright terms
except that the holder is Tim Hudson (tjh@cryptsoft.com). Copyright remains Eric Young’s,
and as such any Copyright notices in the code are not to be removed. If this package is used
in a product, Eric Young should be given attribution as the author of the parts of the library
used.
This can be in the form of a textual message at program startup or in documentation (online
or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1) Redistributions of source code must retain the copyright notice, this list of conditions
and the following disclaimer.
2) Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
3) All advertising materials mentioning features or use of this software must display the
following acknowledgement:
“This product includes cryptographic software written by Eric Young
(eay@cryptsoft.com)”
The word ‘cryptographic’ can be left out if the rouines from the library being used are
not cryptographic related:-).
4) If you include any Windows specific code (or a derivative thereof) from the apps
directory (application code) you must include an acknowledgement: “This product
includes software written by Tim Hudson (tjh@cryptsoft.com)”
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS;
![](/img.php?id=2529411&img=bg142.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 622 of 628
OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
The license and distribution terms for any publically available version or derivative of this
code cannot be changed. i.e. this code cannot simply be copied and put under another
distribution license [including the GNU Public Licence.]
VIM LICENSE
1) There are no restrictions on distributing unmodified copies of Vim except that they
must include this license text. You can also distribute unmodified parts of Vim,
likewise unrestricted except that they must include this license text. You are also
allowed to include executables that you made from the unmodified Vim sources, plus
your own usage examples and Vim scripts.
2) It is allowed to distribute a modified (or extended) version of Vim, including
executables and/or source code, when the following four conditions are met:
a) This license text must be included unmodified.
b) The modified Vim must be distributed in one of the following five ways:
i) If you make changes to Vim yourself, you must clearly describe in the
distribution how to contact you. When the maintainer asks you (in any way)
for a copy of the modified Vim you distributed, you must make your changes,
including source code, available to the maintainer without fee. The maintainer
reserves the right to include your changes in the official version of Vim. What
the maintainer will do with your changes and under what license they will be
distributed is negotiable. If there has been no negotiation then this license, or
a later version, also applies to your changes. The current maintainer is Bram
Moolenaar {Bram@vim.org}. If this changes it will be announced in
appropriate places (most likely vim.sf.net, www.vim.org and/or comp.editors).
When it is completely impossible to contact the maintainer, the obligation to
send him your changes ceases. Once the maintainer has confirmed that he has
received your changes they will not have to be sent again.
ii) If you have received a modified Vim that was distributed as mentioned under
a) you are allowed to further distribute it unmodified, as mentioned at I).
If you make additional changes the text under a) applies to those changes.
iii) Provide all the changes, including source code, with every copy of the
modified Vim you distribute. This may be done in the form of a context diff.
You can choose what license to use for new code you add. The changes and
their license must not restrict others from making their own changes to the
official version of Vim.
When you have a modified Vim which includes changes as mentioned under
c), you can distribute it without the source code for the changes if the
following three conditions are met:
![](/img.php?id=2529411&img=bg143.png)
ANNEX C. Open Source Announcement (WEA302/WEA303/ WEA312/WEA313/WEA403/WEA412)
© SAMSUNG Electronics Co., Ltd. page 623 of 628
The license that applies to the changes permits you to distribute the changes
to the Vim maintainer without fee or restriction, and permits the Vim
maintainer to include the changes in the official version of Vim without fee
or restriction.
You keep the changes for at least three years after last distributing the
corresponding modified Vim. When the maintainer or someone who you
distributed the modified Vim to asks you (in any way) for the changes within
this period, you must make them available to him.
You clearly describe in the distribution how to contact you. This contact
information must remain valid for at least three years after last distributing
the corresponding modified Vim, or as long as possible.
iv) When the GNU General Public License (GPL) applies to the changes, you
can distribute the modified Vim under the GNU GPL version 2 or any later
version.
c) A message must be added, at least in the output of the “:version” command and in
the intro screen, such that the user of the modified Vim is able to see that it was
modified. When distributing as mentioned under 2) e) adding the message is only
required for as far as this does not conflict with the license used for the changes.
d) The contact information as required under 2) a) and 2) d) must not be removed or
changed, except that the person himself can make corrections.
3) If you distribute a modified version of Vim, you are encouraged to use the Vim license
for your changes and make them available to the maintainer, including the source code.
The preferred way to do this is by e-mail or by uploading the files to a server and e-
mailing the URL. If the number of changes is small (e.g. a modified Makefile) e-
mailing a context diff will do. The e-mail address to be used is {maintainer@vim.org}
4) It is not allowed to remove this license from the distribution of the Vim sources, parts
of it or from a modified version. You may use this license for previous Vim releases
instead of the license that they came with, at your option.
The zlib/libpng License
Copyright(c) <year> <copyright holders>
This software is provided ‘as-is’, without any express or implied warranty. In no event will
the authors be held liable for any damages arising from the use of this software.
Permission is granted to anyone to use this software for any purpose, including commercial
applications, and to alter it and redistribute it freely, subject to the following restrictions:
1) The origin of this software must not be misrepresented; you must not claim that you
wrote the original software. If you use this software in a product, an acknowledgment
in the product documentation would be appreciated but is not required.
2) Altered source versions must be plainly marked as such, and must not be
misrepresented as being the original software.
3) This notice may not be removed or altered from any source distribution.
![](/img.php?id=2529411&img=bg144.png)
ABBREVIATION
© SAMSUNG Electronics Co., Ltd. page 624 of 628
ABBREVIATION
A
ACL Access Control List
AES Advanced Encryption Standard
ALG Application Layer Gateway
AP Access Point
APC Access Point Controller
B
BPDU Bridge Protocol Data Unit
C
CAC Call Admission Control
CAPWAP Control And Provisioning Wireless Access Point
CCM Counter mode encryption with CBC-MAC
CCMP Counter mode encryption with CBC-MAC Protocol
CCTV Closed Circuit Television
CDR Crash Detect and Report
CHDC Coverage Hole Detection and Control
CLI Command Line Interface
CSMA/CD Carrier Sense Multiple Access/Collision Detect
CVO Controlled Voice Optimization
D
DCS Dynamic Channel Selection
DECT Digital Enhanced Cordless Telecommunications
DFS Dynamic Frequency Selection
DHCP Dynamic Host Configuration Protocol
DNAT Destination NAT
DNS Domain Naming Service
DPC Dynamic Power control
DSCP Differentiated Services Code Point
DTIM Delivery Traffic Indication Message
DTLS Datagram Transmission Layer Security
![](/img.php?id=2529411&img=bg145.png)
ABBREVIATION
© SAMSUNG Electronics Co., Ltd. page 625 of 628
E
EAP Extensible Authentication Protocol
EAPOL EAP over LANs
EDCA Enhanced Distributed Channel Access
F
FFT Fast Fourier Transform
FIFO First-In-First-Out
FMC Fixed Mobile Convergence
FTP File Transfer Protocol
G
GARP Gratuitous Address Resolution Protocol
GbE Giga Bit Ethernet
GI Guard Interval
H
HO Handover
I
IGMP Internet Group Management Protocol
IP Internet Protocol
IPWATCHD IP WATCH Deamon
IV Initial Vector
L
LACP Link Aggregation Control Protocol
LAN Local Area Network
LED Light Emitting Diode
LSA Link State Advertisement
M
MAC Medium Access Control
MCS Modulation and Coding Scheme
MIB Management Information Base
MIMO Multiple Input Multiple Output
MSTP Multiple Spanning-Tree Protocol
MTU Maximum Transmission Unit
N
NAT Network Address Translation
NMS Network Management System
NSSA Not So Stubby Areas
NTP Network Time Protocol
![](/img.php?id=2529411&img=bg146.png)
ABBREVIATION
© SAMSUNG Electronics Co., Ltd. page 626 of 628
O
OKC Opportunistic Key Caching
OSPF Open Shortest Path First
OUI Organizationally Unique Identifier
P
PHY Physical layer
PIM-SM Protocol Independent Multicast-Sparse Mode
PoE Power over Ethernet
PMK Pairwise Master Key
PSK Pre-Shared Key
Q
QoS Quality of Service
R
RADIUS Remote Authentication Dial-In User Service
RF Radio Frequency
RPM Revolution Per Minute
RRM Radio Resource Management
RSSI Received Signal Strength Indication
RSTP Rapid Spanning-Tree Protocol
RTP Real-time Transport Protocol
S
SDS Samsung Downlink Scheduler
SIP Session Initiation Protocol
SNAT Source NAT
SNMP Simple Network Management Protocol
SNR Signal to Noise Ratio
SSH Secure Shell
SSID Service Set Identifier
STP Signaling Transfer Point
T
TBTT Target Beacon Transmission Times
TKIP Temporal Key Integrity Protocol
U
USB Universal Serial Bus
UTC Coordinated Universal Time
UTP Unshielded Twisted Pair
![](/img.php?id=2529411&img=bg147.png)
ABBREVIATION
© SAMSUNG Electronics Co., Ltd. page 627 of 628
V
VAP Virtual Access Point
VATS Voice-Aware Traffic Scheduling
VLAN Virtual Local Area Network
VoIP Voice over IP
VPN Virtual Private Network
VQM Voice Quality Monitoring
VRRP Virtual Router Redundancy Protocol
W
WAN Wide Area Network
WDS Wireless Distribution Service
WEM Wireless Enterprise WLAN Manager
WEP Wired Equivalent Privacy
Wi-Fi Wireless Fidelity
WIDS Wireless Intrusion Detection System
WIPS Wireless Intrusion Prevention System
WLAN Wireless Local Area Network
WMM WiFi Multimedia
WPA Wi-Fi Protected Access
WPA2 Wi-Fi Protected Access Version 2
![](/img.php?id=2529411&img=bg148.png)
© SAMSUNG Electronics Co., Ltd. page 628 of 628
WEC8500/WEC8050 (APC)
Operation Manual
©2013~2014 Samsung Electronics Co., Ltd.
All rights reserved.
Information in this manual is proprietary to SAMSUNG
Electronics Co., Ltd.
No information contained here may be copied, translated,
transcribed or duplicated by any form without the prior written
consent of SAMSUNG.
Information in this manual is subject to change without notice.
